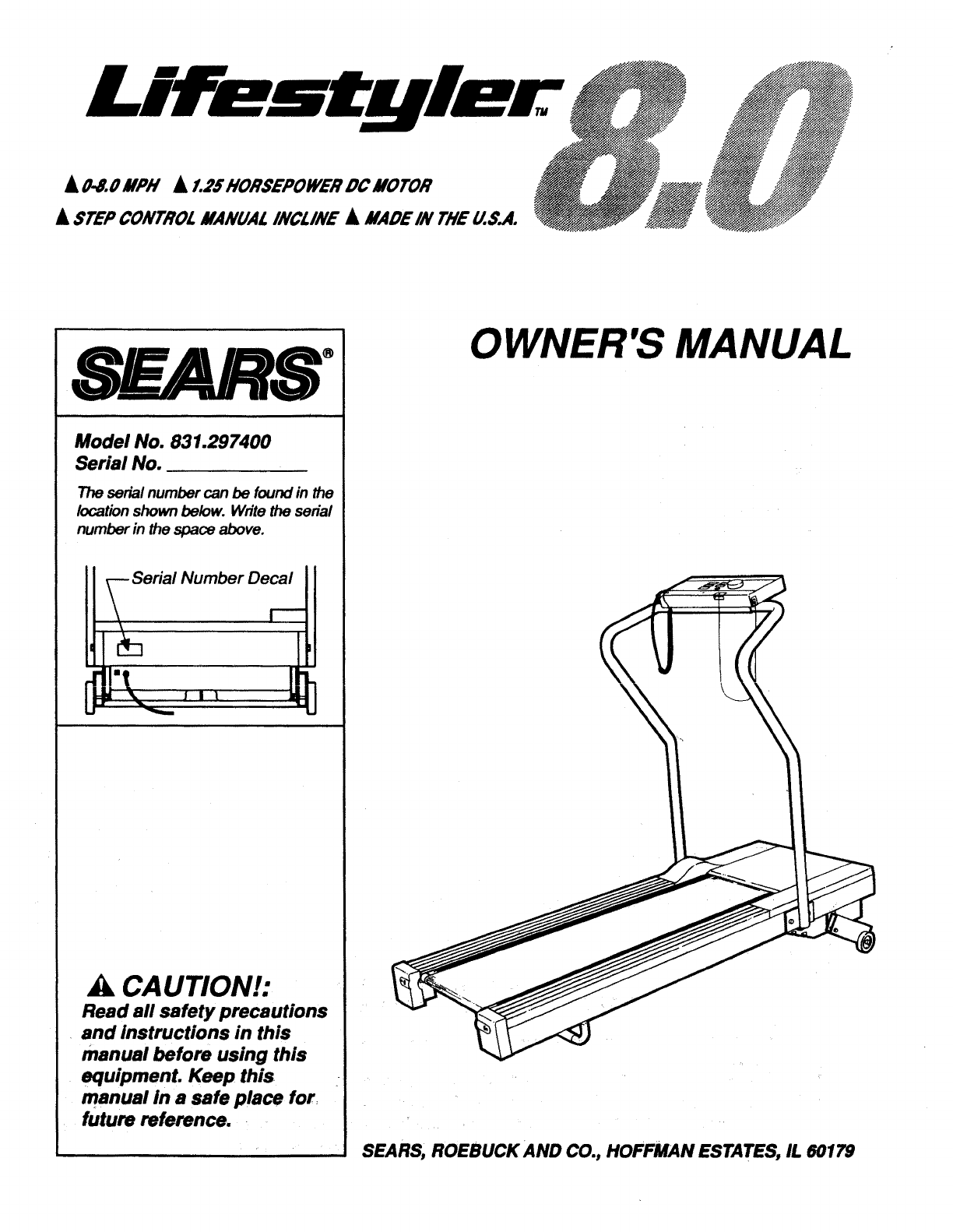

•O.W.OMPH Jk 1.25HORSEPOWER DC MOTOR
•STEP CONTROL MANUAL INCLINE AMADEIN THE U.S.A.
Model No. 831.297400
Serial No.
The serial number can be found in the
location shown below. Write the serial
number in the space above.
Number Decal
CAUTION!:
Read all safety precautions
and instructions in this
manual before using this
equipment. Keep this
manual in a safe place for
future reference.
OWNER'S MANUAL
SEARS, ROEBUCK AND CO., HOFFMAN ESTATES, IL 60179
•0-8.0 MPN •1.25HORSEPOWER DC MOTOR
•STEP CONTROL MANUAL INCLINE •MADE IN THE U.S.A.

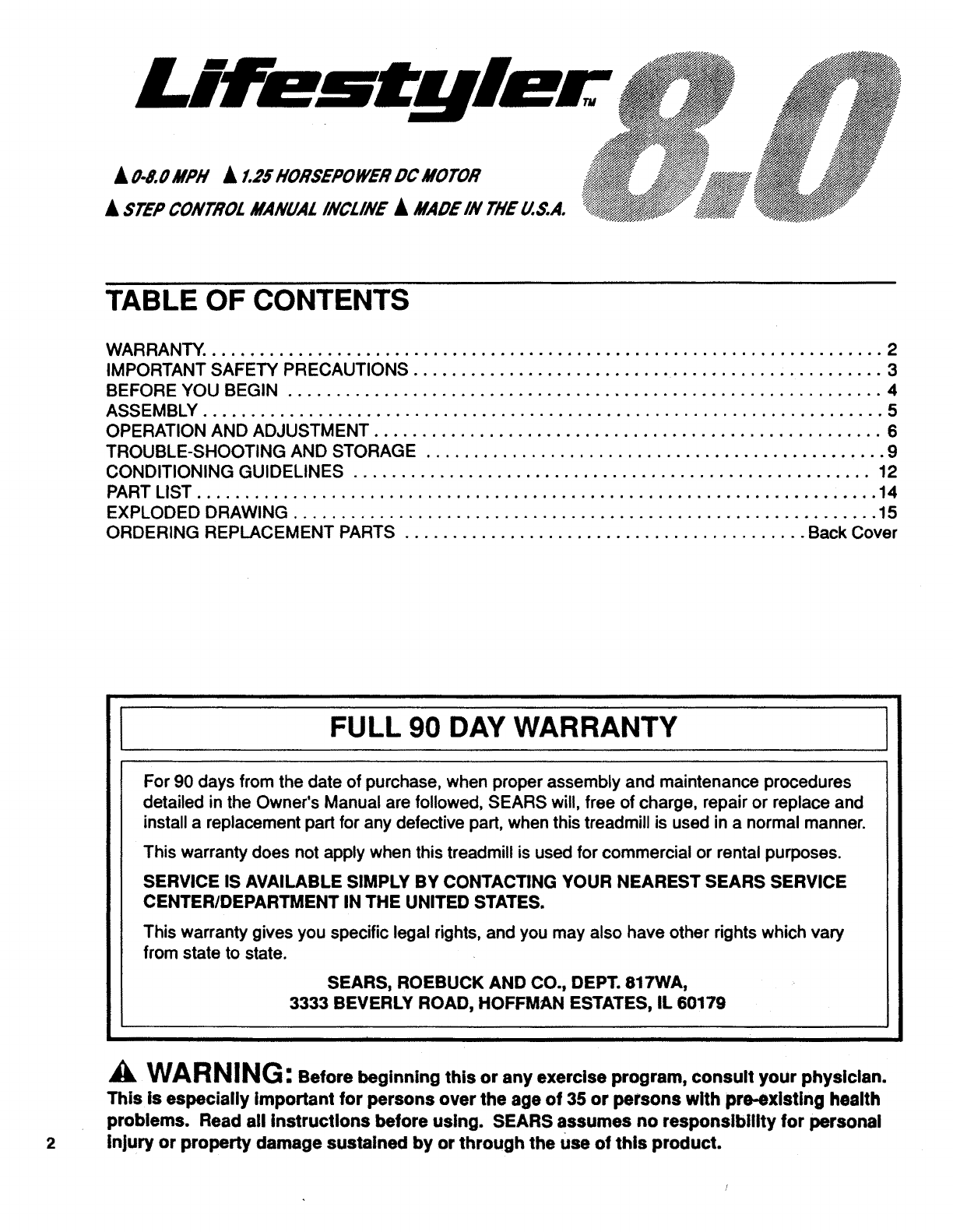

TABLE OF CONTENTS
WARRANTY ....................................................................... 2
IMPORTANT SAFETY PRECAUTIONS ........................... ...................... 3
BEFORE YOU BEGIN .............................................................. 4
ASSEMBLY ....................................................................... 5
OPERATION AND ADJUSTMENT ..................................................... 6
TROUBLE-SHOOTING AND STORAGE ................................................ 9

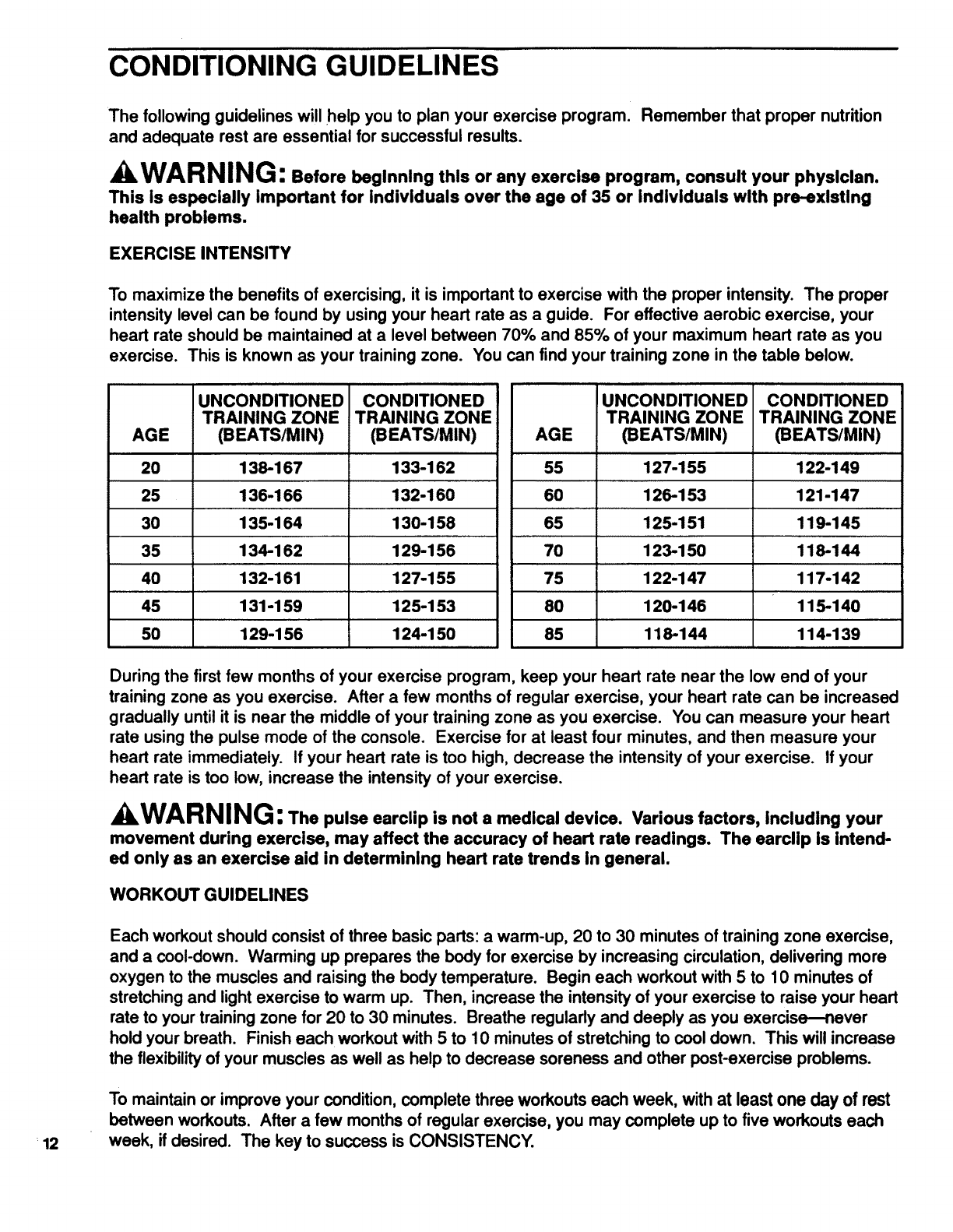

CONDITIONING GUIDELINES ...................................................... 12

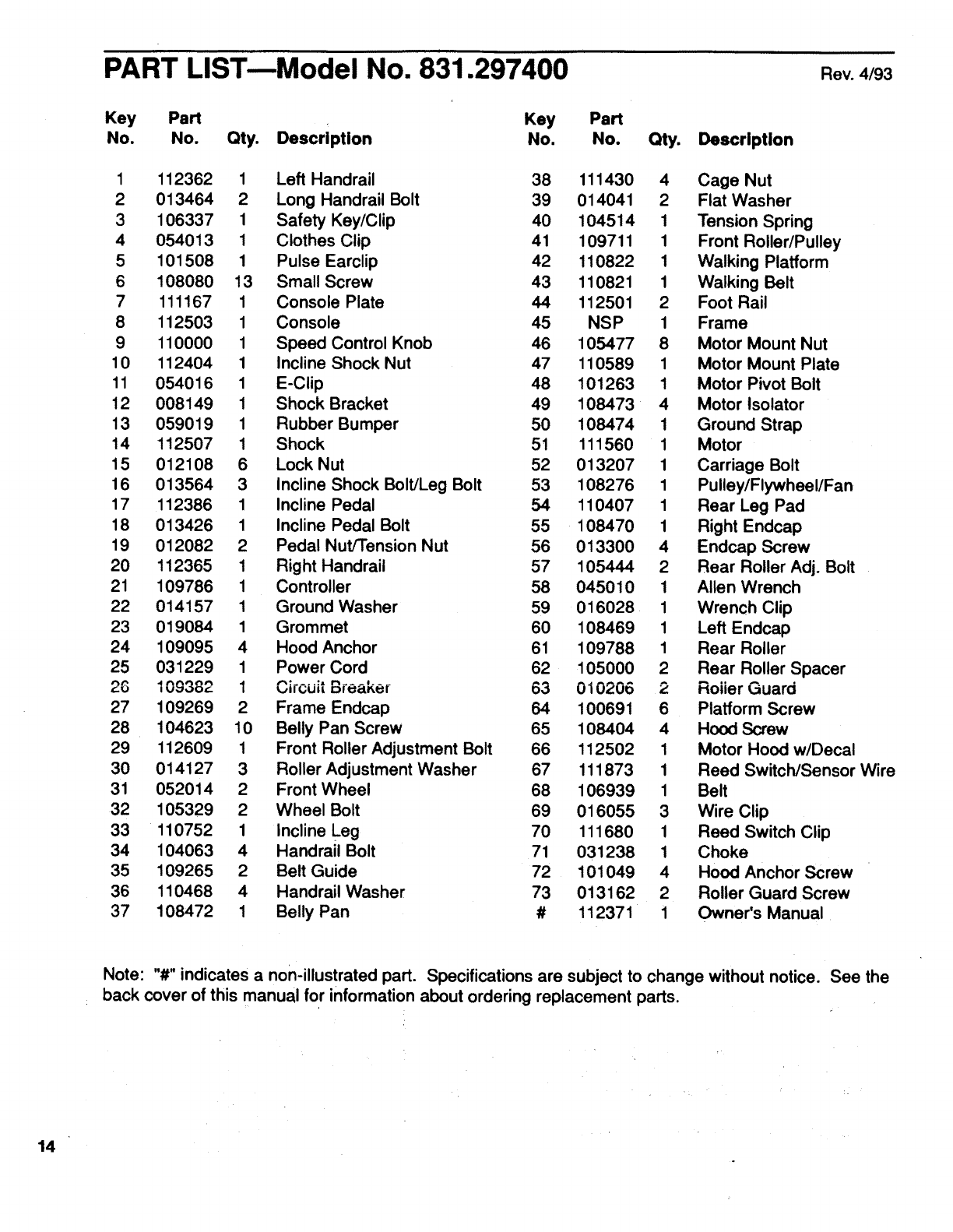

PART LIST ....................................................................... 14

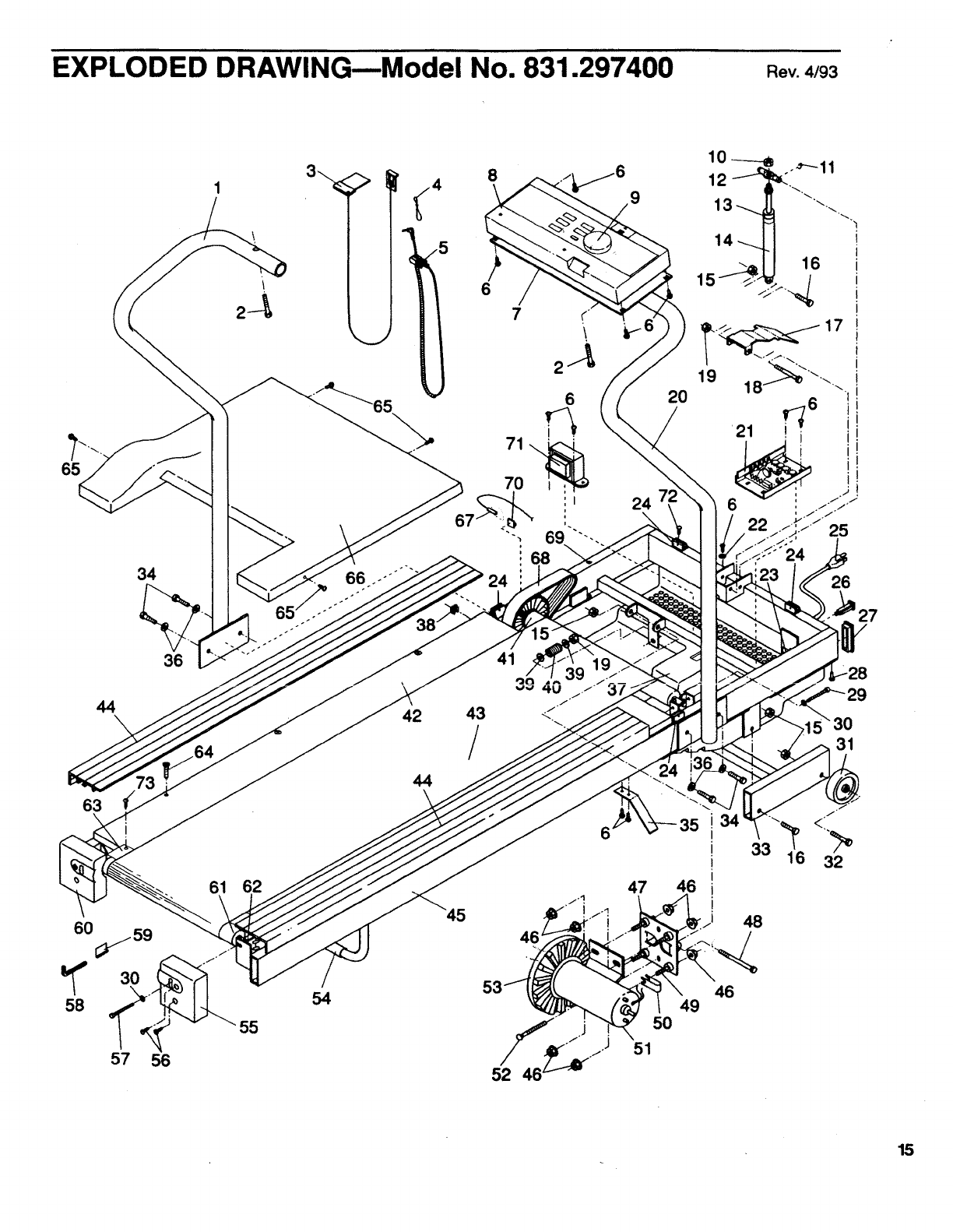

EXPLODED DRAWING ............................................................. 15
ORDERING REPLACEMENT PARTS .......................................... Back Cover
iiii iii iiii
FULL 90 DAY WARRANTY
2
For 90 days from the date of purchase, when proper assembly and maintenance procedures
detailed in the Owner's Manual are followed, SEARS will, free of charge, repair or replace and
install a replacement part for any defective part, when this treadmill is used in a normal manner.
This warranty does not apply when this treadmill is used for commercial or rental purposes.
SERVICE IS AVAILABLE SIMPLY BY CONTACTING YOUR NEAREST SEARS SERVICE
CENTER/DEPARTMENT IN THE UNITED STATES.
This warranty gives you specific legal rights, and you may also have other rights which vary
from state to state.
SEARS, ROEBUCK AND CO., DEPT. 817WA,
3333 BEVERLY ROAD, HOFFMAN ESTATES, IL 60179
WARNING: Before beginning this or any exercise program, consult your physlclan.
This Is especially Important for persons over the age of 35 or persons wlth pre4xlstlng health
problems. Read all Instructlons before using. SEARS assumes no responslblllty for personal
Injury or property damage sustained by or through the use of thls product.

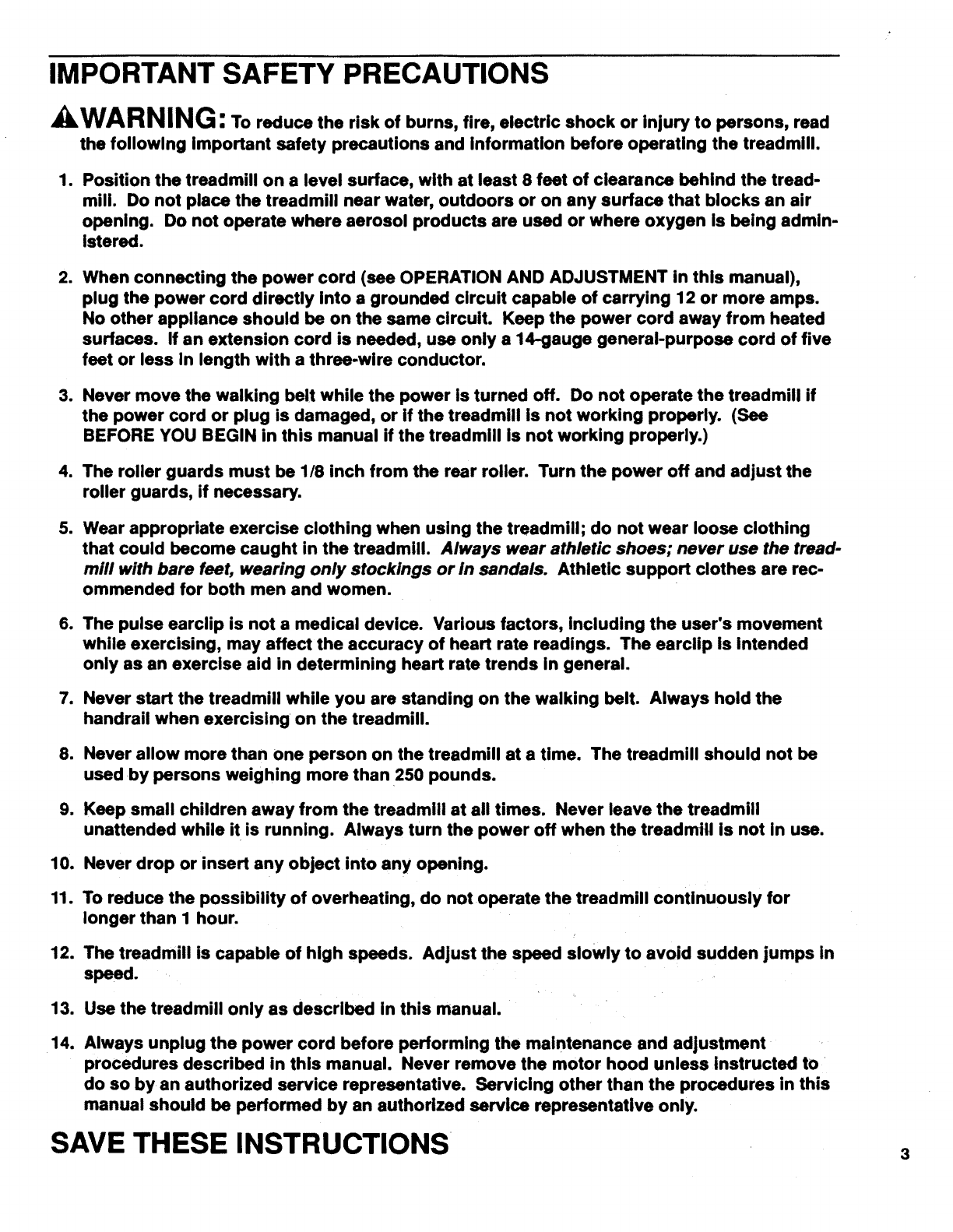

IMPORTANT SAFETY PRECAUTIONS
WARNING: To reduce the risk of burns, fire, electric shock or injury to persons, read
the followlng Important safety precautions and Informatlon before operatlng the treadmlll.
1. Position the treadmill on a level surface, wlth at least 8 feat of clearance behlnd the tread-
mill. Do not place the treadmill near water, outdoors or on any surface that blocks an air
openlng. Do not operate where aerosol products are used or where oxygen Is being admln-
Istered.
.When connecting the power cord (see OPERATION AND ADJUSTMENT in thls manual),
plug the power cord directly Into a grounded clrcuit capable of carrying 12 or more amps.
No other appllance should be on the same clrcult. Keep the power cord away from heated
surfaces. If an extension cord is needed, use only a 14-gauge general-purpose cord of five
feet or less In length with a three-wlre conductor.
3. Never move the walking belt while the power Is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or If the treadmill Is not working properly. (See
BEFORE YOU BEGIN in this manual if the treadmlll Is not working properly.)
4. The roller guards must be 1/8 inch from the rear roller. Turn the power off and adjust the
roller guards, if necessary.
5. Wear appropriate exercise clothing when uslng the treadmill; do not wear loose clothing
that could become caught in the treadmill. Always wear athletic shoes; never use the tread-
mill with bare feet, wearing only stockings or in sandals. Athletic support clothes are rec-
ommended for both men and women.
6. The pulse earclip is not amedical devlce. Various factors, Including the user's movement
while exercising, may affect the accuracy of heart rate readings. The earcllp Is Intended
only as an exerclse aid in determining heart rate trends In general.
7. Never start the treadmill while you are standing on the walking belt. Always hold the
handrail when exercising on the treadmill.
8. Never allow more than one person on the treadmill at a tlme. The treadmill should not be
used by persons weighing more than 250 pounds.
9. Keep small children away from the treadmlll at all times. Never leave the treadmill
unattended while it is running. Always turn the power off when the treadmill Is not In use.
10. Never drop or insert any object into any opening.
11. To reduce the possibility of overheating, do not operate the treadmill continuously for
longer than 1 hour.
12. The treadmill is capable of high speeds. Adjust the speed slowly to avoid sudden jumps in
speed.
13. Use the treadmill only as described in this manual.
14. Always unplug the power cord before performing the maintenance and adjustment
procedures described in this manual. Never remove the motor hood unless instructed to
do so by an authorized service representative. Servicing other than the procedures in this
manual should be performed by an authorized service representative only.
SAVE THESE INSTRUCTIONS 3
BEFORE YOU BEGIN
Thank you for selecting the SEARS _ LIFESTYLER 8.0 treadmill. The LIFESTYLER 8.0 treadmill
blends advanced technology with innovative design to let you enjoy an excellent form of cardiovascular
exercise in the convenience and privacy of your home.
For your safety and benefit, read this manual carefully before using the treadmill. If you have
additional questions, please call our Customer Service Department toll-free at 1-800-999-3756,
Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you,
please note the product model number and serial number before calling. The model number of the
treadmill is 831.297400. The serial number can be found on a decal attached to the treadmill (see the
front cover of this manual for the location).

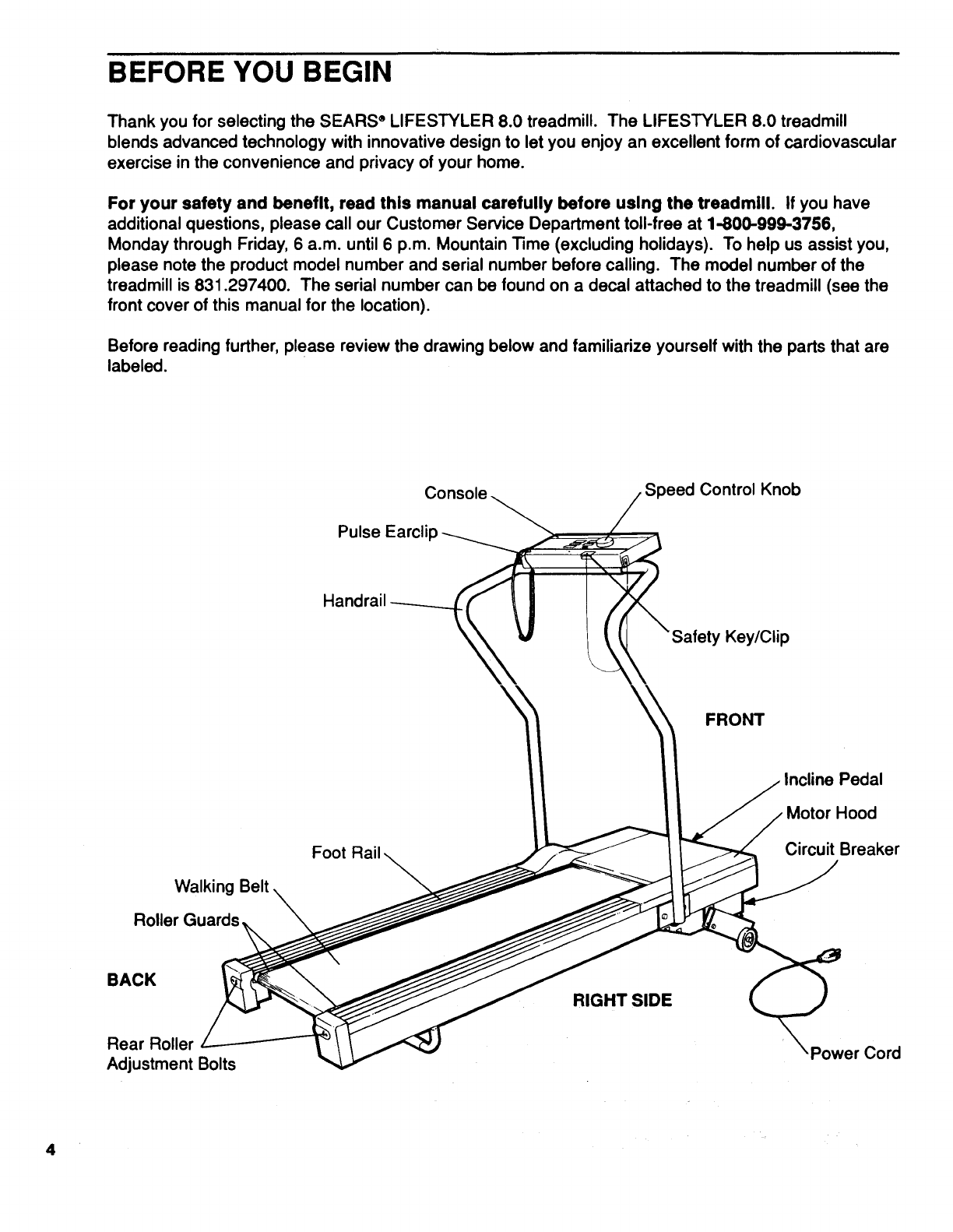

Before reading further, please review the drawing below and familiarize yourself with the parts that are
labeled.
Console
Pulse Earcli
Control Knob
Handrail
Key/Clip
FRONT
Walking Belt
Roller Guards
Foot Rail
Incline Pedal
Motor Hood
Circuit Breaker
BACK
RIGHT SIDE
Rear Roller
Adjustment Bolts Power Cord
4

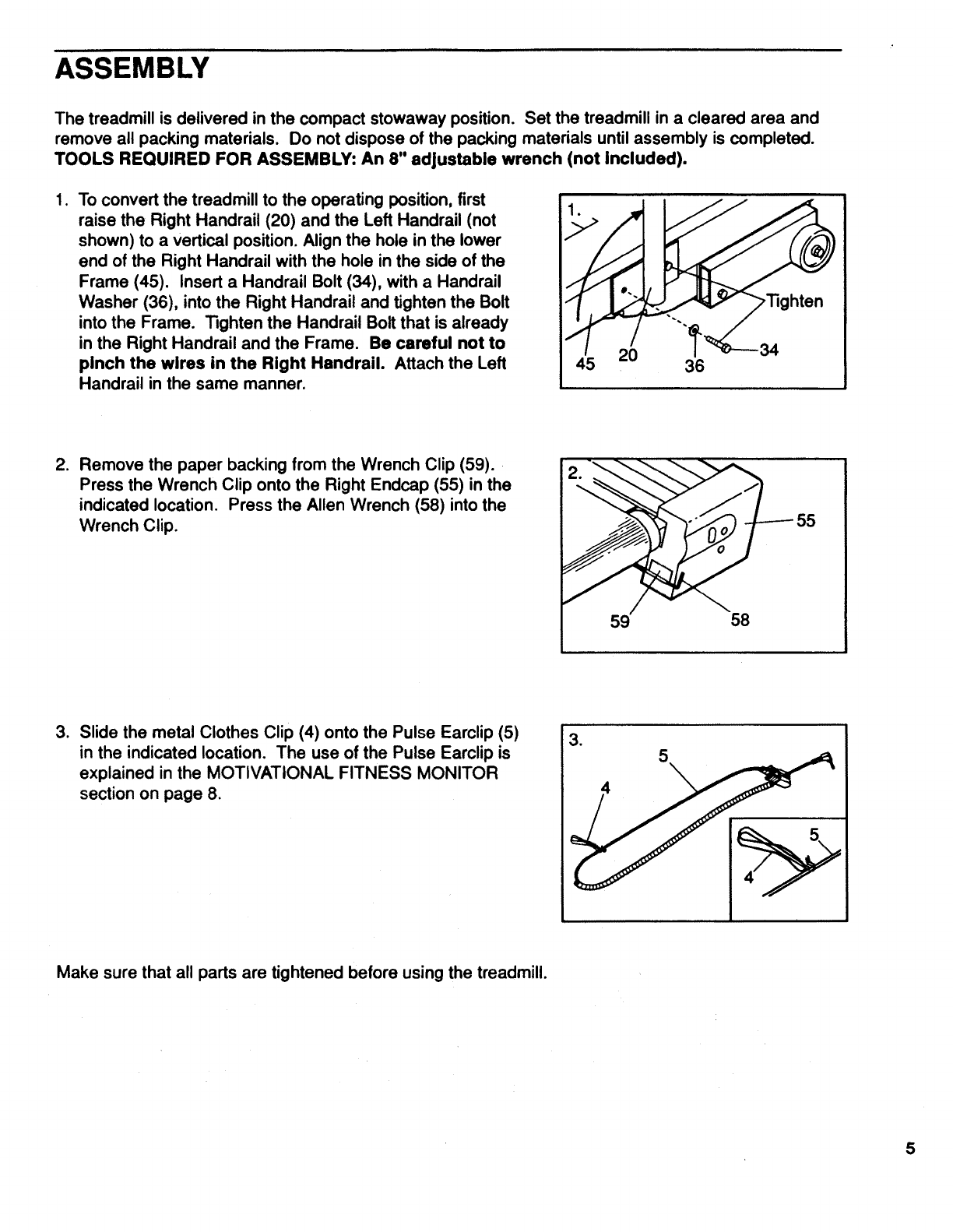

ASSEMBLY
The treadmill is delivered in the compact stowaway position. Set the treadmill in a cleared area and
remove all packing materials. Do not dispose of the packing materials until assembly is completed.
TOOLS REQUIRED FOR ASSEMBLY: An 8" adjustable wrench (not Included).
.To convert the treadmill to the operating position, first
raise the Right Handrail (20) and the Left Handrail (not
shown) to a vertical position. Align the hole in the lower
end of the Right Handrail with the hole in the side of the
Frame (45). Insert a Handrail Bolt (34), with a Handrail
Washer (36), into the Right Handrail and tighten the Bolt
into the Frame. Tighten the Handrail Boltthat is already
in the Right Handrail and the Frame. Be careful not to
pinch the wires in the Right Handrail. Attach the Left
Handrail in the same manner.
.
Y
036
.Remove the paper backing from the Wrench Clip (59).
Press the Wrench Clip onto the Right Endcap (55) in the
indicated location. Press the Allen Wrench (58) into the
Wrench Clip. _55
59 58
.Slide the metal Clothes Clip (4) onto the Pulse Earclip (5)
in the indicated location. The use of the Pulse Earclip is
explained in the MOTIVATIONAL FITNESS MONITOR
section on page 8.
,5\
Make sure that all parts are tightened before using the treadmill.
5

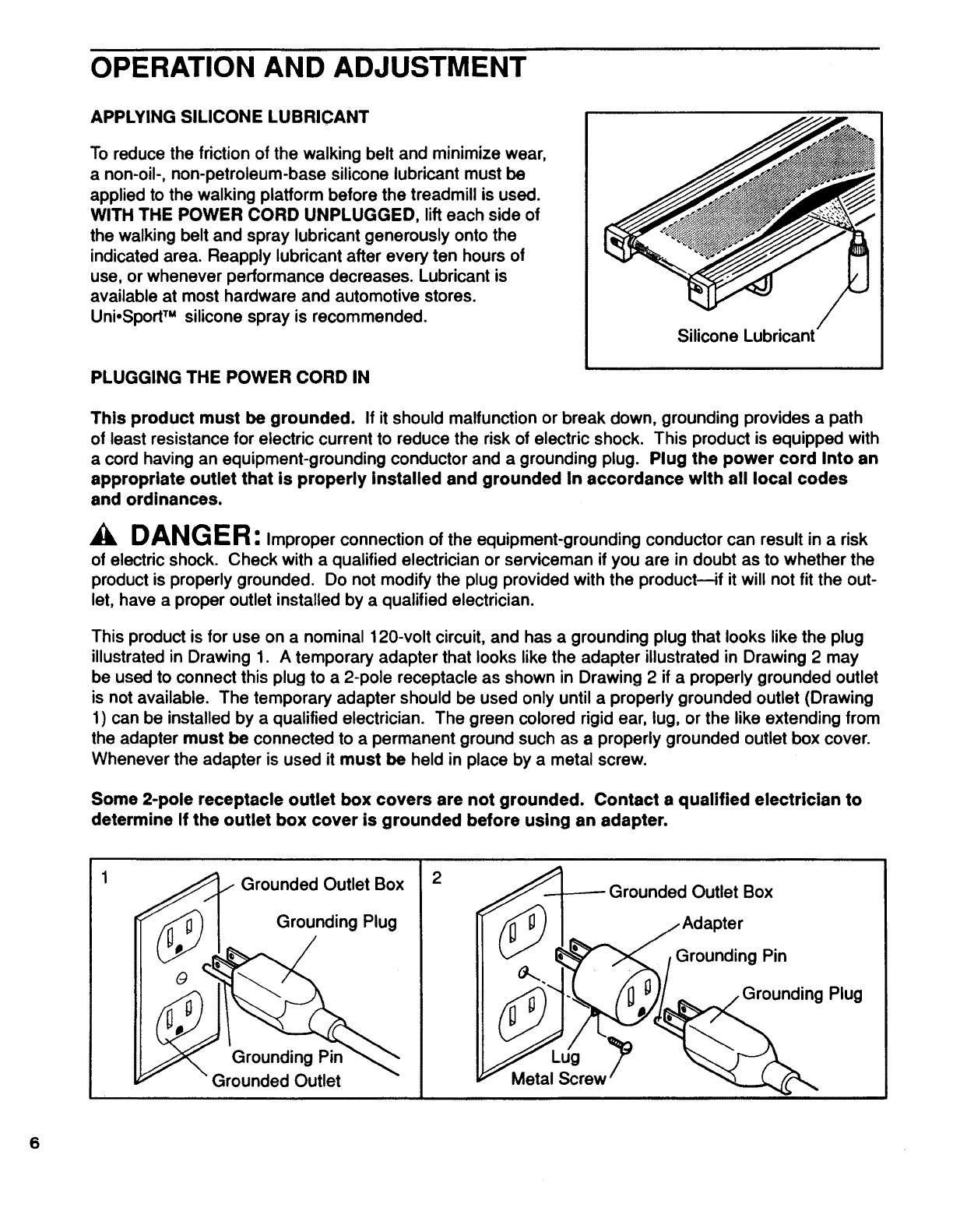

OPERATION AND ADJUSTMENT
APPLYING SILICONE LUBRICANT
To reduce the friction of the walking belt and minimize wear,
anon-oil-, non-petroleum-base silicone lubricant must be
applied to the walking platform before the treadmill is used.
WITH THE POWER CORD UNPLUGGED, lift each side of
the walking belt and spray lubricant generously onto the
indicated area. Reapply lubricant after every ten hours of
use, or whenever performance decreases. Lubricant is
available at most hardware and automotive stores.
Uni.Sport TM silicone spray is recommended. Silicone Lubricant
PLUGGING THE POWER CORD IN
This product must be grounded. If it should malfunction or break down, grounding provides a path
of least resistance for electric current to reduce the risk of electric shock. This product is equipped with
acord having an equipment-grounding conductor and a grounding plug. Plug the power cord Into an
appropriate outlet that is properly installed and grounded In accordance with all local codes
and ordinances.
DANGER: Improperconnection of the equipment-grounding conductor can result in arisk
of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the
product is properly grounded. Do not modify the plug provided with the product--if it will not fit the out-
let, have a proper outlet installed by a qualified electrician.
This product is for use on a nominal 120-volt circuit, and has agrounding plug that looks like the plug
illustrated in Drawing 1. A temporary adapter that looks like the adapter illustrated in Drawing 2 may
be used to connect this plug to a 2-pole receptacle as shown in Drawing 2 if a properly grounded outlet
is not available. The temporary adapter should be used only until a properly grounded outlet (Drawing
1) can be installed by a qualified electrician. The green colored rigid ear, lug, or the like extending from
the adapter must be connected to a permanent ground such as a properly grounded outlet box cover.
Whenever the adapter is used it must be held in place by a metal screw.
Some 2-pole receptacle outlet box covers are not grounded. Contact a qualified electrician to
determine If the outlet box cover is grounded before using an adapter.
Grounded Outlet Box
Grounding Plug
Grounding Pin
Grounded Outlet
2
Metal Screw
unded Outlet Box
g Pin
Grounding Plug
6
DIAGRAMOFTHE CONSOLE
Motivational Fitness Monitor-
j_JSMA_'_I MOTIVATIONAL FITNESS MONITOR
I I
I I
I I
Battery Cover !m
m
mI
L I
I!
peed.• " " " •.. Control Knob
OjJ Pulse Earclip Jack
Power Indicator "_Power Switch !
INSTALLING BATTERIES
The motivational fitness monitor requires two "AA"batteries
(not included); alkaline batteries are recommended. Slide
the battery cover open. Grasp the red cord and remove the
battery clip from the console. Find the markings inside the
battery clip showing which direction the batteries should be
turned. Press the batteries into the battery clip. Replace the
battery clip in the console and close the battery cover.
Battery.Cover Clip
o_'''" ÷" °'''o J
TURNING THE POWER ON
Step onto the foot rails of the treadmill. Locate the clip attached by a cord to the safety key, and slide
the clip onto the waistband of your clothing.
CAUTION: Do not stand on the walking belt while turning the power on. Always wear
the clip while operating the treadmill; if you fall, the safety key will be pulled from the power
switch, Instantly turning the power off.
Insert the safety key into the power switch. The power indicator will light. The five displays of the moti-
vational fitness monitor will not light until the ON/CLEAR button is pressed, or the walking belt begins
to move (see CONTROLLING THE SPEED). Note: If batteries were just installed, the five displays will
already be lighted.
CONTROLLING THE SPEED
To start the walking belt, first turn the speed control knob to "reset." Then, turn the knob slowly clock-
wise until the walking belt begins to move at slow speed.
CAUTION: After the knob is turned, there will be apause before the walking belt
begins to move. Adjust the speed slowly until you are familiar with the operation of the tread-
mill.
Carefully step onto the walking belt and begin exercising. Change the speed of the walking belt as
desired by turning the speed control knob. To stopthe walking belt, turn the knob to "reset." 7

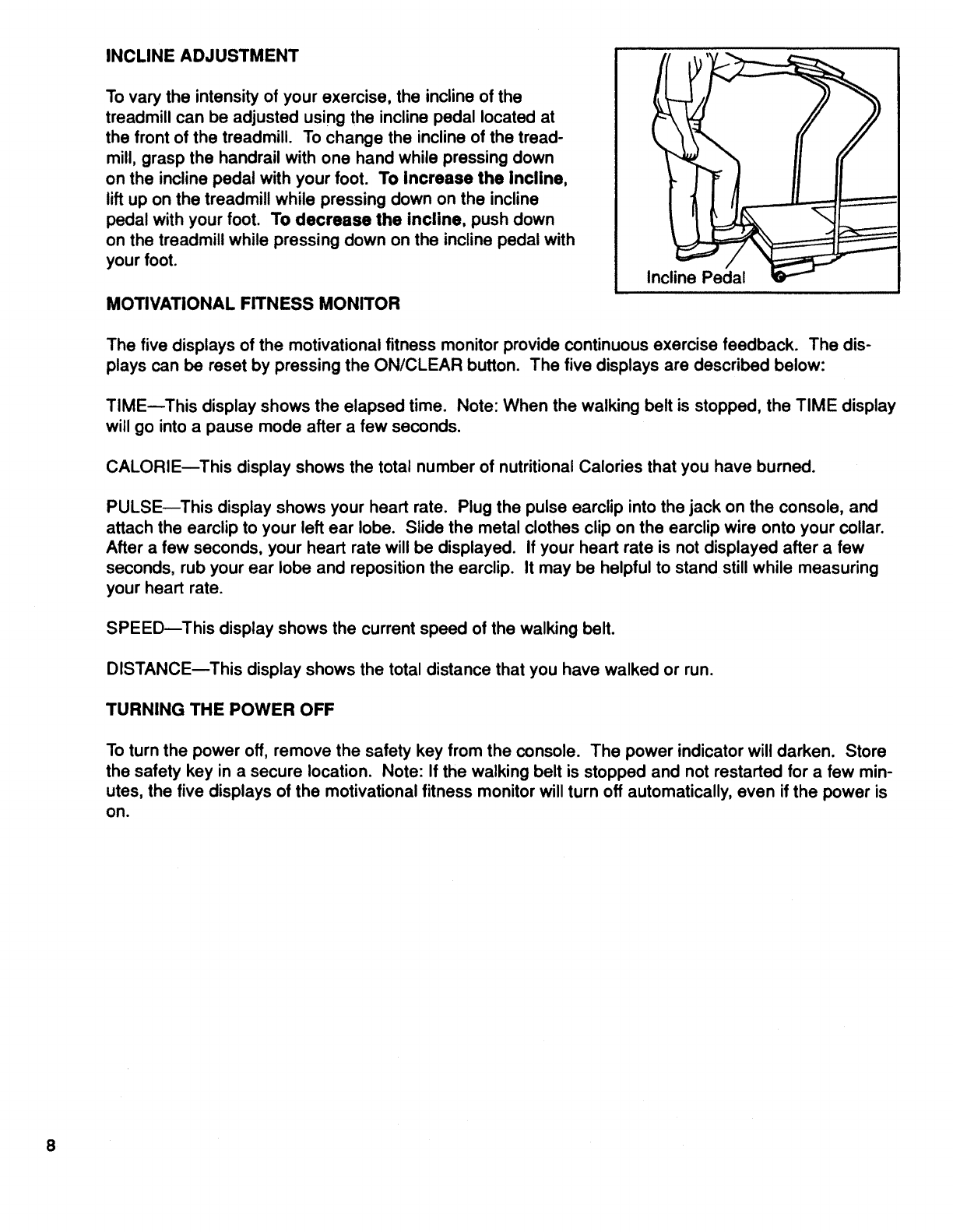

INCLINEADJUSTMENT
Tovarythe intensityof your exercise, the incline of the
treadmill can be adjusted using the incline pedal located at
the front of the treadmill. To change the incline of the tread-
mill, grasp the handrail with one hand while pressing down
on the incline pedal with your foot. To Increase the Incline,
lift up on the treadmill while pressing down on the incline
pedal with your foot. To decrease the incline, push down
on the treadmill while pressing down on the incline pedal with
your foot.
MOTIVATIONAL FITNESS MONITOR
Incline Pedal
The five displays of the motivational fitness monitor provide continuous exercise feedback. The dis-
plays can be reset by pressing the ON/CLEAR button. The five displays are described below:
TIME--This display shows the elapsed time. Note: When the walking belt is stopped, the TIME display
will go into a pause mode after a few seconds.
CALORIE--This display shows the total number of nutritional Calories that you have burned.
PULSEwThis display shows your heart rate. Plug the pulse earclip into the jack on the console, and
attach the earclip to your left ear lobe. Slide the metal clothes clip on the earclip wire onto your collar.
After a few seconds, your heart rate will be displayed. If your heart rate is not displayed after a few
seconds, rub your ear lobe and reposition the earclip. It may be helpful to stand still while measuring
your heart rate.
SPEEDmThis display shows the current speed of the walking belt.
DISTANCEmThis display shows the total distance that you have walked or run.
TURNING THE POWER OFF
To turn the power off, remove the safety key from the console. The power indicator will darken. Store
the safety key in a secure location. Note: If the walking belt is stopped and not restarted for afew min-
utes, the five displays of the motivational fitness monitor will turn off automatically, even if the power is
on.
8

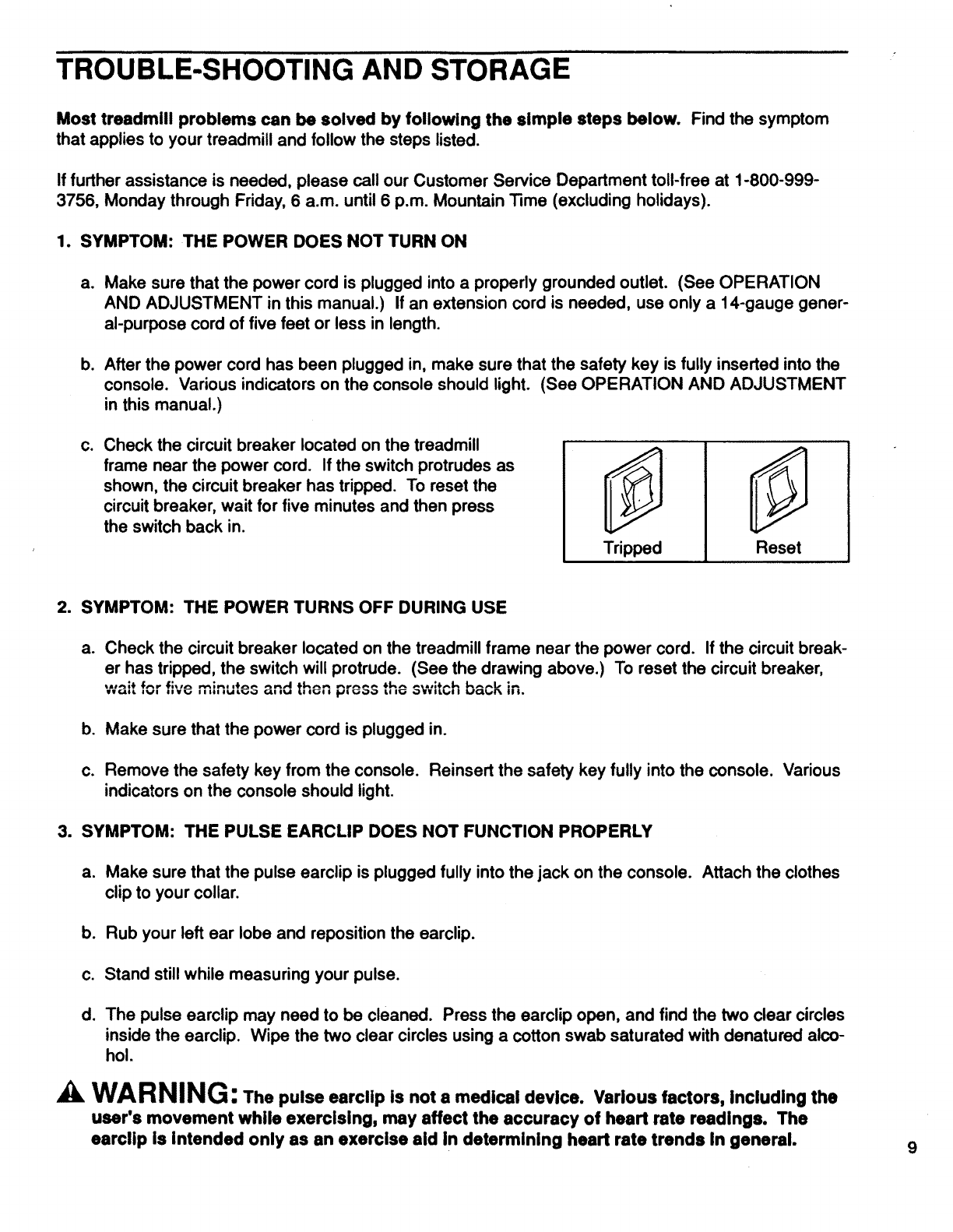

TROUBLE-SHOOTING AND STORAGE
Most tresdmlll problems can be solved by following the simple steps below. Find the symptom
that applies to your treadmill and follow the steps listed.
If further assistance is needed, please call our Customer Service Department toll-free at 1-800-999-
3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays).
1. SYMPTOM: THE POWER DOES NOT TURN ON
a.
b,
c.
Make sure that the power cord is plugged into a properly grounded outlet. (See OPERATION
AND ADJUSTMENT in this manual.) If an extension cord is needed, use only a 14-gauge gener-
al-purpose cord of five feet or less in length.
After the power cord has been plugged in, make sure that the safety key is fully inserted into the
console. Various indicators on the console should light. (See OPERATION AND ADJUSTMENT
in this manual.)
Check the circuit breaker located on the treadmill
frame near the power cord. If the switch protrudes as
shown, the circuit breaker has tripped. To reset the
circuit breaker, wait for five minutes and then press
the switch back in.
Tripped Reset
2. SYMPTOM: THE POWER TURNS OFF DURING USE
a. Check the circuit breaker located on the treadmill frame near the power cord. If the circuit break-
er has tripped, the switch will protrude. (See the drawing above.) To reset the circuit breaker,
LI I_1 I iJr_oo LI I_ OVVlL_..,I I
b. Make sure that the power cord is plugged in.
c. Remove the safety key from the console. Reinsert the safety key fully into the console. Various
indicators on the console should light.
3. SYMPTOM: THE PULSE EARCLIP DOES NOT FUNCTION PROPERLY
a. Make sure that the pulse earclip is plugged fully into the jack on the console. Attach the clothes
clip to your collar.
b. Rub your left ear lobe and reposition the earclip.
c. Stand still while measuring your pulse.
d. The pulse earclip may need to be cleaned. Press the earclip open, and find the two clear circles
inside the earclip. Wipe the two clear circles using a cotton swab saturated with denatured alco-
hol.
AWARNING: The pulse earclip is not a medical device. Various factors, Including the
user's movement while exercising, may affect the accuracy of heart rate readings. The
earclip is Intended only as an exercise aid in determining heart rate trends In general. 9

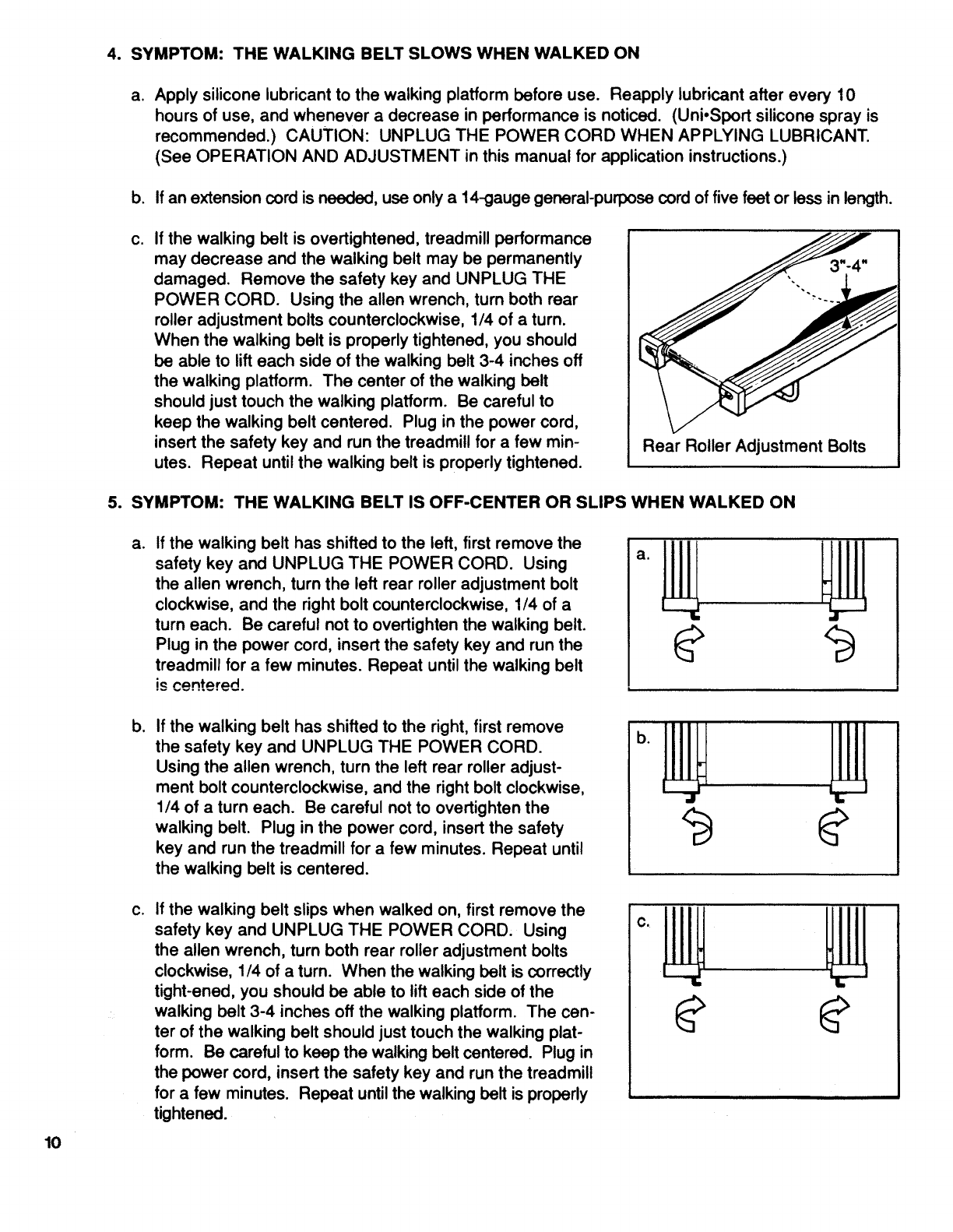

4. SYMPTOM:THE WALKINGBELTSLOWSWHENWALKEDON
a° Apply silicone lubricant to the walking platform before use. Reapply lubricant after every 10
hours of use, and whenever a decrease in performance is noticed. (Uni.Sport silicone spray is
recommended.) CAUTION: UNPLUG THE POWER CORD WHEN APPLYING LUBRICANT.
(See OPERATION AND ADJUSTMENT in this manual for application instructions.)
b.
C.
If an extension cord is needed, use only a 14-gauge general-purpose cord of five feet or less in length.
If the walking belt is overtightened, treadmill performance
may decrease and the walking belt may be permanently
damaged. Remove the safety key and UNPLUG THE
POWER CORD. Using the allen wrench, turn both rear
roller adjustment bolts counterclockwise, 1/4 of a turn.
When the walking belt is properly tightened, you should
be able to lift each side of the walking belt 3-4 inches off
the walking platform. The center of the walking belt
should just touch the walking platform. Be careful to
keep the walking belt centered. Plug in the power cord,
insert the safety key and run the treadmill for a few min-
utes. Repeat until the walking belt is properly tightened. Rear Roller Adjustment Bolts
I
5. SYMPTOM: THE WALKING BELT IS OFF-CENTER OR SLIPS WHEN WALKED ON
a. If the walking belt has shifted to the left, first remove the
safety key and UNPLUG THE POWER CORD. Using
the allen wrench, turn the left rear roller adjustment bolt
clockwise, and the right bolt counterclockwise, 1/4 of a
turn each. Be careful not to overtighten the walking belt.
Plug in the power cord, insert the safety key and run the
treadmill for a few minutes. Repeat until the walking belt
is centered.
a,
b, If the walking belt has shifted to the right, first remove
the safety key and UNPLUG THE POWER CORD.
Using the allen wrench, turn the left rear roller adjust-
ment bolt counterclockwise, and the right bolt clockwise,
1/4 of a turn each. Be careful not to overtighten the
walking belt. Plug in the power cord, insert the safety
key and run the treadmill for a few minutes. Repeat until
the walking belt is centered.
10
C. If the walking belt slips when walked on, first remove the
safety key and UNPLUG THE POWER CORD, Using
the allen wrench, turn both rear roller adjustment bolts
clockwise, 1/4 of a turn. When the walking belt is correctly
tight-ened, you should be able to lift each side of the
walking belt 3-4 inches off the walking platform. The cen-
ter of the walking belt should just touch the walking plat-
form. Be careful to keep the walking belt centered. Plug in
the power cord, insert the safety key and run the treadmill
for afew minutes. Repeat until the walking belt is properly
tightened.

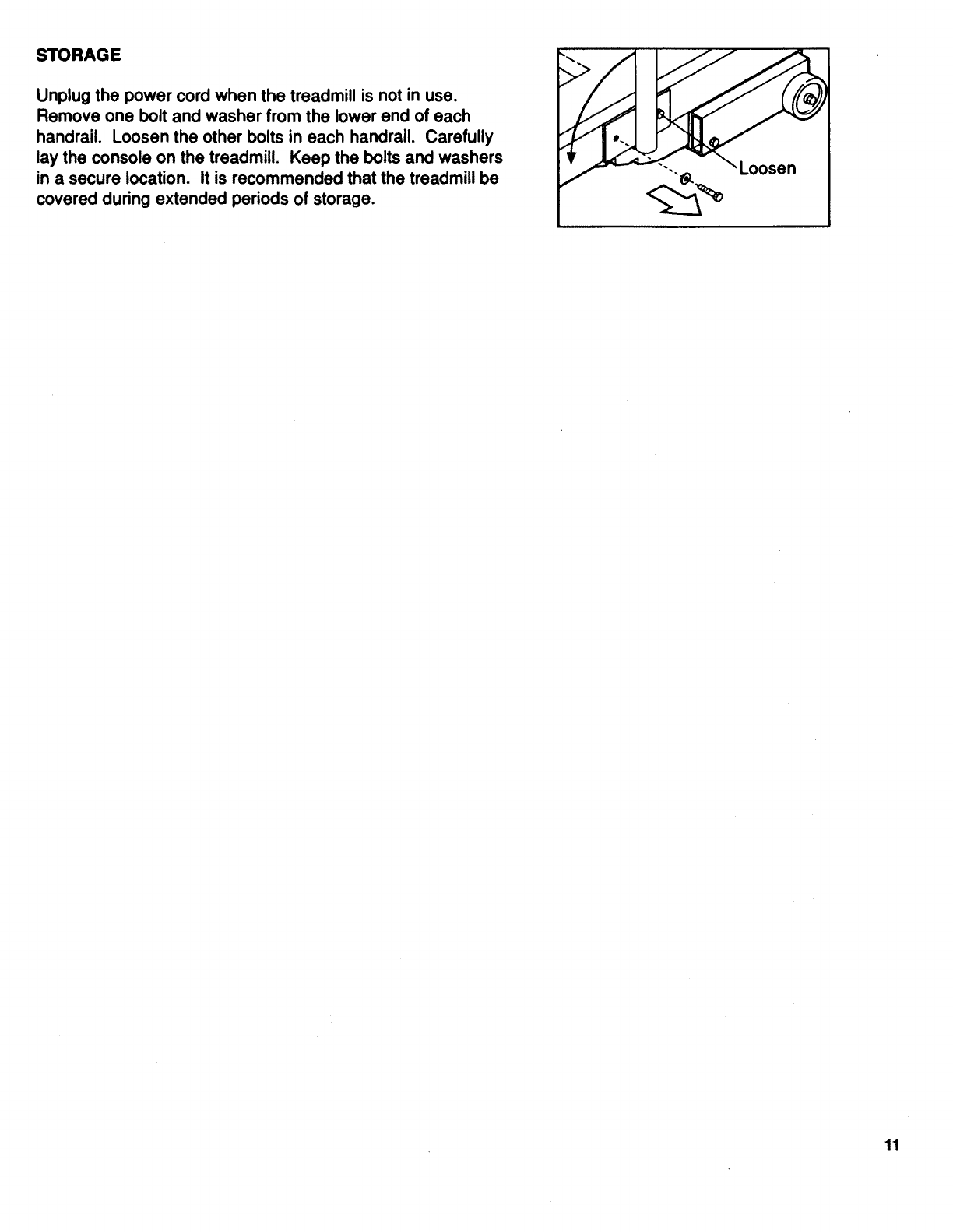

STORAGE
Unplug the power cord when the treadmill is not in use.
Remove one bolt and washer from the lower end of each
handrail. Loosen the other bolts in each handrail. Carefully
lay the console on the treadmill. Keep the bolts and washers
in a secure location. It is recommended that the treadmill be
covered during extended periods of storage.
illl ii ,i i
11
CONDITIONING GUIDELINES
_12
The following guidelines will help you to plan your exercise program. Remember that proper nutrition
and adequate rest are essential for successful results.
kWARNING: Before beglnnlng thls or any exerclse program, consult your physlclan.
This Is especially Important for Indivlduals over the age of 35 or Indlvlduals wlth prHxlstlng
health problems.
EXERCISE INTENSITY
To maximize the benefits of exercising, it is important to exercise with the proper intensity. The proper
intensity level can be found by using your heart rate as a guide. For effective aerobic exercise, your
heart rate should be maintained at a level between 70% and 85% of your maximum heart rate as you
exercise. This is known as your training zone. You can find your training zone in the table below.
UNCONDITIONED CONDITIONED
TRAINING ZONE TRAINING ZONE
AGE (BEATS/MIN) (BEATS/MIN)
20 138-167 133-162
25 136-166 132-160
30 135-164 130-158
35 134-162 129-156
40 132-161 127-155
45 131-159 125-153
50 129-156 124-150
UNCONDITIONED CONDITIONED
TRAINING ZONE TRAINING ZONE
AGE (BEATS/MIN) (BEATS/MIN)
55 127-155 122-149
60 126-153 121-147
65 125-151 119-145
70 123-150 116-144
75 122-147 117-142
80 120-146 115..140
85 118-144 114-139
During the first few months of your exercise program, keep your heart rate near the low end of your
training zone as you exercise. After a few months of regular exercise, your heart rate can be increased
gradually until it is near the middle of your training zone as you exercise. You can measure your heart
rate using the pulse mode of the console. Exercise for at least four minutes, and then measure your
heart rate immediately. If your heart rate is too high, decrease the intensity of your exercise. If your
heart rate is too low, increase the intensity of your exercise.
kWARNING: The pulse earclip is not amedical device. Various factors, including your
movement during exercise, may affect the accuracy of heart rate readings. The earclip is Intend-
ed only as an exercise aid in determining heart rate trends in general.
WORKOUT GUIDELINES
Each workout should consist of three basic pads: a warm-up, 20 to 30 minutes of training zone exercise,
and a cool-down. Warming up prepares the body for exercise by increasing circulation, delivering more
oxygen to the muscles and raising the body temperature. Begin each workout with 5 to 10 minutes of
stretching and light exercise to warm up. Then, increase the intensity of your exercise to raise your heart
rate to your training zone for 20 to 30 minutes. Breathe regularly and deeply as you exercise--never
hold your breath. Finish each workout with 5 to 10 minutes of stretching to cool down. This will increase
the flexibility of your muscles as well as help to decrease soreness and other post-exercise problems.
To maintain or improve your condition, complete three workouts each week, with at least one day of rest
between workouts. After a few months of regular exercise, you may complete up to five workouts each
week, ifdesired. The key to success is CONSISTENCY.

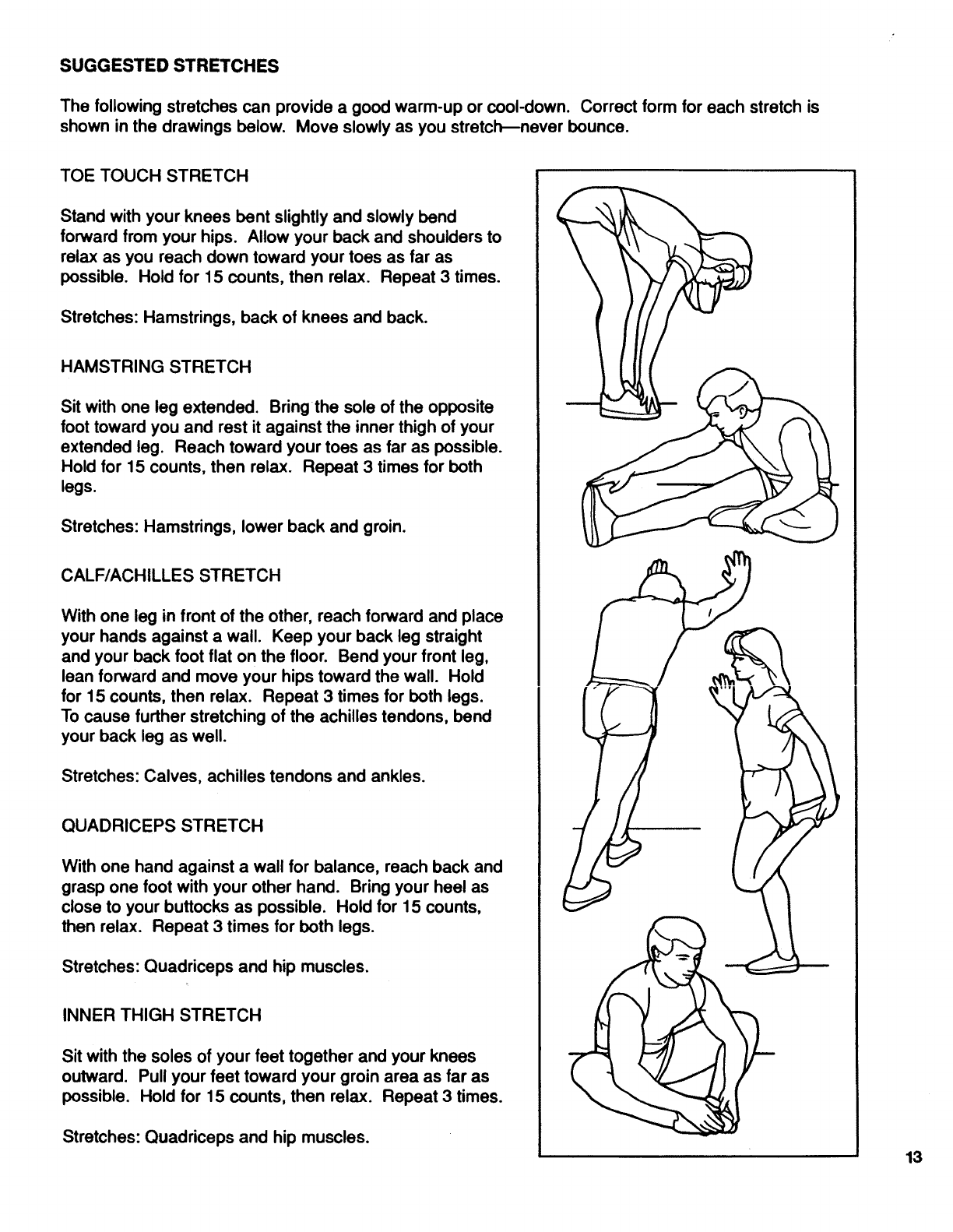

SUGGESTED STRETCHES
The following stretches can provide a good warm-up or cool-down. Correct form for each stretch is
shown in the drawings below. Move slowly as you stretch_never bounce.
TOE TOUCH STRETCH
Stand with your knees bent slightly and slowly bend
forward from your hips. Allow your back and shoulders to
relax as you reach down toward your toes as far as
possible. Hold for 15 counts, then relax. Repeat 3 times.
Stretches: Hamstrings, back of knees and back.
HAMSTRING STRETCH
Sit with one leg extended. Bring the sole of the opposite
foot toward you and rest it against the inner thigh of your
extended leg. Reach toward your toes as far as possible.
Hold for 15 counts, then relax. Repeat 3 times for both
legs.
Stretches: Hamstrings, lower back and groin.
CALF/ACHILLES STRETCH
With one leg in front of the other, reach forward and place
your hands against a wall. Keep your back leg straight
and your back foot flat on the floor. Bend your front leg,
lean forward and move your hips toward the wall. Hold
for 15 counts, then relax. Repeat 3 times for both legs.
To cause further stretching of the achilles tendons, bend
your back leg as well.
Stretches: Calves, achilles tendons and ankles.
QUADRICEPS STRETCH
With one hand against a wall for balance, reach back and
grasp one foot with your other hand. Bring your heel as
close to your buttocks as possible. Hold for 15 counts,
then relax. Repeat 3 times for both legs.
Stretches: Quadriceps and hip muscles.
INNER THIGH STRETCH
Sit with the soles of your feet together and your knees
outward. Pull your feet toward your groin area as far as
possible. Hold for 15 counts, then relax. Repeat 3 times.
Stretches: Quadriceps and hip muscles. 13
PART LIST---Model No. 831.297400 Rev.4/93
Key Part Key Part
No. No. Qty. Description No. No. Qty. Description
1 112362 1 Left Handrail 38 111430 4 Cage Nut
2013464 2 Long Handrail Bolt 39 014041 2 Flat Washer
3 106337 1 Safety Key/Clip 40 104514 1 Tension Spring
4 054013 1 Clothes Clip 41 109711 1 Front Roller/Pulley
5 101508 1 Pulse Earclip 42 110822 1 Walking Platform
6 108080 13 Small Screw 43 110821 1 Walking Belt
7 111167 1 Console Plate 44 112501 2 Foot Rail
8 112503 1 Console 45 NS P 1 Frame
9 110000 1 Speed Control Knob 46 105477 8 Motor Mount Nut
10 112404 1 Incline Shock Nut 47 110589 1 Motor Mount Plate
11 054016 1 E-Clip 48 101263 1 Motor Pivot Belt
12 008149 1 Shock Bracket 49 108473 4 Motor Isolator
13 059019 1 Rubber Bumper 50 108474 1 Ground Strap
14 112507 1 Shock 51 111560 1 Motor
15 012108 6 Lock Nut 52 013207 1 Carriage Bolt
16 013564 3 Incline Shock Bolt/Leg Bolt 53 108276 1 Pulley/Flywheel/Fan
17 112386 1 Incline Pedal 54 110407 1 Rear Leg Pad
18 013426 1 Incline Pedal Bolt 55 108470 1 Right Endcap
19 012082 2 Pedal Nut/Tension Nut 56 013300 4 Endcap Screw
20 112365 1 Right Handrail 57 105444 2 Rear Roller Adj. Bolt
21 109786 1 Controller 58 045010 1 Allen Wrench
22 014157 1 Ground Washer 59 016028 1 Wrench Clip
23 019084 1 Grommet 60 108469 1 Left Endcap
24 109095 4 Hood Anchor 61 109788 1 Rear Roller
25 031229 1 Power Cord 62 105000 2 Rear Roller Spacer
2G 109382 1 _.,.";-curet:"Breaker o_^^ 010206 2 Roiier Guard
27 109269 2 Frame Endcap 64 100691 6 Platform Screw
28 104623 10 Belly Pan Screw 65 108404 4 Hood Screw
29 112609 1 Front Roller Adjustment Bolt 66 112502 1 Motor Hood w/Decal
30 014127 3 Roller Adjustment Washer 67 111873 1 Reed Switch/Sensor Wire
31 052014 2 Front Wheel 68 106939 1 Belt
32 105329 2 Wheel Bolt 69 016055 3 Wire Clip
33 110752 1 Incline Leg 70 111680 1 Reed Switch Clip
34 104063 4 Handrail Bolt 71 031238 1 Choke
35 109265 2 Belt Guide 72 101049 4 Hood Anchor Screw
36 110468 4 Handrail Washer 73 013162 2 Roller Guard Screw
37 108472 1 Belly Pan # 112371 1 Owner's Manual
Note: "#" indicates a non-illustrated part. Specifications are subject to change without notice. See the
• back cover of this manual for information about ordering replacement parts.
14
EXPLODED DRAWING.--Model No. 831.297400 Rev.4/93
34
36
44
63
601;;;_ 59
58
57 56
61
55
8
6
54
44
45
6
9
24
2O
25
26
31
47
35
48
46
49
5O
51
15
ORDERING REPLACEMENT PARTS
Each TREADMILL has its own MODEL NUMBER. Always mention the MODEL NUMBER when
requesting service or repair parts for your TREADMILL.
All parts listed may be ordered through SEARS, ROEBUCK AND CO. SERVICE CENTERS and most
SEARS RETAIL STORES.
If parts you need are not stocked locally, your order will be transmitted to a SEARS PARTS DISTRIBU-
TION CENTER for handling.
WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE FOLLOWING INFORMATION:
1. The MODEL NUMBER of the product (831.297400).
2. The NAME of the product (SEARS ®LIFESTYLER 8.0 treadmill).
3. The PART NUMBER of the part(s), from page 14 of this manual.
4. The DESCRIPTION of the part(s), from page 14 of this manual.
Your SEARS merchandise has added value when you consider that SEARS has service units nation-
wide staffed with SEARS trained technicians specifically trained on SEARS products, having the pads,
tools and equipment to ensure that we meet our pledge to you: "We service what we sell."
SOLD BY SEARS, ROEBUCK AND CO., HOFFMAN ESTATES, IL 60179
Part No. 112371 4/93 Printed in USA ©1993 Sears, Roebuck and Co.
