OWNER'S
MANUAL
Model No,
919.327210
IMPORTANT:
Read the Safety Guidelines
and All Instructions Carefully
Before Operating
f ......... ............
120/240 VOLT ° 5250 WATT
GENERATOR
• SAFETY GUIDELINES
°ASSEMBLY
°OPERATION
°MAINTENANCE
=TROUBLESHOOTING
=REPAIR PARTS
Sold by Sears Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
MGP-327210A 8/10/99

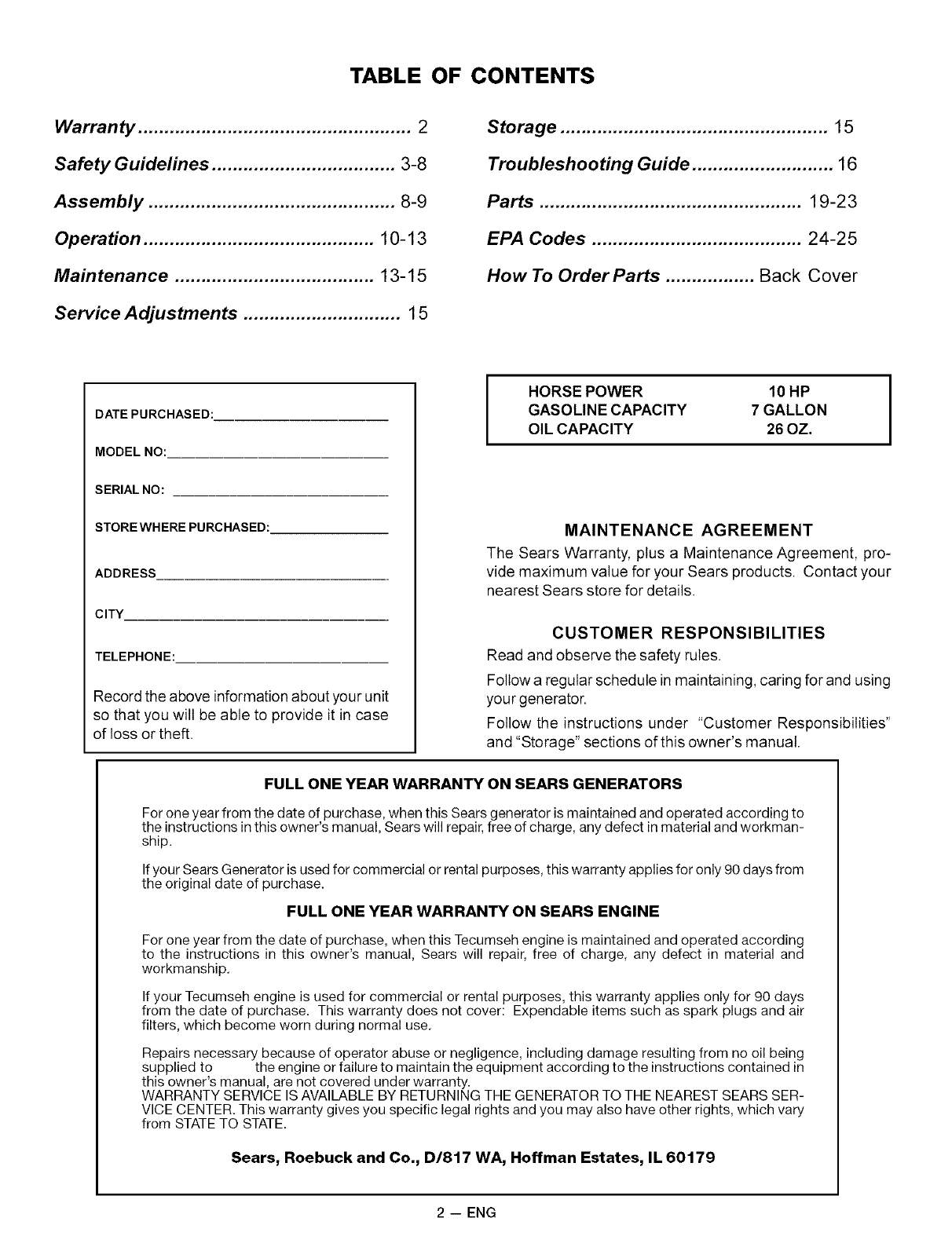

TABLE OF CONTENTS
Warranty .................................................... 2
Safety Guidelines ................................... 3-8
Assembly ............................................... 8-9
Operation ............................................ 10-13

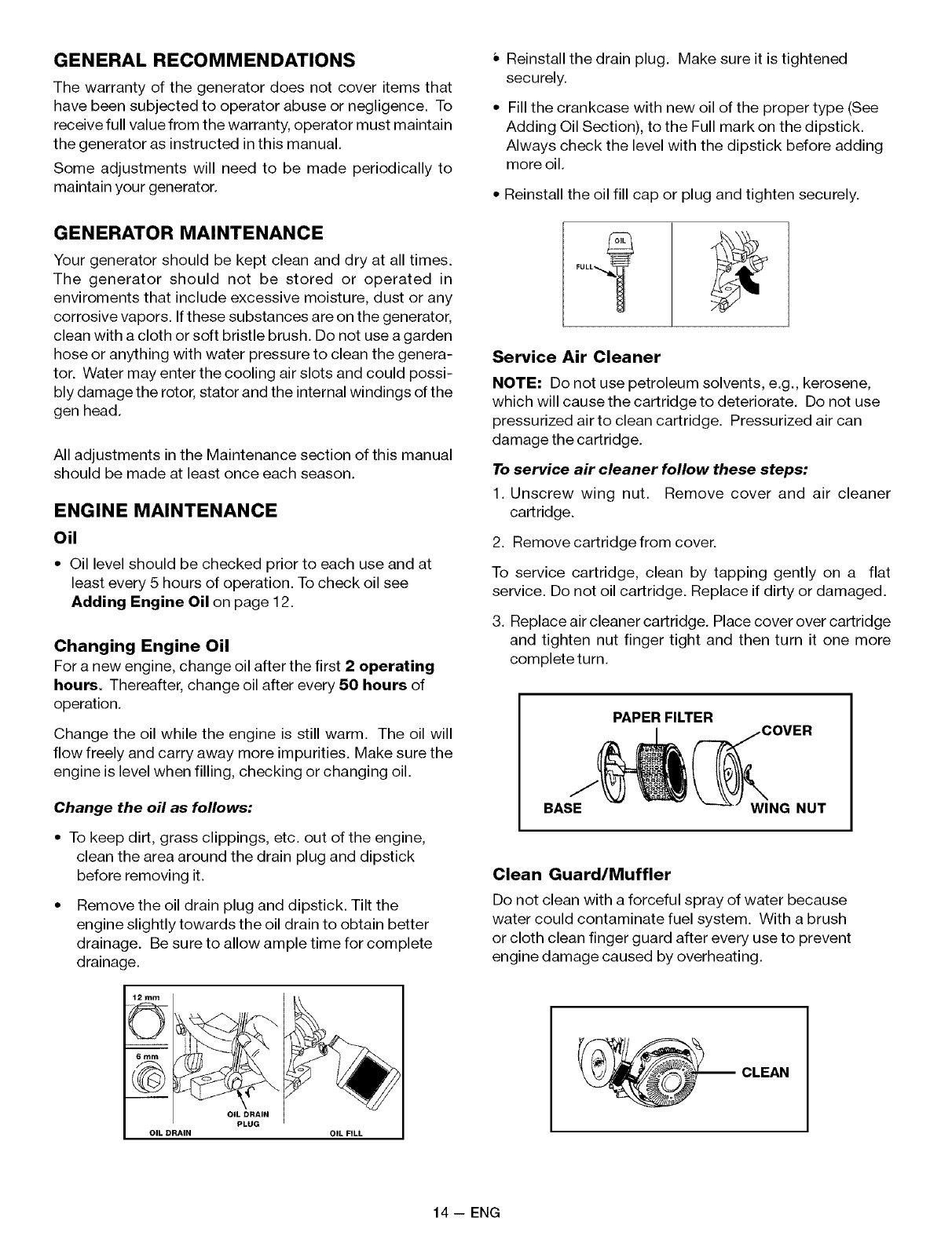

Maintenance ...................................... 13-15
Service Adjustments .............................. 15
Storage ................................................... 15

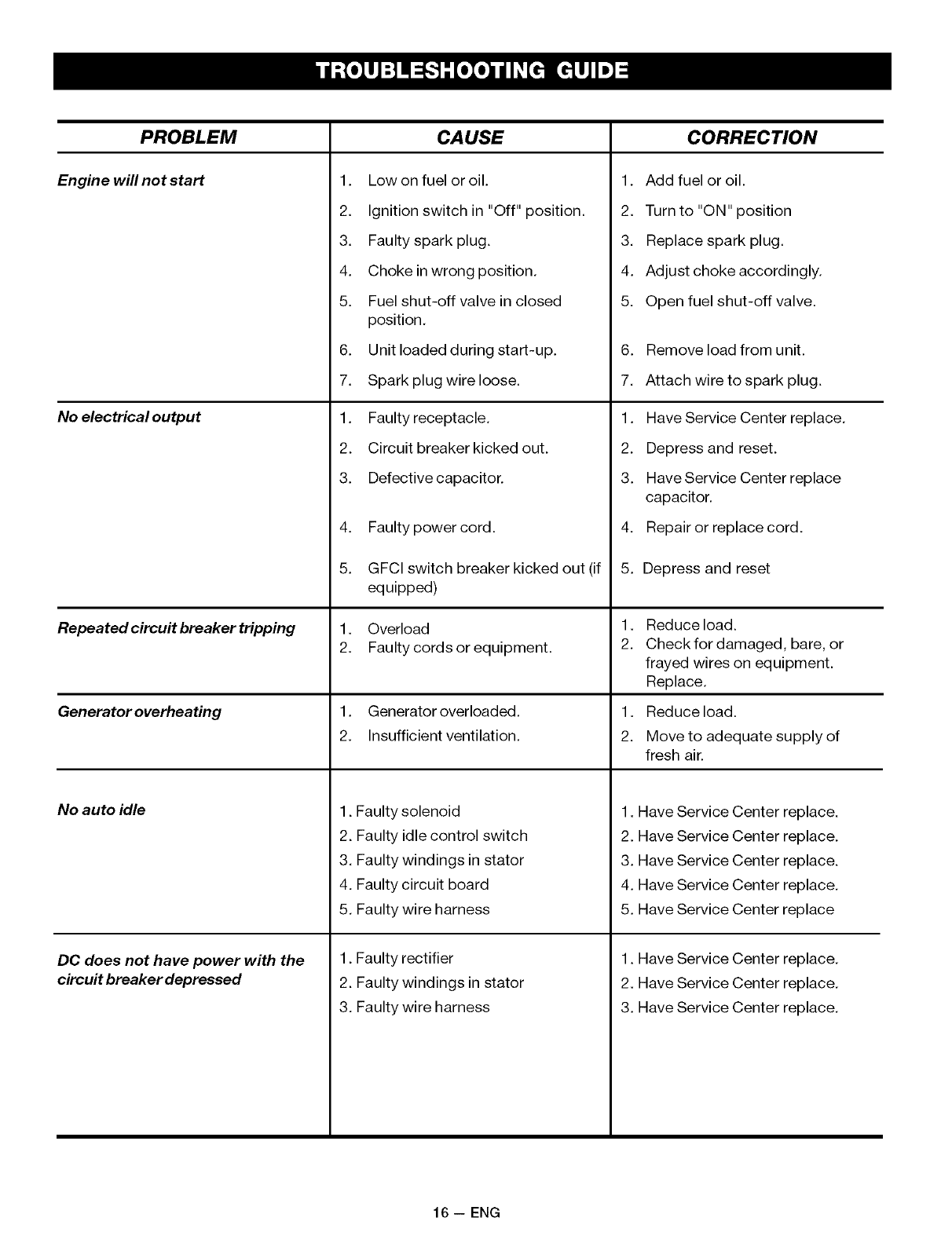

Troubleshooting Guide ........................... 16

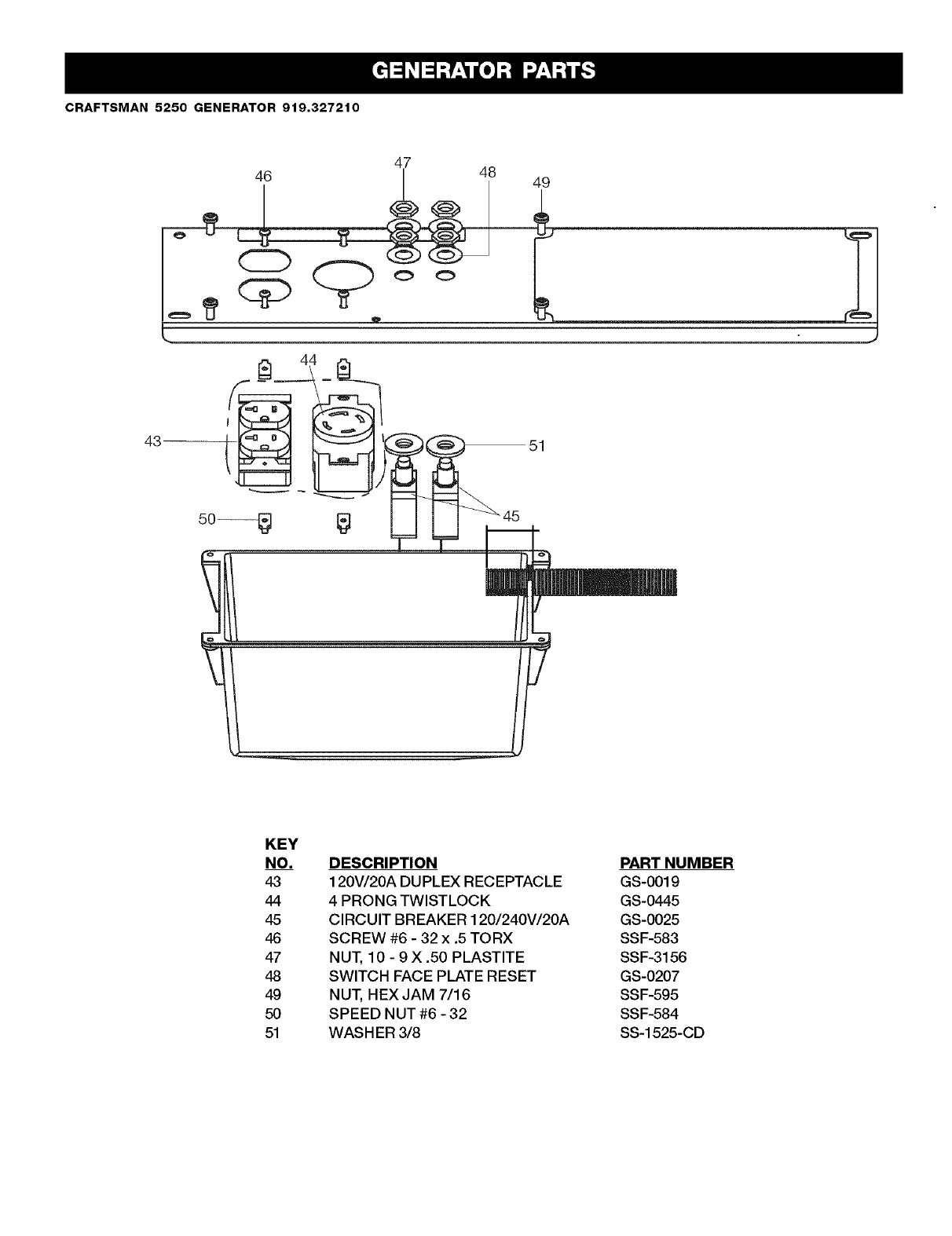

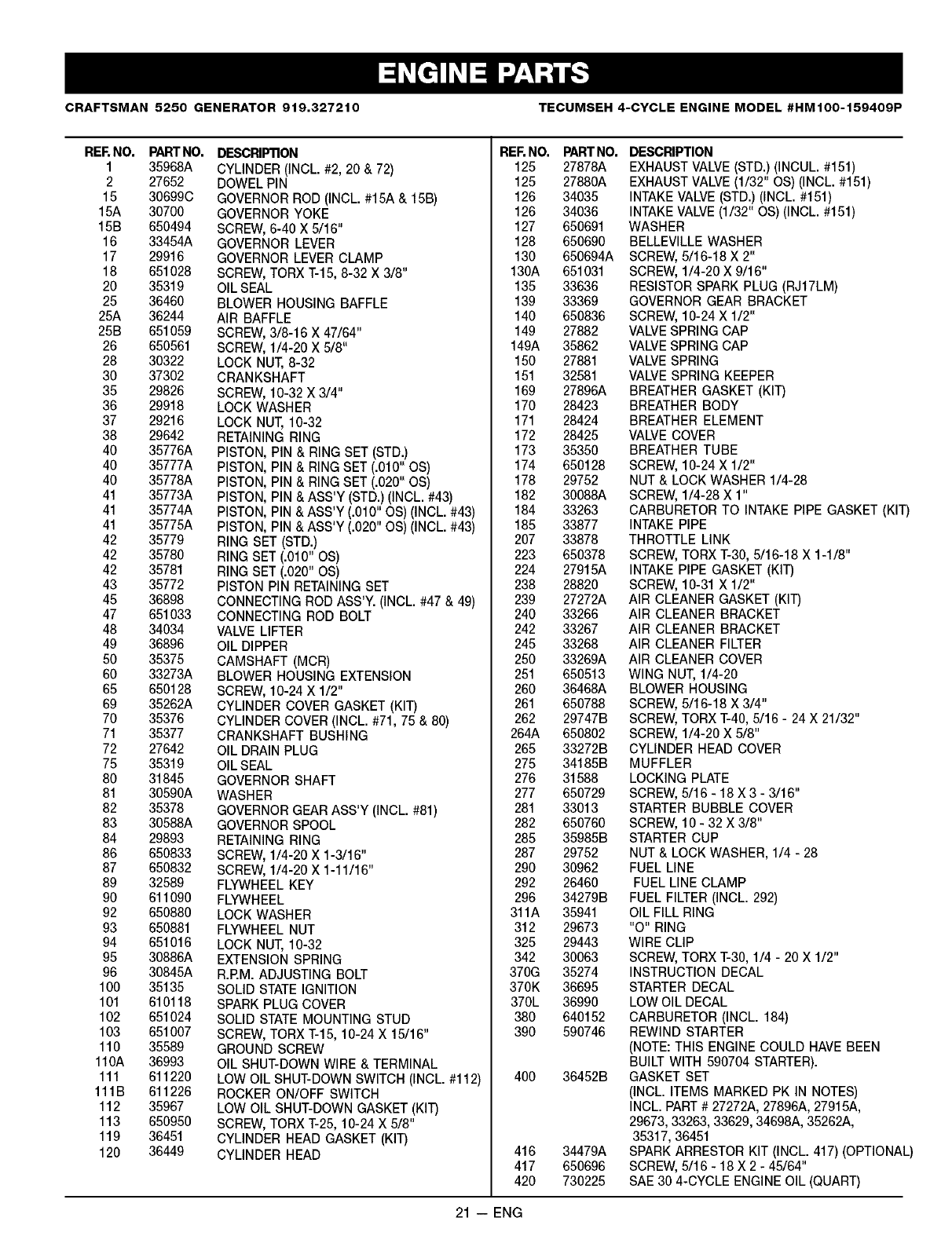

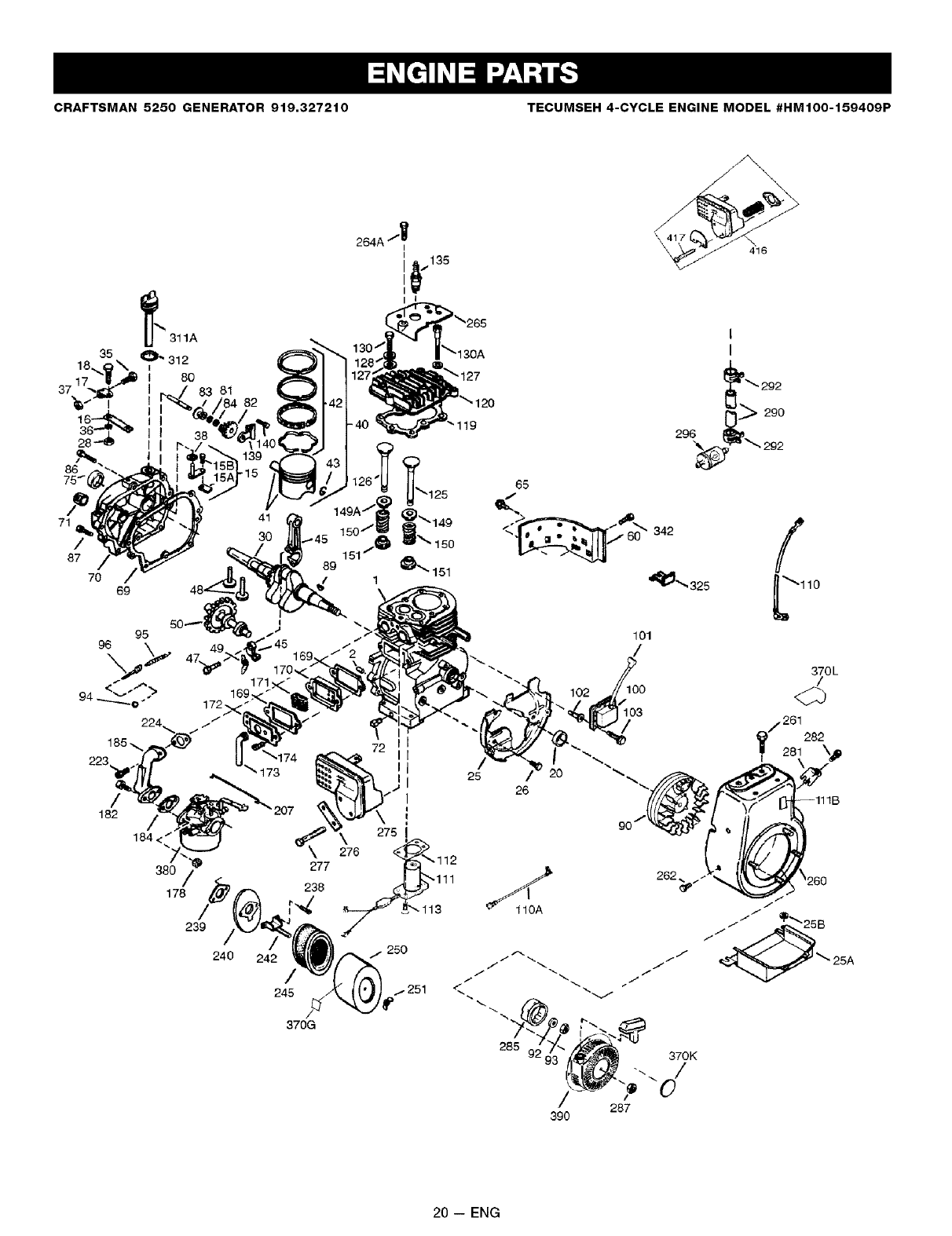

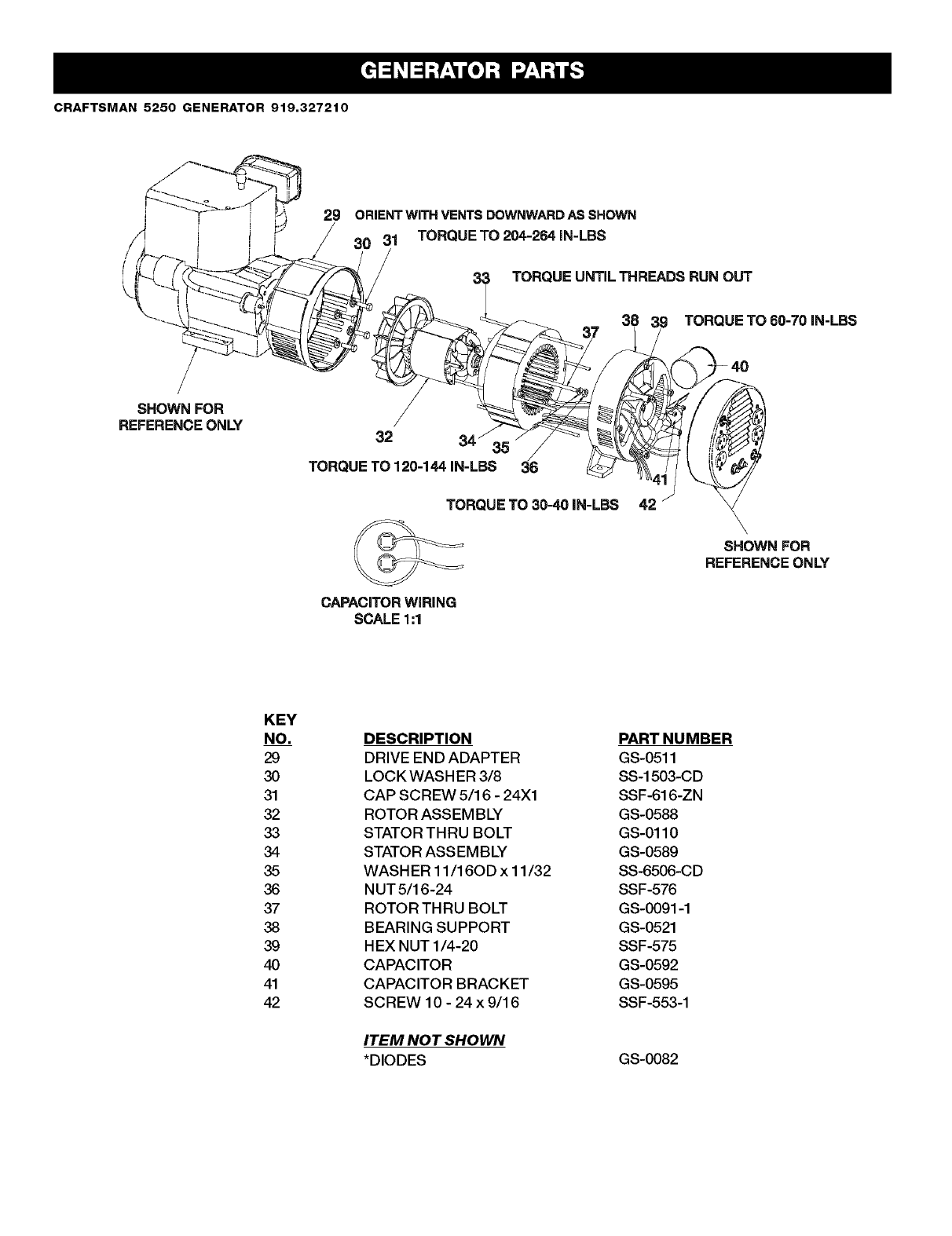

Parts .................................................. 19-23

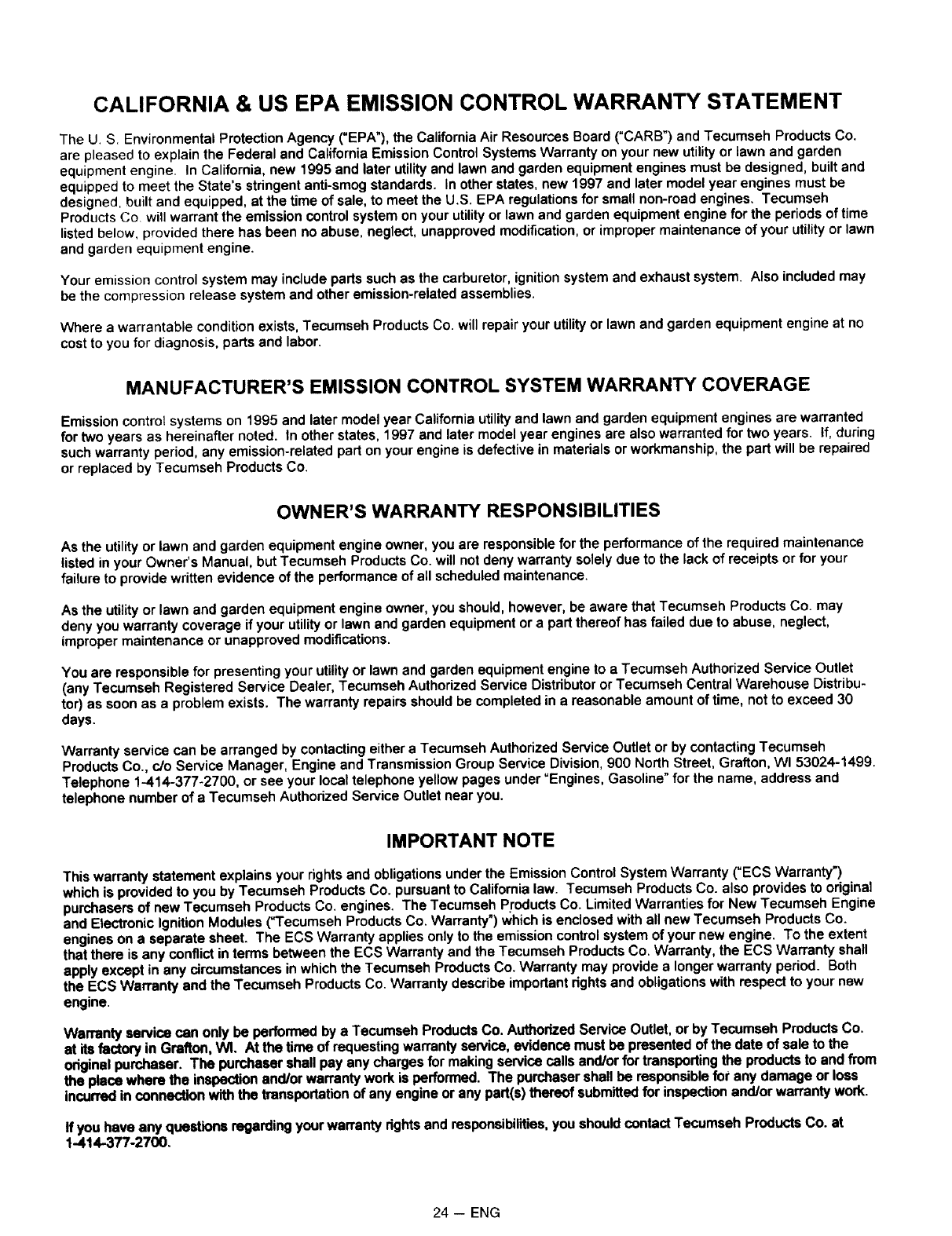

EPA Codes ........................................ 24-25
How To Order Parts ................. Back Cover
DATEPURCHASED:
MODEL NO:
SERIALNO:
STOREWHERE PURCHASED:
ADDRESS
CITY
TELEPHONE:
Record the above information about your unit
so that you wilt be able to provide it in case
of loss or theft.
HORSE POWER 10 HP
GASOLINE CAPACITY 7GALLON
OIL CAPACITY 26 OZ. I
MAINTENANCE AGREEMENT
The Sears Warranty, plus a Maintenance Agreement, pro-
vide maximum value for your Sears products. Contact your
nearest Sears store for details.
CUSTOMER RESPONSIBILITIES
Read and observe the safety rules.
Follow a regular schedule in maintaining, caring for and using
your generator.
Follow the instructions under "Customer Responsibilities"
and "Storage" sections of this owner's manual.
FULL ONE YEAR WARRANTY ON SEARS GENERATORS
For one year from the date of purchase, when this Sears generator is maintained and operated according to
the instructions in this owner's manual, Sears will repair, free of charge, any defect in material and workman-
ship.
If your Sears Generator is used for commercial or rental purposes, this warranty applies for only 90 days from
the original date of purchase.
FULL ONE YEAR WARRANTY ON SEARS ENGINE
For one year from the date of purchase, when this Tecumseh engine is maintained and operated according
to the instructions in this owner's manual, Sears will repair, free of charge, any defect in material and
workmanship.
Ifyour Tecumseh engine is used for commercial or rental purposes, this warranty applies only for 90 days
from the date of purchase. This warranty does not cover: Expendable items such as spark plugs and air
filters, which become worn during normal use.
Repairs necessary because of operator abuse or negligence, including damage resulting from no oil being
supplied to the engine or failure to maintain the equipment according to the instructions contained in
this owner's manual, are not covered under warranty.
WARRANTY SERVICE IS AVAILABLE BY RETURNING THE GENERATOR TO THE NEAREST SEARS SER-
VICE CENTER. This warranty gives you specific legal rights and you may also have other rights, which vary
from STATE TO STATE.
Sears, Roebuck and Co., D/817 WA, Hoffman Estates, IL 60179
2 -- ENG

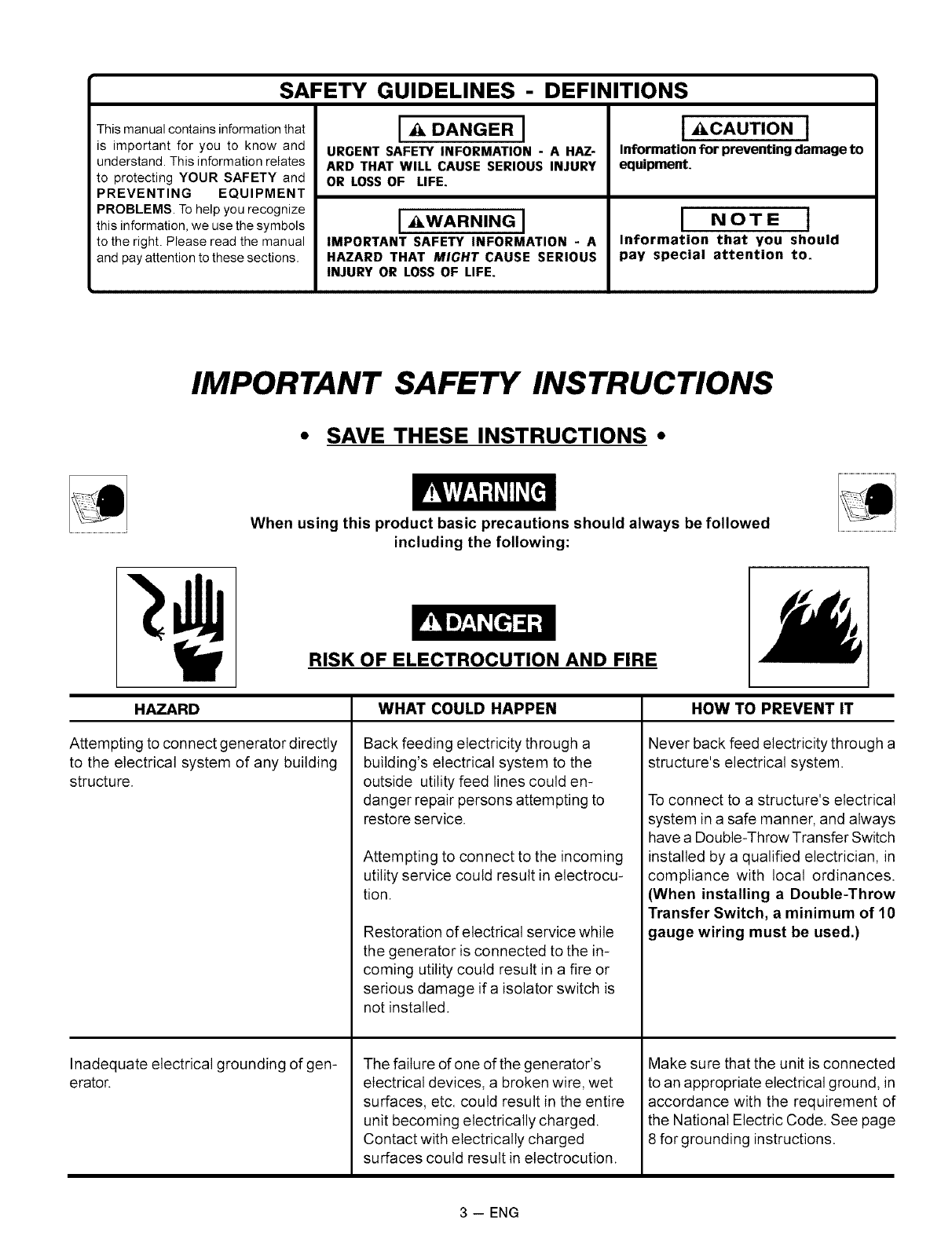

SAFETY GUIDELINES - DEFINITIONS
This manual contains information that
is important for you to know and
understand. This information relates
to protecting YOUR SAFETY and
PREVENTING EQUIPMENT
PROBLEMS. To help you recognize
this information, we use the symbols
to the right, Please read the manual
and pay attention to these sections,
I _ DANGER I
URGENT SAFETY INFORMATION - A HAZ-
ARD THAT WILL CAUSE SERIOUS INJURY
OR LOSS OF LIFE.
I _i_WARNING I
IMPORTANT SAFETY INFORMATION - A
HAZARD THAT MIGHT CAUSE SERIOUS
INJURY OR LOSS OF LIFE.
I _&CAUTION 1
Informationfor preventingdamageto
equipment.
INOTE 1
Information that you should
pay special attention to.
IMPORTANT SAFETY INSTRUCTIONS
• SAVE THESE INSTRUCTIONS •
HAZARD
Attempting to connect generator directly
to the electrical system of any building
structure.
Inadequate electrical grounding of gen-
erator.
When using this product basic precautions should always be followed
including the following:
RISK OF ELECTROCUTION AND FIRE
WHAT COULD HAPPEN
Back feeding electricity through a
buitding's electrical system to the
outside utility feed lines could en-
danger repair persons attempting to
restore service.
Attempting to connect to the incoming
utility service could result in electrocu-
tion.
Restoration of electrical service while
the generator is connected to the in-
coming utility could result in a fire or
serious damage if a isolator switch is
not installed.
The failure of one of the generator's
electrical devices, a broken wire, wet
surfaces, etc. could result in the entire
unit becoming electrically charged.
Contact with electrically charged
surfaces could result in electrocution.
HOW TO PREVENT IT
Never back feed electricity through a
structure's electrical system.
To connect to a structure's electrical
system in a safe manner, and always
have a Double-Throw Transfer Switch
installed by a qualified electrician, in
compliance with local ordinances.
(When installing a Double-Throw
Transfer Switch, a minimum of 10
gauge wiring must be used.)
Make sure that the unit is connected
to an appropriate electrical ground, in
accordance with the requirement of
the National Electric Code. See page
8 for grounding instructions.
3-- ENG
READ AND UNDERSTAND ALL WARNINGS BEFORE
ATTEMPTING TO OPERATE GENERATOR.

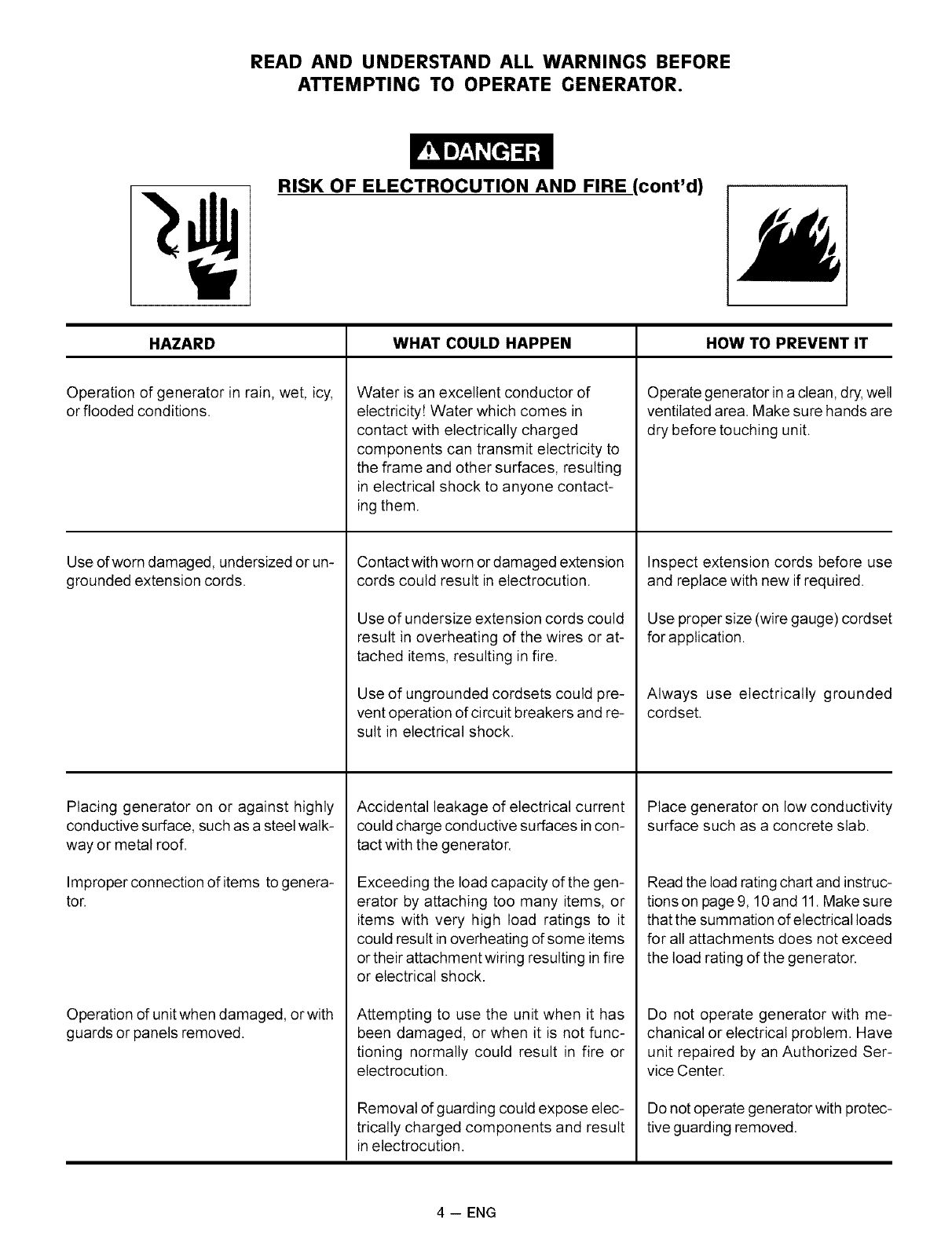

RISK OF ELECTROCUTION AND FIRE (cont'd)
HAZARD
Operation of generator in rain, wet, icy,
or flooded conditions.
Use of worn damaged, undersized or un-
grounded extension cords.
Placing generator on or against highly
conductive surface, such as a steel walk-
way or metal roof.
Improper connection of items to genera-
tor.
Operation of unit when damaged, or with
guards or panels removed.
WHAT COULD HAPPEN
Water is an excellent conductor of
electricity[ Water which comes in
contact with electrically charged
components can transmit electricity to
the frame and other surfaces, resulting
in electrical shock to anyone contact-
ing them.
Contact with worn or damaged extension
cords could result in electrocution.
Use of undersize extension cords could
result in overheating of the wires or at-
tached items, resulting in fire.
Use of ungrounded cordsets could pre-
vent operation of circuit breakers and re-
sult in electrical shock.
Accidental leakage of electrical current
could charge conductive surfaces in con-
tact with the generator.
Exceeding the load capacity of the gen-
erator by attaching too many items, or
items with very high load ratings to it
could result in overheating of some items
or their attachment wiring resulting in fire
or electrical shock.
Attempting to use the unit when it has
been damaged, or when it is not func-
tioning normally could result in fire or
electrocution.
Removal of guarding could expose elec-
trically charged components and result
in electrocution.
HOW TO PREVENT IT
Operate generator in a clean, dry, well
ventilated area. Make sure hands are
dry before touching unit.
Inspect extension cords before use
and replace with new if required.
Use proper size (wire gauge) cordset
for application.
Always use electrically grounded
cordset.
Place generator on low conductivity
surface such as a concrete slab.
Read the load rating chart and instruc-
tions on page 9, 10 and 11. Make sure
that the sum mation of electrical loads
for all attachments does not exceed
the load rating of the generator.
Do not operate generator with me-
chanical or electrical problem. Have
unit repaired by an Authorized Ser-
vice Center.
Do not operate generator with protec-
tive guarding removed.
4-- ENG
READ AND UNDERSTAND ALL WARNINGS BEFORE
ATTEMPTING TO OPERATE GENERATOR.

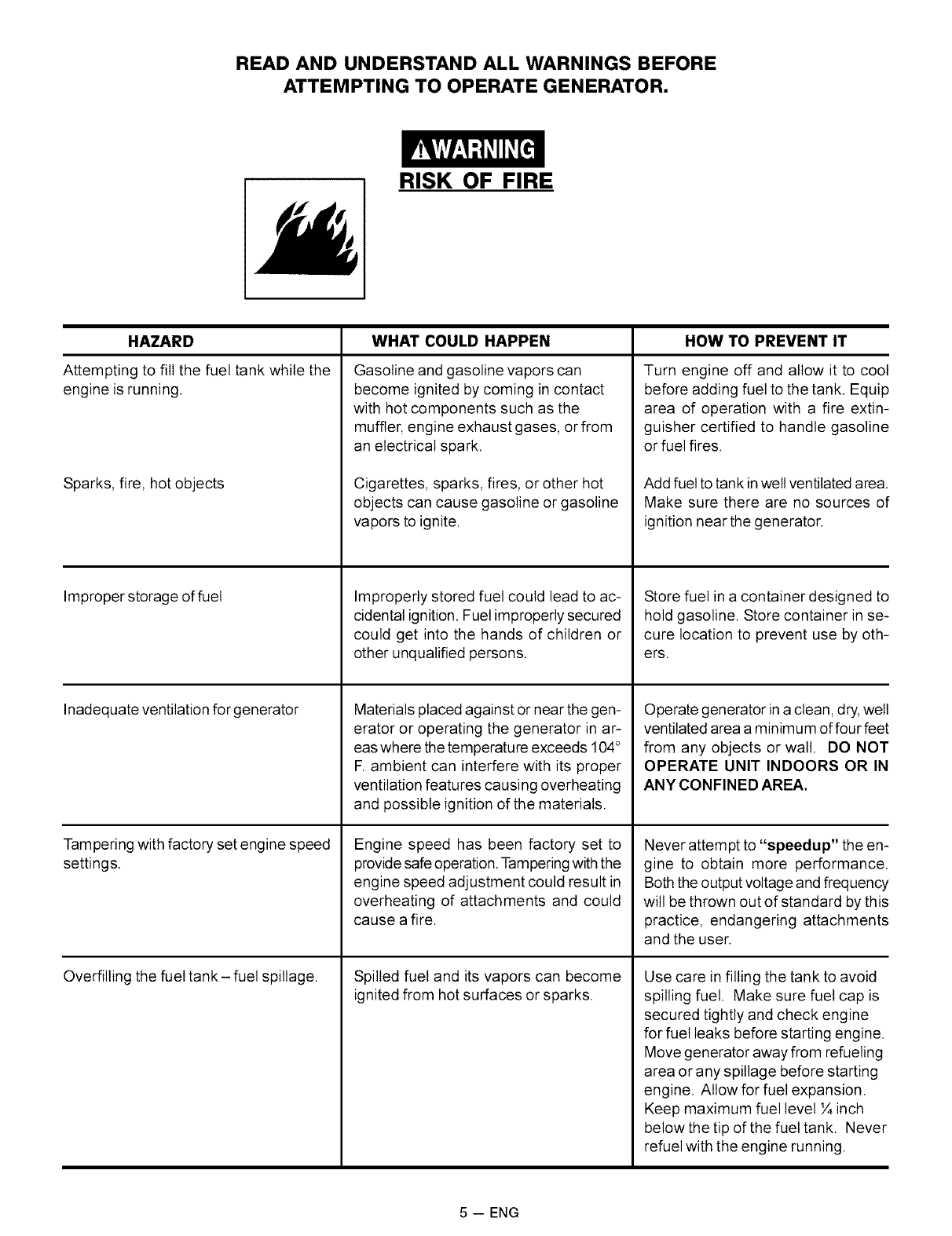

RISK OF FIRE
HAZARD
Attempting to fill the fuel tank while the
engine is running.
Sparks, fire, hot objects
Improper storage of fuel
Inadequate ventilation for generator
Tampering with factory set engine speed
settings.
Overfilling the fuel tank- fuel spillage.
WHAT COULD HAPPEN
Gasoline and gasoline vapors can
become ignited by coming in contact
with hot components such as the
muffler, engine exhaust gases, or from
an electrical spark.
Cigarettes, sparks, fires, or other hot
objects can cause gasoline or gasoline
vapors to ignite.
Improperly stored fuel could lead to ac-
cidental ignition. Fuel improperly secured
could get into the hands of children or
other unqualified persons.
Materials placed against or near the gen-
erator or operating the generator in ar-
eas where the temperature exceeds 104°
F. ambient can interfere with its proper
ventilation features causing overheating
and possible ignition of the materials.
Engine speed has been factory set to
provide safe operation. Tampering with the
engine speed adjustment could result in
overheating of attachments and could
cause a fire.
Spilled fuel and its vapors can become
ignited from hot surfaces or sparks.
HOW TO PREVENT IT
Turn engine off and allow it to cool
before adding fuel to the tank. Equip
area of operation with a fire extin-
guisher certified to handle gasoline
or fuel fires.
Add fuel to tank in well ventilated area.
Make sure there are no sources of
ignition near the generator.
Store fuel in a container designed to
hold gasoline. Store container in se-
cure location to prevent use by oth-
ers.
Operate generator in a clean, dry, well
ventilated area a minimum of four feet
from any objects or wall. DO NOT
OPERATE UNIT INDOORS OR IN
ANY CONFINED AREA.
Never attempt to "speedup" the en-
gine to obtain more performance.
Both the output voltage and frequency
will be thrown out of standard by this
practice, endangering attachments
and the user.
Use care in filling the tank to avoid
spilling fuel. Make sure fuel cap is
secured tightly and check engine
for fuel leaks before starting engine.
Move generator away from refueling
area or any spillage before starting
engine. Allow for fuel expansion.
Keep maximum fuel level I/4inch
below the tip of the fuel tank. Never
refuel with the engine running.
5-- ENG
READ AND UNDERSTAND ALL WARNINGS BEFORE
ATTEMPTING TO OPERATE GENERATOR.

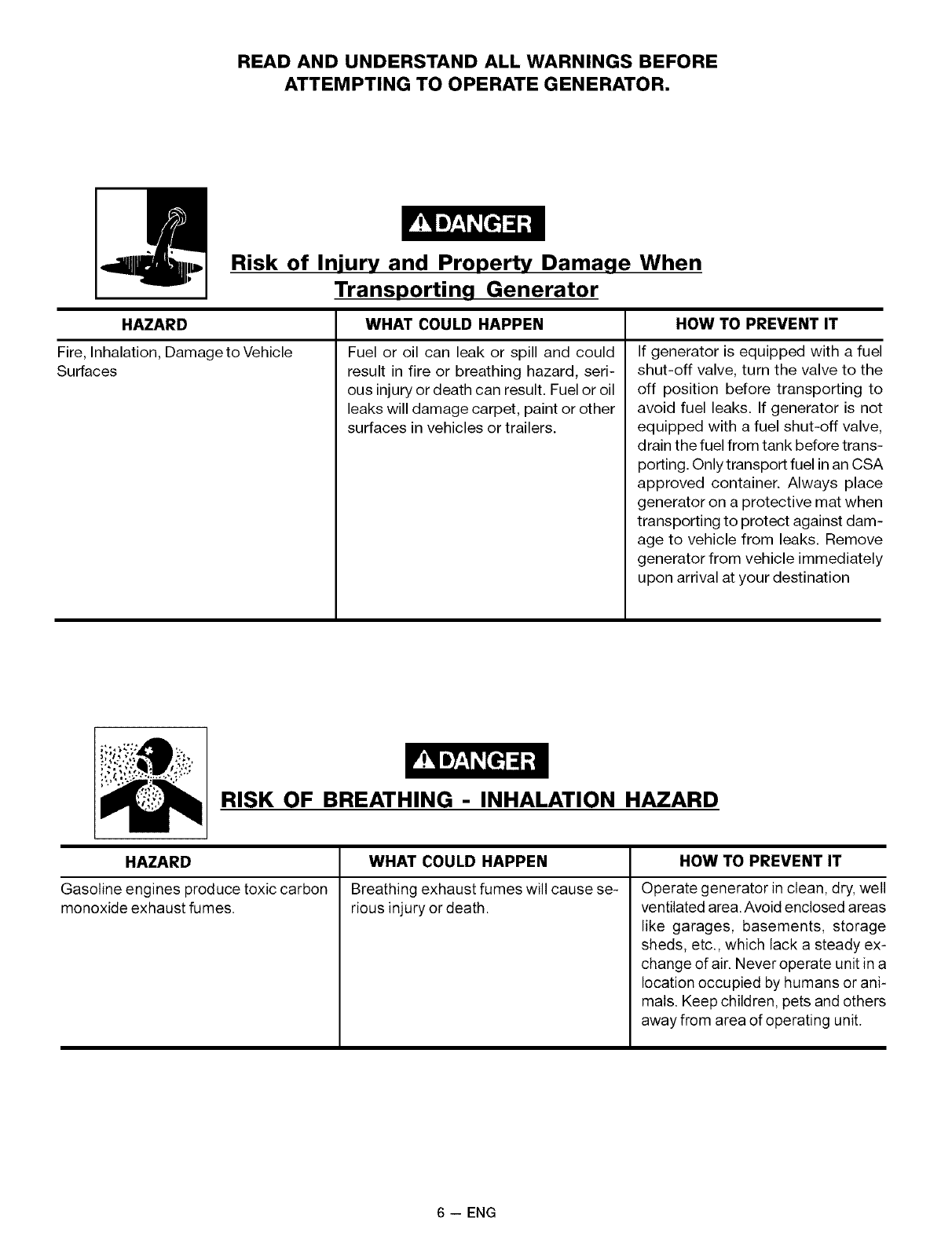

Risk of Injury and Property Damage When
Transporting Generator
HAZARD
Fire, Inhalation, Damage to Vehicle
Surfaces
WHAT COULD HAPPEN
Fuel or oil can leak or spill and could
result in fire or breathing hazard, seri-
ous injury or death can result. Fuel or oil
leaks will damage carpet, paint or other
surfaces in vehicles or trailers.
HOW TO PREVENT IT
If generator is equipped with a fuel
shut-off valve, turn the valve to the
off position before transporting to
avoid fuel leaks. If generator is not
equipped with a fuel shut-off valve,
drain the fuel from tank before trans-
porting. Only transport fuel in an CSA
approved container. Always place
generator on a protective mat when
transporting to protect against dam-
age to vehicle from leaks. Remove
generator from vehicle immediately
upon arrival at your destination
RISK OF BREATHING - INHALATION HAZARD
HAZARD
Gasoline engines produce toxic carbon
monoxide exhaust fumes.
WHAT COULD HAPPEN
Breathing exhaust fumes will cause se-
rious injury or death.
HOW TO PREVENT IT
Operate generator in clean, dry, well
ventilated area. Avoid enclosed areas
like garages, basements, storage
sheds, etc., which lack a steady ex-
change of air. Never operate unit in a
location occupied by humans or ani-
mals. Keep children, pets and others
away from area of operating unit.
6-- ENG
READ AND UNDERSTAND ALL WARNINGS BEFORE
ATTEMPTING TO OPERATE GENERATOR.

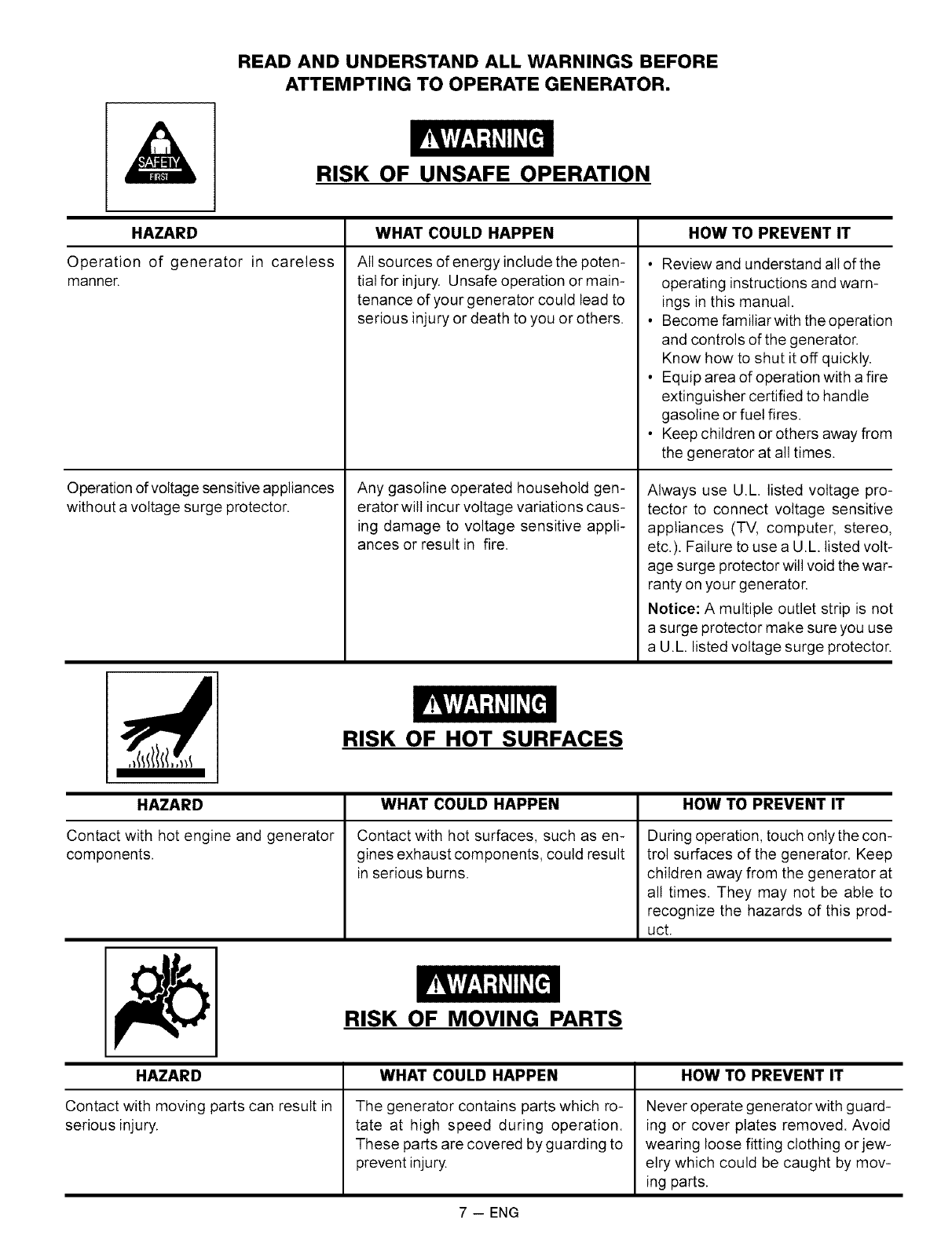

RISK OF UNSAFE OPERATION
HAZARD
Operation of generator in careless
manner.
Operation of voltage sensitive appliances
without a voltage surge protector.
WHAT COULD HAPPEN
All sources of energy include the poten-
tial for injury. Unsafe operation or main-
tenance of your generator could lead to
serious injury or death to you or others.
Any gasoline operated household gen-
erator wilt incur voltage variations caus-
ing damage to voltage sensitive appli-
ances or result in fire.
HOW TO PREVENT IT
Review and understand all of the
operating instructions and warn-
ings in this manual.
Become fam iliar with the operation
and controls of the generator.
Know how to shut it off quickly.
Equip area of operation with a fire
extinguisher certified to handle
gasoline or fuel fires.
Keep children or others away from
the generator at all times.
Always use U.L listed voltage pro-
tector to connect voltage sensitive
appliances (TV, computer, stereo,
etc.). Failure to use a U.L listed volt-
age surge protector will void the war-
ranty on your generator.
Notice: A multiple outlet strip is not
a surge protector make sure you use
a U.L listed voltage surge protector.
RISK OF HOT SURFACES
HAZARD
Contact with hot engine and generator
components.
HAZARD
Contact with moving parts can result in
serious injury.
WHAT COULD HAPPEN
Contact with hot surfaces, such as en-
gines exhaust corn ponents, could result
in serious burns.
HOW TO PREVENT IT
During operation, touch only the con-
trol surfaces of the generator. Keep
children away from the generator at
all times. They may not be able to
recognize the hazards of this prod-
uct.
RISK OF MOVING PARTS
WHAT COULD HAPPEN
The generator contains parts which ro-
tate at high speed during operation.
These parts are covered by guarding to
prevent injury.
HOW TO PREVENT IT
Never operate generator with guard-
ing or cover plates removed. Avoid
wearing loose fitting clothing or jew-
elry which could be caught by mov-
ing parts.
7-- ENG
READ AND UNDERSTAND ALL WARNINGS BEFORE
ATTEMPTING TO OPERATE GENERATOR.

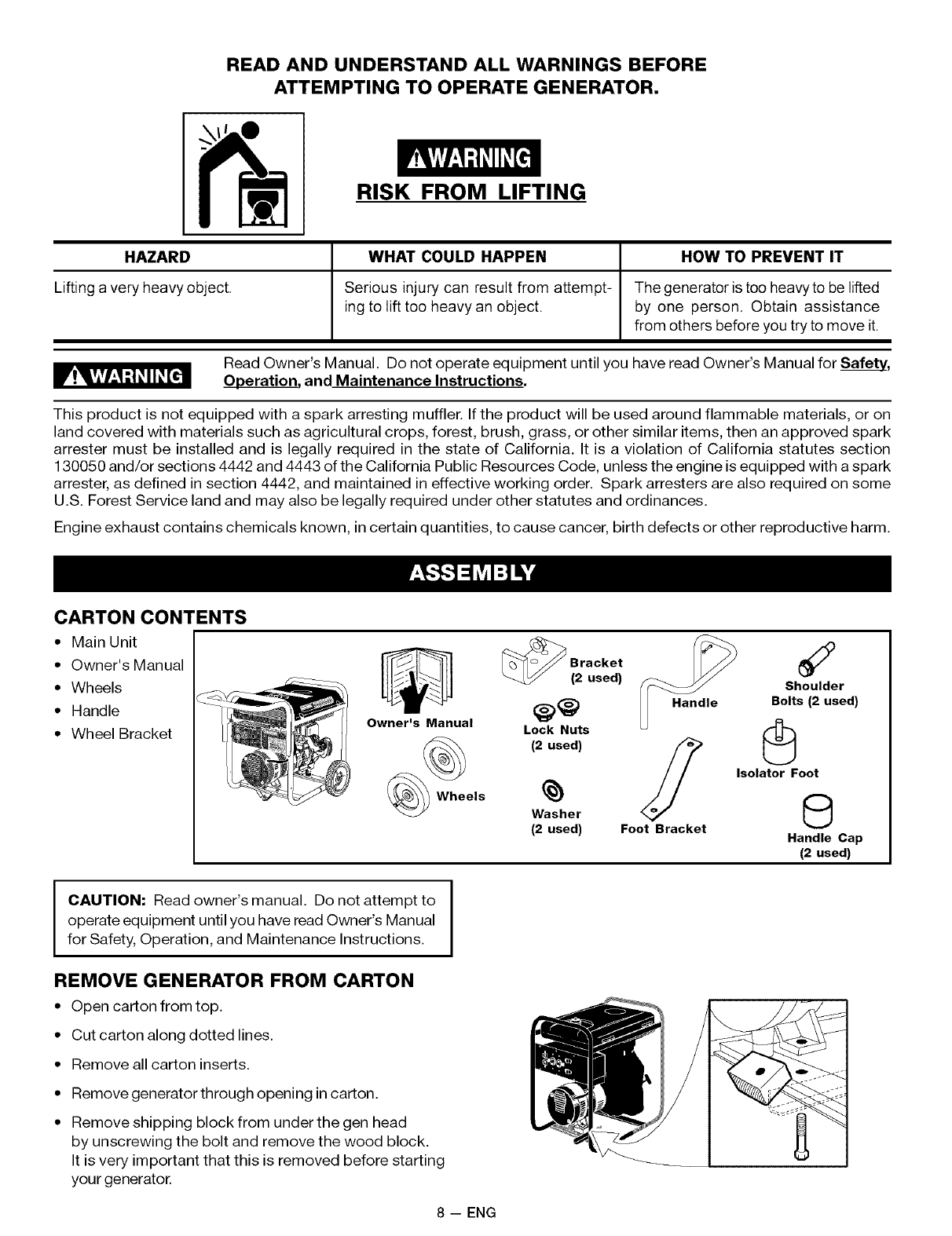

HAZARD
Lifting a very heavy object.
RISK FROM LIFTING
WHAT COULD HAPPEN
Serious injury can result from attempt-
ing to lift too heavy an object.
HOW TO PREVENT IT
The generator is too heavy to be lifted
by one person. Obtain assistance
from others before you try to move it.
Read Owner's Manual. Do not operate equipment until you have read Owner's Manual for Safety,
Operation, and Maintenance Instructions.
This product is not equipped with a spark arresting muffler. If the product will be used around flammable materials, or on
land covered with materials such as agricultural crops, forest, brush, grass, or other similar items, then an approved spark
arrester must be installed and is legally required in the state of California. It is a violation of California statutes section
130050 and/or sections 4442 and 4443 of the California Public Resources Code, unless the engine is equipped with a spark
arrester, as defined in section 4442, and maintained in effective working order. Spark arresters are also required on some
U.S. Forest Service land and may also be legally required under other statutes and ordinances.
Engine exhaust contains chemicals known, in certain quantities, to cause cancer, birth defects or other reproductive harm.
CARTON CONTENTS
• Main Unit
• Owner's Manual
• Wheels
• Handle
• Wheel Bracket Owner's Manual
_W_heels
(2 used)
Lock Nuts
(2 used)
Washer
(2 used)
Ha_ndle Should<rBolts (2 used)
/,so,.tor Foo,
Foot Bracket 0
Handle Cap
(2 used)
I AUTION: Read owner's manual. Do not attempt to
operate equipment until you have read Owner's Manual
for Safety, Operation, and Maintenance Instructions.
REMOVE GENERATOR FROM CARTON
• Open carton from top.
• Cut carton along dotted lines.
• Remove all carton inserts.
Remove generator through opening in carton.
Remove shipping block from under the gen head
by unscrewing the bolt and remove the wood block.
It is very important that this is removed before starting
your generator.
8-- ENG

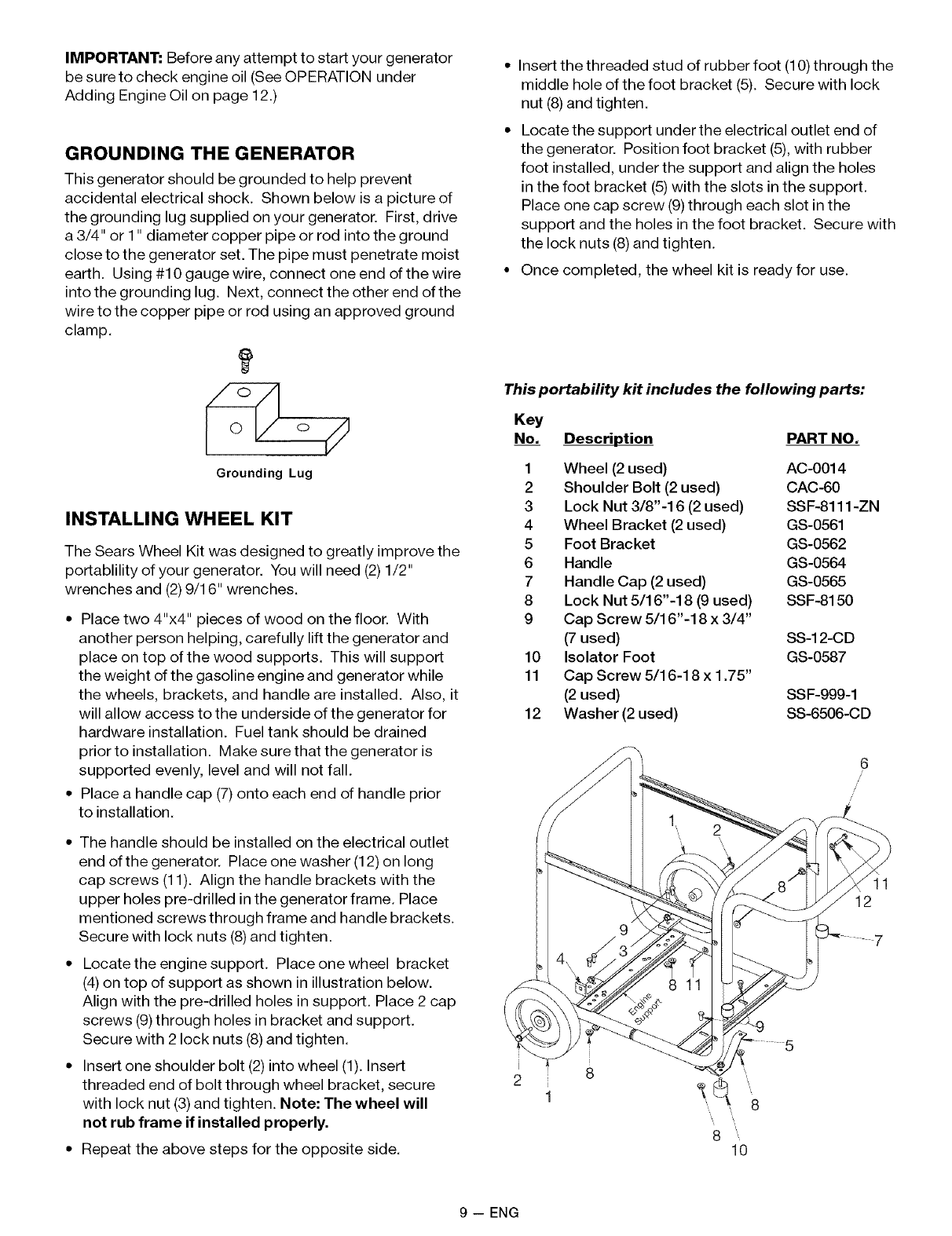

IMPORTANT: Before any attempt to start your generator
be sure to check engine oil (See OPERATION under
Adding Engine Oil on page 12.)
GROUNDING THE GENERATOR
This generator should be grounded to help prevent
accidental electrical shock. Shown below is a picture of
the grounding lug supplied on your generator. First, drive
a 3/4" or 1" diameter copper pipe or rod into the ground
close to the generator set. The pipe must penetrate moist
earth. Using #10 gauge wire, connect one end of the wire
into the grounding lug. Next, connect the other end of the
wire to the copper pipe or rod using an approved ground
clamp.
Grounding Lug
INSTALLING WHEEL KIT
The Sears Wheel Kit was designed to greatly improve the
portablility of your generator. You will need (2) 1/2"
wrenches and (2) 9/16" wrenches.
•Place two 4"x4" pieces of wood on the floor. With
another person helping, carefully lift the generator and
place on top of the wood supports. This will support
the weight of the gasoline engine and generator while
the wheels, brackets, and handle are installed. Also, it
will allow access to the underside of the generator for
hardware installation. Fuel tank should be drained
prior to installation. Make sure that the generator is
supported evenly, level and will not fall.
• Place a handle cap (7) onto each end of handle prior
to installation.
• The handle should be installed on the electrical outlet
end of the generator. Place one washer (12) on long
cap screws (11). Align the handle brackets with the
upper holes pre-drilled in the generator frame. Place
mentioned screws through frame and handle brackets.
Secure with lock nuts (8) and tighten.
• Locate the engine support. Place one wheel bracket
(4) on top of support as shown in illustration below.
Align with the pre-drilled holes in support. Place 2 cap
screws (9) through holes in bracket and support.
Secure with 2 lock nuts (8) and tighten.
• Insert one shoulder bolt (2) into wheel (1). Insert
threaded end of bolt through wheel bracket, secure
with lock nut (3) and tighten. Note: The wheel will
not rub frame if installed properly.
• Repeat the above steps for the opposite side.
• Insert the threaded stud of rubber foot (10) through the
middle hole of the foot bracket (5). Secure with lock
nut (8)and tighten.
• Locate the support under the electrical outlet end of
the generator. Position foot bracket (5), with rubber
foot installed, under the support and align the holes
in the foot bracket (5) with the slots in the support.
Place one cap screw (9)through each slot in the
support and the holes in the foot bracket. Secure with
the lock nuts (8)and tighten.
• Once completed, the wheel kit is ready for use.
This portability kit includes the following parts:
Key
No. Description PART NO.
1 Wheel (2 used) AC-0014
2 Shoulder Bolt (2 used) CAC-60
3 Lock Nut 3/8"-16 (2 used) SSF-8111 -ZN
4 Wheel Bracket (2 used) GS-0561
5 Foot Bracket GS-0562
6 Handle GS-0564
7 Handle Cap (2 used) GS-0565
8 Lock Nut 5/16"-18 (9 used) SSF-8150
9 Cap Screw 5/16"-18 x 3/4"
(7 used) SS-12-CD
10 Isolator Foot GS-0587
11 Cap Screw 5/16-18 x 1.75"
(2 used) SSF-999-1
12 Washer (2 used) SS-6506-CD
/
/
/
11
12
10
9 -- ENG

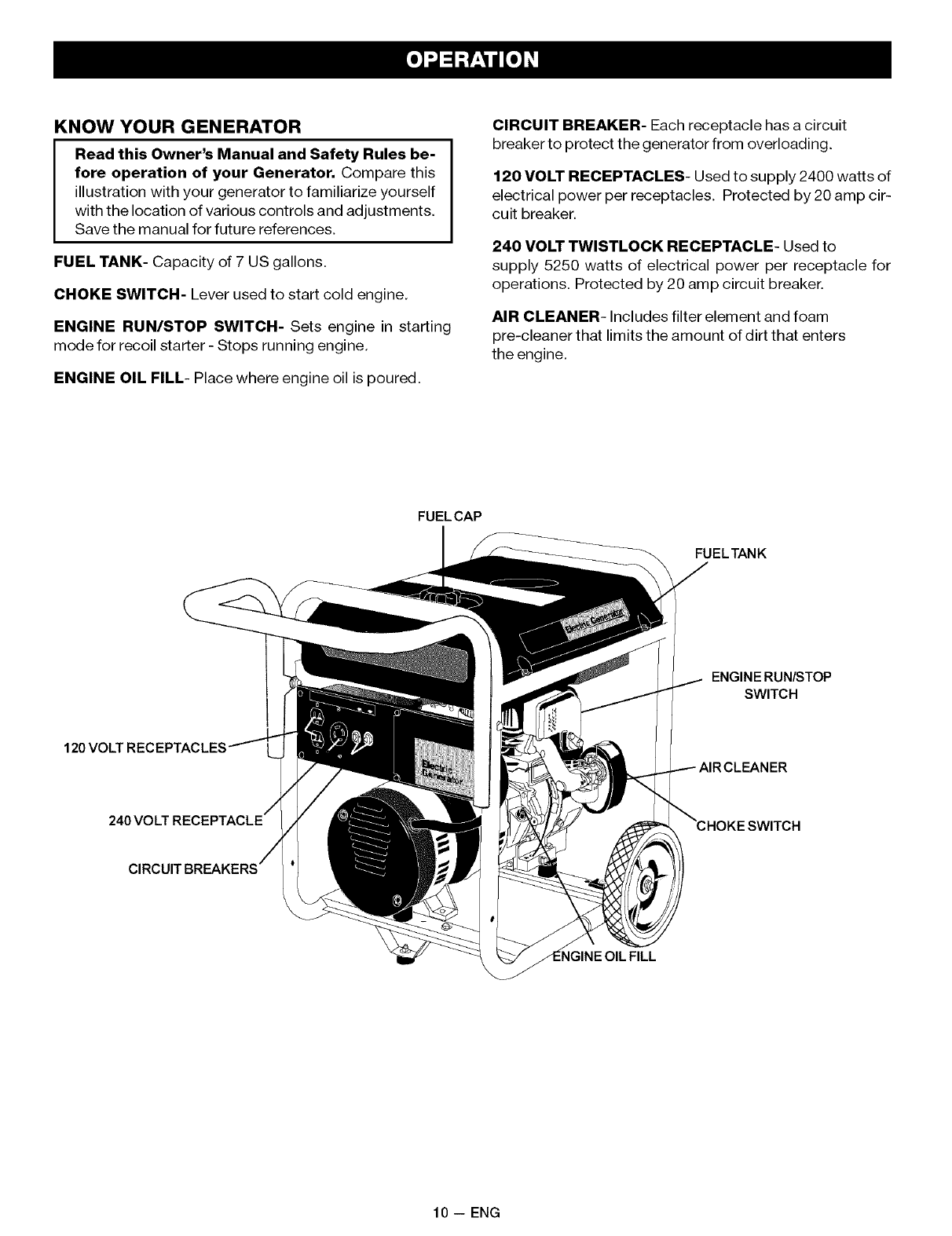

KNOW YOUR GENERATOR
Read this Owner's Manual and Safety Rules be-
fore operation of your Generator, Compare this
illustration with your generator to familiarize yourself
with the location of various controls and adjustments.
Save the manual for future references.
FUEL TANK- Capacity of 7 US gallons.
CHOKE SWITCH- Lever used to start cold engine.
ENGINE RUN/STOP SWITCH- Sets engine in starting
mode for recoil starter - Stops running engine.
ENGINE OIL FILL- Place where engine oil is poured.
CIRCUIT BREAKER- Each receptacle has a circuit
breaker to protect the generator from overloading.
120 VOLT RECEPTACLES- Used to supply 2400 watts of
electrical power per receptacles. Protected by 20 amp cir-
cuit breaker.
240 VOLT TWISTLOCK RECEPTACLE- Used to
supply 5250 watts of electrical power per receptacle for
operations. Protected by 20 amp circuit breaker.
AIR CLEANER- Includes filter element and foam
pre-cleaner that limits the amount of dirt that enters
the engine,
FUEL CAP
FUELTANK
ENGINE RUN/STOP
SWITCH
120 VOLT
10 -- ENG
RECEPTACLES
Your generator is equipped with duplex 120 volt receptacles
and a twistlock 240 volt receptacle.
The unit is also equipped with a 20 amp circuit breaker for
the 120 volt receptacles and a 20 amp circuit breaker for
the 240 volt receptacle which is provided to protect the
generator against electrical overload. If the circuit breaker
trips, unplug electrical load from receptacle. Let circuit
breaker cool down and then push circuit breaker button to
reset.
o® 1
@ @
120V 20A
120V 20A
cD@
@
120/240V 20A
@
GENERATOR CAPACITY
Exceeding the rated capacity of your generator can
result in serious damage to your generator and connected
electrical devices. You should observe the following to
prevent overloading the unit:
• Starting and running wattage requirements must be
calculated to match your generator wattage capacity.
Resistive load appliances such as light bulbs, TV's
and microwaves, have the same starting and running
wattage. The wattage used for calculating the capacity
can usually be found on each of these appliances.
Some inductive appliances and tools will list on the motor
name plate, the starting and running voltage and amperage
requirements. Use the following formula to convert voltage
and amperage to wattage:
(Volts X Amp = Watts)
Inductive load appliances and tools such as refrigerators,
air compressors and washers require approximately 2 to
4 times the listed running wattage for starting the equip-
ment. This initial load only lasts for a few seconds on
start-up but is very important when figuring your total
wattage to be used.
NOTE: Always start your largest electric motor first, and
then plug in other items, one at a time.
The guide below is provided to assist you in determining
the appliances and tools that can be ran with the wattage
capacity of your generator.
I!
OBTAINING ELECTRICITY FROM
GENERATOR
There are basically two ways to obtain electricity form a
generator:
• Use of extension cords directly form the generator
to the appliance, lights, tools, etc.
• Use of a double-throw transfer switch installed
directly to the main electrical supply outside of the
house.
Extension Cord
When using an appliance or tool at a considerable distance
from the generator, a 3-wire extension cord that has a
3-blade grounding plug and 3-slot receptacle that accepts
the tool's plug should be used. A cord of adequate size
must be used. A minimum of 12 gauge wire size with at
least a 20 amp draw can be used. When amperage
exceeds 20 amps a 10 gauge wire size should be used.
11 -- ENG

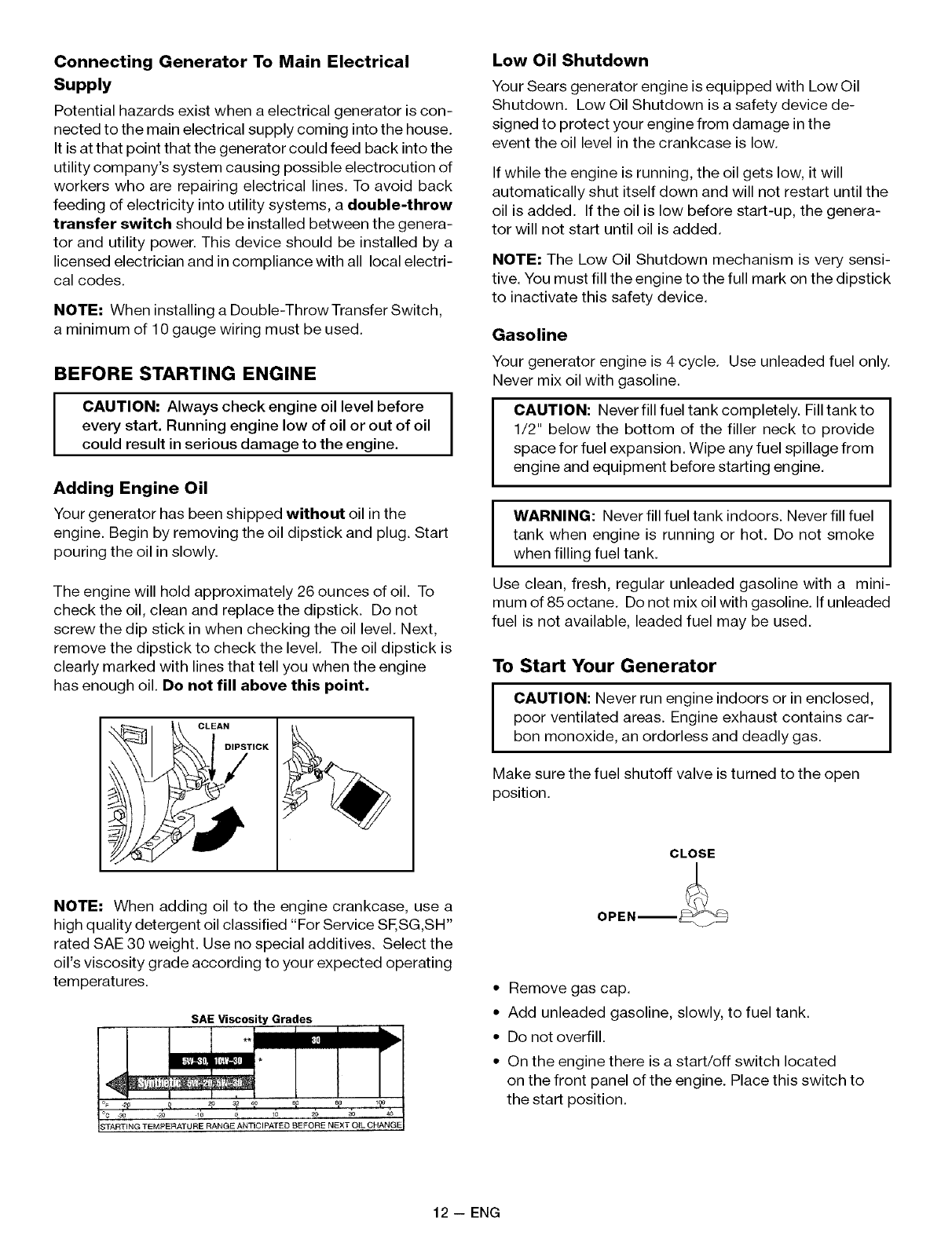

Connecting Generator To Main Electrical
Supply
Potential hazards exist when a electrical generator is con-
nected to the main electrical supply coming into the house.
It is at that point that the generator could feed back into the
utility company's system causing possible electrocution of
workers who are repairing electrical lines. To avoid back
feeding of electricity into utility systems, a double-throw
transfer switch should be installed between the genera-
tor and utility power. This device should be installed by a
licensed electrician and in compliance with all local electri-
cal codes.
NOTE: When installing a Double-ThrowTransfer Switch,
a minimum of 10 gauge wiring must be used.
BEFORE STARTING ENGINE
I CAUTION: Always check engine oil level before
every start. Running engine low of oil or out of oil
could result in serious damage to the engine.
Adding Engine Oil
Your generator has been shipped without oil in the
engine. Begin by removing the oil dipstick and plug. Start
pouring the oil in slowly.
The engine will hold approximately 26 ounces of oil. To
check the oil, clean and replace the dipstick. Do not
screw the dip stick in when checking the oil level. Next,
remove the dipstick to check the level. The oil dipstick is
clearly marked with lines that tell you when the engine
has enough oil. Do not fill above this point.
CLEAN
DIPSTICK
NOTE: When adding oil to the engine crankcase, use a
high quality detergent oil classified "For Service SF,SG,SH"
rated SAE 30 weight. Use no special additives. Select the
oil's viscosity grade according to your expected operating
temperatures.
SAE Viscosity Grades
IT
TARTI NG TEMPERATLIR1E RANGE_ANTICIPATED BEFORE NEXT_IL CHANGE
Low Oil Shutdown
Your Sears generator engine is equipped with Low Oil
Shutdown. Low Oil Shutdown is a safety device de-
signed to protect your engine from damage in the
event the oil level in the crankcase is low.
If while the engine is running, the oil gets low, it will
automatically shut itself down and will not restart until the
oil is added. If the oil is low before start-up, the genera-
tor will not start until oil is added.
NOTE: The Low Oil Shutdown mechanism is very sensi-
tive. You must fill the engine to the full mark on the dipstick
to inactivate this safety device.
Gasoline
Your generator engine is 4 cycle. Use unleaded fuel only.
Never mix oil with gasoline.
CAUTION: Never fill fuel tank completely. Fill tank to
1/2" below the bottom of the filler neck to provide
space for fuel expansion. Wipe any fuel spillage from
engine and equipment before starting engine.
I WARNING: Never fill fuel tank indoors. Never fill fuel I
tank when engine is running or hot. Do not smoke I
when filling fuel tank.
Use clean, fresh, regular unleaded gasoline with a mini-
mum of 85 octane. Do not mix oil with gasoline. If unleaded
fuel is not available, leaded fuel may be used.
To Start Your Generator
I CAUTION: Never run engine indoors or in enclosed, I
I
poor ventilated areas. Engine exhaust contains car-
lbon monoxide, an ordorless and deadly gas.
Make sure the fuel shutoff valve is turned to the open
position.
CLOSE
OPEN__
• Remove gas cap.
• Add unleaded gasoline, slowly, to fuel tank.
• Do not overfill.
• On the engine there is a start/off switch located
on the front panel of the engine. Place this switch to
the start position.
12 -- ENG
• On the engine there is a choke/run lever. Place this
lever to the choke position.
FULL CHOKE POSITION
S_ CHOKE LEVER
*,_ NO CHOKE
•Grasp the starter handle and pull rope out slowly
until it pulls harder. Let the rope rewind slowly.
Then pull rope with a rapid full arm stroke. Let rope
return to starter slowly.
•When engine starts, gradually move choke lever to
"No Choke Position".
•If the engine fails to start after (3) pulls, move the
choke lever to the beginning choke position and pull
start rope again.
• For hot engine starts make sure choke lever is in the
"No Choke Position".
Connecting Electrical Loads
• Let engine run and warm up for about five minutes
after starting.
• Plug in the desired 120 or 240 volts tools.
• DO NOT connect 240 volt equipment to the 120 volt
duplex receptacles.
• DO NOT connect 3-phase loads to the panel
receptacles.
IMPORTANT: You should always add up the rated
watts of all lights, tools and appliances you are power-
ing at one time. This total should not exceed the rated
capacity of you generator or circuit breaker rating of
the receptacle supplying power.
Stopping The Engine
• Disconnect all electrical loads.
• Switch the start/off switch to the off position.
.......STOp _
IMPORTANT: Never store engine with fuel in tank,
indoors, or in enclosed, poorly ventilated areas or where
fuel fumes may reach an open flame.
CUSTOMER RESPONSIBILITIES TABLE
MAINTNENANCE TASK
Before each
use Every 25
Hours of Every
Season
Every 50
Hours of Every
Season
Check oil level X See Note 2
Change oil See Note 1
Clean Air Filter Assembly X
Check Spark Plug X
Prepare Unit for Storage
Every 100
Hours of Every
Season
x
Prepare unit for storage if it is to remain idle for more than 30 days.
Note 1: Change oil after first two (2) operating hours and every 50 operating hours thereafter, more often if operated in
extreme dusty or dirty conditions.
Note 2: Check oil after 5 hours of operation (See page 14 - ENGINE MAINTENANCE - Oil.)
13 -- ENG
GENERAL RECOMMENDATIONS
The warranty of the generator does not cover items that
have been subjected to operator abuse or negligence. To
receive full value from the warranty, operator must maintain
the generator as instructed in this manual.
Some adjustments will need to be made periodically to
maintain your generator.
GENERATOR MAINTENANCE
Your generator should be kept clean and dry at all times.
The generator should not be stored or operated in
enviroments that include excessive moisture, dust or any
corrosive vapors. Ifthese substances are on the generator,
clean with a cloth or soft bristle brush. Do not use a garden
hose or anything with water pressure to clean the genera-
tor. Water may enter the cooling air slots and could possi-
bly damage the rotor, stator and the internal windings of the
gen head.
All adjustments in the Maintenance section of this manual
should be made at least once each season.
ENGINE MAINTENANCE
Oil
• Oil level should be checked prior to each use and at
least every 5 hours of operation. To check oil see
Adding Engine Oil on page 12.
Changing Engine Oil
For a new engine, change oil after the first 2 operating
hours. Thereafter, change oil after every 50 hours of
operation.
Change the oil while the engine is still warm. The oil will
flow freely and carry away more impurities. Make sure the
engine is level when filling, checking or changing oil.
Change the oil as follows:
• To keep dirt, grass clippings, etc. out of the engine,
clean the area around the drain plug and dipstick
before removing it.
Remove the oil drain plug and dipstick. Tilt the
engine slightly towards the oil drain to obtain better
drainage. Be sure to allow ample time for complete
drainage.
OIL DRAIN
OIL DRAIN
PLUG
OIL FILL
Reinstall the drain plug. Make sure it is tightened
securely.
• Fill the crankcase with new oil of the proper type (See
Adding Oil Section), to the Full mark on the dipstick.
Always check the level with the dipstick before adding
more oil.
• Reinstall the oil fill cap or plug and tighten securely.
Service Air Cleaner
NOTE: Do not use petroleum solvents, e.g., kerosene,
which will cause the cartridge to deteriorate. Do not use
pressurized air to clean cartridge. Pressurized air can
damage the cartridge.
To service air cleaner follow these steps:
1. Unscrew wing nut. Remove cover and air cleaner
cartridge.
2. Remove cartridge from cover.
To service cartridge, clean by tapping gently on a flat
service. Do not oil cartridge. Replace if dirty or damaged.
3. Replace air cleaner cartridge. Place cover over cartridge
and tighten nut finger tight and then turn it one more
complete turn.
PAPER FILTER
___Wl cOVER
BASE NG NUT
Clean Guard/Muffler
Do not clean with a forceful spray of water because
water could contaminate fuel system. With a brush
or cloth clean finger guard after every use to prevent
engine damage caused by overheating.
CLEAN
14 -- ENG

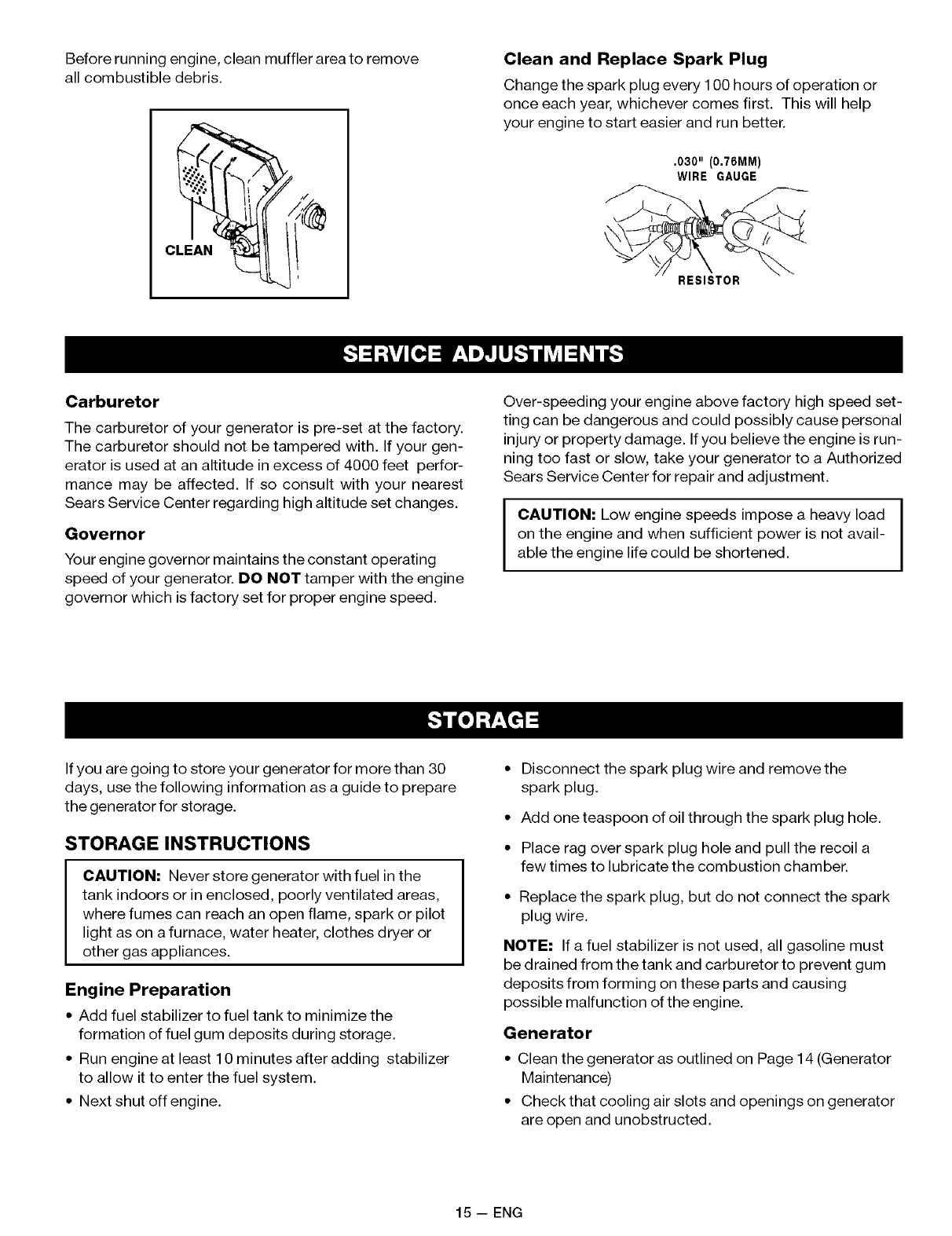

Before running engine, clean muffler area to remove
all combustible debris.
CLEAN
Clean and Replace Spark Plug
Change the spark plug every 100 hours of operation or
once each year, whichever comes first. This will help
your engine to start easier and run better.
.030" (0.76MM)
WIRE GAUGE
RESISTOR
Carburetor
The carburetor of your generator is pre-set at the factory.
The carburetor should not be tampered with. If your gen-
erator is used at an altitude in excess of 4000 feet perfor-
mance may be affected. If so consult with your nearest
Sears Service Center regarding high altitude set changes.
Governor
Your engine governor maintains the constant operating
speed of your generator. DO NOT tamper with the engine
governor which is factory set for proper engine speed.
Over-speeding your engine above factory high speed set-
ting can be dangerous and could possibly cause personal
injury or property damage. If you believe the engine is run-
ning too fast or slow, take your generator to a Authorized
Sears Service Center for repair and adjustment.
I CAUTION: Low engine speeds impose a heavy load I
on the engine and when sufficient power is not avail- I
able the engine life could be shortened.
Ifyou are going to store your generator for more than 30
days, use the following information as a guide to prepare
the generator for storage.
STORAGE INSTRUCTIONS
CAUTION: Never store generator with fuel in the
tank indoors or in enclosed, poorly ventilated areas,
where fumes can reach an open flame, spark or pilot
light as on a furnace, water heater, clothes dryer or
other gas appliances.
Engine Preparation
• Add fuel stabilizer to fuel tank to minimize the
formation of fuel gum deposits during storage.
• Run engine at least 10 minutes after adding stabilizer
to allow it to enter the fuel system.
• Next shut off engine.
• Disconnect the spark plug wire and remove the
spark plug.
• Add one teaspoon of oil through the spark plug hole.
• Place rag over spark plug hole and pull the recoil a
few times to lubricate the combustion chamber.
• Replace the spark plug, but do not connect the spark
plug wire.
NOTE: If a fuel stabilizer is not used, all gasoline must
be drained from the tank and carburetor to prevent gum
deposits from forming on these parts and causing
possible malfunction of the engine.
Generator
• Clean the generator as outlined on Page 14 (Generator
Maintenance)
• Check that cooling air slots and openings on generator
are open and unobstructed.
15 -- ENG
PROBLEM
Engine will not start
No electrical output
Repeated circuit breaker tripping
Generator overheating
CAUSE
No auto idle
DC does not have power with the
circuit breaker depressed
1. Low on fuel or oil.
2. Ignition switch in "Off" position.
3. Faulty spark plug.
4. Choke in wrong position.
5. Fuel shut-off valve in closed
position.
6. Unit loaded during start-up.
7. Spark plug wire loose.
1. Faulty receptacle.
2. Circuit breaker kicked out.
3. Defective capacitor.
4. Faulty power cord.
5. GFCI switch breaker kicked out (if
equipped)
1. Overload
2. Faulty cords or equipment.
1. Generator overloaded.
2. Insufficient ventilation.
1. Faulty solenoid
2. Faulty idle control switch
3. Faulty windings in stator
4. Faulty circuit board
5. Faulty wire harness
1. Faulty rectifier
2. Faulty windings in stator
3. Faulty wire harness
CORRECTION
1. Add fuel or oil.
2. Turn to "ON" position
3. Replace spark plug.
4. Adjust choke accordingly.
5. Open fuel shut-off valve.
6. Remove load from unit.
7. Attach wire to spark plug.
1. Have Service Center replace.
2. Depress and reset.
3. Have Service Center replace
capacitor.
4. Repair or replace cord.
5. Depress and reset
1=
2.
Reduce load.
Check for damaged, bare, or
frayed wires on equipment.
Replace.
1. Reduce load.
2. Move to adequate supply of
fresh air.
1. Have Service Center replace.
2. Have Service Center replace.
3. Have Service Center replace.
4. Have Service Center replace.
5. Have Service Center replace
1. Have Service Center replace.
2. Have Service Center replace.
3. Have Service Center replace.
16 -- ENG

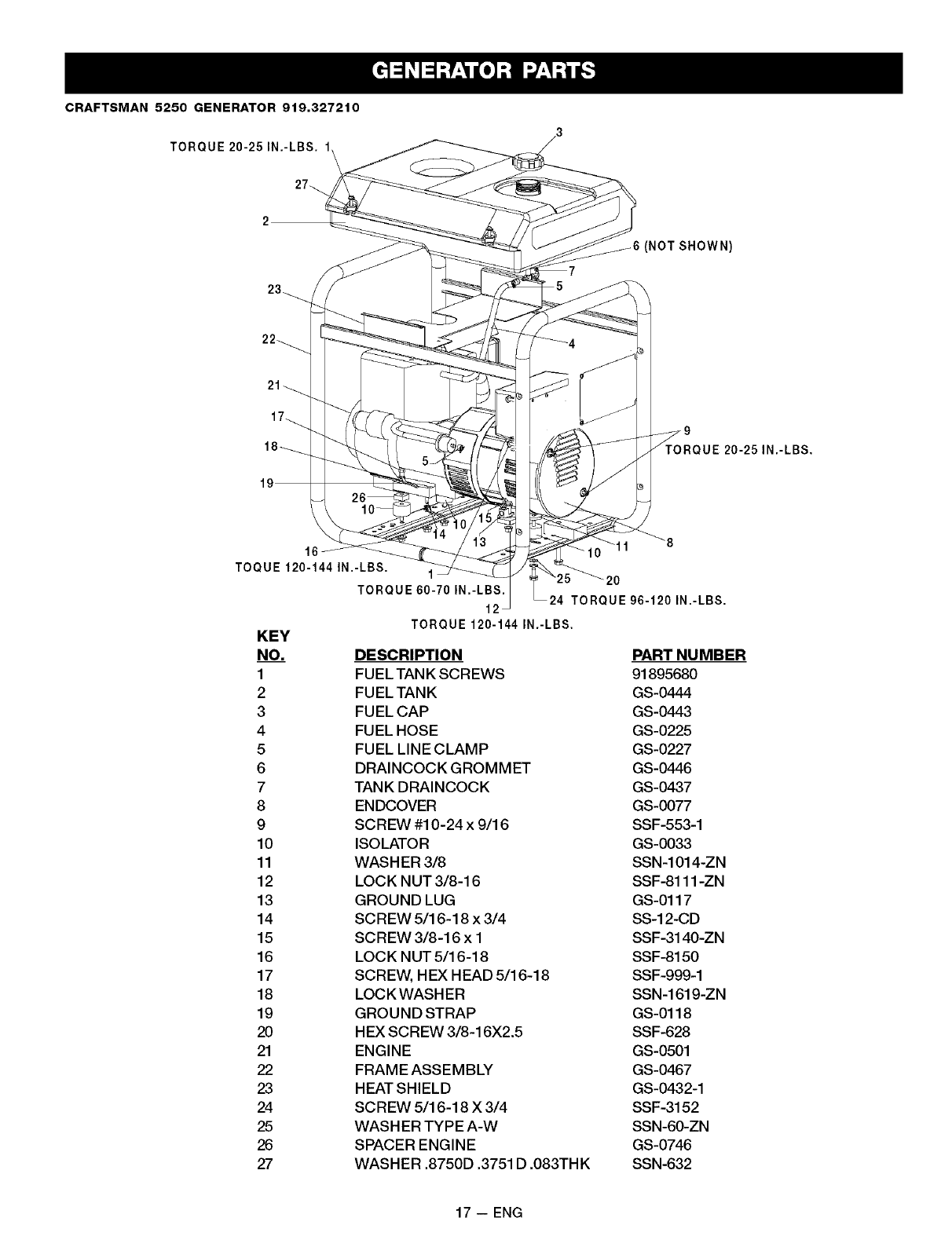

CRAFTSMAN 5250 GENERATOR 919.327210
TORQUE 20-25 IN.-LBS.
(NOT SHOWN)
20-25 IN.-LBS.
16
TOQUE 120-144 IN.-LBS.
KEY
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
2O
21
22
23
24
25
26
27
1 20
TORQUE 60-70 IN.-LBS, TORQUE
12
TORQUE 120-144 IN.-LBS.
DESCRIPTION
FUEL TAN K SCREWS
FUEL TANK
FUEL CAP
FUEL HOSE
FUEL LINE CLAMP
DRAINCOCK GROMMET
TANK DRAINCOCK
ENDCOVER
SCREW #10-24 x 9/16
ISOLATOR
WASHER 3/8
LOCK NUT 3/8-16
GROUND LUG
SCREW 5/16-18 x 3/4
SCREW 3/8-16 x 1
LOCK NUT 5/16-18
SCREW, HEX HEAD 5/16-18
LOCK WASH ER
GROUND STRAP
HEX SCREW 3/8-16X2.5
ENGINE
FRAME ASSEMBLY
HEAT SHIELD
SCREW 5/16-18 X 3/4
WASHER TYPE A-W
SPACER ENGINE
WASHER .8750D .3751 D .083THK
96-120 IN.-LBS.
PART NUMBER
91895680
GS-0444
GS-0443
GS-0225
GS-0227
GS-0446
GS-0437
GS-0077
SSF-553-1
GS-0033
SSN-1014-ZN
SSF-8111 -ZN
GS-0117
SS-12-CD
SSF-3140-ZN
SSF-8150
SSF-999-1
SSN-1619-ZN
GS-0118
SSF-628
GS-0501
GS-0467
GS-0432-1
SSF-3152
SSN-60-ZN
GS-0746
SSN-632
17 -- ENG
CRAFTSMAN 5250 GENERATOR 919.327210
SHOWN FOR
REFERENCE ONLY
29 ORIENT WiTH VENTS DOWNWARDAS SHOWN
30 31 TORQUE TO 204--264 IN-LBS
TORQUE UNTIL THREADS RUN OUT
38 39 TORQUETO 60-70 IN-LBS
32 34 35
TORQUE TO 120-144-IN-LBS
TORQUE TO 30-40 IN-LBS
CAPACITORWiRiNG
SCALE 1:1
SHOWN FOR
REFERENCE ONLY
KEY
NO.
29
3O
31
32
33
34
35
36
37
38
3g
4O
41
42
DESCRIPTION
DRIVE END ADAPTER
LOCKWASHER 3/8
CAP SCREW 5/16 -24Xl
ROTOR ASSEMBLY
STATOR THRU BOLT
STATOR ASSEMBLY
WASHER 11/16OD x 11/32
NUT 5/16-24
ROTOR THRU BOLT
BEARING SUPPORT
HEX NUT 1/4-20
CAPACITOR
CAPACITOR BRACKET
SCREW 10 -24 x g/16
PART NUMBER
GS-0511
SS-1503-CD
SSF-616-ZN
GS-0588
GS-0110
GS-058g
SS-6506-CD
SSF-576
GS-00g1-1
GS-0521
SSF-575
GS-05g2
GS-0595
SSF-553-1
ITEM NOT SHOWN
*DIODES GS-0082
CRAFTSMAN 5250 GENERATOR 919.327210
46
O
47 48 49
44
43 51
KEY
NO. DESCRIPTION
43 120V/20A DUPLEX RECEPTACLE
44 4 PRONG TWlSTLOCK
45 CIRCUIT BREAKER 120/240V/20A
46 SCREW #6 -32 x .5 TORX
47 NUT, 10 - 9 X .50 PLASTITE
48 SWITCH FACE PLATE RESET
49 NUT, HEX JAM 7/16
50 SPEED NUT #6 - 32
51 WAS HER 3/8
PART NUMBER
GS-0019
GS-0445
GS-0025
SSF-583
SSF-3156
GS-0207
SSF-595
SSF-584
SS-1525-CD
CRAFTSMAN 5250 GENERATOR 919.327210 TECUMSEH 4-CYCLE ENGINE MODEL #HM100-159409P
/
87
70 69
82
264A ,..,'V
I
I
I1_''136
I
I I
240 242 /250
/
246
112
111
113
370G
262
285 370K
"--. /
/
/287
390
/
_110
370L
/
/261282
_' 281 \_
20 -- ENG
CRAFTSMAN 5250 GENERATOR 919.327210 TECUMSEH 4-CYCLE ENGINE MODEL #HM10O-159409P
RERNO. PARTNO.
1 35968A
2 27652
15 30699C
15A 30700
15B 650494
16 33454A
17 29916
18 651028
20 35319
25 36460
25A 36244
25B 651059
26 650561
28 30322
30 37302
35 29826
36 29918
37 29216
38 29642
40 35776A
40 35777A
40 35778A
41 35773A
41 35774A
41 35775A
42 35779
42 35780
42 35781
43 35772
45 36898
47 651033
48 34034
49 36896
50 35375
60 33273A
65 650128
69 35262A
70 35376
71 35377
72 27642
75 35319
80 31845
81 30590A
82 35378
83 30588A
84 29893
86 650833
87 650832
89 32589
90 611090
92 650880
93 650881
94 651016
95 30886A
96 30845A
100 35135
101 610118
102 651024
103 651007
110 35589
110A 36993
111 611220
111B 611226
112 35967
113 650950
119 36451
120 36449
DESCRIPTION
CYLINDER (INCL. #2, 20 & 72)
DOWEL PIN
GOVERNOR ROD (INCL. #15A & 15B)
GOVERNOR YOKE
SCREW,6-40 X 5/16"
GOVERNOR LEVER
GOVERNOR LEVER CLAMP
SCREW,TORX T-15, 8-32 X 3/8"
OIL SEAL
BLOWER HOUSING BAFFLE
AIR BAFFLE
SCREW,3/8-16 X 47/64"
SCREW,1/4-20 X 5/8"
LOCK NUT, 8-32
CRANKSHAFT
SCREW,10-32 X 3/4"
LOCK WASHER
LOCK NUT, 10-32
RETAINING RING
PISTON PIN & RING SET (STD.)
PISTON PIN & RING SET (.010" OS)
PISTON PIN & RING SET (.020" OS)
PISTON PIN & ASS'Y (STD.) (INCL. #43)
PISTON PIN & ASS'Y (.010" OS)(INCL. #43)
PISTON PIN & ASS'Y (.020" OS) (INCL. #43)
RING SET (STD.)
RING SET (.010" OS)
RING SET (.020" OS)
PISTON PIN RETAINING SET
CONNECTING ROD ASS'Y. (INCL. #47 & 49)
CONNECTING ROD BOLT
VALVE LIFTER
OIL DIPPER
CAMSHAFT (MCR)
BLOWER HOUSING EXTENSION
SCREW,10-24 X 1/2"
CYLINDER COVER GASKET (KIT)
CYLINDER COVER (INCL. #71, 75 & 80)
CRANKSHAFT BUSHING
OIL DRAIN PLUG
OILSEAL
GOVERNOR SHAFT
WASHER
GOVERNOR GEAR ASS'Y (INCL. #81)
GOVERNOR SPOOL
RETAINING RING
SCREW,1/4-20 X 1-3/16"
SCREW,1/4-20 X 1-11/16"
FLYWHEEL KEY
FLYWHEEL
LOCK WASHER
FLYWHEEL NUT
LOCK NUT, 10-32
EXTENSION SPRING
R.RM. ADJUSTING BOLT
SOLID STATEIGNITION
SPARK PLUG COVER
SOLID STATEMOUNTING STUD
SCREW,TORX T-15, 10-24 X 15/16"
GROUND SCREW
OIL SHUT-DOWN WIRE & TERMINAL
LOW OIL SHUT-DOWN SWITCH (INCL. #112)
ROCKER ON/OFF SWITCH
LOW OIL SHUT-DOWN GASKET (KIT)
SCREW,TORX T-25, 10-24 X 5/8"
CYLINDER HEAD GASKET (KIT)
CYLINDER HEAD
HERNO.
125
125
126
126
127
128
130
130A
135
139
140
149
149A
150
151
169
170
171
172
173
174
178
182
184
185
207
223
224
238
239
24O
242
245
250
251
260
261
262
264A
265
275
276
277
281
282
285
287
290
292
296
311A
312
325
342
370G
370K
370L
380
390
4OO
416
417
42O
PARTNO.
27878A
27880A
34035
34036
650691
650690
650694A
651031
33636
33369
650836
27882
35862
27881
32581
27896A
28423
28424
28425
35350
650128
29752
30088A
33263
33877
33878
650378
27915A
28820
27272A
33266
33267
33268
33269A
650513
36468A
650788
29747B
650802
33272B
34185B
31588
650729
33013
650760
35985B
29752
30962
26460
34279B
35941
29673
29443
30063
35274
36695
36990
640152
590746
36452B
34479A
650696
730225
DESCRIPTION
EXHAUST VALVE(STD.)(INCUL. #151)
EXHAUST VALVE(1/32" OS)(INCL. #151)
INTAKE VALVE(STD.) (INCL. #151)
INTAKEVALVE(1/32" OS) (INCL. #151)
WASHER
BELLEVILLE WASHER
SCREW, 5/16-18 X 2"
SCREW, 1/4-20 X 9/16"
RESISTOR SPARK PLUG (RJ17LM)
GOVERNOR GEAR BRACKET
SCREW, 10-24 X 1/2"
VALVESPRING CAP
VALVESPRING CAP
VALVESPRING
VALVESPRING KEEPER
BREATHER GASKET (KIT)
BREATHER BODY
BREATHER ELEMENT
VALVECOVER
BREATHER TUBE
SCREW, 10-24 X 1/2"
NUT & LOCK WASHER 1/4-28
SCREW, 1/4-28 X 1"
CARBURETOR TO INTAKE PIPE GASKET (KIT)
INTAKE PIPE
THROTTLE LINK
SCREW, TORX T-3O,5/16-18 X 1-1/8"
INTAKE PIPE GASKET (KIT)
SCREW, 10-31 X 1/2"
AIR CLEANER GASKET (KIT)
AIR CLEANER BRACKET
AIR CLEANER BRACKET
AIR CLEANER FILTER
AIR CLEANER COVER
WING NUT, 1/4-20
BLOWER HOUSING
SCREW 5/16-18 X 3/4"
SCREW TORX T-4O,5/16 - 24 X 21/32"
SCREW 1/4-20 X 5/8"
CYLINDER HEAD COVER
MUFFLER
LOCKING PLATE
SCREW, 5/16 - 18 X 3 - 3/16"
STARTER BUBBLE COVER
SCREW, 10 - 32 X 3/8"
STARTER CUP
NUT & LOCK WASHER, 1/4 - 28
FUEL LINE
FUEL LINE CLAMP
FUEL FILTER (INCL. 292)
OIL FILL RING
"O" RING
WIRE CLIP
SCREW,TORX T-3O,1/4 - 20 X 1/2"
INSTRUCTION DECAL
STARTER DECAL
LOW OIL DECAL
CARBURETOR (INCL. 184)
REWIND STARTER
(NOTE: THIS ENGINE COULD HAVE BEEN
BUILT WITH 590704 STARTER).
GASKET SET
(INCL. ITEMS MARKED PK IN NOTES)
INCL. PART # 27272A, 27896A, 27915A,
29673, 33263, 33629, 34698A, 35262A,
35317, 36451
SPARK ARRESTOR KIT (INCL. 417) (OPTIONAL)
SCREW, 5/16 - 18 X 2 - 45/64"
SAE 30 4-CYCLE ENGINE OIL (QUART)
21 -- ENG

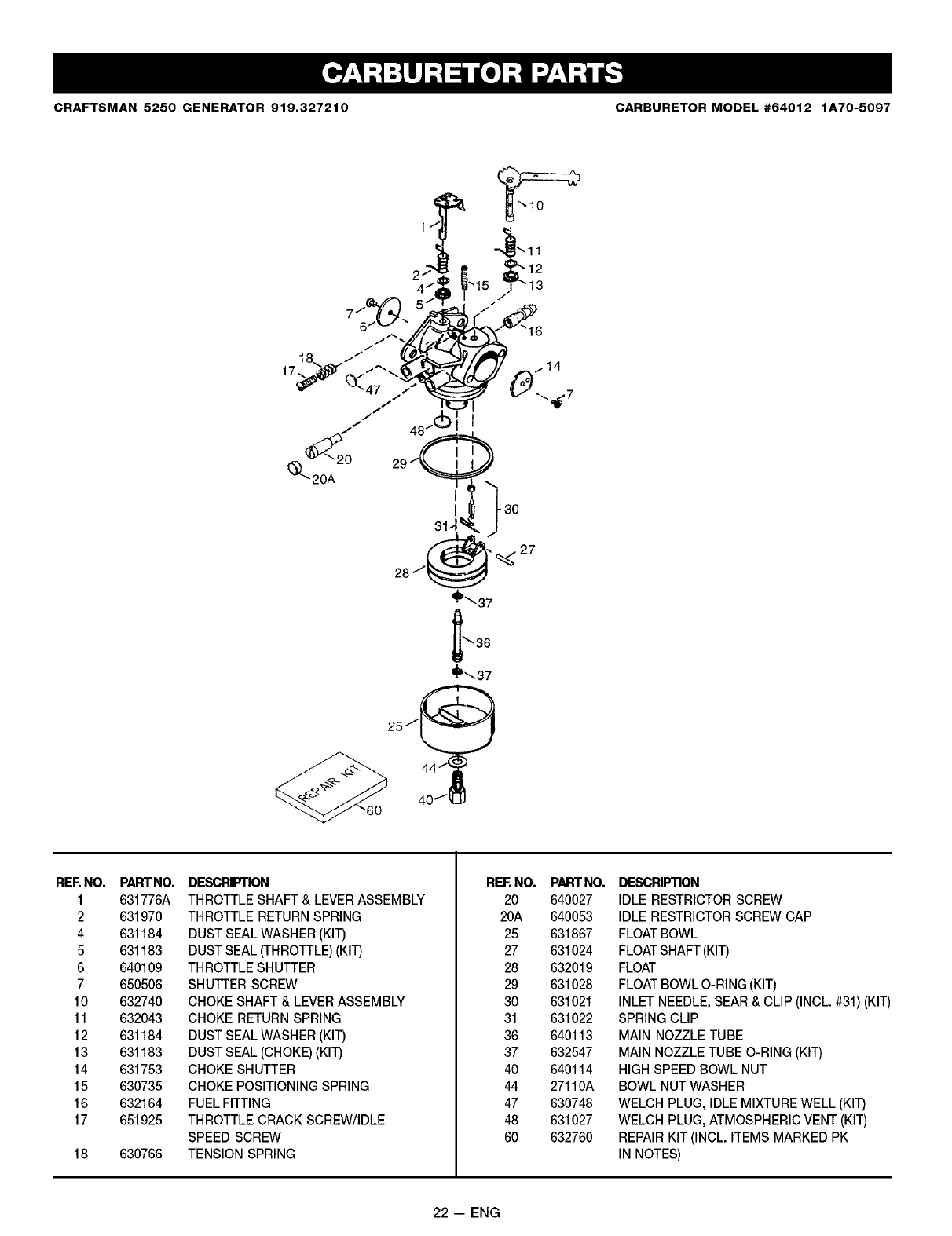

CRAFTSMAN 5250 GENERATOR 919.327210 CARBURETOR MODEL #64012 1A70-5097
REE NO.
1
2
4
5
6
7
10
11
12
13
14
15
16
17
18
PARTNO.
631776A
631970
631184
631183
640109
650506
632740
632043
631184
631183
631753
630735
632164
651925
630766
DESCRIPTION
THROTTLE SHAFT & LEVERASSEMBLY
THROTTLE RETURN SPRING
DUSTSEAL WASHER (KIT)
DUSTSEAL (THROTTLE)(KIT)
THROTTLE SHUTTER
SHUTTER SCREW
CHOKE SHAFT & LEVERASSEMBLY
CHOKE RETURN SPRING
DUSTSEAL WASHER (KIT)
DUSTSEAL (CHOKE)(KIT)
CHOKE SHUTTER
CHOKE POSITIONING SPRING
FUELFITTING
THROTTLE CRACK SCREW/IDLE
SPEED SCREW
TENSION SPRING
REE NO. PARTNO.
20 640027
20A 640053
25 631867
27 631024
28 632019
29 631028
30 631021
31 631022
36 640113
37 632547
40 640114
44 27110A
47 630748
48 631027
60 632760
DESCRIPTION
IDLE RESTRICTOR SCREW
IDLE RESTRICTORSCREW CAP
FLOATBOWL
FLOATSHAFT(KIT)
FLOAT
FLOATBOWL O-RING (KIT)
INLET NEEDLE,SEAR & CLIP (INCL. #31) (KIT)
SPRING CLIP
MAIN NOZZLE TUBE
MAIN NOZZLE TUBE O-RING (KIT)
HIGH SPEED BOWL NUT
BOWL NUT WASHER
WELCH PLUG, IDLE MIXTURE WELL (KIT)
WELCH PLUG, ATMOSPHERIC VENT (KIT)
REPAIR KIT (INCL. ITEMS MARKED PK
IN NOTES)
22 -- ENG

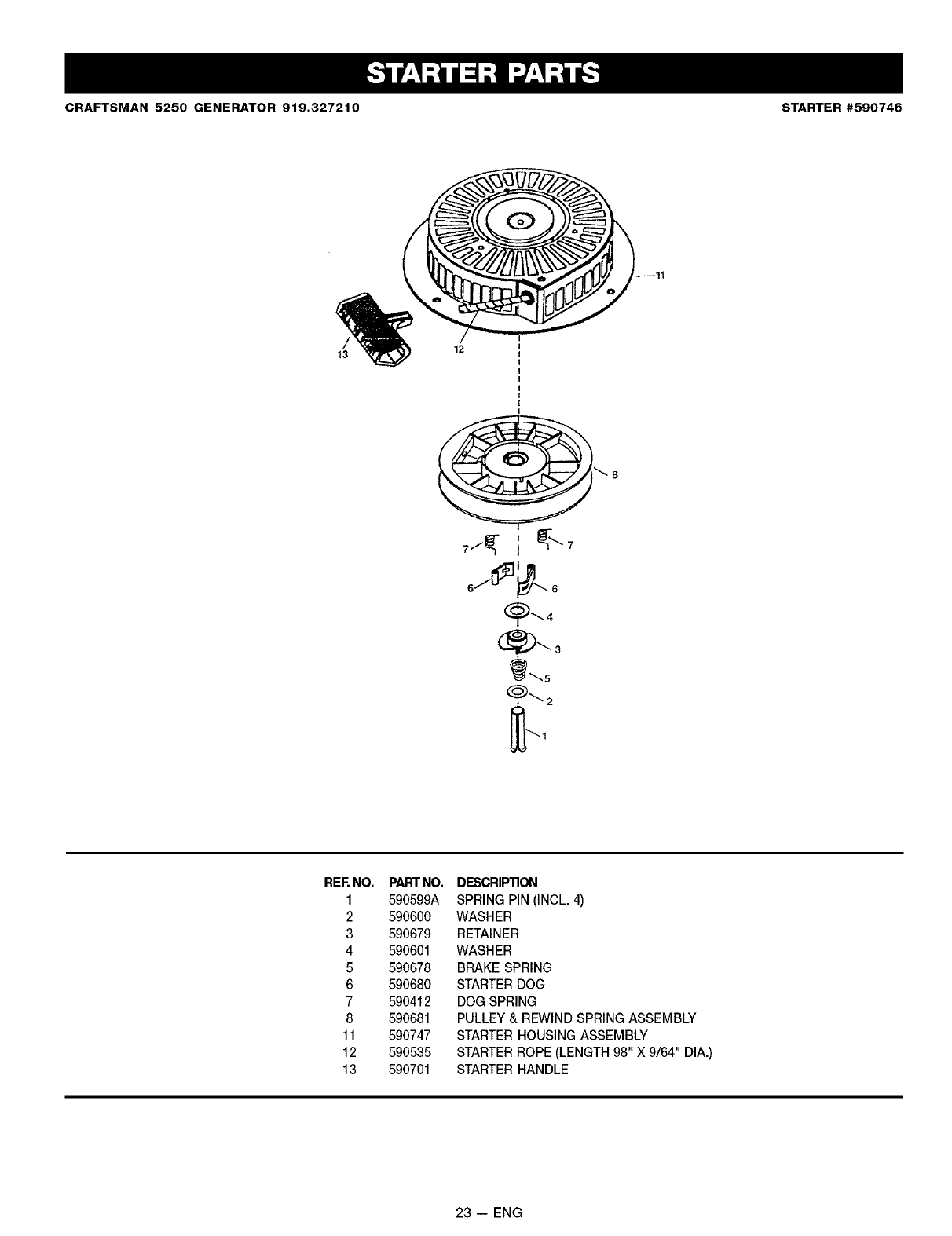

CRAFTSMAN 5250 GENERATOR 919.327210 STARTER #590745
--11
13 12
6j 6
RERNO.
1
2
3
4
5
6
7
8
11
12
13
PARTNO.
590599A
590600
590679
590601
590678
590680
590412
590681
590747
590535
590701
DESCRIPTION
SPRING PIN (INCL. 4)
WASHER
RETAINER
WASHER
BRAKE SPRING
STARTER DOG
DOG SPRING
PULLEY & REWIND SPRING ASSEMBLY
STARTER HOUSING ASSEMBLY
STARTER ROPE (LENGTH 98" X 9/64" DIA.)
STARTER HANDLE
23 -- ENG
CALIFORNIA & US EPA EMISSION CONTROL WARRANTY STATEMENT
The U. S. Environmental Protection Agency ("EPA"), the California Air Resources Board ("CARB") and Tecumseh Products Co.
are pleased to explain the Federal and California Emission Control Systems Warranty on your new utility or lawn and garden
equipment engine. In California, new 1995 and later utility and lawn and garden equipment engines must be designed, built and
equipped to meet the State's stringent anti-smog standards. In other states, new 1997 and later model year engines must be
designed, built and equipped, at the time of sale, to meet the U.S. EPA regulations for small non-road engines. Tecumseh
Products Co. will warrant the emission control system on your utility or lawn and garden equipment engine for the periods of time
listed below, provided there has been no abuse, neglect, unapproved modification, or improper maintenance of your utility or lawn
and garden equipment engine.
Your emission control system may include parts such as the carburetor, ignition system and exhaust system. Also included may
be the compression release system and other emission-related assemblies.
Where a warrantable condition exists, Tecumseh Products Co. will repair your utility or lawn and garden equipment engine at no
cost to you for diagnosis, parts and labor.
MANUFACTURER'S EMISSION CONTROL SYSTEM WARRANTY COVERAGE
Emission control systems on 1995 and later model year California utility and lawn and garden equipment engines are warranted
for two years as hereinafter noted. In other states, 1997 and later model year engines are also warranted for two years. If, during
such warranty period, any emission-related part on your engine is defective in materials or workmanship, the part will be repaired
or replaced by Tecumseh Products Co.
OWNER'S WARRANTY RESPONSIBILITIES
As the utility or lawn and garden equipment engine owner, you are responsible for the performance of the required maintenance
listed in your Owner's Manual, but Tecumseh Products Co. will not deny warranty solely due to the lack of receipts or for your
failure to provide written evidence of the performance of all scheduled maintenance.
As the utility or lawn and garden equipment engine owner, you should, however, be aware that Tecumseh Products Co. may
deny you warranty coverage if your utility or lawn and garden equipment or a part thereof has failed due to abuse, neglect,
improper maintenance or unapproved modifications.
You are responsible for presenting your utility or lawn and garden equipment engine to a Tecumseh Authorized Service Outlet
(any Tecumseh Registered Service Dealer, Tecumseh Authorized Service Distributor or Tecumseh Central Warehouse Distribu-
tor) as soon as a problem exists. The warranty repairs should be completed in a reasonable amount of time, not to exceed 30
days.
Warranty service can be arranged by contacting either aTecumseh Authorized Service Outlet or by contacting Tecumseh
Products Co., c/o Service Manager, Engine and Transmission Group Service Division, 900 North Street, Grafton, Wl 53024-1499.
Telephone 1-414-377-2700, or see your local telephone yellow pages under "Engines, Gasoline" for the name, address and
telephone number of a Tecumseh Authorized Service Outlet near you.
IMPORTANT NOTE
This warranty statement explains your rights and obligations under the Emission Control System Warranty ("ECS Warranty")
which is provided to you by Tecumseh Products Co. pursuant to California law. Tecumseh Products Co. also provides to odginal
purchasers of new Tecumseh Products Co. engines. The Tecumseh Products Co. Limited Warranties for New Tecumseh Engine
and Electronic Ignition Modules ("Tecumseh Products Co. Warranty') Which is enclosed with all new Tecumseh Products Co.
engines on a separate sheet. The ECS Warranty applies only to the emission control system of your new engine. To the extent
that there is any conflict in terms between the EC$ Warranty and the Tecumseh Products Co. Warranty, the ECS Warranty shall
apply except in any circumstances in which the Tecumseh Products Co. Warranty may provide a longer warranty period. Both
the ECS Warranty and the Tecumseh Products Co. Warranty describe important rights and obligations with respect to your new
engine.
Warranty service can only be performed by a Tecumseh Products Co. Authorized Service Outlet, or by Tecumseh Products Co.
at its factory in Grefton, Wl. At the time of requesting warranty service, evidence must be presented of the date of sale to the
original purchaser. The purchaser shall pay any charges for making service cells and/or for transporting the products to and from
the place where the inspection and/or warranty work is performed. The purchaser shall be responsible for any damage or loss
incurred in connection with the transportation of any engine or any part(s) thereof submitted for inspection and/or warranty work.
If you have any questions regarding your warranty dghts and responsibilities, you should contact Tecumseh Products Co. at
1-414-377-2700.
24 -- ENG
EMISSION CONTROL SYSTEM WARRANTY
Emission Control System Warranty ('ECS Warranty') for 1995 and later model year California utility and lawn and garden equip-
ment engines (for other states, 1997 and later model year engines):
A. APPLICABILITY: This warranty shall apply to 1995 and later model year California utility and lawn and garden equipment
engines (for other states, 1997 and later model year engines). The ECS Warranty Period shall begin on the date the new
engine or equipment is delivered to its original, end-use purchaser, and shall continue for 24 consecutive months thereafter.
B. GENERAL EMISSIONS WARRANTY COVERAGE: Tecumseh Products Co. warrants to the original, end-use purchaser of
the new engine or equipment and to each subsequent purchaser that each of its utility and lawn and garden equipment
engines is:
1. Designed, built and equipped so as to conform with all applicable regulations adopted by the Air Resources Board pursuant
to its authodty in Chapters 1 and 2, Part 5, Division 26 of the Health and Safety Code, and
2. Free from defects in materials and workmanship which, at any time during the ECS Warranty Period, will cause a warranted
emissions-related part to fail to be identical in all material respects to the part as described in the engine manufacturer's
application for certification.
C. The ECS Warranty only pertains to emissions-related parts on your engine, as follows:
1. Any warranted emissions-related parts which are not scheduled for replacement as required maintenance in the Owner's
Manual shall be warranted for the ECS Warranty Period. If any such part fa s dur ng the ECS Warranty Per od, it shall be
repaired or replaced by Tecumseh Products Co. according to Subsection 4 below. Any such part repaired or replaced
under the ECS Warranty shall be warranted for any remainder of the ECS Warranty Period.
.
3,
4,
Any warranted, emissions-related part which is scheduled only for regular inspection as specified in the Owner's Manual
shall be warranted for the ECS Warranty Period. A statement in such written instructions to the effect of "repair or replace
as necessary" shall not reduce.the ECSWarranty Period. Any such part repaired or replaced under the ECS Warranty
sha be warranted for the remainder of the ECS Warranty Period.
Any warranted, emissions-related part which is scheduled for replacement as required maintenance in the Owner's Manual,
shall be warranted for the period of time prior to the first scheduled replacement point for that part. If the part fails prior to
the first scheduled replacement, the part shall be repaired or replaced by Tecumseh Products Co. according to Subsection
4 below. Any such emissions-related part repaired or replaced under the ECS Warranty, shall be warranted for the remain-
der of the ECS Warranty Period prior to the first scheduled replacement point for such emissions-related part.
Repair or replacement of any warranted, emissions-related part under this ECS Warranty shall be performed at no charge to
the owner at a Tecumseh Au[h_ri_ed S_rvice Outlet. -
5.
6.
7.
8.
9_
The owner shall not be charged for diagnostic labor which leads to the determination that a part covered by the ECS
Warranty is in fact defective, provided that such diagnostic work is performed at a Tecumseh Authorized Service Outlet,
Tecumseh Products Co. shall be liable for damages to other original engine components or approved modifications proxi-
mately caused by a failure under warranty of an emission-related part covered by the ECS Warranty.
Throughout the ECS Warranty Period, Tecumseh Products Co. shall maintain a supply of warranted emission-related parts
sufficient to meet the expected demand for such emission-related pads.
Any Tecumseh Products Co. authorized and approved emission-related replacement part may be used in the performance
of any ECS Warranty maintenance or repair and will be provided without charge to the owner. Such use shall not reduce
Tecumseh Products Co. ECS Warranty obligations.
Unapproved add-on or modified parts may not be used to modify or repair a Tecumseh Products Co. engine. Such use
voids this ECS Warranty and shall be sufficient grounds for disallowing an ECS Warranty claim. Tecumseh Products Co.
shall not be liable hereunder for failures of any warranted parts of a Tecumseh Products Co. engine caused by the use of
such an unapproved add-on or modified part.
EMISSION-RELATED PARTS INCLUDE THE FOLLOWING:
2_
3.
Carburetor Assembly and its Internal Components
a) Fuel filter
b) Carburetor gaskets
c) Intake pipe
Air Cleaner Assembly
a) Air filter element
Ignition System, including:
a) Spark plug
b) Ignition module
4. Catalytic Muffler (if so equipped)
a) Muffler gasket (if so equipped)
b) Exhaust manifold (if so equipped)
5. Crankcase Breather Assembly and its Components
a) Breather connection tube
25 -- ENG
For in-home major brand repair service:
Call 24 hours a day, 7 days a week
1-800-4-MY-HOME TM(1-800-469-46631
Para pedir servicio de reparacion a domicillo m 1-800-676-5811
In Canada for all your service and parts needs call 1-800-665-4455
Au Canada pour tout le service ou les pieces
For the repair or replacement parts you need:
Call 6 am - 11 pm CST, 7 days a week
PartsDirectTM
1-800-366-PART (1-800-366-7278)
Para ordenar piezas con entrega a domicillo -- 1-800-1659-7084
For the location of a Sears Parts and Repair Center in your area:
Call 24 hours aday, 7days a week
1-800-488-1222
For information on purchasing a Sears Maintenance Agreement
or to inquire about an existing Agreement:
Call 9 am _5 pm, Monday _Saturday
1-800-827-6655
HomeCentraF

Navigation menu
