OWNER'S MANUAL

S_FA/RS

SEWING MACHINE

MODELS 385. 12708

385. 12710

385. 12712

385. 12714

SEARS CANADA INC.

Dear Customer:

You have just invested in avery fine zigzag sewing machine. Before using your new Kenmore machine,

please pause for a moment and carefully read this booklet which contains instructions on how to operate

and care for your machine.

Specific instructions are given on threading, tension adjustments, cleaning, oiling, etc. This will help you

obtain the best sewing results and avoid unnecessary service expense for conditions beyond our control.

Advice on the operation and care of your machine is always available at your nearest Sears Retail Store.

Please remember, if you have questions about your machine or need parts and service, always mention

the model number and serial number when you inquire.

Kenmore Sewing Machine

Record in space provided below the model number and serial

number of this appliance. The model number and serial number

are located on the nomenclature plate, as identified on Page 4 of

this booklet.

Model No. 385. Serial No

Retain these numbers for future reference.

THIS MODEL IS A CENTER NEEDLE, LOW BAR SEWING MACHINE.

TABLE OFCONTENTS

SECTION 1.

SECTION 2.

SECTION 3.

KNOW THE MACHINE

A Portable Case or Cabinet is Avaialble .............. 3

Locate and Identify the Parts .................. 3_4

Identify the Accessories ........................ 4

PREPARE THE MACHINE FOR SEWING

Set Up the Machine ......................... 5_7

• Plug in the Machine and Switch on the Power ....... S

•Foot Control Use .......................... 5

•Setting Spool Pins .......................... 6

•Adjust the PresserFoot Lever .................. 6

• Thread Cutter ............................ 6

•Free Arm Sewing: the Removable Extension Table .. . 7

•AccessoriesStorage Box ' 7

•Change the PresserFoot ...................... 7

Choose the Needle and Thread ................. 7_8

•To Change the Needle ....................... 7

•Check the Needle .......................... B

•Fabric, Needle, Thread and Stitch Length Chart ...... 8

Prepare the Bobbin ........................ 9_10

• To Remove the Bobbin Case from the Machine ...... 9

•Wind the Bobbin ....................... 9_10

•Insert the Bobbin into the Bobbin Case ........... 10

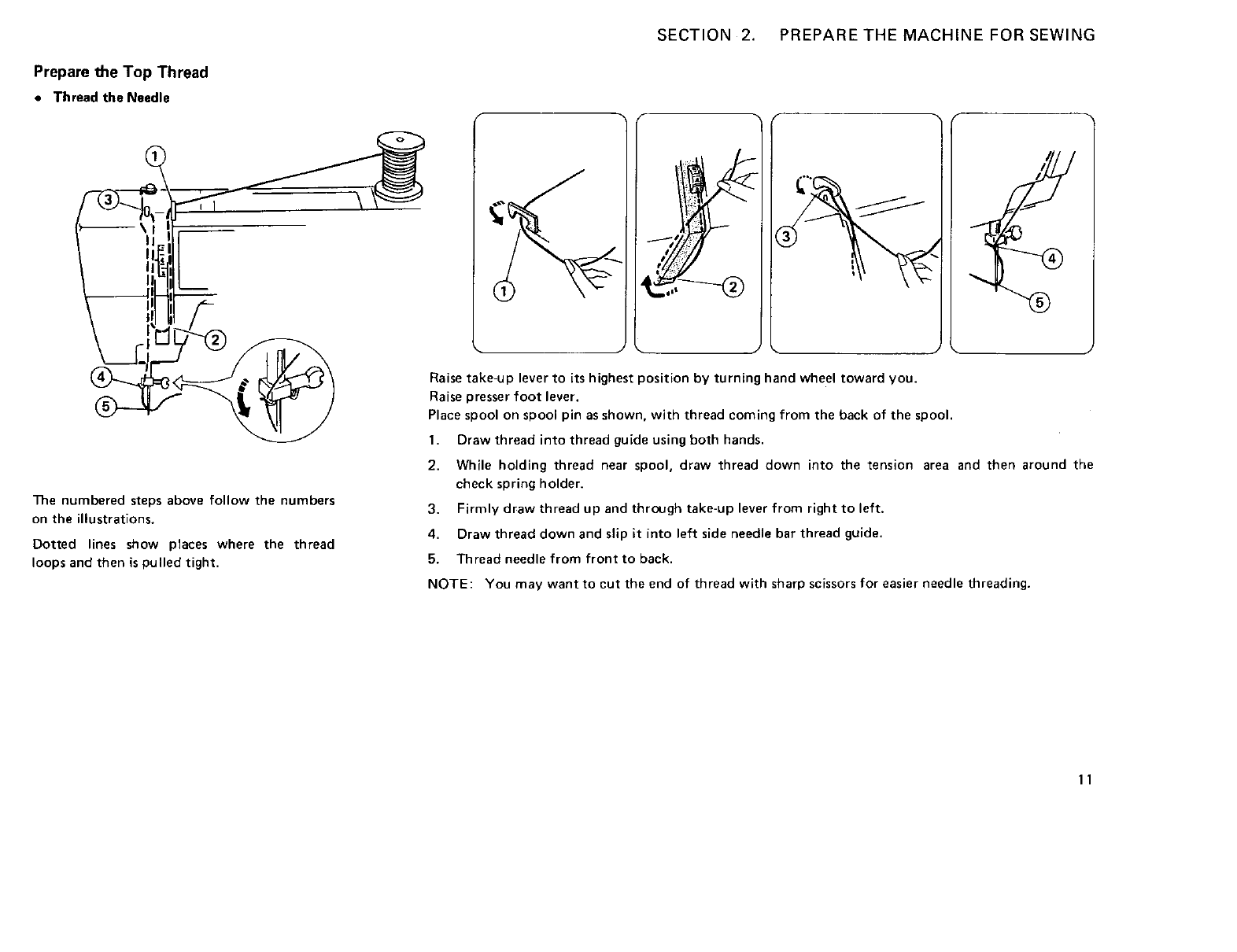

Prepare the Top Thread ..................... 11_12

•Thread the Needle ........................ 11

•Pick Up the Bobbin Thread .................. 12

Adjust the Top Thread Tension ................ 13_14

ReverseStitch Control ........................ 14

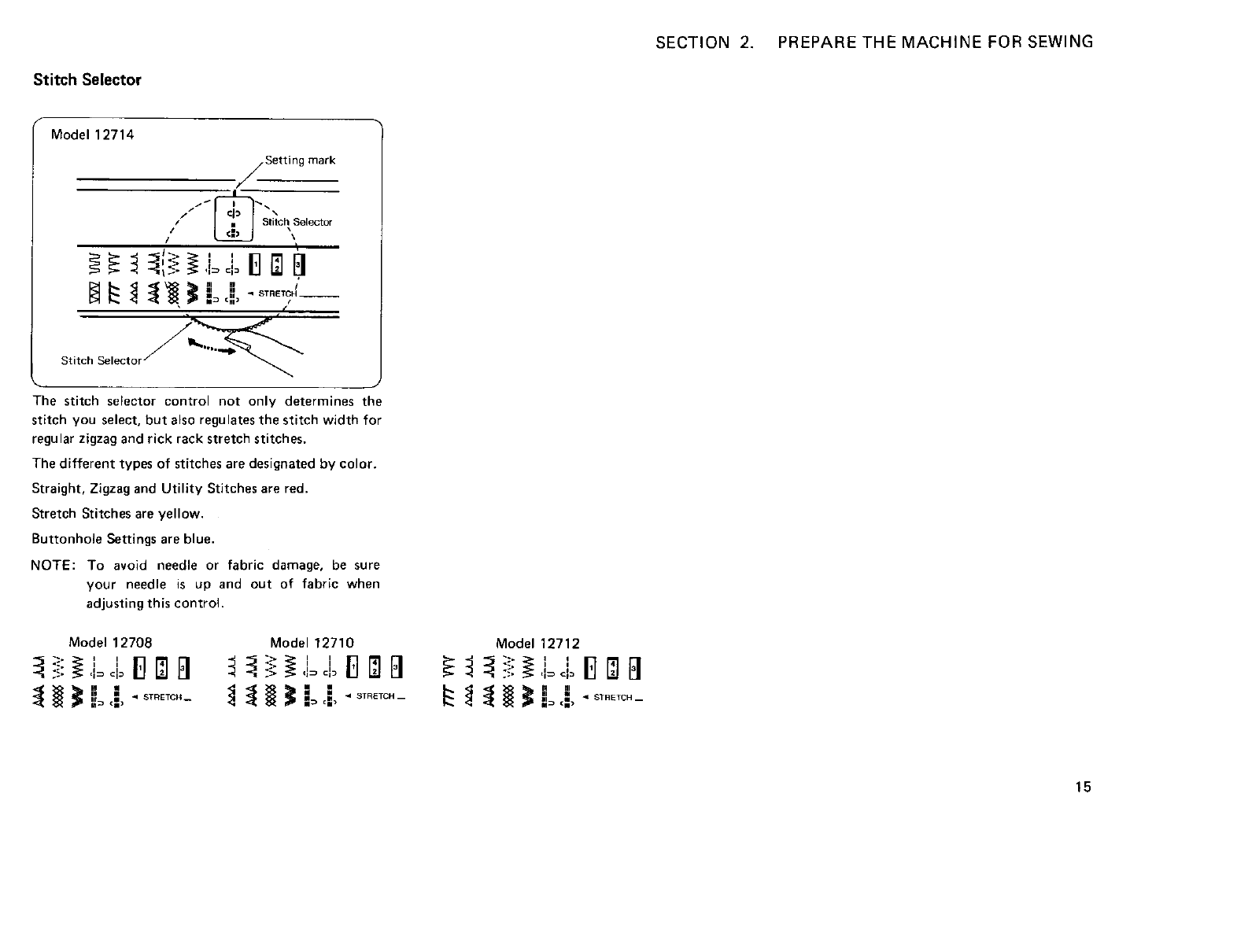

Stitch Selector ............................. 15

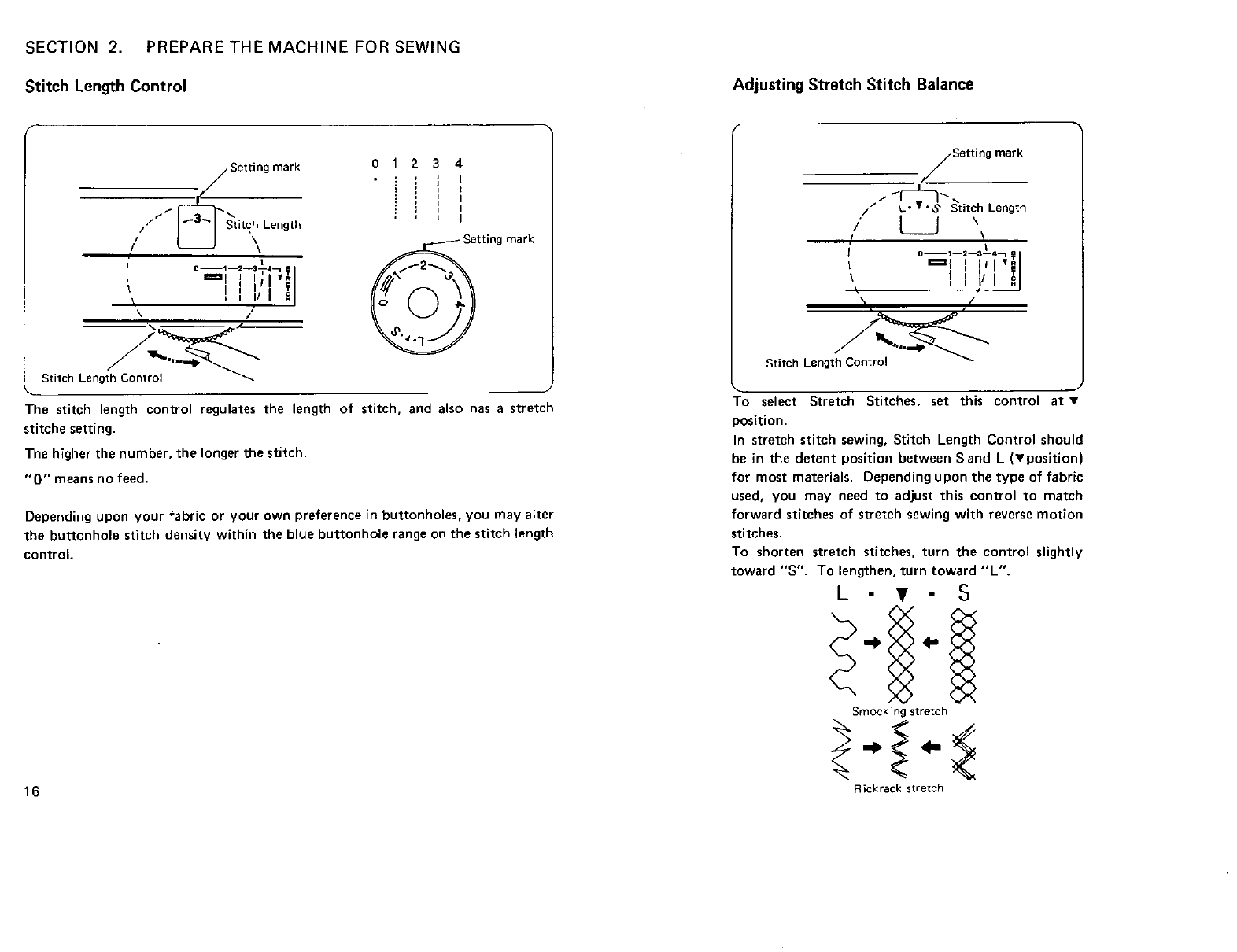

Stitch Length Control ........................ 16

Adjusting Stretch Stitch Balance ................. 16

Starting To Sew ............................ 17

LEARN THE STITCHES

Straight Stitches .......................... 18_22

•Straight Stitch ........................... 18

•Use the Seam Guides ....................... 18

•Turn a Square Corner ...................... 18

•Topstitching ............................ 19

•Left Needle Position ....................... 19

• Sew in a Zipper ........................ 20_21

•Use the Darning Plate ...................... 22

• Darning ............................... 22

Zigzag Stitches ........................... 23_30

•Basic Zigzag ............................. 23

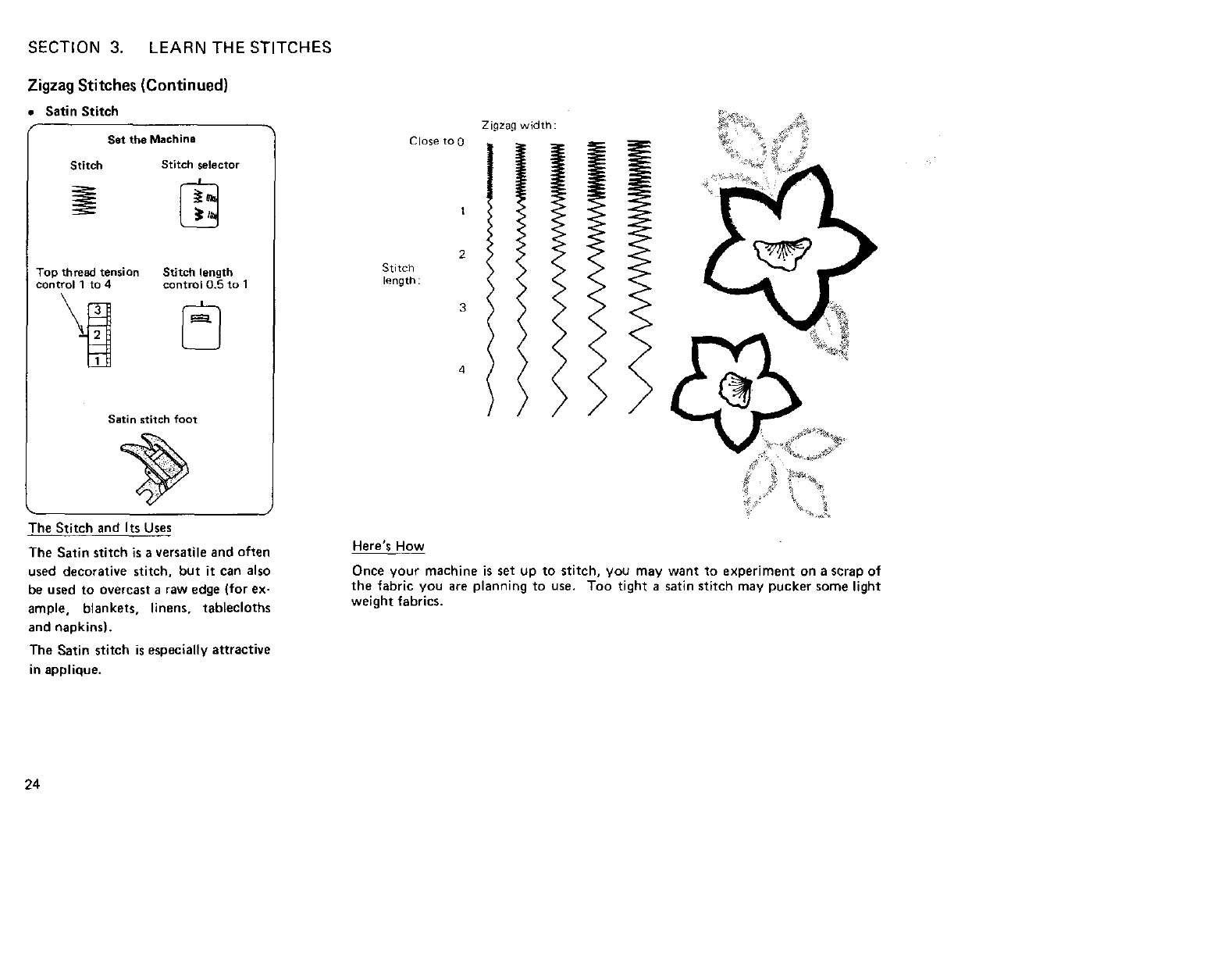

• Satin Stitch ............................. 24

• Applique ............................... 25

• Bar Tacklng ............................. 25

• Sew a Button ............................ 26

• Overcasting Stitch ......................... 27

• Three-Step Zigzag ......................... 28

• LaceWork .............................. 28

• Blind Hemming .......................... 29

• Shell Stitching (Models 12712and 12714) ........ 30

• Box Stitching (Model 12714 only) .............. 30

Stretch Stitches .......................... 31 _33

• Straight Stretch .......................... 31

•Rick-Ruck Stretch ........................ 31

• Smocking .............................. 32

• Overcast Stretch Stitching ................... 32

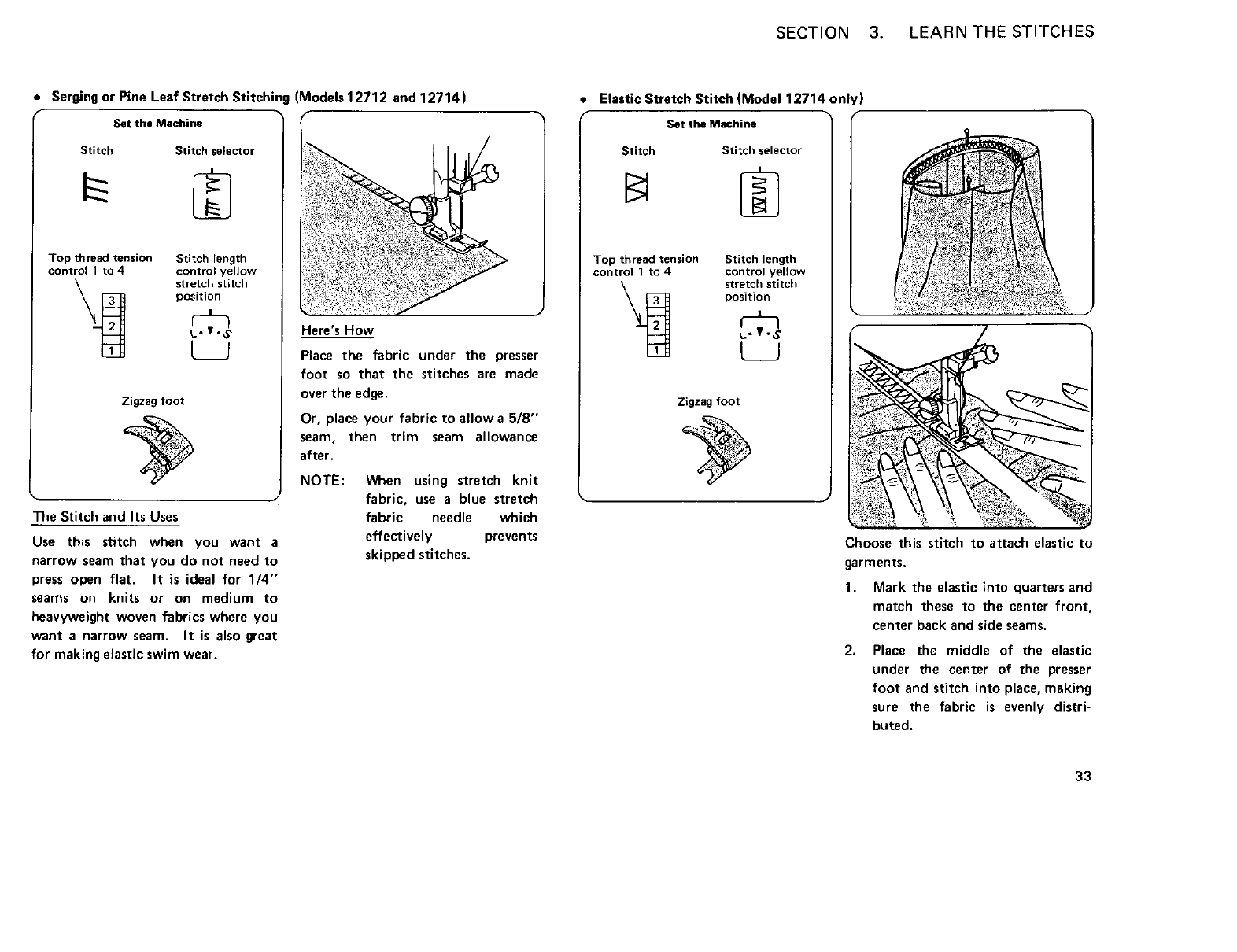

• Serging or Pine Leaf Stretch Stitching

(Models 12712 and 12714) ................... 33

• Elastic Stretch Stitch (Model 12714 only) ......... 33

Buttonholes ............................. 34_35

SECTION 4. PERFORMANCE PROBLEMS CHART

What to Do When ........................ 36_37

SECTION 5. CARE FOR THE MACHINE

Replacing the Light Bulb ...................... 38

Cleaning the Machine ...................... 38_39

• Clean the Feed Dogs ....................... 38

• Clean the Shuttle Race ..................... 39

Oiling the Machine .......................... 40

• Oil behind the Face Cover Plate and Under

Arm Cover Plate .......................... 40

• Oil the Underside ......................... 40

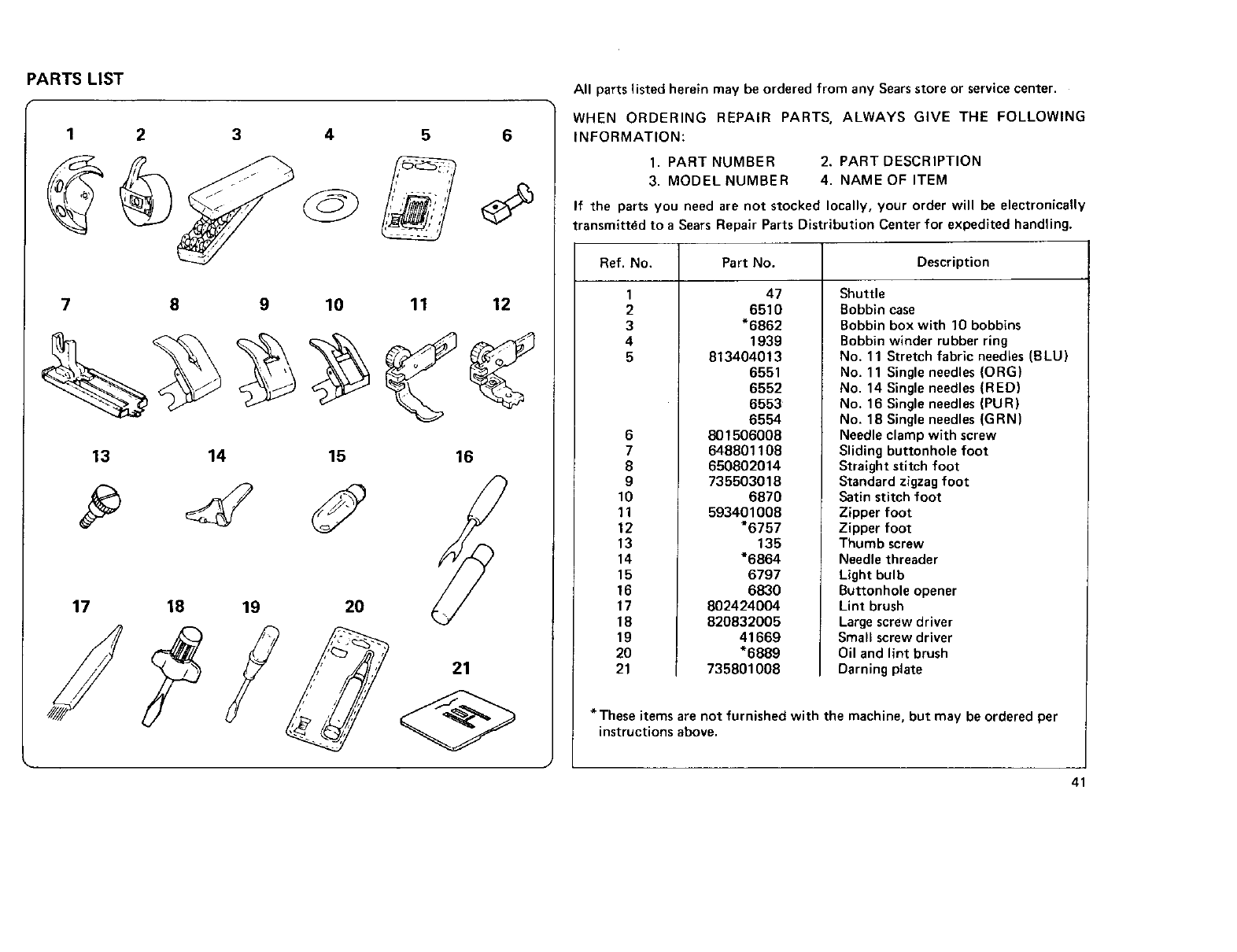

PARTS LIST ........................................ 41

INDEX ............................................ 42

SECTION 1. KNOW THE MACHINE

APortable Case or Cabinet is Available

A full line of sewing cabinets is available at your

nearest Sears retail store or through our general

catalog,

Another option . . . buy a Carrying Case . . . then

your Kenmore goes anywhere, can be stored any-

where.

Locate and Identify the Parts

Take-up Lever

Bobbin Winding Tension Disc \

Upper Thread Guide Thread Spool Pins

Bobbin Winding Spindle

Top Thread Tension Control

Face Cover Plate

Thread Cutter

Stitch Length Control

Reverse Stitch Control

Needle Plate

Shuttle Cover

Extension Table

(Accessory storage box)

Stitch Selector

SECTION 1. KNOWTHEMACHINE

Identify the Accessories

Arm Cover Plate \

Hand Wheel

Auto Clutch Kno _i_

Light and

power Switch

Plug Connector __

Presser Foot

Carrying Handle

Presser Foot Lever

_ Nomenclature Plate

Free Arm

Foot Control

Need le set /_I lI'_

Lint brush

_mall screw driver

__ittonhole opener

(_ Large screw driver

Sliding

buttonhole foot

Zipperfoot

Straight

stitch foot

Satin stitch

foot

Set Up the Machine

Plugin the MachineandSwitchon the Power

SECTION 2. PREPARE THE MACHINE FOR SEWING

Foot Control Use

NOTE:

Power supply plug

Power _1 _[_

switch Power

supply

Plug

connector

Machine

plug

Before inserting the plug into your

machine, be sure the power switch is

OFF.

Check your outlet to be sure it is a 110 to 120

Volt AC outlet.

Insert the machine plug into the three-prong

plug connector, as shown. It will only fit one

way.

Insert the power supply plug into the outlet.

light

Power swltch

4, Push the light and power switch to turn

on the power and sewing light,

SAFETY FEATURE:

Your machine will not operate unless the

light/power switch is turned on. If you are

interrupted or stop sewing, turn off the

light/power switch to prevent injury to

children.

Foot control

The foot control regulates the speed at

which you sew.

To increase speed, gentry press down with

the ball of your foot.

To decrease speed, release your foot pres-

sure slightry.

NOTE: The foot control is sensitive and

will increase or decrease your

sewing speed immediately.

Practice on a scrap of fabric to

regulate your sewing speed to

your taste and needs.

SECTION 2. PREPARE THE MACHINE FOR SEWING

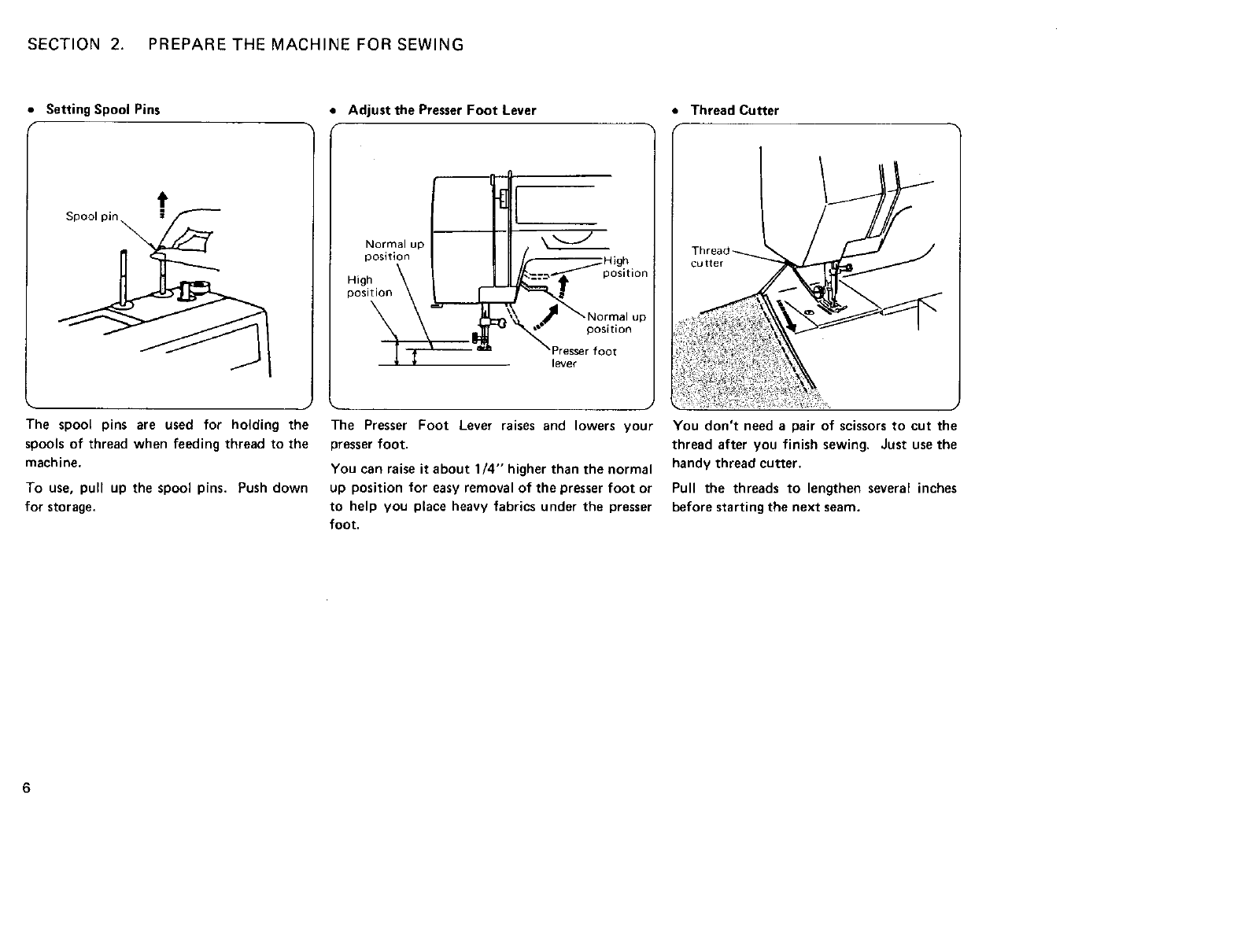

Setting Spool Pins

Spool pin

The spool pins are used for holding the

spools of thread when feeding thread to the

machine.

To use, pull up the spool pins. Push down

for storage.

Adjust the Presser Foot Lever

Normal up __._

position

positior

High

position

'Presser foot

lever

The Presser Foot Lever raises and lowers your

presser foot.

You can raise it about 1/4""higher than the normal

up position for easy removal of the presserfoot or

to help you place heavy fabrics under the presser

foot.

•Thread Cutter

Jtter

You don't need a pair of scissors to cut the

thread after you finish sewing. Just use the

handy thread cutter.

Pull the threads to lengthen several inches

before starting the next seam.

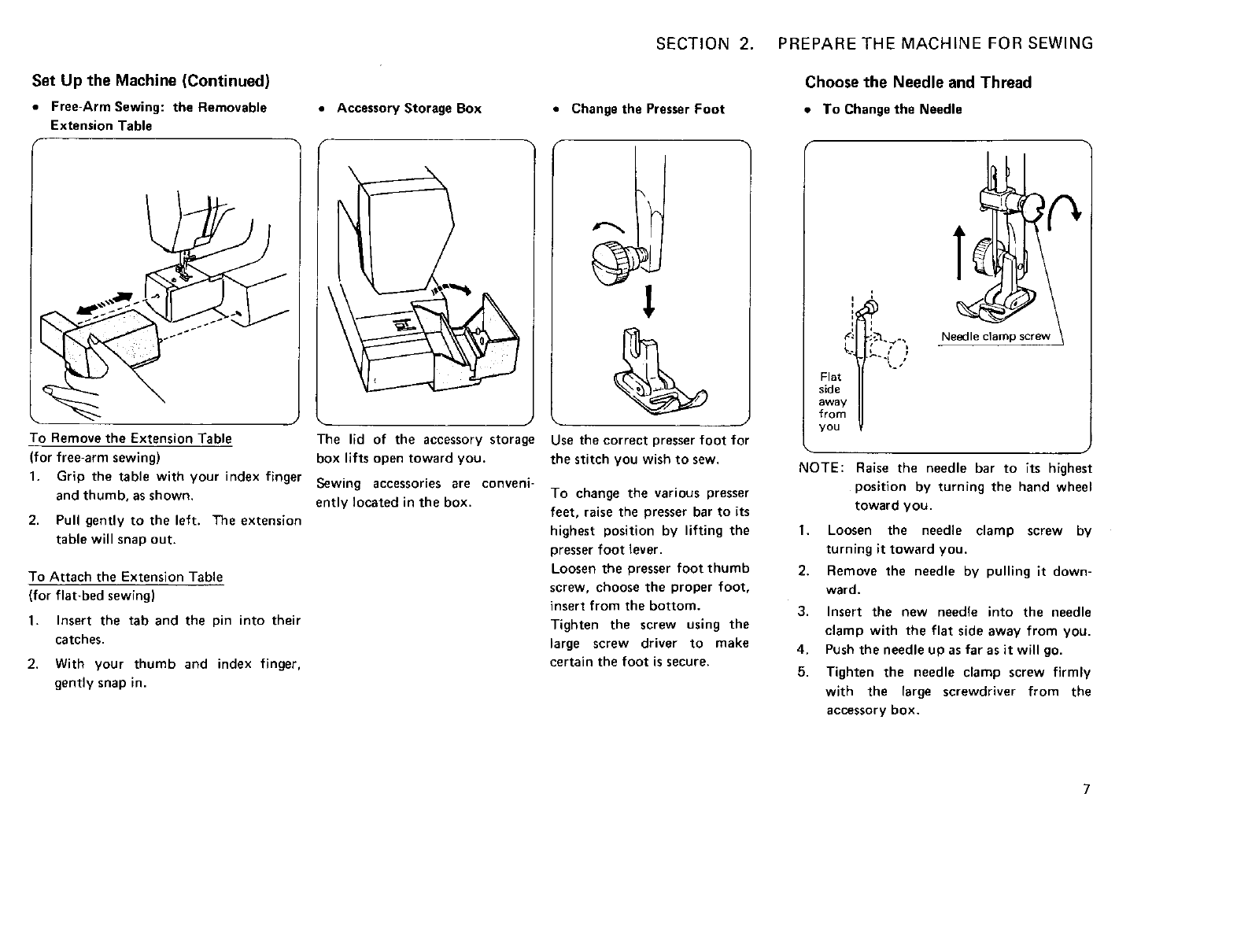

Set Up the Machine (Continued)

• Free-Arm Sewing: the Removable

Extension Table

•Accessory Storage Box

To Remove the Extension Table The lid of the accessory storage

(for free-arm sewing) box lifts open toward you.

1. Grip the table with your index finger Sewing accessories are conveni-

and thumb, as shown, ently located in the box.

2. Pull gently to the left. The extension

table will snap out.

To Attach the Extension Table

(for flat*bed sewing)

1. Insert the tab and the pin into their

catches.

2. With your thumb and index finger,

gently snap in.

SECTION 2.

•Change the Presser Foot

Use the correct presser foot for

the stitch you wish to sew.

To change the various presser

feet, raise the presser bar to its

highest position by lifting the

presserfoot lever.

Loosen the presser foot thumb

screw, choose the proper foot,

insert from the bottom.

Tighten the screw using the

large screw driver to make

certain the foot is secure.

PREPARE THE MACHINE FOR SEWING

Choose the Needle and Thread

• To Change the Needle

Flat

side

away

from

you

(

_",_"k Needle clamp screw

•-._ /

,_i

NOTE: Raise the needle bar to its highest

position by turning the hand wheel

toward you.

I, Loosen the needle clamp screw by

turning it toward you.

2, Remove the needle by pulling it down-

ward.

3. Insert the new needle into the needle

clamp with the flat side away from you.

4. Push the needle up as far as it will go.

5. Tighten the needle clamp screw firmly

with the rarge screwdriver from the

accessory box.

SECTION 2. PREPARE THE MACHINE FOR SEWING

II _- ,1

L- ir

Your choice of needle and thread depends on the fabric you are

sewing.

rn the needle envelope, you will find the following color-coded

needles:

Blue (11 ) ......... for stretch fabrics.

Orange (11) ........ for lightweight fabrics.

Red (14) .......... for medium or medium-heavy

weight fabrics.

Purple (16) ........ for medium-heavy weight fabrics

and decorative topstitehing on these

fabrics. (This needle has a larger

thread hole for thicker topstitching

thread.)

Green (18) ........ for heavy weight fabrics and

decorative top-stitching on these

fabrics.

Replacement Kenmore needles ere available at your nearest Sears

store.

• Check the Needle

1. Look for barbed or blunt point.

2. A damaged needle can cause permanent snags or runs in

knits, fine silks and silk-like fabrics.

Always buy a good quality thread. It should resist tangling and

be strong, smooth and consistent in thickness.

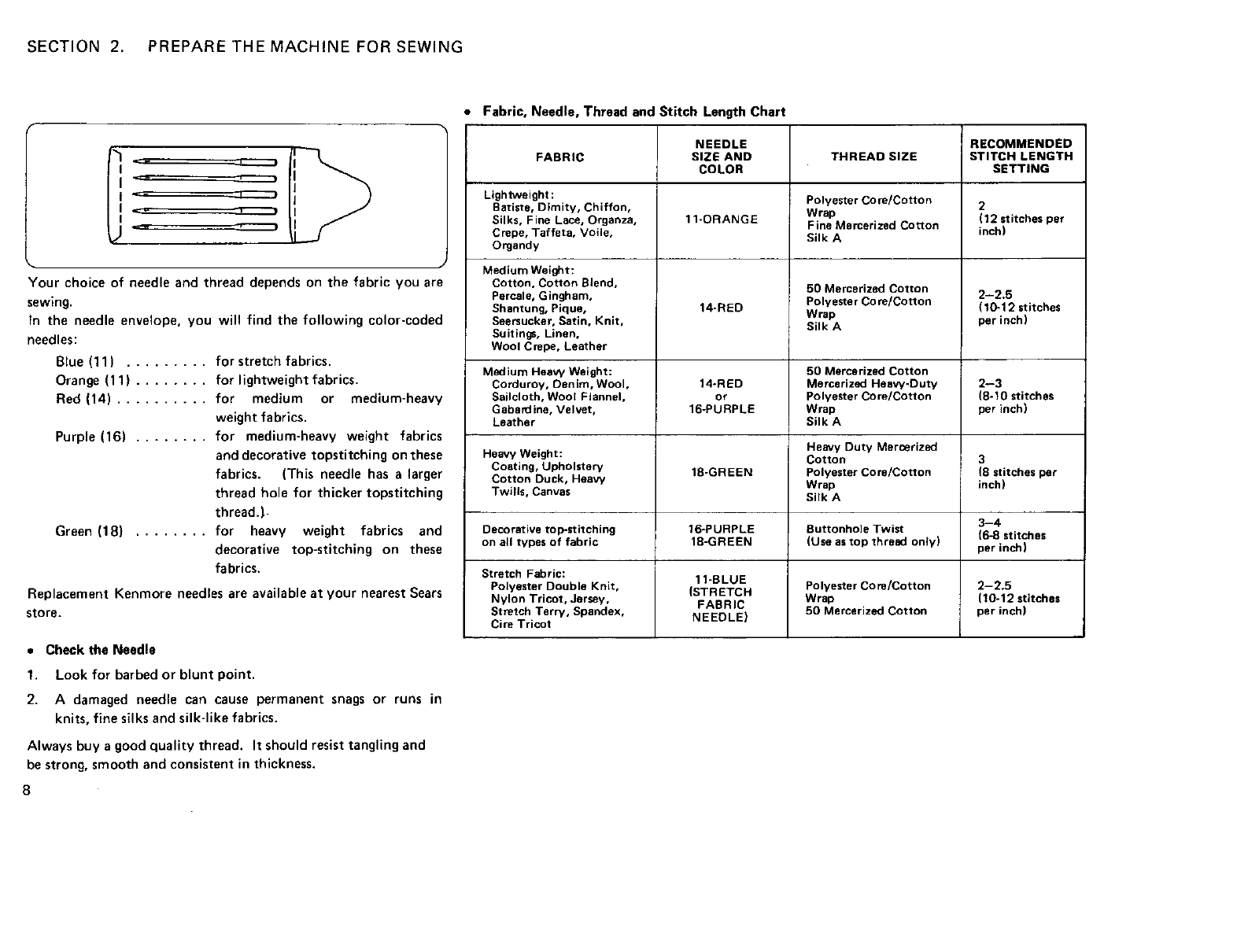

Fabric, Needle, Thread and Stitch Length Chart

NEEDLE RECOMMENDED

FABRIC SIZE AND THREAD SIZE STITCH LENGTH

COLOR SETTING

Lightweight : Polyester Core/Cotton 2

Batiste, Dimity, Chiffon, Wrap (12 stitches per

Silks, Fine Lace, Organza, 11-ORANGE Fine Mercerized Cotton inch)

Crepe, Taffeta, Voile, Silk A

Organdy

Medium Weight:

Cotton, Cotton Blend, 50 Mercerized Cotton

Percale, Gingham, Polyester Core/Cotton 2--2.5

110-12 stitches

Shantung, Pique, 14-RED Wrap per inch)

Seersucker, Satin, Knit, Silk A

Suit ings, Linen,

Wool Crepe, Leather

Medium Heavy Weight: 50 Mercerized Cotton

Corduroy, Den ira, Wool, 14oR ED Mercerized Heavy-Duty 2--3

Sailcloth, Wool Flannel, or Polyester Core/Cotton (8-10 stitches

Gabardine, Velvet, 16-PURPLE Wrap per inch)

Leather Silk A

Heavy Duty Mercerized

Heavy Weight: Cotton 3

Coating, Upholstery 18-GREEN Polyester Core/Cotton (S stitches per

Cotton Duck, Heavy Wrap inch)

Twills, Canvas Silk A

3--4

Decorative top-stitching 16-PURPLE Buttonhole Twist 16-8 stitches

on all types of fabric 18-GREEN (Use as top thread only) per inch)

Stretch Fabric: 11-BLUE

Polyester Double Knit, (STRETCH Polyester Core/Cotton 2-2.5

Nylon Tricot, Jersey, FABRIC Wrap (10-12 stitches

Stretch Terry, Spandex, NEEDLE) 50 Mercerized Cotton per inch)

Cire Tricot

Prepare the Bobbin

•To Removethe BobbinCasefrom the Machine

SECTION 2. PREPARE THE MACHINE FOR SEWING

•Wind the Bobbin

Remove the extension table from

the machine by pulling it to the

left. Open the shuttle cover by

pulling down the embossed part on

the left side of the cover.

Raise needle to its highest position

by rotating hand wheel toward you.

To remove bobbin case from shut-

tle, pull open latch of bobbin case.

Pull bobbin case straight out of

shuttle.

Release clutch by turning the

clutch knob inside the hand wheel

toward you to stop the needle from

moving while you wind the

bobbin.

SECTION 2. PREPARE THE MACHINE FOR SEWING

Wind the Bobbin (Continued)

Draw thread from spool through

bobbin winding tension disc as shown.

Pull end of thread through hole in

bobbin asshown.

Place bobbin onto bobbin winding

spindle with end of thread coming

from the top of the bobbin. Push

bobbin winding spindle to the right

until it clicks. Holding onto end of

thread, start machine, When bobbin is

slightly filled, snip off end of thread.

Wind thread until winder stops.

Push bobbin winding spindle to the

left and clip thread. Remove bobbin.

Turn clutch knob away from you

while holding hand wheel for normal

sewing operation.

Insert the Bobbin into the Bol bin Case

Place bobbin in bobbin case Pull thread through slot of case Pull thread under tension

making sure thread feeds clock- as shown, spring and through the opening

wise and is coming from as shown above. Pull 3 to4

bobbin as shown, inches of thread from bobbin.

Holding latch open, position Case should lock into place

case into shuttle and release when latch is released.

latch.

Prepare the Top Thread

• Thread the Needle

SECTION 2. PREPARE THE MACHINE FOR SEWING

ILuLf_

Raise take-up lever to its highest position by turning hand wheel toward you.

Raise presser foot lever.

Place spool on spool pin as shown, with thread coming from the back of the spool.

1. Draw thread into thread guide using both hands.

The numbered steps above follow the numbers

on the illustrations.

Dotted lines show places where the thread

loops and then is pulled tight.

2. While holding thread near spool, draw thread down into the tension area and then around the

check spring holder.

3. Firmly draw thread up and through take-up lever from right to left,

4. Draw thread down and slip it into left side needle bar thread guide.

5. Thread needle from front to back.

NOTE: You may want to cut the end of thread with sharp scissors for easier needle threading.

SECTION 2. PREPARE THE MACHINE FOR SEWING

Pick Up the Bobbin Thread

1. Raise presser foot lever. Hold top

thread loosely in left hand and rotate

handwheel toward you one complete

turn.

2. Bring bobbin thread up by pulling

top thread.

3. Pull both threads under and to the

back of the presser foot, leaving 4

to 6 inches of thread clear.

If you cannot pick up bobbin thread by following steps given above, then check:

1. Is needle threaded from front to back?

2. Is thread tangled around needle?

3. Are 3 to 4 inches of thread coming from the shuttle?

4. Is thread from shuttle tangled?

5. Is bobbin properly installed in the bobbin case?

6. Is the machine threaded according to the instructions?

Adjust the Top Thread Tension

SECTION 2. PREPARE THE MACHINE FOR SEWING

Top side of fabric

Top

_hread

Bobbin

Setting mark

Tighten

For Straight Stitch

The ideal straight stitch will have threads locked between the two layers of

fabric, asshown above, magnified to show detail.

If you look at the stitch, front and back, you will notice that there are no

gaps,that each stitch is smooth and even.

When adjusting top thread tension, the higher the number, the tighter the top

thread.

Choose the Correct Tension:

The best tension will depend on;

the stiffness and thickness of the fabric

--~ the number of fabric layers

--- the type of stitch

The top thread

is too loose.

o%°

The top thread

appears on the

underside of the

fabric.

The top thread

is too tight

The bobbin thread

appears on the

upper surface of the

fabric.

Tension is too loose: Tension is too tight:

The top thread shows through the The bobbin thread will come through

bottom of the fabric. The bottom side the top of the fabric. The top side of

of the stitch will feel bumpy, the stitch will feel bumpy.

SECTION 2. PREPARE THE MACHINE FOR SEWING

For Zigzag Stitch

In a correct zigzag stitch, the bobbin threads will not show on the top side

of fabric and the top threads will show slightly on the bottom side. See

below for the correct appearance, To match this appearance, adjust the top

tension.

Top tension Top tension

Too Tight Too Loose Just Right

Top side of Fabric Top side of Fabric Top side of Fabric

Reverse Stitch Control

To reverse stitch, hold down this control during

sewing.

Releaseto sew forward again.

Bottom side of Fabric Bottom side of Fabric

Too Tight: Too Loose:

-- Corner of each -- The top thread

zigzag will pull will loop through

together on the bottom side of

top side of fabrics, fabric and will be

pulled almost

together.

Bottom side of Fabric

Just Right:

Minimize the amount

of top thread visible on

the bottom side of

fabric without causing

excessive puckering or

causing the bobbin

thread to show on the

top side. Results vary

with fabric, thread and

sewing condition&

Stitch Selector

SECTION 2. PREPARE THE MACHINE FOR SEWING

Model 12714

Settlng mark

// _StitchSelector

m If "q /STRETCH ___

• m D CHI] (t

Stitch Selector /_"'"_ "_ _

The stitch selector control not only determines the

stitch you select, but also regulates the stitch width for

regular zigzag and rick rack stretch stitches.

The different types of stitches are designated by color.

Straight, Zigzag and Utility Stitches are red.

Stretch Stitches are yellow.

Buttonhole Settings are blue.

NOTE: To avoid needle or fabric damage, be sure

your needle is up and out of fabric when

adjusting this control.

Model 12708 Model 12710

}io,L""O'TO"-

Model 12712

:dl • _ STRETCH_

m_ era)

SECTION2. PREPARETHE MACHINEFOR SEWING

Stitch Length Control

j Setting mark

/Stitch Length

[I i I I I I

\I i/I .=1

\//

Stitch Length Control

0 2 4

l t

' t

tting mark

The stitch length control regulates the length of stitch, and also has astretch

stitche setting.

The higher the number, the longer the stitch.

"0'" means no feed.

Depending upon your fabric or your own preference in buttonholes, you may alter

the buttonhole stitch density within the blue buttonhole range on the stitch length

control.

Adjusting Stretch Stitch Balance

Setting mark

'///_L- Tl_'2_titch Length

Io--I12--3 t_4_

_l III Till

II J t

Stitch Length Control

To select Stretch Stitches, set this control at •

position.

In stretch stitch sewing, Stitch Length Control should

be in the detent position between Sand L (vposition)

for most materials. Depending upon the type of fabric

used, you may need to adjust this control to match

forward stitches of stretch sewing with reverse motion

stitches.

To shorten stretch stitches, turn the control slightly

toward "S". To lengthen, turn toward "'L".

L••• S

Smocking stretch

Rick rack stretch

Stardng To Sew

SECTION 2. PREPARE THE MACHINE FOR SEWING

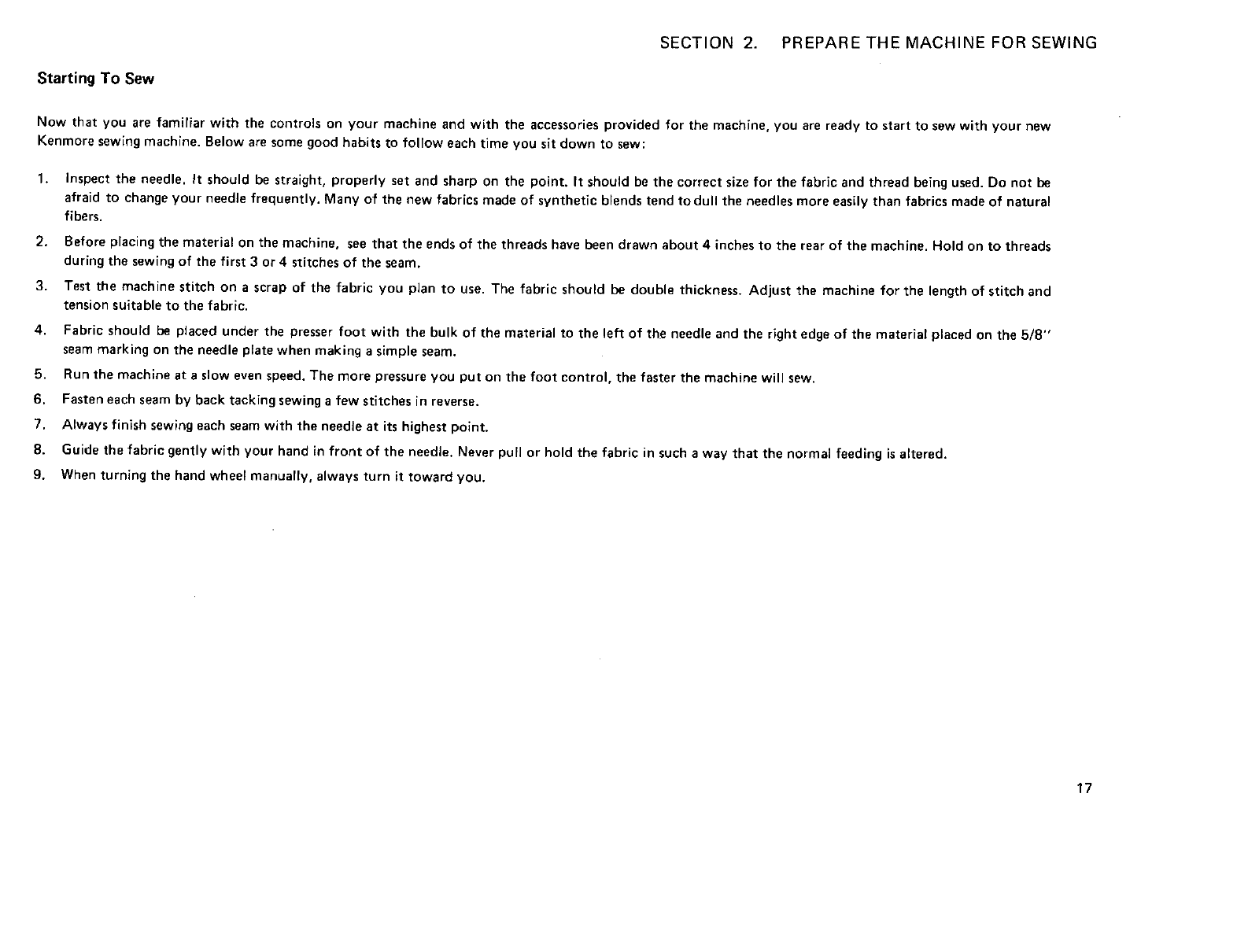

Now that you are familiar with the controls on your machine and with the accessoriesprovided for the machine, you are ready to start to sew with your new

Kenmore sewing machine. Below are some good habits to follow each time you sit down to sew:

Inspect the needle, it should be straight, properly set and sharp on the point. It should be the correct size for the fabric and thread being used. Do not be

afraid to change your needle frequently. Many of the new fabrics made of synthetic blends tend to dull the needles more easily than fabrics made of natural

fibers.

Before placing the material on the machine, see that the ends of the threads have been drawn about 4 inches to the rear of the machine. Hold on to threads

during the sewing of the first 3 or 4 stitches of the seam.

Test the machine stitch on a scrap of the fabric you plan to use. The fabric should be double thickness. Adjust the machine for the length of stitch and

tension suitable to the fabric.

4. Fabric should be placed under the presser foot with the bulk of the material to the left of the needle and the right edge of the material placed on the 5/8"

seammarking on the needle plate when making a simple seam.

5. Run the machine at a slow even speed. The more pressure you put on the foot control, the faster the machine will sew.

6. Fasten each seam by back tacking sewing a few stitches in reverse.

7. Always finish sewing each seam with the needle at its highest point.

8. Guide the fabric gently with your hand in front of the needle. Never pull or hold the fabric in such a way that the normal feeding is altered.

9. When turning the hand wheel manually, always turn it toward you.

SECTION 3. LEARN THE STITCHES

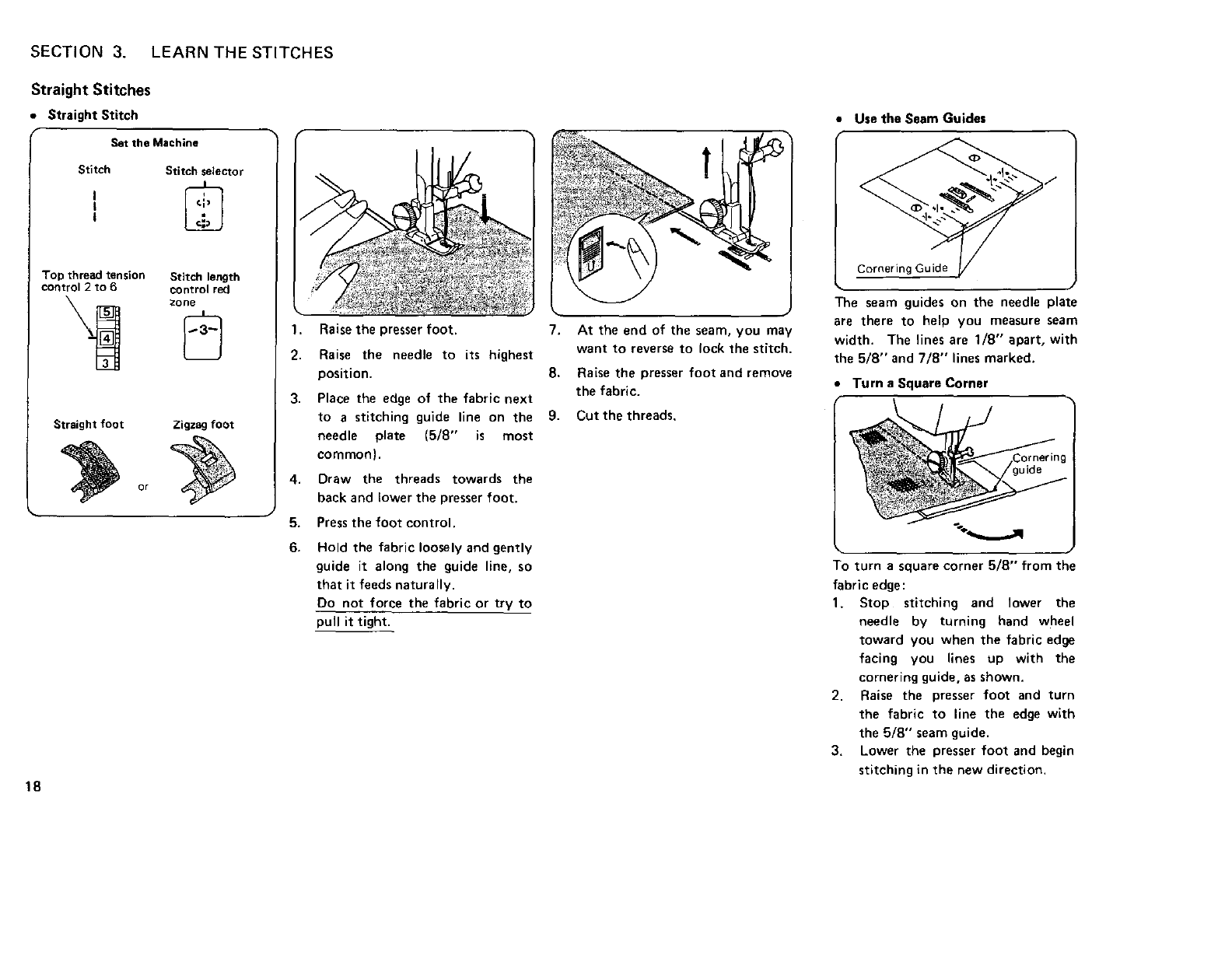

Straight Stitches

Straight Stitch

Set the Machine

Stitch Stitch selector

Top thread tension Stitch length

control 2 to 6 control red

x_ z°n_

Straight foot Zigzag foot

Raise the presser foot,

Raise the needle to its highest

position.

Place the edge of the fabric next

to a stitching guide line on the

needle plate (5/8" is most

common).

Draw the threads towards the

back and lower the presser foot.

Press the foot control.

Hold the fabric loosely and gently

guide it along the guide line, so

that it feeds naturally.

Do not force the fabric or try to

pull it tight.

At the end of the seam, you may

want to reverse to lock the stitch.

Raise the presser foot and remove

the fabric.

Cut the threads,

Use the Seam Guides

Cornering Guide

The seam guides on the needle plate

are there to help you measure seam

width. The lines are 1/8" apart, with

the 5/8" and 7/8" lines marked.

Turn a Square Corner

To turn a square corner 5/8" from the

fabric edge:

1. Stop stitching and lower the

needle by turning hand wheel

toward you when the fabric edge

facing you lines up with the

cornering guide, as shown,

2. Raise the presser foot and turn

the fabric to line the edge with

the 5/8" seam guide.

3, Lower the presser foot and begin

stitching in the new direction.

SECTION 3. LEARN THE STITCHES

Topatitching

set the Machine

Stitch Stitch selector

Top thread tension Stitch length

control 2 to 6 control red

zon

Straight foot Zigzag foot

The Stitch and Its Uses

Topstitching emphasizes the lines of

your garment and keeps seams and

edges flat and crisp.

Accent suits or blouses with one or

two rows of topstitching around the

outer edges of cuffs, lapels or collars.

Here's How

Lower the presser foot.

Keep the edge of the fabric next

to the right edge of the presser

foot.

Evenly guide the fabric along this

edge to produce an even row of

topstitching 3/8" from the edge.

Left Needle Position

Stitch selector

Use Left Needle Position for more

control while topstitching or edge

stitching difficult fabrics.

NOTE: Use only zigzag presser

foot for Left Needle

Sewing.

SECTION 3. LEARN THE STITCHES

Straight Stitches (Continued)

•Sew in a Zipper

Fabric Preparation:

Put the right sides of the fabric to-

gether and sew to the end of the zip-

per opening, Use the reverse to lock

the stitches.

Sew the zipper opening with stitch

length at "4" and top thread tension

at "3",

of fabric

Top edge of fabric

Set the Machine

Stitch Stitch selector

Top thread tension Stitch length

control 3 to S control 2

Zipper foot

1/S") Zipper teeth

Zipper tape

To Sew:

1. Fold back the left seam allowance

as shown,

2. Turn under the right seam allow-

ance to form a 1/8" fold.

3. Place the zipper teeth next to the

1/8" fold and pin in place.

4. To sew the left side of the zipper,

set the zipper foot on the left side

of the needle.

5, Lower the zipper foot on the right

side at the bottom of the zipper

so that the needle pierces the fold

and the zipper tape.

6. Sew through the fold and the zip-

per tape to the point where the

slider begins.

7. Lower the needle to hold the fab-

ric and raise the presser foot.

SECTION3. LEARNTHE STITCHES

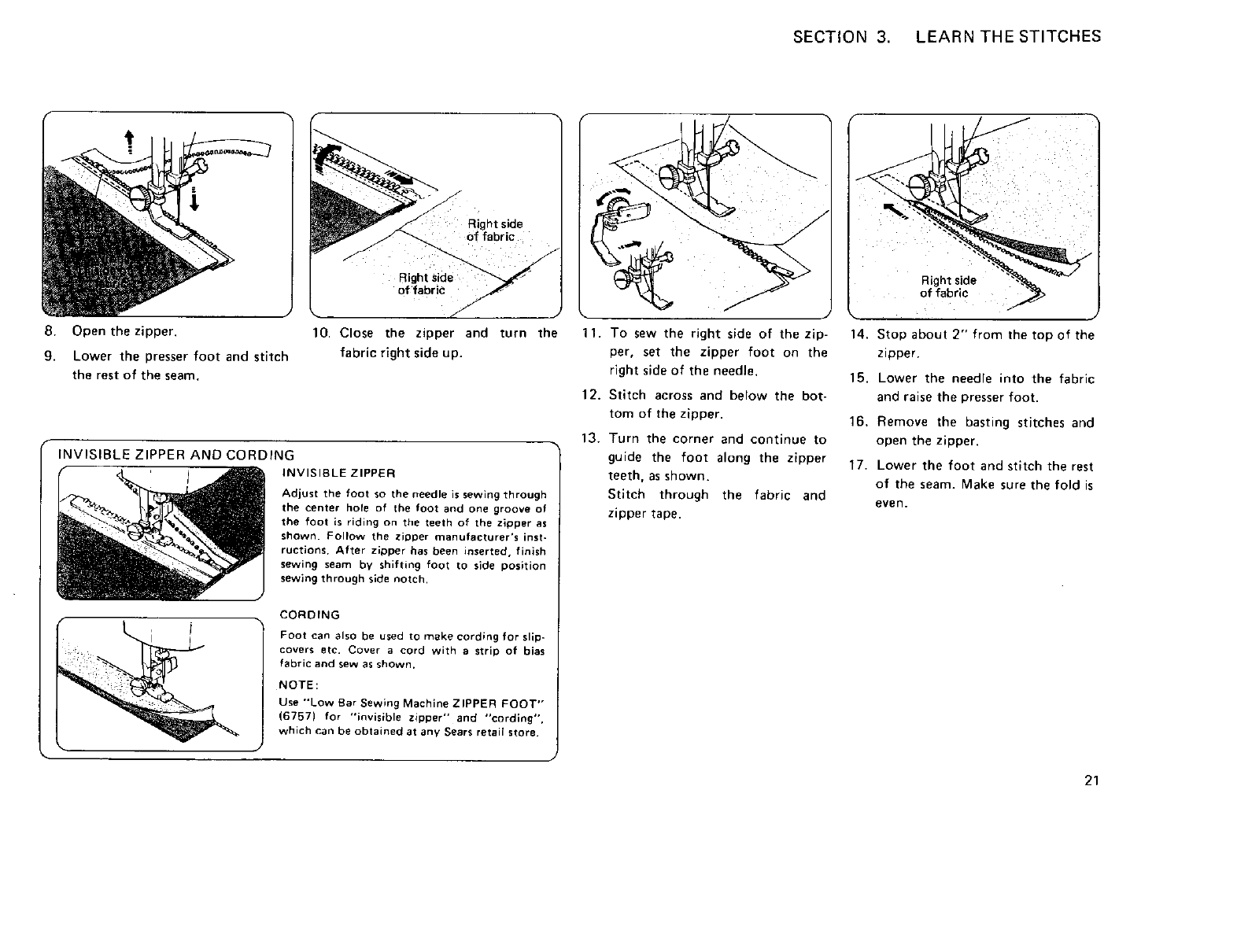

8. Open the zipper. 10. Close the zipper and turn the

9. Lower the presser foot and stitch fabric right side up.

the rest of the seam.

INVISIBLE ZIPPER AND CORDrNG

INVISIBLE ZIPPER

Adjust the foot so the needle is sewing through

the center hore of the foot and one groove of

the foot is riding on the teeth of the zipper as

shown. Follow the zipper manufacturer's inst-

ructions. After zipper has been inserted, finish

sewing seam by shifting foot to side position

sewing through side notch,

CORDrNG

Foot can also be used to make cording for slip-

covers etc. Cover a cord with a strip of bias

fabric and sew as shown.

NOTE:

Use "Low Bar Sewing Machine ZIPPER FOOT'"

(6757) for "invis}ble zipper" and "cording",

which can be obtained at any Sears retail store.

11. To sew the right side of the zip-

per, set the zipper foot on the

right side of the needle.

12. Stitch across and below the bot-

tom of the zipper.

13. Turn the corner and continue to

guide the foot along the zipper

teeth, as shown.

Stitch through the fabric and

zipper tape.

Right side "'-,

14. Stop about 2" from the top of the

zipper.

15. Lower the needle into the fabric

and raise the presser foot.

16. Remove the basting stitches and

open the zipper.

17. Lower the foot and stitch the rest

of the seam. Make sure the fold is

even.

SECTION 3. LEARN THE STITCHES

Straight Stitches (Continued)

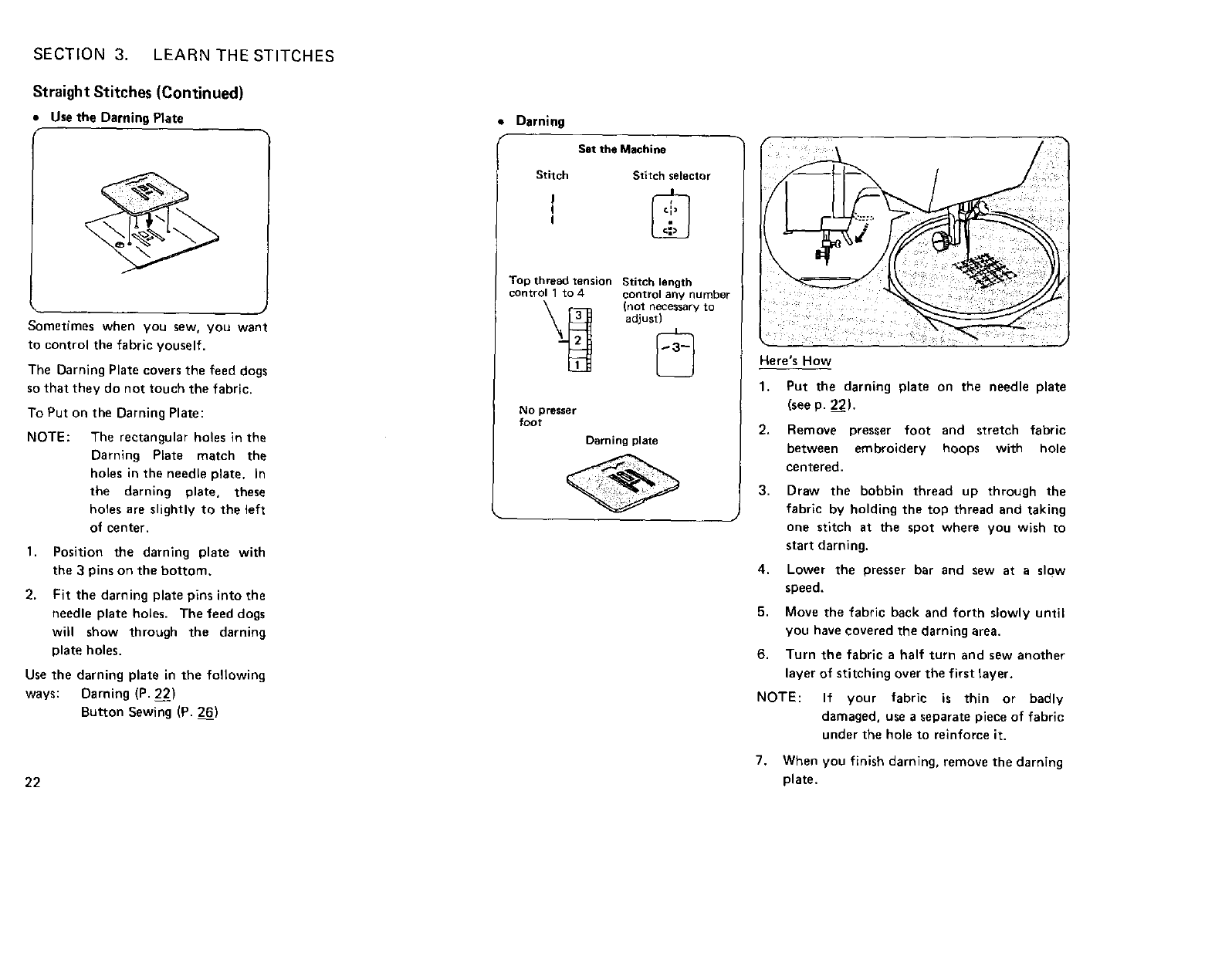

Usethe DarningPlate

Sometimes when you sew, you want

to control the fabric youself.

The Darning Plate covers the feed dogs

so that they do not touch the fabric.

To Put on the Darning Plate:

NOTE: The rectangular holes in the

Darning Plate match the

holes in the needle plate. In

the darning plate, these

holes are slightly to the left

of center.

1. Position the darning plate with

the 3 pins on the bottom.

2. Fit the darning plate pins into the

needle plate holes. The feed dogs

will show through the darning

plate holes.

Use the darning plate in the following

ways: Darning (P. 22)

Button Sewing (P. 26)

• Darning

Set the Machine

Stitch Stitch selector

Top thread tension Stitch length

control 1 to 4 control any number

adjust)

No presser

foot

Darning plate

Here's How

1. Put the darning plate on the needle plate

(see p. 2.2).

2, Remove presser foot and stretch fabric

between embroidery hoops with hole

centered.

3. Draw the bobbin thread up through the

fabric by holding the top thread and taking

one stitch at the spot where you wish to

start darning.

4. Lower the presser bar and sew at a slow

speed,

5. Move the fabric back and forth slowly until

you have covered the darning area.

6. Turn the fabric a half turn and sew another

layer of stitching over the first layer.

NOTE: If your fabric is thin or badly

damaged, use a separate piece of fabric

under the hole to reinforce it.

7. When you finish darning, remove the darning

22 plate.

Zigzag Stitches

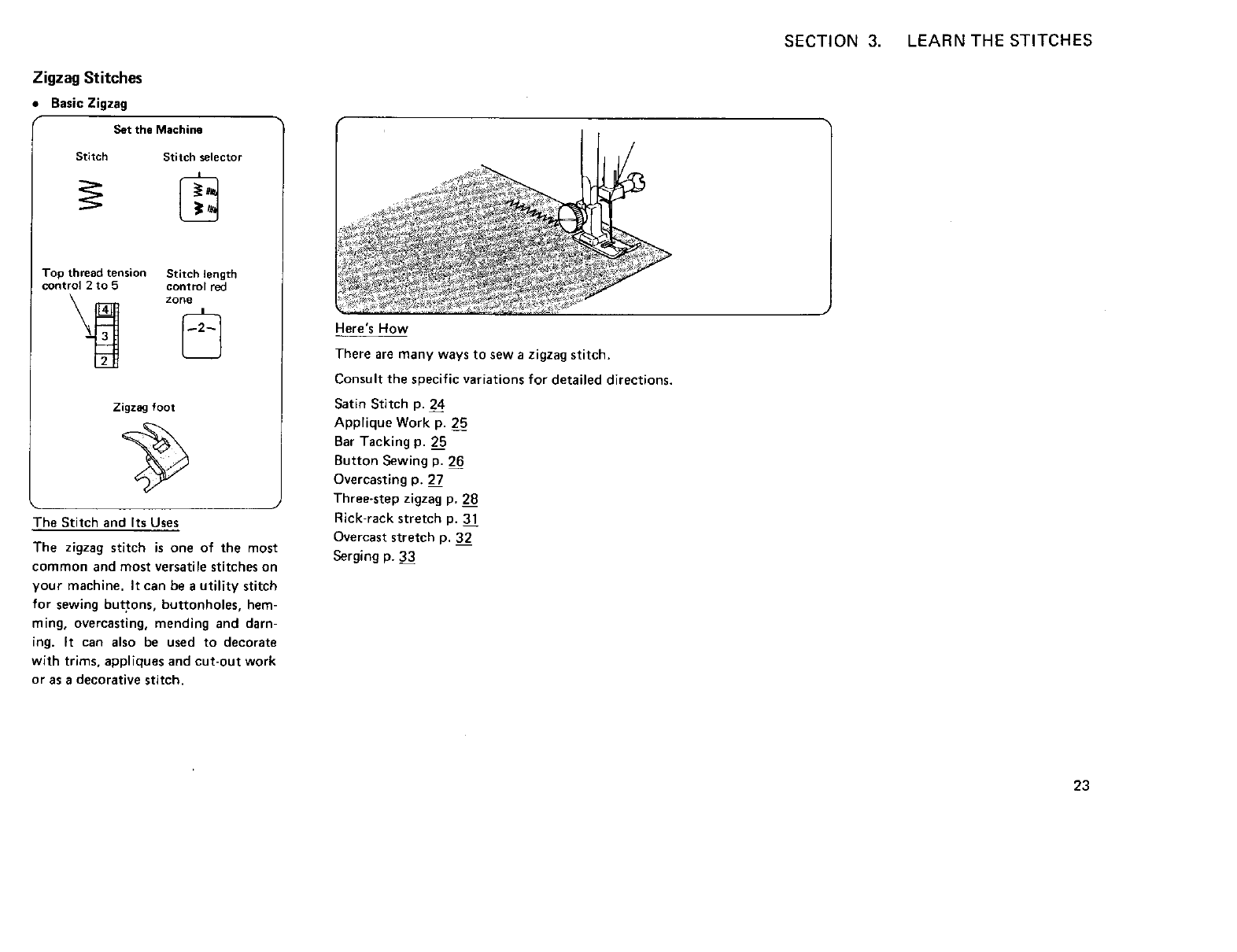

Basic Zigzag

Set the Machine

Stitch Stitch selector

Top thread tension Stitch length

control 2to 5 control red

Zigzag foot

The Stitch and Its Uses

The zigzag stitch is one of the most

common and most versatile stitches on

your machine. It can be a utility stitch

for sewing buttons, buttonholes, hem-

ming, overcasting, mending and darn-

ing. It can also be used to decorate

with trims, appliques and cut-out work

or as a decorative stitch.

Here's How

There are many ways to sew a zigzag stitch.

Consult the specific variations for detailed directions.

Satin Stitch p. 24

Applique Work p. 25

Bar Tacking p. 25

Button Sewing p. 26

Overcasting p. 27

Three-step zigzag p. 28

Rick-rack stretch p. 31

Overcast stretch p. 32

Serging p. 33

SECTION 3. LEARN THE STITCHES

Zigzag Stitches (Continued)

Satin Stitch

Set the Machine

Stitch Stitch selector

Top thread tension Stitch length

control 1 to 4 control 0.5 to 1

Satin stitch foot

The Stitch and Its Uses

The Satin stitch is a versatile and often

used decorative stitch, but it can also

be used to overcast a raw edge (for ex-

ample, blankets, linens, tablecloths

and napkins).

The Satin stitch is especially attractive

in applique.

Close to 0

Stitch

length:

Zigzag width :

Here's How

Once your machine is set up to stitch, you may want to experiment on a scrap of

the fabric you are planning to use. Too tight asatin stitch may pucker some light

weight fabrics.

SECTION 3. LEARN THE STITCHES

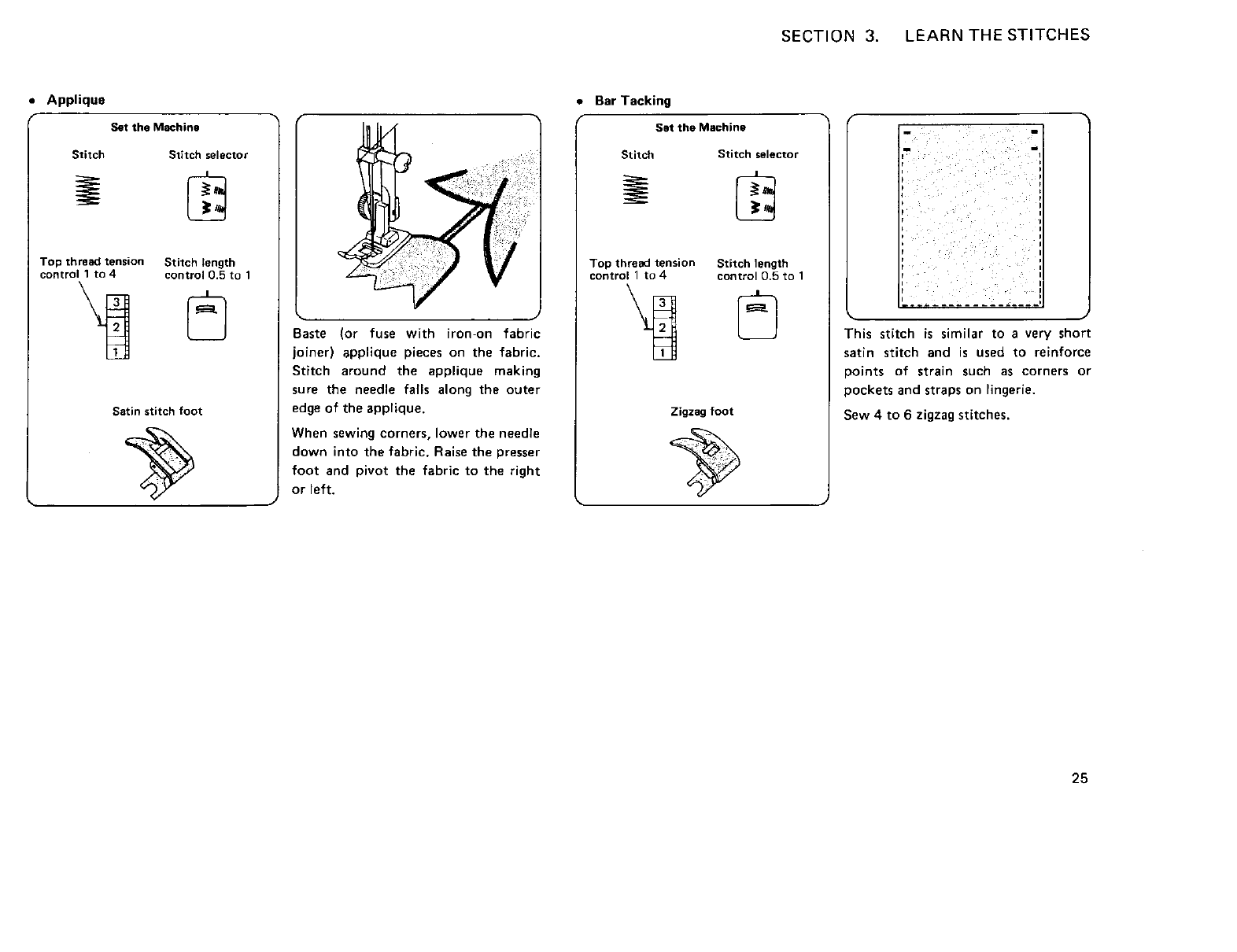

Applique

Set the Machine

Stitch Stitch selector

Top thread tension Stitch length

control 1 to 4control 0.5 to 1

Satin stitch foot

Baste (or fuse with iron-on fabric

joiner) applique pieces on the fabric.

Stitch around the applique making

sure the needle falls along the outer

edge of the applique.

When sewing corners, lower the needle

down into the fabric. Raise the presser

foot and pivot the fabric to the right

or left.

Bar Tacking

Set the Machine

Stitch Stitch selector

Top thread tension Stitch length

control 1to 4control 0.5 to 1

Zigzag foot

r,i

This stitch is similar to a very short

satin stitch and is used to reinforce

points of strain such as corners or

pockets and straps on ringerle.

Sew 4 to 6 zigzag stitches.

SECTION 3. LEARN THE STI,TCHES

Zigzag Stitches (Continued)

•Sewa Button

Set the Machine

Stitch Stitch selector

Top thread tension Stitch length control

control 1 to 4 any number (not

Zigzag foot

Darning plate

Use the darning plate for button sewing (see p. 22).

1. Set the stitch selector at " c_ •

2. Align both holes of the button with theslot of the foot and place theleft

hole of the button just below the needle point.

3, Lower the foot and turn the stitch selector to zigzag until the needle point

comes just above the right hole of the button.

4, Sew about five stitches and raise needle.

I " again and sew a few stitches to lock thread.

5. Set the stitch selector at "" c_:_

To strengthen the shank, cut the

threads leaving a20 cm (8") tail. Bring

the needle thread down through the

hole in the button and wind it around

the shank.

Draw the thread to the bottom side

and knot.

SECTION 3. LEARN THE STITCHES

• Overcasting Stitch

Set the Machine

Stitch Stitch selector

lop thread tension Stitch length

control 1 to 4control 1 to 2

Zigzag foot

The Stitch and Its Uses

This zigzag variation is very useful in

garment construction and in finishing

raw edgesof any sewing project.

Helpful Hints

Start overcasting about 1/8" inside the

raw corner of your seam. If you start

right at the edge, the fabric will bunch

up and the stitches will become

tangled.

SECTION 3. LEARN THE STITCHES

Zigzag Stitches (Continued)

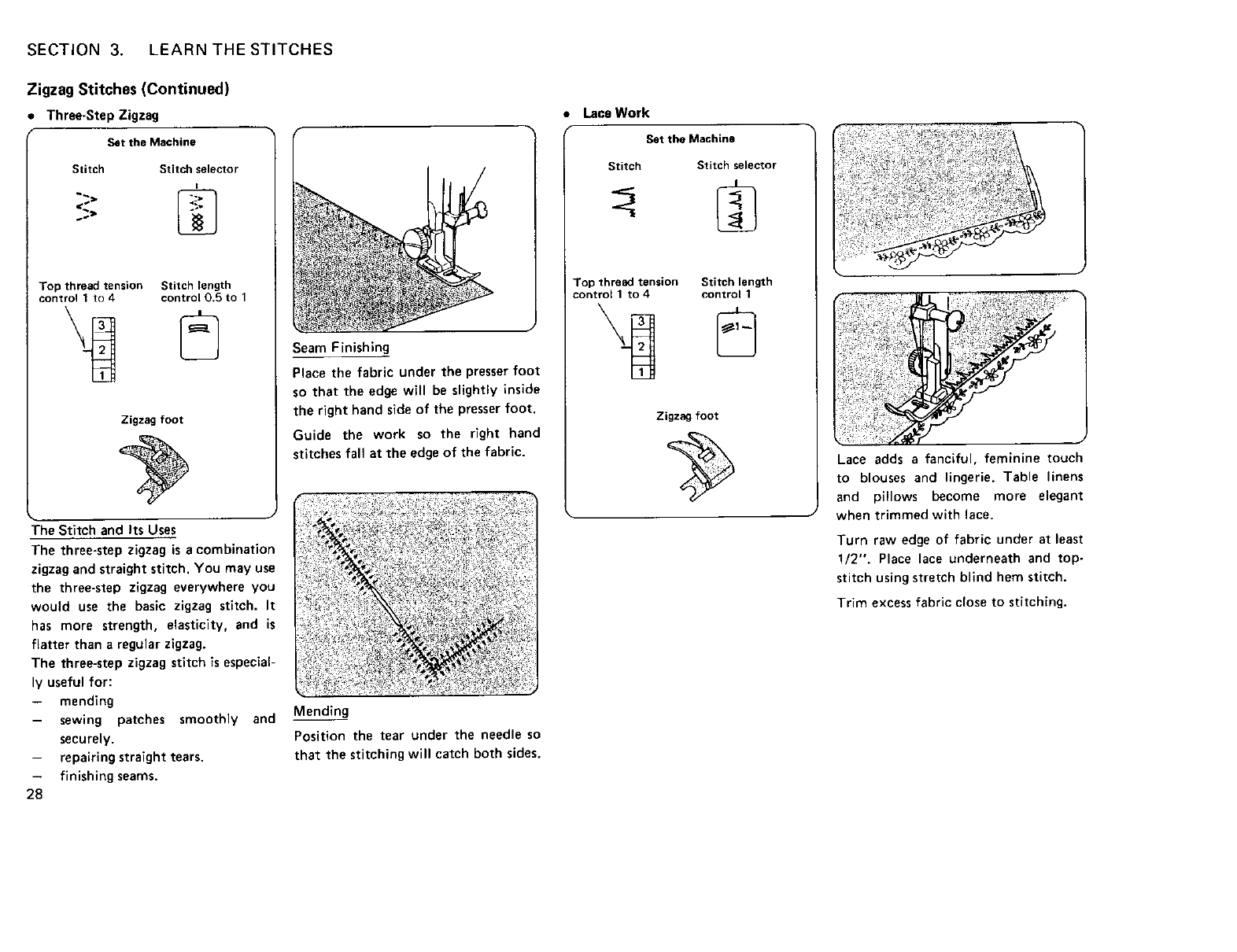

Three-Step Zigzag

Set the Machine

Stitch Stitch selector

Top thread tension Stitch length

control 1 to 4 control 0.5 to 1

Zigzag foot

The Stitch and Its Uses

The three-step zigzag is a combination

zigzag and straight stitch, You may use

the three-step zigzag everywhere you

would use the basic zigzag stitch. It

has more strength, elasticity, and is

flatter than a regular zigzag.

The three-step zigzag stitch is especial-

ly useful for:

-- mending

- sewing patches smoothly and

securely.

-- repairing straight tears.

- finishing seams.

Seam Finishing

Place the fabric under the presserfoot

so that the edge will be slightly inside

the right hand side of the presserfoot,

Guide the work so the right hand

stitches fall at the edge of the fabric.

Mending

Position the tear under the needle so

that the stitching will catch both sides.

Lace Work

Set the Machine

Stitch Stitch selector

Top threBd tension Stitch length

control 1 to 4 control 1

Zigzag foot

k ?"

Lace adds a fanciful, feminine touch

to blouses and lingerie. Table linens

and pillows become more elegant

when trimmed with lace.

Turn raw edge of fabric under at least

1/2". Place lace underneath and top-

stitch using stretch blind hem stitch.

Trim excess fabric close to stitching.

SECTION 3. LEARN THE STITCHES

Blind Hemming

Set the Machine

Stitch Stitch selector

(Regular)

top thread tension Stitch length

control 1to 4control 1to 3

Zigzag foot

Set the Machine

Stitch Stitch selector

(Stretch)

Top thread tension Stitch length

control 1to 4control 1to 3

_Zigzag foot

1/4"

Light

Weight

Fabric 1/4"

Heavy

Weight

Fabric

There are two blind hem stitches on your machine. The regular blind hem is used for woven fabrics. The stretch blind hem ts

wider and will "give" and is used for knit and stretch fabrics.

1. Finish the raw edge of your hem any way you desired. (See Overcasting, p. 27)

2. Measure, turn up your hem and pin.

NOTE: For light weight fabrics, you may need a double fold.

3. Fold the material (wrong side out) on the edge to be stitched, as shown, leaving 1/4" of the finished hem edge showing.

4. Place garment under presser foot in such amanner that straight stitches will be sewn on extended edge. The zigzag stitch

should just catch the fold of the garment.

5. After hemming, press both sides of the finished hem. The top side of the garment will show only the blind stitches.

NOTE: The blind hem stitch also can be used for Lace Work. (See p. 28)

SECTION 3. LEARN THE STITCHES

Zigzag Stitches (Continued)

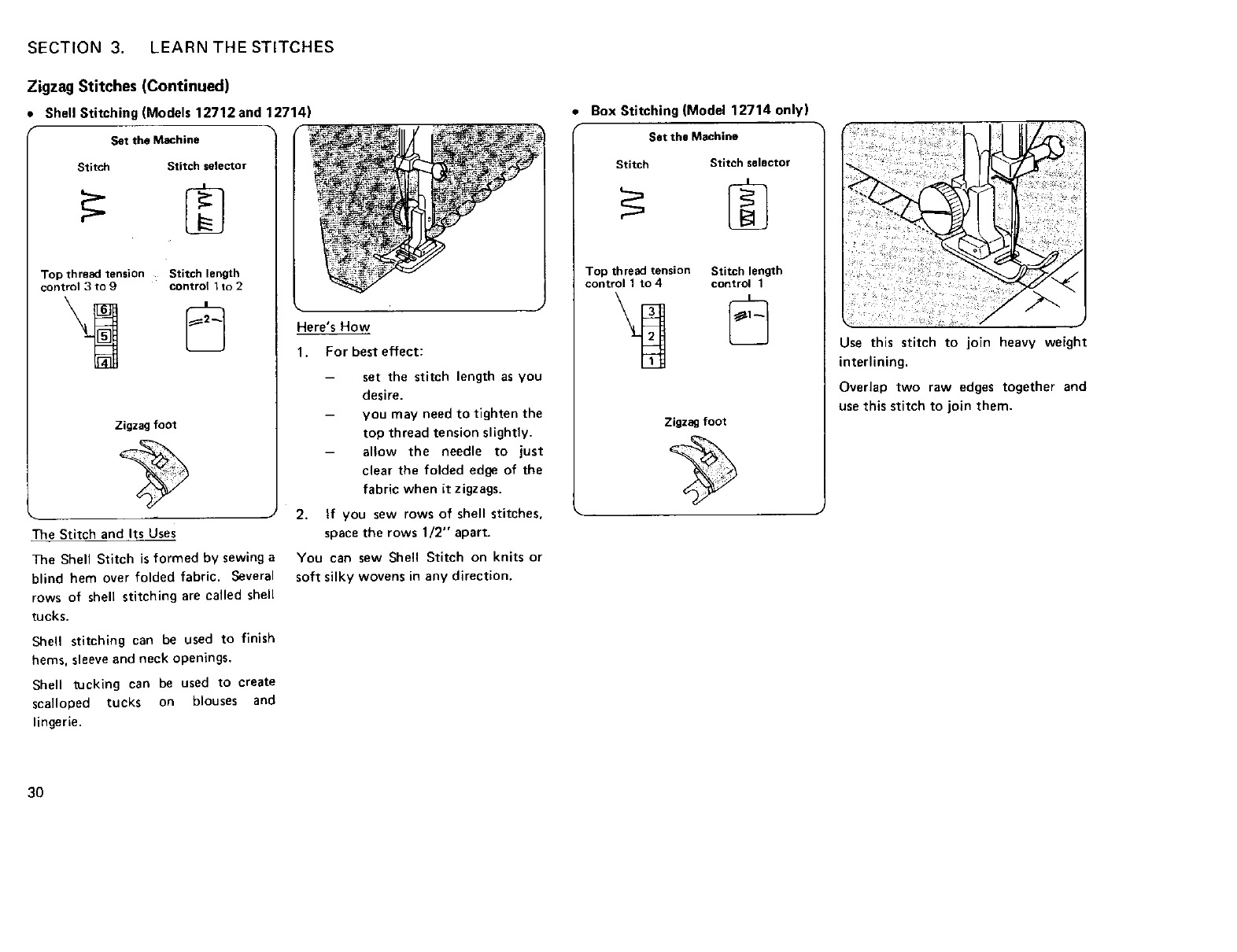

Shell Stitching (Models 12712 and 12714)

Set the Machine

Stitch Stitch selector

Top thread tension Stitch length

control 3to g control 1to 2

Zigzag foot

The Stitch and Its Uses

Here°s How

1. For best effect:

-- set the stitch length as you

desire.

-you may need to tighten the

top thread tension slightly.

-allow the needle to just

clear the folded edge of the

fabric when it zigzags.

If you sew rows of shell stitches,

space the rows 1/2" apart.

The Shell Stitch is formed by sewing a

blind hem over folded fabric. Several

rows of shell stitching are called shell

tucks.

You can sew Shell Stitch on knits or

soft silky wovens in any direction.

Shell stitching can be used to finish

hems, sleeve and neck openings.

Shell tucking can be used to create

scalloped tucks on blouses and

lingerie.

Box Stitching (Model 12714 only)

Set the Machine

Stitch Stitch selector

Top thread tension Stitch length

control 1to 4control 1

Zigzag foot

Use this stitch to join heavy weight

interlining.

Overlap two raw edges together and

use this stitch to join them.

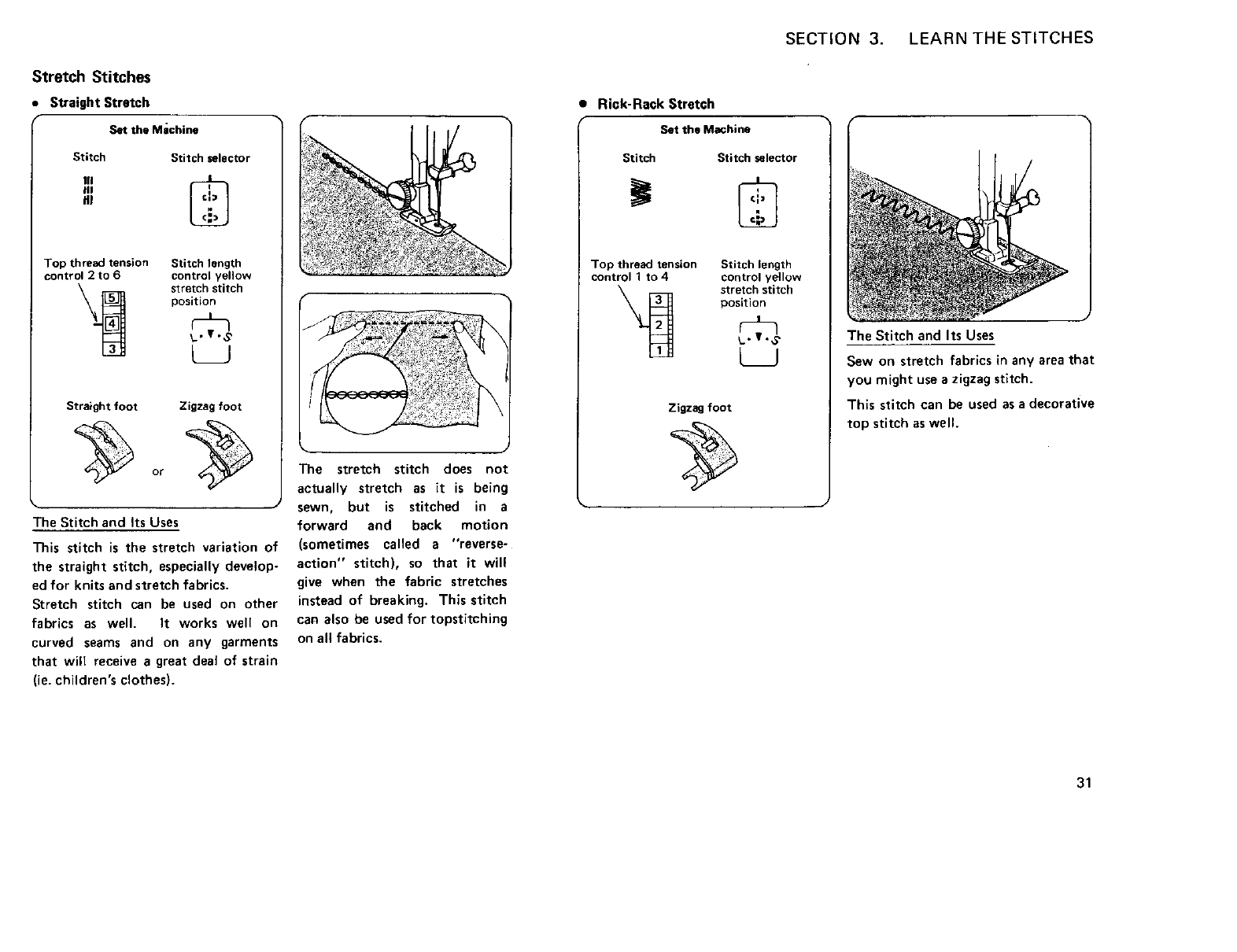

Stretch Stitches

Straight Stretch

Set the Machine

Stitch Stitch selector

III

Ill

Top thread tension Stitch length

control 2 to 6 control yellow

_k_ stretch stitch

position

Y_J

Straight foot Zigzag foot

The Stitch and Its Uses

This stitch is the stretch variation of

the straight stitch, especially develop-

ed for knits and stretch fabrics.

Stretch stitch can be used on other

fabrics as well. It works well on

curved seams and on any garments

that will receive a great deal of strain

(me.children's clothes).

The stretch stitch does not

actually stretch as it is being

sewn, but is stitched in a

forward and back motion

(sometimes called a "reverse-

action" stitch), so that it will

give when the fabric stretches

instead of breaking. This stitch

can also be used for topstitching

on all fabrics.

• Rick-Rack Stretch

Set the Machine

Stitch Stitch selector

Top thread tension Stitch length

control 1to 4 control yellow

_k_ stretch stitch

position

L_J

Zigzag foot

SECTION 3. LEARN THE STITCHES

The Stitch and Its Uses

Sew on stretch fabrics in any area that

you might use azigzag stitch.

This stitch can be used as a decorative

top stitch aswell.

SECTION 3. LEARN THE STfTCHES

Stretch Stitches {Continued)

Smocking

Set the Machine

Stitch Stitch selector

Top thread tension Stitch length control

control 1 to 4 yellow stretch stitch

position

L_J

Zigzag foot

With the stitch length at "4", sew

straight stitching lines 3/8" apart

across the area to be smocked.

Knot the threads along one edge. Pull

the bobbin threads and distribute the

gathers evenly. Secure the threads at

the other end. Sew the decorative

stitch between the gathering stitches,

Pu II out the gathering stitches.

NOTE: Loosen the top thread

tension to make gathering

easier.

Overcast Stretch Stitching

Set the Machine

Stitch Stitch selector

Top thread tension Stitch length

control 1 to 4control yellow

_._ stretch stitch

position

L_J

Zigzag foot

The Stitch and its Uses

This stitch can be used for sewing a

seam with an overcast finish.

The seam is formed and finished in

one operation. It can be used when

you are making swimwear, ski pants

and other garments that require

stretch.

Here's How

Place the raw edge of the fabric to

the LEFT of the needle as shown.

Stitch so the needle pierces the fabric

just short of the outside edge.

Or, place your fabric to allow a 5/8"

seam, then trim seam allowance

after.

Raw or worn edgesof older garments

can be overcast to prevent further

raveling.

NOTE: Use a blue stretch fabric

needle, which effectively

prevents skipped stitches.

SECTION 3. LEARN THE STITCHES

Serglngor Pine Leaf Stretch Stitchin

Set the Machine

Stitch Stitch selector

Top thread tension Stitch length

control 1 to 4 control yellow

_stretch stitch

position

t___J

Models 12712 and 12714)

Here's How

Place the fabric under the presser

Zigzag foot

foot so that the stitches are made

over the edge.

Or, place your fabric to allow a 5/8"

seam, then trim seam allowance

after,

NOTE:

The Stitch and Its Uses

Use this stitch when you want a

narrow seam that you do not need to

press open flat. It is ideal for 1/4"

seams on knits or on medium to

heavyweight woven fabrics where you

want a narrow seam. It is also great

for making elastic swim wear.

When using stretch knit

fabric, use a blue stretch

fabric needle which

effectively prevents

skipped stitches.

Elastic Stretch Stitch (Model 12714 only)

Set the Machine

Stitch Stitch selector

Top thread tension Stitch length

control 1 to 4 control yellow

stretch stitch

position

L_J

Zigzag foot ¸¸

Choose this stitch to attach elastic to

garments.

1. Mark the elastic into quarters and

match these to the center front,

center back and side seams.

2. Place the middle of the elastic

under the center of the presser

foot and stitch into place, making

sure the fabric is evenly distri-

buted.

SECTION 3. LEARN THE STITCHES

Buttonholes

Sat the Machine

Stitch Stitch selector

Top thread tension Stitch length contro

control 1 to 5 blue zone _==

Sliding buttonhole foot

Adjusting the Stitch Density

Depending upon your fabric or your

own preference in buttonholes, you

may alter the buttonhole stitch

density within the blue buttonhole

rangeon the stitch length dial.

(_ For more density, turn the dial

toward "0".

(_) For less density, turn the dial

toward "1 ".

NOTE: Always make a practice but-

tonhole on a scrap of fabric

you plan to use to find the

more suitable stitch length.

1. a. Carefully mark the buttonhole

length on your garment.

b. Change to the sliding buttonhole

foot.

c. Insert the garment under the

foot with the buttonhole mark-

ing running toward you.

Fn°!1 I C°ar

stitches stitches

for light for heavy

fabric fabrics

2. a. Move the slider (A) toward you

so that the top mark (C) on the

slider meets the start mark (B).

b. Line up the markings on the

foot with the top mark on your

garment.

c. Lower the presserfoot.

NOTE: The markings on the slider

are engraved in centimeters.

3. a. Set the stitch selector at _] .

b. Sew forward until you reach the

front marking of your button-

hole.

c. Stop sewing at the left stitch.

SECTION 3. LEARN THE STITCHES

4. a. Set the stitch selector at _Jz m

b. Sew 4 to 6 stitches.

c. Stop sewing at the right stitch.

. ...... : c-

:"t

) I? ; ; : : ? r ,.£; =

5. a. Set the stitch selector at I_ "6. a. Set the stitch selector at r_ m

b. Sew until you reach the back b. Sew4 to 6 stitches.

marking of the buttonhole. c. Stop sewing at the left stitch•

c. Stop sewing at the right stitch•

NOTE:

When sewing at the edge of fabric, set

sliding buttonhole foot as illustrated

and sew in reverse( bl-->r_-_l_,_ ).

_ m m

UI I,_d u 6_d

7. Remove the fabric and cut the hole

open with the buttonhole opener•

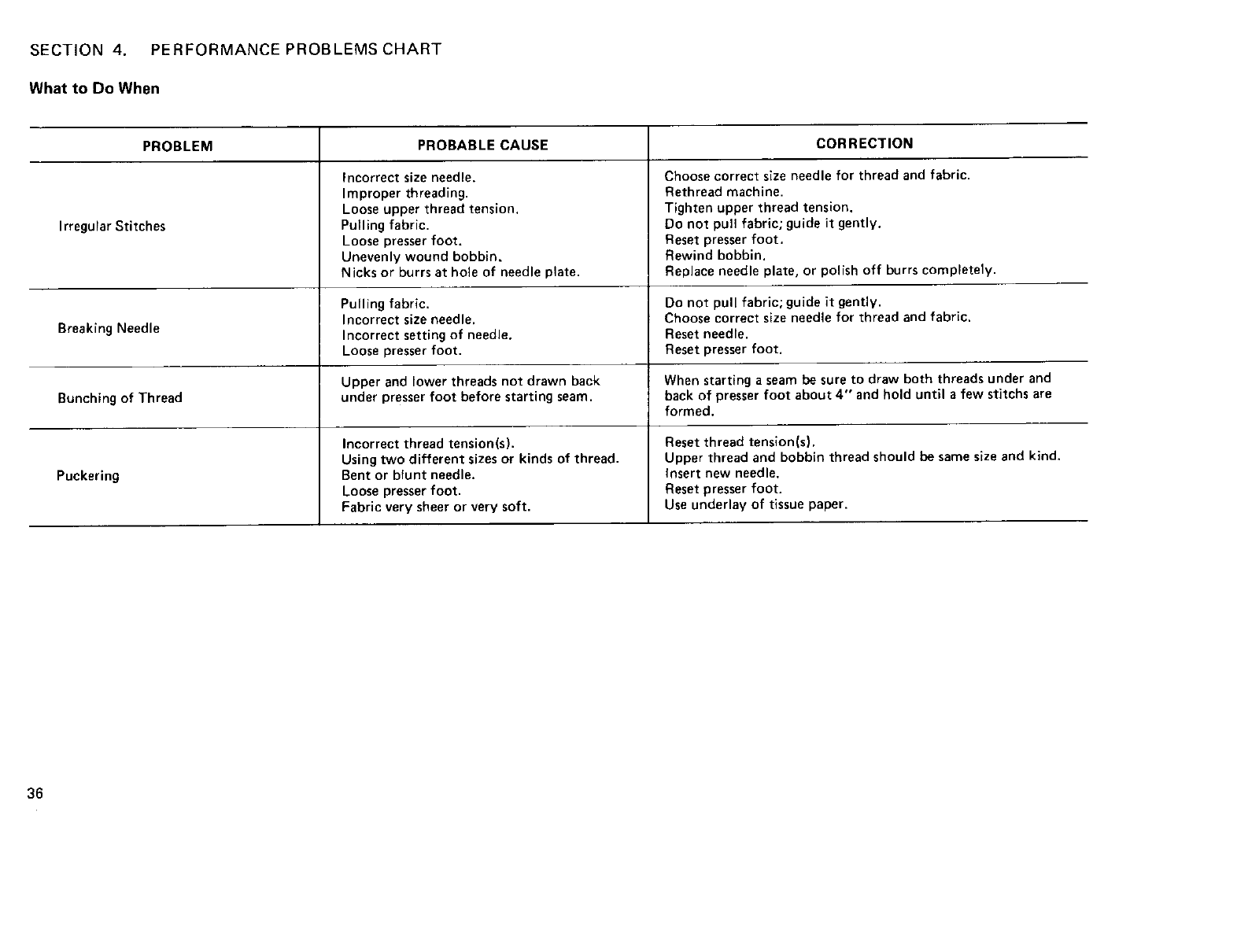

SECTION 4. PERFORMANCE PROBLEMS CHART

What to Do When

PROBLEM PROBABLE CAUSE CORRECTION

Incorrect size needle, Choose correct size needle for thread and fabric,

Improper threading, Rethread machine,

Loose upper thread tension. Tighten upper thread tension.

Irregular Stitches Pulling fabric. Do not pull fabric; guide it gently.

Loose presser foot, Reset presser foot.

Unevenly wound bobbin, Rewind bobbin.

Nicks or burrs at hole of needle plate. Replace needle plate, or polish off burrs completely.

Pulling fabric. Do not pull fabric; guide it gently.

Incorrect size needle. Choose correct size needle for thread and fabric.

Breaking Needle Incorrect setting of needle. Reset needle.

Loose presser foot. Reset presser foot.

Upper and lower threads not drawn back When starting a seam be sure to draw both threads under and

Bunching of Thread under presser foot before starting seam. back of presser foot about 4" and hold until a few stitchs are

formed.

Puckering

Incorrect thread tension(s).

Using two different sizes or kinds of thread.

Bent or blunt needle.

Loose presserfoot.

Fabric very sheer or very soft.

Reset thread tension(s).

Upper thread and bobbin thread should be same size and kind,

Insert new needle.

Reset presser foot.

Use underlay of tissue paper.

SECTION 4. PERFORMANCE PROBLEMS CHART

PROBLEM PROBABLE CAUSE CORRECTION

Incorrect size needle. Choose correct size needle for thread and fabric.

Bent or blunt needle. Insert new needle.

Skipping Stitches Incorrect setting of needle. Reset needle.

Tight upper thread tension. Loosen upper thread tension.

Starting to stitch too fast. Start to stitch at a medium speed.

Improper threading. Rethread machine.

Tight upper thread tension. Loosen upper thread tension.

Breaking Upper Thread Incorrect size needle. Choose correct size needle for thread end fabric.

Sharp eye in needle. Insert new needle.

Nicks or burrs on shuttle. Replace shuttle, or polish off burrs completely.

Nicks or burrs at hole of needle plate. Replace needle plate, or polish off burrs completely.

Breaking Bobbin Thread Improper bobbin case threading. Check bobbin casethreading.

Lint in bobbin caseor shuttre. Clean bobbin case and shuttle.

Darning prate in place. Remove darning plate.

Fabric not Moving Stitch Length set at O. Adjust Stitch Length Control.

Thread knotted under fabric. Place both threads back under presserfoot before beginning

to stitch.

Thread caught in shuttle. Disassemble and clean shuttle.

Machine Jamming Knocking Noise Lint in bobbin caseor shuttle. Clean bobbin case and shuttle.

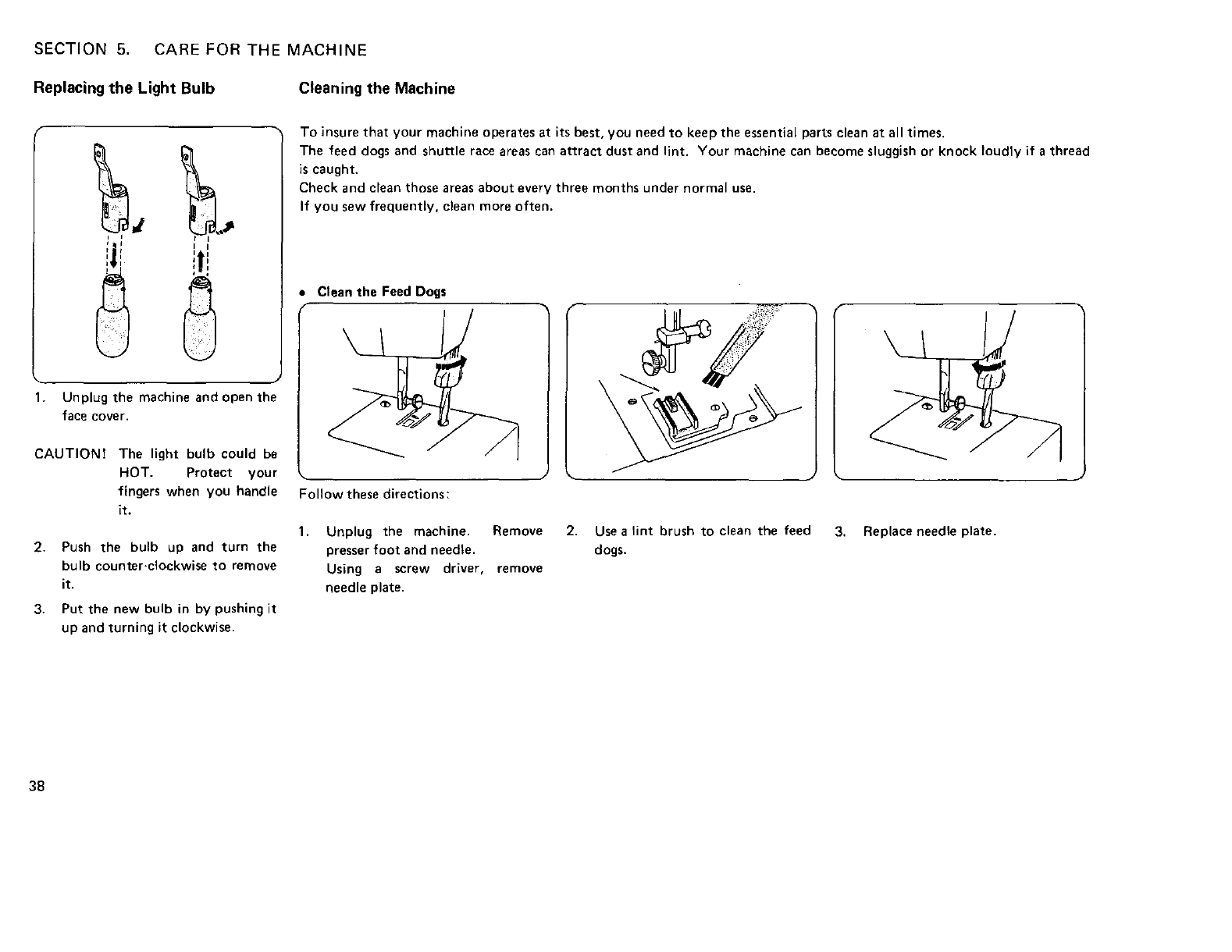

SECTION 5. CARE FOR THE MACHINE

Replacing the Light Bulb Cleaning the Machine

T T

1. Unplug the machine and open the

face cover.

CAUTION! The light bulb could be

HOT. Protect your

fingers when you handle

it.

Push the bulb up and turn the

bulb counter*clockwise to remove

it,

Put the new bulb in by pushing it

up and turning it clockwise.

To insure that your machine operates at its best, you need to keep the essential parts clean at all times.

The feed dogs and shuttle race areas can attract dust and lint. Your machine can become sluggish or knock loudly if a thread

is caught.

Check and clean those areas about every three months under normal use.

If you sew frequently, clean more often.

Clean the Feed Dogs

Follow these directions:

1, Unplug the machine. Remove

presser foot and needte.

Using a screw driver, remove

needle plate.

2. Use a lint brush to clean the feed 3. Replace needle plate.

dogs.

SECTION5. CAREFORTHE MACHINE

• Clean the Shuttle Race

This area must be kept free of dust, lint and occasional tangled thread. Clean the shuttle race area

about every three months.

Center pin of

the shuttle

Lever

case

Shuttle driver

Lever

hurtle

To Clean the Shuttle Area:

1. Raise the needle bar to its highest

point and remove the bobbin case.

2. Push shuttle race levers aside. Lift

shuttle race cover and take shuttle out.

3. Clean the shuttle race with a llnt

brush.

4. Put a drop of oil on the center pin of

the shuttle and shuttle race. Do not

over-oil.

To Replace Shuttle Assembly:

1. Position shuttle race as illustrated so that shuttle

driver is forming half moon on the left side of the

machine.

2. Hold shuttle by center pin and position shuttle so as

to form ahalf moon on the right side. Pointed hook

will be on the bottom.

3. Place shuttle race cover into place over shuttle

assembly.

4. Snap the levers back into the original position.

SECTION 5. CARE FOR THE MACHINE

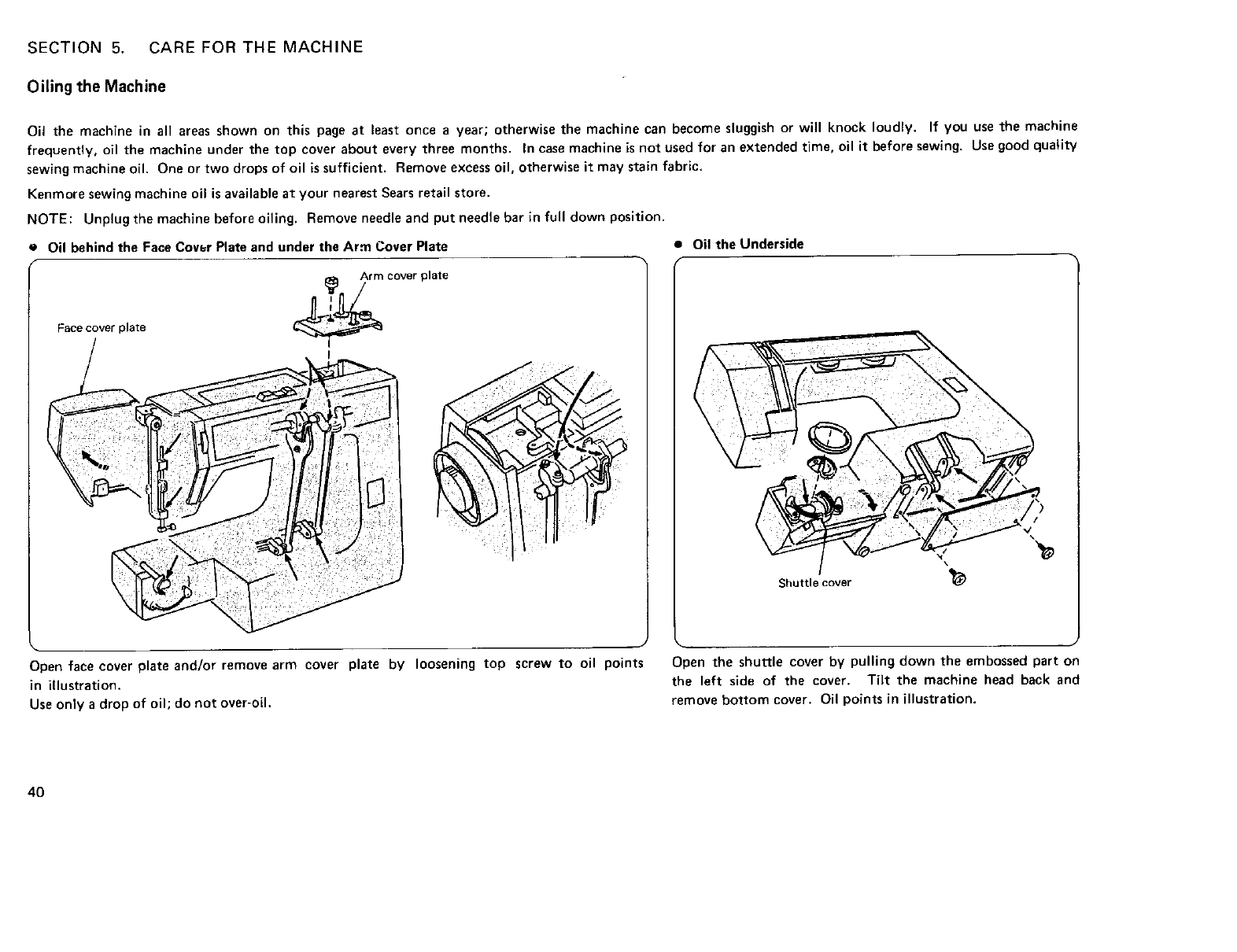

Oiling the Machine

Oil the machine in all areas shown on this page at least once a year; otherwise the machine can become sluggish or will knock loudly. If you use the machine

frequently, oil the machine under the top cover about every three months. In case machine is not used for an extended time, oil it before sewing. Use good quality

sewing machine oil. One or two drops of oil is sufficient. Remove excess oil, otherwise it may stain fabric.

Kenmore sewing machine oil is available at your nearest Sears retail store.

NOTE: Unplug the machine before oiling. Remove needle and put needle bar in full down position.

eOil behind the Face Cover Plate and under the Arm Cover Plate • Oil the Underside

Facecover plate

_ cover plate

Shuttle cover

Open face cover plate and/or remove arm cover plate by loosening top screw to oil points

in illustration.

Use only a drop of oil; do not over-oil.

Open the shuttle cover by pulling down the embossed part on

the left side of the cover. Tilt the machine head back and

remove bottom cover. Oil points in illustration.

PARTS LIST

1 2 34 5 6

7 8 9 10 11 12

13 14

17 18 19

All parts listed herein may be ordered from any Sears store or service center.

WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE FOLLOWING

INFORMATION:

1. PART NUMBER 2, PART DESCRIPTION

3. MODEL NUMBER 4. NAME OF ITEM

If the parts you need are not stocked locally, your order will be electronically

transmitted to a Sears Repair Parts Distribution Center for expedited handling.

Ref. No. Part No. Description

6510

*6862

1939

813404013

6551

6552

6553

6554

8O1506008

648801108

650802014

735503018

6870

593401008

*6757

135

*6864

6797

6830

802424004

820832005

41669

*6889

735801008

Shuttle

Bobbin case

Bobbin box with 10 bobbins

Bobbin winder rubber ring

No. 11 Stretch fabric needles (BLU)

No. 11 Single needles (ORG)

No. 14 Single needles (RED)

No. 16 Single needles (PUR)

No. 18 Single needles (GRN)

Needle clamp with screw

Sliding buttonhole foot

Straight stitch foot

Standard zigzag foot

Satin stitch foot

Zipper foot

Thumb screw

Needle threader

Light bulb

Buttonhole opener

Lint brush

Large screw driver

Small screw driver

Oil and lint brush

Darning plate

*These items are not furnished with the machine, but may be ordered per

instructions above.

Accessory storage box ............... 3, 7

Adjusting stretch stitch balance ......... 16

Applique ........................ 25

Arm cover plate .................. 4, 40

Bar tacking ...................... 25

Basic zigzag ...................... 23

Blind hemming .................... 29

Bobbin ................... 4, 9_10, 41

Bobbin case ............... 9_10, 39, 41

Bobbin thread .................. 12_13

Bobbin winding ................. 9_I0

Bobbin winding tension disc .......... 3, 10

Bobbin winding spindle ............. 3, 10

Box stitching ..................... 30

Buttonhole .................... 34_35

Buttonhole opener ............. 4, 35, 41

Button sewing .................... 26

Cabinet .......................... 3

Carrying handle .................... 4

Changing needle .................... 7

Changing presser foot ................ 7

Cleaning feed dogs and shuttle race .... 38_3g

Clutch knob .................. 4, 9, 10

Cording ........................ 21

Cornering guide ................... 18

Darning ........................ 22

Darning plate ............... 4, 22, 26, 41

Elasticstretch stitch ................ 33

Extension table ................... 3, 7

Fabric, needle, thread and stitch

length chart ....................... 8

INDEX

Face cover plate .................. 3, 40

Feed dogs ....................... 38

Foot control .................... 4_5

Free arm sewing .................... 7

Hand wheel ..................... 4, 17

Invisible zipper .................... 21

Lace work ....................... 28

Large screw driver ................. 4, 41

Light and power switch ............. 4_5

Light bulb ................... 5, 38, 41

Lint brush ................... 4, 38, 41

Needle .................... 4, 7_8, 41

Needle clamp screw .............. 4, 7, 41

Needle plate .................... 3, 38

Needle, thread and fabric chart .......... 8

Oiling .......................... 40

Overcasting stitch .................. 27

Overcast stretch stitching ............. 32

Parts list ........................ 41

Performance problems chart ......... 36_37

Pine leaf stretch stitching ............. 33

Plug connector ................... 4_5

Portable case ...................... 3

Power switch ...................... 5

Presserfoot ....................... 4

Presserfoot lever .................. 4, 6

Replacing bobbin case ............. 9_10

Reverse stitch control .............. 3, 14

Rick rack stretch .................. 31

Satin stitch foot ............ 4, 24_25, 41

Satin stitch ....................... 24

Seam guides ...................... 18

Serging ......................... 33

Sewing light ....................... 5

Shell stitching .................... 30

Shuttle ....................... 39, 41

Shuttle cover ..................... 3, 9

Shuttle race ...................... 39

Sliding buttonhole foot ....... 4, 34_35, 41

Small screw driver ................. 4, 41

Smocking ....................... 32

Spool pin ....................... 3, 6

Stitch length control ............... 3, 16

Stitch selector ................... 3, 15

Straight stitch .................. I B_22

Straight stitch foot ........ 4, 18_19, 31, 41

Straight stretch ................... 31

Stretch stitches ................. 31_33

Thread cutter ..................... 3, 6

Thread guide ...................... 3

Thread take-up lever ............... 3, 11

Thread tensions ................. 13_141

Three-step zigzag .................. 28

Topstitching ..................... 19

Top thread .................... 11_14

Top thread tension ............... 13_14

Top thread tension control ............. 3

Turn a square corner ................ 18

Zigzag foot ......... 18_19, 23, 25_33, 41

Zigzag stitches .................. 23_30

Zipper application ............... 20_2!

Zipper foot ............... 4, 20_21,41

_l_- inn, _ Ptnl _ _n, _ Iqt, _ ,ll_ _ ,It, _ Intr _ _11,_ Inn, _ II_ _ _tl, .4_ ,11,_ Ill, _ rtl, _ 'lh _ 'Ill, _ nl_, _ _tl, _ 'Ip, _ q_l,_ '11, _ '11, 4b. _rl, _ ,_p,_ ,_n,_ ,_p, _ ,l_, _ _1_,_ .I,

WARRANTY

.=,

FULL 25-YEAR WARRANTY ON SEWING MACHINE HEAD _

I_ For 25 years from the date of purchase, Sears will, free of charge, repair defects in material or workmanship which appear

.__, .-=

in the sewingmachine head. 0

--" FULL TWO YEAR WARRANTY ON ELECTRICAL EQUIPMENT OF SEWING MACHINE =-

For two years from the date of purchase, Sears will, free of charge, repair defects in material or workmanship which

appear in the electrical and electronic equipment of the sewing machine, including motor, wiring, switch and speed control

--- and printed circuit boards. --

__. _-

FULL 90-DAY WARRANTY ON ALL PARTS AND MECHANICAL ADJUSTMENTS _)

For 90 days from the date of purchase, Sears will, free of charge, replace any parts and provide mechanical service

__ necessary for proper operation of the sewing machine, except for normal maintenance. __

To obtain warranty service described above, SIMPLY CONTACT THE NEAREST SEARS STORE OR SERVICE CENTER IN --

CANADA. This warranty applies only while this product is in use in CANADA.

__= .=

This warranty gives you specific legal rights, and you may also have other rights which vary from province to province. __

SEARS CANADA INC., TORONTO, ONT, M5B 2B8

L, ....

SEWING MACHINE

Now that you have purchased your Kenmore Sewing Machine, should a need ever exist for repair parts

or service, simply contact your nearest Sears Service Center. Be sure to pertinent facts when you call or

visit.

The model number of your Sewing Machine will be shown on your nomenclature plate on the back of

your Sewing Machine. See page 4 for location.

WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE FOLLOWING INFORMATION:

*PART NUMBER *PART DESCRIPTION *MODEL NUMBER "NAME OF ITEM

If the parts you need are not stocked locally, your order will be electronically transmitted to a Sears

Repair Parts Distribution Canter for handling.

SEARS CANADA INC., TORONTO, ONT M5B 2B8

S-385 Printed in Taiwan Part No. 735806324 (_

Sears Kenmore 385 12708 Users Manual

KENMORE Mechanical Sewing Manual L0612396 KENMORE Mechanical Sewing Owner's Manual, KENMORE Mechanical Sewing installation guides

385. 12708 to the manual f29133e5-9fc7-4447-a790-6d7444812cae

Navigation menu

Versions of this User Manual:

Views

Navigation
