Model No. 831.23744.1

Serial No.

Write the serial number in the

space above for reference.

Serial

Number

Decal

• Assembly

•Operation

•Maintenance

•Part List and Drawing

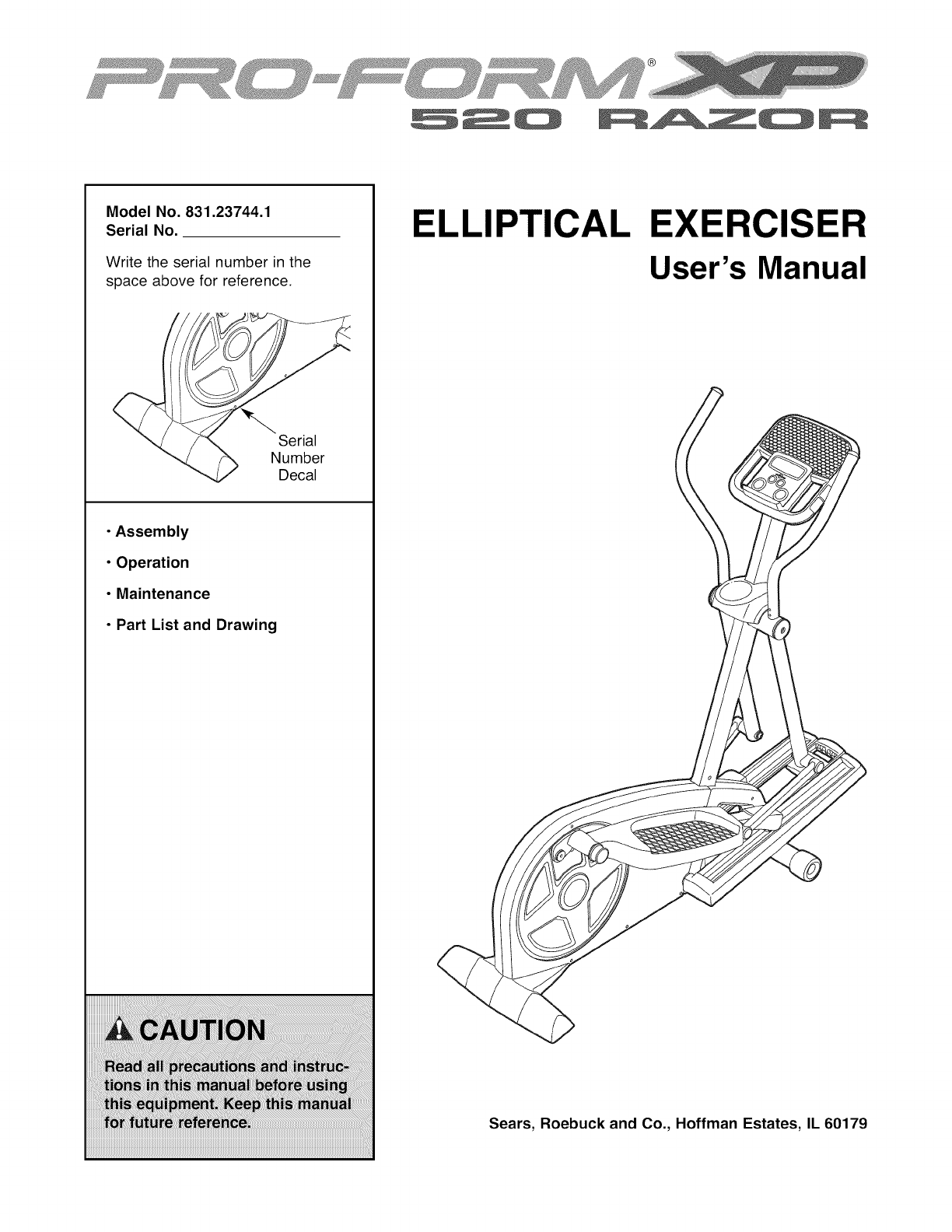

ELLIPTICAL EXERCISER

User's Manual

Sears, Roebuck and Co., Hoffman Estates, IL 60179

TABLE OF CONTENTS

WARNING DECAL PLACEMENT .............................................................. 2

IMPORTANT PRECAUTIONS ................................................................ 3

BEFORE YOU BEGIN ...................................................................... 4

ASSEMBLY ............................................................................... 5

HOW TO USE THE ELLIPTICAL EXERCISER .................................................. 12

MAINTENANCE AND TROUBLESHOOTING ................................................... 21

EXERCISE GUIDELINES ................................................................... 22

PART LIST .............................................................................. 24

EXPLODED DRAWING .................................................................... 26

ORDERING REPLACEMENT PARTS .................................................. Back Cover

90 DAY FULL WARRANTY .......................................................... Back Cover

WARNING DECAL PLACEMENT

This drawing shows the location(s) of the

warning decal(s) shown. If a decal is

missing or illegible, call 1-888-533-1333

and request a free replacement decal.

Apply the decal in the location shown.

Note: The decal(s) may not be shown at

actual size.

Misuseof this machine

may result in serious

injury.

•Read user's manual

prior to use and follow

all warnings and

instructions.

•Do not allow children

on or around machine.

•Pedals continue to

spin when you stop

pedaling.

• Spinning pedals can

cause injury.

• Reduce pedal speed

inacontrolled manner.

•User weight must not

exceed 275 pounds.

• Replace label if

damaged, illegible, or

removed. [_

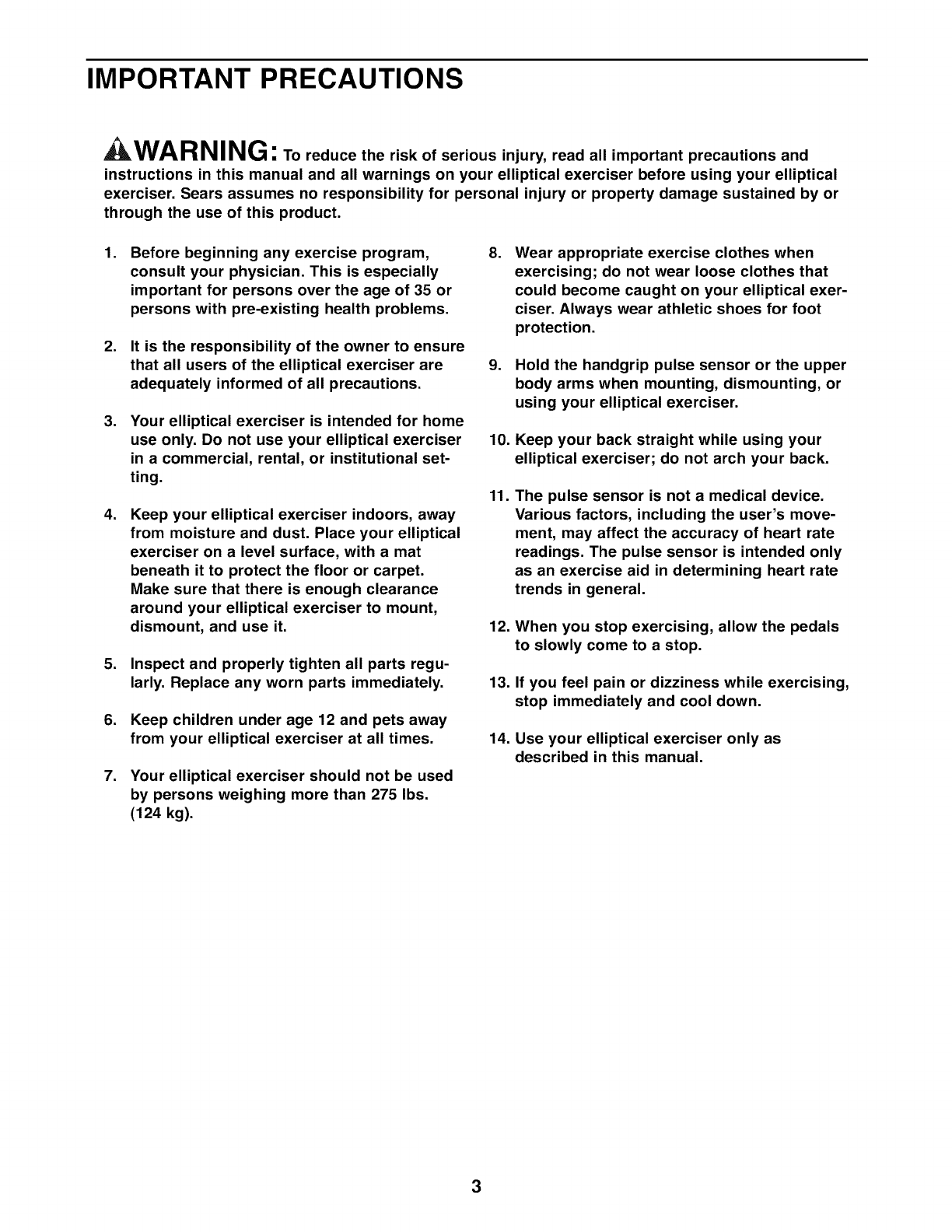

IMPORTANT PRECAUTIONS

AWARNING: To reduce the risk of serious injury, read all important precautions and

instructions in this manual and all warnings on your elliptical exerciser before using your elliptical

exerciser. Sears assumes no responsibility for personal injury or property damage sustained by or

through the use of this product.

1. Before beginning any exercise program, 8.

consult your physician. This is especially

important for persons over the age of 35 or

persons with pre-existing health problems.

It is the responsibility of the owner to ensure

that all users of the elliptical exerciser are

adequately informed of all precautions.

Your elliptical exerciser is intended for home

use only. Do not use your elliptical exerciser

in a commercial, rental, or institutional set-

ting.

Keep your elliptical exerciser indoors, away

from moisture and dust. Place your elliptical

exerciser on a level surface, with a mat

beneath it to protect the floor or carpet.

Make sure that there is enough clearance

around your elliptical exerciser to mount,

dismount, and use it.

Inspect and properly tighten all parts regu-

larly. Replace any worn parts immediately.

Keep children under age 12 and pets away

from your elliptical exerciser at all times.

Your elliptical exerciser should not be used

by persons weighing more than 275 Ibs.

(124 kg).

10.

11.

12.

13.

14.

Wear appropriate exercise clothes when

exercising; do not wear loose clothes that

could become caught on your elliptical exer-

ciser. Always wear athletic shoes for foot

protection.

Hold the handgrip pulse sensor or the upper

body arms when mounting, dismounting, or

using your elliptical exerciser.

Keep your back straight while using your

elliptical exerciser; do not arch your back.

The pulse sensor is not a medical device.

Various factors, including the user's move-

ment, may affect the accuracy of heart rate

readings. The pulse sensor is intended only

as an exercise aid in determining heart rate

trends in general.

When you stop exercising, allow the pedals

to slowly come to a stop.

If you feel pain or dizziness while exercising,

stop immediately and cool down.

Use your elliptical exerciser only as

described in this manual.

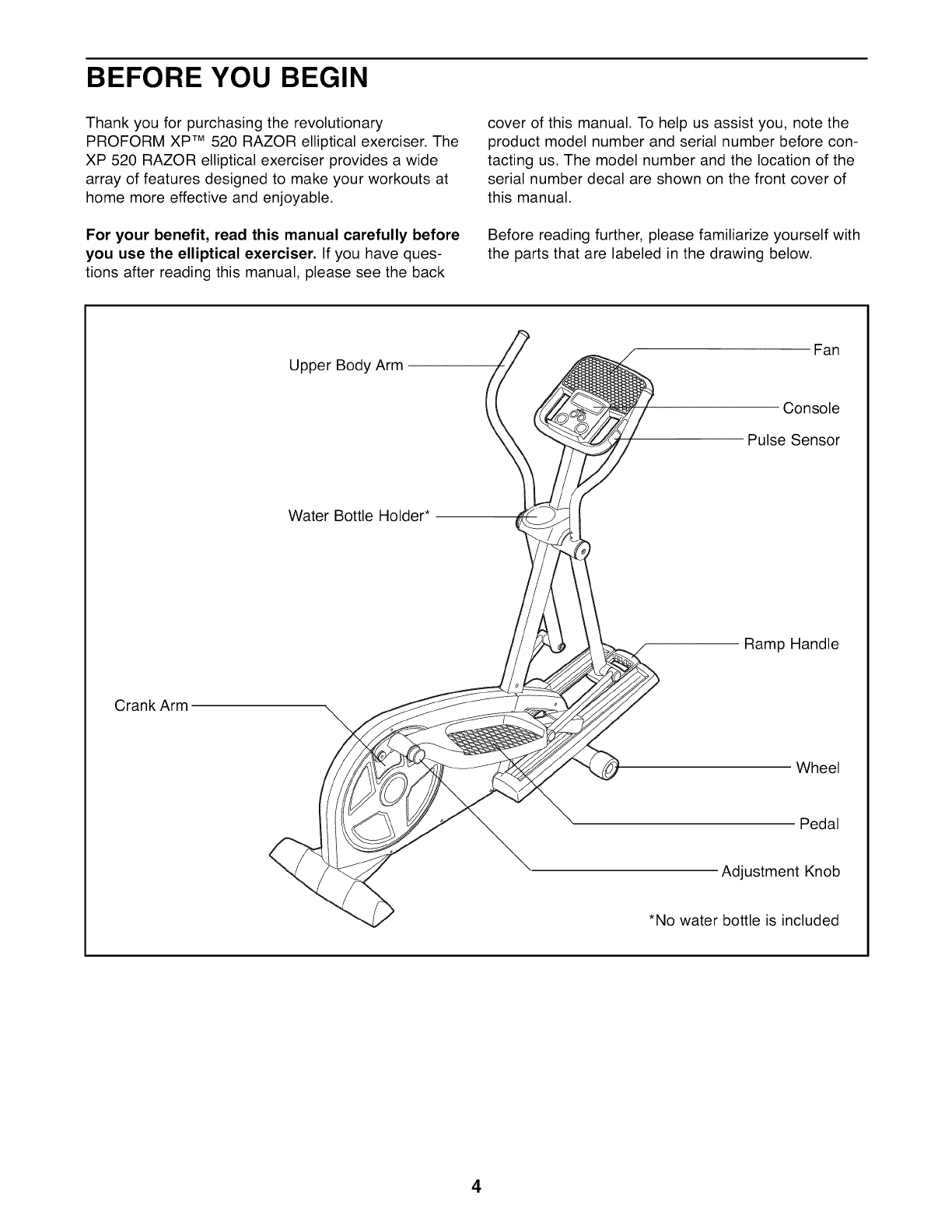

BEFORE YOU BEGIN

Thank you for purchasing the revolutionary

PROFORM XP TM 520 RAZOR elliptical exerciser. The

XP 520 RAZOR elliptical exerciser provides a wide

array of features designed to make your workouts at

home more effective and enjoyable.

For your benefit, read this manual carefully before

you use the elliptical exerciser. If you have ques-

tions after reading this manual, please see the back

cover of this manual. To help us assist you, note the

product model number and serial number before con-

tacting us. The model number and the location of the

serial number decal are shown on the front cover of

this manual.

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

Upper Body Arm Fan

Console

Pulse Sensor

Water Bottle Holder*

Ramp Handle

Crank Arm

Wheel

Pedal

Adjustment Knob

*No water bottle is included

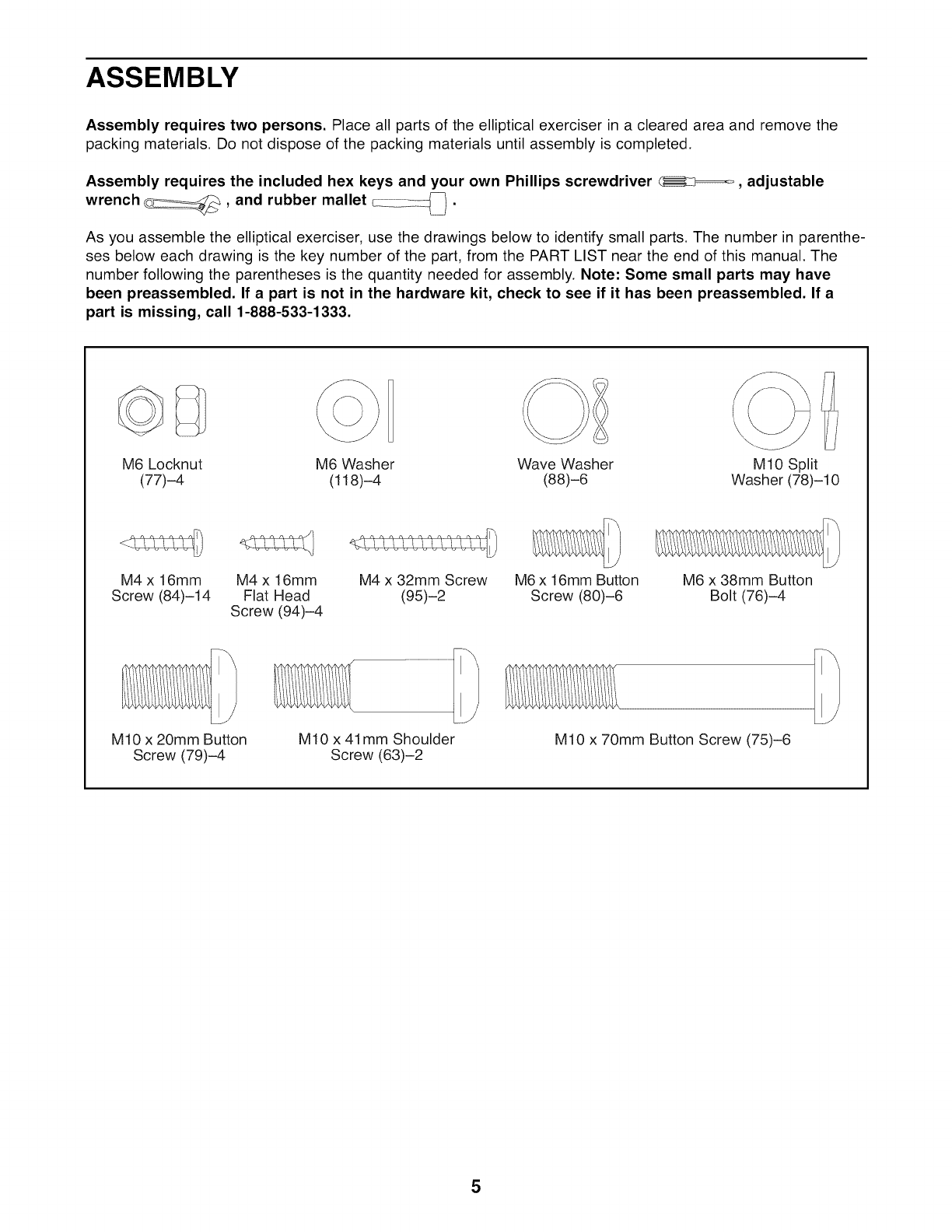

ASSEMBLY

Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the

packing materials. Do not dispose of the packing materials until assembly is completed.

Assembly requires the included hex keys and your own Phillips screwdriver _L_====o, adjustable

wrench _, and rubber mallet __ .

As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parenthe-

ses below each drawing is the key number of the part, from the PART LIST near the end of this manual. The

number following the parentheses is the quantity needed for assembly. Note: Some small parts may have

been preassembled. If a part is not in the hardware kit, check to see if it has been preassembled. If a

part is missing, call 1-888-533-1333.

M6 Locknut

(77)-4 M6 Washer Wave Washer M10 Split

(118)-4 (88)-6 Washer (78)-10

M4 x 16mm M4 x 16mm

Screw (84)-14 Flat Head

Screw (94)-4

M4 x 32mm Screw

(95)-2 M6 x 16mm Button

Screw (80)-6 M6 x 38mm Button

Bolt (76)-4

M10 x 20mm Button

Screw (79)-4

M10 x 41 mm Shoulder

Screw (63)-2 M10 x 70mm Button Screw (75)-6

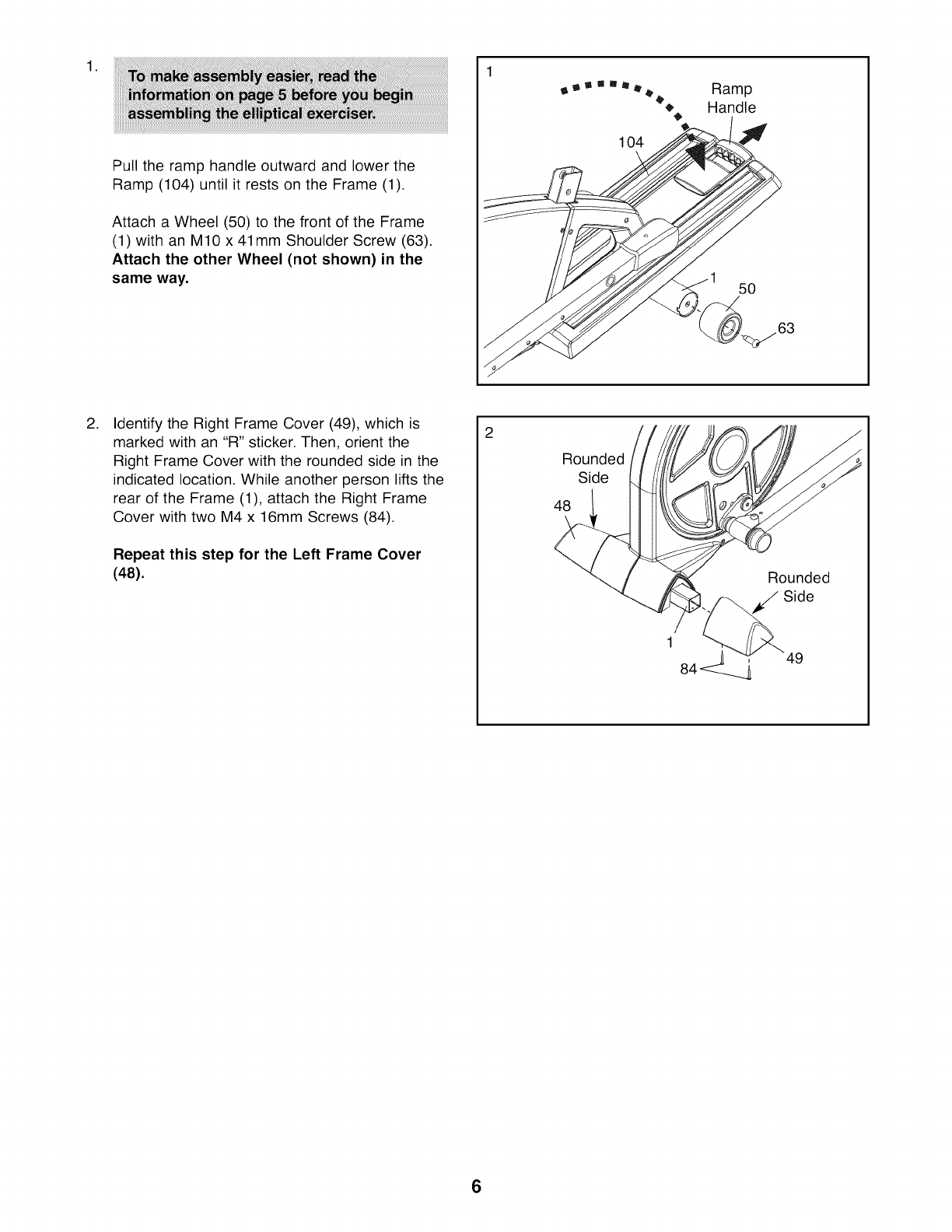

Pull the ramp handle outward and lower the

Ramp (104) until it rests on the Frame (1).

Attach a Wheel (50) to the front of the Frame

(1) with an M10 x 41 mm Shoulder Screw (63).

Attach the other Wheel (not shown) in the

same way.

104

.Identify the Right Frame Cover (49), which is

marked with an "R" sticker. Then, orient the

Right Frame Cover with the rounded side in the

indicated location. While another person lifts the

rear of the Frame (1), attach the Right Frame

Cover with two M4 x 16mm Screws (84).

Repeat this step for the Left Frame Cover

(48).

Rounded

Side

Rounded

Side

Tip: Be careful not to pinch the Wire

Harness (100) during this step. Start all

screws before tightening any of them.

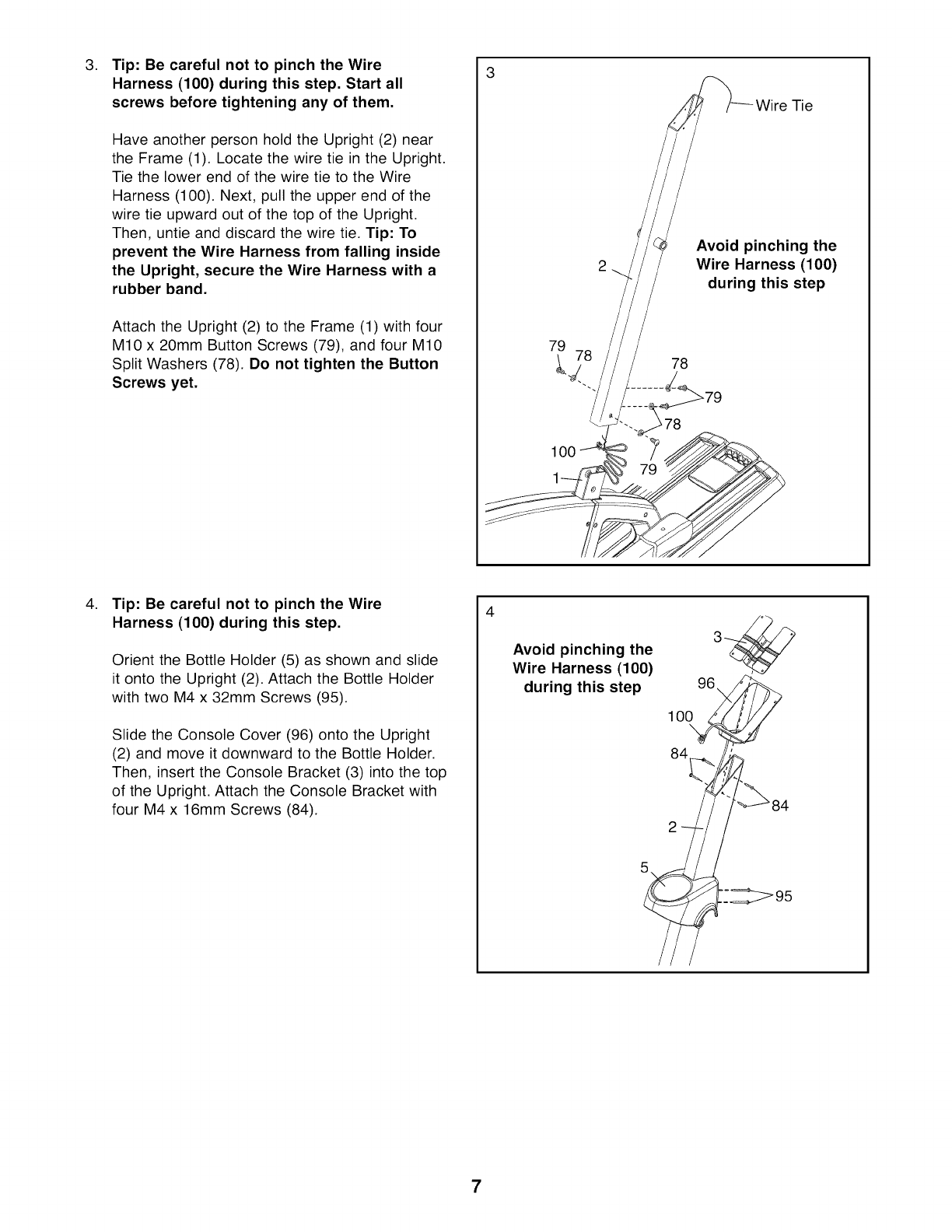

Have another person hold the Upright (2) near

the Frame (1). Locate the wire tie in the Upright.

Tie the lower end of the wire tie to the Wire

Harness (100). Next, pull the upper end of the

wire tie upward out of the top of the Upright.

Then, untie and discard the wire tie. Tip: To

prevent the Wire Harness from falling inside

the Upright, secure the Wire Harness with a

rubber band.

Attach the Upright (2) to the Frame (1) with four

M10 x 20mm Button Screws (79), and four M10

Split Washers (78). Do not tighten the Button

Screws yet.

Tie

Avoid pinching the

Wire Harness (100)

during this step

.Tip: Be careful not to pinch the Wire

Harness (100) during this step.

Orient the Bottle Holder (5) as shown and slide

it onto the Upright (2). Attach the Bottle Holder

with two M4 x 32mm Screws (95).

Slide the Console Cover (96) onto the Upright

(2) and move it downward to the Bottle Holder.

Then, insert the Console Bracket (3) into the top

of the Upright. Attach the Console Bracket with

four M4 x 16mm Screws (84).

Avoid pinching the

Wire Harness (100)

during this step

96,,_

5_2/_i t ._84

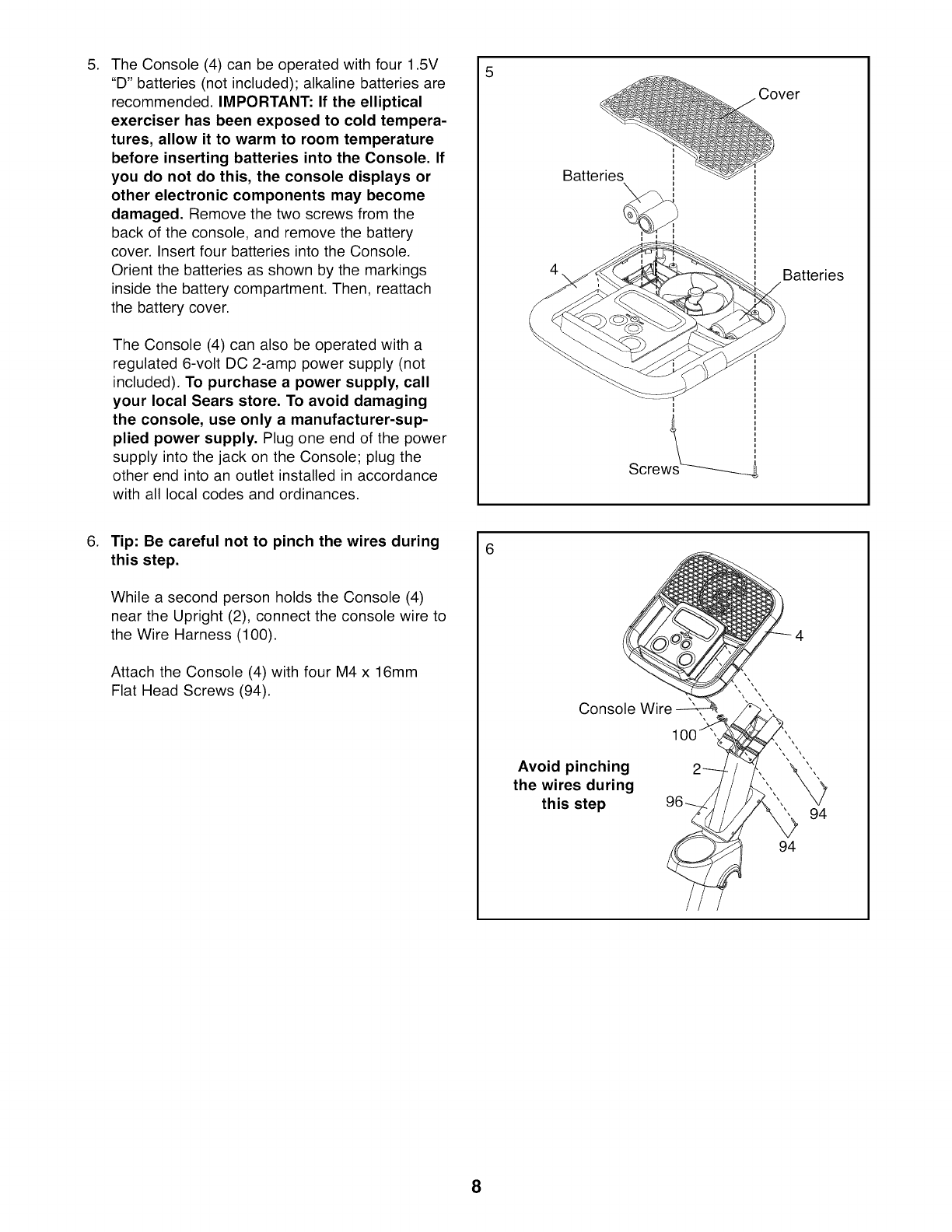

.The Console (4) can be operated with four 1.5V

"D" batteries (not included); alkaline batteries are

recommended. IMPORTANT: If the elliptical

exerciser has been exposed to cold tempera-

tures, allow it to warm to room temperature

before inserting batteries into the Console. If

you do not do this, the console displays or

other electronic components may become

damaged. Remove the two screws from the

back of the console, and remove the battery

cover. Insert four batteries into the Console.

Orient the batteries as shown by the markings

inside the battery compartment. Then, reattach

the battery cover.

The Console (4) can also be operated with a

regulated 6-volt DC 2-amp power supply (not

included). To purchase a power supply, call

your local Sears store. To avoid damaging

the console, use only a manufacturer-sup-

plied power supply. Plug one end of the power

supply into the jack on the Console; plug the

other end into an outlet installed in accordance

with all local codes and ordinances.

',' C ver

Batteries

Screw_

.Tip: Be careful not to pinch the wires during

this step.

While a second person holds the Console (4)

near the Upright (2), connect the console wire to

the Wire Harness (100).

Attach the Console (4) with four M4 x 16mm

Flat Head Screws (94). Console Wire

Avoid pinching

the wires during

this step

7. 7

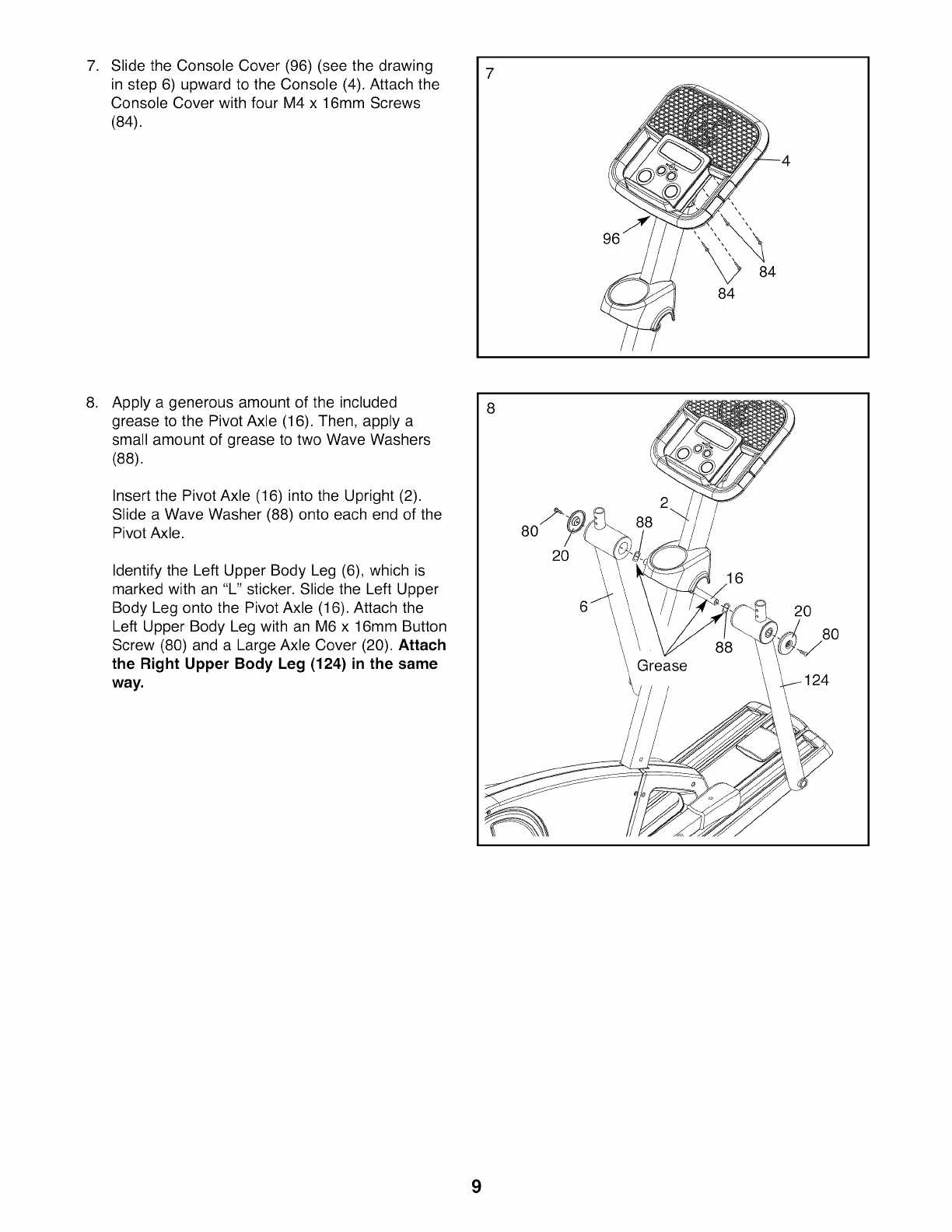

Slide the Console Cover (96) (see the drawing

in step 6) upward to the Console (4). Attach the

Console Cover with four M4 x 16mm Screws

(84).

.Apply a generous amount of the included

grease to the Pivot Axle (16). Then, apply a

small amount of grease to two Wave Washers

(88).

Insert the Pivot Axle (16) into the Upright (2).

Slide a Wave Washer (88) onto each end of the

Pivot Axle.

Identify the Left Upper Body Leg (6), which is

marked with an "L" sticker. Slide the Left Upper

Body Leg onto the Pivot Axle (16). Attach the

Left Upper Body Leg with an M6 x 16mm Button

Screw (80) and a Large Axle Cover (20). Attach

the Right Upper Body Leg (124) in the same

way.

9. 9

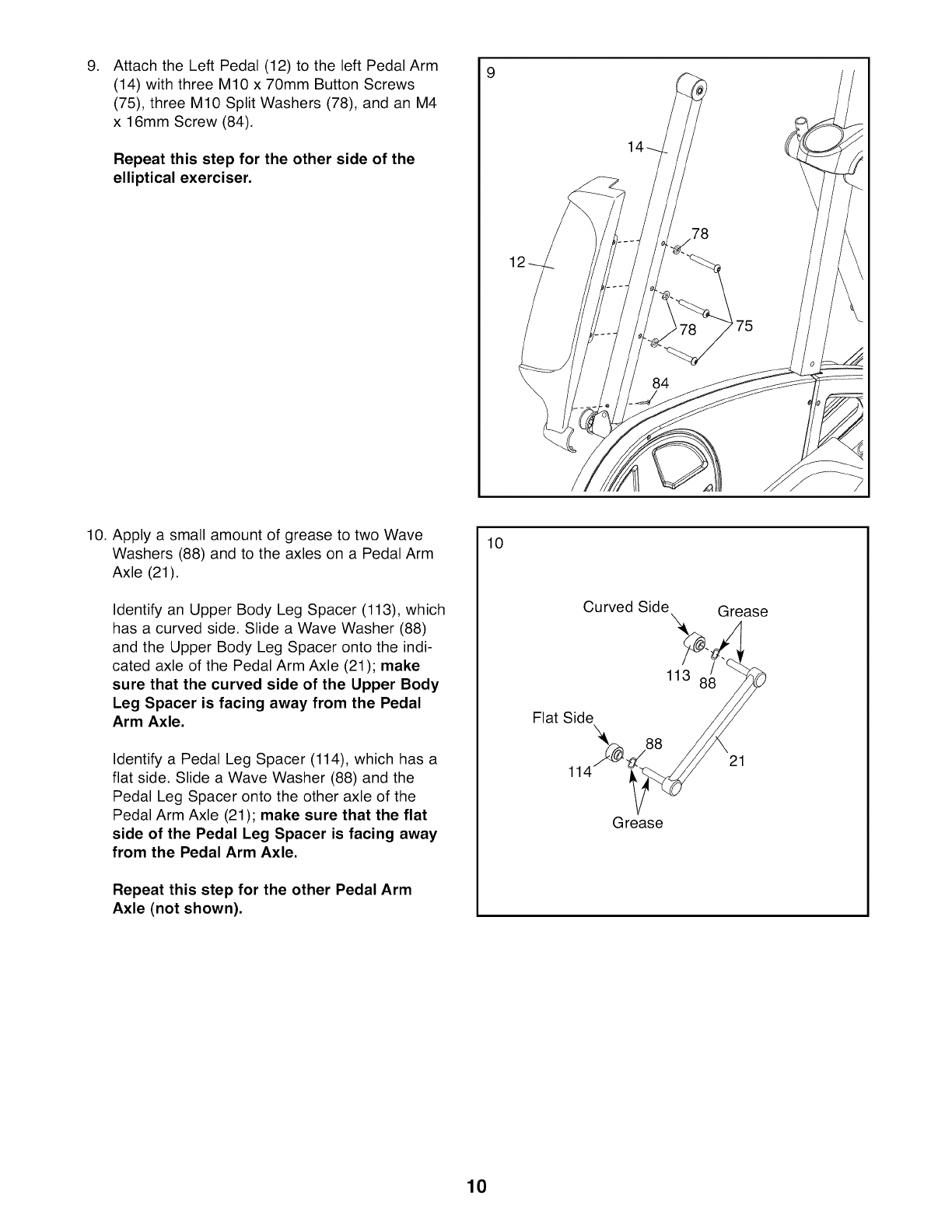

Attach the Left Pedal (12) to the left Pedal Arm

(14) with three M10 x 70mm Button Screws

(75), three M10 Split Washers (78), and an M4

x 16mm Screw (84).

Repeat this step for the other side of the

elliptical exerciser.

10. Apply a small amount of grease to two Wave

Washers (88) and to the axles on a Pedal Arm

Axle (21).

Identify an Upper Body Leg Spacer (113), which

has a curved side. Slide a Wave Washer (88)

and the Upper Body Leg Spacer onto the indi-

cated axle of the Pedal Arm Axle (21); make

sure that the curved side of the Upper Body

Leg Spacer is facing away from the Pedal

Arm Axle.

Identify a Pedal Leg Spacer (114), which has a

flat side. Slide a Wave Washer (88) and the

Pedal Leg Spacer onto the other axle of the

Pedal Arm Axle (21); make sure that the flat

side of the Pedal Leg Spacer is facing away

from the Pedal Arm Axle.

Repeat this step for the other Pedal Arm

Axle (not shown).

Flat Side

Curved Side

Grease

113

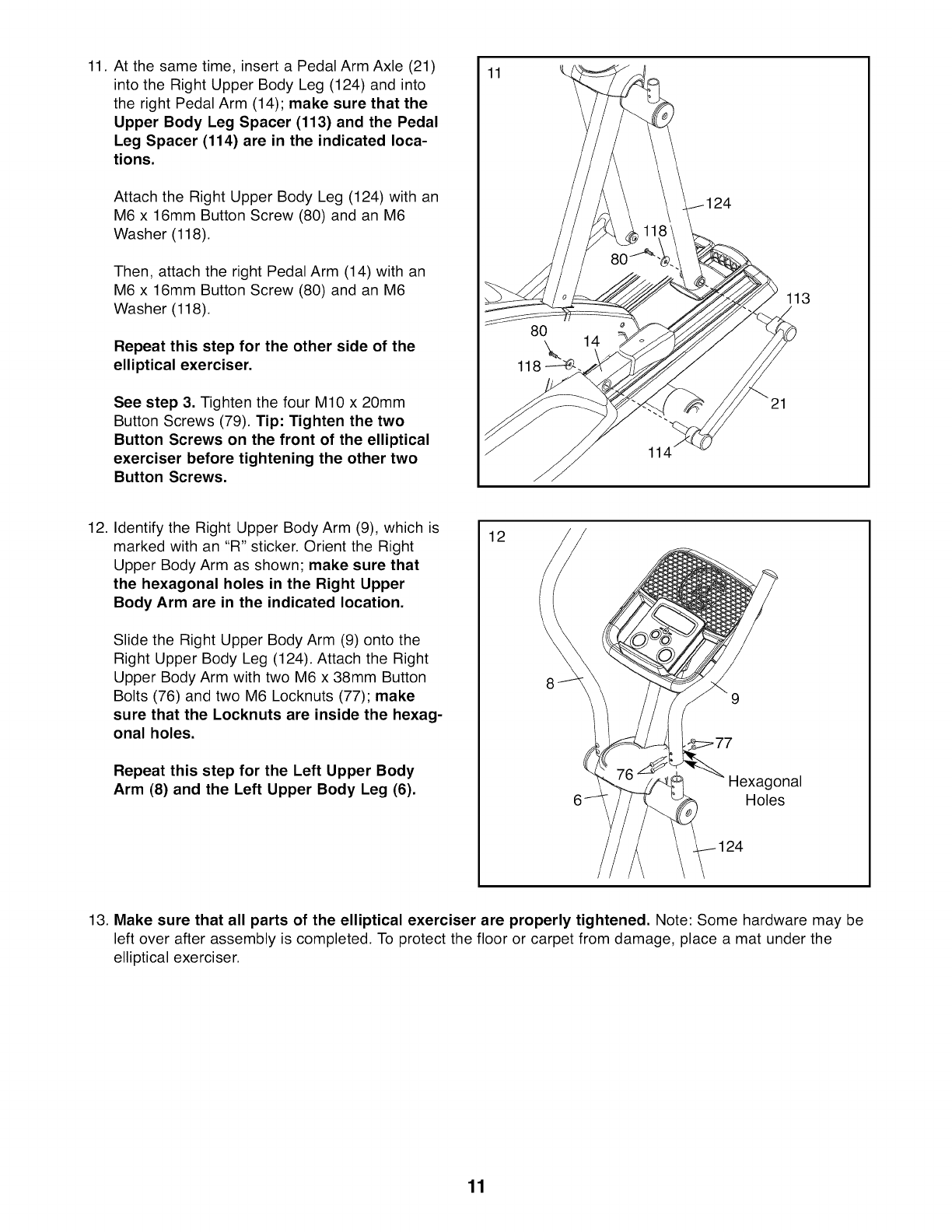

11. At the same time, insert a Pedal Arm Axle (21)

into the Right Upper Body Leg (124) and into

the right Pedal Arm (14); make sure that the

Upper Body Leg Spacer (113) and the Pedal

Leg Spacer (114) are in the indicated loca-

tions.

Attach the Right Upper Body Leg (124) with an

M6 x 16mm Button Screw (80) and an M6

Washer (118).

Then, attach the right Pedal Arm (14) with an

M6 x 16mm Button Screw (80) and an M6

Washer (118).

Repeat this step for the other side of the

elliptical exerciser.

See step 3. Tighten the four M10 x 20mm

Button Screws (79). Tip." Tighten the two

Button Screws on the front of the elliptical

exerciser before tightening the other two

Button Screws.

114

113

12. Identify the Right Upper Body Arm (9), which is

marked with an "R" sticker. Orient the Right

Upper Body Arm as shown; make sure that

the hexagonal holes in the Right Upper

Body Arm are in the indicated location.

Slide the Right Upper Body Arm (9) onto the

Right Upper Body Leg (124). Attach the Right

Upper Body Arm with two M6 x 38mm Button

Bolts (76) and two M6 Locknuts (77); make

sure that the Locknuts are inside the hexag-

onal holes.

Repeat this step for the Left Upper Body

Arm (8) and the Left Upper Body Leg (6).

onal

Holes

13. Make sure that all parts of the elliptical exerciser are properly tightened. Note: Some hardware may be

left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the

elliptical exerciser.

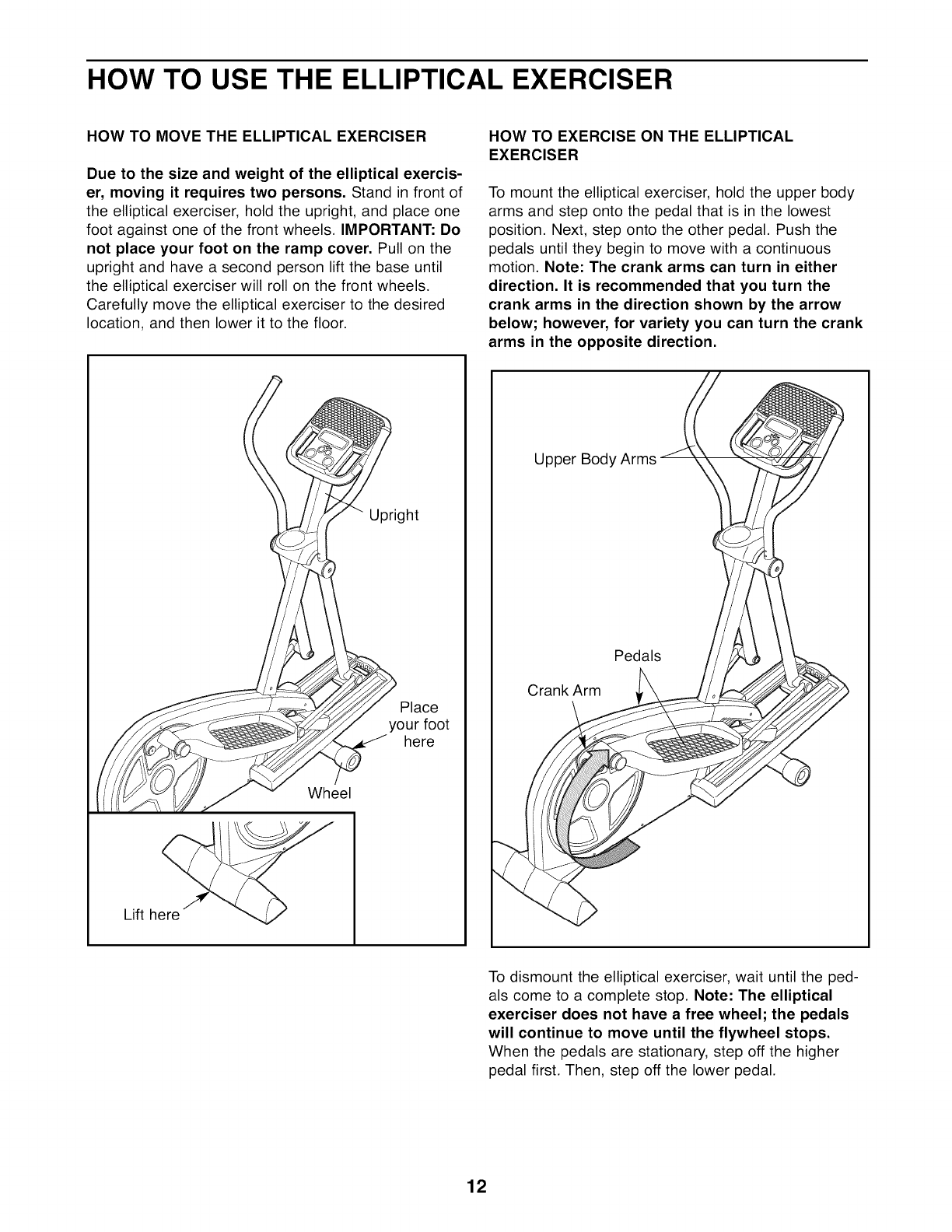

HOW TO USE THE ELLIPTICAL EXERCISER

HOW TO MOVE THE ELLIPTICAL EXERCISER

Due to the size and weight of the elliptical exercis-

er, moving it requires two persons. Stand in front of

the elliptical exerciser, hold the upright, and place one

foot against one of the front wheels. IMPORTANT: Do

not place your foot on the ramp cover. Pull on the

upright and have a second person lift the base until

the elliptical exerciser will roll on the front wheels.

Carefully move the elliptical exerciser to the desired

location, and then lower it to the floor.

HOW TO EXERCISE ON THE ELLIPTICAL

EXERCISER

To mount the elliptical exerciser, hold the upper body

arms and step onto the pedal that is in the lowest

position. Next, step onto the other pedal. Push the

pedals until they begin to move with a continuous

motion. Note: The crank arms can turn in either

direction. It is recommended that you turn the

crank arms in the direction shown by the arrow

below; however, for variety you can turn the crank

arms in the opposite direction.

Lift here

Wheel

Upright

Place

your foot

here

Upper Body

Pedals

Crank Arm

To dismount the elliptical exerciser, wait until the ped-

als come to a complete stop. Note: The elliptical

exerciser does not have a free wheel; the pedals

will continue to move until the flywheel stops.

When the pedals are stationary, step off the higher

pedal first. Then, step off the lower pedal.

HOW TO ADJUST THE STRIDE OF THE

ELLIPTICAL EXERCISER

To adjust the stride of the elliptical exerciser, first pull

one of the adjustment knobs until the adjustment

bracket pivots freely. Pivot the adjustment bracket until

the adjustment knob is aligned with one of the holes in

the crank arm, and gently release the knob. Then,

pivot the adjustment bracket back and forth slightly to

make sure that the adjustment pin is engaged in one

of the holes in the crank arm.

Adjustment

Bracket

Adjustment

Holes

Crank

Arm

ustment

Knob

HOW TO CHANGE THE INCLINE OF THE RAMP

To vary the motion of the pedals, you can change the

incline of the ramp. To change the incline, pull the

ramp handle outward, raise or lower the ramp, and

engage the ramp pin into one of the adjustment holes

in the front of the frame.

Ramp

Pin Ramp

Handle

Ramp

Adjust the other side of the elliptical exerciser in the

same way.

FAN WORKOUT

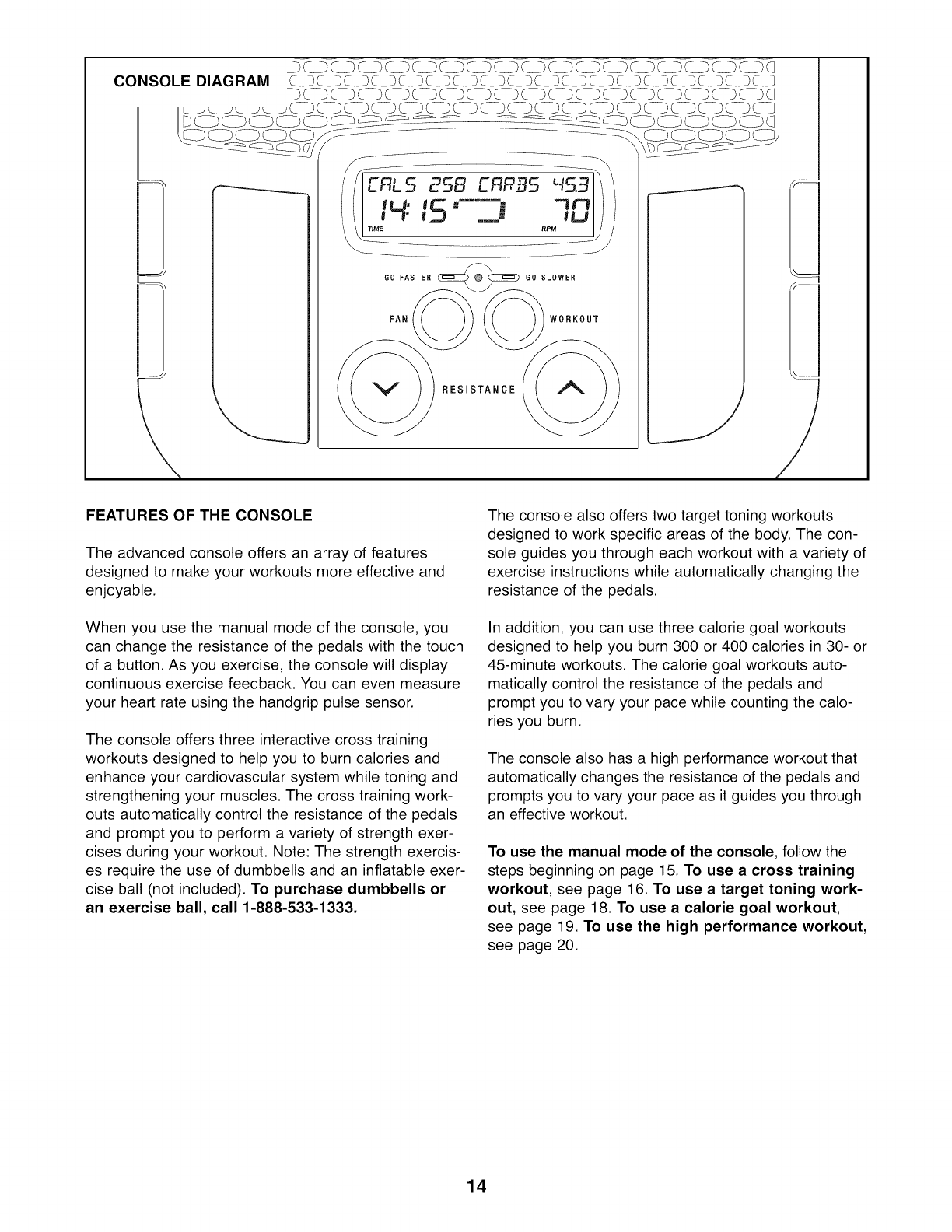

FEATURES OF THE CONSOLE

The advanced console offers an array of features

designed to make your workouts more effective and

enjoyable.

When you use the manual mode of the console, you

can change the resistance of the pedals with the touch

of a button. As you exercise, the console will display

continuous exercise feedback. You can even measure

your heart rate using the handgrip pulse sensor.

The console offers three interactive cross training

workouts designed to help you to burn calories and

enhance your cardiovascular system while toning and

strengthening your muscles. The cross training work-

outs automatically control the resistance of the pedals

and prompt you to perform a variety of strength exer-

cises during your workout. Note: The strength exercis-

es require the use of dumbbells and an inflatable exer-

cise ball (not included). To purchase dumbbells or

an exercise ball, call 1-888-533-1333.

The console also offers two target toning workouts

designed to work specific areas of the body. The con-

sole guides you through each workout with a variety of

exercise instructions while automatically changing the

resistance of the pedals.

In addition, you can use three calorie goal workouts

designed to help you burn 300 or 400 calories in 30- or

45-minute workouts. The calorie goal workouts auto-

matically control the resistance of the pedals and

prompt you to vary your pace while counting the calo-

ries you burn.

The console also has a high performance workout that

automatically changes the resistance of the pedals and

prompts you to vary your pace as it guides you through

an effective workout.

To use the manual mode of the console, follow the

steps beginning on page 15. To use a cross training

workout, see page 16. To use a target toning work-

out, see page 18. To use a calorie goal workout,

see page 19. To use the high performance workout,

see page 20.

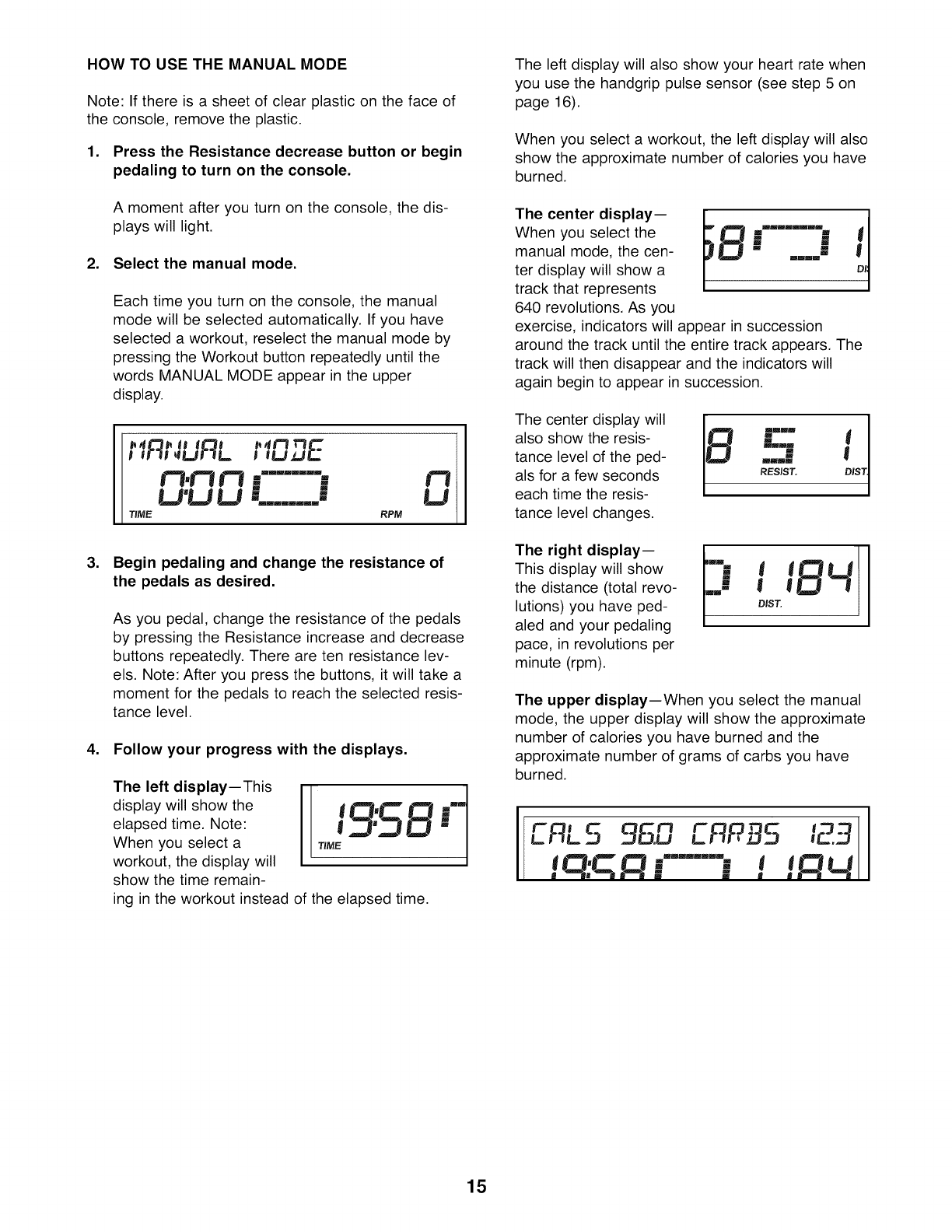

HOW TO USE THE MANUAL MODE

Note: If there is a sheet of clear plastic on the face of

the console, remove the plastic.

1. Press the Resistance decrease button or begin

pedaling to turn on the console.

A moment after you turn on the console, the dis-

plays will light.

2. Select the manual mode.

Each time you turn on the console, the manual

mode will be selected automatically. If you have

selected a workout, reselect the manual mode by

pressing the Workout button repeatedly until the

words MANUAL MODE appear in the upper

display.

! ll--m!_LJ!--IL. ! eLI,_tE

f'3,F3 F3 m....... _ F3

LJ'U L! ."......... .= L!

TIME RPM

.Begin pedaling and change the resistance of

the pedals as desired.

As you pedal, change the resistance of the pedals

by pressing the Resistance increase and decrease

buttons repeatedly. There are ten resistance lev-

els. Note: After you press the buttons, it will take a

moment for the pedals to reach the selected resis-

tance level.

4. Follow your progress with the displays.

The left display--This

display will show the

elapsed time. Note:

When you select a

workout, the display will

show the time remain-

I 'l

!.T_J'__Ce

TIME

ing in the workout instead of the elapsed time.

The left display will also show your heart rate when

you use the handgrip pulse sensor (see step 5 on

page 16).

When you select a workout, the left display will also

show the approximate number of calories you have

burned.

The center display--

When you select the

manual mode, the cen-

ter display will show a

track that represents

640 revolutions. As you

f°' .......""!l

D = .... m

exercise, indicators will appear in succession

around the track until the entire track appears. The

track will then disappear and the indicators will

again begin to appear in succession.

The center display will

also show the resis-

tance level of the ped-

als for a few seconds

each time the resis-

tance level changes.

The right display--

This display will show

the distance (total revo-

lutions) you have ped-

aled and your pedaling

pace, in revolutions per

minute (rpm).

The upper display--When you select the manual

mode, the upper display will show the approximate

number of calories you have burned and the

approximate number of grams of carbs you have

burned.

IJE LSE PBS,2 1

_ mmmmzmmm_ m

!q:q!--"! ! .= !

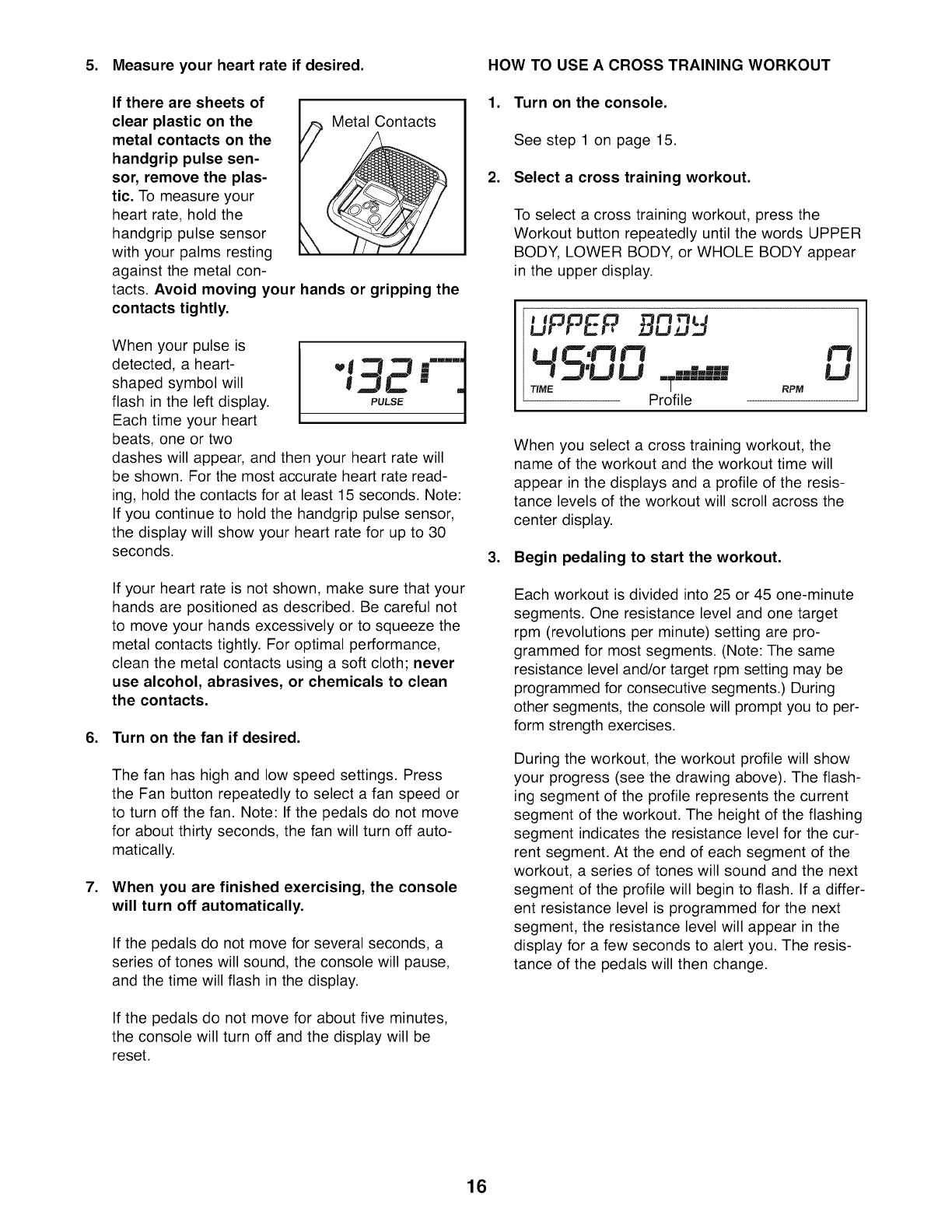

5. Measure your heart rate if desired. HOW TO USE A CROSS TRAINING WORKOUT

If there are sheets of

clear plastic on the Metal Contacts

metal contacts on the

handgrip pulse sen-

sor, remove the plas-

tic. To measure your

heart rate, hold the

handgrip pulse sensor

with your palms resting

against the metal con-

tacts. Avoid moving your hands or gripping the

contacts tightly.

When your pulse is

detected, a heart-

shaped symbol will

flash in the left display.

Each time your heart

beats, one or two

dashes will appear, and then your heart rate will

be shown. For the most accurate heart rate read-

ing, hold the contacts for at least 15 seconds. Note:

If you continue to hold the handgrip pulse sensor,

the display will show your heart rate for up to 30

seconds.

If your heart rate is not shown, make sure that your

hands are positioned as described. Be careful not

to move your hands excessively or to squeeze the

metal contacts tightly. For optimal performance,

clean the metal contacts using a soft cloth; never

use alcohol, abrasives, or chemicals to clean

the contacts.

6. Turn on the fan if desired.

The fan has high and low speed settings. Press

the Fan button repeatedly to select a fan speed or

to turn off the fan. Note: If the pedals do not move

for about thirty seconds, the fan will turn off auto-

matically.

When you are finished exercising, the console

will turn off automatically.

If the pedals do not move for several seconds, a

series of tones will sound, the console will pause,

and the time will flash in the display.

If the pedals do not move for about five minutes,

the console will turn off and the display will be

reset.

1. Turn on the console.

See step 1 on page 15.

2. Select a cross training workout.

To select a cross training workout, press the

Workout button repeatedly until the words UPPER

BODY, LOWER BODY, or WHOLE BODY appear

in the upper display.

UPPEP BOOd

! I'UL! ---=='-'=" L!

ll_lmmmlmE

TIME RPM

Profile

When you select a cross training workout, the

name of the workout and the workout time will

appear in the displays and a profile of the resis-

tance levels of the workout will scroll across the

center display.

3. Begin pedaling to start the workout.

Each workout is divided into 25 or 45 one-minute

segments. One resistance level and one target

rpm (revolutions per minute) setting are pro-

grammed for most segments. (Note: The same

resistance level and/or target rpm setting may be

programmed for consecutive segments.) During

other segments, the console will prompt you to per-

form strength exercises.

During the workout, the workout profile will show

your progress (see the drawing above). The flash-

ing segment of the profile represents the current

segment of the workout. The height of the flashing

segment indicates the resistance level for the cur-

rent segment. At the end of each segment of the

workout, a series of tones will sound and the next

segment of the profile will begin to flash. If a differ-

ent resistance level is programmed for the next

segment, the resistance level will appear in the

display for a few seconds to alert you. The resis-

tance of the pedals will then change.

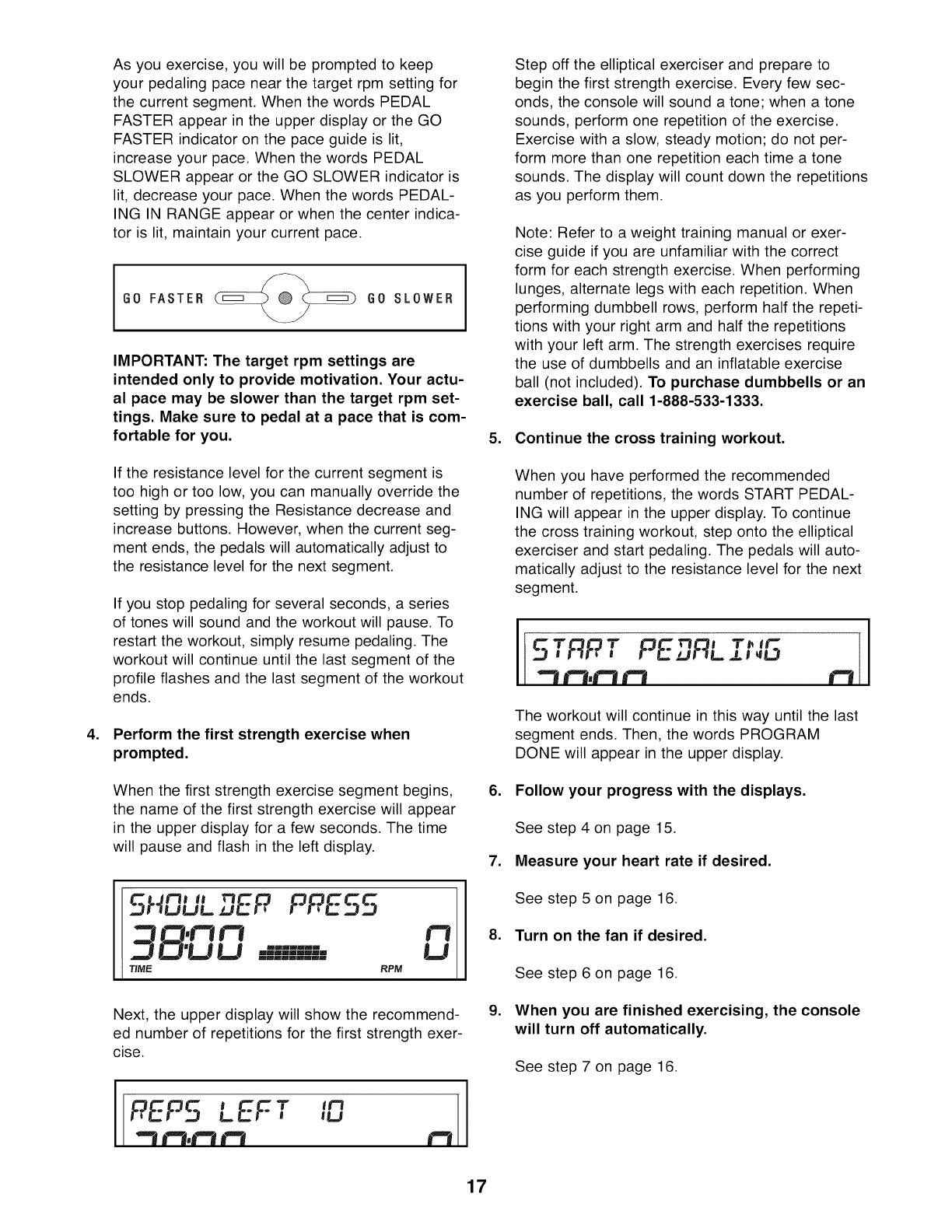

As you exercise, you will be prompted to keep

your pedaling pace near the target rpm setting for

the current segment. When the words PEDAL

FASTER appear in the upper display or the GO

FASTER indicator on the pace guide is lit,

increase your pace. When the words PEDAL

SLOWER appear or the GO SLOWER indicator is

lit, decrease your pace. When the words PEDAL-

ING IN RANGE appear or when the center indica-

tor is lit, maintain your current pace.

GO FASTER _ GO SLOWER

IMPORTANT: The target rpm settings are

intended only to provide motivation. Your actu-

al pace may be slower than the target rpm set-

tings. Make sure to pedal at a pace that is com-

fortable for you.

If the resistance level for the current segment is

too high or too low, you can manually override the

setting by pressing the Resistance decrease and

increase buttons. However, when the current seg-

ment ends, the pedals will automatically adjust to

the resistance level for the next segment.

If you stop pedaling for several seconds, a series

of tones will sound and the workout will pause. To

restart the workout, simply resume pedaling. The

workout will continue until the last segment of the

profile flashes and the last segment of the workout

ends.

Perform the first strength exercise when

prompted.

When the first strength exercise segment begins,

the name of the first strength exercise will appear

in the upper display for a few seconds. The time

will pause and flash in the left display.

cHn'" < I

_,, uuL. ,.JER PPE55

LI .=.,==,..=..%%.%,.r=LJ

TIME RPM

Next, the upper display will show the recommend-

ed number of repetitions for the first strength exer-

cise.

REP.5 LEF T

£'_,m"t _"_ £"1

Step off the elliptical exerciser and prepare to

begin the first strength exercise. Every few sec-

onds, the console will sound a tone; when a tone

sounds, perform one repetition of the exercise.

Exercise with a slow, steady motion; do not per-

form more than one repetition each time a tone

sounds. The display will count down the repetitions

as you perform them.

Note: Refer to a weight training manual or exer-

cise guide if you are unfamiliar with the correct

form for each strength exercise. When performing

lunges, alternate legs with each repetition. When

performing dumbbell rows, perform half the repeti-

tions with your right arm and half the repetitions

with your left arm. The strength exercises require

the use of dumbbells and an inflatable exercise

ball (not included). To purchase dumbbells or an

exercise ball, call 1-888-533-1333.

5. Continue the cross training workout.

When you have performed the recommended

number of repetitions, the words START PEDAL-

ING will appear in the upper display. To continue

the cross training workout, step onto the elliptical

exerciser and start pedaling. The pedals will auto-

matically adjust to the resistance level for the next

segment.

1I.STRPT I-- _JJr]L J. t _L_

£'1

The workout will continue in this way until the last

segment ends. Then, the words PROGRAM

DONE will appear in the upper display.

6. Follow your progress with the displays.

See step 4 on page 15.

Measure your heart rate if desired.

See step 5 on page 16.

8. Turn on the fan if desired.

See step 6 on page 16.

When you are finished exercising, the console

will turn off automatically.

See step 7 on page 16.

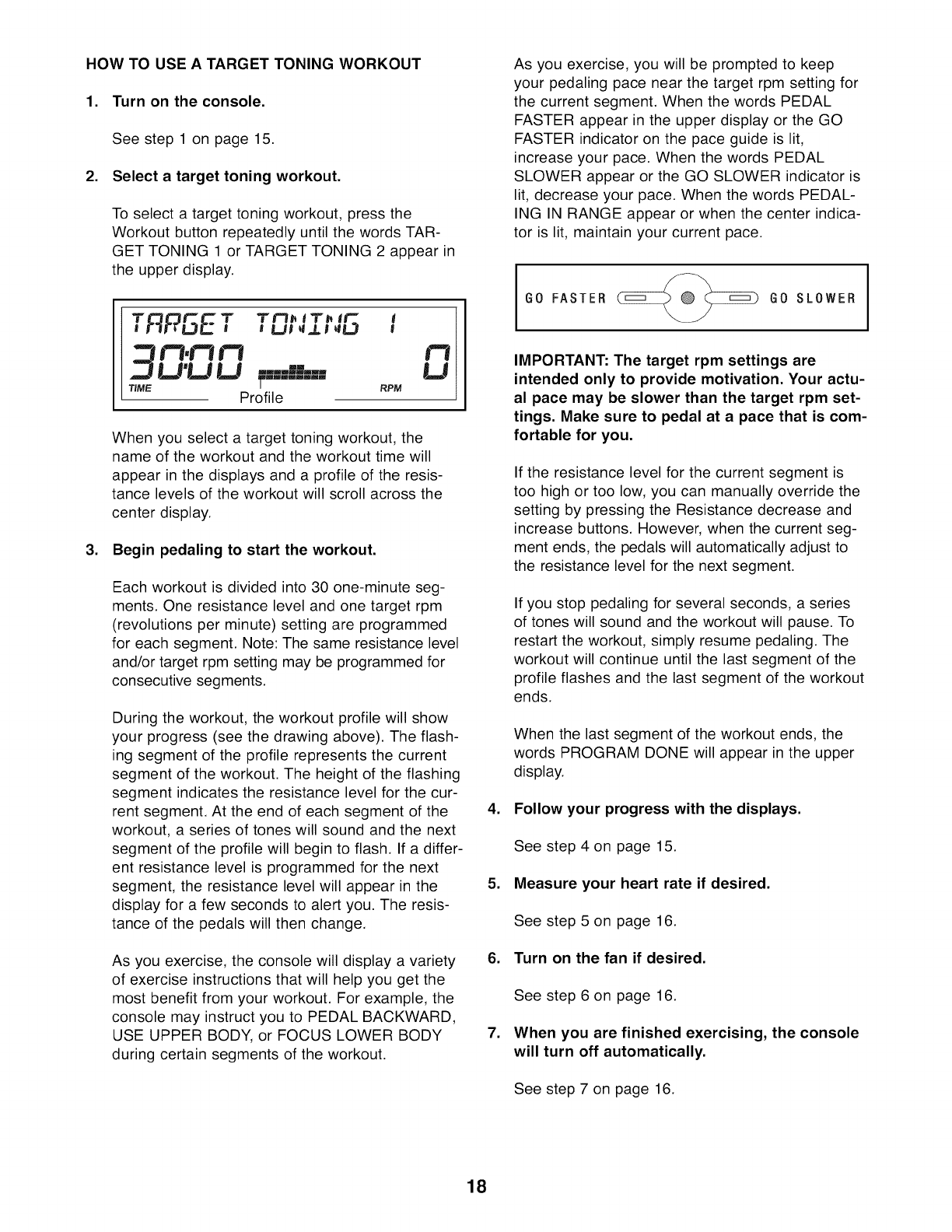

HOW TO USE A TARGET TONING WORKOUT

1. Turn on the console.

See step 1 on page 15.

2. Select a target toning workout.

To select a target toning workout, press the

Workout button repeatedly until the words TAR-

GET TONING 1 or TARGET TONING 2 appear in

the upper display.

TRpSE T Tf"_l_IT I__VS'_ I

I"!,¢3 l-I ¢3

U'LJ U .... L.. LI

TIME RPM

Profile

When you select a target toning workout, the

name of the workout and the workout time will

appear in the displays and a profile of the resis-

tance levels of the workout will scroll across the

center display.

3. Begin pedaling to start the workout.

Each workout is divided into 30 one-minute seg-

ments. One resistance level and one target rpm

(revolutions per minute) setting are programmed

for each segment. Note: The same resistance level

and/or target rpm setting may be programmed for

consecutive segments.

During the workout, the workout profile will show

your progress (see the drawing above). The flash-

ing segment of the profile represents the current

segment of the workout. The height of the flashing

segment indicates the resistance level for the cur-

rent segment. At the end of each segment of the

workout, a series of tones will sound and the next

segment of the profile will begin to flash. If a differ-

ent resistance level is programmed for the next

segment, the resistance level will appear in the

display for a few seconds to alert you. The resis-

tance of the pedals will then change.

As you exercise, the console will display a variety

of exercise instructions that will help you get the

most benefit from your workout. For example, the

console may instruct you to PEDAL BACKWARD,

USE UPPER BODY, or FOCUS LOWER BODY

during certain segments of the workout.

As you exercise, you will be prompted to keep

your pedaling pace near the target rpm setting for

the current segment. When the words PEDAL

FASTER appear in the upper display or the GO

FASTER indicator on the pace guide is lit,

increase your pace. When the words PEDAL

SLOWER appear or the GO SLOWER indicator is

lit, decrease your pace. When the words PEDAL-

ING IN RANGE appear or when the center indica-

tor is lit, maintain your current pace.

GO FASTER _ GO SLOWER

IMPORTANT: The target rpm settings are

intended only to provide motivation. Your actu-

al pace may be slower than the target rpm set-

tings. Make sure to pedal at a pace that is com-

fortable for you.

If the resistance level for the current segment is

too high or too low, you can manually override the

setting by pressing the Resistance decrease and

increase buttons. However, when the current seg-

ment ends, the pedals will automatically adjust to

the resistance level for the next segment.

If you stop pedaling for several seconds, a series

of tones will sound and the workout will pause. To

restart the workout, simply resume pedaling. The

workout will continue until the last segment of the

profile flashes and the last segment of the workout

ends.

When the last segment of the workout ends, the

words PROGRAM DONE will appear in the upper

display.

4. Follow your progress with the displays.

See step 4 on page 15.

5. Measure your heart rate if desired.

See step 5 on page 16.

6. Turn on the fan if desired.

See step 6 on page 16.

When you are finished exercising, the console

will turn off automatically.

See step 7 on page 16.

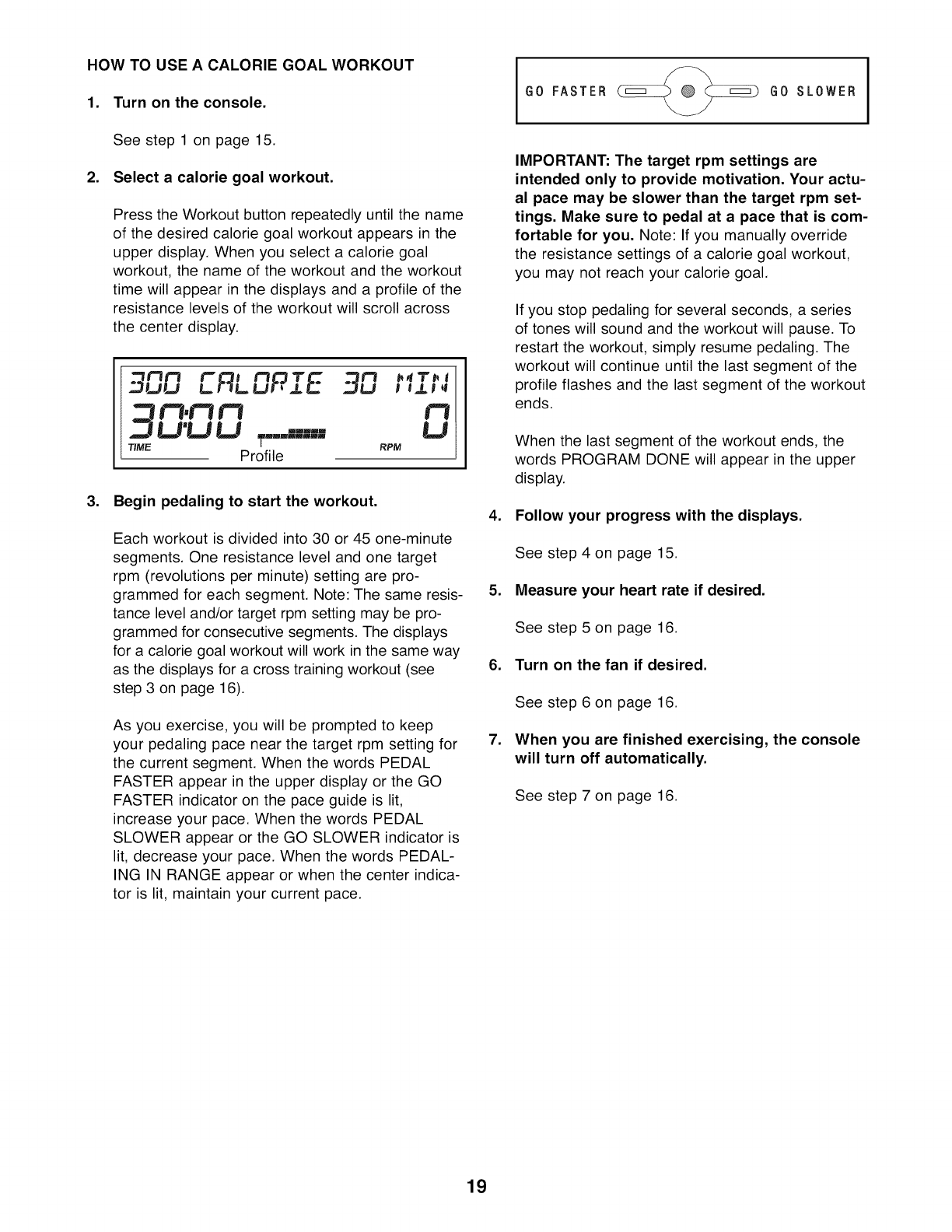

HOW TO USE A CALORIE GOAL WORKOUT

1. Turn on the console.

See step 1 on page 15.

2. Select a calorie goal workout.

Press the Workout button repeatedly until the name

of the desired calorie goal workout appears in the

upper display. When you select a calorie goal

workout, the name of the workout and the workout

time will appear in the displays and a profile of the

resistance levels of the workout will scroll across

the center display.

L!'U L! ....:..=..-.- L!

TIME RPM

Profile

3. Begin pedaling to start the workout.

Each workout is divided into 30 or 45 one-minute

segments. One resistance level and one target

rpm (revolutions per minute) setting are pro-

grammed for each segment. Note: The same resis-

tance level and/or target rpm setting may be pro-

grammed for consecutive segments. The displays

for a calorie goal workout will work in the same way

as the displays for a cross training workout (see

step 3 on page 16).

As you exercise, you will be prompted to keep

your pedaling pace near the target rpm setting for

the current segment. When the words PEDAL

FASTER appear in the upper display or the GO

FASTER indicator on the pace guide is lit,

increase your pace. When the words PEDAL

SLOWER appear or the GO SLOWER indicator is

lit, decrease your pace. When the words PEDAL-

ING IN RANGE appear or when the center indica-

tor is lit, maintain your current pace.

G0 FASTER G0 SLOWER

IMPORTANT: The target rpm settings are

intended only to provide motivation. Your actu-

al pace may be slower than the target rpm set-

tings. Make sure to pedal at a pace that is com-

fortable for you. Note: If you manually override

the resistance settings of a calorie goal workout,

you may not reach your calorie goal.

If you stop pedaling for several seconds, a series

of tones will sound and the workout will pause. To

restart the workout, simply resume pedaling. The

workout will continue until the last segment of the

profile flashes and the last segment of the workout

ends.

When the last segment of the workout ends, the

words PROGRAM DONE will appear in the upper

display.

4. Follow your progress with the displays.

See step 4 on page 15.

5. Measure your heart rate if desired.

See step 5 on page 16.

6. Turn on the fan if desired.

See step 6 on page 16.

When you are finished exercising, the console

will turn off automatically.

See step 7 on page 16.

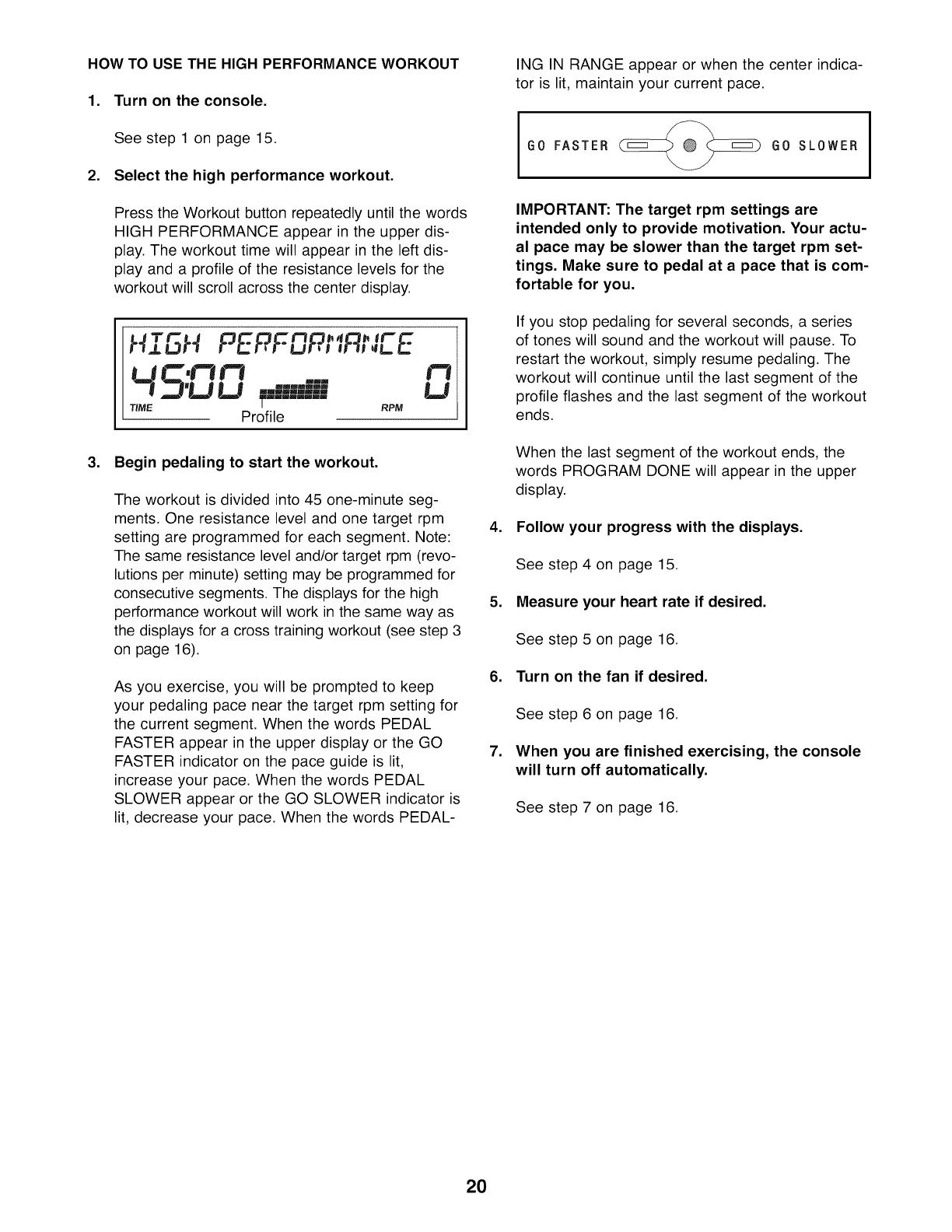

HOW TO USE THE HIGH PERFORMANCE WORKOUT

1. Turn on the console.

See step 1 on page 15.

2. Select the high performance workout.

Press the Workout button repeatedly until the words

HIGH PERFORMANCE appear in the upper dis-

play. The workout time will appear in the left dis-

play and a profile of the resistance levels for the

workout will scroll across the center display.

_ _ If""

H SH PERFuR, ,R,,LE

Ir!! C,m ¢3

!LJ LJ

TiME RPM

Profile

3. Begin pedaling to start the workout.

The workout is divided into 45 one-minute seg-

ments. One resistance level and one target rpm

setting are programmed for each segment. Note:

The same resistance level and/or target rpm (revo-

lutions per minute) setting may be programmed for

consecutive segments. The displays for the high

performance workout will work in the same way as

the displays for a cross training workout (see step 3

on page 16).

As you exercise, you will be prompted to keep

your pedaling pace near the target rpm setting for

the current segment. When the words PEDAL

FASTER appear in the upper display or the GO

FASTER indicator on the pace guide is lit,

increase your pace. When the words PEDAL

SLOWER appear or the GO SLOWER indicator is

lit, decrease your pace. When the words PEDAL-

ING IN RANGE appear or when the center indica-

tor is lit, maintain your current pace.

G0 FASTER GO SLOWER

IMPORTANT: The target rpm settings are

intended only to provide motivation. Your actu-

al pace may be slower than the target rpm set-

tings. Make sure to pedal at a pace that is com-

fortable for you.

If you stop pedaling for several seconds, a series

of tones will sound and the workout will pause. To

restart the workout, simply resume pedaling. The

workout will continue until the last segment of the

profile flashes and the last segment of the workout

ends.

When the last segment of the workout ends, the

words PROGRAM DONE will appear in the upper

display.

4. Follow your progress with the displays.

See step 4 on page 15.

5. Measure your heart rate if desired.

See step 5 on page 16.

6. Turn on the fan if desired.

See step 6 on page 16.

When you are finished exercising, the console

will turn off automatically.

See step 7 on page 16.

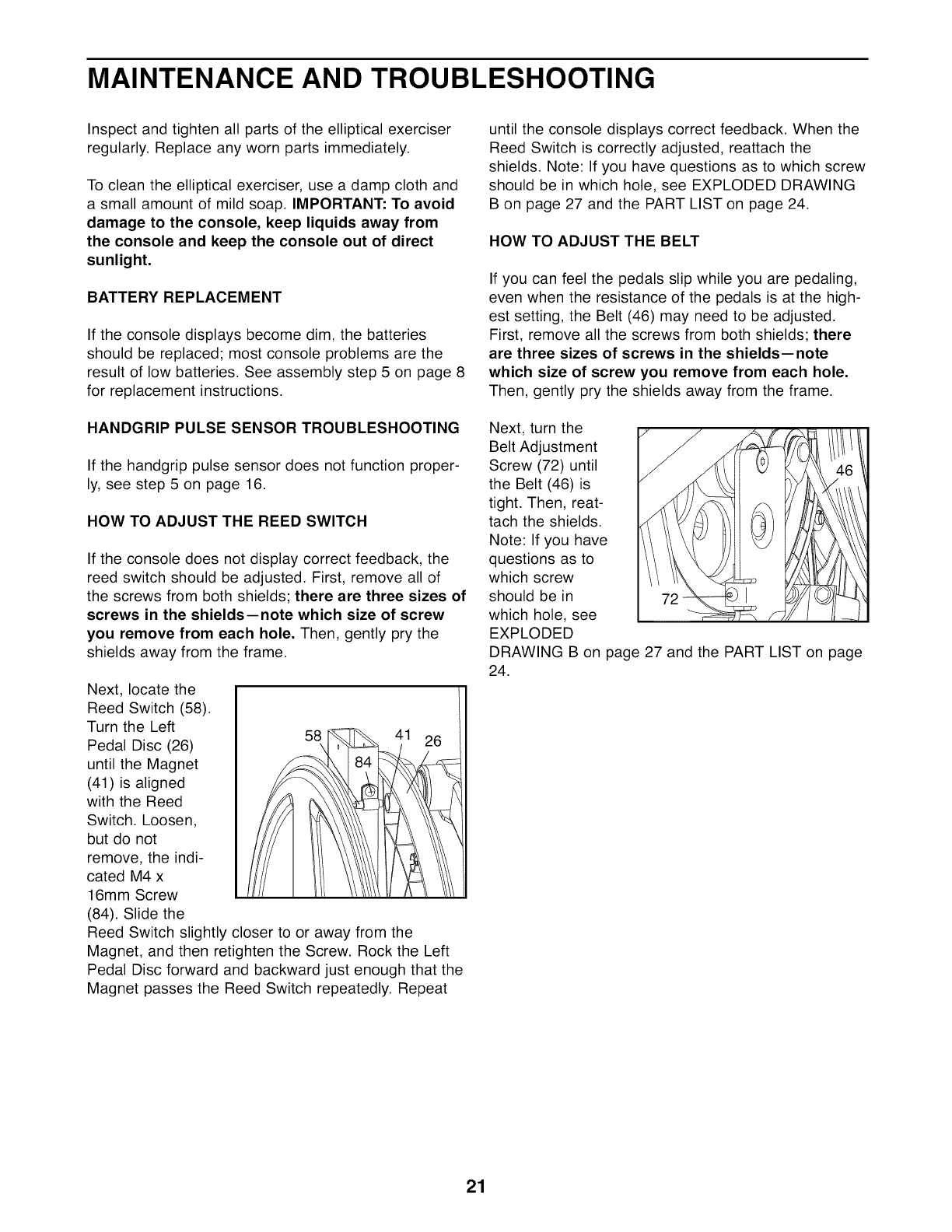

MAINTENANCE AND TROUBLESHOOTING

Inspect and tighten all parts of the elliptical exerciser

regularly. Replace any worn parts immediately.

To clean the elliptical exerciser, use a damp cloth and

a small amount of mild soap. IMPORTANT: To avoid

damage to the console, keep liquids away from

the console and keep the console out of direct

sunlight.

BATTERY REPLACEMENT

If the console displays become dim, the batteries

should be replaced; most console problems are the

result of low batteries. See assembly step 5 on page 8

for replacement instructions.

HANDGRIP PULSE SENSOR TROUBLESHOOTING

If the handgrip pulse sensor does not function proper-

ly, see step 5 on page 16.

HOW TO ADJUST THE REED SWITCH

If the console does not display correct feedback, the

reed switch should be adjusted. First, remove all of

the screws from both shields; there are three sizes of

screws in the shields--note which size of screw

you remove from each hole. Then, gently pry the

shields away from the frame.

Next, locate the

Reed Switch (58).

Turn the Left 58

Pedal Disc (26)

until the Magnet

(41) is aligned

with the Reed

Switch. Loosen,

but do not

remove, the indi-

cated M4 x

16mm Screw

(84). Slide the

Reed Switch slightly closer to or away from the

Magnet, and then retighten the Screw. Rock the Left

Pedal Disc forward and backward just enough that the

Magnet passes the Reed Switch repeatedly. Repeat

until the console displays correct feedback. When the

Reed Switch is correctly adjusted, reattach the

shields. Note: If you have questions as to which screw

should be in which hole, see EXPLODED DRAWING

B on page 27 and the PART LIST on page 24.

HOW TO ADJUST THE BELT

If you can feel the pedals slip while you are pedaling,

even when the resistance of the pedals is at the high-

est setting, the Belt (46) may need to be adjusted.

First, remove all the screws from both shields; there

are three sizes of screws in the shields--note

which size of screw you remove from each hole.

Then, gently pry the shields away from the frame.

Next, turn the

Belt Adjustment

Screw (72) until

the Belt (46) is

tight. Then, reat-

tach the shields.

Note: If you have

questions as to

which screw

should be in

which hole, see

EXPLODED

DRAWING B on page 27 and the PART LIST on page

24.

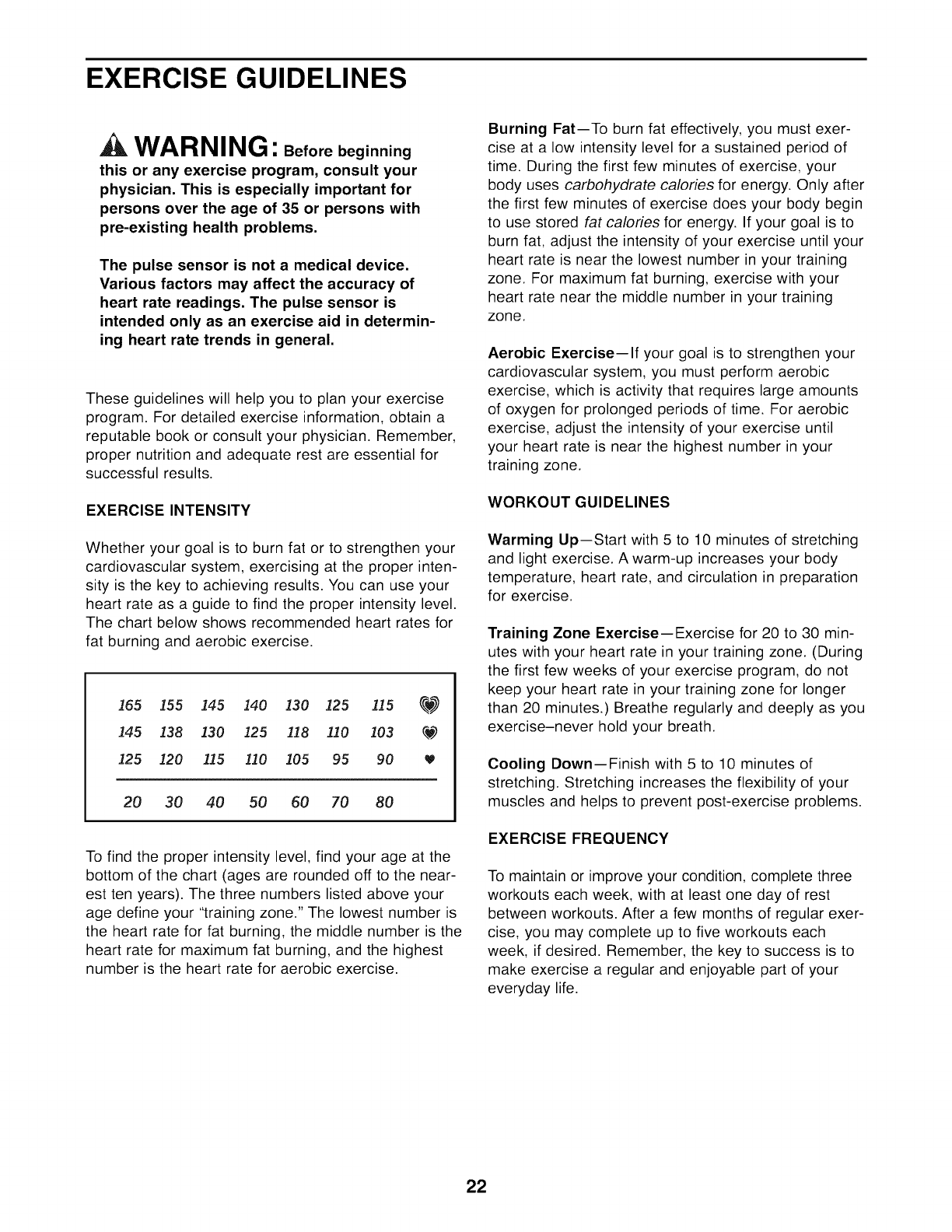

EXERCISE GUIDELINES

WARNING: Beforebeginning

this or any exercise program, consult your

physician. This is especially important for

persons over the age of 35 or persons with

pre-existing health problems.

The pulse sensor is not a medical device.

Various factors may affect the accuracy of

heart rate readings. The pulse sensor is

intended only as an exercise aid in determin-

ing heart rate trends in general.

These guidelines will help you to plan your exercise

program. For detailed exercise information, obtain a

reputable book or consult your physician. Remember,

proper nutrition and adequate rest are essential for

successful results.

EXERCISE INTENSITY

Whether your goal is to burn fat or to strengthen your

cardiovascular system, exercising at the proper inten-

sity is the key to achieving results. You can use your

heart rate as a guide to find the proper intensity level.

The chart below shows recommended heart rates for

fat burning and aerobic exercise.

165 155 145 140 130 125 115 _

145 138 130 125 118 110 103 CV)

125 120 ]I5 110 105 95 90 V

20 30 40 50 60 70 80

To find the proper intensity level, find your age at the

bottom of the chart (ages are rounded off to the near-

est ten years). The three numbers listed above your

age define your "training zone." The lowest number is

the heart rate for fat burning, the middle number is the

heart rate for maximum fat burning, and the highest

number is the heart rate for aerobic exercise.

Burning Fat--To burn fat effectively, you must exer-

cise at a low intensity level for a sustained period of

time. During the first few minutes of exercise, your

body uses carbohydrate calories for energy. Only after

the first few minutes of exercise does your body begin

to use stored fat calories for energy. If your goal is to

burn fat, adjust the intensity of your exercise until your

heart rate is near the lowest number in your training

zone. For maximum fat burning, exercise with your

heart rate near the middle number in your training

zone.

Aerobic Exercise--If your goal is to strengthen your

cardiovascular system, you must perform aerobic

exercise, which is activity that requires large amounts

of oxygen for prolonged periods of time. For aerobic

exercise, adjust the intensity of your exercise until

your heart rate is near the highest number in your

training zone.

WORKOUT GUIDELINES

Warming Up--Start with 5 to 10 minutes of stretching

and light exercise. A warm-up increases your body

temperature, heart rate, and circulation in preparation

for exercise.

Training Zone Exercise--Exercise for 20 to 30 min-

utes with your heart rate in your training zone. (During

the first few weeks of your exercise program, do not

keep your heart rate in your training zone for longer

than 20 minutes.) Breathe regularly and deeply as you

exercise-never hold your breath.

Cooling Down--Finish with 5 to 10 minutes of

stretching. Stretching increases the flexibility of your

muscles and helps to prevent post-exercise problems.

EXERCISE FREQUENCY

To maintain or improve your condition, complete three

workouts each week, with at least one day of rest

between workouts. After a few months of regular exer-

cise, you may complete up to five workouts each

week, if desired. Remember, the key to success is to

make exercise a regular and enjoyable part of your

everyday life.

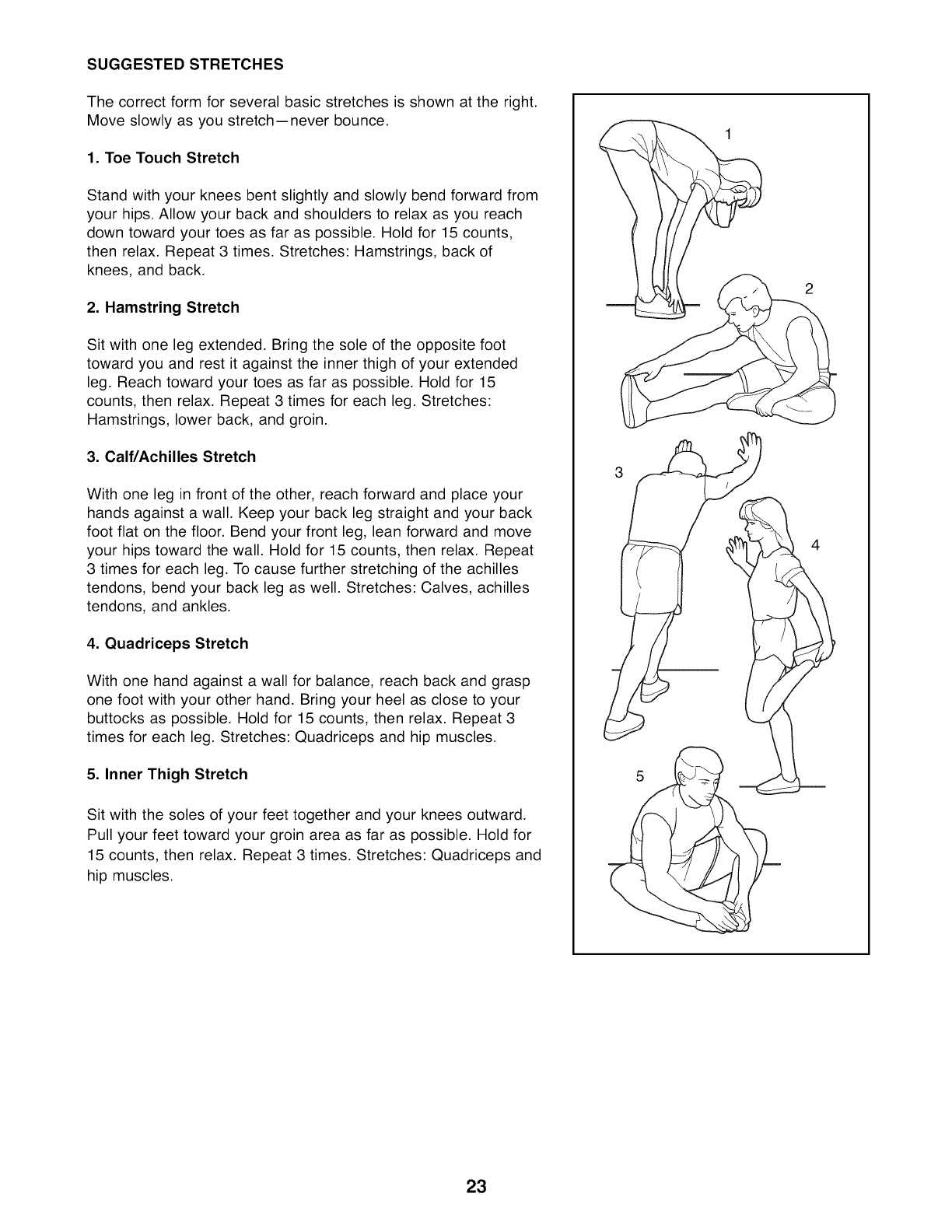

SUGGESTED STRETCHES

The correct form for several basic stretches is shown at the right.

Move slowly as you stretch--never bounce.

1. Toe Touch Stretch

Stand with your knees bent slightly and slowly bend forward from

your hips. Allow your back and shoulders to relax as you reach

down toward your toes as far as possible. Hold for 15 counts,

then relax. Repeat 3 times. Stretches: Hamstrings, back of

knees, and back.

2. Hamstring Stretch

Sit with one leg extended. Bring the sole of the opposite foot

toward you and rest it against the inner thigh of your extended

leg. Reach toward your toes as far as possible. Hold for 15

counts, then relax. Repeat 3 times for each leg. Stretches:

Hamstrings, lower back, and groin.

3. Calf/Achilles Stretch

With one leg in front of the other, reach forward and place your

hands against a wall. Keep your back leg straight and your back

foot flat on the floor. Bend your front leg, lean forward and move

your hips toward the wall. Hold for 15 counts, then relax. Repeat

3 times for each leg. To cause further stretching of the achilles

tendons, bend your back leg as well. Stretches: Calves, achilles

tendons, and ankles.

4. Quadriceps Stretch

With one hand against a wall for balance, reach back and grasp

one foot with your other hand. Bring your heel as close to your

buttocks as possible. Hold for 15 counts, then relax. Repeat 3

times for each leg. Stretches: Quadriceps and hip muscles.

5. Inner Thigh Stretch

Sit with the soles of your feet together and your knees outward.

Pull your feet toward your groin area as far as possible. Hold for

15 counts, then relax. Repeat 3 times. Stretches: Quadriceps and

hip muscles.

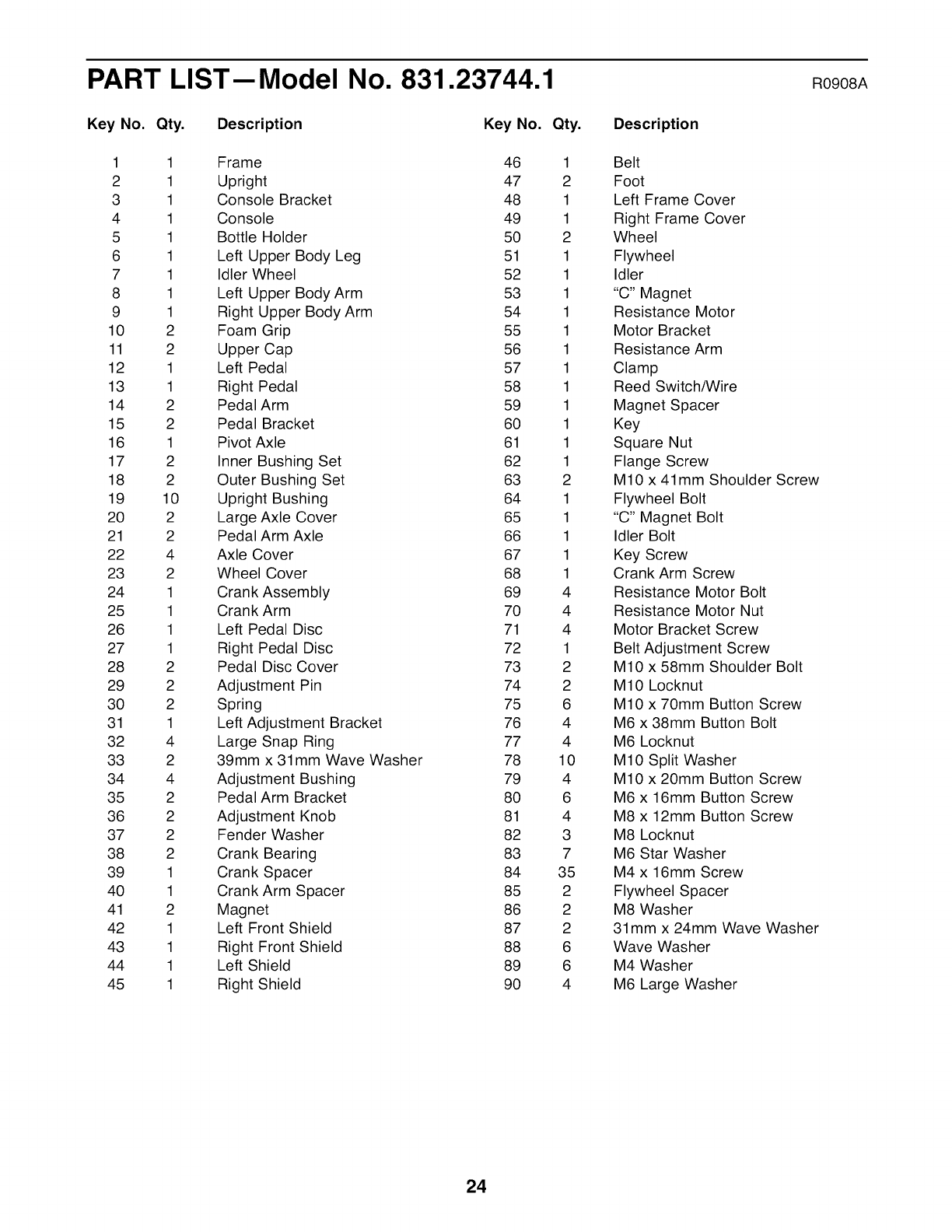

PART LIST--Model No. 831.23744.1 Rogo8A

Key No. Qty. Description Key No. Qty.

1 1 Frame 46 1

2 1 Upright 47 2

3 1 Console Bracket 48 1

4 1 Console 49 1

5 1 Bottle Holder 50 2

6 1 Left Upper Body Leg 51 1

7 1 Idler Wheel 52 1

8 1 Left Upper Body Arm 53 1

9 1 Right Upper Body Arm 54 1

10 2 Foam Grip 55 1

11 2 Upper Cap 56 1

12 1 Left Pedal 57 1

13 1 Right Pedal 58 1

14 2 Pedal Arm 59 1

15 2 Pedal Bracket 60 1

16 1 Pivot Axle 61 1

17 2 Inner Bushing Set 62 1

18 2 Outer Bushing Set 63 2

19 10 Upright Bushing 64 1

20 2 Large Axle Cover 65 1

21 2 Pedal Arm Axle 66 1

22 4 Axle Cover 67 1

23 2 Wheel Cover 68 1

24 1 Crank Assembly 69 4

25 1 Crank Arm 70 4

26 1 Left Pedal Disc 71 4

27 1 Right Pedal Disc 72 1

28 2 Pedal Disc Cover 73 2

29 2 Adjustment Pin 74 2

30 2 Spring 75 6

31 1 Left Adjustment Bracket 76 4

32 4 Large Snap Ring 77 4

33 2 39mm x 31 mm Wave Washer 78 10

34 4 Adjustment Bushing 79 4

35 2 Pedal Arm Bracket 80 6

36 2 Adjustment Knob 81 4

37 2 Fender Washer 82 3

38 2 Crank Bearing 83 7

39 1 Crank Spacer 84 35

40 1 Crank Arm Spacer 85 2

41 2 Magnet 86 2

42 1 Left Front Shield 87 2

43 1 Right Front Shield 88 6

44 1 Left Shield 89 6

45 1 Right Shield 90 4

Description

Belt

Foot

Left Frame Cover

Right Frame Cover

Wheel

Flywheel

Idler

"C" Magnet

Resistance Motor

Motor Bracket

Resistance Arm

Clamp

Reed Switch/Wire

Magnet Spacer

Key

Square Nut

Flange Screw

M10 x 41mm Shoulder Screw

Flywheel Bolt

"C" Magnet Bolt

Idler Bolt

Key Screw

Crank Arm Screw

Resistance Motor Bolt

Resistance Motor Nut

Motor Bracket Screw

Belt Adjustment Screw

M10 x 58mm Shoulder Bolt

M10 Locknut

M10 x 70mm Button Screw

M6 x 38mm Button Bolt

M6 Locknut

M10 Split Washer

M10 x 20mm Button Screw

M6 x 16mm Button Screw

M8 x 12mm Button Screw

M8 Locknut

M6 Star Washer

M4 x 16mm Screw

Flywheel Spacer

M8 Washer

31mm x 24mm Wave Washer

Wave Washer

M4 Washer

M6 Large Washer

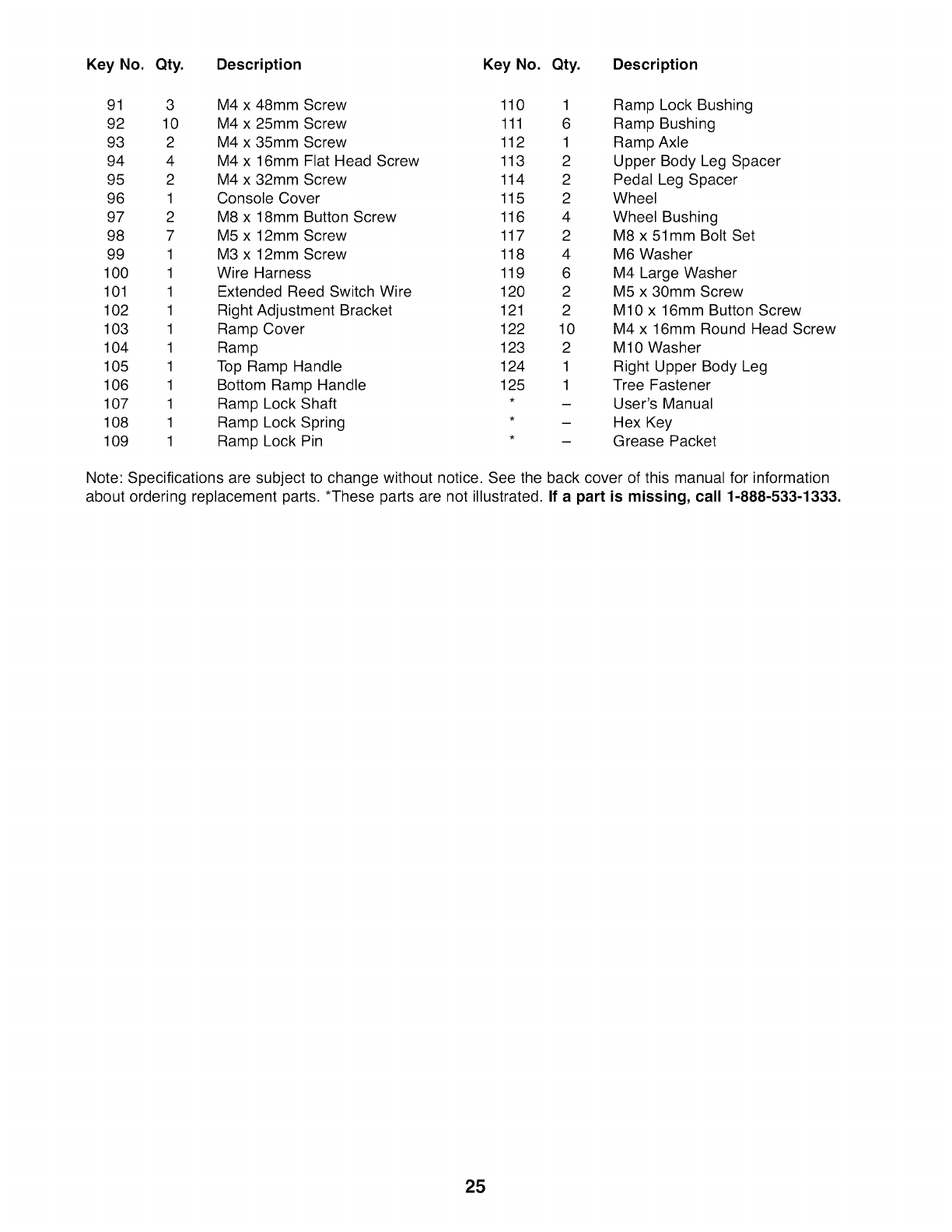

Key No. Qty. Description Key No. Qty. Description

91 3 M4 x 48mm Screw 110 1 Ramp Lock Bushing

92 10 M4 x 25mm Screw 111 6 Ramp Bushing

93 2 M4 x 35mm Screw 112 1 Ramp Axle

94 4 M4 x 16mm Flat Head Screw 113 2 Upper Body Leg Spacer

95 2 M4 x 32mm Screw 114 2 Pedal Leg Spacer

96 1 Console Cover 115 2 Wheel

97 2 M8 x 18mm Button Screw 116 4 Wheel Bushing

98 7 M5 x 12mm Screw 117 2 M8 x 51mm Bolt Set

99 1 M3 x 12mm Screw 118 4 M6 Washer

100 1 Wire Harness 119 6 M4 Large Washer

101 1 Extended Reed Switch Wire 120 2 M5 x 30mm Screw

102 1 Right Adjustment Bracket 121 2 M10 x 16mm Button Screw

103 1 Ramp Cover 122 10 M4 x 16mm Round Head Screw

104 1 Ramp 123 2 M10 Washer

105 1 Top Ramp Handle 124 1 Right Upper Body Leg

106 1 Bottom Ramp Handle 125 1 Tree Fastener

107 1 Ramp Lock Shaft * - User's Manual

108 1 Ramp Lock Spring * - Hex Key

109 1 Ramp Lock Pin * - Grease Packet

Note: Specifications are subject to change without notice. See the back cover of this manual for information

about ordering replacement parts. *These parts are not illustrated. If a part is missing, call 1-888-533-1333.

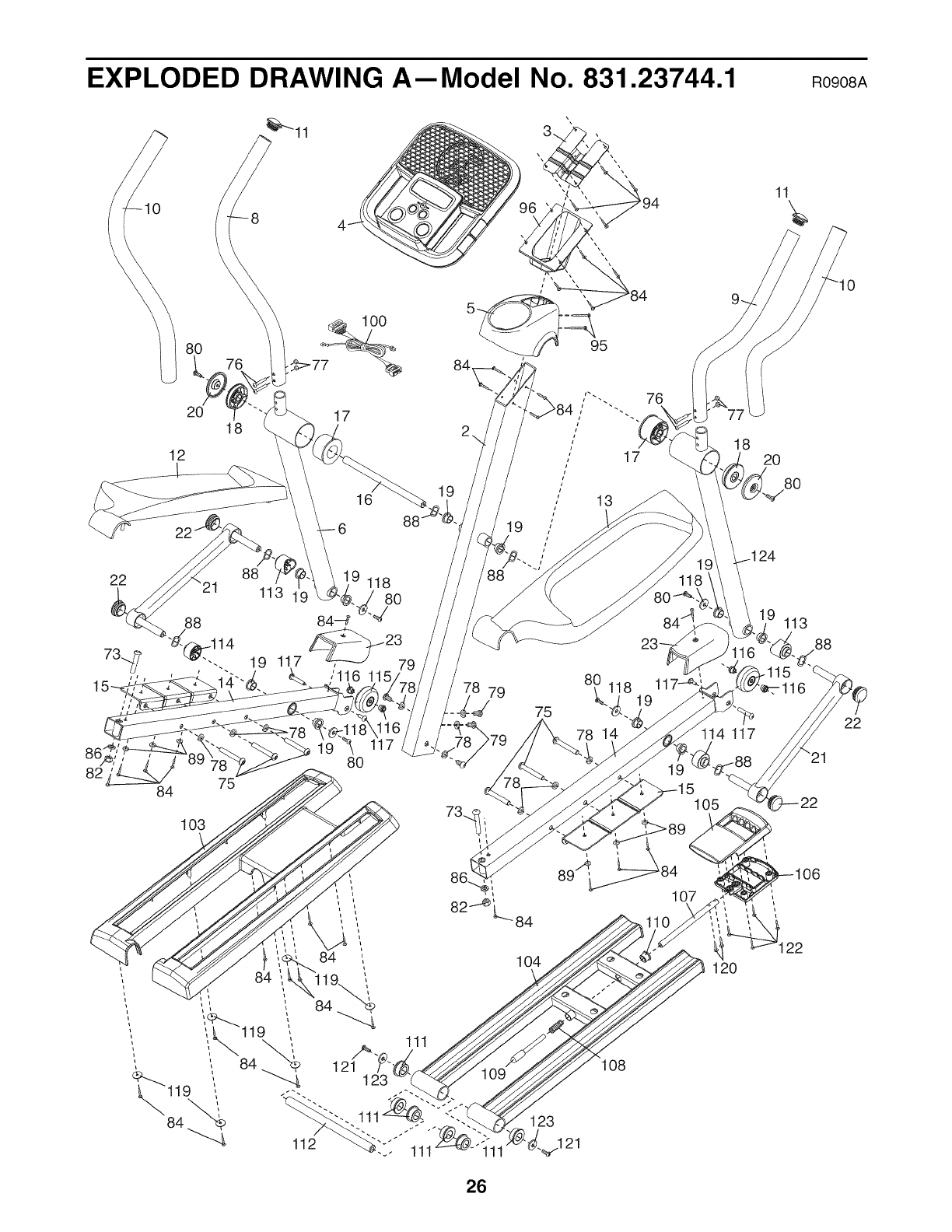

EXPLODED DRAWING A--Model No. 831.23744.1 Rogo8A

20 17

"21

103

16 i

19 '

88 9 118

113 1 ._. 80

84--_

19 117 7_

8 79

</ 75

86.

82..-----eL_84

104

123

108

114 117

105

107

120

18 20

9 113

35 _, 33

122

48 91

101

45\

102

._k

',,,I

._k

(.o

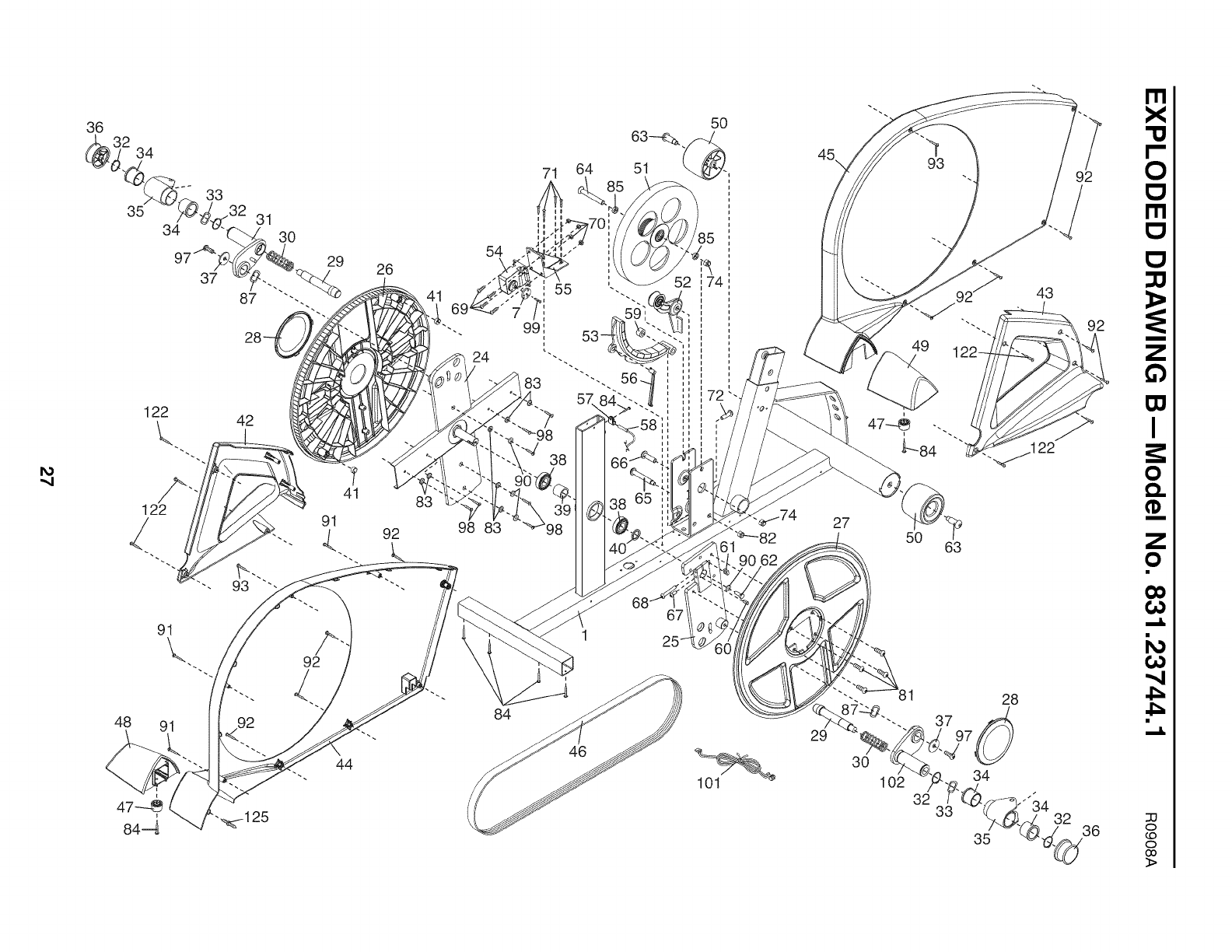

Your Home

® Registered Trademark /TMTrademark /SMService Mark of Sears Brands, LLC

® Marca Registrada /TMMarca de Fabrica /SMMarca de Servicio de Sears Brands, LLC

90 DAY FULL WARRANTY

If this Sears Elliptical Exerciser fails due to a defect in material or workmanship within 90 days of the

date of purchase, call 1-800-4-MY-HOME ®(1-800-469-4663) to arrange for free repair (or replacement

if repair proves impossible). The frame is warranted for a period of 7 years from the date of purchase.

This warranty does not apply when the Elliptical Exerciser is used commercially or for rental purposes.

This warranty gives you specific legal rights, and you may also have other rights which vary from state

to state.

Sears, Roebuck and Co., Hoffman Estates, IL 60179

Sears Pro Form 831 23744 1 Users Manual

831237441 831237441 PROFORM PROFORM XP 520 RAZOR - Manuals and Guides L0812596 View the owners manual for your PROFORM PROFORM XP 520 RAZOR #831237441. Home:Fitness Equipment Parts:Proform Parts:Proform PROFORM XP 520 RAZOR Manual

PROFORM Elliptical Manual L0812596 PROFORM Elliptical Owner's Manual, PROFORM Elliptical installation guides

831.23744.1 L0812596

831.23744.1 to the manual 60db665f-3731-484b-9612-ba664f4c801f

Navigation menu

Versions of this User Manual:

Views

Navigation
