Electronic Security

Hardware

HES | Securitron Product

Catalog 2018

HES and Securiton have

united as ASSA ABLOY

Electronic Security Hardware

When we come together,

great things happen.

In 2018 HES and Securitron, the world’s premier suppliers of

electric strikes, electronic locking systems and access control

components, are uniting as ASSA ABLOY Electronic Security

Hardware. This exciting combination accentuates the best of both

brands: the innovation, strength and service of HES harmonizing

with the durability, quality and no-fault warranty of Securitron.

Industry Leaders

With more than 40 years of experience shaping the access control

industry while innovating electric strikes and electromagnetic

locks and accessories, ASSA ABLOY Electronic Security Hardware

will continue to offer the same high quality products of the

legacy HES and Securitron brands that you have come to rely

upon. By combining the brands together, ASSA ABLOY Electronic

Security Hardware provides a solution offering that is more

comprehensive than either one brand could have provided alone.

Customers Come First

The MagnaCare warranty no-fault, no questions asked commitment

to customer satisfaction will continue to be called MagnaCare and

will apply to select products under the over-arching strength and

assurance of the ASSA ABLOY brand. Knowledgeable Customer

Care and Tech Support teams are ready to assist with anything from

the smallest detail to the most difficult application questions.

A Brighter Future…Together

The unification of these two legacies creates immense opportunity

for innovation, provides a more solutions-focused product

offering, and supports superior customer experiences.

Our success could not be achieved without you, our customers.

We thank you for your business and partnership, and appreciate

your continued support. We look forward to working with

you… together as ASSA ABLOY Electronic Security Hardware.

For more information, visit assaabloyesh.com.

Table of Contents

Electronic Security

Hardware

HES | Securitron Product

Catalog 2018

10027 S. 51st Street Phoenix, AZ 85044 USA

assaabloyesh.com | 800.626.7590

whole or in part without the express written permission of

Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent assaabloydss.com/patents

Table of Contents

Electric Strikes

HES 1006 ••••••••••••••••••••••••••••••••••••••••••••••••••••• 3

HES 1500, 1600•••••••••••••••••••••••••••••••••••••••••••••••• 13

HES 4500 ••••••••••••••••••••••••••••••••••••••••••••••••••••21

HES 5000, 5200 •••••••••••••••••••••••••••••••••••••••••••••••23

HES 7000, 7501 •••••••••••••••••••••••••••••••••••••••••••••••29

HES 8000, 8300, 8500 ••••••••••••••••••••••••••••••••••••••••••35

HES 9400, 9500, 9600, 9700 ••••••••••••••••••••••••••••••••••••45

HES Folger Adam 310 Series •••••••••••••••••••••••••••••••••••••53

HES Folger Adam 310-4 Series •••••••••••••••••••••••••••••••••••57

HES Folger Adam 310-4-X Series •••••••••••••••••••••••••••••••••59

HES Folger Adam 310-6-X Series ••••••••••••••••••••••••••••••••• 61

HES Folger Adam 700 Series •••••••••••••••••••••••••••••••••••••63

HES Folger Adam 742 Series •••••••••••••••••••••••••••••••••••••65

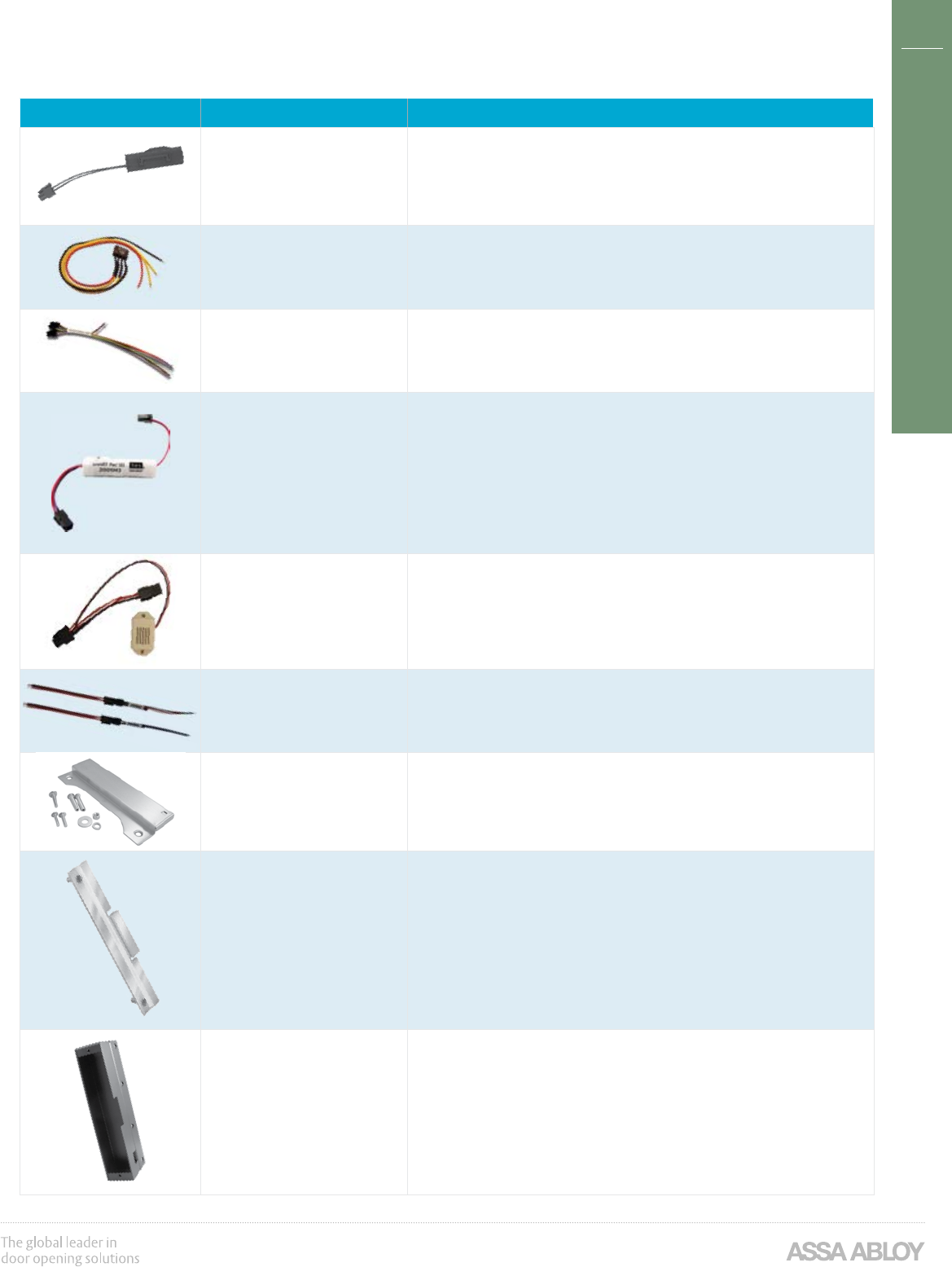

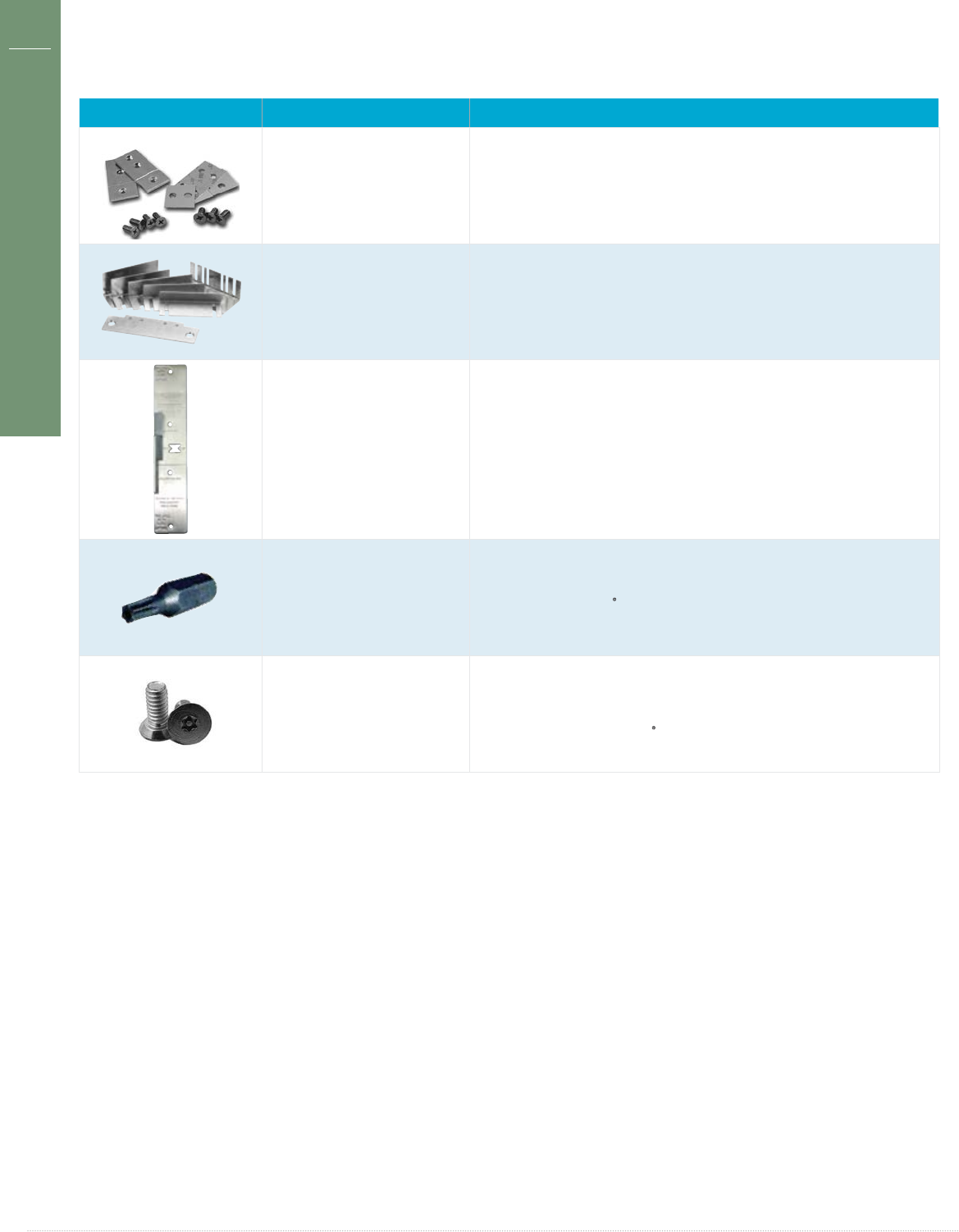

Electric Strike Accessories ••••••••••••••••••••••••••••••••••••••67

Securitron UNL, MUNL •••••••••••••••••••••••••••••••••••••••••69

Electric Strike Compatability Chart ••••••••••••••••••••••••••••••73

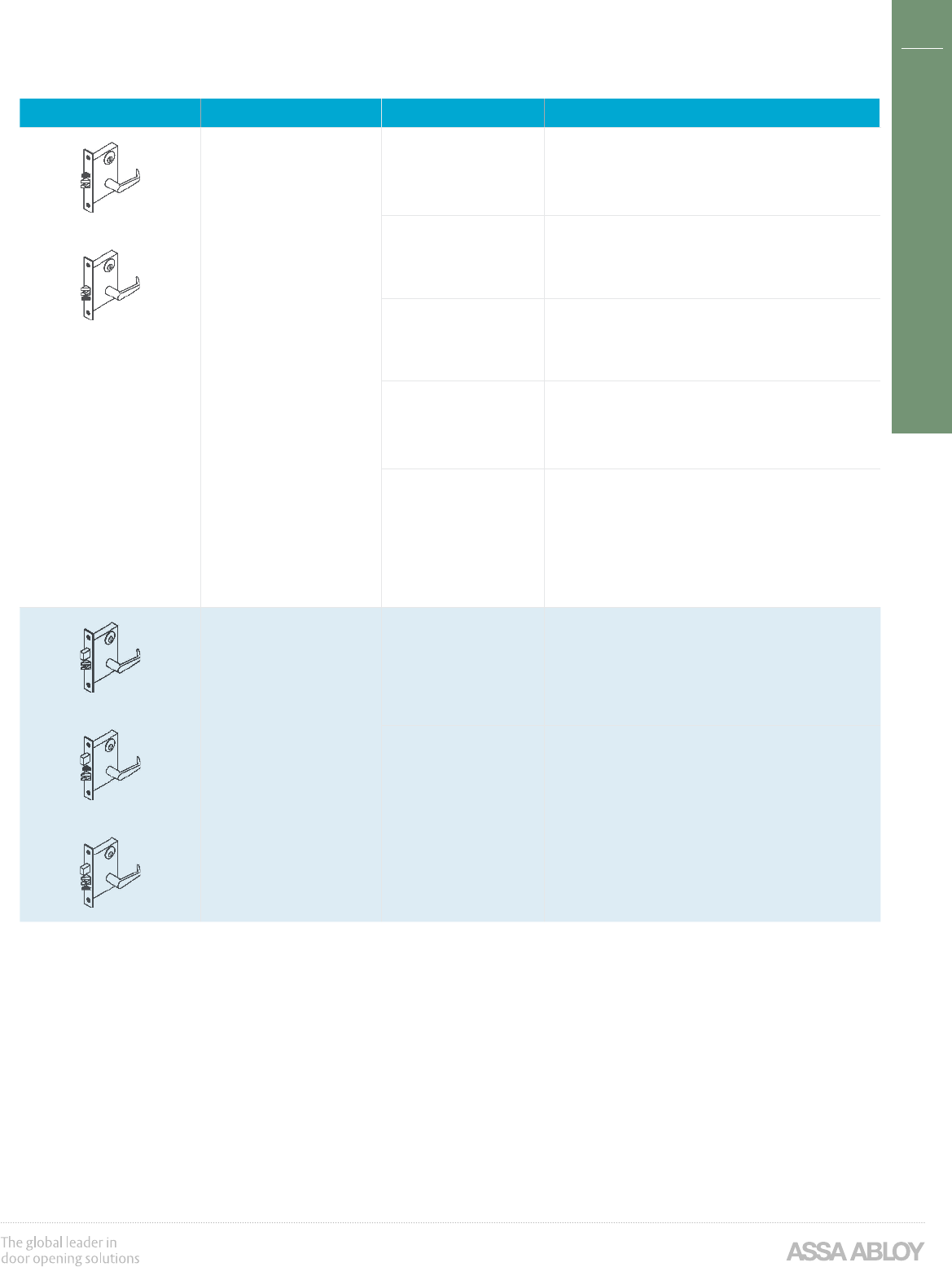

Lock Cross Reference ••••••••••••••••••••••••••••••••••••••••••75

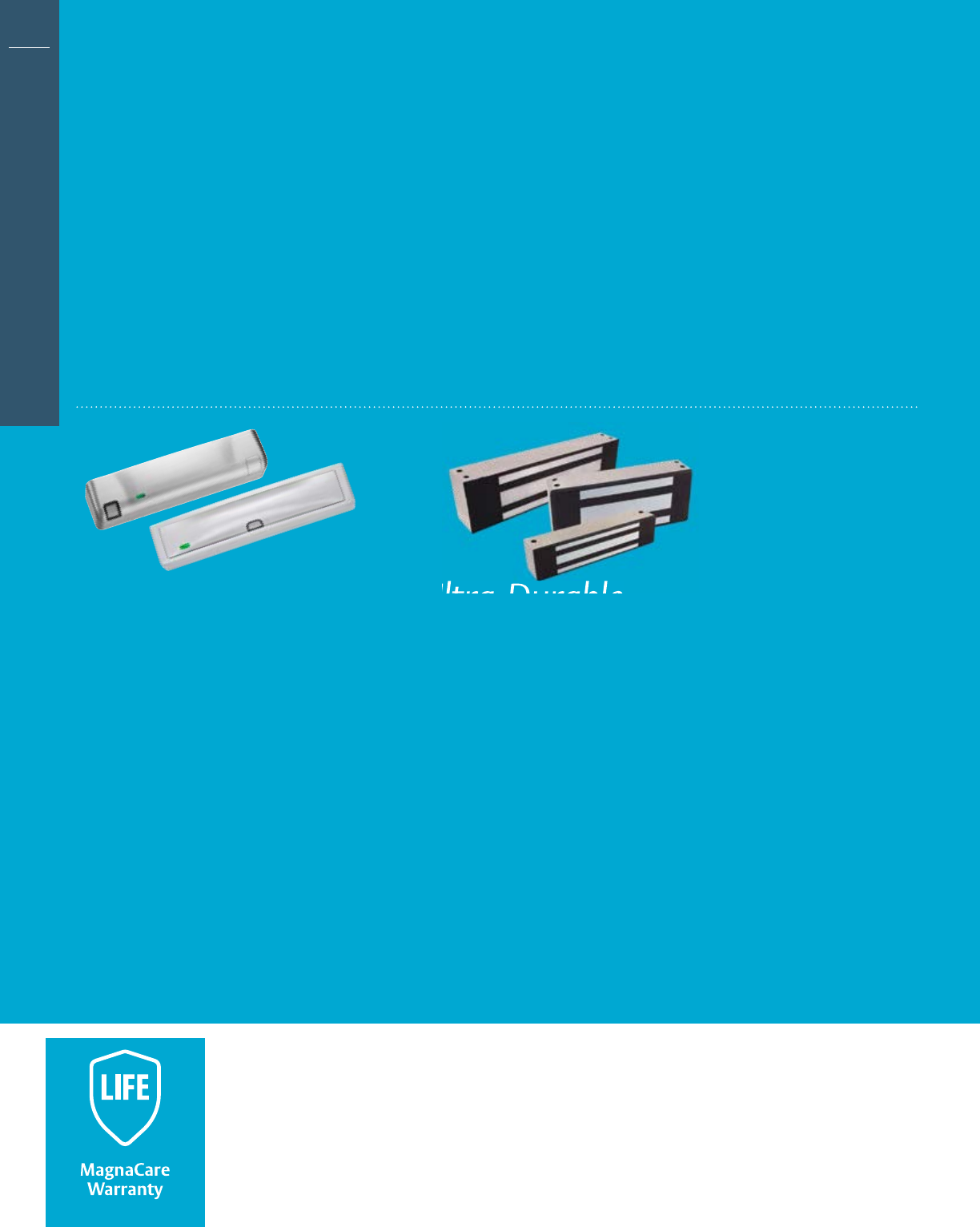

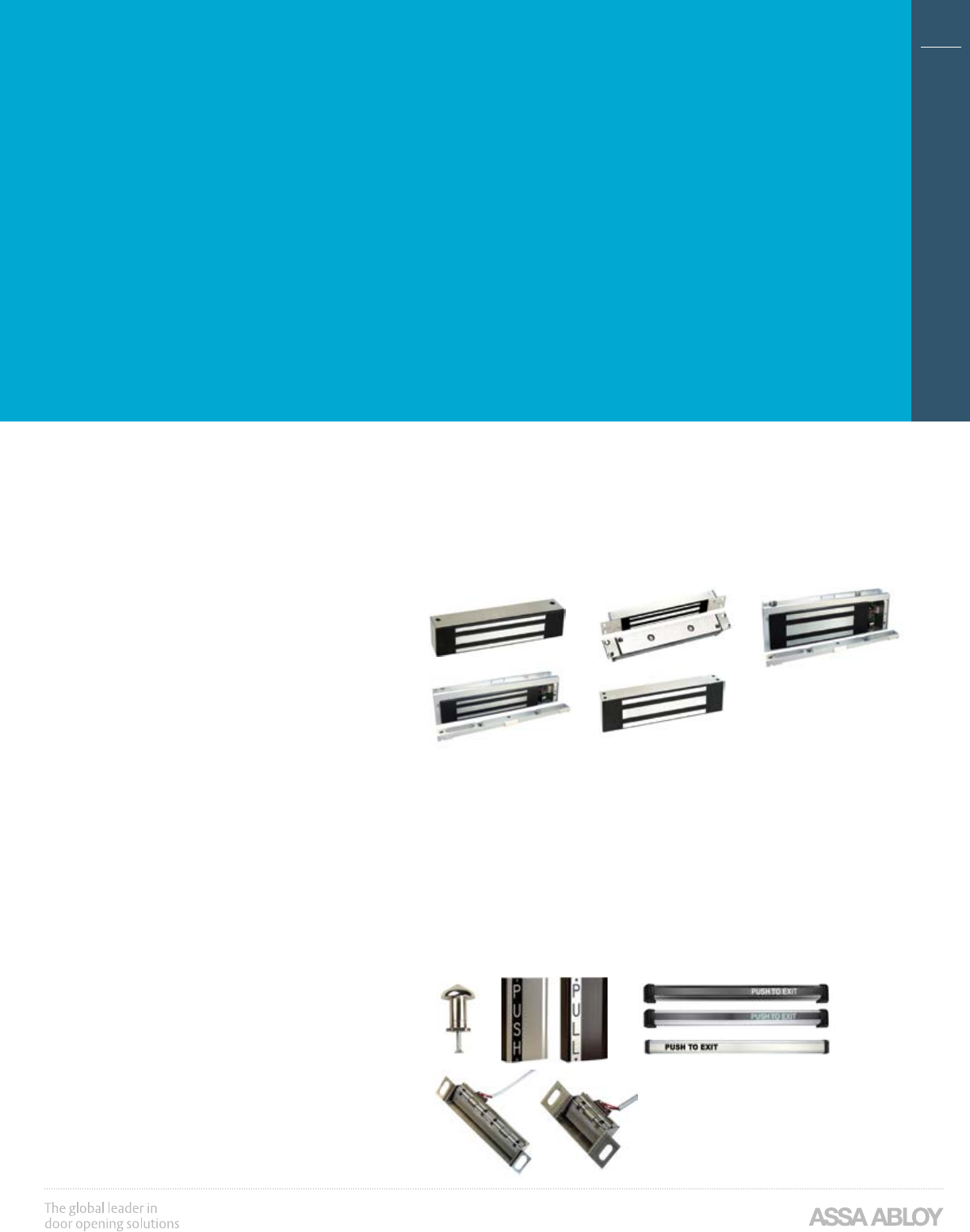

Magnalocks®

Intelligent Magnalocks

Securitron M380 ••••••••••••••••••••••••••••••••••••••••••••••79

Securitron M680E EcoMag •••••••••••••••••••••••••••••••••••••• 81

Delayed Egress Magnalocks

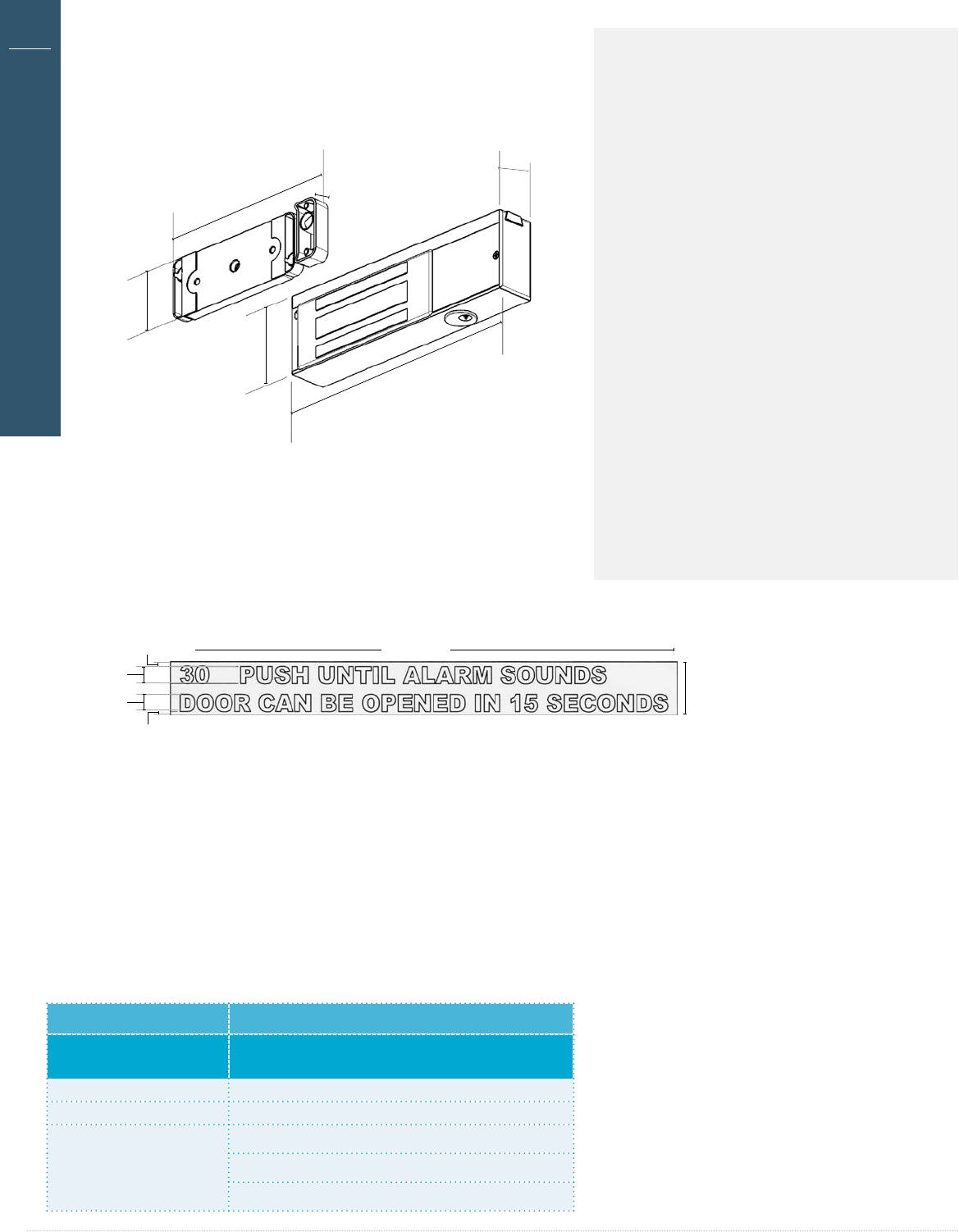

Securitron iMXDa •••••••••••••••••••••••••••••••••••••••••••••83

Modular Exit Delay System ••••••••••••••••••••••••••••••••••••••85

Securitron XDT ••••••••••••••••••••••••••••••••••••••••••••••••87

Durable Magnalocks

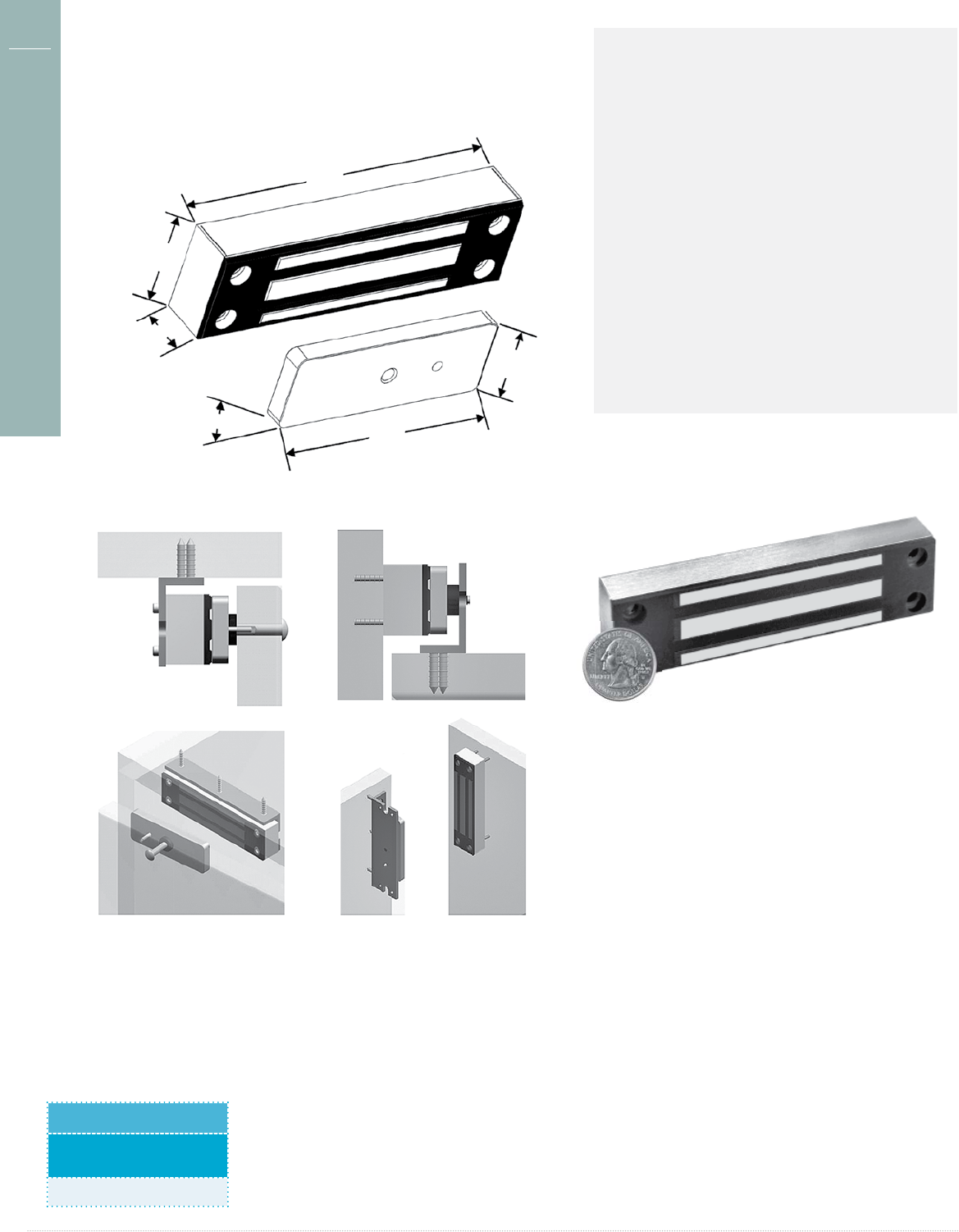

Securitron M32 •••••••••••••••••••••••••••••••••••••••••••••••91

Securitron M62, M62FG-SASM ••••••••••••••••••••••••••••••••••93

Securitron M82 •••••••••••••••••••••••••••••••••••••••••••••••97

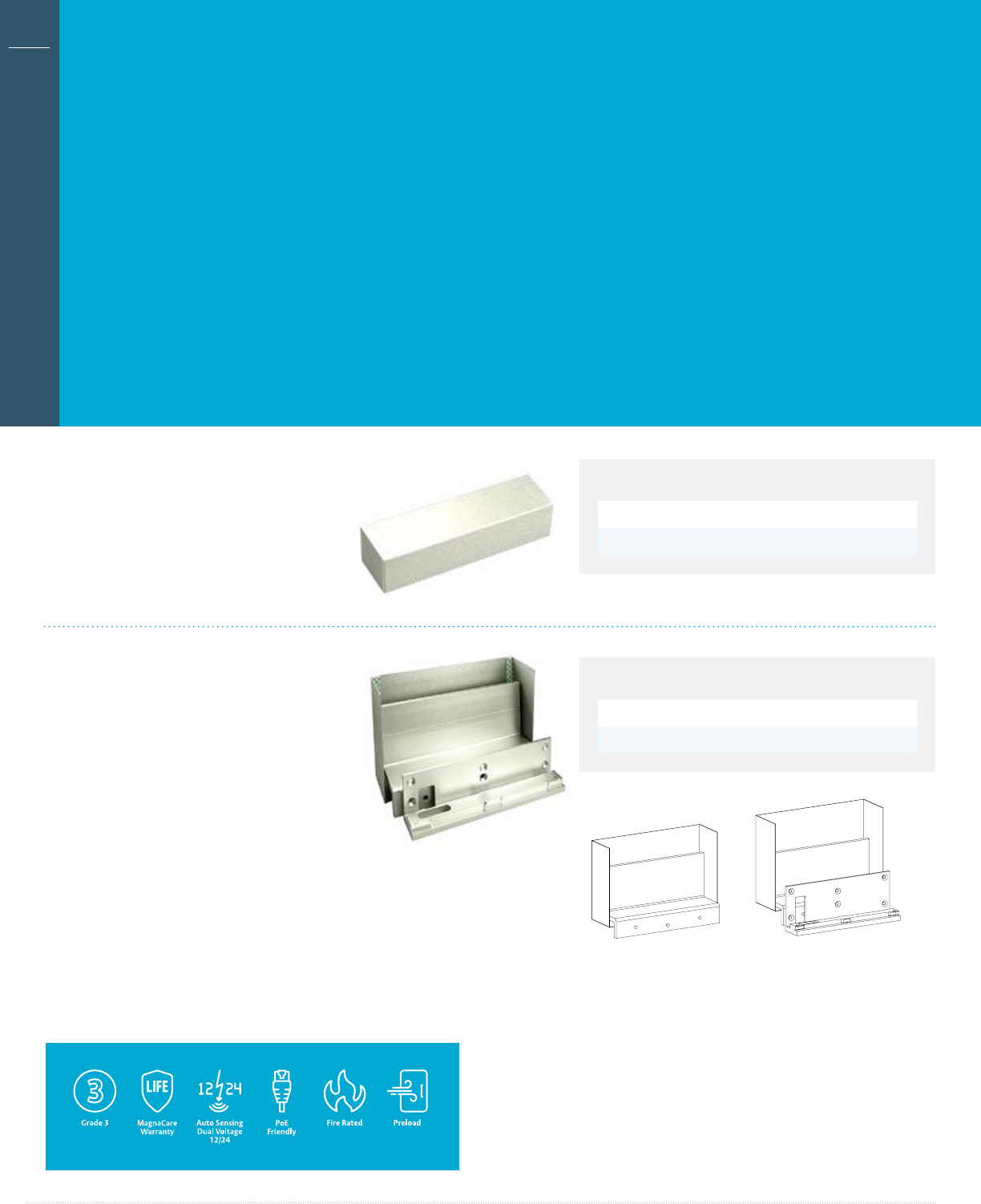

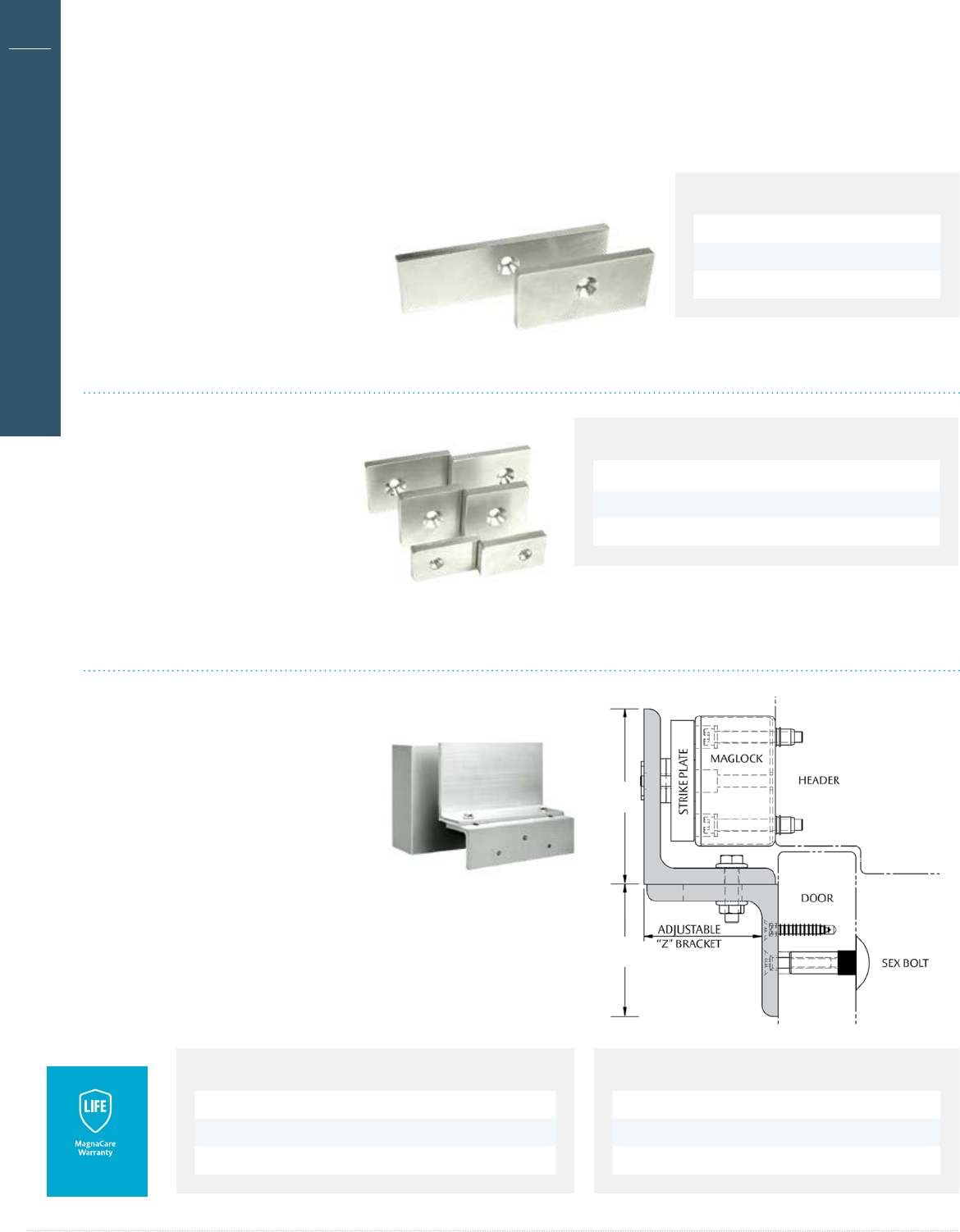

Securitron M32, M62 M82 Accessories ••••••••••••••••••••••••••••99

Securitron M38, M68 •••••••••••••••••••••••••••••••••••••••••104

Securitron M38, M68 Accessories •••••••••••••••••••••••••••••••108

Securitron Universal Magnalock Accessories •••••••••••••••••••••109

Securitron DM62 ••••••••••••••••••••••••••••••••••••••••••••• 112

Shear Magnalocks

Securitron SAM, M34R, SAM2-24 ••••••••••••••••••••••••••••••• 114

Securitron SAM Accessories ••••••••••••••••••••••••••••••••••••120

Securitron Magnalock Selection Guide & Options ••••••••••••••••• 121

Speciality Magnets

Securitron MM15 ••••••••••••••••••••••••••••••• See Specialty Locks

Seccuritron M32-SS •••••••••••••••••••••••••••••• See Cabinet Locks

Securitron MCL ••••••••••••••••••••••••••••••••• See Cabinet Locks

Cabinet Locks

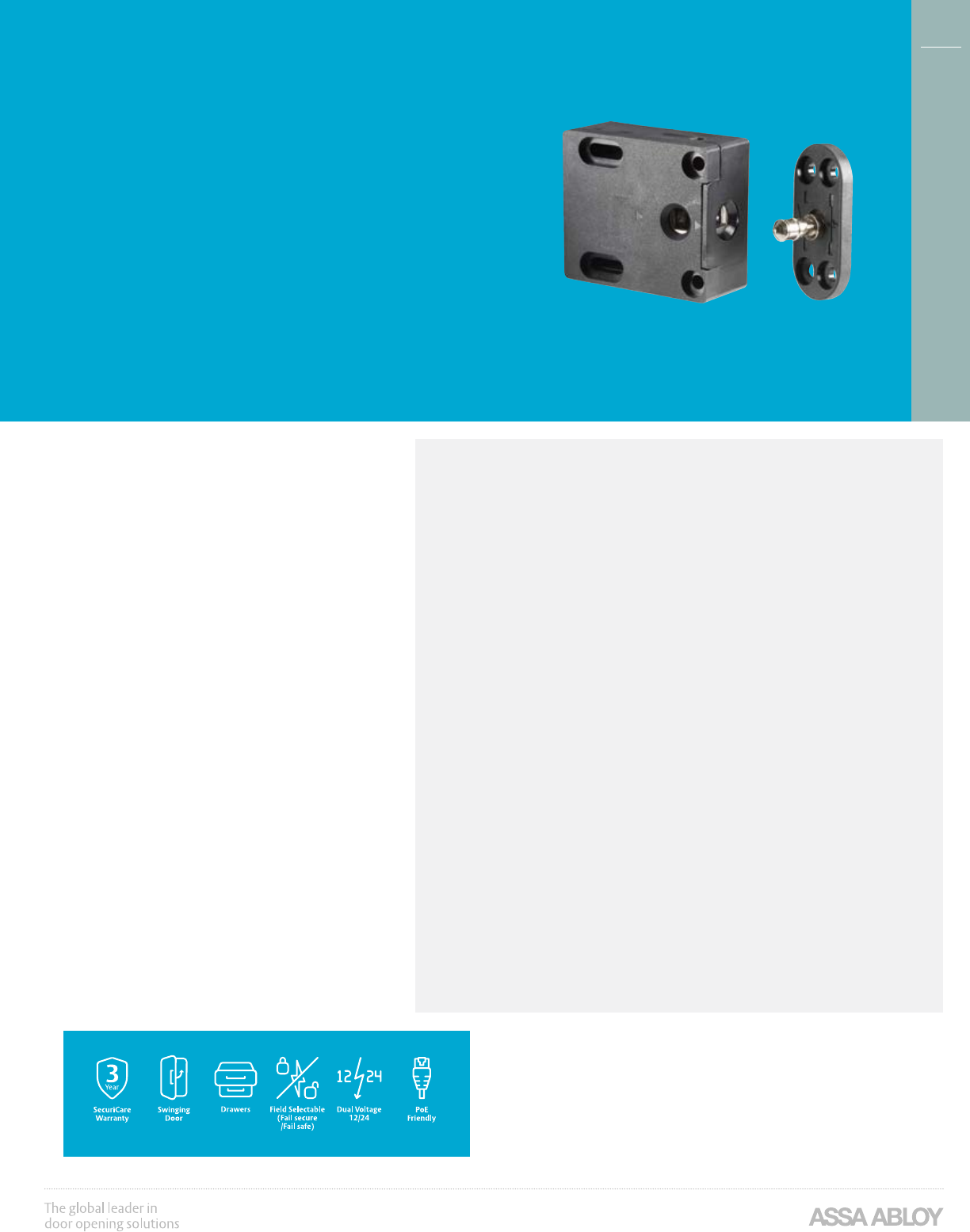

HES 610 •••••••••••••••••••••••••••••••••••••••••••••••••••••125

HES 660 ••••••••••••••••••••••••••••••••••••••••••••••••••••127

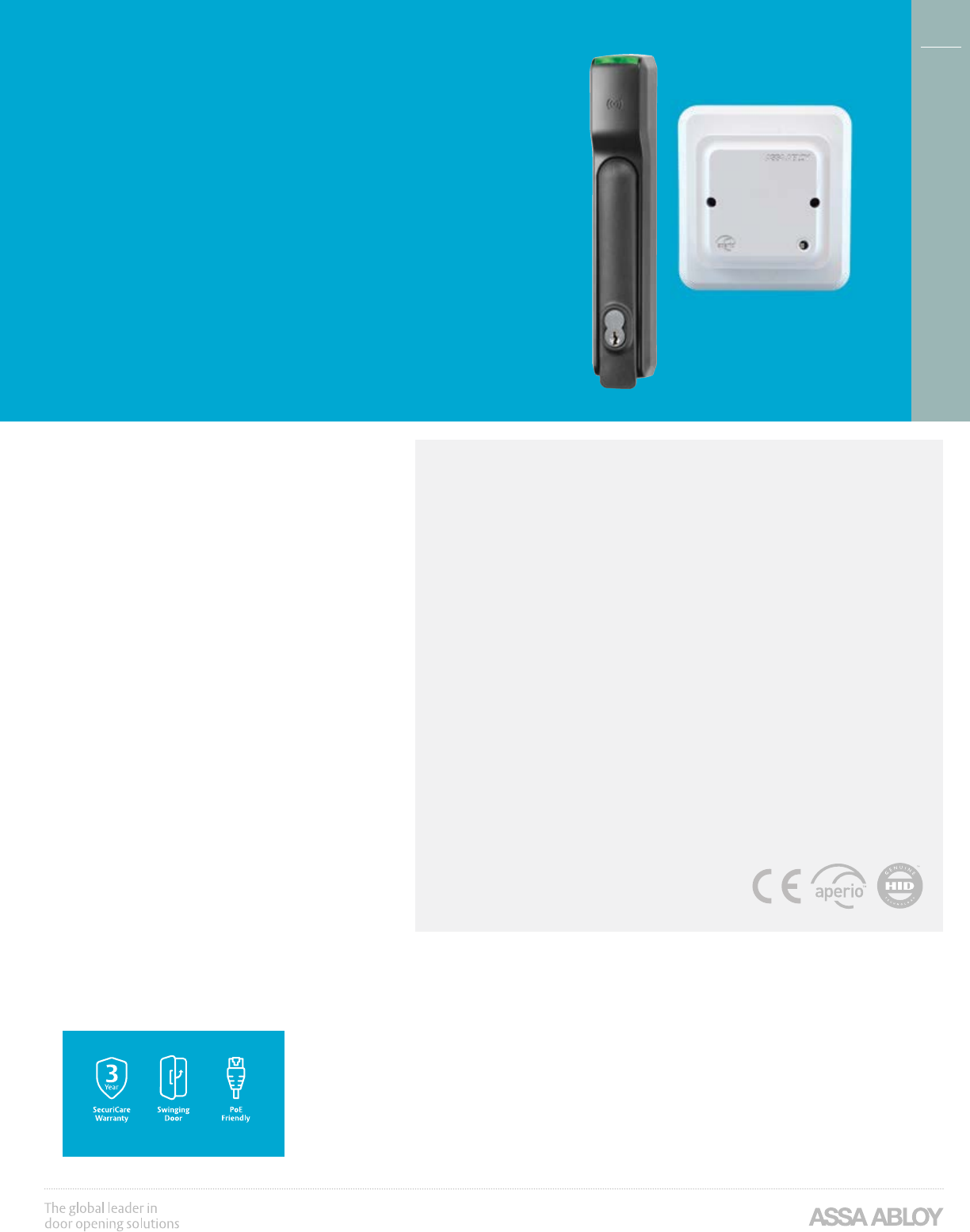

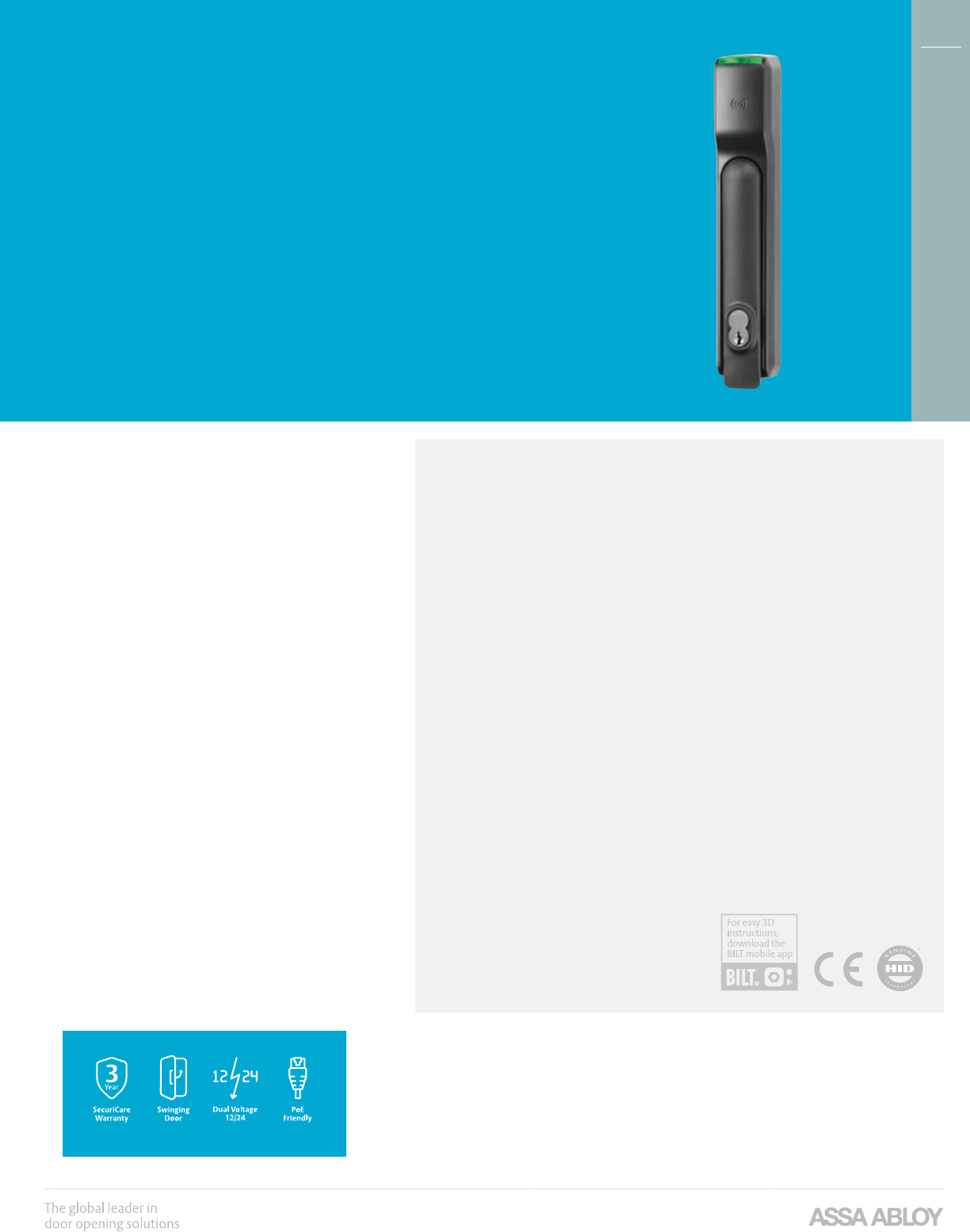

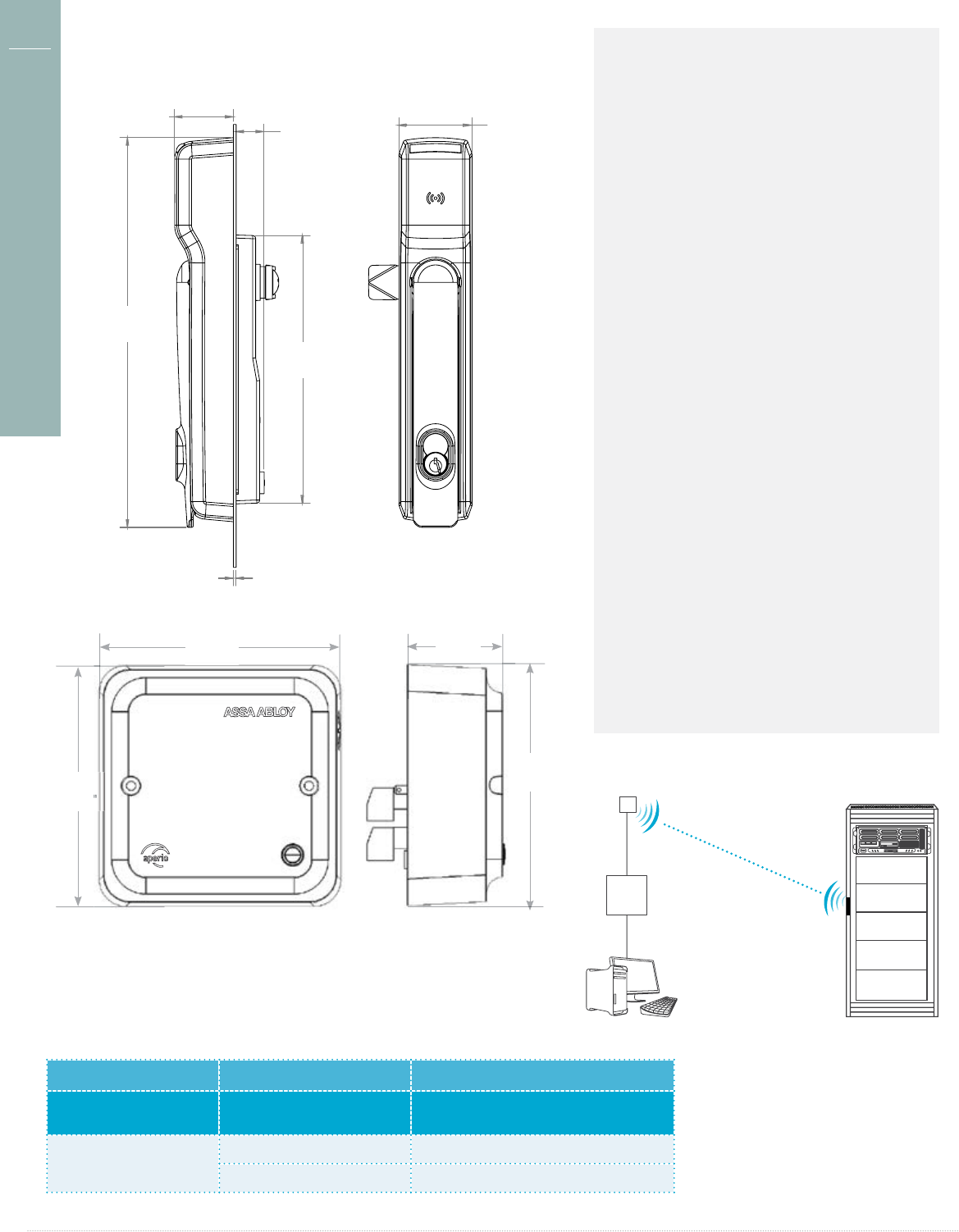

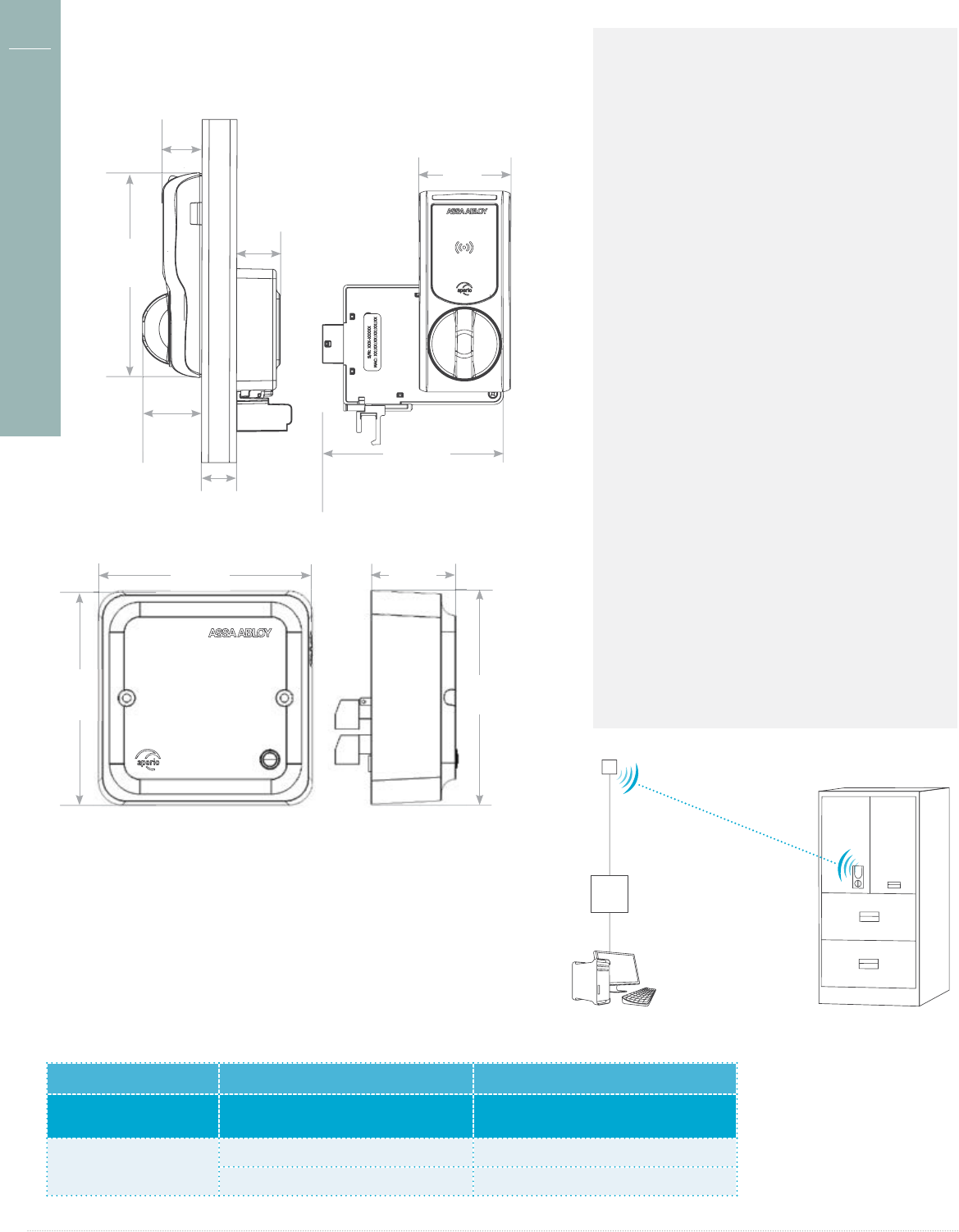

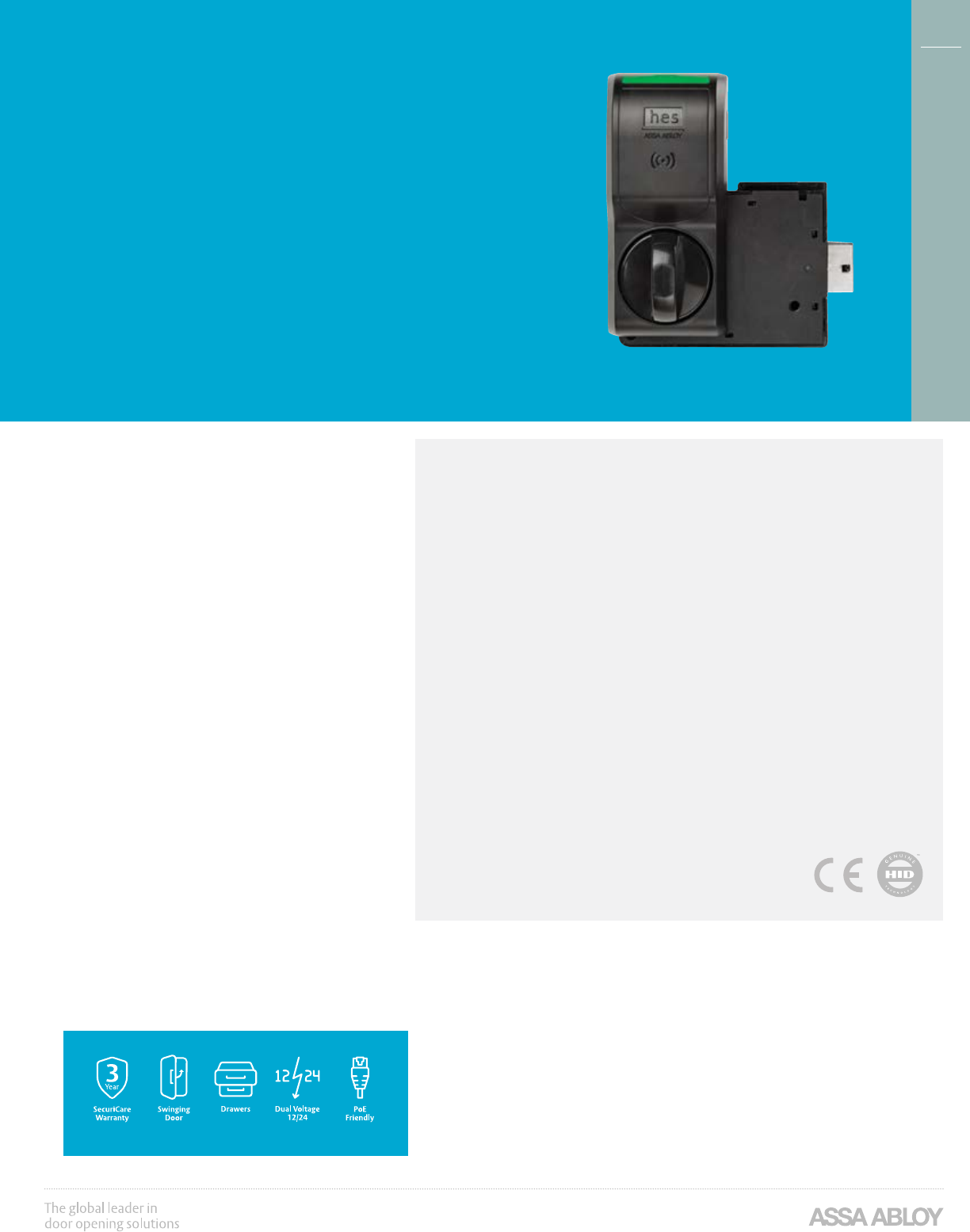

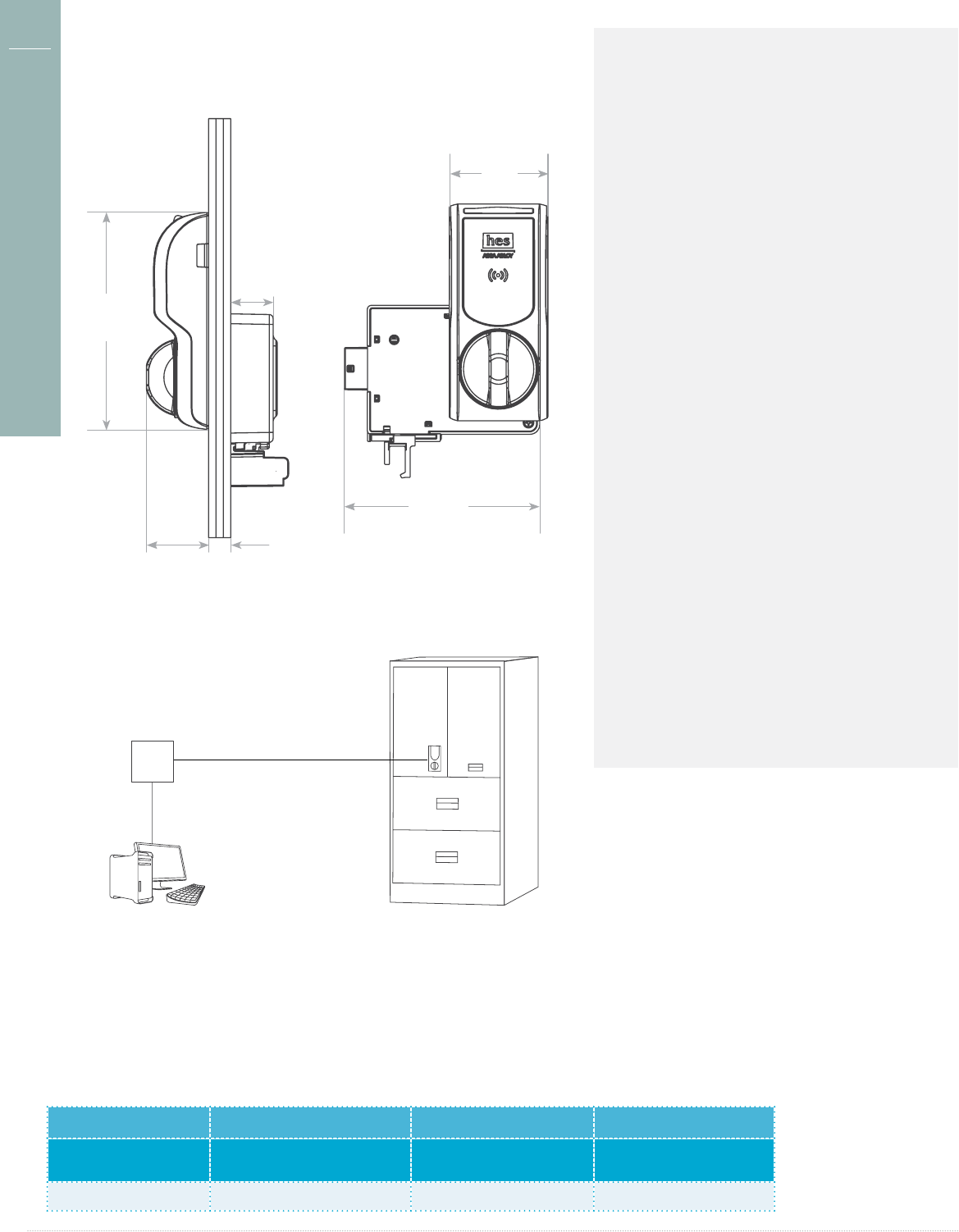

HES K100-622H Aperio® Wireless Cabinet Lock••••••••••••••••••••129

HES K200 Wiegand Cabinet Lock ••••••••••••••••••••••••••••••••131

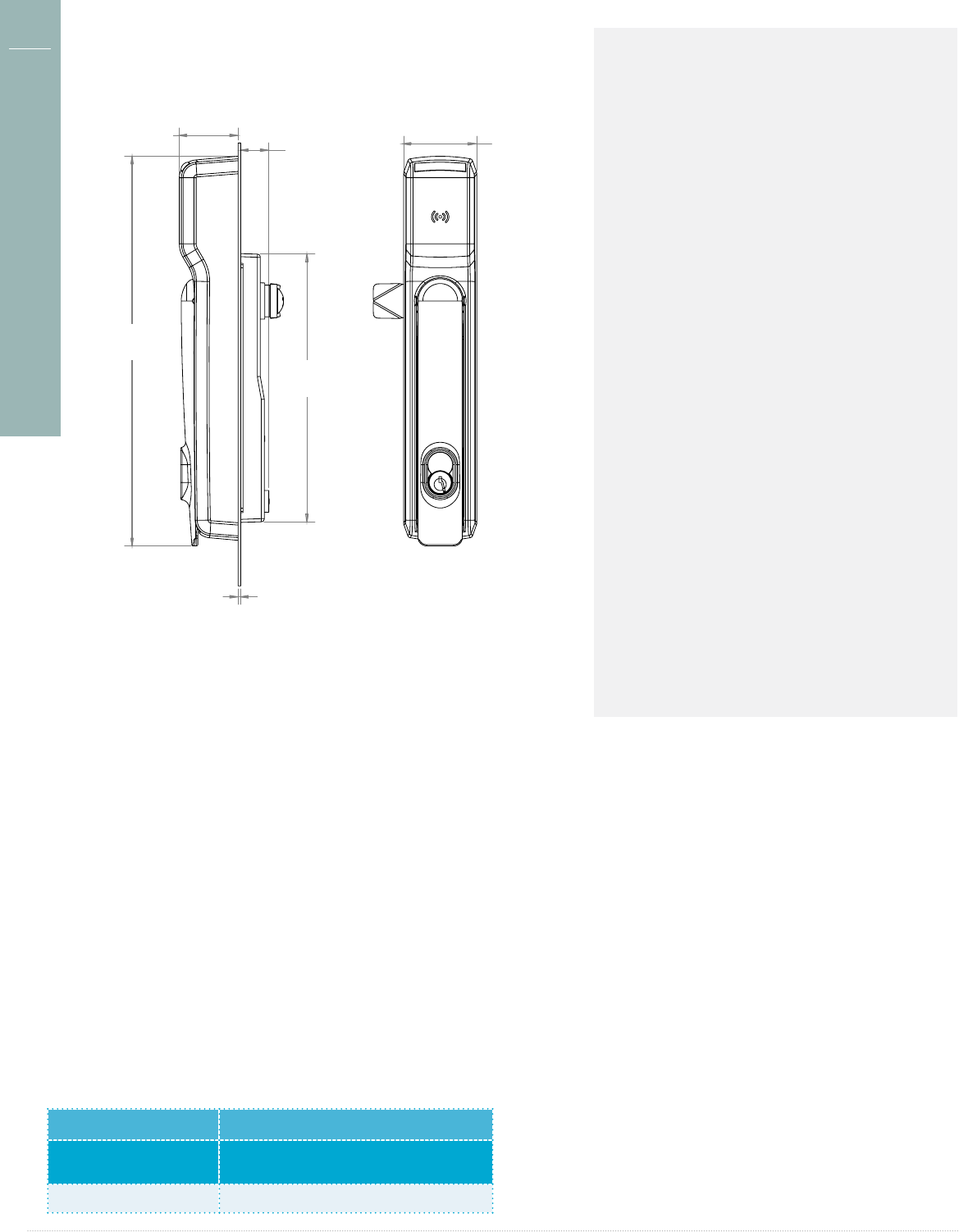

HES KS100-640H Aperio® Wireless Server Cabinet Lock ••••••••••••133

HES KS200 Wiegand Server Cabinet Lock ••••••••••••••••••••••••135

Securitron M32-SS ••••••••••••••••••••••••••••••••••••••••••••137

Securitron MCL Cabinet Lock •••••••••••••••••••••••••••••••••••139

Specialty Locks

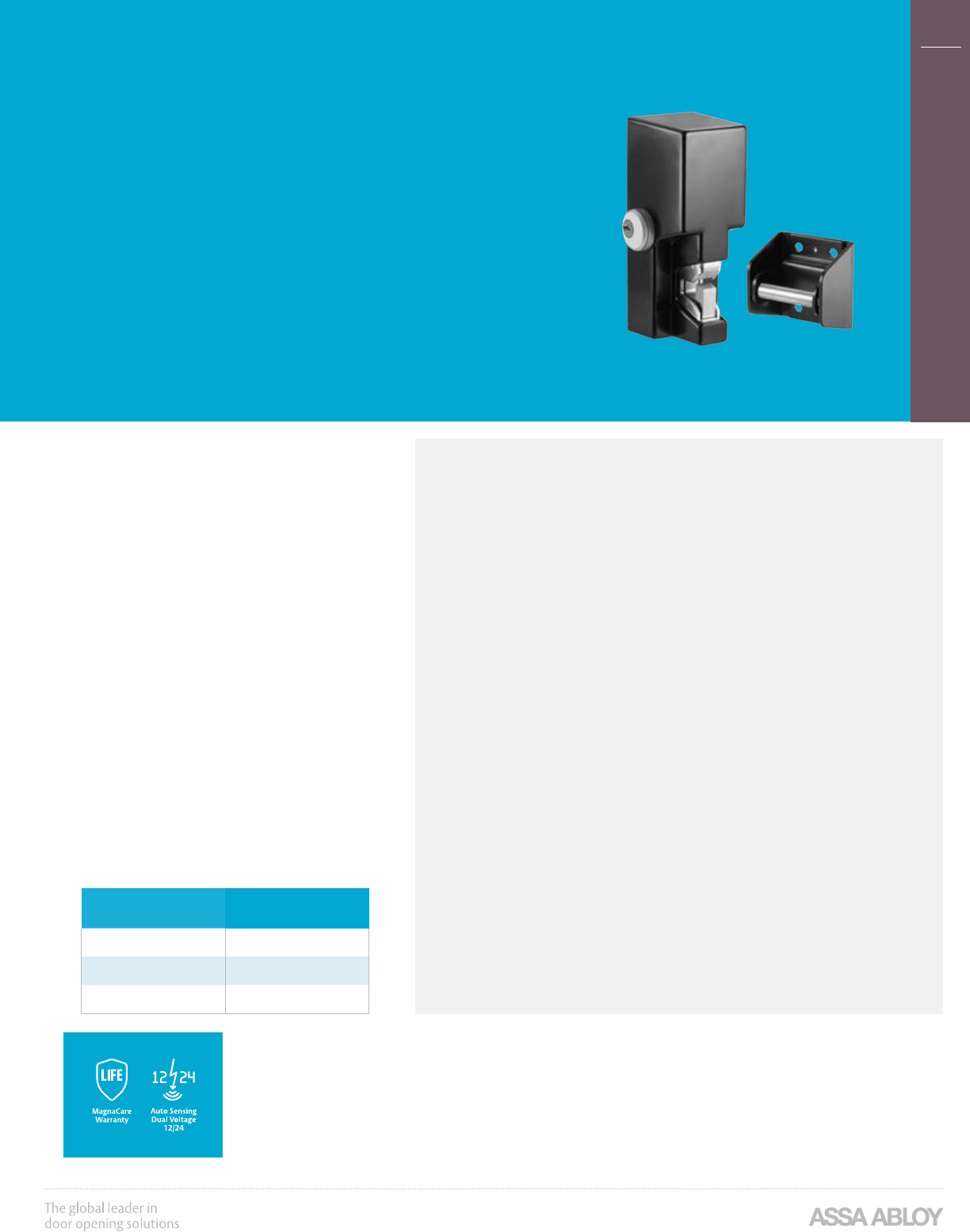

Securitron GL1 Gate Lock ••••••••••••••••••••••••••••••••••••••143

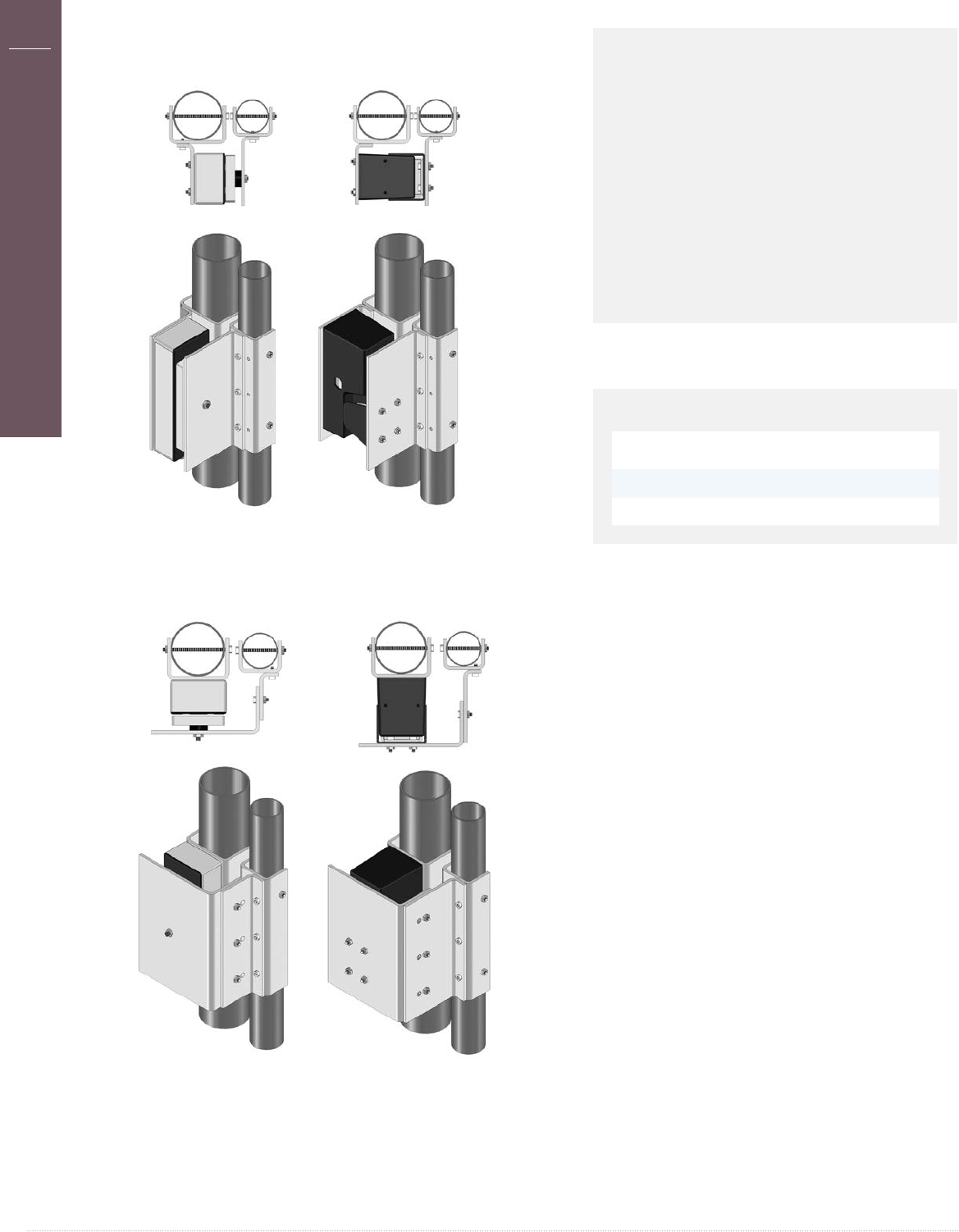

Securitron FMK Bracket Kits ••••••••••••••••••••••••••••••••••••145

Securitron MM15 MEMLOCK ••••••••••••••••••••••••••••••••••••147

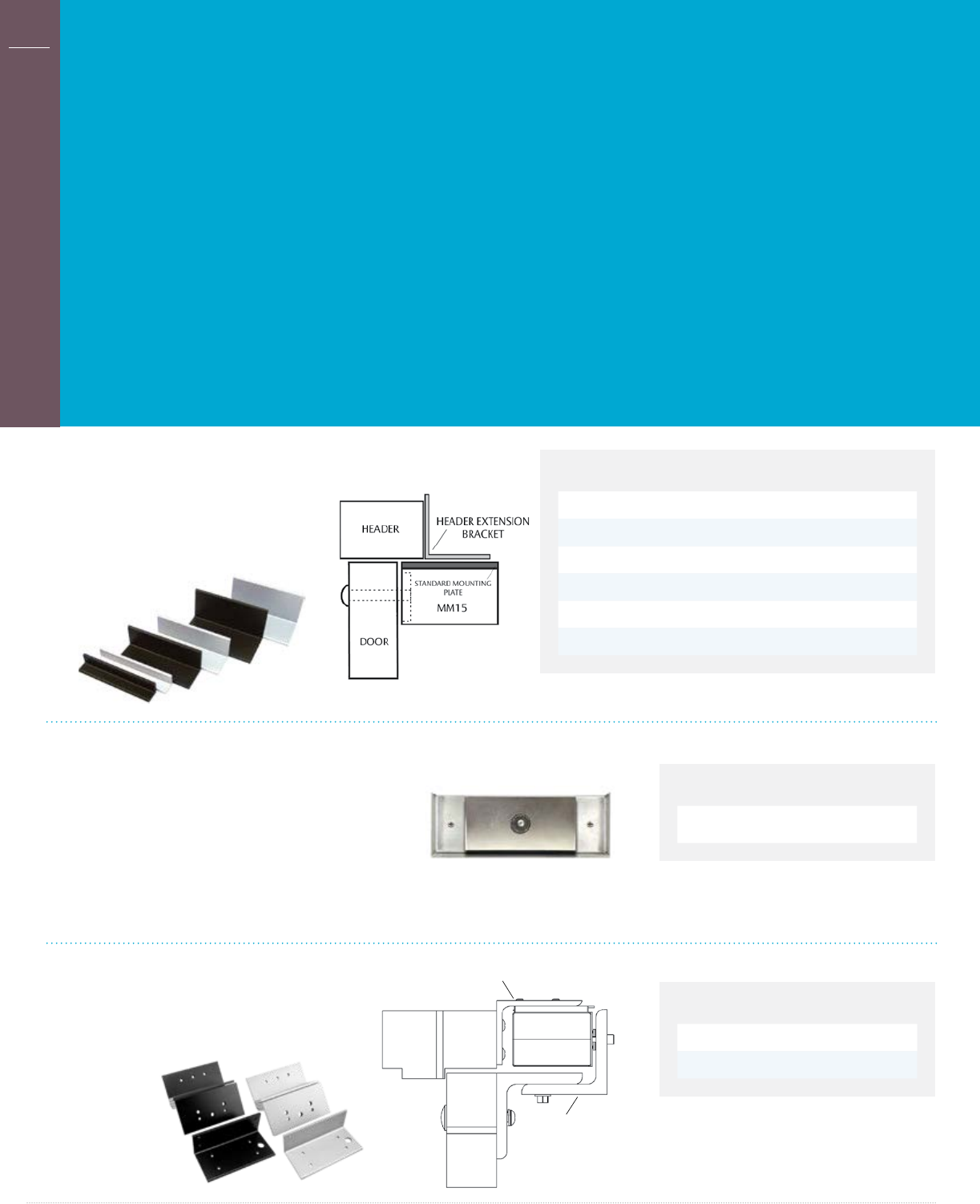

Securitron MM15 MEMLOCK Accessories •••••••••••••••••••••••••149

Keypads & Card Readers

Stand Alone Keypads

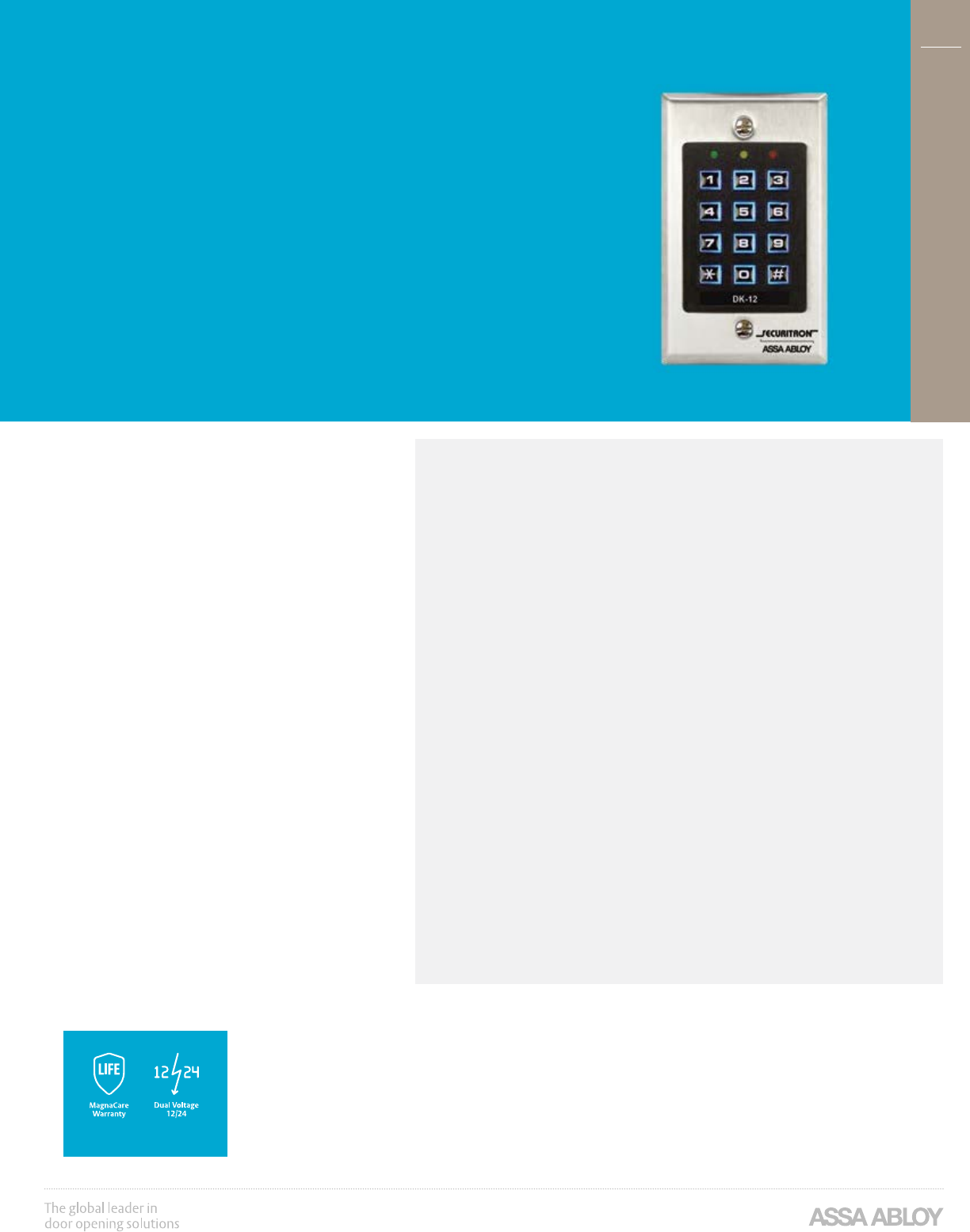

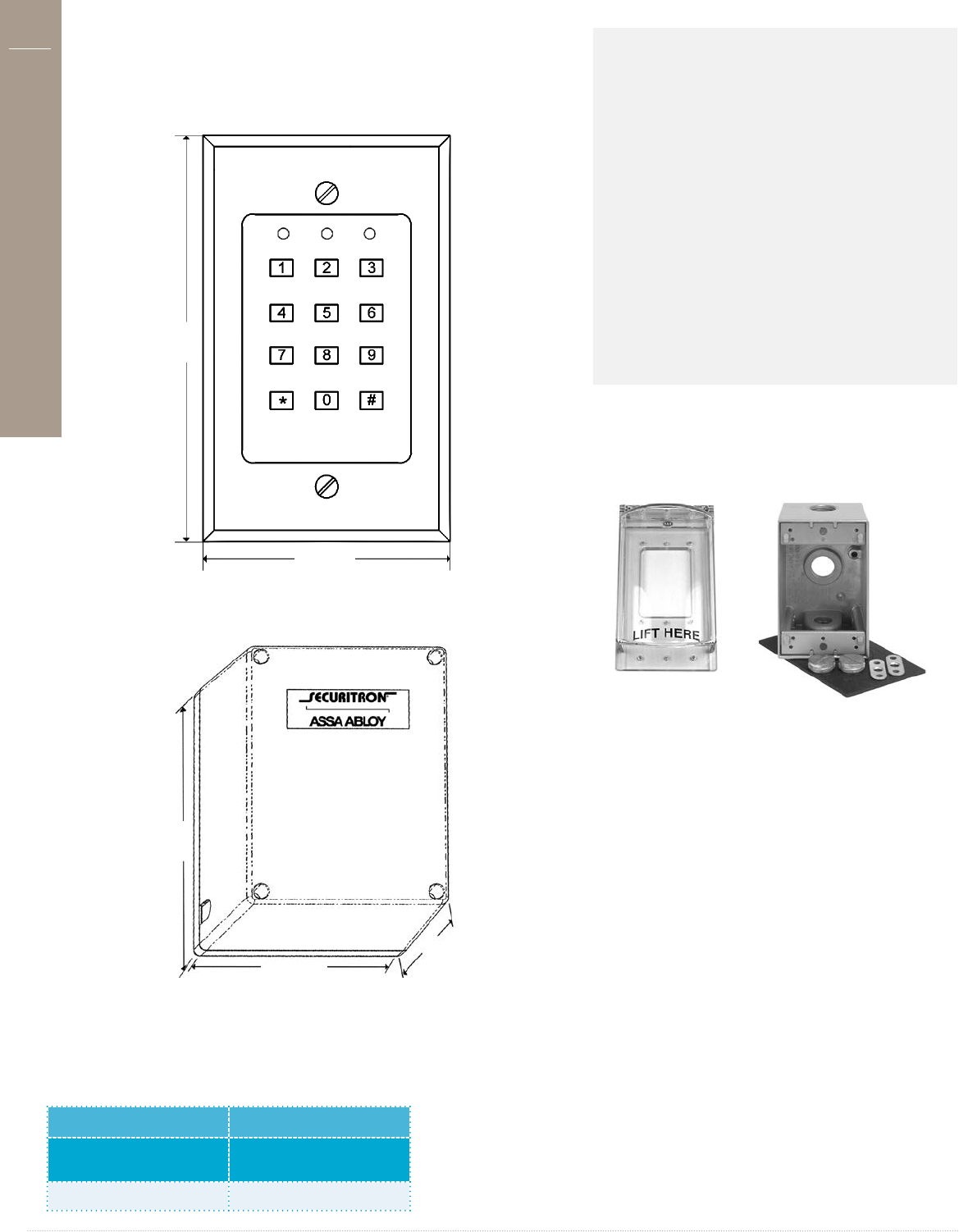

Securitron DK-12 •••••••••••••••••••••••••••••••••••••••••••••153

Keypad System

Securitron DK-16 •••••••••••••••••••••••••••••••••••••••••••••155

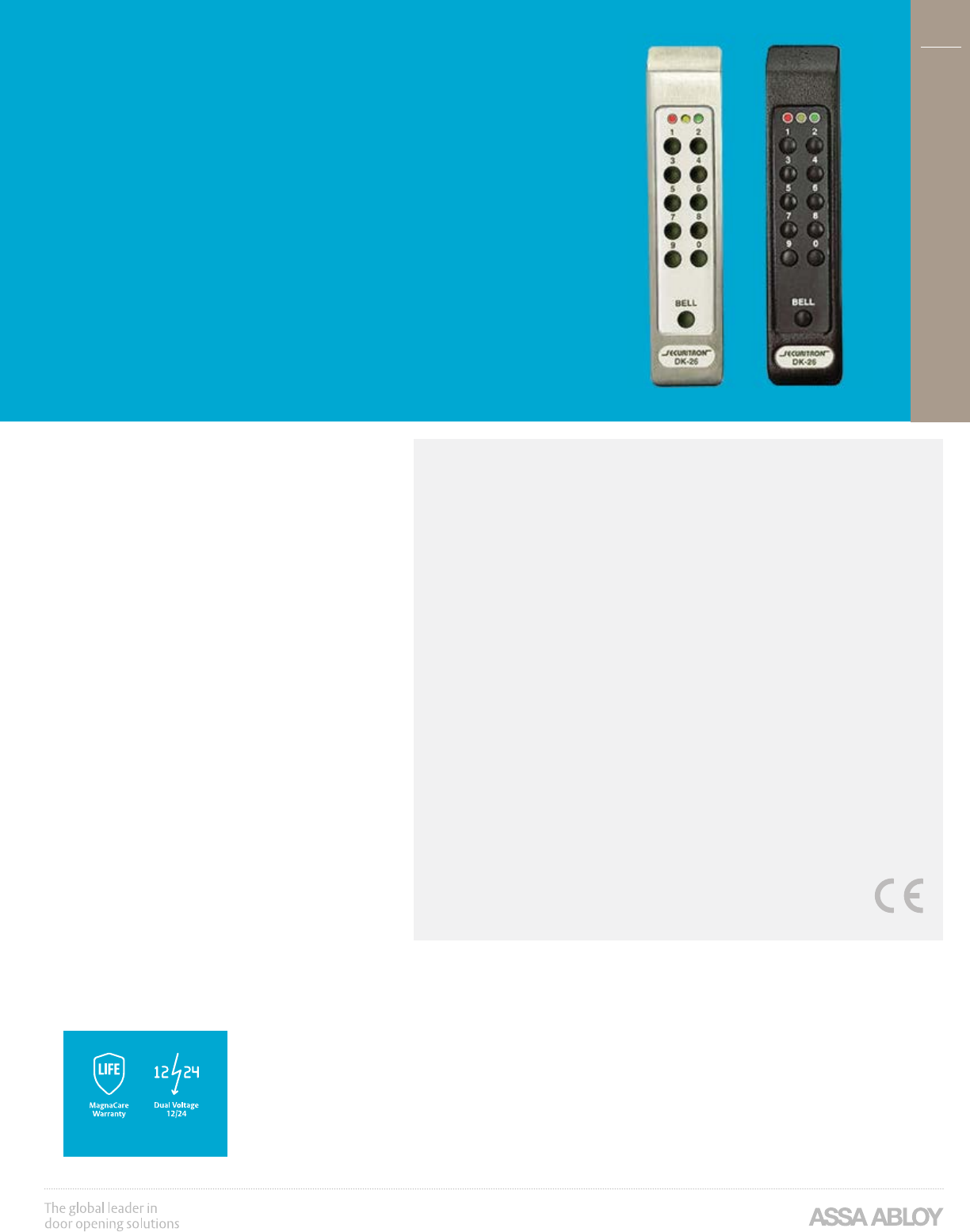

Securitron DK-26 •••••••••••••••••••••••••••••••••••••••••••••157

Wiegand Keypads

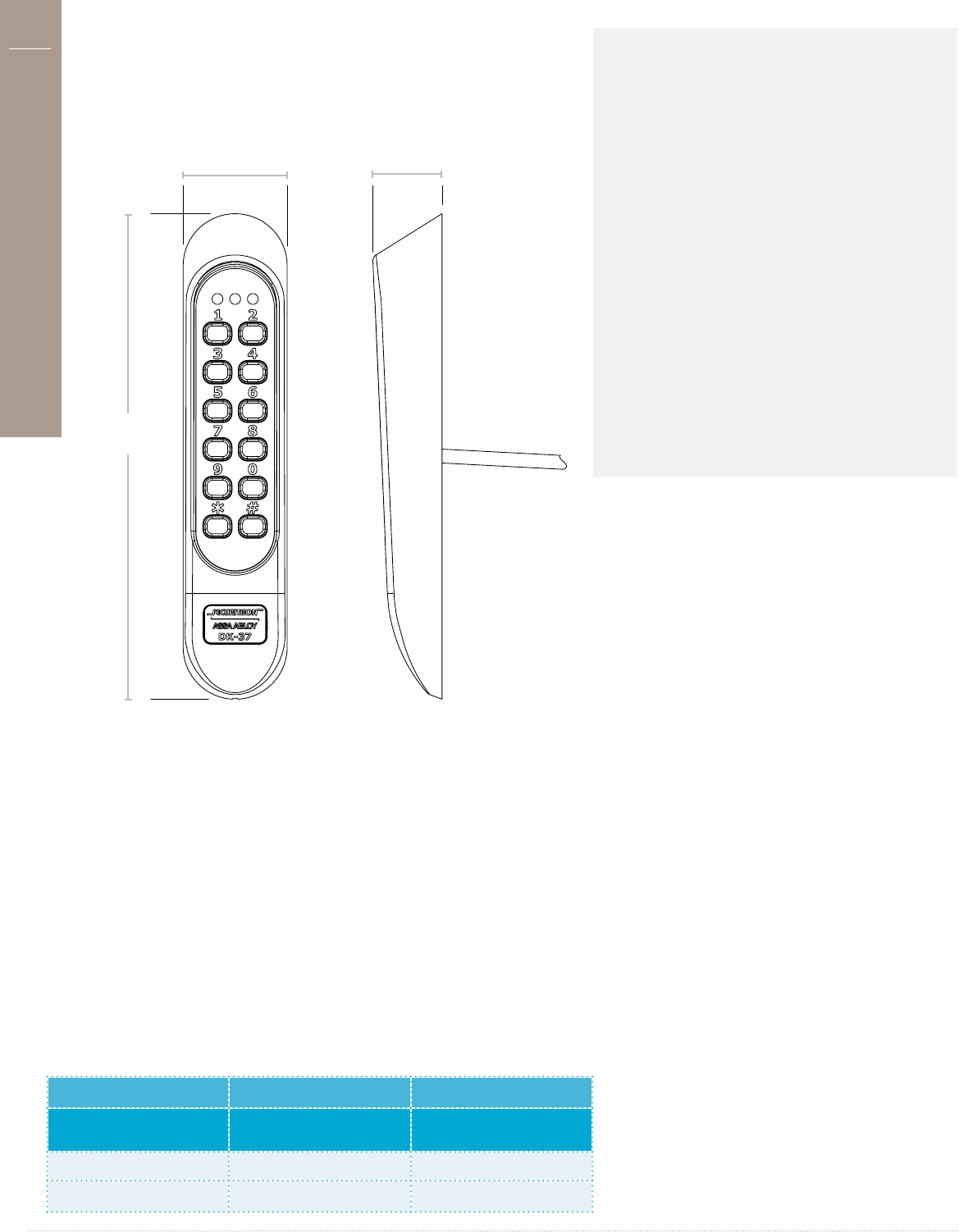

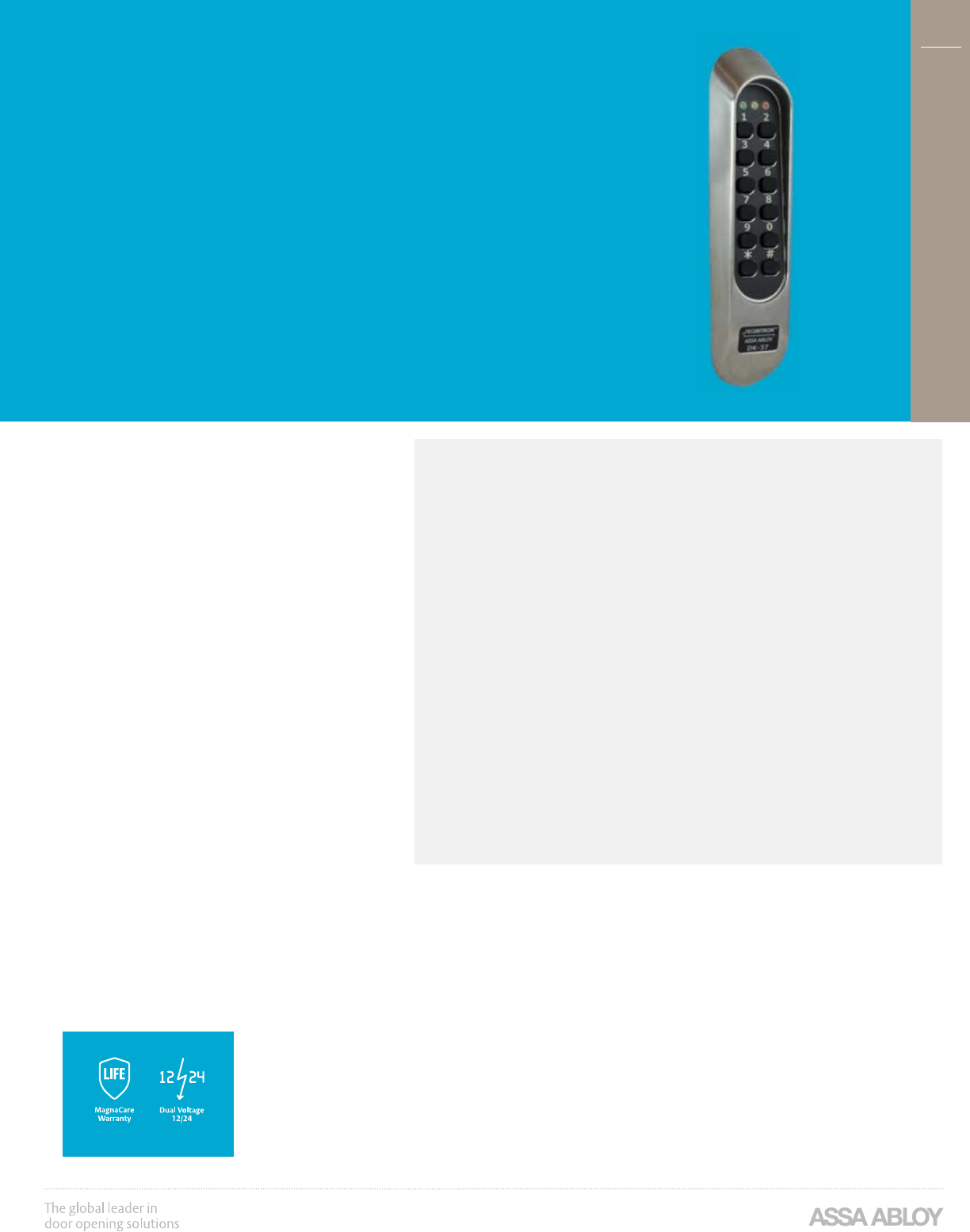

Securitron DK-37 •••••••••••••••••••••••••••••••••••••••••••••159

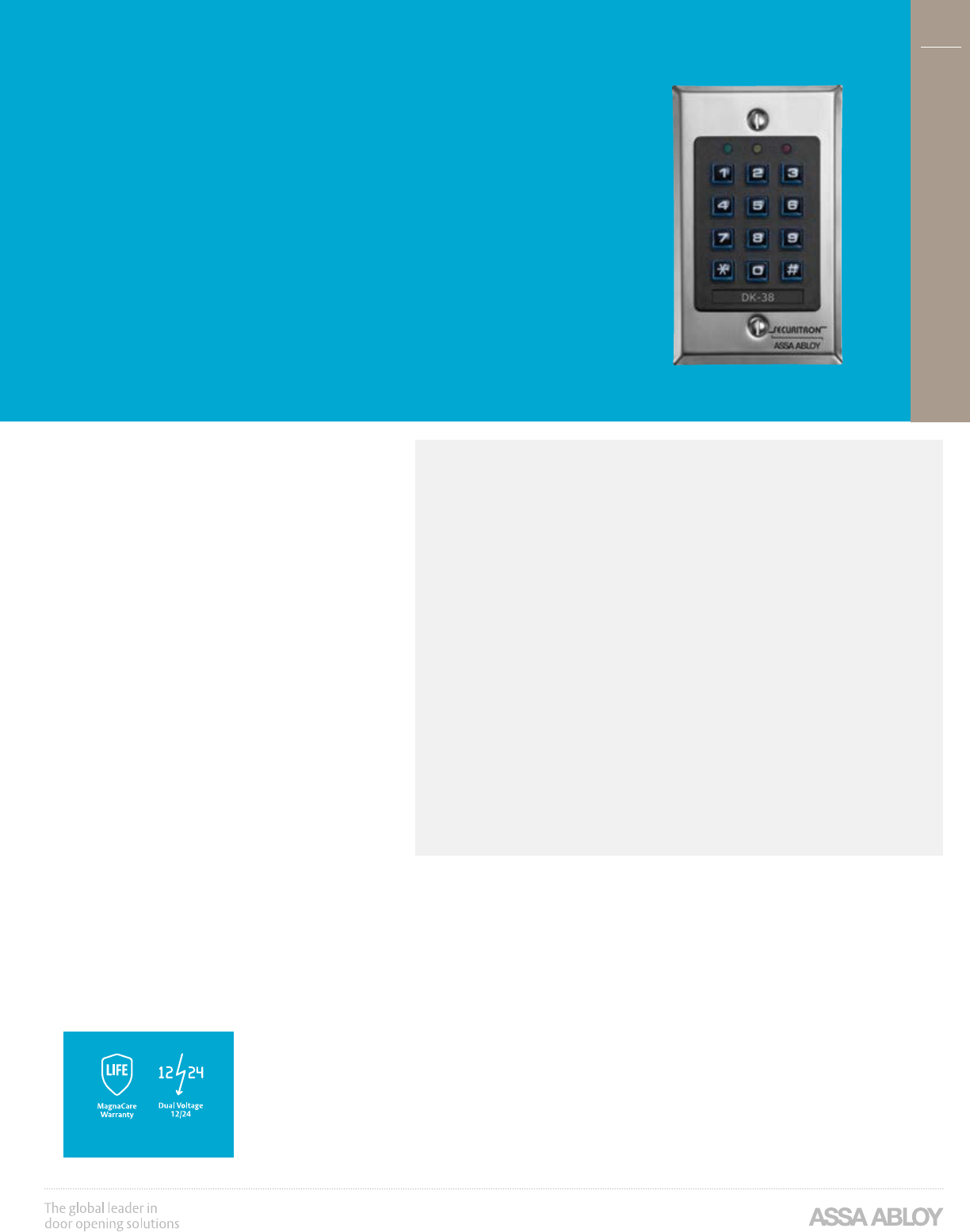

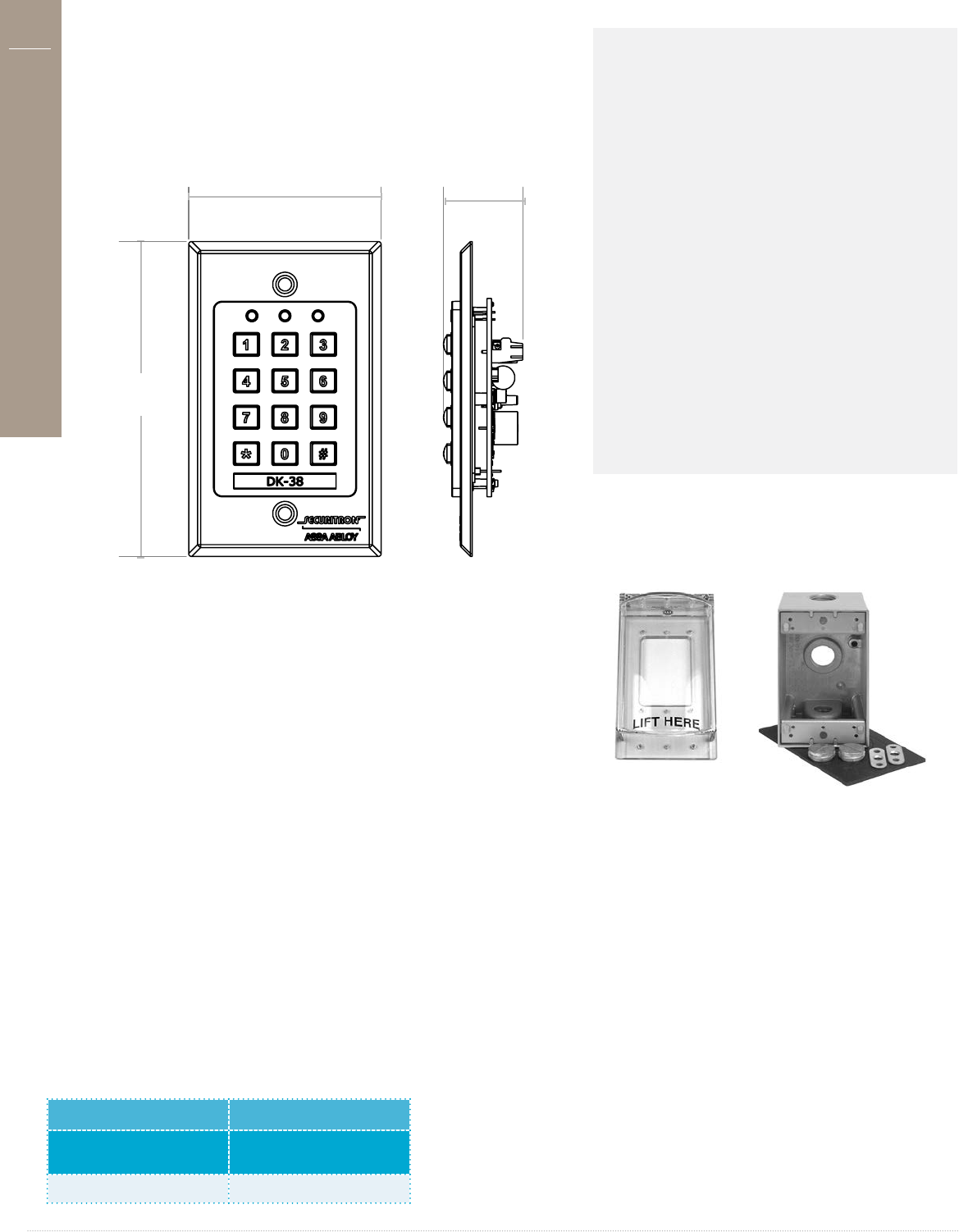

Securitron DK-38 •••••••••••••••••••••••••••••••••••••••••••••161

Card Readers

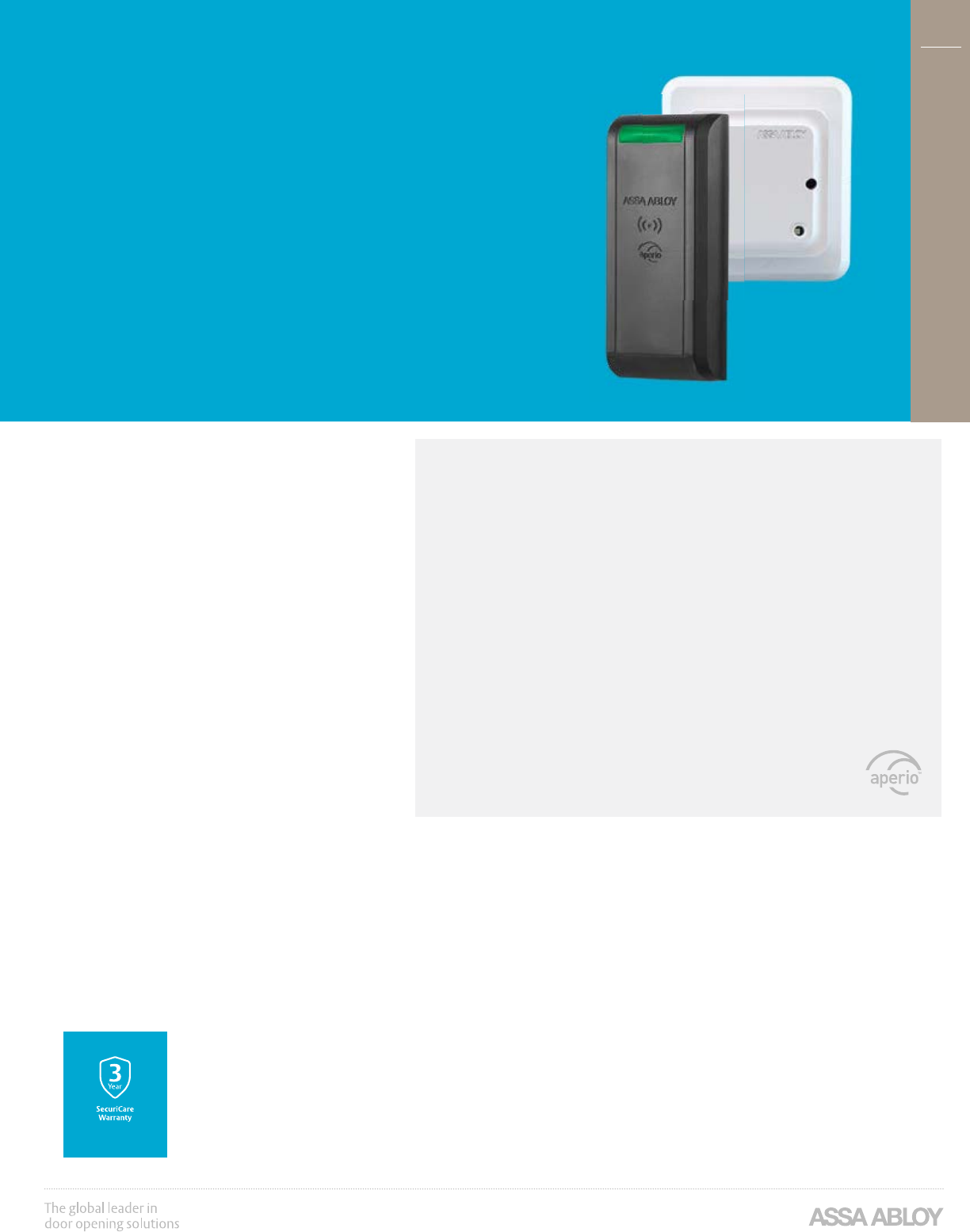

Securitron R100-1H Aperio® Wireless Card Reader •••••••••••••••••163

Push Buttons & Egress Devices

Exit Motion Sensor

Securitron XMS ••••••••••••••••••••••••••••••••••••••••••••••167

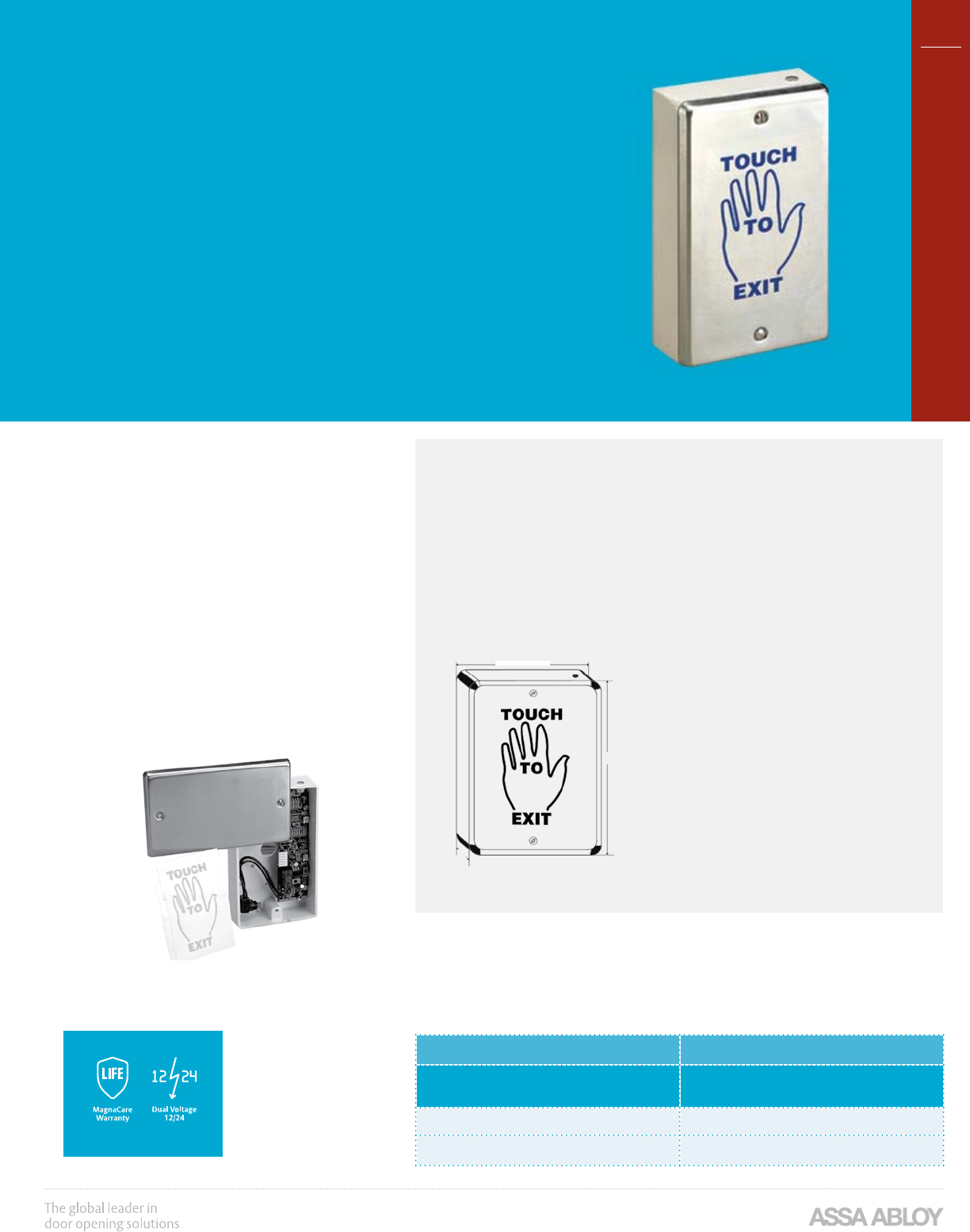

Emergency Exit Buttons

Securitron EEB Series •••••••••••••••••••••••••••••••••••••••••168

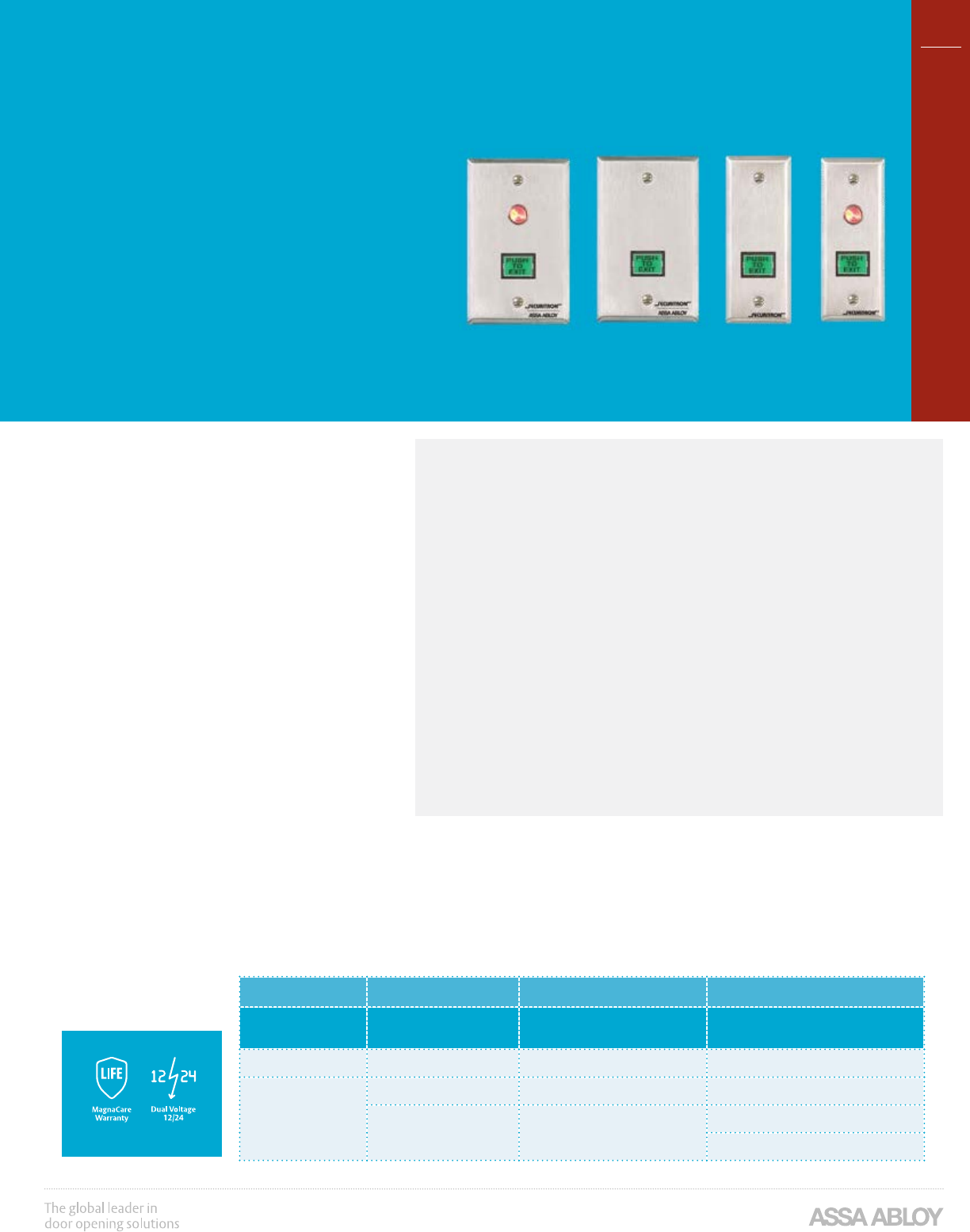

Push Buttons

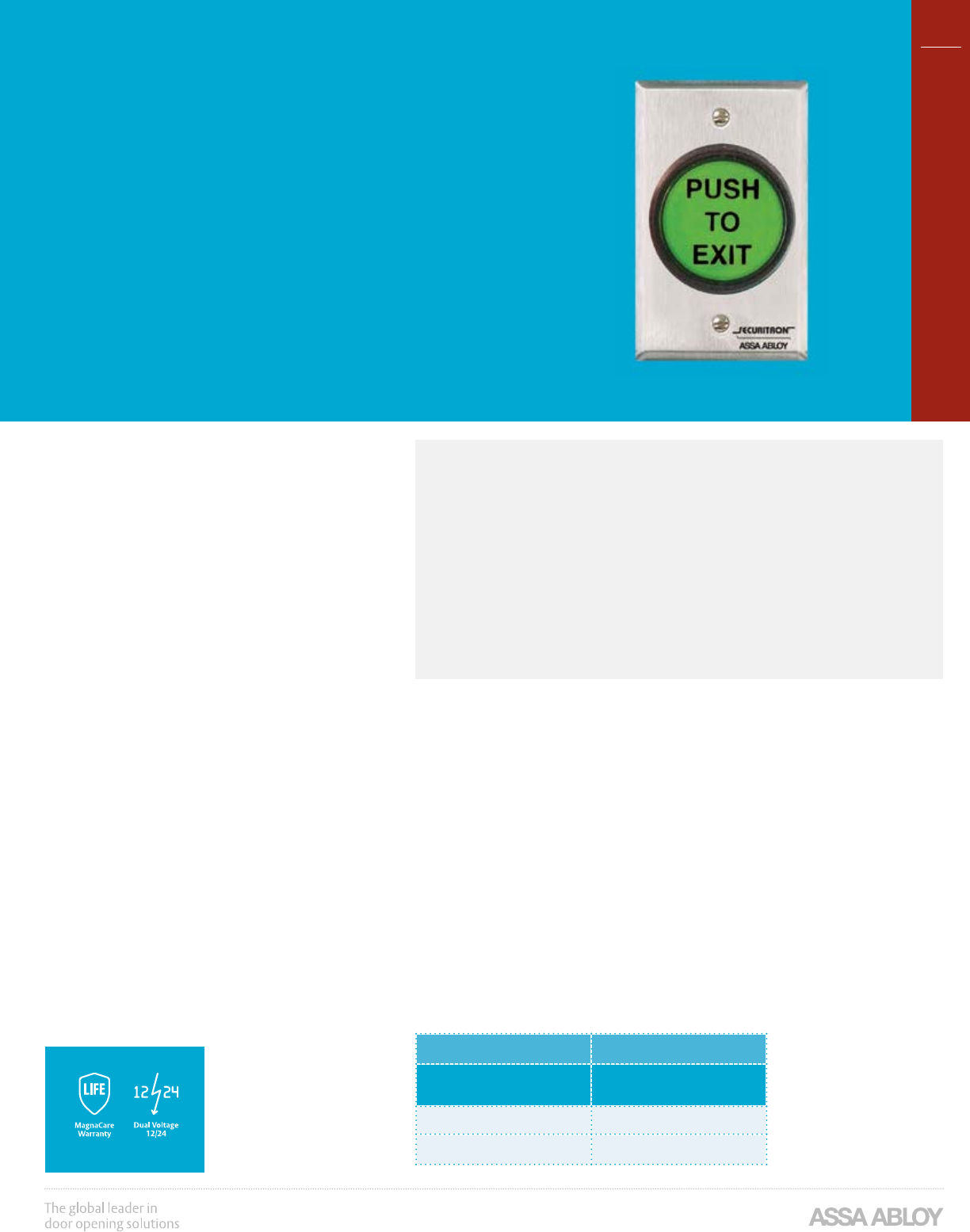

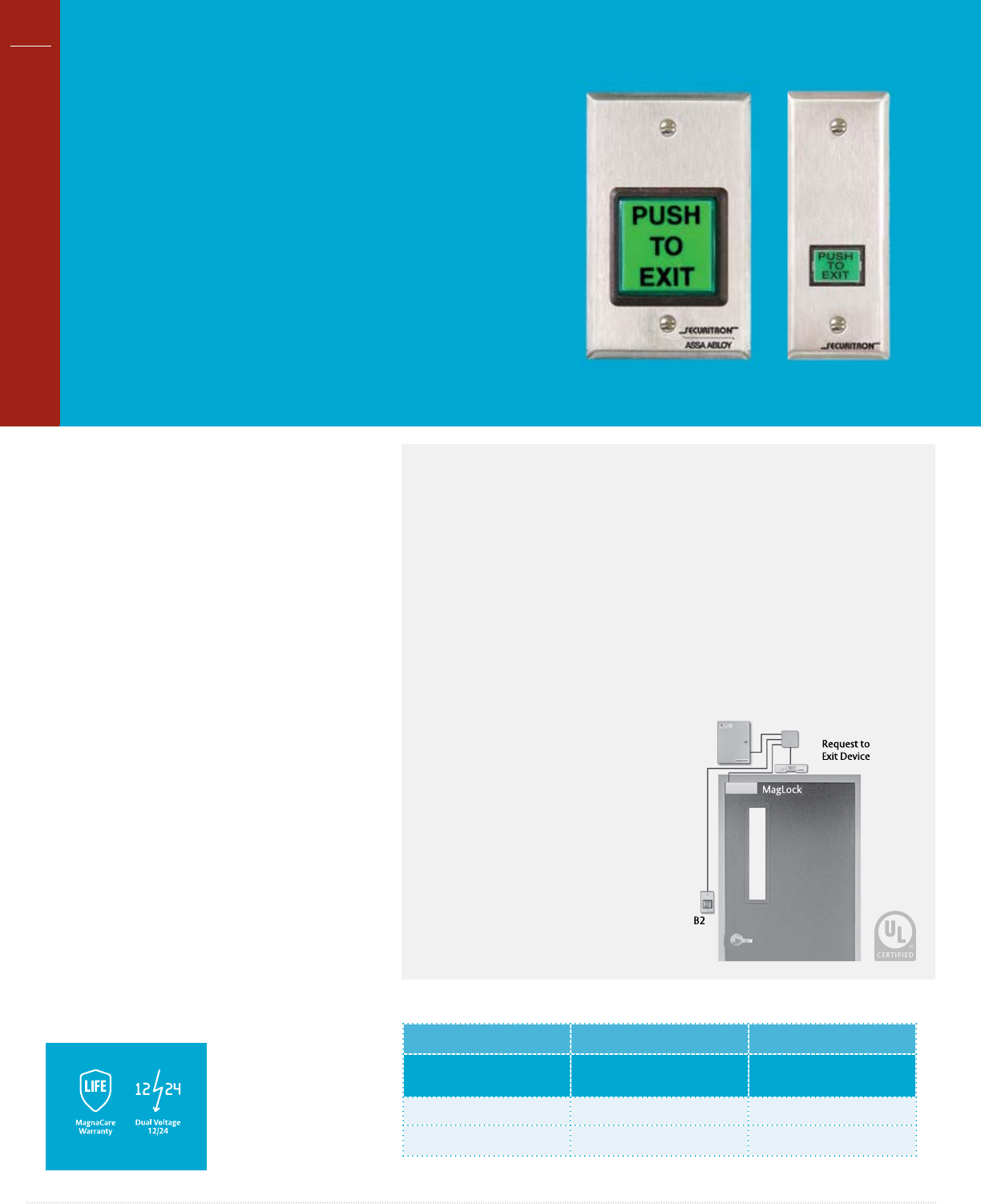

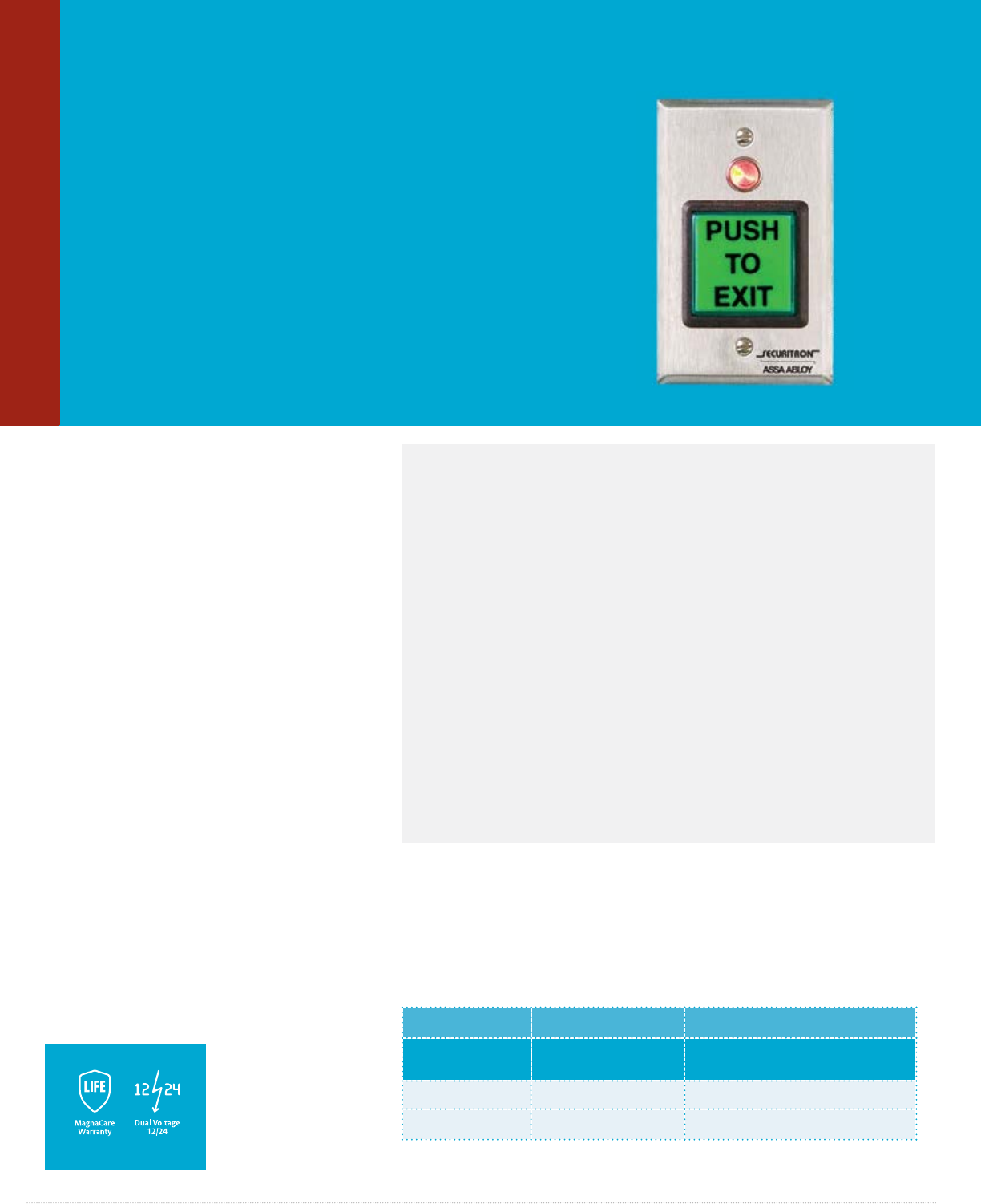

Securitron PB, BP2, PB3, PB4L, PB5 Series •••••••••••••••••••••••••169

Push Button Selector Chart •••••••••••••••••••••••••••••••••••• 174

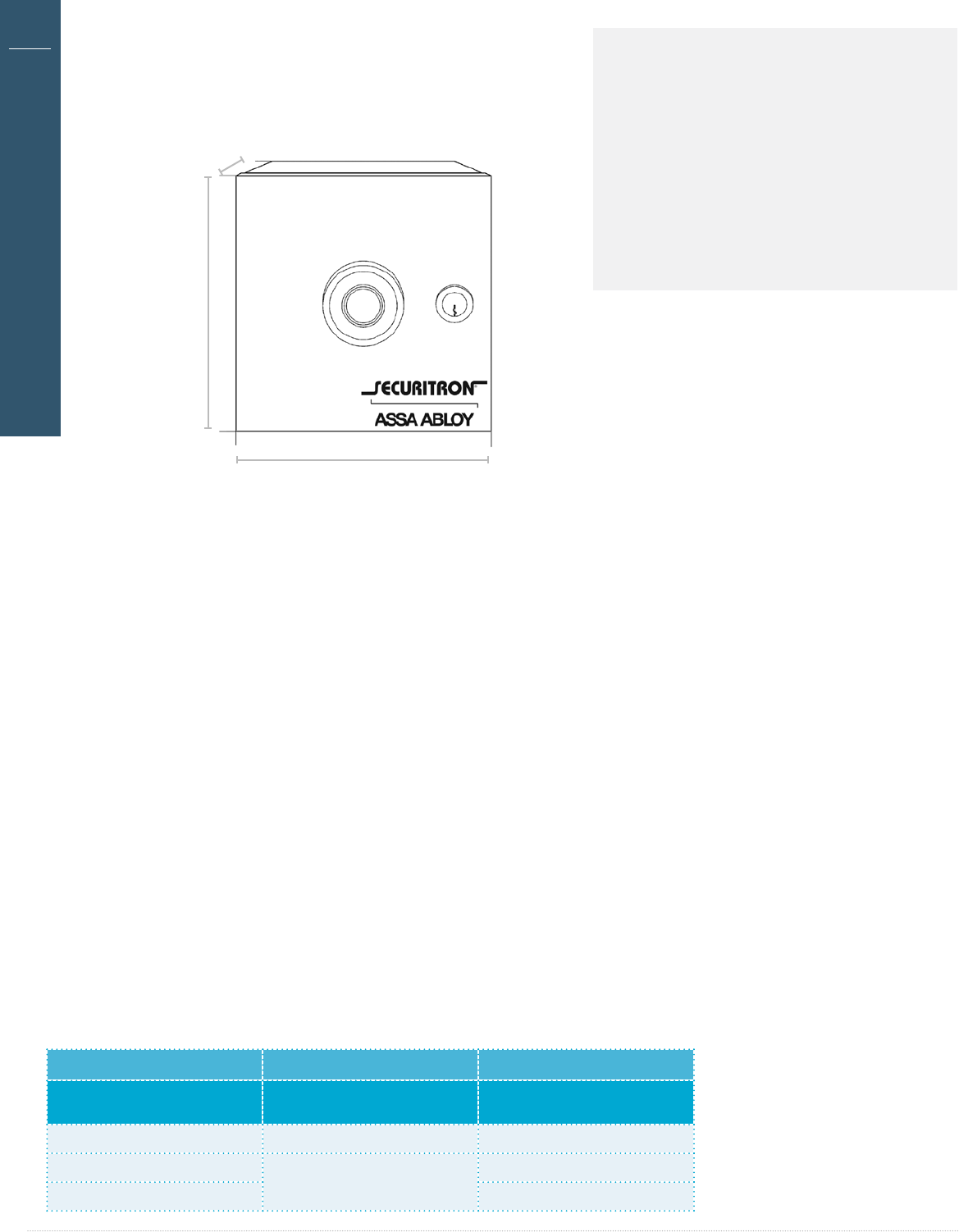

Keyswitches

Keyswitch Selector Guide •••••••••••••••••••••••••••••••••••••177

Securitron MK ••••••••••••••••••••••••••••••••••••••••••••••• 176

Securitron KP-1 ••••••••••••••••••••••••••••••••••••••••••••••177

Wave Switch

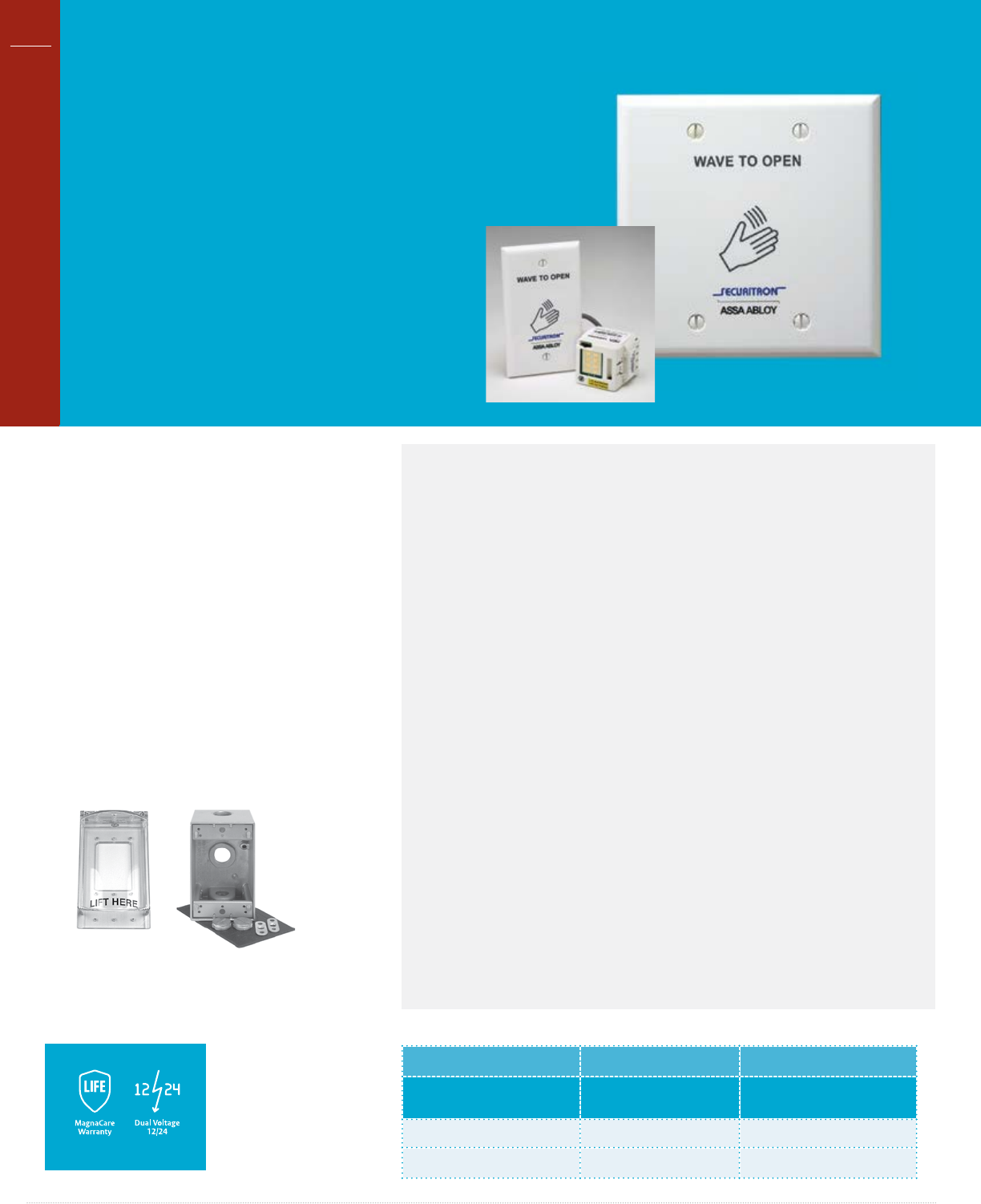

Securitron WSS ••••••••••••••••••••••••••••••••••••••••••••••178

Capacitive Plate

Securitron SP1 •••••••••••••••••••••••••••••••••••••••••••••••179

Egress Bars

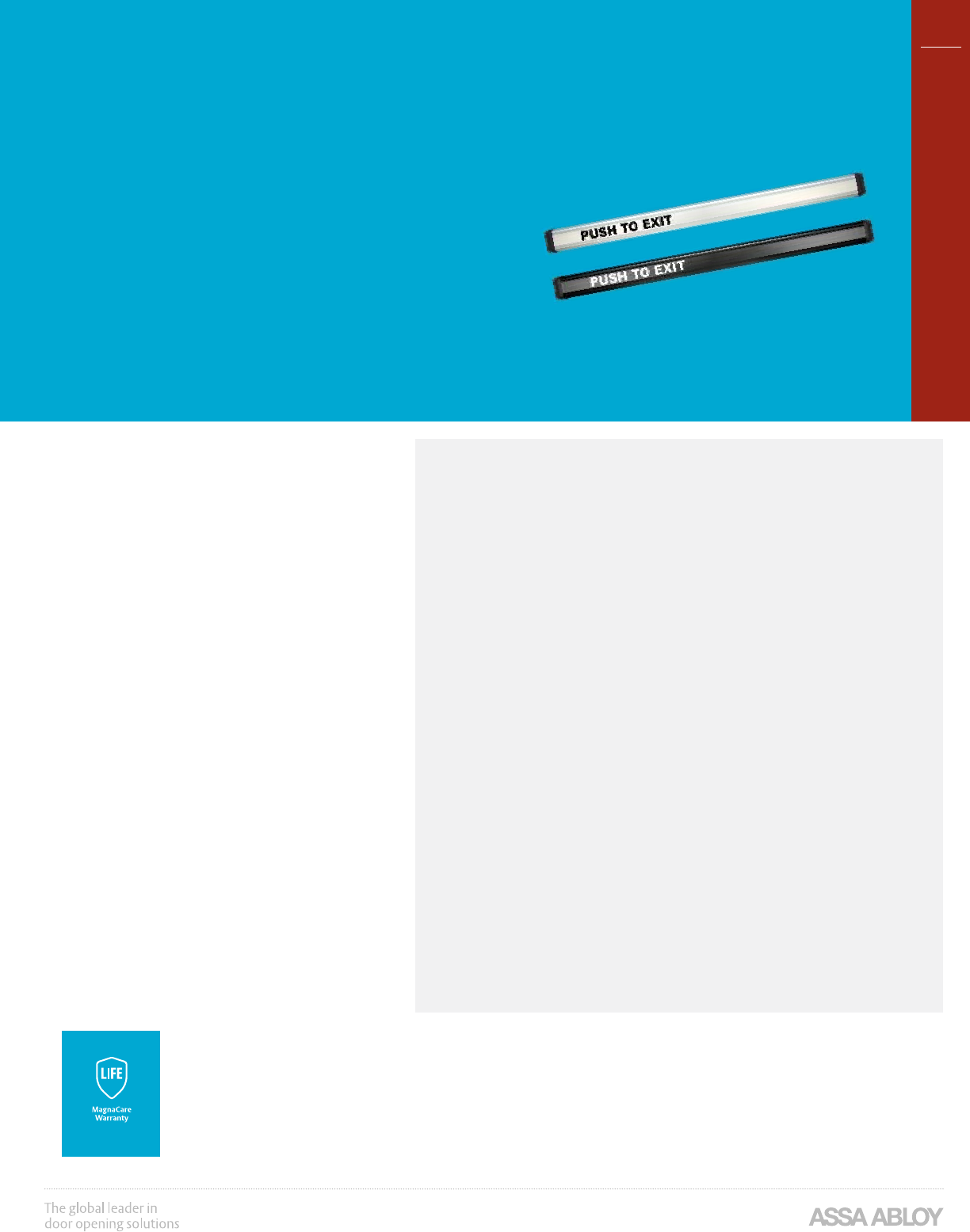

Securitron DSB ••••••••••••••••••••••••••••••••••••••••••••••181

Securitron TSB •••••••••••••••••••••••••••••••••••••••••••••••183

Securitron EMB ••••••••••••••••••••••••••••••••••••••••••••••185

Egress Handles

Securitron TSH ••••••••••••••••••••••••••••••••••••••••••••••187

Securitron EMH ••••••••••••••••••••••••••••••••••••••••••••••188

Aperio® Wireless

HES K100-622H ••••••••••••••••••••••••••••••••• See Cabinet Locks

HES KS100-640H •••••••••••••••••••••••••••••••• See Cabinet Locks

Securitron R100-1H •••••••••••••••••••••••••• See Keypads & Readers

Integrated Wiegand

Securitron DK-37, DK-38 •••••••••••••••••••••• See Keypads & Readers

HES K200-622 •••••••••••••••••••••••••••••••••• See Cabinet Locks

HES KS200-640 ••••••••••••••••••••••••••••••••• See Cabinet Locks

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

Table of Contentss

Power

Linear Power Supplies

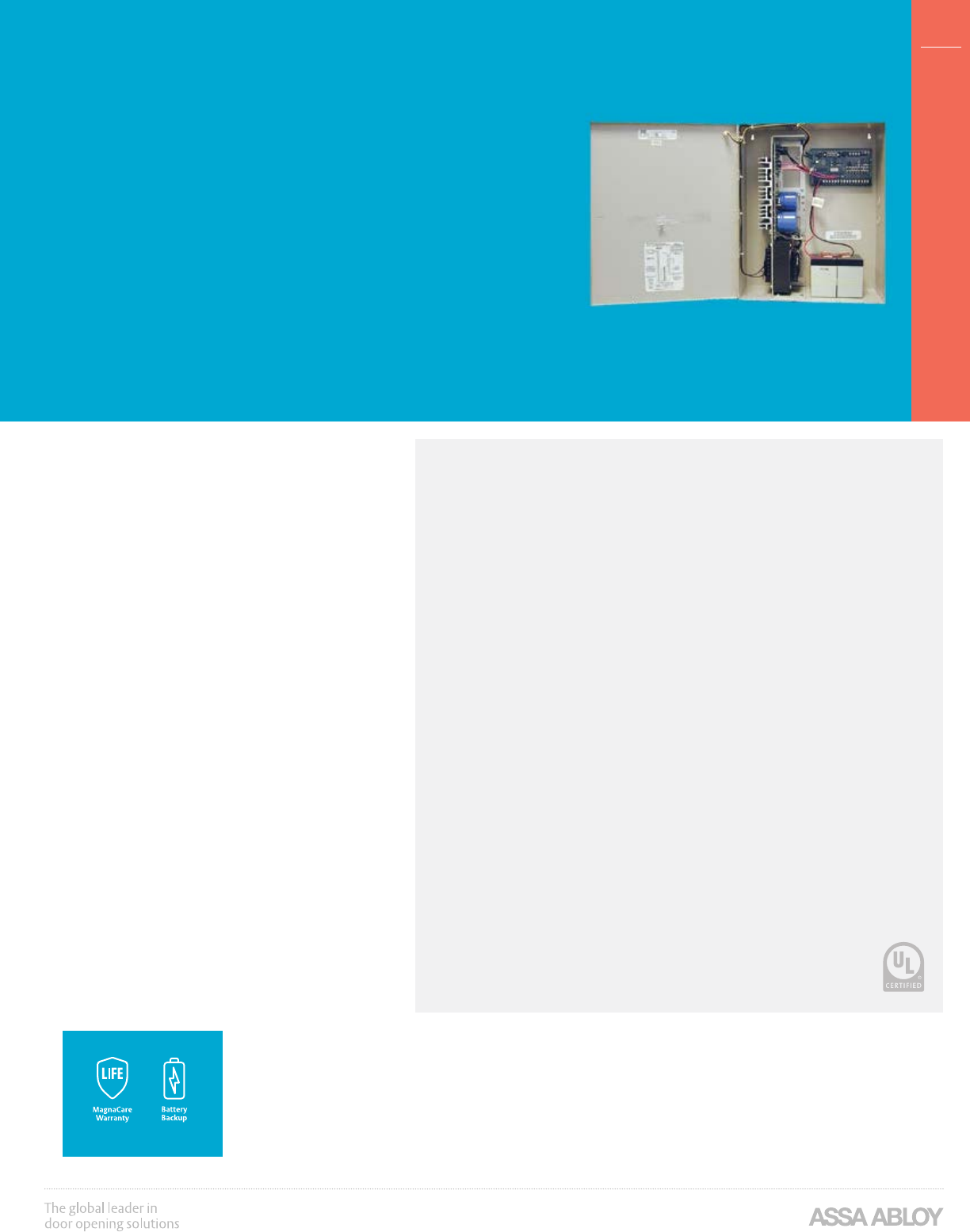

Securitron BPS Series ••••••••••••••••••••••••••••••••••••••••• 191

Securitron BPSM Series •••••••••••••••••••••••••••••••••••••••195

Securitron PSM Series •••••••••••••••••••••••••••••••••••••••••197

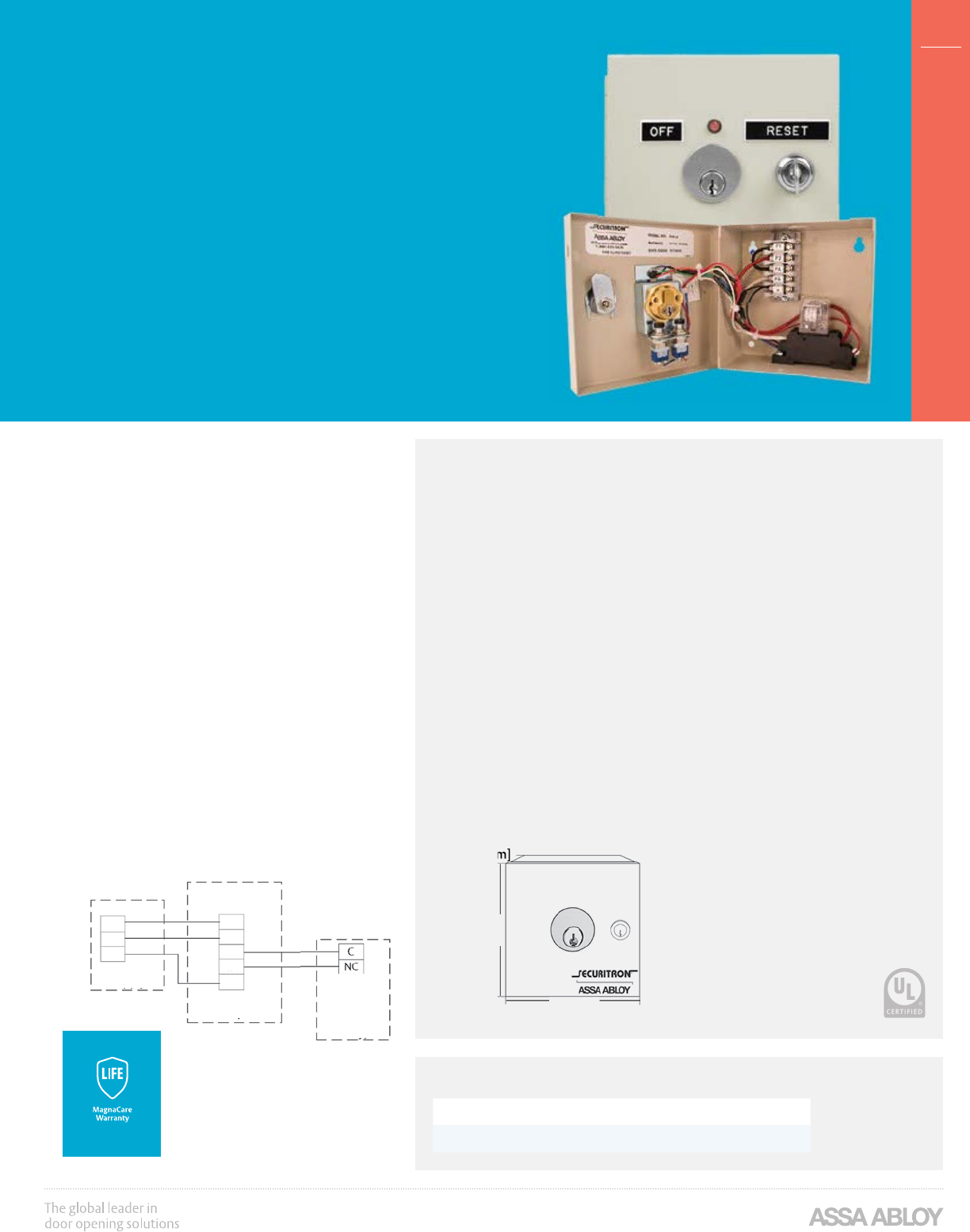

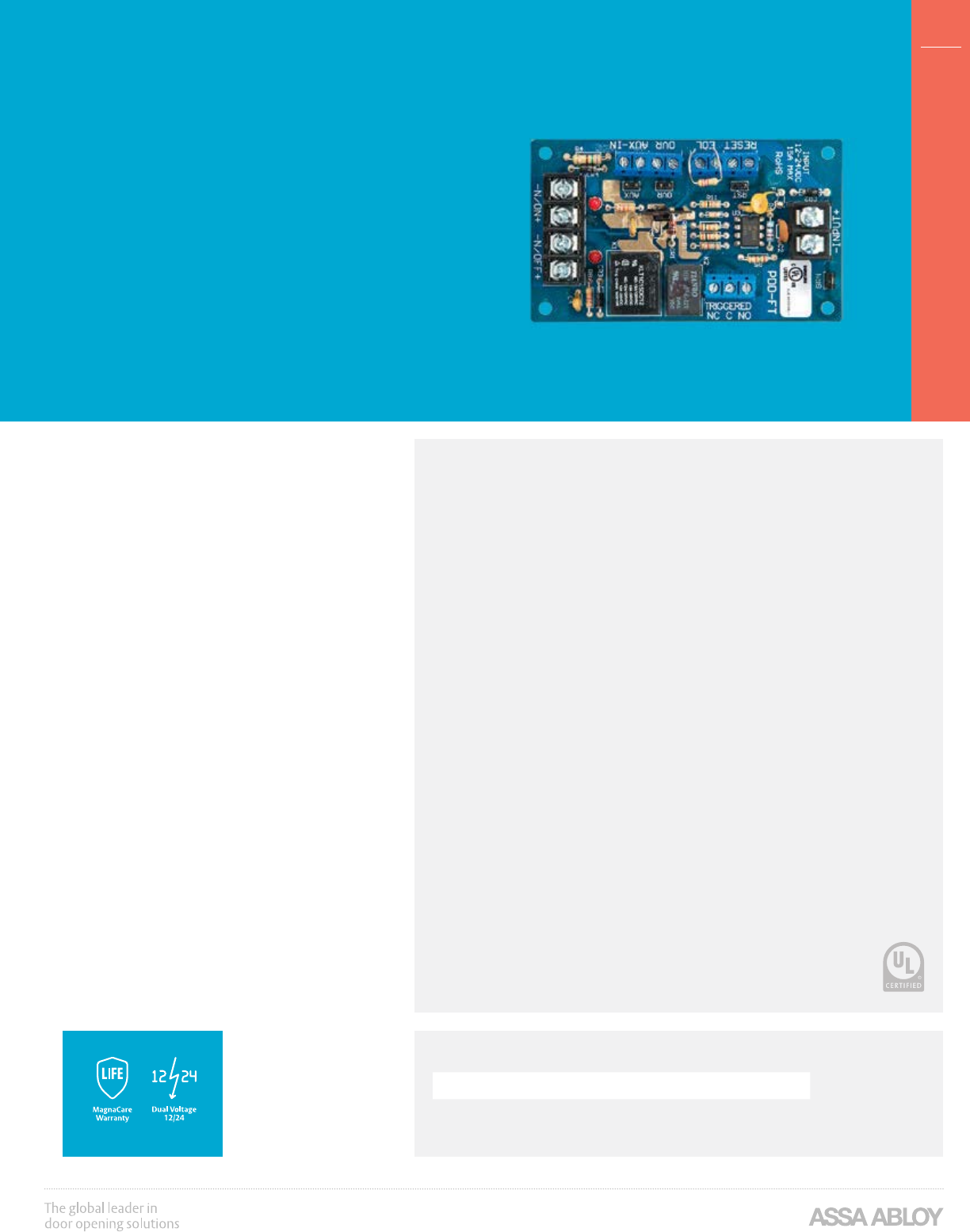

Securitron FAR Fire Alam Reset •••••••••••••••••••••••••••••••••199

BPS Linear Power Supply and Plug-In Power Supply Selection Guide ••200

Switching Power Supplies

Securitron AQD Series •••••••••••••••••••••••••••••••••••••••••201

Securitron AQS Series •••••••••••••••••••••••••••••••••••••••••203

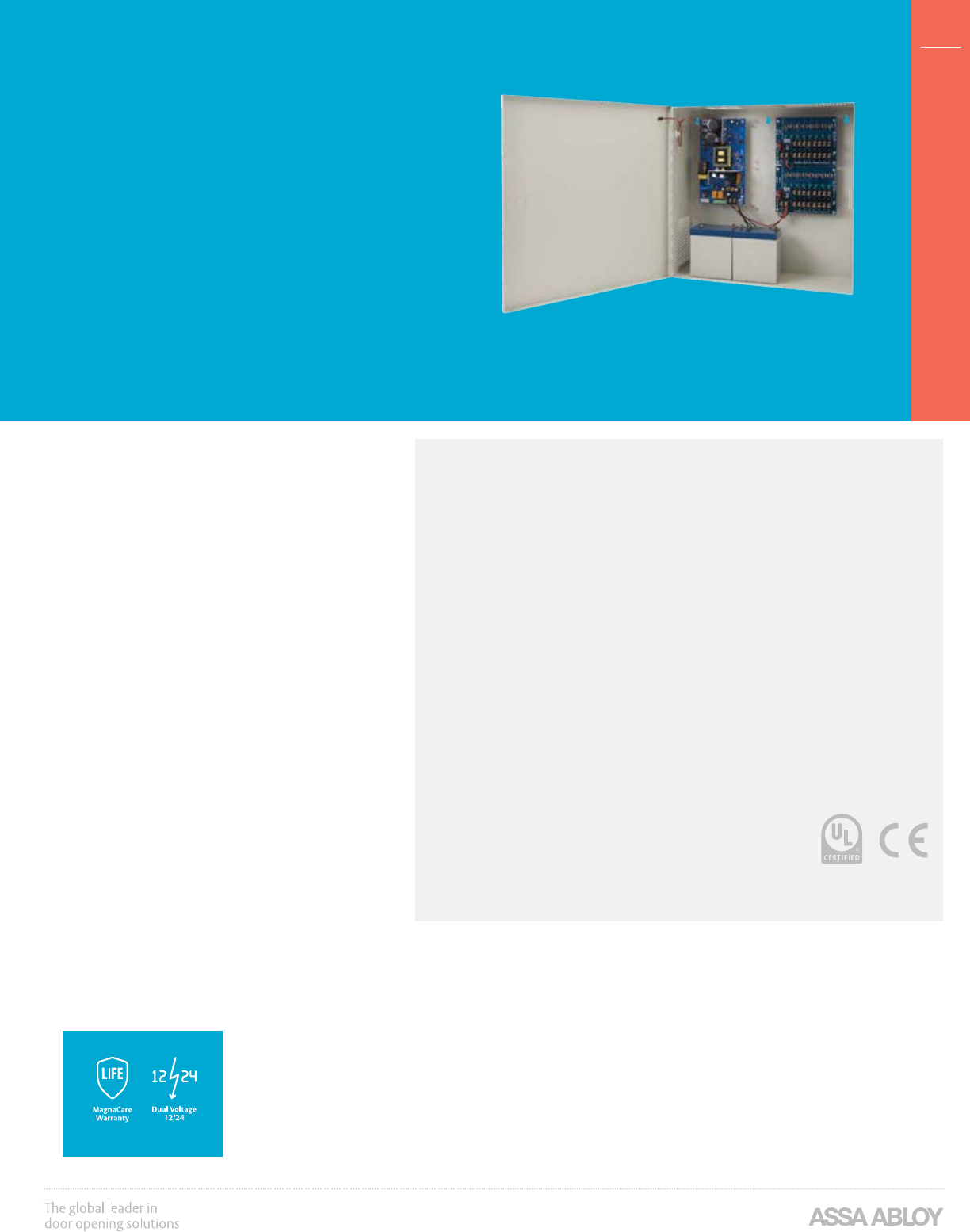

Securitron Power Distribution Series ••••••••••••••••••••••••••••205

EcoPower®

Securitron EPS Series ••••••••••••••••••••••••••••••••••••••••••210

Solar Power Supplies

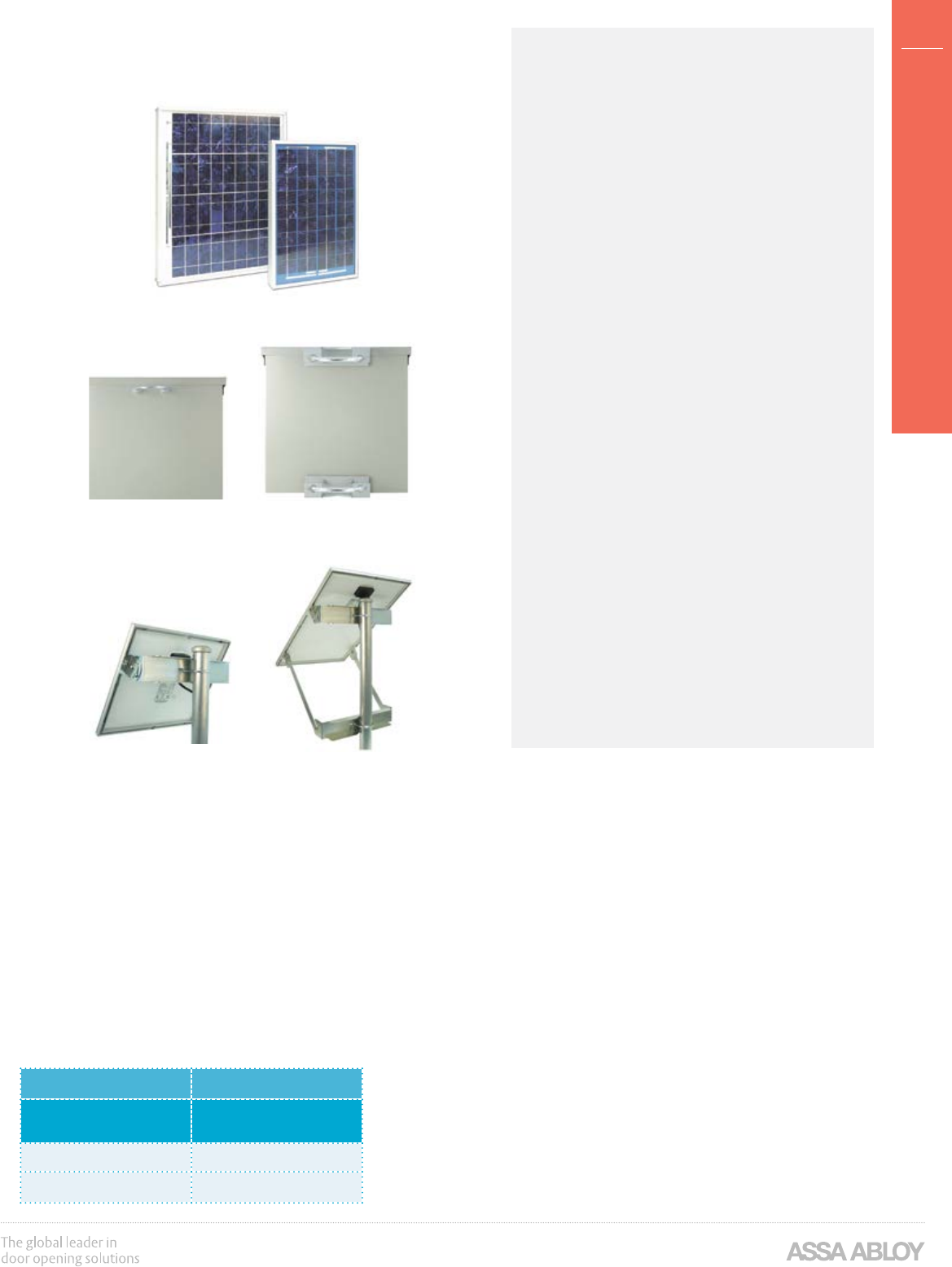

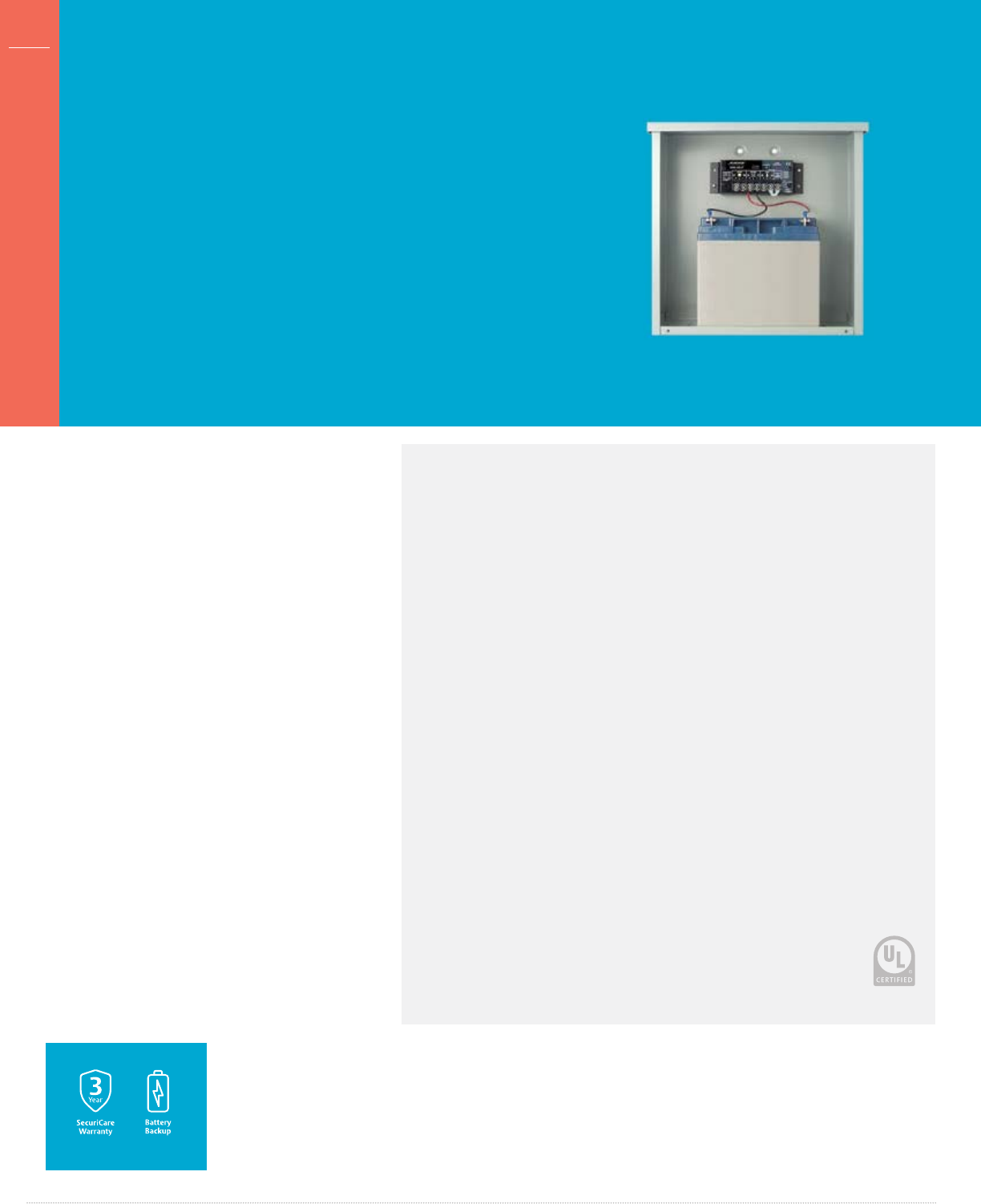

Securitron BPSS Series ••••••••••••••••••••••••••••••••••••••••212

PoE Power Supplies

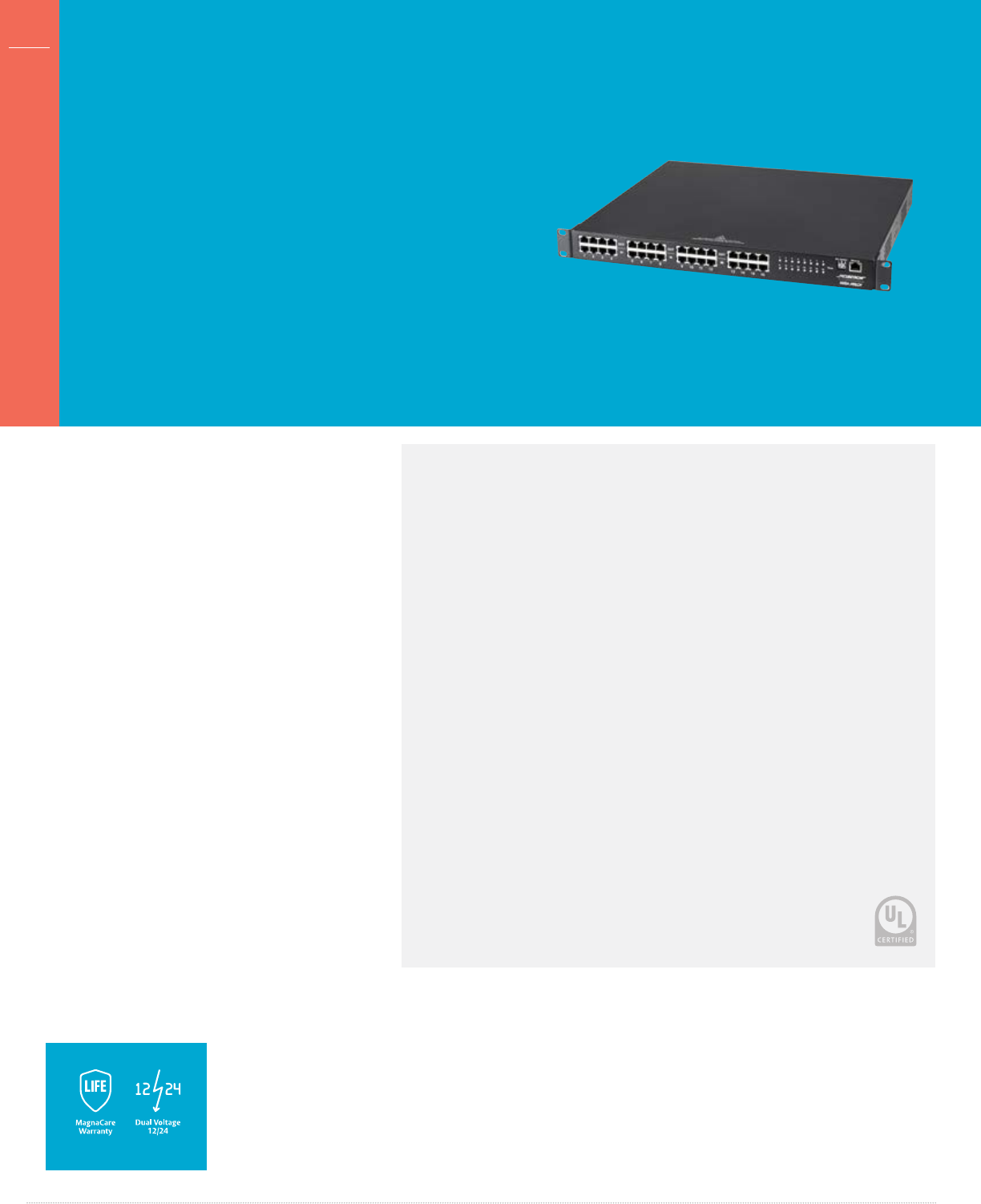

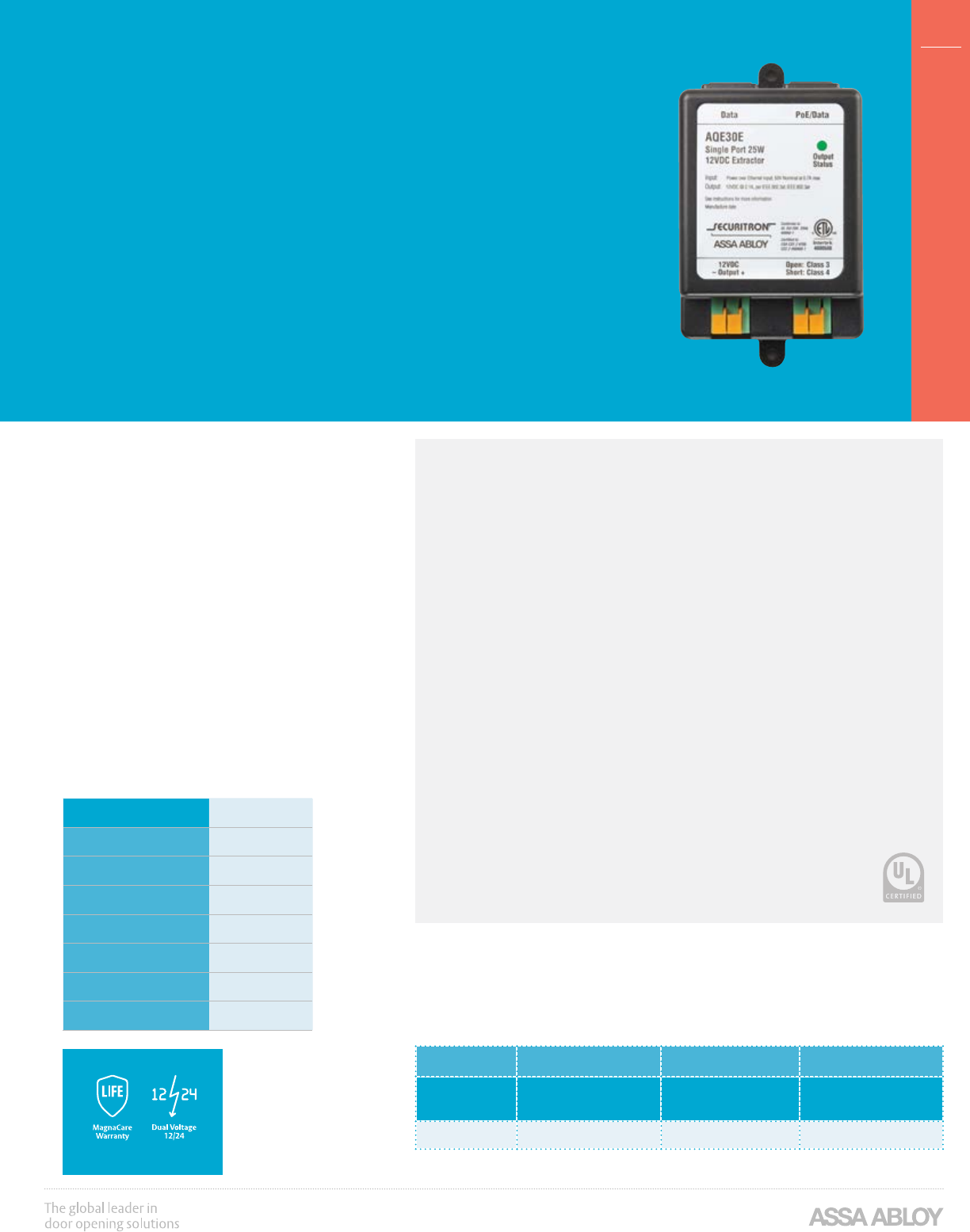

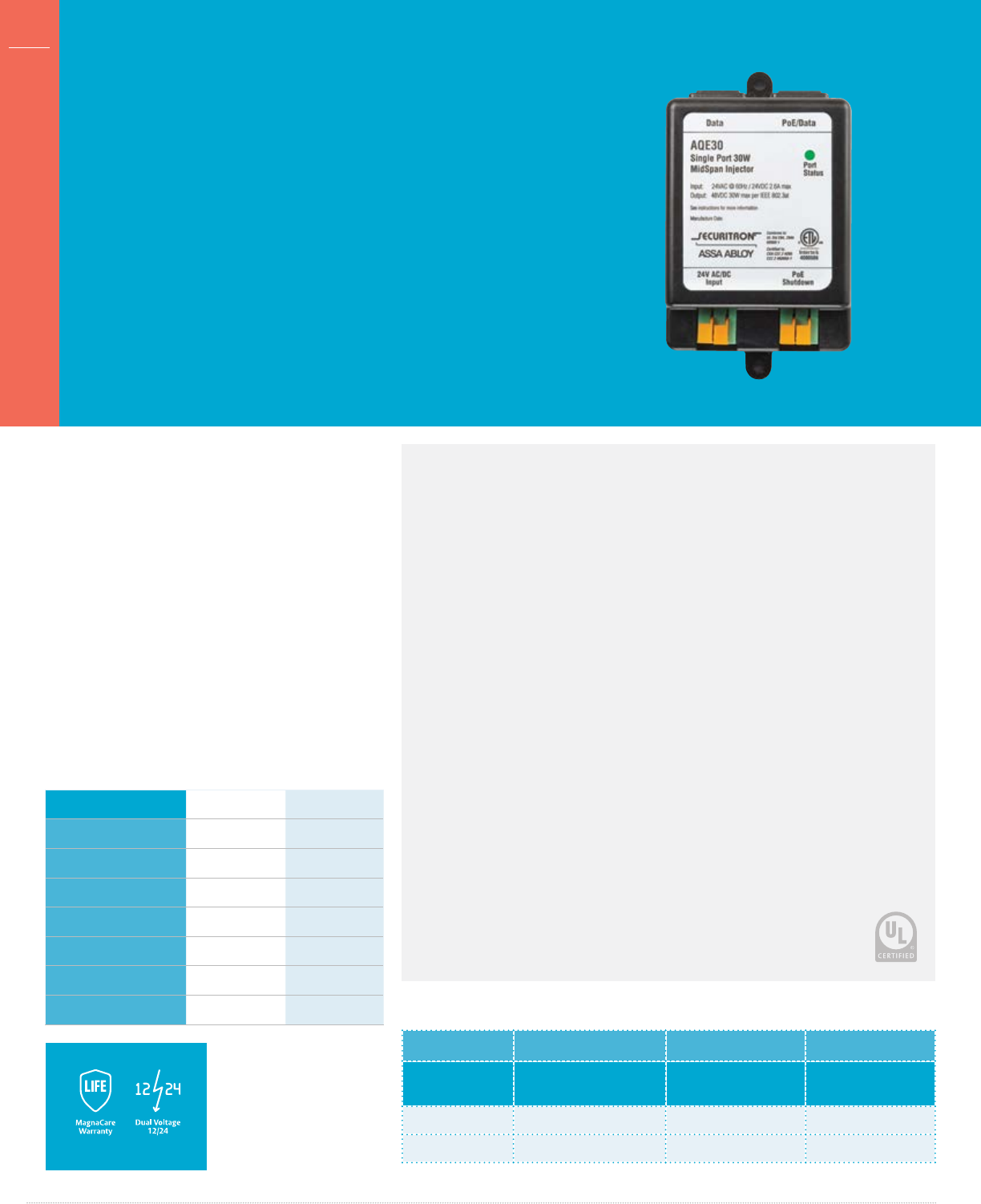

Securitron AQE Injectors & Extractors •••••••••••••••••••••••••••214

Plug-In Power Supplies

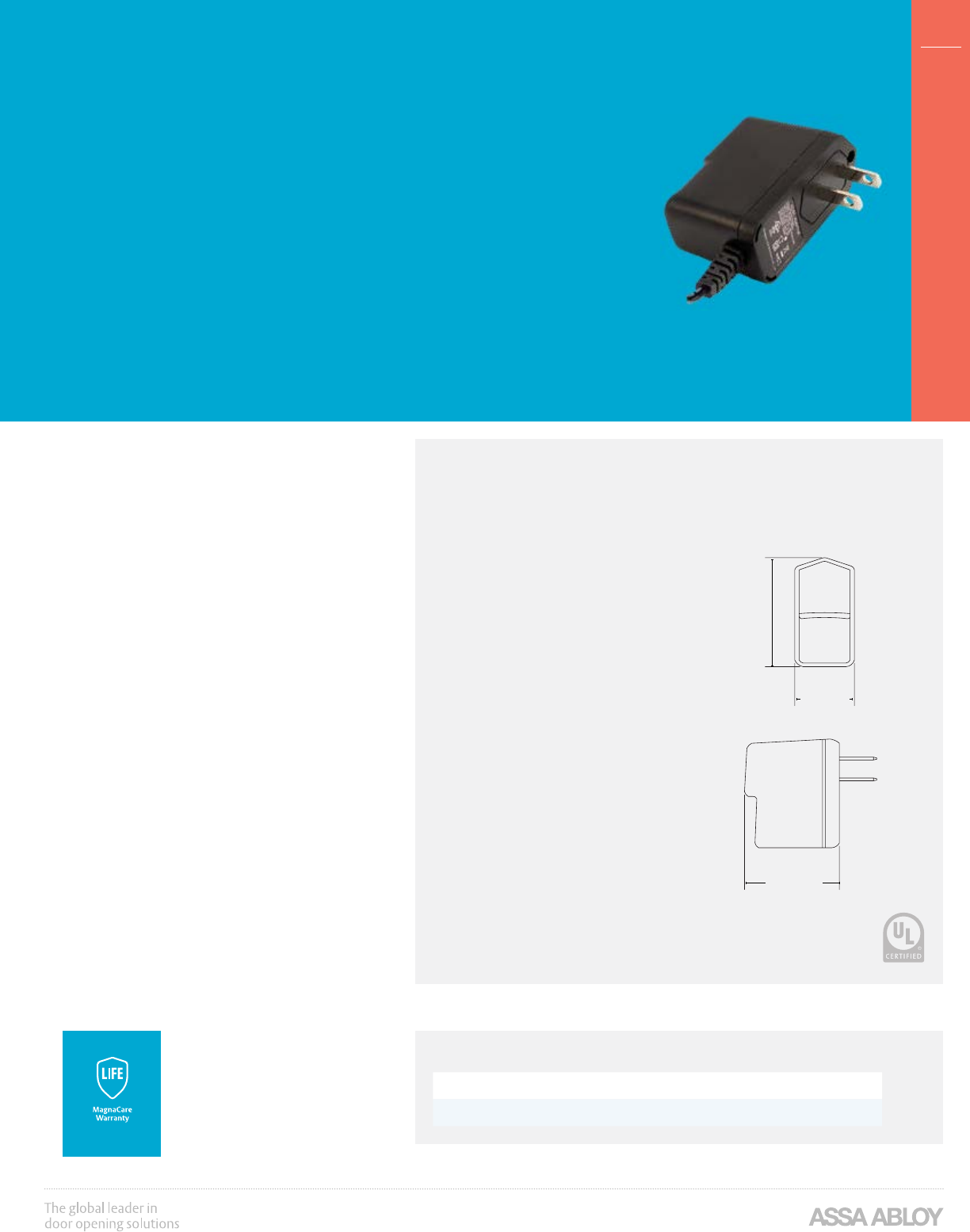

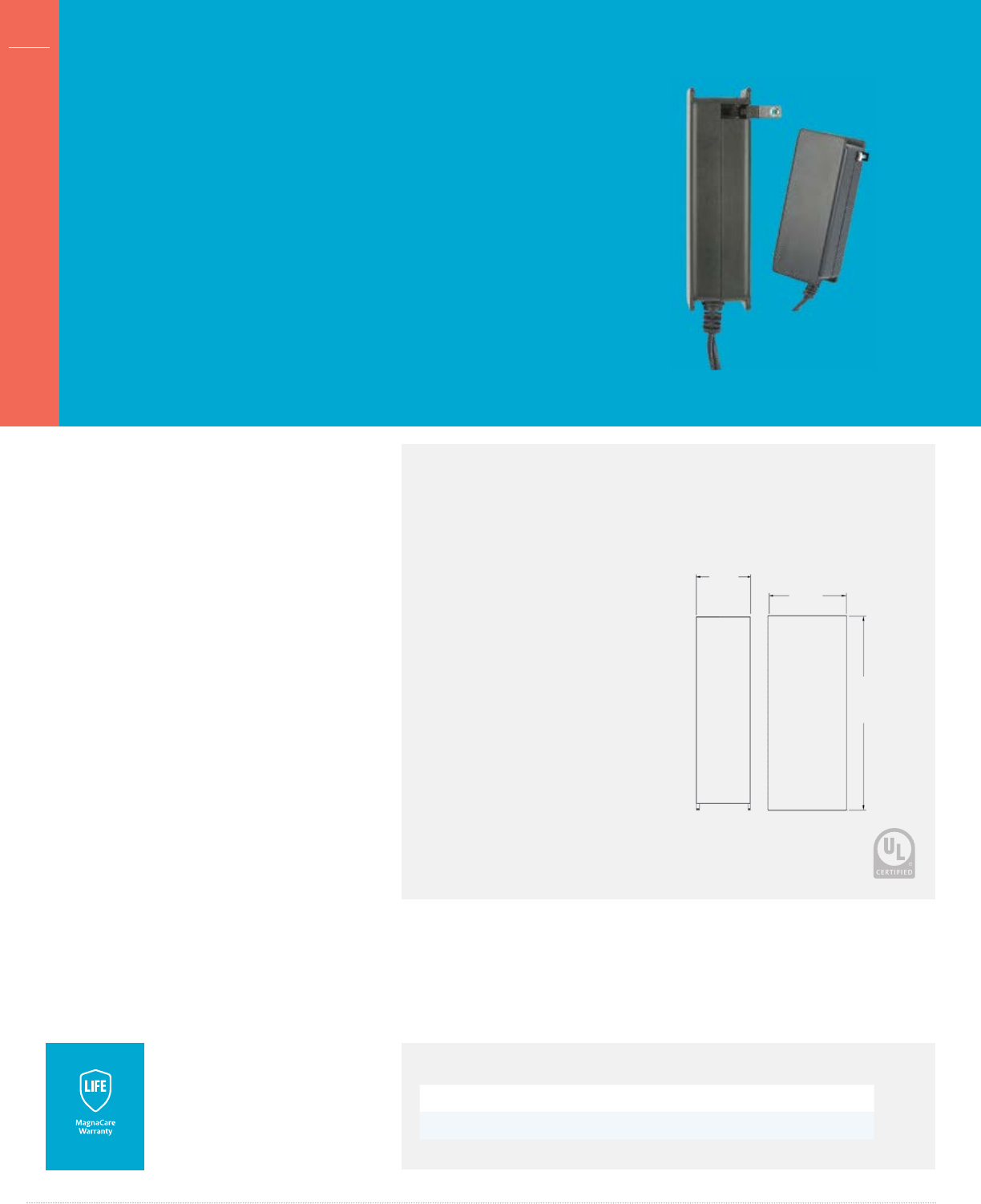

Securitron PSP Series •••••••••••••••••••••••••••••••••••••••••• 218

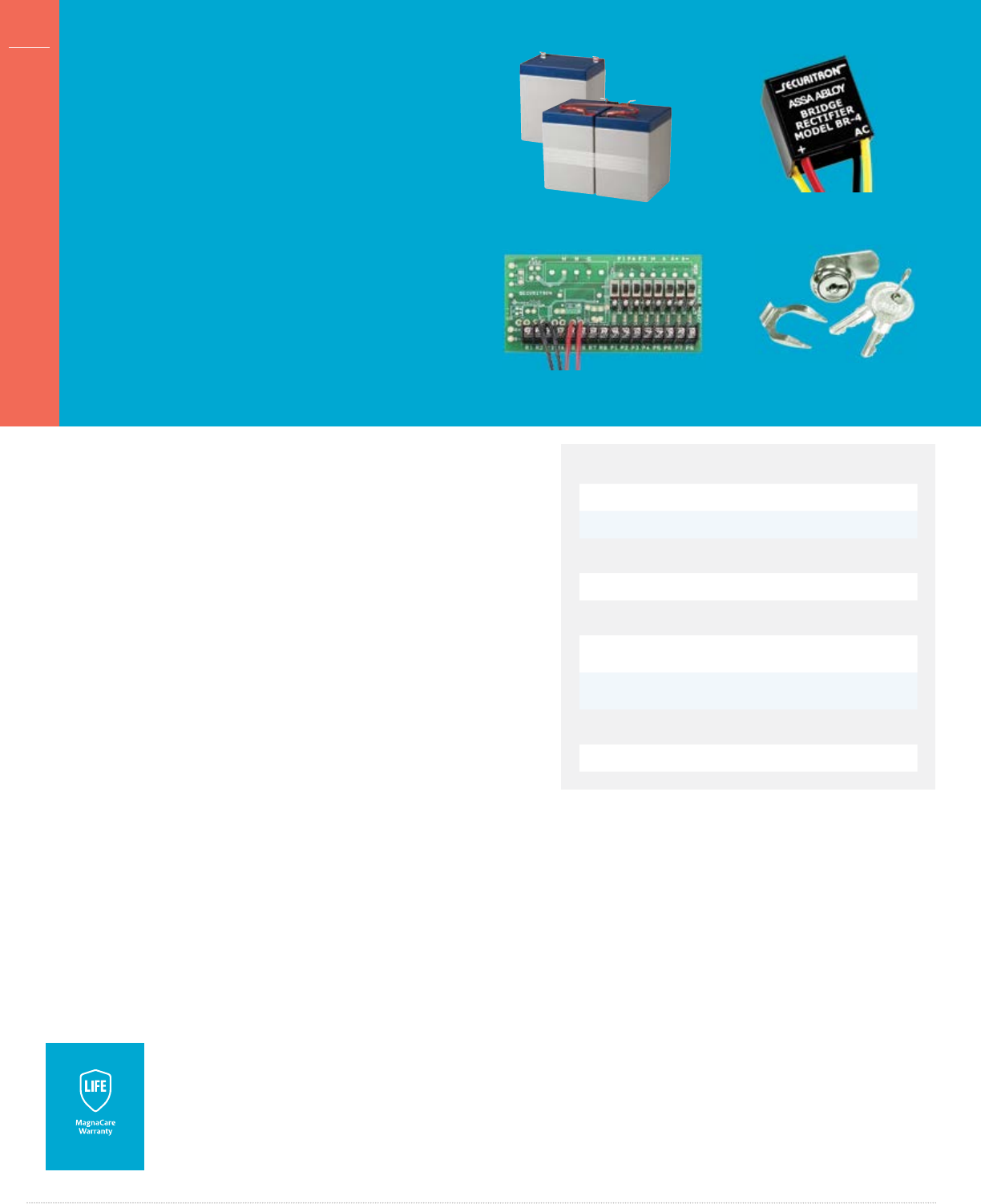

Securitron Power Supply Accessories •••••••••••••••••••••••••••220

Power Transfers

Concealed Power Transfers

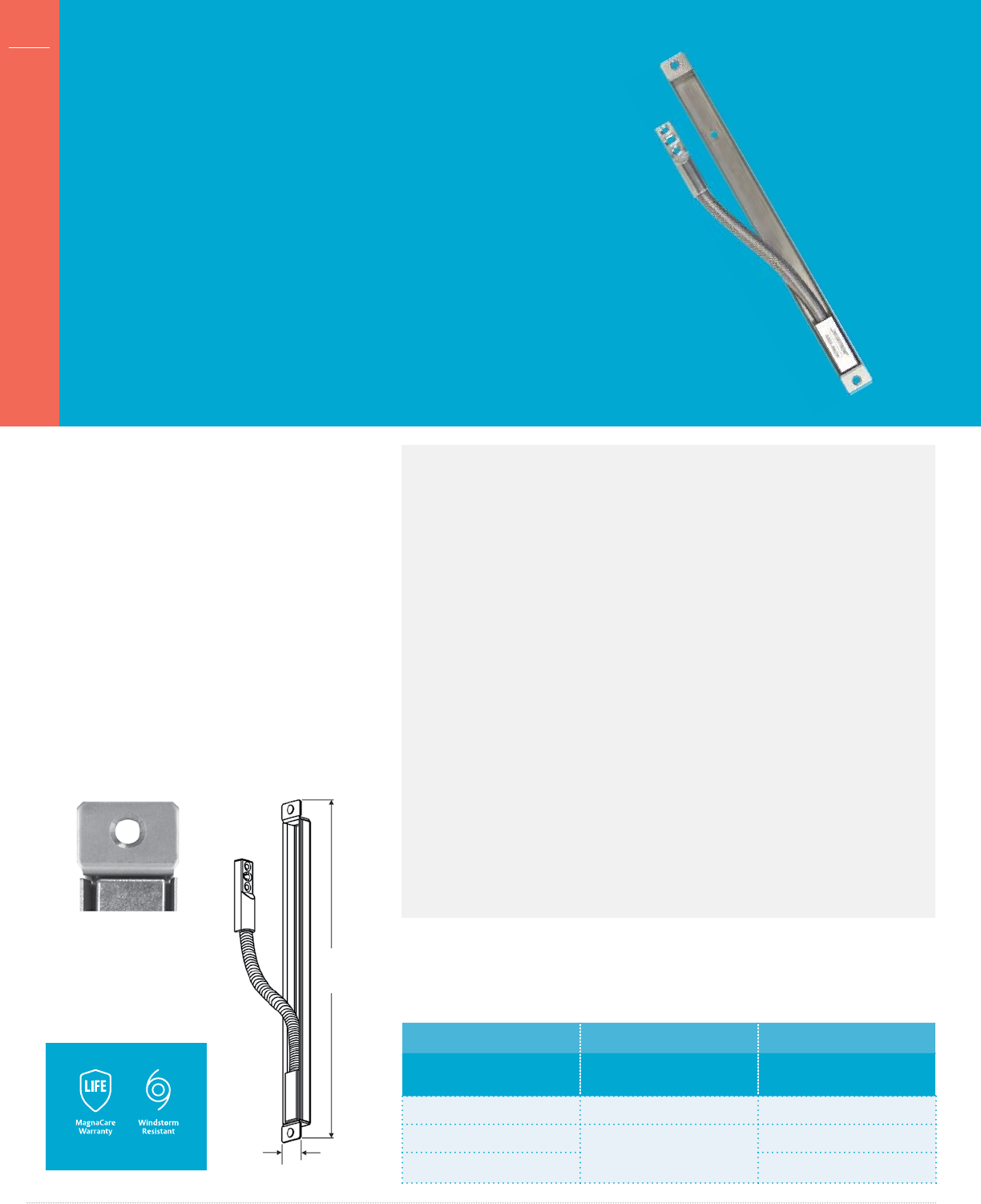

Securitron ICPT, CEPT, SEPT, EPT •••••••••••••••••••••••••••••••••222

Electric Hinges

Securitron EH ••••••••••••••••••••••••••••••••••••••••••••••••229

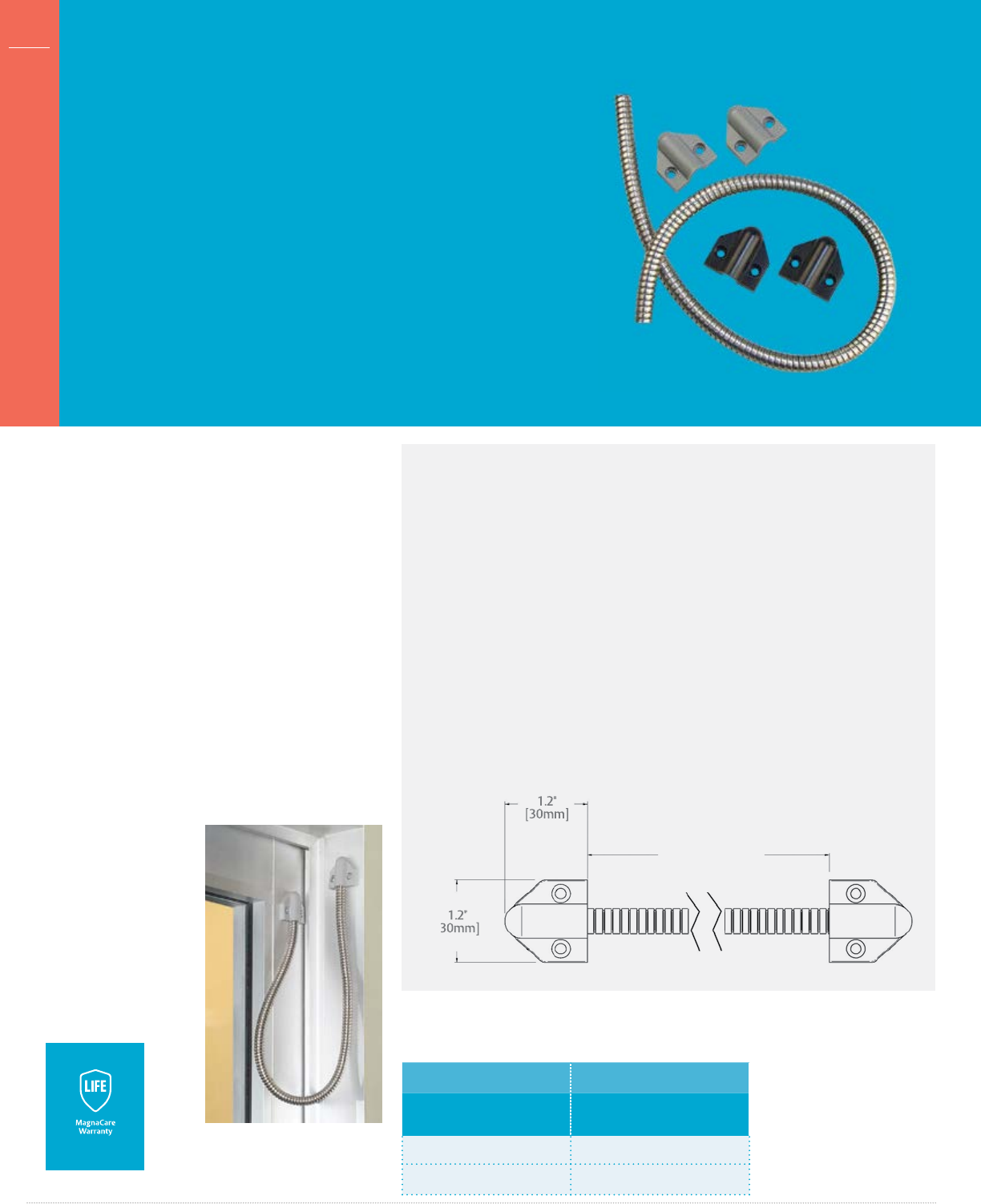

Door Cords

Securitron TSB-C •••••••••••••••••••••••••••••••••••••••••••••230

Accessories

Timers & Alarms

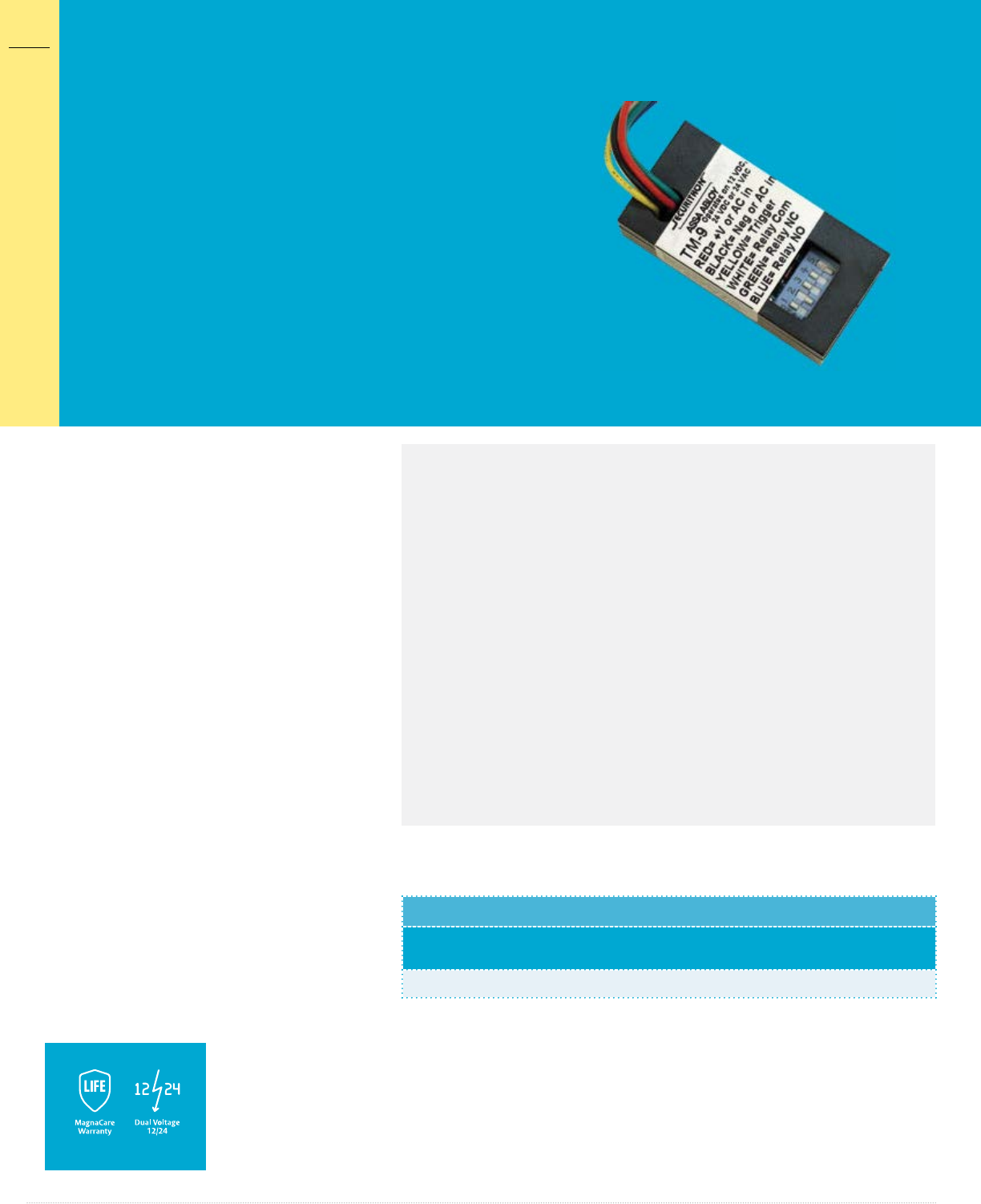

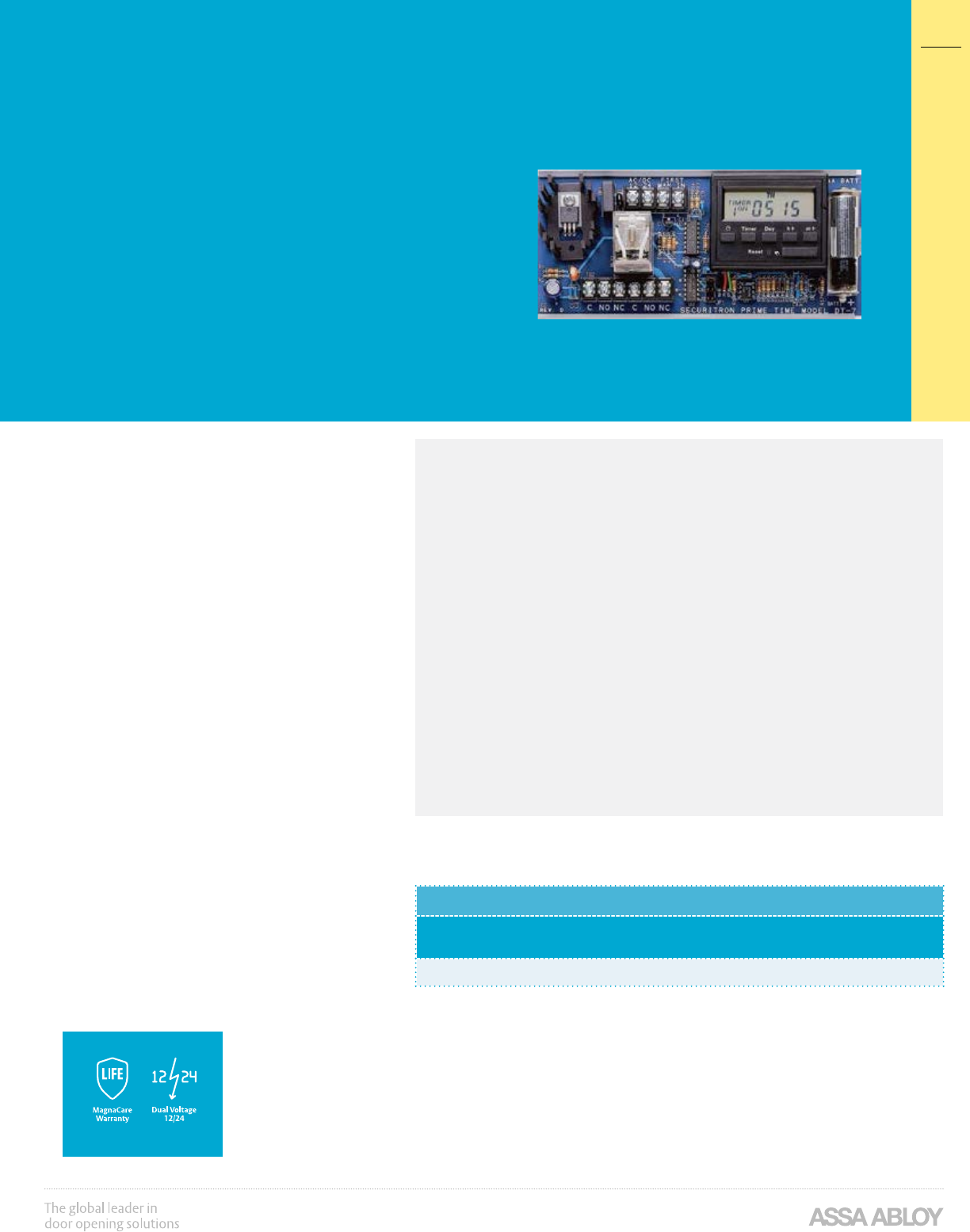

Securitron TM-2, TM-9, DT-7 & PZ1 ••••••••••••••••••••••••••••••233

Door Position Monitoring

Securitron BA-DPA 12 or 24 ••••••••••••••••••••••••••••••••••••237

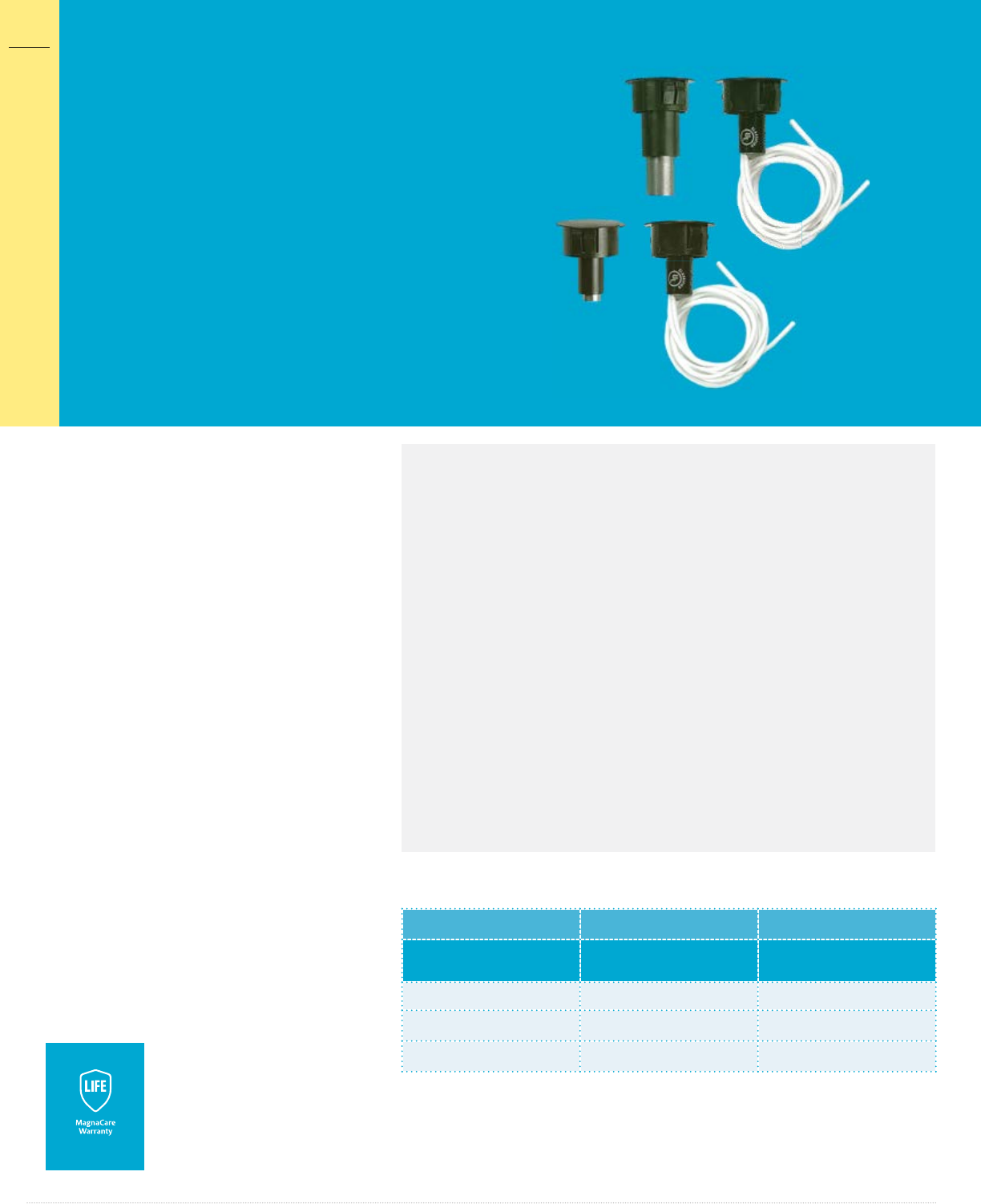

Securitron DPS Series •••••••••••••••••••••••••••••••••••••••••238

Securitron MSS ••••••••••••••••••••••••••••••••••••••••••••••239

Securitron LM ••••••••••••••••••••••••••••••••••••••••••••••••240

Relays

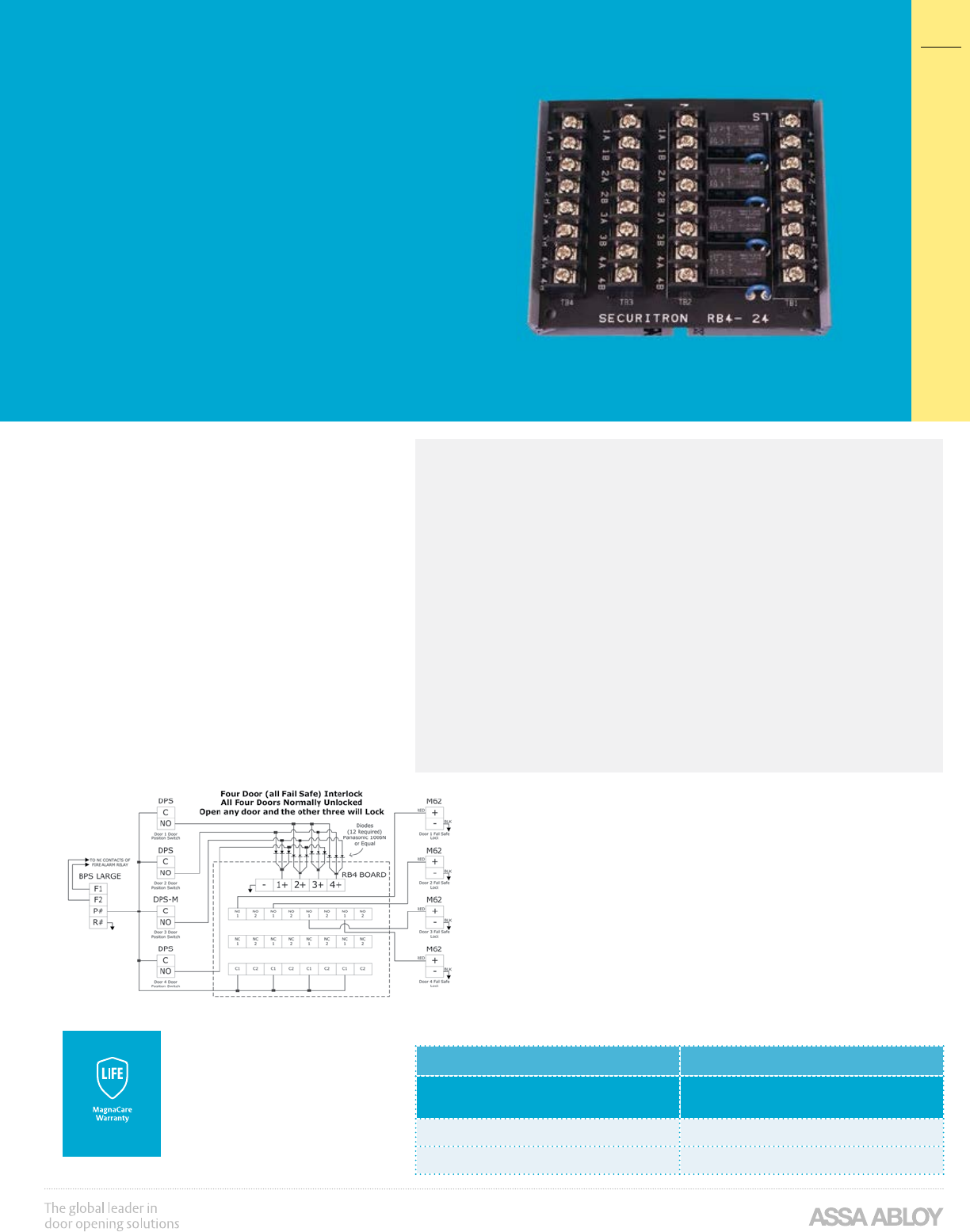

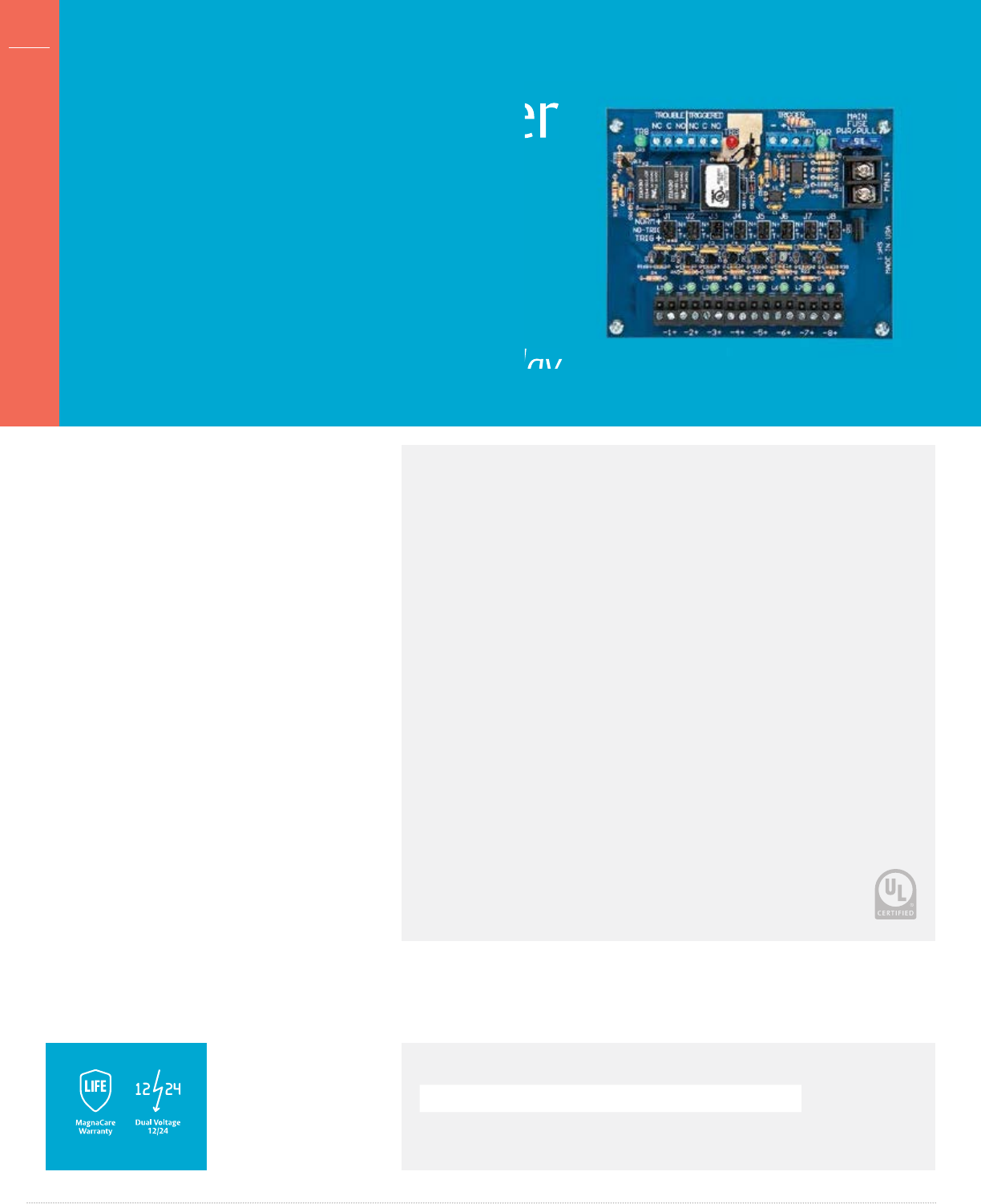

Securitron RB4 Series •••••••••••••••••••••••••••••••••••••••••241

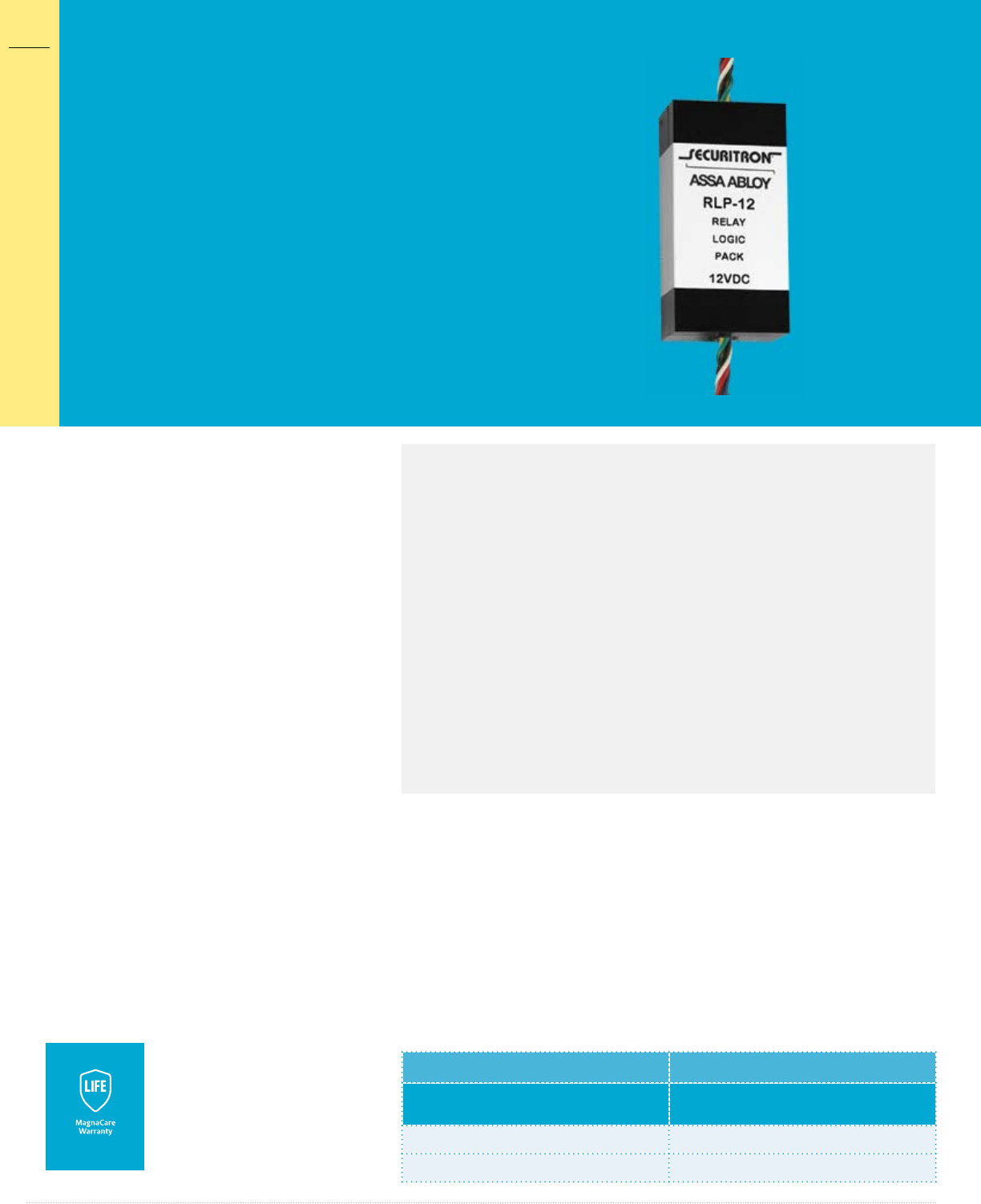

Securitron RLP Series ••••••••••••••••••••••••••••••••••••••••••242

Resources

Glossary of Terms & Icons

Terms ••••••••••••••••••••••••••••••••••••••••••••••••••••••245

Icons •••••••••••••••••••••••••••••••••••••••••••••••••••••••246

Locking Systems

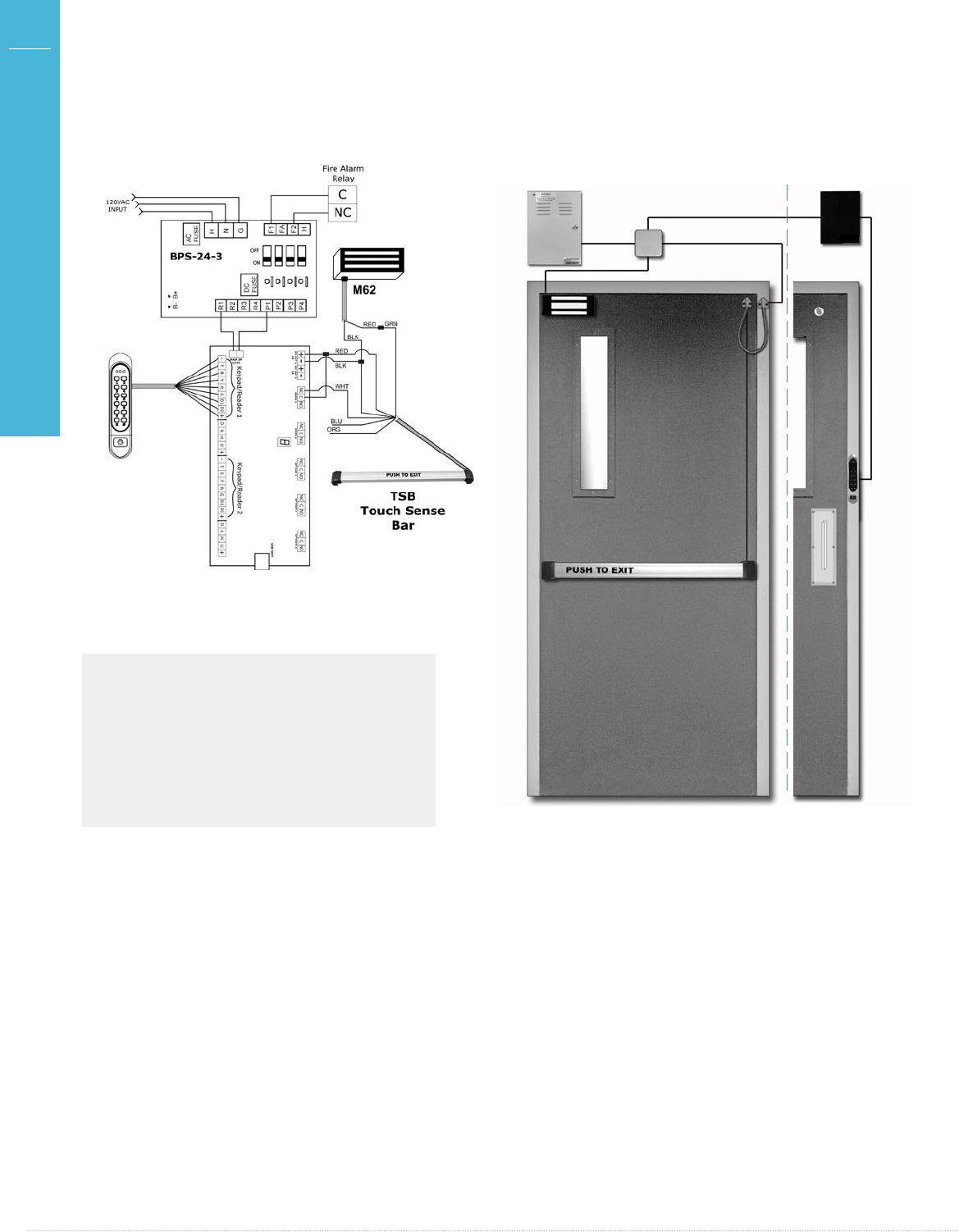

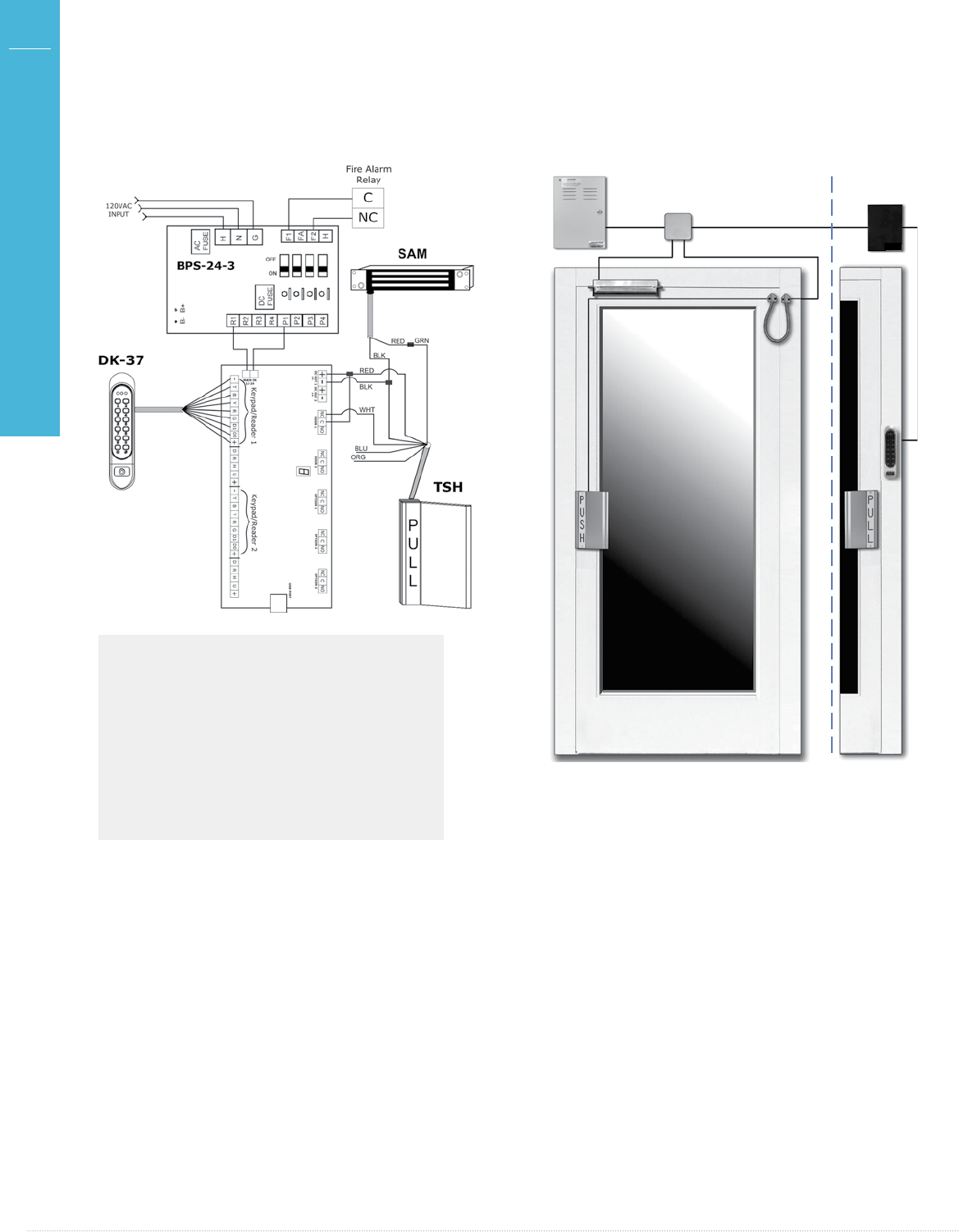

Basic Magnetic Locking System •••••••••••••••••••••••••••••••••248

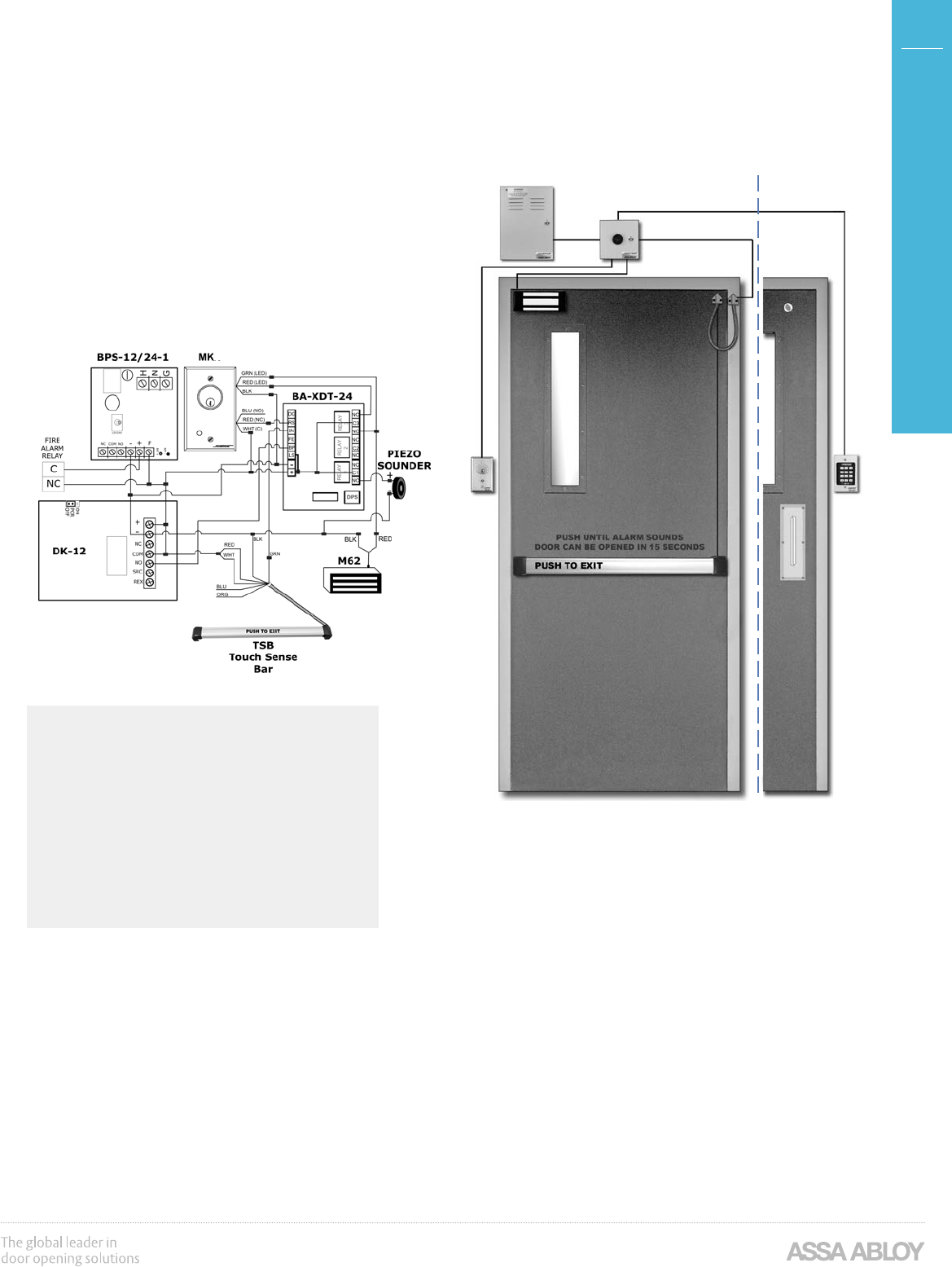

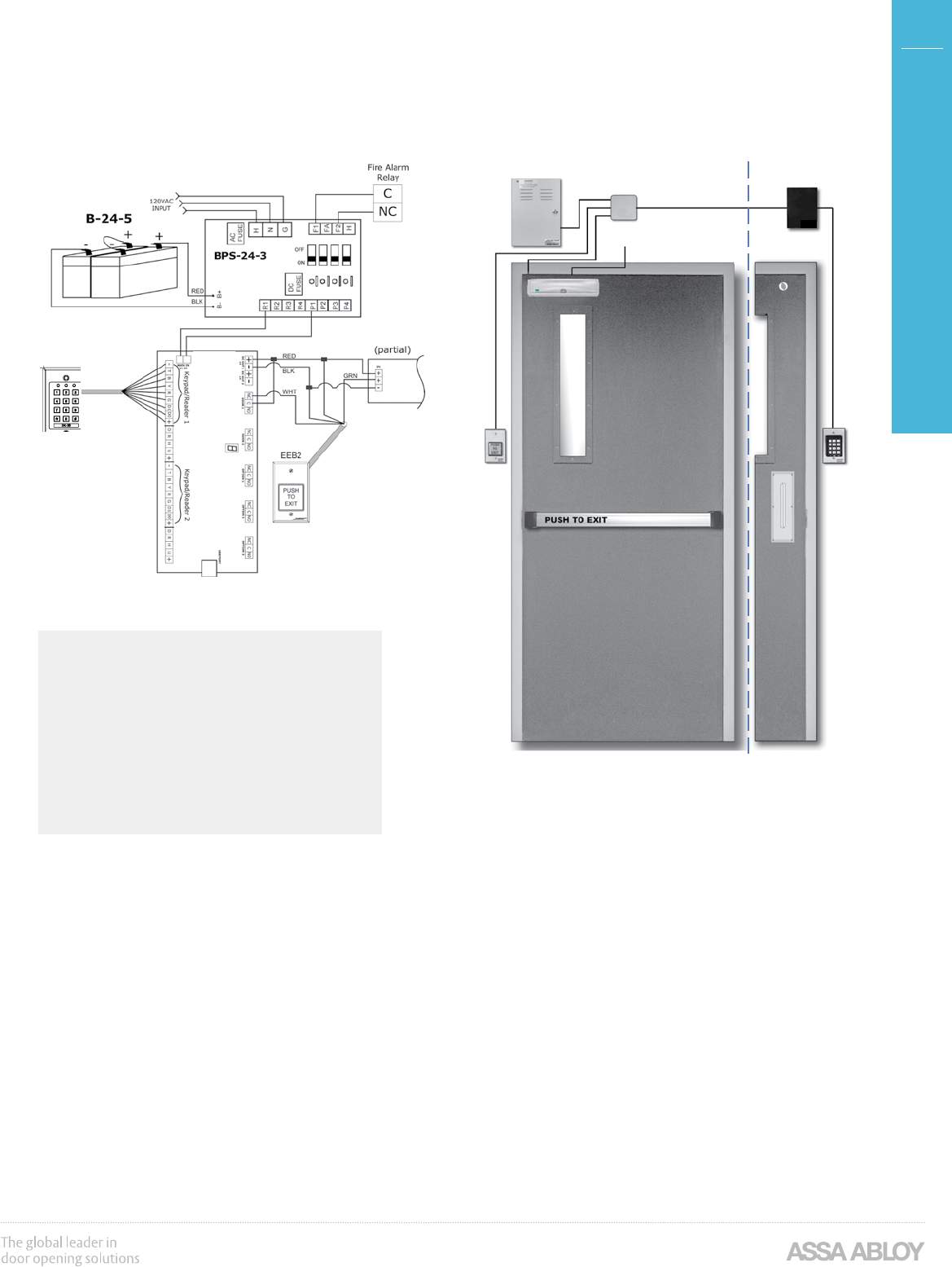

Delayed Egress Magnetic Locking System ••••••••••••••••••••••••249

Store Front Locking System•••••••••••••••••••••••••••••••••••••250

Motion Activated Locking System •••••••••••••••••••••••••••••••251

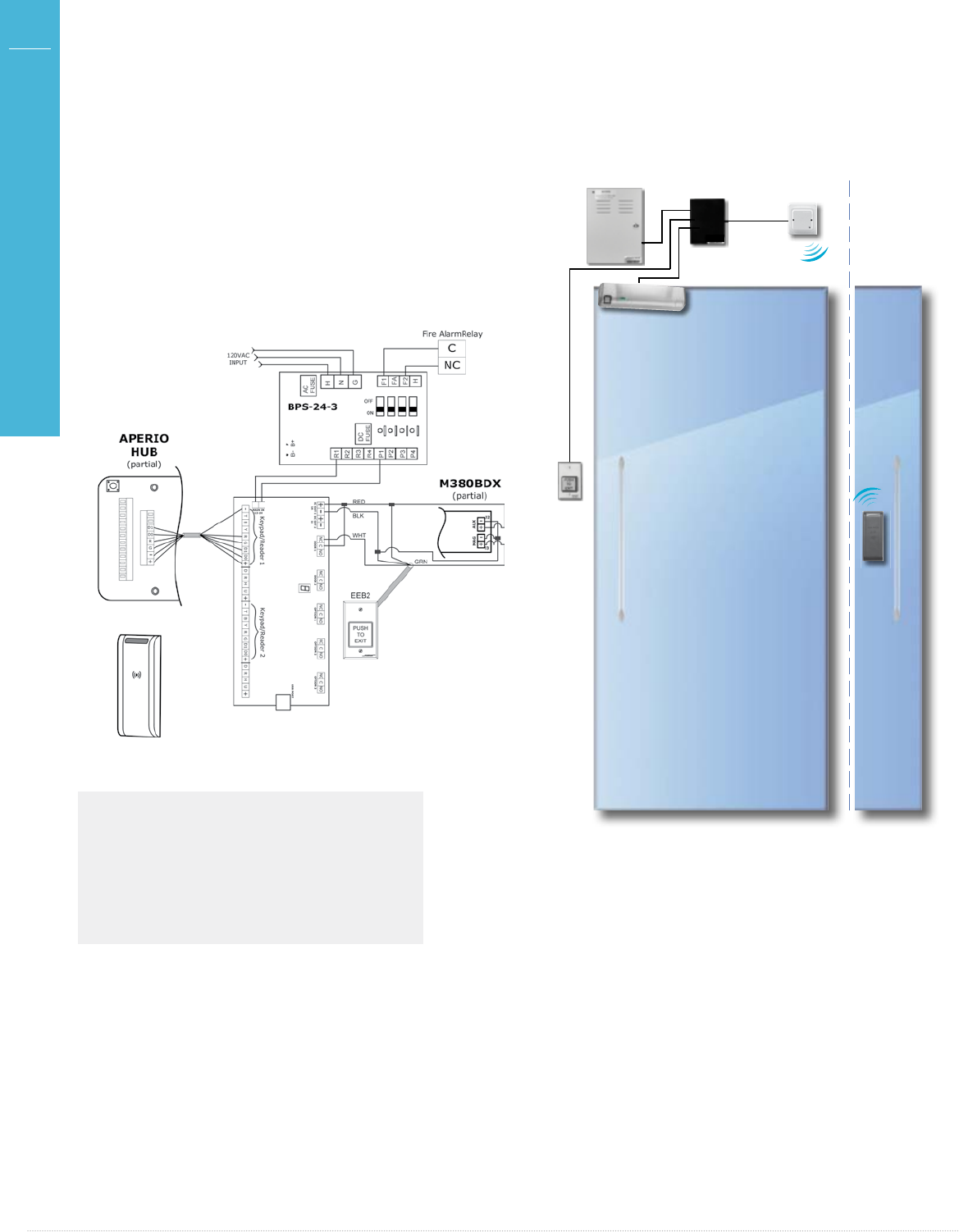

Glass Door Locking System •••••••••••••••••••••••••••••••••••••252

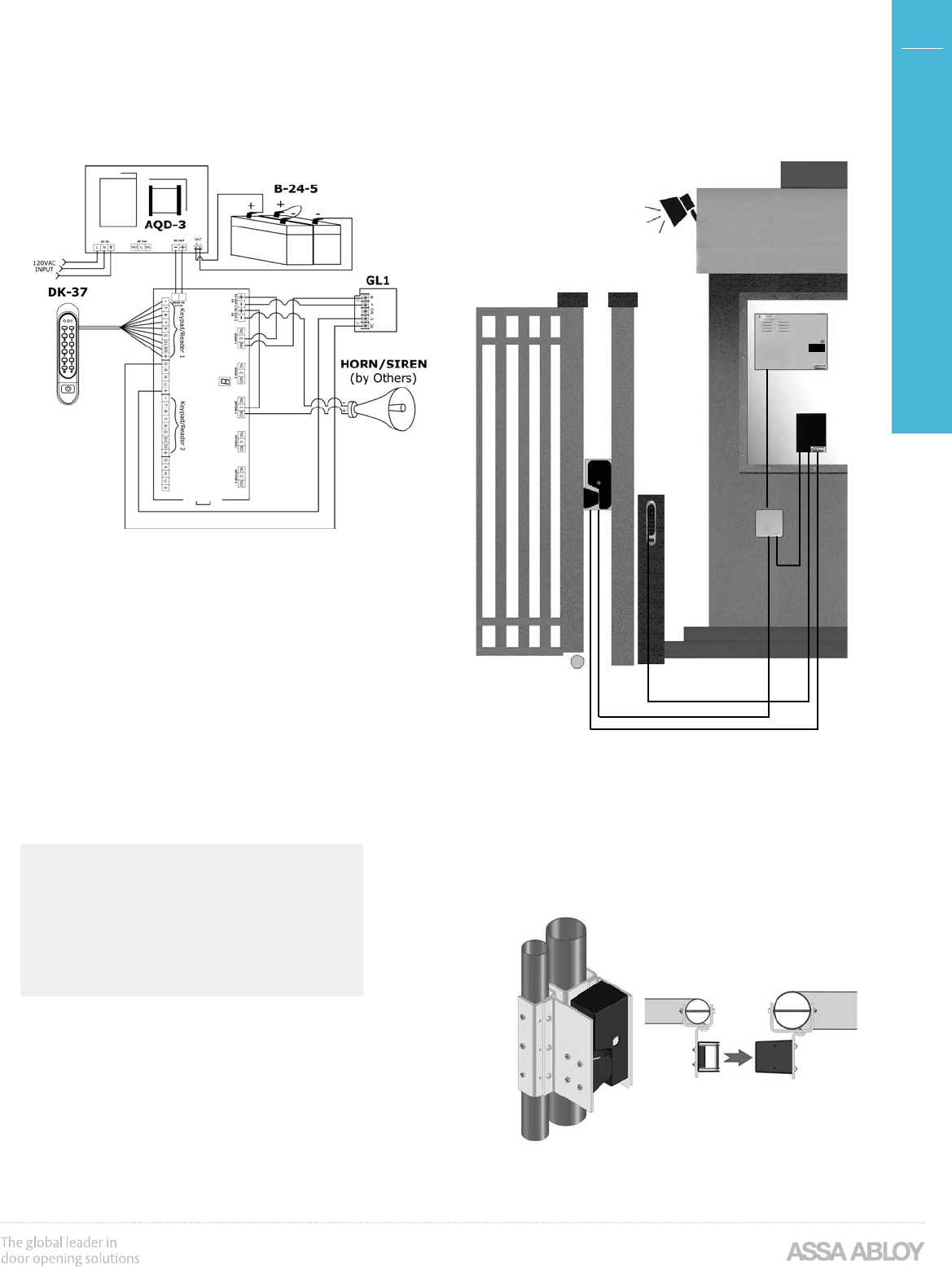

Gate Locking System ••••••••••••••••••••••••••••••••••••••••••253

Terms and Conditions, Warranty •••••••••••••••••••••••••••••••254

Table of Contents

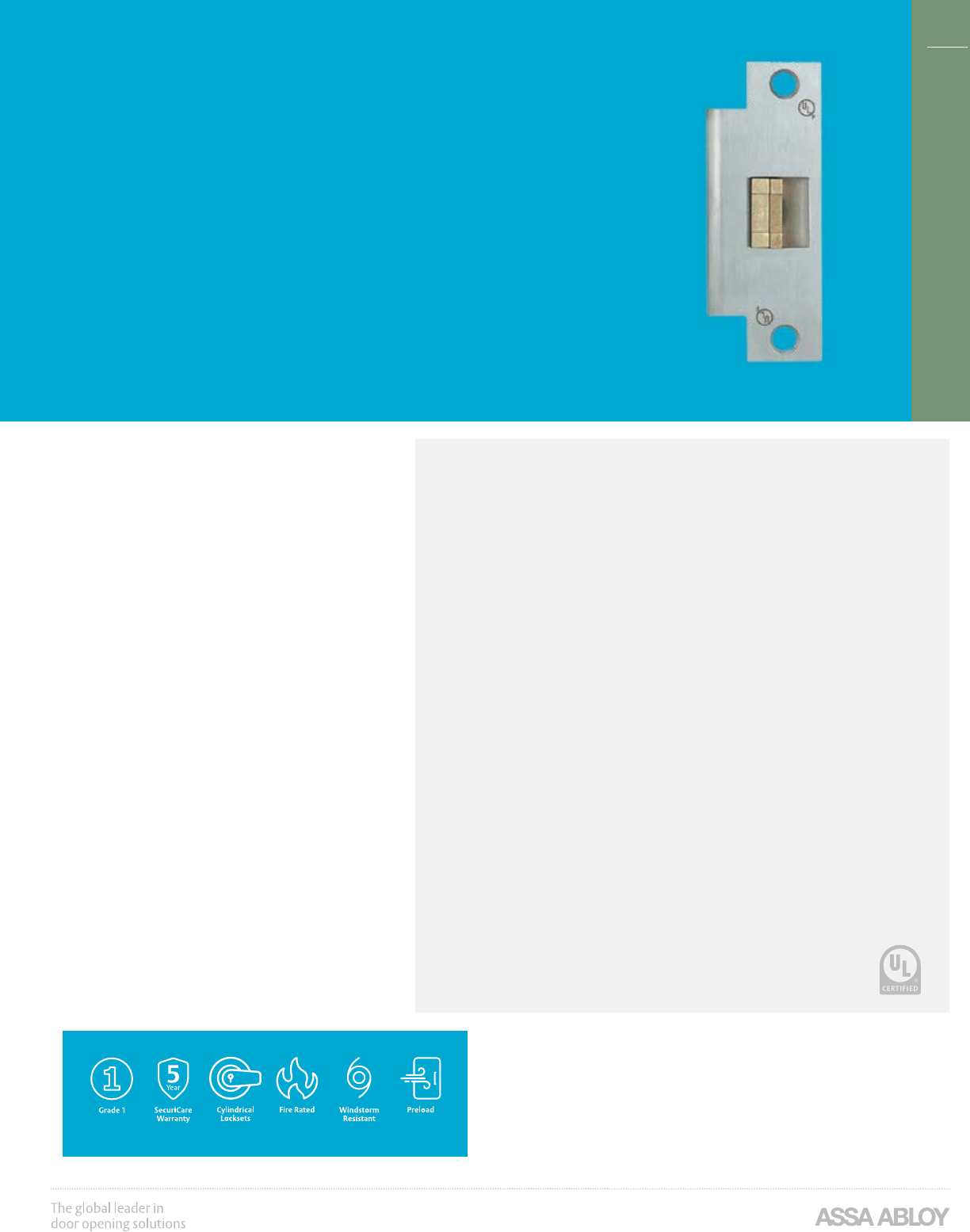

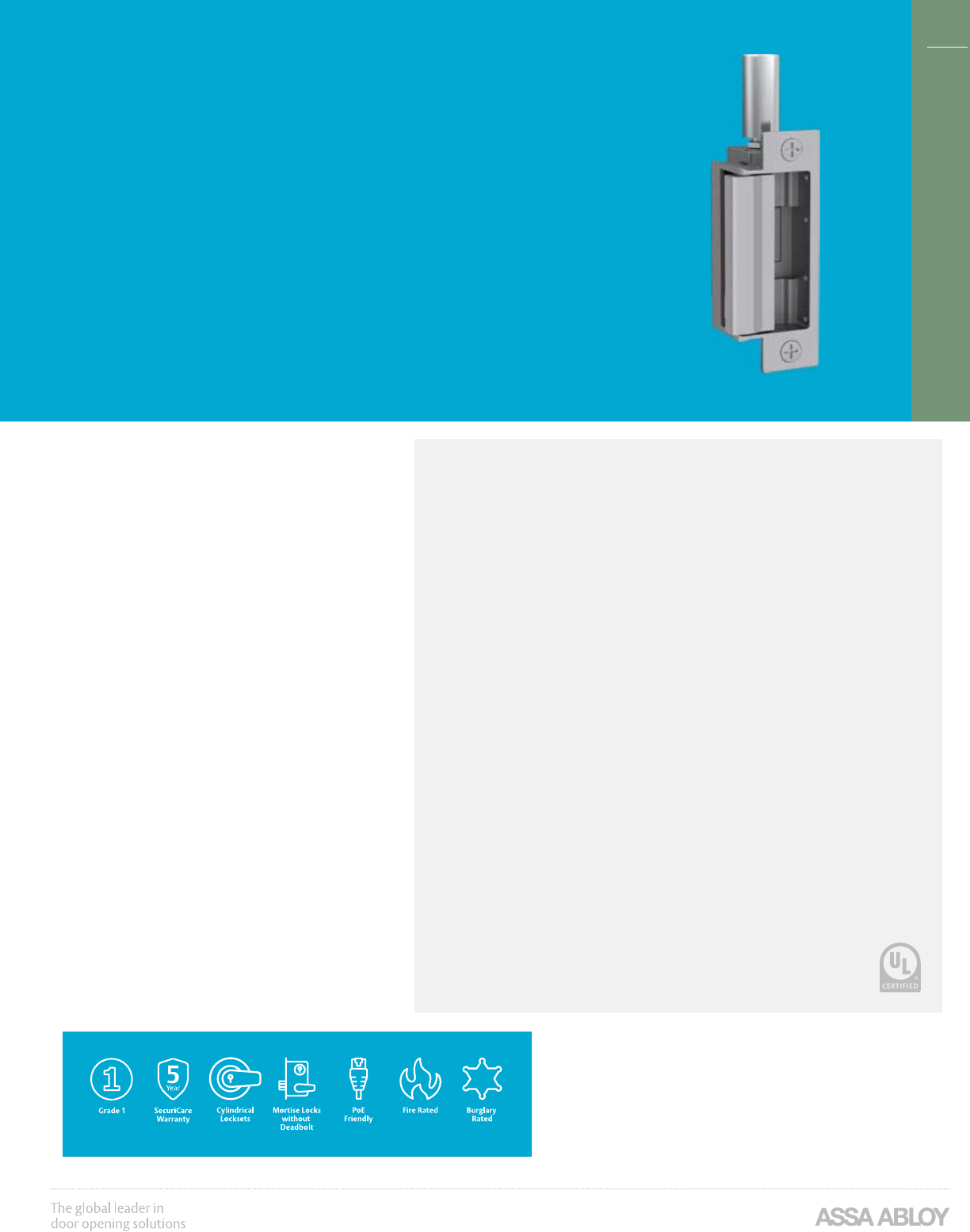

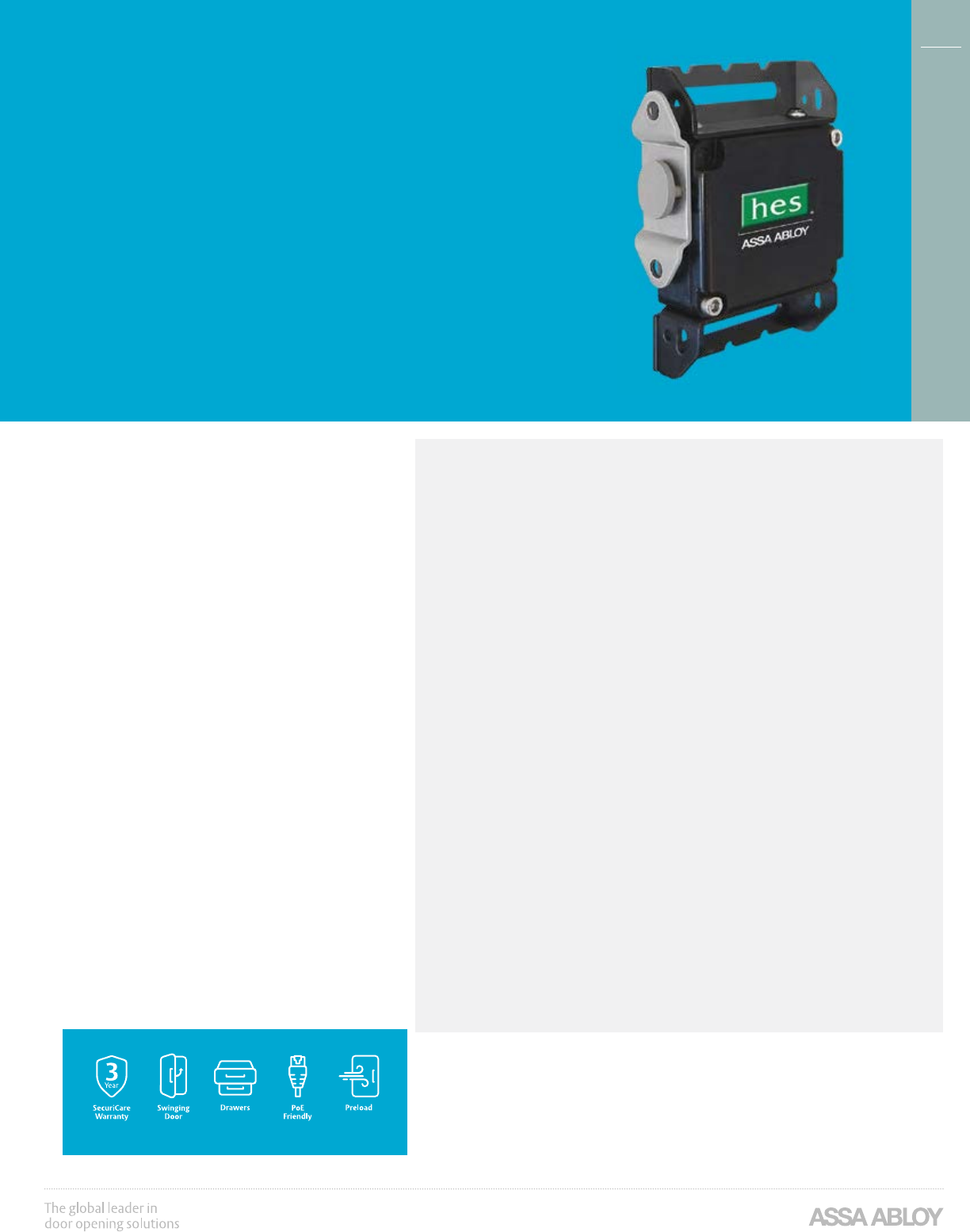

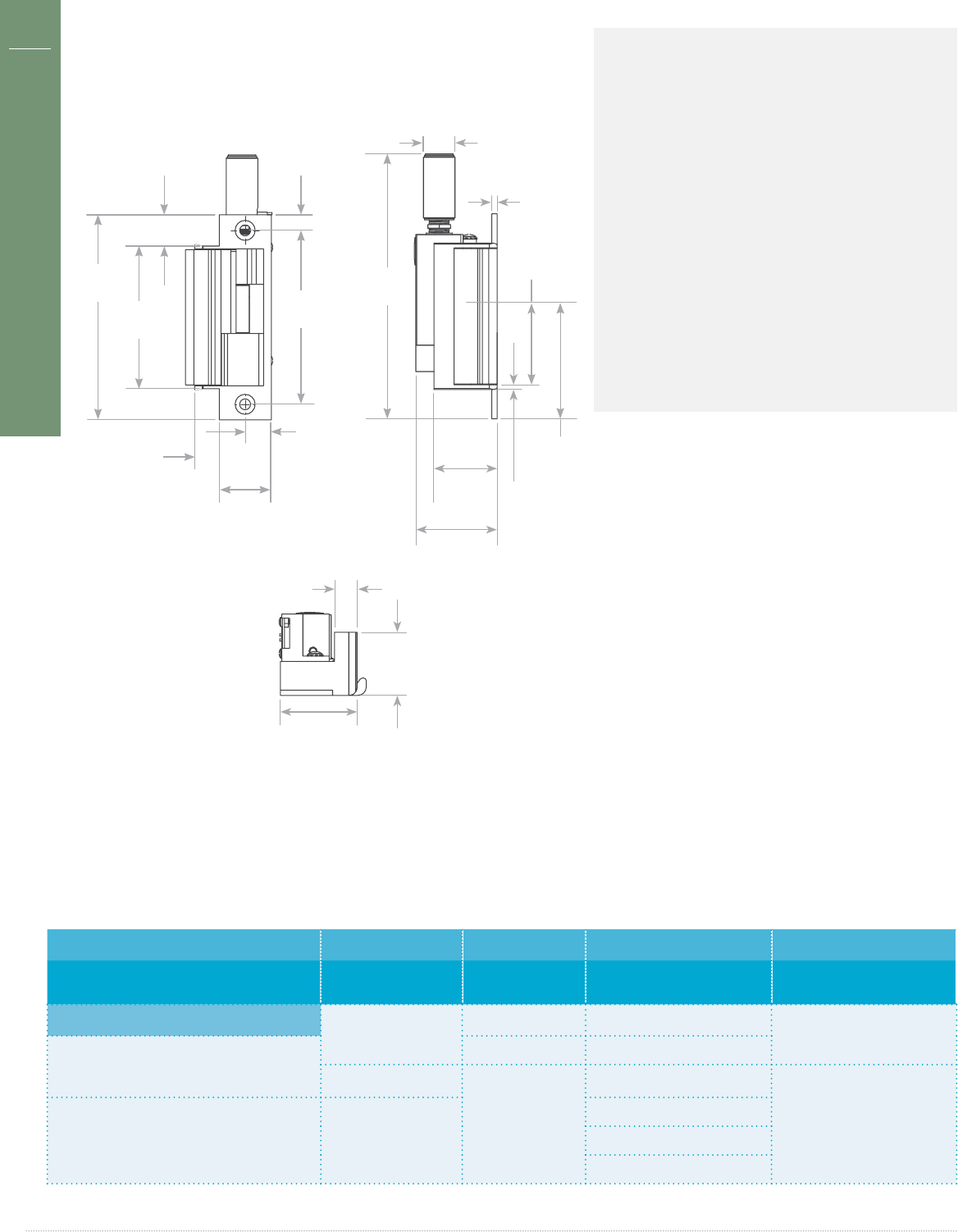

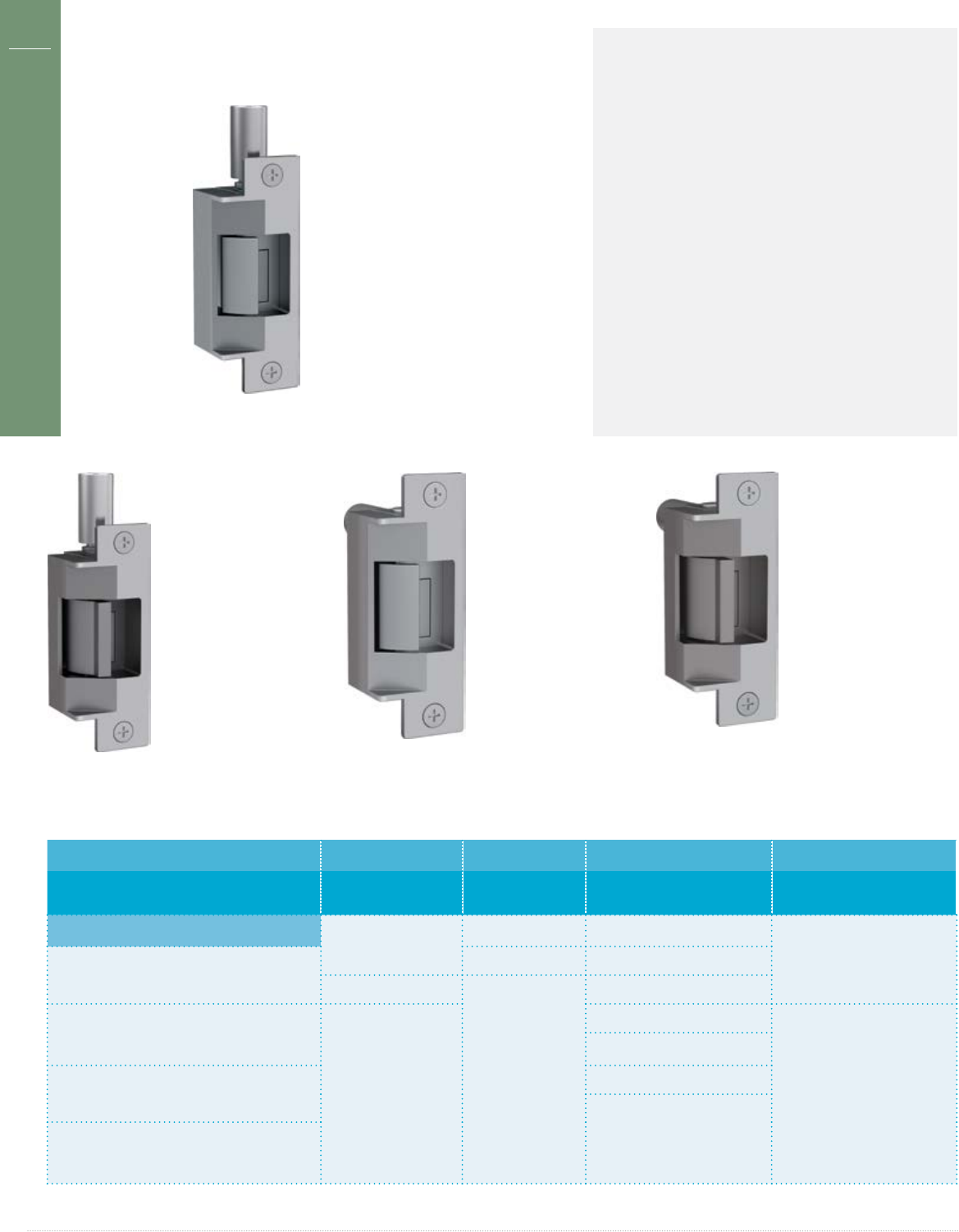

Electric Strikes

Features

Standard Features

• Stainless steel construction

• Tamper-resistant

• Static strength 2,500 lbs

• Dynamic strength 350

ft-lbs (fail secure)

• Endurance 1 million cycles

• Fail secure (Standard)

• Non-handed

• Accommodates up to 1" deadbolt

• Plug-in connector

• Full keeper shims for

horizontal adjustment

• Trim enhancer

• Strike body depth 11/16"

• SecuriCare five-year, no fault,

no questions asked warranty

Optional Features

• LBM Latchbolt monitor

• LBSM Latchbolt strike monitor

• Fail safe

• Interchangeable faceplates

• Monitor switches may not work

with all faceplate options

Accessories

• 1000-102 Rain guard

• 1006-103 Full keeper shims

• 1000-104 Lip extension trim adapter

• 1006-105 Trim enhancer

BLK (goof plate)

• 1006-109 Trim adapter

• 1000-110 Replacement strike plate

• 1000-130 KD filler plate

• 150 Strike latch guard

• HESCUT-MTK Metal template kit

• 2005M3 SMART Pac® III

The strongest,

most versatile electric

strike available.

The 1006 series is the strongest and most

versatile electric strike available. The dual

interlocking plunger design and heavy duty

stainless steel construction, enables it to

exceed every standard developed for electric

strikes. With multiple faceplate options,

the 1006 will fully accommodate every lock

designed to work within an ANSI 4-7/8" strike

plate. Tested to exceed 3,000 lbs of static

strength, 350 ft-lbs of dynamic strength and

factory tested to exceed 1 million cycles of

operation, the 1006 is in a class of its own.

HES® 1006

Electric Strike

Works with all cylindrical

and mortise locksets with

or without a deadbolt

The 1006 Series is also

available in a Complete

One Box Solution

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

Electric Strikes

Specifications

Certifications

• ANSI/BHMA A156.31, Grade 1

• UL 1034 burglary-resistant listed

and suitable for outdoor use

• UL 294 (6th Edition) listed

• RoHS compliant

• UL 10C fire-rated, 3 hour single

door (fail secure only)

• UL 10C fire-rated, 1-1/2 hour double

door (fail secure only)

• CAN/ULC-S104 fire door conformant

• NFPA-252 fire door compliant

• ASTM-E152 fire door compliant

• ANSI/SDI A250.13 windstorm resistant

• Florida Building Code approved TAS 201, 202, 203

• ANSI-ASTM E330

• Sustainability documentation

Frame Application

• Metal

• Wood

Electrical (DC Continuous Duty)

• Dual Voltage 12/24 VDC

• 450 mA at 12 VDC / 250 mA at 24 VDC

Dimensions

Note: DC must be well filtered with ripple less than 1 volt 12ms.

How to Order

Series Model Fail Safe / Secure Finish* Option (s)

1006 — – F – 630 – LBM

1006 Universal Electric

Strike Faceplates

ordered separately

CS* Complete Electric Strike;

Includes the SMART Pac II and

J, KD, KM, HM, ND faceplates

and brackets

F Fail Safe / Secure 605 Bright Brass LBM Latchbolt Monitor

(blank) Fail Secure

(standard)

606 Satin Brass LBSM Latchbolt Strike Monitor

612 Satin Bronze

CS* Complete Electric Strike;

Includes the SMART Pac II and

J, KD, KM, HM, ND faceplates

and brackets

613 Bronze Toned

629 Bright Stainless Steel

630 Satin Stainless Steel

CDB* Complete Electric Strike for

Deadbolt Locks; Includes the

ND and HM faceplates

CAS* Complete Electric Strike for

Deadbolt Locks; Includes the

N, ND and NM faceplates

*Complete Pacs are only available in the 630 finish

[104.8]

4-1/8"

[85]

3-3/8"

[123.4]

4-7/8"

[42.7]

1-11/16"

[85]

3-3/8"

[52.4]

2-1/16" [44.5]

1-3/4"

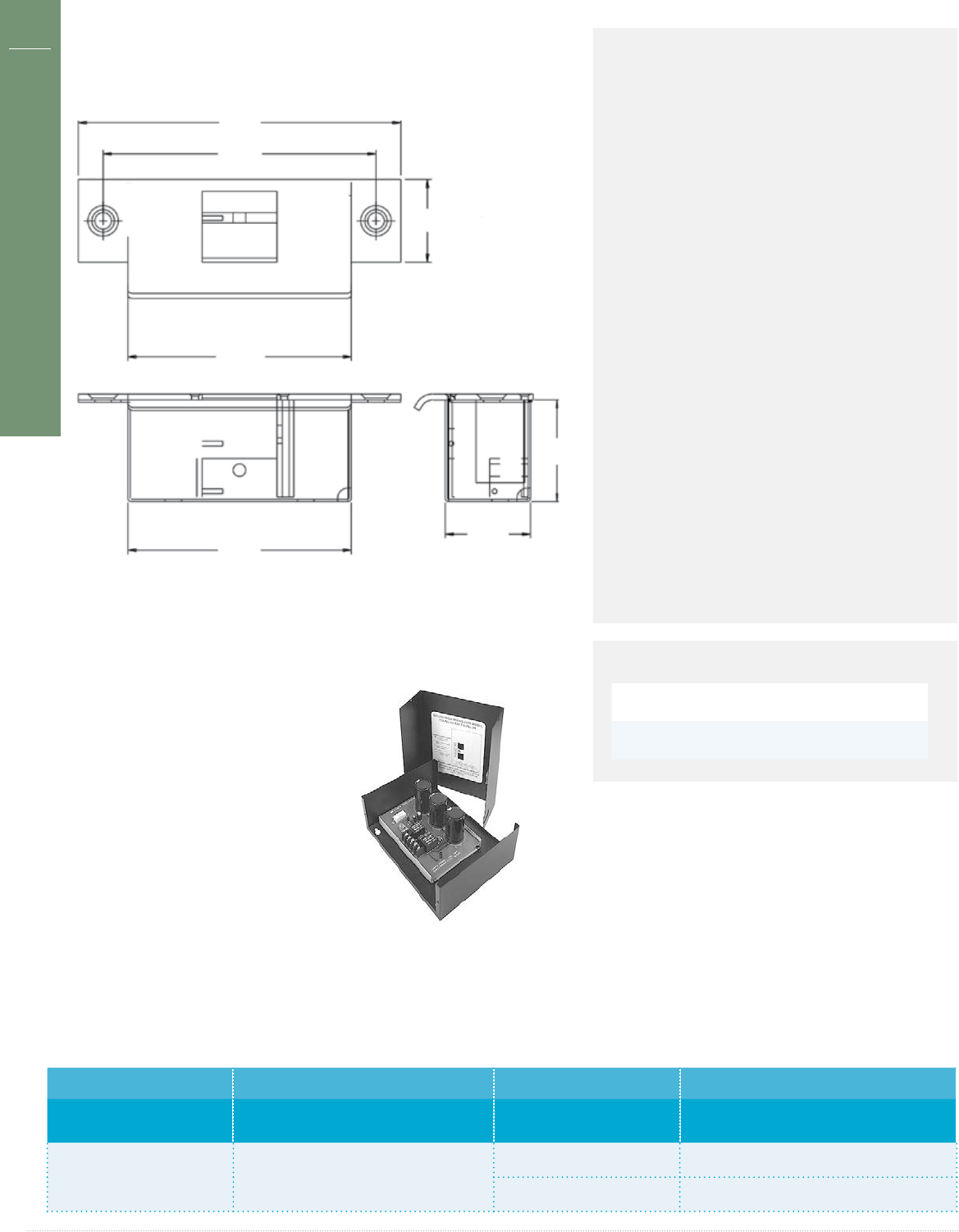

Diagram shown with cylindrical faceplate

Electric Strikes

HES 1006CS Smart Strike™

The Complete One Box Solution

for all cylindrical and mortise locksets,

with or without a 1" deadbolt

The 1006CS Smart Strike includes a 1006 electric strike body

and SMART Pac® III plus faceplates and brackets that can

provide the same function as any of the following options:

J Option

K Option

KD Option

KM Option

H Option

HD Option

HM Option

HT Option

HTD Option

N Option

ND Option

NM Option

Compatible Locksets

HES 1006CAS Complete

for Recapture

The Complete One Box Solution

for deadbolt recapture

The 1006CS Smart Strike includes a 1006 electric strike body

and SMART Pac® III plus faceplates and brackets that can

provide the same function as any of the following options:

A Option

AD Option

AM Option

N Option

ND Option

NM Option

T Option

TD Option

Compatible Locksets

HES 1006CDB Complete

for Deadbolt Locks

The Complete One Box Solution for

all locksets with a 1" deadbolt

The 1006CDB includes the 1006 electric strike body

plus faceplates and brackets that provide the same

function as any of the following options:

H Option

HD Option

HM Option

HT Option

HTD Option

N Option

ND Option

NM Option

Compatible Locksets

HES 1006CLB Complete

for Latchbolt Locks

The Complete One Box Solution for all

cylindrical and mortise locksets

The 1006CLB includes the 1006 electric strike body

plus faceplates and brackets that provide the same

function as any of the following options:

J Option

K Option

KD Option

KM Option

Compatible Locksets

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

Electric Strikes

HES 1006 Series Faceplate Options

Operation: After releasing the latchbolt, the keeper returns to the locked position

4-7/8" × 1-1/4"

LB Option

The Latchbolt Solution: Includes all hardware to accommodate every

cylindrical and mortise lock up to a 3/4" latchbolt

Replaces function of the J, K, KM and KD Options.

» ANSI/BHMA Numbers: E09321, E09322, E09323

Operation: This deadbolt solution offers two modes of functionality; night latch, lockout. (Functional operation modes

described below.)

4-7/8" × 1-1/4"

DB Option

The Deadbolt Solution: Includes all hardware to retain and

release all mortise and cylindrical locks with up to a 1" deadbolt

Mode 1: Night latch function. The deadbolt is retracted during traffic

hours. The latchbolt is released by the keeper and keeper returns to the

locked position.

Mode 2: Lockout function. The electric strike will not release if the

deadbolt is extended.

Replaces function of the N, ND, NM, H, HD, HM, HT, and HTD options

» ANSI/BHMA Numbers: E09391, E09392, E09393, E09331, E09332, E09333

Operation: Latchbolt and deadbolt are released by a single keeper. The keeper is held open to recapture the latchbolt and

deadbolt when the door is closed.

4-7/8" × 1-1/4"

CAS Option

The Continuous Deadbolt Recapture Solution: Includes

all hardware to retain, release and recapture all mortise

locks and tubular locks with up to a 1” deadbolt.

Mode 3: : Normally extended deadbolt. Latchbolt and deadbolt are

released by a single keeper. The keeper is held open to recapture the

latchbolt and deadbolt when the door is closed.

Replaces the N, ND, NM, A, AM, AD, T and TD options

» ANSI/BHMA Numbers: E09391, E09392, E09393, E09331, E09332, E09333

“For use with” information is offered as a recommendation only. Reference should be made to the lockset manufacturer for proper installation instructions necessary to meet compatibility requirements.

Electric Strikes

HES 1006 Series Faceplate Options

Operation: After releasing the latchbolt or deadbolt the keeper returns to the locked position

4-7/8" × 1-1/4"

E Option

For use with: Corbin Russwin Security Bolt, Weiserbolt

and normally extended 1" tubular deadbolts

» ANSI/BHMA Numbers: E09391, E09392, E09393

Operation: The hookbolt is released by a single keeper. The keeper is held open to recapture

the latchbolt and hookbolt when the door is closed.

4-7/8" × 1-1/4"

R Option

For use with: Adams Rite style hookbolt up to 1" throw

» ANSI/BHMA Numbers: E09391, E09392, E09393, E09332, E09333

Operation: After releasing the latchbolt, the keeper returns to the locked position

4-7/8" × 1-1/4"

Z Option

For use with: Unit and Mono locks

» ANSI/BHMA Numbers: E09321, E09322, E09323

Operation: After releasing the latchbolt, the keeper returns to the locked position

9" × 1-3/8"

J-2 Option

For use with: All cylindrical locks up to a 3/4" latchbolt

» ANSI/BHMA Numbers: E09321, E09322, E09323

Operation: After releasing the latchbolt, the keeper returns to the locked position

9" × 1-3/8"

KM-2 Option

For use with: Mortise locksets up to a 3/4" latchbolt

» ANSI/BHMA Numbers: E09321, E09322, E09323

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

Electric Strikes

HES 1006 Series Faceplate Options

Operation: After releasing the latchbolt, the keeper returns to the locked position

9" × 1-3/8"

KM-2 Option

For use with: Mortise locksets up to a 3/4" latchbolt

» ANSI/BHMA Numbers: E09321, E09322, E09323

Operation: This deadbolt solution offers two modes of functionality; night latch and lockout. (functional operation modes

described below.)

9" × 1-3/8"

DB-2 Option

The Deadbolt Solution: Includes all hardware to retain and

release all mortise and cylindrical locks with up to a 1” deadbolt.

Mode 1: Night latch function. The deadbolt is retracted during traffic

hours. The latchbolt is released by the keeper and keeper returns to the

locked position.

Mode 2: Lockout function. The electric strike will not release if the deadbolt

is extended.

Replaces the N-2 and H-2 options

» ANSI/BHMA Numbers: E09391, E09392, E09393, E09331, E09332, E09333

Operation: Latchbolt and deadbolt are released by a single keeper. The keeper is held open to recapture the latchbolt and

deadbolt when the door is closed.

9" × 1-3/8"

CAS-2 Option

The Deadbolt Solution: Includes all hardware to retain, release and

recapture all mortise locks and tubular locks with up to a 1” deadbolt.

Mode 3: Normally extended deadbolt. Latchbolt and deadbolt are released

by a single keeper. The keeper is held open to recapture the latchbolt and

deadbolt when the door is closed.

Replaces the N-2, A-2 and T-2 options

» ANSI/BHMA Numbers: E09391, E09392, E09393, E09331, E09332, E09333

Operation: After releasing the latchbolt, the keeper returns to the locked position

4-7/8" × 1-1/4"

J Option

For use with: Cylindrical locksets up to 3/4" throw

and all locksets with center-lined bolts

Compatible locksets: All brands of cylindrical latchbolts

» ANSI/BHMA Numbers: E09321, E09322, E09323

Electric Strikes

HES 1006 Series Faceplate Options

Operation: After releasing the latchbolt, the keeper returns to the locked position

4-7/8" × 1-1/4"

KD Option

For use with: Mortise locksets up to 3/4" throw latchbolt

Compatible locksets: Dorma 9500, Jackson,

Sargent (7700 & 8100), Schlage, Yale (8700)

» ANSI/BHMA Numbers: E09321, E09322, E09323

4-7/8" × 1-1/4"

KM Option

For use with: Mortise locksets up to 3/4" throw latchbolt

Compatible locksets: Accurate, Arrow, Baldwin,

Best, Corbin Russwin, Falcon, Marks, PDQ, Sargent

(7800, 8200 & 9200), Yale (8800)

» ANSI/BHMA Numbers: E09321, E09322, E09323

Operation: Lockout function. The electric strike will not release if the deadbolt is extended. The deadbolt is

retracted during traffic hours. The latchbolt is retracted by the keeper. The keeper returns to the locked position.

4-7/8" × 1-1/4"

HM Option

For use with: Mortise locksets with a 1" deadbolt.

Strike will not release when deadbolt is extended

Compatible locksets: Accurate, Arrow, Baldwin, Best,

Corbin Russwin, Falcon (45H, 47H, 34H & 37H), Marks,

Omnia, PDQ , Sargent (7800, 8200 & 9200), Yale (8800)

» ANSI/BHMA Numbers: 09391, E09392, E09393, E09331, E09332, E09333

4-7/8" × 1-1/4"

HTD Option

For use with: tise locksets with a 1" deadbolt and no

deadlatch or a center positioned deadlatch. Strike

will not release when deadbolt is extended

Compatible locksets: Sargent (7700 & 8100), Schlage, Yale (8700)

» ANSI/BHMA Numbers: E09391, E09392, E09393, E09331, E09332, E09333

Continued on next page »

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

Electric Strikes

HES 1006 Series Faceplate Options

Operation: Night latch function. The deadbolt is retracted during traffic hours. The latchbolt is

released by the keeper and keeper returns to the locked position.

4-7/8" × 1-1/4"

ND Option

For use with: Mortise locksets with a deadbolt

used for night latch function only

Compatible locksets: Sargent (7700 & 8100), Schlage, Yale (8700)

» ANSI/BHMA Numbers: E09391, E09392, E09393, E09331, E09332, E09333

4-7/8" × 1-1/4"

NM Option

For use with: Mortise locksets with a deadbolt

used for night latch function only

Compatible locksets: Accurate, Arrow, Baldwin, Best,

Corbin Russwin, Falcon (45H, 47H, 34H & 37H), Marks,

Omnia, PDQ , Sargent (7800, 8200 & 9200), Yale (8800)

» ANSI/BHMA Numbers: E09391, E09392, E09393, E09331, E09332, E09333

The following legacy faceplate options remain available for order. Suggestions are provided below for more versatile options.

H Option replaced by HM Option

HD Option replaced by HTD Option

HT Option replaced by HTD Option

K Option replaced by KM Option

K-2 Option combined into KM-2 Option

A-2 Option replaced by CAS-2 Option

H-2 Option replaced by DB-2 Option

N-2 Option replaced by DB-2 Option

T-2 Option replaced by CAS-2 Option

Electric Strikes

HES 1006 Series Faceplate Dimensions

“For use with” information is offered as a recommendation only. Reference should be made to the lockset

manufacturer for proper installation instructions necessary to meet compatibility requirements.

J, E

Faceplate Option K

Faceplate Option KD

Faceplate Option

Faceplate Option H, HT, N

Faceplate Option HD, ND,

Faceplate Option

HM, NM

Faceplate Option R

Faceplate Option Z

Faceplate Option

[22.23]

7/8"

[79.37]

3-1/8"

[3.97]

5/32"

[18.26]

23/32"

[79.37]

3-1/8"

[23.39]

29/32"

[21.46]

27/32"

[34.11]

1-11/32"

[26.72]

1-1/16"

[18.22]

23/32"

[34.11]

1-11/32"

[15.46]

19/32"

[27. 81]

1-3/32"

[37.29]

1-15/32"

[43.64]

1-23/32"

[40.08]

1-37/64"

[3.17]

1/8"

[28.83]

1-9/64"

[73.02]

2-7/8" [18.22]

23/32"

[21.46]

27/32"

[44.45]

1-3/4"

[7.79]

5/16"

[35.48]

1-25/64"

[37.29]

1-15/32"

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

Electric Strikes

J-2

Faceplate Option K-2

Faceplate Option

KM-2

Faceplate Option N-2, H-2

Faceplate Option

HES 1006 Series Faceplate Dimensions

[15.46]

19/32"

[80]

3-1/8"

[37.29]

1-15/32"

[71]

2-25/32"

[79.37]

3-1/8"

[21.81]

.86"

[92.22]

3.63"

[43.63]

1.72"

[23.39]

29/32"

[74.4]

2-8/9"

[34.11]

1-11/32"

Electric Strikes

The most advanced,

modular electric strikes

that work with every

brand of cylindrical

or mortise locks

designed to work with

a 4-7/8" strike plate.

The HES 1500 Series Electric Strikes set a

new standard in the industry by offering

dynamic integrated adjustability and field

configurable options compatible with any

cylindrical or mortise lock. The modular design

of the platform makes stocking and installing

easier with interchangeable faceplates and

accessories. For the first time, the aesthetics

of an electric strike are complementary

to other surrounding door hardware and

blend in with the opening due to the fully

finished design, available in seven finishes.

Features

Standard Features

• Stainless steel construction

• Tamper-resistant

• Static strength 1,500 lbs

• Dynamic strength 70 ft-lbs

• Endurance 1 million cycles

• Field selectable fail safe/fail secure

• Non-handed

• Interchangeable faceplates

and accessories

• Field replaceable components

• Fully finished faceplate,

keeper, case and trim

• Field adjustable integrated shim

• ElectroLynx® connectors

• Strike body depth 1-3/8"

• SecuriCare five-year, no fault,

no questions asked warranty

Optional Features

• LM Lock monitor

• DLM Dual lock monitors

• LMS Lock monitor and strike monitor

• DLMS Dual lock monitors

and strike monitor

Accessories

• 157 Torx screws

• HESCUT-MTK Metal template kit

• 1500-104-xxx Lip extension

trim adapter (finish to match)

• 1500-106-xxx 4500 adapter and

trim enhancer kit (finish to match)

• OPT-1SRK Spring replacement kit

• OPT-1LM Single lock monitor

• OPT-1DLM Dual lock monitors

• MOD-1SOL Solenoid

replacement module

HES® 1500

Electric Strike

Works with all brands of

cylindrical and mortise locksets

without a deadbolt

The 1500 Series is also

available in a Complete

One Box Solution

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

Electric Strikes

Specifications

Certifications

• ANSI/BHMA A156.31, Grade 1

• UL 1034 burglary-resistant listed

and suitable for outdoor use

• UL 294 (6th Edition) listed

• RoHS compliant

• UL 10C fire-rated, 3 hour single

door (fail secure only)

• UL 10C fire-rated, 1-1/2 hour double

door (fail secure only)

• CAN/ULC-S104 fire door conformant

• NFPA-252 fire door compliant

• ASTM-E152 fire door compliant

• California Fire Marshal listed

• ANSI/SDI A250.13 windstorm resistant

• Florida Building Code approved TAS 201, 202, 203

• ANSI-ASTM E330

• Sustainability documentation

Frame Application

• Metal

• Wood

Electrical (DC Continuous Duty)

• Dual voltage 12/24 VDC/VAC

• 240 mA at 12 VDC/120 mA at 24 VDC

• PoE friendly

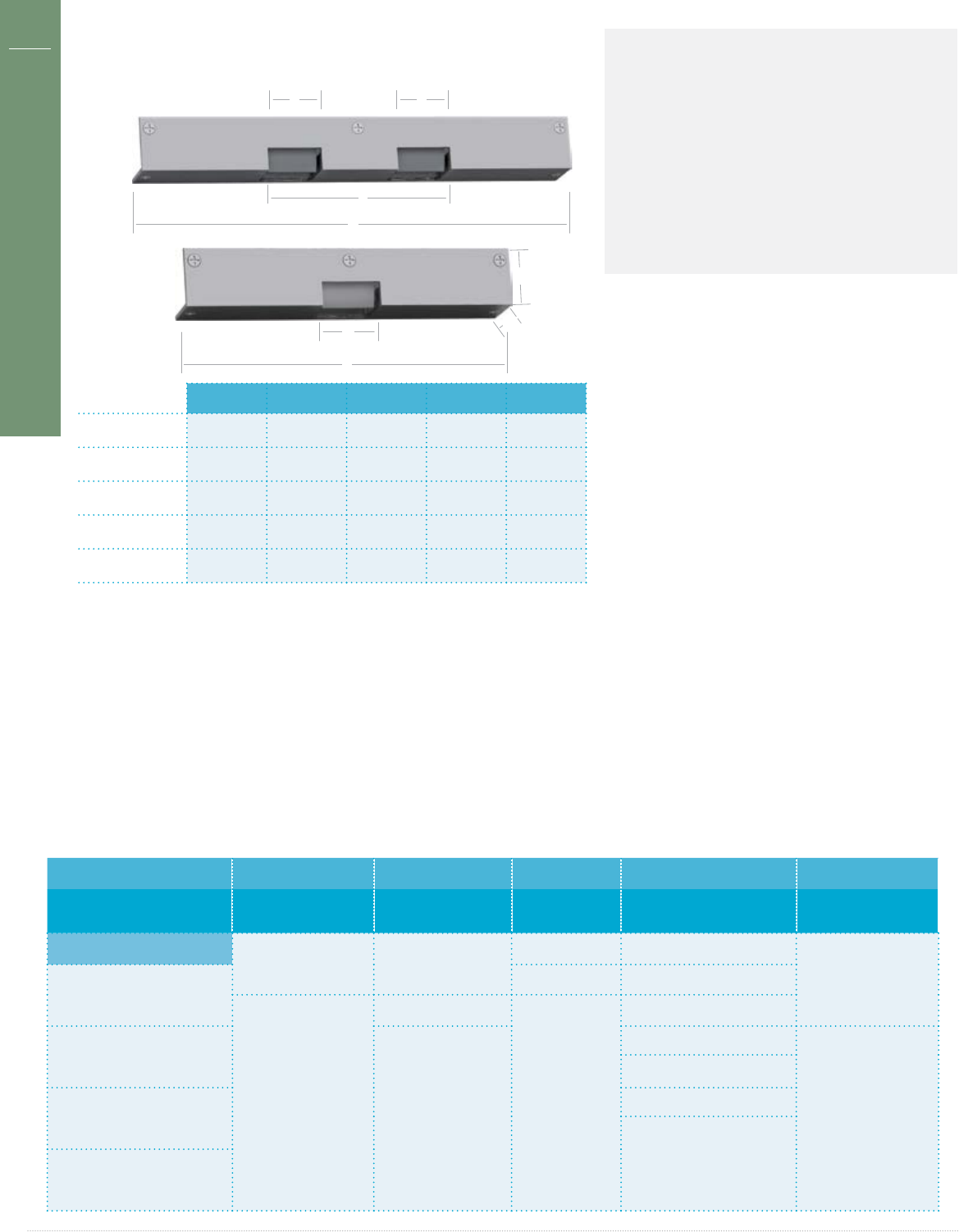

Dimensions

How to Order

Series Model Finish* Option (s)

1500 – – 630 – LM

1500 Universal Electric

Strike; Faceplate

option kits ordered

separately

C Complete Electric Strike;

Includes 1LB faceplate kit for

latchbolts

605 Bright Brass LM Lock Monitor

606 Satin Brass DLM Dual Lock Monitor

612 Satin Bronze LMS Lock Monitor and Strike Monitor*

613 Bronze Toned DLMS Dual Lock Monitors and Strike Monitor*

613E Dark Oxidized Satin Bronze OPT-1LM Single Lock Monitor

629 Bright Stainless Steel OPT-1DLM Dual Lock Monitors

630 Satin Stainless Steel

BSP Black Suede Powder

*Complete Pacs are only available in the 630 finish

[32]

1-1/4"

[124]

4-7/8"

[105]

4-1/8" [82]

3-1/4"

[95]

3-3/8"

[44]

1-3/4"

[41]

1-5/8"

[38]

1-1/2"

[29]

1-1/8"

[35]

1-3/8"

Electric Strikes

The HES 1600

Series electric strike

accommodates up

to a 1" deadbolt with

enhanced vertical

cavity spacing.

The HES 1600 Series Electric Strikes set a new

standard in the industry by offering dynamic

integrated adjustability and field configurable

options compatible with any cylindrical or

mortise lock. The modular design of the

platform makes stocking and installing

easier with interchangeable faceplates and

accessories. For the first time, the aesthetics

of an electric strike are complementary

to other surrounding door hardware and

blend in with the opening due to the fully

finished design, available in seven finishes.

Features

Standard Features

• Stainless steel construction

• Tamper-resistant

• Static strength 1,500 lbs

• Dynamic strength 70 ft-lbs

• Endurance 1 million cycles

• Field selectable fail safe/fail secure

• Non-handed

• Interchangeable faceplates

and accessories

• Field replaceable components

• Fully finished faceplate,

keeper, case and trim

• Field adjustable integrated shim

• ElectroLynx® connectors

• Strike body depth 1 5/8"

• Static strength: 1500 lbs

• SecuriCare five-year, no fault,

no questions asked warranty

Optional Features

• LM Lock monitor

• DLM Dual lock monitors

• LMS Lock monitor and strike monitor

• DLMS Dual lock monitors

and strike monitor

Accessories

• 157 Torx screws

• HESCUT-MTK Metal template kit

• 1600-104-xxx Lip extension

trim adapter (finish to match)

• 1600-106-xxx 1006 adapter and

trim enhancer kit (finish to match)

• OPT-1SRK Spring replacement kit

• OPT-1LM Single lock monitor

• OPT-1DLM Dual lock monitors

• MOD-1SOL Solenoid

replacement module

HES® 1600

Electric Strike

Works with all brands of

cylindrical and mortise locksets,

with or without a deadbolt

The 1600 Series is also

available in a Complete

One Box Solution

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

Electric Strikes

Specifications

Certifications

• ANSI/BHMA A156.31, Grade 1

• UL 1034 burglary-resistant listed

and suitable for outdoor use

• UL 294 (6th Edition) listed

• RoHS compliant

• Static strength: 1500 lbs

• UL 10C fire-rated, 3 hour single

door (fail secure only)

• UL 10C fire-rated, 1-1/2 hour double

door (fail secure only)

• CAN/ULC-S104 fire door conformant

• NFPA-252 fire door compliant

• ASTM-E152 fire door compliant

• California Fire Marshal listed

• ANSI/SDI A250.13 windstorm resistant

• Florida Building Code approved TAS 201, 202, 203

• ANSI-ASTM E330

Frame Application

• Metal

• Wood

Electrical (DC Continous Duty)

• Dual voltage 12/24 VDC/VAC

• 240 mA at 12 VDC/120 mA at 24 VDC

• PoE friendly

[44]

1-3/4"

[41]

1-5/8"

[38]

1-1/2"

[32]

1-1/4"

[124]

4-7/8"

[105]

4-1/8" [82]

3-1/4"

[95]

3-3/8"

[35]

1-3/8"

[41]

1-5/8"

How to Order

Series Model Finish* Option (s)

1600 – CS – 630 – LM

1600 Universal Electric

Strike; Faceplate

option kits ordered

separately

CS Complete Electric Strike;

Includes 1LB faceplate kit for

latchbolts and 1DB faceplate

kit for deadbolts

605 Bright Brass LM Lock Monitor

606 Satin Brass DLM Dual Lock Monitor

612 Satin Bronze LMS Lock Monitor and Strike Monitor*

CLB Complete Electric Strike for

Latchbolt Locks; Includes

1LB faceplate kit for

latchbolts

613 Bronze Toned DLMS Dual Lock Monitors and Strike Monitor*

613E Dark Oxidized Satin Bronze OPT-1LM Single Lock Monitor

629 Bright Stainless Steel OPT-1DLM Dual Lock Monitors

CDB Complete Electric Strike for

Deadbolt Locks; Includes

1DB faceplate kit for

deadbolts

630 Satin Stainless Steel

BSP Black Suede Powder

*Complete Pacs are only available in the 630 finish

Dimensions

Electric Strikes

HES 1500C Complete

Electric Strike

For all cylindrical and mortise

locksets with 3/4" latchbolt

The 1500C includes a 1500 electric strike body

and the 1LB faceplate kit for latchbolts.:

1J Option

1K Option

1KM Option

1KD Option

Compatible Locksets

HES 1600CS Complete

Electric Strike

The Complete One Box Solution for all cylindrical

and mortise locksets, with or without a 1" deadbolt

The 1600CS includes a 1600 electric strike body, the 1LB faceplate

kit for latchbolts and the 1DB faceplate kit for deadbolts.

1J Option

1K Option

1KM Option

1KD Option

1N Option

1NM Option

1ND Option

1NTD Option

Compatible Locksets

HES 1006CDB Complete

for Deadbolt Locks

The Complete One Box Solution for

all locksets with a 1" deadbolt.

The 1600CDB includes a 1600 electric strike body

and the 1DB faceplate kit for deadbolts.

1N Option

1NM Option

1ND Option

1NTD Option

Compatible Locksets

HES 1600CLB Complete

for Latchbolt Locks

The Complete One Box Solution for all

cylindrical and mortise locksets

The 1600CLB includes a 1600 electric strike body

and the 1LB faceplate kit for latchbolts.

1J Option

1K Option

1KM Option

1KD Option

Compatible Locksets

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

Electric Strikes

HES 1500 & 1600 Series Faceplate Options

Operation: After releasing the latchbolt, the keeper returns to the locked position

4-7/8" × 1-1/4"

1LB Option

The Latchbolt Solution: Includes the hardware to accommodate

every cylindrical and mortise lock up to a 3/4" latchbolt. For metal

frame applications.

Operation: After releasing the latchbolt, the keeper returns to the locked position

9" × 1-3/8"

1LB-2 Option

The Deadbolt Solution: Includes the hardware to

accommodate every cylindrical and mortise lock up

to a 3/4" latchbolt. For wood frame applications.

Operation: This deadbolt solution offers two modes of functionality; night latch, lockout,

and normally extended deadbolt. (Functional operation modes described below.)

4-7/8" × 1-1/4"

The Deadbolt Solution: Includes all hardware to retain,

and release all mortise locks, and tubular deadbolts up

to a 1" latchbolt. For metal frame applications.

Operation: This deadbolt solution offers two modes of functionality; night latch, lockout,

and normally extended deadbolt. (Functional operation modes described below.)

9" x 1-3/8"

The Deadbolt Solution: Includes all hardware to retain,

and release all mortise locks, and tubular deadbolts up

to a 1" latchbolt. For wood frame applications.

Electric Strikes

HES 1500 & 1600 Series Faceplate Dimensions

“For use with” information is offered as a recommendation only. Reference should be made to the lockset

manufacturer for proper installation instructions necessary to meet compatibility requirements.

Faceplate Option 1K

Faceplate Option 1KD

Faceplate Option

1KM

Faceplate Option 1N

Faceplate Option 1ND

Faceplate Option

1NM

Faceplate Option 1NTD

Faceplate Option

1-23/32”

[43.64]

1-37/64”

[40.08]

29/32”

[23.39]1-11/32”

[34.11]

27/32”

[21.46]

1-11/32”

[34.11]

23/32”

[18.22]

1-1/16”

[26.72]

19/32”

[15.46]1-15/32”

[37.29]

1-3/32”

[27.81]

3-1/8”

[79.37]

7/8”

[22.23]

5/32

[3.97]

3-1/8”

[79.37]

23/32”

[18.26]

“

2-7/8”

[73.02]

1-9/64”

[28.83]

1/8”

[3.17]

23/32"

[18.22

]

15/16

[23.8

]

13/16

[20.5

]

1-1/2"

[38.1]

1-1/4"

[32.0]

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

Electric Strikes

HES 1500 & 1600 Series Faceplate Dimensions

1J-2

Faceplate Option 1KM-2

Faceplate Option

1N-2

Faceplate Option

1.72"

[43.63]

3.63"

[92.22]

.86"

[21.81]

1-15/32"

[37.29]

3-1/8"

[80]

19/32"

[15.46]

3-1/8"

[79.37]

2-25/32"

[71]

Electric Strikes

The low-profile,

heavy-duty,

fire-rated solution.

The 4500C series electric strike is designed to

maintain 1/2" drywall penetration even in a 2"

UL 10C fire-rated frame. The 4500C features a

low profile 1-3/8" depth, heavy-duty stainless

steel construction. Its strength is derived

from a unique keeper pin locking design,

enabling the 4500C to exceed the ratings of

the frame, door and locking hardware. The

4500C includes two faceplates designed to

accommodate either cylindrical or mortise

locksets up to a 3/4" throw latchbolt.

Features

Standard Features

• Stainless steel construction

• Tamper-resistant

• Static strength 1,500 lbs

• Dynamic strength 100 ft-lbs

• Endurance 1 million cycles

• Field selectable fail secure/fail safe

• Two faceplates provided to

accommodate a variety of locksets

• Non-handed

• Internally mounted solenoid

• Accommodates up to a 3/4" latchbolt

• Strike body depth 1-3/8"

• Plug-in connector

• Trim enhancer

• Full keeper shims for

horizontal adjustment

• SecuriCare five-year, no fault,

no questions asked warranty

Optional Features

• LBM Latchbolt monitor

• LBSM Latchbolt strike monitor

Accessories

• 4500-105 Trim enhancer - black

• 4500 -110 Replacement strike plate

• 4500-131 Filler block - 7/16"

• 150 Strike latch guard

• HESCUT-MTK Metal template kit

• 2001M Plug-in bridge rectifier

• 2004M ElectroLynx® adapter

• 2005M3 SMART Pac® III

• 2006M Plug-in buzzer

• 4501-1/2 1/2" stackable lip extension

• 4501-1 1" stackable lip extension

HES® 4500C

Electric Strike

Complete Pac

Works with cylindrical and mortise

locksets up to a 3/4" throw latchbolt

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

Electric Strikes

Specifications

Certifications

• ANSI/BHMA A156.31, Grade 1

• UL 1034 burglary-resistant listed

• UL 294 (6th Edition) listed

• UL 10C fire-rated, 3 hour (fail secure only)

• CAN/ULC-S104 fire door conformant

• NFPA-252 fire door compliant

• ASTM-E152 fire door compliant

• California Fire Marshal listed

Frame Application

• Metal

• Wood

Electrical (DC Continuous Duty)

• Dual voltage 12/24 VDC/VAC

• 240 mA at 12 VDC/120 mA at 24 VDC

• PoE friendly

Dimensions

How to Order

Series Finish* Option (s)

4500C – 630 – LBM

4500C Complete Electric Strike; Includes faceplates

for cylindrical and mortise locks

605 Bright Brass LBM Latchbolt Monitor

606 Satin Brass LBSM Latchbolt Strike Monitor

612 Satin Bronze

613 Bronze Toned

629 Bright Stainless Steel

630 Satin Stainless Steel

Diagram shown with cylindrical faceplate

[32]

1-1/4"

[123]

4-7/8"

[69]

2-11/16"

[105]

4-1/8"

[25]

[92]

3-5/8"

[35]

1-3/8"

[44]

1-3/4" [37]

1-1/2"

Electric Strikes

The Grade 1,

low-profile solution for

cylindrical locksets.

The 5000 series is a compact, high

performance electric strike designed for low

profile openings where there is limited space

behind the jamb. Its strength is derived from a

unique keeper pin locking design, enabling the

5000 to exceed the ratings of the frame, door

and locking hardware. This field selectable

fail secure/fail safe unit is easy to install and

accommodates latchbolts up to 5/8" throw.

Features

Standard Features

• Tamper-resistant

• Static strength 1,500 lbs

• Dynamic strength 70 ft-lbs

• Endurance 1 million cycles

• Field selectable fail secure/fail safe

• Non-handed

• Internally mounted solenoid

• Accommodates 1/2" – 5/8" latchbolt

(5/8" with 1/8" door gap)

• Strike body depth 1-1/16"

• Plug-in connector

• Trim enhancer included

• SecuriCare five-year, no fault,

no questions asked warranty

Optional Features

• LBM Latchbolt monitor

Accessories

• 150 Strike latch guard

• HESCUT-MTK Metal template kit

• 2001M Plug-in bridge rectifier

• 2004M ElectroLynx® adapter

• 2005M3 SMART Pac® III

• 2006M Plug-in buzzer

• 5104 -1/2 1/2" stackable lip extension

• 5104-1 1" stackable lip extension

• 5104-1-1/4 1-1/4" stackable

lip extension

HES® 5000

Electric Strike

Works with cylindrical locksets

up to a 5/8" throw latchbolt

The 5000 Series is also

available in a Complete

One Box Solution

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

Electric Strikes

Specifications

Certifications

• ANSI/BHMA A156.31, Grade 1

• UL 1034 burglary-resistant listed

and suitable for outdoor use

• UL 294 (6th Edition) listed

• RoHS compliant

Frame Application

• Metal

• Wood

Electrical (DC Continuous Duty)

• Dual voltage 12/24 VDC/VAC

• 240 mA at 12 VDC/120 mA at 24 VDC

• PoE friendly

Dimensions

How to Order

Series Model Finish* Option (s)

5000 – – 630 – LBM

5000 Universal Electric Strike;

Faceplates ordered separately

C* Complete Electric Strike; Includes the 501

and 501A faceplates

605 Bright Brass LBM Latchbolt Monitor

606 Satin Brass

612 Satin Bronze

613 Bronze Toned

629 Bright Stainless Steel

630 Satin Stainless Steel

BLK Black

*Complete Pacs are only available in the 630 finish

Diagram shown with 501 Option

[26]

1-1/32"

[104.8]

4-1/8" [85.5]

3-3/8"

[123.4]

4-7/8"

[17.1]

11/16" [27. 3]

1-1/16"

[85.5]

3-3/8"

[44.5]

1-3/4" [34.9]

1-3/8"

Electric Strikes

The Grade 1 solution

with horizontal

adjustability.

The 5200 series electric strikes feature an

in-frame horizontal adjustable design to

simplify the installation process. This feature

allows the installer to easily adjust the

electric strike opening to accommodate the

horizontal position of the latchbolt after the

strike has been installed. This field selectable

fail secure/fail safe unit is easy to install and

accommodates latchbolts up to 3/4" throw.

Features

Standard Features

• Tamper-resistant

• Static strength 1,500 lbs

• Dynamic strength 70 ft-lbs

• Endurance 1 million cycles

• Field selectable fail secure/fail safe

• In-frame horizontal adjustment

• Non-handed

• Internally mounted solenoid

• Accommodates 5/8" - 3/4" latchbolt

(3/4" with 1/8" door gap)

• Strike body depth 1-3/16"

• Plug-in connector

• Trim enhancer included

• SecuriCare five-year, no fault,

no questions asked warranty

Optional Features

• LBM Latchbolt monitor

• LBSM Latchbolt strike monitor

Accessories

• 5200-500 Filler block for

retro-fit applications

• 150 Strike latch guard

• HESCUT-MTK Metal template kit

• 2001M Plug-in bridge rectifier

• 2004M ElectroLynx® adapter

• 2005M3 SMART Pac® III

• 2006M Plug-in buzzer

• 5204-1/2 1/2" stackable lip extension

• 5204-1 1" stackable lip extension

• 5204-1-1/4 1-1/4" stackable

lip extension

HES® 5200

Electric Strike

Works with cylindrical locksets

up to a 3/4" throw latchbolt

The 5200 Series is also

available in a Complete

One Box Solution

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

Electric Strikes

Specifications

Certifications

• ANSI/BHMA A156.31, Grade 1

• UL 1034 burglary-resistant listed

• UL 294 (6th Edition) listed

• RoHS compliant

Frame Application

• Metal

• Wood

Electrical (DC Continuous Duty)

• Dual voltage 12/24 VDC/VAC

• 240 mA at 12 VDC/120 mA at 24 VDC

• PoE friendly

Dimensions

How to Order

Series Model Finish* Option (s)

5200 – – 630 – LBM

5200 Universal Electric Strike;

Faceplates ordered separately

C* Complete Electric Strike; Includes

the 501 and 501A faceplates

605 Bright Brass LBM Latchbolt Monitor

606 Satin Brass LBSM Latchbolt Strike Monitor

612 Satin Bronze

613 Bronze Toned

629 Bright Stainless Steel

630 Satin Stainless Steel

BLK Black

*Complete Pacs are only available in the 630 finish

Diagram shown with 501 Option

[33.5]

1-5/16"

[41.9]

1-21/32"

[21.3]

27/32"

[85.5]

3-3/8"

[30.16]

1-3/16"

[26.98]

1-1/16"

[31.75]

1-1/4"

[104.8]

4-1/8"

[123.83]

4-7/8"

[85.5]

3-3/8"

Electric Strikes

HES 5000/5200 Series Faceplate Options

Operation: After releasing the latchbolt, the keeper returns to the locked position

4-7/8" × 1-1/4"

Square corners and

flat faceplate

501 Option

For use with: Cylindrical locksets in ANSI metal jambs

» ANSI/BHMA Numbers: E09321, E09322, E09323

4-7/8" × 1-1/4"

Radius corners and

flat faceplate

501A Option

For use with: Cylindrical locksets or spring latches in

aluminum frames. Includes universal mounting tabs.

» ANSI/BHMA Numbers: E09321, E09322, E09323

7-15/16" × 1-7/16"

Radius corners and

flat faceplate

502 Option

For use with: Cylindrical locksets or spring latches in

aluminum frames. Includes universal mounting tabs.

» ANSI/BHMA Numbers: E09321, E09322, E09323

6-7/8" × 1-1/4"

Radius corners and

flat faceplate

503 Option

For use with: Cylindrical locksets or spring latches in

aluminum frames. Includes universal mounting tabs.

» ANSI/BHMA Numbers: E09321, E09322, E09323

10" × 1-3/8"

Radius corners and

flat faceplate

504 Option

For use with: Cylindrical locksets. Four-point mounting

for wood installations

» ANSI/BHMA Numbers: E09321, E09322, E09323

“For use with” information is offered as a recommendation only. Reference should be made to the lockset manufacturer for proper installation instructions

necessary to meet compatibility requirements.

Electric Strikes

What is Preload?

When pressure is applied to some models of electric strikes, the

solenoid may not have the ability to mechanically release the keeper

because the pressure binds it against the latch. Even a small amount

of this preload can cause problems in the functioning of some electric

strikes. Door preload can prevent the smooth unlocking of the electric

strike or even disable a strike – preventing a door from being opened.

Preload and Building Security

An electric strike failing to release when energized

is not the only problem preload can cause.

If the power to the electric strike is interrupted, either by

accidental or deliberate means, strong preload pressure

can cause a strike in fail safe mode not to function.

If a serious preload condition is present when the strike is activated

the pressure will move the door slightly into an open position,

leaving the door unlocked, and the building vulnerable.

Some of the underlying problems that cause door preload, such as

pressure from air conditioning, are not practically or easily corrected.

What Causes Preload?

— A number of conditions can cause door preload including:

— Stack pressure caused by HVAC systems

— Misaligned strike and lockset

— Warped wood doors; Damaged or bent metal doors

— Thick door seals or heavy weatherstripping

A strike that does not open or opens only intermittently could be showing

signs of a preload problem. If preload pressure causes a strike

or multiple strikes to malfunction, many access and security issues arise.

Electric Strikes

The dual, preload

solution for cylindrical

latch bolts and

rim exit devices.

The 7000 Series offers two solutions to

address preloaded doors. The in-frame

adjustable feature allows the installer to

easily adjust the electric strike opening

to accommodate the horizontal position

of the latchbolt after installation.

The preload release function allows the

electric strike to operate smoothly throughout

the year under varying loads on the door

caused by airconditioning pressure, changes

in the weather, warped doors or doors with

weather stripping that often bind standard

electric strikes. This unit accommodates

cylindrical latchbolts up to 5/8" throw and

rim exit latchbolts up to 3/4" throw.

Features

Standard Features

• Stainless steel construction

• Tamper-resistant

• Static strength 1,500 lbs

(791 and 792 options)

• Dynamic strength 70 ft-lbs

(791 and 792 options)

• Static strength 1,000 lbs (783S,

786S, and 789S options)

• Dynamic strength 50 ft-lbs (783S,

786S, and 789S options)

• Endurance 1 million cycles

• Field selectable fail secure/fail safe

• Accommodates preload (up

to 15lbs: fail secure only)

• Horizontal adjustment

• Non-handed

• Internally mounted solenoid

• Strike body depth 1-11/16"

• Plug-in connector

• Trim enhancer (791 and 792 options)

• Pocket adapter (786S

and 789S options)

• SecuriCare five-year, no fault,

no questions asked warranty

Optional Features

• LBM Latchbolt monitor

Accessories

• SMB Surface mounting box

(783S and 789S options)

• 7000-104 Lip extension trim adapter

• 7000-105 Trim enhancer (goof plate)

• 7000-106 Keeper pocket adapter

• 7000-107 Full keeper shim pack

• 7000-108 1/8" spacer plate (783S

and 789S options, black finish only)

• 7000-110 Replacement strike

plate (791 and 792 option)

• 150 Strike latch guard

• HESCUT-MTK Metal template kit

• 2001M Plug-in bridge rectifier

• 2004M ElectroLynx® adapter

• 2005M3 SMART Pac® III

• 2006M Plug-in buzzer

HES® 7000

Electric Strike

Works with cylindrical latchbolts

up to 5/8" throw and rim exit

devices up to a 3/4" throw

The 7000 Series is also

available in a Complete

One Box Solution

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

Electric Strikes

Specifications

Certifications

• ANSI/BHMA A156.31, Grade 1 (791 & 792 options)

• ANSI/BHMA A156.31, Grade 2 (783S,

786S & 789S options)

• UL 1034 burglary-resistant listed

• UL 294 (6th Edition) listed

Frame Application

• Metal

• Wood

Electrical (DC Continuous Duty)

• Dual voltage 12/24 VDC

• 450 mA at 12 VDC/250 mA at 24 VDC

Dimensions

How to Order

Series Model Finish* Option (s)

7000 – – 630 – LBM

7000 Universal Electric

Strike; Faceplates

ordered separately

C* Complete Electric Strike;

Includes the 791 and 792

faceplates

791 and 792 Options 783S, 786S, 789S Options LBM Latchbolt

Monitor

605 Bright Brass 613E Dark Oxidized Satin Bronze

606 Satin Brass 630 Satin Stainless Steel

612 Satin Bronze

613E Dark Oxidized Satin

Bronze

629 Bright Stainless Steel

630 Satin Stainless Steel

BLK Black

*Complete Pacs are only available in the 630 finish

[29.9]

1-3/16"

[42.7]

1-11/16"

[85.9]

3-3/8"

[44.3]

1-3/4"

[35]

1-3/8"

[104.8]

4-1/8" [85.7]

3-3/8"

[123.4]

4-7/8"

[28.5]

1-1/8"

Electric Strikes

HES 7000 Series Rim Exit Device Options

786S Option

789S Option

[165.1]

6-1/2"

[146.1]

5-3/4"

[38.9]

1-1/2"

[43.7]

1-3/4"

[28]

1-1/8"

[228.6]

[209.6]

8-1/4"

[85.9]

3-3/8"

[43.7]

1-3/4"

[28]

1-1/8"

783S Option

[47.6]

1-7/8" [35]

1-3/8"

[31]

1-1/4"

[47.6]

1-7/8" [35]

1-3/8"

[26.3]

1-1/32"

[228.6]

[209.6]

8-1/4"

[38.9]

1-1/2"

[85.9]

3-3/8"

[43.7]

1-3/4"

[28]

1-1/8"

[47.4]

1-7/8" [35]

1-3/8"

[31]

1-1/4"

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

Electric Strikes

HES 7000 Series Faceplate Options

Operation: After releasing the latchbolt, the keeper returns to the locked position

4-7/8" × 1-1/4"

791 Option

For use with: Cylindrical locksets up to 5/8" throw

» ANSI/BHMA Numbers: E09321, E09322, E09323

7-15/16" × 1-7/16"

792 Option

For use with: Cylindrical locksets up to 5/8" throw

» ANSI/BHMA Numbers: E09321, E09322, E09323

Operation: After releasing pullman latch, the keeper returns to the locked position

9" × 1-3/4" × 11/16"

783S Option

For use with: Rim exit devices in metal jambs with up to a

3/4" pullman latch

Compatible locksets: American Device, Arrow, Dor-O-Matic,

Monarch, Precision, Sargent, Von Duprin, Yale

» ANSI/BHMA Numbers: E09311, E09312, E09313

6-1/2" × 1-3/4" × 1/2"

786S Option

For use with: Rim exit devices in aluminum jambs and

surface mounted vertical rod exit devices with up to a

3/4" pullman latch. Includes keeper pocket adapter.

Compatible locksets: American Device, Arrow, Dor-O-Matic,

Jackson, Monarch, Precision, Sargent, Von Duprin, Yale

» ANSI/BHMA Numbers: E09311, E09312, E09313

9" × 1-3/4" × 1/2"

789S Option

For use with: Rim exit devices in aluminum jambs with up

to a 3/4" pullman latch. Includes keeper pocket adapter.

Compatible locksets: American Device, Arrow, Dor-O-Matic,

Jackson, Monarch, Precision, Sargent, Von Duprin, Yale

» ANSI/BHMA Numbers: E09311, E09312, E09313

“For use with” information is offered as a recommendation only. Reference should be made to the lockset manufacturer for proper installation instructions

necessary to meet compatibility requirements.

Electric Strikes

The Grade 1, fire-rated,

preload solution.

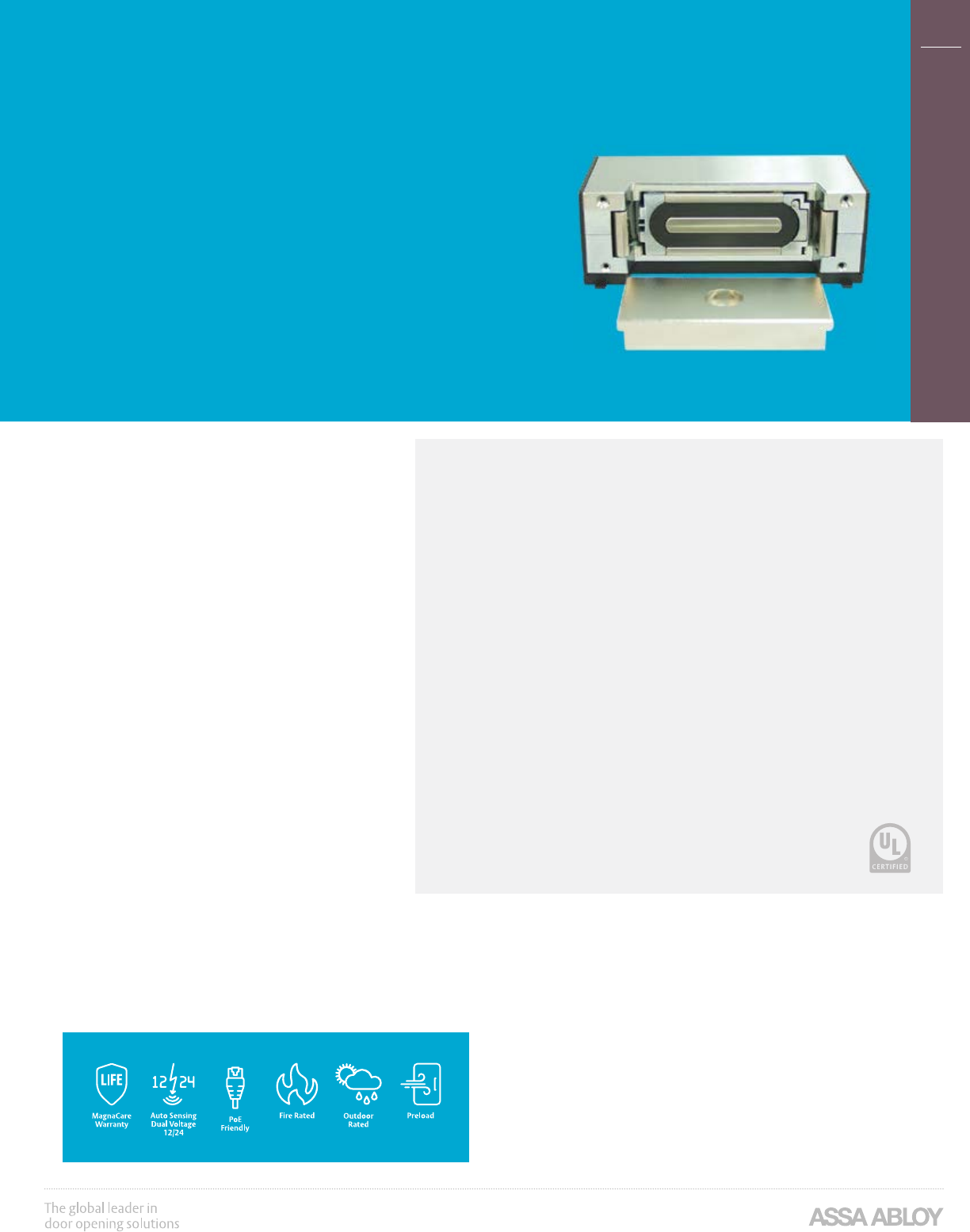

The 7501 electric strike is ideal for fire

rated applications with preload conditions

caused by a warped or misaligned door,

weather stripping, a smoke seal or any

other condition that could cause door

bind. The heavy duty stainless steel

construction provides the strength and

durability required to accommodate

fire rated latchbolts up to 3/4" throw.

What is Preload? Simply stated, door preload

is pressure exerted on a door, that is transfered

to the keeper of the electric strike by the

latch. A number of conditions can cause

door preload including pressure from HVAC

systems, thermal bowing, thick door seals or

heavy weatherstripping, misaligned, damaged,

bent, warped doors, or user anticipation.

When pressure is applied to some models of

electric strikes, the keeper may not release

because the pressure binds it against the

latch. Door preload can prevent the smooth

unlocking of the electric strike or even disable

it—preventing the door from being opened.

Features

Standard Features

• Stainless steel construction

• Tamper-resistant

• Static strength 1,500 lbs

• Dynamic strength 70 ft-lbs

• Endurance 1 million cycles

• Field selectable fail secure/fail safe

• Accommodates preload

(up to 15lbs: fail secure only)

• Non-handed

• Internally mounted solenoid

• Strike body depth 1-11/16"

• Plug-in connector

• Trim enhancer

• SecuriCare five-year, no fault,

no questions asked warranty

Optional Features

• LBM Latchbolt monitor

Accessories

• 2001M Plug-in bridge rectifier

• 2004M ElectroLynx® adapter

• 2005M3 SMART Pac® III

• 2006M Plug-in buzzer

• 150 Strike latch guard

• HESCUT-MTK Metal Template Kit

HES® 7501

Electric Strike

Complete Pac

Works with cylindrical locksets

up to a 3/4" throw latchbolt

The 7501 Series is also

available in a Complete

One Box Solution

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

Electric Strikes

Specifications

Certifications

• ANSI/BHMA A156.31, Grade 1

• UL 1034 burglary-resistant listed

• UL 10C fire-rated, 3 hour (fail secure only)

• CAN/ULC-S104 fire door conformant

• NFPA-252 fire door compliant

• ASTM-E152 fire door compliant

Frame Application

• Metal

• Wood

Electrical (DC Continuous Duty)

• Dual voltage 12/24 VDC

• 450 mA at 12 VDC/250 mA at 24 VDC

Operation: After releasing the latchbolt, the keeper returns to the locked position.

4-7/8" × 1-1/4" × 1-11/16"

7501

For use with: Cylindrical locksets up to a 3/4" throw

» ANSI/BHMA Numbers: E09321, E09322, E09323

Dimensions

How to Order

Series Finish* Option (s)

7501 – 630 – LBM

7501 Universal Electric Strike; Includes faceplate

for cylindrical locksets

605 Bright Brass LBM Latchbolt Monitor

606 Satin Brass

612 Satin Bronze

613 Bronze Toned

629 Bright Stainless Steel

630 Satin Stainless Steel

[38.1]

1-1/2"

[42.6]

1-11/16"

[85.3]

3-3/8"

[31.5]

1-1/4"

[104.8]

4-1/8" [85.1]

3-3/8"

[123.6]

4-7/8"

[46.7]

1-13/16" [34.5]

1-3/8"

Electric Strikes

The concealed electric

strike solution for

cylindrical locksets.

The 8000 series is a compact, high

performance electric strike featuring a

unique concealed design for use with

cylindrical locksets. No cutting on the frame

is required. Simply remove the existing strike

plate, adjust the vertical alignment feature

to the latchbolt centerline, and install. Its

strength is derived from a unique keeper

pin locking design, enabling the 8000 to

exceed the ratings of the frame, door and

locking hardware. This field selectable fail

secure/fail safe unit is easy to install and

accommodates latchbolts up to 5/8" throw.

Features

Standard Features

• No cutting on frame required

• Vertical adjustability to

accommodate door sag

and misalignment

• Tamper-resistant

• Static strength 1,500 lbs

• Dynamic strength 70 ft-lbs

• Endurance 1 million cycles

• Field selectable fail secure/fail safe

• Non-handed

• Internally mounted solenoid

• Accommodates 1/2" – 5/8" cylindrical

latchbolt (5/8" with 1/8" door gap)

• Strike body depth 1-1/16"

• Strike body width 1-7/16"

• SecuriCare five-year, no fault,

no questions asked warranty

Optional Features

• LBM Latchbolt monitor

Accessories

• 2001M Plug-in bridge rectifier

• 2004M ElectroLynx® adapter

• 2005M3 SMART Pac® III

• 2006M Plug-in buzzer

HES® 8000

Electric Strike

Works with cylindrical

locksets and accommodates

latchbolts up to 5/8" throw

The 8000 Series is also

available in a Complete

One Box Solution

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

Electric Strikes

Specifications

Certifications

• ANSI/BHMA A156.31, Grade 1

• UL 1034 burglary-resistant listed

and suitable for outdoor use

• UL 294 (6th Edition) listed

• RoHS compliant

Frame Application

• Metal

• Wood

Electrical (DC Continuous Duty)

• Dual voltage 12/24 VDC/VAC

• 240 mA at 12 VDC/120 mA at 24 VDC

• PoE friendly

Dimensions

How to Order

Series Model Finish* Option (s)

8000 – – 630 – LBM

8000 Universal Electric Strike;

Faceplates ordered separately

C* Complete Electric Strike; Includes

the 801 and 5801A faceplates

605 Bright Brass LBM Latchbolt Monitor

606 Satin Brass

612 Satin Bronze

613 Bronze Toned

629 Bright Stainless Steel

630 Satin Stainless Steel

BLK Black

*Complete Pacs are only available in the 630 finish

Diagram shown with 801 Option

[36.5]

1-7/16"

[27. 3]

1-1/16"

[85.5]

3-3/8"

[104.8]

4-1/8"

[123.4]

4-7/8"

Electric Strikes

The fire-rated,

concealed solution for

cylindrical locksets.

The 8300 series is a fire rated, compact, high

performance electric strike featuring a unique

concealed design for use with cylindrical

locksets. No cutting on the frame is required.

Simply remove the existing strike plate, adjust

the vertical alignment feature to the latchbolt

centerline, and install. Its strength is derived

from a unique keeper pin locking design,

enabling the 8300 to exceed the ratings

of the frame, door and locking hardware.

This unique electric strike is easy to install

and complies with NFPA 80-07 guidelines

for retrofit into fire-rated frames. The 8300

accommodates latchbolts up to 5/8" throw.

Features

Standard Features

• Falls within the guidelines for

retrofit into fire-rated frames

• No cutting on frame required

• Vertical adjustability to

accommodate door sag

and misalignment

• Tamper-resistant

• Static strength 1,500 lbs

• Dynamic strength 70 ft-lbs

• Endurance 1 million cycles

• Field selectable fail secure/fail safe

• Non-handed

• Accommodates 1/2" – 5/8" cylindrical

latchbolt (5/8" with 1/8" door gap)

• Strike body depth 1-1/16"

• Plug-in connector

• SecuriCare five-year, no fault,

no questions asked warranty

Optional Features

• LBM Latchbolt monitor

Accessories

• 2001M Plug-in bridge rectifier

• 2004M ElectroLynx® adapter

• 2005M3 SMART Pac® III

• 2006M Plug-in buzzer

HES® 8300

Electric Strike

Works with cylindrical

locksets and accommodates

latchbolts up to 5/8" throw

The 8300 Series is also

available in a Complete

One Box Solution

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

Electric Strikes

Specifications

Certifications

• ANSI/BHMA A156.31, Grade 1

• UL 1034 burglary-resistant listed

and suitable for outdoor use

• UL 294 (6th Edition) listed

• RoHS compliant

• UL 10C fire-rated, 3 hour single

door (fail secure only)

• CAN/ULC-S104 fire door conformant

• NFPA-252 fire door compliant

• ASTM-E152 fire door compliant

• NFPA 80-07 compliant

Frame Application

• Metal

• Wood

Electrical (DC Continuous Duty)

• Dual voltage 12/24 VDC/VAC

• 240 mA at 12 VDC/120 mA at 24 VDC

• PoE friendly

Dimensions

How to Order

Series Model Finish* Option (s)

8300 – – 630 – LBM

8300 Universal Electric Strike;

Faceplates ordered separately

C* Complete Electric Strike; Includes

the 801 and 801A faceplates

605 Bright Brass LBM Latchbolt Monitor

606 Satin Brass

612 Satin Bronze

613 Bronze Toned

629 Bright Stainless Steel

630 Satin Stainless Steel

BLK Black

*Complete Pacs are only available in the 630 finish

Diagram shown with 801 Option

[27. 3]

1-1/16"

[85.5]

3-3/8"

[36.5]

1-7/16"

[104.8]

4-1/8"

[123.4]

4-7/8"

Electric Strikes

HES 8000/8300 Series Faceplate Options

Operation: After releasing the latchbolt, the keeper returns to the locked position

4-7/8" × 1-1/4"

801 Option

For use with: Cylindrical locksets in ANSI metal jambs,

with latchbolts up to 5/8" throw

» ANSI/BHMA Numbers: E05031, E09321, E09322, E09323

4-7/8" × 1-1/4"

Radius corners and

flat faceplate

801A Option

For use with: Cylindrical locksets with latchbolts up to 5/8"

throw. Includes universal mounting tabs. Aluminum frames.

» ANSI/BHMA Numbers: E05031, E09321, E09322, E09323

4-7/8" × 1-1/4"

Extended lip

801E Option

For use with: Extended lip for ‘knock-down’ style frame

installations. For use with cylindrical latchbolts up to 5/8" throw.

» ANSI/BHMA Numbers: E05031, E09321, E09322, E09323

7-15/16" × 1-7/16"

802 Option

For use with: Cylindrical locksets with latchbolts up to 5/8"

throw. Includes universal mounting tabs. Aluminum frames.

» ANSI/BHMA Numbers: E05031, #E09321, E09322, E09323

6-7/8" × 1-1/4"

Radius corners and

flat faceplate

803 Option

For use with: Cylindrical locksets with latchbolts up to 5/8"

throw. Includes universal mounting tabs. Aluminum frames.

» ANSI/BHMA Numbers: E05031, E09321, E09322, E09323

9" × 1-3/8"

Radius corners and

flat faceplate

805 Option

For use with: Cylindrical locksets. For use with latchbolts up

to 5/8" throw. Four point mounting for wood installations.

» ANSI/BHMA Numbers: #E05031, #E09321, #E09322, #E09323

“For use with” information is offered as a recommendation only. Reference should be made to the lockset manufacturer for proper installation instructions

necessary to meet compatibility requirements.

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

Electric Strikes

Reduce your install

time by evaluating

your opening

The 8000/8300 can be adjusted to compensate for frame

and door irregularities. Sometimes, adjusting the frame

and door back to industry standards is just not an option.

Here are some tips to quickly compensate for frame

twist and determine the condition of the latch bolt.

Measure Frame Twist

One way to measure frame twist is to place a carpenter square

on the stop and the face of the door. If the angle is less than 90

degrees, the 45 degree ramp angle of the 8000/8300 is steepened

and may need to be corrected as shown at left (Figure 1).

We recommend you check the condition of the latch bolt prior

to installing the 8000/8300. Poorly constructed, worn out or

damaged latch bolts may not slide along a ramp at any angle. To

check the condition of your latch bolt, we recommend applying a

slight force to the tip of the latch bolt (about 45 degrees to the door

face). Make sure the latch bolt can be pushed up into the door.

Compensate for Frame Twist

When a frame is twisted, the relationship between the face of a

closed door and of the inside face of the frame (i.e., Rabbet) may

not meet the 90 degree industry standard. Untrue frames and

doors impact latch bolt wear and the force required to exit, so we

recommend you ensure that the angle is between 90–95 degrees.

If manipulating the frame is not possible, we recommend placing several

shims under the top and bottom (stop side) of the faceplate (Figure 2).

This effectively increases the 8000/8300 ramp angle and compensates

for frame twist. You can also compensate for frame twist by placing

shims under the top and bottom (bevel side) of the latchbolt (Figure 3).

Figure 2

Figure 3

Figure 1

Electric Strikes

The fire-rated,

concealed electric

strike solution for

mortise locksets.

The 8500 series is a fire rated, compact,

high performance electric strike featuring a

unique concealed design for use with mortise

locksets without a deadbolt. Designed for

fast, convenient installation, the 8500 installs

with little or no modification to the frame.

Simply remove the existing strike plate,

remove the dust box and install. Its strength

is derived from a unique keeper pin locking

design, enabling the 8500 to exceed Grade-1

ratings. This unique electric strike complies

with NFPA 80-07 guidelines for retrofit into

fire-rated frames. The 8500 accommodates

mortise latchbolts up to 3/4" throw.

Features

Standard Features

• No cutting to the face of the frame

• Stainless steel construction

• Tamper-resistant

• Static strength 1,500 lbs

• Dynamic strength 70 ft-lbs

• Endurance 1 million cycles

• Field selectable fail secure/fail safe

• Non-handed

• Metal or wood frame

• Internally mounted solenoid

• Accommodates 3/4"

mortise latchbolts

• Strike body depth 1-5/16"

• Plug-in connector

• Full pocket shims for

horizontal adjustment

• SecuriCare five-year, no fault,

no questions asked warranty

Optional Features

• LBM Latchbolt monitor

• LBSM Latchbolt strike monitor

• 4 faceplate option kits to work

with most mortise locksets

Accessories

• 2001M Plug-in bridge rectifier

• 2004M ElectroLynx® adapter

• 2005M3 SMART Pac® III

• 2006M Plug-in buzzer

• 150 Strike latch guard

HES® 8500

Electric Strike

Works with mortise locksets

without a deadbolt up to

a 3/4" throw latchbolt

The 8500 Series is also

available in a Complete

One Box Solution

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

Electric Strikes

Specifications

Certifications

• ANSI/BHMA A156.31, Grade 1

• UL 1034 burglary-resistant listed

and suitable for outdoor use

• UL 294 (6th Edition) listed

• RoHS compliant

• UL 10C fire-rated, 3 hour single

door (fail secure only)

• CAN/ULC-S104 fire door conformant

• NFPA-252 fire door compliant

• ASTM-E152 fire door compliant

• NFPA 80-07 compliant

Frame Application

• Metal

• Wood

Electrical (DC Continuous Duty)

• Dual voltage 12/24 VDC/VAC

• 240 mA at 12 VDC/120 mA at 24 VDC

• PoE friendly

Dimensions

How to Order

Series Model Finish* Option (s)

8500 – – 630 – LBM

8500 Universal Electric Strike;

Faceplates ordered separately

C* Complete Electric Strike; Includes

the 801 and 5801A faceplates

605 Bright Brass LBM Latchbolt Monitor

606 Satin Brass LBSM Latchbolt Strike Monitor

612 Satin Bronze

613 Bronze Toned

629 Bright Stainless Steel

630 Satin Stainless Steel

BLK Black

*Complete Pacs are only available in the 630 finish

Removal of the dustbox required for use

with ANSI/BHMA A156.115 prep

[124]

4-7/8"

[87]

3-7/16"

[32]

1-1/4"

[105]

4-1/8"

[87]

3-7/16"

[33]

1-5/16"

[37]

1-7/16"

[48]

1-7/8"

Electric Strikes

HES 8500 Series Faceplate Option Kits

Operation: After release, the keeper returns to the locked position

4-7/8" × 1-1/4"

851M Option

For use with: Mortise locksets

Compatible locksets: Sargent 8100, 8200, 9200

» ANSI/BHMA Numbers: E05031, E09321, E09322, E09323

4-7/8" × 1-1/4"

852K Option

For use with: Mortise locksets

Compatible locksets: Corbin Russwin ML 2000

» ANSI/BHMA Numbers: E05031, E09321, E09322, E09323

4-7/8" × 1-1/4"

852L Option

For use with: Mortise locksets

Compatible locksets: Schlage L9000

» ANSI/BHMA Numbers: E05031, E09321, E09322, E09323

4-7/8" × 1-1/4"

852M Option

For use with: Mortise locksets

Compatible locksets: Yale 8700 (manufactured after 2005)

& 8800, Accurate, Falcon, Kaba Ilco/Unican

» ANSI/BHMA Numbers: E05031, E09321, E09322, E09323

The 8500 faceplate options kits combine two different faceplate

pocket styles with three different deadlatch platform profiles for

compatibility with a wide variety of mortise locksets. HES 8500

faceplate option kits are lock specific. There are two faceplates

included in each kit: a standard faceplate and a faceplate with a

wider pocket to address less-than-ideal sagging door conditions.

4-7/8" × 1-1/4"

“For use with” information is offered as a recommendation only. Reference should be made to the lockset manufacturer for proper installation instructions

necessary to meet compatibility requirements.

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

Electric Strikes

When the door is closed, the mortise latchbolt is held secure by the

8500 keeper. A 'deadlatch platform' insert holds the deadlatch in its

locked state. Place the deadlatch platform into one of three locations

in the strike as appropriate for the type of mortise lockset.

DOOR

When the electric strike is energized, the keeper begins to rotate

and the deadlatch platform falls away, allowing the deadlatch

to drop and the latchbolt to become unguarded.

DOOR

As the door moves forward, the latchbolt slides first along the

keeper and then up the internal ramp.

DOOR

Deadlatch Platform

Latchbolt

Deadlatch

Keeper

As the door continues along its arc away from the frame, the latchbolt and

deadlatch exit the 8500, which quickly returns to its locked state.

DOOR

Get to Know the HES 8500

The HES 8500 concealed electric strike for mortise locksets builds on the

tradition of ground-breaking design you’ve come to know in the 8000 series

concealed electric strike family. It has a unique design unlike any electric

strike on the market today. It’s important to understand the extraordinary

design of the 8500, so that you can correctly install and operate it.

Electric Strikes

The slim-line, surface

mounted solution.

The 9400 series is a slim-line, surface mounted

electric strike designed to accommodate

rim exit devices with a 1/2" throw Pullman

latchbolt. All components are completely

encased within its 1/2" thick stainless steel

housing, so no cutting on the frame is

required for installation. Simply place the

electric strike on the surface of the frame,

align it with the exit latchbolt, and install.

An 1/8" spacer plate is provided to

accommodate varying door gaps. The 9400

exceeds Grade 1 standards for strength

and performance. It is field selectable for

fail secure or fail safe operation, and for 12

or 24 VDC. The 9400 features a smooth

cover to conceal the mounting screws and

provide a sleek surface for superior looks.

Features

Standard Features

• Installs in metal and wood frames

• Wood screws not provided

• One 1/8" spacer plate included

• Decorative cover for sleek look

• Stainless steel construction

• Tamper-resistant

• Static strength 1,500 lbs

• Dynamic strength 70 ft-lbs

• Endurance 1 million cycles

• Field selectable fail secure/fail safe

• Horizontal adjustability

• Non-handed

• Internally mounted solenoid

• Accommodates up to

1/2" Pullman latch

• SecuriCare five-year, no fault,

no questions asked warranty

Optional Features

• LBM Latchbolt monitor

• LBSM Latchbolt strike monitor

Accessories

• 9000-108 Spacer plate

(black or 630 finish)

• 9000-MTK Metal template kit

• SMB Surface mounting box

• 2001M Plug-in bridge rectifier

• 2004M ElectroLynx® adapter

• 2005M3 SMART Pac® III

• 2006M Plug-in buzzer

HES® 9400

Surface Mounted

Electric Strike

Works with rim exit devices

up to 1/2" throw latchbolt

Spacer Plate Included

The 9400 ships with one 1/8" spacer plate included in thebox. Units ordered

in a 630 finish are stainless steel. All other finishes have a black stainless steel

spacer. Additional black spacer plates can be ordered as an accessory.

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

Electric Strikes

Specifications

Certifications

• ANSI/BHMA A156.31, Grade 1

• UL 1034 burglary-resistant listed

and suitable for outdoor use

• UL 294 (6th Edition) listed

• RoHS compliant

Frame Application

• Metal

• Wood

Electrical (DC Continuous Duty)

• Dual voltage 12/24 VDC

• 450 mA at 12 VDC/250 mA at 24 VDC

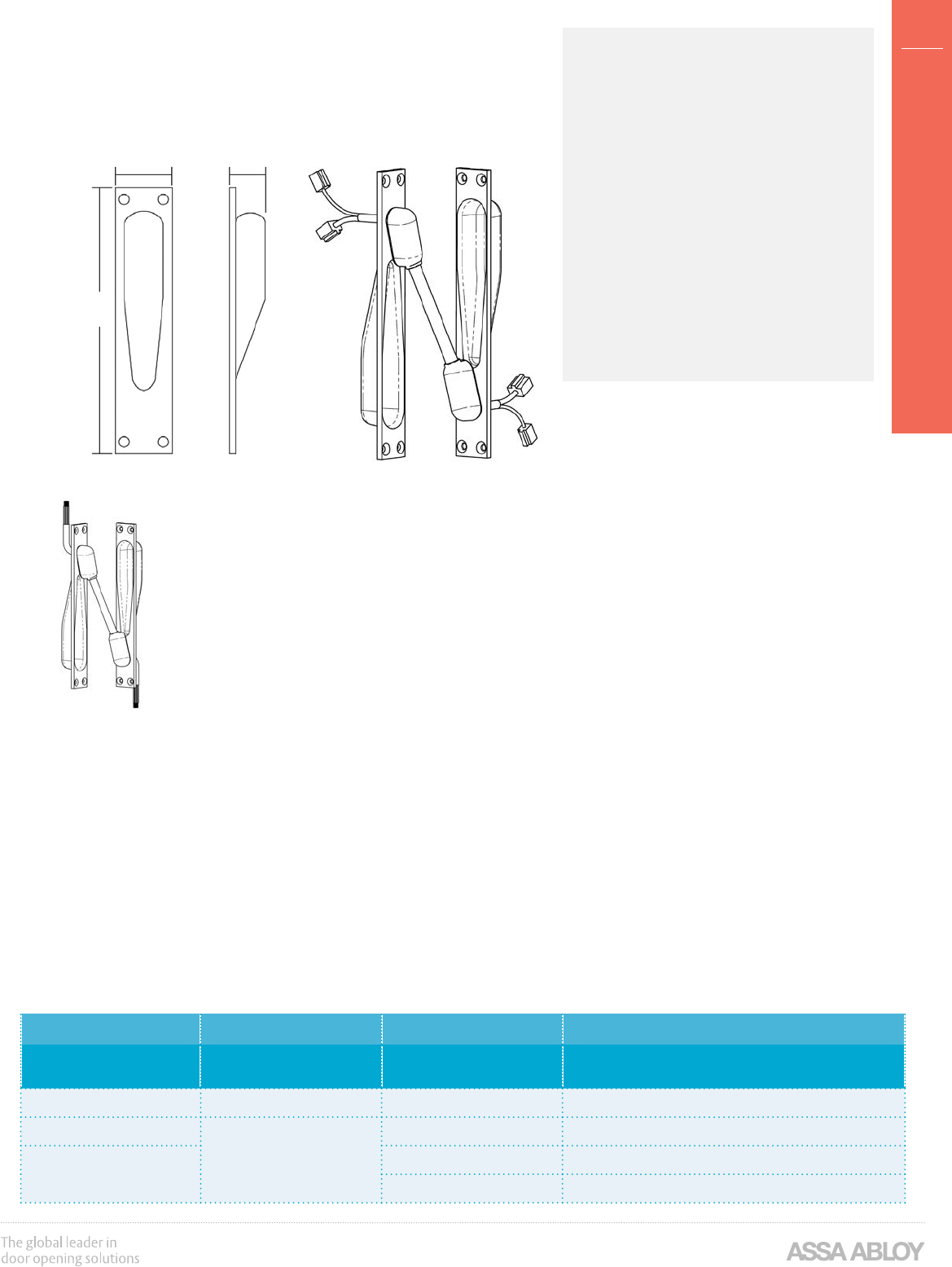

Dimensions

How to Order

Series Finish* Option (s)

9400 – 630 – LBM

9400 Surface-Mounted Electric Strike;

no faceplates required

605 Bright Brass LBM Latchbolt Monitor

606 Satin Brass LBSM Latchbolt Strike Monitor

612 Satin Bronze

613 Bronze Toned

613E Dark Oxidized Satin Bronze

629 Bright Stainless Steel

630 Satin Stainless Steel

[228.6]

[44.5]

1-3/4"

[13]

1/2"

Electric Strikes

The strong durable,

fire-rated surface

mounted solution.

The 9500 series is a 3 hour fire-rated,

surface mounted electric strike designed to

accommodate rim exit devices with a 3/4"

throw Pullman latchbolt. All components

are completely encased within its 3/4" thick

stainless steel housing, so no cutting on the

frame is required for installation. Simply

place the electric strike on the surface of the

frame, align it with the exit latchbolt and

install. Adjustments have never been easier

as the base is now separate from the cover.

The 9500 exceeds Grade 1 standards

for strength and performance. It is field

selectable for fail secure or fail safe operation,

and for 12 or 24 VDC. This unique electric

strike complies with NFPA 80-07 guidelines

for retrofit into fire-rated frames.

Features

Standard Features

• Installs in metal or wood frames

• Wood screws not provided

• Separate base and decorative

cover for easy adjustments

• Stainless steel construction

• Tamper-resistant

• Static strength 1,500 lbs

• Dynamic strength 70 ft-lbs

• Endurance 1 million cycles

• Field selectable fail secure/fail safe

• Horizontal adjustability

• Non-handed

• Internally mounted solenoid

• Accommodates up to

3/4" Pullman latch

• SecuriCare five-year, no fault,

no questions asked warranty

Optional Features

• LBM Latchbolt monitor

• LBSM Latchbolt strike monitor

Accessories

• 9000-108 Spacer plate

(black or 630 finish)

• 9000-MTK Metal template kit

• SMB Surface mounting box

• 2001M Plug-in bridge rectifier

• 2004M ElectroLynx® adapter

• 2005M3 SMART Pac® III

• 2006M Plug-in buzzer

HES® 9500

Surface Mounted

Electric Strike

Works with rim exit devices

up to 3/4" throw latchbolt

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

Electric Strikes

Specifications

Certifications

• ANSI/BHMA A156.31, Grade 1

• UL 1034 burglary-resistant listed

and suitable for outdoor use

• UL 294 (6th Edition) listed

• RoHS compliant

• UL 10C fire-rated, 3 hour single

door (fail secure only)

• CAN/ULC-S104 fire door conformant

• NFPA-252 fire door compliant

• ASTM-E152 fire door compliant

• California Fire Marshal listed

• NFPA 80-07 compliant

• WHI fire door listed

Frame Application

• Metal

• Wood

Electrical (DC Continuous Duty)

• Dual voltage 12/24 VDC

• 450 mA at 12 VDC/250 mA at 24 VDC

Dimensions

How to Order

Series Finish* Option (s)

9500 – 630 – LBM

9500 Surface-Mounted Electric Strike;

no faceplates required

605 Bright Brass LBM Latchbolt Monitor

606 Satin Brass LBSM Latchbolt Strike Monitor

612 Satin Bronze

613 Bronze Toned

613E Dark Oxidized Satin Bronze

629 Bright Stainless Steel

630 Satin Stainless Steel

[228.6]

[19.1]

3/4"

[44.5]

1-3/4"

Electric Strikes

The stylish

windstorm-rated,

surface mounted

solution.

The 9600 series is a windstorm-rated,

surface mounted electric strike designed to

accommodate rim exit devices with a 3/4"

throw Pullman latchbolt. All components

are completely encased within its 3/4" thick

stainless steel housing, so no cutting on the

frame is required for installation. Simply

place the electric strike on the surface of

the frame, align it with the exit latchbolt

and install. Adjustments have never been

easier as the base is now separate from the

cover. It is field selectable for fail secure or

fail safe operation, and for 12 or 24 VDC.

The 9600 is a surface mounted electric

strike designed with the strength and

durability required to exceed the severe

forces of ANSI Windstorm testing.

Features

Standard Features

• Installs in metal or wood frames

• Wood screws not provided

• Separate base and decorative

cover for easy adjustments

• Stainless steel construction

• Tamper-resistant

• Static strength 2,000 lbs

• Dynamic strength 120 ft-lbs

• Endurance 1 million cycles

• Field selectable fail secure/fail safe

• Horizontal adjustment

• Non-handed

• Internally mounted solenoid

• Accommodates up to

3/4" Pullman latch

• SecuriCare five-year, no fault,

no questions asked warranty

Optional Features

• LBM Latchbolt monitor

• LBSM Latchbolt strike monitor

Accessories

• 9000-108 Spacer plate

(black or 630 finish)

• 9000-MTK Metal template kit

• SMB Surface mounting box

• 2001M Plug-in bridge rectifier

• 2004M ElectroLynx adapter

• 2005M3 SMART Pac III

• 2006M Plug-in buzzer

HES® 9600

Surface Mounted

Electric Strike

Works with rim exit devices

up to a 3/4" throw latchbolt

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

Electric Strikes

Specifications

Certifications

• ANSI/BHMA A156.31, Grade 1

• UL 1034 burglary-resistant listed

and suitable for outdoor use

• UL 294 (6th Edition) listed

• RoHS compliant

• ANSI/SDI A250.13 windstorm resistant

• Florida Building Code approved TAS 201, 202, 203

• ANSI-ASTM E330

Frame Application

• Metal

• Wood

Electrical (DC Continuous Duty)

• Dual voltage 12/24 VDC

• 450 mA at 12 VDC/250 mA at 24 VDC

Dimensions

How to Order

Series Finish* Option (s)

9600 – 630 – LBM

9600 Surface-Mounted Electric Strike;

no faceplates required

605 Bright Brass LBM Latchbolt Monitor

606 Satin Brass LBSM Latchbolt Strike Monitor

612 Satin Bronze

613 Bronze Toned

613E Dark Oxidized Satin Bronze

629 Bright Stainless Steel

630 Satin Stainless Steel

[228.6]

[19.1]

3/4"

[44.5]

1-3/4"

Electric Strikes

The stylish

windstorm-rated

and fire-rated,

squarebolt solution.

The 9700 Series is a heavy duty, surface

mounted electric strike designed to

accommodate Corbin Russwin SecureBolt™

and Yale SquareBolt® exit devices. All

components are completely encased

within its 3/4" thick stainless steel housing,

so no cutting on the frame is required for

installation. It is field selectable for fail secure

or fail safe operation, and for 12 or 24 VDC.

The 9700 is designed with the strength and

durability required to exceed the severe

forces of ANSI Windstorm testing. This unique

electric strike also complies with NFPA 80-07

guidelines for retrofit into fire-rated frames.

Features

Standard Features

• Installs in metal or wood

• Wood screws not provided

• Separate base and decorative

cover for easy adjustments

• Stainless steel construction

• Tamper-resistant

• Static strength to 2,000 lbs

• Dynamic strength to 120 ft-lbs

• Endurance 1 million cycles

• Field selectable fail secure/fail safe

• Horizontal adjustment

• Non-handed

• Internally mounted solenoid

• SecuriCare five-year, no fault,

no questions asked warranty

Optional Features

• LBM Latchbolt monitor

• LBSM Latchbolt strike monitor

Accessories

• 9000-108 Spacer plate

(black or 630 finish)

• 9000-MTK Metal template kit

• SMB Surface mounting box

• 2001M Plug-in bridge rectifier

• 2004M ElectroLynx® adapter

• 2005M3 SMART Pac® III

• 2006M Plug-in buzzer

HES® 9700

Surface Mounted

Electric Strike

Works with Corbin Russwin

SecureBolt® and Yale SquareBolt®

exit devices

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

Electric Strikes

Specifications

Certifications

• ANSI/BHMA A156.31, Grade 1

• UL 1034 burglary-resistant listed

and suitable for outdoor use

• UL 294 (6th Edition) listed

• RoHS compliant

• UL 10C fire-rated, 3 hour single

door (fail secure only)

• CAN/ULC-S104 fire door conformant

• NFPA-252 fire door compliant

• ASTM-E152 fire door compliant

• California Fire Marshal listed

• NFPA 80-07 compliant

• ANSI/SDI A250.13 windstorm resistant

• Florida Building Code approved TAS 201, 202, 203

• ANSI-ASTM E330

Frame Application

• Metal

• Wood

Electrical (DC Continuous Duty)

• Dual voltage 12/24 VDC

• 450 mA at 12 VDC/250 mA at 24 VDC

Dimensions

How to Order

Series Finish* Option (s)

9700 – 630 – LBM

9700 Surface Mounted Electric Strike;

no faceplates required

605 Bright Brass LBM Latchbolt Monitor

606 Satin Brass LBSM Latchbolt Strike Monitor

612 Satin Bronze

613 Bronze Toned

613E Dark Oxidized Satin Bronze

629 Bright Stainless Steel

630 Satin Stainless Steel

[228.6]

[19.1]

3/4"

[44.5]

1-3/4"

Electric Strikes

Features

Standard Features

• Tamper-resistant, heavy

duty construction

• Constructed entirely of stainless steel

for strength and corrosion resistance

• Static strength 1,500 lbs

• Dynamic strength 70 ft-lbs

• Endurance rating 1 million cycles

• Horizontally adjustable keeper allows

for door and frame misalignment

• 1/2" keeper depth (310-2)

• 3/4" keeper depth

(310-2 3/4 and 310-2 3/4OB)

• 1" keeper depth (310-3-1)

• Non-handed

• Fail secure (Standard)

• Plug-in connector

• SecuriCare five-year, no fault,

no questions asked warranty

Optional Features

• Fail safe

• LCBMA Latchbolt & Locking Cam

Monitor with Auxiliary Switch

(all except 310-2-3/4OB)

Accessories

• 152 Universal mounting tabs

• 310-2-3 Strike latch guard (astragal)

• 2001-1 Wire-in bridge rectifier

• 2001M Plug-in bridge rectifier

• 2004M ElectroLynx® adapter

• 2005M3 SMART Pac® III

• 2006M Plug-in buzzer

The 310 series is a

3 hour fire-rated,

industrial grade

electric strike designed

for extreme heavy

duty applications.

The all stainless steel construction

of this device makes it ideal for

high abuse applications that would

disable other electric strikes.

HES® Folger Adam

310 Electric Strike

Works with cylindrical and

mortise locksets with 1/2", 5/8"

or 3/4" throw latchbolts

Patent pending and/or patent

assaabloydss.com/patents

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

Electric Strikes

Specifications

Certifications

• UL 10C fire-rated, 3-hour single

door (fail secure only)

• UL 10C fire-rated, 3-hour double

door (fail secure only)

• CAN4-S104 (ULC-S104) fire door conformant

• UL 1034, burglary-resistant listed

• UL 294 (6th Edition) listed

• ANSI/BHMA A156.31, Grade 1

• NFPA-252 fire door conformant

• ASTM-E152 fire door conformant

• RoHS compliant

Electrical (DC Continuous Duty)

• 510 mA at 12 VDC/250 mA at 24 VDC

How to Order

Series Fail Safe / Secure Voltage Finish* Option (s)

9700 – F – 24D – 630 – LCBMA

Complete Pacs (blank) Fail Secure

(Standard)

12D 12 Volt 605 Bright Brass LCBMA* Latchbolt &

locking cam

monitor with

auxiliary switch

310-2 1/2" keeper standard; For up

to a 5/8" throw latchbolt

24D 24 Volt 606 Satin Brass

F Fail Secure 612 Satin Bronze

310-2 3/4 3/4" keeper standard; For

up to a 3/4" throw latchbolt

without deadbolt

613 Bronze Toned

629 Bright Stainless Steel

310-2 3/4OB 3/4" keeper standard; For

a pair of doors without

a door coordinator

630 Satin Stainless Steel

310-3-1 1" keeper standard; For up to a 3/4"

throw latchbolt and a 1" deadbolt

*LCBMA not available with 310-2 3/4OB

310-2

For a 1/2" or 5/8" throw

latchbolt (without

deadbolt) on single

and pairs of doors

1/2" keeper standard

310-2-3/4

For a 3/4" throw latchbolt

(without deadbolt)

on single doors and

pairs of doors

3/4" keeper standard

310-2 3/4OB

For a pair of doors, without

a door coordinator,

which are equipped

with a lock having a 3/4"

throw latchbolt (without

deadbolt)

3/4" keeper standard

310-3-1

For a lockset with both a

3/4" throw latchbolt and

a 1" throw deadbolt

• Deadbolt must be

retracted manually

• Position of block within

cavity is adjustable for

RH and LH applications

1" keeper standard

Dimensions

Electric Strikes

Features

Standard Features

• Tamper-resistant, heavy

duty construction

• Constructed entirely of stainless steel

for strength and corrosion resistance

• Static strength 1,500 lbs

• Dynamic strength 70 ft-lbs

• Endurance rating 1 million cycles

• Adjustable keeper allows for

door and frame alignment 1/2",

3/4" and 1” keeper depths

• Non-handed

• Fail secure (standard)

• Plug-in connector

• SecuriCare five-year, no fault,

no questions asked warranty

Optional Features

• Fail safe

• LCBMA Latchbolt & Locking Cam

Monitor with Auxiliary Switch

Accessories

• 152 Universal mounting tabs

• 310-2-3 Strike latch guard (astragal)

• 2001-1 Wire-in bridge rectifier

• 2001M Plug-in bridge rectifier

• 2004M ElectroLynx® adapter

• 2005M3 SMART Pac® III

• 2006M Plug-in buzzer

The 310 series is a

3 hour fire-rated,

industrial grade

electric strike designed

for extreme heavy

duty applications.

The all stainless steel construction of

this device makes it ideal for strength

and corrosion resistance.

HES® Folger Adam

310-1(X) Electric

Strike Body Only

Works with cylindrical and

mortise locksets with 1/2", 5/8"

or 3/4" throw latchbolts

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

Electric Strikes

Specifications

Certifications

• UL 10C fire-rated, 3-hour single

door (fail secure only)

• UL 10C fire-rated, 3-hour double

door (fail secure only)

• CAN4-S104 (ULC-S104) fire door conformant

• UL 1034, burglary-resistant listed

• UL 294 (6th Edition) listed

• ANSI/BHMA A156.31, Grade 1

• NFPA-252 fire door conformant

• ASTM-E152 fire door conformant

• RoHS compliant

Electrical (Continuous Duty)

• 510 mA at 12 VDC/250 mA at 24 VDC

310-1(1/2)

For use with up to 5/8" throw latchbolts (without deadbolt)

1/2” keeper standard

310-1(3/4)

For use with 3/4" throw latchbolts (without deadbolt) on single and double

glass door applications with the addition of a third party faceplate.

• Works with Rockwood PDU8000 and CR Laurence PA100 Series

panic devices when used with ESK Series stop/strike.

3/4" keeper standard

310-1(1)

For use with both a 3/4" throw latchbolt and a 1" throw deadbolt

1" keeper standard

310-1(PK)

For up to 3/4" Pullman style latchbolts

PK keeper standard

310-1(SK)

For Squarebolt® style rim exit devices

• Works with Corbin Russwin® ED4200S, ED5200S and ED5200SA

Securebolt™ or Yale® 7150(F), 7250, 7270M(F) Squarebolt® Exit Devices.

SK keeper standard

How to Order

Series Keeper Style Fail Safe / Secure Voltage Option (s)

SB-310-1 (3/4) – F – 24D – LCBMA

Strike Body Only (1/2) 1/2" keeper (blank) Fail Secure

(Standard)

12D 12 Volt LCBMA* Latchbolt & locking cam

monitor with auxiliary

switch

SB-310-1 (3/4) 3/4" keeper 24D 24 Volt

(1) 1" keeper F Fail Secure

(PK) For use with 3/4" Pullman

style latchbolts

(SK) For use with Squarebolt®

style rim exit devices

*LCBMA not available with 310-2 3/4OB

Dimensions

Electric Strikes

Features

Standard Features

• Integrated shim for quick

customization of faceplate

thickness (1/2" to 3/4")

• Tamper-resistant, heavy

duty construction

• Constructed entirely of stainless steel

for strength and corrosion resistance

• Static strength 1,500 lbs

• Dynamic strength 70 ft-lbs

• Endurance rating 1 million cycles

• Integrated ramps for better

deadlatch handling

• Set screws for horizontal lockdown

• In-frame horizontal adjustability

• Wider faceplate (1-3/4")

for greater versatility

• Non-handed

• Fail secure (Standard)

• Plug-in connector

• SecuriCare five-year, no fault,

no questions asked warranty

Optional Features

• Fail safe

• LCBMA Latchbolt & Locking Cam

Monitor with Auxiliary Switch

Accessories

• 7000 SMB Surface mounting box

• 2001-1 Wire-in bridge rectifier

• 2001M Plug-in bridge rectifier

• 2004M ElectroLynx® adapter

• 2005M3 SMART Pac® III

• 2006M Plug-in buzzer

The 310-4 is a 3 hour

fire-rated, industrial

grade electric

strike designed

for extreme heavy

duty applications.

The all stainless steel construction of

this device makes it ideal for high abuse

applications that would disable other electric

strikes. The 310-4 has a unique 3/4" face plate

with an integrated 1/4" base shim that can be

removed in the field to accommodate rim exit

devices with a 1/2" or 3/4" throw latchbolt.

HES® Folger Adam

310-4 Electric Strike

Works with Pullman style latchbolts

up to 3/4" and Squarebolt® style rim

exit devices

310-4 310-4S

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

Electric Strikes

Specifications

Certifications

• UL 10C, 3-hour fire-rated (fail secure only)

• CAN4-S104 (ULC-S104) fire door conformant

• UL 1034, burglary-resistant listed

• UL 294 (6th Edition) listed

• ANSI/BHMA A156.31, Grade 1

• NFPA-252 fire door conformant

• ASTM-E152 fire door conformant

• RoHS compliant

Electrical (Continuous Duty)

• 510 mA at 12 VDC/250 mA at 24 VDC

How to Order

Series Fail Safe / Secure Voltage Finish* Option (s)

310-4 (S) – F – 12D – 605 – LCBMA

Complete Pacs (blank) Fail Secure

(Standard)

12D 12 Volt 605 Bright Brass LCBMA* Latchbolt &

locking cam

monitor with

auxiliary switch

310-4 PK keeper standard; For use with 3/4"

Pullman style latchbolts

24D 24 Volt 606 Satin Brass

F Fail Secure 612 Satin Bronze

310-4(S) SK keeper standard; For use with

Squarebolt® style rim exit devices

613 Bronze Toned

629 Bright Stainless Steel

630 Satin Stainless Steel

Dimensions Model 310-4 shown

[19]

3/4"

[44.4]

1-3/4" [28.5]

1-1/8"

310-4

For up to 3/4" Pullman style latchbolts on single doors

PK keeper standard

310-4S

For Squarebolt® style rim exit devices such as;

• Corbin Russwin® ED4200S, ED5200S and ED5200SA

SecureBolt™

• Yale® 7150(F), 7250, 7270M(F) Squarebolt® Exit

Devices

SK keeper standard

[44.5]

1-3/4"

[228.6]

[209.6]

8-1/4"

[30.5]

1-13/64"

[12.7]

1/2"

[6.3]

1/4"

[142.9]

5-5/8"

Electric Strikes

Features

Standard Features

• Tamper-resistant, heavy

duty construction

• Constructed entirely of stainless steel

for strength and corrosion resistance

• Static strength 1,500 lbs

• Dynamic strength 70 ft-lbs

• Endurance 1 million cycles

• Adjustable keeper to allow for

door and frame misalignment

• Pullman keeper

• Non-handed

• Fail secure (Standard)

• Plug-in connector

• SecuriCare five-year, no fault,

no questions asked warranty

Optional Features

• Fail safe

• LCBMA Latchbolt & Locking Cam

Monitor with Auxiliary Switch

Accessories

• 2001-1 Wire-in bridge rectifier

• 2001M Plug-in bridge rectifier

• 2004M ElectroLynx® adapter

• 2005M3 SMART Pac® III

• 2006M Plug-in buzzer

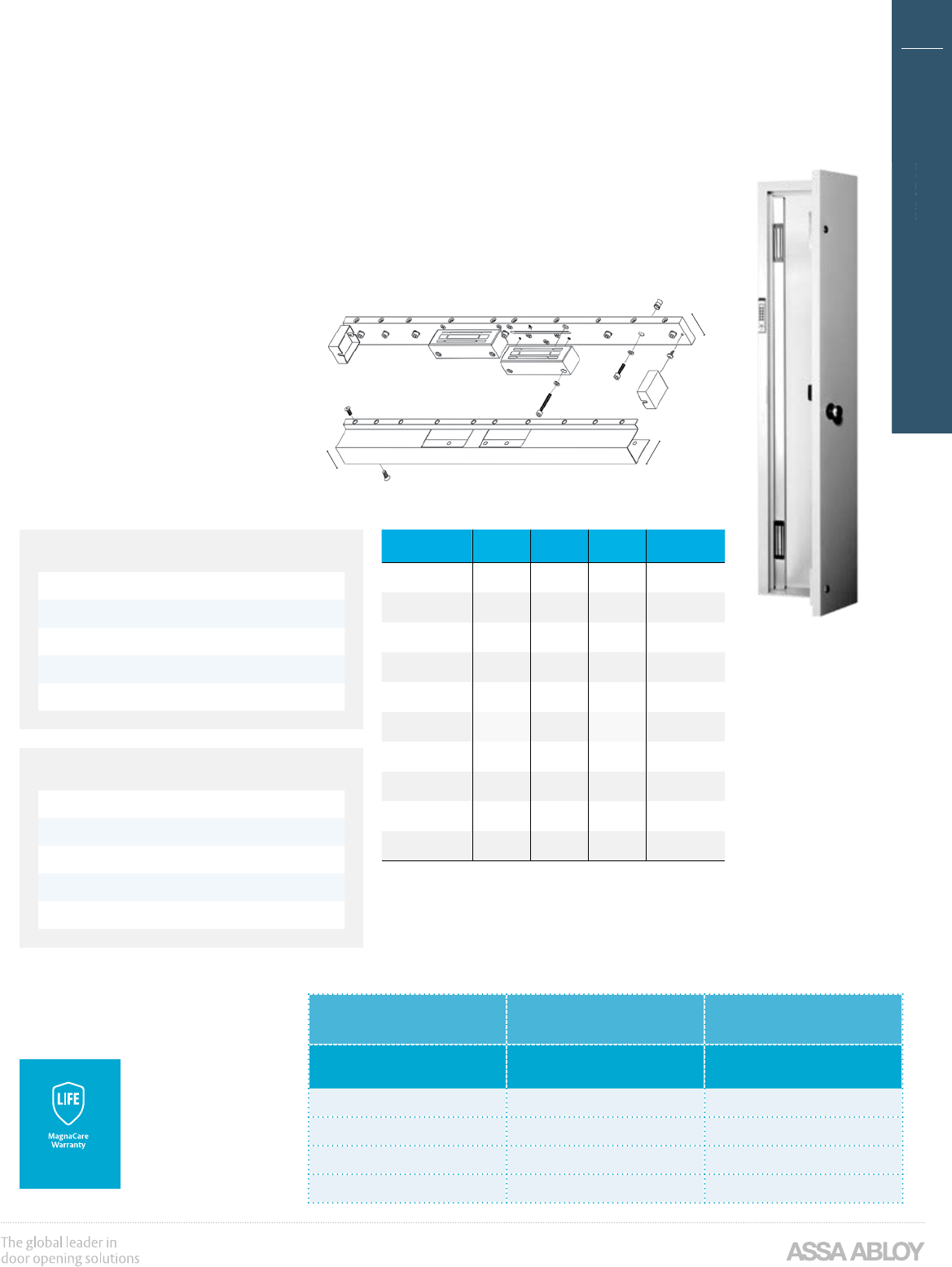

The 310-4-X vertical

surface mounted series

is designed for heavy

duty applications on

single or double doors.

The all stainless steel construction of

this device makes it ideal for high abuse

applications. This line of electric strikes

will accommodate rim exit devices with

a swinging, pullman style latchbolt.

HES® Folger Adam

310-4-X

Electric Strike

Works with surface

vertical rod exit devices

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

Electric Strikes

Specifications

Certifications

• UL 1034, burglary-resistant listed

• UL 294 (6th Edition) listed

• ANSI/BHMA A156.31, Grade 1

• RoHS compliant

Electrical (Continuous Duty)

• 510 mA at 12 VDC/250 mA at 24 VDC

How to Order

Series Keeper Style Fail Safe / Secure Voltage Finish* Option (s)

310-4-X (PK) F – 24D – 612 – LCBMA

Complete Pacs (PK) For use with

3/4" Pullman

style latchbolts

(blank) Fail Secure

(Standard)

12D 12 Volt 605 Bright Brass LCBMA* Latchbolt &

locking cam monitor

with auxiliary switch

1 For use with vertical

rod spacing between

4" and 4-3/4"

24D 24 Volt 606 Satin Brass

F Fail Secure 612 Satin Bronze

2 For use with vertical

rod spacing between

4-5/8" and 5-3/8"

613 Bronze Toned

629 Bright Stainless Steel

3 For use with vertical

rod spacing between

5-1/4" and 6"

630 Satin Stainless Steel

30 For use with vertical

rod spacing between

2-5/8"and 3-3/8

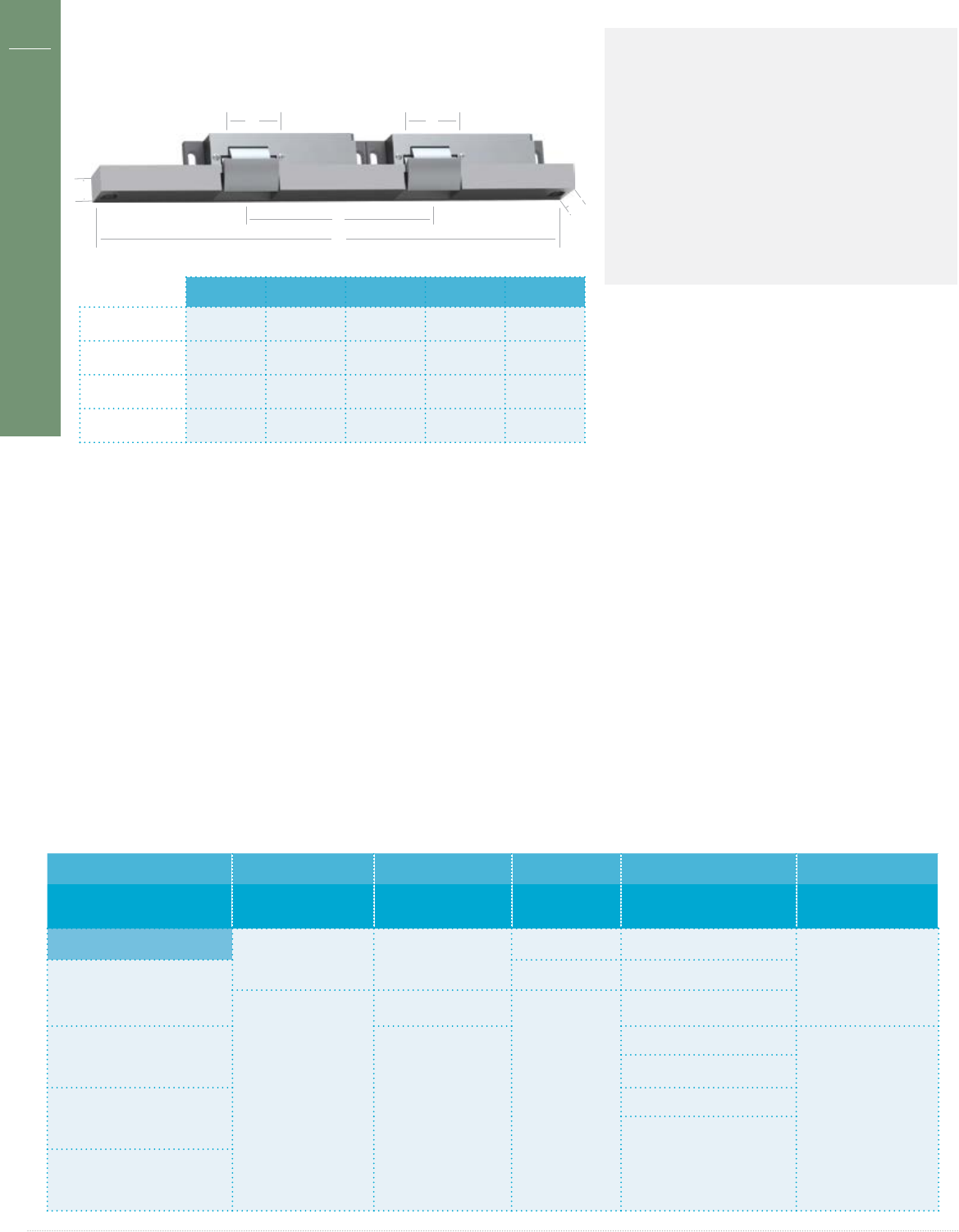

Dimensions

A B C D E

310-4-1 13-3/8" 4-3/8" 1-13/16" 1-1/2" 3/4"

310-4-2 14 5" 1-13/16" 1-1/2" 3/4"

310-4-3 14-5/8" 5-5/8" 1-13/16" 1-1/2" 3/4"

310-4-30 12" 3" 1-13/16" 1-1/2" 3/4"

310-4-1

For both leaves of a pair of doors when spacing

of the vertical rod is between 4" and 4-3/4"

PK keeper standard

310-4-2

For both leaves of a pair of doors when spacing of

the vertical rods is between 4-5/8" and 5-3/8"

PK keeper standard

310-4-3

For both leaves of a pair of doors when spacing

of the vertical rods is between 5-1/4" and 6"

PK keeper standard

310-4-30

For both leaves of a pair of doors when spacing of

the vertical rods is between 2-5/8" and 3-3/8"

PK keeper standard

Note: Double-door models are available with four different center-to-center dimensions

between latchbolt keepers. Keepers are wide enough to compensate for vertical-rod exit

bolts which may be as much as 3/8" (10mm) off center-to-center dimension, either way.

Note: When using an electric strike in conjunction with a vertical-rod exit device:

1. The bottom rod of the exit device must be removed or made inoperative.

2. The latchbolt of the exit device must be the "Pullman" or beveled type.

3. The latchbolt must be free-latching and remain projected while the door is open.

Mechanisms that hold the latchbolt retracted while the door is open, and automatically

release it when the door is closed, must be removed or made inoperative

Electric Strikes

Features

Standard Features

• Tamper-resistant, heavy

duty construction

• Constructed entirely of stainless steel

for strength and corrosion resistance

• Static strength 1,500 lbs

• Dynamic strength 70 ft-lbs

• Endurance 1 million cycles

• Adjustable keeper allows for

door and frame misalignment

• Non-handed

• Fail secure (Standard)

• Plug-in connector

• SecuriCare five-year, no fault,

no questions asked warranty

Optional Features

• Fail safe

• LCBMA Latchbolt & Locking Cam

Monitor with Auxiliary Switch

Accessories

• 2001-1 Wire-in bridge rectifier

• 2001M Plug-in bridge rectifier

• 2004M ElectroLynx® adapter

• 2005M3 SMART Pac® III

• 2006M Plug-in buzzer

The 310-6-X vertical

mounted series is

designed for heavy

duty applications on

single or double doors.

The all stainless steel construction of

this device makes it ideal for high abuse

applications. This line of electric strikes

will accommodate rim exit devices with

a swinging or pullman style latchbolt.

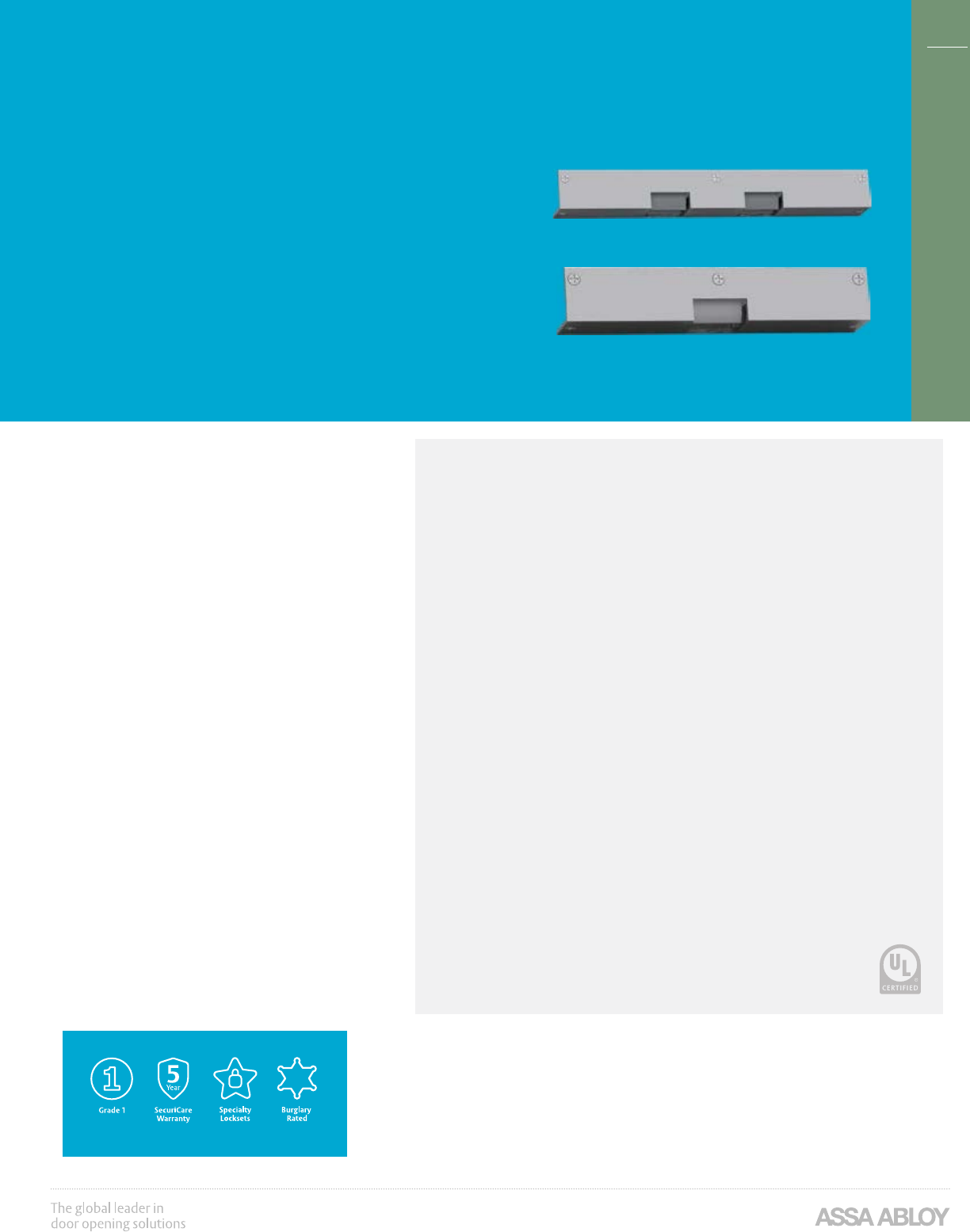

HES® Folger Adam

310-6-X

Electric Strike

Works with concealed

vertical rod exit devices

310-6-X

310-6-8

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

Electric Strikes

Specifications

Certifications

• UL 1034, burglary-resistant listed

• UL 294 (6th Edition) listed

• ANSI/BHMA A156.31, Grade 1

• RoHS compliant

Electrical (Continuous Duty)

• 510 mA at 12 VDC/250 mA at 24 VDC

How to Order

Series Keeper Style Fail Safe / Secure Voltage Finish* Option (s)

310-4-X (PK) F – 24D – 612 – LCBMA

Complete Pacs (PK) For use with

3/4" Pullman

style latchbolts

(blank) Fail Secure

(Standard)

12D 12 Volt 605 Bright Brass LCBMA* Latchbolt &

locking cam monitor

with auxiliary switch

1 For use with vertical

rod spacing between

4" and 4-3/4"

24D 24 Volt 606 Satin Brass

F Fail Secure 612 Satin Bronze

2 For use with vertical

rod spacing between

4-5/8" and 5-3/8"

613 Bronze Toned

629 Bright Stainless Steel

3 For use with vertical

rod spacing between

5-1/4" and 6"

630 Satin Stainless Steel

30 For use with vertical

rod spacing between

2-5/8"and 3-3/8

Dimensions

A B C D E

310-6-1 14-1/2" 4-3/8" 1-13/16" 1-3/4" 1-3/4"

310-6-2 15-1/8" 5" 1-13/16" 1-3/4" 1-3/4"

310-6-3 15-3/4" 5-5/8" 1-13/16" 1-3/4" 1-3/4"

310-6-30 13-1/8" 3" 1-13/16" 1-3/4" 1-3/4"

310-6-8 10-7/8" –1-13/16" 1-3/4" 1-3/4"

310-6-8 E

310-6-X

Note: Double-door models are available with four different center-to-center dimensions

between latchbolt keepers. Keepers are wide enough to compensate for vertical-rod exit

bolts, which may be as much as 3/8" (10mm) off center-to-center dimension, either way.

Note: When using an electric strike in conjunction with a vertical-rod exit device:

1. The bottom rod of the exit device must be removed or made inoperative.

2. The latchbolt of the exit device must be the "Pullman" or beveled type.

3. The latchbolt must be free-latching and remain projected while the door is open.

Mechanisms that hold the latchbolt retracted while the door is open, and automatically

release it when the door is closed, must be removed or made inoperative.

Note: The electric strike will not operate with a deadbolt style vertical rod.

310-6-1

For both leaves of a pair of doors when spacing of the

vertical rods is between 4" and 4-3/4"

PK keeper standard

310-6-2

For both leaves of a pair of doors when spacing of the

vertical rods is between 4-5/8" and 5-3/8"

PK keeper standard

310-6-3

For both leaves of a pair of doors when spacing of the

vertical rods is between 5-1/4" and 6"

PK keeper standard

310-6-8

For only the active leaf of a pair

PK keeper standard

310-6-30

For both leaves of a pair of doors when spacing of the

vertical rods is between 2-5/8" and 3-3/8"

PK keeper standard

Electric Strikes

The 700 series is a

3 hour fire-rated,

industrial grade

electric strike designed

for extreme heavy

duty applications.

The all stainless steel construction

of this device makes it ideal for high

abuse applications. The 712 series is

designed to accommodate 1/2" throw

latchbolts, and the 712-75 is designed

to accommodate 3/4" latchbolts.*

*NOTE: These products will require relocation of the

center line when used with moritse locks. Consult HES

customer support regarding use with the Best 40 series.

Features

Standard Features

• Tamper-resistant, heavy

duty construction

• Constructed entirely of stainless steel

for strength and corrosion resistance

• Static strength 1,500 lbs

• Dynamic strength 70 ft-lbs

• Horizontally adjustable keeper allows

for door and frame misalignment

• 1/2" keeper depth (712 and 732)

• 3/4" keeper depth

(712-75 and 732-75)

• Non-handed

• Fail secure (Standard)

• Plug-in connector

• SecuriCare five-year, no fault,

no questions asked warranty

Optional Features

• Fail safe

• LBMLCM Latchbolt &

Locking Cam Monitor

Accessories

• 150 Strike latch guard

• 152 Universal mounting tabs

• 2001-1 Wire-in bridge rectifier

• 2001M Plug-in bridge rectifier

• 2004M ElectroLynx® adapter

• 2005M3 SMART Pac® III

• 2006M Plug-in buzzer

HES® Folger Adam

700 Electric Strike

Works with cylindrical and mortise

locksets without a deadbolt

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

Electric Strikes

Dimensions Specifications

Certifications

• UL 10C fire-rated, 3-hour single

door (fail secure only)

• UL 10C fire-rated, 3-hour double

door (fail secure only)

• CAN4-S104 (ULC-S104) fire door confomant

• UL 1034, burglary-resistant listed

• UL 294 (6th Edition) listed

• ANSI/BHMA A156.31, Grade 1

• NFPA-252 fire door conformant

• ASTM-E152 fire door conformant

• RoHS compliant

Electrical (Continuous Duty)

• 290 mA at 12 VDC/150 mA at 24 VDC

• PoE friendly

How to Order

Series Fail Safe / Secure Voltage Finish* Option (s)

712 – F – 24D – 630 – LBMLCM

Complete Pacs (blank) Fail Secure

(Standard)

12D 12 Volt 605 Bright Brass LBMLCM Latchbolt &

locking cam monitor

712 1/2" PK keeper standard; Hollow metal

frames, for up to a 5/8" throw latchbolt

24D 24 Volt 606 Satin Brass

F Fail Secure 612 Satin Bronze

712-75 3/4" PK keeper standard; Hollow

metal frames, for up to a 3/4" throw

latchbolt without deadbolt

613 Bronze Toned

629 Bright Stainless Steel

732 PK keeper standard; Wood frames, for

up to a 5/8" throw latchbolt

630 Satin Stainless Steel

732-75 3/4" PK keeper standard; Wood

frames, for up to a 3/4" throw

latchbolt without deadbolt

*LCBMA not available with 310-2 3/4OB

712

For use with 1/2" to 5/8"

throw latchbolts in hollow

metal frame applications

1/2" PK keeper standard

712-75

For use with 1/2"*, 5/8"*

or 3/4" throw latchbolts

in hollow-metal frame

applications

3/4" PK keeper standard

732

For use with 1/2"* to

5/8"* throw latchbolts in

wood frame applications.

Features

an offset solenoid

PK keeper standard

732-75

For use with 1/2", 5/8" or

3/4" throw latchbolts in

wood frame applications.

Features

an offset solenoid

3/4" PK keeper standard

*NOTE: When using LBMLCM with a 1/2" or 5/8" keeper

latchbolt detection may be dependent on the door gap.

Electric Strikes

Features

Standard Features

• Tamper-resistant, heavy

duty construction

• Constructed entirely of stainless steel

for strength and corrosion resistance

• Static strength 1,500 lbs

• Dynamic strength 70 ft-lbs

• Endurance rating 1 million cycles

• Horizontally adjustable

keeper to allow for door and

frame misalignment

• Deadlatch tabs included

• 3/4" keeper depth

• Non-handed

• Fail secure (Standard)

• Plug-in connector

• Full keeper shim

• SecuriCare five-year, no fault,

no questions asked warranty

Optional Features

• Fail safe

• LBMLCM Latchbolt &

Locking Cam Monitor

Accessories

• 150 Strike latch guard

• 152 Universal mounting tabs

• 2001-1 Wire-in bridge rectifier

• 2001M Plug-in bridge rectifier

• 2004M ElectroLynx® adapter

• 2005M3 SMART Pac® III

• 2006M Plug-in buzzer

The 742-75 series is

a 3 hour fire-rated,

industrial grade

electric strike designed

for extreme heavy

duty applications.

The all stainless steel construction of

this device makes it ideal for high abuse

applications. The 742-75 series comes standard

with a variety of brackets to accommodate

all major mortise and cylindrical locks with

up to a 3/4" throw latchbolts.* This is the

one electric strike to choose when you are

uncertain of which lockset you may encounter.

*NOTE: 742-75 is designed to work with a variety

of mortise locks without deadbolts, including the

Schlage L9000 and Yale 8800 without relocating

the strike prep in the frame. Consult HES customer

support regarding use with the Best 40 series.

HES® Folger Adam

742 Electric Strike

Works with all major mortise

and cylindrical locksets with

up to 3/4" throw latchbolt

Patent pending and/or patent

assaabloydss.com/patents

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Electric Strikes

Dimensions Specifications

Certifications

• UL 10C fire-rated, 3-hour single

door (fail secure only)

• UL 10C fire-rated, 1-1/2 hour double

door (fail secure only)

• CAN4-S104 (ULC-S104) fire door conformant

• UL 1034, burglary-resistant listed

• UL 294 (6th Edition) listed

• ANSI/BHMA A156.31, Grade 1

• NFPA-252 fire door conformant

• ASTM-E152 fire door conformant

Electrical (Continuous Duty)

• 290 mA at 12 VDC/150 mA at 24 VDC

• PoE friendly

How to Order

Series Fail Safe / Secure Voltage Finish* Option (s)

742-75 – F – 12D – 613 – LBMLCM

Complete Pacs (blank) Fail Secure

(Standard)

12D 12 Volt 605 Bright Brass LBMLCM Latchbolt &

locking cam monitor

742-75 Hollow metal frames, for up to

a 3/4" throw latchbolt without

deadboltt

24D 24 Volt 606 Satin Brass

F Fail Secure 612 Satin Bronze

613 Bronze Toned

629 Bright Stainless Steel

630 Satin Stainless Steel

*LCBMA not available with 310-2 3/4OB

[46.3]

1-13/16"

[13.6]

9/16"

[38.1]

1-1/2"

[61.7]

2-7/16"

[38.1]

1-1/2"

[17.6]

11/16"

[159.9]

6-5/16"

[41.3]

1-5/8"

[3.2]

1/8"

[19.1]

3/4"

[49]

1-15/16"

[31.5]

1-1/4"

[15.9]

5/8"

[14.8]

9/16"

[9.3]

3/8"

[18.8]

3/4"

[104.8]

4-1/8"

[85.7]

3-38"

[123.4]

4-7/8"

* NOTE: When using LBMLCM with a 1/2" or 5/8" keeper

latchbolt detection may be dependent on the door gap

742-75

For use with 1/2"*, 5/8" *or 3/4" throw latchbolts in

hollow metal frame applications

Electric Strikes

Accessories

Item Accessory Description

2001M

Plug-in bridge rectifier

Converts AC to unfiltered DC. Rated 35 V, 1 Amp

Includes MOV and self-resettable fuse Not

recommended for 1006 Electric Strike

2001-1

Wire-in bridge rectifier

Converts AC to unfiltered DC. Rated 35 V, 2 Amp

Not recommended for 1006 Electric Strike

2004M

ElectroLynx® adapter

Adapter between existing HES electric strikes

and ElectroLynx® connectors

2005M3

SMART Pac® III

Addition of Smart Pac to any electric

strike extends the 5-year "No Fault"

warranty to a 10-year "No Fault" warranty.

In-line power controller able to receive input voltages from

12- 32V AC or DC. Built-in bridge rectifier. Reduces initial

voltage by 25% to extend the life of the electric strike.

Includes built-in resettable fuse, MOV, voltage regulation

and input voltage level indicating and unit status

For use with 1006, input voltage must be DC

2006M

Plug-in buzzer Audible operation indicator. At 24 VDC, 75db at 11-3/4"

2007M

Plug-in pigtail connectors With 4" wire leads

150

Strike latch guard

Stainless steel. Installed at the edge of the door

to cover the lock and electric strike

310-2-3

Astragal strike latch guard

Designed to prevent tampering with the latchbolt, as well as the

latchbolt keeper. Prevents one door from being open before the other.

7000-SMB

Surface mounting box

Installs on inactive door of pair of doors to accommodate

rim-exit devices. To be used with the 7000 (783S and

789S), 9400, 9500, 9600 and 9700 series.

Available in black finish only

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

Electric Strikes

Accessories

Item Accessory Description

152

Universal mounting tabs Mount inside hollow metal and aluminum jambs

HESCUT-MTK

Metal template kit

For installing the 1006, 1500, 1600, 4500, 5000,

5200, 7000 and 7501 electric strikes

(4-7/8" ANSI jamb preparation only)

9000-MTK

Metal template kit

For installing the 9400, 9500, 9600, and 9700

electric strikes

157D

Torx® security bit Tamper-Resistant Torx R20 insert bit

157

Torx® screws

Two (2) 12-24 UNC x 3/4" FH

Tamper-Resistant Pin-in-Torx screws

Electric Strikes

Features

Standard Features

• No cutting or altering

of the jamb required

• Fits standard ANSI 4-7/8" strike cutout

• Fail secure (Standard)

• Preload capable

• Supports deadlatch function

• Motor driven action

• Latch status sensor included (SPDT)

• SecuriCare five-year, no fault,

no questions asked warranty

Optional Features

• 12 VDC

• 24 VDC

• FSUNL for field-selectable fail safe

operation (ordered separately)

The universal compact,

high performance, no

cut electromechanical

motorized electric

strike for use with

cylindrical locksets.

The UNL is capable of releasing under preload

conditions and includes lock monitoring

standard. Strong enough to withstand

windstorm conditions, the UNL is the UL

listed, fire-rated electric strike that provides

ANSI/BHMA Grade 1 holding power.

Securitron® UNL

UnLatch® Strike

Works with most cylindrical

locksets

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

Electric Strikes

Dimensions Specifications

Certifications

• UL 10C Listed, 3 hour single door

• CAN4-S104, CAN/ULC Listed

• NFPA-252 fire door compliant

• UL listed to ANSI/ SDI-BHMA A250.13

(60PSI) Windstorm

• ANSI/BHMA A156.31, Grade 1;

E09321, E09322, E09323

• ASTM-E152 fire door compliant

Electrical

• 12 VDC (continuous duty)

– Inrush – 3 Amps

– Standby Current – 300 mA

• 24 VDC (continuous duty)

– Inrush – 1.5 Amps

– Standby Current – 200 mA

Holding Force

• 1500 lbs [680kg] static

Operating Temperature

• -20 to +125F [-29 to + 52C]

Shipping Weight

• 1.6 lbs [0.73kg]

How to Order

Series Fail Safe / Secure Voltage Finish

UNL — – 24 – 10B

UNL Cylindrical (blank) Fail Secure (Standard)

Note: FSUNL for field-selectable fail safe

operation ordered separately

12 12 Volt (blank) US26D/626—Stainless Steel

24 24 Volt 10B US10B/613—Oil Rubbed Bronze

Part Number | Description

FSUNL-12 Fail Safe/Fail Secure Unlatch

Module, 12 VDC, .90 mA

FSUNL-24 Fail Safe/Fail Secure Unlatch

Module, 24 VDC, 1.4 mA

Securitron®

FSUNL Fail Safe

Unlatch® Module

Allows Fail Safe

Configuration of

UNL and MUNL

The FSUNL is used with an UNL or MUNL

installation to provide selectable fail

safe or fail secure behavior. Removal of

power initiates a full unlatch or latch cycle

depending on which mode is selected.

FSUNL

4.87"

4.12"

1.245"

1.33"

1.50"

3.37"

3.38"

Electric Strikes

Features

Standard Features

• No cutting or altering

of the jamb required

• Fits standard ANSI 4-7/8"

strike cutout

• Fail secure (Standard)

• Preload capable

• Motorized, no solenoids

• Fully concealed installation

• Maintains dead latch

function at all times

• Continuous duty

• Lock Monitor included (SPDT)

• SecuriCare five-year, no fault,

no questions asked warranty

Optional Features

• 12 VDC

• 24 VDC

• FSUNL for field selectable

fail safe operation

• One model works with most

North American Mortise

Locks (Sargent 7800 and 8200

require tab kit model #STK-1

for retrofit installations)

The universal compact,

high performance, no

cut electromechanical

motorized strike for

use with mortise

locksets without

deadbolts.

The MUNL is capable of releasing under

preload conditions and includes lock

monitoring standard. Strong enough to

withstand windstorm conditions, the MUNL

is the UL listed, fire-rated electric strike

that provides ANSI/BHMA Grade 1 holding

power and includes field adjustability

for latch and deadlatch positions.

Securitron® MUNL

Works with Mortise Locksets

without Deadbolts

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

Electric Strikes

1.25"

3.38"

1.88"

3.50" 4.88"

Part Number | Description

FSUNL-12 Fail Safe/Fail Secure Unlatch

Module, 12 VDC, .90 mA

FSUNL-24 Fail Safe/Fail Secure Unlatch

Module, 24 VDC, 1.4 mA

FSUNL Fail Safe Unlatch

Module

Specifications

Certifications

• UL 10C Listed

• CAN4-S104, CAN/ULC Listed

• NFPA-252 fire door compliant

• UL listed to ANSI/ SDI-BHMA A250.13

(60PSI) Windstorm

• ANSI/BHMA A156.31, Grade 1;

E09321, E09322, E09323

• ASTM-E152 fire door compliant

Electrical

• 12 VDC (continuous duty)

– Inrush – 4 Amps

– Standby Current – 600 mA

• 24 VDC (continuous duty)

– Inrush – 2 Amps

– Standby Current – 300 mA

Holding Force

• 1500 lbs [680kg] static

Operating Temperature

• -20 to +125F [-29 to + 52C]

Shipping Weight

• 2 lbs [0.91kg]

Dimensions

Securitron®

FSUNL Fail Safe

Unlatch® Module

Allows Fail Safe

Configuration of

UNL and MUNL

The FSUNL is used with an UNL or MUNL

installation to provide selectable fail

safe or fail secure behavior. Removal of

power initiates a full unlatch or latch cycle

depending on which mode is selected.

FSUNL

How to Order

Series Fail Safe / Secure Voltage Finish

MUNL — – 24 – 10B

MUNL Mortise (blank) Fail Secure (Standard) 12 12 Volt (blank) US26D/626—Stainless Steel

24 24 Volt 10B US10B/613—Oil Rubbed Bronze

Electric Strikes

Compatability Chart

ASSA ABLOY Electronic Security Hardware Adams Rite Von Duprin RCI Trine SDC

HES

Complete

One Box

Solutions

HES Standard

Models

Seuritron

Complete

One Box

Solutions

Folger

Adam

Models

1006CS,

1006CLB 1006J 712-75,

732-75

VD3140,

6211

6400

F2164 4100 55

1006CS,

1006CLB

1006K, 1006KD,

1006KM 742-75 6210

6400 F2164 4100

1006CAS 1006A, 1006AD,

1006AM

1006CS,

1006CDB,

1006N, 1006ND,

1006NM 6210 F2164

1006CAS 1006T, 1006TD

1006CS,

1006CDB

1006H, 1006HD,

1006HM F2164

1006CS,

1006CDB 1006E

1006CS 1006Z

1006R

1006J2 310-2,

310-2 3/4

6215, 6224,

6226

1006CDB 1006H-2 310-3-1 6216

4500C 742-75 7240, 7270 6210 F2164 4100

5000C 5000-501 7140, 7340,

7410, 7411

4200

5100 L6514 25-4U

5000C 5000-501A 7101, 7160,

7300, 7440

4200

5100 L6504 25-4U

5000-502 7110, 7310,

7410 5100 L6508

5000-503 7130, 7430 L6507

5000-504

5200C 5200-501 5100 S6514,

7114, 7314 2012 45-4S

5200C 5200-501A 5100 S6504,

7104, 7304 45-4R

5200-502 5100 S6508,

7108, 7308 2002 45-7R

5200-503 S6507,

7107, 7307 2678 145-6R

5200-504

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

Electric Strikes

Compatability Chart

ASSA ABLOY Electronic Security Hardware Adams Rite Von Duprin RCI Trine SDC

HES

Complete

One Box

Solutions

HES

Standard

Models

Seuritron

Complete

One Box

Solutions

Folger

Adam

Models

7000C 7000-791 UNL 712, 732 7400, 7401,

7440

7000C 7000-792 UNL 7410, 7411

7000-783S 74R1, 74R 2

7000-786S

7000-789S

7501 7501 MUNL

8000C

8000-801,

8000-801A,

8300-801,

8300-801A

UNL

8000-801E,

8000-802,

8000-803,

8300-801E,

8300-802,

8300-803

UNL

8500-851M,

8500-852K,

8500-852L,

8500-852M

MUNL

9400 9400 310-4 0563 4850

9500 9500 6300 F0162 4800F

9600 9600 0162 4800

310-2OB 6222, 6225

310-4 6212,

VD3146

9700 9700 310-4S 4801

310-4-1, 310-

4-2, 310-4-3,

310-4-30

310-6-1,

310-6-2, 310-

6-3, 301-6-8,

310-6-30

NOTE: This chart is offered as a convenience only. Reference should be made to the individual manufacturer’s catalogs for complete data as to exact equi-

valents. There may be some variation in physical size, electrical characteristics and durability between strikes of different manufacturers. HES assumes no

liability for differences between items compared. When compatibility is a concern, contact Customer Support at 800-626-7590 for application assistance.

NOTE: The 109 trim adapter may be required for a neater appearance in retro fit applications where the strike lip dimensions exceed 3-3/8".

NOTE: This chart details the HES and Folger Adam products that can replace competitors products, but not necessarily the reverse.

Electric Strikes

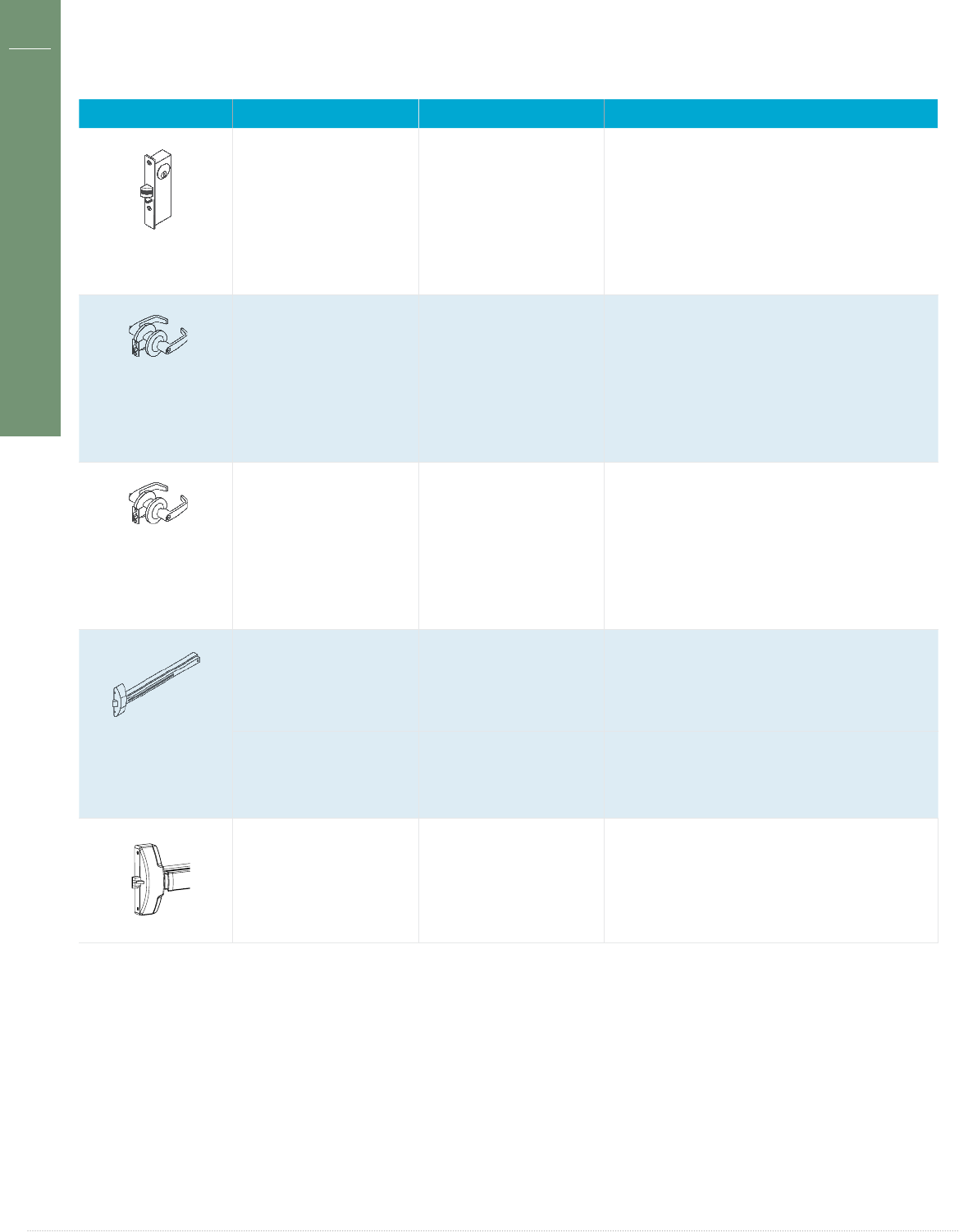

ANSI Lock Description Manufacturer Electric Strikes

Mortise locksets

Mortise lockset

without a deadbolt

Arrow, Baldwin, Best,

Marks, Omnia, PDQ

1006CS, 1600-CS, 1006CLB, 1600-CLB, 1006-

KM, 1600-1LB, 1500C, 4500C, MUNL

Corbin Russwin

ML2000 and Arrow

1006CS, 1600-CS, 1006CLB, 1600-CLB, 1006-KM,

1600-1LB, 1500C, 4500C, 8500-852K, 742-75, MUNL

Sargent 7700 and

8100 Schlage L9000

1006CS, 1600-CS, 1006CLB, 1600-CLB, 1006-

KD, 1600-1LB, 1500C, 4500C, 8500-851M,

(Sargent 8100 only), 8500-852L, 742-75, MUNL

Sargent 7900,

8200, and 9200

1006CS, 1600-CS, 1006CLB, 1600-CLB, 1006-KM,

1600-1LB, 1500C, 4500C, 8500-851M, 8500-

852L, 742-75, MUNL (requires STK-1 tab kit)

Accurate, Falcon,

Kaba Ilco/

Unican, Yale 8700

(manufactured after

2005),

Yale 8800

1006CS, 1600-CS, 1006CLB, 1600-CLB, 1006-KD,

1600-1LB, 1500C, 4500C, 8500-852M, MUNL

Mortise locksets

Mortise lockset with a

1" deadbolt

Accurate, Almet,

Arrow, Baldwin,

Best, Marks, Corbin

Russwin, Falcon,

Omnia, PDQ, Schlage

1006CS*, 1600-CS*, 1006CDB*, 1600-

CDB* 1006-HD*, 1006-ND*, 1006CAS

Sargent, Yale 1006CS*, 1600-CS*, 1006CDB*, 1600-

CDB* 1006-HD*, 1006-ND*, 1006CAS

Lock Cross Reference

*Not intended for continuous recapture of a 1" deadbolt - use 1006 CAS

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

Electric Strikes

Lock Cross Reference

ANSI Lock Description Manufacturer Electric Strikes

Cylindrical lockset

Latchbolt for aluminum

stile doors

All manufacturers 5000C, 5200C, 1500C, 7000C,

1006-J, 1600-1LB, UNL

Cylindrical lockset

up to 5/8" throw

All manufacturers 1006CS, 1600-CS, 1006CLB, 1600-CLB, 1006-J,

1600-1LB, 1500C, 4500C, 5000C, 7000C, 8000C,

8300C, 712, 310-2, UNL, Vista V3 (now Alarm

Controls AES300)

Cylindrical lockset

up to 3/4" throw

All manufacturers 1006CS, 1600-CS, 1006CLB, 1600-CLB, 1006-

J, 1600-1LB, 1500C, 4500C, 5200C, 7501,

310-75, 712-75

Rim mounted

Pullman rim mounted exit

device up to 1/2" throw

All Manufacturers 9400, 7000-789S

Rim mounted

Pullman rim mounted exit

device up to 3/4" throw

All Manufacturers 9500, 9600, 7000-783S, 7000-786S, 310-4

Rim mounted

Squarebolt® style rim

mounted exit devices

Corbin Russwin

(SecureBoltTM), Yale

(SquareBolt®)

9700, 310-4S

•HES and Folger Adam electric strikes are designed to be installed in accordance with the ANSI/BHMA A156.31 4-7/8" jam preparation.

•When accommodating a cylindrical lock, the electric strike is to be installed centerline to centerline.

• When accommodating a mortise lock, the centerline of the electric strike is to be installed 3/8" above the centerline of the mortise lock, except as noted

for individual strikes. Folger Adam 712 series and 310 series will need special alignment with used with a mortise lock.

•HES electric strikes are all non-handed and designed for installation in hollow metal, concrete filled metal, aluminum and wood jambs.

•Folger Adam electric strikes are all non-handed and designed for installation in hollow metal, aluminum and wood jambs.

Electromagnetic

Locks

Electromagnetic Locks

ASSA ABLOY Electronic

Security Hardware

The premier supplier of

electromagnetic locking solutions.

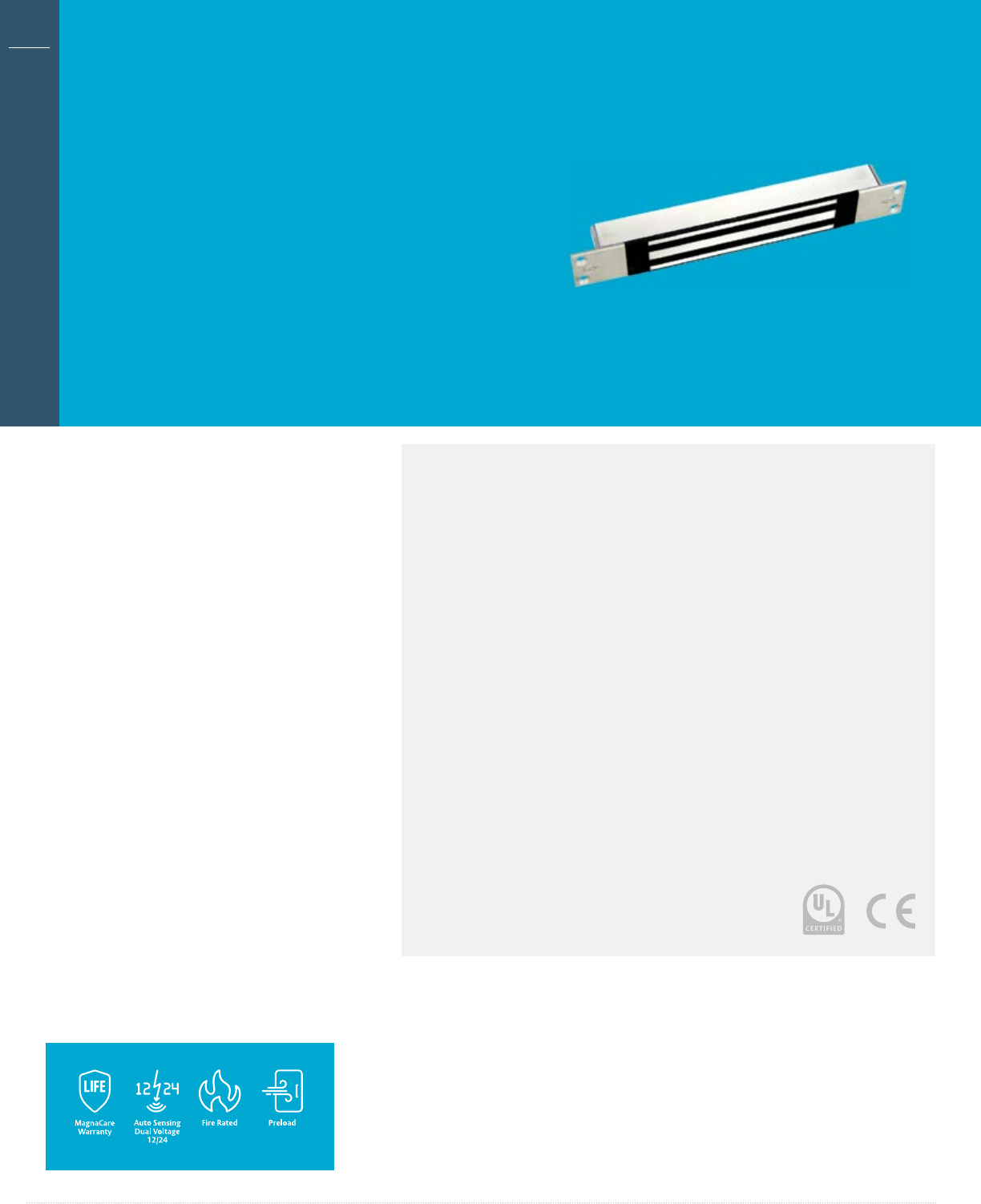

When you choose a genuine Securitron® Magnalock®, you get

quality solutions for high traffic and high security applications

plus MagnaCare® Lifetime Replacement No Fault Warranty.

Ultra-Durable

Magnalocks

• • Lower power usage than competitor locks. At 3 watts

(less wattage than a typical nightlight), a Securitron

Magnalock operates efficiently with a smaller power

supply, thinner wiring and longer battery backup.

Securitron Magnalocks consume less energy,

generate less heat and outlast the competition.

• • 100% waterproof design, shock absorbing

polyurethane, stainless steel casing and plated

lock face that is impervious to corrosion

operate from -40F to +140F [-40C to +60C]

• • Instant release circuit with no residual

magnetism and no inductive kickback

Ultra-Durable

All Securitron Magnalocks Include

• Automatic Dual-voltage uses 12 or 24 volt power supply and protects Magnalock

• World-class technical support experts, ready to assist you in selecting

hardware, wiring and troubleshooting your opening

• Collapsing blind nuts, securely anchor Magnalocks to the frame with 1,000 lbs of tensile strength

• Excellent product quality—Magnalocks are manufactured in an

ISO9001and ISO14001 certified factory in Phoenix, AZ

• MagnaCare®, the best warranty in the industry – lifetime replacement, no fault, no questions asked

Smart & Sustainable

Magnalocks

• • Available with PIR REX,

BondSTAT® and DPS reduce

the number of devices to buy

and install at the door

• • Sleek, low profile and

refined lines for aesthetically

demanding applications

• • Patent-pending template and

bracket mounting system

enable accurate alignment of

magnet and armature plate

for maximum holding force,

installs in less than 22 minutes

Electromagnetic Locks

Features

Standard Features

• PoE friendly

• Sustainability documentation

• Tamper resistant

• Efficient, low power usage

• Automatic dual-voltage—no

field adjustment required

• Bracket mounting provides the

easiest install for out-swing doors

• Size optimized for use

with door closers

• Rust resistant—all ferrous metal

surfaces plated for durability

• Instant release circuit—no

residual magnetism

• LED visual locked status with

configurable red/green color output

• Sleek, low profile and refined

lines for improved aesthetics

• Wire chamber with

anti-tamper switch

• Adjustable automatic relock

timer (0 to 30 seconds)

• Ultra-secure collapsing blind

nuts mount to door frame for

strength and reliability

• MagnaCare® lifetime replacement,

no fault, no questions

asked warranty

Optional Features

• B Patented BondSTAT

magnetic bond sensor

• D Integrated Door

Position Switch (DPS)

• C2 Integrated color video

surveillance camera

• C Integrated black and white

video surveillance camera

for lower light conditions

• X Integrated passive

infrared request to exit

Smart, stylish, and

secure with advanced

features and amazingly

easy to install.

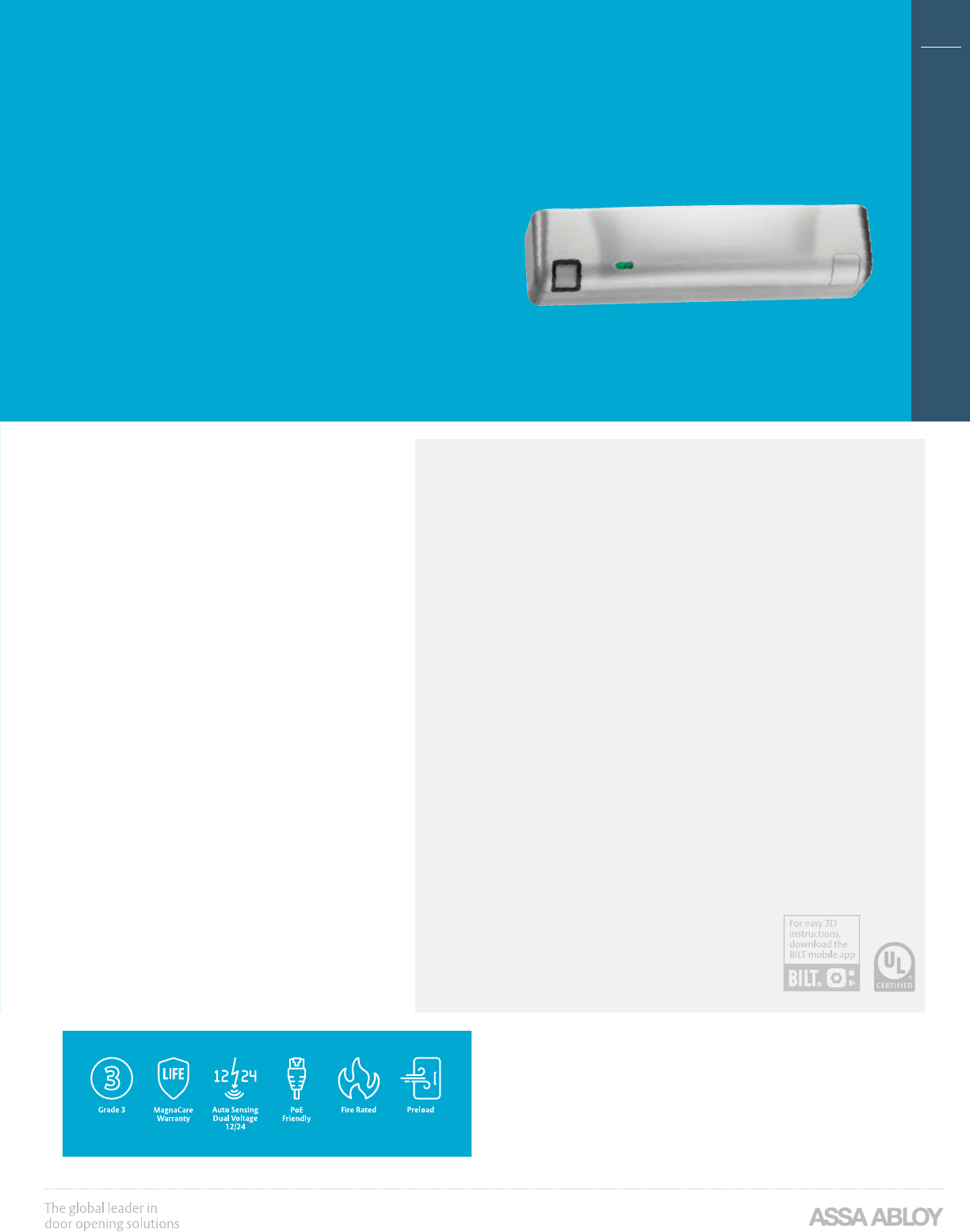

The M380 from Securitron provides strong

hold, in a stylish way. With unsurpassed

intelligence, an integrated optional REX and

surveillance camera and incredible ease of

installation, it sets a new standard for maglocks.

A built in, auto voltage-sensing microprocessor

along with Securitron’s patented BondSTAT

and door position monitoring plus advanced

options such as integrated camera and REX for

the most functional maglock ever. The newest

addition to the aesthetically pleasing line of

maglocks the M380 look is refined enough for

the most discriminating designer openings

with consolidated features that eliminate

the clutter of multiple devices around

the door. The fastest, easiest, most secure

installation of any bracket mount maglock.

Watch how easy at: bit.ly/1w90Gnx

Securitron® M380

Magnalock®

The 600 lbs holding

force, bracket mounted

smart Magnalock

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

Electromagnetic Locks

Dimensions Specifications

Certifications

• UL 10C Listed

• UL 1034 Listed

• CAN4-S104, CAN/ULC Listed

• ANSI/BHMA A156.23, Grade 3;

E18501-500, E18531-500

• CSFM—California State Fire Marshall Approved

Dimensions

• Magnalock: 10"L x 2-7/16"D x 2-3/16"H

• Strike: 6-1/4"L x 1/2"D x 1-5/8"H

Electrical

• 510 mA at 12 VDC

• 270 mA at 24 VDC

Holding Force

• 600 lbs [272kg]

Operating Temperature

• +32 to +110F [0 to +43C]

• Indoor use only

Shipping Weight

• 8 lbs [3.6kg]

10"

[254mm]

2-3/16"

[56mm]

1-5/8"

[41mm]

9/16"

[14mm]

7-7/16"

[189mm]

2-7/16"

[62mm]

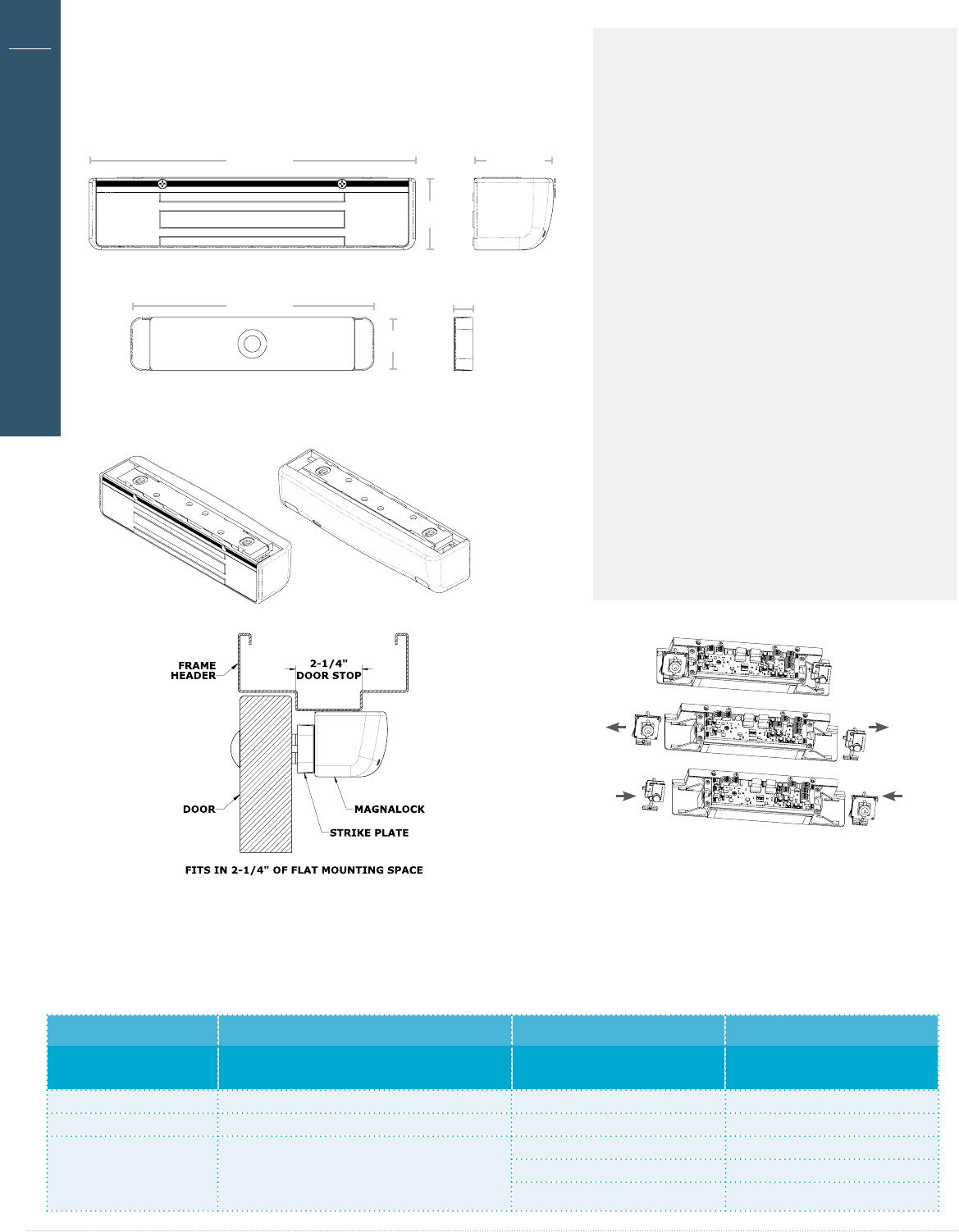

The optional camera and the REX are designed as modular com-

ponents that can be installed on either the left side or the right

side of the magnet. The position of the camera and REX modules

can be easily field configured for better positioning on the door.

How to Order

Model Series Monitoring Options Accessory Options Finish Options

M380 BD C2X – 313

M370 600 lbs (blank) No Monitoring (blank) No Accessory Options (blank) Satin Aluminum Clear

M380 600 lbs BD BondStat Monitor & Door Position Switch C Black and White Camera 605 Bright Brass

C2 Color Camera 606 Satin Brass

X PIR Request to Exit 612 Satin Bronze

313 Satin Brown

Electromagnetic Locks

Features

Standard Features

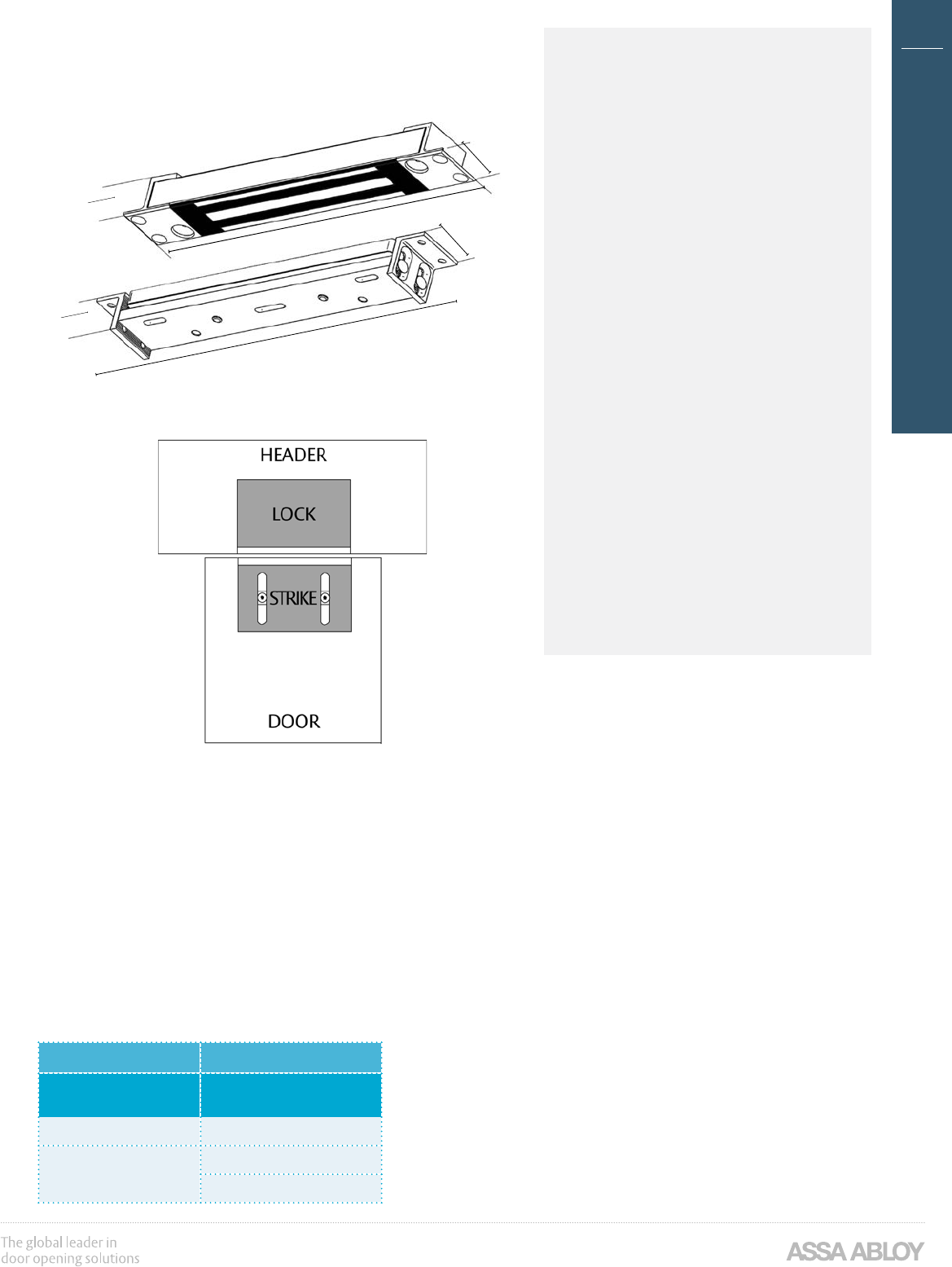

• Strike plate mounting template

provides the easiest install

for out-swing doors

• LED Indicator shows the lock is secure,

open, or has an incomplete bond

• Tamper Switch sends an alarm

output if the cover is removed

and is selectable to NO or NC

• Available integrated BondSTAT

Door Position Switch

• Autosensing dual voltage with

microprocessor technology

• Adjustable automatic relock

timer (0 to 30 seconds)

• Wire chamber anti-tamper switch

• Energy efficient, low power usage

• Size optimized for use

with door closers

• MagnaCare® lifetime replacement,

no fault, no questions asked warranty

Optional Features

• B Patented BondSTAT

magnetic bond sensor

• D Integrated Door

Position Switch (DPS)

• X Integrated passive

infrared request to exit

The same unsurpassed

intelligence, style and

convenience as the

M680 series, but with

up to 80% reduction in

energy consumption.

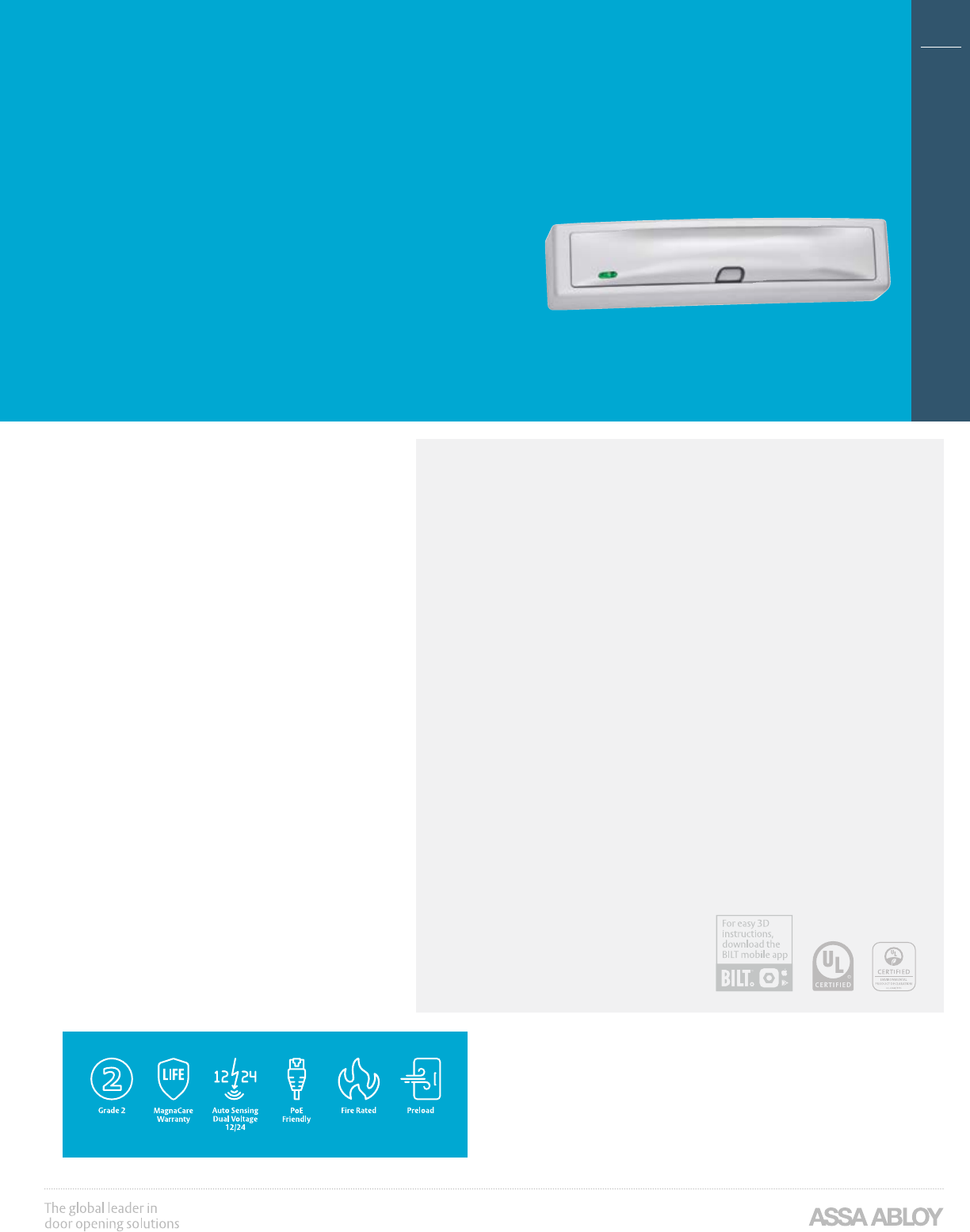

The M680E is smart, with built-in door prop

sensing allows the magnet to de-energize

the coil when the door is held open for

extended periods. The M680EBD offers

built-in smart voltage sensing, Securitron’s

integrated patented BondSTAT, tamper sensor

as well as door position status monitoring.

The aesthetics of the M680E are refined

enough for the most discriminating designer

openings. It also offers the fastest, easiest,

most secure installation of any bracket

mount maglock with an updated strike plate

mounting template. The optional integrated

request to exit (REX) provides optimum

coverage for detecting an approaching

person so the door unlocks for egress.

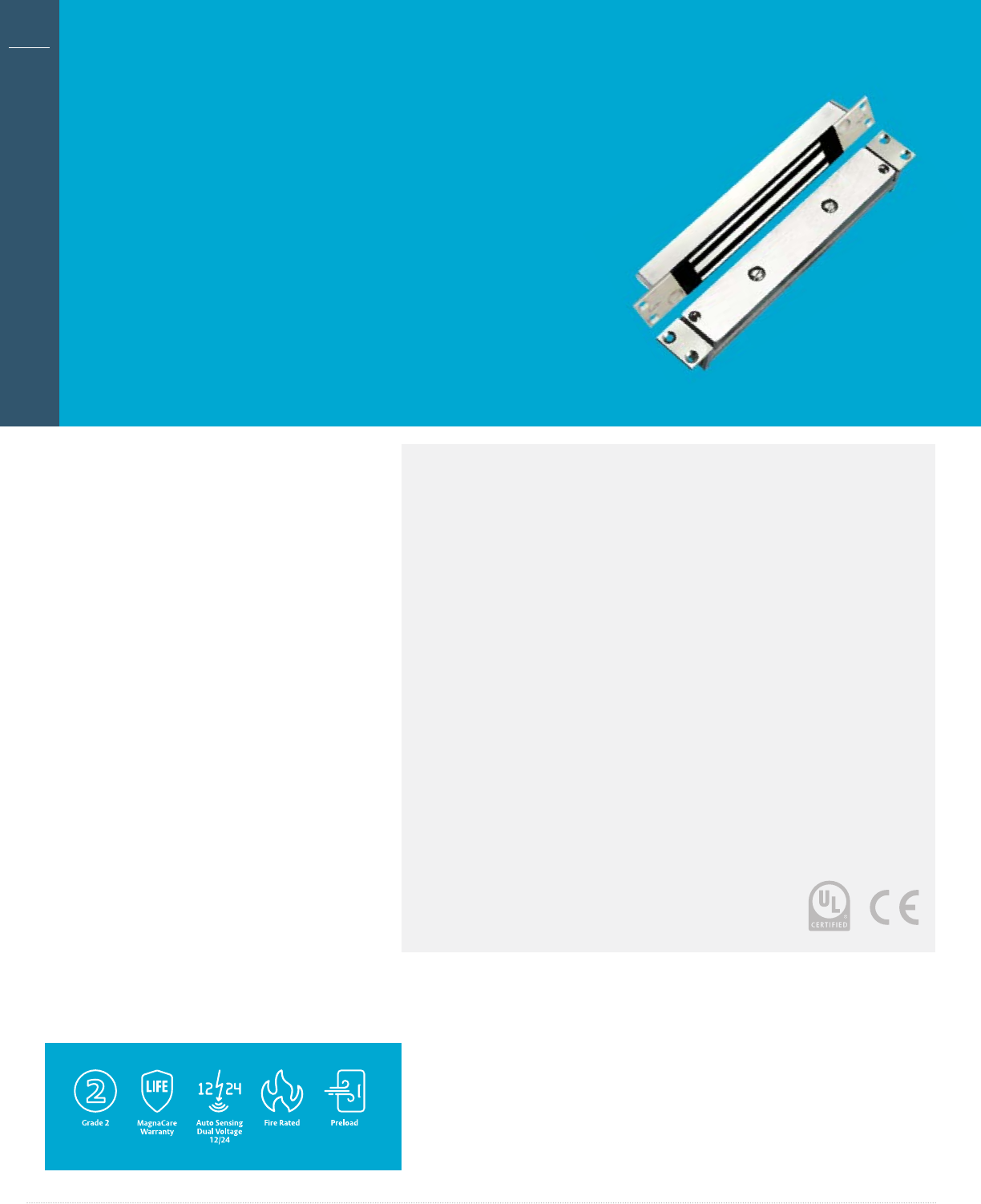

Securitron® M680E

EcoMag Sustainable

Magnalock®

1,200 lbs holding force, bracket

mounted, sustainable Magnalock

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

Electromagnetic Locks

Specifications

Certifications

• UL 10C Fire Rated, 1 Hour

• CAN/ULC-S104 Fire Door Conformant

• UL 1034 Burglary-Resistant Listed

• UL 294 Recognized Component

• ANSI/BHMA A156.23, Grade 2; E18501

• California State Fire Marshall Listed

Dimensions

• Magnalock: 11-1/2"L x 2-9/16"D x 2-1/2"

• Strike: 10-7/8"L x 9/16"D x 2"H

Electrical

• Maglock Average Power Draw (±10%)

— 113mA at 12VDC

— 52mA at 24VDC

• Maglock Maximum Power Draw (±10%)

— 515mA at 12VDC

— 290mA at 24VDC

• REX Power (±10%)

— +25mA at 12VDC

— +10mA at 24VDC

Holding Force

• 1,200 lbs [544kg]

Operating Temperature

• +32 to +110F [0 to +43C]

• Indoor use only

Shipping Weight

• 8 lbs [3.6kg]

Dimensions

How to Order

Model Series Monitoring Options Accessory Options Finish Options*

M680E BD X – 606

M680E 1,200 lbs (blank) No Monitoring (blank) No Accessory Options 628/US28 Satin Aluminum Clear (standard)

BD BondStat Monitor & Door Position Switch X PIR Request to Exit 605/US3 Bright Brass

606/US4 Satin Brass

612/US10 Satin Bronze

613E Dark Oxidized Satin Bronze

629 Bright Stainless Steel

630 Satin Stainless Steel

BSP Black Suede Powder Coat

WSP White Suede Powder Coat

*M680E Finish Options available soon. Please contact your Sales Representative for product details, availability and pricing.

Electromagnetic Locks

Features

Standard Features

• Automatic dual-voltage—no

field adjustment required

• Bracket mounting provides the

easiest install for out-swing doors

• Size optimized for use

with door closers

• Patented BondSTAT lock bond sensor

• Instant release circuit—no

residual magnetism

• Internal wire access chamber

• Easily visible LEDs indicate

status on secure side of door

• Advanced intelligent microprocessors

provide alarm options and trainable

door movement detection

to minimize false alarms

• Permits free egress in

emergency situations

• Fully integrated delay and detection

features for fast installation

of delayed egress system

• Easily adjustable door

movement detection from 1/8"

[3.2 mm] to 1" [25.4 mm]

• External alarm relay isolated

dry contact (1A at 24 VDC)

• External reset

• Configurable settings include:

Nuisance alarm times – 0 to 3

seconds, Irrevocable delay times

-15 or 30 seconds, External bypass

delay times – 0, 5, 10, or 15 seconds,

Post alarm reminder, Bypass

expiration alarm, Manual relock or

delayed automatic relock (BOCA)

• Required sign included

• Ultra-secure collapsing blind

nuts mount to door frame for

strength and reliability

• Rust resistant - all ferrous metal

surfaces plated for durability

• MagnaCare® lifetime replacement,

no fault, no questions asked warranty

Optional Features

• iEXDa allows alarm initiation

via an external panic device

• iMXDaCA is CAL Fire BML listed

• iMXDaCH is Chicago compliant

• iMXDaH for HUGs® Infant

Protection System

Integrated movement

exit delay with

all-in-one Magnalock.

Prevent losses at emergency exits with iMXDa.

An attempted exit initiates an alarm and a

brief delay before the lock releases, giving

personnel time to respond before an exit

occurs. Protect memory care wards, hospitals,

dormitories, airports, child care facilities and

retail or warehouse environments. Used on

out- swing doors, installation requires no

alteration or replacement of existing fire-

rated or non-fire-rated latching hardware.

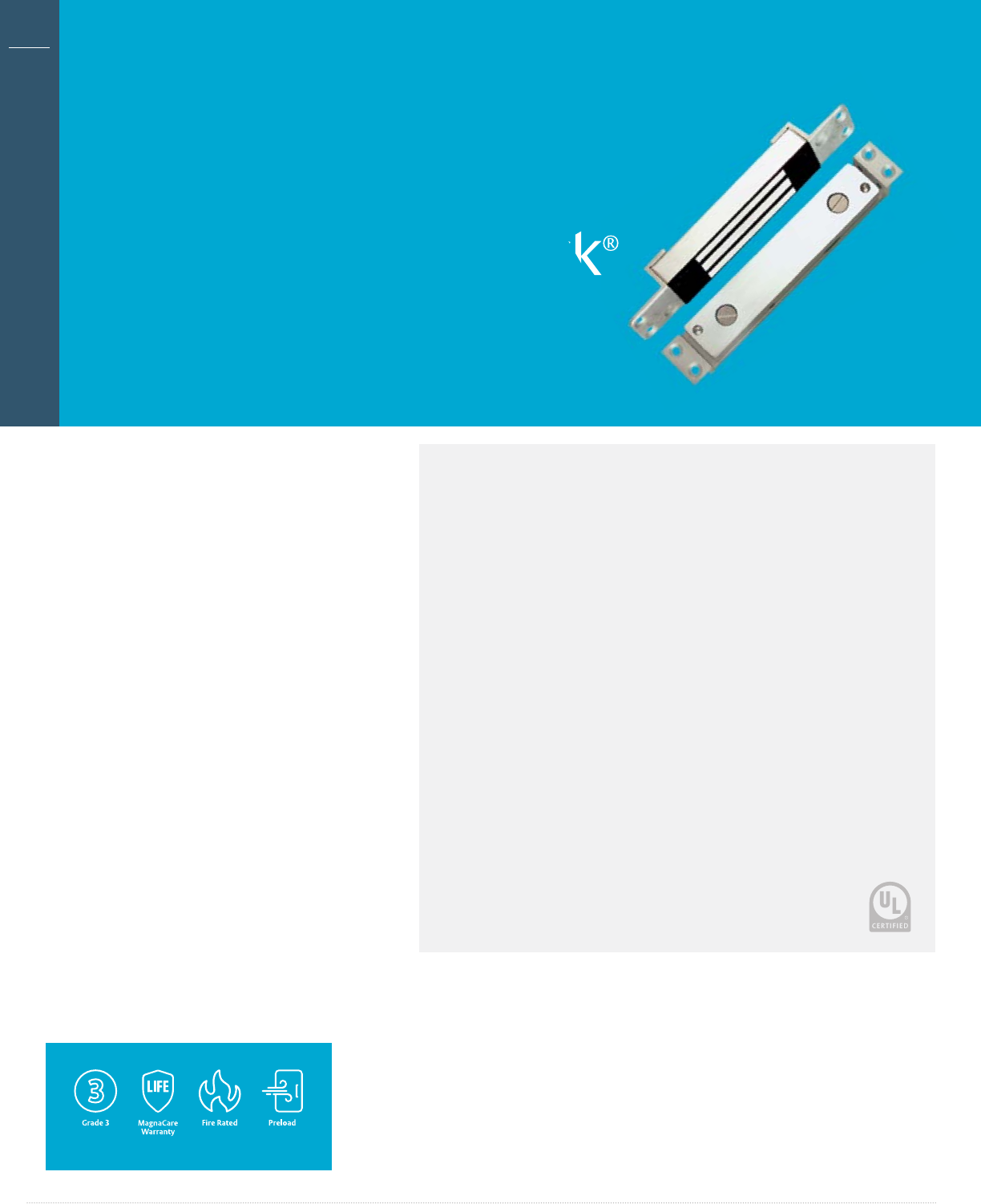

Securitron® iMXDa

Delayed Egress

Magnalock®

Configurable, 1,200 lbs holding

force, delayed egress Magnalock

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

Electromagnetic Locks

Dimensions Specifications

Certifications

• CAN/ULC-S533 Listed

• ANSI/UL 294 Listed

• NFPA 101

• CSFM—California State Fire Marshal

Approved (IMXDA-CA only)

Dimensions

• Magnalock: 12-1/2"L x 2"D x 3-5/8"H

• Strike: 8-15/16"L x 5/16"D x 2-3/4"H

Electrical

• 370 mA max at 12 VDC

• 270 mA max at 24 VDC

Holding Force

• 1,200 lbs [544kg]

Operating Temperature

• +32 to +104F [0 to +40C]

• Indoor use only

Shipping Weight

• 15 lbs [6.80kg]

2-3/4"

[70mm]

3-5/8"

[92mm]

12-1/2"

[318mm]

[51mm]

8-15/16"

[226mm] 5/16"

[8.1mm]

29"

[737mm]

5/16"

[8mm]

[76mm]

[25mm]

5/16"

[8mm]

How to Order

Model Series Timing Options

iMXDa CH

iMXDa Integrated Initation (blank) Adjustable Timing

iEXDa External Initation – CA15S California Required 15s Timings

–CA30S California Required 30s Timings

CH Chicago Required Timings

H HUGS Infant Protection Timings

Electromagnetic Locks

With modular upgrades, maintenance and replacement, Securitron

Component EXD evolves with your changing access control needs

1 Select a locking device (one per door)

Choose from Magnalock® Series: M32, M38, M62,

M68, M82, SAM, M380 or M680E

2 Choose an initiating device (one per door)

Determine type of egress—Egress Control Only or

Egress Control w/Electronic Access Capability

Determine door type—Fire Rated or Non-Fire Rated

Choose from:

a. Securitron®: SB-MXD, LML, LMS, DSB, TSB, TSH, EMB

b. Sargent®: 80 Series w/55 prefix

c. Adams Rite®: 3700, 3600, 3300 & 3100

When the demands of

your door environment

require customized

components, ASSA

ABLOY’s UL/ULC Exit

Delay System (EXD)

delivers a system

that meets your

specific needs.

EXD provides modular delayed egress

that complies with NFPA 101 Life Safety

Code and conforms to BOCA, UBC, SBC

and National Building Code of Canada.

This modular approach suits the specific

locking requirements of all doors, as

well as the desired level of physical

security and ease of maintenance.

See individual product pages

for complete specifications.

Modular Exit

Delay System

Build an exit delay system customized

to your specific application

Continued on next page

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

Electromagnetic Locks

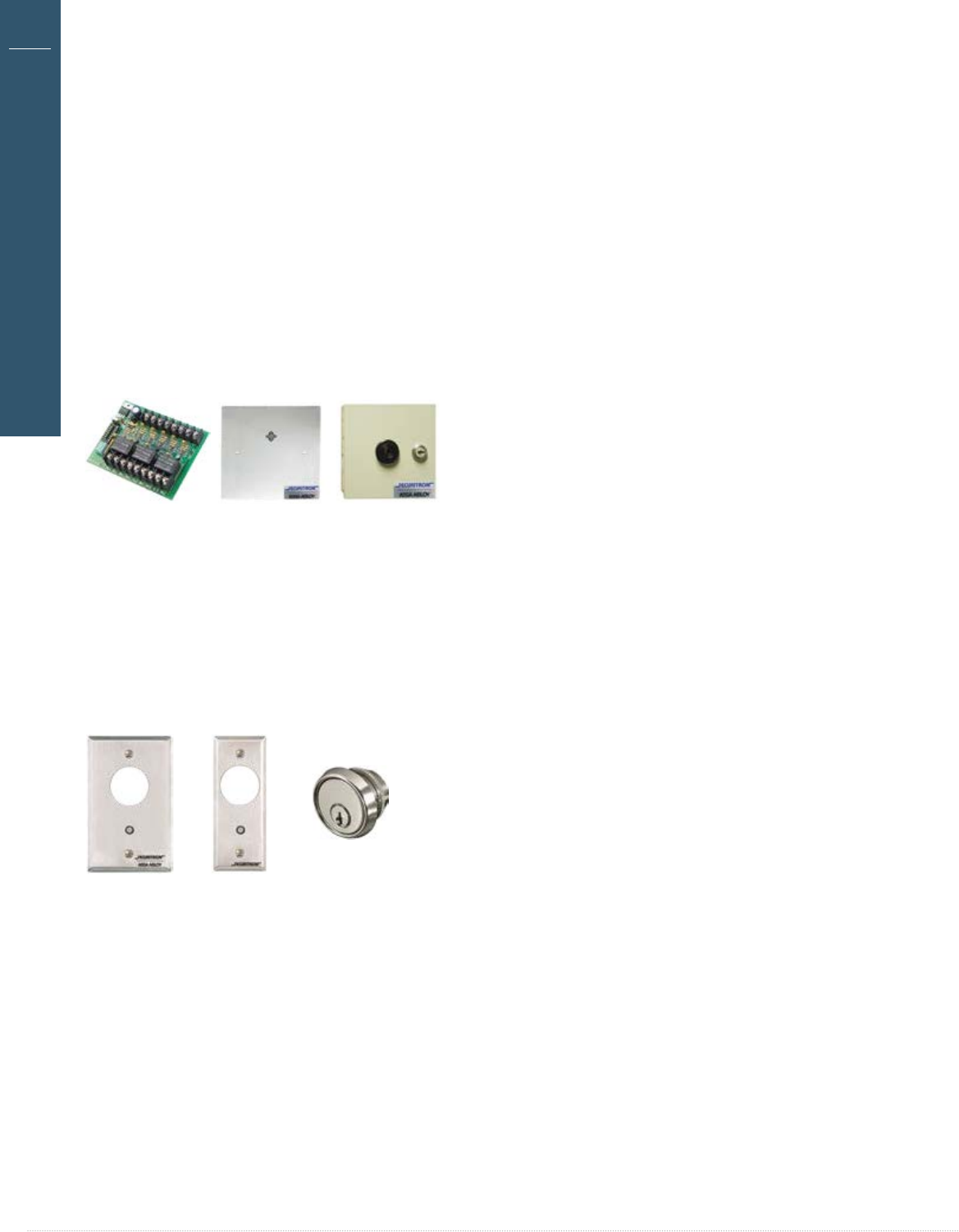

3 Choose an exit delay timer

(one per opening)

Choose from: XDT, BA-XDT, FA-XDT

More than one door requires purchase of additional EXD-1L Door Label

Securitron Modular Exit

Delay System

4 Choose a system reset (one per opening)

Choose from:

a. Manual Reset: MK Series w/momentary switch

b. Automatic Reset: DPS-W and DPS-M

NOTE: Manual Reset (NBC of Canada, NFPA 101 & UBC) or Automatic Reset

(UBC & BOCA). Please consult local jurisdiction for specific requirements.

See individual product pages for complete specifications.

Electromagnetic Locks

BA-XDT

Features

Standard Features

• Meets all code requirements

including the BOCA 30

second relock function

• Nuisance delay and release

times are digitally set using

precise DIP switches

• Three 5A SPDT relays for

interface capabilities

• External switches such as time

clocks can put the XDT into

different modes when delayed

exit is not desired at all times

• MagnaCare® lifetime replacement,

no fault, no questions asked warranty

Optional Features

• XDT is board only

• BA-XDT in surface mount enclosure

with piezo sounder and door label

• FA-XDT is a flush mount

plate enclosure with piezo

sounder and door label

Configurable exit delay

is ideal for fail safe

environments that

have varying needs

throughout the day.

Function is compatible with entry control,

door/lock monitoring, and authorized

immediate exit. Widely used in healthcare

environments to alert for patient exit and

in retail environments to prevent theft.

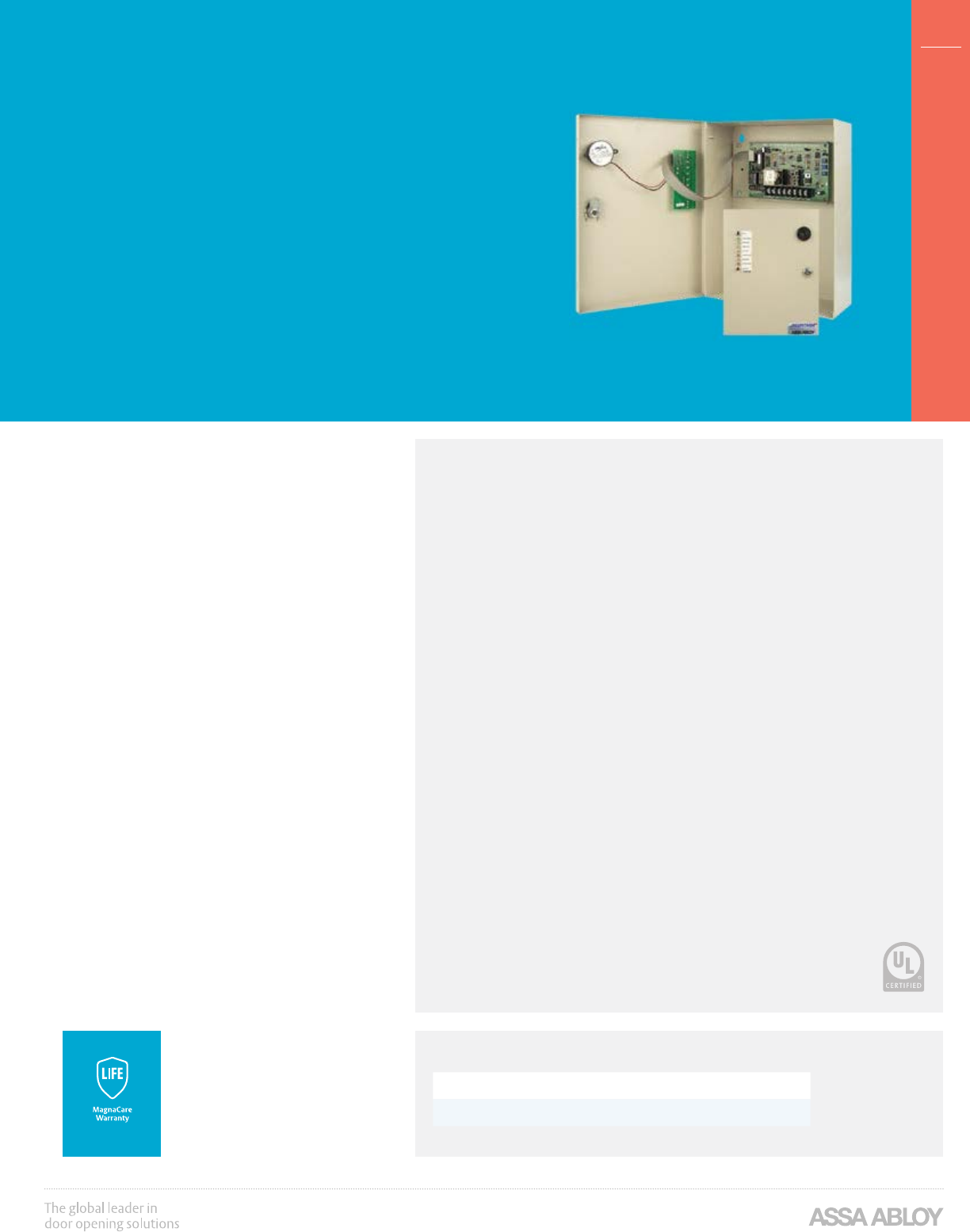

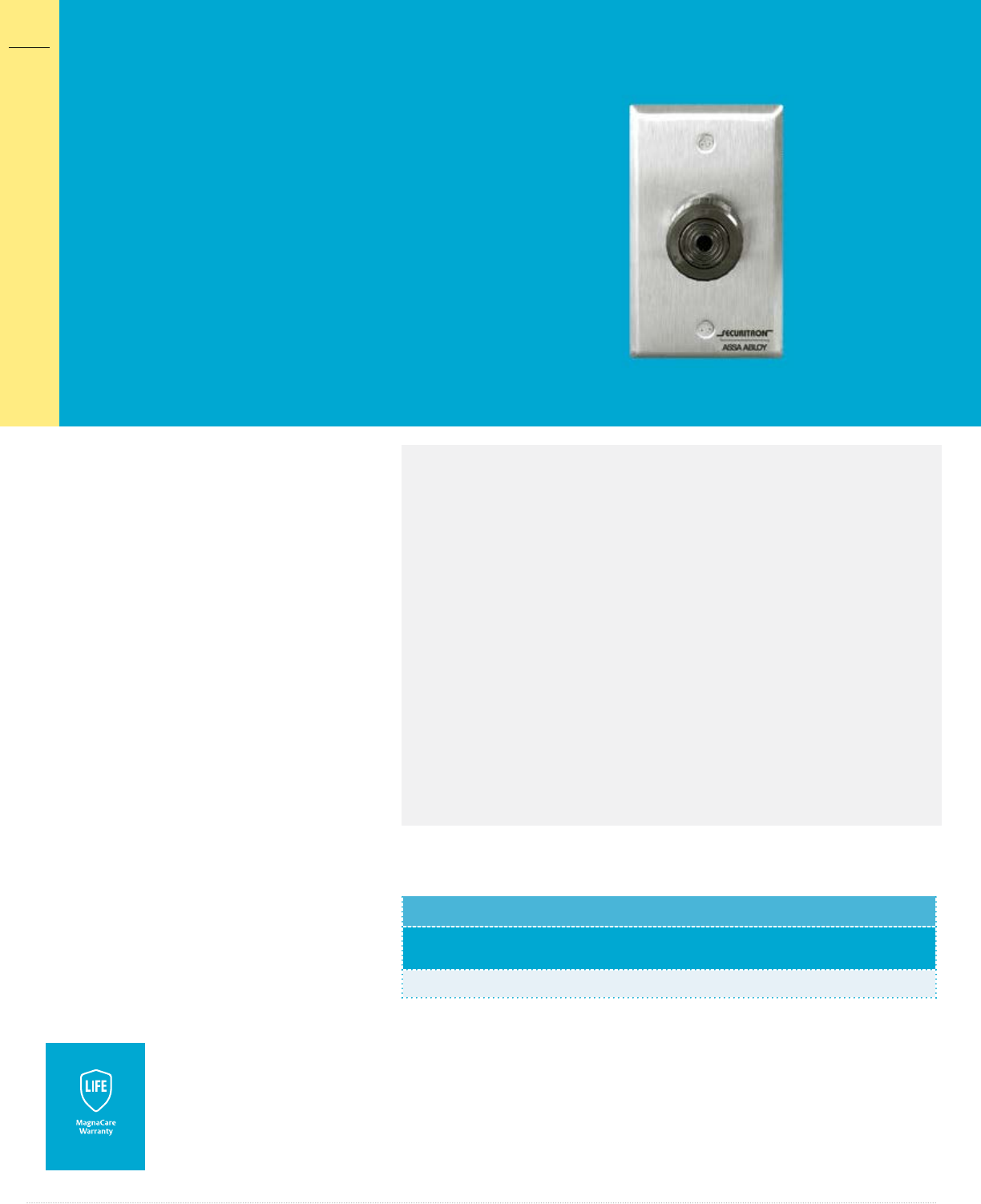

Securitron® XDT

Exit Delay Timer

Sophisticated control in an

easy-to-use, modular exit delay timer

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

Electromagnetic Locks

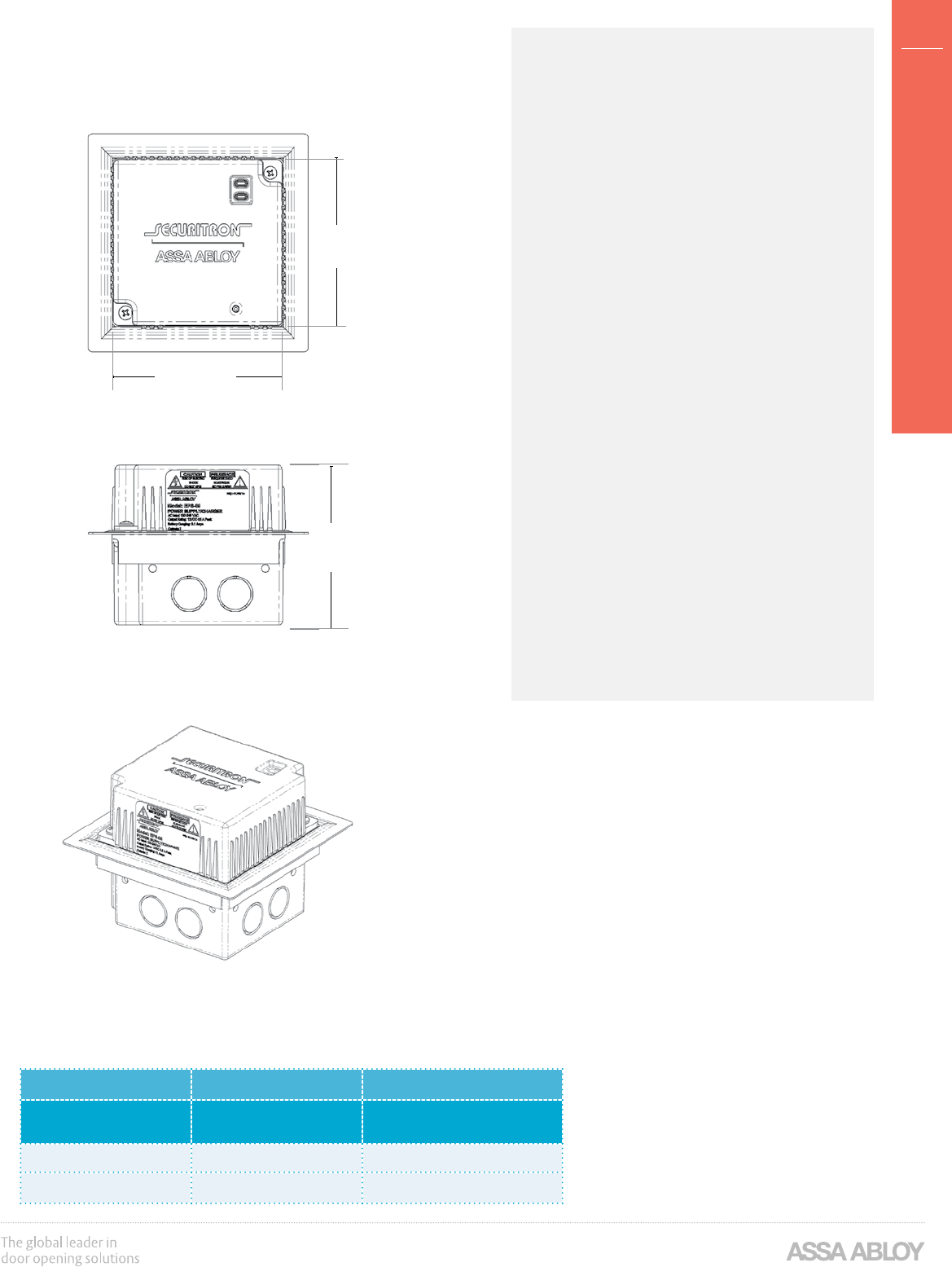

Dimensions Specifications

Certifications

• ANSI/UL 294 Listed

• CSFM—California State Fire

Marshal Approved

Electrical

• 100 mA at 12 VDC

• 50 mA at 24 VDC

• 5A SPDT relays

5-1/4"

[133mm]

5-1/4"

[133mm]

2-1/2"

[63mm]

How to Order

Mounting Method Model Series Voltage

BA – XDT – 12

(blank) Circuit Board only XDT Exit Delay Exit 12 12 VDC

BA Boxed 24 24 VDC

FA Flush Mount

Electromagnetic Locks

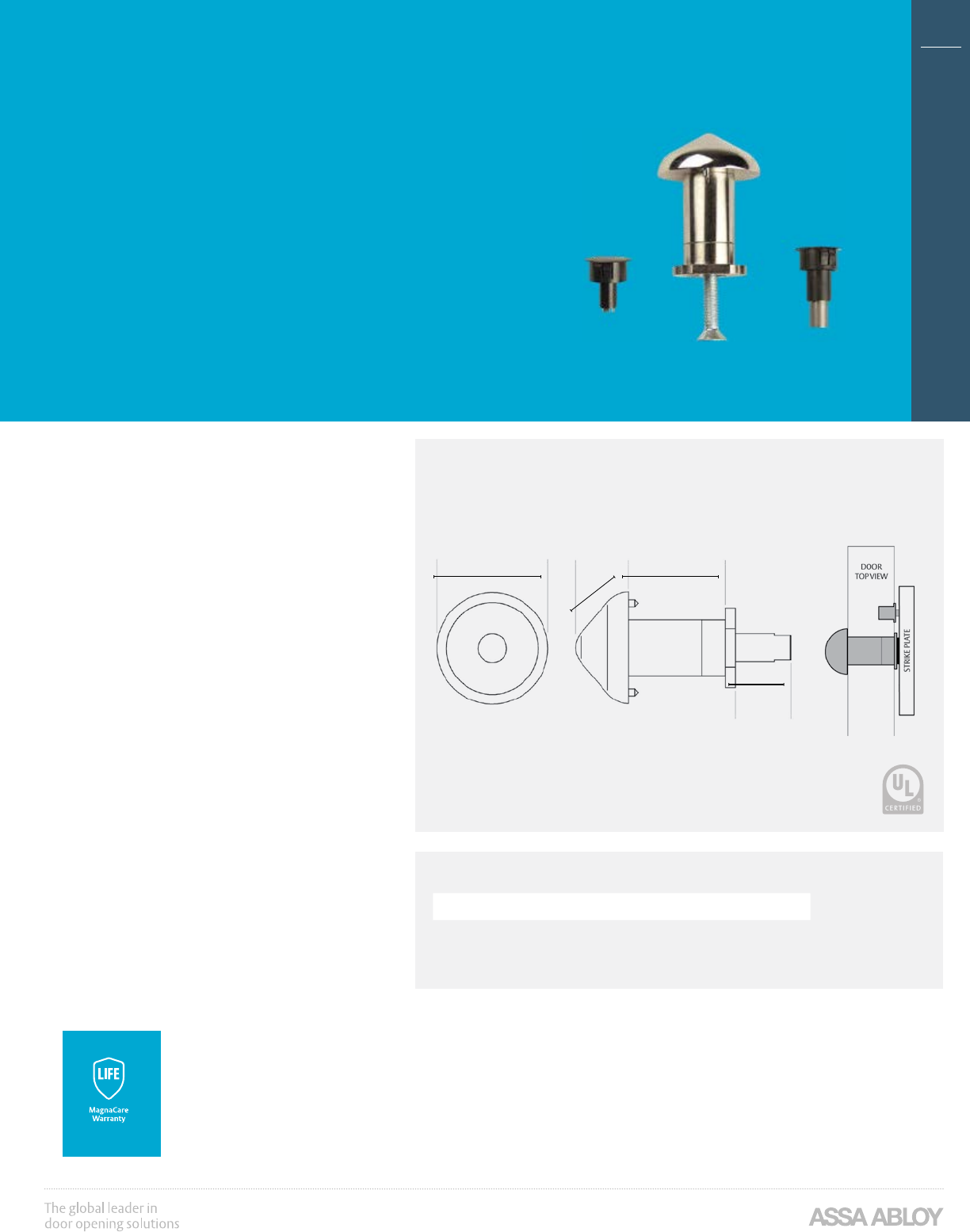

The SB-MXD detects

door movement and

initiates a signal for

delayed egress when

used in conjunction

with ASSA ABLOY’s

Securitron XDT

logic timers.

Door movement tolerance ranges

from 1/2" - 3/4" [12-18mm]. Options are

available for standard, thin and thick

doors. Backed by our MagnaCare Lifetime

Replacement No Fault Warranty.

Dimensions

Securitron®

SB-MXD Exit Delay

Sex Bolt

[51mm]

1-3/4"

[44mm]

15/16"

[24mm]

[25mm]

Part Number | Description

SB-MXD SB-MXD Sex Bolt Kit—Door Movement

Request part # 390-15690 for doors > 2" thick.

Request part # 390-15650 for doors < 1.75" thick.

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

Electromagnetic Locks

Building Codes

Affecting Delayed

Egress in the United

States and Canada

Code Nuisanse

Delay

Release

Delay

Post-delay

Relocking

Upon Fire Alarm

or Loss of Power

to Lock

Signage

Special

Application

Requirements

NFPA-101-2009

National Fire

Protection

Association

0-3

Seconds

15 Seconds or

30 Seconds

with AHJ

approval

Manual

Means Only

Doors Unlock and

Immediate Egress is

Possible. Emergency

Lighting Required

PUSH UNTIL ALARM SOUNDS.

Door Can be Opened in 15

(30) Seconds

Additional Delayed

Egress Systems

Allowed in an Exit

Path

NBC 2010

National Building

Code of Canada 2010

—15 Seconds Manual

Means Only

Doors Unlock and

Immediate Egress is

Possible.

PUSH UNTIL ALARM SOUNDS.

Door Can be Opened in 15

(30) Seconds. Mount within

12" of Releasing Device

—

IBC 2009 & 2012

International

Building Codes

1 Second 15 Seconds or

30 Seconds

with AHJ

approval

Manual

Means Only

Doors Unlock and

Immediate Egress is

Possible. Emergency

Lighting Required

PUSH UNTIL ALARM SOUNDS.

Door Can be Opened in 15

(30) Seconds. Mount within

12" of Releasing Device

—

IBC 2015

International

Building Code

0-3

Seconds

15 Seconds or

30 Seconds

with AHJ

approval

Manual

Means Only

Door Releases Upon

Loss of Power

PUSH UNTIL ALARM SOUNDS.

Door Can be Opened in 15

(30) Seconds. Mount within

12" of Releasing Device

DOOR Can Remain

Locked From

Outside. I-2 and I-3

Allow Two 15 Second

Delays in One Exit

Path.

Exeptions on Signage

in I-1

The following general information on code

requirements should not be considered

definitive. The information provided

represents ASSA ABLOY Electronic Security

Hardware's best understanding of individual

codes at the time of this catalog’s printing.

Codes, however, may change and are also

subject to local interpretations that may differ

from those provided here. Please consider this

information as a preliminary point of reference

which should be confirmed or altered in

accordance with the direction given by any

local authority having jurisdiction (AHJ).

The following chart describes four individual

building code requirements in five areas

of function: Nuisance Delay, Release Delay,

Post Alarm Relocking, Power Loss and

Special Application Requirements.

Electromagnetic Locks

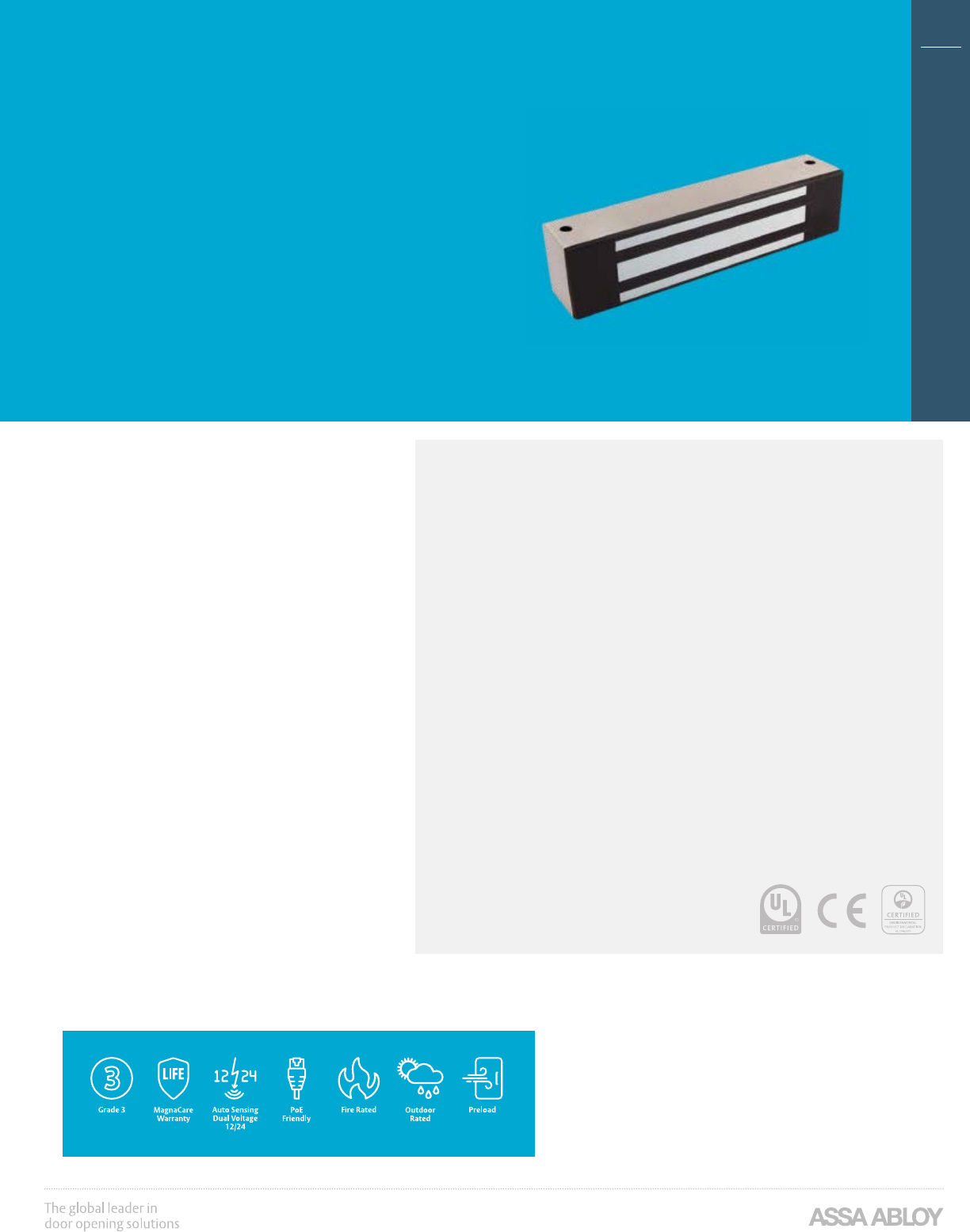

Features

Standard Features

• PoE friendly

• Sustainability documentation

• Efficient, low power usage

• Automatic dual-voltage—no

field adjustment required

• Fully sealed for weatherproof

operations

• Size optimized for use

with door closers

• Rust resistant—all ferrous metal

surfaces plated for durability

• Instant release circuit—no

residual magnetism

• Noise suppression with included MOV

• 10 ft [3.05m] of jacketed,

stranded conductor cable

• Ultra-secure collapsing blind

nuts mount to door frame for

strength and reliability

• MagnaCare® lifetime replacement,

no fault, no questions asked warranty

Optional Features

• F Face drilled

• B Patented BondSTAT

magnetic bond sensor

• D Integrated Door

Position Switch (DPS)

• SS Split Strike

The ultimate in

Magnalock reliability

for indoor/outdoor

traffic control.

The M32 electromagnetic lock is ideal for

traffic control in high-use areas within

secured or monitored perimeters. With

unsurpassed durability, the M32 will

last long after most buildings wear out.

Applications include storage areas, rooms,

and hallways where reliability, high durability

and low-maintenance are required.

Securitron® M32

Magnalock®

600 lbs holding force

direct mounted Magnalock

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

Electromagnetic Locks

Dimensions Specifications

Certifications

• UL 10C Listed

• CAN4-S104, CAN/ULC-S533 Listed

• ANSI/UL 294 Listed

• CSA-C22.2 No.205 Listed

• ANSI/BHMA A156.23, Grade 3; E08501-500

• CSFM—California State Fire Marshal Approved

• CE:EN 50081-1(92), EN 61000-6-2(99) Approved

• Environmental Product Declaration

• Health Product Declaration

Dimensions

• Magnalock: 8"L x 1-5/8"D x 1-7/8"H

• Strike: 6-1/4"L x 1/2"D x 1-5/8"H

Electrical

• 300 mA at 12 VDC

• 150 mA at 24 VDC

Holding Force

• 600 lbs [272kg]

Operating Temperature

• -40 to +140F [-40 to +60C]

• Indoor or Outdoor use

Shipping Weight

• 6 lbs [2.72kg]

How to Order

Model Series Mounting Method Monitoring Options Strike Plate Options

M32 FG BD – SS

M32 600 lbs (blank) Direct Mount (blank) No Monitoring (blank) Standard Strike

F Face Drilled B BondStat Monitor SS Split Strike

G Gate Conduit (M62/M82 only) D Door Position Switch SASM Shock Absorbing Strike Mount

BD BondStat and DPS

1-5/8"

[41mm]

6-1/4"

[153mm]

1/2"

[12mm]

1-5/8"

[41mm]

1-7/8"

[47mm]

[203mm]

2-1/4"

Fits in 2-1/4" of flat mounting space

Electromagnetic Locks

Features

Standard Features

• PoE friendly

• Sustainability documentation

• Efficient, low power usage

• Automatic dual-voltage—no

field adjustment required

• Fully sealed for weatherproof

operations

• Size optimized for use

with door closers

• Rust resistant—all ferrous metal

surfaces plated for durability

• Instant release circuit—no

residual magnetism

• Noise suppression with included MOV

• 10 ft [3.05m] of jacketed,

stranded conductor cable

• Ultra-secure collapsing blind

nuts mount to door frame for

strength and reliability

• MagnaCare® lifetime replacement,

no fault, no questions asked warranty

Optional Features

• F Face drilled

• G Gate conduit

• B Patented BondSTAT

magnetic bond sensor

• D Integrated Door

Position Switch (DPS)

• SS Split Strike

• SASM Shock Absorbing

Strike Mount for Gates

• OS Offset Strike

The ultimate in

Magnalock versatility

for indoor/outdoor

higher security.

The M62 is a strong, easy-to-maintain solution

for interior, perimeter and exterior access

control. With unsurpassed durability, the

M62 will last long after most buildings wear

out. Flexible mounting options support

applications for hollow metal, concrete filled

metal, wood, or glass with aluminum frames,

and Herculite doors. Options include single

and double door configurations, or specialty

applications such as gates and fences.

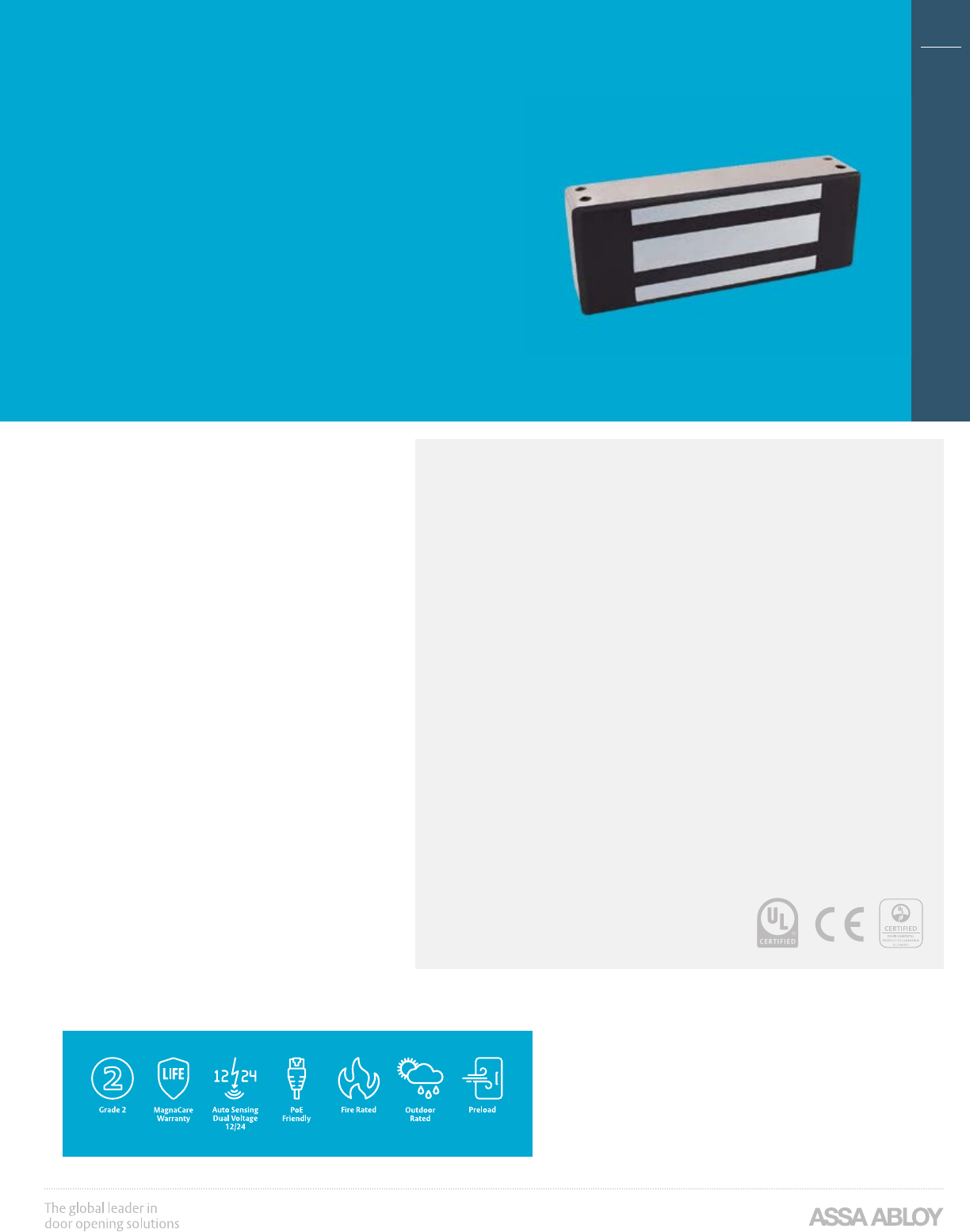

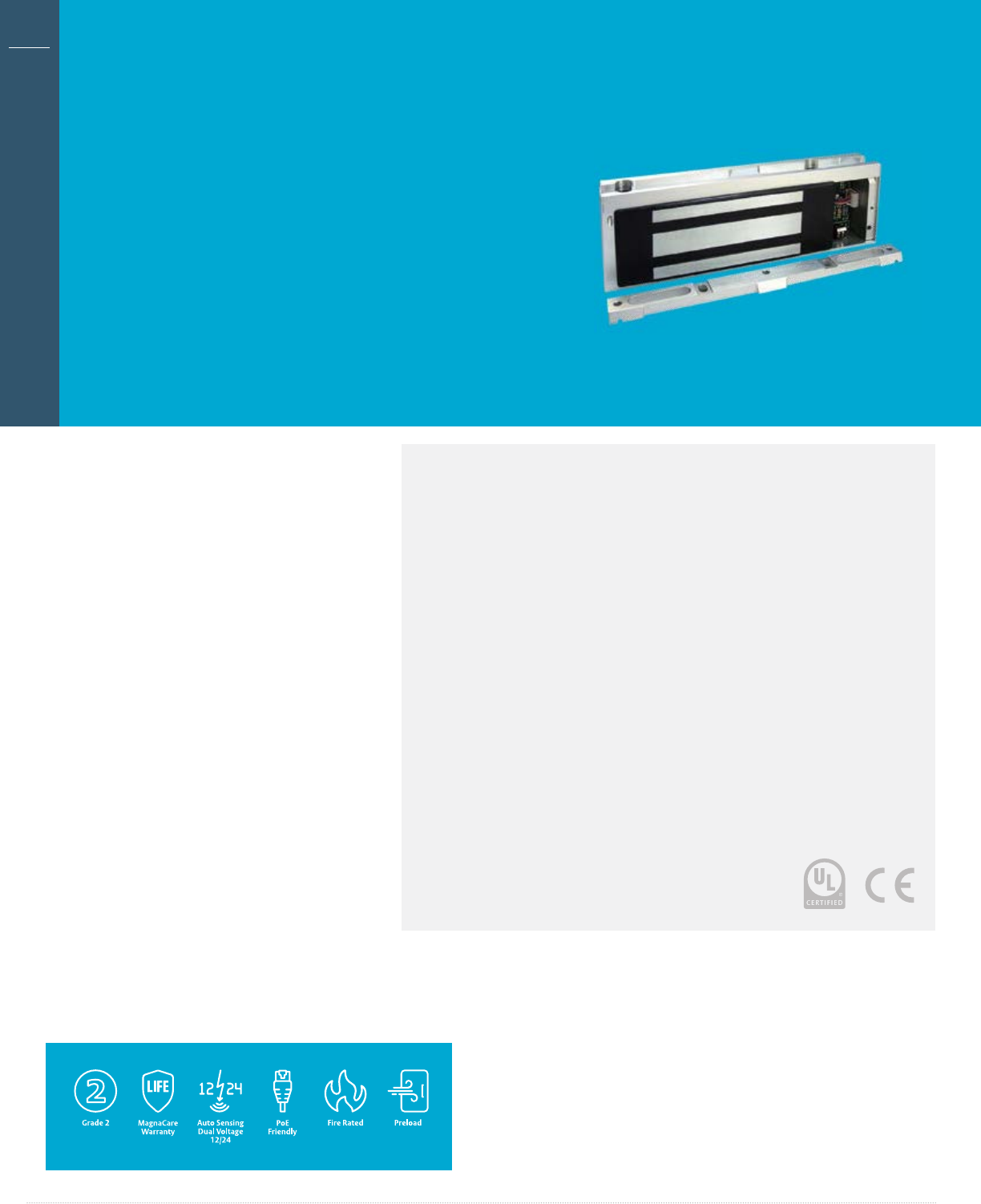

Securitron® M62

Magnalock®

1,200 lbs holding force

direct mounted Magnalock

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

Electromagnetic Locks

Dimensions Specifications

Certifications

• UL 10C Listed

• CAN4-S104, CAN/ULC-S533 Listed

• ANSI/UL 294 Listed

• CSA-C22.2 No.205 Listed

• ANSI/BHMA A156.23, Grade 2; E08501-1000

• CSFM—California State Fire Marshal Approved

• CE:EN 50081-1(92), EN 61000-6-2(99) Approved

• Environmental Product Declaration

• Health Product Declaration

Dimensions

• Magnalock: 8"L x 1-3/4"D x 3"H

• Strike: 6"L x 1/2"D x 2-3/4"H

Electrical

• 250 mA @ 12 VDC

• 150 mA @ 24 VDC

Holding Force

• 1,200 lbs. [544kg]

Operating Temperature

• -40 to +140F [-40 to +60C]

• Indoor or Outdoor use

Shipping Weight

• 11 lbs [5kg]

How to Order

Model Series Mounting Method Monitoring Options Strike Plate Options

M62 FG BD – OS

M62 1,200 lbs (blank) Direct Mount (blank) No Monitoring (blank) Standard Strike

F Face Drilled B BondStat Monitor OS Offset Strike

G Gate Conduit (M62/M82 only) D Door Position Switch SS Split Strike

BD BondStat and DPS SASM Shock Absorbing Strike Mount

2-3/4"

[70mm]

[152mm]

1/2"

[12mm]

1-3/4"

[44mm]

[76mm]

[203mm]

Electromagnetic Locks

Features

Standard Features

• Flexible bracket options for

swinging or sliding applications

• Fully sealed for weatherproof

operations

• Includes universal threaded conduit

fitting 1/2" female—3/4" male

• 10 ft. [3.05m] of jacketed,

stranded conductor cable

• Noise suppression with included MOV

• Automatic dual-voltage—no

field adjustment required

• Rust resistant—all ferrous metal

surfaces plated for durability

• MagnaCare® lifetime replacement,

no fault, no questions asked warranty

Optional Features

• B BondSTAT™ magnetic bond sensor

• D Integrated door

position switch (DPS)

• F Face drilled

• G Gate conduit

• SASM Shock absorbing strike

mount—shock absorption

and rebound assistance for

proper gate alignment

The M62FG-SASM is

the only heavy duty

Magnalock specifically

designed to secure

and protect gates.

This weatherproof unit delivers 1,200 lbs

of holding force and comes equipped

with conduit fittings and a special shock

absorbing strike mount (SASM). This unique

design dramatically prolongs the life of

the lock, the gate and other hardware by

controlling excessive impact between

the strike plate and the magnet.

The SASM is also available as a separate retrofit

kit and is compatible with M32, M62 or M82

Magnalock strike plates for areas prone to

excessive force closures or slamming.

Securitron®

M62FG – SASM

Gate Magnalock®

The shock absorbing 1,200 lbs

Magnalock solution for outdoor gates

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

Electromagnetic Locks

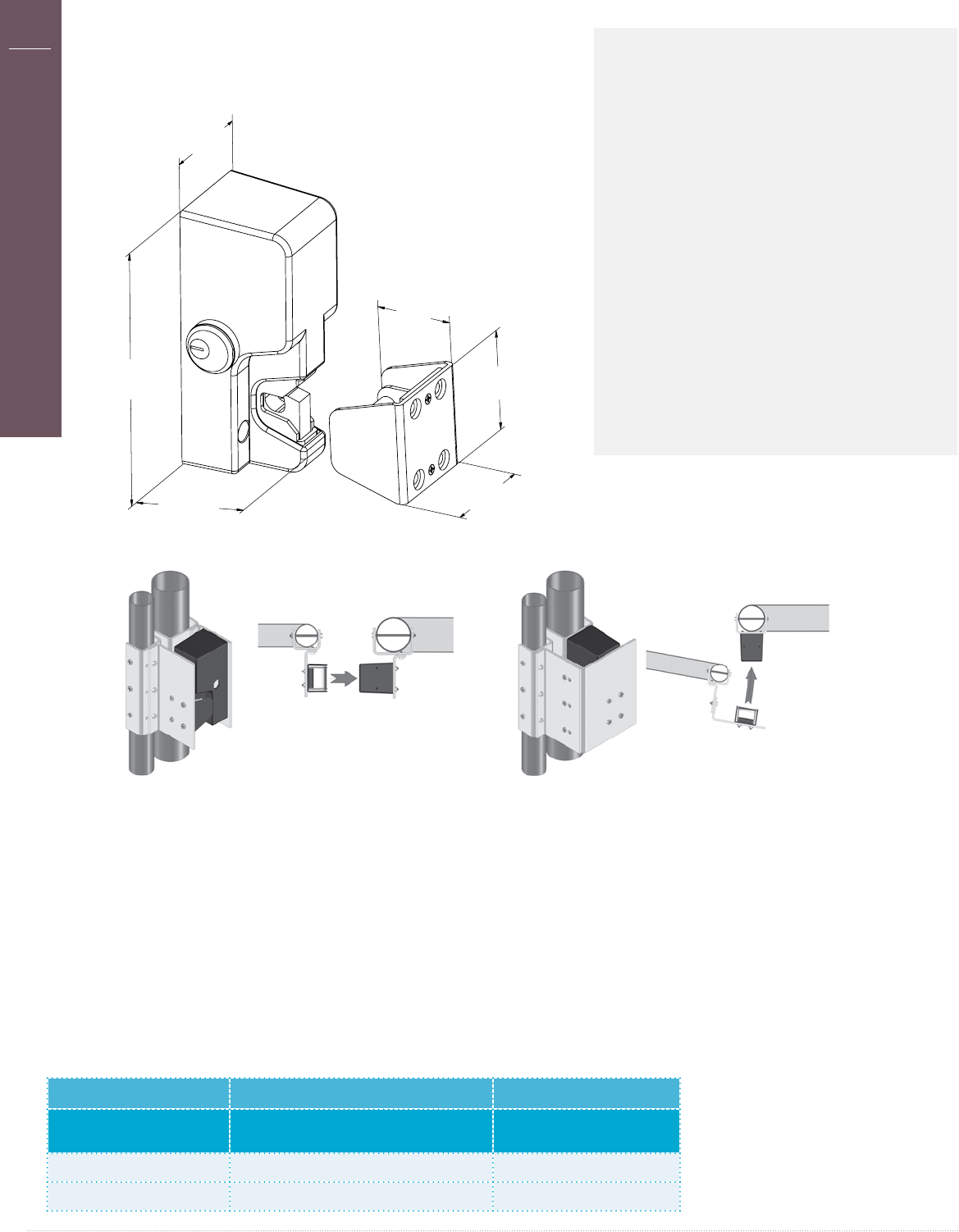

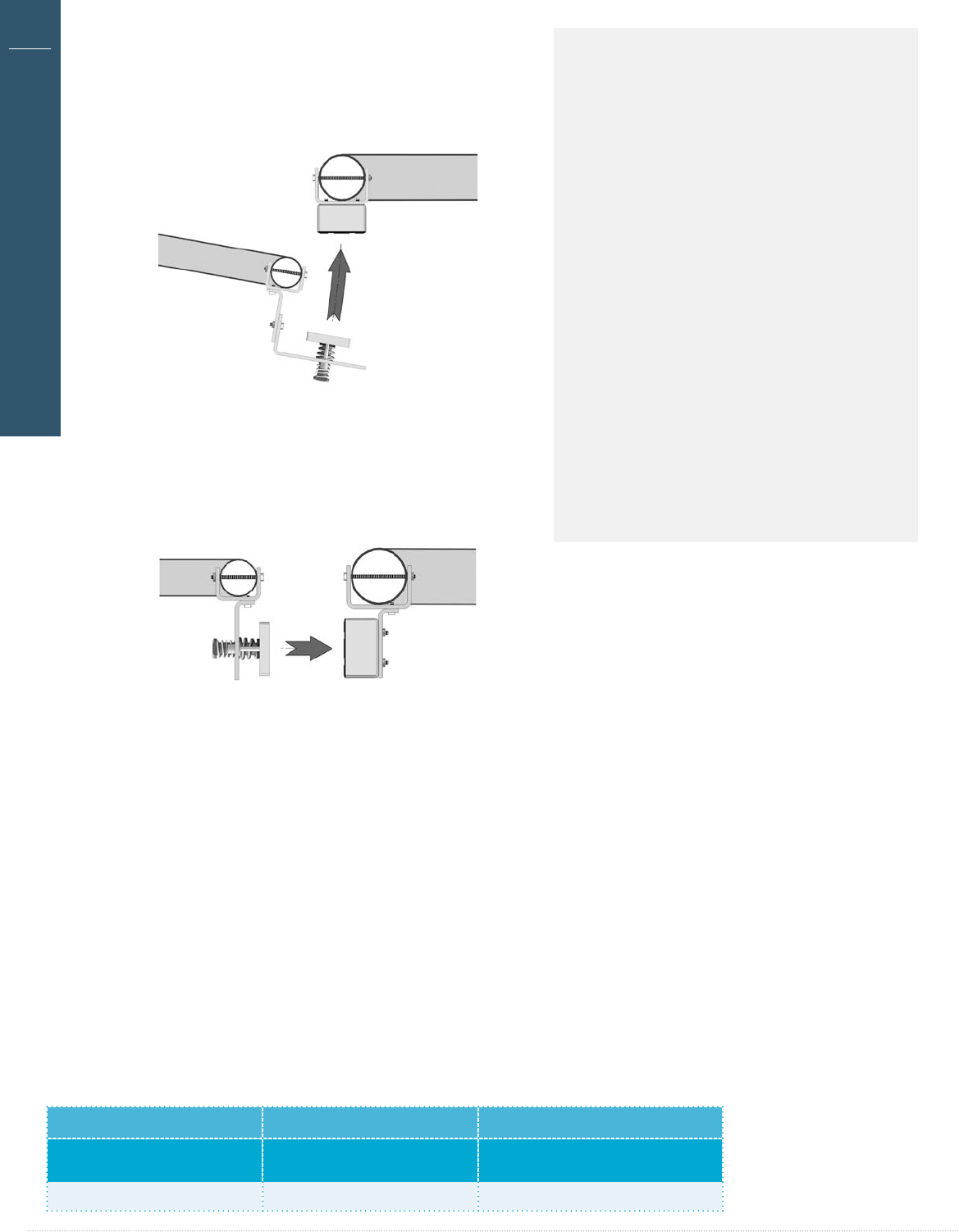

M62FG-SASM on Swinging Gate Using

Flex-Mount Bracket Kit FMK-SW

M62FG-SASM on Sliding Gate Using

Flex-Mount Bracket Kit FMK-SL

Specifications

Certifications

• UL 10C Listed

• CAN4-S104, CAN/ ULC-S533 Listed

• ANSI/BHMA A156.23, Grade 2; E08511-1000

• CSFM—California State Fire Marshal Approved

Dimensions

• 8"L x 1-3/4"D x 3"H

Electrical

• 250 mA at 12 VDC

• 150 mA at 24 VDC

Holding Force

• 1,200 lbs [544kg]

Operating Temperature

• -40 to +140F [-40 to +60C]

• Indoor or Outdoor use

Shipping Weight

• 12 lbs [5.44kg]

How to Order

Model Series Mounting Method Strike Plate Options

M62 FG – SASM

M62 1,200 lbs FG Face drilled, gate conduit SASM Shock Absorbing Strike Mount

Dimensions

Electromagnetic Locks

Securitron®

M82 Magnalock®

1,800 lbs holding force

direct mounted Magnalock

Features

Standard Features

• Efficient, low power usage

• Automatic dual-voltage—no

field adjustment required

• Fully sealed for weatherproof

operations

• Rust resistant—all ferrous metal

surfaces plated for durability

• Instant release circuit—no

residual magnetism

• Noise suppression with included MOV

• 10 ft [3.05m] of jacketed,

stranded conductor cable

• Ultra-secure collapsing blind

nuts mount to door frame for

strength and reliability

• MagnaCare® lifetime replacement,

no fault, no questions asked warranty

Optional Features

• F Face drilled

• G Gate conduit

• B Patented BondSTAT

magnetic bond sensor

• D Integrated Door

Position Switch (DPS)

• SS Split Strike

• OS Offset Strike

Industrial strength

hold for challenging

indoor/outdoor

environments.

The M82 electromagnetic lock offers

unsurpassed magnetic holding strength,

durability and ease of maintenance for

interior, perimeter and exterior access control

applications in high-risk environments. With

unsurpassed durability, the M82 will last

long after most buildings wear out. Flexible

mounting options are available for higher

security locations and other environments

where extreme forces may be encountered.

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

Electromagnetic Locks

Specifications

Certifications

• UL 10C Listed

• CAN4-S104, CAN/ULC-S533 Listed

• ANSI/UL 294 Listed

• ANSI/BHMA A156.23, Grade 1; E08501-1500

• CSFM—California State Fire Marshal Approved

• CE:EN 50081-1(92), EN 61000-6-2(99) Approved

Dimensions

• Magnalock: 12"L x 1-3/4"D x 3"H

• Strike: 9"L x 1/2"D x 2-3/4"H

Electrical

• 350 mA at 12 VDC

• 200 mA at 24 VDC

Holding Force

• 1,800 lbs [816kg]

Operating Temperature

• -40 to +140F [-40 to +60C]

• Indoor or Outdoor use

Shipping Weight

• 16 lbs [7.26kg]

How to Order

Model Series Mounting Method Monitoring Options Strike Plate Options

M82 FG BD – OS

M82 1,800 lbs (blank) Direct Mount (blank) No Monitoring (blank) Standard Strike

F Face Drilled B BondStat Monitor OS Offset Strike

G Gate Conduit (M62/M82 only) D Door Position Switch SS Split Strike

BD BondStat and DPS SASM Shock Absorbing Strike Mount

Dimensions

[76mm] 2-3/4"

[70mm]

12"

[305mm]

1-3/4"

[44mm]

[229mm]

1/2"

[12mm]

2-1/2"

The M82 with Strike fits in

2-1/2" of flat mounting space

Electromagnetic Locks

Securitron®

M32, M62, M82

Magnalock® Accessories

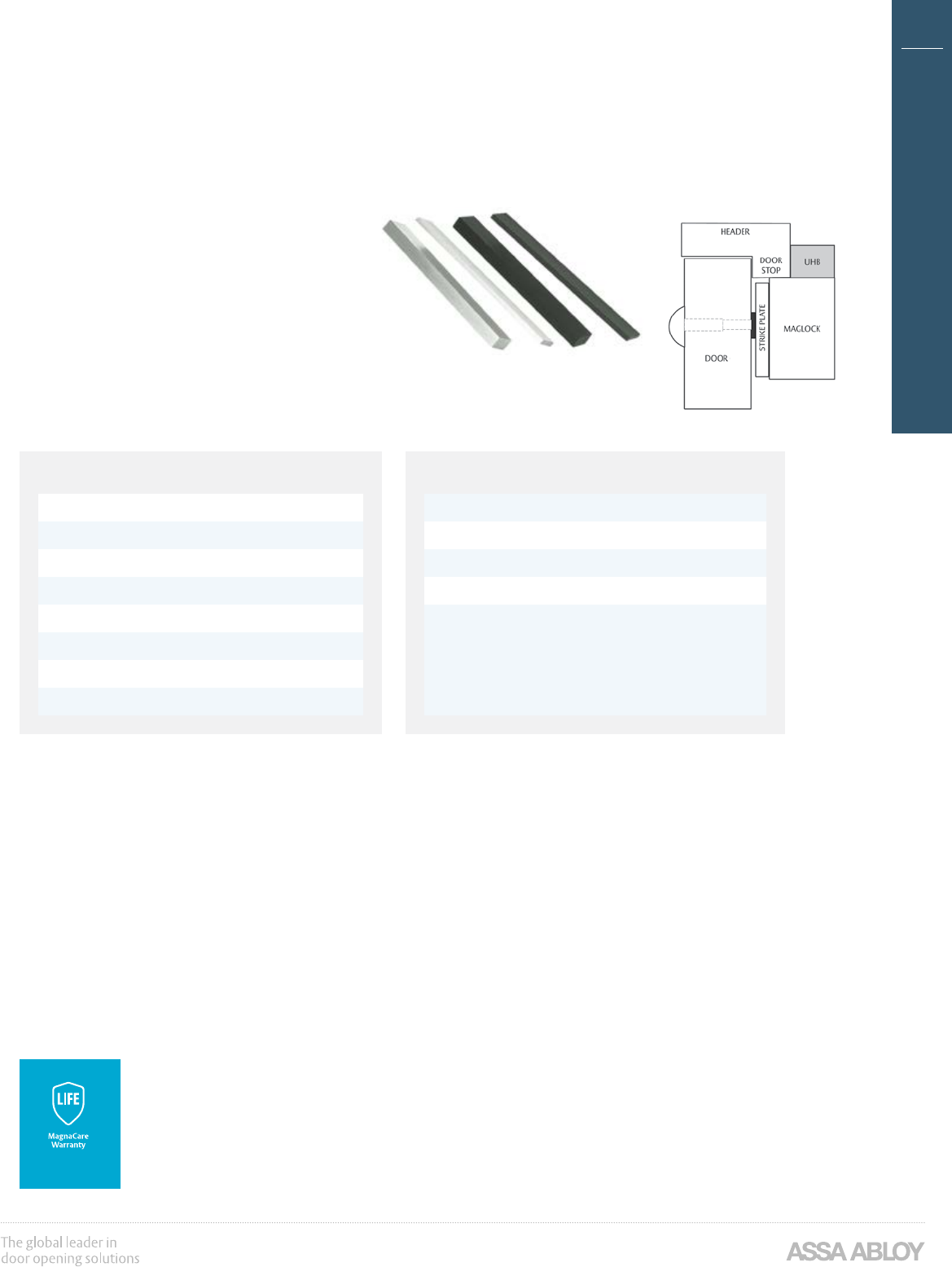

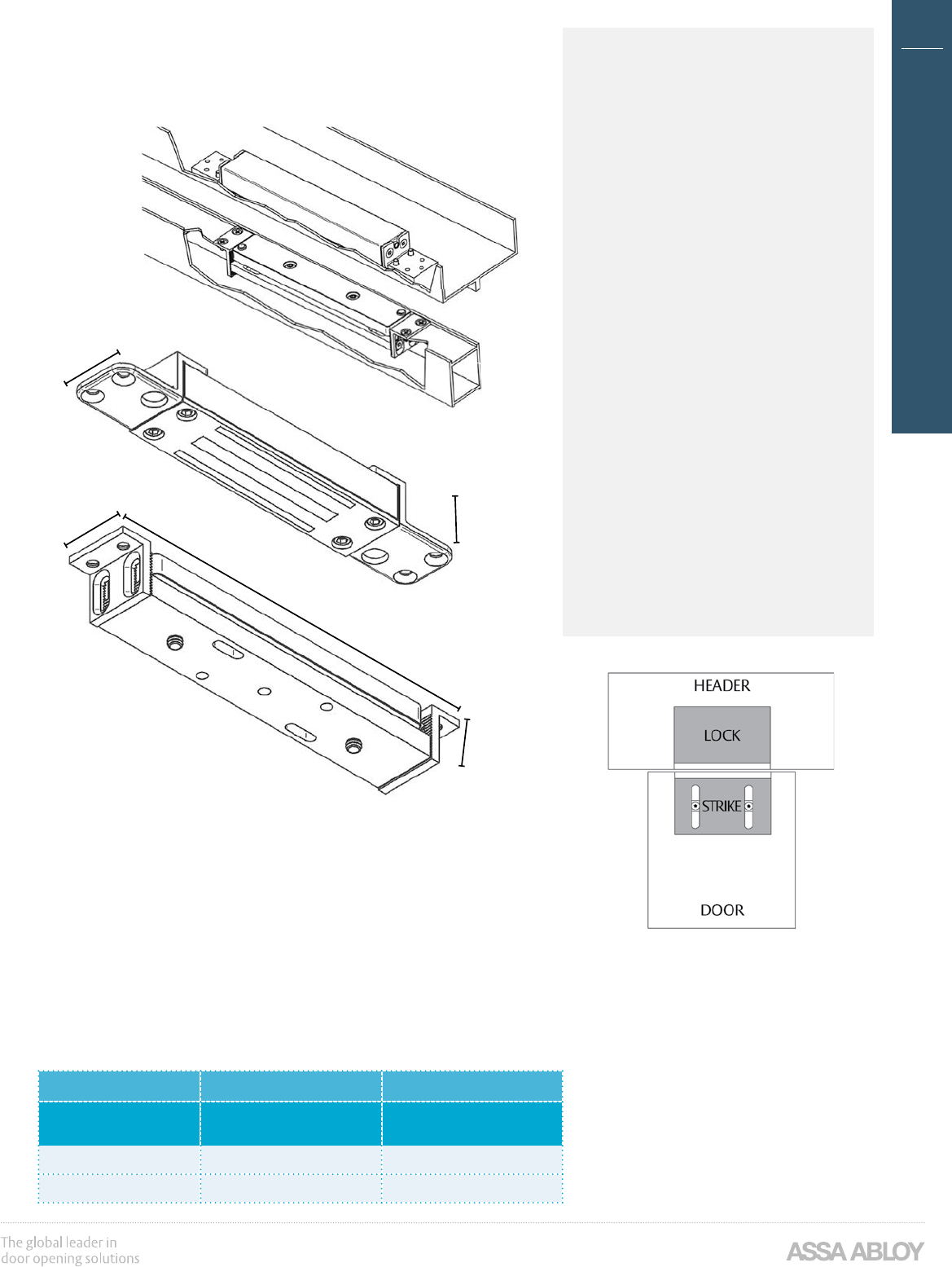

ASB Aluminum Spacer Bracket

• Use when a blade stop requires the Magnalock to be lowered

• Comes pre-drilled for the mounting bolts and wire

• Provides a blind nut for surface installation of strike

• Available in clear aluminum or black anodized

• MagnaCare® lifetime replacement, no fault,

no questions asked warranty

CWB Concrete Wood Bracket

• Used on wood or concrete filled metal frames

• Provides a concealed wire chamber

• Available in clear aluminum or black anodized

• MagnaCare® lifetime replacement, no fault,

no questions asked warranty

Part Number | Description

ASB-32BK Alum Frame Spacer Bracket - M32, Black Anodized

ASB-32CL Alum Frame Spacer Bracket - M32, Clear Anodized

ASB-62BK Alum Frame Spacer Bracket - M62, Black Anodized

ASB-62CL Alum Frame Spacer Bracket - M62, Clear Anodized

Part Number | Description

ASB-82BK2 Alum Frame Spacer Bracket

- M82, Black Anodized

ASB-82CL Alum Frame Spacer Bracket

- M82, Clear Anodized

ASCWB-DM62CL Alum 1 -1/2" Spacer - Concrete/

Wood Bracket, DM62, Clear

Part Number | Description

CWB-32BK Concrete/Wood Bracket - M32, Black Anodized

CWB-32CL Concrete/Wood Bracket - M32, Clear Anodized

CWB-62BK Concrete/Wood Bracket - M62, Black Anodizedr

Part Number | Description

CWB-62CL Concrete/Wood Bracket - M62, Clear Anodized

CWB-82BK Concrete/Wood Bracket - M82, Black Anodized

CWB-82CL Concrete/Wood Bracket - M82, Clear Anodized

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

100

Electromagnetic Locks

Securitron M32/62/82

Magnalock Accessories continued

ASS Split Strike/

Replacement

Strike Plate

• Allows a single M32, M62 or M82

Magnalock to secure a double door at

traffic control holding force level

• Includes Split Strike Plates only

• MagnaCare® lifetime replacement, no

fault, no questions asked warranty

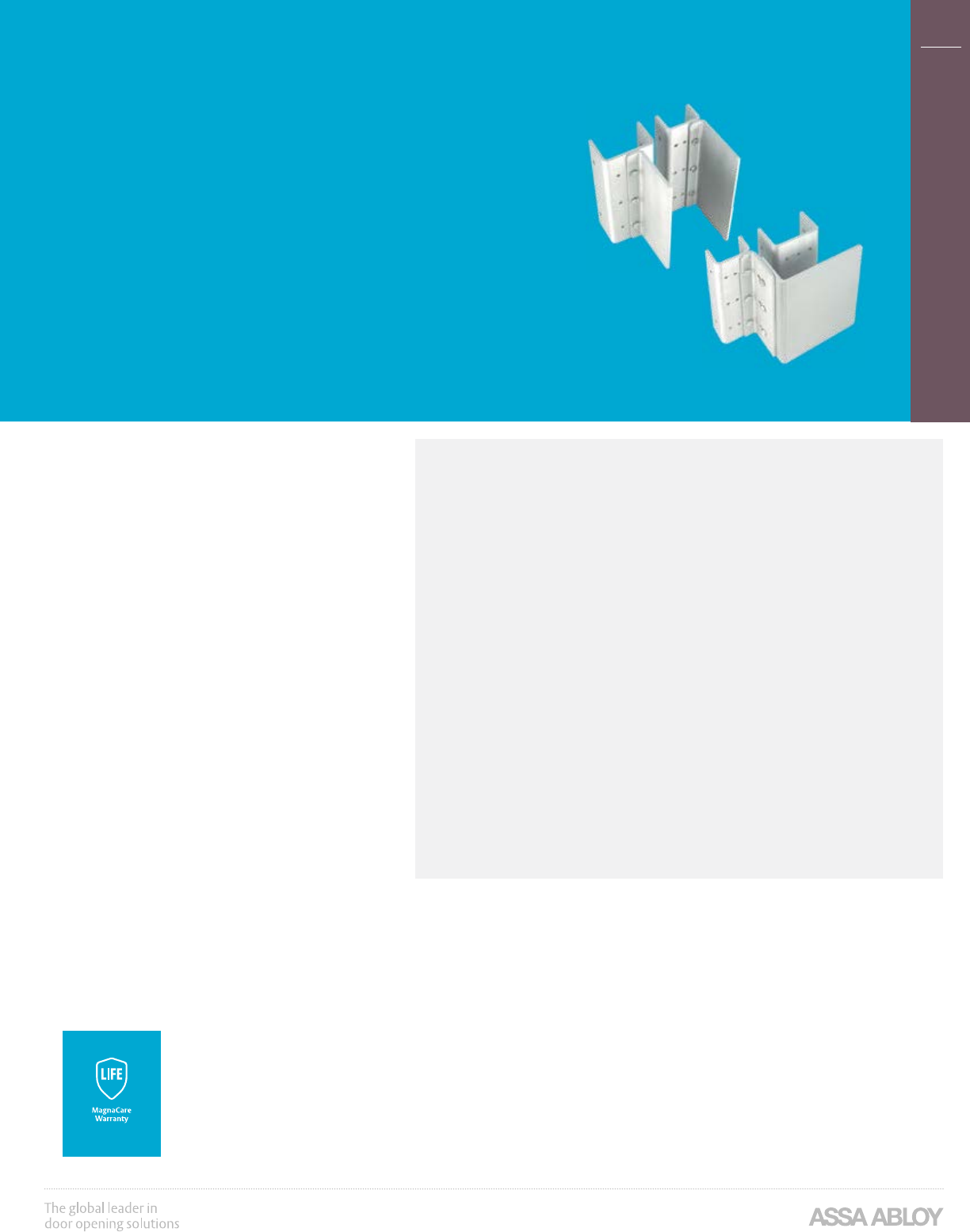

ZA Z Bracket Kits

- Adjustable

• Use on in-swing doors with Magnalock

"F" options (8-1/2" overall length)

• Provides 1-1/4" of lateral movement

to accommodate most openings and

allows for precision adjustments (2-

1/4"to 3-1/2" from door/header)

• Includes an oversized dress cover

• MagnaCare® lifetime replacement, no

fault, no questions asked warranty

AOS Offset Strike Plate

• Alters the position of the mounting hole by

1/4" [6mm]. This is often required to clear the

glass on aluminum frame store front doors

• Includes Offset Strike Plate only

• MagnaCare® lifetime replacement, no

fault, no questions asked warranty

Part Number | Description

AOS-62 Strike Plate - M62, Offset

AOS-62D Strike Plate - M62D, Offset

AOS-82 Strike Plate - M82, Offset

Part Number | Description

ASS-32 Strike Plate M32 - Split Set w/ Fasteners & Sex Bolt

ASS-62 Strike Plate M62 - Split Set w/ Fasteners & Sex Bolt

ASS-82 Strike Plate M82 - Split Set w/Fasteners & Sex Bolt

Part Number | Description

ZA-32/62BK Adjustable Z-Bracket - M32/62, Black Anodized

ZA-32/62CL Adjustable Z-Bracket - M32/62, Clear Anodized

ZA-32/62SS Adjustable Z-Bracket - M32/62, Satin Stainless

Part Number | Description

ZA-82BK Adjustable Z-Bracket - M82, Black Anodized

ZA-82CL Adjustable Z-Bracket - M82, Clear Anodized

ZA-82SS Adjustable Z-Bracket - M82, Satin Stainless

101

Electromagnetic Locks

Securitron M32/62/82

Magnalock® Accessories

TDK-1 Accessory

for Thick Doors

• Provides replacement screws so armature plates

for the M32, M62, M82, M38 and M68 can be

used on doors thicker than 1-3/4", and up to 3"

• MagnaCare® lifetime replacement, no

fault, no questions asked warranty

EASB Energy

Absorbing Sex Bolt

The Energy Absorbing Sex Bolt provides additional

protection and shock absorption to augment

holding force when a door experiences dynamic

forces such as kicks or repeated blows. Used in

mental health care and detention ancillary or

administrative doors, and perimeter doors.

• For high-security applications on inflexible doors

• Replaces the standard Sex Bolt

• Contains a powerful internal spring that

absorbs and dissipates the force of a blow

• MagnaCare® lifetime replacement, no

fault, no questions asked warranty

SB-1 Sex Bolt

Replacement

• Replaces armature plate sex bolt for M32,

M38, M62, M68, and M82B Magnalocks

• Available in clear, polished brass

or oil rubbed bronze finish

• MagnaCare® lifetime replacement, no

fault, no questions asked warrantyy

Part Number | Description

SB-1 Sex Bolt - Replacement, Clear

SB-1-03 Sex Bolt - Replacement, Polished Brass

SB-1-10B Sex Bolt - Replacement, Oil-Rubbed Bronze

Part Number | Description

EASB-250 Energy Absorbing Bolt - 1/4" Spacer Kit

EASB-32 Energy Absorbing Sex Bolt - Model 32

Part Number | Description

TDK-1 Thick Door Kit

Part Number | Description

EASB-62 Energy Absorbing Sex Bolt - Model 62

EASB-82 Energy Absorbing Sex Bolt - Model 82

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

102

Electromagnetic Locks

Securitron M32/62/82

Magnalock Accessories continued

DDC Double

Dress Covers

The Energy Absorbing Sex Bolt provides additional

protection and shock absorption to augment

holding force when a door experiences dynamic

forces such as kicks or repeated blows. Used in

mental health care and detention ancillary or

administrative doors, and perimeter doors.

• For high-security applications

on inflexible doors

• Replaces the standard Sex Bolt

• Contains a powerful internal spring that

absorbs and dissipates the force of a blow

• MagnaCare® lifetime replacement, no

fault, no questions asked warranty

DC Dress Covers

• Use with M32, M62, and M82

• Install using foam adhesive tape

• Available in clear, black, polished

stainless and polished brass finish

• MMagnaCare® lifetime replacement, no

fault, no questions asked warranty

Part Number | Description

DC-32BK DC - M32, Black Anodized

DC-32BP DC - M32, Brass Polished

DC-32CL DC - M32, Clear Anodized

DC-32SP DC - M32, Stainless Polished

DC-62BK DC - M62, Black Anodized

DC-62BP DC - M62, Brass Polished

Part Number | Description

DC-32BK DC - M32, Black Anodized

DC-32BP DC - M32, Brass Polished

DC-32CL DC - M32, Clear Anodized

DC-32SP DC - M32, Stainless Polished

Part Number | Description

DC-62CL DC - M62, Clear Anodized

DC-62SP DC - M62, Stainless Polished

DC-82BK DC - M82, Black Anodized

DC-82BP DC - M82, Brass Polished

DC-82CL DC - M82, Clear Anodized

DC-82SP DC - M82, Stainless Polished

103

Electromagnetic Locks

How to Order Specify quantity and the following information. Order related products separately.

Model Series Mounting Method Monitoring Options

Specify Length

HHD -32 (83")

HHD 32 HHD Max Length 96"

HHSL 62 HHD Max Length 96"

HHSR 82 HHSR Max Length 48"

HVD HVD Max Length 96"

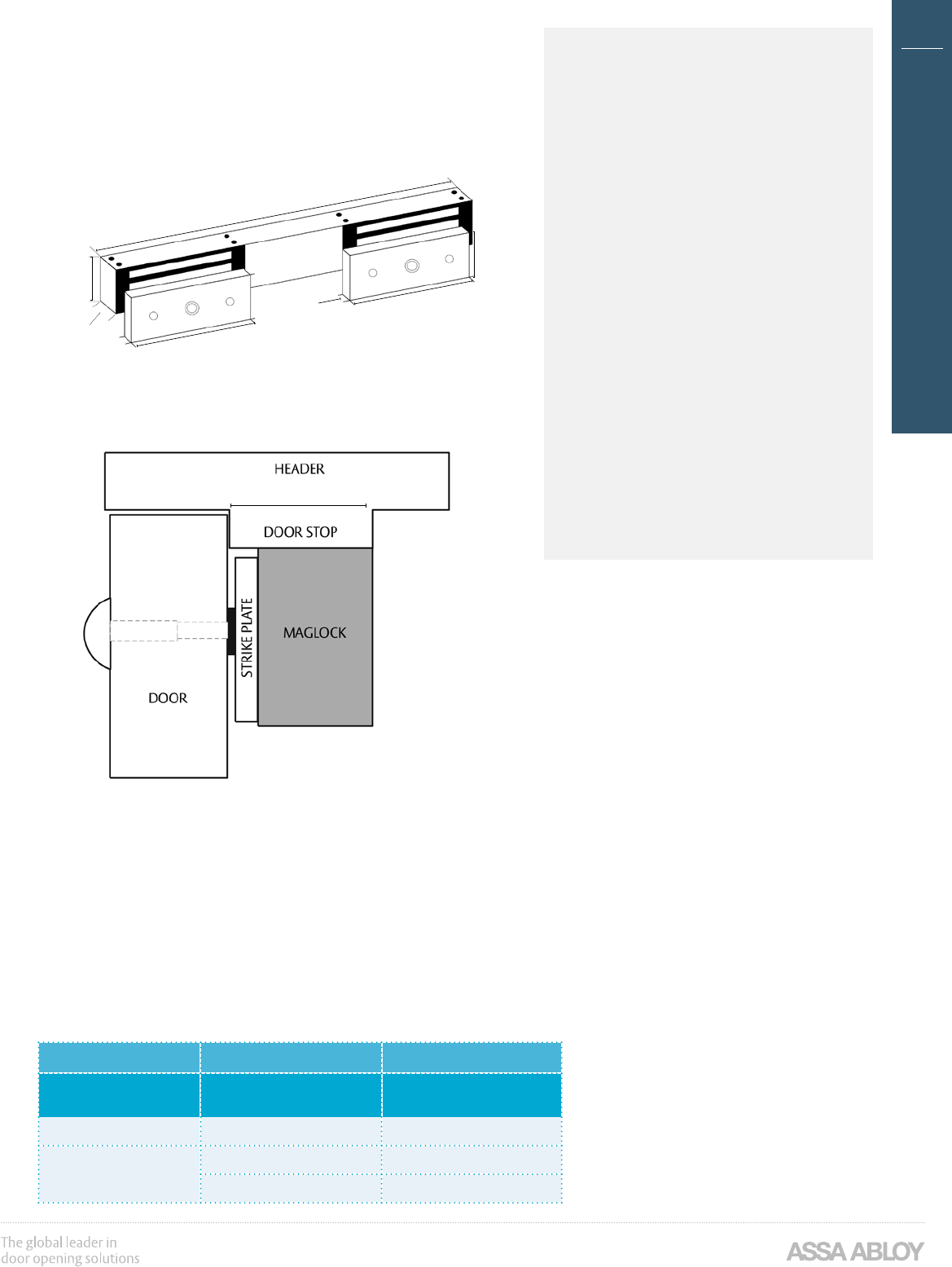

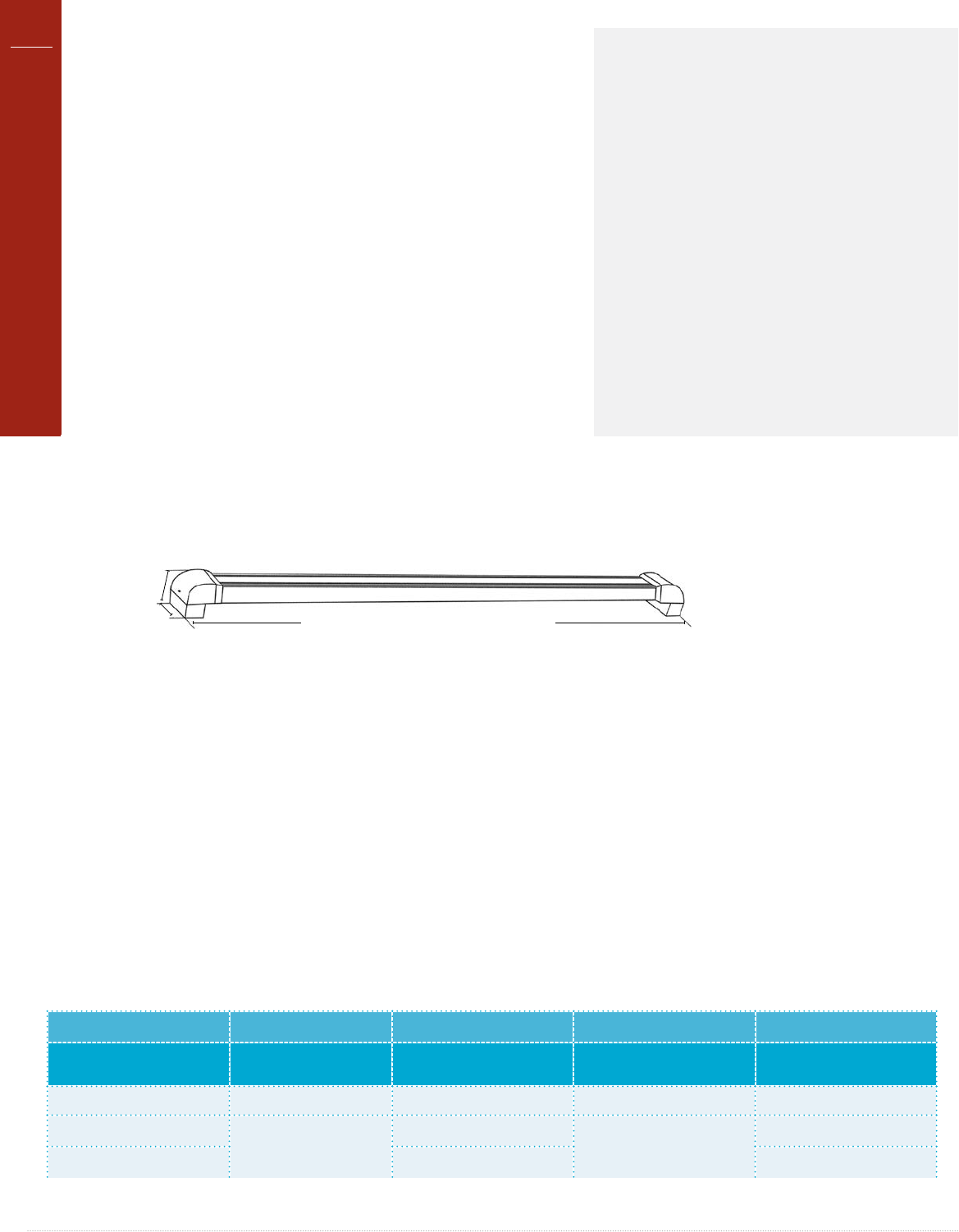

Securitron M32/62/82

Magnalock® Accessories

HHD / HHSL / HHSR / HVD

Full Length Housings

• Vertical or horizontal configurations

• Fit one or two locks (not included)

• (SLR) Single Left Hand Reverse

• (SRR) Single Right Hand Reverse

• MagnaCare® lifetime replacement,

no fault, no questions asked warranty

Electromagnetic Locks

Model A B C Max

Length*

HHD-32 1.75" 2.1" 2.35" 96"

HHD-62 2.1" 2.6" 3.5" 96"

HHD-82 2.1" 2.6" 3.5" 96"

HHSL-32 1.75" 2.1" 2.35" 48"

HHSL-62 2.1" 2.6" 3.5" 48"

HHSR-32 1.75" 2.1" 2.35" 48"

HHSR-62 2.1" 2.6" 3.5" 48"

HVD-32 1.75" 2.1" 2.35" 96"

HVD-62 2.1" 2.6" 3.5" 96"

HVD-82 2.1" 2.6" 3.5" 96"

*Full length housings are individually manufactured to

custom specifications up to the maximum length shown.

HHD Horizontal Housing

Part Number | Description

HHD-32 Lock Housing for M32 - Dbl. Horizontal

HHD-62 Lock Housing for M62 - Dbl. Horizontal

HHD-82 Lock Housing for M82 - Dbl. Horizontal

HHSL-32 Lock Housing for M32 - SLR Horizontal

HHSL-62 Lock Housing for M62 - SLR Horizontal

Part Number | Description

HHSR-32 Lock Housing for M32 - SRR Horizontal

HHSR-62 Lock Housing for M62 - SRR Horizontal

HVD-32 Lock Housing for M32 - Dbl. Vertical

HVD-62 Lock Housing for M62 - Dbl. Vertical

HVD-82 Lock Housing for M82 - Dbl. Vertical

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

104

Electromagnetic Locks

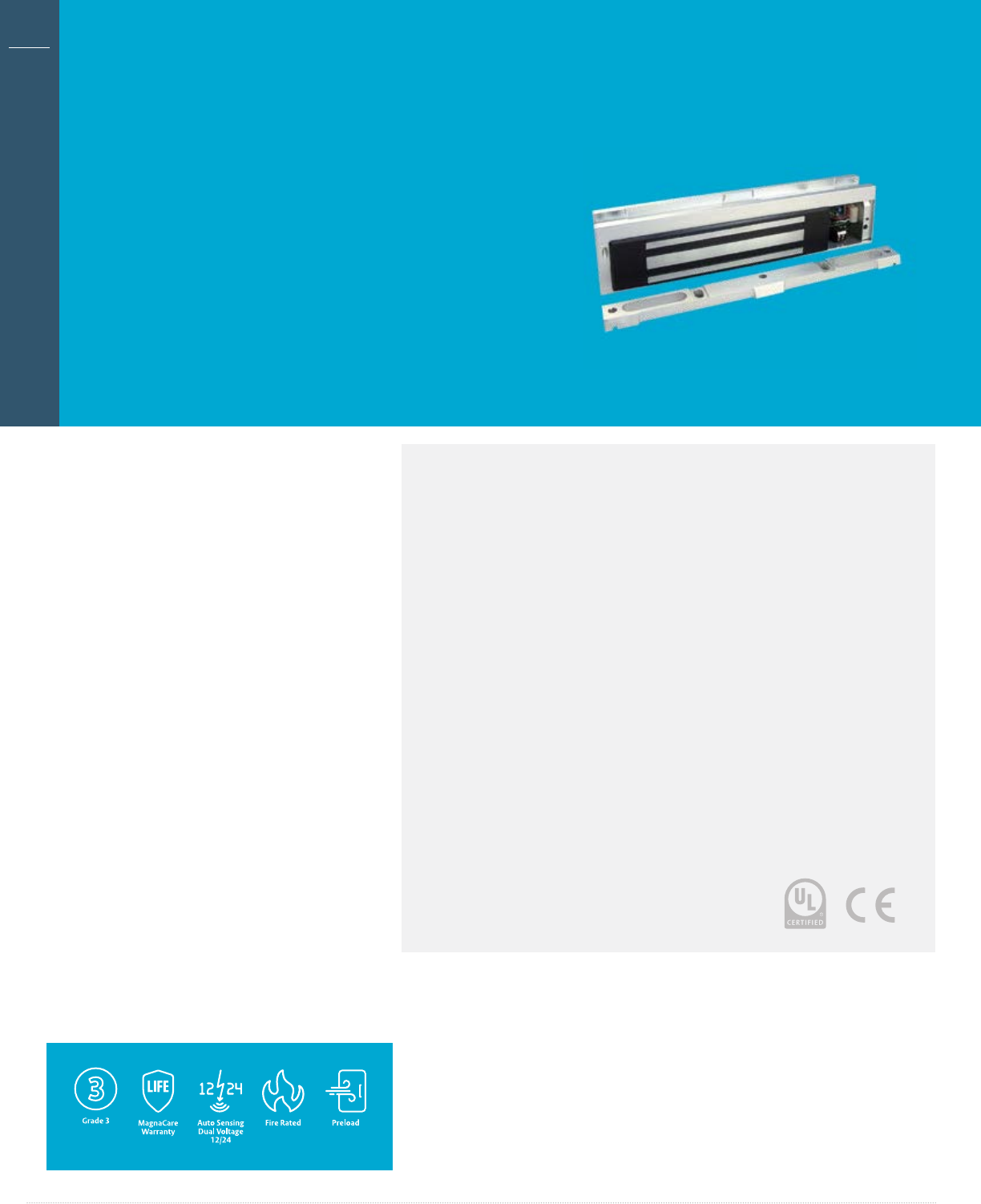

Securitron® M38

Series Magnalock®

600 lbs holding force,

bracket mounted Magnalock

Easily installed,

bracket mounted

Magnalock for interior

applications.

The M38 electromagnetic lock is ideal for

traffic control in high-use areas within

secured or monitored perimeters. Offerings

include solutions for interior rooms,

closets and hallways where reliability, high

durability and lowmaintenance are required.

Bracket mounting and wiring chamber

provide quick, accurate installation.

Features

Standard Features

• Automatic dual-voltage—no

field adjustment required

• Bracket mounting provides the

easiest install for out-swing doors

• Rust resistant—all ferrous metal

surfaces plated for durability

• Instant release circuit—no

residual magnetism

• Internal wire access chamber

• Noise suppression with included MOV

• Ultra-secure collapsing blind

nuts mount to door frame for

strength and reliability

• MagnaCare® lifetime replacement,

no fault, no questions asked warranty

Optional Features

• D Integrated Door

Position Switch (DPS)

• L LED indicator

• S SenSTAT

• T Anti-tamper switch

105

Electromagnetic Locks

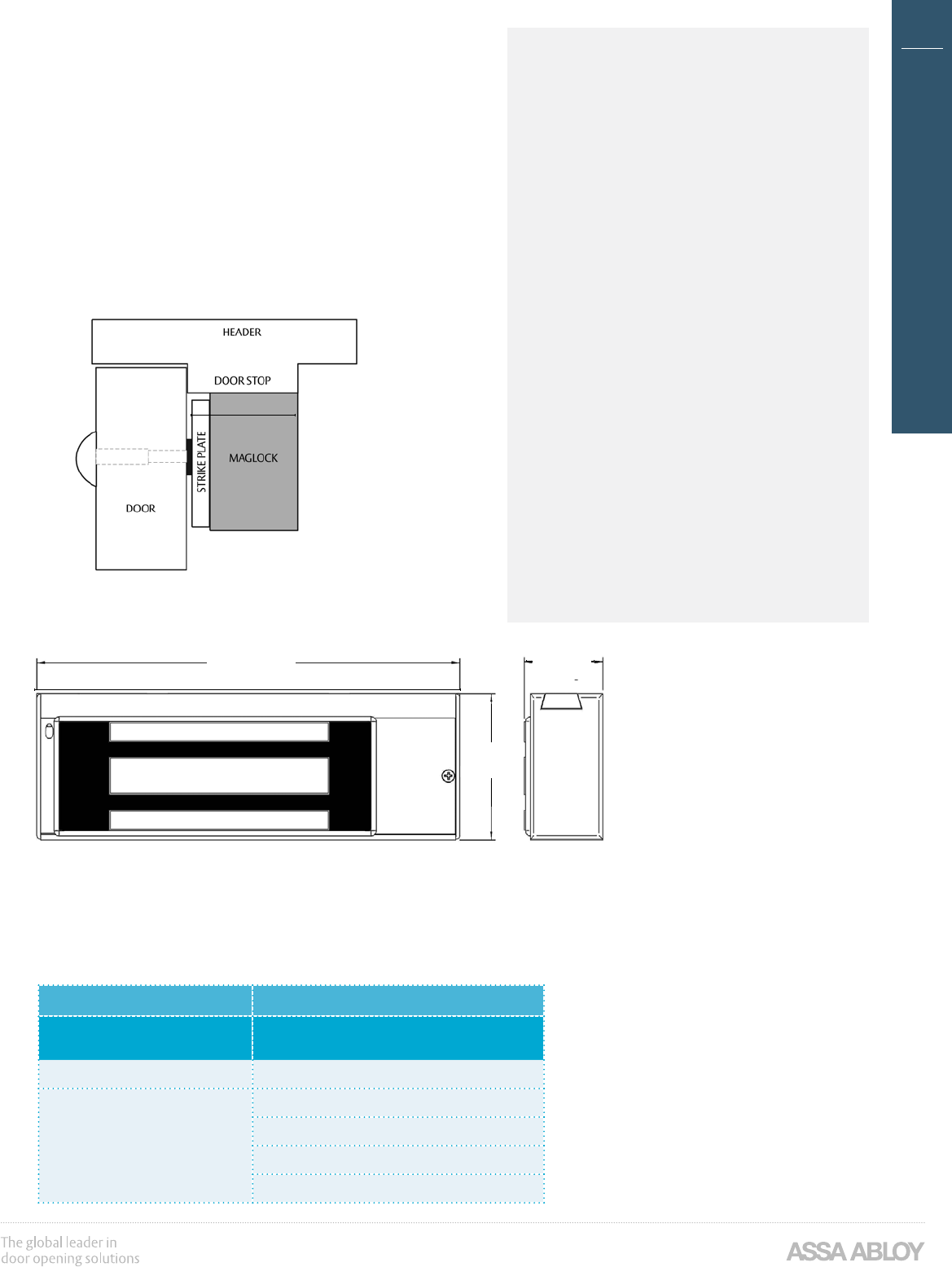

Specifications

Certifications

• UL 10C Listed

• CAN4-S104, CAN/ULC-S533 Listed

• ANSI/UL 294 Listed

• CSA-C22.2 No.205 Listed

• ANSI/BHMA A156.23, Grade 3; E18501-500

• CSFM—California State Fire Marshal Approved

• CE:EN 50081-1(92), EN 61000-6-2(99) Approved

Dimensions

• Magnalock: 10-1/2"L x 1-11/16"D x 2-1/2"H

• Strike: 6-1/4"L x 1/2"D x 1-5/8"H

Electrical

• 350 mA at 12 VDC

• 170 mA at 24 VDC

Holding Force

• 600 lbs [272kg]

Operating Temperature

• +32 to +110F [0 to +43C]

• Indoor use only

Shipping Weight

• 8 lbs [3.63kg]

How to Order

Model Series Monitoring Options

M38 DLST

M38 600lbs Magnalock (blank) No Monitoring

D Door Position Switch

L LED Indicator

S Senstat Monitor

T Tamper Monitor

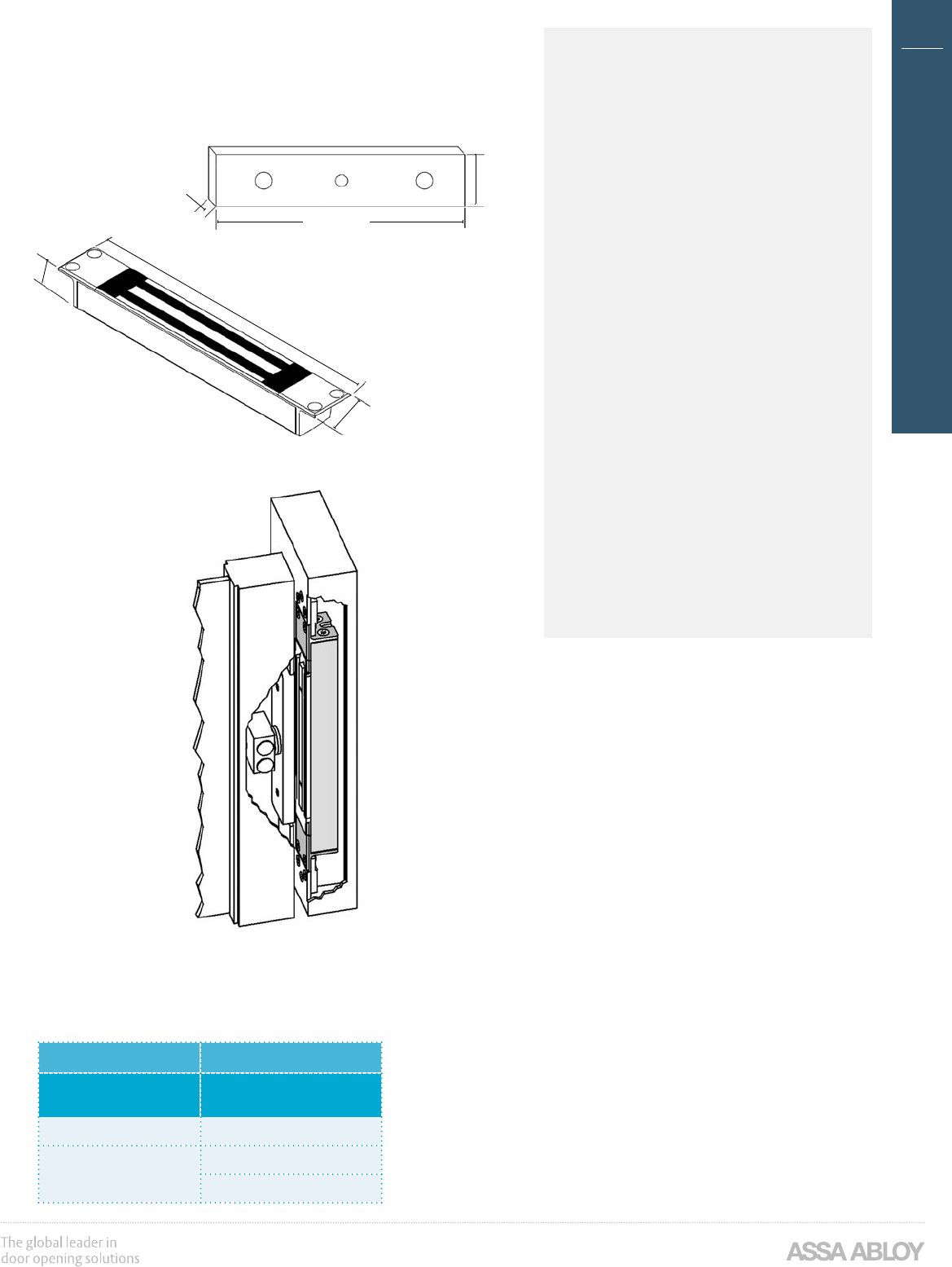

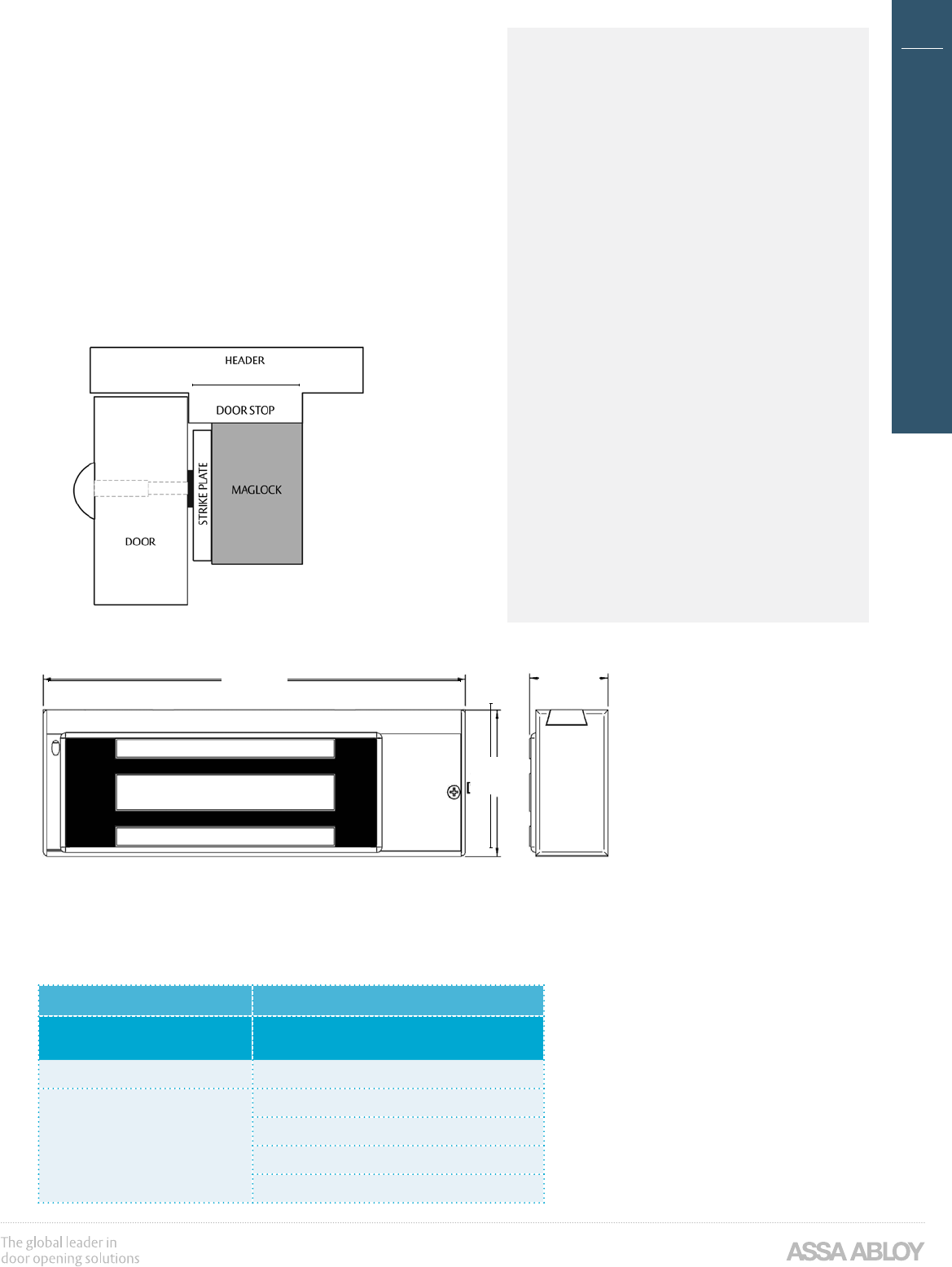

Dimensions

10-1/2"

[266.7mm]

2-1/2"

[64mm]

1-11/16"

[43.3mm]

2-1/4"

Fits in 2-1/4" of flat mounting space

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

106

Electromagnetic Locks

Securitron® M68

Series Magnalock®

1,200 lbs holding force,

bracket mounted Magnalock

Features

Standard Features

• PoE friendly

• Automatic dual-voltage—no

field adjustment required

• Bracket mounting provides the

easiest install for out-swing doors

• Rust resistant—all ferrous metal

surfaces plated for durability

• Instant release circuit —no

residual magnetism

• Internal wire access chamber

• Noise suppression with included MOV

• Ultra-secure collapsing blind

nuts mount to door frame for

strength and reliability

• Strong hold and low maintenance

• MagnaCare® lifetime replacement,

no fault, no questions asked warranty

Optional Features

• D Integrated Door

Position Switch (DPS)

• L LED indicator

• S SenSTAT

• T Anti-tamper switch

Easily installed,

bracket mounted

Magnalock for higher

security interior

applications.

Ideal for traffic control in high-use areas

where higher security is needed, the

M68 electromagnetic lock provides

reliability, durability and strength with

low maintenance and efficient power

consumption. Bracket mounting and wiring

chamber provide ease of installation.

107

Electromagnetic Locks

Specifications

Certifications

• UL 10C Listed

• CAN4-S104, CAN/ULC-S533 Listed

• ANSI/UL 294 Listed

• CSA-C22.2 No.205 Listed

• ANSI/BHMA A156.23, Grade 2; E18501-1000

• CSFM—California State Fire Marshal Approved

• CE:EN 50081-1(92), EN 61000-6-2(99) Approved

Dimensions

• Magnalock: 10-1/2"L x 2"D x 3-5/8"H

• Strike: 6"L x 1/2"D x 2-3/4"H

Electrical

• 250 mA at 12 VDC

• 125 mA at 24 VDC

Holding Force

• 1,200 lbs [544kg]

Operating Temperature

• +32 to +110F [0 to +43C]

• Indoor use only

Shipping Weight

• 13 lbs [5.44kg]

How to Order

Model Series Monitoring Options

M68 DLST

M68 1,200 lbs Magnalock (blank) No Monitoring

D Door Position Switch

L LED Indicator

S Senstat Monitor

T Tamper Monitor

Dimensions

10-1/2"

[266mm]

3-5/8"

[92mm]

[50.8mm]

2-1/4"

Fits in 2-1/4" of flat mounting space

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

108

Electromagnetic Locks

Securitron® M38, M68

Bracket Mounted

Magnalock® Accessories

Part Number | Description

DC-38SP DC–M38, Stainless Polished

DC-68SP DC–M68, Stainless Polished

M38 M68

DC Dress Cover

• Available for the M38 and M68

• Install using foam adhesive tape

• MagnaCare® lifetime replacement, no

fault, no questions asked warranty

TJ Top Jamb - In-

Swing Door Kit

• Available for the M38 and M68

• Used to mount the lock on the secure side

of a door that swings into a secured area

• Includes a Z-Bracket and an

oversized Dress Cover

• MagnaCare® lifetime replacement, no

fault, no questions asked warranty

Part Number | Description

TJ-38CL In-Swing Door Kit—M38, Clear

TJ-68CL In-Swing Door Kit—M68, Clear

109

Electromagnetic Locks

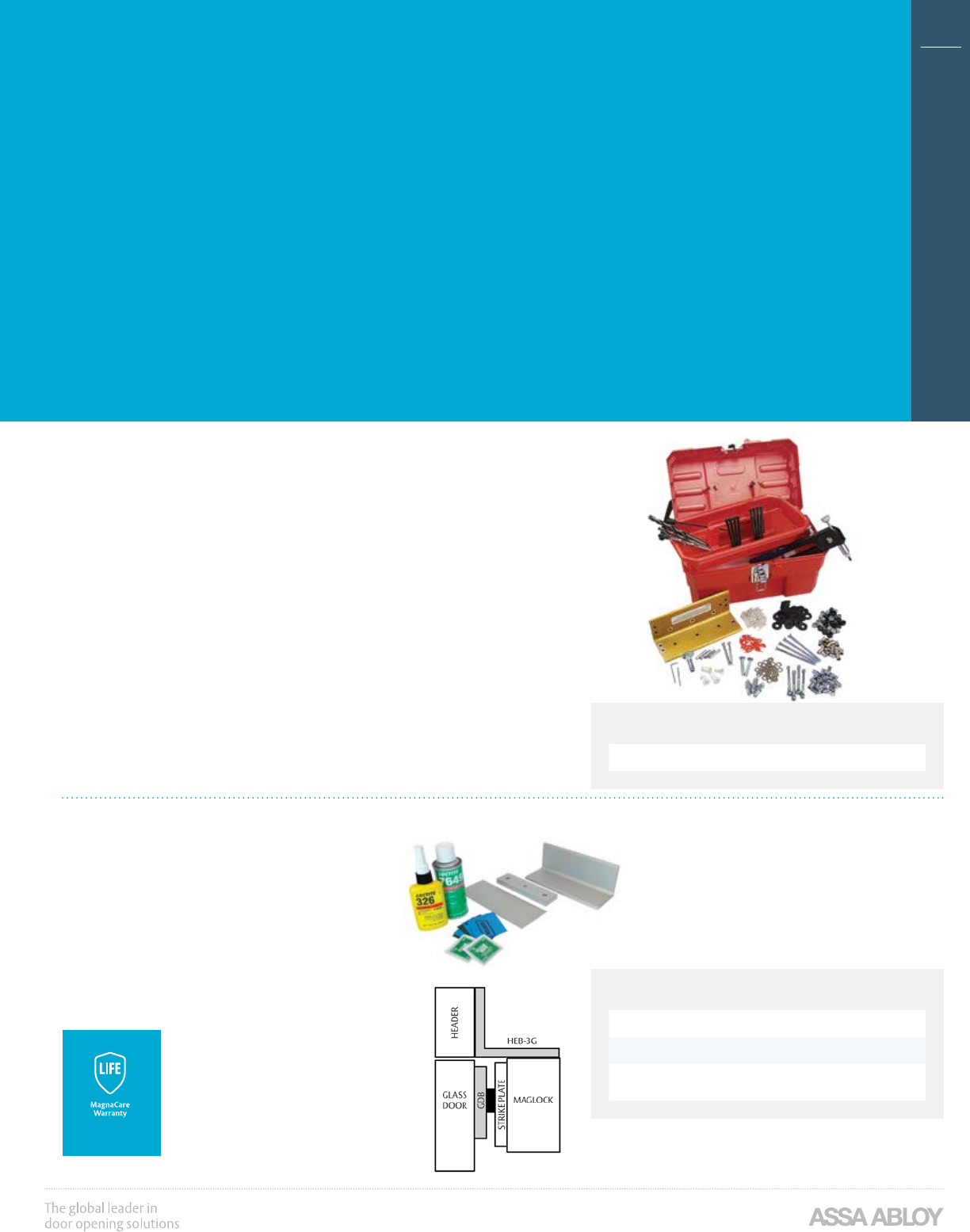

Universal Magnalock®

Accessories

IK Installation Kit

• This convenient, cost effective kit contains

everything an installer needs to

achieve professional, high quality Securitron

Magnalock® installations. The IK offers substantial

savings over purchasing the same items separately.

• MagnaCare® lifetime replacement, no

fault, no questions asked warranty

Tool Box

Heavy Duty Drill Guide

Blind Nut Placement Tool

Sex Bolt – M32/M62/M82

T-Handle Hex Wrench

Hardware Packs –

M32, M62/M82

Rubber Washers

Flat Washers

Insulated Crimp Connectors

Threadlock

1/8" Cobalt Drill Bit

3/8" Cobalt Drill Bit

3/8" Carbide Drill Bit

1/2" High Speed Drill Bit

Blind Nuts with

Collapsing Tool

Finish Caps

Long Screw Pack

Securitron’s original installation kit includes the following components:

Glass Door Accessories

• HEB-3G allows for Magnalock installation

on all-glass header when used with AKG

• GDB permits strike plate installation

on a solid glass door

• AKG permanently bonds to the glass

using a special industrial adhesive

• Strike Plate screws into the bracket,

as glass doors cannot be drilled

• Use HEB-3G with M32, M62, 3" x 3" x

8" with specially milled back

Part Number | Description

IK Installation Kit

Part Number | Description

AKG Adhesive Kit for GDB

GDB Glass Door Bracket

DCP-12X3 Dress Cover Plate, 12 x 3 for

larger strikes (M680, M380)

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

110

Electromagnetic Locks

HEB Header Extension Bracket

• 90 degree angle brackets

• Extends narrow headers to permit proper mounting of Magnalocks

• Use with M32, M62, M82, M38, M68, M370, M380, M670, M680

• Available in clear aluminum or black anodized

• MagnaCare® lifetime replacement, no fault, no questions asked warranty

UHB Universal Header Bracket

• Used to extend the header 1" or 1-1/2"

• Provides a concealed wiring chamber

• Use with M32, M62, M82, M38, M68, M370, M380, M670, M680

• Available in clear aluminum or black anodized

• MagnaCare® lifetime replacement, no fault, no questions asked warranty

Securitron Magnalock

Accessories continued

Part Number | Description

HEB-1BK-12 HEB - 1 x 1 x 12, Black Anodized

HEB-1BK-8 HEB - 1 x 1 x 8, Black Anodized

HEB-1CL-12 HEB - 1 x 1 x 12, Clear Anodized

HEB-1CL-8 HEB - 1 x 1 x 8, Clear Anodized

HEB-2BK-12 HEB - 2 x 2 x 12, Black Anodized

HEB-2BK-8 HEB - 2 x 2 x 8, Black Anodized

HEB-2CL-12 HEB - 2 x 2 x 12, Clear Anodized

Part Number | Description

UHB-BK-12 UHB - 12", Black Anodized

UHB-BK-8 UHB - 8", Black Anodized

UHB-CL-12 UHB - 12", Clear Anodized

UHB-CL-8 UHB - 8", Clear Anodized

Part Number | Description

HEB-2CL-8 HEB - 2 x 2 x 8, Cear Anodized

HEB-3BK-12 HEB - 3 x 3 x 12, Black Anodized

HEB-3BK-8 HEB - 3 x 3 x 8, Black Anodized

HEB-3CL-12 HEB - 3 x 3 x 12, Clear Anodized

HEB-3CL-8 HEB - 3 x 3 x 8, Clear Anodized

HEB-3G HEB - 3 x 3 x 8 for Glass

Door, Clear Anodized

111

Electromagnetic Locks

Securitron Magnalock

Accessories continued

SFP Stop Filler Plate

• Used to fill or extend a door stop

• Creates a flat mounting surface for the Magnalock®

• Available in 1/4", 3/8", 1/2" and 5/8"

thickness, all 1-1/4" wide

• Use with M32, M62, M82, M38, M68,

M370, M380, M670, M680

• Available in clear aluminum or black anodized

• MagnaCare® lifetime replacement, no

fault, no questions asked warranty

Part Number | Description

SFP-1/2BK-12 SFP - 1/2 x 1-1/4 x 12, Black Anodized

SFP-1/2BK-8 SFP - 1/2 x 1-1/4 x 8, Black Anodized

SFP-1/2CL-12 SFP - 1/2 x 1-1/4 x 12, Clear Anodized

SFP-1/2CL-8 SFP - 1/2 x 1-1/4 x 8, Clear Anodized

SFP-1/4BK-12 SFP - 1/4 x 1-1/4 x 12, Black Anodized

SFP-1/4BK-8 SFP - 1/4 x 1-1/4 x 8, Black Anodized

SFP-1/4CL-12 HEB - 2 x 2 x 12, Clear Anodized

SFP-1/4CL-8 SFP - 1/4 x 1-1/4 x 8, Clear Anodized

Part Number | Description

SFP-3/8BK-12 SFP - 3/8 x 1-1/4 x 12, Black Anodized

SFP-3/8BK-8 SFP - 3/8 x 1-1/4 x 8, Black Anodized

SFP-3/8CL-12 SFP - 3/8 x 1-1/4 x 12, Clear Anodized

SFP-3/8CL-8 SFP - 3/8 x 1-1/4 x 8, Clear Anodized

SFP-5/8BK-12 SFP - 5/8 x 1-1/4 x 12, Black Anodized

SFP-5/8BK-8 SFP - 5/8 x 1-1/4 x 8, Black Anodized

SFP-5/8CL-12 SFP - 5/8 x 1-1/4 x 12, Clear Anodized

SFP-5/8CL-8 SFP - 5/8 x 1-1/4 x 8, Clear Anodized

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

112

Electromagnetic Locks

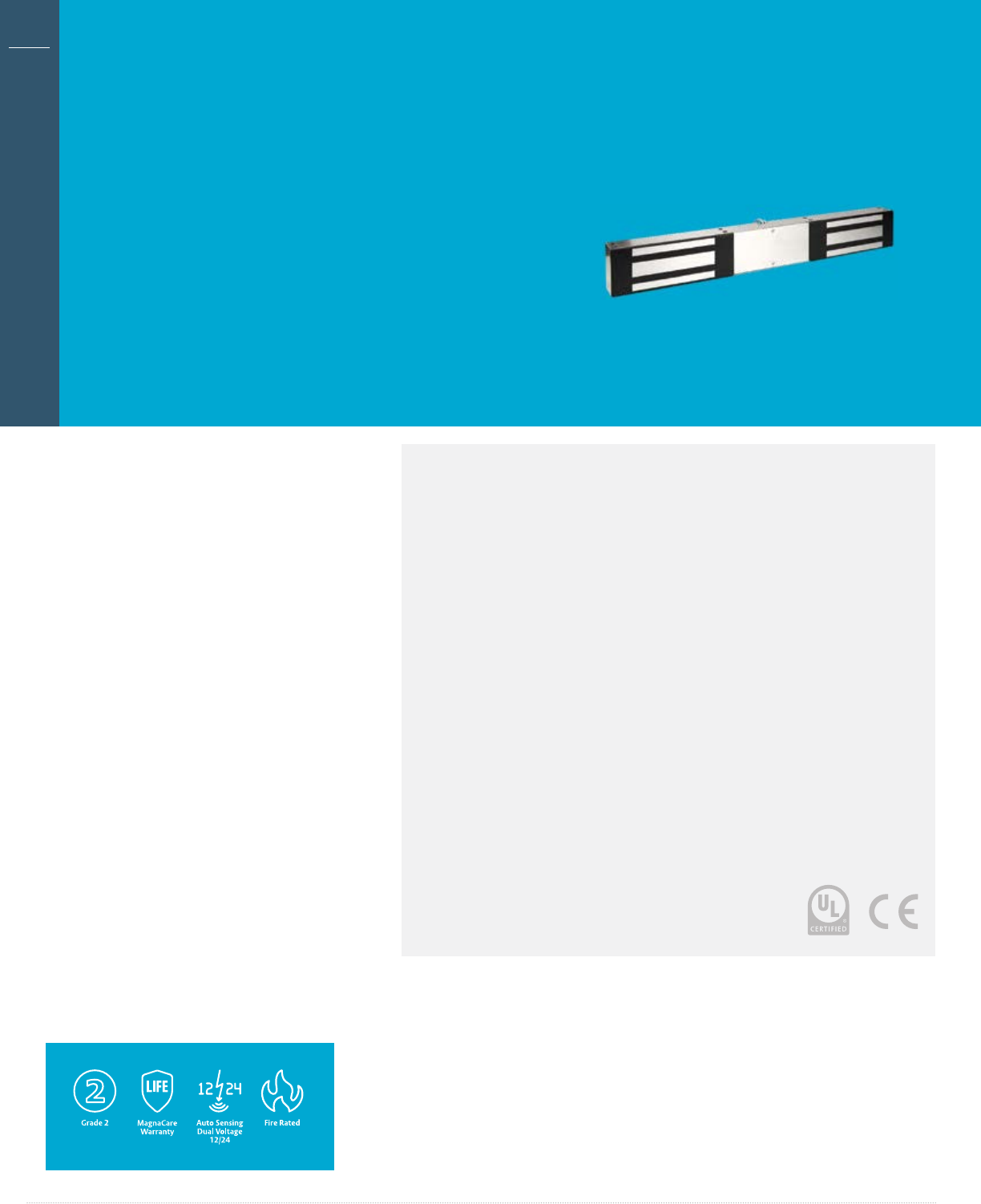

Securitron®

DM62 Magnalock®

The ultimate 1,200 lbs holding

force Magnalock double magnet

for indoor/outdoor high security

Features

Standard Features

• Ultra-secure collapsing blind

nuts mount to door frame for

strength and reliability

• Fully sealed for weatherproof

operations

• 3' [1 m] of jacketed, stranded

conductor cable for each lock

• Automatic dual-voltage—no

field adjustment required

• Instant release circuit—no

residual magnetism

• Noise suppression with included MOV

• Efficient, low power usage

• Rust resistant - all ferrous metal

surfaces plated for durability

• MagnaCare® lifetime replacement,

no fault, no questions asked warranty

Optional Features

• B BondSTAT™ magnetic bond sensor

• D Integrated door

position switch (DPS)

• OS Offset strike plates

The versatile DM62

electromagnetic lock

offers strength and

ease of maintenance

for interior, perimeter

and exterior

access control—

in a compact

double magnet.

This all-in-one unit is designed for

double doors with no mullion. With

unsurpassed durability, the DM62 will

last long after most buildings wear out.

113

Electromagnetic Locks

The DM62 with Strike fits in

2-1/2" of flat mounting space

2-1/2"

[76mm]

22"

[559mm]

1-3/4"

[44mm] 6"

[152mm]

2-3/4"

[70mm]

1/2"

[12mm]

Specifications

Certifications

• UL 10C Listed

• CAN4-S104, CAN/ ULC-S533 Listed

• ANSI/BHMA A156.23, Grade 2; E08511-1000

• CSFM- California State Fire Marshal Approved

Dimensions

• Magnalock: 22"L x 1-3/4"D x 3"H

• Strike: 6"L x 1/2"D x 2-3/4"H each

Electrical (Per Lock)

• 250 mA at 12 VDC

• 150 mA at 24 VDC

Holding Force (Per Lock)

• 1,200 lbs [544kg]

Operating Temperature

• -40 to +140F [-40 to +60C]

• Indoor or Outdoor use

Shipping Weight

• 16 lbs [7.26kg]

How to Order

Model Series Monitoring Options Strike Plate Options

DM62 BD – OS

DM62 (blank) No Monitoring (blank) Standard Strike

B BondStat Monitor OS Offset Strike

D Door Position Switch

Dimensions

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

114

Electromagnetic Locks

Features

Standard Features

• Efficient, low power usage

• Automatic dual-voltage—no

field adjustment required

• Fully sealed for weatherproof

operations

• Rust resistant—all ferrous metal

surfaces plated for durability

• Instant release circuit— no

residual magnetism

• Noise suppression with included MOV

• Recessed for aesthetically

appealing finish

• 10 ft [3.05m] of jacketed,

stranded conductor cable

• Direct mount in door frame

for strength and reliability

• MagnaCare® lifetime replacement,

no fault, no questions asked warranty

Optional Features

• B Patented BondSTAT

magnetic bond sensor

• D Integrated Door

Position Switch (DPS)

Hidden strength

at any angle for

any application.

This concealed Magnalock is ideal for traffic

control or medium security and with its

flexible mounting options solutions the

most challenging door control situations.

The SAM Shear Aligning Magnalock has

mounting options for a single door or each

leaf on a pair of doors and can be on a sliding,

in-swing, out-swing or swing-through door.

It mounts fully concealed into wood, steel,

aluminum or Herculite doors in any position:

at the header, door edge or threshold.

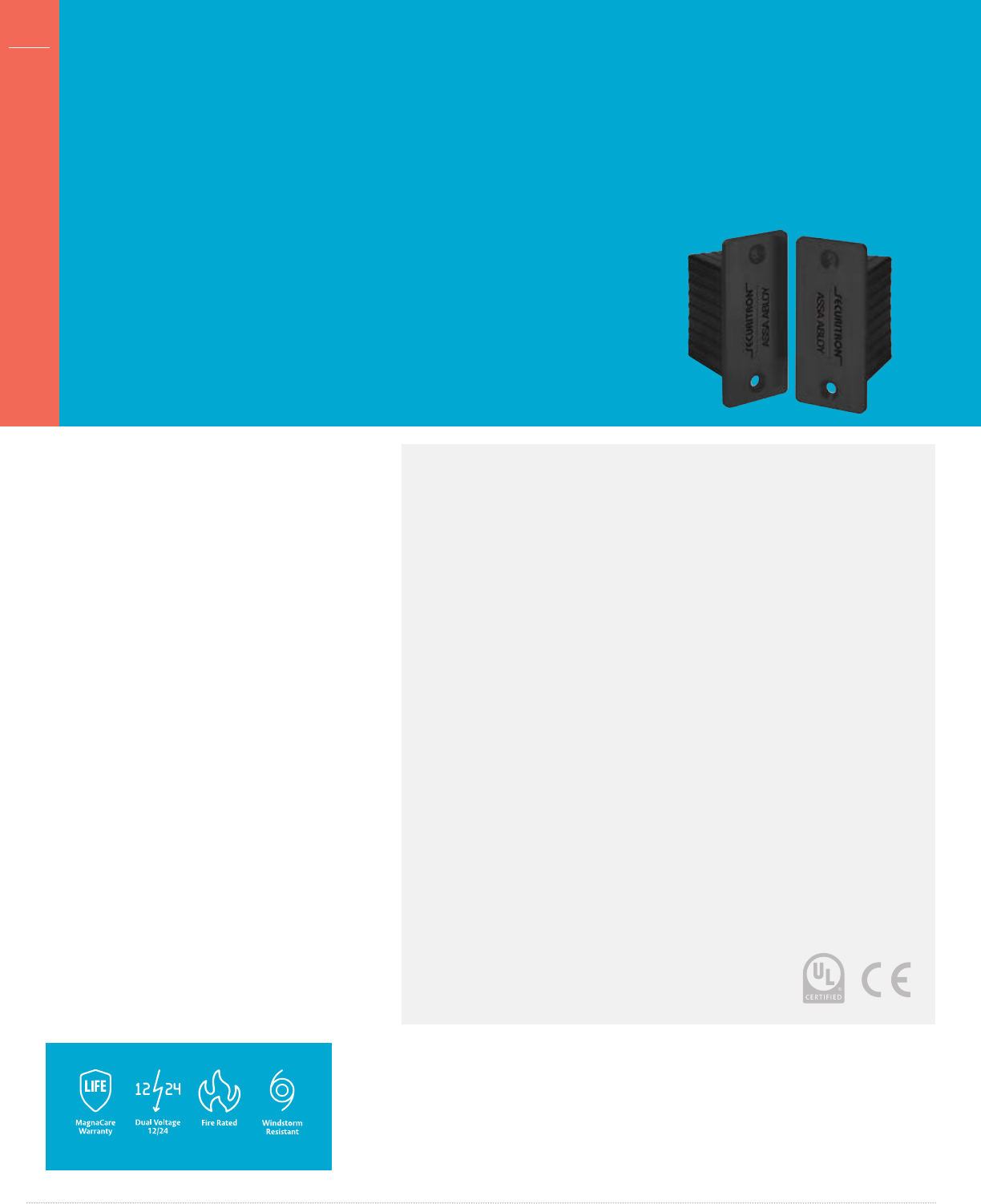

Securitron® SAM

Shear Aligning

Magnalock®

1,200 lbs holding force,

shear aligning Magnalock

115

Electromagnetic Locks

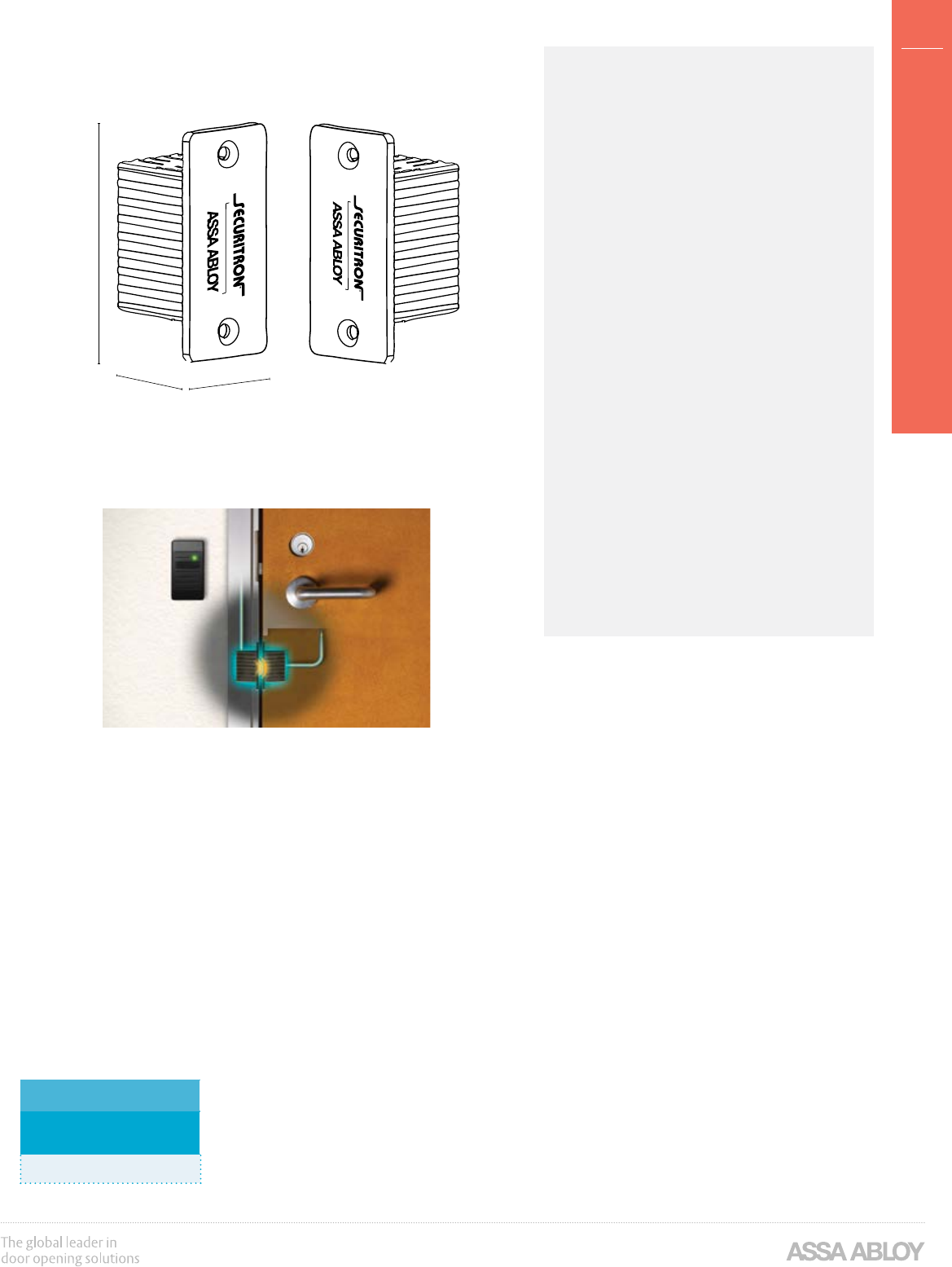

Dimensions Specifications

Certifications

• UL 10C Listed

• CAN4-S104, CAN/ ULC-S533 Listed

• ANSI/UL 294 Listed

• ANSI/BHMA A156.23, Grade 2; E08561-1000,

E08571-1000, E08581-1000, E08591-1000

• CSFM—California State Fire Marshal Approved

• CE:EN 50081-1(92), EN 61000-

6-2(99) Approved

Dimensions

• Magnalock: 10-7/8"L x 1-3/16"D x 1-1/2"H

• Strike: 10-7/8"L x 1-7/16"D x 1-1/2"H

Electrical

• 320 mA at 12 VDC

• 170 mA at 24 VDC

Holding Force

• 1,200 lbs [544kg]

Operating Temperature

• -40 to +140F [-40 to +60C]

• Indoor or Outdoor use

• Not for use in open channel doors

Shipping Weight

• 6 lbs [2.72kg]

1-3/16"

[30mm]

1-7/16"

[36mm]

10-7/8"

[275mm]

10-7/8"

[275mm]

1-1/2"

[37mm]

1-1/2"

[38mm]

How to Order

Model Series Monitoring Options

SAM BD

SAM 1,200 lbs (blank) No Monitoring

B BondStat Monitor

D Door Position Switch

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

116

Electromagnetic Locks

Features

Standard Features

• Efficient, low power usage

• Automatic dual-voltage—no

field adjustment required

• Fully sealed for weatherproof

operations

• Rust resistant—all ferrous metal

surfaces plated for durability

• Instant release circuit—no

residual magnetism

• Noise suppression with included MOV

• Recessed for aesthetically

appealing finish

• 10 ft [3.05m] of jacketed,

stranded conductor cable

• Direct mount in door frame

for strength and reliability

• MagnaCare® lifetime replacement,

no fault, no questions asked warranty

Optional Features

• B Patented BondSTAT

magnetic bond sensor

• D Integrated Door

Position Switch (DPS)

Recessed Magnalock

for traffic control

on a sliding door.

The M34R secures single sliding doors

with Magnalock strength for traffic control

applications within a monitored perimeter.

The recessed design on the edge of the

door that comes against the frame when

the door is closed conceals the maglock

for hidden protection that blends with the

aesthetics of the opening. Works great on

automatic single sliding doors or on sliding

doors for patios, storage closets and more.

Securitron®

M34R Recessed

Magnalock®

500 lbs holding force,

recessed Magnalock

117

Electromagnetic Locks

Dimensions

1-1/8"

[28mm]

1-1/2"

[38mm]

10-1/2"

[268mm]

1-7/16"

[37mm]

1/2"

[13mm] 6-3/8"

[162mm]

How to Order

Model Series Monitoring Options

M34R BD

M34R (500 lbs) (blank) No Monitoring

B BondStat Monitor

D Door Position Switch

Specifications

Certifications

• UL 294 listed

• CAN4-S104, CAN/ULC-S533 Listed

• CSFM—California State Fire Marshal Approved

• CE:EN 50081-1(92), EN 61000-

6-2(99) Approved

Dimensions

• Magnalock: 10-1/2"L x 1-1/8"D x 1-1/2"H

• Strike: 6-3/8"L x 1/2"D x 1-7/16"H

Electrical

• 320 mA at 12 VDC

• 170 mA at 24 VDC

Holding Force

• 500 lbs [227kg]

Operating Temperature

• -40 to +140F [-40 to +60C]

• Indoor or Outdoor use

Shipping Weight

• 5 lbs [2.23kg]

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

118

Electromagnetic Locks

Features

Standard Features

• Efficient, low power usage

• Fully sealed for weatherproof

operations

• Compact design fits tight spaces

• Rust resistant—all ferrous metal

surfaces plated for durability

• Instant release circuit—no

residual magnetism

• Noise suppression with

included MOV

• Recessed for aesthetically

appealing finish

• 6 ft [1.83m] of jacketed,

stranded conductor cable

• Direct mount in door frame

for strength and reliability

• MagnaCare® lifetime replacement,

no fault, no questions

asked warranty

Optional Features

• C Bond sensor

Hidden strength

at any angle ideal

for traffic control.

The compact and versatile SAM2-24 Shear

Aligning Magnalock provides 600 lbs. of

holding force to swinging or sliding doors.

It is ideal for traffic control and to secure

smaller applications, like sliding closet

doors, atriums, and more. The SAM2-24

mounts fully concealed into wood, steel,

aluminum or Herculite doors in any position:

at the header, door edge or threshold.

Securitron®

SAM2-24 Shear

Aligning Magnalock®

600 lbs holding force,

shear aligning Magnalock

Aligning Magnalock

119

Electromagnetic Locks

Dimensions Specifications

Certifications

• UL 10C Listed

• CAN4-S104, CAN/ ULC-S533 Listed

• ANSI/UL 294 Listed

• ANSI/BHMA A156.23, Grade 3;

E08571-1000, E08581-500

• CSFM—California State Fire

Marshal Approved

Dimensions

• 7-3/16"L x 1-1/8"D x 1"H

Electrical

• 62 mA at 24 VDC only

Holding Force

• 600 lbs [272kg]

Operating Temperature

• -40 to +140F [-40 to +60C]

• Indoor or outdoor use

• Not for use in open channel doors

Shipping Weight

• 2.5 lbs [1.13kg]

1-1/8"

[29mm]

7-3/16"

[183mm]

[25mm]

15/16"

[24mm]

1-1/8"

[29mm]

How to Order

Model Series Monitoring Options Voltage

SAM2 C – 24

SAM2 (600 lbs) (blank) No Monitoring 24V operation only

C Bond Sensor

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

120

Electromagnetic Locks

1-3/4"

[44mm] 11"

[279mm]

[51mm]

SMSS

Securitron® SAM

Accessories

SWB SAM

Wood Bracket

• SAM Wood Door Bracket provides additional

strength and protection for the SAM

strike plate in wood door applications

• MagnaCare® lifetime replacement, no

fault, no questions asked warranty

SAM Surface Mount Kit

• Available for the M38 and M68

• Used to mount the lock on the secure side

of a door that swings into a secured area

• Includes a Z-Bracket and an

oversized Dress Cover

• MagnaCare® lifetime replacement, no

fault, no questions asked warranty

Part Number | Description

SWB-03 SAM Wood Bracket—Brass Polished

SWB-10B SAM Wood Bracket—Brass Polished

SWB-26D SAM Wood Bracket—Satin Stainless

Part Number | Description

SMLS Surface Mount Housing Lock—Shear

SMSS Surface Mount Housing Strike—Shear

121

Electromagnetic Locks

Out-Swing Door Magnalock Selection Guide

Locks Mount on the Secure Side of the Door & Door Swings Away from Secure Side.

Dual Doors Will Require Two Locks (X2), One for Each Leaf Except for DM62.

Preferred Application = l

In-Swing Door Magnalock Selection Guide

Locks Mounted on the Secure Side of the Door & Door Swings Toward Secure Side.

Dual Doors Will Require Two Locks (X2), One for Each Leaf.

Preferred Application = l

Sliding Door Magnalock Selection Guide

Preferred Application = l

Genuine Magnalock Selection Guide

All Securitron Magnalocks are Fail Safe Electric Locking Devices

Door Type M32F M38 M62F M68 M82F

Glass Door (w/ Aluminum Frame) l l

Wood Door (Traffic Control) l l

Wood Door (High Security) l l

Metal Door (Traffic Control) l

Metal Door (High Security) l l l

Door Type M34R SAM

Double Sliding Doors l

Single Sliding Doors l

Door Type M32 M380 M62 M680E M82 SAM

Glass Door (w/ Aluminum Frame) l l l

Wood Door (Traffic Control) l l

Wood Door (High Security) l l

Metal Door (Traffic Control) l l

Metal Door (High Security) lll

Herculite Door (w/out Top or Bottom Rail) l l

Herculite Door (w/Top or Bottom Rail) l l

122

Electromagnetic Locks

Securitron Magnalock® Options

Anti-Tamper Sensor (T)

The Anti-Tamper option provides a Single Pole Double Throw (SPDT) switch

output that indicates if the wire access chamber cover has been tampered with

or removed. When connected to an alarm point on an alarm panel or access

control system it offers real-time notification of tampering attempts.

Door Position Switch (D)

The Door Position Switch (DPS) provides a signal to an access control system indicating

whether the door is open or closed. When used in conjunction with BondSTAT™ or Senstat,

it provides layered status indication for precise information about the door state. The DPS

may be ordered included with many Securitron Magnalocks — or as an upgrade kit.

Senstat (S) Unlike commonly used door position switches that indicate only that a door is closed,

Senstat detects the presence of an armature plate and notifies the access control or alarm

system that the magnet is engaged. All Senstat Magnalocks use Form ‘C’ isolated contacts.

BondSTAT® (B)

BondSTAT is the next generation of patented electromagnetic lock monitoring. BondSTAT

delivers unparalleled peace of mind by detecting an armature plate and notifying access

control and/or alarm systems that a door is properly secured. BondSTAT’s sensitive magnetic

field monitors the entire surface of the armature plate, providing maximum assurance that

the lock is engaged. Movement in the armature’s position beyond the set tolerance alerts

the access control system that the Magnalock may not be generating its full holding force.

Conduit Fitting (G) The conduit fitting option is offered on some Magnalocks that can be used for gate-

mounting applications and features a 3/4" outer diameter and 1/2" inner diameter.

Offset Strike Plate (-OS) An Offset Strike Plate may be required for proper installation of

a Magnalock in aluminum frame door applications.

Split Strike Plate (-SS) A Split Strike Plate may be used for a double door with no mullion

to provide traffic control using a single Magnalock.

Face Mount (F) Face Mount Magnalock options provide the holes for the mounting bolts through the face of

the magnet in a front-toback orientation rather than through the magnet bottom-to-top.

LED (L) The LED provides a local visual indicator of the status of the lock. On locks with the Senstat

option, the LED will be green when the lock is powered but not secure, and red when the

lock is secure. Locks without the Senstat option will only indicate green when powered.

Request to Exit (X) Some Securitron Magnalock models offer an integrated motion

detector that automatically signals the lock to disengage when it detects

approaching traffic, also known as request to exit (REX).

Cabinet Locks

123

124

Cabinet Locks

125

Cabinet Locks

Features

Standard Features

• Field selectable fail secure/fail safe

• Compact design fits most

drawers and cabinets

• Installation either at the

side or front of cabinets

• SecuriCare three-year, no fault,

no questions asked warranty

Optional Features

• LM Locked state monitoring

The versatile, compact,

cost effective cabinet

lock to secure

drawers or doors.

The 610 cabinet lock can be triggered by

a simple relay as part of an access control

system or with a standalone keypad. The HES

610 is available with or without monitoring

and has over 200 lbs of holding force.

HES® 610 Series

Cabinet Lock

The compact and cost effective

cabinet locking solution

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

126

Cabinet Locks

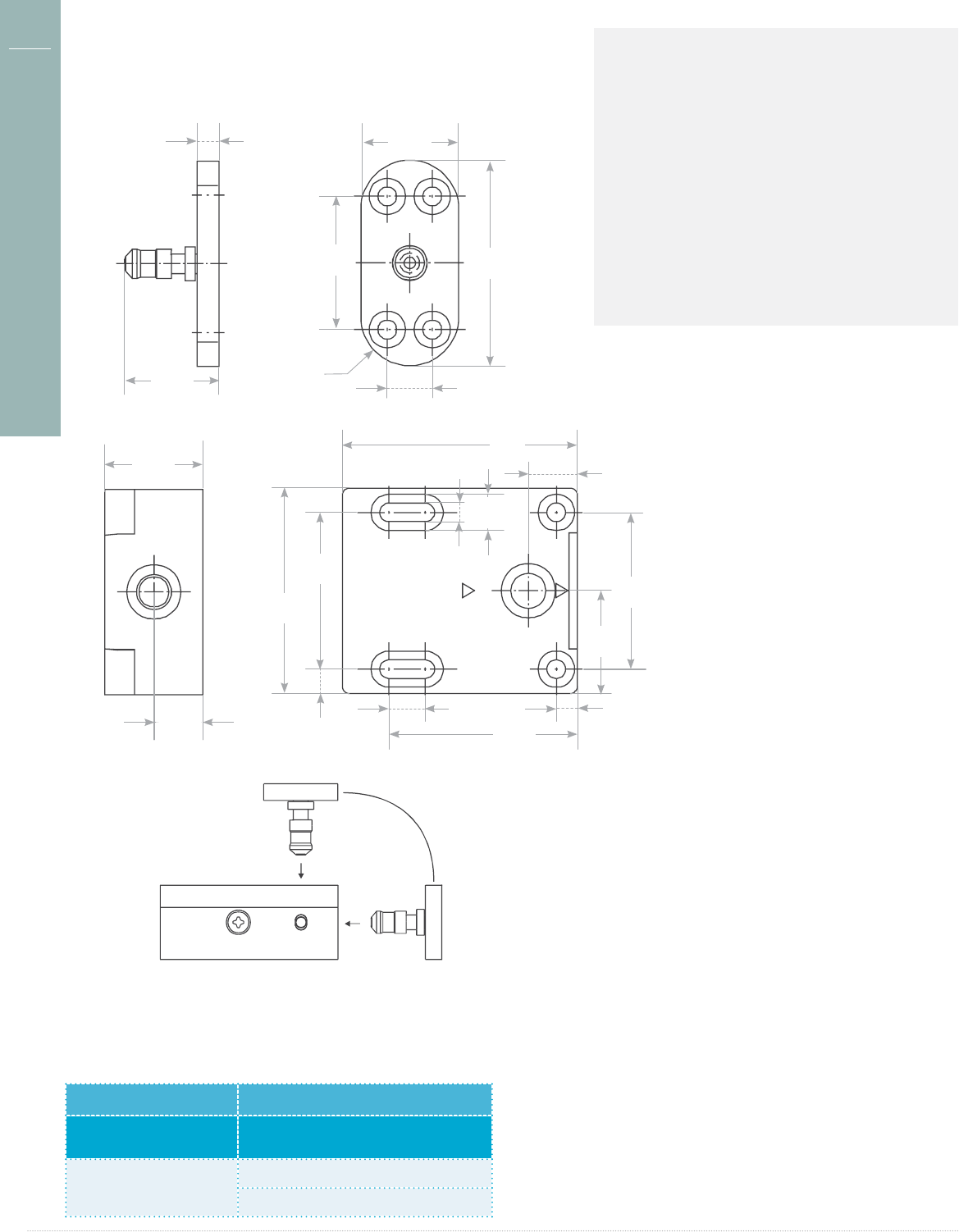

Dimensions

How to Order

Series Option (s)

610 – LM

(blank) No Monitoring

LM Locked state monitoring

How to Order

Series Option (s)

610 – LM

(blank) No Monitoring

LM Locked state monitoring

How to Order

Series Option (s)

610 – LM

(blank) No Monitoring

LM Locked state monitoring

Specifications

Electrical

• 140 mA at 12 VDC / 70 mA at 24 VDC

260 mA at 12 VDC / 130 mA at 24 VDC

• Monitored contact rating 25V / 1A

Holding Force

• 200 lbs [91 kg]

Operating Temperature

• +14 to 104 F [-10 to +40 C]

• IP20 Rated

[48]

[38.5]

1-1/2"

[7.4]

9/32"

[5]

1/2"

[4.3]

3/16"

[32]

1-1/4"

[42]

1-3/4"

[32]

1-1/4"

[21]

13/16"

[10]

13/32"

[7.4]

9/32"

[3.8]

5/32"

[19.2]

3/4"

[4.5]

3/16"

[20]

25/32"

[42]

1-3/4"

[27. 2]

[9.2]

3/8"

R10

Locking Element Rosette

[20]

25/32"

[10]

13/32"

127

Cabinet Locks

Features

Standard Features

• All metal construction

• Adjustable mounting brackets

with final lockdown feature

• 6 foot cable lead

• SecuriCare three-year, no fault,

no questions asked warranty

Optional Features

• Preload (up to 15 lbs)

• LBSM Locked state monitoring

• LBSM Preload Locked state

monitoring with preload

Accessories

• KO Key override

With over 1,000 lbs

of holding force.

Available with or without locked state

monitoring and a pre-load release function

allowing for smooth functional operation

under a variety of environmental conditions.

Strong, convenient and flexible, it is ideal

for corporate and government applications

including lockers, cabinets, and display cases.

HES® 660 Series

Cabinet Lock

The strongest surface mounted,

multi-purpose locking solution

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

128

Cabinet Locks

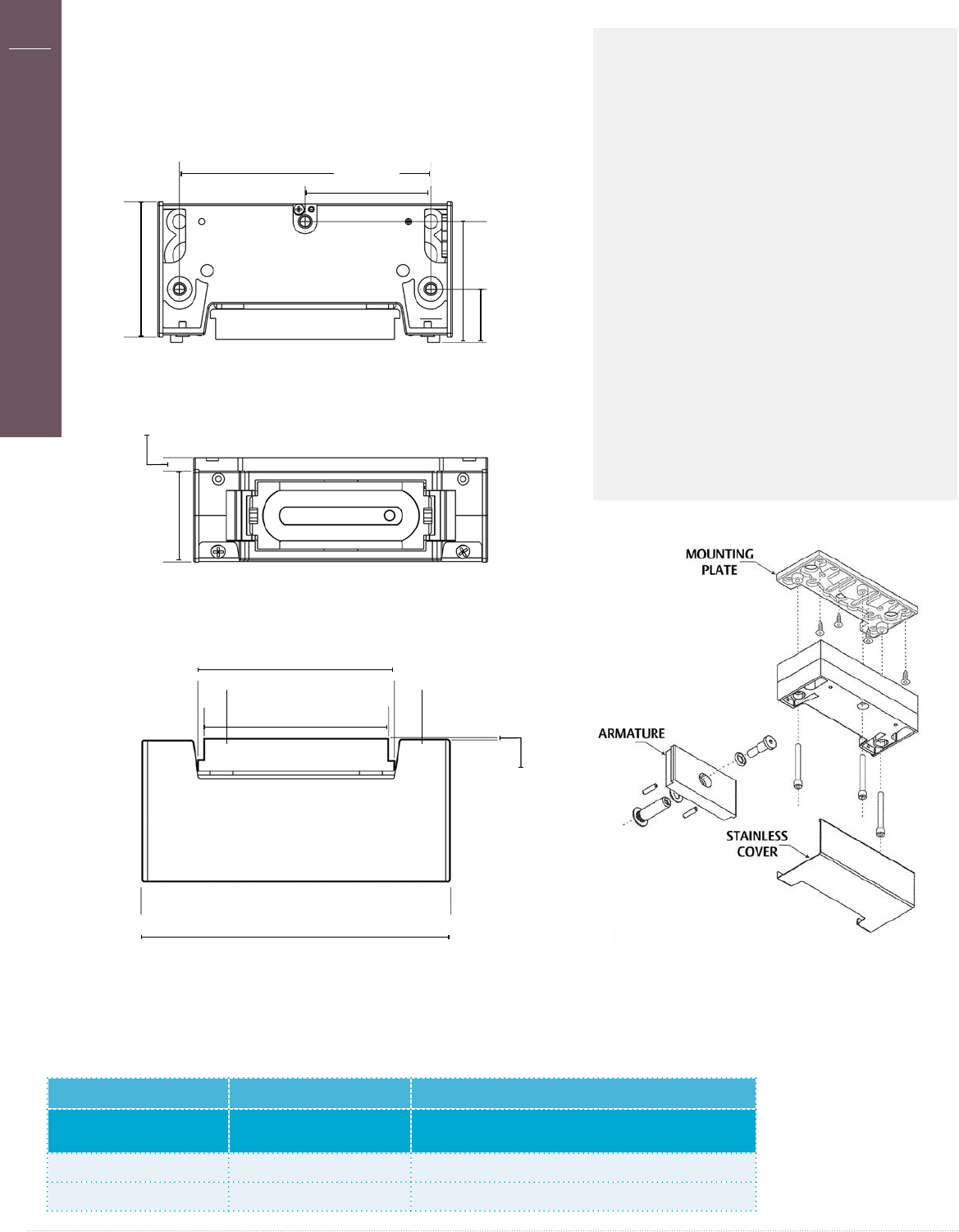

Dimensions Specifications

Certifications

• RoHS compliant

Electrical

• 12 or 24 VDC ± 10%

— 240 mA at 12 VDC / 120 mA at 24 VDC

(continuos duty)

700 mA at 12 VDC / 350 mA at 24 VDC

(preload option)

— Monitored contact rating 25V / 1A

Holding Force

• Static strength 1,000 lbs

• Dynamic strength over 100 ft-lbs

How to Order

Series Voltage Option (s)

660 – 12V – LBSM – Preload

12V 12 Volt (blank) No preload, no monitoring

24V 24 Volt Preload Up to 15 lbs

LBSM Locked state monitoring

LBSM–Preload Locked state monitoring with preload

[43.1]

1-11/16"

[.5]

3/16"

[25]

[58.4]

2-5/16"

[58.4]

3-3/8"

[68.5]

2-11/16"

[40.6]

1-5/8"

[25]

[46.9]

1-7/8"

[3.8]

1/8"

[.5]

3/16"

[43.1]

1-11/16"

[23.3]

15/16"

129

Cabinet Locks

Features

Standard Features

• Wireless Aperio technology

• Integrates with existing access

control systems and ID badges

• Non-handed

• Works with cabinet doors and lockers

with door thickness of 1/16" to 1-1/2"

• Automatic latch relock

when door is closed

• Audit trail limited by EAC system

• LEDs indicate valid/invalid entries;

Red Amber or Green Amber

• Locked State Monitoring

• SecuriCare three-year, no fault,

no questions asked warranty

Optional Features

• iCLASS (SE) or Prox (PA)

card technology

• Mechanical key override

(sold seperately)

Accessories

• 622-JSP Jump-start battery pack

• OBS-622 Open back strike plate

• EXT-10-ANT Aperio Hub External

Antenna (Omni-directional)

The flexible integrated

solution for extending

access control to

secure lockers,

drawers or doors.

The K100 cabinet locks come standard with

locked state monitoring, optional mechanical

key override and over 150 lbs of holding force.

The K100 supports either HID® 125 kHz Prox or

13.56 MHz iCLASS SE® contactless credentials.

It uses local wireless communication between

the lock and an Aperio hub to bring access

control to cabinets and drawers where audit

trail and monitoring are increasingly critical.

HES® K100 Series

Cabinet Lock

Wireless cabinet lock

with Aperio® technology

Note: The HES K100 cabinet lock is available as either a pre-paired lock and

hub kit (no certification required) or as a field configurable component

(requires Aperio® Certified Integrator certification). Pre-paired kits support

limited features, field configured devices are required in order to support

all options. Visit www.IntelligentOpenings.com to learn more.

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

130

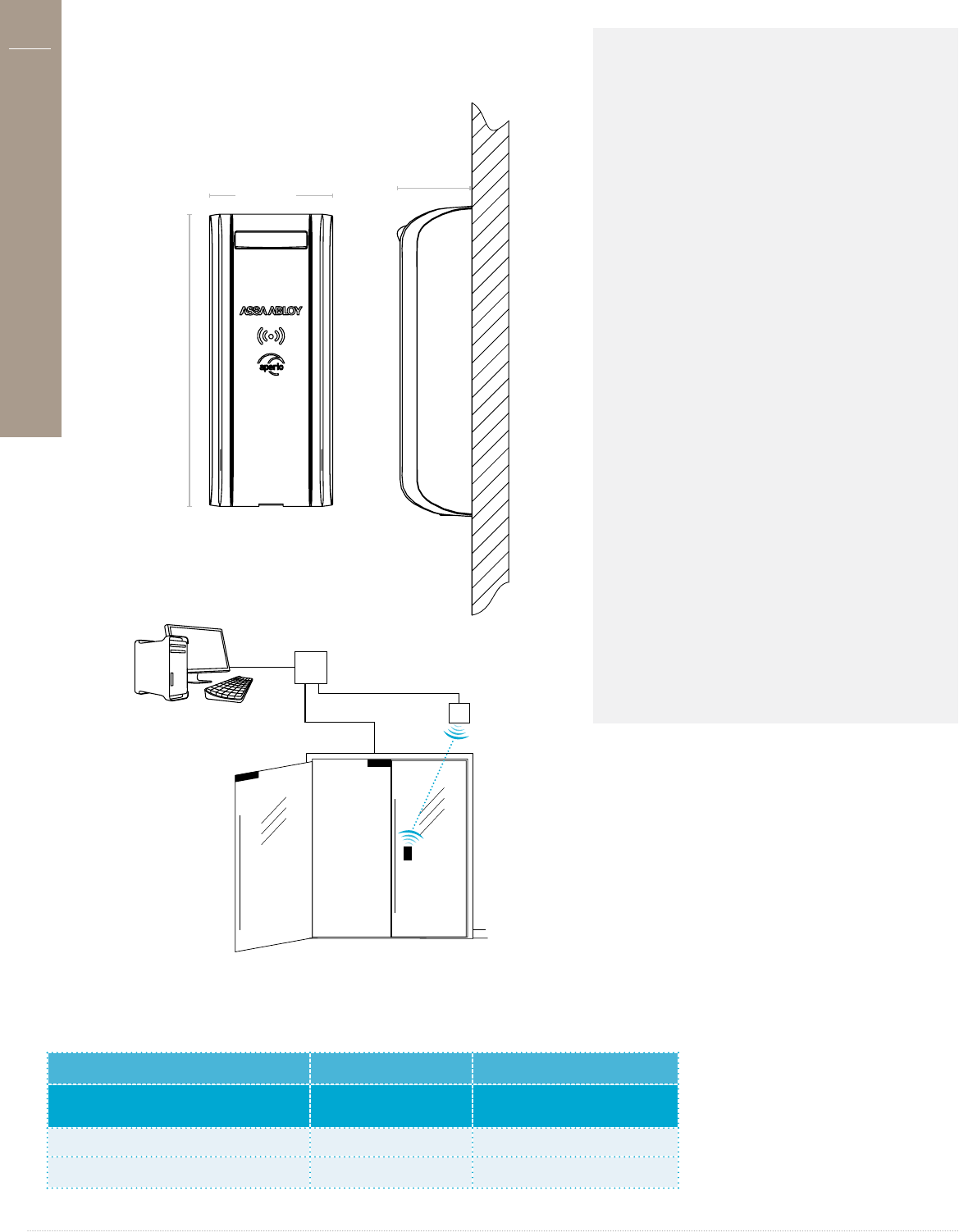

Cabinet Locks

Dimensions Specifications

Certifications

• FCC Part 15 compliant

• IC compliant

Electrical

• 50,000 cycles

• (2) ”AA” lithium batteries (included)

• Low battery signaling and reporting

Holding Force

• Static strength 150 lbs

Operating Temperature

• +32 to +122F [0 to +50C]

Card Technology

• High Frequency (13.56 MHz)

— HID iCLASS®

— HID iCLASS SE® (SIO-enabled)

— HID iCLASS® Seos®

— ISO 14443b UID

— MIFARE Classic™

— MIFARE Plus™

— MIFARE DESfire™ EV1

— MIFARE DESfire™ SE

• Low Frequency (125 kHz)

— HID® Prox

— EM Prox

— AWID Prox

NFC-enabled Mobile Phones

How to Order

Series Model Card Technology

K100 – 622H – PA

622H Factory Paired* PA HID 125 kHz Prox

SE HID 13.56 MHz iCLASS SE

\ *Kit includes integrated lock paired with Wiegand 1:1 wireless hub

[81]

3-3/16"

[81]

3-3/16"

[81]

3-3/16"

[46]

1-7/8"

[51]

[101]

3-31/32"

[112]

4-7/16"

[31]

1-7/32"

[24]

15/16"

[21]

7/8"

1/16" – 1-1/2"

Cabinet

Lock

Reader

Electronic Access

Control System

Secured

Cabinet

Access Control

Panel

Aperio

Hub

Wiegand

131

Cabinet Locks

Features

Standard Features

• HID multiClass SE® card technology

• Integrates with existing access

control systems and ID badges

• Hardwired Wiegand communication

• Locked state monitoring

• Non-handed

• Installs on wood or metal

cabinet doors

• Works with cabinet doors and lockers

with door thickness of 1/16" to 1-1/2"

• Audit trail limited by EAC system

• LEDs indicated valid/invalid entries;

Red Amber or Green Amber

• SecuriCare three-year, no fault,

no questions asked warranty

Optional Features

• Mechanical key override

(sold seperately)

Accessories

• OBS-622 Open back strike plate

• CBL6-QC12 K200/KS200 Lock

Side Interface Cable: 6 foot, 12

conductor and Molex both ends

• CBL12-QC12 K200/KS200 Lock

Side System Interface Cable: 12

foot, 12 conductor and Molex

one end, pinned one end

• WT-1 Wiegand Test Box

with LED Indicators

• WT-2 Wiegand Test Box with LCD

Backlit Display and LED Indicators

The flexible integrated

solution for extending

access control to

secure lockers,

drawers or doors.

The hard powered K200 cabinet locks come

standard with locked state monitoring,

optional mechanical key override and over

150 lbs of holding force.

HES® K200 Series

Cabinet Lock

Integrated Wiegand cabinet lock

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

132

Cabinet Locks

Dimensions Specifications

Certifications

• FCC Part 15 & Industry Canada Compliant

• EU/CE Mark (EN 300 & 301)

• RoHS Compliant

Electrical

• 12 - 24 VDC c

• 226 mA peak at 12 VDC

• 118 mA peak at 24 VDC

• Dual voltage 12 or 24 VDC

Holding Force

• Static strength 150 lbs

Operating Temperature

• +32 to +122F [0 to +50C]

Card Technology

• High Frequency (13.56 MHz)

— HID iCLASS®

— HID iCLASS SE® (SIO®-enabled)

— HID iCLASS® Seos®

— ISO 14443b UID

— MIFARE Classic™

— MIFARE DESfire™ EV1

— MIFARE DESfire™ SE

— FeliCa™ (IDm)

• Low Frequency (125 kHz)

— HID® Prox

— EM4102

— AWID Prox

NFC-enabled Mobile Phones

How to Order

Series Model Color Turn

K200 – 622 – B 2

622 Wiegand, MultiCLASS SE B Black 2 Thumbturn

[31]

1-9/32"

[112]

4-7/16"

[24]

15/16"

1/16" to

1-1/2"

[101]

3-31/32"

[51]

Electronic Access

Control System

Secured

Cabinet

Access Control

Panel

133

Cabinet Locks

Features

Standard Features

• Wireless Aperio technology

• Integrates with existing access

control systems and ID badges

• Non-handed

• Designed for standard cam-activated

swing handle applications with

25 mm x 150 mm lock opening

• Audit trail limited by EAC system

• LEDs indicate valid/invalid entries;

Red Amber or Green Amber

• Locked state monitoring ands

additional optional extended

DPS monitoring to ensure cabinet

is closed, locked and secure

• SecuriCare three-year, no fault,

no questions asked warranty

Optional Features

• iCLASS (SE) or Prox (PA)

card technology

• SFIC Small Format Interchangeable

Core mechanical key override

(sold seperately)

Accessories

• SFIC MEDECO X4 SFIC Cylinder

& 2 keys (1 control, 1 user)

• SFIC-BC KS SFIC Blank,

Black Plastic Core

• KS-DPS Surface Mount

DPS (external)

• KS-CAM38 CAM: 38MM-1

• KS-CAM45 CAM: 45MM - 5

• EXT-10-ANT Aperio Hub External

Antenna (Omni-directional)

Designed to integrate

seamlessly with

existing access

control systems and

protect critical assets

from intrusion and

expensive downtime.

Designed to install easily on most swing

handle server cabinet doors, the KS100 comes

standard with lock monitoring and utilizes

an SFIC (Small Format Interchangeable Core)

mechanical key override. An additional

optional extended DPS monitoring sensor

can be connected to ensure that the

cabinet is closed, locked and secure.

The KS100 supports either HID® 125 kHz Prox

or 13.56 iCLASS® SE contactless credentials. It

uses local wireless communication between

the lock and an Aperio hub to protect servers

from malicious or accidental tampering.

HES® KS100

Series Server

Cabinet Lock

Wireless server cabinet lock

with Aperio® technology

Note: The HES K100 cabinet lock is available as either a pre-paired lock and

hub kit (no certification required) or as a field configurable component

(requires Aperio® Certified Integrator certification). Pre-paired kits support

limited features, field configured devices are required in order to support

all options. Visit www.IntelligentOpenings.com to learn more.

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

134

Cabinet Locks

Dimensions Specifications

Certifications

• FCC Part 15 & Industry Canada Compliant

• EU/CE Mark (EN 300 & 301)

• RoHS Compliant

Electrical

• PoE hardwired via standard IEEE 802.3af, 48 VDC

Power over Ethernet (PoE Injector not included)

• Optional 24VDC input

Holding Force

• Static strength 250 lbs

Operating Temperature

• +32 to +122F [0 to +50C]

Card Technology

• High Frequency (13.56 MHz)

— HID iCLASS®

— HID iCLASS SE® (SIO-enabled)

— HID iCLASS® Seos®

— ISO 14443b UID

— MIFARE Classic™

— MIFARE Plus™

— MIFARE DESfire™ EV1

— MIFARE DESfire™ SE

• Low Frequency (125 kHz)

— HID® Prox

— EM Prox

— AWID Prox

NFC-enabled Mobile Phones

How to Order

Series Model Card Technology

KS100 – 640H – PA

640H Factory Paired* PA HID 125 kHz Prox

SE HID 13.56 MHz iCLASS SE

*Kit includes integrated lock paired with Wiegand 1:1 wireless hub

[81]

3-3/16"

[81]

3-3/16"

[81]

3-3/16"

[46]

1-7/8"

3-3/16"

Electronic Access

Control System

Server

Cabinet

Access Control

Panel

Aperio

Hub

Wiegand

[41.8]

1-21/32"

[16.8]

21/32"

[33.5]

1–5/16"

[222.3]

8-3/4"

[152.4]

Door Thickness

[1-2]

1/32"–3/32"

135

Cabinet Locks

Features

Standard Features

• HID multiClass SE card technology

• Integrates with existing access

control systems and ID badges

• Hardwired Wiegand communication

• Locked state monitoring ands

additional optional extended

DPS monitoring to ensure cabinet

is closed, locked and secure

• Non-handed

• Designed for standard cam-activated

swing handle applications with

25 mm x 150 mm lock opening

• Audit trail limited by EAC system

• LEDs indicate valid/invalid entries;

Red Amber or Green Amber

• SecuriCare three-year, no fault,

no questions asked warranty

Accessories

• SFIC MEDECO X4 SFIC Cylinder

& 2 keys (1 control, 1 user)

• SFIC-BC KS SFIC Blank,

Black Plastic Core

• KS-DPS Surface Mount

DPS (external)

• KS-CAM38 CAM: 38MM–1

• KS-CAM45 CAM: 45MM–5

• CBL6-QC12 K200/KS200

Lock Side Interface Cable: 6 foot,

12 conductor and Molex both ends

• CBL12-QC12 K200/KS200

Lock Side System Interface Cable:

12 foot, 12 conductor and Molex

one end, pinned one end

• WT-1 Wiegand Test Box

with LED Indicators

• WT-2 Wiegand Test Box with LCD

Backlit Display and LED Indicators

Designed to integrate

seamlessly with

existing access

control systems and

protect critical assets

from intrusion and

expensive downtime.

Designed to install easily on most swing

handle server cabinet doors, the KS200

comes standard with lock monitoring and

utilizes an SFIC (Small Format Interchangeable

Core) mechanical key override. An additional

optional extended DPS monitoring sensor

can be connected to ensure that the

cabinet is closed, locked and secure.

The hard powered KS200 features HID

multiClass SE® contactless card technology.

HES® KS200 Series

Cabinet Lock

Integrated Wiegand

server cabinet lock

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

136

Cabinet Locks

Dimensions

How to Order

Series Model

KS200 – 640

640 Wiegand, MultiCLASS SE

Specifications

Certifications

• FCC Part 15 & Industry Canada Compliant

• EU/CE Mark (EN 300 & 301)

• RoHS Compliant

Electrical

• Dual voltage 12 / 24 VDC +/- 10%

— 470 mA at 12 VDC / 245 mA at 24 VDC

Holding Force

• Static strength 250 lbs

Operating Temperature

• +32 to +122F [0 to +50C]

Card Technology

• High Frequency (13.56 MHz)

— HID iCLASS®

— HID iCLASS SE® (SIO®-enabled)

— HID iCLASS® Seos®

— ISO 14443b UID

— MIFARE Classic™

— MIFARE DESfire™ EV1

— MIFARE DESfire™ SE

— FeliCa™ (IDm)

• Low Frequency (125 kHz)

— HID® Prox

— EM4102

— AWID Prox

NFC-enabled Mobile Phones

[41.8]

1-21/32"

[16.8]

21/32"

[33.5]

1–5/16"

[222.3]

8-3/4"

[152.4]

Door Thickness

[1-2]

1/32"–3/32"

137

Cabinet Locks

Features

Standard Features

• Direct mount with common tools

for strength and reliability

• Fully sealed and for weather-

proof operations

• 10 ft. [3.05m] of jacketed,

stranded conductor cable

• Noise suppression with

included MOV

• Automatic dual-voltage - no

field adjustment required

• Instant release circuit —

no residual magnetism

• Efficient, low power usage

• Rust resistant — all ferrous metal

surfaces plated for durability

• For 5/8" to 7/8" thick cabinet doors

• MagnaCare® lifetime replacement,

no fault, no questions asked warranty

Optional Features

• B BondSTAT™ magnetic bond

sensor — Patented (MBS)

• Use with CWB-32 bracket

for mounting option on

wood or concrete

Now you can add

asset control to your

existing access

control system with

the durable, power-

efficient M32-SS.

Each strike plate of the M32-SS delivers 300

lbs of holding force (600 lbs total). Ideal

for securing large two-door cabinets, retail

cases or double-door, indoor/outdoor

storage applications with out- swinging

doors that share a center latching point.

Securitron®

M32-SS Split Strike

Magnalock®

Double-door cabinet control

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

138

Cabinet Locks

Dimensions

How to Order

Model Series Monitoring Options Strike Plate Options

M32 BD -SS

M32 (600 lbs) (blank) No Monitoring (blank) Standard Strike

B BondStat Monitor SS Split Strike

D Door Position Switch

BD BondStat and DPS

Specifications

Dimensions

• Magnalock: 8”L x 1-5/8”D x 1-7/8”H

Strike: 3”L x 1/2”D x 1-5/8”H each

Electrical

• 300 mA at 12 VDC / 150 mA at 24 VDC

Holding Force

• 600 lbs [272kg]

(300 lbs [136kg] per strike)

Operating Temperature

• -40 to +140F [-40 to +60C]

Indoor or outdoor use

Shipping Weight

• 6 lbs [2.72kg]

[203mm]

1-7/8"

[47mm]

1-5/8"

[410mm]

1-5/8"

[40mm] 1/2"

[12mm]

[76mm]

Includes a shortened sex bolt for use

on typical 3/4" MDF cabinet doors

5/8" - 7/8" CABINET

DOOR THICKNESS

SPLIT STRIKE

WASHER(S)

SEX BOLT

FLAT HEAD

SOCKET SCREW

M32-SS

SPLIT STRIKE

CABINET LOCK

Split Strike

Sex Bolt

Flat Head

Socket Screw

Washer(s) 5/8" - 7/8" Cabinet

Door Thickness

Cabinet Mount Quarter View

Split Strike Plate

139

Cabinet Locks

The compact MCL

Magnalock is ideal

for extending access

control to all types

of asset protection.

Typical applications include jewelry cases,

museum cases, gun cabinets, pharmaceutical

storage cabinets, cash drawers and any

swinging or sliding door or drawer that

needs asset control — indoors or out.

Features

Standard Features

• Direct mount or bracket mount with

common tools for easy installation

• Fully sealed for weatherproof

operation

• Universal bracket included to

support a variety of applications

• Sealed 6 ft. [1.8m] jacketed,

stranded conductor cable

• Efficient, low power usage

• Rust resistant — all ferrous metal

surfaces plated for durability

• MagnaCare® lifetime replacement,

no fault, no questions asked warranty

Securitron® MCL

Cabinet Lock

Compact Magnalock® for

versatile asset management

MCL

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

140

Cabinet Locks

Dimensions

How to Order

Model Series

MCL-24

Specifications

Dimensions

• Magnalock: 4-5/8”L x 3/4”D x 1-1/8”H

Strike: 3-1/8”L x 1/4”D x 1-1/8”H

Electrical

• 62 mA at 24 VDC only

Holding Force

• 170 lbs [81.6 kg]

Operating Temperature

• 40 to +140F [-40 to +60C]

Indoor or outdoor use

Shipping Weight

• 6 lbs [2.72kg]

1/4"

[6mm]

4-5/8"

[117mm]

1-1/8"

[29mm]

3/4"

[19mm] 1-1/8"

[29mm]

3-1/8"

[79mm]

Swinging Door Sliding Door

Specialty Locks

141

142

Specialty Locks

143

Specialty Locks

The heavy duty GL1

Electromechanical

Gate Lock provides

weather-resistant

access control for a

wide range of gate

applications.

The GL1 provides 2,000 lbs of holding

force for electrical and manually operated

indoor or outdoor gates where preload is a

concern. Ideal for swinging or sliding vehicle,

pedestrian, or stock gate access control.

Features

Standard Features

• 2,000 lbs holding force

• Operates under preload up to 100 lbs

• Automatic dual-voltage—no

field adjustment required

• Accepts a standard mortise

cylinder with Adams Rite MS

cam for manual key override (not

included, see spacer guide below)

• Self-aligning receiver (+/- 1/2"

horizontally) helps compensate

for gate misalignment and sag

• Tamper resistant cast housing

• Optional latch status monitor

• Surface mount

• MagnaCare® lifetime replacement,

no fault, no questions asked warranty

Optional Features

• FL Fail locked

• FS Fail safe

• M Monitoring option

Mortise Spacer Guide

Cylinder Length Spacer Required

1" 1/4"

1-1/8" 3/8"

1-1/4" 1/2"

Securitron® GL1

Gate Lock

Electromechanical gate solution

offers one ton of holding power

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

144

Specialty Locks

Dimensions Specifications

Dimensions

• 2-3/4"L x 7-1/4"W x 3-1/4"D

Electrical

• 12 Volts Initial (Peak): (~1.0 sec.)

at 870 mA - Reduced: 290 mA

• 24 Volts Initial (Peak): (~1.0 sec.)

at 720 mA - Reduced: 170 mA

Holding Force

• 2,000 lbs [907kg]

Operating Temperature

• -58 to +167F [-50 to +75C]

• Indoor or outdoor use

Shipping Weight

• 6 lbs [2.72kg]

How to Order

Model Series Lock Fail State Monitoring Options

GL1 – FS M

GL1 FL Fail Locked (Fail Secure) (blank) No Monitoring

FS Fail Safe M Monitored

GL1 with FMK-SL for sliding gates

GL1 with FMK-SW for swinging gates

2-11/16"

[69mm]

7-1/4"

[184mm]

3-3/16"

[81mm]

2-1/8"

[54mm]

2-13/16"

[71mm]

2-3/4"

[70mm]

145

Specialty Locks

The FMK Flex-Mount

Bracket System is

an intuitive set of

mounting brackets

designed exclusively

for use with the

M62FG Magnalock®

and the GL1 Gate Lock.

Pre-formed post channels and plates of

varying lengths make it easy for you to

assemble a professional looking, high-

security gate lock mounting platform

in minutes, without special tools.

Features

Standard Features

• Permits electronics to be mounted

on fence posts or gate posts

• Brackets are reversible

• Bracket kits include brackets,

mounting hardware and post shims

• Post brackets are pre-drilled

• Zinc-plated steel provides

durability and long life

• Bolt on or weld for installation

• Compatible with maximum

3" round post with minimum

pole separation of 1"

• Use with Post Shim Brackets

for smaller post sizes

• MagnaCare® lifetime replacement,

no fault, no questions asked warranty

Securitron® FMK

Flex-Mount Gate

Lock Bracket Kits

Bracket kits extend access control

to gates and fences

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

146

Specialty Locks

Specifications

Shipping Weight

• 7 lbs [3.18kg]

Notes

• M62FG can be direct mounted on square posts

• To use FMK-SL with M62FG-SASM, post

separation should be 1" to 2-1/4"

• To use FMK-SW with M62FG or GL1, post

separation should be 1" to 2-3/4"

• To use FMK-SL with M62FG or GL1, post

separation should be 1" to 3-3/4"

Part Number | Description

FMB9-4 Post shim kit for Flex-Mount

Brackets - (Set of 4)

FMK-SL Flex-Mount Kit for Sliding Gate

FMK-SW Flex-Mount Kit for Swing Gate

FMK Flex-Mount Kits

Sliding Gate

Swinging Gate

FMK-SL shown

with M62FG

FMK-SL shown

with GL1

FMK-SW shown

with M62FG

FMK-SW shown

with GL1

147

Specialty Locks

FMK Flex-Mount Kits

MEMLOCK®

unique

hybrid design, two

tons of holding power.

The hybrid design of this magnetic

electromechanical lock includes two

springloaded, hardened steel jaws that

deliver up to 4,000 lbs of ultimate holding

power. In a forced-entry assault, the jaws

of the MM15 MEMLOCK clamp down on

the armature plate and hold firm, for an

unmatched level of access control.

Features

Standard Features

• Efficient, low power usage

• Ideal for mental healthcare and

auxiliary detention facilities

and other high-risk locations

• Automatic dual-voltage—no

field adjustment required

• Mounting plate for easy,

accurate installation

• Size optimized for use

with door closers

• Accepts AC or DC current

• Ultra-secure collapsing blind

nuts mount to door frame for

strength and reliability

• Fail Safe

• MagnaCare® lifetime replacement,

no fault, no questions asked warranty

Optional Features

• G Gate conduit

• D Integrated Door

Position Switch (DPS)

• T Anti-tamper switch

Accessory

• TS Tamper shield

Securitron® MM15

Magnetic and

Mechanical Lock

4,000 lbs holding force,

bracket mounted, magnetic

electromechanical lock

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

148

Specialty Locks

Dimensions Specifications

Certifications

• UL 10C Fire Rated, 1 hour

• CAN/ULC-S533 Listed

Dimensions

• 6"L x 1-7/8"D x 2-3/4"H

Electrical

• AC Current: 130 mA at 12 VAC; 250 mA at 24 VAC

• DC Current: 100 mA at 12 VDC; 200 mA at 24 VDC

Holding Force

• 4,000 lbs [1814 kg]

Operating Temperature

• -40 to +140F [-40 to +60C]

• Indoor use only

Shipping Weight

• 6 lbs [2.72kg]

How to Order

Model Series Mounting Method Monitoring Options

MM15 GDT

MM15 (blank) Direct Mount (blank) No Monitoring

G Gate Conduit DT Door Position Switch and Tamper Switch

5-1/8"

[130mm]

2-3/4"

[70mm]

1-3/8"

[35mm]

1-1/8"

[28mm]

2-9/16"

[65mm]

1/4"

[6mm]

1-7/8"

[48mm]

3-7/8"

[98mm]

[152mm]

3-5/8"

[92mm]

1/16"

[1.6mm]

149

Specialty Locks

Part Number | Description

SFP-1/2BKMM15 SFP–1/2" for MM15, Black Finish

SFP-1/2CLMM15 SFP–1/2" for MM15, Clear Finish

SFP-3/8BKMM15 SFP–3/8" for MM15, Black Finish

SFP-3/8CLMM15 SFP–3/8" for MM15, Clear Finish

SFP-5/8BKMM15 SFP–5/8" for MM15, Black Finish

SFP-5/8CLMM15 SFP–5/8" for MM15, Clear Finish

Securitron®

MM15 MEMLOCK®

Accessories

SFP-MM15 Stop

Filler Plate

• MagnaCare® lifetime replacement, no

fault, no questions asked warranty

Part Number | Description

DC-MM15BK DC–MM15, Black

DC-MM15BP DC–MM15, Polished Brass

DC-MM15BS DC–MM15, Satin Brass

DC-MM15 Dress Cover

• Available in Black, Polished Brass

or Satin Brass finish

• MagnaCare® lifetime replacement, no

fault, no questions asked warranty

Securitron®

MM15 MEMLOCK

Accessories Continued

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

Patent pending and/or patent

assaabloydss.com/patents

permission of Hanchett Entry Systems, Inc. is prohibited.

150

Specialty Locks

150

Specialty Locks

Part Number | Description

HEB-1BK-MM15 HEB–1" for MM15 Series, Black Finish

HEB-1CL-MM15 HEB–1" for MM15 Series #130, Clear Finish

HEB-2BK-MM15 HEB–2" for MM15 Series, Black Finish

HEB-2CL-MM15 HEB–2" for MM15 Series #130, Clear Finish

HEB-3BK-MM15 HEB–3" for MM15 Series, Black Finish

HEB-3CL-MM15 HEB–3" for MM15 Series #130, Clear Finish

HEB-MM15 Header

Extension Bracket

• MagnaCare® lifetime replacement, no

fault, no questions asked warranty

MM15-TS Tamper Shield

The TS Tamper Shield completely encases

the lock face, providing an added layer of

protection against attempts to compromise

or vandalize the magnetic locking mechanism.

• MagnaCare® lifetime replacement, no

fault, no questions asked warranty

Z-MM15 Z Bracket Kit

• MagnaCare® lifetime replacement, no

fault, no questions asked warranty

Part Number | Description

MM15-TS Tamper Shield for

MM15 - Stainless Steel

Part Number | Description

Z-MM15BK Z-Bracket—MM15, Black

Z-MM15CL Z-Bracket—MM15, Clear

MM15

Header

Door

Z Bracket

Header Extention

Bracket

Keypads & Card

Readaers

151

152

Keypads & Card Readers

153

Keypads & Card Readers

The DK-12 standalone

keypad and controller

is ideal for lower

security applications

such as traffic control.

Easy to install and easy to program, the

one-piece DK-12 supports 99 user codes,

including Passage mode and Lockout mode.

Features

Standard Features

• Single gang, stainless steel plate

with low voltage mounting ring

• 12-key illuminated 3x4 keypad

• True 10-digit operation (10 digits

plus * and # keys)

• 99 user code capability

• Easy programming from the keypad

• Passage mode and Lockout mode

• Configurable audible keystroke echo

• Red, green and yellow LEDs for

status and programming feedback

• Fail secure or fail safe-capable

• Easy to install with simple hand tools

• 5A SPDT timed, control relay output

• Request to exit (REX) input

• Primarily for indoor applications

• US32D/630 Satin Stainless Steel finish

• MagnaCare® lifetime replacement,

no fault, no questions asked warranty

Accessories

• WCC Weather-resistant cover

• WBB Weather-resistant backbox

Securitron® DK-12

Digital Keypad

System

All-in-one keypad system

for single-door traffic control

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

154

Keypads & Card Readers

Specifications

Dimensions

• 2-3/4"W x 4-1/2"H x 5/32"D

Electrical

• 100 mA at 12 or 24 VDC

325 mA at 12 or 24 VDC

• Max 30 Volt input

• 0.5A SPDT Relay

Operating Temperature

• -10 to +140F [-23 to +60C]

Shipping Weight

• 1lb [0.45kg]

DimensionsDimensions

How to Order

Model Series

DK-12

DK-12 Keypad

WCC WBB

WCC and WBB allow DK-12 to be mounted in outdoor

locations not directly exposed to rain or snow

Need an Outdoor

Solution?

4-1/2"

[114mm]

2-3/4"

[70mm]

155

Keypads & Card Readers

The DK-16 digital

keypad system provides

medium/high security

control of electric locks

in a one- or two-door

application where

both doors have the

same control needs.

The tamper-resistant keypad provides true

10-key operation for use and programming.

Encased in a separate enclosure for secure

installation in a protected area, the controller

offers REX input and relay output for lock

control, alarm shunt or other interfaces.

Features

Standard Features

• 12-key keypad with engraved

and paint filled numbers

• Stainless steel plate

• Red, green and yellow LEDs for

status and programming feedback

• Audible keystroke echo

• True 10-key operation

(keys are not paired)

• 59 users with multiple entry codes

• User code and hard code

disable feature

• Passage Mode and Lockout Mode

• Request to exit (REX) input

• 16 ft. [4.8m], 12 conductor,

22 gauge keypad cable

• 3 LEDs and a bell button

• US32D/630 Satin Stainless Steel finish

• MagnaCare® lifetime replacement,

no fault, no questions asked warranty

Accessories

• WCC Weather-resistant cover

• WBB Weather-resistant back box

• Keypad available as

system or separately

Securitron® DK-16

Digital Keypad

System

Secure, easy-to-program,

single-door control system

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

156

Keypads & Card Readers

WCC WBB

WCC and WBB allow DK-12 to be mounted in outdoor

locations not directly exposed to rain or snow

Need an Outdoor

Solution?

Specifications

Dimensions

• Keypad: 2-3/4"W x 4-1/2"H x 5/32"D

• Enclosure: 6"W x 8"H x 3"D

Electrical

• 12 VAC/VDC: 7 mA at rest; 160 mA active

• 24 VAC/VDC: 20 mA at rest; 190 mA active

Operating Temperature

• CPU: +32 to +158F [0 to +70C]

• Keypad: +32 to +110F [0 to +43C] Indoor use

Shipping Weight

• Keypad and Controller: 2.8lbs [1.25kg]

DimensionsDimensions

How to Order

Model Series Special Feature

DK-16 P

DK-16 Keypad P Keypad only

[76mm]

[203mm]

[152mm]

4-1/2"

[114mm]

2-3/4"

[70mm]

157

Keypads & Card Readers

The DK-26 digital

keypad system provides

medium/ high security

control of electric

locks in one or two

door applications

where doors have the

same control needs.

The fully weatherproof, rugged stainless

steel keypad can be mounted in most

outdoor environments. Encased in a separate

enclosure for secure installation, the full-

featured, easy-to-program, DK-26 Controller

is ideal for narrow stile applications.

Features

Standard Features

• Cast stainless steel with

11 EPDM rubber keys

• Weatherproof and vandal resistant

• Mounts on a narrow mullion

• Audible keystroke echo

• True 10-key operation

(keys are not paired)

• 59 users with multiple entry codes

• User code and hard code

disable feature

• Passage Mode and Lockout Mode

• Request to exit (REX) input

• 16 ft. [4.8m], 12 conductor,

22 gauge keypad cable

• 3 LEDs and a bell button

• MagnaCare® lifetime replacement,

no fault, no questions asked warranty

Optional Features

• Keypad available as

system or separately

Securitron® DK-26

Digital Keypad

System

Digital control system for narrow

stile outdoor applications

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

158

Keypads & Card Readers

Specifications

Certifications

• CE: EN 50091-1, EN 61000-6-2 Approved

Dimensions

• Keypad: 1-1/2"W x 7"H x 7/8"D

• Enclosure: 6"W x 8"H x 3"D

Electrical

• 12 VAC/VDC: 7 mA at rest; 160 mA active

• 24 VAC/VDC: 20 mA at rest; 190 mA active

Operating Temperature

• CPU: +32 to +158F [0 to +70C]

• Keypad: -22 to +158F [-30 to +70C]

Indoor or Outdoor use

Shipping Weight

• 5 lbs [2.27kg]

Accessories

DK26-CPSS Cover Plate

• Allows DK-26 and DK-37 to be

mounted over a single gang box

• MagnaCare® lifetime replacement,

no fault warranty

DimensionsDimensions

How to Order

Model Series Special Feature Finish

DK-26 PBK

DK-26 Keypad P Keypad only BK Black Anodized

SS Stainless Steel

[76mm]

[203mm]

[152mm]

Digital Keypad System

DK-26 Cover Plate

[178mm]

1-1/2"

[38mm]

7/8"

[22mm]

159

Keypads & Card Readers

The DK-37 digital

keypad offers Wiegand

output for universal

compatibility with

access control systems.

The fully weatherproof stainless steel keypad

is designed for narrow stile applications.

Features

Standard Features

• 12-key cast stainless steel 2x6

keypad with silicone rubber keys

• Weatherproof and vandal resistant

• Dual-voltage 12 VDC or 24 VDC

• Mounts on narrow mullion

• Compatible with access control

systems using Wiegand output

• Red, green and yellow status LEDs

• Audible keystroke echo

• 16 foot (4.88m) cable included

• MagnaCare® lifetime replacement,

no fault, no questions asked warranty

Securitron® DK-37

Digital Keypad

Digital keypad for

narrow stile applications

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

160

Keypads & Card Readers

Specifications

Certifications

• FCC Part 15 & Industry Canada Compliant

Dimensions

• Keypad: 1-1/2"W x 7"H x 1"D

Electrical

• 12 VDC: 7 mA at rest; 35 mA active

• 24 VDC: 16 mA at rest; 75 mA active

Operating Temperature

• Keypad: -22to +158F[-30to +70C]

• Indoor or outdoor use

Endurance

• 1 million cycles

Shipping Weight

• 1.75lbs [0.8kg]

DimensionsDimensions

How to Order

Model Series Output Finish

DK-37 WBK

DK-37 Keypad W Wiegand Output BK Black Anodized

SS Stainless Steel

[25mm]

1-1/2"

[38mm]

[178mm]

[25mm]

[178mm]

1-1/2"

[38mm]

161

Keypads & Card Readers

The DK-38 digital

keypad offers Wiegand

output for universal

compatibility with

access control systems.

The 3x4 illuminated keypad features

true 10-key operation and a flush-

mount stainless steel faceplate.

Features

Standard Features

• 12-key illuminated 3x4 keypad

• Dual-voltage 12 or 24 VDC

• Compatible with access

control systems using

standard Wiegand output

• Single gang mounting

• Red, green and yellow status LEDs

• Tamper detection

• True 10-digit operation

• Audible keystroke echo

• 16 foot (4.88m) cable included

• US32D/630 Satin Stainless Steel finish

• MagnaCare® lifetime replacement,

no fault, no questions asked warranty

Accessories

• WCC Weather-resistant cover

• WBB Weather-resistant back box

Securitron® DK-38

Digital Keypad

Digital keypad

for indoor applications

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

162

Keypads & Card Readers

Specifications

Certifications

• FCC Part 15 & Industry Canada Compliant

Dimensions

• Keypad: 2-3/4"Wx4-1/2"H x 1-1/8"D

Electrical

• 12 VDC: 24 mA at rest; 52 mA active 24

VDC: 50 mA at rest; 110 mA active

Operating Temperature

• +32 to +110F [0 to +43C]

• Indoor use

Endurance

• 1 million cycles

Shipping Weight

• 1.5lbs [0.68kg]

DimensionsDimensions

How to Order

Model Series Output

DK-38 W

DK-38 Keypad W Wiegand Output

WCC WBB

WCC and WBB allow DK-12 to be mounted in outdoor

locations not directly exposed to rain or snow

Need an Outdoor

Solution?

4-1/2"

[114mm]

2-3/4"

[70mm] 1-1/8"

[29mm]

163

Keypads & Card Readers

The R100 surface

mounted wireless

reader with Aperio

technology offers an

elegant way to extend

access control to

glass, stone, granite or

marble entryways.

Installation is easy, requires no drilling or

pulling of wires and can adhere in minutes.

A complement to ASSA ABLOY electrified

locking devices, including electromagnetic

locks, electrified strikes, electric locks and

electrified exit devices, glass entryways can

now integrate robust access control while

maintaining a clean, wireless appearance.

Features

Standard Features

• Adheres to glass surface without

any connecting wires

• Online transaction audit

trail capability

• Low battery signaling and reporting

• Green status LED indicator

• Shortened wire pull from

panel to hub provides cost

benefit in installation

• Fully-encrypted AES 128

wireless communication

• SecuriCare three-year, no fault,

no questions asked warranty

Optional Features

• iCLASS (SE) or Prox (PA)

card technology

Securitron® R100

Wireless Reader

and Aperio® Hub

Surface mounted—no drilling

Note: The Securitron R100 card reader is available as either a pre-paired

reader and hub kit (no certification required) or as a field configurable

component (requires Aperio® Certified Integrator certification). Pre-paired

kits support limited features, field configured devices are required in order

to support all options. Visitwww.IntelligentOpenings.com to learn more.

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

164

Keypads & Card Readers

Specifications

Certifications

• FCC Part 15

• IC Compliant

Electrical

• 40,000 cycles

• (1) 3V "CR2" lithium battery (included)

• Low battery signaling and reporting

Operating Temperature

• -40 to +122F [-40 to +50C]

• Indoor or outdoor use

Shipping Weight

• 2.83oz [80g]

Card Technology

• High Frequency (13.56 MHz)

— HID iCLASS®

— HID iCLASS SE® (SIO-enabled)

— HID iCLASS® Seos®

— ISO 14443b UID

— MIFARE Classic™

— MIFARE Plus™

— MIFARE DESfire™ EV1

— MIFARE DESfire™ SE

• Low Frequency (125 kHz)

— HID® Prox

— EM Prox

— AWID Prox

• NFC-enabled Mobile Phones

DimensionsDimensions

How to Order

Series Model Card Technology

R100 – 1H – SE

R100 Aperio® Wireless Reader 1H Factory Paired* PA HID 125 KHe Prox

SE HID 1356 MHz iClass SE

*Kit includes integrated lock paired with Wiegand 1:1 wireless hub

Electronic Access

Control System

Access Control

Panel

Aperio Hub

Electro-

magnetic

Lock

IEEE 802.15.4

(2.4GHz)

TCP/IP Wiegand

Local wireless

communication eliminates

the cost and inconvenience

of wiring in and around the

door, without the hassle of

complex site surveys.

Typical configuration with

electromagnetic lock

4-7/32"

[107mm]

1-25/32"

[45mm]

[25mm]

Push Buttons

& Egress Devices

165

166

Push Buttons & Egress Devices

167

Push Buttons & Egress Devices

Features

Standard Features

• Passive infrared (PIR) request

to exit (REX) device

• Automatically and reliably

cuts power to the lock with

no human intervention

• REX output

• Easily adjustable beam pattern

• Adjustable time relock

• MagnaCare® lifetime replacement,

no fault, no questions asked warranty

Specifications

Certifications

• ANSI/UL 294 Listed

Dimensions

• 7"L x 1-7/8"W x 1-3/4"H

• Indoor use only

Electrical

• 20 mA-50 mA (depending on

switching status) at 12 or 24 VDC

Shipping Weight

• 0.5 lbs [0.23kg]

The XMS passive

infrared (PIR) motion

sensor request to

exit (REX) device

reliably detects

motion near a door

and releases its lock.

Versatile mounting options and an easily

adjustable infrared beam pattern provide

optimal coverage of the egress area for

smooth, hands-free lock release and exit.

Safety Note: ASSA ABLOY Electronic Security Hardware

recommends that an emergency exit button, such as

the EEB, be used in conjunction with the XMS to meet

applicable building codes and specific life safety issues.

Securitron®

XMS Exit

Motion Sensor

Versatile motion detection

for hands-free exit request

Model Series

XMS

XMS Exit Motion Sensor

How to Order 1.87"

[48mm]

[178mm]

1.75"

[44mm]

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

168

Push Buttons & Egress Devices

168

Push Buttons & Egress Devices

Features

Standard Features

• Backup device in case of exit

sensor failure per BOCA,

NFPA, IBC, and VBC code

• Momentarily pressing the EEB

releases the door for 30-seconds

• Re-triggerable for added

30-second release

• Interchangeable green and red

lenses included standard

• MagnaCare® lifetime replacement,

no fault, no questions asked warranty

Optional Features

• Single gang

• Narrow stile

• EEB2 includes standard

lenses plus blue ADA lens

• Illumination kits

Specifications

Certifications (EEB2, EEB3N only)

• ANSI/UL 294 Listed

• CSA-C22.2 No.205 Listed

• CSFM—California State Fire Marshal

Electrical

• 226 mA peak at 12 VDC

• 118 mA peak at 24 VDC

• 3A SPDT N/C Relay

Install the EEB

Emergency Exit Button

next to the door to

provide additional

safety and redundancy

as required by code

when using a motion

detector for a request-

to-exit device.

Securitron®

EEB Emergency

Exit Button

Redundant backup

ensures safe egress

How to Order

Model Series LED Lens Color Mounting Method

EEB 3 N

EEB Push Buttons 2 Green/ Red/ Handicap (blank) Single Gang

3 Green/Red N Narrow Gang

Note: Not every combination above is possible. Please contact the factory if you need a

combination of features not listed on this page

EEB2

Request to

Exit

Device

MagLock

Note: ASSA ABLOY Electronic Security Hardware’s

UL294 certification indicates that when the EEB

is used with the XMS Motion Sensor, it meets

the NFPA Life Safety Code 101 requirements

for exit of access-controlled egress doors.

169

Push Buttons & Egress Devices

Features

Standard Features

• Includes interchangeable

green and red lenses

• Red LED on plate

• Stainless steel single gang plate:

4-1/2" x 2-3/4" [114mm x 70mm]

• Field selectable 12 or 24VDC

• MagnaCare® lifetime replacement,

no fault, no questions asked warranty

Specifications

Electrical

• 5 mA at 12 or 24VDC

• 7A rated DPSAT contacts

High-quality

Securitron Push

Buttons are available

in a broad selection

of colors, sizes, switch

types and outputs.

With a wide range of options for

interchangeable lenses and field convertible

outputs, Securitron push buttons can

release any lock, alone or in conjunction

with door closers and other hardware.

Securitron®

PB Series Push

Buttons

Medium round illuminated

How to Order

Model Series Switch Type

PB A

PB Push Button (blank) Momentary Switch

A Alternate Switch

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

170

Push Buttons & Egress Devices

170

Push Buttons & Egress Devices

Features

Standard Features

• Easy to read 2" size

• Includes interchangeable green,

red and blue ADA lenses

• Field selectable 12 or 24VDC

• MagnaCare® lifetime replacement,

no fault, no questions asked warranty

Optional Features

• Standard or Illuminated

• Single Pole-Double Throw

• Double Pole-Double Throw

• Red LED on plate

Specifications

Dimensions

• Stainless steel single gang plate:

4-1/2" x 2-3/4" [114mm x 70mm]

Electrical

• 29 mA at 12 VDC

• 40 mA at 24 VDC

• 5A rated SPDT relay

• PB22 5A rated DPDT relay

High-quality

Securitron Push

Buttons are available

in a broad selection

of colors, sizes, switch

types and outputs.

With a wide range of options for

interchangeable lenses and field convertible

outputs, Securitron push buttons can

release any lock, alone or in conjunction

with door closers and other hardware.

Securitron®

PB2 Series

Push Buttons

Large square illuminated

How to Order

Model Series Illumination Switch Pull / Throw

PB2 2

PB2 Push Button (blank) Illuminated (blank) Single Pull, Double Throw

E Non-Illuminated 2 Double Pull, Double Throw

Note: Not every combination above is possible. Please contact the factory

if you need a combination of features not listed on this page

171

Push Buttons & Egress Devices

Features

Standard Features

• Includes interchangeable

green and red lenses

• Field convertible from DPST to DPDT

• Field selectable 12/24VDC

• MagnaCare® lifetime replacement,

no fault, no questions asked warranty

Optional Features

• Red LED on plate; for no LED select (E)

• Momentary or for Alernate select (A)

• Ilumination Light Kit (LK)s

Specifications

Dimensions

• Stainless steel single gang plate:

4-1/2" x 2-3/4" [114mm x 70mm]

• Stainless steel narrow stile plate (N):

4-1/2" x 1-3/4" [114mm x 44mm]

• Black plastic surface mount (R):

3-7/8" x 2" [98mm x 51mm]

Electrical

• 29 mA at 12 VDC

• 40 mA at 24 VDC

• 3A rated contacts

High-quality

Securitron Push

Buttons are available

in a broad selection

of colors, sizes, switch

types and outputs.

With a wide range of options for

interchangeable lenses and field convertible

outputs, Securitron push buttons can

release any lock, alone or in conjunction

with door closers and other hardware.

Securitron®

PB3 Series

Push Buttons

Assorted sizes and colors

with a uniform look

How to Order

Model Series Illumination Switch Type Mounting Method

PB3 E A N

PB3 Push Button (blank) Illuminated (blank) Momentary Switch (blank) Single Gang

E Non-Illuminated A Alternate Switch 2 Double Gang

N Narrow Gang

R Remote, Surface Mount

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

172

Push Buttons & Egress Devices

172

Push Buttons & Egress Devices

Features

Standard Features

• Illuminated green halo-style button

• Bi-color LED

• Tamper resistant

• MagnaCare® lifetime replacement,

no fault, no questions asked warranty

Specifications

Dimensions

• Stainless steel single gang plate:

4-1/2" x 2-3/4" [114mm x 70mm]

• Stainless steel narrow stile plate:

4-1/2" x 1-3/4" [114mm x 44mm]

Electrical

• 20 mA at 12 VDC

• 40 mA at 24 VDC

• 4A rated contacts

High-quality

Securitron Push

Buttons are available

in a broad selection

of colors, sizes, switch

types and outputs.

With a wide range of options for

interchangeable lenses and field convertible

outputs, Securitron push buttons can

release any lock, alone or in conjunction

with door closers and other hardware.

Securitron®

PB4L Series

Push Buttons

Stainless push button

with illuminated halo

How to Order

Model Series Switch Type Mounting Method Switch Pull / Throw

PB4L A N – 2

PB4L Push Button (blank) Momentary Switch (blank) Single Gang 2 Double Pull, Double Throw Switch

A Alternate Switch N Narrow Gang

173

Push Buttons & Egress Devices

173

Push Buttons & Egress Devices

Features

Standard Features

• Includes interchangeable green,

red and blue ADA lenses

• Field convertible from DPST to DPDT

• Field selectable 12/24VDC

• MagnaCare® lifetime replacement,

no fault, no questions asked warranty

Specifications

Dimensions

• Stainless steel single gang plate:

4-1/2" x 2-3/4" [114mm x 70mm]

Electrical

• 9 mA at 12 VDC

• 20 mA at 24 VDC

• 5A rated contacts

High-quality Securitron

Push Buttons are

available in a broad

selection of colors,

sizes, switch types

and outputs.

With a wide range of options for

interchangeable lenses and field convertible

outputs, Securitron push buttons can

release any lock, alone or in conjunction

with door closers and other hardware.

Securitron®

PB5 Series

Push Buttons

Medium round illuminated

How to Order

Model Series Illumination

PB5 E

PB5 Push Button (blank) Illuminated

E Non-Illuminated

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

174

Push Buttons & Egress Devices

Push Button Selector Chart

Push Button Accessories

Waterproof Single

Gang

Narrow

Stile Surface Green

Button

Red

Button

Blue

Button

Steel

Button Illuminated Momentary Alternate DPST DPDT SPDT LED

Color

Required

Box

Clearance

PB l l l l l l l R1-3/4"

PBA l l l l l l l R1-3/4"

PB2 l l l l l l l R2"

PB22 l l l l l l l R2"

PB2E l l l l l l 2"

PB3 l l l l l l *R1-1/2"

PB3A l l l l l l *R1-1/2"

PB3AN l l l l l l *R1-1/2"

PB3E l l l l l *1-3/8"

PB3ER l l l l l *SURFACE

MOUNT

PB3EAR lll ll*SURFACE

MOUNT

PB3EA l l l l l *1-3/8"

PB3EAN l l l l l *1-3/8"

PB3EN l l l l l *1-3/8"

PB3N l l l l l l *R1-3/8"

PB4L-2 l l l l l BI-C 1-3/4"

PB4LA-2 l l l l l BI-C 1-3/4"

PB4LN-2 l l l l l BI-C 1-3/4"

PB4LAN-2 l l l l l BI-C 1-3/4"

PB5 l l l l l l l *2"

PB5E l l l l l l *2"

EEB2 l l l l 30-SECONDS

TIMED RELEASE HOLD

TIMER

EEB3N l l l 1-1/2"

*All PB3 and PB5 Series can be field converted from DPST to DPDT. PB4 Series feature bi-colored LEDs.

PB2-LK PB3-LKWCC WBB

WCC and WBB weatherize any single gang

push button to permit mounting in outdoor

locations not directly exposed to rain or snow

PB2-LK - Illumination kit for PB2E, PB5E & EEB2

PB3-LK - Illumination kit for PB3E,

PB3EN & EEB3N Series

175

Push Buttons & Egress Devices

Keyswitch Selection Guide

Single Gang Narrow

Stile Double Gang Tubular Key Momentary Alternate SPDT DPDT

KP1 l l l l

KP1A l l l l

MK l l l

MK2 l l l

MKA l l l

MKA2 l l l l

MKAN l l l

MKAN2 l l l

MKN l l l

MKN2 l l l

MKPZ lll

MKAPZ l l l

MK ACCESSORIES

MKS l l

MKS2 l l

MKSA l l

MKSA2 l l

MKC lll

MKC-KA lll

Single Pole – Single

Throw (SPST)

Switches that have one input

and one output (NO or NC)

and turn on or off in response

to the switch action

Single Pole - Double Throw (SPDT)

Switches with one input and

two outputs. When the switch

operation occurs, the connection

shifts from output A to output B

Double Pole - Single Throw (DPST)

Two SPST switches that operate

in tandem using one switch

operation so that two outputs

turn on or off simultaneously in

reaction to the switch operation

Double Pole – Double

Throw (DPDT)

Two SPDT switches that operate in

tandem using one switch operation

so that each connection shifts

simultaneously from its primary

output to its secondary output

Momentary Switch

A momentary switch changes state

during activation and reverts to its

original state upon deactivation.

A doorbell is a common example

of a momentary switch. A timer

can be used to extend the effect

of the switch operation for a

specific amount of time.

Alternate Switch

An alternate switch changes state

upon activation and does not

change back until reactivated.

A light switch is a common

example of an alternate switch.

Alternate switches are also called

maintained or latching switches

Normally Open Contacts (NO)

A normally open contact provides

an open circuit where no current

is flowing in its usual state.

Wired in Parallel for Fail Secure

type electric locks (i.e. Electric

strike). Activating any switch will

apply power, releasing the lock.

Normally Closed

Contacts (NC)

A normally closed contact provides

a closed circuit where current

is flowing in its usual state.

Wired in Series for fail safe type

electric locks (i.e. Securitron

Magnalocks). Activating any switch

will break power, releasing the lock.

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

176

Push Buttons & Egress Devices

176

Push Buttons & Egress Devices

Features

Standard Features

• 12 or 24 VDC

• Bi-color LED

• Backing bracket permits

integration with any 1-1/4"

[32mm] or 1-1/8" [28mm] mortise

cylinder (not included)

• Support for 1-1/2" cylinder using

spacer ring and backset

• Additional switch position on

backing bracket allows another

switch to be activated by turning

the key in the opposite direction

• 5A rated plunger switch

• Includes anti-tamper screws

• MagnaCare® lifetime replacement,

no fault, no questions asked warranty

Optional Features

• Momentary or Alternate

• SPDT or DPDT relay

• Narrow Stile, Single- or Double-Gang

• Local annunciation via Piezo sounder

• Additional switch add on

• 1-1/8" Key Cylinder, 26D

Finish, SC keyway

The MK Keyswitch

supports electric

lock control; alarm

panel arming, reset

and override when

paired with any

mortise cylinder

1-1/8" to 1-1/2".

Securitron®

MK Mortise

Keyswitch

Turns standard mortise cylinder

into full featured keyswitch

How to Order

Model Series Switch Type Mounting Method Special Feature

MK A N 2

MK Mortise Key Switch (blank) Momentary Switch (blank) Single Gang Z Piezo

A Alternate Switch 2 Double Gang 2 DPDT—Double Pull,

Double Throw

N Narrow Gang

Note: Not every combination above is possible. Please contact the factory

if you need a combination of features not listed on this page

177

Push Buttons & Egress Devices

177

Push Buttons & Egress Devices

Features

Standard Features

• Stainless steel face plates

• 12/24 VDC bi-color LED,

tubular style keyswitches

• Momentarily turning the key

changes the state of the contacts

• Includes anti-tamper screws

• Includes two keys

• MagnaCare® lifetime replacement,

no fault, no questions asked warranty

Optional Features

• Momentary or Alternate

Specifications

Electrical

• 7A rated SPDT switch

• 40mA at 12 or 24VDC

The KP1 Keyswitch

supports electric

lock control; alarm

panel arming, reset

and override when

paired with any tubular

cylinder 1-1/8" to 1-1/2".

Securitron®

KP1 Tubular

Keyswitch

Simple solution for exit, door

release, manual override or reset

How to Order

Model Series Switch Type

KP1 A

KP1 Tubular Key Switch (blank) Momentary Switch

A Alternate Switch

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

178

Push Buttons & Egress Devices

178

Push Buttons & Egress Devices

Features

Standard Features

• Active microwave motion sensing

using Doppler radar that is more

reliable than infrared sensors

• Adjustable sensing zone from 4"

to 24" (102mm to 610mm) helps

screen out incidental traffic

• FCC certified for use in general

and medical environments

• Touchless activation for

hands-free operation, reduces

transmission of germs

• Pulse mode to initiate action or

toggle mode to provide on/off switch

• Mounting ring included or install in

standard plastic or metal gang box

• Water-resistant foam gasket included

• MagnaCare® lifetime replacement,

no fault, no questions asked warranty

Optional Features

• Weather-resistant cover

• Weather-resistant backbox

• Offered in a single-gang

or double-gang model

Specifications

Certifications

• Electromagnetic compatibility

to 2004/108/EC

• FCC: G9B-MS08 and IC: 4680A-MS08

Dimensions

• Single gang faceplate

4-1/2" x 2-3/4" [114mm x 69.85mm]

• Double gang faceplate

4-1/2" x 4-1/2" [114mm x 114mm]

Electrical

• Self-sensing 12 or 24V DC

or AC input (± 10%)

Maximum Power Consumption

• Less than 1.5W (125 mA at 12

VDC) 1A SPDT contact can be

operated in toggle or pulse mode

• Pulse output: 0.5 seconds

Operating Temperature

• -4 to +131F [-20 to +55C]; Indoor use

Shipping Weight

• 0.5 lbs

A new class of

motion sensing

technology for hands-

free, contactless

switch activation.

Use for request to exit (REX), activation,

or on/off switching to trigger a variety

of access control devices in place

of a push plate or push button.

Securitron® WSS

Wave Sense®

Switch

No-touch switch for

hands-free activation

How to Order

Model Series Finish Mounting Method

WSS – W 1

WSS Wave Sense Switch W White 1 Single Gang

2 Double Gang

Need an Outdoor Solution?

WCC WBB

WCC and WBB allow the Wave Sense Switch to be mounted

in outdoor locations not directly exposed to rain or snow

179

Push Buttons & Egress Devices

179

Push Buttons & Egress Devices

How to Order

Model Series Label

SP-1

SP-1 Touch Sense Plate, Clear Anodized L Touch To Exit

LH Handicap

Features

Standard Features

• Internal 0-25 second timer

• Backup push button

• MagnaCare® lifetime replacement,

no fault, no questions asked warranty

Specifications

Dimensions

• 3-3/16"L x 1-1/2"D x 5-3/4"H

Electrical

• 40 mA at rest; 25 mA

releasing at 12 or 24 VDC

Operating Temperature

• +32 to +110F [0 to +43C]

• Indoor use only

Shipping Weight

• 1.5 lbs [0.68kg]

The SP-1 uses touch

sensing technology

to create a push plate

with no moving parts.

For indoor use only, the unit is oversized to

cover a single gang cutout. Ideal to assist

with ADA compliance, the unit includes a

three-part vinyl “Touch to Exit” decal. A red

LED is incorporated into the backbox.

Securitron® SP-1

Touch Sense® Plate

Touch Sense technology in a

wall-mount request to exit plate

1-1/2"

[38mm]

5-3/4"

[146mm]

3-3/16"

[81mm]

180

Push Buttons & Egress Devices

MagnaCare®

Lifetime

Replacement

Warranty

The Industry’s Best Warranty

Lifetime—No Fault—Tomorrow

• Lifetime — We guarantee our products, and since we’ve been

making Magnalocks for over 35 years that’s a promise you can trust

• No Fault — For any reason, including but not limited

to installation error, vandalism or act of God

• Tomorrow — Replacement product is shipped at

Securitron’s expense, next day air if needed

• Hassle Free — No product registration is required

At ASSA ABLOY we pay special attention to the needs of our customers.

Our 1.800.MAGLOCK sales and service support line puts you in

touch with our knowledgeable and friendly team to assist you with

the smallest detail, or the most difficult application, including free

wiring diagrams. In 1999, Securitron® introduced the first “no strings

attached” warranty program called MagnaCare, because we believe

quality products and quality service should be the expectation, not

the exception. ASSA ABLOY Electronic Security Hardware continues

this tradition on all Securitron Maglocks and many other products.

Select products are covered under ASSA ABLOY Electronic Security

Hardware’s other warranty programs. Full details are available online.

181

Push Buttons & Egress Devices

181

Push Buttons & Egress Devices

Features

Standard Features

• Redundant switches

• Release triggered by either 1/8"

mechanical movement or reliable

touch sense technology

• Resistant to interference from

radio frequency or electromagnetic

frequency and external impact/

bounce attempts

• All metal construction

• Can be field cut to fit nonstandard

door widths

• 16 ft. [4.8m] 22 AWG 6

conductor cable and armored

door cord included

• Resists electrostatic discharge

up to 27,000 volts

• MagnaCare® lifetime replacement,

no fault, no questions asked warranty

Optional Features

• 36 36" (914mm) Length

• 42 42" (1,067mm) Length

• 48 48" (1,219mm) Length

• EL ElectroLynx® ready

• I Illuminated via fiber optics

• Through-bolt kit for doors 1-3/4"

to 2-1/4" thick

• Cover plates per TSB

The dependable

DSB Dual Sense Bar is

the most reliable exit

device available for

electronically locked,

non-fire-rated doors.

Its unique design delivers superior fault

tolerance with two independent, redundant

switch circuits for releasing the lock. The DSB

can be installed on all types of interior metal,

aluminum or wood doors. Meets “no special

tools or knowledge” criteria required by code.

Securitron® DSB

Dual Sense® Bar

Dependable touch and

mechanical release for superior

safety and redundancy

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

182

Push Buttons & Egress Devices

Dimensions

Specifications

Certifications

• CAN/ULC-S533 Listed

• ANSI/UL 294 Listed

• CSA-C22.2 No. 205 Listed

• NFPA 101

Electrical

• Dual Sense Bar Only—

24 mA at 12 or 24 VDC

• Dual Sense Bar with Illumination—

44 mA at 12 or 24 VDC

Operating Temperature

• +32 to +120F [0 to +49C]

Indoor use only

Shipping Weight

• 6 lbs [2.72kg] to 8 lbs [3.63kg]

depending on length

How to Order

Connector Style Model Series Finish Illumination Bar Length

EL – DSB – CL I42

(blank) None DSB Dual Sense Bar BK Black Anodized (blank) Non Illuminated (blank) 36" Standard Unit

EL Electrolynx®CL Clear Anodized I Illuminated 42"

48"

Note: Not every combination above is possible. Please contact the factory if you need a combination of features not listed on this page

34-13/16" 40-13/16" 46-13/16"

[868mm, 1021mm,1173mm]

[76mm] 3"

[76mm]

183

Push Buttons & Egress Devices

Features

Standard Features

• Can be field cut to accommodate

non-standard openings up to 48"

• Activates a 2A DPST rated relay

when touched (no mechanical

movement) which will allow

free egress, or initiates the

delay on an exit delay timer

• Backup push button included

• 16 ft. [4.8m] 22AWG 6

conductor cable and armored

door cord included

• Available ElectroLynx® ready

• MagnaCare® lifetime replacement,

no fault, no questions asked warranty

Optional Features

• 36 36" (914mm) Length

• 42 42" (1,067mm) Length

• 48 48" (1,219mm) Length

• EL ElectroLynx® connectors

• D Dummy bar with no

release function

• Through-bolt kit for doors

up to 2-1/4" thick

• Cover plates for retrofit

of competitor products

• Trailing edge timer

The TSB Touch Sense

Bar provides touch-

triggered release of

electronically locked,

non-fire-rated doors.

Touching the bar, even through light gloves

or clothing, triggers an electronic sensor that

releases the lock. For indoor use only, the TSB

installs easily on all types of metal, aluminum

or wood frame doors. Meets "no special tools

or knowledge" criteria in code requirements.

Securitron® TSB

Touch Sense® Bar

Touch-triggered release

for reliable egress

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

184

Push Buttons & Egress Devices

Dimensions

Specifications

Certifications

• ANSI/UL 294 Listed

• CSA-C22.2 No. 205 Listed

• CSFM—California State Fire Marshal Approved

• CE: EN 50091-1, EN 61000-6-2 Approved

Electrical

• 40 mA at rest; 25 mA releasing at 12 VDC or 24 VDC

Operating Temperature

• +32 to +110F [0 to +43C]

• Indoor use

Shipping Weight

• 7 lbs [3.18kg] to 9 lbs [4.08kg] depending on length

How to Order

Connector Style Model Series Finish Special Features Bar Length

EL – TSB – CL T – 42

(blank) None TSB Touch Sense Bar BK Black Anodized T Trailing Edge Timer (blank) 36" Standard Unit

EL Electrolynx®CL Clear Anodized 42"

48"

Note: Not every combination above is possible. Please contact the factory if you need a combination of features not listed on this page

[76mm]

2-3/4"

[70mm]

34-1/2", 40-1/2", 46-1/2"

[870mm, 1022mm,1175mm]

185

Push Buttons & Egress Devices

Features

Standard Features

• Low profile design requires only

1/4" movement for activation

• Can be field cut to accommodate

non-standard openings up to 48"

• Uses same mounting pattern

as the TSB and DSB

• Direct retrofit for some

competitor footprints

• Mechanical action

activates a DPDT relay

• 5A rated output to allow free egress

or initiate an exit delay timer

• Redundant switches ensure

reliable, fault-tolerant operation

• All metal construction

• 16 ft. [4.8m] 22 AWG 6

conductor cable and armored

door cord included

• MagnaCare® lifetime replacement,

no fault, no questions asked warranty

Optional Features

• 36 36" (914mm) Length

• 42 42" (1,067mm) Length

• 48 48" (1,219mm) Length

• W Weather-resistant upgrade

• Through-bolt kit for doors

1-3/4" to 2-1/4" thick

• Cover plates for retrofit

of competitor products

Use the

Electromechanical

Exit Bar (EMB) on

electronically locked,

non-fire-rated doors or

as an initiate device for

a delayed egress timer.

Pressing the bar activates internal mechanical

switches that release the lock. Optional

waterproof switches are available, which allow

the EMB to function in protected outdoor

applications. Meets "no special tools or

knowledge" criteria for code requirements.

Securitron® EMB

Electromechanical

Bar

Mechanical activation for

electronic lock release in a

reliable, durable exit bar

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

186

Push Buttons & Egress Devices

Dimensions

Specifications

Electrical

• Max current 1.5A at 30VDC

Operating Temperature

• -4 to +185F [-20 to +85C] indoor operation

• Optional weather-resistant switches

Shipping Weight

• 7 lbs [3.18kg] to 9 lbs [4.08kg] depending on length

How to Order

Connector Style Finish Bar Length

EMB – CL – 42

EMB Electromechanical Bar BK Black Anodized (blank) 36" Standard Unit

WEMB Weather Resistant Electromechanical Bar CL Clear Anodized 42"

48"

Note: Not every combination above is possible. Please contact the factory if

you need a combination of features not listed on this page

1.6"

[41mm]

2.6"

[66mm]

34.5, 40.5, 46.5"

[876mm, 1029mm, 1181mm]

TCP covers unwanted holes from previously

installed exit bars, strengthens the mounting

area and provides a clean look.

187

Push Buttons & Egress Devices

Features

Standard Features

• For use on any push, pull

or swing-through door

• Activates electronic release

via DPST 2A rated relay when

touched to allow free egress

• Backup push button

• 16 ft. [4.8m] 22AWG 6

conductor cable and armored

door cord included

• MagnaCare® lifetime replacement,

no fault, no questions asked warranty

Optional Features

• (EL) ElectroLynx® ready connectors

Specifications

Certifications

• ANSI/UL 294 Listed

• CSA-C22.2 No.205 Listed

• CSFM—California State Fire

Marshal Approved

• CE: EN 50091-1, EN 61000-

6-2 Approved

Dimensions

• 5"L x 2-1/8"D x 9"H

Electrical

• 40 mA at rest; 25 mA releasing

at 12 VDC or 24 VDC

• 2A DPST relays

Operating Temperature

• +32 to +110F [0 to +43C]

• Indoor use only

Shipping Weight

• 3 lbs [1.36kg]

Sized to conceal

existing mounting

holes, the TSH Touch

Sense Handle replaces

standard pulls on

aluminum doors to

allow electronic lock

release for egress.

With flexible options, it works equally

well on in-swing doors or as a push-open

device for out-swing doors, offering a clean

look on aluminum frame glass doors.

Securitron®

TSH Touch

Sense® Handle

Compact push or pull

egress alternative for

electronic lock release

How to Order

Connector Style Model Series Finish

EL – TSH – CL

(blank) None TSH Touch Sense

Handle

BK Black Anodized

EL Electrolynx®CL Clear Anodized

2-1/8"

[54mm]

[127mm]

[229mm]

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

188

Push Buttons & Egress Devices

188

Push Buttons & Egress Devices

Securitron® EMH

Electromechanical

Handle

Mechanical activation for

electronic lock release in

a compact handle

Features

Standard Features

• Activates a DPDT 2A rated output

when pushed or pulled, to allow free

egress or initiate an exit delay timer

• 16 ft. [4.8m] 22AWG 3

conductor cable and armored

door cord included

• MagnaCare® lifetime replacement,

no fault, no questions asked warranty

Optional Features

• (EL) ElectroLynx® ready connectors

Specifications

Certifications

• ANSI/UL 294 Listed

• CSA-C22.2 No.205 Listed

• CSFM—California State Fire

Marshal Approved

• CE: EN 50091-1, EN 61000-

6-2 Approved

Dimensions

• 5"L x 2-1/8"D x 9"H

Electrical

• 40 mA at rest; 25 mA

releasing at 12 or 24 VDC

• 2A DPDT relay

Operating Temperature

• +32 to +110F [0 to +43C]

• Indoor use only

Shipping Weight

• 3 lbs [1.36kg]

The EMH

Electromechanical

Handle works on

any push, pull or

swing-through door,

and is designed for

specialized outdoor

applications.

Pressing the handle activates internal

mechanical switches that release the lock.

Meets "no special tools or knowledge"

criteria for code requirements.

How to Order

Connector Style Model Series Finish

EL – EMH – CL

(blank) None EMH Electromechanical

Handle

BK Black Anodized

EL Electrolynx®CL Clear Anodized

Pull

Emh Movement

Push

2-1/8"

[54mm]

[127mm]

[229mm]

189

Power

190

Power

191

Power

Features

Standard Features

• Dual output, field selectable 12 or 24

VDC via clearly marked toggle switch

• Supplies 1 full AMP continuous

current output, even while

charging back-up batteries

• Linear regulated power supply

provides the cleanest power available

• UL Class 2 power limited output

• SPDT AC monitoring output allows

for remote monitoring of the

power supply’s 110 VAC input

• External LED indicator (AC and DC)

easily determines power status

• UL Listed, low-current fire alarm

disconnect requires only a minimum

size fire alarm relay and wire gauge

• Polyswitch 2A breaker allows

for large short duration inrush

current if batteries are installed

(approx. 20A for 1 second)

• Line voltage and DC fuses

• Sealed lead acid or gel battery

charging capability (battery sold

separately, see page 220)

• MagnaCare® lifetime replacement, no

fault, no questions asked warranty

The BPS series of

power supplies delivers

linear technology

recommended by

most manufacturers

of sensitive electronic

access control and

security components.

Safe for use with readers, electric strikes,

and maglocks, these units interface to fire

alarm systems and provide battery backup.

The BPS-12/24-1 is UL Class 2 listed.

Securitron®

BPS 12/24-1 Dual

Voltage Linear

Power Supply

Linear power for sensitive electronics

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

192

Power

Dimensions Specifications

Certifications

• UL Listed

Dimensions

• 9"L x 12"H x 4"D

Electrical

• 12V/24V selector switch

• Input Voltage: 120 VAC

• Output Current: 1A at 12 VDC or 24 VDC

Operating Temperature

• +32 to +105F [0 to +40C]

Shipping Weight

• 9 lbs [4.08kg]

Part Number | Description

BPS-12/24-1 Dual Voltage Power Supply—12/24 VDC, 1A

12"

[305mm]

[229mm]

[102mm]

193

Power

Features

Standard Features

• 1, 4 or 8 outputs protected with

polyswitch (PTC) 2A circuit breakers

• LEDs provide an easy-to-read

voltage indicator for output zone

status (voltage, no voltage)

• Slide switches connect or disconnect

load from power (excludes 1A)

• Battery charging and backup

capability (battery sold

separately, see page 220)

• Rugged steel enclosure

• Fire alarm relay connection

for release of all devices upon

fire alarm activation

• Clean linear power for flawless

operation with all sensitive

active electronic components

• MagnaCare® lifetime replacement, no

fault, no questions asked warranty

The BPS series single

voltage power

supplies deliver

linear technology

recommended by

most manufacturers

of sensitive electronic

access control and

security components.

Safe for use with readers, electric strikes,

and maglocks, these units interface to fire

alarm systems and provide battery backup.

The BPS power supplies provide 12 VDC or

24 VDC output with a variety of amp sizes

that support small or large power needs.

Securitron®

BPS Linear

Power Supply

12 VDC or 24 VDC linear output

for high performance

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

194

Power

Dimensions Specifications

Certifications

• UL 294 Listed

• CSA-C22.2 No.205 Listed

• MEA—City of New York Approved

Electrical

• Input Voltage: 120 VAC

Operating Temperature

• +32 to +105F [0 to +40C]

Shipping Weight

• BPS-12-1, BPS-24-1: 9 lbs [4.08kg]

• BPS-12-3, BPS-24-2: 15 lbs [6.80kg]

• BPS-12-45, BPS-24-3: 18 lbs [8.16kg]

• BPS-12-6, BPS-24-4: 24 lbs [10.89kg]

• BPS-12-9, BPS-24-6: 28 lbs [12.70kg]

• BPS-12-15, BPS-24-10: 33 lbs [14.97kg]

12 VDC Capacity 24 VDC Capacity Cabinet

Size Outputs

BPS-12-1 1A BPS-24-1 1A 12" x 9" x 4" 1

BPS-12-3 3A BPS-24-2 2A 14" x 14" x 4" 4

BPS-12-45 4.5A BPS-24-3 3A 14" x 14" x 4" 4

BPS-12-6 6A BPS-24-4 4A 15" x 18" x 6" 8

BPS-12-9 9A BPS-24-6 6A 15" x 18" x 6" 8

BPS-12-15 15A BPS-24-10 10A 15" x 18" x 6" 8

How to Order

Model Series Switch Type Voltage Output Power

BPS M – 24 – X

BPS (blank) No Monitoring 12 12VDC X Output in Amps

M PSM Monitoring 24 24VDC

195

Power

Features

Standard Features

• Polyswitch (PTC) 2A output

breakers protect 8 outputs

• Easy-to-use slide switches connect

or disconnect load from power

• LED indicators (AC and DC)

provide easy-to-read visual

status of power supply

• Emergency low-current,

fire-release terminals

• AC status output terminals provide

real time status information, SPDT, 3A

• Battery status output terminals

supply real time information,

Form “C” SPDT, 3A

• Line voltage and DC fuses

• Sealed lead acid or gel battery

charging capability (battery sold

separately, see page 220)

• Automatic battery disconnect

to prevents deep discharge

• Clean linear power delivers flawless

operation with all sensitive

active electronic components

• MagnaCare® lifetime replacement, no

fault, no questions asked warranty

Optional Features

• Output Current

— 6A /12 VDC

— 9A/12 VDC

— 15A/12 VDC

— 4A/24 VDC

— 6A/24 VDC

The BPSM self-

monitoring power

supply delivers all

the benefits of linear

technology with

battery supervision

for real-time power

status information.

This unit is the right choice when interfacing

to fire alarm systems with auxiliary relays

that can’t handle the full current potential

of the power supply, or when monitoring

power systems for AC failure or DC battery

failure. BPSM status LED indicators and status

output terminals offer advanced protection.

Securitron® BPSM

Self Monitoring

Power Supply

Clean linear output with

built-in supervision

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

196

Power

Dimensions Specifications

Certifications

• ANSI/UL 294 Listed

• CSA-C22.2 No.205 Listed

Dimensions

• 15"W x 8"H x 6"D

Electrical

• Input Voltage: 120 VAC

• Voltage and Capacity

— 12 VDC - 6A, 9A, 15A

— 24 VDC - 4A, 6A, 10A

• Monitoring: 110 VAC Status, Battery Status

Operating Temperature

• +32 to +105F [0 to +40C]

Shipping Weight

• BPSM-12-6, BPS-24-4: 24 lbs [10.89kg]

• BPSM-12-9, BPS-24-6: 28 lbs [12.70kg]

• BPSM-12-15, BPS-24-10: 33 lbs [14.97kg]

How to Order

Model Series Switch Type Voltage Output Power

BPS M – 24 – X

BPS (blank) No Monitoring 12 12VDC X Output in Amps

M PSM Monitoring 24 24VDC

[152mm] 15"

[381mm]

18"

[457mm]

197

Power

Features

Standard Features

• Monitors and reports the status of the

power supply system’s output voltage

• Load tests and reports on the

battery pack every 8 hours

• Audio and visual alarm

• Monitors/tests DC output

of power supply load

• Available for both 12V

and 24 VDC systems

• MagnaCare® lifetime replacement, no

fault, no questions asked warranty

Optional Features

• PSM-12: 3A or greater at 12 VDC

— BPS-12-3

— BPS-12-45

— BPS-12-6

— BPS-12-9

— BPS-12-15

• PSM-24: 2A or greater at 24 VDC

— BPS-24-2

— BPS-24-3

— BPS-24-4

— BPS-24-6

— BPS-24-10

The PSM Series

works with most

BPS power supplies

when real-time power

and battery status

information is critical.

Compatible with all BPS supplies of 2

Amps or more, the PSM acts as a power

supply alarm system, monitoring all key

functions and reporting any trouble. This

unit constantly monitors its output voltage

to ensure it remains within tight limits for

proper float charging of the battery pack.

Securitron®

PSM Power

Supply Monitor

Add-on monitoring for BPS

Part Number | Description

PSM-12 Power Supply Monitor—12 VDC

PSM-24 Power Supply Monitor—24 VDC

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

198

Power

Dimensions Specifications

Electrical

• Voltage: VDC power from

corresponding power supply

• Current Draw

— 250 mA at 12 VDC

— 200 mA at 24 VDC

Operating Temperature

• +32 to +105F [0 to +40C]

Shipping Weight

• 5 lbs [2.27kg]

[102mm]

12"

[305mm]

[229mm]

199

Power

Features

Standard Features

• Key switch for manual reset

capability where required by code

• Enables manual cut-off of

power for testing and other

emergency situations

• Simple bi-color, LED status indicator

for easy-to-read power status

• Easy-to-mount metal enclosure

equipped with security cam lock

• CFAR version available to meet

Canadian fire release requirements

• Select 12 VDC unit or 24 VDC unit to

match power supply output voltage

• 5A-rated SPDT plunger switches

• MagnaCare® lifetime replacement, no

fault, no questions asked warranty

Specifications

Certifications

• UL 634 Listed

• ULC/ORD—C634 Listed

Dimensions

• Contact: 3/4"H x 4-1/4"L x 3/4"D

• Switch: 1-1/2"H x 4-1/4"L x 3/4"D

Electrical

• Main Output: SPDT at max of 125

mA at 24 VDC; 250 mA at 12 VDC

• Tamper Output: Closed when secure;

open to alarm—1A max current

Operating Temperature

• -40 to +150F [-40 to +65C]

Shipping Weight

• 1.5 lbs [0.68 kg]

Provides functionality

beyond a standard fire

trigger relay when local

code requires manual

reset after a fire alarm.

This self-contained unit interfaces to a fire alarm

unit to cut power to devices downstream of

the power supply in an alarm situation. The

power stays off until the FAR’s Key switch is

manually reset. This feature is required by

some jurisdictions to prevent the unintentional

re-arming of doors until the fire alarm is reset

and power is restored to the access control

system during an ongoing emergency.

Securitron® FAR

Fire Alarm Reset

Manual door lock power reset

for code compliance

Part Number | Description

FAR-12 Fire Alert Reset Control—12 VDC

FAR-24 Fire Alert Reset Control—24 VDC

2.5"

[63mm]

5.25"

[133mm]

5.25"

[133mm]

FAR shown with BPS and Fire Alarm

BPS Power

Supply

FAR-12,24

Terminal

Strip

Fire alarm

interface

(latching

auxilliary

relay)

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

200

Power

BPS Linear Power Supply Selection Guide

Plug In Power Supply Selection Guide

Model Input

Voltage

Output

Voltage

Output

Current

Battery

Charger UL Listed # of

Outputs

AC Loss

and Low

Battery

Status

Fire Alarm

Reset

Option

BPS-12/24-1 120 VAC 12/24 VDC 1A l l 1 AC LOSS ONLY W/FAR

BPS-12-1 120 VAC 12 VDC 1A l l 1 - W/FAR-12

BPS-12-3 120 VAC 12 VDC 3A l l 4 W/PSM-12 W/FAR-12

BPS-12-45 120 VAC 12 VDC 4.5A l l 4 W/PSM-12 W/FAR-12

BPS-12-6 120 VAC 12 VDC 6A l l 8 W/PSM-12 W/FAR-12

BPS-12-9 120 VAC 12 VDC 9A l l 8 W/PSM-12 W/FAR-12

BPS-12-15 120 VAC 12 VDC 15A l l 8 W/PSM-12 W/FAR-12

BPS-24-1 120 VAC 24 VDC 1A l l 1-W/FAR-24

BPS-24-2 120 VAC 24 VDC 2A l l 4 W/PSM-24 W/FAR-24

BPS-24-3 120 VAC 24 VDC 3A l l 4 W/PSM-24 W/FAR-24

BPS-24-4 120 VAC 24 VDC 4A l l 8 W/PSM-24 W/FAR-24

BPS-24-6 120 VAC 24 VDC 6A l l 8 W/PSM-24 W/FAR-24

BPS-24-10 120 VAC 24 VDC 10A l l 8 W/PSM-24 W/FAR-24

BPSM-12-6 120 VAC 12 VDC 6A l l 8lW/FAR-12

BPSM-12-9 120 VAC 12 VDC 9A l l 8lW/FAR-12

BPSM-12-15 120 VAC 12 VDC 15A l l 8lW/FAR-12

BPSM-24-4 120 VAC 24 VDC 4A l l 8lW/FAR-24

BPSM-24-6 120 VAC 24 VDC 6A l l 8lW/FAR-24

BPSM-24-10 120 VAC 24 VDC 10A l l 8lW/FAR-24

Connection to AC power is hard wired.

Model Input

Voltage

Output

Voltage

Output

Current

Battery

Charger UL Listed # of

Outputs

AC Loss and

Low Battery

Status

Manual

Reset

Option

PSP-12 120 VAC 12 VDC 700 mA - - 1- -

PSP-24 120 VAC 24 VDC 350 mA - - 1- -

PSP-12-3 120-220 VAC 12 VDC 3A - - 1- -

PSP-24-15 120-220 VAC 24 VDC 1.5A - - 1- -

201

Power

Features

Standard Features

• Dual-voltage 12 or 24 VDC field

selectable continuous output

• Tolerates brownout or overvoltage

input ± 15% of nominal voltage

• Thermal shutdown protection

with auto restart

• Circuit breaker protects against

overcurrent and reverse battery faults

• Dedicated battery charging

circuit prevents overvoltage

on locking devices

• Expandable up to 16 outputs; Class

2 power limited when used with 4,

8 or 16 output distribution boards

• Available with a single relay

fire trigger or individually fire

trigger relayed outputs

• MagnaCare® lifetime replacement, no

fault, no questions asked warranty

A full line of highly

efficient power

supplies that

protect devices

from over voltage.

The Securitron AQD Series of switching

power supplies are dual voltage supervised

units with a battery charger designed to

power magnetic locks, electric strikes, card

readers, sensors, access control boards and

other devices in access control systems. The

AQD Series can also be used to power DC

cameras and other DC locking equipment.

These units provide field selectable 12

or 24 VDC with up to 16 independently

controlled power limited outputs.

Securitron®

AQD Series

Dual-voltage

switching power supplies

New products launching Q2 2018

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

202

Power

Specifications

Certifications

Please refer to the table

• UL 294 Listed

• UL 603 Listed

• ULC-S318 Listed

• RoHS compliant

• REACH Compliant

Dimensions

• Enclosure: 14" x 14" x 4-3/4"

Electrical

• 12 VDC or 24 VDC output

• 115 or 230 VAC input

• Supports up to two (2) sealed gel,

AGM or wet lead acid batteries

• Up to 90% efficiency

• Low voltage ripple design as low as 240mV p-p

Operating Temperature

• 4 to +104F [-20 to +40C]

Shipping Weight

• 12.7 lbs [5.76kg

Certifications

Model Amperage

(12 or 24 VDC) Output Voltage Input Voltage Class 2 Outputs UL 294** UL 603 ULCS-318

AQD1 1 12 or 24 VDC 115 Yes Listed Listed Listed

AQD2 2 13 or 24 VDC 115/230 Yes Listed Listed Listed

AQD4 4 4 14 or 24 VDC 115/230 Available* Listed Listed Listed

AQD6 6 15 or 24 VDC 115/230 Available* Listed Listed Listed

* Outputs are class 2 limited when used with 4 or 8 output distribution boards

** All combinations of AQD power supplies and distribution boards are UL Listed

203

Power

Features

Standard Features

• Single-voltage 12 or 24 VDC

continuous output

• Tolerates brownout or overvoltage

input ± 15% of nominal voltage

• Thermal shutdown protection

with auto restart

• Circuit breaker protects against

overcurrent and reverse battery faults

• Dedicated battery charging

circuit prevents overvoltage

on locking devices

• Expandable up to 16 outputs; Class

2 power limited when used with 4,

8 or 16 output distribution boards

• Available with a single relay

fire trigger or individually fire

trigger relayed outputs

• MagnaCare® lifetime replacement,

no fault, no questions asked warranty

A full line of highly

efficient power

supplies that

protect devices

from over voltage.

The Securitron AQS Series of switching

power supplies are single voltage supervised

units with a battery charger designed to

power magnetic locks, electric strikes,

card readers, sensors, access control

boards and other devices in access control

systems. The AQS Series can also be used

to power DC cameras and other DC locking

equipment. These units provide stable 12

or 24 VDC with up to 16 independently

controlled power limited outputs.

Securitron®

AQS Series

Single-voltage

switching power supplies

New products launching Q2 2018

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

204

Power

Specifications

Certifications

Please refer to the table

• UL 294 Listed

• UL 603 Listed

• ULC-S318 Listed

• RoHS compliant

• REACH Compliant

Dimensions

• Enclosure: 14" x 14" x 4-3/4"

Electrical

• 12 VDC or 24 VDC output

• 115 or 230 VAC input

• Supports up to two (2) sealed gel,

AGM or wet lead acid batteries

Operating Temperature

• -4 to +122F [-20 to +50C]

Shipping Weight

• 12.7 lbs [5.76kg]

Model Amperage

(12 or 24 VDC) Output Voltage Input Voltage Class 2 Outputs UL 294** UL 603 ULCS-318

AQS1210 10 12 115/230 Available* L L L

AQS2410 10 24 115/230 Available* L L L

AQS1216 16 12 115/230 Available* L L L

* Outputs are class 2 limited when used with 4 or 8 output distribution boards

** All combinations of AQS power supplies and distribution boards are UL Listed

Certifications

205

Power

Features

Standard Features

• Eight power outputs

• Eight individually configurable

relays with status LEDs

• End-of-Line resistor master

trigger for Fire System interface

• LED indicator for trigger status

• Removable terminal blocks

for easy connection

• Each output individually

configurable for:

— Fire trigger enabled or disabled

— Normally Open or

Normally Closed

— Continuous output

• 8F8R can provide dry contacts

by removing fuses

• Relay inputs individually

configurable for:

• Low current open collector

— Normally Closed switch

— Normally Open switch

• MagnaCare® lifetime replacement, no

fault, no questions asked warranty

Specifications

Certifications

• UL 294 Recognized

• UL 603 Listed

• ULC-S318 Listed

Electrical

• Available with 1A or 2A Fuses or PTC

• Uses 20 mA per relay

• 7A relays

• 8 fused 0.5A outputs

Dimensions

• Board: 3-3/4"H x 4-13/16"W x 13/16"D

• Mounting: 3-7/16"H x 4-1/2"W

Shipping Weight

• 1 lb [0.45kg]

The PDB-8F8R and

PDB-8C8R split a power

supply main output

into eight fused- or

PTC circuit breaker-

protected outputs.

Each output is individually configurable

to respond and react to access control

relay inputs and/or fire trigger.

Securitron® Power

Distribution with

Access Control

& Fire Trigger

Power plus interfaces for sophisticated access control

Part Number | Description

PDB-8C8R 8 PTC Output with Relays, Fire Trigger

PDB-8F8R 8 Fused Output with Relays, Fire Trigger

Power

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

206

Power

206

Power

Features

Standard Features

• 8 Class 2 power limited outputs

with PTC circuit breakers

• Individual LED output

status indicators

• LED main input power indicator

• Removable terminal blocks

for easy connection

• Two supervised triggers

— End-of-line resistor

— Optically isolated trigger by

voltage or reverse polarity

• LEDs and form C contacts

indicate trigger status

• MagnaCare® lifetime replacement, no

fault, no questions asked warranty

Specifications

Certifications

• UL 294

• UL 603

• ULC-S318 recognized

Dimensions

• Board: 3-7/8"H x 4-7/8"W x 3/4"D

• Mounting: 3-7/16"H x 4-1/2"W

Electrical

• Universal 12-24 VDC input

• 90-160 mA per relay

• Available with 1A or 2A Fuses or PTC’s

• 2A form C contacts

Shipping Weight

• 1 lb [0.45kg]

The PDB-8C1R and

PDB-8F1R split a main

DC power source into

eight Class 2 power

limited outputs.

Each output is individually configurable

for “Normally On” or “Normally Off” and

can change state in response to an alarm

condition from either or both supervised

triggers, or can remain in its native state.

Securitron® Power

Distribution

w/Fire Trigger

Power distribution with

configurable, supervised fire relay

Part Number | Description

PDB-8C1R 8 PTC Output, Fire Trigger/Relay

Power

configurable, supervised fire relay

207

Power

Features

Standard Features

• Splits main board output

into multiple outputs

• Each output has a status LED indicator

• Main input has a status LED indicator

• 12 or 24V output (based on

power supply output)

• Accepts AC or DC input/

provides same output

• DB-4 has an on/off power switch

• PDB-8 has a main power

indicator that indicates AC,

DC or reverse DC input

• Individually fused with 1

or 2A options available

• Separate fuse for main input

surge protection–standard

automotive ATO sizes

• MagnaCare® lifetime replacement, no

fault, no questions asked warranty

Securitron Power

Distribution Boards

split the primary AC

or DC output from

a power supply into

multiple outputs of the

same voltage type to

separate equipment

onto individual circuits.

Securitron® Power

Distribution Board

Creates multiple outputs

for separate circuits

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

208

Power

Specifications

Electrical

• PDB-4C, PDB-8C

— PTC circuit breakers rated

holding current at 130° F

— Accepts AC or DC

input up to 32V

— Outputs rated Class

2 power limited

• PDB-4F, PDB-8F

— Fuses for individual

outputs are standard 3AGC

— Accepts AC or DC input

— Outputs rated Class

2 power limited

— UL 294, UL 603, ULC-S318

recognized components

Dimensions

• PDB-4: 3-3/4"H x 2-1/4"W x 1"D

Mounting: 3-7/16"H x 1-7/8"W

• PDB-8: 4-7/8"H x 4-7/8"W x 1"D

Mounting: 3-7/16"H x 4-1/2"W

Part Number | Description

PDB-4C07 4 PTC Output, 700 mA each

PDB-4C1 4 PTC Output, 1.04A each

PDB-4C2 4 PTC Output, 1.93Aeach

PDB-4C3 4 PTC Output, 1.93A each

PDB-4C4 4 PTC Output, 1.93A each

PDB-4C5 4 PTC Output, 4.62A each

PDB-4F05 4 Fused Output, 500 mA each

PDB-4F1 4 Fused Output, 1A each

PDB-4F2 4 Fused Output, 2A each

PDB-4F3 4 Fused Output, 3A each

PDB-4F4 4 Fused Output, 4A each

PDB-4F5 4 Fused Output, 5A each

PDB-8C07 8 PTC Output, 700 mA each

PDB-8C1 8 PTC Output, 1.04A each

PDB-8C2 8 PTC Output, 1.93A each

PDB-8C3 8 PTC Output, 3.08A each

PDB-8C4 8 PTC Output, 3.85A each

PDB-8C5 8 PTC Output, 4.62A each

PDB-8F05 8 Fused Output, 500 mA each

PDB-8F1 8 Fused Output, 1A each

PDB-8F2 8 Fused Output, 2A each

PDB-8F3 8 Fused Output, 3A each

PDB-8F4 8 Fused Output, 4A each

PDB-8F5 8 Fused Output, 5A each

209

Power

Features

Standard Features

• Individual LED indicators show

which output is powered

• Form C contact indicates

trigger status

• Latching or non-latching mode

• Can provide ground supervision

via jumper configuration

• Output triggers include:

— Normally Open or Normally

Closed with supervised

End-of-Line resistor

— Normally Closed override

switch trigger input

— Normally Closed Auxiliary

switch trigger input

— Ground fault detection

— Trigger status reporting

• MagnaCare® lifetime replacement, no

fault, no questions asked warranty

Specifications

Certifications

• UL 294 Recognized

• UL 603 Recognized

• ULC-S318-96 Recognized

Dimensions

• Board: 3-3/4"H x 2-1/4"W x 13/16"D

• Mounting: 3-7/16" H x 1-7/8"W

Electrical

• 70 mA used for relay control

• Universal 12-24 VDC input

• 1A or 2A outputs

Shipping Weight

• 0.75 lbs [0.45kg]

The PDB-1R uses an

end-of-line resistor

to trigger a form C

contact in response

to a fire system

alarm condition.

In response to the trigger, the unit transfers

power from the “Normally On” output

to the “Normally Off” output. Additional

triggered reactions include status

feedback to fire control or annunciation

systems, ground fault trigger and input

trigger that latches until reset.

Securitron®

Fire Trigger

Fire relay triggers power

transfer in alarm situation

Part Number | Description

PDB-1R Fire Trigger/Relay Interface Board

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

210

Power

210

Power

Securitron EcoPower

power supply is

designed to work

with ultra-low-power

electrified access

control devices.

This small, aesthetic power supply reduces

standby power consumption to only

8.5mW, a 99% energy savings compared

to switching power supplies. When paired

with EcoFlex® from SARGENT® and Corbin

Russwin®, EcoPower reduces total door

power consumption 99%, from up to 20W to

0.3W or less. EcoPower is the most efficient,

fully featured power supply available today.

Features

Standard Features

• Extremely low power consumption,

only 8.5mW standby power

consumption with a 115V input

• Included battery provides

24 hours of backup

• Universal input voltage

capabilities (100-240 VAC)

• Multiple mounting options

— Surface mounted

— Recessed into drywall

• Use either the factory box or

an existing UL Listed double

gang junction box

• Increased low current wire runs

and wire run length provides

additional cost savings

• Fire alarm input dry

contact (NO or NC)

• Access control input dry

contact (NO or NC)

• Supports fail secure and fail

safe lock configurations

• LED troubleshooting

• Built in battery end-of-life

notification system

• MagnaCare® lifetime replacement, no

fault, no questions asked warranty

Securitron® EcoPower®

Power Supply

Efficient 0.5A power supply

for low-power locks

211

Power

Specifications

Certifications

• UL 294 (6th Edition) listed

• UL 603 Listed

• ULC S533 Listed

• CE Certified

— EN 60950-1:2006 + A11:2009 +

A1:2010 + A12:2011 + A2:2013

— EN 55022: 2010

— EN 55024: 2010

— EN61000-3-2: 2014

— EN61000-3-3: 2013

• RoHS Compliant

• REACH Compliant

• Environmental Produt Delaration

Dimensions

• Enclosure: 4"L x 4"W x 3-3/4"D

Electrical

• Input voltage: 100-240V

• Output voltage: 12V-14V

• Standby power: <10mW at 115V, <20mW at 230V

• Output current: 0.5A peak, 0.1A continuous

• Includes one (1) 800 mAh sealed

AGM lead acid battery*

Operating Temperature

• -4 to +122F [-20 to +50C]

Shipping Weight

• 1.7 lbs [0.77kg]

How to Order

Model Series Output Power Option (s)

EPS – 05 B

EPS 05 0.5 Amps (blank) PS, enclosure, battery

B Circuit Board Only

* Battery not covered under MagnaCare® warranty.

Dimensions

[101.6mm]

3-3/4"

[95.25mm]

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

212

Power

212

Power

Features

Standard Features

• Works with most fail

secure electric locks

• Works with most keypads

or card readers

• Operates outdoors

• 100% solid state solar controller

comes with anodized aluminum

case and marine-rated terminals

• Low voltage battery monitor protects

batteries from deep discharge

• High-efficiency photovoltaic

panels use silicon nitride

multicrystalline cells

• Green charging LED indicator

• Comes with mounting brackets

for enclosure and solar panel

• Approved for use in hazardous

locations—Class 1, Division

2, Groups A, B, C, D

• SecuriCare 3-year, no fault,

no questions asked warranty

Optional Features

• Mounting brackets available for

fence/pole mounting (to 3" diameter)

• Wind kit available for high wind areas

• Available in 10W and 20W versions

The BPSS is the

only out-of-the-box

solution specifically

designed for remote

electric lock control

where conventional

power is impractical

or not available.

This complete solar power system powers

most single-point access control device

and fail secure lock (intermittent duty

only) by producing sustainable solar and

battery operated power. Select the BPSS-

10 or BPSS-20 (10 or 20 charging watts

respectively), based on solar activity in

the area/region where you’re installing.

Securitron® BPSS

Solar Boxed

Power Supply

Clean power meets green power

213

Power

Specifications

Solar Panels

• Size

— BPSS-10: 14-1/2" x 12-3/16" x 11/16"

— BPSS-20: 22" x 14-3/16" x 11/16"

• Rated Power

— BPSS-10: 10 Watts

— BPSS-20: 20 Watts

• Panel Weight

— BPSS-10: 3.3 lbs [1.5kg]

— BPSS-20: 5.5 lbs [2.5kg]

Dimensions

• Outdoor (NEMA-3R)

• Enclosure: 12-1/2" x 13-5/8" x 4-7/16"

Standard Enclosure Brackets

• Accommodates up to 2" diameter pole/post

Electrical

• Output Voltage: 14.4 VDC max

• Maximum 125 mA continuous, 1A maximum

operating the locking device - intermittent

duty only. Number of daily lock operations will

vary due to solar activity and current draw

Operating Temperature

• -4 to +113F [-20 to +45C]

Operating Temperature

• Panels: -40 to +185F [-40 to +85C]

Shipping Weight

• 15 lbs [6.8kg]

How to Order

Model Series Solar Panel Output

BPSS – 10

BPSS Solar Power Supply 10 10 Watts

20 20 Watts

20W

Panel 10W

Panel

BPSS Standard

2" Pole Mounting Kit

Included Solar Panel

Mounting Kit

PMK-3 – Optional

3" Large Pole Mounting Kit

SWK – Optional Solar Panel

High Wind Kit for 20W Panel

Dimensional Images

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

214

Power

214

Power

Features

Standard Features

• Allows powering of PoE devices

from a non-PoE source

• Operates from low voltage

24 VAC or 24V DC input

• Reset feature allows PoE shutdown

• Visual diagnostics via on board LED

• MagnaCare® lifetime replacement, no

fault, no questions asked warranty

Specifications

Certifications

• UL 294B Listed

• UL/CUL 60950-1

• 15W IEEE 802.3af

• 30W IEEE 802.3at

• CSA C22.2 No.205-M1983,

Signal Equipment

• RoHS Compliant

Electrical

• 24 VAC or 24 VDC ± 15% input

• 1.4 or 2.6As input current

• 50 VDC output

• 300 or 600 mA output current

• 5 to 24 VDC, 10 mA max

shutdown terminals

• 100m (328 feet) max data cable length

• 10/100/1000 data rate

Base-T compliant

Operating Temperature

• +32 to +120F [0 to +49C]

Gigabit data and

power all-in-one.

Securitron brings power and data together

with our latest innovation. The AQE15 and

AQE30 are single port Power over Ethernet

(PoE) MidSpan Injectors designed for

access control and security applications.

These modules enable the powering of PoE

devices from a non-PoE source. AQE Series

Injectors power PoE cameras, access control

door controllers and other PoE equipment.

Securitron® AQE

Single Port Injector

Power over Ethernet

Product Number AQE15 AQE30

Input Amps 1.4 2.6

Input Voltage 24 VAC or VDC 24 VAC or VDC

Output Current 300 mA 600 mA

Data Rate – BASE T 10/100 10/100/1000

UL294B Listed Listed

UL/CUL 60950-1 Listed Listed

IEEE 802.3at Listed Listed How to Order

Model Series Power Function Mounting Style

AQE 15

AQE PoE 15 1.4A, Dual Voltage (blank) PoE Injector (blank) Single Port

30 2.6A, Dual Voltage

Items can only be ordered as listed above

215

Power

Product Number AQE30E

Input Amps 0.6

Input Voltage 12 VDC

Output Current 1A/2A (13/25W)

Data Rate – BASE T 10/100/100

UL294B Listed

UL/CUL 60950-1 Listed

IEEE 802.3at Listed

Features

Standard Features

• Allows powering of non-PoE

devices from a PoE source

• 12 VDC output power derived

from PoE source

• Selectable for 13W or 25W output

• Visual diagnostics by on-board LED

• MagnaCare® lifetime replacement, no

fault, no questions asked warranty

Specifications

Certifications

• UL 294B Listed

• UL/CUL 60950-1

• 30W IEEE 802.3at

• CSA C22.2 No.205-M1983,

Signal Equipment

• RoHS Compliant

Electrical

• 42.5 to 57 VDC PoE Input

• 0.6 A input current

• 12 VDC output, 13 or 25W

• 10/100/1000 data rate

Base-T compliant

Operating Temperature

• +32 to +120F [0 to + 49C]

Gigabit data and

power all-in-one.

The Securitron AQE30E is a single port Power

over Ethernet (PoE) MidSpan Extractor designed

for access control and security applications. This

module provides 12 VDC up to a maximum of

25W output power to a non-PoE device from

a PoE source. The AQE30E Extractor is used to

power DC IP and PTZ cameras, access control,

door controllers and other similar equipment.

The AQE Series Extractor provides RJ45 connectors

for data input and output and two terminal strips

for the DC output and power level selection.

Securitron® AQE

Single Port Extractor

Power over Ethernet

How to Order

Model Series Power Function Mounting Style

AQE 30 E

AQE PoE 30 2.6A, Dual Voltage (blank) PoE Injector (blank) Single Port

Items can only be ordered as listed above

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

216

Power

216

Power

Features

Standard Features

• Up to 32W/port IEEE 802.3at, up to

maximum output of 256W or 540W

• Extended temperature range

operation up to +122F [+50C]

• Remote managed system

with browser interface

• Remote PoE shutdown per port

or all ports simultaneously

• Identifies and protects

non- PoE equipment

• Port status LED for easy diagnostics

• Overtemperature, overvoltage,

overcurrent and short

circuit protection

• Illuminated master power

switch with circuit breaker

• 1U 19" rack mount or wall mount

(with bracket included)

• Accepts AC or DC input power

• MagnaCare® lifetime replacement, no

fault, no questions asked warranty

Centralize your

PoE with remote

manageability.

The Securitron AQE250R and AQE500R are

16 port, Power over Ethernet (PoE) injectors

that can be monitored and managed online.

This series provides power and data to PoE

devices such as PTZ cameras, video, access

control, door locks and other PoE devices.

These rack mounted power supplies

feature (16) ports at up to 32W per port

with 10/100/1000 Base-T Gigabit support.

They offer remote power monitoring

and the ability to remotely shut down

individual ports or all ports simultaneously.

They also include a 48V battery charger

for cost effective back-up power.

Securitron®

AQE Rack

Mount Injector

Power over Ethernet

217

Power

Specifications

Certifications

• FCC part 15, Class A

• EN 55022 Class A (Emissions)

• EN55024 (Immunity)

• UL/CUL 60950-1

• IEEE.802.at

• CSA C22.2 No. 60950-1

• RoHS Compliant

Electrical

AQE Series AQE250R

• 16 ports

10/100/1000 Mbps data rate

• Up to 32W per port, IEEE.802at,

up to 256W aggregate power

• AC Input Requirement

— Input voltage: 100-240 VAC

— Input current: 4.5A max

— AC frequency: 47 to 63 Hz

• DC Input Requirement

— Input voltage: 50 VDC ± 10%

— Input current: 7A max

• Battery Back-up Specification

— Input voltage: 48 VDC nominal

• BTU rating: 116 BTU/Hr

AQE Series AQE500R

• 16 ports

10/100/1000 Mbps data rate

• 32W per port, IEEE.802.at, up to

540W aggregate power

• AC Input Requirement

— Input voltage: 100-240 VAC

— Input current: 9A max

— AC frequency: 47 to 63 Hz

• DC Input Requirement

— Input voltage: 50 VDC ± 10%

— Input current: 14A max

• Battery Back-up Specification

— Input voltage: 48 VDC nominal

• BTU rating: 232 BTU/Hr

Operating Temperature

• AQE250R: -4 to +122F [-20 to + 50C]

• AQE500R: -4 to +122F [-20 to + 50C]

Shipping Weight

• AQE250R: 12 lbs [5.44kg]

• AQE500R: 14 lbs [6.35kg]

Product Number AQE250R AQE500R

# of Ports 16 16

Output Power 32W/port up to 256W 32W/port up to 540W

Class 2 Power Limited 100- 240 VAC at 4.5A

50 VDC ± 10% 7A

100- 240 VAC at 9A

50 VDC ± 10% 14A

Fuse Rating 10/100/1000 10/100/1000

Fuse Type Listed Listed

# of Relays Listed Listed

How to Order

Model Series Power Function Mounting Style

AQE 250 R

AQE PoE 250 256W (blank) PoE Injector R Rack Mount Multi-Port

500 500W

Items can only be ordered as listed above

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

218

Power

218

Power

Features

Standard Features

• 36 watts continuous output

• 6 ft. [1.8m] output cable included

• Folding, two-prong AC connector

• MagnaCare® lifetime replacement, no

fault, no questions asked warranty

Certifications

• UL listed

Dimensions

The PSP Plug-in DC

Power Supplies are

available in 12 volts at

3A maximum capacity

or 24 volts at 1.5A

maximum capacity.

6 ft. output cable is included. Input voltage

100 VAC to 240 VAC. PSPs are ideal for

powering a wide range of DC devices

where power is available via an outlet.

Securitron® PSP

Medium Filtered DC

Plug-In Power Supply

Medium capacity plug-in power supply

Part Number | Description

PSP-12-3 Power Supply Plug-In—Switching, Regulated, 12 VDC, 3A

PSP-24-1.5 Power Supply Plug-In—Switching, Regulated, 24 VDC, 1.5A

4-1/8"

[105mm]

1-3/4"

[44mm]

1-1/8"

[29mm]

219

Power

Features

Standard Features

• Internal thermal fuse

• 12 ft. [3.6m] output cable included

• UL listed

• 120-240 VAC input

• MagnaCare® lifetime replacement, no

fault, no questions asked warranty

Certifications

• UL listed

Electrical

• 120-240 VAC input

Dimensions

PSP plug-in DC

power supplies are

available in 12 volts at

700 mA maximum

capacity or 24 volts

at 350 mA capacity.

PSPs are ideal for powering a wide range

of DC devices. Accepts 120-240 VAC input.

Securitron® PSP

Small Filtered DC

Plug-In Power Supply

Small plug-in power supply

Part Number | Description

PSP-12 Power Supply Plug-In—12 VDC, 700 mA

PSP-24 Power Supply Plug-In—24 VDC, 350 mA

2-1/2"

[63mm]

1-1/16"

[27mm]

1-11/16"

[43mm]

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

220

Power

220

Power

Securitron®

Power Supply

Accessories

Sealed Lead Acid Battery

Lead Acid Batteries provide battery back up when used

with linear, switching, or EcoPower power supplies,

ensuring continued operation of access control devices

when the AC source power is compromised.

• Batteries are not covered under warranty

BR-4 Bridge Rectifier

Converts AC input to full wave rectified DC output with

a maximum 4A output capacity.

• MagnaCare® lifetime replacement, no fault, no questions asked warranty

CCB-8 Control Board

Eight (8)-output power distribution board splits a BPS primary

output into eight (8), Class 2 power-limited outputs protected

by 2A polyswitch breakers.

• Slide switches connect or disconnect load from power

• LEDs indicate power status for each output zone

• Compatible with all BPS models larger than 2A output

• MagnaCare® lifetime replacement, no fault, no questions asked warranty

CKL Cabinet Key Lock

Fits the standard knockout on all Securitron power supply enclosures to

protect against tampering and unauthorized access. Includes two (2) keys.

• MagnaCare® lifetime replacement, no fault, no questions asked warranty

B-12-5 / B-24-5 Lead Acid Battery BR-4 Bridge Rectifier

CCB-8 Control Board CKL Cabinet Key Lock

Sealed Battery

B-12-5 Battery– 12VDC, 5Ah

B-24-5 Power Supply Plug-In—24 VDC, 5Ah

Bridge Rectifier

BR-4 Bridge Rectifier – 4A

Control Board

CCB-8-12 Central Control Board –

12VDC,8 fused outputs

CCB-8-24 Central Control Board –

24VDC,8 fused outputs

Cabinet Key Lock

CKL Cabinet key lock

221

Power Transfers

Power

Transfers

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

222

Power Transfers

222

Power Transfers

Features

Standard Features

• Transfers power wirelessly across

door gaps of up to 3/16"

• Flexible mounting: can be installed on

hinge side, latch side or top of frame

• Dual-voltage output 12 VDC

or 24 VDC field selectable

• Intermittent duty only

• Recommended f or fail secure devices

• Use with electrified locks, latches or

other door hardware requiring up to

6 watts (0.5A at12 VDC) of power

• Adhesive backed templates

for accurate installation

• MagnaCare® lifetime replacement, no

fault, no questions asked warranty

The Securitron

PowerJump ICPT

transfers power

contactlessly and

invisibly across the

door gap to run

electrified hardware

on the door.

With flexible installation placement on

the latch side, hinge side or top of the door,

it transfers power without pins or wires,

eliminating points of vulnerability and

wear—and no need to core drill the door!

Securitron® PowerJump

ICPT Inductive Coupling

Power Transfer

No moving parts, no more broken wires,

no need to core drill the door

223

Power Transfers

Specifications

Certifications

• UL 10C Fire Rated, 3 hour

• CAN4-S101 (ULC-S104) fire door conformant

• ANSI/SDI-BHMA A250.13

(+/- 150 psi) Windstorm Listed

• FCC Part 15 compliant

Endurance

• 2 million cycles

Dimensions

• Send Unit: (Frame Side)

2-3/4"H x 1-1/4"W x 1-3/8"D

• Receive Unit: (Door Side)

2-3/4"H x 1-1/4"W x 1-5/8"D

Electrical

• Input: 24 VDC only 500 mA max

• Output: 500 mA at 12 VDC

250 mA at 24 VDC

Operating Temperature

• -40 to +120F [-40 to +49C]

How to Order

Model Series

ICPT

2-3/4"

[70mm]

1-5/8"

[40mm]

Door Side Frame Side

1-1/4"

[32mm]

Watch how this power transfer

works at http://bit.ly/1F7M2j2

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

224

Power Transfers

224

Power Transfers

Features

Standard Features

• Mortises into the edges

of the door and frame

• Direct retrofit for

competitor products

• Tamper resistant

• All metal construction

including back boxes

• 7/8" knockouts on back boxes

accommodate EMF-type fittings

• Tested to 1 million cycles

• Compatible with butt hinges up to 6"

and continuous hinges with cutout

• MagnaCare® lifetime replacement, no

fault, no questions asked warranty

Optional Features

• CEPT-10 includes 8–22 AWG

wires plus 2–18 AWG wires

for higher current devices

• CEPT-C5E includes CAT5E compatible

with 9–22 AWG wire stranded

conductor, Molex connectors

• EL-CEPT is ElectroLynx®

compatible with 12-22 AWG

wires, ElectroLynx® connectors

The heavy-duty,

tamper-resistant

Concealed Electrical

Power Transfer (CEPT)

securely transfers

power and data from

the hinge side of the

frame to electrified

hardware on the door.

The unit is discreetly concealed between

the frame and door when the door is

closed. Available in three multi-wire

configurations and four finishes, the CEPT

complements any architectural setting.

Securitron® CEPT

Concealed Electrical

Power Transfer

Beautifully crafted, compact,

secure power transfer

225

Power Transfers

Dimensions Specifications

Certifications

• ANSI/UL 10C Listed, 3 hour rated

• ULC-S318 Listed, 3 hour rated

• ANSI/SDI-BHMA A250.13

(+/- 150 psi) Windstorm Listed

• Florida Building Code Approved

Dimensions

• CEPT Housing: 9-1/16"L x

1-3/16"W x 1-7/16"D

Shipping Weight

• 2.40 lbs [1.09kg]US10/612—Satin Bronze

• US10B/613—Oil Rubbed Bronze

How to Order

Wire Connectors Shape Number of Wires Finish

EL – CEPT – C5E – 10B

(blank) No Connectors CEPT Concealed (blank) 12 Wires (blank) 630 finish (625 on SEPT)

EL Electrolynx Connectors 10 10 Wires 04 606 finish

C5E 9 Wires 10 612 finish

10B 613 finish

1.2"

[30.5mm]

[229mm]

1.03"

[26mm]

Technical note:

• Not for use with center hung or balanced doors, pocket or

offset pivots or swing clear hinges.

• Door swing ranges when installed with butt hinges are :

Hinge Size Door Swing Range

5" or less up to 180

5-1/2" up to 130

6" Butt Hinge up to 110

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

226

Power Transfers

226

Power Transfers

Features

Standard Features

• Heavy duty design

• Installs in the door and frame edges

• Flexible steel shield protects wires

- 1/4" [6.3mm] inside diameter

• Works with almost any type of

butt hinge or continuous hinge

• MagnaCare® lifetime replacement, no

fault, no questions asked warranty

Optional Features

• SEPT-10 includes 8-22 AWG

wires plus 2—18 AWG wires

for higher current devices

• SEPT-C5E CAT5E compatible

with 9-22 AWG wire stranded

conductor, Molex connectors

• EL-SEPT ElectroLynx® compatible

with 12-22 AWG Wires,

ElectroLynx® connectors

Specifications

Certifications

• UL 10C Listed

• CAN4-S104 Listed

• ANSI A250.13 (+/- 150 psi)

• Windstorm Listed

Dimensions

• SEPT Housing: 13"L x 1"W x 11/16"D

• Interior Flex Shield: 1/4" [6.3mm]

Shipping Weight

• 0.85 lbs [0.39kg]

Concealed, secure

conduit for power and

data transfer between

a frame and door.

This unit is designed with a stamped steel

housing and spring steel conduit to protect

power and data wires. The square mounting

tabs provide easier installation for recessed

installation. The SEPT can be used on swing

doors with butt hinges, continuous hinges

or pivots with less than 3/4" offset.

Securitron® SEPT

Square-Cut Electrical

Power Transfer

Square tabs, medium length

for flexible power & data transfer

How to Order

Wire Connectors Shape Number of Wires

EL – SEPT – C5E

(blank) No Connectors SEPT Square Cut (blank) 12 Wires

EL Electrolynx Connectors 10 10 Wires

C5E 9 Wires

Square mounting

tabs simplify recessed

prep on any door 13"

[330mm]

[25.4mm]

227

Power

227

Power Transfers

227

Power Transfers

Features

Standard Features

• Installs in the door and frame edges

• Flexible steel shield protects

wire bundles up to 5/16" thick

• Works with almost any type

butt hinge, continuous hinges

and some pivot hinges.

• Rounded mounting tabs

• MagnaCare® lifetime replacement, no

fault, no questions asked warranty

•

Optional Features

• EPT for standard hinges and pivot

hinges less than 3/4" offset

• EPTL for extended length

up to 5" center to center

• EPT-SC for swing-clear hinges or

pivot hinges with larger offset; not

for use with center pivot doors

• EL Models are ElectroLynx®

compatible including 12-22 AWG

wires, ElectroLynx® connectors

The EPT Electric Power

Transfer provides

concealed, secure

power and data

conduit between

a frame and door,

transmitting power

to electrified locks,

exit bars and more.

Its durable stamped steel housing and flexible

spring steel conduit make the EPT suitable

for most types of swinging doors with butt

or continuous hinges or pivot hinges up

to 3/4" offset. The EPT-SC accommodates

swing-clear hinges and most pivot hinges.

Securitron® EPT

Electrical Power

Transfer

Concealed, tamper resistant,

flexible power and data transfer

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

228

Power Transfers

Dimensions

9.8"

[249mm]

12.72"

[323mm]

18.07"

[459mm]

21.38"

[543mm]

.88"

[22mm]

.88"

[22mm]

.67"

[17mm]

Specifications

Certifications

• UL 10C Listed

• CAN4-S104 Listed

• UL 634 Listed (EL-EPT/ EL-EPTL)

• ULC/ORD-C634 (EL- EPT/EL-EPTL)

• ANSI/SDI-BHMA A250.13

(+/- 60 PSF) Windstorm Listed

Dimensions

• EPT Housing: 12-3/4"L x 7/8" W x 11/16" D

• EPTL Housing: 21-3/8"L x 7/8" W x 11/16"D

• Interior Flex Shield: 3/8" [9.5mm]

Shipping Weight

• EPT: 0.75 lbs [0.34kg]

• EPTL: 1.20 lbs [0.54kg]

• EPT-SC: 1.25 lbs [0.57kg]

• EL-EPT: 0.75 lbs [0.34kg]

• EL-EPTL: 1.20 lbs [0.54kg]

• EL-EPT-SC: 1.25 lbs [0.57kg]

How to Order

Wire Connectors Shape Door Swing

EL – EPT – SC

(blank) No Connectors EPT 10” Cord (blank) Standard Swing

EL Electrolynx Connectors EPTL 18" Cord SC Swing Clear / Pivots

C5E 9 Wires

229

Power Transfers

Features

Standard Features

• Transfer power with the highest

level of concealment

• Produces the most aesthetically

pleasing appearance

• Available in 4-1/2" or 4" hinge length

• 500 mA power capability

• 6 conductor, 28 gauge wire

• 6" pigtail provided for connections

• MagnaCare® lifetime replacement, no

fault, no questions asked warranty

•

Shipping Weight

• 1.10 lbs [0.50kg]

Dimensions

The EH is an efficient,

discreet, concealed

solution that provides

secure power and data

transfer from frame to

door when streamlined

wiring is needed.

Each hinge features concealed plug connectors

that eliminate separate or exposed wiring.

Ultimate concealment for tamper-resistance.

Securitron® EH

Electric Hinge

Double duty hinge for

streamlined power transfer

4.5"

[114mm]

4", 4.5"

[102mm,

114mm]

How to Order

Model Series Size

EH – 45

EH Electric Hinge 40 4” Length

45 4.5” Length

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

230

Power Transfers

230

Power Transfers

Features

Standard Features

• Flexible armored stainless steel

cable conduit with plastic end caps

• Maximum flexibility for

installation site on door/frame

• Include both gray and black end caps

• Interior diameter: 1/4" [6mm]

• MagnaCare® lifetime replacement, no

fault, no questions asked warranty

Optional Features

• Product Options

— 18 18" [460mm] length

— 36 36" [920mm] length

Specifications

Shipping Weight

• 0.10 lbs [0.05kg]

The TSB–Door Cord is

the simplest and most

economical solution

for power transfer

between a door

frame and the door.

Designed with an armored

stainless steel cable and mounting

caps for ease of installation.

Securitron® TSB-C

Door Cord

Simple, affordable solution

for durable, tamper resistant

power and data transfer

1.2"

[30mm]

1.2"

[30mm]

18", 36"

[460mm, 920mm]

How to Order

Model Series Size

TSB-C XL

TSB-C Door Cord (blank) 18"

XL 36”

231

Accessories

232

Accessories

233

Accessories

Features

Standard Features

• Industrial quality multi-function

timer for delay or time sequencing

• DIP switches select delay times

of 1 to 255 seconds or minutes

• Flashing LED provides visual

indication of remaining

time or alert status

• Triggering can be from

a N/O or N/C switch

• MagnaCare® lifetime replacement,

no fault, no questions asked warranty

Specifications

Electrical

• 12 or 24 VAC or VDC

• 5A DPDT relay output

Operating Temperature

• +32 to +149F [0 to +65C]

The TM-2 is a

premium, industrial

duty, multi-function

timer that provides

precise timing using

stackable increments

in seconds or minutes

and easy-to-use dip

switch settings.

Ideally suited for unusual time sequencing

requests, like bank or ATM vaults.

Securitron® TM-2

Time Master II

Multi-Function

Timer

How to Order

Model Series

TM-2

TM-2 Multi-Function Timer

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

234

Accessories

Features

Standard Features

• Miniature timer extends

momentary switches

• Fits in outlet boxes with push

buttons or keyswitches

• 3A SPDT relay energizes

for 2 to 36 seconds

• Time setting is selected by easy

to configure DIP switches

• Applications include releasing electric

locks and shunting alarm contacts

• MagnaCare® lifetime replacement,

no fault, no questions asked warranty

Specifications

Electrical

• 12 or 24 VAC or VDC

• 5A DPDT relay output

Operating Temperature

• +32 to +149F [0 to +65C]

The compact

TM-9 extends the

hold-open request

of a push button

or keyswitch,

enabling single-hand

operation of the

door or delaying re-

arming of alarms.

Securitron® TM-9

Time Mate Timer

How to Order

Model Series

TM-9

TM-9 Time Mate

235

Accessories

Features

Standard Features

• 7-day digital timer

• DPDT relay can be operated

in toggle or pulse mode

• 12 programmed on/off times

• Set daily (6 on, 6 off), on selected

days, or on blocks of days

• “First Man In” feature delays

preset action until first access

• Supports holiday programming

• AA battery provides backup to

the display module program

memory - battery not included

• MagnaCare® lifetime replacement,

no fault, no questions asked warranty

Specifications

Electrical

• 170 mA at 12 or 24 VAC or VDC

• 10A DPDT relay

Operating Temperature

• +32 to +113F [0 to +45C]

Shipping Weight

• 0.75 lbs [0.34kg]

Control doors

equipped with

electrified hardware—

with or without access

control—with the

DT-7 digital timer.

The DT-7 can be used as a stand-alone unit, or

in conjunction with DK and other products.

Versatile programming supports timed,

unlocked, locked, or access-control-only

states to turn electric locks or other security

systems on and off at programmed times.

Securitron® DT-7

Prime Time

Digital Timer

How to Order

Model Series

DT-7

DT-7 Digital Timer

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

236

Accessories

Features

Standard Features

• Remote annunciator

• Powerful Piezo sounder — 86 db

• Includes anti-tamper screws

• Stainless steel single gang plate

4-1/2" x 2-3/4" [114mm x 70mm]

• MagnaCare® lifetime replacement,

no fault, no questions asked warranty

Specifications

Electrical

• Operates on 5 VDC – 28 VDC

• Rated at 20 mA operating

current at 24 VDC

• 103 dB max at 1 ft and 24 VDC

The PZ1 can be used

as a local or remote

alarm sounder for

exit delay or door

prop alarm.

Securitron® PZ1

Piezo Sounder

How to Order

Model Series

PZ1

PZ1 Piezo Horn

237

Accessories

Features

Standard Features

• Multi-functional control

timer provides relay action

for alarms and alerts

• Monitors whether a door remains

open after a defined time frame

• Includes three SPDT outputs

providing local and remote signaling

• Digital time settings from

30 to 240 seconds

• Detects attempts to tamper

with lock or door status

• Multiple time ranges for

escalating alerts

• Bypass mode for valid

access/egress needs

• Comes with Piezo sounder and LED

• MagnaCare® lifetime replacement,

no fault, no questions asked warranty

Specifications

Electrical

• Max draw 100 mA at 12 VDC

Max draw 50 mA at 24 VDC

• 5A SPDT Relays

Operating Temperature

• +32 to +120F [0 to +49C]

Shipping Weight

• 2.05 lbs [0.93kg]

The DPA complements

door position/door

state detection with

timed logic and relays

that provide escalating

alerts when a door

is held, propped

or unsecure after a

defined time period.

This unit promotes safety and loss

prevention at ancillary exits for healthcare,

commercial and retail facilities.

Securitron®

DPA Door

Prop Alarm

How to Order

Model Series Voltage

BA-DPA – 24

BA-DPA Door Prop Alarm Timer 12 12VDC

24 24VDC

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

238

Accessories

Features

Standard Features

• Mated magnetic switch and

cylindrical magnetic contact

• Recesses into door and frame

• 3/4" [19mm] round

installation, 15/16" deep

• Provides Normally

Closed SPST switch

• Works with door gap

up to 3/4" [18mm]

• Larger cylindrical magnet counters

shielding effect of steel

• MagnaCare® lifetime replacement,

no fault, no questions asked warranty

Optional Features

• Available in white, gray or black

Specifications

Electrical

• Switching Current

AC/DC (max): 0.4A

Operating Temperature

• -40 to +150F [-40 to +65C]

DPS-W and DPS-M

door position

switches enable

access control

systems to monitor

the open or closed

state of a door.

These switches can transmit an initiate

signal to Securitron’s XDT delayed exit logic

timers and DPA door prop logic timers.

Securitron® DPS

Door Position

Switches

How to Order

Model Series Door Type Finish

DPS – M – BK

DPS Door Position Switch M Metal Door BK Black

W Wood Door GY Grey

WH White

239

Accessories

1-1/2"

[38mm]

4-1/4"

[108mm]

3/4"

[19mm]

3/4"

[19mm]

3/4"

[19mm]

4-1/4"

[108mm]

Features

Standard Features

• Interfaces to access control

and alarm systems for remote

indication of open/closed status

• Unique “mated” magnetic

contact for preventing defeat

attempts by foreign magnets

• Can be used to provide initiate

signal to XDT delayed egress timer

• Hidden anti-tamper output

(MSS-1 and MSS-1G)

• Layered protection for tamper

detection and reporting

• SPDT Contact

• MagnaCare® lifetime replacement,

no fault, no questions asked warranty

Optional Features

• MSS-1 includes jacketed cable

for hollow metal applications

• MSS-1G includes a 3-foot

[936mm] stainless steel cable

• (RT) Enables remote testing

to confirm function

• (C) Concealed

Specifications

Certifications

• UL 634 Listed

• ULC/ORD-C634 Listed

Electrical

• Main Output: SPDT at max of 125

mA at 24 VDC; 250 mA at 12 VDC

• Tamper Output: Closed when secure;

open to alarm — 1A max current

Operating Temperature

• -40 to +150F [-40 to +65C]

Shipping Weight

• 1.5 lbs [0.68 kg]

Tamper-resistant

switches provide versatile

door monitoring with

armored cable options

to detect the status of

opened areas in higher

security settings.

With multiple options for different environments,

MSS can be used with access control or alarm

systems to provide peace of mind where

status detection is a critical concern.

Securitron® MSS

Maximum Security

Switches

Maximum security switches

for door position detection

How to Order

Model Series Mounting Method Special Feature

MSS-1 C – RT

MSS Magnetic Security Switch C Concealed RT Remote Test

G Surface Mount

Note: No other combinations of model numbers can be ordered other that what is listed

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

240

Accessories

Features

Standard Features

• Electronically detects and reports

mechanical latch and bolt positions

• Provides peace of mind

that the door is secure

• Installs easily, conceals

behind existing hardware

• Requires no jamb or strike

plate modification

• MagnaCare® lifetime replacement,

no fault, no questions asked warranty

Optional Features

• LML-1 provides SPDT switch,

fits ANS1 4-7/8” cutout

• LMS-1 provides SPDT switch,

fits ANSI 2-3/4” cutout

• LML-2 monitors mortise latch

and deadbolt separately

with two SPDT switches

Specifications

Certifications

• UL 634 Listed

• ULC/ORD-C634 Listed

• ANSI/UL 294 Listed

• CSFM — California State

Fire Marshal Approved

Electrical

• Contact Rating: SPDT 2A at 24V

Operating Temperature

• -40 to +160F [-40 to +71C]

3-7/16", 1-5/16"

[87mm, 33mm]

4-5/8", 2-9/16"

[117mm, 65mm]

7/8"

[23mm]

7/8"

[22mm]

The LM Series

interfaces with an

access control or alarm

system to indicate the

state of the latchbolt.

Used alone or in conjunction with a door

position switch, the LM provides confirmation

that the door is secure, preventing false

alarms and unauthorized access while

providing tamper detection. Can also

be used to transmit an initiate signal to

model XDT delayed egress logic timers.

Securitron® LM

Latch Monitors

How to Order

Model Series Strike Size Number of Switches

LM L – 2

LM Latch Monitor L ANSI 4-7/8" Strike 1 Single Switch

S ANSI 2-3/4” Strike 2 Dual Switches

241

Accessories

Features

Standard Features

• 4 DPDT relays with 2A contacts

• Individual coil connections —

common negative or positive

• Replaces socket mount relays

• Dry contact connections

via screw terminals

• Relays have low current coils /

(13 mA at 12 VDC; 8 mA at 24 VDC)

• Allows operation from most

LED drive outputs

• MagnaCare® lifetime replacement,

no fault, no questions asked warranty

Specifications

Dimensions

• 4"W x 3-1/2"H

Electrical (Max Draw)

• 32 mA at 12 VDC or 32 mA at 24 VDC

Operating Temperature

• -13 to +158F [-25 to +70C]

The relay board

provides normally-

open or normally-

closed relays that can

be interconnected.

Ideal for interlock installations or

wherever a basic relay board is used to

trigger action, shunt alarms or report

status from an access control system.

Securitron® RB

Relay Board

How to Order

Model Series Voltage

RB-4 – 12

RLP Relay Logic Pack 12 12VDC

RB-4 Relay Board 24 24VDC

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

242

Accessories

Features

Standard Features

• Provides additional relay to

access control systems requiring

N/O or N/C dry status signals

• Provides a brief delay to harmonize

door state reporting from

multiple detection points

• Can create a relay interlock circuit

• Use with locks to create a

interlocked trap entry

• Provides time delay of door operator

when electric lock is used

• MagnaCare® lifetime replacement,

no fault, no questions asked warranty

Specifications

Electrical

• 30 mA at 12 VDC

• 15 mA at 24 VDC

• 1A DPDT relay

Operating Temperature

• -13 to +158F [-25 to +70C]

The economical,

multi-function RLP

logic circuit can be

used as a DPDT latching

alarm relay, provide

a relay for two-door

interlocks (mantrap),

or can initiate a brief

signal delay to eliminate

timing problems among

multiple monitoring

points on a door

under access control.

Securitron® RLP

Relay Logic Pack

How to Order

Model Series Voltage

RLP – 12

RLP Relay Logic Pack 12 12VDC

RB-4 Relay Board 24 24VDC

Resources

243

Resources

244

Resources

245

Resources

Glossary of

Common Electrified

Locking Terms

Access Control

Any person, device, or system that qualifies

a request for access. This can include

recognition by others, possession of the

correct key or card, knowledge of the

correct code, or having the biological

features to pass biometric review (facial

recognition, retina scans, fingerprints,

hand geometry, etc.) Failure to qualify

typically results in not gaining entry.

Egress Control

Any person, device, or system that qualifies

a request to exit. Such control is commonly

used in institutional occupancies where

elopement presents a danger to oneself

or to others. Failure to qualify typically

results in not being able to exit.

Free Egress

The ability to exit at will.

Free Ingress

The ability to enter at will.

Delayed Egress

A delay between the attempt to exit

and the ability to exit. In door hardware

systems, it is accomplished by the

triggering of a switch within a component

of the door hardware during the course

of an exit attempt. The switch starts an

irrevocable timing sequence, usually

15 seconds, leading to the unlocking of

the door in the direction of egress.

Fail Secure

A term used to describe an electric lock

that has a mechanical state of being

locked and requires power to unlock it.

Also known as electrically unlocked.

Fail Safe

A term used to describe an electric lock

that has a mechanical state of being

unlocked and requires power to lock

it. Also known as electrically locked.

Switch Bar, aka Active

Dummy with Switch

A panic style bar with no latching

mechanism that is designed to switch a

low voltage electrical current. Some are UL

Listed for the purpose of directly breaking

power to an electromagnetic lock.

Door Position Switch (DPS)

A door position switch (DPS) provides a

signal to an access control system indicating

whether the door is open or closed.

Request to Exit (REX)

Some access control hardware offer

integrated motion detectors that auto-

matically signal the lock to disengage

when it detects approaching traffic.

Passive Infrared (PIR)

A passive infrared (PIR) sensor measures

invisible radiant light radiating

from objects in its field of view.

Metal Oxide Varistor (MOV)

Metal Oxide Varistors (MOV) are used

as compensation elements in circuits to

protect against excessive transient voltages.

Lock Function

A term used to describe a selection

from the classification system for the

functional characteristics of locks. Four

functions are commonly used with

electrically controlled access systems:

• Passage Function

Free egress and ingress. No locking controls

are present from either side. Commonly

used with electromagnetic locks to provide

necessary latching for fire-labeled doors.

• Classroom Function

Free egress. Exterior lever can be locked or

unlocked using a key, resulting in a mechanical

function change from passage to storeroom.

Used, but not recommended for electric

locking systems as it introduces the human

error of forgetting to relock the door.

• Storeroom Function

Free egress. Non-functioning exterior lever.

Key retracts latch for entry. Available as

an electrically controllable lock in both

fail secure and fail safe. Application or

removal of electric current temporarily

changes function to passage.

• Asylum Function, aka Institutional Function

Locked from both sides. Key required to

retract latch from either side. Cannot be

left unlocked from either side. Available

as an electrically controllable lock in both

fail secure and fail safe. Application or

removal of electric current temporarily

changes function to passage.

Icon Glossary

Icon Descriptions

Grade 1

Electric Strikes - 1500lbs or greater static holding force, 70 ft lbs of dynamic

holding force, and withstands 500,000 cycles of operation

Magnetic Locks - 1500lbs or greater static holding force, 70 ft lbs of dynamic

holding force, and withstands 1 Million cycles of operation

Grade 2

Electric Strikes - 1000lbs or greater static holding force, 50 ft lbs of dynamic

holding force, and withstands 300,000 cycles of operation

Magnetic Locks - 1000lbs or greater static holding force, 50 ft lbs of dynamic

holding force, and withstands 1 Million cycles of operation

Grade 3

Electric Strikes - 500lbs or greater static holding force, 33 ft lbs of dynamic

holding force, and withstands 100,000 cycles of operation

Magnetic Locks - 1000lbs or greater static holding force, 33 ft lbs of dynamic

holding force, and withstands 1 Million cycles of operation

Magnacare

Warranty

ASSA ABLOY Electronic Security Hardware’s exclusive MagnaCare®

lifetime replacement, no fault, no questions asked warranty

Securicare

Warranty (10)

ASSA ABLOY Electronic Security Hardware’s exclusive SecuriCare

ten-year, no fault, no questions asked warranty

Securicare

Warranty (5)

ASSA ABLOY Electronic Security Hardware’s exclusive SecuriCare

five-year, no fault, no questions asked warranty

Securicare

Warranty (3)

ASSA ABLOY Electronic Security Hardware’s exclusive SecuriCare

three-year, no fault, no questions asked warranty

Mortise Locks

With Deadbolts

A lock case that fits into a prepared rectangular shaped recess in the edge or a door.

Deadbolts are bolts having no spring action, but are operated by a thumb turn or key.

Mortise Locks

Without Deadbolts

A lock case that fits into a prepared rectangular shaped recess in the edge or a door. Latchbolts are a spring

actuated bolt, with a beveled surface, which, when aligned with the strike plate, engages it automatically.

Cylindrical Locksets A lock for a door prepared with one or more cross-bores and one or more

edge-bores

Rim Exit

Devices

A latch mechanism that releases by depressing a cross bar or panel extending across the

width of the door sometimes called a panic bar, panic exit hardware or fire exit bolt

Specialty

Locksets

Includes specialty locksets including but not limited to: cylindrical deadbolt,

hook bolt, unit lock, weiser bolt, and narrow style aluminum lock

Swinging Door For use on swinging doors or cabinets

Sliding Door For use on sliding doors or cabinets

Roll-Up Door For use on roll-up doors or cabinets

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

246

Resources

Icon Descriptions

Drawers For use on cabinet drawers

Field Selectable Fail

Secure/Fail Safe

Product able to be configured in the field to operate in fail safe

(power to lock) or fail secure (power to unlock).

Dual Voltage Product able to be configured in the field to operate on either 12 or 24 volts or provide 12 or 24 volts

Auto Sensing Dual

Voltage Product automatically configures to operate on either 12 or 24 volts

PoE Friendly

An electronic locking device with a standby current draw of less than 300 mA at 12 VDC,

which ensures compatibility with most PoE enabled door controllers with sufficient

capacity to allow for other access control peripherals to be powered around the door.

Battery Backup Supports the addition of batteries to provide backup power in case of a primary source power outage

Fire-Rated Products with a Fire Rating have been evaluated and listed to UL10B, “Fire Test of Door Assemblies” and

UL10C, “Positive Pressure Fire Tests with Door Assemblies”. The hourly rating qualification is also noted.

Windstorm Resistant

Windstorm restistant products are certified to meet the performance requirements

of windstorm-rated assemblies on exterior swinging door applications (Products are

designed and tested to perform in sustained winds up to 150 miles per hour).

Preload CAPABLE

Windstorm restistant products are certified to meet the performance requirements

of windstorm-rated assemblies on exterior swinging door applications (Products are

designed and tested to perform in sustained winds up to 150 miles per hour).

Outdoor Rated Product has been tested and shown to comply to UL1034,

including the “Outdoor Equipment Use” section.

Burglary Rated Product has been tested and shown to comply to UL1034.

UL LISTed

UL Listed means that UL has tested representative samples of the product and

determined that it meets UL’s requirements. These requirements are based

primarily on UL’s published and nationally recognized Standards for Safety.

UL LISTed

UL Listed means that UL has tested representative samples of the product and determined that it meets

UL’s requirements. These requirements are based primarily on UL’s published and nationally recognized

Standards for Safety. This icon indicates compliance with both Canadian and U.S. requirements.

CE Listed CE listed is a conformity marking for certain products sold within the European Economic Area (EEA)

Environmental Product

Declaration

A UL-certified Environmental Product Declaration (EPD) is a thorough,

internationally harmonized report produced by a manufacturer documenting

the ways a product, throughout its lifecycle, impacts the environment.

Icon Glossary

247

Resources

System Components

M62 Magnalock®p. 93

BPS-24-3 Power Supply p. 193

TSB Touch Sense Bar p. 183

DK-37 Digital Keypad p. 159

TSB-C Door Cord* p. 230

*Door cord is included with the TSB Touch Sense Bar

Basic Magnetic Locking System

Use on Any Exit Door Where Free Egress is Permitted

Inside Operation

The door is secured via the Magnalock. Free egress

is accomplished by pushing on the TSB which de-

energizes the lock. Contact the factory for additional

exit devices necessary for fire-rated installations.

Outside Operation

The door is secured via the M62 Magnalock. Entry is permitted

using an optional entry device which releases the magnetic lock.

DK-37

Door

Controller

BPS-24-

3 Power

Supply

M32/M62

120 VAC INPUT

Armored

Door Cord

J-Box

TSB

Door

Controller

DK-37

Keypad

EXIT ENTRY

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

248

Resources

Inside Operation

The door is secured via the Magnalock.Egress without

the alarm is accomplished using an optional bypass

device. Emergency egress is accomplished when

the BA-XDT is activated by pushing on the TSB

bar which will initiate the exit delay cycle.

Outside Operation

The door is secured via the M62B Magnalock. Entry is permitted

using an optional entry device which releases the magnetic lock

and shunts the exit delay system as well as the alarm contacts.

The Magnalock will release after the selected delay period

has expired, allowing egress. The Magnalock will not resecure

until the door system is reset using the MK Key switch.

System Approvals and Listings

Underwriter’s Laboratories: FWAX Special

Locking Arrangements File SA6635

California State Fire Marshal: 3774 - 0923:102

Use on Exit Doors Where a 15 to 30 Second Delay is desirable

before egress is allowed. This exit delay system is typically

used to fight risk of loss by theft in Retail Sites, Museums,

Libraries, etc. Exit delay technology is also an important safety

consideration for Hospitals and Nursing Homes as these

facilities are often responsible for preventing unauthorized

exit by patients under their supervision. This system meets

NFPA life safety code 101 and all US/Canada model codes.

Armored

Door Cord

BA-XDT

TSB

M32B/M62B

BPS-

12/24-1

Power

Supply

120 VAC

INPUT

DK12

EXIT ENTRY

System Components

M62 Magnalock®p. 93

BPS-12/24-1 Power Supply p. 193

TSB Touch Sense Bar p. 183

DK-12 Digital Keypad p. 153

MK Mortise Key switch p.174

BA-XDT Exit Delay Timer p.87

TSB-C Door Cord* p. 230

*Door cord is included with the TSB Touch Sense Bar

Delayed Egress Magnectic Locking System

249

Resources

System Components

SAM Shear Magnalock®p. 114

BPS-24-3 Power Supply p. 193

TSH Touch Sense Handle p. 187

DTSH Dummy Touch Sense Handle p. 187

DK-37 Digital Keypad p.159

TSB-C Door Cord* p. 230

*Door cord is included with TSH Touch Sense Handle

Inside Operation

The door is secured via the SAM. Free egress is accomplished

by pushing on the TSH which de-energizes the lock.

Outside Operation

The door is secured via the SAM Magnalock. Entry is permitted

using an optional entry device which releases the magnetic lock.

Door

Controller

BPS-24-3

Power

Supply

120 VAC INPUT

Armored

Door Cord

J-Box

SAM

DK-37

Keypad

Touch Sense

Handle

Dummy

Touch

Sense

Handle

EXIT ENTRY

Door

Controller

Store Front Magnetic Locking System

Use on any Bi-Directional Exit Door Where Free Egress is Permitted

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

250

Resources

System Components

M680EBDX EcoMag® p. 81

BPS-24-3 Power Supply p. 193

EEB Emergency Exit Button p. 168

DTSH Dummy Touch Sense Handle p. 187

DK-38 Digital Keypad p. 161

Battery B-24-5 p. 220

DTSB Dummy Touch Sense Bar p. 183

Inside Operation

The door is secured via the Magnalock. Free egress is

accomplished by activating the motion sensor or by pushing

the emergency exit button. Both will de-energize the lock.

Outside Operation

The door is secured via the M680EBDX Magnalock. Entry is

permitted using the keypad or optional entry device.

BPS-24-3

Power

Supply

CCTV DVR System

120 VAC INPUT

EEB2

ENTRYEXIT

DK-38W

J-Box

M680EBDX

Door Controller

M680EBDX

Door

Controller

DK-38W

Motion Activated Magnetic Locking System

Use on Any Interior or Exterior Access Controlled Egress Security Door

251

Resources

System Components

M380BDX Magnalock®p. 79

BPS-24-3 Power Supply p. 193

EEB Emergency Exit Button p. 168

R100 -1H p. 163

Glass Mounting Components p. 109

Inside Operation

The door is secured via the M380BDX Magnalock

adhered with Securitron’s accessories for glass door

installations. Free egress is accomplished by activating

the Request to Exit or by pushing the emergency

exit button. Both will de-energize the lock.

Outside Operation

To enter, an RFID credential is presented to the R100-H

surface mount wireless reader. The door controller checks

the credential and if it is approved, releases the M380BDX.

R100

Door

Controller

Door

Controller

Aperio

Hub

BPS-24-3

Power

Supply

EXIT ENTRY

M380BDX

Magnalock

EEB

R100

120 VAC

INPUT

Glass Door Magnetic Locking System

Use on any full glass interior or exterior

access controlled egress security door.

The Securitron R100 surface mounted

wireless reader, with ASSA ABLOY Aperio®

technology, offers an aesthetically appealing

way to extend access control to glass,

stone, granite or marble entryways.

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

252

Resources

Outside Operation

The gate is secured via the GL1 Gate Lock. Entry is

permitted using the weatherproof keypad. Door

controller’s internal door prop alarm feature

activates horn if gate remains open too long.

Gate Lock/

Flex Mount Kit

DK-37

J-Box

Door Controller

AQD3

Light/

Horn

Maximize your Securitron gate locking system by

pairing it with an Ameristar fence. ASSA ABLOY group

brand Ameristar, based in Tulsa, Oklahoma, focuses

on increasing strength & durability, enhancing the

aesthetic appearance of modern fence products,

and promoting ease of installation. They are known

for producing the highest quality residential,

commercial, industrial and high-end security

fences in today’s market place, including sites such

as the Statue of Liberty, the 9/11 Memorial in New

York City, and the Dallas Cowboys Stadium.

System Components

Gate Lock GL1-FS p. 143

AQD3 Power Supply p. 201

Flex Mounting Kit p. 145

DK-37 Digital Keypad p. 159

Battery B-24-5 p. 220

GL1 with FMK-SL for sliding gates

Door

Controller

Gate Locking System

Use on any Exterior Access Controlled Security Gate

253

Resources

ASSA ABLOY Electronic Security

Hardware (ESH) Terms & Conditions

PRICES: All prices are subject to change without

notice. Prices listed on the ESH website will serve

as the most current list price. All shipments will be

made at prices in effect at the time of shipment.

The customer shall be responsible for payment of all

applicable sales and/or use taxes and freight costs.

MINIMUM ORDER: Minimum product charge per invoice

is $150.00 USD.

PAYMENT TERMS: Net thirty (30) days from date of

invoice. Interest at the rate of up to 1-1/2% per month may

be charged on all past due accounts. An order received

on an account which has not been paid within 45 days

of the date of invoice may not be processed until the

account is current. Custom orders may require a deposit.

DELIVERY TERMS: All prices are Ex-works factory.

Purchaser assumes the risk of loss or damage to the goods

while in transit from the point of shipment. ESH reserves

the right to make delivery in installments. Installments

shall be separately invoiced and paid for when due.

Delay in delivery of an installment shall not relieve the

purchaser of its obligation to accept remaining deliveries.

SHORTAGE: Any claim for shortages must be made to ESH

in writing within one (1) week of receipt of merchandise.

WARRANTY RETURNS: A Customer Care Form (CCF)

for defective product must be obtained from ESH before

any merchandise can be returned. CCF’s are valid for

sixty (60) days from date of issuance Goods returned

under the terms of MAGNACARE® and SECURICARE®

Warranties may require a copy of the original invoice.

RETURNS: A Customer Care Form (CCF) must be obtained

from ESH before any merchandise can be returned. CCF’s

are valid for sixty (60) days from date of issuance. Items

that are not factory sealed, or that are returned later than

90 days from the date of receipt are subject to a restocking

charge plus an additional charge for any damage.

CANCELLATIONS: Any order may be subject to a 5%

cancellation charge for catalog items. Cancellation of

non-catalog or custom items will be subject to a 20%

cancellation charge plus all costs (both direct and indirect)

incurred by manufacturing at the point of cancellation

that are properly allocated to the cancelled item(s).

LIMITATION OF LIABILITY: Neither party will be liable

to the other for any delay or failure in performance

arising directly out of war, sabotage, insurrection, riot,

and any other act of civil disobedience, act of public

enemy, fire, explosion, flood, storm, or other act of

God or nature, or similar cause beyond its reasonable

control, including shortage or unavailability of labor or

materials. If, notwithstanding the foregoing limitations,

ESH has any liability to the purchaser, the purchaser

agrees that the total liability to the purchaser for all

losses, damages, and causes of action, whether in

contract, equity, tort (including without limitation,

negligence and gross negligence), or otherwise, will

not exceed the amount the purchaser paid to ESH for

the products (including, without limitation, incidental

or consequential damages, damages for lost profits

or business interruption, and punitive damages).

NO THIRD PARTY LIABILITY: If the purchaser uses the

ESH Products on behalf of others or provides to others

any products referenced herein, the ESH Parties shall

have no liability to such persons whatsoever, and the

purchaser agree to defend and indemnify the ESH

Parties from any and all claims and demands asserted

against them, and from any legal fees, costs and other

expenses that the HES Parties incur therewith.

Customers purchasing from Door Security

Solutions Canada can find Canadian terms and

conditions at assaabloydss.ca/terms

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

permission of Hanchett Entry Systems, Inc. is prohibited.

Patent pending and/or patent

assaabloydss.com/patents

254

Resources

ASSA ABLOY Electronic Security Hardware

(ESH) Warranty Policy

In 1999 Securitron® introduced the first no-fault, no-questions asked warranty to the industry,

MagnaCare®. As a part of HES and Securitron’s transition to ASSA ABLOY Electronic Security Hardware

(ESH), we believe that the best products in the industry should be supported by our commitment

to deliver the highest quality products and services. ASSA ABLOY ESH is proud to now extend

the most comprehensive no-fault, no-questions asked warranty coverage to all of our products

and solutions. This is our expectation and commitment to you – our valued customer.

MagnaCare Warranty

Duration: Lifetime

Condition: Any reason, including,

but not limited to, installation error,

vandalism or force majeure

Replacement: Replacement product or

equivalent shipped at ASSA ABLOY ESH’s

expense via next day air freight in most cases.

Products Covered:

• Electromagnetic and

Specialty Magnalocks

• Power Supplies (excluding BPSS)

• Power Transfers

SecuriCare 10-year Warranty

Duration: Ten Years from date of shipment

Condition: Any reason including,

but not limited to, installation error,

vandalism or force majeure

Replacement: Replacement product or

equivalent shipped at ASSA ABLOY ESH’s

expense via next day air freight in most cases.

Products Covered:

• Electric Strikes HES 1500, 1600

• When installed with a Smart PAC

III the following electric strikes are

upgraded to the 10 year warranty:

− HES 1006, 4500, 5000, 5200,

7500, 8000, 8300, 8500,

9400, 9500, 9600, 9700

− Folger Adam 310, 712, 732, 742

− Integrated Wiegand Electric Strikes

− Securitron MUNL, UNL

SecuriCare 5-year Warranty

Duration: Five Years from date of shipment

Condition: Any reason including,

but not limited to, installation error,

vandalism or force majeure

Replacement: Replacement product or

equivalent shipped at ASSA ABLOY ESH’s

expense via next day air freight in most cases

Products Covered:

• HES 1006, 4500, 5000, 5200, 7500, 8000,

8300, 8500, 9400, 9500, 9600, 9700
