Digital Entry System – DK-26
Features
•Designed for high volume use in
controlling entry through electrically
locked doors
•Lifetime replacement warranty
•Fully weather proof and water proof
•Constructed of investment cast
stainless steel with individual EPDM
rubber buttons
•The digital keypad system circuit board
is a remote unit to allow for increased
security
•Unit operates on 12 or 24 volts AC or
DC
•The digital keypad system circuit board
is mounted in a metal enclosure and
provides for multiple users.
•DP/DT relay output for lock control and alarm shunt, camera call up or other device
interface as well as a REX input
•Power consumption at rest, 7mA @ 12VDC – 20mA @ 24VDC, power consumption
maximum is 160mA @ 12VDC – 190mA @ 24VDC
Options
•Cover plate
•Spy Shield
•Expansion Circuit Board
•Wiegand output

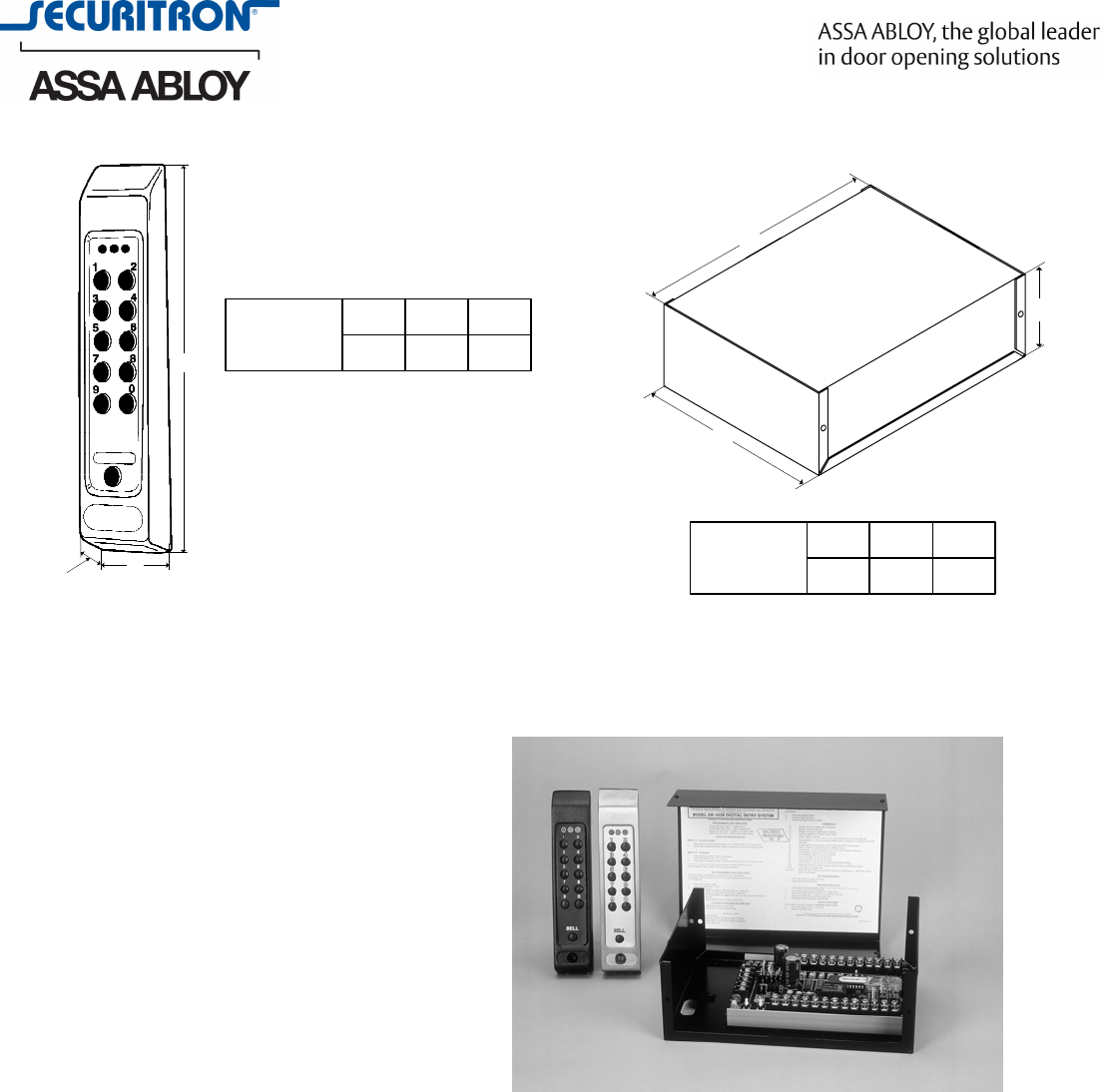

A
6.75
B
1.375
C
.875
MODEL
DK-26
KEYPAD
A
8.25
B
6
C
3
MODEL
DK-26
CBO
A
B
C
C
B
A
www.securitron.com | techsupport@securitron.com
© 2015, Hanchett Entry Systems, Inc., an ASSA ABLOY Group company.
Digital Entry System – DK-26 (cont’d)
Operating Temperature
(CPU) 0 to 70C [32 to 158F] Keypad -30 to 70C [-22 to 158F]
How to Order
Part Number Product Description
DK-26SS Digital Keypad System Model 26, Stainless Steel
DK-26BK Digital Keypad System Model 26, Black
DK-26PSS Digital Keypad Model 26, Stainless Steel
DK-26PBK Digital Keypad Model 26, Black
DK-CPSS Cover Plate for DK-26
DK-SBK Spy Shield for DK-26 Black
DK-SSS Spy Shield for DK-26 Stainless
DK-26SSXB Digital Keypad System Model 26, Expansion Circuit Board
Stainless
DK-XB Digital Keypad System Model 16/26, Expansion Circuit Board
Upg. Kit
DK-26WSS Digital Keypad System Model 26, Wiegand Output Stainless
DK-26WBK Digital Keypad System Model 26, Wiegand Output Black
ARCHITECTURAL SPECIFICATION – Digital Entry System
Model DK-26
2.x Digital Keypad System – Model 26
A. The digital keypad shall be produced by an ISO 9001 certified manufacturer.
B. The digital keypad shall have a lifetime replacement warranty.
C. The digital keypad shall be weather proof, vandal resistant, and suitable for
mounting on a narrow mullion.
D. The digital keypad housing shall be constructed of investment cast stainless steel
with individual EPDM rubber buttons.
E. The digital keypad system circuit board shall be a remote unit to allow for increased
security and shall operate on 12 or 24 volts AC or DC.
F. The digital keypad system circuit board shall be mounted in a metal enclosure and
provide for multiple users.
G. The digital keypad shall have a DP/DT relay output for lock control and alarm shunt,
camera call up or other device interface as well as a REX input.
H. Power consumption at rest shall not exceed 7mA @ 12VDC – 20mA @ 24VDC.
I. Power consumption maximum shall not exceed 160mA @ 12VDC and 190mA @ 24
VDC.
2.x Digital Keypad System – Model 26W
J. The digital keypad system circuit board shall interface with a PC based access system
via Weigand output protocol..
