INSTALLATION GUIDE
Intelli-M System Installation Guide
Information contained in this document is the exclusive property of AXS Technologies Inc. All rights reserved.
Intelli-M System Installation Guide
02-01-2000, Revision 2
CRK

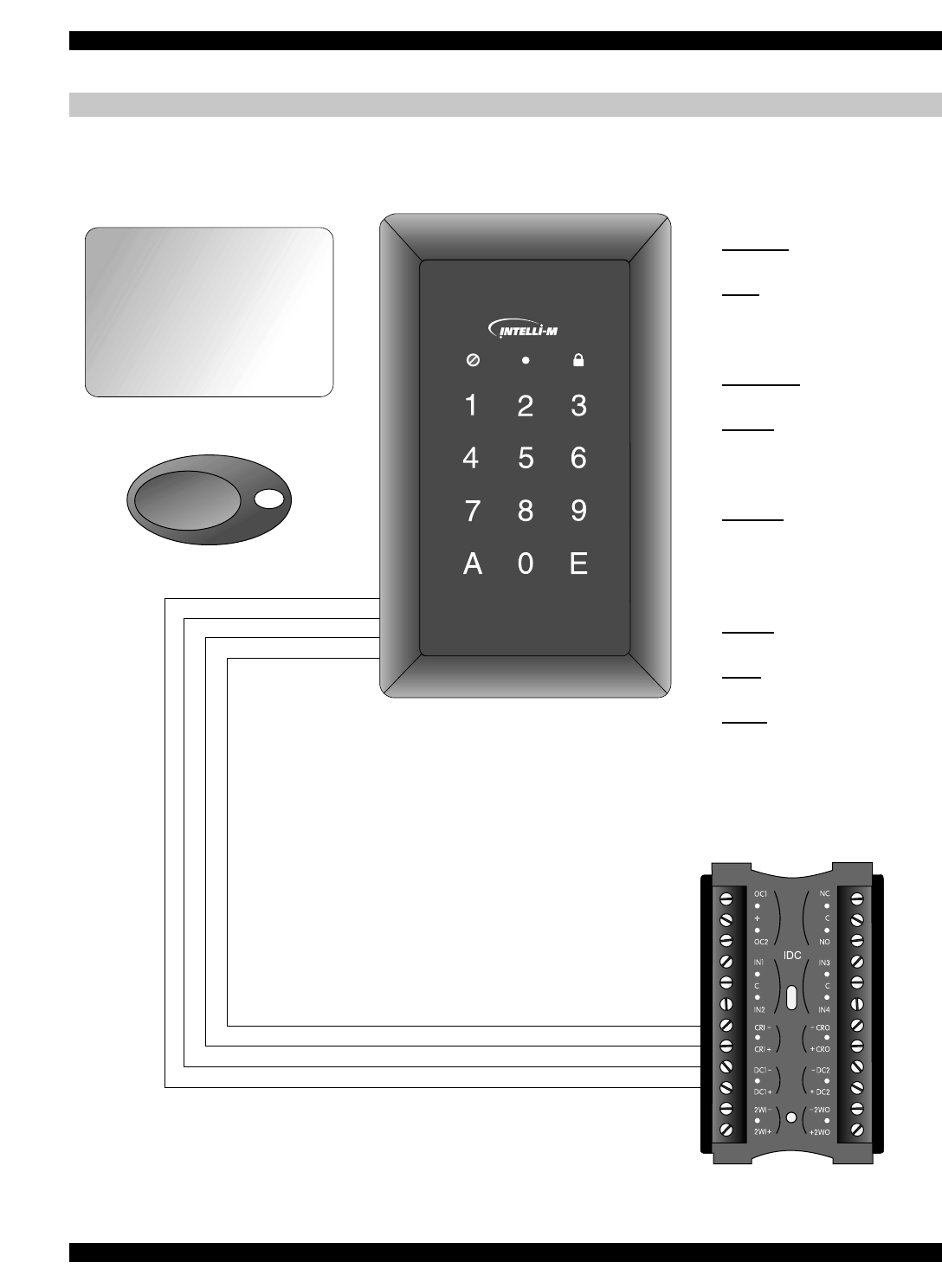

CRK Reader - Typical Connection
0000 000 000
Data 0 (Blue)
Data 1 (Yellow)
-12 VDC (Black)
+12 VDC (Red)
ELECTRICAL CHARACTERISTICS
Input Voltage
12 VDC at reader
Current
50 mA
READER CHARACTERISTICS
Reading Range
Up to 4 (in) using card or keytag
Frequency
13.56 MHz
DIMENSIONS
CRK Reader
2.75 W x 4.50 H x 0.38 D (in)
Weight: 3.2 (oz)
TEMPERATURE
Operation
-30˚ to 150˚ (F), -34˚ to 66˚ (C)
Storage
-40˚ to 150˚ (F), -40˚ to 66˚ (C)
Humidity
0 to 95% relative (non-condensing)
Access Key CR-80 Format
Access Key Keytag Format
IDC • Integrated Door Controller
CRK Reader
