Vicon Industries Inc. 89 Arkay Drive, Hauppauge, NY 11788 P: (631) 952-2288 F: (631) 951-2288 www.vicon-cctv.com

1967—2007

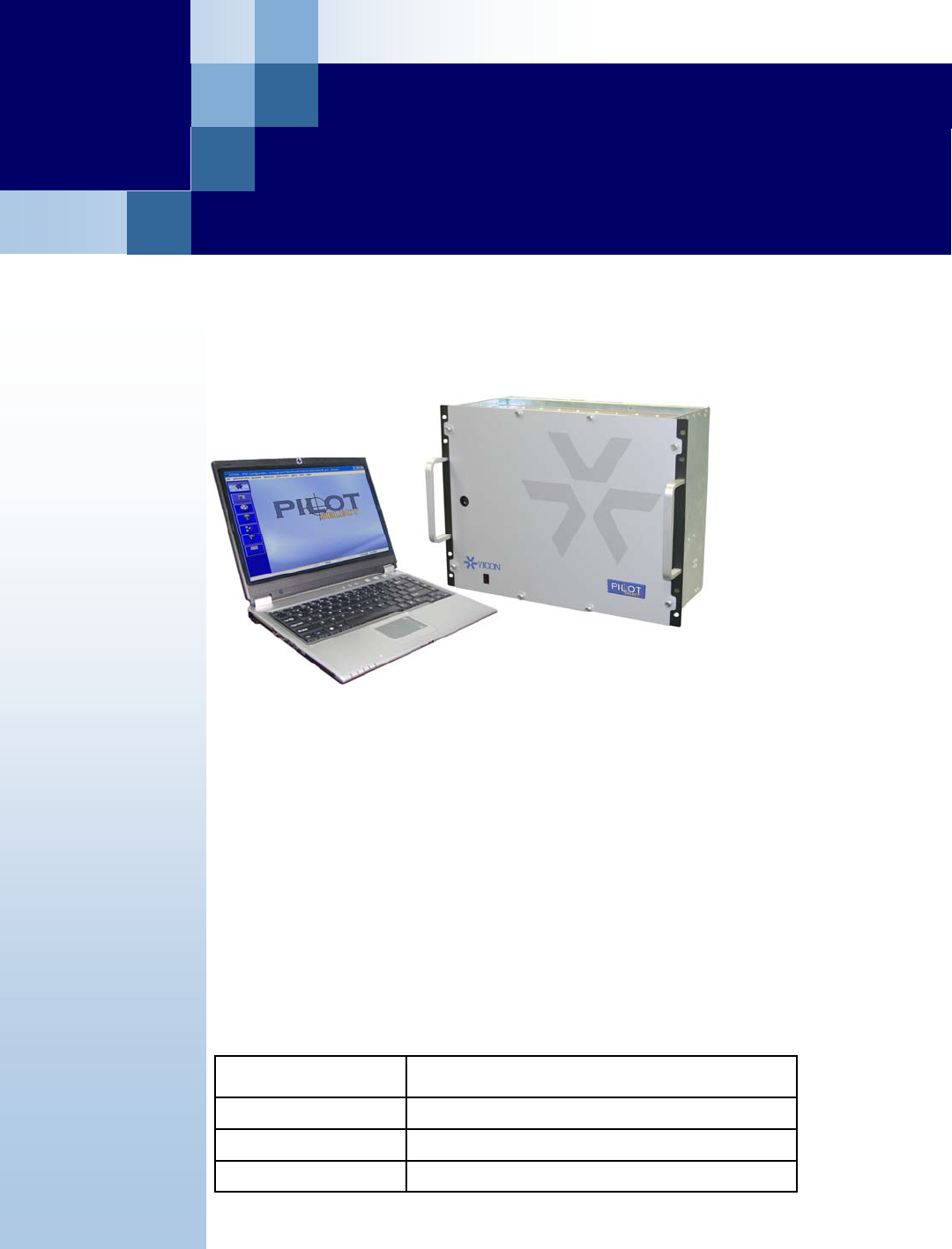

Vicon’s New Pilot Select™ V1566 System

Replaces Nova V1466A System with More Capacity at a

Lower Cost

Number of Cages Capacity

Cameras x Monitors

Single-cage Up to 256 x 32 maximum

Two-cage Up to 512 x 32 maximum

Four-cage Up to 512 x 64 maximum

Vicon’s new Pilot Select V1566 is being introduced this spring to replace the Nova 1466A Digital

Control and Matrix System. The Pilot Select has been totally redesigned to provide increased

capacity, a more rugged construction for the cage and circuit cards and a Microsoft® Windows®

based Configurator that simplifies programming and provides the ability to create custom profiles

for the V1566, offline, on a PC or laptop.

More Value

By leveraging the latest in component technology, the Pilot Select doubles the capacity of the

NOVA 1466A while maintaining the same overall footprint. With the Pilot Select, you can now

manage systems up to 512 cameras by 64 monitors. Previously this was only possible wih an

external CPU, which increased system cost and required additional space.

More System Capability

The Pilot Select can support up to 512 cameras and 64 monitors using 4 card cages. The system

is expandable from a single cage to four cages as listed in the table below.

Vicon Industries Inc.

March 17, 2008 Volume XVII, Number 5

Sales Alert: Pilot Select V1566

Digital Control and Matrix Switching

System

INSIDE THIS ISSUE:

V1566 Page 1

The

Configurator

Page 5

Product

Information

and Pricing

Page 7

Page 2

Sales Alert: Pilot Select V1566 Digital Control and Matrix Switching System

More Rugged Construction

The card cage has been completely redesigned with

separate compartments for the power supply section

and the circuit cards. The circuit cards have a smaller

footprint and have been designed for easy insertion

and removal. A Primary Cage is shown here. The

power supply section is located under the circuit card

slots. For a single-cage system, the primary cage will

contain a CPU card, Time/Date/Titler AMP card and

Video Switcher Boards.

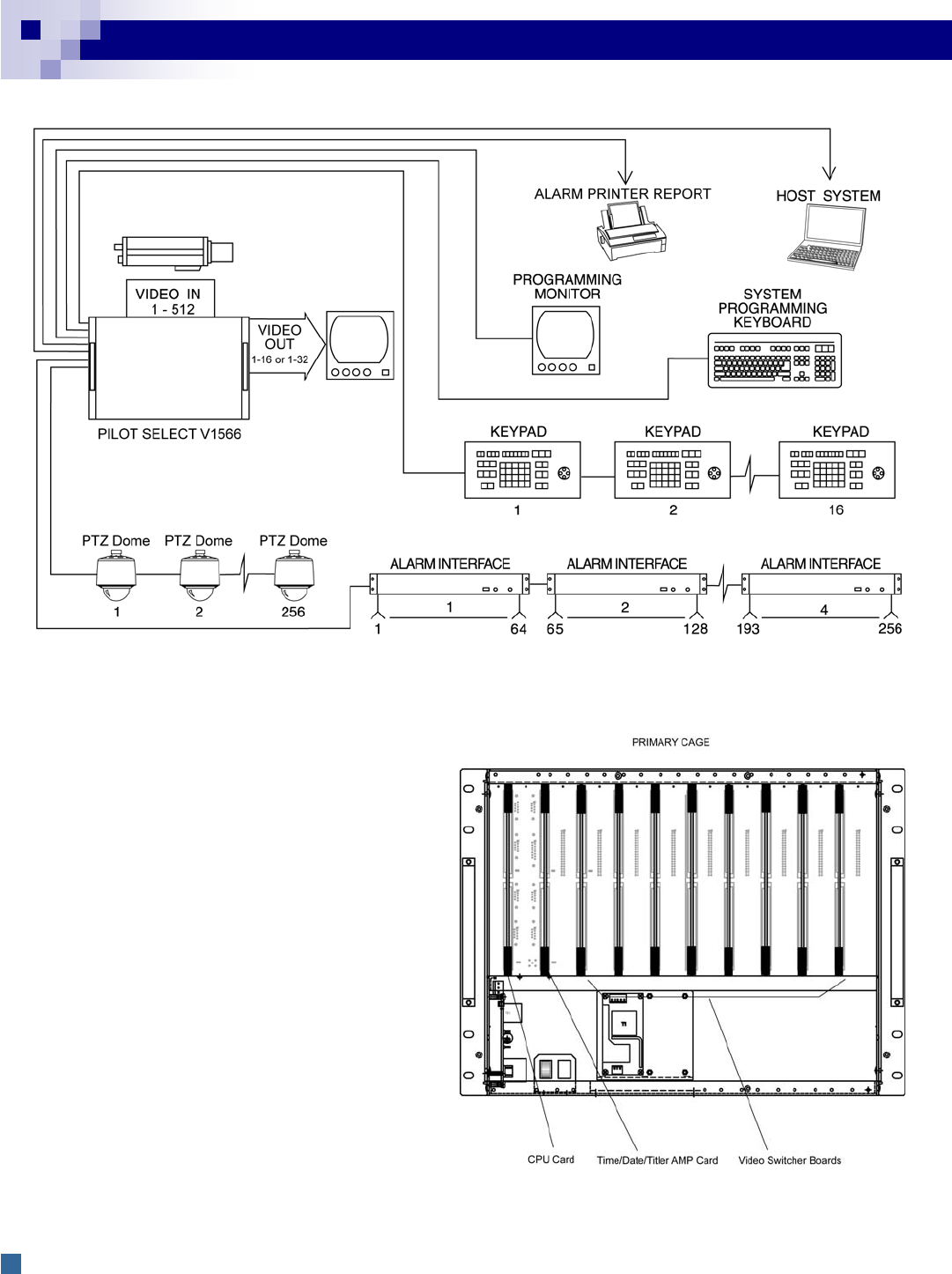

Typical System Setup

Page 3

Sales Alert: Pilot Select V1566 Digital Control and Matrix Switching System

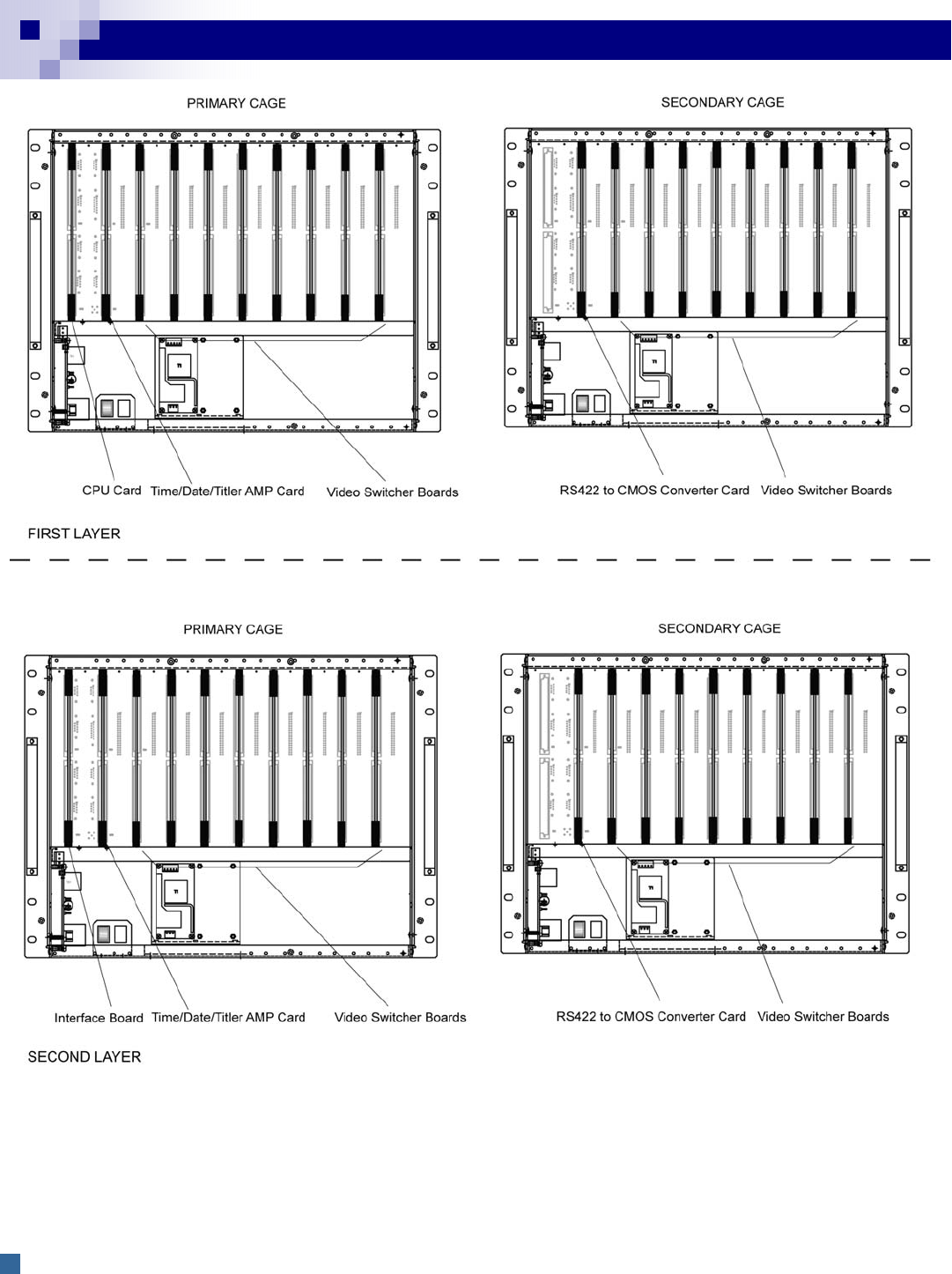

The four-cage system (Page 4) consists of two layers that have primary and secondary card cages. The first layer is configured

the same as the two-cage system. The second layer primary cage has the Interface board mounted in the CPU slot. All other

components in the primary and secondary cages are the same as the first layer.

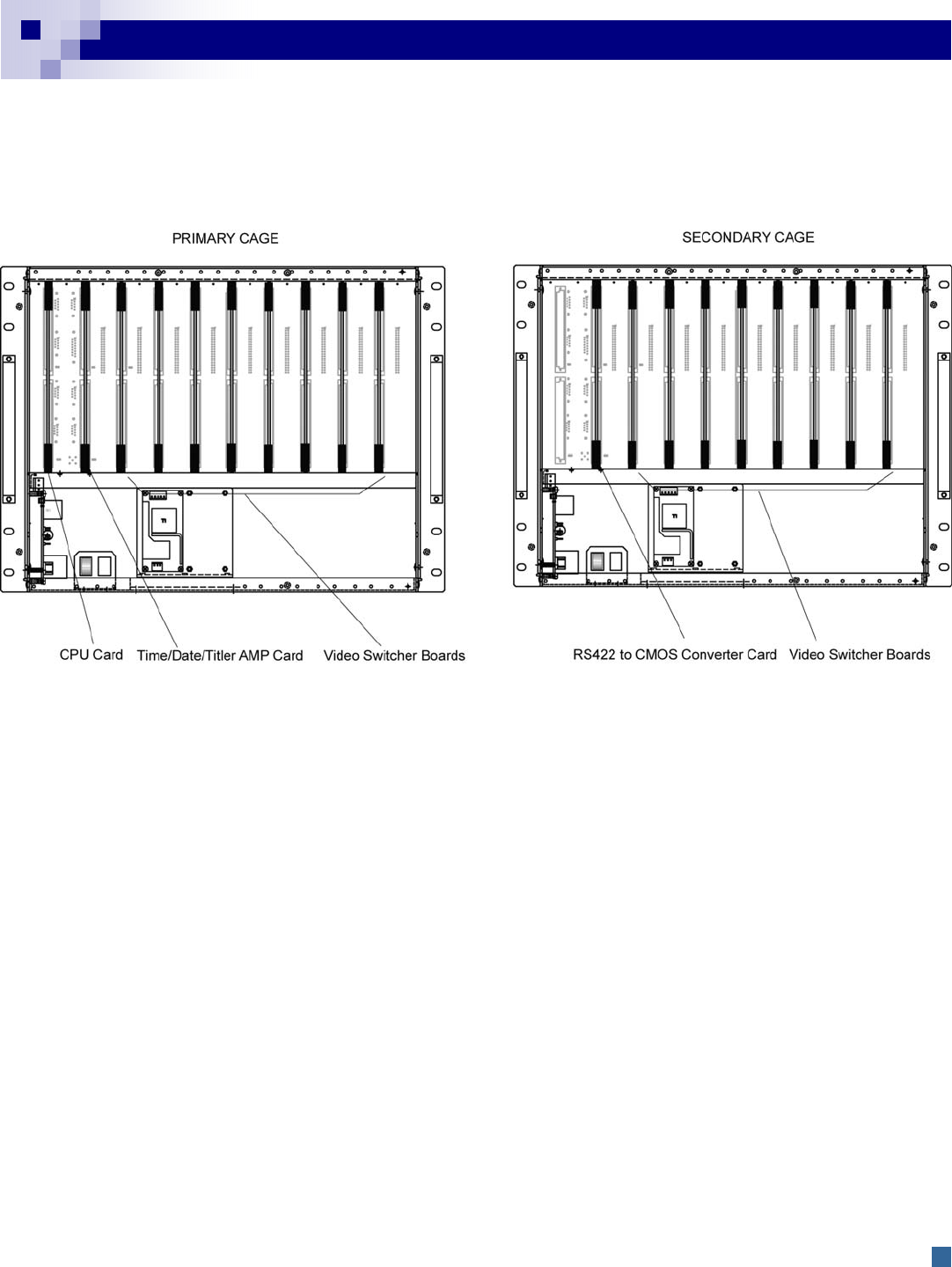

The two-cage system consists of a primary cage and secondary cage. The primary cage is configured the same as the single-

cage system. The secondary cage contains the RS422 to CMOS Converter card and additional Video Switcher boards.

Page 4

Sales Alert: Pilot Select V1566 Digital Control and Matrix Switching System

Four-Cage System

More Programming Choices

The V1566 provides powerful programming options that allow you to customize the system for your installation and configure it

so that the operator interface is both intuitive and accessible to the user. This custom configuration is called a profile, and mul-

tiple profiles may be created to suit your needs. Listed below are just some of the functions that can be programmed into a

profile.

• Partitioning - listing cameras accessible to specific monitors; listing monitors accessible to specific keypads

• Create timed or triggered events such as: Tours, Salvos, Presets and Alarms

• Control PTZ actions

• Prioritize operator keypads

• Set unique alarm actions

• Designate up to 2 monitors for high-speed video switching

• Create unique descriptions for the cameras with time and date displayed

• Create custom profiles offline using the Configurator program and upload the profile to single or multiple systems

The Configurator

A Windows-based Configurator program is provided with the Pilot Select. The Configurator allows you to create a custom profile

or profiles for your system or systems offline, and then upload the profile to your system or systems via the host computer PC-

HOST-1 port. All of the programming choices that have been described previously can be saved as a unique profile and up-

loaded to the V1566. This enables you to create one master profile and upload it to multiple systems at your site or to create

multiple profiles for different situations that may change seasonally or for special events.

For example, a correctional facility may have several V1566 systems operating in different areas. Rather than program each

system individually using the Pilot Select’s built-in menu driven system, an administrator can create one master profile on a PC

and then upload that profile to each V1566 system using a laptop. Individual customization, if required, can then be done at

each system, or the administrator can use the master profile as a starting point and quickly create different versions of the

master with the required changes for each system.

Page 5

Volume XVII, Number 5

System Capabilities

Number of keypads - 16

Number of PTZ receivers - 256

Host computer ports - 1

Number of X-IA alarms - 256

Number of receiver alarms - 256

Number of tours* - 128

Steps per tour - 32

Number of salvos - 64

Monitors per salvo - 16

Number of timed events – 64

* Tours may be chained together.

Product information and Pricing for the Pilot Select is provided on Pages 7 and 8. Please note that pricing

will be provided at a later time.

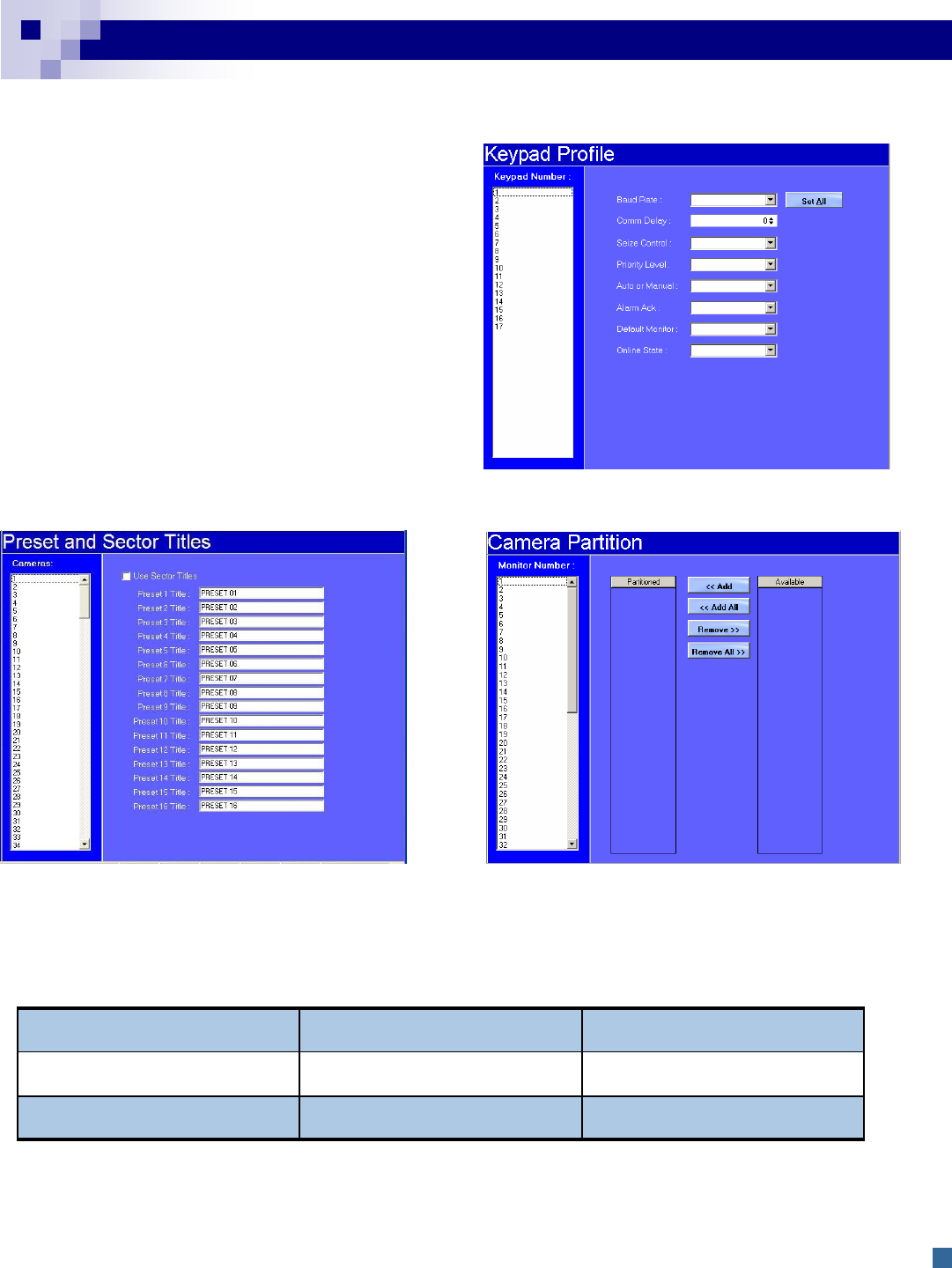

Setting up keypads is easy and quick with the Configurator.

More Everything

Easily identify cameras and their locations. Assign cameras to monitors.

The Complete Pilot Line is Coming Soon

The Pilot Select is one of four new matrix switching systems that Vicon will be introducing in 2008. Listed below are

the other Pilot systems.

Page 6

Sales Alert: Pilot Select V1566 Digital Control and Matrix Switching System

Pilot Lite V1522 Replaces NOVA V1422 System 32 Cameras x 8 Monitors

Pilot Plus V1544 Replaces NOVA V1344 System 128 Cameras x 8 Monitors

Pilot Ultra V1599 Replaces NOVA V1500 System Over 8000 Cameras x 512 Monitors

Product Information and Pricing — Pilot Select Components

Model Number Product

Code

Description

Price

V1580SCC

6020-80

Pilot66/99 card cage (256x16 or 256x32). Accepts up to 8 switcher

boards. Includes motherboard, line sync board and universal power

supply.

V1566SCPU

6159-20

Internal CPU for Pilot66/99 Card Cage. Controls matrix switching for

up to 512 cameras and 64 monitors.

V1510S-16

6023-20

Video Switcher Board. Provides video switching for up to 32 cameras

and 16 monitors.

V1510S-32

6023-30

Video Switcher Board. Provides video switching for up to 32 cameras

and 32 monitors.

V1566TDT-16 4807-30 Time/Date/Titler AMP Card for monitors 1-16. For use with

V1566SCPU only.

V1566ATDT-32 4807-40

Time/Date/Titler AMP Card for monitors 17-32. For use with

V1566SCPU only. Plugs in to V1566TDT-16 circuit card.

V1599-PKA 8234-10 Programming Keyboard for V1544SCPU, V1566SCPU, and V1599CPU.

V1566DB 4807-90 Interface Board. Required in Master cages for use with an external

CPU controller configuration for V1599 systems. Required in Secon-

dary cages for V1566 systems.

V1566CONV-

32

4807-81 RS422 to CMOS Converter. Required for expanding cameras from 257

to 512 on a Master/Slave cage configuration. Supports 16 or 32

monitors.

V1566MS 4807-50 Primary/Secondary Cable. Control interface cable between primary

cage (cameras 1-256) and secondary cage(s) (cameras 257-512).

V15662L 4807-60 2nd Layer Cable. Control interface cable between 1st layer cages

(monitors 1-16 or 1-32) and 2nd layer cages (monitors 17-32 or 33-

64).

V1510RP32I 4628-25 32-Channel Camera Input Panel. Contains 32 BNC connectors.

V1510RP32-O 4628-45 32-Channel Camera Output Panel. Contains 32 BNC connectors.

V1550RCP 4471-20 Blank rear closure panel for unused card positions.

V15RCB-24 7867-05 24-inch coaxial cable for looping video inputs from a switcher card to

external devices. D-shell connector on one end, 8 BNC connectors on

the other end.

V1566RC-36 4472-25 36-inch coaxial cable for looping video inputs from a switcher card to

external devices. D-shell on each end.

V75TR-SHD 4479-00 75-ohm terminator for D-shell outputs.

V75T 3260-00 75-ohm terminator for BNC outputs.

Page 7

Page 8

Sales Alert: Pilot Select V1566 Digital Control and Matrix Switching System

Product Information and Pricing — Pilot Select Prepacs

Model Number Product

Code

Description

Price

PS32X16 9335-30 Pilot 1566 Matrix Prepacs; Controls 32 Cameras and 16 Monitors;

includes 1 switcher card cage, internal V1566 CPU and titler, program-

ming keyboard and 9-in monochrome monitor

PS32X32 9336-30 Pilot 1566 Matrix Prepacs; Controls 32 Cameras and 32 Monitors;

includes 2 switcher card cages, internal V1566 CPU and titler, pro-

gramming keyboard and 9-in monochrome monitor

PS32X48 9337-30 Pilot 1566 Matrix Prepacs; Controls 32 Cameras and 48 Monitors;

includes 2 switcher card cages, internal V1566 CPU and titler, pro-

gramming keyboard and 9-in monochrome monitor

PS32X64 9338-30 Pilot 1566 Matrix Prepacs; Controls 32 Cameras and 64 Monitors;

includes 2 switcher card cages, internal V1566 CPU and titler, pro-

gramming keyboard and 9-in monochrome monitor

PS64X16 9339-30 Pilot 1566 Matrix Prepacs; Controls 64 Cameras and 16 Monitors;

includes 1 switcher card cage, internal V1566 CPU and titler, program-

ming keyboard and 9-in monochrome monitor

PS64X32 9340-30 Pilot 1566 Matrix Prepacs; Controls 64 Cameras and 32 Monitors;

includes 2 switcher card cages, internal V1566 CPU and titler, pro-

gramming keyboard and 9-in monochrome monitor

PS64X48 9341-30 Pilot 1566 Matrix Prepacs; Controls 64 Cameras and 48 Monitors;

includes 2 switcher card cages, internal V1566 CPU and titler, pro-

gramming keyboard and 9-in monochrome monitor

PS64X64 9342-30 Pilot 1566 Matrix Prepacs; Controls 64 Cameras and 64 Monitors;

includes 2 switcher card cages, internal V1566 CPU and titler, pro-

gramming keyboard and 9-in monochrome monitor

PS96X16 9344-30 Pilot 1566 Matrix Prepacs; Controls 96 Cameras and 16 Monitors;

includes 2 switcher card cages, internal V1566 CPU and titler, pro-

gramming keyboard and 9-in monochrome monitor

PS96X32 9345-30 Pilot 1566 Matrix Prepacs; Controls 96 Cameras and 32 Monitors;

includes 2 switcher card cages, internal V1566 CPU and titler, pro-

gramming keyboard and 9-in monochrome monitor

PS96X48 9346-30 Pilot 1566 Matrix Prepacs; Controls 96 Cameras and 48 Monitors;

includes 2 switcher card cages, internal V1566 CPU and titler, pro-

gramming keyboard and 9-in monochrome monitor

PS96X64 9347-30 Pilot 1566 Matrix Prepacs; Controls 96 Cameras and 64 Monitors;

includes 2 switcher card cages, internal V1566 CPU and titler, pro-

gramming keyboard and 9-in monochrome monitor

PS128X16 9348-30 Pilot 1566 Matrix Prepacs; Controls 128 Cameras and 16 Monitors;

includes 2 switcher card cages, internal V1566 CPU and titler, pro-

gramming keyboard and 9-in monochrome monitor

Page 9

Model Number Product

Code

Description

Price

PS128X32 9349-30 Pilot 1566 Matrix Prepacs; Controls 128 Cameras and 32 Monitors;

includes 2 switcher card cages, internal V1566 CPU and titler, pro-

gramming keyboard and 9-in monochrome monitor

PS128X48 9350-30 Pilot 1566 Matrix Prepacs; Controls 128 Cameras and 48 Monitors;

includes 2 switcher card cages, internal V1566 CPU and titler, pro-

gramming keyboard and 9-in monochrome monitor

PS128X64 9351-30 Pilot 1566 Matrix Prepacs; Controls 128 Cameras and 64 Monitors;

includes 2 switcher card cages, internal V1566 CPU and titler, pro-

gramming keyboard and 9-in monochrome monitor

PS160X16 9352-30 Pilot 1566 Matrix Prepacs; Controls 160 Cameras and 16 Monitors;

includes 2 switcher card cages, internal V1566 CPU and titler, pro-

gramming keyboard and 9-in monochrome monitor

PS160X32 9353-30 Pilot 1566 Matrix Prepacs; Controls 160 Cameras and 32 Monitors;

includes 2 switcher card cages, internal V1566 CPU and titler, pro-

gramming keyboard and 9-in monochrome monitor

PS160X48 9354-30 Pilot 1566 Matrix Prepacs; Controls 160 Cameras and 48 Monitors;

includes 2 switcher card cages, internal V1566 CPU and titler, pro-

gramming keyboard and 9-in monochrome monitor

PS160X64 9355-30 Pilot 1566 Matrix Prepacs; Controls 160 Cameras and 64 Monitors;

includes 2 switcher card cages, internal V1566 CPU and titler, pro-

gramming keyboard and 9-in monochrome monitor

PS192X16 9356-30 Pilot 1566 Matrix Prepacs; Controls 192 Cameras and 16 Monitors;

includes 2 switcher card cages, internal V1566 CPU and titler, pro-

gramming keyboard and 9-in monochrome monitor

PS192X32 9357-30 Pilot 1566 Matrix Prepacs; Controls 192 Cameras and 32 Monitors;

includes 2 switcher card cages, internal V1566 CPU and titler, pro-

gramming keyboard and 9-in monochrome monitor

PS192X48 9358-30 Pilot 1566 Matrix Prepacs; Controls 192 Cameras and 48 Monitors;

includes 2 switcher card cages, internal V1566 CPU and titler, pro-

gramming keyboard and 9-in monochrome monitor

PS192X64 9359-30 Pilot 1566 Matrix Prepacs; Controls 192 Cameras and 64 Monitors;

includes 2 switcher card cages, internal V1566 CPU and titler, pro-

gramming keyboard and 9-in monochrome monitor

PS224X16 9360-30 Pilot 1566 Matrix Prepacs; Controls 224 Cameras and 16 Monitors;

includes 2 switcher card cages, internal V1566 CPU and titler, pro-

gramming keyboard and 9-in monochrome monitor

PS224X32 9361-30 Pilot 1566 Matrix Prepacs; Controls 224 Cameras and 32 Monitors;

includes 2 switcher card cages, internal V1566 CPU and titler, pro-

gramming keyboard and 9-in monochrome monitor

PS224X48 9362-30 Pilot 1566 Matrix Prepacs; Controls 224 Cameras and 48 Monitors;

includes 2 switcher card cages, internal V1566 CPU and titler, pro-

gramming keyboard and 9-in monochrome monitor

PS224X64 9363-30 Pilot 1566 Matrix Prepacs; Controls 224 Cameras and 64 Monitors;

includes 2 switcher card cages, internal V1566 CPU and titler, pro-

gramming keyboard and 9-in monochrome monitor

Page 10

Sales Alert: Pilot Select V1566 Digital Control and Matrix Switching System

PS256X16 9364-30 Pilot 1566 Matrix Prepacs; Controls 256 Cameras and 16 Monitors;

includes 2 switcher card cages, internal V1566 CPU and titler, pro-

gramming keyboard and 9-in monochrome monitor

PS256X32 9365-30 Pilot 1566 Matrix Prepacs; Controls 256 Cameras and 32 Monitors;

includes 2 switcher card cages, internal V1566 CPU and titler, pro-

gramming keyboard and 9-in monochrome monitor

PS256X48 9366-30 Pilot 1566 Matrix Prepacs; Controls 256 Cameras and 48 Monitors;

includes 2 switcher card cages, internal V1566 CPU and titler, pro-

gramming keyboard and 9-in monochrome monitor

PS256X64 9367-30 Pilot 1566 Matrix Prepacs; Controls 256 Cameras and 64 Monitors;

includes 2 switcher card cages, internal V1566 CPU and titler, pro-

gramming keyboard and 9-in monochrome monitor

PS288X16 9368-30 Pilot 1566 Matrix Prepacs; Controls 288 Cameras and 16 Monitors;

includes 2 switcher card cages, internal V1566 CPU and titler, pro-

gramming keyboard and 9-in monochrome monitor

PS288X32 9369-30 Pilot 1566 Matrix Prepacs; Controls 288 Cameras and 32 Monitors;

includes 2 switcher card cages, internal V1566 CPU and titler, pro-

gramming keyboard and 9-in monochrome monitor

PS288X48 9370-30 Pilot 1566 Matrix Prepacs; Controls 288 Cameras and 48 Monitors;

includes 2 switcher card cages, internal V1566 CPU and titler, pro-

gramming keyboard and 9-in monochrome monitor

PS288X64 9371-30 Pilot 1566 Matrix Prepacs; Controls 288 Cameras and 64 Monitors;

includes 2 switcher card cages, internal V1566 CPU and titler, pro-

gramming keyboard and 9-in monochrome monitor

PS320X16 9372-30 Pilot 1566 Matrix Prepacs; Controls 320 Cameras and 16 Monitors;

includes 2 switcher card cages, internal V1566 CPU and titler, pro-

gramming keyboard and 9-in monochrome monitor

PS320X32 9373-30 Pilot 1566 Matrix Prepacs; Controls 320 Cameras and 32 Monitors;

includes 2 switcher card cages, internal V1566 CPU and titler, pro-

gramming keyboard and 9-in monochrome monitor

PS320X48 9374-30 Pilot 1566 Matrix Prepacs; Controls 320 Cameras and 48 Monitors;

includes 2 switcher card cages, internal V1566 CPU and titler, pro-

gramming keyboard and 9-in monochrome monitor

Model Number Product

Code

Description

Price

PS320X64 9375-30 Pilot 1566 Matrix Prepacs; Controls 288 Cameras and 64 Monitors;

includes 2 switcher card cages, internal V1566 CPU and titler, pro-

gramming keyboard and 9-in monochrome monitor

PS352X16 9376-30 Pilot 1566 Matrix Prepacs; Controls 352 Cameras and 16 Monitors;

includes 2 switcher card cages, internal V1566 CPU and titler, pro-

gramming keyboard and 9-in monochrome monitor

PS352X32 9377-30 Pilot 1566 Matrix Prepacs; Controls 352 Cameras and 32 Monitors;

includes 2 switcher card cages, internal V1566 CPU and titler, pro-

gramming keyboard and 9-in monochrome monitor

PS352X48 9378-30 Pilot 1566 Matrix Prepacs; Controls 352 Cameras and 48 Monitors;

includes 2 switcher card cages, internal V1566 CPU and titler, pro-

gramming keyboard and 9-in monochrome monitor

PS352X64 9379-30 Pilot 1566 Matrix Prepacs; Controls 352 Cameras and 64 Monitors;

includes 2 switcher card cages, internal V1566 CPU and titler, pro-

gramming keyboard and 9-in monochrome monitor

PS384X16 9380-30 Pilot 1566 Matrix Prepacs; Controls 384 Cameras and 16 Monitors;

includes 2 switcher card cages, internal V1566 CPU and titler, pro-

gramming keyboard and 9-in monochrome monitor

Page 11

Volume XVII, Number 5

Model Number Product

Code

Description

Price

PS384X32 9381-30 Pilot 1566 Matrix Prepacs; Controls 384 Cameras and 32 Monitors;

includes 2 switcher card cages, internal V1566 CPU and titler, pro-

gramming keyboard and 9-in monochrome monitor

PS384X48 9382-30 Pilot 1566 Matrix Prepacs; Controls 384 Cameras and 48 Monitors;

includes 2 switcher card cages, internal V1566 CPU and titler, pro-

gramming keyboard and 9-in monochrome monitor

PS384X64 9383-30 Pilot 1566 Matrix Prepacs; Controls 384 Cameras and 64 Monitors;

includes 2 switcher card cages, internal V1566 CPU and titler, pro-

gramming keyboard and 9-in monochrome monitor

PS416X16 9390-30 Pilot 1566 Matrix Prepacs; Controls 416 Cameras and 16 Monitors;

includes 2 switcher card cages, internal V1566 CPU and titler, pro-

gramming keyboard and 9-in monochrome monitor

PS416X32 9391-30 Pilot 1566 Matrix Prepacs; Controls 416 Cameras and 32 Monitors;

includes 2 switcher card cages, internal V1566 CPU and titler, pro-

gramming keyboard and 9-in monochrome monitor

PS416X48 9392-30 Pilot 1566 Matrix Prepacs; Controls 416 Cameras and 48 Monitors;

includes 2 switcher card cages, internal V1566 CPU and titler, pro-

gramming keyboard and 9-in monochrome monitor

PS416X64 9393-30 Pilot 1566 Matrix Prepacs; Controls 416 Cameras and 64 Monitors;

includes 2 switcher card cages, internal V1566 CPU and titler, pro-

gramming keyboard and 9-in monochrome monitor

PS448X16 9394-30 Pilot 1566 Matrix Prepacs; Controls 448 Cameras and 16 Monitors;

includes 2 switcher card cages, internal V1566 CPU and titler, pro-

gramming keyboard and 9-in monochrome monitor

PS448X32 9395-30 Pilot 1566 Matrix Prepacs; Controls 448 Cameras and 32 Monitors;

includes 2 switcher card cages, internal V1566 CPU and titler, pro-

gramming keyboard and 9-in monochrome monitor

PS448X48 9396-30 Pilot 1566 Matrix Prepacs; Controls 448 Cameras and 48 Monitors;

includes 2 switcher card cages, internal V1566 CPU and titler, pro-

gramming keyboard and 9-in monochrome monitor

PS448X64 9397-30 Pilot 1566 Matrix Prepacs; Controls 448 Cameras and 64 Monitors;

includes 2 switcher card cages, internal V1566 CPU and titler, pro-

gramming keyboard and 9-in monochrome monitor

PS480X16 9398-30 Pilot 1566 Matrix Prepacs; Controls 480 Cameras and 16 Monitors;

includes 2 switcher card cages, internal V1566 CPU and titler, pro-

gramming keyboard and 9-in monochrome monitor

PS480X32 9399-30 Pilot 1566 Matrix Prepacs; Controls 480 Cameras and 32 Monitors;

includes 2 switcher card cages, internal V1566 CPU and titler, pro-

gramming keyboard and 9-in monochrome monitor

PS480X48 9400-30 Pilot 1566 Matrix Prepacs; Controls 480 Cameras and 48 Monitors;

includes 2 switcher card cages, internal V1566 CPU and titler, pro-

gramming keyboard and 9-in monochrome monitor

PS480X64 9401-30 Pilot 1566 Matrix Prepacs; Controls 480 Cameras and 64 Monitors;

includes 2 switcher card cages, internal V1566 CPU and titler, pro-

gramming keyboard and 9-in monochrome monitor

PS512X16 9402-30 Pilot 1566 Matrix Prepacs; Controls 512 Cameras and 16 Monitors;

includes 2 switcher card cages, internal V1566 CPU and titler, pro-

gramming keyboard and 9-in monochrome monitor

Page 12

Sales Alert: Pilot Select V1566 Digital Control and Matrix Switching System

PS512X32 9403-30 Pilot 1566 Matrix Prepacs; Controls 512 Cameras and 32 Monitors;

includes 2 switcher card cages, internal V1566 CPU and titler, program-

ming keyboard and 9-in monochrome monitor

PS512X48 9404-30 Pilot 1566 Matrix Prepacs; Controls 512 Cameras and 48 Monitors;

includes 2 switcher card cages, internal V1566 CPU and titler, program-

ming keyboard and 9-in monochrome monitor

PS512X64 9405-30 Pilot 1566 Matrix Prepacs; Controls 512 Cameras and 64 Monitors;

includes 2 switcher card cages, internal V1566 CPU and titler, program-

ming keyboard and 9-in monochrome monitor

Model Number Product

Code

Description

Price
