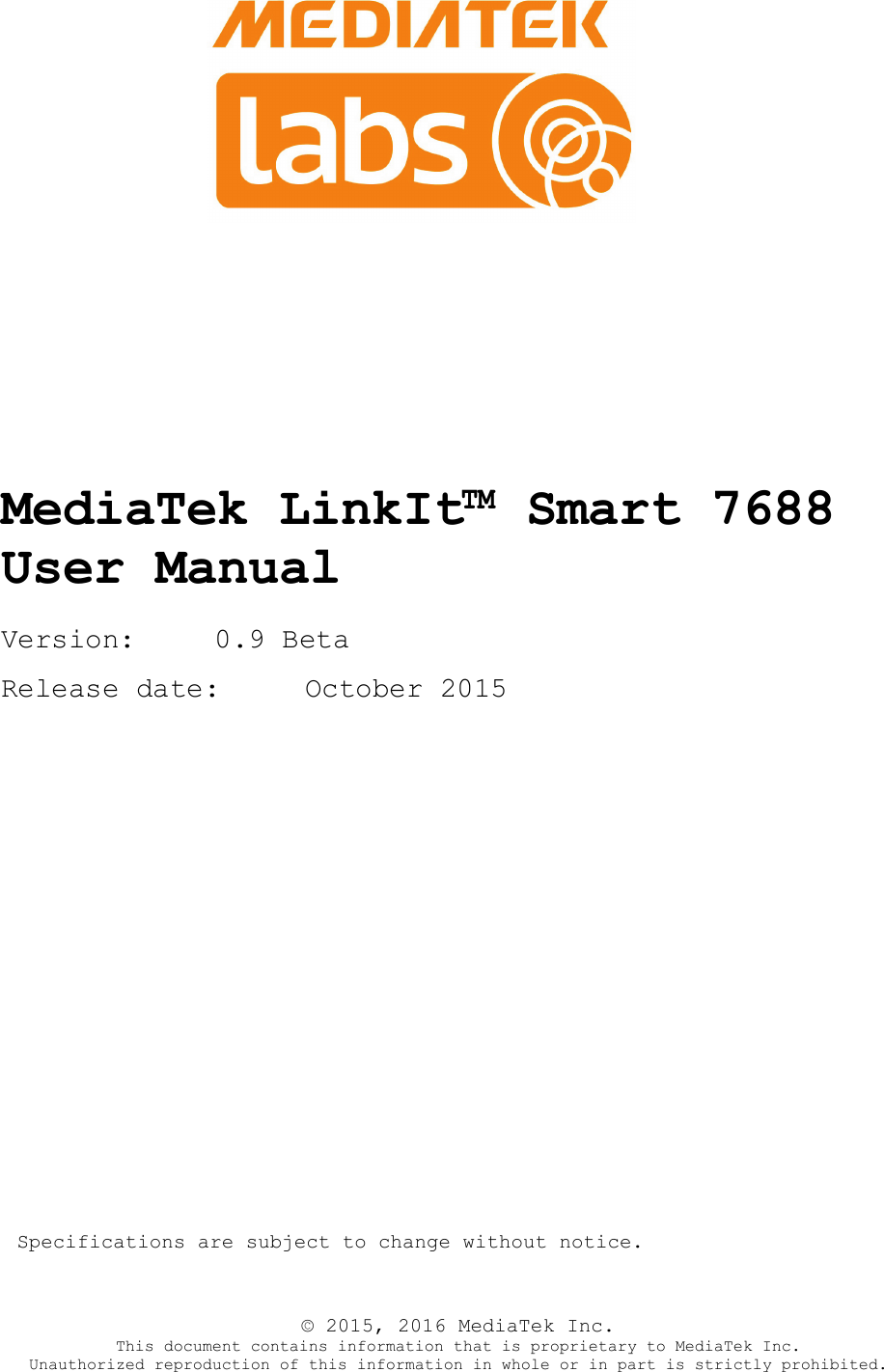

MediaTek LinkIt™ Smart 7688 User Manual Version: 0.9 Beta Release date: October 2015 Specifications are subject to change without notice. © 2015, 2016 MediaTek Inc. This document contains information that is proprietary to MediaTek Inc. Unauthorized reproduction of this information in whole or in part is strictly prohibited.

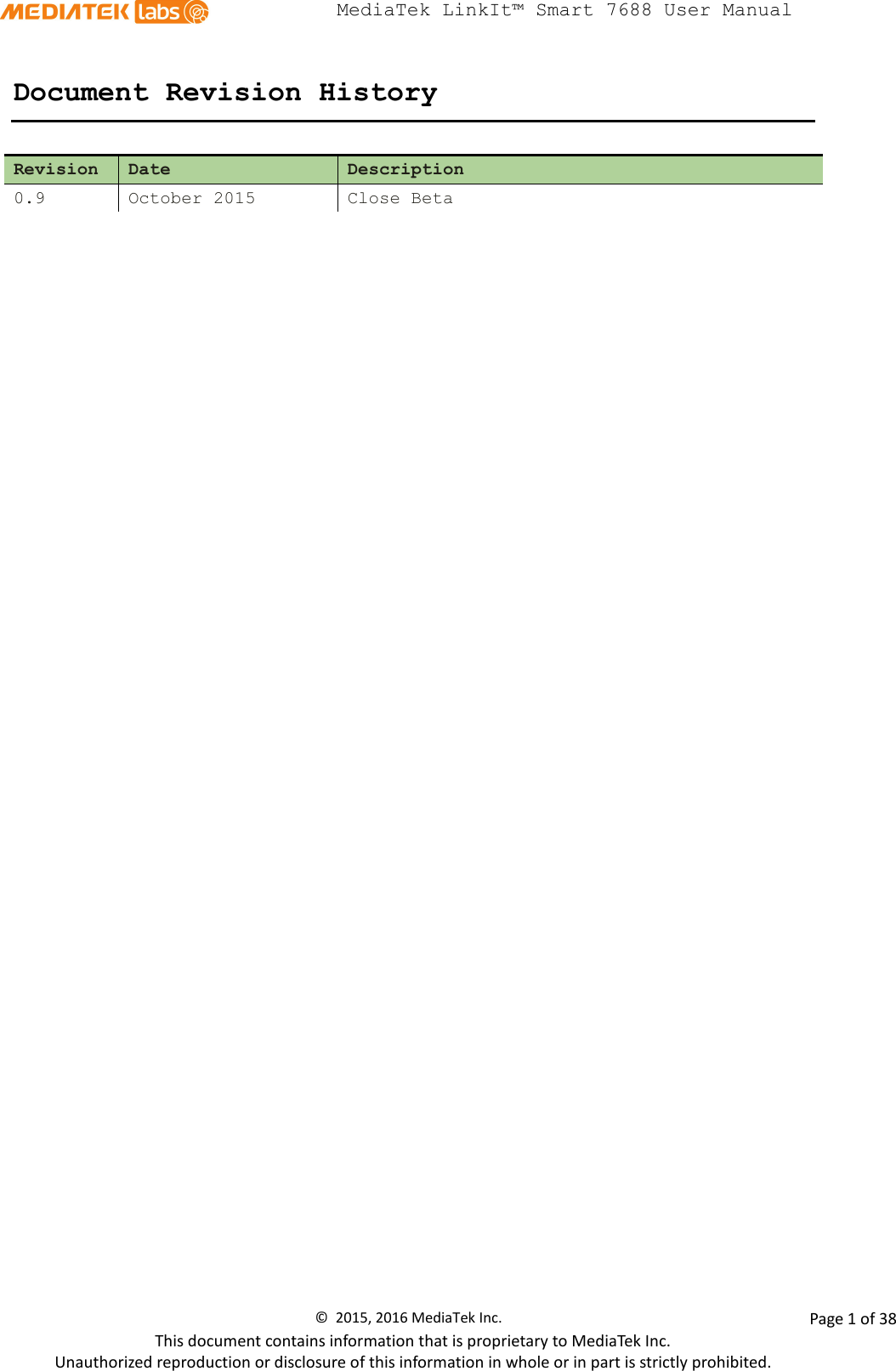

MediaTek LinkIt™ Smart 7688 User Manual Document Revision History Revision Date Description 0.9 October 2015 Close Beta © 2015, 2016 MediaTek Inc. Page 1 of 38 This document contains information that is proprietary to MediaTek Inc. Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.

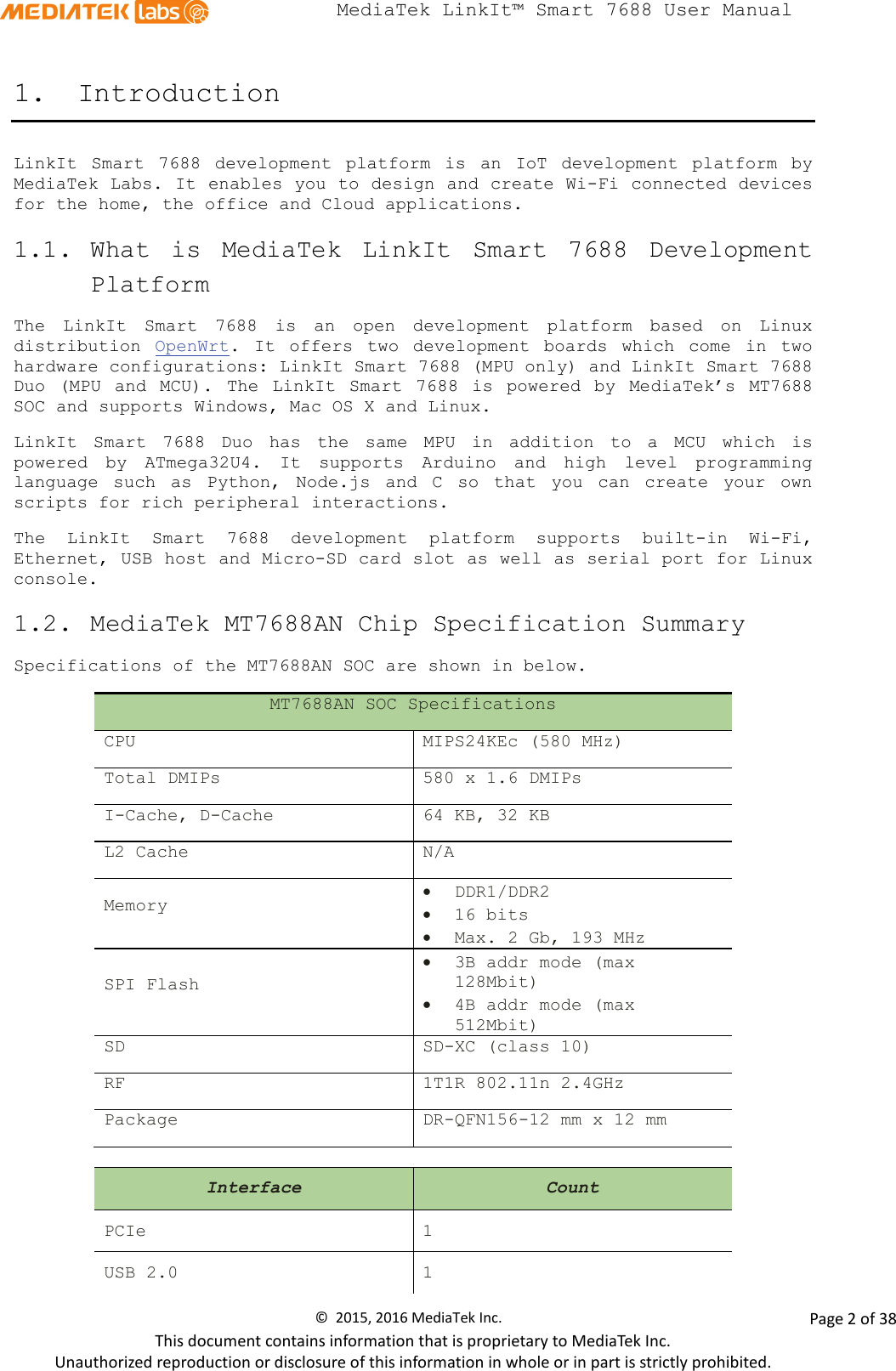

MediaTek LinkIt™ Smart 7688 User Manual 1. Introduction LinkIt Smart 7688 development platform is an IoT development platform by MediaTek Labs. It enables you to design and create Wi-Fi connected devices for the home, the office and Cloud applications. 1.1. What is MediaTek LinkIt Smart 7688 Development Platform The LinkIt Smart 7688 is an open development platform based on Linux distribution OpenWrt. It offers two development boards which come in two hardware configurations: LinkIt Smart 7688 (MPU only) and LinkIt Smart 7688 Duo (MPU and MCU). The LinkIt Smart 7688 is powered by MediaTek’s MT7688 SOC and supports Windows, Mac OS X and Linux. LinkIt Smart 7688 Duo has the same MPU in addition to a MCU which is powered by ATmega32U4. It supports Arduino and high level programming language such as Python, Node.js and C so that you can create your own scripts for rich peripheral interactions. The LinkIt Smart 7688 development platform supports built-in Wi-Fi, Ethernet, USB host and Micro-SD card slot as well as serial port for Linux console. 1.2. MediaTek MT7688AN Chip Specification Summary Specifications of the MT7688AN SOC are shown in below. MT7688AN SOC Specifications CPU MIPS24KEc (580 MHz) Total DMIPs 580 x 1.6 DMIPs I-Cache, D-Cache 64 KB, 32 KB L2 Cache N/A Memory • DDR1/DDR2 • 16 bits • Max. 2 Gb, 193 MHz SPI Flash • 3B addr mode (max 128Mbit) • 4B addr mode (max 512Mbit) SD SD-XC (class 10) RF 1T1R 802.11n 2.4GHz Package DR-QFN156-12 mm x 12 mm Interface Count PCIe 1 USB 2.0 1 © 2015, 2016 MediaTek Inc. Page 2 of 38 This document contains information that is proprietary to MediaTek Inc. Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.

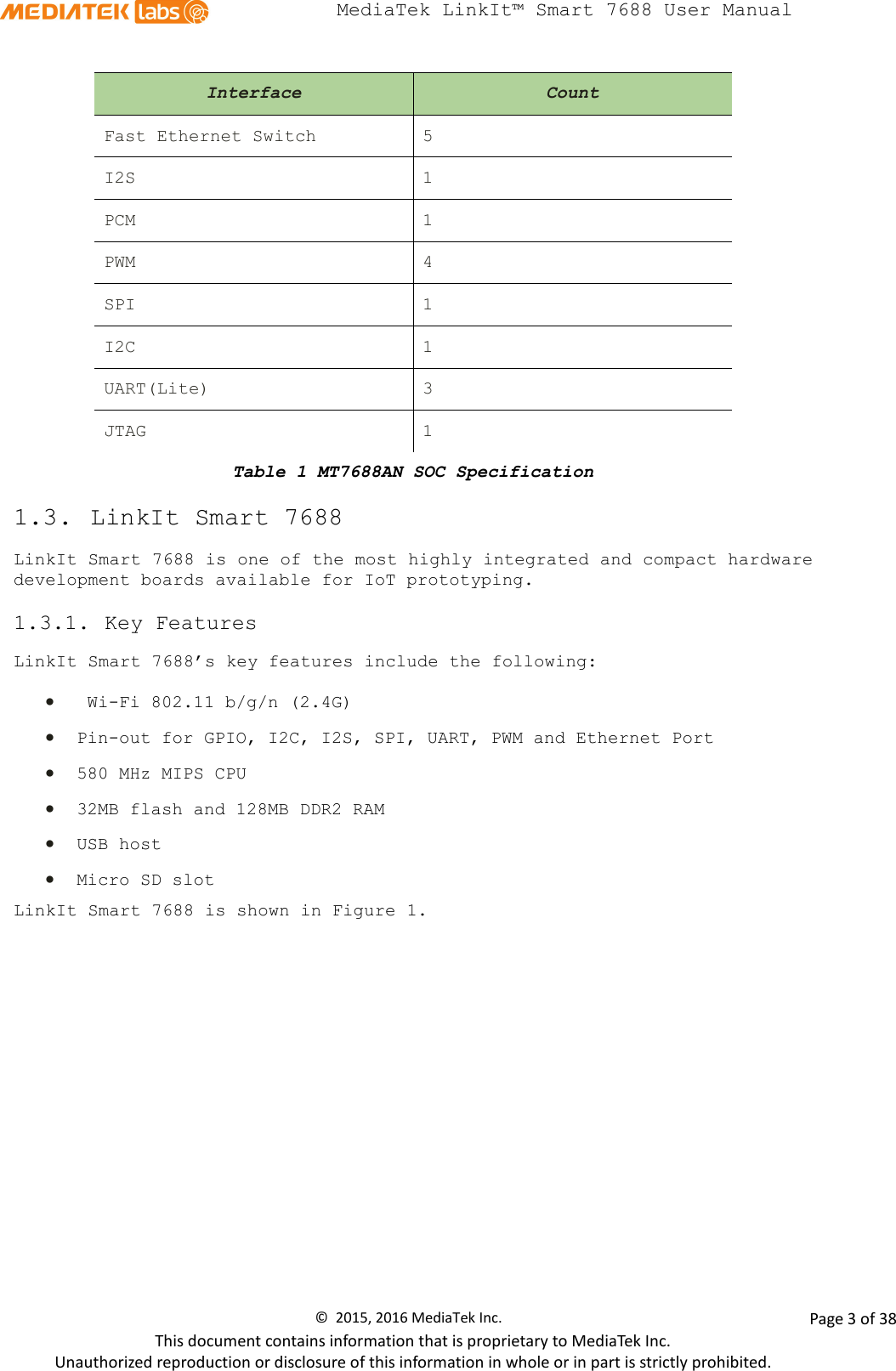

MediaTek LinkIt™ Smart 7688 User Manual Interface Count Fast Ethernet Switch 5 I2S 1 PCM 1 PWM 4 SPI 1 I2C 1 UART(Lite) 3 JTAG 1 Table 1 MT7688AN SOC Specification 1.3. LinkIt Smart 7688 LinkIt Smart 7688 is one of the most highly integrated and compact hardware development boards available for IoT prototyping. 1.3.1. Key Features LinkIt Smart 7688’s key features include the following: • Wi-Fi 802.11 b/g/n (2.4G) • Pin-out for GPIO, I2C, I2S, SPI, UART, PWM and Ethernet Port • 580 MHz MIPS CPU • 32MB flash and 128MB DDR2 RAM • USB host • Micro SD slot LinkIt Smart 7688 is shown in Figure 1. © 2015, 2016 MediaTek Inc. Page 3 of 38 This document contains information that is proprietary to MediaTek Inc. Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.

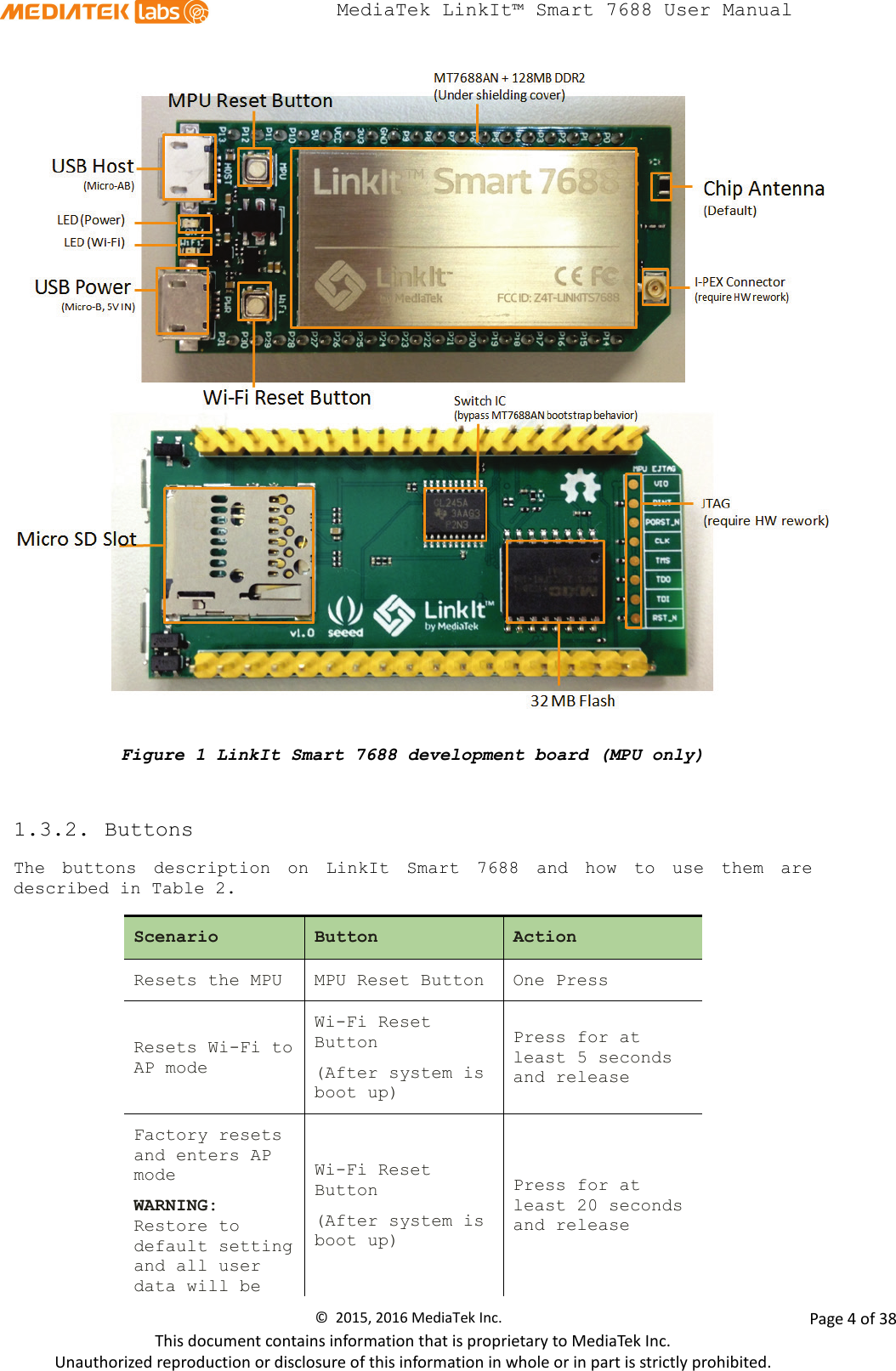

MediaTek LinkIt™ Smart 7688 User Manual Figure 1 LinkIt Smart 7688 development board (MPU only) 1.3.2. Buttons The buttons description on LinkIt Smart 7688 and how to use them are described in Table 2. Scenario Button Action Resets the MPU MPU Reset Button One Press Resets Wi-Fi to AP mode Wi-Fi Reset Button (After system is boot up) Press for at least 5 seconds and release Factory resets and enters AP mode WARNING: Restore to default setting and all user data will be Wi-Fi Reset Button (After system is boot up) Press for at least 20 seconds and release © 2015, 2016 MediaTek Inc. Page 4 of 38 This document contains information that is proprietary to MediaTek Inc. Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.

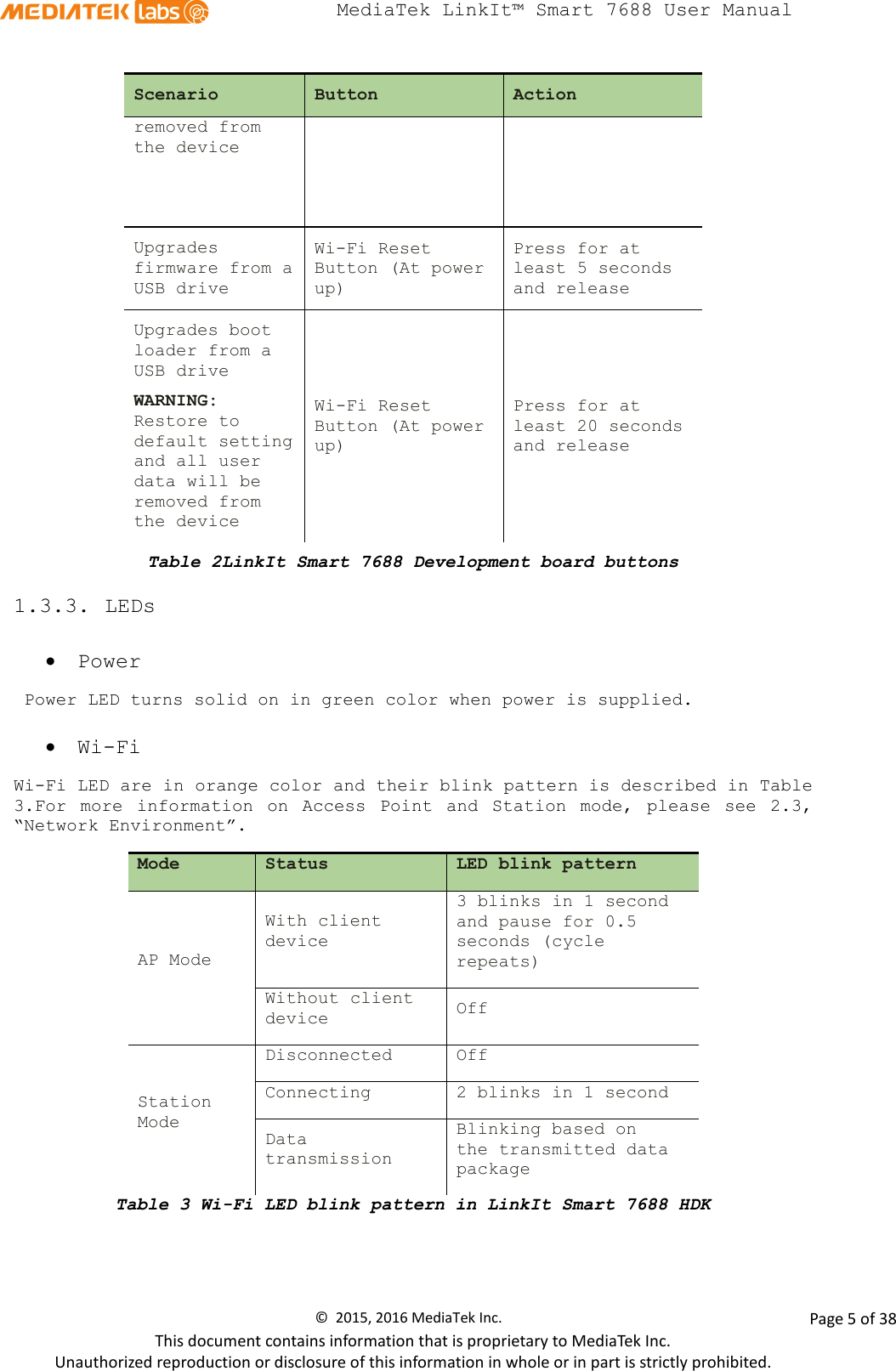

MediaTek LinkIt™ Smart 7688 User Manual Scenario Button Action removed from the device Upgrades firmware from a USB drive Wi-Fi Reset Button (At power up) Press for at least 5 seconds and release Upgrades boot loader from a USB drive WARNING: Restore to default setting and all user data will be removed from the device Wi-Fi Reset Button (At power up) Press for at least 20 seconds and release Table 2LinkIt Smart 7688 Development board buttons 1.3.3. LEDs • Power Power LED turns solid on in green color when power is supplied. • Wi-Fi Wi-Fi LED are in orange color and their blink pattern is described in Table 3.For more information on Access Point and Station mode, please see 2.3, “Network Environment”. Table 3 Wi-Fi LED blink pattern in LinkIt Smart 7688 HDK Mode Status LED blink pattern AP Mode With client device 3 blinks in 1 second and pause for 0.5 seconds (cycle repeats) Without client device Off Station Mode Disconnected Off Connecting 2 blinks in 1 second Data transmission Blinking based on the transmitted data package © 2015, 2016 MediaTek Inc. Page 5 of 38 This document contains information that is proprietary to MediaTek Inc. Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.

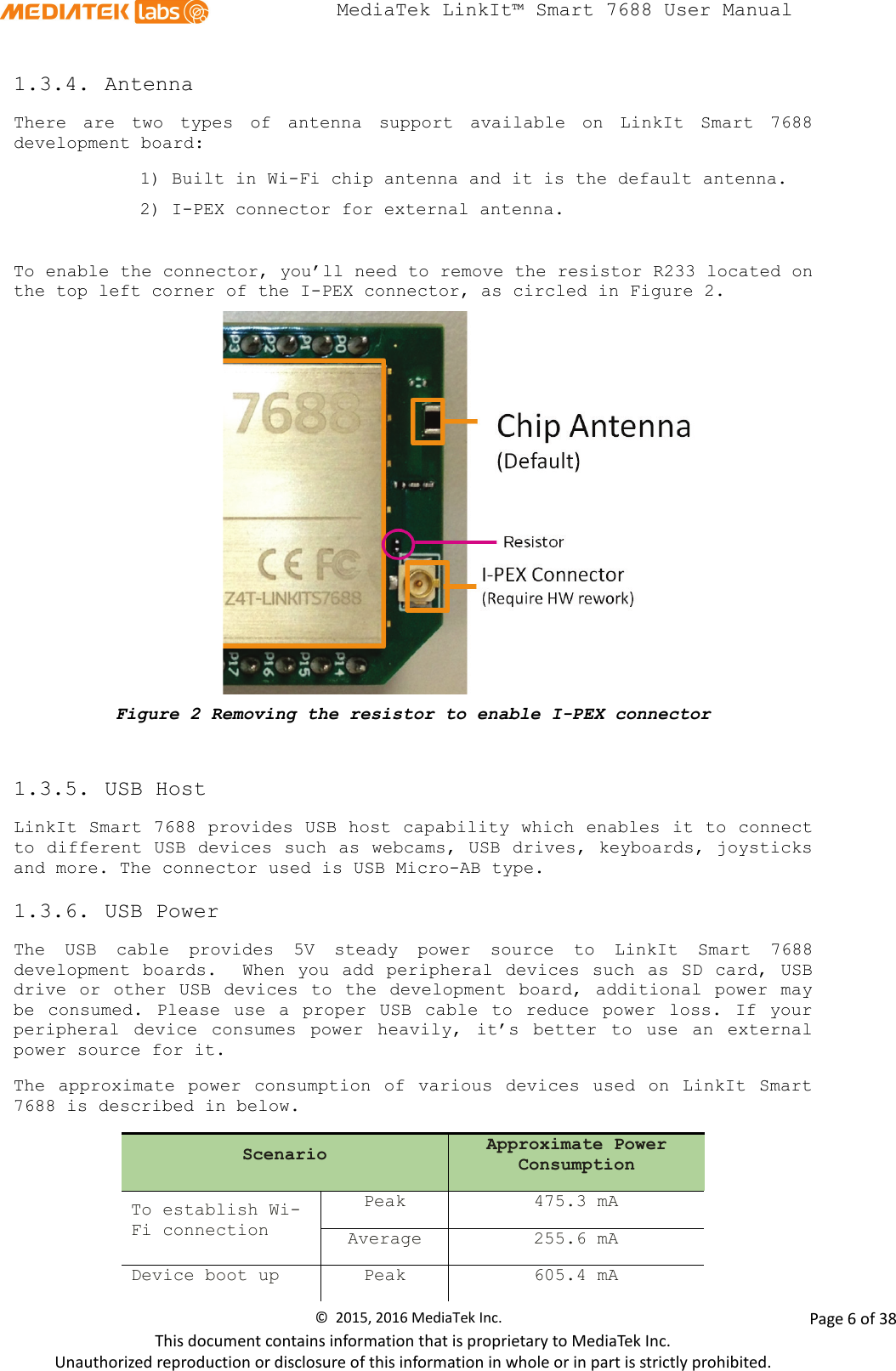

MediaTek LinkIt™ Smart 7688 User Manual 1.3.4. Antenna There are two types of antenna support available on LinkIt Smart 7688 development board: 1) Built in Wi-Fi chip antenna and it is the default antenna. 2) I-PEX connector for external antenna. To enable the connector, you’ll need to remove the resistor R233 located on the top left corner of the I-PEX connector, as circled in Figure 2. Figure 2 Removing the resistor to enable I-PEX connector 1.3.5. USB Host LinkIt Smart 7688 provides USB host capability which enables it to connect to different USB devices such as webcams, USB drives, keyboards, joysticks and more. The connector used is USB Micro-AB type. 1.3.6. USB Power The USB cable provides 5V steady power source to LinkIt Smart 7688 development boards. When you add peripheral devices such as SD card, USB drive or other USB devices to the development board, additional power may be consumed. Please use a proper USB cable to reduce power loss. If your peripheral device consumes power heavily, it’s better to use an external power source for it. The approximate power consumption of various devices used on LinkIt Smart 7688 is described in below. Scenario Approximate Power Consumption To establish Wi-Fi connection Peak 475.3 mA Average 255.6 mA Device boot up Peak 605.4 mA © 2015, 2016 MediaTek Inc. Page 6 of 38 This document contains information that is proprietary to MediaTek Inc. Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.

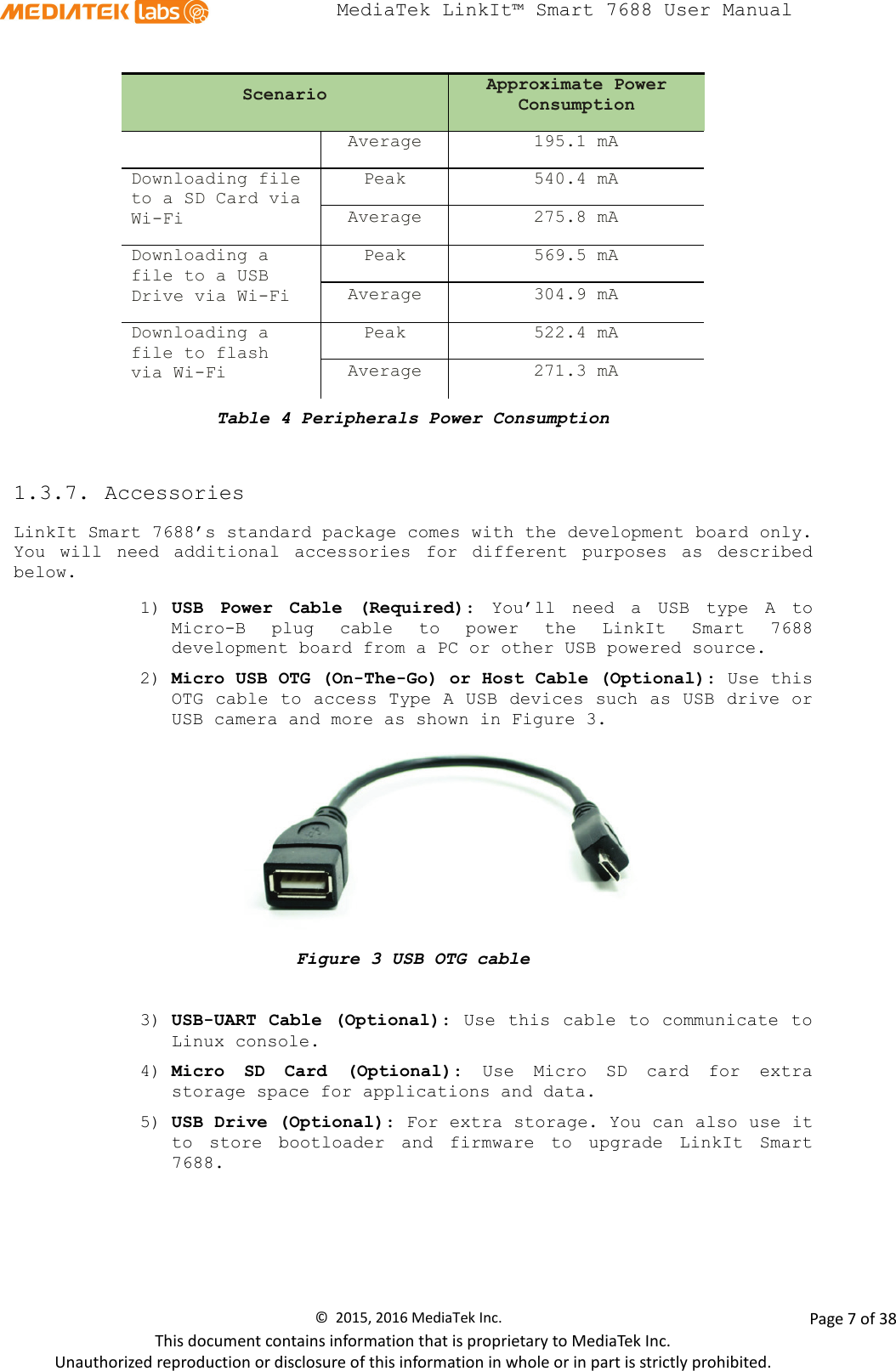

MediaTek LinkIt™ Smart 7688 User Manual Scenario Approximate Power Consumption Average 195.1 mA Downloading file to a SD Card via Wi-Fi Peak 540.4 mA Average 275.8 mA Downloading a file to a USB Drive via Wi-Fi Peak 569.5 mA Average 304.9 mA Downloading a file to flash via Wi-Fi Peak 522.4 mA Average 271.3 mA Table 4 Peripherals Power Consumption 1.3.7. Accessories LinkIt Smart 7688’s standard package comes with the development board only. You will need additional accessories for different purposes as described below. 1) USB Power Cable (Required): You’ll need a USB type A to Micro-B plug cable to power the LinkIt Smart 7688 development board from a PC or other USB powered source. 2) Micro USB OTG (On-The-Go) or Host Cable (Optional): Use this OTG cable to access Type A USB devices such as USB drive or USB camera and more as shown in Figure 3. Figure 3 USB OTG cable 3) USB-UART Cable (Optional): Use this cable to communicate to Linux console. 4) Micro SD Card (Optional): Use Micro SD card for extra storage space for applications and data. 5) USB Drive (Optional): For extra storage. You can also use it to store bootloader and firmware to upgrade LinkIt Smart 7688. © 2015, 2016 MediaTek Inc. Page 7 of 38 This document contains information that is proprietary to MediaTek Inc. Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
MediaTek LinkIt™ Smart 7688 User Manual 1.3.8. Breakout Board (TBD) 1.3.9. JTAG You can use JTAG interface to debug MT7688AN. To access JTAG interface, you will need to unsolder resistor R95 and solder it to resistor R3 on the 7688 development board. After you’ve moved the resistor and reboot the device you’ll activate JTAG function. The steps are: 1) Find a group of resistors on the bottom side of LinkIt Smart 7688 (top-right view) as circled in below. Figure 4 JTAG resistors on LinkIt Smart 7688 Bottom view 2) Next, you will move a resistor by unsoldering and soldering it to a lower position as shown in below, after you’ve finished moving the resistor, restart the device and you should be able to activate JTAG function. Figure 5 Moving a resistor to access JTAG mode © 2015, 2016 MediaTek Inc. Page 8 of 38 This document contains information that is proprietary to MediaTek Inc. Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.

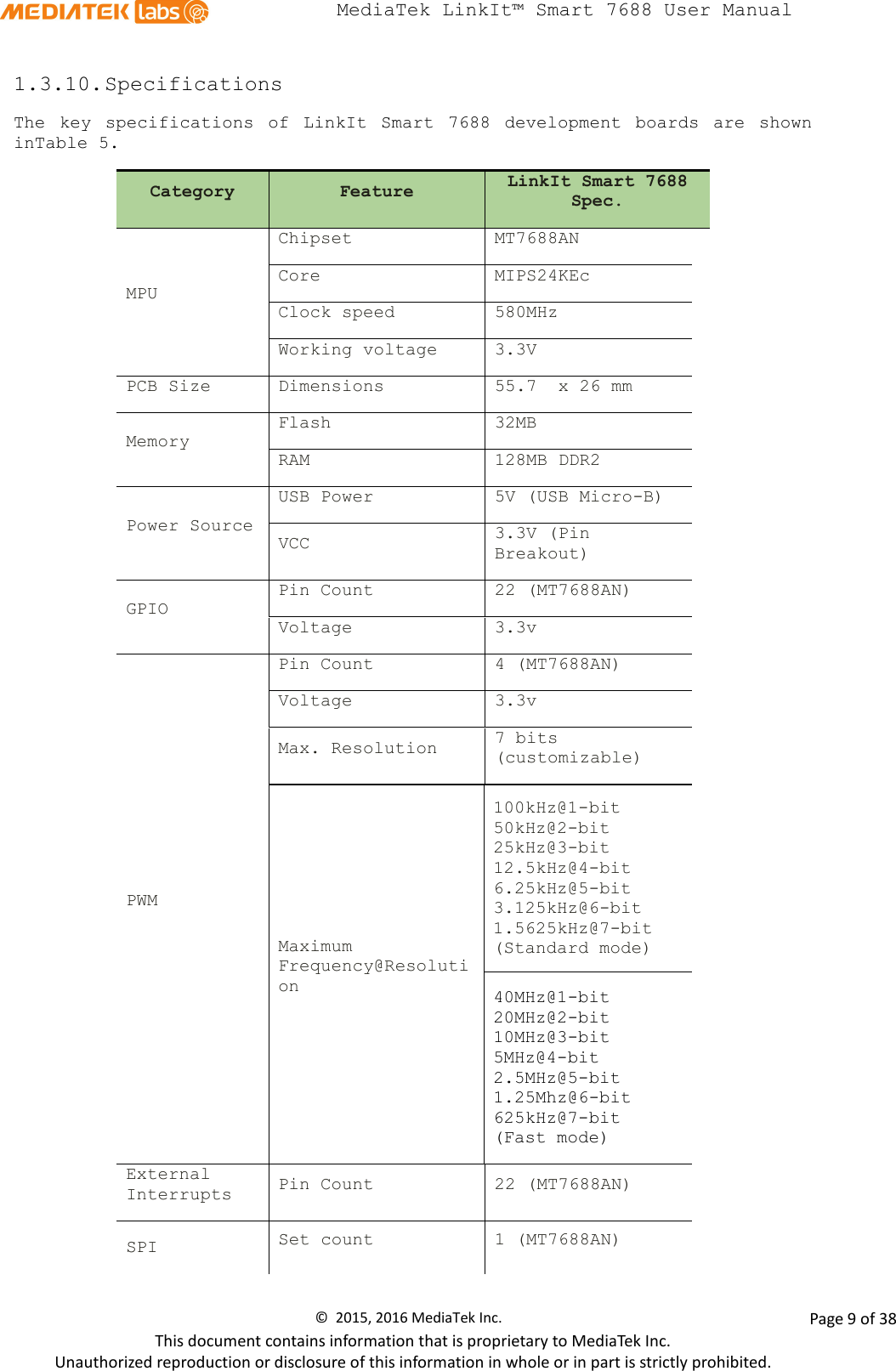

MediaTek LinkIt™ Smart 7688 User Manual 1.3.10. Specifications The key specifications of LinkIt Smart 7688 development boards are shown inTable 5. Category Feature LinkIt Smart 7688 Spec. MPU Chipset MT7688AN Core MIPS24KEc Clock speed 580MHz Working voltage 3.3V PCB Size Dimensions 55.7 x 26 mm Memory Flash 32MB RAM 128MB DDR2 Power Source USB Power 5V (USB Micro-B) VCC 3.3V (Pin Breakout) GPIO Pin Count 22 (MT7688AN) Voltage 3.3v PWM Pin Count 4 (MT7688AN) Voltage 3.3v Max. Resolution 7 bits (customizable) Maximum Frequency@Resolution 100kHz@1-bit 50kHz@2-bit 25kHz@3-bit 12.5kHz@4-bit 6.25kHz@5-bit 3.125kHz@6-bit 1.5625kHz@7-bit (Standard mode) 40MHz@1-bit 20MHz@2-bit 10MHz@3-bit 5MHz@4-bit 2.5MHz@5-bit 1.25Mhz@6-bit 625kHz@7-bit (Fast mode) External Interrupts Pin Count 22 (MT7688AN) SPI Set count 1 (MT7688AN) © 2015, 2016 MediaTek Inc. Page 9 of 38 This document contains information that is proprietary to MediaTek Inc. Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
MediaTek LinkIt™ Smart 7688 User Manual Category Feature LinkIt Smart 7688 Spec. Pin numbers • P22, P23,P24 (Shared with on-board flash) • P25 Max. Speed 25 MHz SPI Slave Set count 1 (MT7688AN) Pin numbers P28, P29, P30, P31 Max. Speed 25 MHz I2S Set Count 1 (MT7688AN) Pin numbers P10, P11, P12, P13 I2C Set Count 1 Pin numbers P20, P21 Speed 120K/400K UART (Lite) Set Count 3 (MT7688AN) Pin numbers P8, P9, P16, P17, P18, P19 Max. Speed 115,200 bps USB Host Pin Count 1 (MT7688AN) Pin numbers P6, P7 Connector type Micro-AB Communication Wi-Fi 1T1R 802.11 b/g/n (2.4G) Ethernet 1-port 10/100 FE PHY Pin numbers P2, P3, P4, P5 User Storage SD Card Micro SD SDXC Table 5 LinkIt Smart 7688 development boards specifications © 2015, 2016 MediaTek Inc. Page 10 of 38 This document contains information that is proprietary to MediaTek Inc. Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.

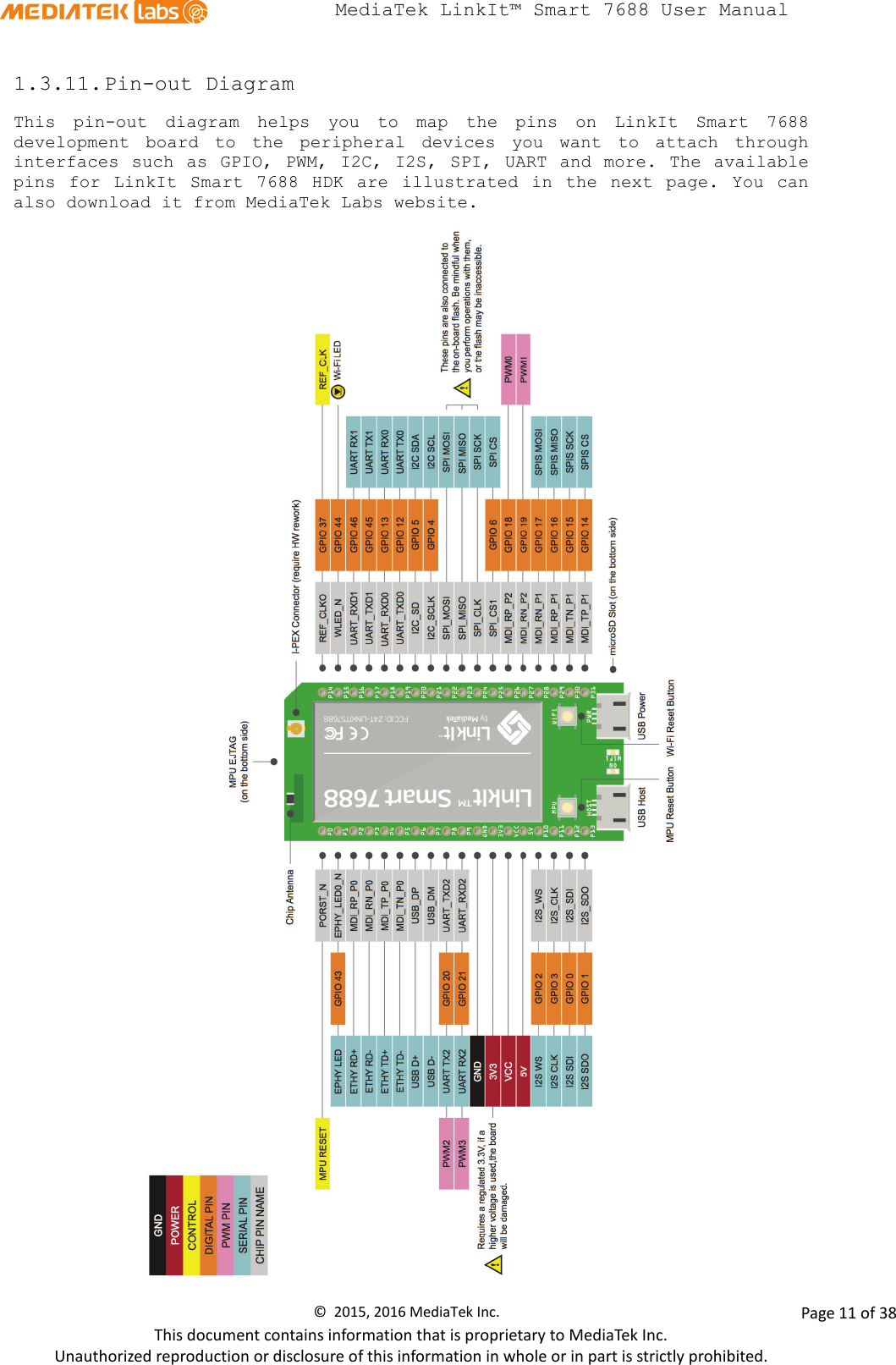

MediaTek LinkIt™ Smart 7688 User Manual 1.3.11. Pin-out Diagram This pin-out diagram helps you to map the pins on LinkIt Smart 7688 development board to the peripheral devices you want to attach through interfaces such as GPIO, PWM, I2C, I2S, SPI, UART and more. The available pins for LinkIt Smart 7688 HDK are illustrated in the next page. You can also download it from MediaTek Labs website. © 2015, 2016 MediaTek Inc. Page 11 of 38 This document contains information that is proprietary to MediaTek Inc. Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.

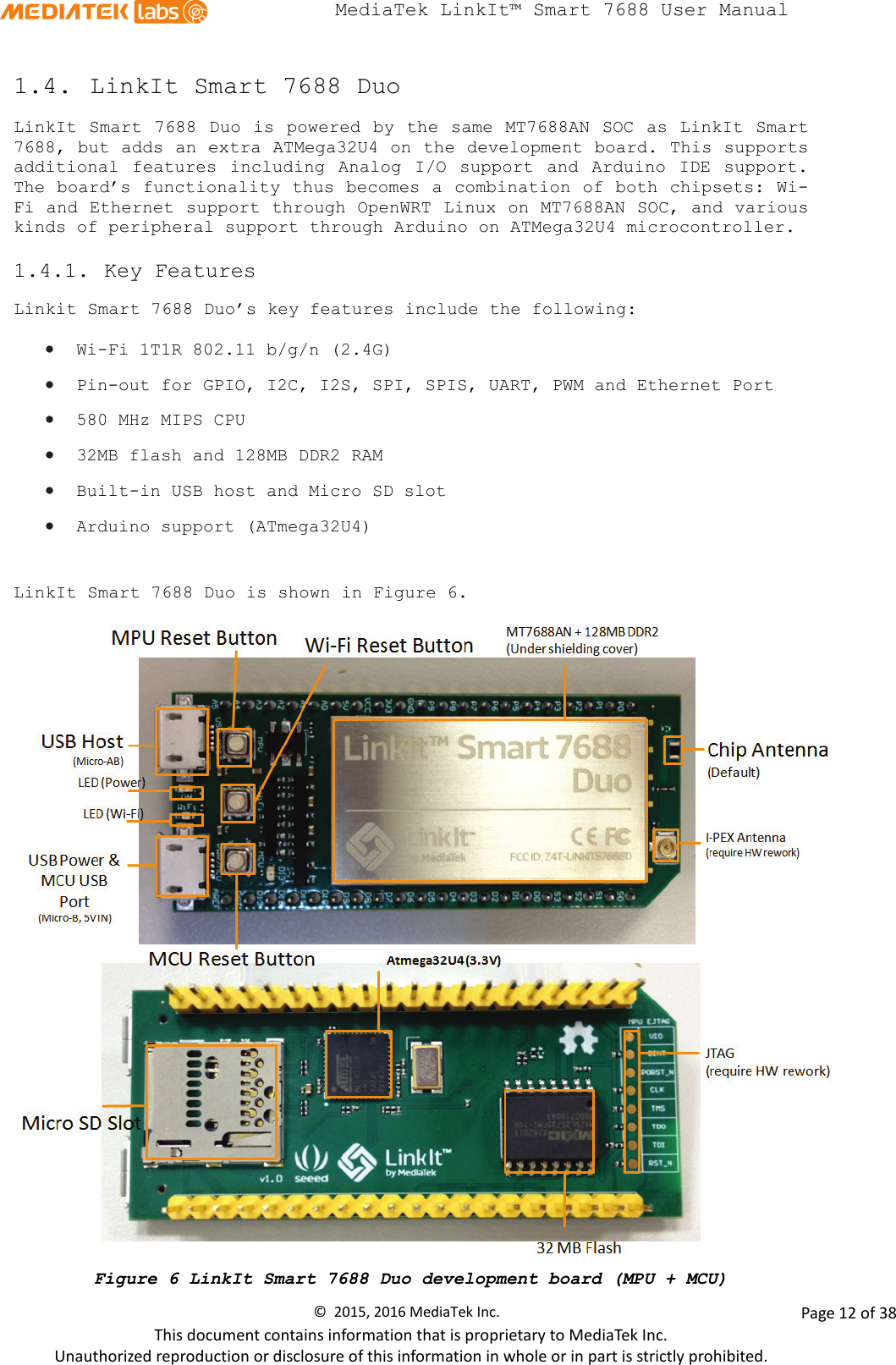

MediaTek LinkIt™ Smart 7688 User Manual 1.4. LinkIt Smart 7688 Duo LinkIt Smart 7688 Duo is powered by the same MT7688AN SOC as LinkIt Smart 7688, but adds an extra ATMega32U4 on the development board. This supports additional features including Analog I/O support and Arduino IDE support. The board’s functionality thus becomes a combination of both chipsets: Wi-Fi and Ethernet support through OpenWRT Linux on MT7688AN SOC, and various kinds of peripheral support through Arduino on ATMega32U4 microcontroller. 1.4.1. Key Features Linkit Smart 7688 Duo’s key features include the following: • Wi-Fi 1T1R 802.11 b/g/n (2.4G) • Pin-out for GPIO, I2C, I2S, SPI, SPIS, UART, PWM and Ethernet Port • 580 MHz MIPS CPU • 32MB flash and 128MB DDR2 RAM • Built-in USB host and Micro SD slot • Arduino support (ATmega32U4) LinkIt Smart 7688 Duo is shown in Figure 6. Figure 6 LinkIt Smart 7688 Duo development board (MPU + MCU) © 2015, 2016 MediaTek Inc. Page 12 of 38 This document contains information that is proprietary to MediaTek Inc. Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.

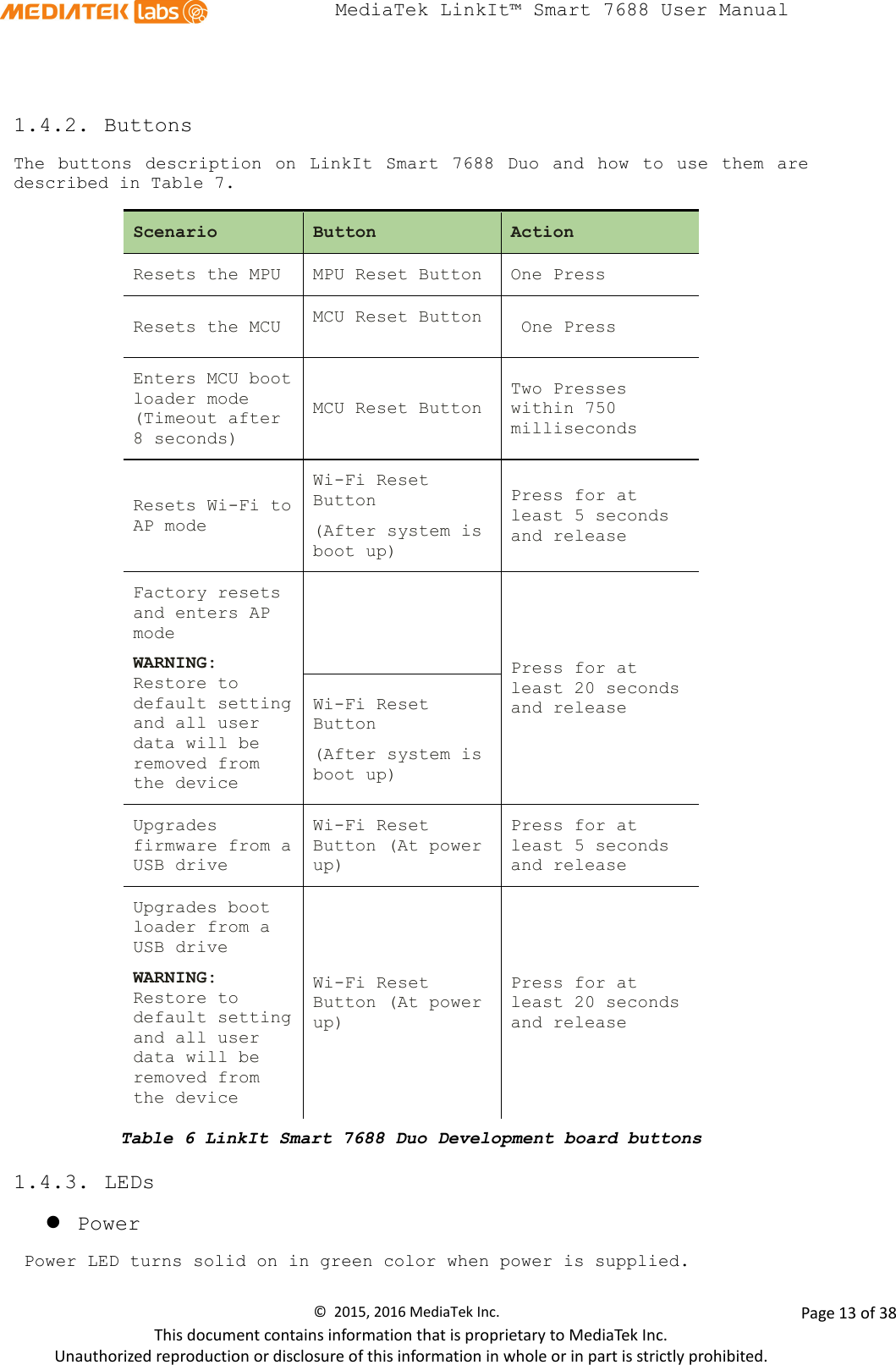

MediaTek LinkIt™ Smart 7688 User Manual 1.4.2. Buttons The buttons description on LinkIt Smart 7688 Duo and how to use them are described in Table 7. Scenario Button Action Resets the MPU MPU Reset Button One Press Resets the MCU MCU Reset Button One Press Enters MCU boot loader mode (Timeout after 8 seconds) MCU Reset Button Two Presses within 750 milliseconds Resets Wi-Fi to AP mode Wi-Fi Reset Button (After system is boot up) Press for at least 5 seconds and release Factory resets and enters AP mode WARNING: Restore to default setting and all user data will be removed from the device Press for at least 20 seconds and release Wi-Fi Reset Button (After system is boot up) Upgrades firmware from a USB drive Wi-Fi Reset Button (At power up) Press for at least 5 seconds and release Upgrades boot loader from a USB drive WARNING: Restore to default setting and all user data will be removed from the device Wi-Fi Reset Button (At power up) Press for at least 20 seconds and release Table 6 LinkIt Smart 7688 Duo Development board buttons 1.4.3. LEDs  Power Power LED turns solid on in green color when power is supplied. © 2015, 2016 MediaTek Inc. Page 13 of 38 This document contains information that is proprietary to MediaTek Inc. Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.

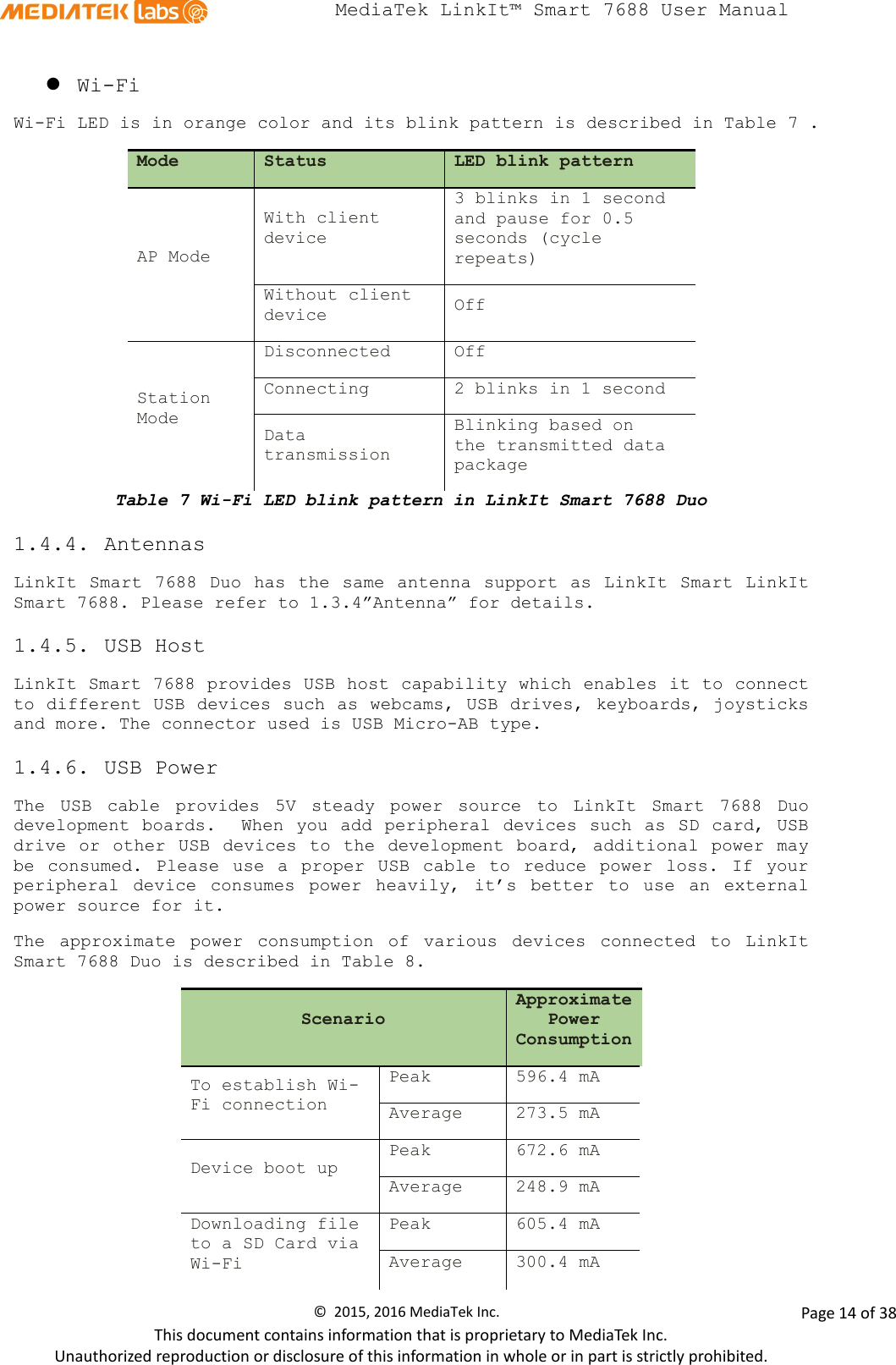

MediaTek LinkIt™ Smart 7688 User Manual  Wi-Fi Wi-Fi LED is in orange color and its blink pattern is described in Table 7 . Table 7 Wi-Fi LED blink pattern in LinkIt Smart 7688 Duo 1.4.4. Antennas LinkIt Smart 7688 Duo has the same antenna support as LinkIt Smart LinkIt Smart 7688. Please refer to 1.3.4”Antenna” for details. 1.4.5. USB Host LinkIt Smart 7688 provides USB host capability which enables it to connect to different USB devices such as webcams, USB drives, keyboards, joysticks and more. The connector used is USB Micro-AB type. 1.4.6. USB Power The USB cable provides 5V steady power source to LinkIt Smart 7688 Duo development boards. When you add peripheral devices such as SD card, USB drive or other USB devices to the development board, additional power may be consumed. Please use a proper USB cable to reduce power loss. If your peripheral device consumes power heavily, it’s better to use an external power source for it. The approximate power consumption of various devices connected to LinkIt Smart 7688 Duo is described in Table 8. Scenario Approximate Power Consumption To establish Wi-Fi connection Peak 596.4 mA Average 273.5 mA Device boot up Peak 672.6 mA Average 248.9 mA Downloading file to a SD Card via Wi-Fi Peak 605.4 mA Average 300.4 mA Mode Status LED blink pattern AP Mode With client device 3 blinks in 1 second and pause for 0.5 seconds (cycle repeats) Without client device Off Station Mode Disconnected Off Connecting 2 blinks in 1 second Data transmission Blinking based on the transmitted data package © 2015, 2016 MediaTek Inc. Page 14 of 38 This document contains information that is proprietary to MediaTek Inc. Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.

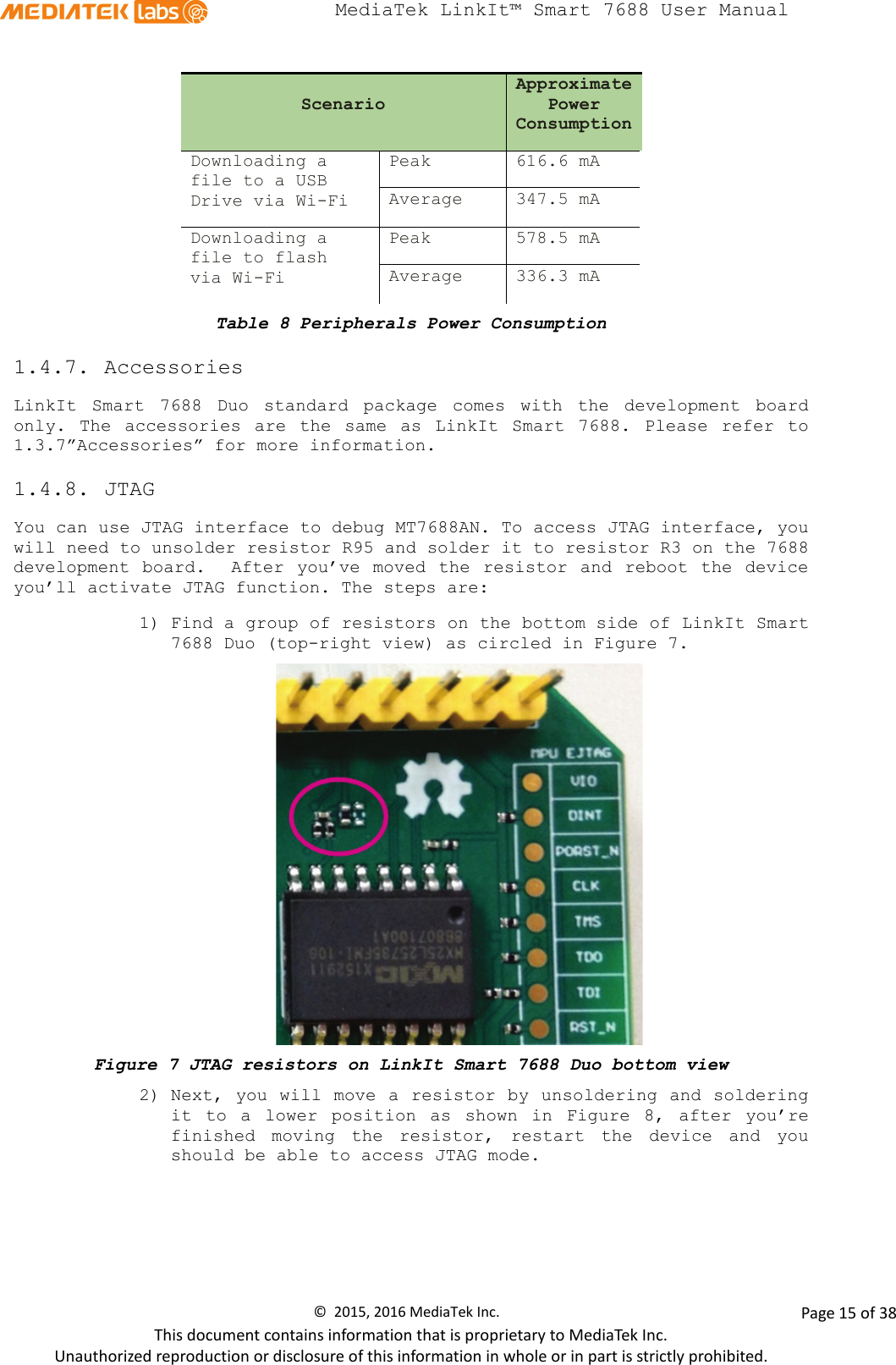

MediaTek LinkIt™ Smart 7688 User Manual Scenario Approximate Power Consumption Downloading a file to a USB Drive via Wi-Fi Peak 616.6 mA Average 347.5 mA Downloading a file to flash via Wi-Fi Peak 578.5 mA Average 336.3 mA Table 8 Peripherals Power Consumption 1.4.7. Accessories LinkIt Smart 7688 Duo standard package comes with the development board only. The accessories are the same as LinkIt Smart 7688. Please refer to 1.3.7”Accessories” for more information. 1.4.8. JTAG You can use JTAG interface to debug MT7688AN. To access JTAG interface, you will need to unsolder resistor R95 and solder it to resistor R3 on the 7688 development board. After you’ve moved the resistor and reboot the device you’ll activate JTAG function. The steps are: 1) Find a group of resistors on the bottom side of LinkIt Smart 7688 Duo (top-right view) as circled in Figure 7. Figure 7 JTAG resistors on LinkIt Smart 7688 Duo bottom view 2) Next, you will move a resistor by unsoldering and soldering it to a lower position as shown in Figure 8, after you’re finished moving the resistor, restart the device and you should be able to access JTAG mode. © 2015, 2016 MediaTek Inc. Page 15 of 38 This document contains information that is proprietary to MediaTek Inc. Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.

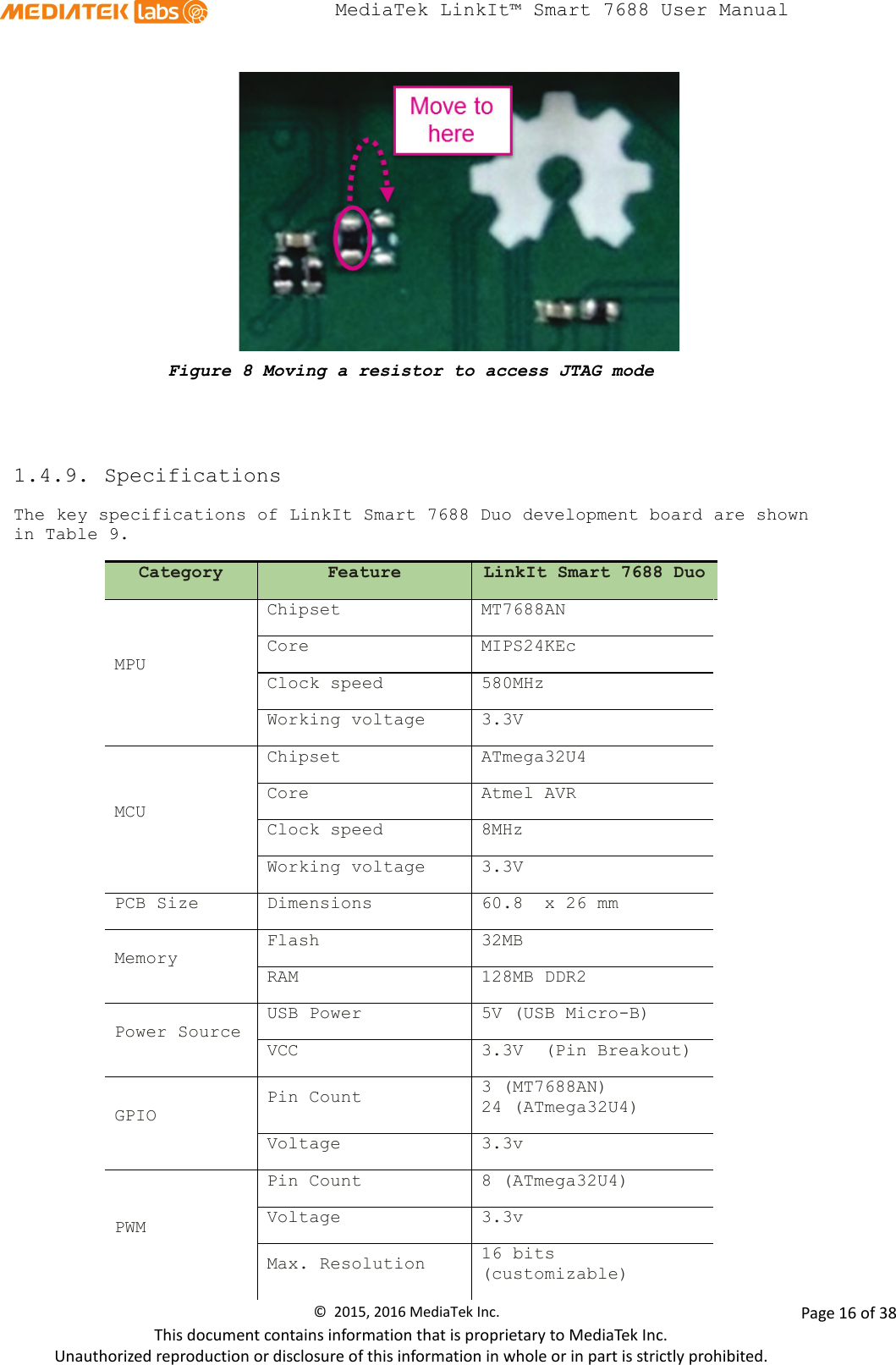

MediaTek LinkIt™ Smart 7688 User Manual Figure 8 Moving a resistor to access JTAG mode 1.4.9. Specifications The key specifications of LinkIt Smart 7688 Duo development board are shown in Table 9. Category Feature LinkIt Smart 7688 Duo MPU Chipset MT7688AN Core MIPS24KEc Clock speed 580MHz Working voltage 3.3V MCU Chipset ATmega32U4 Core Atmel AVR Clock speed 8MHz Working voltage 3.3V PCB Size Dimensions 60.8 x 26 mm Memory Flash 32MB RAM 128MB DDR2 Power Source USB Power 5V (USB Micro-B) VCC 3.3V (Pin Breakout) GPIO Pin Count 3 (MT7688AN) 24 (ATmega32U4) Voltage 3.3v PWM Pin Count 8 (ATmega32U4) Voltage 3.3v Max. Resolution 16 bits (customizable) © 2015, 2016 MediaTek Inc. Page 16 of 38 This document contains information that is proprietary to MediaTek Inc. Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.

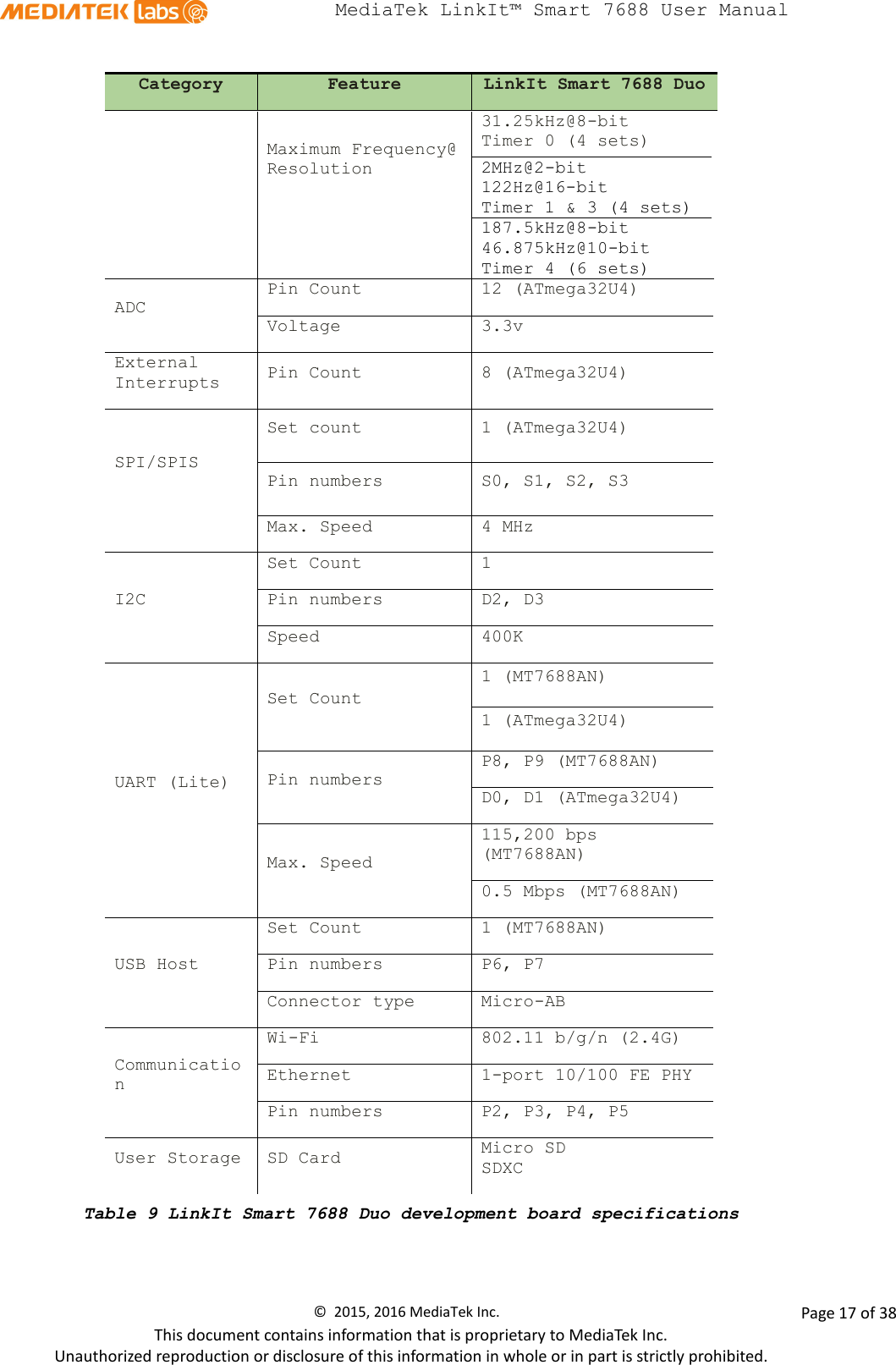

MediaTek LinkIt™ Smart 7688 User Manual Category Feature LinkIt Smart 7688 Duo Maximum Frequency@ Resolution 31.25kHz@8-bit Timer 0 (4 sets) 2MHz@2-bit 122Hz@16-bit Timer 1 & 3 (4 sets) 187.5kHz@8-bit 46.875kHz@10-bit Timer 4 (6 sets) ADC Pin Count 12 (ATmega32U4) Voltage 3.3v External Interrupts Pin Count 8 (ATmega32U4) SPI/SPIS Set count 1 (ATmega32U4) Pin numbers S0, S1, S2, S3 Max. Speed 4 MHz I2C Set Count 1 Pin numbers D2, D3 Speed 400K UART (Lite) Set Count 1 (MT7688AN) 1 (ATmega32U4) Pin numbers P8, P9 (MT7688AN) D0, D1 (ATmega32U4) Max. Speed 115,200 bps (MT7688AN) 0.5 Mbps (MT7688AN) USB Host Set Count 1 (MT7688AN) Pin numbers P6, P7 Connector type Micro-AB Communication Wi-Fi 802.11 b/g/n (2.4G) Ethernet 1-port 10/100 FE PHY Pin numbers P2, P3, P4, P5 User Storage SD Card Micro SD SDXC Table 9 LinkIt Smart 7688 Duo development board specifications © 2015, 2016 MediaTek Inc. Page 17 of 38 This document contains information that is proprietary to MediaTek Inc. Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
MediaTek LinkIt™ Smart 7688 User Manual 1.4.10. Pin-out Diagram The LinkIt Smart 7688 Duo pin-out diagram is shown in the next page. You can also download LinkIt Smart 7688 Reference Design at MediaTek Labs website. © 2015, 2016 MediaTek Inc. Page 18 of 38 This document contains information that is proprietary to MediaTek Inc. Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.

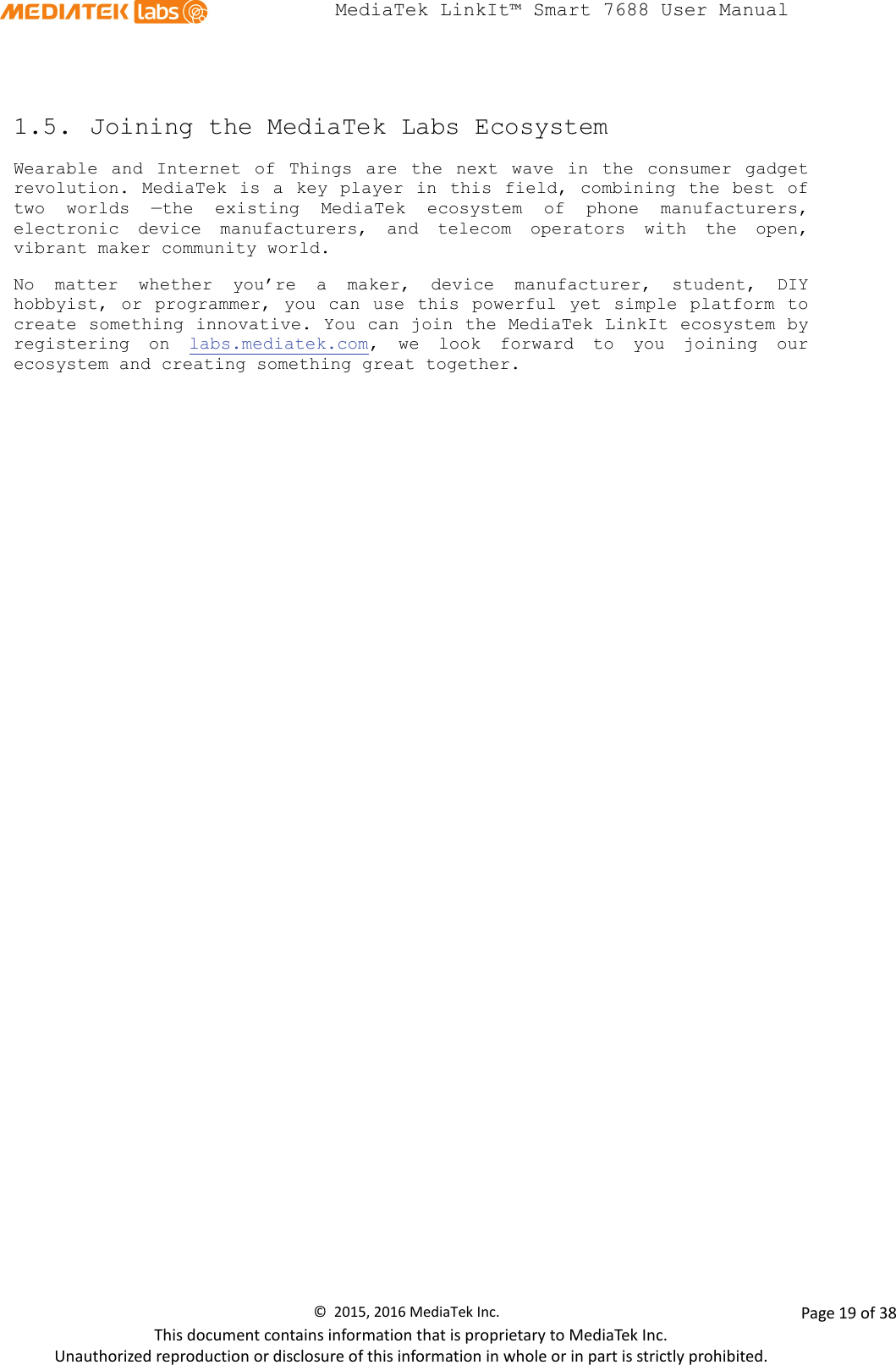

MediaTek LinkIt™ Smart 7688 User Manual 1.5. Joining the MediaTek Labs Ecosystem Wearable and Internet of Things are the next wave in the consumer gadget revolution. MediaTek is a key player in this field, combining the best of two worlds —the existing MediaTek ecosystem of phone manufacturers, electronic device manufacturers, and telecom operators with the open, vibrant maker community world. No matter whether you’re a maker, device manufacturer, student, DIY hobbyist, or programmer, you can use this powerful yet simple platform to create something innovative. You can join the MediaTek LinkIt ecosystem by registering on labs.mediatek.com, we look forward to you joining our ecosystem and creating something great together. © 2015, 2016 MediaTek Inc. Page 19 of 38 This document contains information that is proprietary to MediaTek Inc. Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.

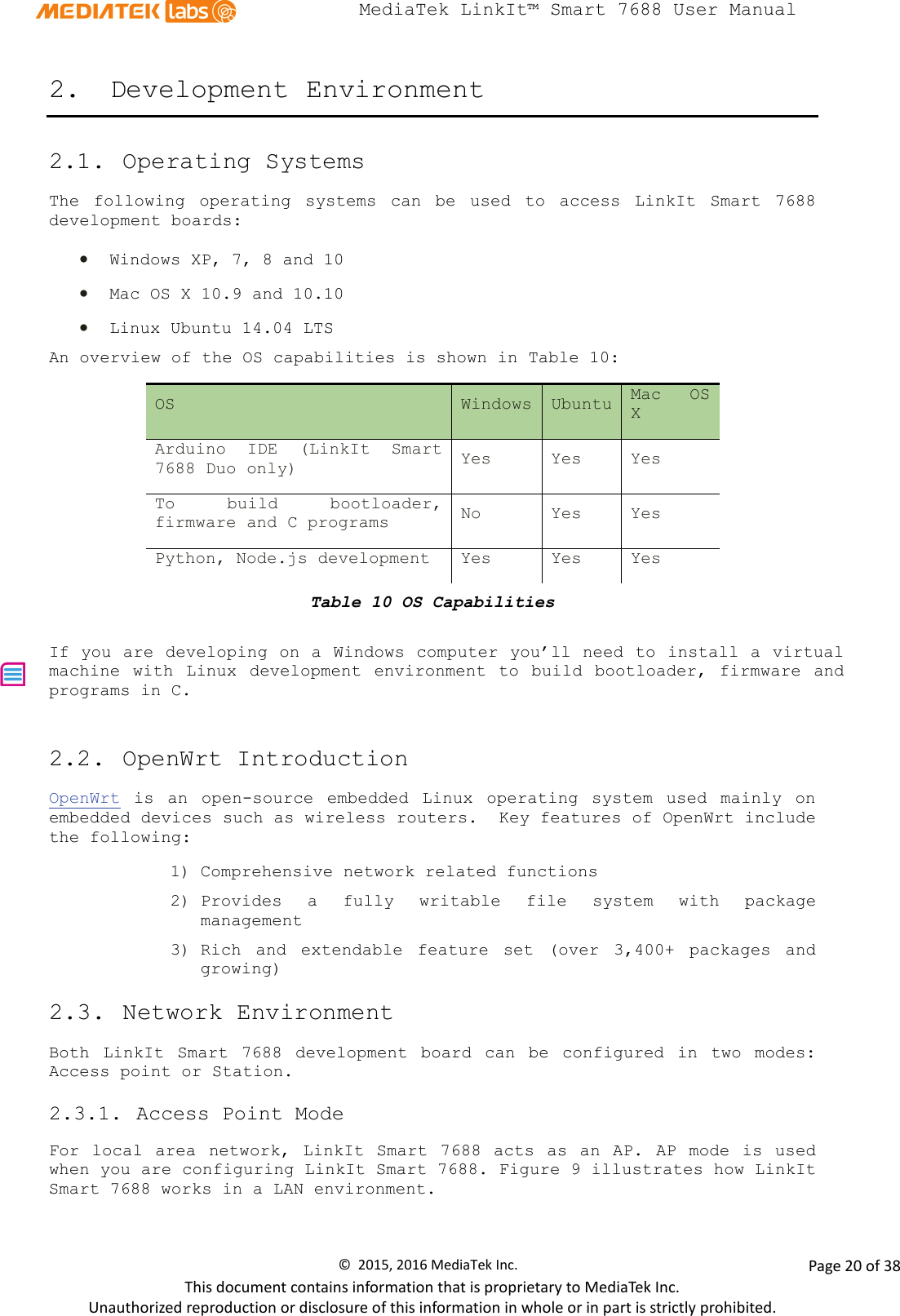

MediaTek LinkIt™ Smart 7688 User Manual 2. Development Environment 2.1. Operating Systems The following operating systems can be used to access LinkIt Smart 7688 development boards: • Windows XP, 7, 8 and 10 • Mac OS X 10.9 and 10.10 • Linux Ubuntu 14.04 LTS An overview of the OS capabilities is shown in Table 10: OS Windows Ubuntu Mac OS X Arduino IDE (LinkIt Smart 7688 Duo only) Yes Yes Yes To build bootloader, firmware and C programs No Yes Yes Python, Node.js development Yes Yes Yes Table 10 OS Capabilities If you are developing on a Windows computer you’ll need to install a virtual machine with Linux development environment to build bootloader, firmware and programs in C. 2.2. OpenWrt Introduction OpenWrt is an open-source embedded Linux operating system used mainly on embedded devices such as wireless routers. Key features of OpenWrt include the following: 1) Comprehensive network related functions 2) Provides a fully writable file system with package management 3) Rich and extendable feature set (over 3,400+ packages and growing) 2.3. Network Environment Both LinkIt Smart 7688 development board can be configured in two modes: Access point or Station. 2.3.1. Access Point Mode For local area network, LinkIt Smart 7688 acts as an AP. AP mode is used when you are configuring LinkIt Smart 7688. Figure 9 illustrates how LinkIt Smart 7688 works in a LAN environment. © 2015, 2016 MediaTek Inc. Page 20 of 38 This document contains information that is proprietary to MediaTek Inc. Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.

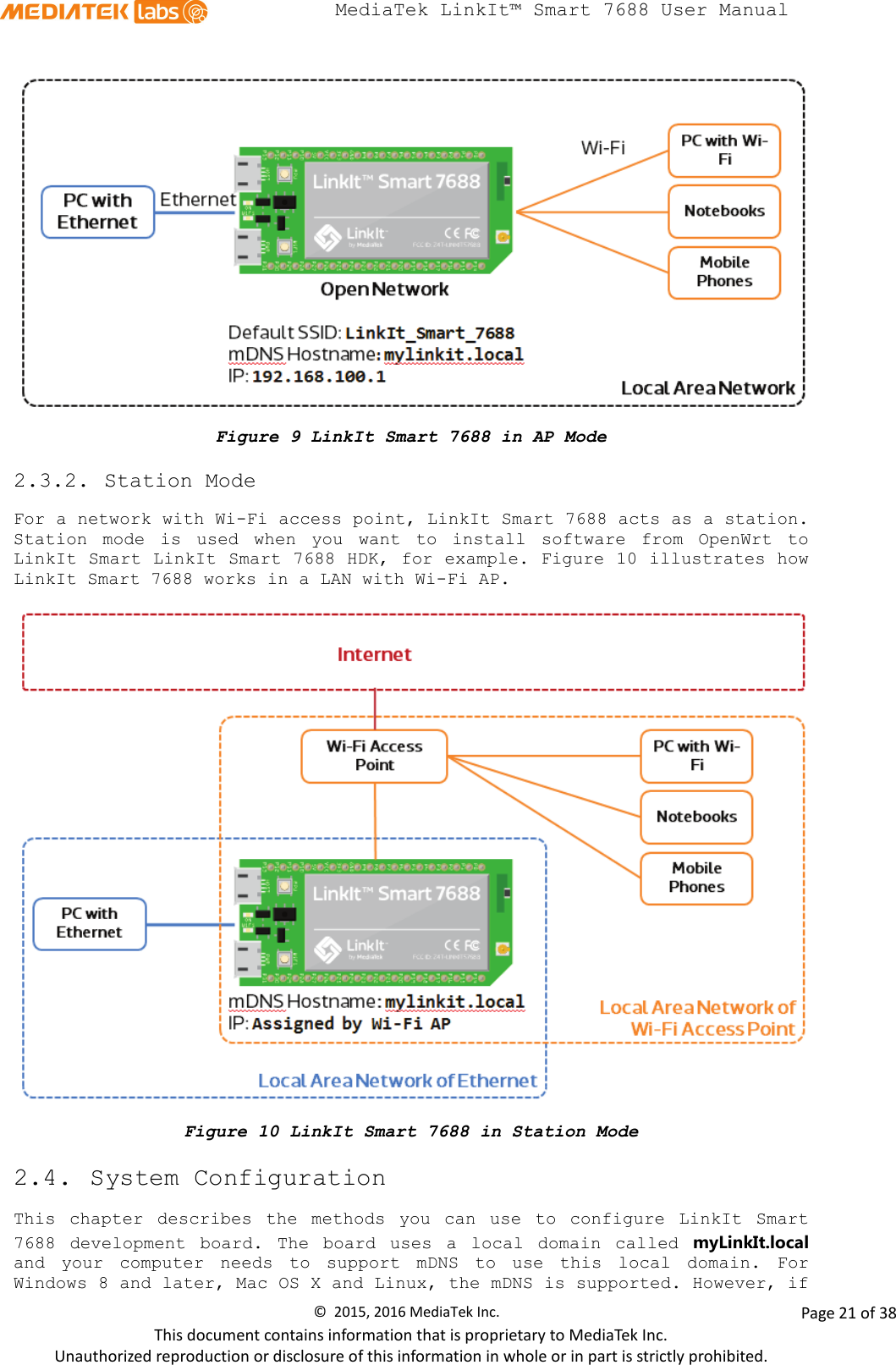

MediaTek LinkIt™ Smart 7688 User Manual Figure 9 LinkIt Smart 7688 in AP Mode 2.3.2. Station Mode For a network with Wi-Fi access point, LinkIt Smart 7688 acts as a station. Station mode is used when you want to install software from OpenWrt to LinkIt Smart LinkIt Smart 7688 HDK, for example. Figure 10 illustrates how LinkIt Smart 7688 works in a LAN with Wi-Fi AP. Figure 10 LinkIt Smart 7688 in Station Mode 2.4. System Configuration This chapter describes the methods you can use to configure LinkIt Smart 7688 development board. The board uses a local domain called myLinkIt.local and your computer needs to support mDNS to use this local domain. For Windows 8 and later, Mac OS X and Linux, the mDNS is supported. However, if © 2015, 2016 MediaTek Inc. Page 21 of 38 This document contains information that is proprietary to MediaTek Inc. Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.

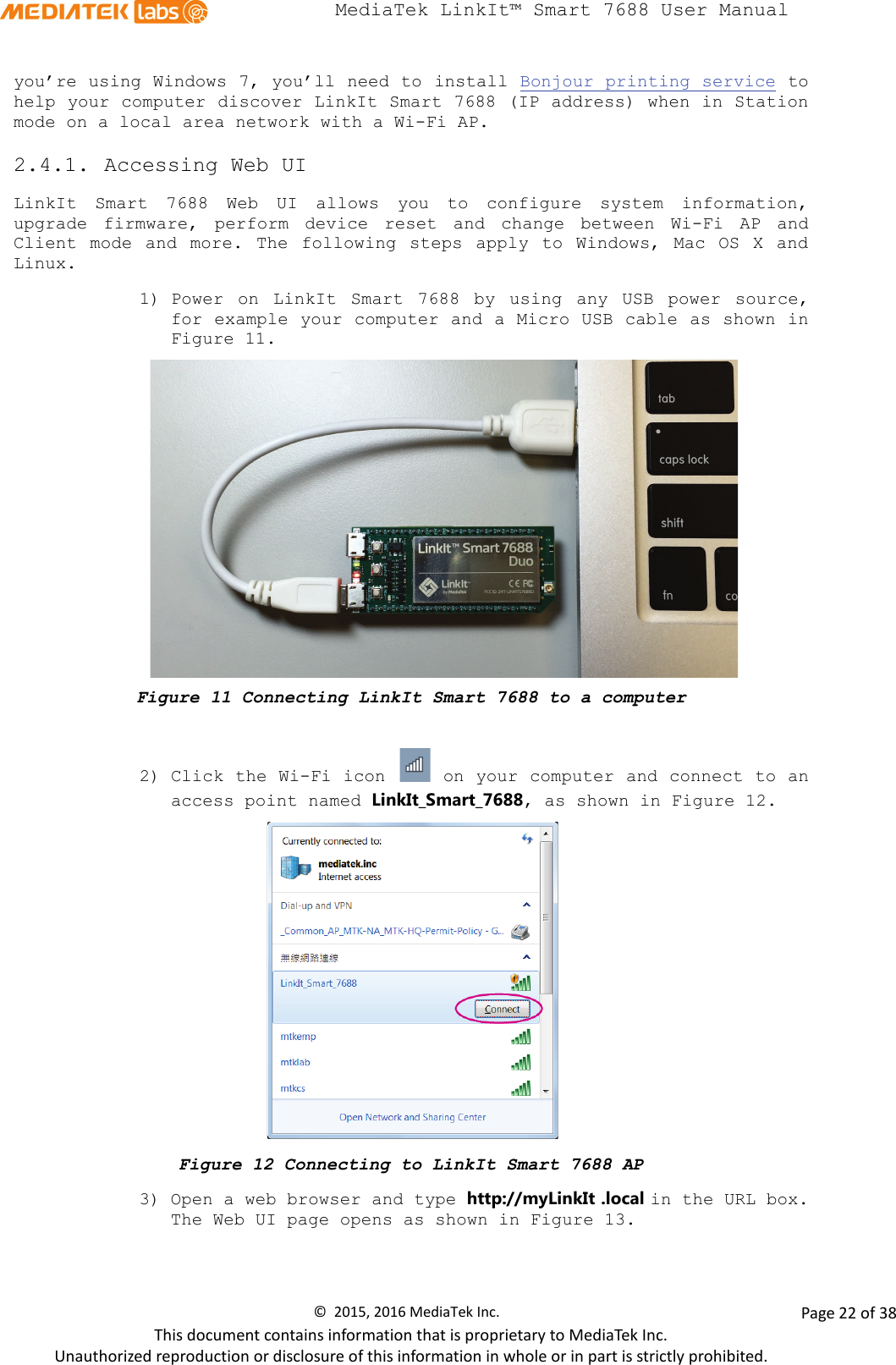

MediaTek LinkIt™ Smart 7688 User Manual you’re using Windows 7, you’ll need to install Bonjour printing service to help your computer discover LinkIt Smart 7688 (IP address) when in Station mode on a local area network with a Wi-Fi AP. 2.4.1. Accessing Web UI LinkIt Smart 7688 Web UI allows you to configure system information, upgrade firmware, perform device reset and change between Wi-Fi AP and Client mode and more. The following steps apply to Windows, Mac OS X and Linux. 1) Power on LinkIt Smart 7688 by using any USB power source, for example your computer and a Micro USB cable as shown in Figure 11. Figure 11 Connecting LinkIt Smart 7688 to a computer 2) Click the Wi-Fi icon on your computer and connect to an access point named LinkIt_Smart_7688, as shown in Figure 12. Figure 12 Connecting to LinkIt Smart 7688 AP 3) Open a web browser and type http://myLinkIt .local in the URL box. The Web UI page opens as shown in Figure 13. © 2015, 2016 MediaTek Inc. Page 22 of 38 This document contains information that is proprietary to MediaTek Inc. Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
MediaTek LinkIt™ Smart 7688 User Manual Figure 13 LinkIt Smart 7688 Web UI Sign In 4) Click on the Password field and set a password using at least 6 alphanumeric characters. Note: You must set a password before using SSH to access system console. 2.4.2. Accessing System Console There are two ways to access the system console on LinkIt Smart 7688 development board. They are described as follows: 2.4.3. Using SSH (Secure Socket Shell) Before you start please make sure you’ve already set a password in the Web UI as described in 2.4.1 “Accessing Web UI” and the LinkIt Smart 7688 is in the same network as your computer. For Mac and Linux, use the Terminal that’s already installed in the computer.  For Windows: 1) Install PuTTY from here. 2) Open PuTTY and a Security Alert window will pop up, click Yes. Then, in the PuTTY Configuration window, type myLinkIt.local in the Host Name box, check the SSH radio button and click Open as shown in Figure 14 . © 2015, 2016 MediaTek Inc. Page 23 of 38 This document contains information that is proprietary to MediaTek Inc. Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.

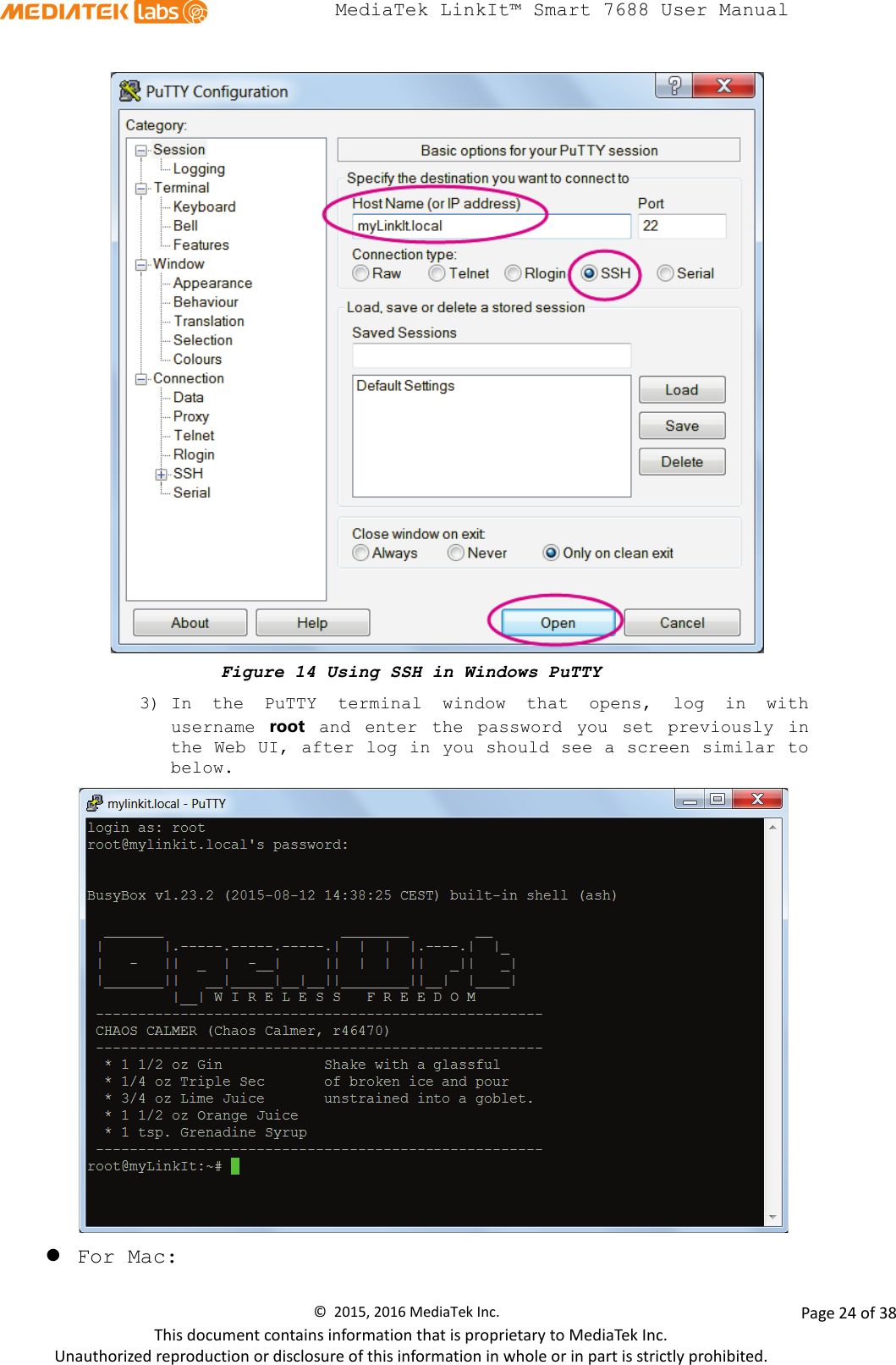

MediaTek LinkIt™ Smart 7688 User Manual Figure 14 Using SSH in Windows PuTTY 3) In the PuTTY terminal window that opens, log in with username root and enter the password you set previously in the Web UI, after log in you should see a screen similar to below.  For Mac: © 2015, 2016 MediaTek Inc. Page 24 of 38 This document contains information that is proprietary to MediaTek Inc. Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.

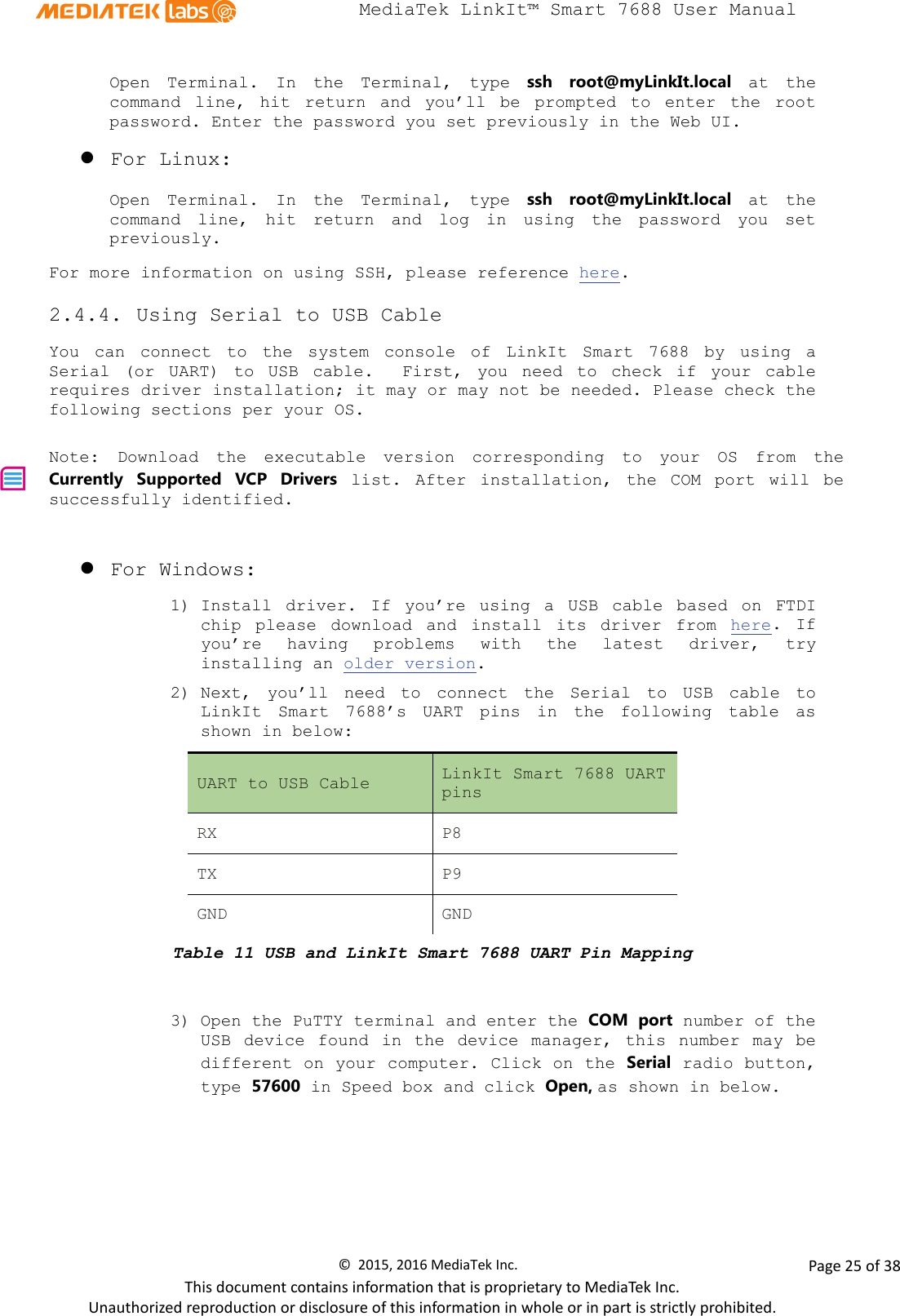

MediaTek LinkIt™ Smart 7688 User Manual Open Terminal. In the Terminal, type ssh root@myLinkIt.local at the command line, hit return and you’ll be prompted to enter the root password. Enter the password you set previously in the Web UI.  For Linux: Open Terminal. In the Terminal, type ssh root@myLinkIt.local at the command line, hit return and log in using the password you set previously. For more information on using SSH, please reference here. 2.4.4. Using Serial to USB Cable You can connect to the system console of LinkIt Smart 7688 by using a Serial (or UART) to USB cable. First, you need to check if your cable requires driver installation; it may or may not be needed. Please check the following sections per your OS. Note: Download the executable version corresponding to your OS from the Currently Supported VCP Drivers list. After installation, the COM port will be successfully identified.  For Windows: 1) Install driver. If you’re using a USB cable based on FTDI chip please download and install its driver from here. If you’re having problems with the latest driver, try installing an older version. 2) Next, you’ll need to connect the Serial to USB cable to LinkIt Smart 7688’s UART pins in the following table as shown in below: UART to USB Cable LinkIt Smart 7688 UART pins RX P8 TX P9 GND GND Table 11 USB and LinkIt Smart 7688 UART Pin Mapping 3) Open the PuTTY terminal and enter the COM port number of the USB device found in the device manager, this number may be different on your computer. Click on the Serial radio button, type 57600 in Speed box and click Open, as shown in below. © 2015, 2016 MediaTek Inc. Page 25 of 38 This document contains information that is proprietary to MediaTek Inc. Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.

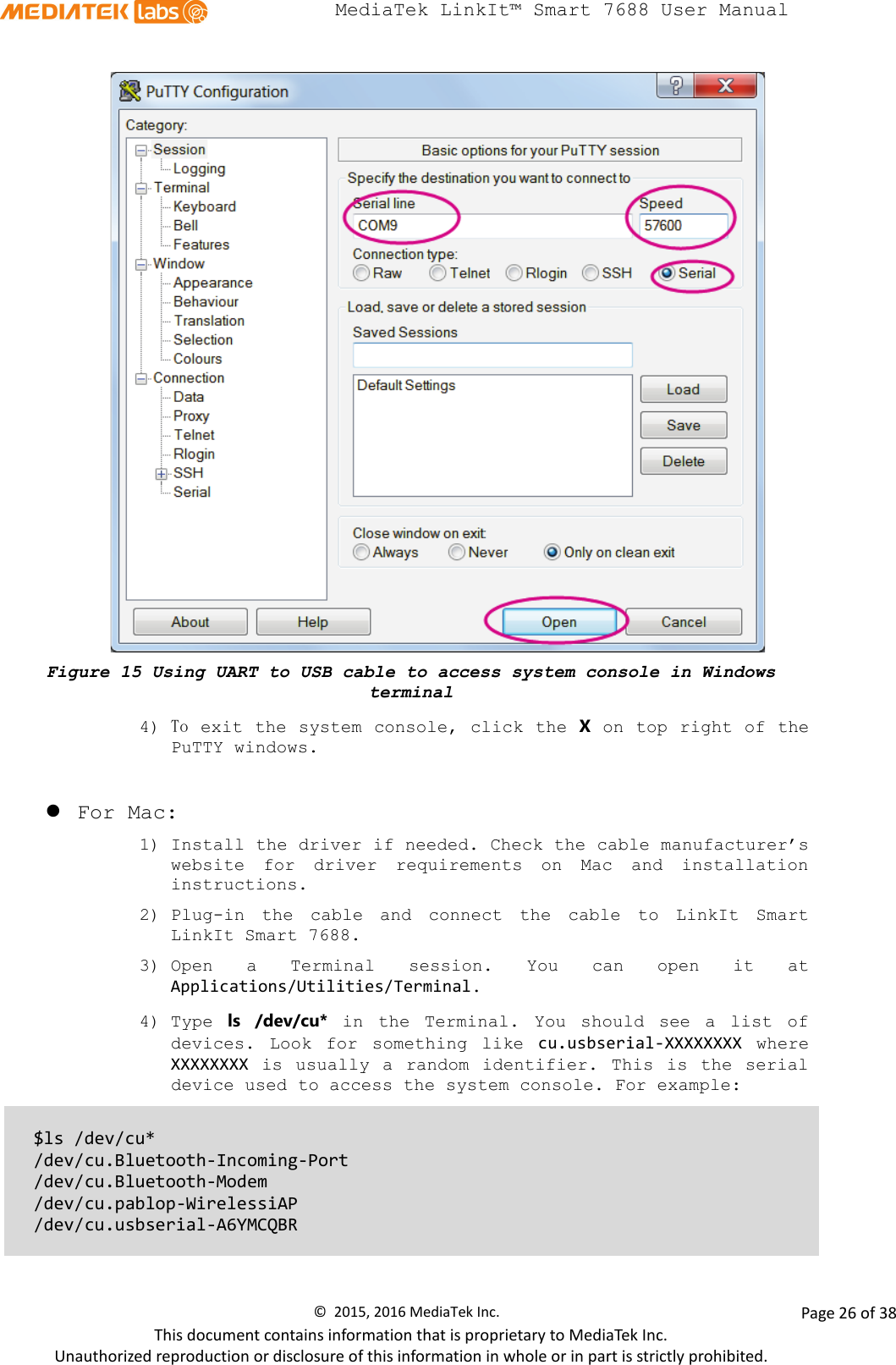

MediaTek LinkIt™ Smart 7688 User Manual Figure 15 Using UART to USB cable to access system console in Windows terminal 4) To exit the system console, click the X on top right of the PuTTY windows.  For Mac: 1) Install the driver if needed. Check the cable manufacturer’s website for driver requirements on Mac and installation instructions. 2) Plug-in the cable and connect the cable to LinkIt Smart LinkIt Smart 7688. 3) Open a Terminal session. You can open it at Applications/Utilities/Terminal. 4) Type ls /dev/cu* in the Terminal. You should see a list of devices. Look for something like cu.usbserial-XXXXXXXX where XXXXXXXX is usually a random identifier. This is the serial device used to access the system console. For example: $ls /dev/cu* /dev/cu.Bluetooth-Incoming-Port /dev/cu.Bluetooth-Modem /dev/cu.pablop-WirelessiAP /dev/cu.usbserial-A6YMCQBR © 2015, 2016 MediaTek Inc. Page 26 of 38 This document contains information that is proprietary to MediaTek Inc. Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.

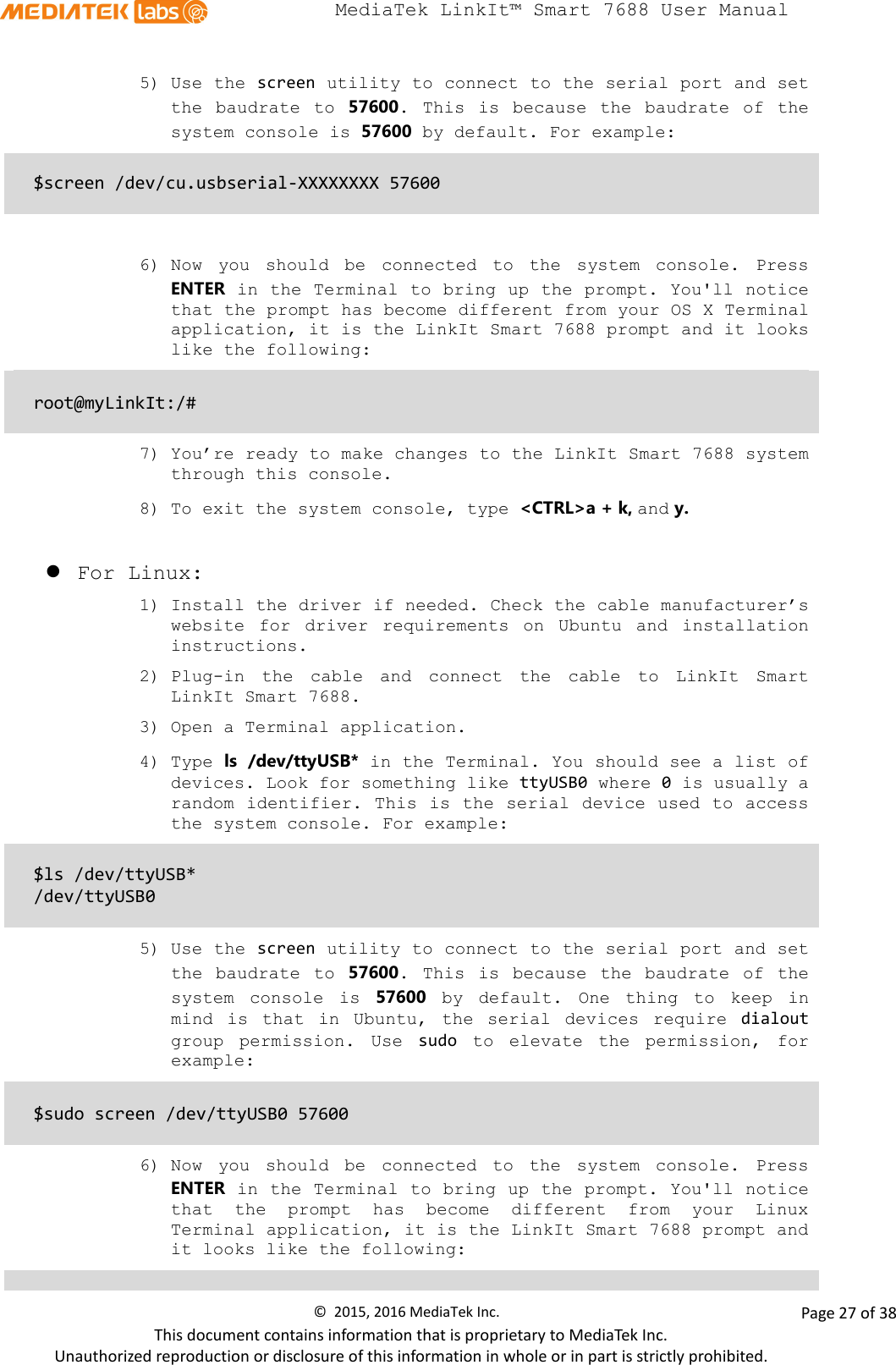

MediaTek LinkIt™ Smart 7688 User Manual 5) Use the screen utility to connect to the serial port and set the baudrate to 57600. This is because the baudrate of the system console is 57600 by default. For example: $screen /dev/cu.usbserial-XXXXXXXX 57600 6) Now you should be connected to the system console. Press ENTER in the Terminal to bring up the prompt. You'll notice that the prompt has become different from your OS X Terminal application, it is the LinkIt Smart 7688 prompt and it looks like the following: root@myLinkIt:/# 7) You’re ready to make changes to the LinkIt Smart 7688 system through this console. 8) To exit the system console, type <CTRL>a + k, and y.  For Linux: 1) Install the driver if needed. Check the cable manufacturer’s website for driver requirements on Ubuntu and installation instructions. 2) Plug-in the cable and connect the cable to LinkIt Smart LinkIt Smart 7688. 3) Open a Terminal application. 4) Type ls /dev/ttyUSB* in the Terminal. You should see a list of devices. Look for something like ttyUSB0 where 0 is usually a random identifier. This is the serial device used to access the system console. For example: $ls /dev/ttyUSB* /dev/ttyUSB0 5) Use the screen utility to connect to the serial port and set the baudrate to 57600. This is because the baudrate of the system console is 57600 by default. One thing to keep in mind is that in Ubuntu, the serial devices require dialout group permission. Use sudo to elevate the permission, for example: $sudo screen /dev/ttyUSB0 57600 6) Now you should be connected to the system console. Press ENTER in the Terminal to bring up the prompt. You'll notice that the prompt has become different from your Linux Terminal application, it is the LinkIt Smart 7688 prompt and it looks like the following: © 2015, 2016 MediaTek Inc. Page 27 of 38 This document contains information that is proprietary to MediaTek Inc. Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.

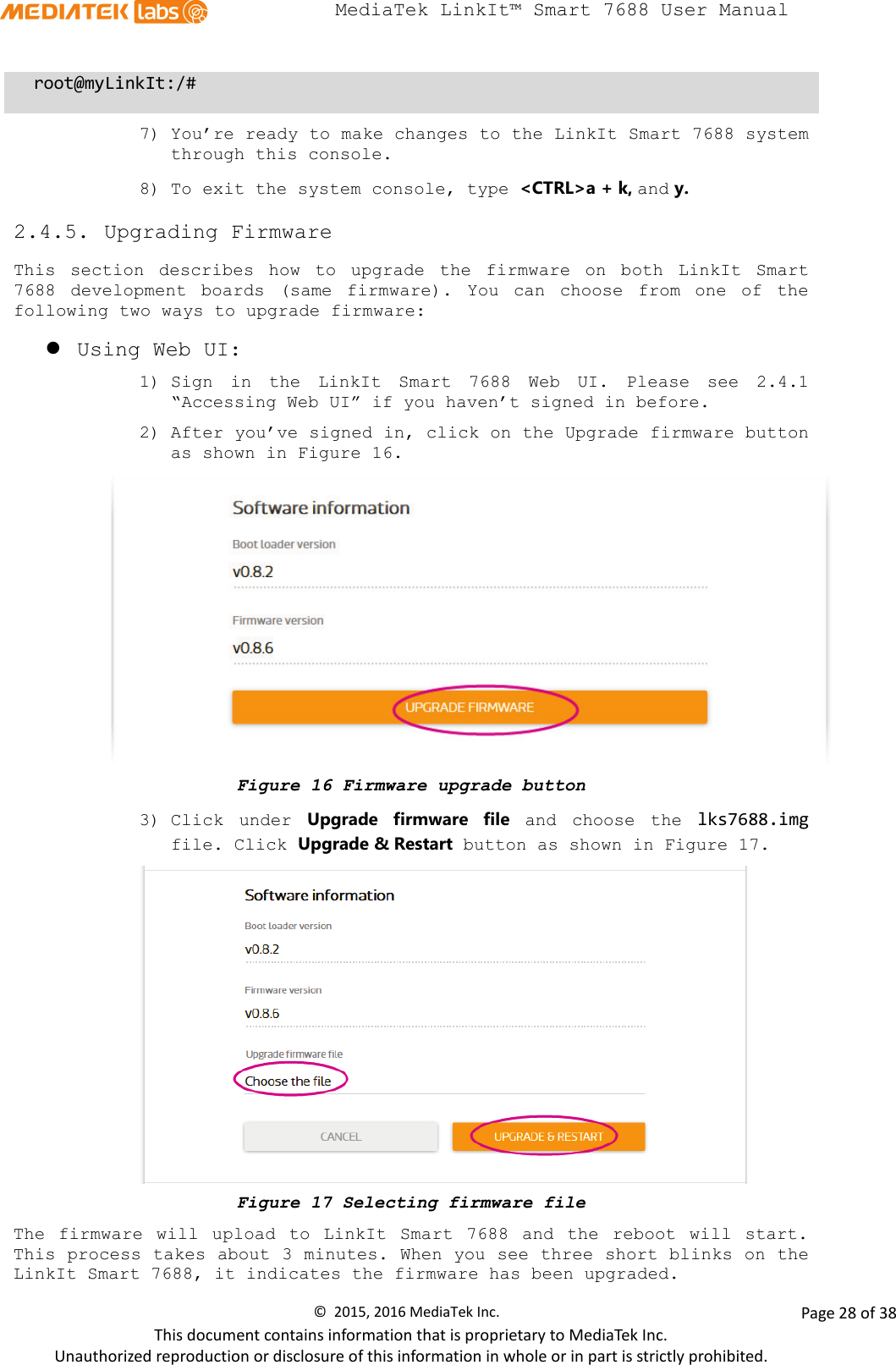

MediaTek LinkIt™ Smart 7688 User Manual root@myLinkIt:/# 7) You’re ready to make changes to the LinkIt Smart 7688 system through this console. 8) To exit the system console, type <CTRL>a + k, and y. 2.4.5. Upgrading Firmware This section describes how to upgrade the firmware on both LinkIt Smart 7688 development boards (same firmware). You can choose from one of the following two ways to upgrade firmware:  Using Web UI: 1) Sign in the LinkIt Smart 7688 Web UI. Please see 2.4.1 “Accessing Web UI” if you haven’t signed in before. 2) After you’ve signed in, click on the Upgrade firmware button as shown in Figure 16. Figure 16 Firmware upgrade button 3) Click under Upgrade firmware file and choose the lks7688.img file. Click Upgrade & Restart button as shown in Figure 17. Figure 17 Selecting firmware file The firmware will upload to LinkIt Smart 7688 and the reboot will start. This process takes about 3 minutes. When you see three short blinks on the LinkIt Smart 7688, it indicates the firmware has been upgraded. © 2015, 2016 MediaTek Inc. Page 28 of 38 This document contains information that is proprietary to MediaTek Inc. Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.

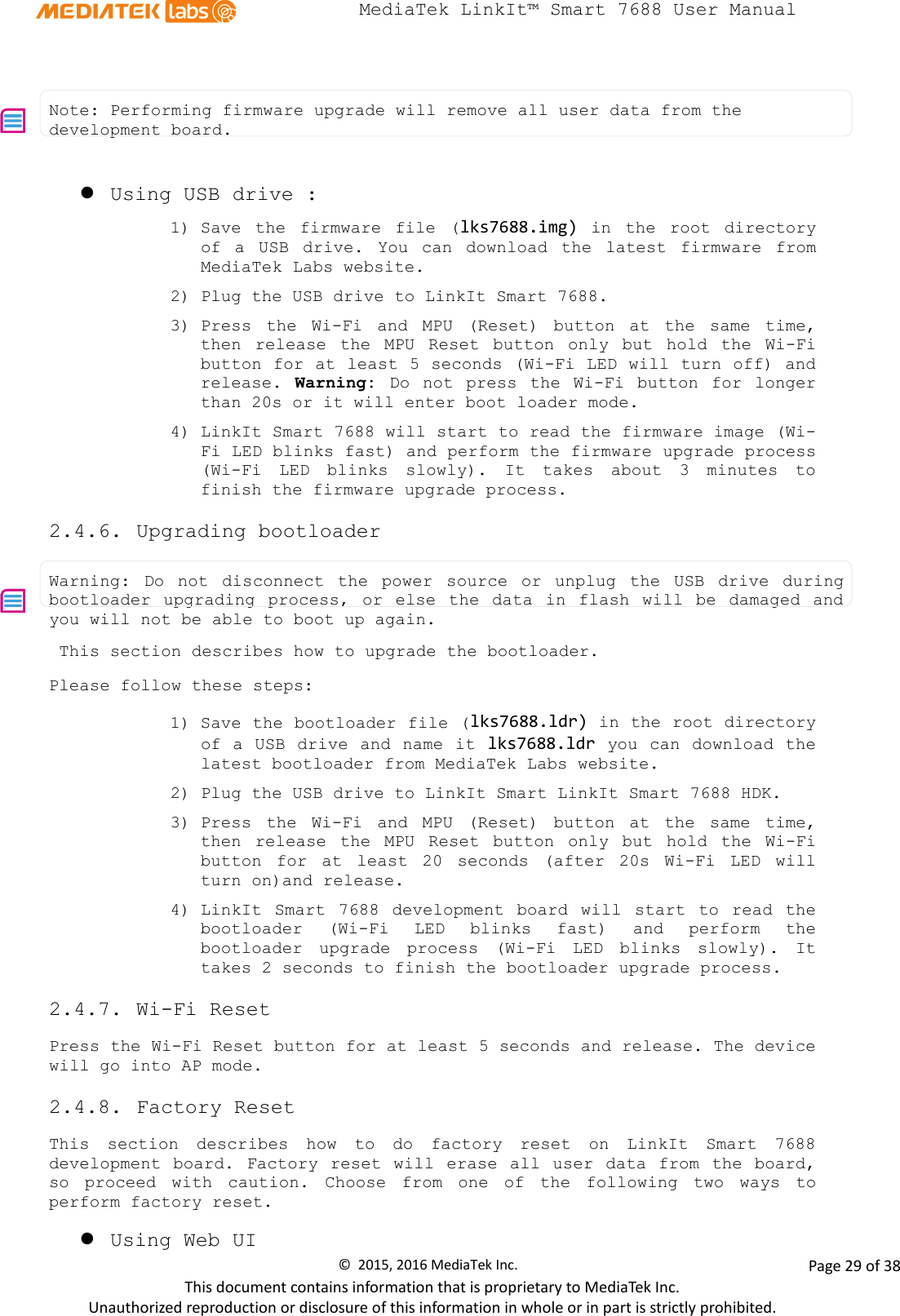

MediaTek LinkIt™ Smart 7688 User Manual Note: Performing firmware upgrade will remove all user data from the development board.  Using USB drive : 1) Save the firmware file (lks7688.img) in the root directory of a USB drive. You can download the latest firmware from MediaTek Labs website. 2) Plug the USB drive to LinkIt Smart 7688. 3) Press the Wi-Fi and MPU (Reset) button at the same time, then release the MPU Reset button only but hold the Wi-Fi button for at least 5 seconds (Wi-Fi LED will turn off) and release. Warning: Do not press the Wi-Fi button for longer than 20s or it will enter boot loader mode. 4) LinkIt Smart 7688 will start to read the firmware image (Wi-Fi LED blinks fast) and perform the firmware upgrade process (Wi-Fi LED blinks slowly). It takes about 3 minutes to finish the firmware upgrade process. 2.4.6. Upgrading bootloader Warning: Do not disconnect the power source or unplug the USB drive during bootloader upgrading process, or else the data in flash will be damaged and you will not be able to boot up again. This section describes how to upgrade the bootloader. Please follow these steps: 1) Save the bootloader file (lks7688.ldr) in the root directory of a USB drive and name it lks7688.ldr you can download the latest bootloader from MediaTek Labs website. 2) Plug the USB drive to LinkIt Smart LinkIt Smart 7688 HDK. 3) Press the Wi-Fi and MPU (Reset) button at the same time, then release the MPU Reset button only but hold the Wi-Fi button for at least 20 seconds (after 20s Wi-Fi LED will turn on)and release. 4) LinkIt Smart 7688 development board will start to read the bootloader (Wi-Fi LED blinks fast) and perform the bootloader upgrade process (Wi-Fi LED blinks slowly). It takes 2 seconds to finish the bootloader upgrade process. 2.4.7. Wi-Fi Reset Press the Wi-Fi Reset button for at least 5 seconds and release. The device will go into AP mode. 2.4.8. Factory Reset This section describes how to do factory reset on LinkIt Smart 7688 development board. Factory reset will erase all user data from the board, so proceed with caution. Choose from one of the following two ways to perform factory reset.  Using Web UI © 2015, 2016 MediaTek Inc. Page 29 of 38 This document contains information that is proprietary to MediaTek Inc. Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.

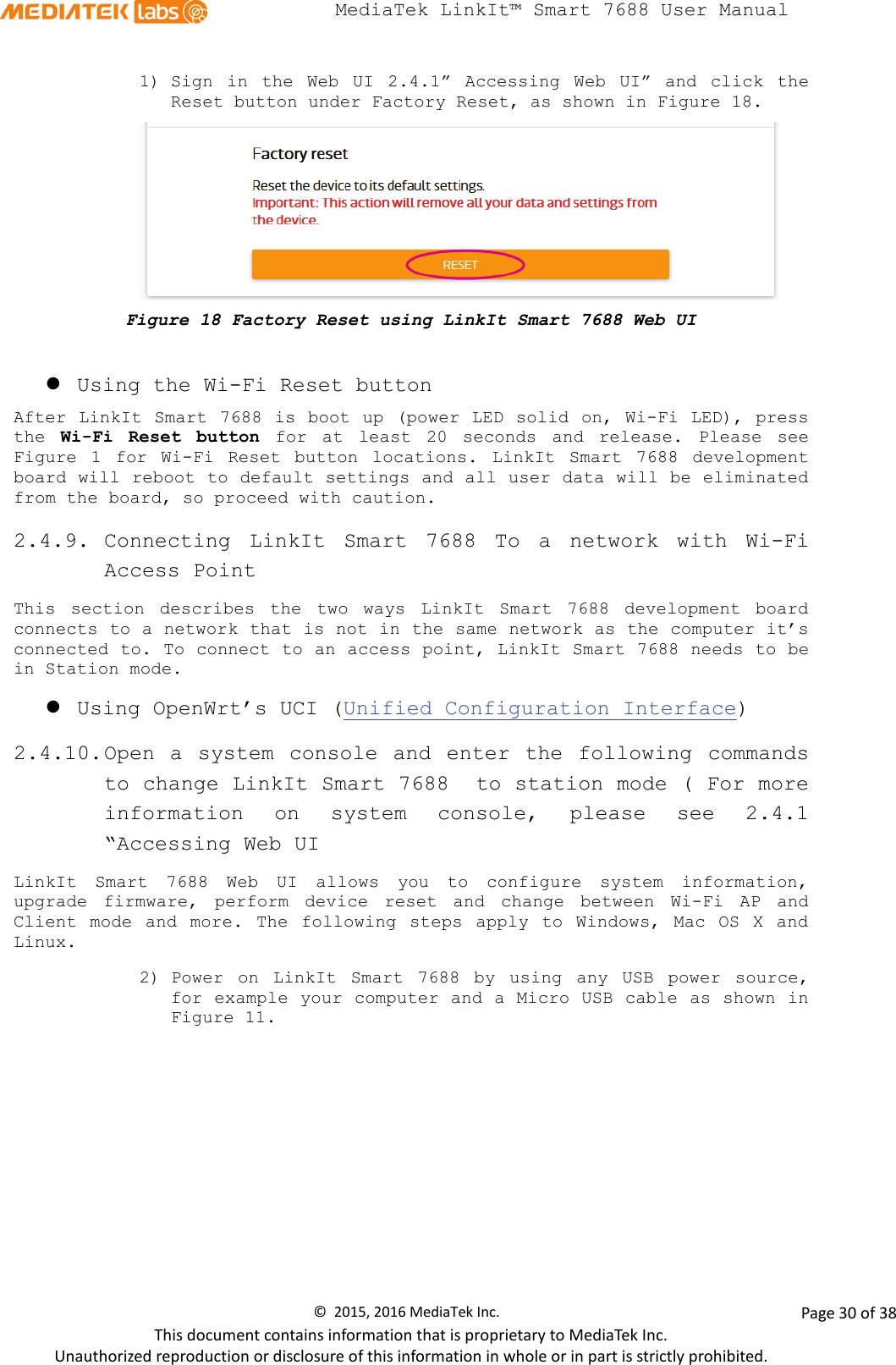

MediaTek LinkIt™ Smart 7688 User Manual 1) Sign in the Web UI 2.4.1” Accessing Web UI” and click the Reset button under Factory Reset, as shown in Figure 18. Figure 18 Factory Reset using LinkIt Smart 7688 Web UI  Using the Wi-Fi Reset button After LinkIt Smart 7688 is boot up (power LED solid on, Wi-Fi LED), press the Wi-Fi Reset button for at least 20 seconds and release. Please see Figure 1 for Wi-Fi Reset button locations. LinkIt Smart 7688 development board will reboot to default settings and all user data will be eliminated from the board, so proceed with caution. 2.4.9. Connecting LinkIt Smart 7688 To a network with Wi-Fi Access Point This section describes the two ways LinkIt Smart 7688 development board connects to a network that is not in the same network as the computer it’s connected to. To connect to an access point, LinkIt Smart 7688 needs to be in Station mode.  Using OpenWrt’s UCI (Unified Configuration Interface) 2.4.10. Open a system console and enter the following commands to change LinkIt Smart 7688 to station mode ( For more information on system console, please see 2.4.1 “Accessing Web UI LinkIt Smart 7688 Web UI allows you to configure system information, upgrade firmware, perform device reset and change between Wi-Fi AP and Client mode and more. The following steps apply to Windows, Mac OS X and Linux. 2) Power on LinkIt Smart 7688 by using any USB power source, for example your computer and a Micro USB cable as shown in Figure 11. © 2015, 2016 MediaTek Inc. Page 30 of 38 This document contains information that is proprietary to MediaTek Inc. Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.

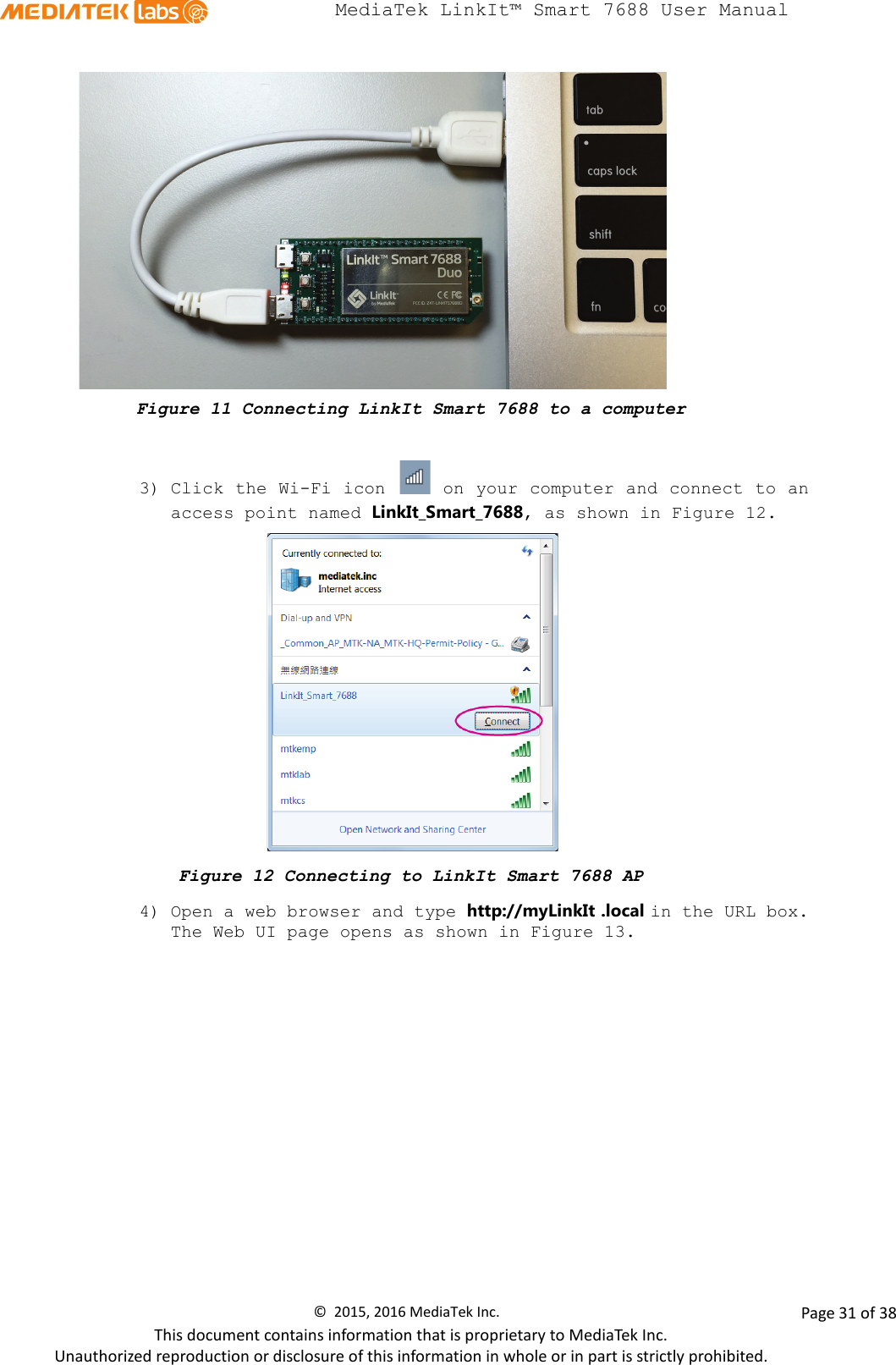

MediaTek LinkIt™ Smart 7688 User Manual Figure 11 Connecting LinkIt Smart 7688 to a computer 3) Click the Wi-Fi icon on your computer and connect to an access point named LinkIt_Smart_7688, as shown in Figure 12. Figure 12 Connecting to LinkIt Smart 7688 AP 4) Open a web browser and type http://myLinkIt .local in the URL box. The Web UI page opens as shown in Figure 13. © 2015, 2016 MediaTek Inc. Page 31 of 38 This document contains information that is proprietary to MediaTek Inc. Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.

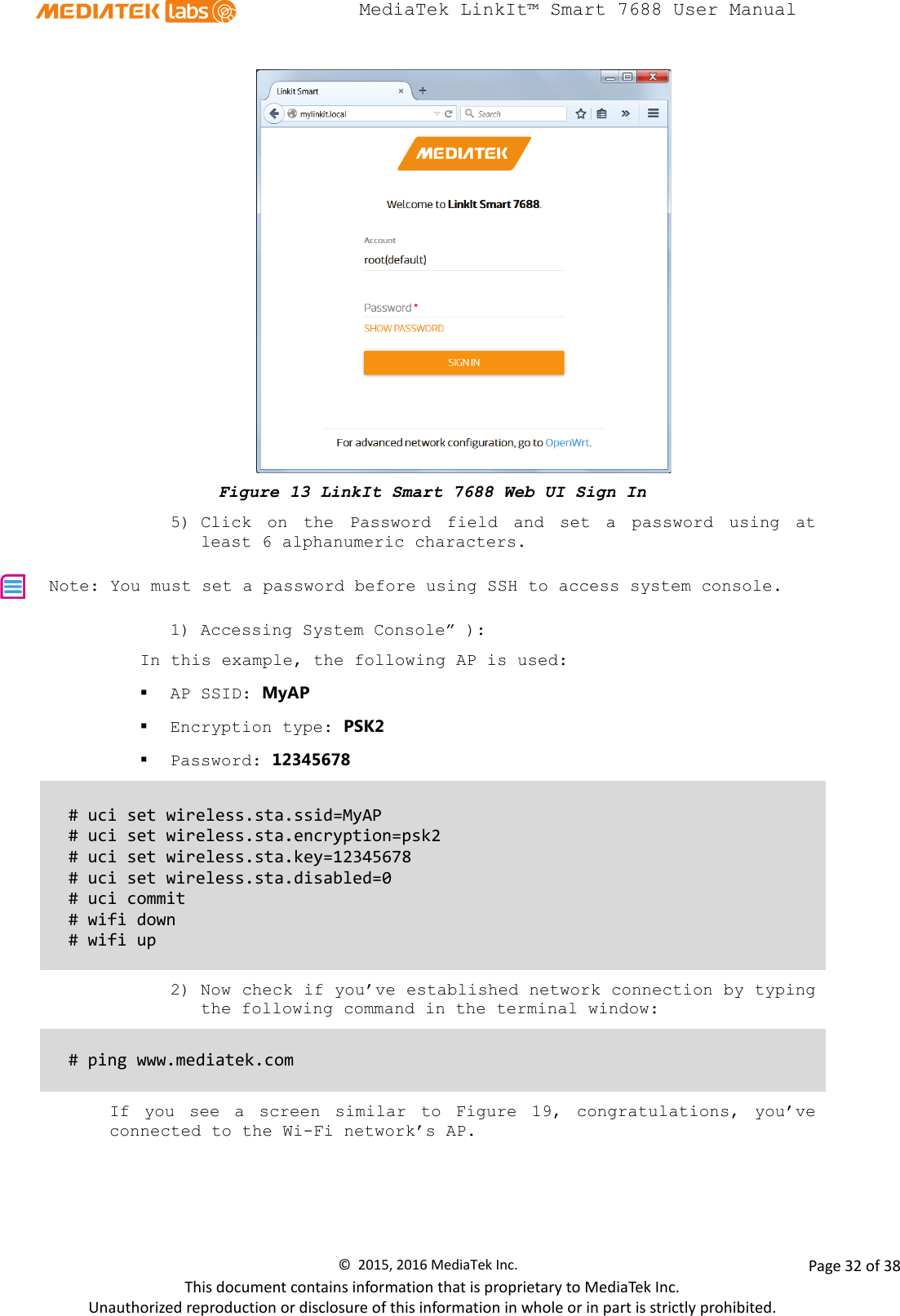

MediaTek LinkIt™ Smart 7688 User Manual Figure 13 LinkIt Smart 7688 Web UI Sign In 5) Click on the Password field and set a password using at least 6 alphanumeric characters. Note: You must set a password before using SSH to access system console. 1) Accessing System Console” ): In this example, the following AP is used:  AP SSID: MyAP  Encryption type: PSK2  Password: 12345678 # uci set wireless.sta.ssid=MyAP # uci set wireless.sta.encryption=psk2 # uci set wireless.sta.key=12345678 # uci set wireless.sta.disabled=0 # uci commit # wifi down # wifi up 2) Now check if you’ve established network connection by typing the following command in the terminal window: # ping www.mediatek.com If you see a screen similar to Figure 19, congratulations, you’ve connected to the Wi-Fi network’s AP. © 2015, 2016 MediaTek Inc. Page 32 of 38 This document contains information that is proprietary to MediaTek Inc. Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.

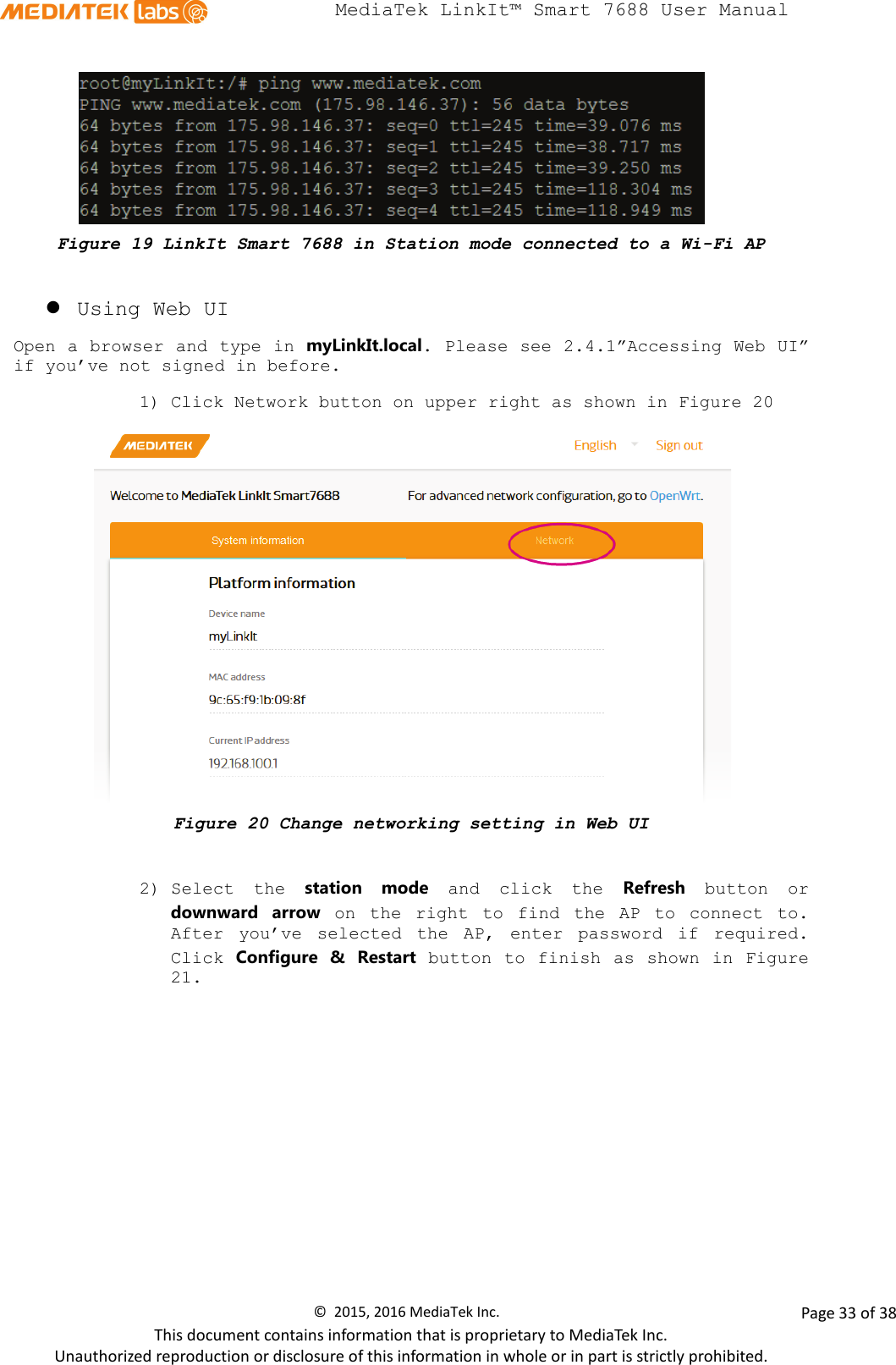

MediaTek LinkIt™ Smart 7688 User Manual Figure 19 LinkIt Smart 7688 in Station mode connected to a Wi-Fi AP  Using Web UI Open a browser and type in myLinkIt.local. Please see 2.4.1”Accessing Web UI” if you’ve not signed in before. 1) Click Network button on upper right as shown in Figure 20 Figure 20 Change networking setting in Web UI 2) Select the station mode and click the Refresh button or downward arrow on the right to find the AP to connect to. After you’ve selected the AP, enter password if required. Click Configure & Restart button to finish as shown in Figure 21. © 2015, 2016 MediaTek Inc. Page 33 of 38 This document contains information that is proprietary to MediaTek Inc. Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.

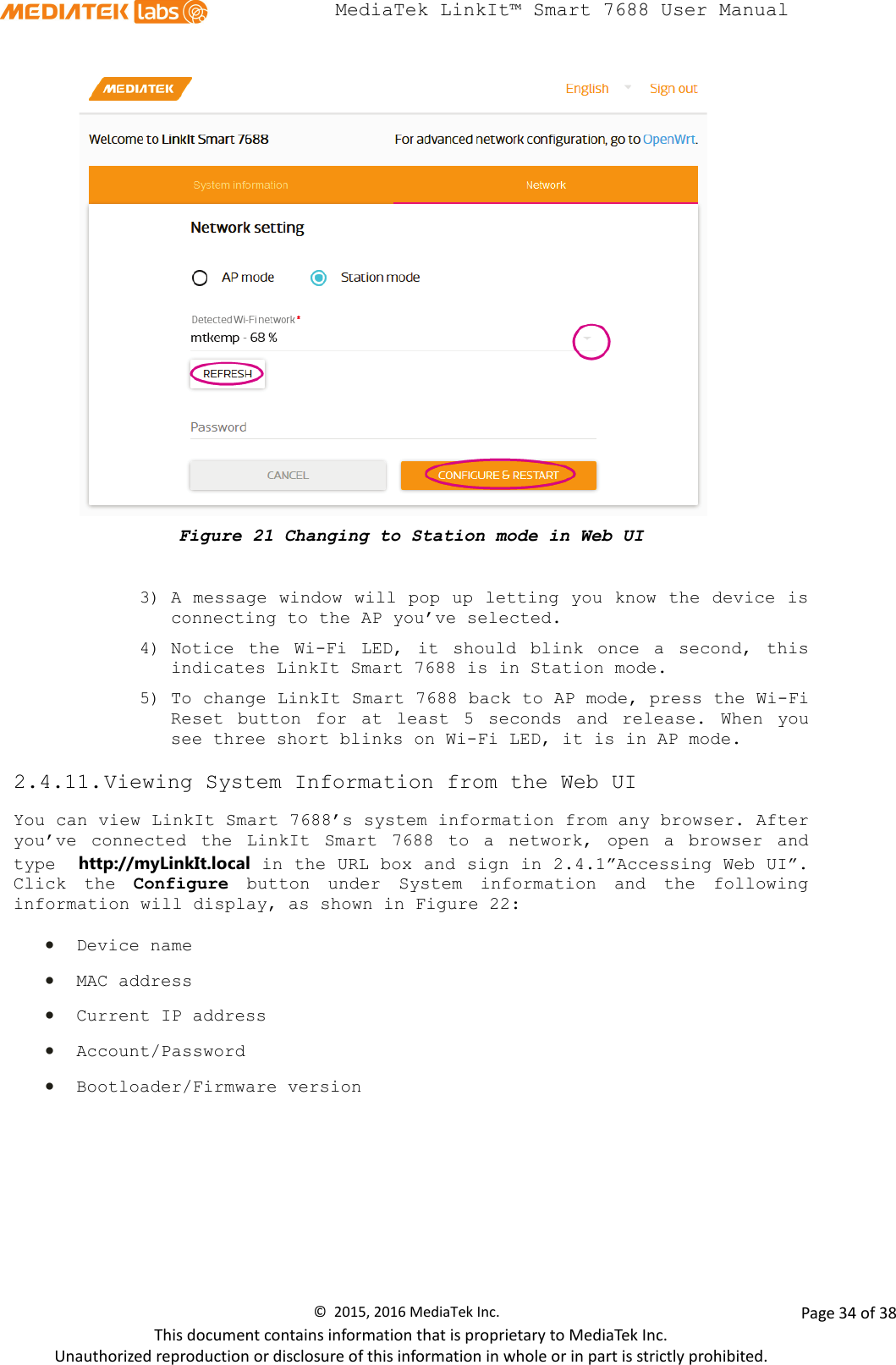

MediaTek LinkIt™ Smart 7688 User Manual Figure 21 Changing to Station mode in Web UI 3) A message window will pop up letting you know the device is connecting to the AP you’ve selected. 4) Notice the Wi-Fi LED, it should blink once a second, this indicates LinkIt Smart 7688 is in Station mode. 5) To change LinkIt Smart 7688 back to AP mode, press the Wi-Fi Reset button for at least 5 seconds and release. When you see three short blinks on Wi-Fi LED, it is in AP mode. 2.4.11. Viewing System Information from the Web UI You can view LinkIt Smart 7688’s system information from any browser. After you’ve connected the LinkIt Smart 7688 to a network, open a browser and type http://myLinkIt.local in the URL box and sign in 2.4.1”Accessing Web UI”. Click the Configure button under System information and the following information will display, as shown in Figure 22: • Device name • MAC address • Current IP address • Account/Password • Bootloader/Firmware version © 2015, 2016 MediaTek Inc. Page 34 of 38 This document contains information that is proprietary to MediaTek Inc. Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.

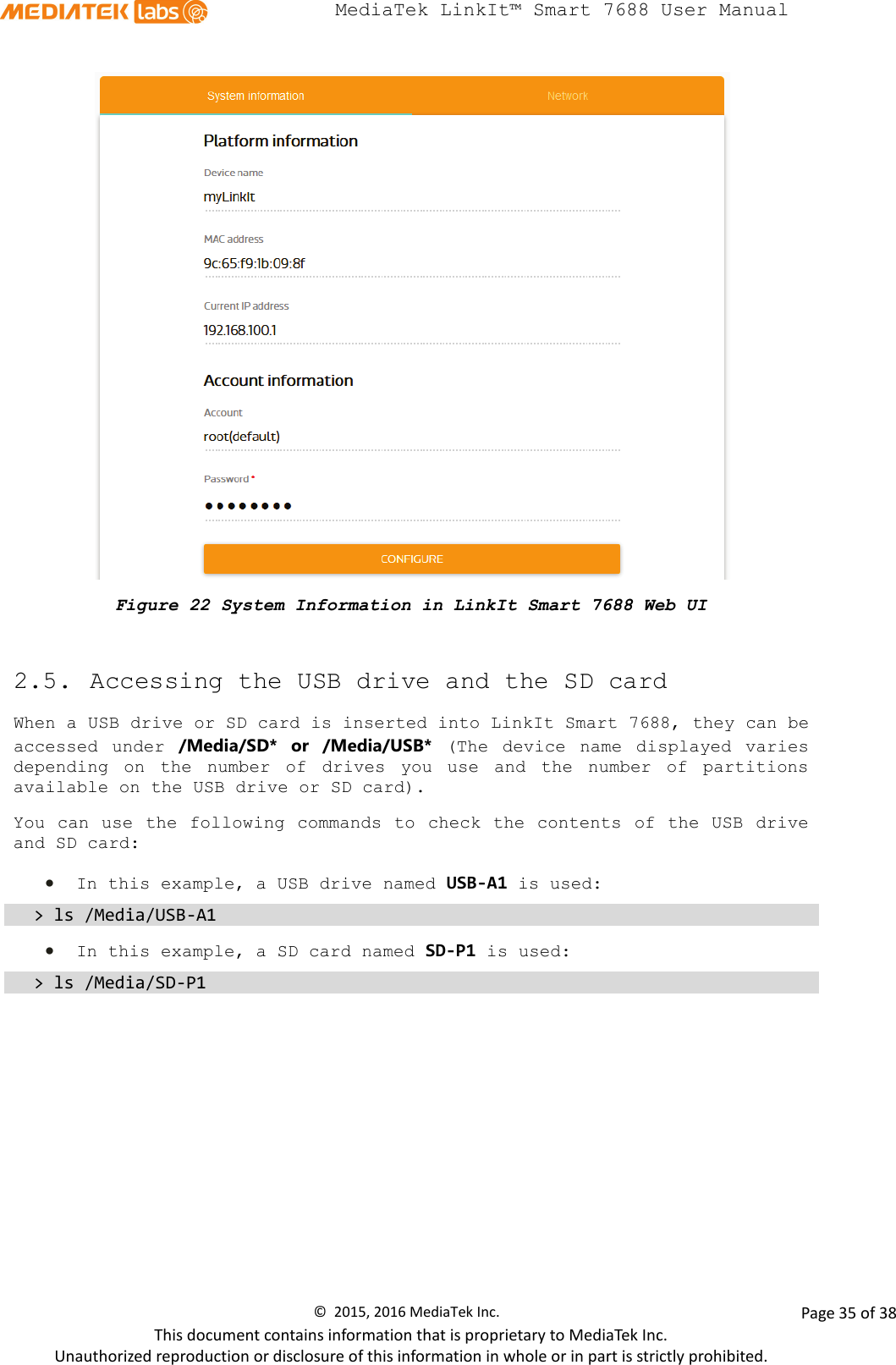

MediaTek LinkIt™ Smart 7688 User Manual Figure 22 System Information in LinkIt Smart 7688 Web UI 2.5. Accessing the USB drive and the SD card When a USB drive or SD card is inserted into LinkIt Smart 7688, they can be accessed under /Media/SD* or /Media/USB* (The device name displayed varies depending on the number of drives you use and the number of partitions available on the USB drive or SD card). You can use the following commands to check the contents of the USB drive and SD card: • In this example, a USB drive named USB-A1 is used: > ls /Media/USB-A1 • In this example, a SD card named SD-P1 is used: > ls /Media/SD-P1 © 2015, 2016 MediaTek Inc. Page 35 of 38 This document contains information that is proprietary to MediaTek Inc. Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.

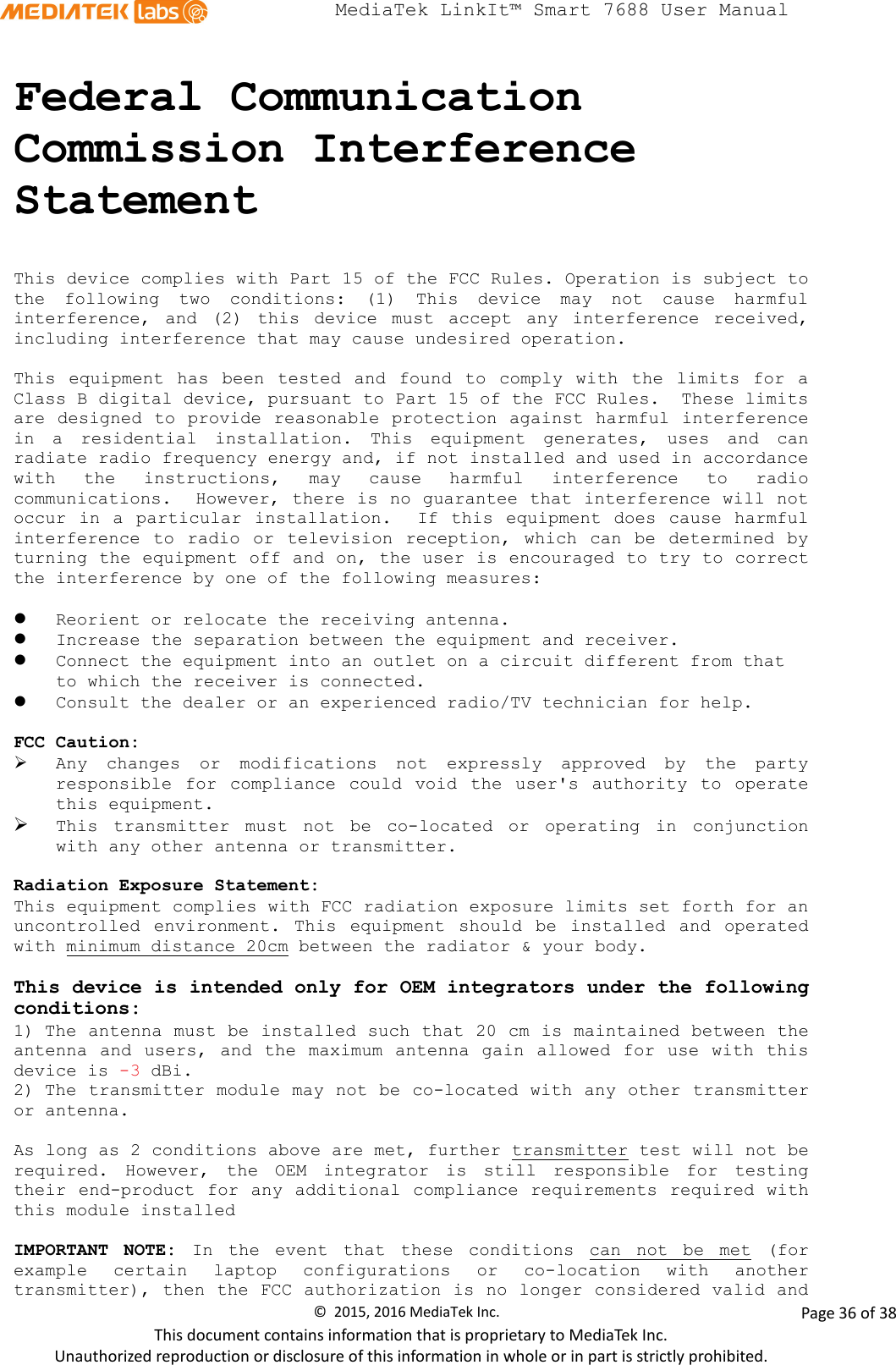

MediaTek LinkIt™ Smart 7688 User Manual Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. FCC Caution:  Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.  This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and the maximum antenna gain allowed for use with this device is -3 dBi. 2) The transmitter module may not be co-located with any other transmitter or antenna. As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and © 2015, 2016 MediaTek Inc. Page 36 of 38 This document contains information that is proprietary to MediaTek Inc. Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.

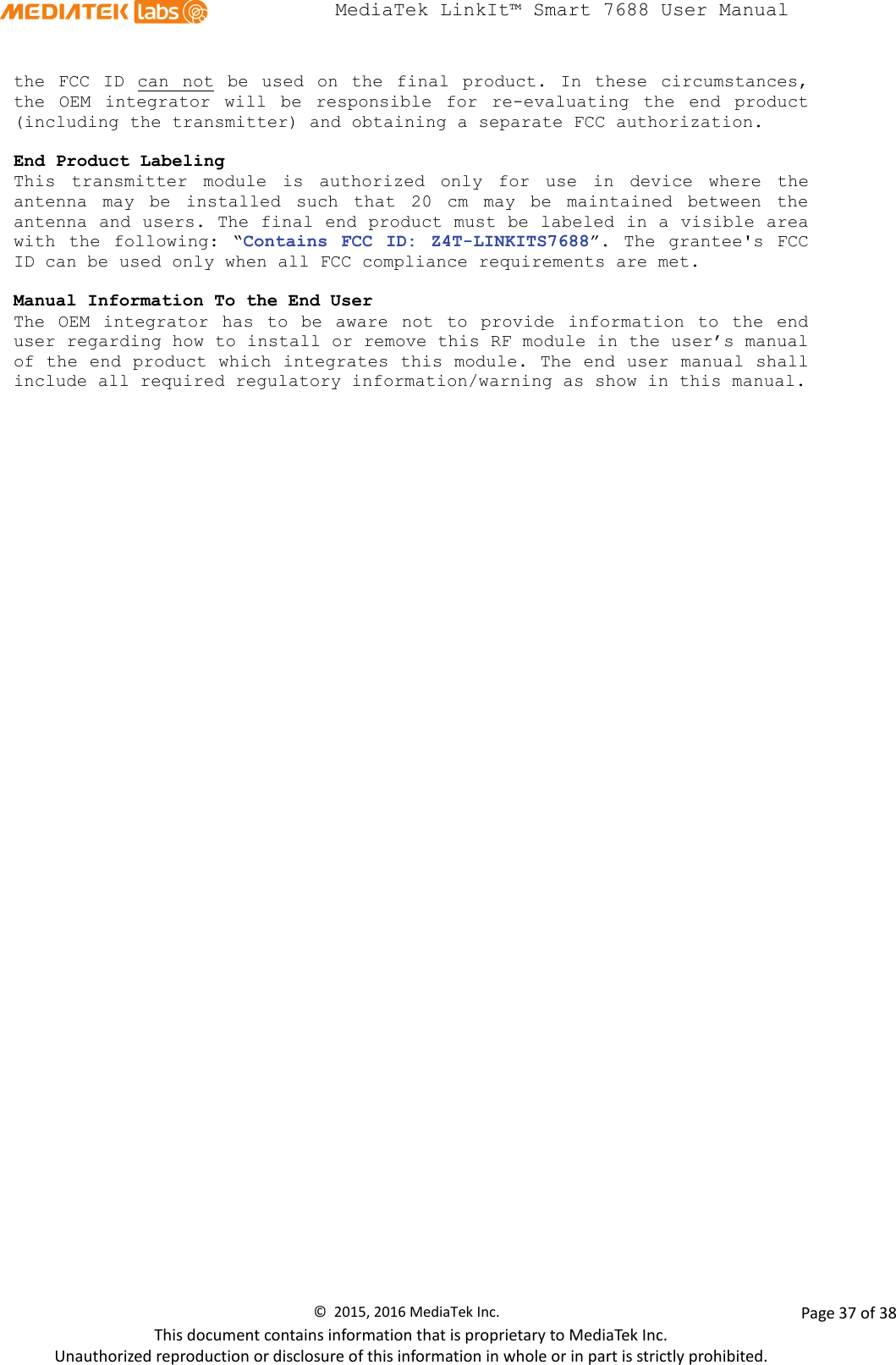

MediaTek LinkIt™ Smart 7688 User Manual the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “Contains FCC ID: Z4T-LINKITS7688”. The grantee's FCC ID can be used only when all FCC compliance requirements are met. Manual Information To the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module. The end user manual shall include all required regulatory information/warning as show in this manual. © 2015, 2016 MediaTek Inc. Page 37 of 38 This document contains information that is proprietary to MediaTek Inc. Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
