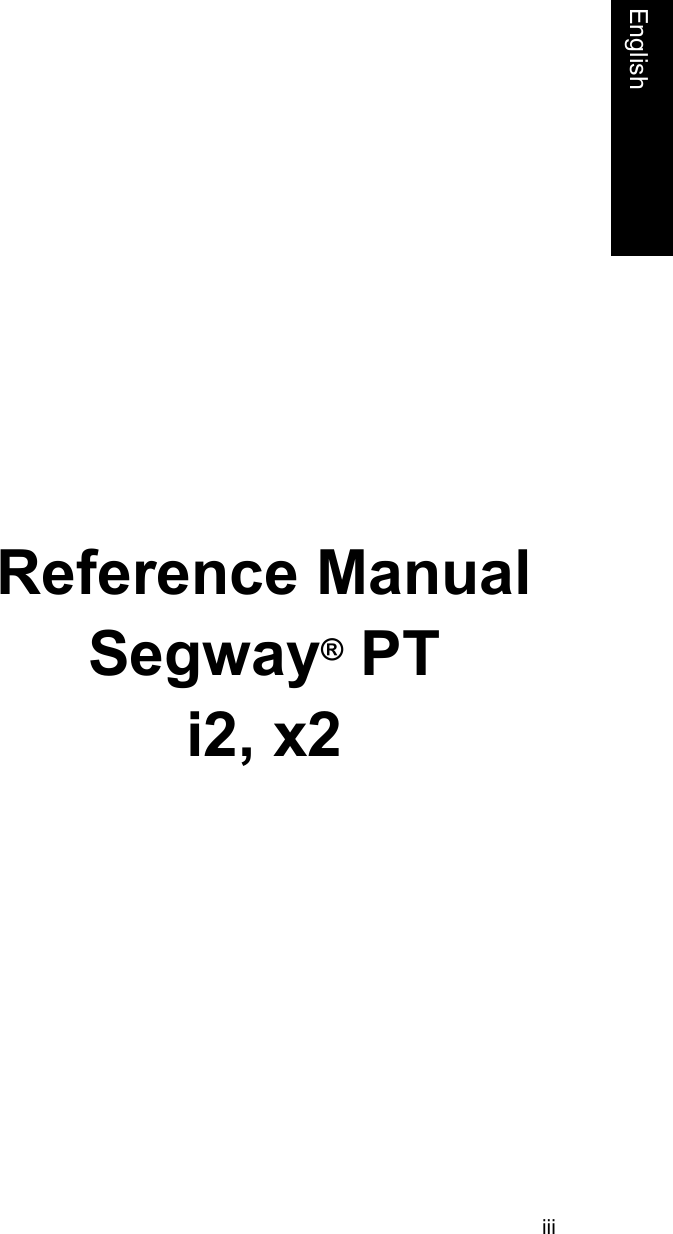

iiiFrenchEnglishReference ManualSegway® PTi2, x2

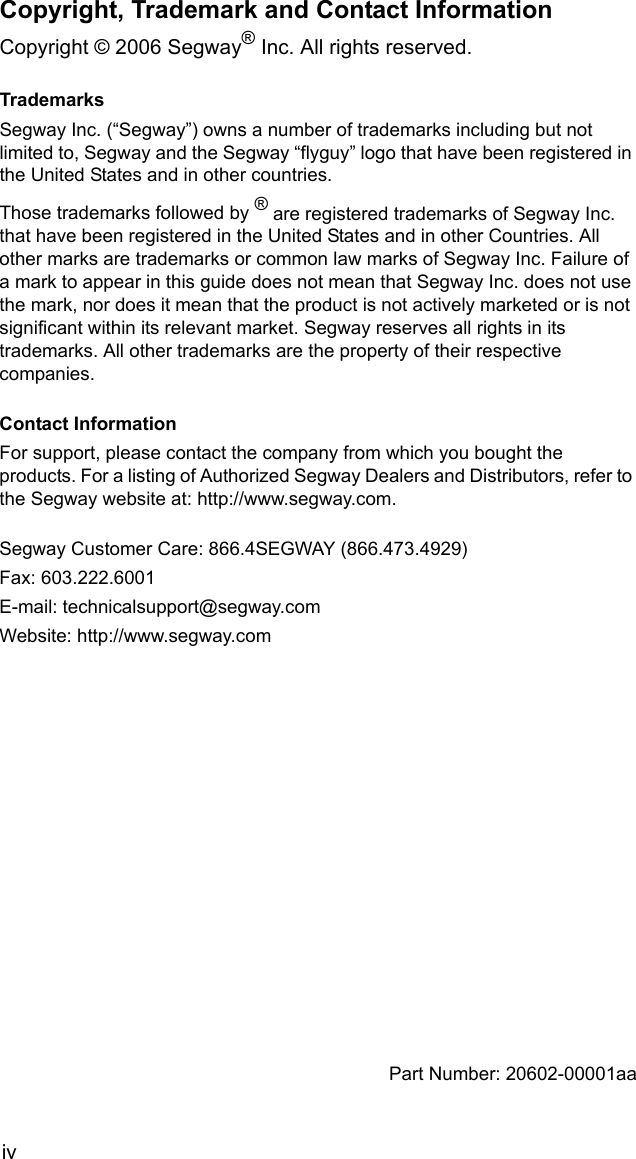

ivCopyright, Trademark and Contact InformationCopyright © 2006 Segway® Inc. All rights reserved.TrademarksSegway Inc. (“Segway”) owns a number of trademarks including but not limited to, Segway and the Segway “flyguy” logo that have been registered in the United States and in other countries. Those trademarks followed by ® are registered trademarks of Segway Inc. that have been registered in the United States and in other Countries. All other marks are trademarks or common law marks of Segway Inc. Failure of a mark to appear in this guide does not mean that Segway Inc. does not use the mark, nor does it mean that the product is not actively marketed or is not significant within its relevant market. Segway reserves all rights in its trademarks. All other trademarks are the property of their respective companies.Contact InformationFor support, please contact the company from which you bought the products. For a listing of Authorized Segway Dealers and Distributors, refer to the Segway website at: http://www.segway.com.Segway Customer Care: 866.4SEGWAY (866.473.4929)Fax: 603.222.6001E-mail: technicalsupport@segway.com Website: http://www.segway.comPart Number: 20602-00001aa

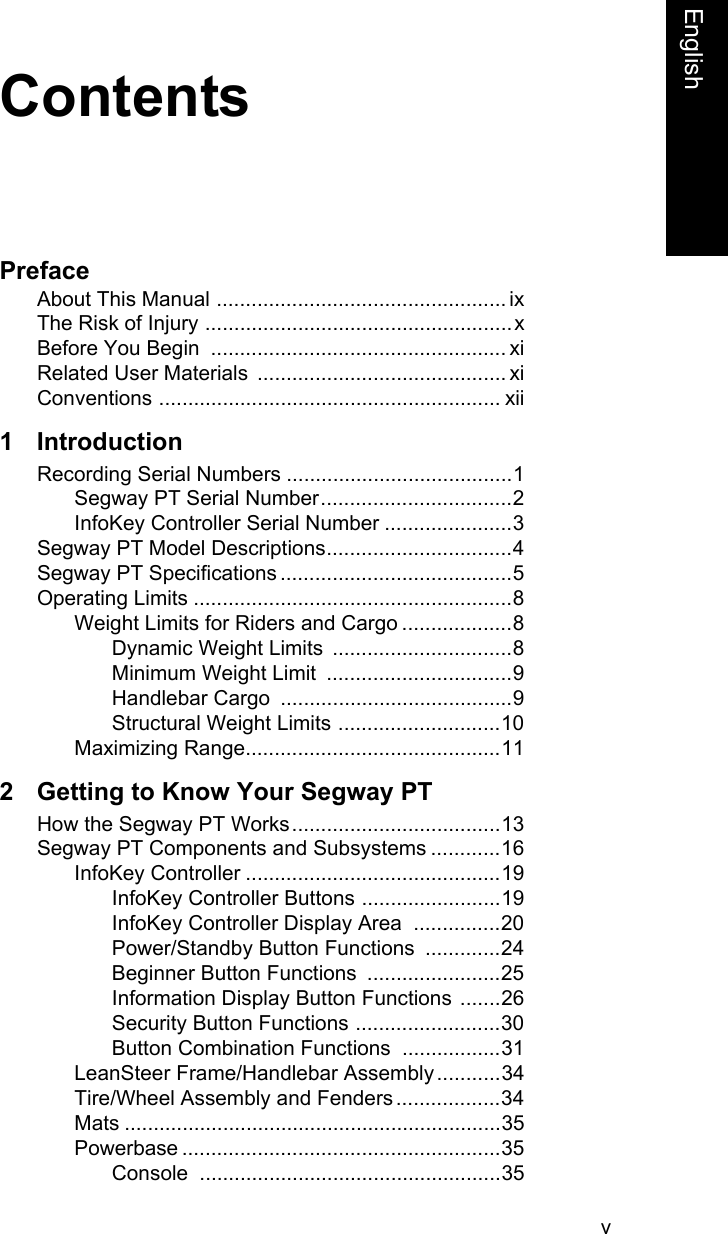

vEnglishContentsPrefaceAbout This Manual .................................................. ixThe Risk of Injury .....................................................xBefore You Begin ................................................... xiRelated User Materials ........................................... xiConventions ........................................................... xii1 IntroductionRecording Serial Numbers .......................................1Segway PT Serial Number.................................2InfoKey Controller Serial Number ......................3Segway PT Model Descriptions................................4Segway PT Specifications ........................................5Operating Limits .......................................................8Weight Limits for Riders and Cargo ...................8Dynamic Weight Limits ...............................8Minimum Weight Limit ................................9Handlebar Cargo ........................................9Structural Weight Limits ............................10Maximizing Range............................................112 Getting to Know Your Segway PTHow the Segway PT Works....................................13Segway PT Components and Subsystems ............16InfoKey Controller ............................................19InfoKey Controller Buttons ........................19InfoKey Controller Display Area ...............20Power/Standby Button Functions .............24Beginner Button Functions .......................25Information Display Button Functions .......26Security Button Functions .........................30Button Combination Functions .................31LeanSteer Frame/Handlebar Assembly...........34Tire/Wheel Assembly and Fenders ..................34Mats .................................................................35Powerbase .......................................................35Console ....................................................35

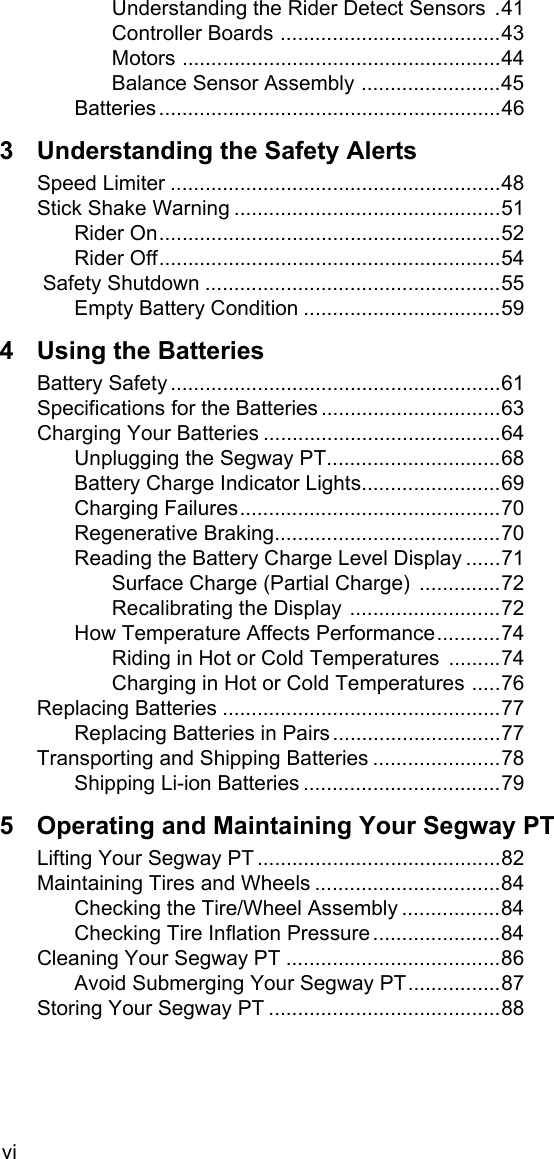

viUnderstanding the Rider Detect Sensors .41Controller Boards ......................................43Motors .......................................................44Balance Sensor Assembly ........................45Batteries...........................................................463 Understanding the Safety AlertsSpeed Limiter .........................................................48Stick Shake Warning ..............................................51Rider On...........................................................52Rider Off...........................................................54 Safety Shutdown ...................................................55Empty Battery Condition ..................................594 Using the BatteriesBattery Safety .........................................................61Specifications for the Batteries ...............................63Charging Your Batteries .........................................64Unplugging the Segway PT..............................68Battery Charge Indicator Lights........................69Charging Failures.............................................70Regenerative Braking.......................................70Reading the Battery Charge Level Display ......71Surface Charge (Partial Charge) ..............72Recalibrating the Display ..........................72How Temperature Affects Performance...........74Riding in Hot or Cold Temperatures .........74Charging in Hot or Cold Temperatures .....76Replacing Batteries ................................................77Replacing Batteries in Pairs .............................77Transporting and Shipping Batteries ......................78Shipping Li-ion Batteries ..................................795 Operating and Maintaining Your Segway PTLifting Your Segway PT ..........................................82Maintaining Tires and Wheels ................................84Checking the Tire/Wheel Assembly .................84Checking Tire Inflation Pressure ......................84Cleaning Your Segway PT .....................................86Avoid Submerging Your Segway PT................87Storing Your Segway PT ........................................88

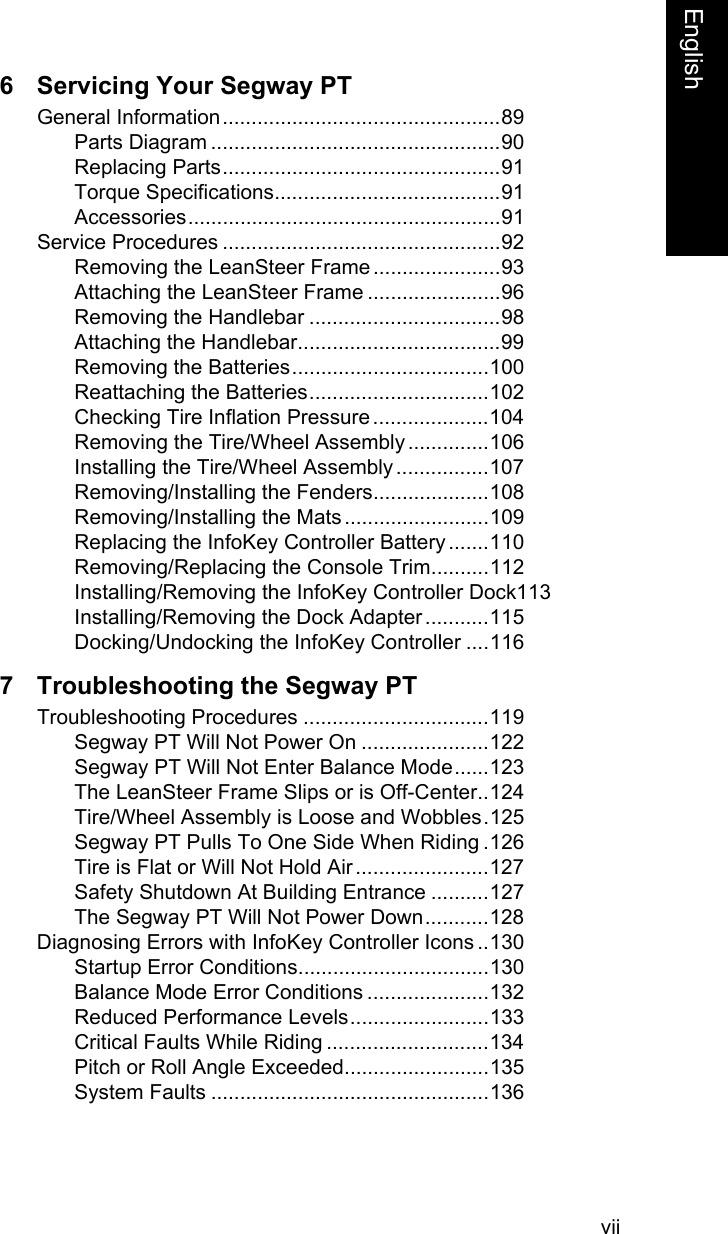

viiEnglish6 Servicing Your Segway PTGeneral Information................................................89Parts Diagram ..................................................90Replacing Parts................................................91Torque Specifications.......................................91Accessories......................................................91Service Procedures ................................................92Removing the LeanSteer Frame ......................93Attaching the LeanSteer Frame .......................96Removing the Handlebar .................................98Attaching the Handlebar...................................99Removing the Batteries..................................100Reattaching the Batteries...............................102Checking Tire Inflation Pressure ....................104Removing the Tire/Wheel Assembly ..............106Installing the Tire/Wheel Assembly ................107Removing/Installing the Fenders....................108Removing/Installing the Mats .........................109Replacing the InfoKey Controller Battery .......110Removing/Replacing the Console Trim..........112Installing/Removing the InfoKey Controller Dock113Installing/Removing the Dock Adapter ...........115Docking/Undocking the InfoKey Controller ....1167 Troubleshooting the Segway PTTroubleshooting Procedures ................................119Segway PT Will Not Power On ......................122Segway PT Will Not Enter Balance Mode......123The LeanSteer Frame Slips or is Off-Center..124Tire/Wheel Assembly is Loose and Wobbles.125Segway PT Pulls To One Side When Riding .126Tire is Flat or Will Not Hold Air .......................127Safety Shutdown At Building Entrance ..........127The Segway PT Will Not Power Down...........128Diagnosing Errors with InfoKey Controller Icons ..130Startup Error Conditions.................................130Balance Mode Error Conditions .....................132Reduced Performance Levels........................133Critical Faults While Riding ............................134Pitch or Roll Angle Exceeded.........................135System Faults ................................................136

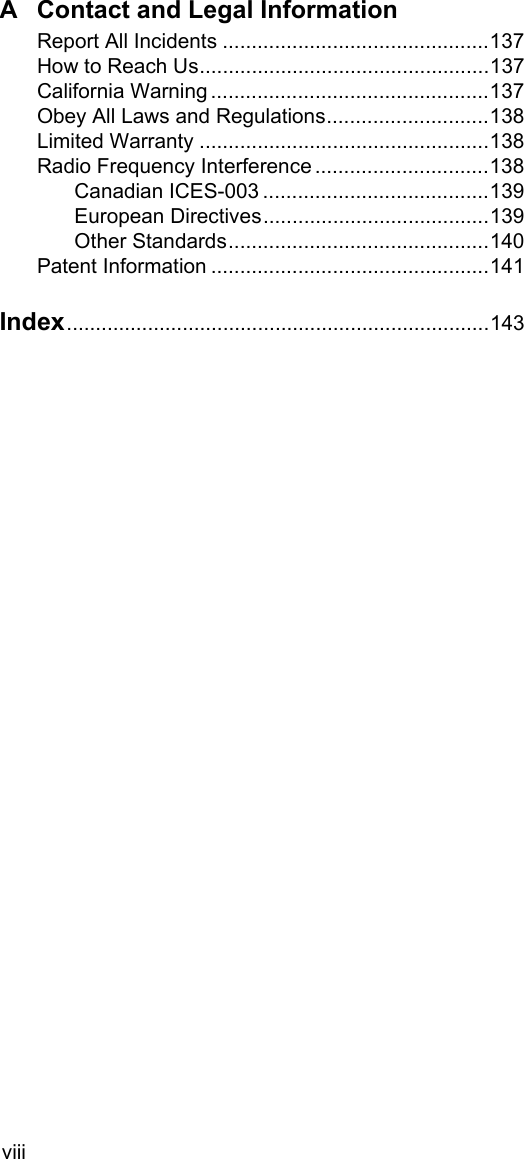

viiiA Contact and Legal InformationReport All Incidents ..............................................137How to Reach Us..................................................137California Warning ................................................137Obey All Laws and Regulations............................138Limited Warranty ..................................................138Radio Frequency Interference ..............................138Canadian ICES-003 .......................................139European Directives.......................................139Other Standards.............................................140Patent Information ................................................141Index.........................................................................143

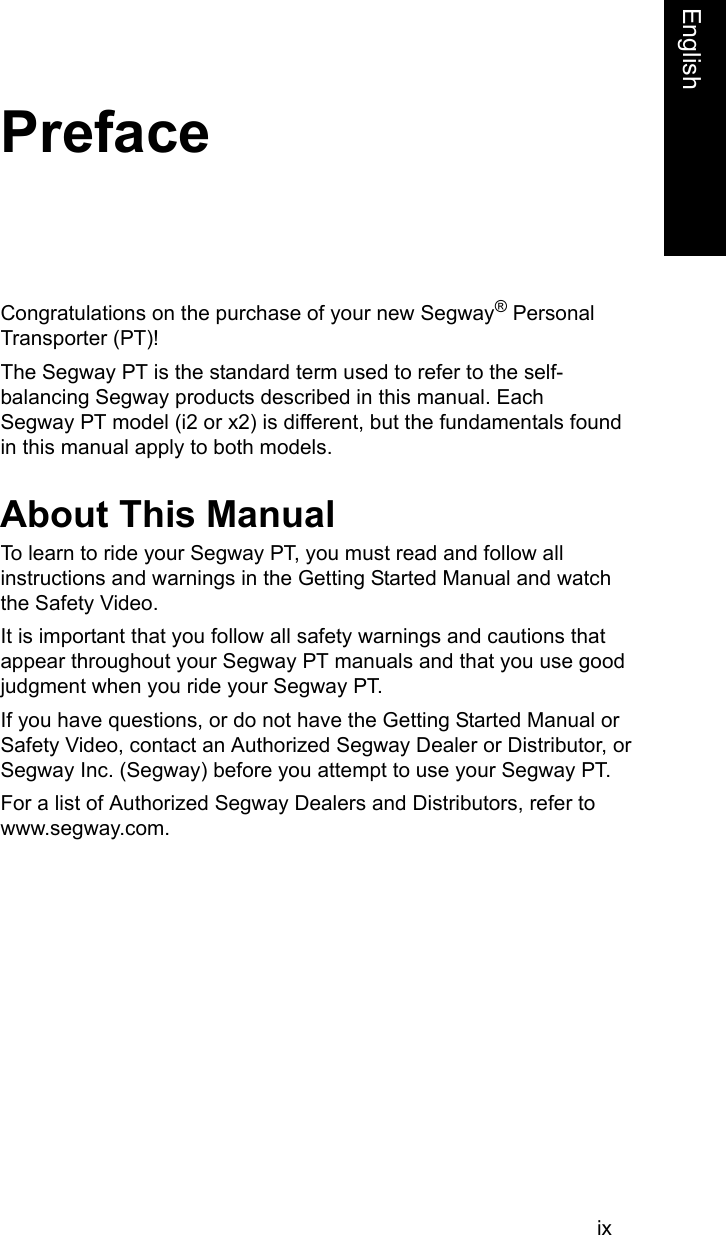

ixFrenchEnglishPrefaceCongratulations on the purchase of your new Segway® Personal Transporter (PT)! The Segway PT is the standard term used to refer to the self-balancing Segway products described in this manual. Each Segway PT model (i2 or x2) is different, but the fundamentals found in this manual apply to both models. About This ManualTo learn to ride your Segway PT, you must read and follow all instructions and warnings in the Getting Started Manual and watch the Safety Video. It is important that you follow all safety warnings and cautions that appear throughout your Segway PT manuals and that you use good judgment when you ride your Segway PT. If you have questions, or do not have the Getting Started Manual or Safety Video, contact an Authorized Segway Dealer or Distributor, or Segway Inc. (Segway) before you attempt to use your Segway PT. For a list of Authorized Segway Dealers and Distributors, refer to www.segway.com.

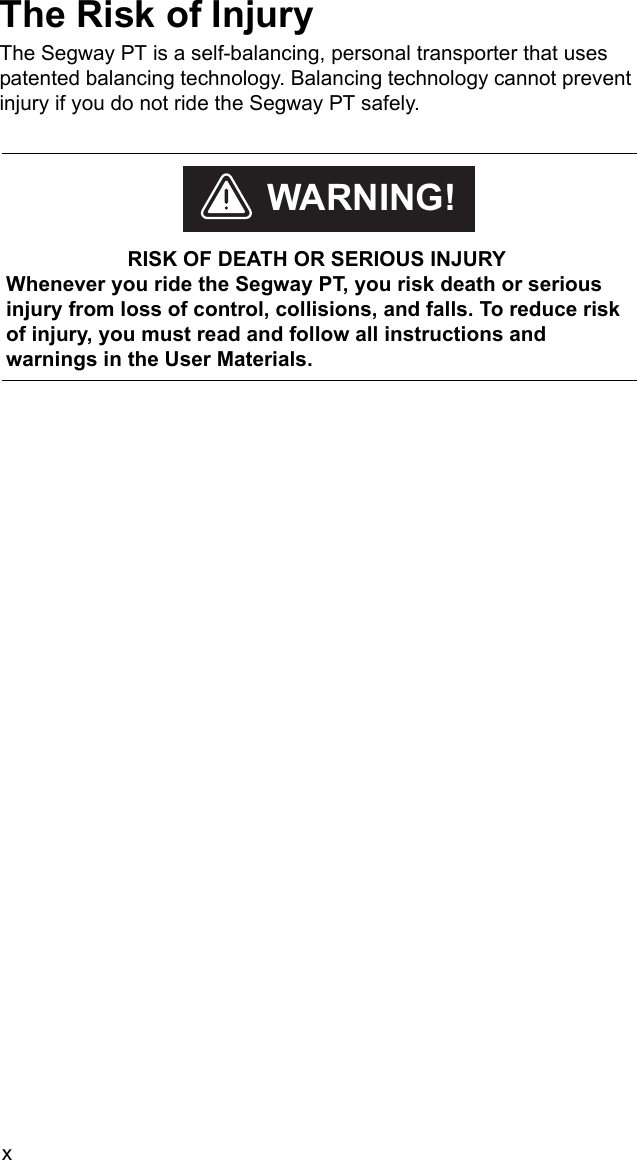

xThe Risk of InjuryThe Segway PT is a self-balancing, personal transporter that uses patented balancing technology. Balancing technology cannot prevent injury if you do not ride the Segway PT safely. RISK OF DEATH OR SERIOUS INJURYWhenever you ride the Segway PT, you risk death or serious injury from loss of control, collisions, and falls. To reduce risk of injury, you must read and follow all instructions and warnings in the User Materials.WARNING!

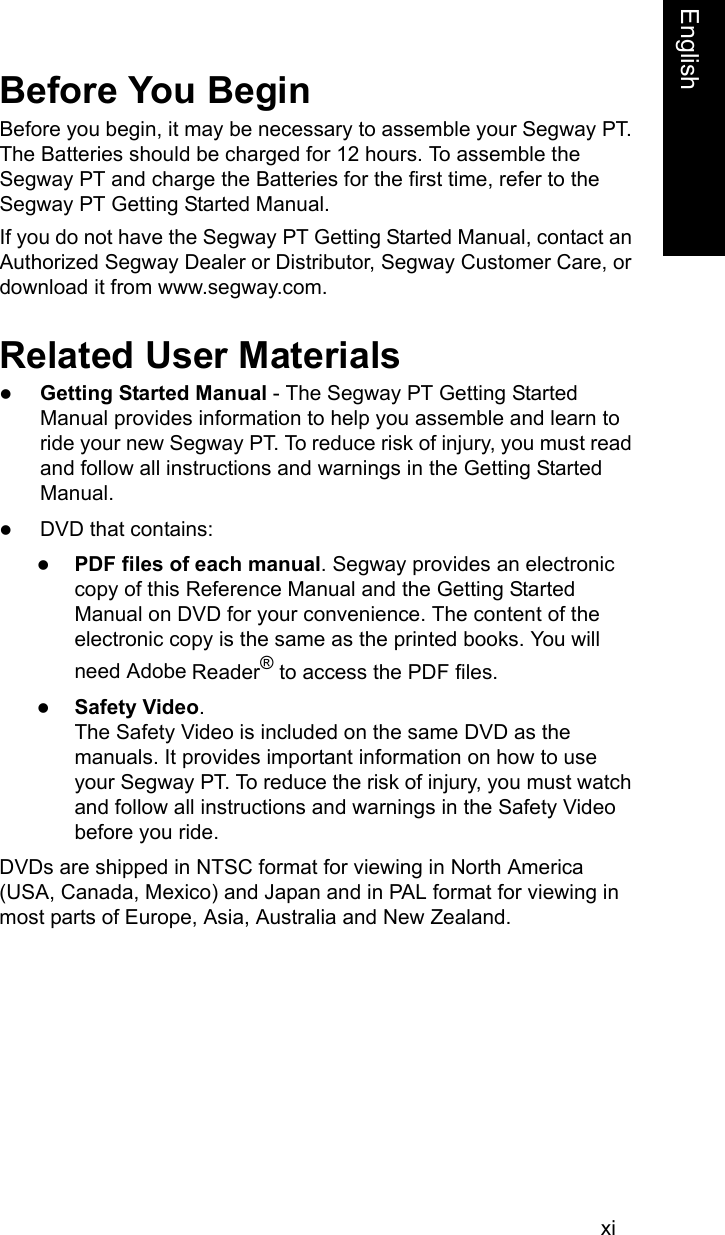

xiEnglishBefore You BeginBefore you begin, it may be necessary to assemble your Segway PT. The Batteries should be charged for 12 hours. To assemble the Segway PT and charge the Batteries for the first time, refer to the Segway PT Getting Started Manual. If you do not have the Segway PT Getting Started Manual, contact an Authorized Segway Dealer or Distributor, Segway Customer Care, or download it from www.segway.com. Related User MaterialszGetting Started Manual - The Segway PT Getting Started Manual provides information to help you assemble and learn to ride your new Segway PT. To reduce risk of injury, you must read and follow all instructions and warnings in the Getting Started Manual.zDVD that contains:zPDF files of each manual. Segway provides an electronic copy of this Reference Manual and the Getting Started Manual on DVD for your convenience. The content of the electronic copy is the same as the printed books. You will need Adobe Reader® to access the PDF files. zSafety Video.The Safety Video is included on the same DVD as the manuals. It provides important information on how to use your Segway PT. To reduce the risk of injury, you must watch and follow all instructions and warnings in the Safety Video before you ride.DVDs are shipped in NTSC format for viewing in North America (USA, Canada, Mexico) and Japan and in PAL format for viewing in most parts of Europe, Asia, Australia and New Zealand.

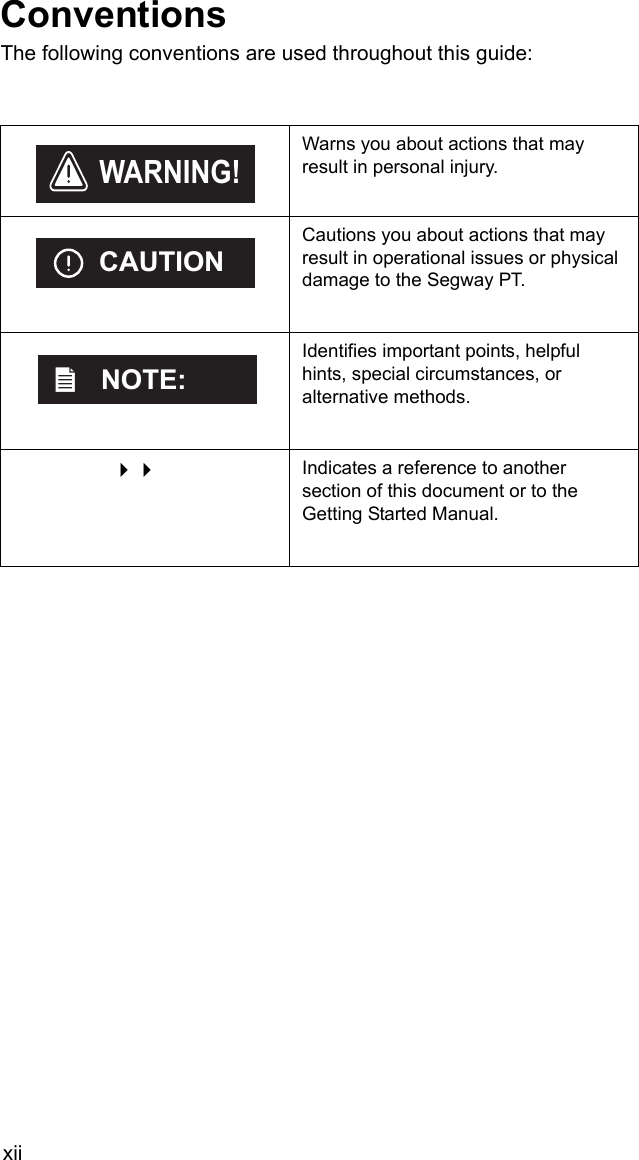

xiiConventionsThe following conventions are used throughout this guide:Warns you about actions that may result in personal injury. Cautions you about actions that may result in operational issues or physical damage to the Segway PT.Identifies important points, helpful hints, special circumstances, or alternative methods. Indicates a reference to another section of this document or to the Getting Started Manual. WARNING!CAUTIONNOTE:

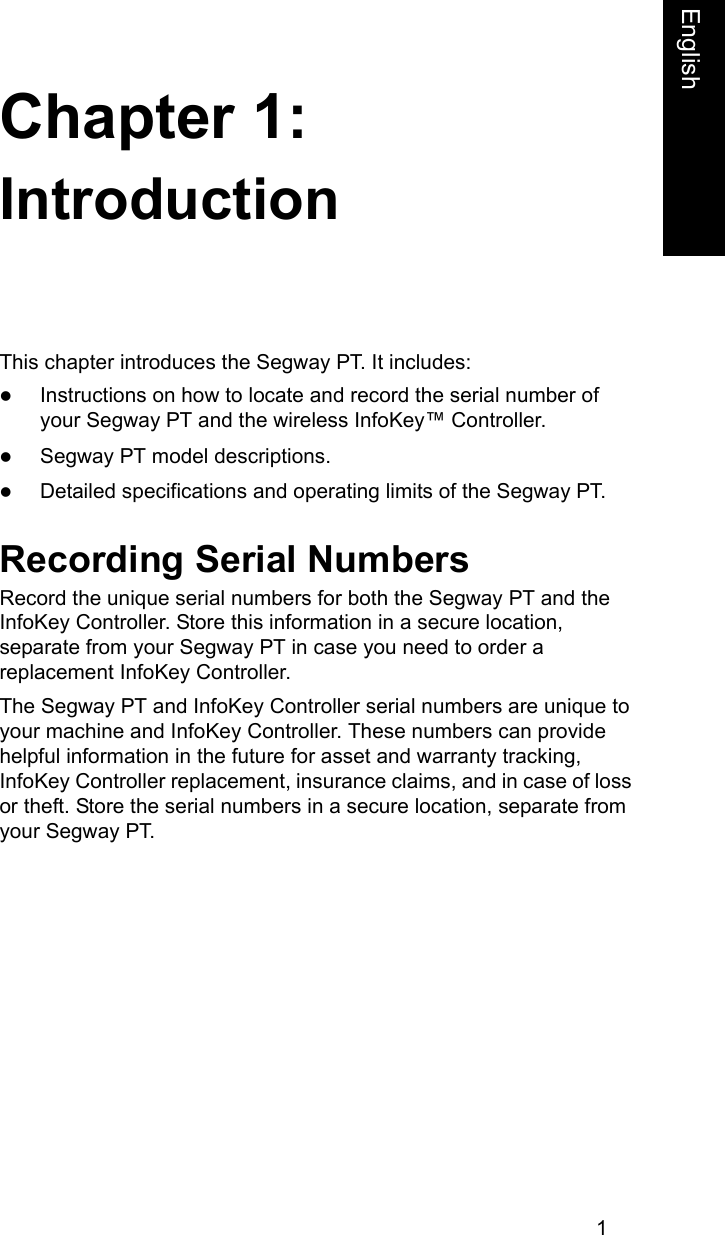

1Chapter 1:FrenchEnglishIntroductionThis chapter introduces the Segway PT. It includes:zInstructions on how to locate and record the serial number of your Segway PT and the wireless InfoKey™ Controller.zSegway PT model descriptions.zDetailed specifications and operating limits of the Segway PT.Recording Serial NumbersRecord the unique serial numbers for both the Segway PT and the InfoKey Controller. Store this information in a secure location, separate from your Segway PT in case you need to order a replacement InfoKey Controller.The Segway PT and InfoKey Controller serial numbers are unique to your machine and InfoKey Controller. These numbers can provide helpful information in the future for asset and warranty tracking, InfoKey Controller replacement, insurance claims, and in case of loss or theft. Store the serial numbers in a secure location, separate from your Segway PT.

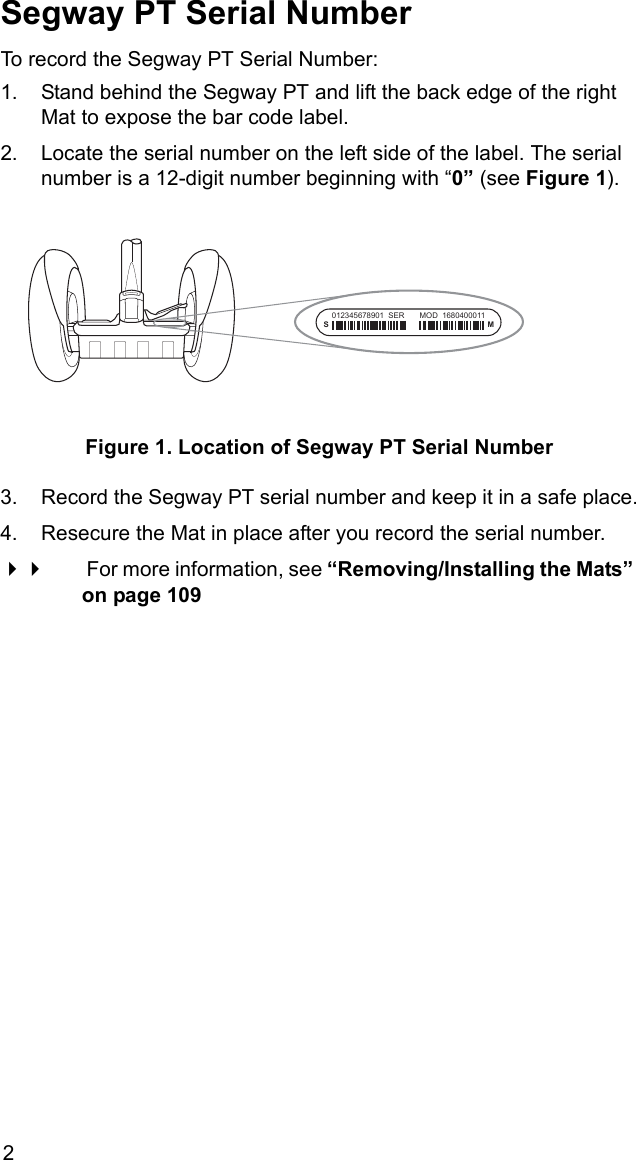

2Segway PT Serial NumberTo record the Segway PT Serial Number:1. Stand behind the Segway PT and lift the back edge of the right Mat to expose the bar code label.2. Locate the serial number on the left side of the label. The serial number is a 12-digit number beginning with “0” (see Figure 1). Figure 1. Location of Segway PT Serial Number3. Record the Segway PT serial number and keep it in a safe place.4. Resecure the Mat in place after you record the serial number. For more information, see “Removing/Installing the Mats” on page 109SM012345678901 SER MOD 1680400011

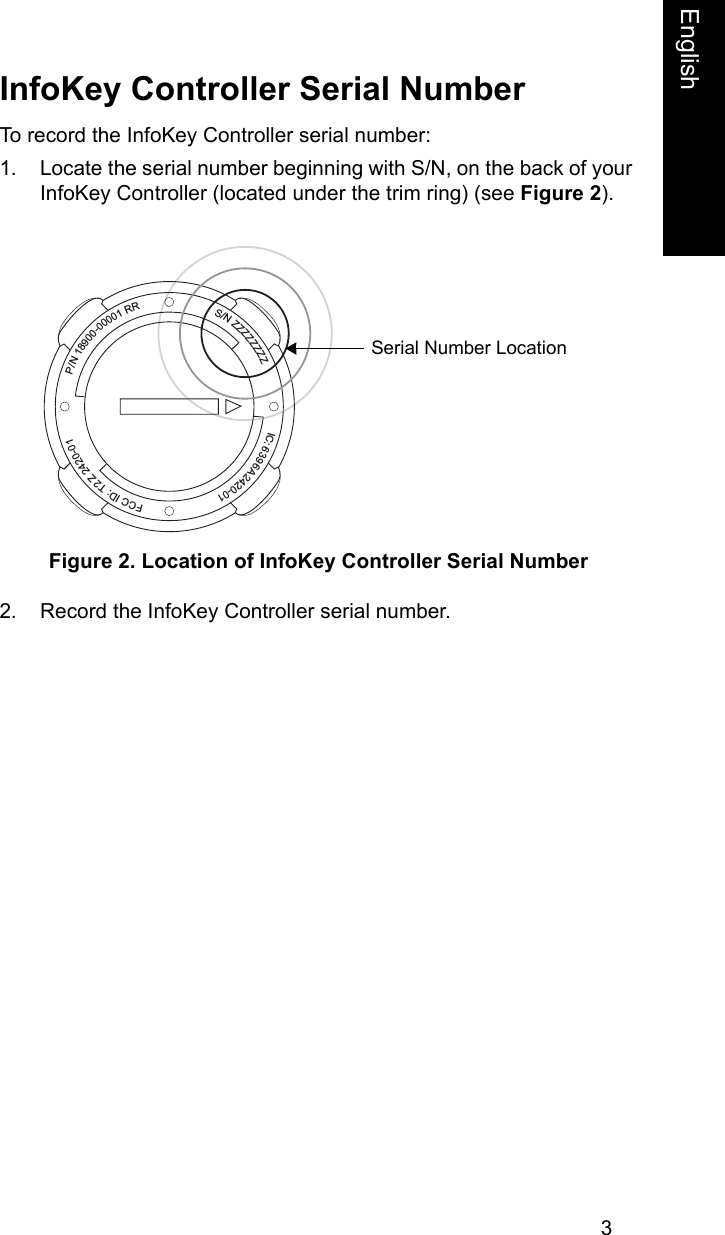

3EnglishInfoKey Controller Serial NumberTo record the InfoKey Controller serial number:1. Locate the serial number beginning with S/N, on the back of your InfoKey Controller (located under the trim ring) (see Figure 2). Figure 2. Location of InfoKey Controller Serial Number2. Record the InfoKey Controller serial number.P/N 18900-00001 RRS/N ZZZZZZZZIC: 6396A 2420-01FCC ID: T2Z 2420-01Serial Number Location

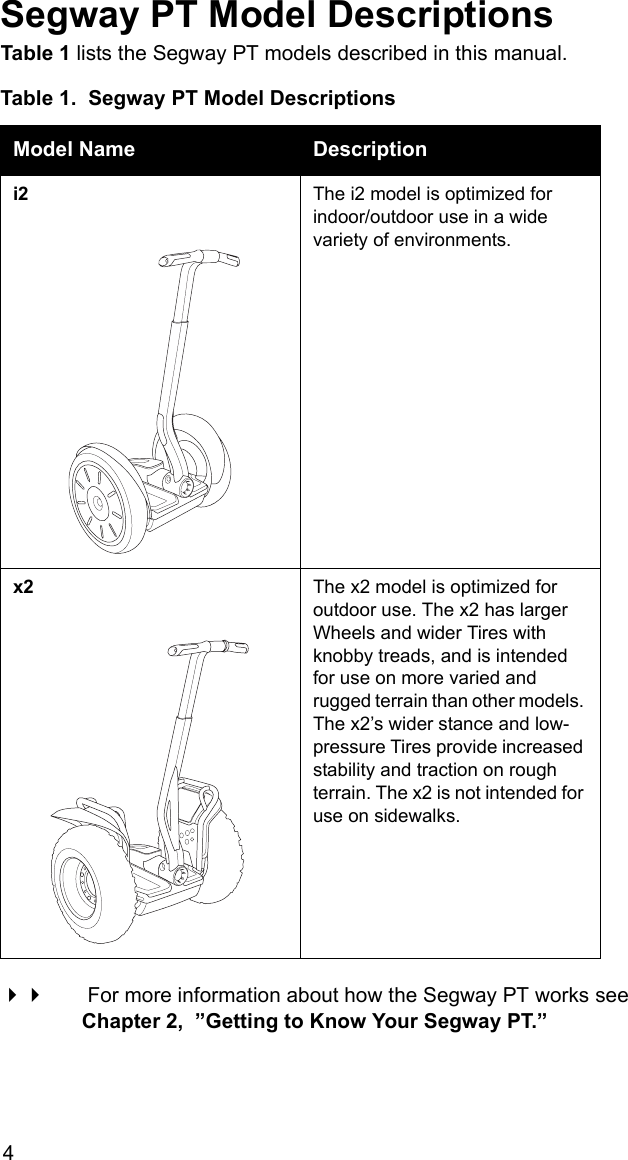

4Segway PT Model DescriptionsTable 1 lists the Segway PT models described in this manual.  For more information about how the Segway PT works see Chapter 2, ”Getting to Know Your Segway PT.”Table 1. Segway PT Model DescriptionsModel Name Descriptioni2 The i2 model is optimized for indoor/outdoor use in a wide variety of environments.x2 The x2 model is optimized for outdoor use. The x2 has larger Wheels and wider Tires with knobby treads, and is intended for use on more varied and rugged terrain than other models. The x2’s wider stance and low-pressure Tires provide increased stability and traction on rough terrain. The x2 is not intended for use on sidewalks.

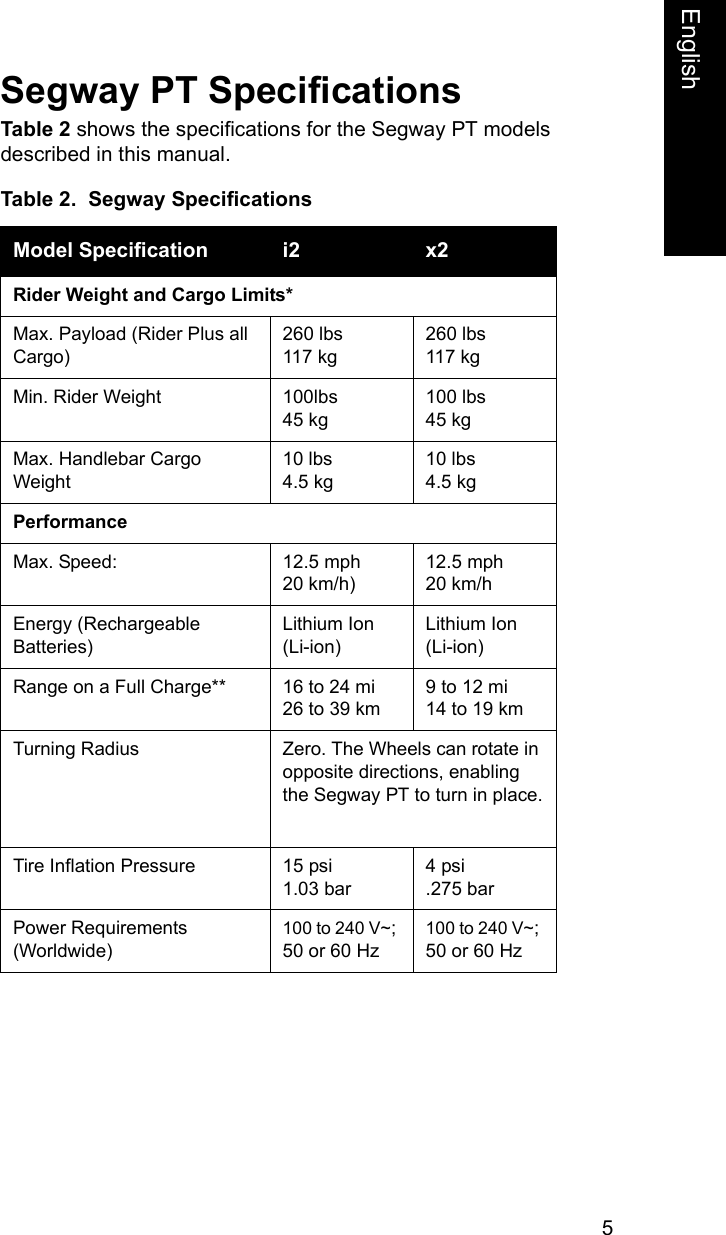

5EnglishSegway PT SpecificationsTable 2 shows the specifications for the Segway PT models described in this manual.Table 2. Segway SpecificationsModel Specification i2 x2Rider Weight and Cargo Limits*Max. Payload (Rider Plus all Cargo)260 lbs 117 kg260 lbs 117 kgMin. Rider Weight 100lbs 45 kg100 lbs 45 kgMax. Handlebar Cargo Weight10 lbs 4.5 kg10 lbs 4.5 kgPerformanceMax. Speed: 12.5 mph20 km/h)12.5 mph 20 km/hEnergy (Rechargeable Batteries)Lithium Ion (Li-ion)Lithium Ion (Li-ion)Range on a Full Charge** 16 to 24 mi 26 to 39 km9 to 12 mi 14 to 19 kmTurning Radius Zero. The Wheels can rotate in opposite directions, enabling the Segway PT to turn in place.Tire Inflation Pressure 15 psi 1.03 bar4 psi .275 barPower Requirements (Worldwide)100 to 240 V~; 50 or 60 Hz 100 to 240 V~; 50 or 60 Hz

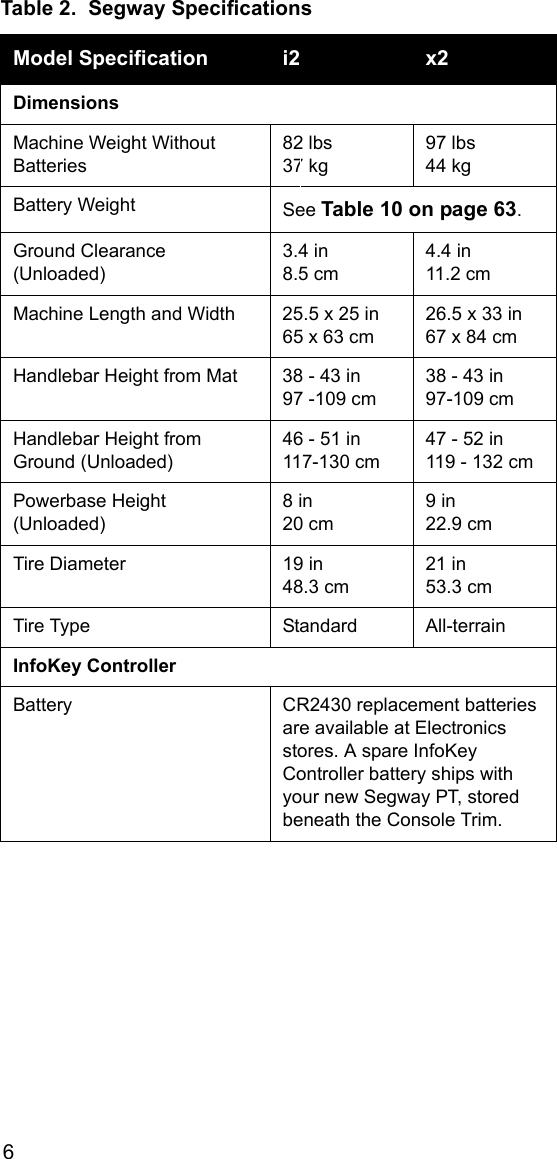

6DimensionsMachine Weight Without Batteries82 lbs 37 kg97 lbs 44 kgBattery Weight See Table 10 on page 63.Ground Clearance (Unloaded)3.4 in 8.5 cm4.4 in 11.2 cmMachine Length and Width 25.5 x 25 in 65 x 63 cm26.5 x 33 in 67 x 84 cmHandlebar Height from Mat 38 - 43 in 97 -109 cm38 - 43 in 97-109 cmHandlebar Height from Ground (Unloaded)46 - 51 in 117-130 cm47 - 52 in 119 - 132 cmPowerbase Height (Unloaded)8 in 20 cm9 in 22.9 cmTire Diameter 19 in 48.3 cm21 in 53.3 cmTire Type Standard All-terrainInfoKey ControllerBattery CR2430 replacement batteries are available at Electronics stores. A spare InfoKey Controller battery ships with your new Segway PT, stored beneath the Console Trim.Table 2. Segway SpecificationsModel Specification i2 x2

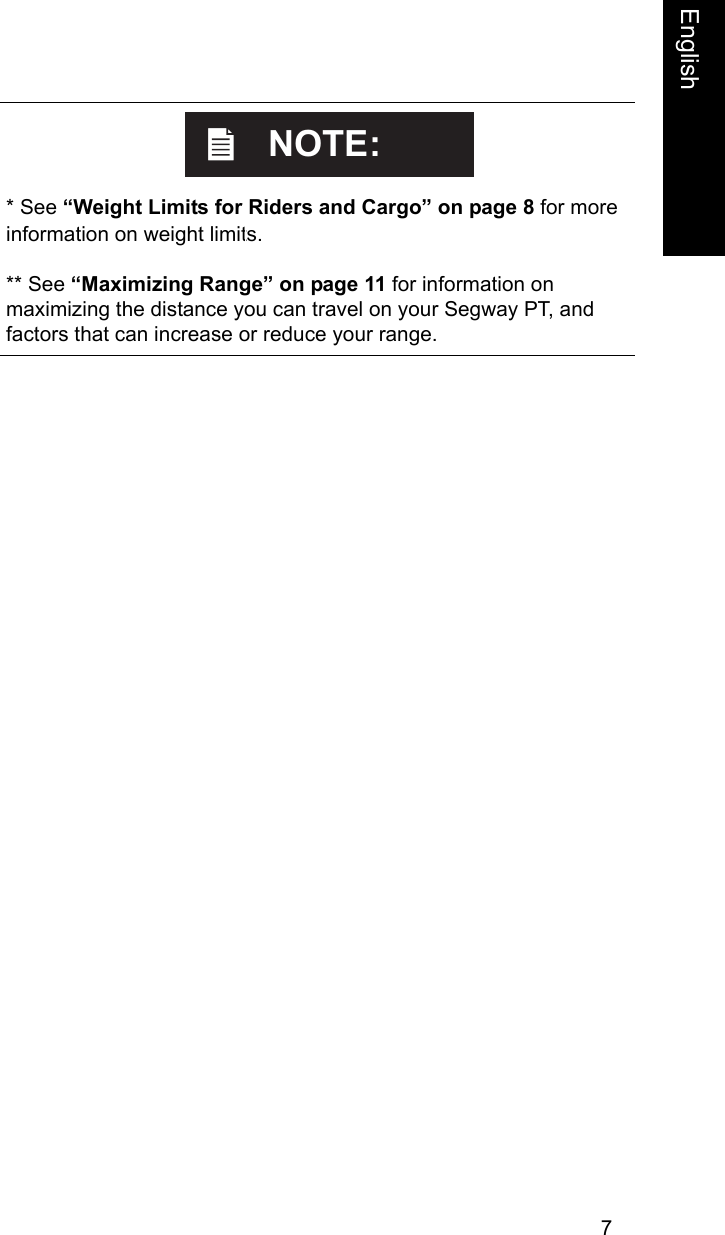

7English * See “Weight Limits for Riders and Cargo” on page 8 for more information on weight limits.** See “Maximizing Range” on page 11 for information on maximizing the distance you can travel on your Segway PT, and factors that can increase or reduce your range.NOTE:

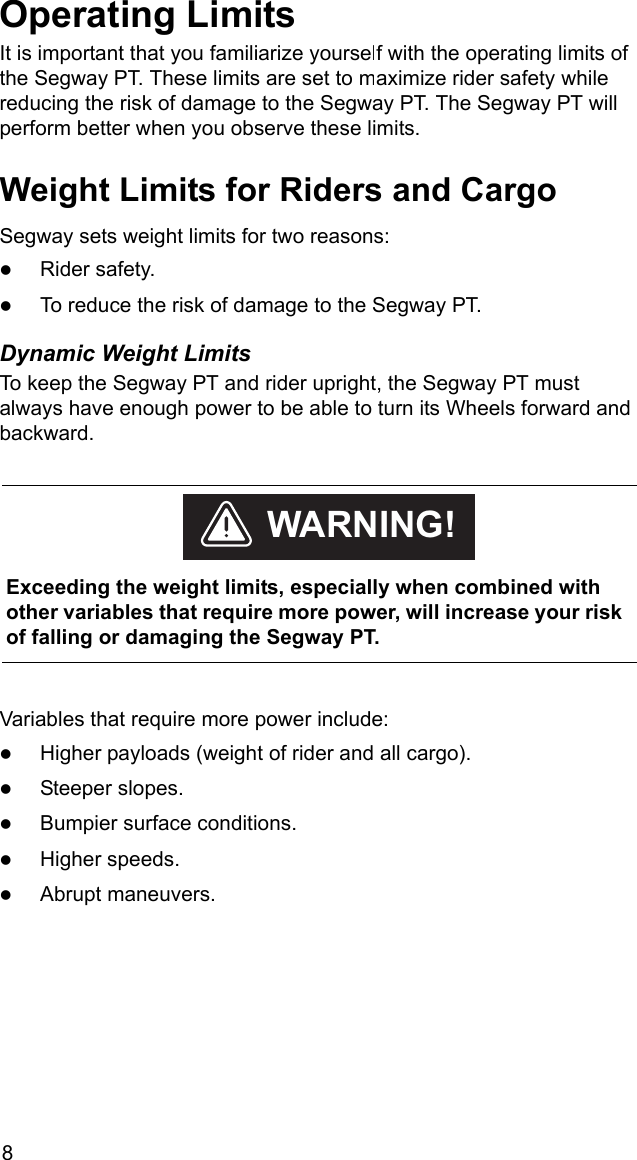

8Operating LimitsIt is important that you familiarize yourself with the operating limits of the Segway PT. These limits are set to maximize rider safety while reducing the risk of damage to the Segway PT. The Segway PT will perform better when you observe these limits.Weight Limits for Riders and CargoSegway sets weight limits for two reasons: zRider safety.zTo reduce the risk of damage to the Segway PT.Dynamic Weight LimitsTo keep the Segway PT and rider upright, the Segway PT must always have enough power to be able to turn its Wheels forward and backward. Variables that require more power include:zHigher payloads (weight of rider and all cargo).zSteeper slopes.zBumpier surface conditions.zHigher speeds.zAbrupt maneuvers. Exceeding the weight limits, especially when combined with other variables that require more power, will increase your risk of falling or damaging the Segway PT.WARNING!

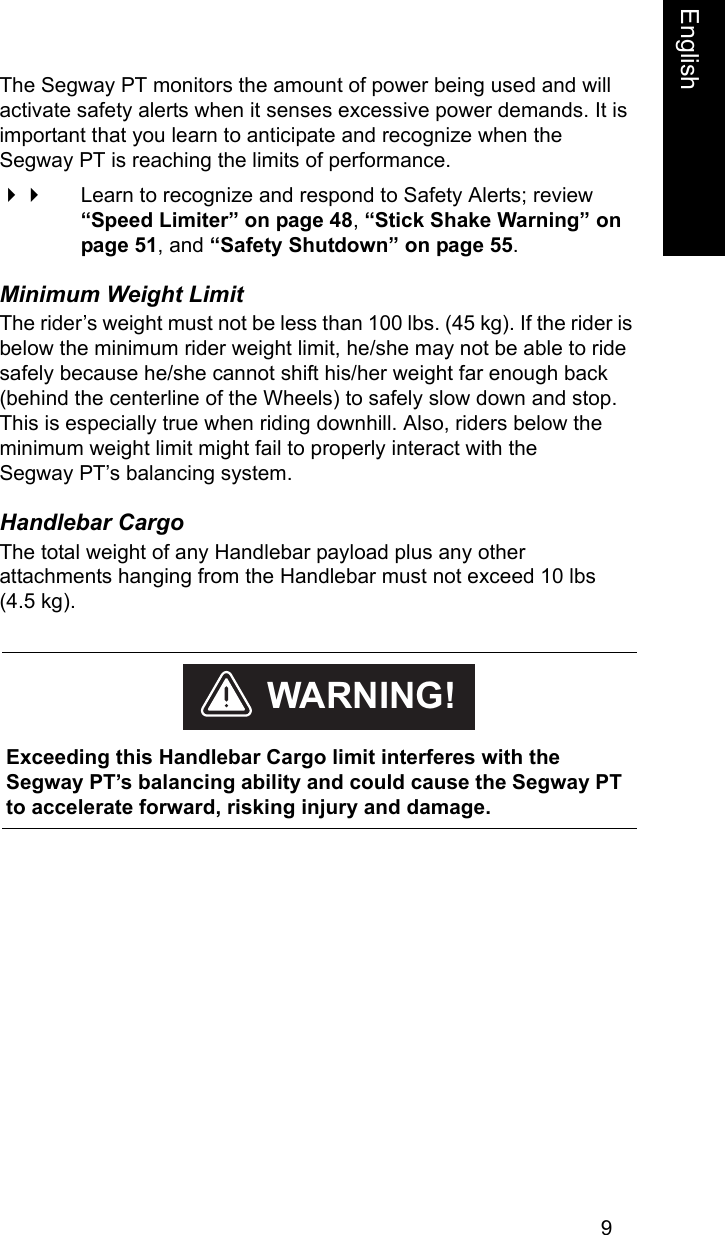

9EnglishThe Segway PT monitors the amount of power being used and will activate safety alerts when it senses excessive power demands. It is important that you learn to anticipate and recognize when the Segway PT is reaching the limits of performance.  Learn to recognize and respond to Safety Alerts; review “Speed Limiter” on page 48, “Stick Shake Warning” on page 51, and “Safety Shutdown” on page 55.Minimum Weight LimitThe rider’s weight must not be less than 100 lbs. (45 kg). If the rider is below the minimum rider weight limit, he/she may not be able to ride safely because he/she cannot shift his/her weight far enough back (behind the centerline of the Wheels) to safely slow down and stop. This is especially true when riding downhill. Also, riders below the minimum weight limit might fail to properly interact with the Segway PT’s balancing system.Handlebar CargoThe total weight of any Handlebar payload plus any other attachments hanging from the Handlebar must not exceed 10 lbs (4.5 kg). Exceeding this Handlebar Cargo limit interferes with the Segway PT’s balancing ability and could cause the Segway PT to accelerate forward, risking injury and damage.WARNING!

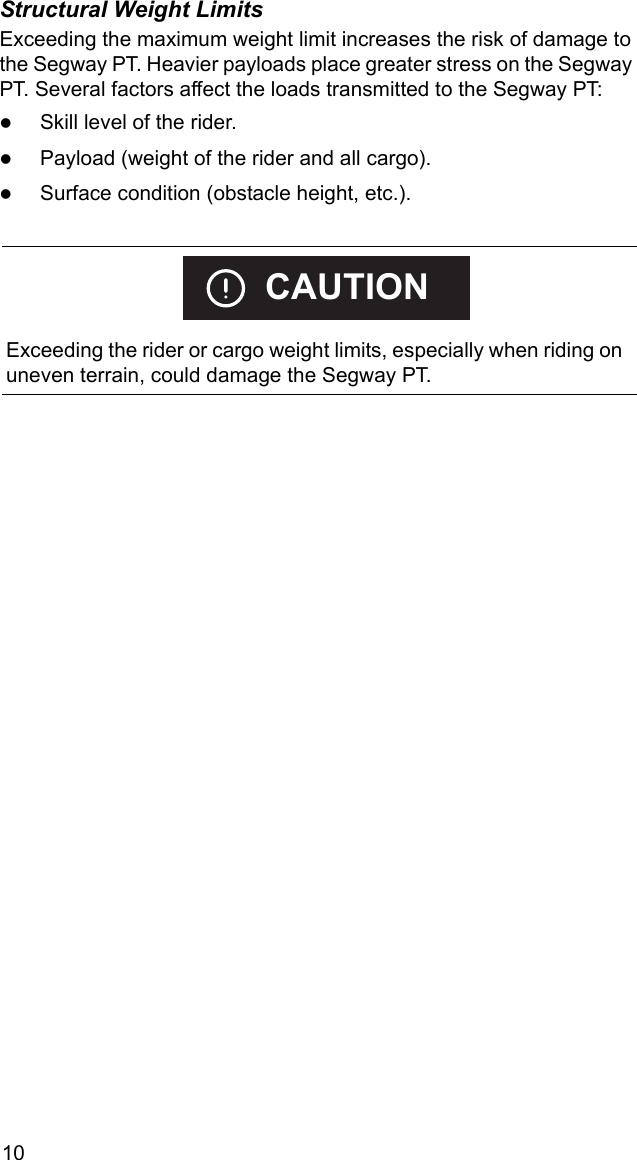

10Structural Weight LimitsExceeding the maximum weight limit increases the risk of damage to the Segway PT. Heavier payloads place greater stress on the Segway PT. Several factors affect the loads transmitted to the Segway PT:zSkill level of the rider.zPayload (weight of the rider and all cargo).zSurface condition (obstacle height, etc.). Exceeding the rider or cargo weight limits, especially when riding on uneven terrain, could damage the Segway PT.CAUTION

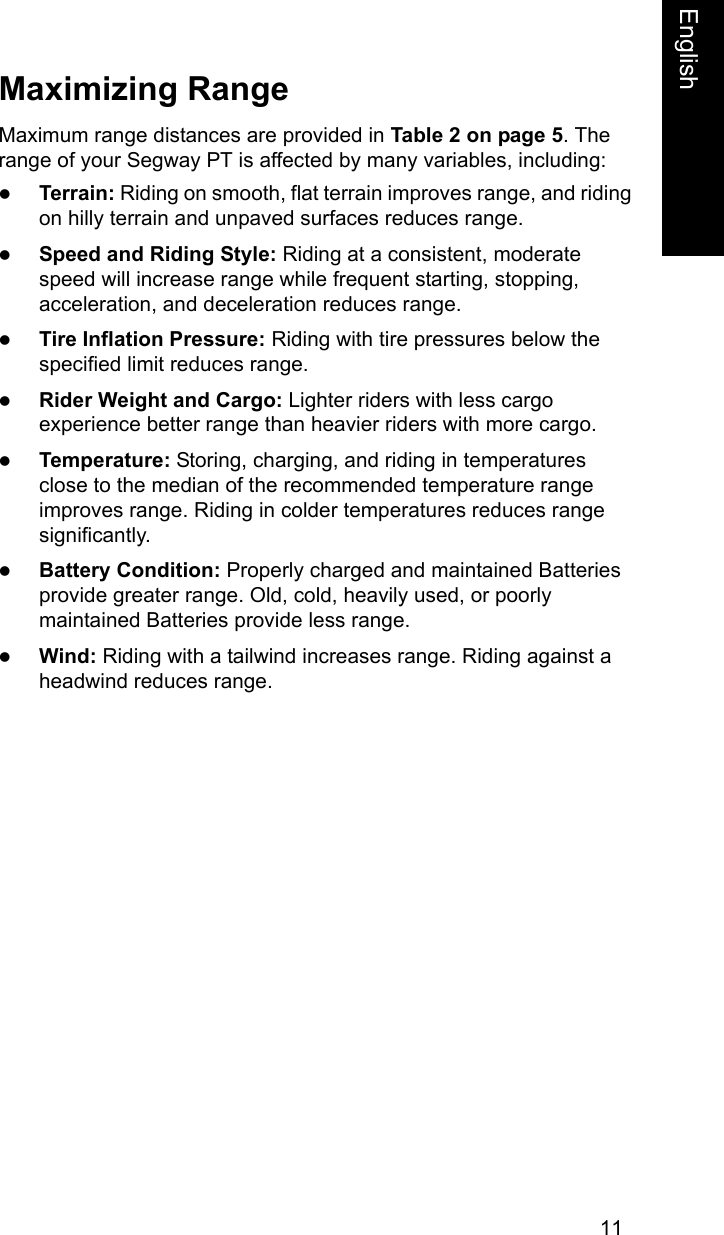

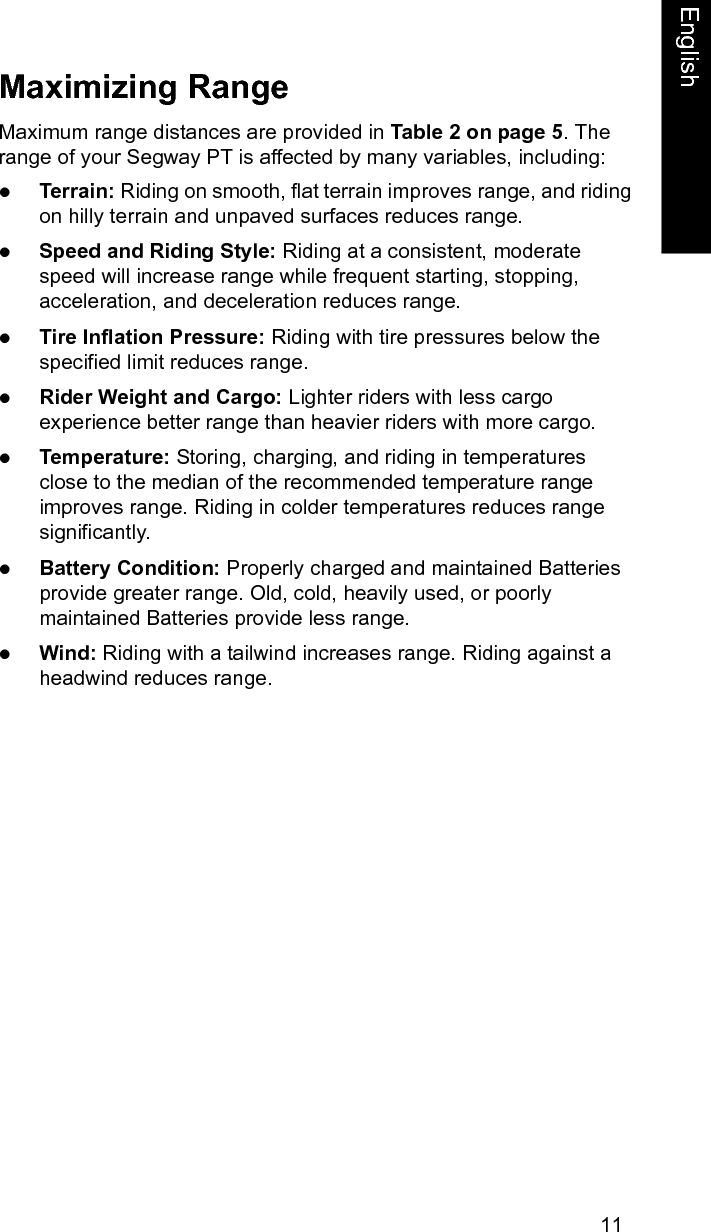

11EnglishMaximizing RangeMaximum range distances are provided in Table 2 on page 5. The range of your Segway PT is affected by many variables, including:zTerrain: Riding on smooth, flat terrain improves range, and riding on hilly terrain and unpaved surfaces reduces range. zSpeed and Riding Style: Riding at a consistent, moderate speed will increase range while frequent starting, stopping, acceleration, and deceleration reduces range.zTire Inflation Pressure: Riding with tire pressures below the specified limit reduces range.zRider Weight and Cargo: Lighter riders with less cargo experience better range than heavier riders with more cargo.zTemperature: Storing, charging, and riding in temperatures close to the median of the recommended temperature range improves range. Riding in colder temperatures reduces range significantly. zBattery Condition: Properly charged and maintained Batteries provide greater range. Old, cold, heavily used, or poorly maintained Batteries provide less range.zWind: Riding with a tailwind increases range. Riding against a headwind reduces range.
12

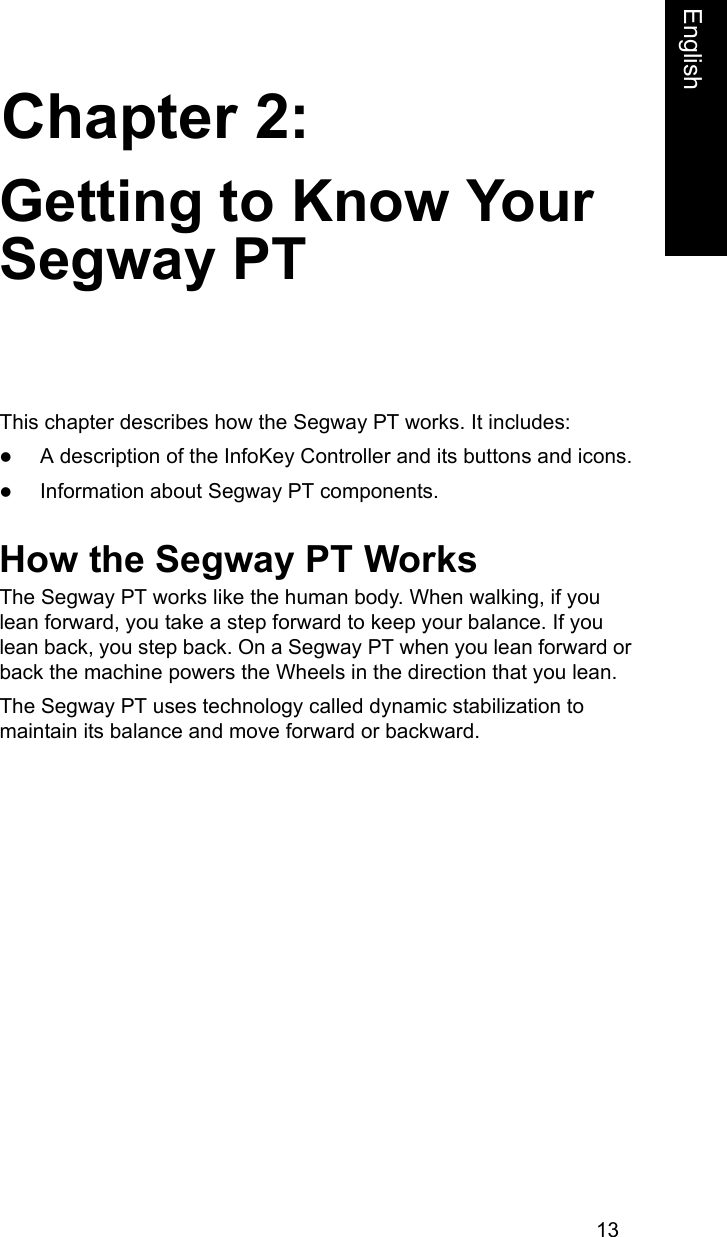

13Chapter 2:EnglishGetting to Know Your Segway PTThis chapter describes how the Segway PT works. It includes:zA description of the InfoKey Controller and its buttons and icons.zInformation about Segway PT components.How the Segway PT WorksThe Segway PT works like the human body. When walking, if you lean forward, you take a step forward to keep your balance. If you lean back, you step back. On a Segway PT when you lean forward or back the machine powers the Wheels in the direction that you lean. The Segway PT uses technology called dynamic stabilization to maintain its balance and move forward or backward.

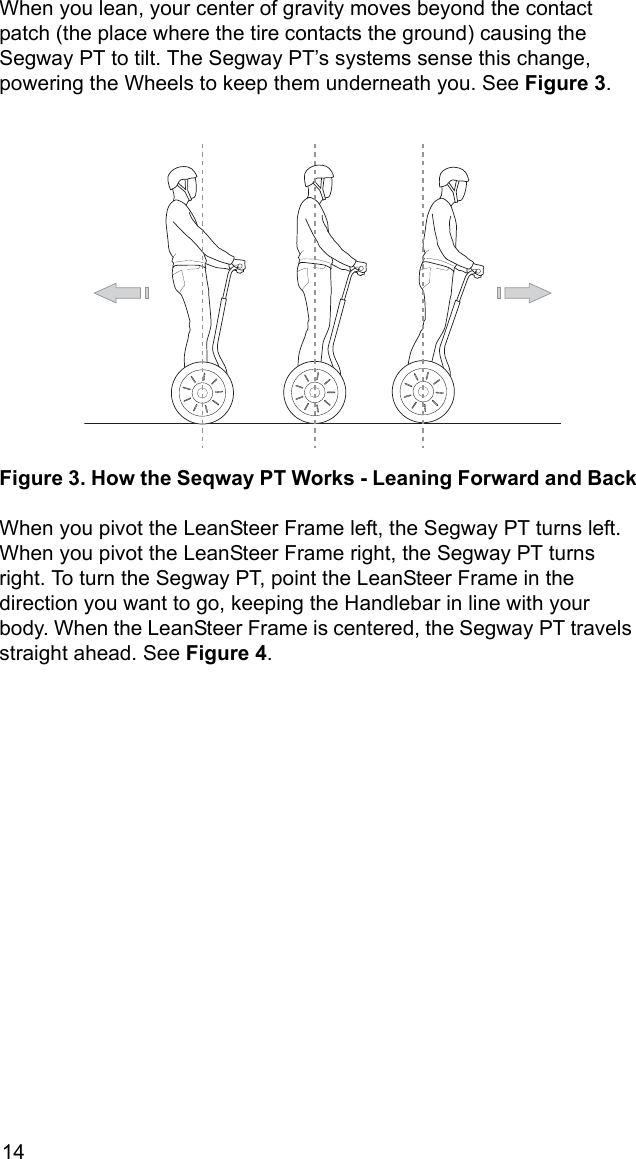

14When you lean, your center of gravity moves beyond the contact patch (the place where the tire contacts the ground) causing the Segway PT to tilt. The Segway PT’s systems sense this change, powering the Wheels to keep them underneath you. See Figure 3.Figure 3. How the Seqway PT Works - Leaning Forward and BackWhen you pivot the LeanSteer Frame left, the Segway PT turns left. When you pivot the LeanSteer Frame right, the Segway PT turns right. To turn the Segway PT, point the LeanSteer Frame in the direction you want to go, keeping the Handlebar in line with your body. When the LeanSteer Frame is centered, the Segway PT travels straight ahead. See Figure 4.

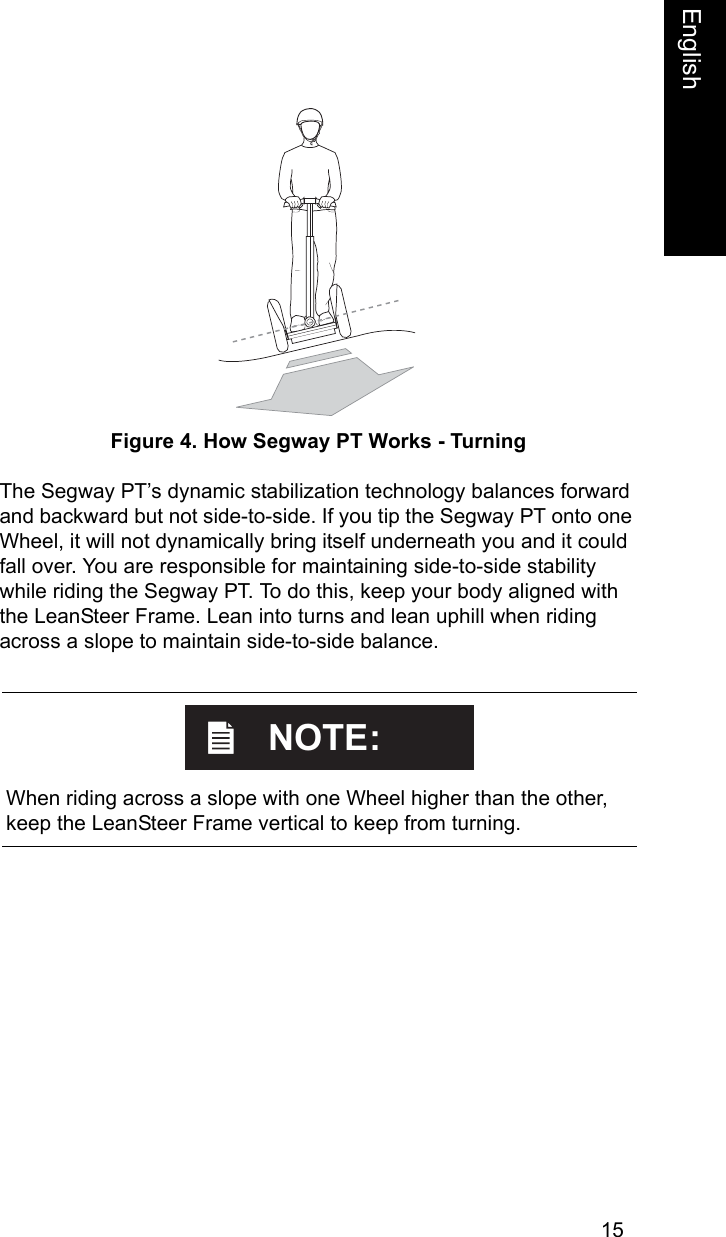

15EnglishEnglishFigure 4. How Segway PT Works - TurningThe Segway PT’s dynamic stabilization technology balances forward and backward but not side-to-side. If you tip the Segway PT onto one Wheel, it will not dynamically bring itself underneath you and it could fall over. You are responsible for maintaining side-to-side stability while riding the Segway PT. To do this, keep your body aligned with the LeanSteer Frame. Lean into turns and lean uphill when riding across a slope to maintain side-to-side balance. When riding across a slope with one Wheel higher than the other, keep the LeanSteer Frame vertical to keep from turning.NOTE:

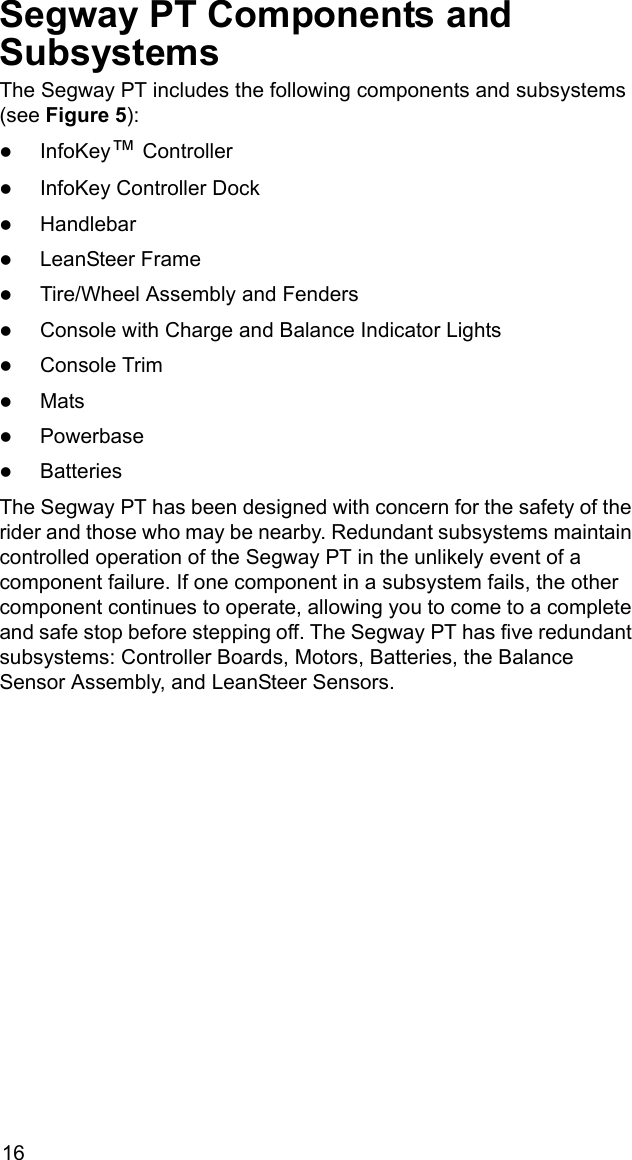

16Segway PT Components and SubsystemsThe Segway PT includes the following components and subsystems (see Figure 5): zInfoKey™ Controller zInfoKey Controller Dock zHandlebarzLeanSteer FramezTire/Wheel Assembly and FenderszConsole with Charge and Balance Indicator LightszConsole TrimzMatszPowerbase zBatteriesThe Segway PT has been designed with concern for the safety of the rider and those who may be nearby. Redundant subsystems maintain controlled operation of the Segway PT in the unlikely event of a component failure. If one component in a subsystem fails, the other component continues to operate, allowing you to come to a complete and safe stop before stepping off. The Segway PT has five redundant subsystems: Controller Boards, Motors, Batteries, the Balance Sensor Assembly, and LeanSteer Sensors.

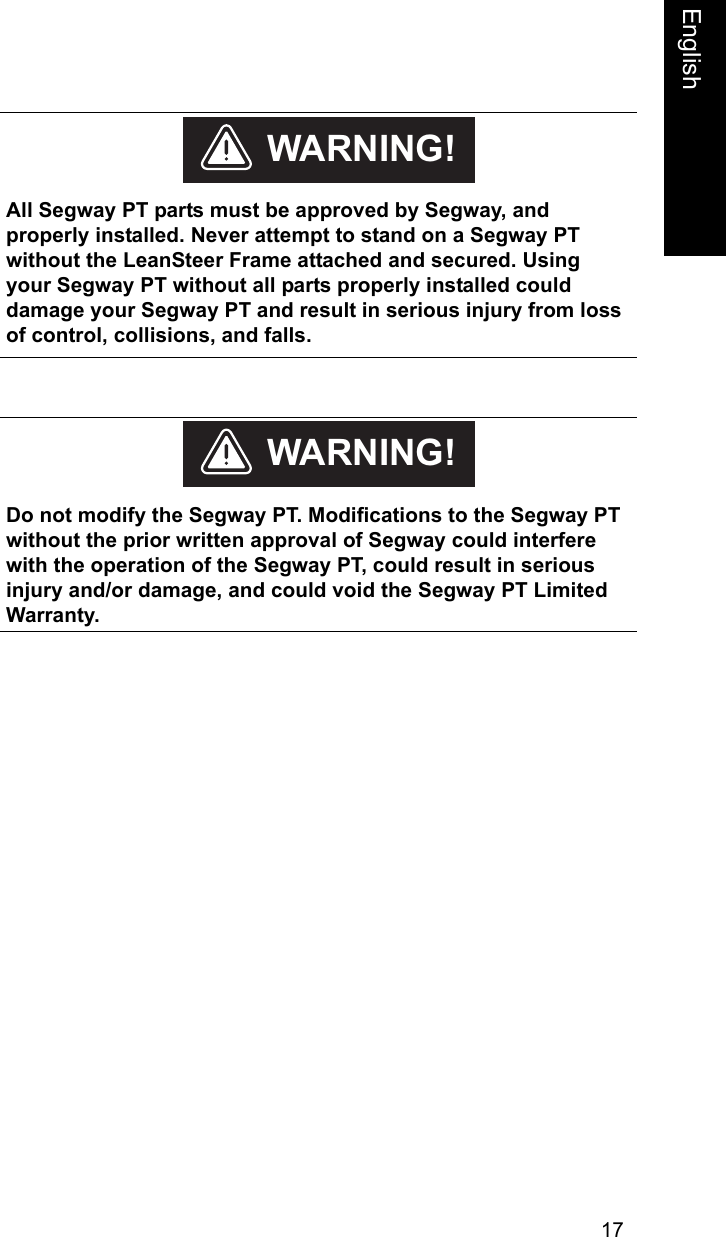

17EnglishEnglish All Segway PT parts must be approved by Segway, and properly installed. Never attempt to stand on a Segway PT without the LeanSteer Frame attached and secured. Using your Segway PT without all parts properly installed could damage your Segway PT and result in serious injury from loss of control, collisions, and falls.WARNING! Do not modify the Segway PT. Modifications to the Segway PT without the prior written approval of Segway could interfere with the operation of the Segway PT, could result in serious injury and/or damage, and could void the Segway PT Limited Warranty. WARNING!

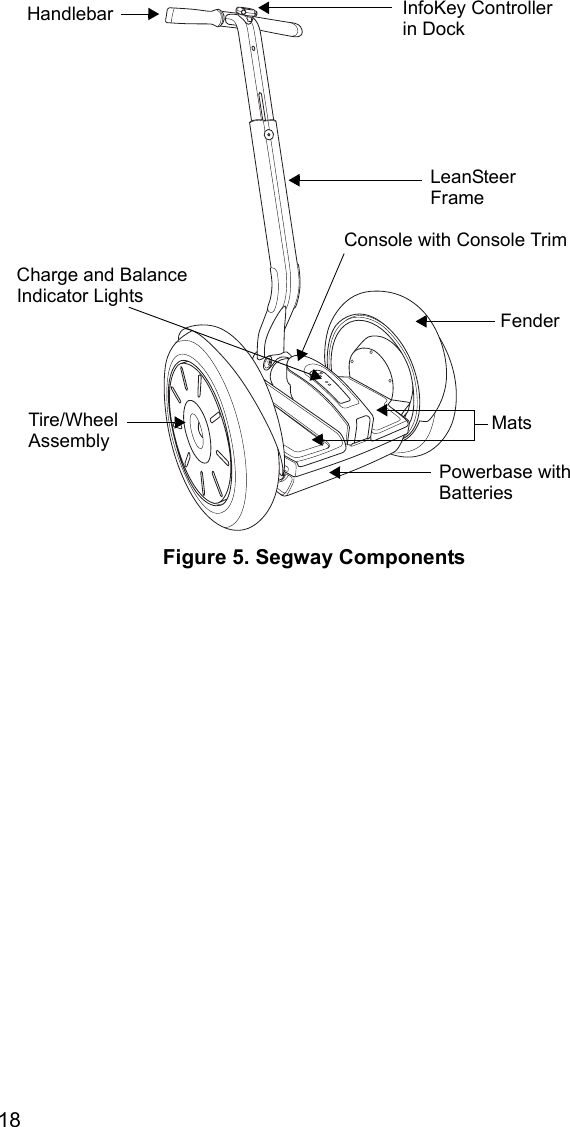

18Figure 5. Segway ComponentsHandlebar Console with Console TrimCharge and Balance Mats Powerbase withLeanSteer FrameTire/Wheel InfoKey Controller in DockFenderAssembly BatteriesIndicator Lights

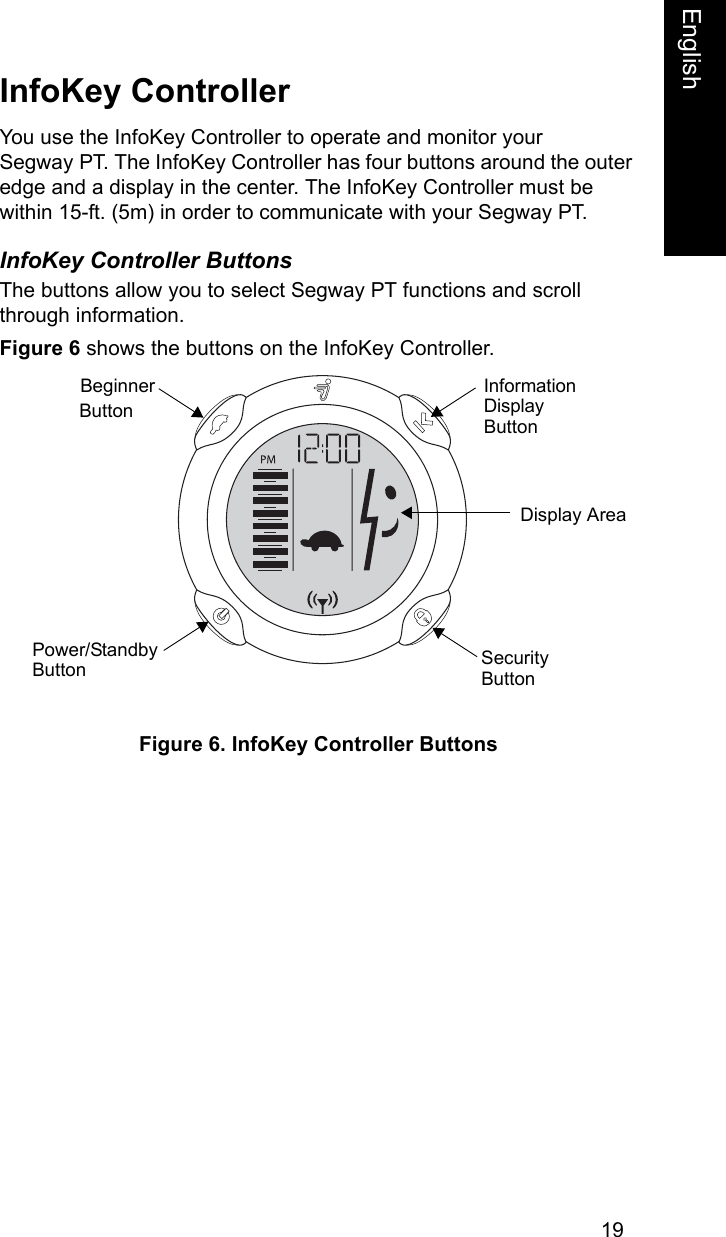

19EnglishEnglishInfoKey ControllerYou use the InfoKey Controller to operate and monitor your Segway PT. The InfoKey Controller has four buttons around the outer edge and a display in the center. The InfoKey Controller must be within 15-ft. (5m) in order to communicate with your Segway PT.InfoKey Controller ButtonsThe buttons allow you to select Segway PT functions and scroll through information.Figure 6 shows the buttons on the InfoKey Controller.Figure 6. InfoKey Controller Buttons Power/StandbyBeginnerButton InformationButtonDisplay AreaSecurity DisplayButton Button
20InfoKey Controller Display AreaThe Display Area provides status information such as messages and warnings. Figure 7 shows icons and data that display on the InfoKey Controller.Figure 7. InfoKey Controller DisplayFace Icons Information Display(time, distance, speed, etc.)Security IconBeginner IconAC Power IconSegway PT Battery GaugeInfoKey Controller Low Battery IconInfoKey Controller Link Signal IconWrench Icon (Service)Warning IconRider Detect Error Icons

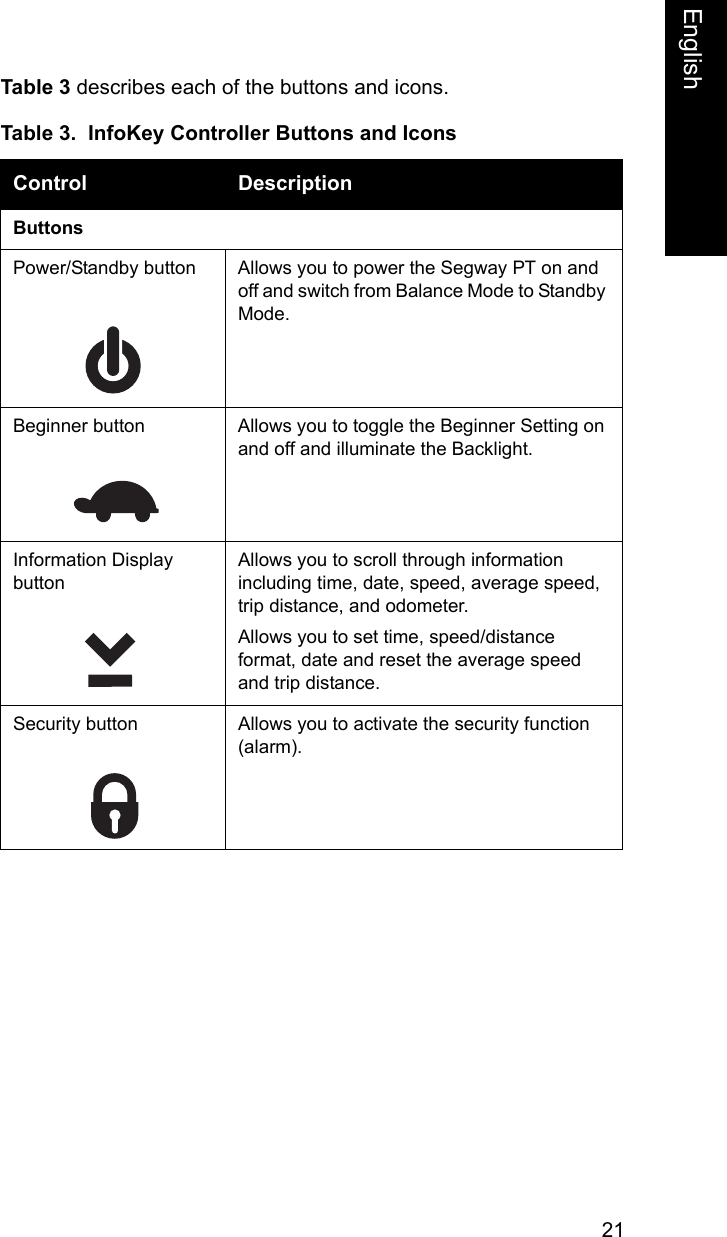

21EnglishEnglishTable 3 describes each of the buttons and icons.Table 3. InfoKey Controller Buttons and IconsControl DescriptionButtonsPower/Standby button Allows you to power the Segway PT on and off and switch from Balance Mode to Standby Mode.Beginner button Allows you to toggle the Beginner Setting on and off and illuminate the Backlight.Information Display button Allows you to scroll through information including time, date, speed, average speed, trip distance, and odometer.Allows you to set time, speed/distance format, date and reset the average speed and trip distance.Security button Allows you to activate the security function (alarm).

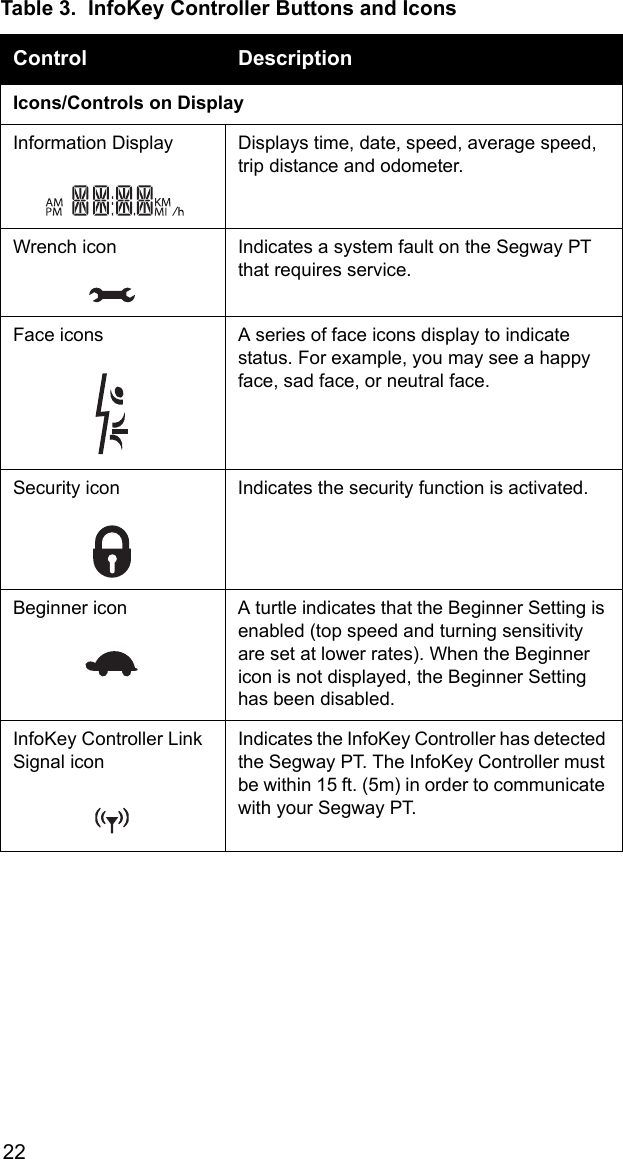

22Icons/Controls on DisplayInformation Display Displays time, date, speed, average speed, trip distance and odometer.Wrench icon Indicates a system fault on the Segway PT that requires service.Face icons A series of face icons display to indicate status. For example, you may see a happy face, sad face, or neutral face.Security icon Indicates the security function is activated.Beginner icon A turtle indicates that the Beginner Setting is enabled (top speed and turning sensitivity are set at lower rates). When the Beginner icon is not displayed, the Beginner Setting has been disabled.InfoKey Controller Link Signal iconIndicates the InfoKey Controller has detected the Segway PT. The InfoKey Controller must be within 15 ft. (5m) in order to communicate with your Segway PT. Table 3. InfoKey Controller Buttons and IconsControl Description

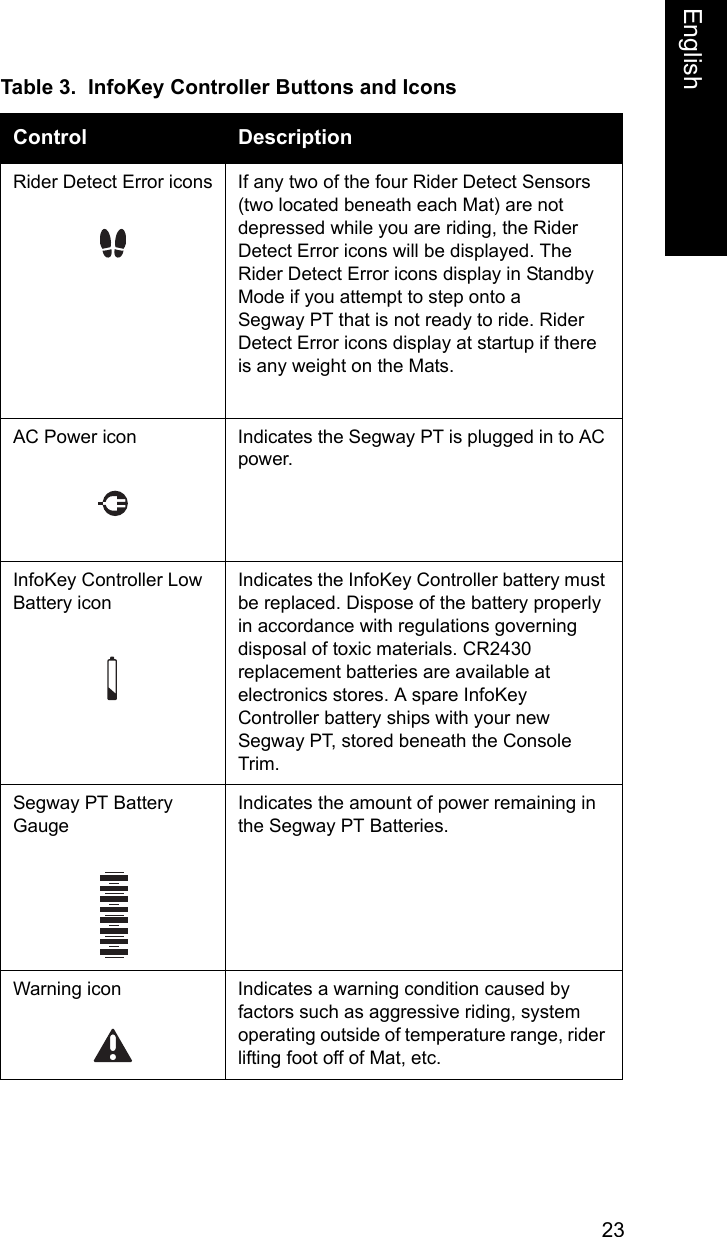

23EnglishEnglishRider Detect Error icons If any two of the four Rider Detect Sensors (two located beneath each Mat) are not depressed while you are riding, the Rider Detect Error icons will be displayed. The Rider Detect Error icons display in Standby Mode if you attempt to step onto a Segway PT that is not ready to ride. Rider Detect Error icons display at startup if there is any weight on the Mats.AC Power icon Indicates the Segway PT is plugged in to AC power.InfoKey Controller Low Battery iconIndicates the InfoKey Controller battery must be replaced. Dispose of the battery properly in accordance with regulations governing disposal of toxic materials. CR2430 replacement batteries are available at electronics stores. A spare InfoKey Controller battery ships with your new Segway PT, stored beneath the Console Trim.Segway PT Battery GaugeIndicates the amount of power remaining in the Segway PT Batteries. Warning icon Indicates a warning condition caused by factors such as aggressive riding, system operating outside of temperature range, rider lifting foot off of Mat, etc.Table 3. InfoKey Controller Buttons and IconsControl Description

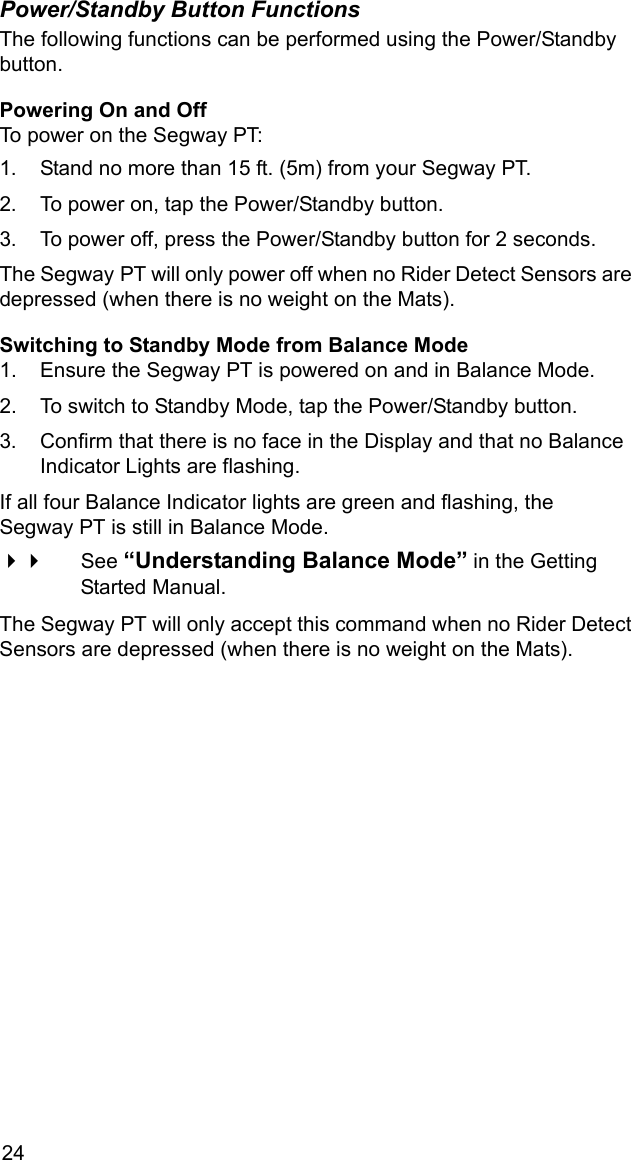

24Power/Standby Button FunctionsThe following functions can be performed using the Power/Standby button.Powering On and OffTo power on the Segway PT:1. Stand no more than 15 ft. (5m) from your Segway PT.2. To power on, tap the Power/Standby button.3. To power off, press the Power/Standby button for 2 seconds. The Segway PT will only power off when no Rider Detect Sensors are depressed (when there is no weight on the Mats).Switching to Standby Mode from Balance Mode1. Ensure the Segway PT is powered on and in Balance Mode. 2. To switch to Standby Mode, tap the Power/Standby button.3. Confirm that there is no face in the Display and that no Balance Indicator Lights are flashing. If all four Balance Indicator lights are green and flashing, the Segway PT is still in Balance Mode. See “Understanding Balance Mode” in the Getting Started Manual.The Segway PT will only accept this command when no Rider Detect Sensors are depressed (when there is no weight on the Mats).

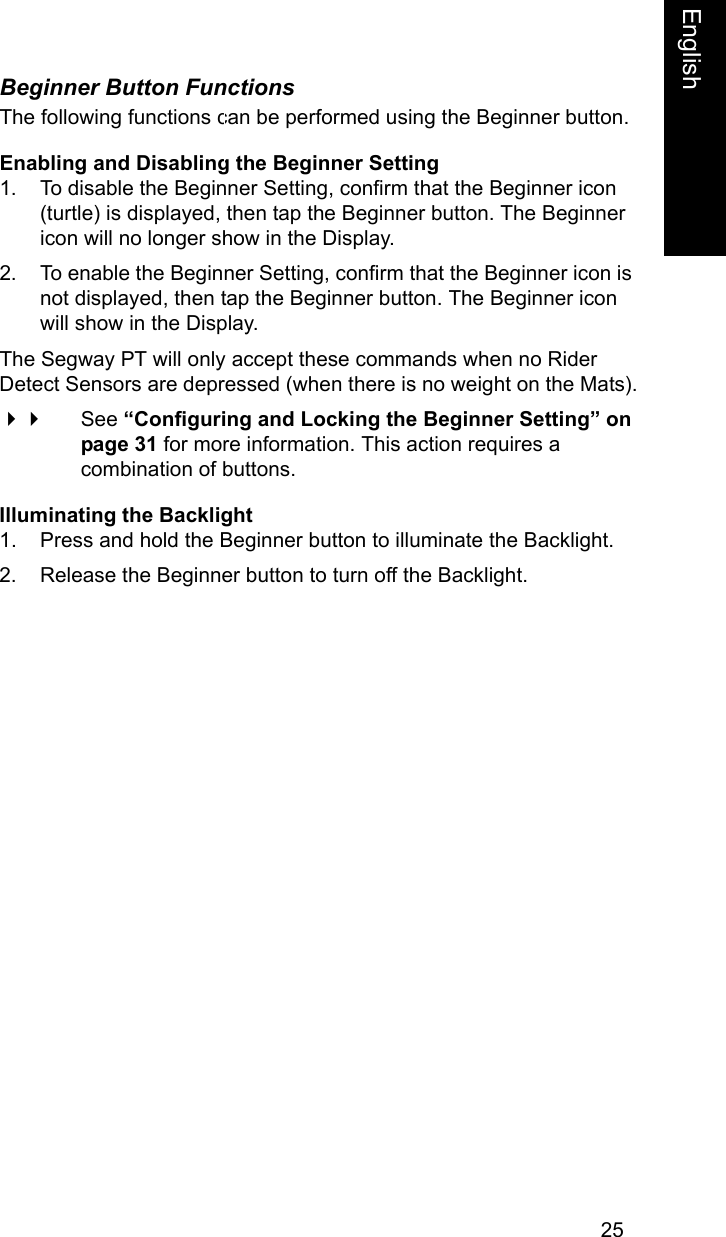

25EnglishEnglishBeginner Button FunctionsThe following functions can be performed using the Beginner button.Enabling and Disabling the Beginner Setting1. To disable the Beginner Setting, confirm that the Beginner icon (turtle) is displayed, then tap the Beginner button. The Beginner icon will no longer show in the Display.2. To enable the Beginner Setting, confirm that the Beginner icon is not displayed, then tap the Beginner button. The Beginner icon will show in the Display.The Segway PT will only accept these commands when no Rider Detect Sensors are depressed (when there is no weight on the Mats). See “Configuring and Locking the Beginner Setting” on page 31 for more information. This action requires a combination of buttons.Illuminating the Backlight1. Press and hold the Beginner button to illuminate the Backlight.2. Release the Beginner button to turn off the Backlight.

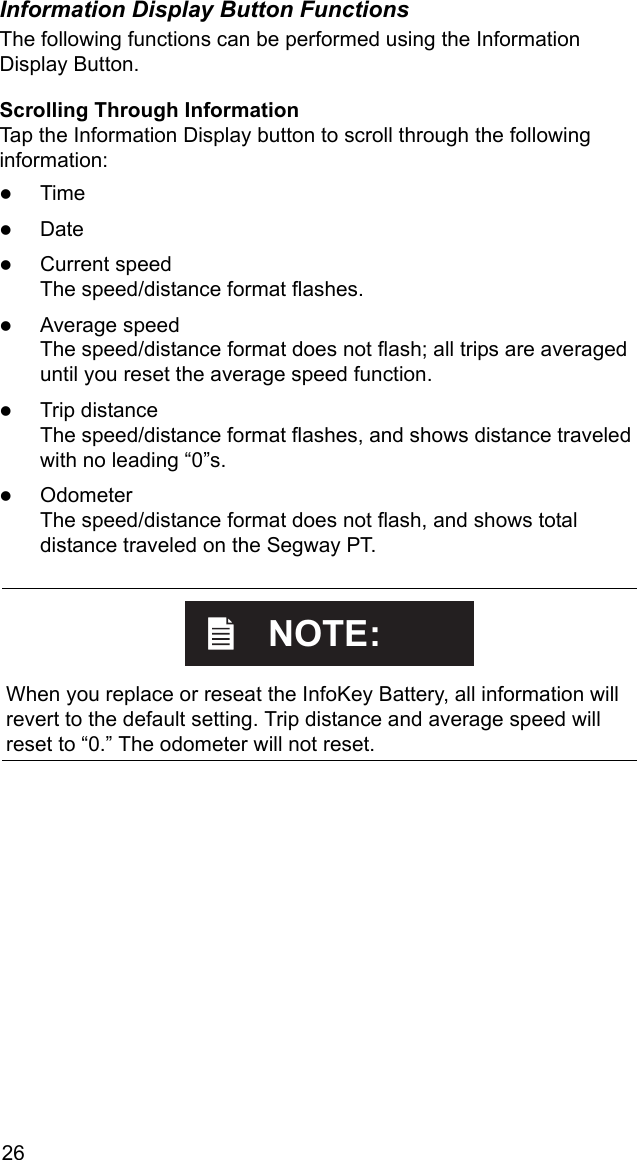

26Information Display Button FunctionsThe following functions can be performed using the Information Display Button.Scrolling Through InformationTap the Information Display button to scroll through the following information: zTimezDatezCurrent speed The speed/distance format flashes.zAverage speedThe speed/distance format does not flash; all trips are averaged until you reset the average speed function.zTrip distanceThe speed/distance format flashes, and shows distance traveled with no leading “0”s.zOdometerThe speed/distance format does not flash, and shows total distance traveled on the Segway PT. When you replace or reseat the InfoKey Battery, all information will revert to the default setting. Trip distance and average speed will reset to “0.” The odometer will not reset.NOTE:

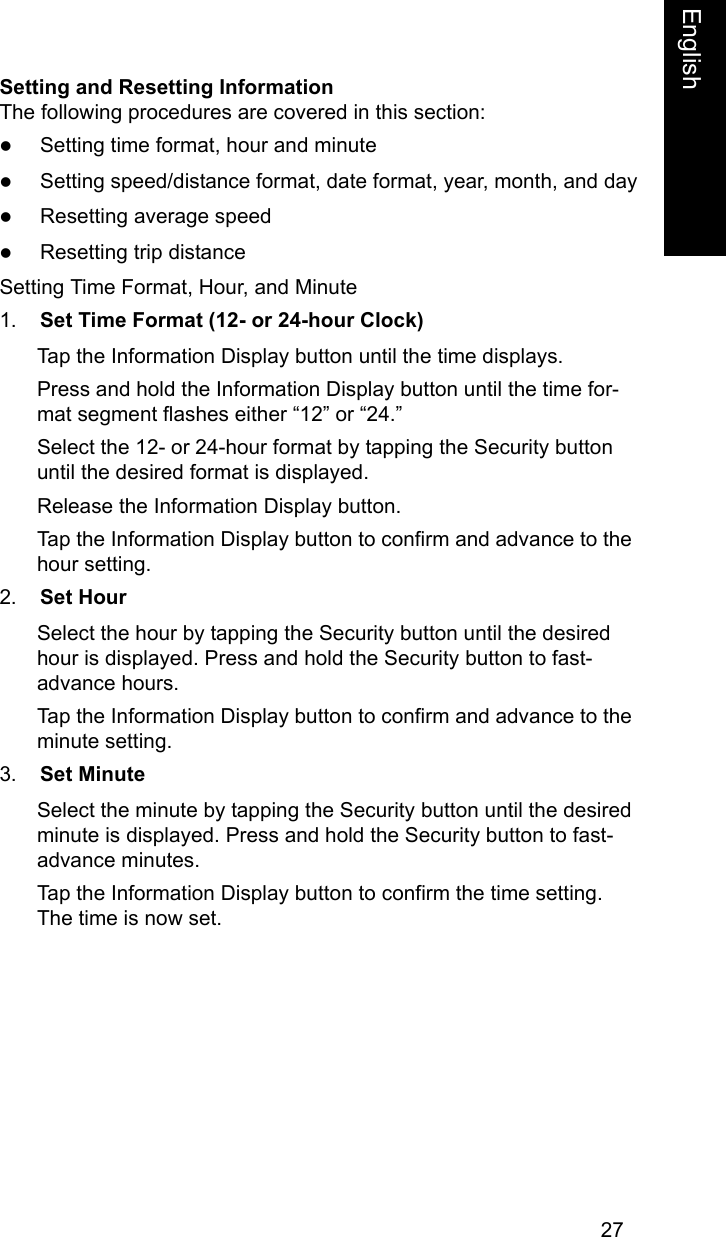

27EnglishEnglishSetting and Resetting InformationThe following procedures are covered in this section:zSetting time format, hour and minutezSetting speed/distance format, date format, year, month, and dayzResetting average speedzResetting trip distanceSetting Time Format, Hour, and Minute1. Set Time Format (12- or 24-hour Clock)Tap the Information Display button until the time displays.Press and hold the Information Display button until the time for-mat segment flashes either “12” or “24.”Select the 12- or 24-hour format by tapping the Security button until the desired format is displayed.Release the Information Display button.Tap the Information Display button to confirm and advance to the hour setting. 2. Set HourSelect the hour by tapping the Security button until the desired hour is displayed. Press and hold the Security button to fast-advance hours.Tap the Information Display button to confirm and advance to the minute setting.3. Set MinuteSelect the minute by tapping the Security button until the desired minute is displayed. Press and hold the Security button to fast-advance minutes.Tap the Information Display button to confirm the time setting. The time is now set.

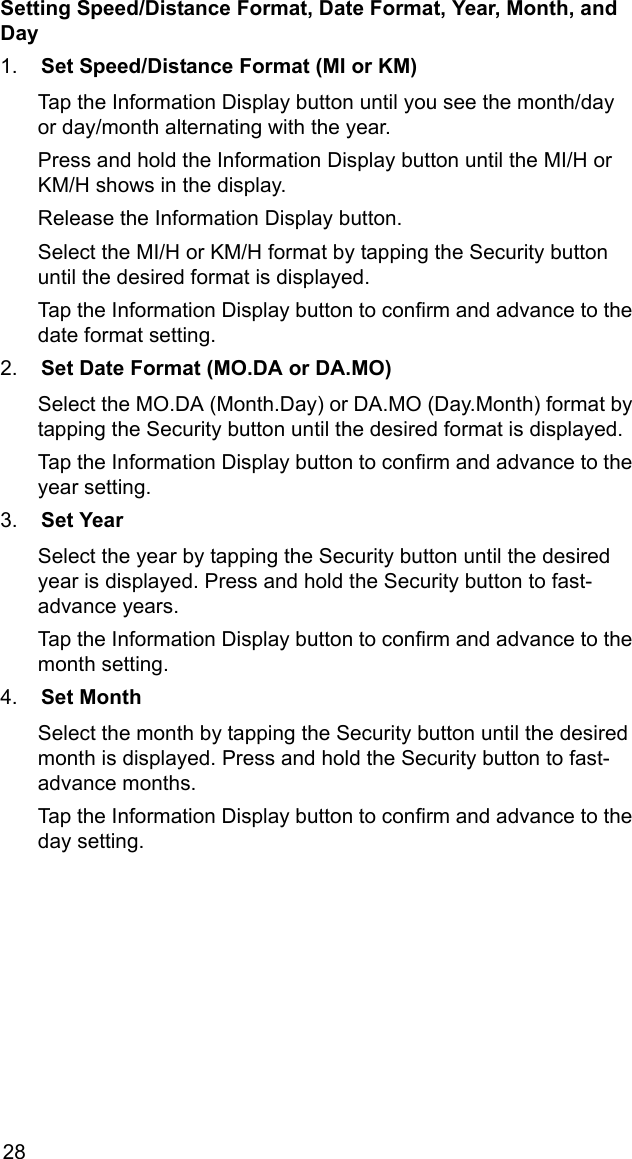

28Setting Speed/Distance Format, Date Format, Year, Month, and Day1. Set Speed/Distance Format (MI or KM)Tap the Information Display button until you see the month/day or day/month alternating with the year.Press and hold the Information Display button until the MI/H or KM/H shows in the display. Release the Information Display button.Select the MI/H or KM/H format by tapping the Security button until the desired format is displayed.Tap the Information Display button to confirm and advance to the date format setting.2. Set Date Format (MO.DA or DA.MO)Select the MO.DA (Month.Day) or DA.MO (Day.Month) format by tapping the Security button until the desired format is displayed.Tap the Information Display button to confirm and advance to the year setting.3. Set YearSelect the year by tapping the Security button until the desired year is displayed. Press and hold the Security button to fast-advance years.Tap the Information Display button to confirm and advance to the month setting.4. Set MonthSelect the month by tapping the Security button until the desired month is displayed. Press and hold the Security button to fast-advance months. Tap the Information Display button to confirm and advance to the day setting.
29EnglishEnglish5. Set DaySelect the day by tapping the Security button until the desired day is displayed. Press and hold the Security button to fast-advance days. 6. Tap the Information Display button to confirm speed/distance format, date format, year, month, and day. These are now set.Resetting Average SpeedTap the Information Display button until you see the average speed (“MI/h” or “KM/h” does not flash).Press and hold the Information Display button until average speed resets to “0.0.” Resetting Trip DistanceTap the Information Display button until you see your trip distance (“MI” or “KM” flashes).Press and hold the Information Display button until the trip odometer resets to “0.0.”

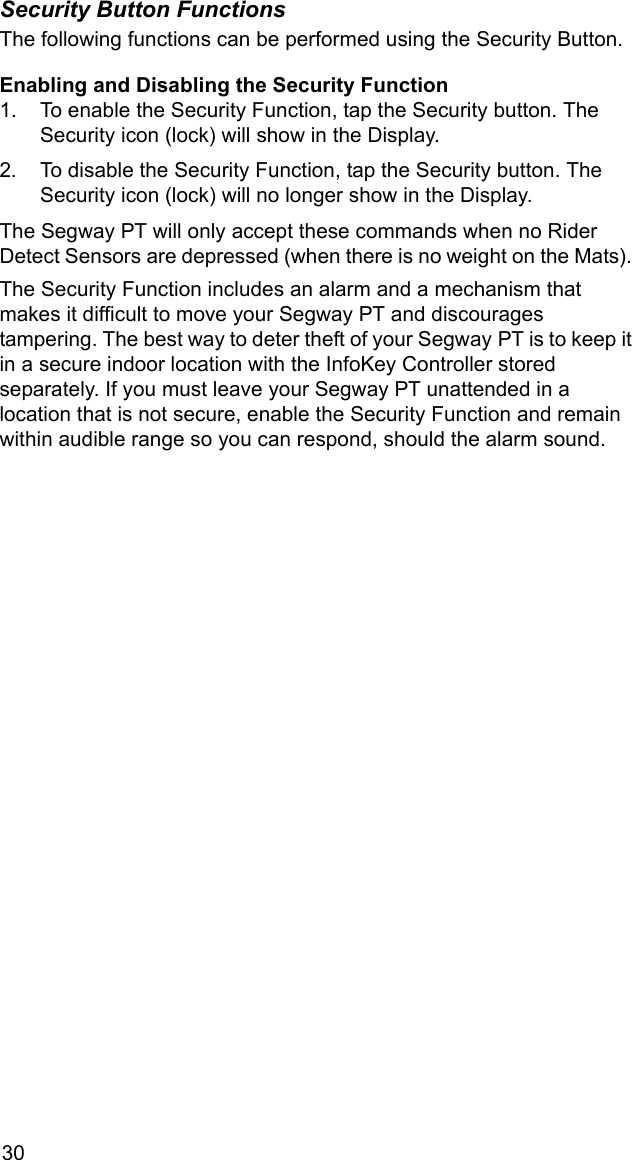

30Security Button FunctionsThe following functions can be performed using the Security Button.Enabling and Disabling the Security Function1. To enable the Security Function, tap the Security button. The Security icon (lock) will show in the Display.2. To disable the Security Function, tap the Security button. The Security icon (lock) will no longer show in the Display.The Segway PT will only accept these commands when no Rider Detect Sensors are depressed (when there is no weight on the Mats). The Security Function includes an alarm and a mechanism that makes it difficult to move your Segway PT and discourages tampering. The best way to deter theft of your Segway PT is to keep it in a secure indoor location with the InfoKey Controller stored separately. If you must leave your Segway PT unattended in a location that is not secure, enable the Security Function and remain within audible range so you can respond, should the alarm sound.

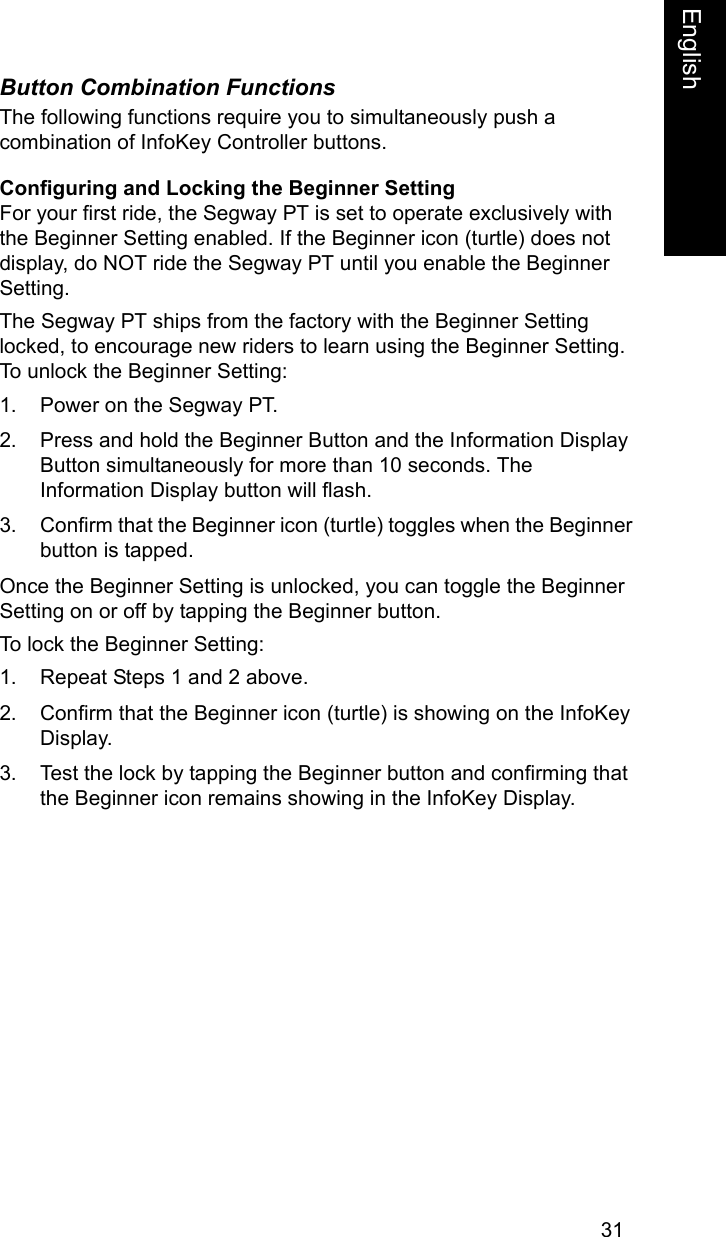

31EnglishEnglishButton Combination FunctionsThe following functions require you to simultaneously push a combination of InfoKey Controller buttons.Configuring and Locking the Beginner SettingFor your first ride, the Segway PT is set to operate exclusively with the Beginner Setting enabled. If the Beginner icon (turtle) does not display, do NOT ride the Segway PT until you enable the Beginner Setting.The Segway PT ships from the factory with the Beginner Setting locked, to encourage new riders to learn using the Beginner Setting. To unlock the Beginner Setting:1. Power on the Segway PT.2. Press and hold the Beginner Button and the Information Display Button simultaneously for more than 10 seconds. The Information Display button will flash.3. Confirm that the Beginner icon (turtle) toggles when the Beginner button is tapped.Once the Beginner Setting is unlocked, you can toggle the Beginner Setting on or off by tapping the Beginner button.To lock the Beginner Setting:1. Repeat Steps 1 and 2 above.2. Confirm that the Beginner icon (turtle) is showing on the InfoKey Display.3. Test the lock by tapping the Beginner button and confirming that the Beginner icon remains showing in the InfoKey Display.

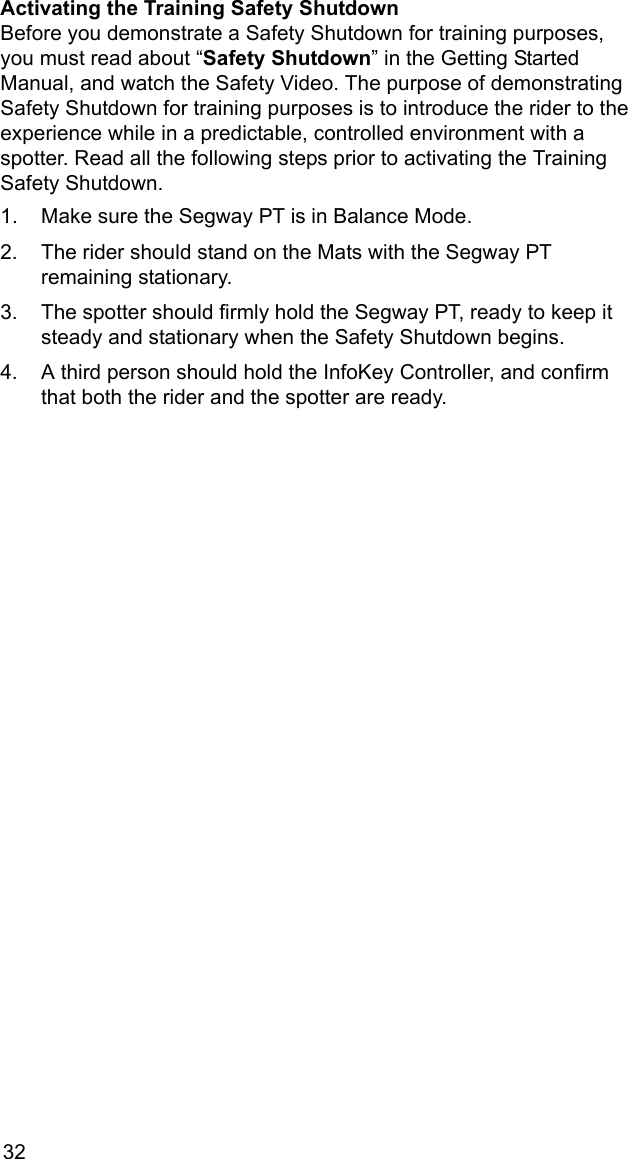

32Activating the Training Safety ShutdownBefore you demonstrate a Safety Shutdown for training purposes, you must read about “Safety Shutdown” in the Getting Started Manual, and watch the Safety Video. The purpose of demonstrating Safety Shutdown for training purposes is to introduce the rider to the experience while in a predictable, controlled environment with a spotter. Read all the following steps prior to activating the Training Safety Shutdown.1. Make sure the Segway PT is in Balance Mode.2. The rider should stand on the Mats with the Segway PT remaining stationary.3. The spotter should firmly hold the Segway PT, ready to keep it steady and stationary when the Safety Shutdown begins.4. A third person should hold the InfoKey Controller, and confirm that both the rider and the spotter are ready.

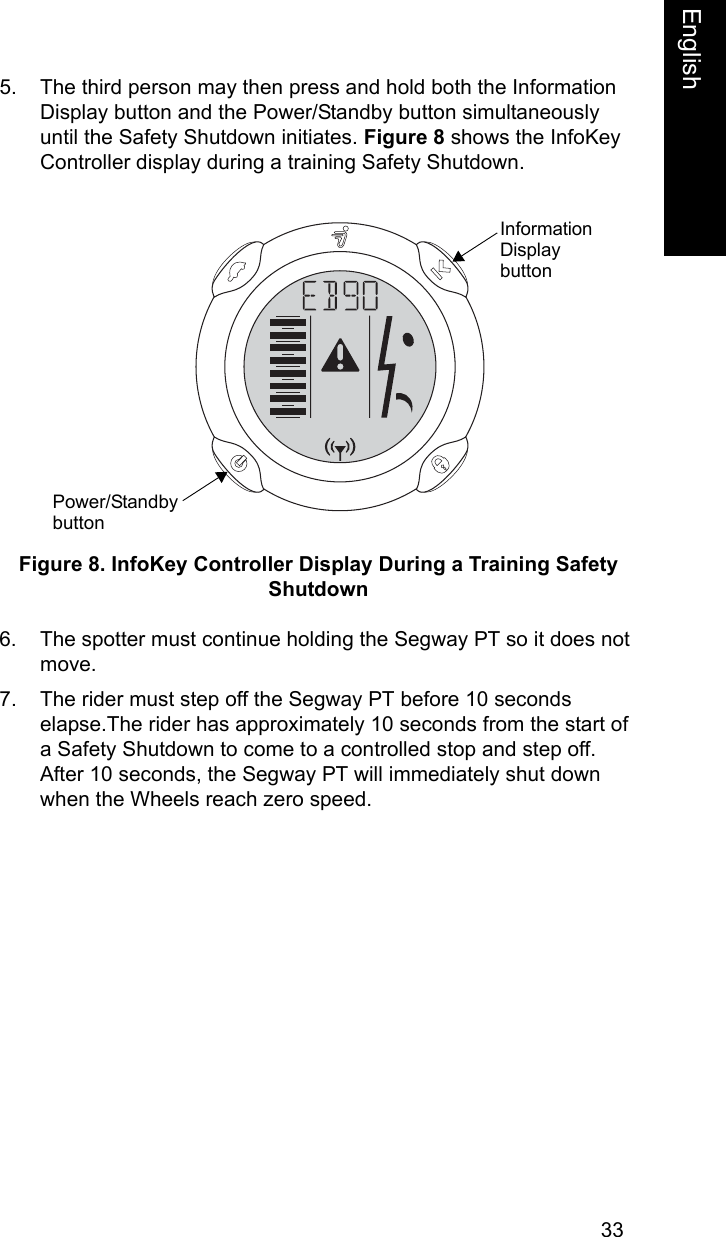

33EnglishEnglish5. The third person may then press and hold both the Information Display button and the Power/Standby button simultaneously until the Safety Shutdown initiates. Figure 8 shows the InfoKey Controller display during a training Safety Shutdown.Figure 8. InfoKey Controller Display During a Training Safety Shutdown6. The spotter must continue holding the Segway PT so it does not move.7. The rider must step off the Segway PT before 10 seconds elapse.The rider has approximately 10 seconds from the start of a Safety Shutdown to come to a controlled stop and step off. After 10 seconds, the Segway PT will immediately shut down when the Wheels reach zero speed.Power/StandbyInformationbuttonDisplaybutton

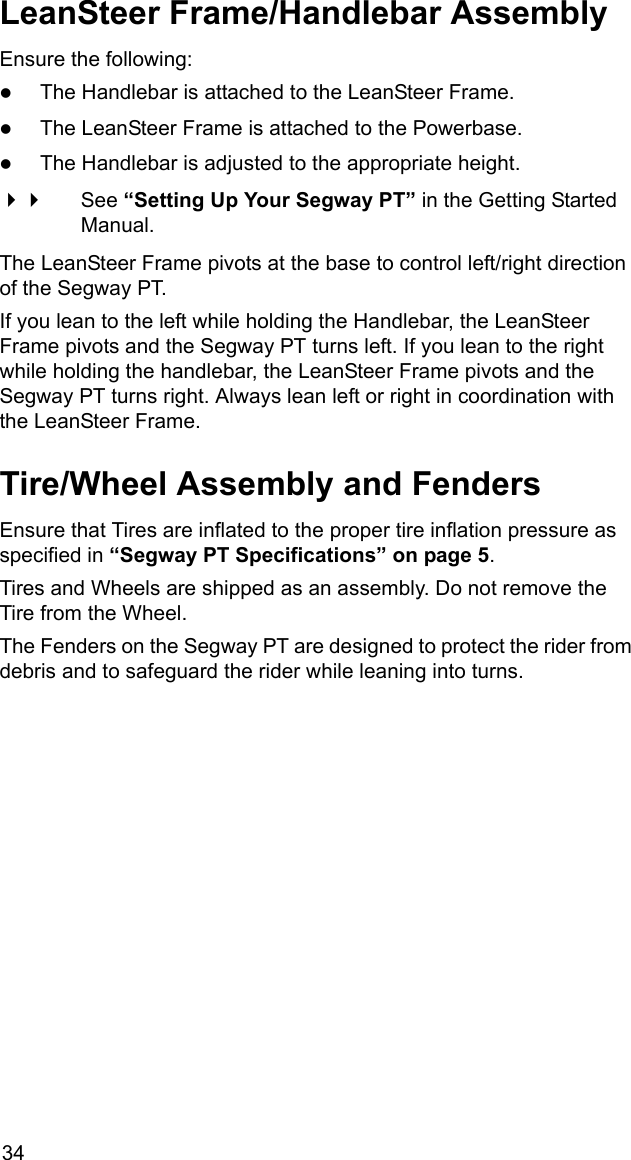

34LeanSteer Frame/Handlebar AssemblyEnsure the following:zThe Handlebar is attached to the LeanSteer Frame.zThe LeanSteer Frame is attached to the Powerbase.zThe Handlebar is adjusted to the appropriate height. See “Setting Up Your Segway PT” in the Getting Started Manual.The LeanSteer Frame pivots at the base to control left/right direction of the Segway PT. If you lean to the left while holding the Handlebar, the LeanSteer Frame pivots and the Segway PT turns left. If you lean to the right while holding the handlebar, the LeanSteer Frame pivots and the Segway PT turns right. Always lean left or right in coordination with the LeanSteer Frame.Tire/Wheel Assembly and FendersEnsure that Tires are inflated to the proper tire inflation pressure as specified in “Segway PT Specifications” on page 5.Tires and Wheels are shipped as an assembly. Do not remove the Tire from the Wheel.The Fenders on the Segway PT are designed to protect the rider from debris and to safeguard the rider while leaning into turns.

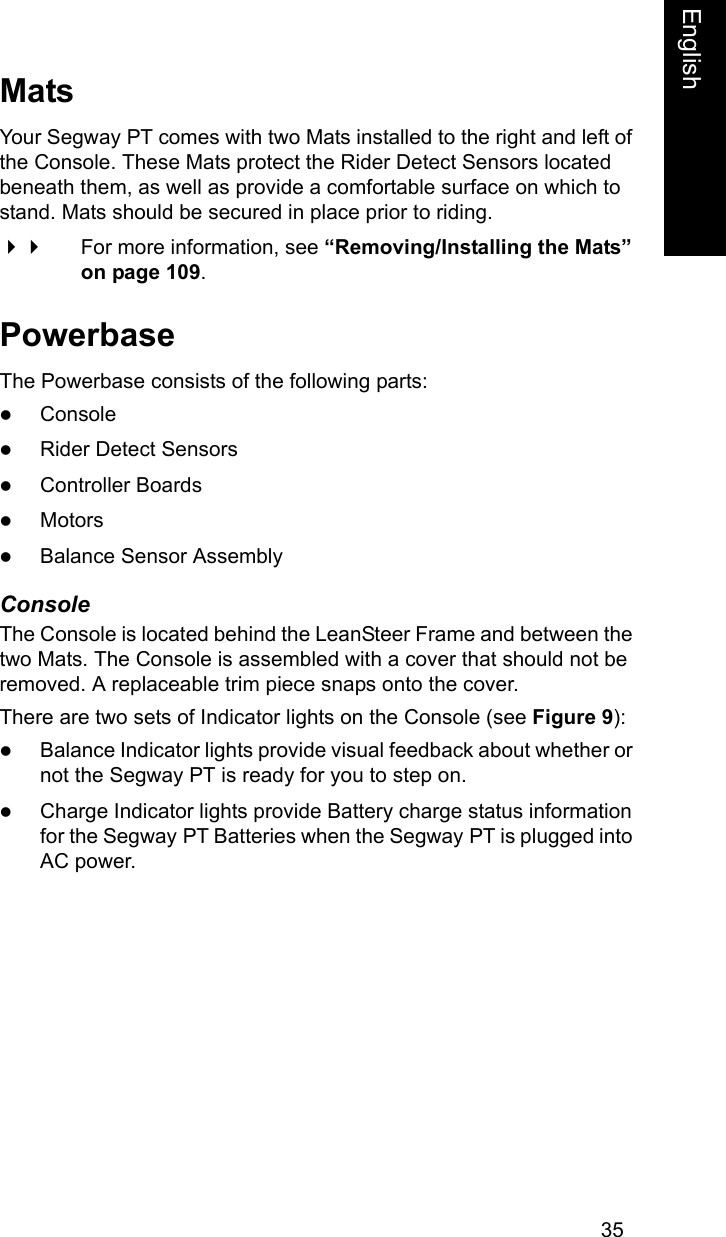

35EnglishEnglishMatsYour Segway PT comes with two Mats installed to the right and left of the Console. These Mats protect the Rider Detect Sensors located beneath them, as well as provide a comfortable surface on which to stand. Mats should be secured in place prior to riding.  For more information, see “Removing/Installing the Mats” on page 109.PowerbaseThe Powerbase consists of the following parts:zConsolezRider Detect SensorszController BoardszMotorszBalance Sensor AssemblyConsoleThe Console is located behind the LeanSteer Frame and between the two Mats. The Console is assembled with a cover that should not be removed. A replaceable trim piece snaps onto the cover. There are two sets of Indicator lights on the Console (see Figure 9):zBalance Indicator lights provide visual feedback about whether or not the Segway PT is ready for you to step on. zCharge Indicator lights provide Battery charge status information for the Segway PT Batteries when the Segway PT is plugged into AC power.

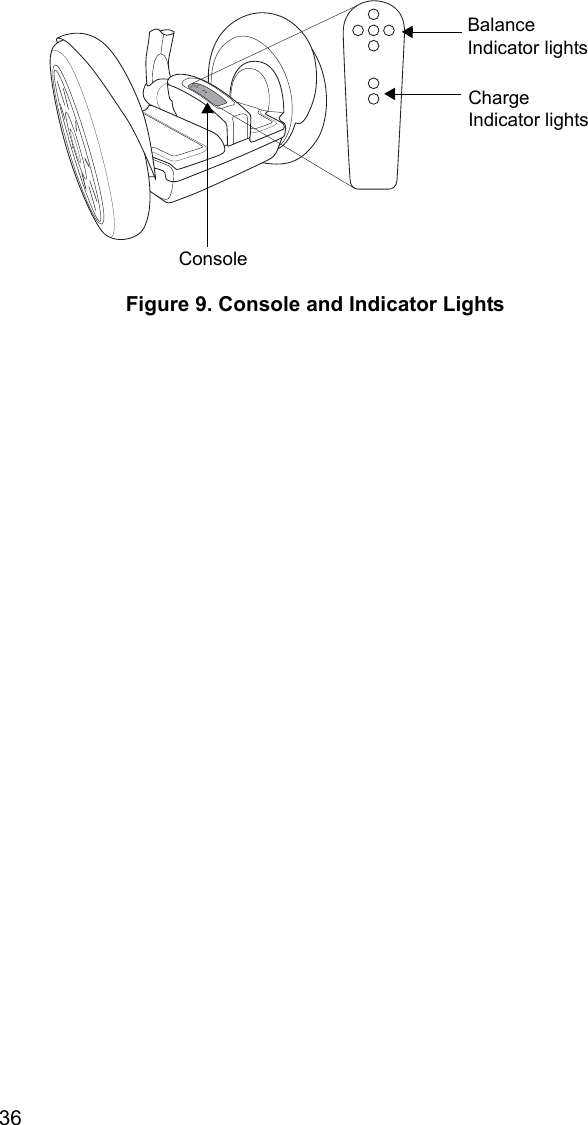

36Figure 9. Console and Indicator LightsBalance Indicator lightsCharge Indicator lights Console
37EnglishEnglishBalance Indicator LightsFive Balance Indicator lights are located on the Console. These lights provide visual feedback about the balancing status of the Segway PT, and help the rider determine when it is safe to step onto the Mats. See Figure 10.Figure 10. Balance Indicator LightsTable 4 describes the Balance Indicator light patterns, and the corresponding balance status of the Segway PT.Table 4. Balance Indicator Light PatternsSegway PT StatusLight PatternNot ReadyDo not step on.Off: No Balance Indicator lights are illuminated.Red: One or more Balance Indicator lights are red.ReadyStep on.Green: Only the center Balance Indicator light is green. All four other lights are not illuminated.Green: All five Balance Indicator lights are pulsing green.Green Red

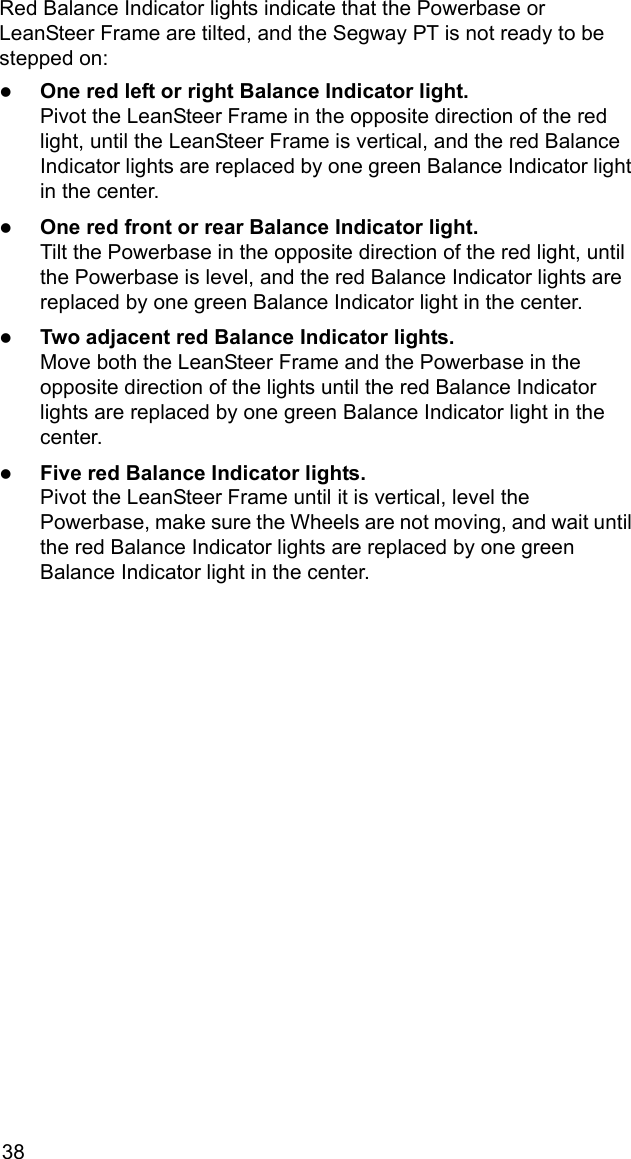

38Red Balance Indicator lights indicate that the Powerbase or LeanSteer Frame are tilted, and the Segway PT is not ready to be stepped on:zOne red left or right Balance Indicator light.Pivot the LeanSteer Frame in the opposite direction of the red light, until the LeanSteer Frame is vertical, and the red Balance Indicator lights are replaced by one green Balance Indicator light in the center.zOne red front or rear Balance Indicator light. Tilt the Powerbase in the opposite direction of the red light, until the Powerbase is level, and the red Balance Indicator lights are replaced by one green Balance Indicator light in the center.zTwo adjacent red Balance Indicator lights. Move both the LeanSteer Frame and the Powerbase in the opposite direction of the lights until the red Balance Indicator lights are replaced by one green Balance Indicator light in the center.zFive red Balance Indicator lights. Pivot the LeanSteer Frame until it is vertical, level the Powerbase, make sure the Wheels are not moving, and wait until the red Balance Indicator lights are replaced by one green Balance Indicator light in the center.

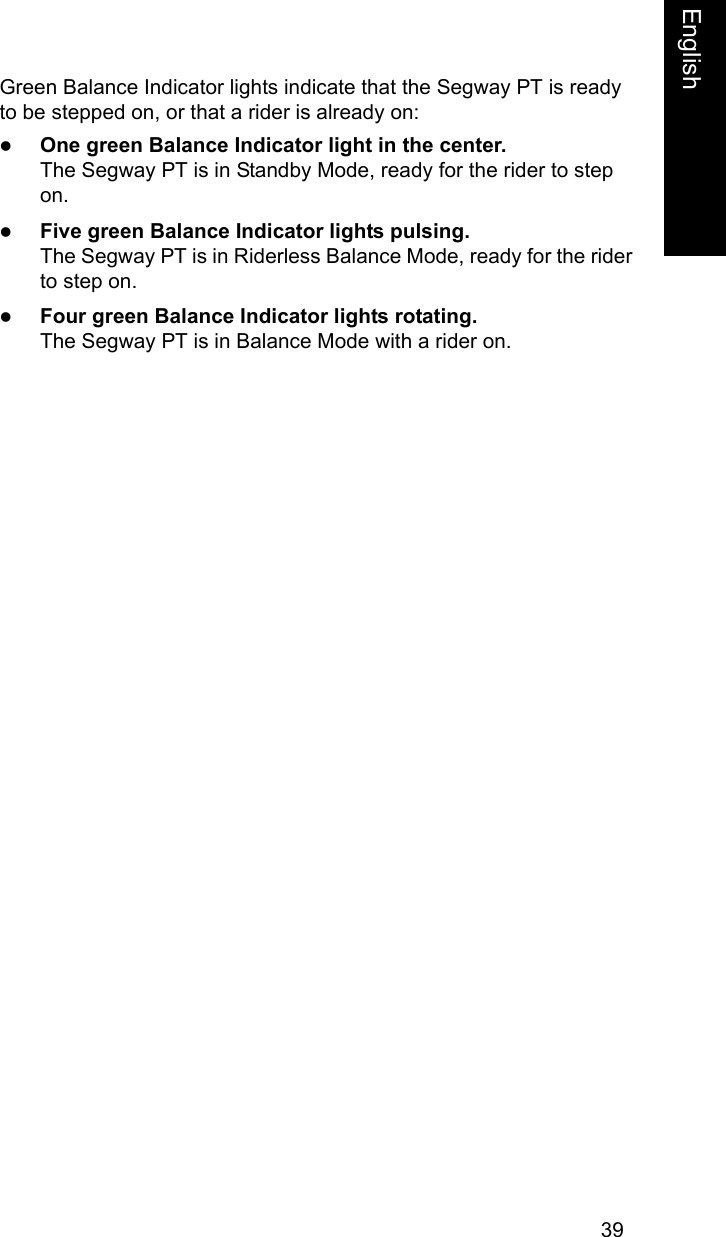

39EnglishEnglishGreen Balance Indicator lights indicate that the Segway PT is ready to be stepped on, or that a rider is already on:zOne green Balance Indicator light in the center. The Segway PT is in Standby Mode, ready for the rider to step on.zFive green Balance Indicator lights pulsing. The Segway PT is in Riderless Balance Mode, ready for the rider to step on.zFour green Balance Indicator lights rotating. The Segway PT is in Balance Mode with a rider on.

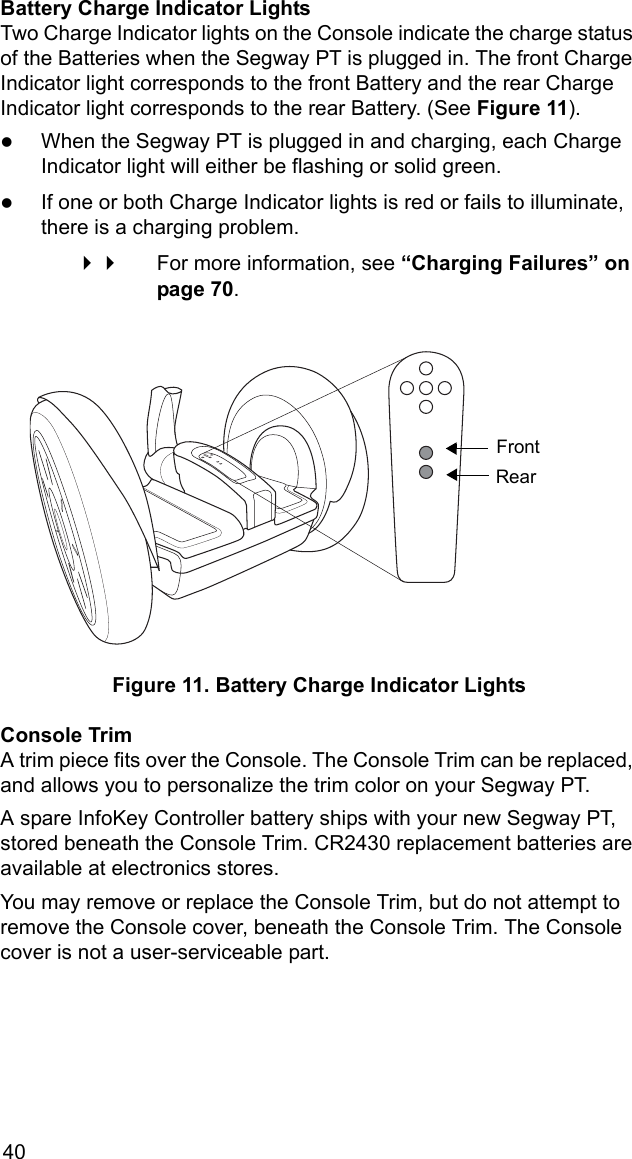

40Battery Charge Indicator LightsTwo Charge Indicator lights on the Console indicate the charge status of the Batteries when the Segway PT is plugged in. The front Charge Indicator light corresponds to the front Battery and the rear Charge Indicator light corresponds to the rear Battery. (See Figure 11). zWhen the Segway PT is plugged in and charging, each Charge Indicator light will either be flashing or solid green.zIf one or both Charge Indicator lights is red or fails to illuminate, there is a charging problem.  For more information, see “Charging Failures” on page 70.Figure 11. Battery Charge Indicator LightsConsole TrimA trim piece fits over the Console. The Console Trim can be replaced, and allows you to personalize the trim color on your Segway PT. A spare InfoKey Controller battery ships with your new Segway PT, stored beneath the Console Trim. CR2430 replacement batteries are available at electronics stores. You may remove or replace the Console Trim, but do not attempt to remove the Console cover, beneath the Console Trim. The Console cover is not a user-serviceable part.FrontRear

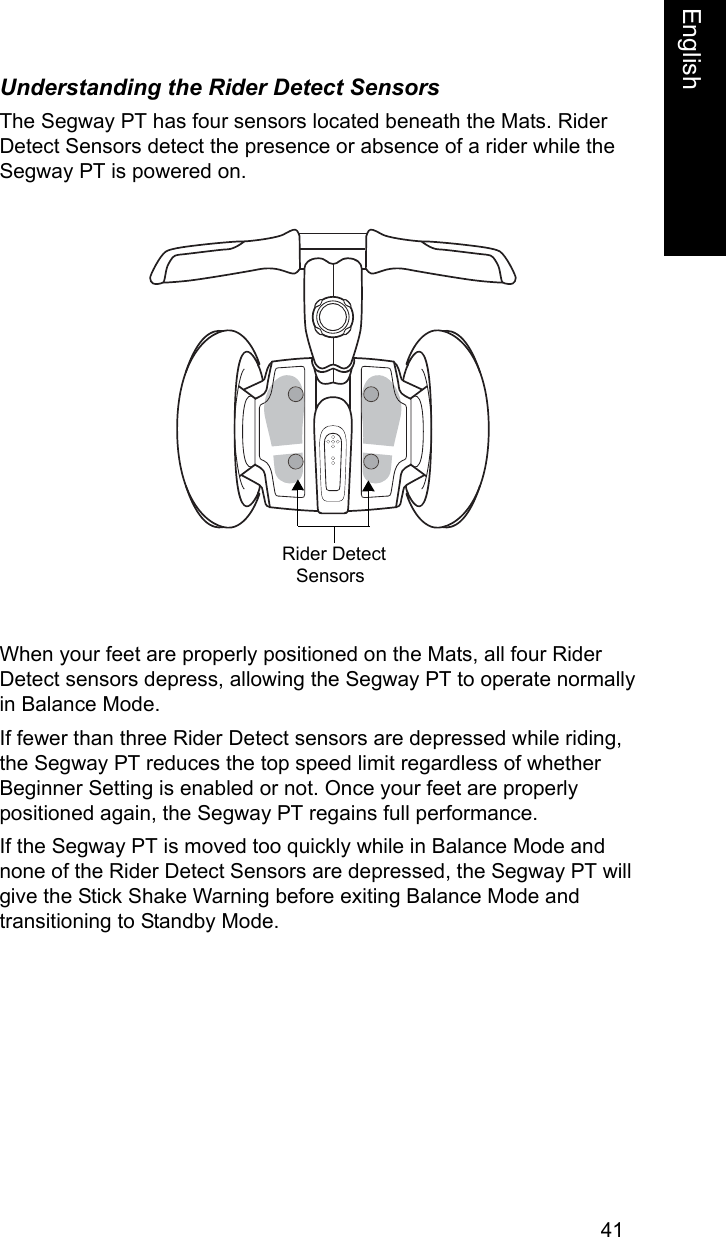

41EnglishEnglishUnderstanding the Rider Detect SensorsThe Segway PT has four sensors located beneath the Mats. Rider Detect Sensors detect the presence or absence of a rider while the Segway PT is powered on. When your feet are properly positioned on the Mats, all four Rider Detect sensors depress, allowing the Segway PT to operate normallyin Balance Mode.If fewer than three Rider Detect sensors are depressed while riding, the Segway PT reduces the top speed limit regardless of whetherBeginner Setting is enabled or not. Once your feet are properly positioned again, the Segway PT regains full performance.If the Segway PT is moved too quickly while in Balance Mode and none of the Rider Detect Sensors are depressed, the Segway PT will give the Stick Shake Warning before exiting Balance Mode and transitioning to Standby Mode.Rider Detect Sensors

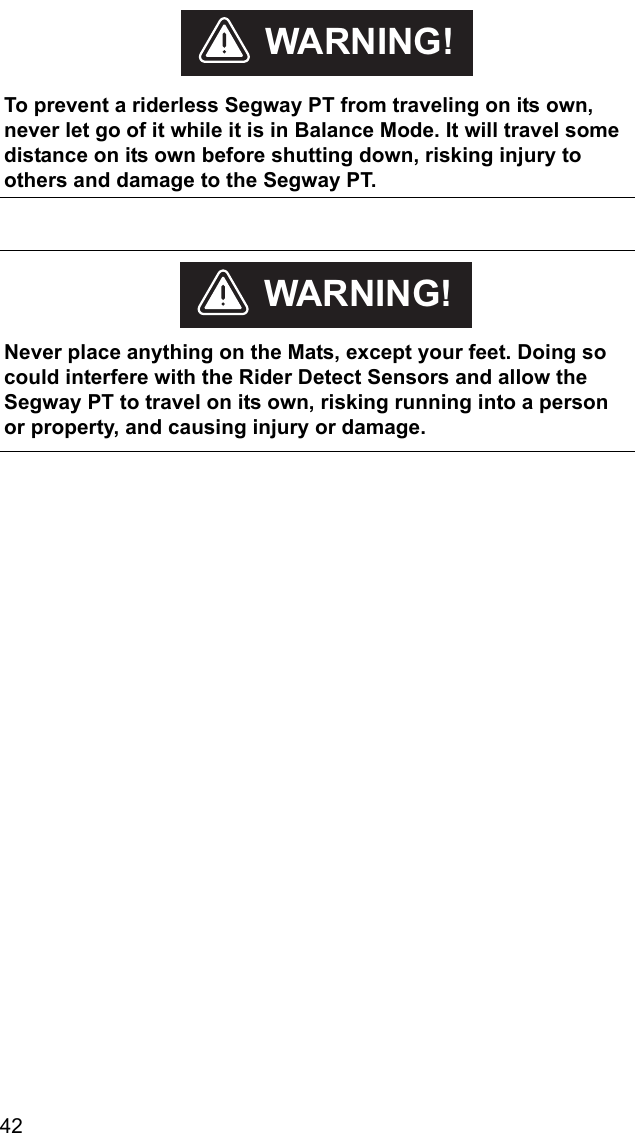

42 To prevent a riderless Segway PT from traveling on its own, never let go of it while it is in Balance Mode. It will travel some distance on its own before shutting down, risking injury to others and damage to the Segway PT.WARNING! Never place anything on the Mats, except your feet. Doing so could interfere with the Rider Detect Sensors and allow the Segway PT to travel on its own, risking running into a person or property, and causing injury or damage.WARNING!

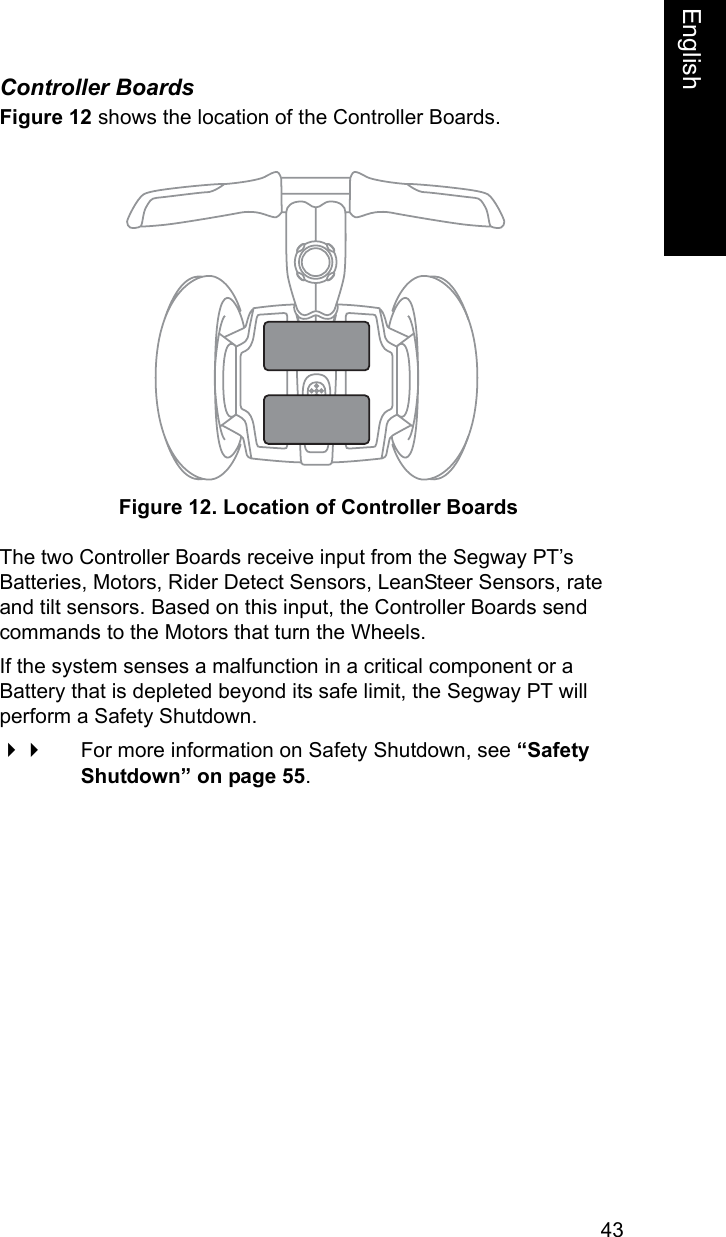

43EnglishEnglishController BoardsFigure 12 shows the location of the Controller Boards. Figure 12. Location of Controller BoardsThe two Controller Boards receive input from the Segway PT’s Batteries, Motors, Rider Detect Sensors, LeanSteer Sensors, rate and tilt sensors. Based on this input, the Controller Boards send commands to the Motors that turn the Wheels. If the system senses a malfunction in a critical component or a Battery that is depleted beyond its safe limit, the Segway PT will perform a Safety Shutdown. For more information on Safety Shutdown, see “Safety Shutdown” on page 55.

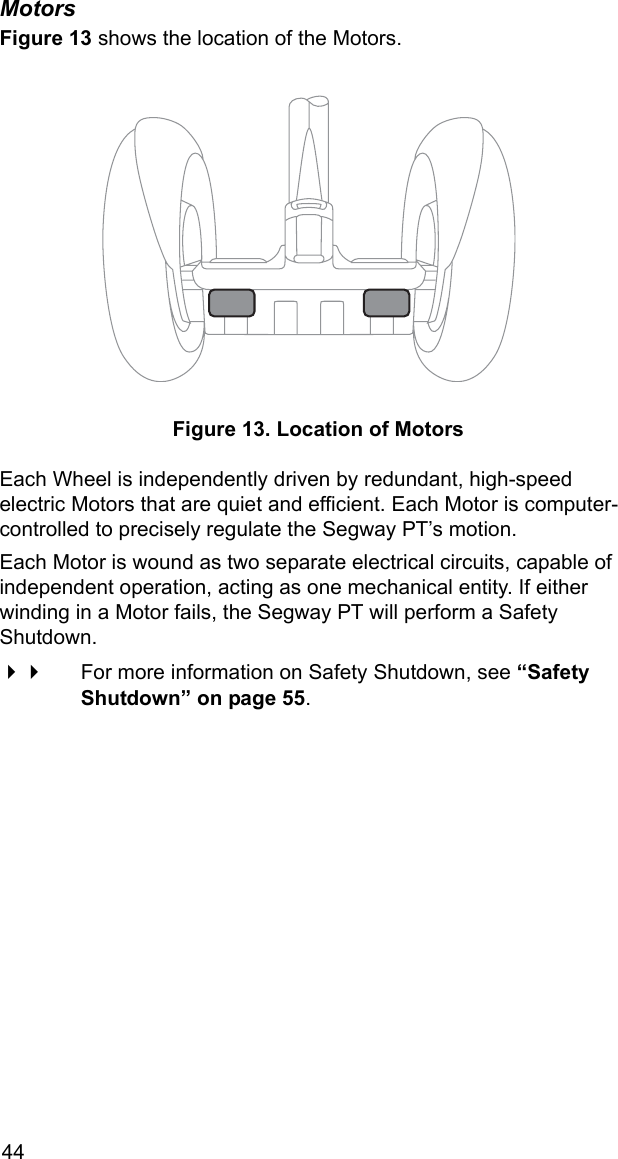

44MotorsFigure 13 shows the location of the Motors. Figure 13. Location of MotorsEach Wheel is independently driven by redundant, high-speed electric Motors that are quiet and efficient. Each Motor is computer-controlled to precisely regulate the Segway PT’s motion.Each Motor is wound as two separate electrical circuits, capable of independent operation, acting as one mechanical entity. If either winding in a Motor fails, the Segway PT will perform a Safety Shutdown. For more information on Safety Shutdown, see “Safety Shutdown” on page 55.

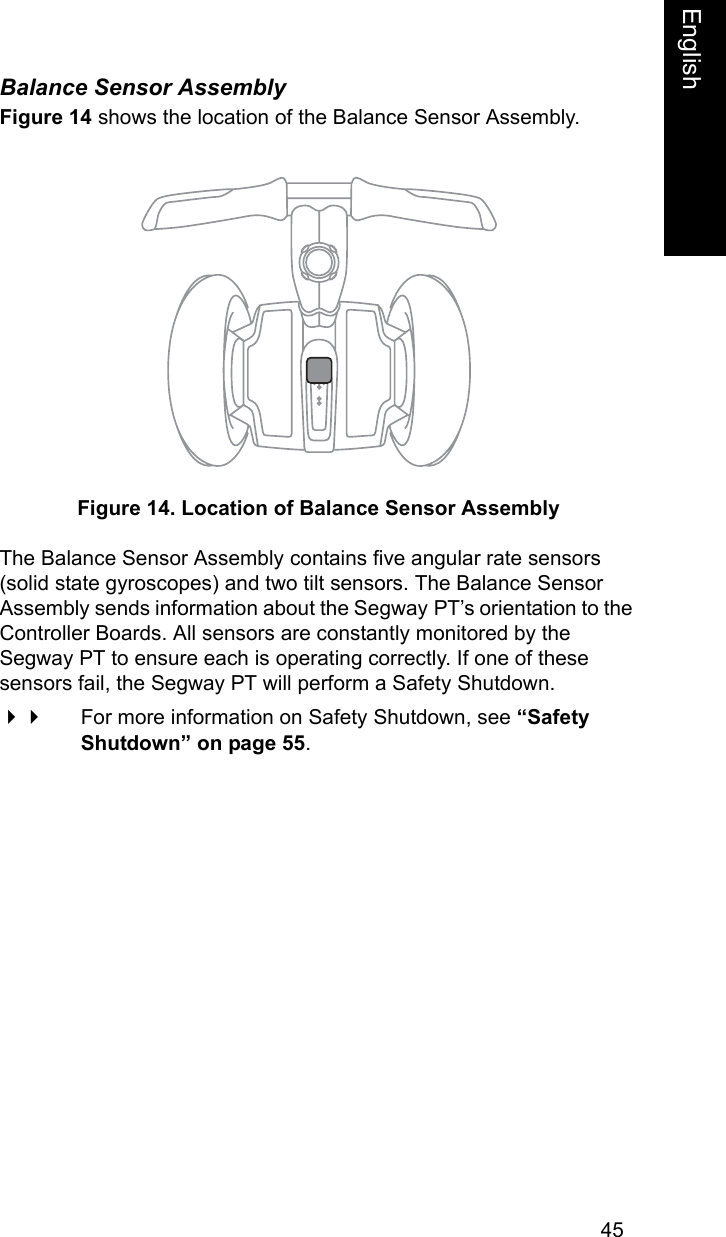

45EnglishEnglishBalance Sensor AssemblyFigure 14 shows the location of the Balance Sensor Assembly. Figure 14. Location of Balance Sensor AssemblyThe Balance Sensor Assembly contains five angular rate sensors (solid state gyroscopes) and two tilt sensors. The Balance Sensor Assembly sends information about the Segway PT’s orientation to the Controller Boards. All sensors are constantly monitored by the Segway PT to ensure each is operating correctly. If one of these sensors fail, the Segway PT will perform a Safety Shutdown. For more information on Safety Shutdown, see “Safety Shutdown” on page 55.

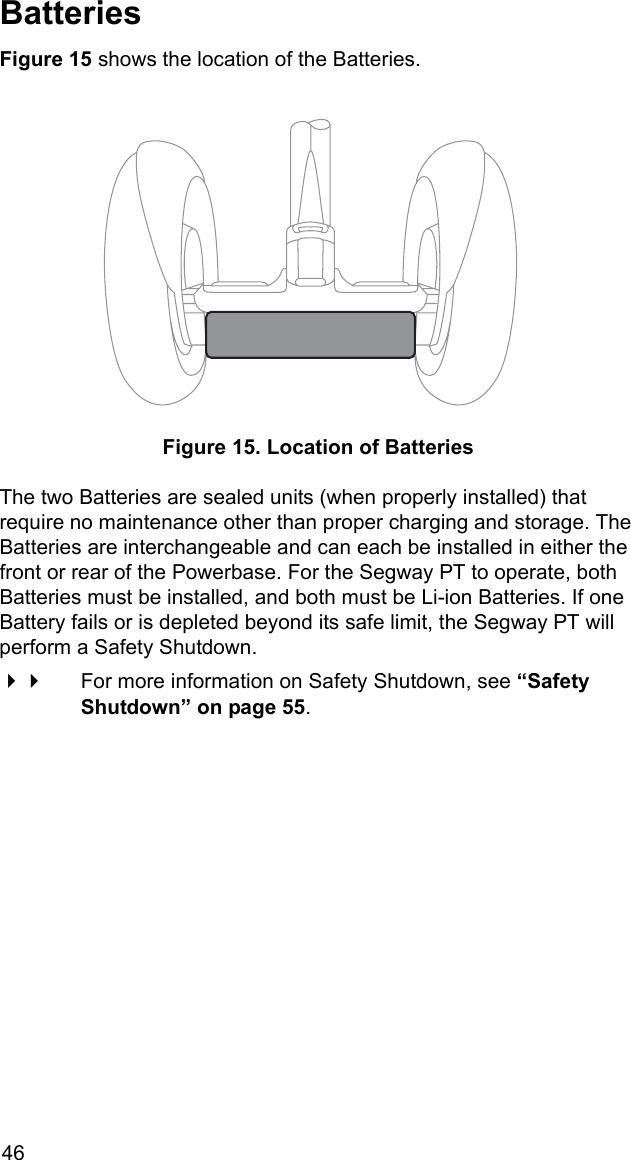

46BatteriesFigure 15 shows the location of the Batteries. Figure 15. Location of BatteriesThe two Batteries are sealed units (when properly installed) that require no maintenance other than proper charging and storage. The Batteries are interchangeable and can each be installed in either the front or rear of the Powerbase. For the Segway PT to operate, both Batteries must be installed, and both must be Li-ion Batteries. If one Battery fails or is depleted beyond its safe limit, the Segway PT will perform a Safety Shutdown. For more information on Safety Shutdown, see “Safety Shutdown” on page 55.

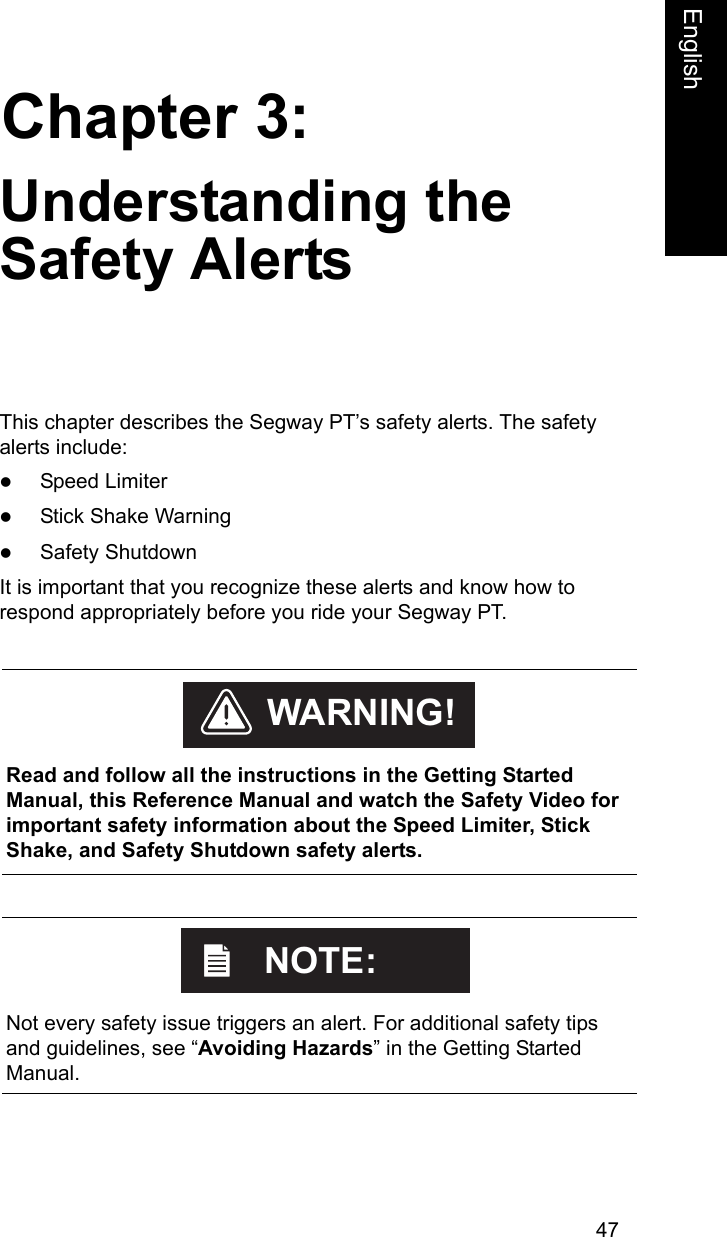

47Chapter 3:EnglishUnderstanding the Safety AlertsThis chapter describes the Segway PT’s safety alerts. The safety alerts include:zSpeed LimiterzStick Shake WarningzSafety ShutdownIt is important that you recognize these alerts and know how to respond appropriately before you ride your Segway PT. Read and follow all the instructions in the Getting Started Manual, this Reference Manual and watch the Safety Video for important safety information about the Speed Limiter, Stick Shake, and Safety Shutdown safety alerts. WARNING! Not every safety issue triggers an alert. For additional safety tips and guidelines, see “Avoiding Hazards” in the Getting Started Manual.NOTE:

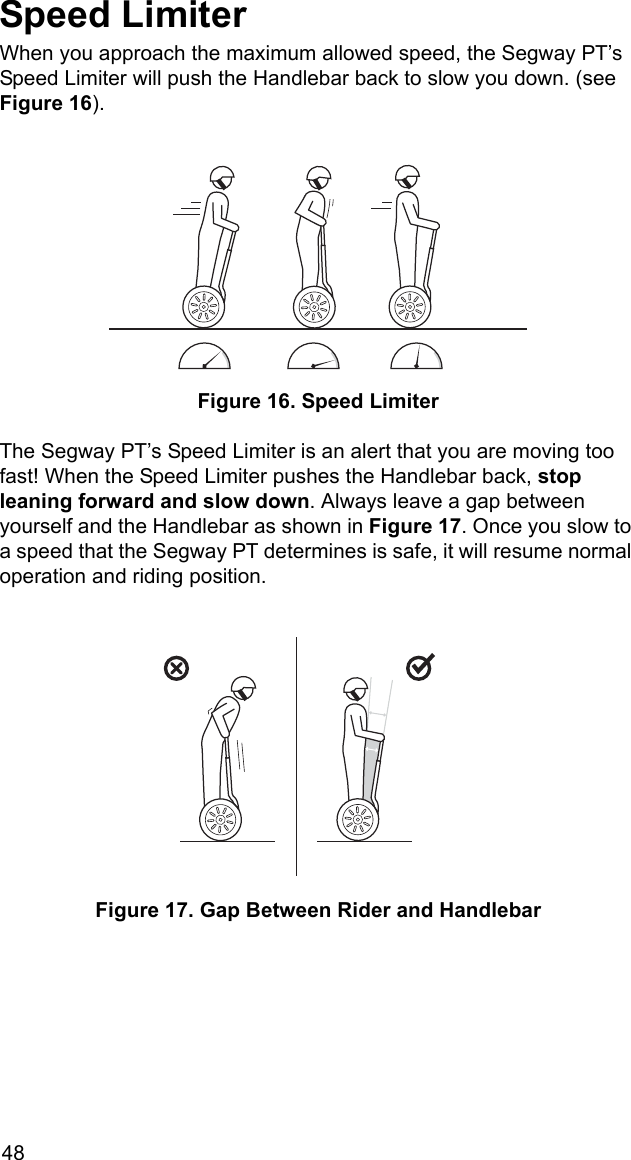

48Speed LimiterWhen you approach the maximum allowed speed, the Segway PT’s Speed Limiter will push the Handlebar back to slow you down. (see Figure 16). Figure 16. Speed LimiterThe Segway PT’s Speed Limiter is an alert that you are moving too fast! When the Speed Limiter pushes the Handlebar back, stop leaning forward and slow down. Always leave a gap between yourself and the Handlebar as shown in Figure 17. Once you slow to a speed that the Segway PT determines is safe, it will resume normal operation and riding position. Figure 17. Gap Between Rider and Handlebar

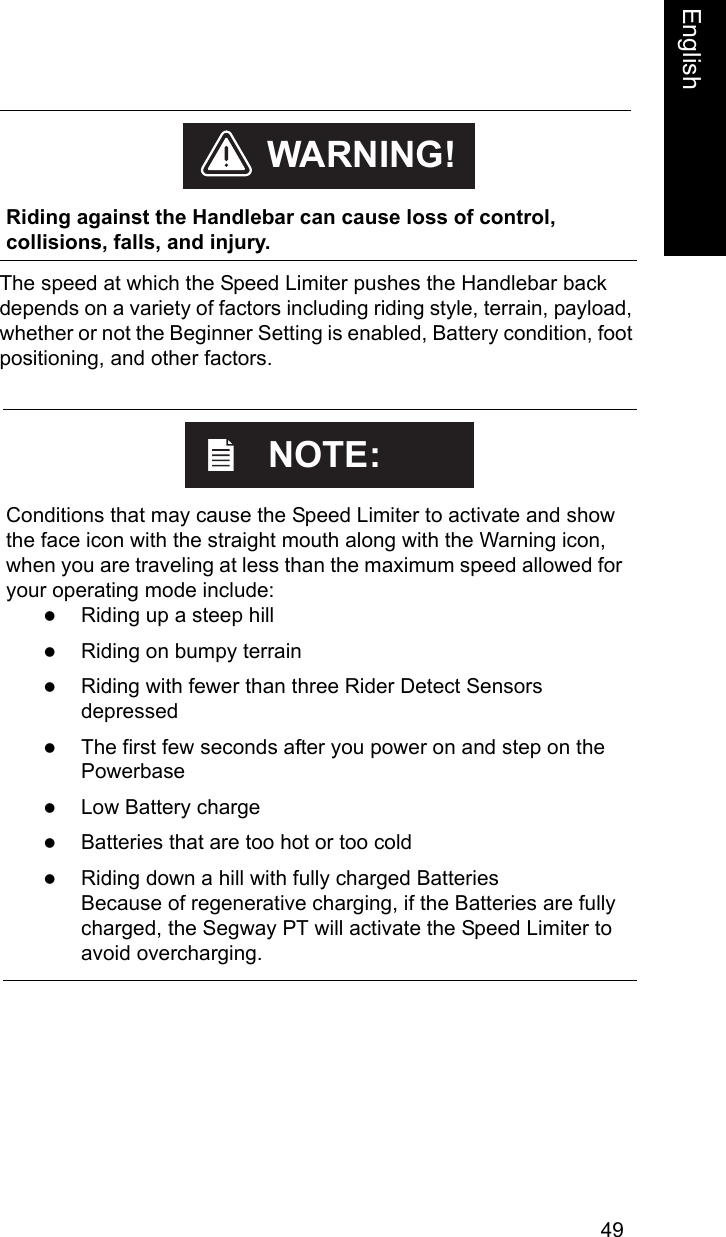

49EnglishEnglishThe speed at which the Speed Limiter pushes the Handlebar back depends on a variety of factors including riding style, terrain, payload, whether or not the Beginner Setting is enabled, Battery condition, foot positioning, and other factors. Riding against the Handlebar can cause loss of control, collisions, falls, and injury.WARNING! Conditions that may cause the Speed Limiter to activate and show the face icon with the straight mouth along with the Warning icon, when you are traveling at less than the maximum speed allowed for your operating mode include: zRiding up a steep hillzRiding on bumpy terrainzRiding with fewer than three Rider Detect Sensors depressedzThe first few seconds after you power on and step on the PowerbasezLow Battery chargezBatteries that are too hot or too coldzRiding down a hill with fully charged Batteries Because of regenerative charging, if the Batteries are fully charged, the Segway PT will activate the Speed Limiter to avoid overcharging.NOTE:

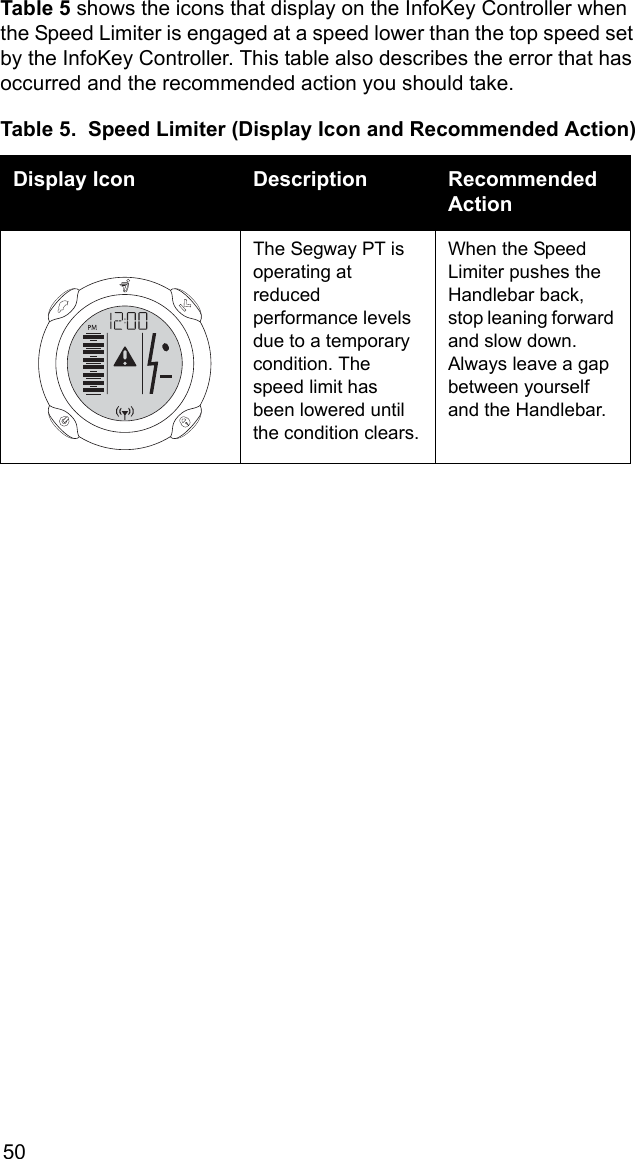

50Table 5 shows the icons that display on the InfoKey Controller when the Speed Limiter is engaged at a speed lower than the top speed set by the InfoKey Controller. This table also describes the error that has occurred and the recommended action you should take.Table 5. Speed Limiter (Display Icon and Recommended Action)Display Icon Description Recommended ActionThe Segway PT is operating at reduced performance levels due to a temporary condition. The speed limit has been lowered until the condition clears.When the Speed Limiter pushes the Handlebar back, stop leaning forward and slow down. Always leave a gap between yourself and the Handlebar.

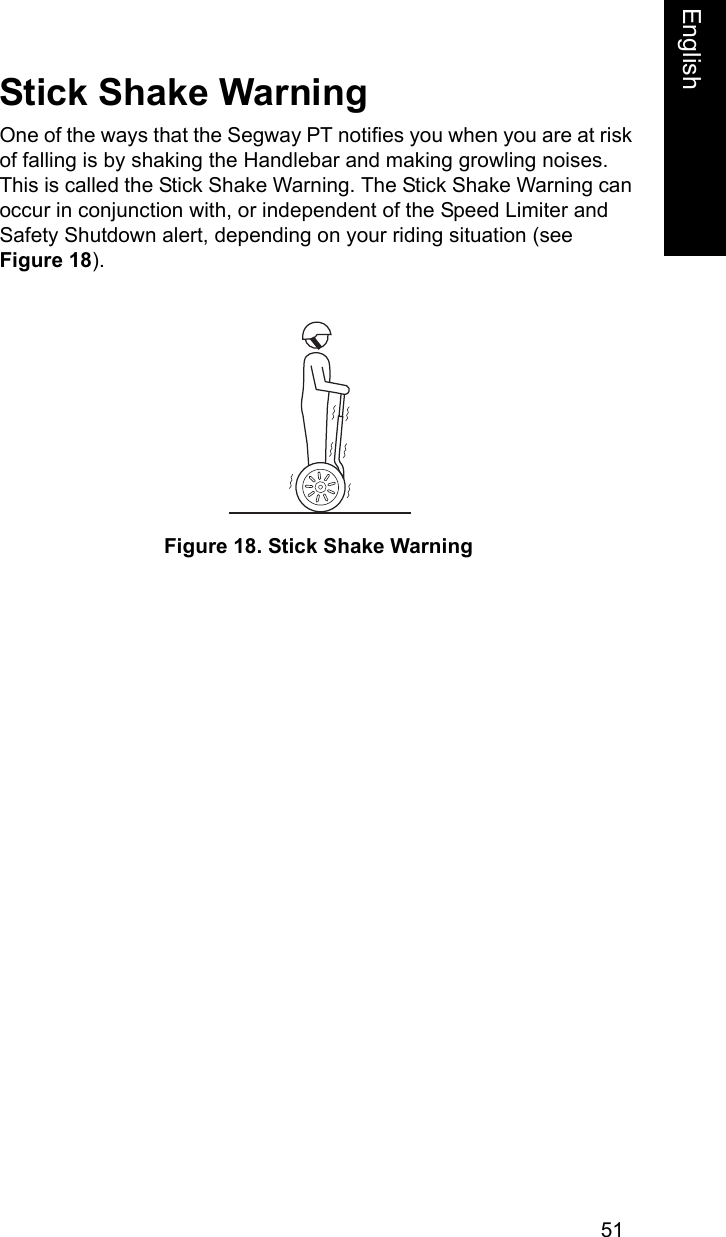

51EnglishEnglishStick Shake WarningOne of the ways that the Segway PT notifies you when you are at risk of falling is by shaking the Handlebar and making growling noises. This is called the Stick Shake Warning. The Stick Shake Warning can occur in conjunction with, or independent of the Speed Limiter and Safety Shutdown alert, depending on your riding situation (see Figure 18). Figure 18. Stick Shake Warning

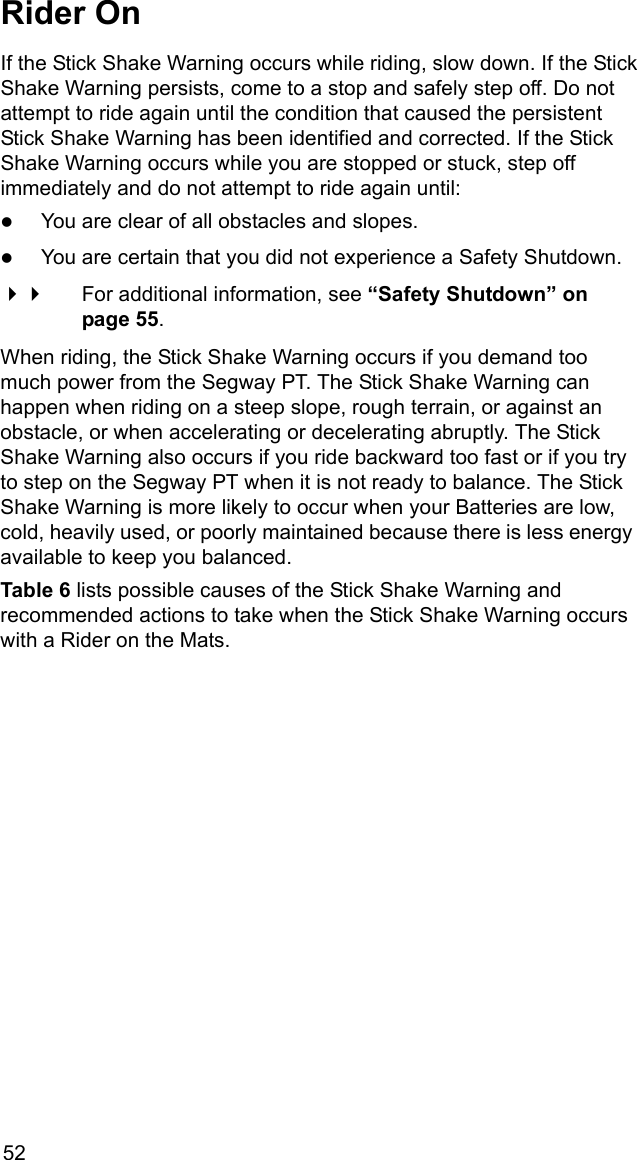

52Rider OnIf the Stick Shake Warning occurs while riding, slow down. If the StickShake Warning persists, come to a stop and safely step off. Do not attempt to ride again until the condition that caused the persistent Stick Shake Warning has been identified and corrected. If the Stick Shake Warning occurs while you are stopped or stuck, step off immediately and do not attempt to ride again until:zYou are clear of all obstacles and slopes.zYou are certain that you did not experience a Safety Shutdown. For additional information, see “Safety Shutdown” on page 55.When riding, the Stick Shake Warning occurs if you demand too much power from the Segway PT. The Stick Shake Warning can happen when riding on a steep slope, rough terrain, or against an obstacle, or when accelerating or decelerating abruptly. The Stick Shake Warning also occurs if you ride backward too fast or if you try to step on the Segway PT when it is not ready to balance. The Stick Shake Warning is more likely to occur when your Batteries are low, cold, heavily used, or poorly maintained because there is less energy available to keep you balanced. Table 6 lists possible causes of the Stick Shake Warning and recommended actions to take when the Stick Shake Warning occurs with a Rider on the Mats.

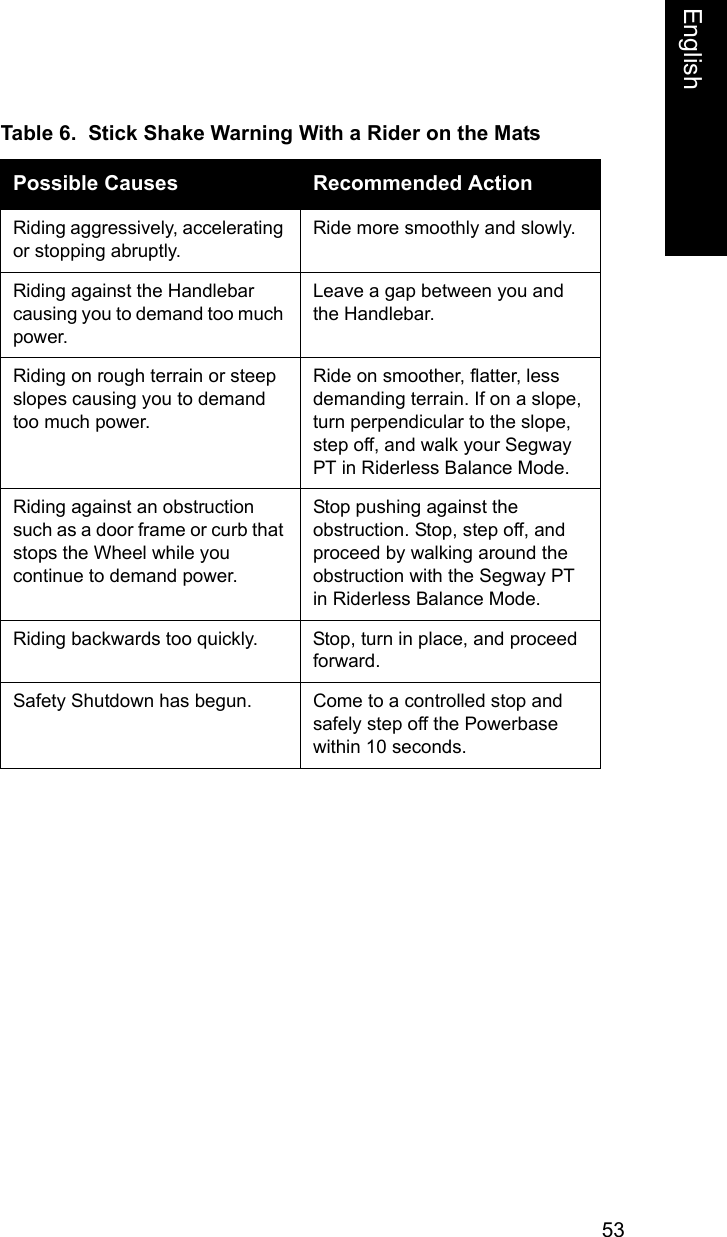

53EnglishEnglishTable 6. Stick Shake Warning With a Rider on the MatsPossible Causes Recommended ActionRiding aggressively, accelerating or stopping abruptly.Ride more smoothly and slowly.Riding against the Handlebar causing you to demand too much power.Leave a gap between you and the Handlebar.Riding on rough terrain or steep slopes causing you to demand too much power.Ride on smoother, flatter, less demanding terrain. If on a slope, turn perpendicular to the slope, step off, and walk your Segway PT in Riderless Balance Mode.Riding against an obstruction such as a door frame or curb that stops the Wheel while you continue to demand power.Stop pushing against the obstruction. Stop, step off, and proceed by walking around the obstruction with the Segway PT in Riderless Balance Mode. Riding backwards too quickly. Stop, turn in place, and proceed forward.Safety Shutdown has begun. Come to a controlled stop and safely step off the Powerbase within 10 seconds.

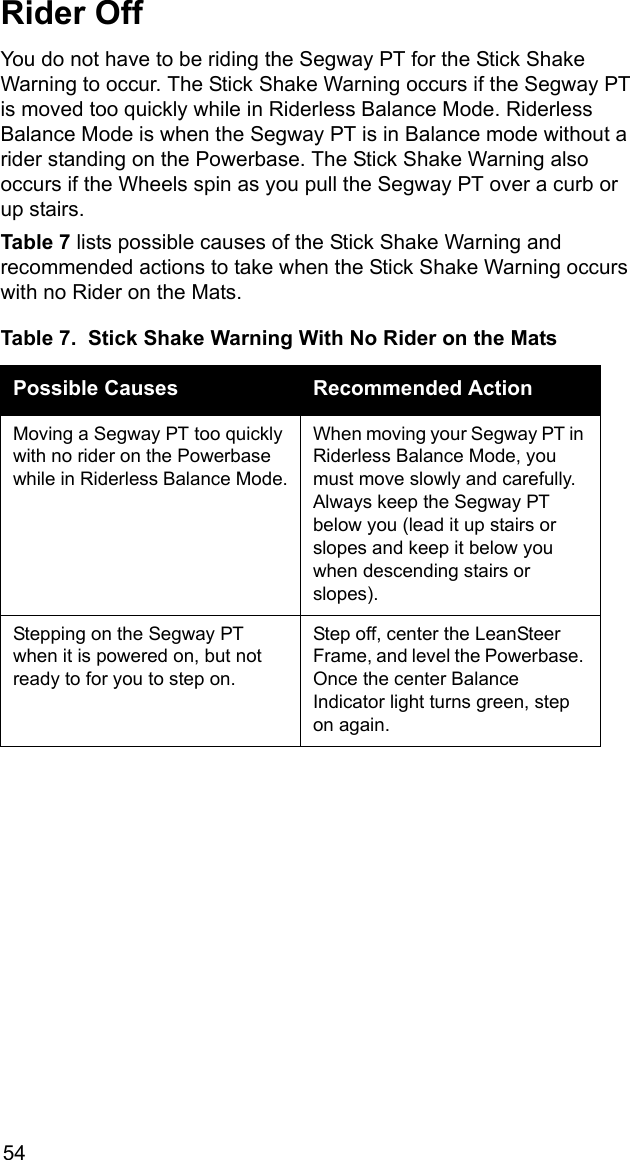

54Rider OffYou do not have to be riding the Segway PT for the Stick Shake Warning to occur. The Stick Shake Warning occurs if the Segway PT is moved too quickly while in Riderless Balance Mode. Riderless Balance Mode is when the Segway PT is in Balance mode without a rider standing on the Powerbase. The Stick Shake Warning also occurs if the Wheels spin as you pull the Segway PT over a curb or up stairs.Table 7 lists possible causes of the Stick Shake Warning and recommended actions to take when the Stick Shake Warning occurs with no Rider on the Mats.Table 7. Stick Shake Warning With No Rider on the MatsPossible Causes Recommended ActionMoving a Segway PT too quickly with no rider on the Powerbase while in Riderless Balance Mode.When moving your Segway PT in Riderless Balance Mode, you must move slowly and carefully. Always keep the Segway PT below you (lead it up stairs or slopes and keep it below you when descending stairs or slopes). Stepping on the Segway PT when it is powered on, but not ready to for you to step on.Step off, center the LeanSteer Frame, and level the Powerbase. Once the center Balance Indicator light turns green, step on again.

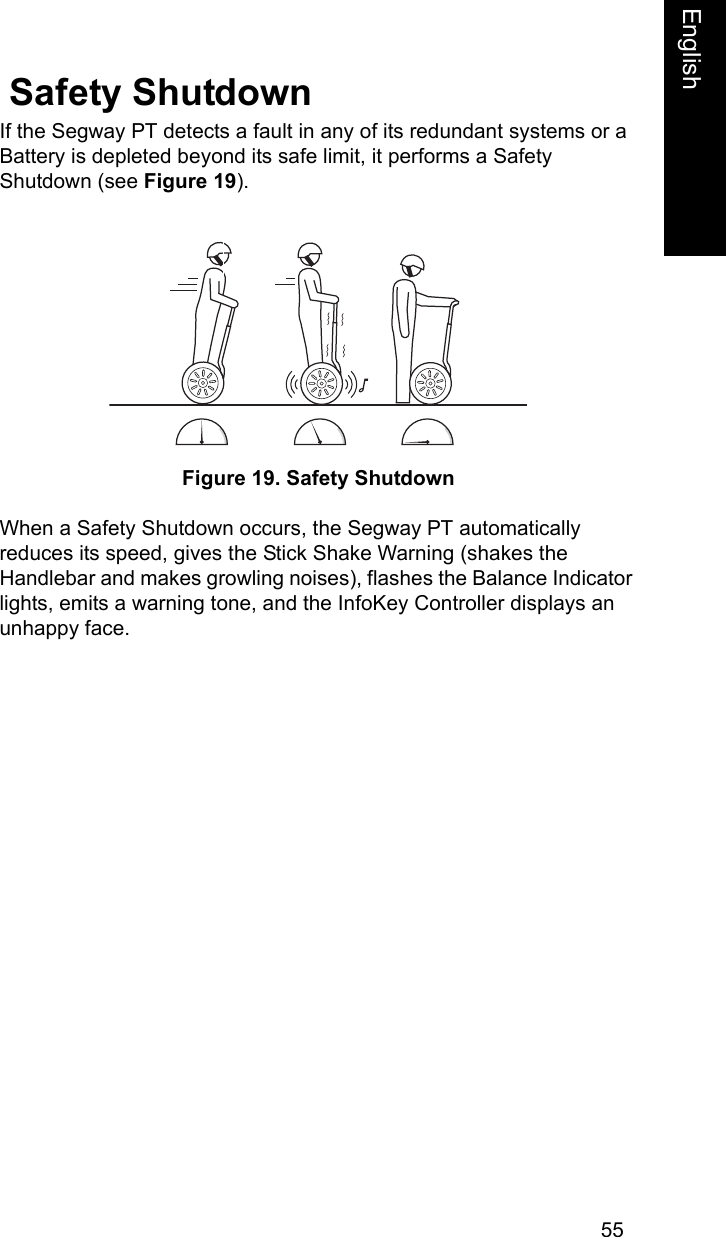

55EnglishEnglish Safety ShutdownIf the Segway PT detects a fault in any of its redundant systems or a Battery is depleted beyond its safe limit, it performs a Safety Shutdown (see Figure 19).Figure 19. Safety ShutdownWhen a Safety Shutdown occurs, the Segway PT automatically reduces its speed, gives the Stick Shake Warning (shakes the Handlebar and makes growling noises), flashes the Balance Indicator lights, emits a warning tone, and the InfoKey Controller displays an unhappy face.

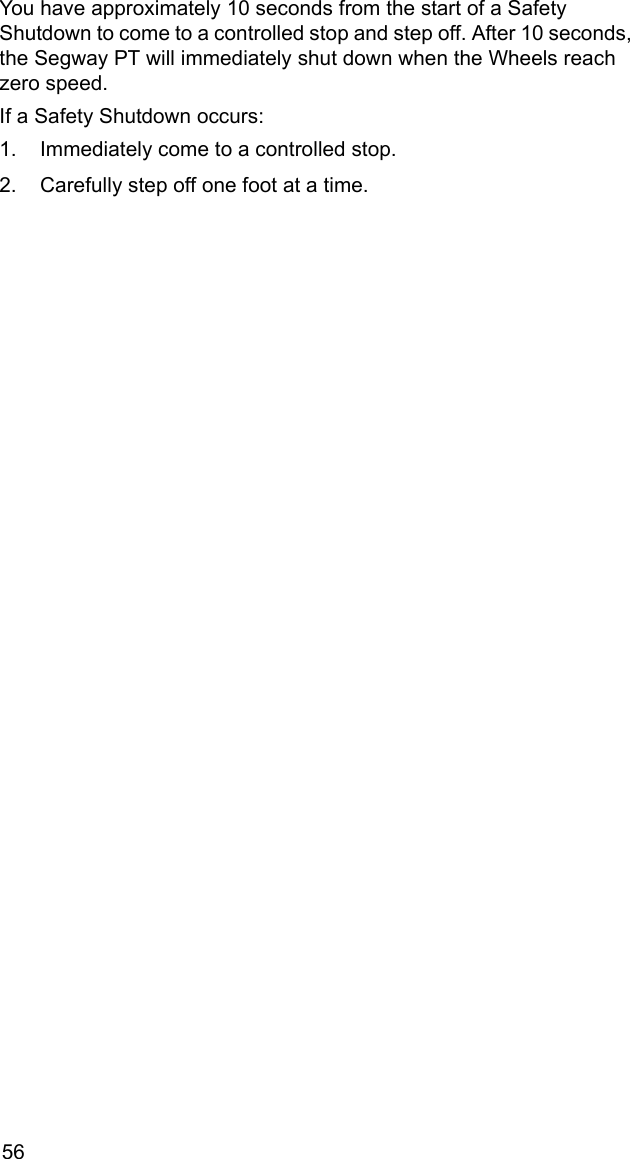

56You have approximately 10 seconds from the start of a Safety Shutdown to come to a controlled stop and step off. After 10 seconds, the Segway PT will immediately shut down when the Wheels reach zero speed. If a Safety Shutdown occurs: 1. Immediately come to a controlled stop. 2. Carefully step off one foot at a time.

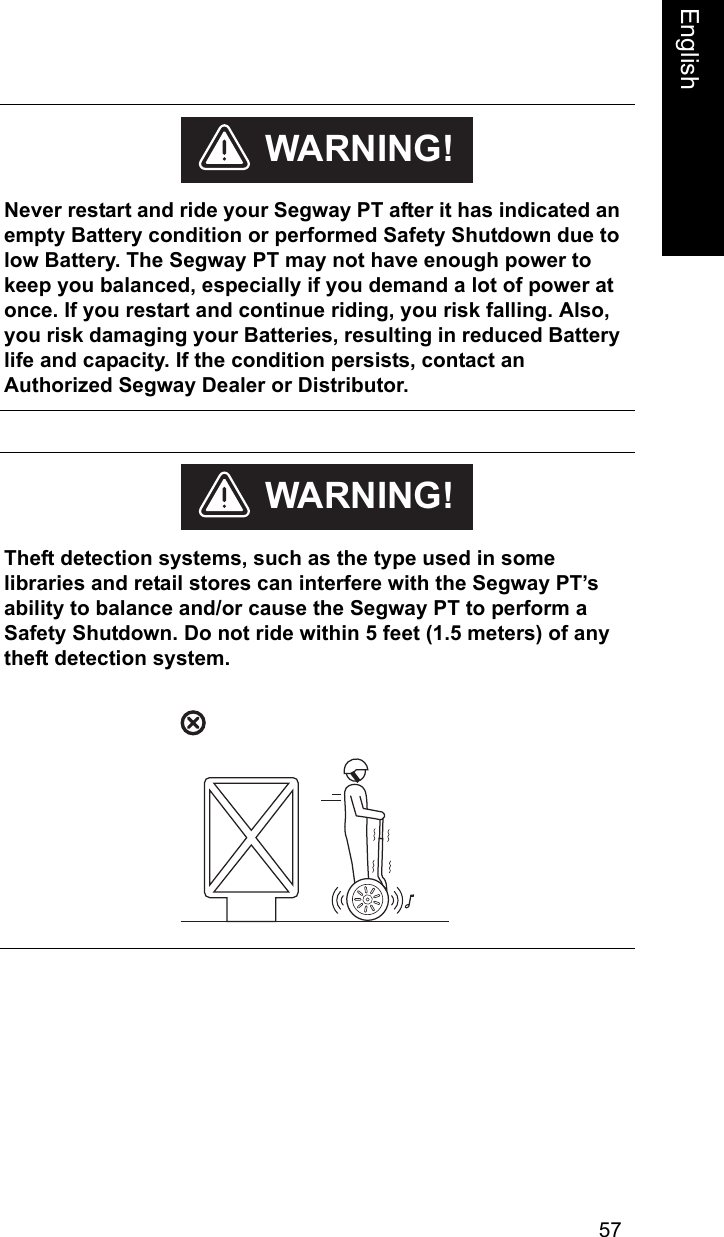

57EnglishEnglish Never restart and ride your Segway PT after it has indicated an empty Battery condition or performed Safety Shutdown due to low Battery. The Segway PT may not have enough power to keep you balanced, especially if you demand a lot of power at once. If you restart and continue riding, you risk falling. Also, you risk damaging your Batteries, resulting in reduced Battery life and capacity. If the condition persists, contact an Authorized Segway Dealer or Distributor. WARNING! Theft detection systems, such as the type used in some libraries and retail stores can interfere with the Segway PT’s ability to balance and/or cause the Segway PT to perform a Safety Shutdown. Do not ride within 5 feet (1.5 meters) of any theft detection system.WARNING!

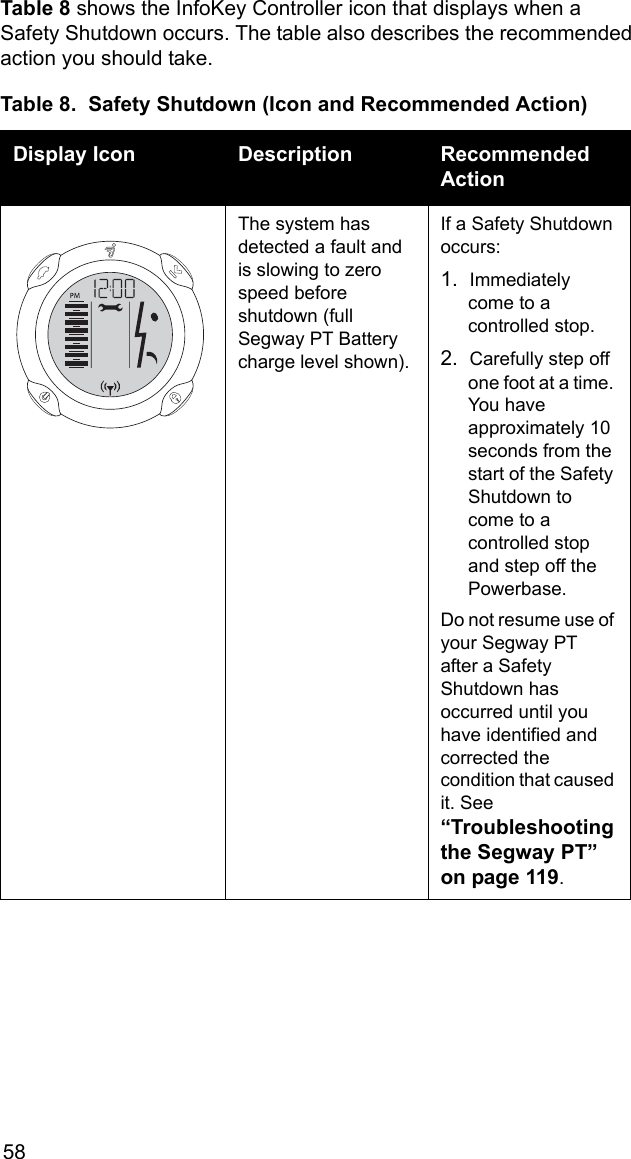

58Table 8 shows the InfoKey Controller icon that displays when a Safety Shutdown occurs. The table also describes the recommended action you should take.Table 8. Safety Shutdown (Icon and Recommended Action)Display Icon Description Recommended ActionThe system has detected a fault and is slowing to zero speed before shutdown (full Segway PT Battery charge level shown).If a Safety Shutdown occurs: 1. Immediately come to a controlled stop. 2. Carefully step off one foot at a time. You have approximately 10 seconds from the start of the Safety Shutdown to come to a controlled stop and step off the Powerbase. Do not resume use of your Segway PT after a Safety Shutdown has occurred until you have identified and corrected the condition that caused it. See “Troubleshooting the Segway PT” on page 119.

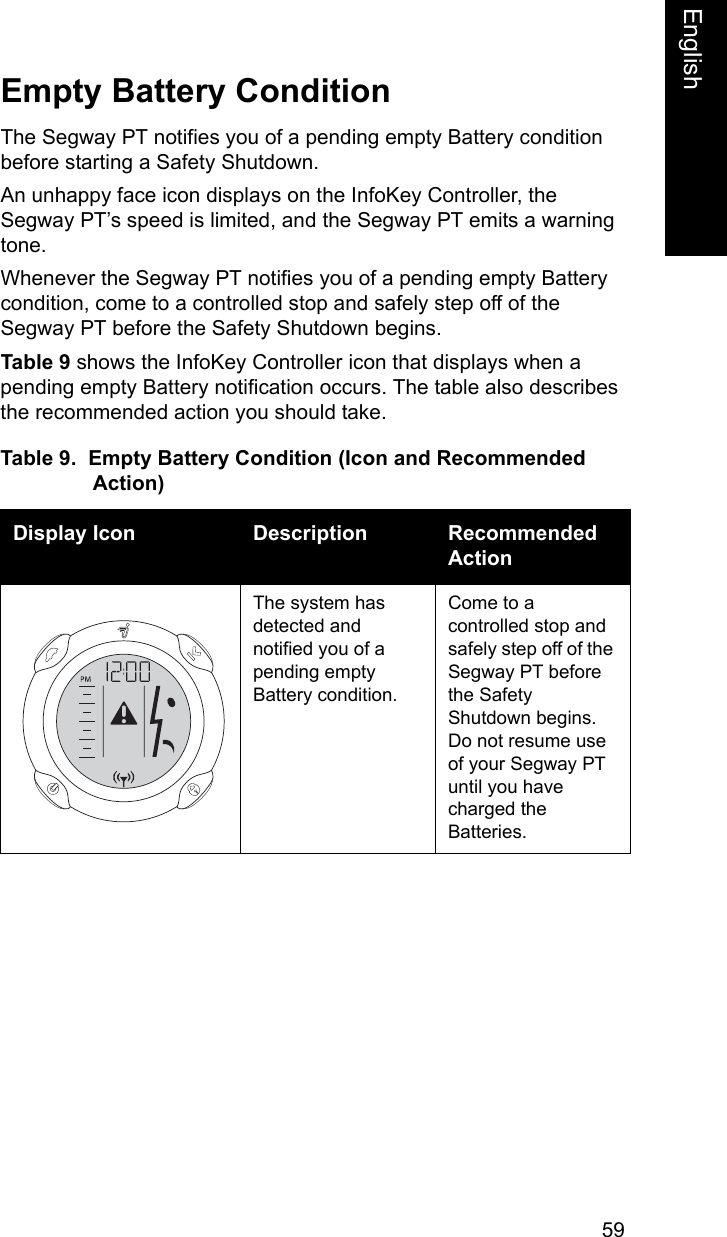

59EnglishEnglishEmpty Battery ConditionThe Segway PT notifies you of a pending empty Battery condition before starting a Safety Shutdown. An unhappy face icon displays on the InfoKey Controller, the Segway PT’s speed is limited, and the Segway PT emits a warning tone. Whenever the Segway PT notifies you of a pending empty Battery condition, come to a controlled stop and safely step off of the Segway PT before the Safety Shutdown begins. Table 9 shows the InfoKey Controller icon that displays when a pending empty Battery notification occurs. The table also describes the recommended action you should take.Table 9. Empty Battery Condition (Icon and Recommended Action)Display Icon Description Recommended ActionThe system has detected and notified you of a pending empty Battery condition. Come to a controlled stop and safely step off of the Segway PT before the Safety Shutdown begins. Do not resume use of your Segway PT until you have charged the Batteries.

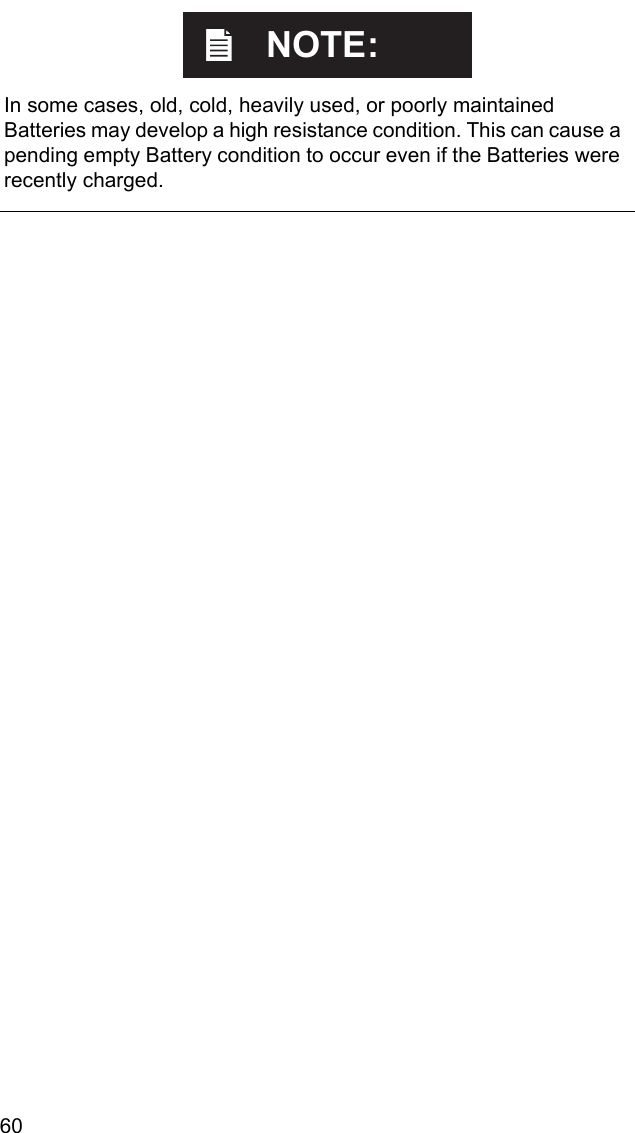

60 In some cases, old, cold, heavily used, or poorly maintained Batteries may develop a high resistance condition. This can cause a pending empty Battery condition to occur even if the Batteries were recently charged.NOTE:

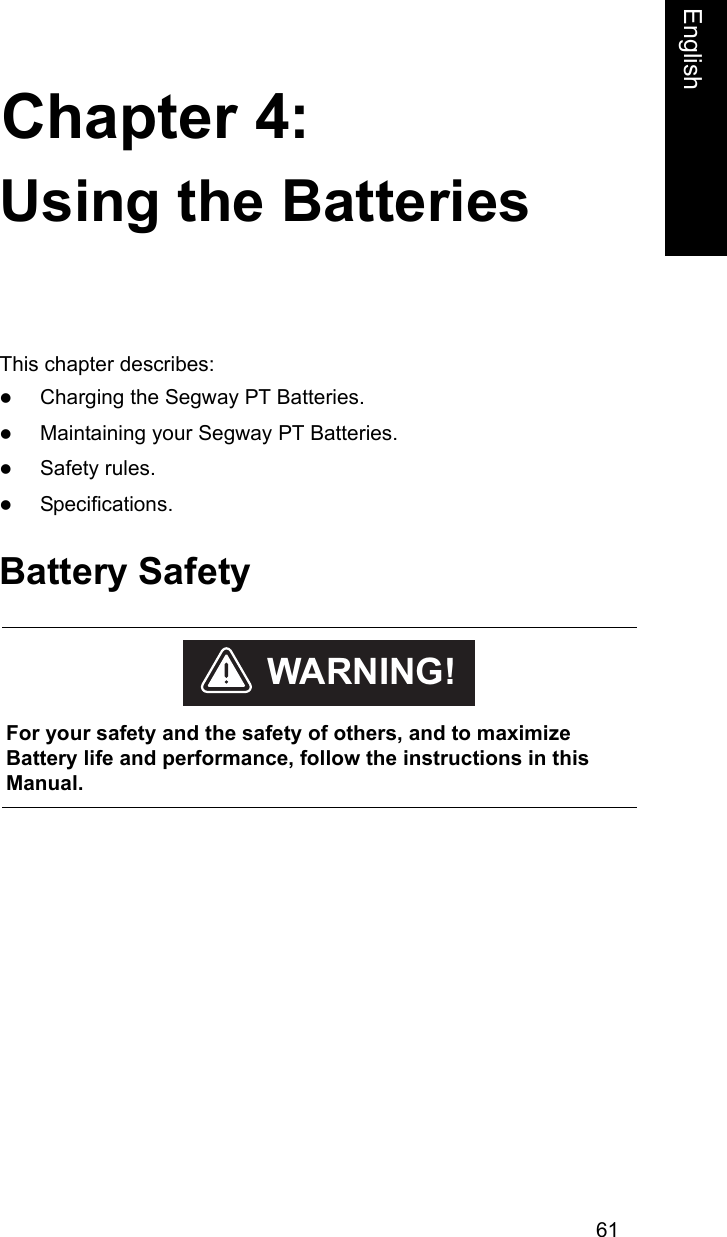

61Chapter 4:EnglishUsing the BatteriesThis chapter describes:zCharging the Segway PT Batteries.zMaintaining your Segway PT Batteries.zSafety rules.zSpecifications.Battery Safety For your safety and the safety of others, and to maximize Battery life and performance, follow the instructions in this Manual.WARNING!

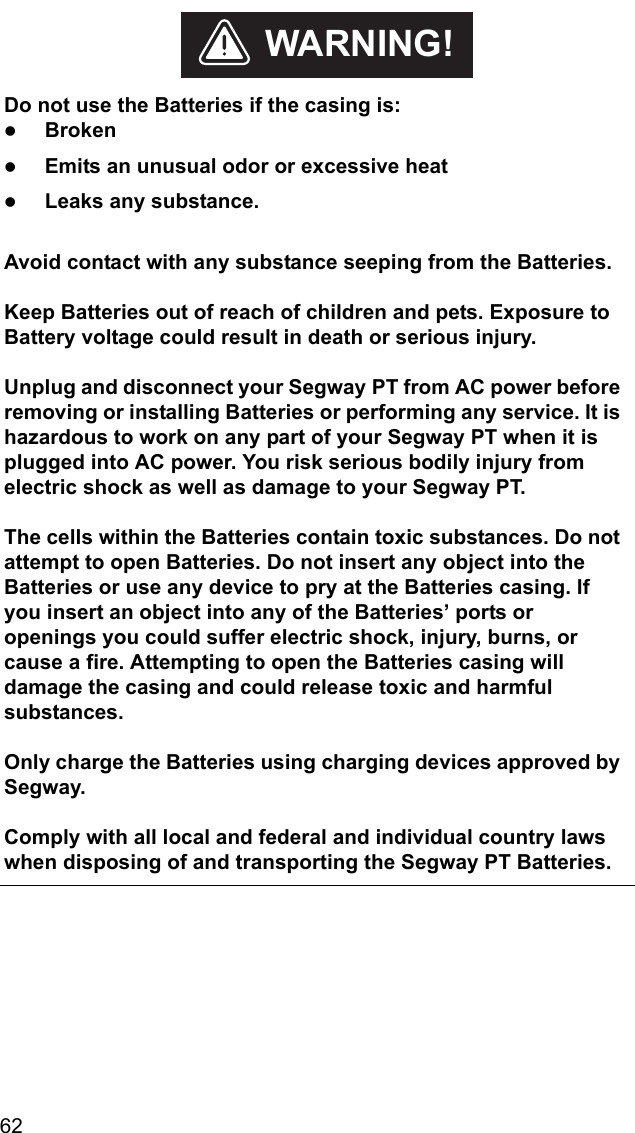

62 Do not use the Batteries if the casing is:zBrokenzEmits an unusual odor or excessive heatzLeaks any substance. Avoid contact with any substance seeping from the Batteries.Keep Batteries out of reach of children and pets. Exposure to Battery voltage could result in death or serious injury.Unplug and disconnect your Segway PT from AC power before removing or installing Batteries or performing any service. It is hazardous to work on any part of your Segway PT when it is plugged into AC power. You risk serious bodily injury from electric shock as well as damage to your Segway PT.The cells within the Batteries contain toxic substances. Do not attempt to open Batteries. Do not insert any object into the Batteries or use any device to pry at the Batteries casing. If you insert an object into any of the Batteries’ ports or openings you could suffer electric shock, injury, burns, or cause a fire. Attempting to open the Batteries casing will damage the casing and could release toxic and harmful substances. Only charge the Batteries using charging devices approved by Segway.Comply with all local and federal and individual country laws when disposing of and transporting the Segway PT Batteries.WARNING!

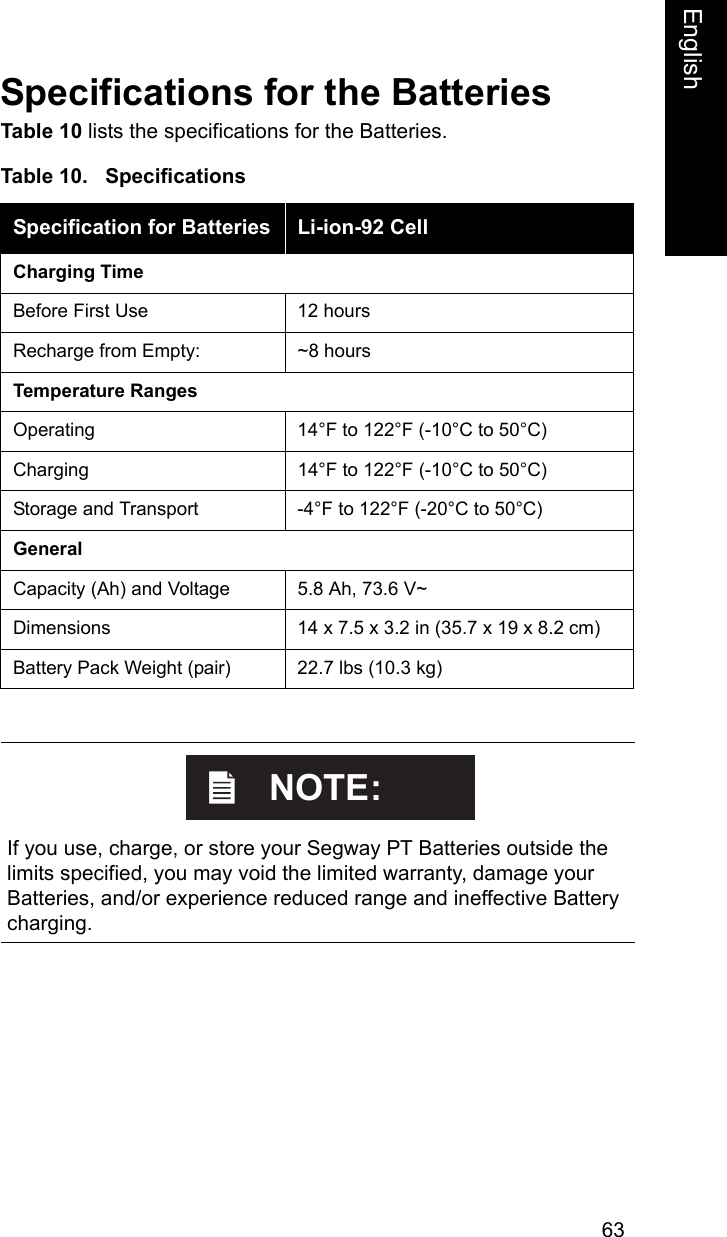

63EnglishEnglishSpecifications for the BatteriesTable 10 lists the specifications for the Batteries. Table 10. SpecificationsSpecification for Batteries Li-ion-92 CellCharging TimeBefore First Use 12 hoursRecharge from Empty: ~8 hoursTemperature RangesOperating 14°F to 122°F (-10°C to 50°C)Charging 14°F to 122°F (-10°C to 50°C)Storage and Transport -4°F to 122°F (-20°C to 50°C)GeneralCapacity (Ah) and Voltage 5.8 Ah, 73.6 V~Dimensions 14 x 7.5 x 3.2 in (35.7 x 19 x 8.2 cm)Battery Pack Weight (pair) 22.7 lbs (10.3 kg) If you use, charge, or store your Segway PT Batteries outside the limits specified, you may void the limited warranty, damage your Batteries, and/or experience reduced range and ineffective Battery charging. NOTE:

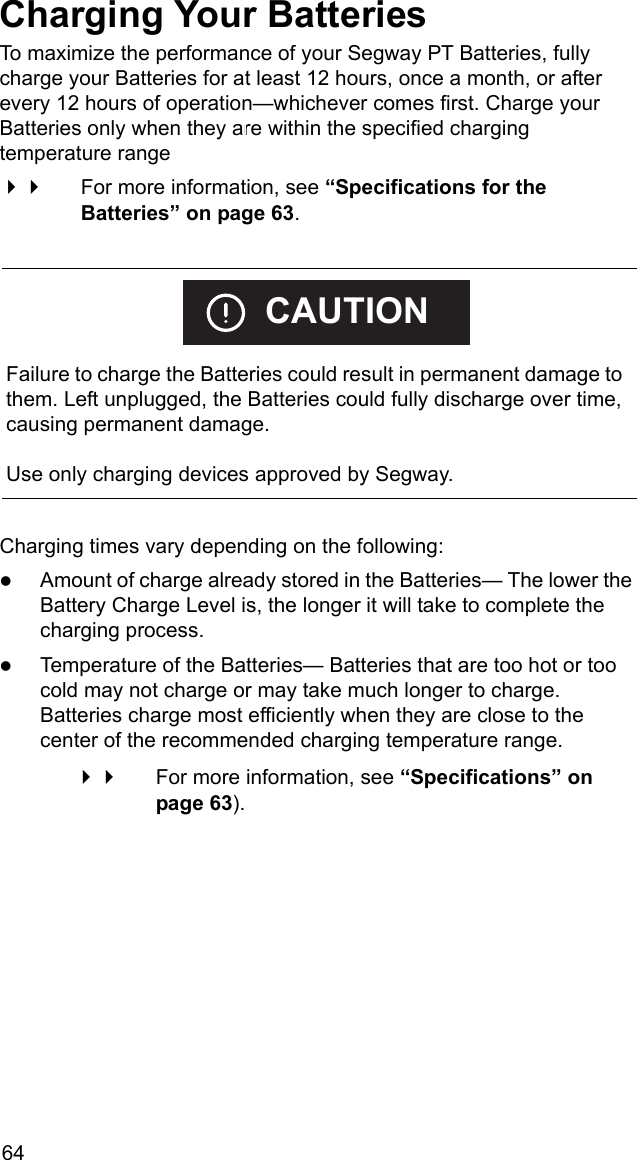

64Charging Your BatteriesTo maximize the performance of your Segway PT Batteries, fully charge your Batteries for at least 12 hours, once a month, or after every 12 hours of operation—whichever comes first. Charge your Batteries only when they are within the specified charging temperature range  For more information, see “Specifications for the Batteries” on page 63.Charging times vary depending on the following:zAmount of charge already stored in the Batteries— The lower the Battery Charge Level is, the longer it will take to complete the charging process.zTemperature of the Batteries— Batteries that are too hot or too cold may not charge or may take much longer to charge. Batteries charge most efficiently when they are close to the center of the recommended charging temperature range.  For more information, see “Specifications” on page 63). Failure to charge the Batteries could result in permanent damage to them. Left unplugged, the Batteries could fully discharge over time, causing permanent damage.Use only charging devices approved by Segway.CAUTION

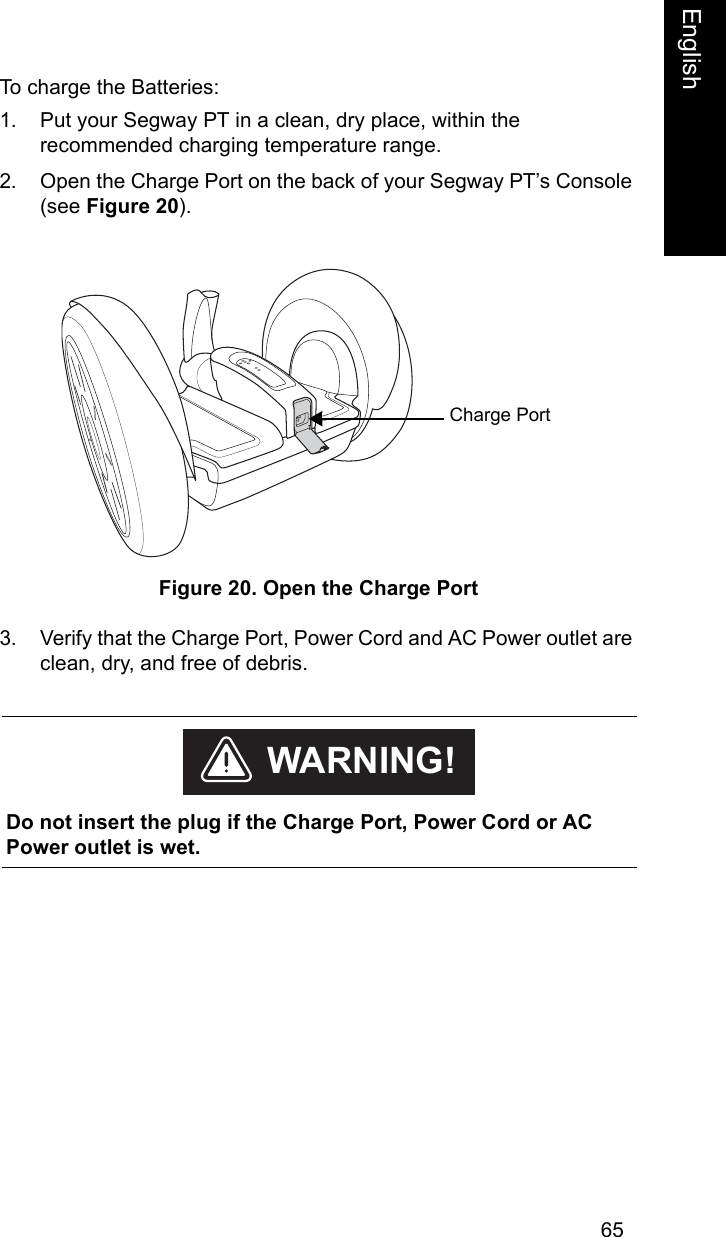

65EnglishEnglishTo charge the Batteries:1. Put your Segway PT in a clean, dry place, within the recommended charging temperature range.2. Open the Charge Port on the back of your Segway PT’s Console (see Figure 20). Figure 20. Open the Charge Port3. Verify that the Charge Port, Power Cord and AC Power outlet are clean, dry, and free of debris. Charge Port Do not insert the plug if the Charge Port, Power Cord or AC Power outlet is wet.WARNING!

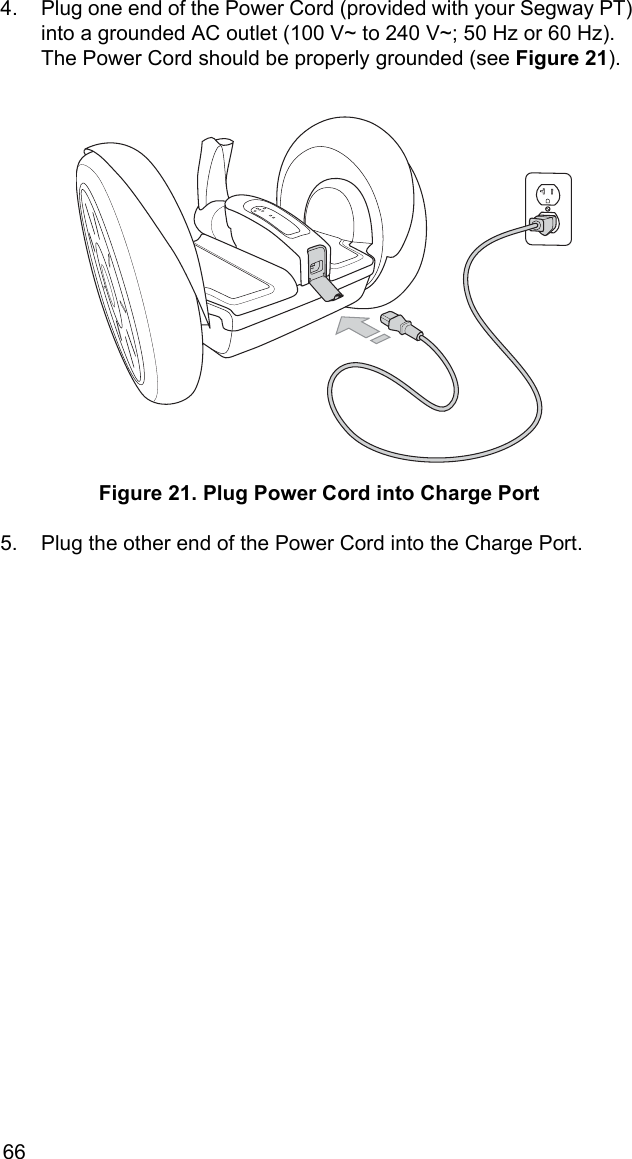

664. Plug one end of the Power Cord (provided with your Segway PT) into a grounded AC outlet (100 V~ to 240 V~; 50 Hz or 60 Hz). The Power Cord should be properly grounded (see Figure 21). Figure 21. Plug Power Cord into Charge Port5. Plug the other end of the Power Cord into the Charge Port.

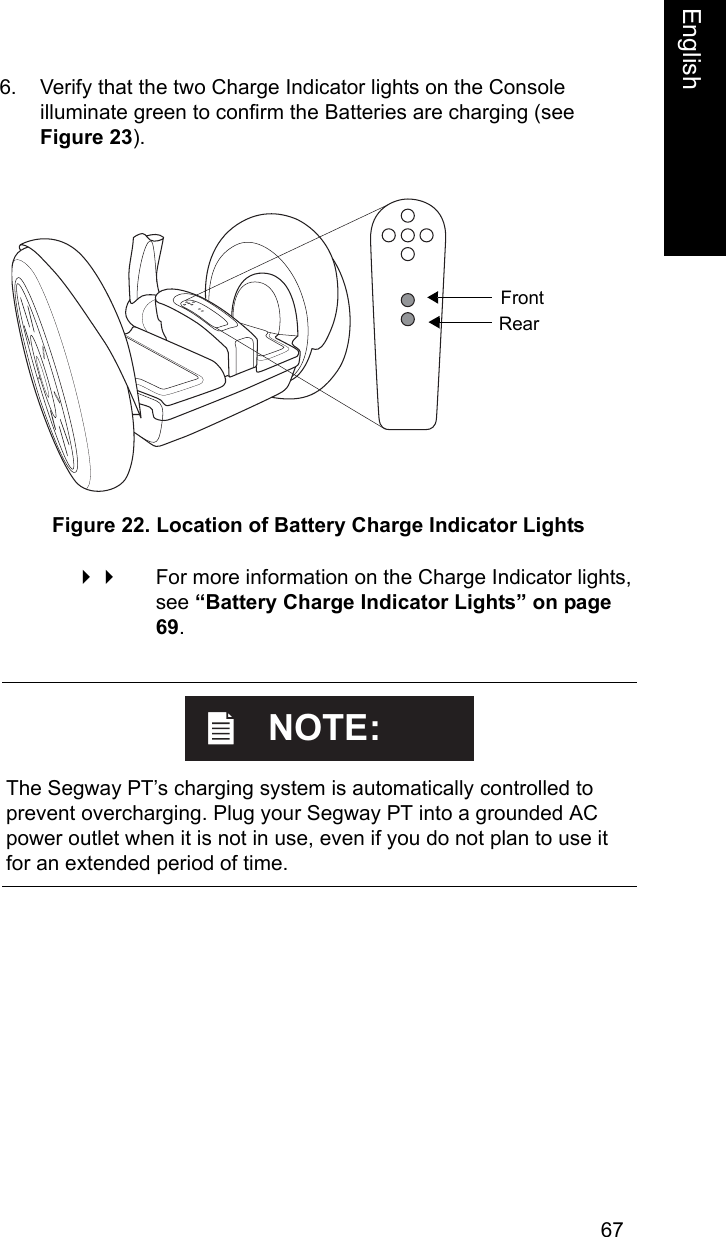

67EnglishEnglish6. Verify that the two Charge Indicator lights on the Console illuminate green to confirm the Batteries are charging (see Figure 23). Figure 22. Location of Battery Charge Indicator Lights For more information on the Charge Indicator lights, see “Battery Charge Indicator Lights” on page 69. FrontRear The Segway PT’s charging system is automatically controlled to prevent overcharging. Plug your Segway PT into a grounded AC power outlet when it is not in use, even if you do not plan to use it for an extended period of time.NOTE:

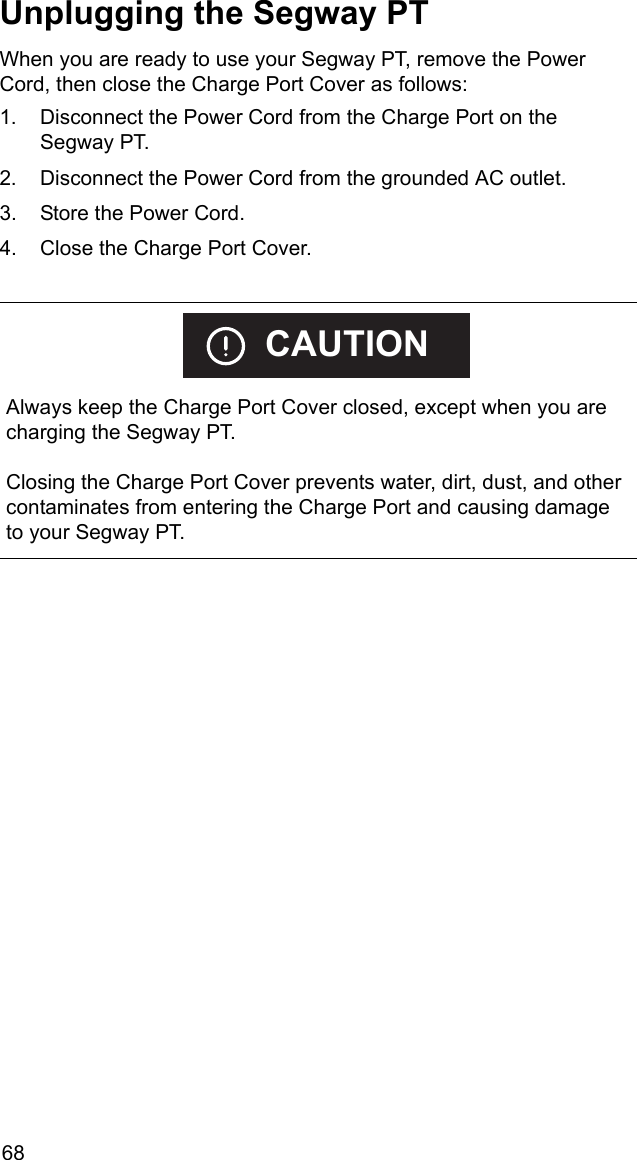

68Unplugging the Segway PTWhen you are ready to use your Segway PT, remove the Power Cord, then close the Charge Port Cover as follows: 1. Disconnect the Power Cord from the Charge Port on the Segway PT. 2. Disconnect the Power Cord from the grounded AC outlet.3. Store the Power Cord. 4. Close the Charge Port Cover. Always keep the Charge Port Cover closed, except when you are charging the Segway PT. Closing the Charge Port Cover prevents water, dirt, dust, and other contaminates from entering the Charge Port and causing damage to your Segway PT.CAUTION

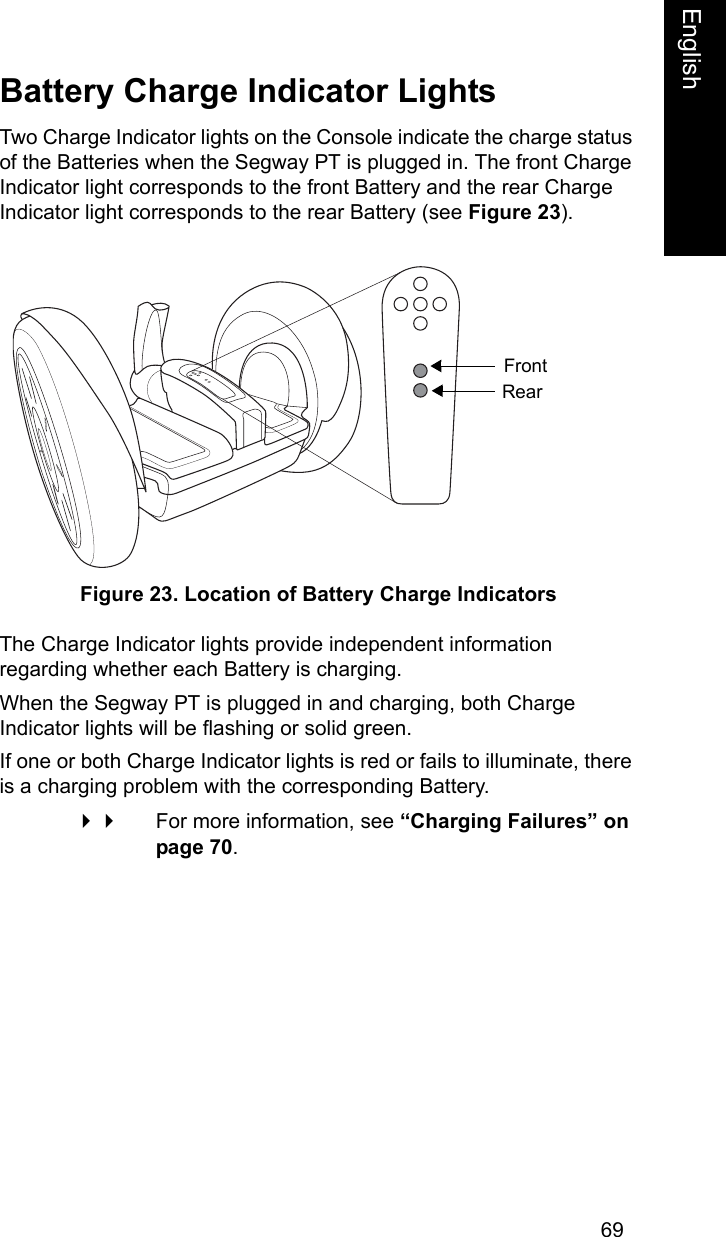

69EnglishEnglishBattery Charge Indicator LightsTwo Charge Indicator lights on the Console indicate the charge status of the Batteries when the Segway PT is plugged in. The front Charge Indicator light corresponds to the front Battery and the rear Charge Indicator light corresponds to the rear Battery (see Figure 23). Figure 23. Location of Battery Charge IndicatorsThe Charge Indicator lights provide independent information regarding whether each Battery is charging. When the Segway PT is plugged in and charging, both Charge Indicator lights will be flashing or solid green.If one or both Charge Indicator lights is red or fails to illuminate, there is a charging problem with the corresponding Battery.  For more information, see “Charging Failures” on page 70.FrontRear

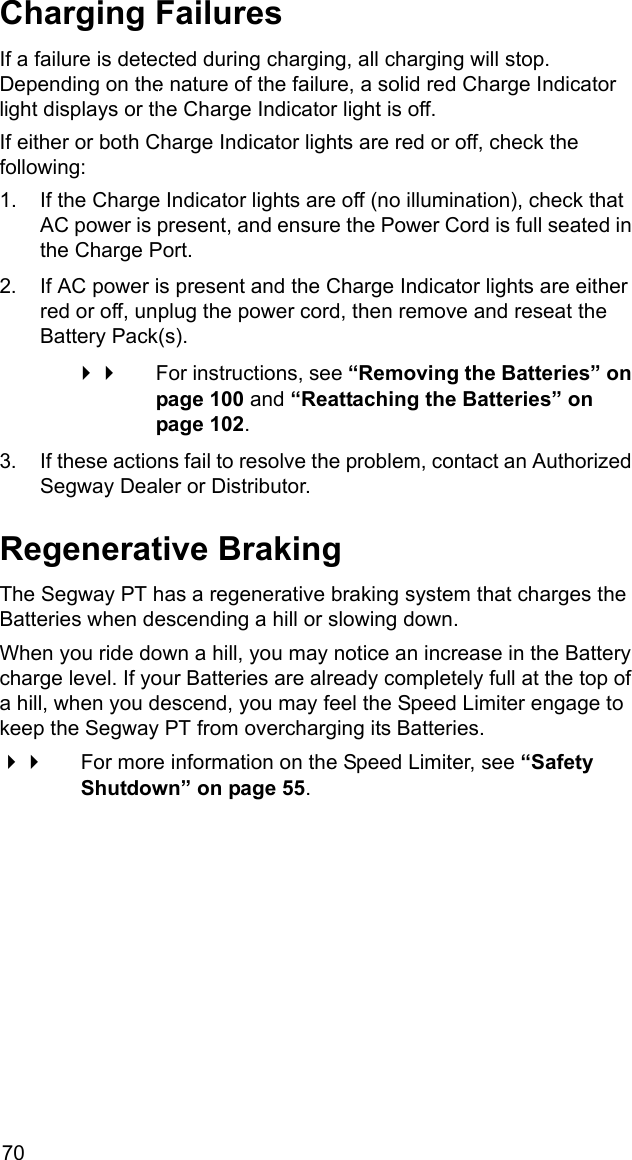

70Charging FailuresIf a failure is detected during charging, all charging will stop. Depending on the nature of the failure, a solid red Charge Indicator light displays or the Charge Indicator light is off.If either or both Charge Indicator lights are red or off, check the following:1. If the Charge Indicator lights are off (no illumination), check that AC power is present, and ensure the Power Cord is full seated in the Charge Port.2. If AC power is present and the Charge Indicator lights are either red or off, unplug the power cord, then remove and reseat the Battery Pack(s).  For instructions, see “Removing the Batteries” on page 100 and “Reattaching the Batteries” on page 102.3. If these actions fail to resolve the problem, contact an Authorized Segway Dealer or Distributor.Regenerative BrakingThe Segway PT has a regenerative braking system that charges the Batteries when descending a hill or slowing down.When you ride down a hill, you may notice an increase in the Battery charge level. If your Batteries are already completely full at the top of a hill, when you descend, you may feel the Speed Limiter engage to keep the Segway PT from overcharging its Batteries. For more information on the Speed Limiter, see “Safety Shutdown” on page 55.

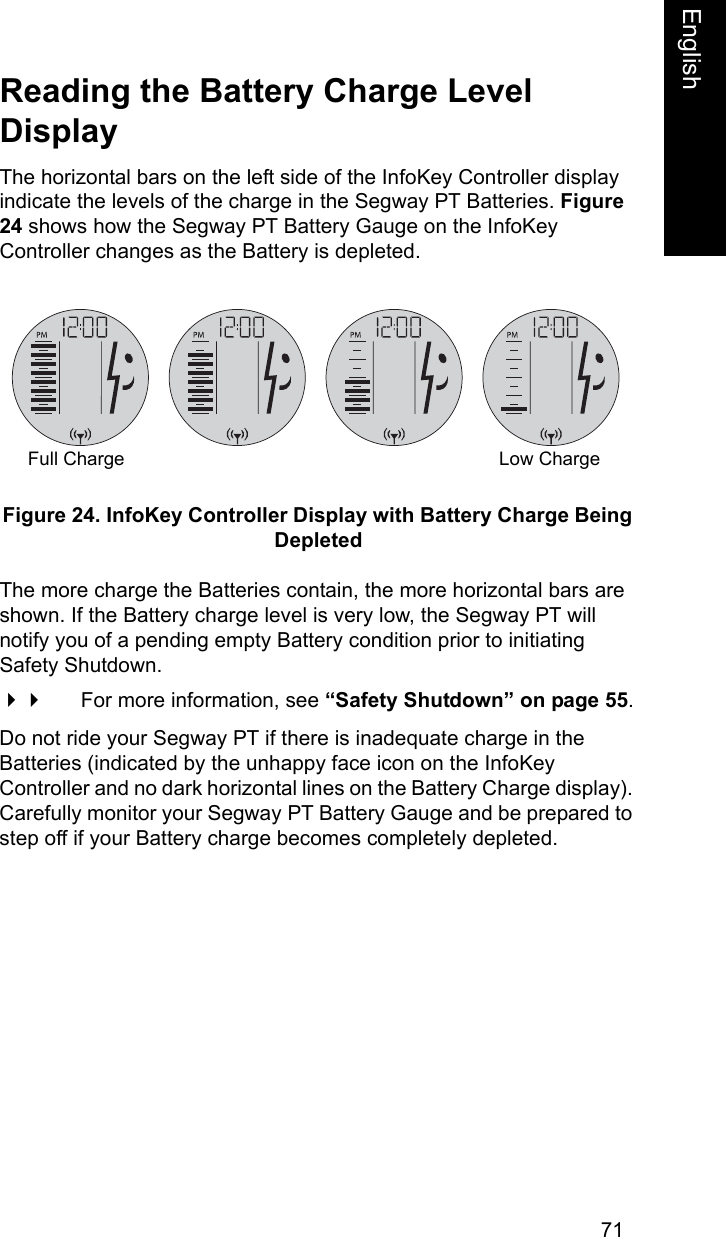

71EnglishEnglishReading the Battery Charge Level DisplayThe horizontal bars on the left side of the InfoKey Controller display indicate the levels of the charge in the Segway PT Batteries. Figure 24 shows how the Segway PT Battery Gauge on the InfoKey Controller changes as the Battery is depleted.Figure 24. InfoKey Controller Display with Battery Charge Being DepletedThe more charge the Batteries contain, the more horizontal bars are shown. If the Battery charge level is very low, the Segway PT will notify you of a pending empty Battery condition prior to initiating Safety Shutdown. For more information, see “Safety Shutdown” on page 55.Do not ride your Segway PT if there is inadequate charge in the Batteries (indicated by the unhappy face icon on the InfoKey Controller and no dark horizontal lines on the Battery Charge display). Carefully monitor your Segway PT Battery Gauge and be prepared to step off if your Battery charge becomes completely depleted.Full Charge Low Charge

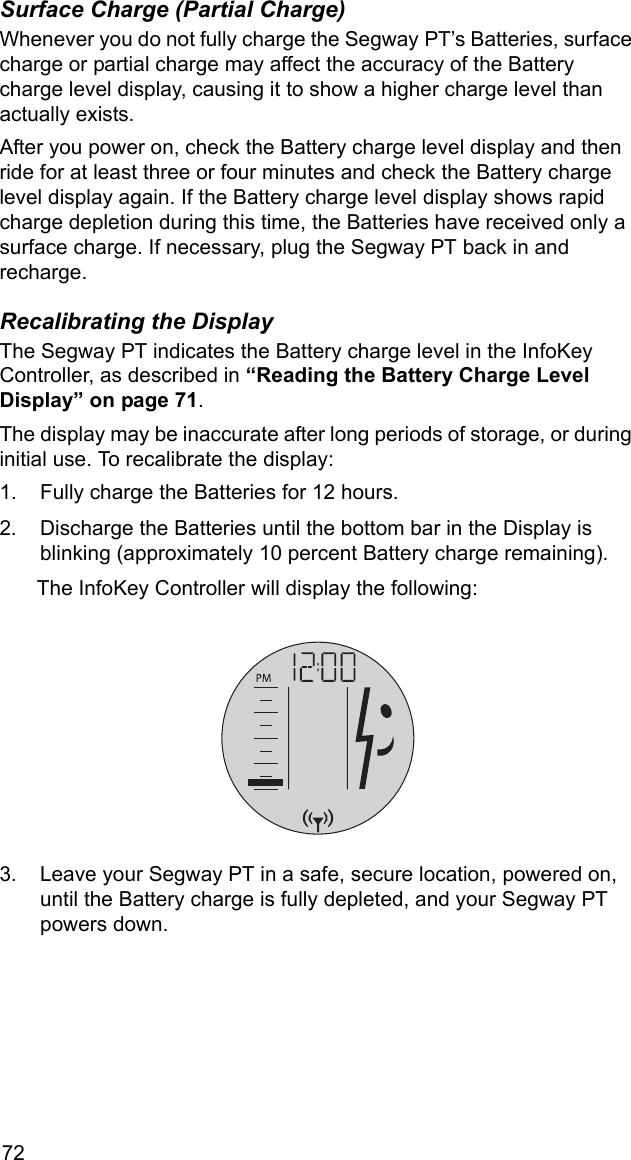

72Surface Charge (Partial Charge)Whenever you do not fully charge the Segway PT’s Batteries, surface charge or partial charge may affect the accuracy of the Battery charge level display, causing it to show a higher charge level than actually exists.After you power on, check the Battery charge level display and then ride for at least three or four minutes and check the Battery charge level display again. If the Battery charge level display shows rapid charge depletion during this time, the Batteries have received only a surface charge. If necessary, plug the Segway PT back in and recharge.Recalibrating the DisplayThe Segway PT indicates the Battery charge level in the InfoKey Controller, as described in “Reading the Battery Charge Level Display” on page 71. The display may be inaccurate after long periods of storage, or during initial use. To recalibrate the display:1. Fully charge the Batteries for 12 hours. 2. Discharge the Batteries until the bottom bar in the Display is blinking (approximately 10 percent Battery charge remaining). The InfoKey Controller will display the following:3. Leave your Segway PT in a safe, secure location, powered on, until the Battery charge is fully depleted, and your Segway PT powers down.

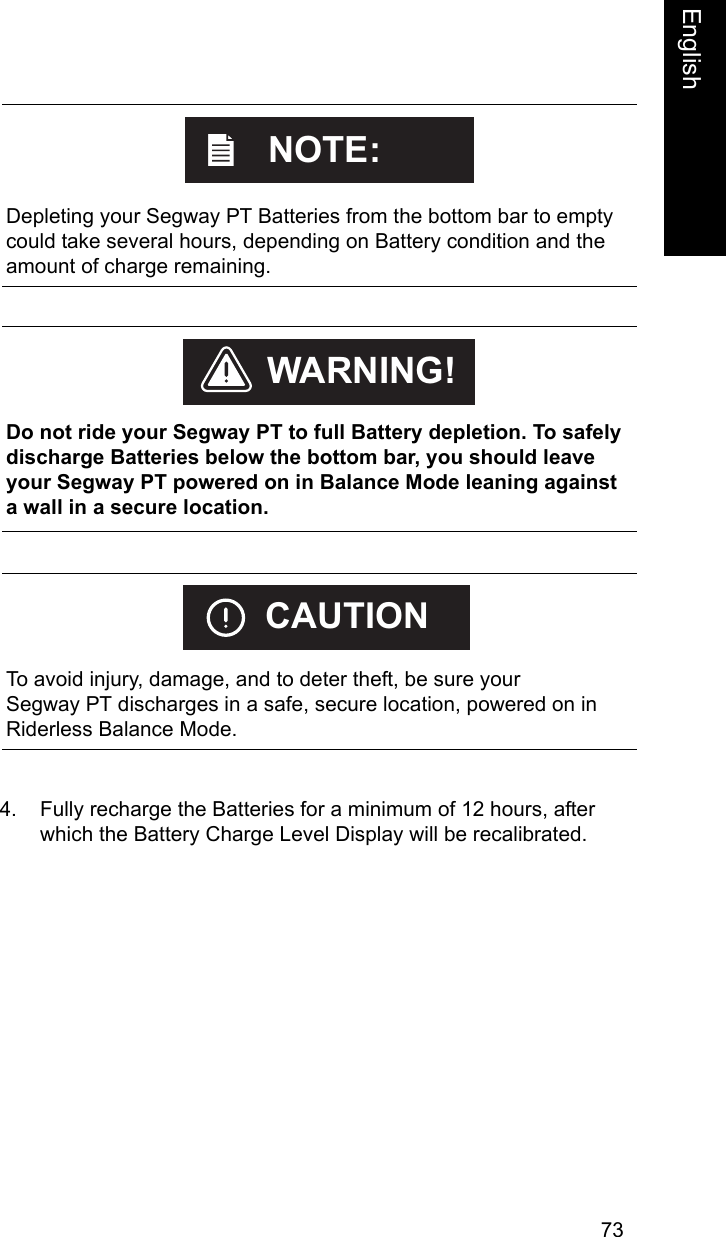

73EnglishEnglish4. Fully recharge the Batteries for a minimum of 12 hours, after which the Battery Charge Level Display will be recalibrated. Depleting your Segway PT Batteries from the bottom bar to empty could take several hours, depending on Battery condition and the amount of charge remaining.NOTE: Do not ride your Segway PT to full Battery depletion. To safely discharge Batteries below the bottom bar, you should leave your Segway PT powered on in Balance Mode leaning against a wall in a secure location. WARNING! To avoid injury, damage, and to deter theft, be sure your Segway PT discharges in a safe, secure location, powered on in Riderless Balance Mode.CAUTION

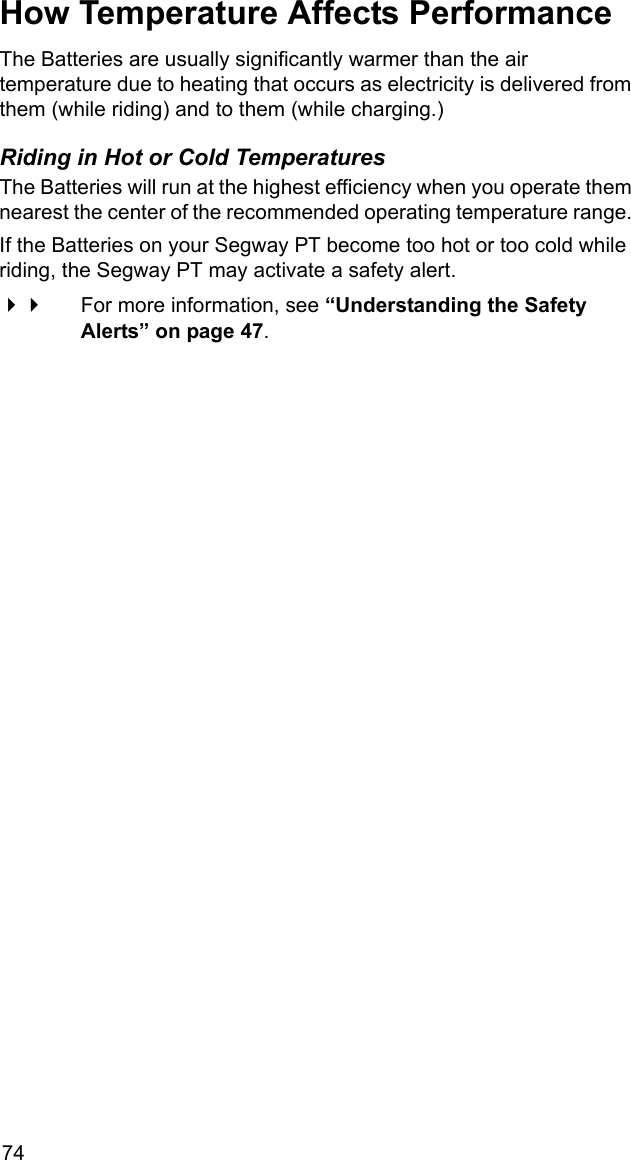

74How Temperature Affects PerformanceThe Batteries are usually significantly warmer than the air temperature due to heating that occurs as electricity is delivered from them (while riding) and to them (while charging.)Riding in Hot or Cold TemperaturesThe Batteries will run at the highest efficiency when you operate them nearest the center of the recommended operating temperature range. If the Batteries on your Segway PT become too hot or too cold while riding, the Segway PT may activate a safety alert. For more information, see “Understanding the Safety Alerts” on page 47.

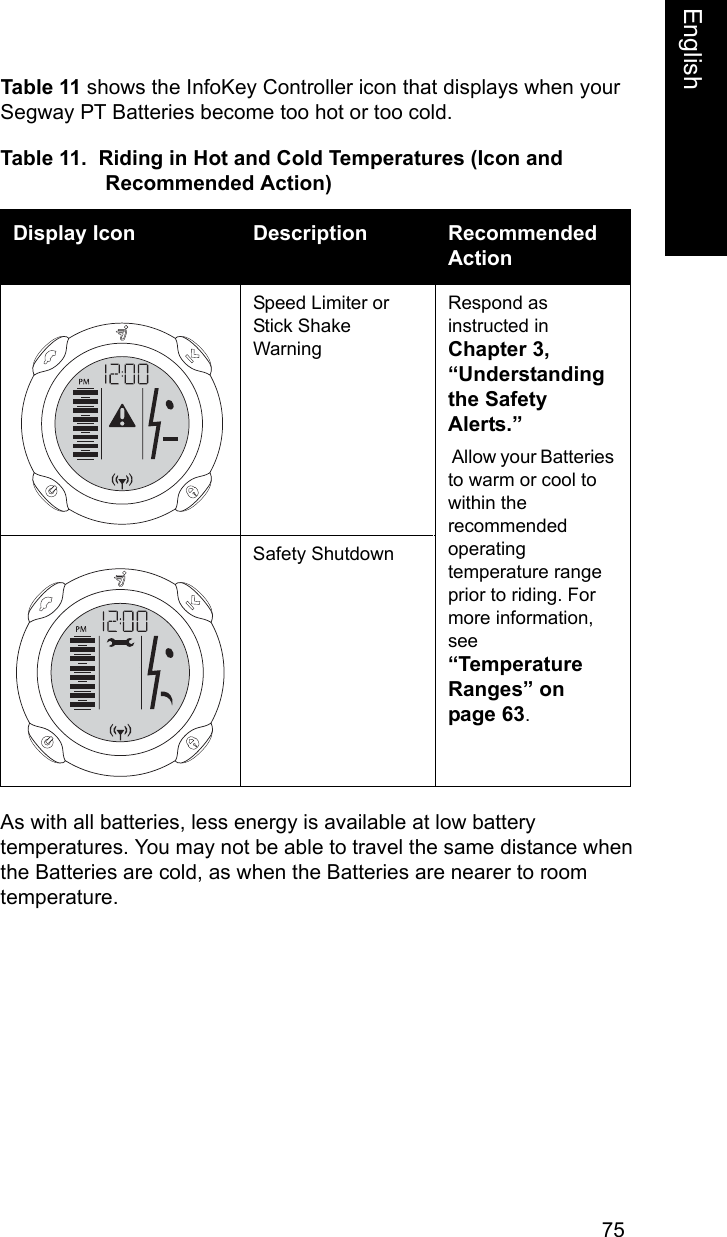

75EnglishEnglishTable 11 shows the InfoKey Controller icon that displays when your Segway PT Batteries become too hot or too cold.As with all batteries, less energy is available at low battery temperatures. You may not be able to travel the same distance when the Batteries are cold, as when the Batteries are nearer to room temperature.Table 11. Riding in Hot and Cold Temperatures (Icon and Recommended Action)Display Icon Description Recommended ActionSpeed Limiter or Stick Shake WarningRespond as instructed in Chapter 3, “Understanding the Safety Alerts.” Allow your Batteries to warm or cool to within the recommended operating temperature range prior to riding. For more information, see “Temperature Ranges” on page 63.Safety Shutdown

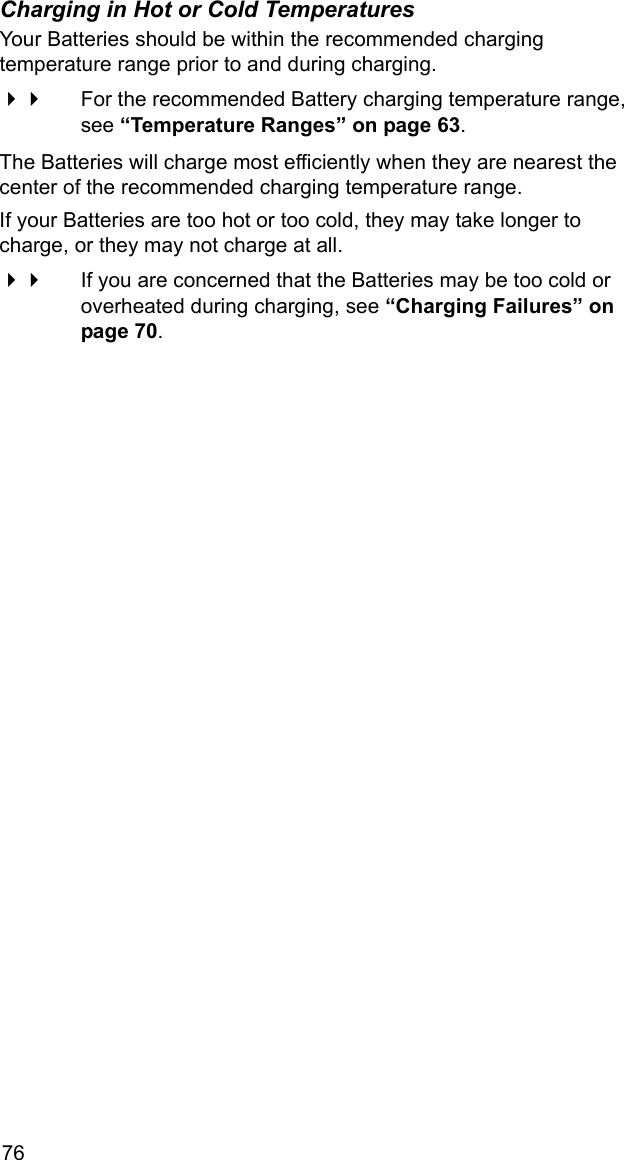

76Charging in Hot or Cold TemperaturesYour Batteries should be within the recommended charging temperature range prior to and during charging.  For the recommended Battery charging temperature range, see “Temperature Ranges” on page 63. The Batteries will charge most efficiently when they are nearest the center of the recommended charging temperature range.If your Batteries are too hot or too cold, they may take longer to charge, or they may not charge at all. If you are concerned that the Batteries may be too cold or overheated during charging, see “Charging Failures” on page 70.

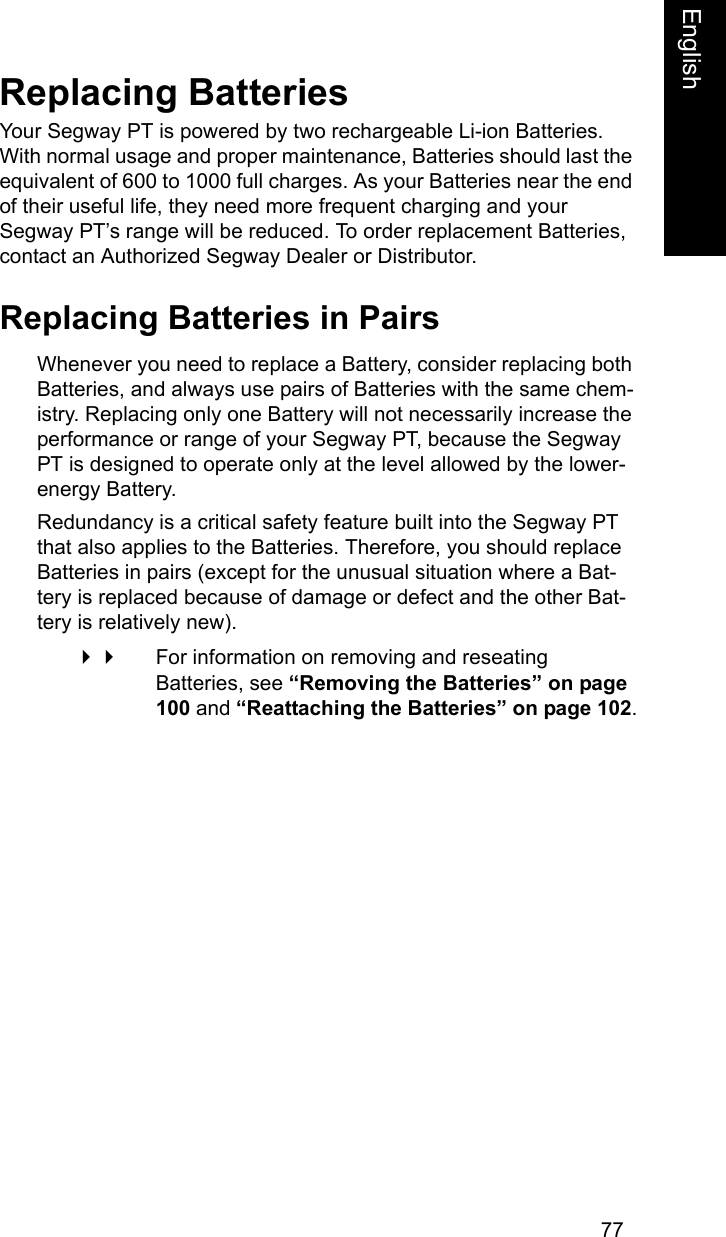

77EnglishEnglishReplacing BatteriesYour Segway PT is powered by two rechargeable Li-ion Batteries. With normal usage and proper maintenance, Batteries should last the equivalent of 600 to 1000 full charges. As your Batteries near the end of their useful life, they need more frequent charging and your Segway PT’s range will be reduced. To order replacement Batteries, contact an Authorized Segway Dealer or Distributor.Replacing Batteries in PairsWhenever you need to replace a Battery, consider replacing both Batteries, and always use pairs of Batteries with the same chem-istry. Replacing only one Battery will not necessarily increase the performance or range of your Segway PT, because the Segway PT is designed to operate only at the level allowed by the lower-energy Battery. Redundancy is a critical safety feature built into the Segway PT that also applies to the Batteries. Therefore, you should replace Batteries in pairs (except for the unusual situation where a Bat-tery is replaced because of damage or defect and the other Bat-tery is relatively new).  For information on removing and reseating Batteries, see “Removing the Batteries” on page 100 and “Reattaching the Batteries” on page 102.

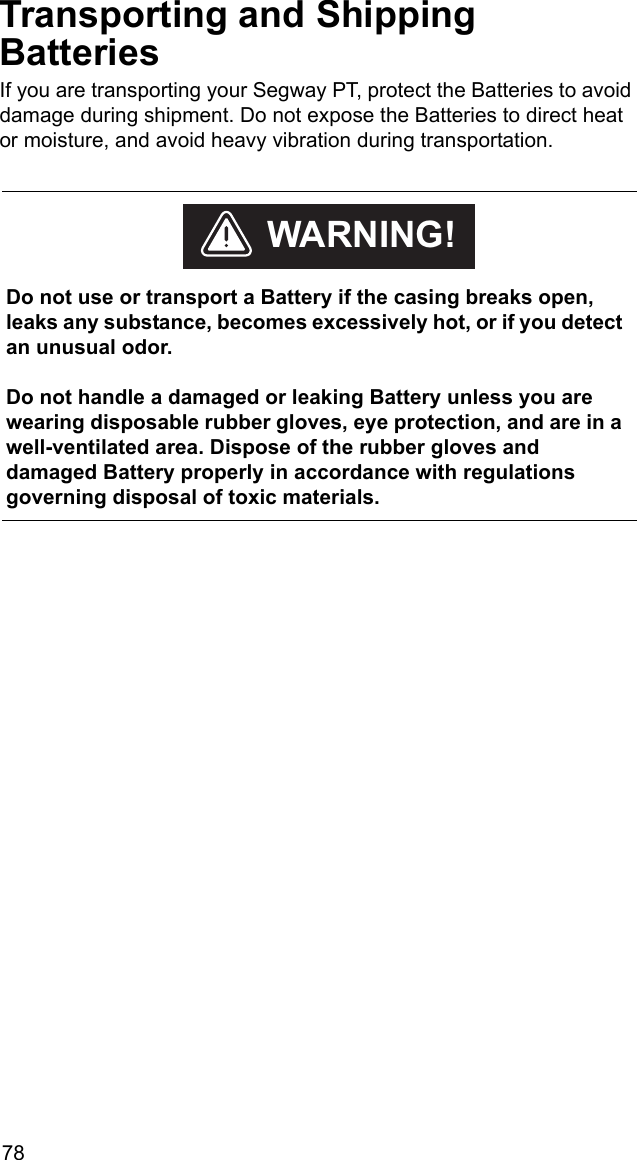

78Transporting and Shipping BatteriesIf you are transporting your Segway PT, protect the Batteries to avoid damage during shipment. Do not expose the Batteries to direct heat or moisture, and avoid heavy vibration during transportation. Do not use or transport a Battery if the casing breaks open, leaks any substance, becomes excessively hot, or if you detect an unusual odor.Do not handle a damaged or leaking Battery unless you are wearing disposable rubber gloves, eye protection, and are in a well-ventilated area. Dispose of the rubber gloves and damaged Battery properly in accordance with regulations governing disposal of toxic materials.WARNING!

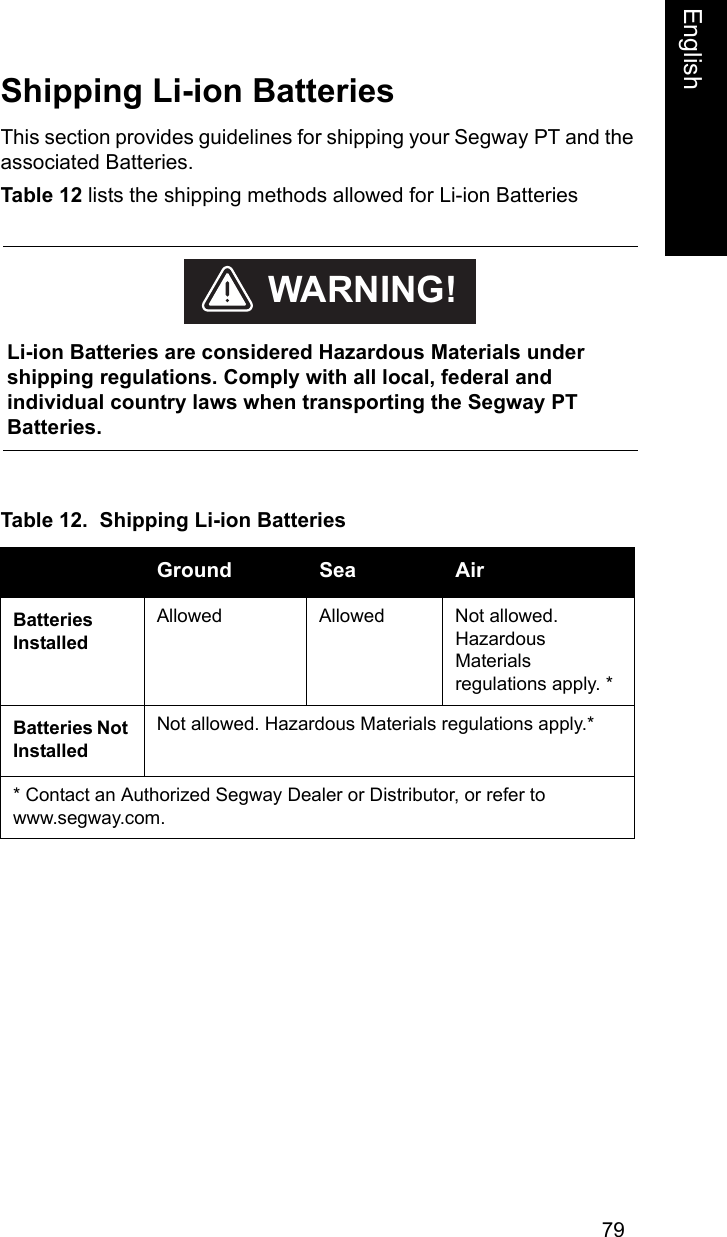

79EnglishEnglishShipping Li-ion BatteriesThis section provides guidelines for shipping your Segway PT and the associated Batteries. Table 12 lists the shipping methods allowed for Li-ion Batteries Table 12. Shipping Li-ion BatteriesGround Sea AirBatteries InstalledAllowed Allowed Not allowed. Hazardous Materials regulations apply. *Batteries Not InstalledNot allowed. Hazardous Materials regulations apply.* * Contact an Authorized Segway Dealer or Distributor, or refer to www.segway.com. Li-ion Batteries are considered Hazardous Materials under shipping regulations. Comply with all local, federal and individual country laws when transporting the Segway PT Batteries.WARNING!

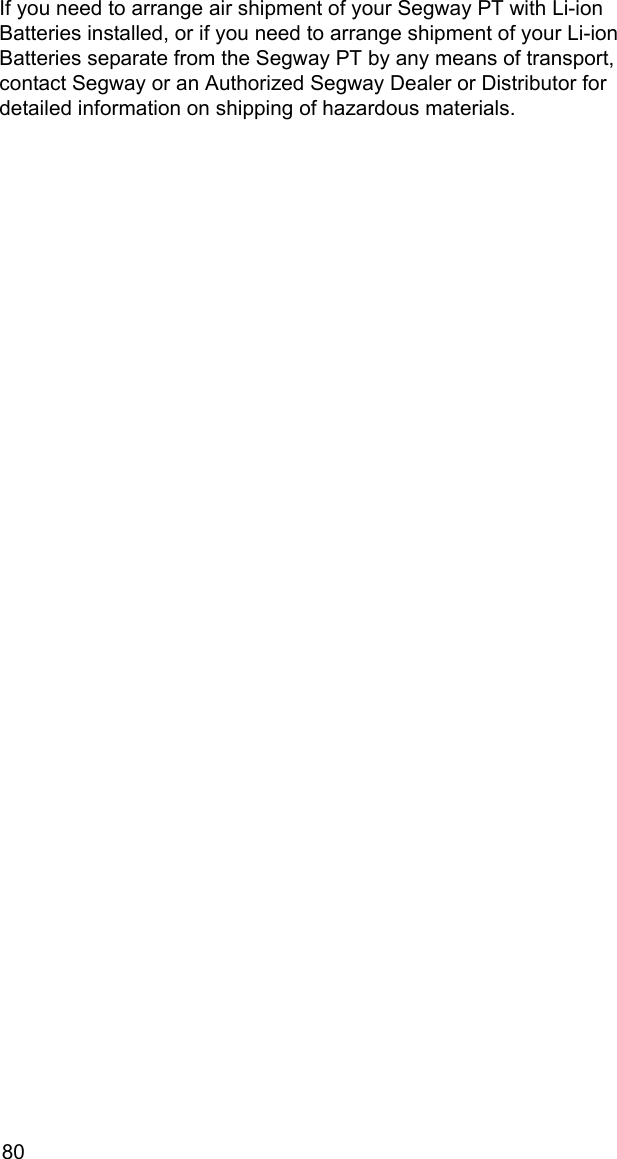

80If you need to arrange air shipment of your Segway PT with Li-ion Batteries installed, or if you need to arrange shipment of your Li-ion Batteries separate from the Segway PT by any means of transport, contact Segway or an Authorized Segway Dealer or Distributor for detailed information on shipping of hazardous materials.

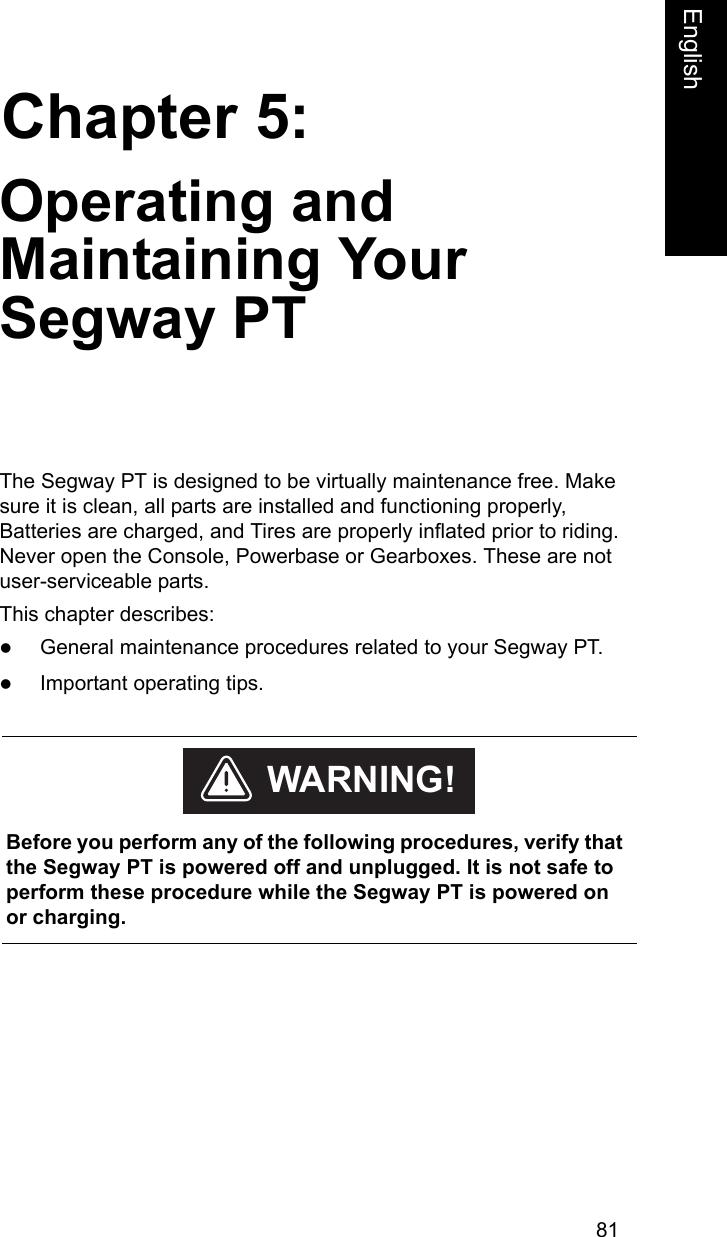

81Chapter 5:EnglishOperating and Maintaining Your Segway PTThe Segway PT is designed to be virtually maintenance free. Make sure it is clean, all parts are installed and functioning properly, Batteries are charged, and Tires are properly inflated prior to riding. Never open the Console, Powerbase or Gearboxes. These are not user-serviceable parts.This chapter describes:zGeneral maintenance procedures related to your Segway PT. zImportant operating tips. Before you perform any of the following procedures, verify that the Segway PT is powered off and unplugged. It is not safe to perform these procedure while the Segway PT is powered on or charging.WARNING!

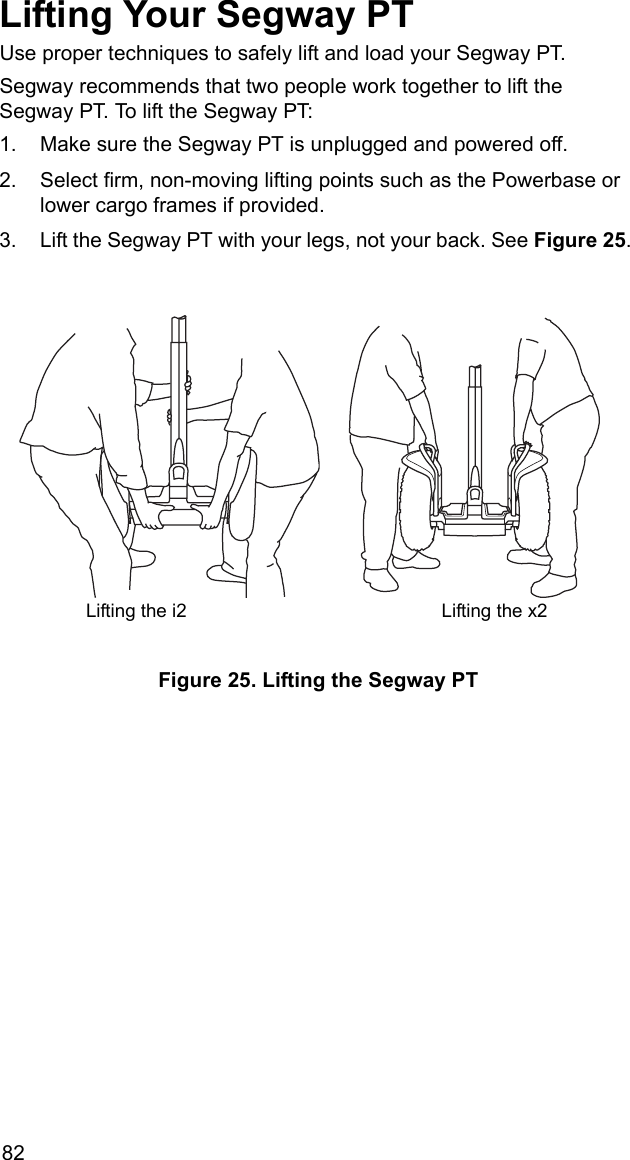

82Lifting Your Segway PTUse proper techniques to safely lift and load your Segway PT. Segway recommends that two people work together to lift the Segway PT. To lift the Segway PT: 1. Make sure the Segway PT is unplugged and powered off.2. Select firm, non-moving lifting points such as the Powerbase or lower cargo frames if provided.3. Lift the Segway PT with your legs, not your back. See Figure 25. Figure 25. Lifting the Segway PTLifting the i2 Lifting the x2

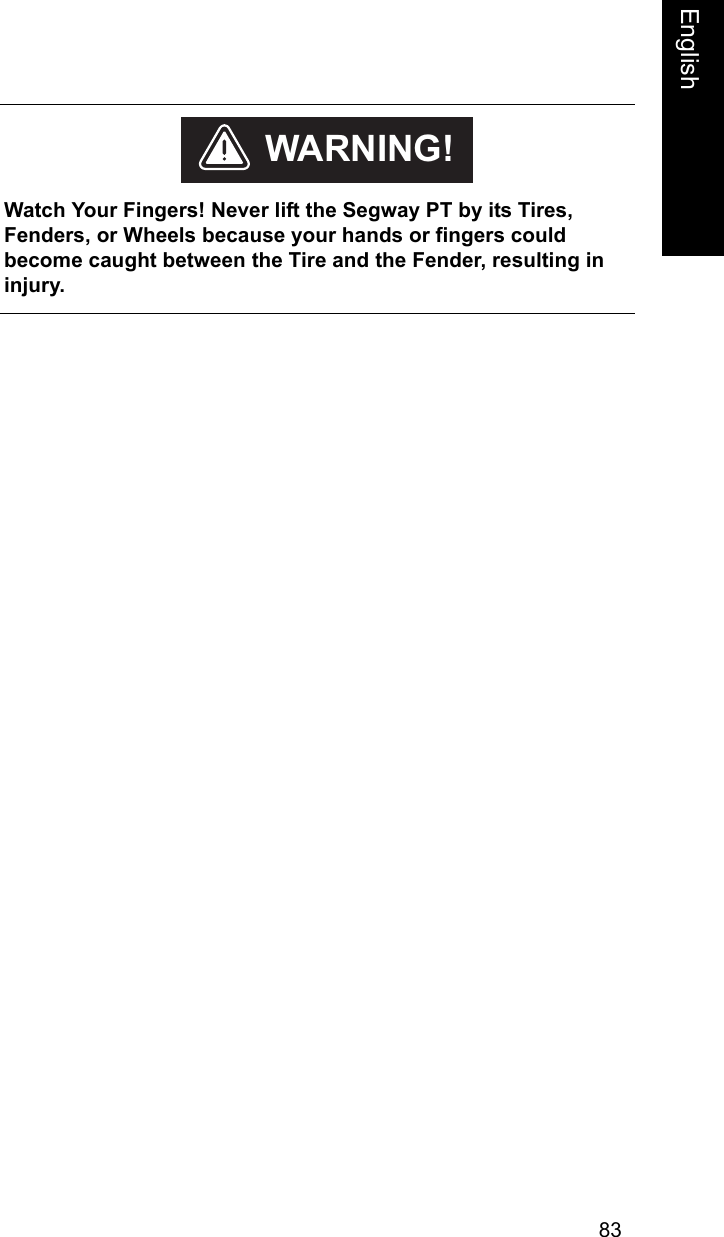

83EnglishEnglish Watch Your Fingers! Never lift the Segway PT by its Tires, Fenders, or Wheels because your hands or fingers could become caught between the Tire and the Fender, resulting in injury. WARNING!

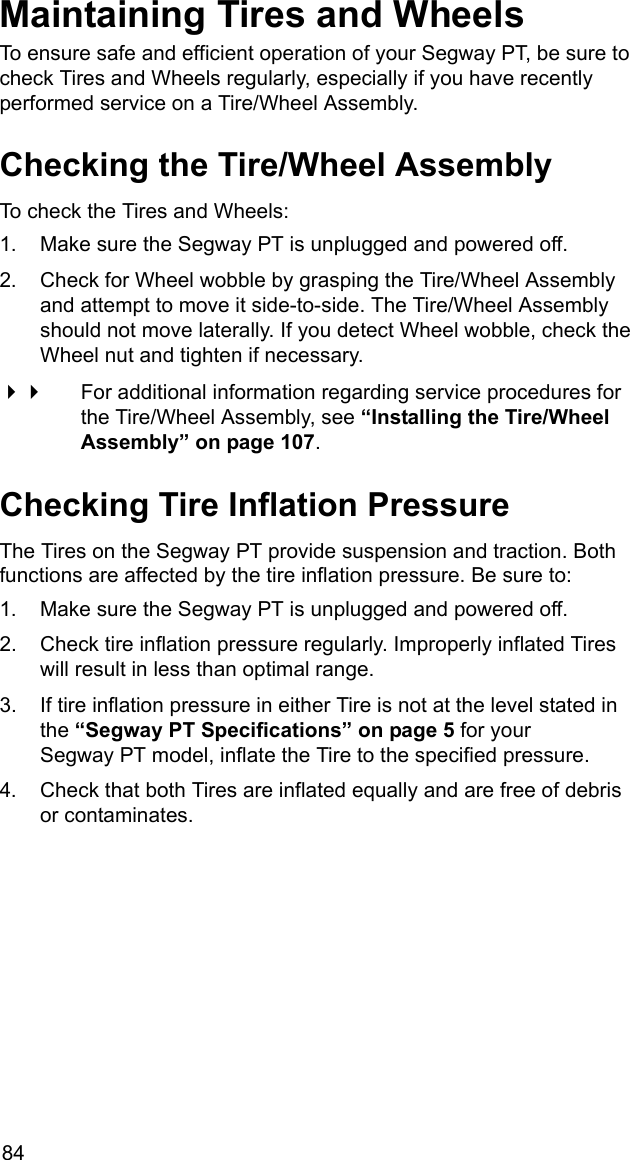

84Maintaining Tires and WheelsTo ensure safe and efficient operation of your Segway PT, be sure to check Tires and Wheels regularly, especially if you have recently performed service on a Tire/Wheel Assembly. Checking the Tire/Wheel AssemblyTo check the Tires and Wheels:1. Make sure the Segway PT is unplugged and powered off.2. Check for Wheel wobble by grasping the Tire/Wheel Assembly and attempt to move it side-to-side. The Tire/Wheel Assembly should not move laterally. If you detect Wheel wobble, check the Wheel nut and tighten if necessary.  For additional information regarding service procedures for the Tire/Wheel Assembly, see “Installing the Tire/Wheel Assembly” on page 107.Checking Tire Inflation PressureThe Tires on the Segway PT provide suspension and traction. Both functions are affected by the tire inflation pressure. Be sure to: 1. Make sure the Segway PT is unplugged and powered off.2. Check tire inflation pressure regularly. Improperly inflated Tires will result in less than optimal range.3. If tire inflation pressure in either Tire is not at the level stated in the “Segway PT Specifications” on page 5 for your Segway PT model, inflate the Tire to the specified pressure.4. Check that both Tires are inflated equally and are free of debris or contaminates.

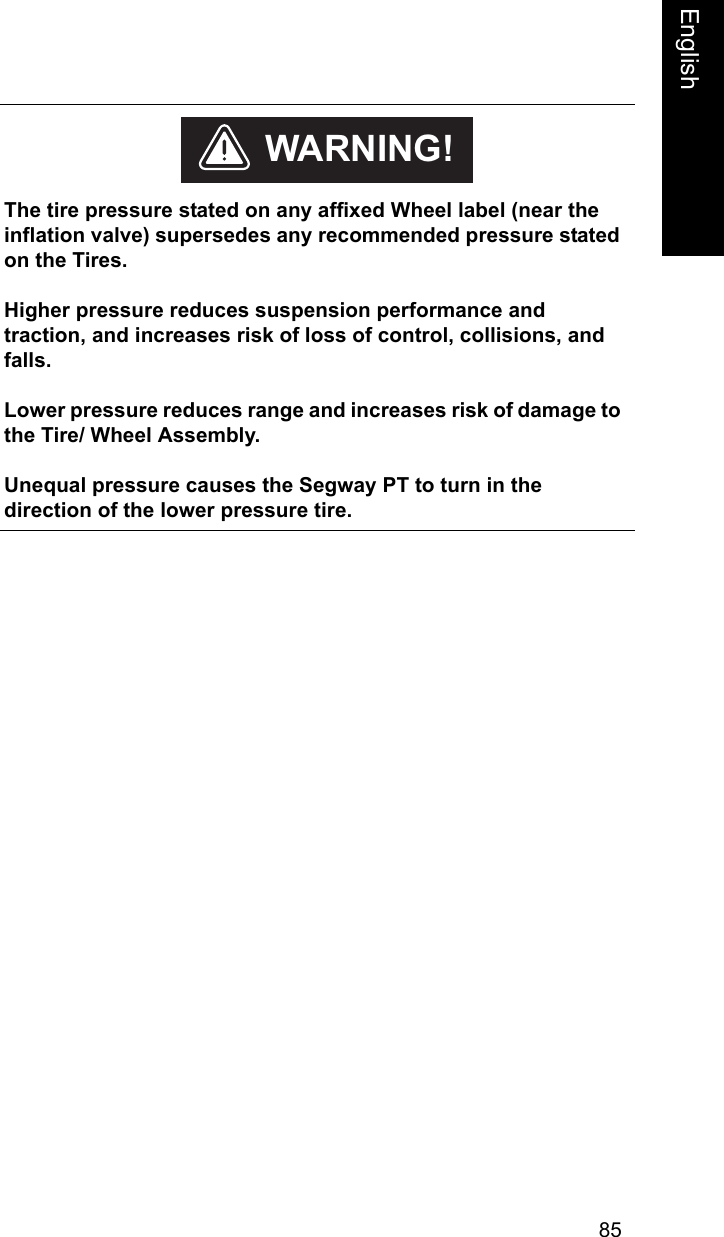

85EnglishEnglish The tire pressure stated on any affixed Wheel label (near the inflation valve) supersedes any recommended pressure stated on the Tires. Higher pressure reduces suspension performance and traction, and increases risk of loss of control, collisions, and falls.Lower pressure reduces range and increases risk of damage to the Tire/ Wheel Assembly.Unequal pressure causes the Segway PT to turn in the direction of the lower pressure tire.WARNING!

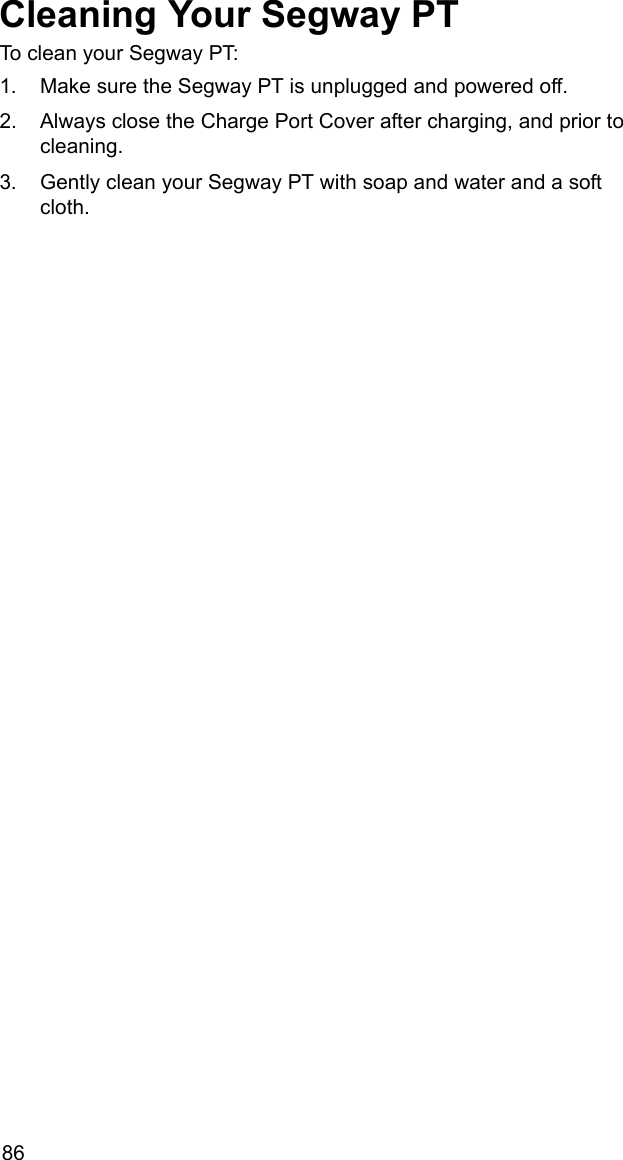

86Cleaning Your Segway PTTo clean your Segway PT: 1. Make sure the Segway PT is unplugged and powered off.2. Always close the Charge Port Cover after charging, and prior to cleaning.3. Gently clean your Segway PT with soap and water and a soft cloth.

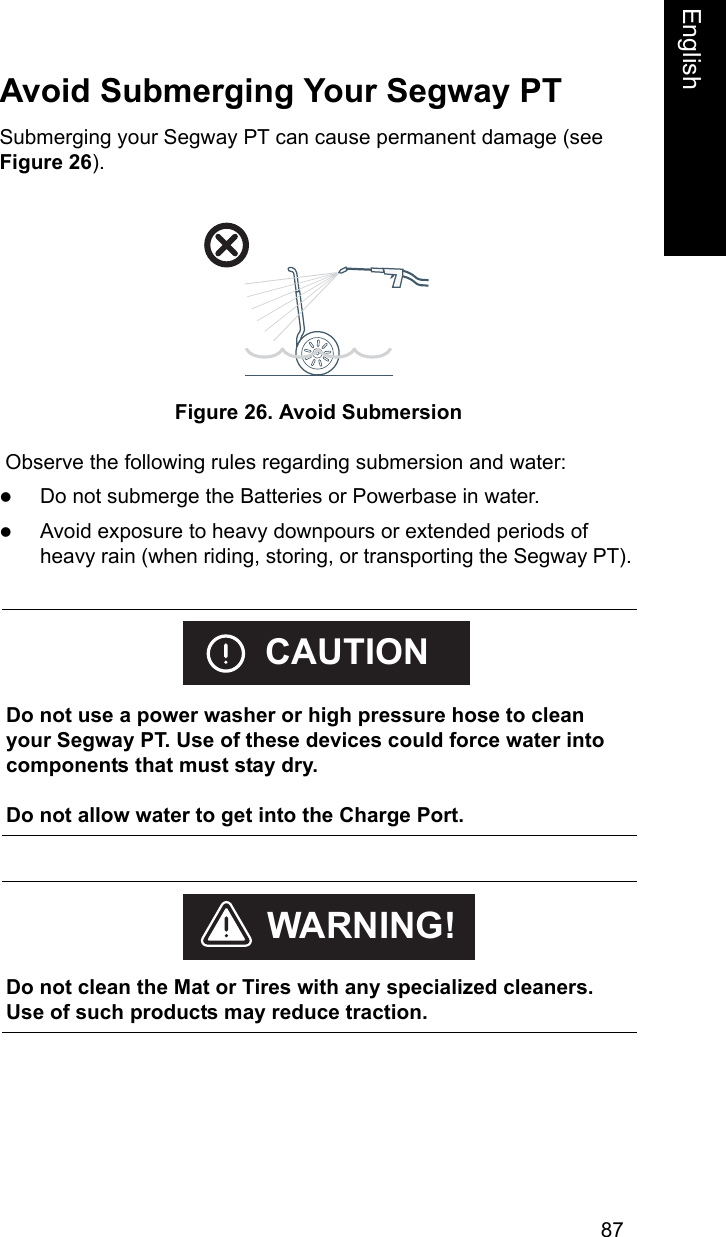

87EnglishEnglishAvoid Submerging Your Segway PTSubmerging your Segway PT can cause permanent damage (see Figure 26). Figure 26. Avoid Submersion Observe the following rules regarding submersion and water: zDo not submerge the Batteries or Powerbase in water. zAvoid exposure to heavy downpours or extended periods of heavy rain (when riding, storing, or transporting the Segway PT). Do not use a power washer or high pressure hose to clean your Segway PT. Use of these devices could force water into components that must stay dry. Do not allow water to get into the Charge Port. CAUTION Do not clean the Mat or Tires with any specialized cleaners. Use of such products may reduce traction.WARNING!

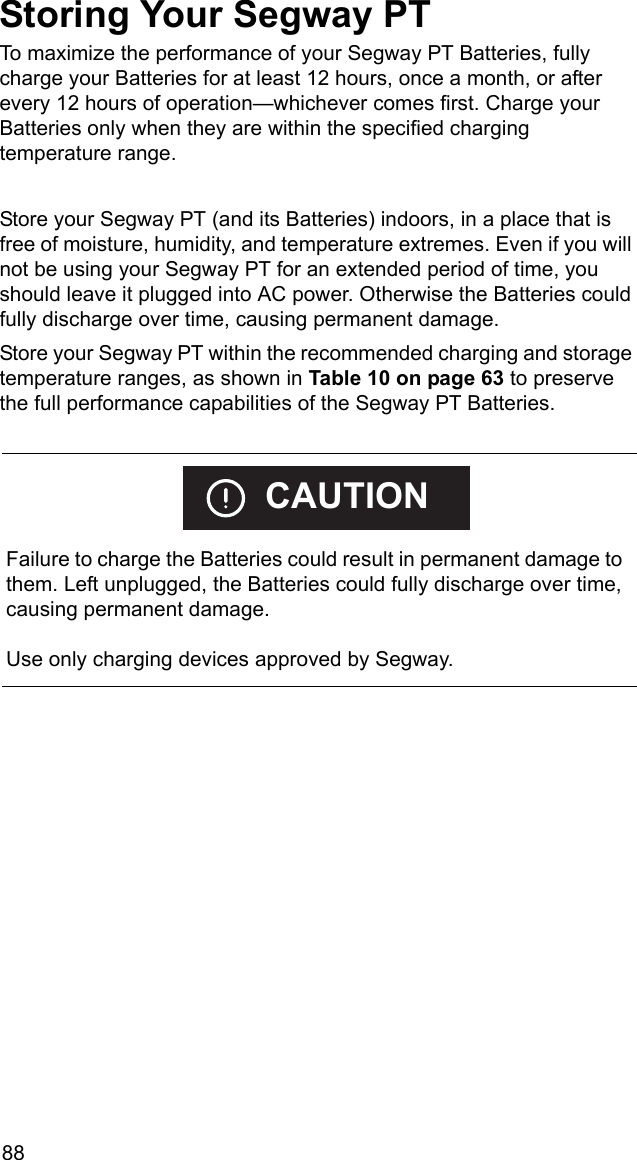

88Storing Your Segway PTTo maximize the performance of your Segway PT Batteries, fully charge your Batteries for at least 12 hours, once a month, or after every 12 hours of operation—whichever comes first. Charge your Batteries only when they are within the specified charging temperature range.Store your Segway PT (and its Batteries) indoors, in a place that is free of moisture, humidity, and temperature extremes. Even if you will not be using your Segway PT for an extended period of time, you should leave it plugged into AC power. Otherwise the Batteries could fully discharge over time, causing permanent damage.Store your Segway PT within the recommended charging and storage temperature ranges, as shown in Table 10 on page 63 to preserve the full performance capabilities of the Segway PT Batteries. Failure to charge the Batteries could result in permanent damage to them. Left unplugged, the Batteries could fully discharge over time, causing permanent damage.Use only charging devices approved by Segway.CAUTION

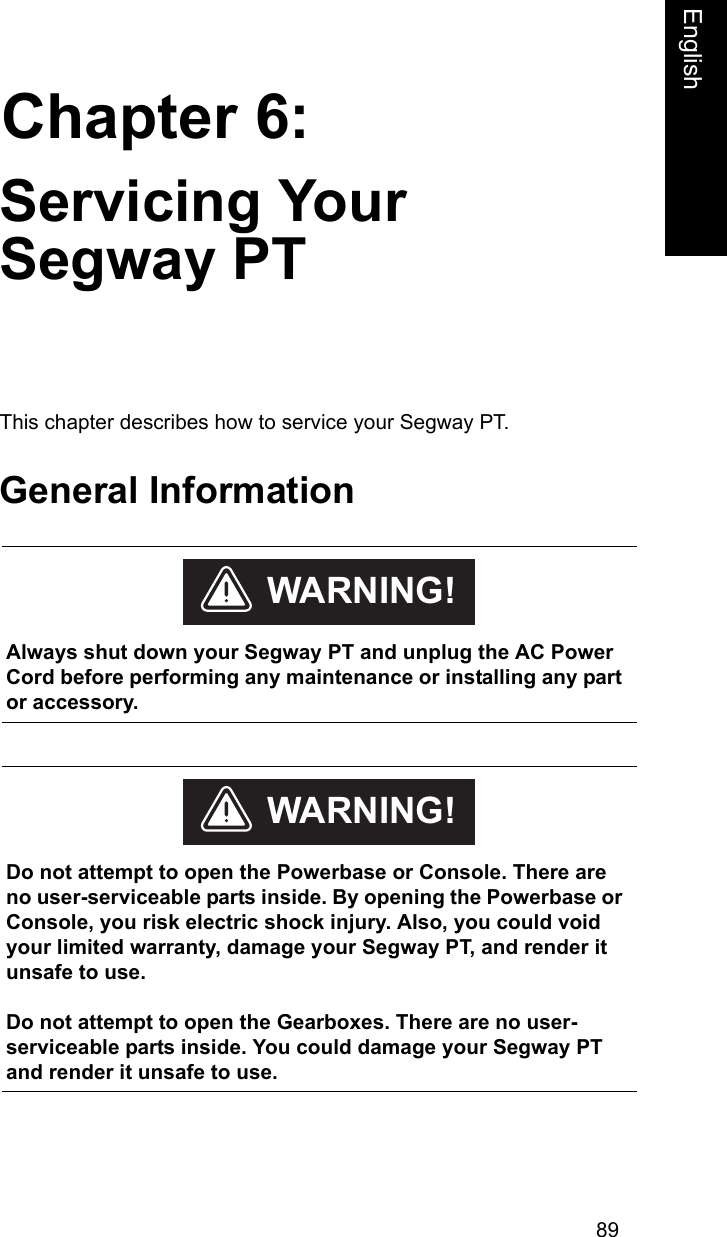

89Chapter 6:EnglishServicing Your Segway PTThis chapter describes how to service your Segway PT. General Information Always shut down your Segway PT and unplug the AC Power Cord before performing any maintenance or installing any part or accessory. WARNING! Do not attempt to open the Powerbase or Console. There are no user-serviceable parts inside. By opening the Powerbase or Console, you risk electric shock injury. Also, you could void your limited warranty, damage your Segway PT, and render it unsafe to use. Do not attempt to open the Gearboxes. There are no user- serviceable parts inside. You could damage your Segway PT and render it unsafe to use.WARNING!

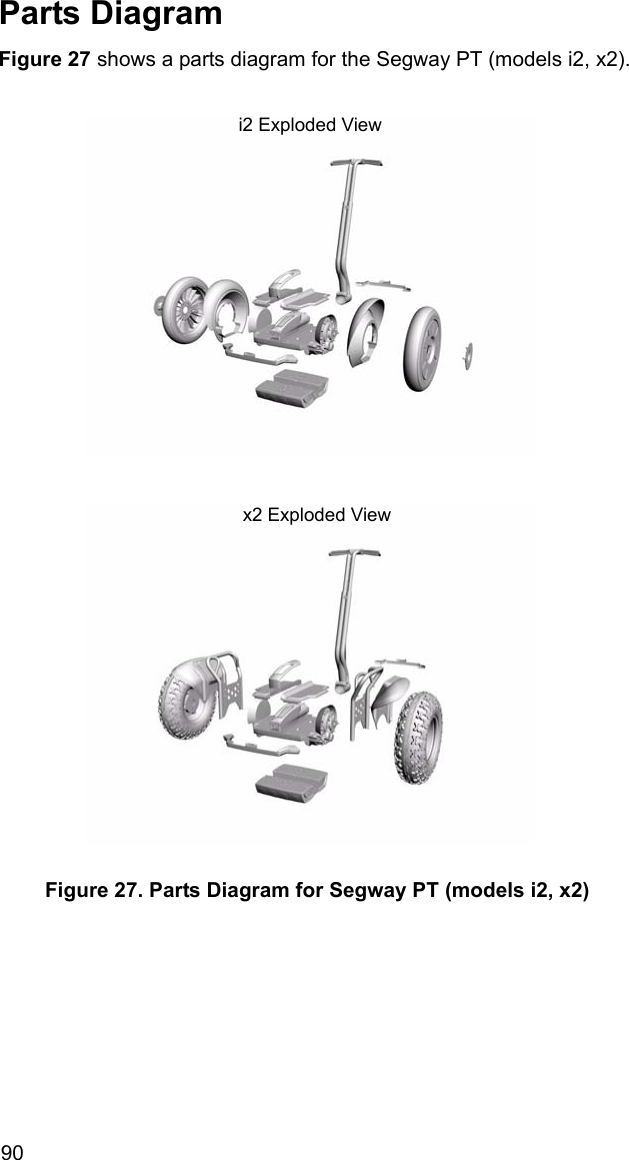

90Parts DiagramFigure 27 shows a parts diagram for the Segway PT (models i2, x2).Figure 27. Parts Diagram for Segway PT (models i2, x2)i2 Exploded View x2 Exploded View

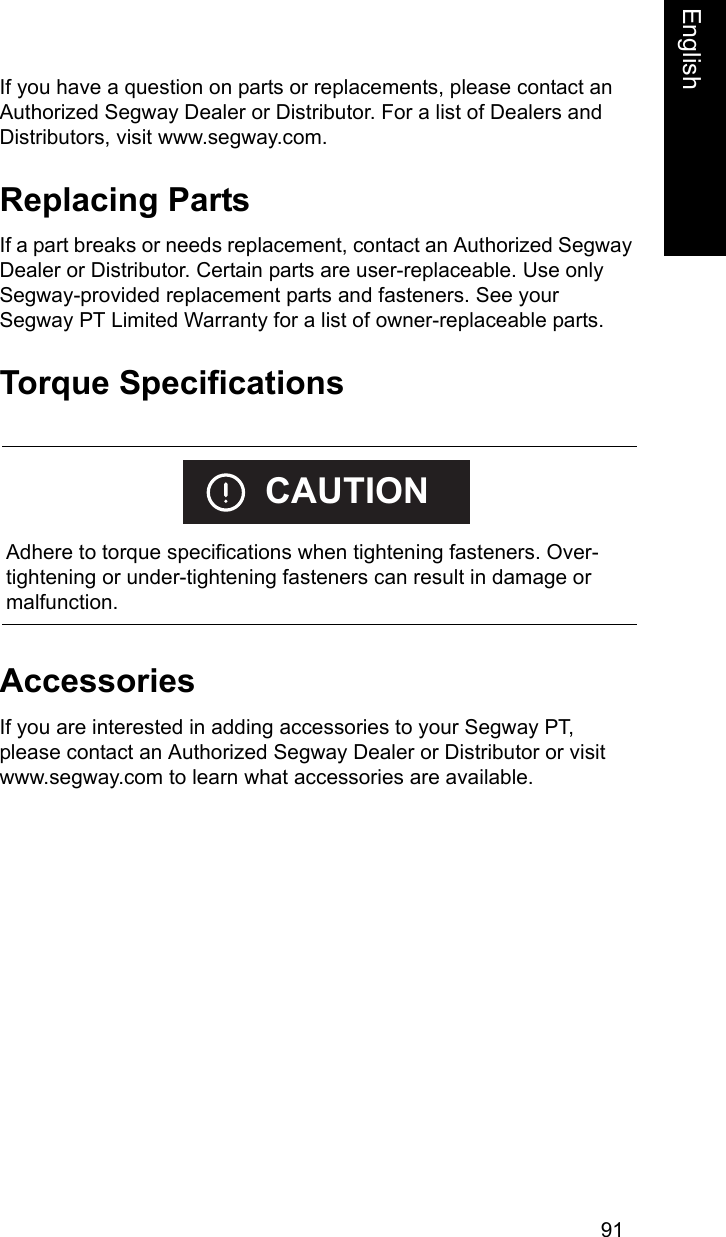

91EnglishEnglishIf you have a question on parts or replacements, please contact an Authorized Segway Dealer or Distributor. For a list of Dealers and Distributors, visit www.segway.com. Replacing PartsIf a part breaks or needs replacement, contact an Authorized Segway Dealer or Distributor. Certain parts are user-replaceable. Use only Segway-provided replacement parts and fasteners. See your Segway PT Limited Warranty for a list of owner-replaceable parts.Torque SpecificationsAccessoriesIf you are interested in adding accessories to your Segway PT, please contact an Authorized Segway Dealer or Distributor or visit www.segway.com to learn what accessories are available. Adhere to torque specifications when tightening fasteners. Over-tightening or under-tightening fasteners can result in damage or malfunction.CAUTION

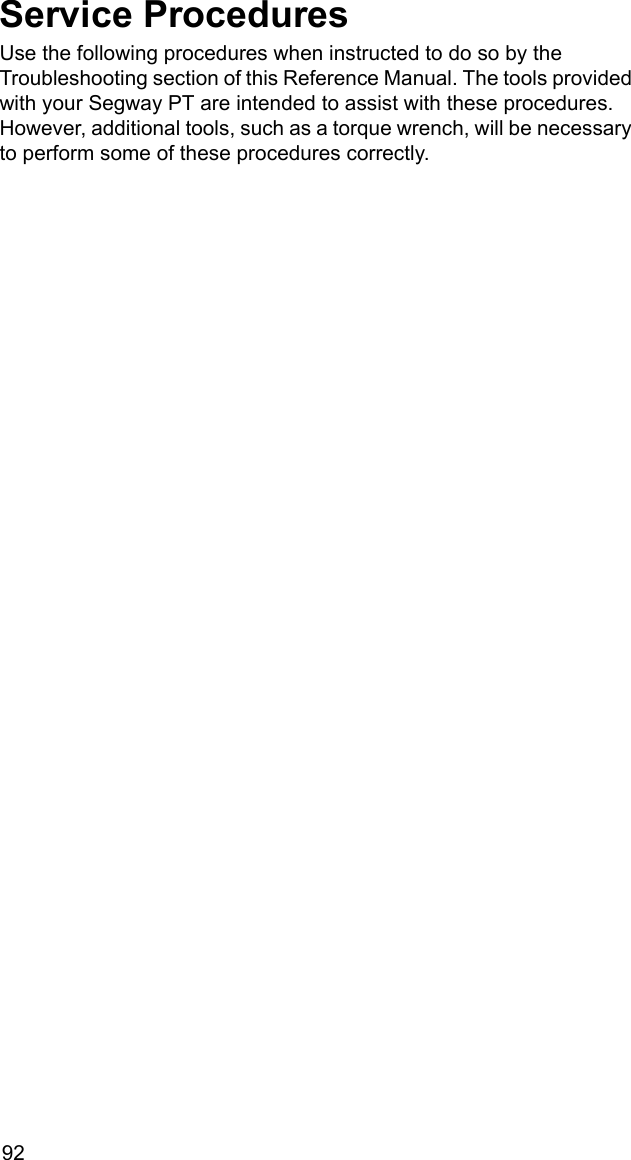

92Service ProceduresUse the following procedures when instructed to do so by the Troubleshooting section of this Reference Manual. The tools provided with your Segway PT are intended to assist with these procedures. However, additional tools, such as a torque wrench, will be necessary to perform some of these procedures correctly.

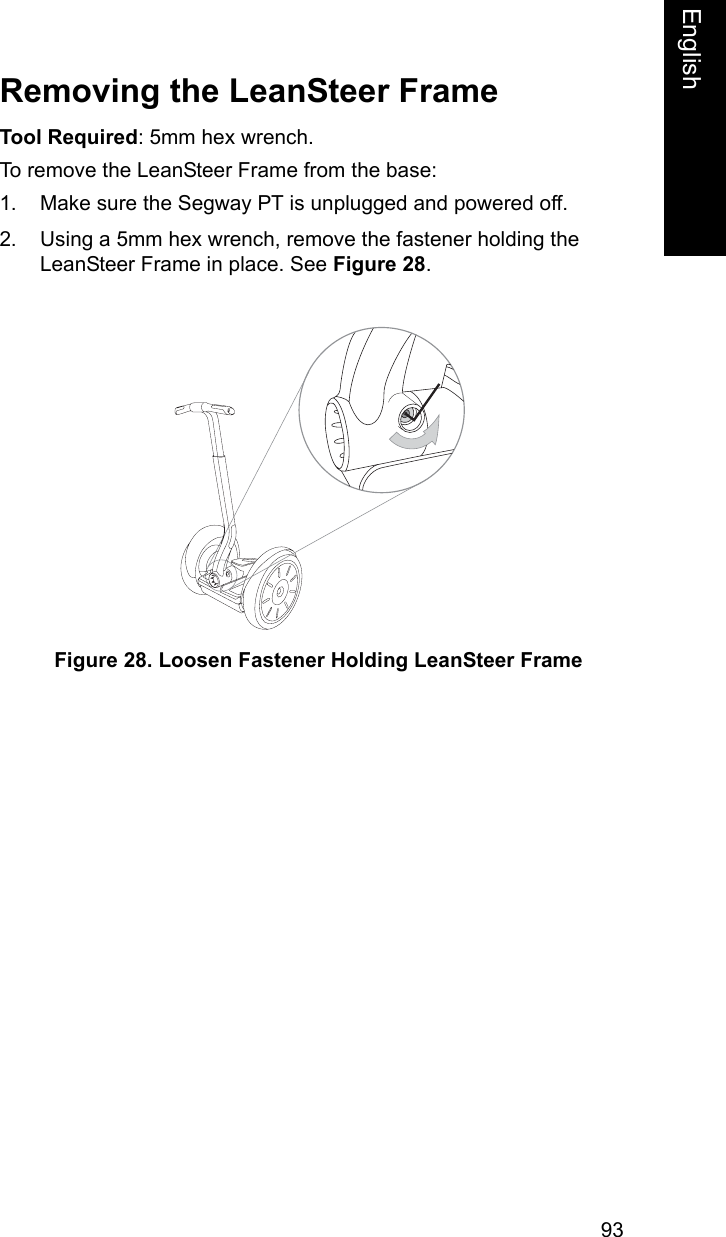

93EnglishEnglishRemoving the LeanSteer FrameTool Required: 5mm hex wrench.To remove the LeanSteer Frame from the base:1. Make sure the Segway PT is unplugged and powered off.2. Using a 5mm hex wrench, remove the fastener holding the LeanSteer Frame in place. See Figure 28. Figure 28. Loosen Fastener Holding LeanSteer Frame

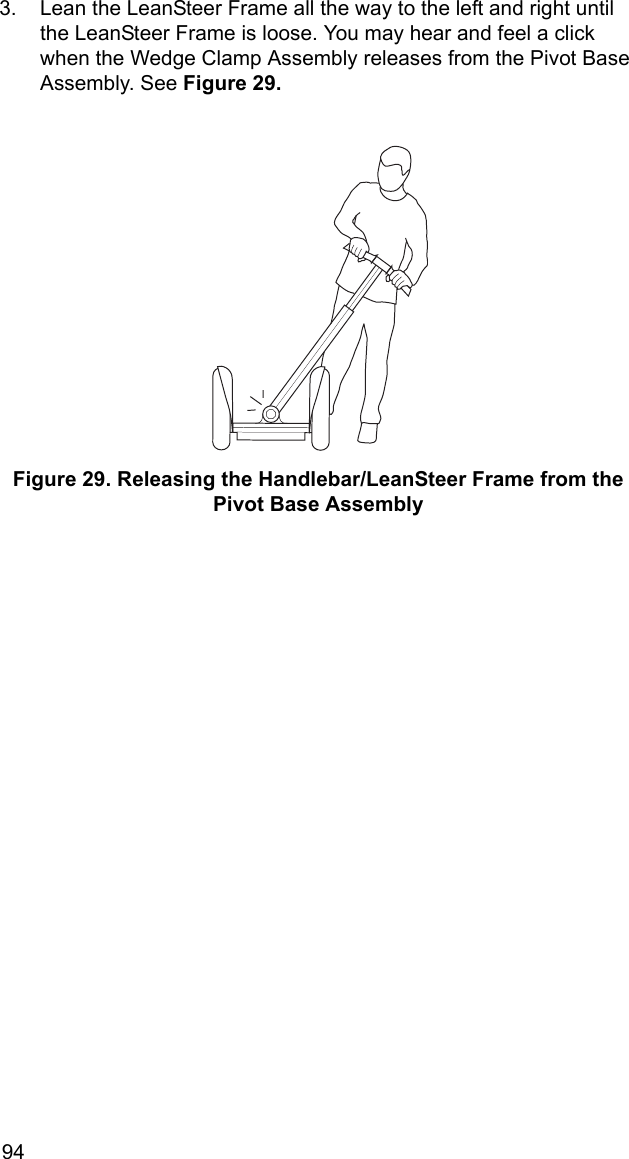

943. Lean the LeanSteer Frame all the way to the left and right until the LeanSteer Frame is loose. You may hear and feel a click when the Wedge Clamp Assembly releases from the Pivot Base Assembly. See Figure 29.Figure 29. Releasing the Handlebar/LeanSteer Frame from the Pivot Base Assembly

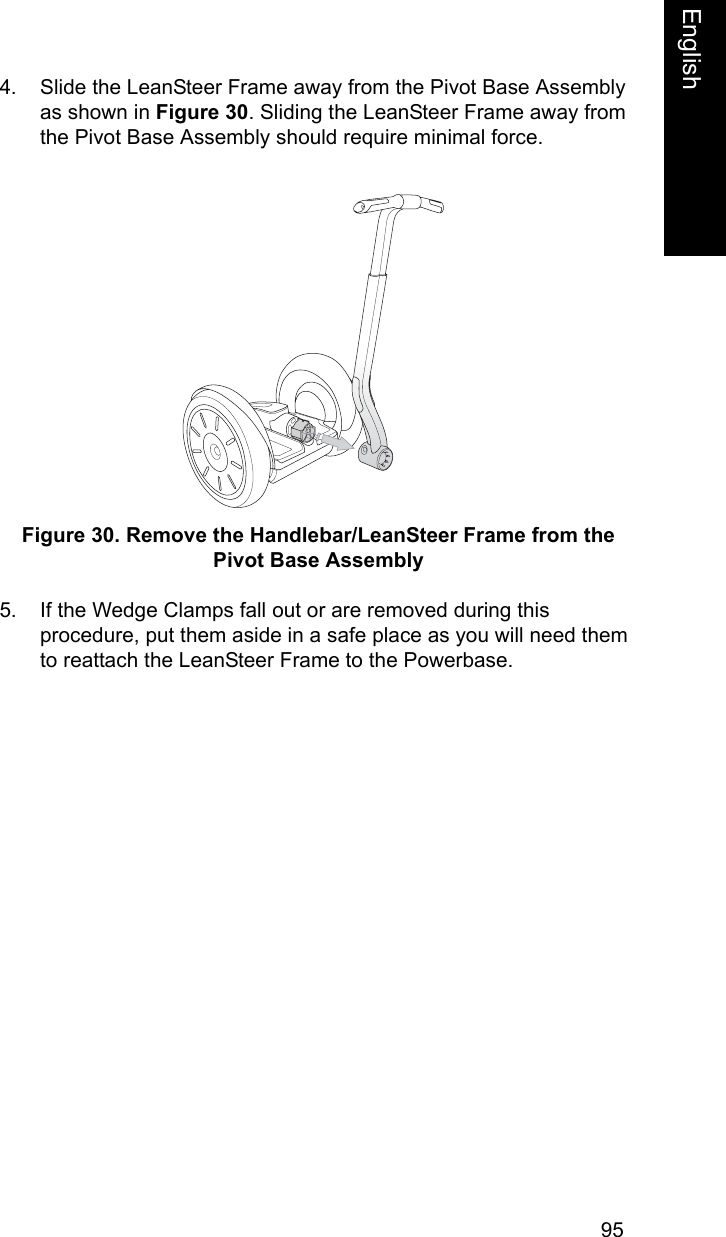

95EnglishEnglish4. Slide the LeanSteer Frame away from the Pivot Base Assembly as shown in Figure 30. Sliding the LeanSteer Frame away from the Pivot Base Assembly should require minimal force.Figure 30. Remove the Handlebar/LeanSteer Frame from the Pivot Base Assembly5. If the Wedge Clamps fall out or are removed during this procedure, put them aside in a safe place as you will need them to reattach the LeanSteer Frame to the Powerbase.

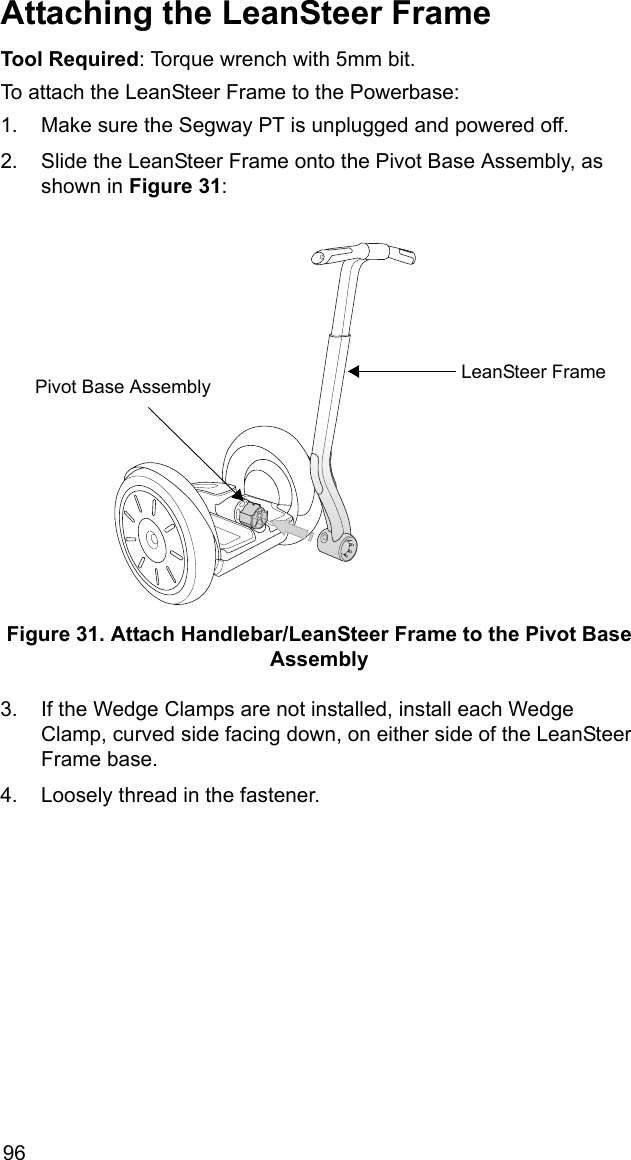

96Attaching the LeanSteer FrameTool Required: Torque wrench with 5mm bit.To attach the LeanSteer Frame to the Powerbase:1. Make sure the Segway PT is unplugged and powered off.2. Slide the LeanSteer Frame onto the Pivot Base Assembly, as shown in Figure 31:Figure 31. Attach Handlebar/LeanSteer Frame to the Pivot Base Assembly3. If the Wedge Clamps are not installed, install each Wedge Clamp, curved side facing down, on either side of the LeanSteer Frame base.4. Loosely thread in the fastener.LeanSteer FramePivot Base Assembly
97EnglishEnglish5. Prior to tightening the fastener, visually check that the Handlebar is straight and centered. If it is not straight and centered, adjust the LeanSteer Frame to straighten and center it.6. Tighten the fastener to 11.0 N-m (8.1 ft-lbf). See Figure 32. Figure 32. Tighten Fastener Holding LeanSteer Frame in Place

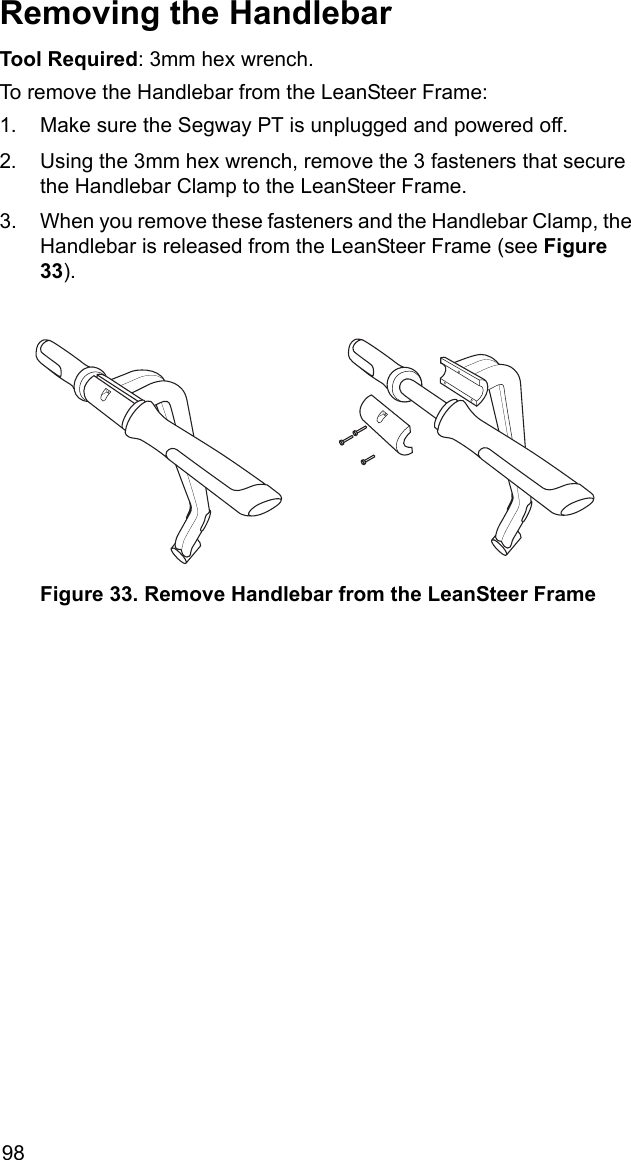

98Removing the HandlebarTool Required: 3mm hex wrench.To remove the Handlebar from the LeanSteer Frame: 1. Make sure the Segway PT is unplugged and powered off.2. Using the 3mm hex wrench, remove the 3 fasteners that secure the Handlebar Clamp to the LeanSteer Frame.3. When you remove these fasteners and the Handlebar Clamp, the Handlebar is released from the LeanSteer Frame (see Figure 33). Figure 33. Remove Handlebar from the LeanSteer Frame

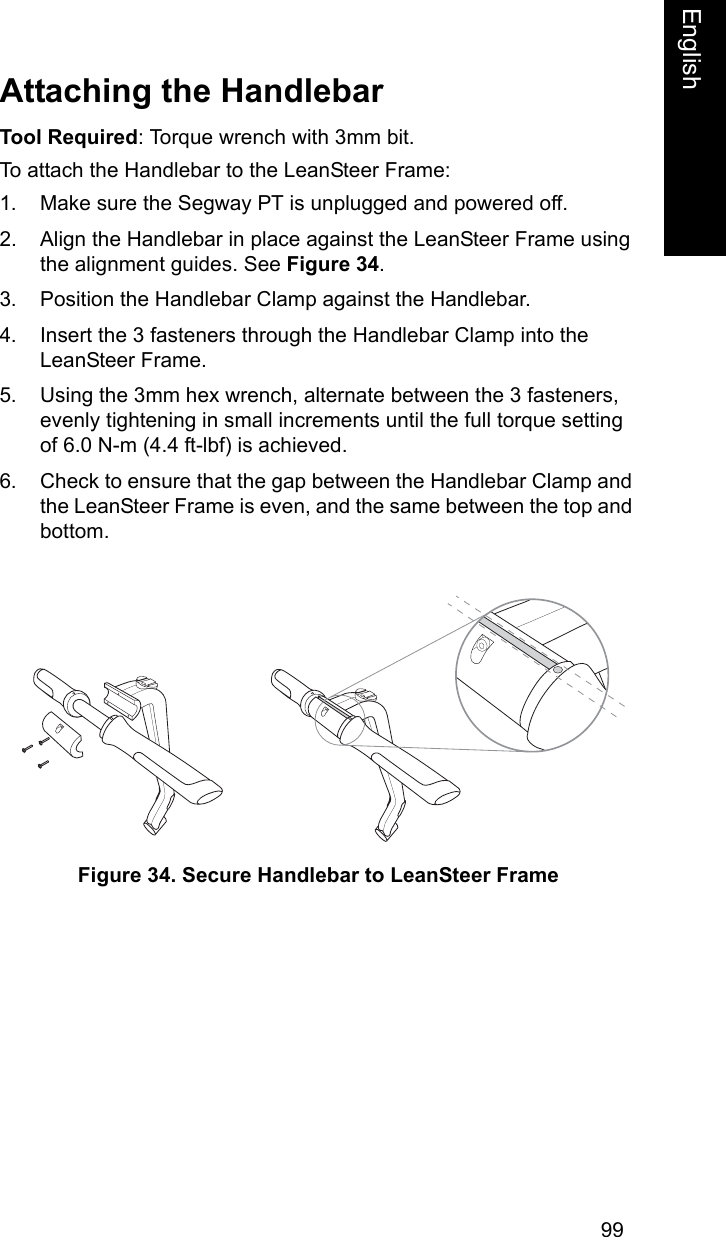

99EnglishEnglishAttaching the HandlebarTool Required: Torque wrench with 3mm bit.To attach the Handlebar to the LeanSteer Frame:1. Make sure the Segway PT is unplugged and powered off.2. Align the Handlebar in place against the LeanSteer Frame using the alignment guides. See Figure 34.3. Position the Handlebar Clamp against the Handlebar. 4. Insert the 3 fasteners through the Handlebar Clamp into the LeanSteer Frame.5. Using the 3mm hex wrench, alternate between the 3 fasteners, evenly tightening in small increments until the full torque setting of 6.0 N-m (4.4 ft-lbf) is achieved.6. Check to ensure that the gap between the Handlebar Clamp and the LeanSteer Frame is even, and the same between the top and bottom.Figure 34. Secure Handlebar to LeanSteer Frame

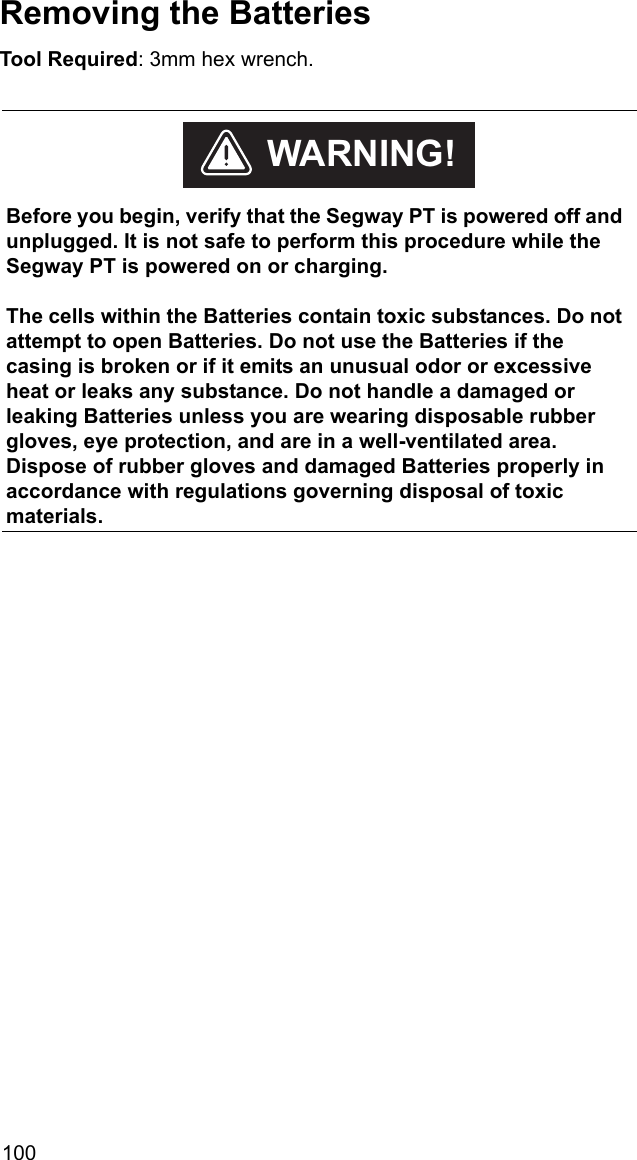

100Removing the BatteriesTool Required: 3mm hex wrench. Before you begin, verify that the Segway PT is powered off and unplugged. It is not safe to perform this procedure while the Segway PT is powered on or charging.The cells within the Batteries contain toxic substances. Do not attempt to open Batteries. Do not use the Batteries if the casing is broken or if it emits an unusual odor or excessive heat or leaks any substance. Do not handle a damaged or leaking Batteries unless you are wearing disposable rubber gloves, eye protection, and are in a well-ventilated area. Dispose of rubber gloves and damaged Batteries properly in accordance with regulations governing disposal of toxic materials. WARNING!

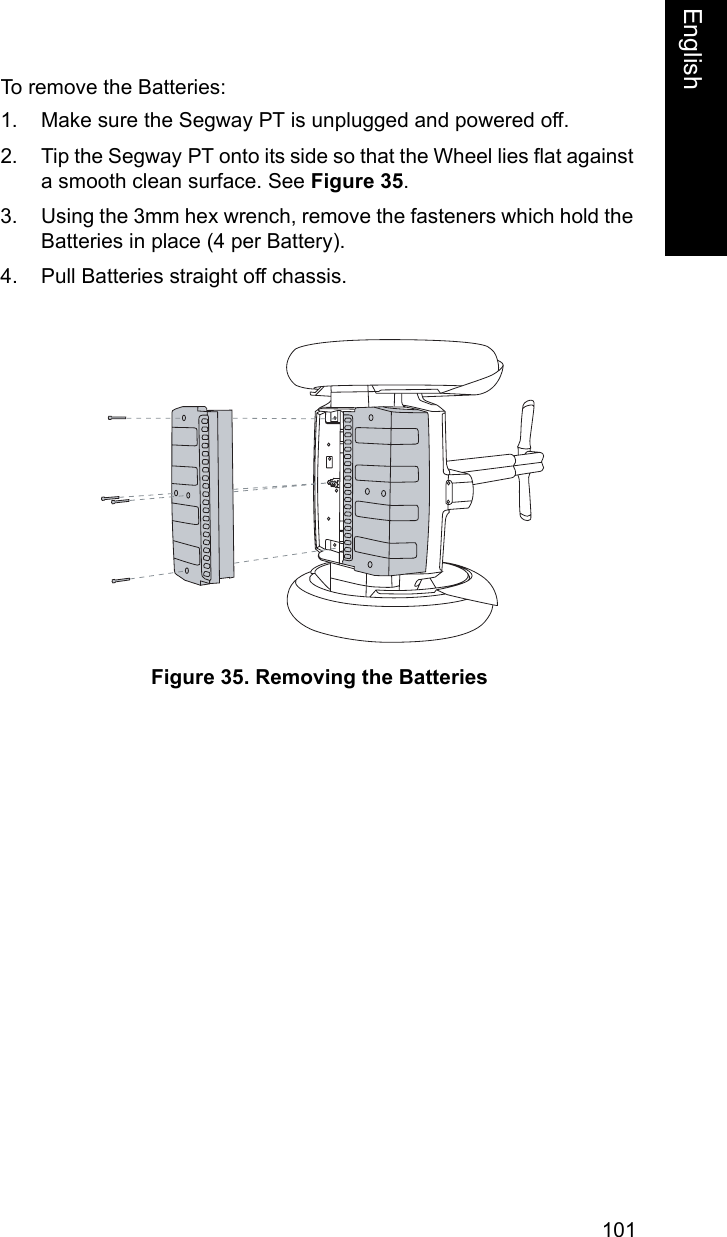

101EnglishEnglishTo remove the Batteries: 1. Make sure the Segway PT is unplugged and powered off. 2. Tip the Segway PT onto its side so that the Wheel lies flat against a smooth clean surface. See Figure 35.3. Using the 3mm hex wrench, remove the fasteners which hold the Batteries in place (4 per Battery). 4. Pull Batteries straight off chassis.Figure 35. Removing the Batteries

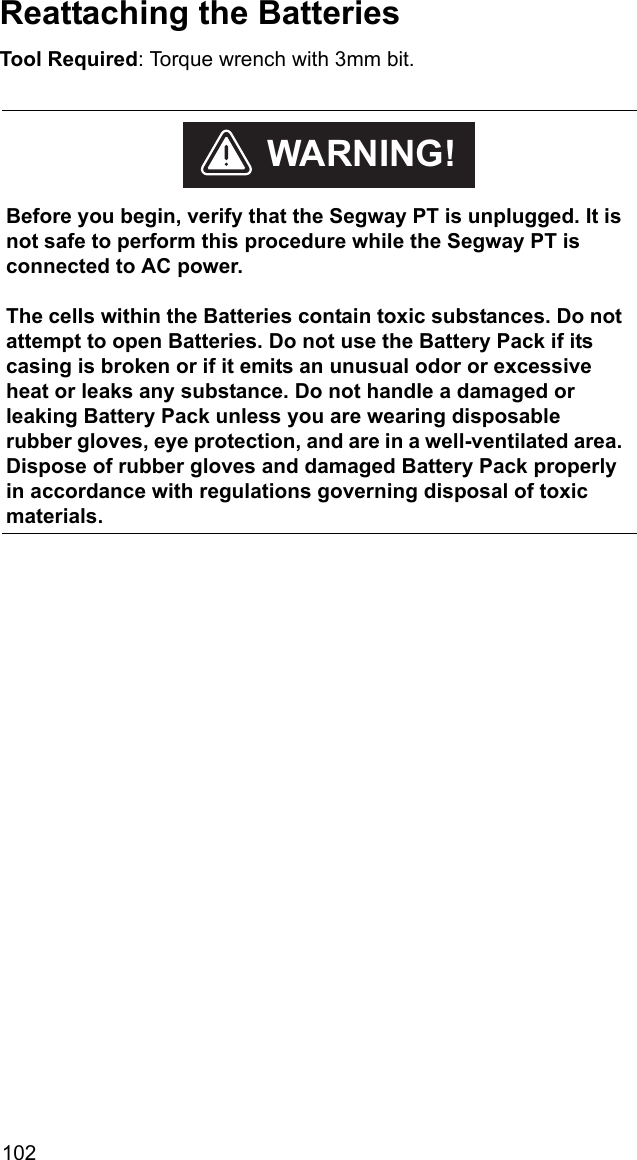

102Reattaching the BatteriesTool Required: Torque wrench with 3mm bit. Before you begin, verify that the Segway PT is unplugged. It is not safe to perform this procedure while the Segway PT is connected to AC power.The cells within the Batteries contain toxic substances. Do not attempt to open Batteries. Do not use the Battery Pack if its casing is broken or if it emits an unusual odor or excessive heat or leaks any substance. Do not handle a damaged or leaking Battery Pack unless you are wearing disposable rubber gloves, eye protection, and are in a well-ventilated area. Dispose of rubber gloves and damaged Battery Pack properly in accordance with regulations governing disposal of toxic materials. WARNING!

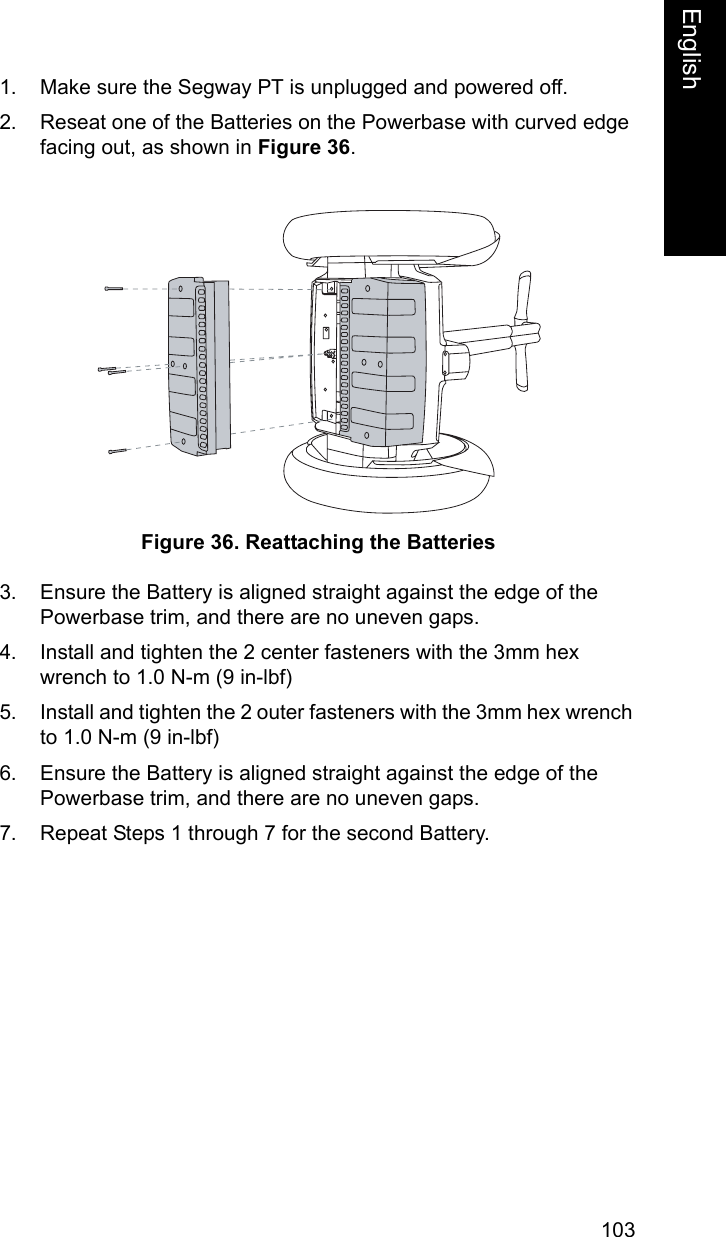

103EnglishEnglish1. Make sure the Segway PT is unplugged and powered off.2. Reseat one of the Batteries on the Powerbase with curved edge facing out, as shown in Figure 36.Figure 36. Reattaching the Batteries3. Ensure the Battery is aligned straight against the edge of the Powerbase trim, and there are no uneven gaps.4. Install and tighten the 2 center fasteners with the 3mm hex wrench to 1.0 N-m (9 in-lbf)5. Install and tighten the 2 outer fasteners with the 3mm hex wrench to 1.0 N-m (9 in-lbf)6. Ensure the Battery is aligned straight against the edge of the Powerbase trim, and there are no uneven gaps.7. Repeat Steps 1 through 7 for the second Battery.

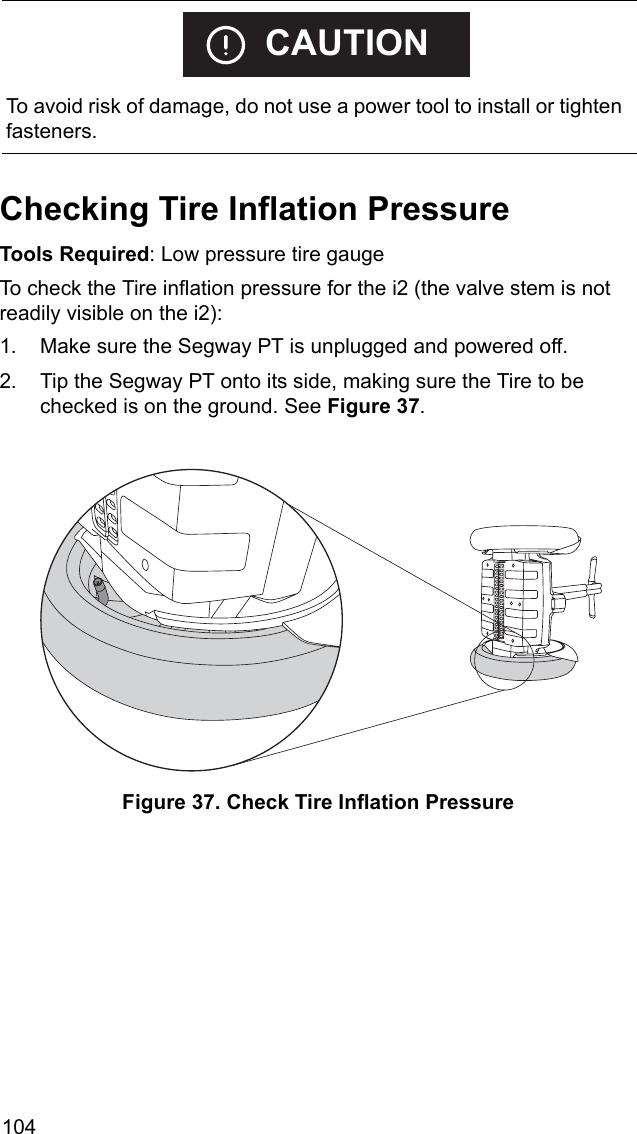

104Checking Tire Inflation PressureTools Required: Low pressure tire gaugeTo check the Tire inflation pressure for the i2 (the valve stem is not readily visible on the i2): 1. Make sure the Segway PT is unplugged and powered off.2. Tip the Segway PT onto its side, making sure the Tire to be checked is on the ground. See Figure 37. Figure 37. Check Tire Inflation Pressure To avoid risk of damage, do not use a power tool to install or tighten fasteners.CAUTION

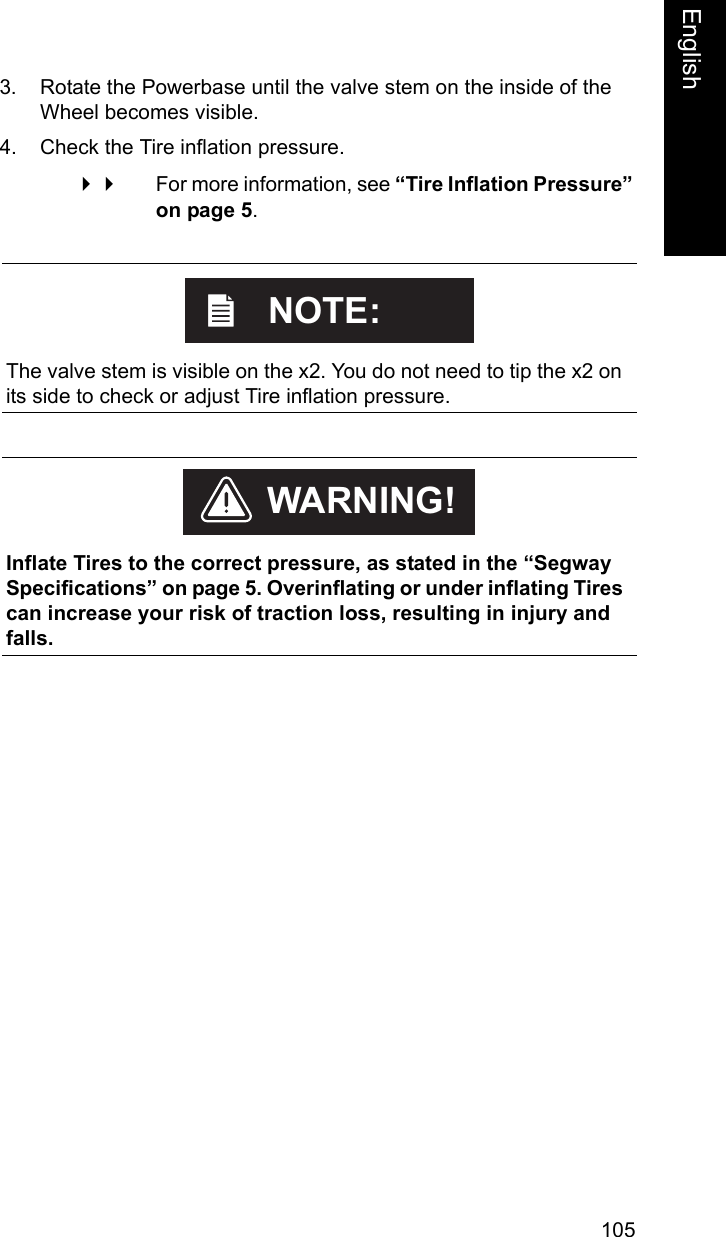

105EnglishEnglish3. Rotate the Powerbase until the valve stem on the inside of the Wheel becomes visible.4. Check the Tire inflation pressure.  For more information, see “Tire Inflation Pressure” on page 5. The valve stem is visible on the x2. You do not need to tip the x2 on its side to check or adjust Tire inflation pressure.NOTE: Inflate Tires to the correct pressure, as stated in the “Segway Specifications” on page 5. Overinflating or under inflating Tires can increase your risk of traction loss, resulting in injury and falls.WARNING!

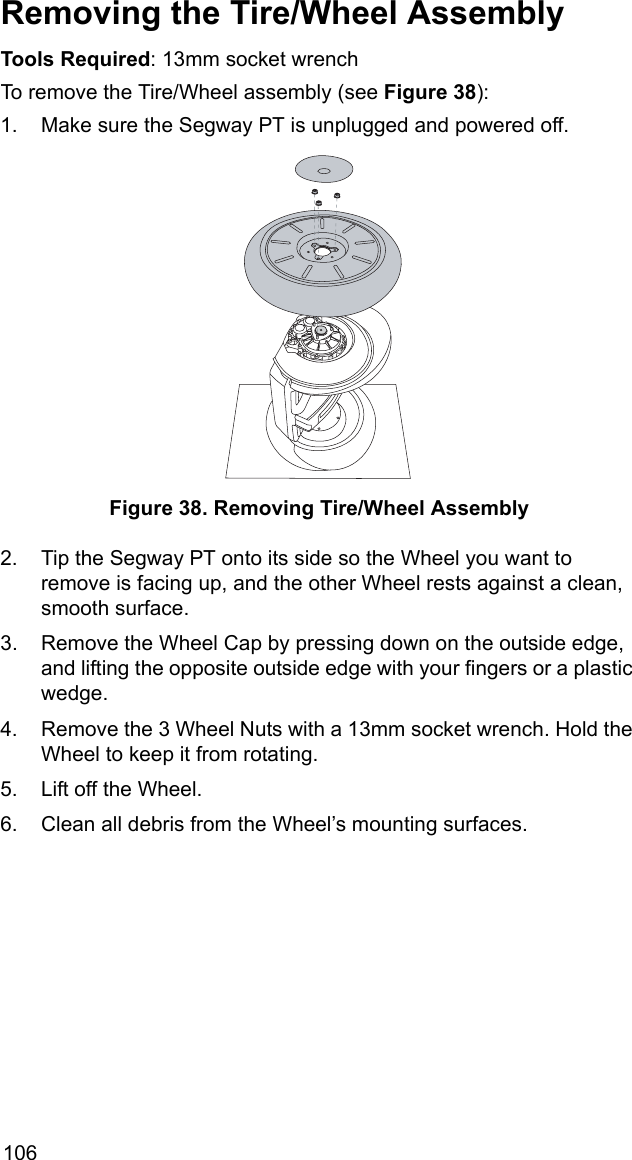

106Removing the Tire/Wheel AssemblyTools Required: 13mm socket wrench To remove the Tire/Wheel assembly (see Figure 38):1. Make sure the Segway PT is unplugged and powered off.Figure 38. Removing Tire/Wheel Assembly2. Tip the Segway PT onto its side so the Wheel you want to remove is facing up, and the other Wheel rests against a clean, smooth surface. 3. Remove the Wheel Cap by pressing down on the outside edge, and lifting the opposite outside edge with your fingers or a plastic wedge.4. Remove the 3 Wheel Nuts with a 13mm socket wrench. Hold the Wheel to keep it from rotating. 5. Lift off the Wheel.6. Clean all debris from the Wheel’s mounting surfaces.

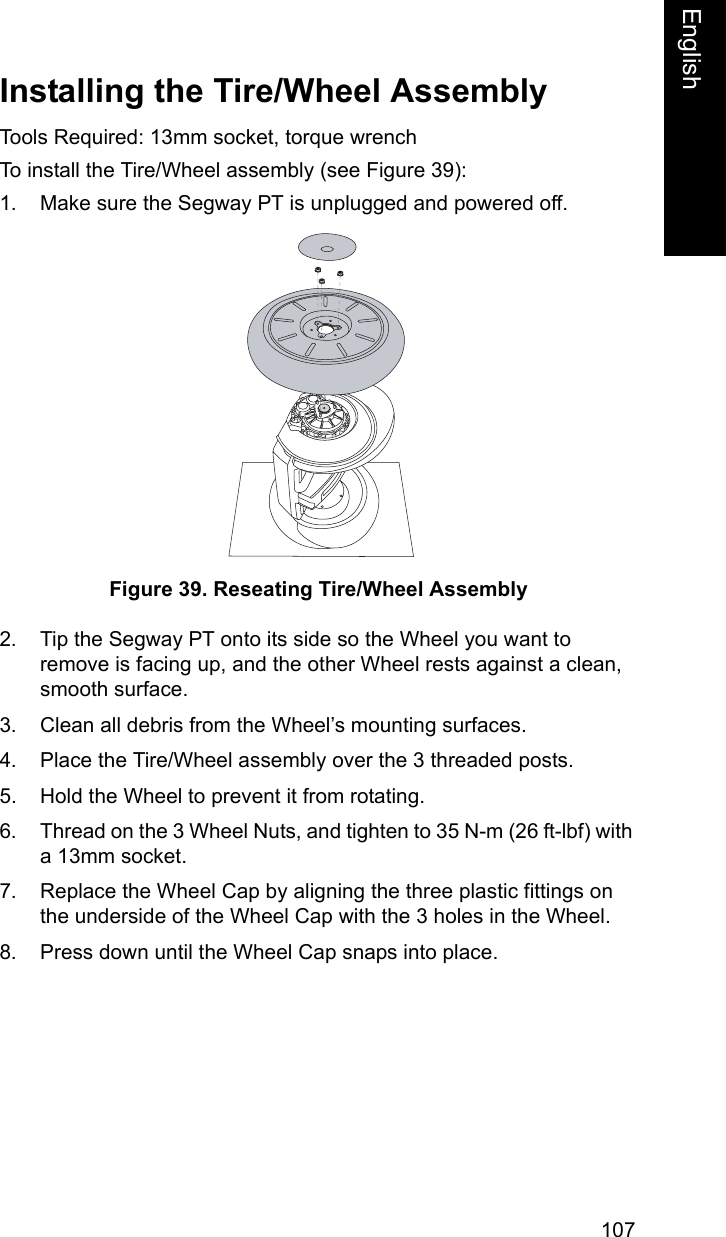

107EnglishEnglishInstalling the Tire/Wheel AssemblyTools Required: 13mm socket, torque wrenchTo install the Tire/Wheel assembly (see Figure 39): 1. Make sure the Segway PT is unplugged and powered off.Figure 39. Reseating Tire/Wheel Assembly2. Tip the Segway PT onto its side so the Wheel you want to remove is facing up, and the other Wheel rests against a clean, smooth surface.3. Clean all debris from the Wheel’s mounting surfaces.4. Place the Tire/Wheel assembly over the 3 threaded posts.5. Hold the Wheel to prevent it from rotating.6. Thread on the 3 Wheel Nuts, and tighten to 35 N-m (26 ft-lbf) with a 13mm socket.7. Replace the Wheel Cap by aligning the three plastic fittings on the underside of the Wheel Cap with the 3 holes in the Wheel.8. Press down until the Wheel Cap snaps into place.

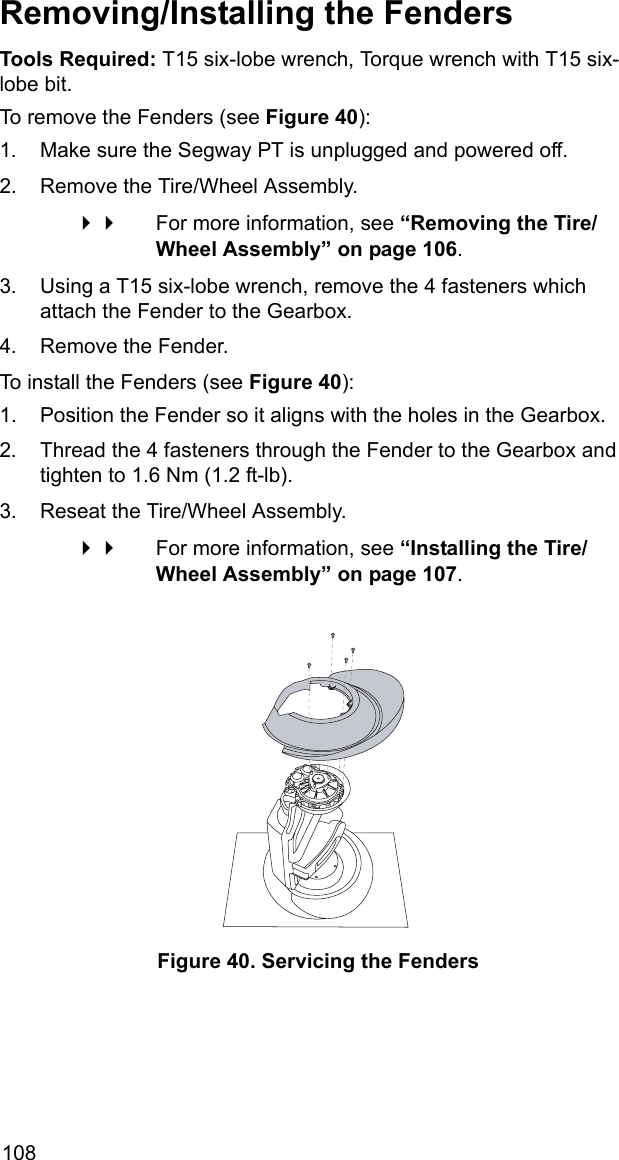

108Removing/Installing the FendersTools Required: T15 six-lobe wrench, Torque wrench with T15 six-lobe bit.To remove the Fenders (see Figure 40):1. Make sure the Segway PT is unplugged and powered off.2. Remove the Tire/Wheel Assembly.  For more information, see “Removing the Tire/Wheel Assembly” on page 106.3. Using a T15 six-lobe wrench, remove the 4 fasteners which attach the Fender to the Gearbox.4. Remove the Fender.To install the Fenders (see Figure 40):1. Position the Fender so it aligns with the holes in the Gearbox.2. Thread the 4 fasteners through the Fender to the Gearbox and tighten to 1.6 Nm (1.2 ft-lb).3. Reseat the Tire/Wheel Assembly. For more information, see “Installing the Tire/Wheel Assembly” on page 107.Figure 40. Servicing the Fenders
109EnglishEnglishRemoving/Installing the MatsTools Required: None.To remove a Mat:1. Make sure the Segway PT is unplugged and powered off.2. Lift the Mat off the Powerbase.To install a Mat: 1. Make sure the Segway PT is unplugged and powered off.2. Verify that the top of the Powerbase and bottom of Mat are clean, dry, and free of debris.3. Place a Mat on the Powerbase. See Figure 41.4. Fit the Mat’s rubber tabs into the Powerbase grooves.5. Tuck the tabs in place around the entire perimeter of the Mat while you press down.6. Visually confirm that the Mat is properly aligned and all rubber tabs are tucked in prior to riding.Figure 41. Removing and Installing the Mats

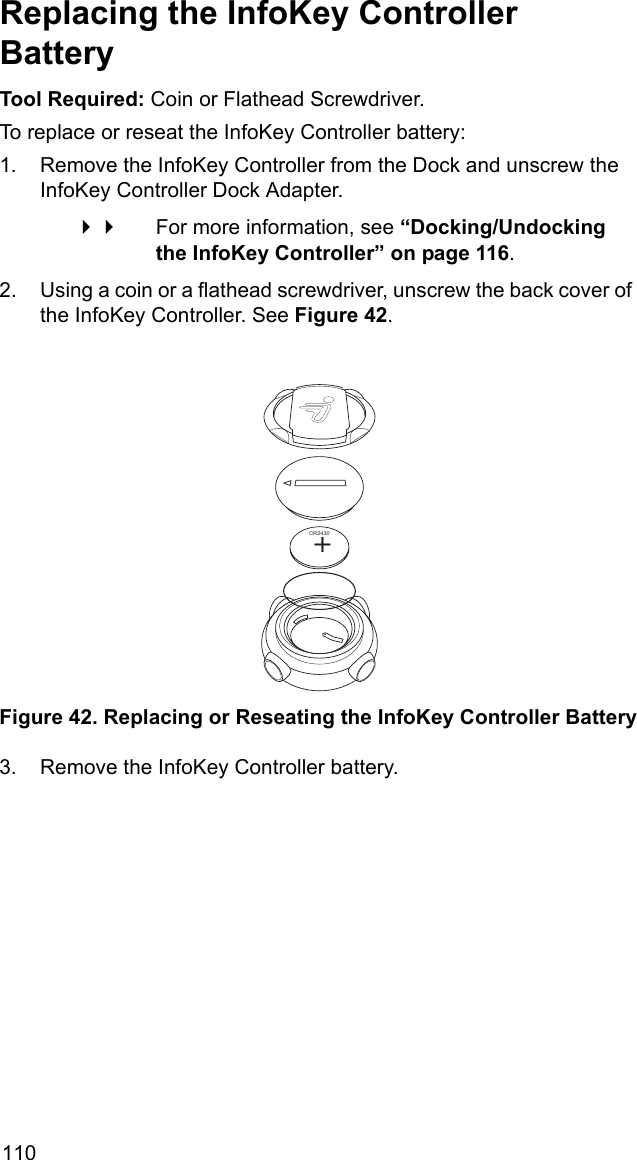

110Replacing the InfoKey Controller BatteryTool Required: Coin or Flathead Screwdriver.To replace or reseat the InfoKey Controller battery:1. Remove the InfoKey Controller from the Dock and unscrew the InfoKey Controller Dock Adapter.  For more information, see “Docking/Undocking the InfoKey Controller” on page 116.2. Using a coin or a flathead screwdriver, unscrew the back cover of the InfoKey Controller. See Figure 42. Figure 42. Replacing or Reseating the InfoKey Controller Battery3. Remove the InfoKey Controller battery.+CR2430

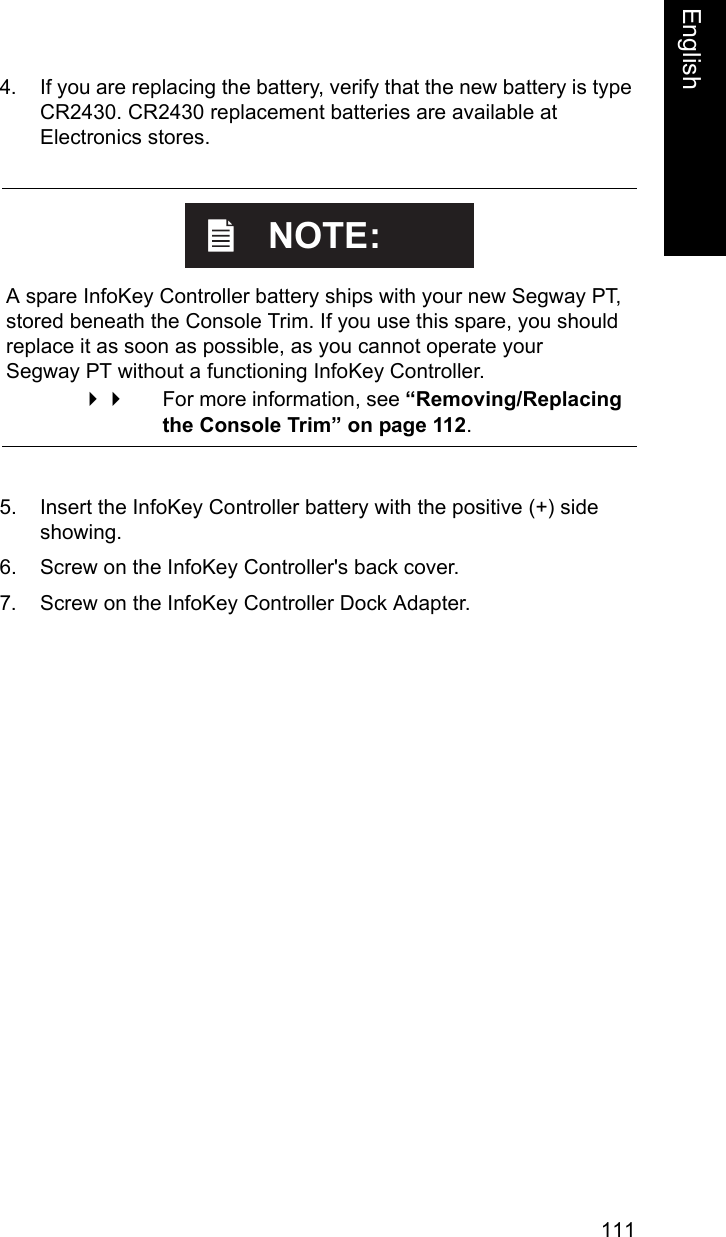

111EnglishEnglish4. If you are replacing the battery, verify that the new battery is type CR2430. CR2430 replacement batteries are available at Electronics stores. 5. Insert the InfoKey Controller battery with the positive (+) side showing.6. Screw on the InfoKey Controller's back cover.7. Screw on the InfoKey Controller Dock Adapter. A spare InfoKey Controller battery ships with your new Segway PT, stored beneath the Console Trim. If you use this spare, you should replace it as soon as possible, as you cannot operate your Segway PT without a functioning InfoKey Controller. For more information, see “Removing/Replacing the Console Trim” on page 112. NOTE:

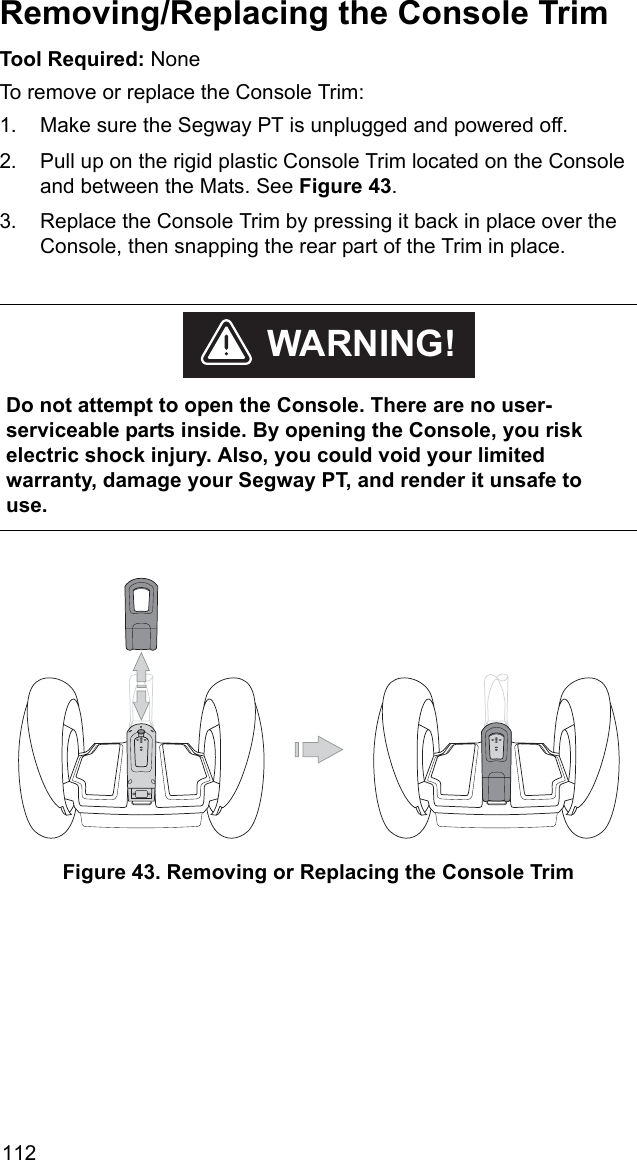

112Removing/Replacing the Console TrimTool Required: NoneTo remove or replace the Console Trim:1. Make sure the Segway PT is unplugged and powered off.2. Pull up on the rigid plastic Console Trim located on the Console and between the Mats. See Figure 43. 3. Replace the Console Trim by pressing it back in place over the Console, then snapping the rear part of the Trim in place.Figure 43. Removing or Replacing the Console Trim Do not attempt to open the Console. There are no user- serviceable parts inside. By opening the Console, you risk electric shock injury. Also, you could void your limited warranty, damage your Segway PT, and render it unsafe to use. WARNING!

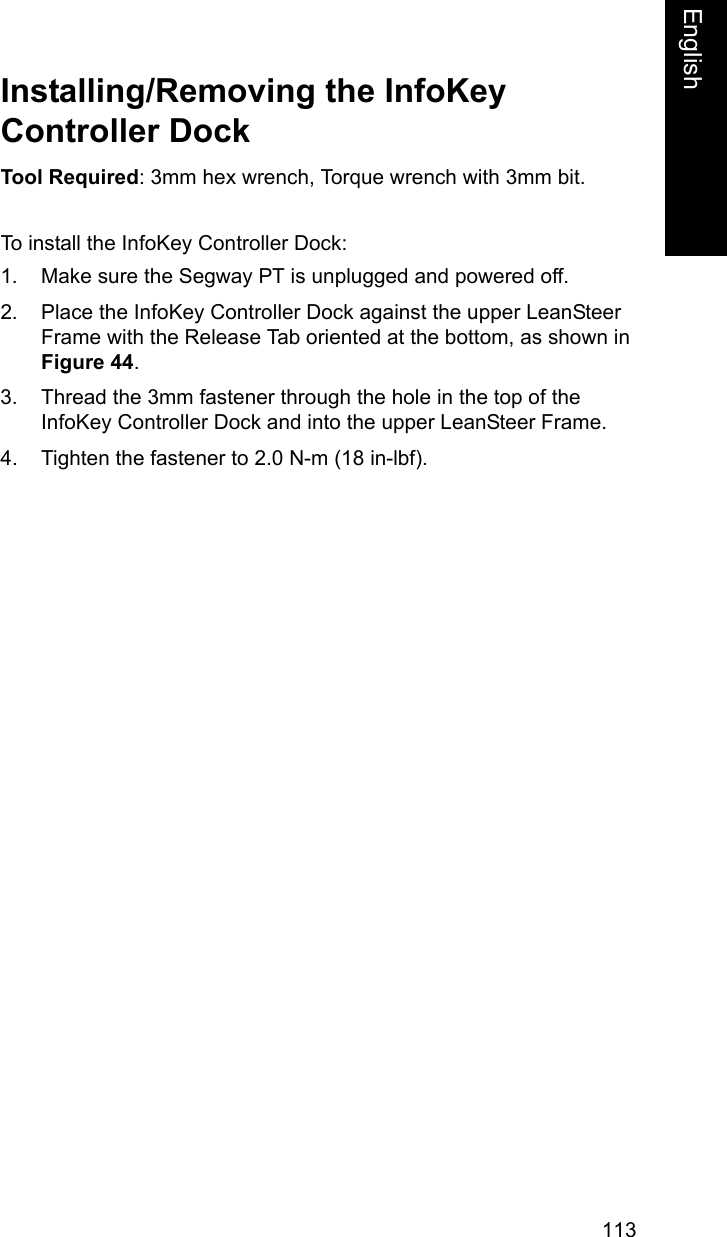

113EnglishEnglishInstalling/Removing the InfoKey Controller DockTool Required: 3mm hex wrench, Torque wrench with 3mm bit.To install the InfoKey Controller Dock:1. Make sure the Segway PT is unplugged and powered off.2. Place the InfoKey Controller Dock against the upper LeanSteer Frame with the Release Tab oriented at the bottom, as shown in Figure 44.3. Thread the 3mm fastener through the hole in the top of the InfoKey Controller Dock and into the upper LeanSteer Frame.4. Tighten the fastener to 2.0 N-m (18 in-lbf).

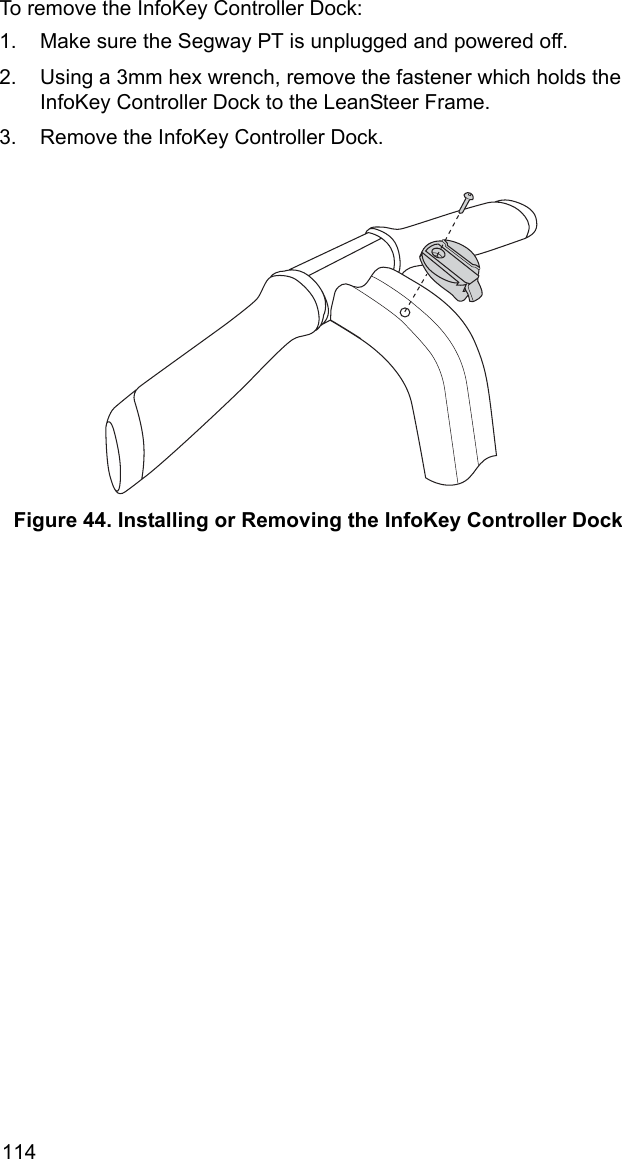

114To remove the InfoKey Controller Dock:1. Make sure the Segway PT is unplugged and powered off.2. Using a 3mm hex wrench, remove the fastener which holds the InfoKey Controller Dock to the LeanSteer Frame.3. Remove the InfoKey Controller Dock.Figure 44. Installing or Removing the InfoKey Controller Dock

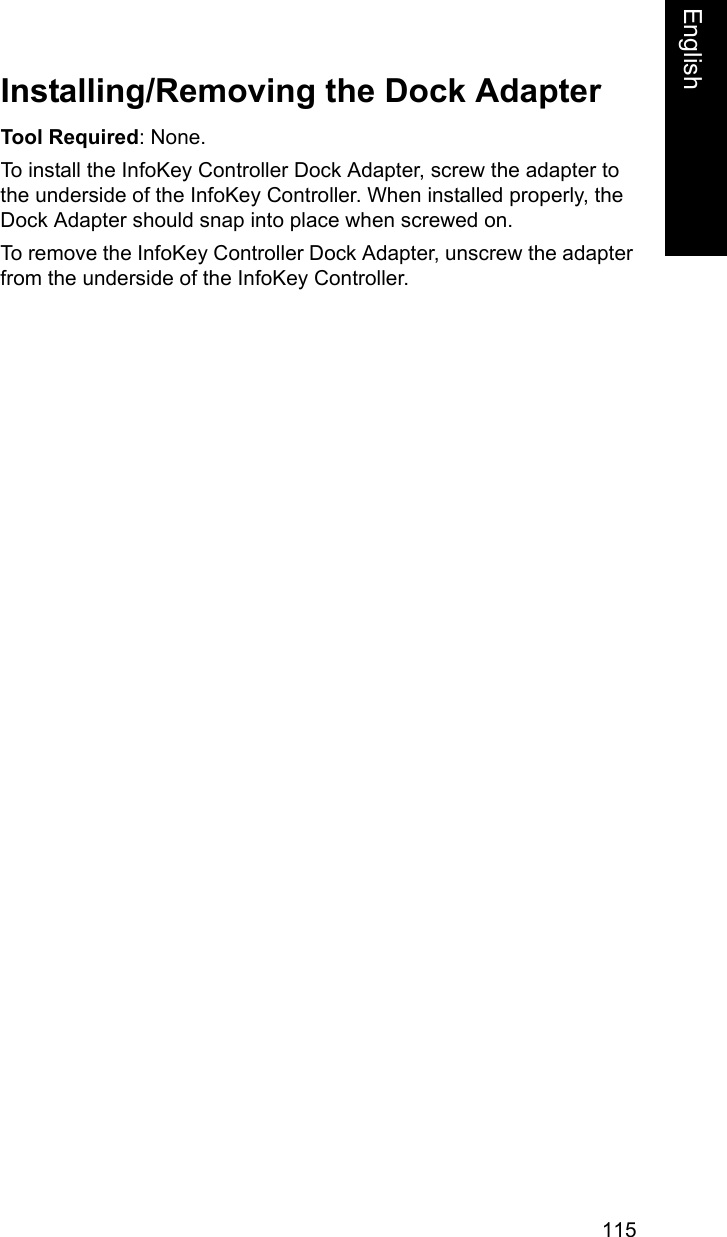

115EnglishEnglishInstalling/Removing the Dock AdapterTool Required: None.To install the InfoKey Controller Dock Adapter, screw the adapter to the underside of the InfoKey Controller. When installed properly, the Dock Adapter should snap into place when screwed on.To remove the InfoKey Controller Dock Adapter, unscrew the adapter from the underside of the InfoKey Controller.

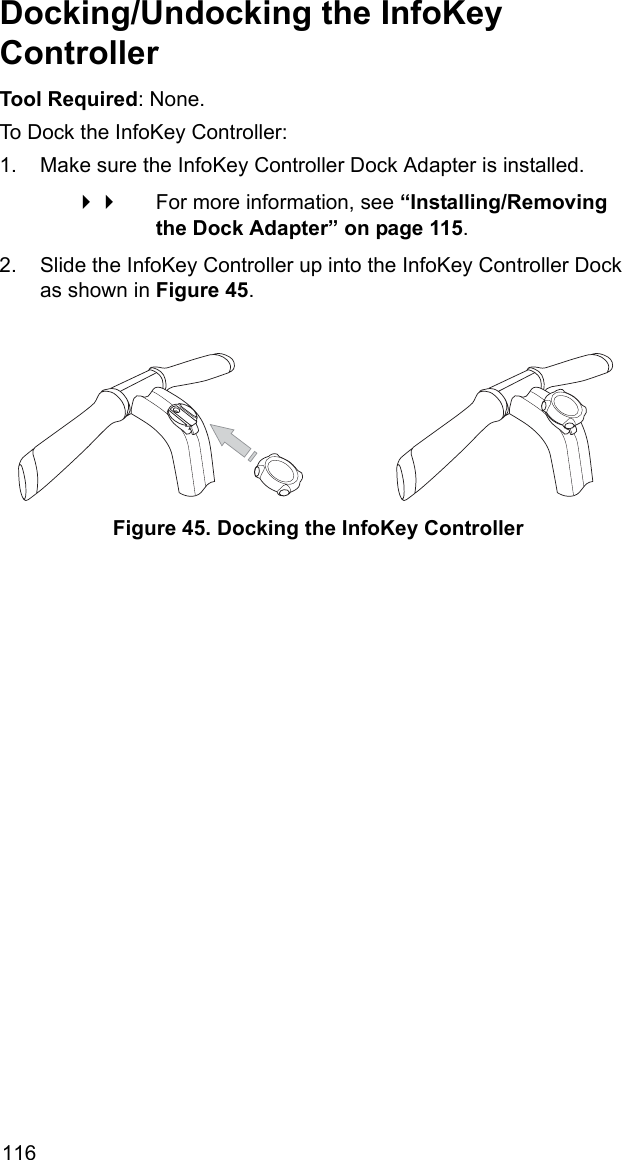

116Docking/Undocking the InfoKey ControllerTool Required: None.To Dock the InfoKey Controller:1. Make sure the InfoKey Controller Dock Adapter is installed.  For more information, see “Installing/Removing the Dock Adapter” on page 115.2. Slide the InfoKey Controller up into the InfoKey Controller Dock as shown in Figure 45.Figure 45. Docking the InfoKey Controller

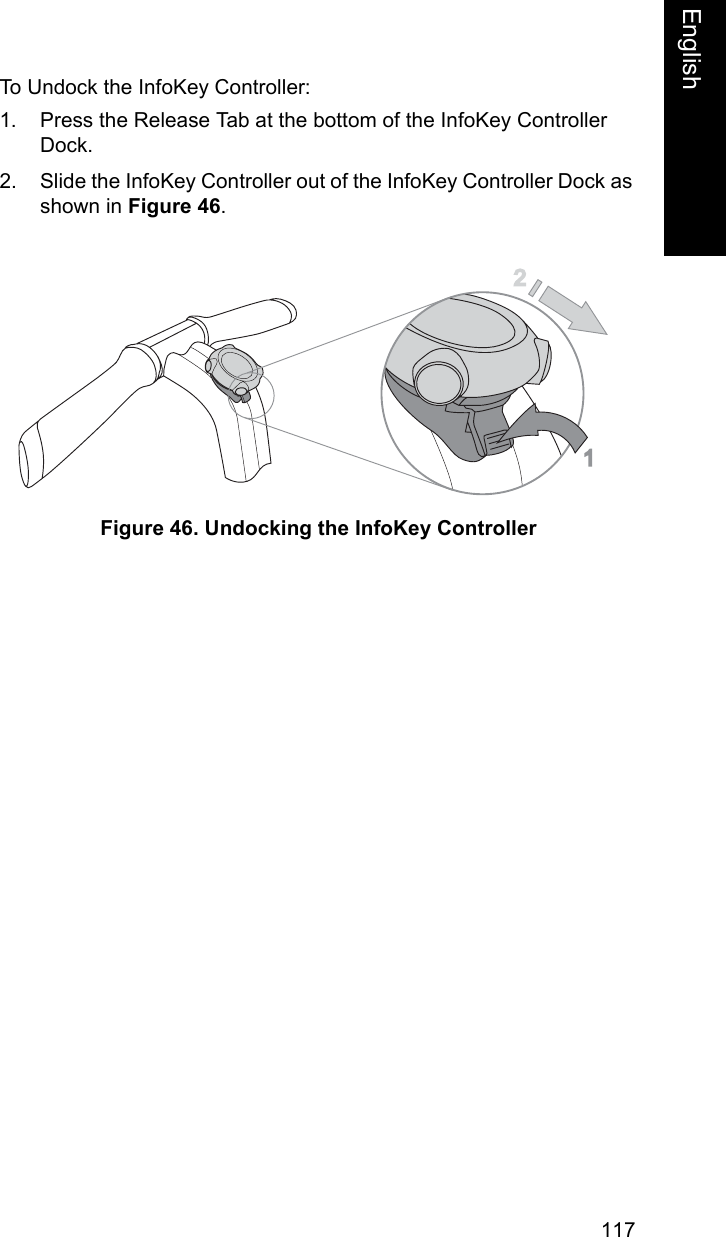

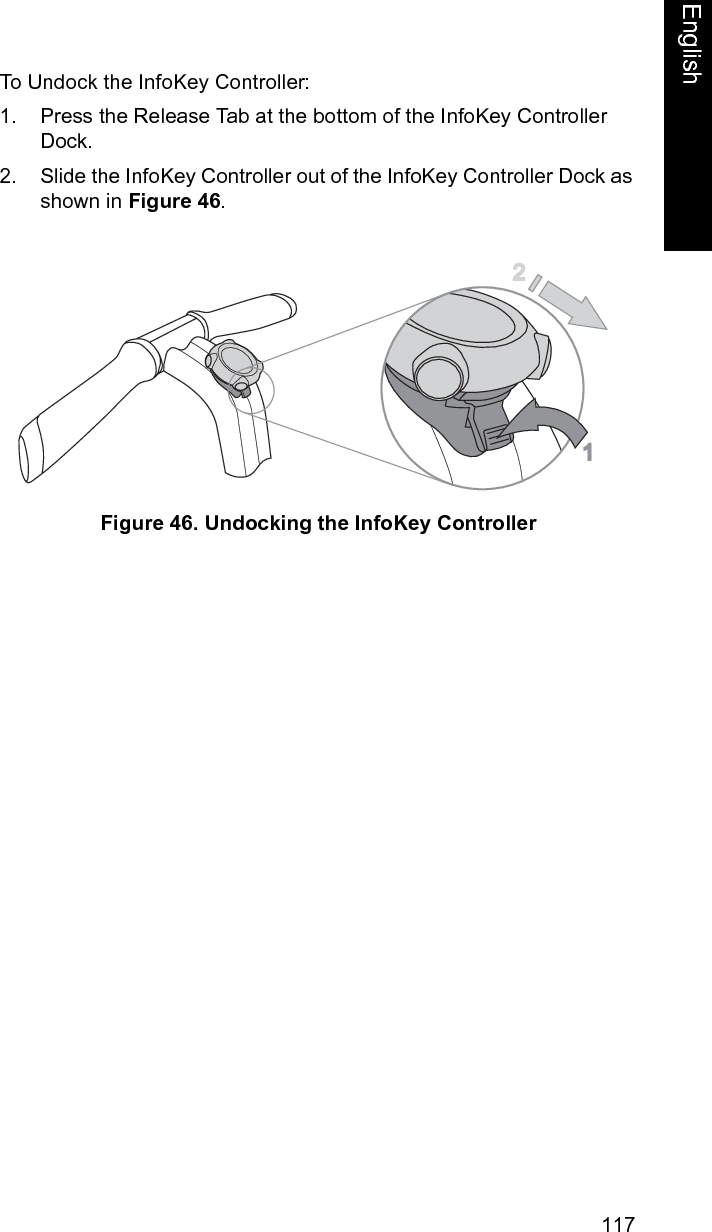

117EnglishEnglishTo Undock the InfoKey Controller:1. Press the Release Tab at the bottom of the InfoKey Controller Dock.2. Slide the InfoKey Controller out of the InfoKey Controller Dock as shown in Figure 46.Figure 46. Undocking the InfoKey Controller12
118

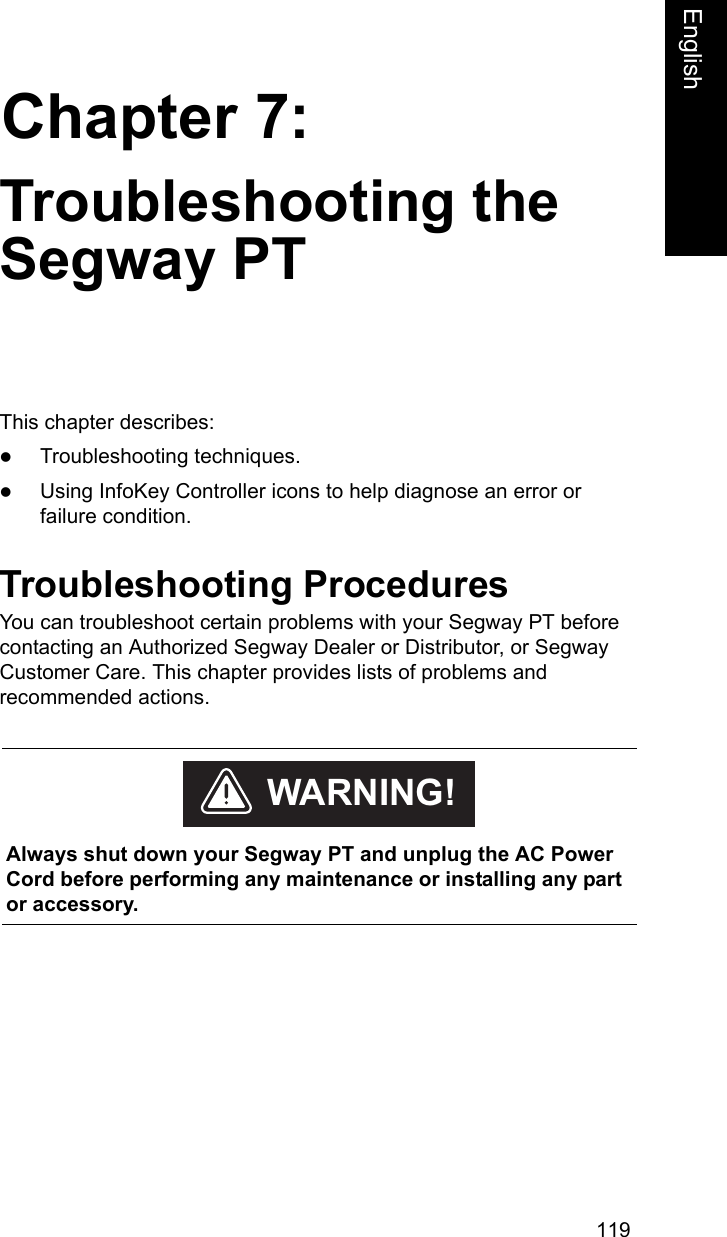

119Chapter 7:EnglishTroubleshooting the Segway PTThis chapter describes:zTroubleshooting techniques. zUsing InfoKey Controller icons to help diagnose an error or failure condition.Troubleshooting ProceduresYou can troubleshoot certain problems with your Segway PT before contacting an Authorized Segway Dealer or Distributor, or Segway Customer Care. This chapter provides lists of problems and recommended actions. Always shut down your Segway PT and unplug the AC Power Cord before performing any maintenance or installing any part or accessory. WARNING!

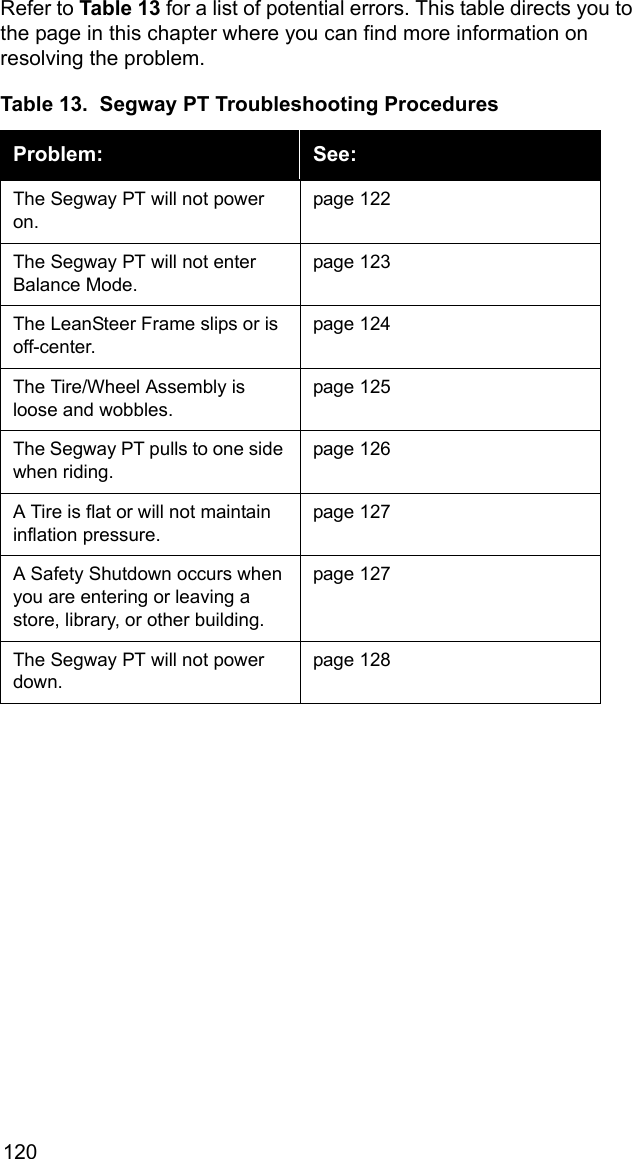

120Refer to Table 13 for a list of potential errors. This table directs you to the page in this chapter where you can find more information on resolving the problem. Table 13. Segway PT Troubleshooting ProceduresProblem: See: The Segway PT will not power on. page 122The Segway PT will not enter Balance Mode. page 123The LeanSteer Frame slips or is off-center. page 124The Tire/Wheel Assembly is loose and wobbles. page 125The Segway PT pulls to one side when riding. page 126A Tire is flat or will not maintain inflation pressure. page 127A Safety Shutdown occurs when you are entering or leaving a store, library, or other building. page 127The Segway PT will not power down. page 128
121EnglishEnglishIf you are unable to solve the problem, look through the section showing the InfoKey Controller icons that display during error or failure conditions in “Diagnosing Errors with InfoKey Controller Icons” on page 130. That section shows the icons and recommended actions to take when you see certain icons. If, after reviewing the troubleshooting procedures and the InfoKey Controller icons, you are still unable to resolve the problem, contact an Authorized Segway Dealer or Distributor, or Segway Customer Care. For a list of Authorized Dealers and Distributors, visit www.segway.com.

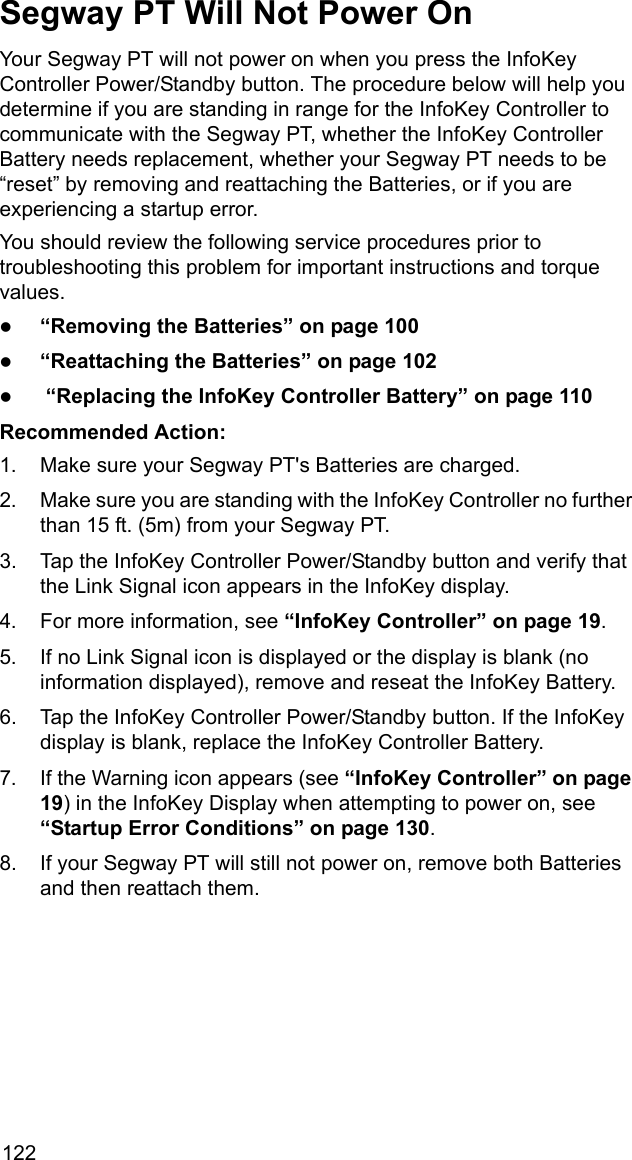

122Segway PT Will Not Power OnYour Segway PT will not power on when you press the InfoKey Controller Power/Standby button. The procedure below will help you determine if you are standing in range for the InfoKey Controller to communicate with the Segway PT, whether the InfoKey Controller Battery needs replacement, whether your Segway PT needs to be “reset” by removing and reattaching the Batteries, or if you are experiencing a startup error.You should review the following service procedures prior to troubleshooting this problem for important instructions and torque values.z“Removing the Batteries” on page 100z“Reattaching the Batteries” on page 102z “Replacing the InfoKey Controller Battery” on page 110Recommended Action: 1. Make sure your Segway PT's Batteries are charged.2. Make sure you are standing with the InfoKey Controller no further than 15 ft. (5m) from your Segway PT.3. Tap the InfoKey Controller Power/Standby button and verify that the Link Signal icon appears in the InfoKey display. 4. For more information, see “InfoKey Controller” on page 19.5. If no Link Signal icon is displayed or the display is blank (no information displayed), remove and reseat the InfoKey Battery.6. Tap the InfoKey Controller Power/Standby button. If the InfoKey display is blank, replace the InfoKey Controller Battery.7. If the Warning icon appears (see “InfoKey Controller” on page 19) in the InfoKey Display when attempting to power on, see “Startup Error Conditions” on page 130.8. If your Segway PT will still not power on, remove both Batteries and then reattach them.

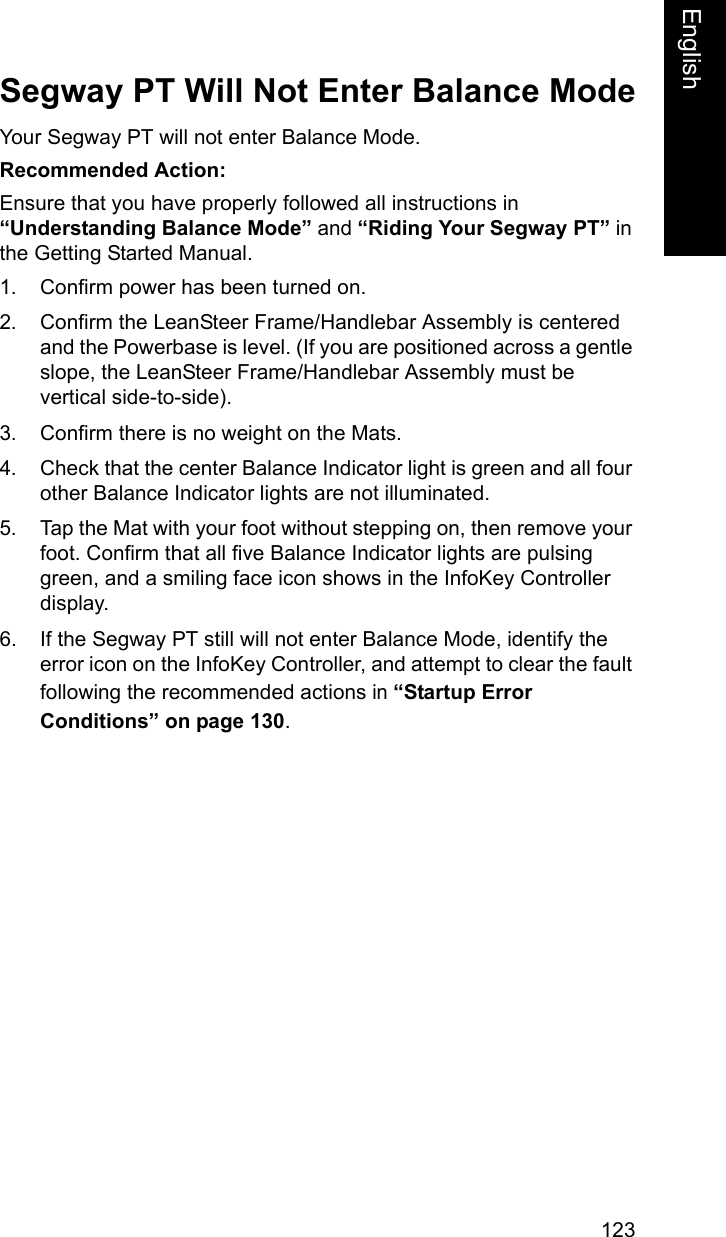

123EnglishEnglishSegway PT Will Not Enter Balance ModeYour Segway PT will not enter Balance Mode. Recommended Action: Ensure that you have properly followed all instructions in “Understanding Balance Mode” and “Riding Your Segway PT” in the Getting Started Manual.1. Confirm power has been turned on.2. Confirm the LeanSteer Frame/Handlebar Assembly is centered and the Powerbase is level. (If you are positioned across a gentle slope, the LeanSteer Frame/Handlebar Assembly must be vertical side-to-side).3. Confirm there is no weight on the Mats.4. Check that the center Balance Indicator light is green and all four other Balance Indicator lights are not illuminated.5. Tap the Mat with your foot without stepping on, then remove your foot. Confirm that all five Balance Indicator lights are pulsing green, and a smiling face icon shows in the InfoKey Controller display.6. If the Segway PT still will not enter Balance Mode, identify the error icon on the InfoKey Controller, and attempt to clear the fault following the recommended actions in “Startup Error Conditions” on page 130.

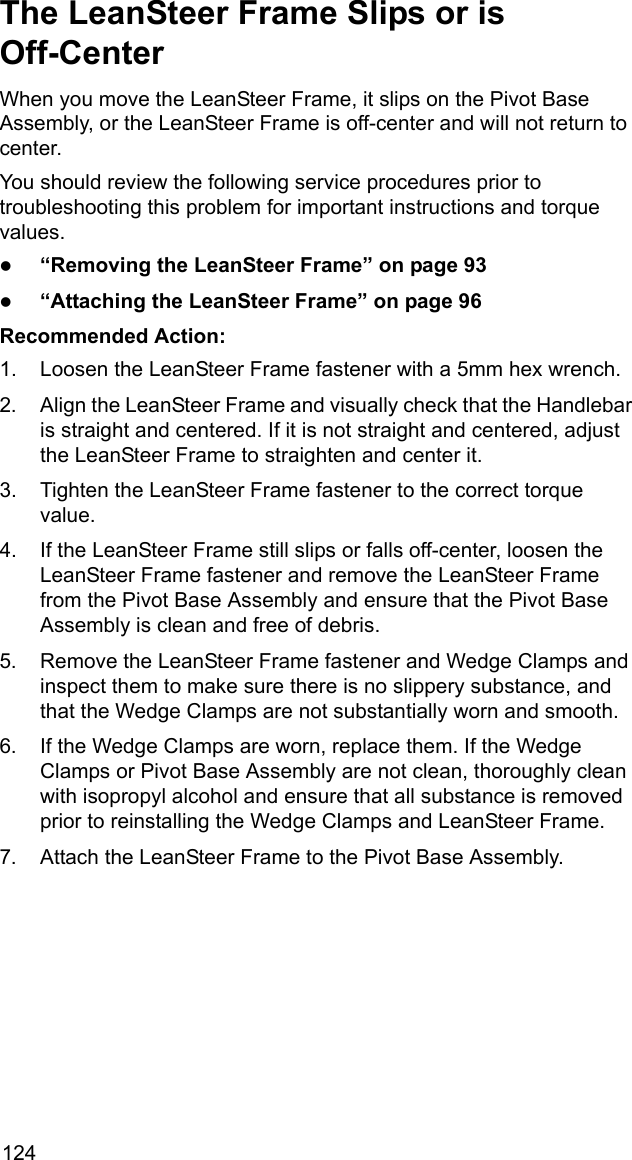

124The LeanSteer Frame Slips or is Off-CenterWhen you move the LeanSteer Frame, it slips on the Pivot Base Assembly, or the LeanSteer Frame is off-center and will not return to center. You should review the following service procedures prior to troubleshooting this problem for important instructions and torque values.z“Removing the LeanSteer Frame” on page 93z“Attaching the LeanSteer Frame” on page 96Recommended Action:1. Loosen the LeanSteer Frame fastener with a 5mm hex wrench.2. Align the LeanSteer Frame and visually check that the Handlebar is straight and centered. If it is not straight and centered, adjust the LeanSteer Frame to straighten and center it.3. Tighten the LeanSteer Frame fastener to the correct torque value.4. If the LeanSteer Frame still slips or falls off-center, loosen the LeanSteer Frame fastener and remove the LeanSteer Frame from the Pivot Base Assembly and ensure that the Pivot Base Assembly is clean and free of debris.5. Remove the LeanSteer Frame fastener and Wedge Clamps and inspect them to make sure there is no slippery substance, and that the Wedge Clamps are not substantially worn and smooth.6. If the Wedge Clamps are worn, replace them. If the Wedge Clamps or Pivot Base Assembly are not clean, thoroughly clean with isopropyl alcohol and ensure that all substance is removed prior to reinstalling the Wedge Clamps and LeanSteer Frame.7. Attach the LeanSteer Frame to the Pivot Base Assembly.

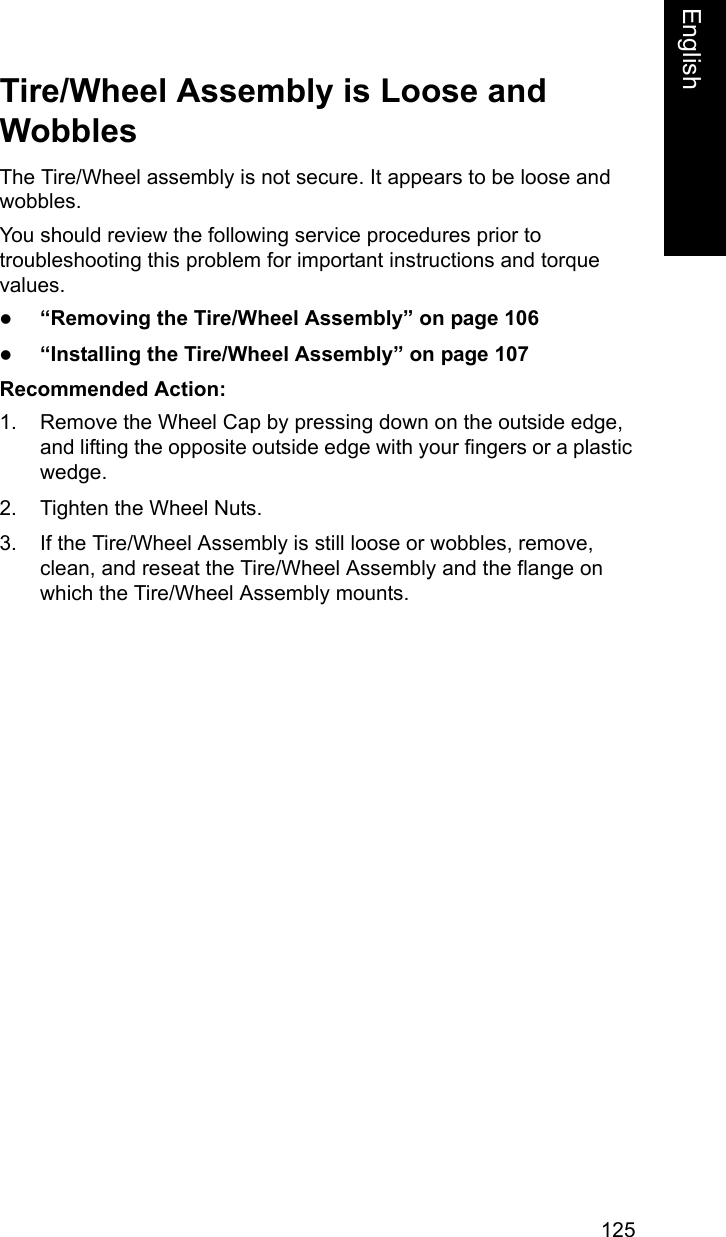

125EnglishEnglishTire/Wheel Assembly is Loose and WobblesThe Tire/Wheel assembly is not secure. It appears to be loose and wobbles. You should review the following service procedures prior to troubleshooting this problem for important instructions and torque values.z“Removing the Tire/Wheel Assembly” on page 106z“Installing the Tire/Wheel Assembly” on page 107Recommended Action: 1. Remove the Wheel Cap by pressing down on the outside edge, and lifting the opposite outside edge with your fingers or a plastic wedge.2. Tighten the Wheel Nuts. 3. If the Tire/Wheel Assembly is still loose or wobbles, remove, clean, and reseat the Tire/Wheel Assembly and the flange on which the Tire/Wheel Assembly mounts.

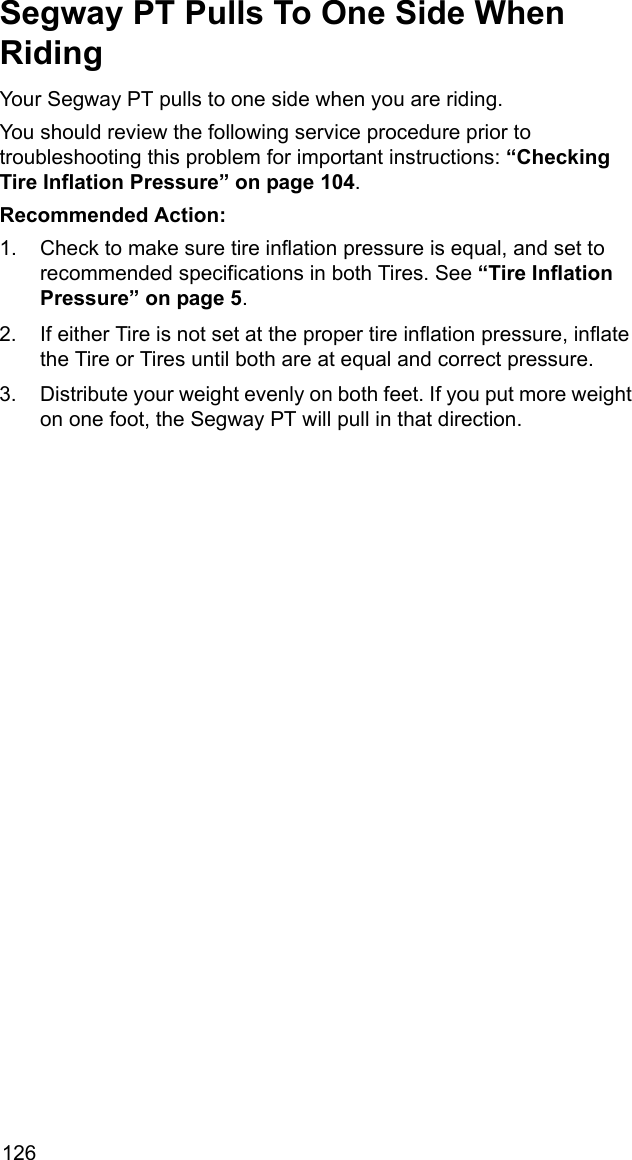

126Segway PT Pulls To One Side When RidingYour Segway PT pulls to one side when you are riding. You should review the following service procedure prior to troubleshooting this problem for important instructions: “Checking Tire Inflation Pressure” on page 104.Recommended Action: 1. Check to make sure tire inflation pressure is equal, and set to recommended specifications in both Tires. See “Tire Inflation Pressure” on page 5.2. If either Tire is not set at the proper tire inflation pressure, inflate the Tire or Tires until both are at equal and correct pressure. 3. Distribute your weight evenly on both feet. If you put more weight on one foot, the Segway PT will pull in that direction.

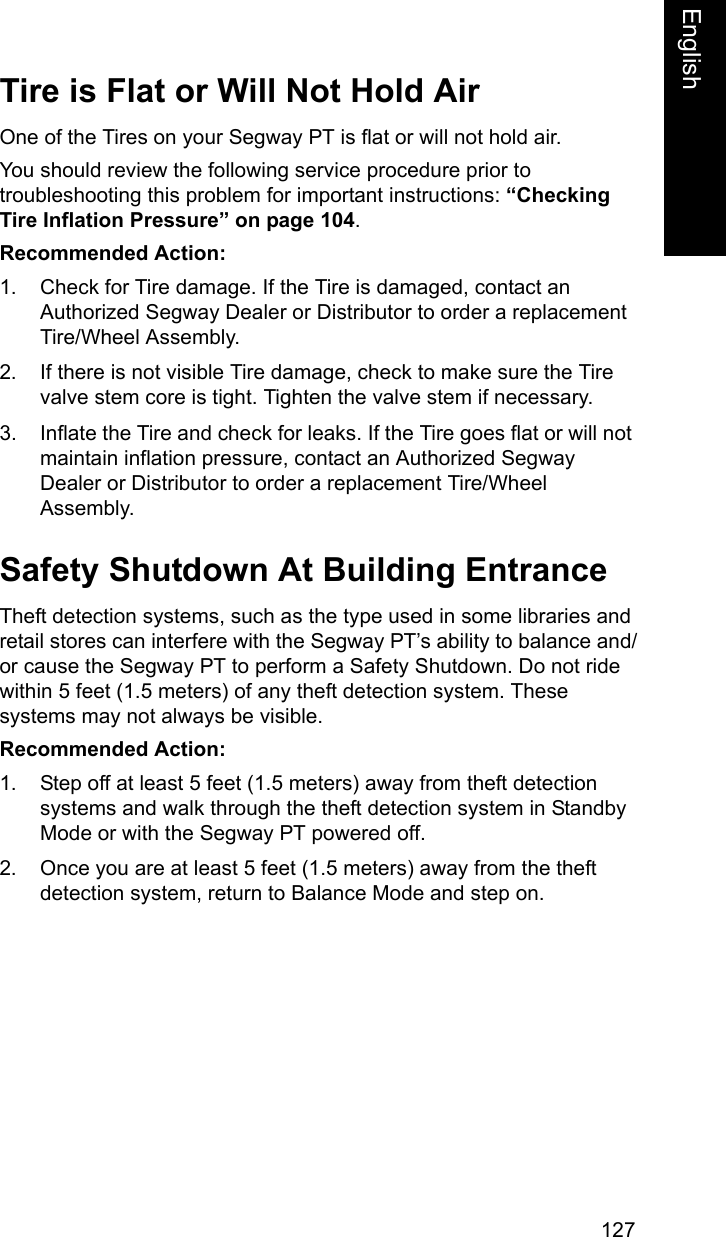

127EnglishEnglishTire is Flat or Will Not Hold AirOne of the Tires on your Segway PT is flat or will not hold air.You should review the following service procedure prior to troubleshooting this problem for important instructions: “Checking Tire Inflation Pressure” on page 104. Recommended Action: 1. Check for Tire damage. If the Tire is damaged, contact an Authorized Segway Dealer or Distributor to order a replacement Tire/Wheel Assembly. 2. If there is not visible Tire damage, check to make sure the Tire valve stem core is tight. Tighten the valve stem if necessary.3. Inflate the Tire and check for leaks. If the Tire goes flat or will not maintain inflation pressure, contact an Authorized Segway Dealer or Distributor to order a replacement Tire/Wheel Assembly. Safety Shutdown At Building EntranceTheft detection systems, such as the type used in some libraries and retail stores can interfere with the Segway PT’s ability to balance and/or cause the Segway PT to perform a Safety Shutdown. Do not ride within 5 feet (1.5 meters) of any theft detection system. These systems may not always be visible. Recommended Action:1. Step off at least 5 feet (1.5 meters) away from theft detection systems and walk through the theft detection system in Standby Mode or with the Segway PT powered off.2. Once you are at least 5 feet (1.5 meters) away from the theft detection system, return to Balance Mode and step on.

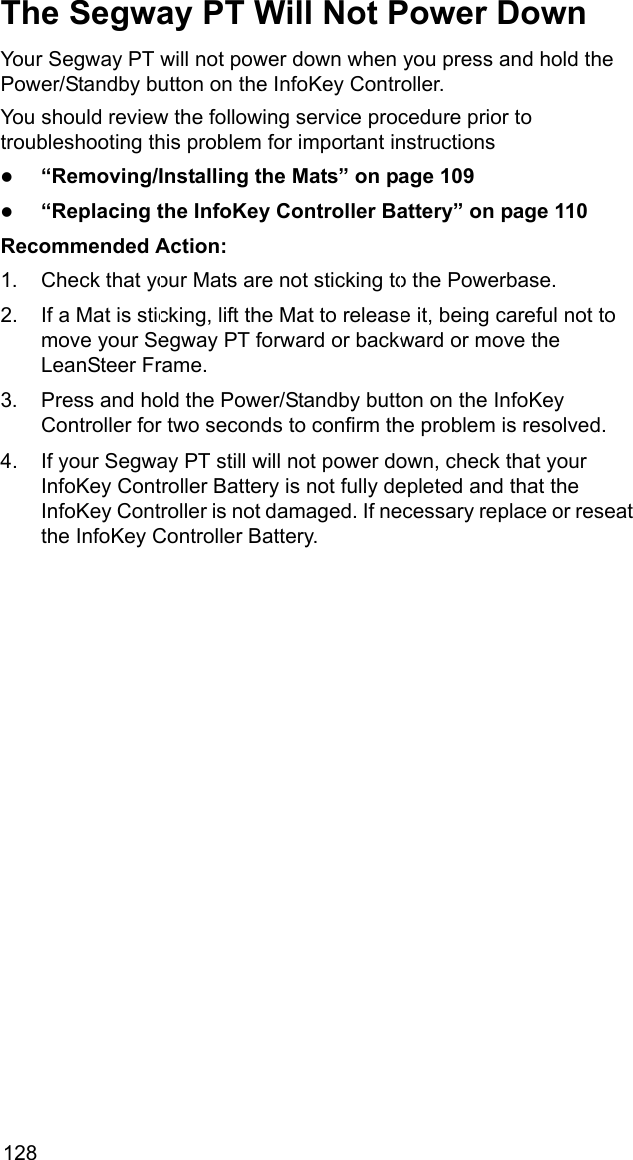

128The Segway PT Will Not Power DownYour Segway PT will not power down when you press and hold the Power/Standby button on the InfoKey Controller.You should review the following service procedure prior to troubleshooting this problem for important instructionsz“Removing/Installing the Mats” on page 109z“Replacing the InfoKey Controller Battery” on page 110Recommended Action: 1. Check that your Mats are not sticking to the Powerbase. 2. If a Mat is sticking, lift the Mat to release it, being careful not to move your Segway PT forward or backward or move the LeanSteer Frame.3. Press and hold the Power/Standby button on the InfoKey Controller for two seconds to confirm the problem is resolved.4. If your Segway PT still will not power down, check that your InfoKey Controller Battery is not fully depleted and that the InfoKey Controller is not damaged. If necessary replace or reseat the InfoKey Controller Battery.

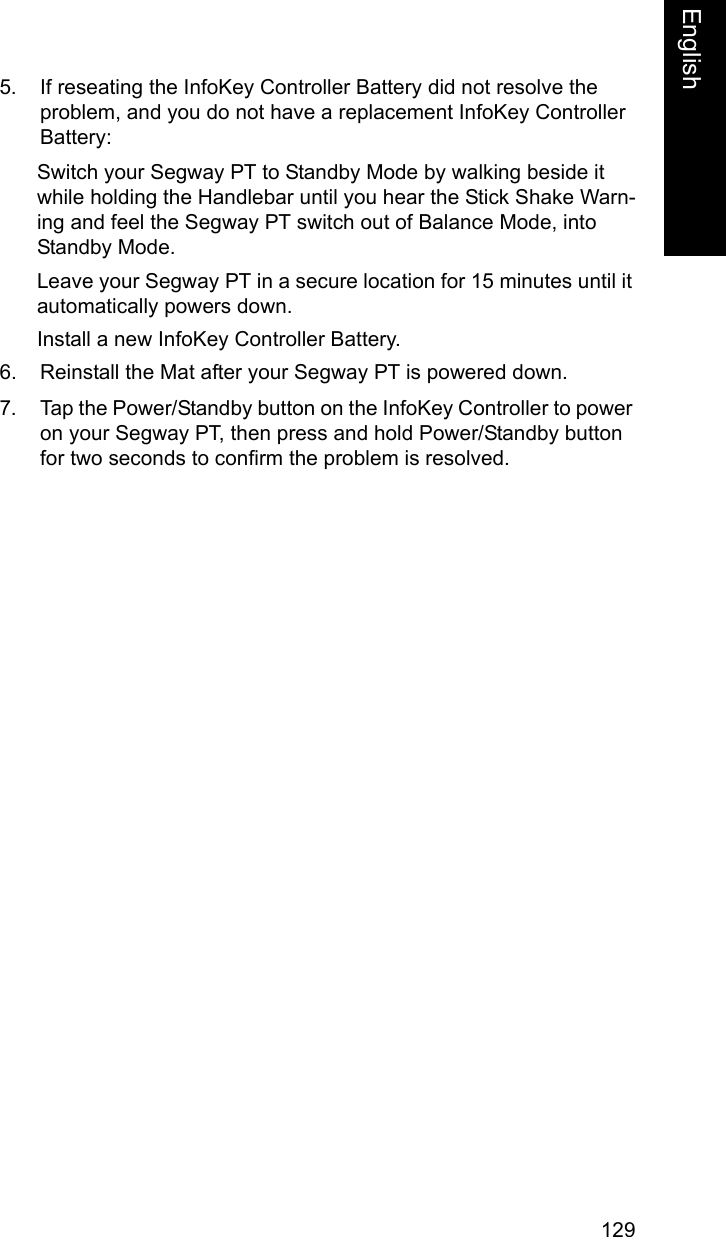

129EnglishEnglish5. If reseating the InfoKey Controller Battery did not resolve the problem, and you do not have a replacement InfoKey Controller Battery:Switch your Segway PT to Standby Mode by walking beside it while holding the Handlebar until you hear the Stick Shake Warn-ing and feel the Segway PT switch out of Balance Mode, into Standby Mode.Leave your Segway PT in a secure location for 15 minutes until it automatically powers down.Install a new InfoKey Controller Battery.6. Reinstall the Mat after your Segway PT is powered down.7. Tap the Power/Standby button on the InfoKey Controller to power on your Segway PT, then press and hold Power/Standby button for two seconds to confirm the problem is resolved.

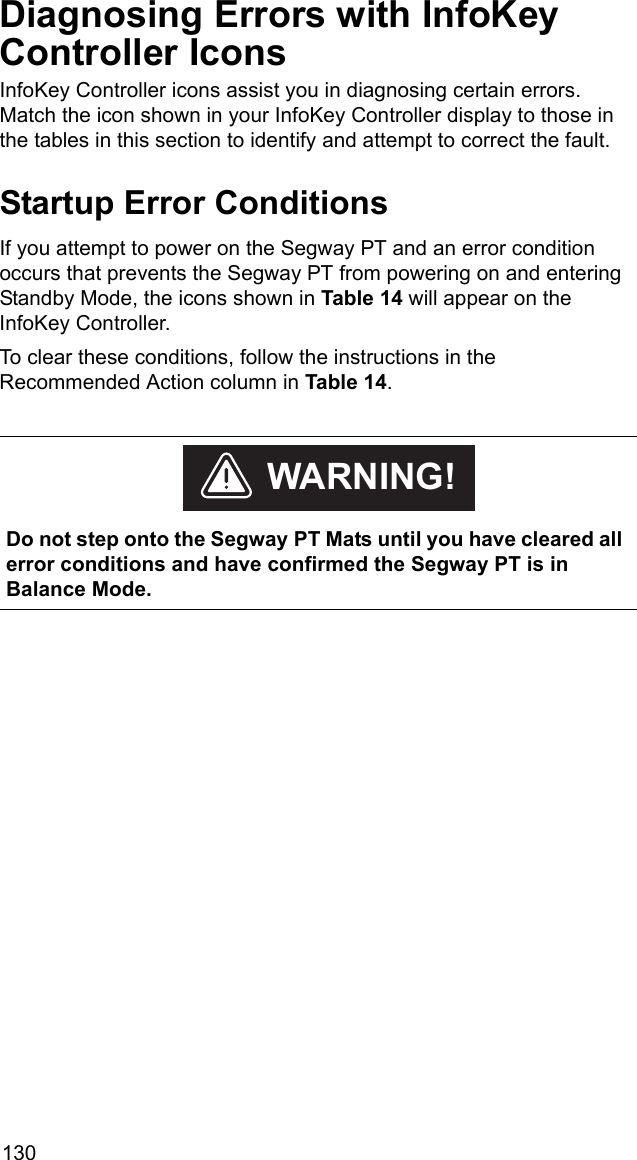

130Diagnosing Errors with InfoKey Controller IconsInfoKey Controller icons assist you in diagnosing certain errors. Match the icon shown in your InfoKey Controller display to those in the tables in this section to identify and attempt to correct the fault.Startup Error ConditionsIf you attempt to power on the Segway PT and an error condition occurs that prevents the Segway PT from powering on and entering Standby Mode, the icons shown in Table 14 will appear on the InfoKey Controller. To clear these conditions, follow the instructions in the Recommended Action column in Table 14. Do not step onto the Segway PT Mats until you have cleared all error conditions and have confirmed the Segway PT is in Balance Mode.WARNING!

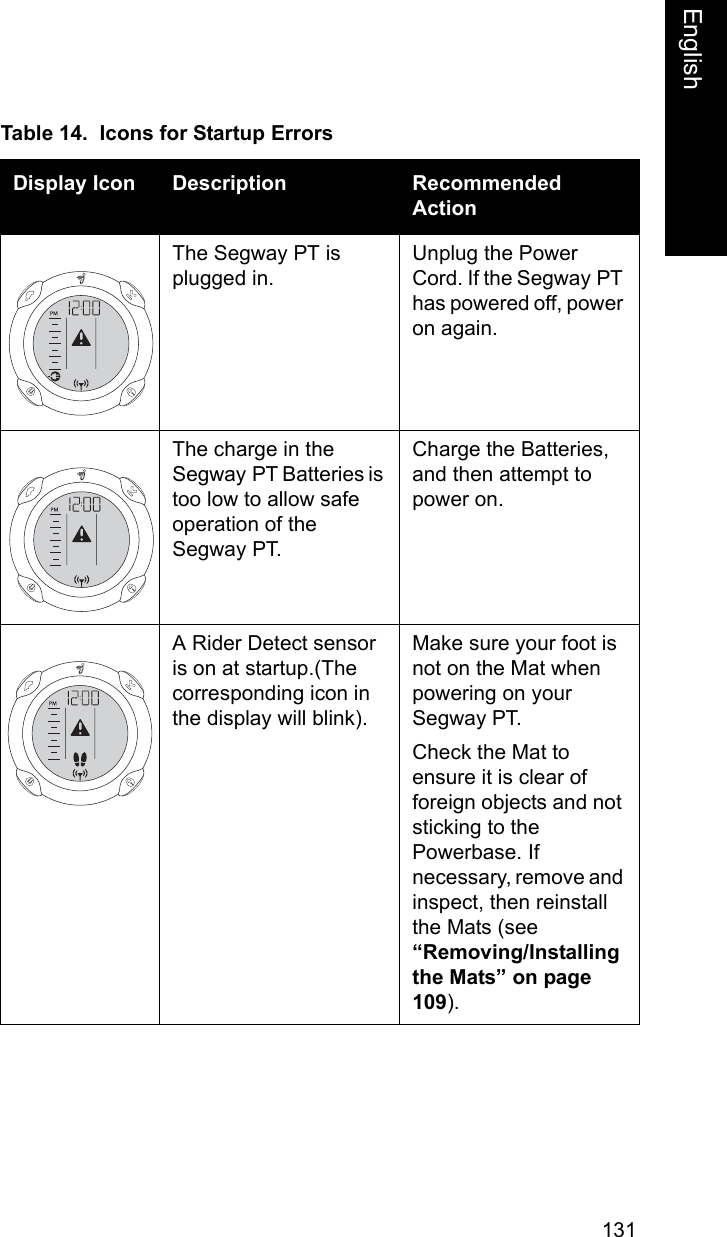

131EnglishEnglishTable 14. Icons for Startup ErrorsDisplay Icon Description Recommended ActionThe Segway PT is plugged in. Unplug the Power Cord. If the Segway PT has powered off, power on again.The charge in the Segway PT Batteries is too low to allow safe operation of the Segway PT.Charge the Batteries, and then attempt to power on.A Rider Detect sensor is on at startup.(The corresponding icon in the display will blink).Make sure your foot is not on the Mat when powering on your Segway PT. Check the Mat to ensure it is clear of foreign objects and not sticking to the Powerbase. If necessary, remove and inspect, then reinstall the Mats (see “Removing/Installing the Mats” on page 109).

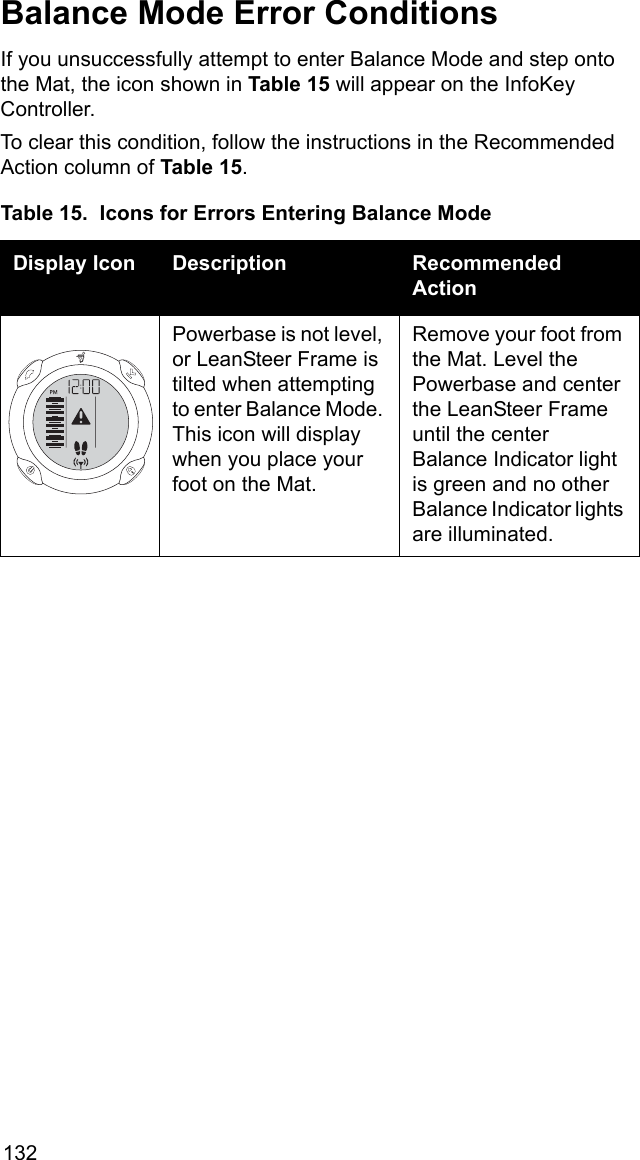

132Balance Mode Error ConditionsIf you unsuccessfully attempt to enter Balance Mode and step onto the Mat, the icon shown in Table 15 will appear on the InfoKey Controller.To clear this condition, follow the instructions in the Recommended Action column of Table 15.Table 15. Icons for Errors Entering Balance ModeDisplay Icon Description Recommended ActionPowerbase is not level, or LeanSteer Frame is tilted when attempting to enter Balance Mode. This icon will display when you place your foot on the Mat.Remove your foot from the Mat. Level the Powerbase and center the LeanSteer Frame until the center Balance Indicator light is green and no other Balance Indicator lights are illuminated.

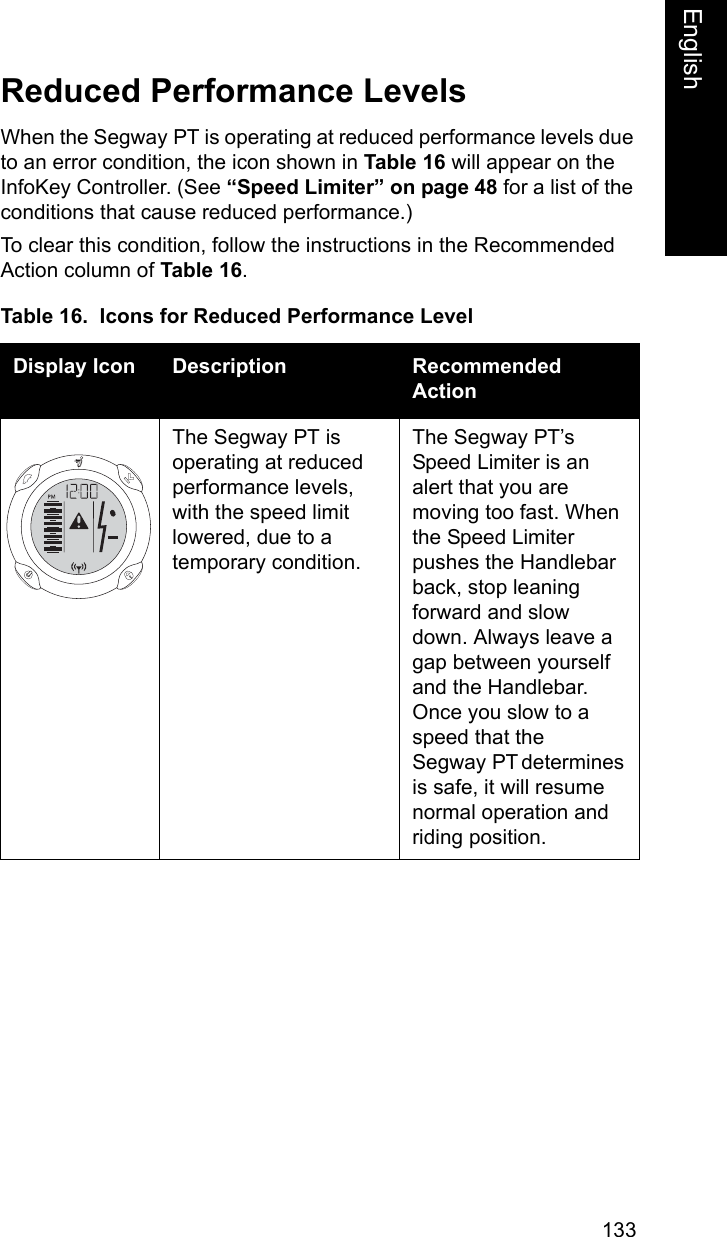

133EnglishEnglishReduced Performance LevelsWhen the Segway PT is operating at reduced performance levels due to an error condition, the icon shown in Table 16 will appear on the InfoKey Controller. (See “Speed Limiter” on page 48 for a list of the conditions that cause reduced performance.)To clear this condition, follow the instructions in the Recommended Action column of Table 16.Table 16. Icons for Reduced Performance LevelDisplay Icon Description Recommended ActionThe Segway PT is operating at reduced performance levels, with the speed limit lowered, due to a temporary condition.The Segway PT’s Speed Limiter is an alert that you are moving too fast. When the Speed Limiter pushes the Handlebar back, stop leaning forward and slow down. Always leave a gap between yourself and the Handlebar. Once you slow to a speed that the Segway PT determines is safe, it will resume normal operation and riding position.

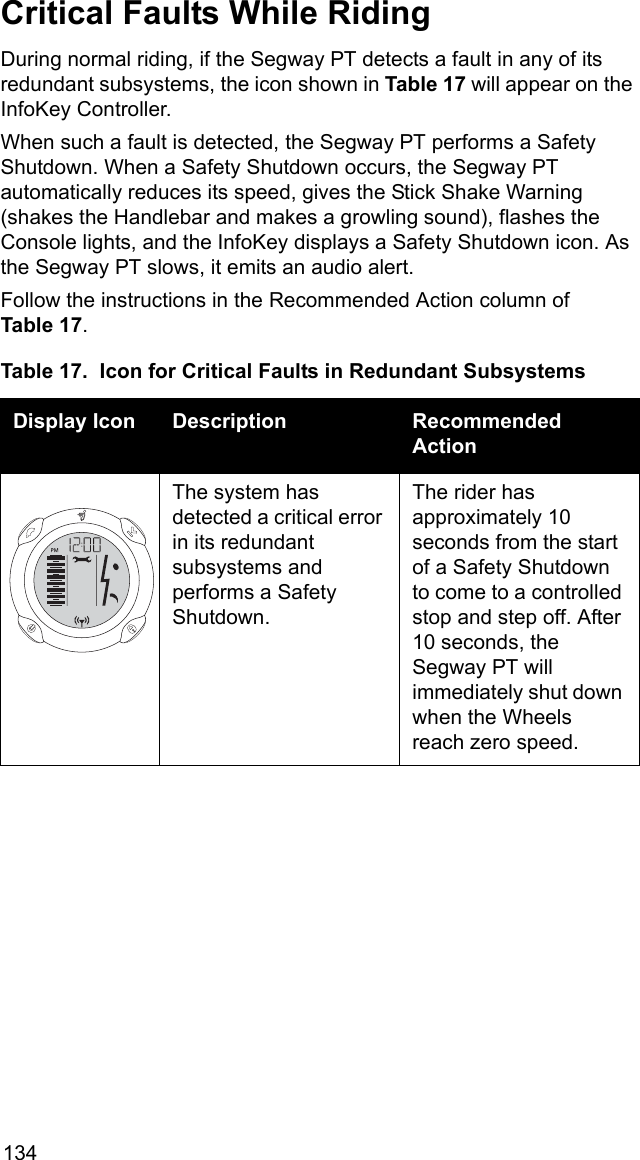

134Critical Faults While RidingDuring normal riding, if the Segway PT detects a fault in any of its redundant subsystems, the icon shown in Table 17 will appear on the InfoKey Controller. When such a fault is detected, the Segway PT performs a Safety Shutdown. When a Safety Shutdown occurs, the Segway PT automatically reduces its speed, gives the Stick Shake Warning (shakes the Handlebar and makes a growling sound), flashes the Console lights, and the InfoKey displays a Safety Shutdown icon. As the Segway PT slows, it emits an audio alert.Follow the instructions in the Recommended Action column ofTable 17.Table 17. Icon for Critical Faults in Redundant SubsystemsDisplay Icon Description Recommended ActionThe system has detected a critical error in its redundant subsystems and performs a Safety Shutdown.The rider has approximately 10 seconds from the start of a Safety Shutdown to come to a controlled stop and step off. After 10 seconds, the Segway PT will immediately shut down when the Wheels reach zero speed.

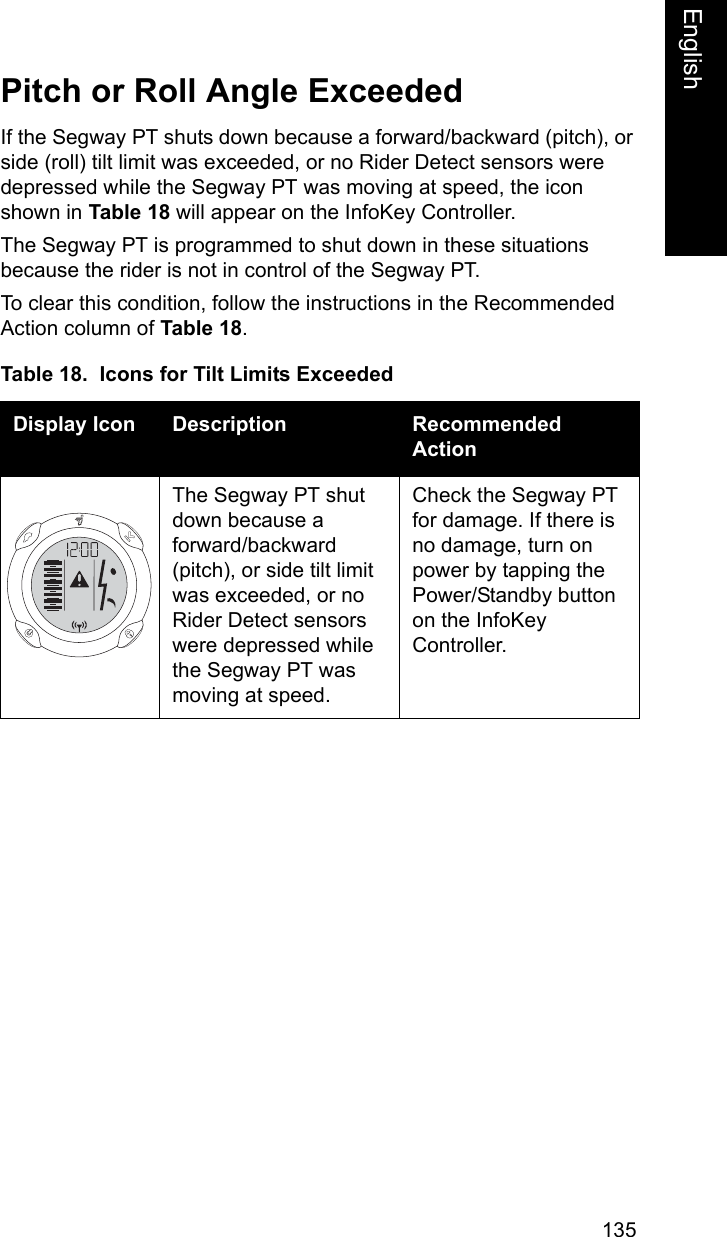

135EnglishEnglishPitch or Roll Angle ExceededIf the Segway PT shuts down because a forward/backward (pitch), or side (roll) tilt limit was exceeded, or no Rider Detect sensors were depressed while the Segway PT was moving at speed, the icon shown in Table 18 will appear on the InfoKey Controller. The Segway PT is programmed to shut down in these situations because the rider is not in control of the Segway PT.To clear this condition, follow the instructions in the Recommended Action column of Table 18.Table 18. Icons for Tilt Limits ExceededDisplay Icon Description Recommended ActionThe Segway PT shut down because a forward/backward (pitch), or side tilt limit was exceeded, or no Rider Detect sensors were depressed while the Segway PT was moving at speed.Check the Segway PT for damage. If there is no damage, turn on power by tapping the Power/Standby button on the InfoKey Controller.

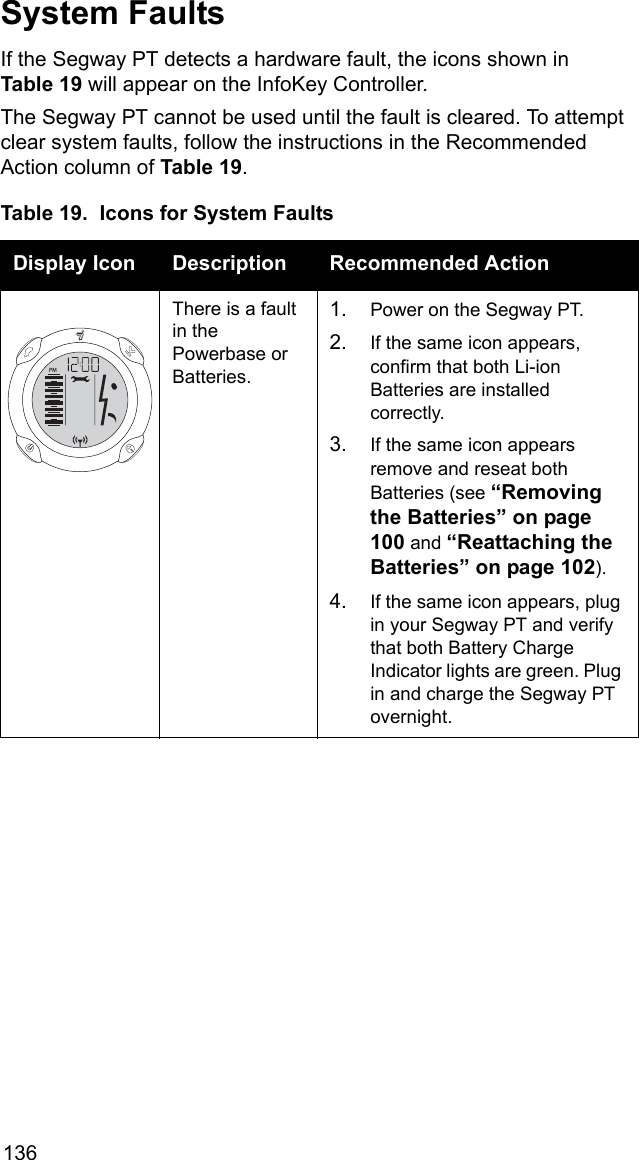

136System FaultsIf the Segway PT detects a hardware fault, the icons shown in Table 19 will appear on the InfoKey Controller. The Segway PT cannot be used until the fault is cleared. To attempt clear system faults, follow the instructions in the Recommended Action column of Table 19.Table 19. Icons for System FaultsDisplay Icon Description Recommended ActionThere is a fault in the Powerbase or Batteries.1. Power on the Segway PT.2. If the same icon appears, confirm that both Li-ion Batteries are installed correctly.3. If the same icon appears remove and reseat both Batteries (see “Removing the Batteries” on page 100 and “Reattaching the Batteries” on page 102). 4. If the same icon appears, plug in your Segway PT and verify that both Battery Charge Indicator lights are green. Plug in and charge the Segway PT overnight.

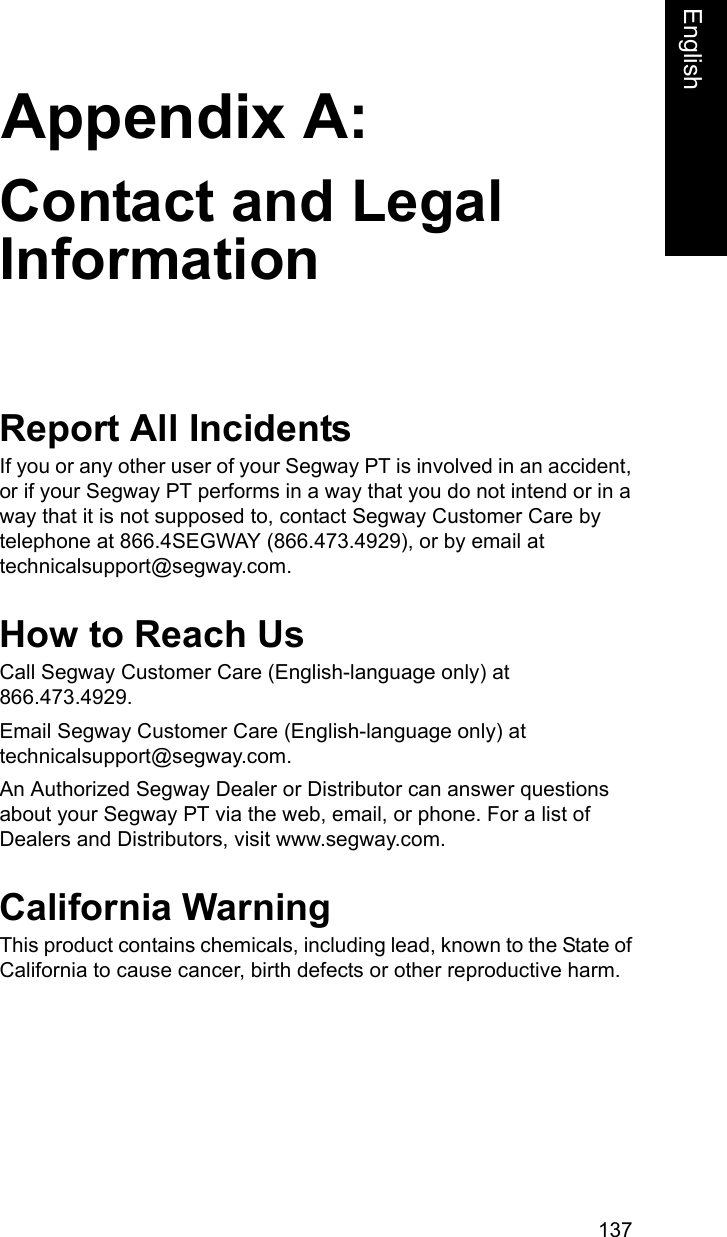

137Appendix A:EnglishContact and Legal InformationReport All IncidentsIf you or any other user of your Segway PT is involved in an accident, or if your Segway PT performs in a way that you do not intend or in a way that it is not supposed to, contact Segway Customer Care by telephone at 866.4SEGWAY (866.473.4929), or by email at technicalsupport@segway.com.How to Reach UsCall Segway Customer Care (English-language only) at 866.473.4929.Email Segway Customer Care (English-language only) at technicalsupport@segway.com.An Authorized Segway Dealer or Distributor can answer questions about your Segway PT via the web, email, or phone. For a list of Dealers and Distributors, visit www.segway.com. California WarningThis product contains chemicals, including lead, known to the State of California to cause cancer, birth defects or other reproductive harm.

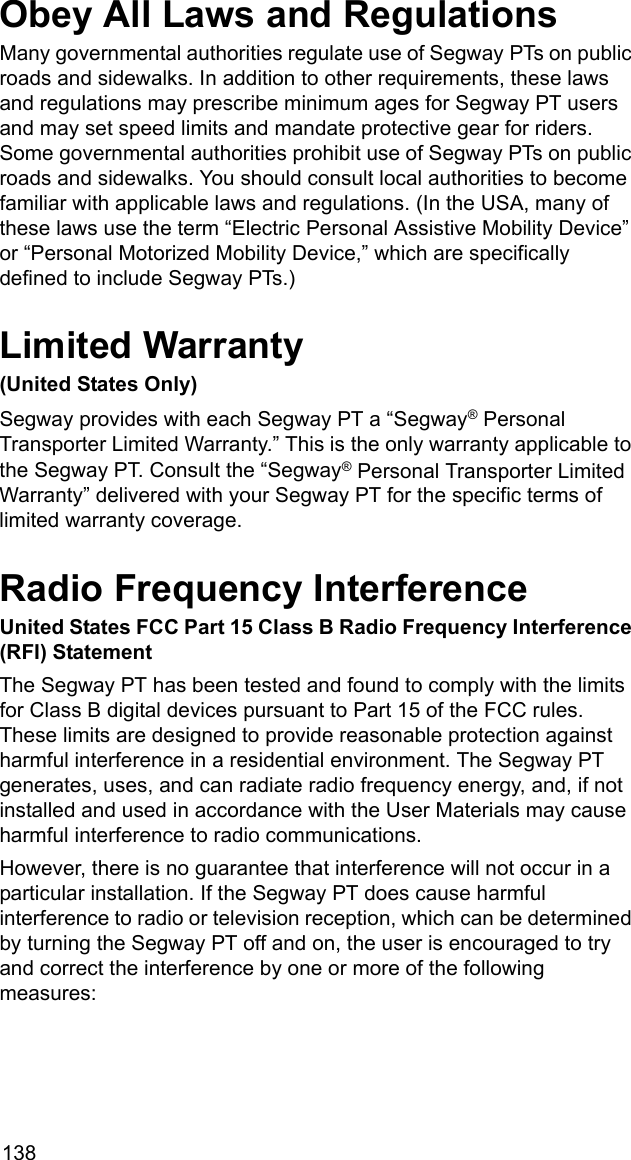

138Obey All Laws and RegulationsMany governmental authorities regulate use of Segway PTs on public roads and sidewalks. In addition to other requirements, these laws and regulations may prescribe minimum ages for Segway PT users and may set speed limits and mandate protective gear for riders. Some governmental authorities prohibit use of Segway PTs on public roads and sidewalks. You should consult local authorities to become familiar with applicable laws and regulations. (In the USA, many of these laws use the term “Electric Personal Assistive Mobility Device” or “Personal Motorized Mobility Device,” which are specifically defined to include Segway PTs.)Limited Warranty(United States Only)Segway provides with each Segway PT a “Segway® Personal Transporter Limited Warranty.” This is the only warranty applicable to the Segway PT. Consult the “Segway® Personal Transporter Limited Warranty” delivered with your Segway PT for the specific terms of limited warranty coverage.Radio Frequency InterferenceUnited States FCC Part 15 Class B Radio Frequency Interference (RFI) StatementThe Segway PT has been tested and found to comply with the limits for Class B digital devices pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential environment. The Segway PT generates, uses, and can radiate radio frequency energy, and, if not installed and used in accordance with the User Materials may cause harmful interference to radio communications.However, there is no guarantee that interference will not occur in a particular installation. If the Segway PT does cause harmful interference to radio or television reception, which can be determined by turning the Segway PT off and on, the user is encouraged to try and correct the interference by one or more of the following measures:

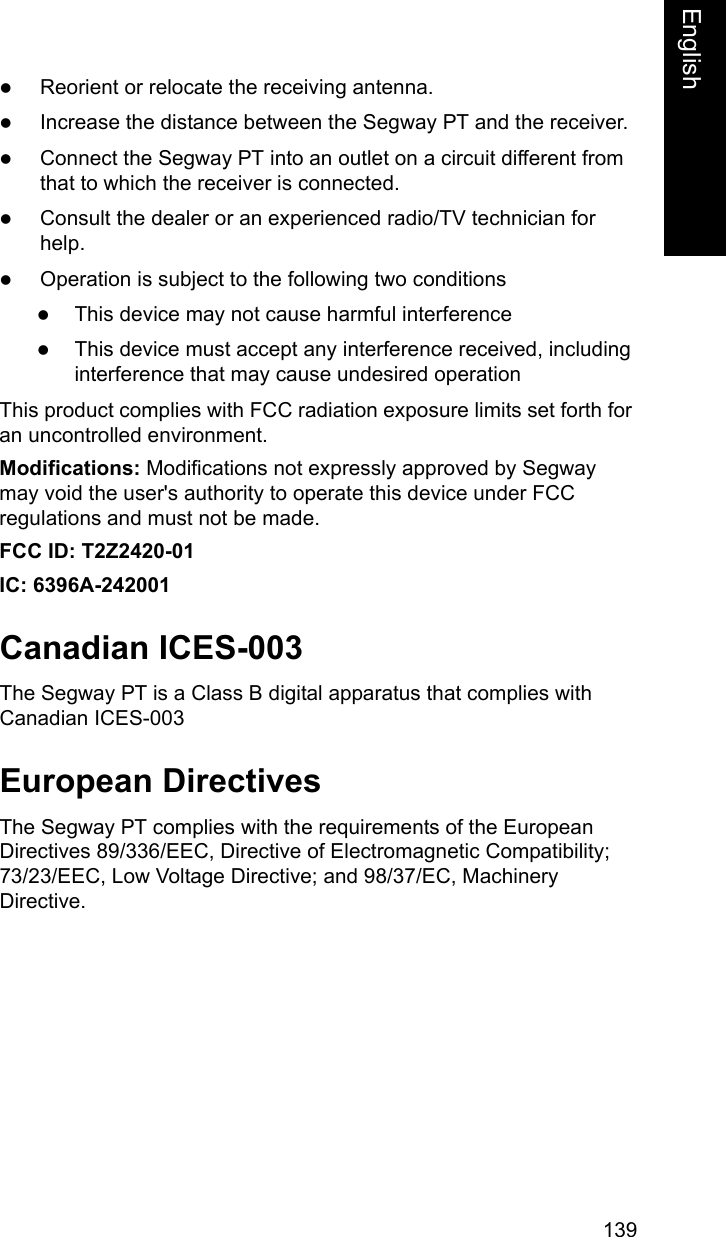

139EnglishEnglishzReorient or relocate the receiving antenna.zIncrease the distance between the Segway PT and the receiver.zConnect the Segway PT into an outlet on a circuit different from that to which the receiver is connected.zConsult the dealer or an experienced radio/TV technician for help.zOperation is subject to the following two conditionszThis device may not cause harmful interferencezThis device must accept any interference received, including interference that may cause undesired operationThis product complies with FCC radiation exposure limits set forth for an uncontrolled environment.Modifications: Modifications not expressly approved by Segway may void the user's authority to operate this device under FCC regulations and must not be made.FCC ID: T2Z2420-01IC: 6396A-242001Canadian ICES-003The Segway PT is a Class B digital apparatus that complies with Canadian ICES-003European DirectivesThe Segway PT complies with the requirements of the European Directives 89/336/EEC, Directive of Electromagnetic Compatibility; 73/23/EEC, Low Voltage Directive; and 98/37/EC, Machinery Directive.

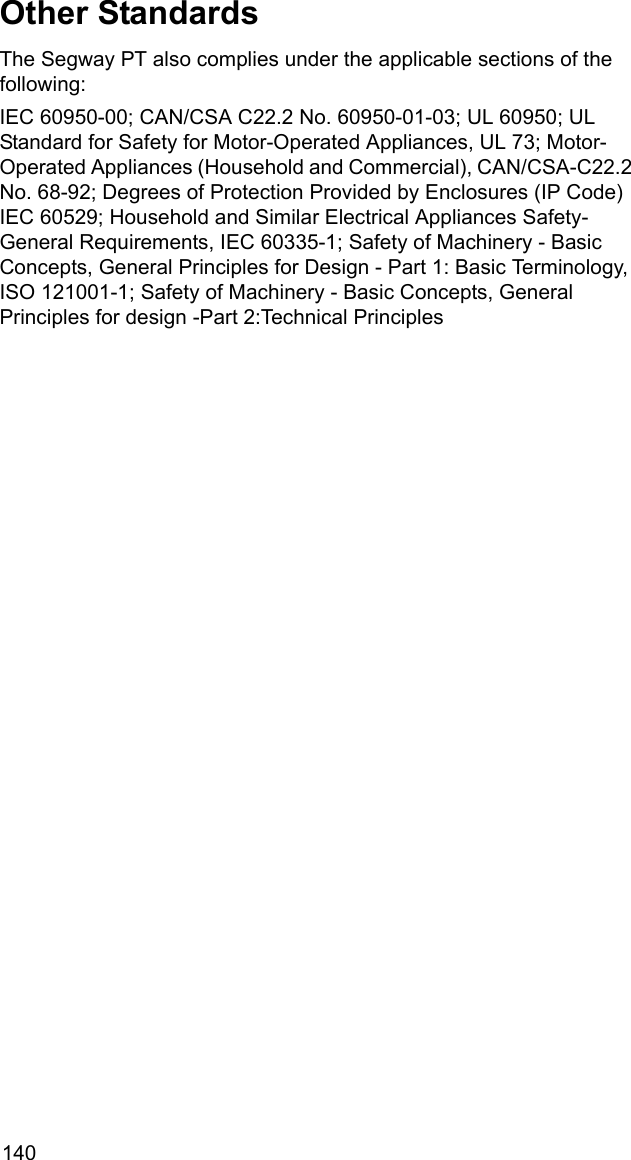

140Other StandardsThe Segway PT also complies under the applicable sections of the following:IEC 60950-00; CAN/CSA C22.2 No. 60950-01-03; UL 60950; UL Standard for Safety for Motor-Operated Appliances, UL 73; Motor-Operated Appliances (Household and Commercial), CAN/CSA-C22.2 No. 68-92; Degrees of Protection Provided by Enclosures (IP Code) IEC 60529; Household and Similar Electrical Appliances Safety- General Requirements, IEC 60335-1; Safety of Machinery - Basic Concepts, General Principles for Design - Part 1: Basic Terminology, ISO 121001-1; Safety of Machinery - Basic Concepts, General Principles for design -Part 2:Technical Principles

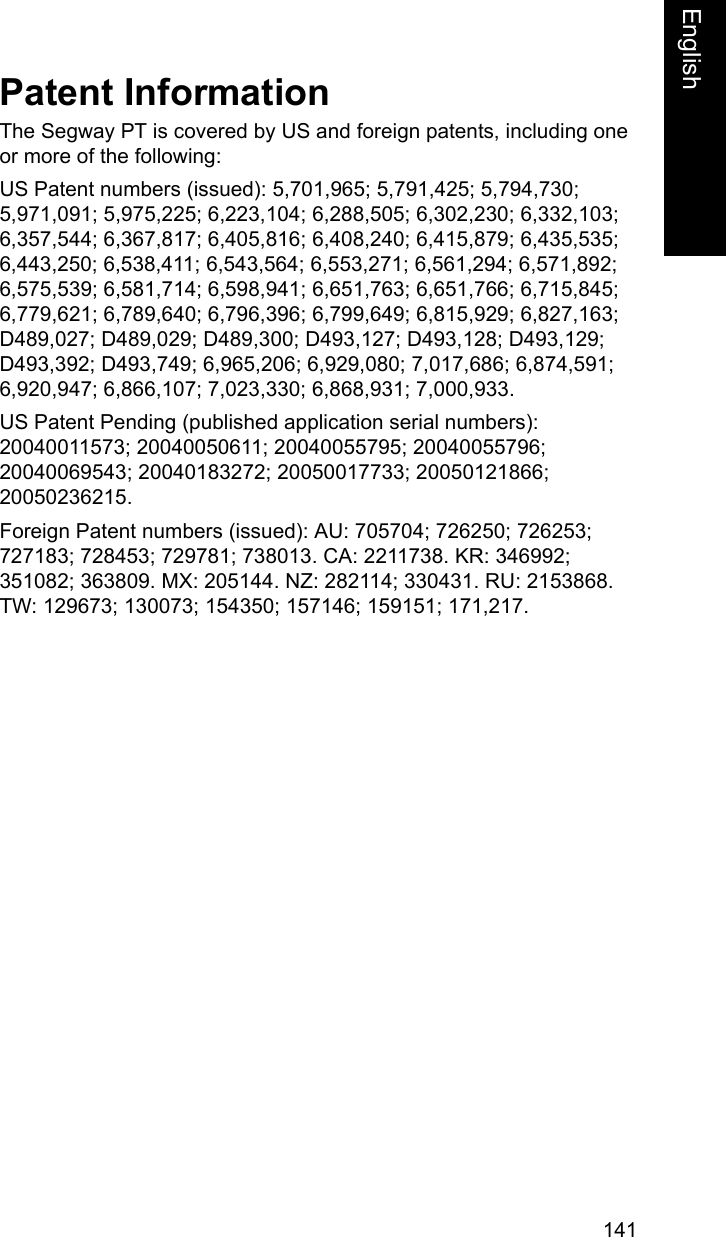

141EnglishEnglishPatent InformationThe Segway PT is covered by US and foreign patents, including one or more of the following:US Patent numbers (issued): 5,701,965; 5,791,425; 5,794,730; 5,971,091; 5,975,225; 6,223,104; 6,288,505; 6,302,230; 6,332,103; 6,357,544; 6,367,817; 6,405,816; 6,408,240; 6,415,879; 6,435,535; 6,443,250; 6,538,411; 6,543,564; 6,553,271; 6,561,294; 6,571,892; 6,575,539; 6,581,714; 6,598,941; 6,651,763; 6,651,766; 6,715,845; 6,779,621; 6,789,640; 6,796,396; 6,799,649; 6,815,929; 6,827,163; D489,027; D489,029; D489,300; D493,127; D493,128; D493,129; D493,392; D493,749; 6,965,206; 6,929,080; 7,017,686; 6,874,591; 6,920,947; 6,866,107; 7,023,330; 6,868,931; 7,000,933.US Patent Pending (published application serial numbers): 20040011573; 20040050611; 20040055795; 20040055796; 20040069543; 20040183272; 20050017733; 20050121866; 20050236215.Foreign Patent numbers (issued): AU: 705704; 726250; 726253; 727183; 728453; 729781; 738013. CA: 2211738. KR: 346992; 351082; 363809. MX: 205144. NZ: 282114; 330431. RU: 2153868. TW: 129673; 130073; 154350; 157146; 159151; 171,217.

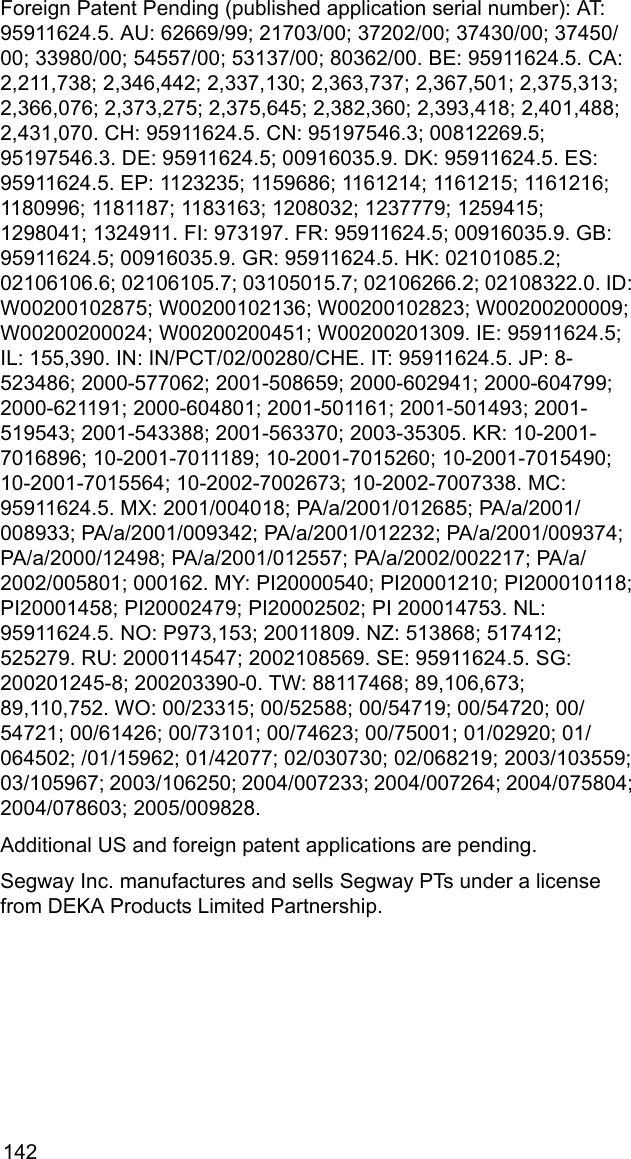

142Foreign Patent Pending (published application serial number): AT: 95911624.5. AU: 62669/99; 21703/00; 37202/00; 37430/00; 37450/00; 33980/00; 54557/00; 53137/00; 80362/00. BE: 95911624.5. CA: 2,211,738; 2,346,442; 2,337,130; 2,363,737; 2,367,501; 2,375,313; 2,366,076; 2,373,275; 2,375,645; 2,382,360; 2,393,418; 2,401,488; 2,431,070. CH: 95911624.5. CN: 95197546.3; 00812269.5; 95197546.3. DE: 95911624.5; 00916035.9. DK: 95911624.5. ES: 95911624.5. EP: 1123235; 1159686; 1161214; 1161215; 1161216; 1180996; 1181187; 1183163; 1208032; 1237779; 1259415; 1298041; 1324911. FI: 973197. FR: 95911624.5; 00916035.9. GB: 95911624.5; 00916035.9. GR: 95911624.5. HK: 02101085.2; 02106106.6; 02106105.7; 03105015.7; 02106266.2; 02108322.0. ID: W00200102875; W00200102136; W00200102823; W00200200009; W00200200024; W00200200451; W00200201309. IE: 95911624.5; IL: 155,390. IN: IN/PCT/02/00280/CHE. IT: 95911624.5. JP: 8-523486; 2000-577062; 2001-508659; 2000-602941; 2000-604799; 2000-621191; 2000-604801; 2001-501161; 2001-501493; 2001-519543; 2001-543388; 2001-563370; 2003-35305. KR: 10-2001-7016896; 10-2001-7011189; 10-2001-7015260; 10-2001-7015490; 10-2001-7015564; 10-2002-7002673; 10-2002-7007338. MC: 95911624.5. MX: 2001/004018; PA/a/2001/012685; PA/a/2001/008933; PA/a/2001/009342; PA/a/2001/012232; PA/a/2001/009374; PA/a/2000/12498; PA/a/2001/012557; PA/a/2002/002217; PA/a/2002/005801; 000162. MY: PI20000540; PI20001210; PI200010118; PI20001458; PI20002479; PI20002502; PI 200014753. NL: 95911624.5. NO: P973,153; 20011809. NZ: 513868; 517412; 525279. RU: 2000114547; 2002108569. SE: 95911624.5. SG: 200201245-8; 200203390-0. TW: 88117468; 89,106,673; 89,110,752. WO: 00/23315; 00/52588; 00/54719; 00/54720; 00/54721; 00/61426; 00/73101; 00/74623; 00/75001; 01/02920; 01/064502; /01/15962; 01/42077; 02/030730; 02/068219; 2003/103559; 03/105967; 2003/106250; 2004/007233; 2004/007264; 2004/075804; 2004/078603; 2005/009828.Additional US and foreign patent applications are pending.Segway Inc. manufactures and sells Segway PTs under a license from DEKA Products Limited Partnership.

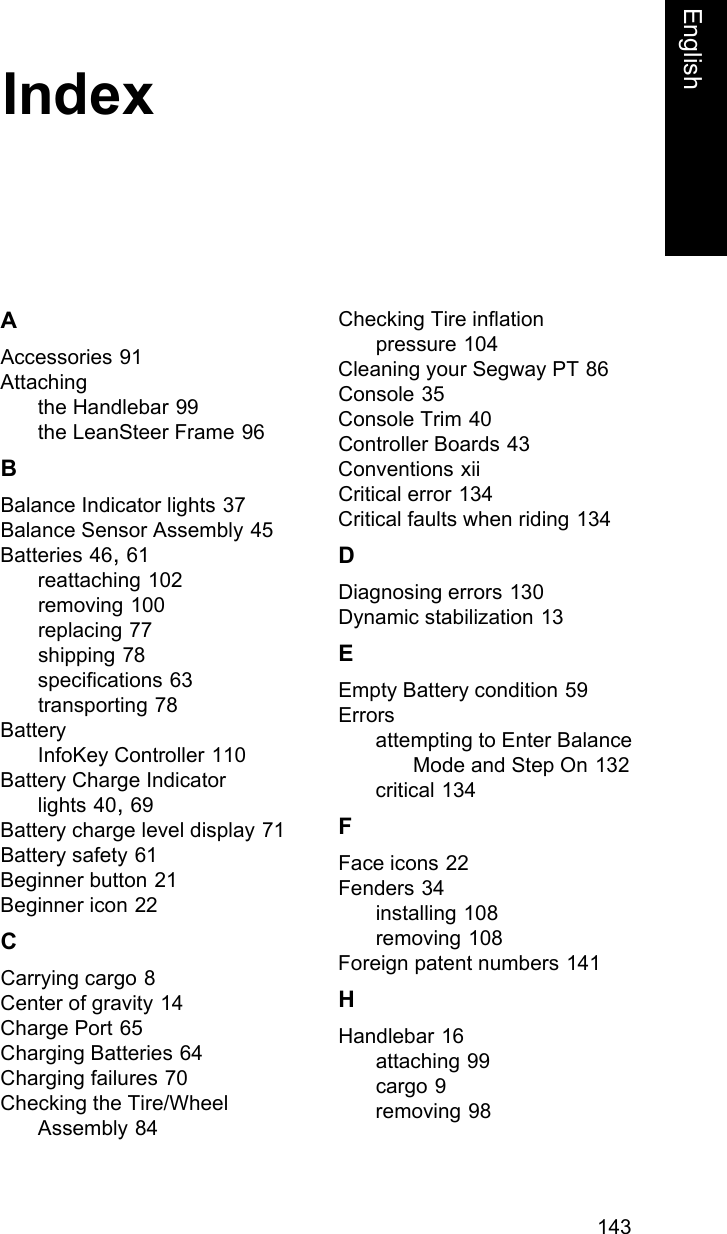

143FrenchEnglishIndexAAccessories 91Attachingthe Handlebar 99the LeanSteer Frame 96BBalance Indicator lights 37Balance Sensor Assembly 45Batteries 46, 61reattaching 102removing 100replacing 77shipping 78specifications 63transporting 78BatteryInfoKey Controller 110Battery Charge Indicator lights 40, 69Battery charge level display 71Battery safety 61Beginner button 21Beginner icon 22CCarrying cargo 8Center of gravity 14Charge Port 65Charging Batteries 64Charging failures 70Checking the Tire/Wheel Assembly 84Checking Tire inflation pressure 104Cleaning your Segway PT 86Console 35Console Trim 40Controller Boards 43Conventions xiiCritical error 134Critical faults when riding 134DDiagnosing errors 130Dynamic stabilization 13EEmpty Battery condition 59Errorsattempting to Enter Balance Mode and Step On 132critical 134FFace icons 22Fenders 34installing 108removing 108Foreign patent numbers 141HHandlebar 16attaching 99cargo 9removing 98

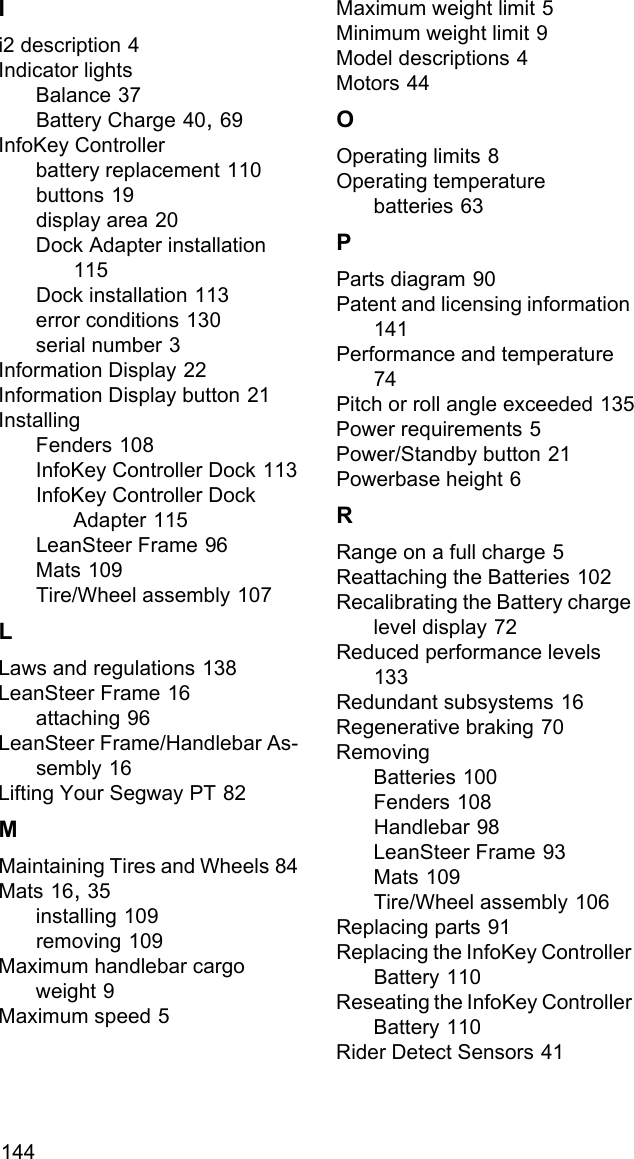

144Ii2 description 4Indicator lightsBalance 37Battery Charge 40, 69InfoKey Controllerbattery replacement 110buttons 19display area 20Dock Adapter installation 115Dock installation 113error conditions 130serial number 3Information Display 22Information Display button 21InstallingFenders 108InfoKey Controller Dock 113InfoKey Controller Dock Adapter 115LeanSteer Frame 96Mats 109Tire/Wheel assembly 107LLaws and regulations 138LeanSteer Frame 16attaching 96LeanSteer Frame/Handlebar As-sembly 16Lifting Your Segway PT 82MMaintaining Tires and Wheels 84Mats 16, 35installing 109removing 109Maximum handlebar cargo weight 9Maximum speed 5Maximum weight limit 5Minimum weight limit 9Model descriptions 4Motors 44OOperating limits 8Operating temperaturebatteries 63PParts diagram 90Patent and licensing information 141Performance and temperature 74Pitch or roll angle exceeded 135Power requirements 5Power/Standby button 21Powerbase height 6RRange on a full charge 5Reattaching the Batteries 102Recalibrating the Battery charge level display 72Reduced performance levels 133Redundant subsystems 16Regenerative braking 70RemovingBatteries 100Fenders 108Handlebar 98LeanSteer Frame 93Mats 109Tire/Wheel assembly 106Replacing parts 91Replacing the InfoKey Controller Battery 110Reseating the InfoKey Controller Battery 110Rider Detect Sensors 41

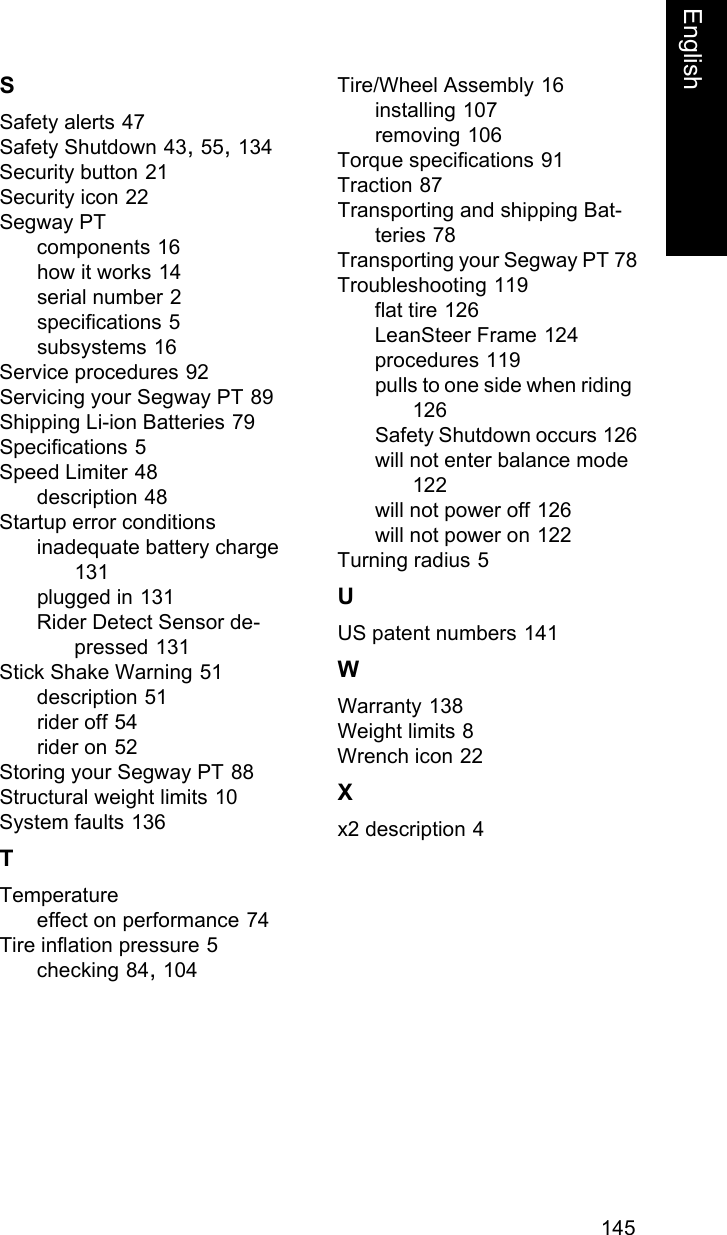

145EnglishSSafety alerts 47Safety Shutdown 43, 55, 134Security button 21Security icon 22Segway PTcomponents 16how it works 14serial number 2specifications 5subsystems 16Service procedures 92Servicing your Segway PT 89Shipping Li-ion Batteries 79Specifications 5Speed Limiter 48description 48Startup error conditionsinadequate battery charge 131plugged in 131Rider Detect Sensor de-pressed 131Stick Shake Warning 51description 51rider off 54rider on 52Storing your Segway PT 88Structural weight limits 10System faults 136TTemperatureeffect on performance 74Tire inflation pressure 5checking 84, 104Tire/Wheel Assembly 16installing 107removing 106Torque specifications 91Traction 87Transporting and shipping Bat-teries 78Transporting your Segway PT 78Troubleshooting 119flat tire 126LeanSteer Frame 124procedures 119pulls to one side when riding 126Safety Shutdown occurs 126will not enter balance mode 122will not power off 126will not power on 122Turning radius 5UUS patent numbers 141WWarranty 138Weight limits 8Wrench icon 22Xx2 description 4
146
