User Manual
1
ELPAP07
Wireless LAN unit
User's Guide
WN7512BEP
2
Notations Used in This Guide
fGeneral information indications
Attention Indicates procedures which may result in damage or injury if sufficient care is not taken.
qIndicates additional information and points which may be useful to know regarding a topic.
sIndicates a page where detailed information regarding a topic can be found.
Indicates operating methods and the order of operations.
The procedure indicated should be carried out in the order of the numbered steps.
[ (Name) ] Indicates the name of the buttons on the remote control or the control panel.
Example: [Esc] button
"(Menu Name)" Indicates configuration menu items.
Example: "Image" - "Brightness"
Procedure
3
Supplied Items List
See the following check list to make sure that you have all of the
supplied items. If anything is missing or damaged, please contact your
dealer.
Wireless LAN unit
Screw (plus head screw M2 ^ 8)
Document CD-ROM (This Guide)
4
Safety Instructions
Thank you very much for purchasing this product. Read this document
carefully to use this unit safely and correctly. To allow you to solve any
unknown points quickly, keep this information close to hand.
So that you can use the product safely and correctly, symbols are
applied in the documentation and on the product to indicate possible
harm to the user or to others and the risk of damage to property. The
indications and their meaning are as follows. Make sure you
understand them properly before reading the guide.
Warning This symbol indicates information that, if ignored, could
possibly result in death or personal injury due to
incorrect handling.
Caution This symbol indicates information that, if ignored, could
possibly result in personal injury or physical damage
due to incorrect handling.
Warning
• May exert electromagnetic interference on, and cause malfunction of,
cardiac pacemakers. Before use, ensure that electromagnetic
interference does not occur.
• May exert electromagnetic interference on, and cause malfunction of,
sensitive medical equipment. Before use, ensure that electromagnetic
interference does not occur.
• Use of this product on aircraft may be restricted in some countries.
Use of this product is based on due diligence with regard to
regulations.
Caution
• This unit should only be used for Epson projectors. If it is installed on
another device such as a computer, it may result in computer failure,
damage, or malfunctions.
• Do not disassemble or remodel this unit. This may result in burns.
5
Precautions
Notes on Handling and Storage
• Do not store in locations with high temperatures or high humidity. It
may in particular be damaged or deformed if left in a vehicle with the
windows shut, or placed it locations with unusually high temperatures
for extended periods such as in direct sunlight.
• Do not get it wet. This may cause malfunctions to occur.
• Do not use near microwave ovens. Wireless communication may be
interrupted by electromagnetic interference generated by microwave
ovens.
• Do not drop it, subject it to shocks, or place heavy objects on it.
Frequency Precautions
The frequency band for this unit is 2.4 GHz/5 GHz. This frequency range
is the same frequency bandwidth as industrial, scientific, and medical
devices such as microwave ovens and mobile unit identification (RF-ID)
systems (licensed premises radio stations and unlicensed specified low-
power radio stations) used in factory production lines. Before using this
unit, check that there are no radio stations for mobile unit identification or
specified low-power radio station premises nearby. In the event that this
unit should interfere electromagnetically with the premises of a radio
station used for mobile unit recognition, cease use immediately and stop
generating the electromagnetic field. Contact your local dealer or the
nearest address provided in the Support and Service Guide supplied with
the projector if this unit interferes electromagnetically with a special low-
power radio station used for mobile unit identification or causes similar
problems.
Wireless Telegraphy Act Regulations
The following acts are prohibited by the Wireless Telegraphy Act.
• Modifying and disassembling (including the antenna)
• Removing the label of conformance
• IEEE 802.11a (5 GHz band) external use
International Travel Precautions
Wireless devices are designed to conform to the channel and frequency
limits of the country they are intended to be used in. This unit is based on
the specifications of the country of sale. If this unit is used outside the
country of sale, check with a local dealer for more information.
Precautions 6
Notes on Security when Using Wireless LAN
(Important information on customer rights (maintaining privacy))
The advantage of using a wireless LAN over a LAN cable is that, because
information is exchanged using radio signals, you can easily connect to
the network if you are within range of the radio signals. A disadvantage of
this is that within a certain range, the electromagnetic signals can pass
through barriers such as walls, so that if security countermeasures are not
implemented in some way, problems such as the following may occur.
• Communicated data can be intercepted
A third party may be able to receive wireless transmissions without
authorization, and they could obtain personal information from these
transmissions such as IDs, passwords, or credit card numbers, or they
could intercept the contents of personal e-mail messages.
• Unauthorized access to the network
A third party could access an individual or intra-company network
without permission and carry out any of the following activities.
- Retrieve personal data or other secret information (information
leakage)
- Pose as another user and send inappropriate data (impersonation)
- Overwrite the contents of intercepted data and resend it (falsification)
- Introduce a computer virus which could cause data loss or system
crashes (damage)
Initially, the possibility that such problems could occur through settings
concerning the security of the wireless LAN product and by using the
product are decreased, because the wireless LAN card and the access
point have security measures to deal with these problems. We recommend
that you use this product after making security settings using your own
judgment and assuming full responsibility, and with your full
understanding of problems that may occur if you do not make any security
settings.
See the documentation supplied with the projector for information on
security settings.
7
Installing this Unit
Installing
Install this unit into the projector.
ARemove the cover for the projector's wireless LAN
unit installation section.
BInstall this unit.
CTo avoid losing this unit and so on, make sure you
fix it in place with the screw supplied.
Reading the Wireless LAN Unit Access Lamp
There are two wireless LAN unit access lamps, one on top of the projector
the other on this unit.
Procedure
Screw hole for the Screw to fix the wireless LAN unit
Installing this Unit 8
: Flashing : Lit : Off
Status
The Projector's
Indicator
This Unit's
Indicator
This unit is not installed in the
projector
This unit is installed in the projector
but not yet connected to the network Green Green
This unit is installed in the projector
and connected to the network
Green
Green
This unit is installed in the projector,
connected to the network, and
communicating Green
(Flashing quickly)
9
Steps for Connecting in "Quick Connection Mode"
When this unit is installed in the projector, you can project computer
images by wirelessly connecting the projector with a computer over a
network.

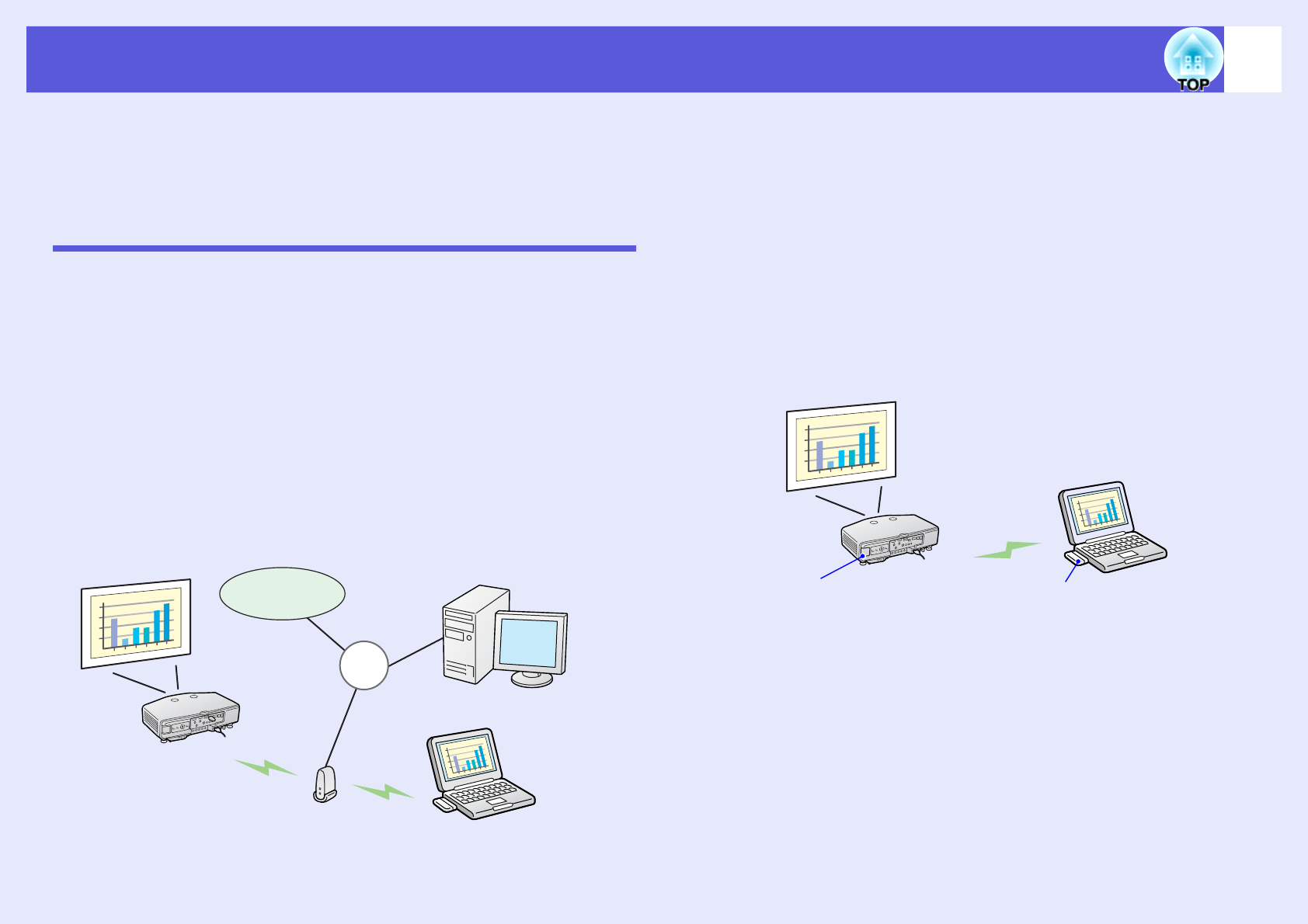

Type of Network Connection
You can use the following two methods to connect a computer and the
projector over a network by using EMP NS Connection found on the
EPSON Projector Software for Meeting & Presentation CD-ROM
supplied with the projector.
f"Advanced Connection Mode"
"Advanced Connection Mode" is an infrastructure connection, and
connects to an existing network system via a network cable.
When this unit is installed in the projector, you can connect to a network
via a wireless LAN access point. If the wireless LAN access point is
WPS (Wi-Fi Protected Setup) compatible, you can easily connect the
projector to the access point and make security settings. See the
documentation supplied with the projector for more details.
When connecting in "Advanced Connection Mode" you can use the
network in the following ways.
• From a conference room, you can open and project a file stored on a
computer or file server in another room.
• You can use the Internet.
• You can monitor and control projectors on a network from the
computer.
f"Quick Connection Mode"
"Quick Connection Mode" is a mode for executing wireless LAN only.
"Quick Connection Mode" temporarily assigns the projector's SSID to a
computer creating an ad hoc connection, and after disconnecting
restores the computer's network settings.
"Quick Connection Mode" has the following advantages.
• You can easily connect a computer to the projector and project images
from the computer without making network settings.
• This lets you connect easily without a connector cable, and you can
connect even if the projector and the computer are at remote locations.
This guide explains how to connect to a computer in "Quick Connection
Mode" and project computer images.
Internet
LAN
This unit Wi-Fi compliant wireless LAN card
or wireless LAN enabled computer
Steps for Connecting in "Quick Connection Mode" 10
Steps before Connecting in "Quick Connection
Mode"
In the following illustration, you only need to perform the light blue
sections the first time you connect.
Install EMP NS Connection on the computer to be connected
Put the computer into wireless LAN connection status
Start EMP NS Connection on the computer and connect with the
projector
11

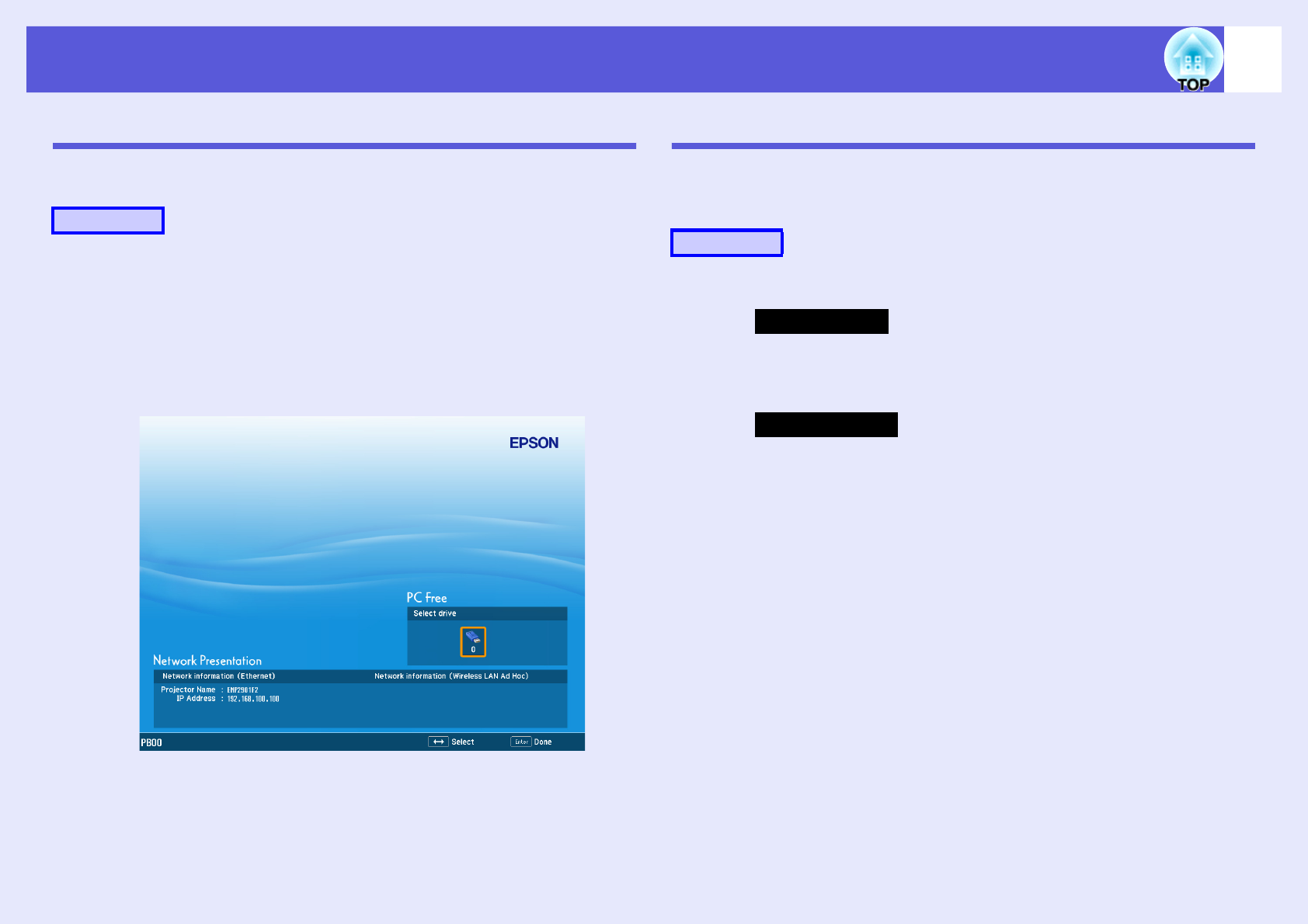

Preparing the Computer
To use "Quick Connection Mode" to connect the projector and the
computer, you need to make the following settings on the computer.
• Install EMP NS Connection
You can find EMP NS Connection on the EPSON Projector Software
for Meeting & Presentation CD-ROM supplied with the projector. If it
is already installed, you do not need to install it again. See the
documentation supplied with the projector for the installation method.
• Put it into wireless LAN connection status
Put the computer into wireless LAN connection
status
fFor Windows
Make settings for the computer by using the utility software supplied with
the wireless LAN card. For more information on the utility software, see
the User's Guide supplied with your wireless LAN card.
fFor Macintosh
Set the network port and communication status. For more details on
setting the communication status, see the User's Guides for your computer
or the AirPort card.

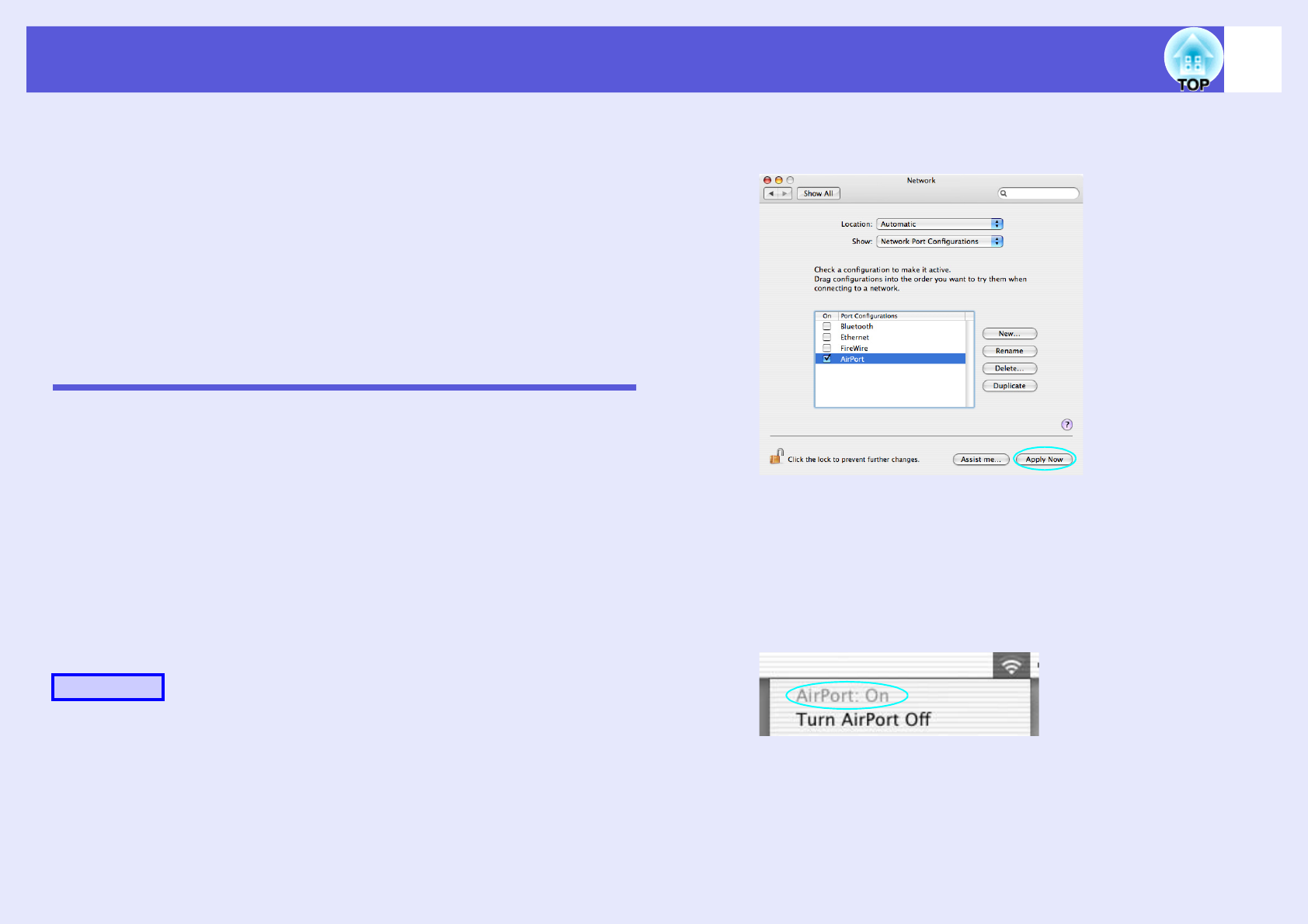

ASelect "System Preferences" - "Network" from the
Apple menu.
The Network Configuration screen is displayed.
BSelect the port used in "Port Configurations" and
click "Apply Now".
CClose the screen.
DClick the communication icon at the top right of the
computer's screen, and check that the following is
displayed.
AirPort: On
You can connect with a Wireless LAN.
Procedure
12
Connecting in "Quick Connection Mode" and Projecting
Operating the Projector
Before connecting, put the projector into connection standby status.
APress the [t] button on the remote control to turn
on the projector.
BPress the [EasyMP] button on the remote control.
The EasyMP standby screen is displayed.
Operating the Computer
In the following explanations, unless otherwise noted, Windows screens
are used. You see the same screens even when using Macintosh.
AStart EMP NS Connection.
Select "Start" - "Programs" (or "All Programs") - "EPSON
Projector" - "EMP NS Connection".
Double-click the "Applications" folder of the hard drive volume in
which EMP NS Connection is installed, and then double-click the
EMP NS Connection icon.
BSelect "Quick Connection Mode" and then click
"OK".
The projector search results are displayed. To always connect using
"Quick Connection Mode", select "Set the selected Connection
Mode as the default mode for future connections".
Procedure
Procedure
For Windows
For Macintosh
Connecting in "Quick Connection Mode" and Projecting 13
CSelect the projector you want to connect to, and
then click "Connect".
If the SSID configuration matches, you can connect up to four
projectors at the same time. If the projector you want to connect to
is not displayed in the search results, click the "Automatic search"
button. The search takes about 30 seconds.
DWhen Projector Keyword is set to "On" from the
projector, the keyword entry screen is displayed.
Enter the keyword displayed on the EasyMP
standby screen, and then click "OK".
When the connection is complete, the computer's screen is
projected. The following EMP NS Connection toolbar is displayed
on the computer screen. You can use this toolbar to operate the
projector and make settings, and to disconnect the network
connection.
From here on, see the documentation supplied with the projector
for details on using the toolbar and useful functions in EMP NS
Connection.
qWhen changing presenters and so on and when
continuously connecting from another computer, start EMP
NS Connection from the computer you want to connect and
execute "Connect". The computer that is currently
connected is disconnected, and it is then connected with the
computer that is trying to connect now.
14
The Target Projector is Not Found
Action 1. Restart the computer.
Action 2. Check if the projector network settings are set to "Quick
Connection Mode". See the documentation supplied with the
projector for more details.
Action 3. Check the following if actions 1 and 2 do not help.
(If it is disconnected, check the following.)
Please note that the projector cannot be found if the wireless LAN method
for the projector and the computer's wireless LAN card do not much, as
shown in the following examples.
Example) Projector: IEEE 802.11a Computer: IEEE 802.11b/g (a is not
compatible)
You can modify the wireless LAN method for the projector from
"Network" in the projector's configuration menu. See the documentation
supplied with the projector for more details.
Is the indicator on the
wireless LAN unit
flashing?
Reinstall the wireless LAN
unit.
Are you using
commercially available
firewall software?
Create a firewall exception
for EMP NS Connection in
the firewall software you are
using.
Are any of the supplied
utilities operating from
the computer's wireless
LAN card?
Close the utility and restart
EMP NS Connection.
Contact your local dealer or the nearest
address provided in the Support and
Service Guide supplied with the projector.
Not flashing
Flashing
Yes
No
Yes
No
15

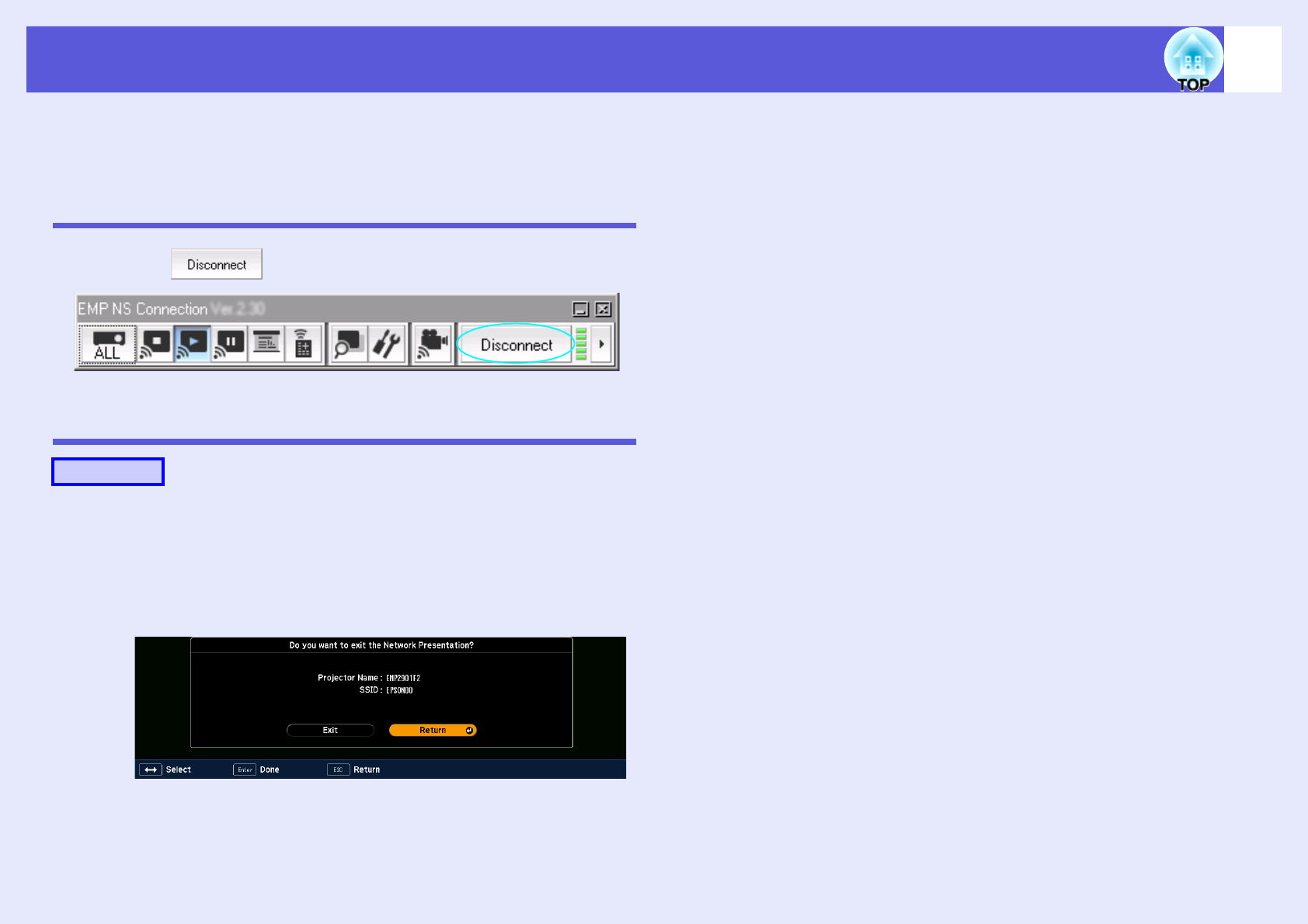

Disconnecting
There are two methods of disconnecting the projector and the
computer.
Disconnecting from the Computer
Click the button on the toolbar.
Disconnecting from the Projector
APress the [Esc] button on the remote control.
BSelect "Exit", and then press the [Enter] button on
the remote control.
Procedure
16
This Unit's General Specifications
Conditions for Connecting to Compatible Wireless
LAN Cards and Access Points
This unit can be connected to the following products in accordance with
IEEE 802.11g, 802.11b, and 802.11n.
• Wireless LAN card
• Computers with a built-in wireless LAN function
• Access points
However, you are unlikely to be able to make an ad hoc connection for
wireless LAN equipment used with a computer in IEEE 802.11g. For
details on wireless LAN equipment see the specifications.
This Unit's General Specifications
Frequency Range *1 IEEE 802.11b/g/n: 2.4 GHz band (1 to 13 Ch)
IEEE 802.11a: 5.15 to 5.25 GHz (W52) and 5.25 to 5.35
GHz (W53)*2
Modulation IEEE 802.11b : DS-SS
IEEE 802.11g/n : OFDM
Potential
Interference Range
Less than 20 m
Propriety of
Frequency Change
Can use all bands, and can avoid "licensed" and
"unlicensed" bands.
(1 to 11 Ch)
AT, BE, CY, CZ, DK, EE, FI, FR, DE, GR, HU, IE, IT,
LV, LT, LU, MT, NL, PL, PT, SK, SI, ES, SE, GB, IS,
LI, NO, CH, BG, RO, TR.
FCC Notices
Wireless LAN 802.11b/g/n adapter,
Model: WN7512BEP,
WARNING:
Changes or modifications to this device not expressly approved by the party
responsible for compliance could void the user authority to operate the
equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
IMPORTANT NOTE:
To comply with FCC RF exposure compliance requirements, the antenna used
for this transmitter must be installed to provide a separation distance of at least
20 cm from all persons.
NOTE:
This device has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This device generates uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which
the receiver is needed.
- Consult the dealer or an experienced radio/TV technician for help.
This device must not be co-located or operating in conjunction with any other
antenna or transmitter.
Epson America, Inc.
3840 Kilroy Airport Way MS: 3-13
Long Beach, CA 90806
Tel :562-290-5254
IC WARNING:
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.

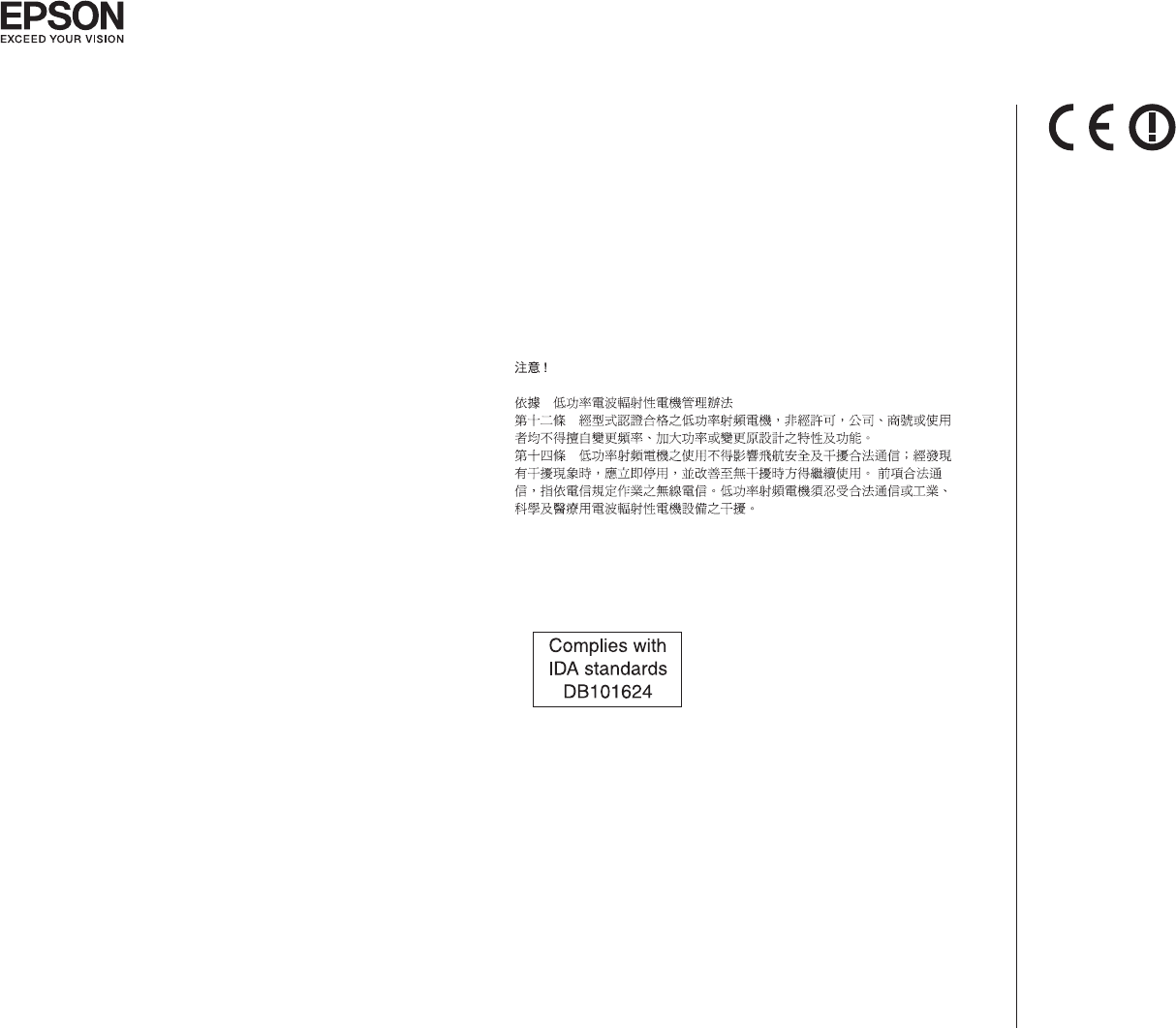

TAIWAN WARNING:
Approved by IDA for use in Singapore:
Printed in China
XX.XX-XX XXX
NOTE:
This device is only for indoor use.
This Class B digital apparatus complies with Canadian ICES-003 and RSS-210.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 et
CNR-210 du Canada.
Caution:
To comply with RF exposure compliance requirements, a separation distance of at least
20 cm must be maintained between the antenna of this device and all persons. This device
must not be co-located or operating in conjunction with any other antenna or transmitter.
