User Manual
GPS Sports Monitor
J-57
Welcome
Features
Measuring a variety of activities
Measure running and walking data and check results data.
❏Measure distance, pace, routes, and other information.
U “Measurable items” on page 31
❏Measure the time that has elapsed since each start (split time) and lap times.
U “Measuring workouts” on page 31
❏Check the measured results/data.
U “Stopping and saving measuring” on page 34
is device features many other functions.
❏Measure pulse (heart rate). (Pulse measurement function):
U “Measuring Pulse (Heart Rate) during Exercise” on page 29
❏AT Lap:
Device records your lap times for distances you have set beforehand.
U “Recording laps automatically (AT Lap)” on page 39
❏AT Pause:
The device automatically stops measuring when you stand still and then restarts measuring
once you start moving again.
U “Pausing and resuming measuring automatically (AT Pause)” on page 40
❏Training:
The device measures specic time and distance goals that you congure./
U “Measuring precongured time and distances (Training)” on page 41
❏Notications:
The device vibrates to notify you when a lap time is recorded, when a target distance has
been reached, etc.
U “Vibration” on page 72
J-57 User Manual
Welcome
2
Measuring activity
Measure various daily activities such as desk work, household chores, and so on.
❏Measure distance, number of steps, calories burnt, and other information.
U “Measuring Daily Activity (Meas. Activity)” on page 57
❏Set a target number of steps and view your daily progress.
U “Conguring a target number of steps” on page 61
❏View the past seven days worth of activity data.
U “Checking your activity” on page 60
Changing device settings
Device settings can be congured to individual preferences.
❏Contrast:
This setting is used to adjust the screen contrast.
U “Contrast” on page 72
❏Vibration:
Vibrates each time a lap is recorded.
U “Vibration” on page 72
❏Initialization:
This setting initializes the device memory and information.
U “Initializing the device” on page 83
Other features
❏This device supports the Quasi-Zenith Satellite System (QZSS).
❏This device is equipped with a stride sensor so that your distance and pace can still be
measured when in locations with poor GPS signal reception, such as in tunnels or indoors.
U “About the stride sensor” on page 28
❏Measures heart rate.
U “Measuring Pulse (Heart Rate) during Exercise” on page 29
U “Activity data you can check” on page 60

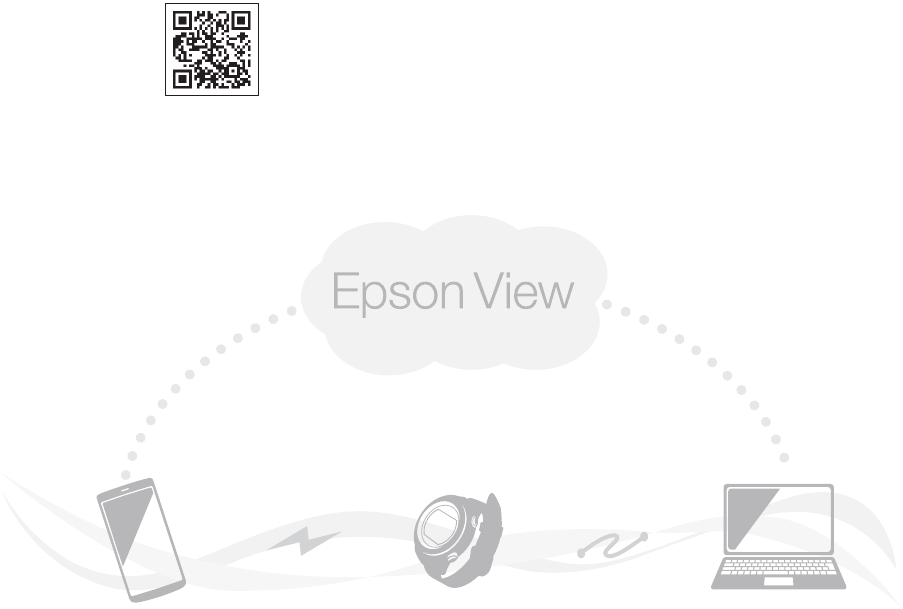

❏With the Epson View companion application, you can view and manage your workout and
activity data from your PC or smartphone.
U “Managing data with the companion application” on page 55
J-57 User Manual
Welcome
3
Contents
Welcome......................................................................... 2
Features.............................................................................. 2
Overview of the ProSense. . . . .................................................... 7
Brief description of the ProSense........................................................... 8
Brief description of the User's Guide and Startup Guide........................................... 9
Descriptions in the User's Guide.......................................................... 9
Conventions used in operation procedures.................................................. 9
Caution........................................................................... 10
Using this Device Safely................................................................. 11
Symbols in this Manual............................................................... 11
Product precautions.................................................................. 11
USB Charging clip precautions.......................................................... 12
Notes on electromagnetic waves......................................................... 13
Included items and optional accessories...................................................... 14
Included items...................................................................... 14
Optional accessories.................................................................. 14
Setup............................................................................ 15
Charging the device.................................................................... 16
Conguring initial settings............................................................... 19
Conguring the device directly.......................................................... 20
Device screens........................................................................ 21
Screen display...................................................................... 21
Battery Levels........................................................................ 22
Locking and unlocking the buttons......................................................... 24
Locking the buttons.................................................................. 24
Turning the device on and o............................................................. 25
Turning on the device................................................................. 25
Device sensors........................................................................ 26
GPS signal reception (GPS positioning).................................................... 26
About the stride sensor................................................................ 28
Measuring Pulse (Heart Rate) during Exercise................................................. 29
Measuring Your Workout....................................................... 30
Measuring workouts.................................................................... 31
Measurable activities................................................................. 31
Measurable items.................................................................... 31
Measurement preparation (selecting the Activity Type)........................................ 33
Starting measuring................................................................... 34
Pausing and resuming measuring........................................................ 34
Stopping and saving measuring.......................................................... 34
Checking data during measuring........................................................... 35
J-57 User Manual
Contents
4
Recording lap times during measuring...................................................... 36
Changing Measure Set (GPS measurement settings)............................................. 37
Conguring settings.................................................................. 37
List of Measure Set................................................................... 38
Recording laps automatically (AT Lap).................................................... 39
Pausing and resuming measuring automatically (AT Pause)..................................... 40
Measuring precongured time and distances (Training)........................................ 41
Setting and measuring paces (target pace).................................................. 43
Setting time/distance training sessions with high/low intensity intervals(interval training)............... 44
Using A-GPS to reduce the GPS positioning time............................................... 45
Conguring the operation of the backlight during measuring...................................... 45
Conguring workout notications......................................................... 45
Measuring time (Stopwatch).............................................................. 47
Estimating VO2max.................................................................... 48
What is VO2max.................................................................... 48
VO2max Standard (ml/kg/min) by Gender/Age.............................................. 50
Checking Workout Measurement Data......................................... 51
Checking history data from previous measurement............................................. 52
Measurement data that can be checked in recall.............................................. 53
Deleting measurement data from the history.................................................. 54
Managing data with the companion application................................................ 55
Starting wireless communication......................................................... 56
Measuring Daily Activity (Meas. Activity). ...................................... 57
Track activity measurement function........................................................ 58
Using track activity measurement function eectively......................................... 58
Enabling and Disabling Measuring Activity................................................... 59
Checking your activity.................................................................. 60
Activity data you can check............................................................. 60
Checking current activity (Track Activity screen)............................................. 60
Checking previous activity data (Recall screen).............................................. 61
Conguring a target number of steps........................................................ 61
Checking your target number of steps progress................................................ 62
Stop measuring your activity.............................................................. 63
Usage Examples for Some Typical Scenarios. ................................... 64
Measuring marathons and walking sessions................................................... 65
Conguring training workouts for races..................................................... 66
Conguring racing goals................................................................. 67
Checking your daily condition (Activity)..................................................... 68
Changing Device Settings....................................................... 69
Changing device settings................................................................ 70
Conguring the device from a smartphone................................................. 70
J-57 User Manual
Contents
5
Conguring the device from a PC........................................................ 70
Conguring the Device Directly......................................................... 70
Conguring the Device from a Smartphone................................................. 71
Conguring the Device from a PC....................................................... 71
Settings............................................................................. 72
Bluetooth.......................................................................... 72
Activity........................................................................... 72
Vibration.......................................................................... 72
Display........................................................................... 72
System............................................................................ 73
Turn O............................................................................ 73
Certication......................................................................... 74
Regular Maintenance........................................................... 75
Cleaning the device.................................................................... 76
Main device and band................................................................ 76
Waterproof performance................................................................ 77
Batteries............................................................................ 77
Internal rechargeable device battery...................................................... 77
Disposing of the device.................................................................. 77
Problem solving....................................................................... 78
Updating thermware.................................................................. 81
Checking the rmware version.......................................................... 81
Updating the rmware................................................................ 81
Restarting Device...................................................................... 82
Initializing the device................................................................... 83
Appendix........................................................................ 84
Product specications................................................................... 85
Device............................................................................ 85
Option specications................................................................. 86
Understanding the icons................................................................. 87
Glossary............................................................................ 88
Trademarks.......................................................................... 90
J-57 User Manual
Contents
6
Overview of the ProSense
U “Brief description of the ProSense” on page 8
U “Brief description of the User's Guide and Startup Guide” on page 9
U “Using this Device Safely” on page 11
U “Included items and optional accessories” on page 14
J-57 User Manual
Overview of the ProSense
7
Brief description of the ProSense
is device is a sports watch designed with GPS functionality to measure and record running and other workout
activity. is device also tracks and records other types of daily activity. With the Epson View companion
application, you can analyze, review, and manage your workout and activity data from your PC or smartphone.
You can also create and track training plans in eorts to accomplish longer term goals such as completing
marathons.
J-57 User Manual
Overview of the ProSense
8
Brief description of the User's Guide and Startup
Guide
ank you for your purchase of the GPS Sports Monitor "ProSense".
To ensure correct use of the device, make sure to read the included Startup Guide and then refer to the User's
Guide as necessary.
Keep the included Startup Guide easily available when you need help with the device.
Descriptions in the User's Guide
Warning This symbol represents precautions or instructions that must be followed. Incorrect
handling due to the disregard of this information may result in product failure or
incorrect operation.
Caution Indicates additional explanations and related information.
Menu Name Indicates menu items displayed on the screen of the device.
START/STOP button Indicates the device buttons.
U
Indicates related pages. Click the link in blue text to display the related page.
Conventions used in operation procedures
Actual procedure Procedure as described in this document
Press the ENTER button.
Press the UP or DOWN button and then select Prole.
Press the ENTER button.
Press the ENTER button > press the UP or DOWN button >
select Prole > and then press the ENTER button.
J-57 User Manual
Overview of the ProSense
9
Caution
❏Unapproved copying of part or all of this guide is strictly forbidden.
❏e content of this guide is subject to change without prior notice.
❏Although every eort has been made to ensure the accuracy of this guide, contact us if you have any questions
or notice any errors in descriptions in the content of this guide.
❏Despite the preceding clause, we cannot accept any responsibility for mishandling due to errors in this guide.
❏We cannot accept any responsibility for malfunctions and so on that occur due to ignoring the content of this
guide, the device being handled inappropriately, repairs or modications performed by a third party that is not
our company or appointed by our company.
J-57 User Manual
Overview of the ProSense
10
Using this Device Safely
Make sure to read the included "Using this Device Safely" document before using the product to ensure safe use.
Incorrect handling may result in product failure or incorrect operation.
❏Keep the included Startup Guide and the User's Guide (this document) easily available when you need help
resolving issues with the device.
❏Conrm the laws and regulations of the applicable country when traveling to other countries with this
device.
❏is product is not a medical device. Use this device as a workout aid.
Symbols in this Manual
e following symbols are used in this guide to indicate potentially dangerous operations or handling. Make sure
you understand these warnings before using the product.
Warning
is symbol indicates information that, if ignored, could possibly result in serious personal injury.
Caution
Ignoring these instructions and mishandling this device could cause injury or damage to property.
This symbol indicates an action that should be done.
This symbol indicates an action that must not be done.
Product precautions
Warning
Do not overexert yourself or work to exhaustion. Always seek medical attention immediately if you are feeling
unwell or for any injury.
Do not watch the device while exercising. Doing so may result in tumbling or slipping. Pay close attention to
your surroundings while using the device.
Do not use while scuba diving.
Use of this device may result in allergic reactions, itchiness of the skin, or irritation. If your skin has a reaction
to the device, rst try loosening the belt and reposition the device. If the situation does not improve,
immediately stop use of the device and seek medical attention.
J-57 User Manual
Overview of the ProSense
11
Warning
Do not use or store this device in the following environments. Doing so may result in electric shock, re, or
product malfunction and damage.
❏Locations exposed to extreme temperature/humidity
❏Near volatile substances
❏Dusty places
❏Near a re
❏Near sources of magnetic energy such as TVs, speakers, and magnetic necklaces
Do not attempt to disassemble or repair this product. Doing so may cause electric shock or other accident.
Do not leave this product within reach of young children.
Use this product at your own risk. Seiko Epson shall not be liable for damages caused to the owner of the
device or any third party.
Caution
If you sweat while wearing this device, remove the device and then completely wipe sweat and any dirt o
your wrist and the device. Continuing to wear the device while wet with sweat or dirty may cause itchiness
and irritation.
This device is water resistant up to 5 bars of pressure. Do not press any buttons while the device is
underwater. This may eect the quality of the waterproong.
Do not use the device while in a bath or sauna. Steam, soap, and minerals in the water could degrade water
resistance or cause rust.
USB Charging clip precautions
Warning
Do not use a damaged USB Charging clip. Doing so may result in re or product malfunction./
Do not use the USB Charging clip if dusty or dirty. Doing so may result in re.
Do not use the USB Charging clip if you notice any smoke, odor, or abnormal noise. Doing so may result in re.
If some abnormalities occur during use, immediately disconnect the USB Charging clip cable and contact a
repair center.
Do not use USB Charging clip if any foreign substances or water/other liquids get inside the device. Doing so
may result in electric shock or re./ If this happens, immediately disconnect the USB Charging clip cable and
contact a repair center.
Disconnect the cable when the USB Charging clip is not in use. Metal or dust/foreign matter collecting on the
terminals may result in burns or re.
Do not use the USB Charging clip to charge other devices. This device must be charged only with the USB
Charging clip. Do not use any other charging method. Doing so may result in product malfunction, electric
shock, or re.
J-57 User Manual
Overview of the ProSense
12
Notes on electromagnetic waves
is device is equipped with Bluetooth
®
Smart technology. is function enables wireless communication of
measurement data between the device and a smartphone.
is device has been classied as a low electronic data communication system based on Radio Law. erefore, this
device does not require a radio station license. e following acts may be punishable by law.
❏Disassembling or remodeling the device
❏Removing the verication or certication number for the device
Frequency

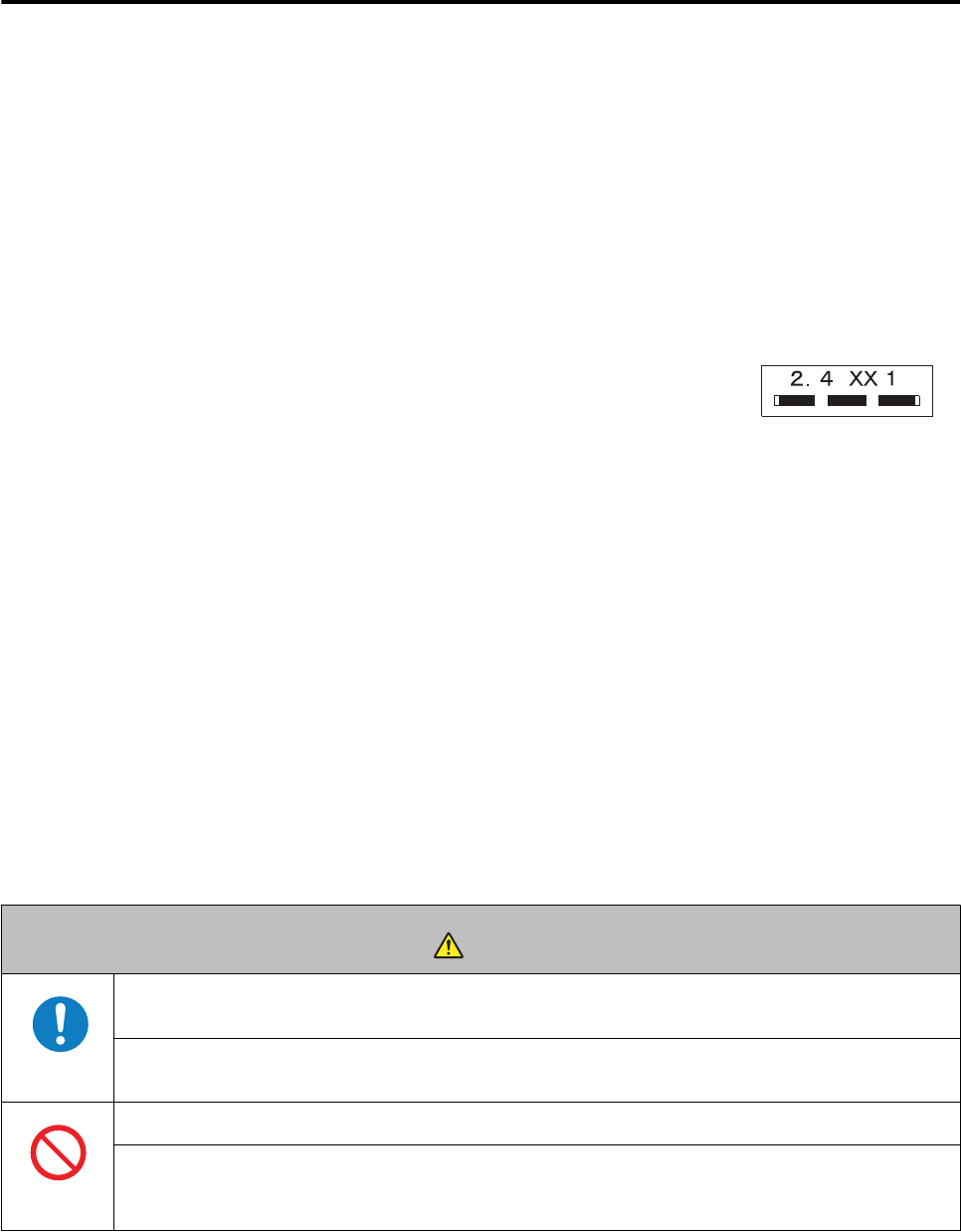

is device uses the frequency bands 2.402 to 2.480 GHz. Other wireless devices may
use the same frequency. Note the following points to avoid wireless interference with
other wireless devices.
Precautions when performing wireless communication
is device operates on the 2.4 GHz band.
is device operates in the same frequency bandwidth as industrial, scientic, and medical devices such as
microwave ovens and mobile object identication (RF-ID) systems (licensed premises radio stations, amateur, and
unlicensed specied low-power radio stations (hereaer "other radio stations")) used in factory production lines.
1. Before using this device, make sure there are no "other radio stations" being used in the vicinity.
2. If this device causes RF interference between the device and "other radio stations", promptly move to a dierent
location, stop using the device, and contact your local reseller to ask for advice on preventing interference (for
example setting up partitions).
3. In addition, when harmful radio wave interference occurs between the device and "other radio stations", and
refer to "Contacting us about this product" to contact our service centre.
Warning
If you notice any abnormalities on your skin and so on, stop using the device immediately and contact a
specialist.
In areas in which usage is restricted, such as on airplanes and in hospitals, follow the rules and regulations
provided (such as in-ight announcements).
Do not use the device if you have a surgically implanted medical device such as a cardiac pacemaker.
Do not bring the device into an operating room, intensive care unit, and so on, and do not use the device near
medical equipment. Radio waves from the device may interfere with electronic medical equipment causing
the equipment to malfunction and cause an accident.
J-57 User Manual
Overview of the ProSense
13

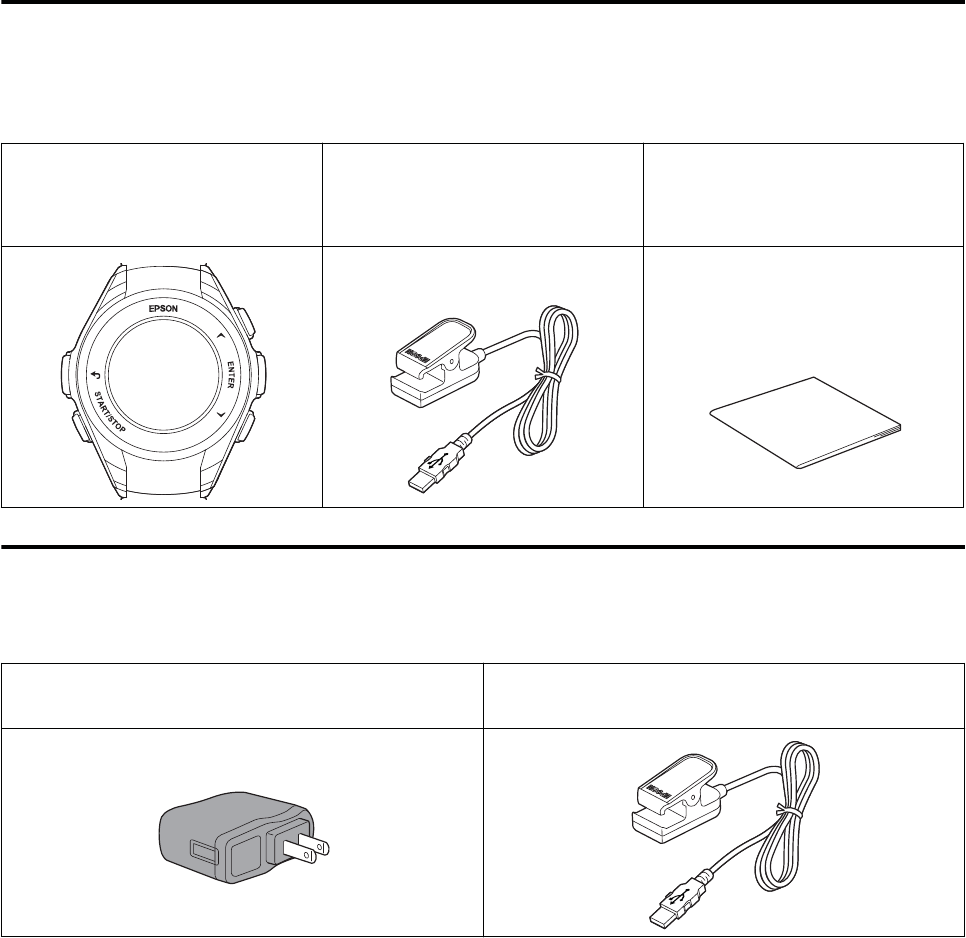

Included items and optional accessories
Included items
Make sure you check that all of the following items have been supplied with this product. If any of these items are
missing, contact your local reseller.
Device USB Charging clip (charging and
communication device)
Notes on Usage
Startup Guide
Warranty
Optional accessories
You can purchase the following optional extras. Contact your local reseller for more information.
AC adapter USB Charging clip (charging and communication
device)
J-57 User Manual
Overview of the ProSense
14
Setup
U “Charging the device” on page 16
U “Conguring initial settings” on page 19
U “Device screens” on page 21

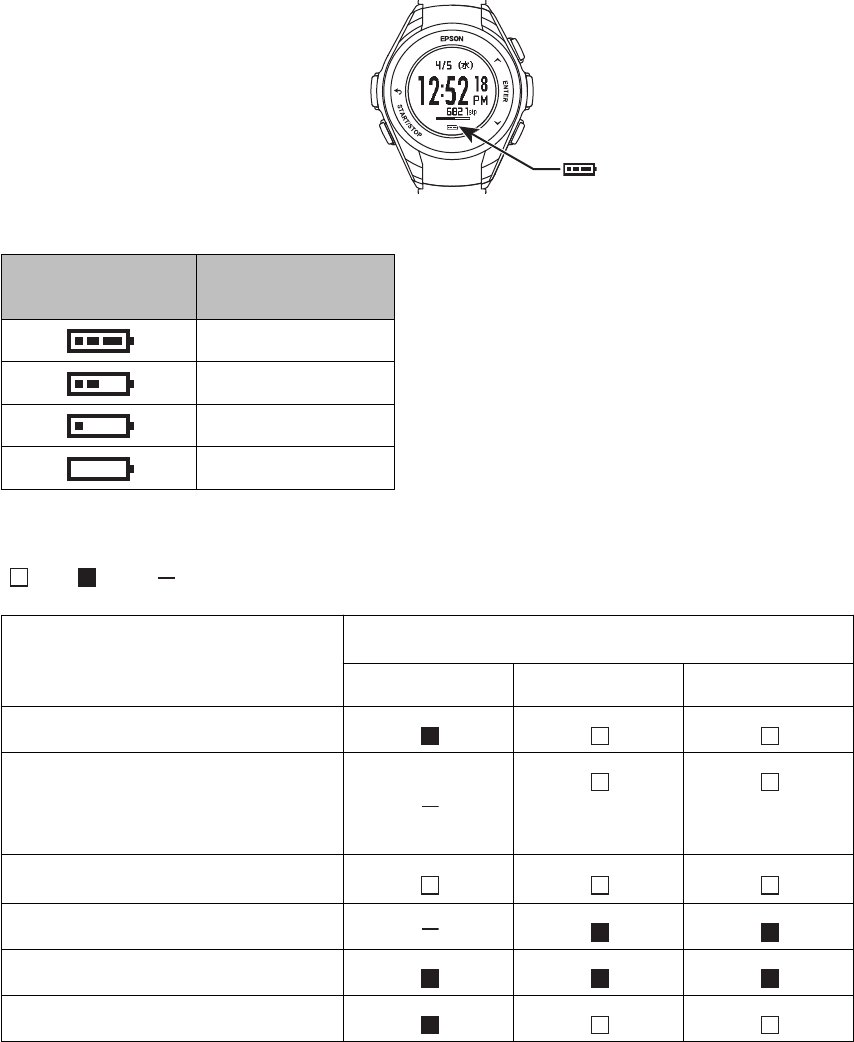

U “Battery Levels” on page 22
U “Locking and unlocking the buttons” on page 24
U “Turning the device on and o” on page 25
U “Device sensors” on page 26
J-57 User Manual
Setup
15
Charging the device
c
Important
❏Charge this device before using it for the rst time.
❏Use the specied USB Charging clip.
❏Do not attach the USB Charging clip to a wet or dirty device.
Doing so may cause corrosion or malfunction of the device or USB Charging clip contact points, or
communication failures.

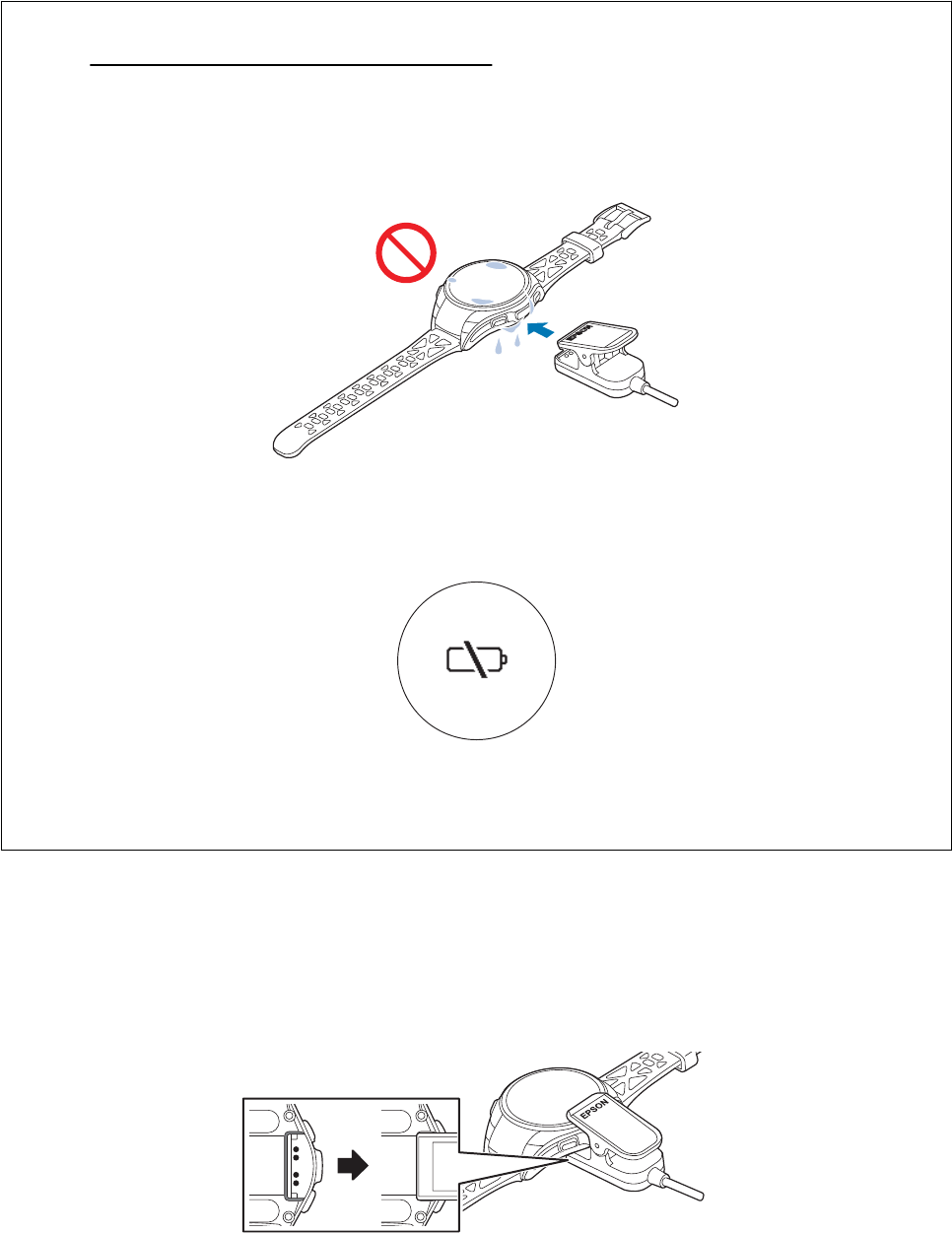

❏Charge in environments with ambient temperatures of 5 to 35˚C. Attempting to charge the device in any other
environment causes the following charge error screen to appear and the device to stop charging. When it
returns to a suitable temperature, charging resumes.
❏Bluetooth is enabled when the USB Charging clip is attached to the device. Disable Bluetooth when not in use.
U “ON/OFF” on page 72
A
Attach the USB Charging clip to the device.
Turn the device over so that the glass faces down. Hold the device up and then attach the USB Charging clip
so that the triangle marks on the back side of the device and the USB Charging clip are in alignment.
J-57 User Manual
Setup
16
B

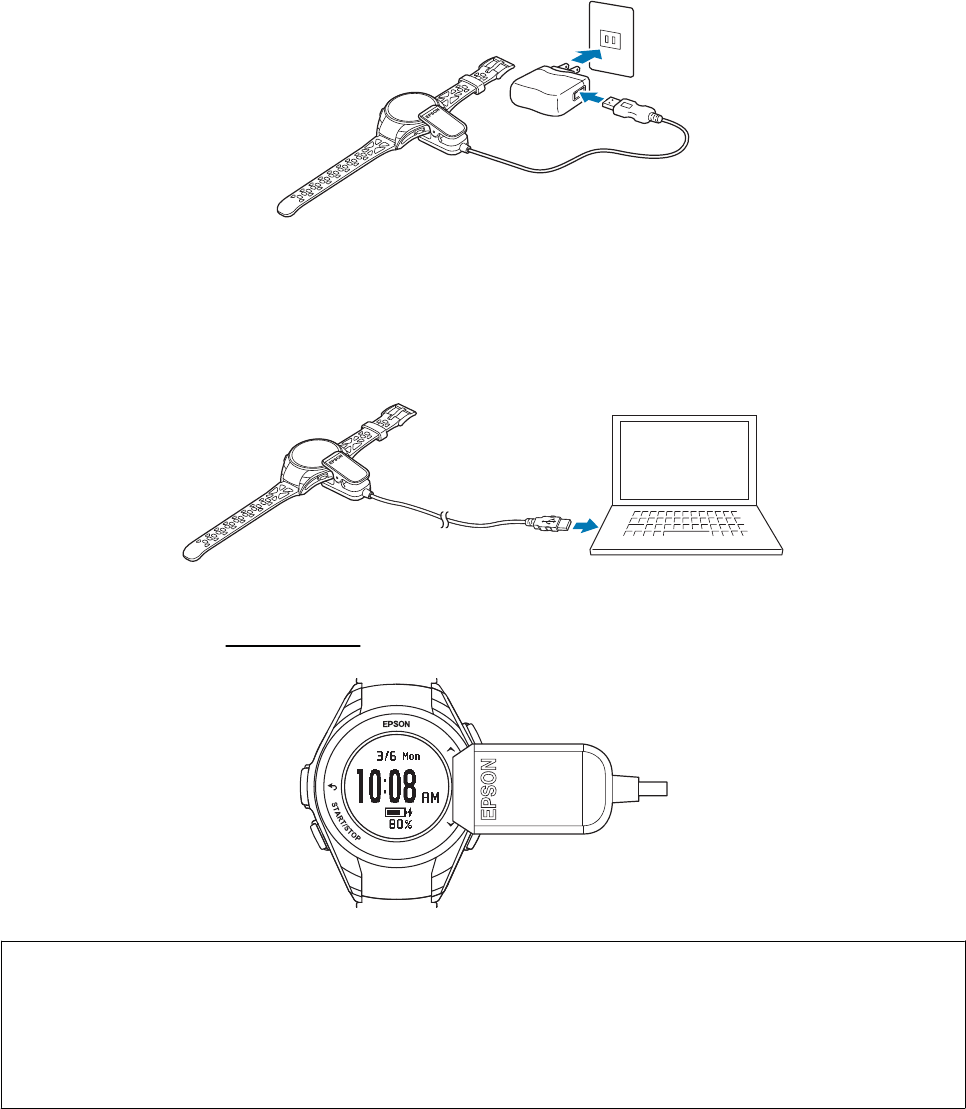

Start charging the device.
Two charging methods are available.
oUsing the AC adapter to charge the device
Connect the USB plug of the USB Charging clip to the USB port in the AC adapter and then connect the AC
adapter to an electrical outlet.
We recommend using the optional AC adapter to charge the device. Using an incompatible AC adapter may
result in failure to charge or improper operation.

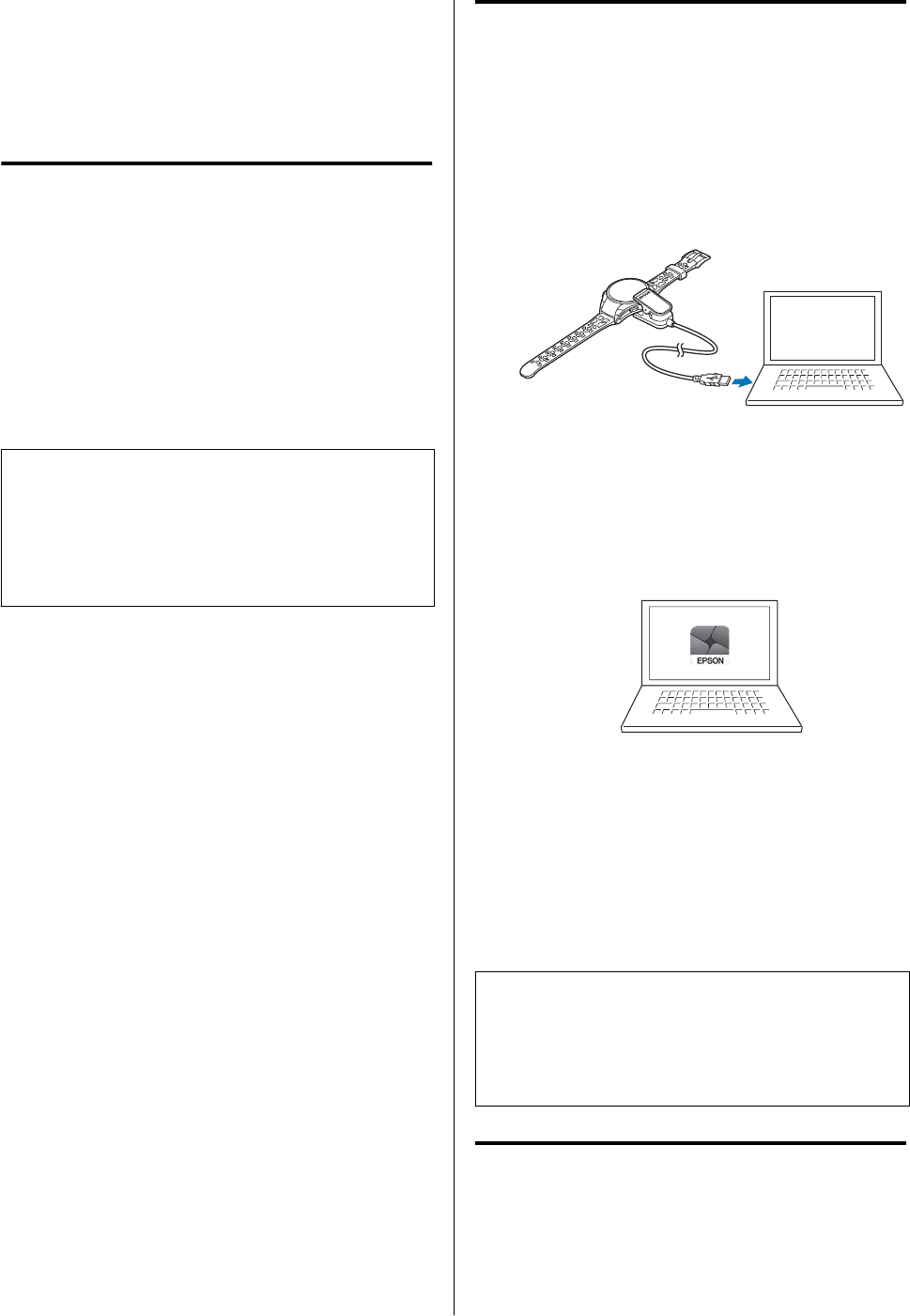

oUsing a PC to charge the device
Connect the USB plug of the USB Charging clip to the USB port in the PC.
is method will not necessarily be successful with all computers. Do not use a USB hub or other
intermediate device. Connect the USB Charging clip directly to the PC.
Charging will start automatically once devices are properly connected. e typical average time to fully
charge the device is 2.5 to 3.5 hours. is can vary depending on conditions.
Note

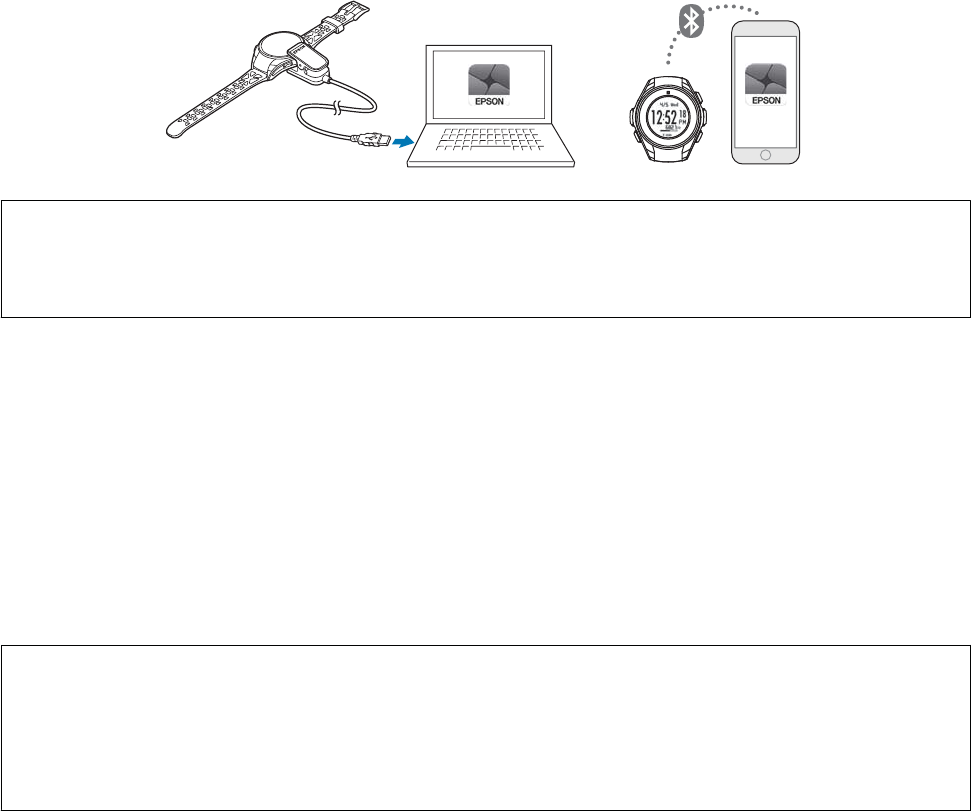

You can use the Epson View companion application to congure initial settings from the PC while charging the device.
Visit the following website to download Epson View, create an account, and learn how to use the application to congure
the device and perform other operations.
U https://view.epson.com/
J-57 User Manual
Setup
17
C

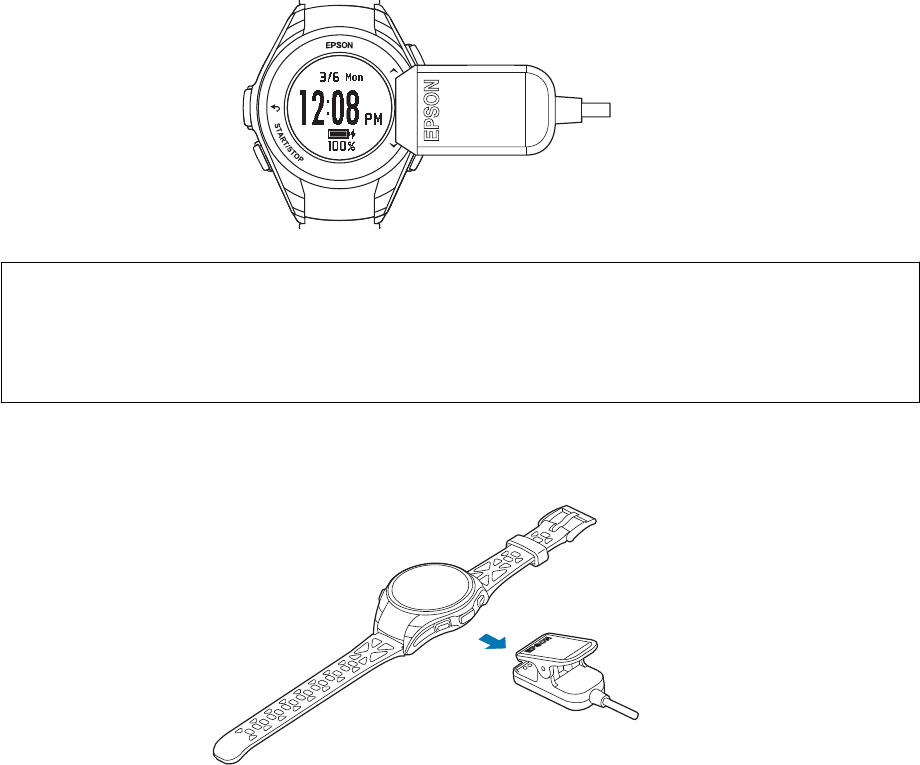

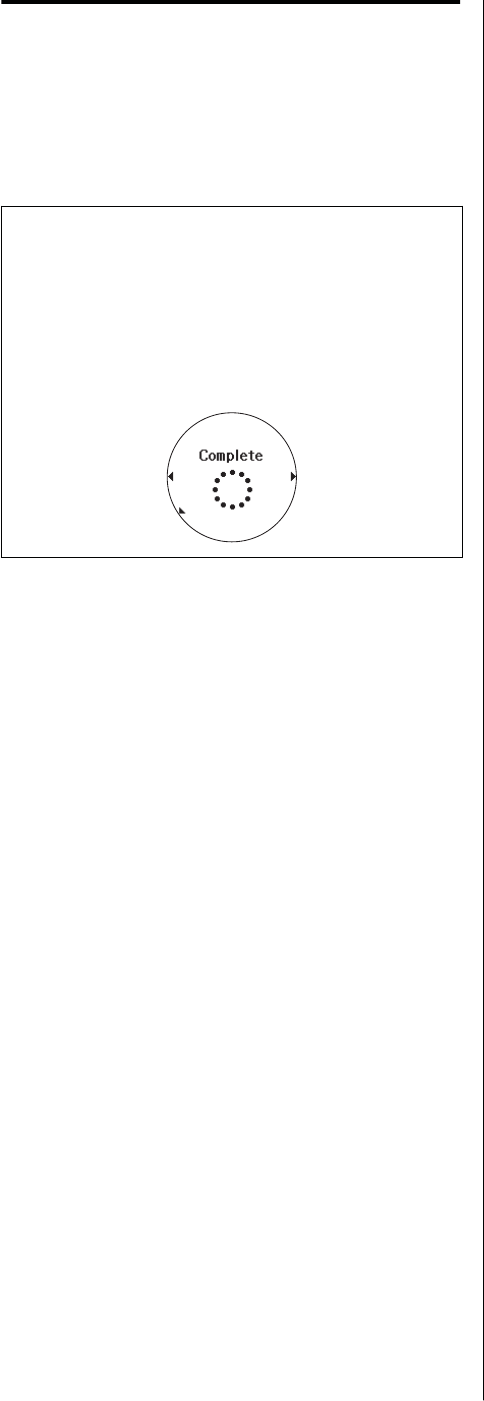

Check that charging is complete.
Charging is complete when the battery icon displays 100%.
Note
❏Once the device is fully charged, the overcharge prevention feature engages. e device will not be damaged
even if you continue to charge the battery.
❏e Time screen appears when conguring initial settings while charging the device.
D
Aer the device is fully charged, disconnect the USB Charging clip from the device. Disconnect the cable
from the USB port in the PC or AC adapter.
J-57 User Manual
Setup
18
Conguring initial
settings
Initial settings include personal details such as height
and weight. Conguring this information improves
accuracy of the recorded data. e initial settings
process starts once the USB Charging clip is removed
from the device.
J-57 User Manual
Setup
19

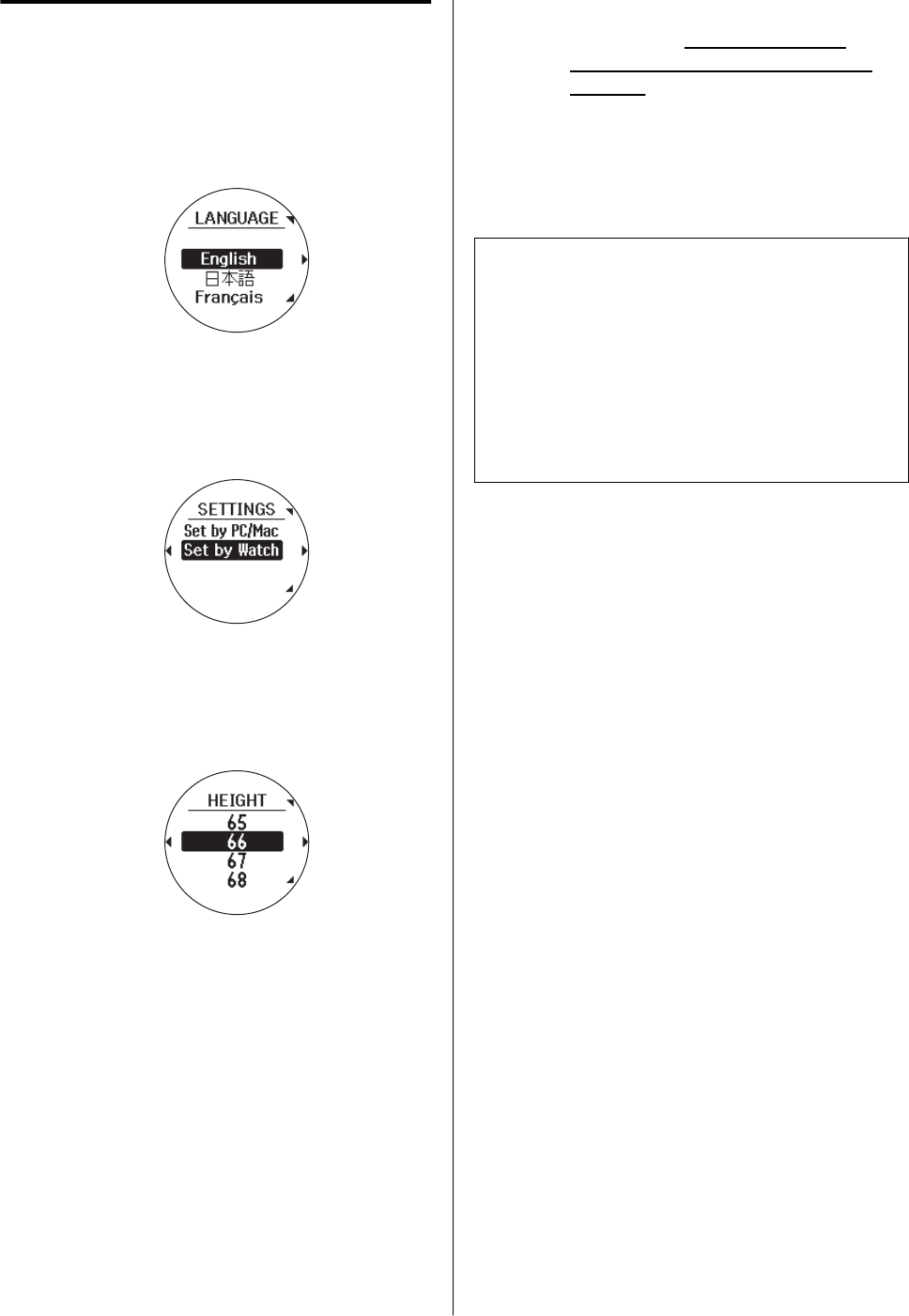

Conguring the device directly
A
Set the display language
Select LANGUAGE and then press the ENTER
button.
B
Select the conguration method
Press the UP orDOWN button > select Set by
Watch > and then press the ENTER button.
C
Enter your initial settings
Follow the on-screen instructions and enter
your information for the initial settings.
Initial settings include the following personal
details.
❏Height
❏Weight
❏Gender
❏DOB
❏Date and time (Year, Month, Day, AM/PM, Minutes,
Seconds)
*
* To congure the date and time
automatically, move to an outdoor
location where there are no obstacles
overhead and select Set by GPS.
Conguration is complete aer you have
nished conguring all settings and the Time
screen appears.
Note
❏If the device fails to acquire a GPS signal, press the
ENTER button and congure manually, or move to
another location and press the BACK button to
start acquiring a GPS signal again.
❏To edit settings or other information, press the
BACK button to display the desired setting. e
previous conguration has already been saved if
you return to a setting.
J-57 User Manual
Setup
20
Device screens

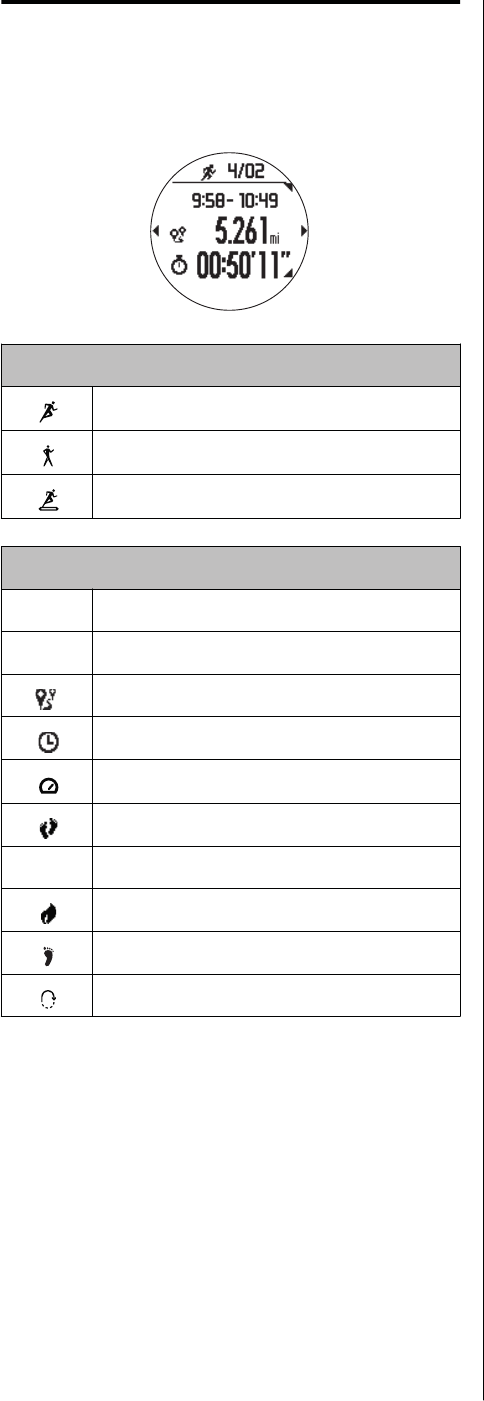

Screen display

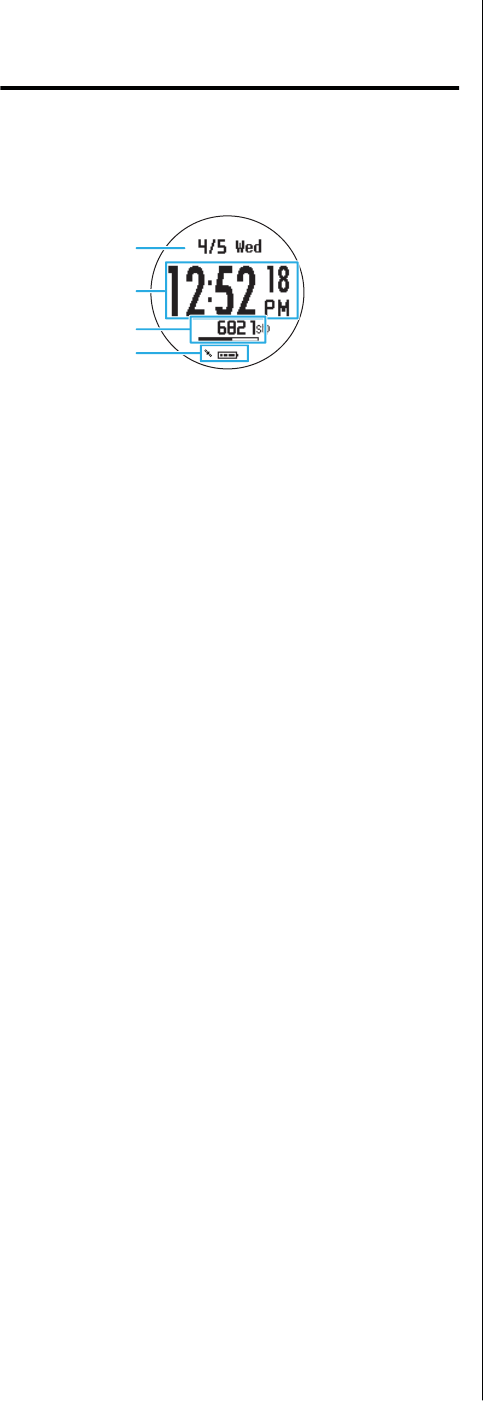

Time screen
1
2
3
4
1:
Current date and day
2:
Current time
3:
Total steps for the day and indicator of progress
toward your target number of steps
*
4:

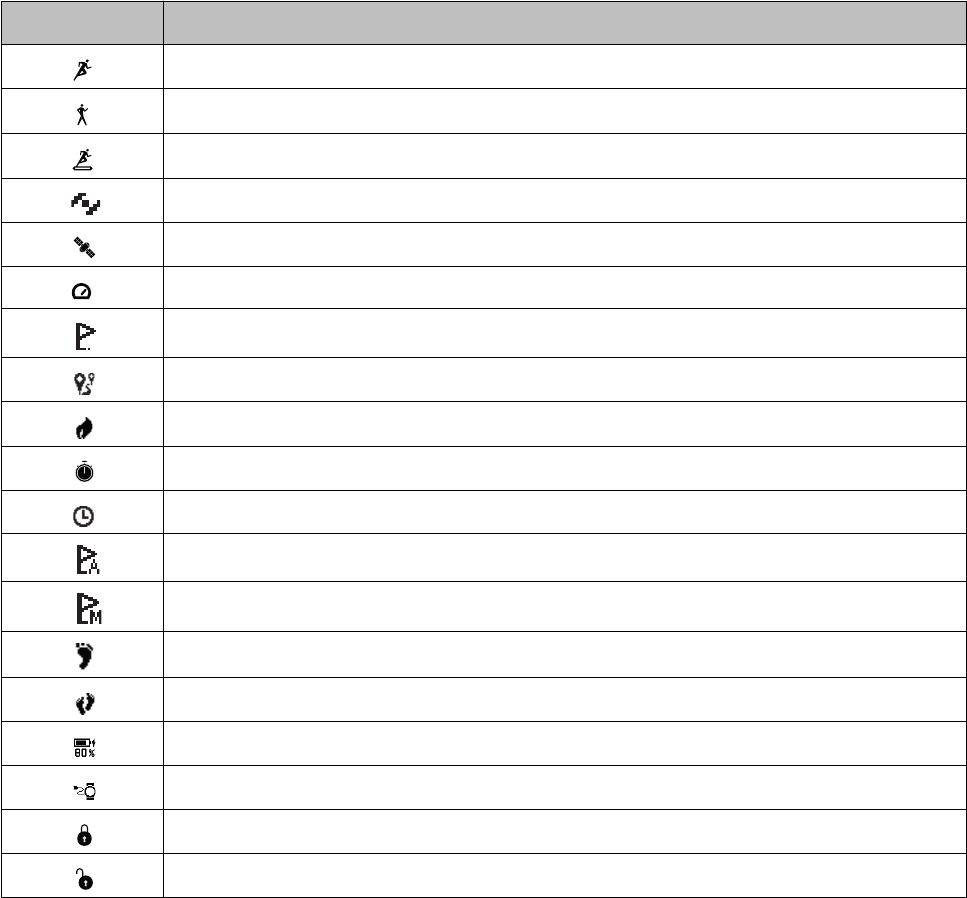

Icons that represent the status of battery level.
* Only when MEAS. ACTIVITY is set to ON.
Settings screen
Measurement screen
Activity screen
J-57 User Manual
Setup
21
Battery Levels
e battery icon below the time display indicates the remaining charge in the battery. Charge the device as
necessary in accordance with usage conditions.
Estimated Continuous Workout Measuring Time
Battery level
indicator Operating time
10 to 6 hours
6 to 4 hours
4 to 2 hours
2 to 0 hours
Estimated Continuous Time Display Duration
: ON : OFF : Not supported
Device usage state
(no workout measuring)
Maximum operation time
*2
30 days 2 days 4 days
Track Activity
Heart rate monitoring
(advanced) (normal)
Auto Sleep
*1
Seconds Display
Auto Search
Bluetooth
®
*1 Auto Sleep is active for 14 hours per day (internal evaluation criteria).
*2 e operation time varies depending on the environment, which aects GPS reception, and device settings
such as backlight settings.
J-57 User Manual
Setup
22
c
Nothing will appear in the screen when the battery level is low.Long-term storage of the device while the internal
battery is low could degrade battery performance. Make sure you charge the device at least once every six
months even when it is not being used.
J-57 User Manual
Setup
23
Locking and unlocking the buttons
Locking the buttons
To lock the buttons, press and hold the UP button at the following screens.
❏Time screen
❏Activity screen
❏Measuring screen
Unlocking the buttons
To unlock the buttons, press and hold the UP button.
J-57 User Manual
Setup
24
Turning the device on and o
Turning on the device
Press and hold the START/STOP button for 2 seconds to turn on and start the device.
Turning o the device
Turn o the device if it will be unused for an extended period of time. To turn o the device, press the ENTER
button at the Time screen and then select MENU > Tur n O > Yes .
U “Turn O” on page 73
J-57 User Manual
Setup
25
Device sensors
GPS signal reception (GPS positioning)
GPS positioning
GPS positioning is the process by which the device receives a GPS signal and timing information to measure
routes, distance, pace, and other information.
To ensure accuracy of measurements, use the device under the following conditions in areas of good GPS signal
reception.
Scenarios in which GPS positioning is used
❏GPS measuring (Run or Walk measurements)
❏Time synchronization (SETTINGSSet by GPS, SystemUpdate Time)

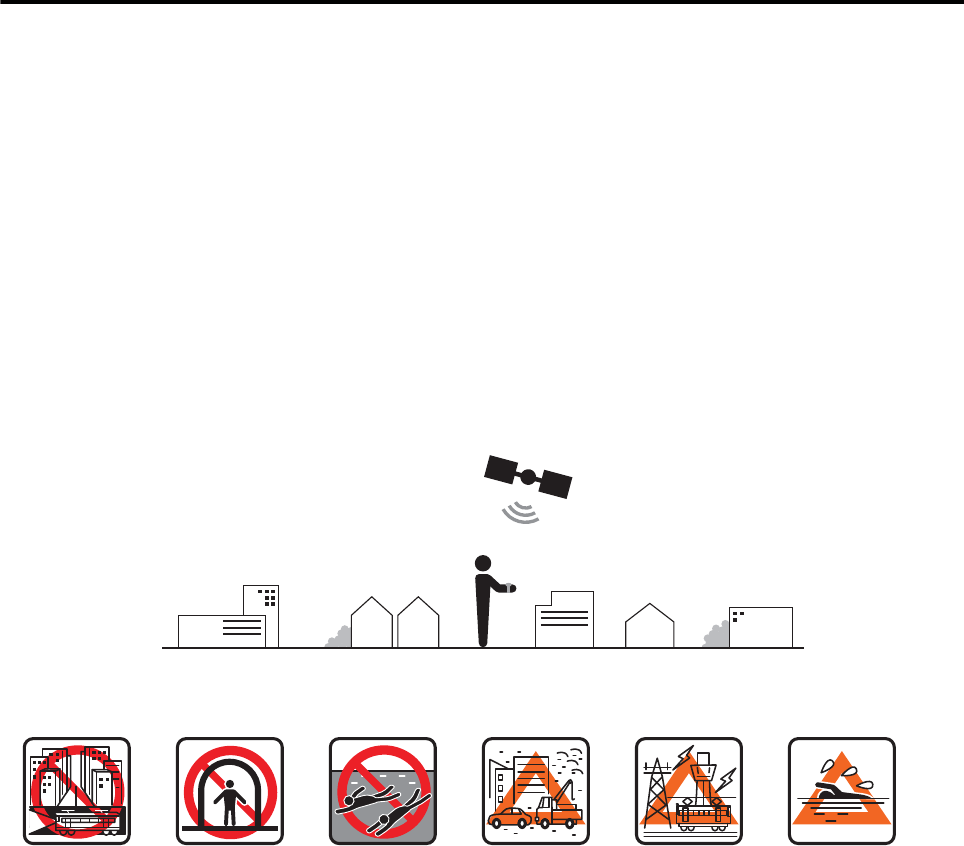

Good signal reception conditions
Locations where you cannot receive signals Locations that are dicult to receive signals
Inside rooms or
buildings, or
underground
In tunnels Under water Locations with
electronic
interference, such
as constructions
sites and heavy
trac
Near high-voltage
wires or television
towers, overhead
electric wires for
trains, and roads
with skyscrapers
On water
Using the device for the rst time
Before using the device for the rst time aer purchase, wait at least 15 minutes aer initial GPS positioning
outdoors with no obstructions overhead while the device displays the Measurement screen. is improves
measurement accuracy.
J-57 User Manual
Setup
26
The Measurement screen
appears after GPS locating. Wait 15 minutes
Note
❏Refer to the following page for more information on GPS positioning.
U “Measurement preparation (selecting the Activity Type)” on page 33
❏is process normally only needs to be performed once.
❏Perform this process if the device has not been used for several months.
Note

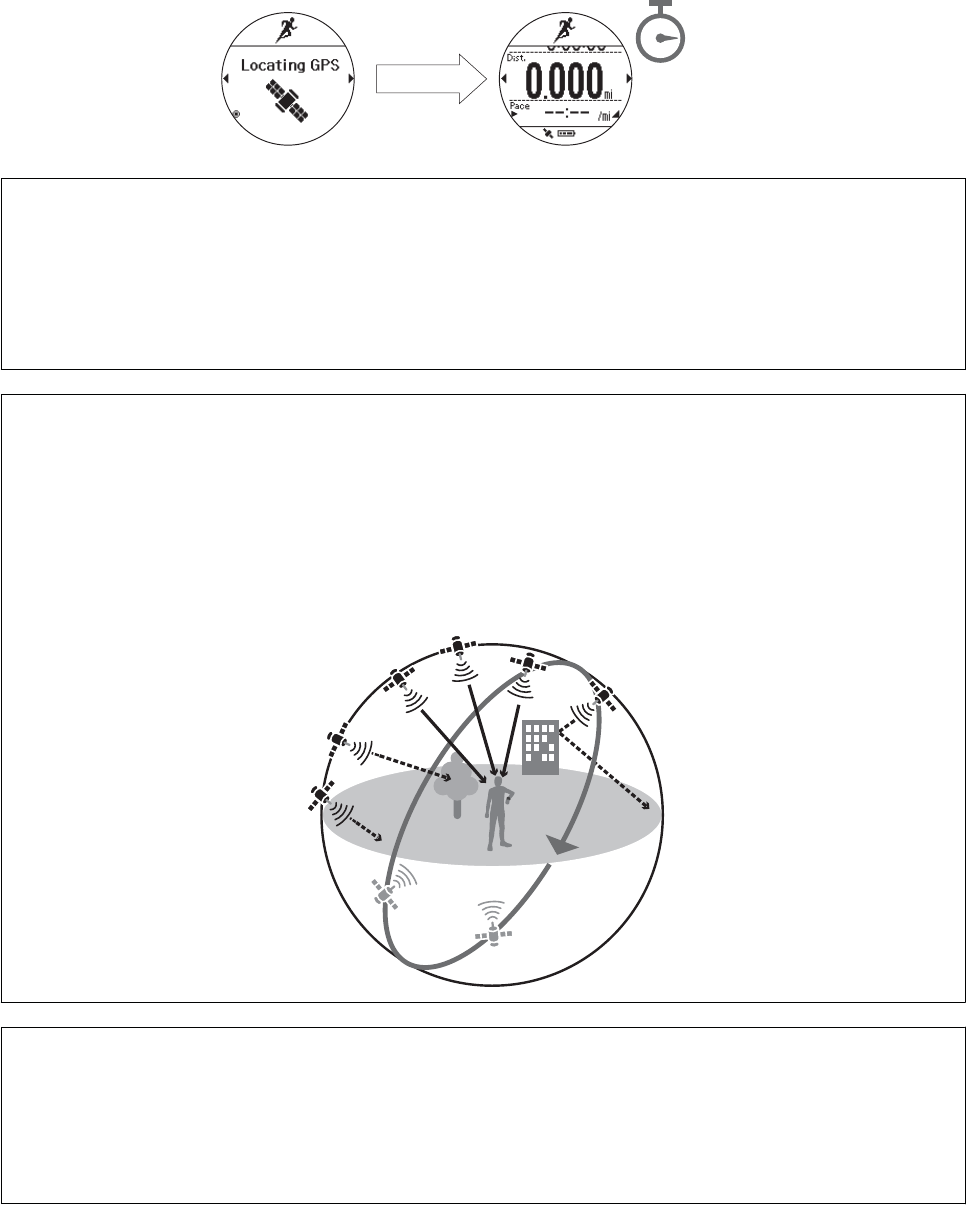

e basic conguration of the GPS system is 24 satellites orbiting the Earth at an altitude of 20,000 km with at least four
satellites traveling in six dierent orbits. e GPS receiver acquires data from four satellites and calculates the latitude,
longitude, altitude, and time. You can start measuring once the GPS positioning has been performed and this
information has been received. You can receive more detailed GPS navigation data (satellite orbital information) if you
wait 15 minutes aer initial GPS signal acquisition, which improves measuring accuracy.
However, note that GPS positioning is not 100% accurate or reliable at all times even with the more detailed GPS data
because of atmospheric conditions and the usage environment.
Note
AGPS - Reducing the GPS Positioning Time
You can reduce the GPS signal acquisition time by connecting the device with a smartphone and then retrieving GPS
satellite information from a network server. Refer to the Epson View website for more information.
https://view.epson.com/
J-57 User Manual
Setup
27
About the stride sensor

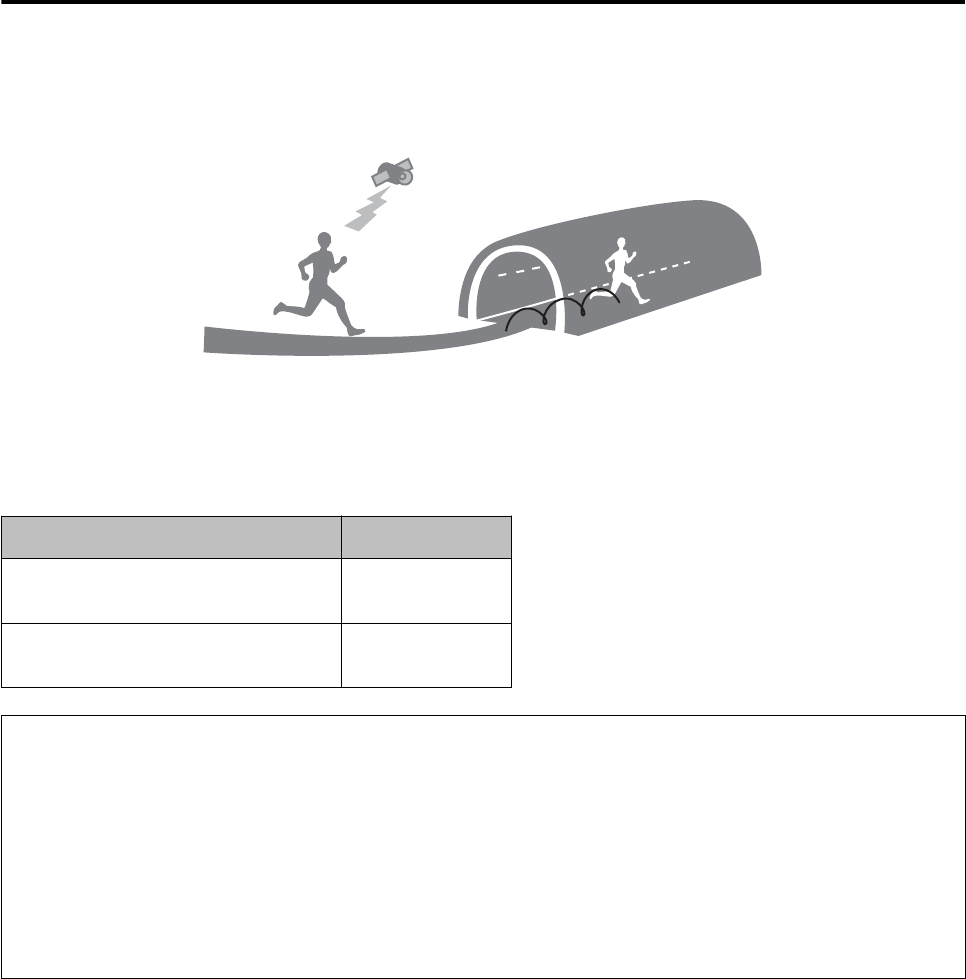

is device is equipped with a stride sensor. is sensor enables the device to continue measuring your distance
and pace in locations with poor GPS signal reception, such as in tunnels or indoors.
Using the device for the rst time
When using the device for the rst time, run or walk for the specied time depending on the location as described
in the following table to allow the device to acclimate to your stride.
Location Time
Outside with no obstructions overhead Approx. 10
minutes
Area with many buildings Approx. 30
minutes
Note
❏is process normally only needs to be performed once. However, note that information on your stride is initialized if
the device is initialized. If this occurs, you need to perform the process to allow the stride sensor to acclimate to your
stride again.
❏When you mainly use the device for walking, set the activity type to Wal k .
U “Measurement preparation (selecting the Activity Type)” on page 33
❏Signicant measurement errors may occur if your stride diers signicantly from that used during the stride sensor
initialization session.
J-57 User Manual
Setup
28
Measuring Pulse (Heart Rate) during Exercise
You can measure your heart rate. Select On or O.
You can set ve heart rate zones (within the range of the minimum and maximum heart rate) to suit the exercise
intensity in User Settings.
e value in brackets () is the default setting.
Setting items Value Explanation
HR Zone Zone1
(30 to 100 bpm)
Zone2
(101 to 130 bpm)
Zone3
(131 to 160 bpm)
Zone4
(161 to 190 bpm)
Zone5
(191 to 240 bpm)
J-57 User Manual
Setup
29
Measuring Your Workout
U “Measuring workouts” on page 31
U “Checking data during measuring” on page 35
U “Recording lap times during measuring” on page 36
U “Changing Measure Set (GPS measurement settings)” on page 37
U “Using A-GPS to reduce the GPS positioning time” on page 45
U “Conguring the operation of the backlight during measuring” on page 45
U “Conguring workout notications” on page 45
U “Measuring time (Stopwatch)” on page 47
U “Estimating VO2max” on page 48
J-57 User Manual
Measuring Your Workout
30
Measuring workouts
is device uses positional and time information received from GPS satellites to measure your distance, pace, and
routes.
You can also measure split times and lap times during GPS measuring sessions.

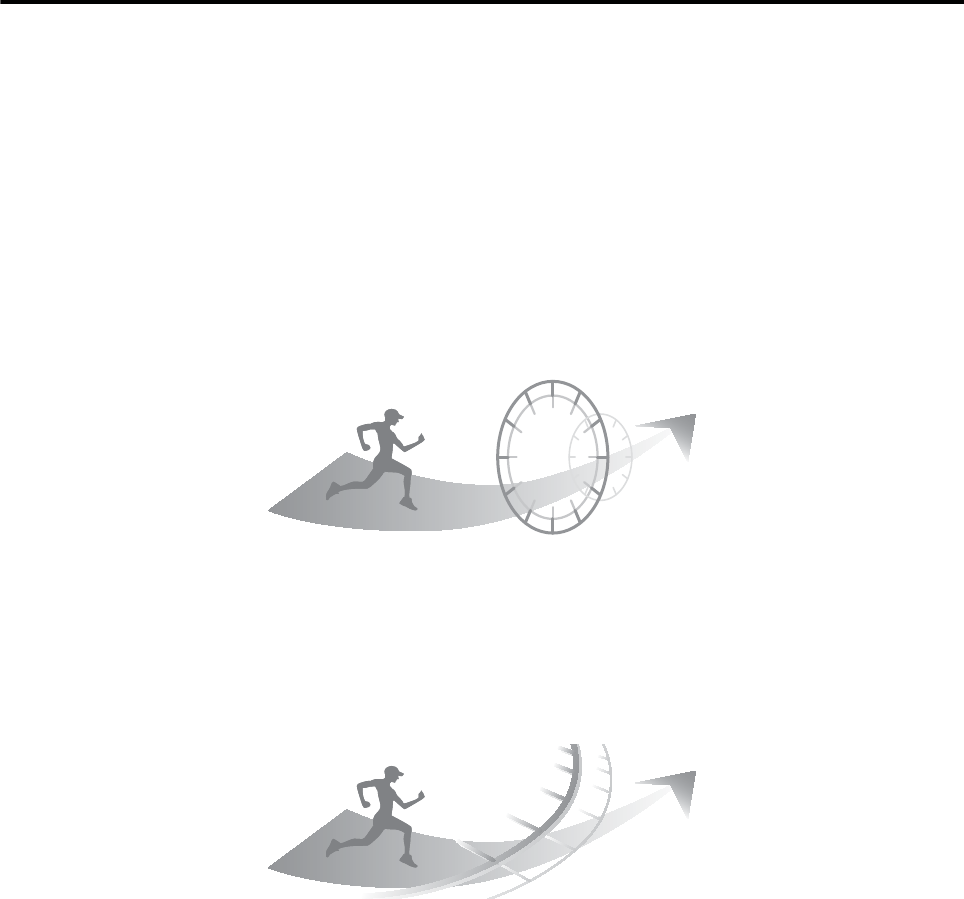

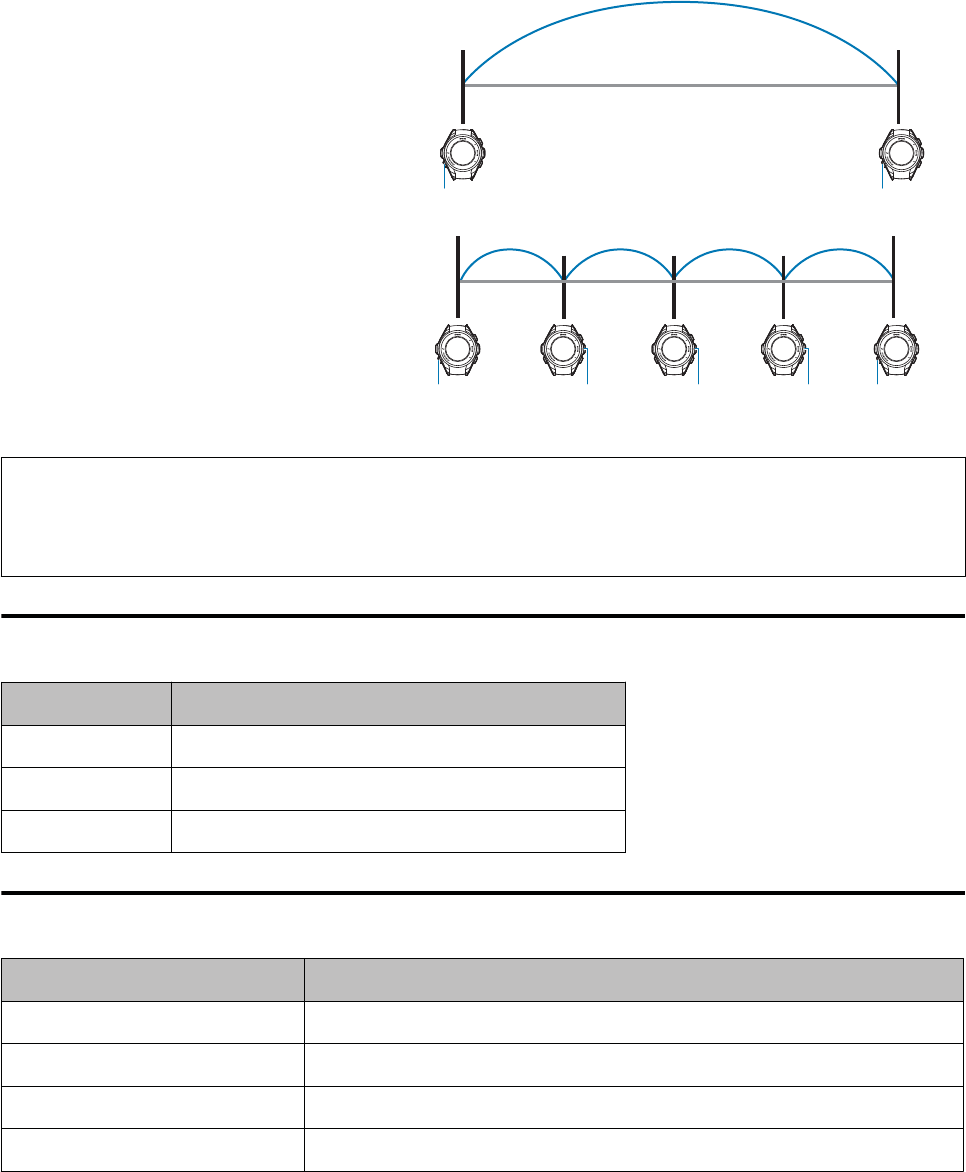

Split time
Measures the elapsed time from the start.
Press the START/STOP button to start
measuring. Press the START/STOP button
again to stop the measuring.
START/STOP START/STOP

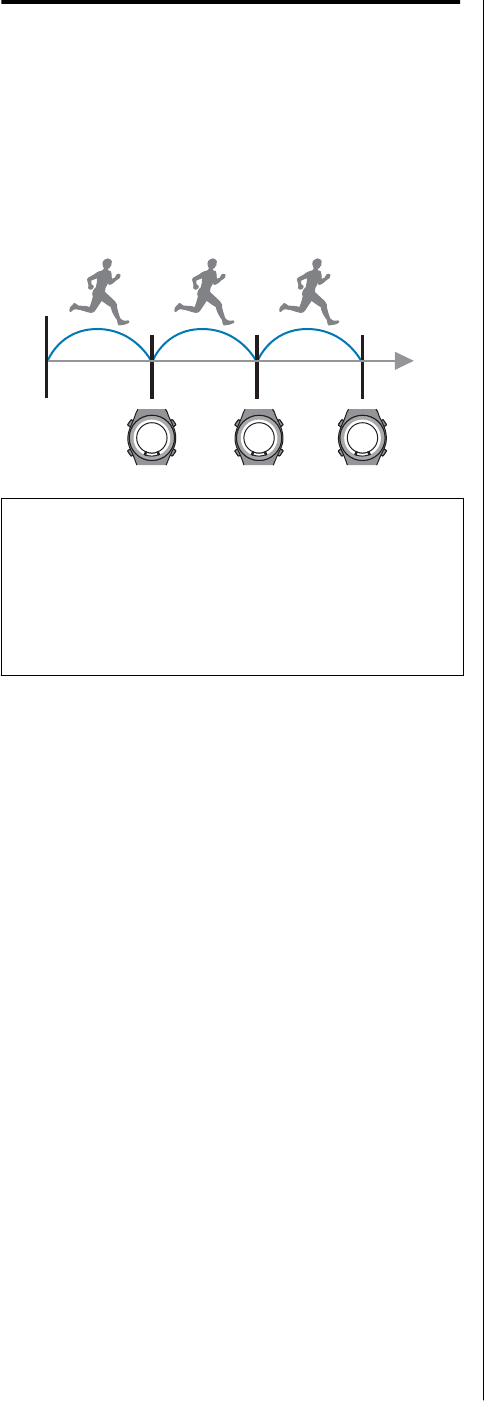

Lap time
Records the elapsed time for each lap.
Press the ENTER button during a
measurement to record your lap time.
START/STOP ENTER START/STOPENTER ENTER
Note
When using the AT Lap function, laps are recorded automatically each time the precongured distance is reached.
U “Recording laps automatically (AT Lap)” on page 39
Measurable activities
Workout Explanation
Run Jogging, running, marathons, etc.
Walk Walking
Treadmill Using a treadmill indoors
Measurable items
Workout Explanation
Split Time (Time) Total time from the start of measurements
Distance (Dist.) Total distance from the start of measurements
Pace (Pace) Current pace (time per kilometer/mile)
Lap Time (LapTime) Average lap time
J-57 User Manual
Measuring Your Workout
31
Workout Explanation
Lap Pace (LapPace) Average pace for each lap
Calories Burnt (Calories) Calories burnt from the start of measurements
Steps (Steps) Total number of steps since the start of measurements
Stride (Stride) Current stride
Pitch (Pitch) Current number of steps per minute
Heart rate (HR) Current heart rate per minute
Time (Time of Day) Current time
Estimated end distance
*2
Estimated distance completed at the end of the congured time
Estimated end time
*3
Estimated time at completion of the congured distance
*2 When Time is set under Training
*3 When Dist. is set under Training
Measurement Screens
Press the UP or DOWN buttons at the Measurement screen to change through the dierent displays. Press the
ENTER button to display the Lap screen.
J-57 User Manual
Measuring Your Workout
32
Measurement preparation (selecting the Activity Type)
At the Time screen, press the DOWN button to select the activity type.
e following table lists the available activities.
Activity Type Explanation
Running (Run) Jogging, running, marathons, etc.
Walking (Walk) Walking
Treadmill (Treadmill) Jogging or running on a treadmill
e device will begin GPS positioning once an activity is selected. e Measurement screen appears once the GPS
positioning is complete.
Note
e device will display the Measurement screen without performing GPS positioning when Treadmill is selected.
c
Important
❏Make sure the screen is facing up and you are outside with no obstructions overhead when performing GPS
positioning.
U “GPS signal reception (GPS positioning)” on page 26
❏If the device fails to acquire a GPS signal, the "Locating GPS Failed" message appears. Press the BACK button
to try and acquire the GPS signal again. To continue your measurement without using GPS positioning, press
the ENTER button.
❏To start your measurement without waiting for the device to nish GPS positioning, press the START/STOP
button at the screen that appears while the device acquires the GPS signal. e device will not be able to track
your route while the device is still performing GPS positioning. e device will begin tracking your route as
soon as it nishes GPS positioning.
U “Measurable items” on page 31
J-57 User Manual
Measuring Your Workout
33
Starting measuring
At the Measurement screen, press the START/STOP
button to start the measuring.
c
Important
❏e oldest data will be overwritten when the
device runs out of storage space used for
measurement data. We recommend that you
use the Epson View companion application to
upload data aer each measuring.
U “Managing data with the companion
application” on page 55
❏e maximum measurement time for each
split lap is 13 hours. If these times are
exceeded, measuring is stopped.
❏e maximum number of measuring sessions
is 64.
Pausing and resuming
measuring
You can pause the measuring by pressing the START/
STOP button during the measuring. You can then
resume the measuring by pressing the START/STOP
button again.
Note
e device will return to the Time screen aer one hour
of no operation before measuring is started or during
paused measuring. e data for the paused measuring
up to the point of the pause will be saved.
Stopping and saving measuring
A
Display the Stop menu
Press the ENTER button while the measuring is
paused to display the Stop menu.
B
Save the data
Press the UP orDOWN button > select Save >
and then press the ENTER button.
e Measurement Results screen appears with
the following information.
❏Activity type and date
❏Measurement time
❏Distance
❏Split time
❏Average pace
❏Average stride
❏Calories burnt
❏Steps
❏Total number of laps
Use the UP and DOWN buttons to change
through the dierent displays./
Note
Select Delete if you do not want to save the data.
To resume the measuring, select Resume or press
the START/STOP button.
You can return to the Time screen by waiting 15
seconds or pressing the ENTER button.
J-57 User Manual
Measuring Your Workout
34
Checking data during measuring
ree dierent screens are available during measuring. Press the UP and DOWN buttons to switch between these
screens.
e information that appears depends on the selected activity.
J-57 User Manual
Measuring Your Workout
35
Recording lap times
during measuring
Press the ENTER button during measuring to record a
lap.
e Display Lap screen appears for a few seconds
when a lap is recorded.
Note
e Display Lap screen will also appear when you have
reached the distance set for the AT Lap function.
U “Recording laps automatically (AT Lap)” on
page 39
J-57 User Manual
Measuring Your Workout
36
Changing Measure Set
(GPS measurement
settings)
Various user-congurable measurement settings are
available.
Conguring settings

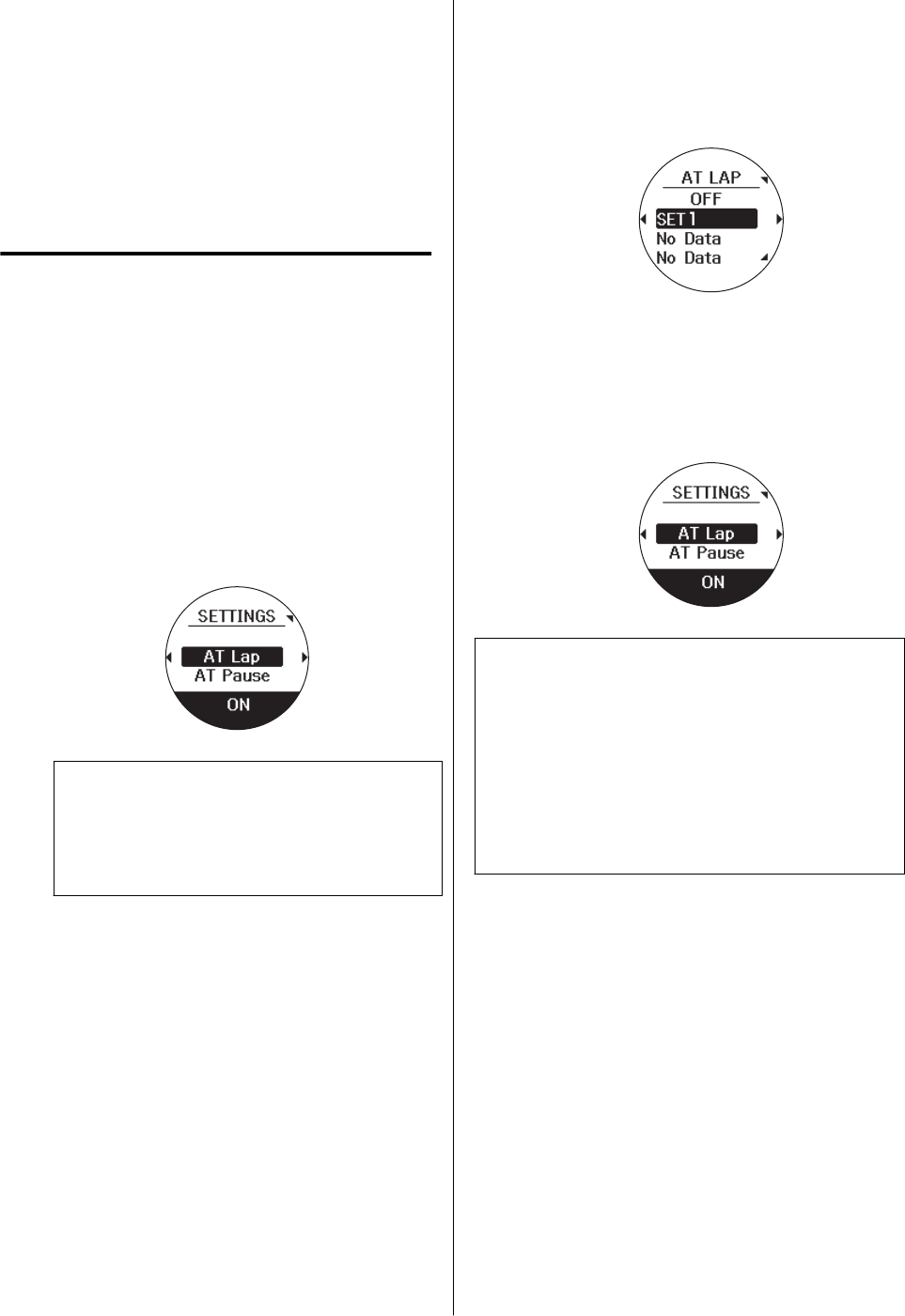

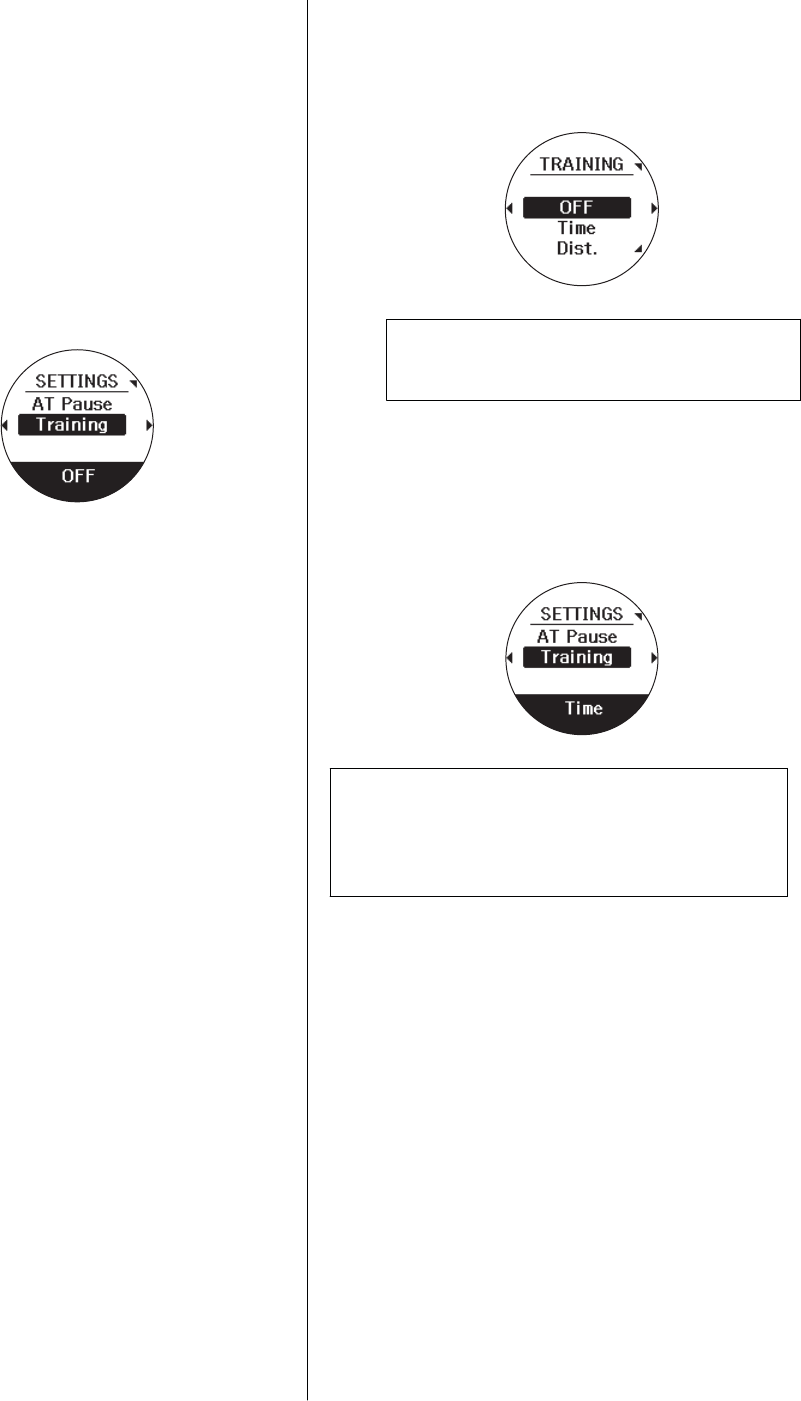

A
Display the Workout menu
Press the ENTER button at the Measurement
screen.
B
Display the Settings screen
Press the UP orDOWN button > select the
desired setting > and then press the ENTER
button.
Note
e available settings vary depending on the
activity.
U “List of Measure Set” on page 38
C
Congure settings
Press the UP orDOWN button > select the
desired option > and then press the ENTER
button.
D
Finish the conguration
Once you have congured all desired settings,
press the BACK button to display the
Measurement screen.
Note
❏If you congured settings while measuring is
paused, press the BACK button twice to display the
paused measurement screen.
❏You c an al so congure settings from a PC using
Epson View. Refer to the following website for more
information.
U https://view.epson.com/
J-57 User Manual
Measuring Your Workout
37
List of Measure Set
AT Lap
is function automatically records laps each time a precongured distance is reached.
U “Recording laps automatically (AT Lap)” on page 39
AT Pause (only for Run activity sessions)
is function automatically pauses your measuring when you stop running and resumes your measuring when you
start running again.
U “Pausing and resuming measuring automatically (AT Pause)” on page 40
Training
is function measures your performance in regards to precongured time and distance goals and also has a mode
that helps you maintain a precongured pace.
U “Measuring precongured time and distances (Training)” on page 41
Interval (only for Run activity sessions)
Interval training is the repetition of sprints followed by periods of rest.
You can set target times and distances to create a full workout.
e device will vibrate to notify you when to switch between each sprint and rest period.
U “Setting time/distance training sessions with high/low intensity intervals(interval training)” on page 44
Race (only for Run activity sessions)
is feature allows you to set a target pace so that the device will vibrate to notify you when you have deviated
from the target pace.
U “Setting and measuring paces (target pace)” on page 43
J-57 User Manual
Measuring Your Workout
38
Recording laps automatically
(AT Lap)

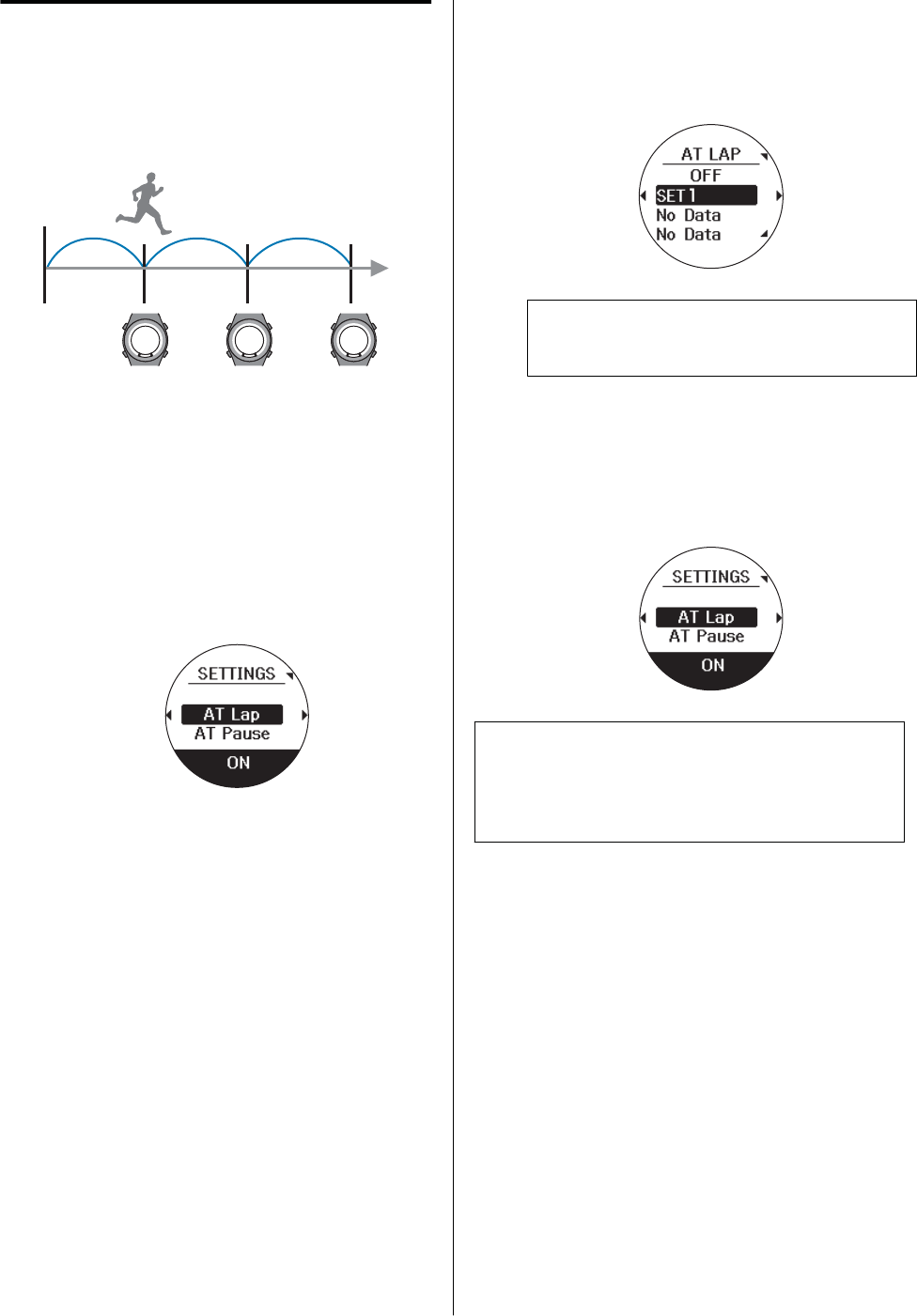

is function automatically records laps each time a
precongured distance is reached.
A
Display the Workout menu
Press the ENTER button at the Measurement
screen.
B
Display the Settings screen
Press the UP or DOWN button > select AT Lap
> and then press the ENTER button.
C
Congure settings
Press the UP or DOWN button > select Time
or Dist. > and then press the ENTER button.
Note
❏To disable this function, select OFF.
D
Finish the conguration
Once you have congured all desired settings,
press the BACK button to display the
Measurement screen.
Note
If you congured settings while the measurement is
paused, press the BACK button twice to display the
paused measurement screen.
J-57 User Manual
Measuring Your Workout
39
Pausing and resuming
measuring automatically (AT
Pause)

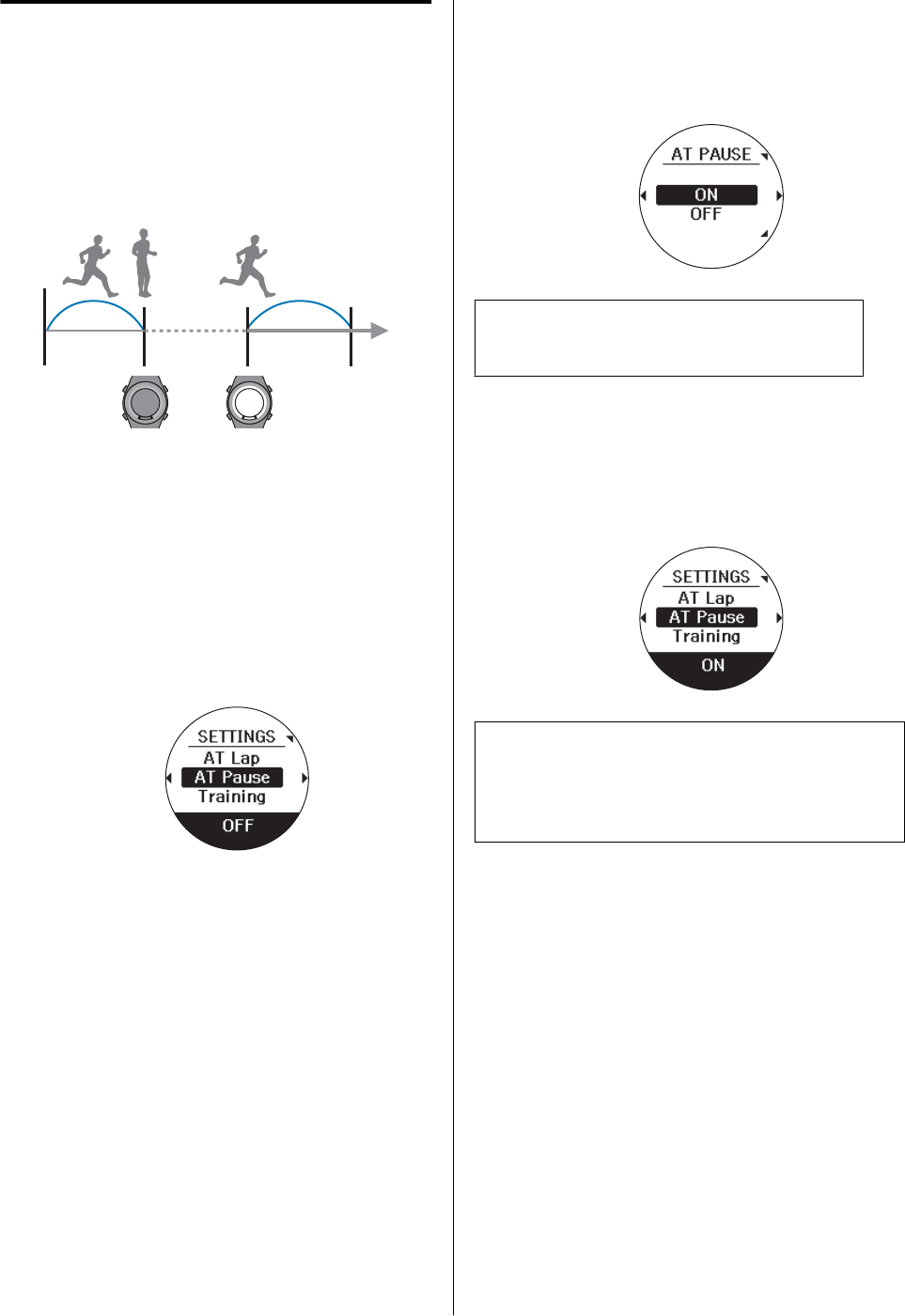

is function automatically pauses your measuring
when you stop running and resumes your measuring
when you start running again.
A
Display the Workout menu
Press the ENTER button at the Measurement
screen.
B
Display the Settings screen
Press the UP orDOWN button > select AT
Pause > and then press the ENTER button.
C
Congure settings
Press the UP orDOWN button > select ON >
and then press the ENTER button.
Note
❏To disable this function, select OFF.
D
Finish the conguration
Once you have congured all desired settings,
press the BACK button to display the
Measurement screen.
Note
If you congured settings while the measurement is
paused, press the BACK button twice to display the
paused measurement screen.
J-57 User Manual
Measuring Your Workout
40
Measuring precongured time and distances (Training)
Training
is function measures your performance in regards to precongured time and distance goals and also has a mode
that helps you maintain a precongured pace.
Time training
Yo u congure a training time to create a timed training session.
During the session, you can check the running time and estimated end distance.
U “Measuring Precongured Time and Distances (Time/Dist.)” on page 42
Distance training
You congure a distance to create a distance training session.
During the session, you can check the current distance and estimated arrival times.
U “Measuring Precongured Time and Distances (Time/Dist.)” on page 42
Race training (only for Run activity sessions)
is feature allows you to set a target pace so that the device will vibrate to notify you when you have deviated
from the target pace.
U “Setting and measuring paces (target pace)” on page 43
Interval training (only for Run activity sessions)
Interval training is the repetition of sprints followed by periods of rest.
You can set target times and distances to create a full workout.
e device will vibrate to notify you when to switch between each sprint and rest period.
U “Brief description of interval training” on page 44
J-57 User Manual
Measuring Your Workout
41
Measuring Precongured Time and
Distances (Time/Dist.)
A
Display the Workout menu
Press the ENTER button at the Measurement
screen.
B
Display the Settings screen
Press the UP orDOWN button > select
Training > and then press the ENTER button.
C
Congure settings
Press the UP orDOWN button > select Time or
Dist. > and then press the ENTER button.
Note
To disable this function, select OFF.
D
Finish the conguration
Once you have congured all desired settings,
press the BACK button to display the
Measurement screen.
Note
If you congured settings while the measurement is
paused, press the BACK button twice to display the
paused measurement screen.
J-57 User Manual
Measuring Your Workout
42
Setting and measuring paces
(target pace)
is feature allows you to set a target pace (time per
kilometer) so that the device will vibrate to notify you
when you have deviated from the target pace.
is feature is only available for Run activity sessions.
♪
♪
♪
Note
e target pace can also be congured from a PC if you
use the Epson View PC application. In this scenario, you
can congure a dierent target pace for each lap/
interval. Refer to the "Application User's Guide" for
more information.
Conguring paces
Measuring
See the following page for information on measuring.
U “Measuring workouts” on page 31
J-57 User Manual
Measuring Your Workout
43
Setting time/distance training
sessions with high/low
intensity intervals
(interval training)
Brief description of interval training

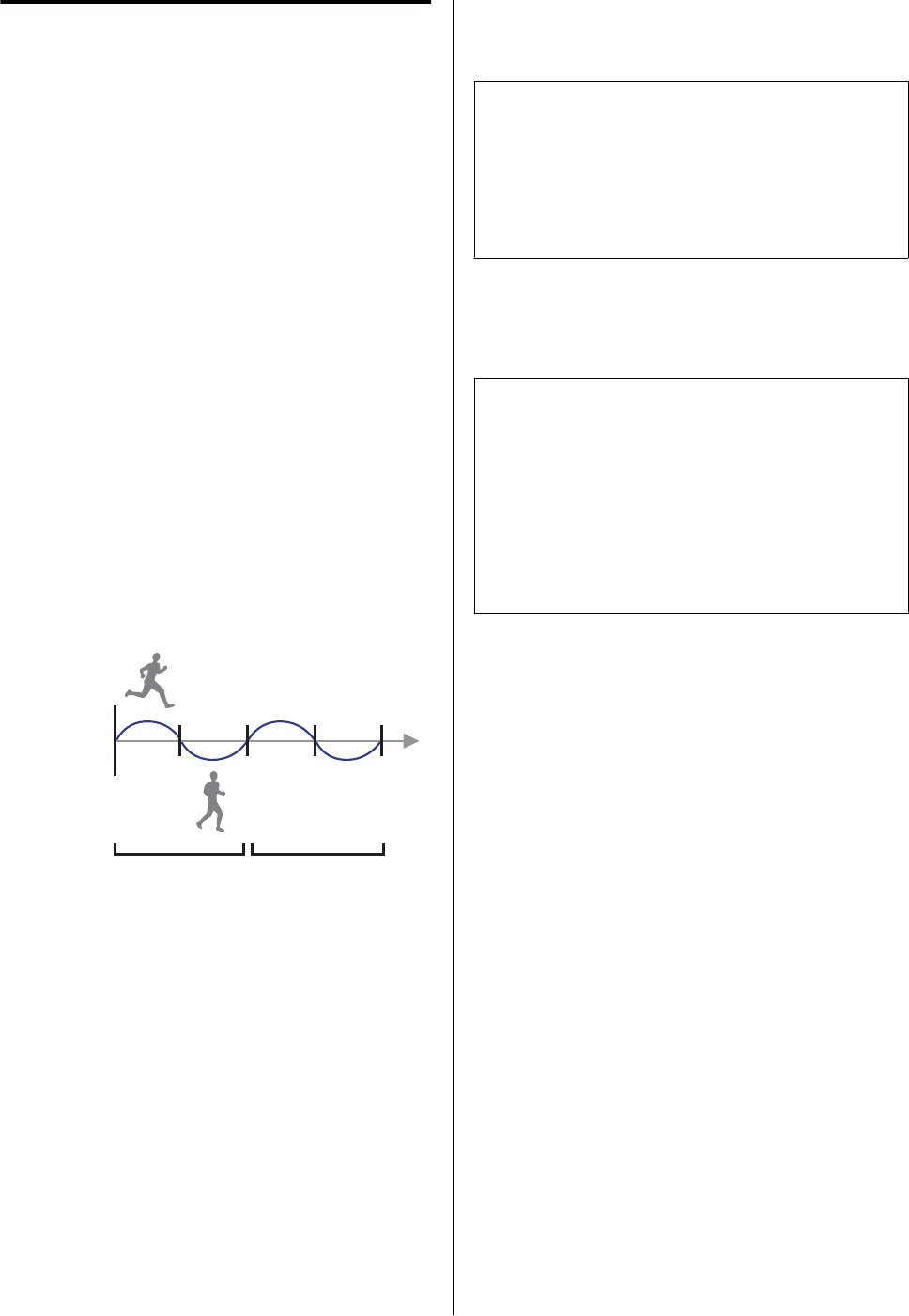

Interval training is the repetition of sprints (high
intensity) followed by periods of rest (low intensity).
You can set target times and distances to create a full
workout.
e device will vibrate and trigger a sound to notify
you when to switch between each sprint and rest
period./
Sprint: High-intensity training periods
Rest: Low-intensity training periods
Number of intervals: Number of intervals of the sprint
and rest periods
Sprint
(Sprint)
Rest
(Rest) First interval Second interval
Setting conditions in your interval
sessions
Note
Interval settings can also be congured from a PC if you
use the PC application.Epson View
You can freely congure the number of intervals when
using the PC application. Refer to the "Application
User's Guide" for more information.
Setting interval conditions
Measuring
c
Important
❏Make sure the screen is facing up and you are
outside with no obstructions overhead when
performing GPS positioning.
U “GPS signal reception (GPS positioning)”
on page 26
❏It usually takes less than two minutes for the
device to complete GPS positioning.
J-57 User Manual
Measuring Your Workout
44
Using A-GPS to reduce the GPS positioning time
You can reduce the GPS positioning time before your walking or running session by updating the GPS information
in the device./

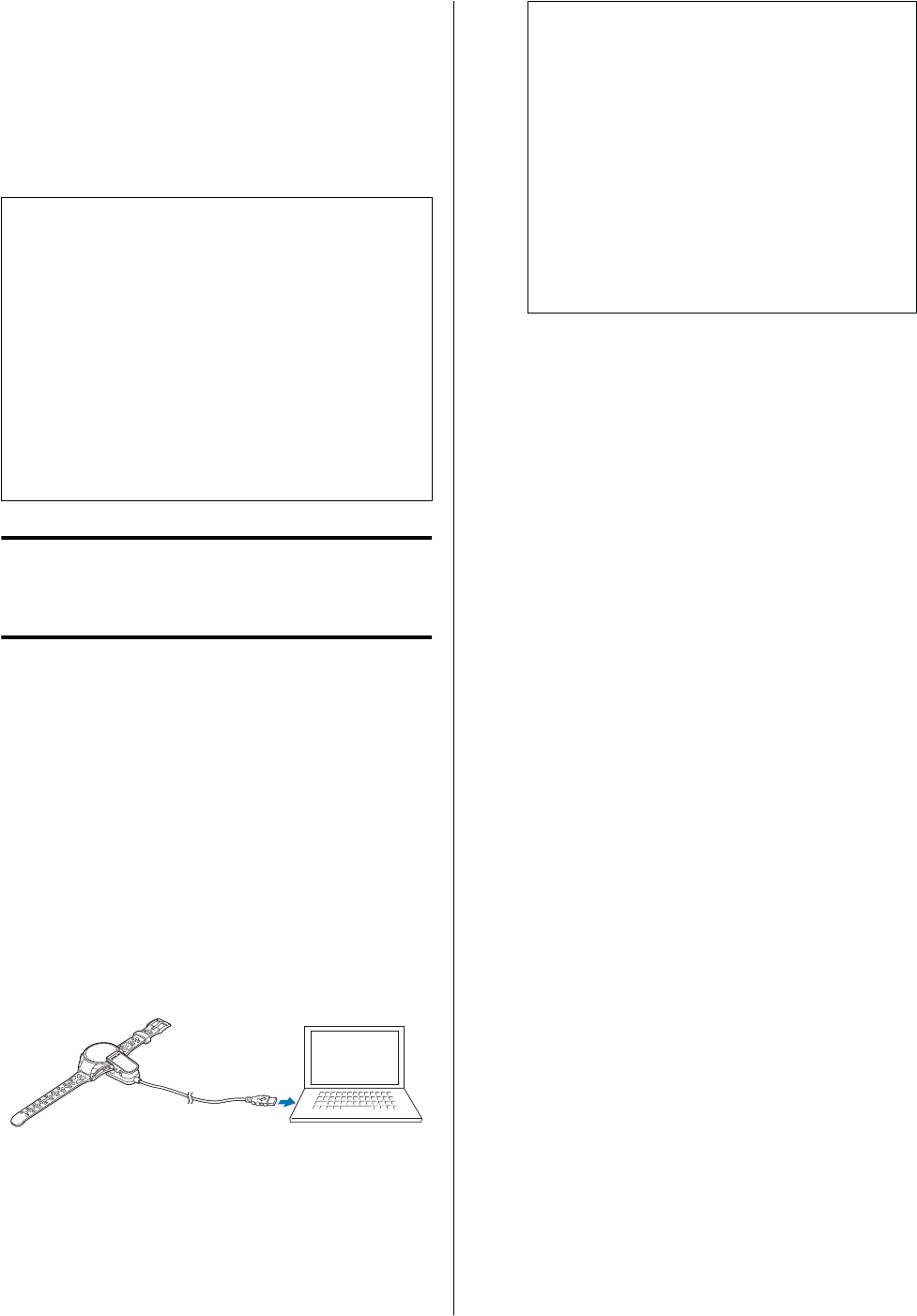

Connect the device to a PC or smartphone and start Epson View to automatically update the GPS information in
the device.
c
Important
❏Downloading GPS information may incur separate communication charges for which the user is responsible.
❏You do not need to be outside to update the GPS information via Epson View.
Conguring the operation of the backlight during
measuring
You can enable the backlight to remain on during the entire measurement.
is is useful when using the device at night.
U “BACKLIGHT” on page 72
Note
❏Using the device with the backlight constantly on reduces the continuous GPS tracking time by approximately two
hours.
❏e backlight turns o momentarily while the device vibrates as lap or other notication. e backlight turns back on
aer the device stops vibrating.
Conguring workout notications
e device can vibrate as notication such as when you complete laps or your target distance in Training mode.
e device alerts users of the following notications.
❏Completion of laps in AT Lap mode
❏Pausing and resuming of measuring in AT Pause mode
❏Completion of target distance or target time in Training mode
J-57 User Manual
Measuring Your Workout
45
❏Deviation from the target pace range in Training mode
U “Vibration” on page 72
J-57 User Manual
Measuring Your Workout
46
Measuring time
(Stopwatch)
Use this feature to measure only time without using
GPS measuring.
Note
❏Stopwatch data is not stored in the device.
❏is function cannot measure distance, pace, or
other GPS measuring activity.
A
Display the screen
At the Time screen, press the DOWN button
and then select Stopwatch.
B
Starting measuring
Press the START/STOP button to start the
stopwatch.
Button functions
START/STOP button: Starts and stops the
stopwatch./
ENTER button:
Records the lap time. (During measuring)
Resets the stopwatch. (When the measuring is
paused)
UP and /DOWN buttons when the measuring
is paused:
Check recorded laps.
J-57 User Manual
Measuring Your Workout
47
Estimating VO2max
VO2max (maximum oxygen uptake) can be estimated by using the heart rate sensor and GPS measurement.
You can check the estimated VO2max on Epson View. Refer to the following website for more information.
U https://view.epson.com/
What is VO2max
VO2max is the maximum amount of oxygen that a person can take per kilogram for one minute. Based on the
estimated VO2max, your time of 5km race, 10km race, half marathon, or full marathon can be estimated.
To estimate VO2max, running is required with the following conditions satised.
❏You prole information (such as body height, weight, and gender) has been
correctly entered.
❏Select [Run] as the activity type (Estimation is not available with [Walk] or
[Treadmill] selected)

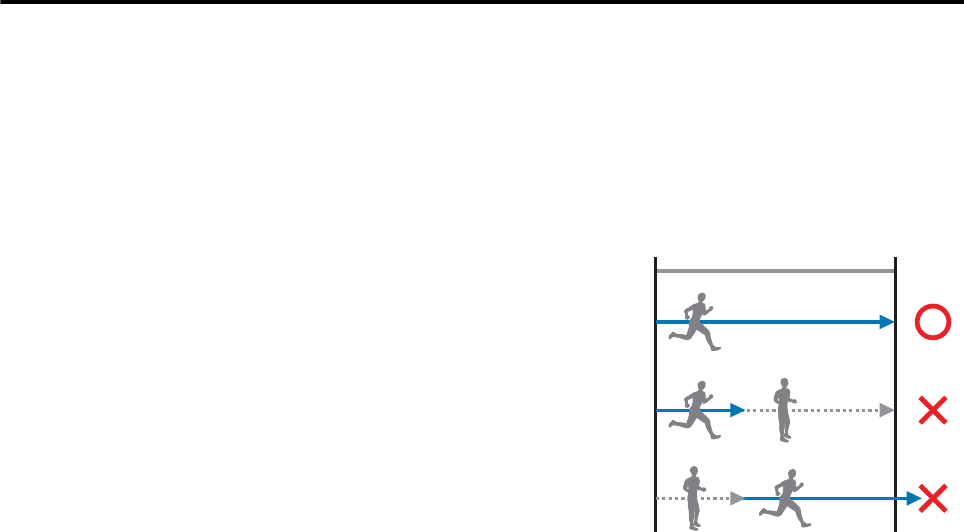

❏Complete GPS positioning outdoors, then run for at least 10 minutes
immediately after starting measurement (Figure 1). Heart rate needs to be
measured during running
❏Heart rate needs to be measured during running
❏Disable Auto Pause
U “AT Pause (only for Run activity sessions)” on page 38
❏Run at 6 kilometers or more per hour, or 10 minutes or faster per kilometer
❏Run so that heart rate is kept at exercise strength 55 to 90%HRR (*)
Figure 1
10minstart
* Formula for exercise strength %HRR (how to get heart rate when exercise strength is 55%HRR): Heart rate
= 0.55× (Maximum heart rate - heart rate at rest) + heart rate at rest
e maximum heart rate and heart rate at rest are automatically calculated according to the information
entered at the initial setup. You can change them using Epson View. Refer to the following website for more
information.
U https://view.epson.com/
VO2max cannot be estimated under the following conditions. End the measurement, then restart measurement.
❏Running is stopped before 10 minutes has passed after starting measurement.
❏Running speed and heart rate that are needed for the estimation are not kept due to trac light or walking.
❏Running without measuring heart rate
J-57 User Manual
Measuring Your Workout
48
Note
Running on a at ground with no slope is recommended.
e VO2max and race time estimation result may vary depending on the following factors.
❏You physical condition and weather condition when running (temperature, humidity, wind, and etc.)
❏Running course (course with slopes, trail run, and etc.)
J-57 User Manual
Measuring Your Workout
49
VO2max Standard (ml/kg/min) by Gender/Age
Male
Evaluation 29 years or
younger
39 years or
younger
49 years or
younger
59 years or
younger
69 years or
younger
70 years or
older
Excellent 56.2 54.3 52.9 49.7 46.1 42.4
Great 51.1 47.5 46.8 43.3 39.5 36.0
Nice 45.7 44.4 42.4 38.5 35.0 30.9
Normal 42.2 41.0 38.4 35.2 31.4 28.0
Low 38.1 36.7 34.6 31.1 27.4 23.7
Female
Evaluation 29 years or
younger
39 years or
younger
49 years or
younger
59 years or
younger
69 years or
younger
70 years or
older
Excellent 50.2 46.9 45.2 39.9 36.9 36.7
Great 44.0 41.0 38.9 35.2 32.3 30.2
Nice 39.5 36.7 35.1 31.4 29.1 26.6
Normal 35.5 33.8 31.6 28.7 26.6 23.8
Low 31.6 29.9 28.0 25.5 23.7 21.2
*e above table is given here with permission of e Cooper Institute ® in the United States.
http://www.cooperinstitute.org/
J-57 User Manual
Measuring Your Workout
50
Checking Workout Measurement Data
U “Checking history data from previous measurement” on page 52
U “Deleting measurement data from the history” on page 54
U “Managing data with the companion application” on page 55
J-57 User Manual
Checking Workout Measurement Data
51
Checking history data
from previous
measurement
You can check measured data on the recall screen.
J-57 User Manual
Checking Workout Measurement Data
52
Measurement data that can be
checked in recall
e following measurement data can be checked.
Icons
Run activity
Walk activity
Treadmill activity
Measurement data parameters
- Date measured
- Start time/End time
Distance
Split time
Average pace
Average stride
HR Heart rate
Calories burnt
Steps
Total number of laps
J-57 User Manual
Checking Workout Measurement Data
53
Deleting measurement
data from the history
Two methods are available to delete measurement data
from the history.
❏Use the following procedure to delete
measurement data from the history.
❏To delete the entire history and all measurement
data, initialize the device. Refer to the following
page for more information.
U “Initializing the device” on page 83
J-57 User Manual
Checking Workout Measurement Data
54
Managing data with the companion application
EPSON View companion application:
With this application, you can review workout measurement data and activity data from your PC.
With this application, you can review workout measurement data and activity data from your smartphone and PC.
Visit the following website to download Epson View, create an account, and learn how to upload data and perform
other operations.
PC: https://view.epson.com/
Smartphone: Use the following QR code to access the web‐
site.
J-57 User Manual
Checking Workout Measurement Data
55
Starting wireless
communication
is section describes the procedure to start wireless
communication so that the device can be paired with a
smartphone.
Note
❏To delete the smartphone pairing, display the
Settings menu, select Smartphone and then Forget
Device.
e following screen appears once the pairing has
been deleted. Select Pairing Completed to complete
the operation.
J-57 User Manual
Checking Workout Measurement Data
56
Measuring Daily Activity (Meas. Activity)
U “Track activity measurement function” on page 58
U “Enabling and Disabling Measuring Activity” on page 59
U “Checking your activity” on page 60
U “Conguring a target number of steps” on page 61
U “Checking your target number of steps progress” on page 62
U “Stop measuring your activity” on page 63
J-57 User Manual
Measuring Daily Activity (Meas. Activity)
57
Track activity measurement function
is device is equipped with functionality to measure dierent activities.
e device can measure daily activity such as number of steps and calories burnt while the device is worn.
Measured data is aggregated on a per-day basis and is viewable on the device or the companion application.
Data on the number of steps derived from GPS measuring, distance, calories burnt, and sleep is included in the
activity data.
Using track activity measurement function eectively
Congure a target number of steps per data so that you can check your progress on the device.
U “Conguring a target number of steps” on page 61
U “Checking your activity” on page 60
J-57 User Manual
Measuring Daily Activity (Meas. Activity)
58
Enabling and Disabling
Measuring Activity
is is enabled (ON) by default.
Use or to select a menu or option and
then press to conrm the selection.
A
Display the menu
B
Select Meas. Activity.
C
Finish the conguration
Press repeatedly or press and hold it for
at least 2 seconds to return to the Time screen.
Note
When Track Activity is set to OFF, the track
activity icon is removed from the bottom right of
the time screen (to the right of the battery icon).
J-57 User Manual
Measuring Daily Activity (Meas. Activity)
59

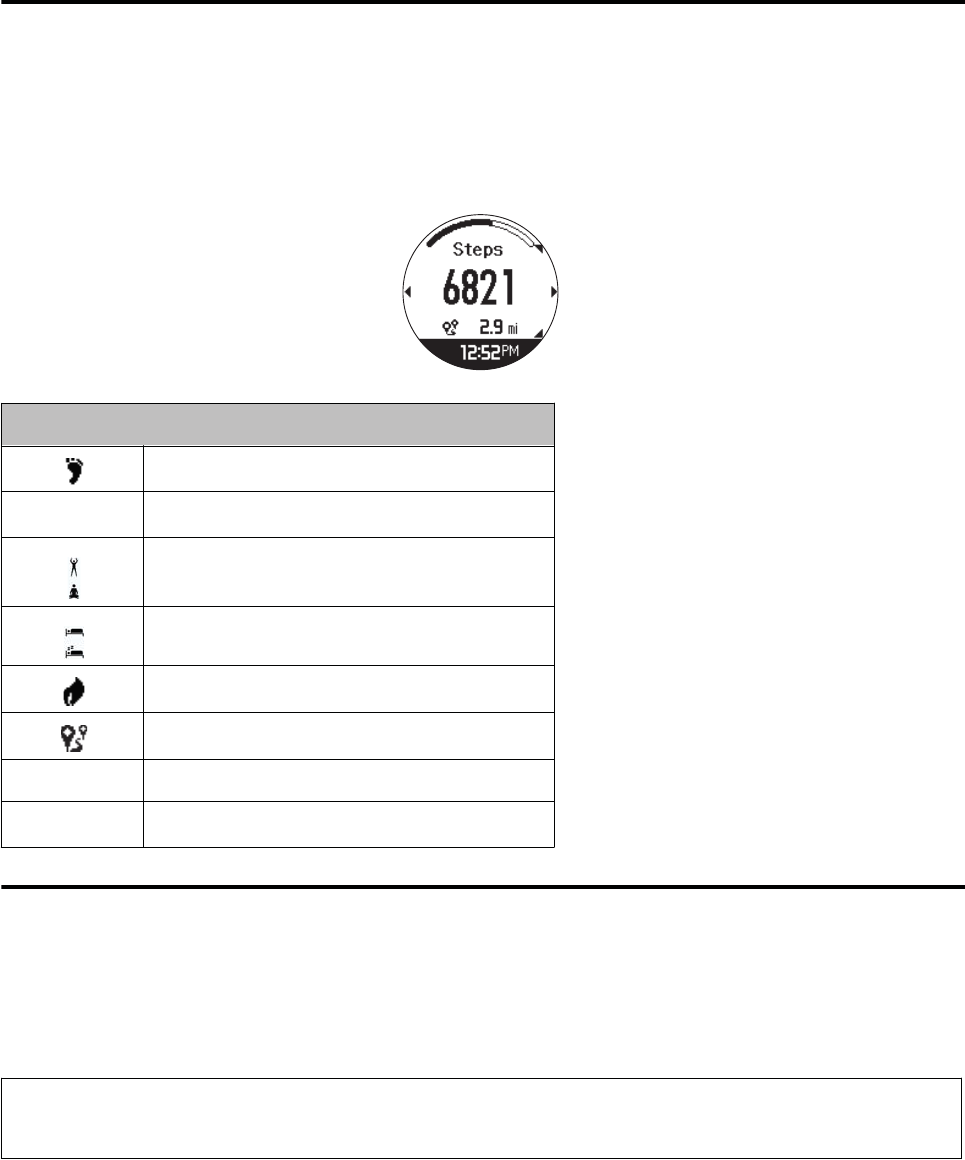

Checking your activity
Activity data you can check
e following two types of data can be checked.
❏Current activity data (Track Activity screen)
❏Past seven days worth of activity data (Recall screen)
Measurement item
Steps
-
Recovery time
Mind balance
Sleep measurement
Calories
Distance
HR Heart rate
-
Exercise
Checking current activity (Track Activity screen)
At the Time screen, press the UP button to display the Track Activity screen. Press the UP orDOWN buttons to
change through the dierent display parameters. Press the ENTER button at the Track Activity screen to display a
graph of the past seven days worth of activity data. Press the BACK button to return to the Track Activity screen.
At the Steps screen, press the DOWN button to return to the Time screen.
Note
Activity is measured on a per-day basis with a cutover time of midnight between each day.
J-57 User Manual
Measuring Daily Activity (Meas. Activity)
60
Checking previous activity data
(Recall screen)
c
Important
e device stores the past seven days worth of
activity data. Older data is overwritten by the
oldest data rst. For this reason, we recommend
that you upload data to the Epson View
companion application on a timely basis.
U “Managing data with the companion
application” on page 55
Note
Activity data cannot be deleted from the History. To
delete the activity data, initialize the device.
U “Initializing the device” on page 83
Conguring a target
number of steps
❏You can track your progress towards your daily
target number of steps when Meas. Activity is set
to ON.
❏e default target number of steps is 10,000 steps/
day.
J-57 User Manual
Measuring Daily Activity (Meas. Activity)
61
Checking your target
number of steps progress
If you congure a target number of steps, the device
displays a target number of steps progress indicator on
the Time screen.
J-57 User Manual
Measuring Daily Activity (Meas. Activity)
62
Stop measuring your
activity
Note
Note: When Track Activity is set to OFF, the Track
Activity icon is removed from the bottom right of the
Time screen (to the right of the battery icon).
e device will no longer measure your number of steps,
calories burnt, or distance.
J-57 User Manual
Measuring Daily Activity (Meas. Activity)
63
Usage Examples for Some Typical Scenarios
U “Measuring marathons and walking sessions” on page 65
U “Conguring training workouts for races” on page 66
U “Conguring racing goals” on page 67
U “Checking your daily condition (Activity)” on page 68
J-57 User Manual
Usage Examples for Some Typical Scenarios
64
Measuring marathons and walking sessions
J-57 User Manual
Usage Examples for Some Typical Scenarios
65
Conguring training workouts for races
J-57 User Manual
Usage Examples for Some Typical Scenarios
66
Conguring racing goals
J-57 User Manual
Usage Examples for Some Typical Scenarios
67
Checking your daily condition (Activity)
J-57 User Manual
Usage Examples for Some Typical Scenarios
68
Changing Device Settings
U “Changing device settings” on page 70
U “Settings” on page 72
U “Turn O” on page 73
J-57 User Manual
Changing Device Settings
69
Changing device settings
is section describes the procedures to congure the
device.
Conguring the device from a
smartphone
You can congure this device using a smartphone.
Download and refer to the Application User's Guide
for more information.
http://www.epson.jp/support/support_menu/ks/
121.htm
Note
A wireless connection must be established between the
device and a smartphone to congure the device using a
smartphone.
U “Starting wireless communication” on page 56
Conguring the device from a
PC
A
Connect the device to the PC
Attach the USB Charging clip to the device and
connect the USB plug into a USB port on the
PC.
B
Congure settings
Start the Epson View companion application on
the PC and congure the initial settings. Follow
the on-screen instructions and enter your
information.
C
Synchronize the device
Aer entering your initial settings, click Next to
synchronize the device.
\\\e conguration is complete once the Time
screen appears on the device. Remove the USB
Charging clip from the device.
Note
Visit the following website for more information on
using Epson View.
U https://view.epson.com/
Conguring the Device Directly
is section describes the procedure to congure
Track Activity as an example.
J-57 User Manual
Changing Device Settings
70
Use or to select an option and then press
to conrm the selection.
A
Display the menu
B
Congure settings
C
Finish the conguration
Press repeatedly or press and hold it for
at least 2 seconds to return to the Time screen.
Conguring the Device from a
Smartphone
Use Epson View to congure the device. Refer to the
following website for more information.
U https://view.epson.com/
Note
Bluetooth connection must be established between the
device and smartphone to congure the device from the
smartphone.
U “Starting wireless communication” on page 56
Conguring the Device from a
PC
Use Epson View to congure the device. Refer to the
following website for more information.
U https://view.epson.com/
J-57 User Manual
Changing Device Settings
71
Settings
Bluetooth
ON/OFF
is setting is used to enable and disable Bluetooth.
Options: ON, OFF
Pairing
is is used to connect with a smartphone.
Select the device to be connected and then operate the
smartphone.
Forget Device
is setting is used to delete the connection
information for the smartphone. Select the desired
device and then select Forget Device.
Activity
Step Target
is setting is used to enter a target number of steps.
Options: 100 to 30,000 steps in 100-step increments.
Meas. Activity
is setting is used to enable and disable the track
activity measurement function.
Options: ON, OFF
Vibration
Alarm
is setting is used to enable and disable alarms, and
congure the alarm time.
Options: ON (00:00 to 23:59), OFF
Notications
ese settings are used to enable and disable
notications such as smartphone reception of phone
calls and email messages when the device is paired
with a smartphone.
Non-Workout
is setting is used to enable and disable notications
at the Time screen.
Options: ON, OFF
Workout
is setting is used to enable and disable notications
at the Measurement screen.
Options: ON, OFF
Alert
is setting is used to enable or disable vibration of
the device as notication such as when you complete
laps or your target distance in training mode.
Options: ON, OFF
Display
Contrast
Set the contrast for the screen.
Options: High, Normal, Low
BACKLIGHT
ese settings are used to congure the conditions at
which the backlight turns on.
❏Movement of the wrist wearing the device (Wrist
turn)
Options: ON, OFF
❏Pressing of any button (Button Push)
Options: ON, OFF
❏During measuring (Workout)
Options: All Time, OFF
J-57 User Manual
Changing Device Settings
72
❏Triggering of a notication such as completion of
a lap or target distance in Training mode
(Notications)
Options: ON, OFF
When a specied time has passed, the light
automatically turns o. e backlight remains on until
the end of measuring when Workout is selected for
All Time.
Note
❏Using the device with the backlight constantly on
reduces the continuous GPS tracking time by
approximately two hours.
❏e backlight turns o momentarily while the
device vibrates as lap or other notication. e
backlight turns back on aer the device stops
vibrating.
AUTO SLEEP
When you leave the device for a while, this function
automatically puts the device into sleep status.
Options: ON, OFF
System
Language
Set the display language.
Options: English,
Clock Set
UPDATE TIME
is setting is used to congure the current time.
Options: Set by GPS, Manual
❏Set by GPS:
e time is set in accordance with GPS
positioning. is process will take a few minutes.
GPS signals cannot be received while indoors.
Make sure the screen is facing up and you are
outside with no obstructions overhead. If the
device fails to complete GPS positioning aer two
minutes elapses, we recommend that you select
Cancel, move to a dierent location, and try
again.
❏Manual:
Congure the time manually on the device
directly.
Options: Year, Month, Date, Hour and Minutes
Time Format
Set the format for the display time.
Options: 12 Hour, 24 Hour
Display Seconds
is setting is used to enable and disable the display of
seconds.
Options: ON, OFF
Auto Search
When this setting is enabled, the device will
periodically perform GPS positioning whenever a
measurement is in progress to reduce the initial GPS
signal acquisition time before starting your next
measurement.
Options: ON, OFF
RESET
Initializing the device resets all settings to their
defaults (Prole/Settings), resets the stride sensor, and
deletes all measurement and activity data (History).
Options: Yes, No
U “Initializing the device” on page 83
VER.INFO
Displays the rmware version information.
Turn O
is is used to turn o the device. To turn the device
on again, press and hold the START/STOP for 2
seconds.
J-57 User Manual
Changing Device Settings
73

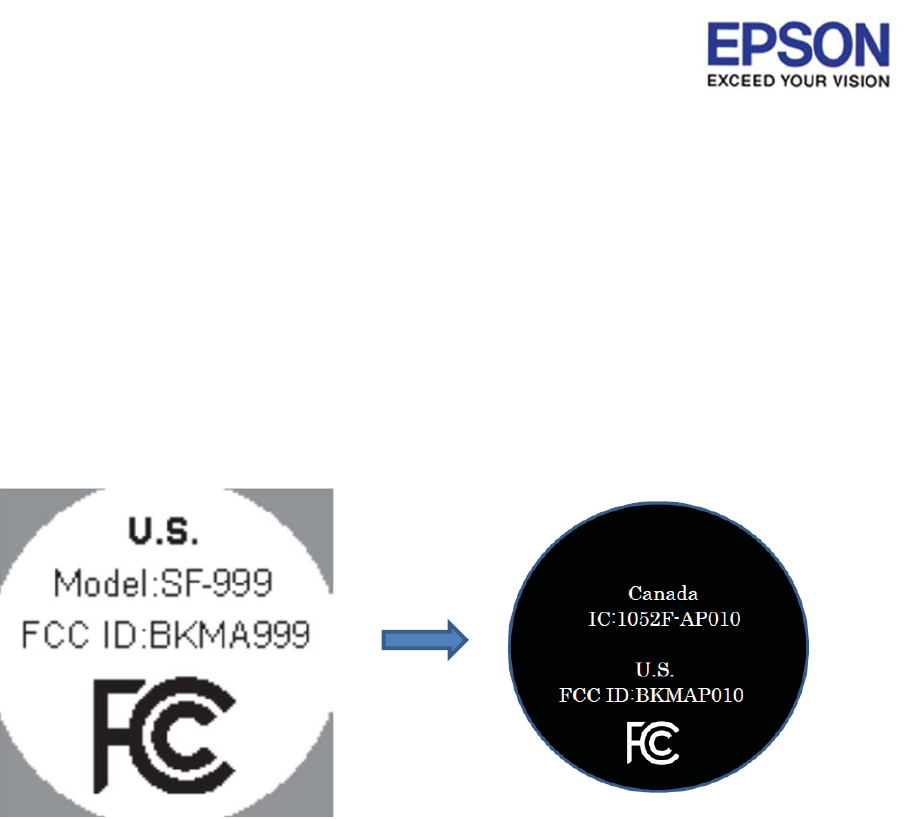

Certication
is displays the device certications.
J-57 User Manual
Changing Device Settings
74
Regular Maintenance
U “Cleaning the device” on page 76
U “Waterproof performance” on page 77
U “Batteries” on page 77
U “Disposing of the device” on page 77
U “Problem solving” on page 78
U “Updating the rmware” on page 81
U “Restarting Device” on page 82
U “Initializing the device” on page 83
J-57 User Manual
Regular Maintenance
75
Cleaning the device
Main device and band

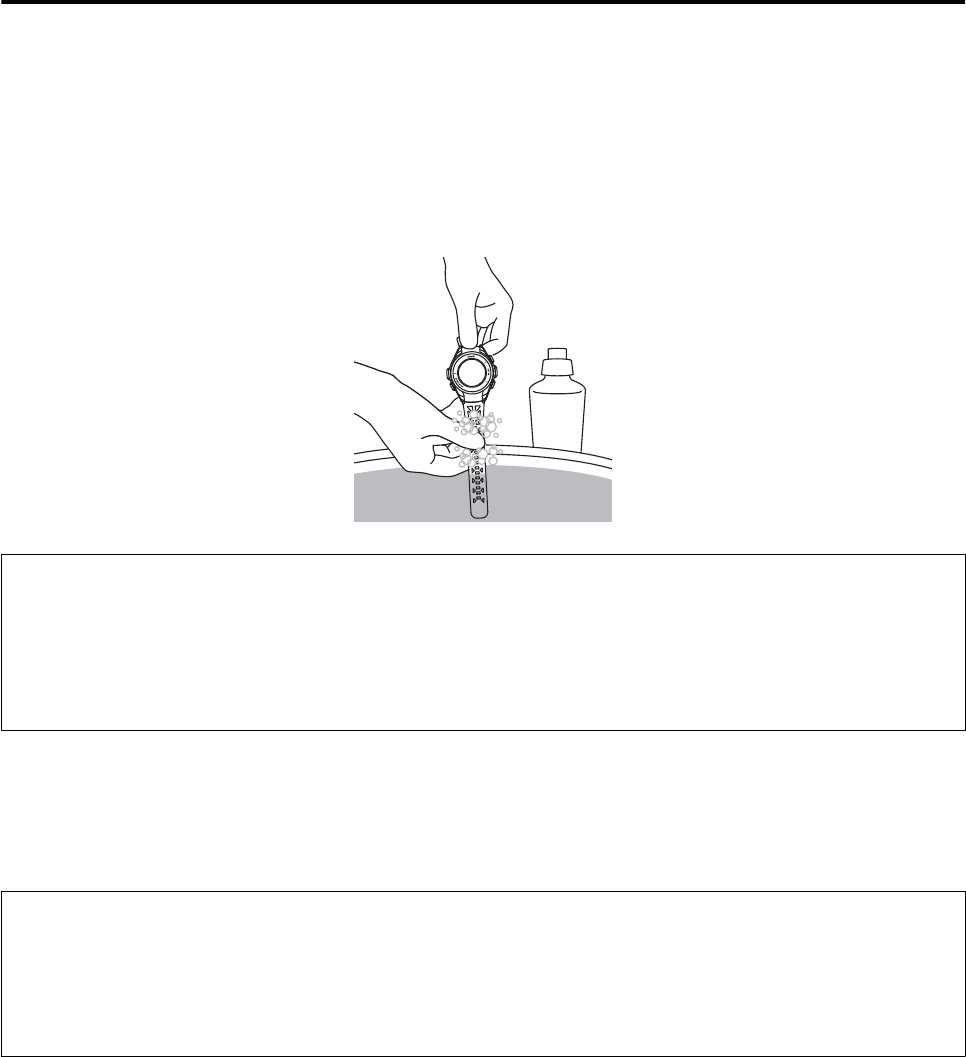

Periodically cleaning with water
Clean the main device with water aer each use or periodically. Wipe completely dry with a dry cloth aer
washing.
e band can be washed with a diluted mild detergent.
c
Important
❏Do not press any buttons or scrub the glass too strongly while cleaning the device. Doing so may cause
malfunction or scratching of the glass.
❏Do not press any buttons while the device is underwater. Doing so may result in failure.
❏is strap is made from polyurethane and aer years of use the color may fade or it may lose its elasticity.
Cleaning contact points
If you experience problems charging the device or using the connection, use a damp cotton swab to clean the
contact points on the device and USB Charging clip.
c
Important
❏Do not attach the USB Charging clip to the device while contact points are wet or dirty. Doing so may cause
corrosion or malfunction of the contact points, or communication failures.
❏Do not clean using organic solvents such as benzine, thinner, alcohol, or detergent. is could cause the product
to degrade.
J-57 User Manual
Regular Maintenance
76
Waterproof performance
Batteries
Internal rechargeable device battery
You cannot replace the built-in rechargeable battery yourself. If the battery does not retain its charge for as long as
it used to due to prolonged use, the battery has likely reached the end of its service life. In this situation, contact
your local reseller or our repair center to replace the battery for a fee.
e average service life of the battery is four years. is varies depending on usage conditions.
Disposing of the device
When disposing of this device, follow your local laws and regulations.
J-57 User Manual
Regular Maintenance
77
Problem solving
Check each item.
Problem Solution
Basic actions The screen is not displayed. You cannot start using the device immediately after purchase
until the device is charged. Try charging the device rst. Also,
nothing is displayed if the battery runs out. Make sure you
charge the battery before use.
U “Charging the device” on page 16
The device does not react even
after performing an operation.
Is the battery running low? Charge the battery.
U “Battery Levels” on page 22
If the device does not operate after charging, try resetting the
system.
U “Restarting Device” on page 82
The screen turns o or turns blue
during use.
Perform a system reset.
U “Restarting Device” on page 82
The clock turns o. When you leave the device for a while, it enters sleep status and
the time display turns o. This is not a malfunction as the display
is restored the next time a button is pressed or you move the
device. If the display is not restored, the battery is running low.
Charge the device.
U “Charging the device” on page 16
Note that the clock does not turn o if AUTO SLEEP is disabled.
U “AUTO SLEEP” on page 73
The time is not set correctly. Set "Time Adjust" from Sys. Settings.
U “UPDATE TIME” on page 73
If the hour is dierent, check the time zone and daylight-saving
time.
U “Clock Set” on page 73
Measurement stops while
exercising.
When exercising slowly, such as when walking, we recommend
turning o the AT Pause function.
U “Pausing and resuming measuring automatically (AT Pause)”
on page 40
J-57 User Manual
Regular Maintenance
78
Problem Solution
GPS GPS signal reception is weak or
failing.
Perform GPS positioning again with the device outside with no
obstructions overhead for 15 minutes.
U “GPS signal reception (GPS positioning)” on page 26
Go to a location outside with no obstructions overhead. GPS
signals cannot be received while indoors. Obstacles partially
blocking the sky, such as tall buildings and mountain sides, can
also interrupt signal reception, which results in reduced distance
accuracy.
GPS signal reception is weak or
interrupted.
Even when a signal is being received, it may be interrupted
depending on the running environment.
Wear the device on the outside of your arm. Also, make sure the
strap is tightened.
Charging The device does not charge after
attaching the USB Charging clip.
Check the USB Charging clip connection.
Clean the contact points of the device and USB Charging clip.
U “Main device and band” on page 76
❏The charge screen may not appear for 1 to 2 minutes after
attaching the USB Charging clip when the battery is
completely exhausted. This is not a malfunction.
❏A malfunction may have occurred if you cannot charge the
device even after checking the points above. If this
happens, immediately stop trying to charge the device and
send the main device and USB Charging clip to our repair
center.
The charge error screen is
displayed.
Charge in environments with ambient temperatures of 5 to 35˚C.
The main device and USB
Charging clip become hot during
the charging process.
There may be a malfunction. Stop charging the device
immediately and contact our repair center.
Water resistance Can I use the device when
swimming?
This device is water resistant up to 5 bars of pressure and can be
used while swimming. However, do not press any buttons while
the device is underwater. The device cannot receive GPS signals
while underwater.
The inside of the glass becomes
cloudy.
Condensation may occur in the device due to dierences in
temperature between the device and the open air. Temporary
condensation does not have any eect on the device. You may
continue using the device in this situation. If the condensation
remains for a long time, water may have entered the device.
Send the device to our repair center.
Communication The device is not recognized by
the PC when connected.
Check the connection between the PC (USB port) and USB
Charging clip (USB plug). Clean the contact points of the device
and USB Charging clip.
U “Main device and band” on page 76
Perform a system reset.
U “Restarting Device” on page 82
J-57 User Manual
Regular Maintenance
79
Problem Solution
Web application An error screen appears and
communication is interrupted
during data exchanges with the
PC.
Do not move the device and USB Charging clip during
communication processes. Avoid communicating data under
environments where static electricity can be easily generated. If
an error occurs, try reconnecting the USB Charging clip and
attempting the communication again.
If you are still having communication errors aer performing this troubleshooting, contact our service center.
J-57 User Manual
Regular Maintenance
80
Updating the rmware
You may be able to resolve problems that occur by
updating the rmware.
Download and use the latest version.
c
Important
e device and all settings/history data are
initialized when the rmware is updated. Refer to
the following page of the Epson website for more
information on updates.
http://www.epson.jp/dl_so/category/121.htm
Before updating the rmware, upload your
measurement data to the Epson View companion
application.
U “Managing data with the companion
application” on page 55
Checking the rmware version
Updating the rmware
A
e latest rmware version is available for
download from the following URL.
http://www.epson.jp/dl_so/category/
121.htm
Select your device model and follow the
on-screen instructions to download the
rmware.
B
Attach the USB Charging clip to the device and
then connect the cable directly to a USB port
on the PC.
C
Execute the downloaded le.
e ProSense rmware update tool starts.
Follow the on-screen instructions to update the
rmware.
Note
Check the following if the ProSense rmware
update tool does not start.
❏An instance of the ProSense rmware update
tool is already started preventing the starting
of another instance.
❏e USB Charging clip attached to the device
is correctly connected to the PC.
Refer to the download page on the Epson website
for more information on rmware update
procedures.
J-57 User Manual
Regular Maintenance
81
Restarting Device
Restart the device if operation becomes unstable.
Press the four buttons; , , and simultaneously.
e screen is reset and the device restarts.
e following shows the dierences between a restart and reset.
*: Data and settings are retained.
-: Data and settings are not retained. (Settings must be recongured.)
Data/Settings Restart Reset
Workout measuring settings * -
History data * -
System settings
*-
Profile settings
*-
Today's Activity Data - -
Step Target settings
*-
User stride data * -
VO2max Estimate * -
Pairing * -
Time information * -
c
Measurement data is not recorded if a system reset is performed while measuring.
J-57 User Manual
Regular Maintenance
82
Initializing the device
If you want to delete all measurement data and clear
the device's memory, you need to initialize the device.
A
Display the menu
At the Time screen, press the ENTER button.
B
Select Settings
Press the UP orDOWN button > select Settings
> and then press the ENTER button.
C
Select System
Press the UP orDOWN button > select System
> and then press the ENTER button.
D
Select Reset
Press the UP orDOWN button > select Reset >
and then press the ENTER button.
E
Initializing the device
Press the UP orDOWN button > select Yes >
and then press the ENTER button.
Once the initialization is complete, the device will
restart and display the Initial Settings screen. Initialize
the device.
U “Conguring initial settings” on page 19
Refer to the following page for more information on
initialization.
U “Restarting Device” on page 82
J-57 User Manual
Regular Maintenance
83
Appendix
U “Product specications” on page 85
U “Understanding the icons” on page 87
U “Glossary” on page 88
U “Trademarks” on page 90
J-57 User Manual
Appendix
84
Product specications
Device
Model No. J-57B/K/T
Size (thickness) 15.8mm
Weight Approx. 41 g
Waterproong performance Water resistant at 5 barometric pressures
Maximum usage time Up to 30 days
*1,5
Up to 2 days
*2,5
Up to 4 days
*3,5
Up to 10 days
*4,6
Operating temperature
-5 to 50°C
Maximum measurement time Approx. 10 hours
Maximum number of daily activity records
Current day plus past 6 days
Maximum number of records 64
Number of lap records Maximum of 200 per split
Total maximum of 512
Heart rate measurement
Pitch/Stride measurement
Display
range
Distance/Lap Distance
0.000 to 999.99 km/0.000 to 999.99 mi
Pace/Lap Pace/Average Pace
0'01'' to 30'00''/km, 0'01'' to 45'00''/mi
Split/Lap time 0:00'00" to 13:00'00"
Pitch/Average Pitch 0 to 255spm
Stride/Average stride 0 to 255cm / 0 to 100inch
Steps 0 to 999999stp
Calories Burnt 0 to 9999kcal
HR 30 to 240bpm
Estimated end time 0:00'00" to 23:59'59"
Estimated end distance 0.000 to 999.99km/0.000 to 999.99mi
*1 Clock display (Track Activity disabled, Auto Sleep enabled, Auto Search disabled, and Bluetooth disabled)
J-57 User Manual
Appendix
85
*2 When activity meter is operating (with heart rate measurement enabled (advanced), Auto Sleep enabled,
Seconds display disabled, Auto Search disabled, and Bluetooth enabled)
*3 When activity meter is operating (with heart rate measurement enabled (normal), Auto Sleep enabled,
Seconds display disabled, Auto Search disabled, and Bluetooth enabled)
*4 GPS enabled (with heart rate measurement enabled)
*5 e device periodically receives a GPS signal to reduce the initial GPS positioning time.
Auto Sleep is active for 14 hours/day (internal evaluation criteria)
*6 Operating time varies depending on GPS signal reception quality and device settings.
e operating time will become shorter especially in doors where GPS signal reception quality is bad. (with
setting to turn on the light)
Option specications
You can purchase the following optional extras. Contact your local reseller for more information.
USB charging clip
Operating temperature range 5 to 35˚C
AC adapter specications
Input 100 VAC 50/60 Hz
Output 5 VDC / 1.0 A
J-57 User Manual
Appendix
86
Understanding the icons
Icons Name
Run mode (measuring while running)
Walking mode (measuring while walking)
Treadmill mode (measuring treadmill workout sessions)
Device is acquiring a GPS signal (GPS On)
GPS positioning
Average pace
Lap
Distance
Calories burnt
Stopwatch
Split time
AT Lap
Manual Lap
Steps
Average stride
Charging
USB communication in progress
Buttons are locked
Buttons are unlocked
J-57 User Manual
Appendix
87
Glossary
Denition Term
A system that is used to calculate
current positions via a GPS receiver
that receives signals from satellites
orbiting the earth. This function
allows you to accurately understand
positional and time information.
U “GPS signal reception (GPS
positioning)” on page 26
GPS function
Distance from the measurement start
point to the current time.
Distance
Target time per km Target Pace
The device is water resistant up to 5
bars of pressure.
Water resistant up to 5 bars of pressure
The display automatically turns o
after a certain time of no user
operation.
Auto Sleep
The total time from starting to
stopping the workout.
Split time
This companion application allows
you to use a smartphone or PC
browser to review session and
measurement data from your device.
Epson View
This function automatically pauses
your measuring when you stop
running and resumes your measuring
when you start running again.
AT Pause
This function automatically records
laps once a certain distance has been
reached.
AT Lap
This function measures various daily
activity including number of steps,
distance, and calories burnt.
Track Activity
This function turns on the light
automatically when transitioning to
dierent screens.
AT Light
This sensor uses stride and
acceleration data accumulated when
GPS is in use so that the device can
estimate distance traveled when you
are in locations of poor GPS signal
reception, such as tunnels.
U “About the stride sensor” on
page 28
Stride sensor
J-57 User Manual
Appendix
88
Denition Term
Your current pace acquired from GPS
information.
Pace
Your pace for the current lap. Lap pace
Your time for the lap. Lap time
J-57 User Manual
Appendix
89
Trademarks
❏EPSON and EXCEED YOUR VISION are registered trademarks of the Seiko Epson Corporation.
❏Microso and Windows are registered trademarks of the Microso Corporation in the United States of
America and other countries.
❏OS X and macOS are registered trademarks of Apple Inc. in the United States of America and other countries.
❏iPhone is a trademark of Apple Inc.
❏Android and Google Play are trademarks of Google Inc.
❏e Bluetooth
®
word mark and logos are registered trademarks of Bluetooth SIG, Inc. Seiko Epson
Corporation uses these trademarks under the terms of license.
❏QR Code is a registered trademark of DENSO WAVE INCORPORATED.
❏Other product names are the trademarks or registered trademarks of their respective companies.
J-57 User Manual
Appendix
90
http://www.epson.jp/support/support_menu/ks/121.htm
XXXXXXXXX  ©2017 Seiko Epson Corporation. All rights reserved.
GPS Sports Monitor
J-57
࠙J-57 Correction of error in Manualࠚ
we will correct the following part.
ڦCertification (p.74)
Before correction After correction

Navigation menu
