User Manual

Installation Manual

This WiFi Board is to be installed only by the professionals and used only for printer produced

by SEIKO EPSON Corporation. When this WiFi Board is installed in the printer, we shall

consider the following points;

1. Since

“M238A”owns its FCC ID/IC Number, we shall affix an exterior label on the outside

of the product if the FCC ID is not visible. The exterior label shall use wording such as

either ”Contains Transmitter Module FCC ID: BKMFBM238A / IC: 1052C-M238A” or

“Contains FCC ID: BKMFBM238A / IC: 1052C-M238A”.

2. “M238A” complies with requirements of sub-sections 15.19(a)(3) in FCC Rules Part 15

Subpart C. The manual statement 15.19 (a)(3) is included User Guide of the product.

3. “M238A” is to be installed only by the professional line operator as shown in following

pictures. (Fig 1 and 2)

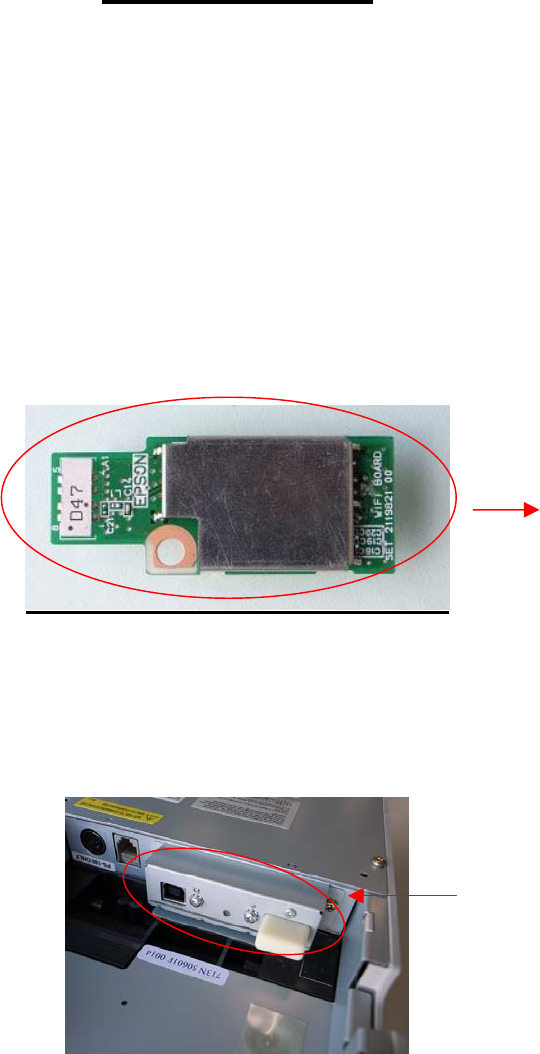

Fig 1. Front side of “M238A”

Fig 2. Front view of “M238A” to be equipped for a printer (example)

WiFi Boar

Interface board

with WiFi Board

There isn’t an official user manual for this WiFi Board (M238A).

However, user manuals of final product, which have the module, must

contain notification corresponding to the following description.

Changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

(This device complies with Part 15 of FCC Rules and RSS-Gen of IC Rules.)

Operation is subject to the following two conditions: (1) this device may not cause

interference, and (2) this device must accept any interference, including interference

that may cause undesired operation of this device.

This transmitter must not be co-located or operated in conjunction with any other

antenna or transmitter.

This equipment complies with FCC/IC radiation exposure limits set forth for

uncontrolled equipment and meets the FCC radio frequency (RF) Exposure Guidelines

in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF) Exposure

rules. This equipment has very low levels of RF energy that it deemed to comply

without maximum permissive exposure evaluation (MPE). But it is desirable that it

should be installed and operated with at least 20cm and more between the radiator and

person’s body (excluding extremities: hands, wrists, feet and ankles).
