MARVELL 88W8786 1X1 11n Card
Engineering Requirements Specification
Project code: T77H145.00
Solution: Marvell 88W8786
Application: IEEE802.11b/g/n
Prepared by Reviewed by Approved by
Robin.Xu Chang-fu Lin
SP88W8786-MD0-2C2T00
.!3!.!
CONTENTS
0. REVISION HISTORY..............................................................................................................................................3
1. INTRODUCTION ..........................................................................................................................................................4
1.1 SCOPE ......................................................................................................................................................................4
1.2 FUNCTION .................................................................................................................................................................4
2 PRODUCT SPECIFICATION ......................................................................................................................................5
2.1 HARDWARE SPECIFICATION .....................................................................................................................................5
3. PRODUCT REQUIREMENTS....................................................................................................................................6
3.1 HARDWARE REQUIREMENTS....................................................................................................................................6
3.2 HARDWARE ARCHITECTURE ....................................................................................................................................6
3.3 MECHANICAL OUTLINE DRAWING .............................................................................................................................7
3.4 BOARD LAYOUT ........................................................................................................................................................8
3.5 WIFIALLICANCE CONFORMANCE.................................................................................................................10
.!4!.!
0. Revision History
Date Change Note REV Note
Jan. 23, 2009 1st Rev. 0
.!5!.!
1. Introduction
Project Name: 11n (1x1) card based on IC Marvell 88W8786 with QFN package.
The typical use model for this embedded device is to allow the host device to be
connected to an 802.11b/g/n 1x1 wireless network with infrastructure mode or to
serve as an ad-hoc (peer-to-peer) data path.
1.1 Scope
The Wireless MARVELL 88W8786 available 11n solution in the 2.4-GHz band,
compatible with the IEEE 802.11b standard , 802.11g standard and 11n standard. The
802.11g data rate provides for 54, 48, 36, 24, 18, 12, 9, 6Mbps, and 802.11b data rate
provides for 11, 5.5, 2, 1Mbps. In addition, 11n provide 6.5, 13, 19.5, 26, 39, 52, 58.5,
65Mbps for HT20; And also provide 13.5, 27, 40.5, 54, 81, 108, 121.5, 135Mbps for
HT40.
1.2 Function
xRoHS and Green Compliant.
x802.11b/g/n 1x1 based on Marvell 88W8786U IC
xUSB 2.0 Interface, High and Full Speeds supported.
xModule has antenna diversity switching.
xModule is powered by the host with a 3.3V +/- 10% supply (55mVpp ripple).
xModule’s clock source is provided by the on board XTAL Oscillator of 40 MHz
(+/- 10ppm).
xModule connected to motherboard with approximately 10cm cable.
xJTAG connector will be provided for FA and debug.
xThe USB-8786U PCA module assembly is homologation tested as a
MODULAR PCA UNIT.
Unit dependent RF parameters are programmed into each module EEPROM at
production test time by the manufacturer.
.!6!.!
2 Product Specification
2.1 Hardware Specification
Wireless LAN Standards IEEE 802.11 b/g/n
Operating Frequency 2.412~2.484GHz
Channel Numbers 11 channels for United States
13 channels for Europe Countries
14 channels for Japan
WLAN Data Rate 802.11g: 54Mbps with fall back of 48, 36, 24, 18, 12,
9, 6Mbps.
802.11b: 11Mbps with fall back rates of 5.5, 2, and
1Mbps
11n: 6.5, 13, 19.5, 26, 39, 52, 58.5, 65Mbps for HT20
11n: 13.5, 27, 40.5, 54, 81, 108, 121.5, 135Mbps for
HT40
Transmitter Output Power Typical 16dBm for 11b
Typical 15dBm for 11g
Typical 15dBm for HT20
Typical 15dBm for HT40
Receiver Sensitivity Typical –65dBm for 135Mbps @ 10% PER
Typical –75dBm for 81Mbps @ 10% PER
Typical –80dBm for 40.5Mbps @ 10% PER
Typical –85dBm for 13.5Mbps @ 10% PER
Typical –71dBm for 65Mbps @ 10% PER
Typical –78dBm for 39Mbps @ 10% PER
Typical –83dBm for 19.5Mbps @ 10% PER
Typical –88dBm for 6.5Mbps @ 10% PER
Typical –72dBm for 54Mbps @ 10% PER
Typical –73dBm for 48Mbps @ 10% PER
Typical –86dBm for 18Mbps @ 10% PER
Typical –89dBm for 6Mbps @ 10% PER
Typical –87dBm for 11Mbps @ 8% PER
Typical –94dBm for 1Mbps @ 8% PER
Typical 25dBm for 11b
Typical 25.5dBm for 11b
Typical 26dBm for HT20
Typical 24dBm for HT40
and Taiwan.
Typical 24dBm for 11b
Typical 25dBm for 11g
Typical 25dBm for HT20
Typical 23dBm for HT40
.!7!.!
3. Product Requirements
3.1 Hardware Requirements
Host Interface USB 2.0
PCB 4-layer FR4
Antenna port: Diversity
3.2 Hardware Architecture
This specification describes an embedded 802.11b/g/n WiFi interface PCA
‘module’ for embedded device products. The module has two on-board antennae.
This module is powered from the host (3.3V) and interfaces to the host with USB
2.0 signals. No switches, indicators or related user interface signals are provided
on this module. An on-board 40 MHz XTAL is included.
8786U PA
Power management
3.3V from host
SPI EEPROM
USB 2.0
USB 1.1
JTAG
40 MHz
XTAL OSC
SPDT
Switch
Optional
SPDT
switch

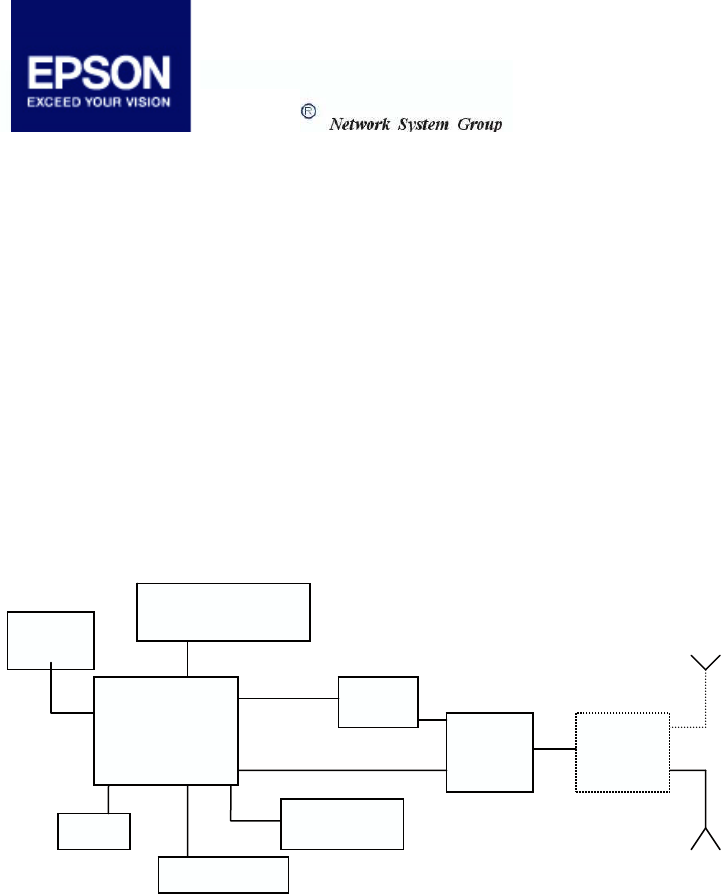

Figure 1 Functional Block Diagram
.!8!.!
3.3 Mechanical outline Drawing
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate this equipment.
This device is intended only for OEM integrators under the following conditions:
The transmitter module may not be co-located with any other transmitter or antenna,
As long as the condition above is met, further transmitter test will not be required. However, the OEM integrator is still
responsible for testing their end-product for any additional compliance requirements required with this module installed
(for example, digital device emissions, PC peripheral requirements, etc.).
IMPORTANT NOTE: In the event that the condition can not be met (for example certain laptop configurations or co-
location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be
used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end
product (including the transmitter) and obtaining a separate FCC authorization.
End Product Labeling
The final end product must be labeled in a visible area with the following: “Contains FCC ID: BKMFBS88W8786”.
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF
module in the user's manual of the end product which integrates this module.
The end user manual shall include all required regulatory information/warning as show in this manual.
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 o
f
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate this equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment
should be installed and operated with minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
IEEE 802.11b or 802.11g operation of this product in the U.S.A. is firmware-limited to channels 1 through 11.
This device is intended only for OEM integrators under the following conditions:
1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and
2) The transmitter module may not be co-located with any other transmitter or antenna,
3) For all products market in US, OEM has to limit the operation channels in CH1 to CH11 for 2.4G band by supplied
firmware programming tool. OEM shall not supply any tool or info to the end-user regarding to Regulatory Domain
change.
A
s long as 3 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still
responsible for testing their end-product for any additional compliance requirements required with this module installed
(for example, digital device emissions, PC peripheral requirements, etc.).
IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-
location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be
used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end
product (including the transmitter) and obtaining a separate FCC authorization.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be
maintained between the antenna and users. The final end product must be labeled in a visible area with the following:
“Contains FCC ID: BKMFBS88W8786”.
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF
module in the user's manual of the end product which integrates this module.
The end user manual shall include all required regulatory information/warning as show in this manual.
.!9!.!
3.4 Board Layout
3.4.1 Top and Bottom side
IC Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. End users
must follow the specific operating instructions for satisfying RF exposure compliance. To maintain compliance with
IC RF exposure compliance requirements, please follow operation instruction as documented in this manual.
This device is intended only for OEM integrators
under the following conditions:
The transmitter module may not be co-located with any other transmitter or antenna.
As long as conduction above is met, further transmitter test will not be required. However, the OEM integrator is still
responsible for testing their end-product for any additional compliance requirements required with this module installed (for
example, digital device emissions, PC peripheral requirements, etc.).
IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-
location with another transmitter), then the IC authorization is no longer considered valid and the IC ID can not be used on the
final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the
transmitter) and obtaining a separate IC authorization.
End Product Labeling
The final end product must be labeled in a visible area with the following: “Contains TX IC : 1052C-SP88W8786”.
Manual Information That Must be Included
The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove.
This RF module in the user's manual of the end product which integrates this module.
The user's manual for OEM Integrators must include the following information in a prominent location “IMPORTANT NOTE:
To comply with FCC RF exposure compliance requirements. The antenna must not be co-located or operating in conjunction
with any other antenna or transmitter”.
NCC ᤞ :
ᆖীڤᎁᢞٽհ܅פ୴᙮ሽᖲΔॺᆖױΔֆΕᇆࢨࠌشृ݁լᖐ۞᧢ޓ᙮ΕףՕפࢨ᧢ޓૠհࢤ֗פ
౨Ζ
܅פ୴᙮ሽᖲհࠌشլᐙଆڜ٤֗եឫٽऄຏॾΙᆖ࿇ڶեឫွழΔᚨمܛೖشΔࠀޏ۟ྤեឫழֱᤉᥛࠌ
شΖছႈٽऄຏॾΔਐࠉሽॾऄࡳ܂ᄐհྤᒵሽຏॾΖ܅פ୴᙮ሽᖲႊݴ࠹ٽऄຏॾࢨՠᄐΕઝᖂ֗᠔᛭شሽंᘿ୴ࢤሽᖲ
ໂհեឫΖʳ
ءᑓิ࣍࠷ᎁᢞ৵ലࠉࡳ࣍ᑓิء᧯ᑑقᐉٽ᧘ΔࠀޣؓՂᑑقψءขփܶ୴᙮ᑓิΚIDᒳᇆωʳ
Industry Canada Statement
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two
conditions:
1) this device may not cause interference and
2) this device must accept any interference, including interference that may cause undesired operation of the device
IMPORTANT NOTE:
IC Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment
should be installed and operated with minimum distance 20cm between the radiator & your body.
IEEE 802.11b or 802.11g operation of this product in the U.S.A. is firmware-limited to channels 1 through 11.
This device is intended only for OEM integrators under the following conditions:
1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and
2) The transmitter module may not be co-located with any other transmitter or antenna,
3) For all products market in US, OEM has to limit the operation channels in CH1 to CH11 for 2.4G band by supplied
firmware programming tool. OEM shall not supply any tool or info to the end-user regarding to Regulatory Domain
change.
A
s long as 3 conditions above are met, further transmitter test will not be required. However, the OEM integrator is
still responsible for testing their end-product for any additional compliance requirements required with this module
installed (for example, digital device emissions, PC peripheral requirements, etc.).
IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations o
r
co-location with another transmitter), then the IC authorization is no longer considered valid and the IC ID can not be
used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end
product (including the transmitter) and obtaining a separate IC authorization.
End Product Labeling
The final end product must be labeled in a visible area with the following: “Contains TX IC : 1052C-SP88W8786”.
Manual Information That Must be Included
The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove.
This RF module in the user's manual of the end product which integrates this module.
The user's manual for OEM Integrators must include the following information in a prominent location “IMPORTANT
NOTE: To comply with FCC RF exposure compliance requirements. The antenna must not be co-located or operating
in conjunction with any other antenna or transmitter”.
Taiwan ᤞ :
ࠠԄᇡӝϐեфᓎႝᐒǴߚёǴϦљǵဦ܈٬Ҕޣ֡όளᏰԾᡂ׳ᓎǵуεф܈ᡂ׳চीϐ
܄ϷфૈǶ
եфᓎႝᐒϐ٬Ҕόளቹៜ०ૐӼӄϷυᘋӝݤ೯ߞǹวԖυᘋຝਔǴᔈҥջଶҔǴ٠ׯ๓ԿคυᘋਔБள
ᝩុ٬ҔǶӝݤ೯ߞǴࡰ٩ႝߞݤೕۓբϐคጕႝ೯ߞǶեфᓎႝᐒהڙӝݤ೯ߞ܈πǵࣽᏢϷᙴᕍҔ
ႝݢᒟ܄ႝᐒഢϐυᘋǶ!
ҁኳಔܭڗளᇡࡕஒ٩ೕۓܭኳಔҁᡏҢቩӝᠸǴ٠ाѳѠҢȨҁౢࠔϣ֖ᓎኳಔǺIDጓဦȩ!
.!21!.!
3.5 WiFi ALLICANCE CONFORMANCE
The Module is certified by the Wi-Fi Alliance. The Module and standard PC
driver passes the Wi-Fi System Interoperability Test Plan including the following:
A. IEEE 802.11-2007 Standard for LAN/MAN - Specific requirements Part 11:
Wireless LAN Medium Access Control (MAC)and Physical Layer (PHY)
Specifications; ISBN: 978-0-7381-3572-4
B. IEEE P802.11N Draft Standard for Information Technology -
Telecommunications and information exchange between systems - Local
and metropolitan area networks - Specific requirements - Part 11: Wireless
LAN Medium Access Control (MAC) and Physical Layer (PHY), ISBN:
0-7381-5568-3
C. Supported security:
x64 bit and 128 bit WEP RC4 encoding
xWPA and WPA2 personal as required by the Wi-Fi Alliance
xModule shall support WPA2 and WPA in 802.11bgn modes
xKey-mapping key.
xThe AES-CCM is implemented in HW
D. Forward compatible to ratified IEEE Standard 802.11n supporting these
optional features:
x1x1 PHY modes minimum (transmit 1 spatial stream, receive 1 spatial
stream)
xFuture 2.4GHz band 20/40 MHz Coexistence Mechanism
xHT duplicate mode
xShort Guard interval
E. WFA Wireless Protected Access: WPA, WPA2 WPA2-CCMP version 3.1
F. WFA Wireless Multimedia (WMM) version 1.3.2
G. WFA Wireless Protected Setup (WPS) version 1.0
H. WWM Power Save test plan version 1.1.1
I. USB 2.0 and USB 1.1 Specification compliance.
9
