Seiko Epson H837A Smart Glasses User Manual

Seiko Epson Corporation Smart Glasses

user manual

User's Guide
Copyright©2017 Seiko Epson Corporation. All rights reserved.
Printed in China XX.XX.-XX(XXX)
2017.4
Information on the Moverio Website
Provides useful tips and support information.
https://moverio.epson.com/
2
Contents
Safety Instructions ...............................4
Notes on Usage .................................10
Included Items ..................................11
Optional Items ..................................12
Part Names and Functions .......................13
Controller ...............................................13
Headset .................................................14
Charging .......................................15
LED indicator status .....................................16
Wearing the Headset ............................17
Wearing over Glasses ....................................18
Turning On and O .............................19
Turning On ..............................................19
Turning Off ..............................................20
Status Bar Icons .................................21
Using the Controller .............................22
Using the Cross-key/Enter key ...........................22
Using the Trackpad ......................................23

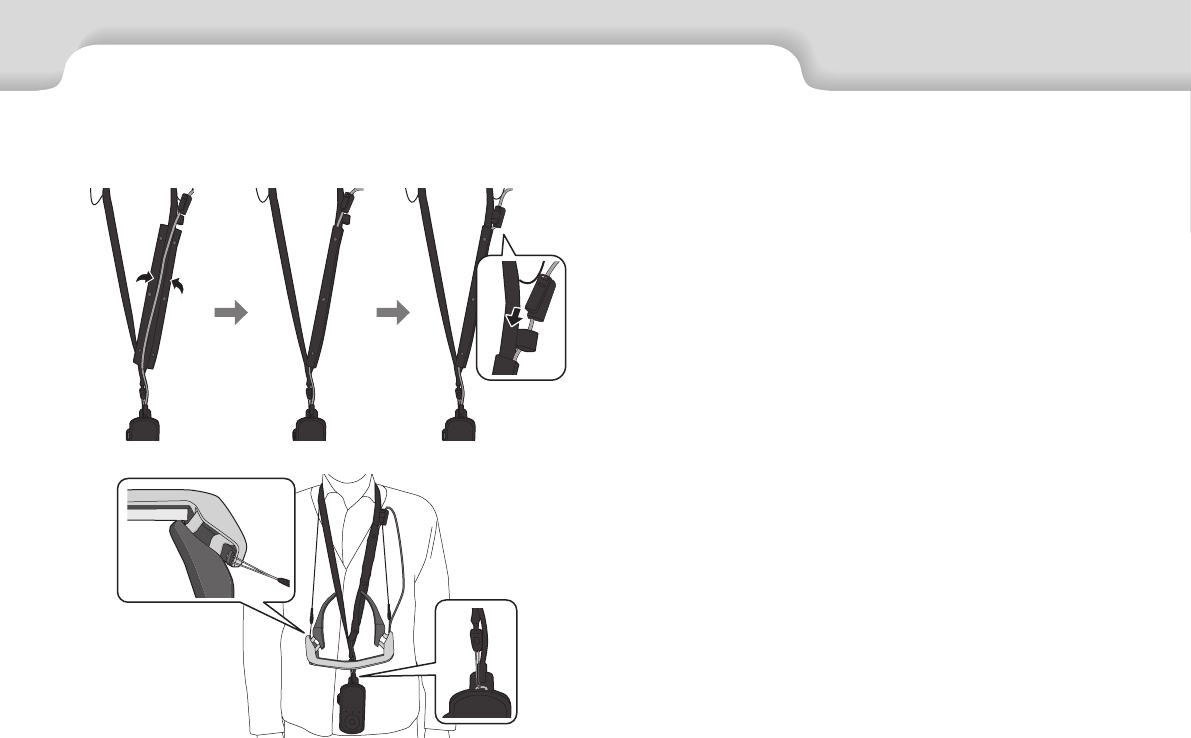

Using the Neck Strap ............................24
Replacing the Parts .............................25
Attaching and Removing the Shade .....................25
Replacing the Temple Grip ..............................26
Replacing the Nose Pads ................................27
Maintenance ....................................28
Troubleshooting ................................29
Specications ...................................31
Intellectual Property Rights. . . . . . . . . . . . . . . . . . . . . .33
General Notes ..................................38
Contact List .....................................43
3
User's Guide Organization
User's Guide This guide provides information on safely using this product, basic operating methods, and troubleshoot-
ing. Make sure you read this guide before using the product.
Symbols Used in this Guide
Safety symbols
Warning
This symbol indicates information that, if ignored,
could possibly result in serious personal injury or even
death due to incorrect handling.
Caution
This symbol indicates information that, if
ignored, could possibly result in personal
injury or physical damage due to incorrect
handling.
General information symbols
Indicates procedures which may result in damage or
injury if sufficient care is not taken.
Indicates additional information and points
which may be useful to know regarding a
topic.
[ ] Indicates icons, menu items, and controller key names
displayed on the screen. Indicates a reference to related topics.
44
Safety Instructions
For your safety, unplug the product when it is not being used. The
insulation may deteriorate, which may result in electric shock, fire, or
malfunction.
Do not touch the plug during a thunderstorm. Doing so could result
in fire or electric shock.
Do not leave this product in locations subject to temperatures be-
yond the specified operating range, such as cars with the windows
closed, in direct sunlight, or in front of air-conditioning or heater out-
lets. Also, avoid locations subject to sudden changes in temperature.
Doing so may result in fire, breakdown, malfunction, or failure.
Do not use the product in locations where it may get wet or is sub-
ject to high levels of humidity such as in a bath or shower. Doing so
could result in fire or electric shock.
Do not place this product in locations subject to smoke, steam, high
humidity, or dust such as kitchen counters or near humidifiers. Doing
so may result in fire, electric shock, or deterioration in image quality.
Do not cover this product with a cloth or similar material during use.
Doing so may change the shape of the case through heat, or fire.
Do not expose the camera lens to direct sunlight for a long time.
Doing so may result in fire or explosion due to condensed beams of
light from the lens.
For your safety, read the attached documents carefully to use the product
correctly. After you have read the documents, keep them in a safe place
so that you can refer to them quickly at a later date.
Warning Usage environment and condition
precautions
Only use this product at the stated power-supply voltage.
Only use the supplied USB cable and AC adapter. Using other power
supply devices could result in heat, fire, explosion, malfunction, or
liquid leakage.
Take the following precautions when handling the plug. Failure to
comply with these precautions could result in fire or electric shock.
Do not plug the AC adapter into an outlet being used by many
other devices.
• Do not insert the plug into a dusty outlet.
• Insert the plug firmly into the outlet.
• Do not hold the plug with wet hands.
• Do not pull the power cable when disconnecting the plug.
Do not use the power cable (USB cable supplied) if it is damaged.
Doing so could result in fire or electric shock.
• Do not modify the supplied power cable.
• Do not place heavy objects on top of the supplied power cable.
• Do not bend, twist, or pull the power cable with excessive force.
• Keep the power cable away from hot electrical appliances.
5
01_Chapter title
5
Safety Instructions
5
Do not throw the product into a fire and do not heat the product. Do
not place objects with naked flames, such as candles, on this product.
Doing so may result in heat, fire, or explosion.
Warning Viewing image precautions
Do not wear this product while driving a car, riding a motor bike or
bicycle, or performing any other dangerous tasks. Doing so may result
in accident or injury.
Do not use this product in unstable locations such as stairs or at alti-
tude. Also, do not use the product while walking in dangerous loca-
tions such as near machinery or equipment that might get caught on
the cables, where there is a lot of traffic, or where it is dark. Doing so
may result in accident or injury.
When walking while viewing images on the product, be aware of
your surroundings. If you are too focused on the image, it could result
in accidents, falling down, and colliding with other people.
When viewing in dark locations, it is difficult to see your surroundings
due to the brightness of the image. Be aware of your surroundings.
When using this product in small locations, be aware of your sur-
roundings.
When wearing this product, do not look directly at the sun or other
light sources even if you are using the shade. This could cause serious
injury to your eyes or loss of eyesight.
Warning Product usage precautions
Do not start using this product at a high volume. Doing so
may result in hearing impairment. Lower the volume before
turning off the product, and gradually increase the volume
after turning on the product. To prevent possible hearing
damage, do not listen at high volume for prolonged periods
of time.
Do not allow any conductive foreign objects to touch the charg-
ing connector, external device connector, or earphone microphone
socket, and do not put any conductive foreign objects into the con-
nection ports. Doing so may cause a short circuit and result in fire or
electric shock.
Do not allow solvents such as alcohol, benzene, or thinner to touch
the product. Also, do not clean this product with a wet cloth or sol-
vents. Doing so may warp or crack the product housing and may
result in electric shock, malfunction, or fire.
The product housing should only be opened by qualified service
personnel unless you are explicitly instructed to do so in the User’s
Guide. Also, do not disassemble or remodel the product (including
consumable items). Many of the parts inside the product carry a high
voltage and could cause fire, electric shock, accident, or poisoning.
Do not subject the lens of the product to strong shocks or knock
it against hard objects. If the lens is damaged, it could splinter and
cause serious injuries to the eyes and face.
6
01_Chapter title
01_Head A
02__lead
Safety Instructions
6
function, disable it before turning off the product. The electromag-
netic waves may cause electromagnetic interference with medical
equipment or cause the equipment to malfunction.
Note the following points when using the Bluetooth or wireless LAN
function in medical institutions.
Do not bring this product into operating rooms, Intensive Care
Units (ICUs), or Cardiac Care Units (CCUs).
When in wards, turn off this product or stop the electromagnetic
waves.
Even when not in wards, turn off this product or stop the electro-
magnetic waves if there is any electronic medical equipment in the
area.
Follow any rules stipulated by medical institutions that prohibit the
use of devices emitting electromagnetic waves, or that prohibit en-
try to certain areas with such devices.
If the product has an auto power on function, disable it before turn-
ing off the product.
If you have an implanted pacemaker or implanted defibrillator, make
sure you keep a distance of at least 22 cm between this product and
the implanted device when using the Bluetooth or the wireless LAN
function. The electromagnetic waves may influence the operation of
implanted pacemakers or implanted defibrillators. Turn off this prod-
uct or stop the electromagnetic waves if you are in a location where
someone near you may have a pacemaker, such as a crowded train.
Make sure the cable does not catch on anything in the surrounding
area while wearing the product. Also, make sure the cable does not
wind around your neck. Doing so may result in accident or injury.
Make sure the cable does not get damaged. Otherwise, it may result
in fire or electric shock.
• Do not damage the cable.
• Do not place heavy objects on top of the cable.
• Do not bend, twist, or pull the cable with excessive force.
• Keep the power cable away from hot electrical appliances.
Warning Product abnormality precautions
In the following situations, turn off this product immediately, unplug
the power plug, and contact your local dealer or the Epson service
call center. Continuing to use under these conditions may result in
fire or electric shock. Do not try to repair this product yourself.
• If you see smoke, or notice any strange odors or noises.
• If any water, beverages, or foreign objects get into the product.
• If the product was dropped or the case was damaged.
Warning Wireless function precautions
When taking this product into areas in which the use of electromag-
netic waves is prohibited, such as in an aircraft or in hospitals, follow
the instructions in the area and turn off this product or disable the
Bluetooth or wireless LAN function. Do not use the Bluetooth or
wireless LAN function near automatically controlled devices such as
automatic doors or fire alarms. If the product has an auto power on
7
01_Chapter title
7
Safety Instructions
7
sult in itching or a rash.
Hold the controller securely or place it on a stable surface and make
sure the cables are not pulled with undue force. Dropping the head-
set due to the weight of the controller may result in injury or mal-
function.
Dispose of this product in accordance with your local laws and regu-
lations.
Caution Viewing image precautions
Always take periodic breaks when viewing images using this product.
Long periods of viewing images may result in eye fatigue. If you feel
fatigued or uncomfortable even after taking a break, stop viewing im-
mediately.
Do not drop this product or treat it with unnecessary force. Also, if the
product breaks due to an impact such as a fall, stop using the prod-
uct. Continuing to use this product may result in injury due to glass
fragments.
When wearing this product, be aware of the edges of the frame. Also,
do not place your finger between the moving parts of this product.
Doing so may result in injury.
Make sure you are wearing this product correctly. Incorrect usage
could make you feel nauseous.
This product should only be used for the purposes stated in the
manuals. Using it for anything else may result in injury.
Caution Usage environment and condition
precautions
Do not place the product in locations subjected to vibrations or
shocks.
While using the product to view images, play games, or listen to mu-
sic, make sure you confirm the safety of your surroundings and do
not leave any fragile items in your immediate vicinity. The images you
are viewing may cause you to move your body involuntarily, resulting
in damage to nearby items or personal injury.
Do not place this product near high-voltage lines or magnetized
items. Doing so may result in breakdown, malfunction, or failure.
When performing maintenance, make sure you turn off the product,
unplug the power plug and the power connector and disconnect all
wires. Otherwise, it may result in electric shock.
Stop charging the battery if the charging does not end in the stated
period of time. Continuing the charge may result in liquid leakage,
heat, explosion, or fire.
Caution Product usage precautions
Stop using this product if the skin that touches the product (face and
so on) feels itchy when wearing the product, or any unusual rashes
occur, and consult your local dermatologist.
If you sweat while using the product, wipe the sweat from your face
and the product. Continuing to use under these conditions may re-
8
01_Chapter title
01_Head A
02__lead
Safety Instructions
8
If a problem or malfunction occurs, stop using this product imme-
diately. Continuing to use this product may result in injury or could
make you feel nauseous.
Stop using this product if your skin feels unusual when wearing this
product and consult your local dermatologist. Sometimes allergies
may occur due to the coating or material of the product.
How a 3D image is perceived varies depending on the individual.
Stop using the 3D function if you feel strange or cannot see in 3D.
Continuing to view the 3D images could make you feel nauseous.
This product must not be used by children under the age of six as
their eyesight is still developing.
If a child of seven years or older uses the product, make sure they are
supervised at all times and that they do not wear the product for ex-
tended periods. Pay close attention to the child's physical condition
and make sure they are not suffering from eye strain.
Do not use this product if you are sensitive to light, or feel nauseous.
Doing so may aggravate your pre-existing conditions.
Do not use this product if you have prior eye conditions. Doing so
may aggravate the symptoms such as strabismus, amblyopia, or an-
isometropia.
Caution Product abnormality precautions
Contact an authorized Epson dealer when replacing batteries.
Data such as video, images, or music stored on the product may be
lost or damaged when the product malfunctions, is repaired, or un-
dergoes other services. Epson shall not be responsible for the loss of
any data, damage to data, or loss of profits that occurs at such a time.
You can recycle used lithium-ion batteries. When the prod-
uct's internal battery reaches the end of its service life, con-
tact a service center for information on recycling.
9
01_Chapter title
9
Safety Instructions
9
Water-proong
(When using the optional controller case)
When the controller is placed correctly in the controller case, the
product is water-proof compliant with the IPX2 standard based on
JISC0920 (IEC60529:2001) confirmed by tests from a third party.
The water-proof feature does not guarantee that the product will op-
erate under all conditions or protect against malfunctions.
The warranty is invalid if malfunctions are determined to have oc-
curred due to incorrect handling of the product by the user.
Water-proofing level compliant with IPX2
If the product is subjected to dripping water at a rate of 3 mm/
minute for up to 10 minutes while the product is at an angle of 15
degrees, water does not enter the product and it can be operated
normally.
Caution Water-proong precautions
(When using the optional controller case)
When using the product, make sure the controller is placed correctly
in the controller case. Do not disconnect from the controller con-
nection port in a wet or dusty environment, and do not perform any
operations with wet hands. If tiny pieces of trash such as hairs or sand
become inserted in the port, the water-proof performance is not
maintained.
Do not drop or damage the product. This could cause the water-
proof performance to degrade.
Do not allow any liquids other than water (such as organic solvents,
soapy water, hot spring water, and seawater) to splash onto the prod-
uct, and do not place it in water intentionally.
Do not leave the product in locations subject to humidity such as
bathrooms.
Do not use the product in heavy rain.
If rain or water splash onto the product, wipe it with a dry cloth as
soon as possible.
1010
Notes on Usage
This product uses an Si-OLED display panel. Due to the char-
acteristics of the Si-OLED, you may notice burn-in or de-
creasing luminance on the panel. This is not a malfunction.
To reduce the burn-in, do the following.
• Do not display the same image for a long time.
• Hide markers or text that always appear in the same position.
• Decrease the display brightness.
Turn off the display using the tap to mute function or sleep func-
tion, or turn off the product when you are not viewing images for a
long time.
Charge the battery at least once a year even if you do not use the
product. If you do not use the product for a long period of time,
the battery performance may deteriorate or you may not be able to
charge the battery.
List of Safety Symbols (corresponding to IEC60950-1 A2)
The following table lists the meaning of the safety symbols labeled
on the equipment.
Approved standards: IEC60417 No.5031
Meaning: Direct current
To indicate on the rating plate
that the equipment is suitable
for direct current only; to identify
relevant terminals.
1111
Included Items
Headset
"Wearing the Headset" p.17
Controller
"Using the Controller" p.22
AC adapter
"Charging" p.15
USB cable
"Charging" p.15
Shade unit
"Attaching and Removing the
Shade" p.25
Carrying porch
Neck strap
"Using the Neck Strap" p.24
USB attachment
This is necessary when using the
optional Quint Battery Charger. Be
careful not to lose it.
1212
Optional Items
Controller Case
BO-CP350
*Waterproof specifications
(Waterproof class IPX2)
Quint Battery Charger
BO-QC350
Magnet Case
BO-MC350
Shade Unit Pack
BO-SP350
Temple Grip/Nose Pad/Neck Strap
Pack
BO-TP350
1313
Part Names and Functions
Controller
Power button
Turns the power on or off.
"Turning On and O" p.19
HOME key (touch sensor)
Displays the Home screen.
History key (touch sensor)
Displays recently used apps.
Trackpad
Touch with your finger to operate the prod-
uct.
"Using the Controller" p.22
Headset connector
Connects the controller connector.
"Charging" p.15
Switch key
Changes the adjustment items to bright-
ness or 2D/3D mode. (Use the cross-key to
adjust settings.) Hold down to turn key lock
on and off.
Enter key
Selects or confirms items.
Cross-key (touch sensor)
Selects items and scrolls the screen.
LED indicator
Indicates the status of the product.
"LED indicator status" p.16
micro-USB connector
Connects the supplied USB cable.
BACK key (touch sensor)
Displays the previous screen.
Volume keys
Adjusts the volume.
14
01_Chapter title
01_Head A
02__lead
Part Names and Functions
14
Headset
Nose pads
If the nose pads get dirty, it can be
replaced.
"Replacing the Nose Pads" p.27
Temples
Open the temples to wear.
"Wearing the Headset" p.17
Earphone microphone socket
You can connect commercially avail-
able earphone microphones.
"Wearing the Headset" p.17
Camera/Indicator
Captures images and movies. The
indicators flash while the camera is
starting.
Remove the protective film before
use.
Tap to mute
This function allows you to tap twice to
temporarily hide the image and mute
the audio.
This is disabled by default.
Controller connector
Connects the controller.
"Charging" p.15
Shade
Shades the product from too much
exterior light.
"Attaching and Removing the
Shade" p.25
Ambient light sensor
Senses the brightness of your sur-
roundings and automatically adjusts
the brightness of the screen.
Temple grip
If the temple grip gets dirty or dete-
riorates, it can be replaced.
"Replacing the Temple Grip"
p.26
1515
Charging
The product is not fully charged at the time of purchase.
Charge before use.
This section explains how to charge using the AC adapter.
Initial charging takes approximately 5 hours.
A
Connect the headset and the controller.
Insert the controller connector into the controller's head-
set connection port until it clicks.
Do not connect the controller connector to any
other devices except for the product.
B
Connect the controller and AC adapter.
Connect the controller and the AC adapter with the USB
cable.
C
Plug in the AC adapter.
The LED indicator flashes light blue.
If the battery is dead, the LED indicator does not
turn on for a while when charging starts. Charge
for at least 30 minutes, and then re-connect the
USB cable.
16
01_Chapter title
01_Head A
02__lead
Charging
16
When the battery is charged 90% or higher, the LED indicator
stops flashing and remains on. The LED indicator turns off when
the battery is fully charged. (The LED indicator provides a rough
indication of the amount of remaining battery.)
Disconnect the AC adapter and the USB cable.
Battery life is approximately six hours. Battery life may vary de-
pending on application and environmental usage conditions.
LED indicator status
You can check the status of the product from the colors and the
lit status of the LED.
Green Starting up/Shutting down
Light blue Charging/Operating
Blue Sleep mode
Orange Battery running low
Pink Error
1717
Wearing the Headset
You can connect the earphone microphone to the ear-
phone microphone socket.
Attach the earphones before playing back any content.
Noise may be heard if the earphone microphone is dis-
connected or connected while content is being played.
You can clip the earphone microphone to your clothes.
A
Use both hands to open the temples, and then put on
the headset.
Do not use too much force when opening the
temples of the headset.
18
01_Chapter title
01_Head A
02__lead
Wearing the Headset
18
Wearing over Glasses
The headset can be worn over glasses. (The headset can
only be worn over glasses that are approximately 147 mm
wide.)
Make sure that you do not damage the glasses and
the lens of the headset when wearing.
You may not be able to wear the headset over the
glasses depending on the shape of your glasses.
The nose pads fit over your glasses.
1919
Turning On and O
How an image is perceived varies depending on
the individual.
See the following for information on using the
controller.
"Using the Controller" p.22
Turning off the screen while the product is on (Sleep
mode)
When you press the Power button briefly, the product
enters Sleep mode and the LED indicator turns blue. Press
the Power button briefly again to wake the product from
Sleep mode.
Disabling controller operations (Key lock)
When you hold down the Switch key, the key lock turns on.
When you hold down the Switch key again, the key lock
turns off.
Turning On
Before turning on the product, check the charge level.
"Charging" p.15
Press the Power button for one second.
When the startup begins, the start screen is displayed in
the headset. When startup is complete, the Home screen is
displayed.
When you cannot view the images, adjust the vertical
position of the headset so that the lens is in line with your
eyes.
20
01_Chapter title
01_Head A
02__lead
Turning On and O
20
Turning O
A
Hold down the Power button for at least one second.
The [Power off] screen is displayed.
B
Select [Power o].
The power turns off.
If operations are unstable, you can force the product to
shutdown by holding down the Power button for at
least 10 seconds.
Do not force the product to shutdown unless
operations are unstable.
Stored data and settings may be lost.
2121
Status Bar Icons
Playing music
Connecting/using wireless LAN
Connecting to Bluetooth
Scanning microSD card
Battery charge status
Charging
Download complete
Screen dims due to high internal temperature
Status bar icons indicates the status of this product.
2222
Using the Controller
Using the Cross-key/Enter key
Cross-key
The Cross-key is an electrostatic touch sensor, and will
react to the lightest of touches.
The selection moves when you select icons or displayed
items. When you hold down one direction, the selection
moves continuously in that direction.
When you have not selected icons or displayed items, you
can scroll the screen.
Enter key
Selects or confirms items or launches the app.
You can operate the product using one of the following
methods.
Cross-key/Enter key
Trackpad
"Using the Trackpad"
p.23
The controller may vibrate depending on the
operation being performed.
23
01_Chapter title
23
Using the Controller
23
Using the Trackpad
When you touch the trackpad with your finger, a pointer is
displayed on the screen. Move the pointer to operate the
product.
Tap
Move the pointer to an
icon or displayed item, and
then tap the trackpad. Tap
performs actions such as
launching apps and selecting
items.
Drag
Touch the track pad for about
one second to select the
icon or displayed item, and
then drag your finger while
holding down the trackpad.
Drag performs actions such
as moving icons, scrolling, or
changing the screen.
Flick
Swipe your finger with a
dragging motion, or swipe
the trackpad with two
fingers.
Use two fingers to scroll the
screen smoothly.
Pinch Out
Enlarges the size of the
screen by moving two
fingers apart.
Pinch In
Reduces the size of the
screen by moving two
fingers closer together.
24
01_Chapter title
01_Head A
02__lead
24
Using the Neck Strap
When using the neck strap, you can hang the headset and
controller around your neck.
2525
Replacing the Parts
Attaching and Removing the Shade
If it is too bright to view the screen when wearing the
headset, attach the shade.
Attaching the Shade
Hold the shade at an angle and press it against the
protruding sections (two points) at the center of the
headset.
Removing the Shade
Raise the shade and slowly pull it towards you to remove it.
If the shade is pushed or pulled with too much force,
the shade and the lens could be damaged. Do not use
too much force on the shade.
26
01_Chapter title
01_Head A
02__lead
Replacing the Parts
26
Replacing the Temple Grip
A
Press the part indicated by the circle ( ) and remove
the tip of the temple grip.
B
Slide o the remaining temple grip.
C
Slide the replacement temple grip into the groove in
the headset.
D
While pressing the part indicated by the circle ( ),
attach the tip of the temple grip.
27
01_Chapter title
27
Replacing the Parts
27
Replacing the Nose Pads
A
Pull the nose pads forward to remove them.
B
Attach the nose pads.
2828
Maintenance
Cleaning the Headset
If you can see marks in the image or if the image is hazy,
check that there is no dirt, dust, fingerprints, and so on, on
the lenses.
If there is dust or dirt on the lenses, wipe them carefully
with a soft cloth.
When wiping the lenses, do not use lens cleaning
liquids or organic solvents.
If the camera is dirty, wipe it carefully with a soft cloth.
If any parts other than the lens or camera are dirty, wipe
them with a wet tissue.
Storing the Headset
When storing the headset, place it in the packaging that it
came in, or in the carrying pouch.
When placing the headset, make sure it is placed
horizontally so that it does not touch against hard objects.
If the headset is placed with the lens facing down and the
lens touches hard objects, the lens could be damaged.
Cleaning the Charging Connectors
If either of the connectors on the controller or the battterys
connectors are dirty or if there are foreign objects stuck to
them, you may not be able to charge correctly. Disconnect
the AC adapter and the AC cable, and wipe off any dirt with
a dry cloth or a cotton swab. We recommend cleaning the
charging connectors regularly (once every three months).
Caution
Do not damage the charging connectors with your finger
or a hard object.
Do not expose the charging connectors to water. When
cleaning the charging connectors, use a dry cloth or a
cotton swab.
2929
Troubleshooting
If the controller gets too hot due to prolonged use or the
usage environment, battery charging stops, and the product
may turn off for safety reasons. Wait for the temperature to
fall, and then turn the product back on.
Cannot view movies or listen to audio
The Gallery supports the following formats.
Supported video: MP4 (MPEG-4/H.264+AAC), MPEG-2
(H.264+AAC), VP8
Supported still images: JPEG, PNG, BMP, GIF
Supported audio formats: WAV, MP3, AAC
When images are not displayed while the LED indicator is
lit, the device may be muted. Tap the right-hand side of the
product twice lightly to release the mute function.
If you accidentally activate the tap to mute function, you
can set it to Off.
Use the earphone microphone to input audio.
You may not be able to use it depending on the type
of switch earphone microphone or standard earphone
microphone.
If you think a malfunction has occurred, check the follow-
ing.
The product does not turn on
Check that the product is fully charged.
If the product cannot turn on due to insufficient power, the
LED indicator is lit orange for five seconds.
If the battery is dead, the LED indicator does not turn on for
a while when charging starts. Charge for at least 30 minutes,
and then re-connect the USB cable.
"Charging" p.15
Press the Power button for one second. When the startup
begins, the start screen is displayed in the headset. When
startup is complete, the Home screen is displayed.
"Turning On" p.19
When charging cannot be performed or operations are
unresponsive, hold down the Power button for at least 10
seconds to force the product to turn off. When the power
turns off, restart the product.
"Turning O" p.20
Contact your local Service Center if you forget the password
for the screen lock. If the operating system needs to be
reinstalled, the device returns to the status at the time of
purchase.
30
01_Chapter title
01_Head A
02__lead
Troubleshooting
30
Images are fuzzy
Switch between 2D or 3D.
If the product gets too hot, the image brightness may be
decreased for safety reasons. When you see [ ] [ ] on the
home screen, wait for the temperature to fall.
Cannot perform controller operations
When you hold down the Switch key, the key lock turns
on, and you cannot operate the controller. Hold down the
Switch key again to release the key lock.
When the LED indicator is blue (during Sleep mode), press
the Power button briefly to release Sleep mode.
Cannot connect to the network
Check that the wireless LAN (Wi-Fi) environment where you
are using the product can be accessed.
Check that the product's network settings are correct.
Contact your network administrator for more details.
3131
Specications
Model Number BT-350 (H837A)
Material Si-OLED
Panel size 0.43" wide panel (16:9)
Panel pixel count 921,600 HD (horizontal 1280 x vertical 720 dots) x 3
Angle of view Approximately 23 degrees (diagonally)
Virtual screen size 40" support (virtual viewing distance 2.5 m)
Color reproduction 24 bit color (approximately 16,770,000 colors)
Platform Android TM 5.1
Supported movie formats MP4 (MPEG-4/H.264+AAC), MPEG-2 (H.264+AAC), VP8
Supported still image formats JPEG, PNG, BMP, GIF
Supported audio formats WAV, MP3, AAC
Supported 3D Side-by-side format
Internal memory Main memory 2 GB
User memory 16 GB
Built-in SD card microSDHC (32 GB, Class10)
Connector ports micro-USB, controller connector, 4 pin mini jack (earphones with microphone complying with
the CTIA standard)*1
Operating temperature 5 to 35°C humidity 20 to 80% (no condensation)
Storage temperature -10 to 60°C humidity 10 to 90% (no condensation)
Power voltage Controller 5 VDC (when using USB connector)
AC adapter
Model Number PSA05F-050QAL6E-H
Manufacturer PHIHONG TECHNOLOGY CO., LTD.
Electrical rating 100-240VAC 50-60Hz 0.15A
Rated voltage/Current 5V/1A
*1 Restrictions in operation may occur when using an adapter plug.
32
01_Chapter title
01_Head A
02__lead
Specications
32
Power consumption 1900 mW when playing movies, 2100 mW when connected by Wi-Fi
Battery Type Lithium polymer battery 2950 mAh
Lithium content Less than 1.5 g
Amount of watt hour rating Less than 20 Wh
Frequency band IEEE 802.11a/b/g/n/ac, Miracast (Source/Sink)
Frequency range 2.4 GHz band 1 to 13 ch, 5 GHz band 36 to 144 ch
Modulation ODFM, DS-SS
Potential interference range 10 m
Battery life Approximately 6 hours (standard life under Epson's evaluation conditions)
Exterior dimensions
(D x W x H)
Headset 193.5 x 176 x 30 mm (without the shade)
Controller 116 x 56 x 23 mm (without protruding section)
Mass Headset Approx. 119 g (without shade and cables)
Controller Approx. 129 g
Camera 5 million pixels
Earphone output Max. voltage 150 mV or less
Voltage with broadband characteristics 75 mV or more
Sensors GPS/geomagnetic sensor/accelerometer sensor/gyroscopic sensor/ambient light sensor
Bluetooth Standard V4.1 (Bluetooth Smart Ready Class2)
Profiles HSP/A2DP/HID/OPP/SPP/AVRCP/PAN
3333
Intellectual Property Rights
Trademarks iWnnIME © OMRON SOFTWARE Co., Ltd. 2011 All Rights Reserved.
microSDHC Logo is a trademark of SD-3C, LLC.
Wi-Fi®, Wi-Fi Direct™, and Miracast™ are the trademarks or registered trademarks of the Wi-Fi Alliance.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by the Seiko Epson Corporation is
under license.
GPStream PGPS™ is a trademark of RX Networks, Inc.
Other product names used herein are also for identification purposes only and may be trademarks of their respective owners. Epson disclaims any and all
rights in those marks.
OPEN SOURCE
SOFTWARE LI-
CENSE
As well as software owned by Epson, this product also uses open source software.
The following provides information on the open source software used in this product.
1. This product includes open source software programs according to the license terms of each program.
The open source software programs are without warranty; however, any malfunctions (including malfunctions caused by the open source
software programs) that occur in this product do not influence the warranty conditions provided for this product.
2. We provide the source code of some open source software programs. If you desire to receive the source code above, please see the "http://
www.epson. com" and contact the customer support of your region. We provide the source code until five (5) years after the discontinuation of
this product. You shall comply with the license terms of each open source software program.
3. The open source software programs are WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY AND FITNESS
FOR A PAR-TICULAR PURPOSE. See the license agreements of each open source software program for more details, which are described in the
product.
4. The license terms of each open source software program are described in Home screen > Settings > About device > Legal information > Open
source licenses of the product.
34
01_Chapter title
01_Head A
02__lead
Intellectual Property Rights
34
INTEL END USER SOFTWARE LICENSE AGREEMENT
IMPORTANT - READ BEFORE COPYING, INSTALLING OR USING.
Do not use or load software from this site or any associated materials until you have carefully read the following terms and conditions. By
loading or using the Software, you agree to the terms of this Agreement. If you do not wish to so agree, do not install or use the Software.
LICENSE. You have a license under Intel's copyrights to copy Intel's Software in binary form, (with the accompanying documentation, the
"Software") solely for your organization's personal internal use only in connection with Intel products for which the Software has been pro-
vided, subject to the following conditions:
(a) You may not disclose, distribute, rent, lease or transfer any part of the Software except as provided in this Agreement, and you agree to
prevent unauthorized copying of the Software.
(b) You may not reverse engineer, decompile, or disassemble the Software.
(c) You may not sublicense the Software.
(d) The Software may contain the software and other property of third party suppliers, some of which may be identified in, and licensed in
accordance with, an enclosed license.txt file or other text or file.
(e) Intel has no obligation to provide any support, technical assistance or updates for the Software.
NO IMPLIED LICENSES OR OTHER RIGHTS. The consideration under this Agreement is only for the licenses that Intel expressly grants to You
in the preceding paragraphs. Any other rights including, but not limited to, patent rights, would require an additional license and additional
consideration. Nothing in this Agreement requires or will be treated to require Intel to grant any such additional license. An essential basis of
the bargain in this Agreement is that Intel grants You no licenses or other rights including, but not limited to, patent, copyright, trademark,
trade name, service mark or other intellectual property licenses or rights, by implication, estoppel or otherwise, except for the licenses ex-
pressly granted in the preceding paragraphs. Specifically, except for the licenses expressly granted in the preceding paragraphs, Intel grants
no licenses or other rights, expressly or by implication, estoppel or otherwise, to:
(1) make, use, sell, offer for sale, or import modifications of the Software;
(2) sell or offer to sell the Software;
(3) combine the Software or modified versions of the Software with other items or to use any such combination; or
(4) any claims of any patents, patent applications, or other patent rights of Intel.
35
01_Chapter title
35
Intellectual Property Rights
35
You acknowledge that there are significant uses of the Software in its original, unmodified and uncombined form. The consideration for the
license in this Agreement reflects Intel's continuing right to assert patent claims against any modifications or derivative works (including,
without limitation, error corrections and bug fixes) of, or combinations with, the Software that You or third parties make that infringe any Intel
patent claim.
OWNERSHIP OF SOFTWARE AND COPYRIGHTS. Title to all copies of the Software remains with Intel or its suppliers. The Software is copyrighted
and protected by the laws of the United States and other countries, and international treaty provisions. You may not remove any copyright
notices from the Software. Except as otherwise expressly provided above, Intel grants no express or implied right under Intel patents, copy-
rights, trademarks, or other intellectual property rights. Transfer of the license terminates your right to use the Software.
DISCLAIMER OF WARRANTY. [Intel warrants that the media on which the Software is furnished will be free from defects in material and work-
manship under normal use for a period of 90 days from the date of purchase. Intel's entire liability and your exclusive remedy will be the
replacement of the Software if the media on which the Software is furnished proves to be defective. This warranty is void if the media defect
has resulted from accident, abuse, or misapplication. [Except as provided above, the] [The] Software is provided "AS IS" without warranty of
any kind, EITHER EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY OR FITNESS FOR ANY PARTICU-
LAR PURPOSE.
LIMITATION OF LIABILITY. NEITHER INTEL NOR ITS SUPPLIERS WILL BE LIABLE FOR ANY DAMAGES WHATSOEVER (INCLUDING, WITHOUT LIMITA-
TION, DAMAGES FOR LOSS OF PROFITS, LOSS OF USE, INTERRUPTION OF BUSINESS, OR INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL
DAMAGES OF ANY KIND) WHETHER UNDER THIS AGREEMENT OR OTHERWISE, EVEN IF INTEL HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES.
LICENSE TO USE COMMENTS AND SUGGESTIONS. This Agreement does NOT obligate You to provide Intel with comments or suggestions
regarding the Software. However, if You provide Intel with comments or suggestions for the modification, correction, improvement or en-
hancement of (a) the Software or (b) Intel products or processes that work with the Software, you grant to Intel a non-exclusive, worldwide,
perpetual, irrevocable, transferable, royalty-free license, with the right to sublicense, under Your intellectual property rights, to incorporate or
otherwise utilize those comments and suggestions.
TERMINATION OF THIS LICENSE. Intel or the sublicensor may terminate this license at any time if You are in breach of any of its terms or condi-
tions. Upon termination, You will immediately destroy the Software, and return to Intel all copies of the Software.
36
01_Chapter title
01_Head A
02__lead
Intellectual Property Rights
36
THIRD PARTY BENEFICIARY. Intel is an intended beneficiary of the End User License Agreement and has the right to enforce all of its terms.
U.S. GOVERNMENT RESTRICTED RIGHTS. No Government procurement regulation or contract clauses or provision will be considered a part of
any transaction between the Parties under this Agreement unless its inclusion is required by statute, or mutually agreed upon in writing by
the Parties in connection with a specific transaction. The technical data and computer software covered by this license is a "Commercial Item,"
as that term is defined by the FAR 2.101 (48 C.F.R. 2.101) and is "commercial computer software" and "commercial computer software docu-
mentation" as specified under FAR 12.212 (48 C.F.R. 12.212) or DFARS 227.7202 (48 C.F.R. 227.7202), as applicable. This commercial computer
software and related documentation is provided to end users for use by and on behalf of the U.S. Government, with only those rights as are
granted to all other end users under the terms and conditions in this Agreement. Use for or on behalf of the U.S. Government is permitted
only if the party acquiring or using this Software is properly authorized by an appropriate U.S. Government official. This use by or for the U.S.
Government clause is in lieu of, and supersedes, any other FAR, DFARS, or other provision that addresses Government rights in the computer
Software or documentation covered by this license. All copyright licenses granted to the U.S. Government are coextensive with the techni-
cal data and computer Software licenses granted in this Agreement. The U.S. Government will only have the right to reproduce, distribute,
perform, display, and prepare Derivative Works as needed to implement those rights.
EXPORT LAWS. You acknowledge that the Software and all related technical information or materials are subject to export controls under the
laws and regulations of the United States and any other applicable governments. You agree to comply with these laws and regulations gov-
erning export, re-export, import, transfer, distribution, and use of the Software, technical information and materials. In particular, but without
limitation, the Software, technical information and materials may not be exported or re-exported (a) into any U.S. embargoed countries or (b)
to any person or entity listed on a denial order published by the U.S. government or any other applicable governments. By using the Software,
technical information and materials, you represent and warrant that you are not located in any such country or on any such list. You also agree
that you will not use the Software, technical information and materials for any purposes prohibited by the U.S. government or other appli-
cable government's law, including, without limitation, the development, design, manufacture or production of nuclear, missile, chemical or
biological weapons. You confirm that the Software, technical information and materials will not be re-exported or sold to a third party who is
known or suspected to be involved in activities including, without limitation, the development, design, manufacture, or production of nuclear,
missile, chemical or biological weapons. You agree that any Software, technical information or materials subject to control under defense laws
37
01_Chapter title
37
Intellectual Property Rights
37
and regulations (e.g., the International Traffic in Arms Regulations [ITAR]) must not be transferred to non-U.S. persons, whether located in the U.S.
or abroad, without a government license. You will indemnify Intel against any loss related to Your failure to conform to these requirements.
APPLICABLE LAWS. This Agreement is governed by the laws of the state of Delaware, excluding its principles of conflict of laws and the United
Nations Convention on Contracts for the Sale of Goods. You may not export the Software in violation of applicable export laws and regula-
tions.
Your specific rights may vary from country to country.
3838
General Notes
Notes Regarding Wireless
LAN
Do not use the Wireless LAN function in France unless you are indoors.
If you purchase this product outside of North America and Taiwan, please note that this product emits wireless LAN electromagnetic waves on
channels 1 to 13. Therefore, do not use the wireless LAN function in North America and Taiwan where wireless LAN channels are limited to 1 to 11
by the Wireless Telegraphy Act.
Follow local laws and regulations when using in other regions.
Wireless Telegraphy Act
Regulations
The following acts are prohibited by the Wireless Telegraphy Act.
Modifying and disassembling (including the antenna)
Removing the label of conformance
Using the 5 GHz bandwidth LAN when outdoors
Restriction of Use This product is manufactured based on the specifications of the country of sale. When using this product outside the country of sale, contact your
nearest support center.
When this product is used for applications requiring high reliability/safety such as transportation devices related to aviation, rail, marine, automo-
tive; disaster prevention devices; various safety devices; or functional/precision devices, you should use this product only after giving consideration
to including fail- safes and redundancies into your design to maintain safety and total system reliability.
Because this product was not intended for use in applications requiring extremely high reliability/safety such as aerospace equipment, main com-
munication equipment, nuclear power control equipment, or medical equipment related to direct medical care, please make your own judgment
on this product's suitability after a full evaluation.
Notes on Frequency This device operates in the same frequency bandwidth as industrial, scientific, and medical devices such as microwave ovens and mobile object
identification (RF-ID) systems (licensed premises radio stations, amateur, and unlicensed specified low-power radio stations (hereafter "other radio
stations")) used in factory production lines.
1. Before using this product, make sure there are no "other radio stations" being used in the vicinity.
2. If this device causes RF interference between the device and "other radio stations", promptly move to a different location, stop using
the device, and contact your local dealer to ask for advice on preventing interference (for example setting up partitions).
3. In addition, when harmful radio wave interference occurs between the device and "other radio stations", contact your local dealer.
Authentication information
1052D-H837A
SKSH837A 1052D-H837A
SKSH837A
39
01_Chapter title
39
General Notes
39
Authentication information
CE
DECLARATION of CONFOR-
MITY
In France, WLAN usage is only permitted indoors.
The purpose of the WLAN function is to connect to a 2.4 GHz access point.
DECLARATION of
CONFORMITY
According to 47CFR, Part 2 and 15
Class B Personal Computers and Peripherals; and/or
CPU Boards and Power Supplies used with Class B Personal Computers
We : Epson America, Inc.
Located at : 3840 Kilroy Airport Way MS : 3-13 Long Beach, CA 90806
Tel : 562-981-3840
Declare under sole responsibility that the product identified herein, complies with 47CFR Part 2 and 15 of the FCC rules as a Class B
digital device. Each product marketed, is identical to the representative unit tested and found to be compliant with the standards.
Records maintained continue to reflect the equipment being produced can be expected to be within the variation accepted, due to
quantity production and testing on a statistical basis as required by 47CFR 2.909. Operation is subject to the following two conditions
: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Trade Name : EPSON
Type of Product : Smart Glasses
Model : H837A
FCC Compliance
Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular instal-
lation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures.
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
40
01_Chapter title
01_Head A
02__lead
General Notes
40
FCC Compliance
Statement
WARNING
The connection of a non-shielded equipment interface cable to this equipment will invalidate the FCC Certification or Declaration of
this device and may cause interference levels which exceed the limits established by the FCC for this equipment. It is the responsibil-
ity of the user to obtain and use a shielded equipment interface cable with this device. If this equipment has more than one interface
connector, do not leave cables connected to unused interfaces. Changes or modifications not expressly approved by the manufac-
turer could void the user's authority to operate the equipment.
FCC/Industry Can-
ada (IC) Notices
FCC Notices
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause unde-
sired operation.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End-users must follow the
specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in con-
junction with any other antenna or transmitter.
Caution:
You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your
authority to operate the equipment.
Industry Canada (IC) Notices
CAN ICES-3 (B)/NMB-3(B)
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numèrique de la classe B est conforme à la norme NMB-003 du Canada.
This equipment complies with RF radiation exposure limits set forth for an uncontrolled environment. End-users must follow the spe-
cific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunc-
tion with any other antenna or transmitter.
Cet équipement se conforme aux limites RF de l’exposition au rayonnement qui sont fixées pour un environnement incontrôlé.
Les utilisateurs finaux doivent suivre les consignes d’utilisation particulières données afin de satisfaire aux normes de conformité
d’exposition à l’énergie radioélectrique. Cet émetteur ne doit pas être placé ou utilisé concurremment avec tout autre émetteur ou
antenne.
This device complies with Industry Canadas licence-exempt RSSs. Operation is subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est
autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d'en compromettre le fonctionnement.
41
01_Chapter title
41
General Notes
41
Operation in the bands 5150–5250 MHz, 5250-5350 MHz is only for indoor use. For indoor use only.
Ce produit dont la fréquence de fonctionnement se situe entre 5150-5250MHz, 5250-5350MHz est conçu uniquement pour une
utilisation en intérieur afin de réduire les risques d'interférences nuisibles avec les systèmes mobiles par satellite à deux cannaux. Pour
usage intérieur seulement .
Users should also be advised that high-power radars are allocated as primary users (i.e. priority users) of the bands 5250-5350 MHz
and 5650-5850 MHz and that these radars could cause interference and/or damage to LE-LAN devices.
Les utilisateurs devraient aussi être avisés, d’une part, que les utilisateurs de radars de haute puissance sont désignés utilisateurs prin-
cipaux (c.-à-d., qu'ils ont la priorité) des bandes de 5 250 à 5 350 MHz et de 5 650 à 5 850 MHz et, d’autre part, que ces radars pour-
raient causer du brouillage et/ou des dommages aux dispositifs de RL-EL.

Navigation menu
