Seiko Precision FB-900AI Printer User Manual Block Diagram

Seiko Precision Inc. Printer Block Diagram

UserManual.wiki >

Seiko Precision >

FB-900AI User Manual >

Block Diagram HTML Version

Contents

1. Users Manual
2. Block Diagram

Block Diagram

5 - 22

5. Control Circuit and Parts Replacement

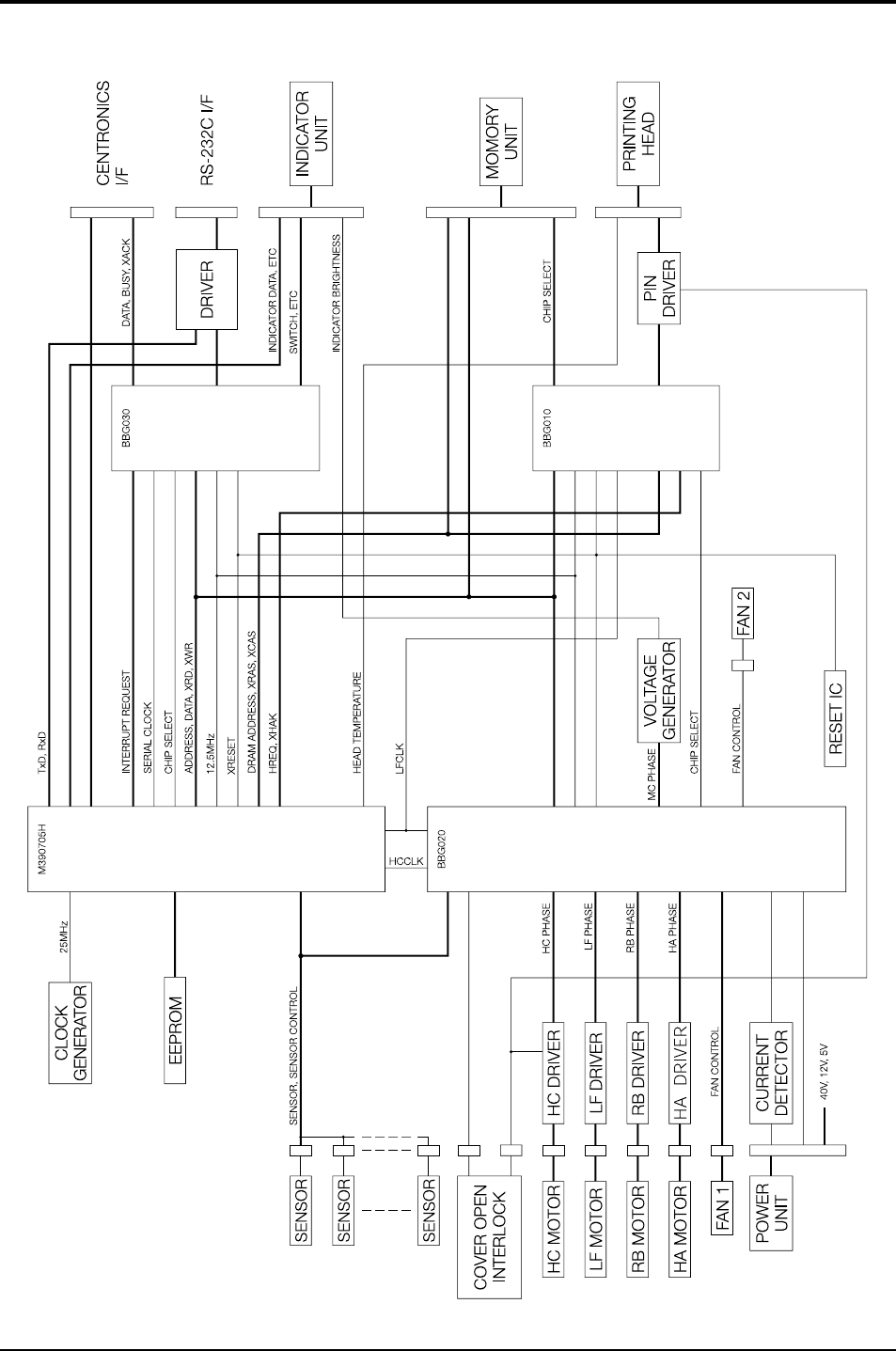

5.14 Control Block Diagram
