Super Zoom Master
L-608/L-608
Operating Manual
Bedienungsanleitung
Mode d’emploi
Manuale d’istruzioni
Manual de instrucciones
DEUTSCH ENGLISH
FRANÇAIS
ITALIANO
ESPANÕL
ENGLISH
Congratulations on your purchase of a
Sekonic Super Zoom Master L-608/L-608CINE
Exposure Meter.
The Zoom Master L-608/L-608CINE is the latest addition to the extensive line of
Sekonic Exposure Meters which have been market leaders.
It was designed to be the ultimate meter, a do-all instrument for the most demanding
pros.
It is the first zoom spot meter on the market. Nine camera-quality lens elements
are required to accomplish its 1° to 4° zoom range.
Its sealed housing and controls make it water and moisture resistant.
Yes, you can use it in the rain, but it is not an underwater meter.
Its large LCD display makes readings easy and lights up automatically in dark
surroundings.
In order not to crowd the controls, four functions which are less frequently used,
are confined to DIP switches, located in the battery compartment.
Because of its many features, the L-608/L-608CINE requires this rather extensive
manual. But since you will never use them all at the same time, once you have
learned all about it, it is simple and its use will become second nature.
The Zoom Master L-608/L-608CINE has undergone extensive quality controls at
every step of manufacture. Please read this instruction manual thoroughly, to be
able to take advantage of its many features and to obtain the long service life it is
designed for.
Thank you for your confidence in Sekonic.
Table of Contents
1. Parts Designation ................................................................................................................ 1
2. Explanation of the Liquid Crystal Display (LCD) .................................................................. 2-3
3. Before Using ........................................................................................................................ 4-6
1. Attach the strap ......................................................................................................... 4
2. Inserting the battery .................................................................................................. 4
3. Checking battery capacity ......................................................................................... 4
4. Replacing battery during measurement
or when using the memory function .......................................................................... 5
5. Auto Power Off function ............................................................................................. 5
6. Setting main ISO film speed ...................................................................................... 5
7. Setting second ISO film speed (ISO 2) ..................................................................... 5

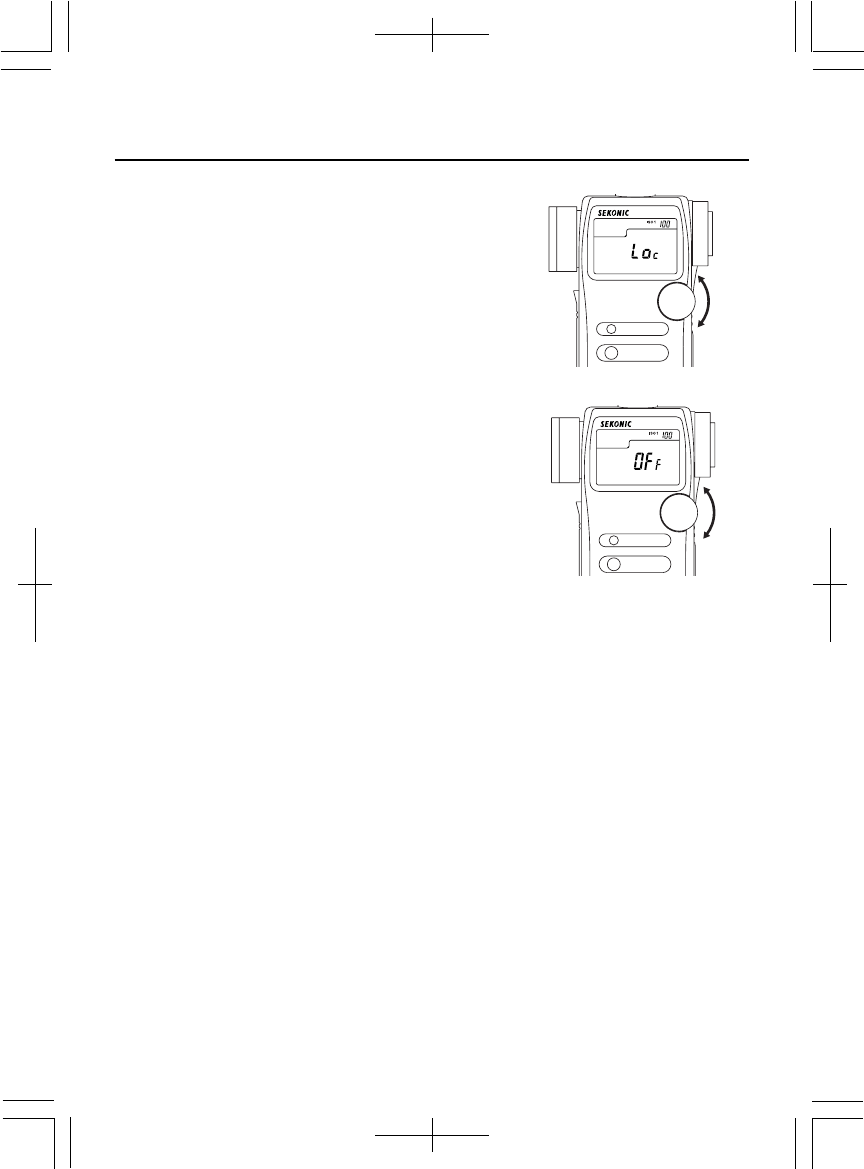

8. Mesurement Lock and Measurement Lock Off .......................................................... 6
4. Basic Operation ................................................................................................................... 7-12

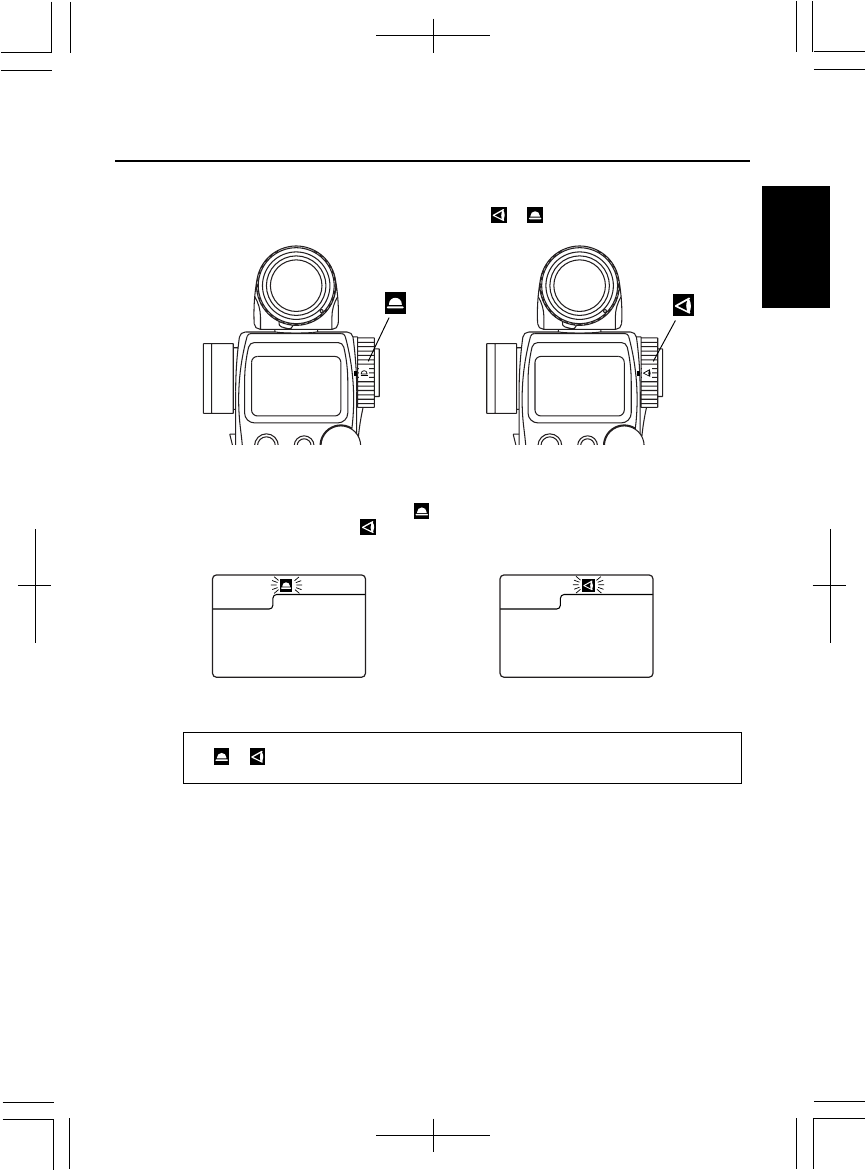

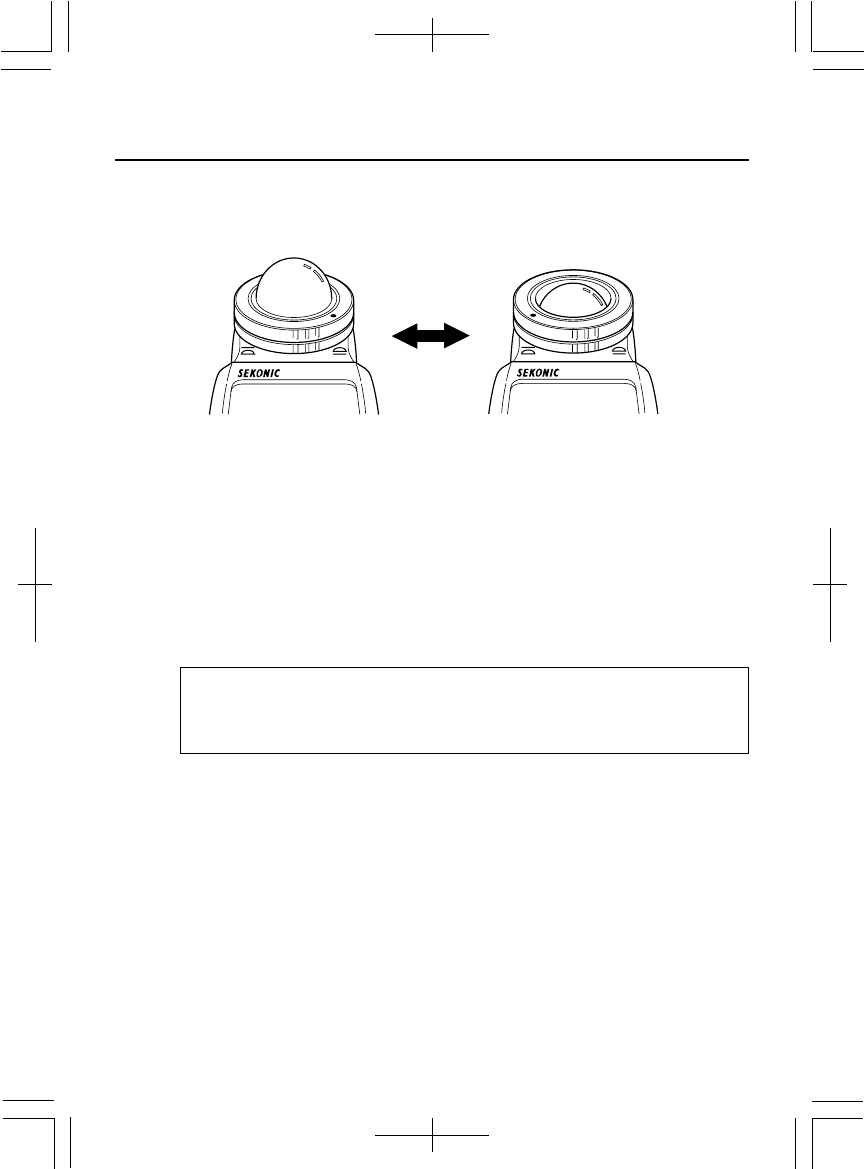

1. Incident or reflected spot measuring ......................................................................... 7
2. Setting measuring mode ........................................................................................... 8

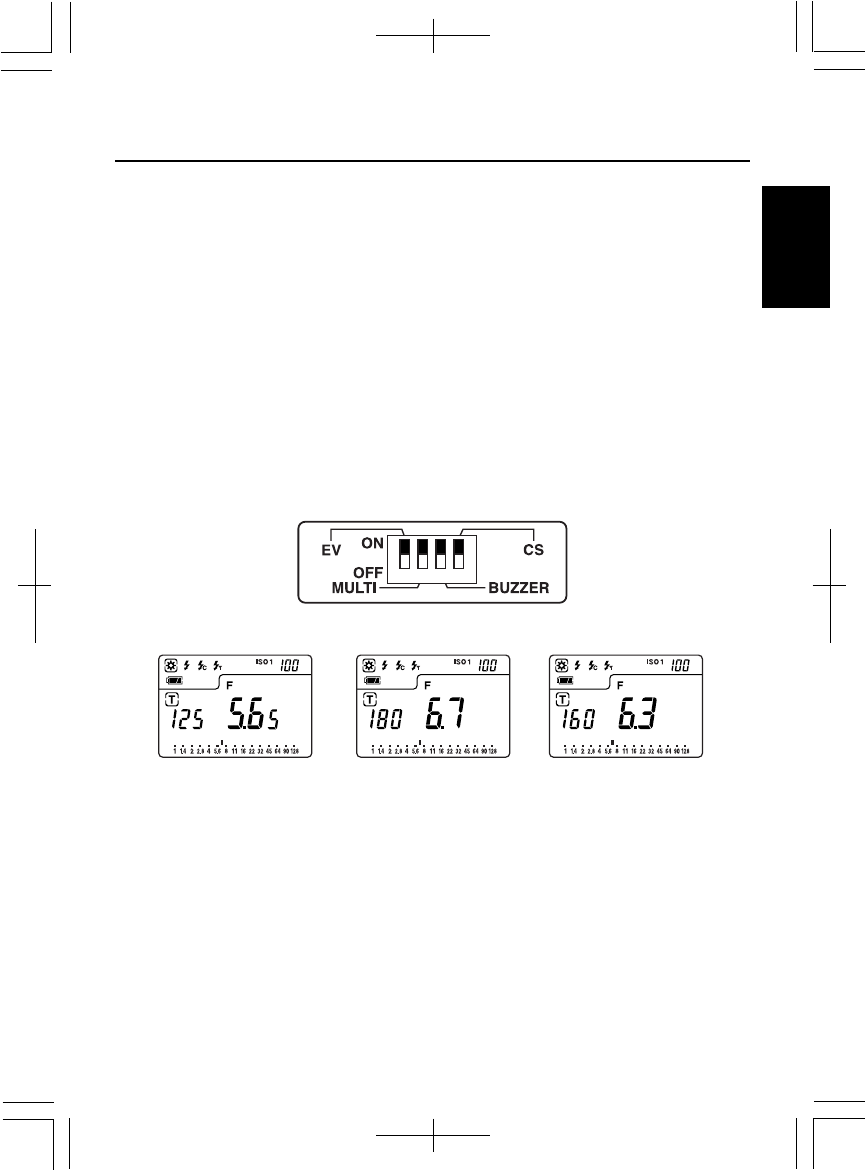

3. Setting DIP switches .................................................................................................. 9
4. When set for incident light ......................................................................................... 10
5. When set for reflected light (spot metering) .............................................................. 11
5. Measurment ........................................................................................................................ 13-22
1. Measuring Ambient Light ........................................................................................... 13
1-1 Shutter Speed Priority mode ........................................................................... 13

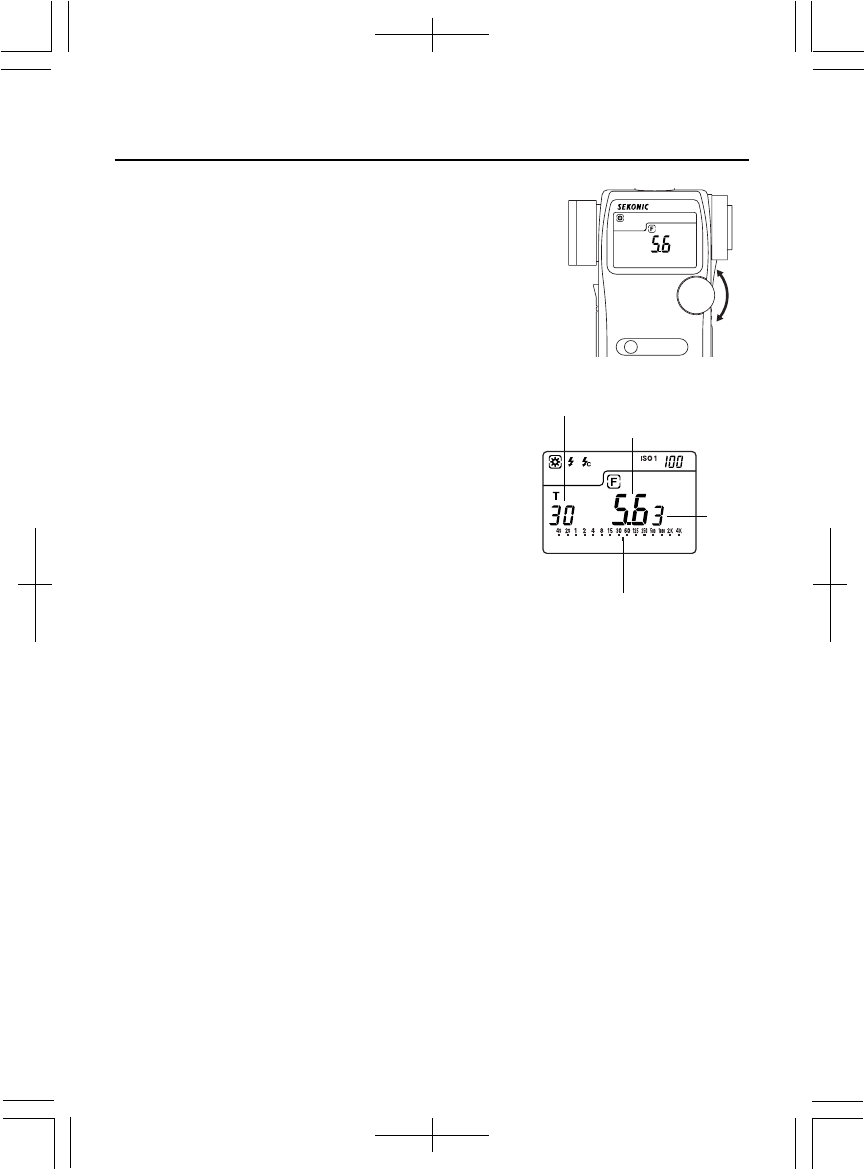

1-2 Aperture Priority mode .................................................................................... 14

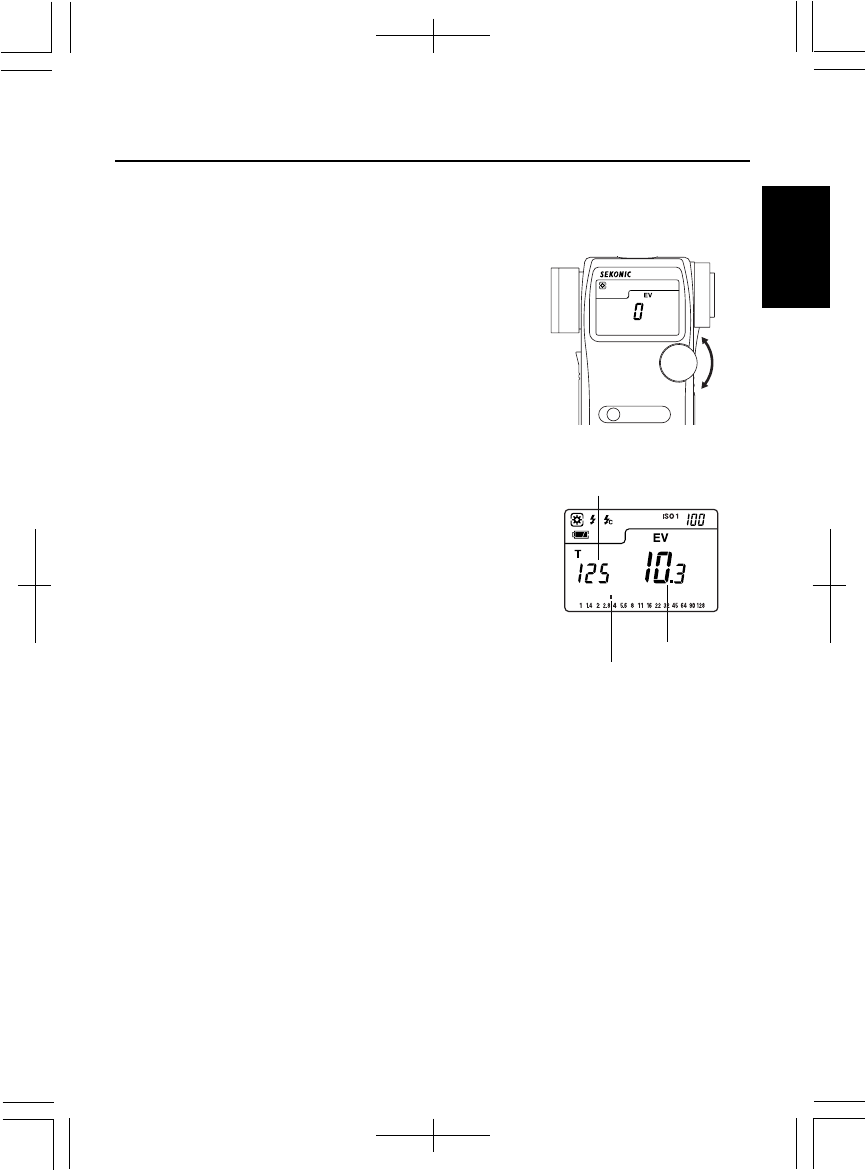

1-3 EV mode ......................................................................................................... 15

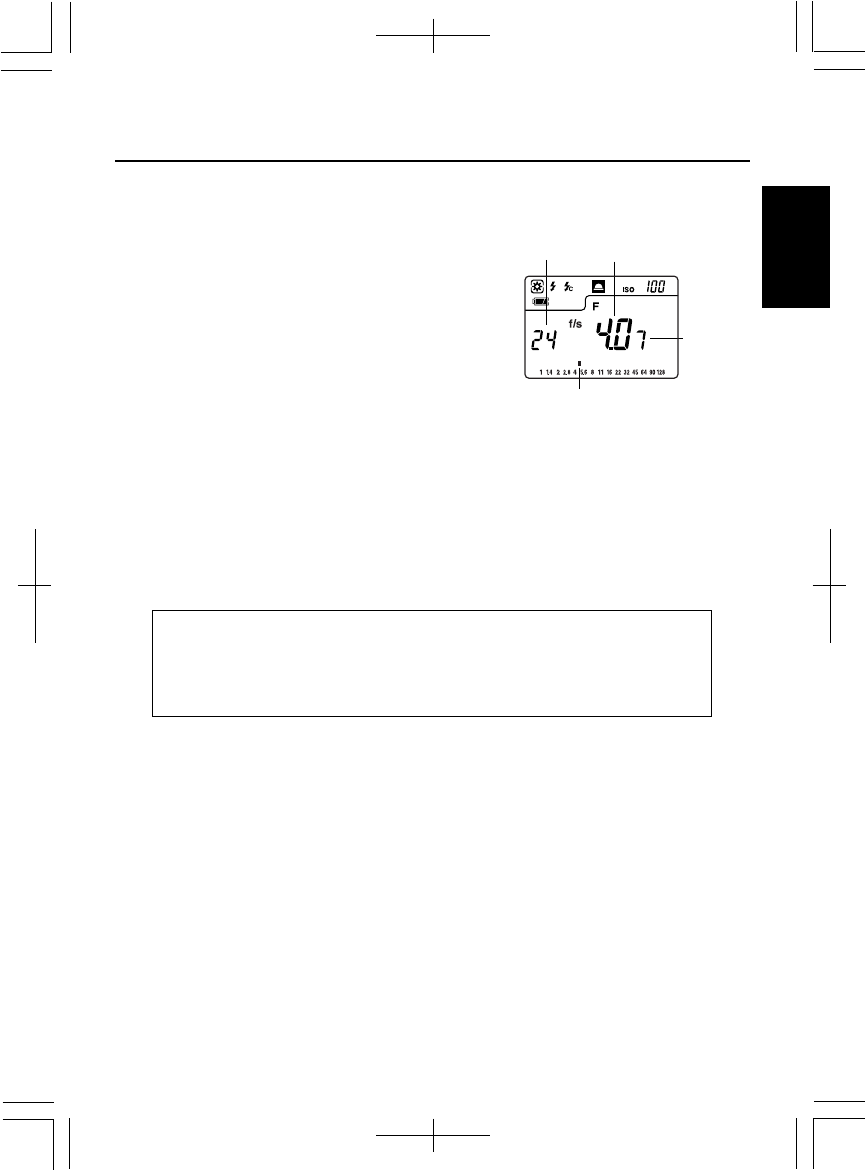

1-4 Cinematography .............................................................................................. 16
2. Measuring Flash Light ............................................................................................... 18
2-1 Cord Flash mode ............................................................................................. 18
2-2 Auto Reset Cordless Flash mode ................................................................... 19

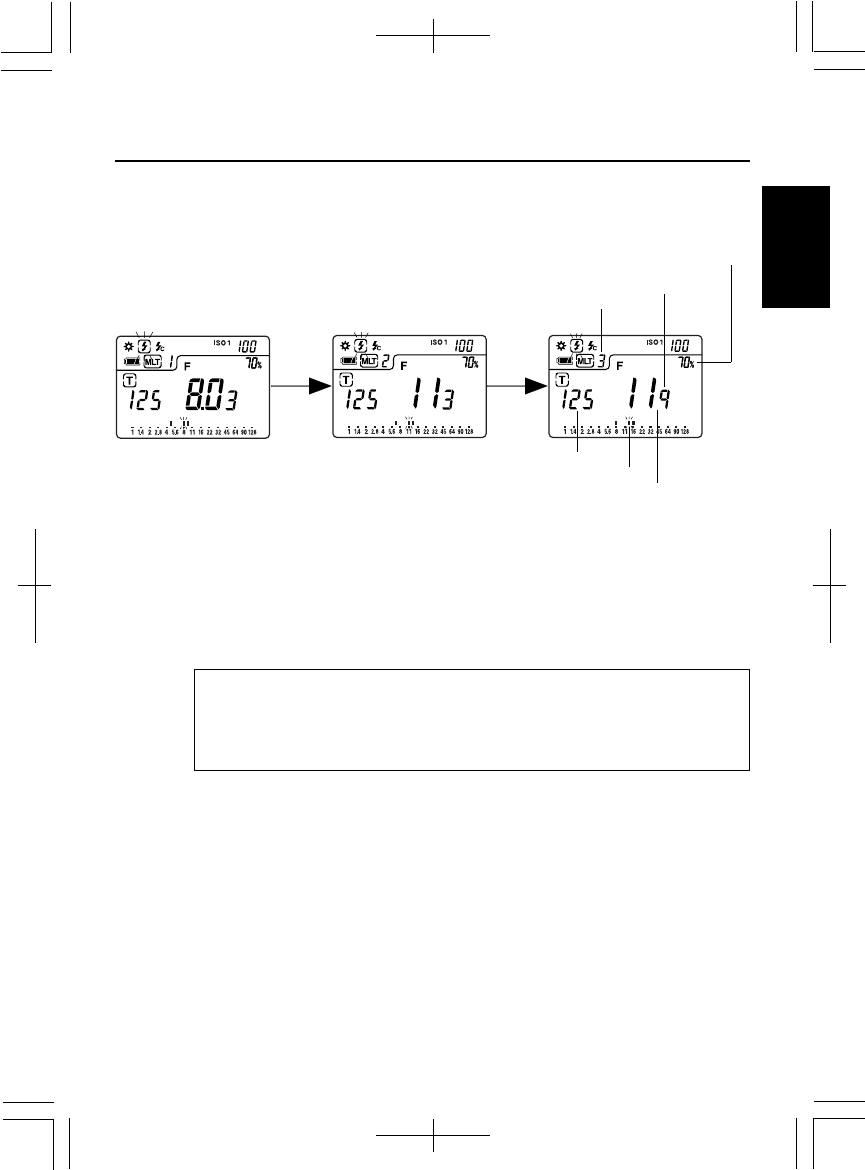

2-3 Cord Multiple Flash (cumulative) mode ........................................................... 21
2-4 Cordless Flash (cumulative) mode .................................................................. 22
6. Advanced Functions ............................................................................................................ 24-35
1. Memory function ........................................................................................................ 24
2. Averaging function ..................................................................................................... 25
3. Brightness Difference function................................................................................... 25
4. How to use an incident Illuminance (LUX) Meter ...................................................... 27
5. How to use a reflected luminance (cd/m2) meter ....................................................... 28
6. How to change the compensating function ............................................................... 29
7. Use of the correction indicator function ..................................................................... 30
8. Filter setting ............................................................................................................... 31
9. Analyzing measurement function .............................................................................. 32
10. Custom setting function ............................................................................................. 33
11. Radio flash system .................................................................................................... 35

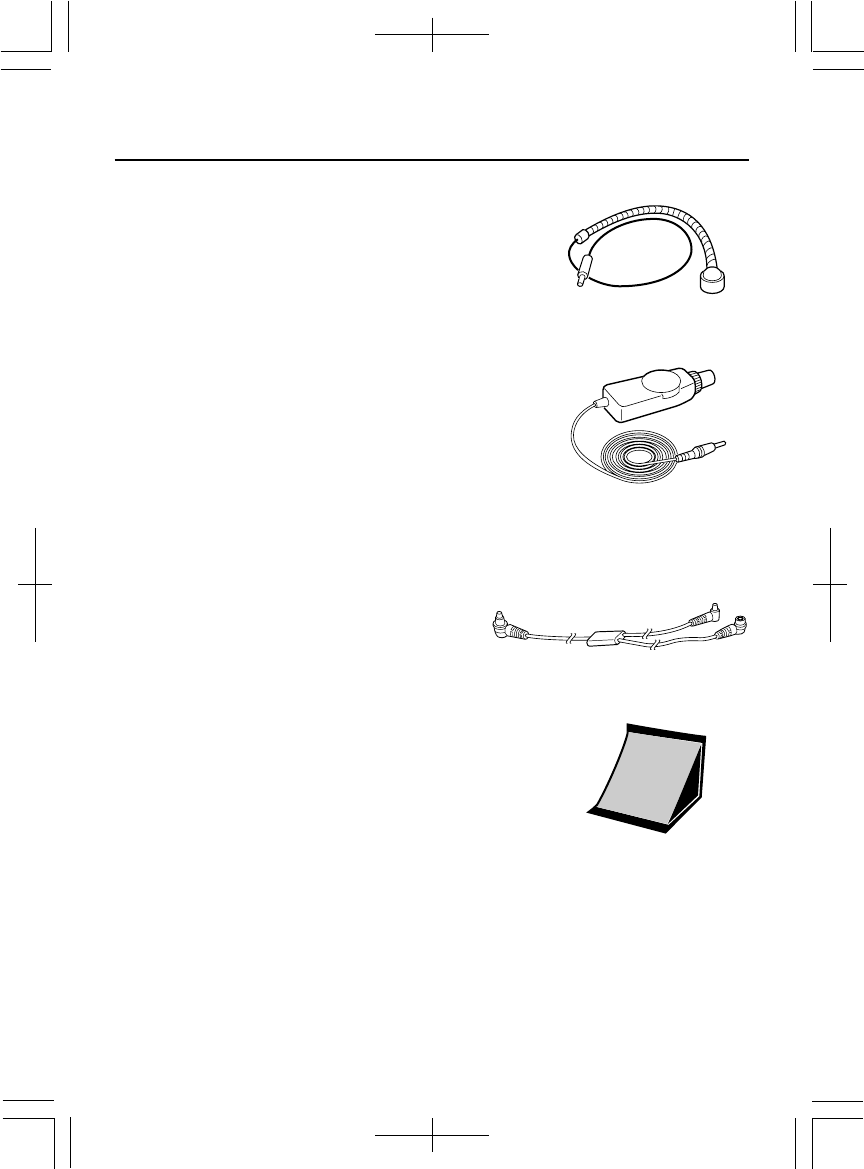

7. Accessories ........................................................................................................................ 38-39
8. Technical Data ..................................................................................................................... 40-41

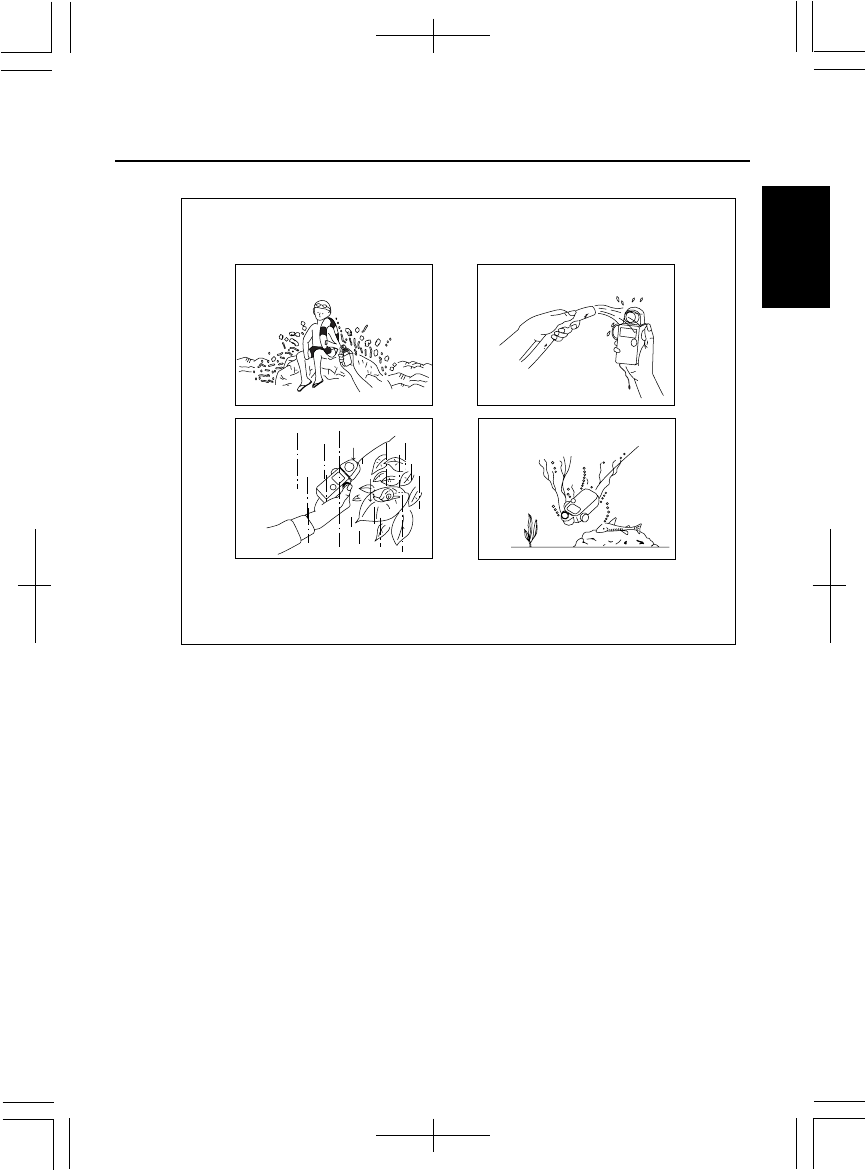

9. Safety Guide ........................................................................................................................ 42
10. Care and Maintenance ........................................................................................................ 43
ENGLISH
-1-

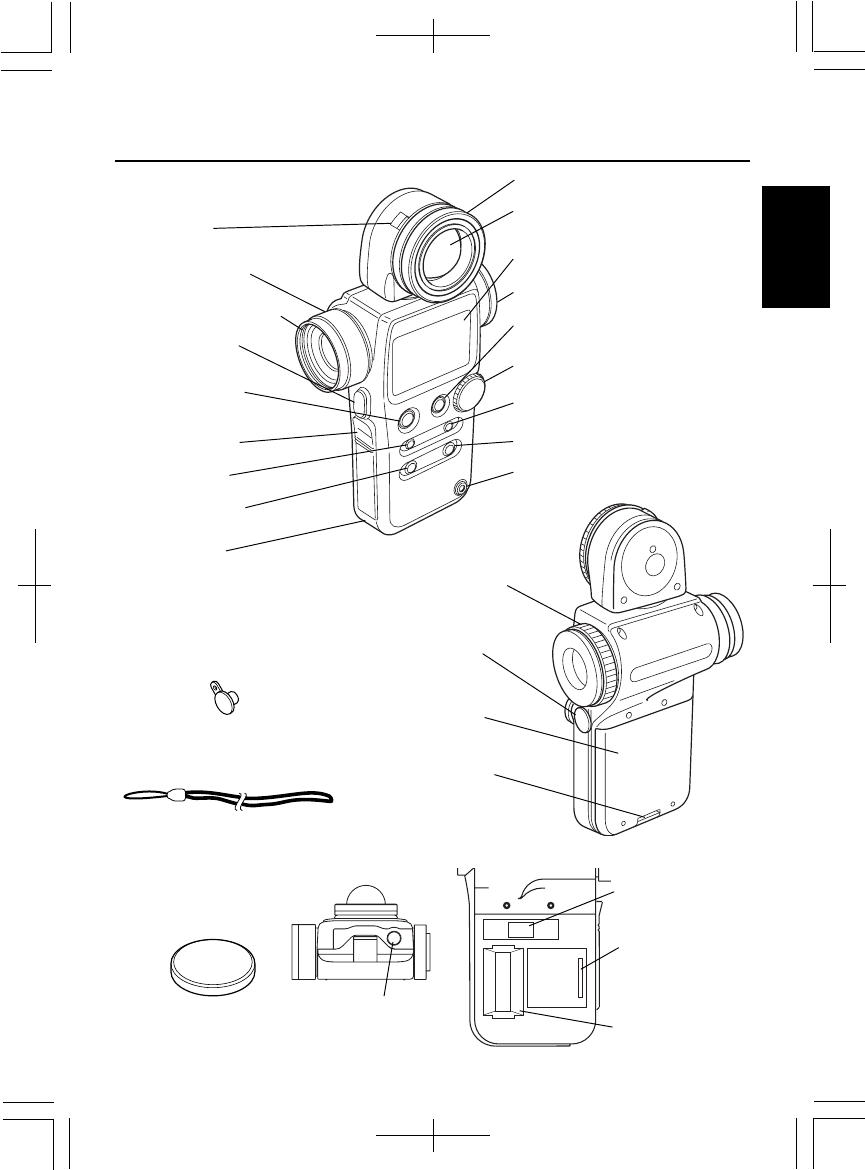

1. Parts Designation
@0 Synchro Terminal Cap
@1 Strap
i Synchro terminal
w Lumisphere
@4 Eyepiece
r Average / Δ EV (Brightness Difference)
button
t Set/change Dial
y ISO 2 button
!1 ISO 1 button
!3 Booster Outlet
!0 Mode set button
@5 Memory Clear button
u Memory button
!4 Lock lever
q Lumisphere UP/DOWN ring
!5 Measuring button
!7 Battery Cover Latch
!8 DIP Switches
!9 Battery Compartment
@6 Zoom Lens Ring
@7 Zoom Lens Protective Glass
!2 Power button
(ON/OFF switch)
e Liquid Crystal Display (LCD)
@8 Incident/Reflected Spot
Selector Switch
@9 1/4” Tripod Socket
@3 Zoom Lens Cap
o Strap eyelet
SEKONIC
MEMORY
ISO1
MODE
POWER
ZOOM MASTER
L-608
MEMORY
ISO2
AVE/△EV
!6 Battery Compartment Cover
@2 Connector cover
-2-

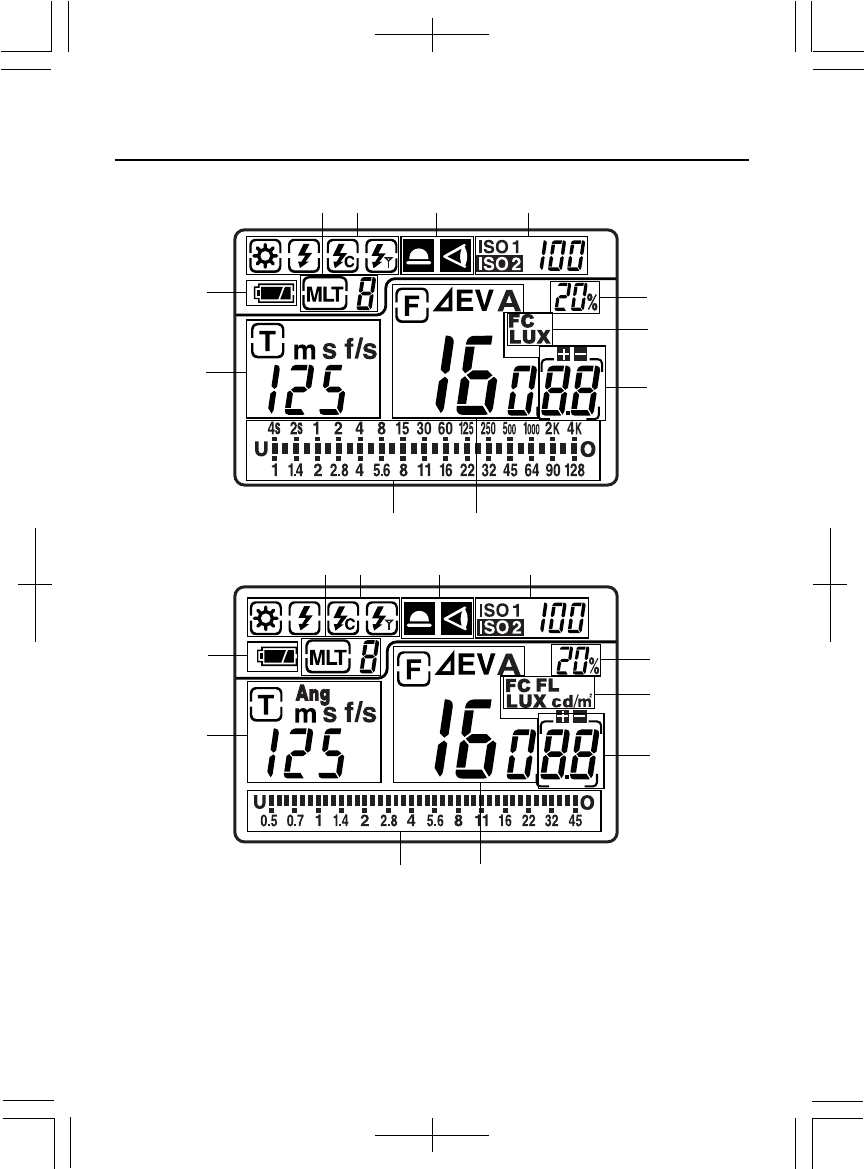

2. Explanation of the Liquid Crystal Display
Auto Electro-Luminescent Display (EL)
In low light (EV 3 or less), a blue backlight will automatically illuminate the entire LCD. When using
the Mini Light Receptor or a Booster (optional accessories) the LCD will be illuminated after measuring,
regardless of the ambient light level.
The LCD will not be automatically illuminated during measuring, or in Cordless Flash mode.
The Electro-luminescent backlight will automatically turn off 20 seconds after last operation.
NOTE:
For explanation purposes, the display illustrated here shows all icons and readouts
simultaneously. Actual display will never show as above.
L-608
L-608CINE
o
i
!0
!1
y
q
r
t
e
w
u
!0 qe
w
!1
r
t
y
u
o
i
ENGLISH
qMeasuring Mode Icons
Ambient (see page 13)
Auto-Reset Cordless Flash (see page 19)
Cord Flash (see page 18)
Flash radio wave trigger mode (see page 35)
wIncident / Reflected Spot Function Icons (see page 7)
Lights when in Incident mode
Lights when in Reflected Spot mode
eISO Display
Displays ISO film setting
Displays second ISO film setting when ISO 2 button is depressed
rAnalyzing indicator
0 to 100% in 10% increments (ratio of the flash light component to total light)
t+/- Compensation Indicator
Lights when +/- Compensation is set
yDigital aperture value, Aperture Priority, EV Brightness Difference, Average function, EV display
lights when in Aperture Priority (f/stop) mode (see page 14)
lights When Using brightness difference function (See Page 25)
lights when using Averaging function (see page 25)
lights when using EV mode (see page 15)
uAnalog Aperture and Memory Scale
Displays marks at apertures indicating full or half f/stop values for measurement, memory, average
values
lights when below display range
lights when under exposed below measurement range
lights when above display range
lights when over exposed above measurement range
iShutter priority indicator, shutter speed display for still photography or frames per second (f/s) for
cinematography
lights when in Shutter Priority (T) mode (see page 13)
lights when shutter speed is in minutes
lights when shutter speed is in full seconds
lights when shutter speed is set by number of frames (see page 16)
oBattery Power Indicator (see page 4)
!0 Memory / Multiple Flash Indicator Display
lights when in Multi (cumulative) flash measurement mode (see page 21)
lights when reading is memorized (see page 24)
!1 Illumination mark/brightness mark
Illumination with incident light (foot-candle) (608/608 Cine)
Brightness with incident light (lux) (608/608 Cine)
Illumination with reflected light (foot-lambert) (608 Cine)
Brightness with reflected light (cd/m2) (608 Cine)
2. Explanation of the Liquid Crystal Display
-3-
-4-
Reference:
・We recommend you always have a spare battery on hand.
・If the liquid crystal display extinguishes immediately after the display appears when power
is first applied, that is an indication that the battery is dead. Please promptly replace the
battery.
3. Before Using

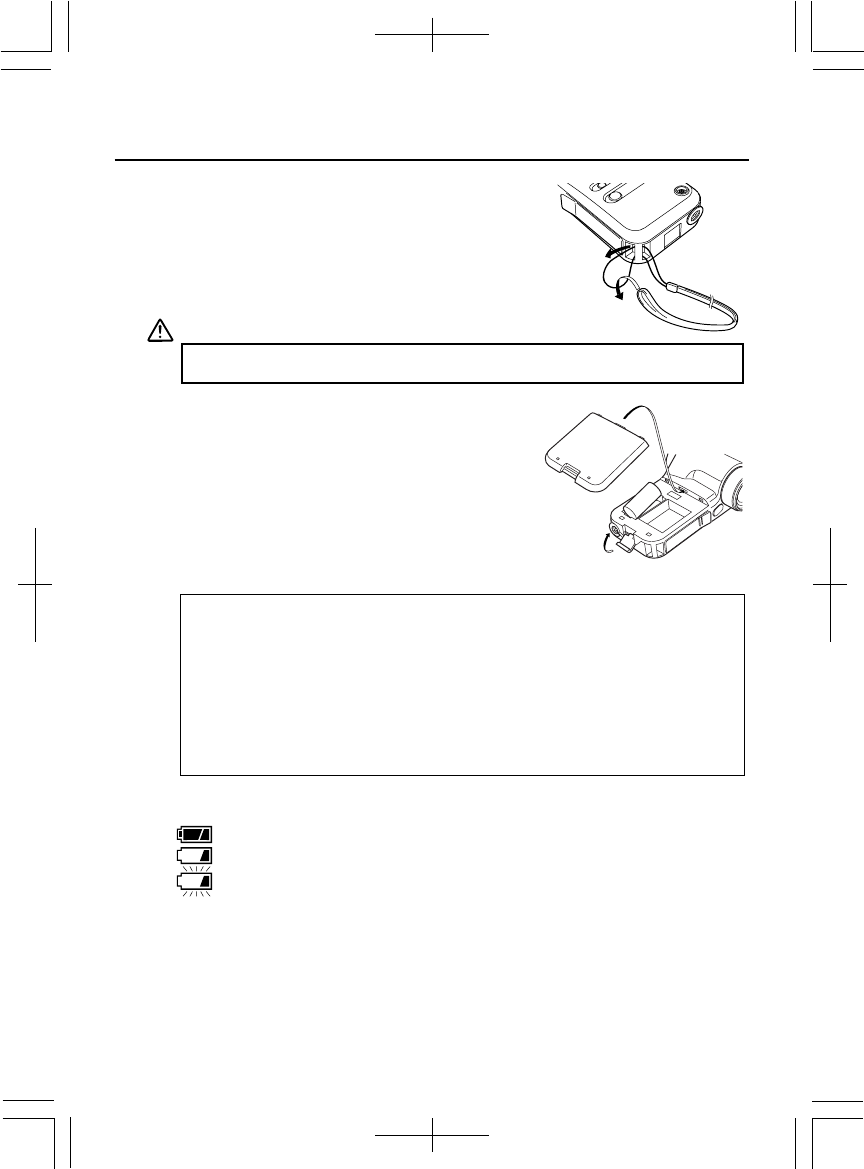

1. Attach the strap
Attach the Strap @1 by passing the small end loop through the
eyelet o and passing the other end of strap through it.

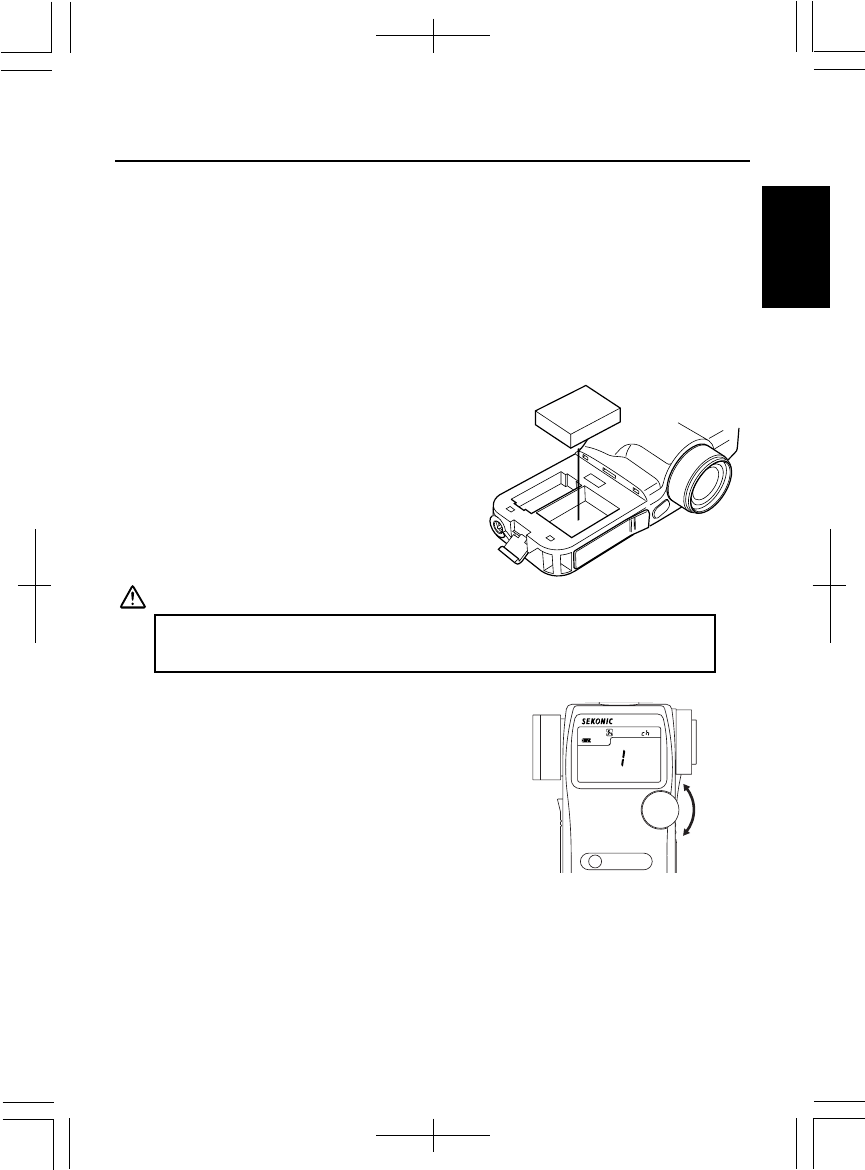

2. Inserting the battery
1. Requires one 3.0 v AA size battery.
(CR123A lithium battery)
2. Open the Battery compartment cover latch !7, and re-
move the Battery comportment cover !6.
3. Insert the battery, observing the polarity with the +,- marks
in the battery chamber.
4. Align the tabs of the Battery compartment cover with the
notches in the back of the meter, and press down to close
the Battery cover latch.
NOTE:
• Nickel cadmium (NiCad) and nickel hydroxide (NiH) rechargeable batteries cannot be
used.
• To prevent loss of All-weather seal, be careful that dirt does not get stuck on the rubber
seal and that the seal is not damaged.
• Remove battery if meter is not used for an extended period. Batteries can leak and
damage the exposure meter. Dispose of used batteries properly.
If the LCD does not light, check that the battery capacity is sufficient, and check that the
battery positive and negative terminals are not reversed.
• The meter has a connector box for radio wave transmitter module. Remove the connector
cover if you do not install radio wave transmitter module, and the electronic circuit board
may be damaded by static electricity.
WARNING
• Please place in a location where an infant cannot reach and accidentally get the strap
wrapped around his neck. There is danger of strangulation.
3. Checking battery capacity
• When the Power button !2 is ON, the battery power indicator on the LCD is lit.
(Lit) Battery power level is good.
(Lit) Battery power level is low. Have a spare battery ready.
(Blinking) Replace battery immediately.
MOODE
ZOOM MASTER
L-608
ENGLISH
-5-
3. Before Using
4. Replacing battery during measurement or when using the memory function
1. Always turn the power OFF before replacing batteries. If batteries are removed with the power
ON, measurements and settings in memory can no longer be recalled.
2. If after replacing the battery, or during measurements, strange screens (displays that have not
been set) appear in the LCD, or nothing happens, no matter what button is pushed, remove the
battery and wait at least ten seconds and then replace the battery. This allows the software to
automatically reset, and is not a malfunction.
WARNING:
•Never place batteries in fire, short, disassemble, or heat them. The batteries might break
down, and cause an accident, injury or pollute the environment.
5. Auto Power Off function
1. To conserve battery power, the meter will turn off about twenty minutes after last use.
2. Whether the Auto Power Saving feature turns the power off or the Power button !2 is pressed,
the settings and measured values remain stored in memory. When the Power button is pressed
again the last settings are displayed.
Reference:
・The power shuts off automatically after 1 minute when the power button is pressed and held.

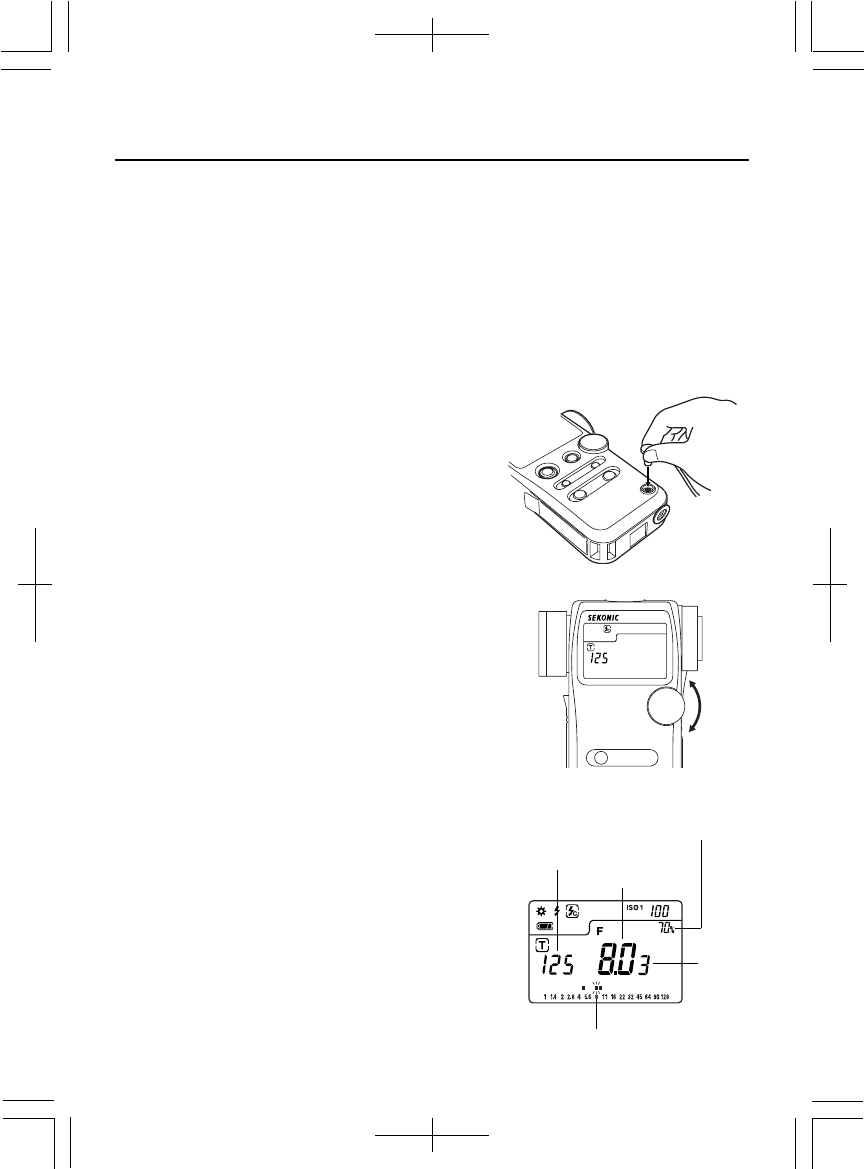

6. Setting main ISO film speed
1. Hold down the ISO1 button !1 and turn the Set/change
dial t to select ISO film speed for the film being used.
2. You can also change the ISO film speed after taking
measurements. The new value is automatically
displayed.
7. Setting second ISO film speed (ISO 2)
1. This feature is useful when using a second film with
different ISO speed, using PolaroidTM proofing film, or
for exposure correction (when using a filter, close-up
photography, etc.).
2. Hold down the ISO 2 button y and turn the Set/change
dial to select ISO film speed of the film being used.
3. Once this is set, after taking a measurement, the mea-
sured value for the second film speed will be displayed
when the ISO 2 button is depressed.
4. You can also change the second ISO film speed after taking
measurements. The new value is automatically is displayed.
Reference:
•The following settings are possible when using custom setting function P33.
1. It is possible to set the amount of correction within a range of ±5 EV in 1/10 steps.
2. When using in movie filming, it is possible to set 7 different frequently used types of filters
(Kodak Wratten filters) (608 Cine compatible).
ISO 1
ISO 2
-6-
8. Mesurement Lock and Measurement Lock Off
1. Hold down the Mode set button !0 and ISO1 button !1
and "LOC" will appear to indicate that the Measure-
ment is locked. The last measurement is held until the
lock is released, even if the Set/change dial is acci-
dentally moved.
2. To release the Measurement lock, perform the same
operation for the Measurement lock, Hold down the
Mode set button and ISO1 button and "Off" will appear
to indicate that the Measurement lock is released.
Reference:
・If the power supply is OFF or Auto OFF when in the locked position, the dial lock function will
continue operating when the power supply is turned on next.
3. Before Using
ISO 1
MODE
ISO 1
MODE
ENGLISH
-7-
4. Basic Operation
1. Incident or reflected spot measuring
1. To set for either incident or reflected light operation, turn the Incident / Reflected Spot Selector
Switch @8 on the eye piece, to the desired position ( or mark) until it clicks.
2. When incident operation is selected, the mark will blink for three seconds and when Reflected
Spot operation is selected the mark will blink for three seconds on the LCD.
NOTE:
•Before taking measurements, always make sure that the desired measurement mode
( or ) is chosen by checking the LCD or that the Incident/Reflected Spot Selector
Switch is clicked in proper position.
Incident operation Reflected Spot operation
Incident operation Reflected Spot operation
-8-
4. Basic Operation

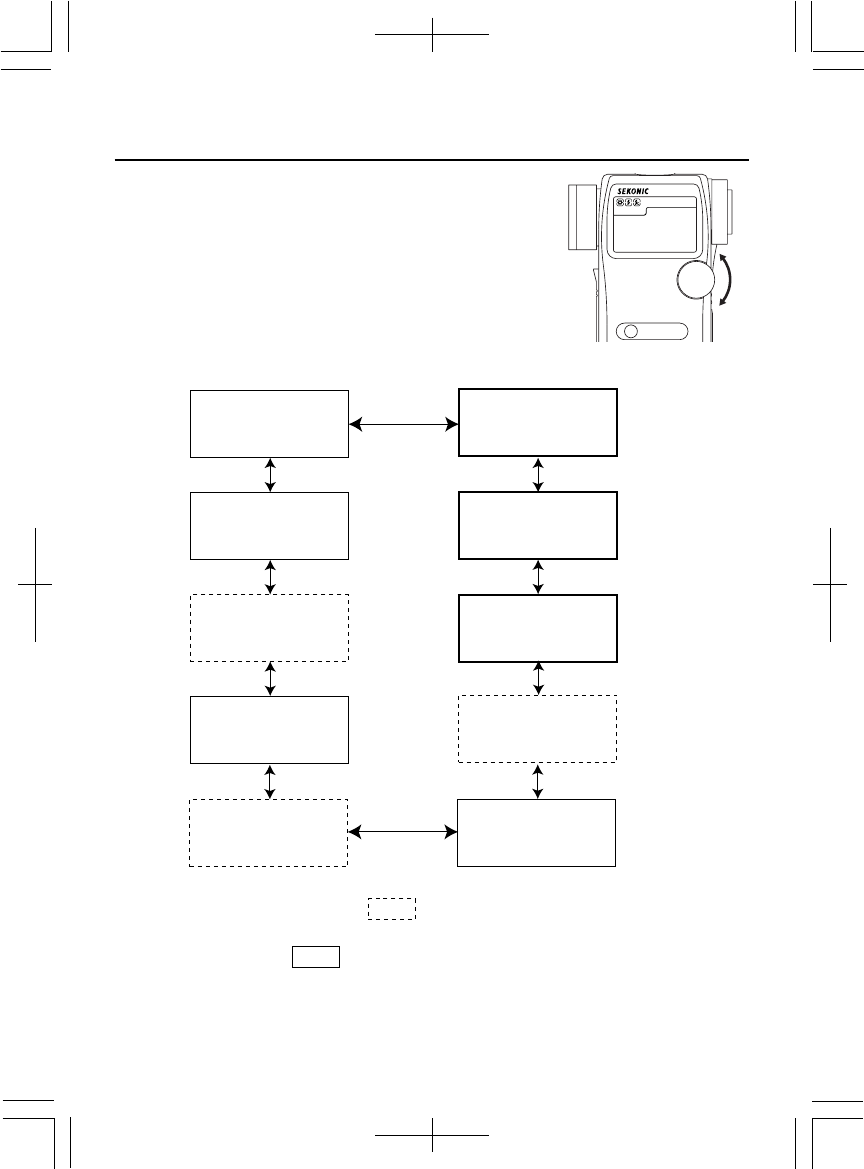

2. Setting measuring mode
1. Hold down the Mode set button !0 and turn the Set/change
dial t to select the desired mode. The mode switching
sequence is shown in the chart below:
・
Modes enclosed in dotted lines can only be selected when the respective DIP switch
is in ON position (see page 8).
・
Modes enclosed in lines can only be selected when Optional Radio Transmitter Mod-
ule is installed.
Radio Multiple Flash
(cumulative) mode
Radio Flash mode
Radio Flash setting mode
Shutter speed priority
mode (Ambient light)
See page 13
Aperture Priority mode
(Ambient light)
See page 14
EV mode (Ambient light)
See page 15
Auto Reset Cordless
Flash mode
See page 19
Dip switch 1
Cord Multiple Flash
(cumulative) mode
See page 21 Dip switch 2
Cordless Flash
cumulative mode
See page 22
Cord Flash mode
See page 18
Dip switch 2
MODE
ENGLISH
-9-
4. Basic Operation
3. Setting DIP Switches
1. Switches for setting modes that are used infrequently are housed in the Battery compartment
!9 of the meter. Select the mode you want prior to beginning measurements.
2. The DIP switches can be set by sliding the DIP switch !8 for the mode you want to select in the
ON position.
☆EV settings
When DIP switch 1 is turned on, setting become possible for EV mode (ambient light)
☆Multi settings
When DIP switch 2 is turned on, multiple cumulative flash mode can be set.
☆Buzzer setting
When DIP switch 3 is on, the buzzer sounds when light is received in the cordless mode.
☆CS setting
When DIP switch 4 is on, the mode changes to the custom setting mode, thereby enabling
various settings (refer to P33).
1234
T : 1 step
F : 1 stop T : 1/3 step
F : 1/3 stop
T : 1/2 step
F : 1/2 stop
-10-
4. When set for incident light
1. Measurement of incident light uses Lumisphere or recessed Lumisphere. You can switch between
Lumisphere and recessed function by firmly rotating the Lumisphere UP/DOWN ring q until it
clicks.
2. When the Lumisphere is raised
This is used to photograph people, buildings, and other three dimensional objects.
Measurements are basically made by the method of measuring with the lumisphere aimed in
the camera direction (more precisely, in the direction of the light axis of the lens) at the position
of the subject.
3. When the Lumisphere is lowered (flat diffuser function)
This is used to photograph manuscripts, paintings or other flat copy. It can also be used for
measuring illumination contrast (see page 25) or illumination levels (see page 27), or brightness
difference (see page 25).
NOTE:
•If the device is used with the UP/DOWN ring in a middle position, distributed light quality
will change, and suitable measurements cannot be made.
•Do not push the Lumisphere down manually.
•If the lumisphere becomes soiled, wipe it with a soft, dry cloth. Organic solutions (paint
thinner, benzene, etc.) must not be used under any circumstances.
4. Basic Operation
Lumisphere Lumidisc
ENGLISH
-11-
4. Basic Operation

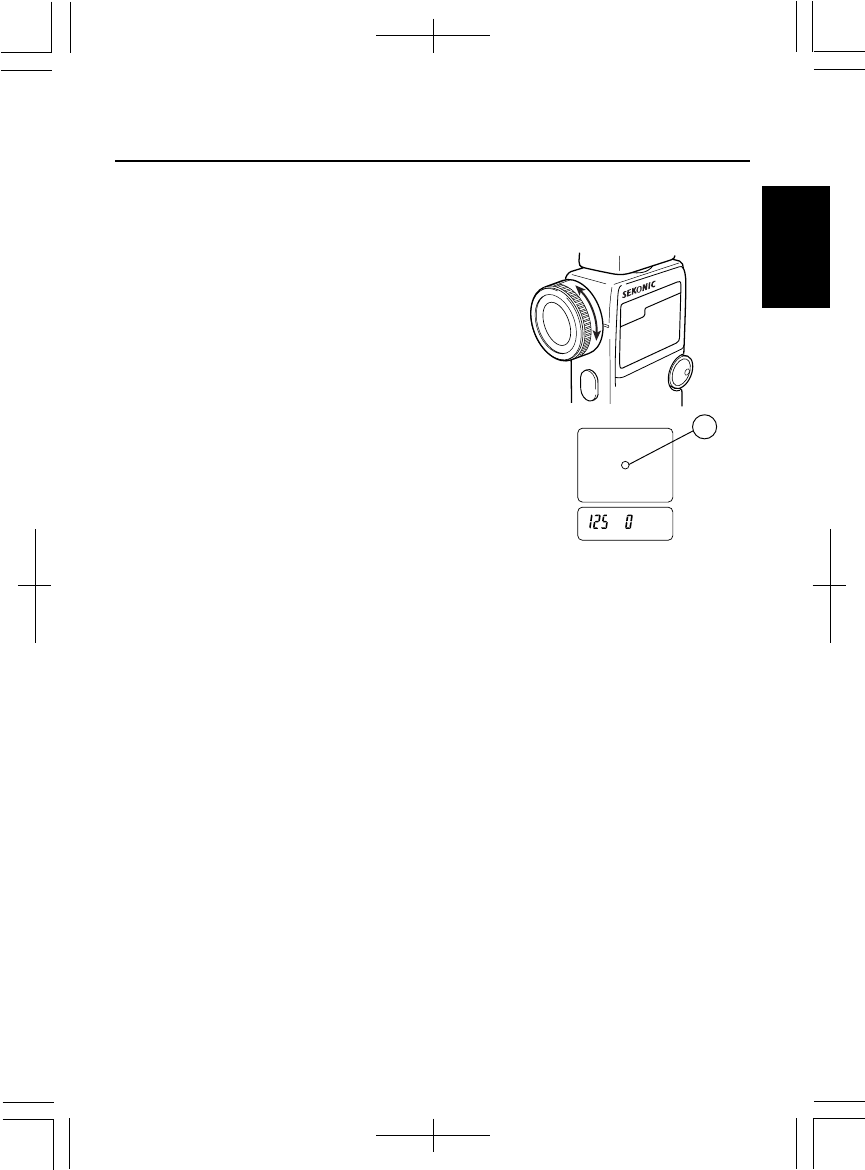

5. When set for reflected light (spot metering)
1. This method measures the brightness (luminance) of the light reflected from the subject. It is
useful for distant objects such as landscapes, when you cannot go to the position of the subject,
or for metering subjects that generate light (neon signs, etc.), highly reflective surfaces or
translucent subjects (stained glass, etc.).
2. The spot metering area can be selected by turning the
Zoom Lens ring @6 while looking through the viewfinder
from the camera position.
3. Take the measurement by aligning the circle inside the
viewfinder with the subject area to be measured.
4. The black circle A in the finder indicates the measure-
ment range. The light receiving angle is 1 degree with
the telephoto setting of the zoom lens and 4 degrees
with the wide angle.
< Visibility Adjustment >
Turn the eyepiece and adjust the visibility so that the circle in the finder is clearly visible when
you peer into the finder.
< Step-Up Ring > (optional)
The step-up ring (30.5mm → 40.5mm), available as an optional accessory, makes it possible to
mount step rings and filters of other manufacturers. This simplifies the setting of exposure
without the troublesome correction calculation of PL filters, etc.
The step-up ring can also be used as a hood to protect lenses from scratching, soiling, etc.
< 2x Angle Converter > (optional)
Mounting the 2x angle converter to the objective lens unit enables zoom measurements at a
light receiving angle of 2° - 8°.
Z
O
O
M
S
P
O
T
1
∼
4
°
S
E
K
O
N
I
C
Memory
A
-12-
4. Basic Operation

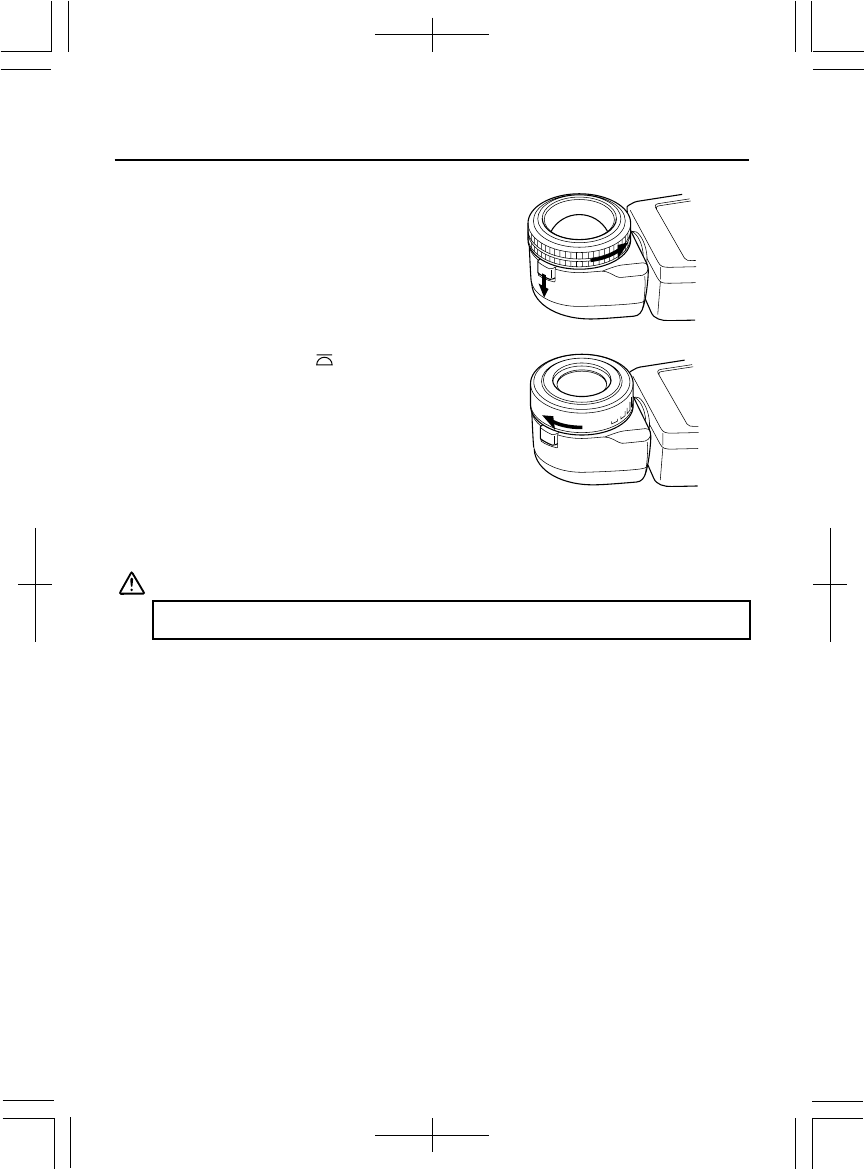

< Lumigrid > (opsional) (Receiving Angle 54°)
1. Remove the Lumisphere
The lumisphere unit is removed by holding the upper
and lower sections of upper and lower double
Lumisphere up/down ring q and turning it in the
counterclockwise direction while pushing the Lock
lever upward.
2. Mount the lumigrid
To mount Lumigrid, align the mount/removal indicator
on the Lumigrid with the mark and, while pressing
it, turn it in the clockwise direction and secure it in
place by raising the Lock lever until it clicks into place.
3. Take measurements by aiming the lumigrid precisely at the area of the subject to be measured
from the position or direction of the camera.
4. Follow the same procedure to mount the lumisphere.
CAUTION:
•Be sure to avoid touching the light receiving section when mounting or removing the lumisphere
or lumigrid.
ENGLISH
-13-
5. Measurement
1. Measuring ambient light
In this measurement mode, we have the choice of shutter priority mode, aperture priority mode and
EV mode. Hold down the Mode set button !0 and turn the Set/change dial t to select ambient
measurement mode .

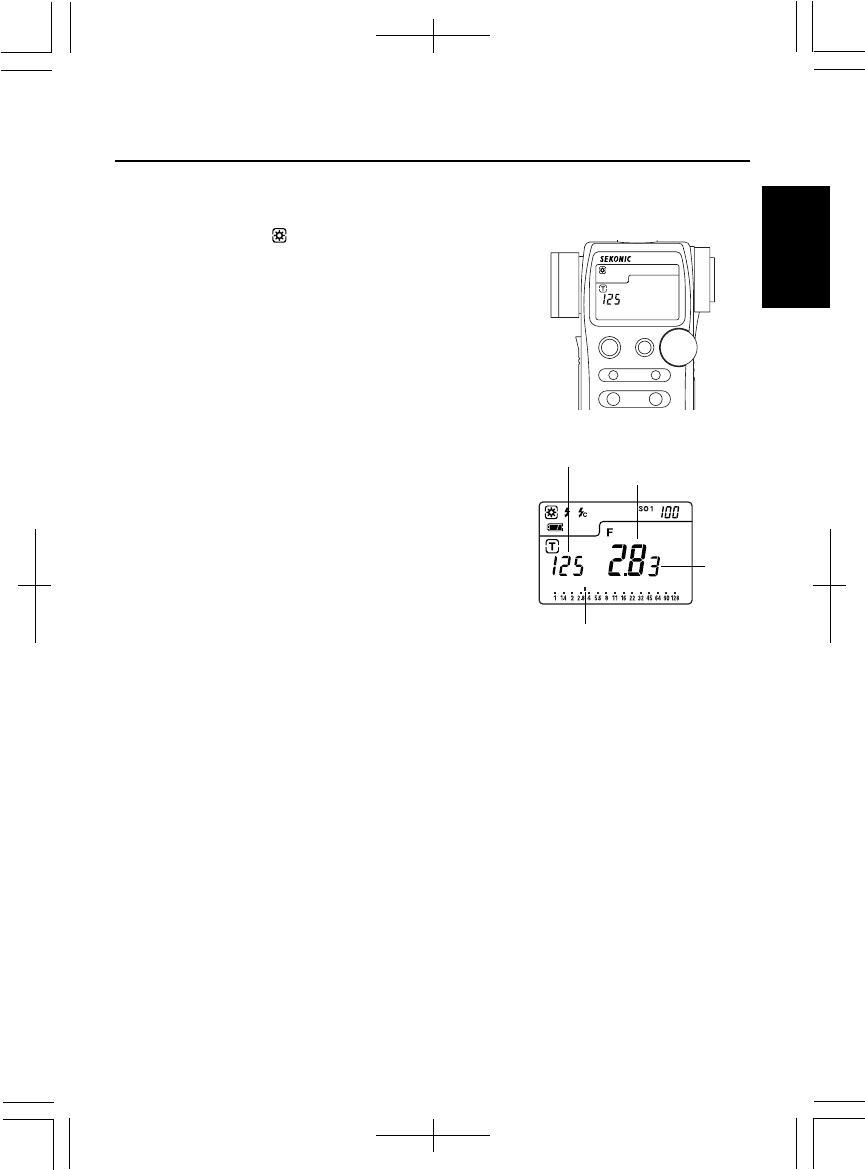

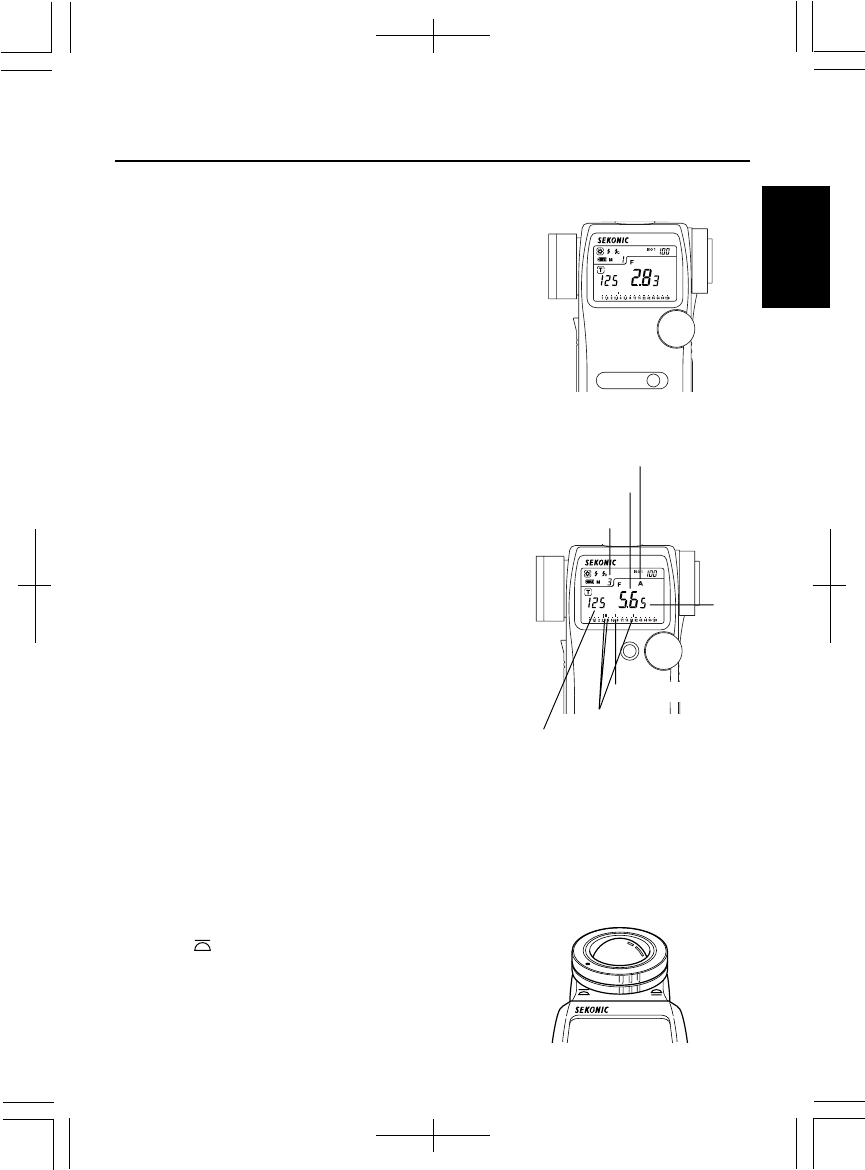

1-1 Shutter Speed Priority mode
1. Hold down the Mode set button !0 and turn the
Set/change dial t to select shutter Speed Priority
mode.
2. Turn the Set/change dial to set the desired shutter
speed.
3. Press the Measuring button !5 to make a
measurement. Release the Measuring button to
complete the measurement. The measured value
(aperture value) at that time will be displayed.
While pressing the Measuring button, the meter
measures continuously until it is released.
Reference:
・
It is possible to switch between 1, 1/2 and 1/3 shutter speed steps by setting DIP switch
4.
・
You can set shutter speeds from 30 minutes to 1/8000 seconds. After 1/8000 the shutter
speeds of 1/200 and 1/400 can be set.
・
After measurement, the F stop value corresponding to the shutter speed is displayed
when the shutter speed is changed.
・
The measured F value is displayed in 1/2 stops in the liquid crystal dot display (1/3
stops are not displayed). 608 Cine displays values in 1/3 stops only.
・
“E.u” (Exposure under) or “E.o” (Exposure over) appears when the combination of shutter
speed and aperture is not possible for the measured light level. Changing the shutter
speed and or aperture with the Set/change dial will allow you to find a combination that
is possible. The 'E.o' or 'E.u' mark may be displayed at the maximum and minimum F
values, F45 and F0.5, respectively, with the 608 Cine.
・
If the “E.u” or “E.o” readout blinks, this indicates that the light level is beyond the
measurement range of the light meter.
Measured f stop
value
1/10
f stop
Set
shutter speed
Measured f stop
POWER
ISO 1
MODE
ISO 2
AVE./∆EV
MEMORY
-14-
1-2 Aperture Priority mode
1. Hold down the Mode set button !0 and turn the Set/change
dial to select aperture priority mode.
2. Turn the Set/change dial t to set the desired
f stop value.
3. Press the Measuring button !5 to make a
measurement.
Release the Measuring button to complete the
measurement. The measured value (shutter
speed) at the time will be displayed.
While pressing the Measuring button, the
meter measures continuously until it is
released.
Reference:
・
It is possible to switch between 1, 1/2 or 1/3 F stop values by setting DIP switch 4.
・
You can set f stops from F0.5 to F161 (full f stops)
・
The measured shutter speed is displayed in 1/2 stops in the liquid crystal dot display.
With the 608 Cine, values are displayed in 1/3 stops.
・
After measurement, the shutter speed corresponding to the F stop is displayed when the
F stop is changed.
5. Measurement
1/10
f stop
Set f stop value
Measured value
(shutter speed)
MODE
Measured shutter speed
ENGLISH
-15-

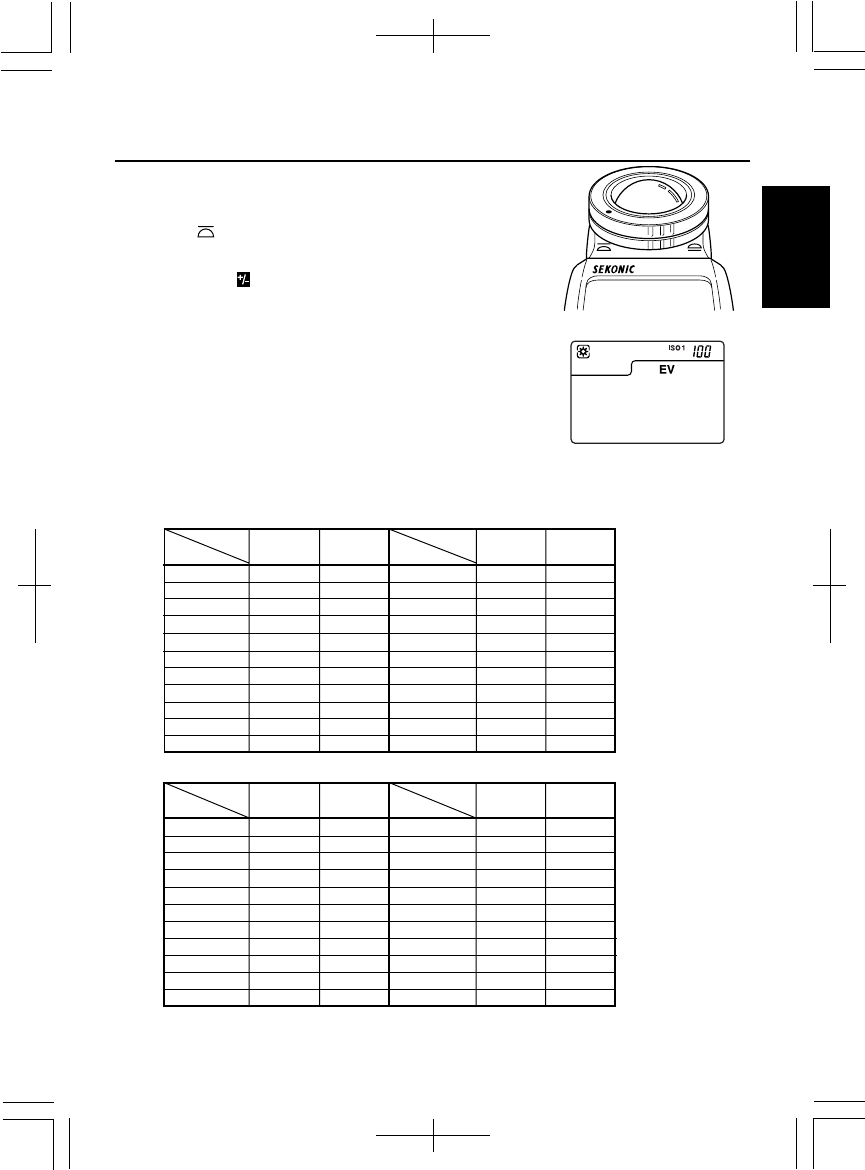

1-3 EV mode
Open the Battery compartment cover !6 and slide the EV, DIP switch (see page 9) to the ON
position.
1. Hold down the Mode set button !0 and turn the
Set/change dial t to select EV value mode.
2. Press the Measuring button !5 to make a
measurement. Release the Measuring button to
complete the measurement. The measured value
(EV value) at that time will be displayed.
At the same time, the shutter speed will be
displayed in the digital display area, and the
corresponding f stop will be displayed in the analog
display area.
While pressing the measuring button, the meter
measures continuously until it is released.
Reference:
・
“E.u” (Exposure under) or “E.o” (Exposure over) appears when the combination of shutter
speed and aperture is not possible for the measured light level. Changing the shutter speed
and or aperture with the Set/change dial will allow you to find a combination that is possible.
If the “E.u” or “E.o” readout blinks, this indicates that the light level is beyond of the
measurement range of the light meter.
f stop
Shutter
speed
EV value
5. Measurement
MODE
-16-

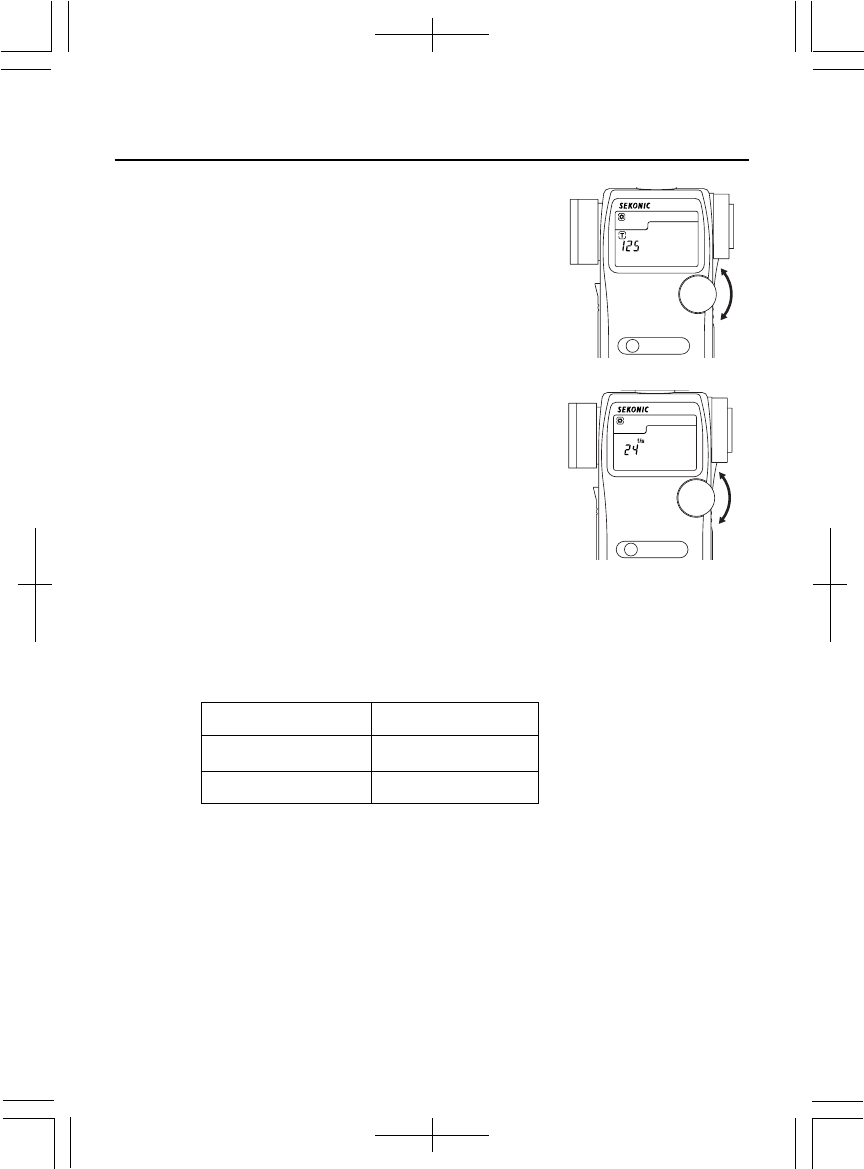

1-4 Cinematography
1. Hold down the Mode set button !0 and turn the Set/
change dial t to select ambient light shutter speed
priority mode.
2. Turn the Set/change dial to select the Cine Speed for
the camera that will be used.
Cine Speed is displayed after 1/8000, 1/200, 1/400 and
the unit are in frames per second (FPS).
[L-608]
The following Cine Speeds will display: 2, 3, 4, 6, 8, 12,
16, 18, 24, 25, 30, 32, 36, 40, 48, 50, 60, 64, 72, 96,
120, 128, 150, 200, 240, 256, 300 and 360 FPS.
[L-608CINE]
The following Cine Speeds will display: 1, 2, 3, 4, 6, 8,
12, 16, 18, 24, 25, 30, 32, 36, 40, 48, 50, 60, 64, 72, 75,
90, 96, 100, 120, 125, 128, 150, 200, 240, 250, 256,
300, 360, 375, 500, 625, 750 and 1000 FPS.

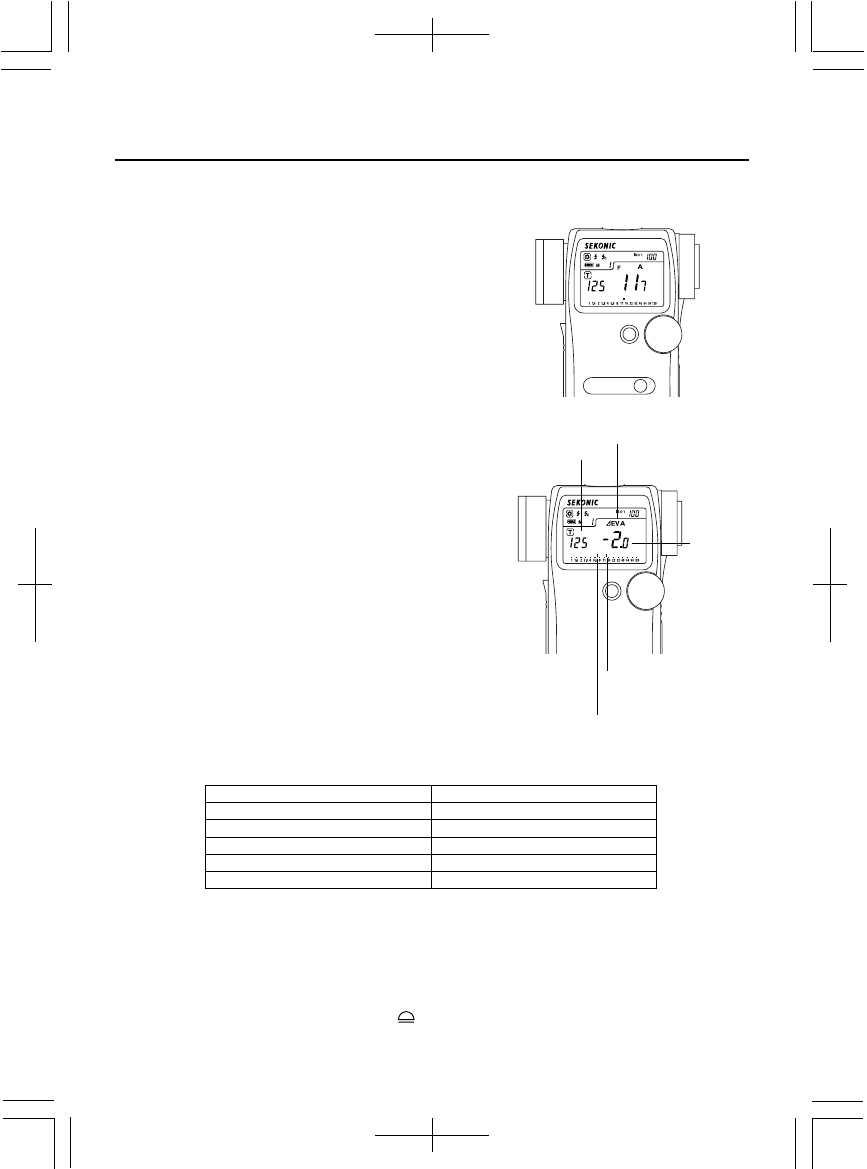

3. The shutter opening angle that these speeds are based
on, is 180 degrees. For other angles make the following
ISO film speed corrections.
5. Measurement
Shutter open angle
Amount of ISO film
speed correction
160 degrees -1/3
220 degrees +1/3
MODE
MODE
ENGLISH
-17-
☆ Example of correction value
-1/3: Decrease ISO film speed by 1/3 stop, example: ISO 80 -1/3 stop = ISO 64
+1/3: Increase ISO film speed by 1/3 stop, example: ISO 80 +1/3 stop = ISO 100
4. Press the Measuring button !5 to make a
measurement. Release the Measuring button to
complete the measurement. The measured value
(f stop value) will be displayed.
While pressing the measuring button, the meter
measures continuously until it is released.
Reference:
・
The measured F stop value is displayed in 1/2 stops in the liquid crystal dot display. With the
608 Cine, values are displayed in 1/3 stops.
5. Setting the shutter opening angle (608 Cine)
It is possible to set the shutter to the desired opening angle by turning the Set/change dial
while pressing mode set button !0 and ISO2 button y .
Note:
•Shutter opening angle: The angle can be set in the range of 5° - 270° (in 5° steps) as
well as 144° and 172°.
•"Ang" is displayed continuously in the LCD display if the shutter opening angle is set to
any value other than 180°.
•Press the mode set button and ISO2 button to confirm the shutter opening angle if it is
not continuously displayed.
Reference:
・
This setting is only valid when the shutter speed is set to display cine frame count (F/S) in the
cine mode.
Set
shutter speed
Measured f stop
on analog display
Measured f stop
value
5. Measurement
1/10
f stop
-18-

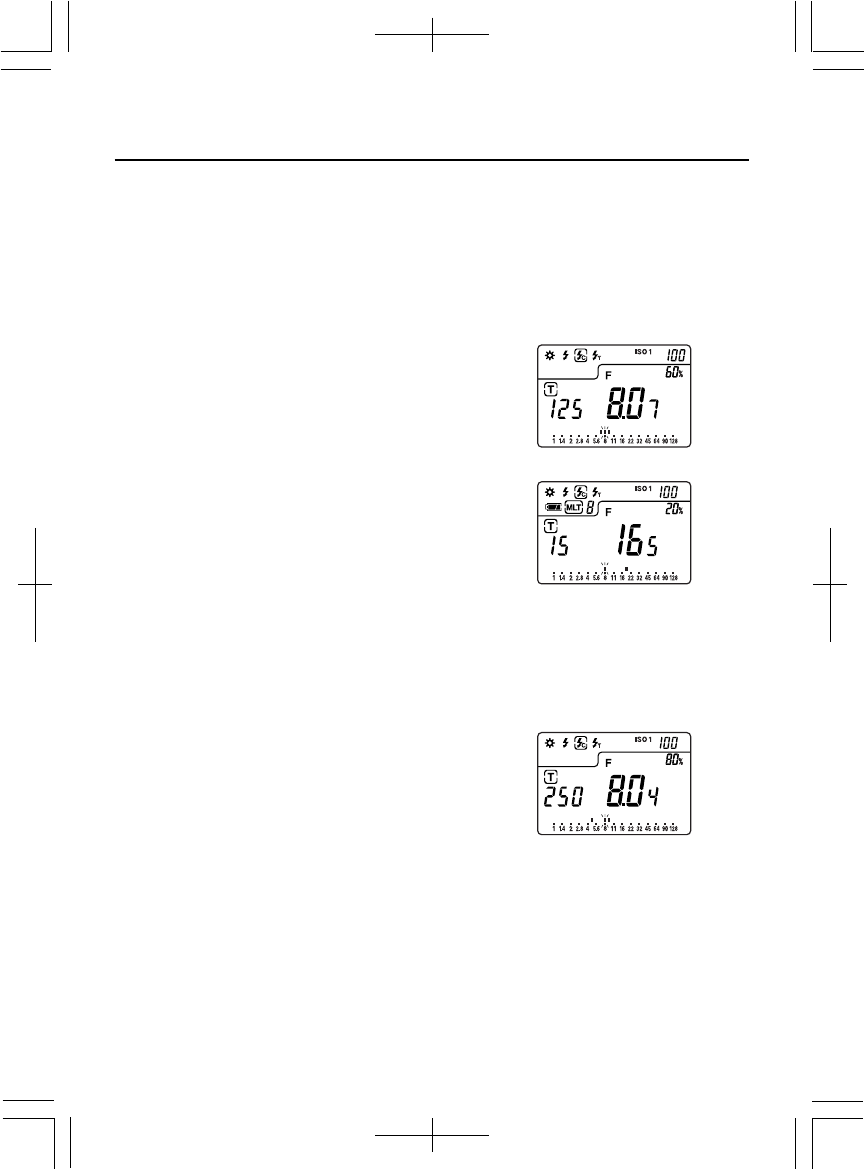

2. Measuring flash light
This method of measurement can be done in the following modes; with cord, without cord, multiple
flash with cord, multiple flash without cord and radio flash system (with optional radio transmitter
module). When Measuring flash light, the shutter speed and F stop value (value combining ambient
light and flash light: total amount of light) are displayed in the liquid crystal display and the ambient
light and flash light are each displayed as separate values together with the total amount of light in
the dot display. In addition, the ratio of flash light to the total amount of light is displayed at that time
as a value in 10% steps.

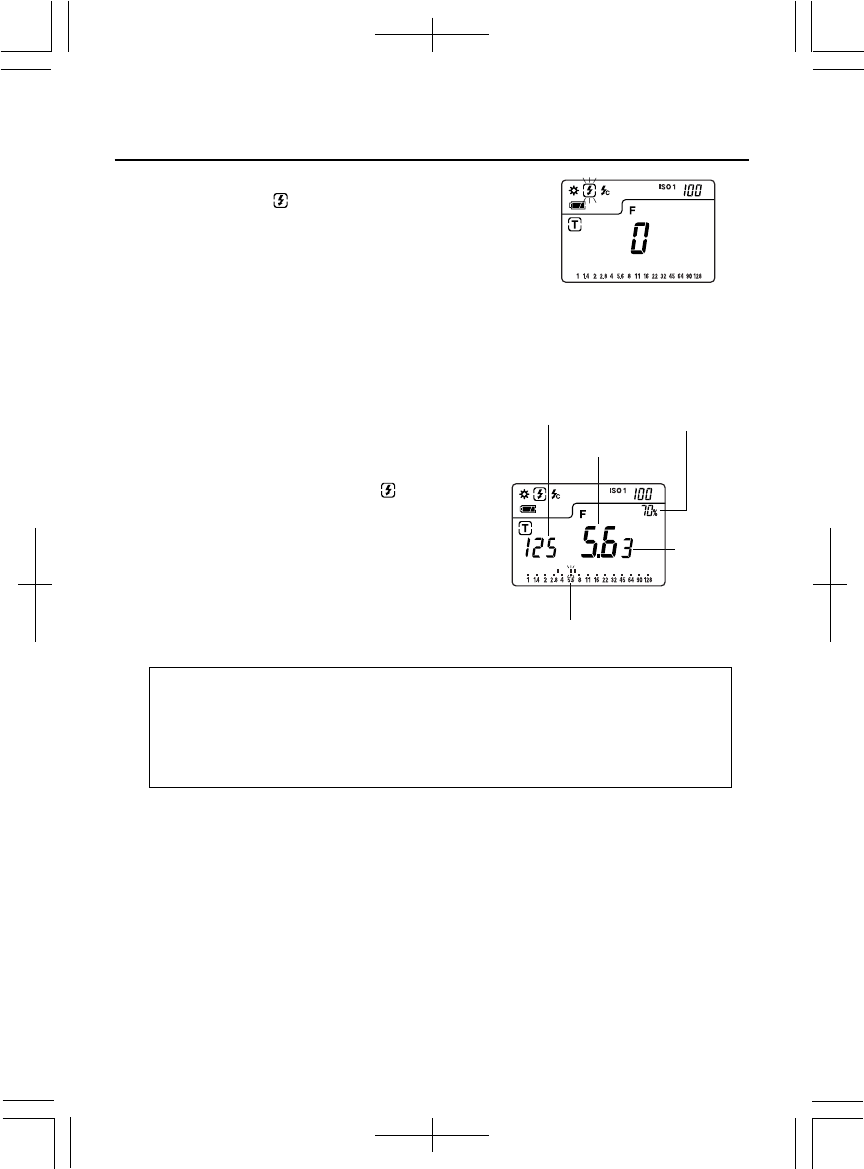

2-1 Cord Flash mode
The most positive method to assure proper synchronization and measurement of flash units.
Connect the meter with the flash with a synchronization cord. Be sure to replace Synchro
terminal cap @0 after your measurement.
1. Connect the flash synchro cord to the Synchro
terminal i on the exposure meter.
2. Hold down the Mode set button !0 and turn the
Set/change dial t to select flash measurement with
cord mode.
3. Turn the Set/change dial to set shutter speed. When
setting shutter speed, first check the settings to
confirm that they correspond to the settings on the
camera.
4. Press the Measuring button !5 to trigger the flash.
The measured value (f stop value) will be displayed.
5. Measurement
Measured f stop
value
1/10
f stop
Set
shutter speed
f stop
MODE
POWER AVE./∆EV
ISO1
MOODE
ZOOM MASTER
L-608
MEMORY
ISOR
The ratio of flash
element to the total
amount of light
ENGLISH
-19-
Reference:
・
It is possible switch the shutter speed between 1 step, 1/2 steps and 1/3 steps by custom
setting the DIP switch 4 (refer to P33).
・
The shutter speed can be set in single or half steps from 30 minutes to 1/1000 of a second.
After 1/1000 sec, the meter can be set at the following intermediate speeds: 1/75, 1/80,
1/90, 1/100, 1/200, or 1/400.
・
If the film speed is changed after the measurement is taken, the new converted measured
value (f stop value) will be displayed.
・
After measurement, the F stop value corresponding to the shutter speed is displayed
when the shutter speed is changed.
・
“E.u” (Exposure under) or “E.o” (Exposure over) appears when the combination of shutter
speed and aperture is not possible for the measured light level. Change the shutter speed
with the Set/change dial and take measurements again.
・
If the “E.u” or “E.o” readout blinks, this indicates that the light level is beyond of the
measurement range of the light meter.
5. Measurement
CAUTION:
•There is danger of electric shock if the meter is handled with wet hands, during rain, in
areas splashed by water or where there is a lot of moisture, if you use cord synchronized
flash.
•Under such conditions, it is recommended that you use the meter in the flash cordless
mode or radio flash system (accessories), and keep the Synchro terminal cap in place.
NOTE:
•The electronic fire unit may fire when you connect the Synchro cord or operate the
POWER Switch.
•For flash units with extremely low electric trigger voltage, the flash may not fire. In this
case, make measurements in flash mode without cord (see page 19).

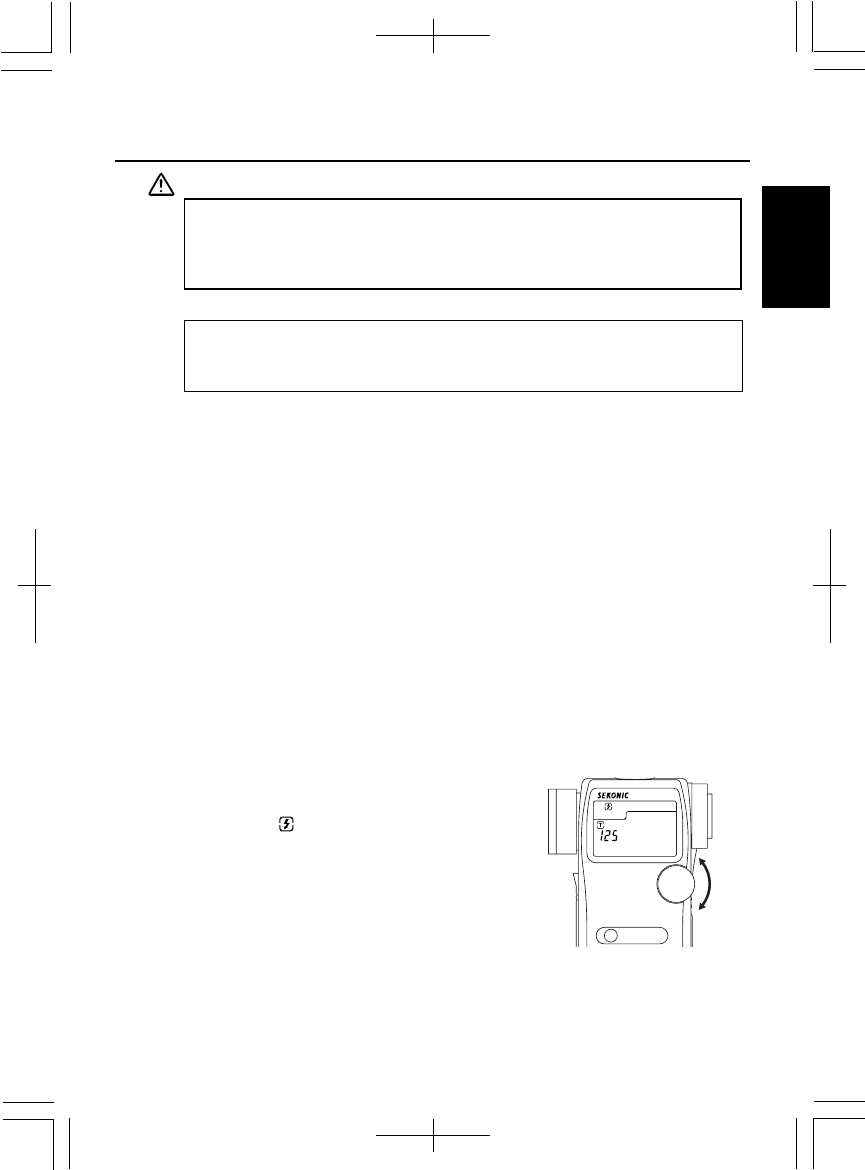

2-2 Auto-reset cordless flash mode
Measurements are made by the meter receiving the light from the flash. This measurement
mode is used when the Synchro cord will not reach because of the distance between the flash
and meter or when use of the Synchro cord is inconvenient.
1. Hold down the Mode set button !0 and turn the
Set/Change dial t to set Auto-reset Cordless
Flash mode .
2. Turn the Set/change dial to set shutter speed.
When setting shutter speed, first check the settings
to confirm that they correspond to the settings
available on the camera.
MODE
-20-
NOTES:
•When firing a flash, if the flash brightness is low compared to the ambient light, the meter
may fail to detect the light. In this case, make measurements using the flash with cord
mode.
• Rapid start fluorescent lamps and special lighting are sometimes mistaken for flash, and
accidentally measured. In this case, make measurements using the flash with cord mode.
•The meter’s tripod socket permits mounting it to a tripod or light stand and placing it
strategically when using cordless flash mode.
Reference:
・
After measurement, the F stop value corresponding to the shutter speed is displayed when
the shutter speed is changed.
・
Setting the shutter speed is the same as measurement (see page 18) of "Cord flash mode" of
section 2-1.
・
A new converted value is displayed when the film speed is changed after taking the
measurement.
・
Readings over and under the measuring range are the same as measurement (see page 18)
of "Cord Flash mode" of section 2-1.
5. Measurement
Measured f stop
value
1/10
f stop
Measured f stop
Set shutter speed
The ratio of flash
element to the total
amount of light
3. When the Measuring button !5 is pressed, the
mode mark will blink and the meter is ready to
measure. The ready to measure mode will continue
for approximately 90 seconds.
During this time, fire the flash and make a
measurement.
4. If the 90 second period is exceeded and the blinking
mark stops, press the Measuring button again to
return to ready to measure.
5. When the light from the flash is received, the
measured value (f stop) is displayed. Even after
measurement, the mode mark continues to blink
the meter is in ready state and new measurement
can be made. (Auto-reset function)
ENGLISH
-21-

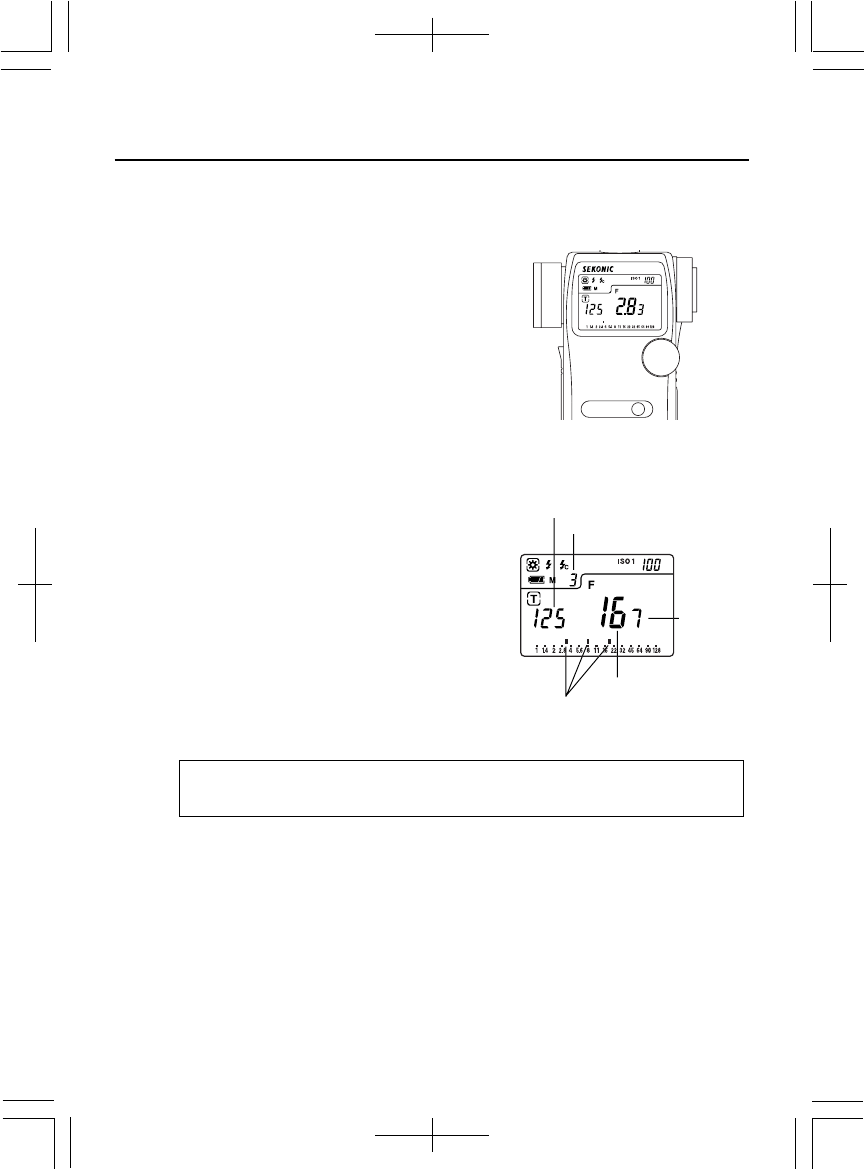

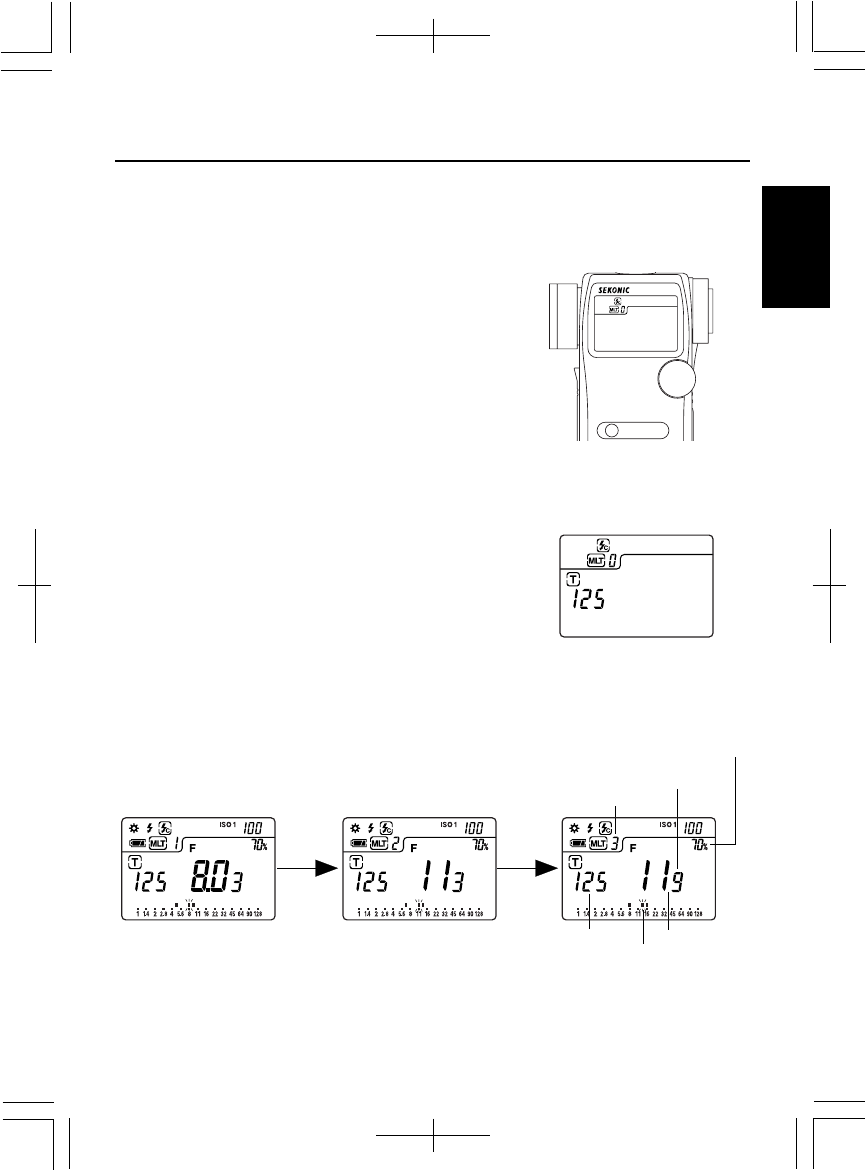

2-3 Cord multiple flash (cumulative) mode
These measurements are used when the light generated by the flash is inadequate for proper
exposure. The repeated flash pops can be accumulated until the desired aperture is displayed.
The cumulative number is infinite. Only one digit is displayed if the cumulative number is ten or
more.
1. Slide DIP switch 2 to MULTI (see page 9) to the
ON position.
Hold down the Mode set button !0 and turn the
Set/change dial t to select cord multiple flash
(cumulative) mode (MLT will display on the LCD).
2. Turn the Set/change dial t to set shutter speed. When setting shutter speed, first check
the settings to confirm that they correspond to the settings available on the camera.
3. Connect the Flash synchro cord to the meter's
synchro terminal i.
4. Press the Measuring button !5 to trigger a flash. The measured f stop value at that time will
be displayed. Each time this is repeated, the accumulated f stop value and the number of
cumulative flashes is displayed.
5. To release the cumulative mode, switch to another mode by turning the Set/change dial
while pressing the mode set button.
5. Measurement
f stop
Measured f stop
1/10 f stop
Number of
cumulative flashes
Set
shutter speed
The ratio of flash
element to the total
amount of light
MODE
-22-

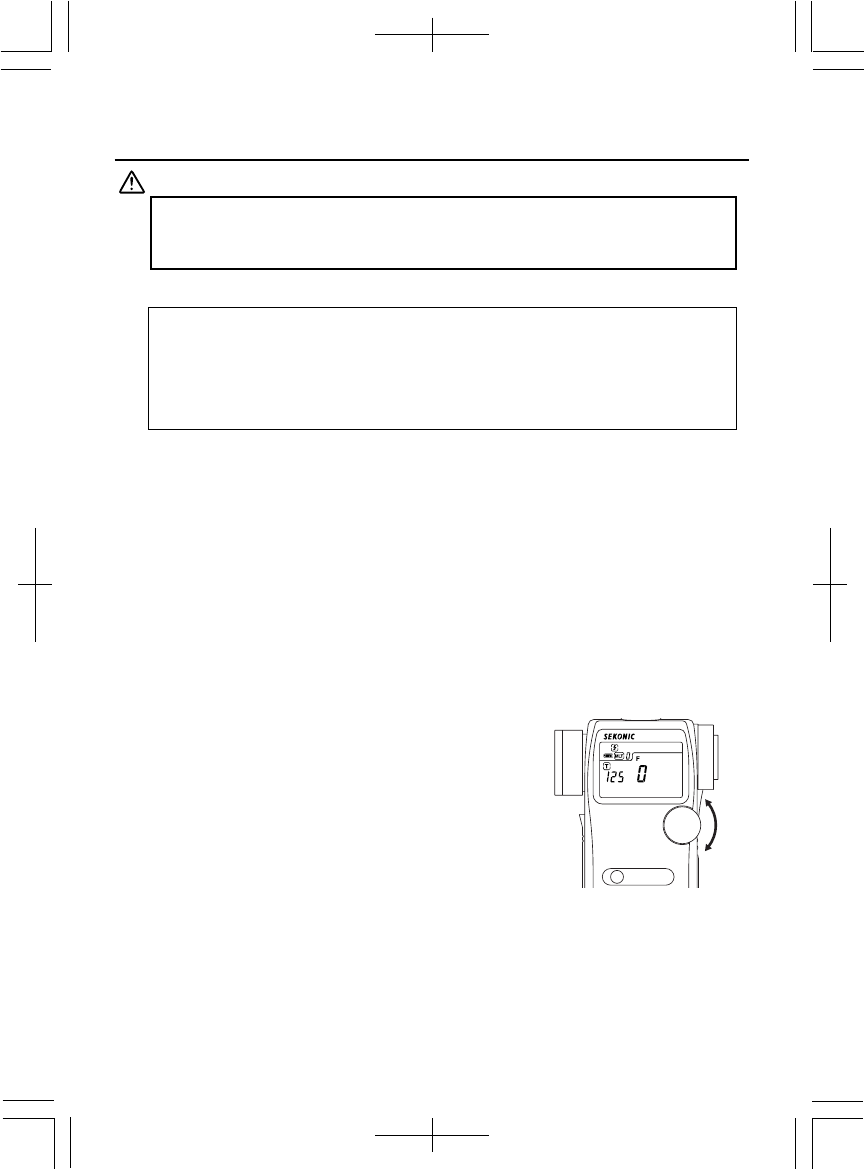

2-4 Cordless flash (cumulative) mode
These measurements are used when the light generated by the flash is inadequate for proper
exposure. The repeated flash pops can be accumulated until the desired aperture is displayed.
The cumulative number is infinite. Only one digit is displayed if the cumulative number is ten or
more.
1. Slide DIP switch 2 to MULTI (see page 9) to the
ON position.
2. Hold down the Mode set button !0 and turn the
Set/change dial t to select flash measurement
cordless multiple flash (cumulative) mode. (MLT
will display on the LCD).
Turn the Set/change dial to set shutter speed.
When setting shutter speed, first change the
settings to confirm that they correspond to the
settings available on the camera.
MODE
NOTE:
•The flash unit may flash when you connect the synchro cord or operate the POWER switch.
•When firing a flash to make measurements, check the camera's synchronizing range and
set the proper shutter speed.
•For flash units with low electric trigger voltage, the flash may not fire. In this case, make
measurements in flash mode without cord (see page 22).
•A new converted f stop is displayed when the film speed is changed after taking the
measurement.
Reference:
・
Setting the shutter speed as measurement (see page 18) of "Cord flash mode" of Section 2-
1.
・
Readings over and under the measuring range, are the same as measurement (see page 18)
of "Cord flash mode" of section 2-1.
・
If the film speed is changed after the measurement is taken, the new converted measured
value (f stop value) will be displayed.
CAUTION:
•There is danger of electric shock if the meter is handled with wet hands, during rain, in
areas splashed by water or where there is a lot of moisture.
Under such conditions, it is recommended that you use the meter in the flash cordless
mode, and keep the Synchro terminal cap in place.
5. Measurement
ENGLISH
-23-
5. Measurement
f stop
Measured f stop
1/10 f stop
Number of
cumulative flashes
Set
shutter speed
The ratio of flash
element to the total
amount of light

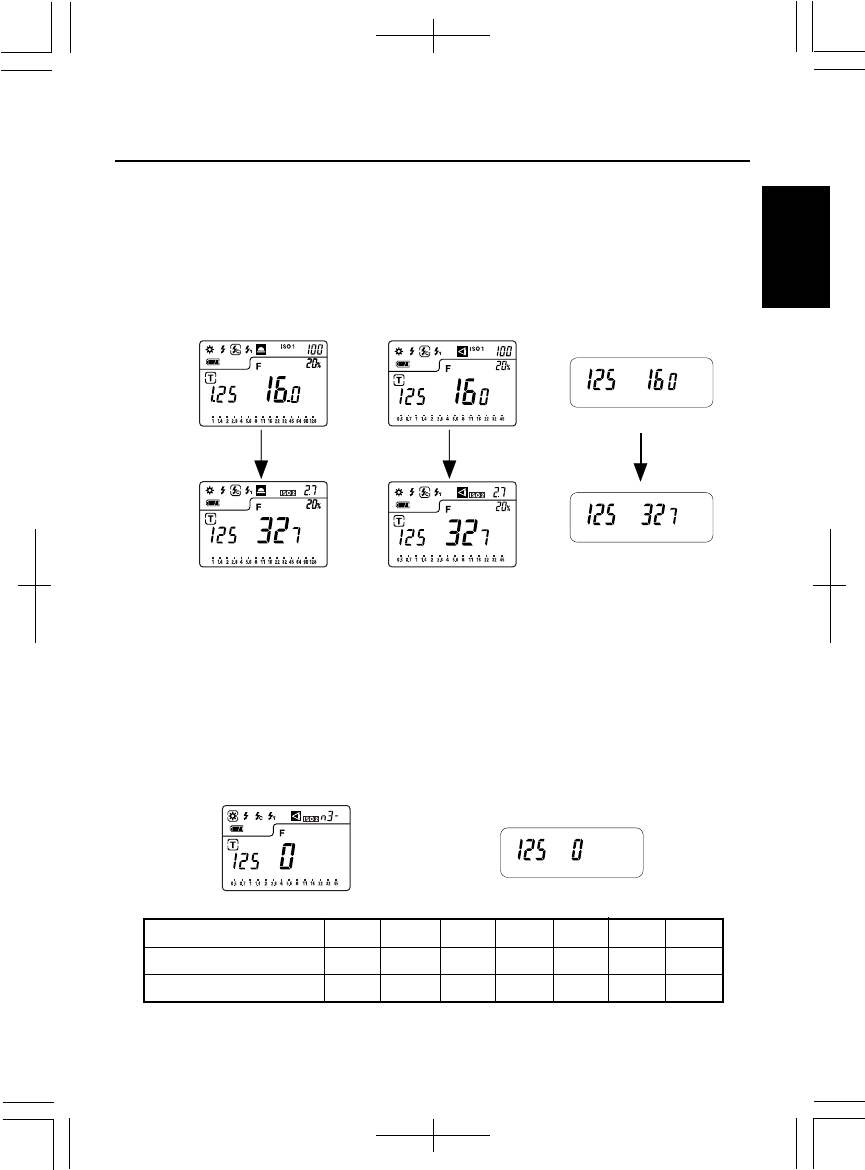

3. When the light from the flash is received, the measured value (f stop) is displayed. Each
time this is repeated, the accumulated value for the aperture and the number of cumulative
flashes is displayed.
4. The ready to measure mode will be displayed for approximately 90 seconds. If the 90
second period is exceeded and the blinking mark stops, press the Measuring button !5
again. The measured value (f stop) of the previous time reverts to 0 and the meter is in
ready to measure mode.
5. If the flashing light extinguishes after 90 seconds, press the measurement button again to
re-set previous setting values (F values) to "0" and revert to the standby state.
NOTE:
•When firing a flash, if the flash brightness is low compared to the ambient light, the
meter may fail to detect the light. In this case, make measurements using the flash with
cord flash mode.
•Rapid start fluorescent lamps and special lighting are sometimes mistaken for flash,
and accidentally measured. In this case, make measurements using the flash with
cord flash mode.
Reference:
・
Setting the shutter speed is the same as measurement (see page 18) of "Cord flash
mode" of Section 2-1.
・
“E.u” (Exposure under) or “E.o” (Exposure over) appears when the combination of
shutter speed and aperture is not possible for the measured light level. Change the
shutter speed with the Set/change dial and take measurements again.
・
If the “E.u” or “E.o” readout blinks, this indicates that the light level is beyond of the
measurement range of the light meter.
-24-
6. Advanced Functions
1. Memory function
This meter can store up to nine measured values in memory. This feature can be used in the follow-
ing modes: ambient light (shutter speed priority, aperture priority and EV) flash (with, without cord
and radio wave).
1. Press the Measuring button !5 and take a measure-
ment.
2. Press the Memory button u placing the measured
value in memory.
The number of values in memory is displayed on
the LCD. The f stop value corresponding to the mea-
sured value is displayed in the analog section. By
repeating this operation, up to nine values can be
stored in memory.
3. To release the memory, press the memory clear but-
ton @5 or switch to the measurement mode.
4. Memory Recall
When the Set/Change dial t is rotated while both
Memory button u and the Mode set button !0 are
held down together, the measured value stored in
the memory is displayed along with the memory
number. When any stored values other than the one
with the largest memory number is being recalled,
its memory number appears flickering together with
"M".
NOTE:
• The memory function cannot be used in "flash cumulative mode."
• Measured values for the nineth and subsequent times will be displayed but cannot be
stored in memory.
1/10
f stop
Measured f stop value
Memoreized
f stop values
Set shuttter
speed
Number of memorized value
MEMORY
ENGLISH
-25-
2. Averaging function
This displays the average of two to nine of the values in memory.
1. Press the Measuring button !5and take a
measurement.
2. Press the Memory button u placing the measured
value in memory.
3. When the Ave/ Δ EV button r is pressed, an
average value for the two to nine measurements
display on the LCD. The value in memory and the
average values are displayed on the analog scale.
An "A" appears in LCD to indicate this is an average.
4. The average mode can be canceled by pressing
the Ave/ Δ EV button.
6. Advanced Functions
MEMORY
AVE./∆EV
Memorized
f stop value
Set shutter speed
Averaging indicator
Number of memorized
value
Averaged f stop
1/10
f stop
Averaged f stop
3. Brightness difference function
This function is useful for evaluating studio lighting and checking the evenness of the lighting set-up
across the subject area.
Take a measured value at a certain point as a standard value. The difference between the standard
value and a new measured value is displayed as EV and the f-stop in analog scale.
Example of adjusting lights using brightness measurement with shutter speed priority mode.
1. Turn the Lumisphere UP/DOWN ring q to lower it to
the mark position.
-26-
5. The Brightness Difference mode can be canceled by pressing the Ave/Δ EV button r.
Reference:
• To determine exposure after adjusting lights, turn both main and secondary light sources
on, raise the Lumisphere to the mark position, then take a reading along the camera
light axis.
2 : 1
3 : 1
4 : 1
8 : 1
16 : 1
EV difference of ∆ EV value Contrast ratio
1
1.5
2
3
4
6. Advanced Functions
Memorized
f stop value
Set shutter speed
Difference
in EV
f stop value
being measured
Now on reading
AVE./∆EV
MEMORY
AVE./∆EV
2. Turn any secondary light source off. Point the
Lumisphere toward the main light source, from the
position of the subject and take a measurement. Press
the Memory button u and store the value in memory.
3. Press the Average/ ∆ EV button r and display the "A"
mark on the LCD.
4. Turn the main lighting off. Now, point the Lumisphere
toward the secondary light source. While the Measuring
button !5 is depressed and held down, the indicated
difference between the main and auxiliary light sources
is displayed in EV values and in bars in analog scale
of memory value. A lighting ratio (contrast ratio) can
be found in the scale below.
ENGLISH
-27-
6. Advanced Functions
4. How to use an incident illuminance (LUX) meter
1. Turn the Lumisphere UP/DOWN ring q to lower it to
the mark position.
2. Make sure that componsating value (see page 29) is
canceled ( ).
3. Set the meter to EV mode (DIP switch 1) and ISO 100.
4. Place meter parallel to the subject and take a
measurement.
5. Convert the measured EV with a conversion table or
calculation formula to find the brightness level.
☆ EV value → Lux conversion table
-2
-1
0
1
2
3
4
5
6
7
8
0.63
1.3
2.5
5.0
10
20
40
80
160
320
640
0.88
1.8
3.5
7.1
14
28
57
110
230
450
910
9
10
11
12
13
14
15
16
17
18
19
1300
2600
5100
10000
20000
41000
82000
160000
330000
660000
1300000
1800
3600
7200
14000
29000
58000
120000
230000
460000
930000
1900000
EV
EV
Decimal places
00.5
0 0.5
Decimal places
☆ EV value → Foot candle conversion table
-2
-1
0
1
2
3
4
5
6
7
8
0.06
0.12
0.23
0.46
0.93
1.9
3.7
7.4
15
30
59
0.08
0.16
0.33
0.66
1.3
2.6
5.3
11
21
42
84
9
10
11
12
13
14
15
16
17
18
19
120
240
480
950
1900
3800
7600
15000
30000
61000
120000
170
340
670
1300
2700
5400
11000
22000
43000
86000
170000
EV 00.5
0 0.5
Decimal places
EV
Decimal places
Reference:
・
When the custom setting function is used, it is possible to read the lux or FC display
directly (refer to P33).
-28-
5. How to use a reflected luminance (cd/m2) meter
1. Make sure that the componsating value (see page 29) is canceled ( ).
2. Set the meter to EV mode (DIP switch 1) and ISO 100.
3. Set meter for spot reading.
Choose angle setting that is best suited for your subject.
Take the measurement by looking through the finder and aligning so the subject that will be
measured is inside the circle.
4. Convert the measured EV with a conversion table or calculation formula to find the luminance
(cd/m2).
6. Advanced Functions
☆ EV value → cd/ft2 conversion table
3
4
5
6
7
8
9
10
11
0.09
0.19
0.37
0.74
1.5
3.0
5.9
12
24
0.13
0.26
0.53
1.1
2.1
4.2
8.4
17
34
12
13
14
15
16
17
18
19
48
95
190
380
760
1500
3000
6100
67
140
270
540
1100
2200
4300
8600
EV 00.5
0 0.5
Decimal places
EV
Decimal places
☆ EV value → cd/m2 conversion table
3
4
5
6
7
8
9
10
11
1
2
4
8
16
32
64
130
260
1.4
2.8
6
11
23
45
91
180
360
12
13
14
15
16
17
18
19
510
1000
2000
4100
8200
16000
33000
66000
720
1400
2900
5800
12000
23000
46000
93000
EV
EV
Decimal places
0 0.5
00.5
Decimal places
Reference:
• With the 608 Cine, it is possible to read cd/m2 or foot-lambert directly in the display by
using the custom setting function (refer to P33).
ENGLISH
-29-
6. Advanced Functions
NOTE:
• Make corrections after a sufficient number of test in actual photographic conditions, to
suit your needs.
• Corrections made effect every mode of the meter.
If recalibration has been made for specific purpose do not forget to return to original
zero settings.
Reference:
• When corrected, a plus (+) or minus (-) sign as well as the amount of correction are
displayed continuously in the LCD display.
• If the custom setting function is used because of difficulties in setting the correction, the
correction amount is not displayed (refer to P33).

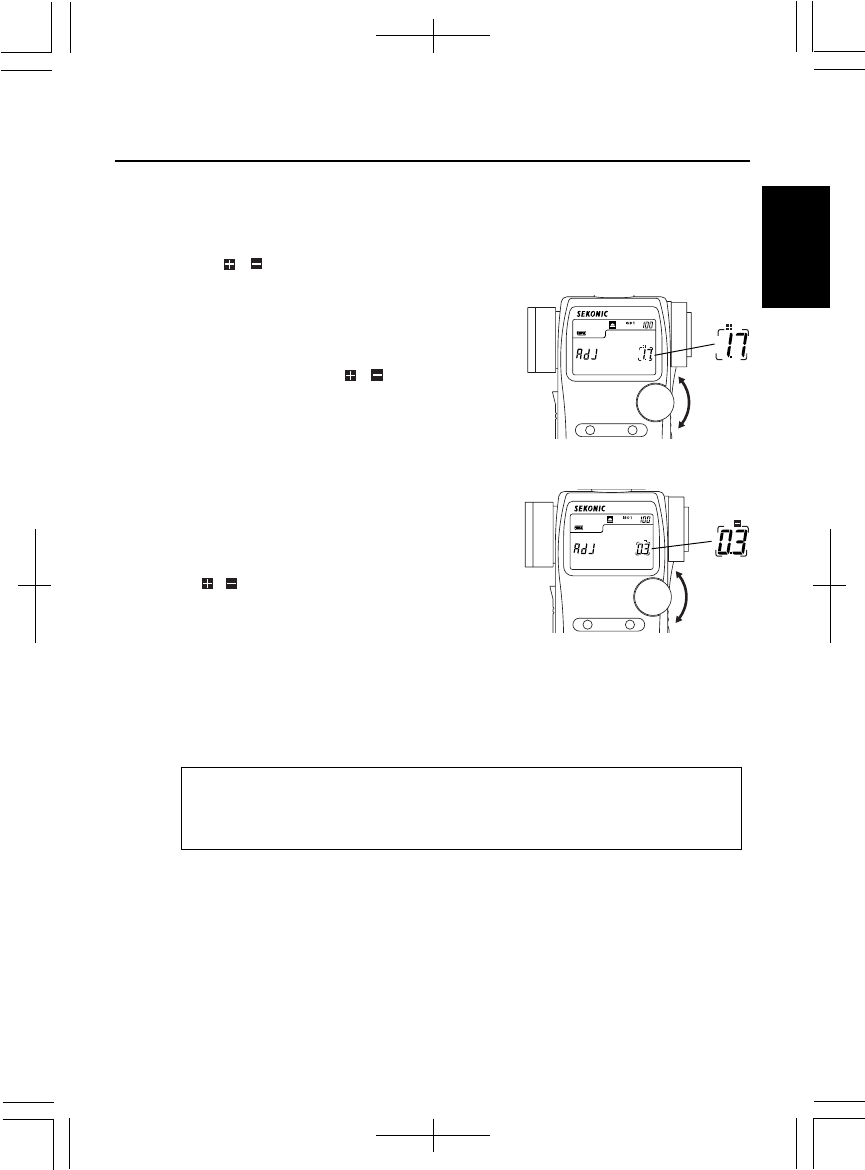

6. How to change the compensating function
Exposure compensation can be made in precise 1/10 step increments in a +/- 9.9 EV range. Exposure
compensation may be desired to match specific requirements, calibration to other light meters, or
setting exposure calibration in 1 /10 steps up or down from standard ISO film speeds, It may also be
desired when requiring compensation for filters, bellows extension, etc. When corrections have
been made, • is displayed on the LCD.
• Making a plus correction (making the film speed / f
stop index value higher) will result in underexposing

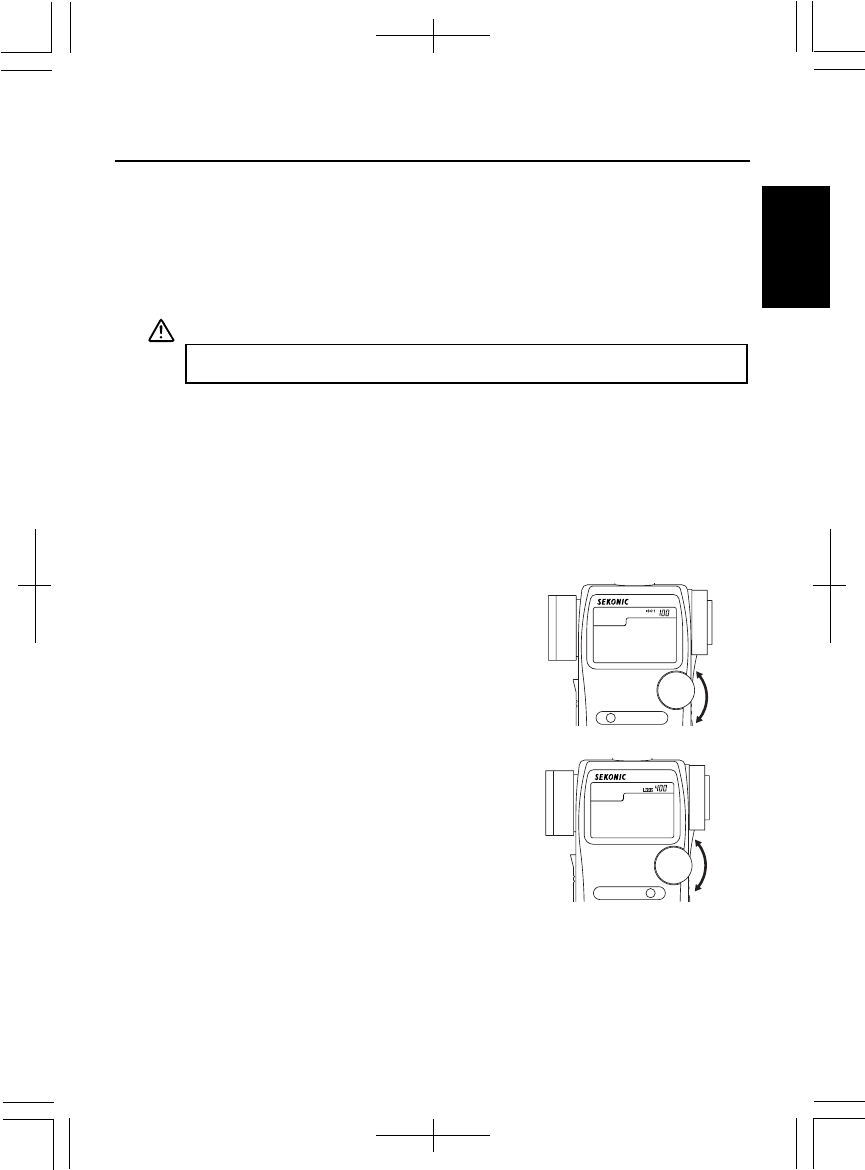

when taking a photograph. Hold the ISO1 button !1
and the ISO 2 button y and turn the Set/change dial
t counter clockwise. The • will appear on the
upper right part of the LCD. The index correction will
change in +0.1 EV steps up to +9.9.
• Making a minus correction will result in overexposing
when taking a photograph, Hold the ISO1 button and
the ISO 2 button and turn the Set/change dial
clockwise.
The • will appear on the upper right part of the
LCD. The index correction will change in -0.1 EV steps
up to -9.9.
ISO 1 ISO 2
ISO 1 ISO 2
-30-
6. Advanced Functions
7. Use of the correction indicator function
1. Set the measurement mode (incident light, reflected light) for the desired correction. It is possible
to set the amount of correction independently for both incident and reflected light.
It is not possible to switch between measurement modes (incident light, reflected light) if the
setting is not completed.

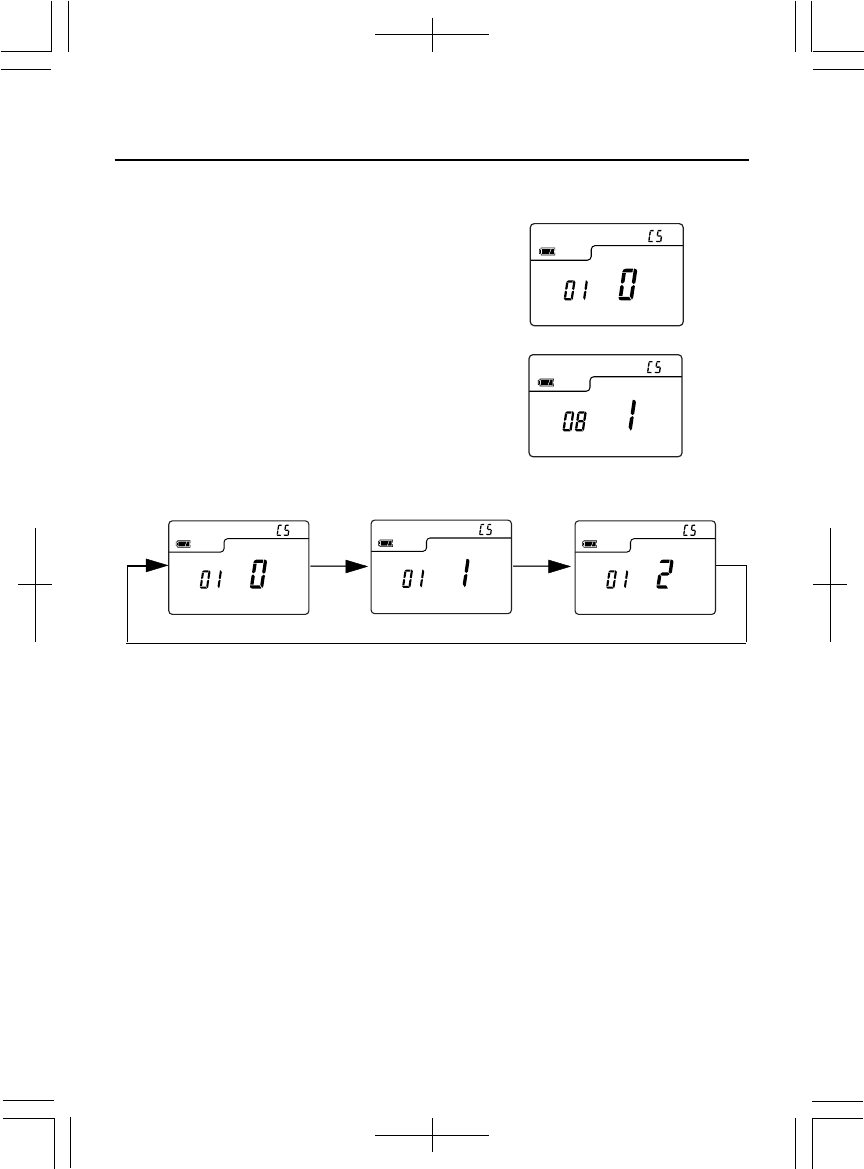

2. Select setting number 2 and item 0 in the custom setting mode with DIP switch set to on. If you
experience difficulties in displaying the calibration value, set the item number to 1 and select
calibration non-display.

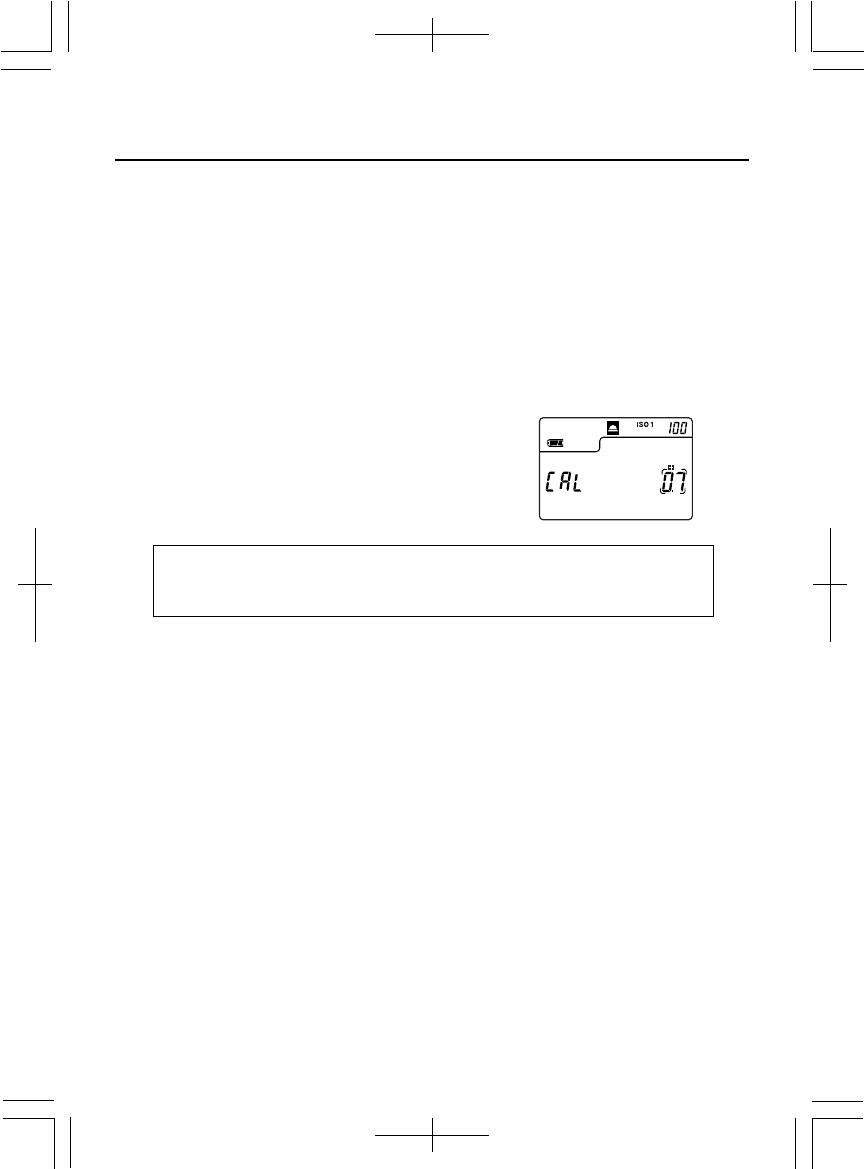

3. With the power turned off, CAL (calibration) will be displayed in the shutter speed display and
0.0 in the aperture display when the power button is pressed while pressing ISO1 button !1 and
ISO2 button y. The value of corrections set in advance will also be displayed.
4. The setting can be changed by pressing the power
button !2 and turning the Set/change dial t while
pressing ISO1 button and ISO2 button.
As in the case of the correction value, a single plus (+)
or minus (-) sign will be displayed if the calibration value
is any value other than 0.
NOTE:
• When making corrections, be sure that they satisfy your needs based on the results of
adequate test filming.
• While incident and reflected light can be set independently, be aware that fixed light and
flash light are corrected uniformly regardless of the measurement.
Reference:
• When corrected, a plus (+) or minus (-) sign is displayed continuously in the LCD display.
ENGLISH
-31-
6. Advanced Functions
8. Filter setting
Filter settings (1)
It is possible to set the correction of the film being used within a range of ±5 EV in 1/10 steps. The
measurement corresponding to the set correction is displayed while pressing ISO2 button y.
1. Select setting number 1 and item number 1 in the custom setting mode (refer to P34).
2. Set the desired correction by turning the Set/change dial t while pressing ISO2 button.
Filter settings (2) (608 Cine compatible)
1. When using in movie filming, it is possible to set 7 different frequently used types of filters.
2. Select setting number 1 and item number 2 in the custom setting mode.
3. The symbol of the desired filter from among the 7 types can be selected by turning the Set/
change dial t while pressing ISO2 button y.
4. After filter correction, the filter symbol and corrected F value or EV value are displayed while
pressing ISO2 setting button.
Filters, LCD Display and Corrected Value
Filter No. 85 NDO.3 NDO.6 NDO.9 85N3 85N6 85N9
LCD display 85- n3- n6- n9- A3- A6- A9-
Corrected value (EV)
-0.7 -1 -2 -3 -1.7 -2.7 -3.7
(Filter numbers are Kodak Wratten filter numbers.)
Display in finder
Display in finder
L-608 L-608CINE
-32-
6. Advanced Functions
9. Analyzing measurement function
When measuring flash light, the shutter speed and F stop value (value combining ambient light and
flash light: total amount of light) are displayed in the liquid crystal display and the ambient light and
flash light are each displayed as separate values together with the total amount of light in the dot
scale. In addition, the ratio of flash light to the total amount of light is displayed at that time as a
value in 10% steps. It is possible to use this value for adjustments, for example, when photographing
with a flash in a room illuminated by tungsten lamp light, to emphasize or weaken the tungsten lamp
(ambient) light element (enhancing the flash light of the photograph) to match the photographer's
intentions.
< Example >
If, under certain conditions, the flash light component is
60% and the tungsten light component is 40%, the display
will be as indicated at the right.
1. To emphasize the tungsten (ambient) light (to imbue
the atmosphere with orange-colored tones)
To increase the ratio of tungsten light, use the Set/
change dial t to change the shutter speed to slow.
It is apparent that the flash light component is now
20%. The dot scale also shows the tungsten light
component to be about 2.5 step level higher than
the flash light component.
As a result, images on the film are expressed with
orange tones that give life to the effect of the
tungsten light.
2. To reduce the effect of tungsten light (to realize a
more natural atmosphere)
To decrease the ratio of tungsten light, use the Set/
change dial to change the shutter speed to fast.
It is apparent that the flash light component is now
80%. The dot display also shows the flash light
component to be about 1.5 step level higher than
the ambient light component.
As a result, the images on the film are expressed in
natural color tones.
The settings above are made by adjusting the tungsten (ambient) light by the shutter speed. It
is also possible to modify the ratio by adjusting the flash light (when changing the distance
between the flash and the subject or when changing the amount of light of the flash). When
using this method, re-measure each time the flash light is adjusted.
ENGLISH
-33-
6. Advanced Functions
10. Custom setting function
It is possible to set the required functions in advance.
*. Individual: LUX, FC, cd/m2, FL
Compound: LUX+T+F, FC+T+F, and cd/m2+T+F, FL+T+F (combination)
Film
Sensitivity
1/3 step
Film
Sensitivity
1/3 step
Always
display
1 step
1 step
Available
Available
Available
Available
Available
Compound +
Individual
Not Available
Not Available
CUSTOM SETTING LIST
No.
1
2
3
4
5
6
7
8
9
*10
11
12
Model
608
CINE
608&CINE
608&CINE
608&CINE
608&CINE
608&CINE
608&CINE
608&CINE
608&CINE
608&CINE
608&CINE
CINE
Lighting
Ambient &
Flash
Ambient &
Flash
Ambient &
Flash
Ambient &
Flash
Ambient
Ambient
Flash
Flash
Flash
Ambient
Ambient
Ambient
Custom Setting name
ISO 2 setting
Exposure Compensation
Display setting
Increments of Shutter
Speed
Increments of Aperture
T priority mode
F priority mode
Code-in mode
Code-less mode
Analyzing Measurement
Illuminance
display
Illuminance measurement
in Incident mode
Illuminance measurement
in Reflected mode
Item
Filter Setting
(1)
0.1EV step
(±5EV)
Filter Setting
(1)
0.1EV step
(±5EV)
Not
display
1/3 step
1/3 step
Not
Available
Not
Available
Not
Available
Not
Available
Not
Available
Compound
LUX
cd/m2
—
Filter Setting
(2) 7 Filter
Name
—
1/2 step
1/2 step
—
—
—
—
—
Individual
FC
FL
—
—
—
—
—
—
—
—
—
—
—
LUX, FC
cd/m2,
FL
0123
-34-
6. Advanced Functions
1. To enter the custom setting mode, set power button !2 to the on position setting DIP switch 4 to
on. It is not possible to enter the custom setting mode if DIP switch 4 is set to on after turning on
the power.
2. When in the custom setting mode, 'CS' (custom
setting) is displayed in the ISO display, a setting
number between 01-12 is displayed in the shutter
speed display and item number 0, 1, 2 or 3 is
displayed in the aperture display.
3. Turn the Set/change dial t and select the custom
setting name by the desired setting number.
4. The item number will change each time the Mode set button !0 is pressed.
5. Pressing the memory clear button @5 in the custom setting will change the setting to item number
0.
6. After completing the custom setting, terminate the custom setting mode by setting DIP switch 4
to off. This operation will also automatically turn off the power.
Since the power cannot be turned off by pressing the power button while in the custom setting
mode, turn off the power by setting DIP switch 4 to off.
ENGLISH
-35-
11. Radio flash system
Setting the radio wave transmitter module (RT-32; optional) in the main unit and connecting the
receiver RR-32 or RR-4; optional) to the flash provides a convenient system that enables one person
working alone to measure flash light without a synchro cord, thereby making it possible to take
measurements by triggering the flash from the exposure meter.
The unit has 32 channels when the radio wave transmitter module (RT-32) is mounted.
Channels 1-16 are single channels and channels 17-32 are quad channels, each of which can be
set to 4 sub-channels (a, b, c and d), thus making it possible to control a maximum of 4 flash units.
Meanwhile, there are two types of radio signal receiver, RR-32, capable of 32 channel settings, and
RR-4, capable of 4 channel settings.
< Example with optional radio wave receiver module RR-32 >
1. Open battery compartment cover !6, remove
connector cover and set the radio wave transmitter
module (optional) by aligning the connector with the
pins.
2. Switch to the radio flash mode by using Set/change
dial t while pressing mode set button !0.
CAUTION
• To prevent damage due to static electricity, release static electricity stored in your body
by touching a metal object nearby (door knob, aluminum window frame, etc.) before
touching the radio wave transmitter module.
6. Advanced Functions
MODE
-36-

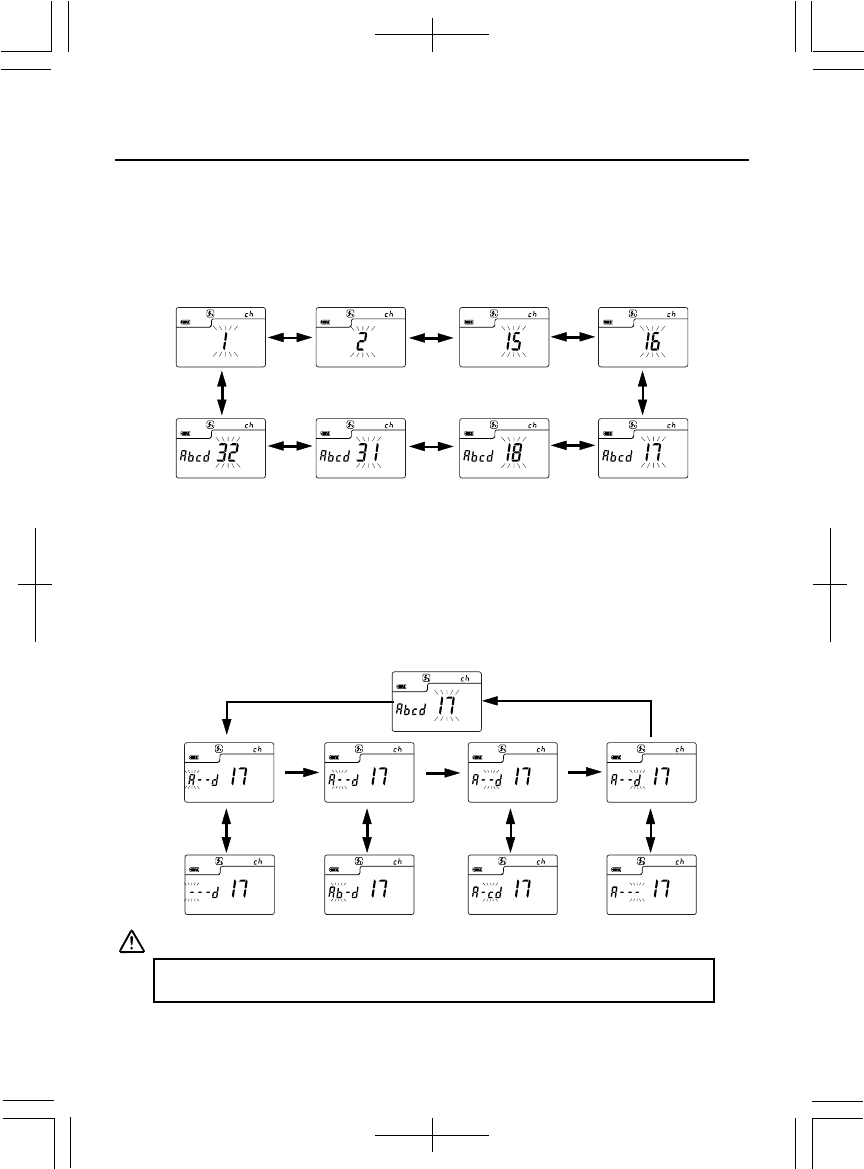

CAUTION
• When using quad channels 17-32, it is not possible to terminate this mode unless a sub-
channel has been set (a, b, c or d is displayed).
6. Advanced Functions
3. The set channel number will flicker on and off at this time.
Turn the Set/change dial to set the channel setting.
4. In the Setting mode, "ch" appears on the ISO indicator. At the same time, channel numbers (1
to 16 and 17 to 32) appear on the F indicator. When the channel number is 17 to 32, sub-
channel (A, b, c and d) settings are displayed on the T indicator. In the absence of settings, "-
" appears in the figures.
5. In sub-channel settings, after the channel is set to 17 to 32, the mode button is pressed. Following
this, the 4th figure on the T indicator flickers to indicate that settings may be made. Every time
the mode button is pressed, the flicker shifts from sub-channel No. : 4th figure → 3rd figure →
2nd figure → 1st figure → channel No., while permitting settings for each sub-channel. As the
Set/change dial is rotated in this state, setting ("A, b, c and d" displayed) and resetting ("-"
displayed) alternate. During this process, the indicator continues to flicker to indicate the channel
being set.
→ Set by manipulating the mode set button.
↔ Set by manipulating the Set/change dial.
ENGLISH
-37-
6. Advanced Functions
6. Upon setting completion, the Radio flash mode is selected using the Set/change dial while the
mode button is depressed.
7. Confirm that the unit and the radio wave receiver are set to the same channel number. The
flash unit will fire when the measurement button of the unit is pressed and measurements can
be made at the same time.
Reference:
• Refer to the receiver instruction manual for the receiver operating method.
• Maximum controllable distance of the radio flash trigger system differs depending on the
placement of the device, direction and other factors.
1. Confirm the direct visible range between the transmitter and receiver.
2. Place the devices away from large metal objects, concrete, objects with large moisture
content (both people and trees fall into the category) and so forth.
3. Secure the radio wave receiver module in place by using Velcro tape or a tripod hole.
Be sure that the entire length of the receiver antenna is higher than the flash pack at
this time. Avoid contact between the receiver antenna and metal objects at all times.
4. Depending on the location, there may be cases when the receiver is incapable of
receiving any radio signals whatsoever.
There are various possible reasons for this such as radio signals reflected from nearby
objects. This can generally be resolved by shifting the device slightly in one direction
or another.
In addition, confirm that the device is not placed behind objects that readily absorb or
deflect radio signals such concrete, metal, low hills, etc.
NOTE:
• The radio flash system may be used only in countries where a permit for the control
frequency has been issued by the government office in charge.
-38-
Mini Light Receptor (Sold separately)
• Incident light receiving unit with a compact 12mm diameter
light receiving surface.
• For measuring narrow areas used for photographing small
subjects or copy work.
Booster (Sold separately)
• For light measuring on camera ground glass, focusing
screens, SLR eyepieces, microscope eyepiece.
• When the Booster is used without any accessory
attachments, it can measure reflected light over
approximately a 60 degree angle of field.
Synchro cord (Sold separately)
• This is a five-meter long cord with three plugs. An exposure
meter, a camera, and a flash can all be connected at the
same time. This is convenient when measurements are
made, because it is not necessary to plug and unplug the
synchro cord.
18% Gray Card (Sold separately)
• 18% gray card with cover (110mm x 102mm, 4 1/4" x 3 1/
2"), folds to 2 3/4" x 4 3/4", and fits in a shirt pocket.
7. Accessories
ENGLISH
-39-
7. Accessories
Radio flash system (Sold separately)
• Combining radio wave transmitter module (RT-32) with radio wave receiver (RR-32 or RR-4) enables
measurements by triggering the flash from the exposure meter.
• Light receiving angle 54° (Lumigrid) (Sold separately)
This method measures the brightness (luminance) of the light
reflected from the subject. It is useful for distant objects such
as landscapes, when you cannot go to the position of the
subject, or for metering subjects that generate light (neon
signs, etc.), highly reflective surfaces or translucent subjects
(stained glass, etc.).
• Step-Up Ring (30.5mm → 40.5mm) (Sold separately)
The step-up ring, available as an optional accessory, makes
it possible to mount step rings and filters of other
manufacturers. This simplifies the setting of exposure without
the troublesome correction calculation of PL filters, etc.
The step-up ring can also be used as a hood to protect lenses
from scratching, soiling, etc.
• 2x Angle Converter (optional) (Sold separately)
Mounting the 2x angle converter to the objective lens unit
enables zoom measurements at a light receiving angle of 2°-
8°.
Radio wave transmitter module
(RT-32)
Radio wave receiver
(RR-32) Radio wave receiver
(RR-4)
-40-
・Type : Digital exposure meter for ambient and flash meter
・Light receiving method : Incident light and reflected
Incident light : Convertible to flat diffuser (Lumisphere in down position)
Reflected light : 1° to 4° element Zoom (display in finder)
Metering distance 1m ~ ∞
・Light Receptors : 2-Silicon photo diodes (incident and reflected)
・Metering modes :
Ambient light : Aperture priority metering
Shutter priority metering
EV metering value
Simple illumination measurement (lux, foot-candle)
Simple brightness measurement (608 Cine only)
(foot-lambert, cd/m2)
Flash : With synchro cord (cumulative, non-cumulative)
Without synchro cord (cumulative, non-cumulative)
Measurement using the optional radio flash system (cumulative,
non-cumulative)
・Measuring Range (ISO 100) :
Ambient light : Incident light EV-2 to EV 22.9
Reflected light EV 3 to EV 24.4
Flash : Incident light f0.5 to f128.9 (approx. f175)
Reflected light f5.6 to f128.9 (approx. f175)
Illumination: : 0.63 - 190,000 lux (2 significant digits)
0.12 - 180,000 foot-candle (2 significant digits)
Brightness (608 Cine only) : 1 - 190,000 cd/m2 (2 significant digits)
0.3 - 190,00 foot-lambert (2 significant digits)
・Repeat Accuracy : +/- 0.1 EV or less
・Calibration Constant :
Incident light metering : Lumisphere C = 340 Flat diffuser C = 250
Reflected light metering : K = 12.5
・Display Range :
Film speed : ISO 3 to 8000 (in 1/3 steps)
Shutter Speeds
Ambient light : 30 minutes to 1/8000 seconds(in 1, 1/2 or 1/3 steps)also 1/200, 1/400
Cine speeds- 2, 3, 4, 6, 8, 12, 16, 18, 24, 25, 30, 32, 36, 40, 48, 50,
60, 64, 72, 96, 120, 128, 150, 200, 240, 256, 300, 360 frames per
second (at a 180 degree shutter angle)
(608 Cine addition)
1, 75, 90, 100, 125, 250, 375, 500, 625, 750, 1000
Flash : 30 minutes to 1/1000 second (in 1, 1/2 or 1/3 steps)
Aperture : f/0.5 to f128 (in 1, 1/2 or 1/3 steps)
f/0.5 to f/45 (in 1, 1/2 or 1/3 steps) (608CINE)
EV : EV -9.9 to EV 40.6 (in 1/10 steps)
Analog display : F1.0 - F128 (in 1/2 steps),T4.0 seconds -1/4000 seconds (in 1/2 steps)
F0.5 - F45 (in 1/3 steps) (608 Cine)
8. Technical Da ta
ENGLISH
-41-
Shutter opening angle (608 Cine only)
:5° ~ 270° (in steps), others: 144°, 172°
Filter correction (608 Cine only)
: 85-, n3-, n6-, n9-, A3-, A6-, A9-
・Other features :
All-weather feature : JIS standard water resistance class 4, splash-proof type
Memory function : 9 readings
Memory clear・recall function
Multiple Flash function : Up to ∞ flash readings
Average function
Brightness Difference function
Analyzing function : 0 to 100% in 10% in crements
Exposure Out of Range : Eu (underexposure) or Eo (overexposure) indication
Correction indicator function : +/- 9.9 EV
Battery Power Indicator display
Auto Power Off : approx. 20 minutes
Auto illumination
DIP switch mode selection
1/4” Tripod socket : For placing meter in subject area for cordless flash measuring.
Second ISO film speed setting
・Battery used : one of CR123A battery (lithium dry cell)
・Operating temperature range : -10 ~ 50°C
・Storage temperature range : -20 ~ 60°C
・Dimensions : 90 w × 170 h × 48 d mm
・Weight : 268 g (with battery)
・
Standard accessories supplied
: Soft case, strap, lens cap, synchro terminal cap, CR123A lithium
battery × 1
・Radio wave frequency
FCC & IC : CH1 ~ 16 344.0MHz
CH17 ~ 32 346.5 ~ 354.0MHz
CE : CH1 ~ 16 433.62MHz
CH17 ~ 32 434.22MHz
Features and specifications are subject to change without notice.
8. Technical Data
-42-
WARNING: • Please keep in a location where an infant cannot reach and accidentally
get the strap wrapped around his neck. There is danger of strangulation.
• Never place batteries in fire, short, disassemble, or heat them. The batteries
might break down, and cause injury or pollute the environment.
CAUTION: • Do not look directly at the sun through the viewfinder, because of potential
eye injury.
• If you are operating the exposure meter in areas under wet conditions or
high humidity, keep the sync post covered. If you are using flash in these
conditions, Cordless Flash mode is recommended.
9. Safety Guide
ENGLISH
-43-
NOTE:
• Although this meter has an All-weather design for everyday use (JIS standard water
resistance class 4), do not place it in water or use it underwater. This will cause it to
malfunction.
• To avoid damaging this meter, never drop it or subject it to shock.
• Avoid storing it in places with high temperatures or humidity.
• Avoid excessive temperature changes which could cause internal condensation,
resulting in malfunction.
10. Care and Maintainance
Splashed
Rain
Do not wash with water
Do not submerge or use under water
Maintenance Notes
• If your meter is splashed with water, wipe immediately with a soft dry cloth.
• Avoid applying excessive force on the rubber seal of the battery compartment cover.
Do not attempt to remove the rubber seal of the battery compartment cover.
• If the rubber seal’s surface is damaged,water or moisture may enter and damage the
meter. If this has happened, you must send your meter to the Sekonic Sevice Center in
your country.
• Keep the surface of the Lumisphere and the front and rear surface of the Zoom lens
free from dust, dirt, and scratches, which could affect accuracy.
• Never use organic cleaners (like thinner or benzene). Clean with soft dry cloth.
-44-
Warning: Changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant
To Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction, may cause harmful interference
to radio communication.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determine by turning the
equipment off and on, the user is encouraged to tray to correct the interference by one or more of the
following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Consult the dealer or an experienced radio/TV technician for help.
This devices complies with Part 15 of the FCC rules and also with RSS-210 of Industry & Science
Canada. Operation is subject to the following two condition: (1) This device may not cause harmful
interference, and (2) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
FCC ID Number: PFK-608-01 Canada:
FCC & IC compliance information:
