Host manual 1 of 3
Internal Photograph for L-858D
February 6, 2017
SEKONIC CORPORATION

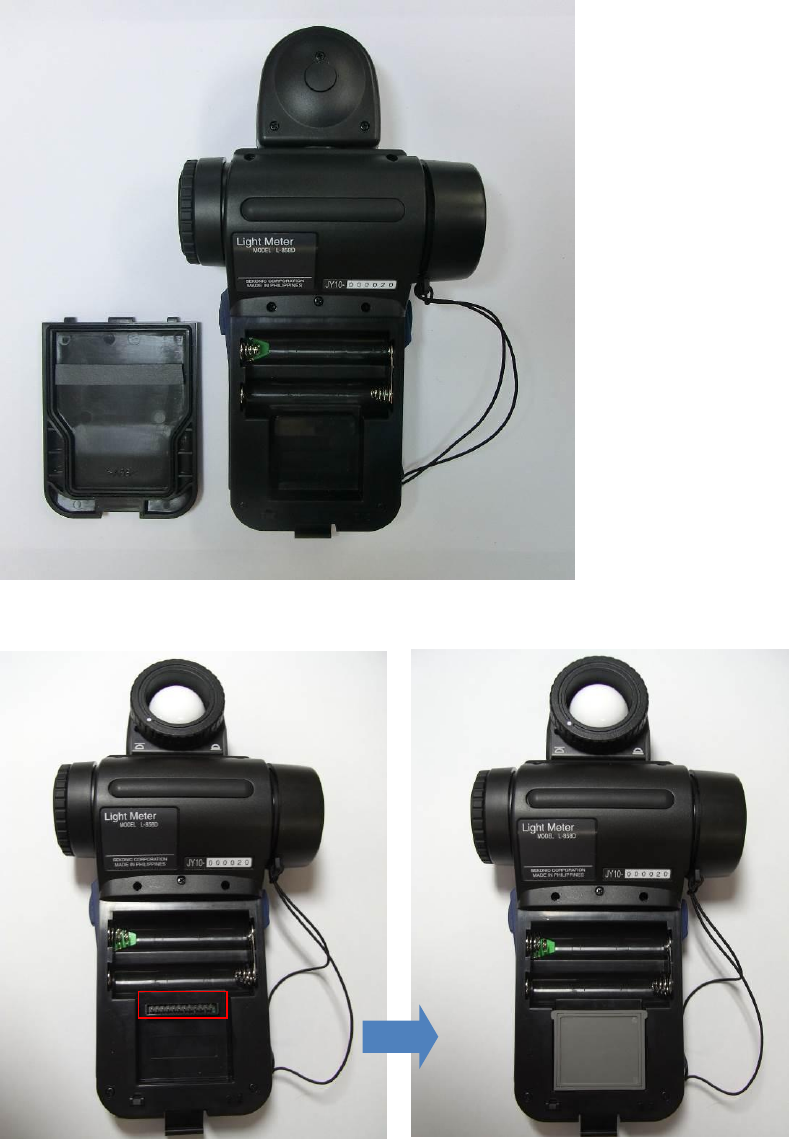

Back side without Battery Cover
Transmitter module installation

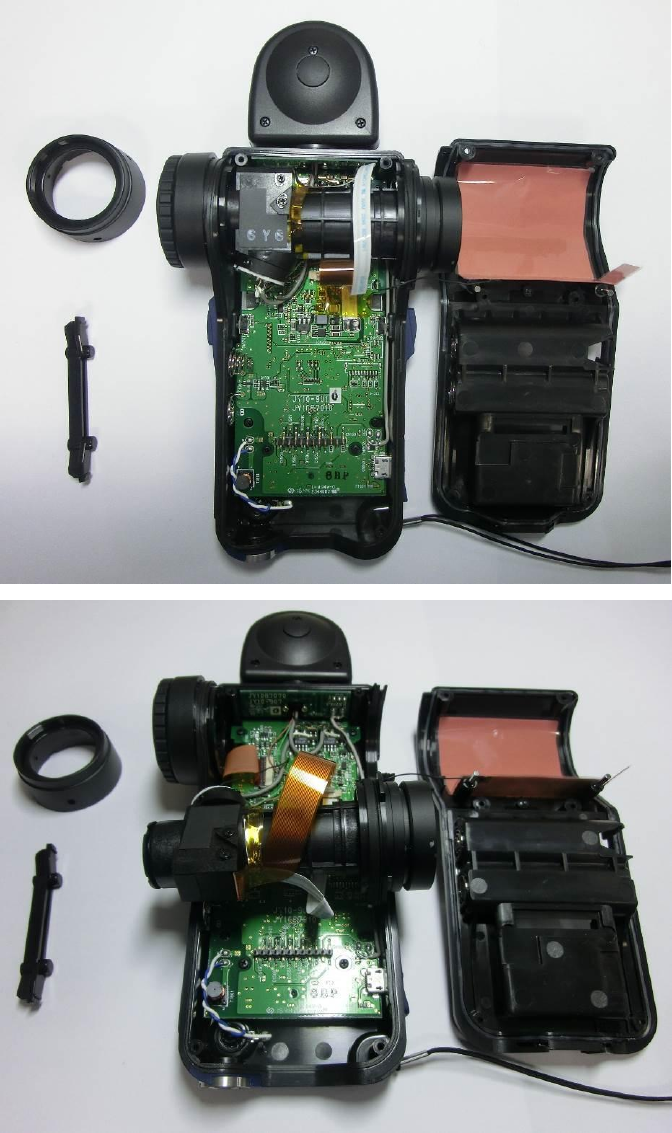

Basic Internal
Transmitter module installation
The installed position of transmitter module RT-20PW
PW
Connection between antenna PCB and transmitter module
Antenna PCB
Cable connection between
Antenna PCB and transmitter module
12pin Connector for connection of
transmitter module

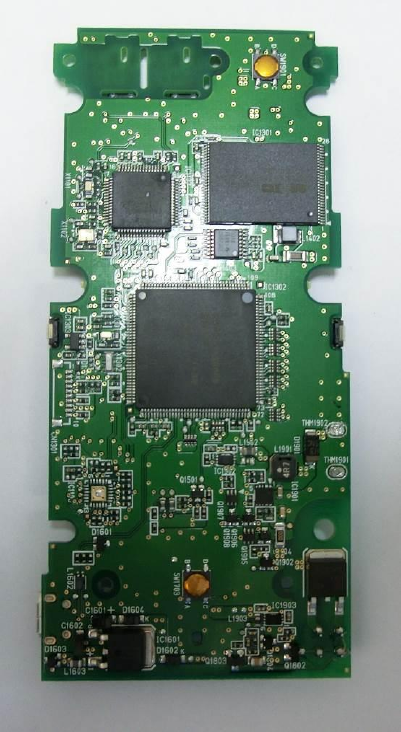

PCB 1 Top View

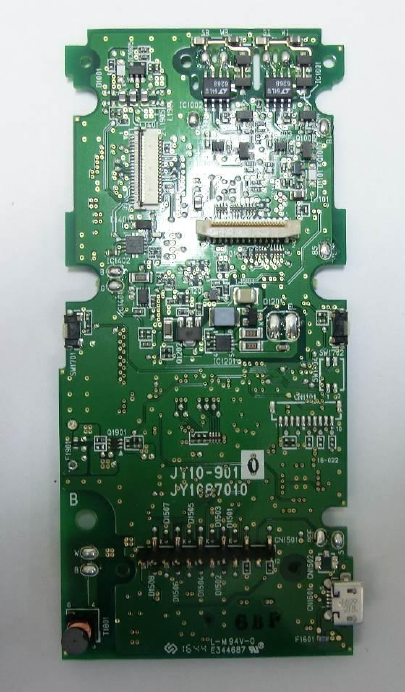

PCB 1 Bottom View

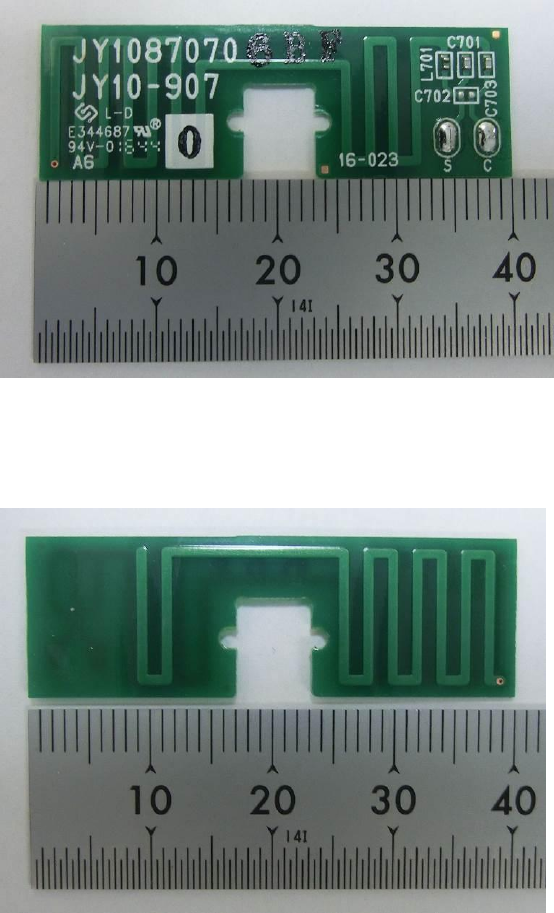

Antenna PCB Top View
Antenna PCB Bottom View
