PRICING GUIDE

Eective July 1, 2015

■ Aluminum Geared

■ Stainless Steel Pin & Barrel

Continuous Hinges

Replaces June 1, 2011 pricing guide.

List prices subject to change without notice.

www.thegreenhinge.com

No price

increase on

geared hinges!

New prices listed for stainless

steel Pin & Barrel models

Ph: 800-423-1174 | Fax: 800-423-7107 | www.select-hinges.com

GEARED

Prices effective July 1, 2015. Subject to change without notice.

2GEARED Continuous Hinges Product Selection

Over the past 23 years, millions of SELECT Products Limited architectural-grade aluminum Geared Continuous Hinges

have been used in schools, hospitals, hotels, ofﬁces, airports, stadiums, storefronts and commercial and industrial

buildings in new construction and retroﬁt applications.

SELECT offers a Continuous Warranty on our Geared Continuous Hinges (see page 15 for

Geared Hinge Warranty statement). We conﬁdently offer this warranty because more than

25 million test cycles at an independent lab proved the durability of SELECT geared hinges.

SELECT hinges outperform most entrance components because they distribute door weight

along the full length of the door frame. They offer a patented 3-HR. Fire Rating without pins

or studs and are approved for both positive and negative pressure. They come in standard 83”,

85”, 95” and 120” hinge lengths, anodized Clear or Dark Bronze and offer a variety of custom lengths, custom anodizing,

custom painted ﬁnishes and custom electric preparations.

There are no ﬁner, longer lasting, better designed and manufactured geared continuous hinges on the market today.

■Shipping 48 hours or less ARO for standard products.

Large quantities and custom processing may require

additional time.

■Drop Shipments There will be a charge of $15 net for

drop shipments.

■Terms Net 30 days.

■Freight

Net amounts of $1,500 or more: Prepaid and allowed, routing

of our choice. (48 contiguous states and Canada only.)

Net amounts less than $1,500: Freight costs are prepaid and

added. (48 contiguous states and Canada only.)

■Special Shipments Oversized shipments (greater than

95" long) will ship via FedEx 3-Day or truck only. Additional

fees may apply to orders shipped outside the 48 contiguous

states, special packaging and advance notiﬁcation requests.

Please consult with SELECT.

■Lengths 83" / 85" / 95" / 120". SELECT hinges are

normally 1" shorter than actual opening height. Custom

lengths can be ordered (see page 4).

■Standard Colors Anodized after machining. Custom colors

can be ordered (see page 4).

CL=Clear BR=Dark Bronze BK=Black (in stock: SL11 only)

■Load/Frequency Rating For 1-3/4" doors except where

noted; 48" max. door width. Frequency of use and door

weight determine the hinge duty needed. SELECT Geared

Continuous Hinge model numbers indicate appropriate

hinge duty.

■Standard Duty [SD] For medium-frequency doors up

to 200 lb.

■Heavy Duty [HD] Up to 200 lb. for high-frequency doors;

up to 400 lb. for medium-frequency doors; up to 600 lb. for

low-frequency doors.

■Heavy Duty [LL] Our HD hinge with additional fastener

holes for low-frequency doors up to 1,000 lb., including most

lead-lined doors.

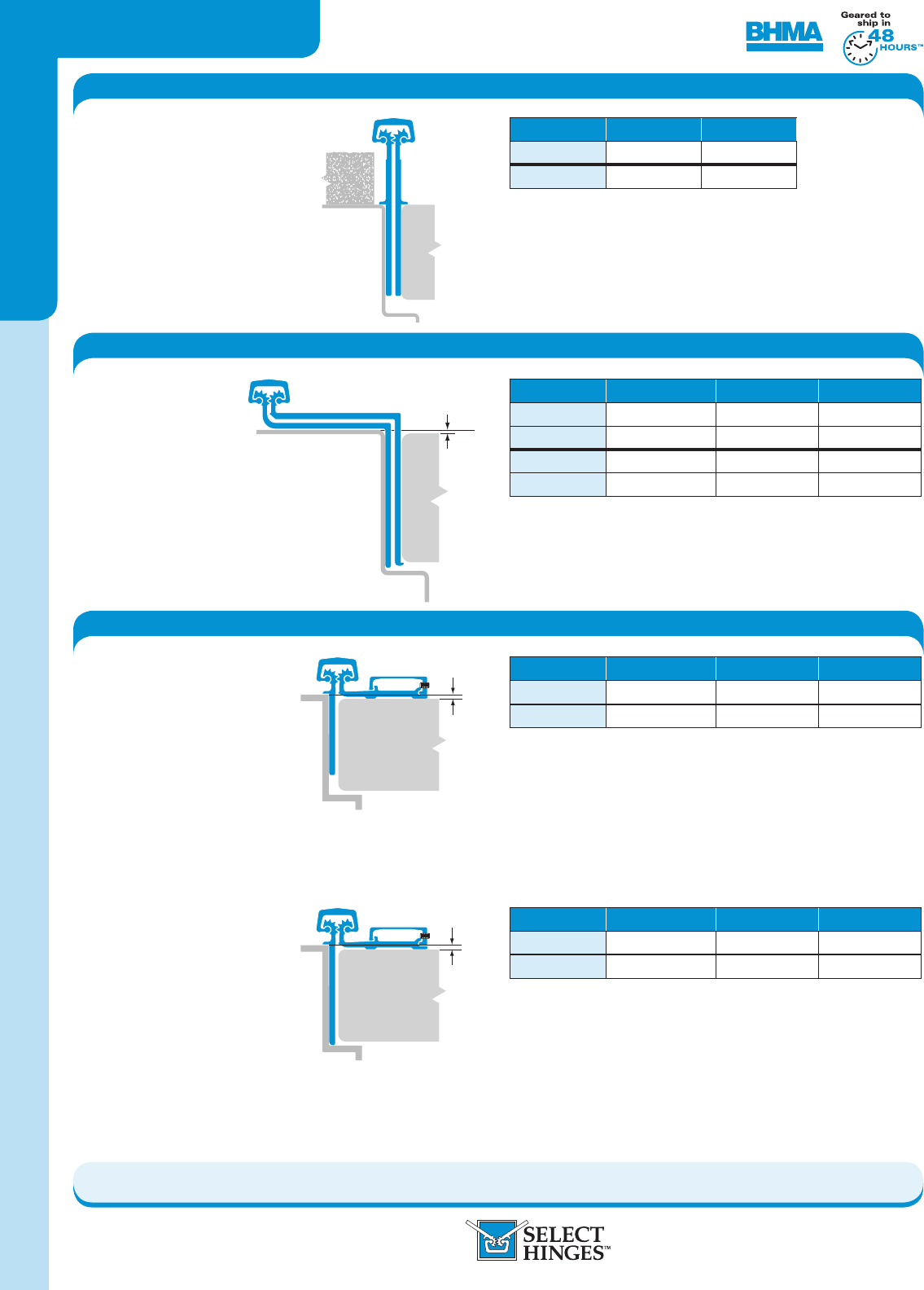

■Door Insets Choose the SELECT hinge model to match

your door inset. Door insets are indicated next to applicable

hinge models listed on pages 6 – 9.

LONGER LASTING

Completely anodized after machining, a SELECT hinge shrugs

o the elements and resists wear.

PARALLEL PERFORMANCE

Hinge leaves are Pair-Matched and numbered during

manufacturing to work smoothly as a unit.

REDUCED MAINTENANCE

Wear points are factory lubricated for life.

FIRE PROTECTION

Patented 3-HR. Fire Rating option (without ﬁre pins or studs)

is approved for both positive and negative pressure.

EASY-OPENING ON EXTRA-HEAVY DOORS

Full-length continuous gears support the whole door, move

smoothly with the least eort.

CONSTANT PROPER ALIGNMENT

Gears align entire door to frame for less deﬂection, warp

or sag.

SMOOTH OPERATION

Self-lubricating bearings assure quiet, long life.

LOWER SERVICE LIFE COSTS

SELECT Geared Continuous Hinges are covered by a

Continuous Warranty.

INCREASED SECURITY

Full-length gears and channel covers prevent tampering.

EASY INSTALLATION

Templated screw hole patterns allow advance preparation for

precise ﬁt with no wasted time.

RAPID INSTALLATION

410 SS Self-Drilling, Thread-Forming screws with added

corrosion protection.

LESS-COSTLY INSTALLATION

Non-handed hinge design prevents mistakes.

EASY UPGRADES

The same screw hole patterns on Standard and Heavy Duty

hinges allow easy interchange should doorway trac increase.

EASILY MODIFIED

Add electrical power transfer, custom colors, etc.

BENEFITS OF GEARED HINGES STANDARD ORDERS

GEARED HINGES IN STOCK

Ph: 800-423-1174 | Fax: 800-423-7107 | www.select-hinges.com

GEARED

Prices effective July 1, 2015. Subject to change without notice.

GEARED Continuous Hinges Product Selection

Custom Designed Continuous Hinges

Contact factory for quotations or special-design continuous hinges (U.S. Navy; U.S. Government; FE-BR; etc.)

customerservice@select-hinges.com

ELECTRICAL MODIFICATIONS ELECTRICAL ACCESS PANELS

■Electric Power Transfer [EPT] Prep Hinges can be

prepared for a variety of power transfer units. Specify

VD-EPT for Von Duprin EPT2, EPT10 or PNT1. All others,

refer to SELECT catalog EPT order form. Available on models

SL11, SL14, SL18, SL24, SL26, SL27, SL31, SL44, SL48,

SL53 & SL54. Handing required except for VD-EPT on SL11

and SL27 hinges.

EPT prep ....................... $35 net add per prep

■Exposed Electric Monitor Switch [EMS] One EMS switch

needed per monitoring hinge. 120V AC @ 250MA 30W

maximum. Available on models SL11, SL14, SL18, SL24,

SL26, SL27, SL31, SL38, SL40, SL41, SL44 and SL48.

Handing required.

EMS ........................... $35 net add per EMS

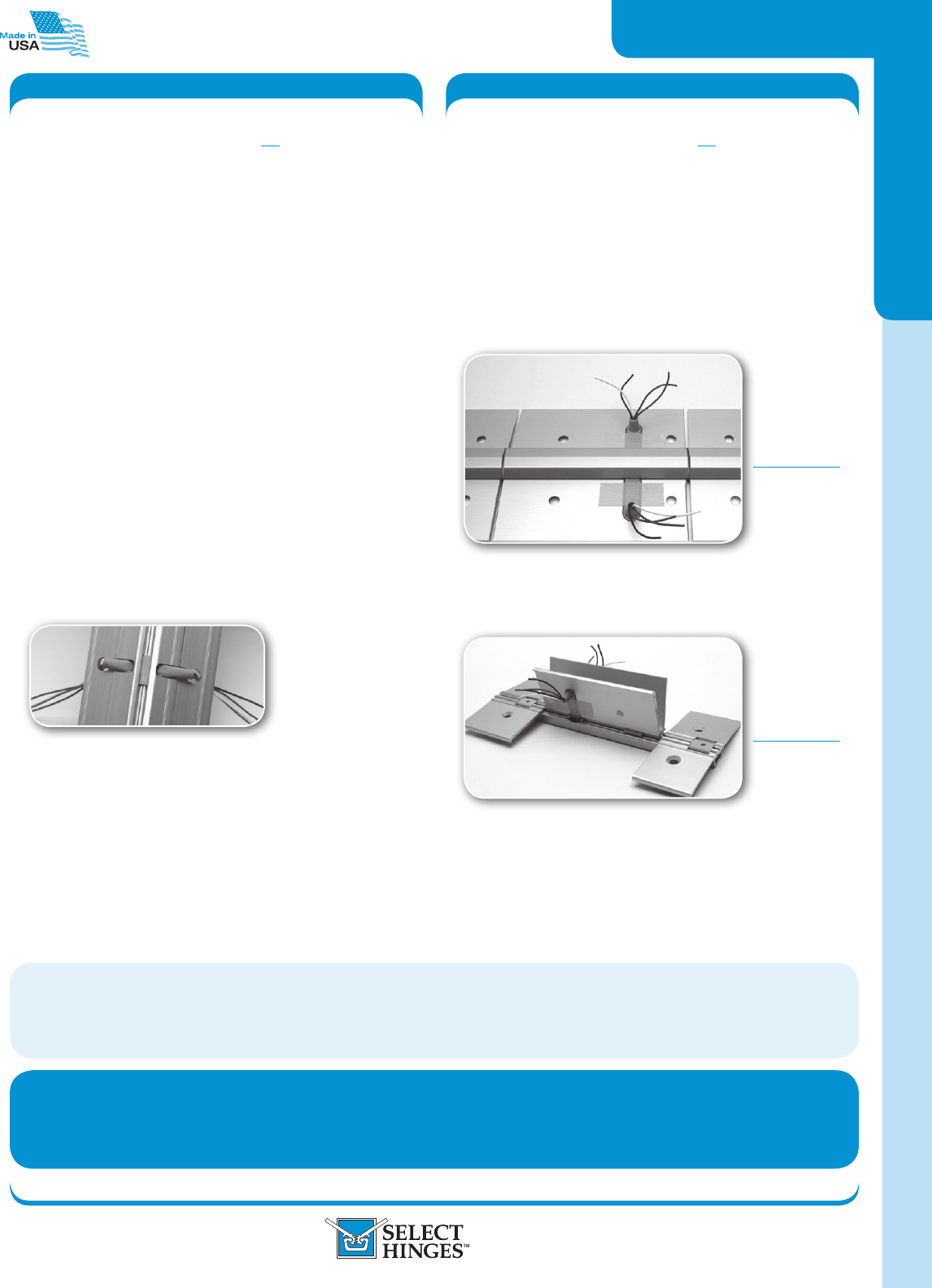

■Concealed Through-Wire [CTW] Continuous electric

conductors ﬁt in bearing slots. See SELECT catalog for

templates. Per conductor: 12V-24V AC/DC @ 3-6 amps.

Ultra ﬂexible 22 gauge wire with 8" leads per leaf. All CTW

options available on heavy duty (HD and LL) models SL11,

SL14, SL18, SL24, SL26 and SL27. Standard and heavy duty

model SL57 and standard duty models SL11, SL14, SL18,

SL24, SL26 and SL27 available with 4- or 5-wire CTW only.

Handing required, except for SL11 and SL27.

No discounts apply to net add items.

Specify prep locations from top of hinge.

See SELECT catalog for speciﬁc prep locations.

Hinges prepared with electrical modiﬁcations are non-returnable.

No discounts apply to net add items.

Specify prep locations from top of hinge.

See SELECT catalog for speciﬁc prep locations.

Hinges prepared with electrical modiﬁcations are non-returnable.

NOTE: Lead times may vary depending on the number of hinges to be custom prepared. Large volume orders extend

lead times. Please contact SELECT for veriﬁcation of the lead time required. Changes or cancellations on custom

processed orders are subject to charges for work already performed and materials utilized.

■Electrical Access Panels Available on models SL11,

SL14, SL18, SL24, SL26, SL27, SL31, SL38, SL44 and SL48.

Engineering approval and handing required.

NOTE: Electrical modiﬁcation not included and must be

ordered separately.

Electrical Access Panels [RP Prep] or [AP Prep] are

recommended for EMS, CTW and CMG Preps.

Removable Panel [RP Prep] ........ $70 net add per RP

Panel can be removed to service electrical wiring without

removing door.

Access Panel [AP Prep] ............ $80 net add per AP

Panel opens to allow electrical diagnostics.

CTW-4 (4-wire) ................. $90 net add per CTW-4

CTW-5 (5-wire) ................. $95 net add per CTW-5

CTW-8 (8-wire) ................ $105 net add per CTW-8

CTW-10 (10-wire) ............. $115 net add per CTW-10

CTW-12 (12-wire) ............. $130 net add per CTW-12

Extra-long leads (48" max.) ....... $21 net add per CTW

■Concealed Adjustable Magnetic Monitor Switch

[CMG Prep] 22 gauge wire, 14" leads, 28 volts DC. Available

on models SL11, SL14, SL18, SL24, SL26, SL27, SL31,

SL38, SL40, SL41, SL44 and SL48. Handing required.

CMG Prep ..................... $80 net add per CMG

SHOWN:

AP Prep ($80.00

+ CTW-4 ($90.00)

$170.00 net

SHOWN:

RP Prep ($70.00

+ CTW-4 ($90.00)

$160.00 net

SHOWN:

SL57 with CTW-4

Ph: 800-423-1174 | Fax: 800-423-7107 | www.select-hinges.com

GEARED

Prices effective July 1, 2015. Subject to change without notice.

4GEARED Continuous Hinges Product Selection

All SELECT hinges have been UL® tested and listed

to 90-minute Fire Rating Standards without ﬁre pins

or studs—at no extra cost (excluding SL71 and Toilet

Partition models).

Patented Design Option

Only SELECT’s patented process allows A-Label Fire

Listing for up to 3 hours without ﬁre pins or studs.

SELECT hinges have been tested by Underwriters

Laboratories, Inc. to meet the Positive and Negative pressure

requirements of UL10B, UL10C and UBC 7.2 (1997).

The following hinges are listed by Underwriters Laboratories,

Inc. to U.S. and Canadian safety standards: Door Hinges

SELECT Products Limited, Portage, MI 49024 R16019

Aluminum continuous hinges:

Models SL11, SL14, SL18, SL21, SL24, SL26, SL27, SL31,

SL38, SL40, SL41, SL44, SL48, SL53, SL54, and SL57 for

use on swinging single or pairs of ﬁre doors, including double

egress, up to 3 hours (not available on SL38) for hollow

metal or steel covered composite and 1-1/2 hours for wood

composite and wood core type ﬁre doors with a maximum size

of 4 ft. wide and 10 ft. high, installed in masonry or drywall.

■UL Labeled 3-HR. Fire Rating

[FR3] .......................... $15 net add per hinge

Not available on SL38.

No discounts apply to net add items.

Hinges prepared with custom processing are non-returnable.

■Express Shipments ............. $10 net add per hinge

Need hinges in a hurry? Order by noon (EST) and most

hinges can be shipped out the same day.

■Special Packaging ............ $10 net add per package

Specially reinforced packaging to prevent in-transit damage.

(Example: single hinges, gear caps, covers and shim stock.)

■Master Marking ..........................No charge

■Individual Hinge Marking ....... $1.00 net add per hinge

■Extra-Long Hinges [LH Prep] ..... $40 net add per splice

Hinges over 120" up to 168" maximum. Leaves are spliced

together, with a staggered joint and continuous gear cap.

Pricing based upon number of hinges used to assemble

extra length plus splicing charge per hinge. Handing required

except for SL11, SL21, SL27, SL40 and SL57. Not available

on SL31, SL38, SL44, SL48 or SL60/62.

■Custom-Cut Hinges [MACH Prep] .. $5 net add per hinge

Cutting more than 5" o standard length (excluding

SL60/62). For SL60/62, contact SELECT for a quote.

Handing required, except on SL11, SL21, SL27, SL38, SL40,

SL57 and SL60/62.

■Cutting Hinges in the Field See SELECT Installation

Instructions and Warranty for speciﬁc information regarding

ﬁeld alterations.

■Dutch Door Hinges [DD Prep]. . . . . $35 net add per hinge

Frame leaf is furnished as a continuous length. Door leaf is

cut to ﬁt the speciﬁed Dutch Door height. Required: Handing

and measurements for net hinge length, top door leaf length,

bottom door leaf length and clearance (3/16" min.) between

top and bottom leaves. Not available on SL60/62.

■Bone White Gear Cap ........... $21 net add per hinge

Color: Bone White only; 2 coats Kynar 500, 70% resin

Valspar: 391X035 PPG: UC43350

In-Stock: Lengths 95" and under.

■Custom Anodized Colors .... Contact SELECT for quote

SELECT hinges are available in a wide variety of custom

anodized colors, including:

BK= Black (in stock: SL11 only)

CH = Champagne

Orders require a set-up charge. Lead time of up to 6-8 weeks

may be needed.

■Custom Kynar® Paint Color ...Contact SELECT for quote

Gear caps or entire hinges on all models of SELECT hinges

can be custom painted. Custom paint orders are individually

quoted and require color approvals. Lead time of up to 4-6

weeks may be needed.

CUSTOM PROCESSING CUSTOM COLORS (non-returnable)

ACCESSORIES

FIRE-RATED GEARED HINGES

No discounts apply to net add items.

■Shim Stock [SH8X1295] .............. $13 net add each

To reduce clearance between the door and frame with

Concealed hinges, or to provide additional door inset from

the frame with Full Surface and Half Surface hinges.

1/8" × 1-1/2" x 95" Clear anodized, no holes.

■Rivnuts & Long Fasteners ........ $1.75 net add per pair

Pair: 12-24 × 1" hinge screw with Rivnut. Clear or Dark

Bronze.

■Rivnut Installation Tool ...........$120 net add per tool

■Door Leaf Replacement Cover .... $18 net add per cover

For SL21, SL53, SL54 and SL57. Clear or Dark Bronze.

■Frame Leaf Replacement Cover .. $18 net add per cover

For SL57. Clear or Dark Bronze.

■Lead Lined Door Leaf Cover ...... $45 net add per cover

For SL21, SL53, SL54 and SL57. Clear or Dark Bronze.

■Lead Lined Frame Leaf Cover .... $45 net add per cover

For SL57. Clear or Dark Bronze.

ADDED SECURITY

■Security Option [SO Prep] ........ $20 net add per hinge

Non-removable bearing added at top of hinge to prevent

material from falling into the opening between cap and

gears. Hinge must be installed with security bearing at top

of door. Handing required, except for SL11, SL27, SL38 and

SL40. Not available with Hospital Tip.

■Tamper-Resistant Hinge

[SO Prep B] .................... $20 net add per hinge

Entire hinge prepared with set screws installed in every

other bearing and tightened against inside of gear cap for

additional security against tampering.

Ph: 800-423-1174 | Fax: 800-423-7107 | www.select-hinges.com

GEARED

Prices effective July 1, 2015. Subject to change without notice.

GEARED Continuous Hinges Product Selection 5

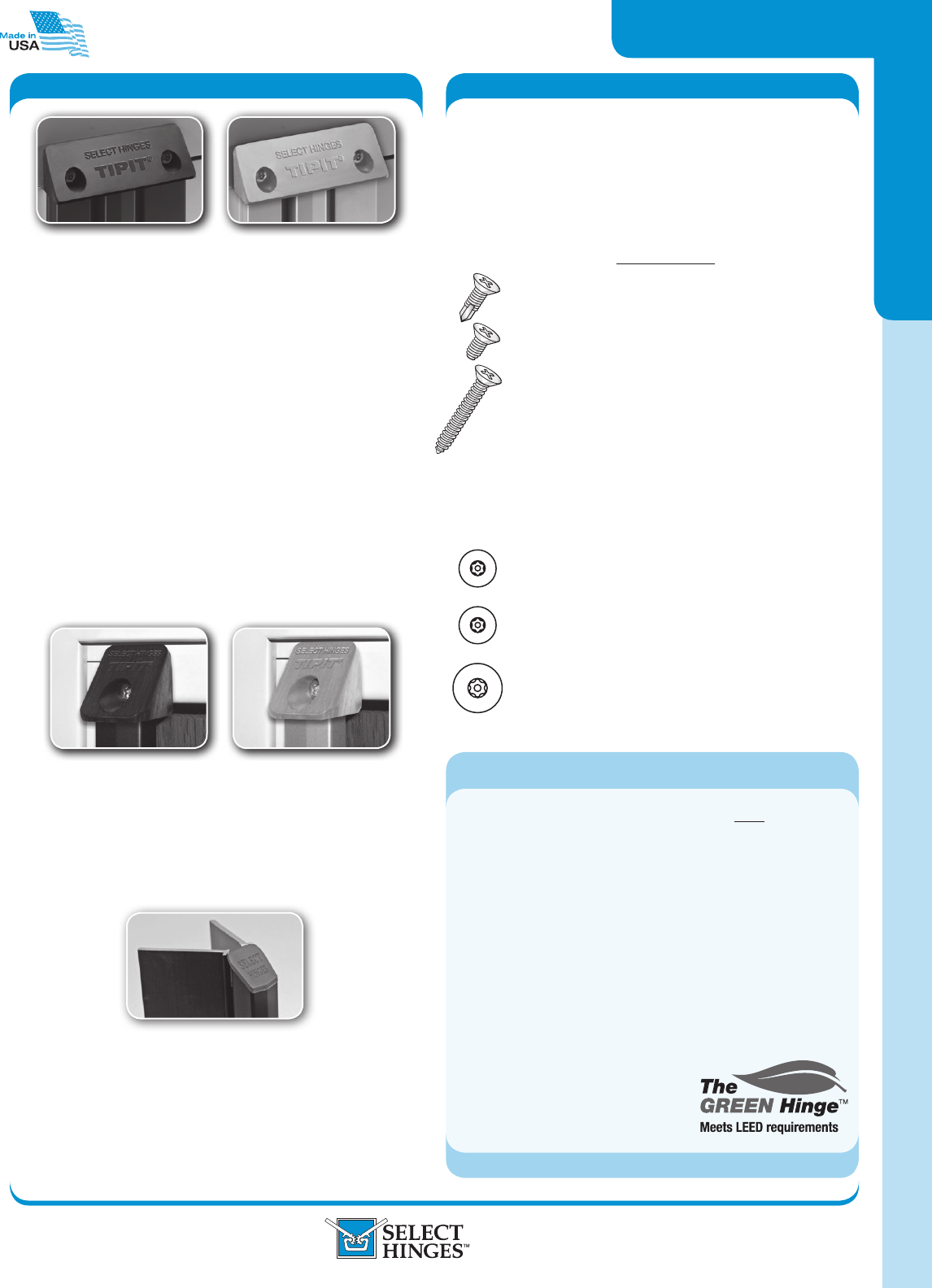

LIGATURE-RESISTANT HOSPITAL TIPS

The SDTF fastener is standard. All hinges are shipped with

Self-Drilling, Thread-Forming, Stainless Steel Screws (SDTF)

unless requested otherwise. With the exception of Torx®

security fasteners, fasteners listed below may be requested at

no upcharge, and must be speciﬁed on the original purchase

order.

NOTE: We do not recommend the use of self-drilling, thread-

forming screws in grouted frames.

■SDTF 12-24 × 3/4", Self-Drilling, Thread-Forming,

410 SS Screws, Phillips Undercut Flathead

■TF 12-24 × 1/2", Thread-Forming, 410 SS Screws,

Phillips Undercut Flathead (Pilot hole required)

■WD 12-14 × 1-1/2", 410 SS Wood Screws

■WD/SDTF 12-14 × 1-1/2", 410 SS Wood Screws

and 12-24 × 3/4", Self-Drilling, Thread-Forming,

410 SS Screws

■WD/TF 12-14 × 1-1/2", 410 SS Wood Screws and

12-24 ×-1/2", Thread-Forming, 410 SS Screws

■Tor x® Security Fasteners

Special Bit ..................... $1.00 net add

For Metal Doors ...... $0.40 net add per screw

Tamper-resistant 12-24 × 1/2" 6-lobe T-25 with pin.

Clear or Dark Bronze.

For Wood Doors ....... $0.50 net add per screw

Tamper-resistant 12-14 × 1-1/2" 6-lobe T-25 with

pin. Clear or Dark Bronze.

Shoulder Screws ...... $1.40 net add per screw

Tamper-resistant 1/4-20 6-lobe T-25 with pin. Clear

or Dark Bronze.

Pre-consumer recycled aluminum and

60+ year product life cycle.

■Tested to withstand 25 million cycles — 10 times beyond

Grade 1 cycle count.

■Saves energy and materials used to produce

replacement hinges and doors.

■Saves landﬁll space taken by worn-out hinges and

damaged doors.

■Saves heating and cooling energy lost by entryways that

don’t seal due to damaged hinges.

■Qualiﬁes toward LEED points for recycled content,

low-emitting materials and regional materials

(depending on location).

For additional documentation

on GREEN SELECT hinges,

visit www.thegreenhinge.com

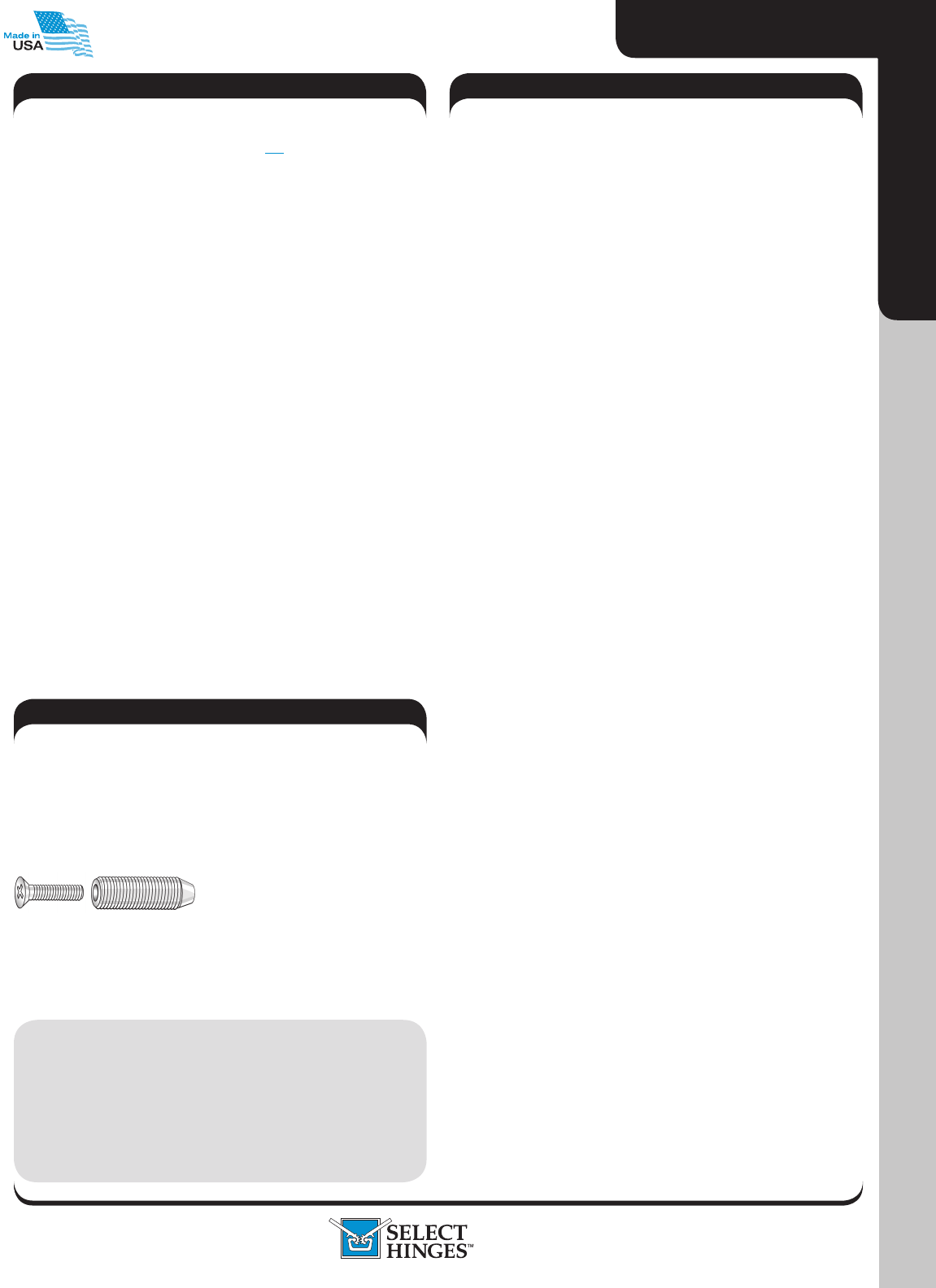

GEARED HINGE FASTENERS

How can a hinge be GREEN?

■TIPIT® for Full Surface, Half Surface, Swing Clear and

Concealed Safety Hinges

[TIPIT L] ...................... $40 net add per hinge

For SL21 and SL57 full surface hinges, SL53 and SL54

half surface hinges, SL41 swing clear hinges and SL71

concealed safety hinges. Mounts on surface of frame,

above the hinge. Retroﬁt applications: Fits above most

brands of full surface, half surface and swing clear-type

continuous geared hinges. Includes large TIPIT® and four (4)

#10 Torx® security screws. Available in gray (G) or black (B).

Patented design.

■Hinge Preparation for TIPIT® L

[TIPIT PREP] ................... $10 net add per hinge.

For SL21 and SL57 full surface hinges, and SL53 and SL54

half surface hinges. Factory preparation of door leaf covers,

for ﬁeld installation of TIPIT. Specify [TIPIT PREP] on your

hinge order. Patented design.

NOTE: Order TIPIT L separately.

NOTE: Not necessary for SL41 swing clear hinges or

SL71 concealed safety hinges.

■TIPIT® for Concealed Hinges (excluding Concealed

Safety Hinges) [TIPIT C] ........ $15 net add per hinge

For new or retroﬁt applications of most concealed hinges.

Mounts on surface of frame, above new or existing

continuous hinge. Fits above most brands of concealed

continuous geared hinges. Includes small TIPIT® and one (1)

#10 Torx® security screw. Available in gray (G) or black (B).

Patented design.

■Hospital Tip [HT Prep] ........... $30 net add per hinge

Angle-cut hinge preparation for new concealed hinges.

Available on the following model hinges: SL11, SL14, SL18,

SL24, SL26, SL27, SL31, SL38, SL44 and SL48 concealed

hinges only. Handing required, except SL11, SL27 and

SL38. Not available on SL71 concealed safety hinges, SL21

and SL57 full surface hinges, SL53 and SL54 half surface

hinges, SL40 wide throw hinges, SL41 swing clear hinges or

SL60/62 toilet partition hinges.

NOTE: Custom lengths are available and require handing, except SL11, SL21, SL27, SL38, SL40, SL57 and SL60/62.

Ph: 800-423-1174 | Fax: 800-423-7107 | www.select-hinges.com

GEARED

Prices effective July 1, 2015. Subject to change without notice.

CERTIFIED

1/16"

1/8"

3/32"

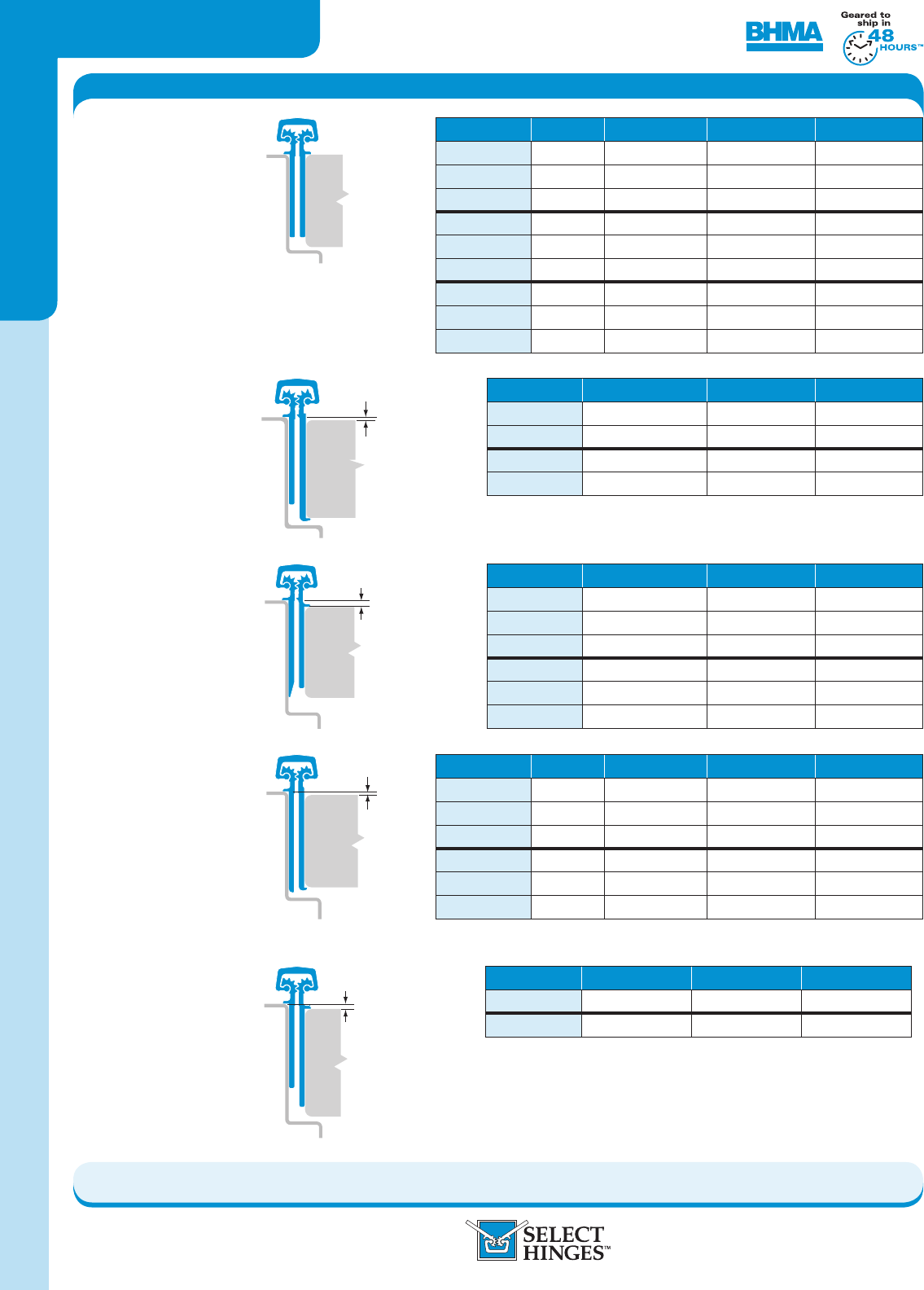

GEARED Continuous Hinges List Prices

Model # 79" 83" / 85" 95" 120"

SL11 CL SD -115.00 147.00 269.00

SL11 CL HD 140.00 140.00 179.00 279.00

SL11 CL LL -160.00 198.00 310.00

SL11 BR SD -145.00 194.00 279.00

SL11 BR HD -181.00 230.00 365.00

SL11 BR LL -215.00 259.00 412.00

SL11 BK SD -163.00 220.00 380.00

SL11 BK HD -206.00 258.00 400.00

SL11 BK LL -255.00 280.00 458.00

Model # 83" / 85" 95" 120"

SL18 CL SD 117.00 148.00 210.00

SL18 CL HD 149.00 186.00 279.00

SL18 CL LL 168.00 205.00 328.00

SL18 BR SD 145.00 186.00 270.00

SL18 BR HD 187.00 239.00 355.00

SL18 BR LL 216.00 266.00 415.00

Model # 83" / 85" 95" 120"

SL14 CL SD 117.00 148.00 269.00

SL14 CL HD 149.00 186.00 279.00

SL14 BR SD 145.00 186.00 355.00

SL14 BR HD 187.00 240.00 365.00

Model # 79" 83" / 85" 95" 120"

SL24 CL SD -117.00 148.00 210.00

SL24 CL HD 145.00 145.00 186.00 279.00

SL24 CL LL -172.00 208.00 330.00

SL24 BR SD -145.00 186.00 270.00

SL24 BR HD -183.00 235.00 355.00

SL24 BR LL -217.00 262.00 415.00

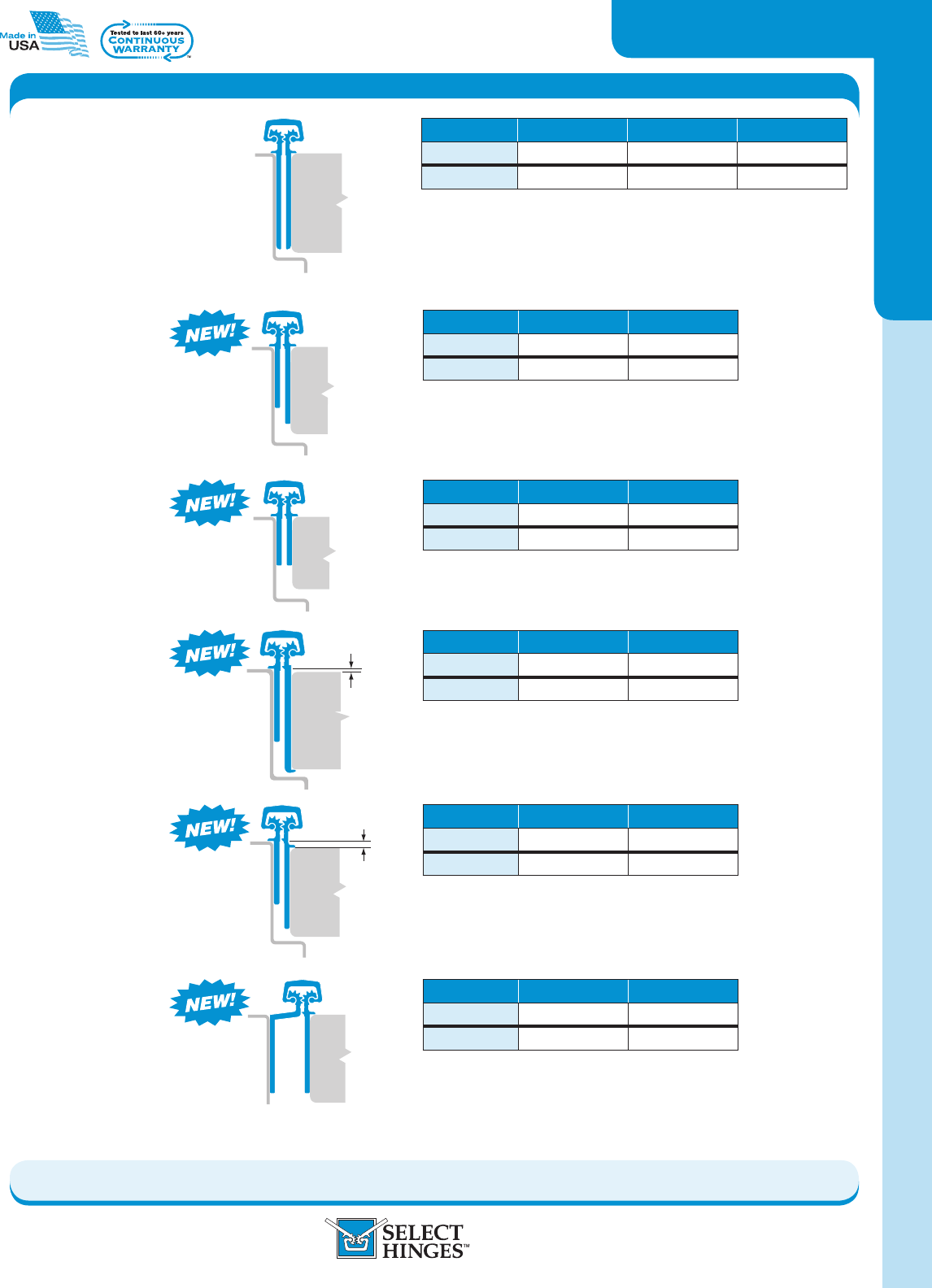

SL26

■Concealed hinge

■For 2" to 2-1/4" doors

■Staggered hole pattern

■For doors up to 1,000 lb.

■Narrow frame leaf

■3/32" door inset

■Grade 1

SL11

■Concealed hinge

■Flush mounted

■For 1-3/4" doors

■HD/LL = Grade 1

SL14

■Concealed hinge

■Narrow frame leaf

■Door edge protector

■1/16" door inset

■For 1-3/4" doors

■HD = Grade 1

SL18

■Concealed hinge

■Beveled frame leaf

■1/8" door inset

■For 1-3/4" doors

■HD/LL = Grade 1

SL24

■Concealed hinge

■Door edge protector

■Frame leaf covers butt

hinge preps

■1/16" door inset

■For 1-3/4" doors

■HD/LL = Grade 1

CONCEALED

Model # 83" / 85" 95" 120"

SL26 CL LL 158.00 200.00 310.00

SL26 BR LL 203.00 258.00 400.00

1/16"

NOTE: Custom lengths are available and require handing, except SL11, SL21, SL27, SL38, SL40, SL57 and SL60/62.

Ph: 800-423-1174 | Fax: 800-423-7107 | www.select-hinges.com

GEARED

Prices effective July 1, 2015. Subject to change without notice.

1/8"

GEARED Continuous Hinges List Prices

1/16"

SL27

■Concealed hinge

■For 2" to 2-1/4" doors

■Frame leaf covers butt hinge preps

■Staggered hole pattern

■For doors up to 1,000 lb.

■Flush mounted

■Grade 1

CONCEALED

Model # 83" / 85" 95" 120"

SL27 CL LL 158.00 200.00 310.00

SL27 BR LL 203.00 258.00 400.00

SL31

■Concealed hinge

■For 1-3/4" doors

■Flush mounted

Model # 83" 95"

SL31 CL HD 135.00 169.00

SL31 BR HD 171.00 220.00

SL38

■Concealed hinge

■For 1" to 1-3/8" doors

■Flush mounted

Model # 83" 95"

SL38 CL SD 98.00 127.00

SL38 BR SD 127.00 160.00

SL44

■Concealed hinge

■Door edge protector

■1/16" door inset

■For 1-3/4" doors

SL48

■Concealed hinge

■1/8" door inset

■For 1-3/4" doors

SL71

■Concealed safety

hinge (when used

without frame stop)

■Provides clearance

sucient to avoid the

pinching of ﬁngers

■Flush mounted

■For 1-3/4" doors

Model # 83" 95"

SL44 CL HD 135.00 169.00

SL44 BR HD 171.00 220.00

Model # 83" 95"

SL48 CL HD 135.00 169.00

SL48 BR HD 171.00 220.00

Model # 83" 95"

SL71 CL HD 251.00 338.00

SL71 BR HD 335.00 428.00

NOTE: Custom lengths are available and require handing, except SL11, SL21, SL27, SL38, SL40, SL57 and SL60/62.

Ph: 800-423-1174 | Fax: 800-423-7107 | www.select-hinges.com

GEARED

Prices effective July 1, 2015. Subject to change without notice.

CERTIFIED

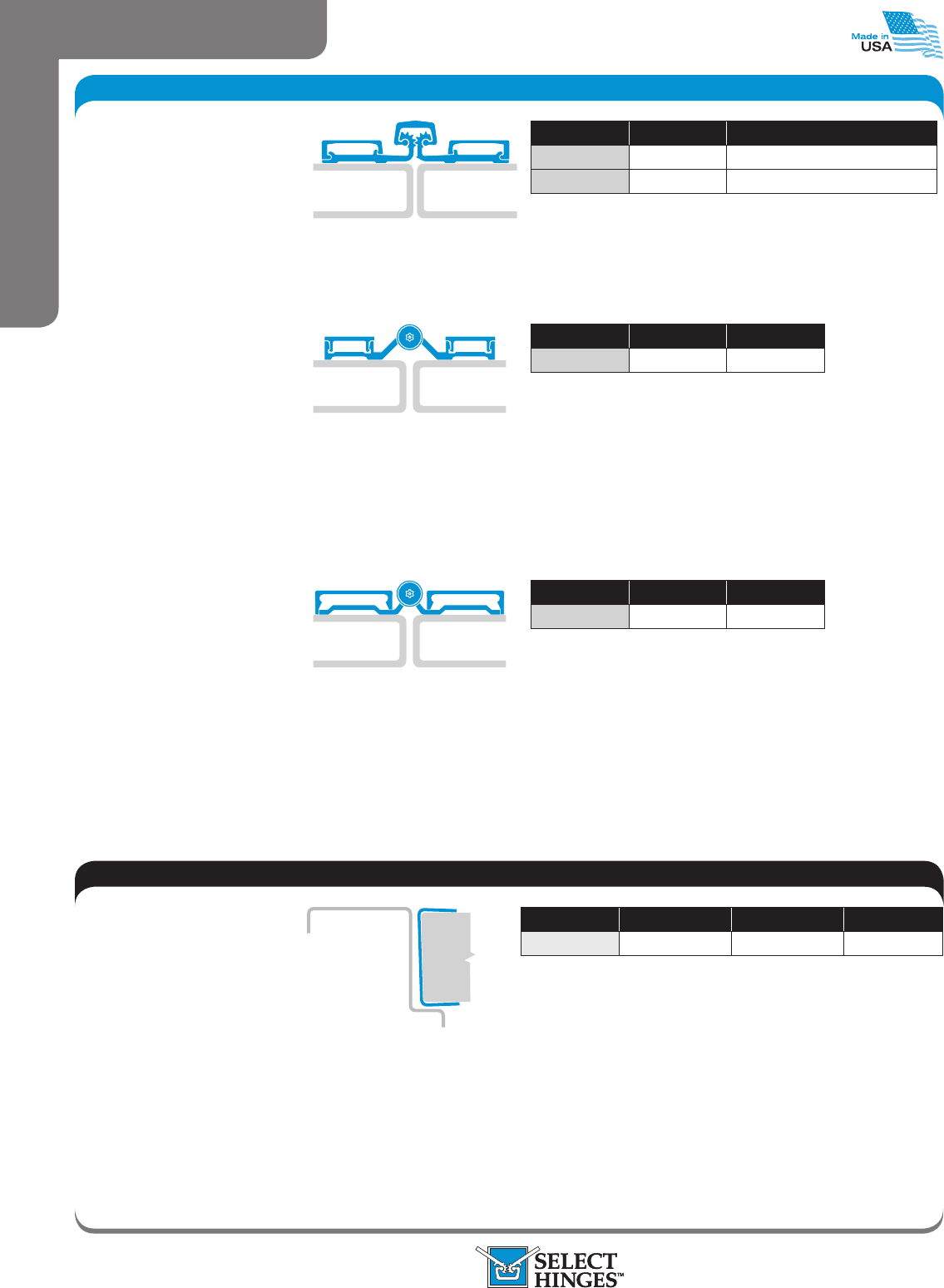

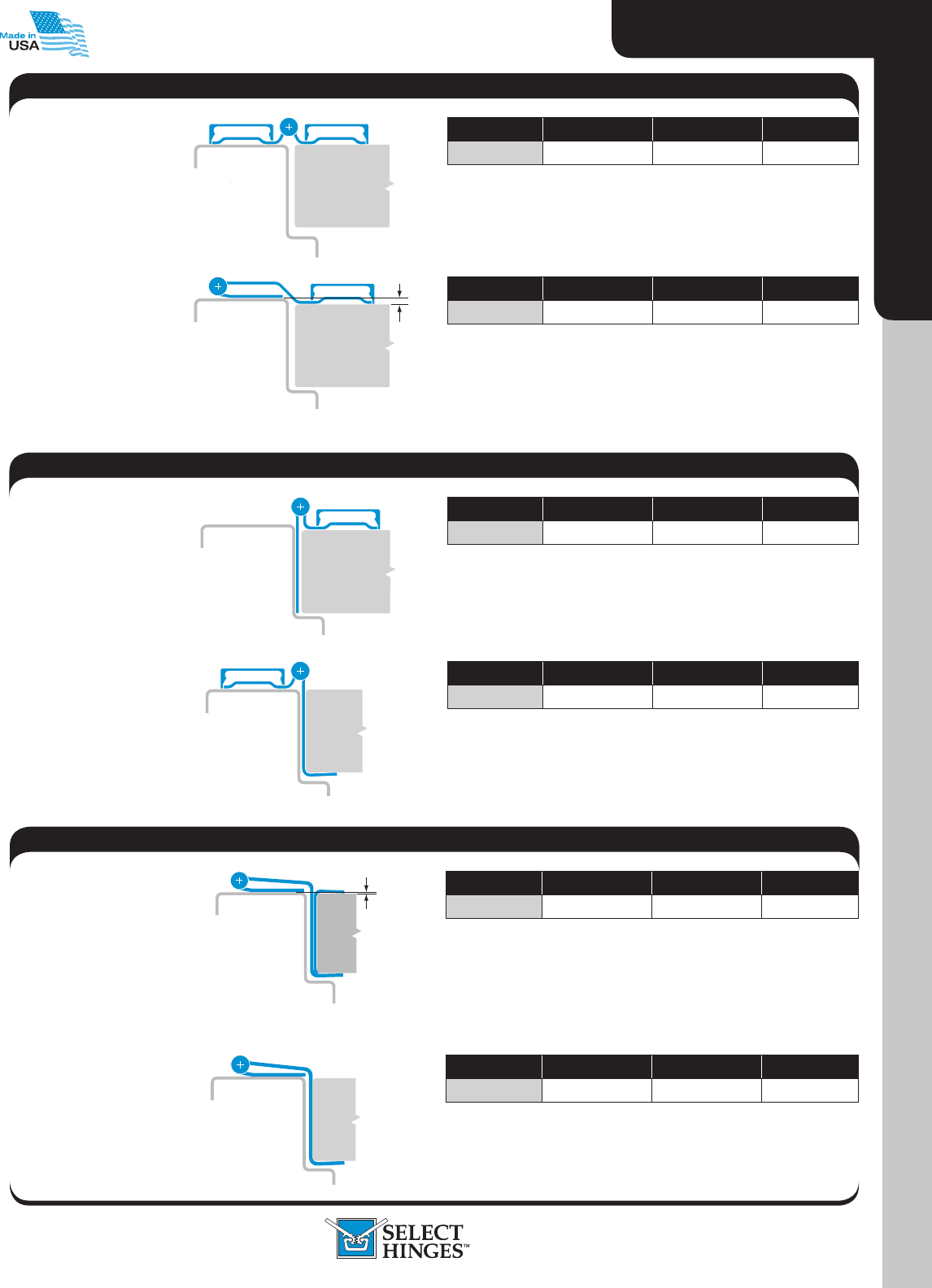

WIDE THROW

SWING CLEAR

3/32"

GEARED Continuous Hinges List Prices

1/16"

Model # 83" / 85" 95" 120"

SL41 CL HD 251.00 335.00 510.00

SL41 CL LL 275.00 355.00 555.00

SL41 BR HD 338.00 428.00 665.00

SL41 BR LL 360.00 465.00 710.00

Model # 83" 95"

SL40 CL HD 345.00 450.00

SL40 BR HD 406.00 560.00

SL40

■Wide throw hinge

■Clearance of brick moldings or

special door/frame designs

■Frame leaf covers butt

hinge preps

■Flush mounted

■For 1-3/4" doors

■Grade 1

SL41

■Swing-clear action

■Door edge protector

■Requires 2-1/4" frame face

for full rotation clearance

■1/16" door inset

■For 1-3/4" doors

■Grade 1

Model # 83" / 85" 95" 120"

SL53 CL HD 203.00 254.00 410.00

SL53 BR HD 268.00 325.00 555.00

Model # 83" / 85" 95" 120"

SL54 CL HD 210.00 260.00 420.00

SL54 BR HD 268.00 325.00 555.00

HALF SURFACE

SL54

■Half surface hinge

■Frame leaf covers butt

hinge preps

■Tamper-resistant,

removable door leaf cover

■3/32" door inset

■For 2" to 2-1/4" doors

request long barrel nuts

■Grade 1

SL53

■Half surface hinge

■Narrow frame leaf

■Tamper-resistant, removable

door leaf cover

■3/32" door inset

■For 2" to 2-1/4" doors

request long barrel nuts

■Grade 1

Ph: 800-423-1174 | Fax: 800-423-7107 | www.select-hinges.com

GEARED

Prices effective July 1, 2015. Subject to change without notice.

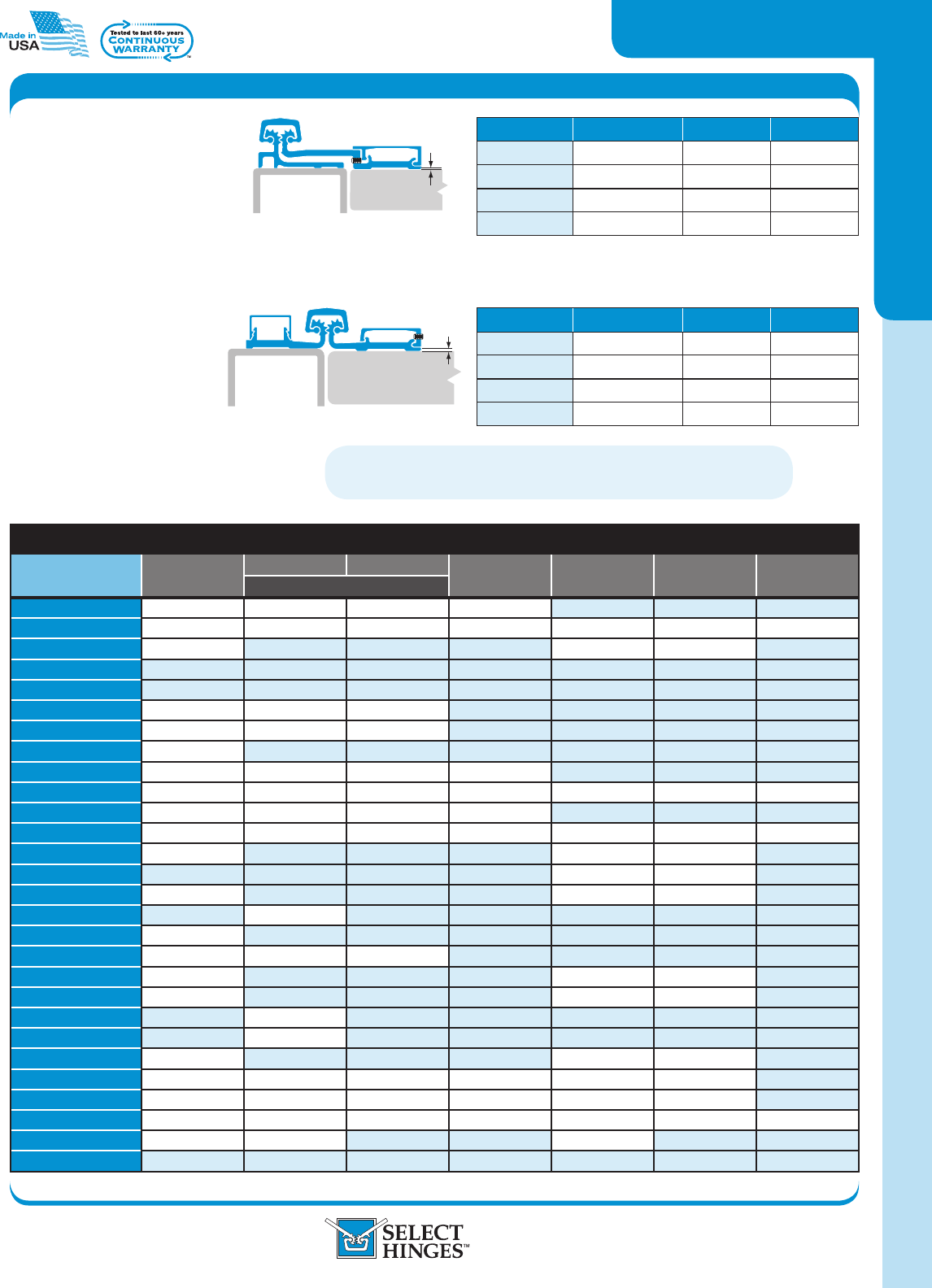

FULL SURFACE

1/16"

1/32"

GEARED Continuous Hinges List Prices

PART NUMBER INTERCHANGE - GEARED HINGES

SELECT ROTON PEMKO MCKINNEY STANLEY ABH PBB IVES

(PEMKO)

SL11 SD 780-112 FMSLF/KFM MCK12 661

SL11 HD 780-112HD FMSLFHD/KFMHD MCK12HD 661HD A110HD CH31L 112HD

SL11 LL 780-112LL A110LL CH31LL

SL14 SD

SL14 HD

SL18 SD 780-111 FMSLI MCK14

SL18 HD 780-111HD FMSLIHD MCK14HD

SL18 LL 780-111LL

SL21 SD 780-210 FS MCK22 665

SL21 HD 780-210HD FSHD MCK22HD 665HD A210HD CH33SC 210HD

SL24 SD 780-224 FM MCK25 662

SL24 HD 780-224HD FMHD MCK25HD 662HD A240HD CH31 224HD

SL24 LL 780-224LL A2400LL CH31LL

SL26 LL A260LL CH31HD

SL27 LL 780-226HD A270LL CH31L2LL

SL31 HD SPFMSLF

SL38 HD 780-110HD

SL40 HD 780-235HD WTFMHD MCKWTHD

SL41 HD 780-041HD A410HD CH31SC

SL41 LL 780-041LL A410LL CH31SCLL

SL44 HD SPFM

SL48 HD SPFMSLI

SL53 HD 780-053HD A530HD CH3453

SL54 HD 780-054HD HSHD MCK54HD 663HD A540HD CH3454

SL57 SD 780-157 FSCP MCK58 664*

SL57 HD 780-157HD FSCPHD MCK58HD 664HD A570HD CH33NF 157HD

SL71 HD 780-113HD* FMSLISFHD* A130HD*

SL60/62

* Not equivalent hinge but possible SELECT hinge substitution depending on application.

Model # 83" / 85" 95" 120"

SL21 CL SD 170.00 210.00 441.00

SL21 CL HD 210.00 253.00 441.00

SL21 BR SD 219.00 275.00 450.00

SL21 BR HD 245.00 310.00 494.00

Model # 83" / 85" 95" 120"

SL57 CL SD 170.00 210.00 441.00

SL57 CL HD 210.00 253.00 441.00

SL57 BR SD 219.00 275.00 450.00

SL57 BR HD 245.00 310.00 494.00

SL57

■Full surface hinge

■Center pivot

■Narrow frame

■Tamper-resistant, removable

door leaf cover

■1/16" door inset

■For 2" to 2-1/4" doors request

long barrel nuts

■HD = Grade 1

SL21

■Full surface hinge

■Swing-clear action

■Tamper-resistant, removable

door leaf cover

■1/32" door inset

■For 2" to 2-1/4" doors request

long barrel nuts

■HD = Grade 1

NOTE: Custom lengths are available and require handing, except

SL11, SL21, SL27, SL38, SL40, SL57 and SL60/62.

Ph: 800-423-1174 | Fax: 800-423-7107 | www.select-hinges.com

CERTIFIED

Prices effective July 1, 2015. Subject to change without notice.

PIN & BARREL

PART NUMBER INTERCHANGE - PIN & BARREL HINGES

SELECT MARKAR HAGER PEMKO MCKINNEY STANLEY ABH IVES

SL300 FM-300 790-900 SPBFM MCK FM300 651 A500 700

SL302 FS-302 SPBFS MCK FS302 657 A502 702

SL303 HS-303 790-903 SPBHS MCK HS303 A503

SL305 HG-305 790-905 SPBFMDEG MCK HG305 652 A505 705

SL306 HG-306 790-906 MCK HG306 655 A506

SL308 EG-308 SDEG EG2/2B A528F

SL309 FS/SC-309 790-909 SPBFSSC MCK FS309

SL310 HG-310 MCK HG310

SL311 HG-311 MCK HG311 656 A511 711

SL315 HG-315 SPBFMEG

SL3500 FM-3500 SPBFMHD

SL402 FS-402-TP

SL200 FM-200 FM3700 641 600

SL902 FM-200 FM3700 641 600

PIN & BARREL HINGES IN STOCK

■Lengths 79" / 83" / 85" / 95" / 119"

SELECT hinges are normally 1" shorter than actual opening

height. Custom lengths can be ordered (see page 11).

■Hinge Duty All SELECT brand Pin & Barrel Continuous

Hinges (excluding SL3500 and Toilet Partition models) are

designed for 1-3/4" doors, medium-frequency up to 400 lb.

or low-frequency up to 600 lb. (4 ft. maximum door width).

■Finishes US32D Satin ﬁnish is standard on all stainless

steel hinges. Standard carbon steel hinges are zinc plated.

Standard aluminum hinges have a bright dipped anodized

ﬁnish. Custom ﬁnishes, including painted and polished, are

available (see page 11).

SELECT offers Pin & Barrel Continuous Hinges for those customers who sometimes require hinges made of steel or

stainless steel. SELECT Products Limited remains focused on providing you the highest quality products, superior

service, and consistently shipping your orders within 48 hours. SELECT Pin & Barrel Continuous Hinges will be

shipped within 48 hours ARO. Large volume orders may require longer lead times.

STANDARD ORDERS

■Shipping 48 hours or less ARO for standard products.

Large quantities and custom processing may require

additional time.

■Terms Net 30 days.

■Freight

Net amounts of $1,500 or more: Prepaid and allowed, routing

of our choice. (48 contiguous states and Canada only.)

Net amounts less than $1,500: Freight costs are prepaid and

added. (48 contiguous states and Canada only.)

■Special Shipments Oversized shipments (greater than

95" long) will ship via FedEx 3-Day or truck only. Additional

fees may apply to orders shipped outside the 48 contiguous

states, special packaging and advance notiﬁcation requests.

Please consult with SELECT.

FIRE-RATED PIN & BARREL HINGES

■UL® Labeled Fire Rating The following

SELECT Pin & Barrel Continuous Hinges have

been tested by Underwriters Laboratories, Inc.

to meet the Positive pressure requirements

of UBC 7.2 and are listed by Underwriters

Laboratories, Inc. to U.S. and Canadian safety standards:

Models SL300, SL302, SL303, SL305, SL306, SL308,

SL309, SL310, SL311, SL315, SL3500 and SL200 for use

on single-mounted doors, up to 3 hours for hollow metal

doors, 1-1/2 hours for hollow metal and composite core

wood ﬁre doors, and 20 minutes for wood doors.

DUST-FREE (MEDICAL) BEARINGS

■Dust-Free (Medical) ﬂanged double bearings are standard

on all SELECT Pin & Barrel continuous hinges except Toilet

Partition hinges.

■Prevent metal-to-metal contact for longer hinge life

■Eliminate dust for "clean room" applications.

Ph: 800-423-1174 | Fax: 800-423-7107 | www.select-hinges.com

Prices effective July 1, 2015. Subject to change without notice.

PIN & BARREL

ELECTRICAL MODIFICATIONS CUSTOM PROCESSING

NOTE: Lead times may vary depending on the number

of hinges to be custom prepared. Large volume

orders extend lead times. Please contact SELECT

for veriﬁcation of the lead time required. Changes

or cancellations on custom processed orders are

subject to charges for work already performed

and materials utilized.

PIN & BARREL FASTENERS

All SELECT Pin & Barrel Continuous Hinges and edge guards

are shipped with a corresponding screw pack unless requested

otherwise. The Adjusta-Screw™, shown below, is an optional

fastener on models SL305, SL308 and SL310.

Optional Fasteners

■Adjusta-Screw™ [AS] ........... $30 net add per hinge

Designed to correct frame

ﬁt variances up to 3/8".

Right-hand thread.

■Security Fasteners [SF] .......Contact SELECT for quote

Tamper-resistant spanner head and Torx® head fasteners

are available to replace standard fasteners for added

entryway security.

No discounts apply to net add items.

Handing required for all custom processing.

Hinges prepared with custom processing are non-returnable.

■Dutch Door [DD] ................ $41 net add per hinge

Frame leaf is furnished as a continuous length. Door leaf is

cut to ﬁt the speciﬁed Dutch Door height. Required: Handing

and measurements for net hinge length, top door leaf length,

bottom door leaf length and clearance (3/16" min.) between

top and bottom leaves.

■Hospital Tip [HT] ............... $38 net add per hinge

Hinges can be prepared with slanted tips for hospitals and

correctional facility applications. Handing required. Available

only on SL300, SL305, SL315 and SL200.

■Wide Throw [WT] ............Contact SELECT for quote

Specify leaf width from pin centerline when ordering.

Engineering drawing required.

■Automatic Door Bottom Cut

[ADBC] ....................... $38 net add per ADBC

■Raised Barrel [RB] .............. $35 net add per hinge

Swaged door leaf for Concealed and Half Surface hinges

allows door to open 180°. Handing required.

■Security Studs Stainless steel studs are mounted to frame

leaf, door leaf is drilled to accommodate studs. 3 studs are

required for hinge lengths up to 85", 4 studs are required for

hinges longer than 85". Handing required. Door and frame

must be specially prepared to accommodate security studs.

[SECSTUD3] ................... $63 net add per hinge

[SECSTUD4] ................... $80 net add per hinge

■Sheared Leaf [SHFL] ............ $47 net add per hinge

Used for narrower door thicknesses, unevenly rabbeted

frames or other special applications. Specify leaf width from

pin centerline when ordering.

■Custom Hole Pattern [CHP] ...... $72 net add per hinge

Hole shapes or patterns other than standard must be

indicated with dimensioned diagrams when ordering.

■Blank Hinge [B] ................. $45 net add per hinge

Holes are omitted for welded installations.

■LL Cover [LLCVR] .............. $300 net add per cover

Lead-lined cover for applications requiring radiation

containment. Available only on surface-mounted hinges.

■LL Astragal [LLAST] ................ $100 net add each

Lead-lined astragal for SL308 edge guard.

■Cutting Charge [CUTCHG] ......... $33 net add per cut

■Paint, Powder Coat

[PAINTPC] ..................Contact SELECT for quote

Scratch-resistant, 7 standard colors. Lead time 4 weeks min.

■Paint, Kynar [PAINTKY] .......Contact SELECT for quote

Available only on aluminum hinges. Lead time 4 weeks min.

■Edge Guard Preps [EG] ........... $27 net add per prep

SL308 edge guard can be prepared for: 161 latch bolt;

86 mortise lock; ASA strike; 161 strike; manual ﬂush bolts;

auto ﬂush bolts.

No discounts apply to net add items.

Specify prep locations from top of hinge.

See SELECT catalog for speciﬁc prep locations.

Handing required for all electrical modiﬁcations.

Hinges prepared with electrical modiﬁcations are non-returnable.

■Current Transfer Prep [CTP] Hinge leaf cutout for EPT.

Standard location is centerline. Provide location for all

non-standard locations. Handing required.

AR-CTP (Adams-Rite) ............ $53 net add per CTP

VD-CTP (Von Duprin) ............ $53 net add per CTP

■Concealed Current Transfer [EL] 28 gauge wires.

EL-4 (4-wire) .................... $175 net add per EL

EL-8 (8-wire) .................... $200 net add per EL

EL-12 (12-wire) ..............Contact SELECT for quote

■Electric Power Transfer [EPT] Hinges can be purchased

with Adams-Rite power transfer units. Please specify the

dimension from the top of the hinge to the centerline of the

EPT cutout. Hinge installed ﬂush with the top of the door.

CTP and handing required. CTP price included.

AR-EPT-4612-1 ................. $250 net add per EPT

AR-EPT-4612-2 ................. $265 net add per EPT

■Adjustable Concealed Monitor Switch [AMS]

Rigid welded assembly allows monitoring switch

adjustments for all applications.

AMS .......................Contact SELECT for quote

■Electrical Transfer Access Prep [ETAP] Access panel in

both hinge leaves allows access to electrical wiring without

removing door or hinge.

ETAP .......................... $90 net add per ETAP

Ph: 800-423-1174 | Fax: 800-423-7107 | www.select-hinges.com

CERTIFIED

Prices effective July 1, 2015. Subject to change without notice.

BHMA CERTIFIED — Cycle Requirements per BHMA Standard ANSI / BHMA A156.26 2000

SELECT Pin & Barrel Continuous Hinges SL300, SL302, SL303, SL305, SL306, SL309, SL310, SL311, SL315

and SL3500 are BHMA CERTIFIED to conform to BHMA Standard ANSI/BHMA A156.26 2000 Grade 1.

CONCEALED

1/8"

1/16" min.

1/8"

1/32"

SL300

■Concealed hinge

■Stainless steel

■1/8" door inset

SL200

■Concealed hinge

■Zinc plated carbon steel

■1/8" door inset

SL3500

■Concealed hinge

■Extra heavy-duty

12 gauge stainless steel

■Meets ASTM F-1450A

Abuse Test requirements

■Hospital Tip standard

■Torx® head security fasteners available

at extra cost (see page 11)

■For 1-3/4" to 2" doors up to 4 ft. wide

and weighing up to 900 lb.

■1/8" door inset

SL305

■Concealed hinge

■Stainless steel

■Door guard

■Universal Adjusta-Screw™ fasteners

(right-hand thread) available at extra

cost (see page 11)

SL315

■Concealed hinge

■Stainless steel

■Edge guard

Model # 79" / 83" 85" 95" 119"

SL300 420.00 476.00 485.00 682.00

Model # 79" / 83" 85" / 95" 119"

SL305 544.00 625.00 915.00

Model # 79" / 83" 85" / 95" 119"

SL315 509.00 577.00 845.00

Model # 79" / 83" 85" / 95"

SL200 275.00 340.00

Model # 83" 95"

SL3500 650.00 775.00

PIN & BARREL

Ph: 800-423-1174 | Fax: 800-423-7107 | www.select-hinges.com

Prices effective July 1, 2015. Subject to change without notice.

FULL SURFACE

1/8"

1/32"

SL306

■Half mortise hinge

■Stainless steel

■Tamper-resistant frame

leaf cover

■Edge guard

SL302

■Full surface hinge

■Stainless steel

■Center pivot

■Tamper-resistant leaf covers

■Flush mounted

SL303

■Half surface hinge

■Stainless steel

■Tamper-resistant door

leaf cover

■1/8" door inset

SL310

■Swing-clear action

■Stainless steel

■Door guard

■Universal Adjusta-Screw™ fasteners

(right-hand thread) available at extra

cost (see page 11)

SL311

■Swing-clear action

■Stainless steel

■Edge guard

SL309

■Full surface hinge

■Stainless steel

■Swing-clear action

■Tamper-resistant door leaf cover

■1/8" door inset

Model # 79" / 83" 85" / 95" 119"

SL302 530.00 642.00 905.00

Model # 79" / 83" 85" / 95" 119"

SL309 590.00 680.00 850.00

Model # 79" / 83" 85" / 95" 119"

SL303 482.00 565.00 725.00

Model # 79" / 83" 85" / 95" 119"

SL306 490.00 588.00 745.00

Model # 79" / 83" 85" / 95" 119"

SL310 765.00 865.00 1,025.00

Model # 79" / 83" 85" / 95" 119"

SL311 613.00 630.00 945.00

HALF SURFACE • HALF MORTISE

SWING CLEAR

PIN & BARREL

Ph: 800-423-1174 | Fax: 800-423-7107 | www.select-hinges.com

Prices effective July 1, 2015. Subject to change without notice.

Ph: 800-423-1174 | Fax: 800-423-7107 | www.select-hinges.com

TOILET PARTITION HINGES

SL60/SL62 GEARED

■Full surface toilet

partition hinges

■For doors 36" wide (max.)

weighing up to 80 lb.

■One-way fasteners: specify for

partitions of 3/4", 1" or 1-1/4"

Model # 57" Swing Angle

SL60 143.00 Opens 180º

SL62 188.00 Opens 120º, spring-loaded

SL402TP PIN & BARREL

■Full surface toilet partition hinge

■Bright dip anodized aluminum

■Spring-loaded; adjustable

■Tamper-resistant Torx® head

end caps

■For doors weighing up to 80 lb.;

consult factory for doors wider

than 36"

SL902TP PIN & BARREL

■Full surface toilet

partition hinge

■Stainless steel

■Spring-loaded; adjustable

■Tamper-resistant Torx® head

end caps

■For doors weighing up to

80 lb.; consult factory for

doors wider than 36"

Model # 54" 57"

SL402TP 452.00 470.00

Model # 54" 57"

SL902TP 505.00 $525.00

SL308

■Edge guard

■Stainless steel

■Lock-side door edge protector

■Can reduce gap between

pairs of doors

■Universal Adjusta-Screw™

fasteners (right-hand thread)

available at extra cost

(see page 11)

■Specify square or beveled

door edge

Model # 79" / 83" 85" / 95" 119"

SL308 240.00 275.00 355.00

EDGE GUARD

Options

Safety-Lift feature ................... net add $20

One-Way Shoulder Bolt .............. net add $25

SPECIALTY

Ph: 800-423-1174 | Fax: 800-423-7107 | www.select-hinges.com

Prices effective July 1, 2015. Subject to change without notice.

PAYMENT TERMS

Terms are net 30 days from the date of invoice, following credit

approval. No C.O.D. orders will be accepted. Interest of 1.5%

per month will accrue on any charges unpaid after 30 days

from the date of invoice. Shipment will be held on subsequent

open orders on accounts unpaid after 45 days from date of

invoice until payment is received in full. Once payment of all

outstanding 45-day+ invoices is received in full by SELECT, the

order will be placed into production (if custom) and/or shipped

(if stock items). Accounts unpaid after 90 days will automatically

be subject to CIA terms on subsequent open orders.

Applicable Federal, State or local taxes are not included in the

prices quoted. Should any license fee, property, sales, use

or excise tax be levied or assessed by the Federal, State or

local law upon any goods which are the subject matter of the

price list, they shall constitute an extra and shall be paid by the

buyer. If a surety bond is required in connection with a contract

to furnish these goods, the premium shall be added to the

contract.

CANCELLATIONS

Changes or cancellations on custom orders, including Fire-

Rated products, will be subject to charges for work already

completed and materials utilized.

PARTIAL SHIPMENTS

Partial shipments may be made on open orders to expedite

delivery. Partial or multiple drop shipment requests subsequent

to originally quoted and/or acknowledged orders may be

subject to re-pricing and re-assessed for freight charges. Partial

shipments will be invoiced at the time of shipment and will be

payable individually, including freight if applicable, under the

terms stated above.

RETURN OF GOODS

SELECT Products Limited's restocking fee is 35%. Only stock

hinges without modiﬁcations are eligible for return. Hinges

with custom colors, special lengths, cutouts, electrical preps or

other custom processing cannot be returned.

GEARED HINGE WARRANTY

SELECT Products Limited will replace your

SELECT Geared Continuous Hinge if it ever

fails under normal use, as long as it was installed in

accordance with the installation instructions enclosed

with every new SELECT hinge.

SELECT Products Limited warrants its

Geared Continuous Hinges to be free from

defects in material or workmanship.

This warranty is continuous

and has no time limit.

The durability delivered by SELECT Hinges’ Pair-Matched™

hinge leaves, lifetime lubrication and anodizing after machining

has been proven in independent performance testing

surpassing 25,000,000 cycles.

Tested to withstand 60 years of heavy trac

Our SL11 HD geared continuous hinge surpassed more than

25,000,000 cycles — 10 times beyond Grade 1 cycle count —

in ANSI-approved physical endurance testing. In the real world,

that’s equivalent to 60 years on a typical high-trac entrance.

Learn more at www.select-hinges.com/cycletest.

PIN & BARREL HINGE WARRANTY

SELECT brand Pin & Barrel Continuous Hinges are

guaranteed to be free of defects in material and

workmanship for a period of 25 years. No claims for faulty

or improper installation, consequent damages, repairs

or backcharges will be allowed. This warranty does not

cover defects or damage resulting from vandalism, abuse,

improper maintenance, improper storage, shipping or

handling, alteration or removal of the factory applied

lubricant, anodizing or painting of product in the ﬁeld.

■SELECT Products Limited will assume no liability for

Geared or Pin & Barrel Continuous Hinges cut or altered

in the ﬁeld if factory speciﬁed cutting instructions are not

followed.

■SELECT Products Limited makes no other warranty or

guarantee, either expressed or implied.

ELECTRICAL COMPONENTS WARRANTY

All electrical modiﬁcation components on SELECT Geared

Continuous Hinges have a 5-year warranty. Electrical

modiﬁcation components on Pin & Barrel Continuous Hinges

have a 5-year warranty.

ORDERING

www.select-hinges.com

Prices effective July 1, 2015.

Subject to change without notice.

Printed in U.S.A. #PR-070115

9770 Shaver Road Portage, MI 49024

Ph: 800.423.1174 Fax: 800.423.7107

CERTIFIED

Select Hinges Price Book Book2015

Navigation menu

Versions of this User Manual:

Views

Navigation
