In the vehicular configuration: during normal operation the
knob has the volume control function, turn it clockwise to
turn up the volume (16 levels) of the audio output of the
loudspeaker/earphone.
Turn the knob counterclockwise to decrease the volume.
If the knob is kept pressed until the alternate symbols
S
and appear on the display it goes to group-channel
selection function. Once in this modality turn the knob to
choose among the available groups and select the group-
channel by pressing the knob. Once pressed the knob you
go back to volume control function. If, in group-channel
selection modality, no operation on the knob is performed for
a pre-defined time interval, the knob automatically changeovers
to volume control function. Each changeover of knob function
is signalled to the operator by means of a confirmation beep.
In the Motorcycle configuration: the triple pushbutton allows
the same operativity of the knob.
(“+” to increase the volume/scroll up the groups;
“-” to decrease the volume/scroll down the groups;
“•” to switch from volume control to group selection/OK).
Lit while the radio is receiving.
Lit while the radio is transmitting; blinking while the tran-
smission is inhibited (only TETRA).
When a symbol, or a writing, is present on the display near
the key, by pressing the key you select the function
associated to the relative symbol/writing.
To scroll up/down the menu items, select the option
and escape.
The off hook green key is used to accept/make (after
having typed in the address) an individual full duplex call
and if pressed in idle status accesses the calls list.
The on hook red key is used to end the connection. It is
also used to switch on/off the radio if kept pressed for a
few seconds.
Alphanumeric keypad for dialling numbers and/or strings.
It is made up of 12 keys (10 digits plus and ).
Clear/escape key.
Only for TETRA: if a group is selected, by pressing the
yellow key the writing "Dispatcher" on the display appears:
now, by pressing PTT (if the network allows this function)
the first available dispatcher of the selected group is called
(not the group). By pressing again the yellow key the name
of the selected group appears on the display and by
pressing PTT the selected group is called. If no group is
selected the yellow key allows to make an (half duplex)
individual/group call by pressing PTT (after having typed
in the address) even if the PTT default modality is set (by
PRP) for group/(half duplex) individual call.
The key allows to switch the audio from the external
loudspeakers to handset accessory and viceversa. (Active
only if the external loudspeaker and the handset are
connected to the radio).
It lets the user send an emergency alarm.
To be connected to audio accessories.
To be connected to USB-A mass storage device (for FPG3
software download).
Push-To-Talk button, press it to talk during half duplex
conversation.
If pressed (in Idle status when a group-channel is se-
lected, or after having typed in a group-channel address)
it sends the call to the group-channel. See also the yellow
key function description.
Signal level (TMO and GTW mode)
Network, searching network (flashing)
Direct Mode with Gateway equipment presence detected
Fallback Mode
Direct Mode
Repeater Mode (Repeater only)
Gateway Mode (Gateway only)
Direct Mode with Repeater equipment presence detected
Packet Data Context
Packet Data Channel
E2E Crypto Enable
Custom E2EE Error
Custom E2EE Enable
No read Messages, Full queue with at least one message not
read (flashing)
Full Queue, each message is read
Active Data Call
Bluetooth Activated
Earphone Speech Call
Active Speech Call
Keypad Volume Off
Keypad Locked
Group scanning Enabled
Group Attach Failure
SDS and voice communication monitoring (Repeater only)
Voice communication monitoring (Repeater and Gateway only)
SDS monitoring (Repeater only)
Helmet detected
Rotary Knob Enabled
Tx Active
UHF Network Channel
UHF Simplex Channel
Loudspeaker Audio Output
Earphone Audio Output
Menu structure
© 2010 SELEX Communications S.p.A. - All rights reserved.
SELEX Communications S.p.A. reserves the right to change specifications, performance or features relevant to the product described
without notice. This is an unpublished work the copyright in which vests in SELEX Communications S.p.A. The information contained
herein is confidential and the property of SELEX Communications S.p.A. and is supplied without liability for errors or omissions. No
part may be reproduced, disclosed or used except as authorised by contract or other written permission.
TETRA - Mobile Radio Terminal
Quick Reference Guide

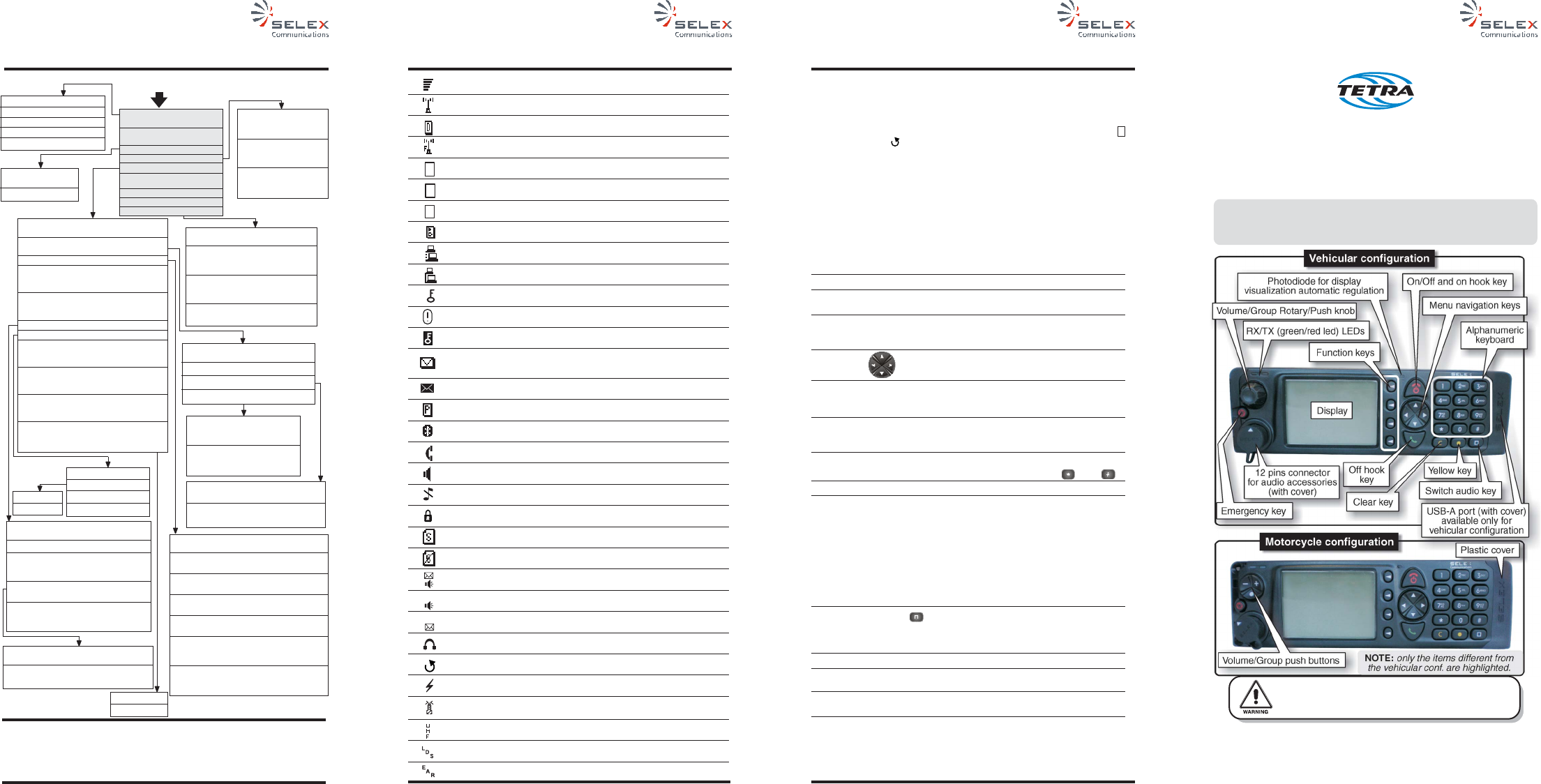

Controls, indicators and connectors
VS3000-FPG3
Displayed symbols SELEX Communications S.p.A. A Finmeccanica Company
Via Pieragostini, 80, 16151 - Genova, Italy
D
R
G
M
M
Volume
Controller/
Group -
channel
Selector
Green LED
Red LED
Function Keys
Menu
navigation
keys
Off hook key
On hook key
Alphanumeric
keypad
Clear key
Yellow key
Switch audio
key
Emergency key
12 pins
connector
USB connector
(only vehicular)
PTT (Not
located on the
FPG3 front
panel)
Menu
NOTES:
- Some menus can be or not available according to the configuration of
the radio terminal.
- Choosing some options of WPS menus can cause the ending of active
group calls.
E2EE Status (enable/
disable E2EE)
E2EE Key
In Box (TMO, DMO, REP, FM)
Out Box (TMO, DMO, FM)
Text Message (TMO, DMO, FM)
Send Status (TMO, DMO, FM)
Char Size (TMO, DMO)
Messages (TMO, DMO, REP,
FM)
Change Mode (TMO, DMO,
REP, GTW, FM)
Encryption (TMO, and DMO only)
Phone Lists
Settings
Monitor (to check radio coverage,
FM only)
GPS
Information
Help
Phone Book
(user defined TMO and
DMO only)
Home TETRA
(pre-configured phone
book TMO and DMO only
Non TETRA
(pre-configured phone
book, TMO only)
Group
(To see the configured groups, FM only)
Group Management
(TMO, DMO and GTW)
Calls (TMO and DMO only)
Delivery Options
(to select the kind of messages delivery
report, TMO and DMO)
Tx Inhibit
(to disable/enable the transmission, TMO
and DMO only)
Preferences
Bluetooth (TMO only)
Speech Monitor
(to enable/disable the functionality; REP and
GTW only)
SDS Monitor
(to enable/disable the functionality; REP
only)
Auxiliary Microphone
(to configure the kind of auxiliary microphone,
TMO, DMO and FM)
Full Duplex
(to set the type of full duplex: real or pseudo
full duplex, TMO only)
Group Scanning
(to enable/disable it, TMO and DMO only)
WPS Selection (TMO, DMO and GTW)
WPS Update (TMO, DMO and GTW)
WPS Reconfigure (TMO, DMO and GTW)
Active WPS
(to change the configuration of
the active WPS)
Extra WPS
(to move the groups assigned
by DGNA in the current WPS)
WPS Data
(to modify the current WPS parameters)
Group Data
(to modify the groups parameters)
Late Entry
(to enable/disable the function)
Communication
(with/without ack, DMO only)
Send TPNI
(enable/disable, DMO only)
Group Call
(to select the type of group call, TMO only)
Dial Mode
(to select the dialling modality)
Call Identification
(to choose if send or hide its own radio identifier,
TMO only)
Gateway <0>, <9>
(to select the default gateway from the gateway
list, TMO only)
Pin
(to change/enable/disable it)
Language
Sounds
(to disable and to control the sounds
volume)
Display
(to configure display settings)
Presence Signalling
(to enable/disable the presence signal
transmission; REP only)
Hands Free
Lemo
Key Access
(direct access keys are shown)
Dialling
(dialling digits are shown; TMO and
DMO only)
Supplementary String
(supplementary strings are shown;
TMO and DMO only)
Symbols
(symbols meaning is shown)
Activation/Deactivation
Devices
Active Connections
Offered Services
Find New
Devices List
Backlight
(to change the display backlight modality)
Zoom
(to zoom in/zoom out the display)
& FM
Before using the equipment, read all the
instructions contained in the manual and, with
special care, those relative to safety.
Two versions are available:
VS3000-FPG3 Vehicular configuration
VS3000-FPG3 Motorcycle configuration
See the Safety Recommendation guide for FCC Approval.
P/N MAN-0698/01.01P/N MAN-0698/01.01P/N MAN-0698/01.01P/N MAN-0698/01.01
How to...
Access the send status menu, pressing the key associated
with
S
when the radio is in idle status or selecting from main
menu: Messages
Send Status.
Select the status to be sent, then select an user by means of the
key associated with or a group by means of the key asso-
ciated with . To send the message use the key or select
the Send option.
Access the text messages selecting from main menu Mes-
sages
Text Message. Create a new message or select a
predefined message then select OPT
Send.
Select an user ( ) or a group ( ) and send the message by
means of key or selecting the option Send. During the
editing of a message it is possible to change from uppercase
to lowercase pressing the key .
Access the received messages list from main menu selecting
Messages
Inbox. Use the keys , to scroll the list
of messages. The received messages can be status
S
or text
messages. Select the message to be read (VIEW) and
then OPT to choose among Delete-Reply-Reply+History.
From idle status press key to display the list of the last 20
received/made individual calls. Scroll them by means of keys
, . It is possible to recall the subscriber pressing the
key followed by the PTT pressing (Half-Duplex call) or
followed by the pressing of the key (Full-Duplex call, TMO
only).
It is possible to go back in a group call which is still active and
from which you have disconnected: in TMO by pressing the
PTT and in DMO by keeping pressed the key .
From main menu select Settings
Speech monitor, to
change the function status. If the speech monitor is active the
user will be asked to deactivate it and vice versa. By pressing
the key corresponding to YES the change is confirmed; by press-
ing the key corresponding to NO or the key the user can exit
the menu without modification.
From main menu select Settings
SDS monitor, to change
the function status. If the SDS monitor is active the user will be
asked to deactivate it and vice versa. By pressing the key cor-
responding to YES the change is confirmed; by pressing the
key corresponding to NO or the key the user can exit the
menu without modification.
From main menu select Settings
Preferences
Presence Signalling To enable the transmission of presence
signal select PsOn; select PsOff to disable it.
From main menu select GPS. The data relative to vehicle
position will be shown on the display.
Activate Bluetooth functionality selecting Settings
Bluetooth
Activation. Once Bluetooth is active the sym-
bol appears on the radio display. Note: If the radio is turned
off with the Bluetooth active, at the successive switch on the
Bluetooth is deactivated.
With Bluetooth functionality active select the menu item Find
New from Settings
Bluetooth
Devices. Once the device
has been found check if it is "Trusted" or "Untrusted" through
the menu item Devices List from menu Settings
Bluetooth
Devices, showing the device information. If the
device is "Untrusted" select OPT from the display showing the
device information, and then select Service Search.
Menu main items
NOTE:
For what concerns technical characteristics, reference standard,
maintenance and troubleshooting, refer to the relevant technical handbook.
TETRA Operating modes
The vehicular radio terminal can work in four different TETRA
operating modes, depending on the protocol selected in menu
Change Mode: Trunked Mode (TMO), Direct Mode (DMO), Repe-
ater Mode (REP), Gateway Mode (GTW).
TMO
DMO
REP
GTW
FM
* *
*
Send a status
message
Send a text mes-
sage
Read a received
message (Inbox)
Access last calls
list
Go back in a group
call
Enable/Disable
the speech
monitoring
function
Enable/Disable
the SDS
monitoring
function
Enable/Disable
the presence
signal
Visualize
GPS data
Activate Bluetooth
(*)
Connect with
Bluetooth device
(*)
How to...
See the relative accessories user’s guide.
Keep pressed the key for a few seconds.
PIN insertion at power on, can be:
• Enable/disabled from menu
• Always enabled
• Always disabled
If PIN insertion is enabled, at power on the user must insert the
current PIN. In case of insertion of 3 consecutive wrong pin, the
current PUK must be inserted to unlock the radio. In case of 3
consecutive wrong PUK insertion the radio must be repro-
grammed to be unlocked.
To adjust the volume of the various sounds access from main
menu to Settings
Preferences
Sounds.
In the vehicular configuration: to adjust the speech volume,
use the volume knob; turn it clockwise to increase the volume
and counterclockwise to decrease it.
In the Motorcycle configuration: the triple pushbutton al-
lows the same operativity of the knob.
(“+” and “-” to increase/decrease the volume;
“•” to switch from volume control to group selection function).
In the Vehicular configuration: keep pressed the knob until
the alternate symbols
S
and appear on the display. The
radio is in group selection mode. Once in this modality turn the
knob to choose among the available groups-channel and select
the group by pressing the knob.
In the Motorcycle configuration: the triple pushbutton al-
lows the same operativity of the knob.
(“+” and “-” to scroll the groups list;
“•” to switch from volume control to group selection and to
confirm the choose).
Press and then (associated to menu) keys to lock the
keypad; to unlock it press any key and follow the instructions
shown on the display.
Keep pressed key for a few seconds. Otherwise select
Change mode from main menu and select the modality.
Each WPS is composed of a set of different groups related to
the group selector knob positions. Changing WPS you change
the groups that can be selected by means of the knob. To change
WPS, keep pressed key for a few seconds. Otherwise
select Settings
Group Management
WPS Select.
Select the group by means of the relevant knob (in the vehicular
configuration) or the triple push button (in the motorcycle configu-
ration), then press PTT to talk; otherwise type in the group address
and press PTT (if the PTT default modality is set (by PRP) for
individual call, press the key before pressing the PTT).
Select the group by means of the relevant knob and press the
key . Now by pressing PTT the first available dispatcher of
the selected group is called (not the gorup). By pressing again
the key and then the PTT the selected group is called.
Keep pressed key for a few seconds, then press PTT to talk.
Type in the address or select a subscriber from phone book
then press key .
Type in the address or select a subscriber from phone book
then press PTT (if the PTT default modality is set (by PRP) for
group call, press the key before pressing the PTT).
Keep pressed the emergency key at least for 2 seconds.
In TETRA mode the radio can be programmed to: send a call
request, send an SDS, send a call request and an SDS, at the
emergency key pressing.
In FM mode, the radio sends an alarm until another radio gives
the received alarm signal throught the key .
* * * * *
TMO
DMO
REP
GTW
FM
** * * *
** *
** **
* * *
*
Change accesso-
ries configuration
Switch on/switch
off the radio
Manage the PIN
(Personal Identifi-
cation Number)
Adjust the
Volume
Change group -
channel
Lock/unlock
keypad
Change modality
TMO/DMO/REP/
GTW/FM (*)
Change
Working Profile
Subset (WPS)
Call a group /
Channel
Call the dispatcher
of the selected
group (if the net-
work allows this
function)
Call the OPEN
GROUP
Make an individual
full duplex speech
call
Make an individual
half duplex speech
call
Send an emer-
gency alarm
*
*
How to...
Once the device is "Trusted" select OPT from the display
showing the device information, and then select Service List.
Choose the service scrolling the list through the keys and
, select OPT and then Connect, to connect to the service.
To remove a Bluetooth device it is first necessary to discon-
nect it closing and removing the relative service:
select Settings
Bluetooth
Devices
Devices
List;
scroll the device list till the device to be removed and
select OPT;
select the item Service List and scroll the Service List till
the service to be close;
select OPT and then Disconnect. Then, from the same
menu select Remove to remove the service.
Now it is possible to remove the device:
select Settings
Bluetooth
Devices
Devices
List;
scroll the device list till the device to be removed and
select OPT;
select the item Remove Device
press the key associated with "YES" to confirm the opera-
tion.
To deactivate Bluetooth it is first necessary to remove all the
Bluetooth accessories, then select Settings
Bluetooth
Deactivation.
Access the monitor menu keeping pressed the key for a
few seconds from idle status, otherwise select item Monitor
from main menu. Selecting Opt it is possible to choose among:
Add (to add an user to be monitored);
Delete (to remove an user to be monitored);
View (to visualize the details of the last three radio coverage
checks of the specific user).
To make a call in FM mode (whether to a user or to a group)
dial the user or the group address to be called, or select the
address from the Phone lists and press the key . Press
PTT to talk.
TMO
DMO
REP
GTW
FM
*
Remove
Bluetooth device
(*)
Deactivate
Bluetooth (*)
Check the
coverage of other
users
Make a call in
FM mode (*)
* * * * *
* * * * *
* * *
** * * *
* * *
**
* * *
* * *
* * *
* * *
*
*** * *
*
*
*
*
*
* *
Messages
By means of this menu it is possible to send text and status
messages, and to read received messages and sent messages that
have been saved. It is also possible to define the text char size.
In Repeater mode with SDS Monitor active it is possible to read
the messages monitored by the radio.
Change Mode
By means of this menu item it is possible to select the transmis-
sion protocol TMO/DMO/REP/GTW/FM.
Encryption (TETRA only)
By means of this menu it is possible to enable/disable the
encryption function.
Phone Lists
In TETRA mode, by means of this menu you can access the
phone books (whether user defined or predefined). In FM mode
you can directly access the FM users list.
Settings
Through the sub-menus of this item it is possible to configure
several options of the radio terminal. For example (in TETRA
mode) it is possible to inhibit the transmission (Tx Inhibit), to
manage the working profiles WPS (Group Management), to ac-
cess the Bluetooth functionalities.
Furthermore through the Preferences menu the user can person-
alize the terminal, setting: language, sounds volume, backlight,
zoom in/zoom out. It is also possible in REP mode, to enable or
disable the presence signal transmission.
In REP or GTW mode it is also possible to enable or disable the
speech monitor function and only in REP mode the SDS monitor
function.
Monitor (FM only) (*)
By means of menu Monitor it is possible to check the radio
coverage of other FM radio users.
GPS
This menu allows to display the GPS data information.
Information
This menu allows to display the equipment information.
Help
Selecting Help from main menu it is possible to visualize the
direct access keys function (direct access keys are available even
during calls). Within the Help menu are also shown: the descrip-
tion of the strings to be dialled to define the call priority, the
gateways and the address composition method (for TETRA). It is
also possible to visualize a brief description of the symbols that
can appear on the display.
(*) Function not available for U.S. market

Navigation menu
