Semilink MCR1500 MediaCell Bluetooth Remote Control User Manual

Semilink Inc. MediaCell Bluetooth Remote Control Users Manual

Users Manual

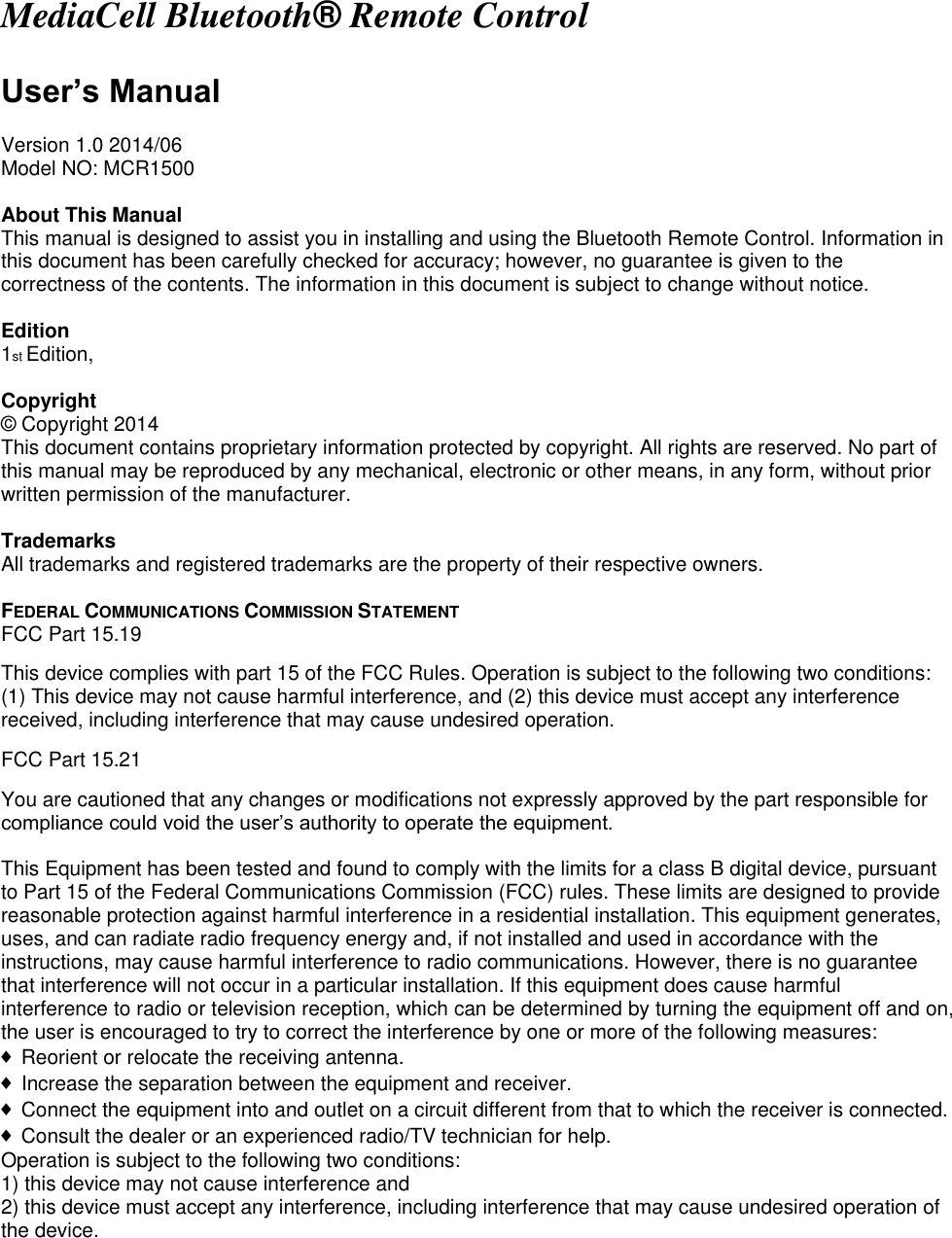

MediaCell Bluetooth® Remote Control User’s Manual Version 1.0 2014/06 Model NO: MCR1500 About This Manual This manual is designed to assist you in installing and using the Bluetooth Remote Control. Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. Edition 1st Edition, Copyright © Copyright 2014 This document contains proprietary information protected by copyright. All rights are reserved. No part of this manual may be reproduced by any mechanical, electronic or other means, in any form, without prior written permission of the manufacturer. Trademarks All trademarks and registered trademarks are the property of their respective owners. FEDERAL COMMUNICATIONS COMMISSION STATEMENT FCC Part 15.19 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Part 15.21 You are cautioned that any changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. This Equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ♦ Reorient or relocate the receiving antenna. ♦ Increase the separation between the equipment and receiver. ♦ Connect the equipment into and outlet on a circuit different from that to which the receiver is connected. ♦ Consult the dealer or an experienced radio/TV technician for help. Operation is subject to the following two conditions: 1) this device may not cause interference and 2) this device must accept any interference, including interference that may cause undesired operation of the device.

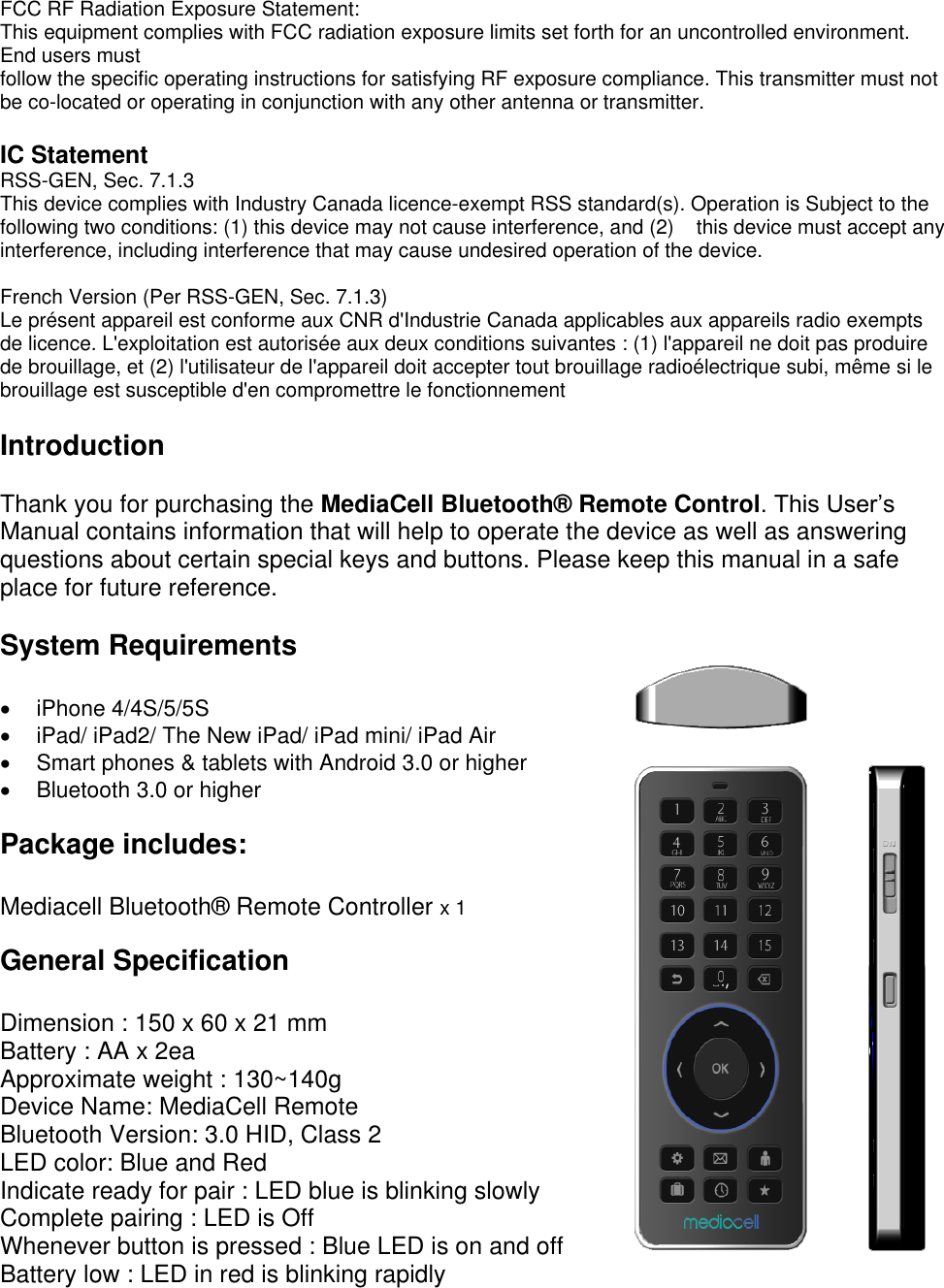

FCC RF Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. IC Statement RSS-GEN, Sec. 7.1.3 This device complies with Industry Canada licence-exempt RSS standard(s). Operation is Subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. French Version (Per RSS-GEN, Sec. 7.1.3) Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement Introduction Thank you for purchasing the MediaCell Bluetooth® Remote Control. This User’s Manual contains information that will help to operate the device as well as answering questions about certain special keys and buttons. Please keep this manual in a safe place for future reference. System Requirements  iPhone 4/4S/5/5S  iPad/ iPad2/ The New iPad/ iPad mini/ iPad Air  Smart phones & tablets with Android 3.0 or higher  Bluetooth 3.0 or higher Package includes: Mediacell Bluetooth® Remote Controller x 1 General Specification Dimension : 150 x 60 x 21 mm Battery : AA x 2ea Approximate weight : 130~140g Device Name: MediaCell Remote Bluetooth Version: 3.0 HID, Class 2 LED color: Blue and Red Indicate ready for pair : LED blue is blinking slowly Complete pairing : LED is Off Whenever button is pressed : Blue LED is on and off Battery low : LED in red is blinking rapidly

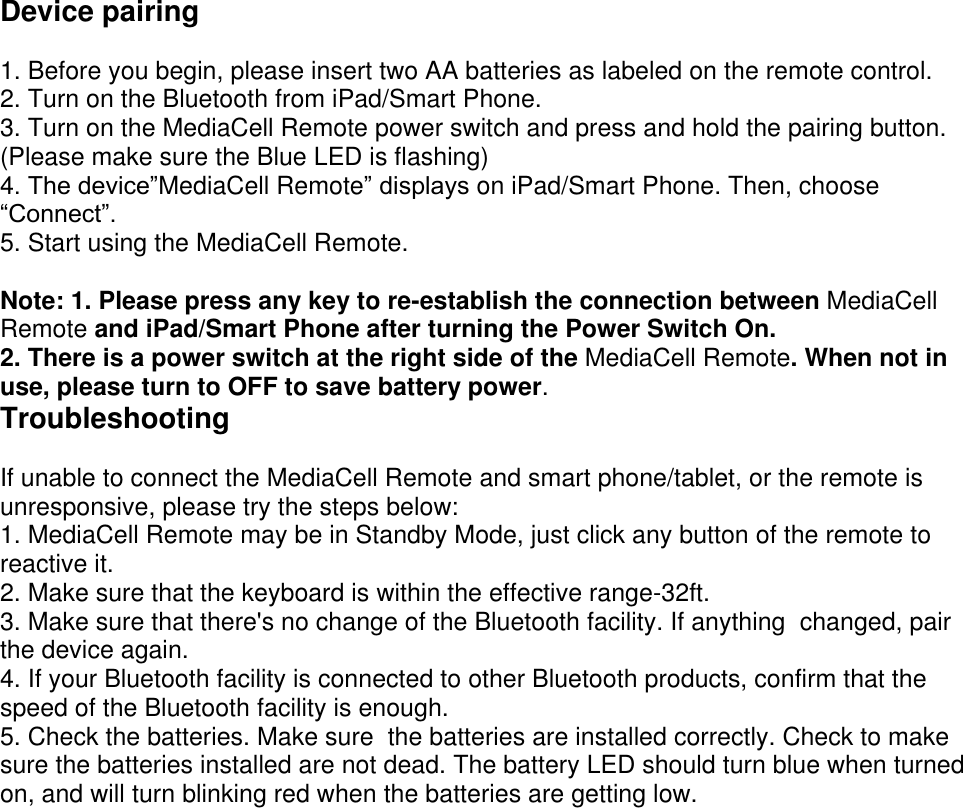

Device pairing 1. Before you begin, please insert two AA batteries as labeled on the remote control. 2. Turn on the Bluetooth from iPad/Smart Phone. 3. Turn on the MediaCell Remote power switch and press and hold the pairing button. (Please make sure the Blue LED is flashing) 4. The device”MediaCell Remote” displays on iPad/Smart Phone. Then, choose “Connect”. 5. Start using the MediaCell Remote. Note: 1. Please press any key to re-establish the connection between MediaCell Remote and iPad/Smart Phone after turning the Power Switch On. 2. There is a power switch at the right side of the MediaCell Remote. When not in use, please turn to OFF to save battery power. Troubleshooting If unable to connect the MediaCell Remote and smart phone/tablet, or the remote is unresponsive, please try the steps below: 1. MediaCell Remote may be in Standby Mode, just click any button of the remote to reactive it. 2. Make sure that the keyboard is within the effective range-32ft. 3. Make sure that there's no change of the Bluetooth facility. If anything changed, pair the device again. 4. If your Bluetooth facility is connected to other Bluetooth products, confirm that the speed of the Bluetooth facility is enough. 5. Check the batteries. Make sure the batteries are installed correctly. Check to make sure the batteries installed are not dead. The battery LED should turn blue when turned on, and will turn blinking red when the batteries are getting low.
