Senao Co MP86005001 IEEE 802.11a/b/g Wireless Mini-PCI Adapter User Manual
Senao International Co Ltd IEEE 802.11a/b/g Wireless Mini-PCI Adapter
Senao Co >
Users Manual
* Theoretical wireless signal rate based on IEEE standard of 802.11a, b, g chipset used. Actual throughput
may vary. Network conditions and environmental factors lower actual throughput rate.
** All specifications are subject to change without notice. 12/9/2005
EMP-8602 (FCC)PLUS
2.4 / 5.0 GHz 802.11a/b/g 54 Mbps

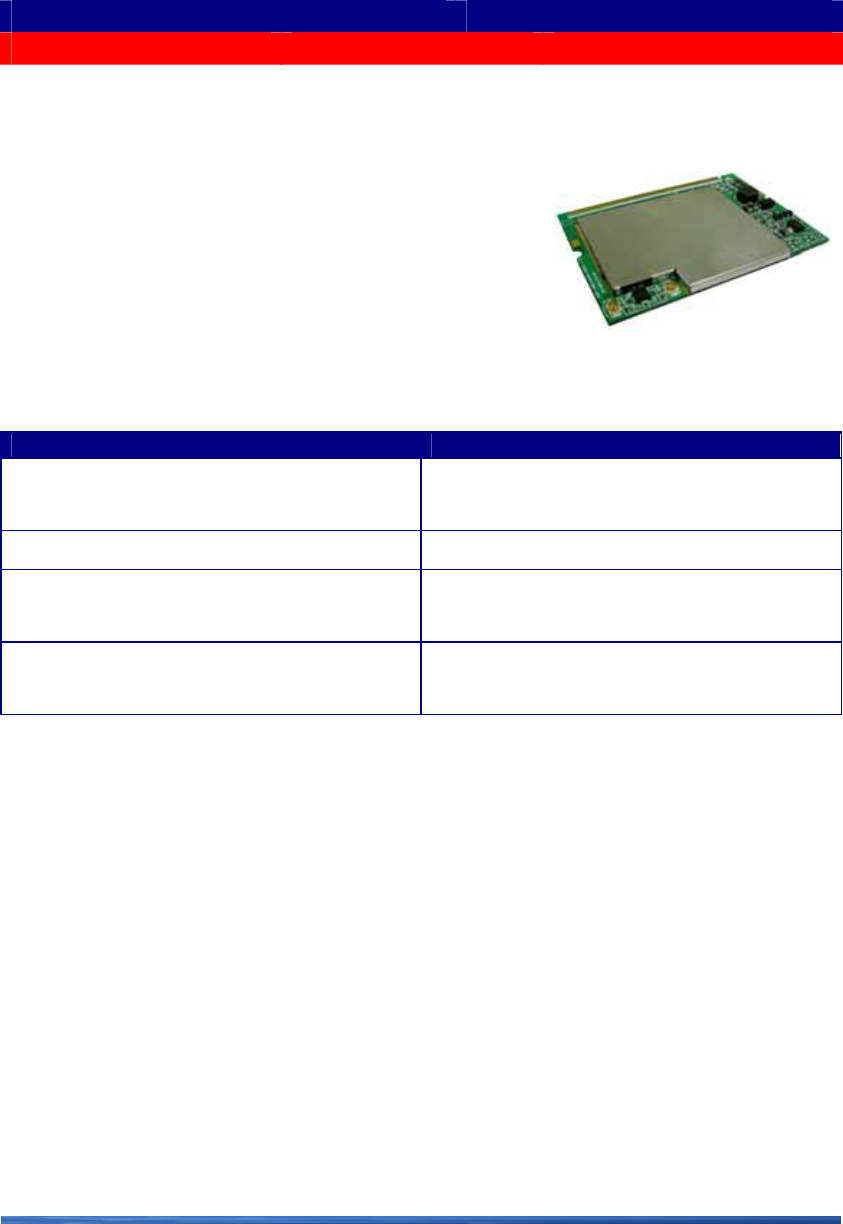

NMP-8602 is a mini-PCI type III B High-Power card
supporting dual-band (2.4GHz & 5GHz) radio operation. It
provides high-speed wireless connection with data rate up to
54Mbps. The shirking dimension and light weight can easily
integrate into a wide range of AP/Bridge device.
The 802.11g standard is backwards compatible with
802.11b products. This means that you do not need to
change your entire network to maintain connectivity. You
may sacrifice some of 802.11g speed when you mix 802.11b
and 802.11g devices, but you will not lose the ability to
communicate when you incorporate the 802.11g standard
into your 802.11b network.
Features Benefits
High Speed Data Rate up to 54Mbps Capable of handling heavy data payloads
such as MPEG video streaming
High Output Power up to 26 dBm More high power can advance the distance.
Advanced Power Management Low power consumption in power saving
mode.
Support eXtended Range technology eXtended Range technology give Wi-Fi
products twice the range of existing designs
* Theoretical wireless signal rate based on IEEE standard of 802.11a, b, g chipset used. Actual throughput
may vary. Network conditions and environmental factors lower actual throughput rate.
** All specifications are subject to change without notice. 12/9/2005
Technical Specifications
Data Rates
802.11a: 6, 9, 12, 18, 24, 36, 48,
54Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48,
54Mbps
802.11b: 1, 2, 5.5, 11Mbps
Standards / Compliance
WECA (Wi-Fi & Wi-Fi5
compliance), IEEE802.11,
IEEE802.11a, IEEE802.11g,
IEEE802.11b
Regulation Certifications
FCC Part 15
Operating Voltage
3.3V+0.15V
Current consumption
Tx Current ≦ 1A
Rx Current ≦ 400mA
Card on Current ≦ 400mA
Sleep Current ≦ 100mA
RF Information
Frequency Band
802.11a:
5.15~5.35GHz,
5.47~5.725GHz,
5.725~5.850GHz
802.11b/g:
U.S., Europe and Japan product
covering 2.4 to 2.4835 GHz,
programmable for different
country regulations
Modulation Technology
802.11a/g:
OFDM (64-QAM, 16-QAM,
QPSK, BPSK)
802.11b:
DSSS (DBPSK, DQPSK, CCK)
Operating Channels
802.11b/g
11 for North America, 14 for
Japan, 13 for Europe, 2 for Spain,
4 for France
802.11a
US/Canada:13 non-overlapping
channel (5.15~5.35GHz,
5.725~5.850GHz)
Europe:19 non-overlapping channel
(5.15~5.35GHz, 5.47~5.825GHz)
Japan:4 non-overlapping channel
(5.15~5.25GHz)
China:5 non-overlapping
channel (5.725~5.85GHz)
Receive Sensitivity (Typical)
802.11a:
-90dBm @ 6Mbps,
-72dBm @ 54Mbps
802.11g:
-91 dBm @ 6Mbps,
-74 dBm @ 54Mbp
802.11b:
-95 dBm @ 1Mbps
-90 dBm @ 11Mbps
Available transmit power
(Typical)
NMP-8602 (ETSI)
z 5.15~5.35 & 5.47~5.6 GHz
20 dBm @6Mbps
15 dBm @54Mbps
z 5.62~5.725 GHz
19 dBm @6Mbps
14 dBm @54Mbps
z 5.725~5.85 GHz
18 dBm @6Mbps
13 dBm @54Mbps
z 2.412~2.472 GHz (IEEE802.11g)
20 dBm @6~54Mbps
z 2.412~2.472 GHz (IEEE802.11b)
20 dBm @1~11Mbps
EMP-8602 (FCC)PLUS
z 5.15~5.25 GHz
17dBm
z 5.26~5.35 GHz
17dBm
z 5.725~5.825GHz
23dBm
z 2.412~2.462 GHz (IEEE802.11g)
Up to 26 dBm
z 2.412~2.462 GHz (IEEE802.11b)
Up to 25 dBm
Antenna
Two antenna connectors
(U.FL)
Form Factor
Mini-PCI type III B
Dimensions (LxWxH)
59.60mm X 44.45mm
Weight
15g (0.53 oz)
Environmental
Temperature Range
Operating: -0°C to 70°C
Storage: -20°Cto 80°C
Humidity (non-condensing)
5% ~ 95% typical
Related Product(s)
NMP-560 (802.11a)
NMP-360 (802.11b/g)
NMP-352 (802.11b/g)
NL-2511MP+ (802.11b)
Summary
1. Product Highlight
AR5006X Solution Highlights
Highly integrated single chip CMOS solution with multi-protocol MAC/baseband processor and
2.4/5 GHz radio
Uses digital CMOS technology exclusively, minimizing power consumption and cost while
maximizing reliability
Support for IEEE 802.11a, 802.11b, 802.11g
802.11e standard compatible bursting
Wi-Fi Multimedia Quality of Service support (QoS)
Hardware encryption for the Wi-Fi Protected Access (WPA, WPA2) and IEEE 802.11i security
specifications, provides Advanced Encryption
Standard (AES), Temporal Key Integrity Protocol (TKIP) and Wired Equivalent Privacy (WEP)
without performance degradation
Extended tuning range (2.400-2.4835 & 5.150-5.350 ,5725-5850 GHz) for worldwide use
Dynamic Frequency Selection/Transmit Power Control (DFS/TPC) for international operation
Support for draft IEEE 802.11e, h, i and j standards
Atheros XR™ eXtended Range technology to give Wi-Fi products twice the range of existing
designs Power-saving design improvements reduce system power consumption by 98%
AR5413 Single-Chip CMOS MAC/Baseband/Radio
Support for IEEE 802.11a, 802.11b, 802.11g
Operates from 2.400-2.4835 & 5.150-5.350 ,5.725-5.850 GHz
Advanced wideband receiver with best path sequencer for better range and multipath
resistance than conventional equalizer-based designs
Integrated low-noise amplifier (LNA) External PA and/or LNA can be used for special
applications
Eliminates all IF filters and most RF filters; no external voltage-controlled oscillators (VCOs) or
surface acoustic wave (SAW) filters needed
Enhanced transmit and receive chains
Atheros XR eXtended Range technology to give Wi-Fi products twice the range of existing
designs
No external FLASH or RAM memory needed
PCI 2.3 and PC Card 7.1 host interfaces with DMA support
Integrated analog-to-digital and digital-to-analog converters
High speed UART with DMA supports data rates up to 1 Mbps
Serial EEPROM, LEDs, GPIOs peripheral interfaces
Low power operational and sleep modes
2. Product ID & Cosmetic
mini-PCI type III B form factor (Dimension: 59.60mm X 44.45mm)
3. Product Performance
High-power performance
4. Accessories or Sub-system
No accessories or sub-system needed.
5. Operation Environment
z Operation temperature: 0°C~ +50°C
z Storage temperature: -40°C~ +70°C
z Humidity: 5% ~ 95% typical
6. Reliability 20,000 hours

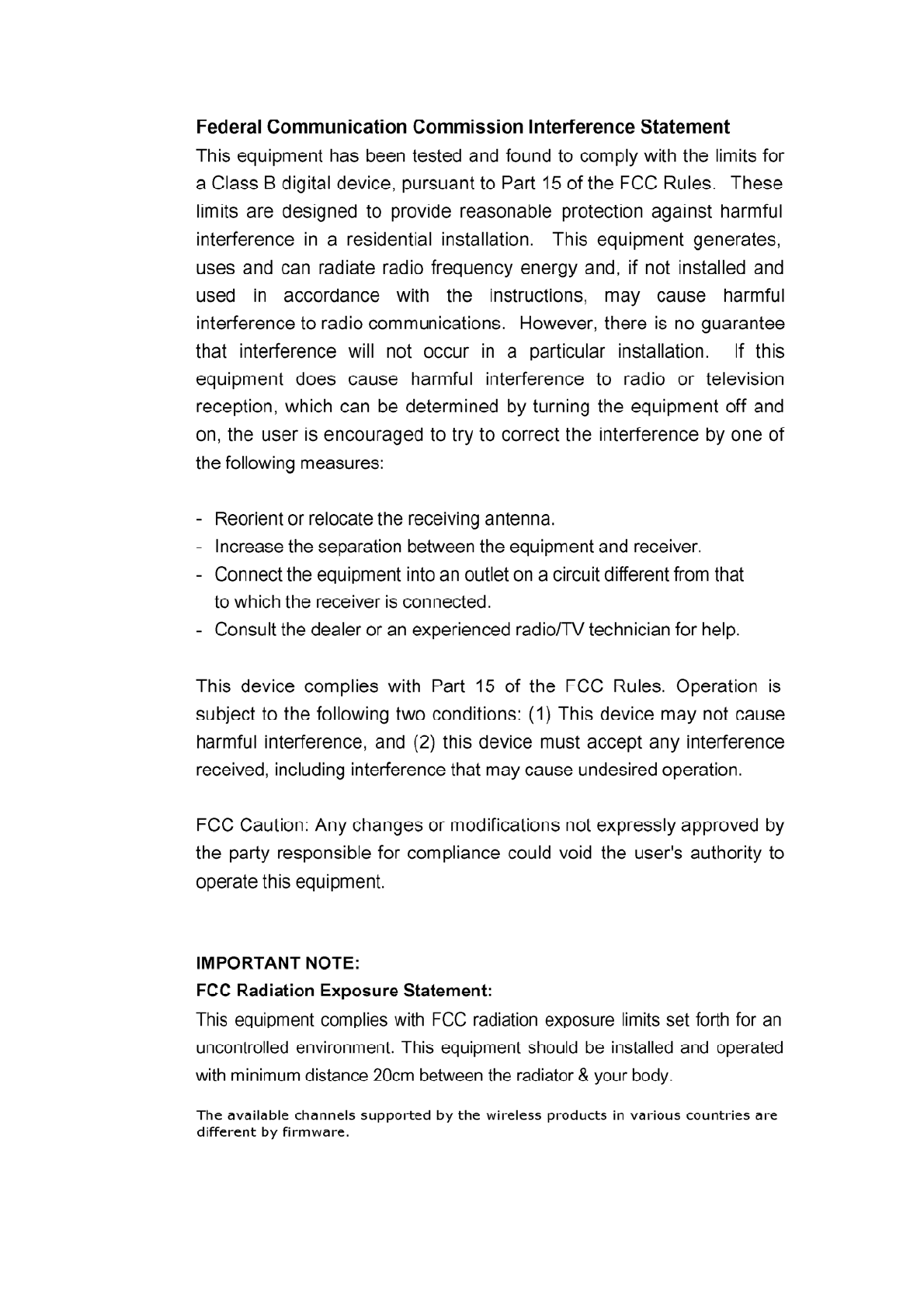

This device is intended only for OEM integrators under the following
conditions:
1) The antenna must be installed such that 20 cm is maintained between the
antenna and users, and
2) The antenna should be integral if the end device is intended to be operated
in 5.15 ~ 5.25GHz frequency range.
As long as 2 conditions above are met, further transmitter test will not be
required. However, the OEM integrator is still responsible for testing their
end-product for any additional compliance requirements required with this
module installed (for example, digital device emissions, PC peripheral
requirements, etc.).
IMPORTANT NOTE: In the event that these conditions can not be met (for
example certain laptop configurations or co-location with another transmitter),
then the FCC authorization is no longer considered valid and the FCC ID can
not be used on the final product. In these circumstances, the OEM integrator
will be responsible for re-evaluating the end product (including the transmitter)
and obtaining a separate FCC authorization.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna
may be installed such that 20 cm may be maintained between the antenna and
users (for example Access Point ,Router). The final end product must be
labeled in a visible area with the following: “Contains TX FCC ID:
NI3-MP86005001Manual Information That Must be Included
The OEM integrator has to be aware not to provide information to the end
user regarding how to install or remove this RF module in the users manual of
the end product which integrate this module.
The users manual for OEM integrators end users must include the following
information in a prominent location “ IMPORTANT NOTE: To comply with FCC
RF exposure compliance requirements, the antenna used for this transmitter
must be installed to provide a separation distance of at least 20 cm from all
persons and must not be co-located or operating in conjunction with any other
antenna or transmitter”.
If the end product integrating this module is going to be operated in 5.15 ~
5.25GHz frequency range, the warning statement in the user manual of the
end product should include the restriction of operating this device in indoor
could void the user’s authority to operate the equipment.
