Senao Networks AP36600801 Indoor 802.11b/g AP User Manual EAP 3660 UsersManual V1 2 20080923
Senao Networks, Inc. Indoor 802.11b/g AP EAP 3660 UsersManual V1 2 20080923
Manual
EAP-3660
11b/g Wireless Access Point
User’s Manual
Version: 1.1
EAP-3660 11b/g Wireless Access Point Version 1.1
2
Table of Contents
1 INTRODUCTION ................................................................................................................4
1.1 F
EATURES
&
B
ENEFITS
..................................................................................................4
1.2 P
ACKAGE
C
ONTENTS
....................................................................................................5
1.3 A
CCESS
P
OINT
D
ESCRIPTION
.........................................................................................6
1.4 S
YSTEM
R
EQUIREMENTS
...............................................................................................6
1.5 A
PPLICATIONS
..............................................................................................................6
1.6 N
ETWORK
C
ONFIGURATION
............................................................................................7
2 UNDERSTANDING THE HARDWARE ...............................................................................9
2.1 H
ARDWARE
I
NSTALLATION
..............................................................................................9
2.2 IP
A
DDRESS
C
ONFIGURATION
.......................................................................................10
3 WEB CONFIGURATION...................................................................................................12
3.1 L
OGGING
I
N
................................................................................................................12
3.2 S
TATUS
......................................................................................................................13

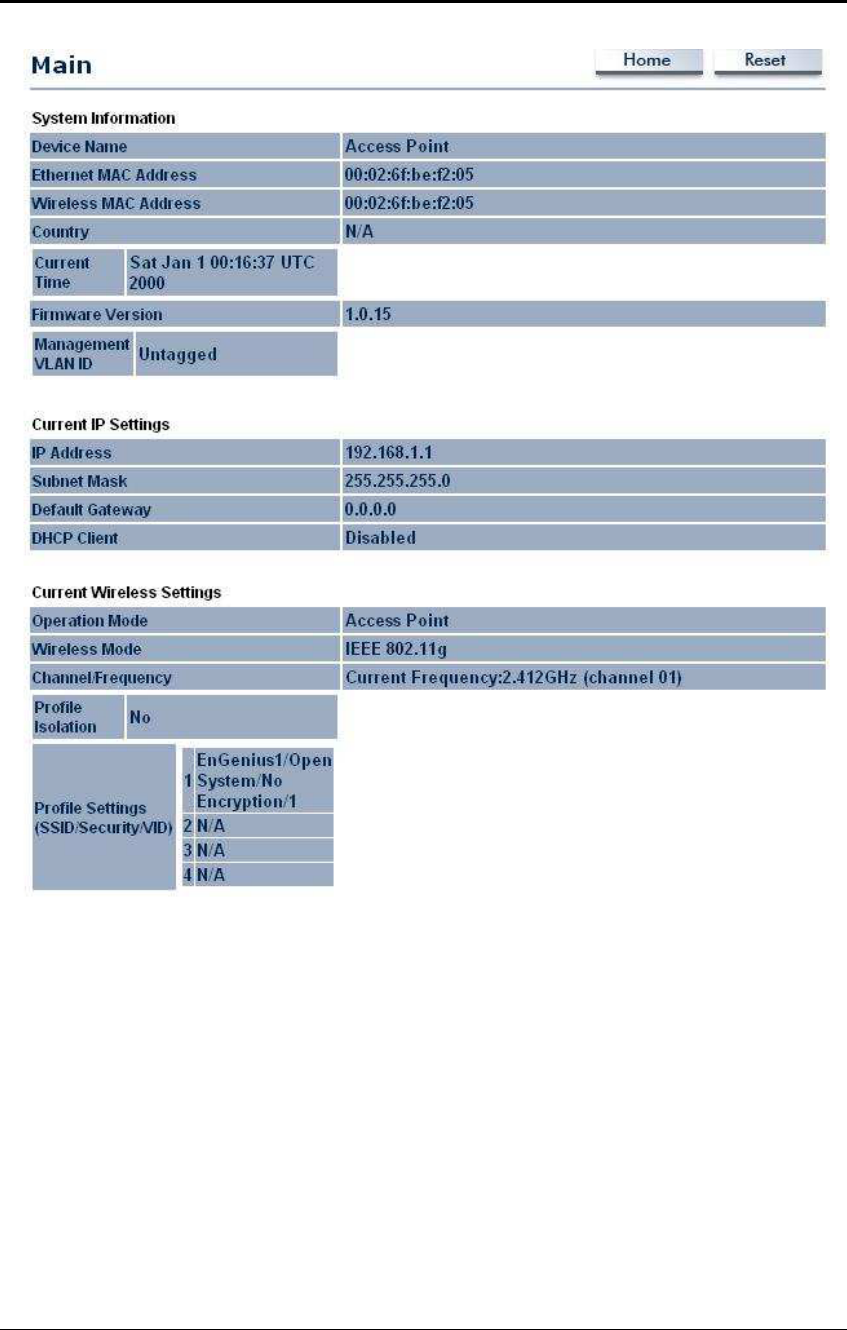

3.2.1 M
AIN
–
S
YSTEM
S
TATUS
..............................................................................................13

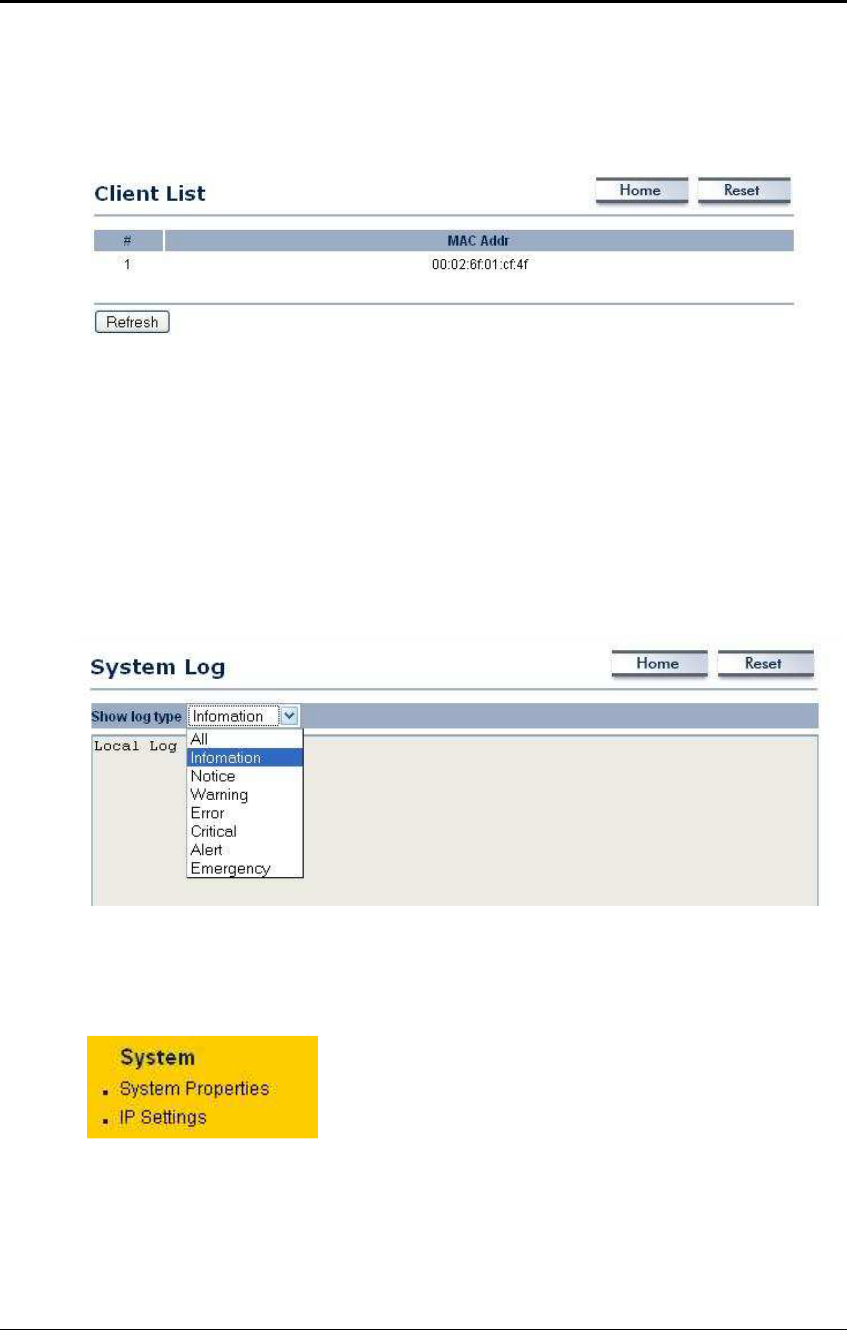

3.2.2 C
LIENT
L
IST
...............................................................................................................15
3.2.3 S
YSTEM
L
OG
..............................................................................................................15
3.3 S
YSTEM
.....................................................................................................................15
3.3.1 S
YSTEM
P
ROPERTIES
..................................................................................................16
3.3.2 IP
S
ETTINGS
..............................................................................................................16
3.4 W
IRELESS
..................................................................................................................17

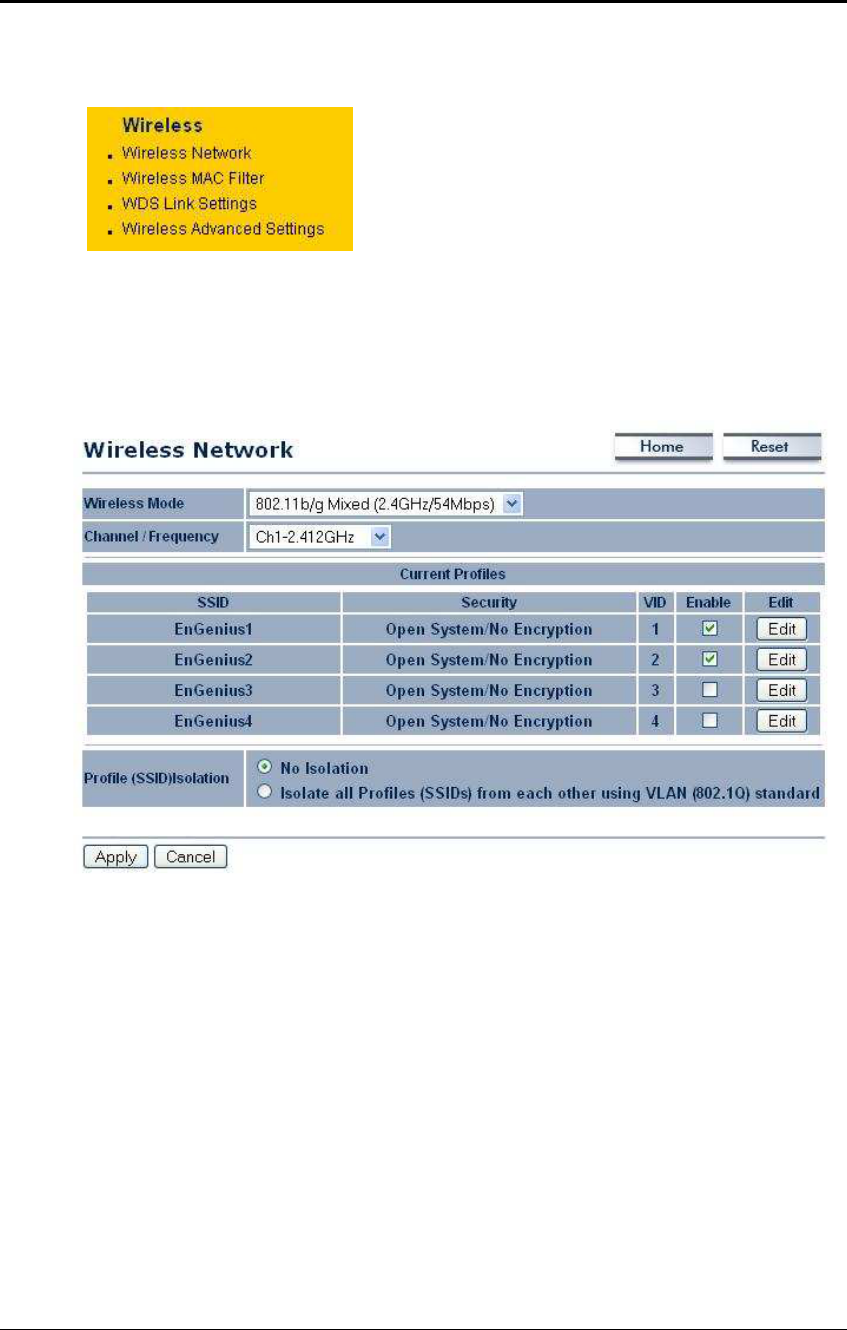

3.4.1 W
IRELESS
N
ETWORK
..................................................................................................17
3.4.1.1 W
IRELESS
S
ECURITY
-
WEP....................................................................................18

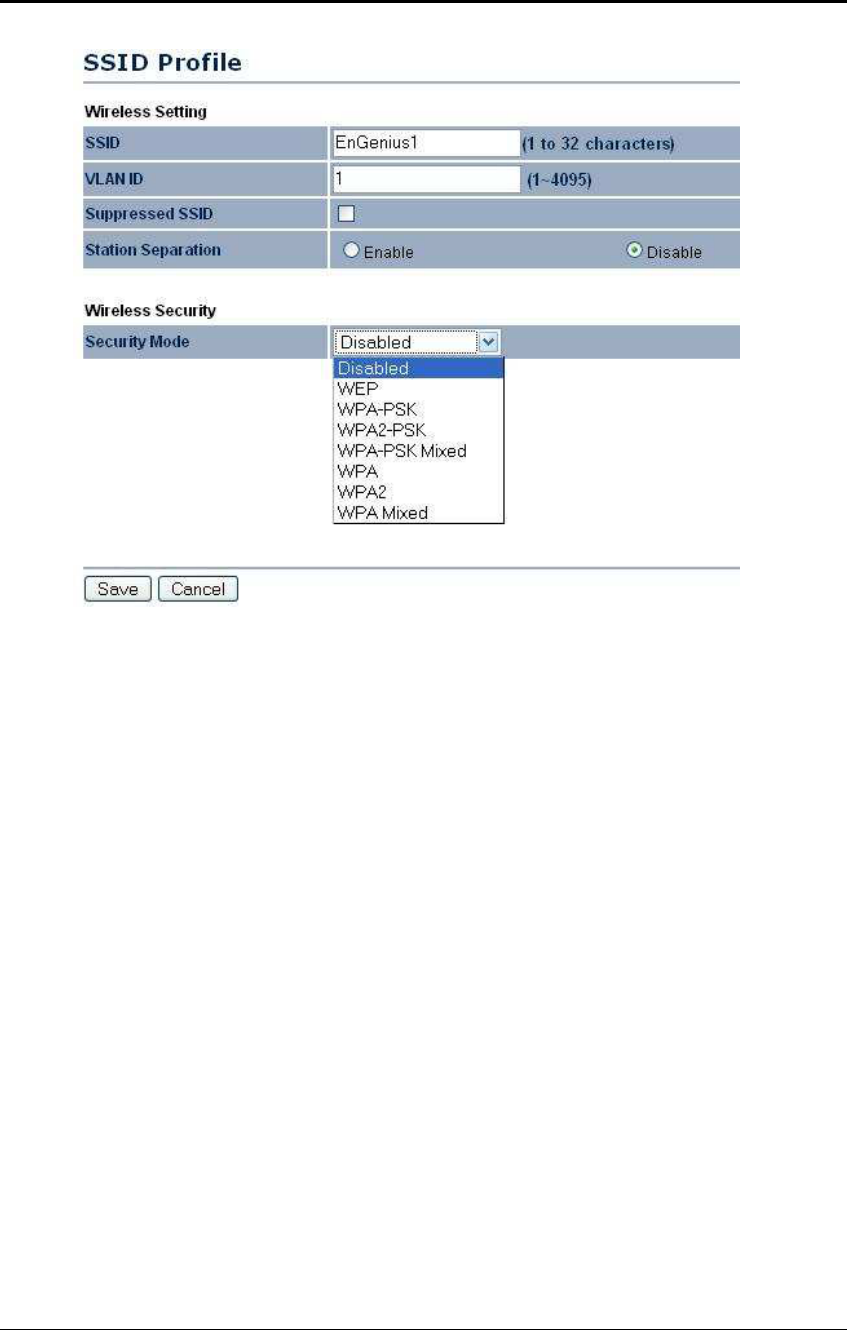

3.4.1.2 W
IRELESS
S
ECURITY
–
WPA-PSK,
WPA2-PSK,
WPA-M
IXED
....................................19
3.4.1.3 W
IRELESS
S
ECURITY
–
WPA,
WPA2........................................................................20
3.4.2 W
IRELESS
MAC
F
ILTER
...............................................................................................22
3.4.3 WDS
L
INK
S
ETTINGS
..................................................................................................22

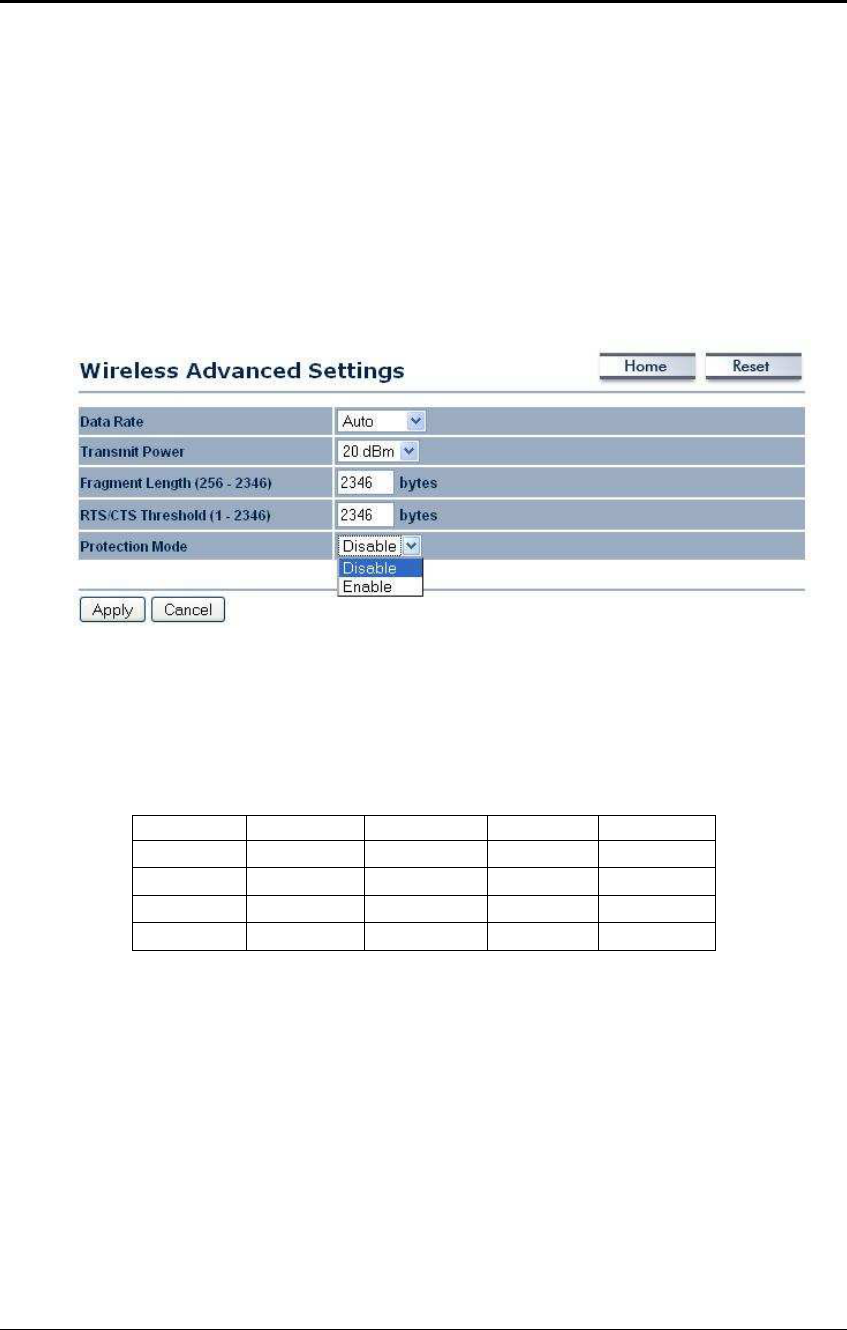

3.4.4 W
IRELESS
A
DVANCED
S
ETTINGS
..................................................................................23
3.5 M
ANAGEMENT
............................................................................................................24
3.5.1 A
DMINISTRATION
.........................................................................................................24

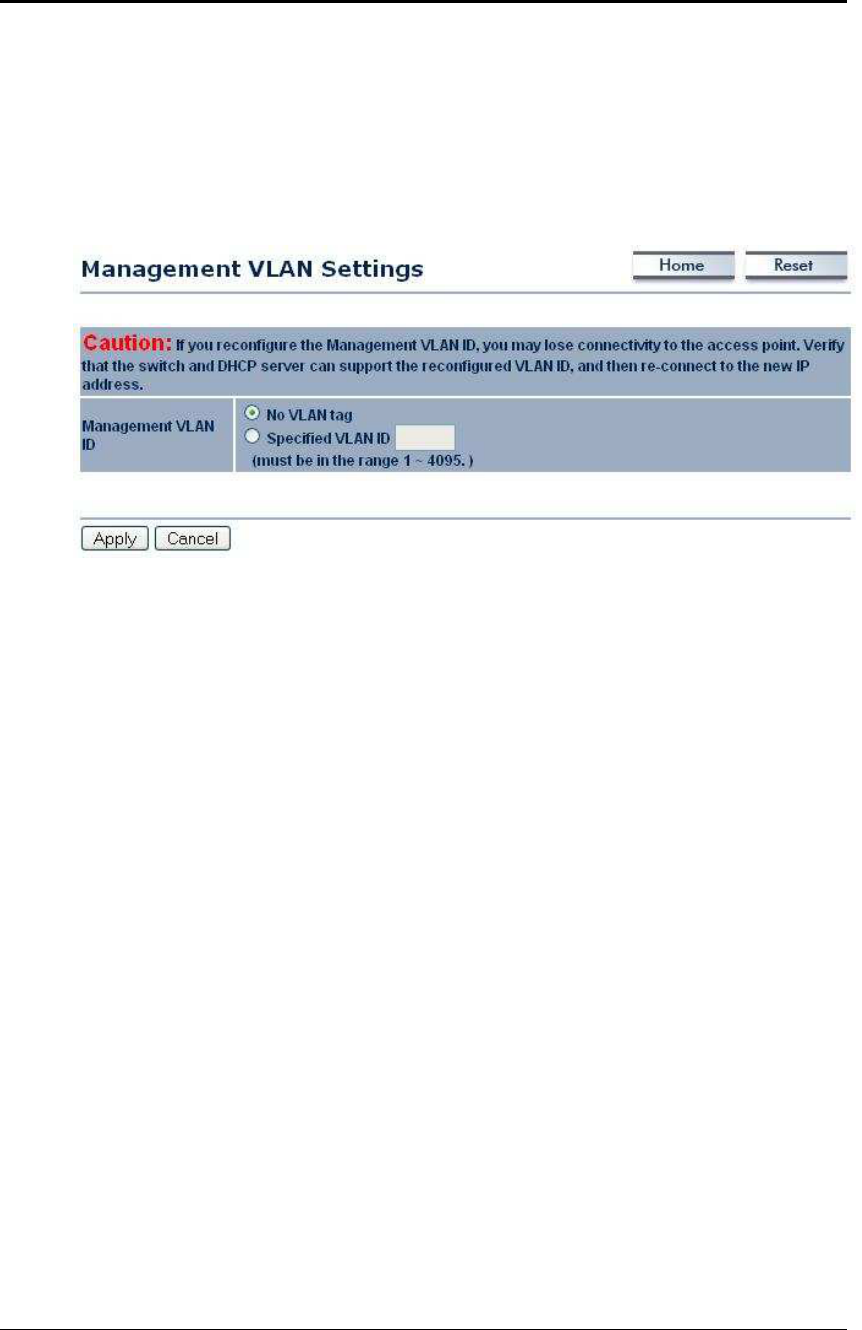

3.5.2 M
ANAGEMENT
VLAN ..................................................................................................25
3.5.3 SNMP
S
ETTINGS
........................................................................................................25
3.5.4 B
ACKUP
/R
ESTORE SETTINGS
,
R
ESET TO FACTORY DEFAULT SETTINGS
..............................26
3.5.5 F
IRMWARE
U
PGRADE
..................................................................................................27
3.5.6 T
IME
S
ETTINGS
..........................................................................................................28
3.5.7 L
OG
..........................................................................................................................28
APPENDIX A – SPECIFICATIONS............................................................................................29
APPENDIX B – FCC INTERFERENCE STATEMENT ...............................................................32
APPENDIX C – IC STATEMENT ...............................................................................................33
EAP-3660 11b/g Wireless Access Point Version 1.1
3
Revision History
Version Date Notes
1.0 June 9, 2008 Initial version
1.1 July 22, 2008 Update screen captures of status, advanced wireless,
and firmware upgrade based on new firmware version.
1.2 September 22, 2008 Output power spec adjustment (p.5, P.30)
EAP-3660 11b/g Wireless Access Point Version 1.1
4
1 Introduction
This is a smoke detector looking Wireless Access Point / Repeater / WDS that
operates seamlessly in the 2.4 GHz frequency spectrum supporting the 802.11b
(2.4GHz, 11Mbps) and faster 802.11g (2.4GHz, 54Mbps) wireless standards. It's the
best way to add wireless capability to your existing wired network, or to add
bandwidth to your wireless installation.
This device features high transmitted output power and high receivable sensitivity
along with antenna diversity. High output power and high sensitivity can extend
range and coverage to reduce the roaming between Access Points to get more
stable wireless connection. It also reduces the expense of equipment in the same
environment.
To protect your wireless connectivity, it can encrypt all wireless transmissions
through 64/128-bit WEP data encryption and also supports WPA/WPA2. The MAC
address filter lets you select exactly which stations should have access to your
network. In addition, the User Isolation function can protect the private network
between client users.
The attractive design, high performance, and array of features makes this a suitable
wireless solution for your residence or office.
This chapter describes the features & benefits, package contents, applications, and
network configuration.
Features & Benefits
Features Benefits
High Speed Data Rate Up to 54Mbps Capable of handling heavy data payloads such
as MPEG video streaming
High Output Power up to 25 dBm Extended excellent Range and Coverage (fewer
APs)
IEEE 802.11b/g Compliant Fully Interoperable with IEEE
802.11b/IEEE802.11g compliant devices
Embedded Antenna Users won’t see antenna in your building
environment
Point-to-point, Point-to-multipoint
Wireless Connectivity Let users transfer data between two buildings
or multiple buildings
WDS (Wireless Distributed System) Make wireless AP and Bridge mode
simultaneously as a wireless repeater
Universal Repeater The easiest way to expand your wireless
network's coverage
Support Multi-SSID function (4 SSID)
in AP mode Allow clients to access different networks
through a single access point and assign
different policies and functions for each SSID
EAP-3660 11b/g Wireless Access Point Version 1.1
5
by manager
Diversity support Enhance the traffic signal
WPA2/WPA/ IEEE 802.1x support Powerful data security
MAC address filtering in AP mode(up
to 50) Ensures secure network connection
User isolation support (AP mode) Protect the private network between client
users.
Power-over-Ethernet (IEEE802.3af) Flexible Access Point locations and cost
savings
Keep personal setting Keep the latest setting when firmware upgrade
SNMP Remote Configuration
Management Help administrators to remotely configure or
manage the Access Point easily.
QoS (WMM) support Enhance user performance and density
Package Contents
Open the package carefully, and make sure that none of the items listed below are
missing. Do not discard the packing materials, in case of return; the unit must be
shipped in its original package.
One Wireless Access Point Unit (EAP-3660)
One Power Adapter (12V/ 1A)
One CAT5 UTP Cable
One Quick Installation Guide
One CD-ROM with User’s Manual
EAP-3660 11b/g Wireless Access Point Version 1.1
6

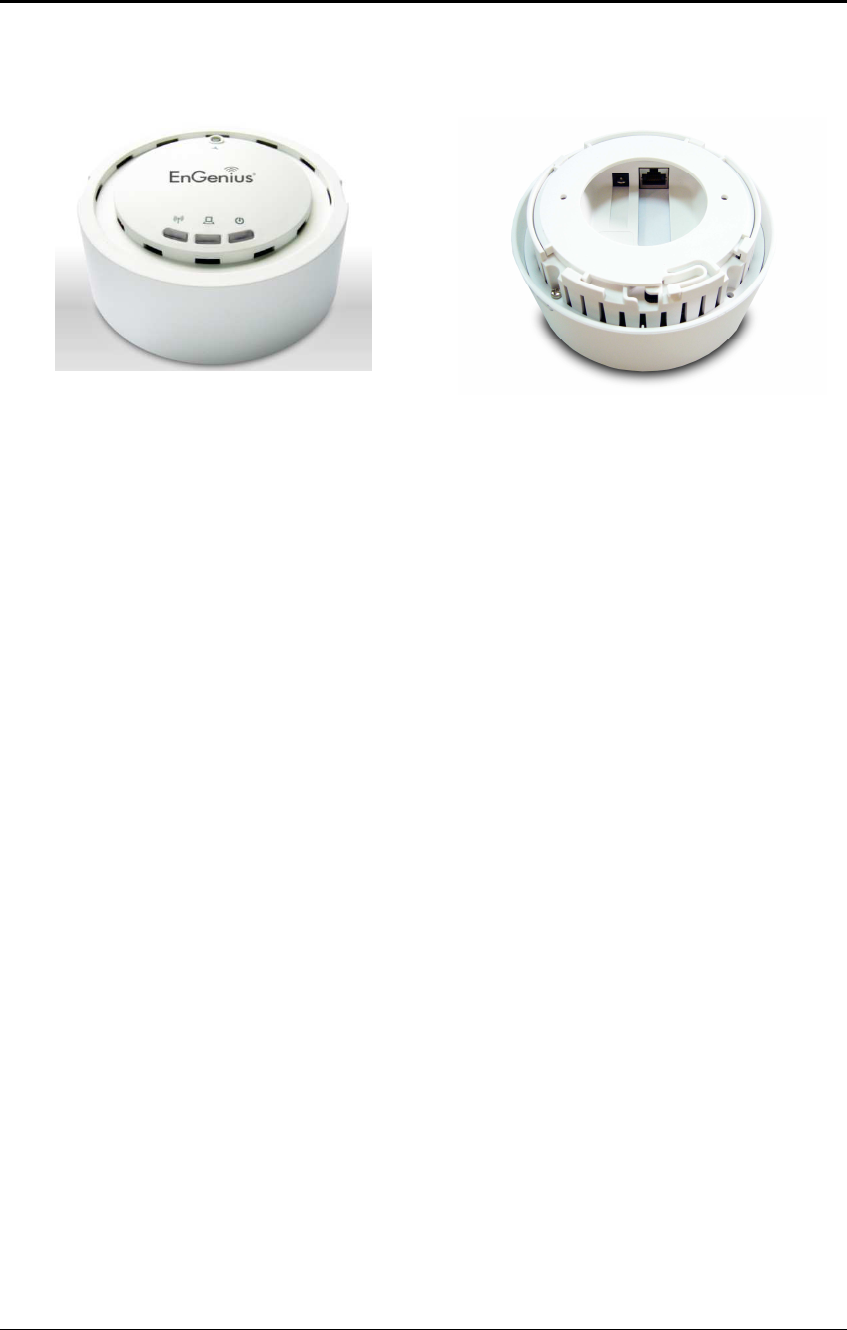

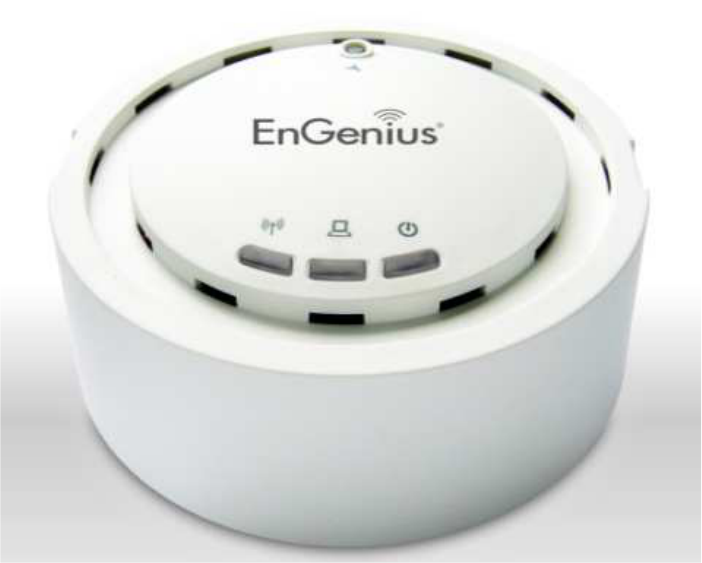

Access Point Description
Front Panel Rear Panel
System Requirements
The following are the minimum system requirements in order configure the
device.
PC/AT compatible computer with a Ethernet interface.
Operating system that supports HTTP web-browser
Applications
The wireless LAN products are easy to install and highly efficient. The following list
describes some of the many applications made possible through the power and
flexibility of wireless LANs:
a) Difficult-to-wire environments
There are many situations where wires cannot be laid easily. Historic
buildings, older buildings, open areas and across busy streets make the
installation of LANs either impossible or very expensive.
b) Temporary workgroups
Consider situations in parks, athletic arenas, exhibition centers, disaster-
recovery, temporary offices and construction sites where one wants a
temporary WLAN established and removed.
c) The ability to access real-time information
Doctors/nurses, point-of-sale employees, and warehouse workers can
access real-time information while dealing with patients, serving
customers and processing information.
d) Frequently changed environments
Show rooms, meeting rooms, retail stores, and manufacturing sites where
frequently rearrange the workplace.
e) Small Office and Home Office (SOHO) networks
SOHO users need a cost-effective, easy and quick installation of a small
network.
f) Wireless extensions to Ethernet networks
EAP-3660 11b/g Wireless Access Point Version 1.1
7
Network managers in dynamic environments can minimize the overhead
caused by moves, extensions to networks, and other changes with
wireless LANs.
g) Wired LAN backup
Network managers implement wireless LANs to provide backup for
mission-critical applications running on wired networks.
h) Training/Educational facilities
Training sites at corporations and students at universities use wireless
connectivity to ease access to information, information exchanges, and
learning.
Network Configuration
To better understand how the wireless LAN products work together to create a
wireless network, it might be helpful to depict a few of the possible wireless LAN PC
card network configurations. The wireless LAN products can be configured as:
a) Ad-hoc (or peer-to-peer) for departmental or SOHO LANs.
b) Infrastructure for enterprise LANs.

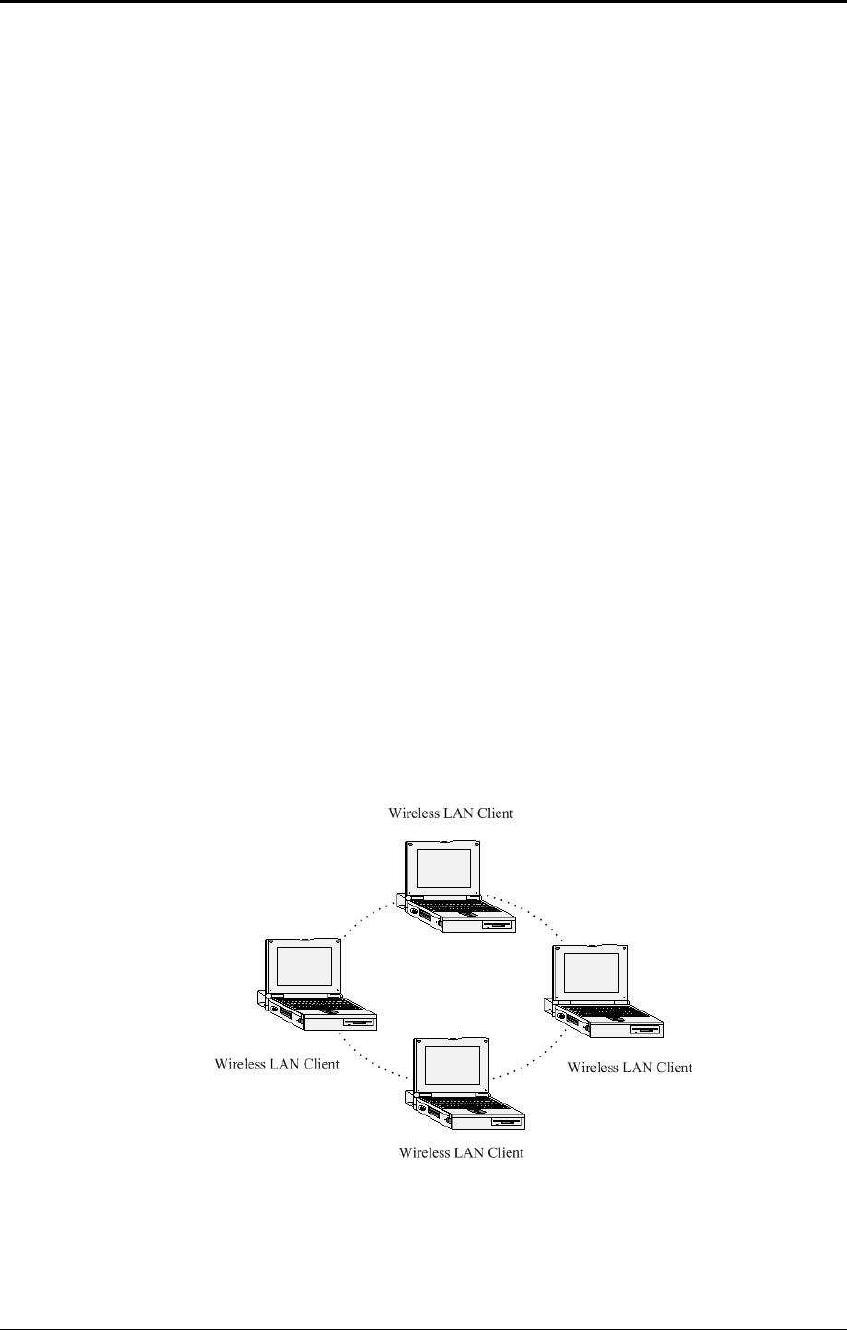

a) Ad-hoc (peer-to-peer) Mode
This is the simplest network configuration with several computers
equipped with the PC Cards that form a wireless network whenever they
are within range of one another. In ad-hoc mode, each client is peer-to-
peer, would only have access to the resources of the other client and
does not require an access point. This is the easiest and least expensive
way for the SOHO to set up a wireless network. The image below depicts
a network in ad-hoc mode.

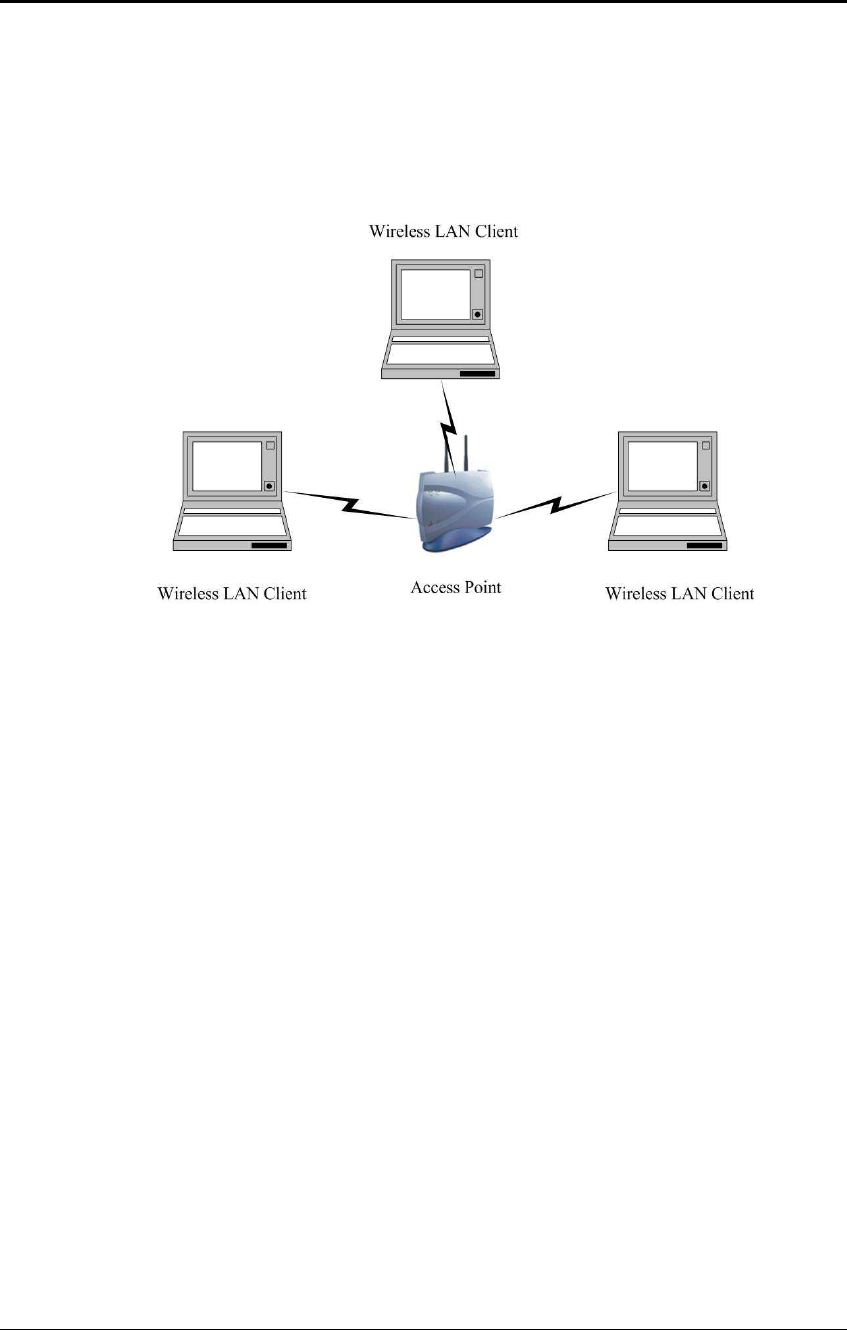

b) Infrastructure Mode
The infrastructure mode requires the use of an access point (AP). In this
mode, all wireless communication between two computers has to be via
EAP-3660 11b/g Wireless Access Point Version 1.1
8
the AP. It doesn’t matter if the AP is stand-alone or wired to an Ethernet
network. If used in stand-alone, the AP can extend the range of
independent wireless LANs by acting as a repeater, which effectively
doubles the distance between wireless stations. The image below
depicts a network in infrastructure mode.
EAP-3660 11b/g Wireless Access Point Version 1.1
9
2 Understanding the Hardware
Hardware Installation
1 Place the unit in an appropriate place after conducting a site survey.
2 Plug one end of the Ethernet cable into the RJ-45 port on the rear panel of the
device and another end into your PC/Notebook.
3 Insert the DC-inlet of the power adapter into the port labeled “DC-IN” and the
other end into the power socket on the wall.

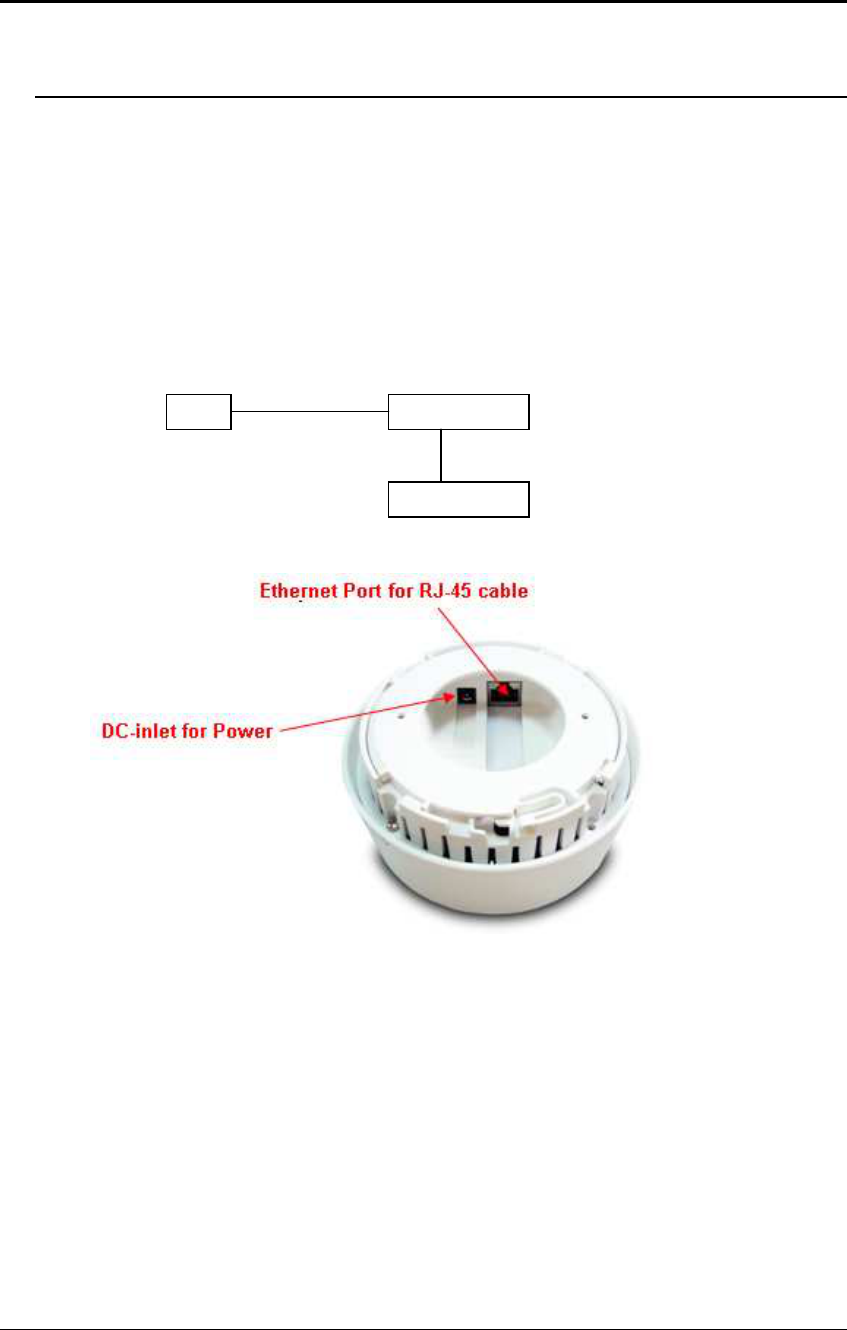

This diagram depicts the hardware configuration
Access Point
PC
Power Outlet
Ethernet
AC/DC cable
EAP-3660 11b/g Wireless Access Point Version 1.1
10

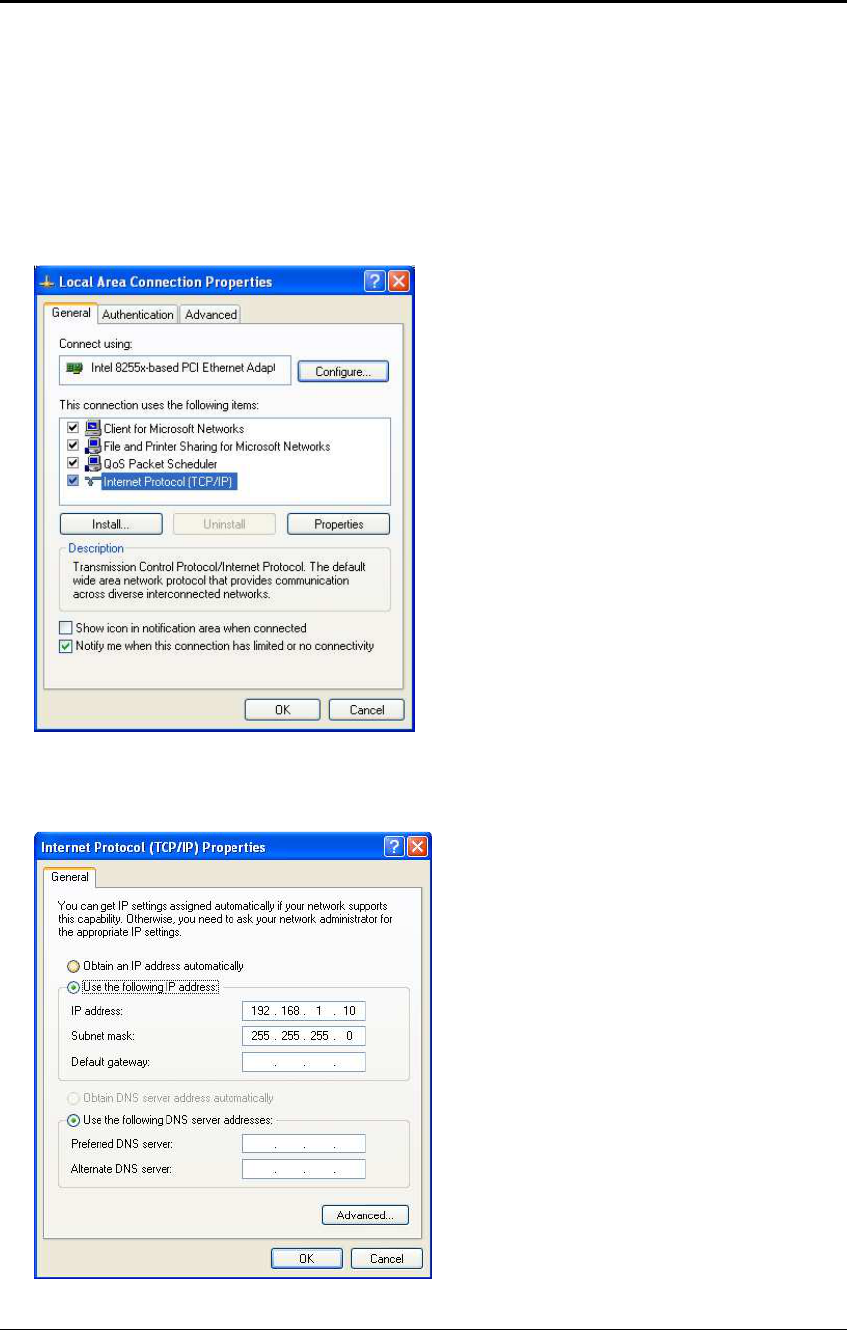

IP Address Configuration
The default IP address of the device is 192.168.1.1. In order to log into this device,
you must first configure the TCP/IP settings of your PC/Notebook.
1. In the control panel, double click Network Connections and then double click on
the connection of your Network Interface Card (NIC). You will then see the
following screen.
2. Select Internet Protocol (TCP/IP) and then click on the Properties button. This
will allow you to configure the TCP/IP settings of your PC/Notebook.
EAP-3660 11b/g Wireless Access Point Version 1.1
11
3. Select Use the following IP Address radio button and then enter the IP address
and subnet mask. Ensure that the IP address and subnet mask are on the same
subnet as the device.
For Example: Device IP address: 192.168.1.1
PC IP address: 192.168.1.10
PC subnet mask: 255.255.255.0
4. Click on the OK button to close this window, and once again to close LAN
properties window.
EAP-3660 11b/g Wireless Access Point Version 1.1
12
3 Web Configuration

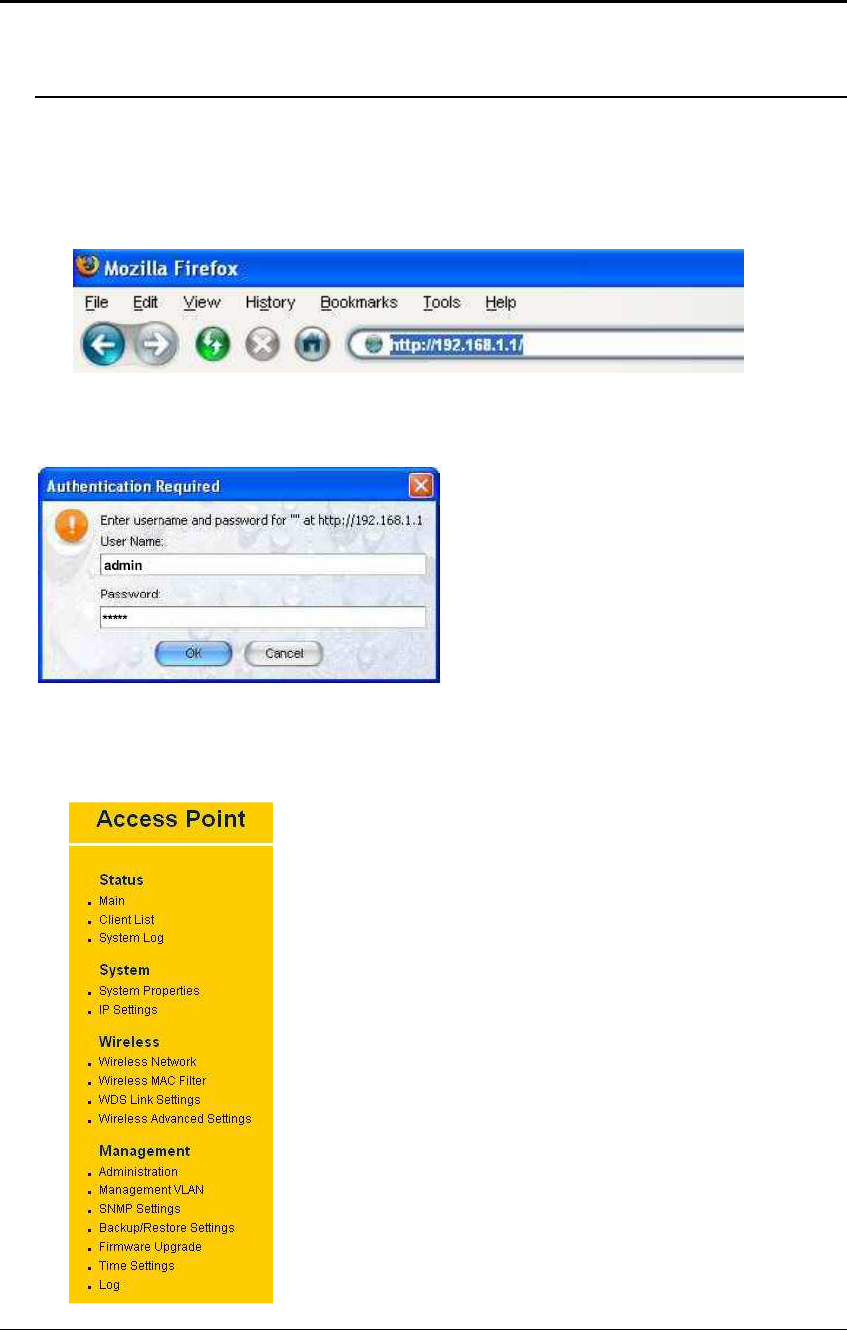

Logging In
To configure the device through the web-browser, enter the IP address of the Bridge
(default: 192.168.1.1) into the address bar of the web-browser and press Enter.
Make sure that the Bridge and your computers are on the same subnet. Refer to
Chapter 2 in order to configure the IP address of your computer.
Username：admin; Password：admin
After logging in you will see the graphical user
interface (GUI) of the device. The navigation drop-
down menu on left is divided into four main sections:
1. Status: This includes the main status page, DHCP
client list, and system log.
2. System: This includes the system properties and
IP settings.
3. Wireless: This includes the basic, advanced,
security, WDS, and MAC filter for the wireless
interface.

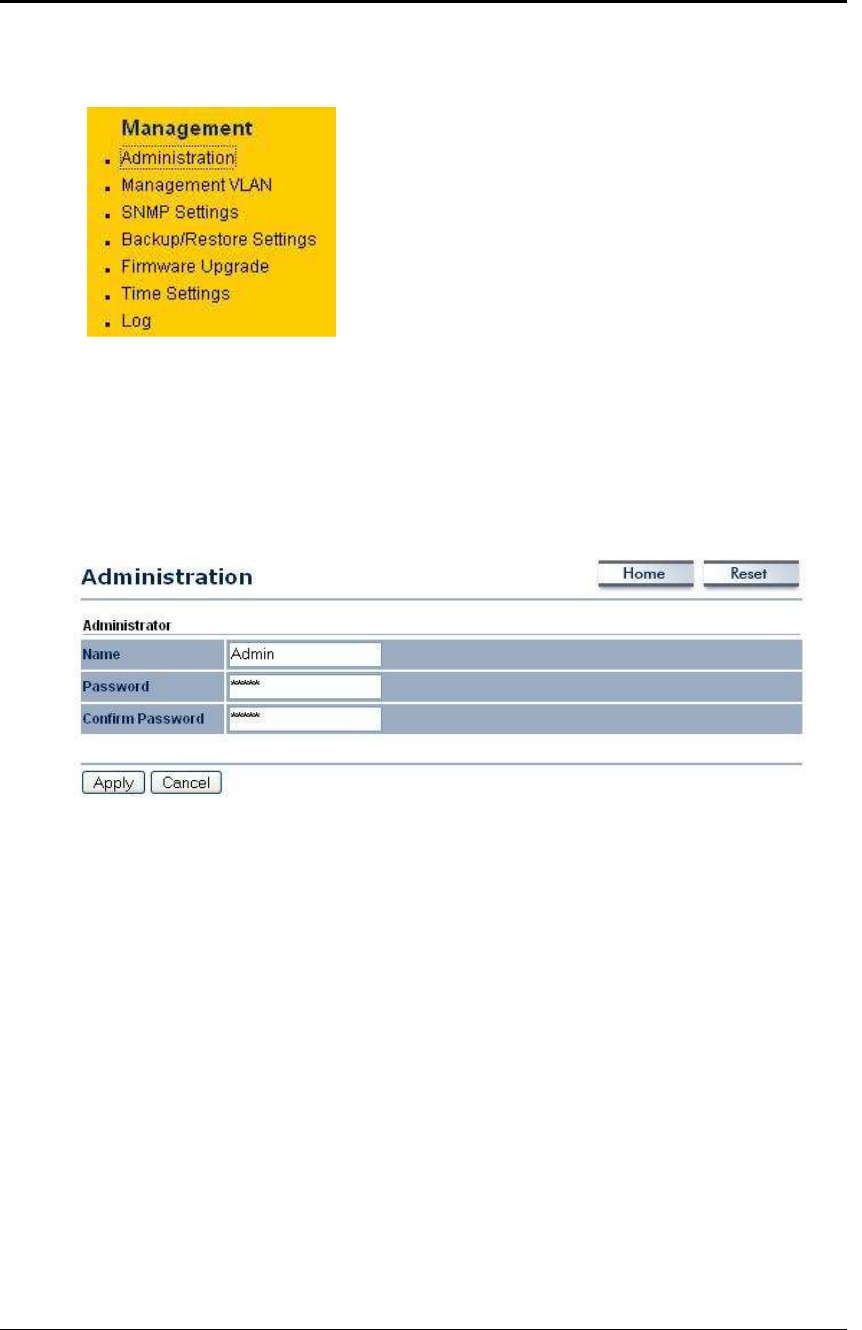

4. Management: This includes the administrator
password settings, VLAN and SNMP settings,

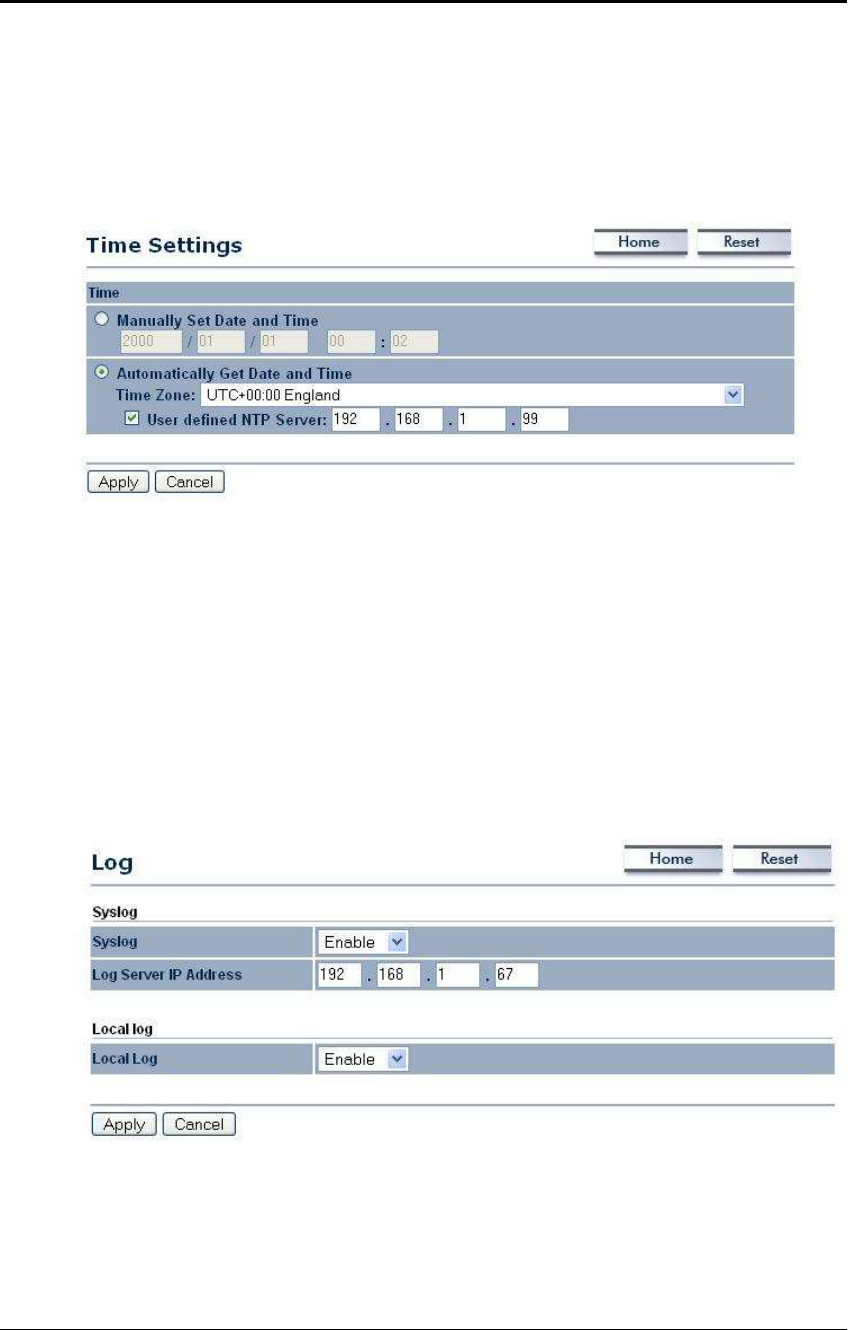

backup/restore configuration, firmware upgrade, time
settings, and the system log.
The status page is also displayed once you have
logged in. This includes details about the system,
wireless, and TCP/IP configuration.
EAP-3660 11b/g Wireless Access Point Version 1.1
13
Status
Click on the Status link on the navigation drop-down
menu. You will then see three options: main, client list,
and system log. Each option is described below.
Main – System Status
The Main page is the first page that is displayed once you have logged in. The
following information is included on this page:
o System Information – device name, Ethernet MAC address, Wireless MAC
address, country, current time, firmware version, and VLAN management tag.
o Current IP Settings: IP address, subnet mask, default gateway, and DHCP
client status.
o Current Wireless Settings: Operation mode, wireless mode, channel
frequency, profile isolation, profile settings such as SSID, and security
settings.
EAP-3660 11b/g Wireless Access Point Version 1.1
14
EAP-3660 11b/g Wireless Access Point Version 1.1
15
Client List
Click on the Client List link to view a list of devices that are associated with the
Access Point.
Click on the Refresh button to view an updated list of devices that are associated
with the Access Point.
System Log
The
System Log
page displays a list of events that are triggered on the Ethernet
and Wireless interface. This log can be referred to when an unknown error occurs on
the system or when a report needs to be sent to the technical support department for
debugging purposes.
System
Click on the System link on the navigation
drop-down menu. You will then see two
options: system properties and IP settings.
Each option is described below.
EAP-3660 11b/g Wireless Access Point Version 1.1
16
System Properties
The
System Properties
allows you to configure a name for the device (this is not
the SSID), select and country and the operational mode.
Device Name: Specify a name for the device – this is not the SSID.
Country/Region: Select the region from the drop-down list.
Operation Mode: Select Access Point or Repeater radio button. In order to
configure the Repeater, click on the WDS Link Settings under the Wireless drop-
down menu.
Click on the Apply button to save the changes.
IP Settings
The
IP Settings page
allows you to configure the device with a static IP address
or a DHCP client.
IP Network Setting: Select Obtain an IP address automatically (DHCP) radio
button if the Access Point is connected to a DHCP server. This will allow the Access
Point to pass IP addresses to the clients associated with it. You may select Specify
an IP Address radio button if you would like the device to use a static IP address. In
this case, you would be required to specify an IP address, subnet mask, and default
gateway IP address.
IP Address: Specify an IP address
IP Subnet Mask: Specify the subnet mask for the IP address
Default Gateway: Specify the IP address of the default gateway.
Click on the Apply button to save the changes.
EAP-3660 11b/g Wireless Access Point Version 1.1
17
Wireless
Click on the Wireless link on the
navigation drop-down menu. You will then
see four options: wireless network,
wireless MAC filter, WDS link settings, and
wireless advanced settings. Each option is
described below.
Wireless Network
The
Wireless Network page
allows you to configure the wireless mode, channel,
SSID, and security settings.
Wireless Mode: Depending on the type of wireless clients that are connected to the
network, you may select B, G, or B/G-mixed. If you are not sure about which clients
will be accessing the wireless networks, it is recommended that you select B/G-
mixed for the best performance.
Channel: Select a channel from the drop-down list. The channels available are
based on the country’s regulation. When selecting Infrastructure mode, a channel is
not required, however, when selecting Adhoc mode, you must select the same
channel on all points.
Channel: You may configure up to four different wireless profiles. Click on the Edit
button to modify the profile and place a check in the Enable box to activate the
profile.
EAP-3660 11b/g Wireless Access Point Version 1.1
18
SSID: The SSID is a unique named shared amongst all the points of the wireless
network. The SSID must be identical on all points of the wireless network and cannot
exceed 32 characters.
VLAN ID: If you have enabled VLAN tagging on your network, specify the VLAN tag
ID.
Suppressed SSID: Place a check in this box if you would like to hide the SSID. By
enabling this feature, wireless clients will not be able to scan this access point in a
site survey.
Station Separator: This is also known as layer 2 isolation. Clients connected to this
Access Point will not be able to directly communicate with each other.
Security Mode: By default, the security is disabled. Refer to the next section to
configure the security features such as WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
and WPA-Mixed
Click on the Apply button to save the changes.

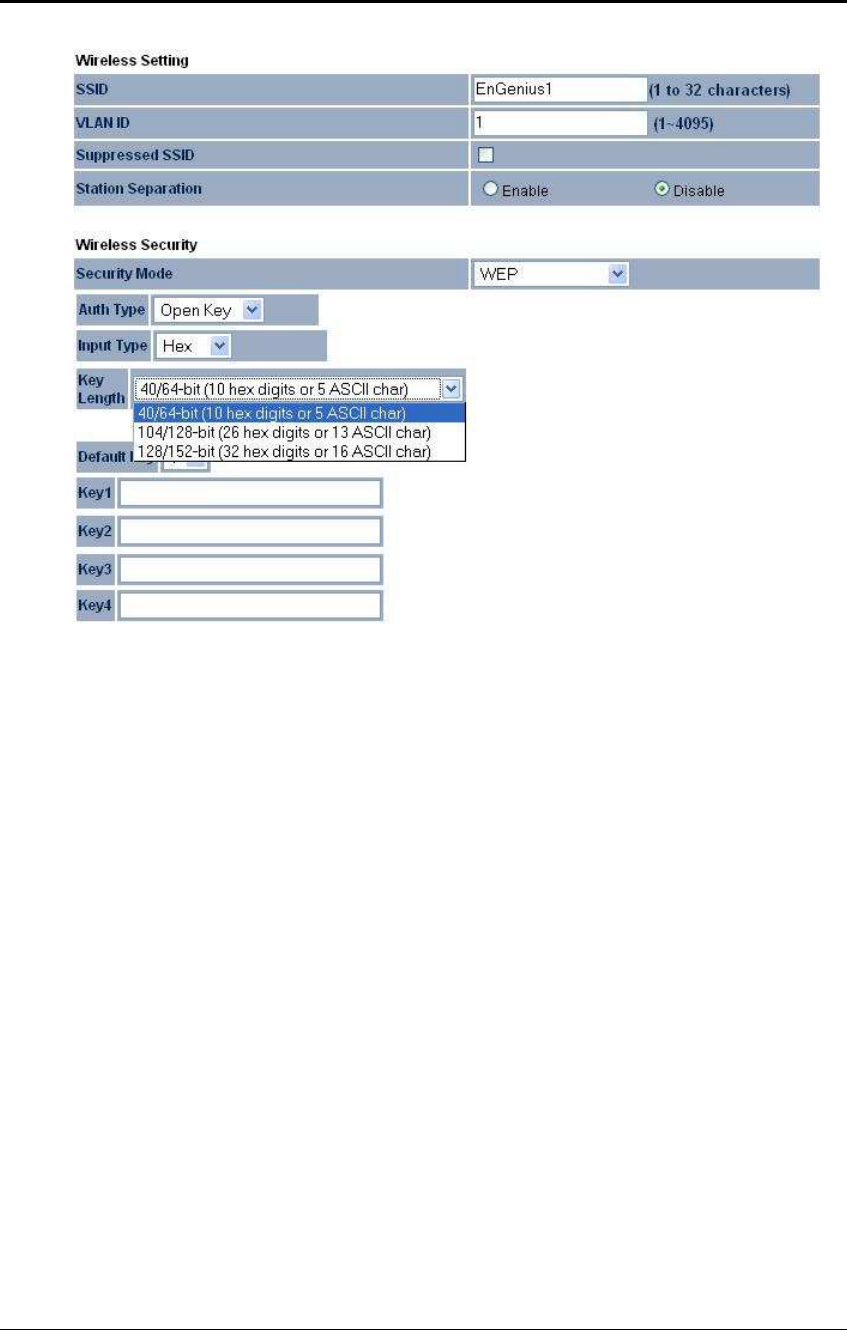

Wireless Security - WEP
Security Mode: Select WEP from the drop-down list if your wireless network uses
WEP encryption. WEP is an acronym for Wired Equivalent Privacy, and is a security
protocol that provides the same level of security for wireless networks as for a wired
network.
EAP-3660 11b/g Wireless Access Point Version 1.1
19
Authentication Type: Select an authentication method. Options available are Open
Key, Shared Key or Auto. An open system allows any client to authenticate as long
as it conforms to any MAC address filter policies that may have been set. All
authentication packets are transmitted without encryption. Shared Key sends an
unencrypted challenge text string to any device attempting to communicate with the
Access PointP. The device requesting authentication encrypts the challenge text and
sends it back to the Access Point. If the challenge text is encrypted correctly, the
Access Point allows the requesting device to authenticate. It is recommended to
select Auto if you are not sure which authentication type is used.
Input Type: Select He or ASCII from the drop-down list
Key Length: Select a key format from the drop-down list. 64bit-hex keys require 10
characters, where as 128-bit keys require 26 characters. A hex key is defined as a
number between 0 through 9 and letter between A through F.
Default Key: You may use up to four different keys for four different networks. Select
the current key that will be used.
Key 1-4: You may enter four different WEP keys.
Click on the Apply button to save the changes.

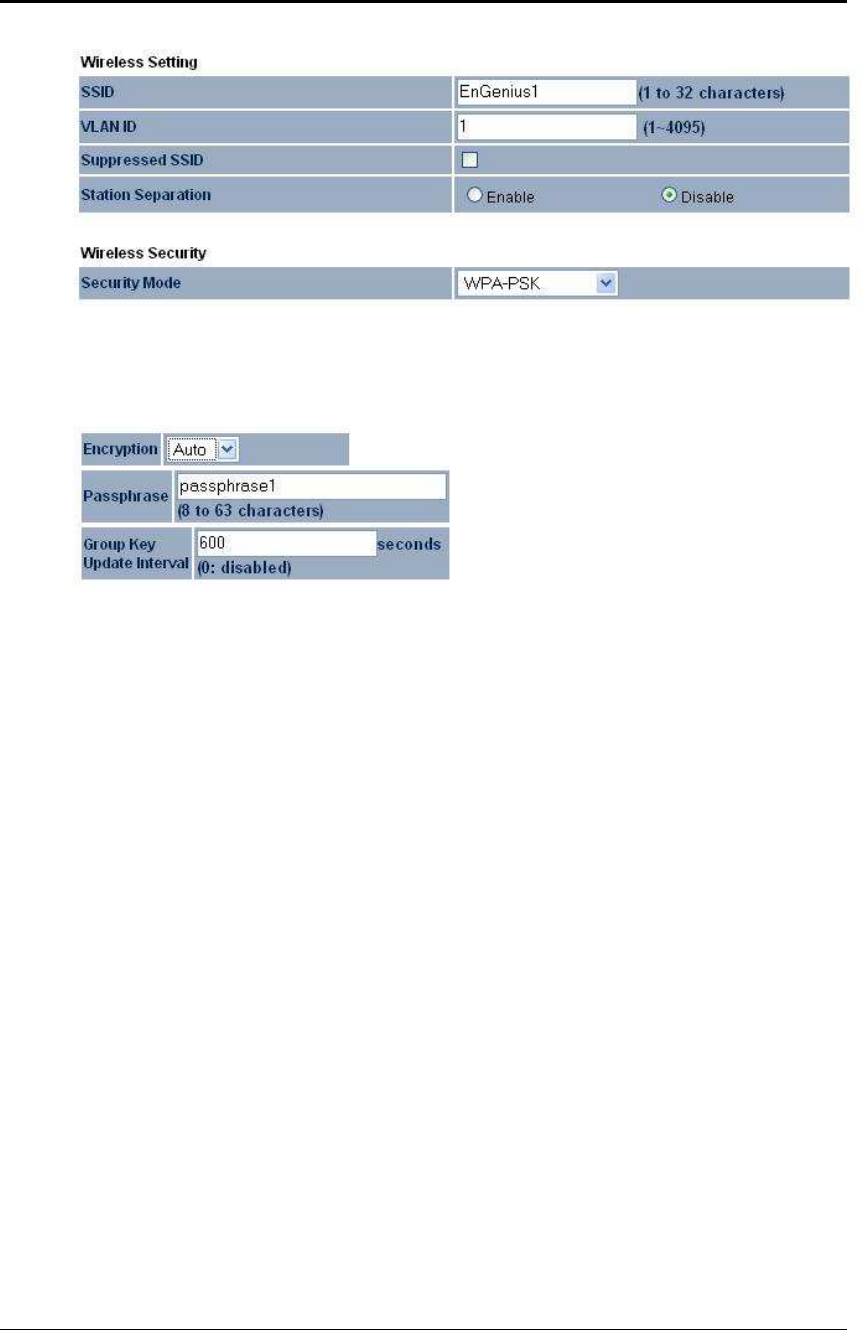

Wireless Security – WPA-PSK, WPA2-PSK, WPA-Mixed
Security Mode: Select WPA-PSK, WPA2-PSK, or WPA-Mixed from the drop-down
list if your wireless network uses WPA pre-shared key.
EAP-3660 11b/g Wireless Access Point Version 1.1
20
Encryption: Select TKIP or AES from the drop-down list if your wireless network
uses this encryption. WPA (Wi-Fi Protected Access) was designed to improve upon
the security features of WEP (Wired Equivalent Privacy). The technology is designed
to work with existing Wi-Fi products that have been enabled with WEP. WPA
provides improved data encryption through the Temporal Integrity Protocol (TKIP),
which scrambles the keys using a hashing algorithm and by adding an integrity
checking feature which makes sure that keys haven’t been tampered with.
Passphrase: Specify a passphrase that is shared amongst the Access Points and
clients.
Group Key Update Interval: Specify the number of seconds after which the Access
Point will probe the client for the passphrase.
Click on the Apply button to save the changes.

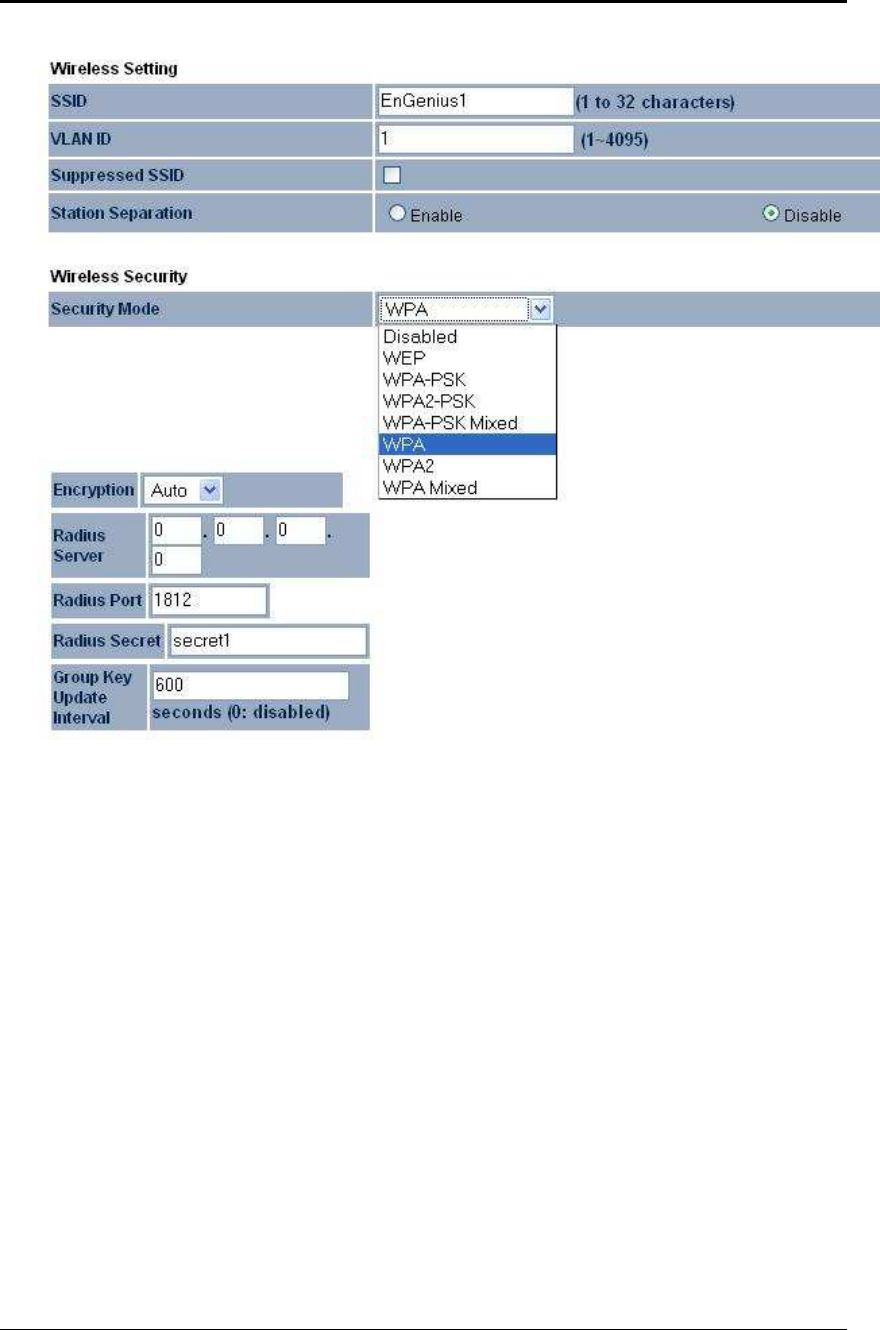

Wireless Security – WPA, WPA2
Security Mode: Select WPA or WPA2 from the drop-down list if your wireless
network uses WPA. WPA (Wi-Fi Protected Access) was designed to improve upon
the security features of WEP (Wired Equivalent Privacy). The technology is designed
to work with existing Wi-Fi products that have been enabled with WEP. WPA
provides improved data encryption through the Temporal Integrity Protocol (TKIP),
which scrambles the keys using a hashing algorithm and by adding an integrity
checking feature which makes sure that keys haven’t been tampered with.
EAP-3660 11b/g Wireless Access Point Version 1.1
21
Encryption: Select TKIP or AES from the drop-down list if your wireless network
uses this encryption.
RADIUS IP Address: Enter the IP address of the RADIUS server.
RADIUS Port: Enter the port number of the RADIUS server. The default is usually
1812.
RADIUS Secret: Enter the shared password of the RADIUS server.
Group Key Update Interval: Specify the number of seconds after which the Access
Point will probe the client for the secret.
Click on the Apply button to save the changes.
EAP-3660 11b/g Wireless Access Point Version 1.1
22

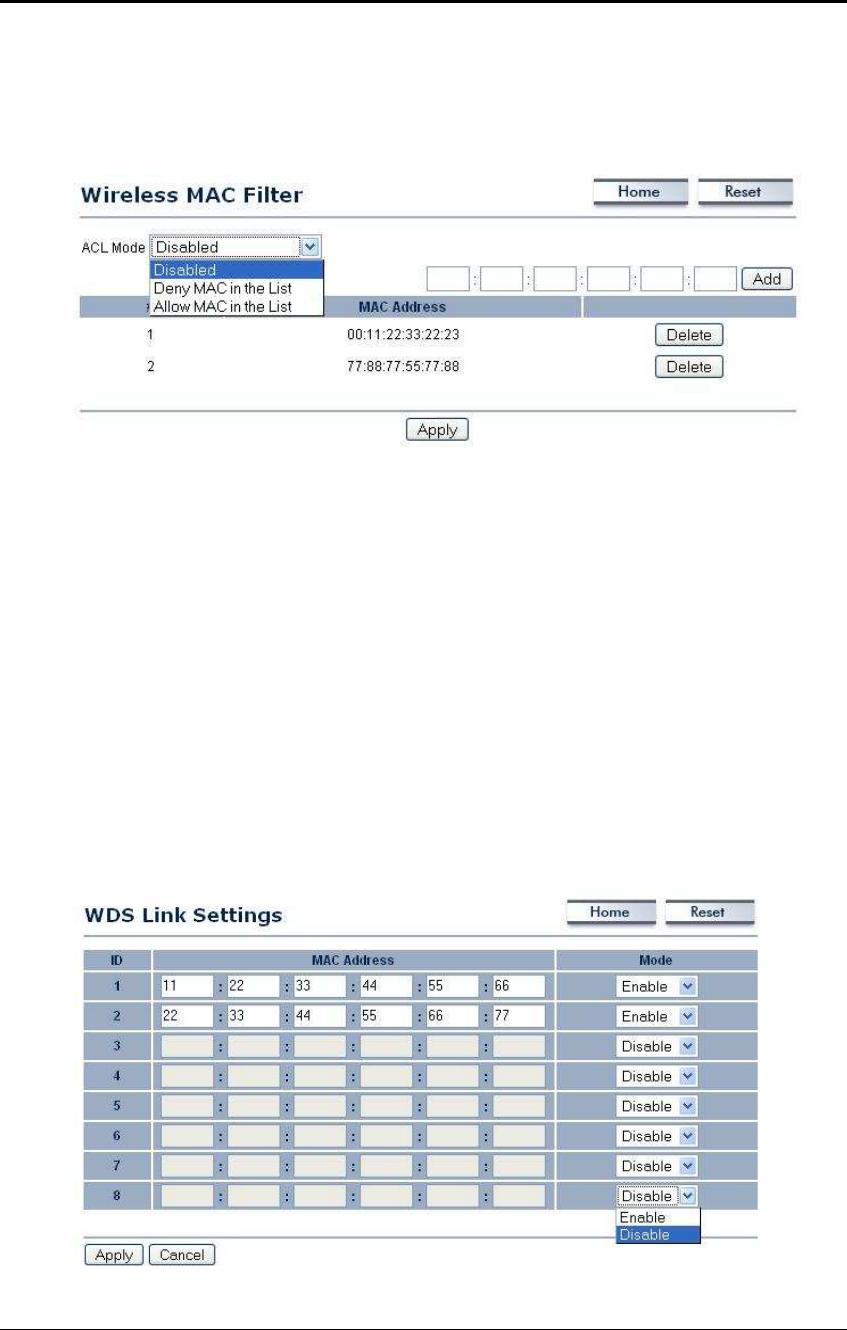

Wireless MAC Filter
Click on the Wireless MAC Filter link under the Wireless menu. On this page you
can filter the MAC address by allowing or blocking access the network.
ACL (Access Control) Mode: You may choose to Disable, Allow Listed, or Deny
Listed MAC addresses from associating with the network. By selecting Allow MAC
in the List, only the address listed in the table will have access to the network; all
other clients will be blocked. On the other hand, selected Deny MAC in the List,
only the listed MAC addresses will be blocked from accessing the network; all other
clients will have access to the network.
MAC Address: Enter the MAC address.
This table lists the blocked or allowed MAC addresses; you may delete selected
MAC address or delete all the addresses from the table by clicking on the Delete
button.
Click on the Apply button to save the changes.
WDS Link Settings
Click on the WDS Link Settings On this page you can configure the WDS (Wireless
Distribution System) which allows the Access Point to function as a repeater.
EAP-3660 11b/g Wireless Access Point Version 1.1
23
WDS MAC Address: Specify the MAC address of the Access Points that will join the
WDS network and then select Enable or Disable from the drop-down list.
Click on the Apply button to save the changes.
Wireless Advanced Settings
Click on the Wireless Advanced Settings link. On this page you can configure the
advanced settings to tweak the performance of your wireless network. Options
available are: data rate, transmit power, antenna diversity, fragmentation threshold,
RTS threshold, and 802.11g protection.
Data Rate: If you would like to force a data rate, you may select one from the drop-
down list. However, for best performance it is recommended to use the Auto setting.
Transmit Power: You may have the different application distance of the device by
selecting a value from the drop-down list. This feature can be helpful in restricting the
coverage area of the wireless network.
You can arrange the different data rate in distance in Access Point mode. Please
refer below table. The table only for 11g and 11b/g mix mode
6M-24M 36M 48M 54M
High ˇ ˇ ˇ Great
GreatGreat
Great
Ultra High
ˇ ˇ Great
GreatGreat
Great N/A
Super ˇ Great
GreatGreat
Great NA N/A
Extreme Great
GreatGreat
Great N/A N/A N/A
Fragment: Packets over the specified size will be fragmented in order to improve
performance on noisy networks.
RTS Threshold: Packets over the specified size will use the RTS/CTS mechanism to
maintain performance in noisy networks and preventing hidden nodes from
degrading the performance.
Protection Mode: If your wireless network is using both 802.11b and 802.g devices
then it is recommended to enable this feature so that the 802.11b devices will not
degrade the performance of 802.11g devices.
Click on the Apply button to save the changes.
EAP-3660 11b/g Wireless Access Point Version 1.1
24
Management
Click on the Management link on the
navigation drop-down menu. You will then
see seven options: administration,
management VLAN, SNMP settings,
backup/restore settings, firmware upgrade,
time settings, and log. Each option is
described below.
Administration
Click on the Administration link under the Management menu. This option allows
you to create a user name and password for the device. By default, this device is
configured without a user name and password Admin. For security reasons it is
highly recommended that you create a new user name and password.
Name: Specify a user name into the first field.
Password: Specify a password into this field and then re-type the password into the
Confirm Password field. Then click on the Apply button.
Click on the Apply button to save the changes.
EAP-3660 11b/g Wireless Access Point Version 1.1
25
Management VLAN
Click on the SNMP link under the Management menu. This option allows you to
assign a VLAN tag to the packets. A VLAN is a group of computers on a network
whose software has been configured so that they behave as if they were on a
separate Local Area Network (LAN). Computers on VLAN do not have to be
physically located next to one another on the LAN
Management VLAN ID: If your network includes VLANs and if tagged packets need
to pass through the Access Point, specify the VLAN ID into this field. If not, select the
No VLAN tag radio button.
Note: If your reconfigure the Management VLAN ID, you may lose connectivity to the
Access Point. Verify that the switch and DHCP server can support the reconfigured
VLAN ID, and then re-connect to the new IP address.
Click on the Apply button to save the changes.

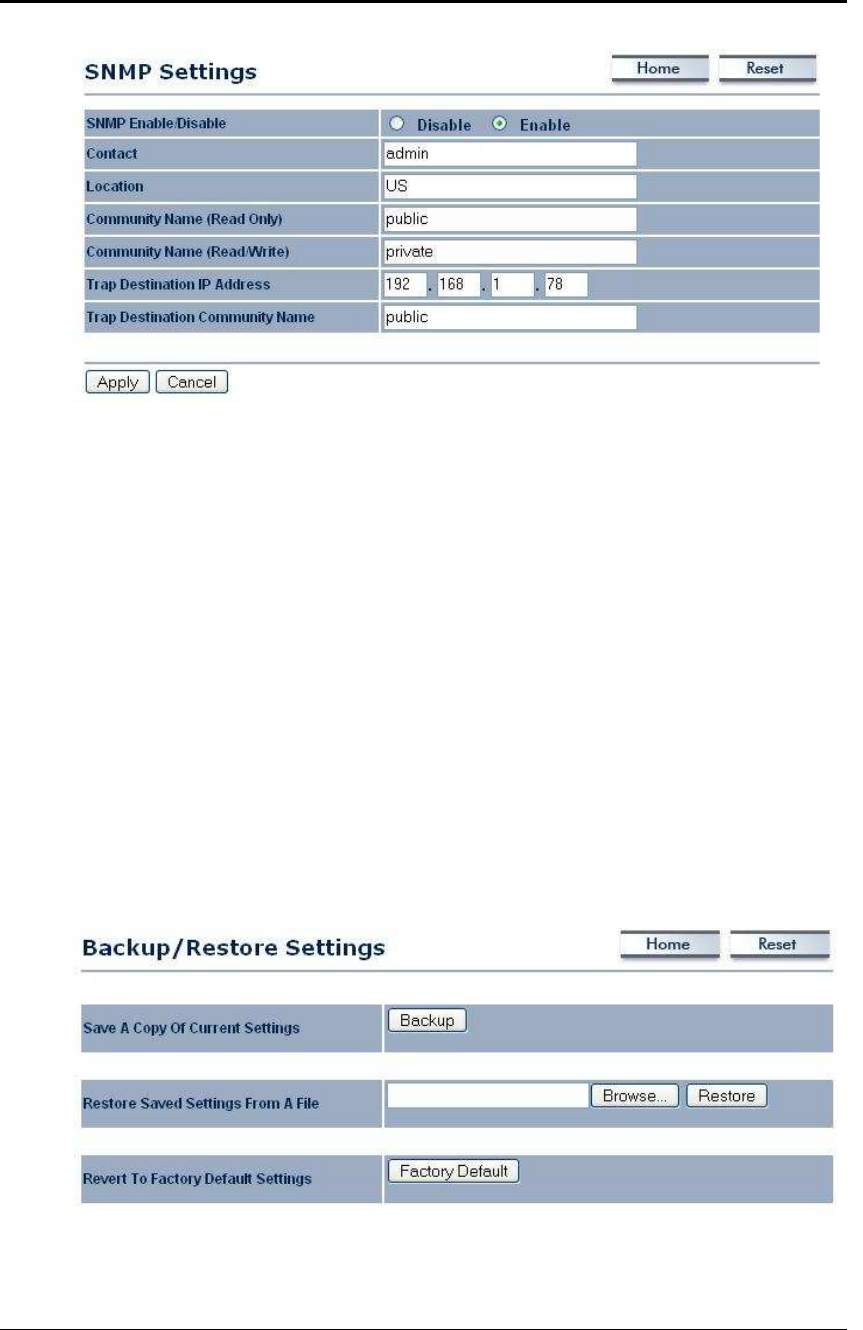

SNMP Settings
Click on the SNMP Settings link under the Management menu. This option allows
you to assign the contact details, location, community name and trap settings for
SNMP This is a networking management protocol used to monitor network-attached
devices. SNMP allows messages (called protocol data units) to be sent to various
parts of a network. Upon receiving these messages, SNMP-compatible devices
(called agents) return data stored in their Management Information Bases. .
EAP-3660 11b/g Wireless Access Point Version 1.1
26
SNMP Enable/Disable: Choose to enable or disable the SNMP feature.
Contact: Specify the contact details of the device.
Location: Specify the location of the device.
Read-Only Community Name: Specify the password for access the SNMP
community for read only access.
Read-Write Community Name: Specify the password for access to the SNMP
community with read/write access.
Send SNMP Trap: Specify the IP address of the computer that will receive the
SNMP traps.
Trap Community Name: Specify the password for the SNMP trap community.
Click on the Apply button to save the changes.
Backup/Restore settings, Reset to factory default settings
Click on the Backup/Restore Setting link under the Management menu. This option
is used to save the current settings of the device in a file on your local disk or load
settings on to the device from a local disk. This feature is very handy for
administrators who have several devices that need to be configured with the same
settings.
Save a copy of the current settings: Click on the Backup button to save the current
configuration.
EAP-3660 11b/g Wireless Access Point Version 1.1
27
Restore saved settings from a file: Once a file has been backed up, you may
restore it by clicking on the Browse button to select the file, and then the Restore
button.
Revert to factory default settings: Click on the Factory Default Settings button to
reset the device to the default settings. Please wait while the device restart and then
access the device using the default IP address: 192.168.1.1

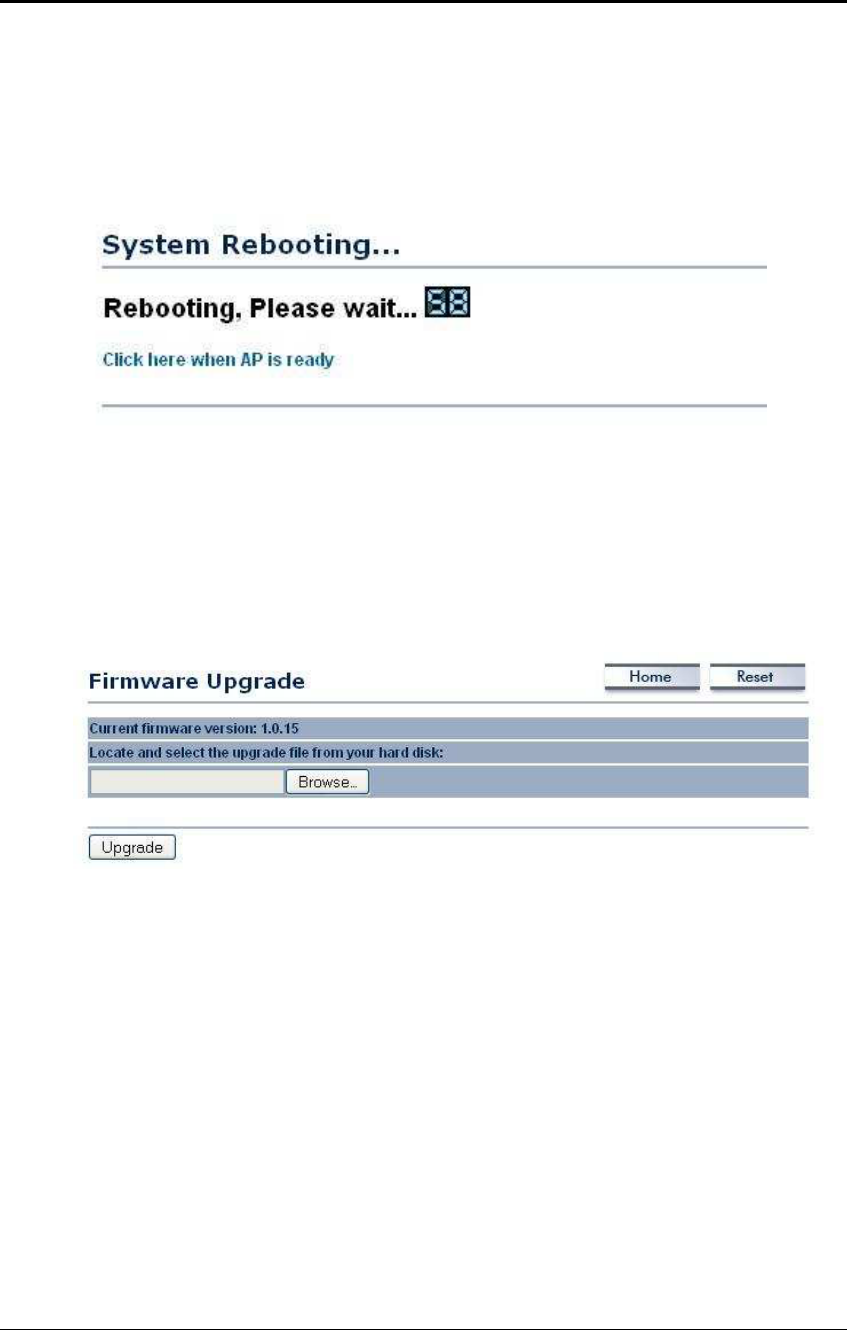

Firmware Upgrade
Click on the Upgrade Firmware link under the Management menu. This page is
used to upgrade the firmware on the device. Make sure that downloaded the
appropriate firmware from your vendor.
Click on the Browse button and then select the appropriate firmware and then click
on the Upgrade button.
Note: The upgrade process may take about 1 minute to complete. Do not power off
the device during this process as it may crash the device and make it unusable. The
device will restart automatically once the upgrade is complete.
EAP-3660 11b/g Wireless Access Point Version 1.1
28
Time Settings
Click on the Time Settings link under the Management menu. This page allows you
to configure the time on the device. You may do this manually or by connecting to a
NTP server.
Manually Set Date and Time: Specify the date and time
Automatically Get Date and Time: Select the time zone from the drop down list and
then specify the IP address of the NTP server.
Click on the Apply button to save the changes.
Log
Click on the Log link under the Management menu. The Log page displays a list of
events that are triggered on the Ethernet and Wireless interface. This log can be
referred when an unknown error occurs on the system or when a report needs to be
sent to the technical support department for debugging purposes.
Syslog: Choose to enable or disable the system log.
Log Server IP Address: Specify the IP address of the server that will receive the
system log.
Local Log: Choose to enable or disable the local log.
Click on the Apply button to save the changes.
EAP-3660 11b/g Wireless Access Point Version 1.1
29
Appendix A – Specifications
Hardware
Physical Interface LAN: One 10/100 Fast Ethernet RJ-45
Reset Button
Power Jack
LEDs Status Power/ Status
LAN (10/100Mbps)
WLAN (Wireless Connection)
Power Requirements Power Supply: 90 to 240 VDC ± 10％, 50/60 Hz (depends on
different countries)
Active Ethernet (Power over Ethernet, IEEE802.3af)- 48
VDC/0.375A
Device: 12V/1A
Regulation Certifications FCC Part 15/UL, ETSI 300/328/CE
RF Specification
Frequency Band 2.400～2.484 GHz
Media Access Protocol Carrier sense multiple access with collision avoidance (CSMA/CA)
Modulation Technology OFDM: BPSK, QPSK, 16-QAM, 64-QAM
DBPSK, DQPSK, CCK
Operating Channels 11 for North America, 14 for Japan, 13 for Europe
Receive Sensitivity
(Typical)
IEEE802.11g
6Mbps@ -95dBm
54Mbps@ -75dBm
IEEE802.11b
1Mbps@ -98dBm
11Mbps@ -93dBm
Available transmit power
(peak power)
IEEE802.11g
25 dBm
IEEE802.11b
18 dBm
Antenna Directional Embedded antenna
Peak Gain = 4 dBi
11g Wireless Multi-Client Bridge/AP/WDS Version 1.0
30
Software Features
Topology Infrastructure/Ad-Hoc
Operation Mode Access Point/Repeater/WDS
LAN • DHCP Server
• DHCP Client
VPN VPN pass-through (PPTP, L2TP, IPSEC)
Wireless • Wireless Mode – 11b / 11g / Disable
• Channel Selection (Setting varies by Country)
• Transmission Rate
11 b/g: 54, 48, 36, 24, 18, 12, 11, 9, 6, 5.5, 2, 1 in Mbps
• Transmit power (4 levels)
• Antenna Diversity
Security • WEP Encryption-64/128/152 bit
• WPA Personal (WPA-PSK using TKIP or AES)
• WPA Enterprise (WPA-EAP using TKIP)
• 802.1x Authenticator
• Hide SSID in beacons
• Multiple SSID with 802.1q VLAN tagging (up to 4 SSIDs)
• MAC Filter
• L2 isolation
• Wireless STA (Client) connected list
QoS • WMM
Management
Configuration Web-based configuration (HTTP)/Telnet
Firmware Upgrade • Upgrade firmware via web-browser
• Keep latest setting when f/w update
Administrator Setting Administrator password change
Reset Setting • Reboot
• Reset to Factory Default
System monitoring Status, Statistics and Event Log
SNMP V1, V2c
MIB MIB I, MIB II (RFC1213) and Private MIB
Bandwidth Measurement Port / IP
Backup & Restore Settings through Web
11g Wireless Multi-Client Bridge/AP/WDS Version 1.0
31
Environment & Physical
Temperature Range • Operating: 0°C to 45°C (32°F to 113°F)
• Storage: -20°C to 70°C (-4°F to 158°F)
Humidity (non-condensing) 5%～95% typical
Dimensions Diameter:120mm
Height: 50mm
Weight 280g
11g Wireless Multi-Client Bridge/AP/WDS Version 1.0
32
Appendix B – FCC Interference Statement
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This device complies with FCC RF Exposure limits set forth for an uncontrolled environment, under 47
CFR 2.1093 paragraph (d)(2).
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
This equipment should be installed and operated with minimum distance 20cm between the radiator &
your body.
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment.
End users must follow the specific operating instructions for satisfying RF exposure compliance. This
equipment should be installed and operated with minimum distance 20cm between the radiator & your
body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
11g Wireless Multi-Client Bridge/AP/WDS Version 1.0
33
Appendix C – IC Statement
IC statement
Operation is subject to the following two conditions:
This device may not cause interference and
This device must accept any interference, including interference that may cause undesired operation of
the device.
This device has been designed to operate with an antenna having a maximum gain of 4 dBi. Antenna
having a higher gain is strictly prohibited per regulations of Industry Canada. The required antenna
impedance is 50 ohms.
IMPORTANT NOTE:
IC Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment.
End users must follow the specific operating instructions for satisfying RF exposure compliance. This
equipment should be installed and operated with minimum distance 20cm between the radiator & your
body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Règlement d’Industry Canada
Les conditions de fonctionnement sont sujettes à deux conditions:
Ce périphérique ne doit pas causer d’interférence et.
Ce périphérique doit accepter toute interférence, y compris les interférences pouvant perturber le bon
fonctionnement de ce périphérique.
