Senao Networks, Inc. Wireless 802.11abgn Access Point CAP4200AG QIG 20120723
Contents
User Manual
Quick Installation Guide
CAP4200AG/CAP4201AG/CAP4202AG
Wireless 802.11abgn Access Point

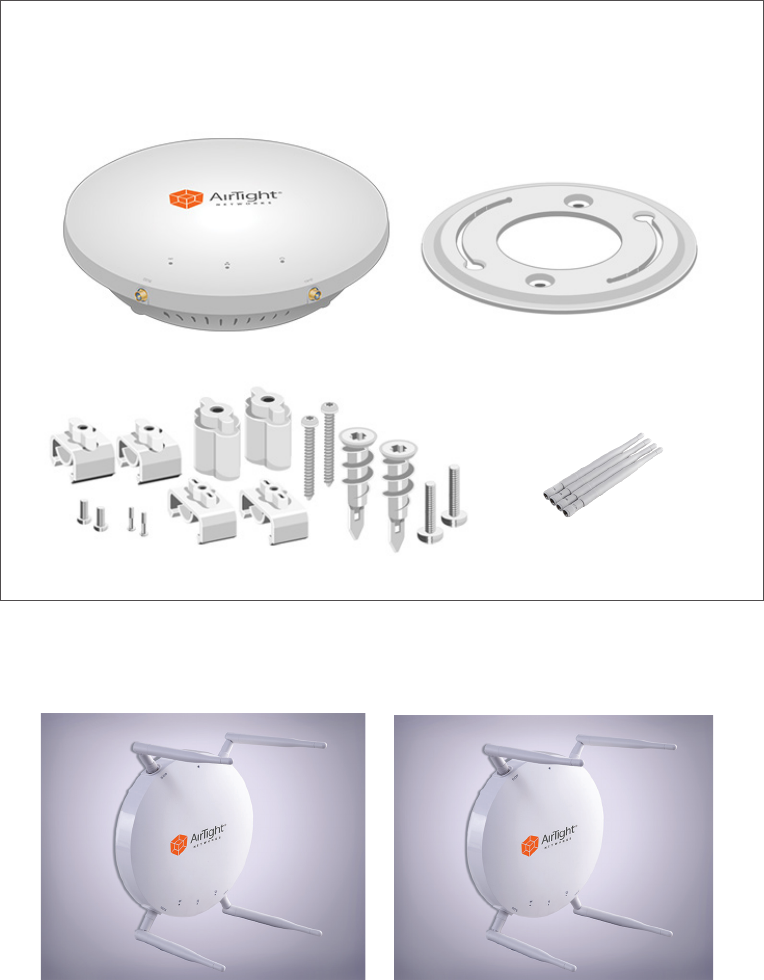

Please verify contents of the box before continuing to set up the CAP4200AG/CAP4201AG/CAP4202AG.

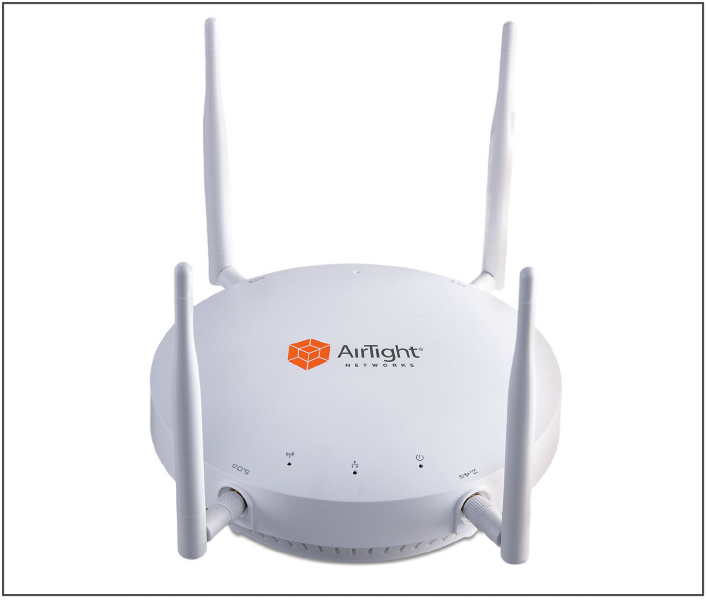

CAP4200AG/CAP4201AG/CAP4202AG Access Point
12V/2A 100V~240V Power Adaptor
RJ-45 Ethernet Cable
Mounting Bracket
Wall/Ceiling Mounting Hardware Kit
T-Rail Mounting Hardware Kit
CD with User's Manual

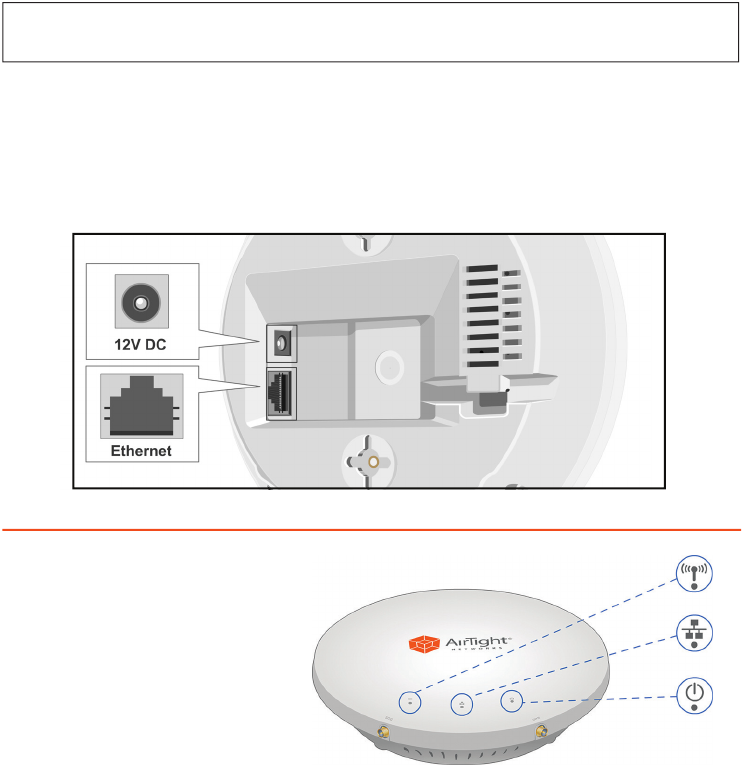

Connecting the CAP4200AG/CAP4201AG/CAP4202AG
1) Ensure that the computer in use has an Ethernet Card (RJ-45 Ethernet Port). For more
information, verify with User Manual.
2) Connect one end of the Category 5e Ethernet cable into RJ-45 port of the
CAP4200AG/CAP4201AG/CAP4202AG and the other end to the RJ-45 port on the computer that
will use the CAP4200AG/CAP4201AG/CAP4202AG. Ensure that the cable is securely connected
to both the CAP4200AG/CAP4201AG/CAP4202AG and the Computer.
3) Connect the Power DC Inlet to the DC-IN port of the CAP4200AG/CAP4201AG/CAP4202AG and
the Power to the electrical out.
Note: CAP4200AG/CAP4201AG/CAP4202AG supports both IEEE 802.3at PoE(Power over Ethernet)
and regular power adapter. You should use either one as the power source. Please do not apply both at
the same time.
IP address configuration
1) After ensuring the EnGenius device is powered on and plugged in, ensure that your computer is
on.
2) For the next steps, refer to your Operating System User Manual.
3) Once your computer is on, ensure that your TCP/IP is set to On or Enabled. (In the control panel,
double click Network Connections and then double click on the connection of your Network
Interface Card (NIC). Select Internet Protocol (TCP/IP) and then click on the Properties button.)
4) If your PC is already on a computer network, ensure that you have set it to a Static IP Address on
the interface (or Ethernet card that will use the CAP4200AG/CAP4201AG/CAP4202AG) as
192.168.1.21 and the Subnet Mask address as 255.255.255.0. (Select Use the following IP
Address radio button). Once the computer has been prepared, proceed to setting up the
CAP4200AG/CAP4201AG/CAP4202AG.
CAP4200AG/CAP4201AG/CAP4202AG Setup
1) To configure CAP4200AG/CAP4201AG/CAP4202AG, open a web browser (example: Microsoft
Internet Explorer, Mozilla Firefox, Google Chrome, etc.).
2) In the address bar of the web browser, enter 192.168.1.1 (the default IP address of the
CAP4200AG/CAP4201AG/CAP4202AG) and hit enter.
3) A login screen will appear. By default, the username of the
CAP4200AG/CAP4201AG/CAP4202AG is admin and the password is admin. Enter the current
username and password of the CAP4200AG/CAP4201AG/CAP4202AG and then click Login.
Refer to the CAP4200AG/CAP4201AG/CAP4202AG
user manual on how to change the username and
password.
4) After clicking Login with the correct username and
password, the
CAP4200AG/CAP4201AG/CAP4202AG Main Menu
will appear. If you are successful, proceed to setting
up the wireless connection.
Switching Between Operating Modes
This device can operate in the following modes: Access Point, WDS AP, WDS Bridge and Repeater.
A. Click on the Operation Mode link under the System navigation drop-down menu.
B. Operating Mode: Select an operating mode from the list (Access Point, WDS AP, WDS Bridge
or Repeater) and then click on the Apply button.
C. All basic setup is completed. Note: The wireless connection is not secure. To setup security on
the CAP4200AG/CAP4201AG/CAP4202AG, refer to the
CAP4200AG/CAP4201AG/CAP4202AG User Manual.
Mounting the CAP4200AG/CAP4201AG/CAP4202AG
Using the provided hardware, the CAP4200AG/CAP4201AG/CAP4202AG can be attached to a ceiling or
wall.
To attach the CAP4200AG/CAP4201AG/CAP4202AG to a ceiling or wall using the mounting
bracket:
http://192.168.1.1
1) Attach the mounting bracket to the wall or ceiling using the provided wall/ceiling mounting
hardware kit.
2) Insert the provided short screws into the bottom cover of the
CAP4200AG/CAP4201AG/CAP4202AG.
Leave enough of the screws exposed to ensure that the unit can be attached to the mounting bracket.
If extra space is required, use the provided spacers and long screws from the T-Rail mounting
hardware kit to increase the space between the unit and the mounting bracket.
3) Mount the CAP4200AG/CAP4201AG/CAP4202AG on the mounting bracket by rotating the unit
clockwise about 90 degrees to secure it in place.
To attach the CAP4200AG/CAP4201AG/CAP4202AG to a ceiling using the provided T-rail
connectors:
1) Attach the T-rail connectors to the bottom cover of the CAP4200AG/CAP4201AG/CAP4202AG
using the provided short screws.
Two sizes of T-rail connectors are included in the mounting hardware kit: 15/16in (2.38cm) and 9/16in
(1.43cm).
If extra space is required to accommodate drop ceiling tiles, use the provided spacers and long
screws.
2) Line up the connected T-rail connectors with an appropriately sized rail and press the unit onto
the rail until it snaps into place.
Note: To protect your CAP4200AG/CAP4201AG/CAP4202AG, use the Kensington security slot to attach
a cable lock (cable lock is not included).
