Senao Networks EAP300 11N Multi-Function Access Point User Manual ECB 9750
Senao Networks, Inc. 11N Multi-Function Access Point ECB 9750
User Man_U2M-EAP300
1
11N Multi-Function Access Point
EAP300
11N Multi-Function Access Point
V1.0
1
Table of Contents
1 Introduction .................................................................................................................................................................. 4
1.1 Features and Benefits ..................................................................................................................................................................................... 4
1.2 Package Contents ............................................................................................................................................................................................ 5
1.3 System Requirements ..................................................................................................................................................................................... 6
1.4 Applications ....................................................................................................................................................................................................... 6
2 Before you Begin .......................................................................................................................................................... 8
2.1 Considerations for Wireless Installation .................................................................................................................................................. 8
2.2 Computer Settings (Windows XP/Windows 7) ...................................................................................................................................... 9
2.3 Apple Mac X OS ............................................................................................................................................................................................. 12
2.4 Hardware Installation ................................................................................................................................................................................... 13
3 Configuring Your Access Point ..................................................................................................................................14
3.1 Default Settings ............................................................................................................................................................................................. 14
3.2 Web Configuration ....................................................................................................................................................................................... 15
4 System .........................................................................................................................................................................18
4.1 Operation Mode ............................................................................................................................................................................................ 18
4.2 Status ................................................................................................................................................................................................................. 19
4.3 DHCP ................................................................................................................................................................................................................. 21
4.4 Schedule ........................................................................................................................................................................................................... 24
4.5 Event Log ......................................................................................................................................................................................................... 26
4.6 Monitor ............................................................................................................................................................................................................. 27
5 Wireless .......................................................................................................................................................................28
5.1 Status ................................................................................................................................................................................................................. 28
5.2 Basic ................................................................................................................................................................................................................... 29
2
5.3 Advanced ......................................................................................................................................................................................................... 31
5.4 Security ............................................................................................................................................................................................................. 35
5.5 Filter ................................................................................................................................................................................................................... 41
5.6 WPS (Wi-Fi Protected Setup) .................................................................................................................................................................... 43
5.7 Client List .......................................................................................................................................................................................................... 45
5.8 VLAN .................................................................................................................................................................................................................. 46
6 Network ......................................................................................................................................................................47
6.1 Status ................................................................................................................................................................................................................. 47
6.2 LAN ..................................................................................................................................................................................................................... 48
6.3 Spanning Tree ................................................................................................................................................................................................ 50
7 Management ...............................................................................................................................................................51
7.1 Admin ................................................................................................................................................................................................................ 51
7.2 SNMP ................................................................................................................................................................................................................. 52
7.3 Firmware Upgrade ........................................................................................................................................................................................ 54
7.4 Configure ......................................................................................................................................................................................................... 57
7.5 Reset .................................................................................................................................................................................................................. 58
8 Tools ............................................................................................................................................................................59
8.1 Time Setting .................................................................................................................................................................................................... 59
8.2 Diagnosis .......................................................................................................................................................................................................... 60
8.3 LED Control ..................................................................................................................................................................................................... 61
9 Logout .........................................................................................................................................................................62
Appendix A – FCC Interference Statement .......................................................................................................................63
3
Revision History
Version Date Notes
1.0 2011/06/24 First Release
4
1 Introduction
EAP300 is a multi-functioned 11n product with 3 major multi-functions, is designed to operate in every working
environment for enterprises.
EAP300 is a Wireless Network device that delivers up to 6x faster speeds and 7x extended coverage than 802.11b/g
devices. EAP300 supports home network with superior throughput, performance and unparalleled wireless range.
To protect data during wireless transmissions, EAP300 encrypts all wireless transmissions through WEP data encryption
and supports WPA/WPA2. Its MAC address filter allows users to select stations with access to connect network. In
addition, the function of user isolation protects private network between client users. EAP300 thus is the best product to
ensure network safety for enterprises.
1.1 Features and Benefits
Features Benefits
High Speed Data Rate Up to 300Mbps Capable of handling heavy data payloads such as MPEG video
streaming.
10/100 Fast Ethernet Support up to 100Mbps networking speed.
IEEE 802.11n draft Compliant and backward
compatible with 802.11b/g
Fully compatible with IEEE 802.11b/g/n devices.
Multi-Function, 3 functions Allowing users to select AP, WDS AP or WDS Bridge mode in various
applications.
Point-to-point, Point-to-multipoint Wireless
Connectivity
Allowing to transfer data from buildings to buildings.
5
Support Multi-SSID function (4 SSID) in AP
mode
Allowing clients to access different networks through a single access
point and to assign different policies and functions for each SSID by
manager.
WPA2/WPA/ IEEE 802.1x support Powerful data security.
MAC address filtering in AP mode Ensuring secure network connection.
User isolation support (AP mode) Protecting the private network between client users.
Power-over-Ethernet (IEEE802.3af) Flexible Access Point locations and saving cost.
Keep personal setting Keeping the latest setting when firmware upgrade.
SNMP Remote Configuration Management Helping administrators to remotely configure or manage the Access
Point easily.
QoS (WMM) support Enhancing user performance and density.
1.2 Package Contents
The package contains the following items. In case of return, please keep the original box set, and the complete box set
must be included for full refund.
• EAP300
• 12V/1A 100V~240V Power Adapter
• RJ-45 Ethernet LAN Cable
• CD-ROM with User's Manual
• Quick Guide
6
1.3 System Requirements
The following are the minimum system requirements in order configure the device.
• Computer with an Ethernet interface or Wireless Network function.
• Windows, Mac OS or Linux based operating systems
• Internet Explorer or Firefox or Safari Web-Browser Software
1.4 Applications
The wireless LAN products are easy to install and highly efficient. The following list describes some of the many
applications made possible through the power and flexibility of wireless LANs:
a) Difficult-to-wire environments
There are many situations where wires cannot be laid easily. Historic buildings, older buildings, open areas
and across busy streets make the installation of LANs either impossible or very expensive.
b) Temporary workgroups
Consider situations in parks, athletic arenas, exhibition centers, disaster-recovery, temporary offices and
construction sites where one wants a temporary WLAN established and removed.
c) The ability to access real-time information
Doctors/nurses, point-of-sale employees, and warehouse workers can access real-time information while
dealing with patients, serving customers and processing information.
d) Frequently changed environments
Show rooms, meeting rooms, retail stores, and manufacturing sites where frequently rearrange the
workplace.
7
e) Small Office and Home Office (SOHO) networks
SOHO users need a cost-effective, easy and quick installation of a small network.
f) Wireless extensions to Ethernet networks
Network managers in dynamic environments can minimize the overhead caused by moves, extensions to
networks, and other changes with wireless LANs.
g) Wired LAN backup
Network managers implement wireless LANs to provide backup for mission-critical applications running on
wired networks.
h) Training/Educational facilities
Training sites at corporations and students at universities use wireless connectivity to ease access to
information, information exchanges, and learning.
8
2 Before you Begin
This section will guide you through the installation process. Placement of the ENGENIUS EAP300 is very important to
avoid poor signal reception and performance. Avoid placing the device in enclosed spaces such as a closet, cabinet or
wardrobe.
2.1 Considerations for Wireless Installation
The operating distance of all wireless devices cannot be pre-determined due to a number of unknown obstacles in the
environment that the device is deployed. These could be the number, thickness and location of walls, ceilings or other
objects that the wireless signals must pass through. Here are some key guidelines to ensure that you have the optimal
wireless range.
• Keep the number of walls and ceilings between the EnGenius access point and other network devices to a minimum.
Each wall or ceiling can reduce the signal strength; the degradation depends on the building’s material.
• Building materials makes a difference. A solid metal door or aluminum stubs may have a significant negative effect on
range. Locate your wireless devices carefully so the signal can pass through a drywall or open doorways. Materials such
as glass, steel, metal, concrete, water (fish tanks), mirrors, file cabinets and brick will also degrade your wireless signal.
• Interferences can also come from your other electrical devices or appliances that generate RF noise. The most usual
types are microwaves, or cordless phones.
9
2.2 Computer Settings (Windows XP/Windows 7)
This device can be configured as an Access Point, WDS AP or WDS Bridge. The default IP address of the device is
192.168.1.1 (In Access Point Mode as default). In order to log into this device, you must first configure the TCP/IP
settings of your PC/Notebook.

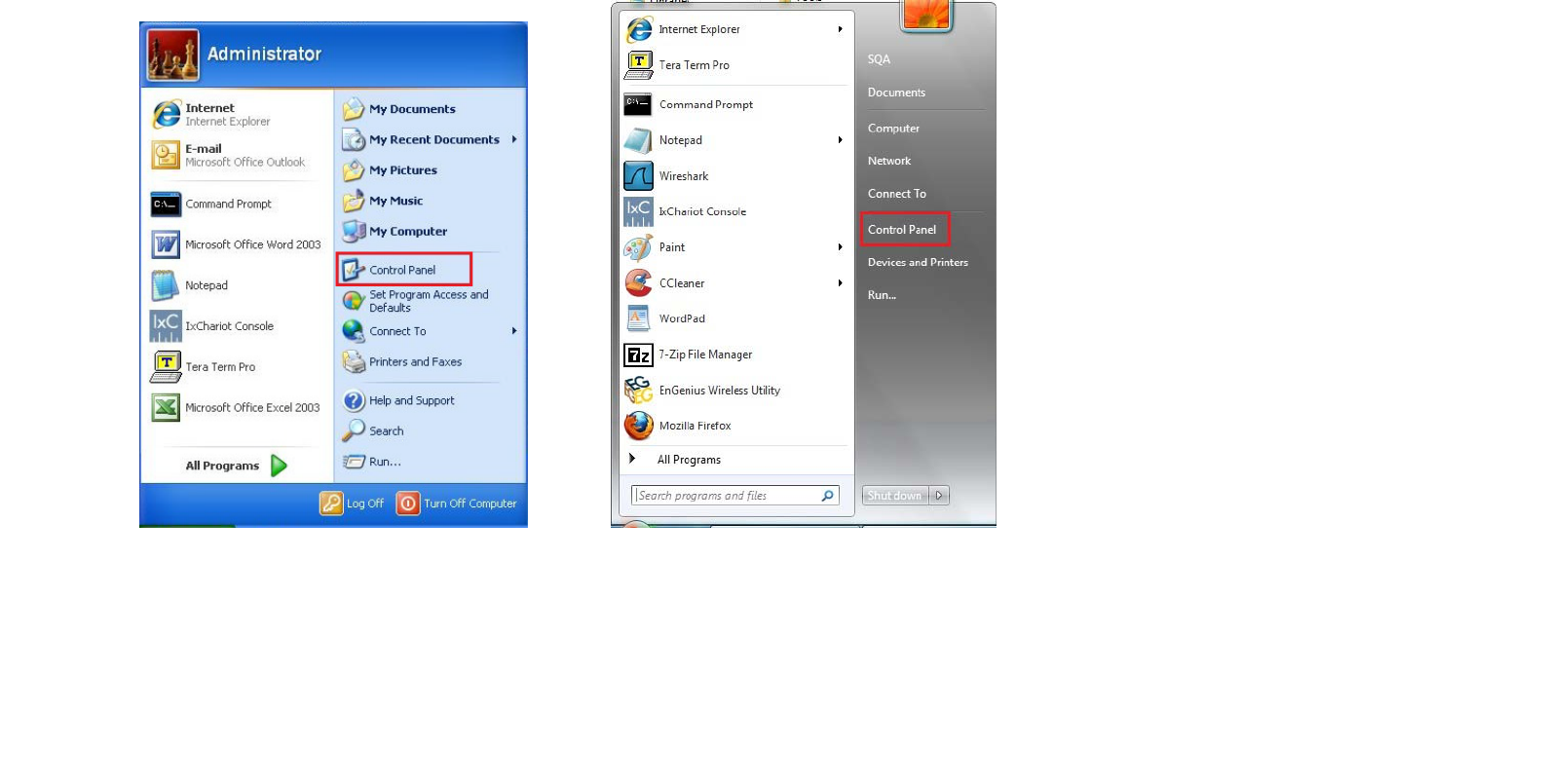

• Click Start button and open Control Panel.
Windows XP Windows 7
10

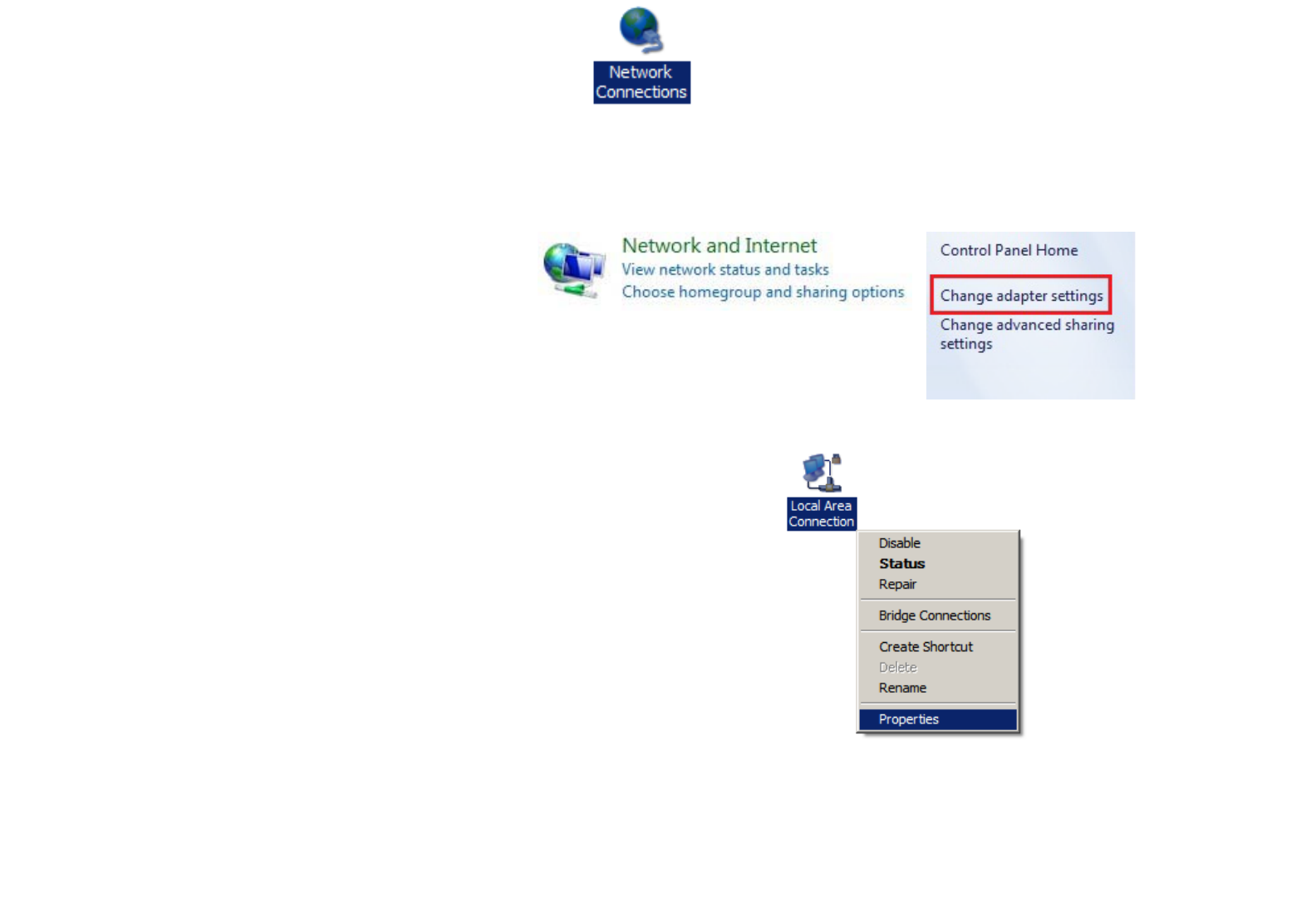

• Windows XP, click [Network Connection]
• Windows 7, click [View Network Status and Tasks] then [Change adapter settings]
• Right click on [Local Area Connection] and select [Properties].
11

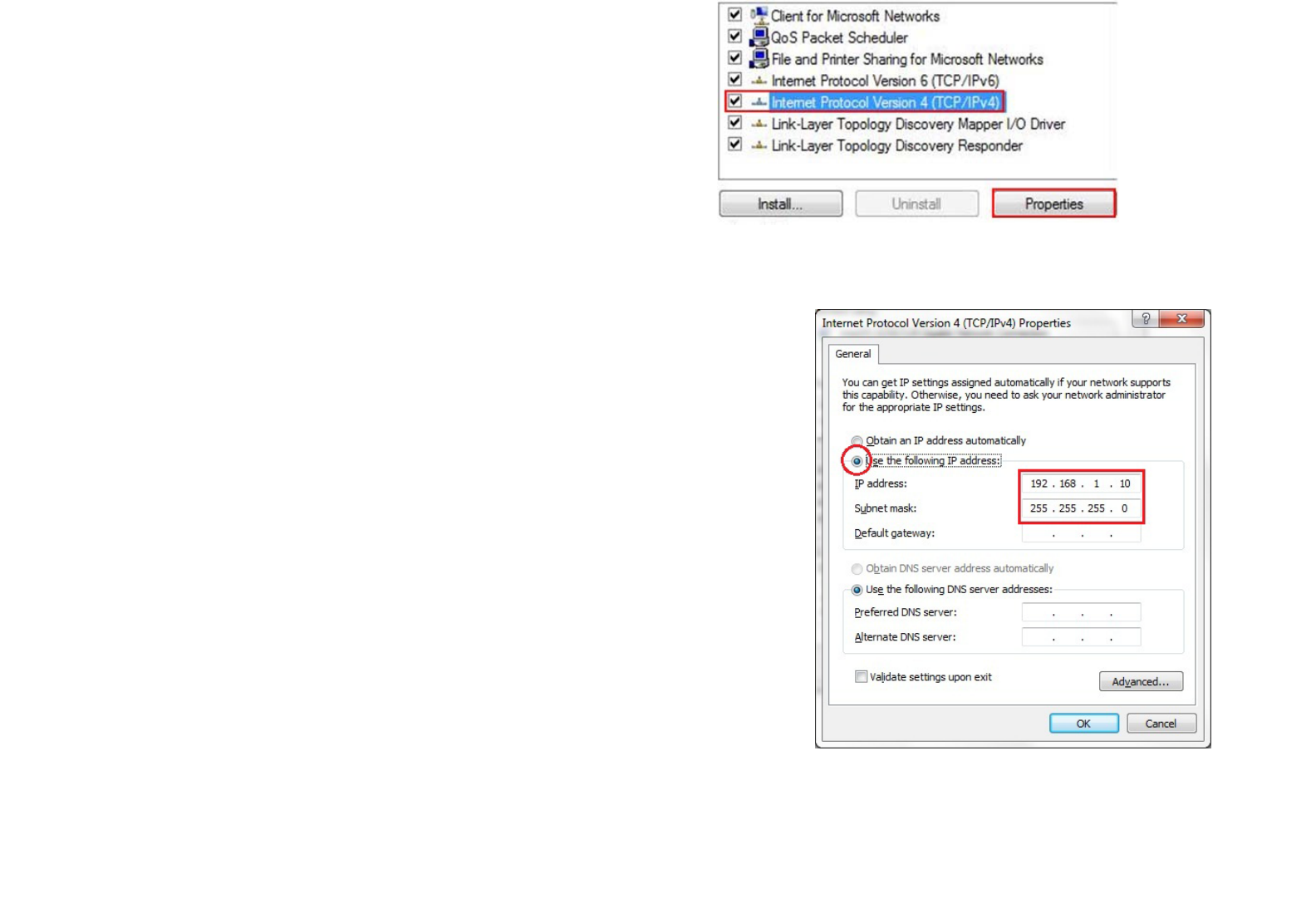

• Select “Internet Protocol (TCP/IP)” and click [Properties]
• Select “Use the following IP address” and enter IP address and subnet
mask then click [OK].
Note: Ensure that the IP address and subnet mask are on the same subnet as
the device.
For example: Device IP address: 192.168.1.1
PC IP address: 192.168.1.10
PC subnet mask: 255.255.255.0
12
2.3 Apple Mac X OS

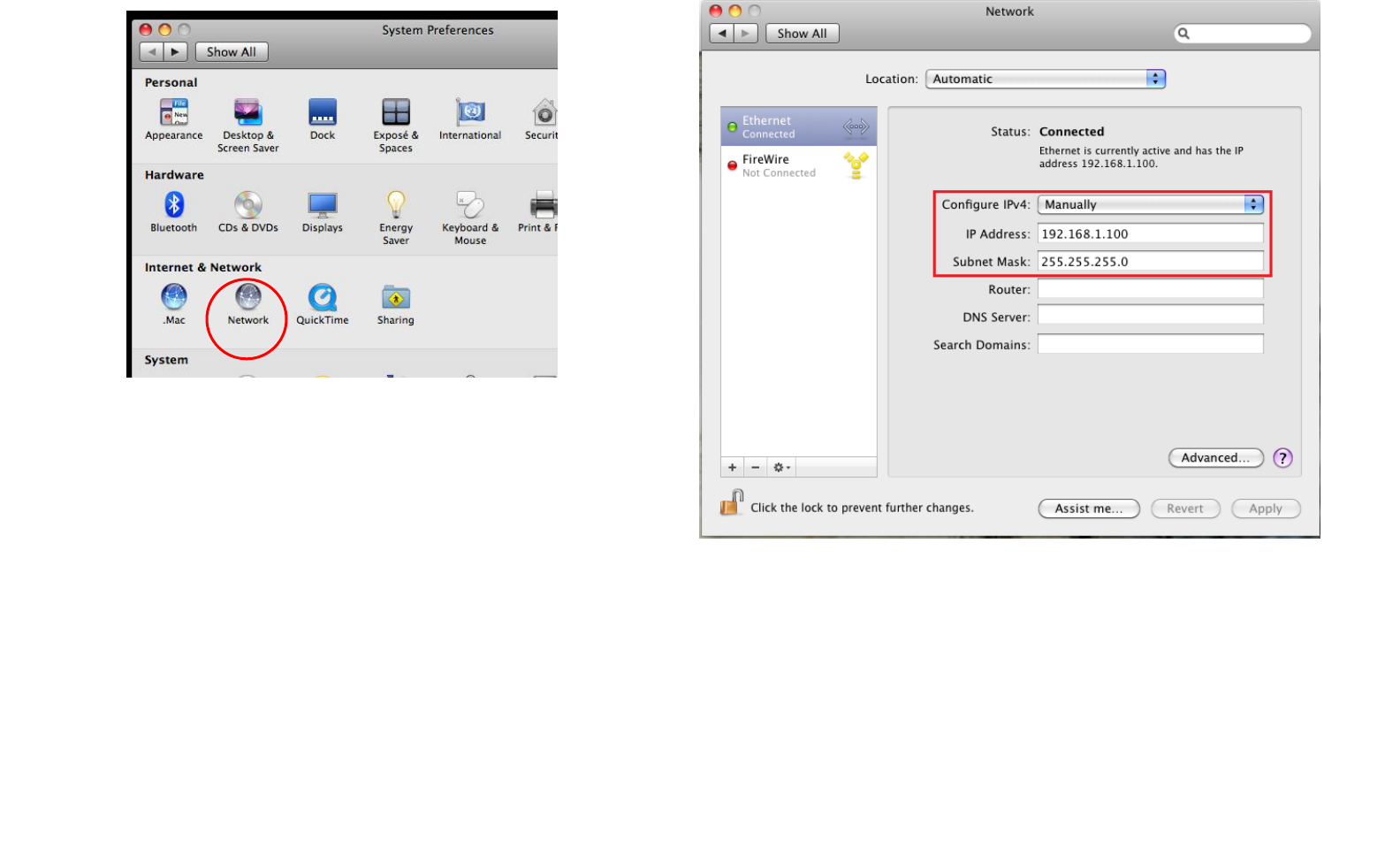

• Go to System Preferences > Network
• Under Network setting, select “Manually” and enter IP
address and subnet mask.
• Click Apply when done.
13
2.4 Hardware Installation
1. Place the unit in an appropriate location after conducting a site survey.
2. Plug one end of the Ethernet cable into the Ethernet port of the device and another end into your PC/Notebook.
3. Insert the DC-inlet of the power adapter into the port labeled “DC-IN” and the other end into the power socket on
the wall.

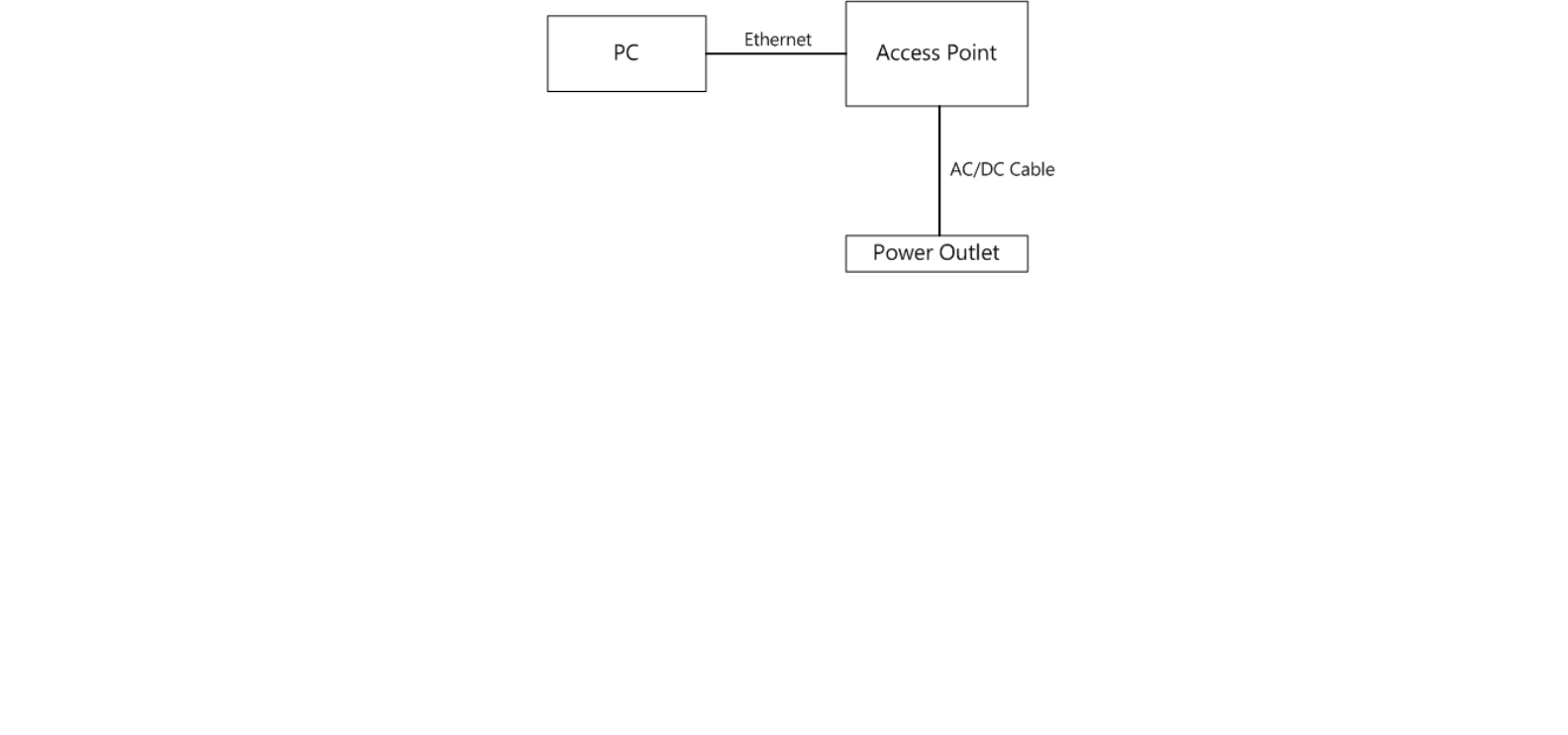

This diagram depicts the hardware configuration.
14
3 Configuring Your Access Point
This section will show you how to configure the device using the web-based configuration interface.
3.1 Default Settings
Please use your Ethernet port or wireless network adapter to connect the Access Point.
Default Settings
IP Address 192.168.1.1
Username / Password admin / admin
Operation Mode Access Point
Wireless SSID EnGeniusxxxxxx
Wireless Security None
Note: xxxxxx represented in the wireless SSID above is the last 6 characters of your device MAC Address. This can be found on the device body
label and is unique for each device.
15
3.2 Web Configuration

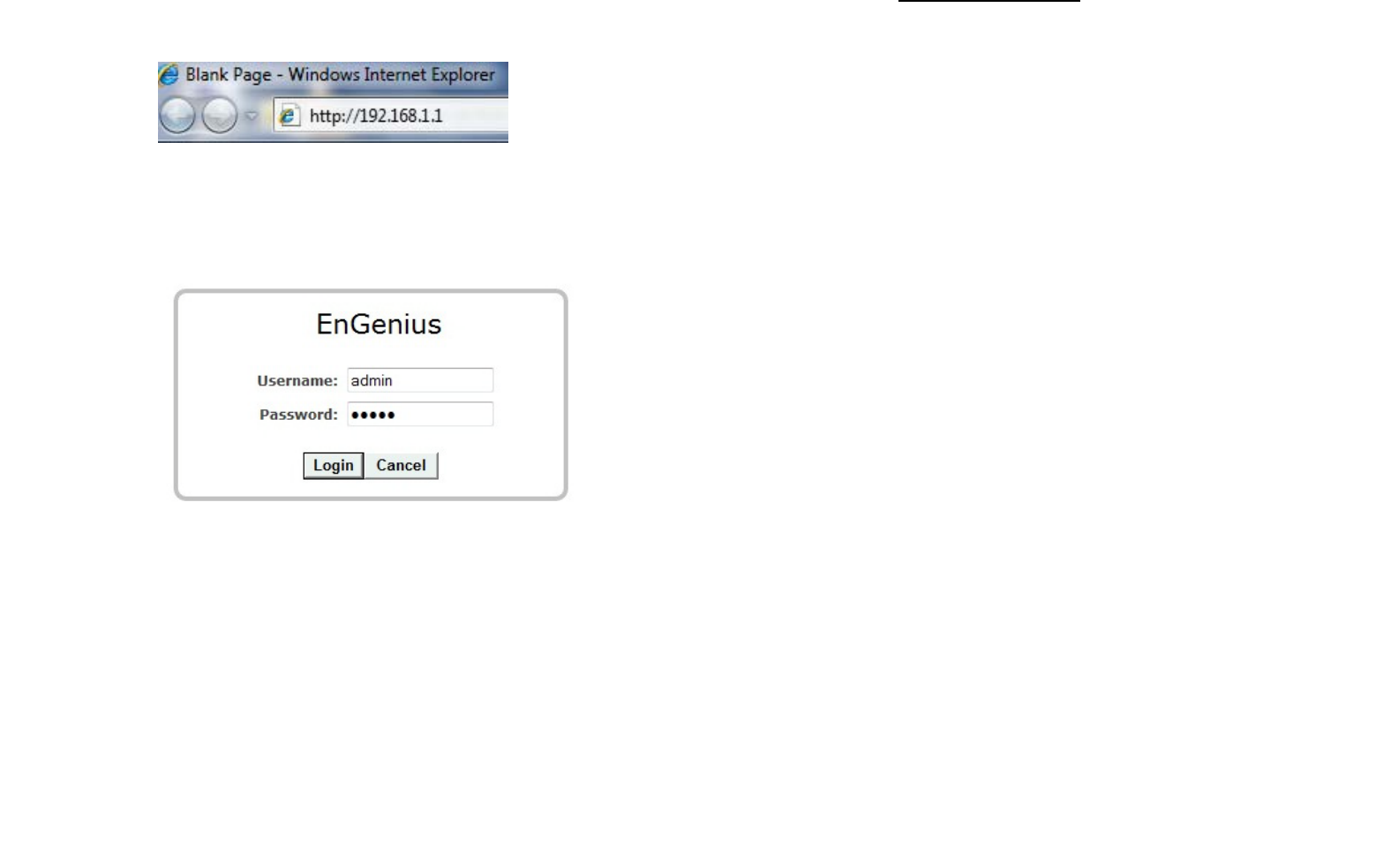

• Open a web browser (Internet Explorer/Firefox/Safari) and enter the IP Address
Note: If you have changed the default LAN IP Address of the Access Point, ensure you enter the correct IP Address.
http://192.168.1.1

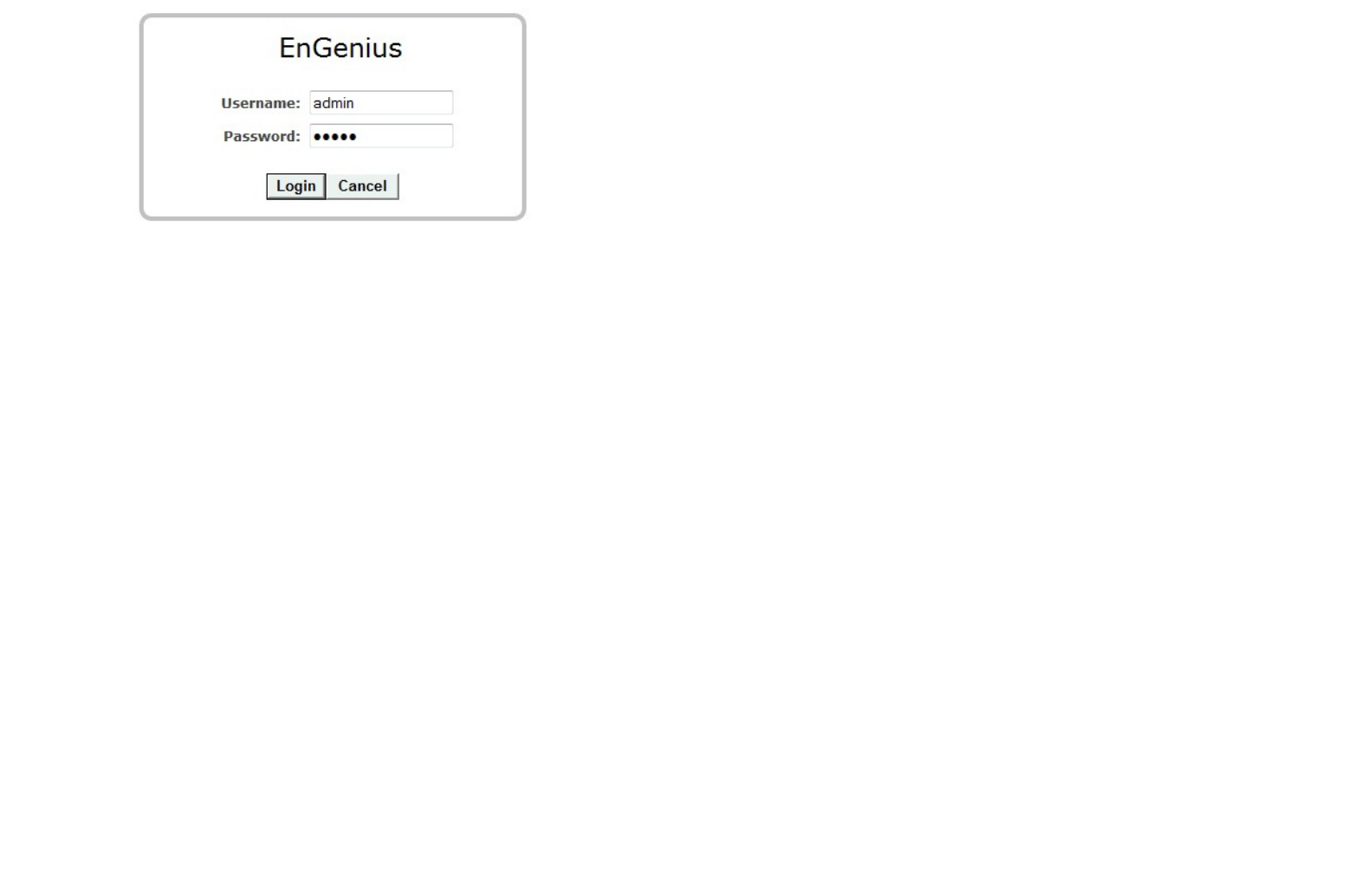

• The default username and password are admin. Once you have entered the correct username and password, click the
Login button to open the web-base configuration page.
16

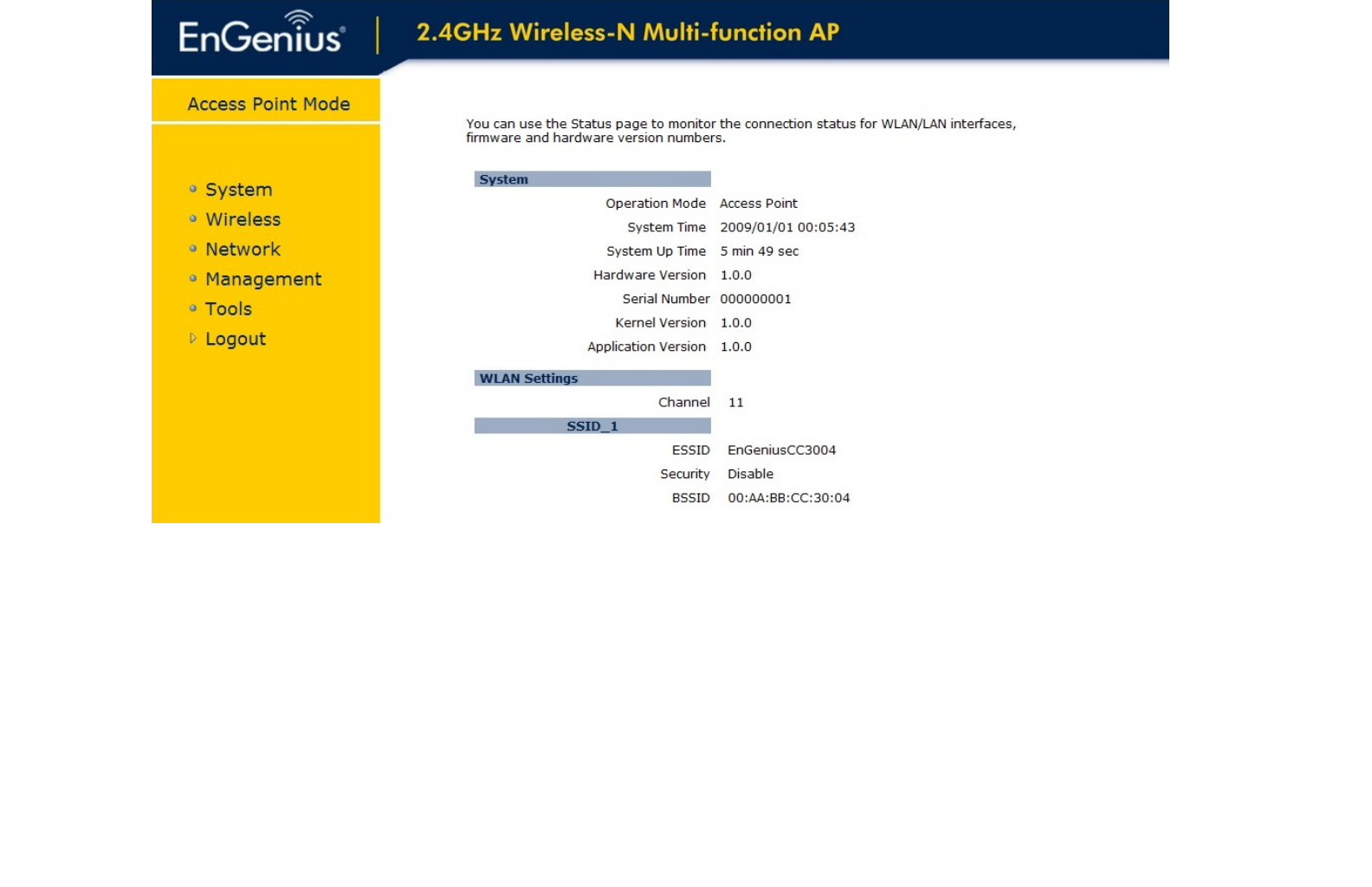

• You will see the following webpage if login successfully.
17
• The navigation drop-down menu on left is divided into seven main sections:
1. System: This menu includes the operation mode, status, DHCP, schedule, event log, and monitor. Through this
section, you can also change the device operating mode, such as Access Point, WDS AP or WDS Bridge.
2. Wireless: This menu includes status, basic, advanced, security, filter, client list and VLAN.
3. Network: This menu includes status, LAN and spanning tree.
4. Management: This menu includes the admin setup, SNMP, firmware upgrade, save/restore backup and device
reset.
5. Tools: Displays the time zone, diagnostics and LED control.
6. Logout: To logout the system. Need to open up a new browser window in order to login again.
18
4 System
4.1 Operation Mode

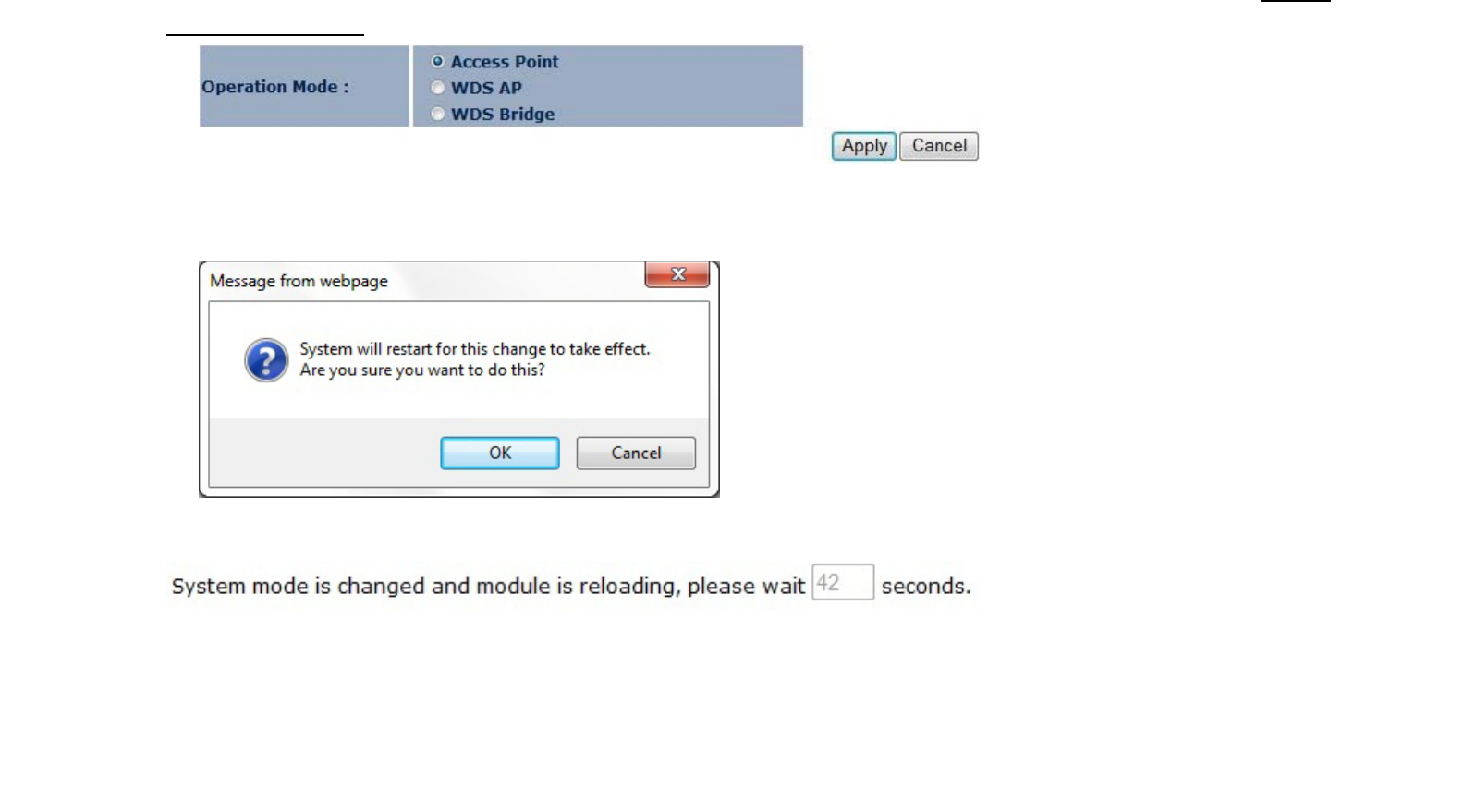

Each of the operating modes offers different features. In order to switch the operating mode, select it from the System
>> Operation Mode. There are three operation modes: Access Point, WDS AP and WDS Bridge.
A dialog box will appear to notify you that the system will restart in order for the change to take effect. Click on the OK
button to continue.
Please wait while the device counts down and restarts into the new operating mode.
19
4.2 Status

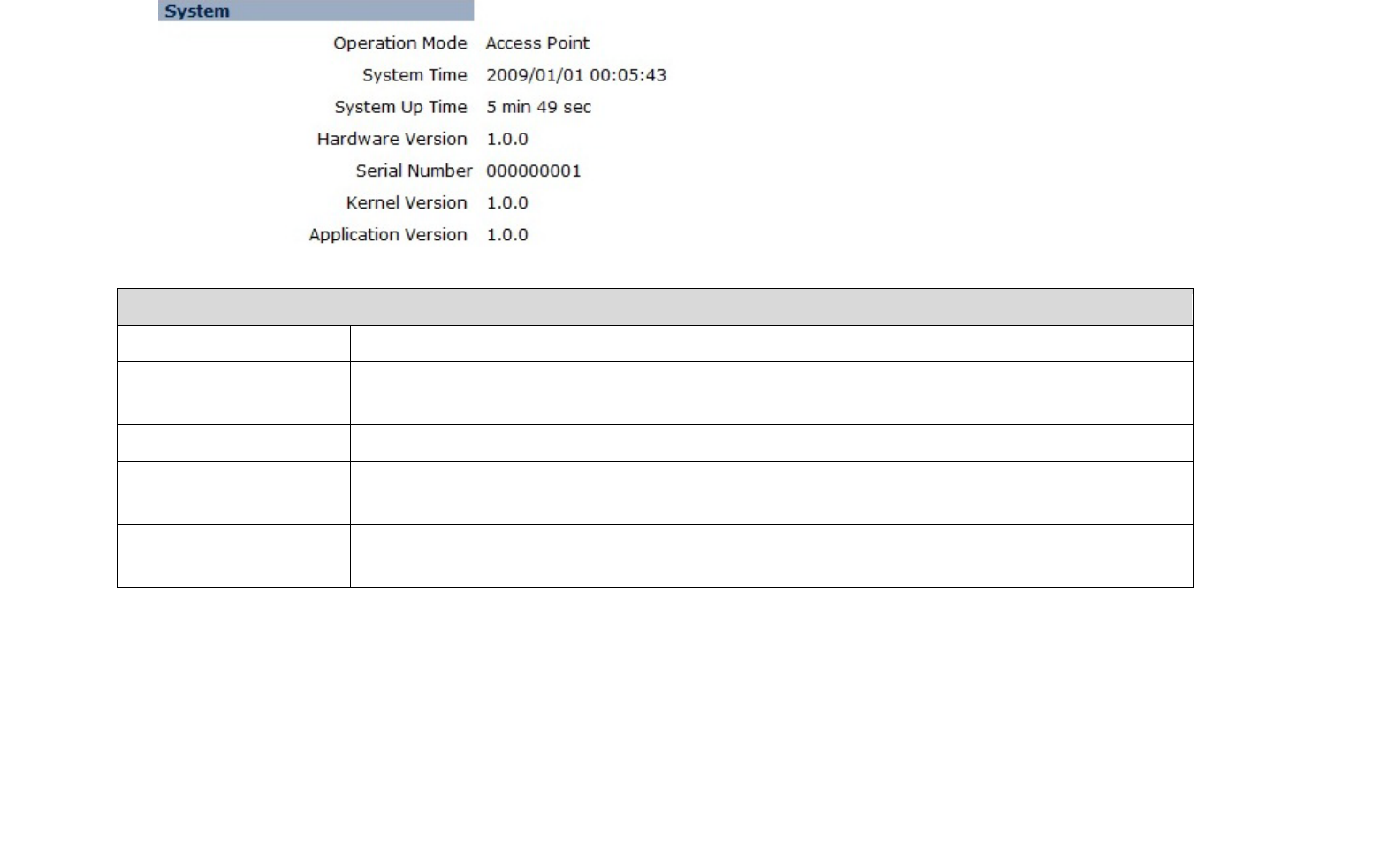

This page will display status of the device.
System
Operation Mode
The device is currently in which mode.
System Time The device’s system time.
If this is incorrect, please set the time in the Tools / Time page.
System Up Time The duration about the device has been operating without powering down or reboot.
Hardware Version and
Serial Number
Hardware information for this device.
Kernel and Application
Version
Firmware information for this device.
20

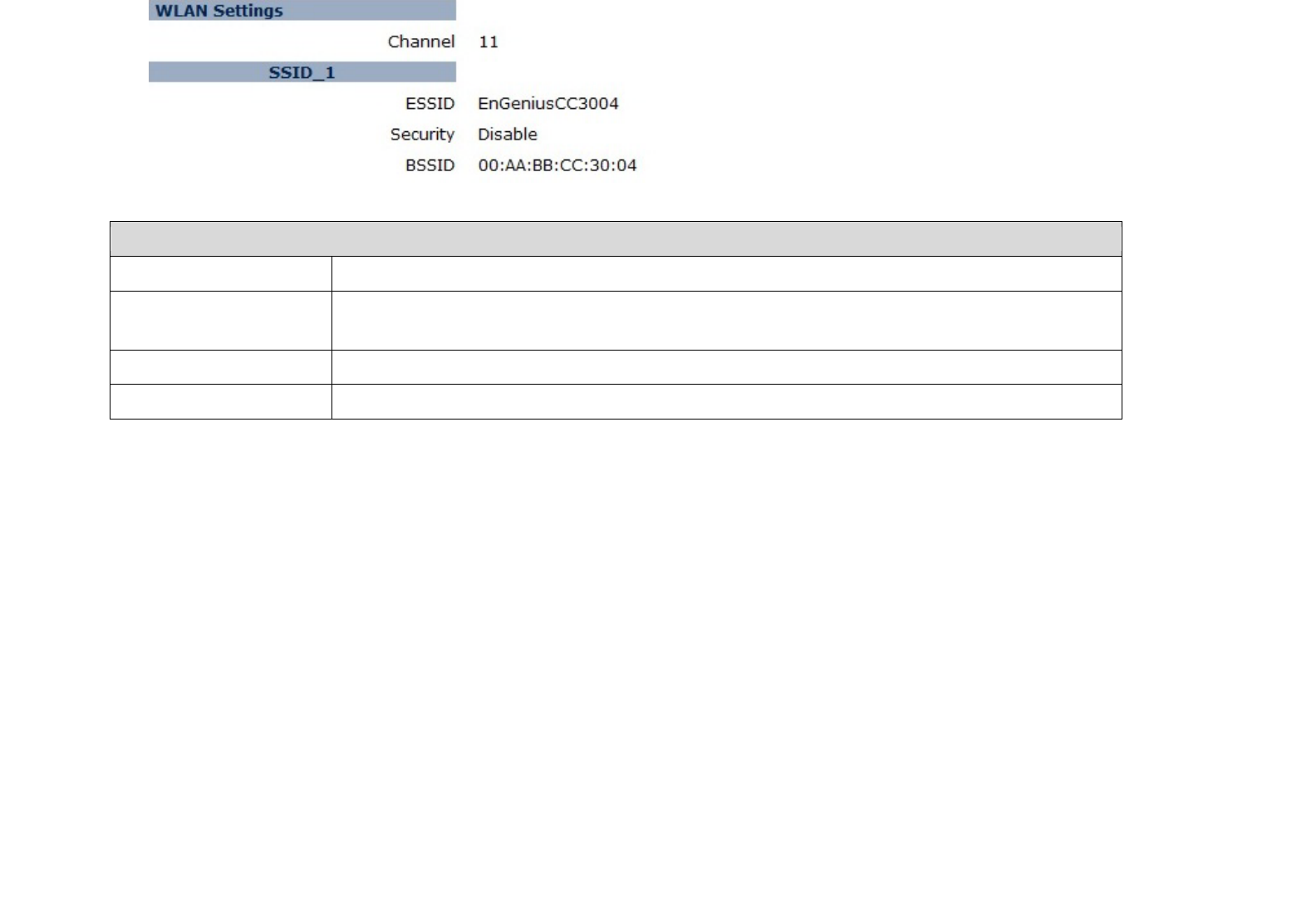

WLAN Settings
Channel The wireless channel in use.
ESSID The SSID (Network Name) of the wireless network.
(up to 4 SSIDs are supported)
Security Wireless encryption is enabled for this SSID.
BSSID
The MAC address of this SSID.
21
4.3 DHCP

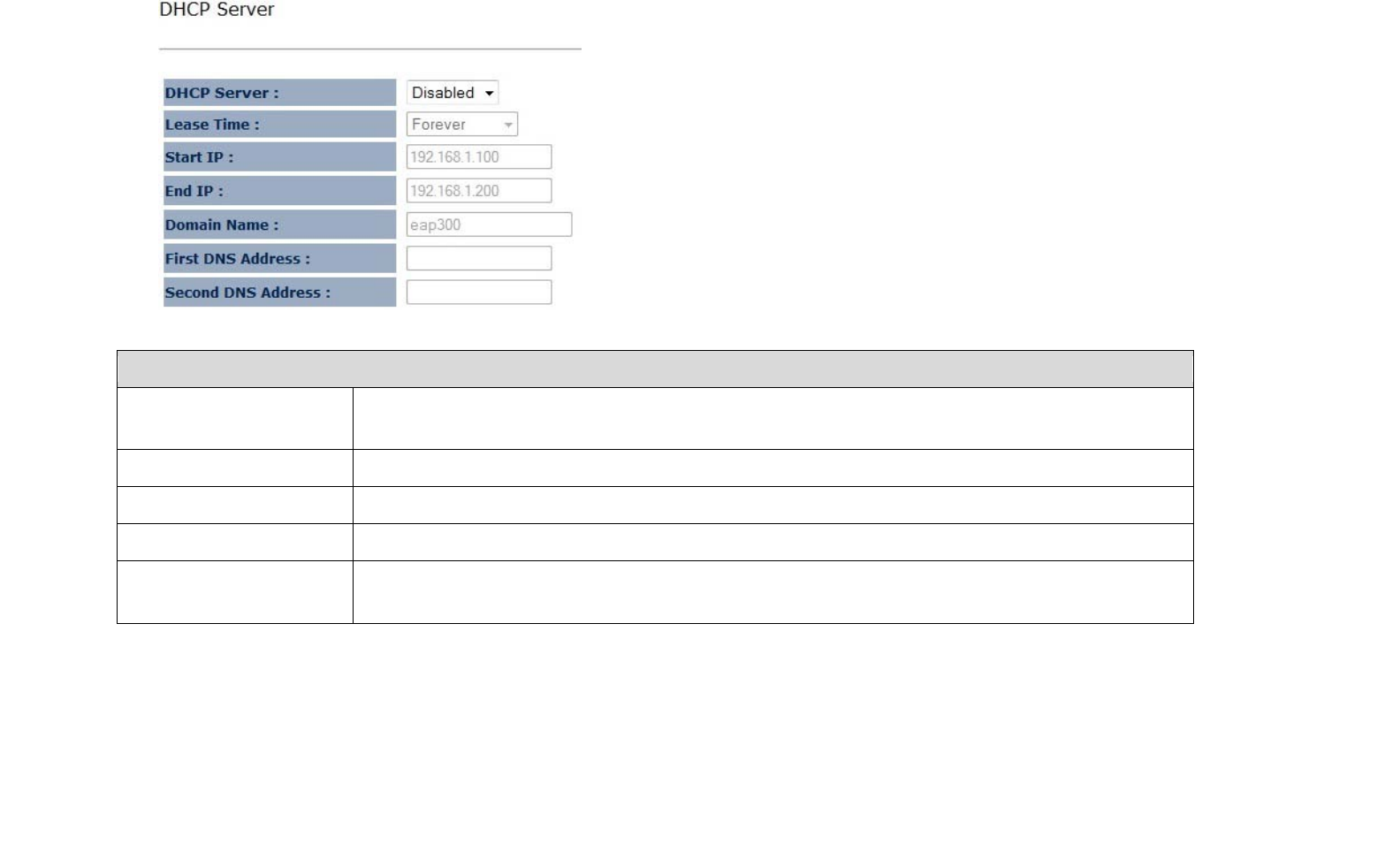

This page shows the status of the DHCP server and also allows you to control how the IP addresses are allocated.
Note: Only in Access Point mode.
22

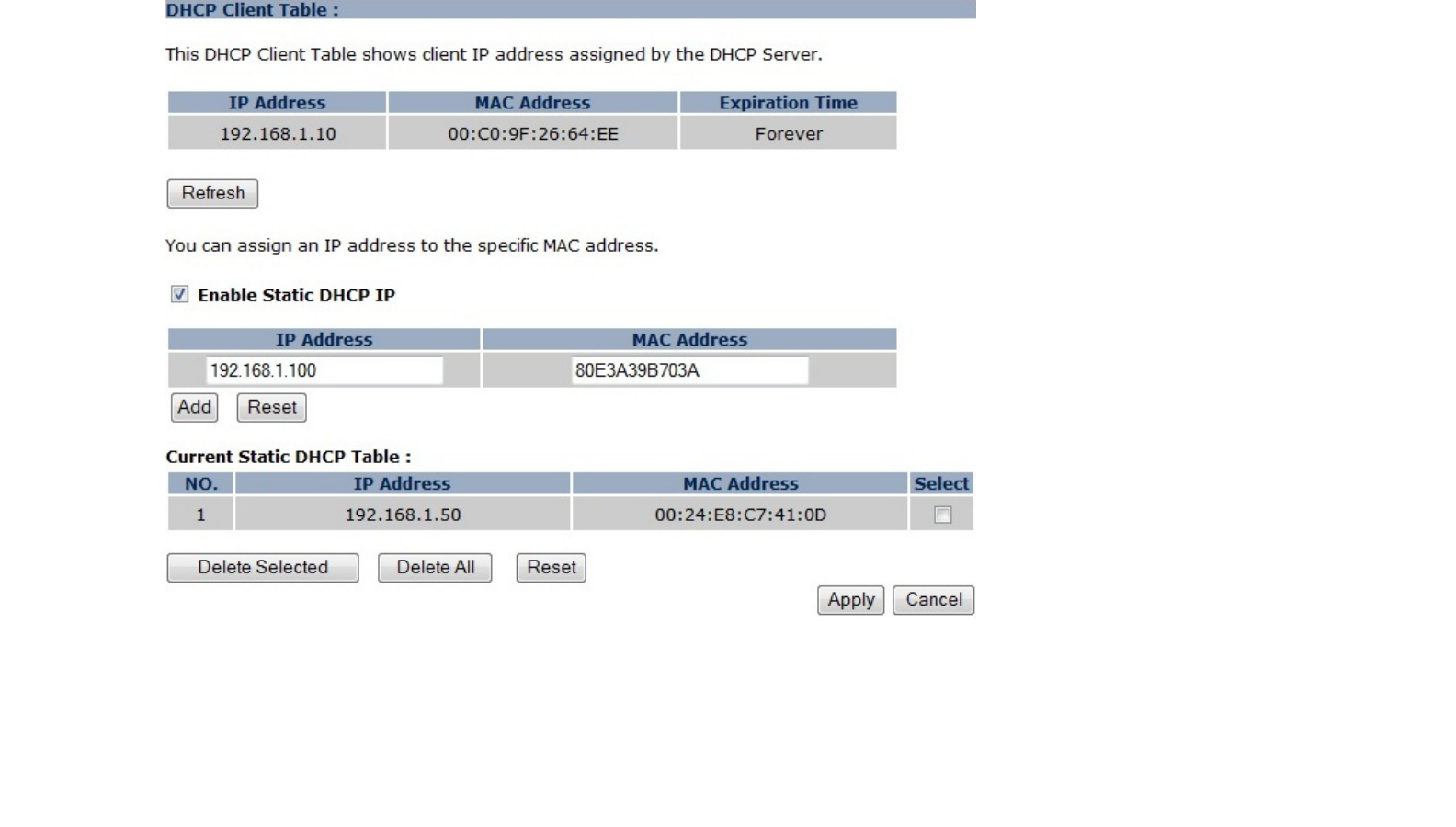

The DHCP Client Table shows the LAN clients that have been allocated an IP address from the DHCP Server.

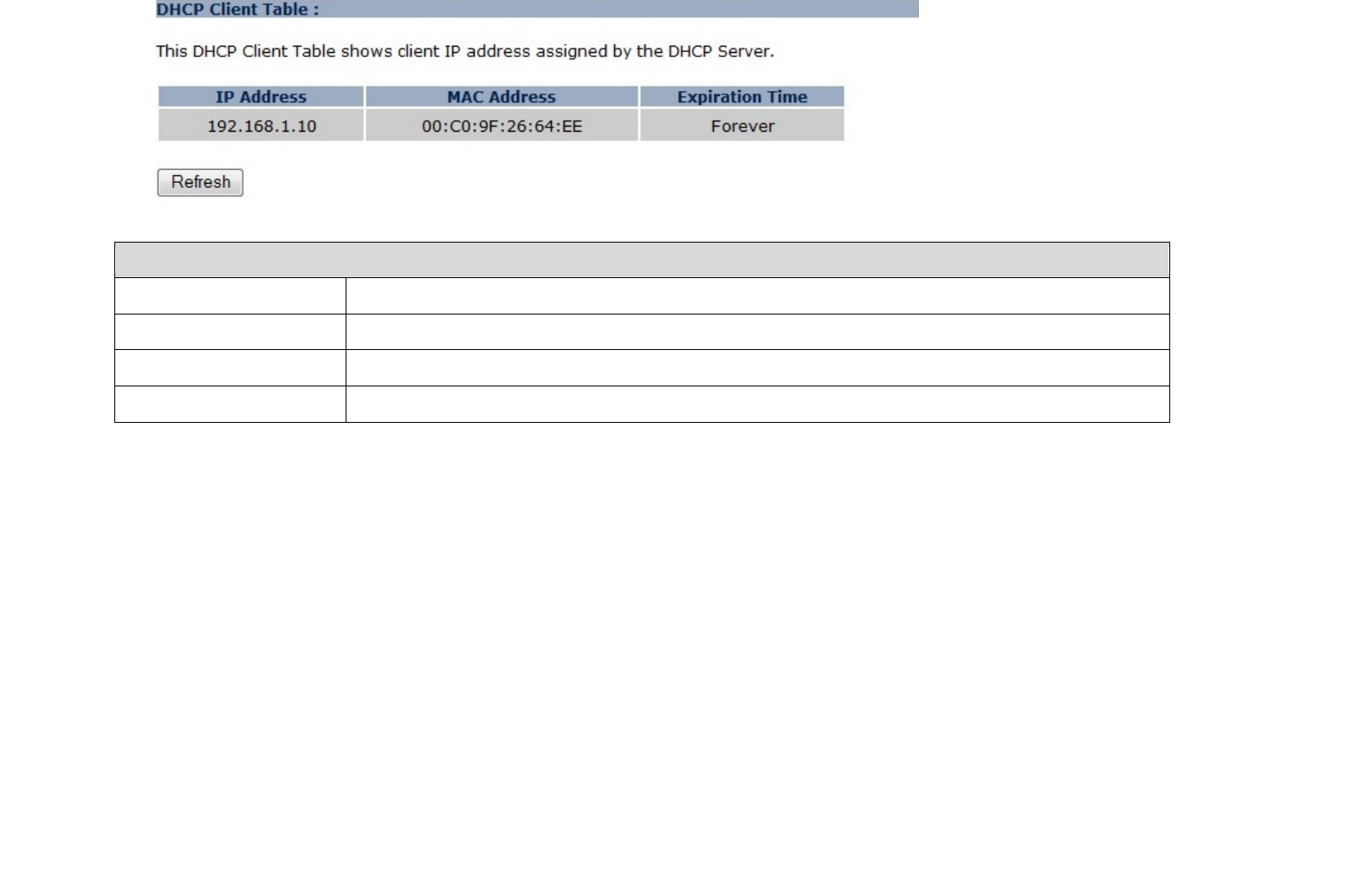

DHCP Client Table
IP address
The LAN IP address of the client.
MAC address The MAC address of the client’s LAN interface.
Expiration Time The time that the allocated IP address will expire.
Refresh Click this button to update the DHCP Client Table.
23

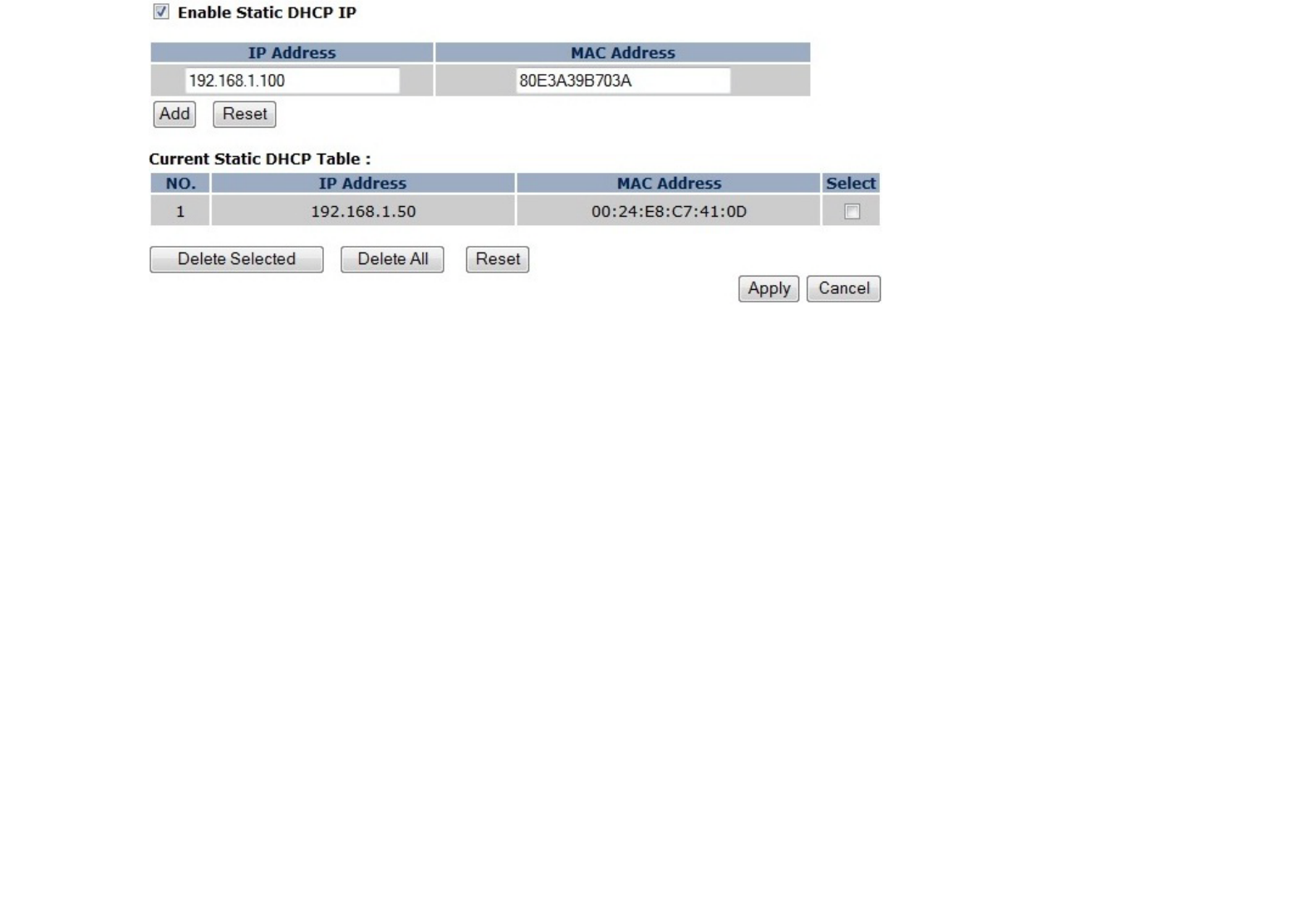

You can also manually specify the IP address that will be allocated to a LAN client by associating the IP address with its
MAC address.
Type the IP address you would like to manually assign to a specific MAC address and click Add to add the condition to
the Static DHCP Table.
24
4.4 Schedule

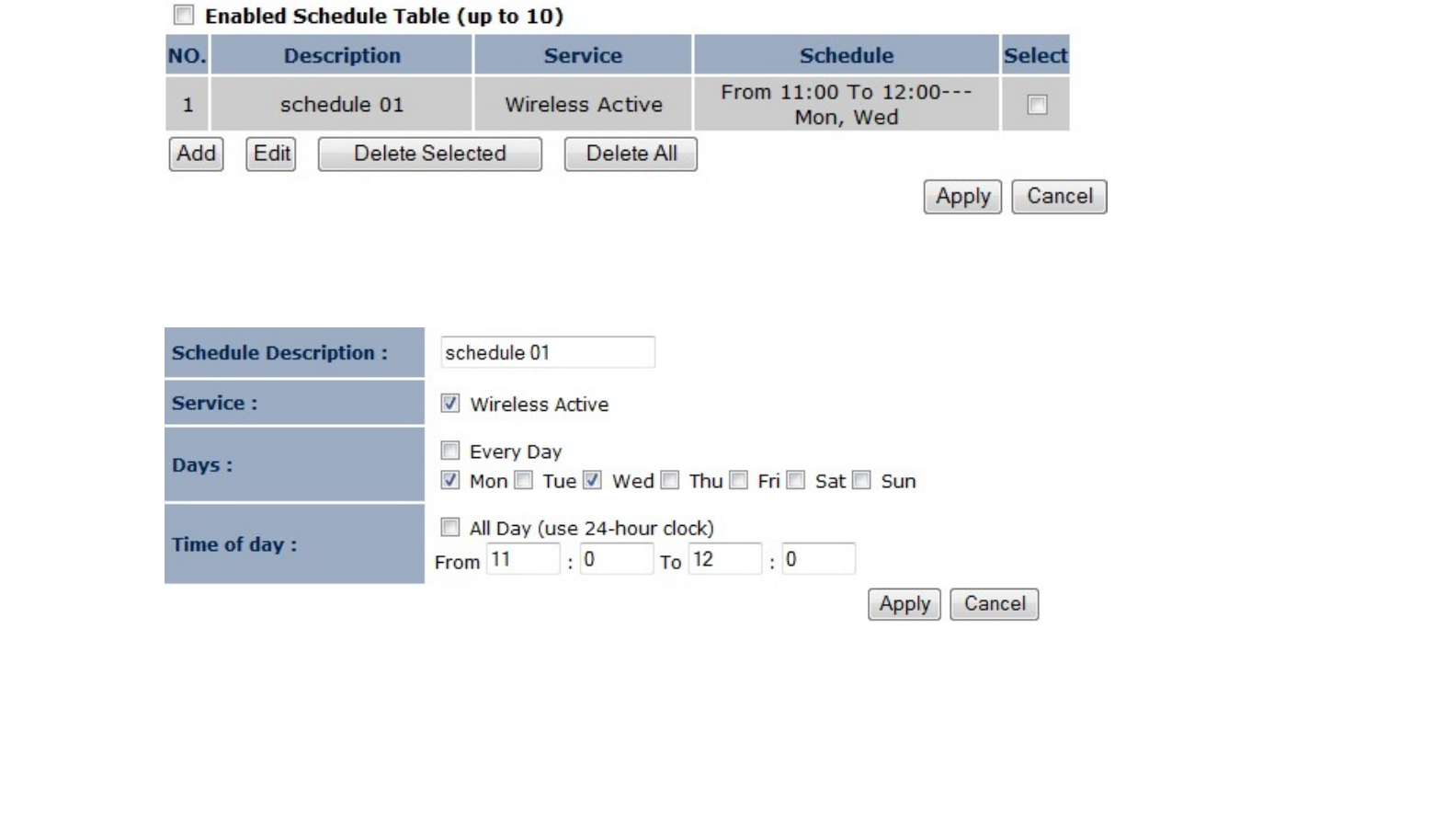

This page allows you to setup the schedule times that the Wireless Active feature will be activated / deactivated.
Click Add to create a Schedule entry.
25
Schedule
Schedule Description
Assign a name to the schedule.
Service
The service provides for the schedule.
Days Define the Days to activate or deactivate the schedule.
Time of day Define the Time of day to activate or deactivated the schedule.
Please use 24-hour clock format.
26

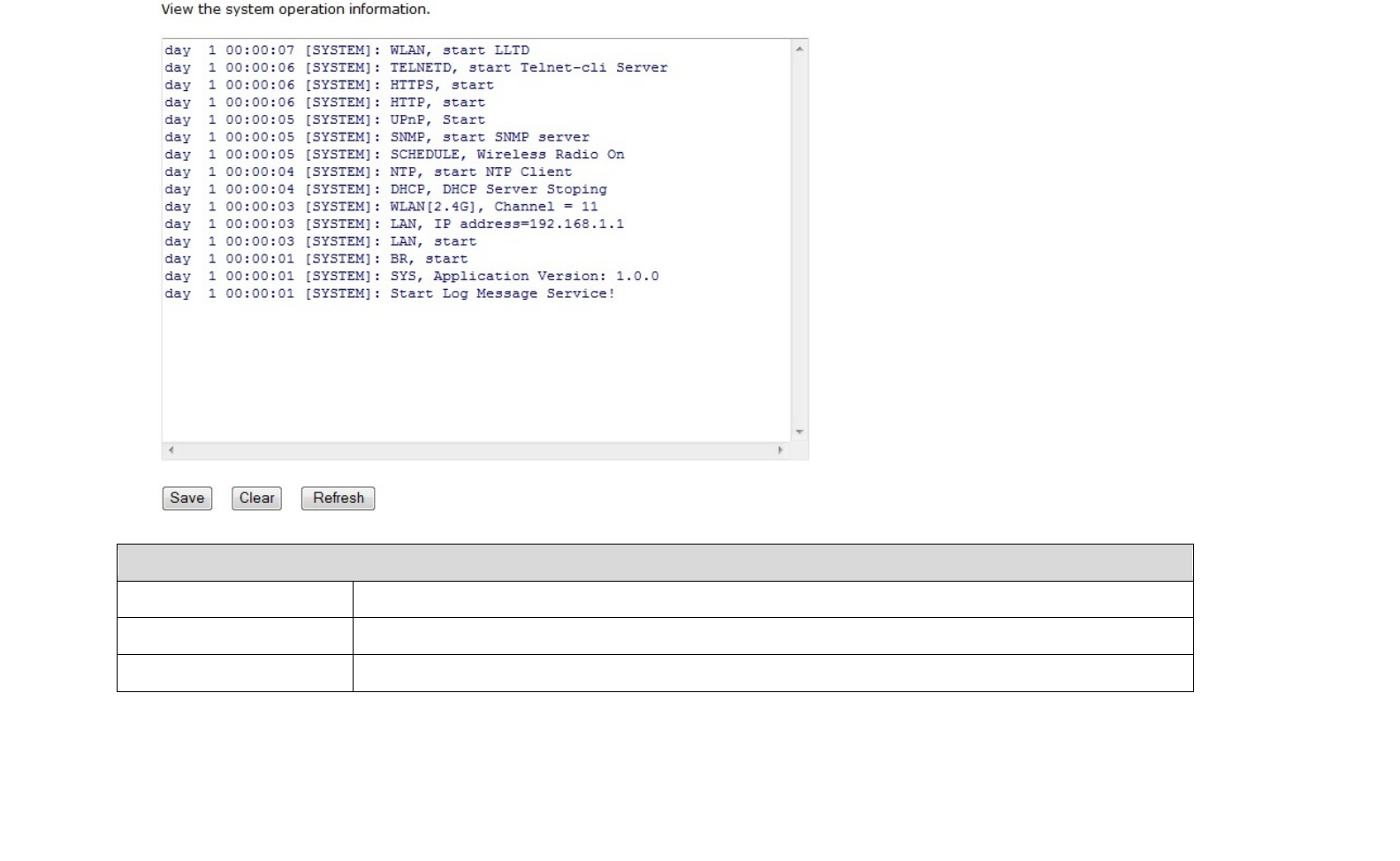

4.5 Event Log
This page displays the system log of the device. When powered down or rebooted, the log will be cleared.
Event Log
Save Save the log to a file.
Clear Clear the log.
Refresh
Update the log.
27
4.6 Monitor

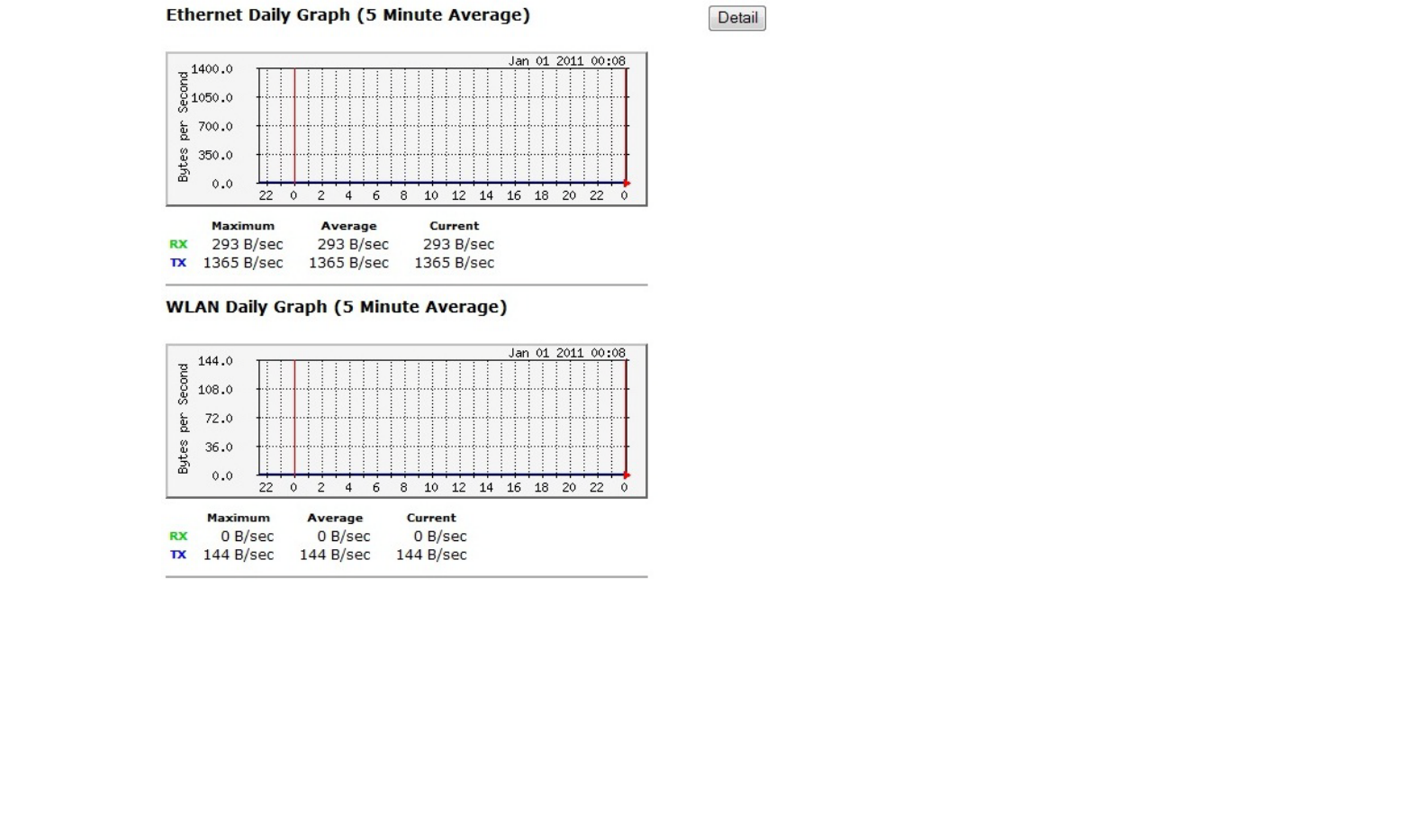

This page shows a histogram of the Ethernet and Wireless LAN traffic. Click on [Detail] to get the detail information.
28
5 Wireless
5.1 Status

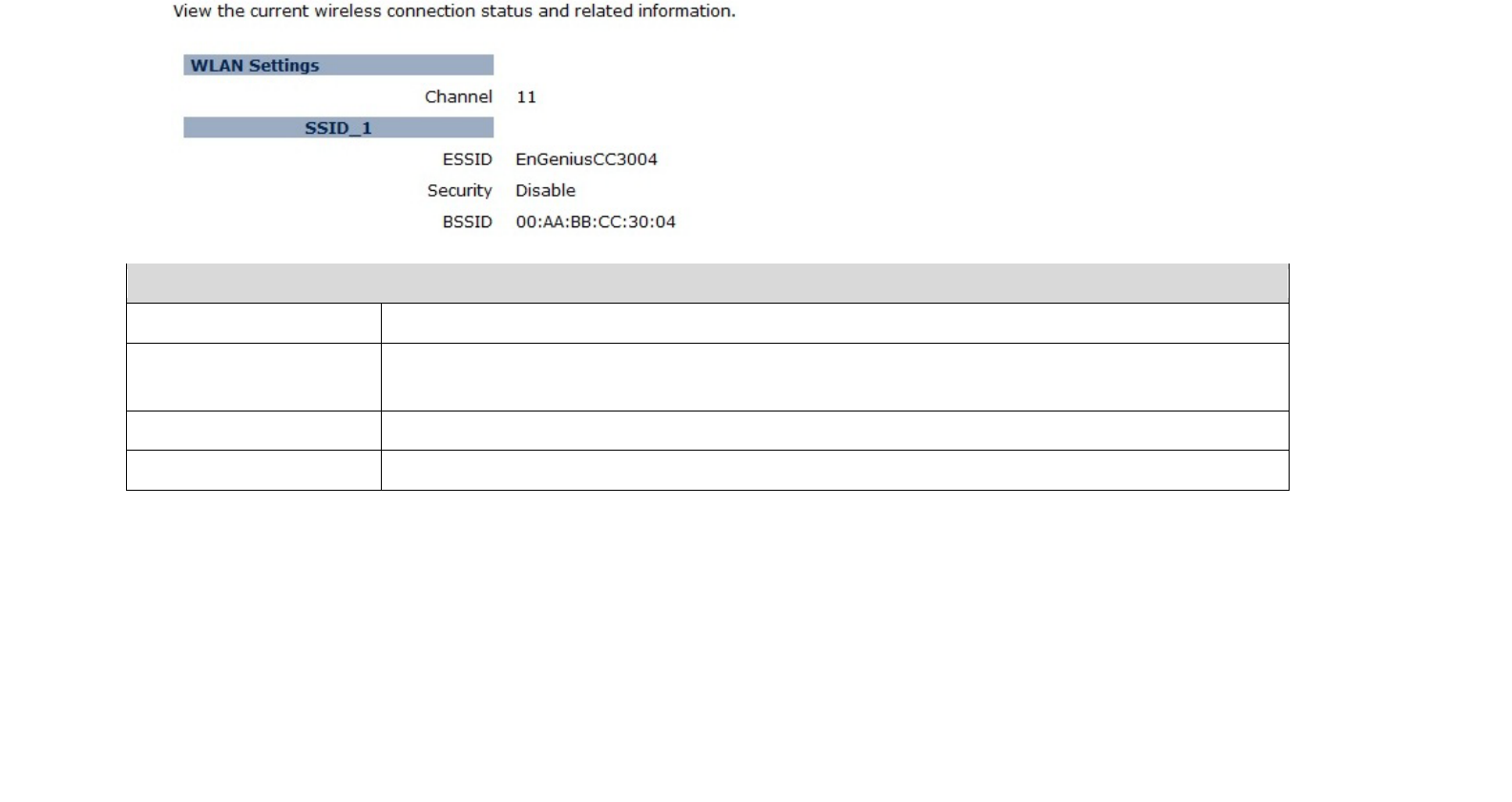

This page shows the current status of the device's Wireless settings.
WLAN Settings
Channel The wireless channel in use.
ESSID The SSID (Network Name) of the wireless network.
(up to 4 SSIDs are supported)
Security
Wireless encryption is enabled for this SSID.
BSSID
The MAC address of this SSID.
29

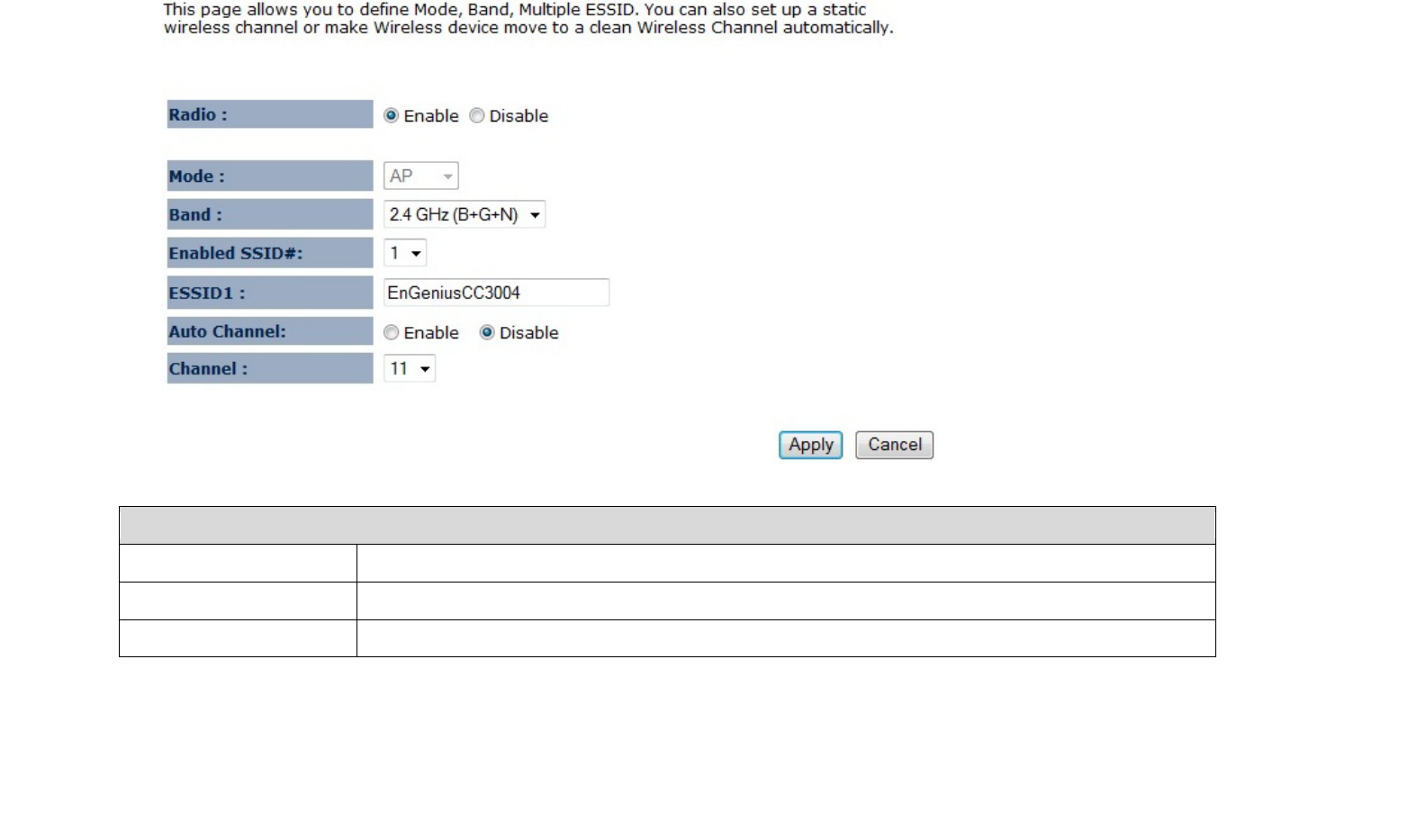

5.2 Basic
This page shows the current status of the device's Wireless settings.
Basic
Radio Enable or Disable the device’s wireless signal.
Mode Select between Access Point or Wireless Distribution System (WDS) modes.
Band Select the types of wireless clients that the device will accept.
30
Enable SSID# Select the number of SSID’s (Wireless Network names) you would like.
You can create up to 4 separate wireless networks.
SSID# Enter the name of your wireless network. You can use up to 32 characters.
Auto Channel
When enabled, the device will scan the wireless signals around your area and select the channel
with the least interference.
Channel Manually select which channel the wireless signal will use.
Check Channel Time When Auto Channel is Enabled, you can specify the period of the device will scan the wireless
signals around your area.

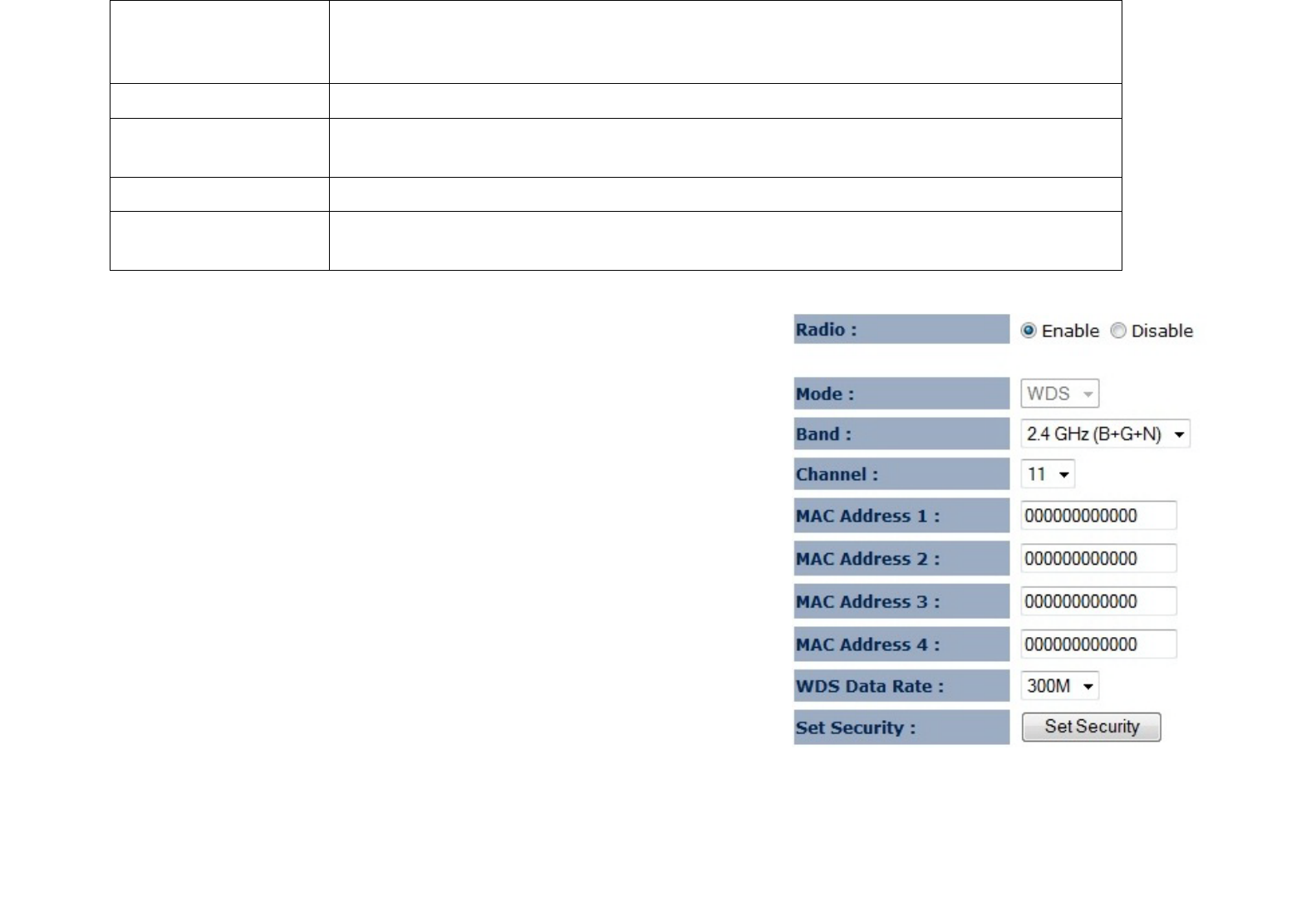

Wireless Distribution System (WDS)
Using WDS to connect Access Point wirelessly, and in doing so extend a
wired infrastructure to locations where cabling is not possible or
inefficient to implement.
Note that compatibility between different brands and models is not
guaranteed. It is recommended that the WDS network be created using
the same models for maximum compatibility.
Also note that all Access Points in the WDS network needs to use the
same Channel and Security settings.
To create a WDS network, please enter the MAC addresses of the Access
Points that you want included in the WDS. There can be a maximum of
four access points.
31
5.3 Advanced

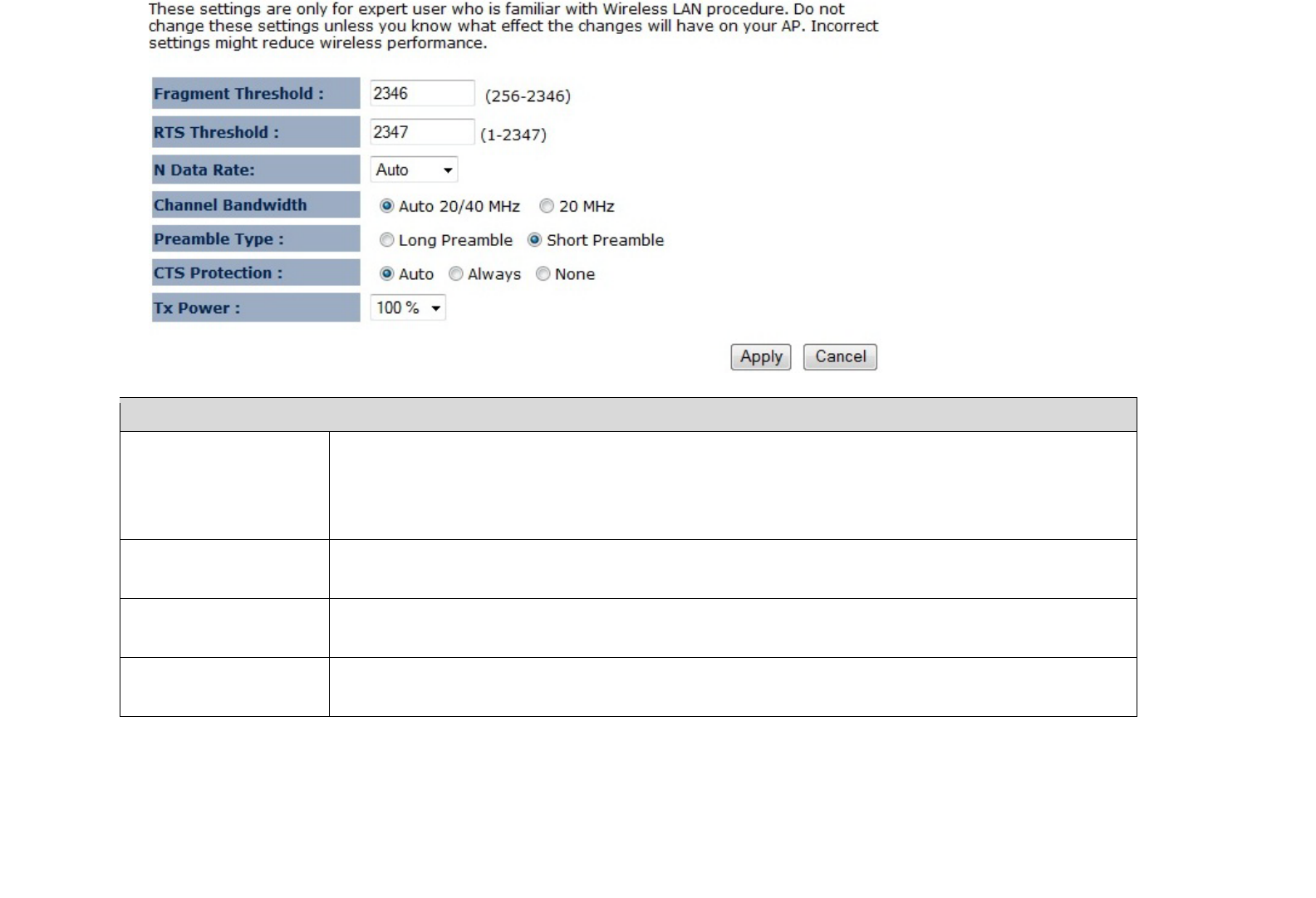

This page allows you to configure wireless advance settings. It is recommended the default settings are used unless the
user has experience with these functions.
Advanced (Access Point / WDS AP mode)

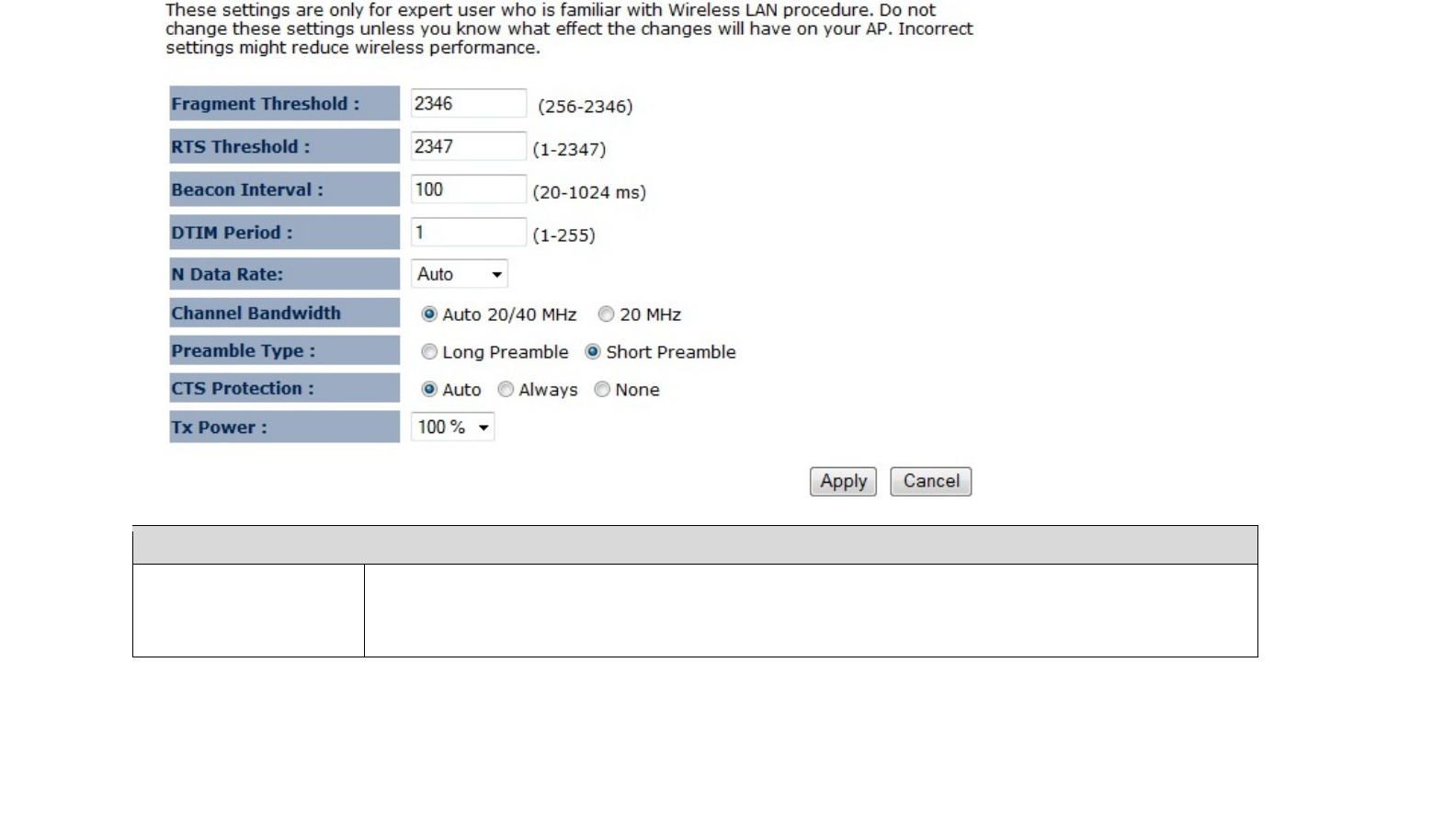

Fragment Threshold Specifies the size of the packet per fragment. This function can reduce the chance of packet
collision.
However when this value is set too low, there will be increased overheads resulting in poor
32
performance.
RTS Threshold
When the packet size is smaller than the RTS Threshold, then the packet will be sent without
RTS/CTS handshake which may result in incorrect transmission.
Beacon Interval The time interval that the device broadcasts a beacon. This beacon is used to synchronize all
wireless clients on the network.
DTIM Period
A Delivery Traffic Indication Message informs all wireless clients that the access point will be
sending Multi-casted data.
N Data Rate You can limit the transfer rates between the device and wireless clients. Each Modulation Coding
Scheme (MCS) refers to a specific transfer speed.
Channel Bandwidth
Set whether each channel uses 20 or 40Mhz.
To achieve 11n speeds, 40Mhz channels must be used.
Preamble Type A preamble is a message that helps access points synchronize with the client.
Long Preamble is standard based so increases compatibility.
Short Preamble is non-standard, so it decreases compatibility but increases performance.
Tx Power
Set the power output of the wireless signal.
33
Advanced (WDS Bridge mode)
Fragment Threshold Specifies the size of the packet per fragment. This function can reduce the chance of packet
collision.
However when this value is set too low, there will be increased overheads resulting in poor
performance.
RTS Threshold When the packet size is smaller than the RTS Threshold, then the packet will be sent without
RTS/CTS handshake which may result in incorrect transmission.
N Data Rate You can limit the transfer rates between the device and wireless clients. Each Modulation Coding
Scheme (MCS) refers to a specific transfer speed.
Channel Bandwidth Set whether each channel uses 20 or 40Mhz.
To achieve 11n speeds, 40Mhz channels must be used.
34
Preamble Type A preamble is a message that helps access points synchronize with the client.
Long Preamble is standard based so increases compatibility.
Short Preamble is non-standard, so it decreases compatibility but increases performance.
Tx Power Set the power output of the wireless signal.
35
5.4 Security
This page allows you to set the wireless security settings.
Note: Only in Access Point and WDS AP mode.

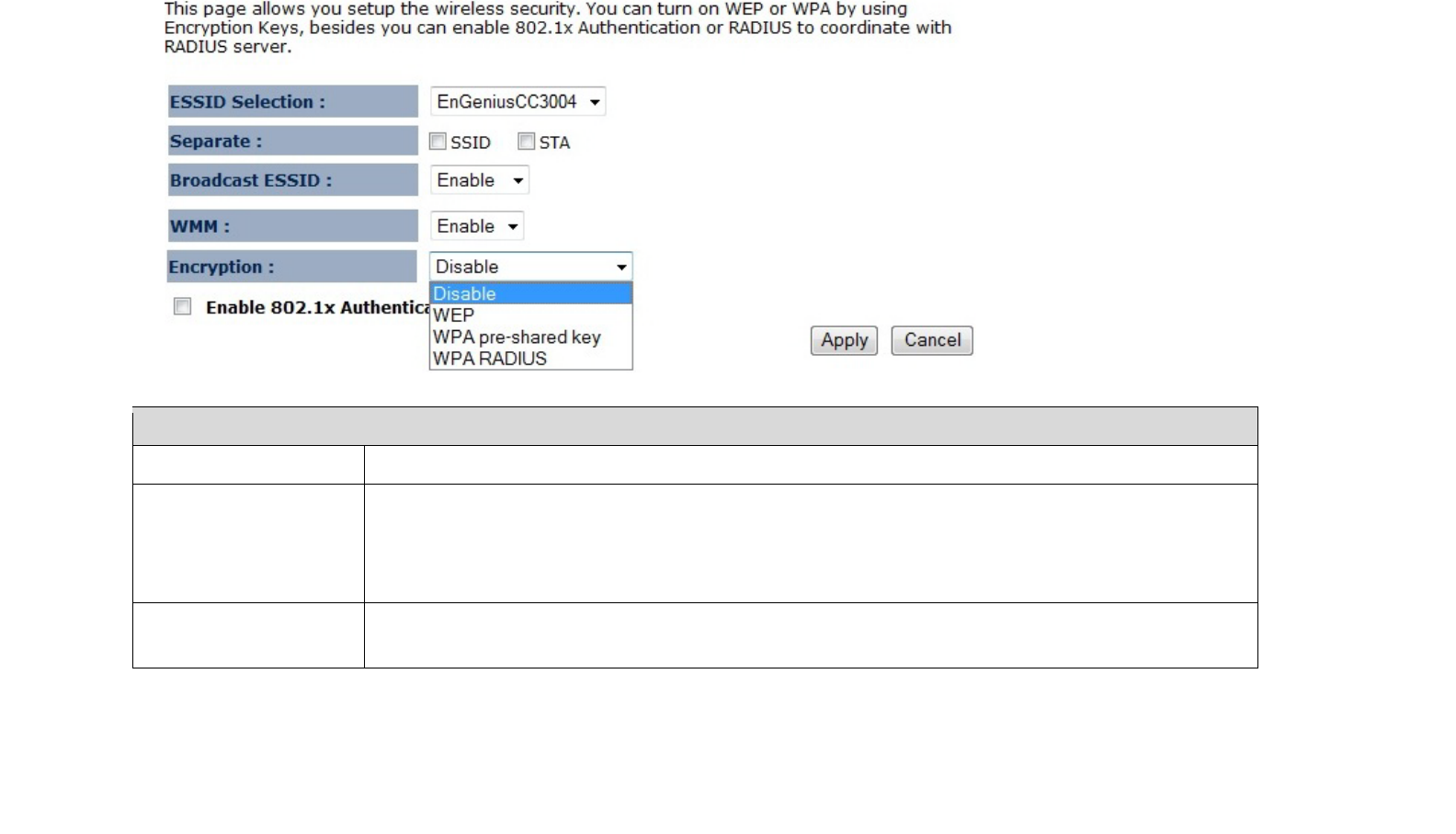

Security (Access Point / WDS AP mode)
SSID Selection Select the SSID that the security settings will apply to.
Separate Tick the box in SSID or STA to Enable Separate feature.
Separate prevents communication and data sharing between wireless stations associated with
same SSID or different SSID.
Broadcast SSID If Disabled, then the device will not be broadcasting the SSID. Therefore it will be invisible to
wireless clients.
36
WMM Wi-Fi Multi-Media is a Quality of Service protocol which prioritizes traffic in the order according
to voice, video, best effort, and background.
Note that in certain situations, WMM needs to be enabled to achieve 11n transfer speeds.
Encryption The encryption method to be applied.
You can choose from WEP, WPA pre-shared key or WPA RADIUS.
• Disabled - no data encryption is used.
• WEP - data is encrypted using the WEP standard.
• WPA-PSK - data is encrypted using the WPA-PSK standard. This is a later standard than WEP,
and provides much better security than WEP. If all your Wireless stations support WPA-PSK,
you should use WPA-PSK rather than WEP.
• WPA2-PSK - This is a further development of WPA-PSK, and offers even greater security,
using the AES (Advanced Encryption Standard) method of encryption.
• WPA-RADIUS - This version of WPA requires a Radius Server on your LAN to provide the
client authentication according to the 802.1x standard. Data transmissions are encrypted using
the WPA standard.
If this option is selected:
• This Access Point must have a "client login" on the Radius Server.
• Each user must have a "user login" on the Radius Server.
• Each user's wireless client must support 802.1x and provide the login data when required.
• All data transmission is encrypted using the WPA standard. Keys are automatically
generated, so no key input is required.
IEEE 802.1x is an authentication protocol. Every user must use a valid account to login to this Access Point before accessing the
wireless LAN. The authentication is processed by a RADIUS server. This mode only authenticates users by IEEE 802.1x, but it does not
encrypt the data during communication.
37

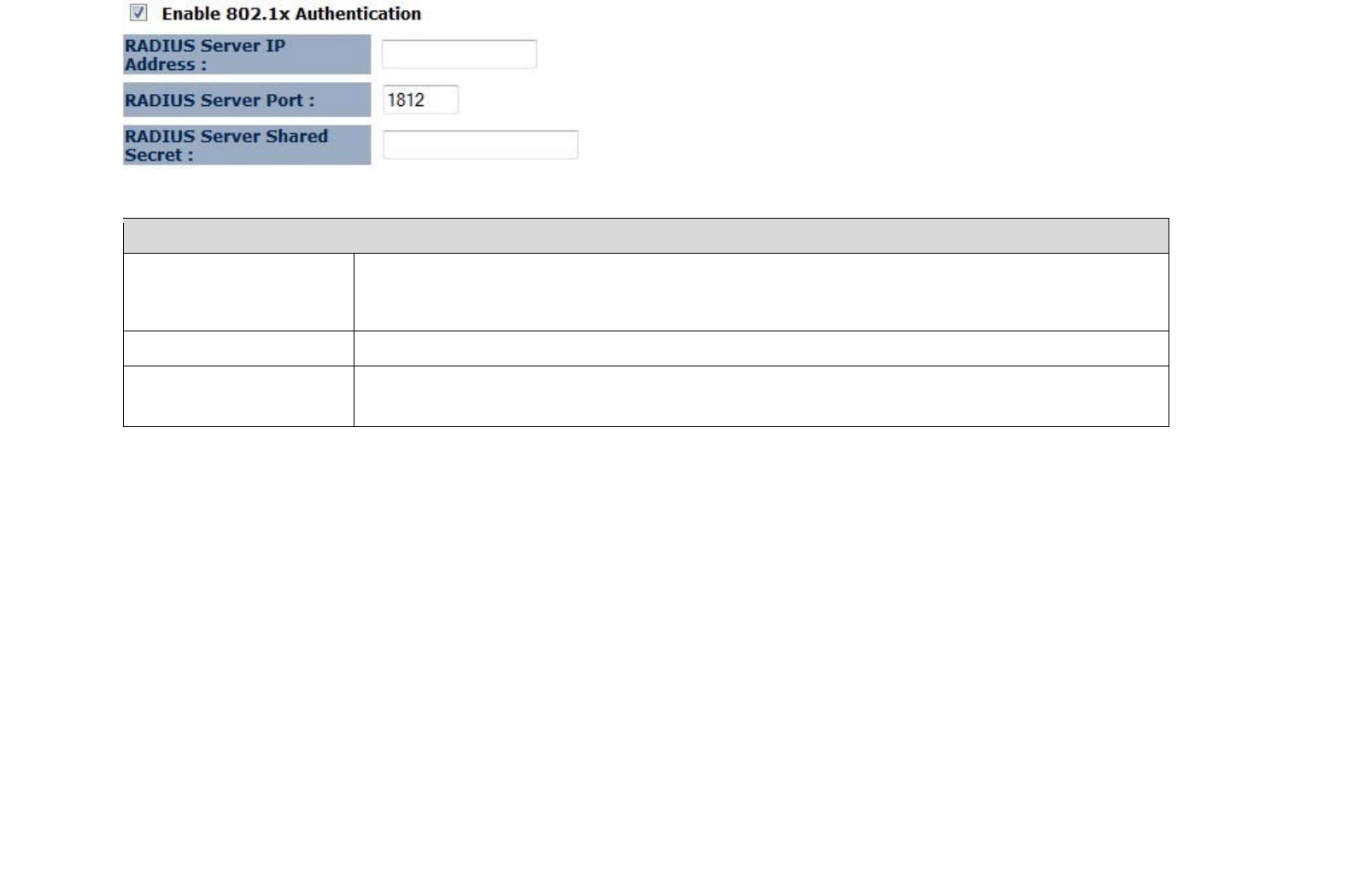

802.1x Authentication
RADIUS Server IP
Address
The IP Address of the RADIUS Server
RADIUS Server port
The port number of the RADIUS Server.
RADIUS Server
password
The RADIUS Server’s password.
38

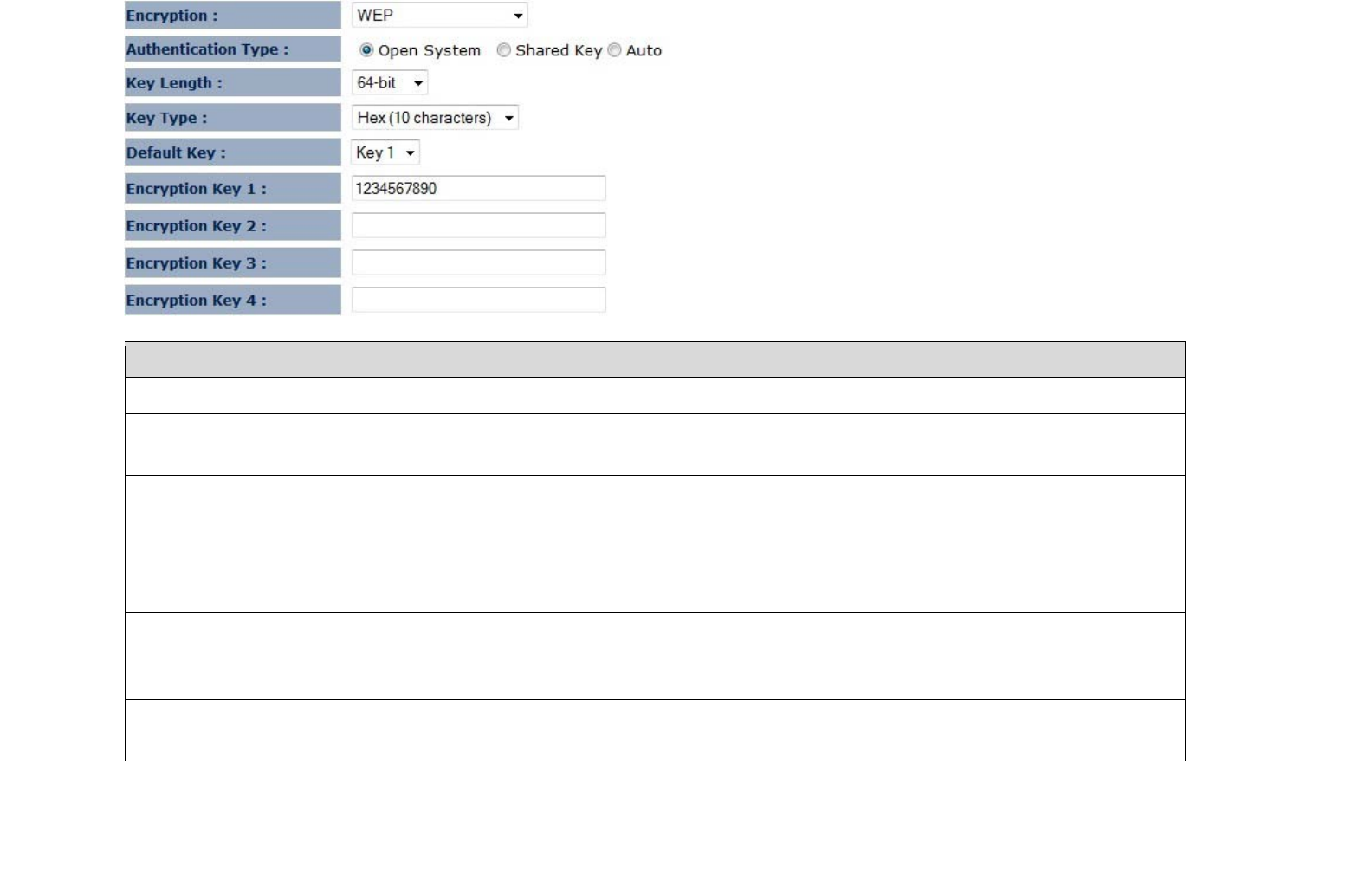

WEP Encryption:
WEP Encryption
Authentication Type Please ensure that your wireless clients use the same authentication type.
Key type ASCII: regular text (recommended)
HEX: for advanced users
Key Length Select the desired option, and ensure the wireless clients use the same setting.
• 64 Bit - data is encrypted, using the default key, before being transmitted. You must enter
at least the default key. For 64 Bit Encryption, the key size is 10 chars in HEX (0~9 and A~F).
• 128 Bit - data is encrypted, using the default key, before being transmitted. You must enter
at least the default key. For 128 Bit Encryption, the key size is 26 chars in HEX (0~9 and A~F).
Default Key Select the key you wish to be the default. Transmitted data is ALWAYS encrypted using the
Default Key; the other Keys are for decryption only.
You must enter a Key Value for the Default Key.
Encryption Key # Enter the key value or values you wish to use. Only the Key selected as Default is required. The
others are optional.
39

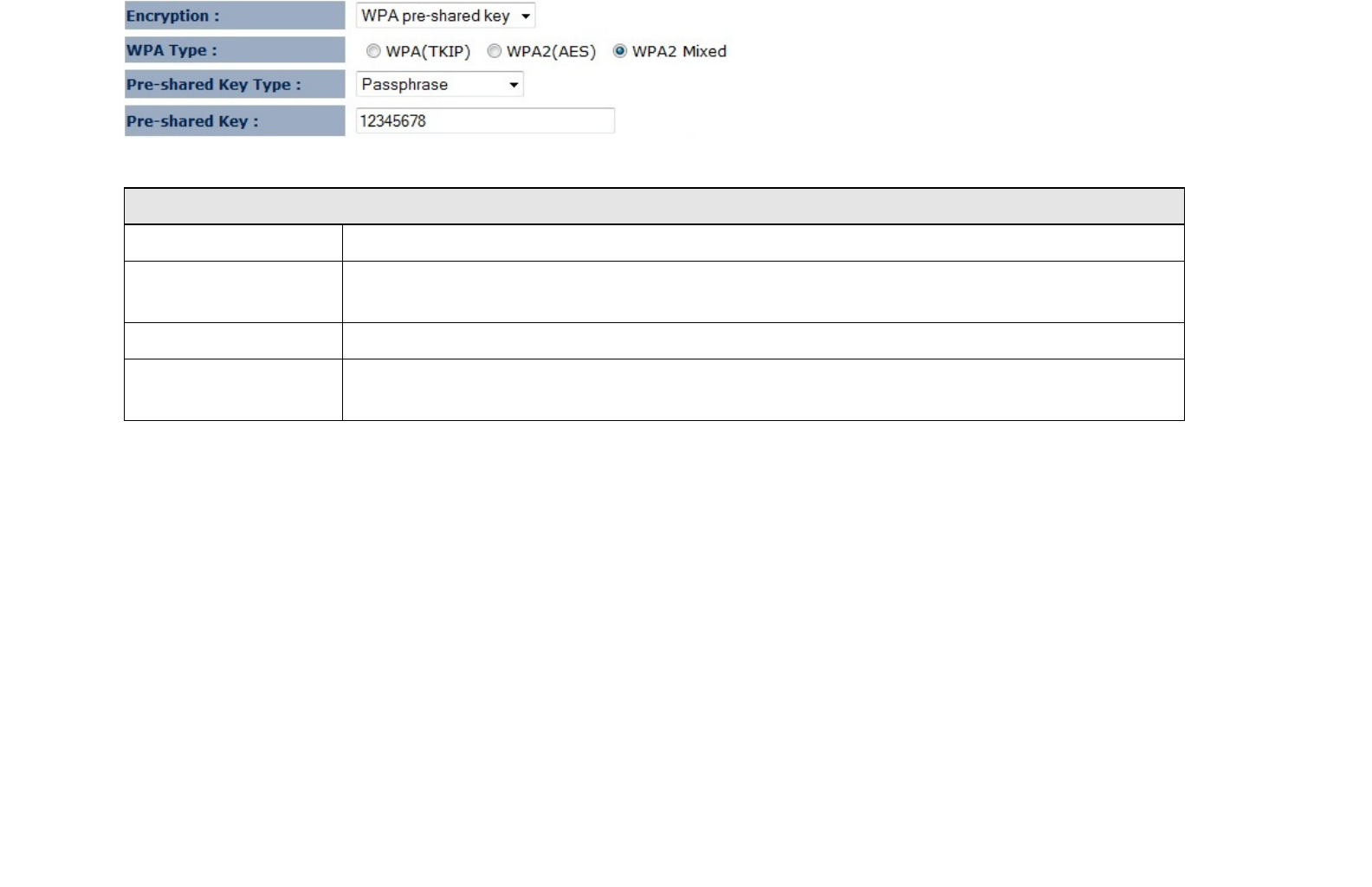

WPA Pre-Shared Key Encryption:
WPA Pre-Shared Key Encryption
Authentication Type
Please ensure that your wireless clients use the same authentication type.
WPA type
Select the WPA encryption you would like.
Please ensure that your wireless clients use the same settings.
Pre-shared Key Type
Select whether you would like to enter the Key in HEX or Passphrase format.
Pre-shared Key
Wireless clients must use the same key to associate the device.
If using passphrase format, the Key must be from 8 to 63 characters in length.
40
WPA RADIUS Encryption:

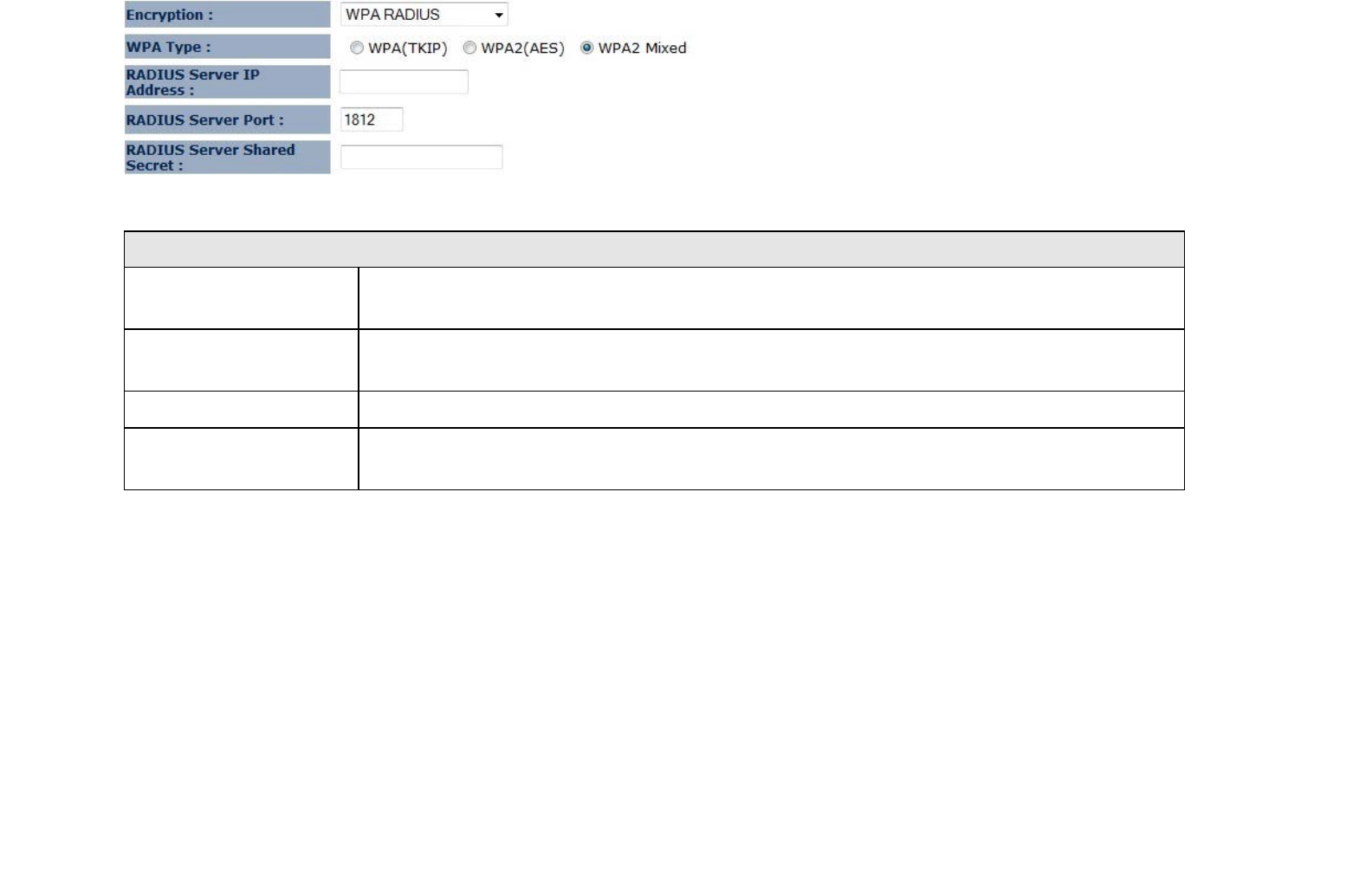

WPA RADIUS Encryption
WPA type Select the WPA encryption you would like.
Please ensure that your wireless clients use the same settings.
RADIUS Server IP
address
Enter the IP address of the RADIUS Server
RADIUS Server Port
Enter the port number used for connections to the RADIUS server.
RADIUS Server
password
Enter the password required to connect to the RADIUS server.
41
5.5 Filter
This page allows you to create filters to control which wireless clients can connect to this device by only allowing the
MAC addresses entered into the Filtering Table.
Note: Only in Access Point and WDS AP mode.
Wireless Filter (Access Point / WDS AP mode)
Enable Wireless Access
Control
Tick the box to Enable Wireless Access Control.
When Enabled, only wireless clients on the Filtering Table will be allowed.
42

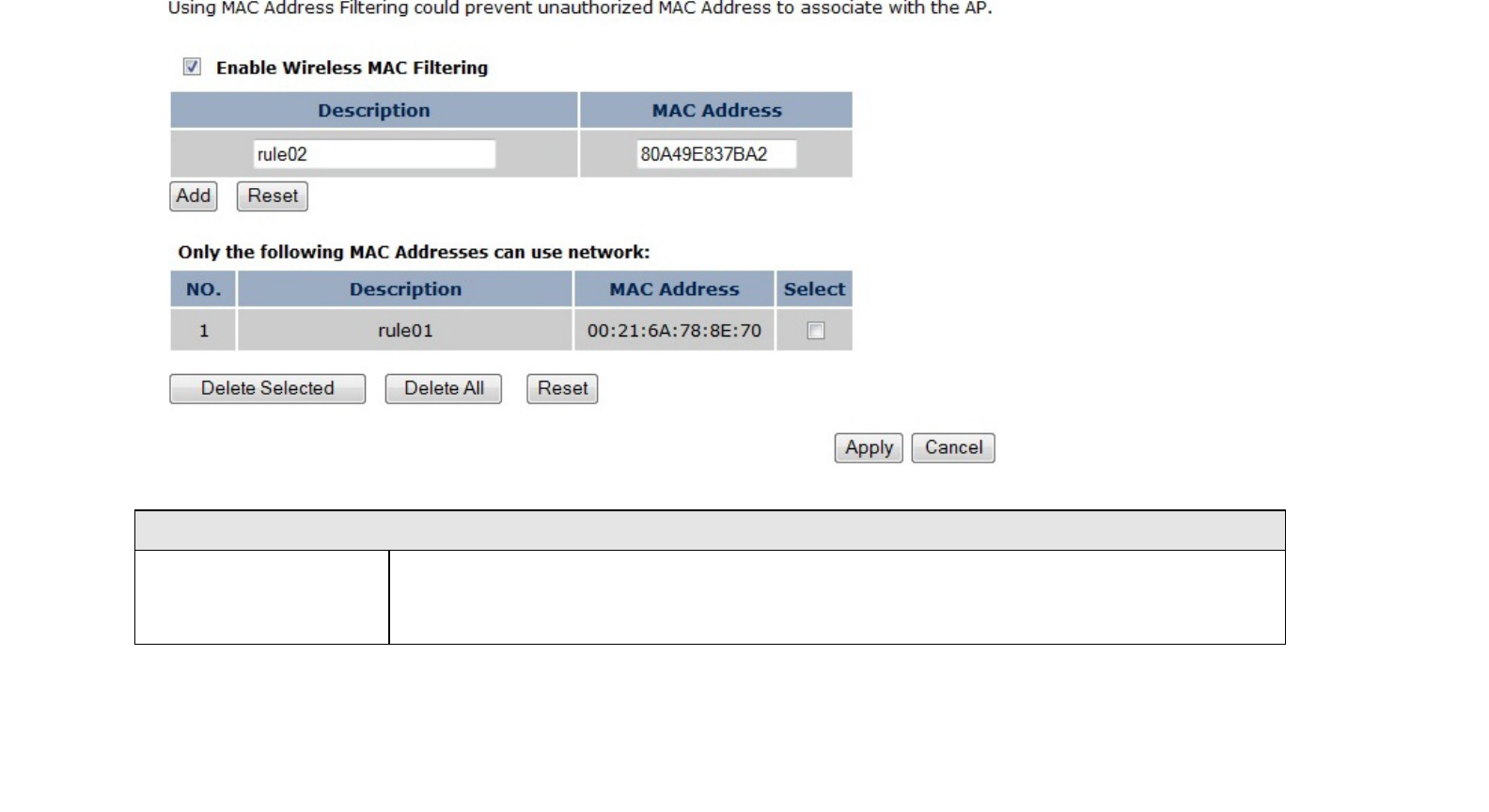

Description Enter a name or description for this entry.
MAC address Enter the MAC address of the wireless client that you wish to allow connection.
Add Click this button to add the entry.
Reset Click this button if you have made a mistake and want to reset the MAC address and
Description fields.
MAC Address Filtering Table
Only clients listed in this table will be allowed access to the wireless network.
Delete Selected Delete the selected entries.
Delete All Delete all entries
Reset Un-tick all selected entries.
43
5.6 WPS (Wi-Fi Protected Setup)
WPS feature is following the Wi-Fi Alliance WPS standard and it eases the set up of security-enabled Wi-Fi networks in
the home and small office environment.
It reduces the user steps required to configure a network and supports two methods that are familiar to most
consumers to configure a network and enable security.
Note: Only in Access Point and WDS AP mode.
Wi-Fi Protected Setup (WPS)
WPS Tick to Enable the WPS feature.

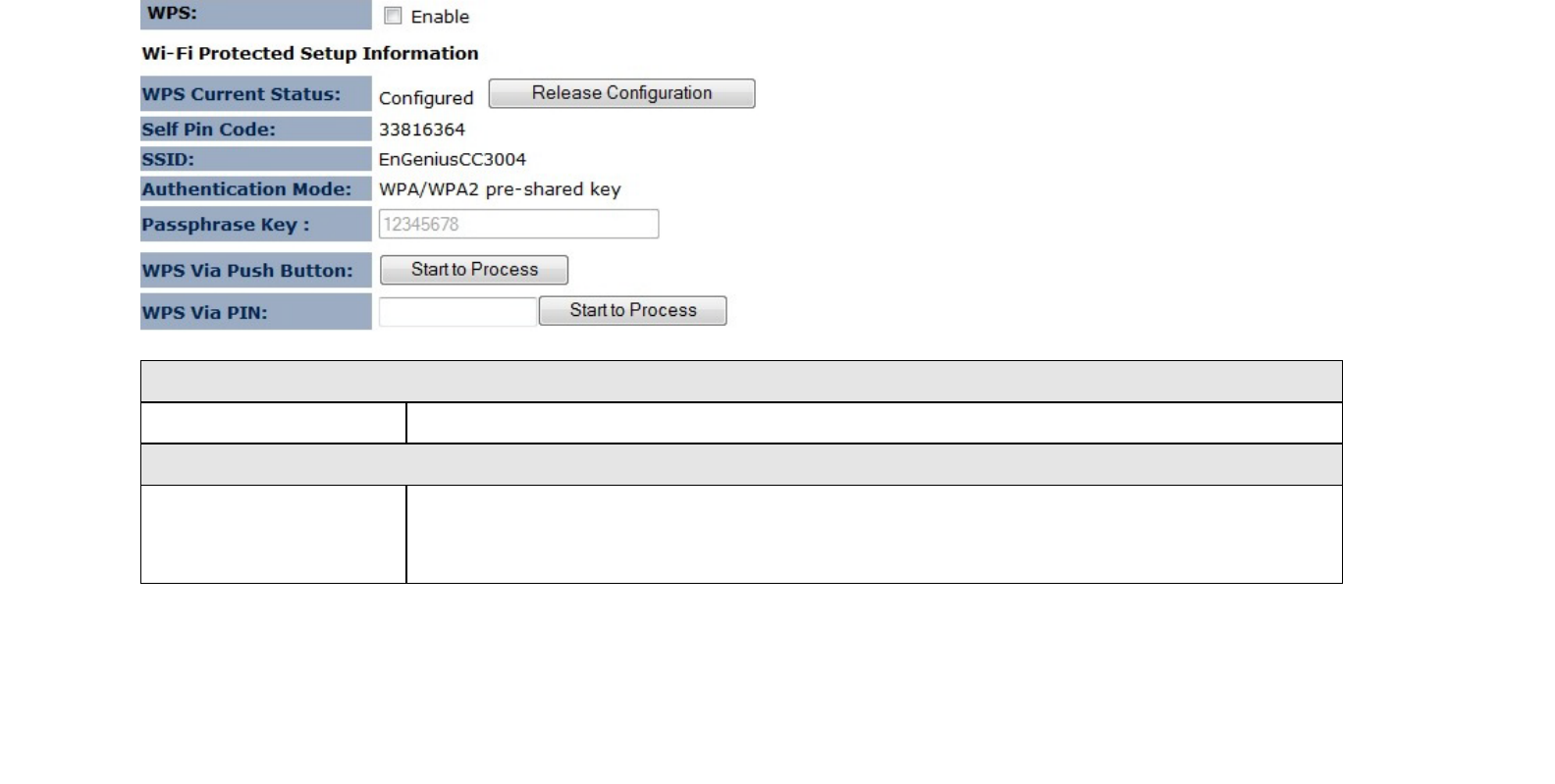

Wi-Fi Protected Setup Information
WPS Current Status Shows whether the WPS function is Configured or Un-configured.
Configured means that WPS has been used to authorize connection between the device and
wireless clients.
44
SSID The SSID (wireless network name) used when connecting using WPS.
Authentication Mode Shows the encryption method used by the WPS process.
Passphrase Key This is the passphrase key that is randomly generated during the WPS process. It is required if
wireless clients that do not support WPS attempts to connect to the wireless network.
WPS Via Push Button Click this button to initialize WPS feature using the push button method.
WPS Via PIN Enter the PIN code of the wireless device and click this button to initialize WPS feature using the
PIN method.
45

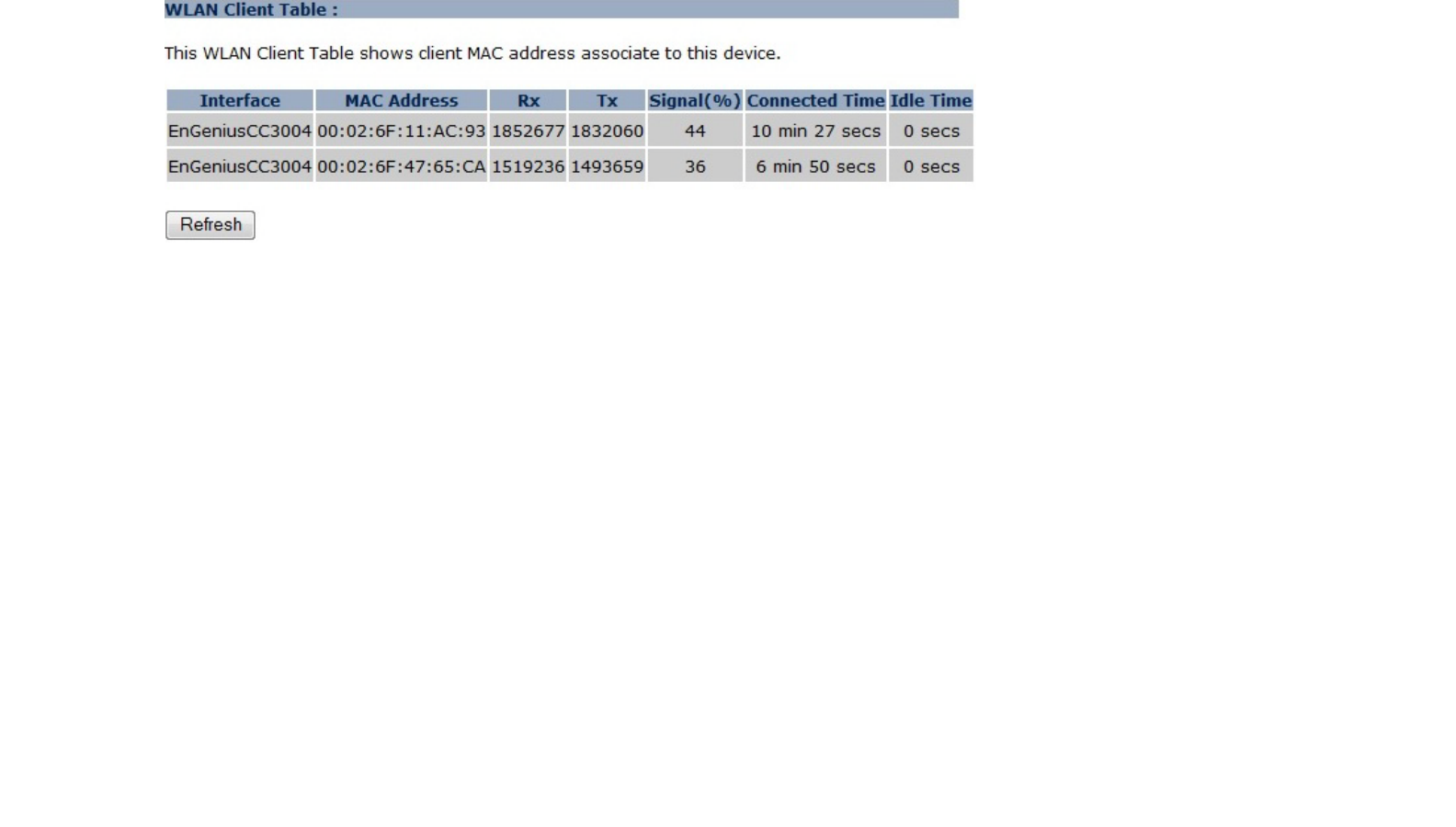

5.7 Client List
This page shows the wireless clients that are connected to the device.
Note: Only in Access Point and WDS AP mode.
46

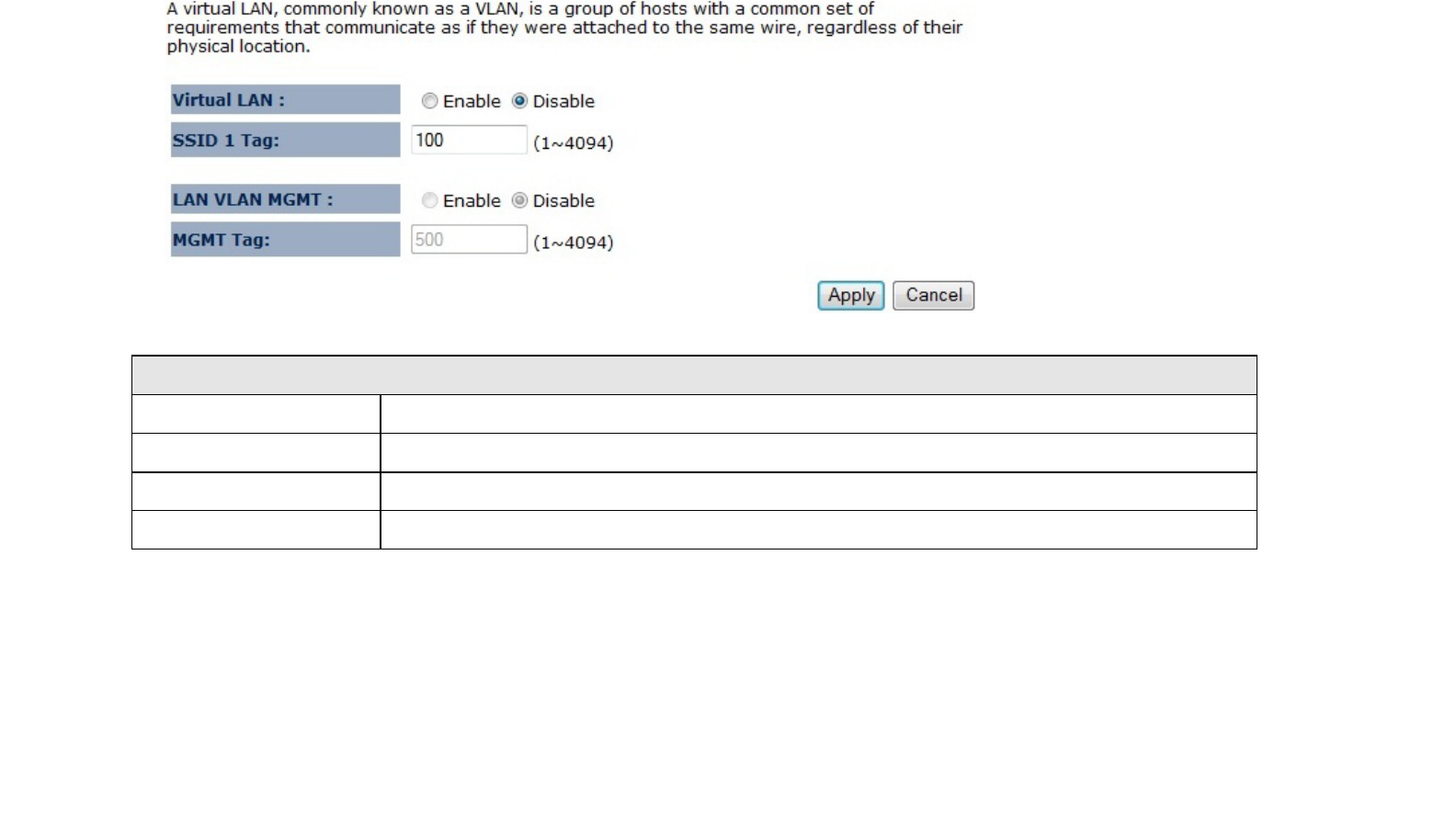

5.8 VLAN
This page allows you to configure the VLAN
Note: Only in Access Point and WDS AP mode.
VLAN
Virtual LAN Choose to Enable or Disable the VLAN feature.
SSID# Tag
Specify the VLAN tag for each SSID.
LAN VLAN MGMT
Choose to Enable or Disable the LAN VLAN MGMT feature.
MGMT Tag
Specify the VLAN tag for LAN.
47
6 Network
6.1 Status

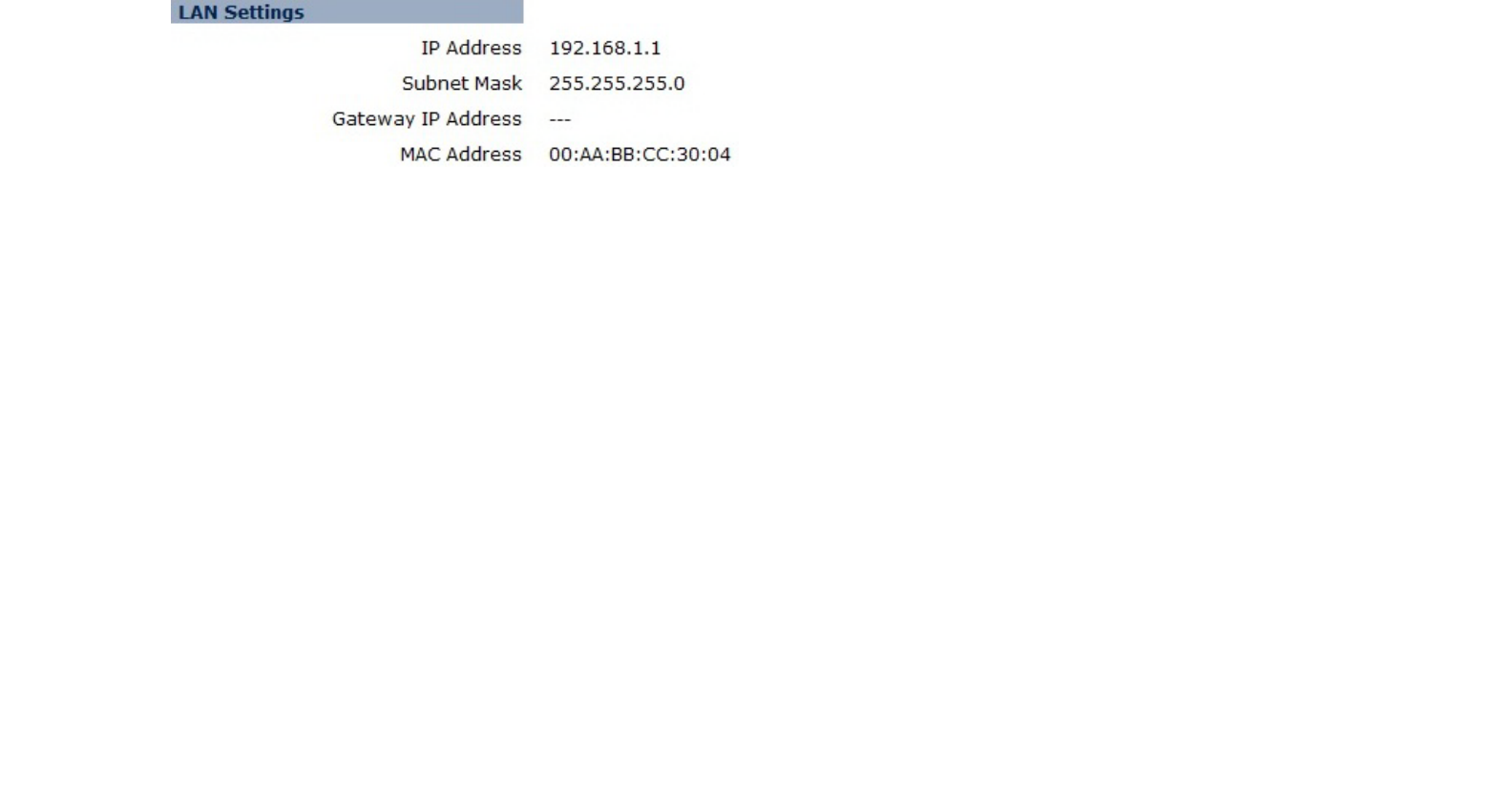

This page shows the current status of the device’s LAN connection.
48
6.2 LAN
This page allows you to modify the device's LAN settings.
LAN IP
Bridge Type Select Static IP or Dynamic IP from the drop-down list. If you select Static IP, you will be required
to specify an IP address and subnet mask. If Dynamic IP is selected, then the IP address is
received automatically from the external DHCP server.
IP address
The LAN IP Address of this device.
IP Subnet Mask
The LAN Subnet Mask of this device.
Default Gateway The Default Gateway of this device. Leave it blank if you are unsure of this setting.
DNS Type Select Static or Dynamic from the drop-down list.
First / Second DNS
Address
The first / second DNS address for this device.
49
DHCP Server feature is only in Access Point mode.
DHCP Server (Access Point mode)
DHCP Server
Enable or disable DHCP feature. The DHCP Server automatically allocates IP addresses to your
LAN device. Disabled as default.
Lease Time The duration of the DHCP server allocates each IP address to a LAN device.
Start / End IP The range of IP addresses of the DHCP server will allocate to LAN device.
Domain name The domain name for this LAN network.
First / Second DNS
Address
The first / second DNS address for this LAN network.
50
6.3 Spanning Tree
This page allows you to modify the Spanning Tree settings. Enabling Spanning Tree protocol will prevent network loops in
your LAN network.
51
7 Management

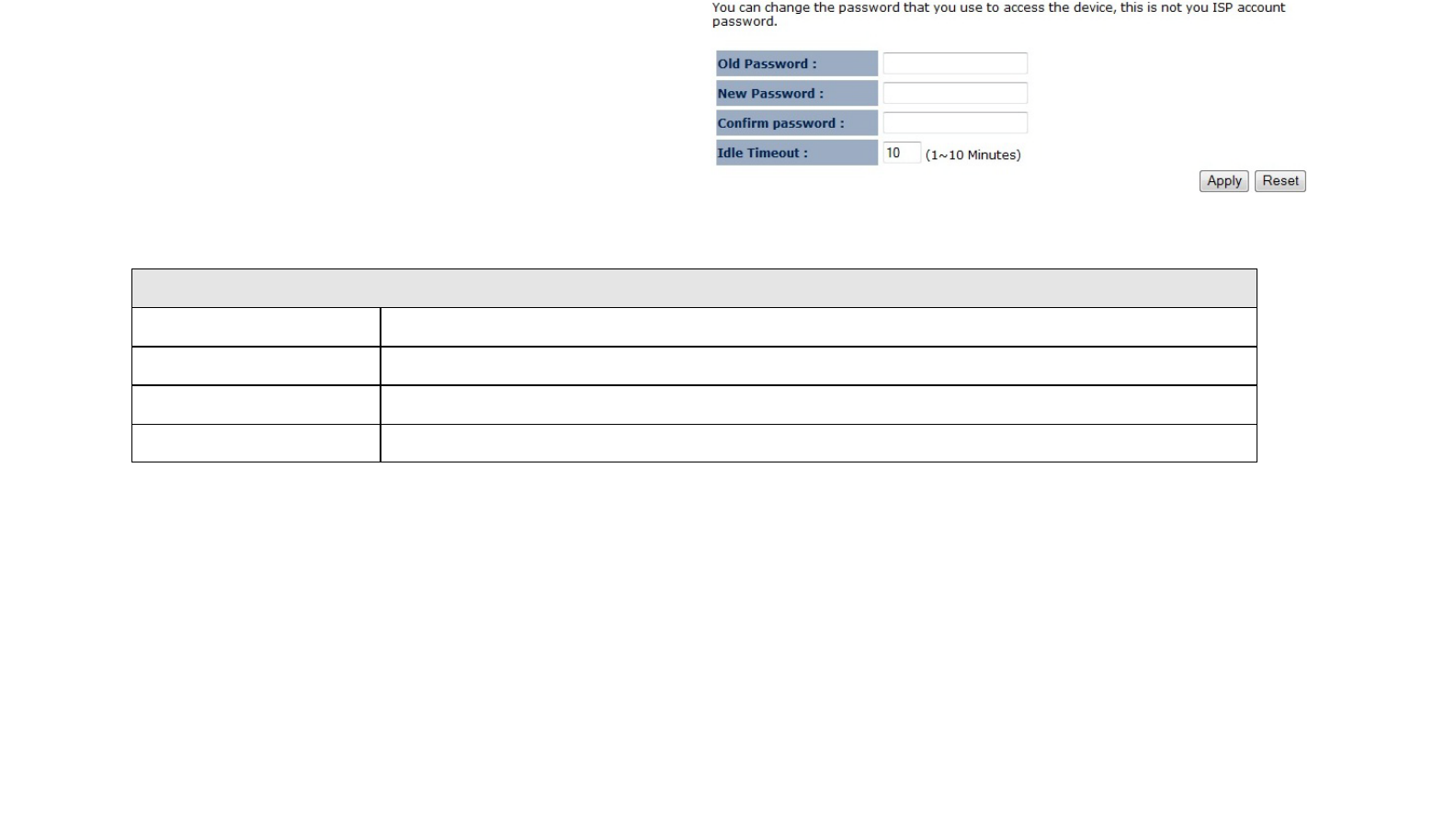

7.1 Admin
This page allows you to change the system password
and to configure remote management. By default, the
password is: admin. Password can contain 0 to 12
alphanumeric characters and are case sensitive.
Change Password
Old Password Enter the current password.
New Password Enter your new password.
Confirm Password Enter your new password again for verification.
Idle Timeout Enter Administration Page timeout time.
52
7.2 SNMP
This page allows you to assign the contact details, location, community name and trap settings for SNMP. This is a
networking management protocol used to monitor network-attached devices. SNMP allows messages (called protocol
data units) to be sent to various parts of a network. Upon receiving these messages, SNMP-compatible devices (called
agents) return data stored in their Management Information Bases.
53
SNMP
SNMP Active Enable or disable SNMP feature.
SNMP Version
You may select a specific version or select All from the drop-down list.
Read Community
Specify the password for access the SNMP community for read only access.
Set Community Specify the password for access to the SNMP community with read/write access.
System Location Specify the location of the device.
System Contact Specify the contact details of the device
Trap
Trap Active Enable or disable SNMP trapping feature.
Trap Manager IP Specify the IP address of the computer that will receive the SNMP traps.
Trap Community Specify the password for the SNMP trap community.
54

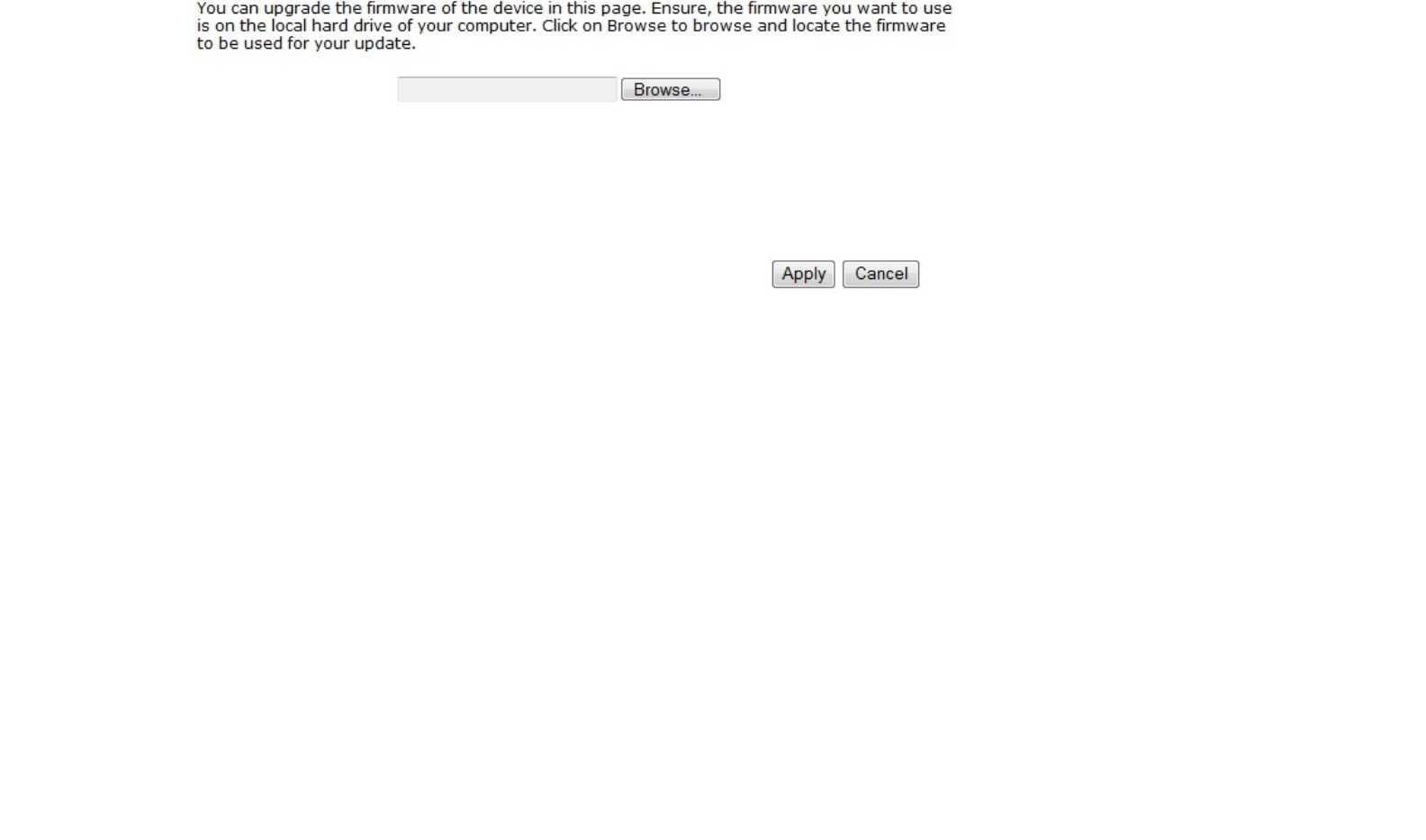

7.3 Firmware Upgrade
This page allows you to upgrade the device's firmware.
To perform the Firmware Upgrade:
1. Click the [Browse] button and navigate to the location of the upgrade file.
2. Select the upgrade file. Its name will appear in the Upgrade File field.
3. Click the [Apply] button to commence the firmware upgrade.
Note: The device is unavailable during the upgrade process, and must restart when the upgrade is completed. Any connections to or through the
device will be lost.
55
Emergency Upgrade

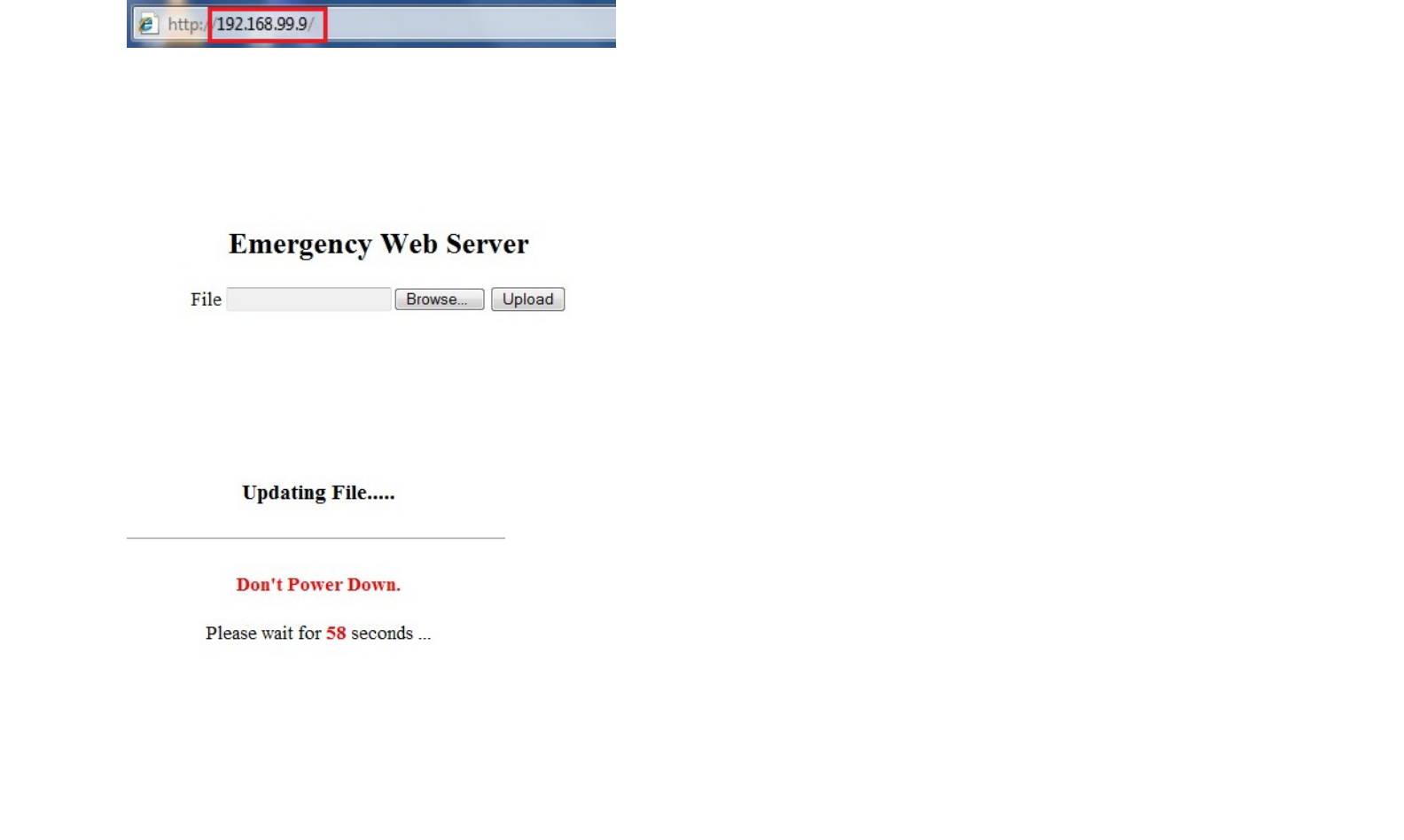

If you upgrade fail, you may enter Emergency Upgrade WEB page.
1. Enter IP address: 192.168.99.9 and enter Emergency Upgrade WEB page.
Note: Refer to 2.2 to configure PC/Notebook IP address to 192.168.99.8.
2. Click the [Browse] button and navigate to the location of the upgrade file and then click [Upload].
3. Wait for 60 seconds for firmware upgrade and reboot the device.
56
4. You can access the device again.
57
7.4 Configure
This page allows you to save the current device configurations. When you save the configurations, you also can re-load
the saved configurations into the device through the [Restore Settings]. If extreme problems occur you can use the
[Restore to Factory Defaults] to set all configurations to its original default settings.
Configure
Restore to Factory Default
Restores the device to factory default settings.
Backup Settings
Save the current configuration settings to a file.
Restore Settings
Restores a previously saved configuration file.
Click Browse to select the file. Then Upload to load the settings.
58
7.5 Reset

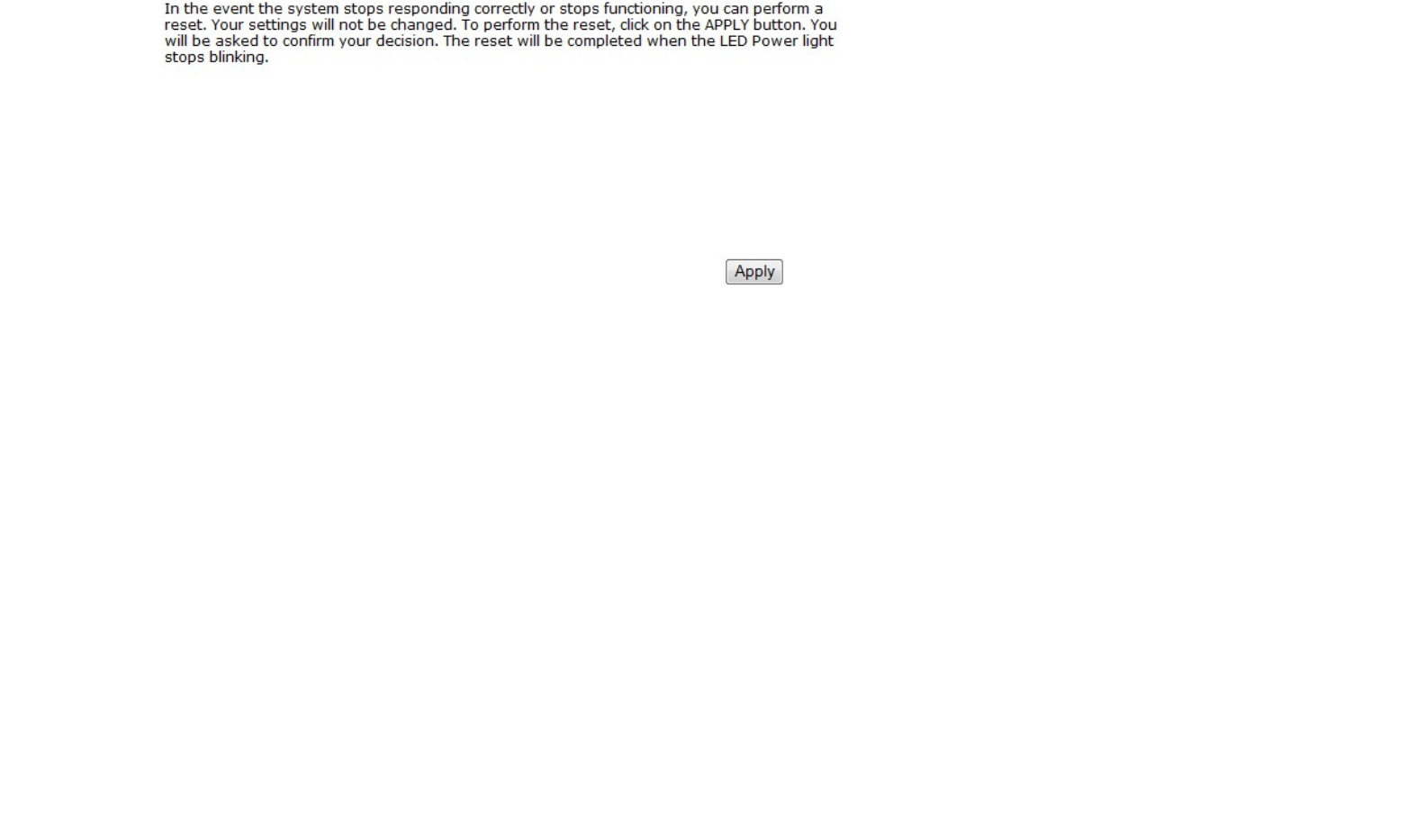

In some circumstances it may be required to force the device to reboot. Click on [Apply] to reboot.
59
8 Tools

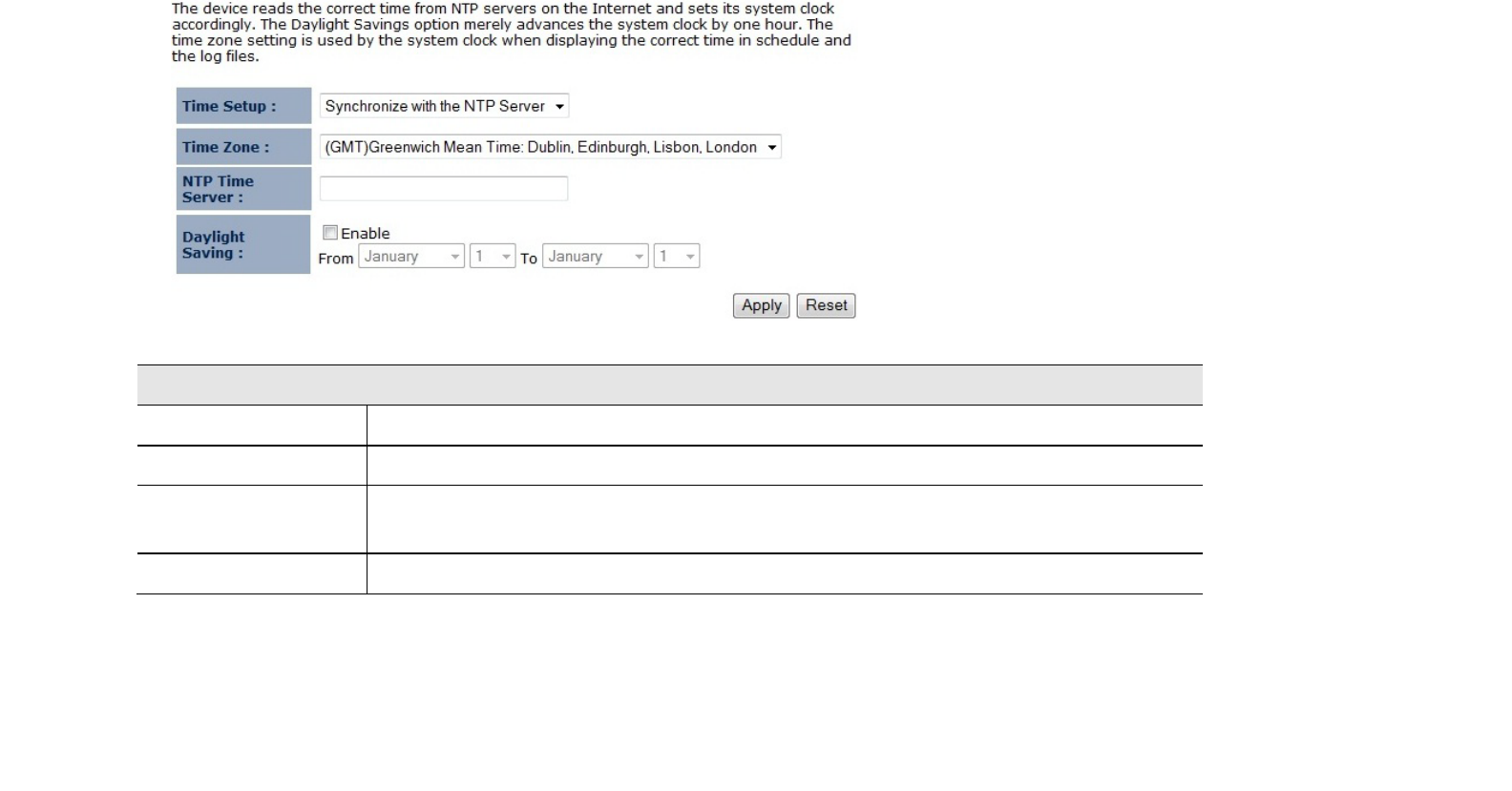

8.1 Time Setting
This page allows you to set the system time.
Time
Time Setup
Select the method you want to set the time.
Time Zone
Select the time zone for your current location.
NTP Time Server
Enter the address of the Network Time Protocol (NTP) Server to automatically
synchronize with a server on the Internet.
Daylight Savings Check whether daylight savings applies to your area.
60
8.2 Diagnosis

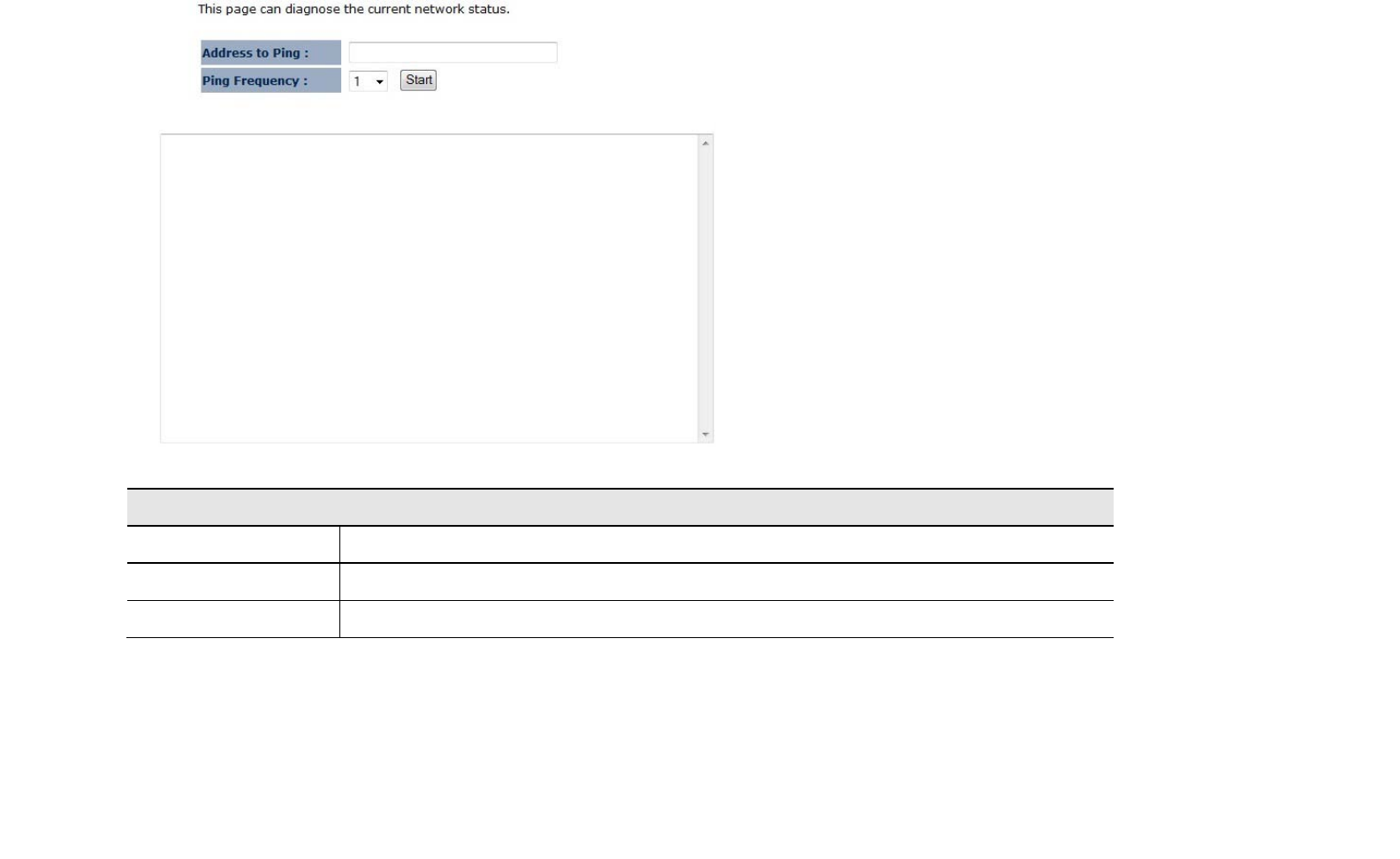

This page allows you to test your network. Type in the address for diagnosis.
Diagnosis
Address to Ping Enter the IP address you like to see if a successful connection can be made.
Ping Frequency Select the frequency for Ping test.
Ping Result The results of the Ping test.
61

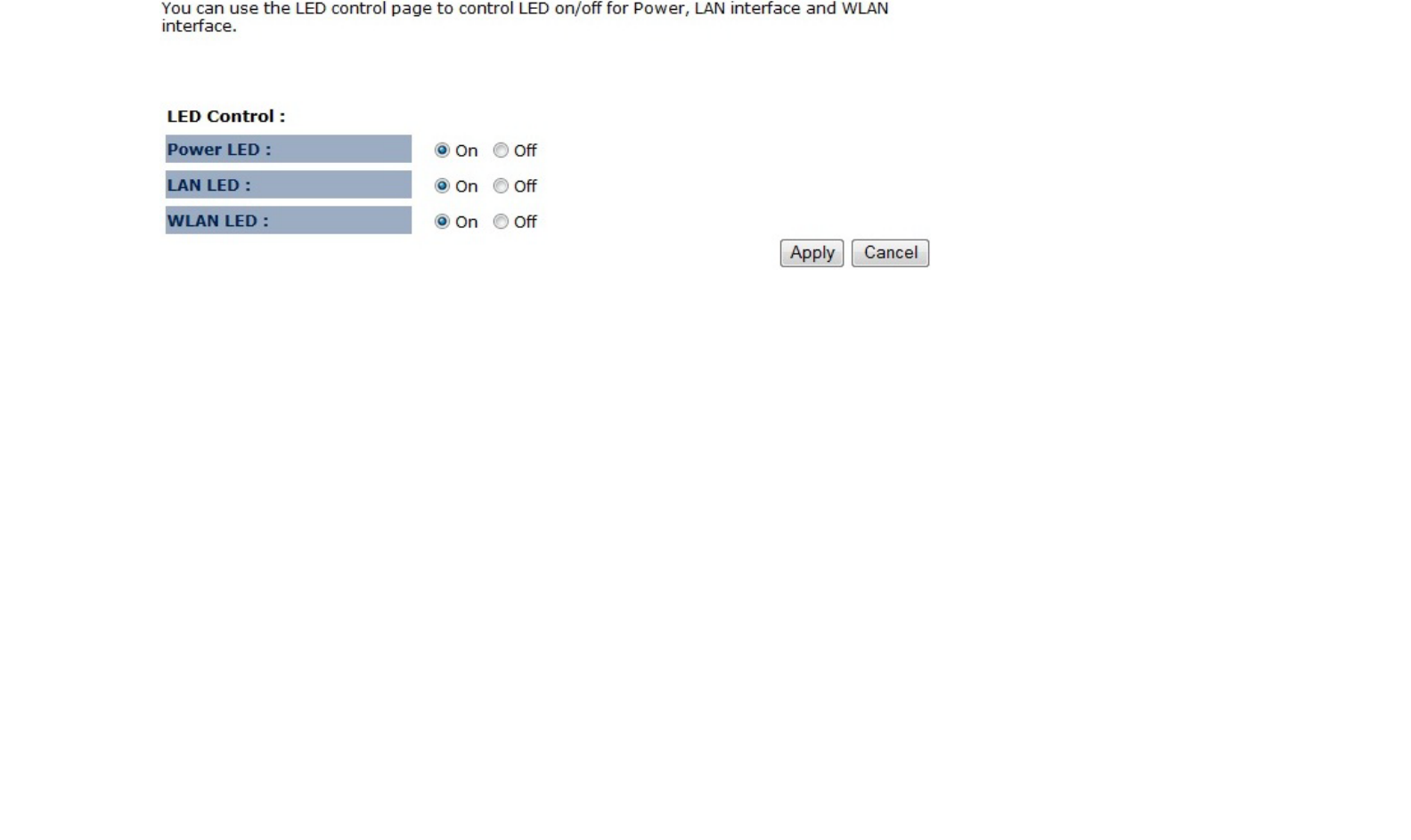

8.3 LED Control
This page allows you to control LED on/off for Power, LAN interface and WLAN interface.
62
9 Logout
Click on [Logout] button to logout.
2006/8/16 v1.0
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance
20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
Europe – EU Declaration of Conformity
This device complies with the essential requirements of the R&TTE Directive 1999/5/EC.
The following test methods have been applied in order to prove presumption of
conformity with the essential requirements of the R&TTE Directive 1999/5/EC:
- EN60950-1:2006 A11:2009+A1:2010
Safety of Information Technology Equipment
- EN50385 : 2002
- Generic standard to demonstrate the compliance of electronic and electrical
apparatus with the basic restrictions related to human exposure to electromagnetic
fields (0 Hz - 300 GHz)
- EN 300 328 V1.7.1: 2006-10
- Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband
Transmission systems; Data transmission equipment operating in the 2,4 GHz ISM
band and using spread spectrum modulation techniques; Harmonized EN covering
essential requirements under article 3.2 of the R&TTE Directive
-
EN 301 489-1 V1.8.1: 2008-04
Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic
Compatibility (EMC) standard for radio equipment and services; Part 1: Common
technical requirements
- EN 301 489-17 V2.1.1 2009-05
- Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic
Compatibility (EMC) standard for radio equipment and services; Part 17: Specific
conditions for 2,4 GHz wideband transmission systems and 5 GHz high performance
RLAN equipment
This device is a 2.4 GHz wideband transmission system (transceiver), intended for use
in all EU member states and EFTA countries, except in France and Italy where
restrictive use applies.
In Italy the end-user should apply for a license at the national spectrum authorities in
order to obtain authorization to use the device for setting up outdoor radio links and/or
for supplying public access to telecommunications and/or network services.
This device may not be used for setting up outdoor radio links in France and in some
areas the RF output power may be limited to 10 mW EIRP in the frequency range of
2454 – 2483.5 MHz. For detailed information the end-user should contact the national
spectrum authority in France.
0560
Česky
[Czech]
[Jméno výrobce] tímto prohlašuje, že tento [typ zařízení] je ve shodě se základními požadavky a
dalšími příslušnými ustanoveními směrnice 1999/5/ES.
Dansk
[Danish]
Undertegnede [fabrikantens navn] erklærer herved, at følgende udstyr [udstyrets
typebetegnelse] overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.
Deutsch
[German]
Hiermit erklärt [Name des Herstellers], dass sich das Gerät [Gerätetyp] in Übereinstimmung mit
den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie
1999/5/EG befindet.
Eesti
[Estonian]
Käesolevaga kinnitab [tootja nimi = name of manufacturer] seadme [seadme tüüp = type of
equipment] vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele
teistele asjakohastele sätetele.
English
Hereby, [name of manufacturer], declares that this [type of equipment] is in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/EC.
Español
[Spanish]
Por medio de la presente [nombre del fabricante] declara que el [clase de equipo] cumple con
los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la
Directiva 1999/5/CE.
Ελληνική
[Greek]
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ [name of manufacturer] ΔΗΛΩΝΕΙ ΟΤΙ [type of equipment]
ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ
ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.
Français
[French]
Par la présente [nom du fabricant] déclare que l'appareil [type d'appareil] est conforme aux
exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE.
Italiano
[Italian]
Con la presente [nome del costruttore] dichiara che questo [tipo di apparecchio] è conforme ai
requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
Latviski
[Latvian]
Ar šo [name of manufacturer / izgatavotāja nosaukums] deklarē, ka [type of equipment /
iekārtas tips] atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem
noteikumiem.
Lietuvių
[Lithuanian]
Šiuo [manufacturer name] deklaruoja, kad šis [equipment type] atitinka esminius reikalavimus ir
kitas 1999/5/EB Direktyvos nuostatas.
Nederlands
[Dutch]
Hierbij verklaart [naam van de fabrikant] dat het toestel [type van toestel] in overeenstemming is
met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG.
Malti
[Maltese]
Hawnhekk, [isem tal-manifattur], jiddikjara li dan [il-mudel tal-prodott] jikkonforma mal-ħtiġijiet
essenzjali u ma provvedimenti oħrajn relevanti li hemm fid-Dirrettiva 1999/5/EC.
Magyar
[Hungarian]
Alulírott, [gyártó neve] nyilatkozom, hogy a [... típus] megfelel a vonatkozó alapvetõ
követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.
Polski
[Polish]
Niniejszym [nazwa producenta] oświadcza, że [nazwa wyrobu] jest zgodny z zasadniczymi
wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC.
Português
[Portuguese]
[Nome do fabricante]
declara que este
[tipo de equipamento]
está conforme com os requisitos
essenciais e outras disposições da Directiva 1999/5/CE.
Slovensko
[Slovenian]
[Ime proizvajalca] izjavlja, da je ta [tip opreme] v skladu z bistvenimi zahtevami in ostalimi
relevantnimi določili direktive 1999/5/ES.
Slovensky
[Slovak]
[Meno výrobcu] týmto vyhlasuje, že [typ zariadenia] spĺňa základné požiadavky a všetky
príslušné ustanovenia Smernice 1999/5/ES.
Suomi
[Finnish] [Valmistaja = manufacturer] vakuuttaa täten että [type of equipment = laitteen tyyppimerkintä]
tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin
muiden ehtojen mukainen.
Svenska
[Swedish]
Härmed intygar [företag] att denna [utrustningstyp] står I överensstämmelse med de väsentliga
egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.
Industry Canada statement:
This device complies with RSS-210 of the Industry Canada Rules. Operation is
subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux
appareils radio exempts de licence. Son fonctionnement est sujet aux deux
conditions suivantes: (1) le dispositif ne doit pas produire de brouillage
préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un
brouillage susceptible de provoquer un fonctionnement indésirable.
IMPORTANT NOTE:
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
NOTE IMPORTANTE: (Pour l'utilisation de dispositifs mobiles)
Déclaration d'exposition aux radiations:
Cet équipement est conforme aux limites d'exposition aux rayonnements IC
établies pour un environnement non contrôlé. Cet équipement doit être installé et
utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et
votre corps.
