Senao Networks FS1 Single Line Long Range Cordless Telephone User Manual FreeStyl 1 English Mar092010

Senao Networks, Inc. Single Line Long Range Cordless Telephone FreeStyl 1 English Mar092010

User Manual

User Manual

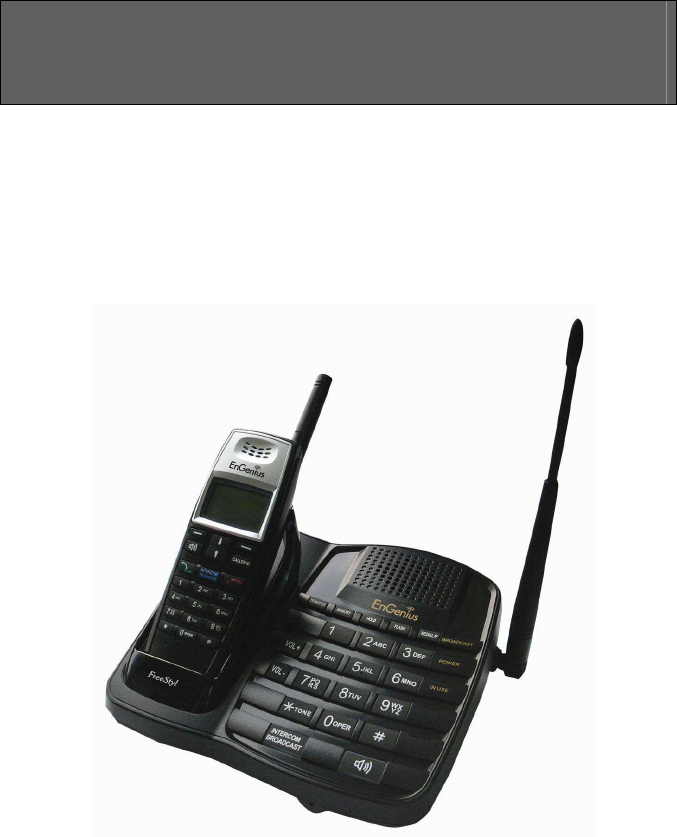

FreeStyl 1
Single Line Long Range Cordless
Telephone
EnGenius Customer Service
United States: 1-888-735-7888
Canada: 1-888-397-2788
~
2
~
Table of Contents
Safety Instructions ...................................................................4
General Safety Instructions..................................................4
Product Safety Instructions ..................................................4
Battery Safety Instructions ...................................................6
Regulatory Information ............................................................7
Equipment Checklist..............................................................10

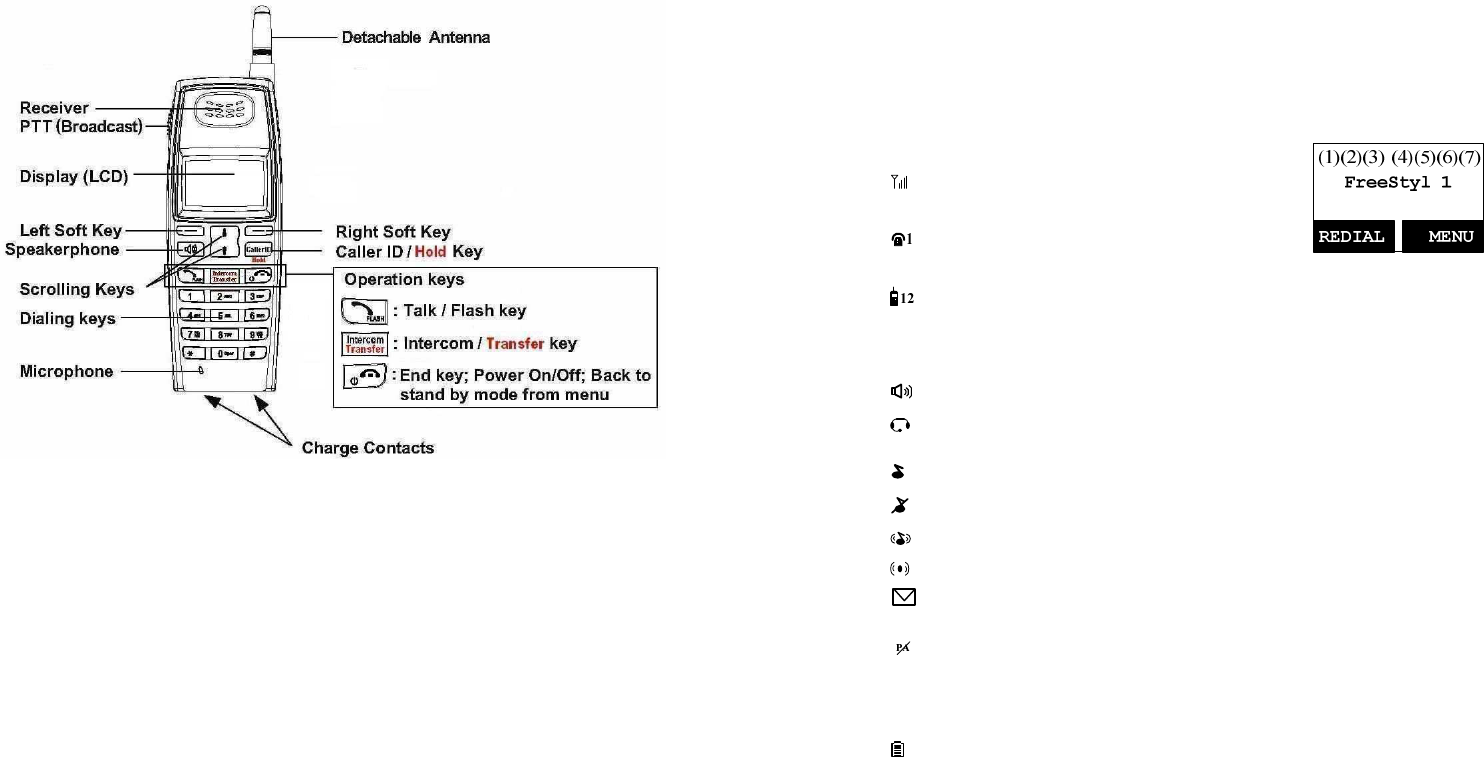

Handset Illustration................................................................11
Handset Features ..................................................................12
Basic Handset Features.....................................................12
Additional Handset Features..............................................14

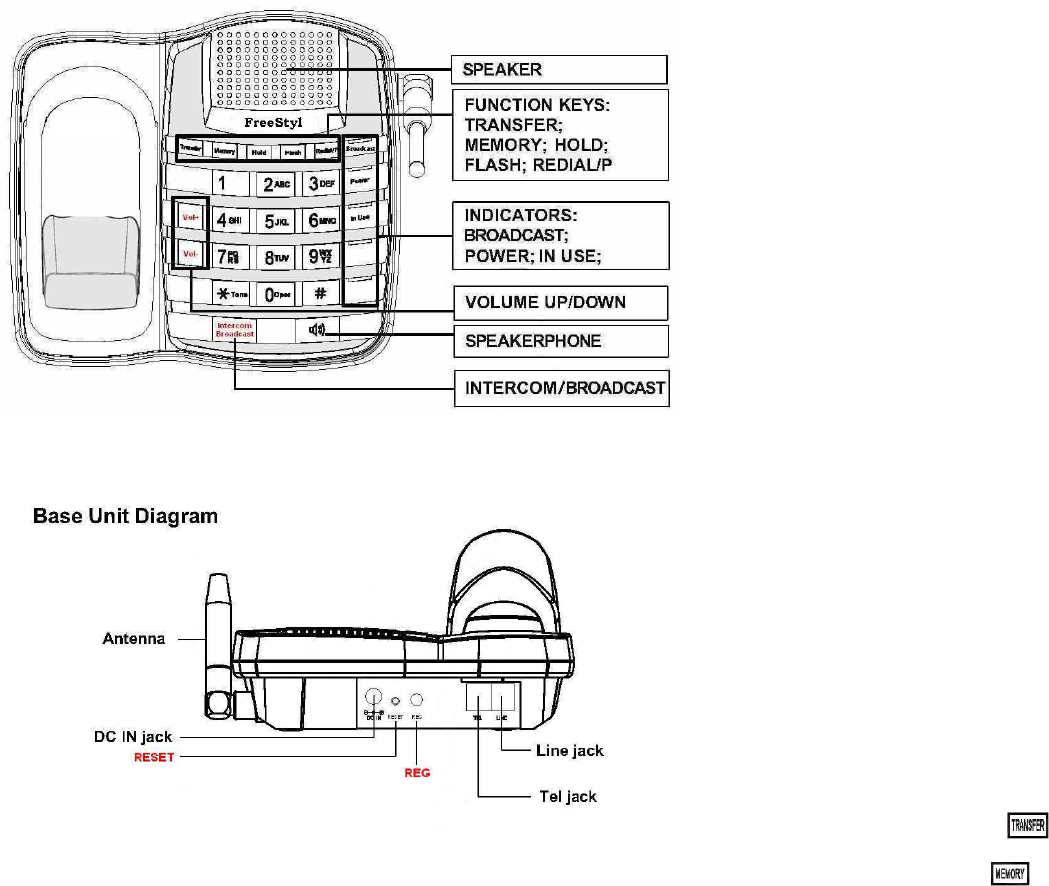

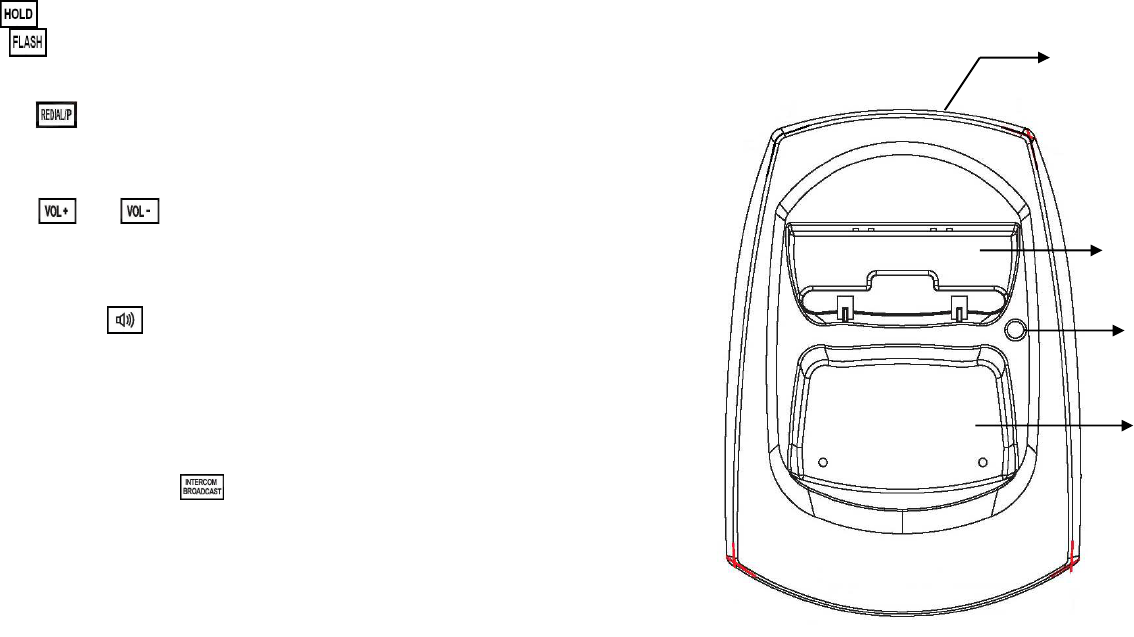

Base Illustration .....................................................................19
Base Features .......................................................................20
Basic Base Station Features..............................................20
Charger Illustration ................................................................22
Charger Features...................................................................23
Getting Started ......................................................................24
Base Station Installation.....................................................24
Handset and Charger Installation.......................................25
Basic Operations ...................................................................26
Operation Modes................................................................26
A. Base Operation Modes ..............................................26
B. Handset Operation Modes .........................................26
Making a Telephone Call ...................................................28

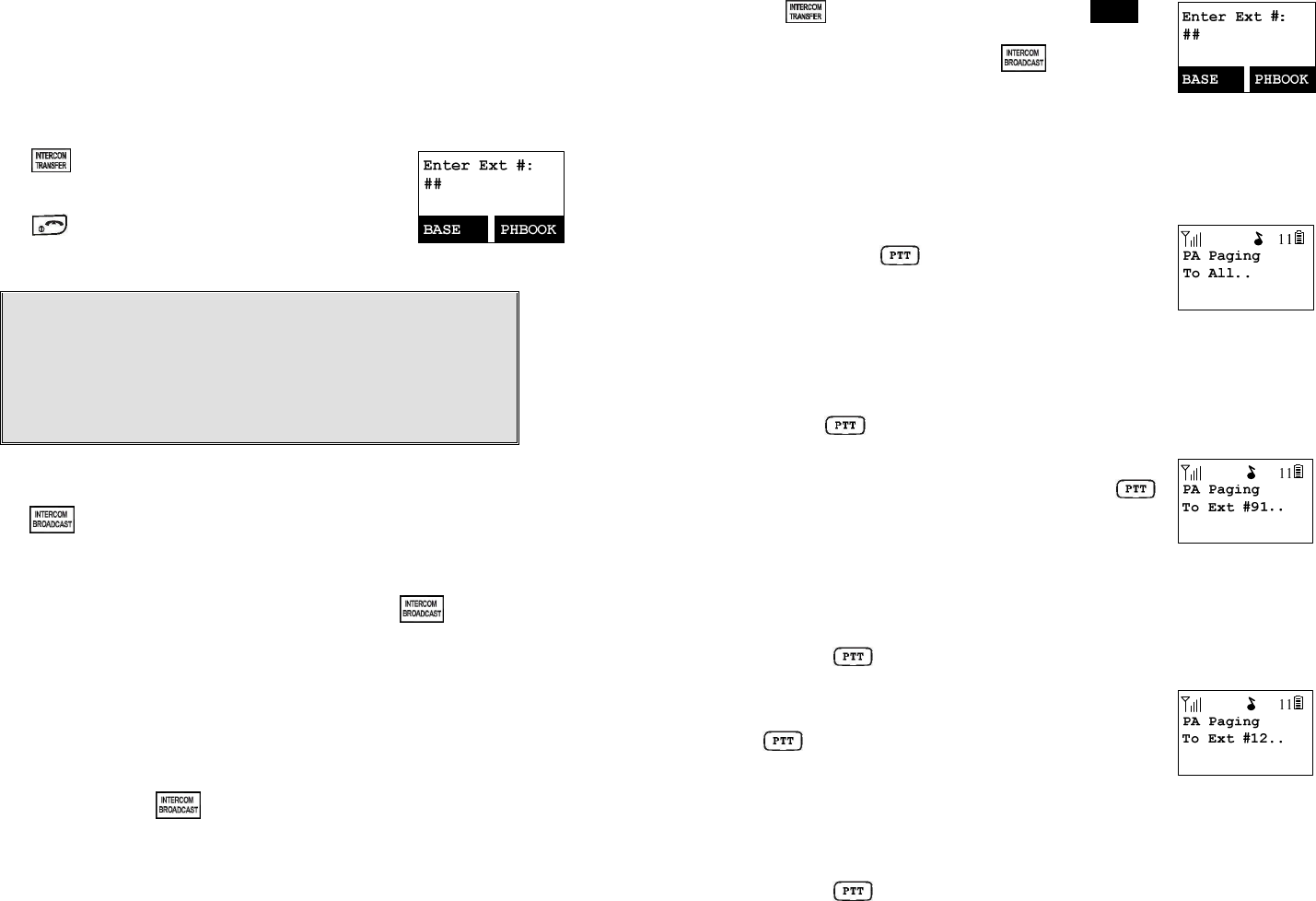

Making an 2-Way/ Intercom Call ........................................29
A. Handset to Handset Calls...........................................29
B. Intercom/2-Way from Base to Handset ......................29
C. Intercom/2-Way from Handset to Base......................30

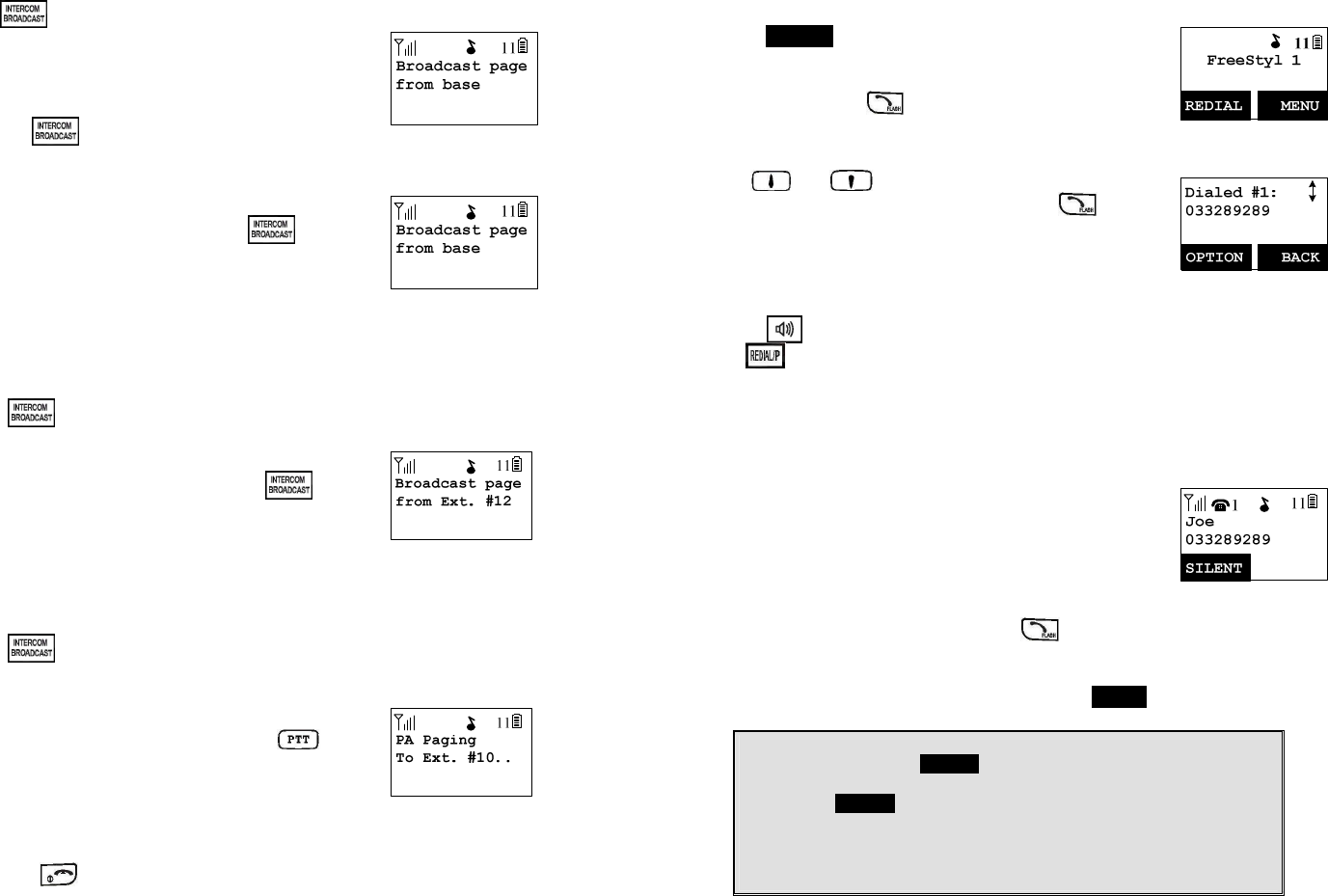

Making a Broadcast ...........................................................30
A. Handset to Handset Calls...........................................30
B. Broadcasting from Base to Handset...........................31
C. Broadcasting from Handset to Base ..........................31
Redial.................................................................................32
Receiving a Telephone Call ...............................................32
Receiving an Intercom Call ................................................33
~
3
~
Ending a Call......................................................................33
Adjusting Handset Receiver (Earpiece) Voice Volume ......34
Adjusting Handset Speakerphone Voice Volume...............34
Adjusting Base Speakerphone Voice Volume....................34

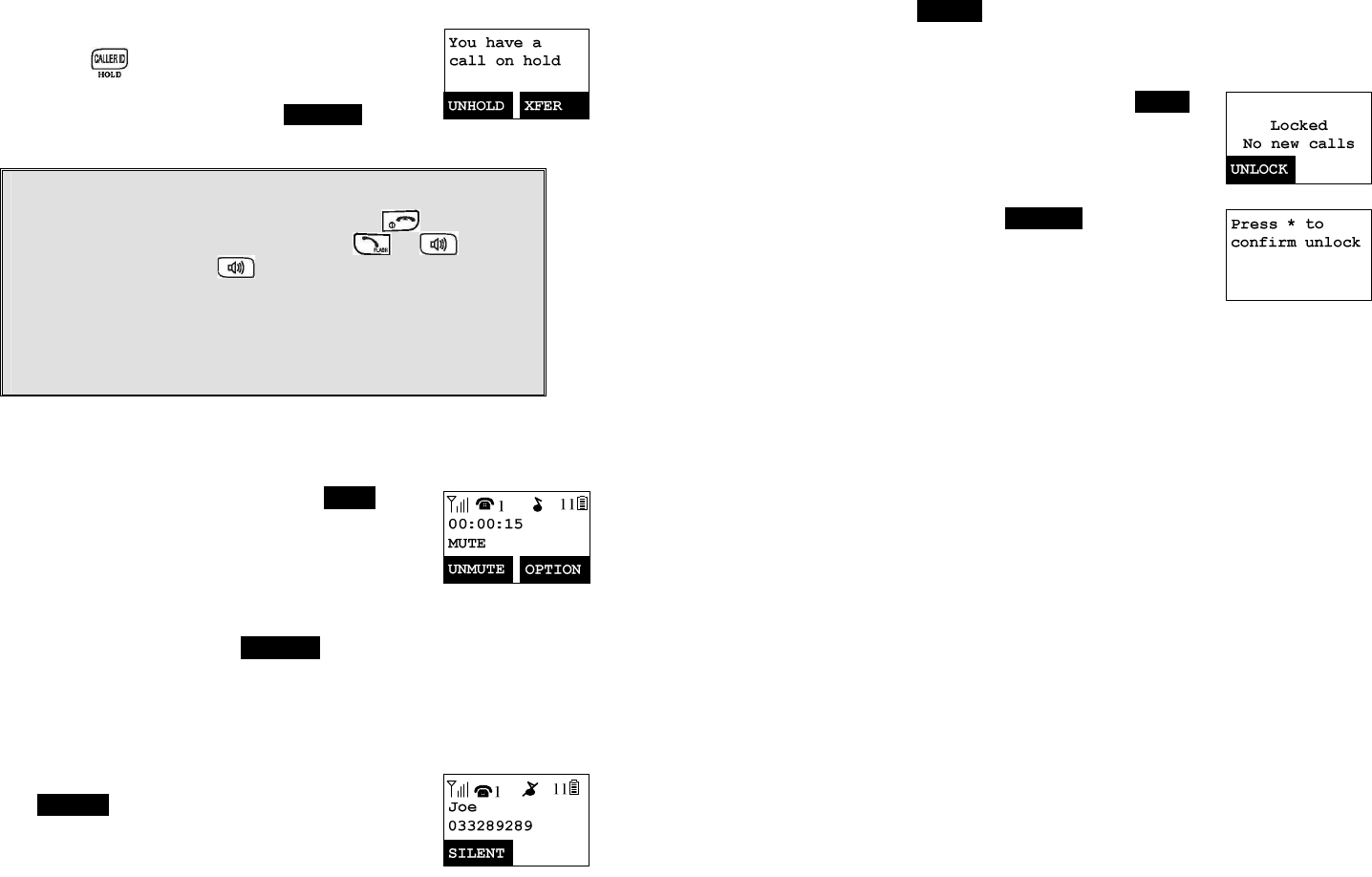

Placing a Call On Hold.......................................................35
Mute...................................................................................35
Do Not Disturb (Silent Ring)...............................................35
Key Guard..........................................................................36
Battery Recharge and Replacement ..................................36
Advanced Operations ............................................................37

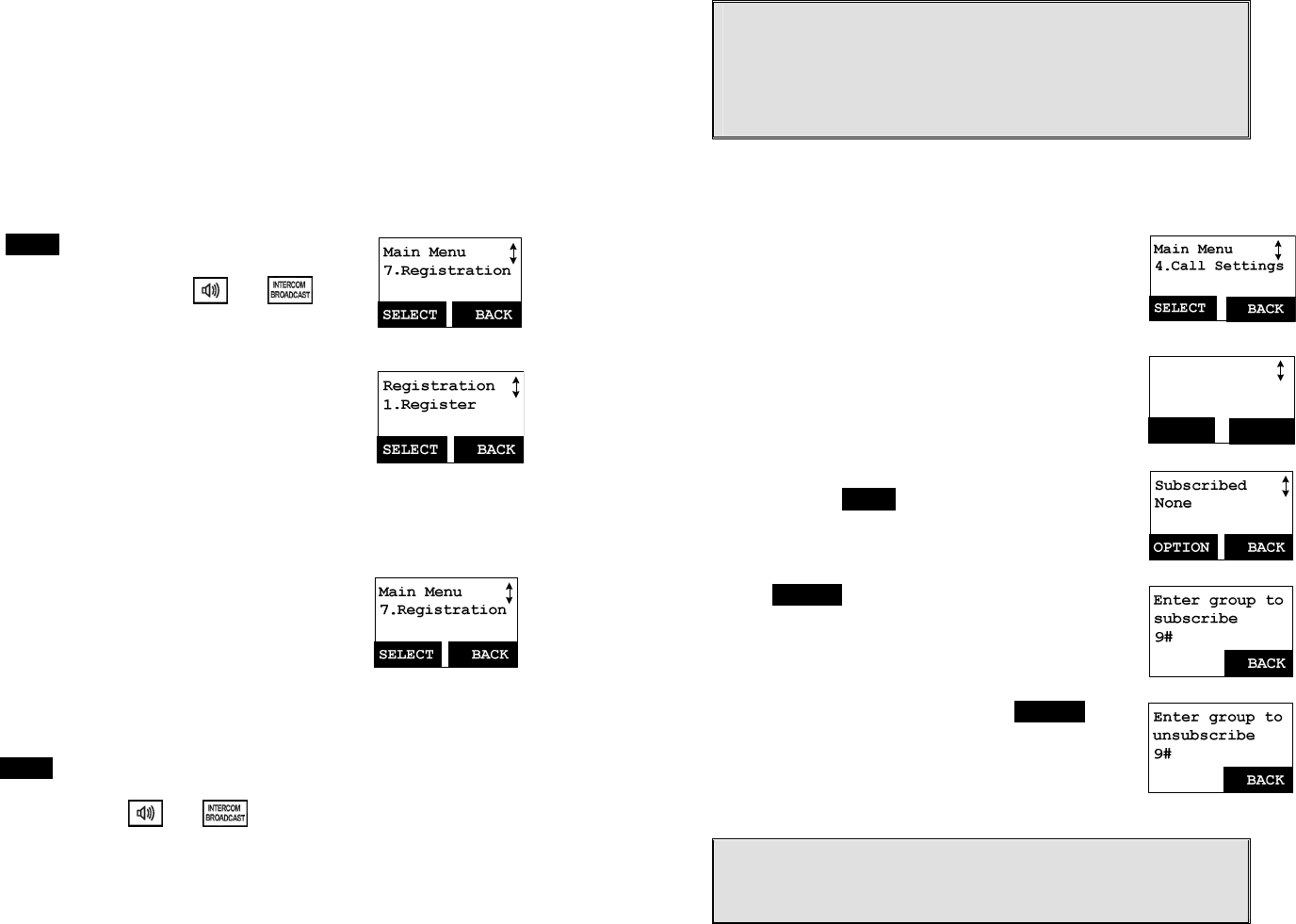

Handset Registration..........................................................37
Handset Group Subscription..............................................38
Call Transfer.......................................................................39

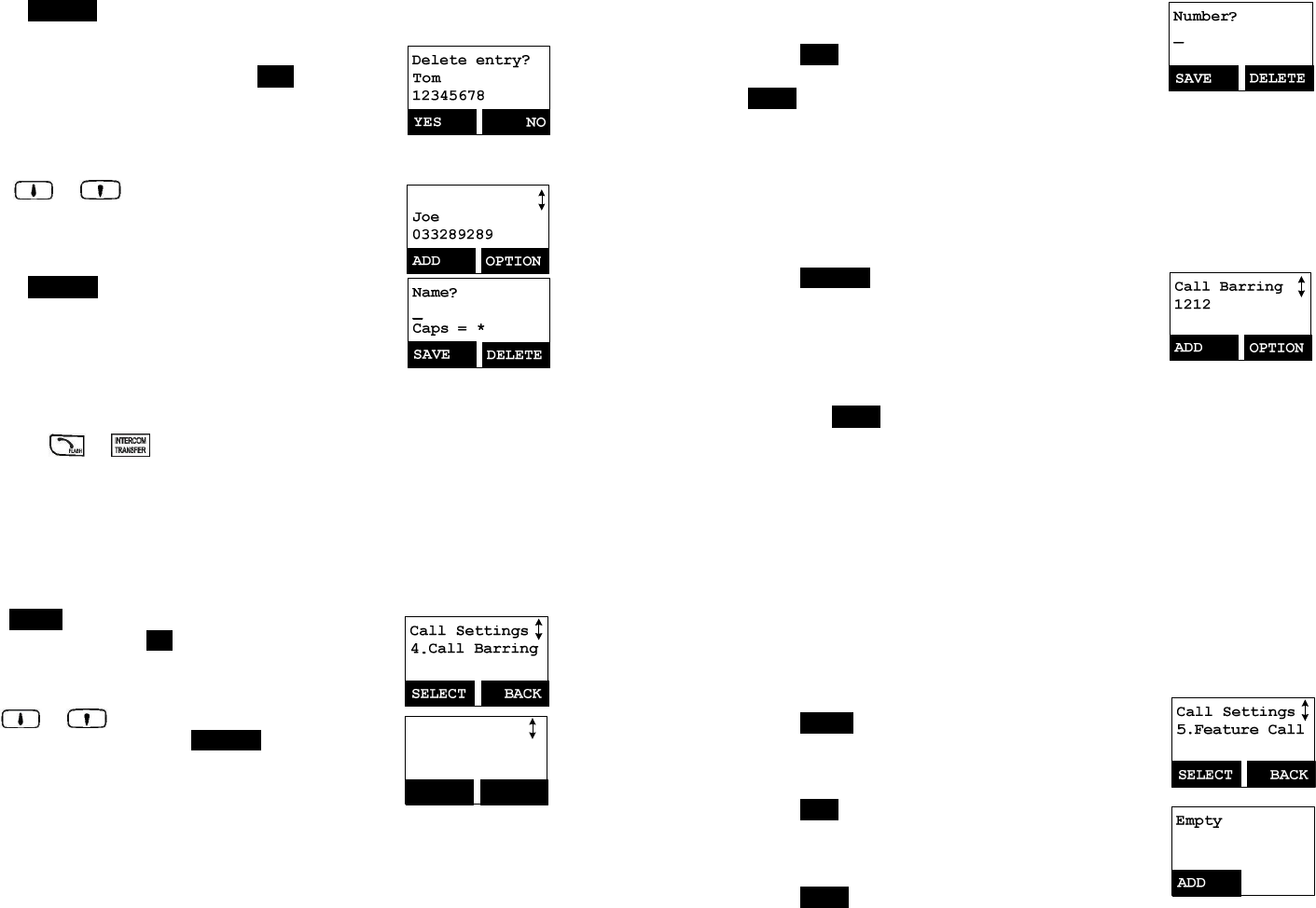

Phonebook Operations ......................................................40
Call barring.........................................................................43
Programmable Feature Call...............................................44

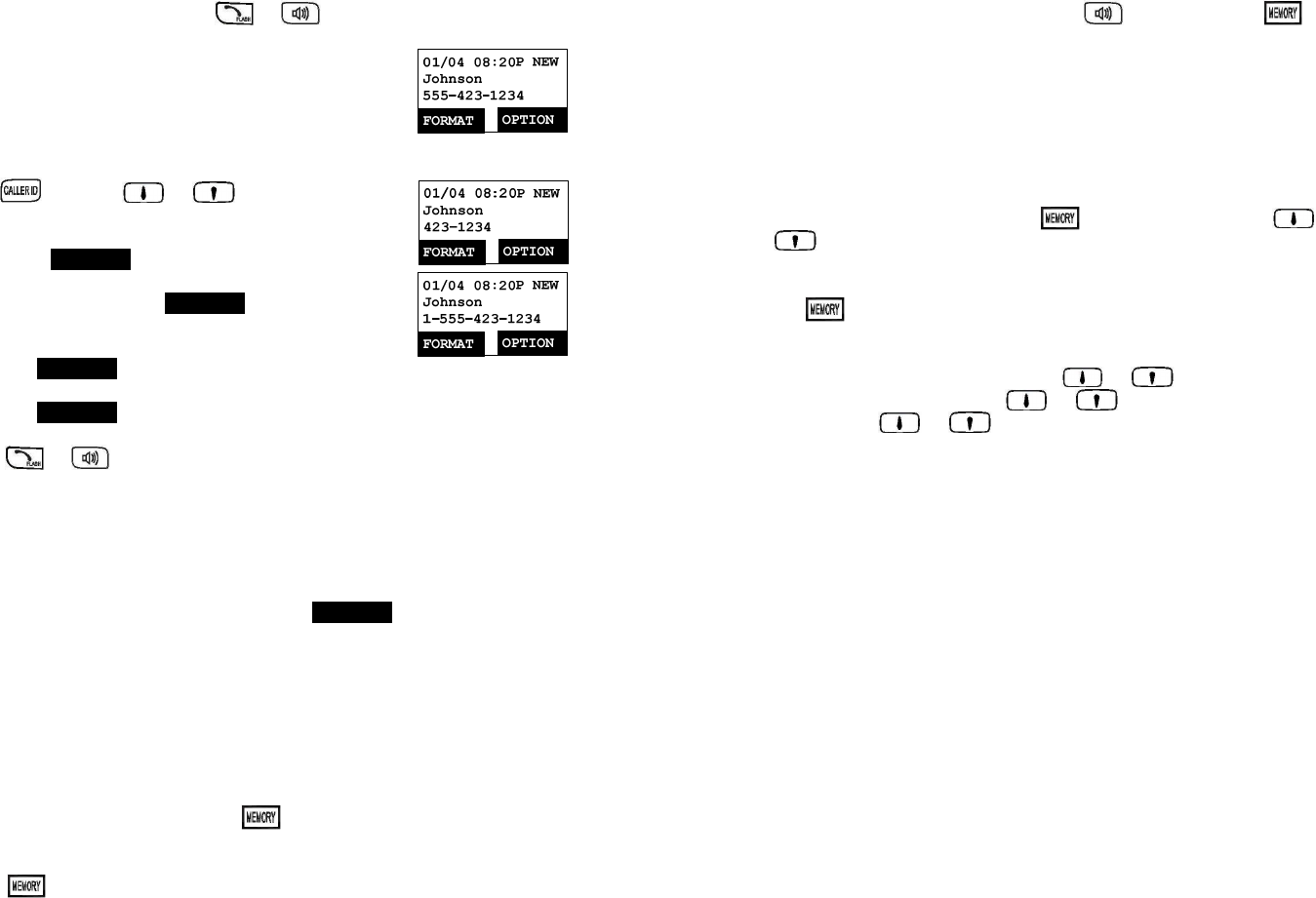

Caller ID .............................................................................46
Base Speed Dial Setting ....................................................47
Base Ringer Setting ...........................................................48
Visual Message Waiting Indicator (VMWI).........................48

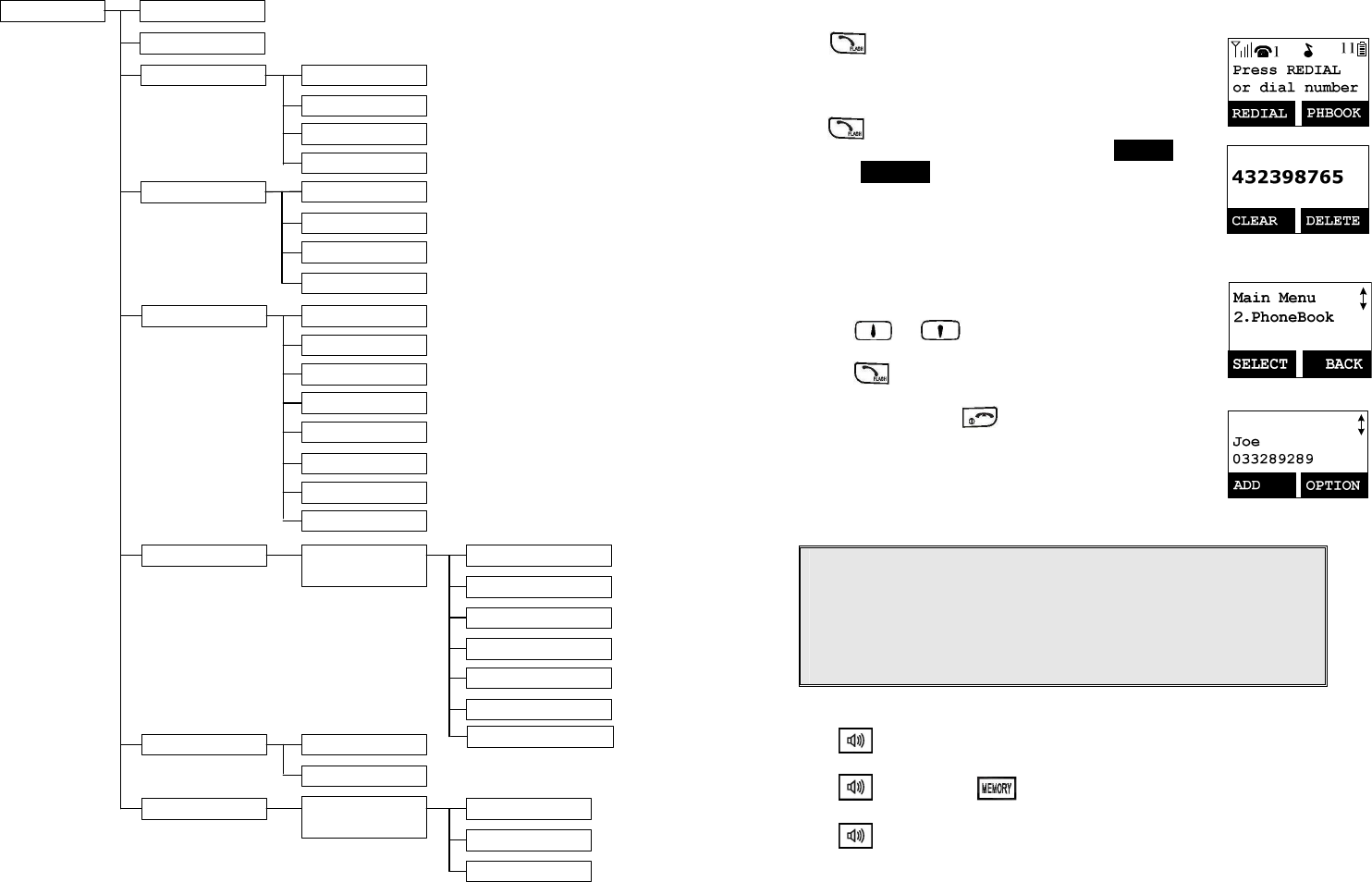

Menu Operations................................................................49
Part 68 Statement..................................................................54
Index......................................................................................56
Technical Specifications ........................................................60
~
4
~
Safety Instructions
Caution: Your wireless telephone gives you freedom and flexibility to stay
in touch while you move around. However, when using your phone
equipment, safety instructions should be followed to avoid the risks of fire,
electric shock, injury to person, and damage to property.
General Safety Instructions
1. When using your wireless phone, ensure your safety and the safety of
others:
a. Always watch where you are walking and standing.
b. Don’t let a phone call distract you from working safely.
2. In an emergency:
a. If an emergency occurs, dial the emergency phone number.
Remember: if you are in an area where your phone does not have a
clear signal from the base, it is highly probable that the call may not
go through. Locate the nearest landline telephone or other
communications device to call for help.
b. Emergency calls may not automatically provide emergency
personnel with your name, phone number or location.
3. Notice to Hearing Aid Users: This phone system is compatible with
inductively coupled hearing aids.
4. Notice to Cardiac Pacemaker Users: Preliminary studies done by the US
FDA and others have shown that, although interference to the implanted
cardiac pacemaker may occur when operating very closely, wireless
telephones “do not seem to pose a significant problem for pacemaker
wearers.” However, until more is known, FDA suggests that people with
pacemakers may want to take precautions when using or carrying a
wireless telephone to ensure that there is ample distance between the
telephone and the pacemaker. Do not carry the handset in a breast
pocket. If you have any reason to suspect that interference is taking
place, turn off your handset immediately.
Product Safety Instructions
1. Read and understand all instructions.
2. Follow all warnings and instructions including those marked on the
product.
~
5
~
3. Changes or modifications to this product not expressively approved by
the manufacturer will void the warranty and the FCC authorization to
operate the equipment. Use only manufacturer provided accessories.
4. Do not use the telephone near water. Never spill liquid of any kind on
this product.
5. Unplug the product from the wall telephone jack and power outlet before
cleaning. Do not use liquid or aerosol cleaners. Use damp cloth for
cleaning.
6. Do not place this product on an unstable cart, stand, or table. The
product may fall and cause personal injury or damage to the product or
other property.
7. Power Outage: In the event of a power outage, your handset charger will
not recharge the handset battery, and the base station will not allow you
to make an outgoing call or take an incoming call. Both the charger and
the base station require electricity for operation. You should have a
telephone that does not require electricity available for use during power
outage, or have a temporary backup power supply.
8. Slots or openings in the product’s housing are provided for ventilation.
These openings must not be blocked or covered. Placing the product on
a bed, carpeting, or other similar surface may block these openings and
should be avoided. This product should never be placed near or over a
radiator or heat register, or in a built-in installation unless proper
ventilation is provided.
9. Never push objects of any kind into this product through housing
slots/openings as they may damage the product, touch dangerous
voltage points or short out parts that could result in fire, electric shock, or
injury.
10. This product should be operated only from the type of power source
indicated on the marking label. If you are not sure of the type of power
supply to your home, consult your dealer or local power company.
11. Do not overload wall power outlets and extension cords as this may
result in fire or electric shock.
12. To avoid electric shock or burn, do not disassemble this product. Send
this product to an authorized service center when service or repair work
is required. Call Customer Service for locations near you. Opening or
removing covers may expose you to dangerous voltages, electrical
currents or other risks. Incorrect reassembling of the product may cause
electric shock when the product is subsequently used.
13. Avoid using the product during a storm. There may be a risk of electric
shock from lightning.
14. Do not place the product where persons can step, trip, or fall on it.
~
6
~
15. Do not place conductive objects over or near the antenna.
16. Do not use the product to report a gas leak while in the vicinity of the
leak.
17. Do not install the base station or the handset charger near microwave
ovens, radios, TV sets, speakers, or other electrical equipment. These
appliances may cause interference to the product or experience
interference from the product.
18. Unplug the base station or the charger adaptor from the power outlet and
refer to an authorized service center under the following conditions:
a. If liquid had been spilled into the product.
b. When the power supply cord or plug is damaged or frayed.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally by following the operating
instructions.
e. If the product has been dropped or housing has been damaged.
f. If the product shows a distinct change in performance.
Battery Safety Instructions
1. Use only manufacturer approved Li-ion rechargeable batteries and
charger. Do not use other types of rechargeable batteries or non-
rechargeable batteries. The batteries could short-circuit, and the battery
enclosure may be damaged causing a hazardous condition.
2. Follow the charging instruction in this manual and instruction labels and
markings in the handset and charger compartments.
3. Battery must be recycled or disposed of properly. Do not dispose the
battery in a fire. The cells may explode.
4. Do not dispose of the battery in municipal waste. Check with local codes
for disposal instructions.
5. Exercise care in handling the batteries in order not to short-circuit the
battery with conductive materials such as rings, bracelets, keys,
pocketknife, and coins. The battery or conductive material may overheat
and cause burn or fire.
6. Do not expose batteries to rain or water.
7. Do not open or mutilate the battery. Released electrolyte is corrosive
and may cause injury to eyes or skin. The electrolyte may be toxic if
swallowed.
8. During charging, the battery heats up. This is normal and is not
dangerous.
~
7
~
Regulatory Information
FreeStyl 1
FCC IDU2M-FS1
IC3616C-FS1
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
1) this device may not cause harmful interference, and
2)
this device must accept any interference received, including
interference that may cause undesired operation.
Base Station
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by
the party responsible for compliance could void the user's authority to
operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
~
8
~
This equipment complies with FCC radiation exposure limits set forth for
an uncontrolled environment. This equipment should be installed and
operated with minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
Industry Canada statement:
This device complies with RSS-210 of the Industry Canada Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may
cause undesired operation.
IMPORTANT NOTE:
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and
operated with minimum distance 20cm between the radiator & your body.
This device has been designed to operate with an antenna having a
maximum gain of 2 dBi. Antenna having a higher gain is strictly
prohibited per regulations of Industry Canada. The required antenna
impedance is 50 ohms.
Protable Handset
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
~
9
~
- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by
the party responsible for compliance could void the user's authority to
operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
IMPORTANT NOTE:
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for
an uncontrolled environment. End users must follow the specific
operating instructions for satisfying RF exposure compliance. To
maintain compliance with FCC RF exposure compliance requirements,
please follow operation instruction as documented in this manual.
This transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
Industry Canada statement:
This device complies with RSS-210 of the Industry Canada Rules.
Operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired
operation.
IMPORTANT NOTE:
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an
uncontrolled environment. End users must follow the specific operating
instructions for satisfying RF exposure compliance. To maintain
compliance with IC RF exposure compliance requirements, please follow
operation instruction as documented in this manual.
This device has been designed to operate with an antenna having a
maximum gain of 2.5dBi. Antenna having a higher gain is strictly
prohibited per regulations of Industry Canada. The required antenna
impedance is 50 ohms.
~
10
~
Equipment Checklist
1.
In a Base + Handset package, please find the following components:
a.
Base Station x 1
b.
Base Antenna x 1
c.
Base AC/DC Adaptor x 1
d.
Handset x 1
e.
Handset Antenna x 1
f.
1100mA Li-ion Battery Pack x 1
g.
Telephone Cord x 1
h.
User’s Manual, Quick Guide, and Warranty Card
2.
In a Handset package, please find the following components:
a.
Handset x 1
b.
Handset Antenna x 1
c.
1100mA Li-ion Battery Pack x 1
d.
Charger x 1
e.
Charger AC/DC Adaptor x 1
f.
Quick Guide, and Warranty Card
3.
Optional Accessory
a.
Spare Battery x 1700mA Li-ion
~
11
~
Handset Illustration
~
12
~
Handset Features
Basic Handset Features

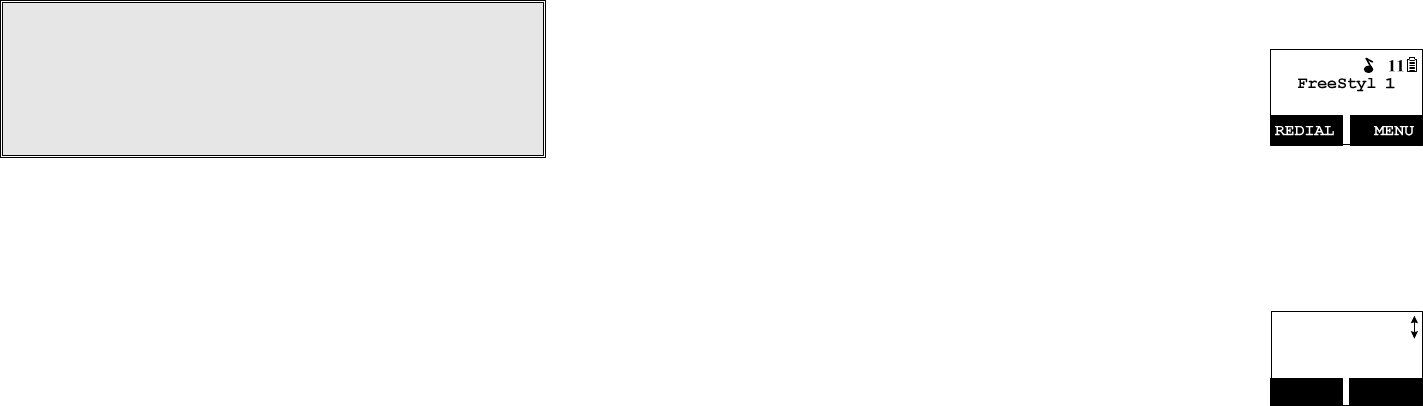

1. 4-line LCD (Liquid Crystal Display)
a. The LCD display has LED (Light Emitting Diode) for backlighting.
b. The 1
st
line of LCD consists of icons.
c. Icons explanation from left to right
(1)
RSSI (Receive Signal Strength Indicator)
During a call, the number of bars is proportional
to the radio signal strength received.
(2)
Link mode
(2.1) Call in-progress (ON/OFF-Hook)
Indicates which the phone line of Base is active.
(2.2) Intercom in-progress
Indicates if Intercom mode is active
Indicate the Handset ID which is making intercom with.
(3)
Speech mode
(3.1) Speaker Indicator
Indicate if the speaker is active
(3.2) Headset mode
(4)
Sound and Indication
(4.1) Enable ringer
(4.2) Disable ringer
(4.3) Ringer and vibrate mode
(4.4) Vibrate mode
(4.5) Message waiting indicator
(5)
Disable PA
Indicate if the speaker is disable
(6)
11
Two-Digit Address Index
Displays the 2-digit Handset ID.
(7)
Battery Strength
Number of bars is proportional to the amount of battery time remaining.
d. The 2
nd
and 3
rd
lines of the LCD, maximum 16 characters each,
display status, message, menu selections, or user-editable
alphanumerical characters.
e The last line displays the left and right soft keys.
2. Ringer
a. Rings to an incoming call and intercom call.
b. Distinctive alert sounds indicating various events:
~
13
~
(1)
Single beep: successful key entry
(2)
Double beep: indicates power on/off
(3)
Triple beep: failed operation
(4)
Periodic 1-Long-2-Short beep (every 1 minute): low battery warning
out of rangecall on hold
(5)
Periodic Long Series of beeps (repeat every 30 seconds): indicates
confirmation for saving success
Re:
No any beep for invalid key entry

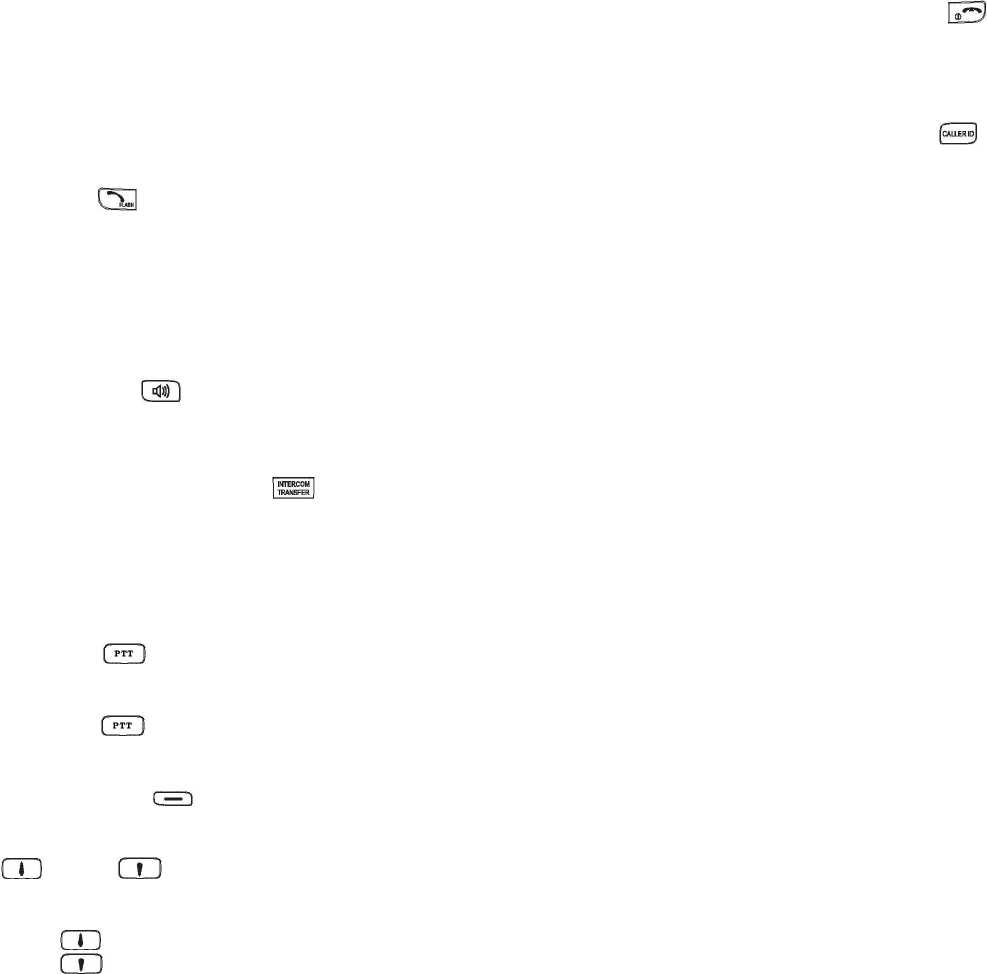

3. TALK/FLASH ( )
a. Places or answers a telephone or intercom call
b. Sends a Flash signal to phone line to retrieve a dial tone after the
call ends, or to perform the call waiting feature provided by local
phone companies during a call.
c. Press and hold the key for two seconds to enable/disable the
speakerphone.
4. SPEAKERPHONE ( )
a. Press the key to enable/disable the speakerphone during incoming,
outgoing or intercom call.
5. 2-WAY INTERCOM / TRANSFER ( )
a. Places an intercom call to another handset, a group handset (group
paging) or all registered handsets.
b. Intercom calls are digital, full duplex, and are conducted without the
assistance from the base.
c.
6. BROADCAST ( )
a. Half duplex broadcasting to handsets for immediate announcement
b. Half duplex broadcasting to base stations
RePress the key on the side of handset to activate the broadcast
function.
7. Left/Right Soft Keys ( )
a. Make menu selection.
8. Up( ) /Down( ) Scrolling Keys
a. Scroll through records and menu selections.
b. Adjust receiver voice volume when in the Talk mode.
c. Press to adjust ringer volume when in the Standby mode.
d. Press to enter phonebook when in the Standby mode.
~
14
~
9. END; On/Off Key ( )
a. Ends a call.
b. Leaves current menu operation, up one level.
c. Press for 3 seconds to off the power
10.
CALLER ID Key ( )
a. Review caller ID list.
b. Including received and missed caller ID.
Additional Handset Features
1. Multiple handsets registration
a. Up to 9 handsets can be registered to a base station
b. ID 11-19: individual Handset IDs.
c. ID 91-99: Group IDs. Handsets can “subscribe” from the handset
menu to group(s) and be paged when a landline caller or an
intercom caller enters a Group ID.
2. Ringer Vibrator
a. For incoming call ringing & intercom ringing.
b. Six-level ringer volume selections (Off/Low/Medium/High/Vibrate/
Vibrate & High)
b. Eight ringer type selections
3. Caller ID
a. Displays incoming call phone number and name on the LCD (needs
Caller ID service from local telephone company)
4. Call waiting with caller ID
a. Displays 2
nd
incoming call information on the same phone line when
1
st
call is in progress (needs Call Waiting with Caller ID service from
local telephone company)
5. Name tagging with caller ID
a. Match the caller ID with the phone book entries; once matched, the
LCD screen will display the name or nickname instead of pure caller
ID info (needs Call Waiting with Caller ID service from local
telephone company)
6. DND (Do Not Disturb, i.e., Silent Ring)
~
15
~
7. Call Logs
a. Redial: Stores 10 phone numbers (up to 26 digits each) dialed most
recently. Can perform last-number redial on all 10 numbers.
b. Received & New Call Log: Total 50 entries (16-digit phone number,
16-character names, and Date/Time stamp), needs Caller ID service
from local telephone company.
c. Phone numbers and names can be saved into phonebook while in
display.
8. Call barring
a. Block the users from dialing the long distance calls or international
calls
b. Up to 5 digits of each call barring setting; up to 5 entries allowed
c. If you need to dial a specific number to retrieve the dial tone, you
need to key in that number while setting the call barring
[Note] you need to key in the accurate user ID and password to perform
this feature. The default password is “0000”
9. Any Key Answer (except and SILENT Soft Key)
10.
Key-guard
a. When the keyguard is selected, all keys will be locked.
Press UNLOCK (Left) soft key followed by “” to release it.
11.
Dialing Prefix
a. Up to 14 digits, including pause(s), one access code can be pre-
programmed to be added automatically in front of the dialed number
when dialing from call logs, phonebook, and dial-and-send dialing.
12.
Call Hold
a. Places call on hold
b. Battery Hot Swap: Change battery while call is on hold.
13.
Mute
a. Press MUTE (Left) soft key during talk, the handset microphone will
be muted.
Press UNMUTE (Left) soft key to release it.
14.

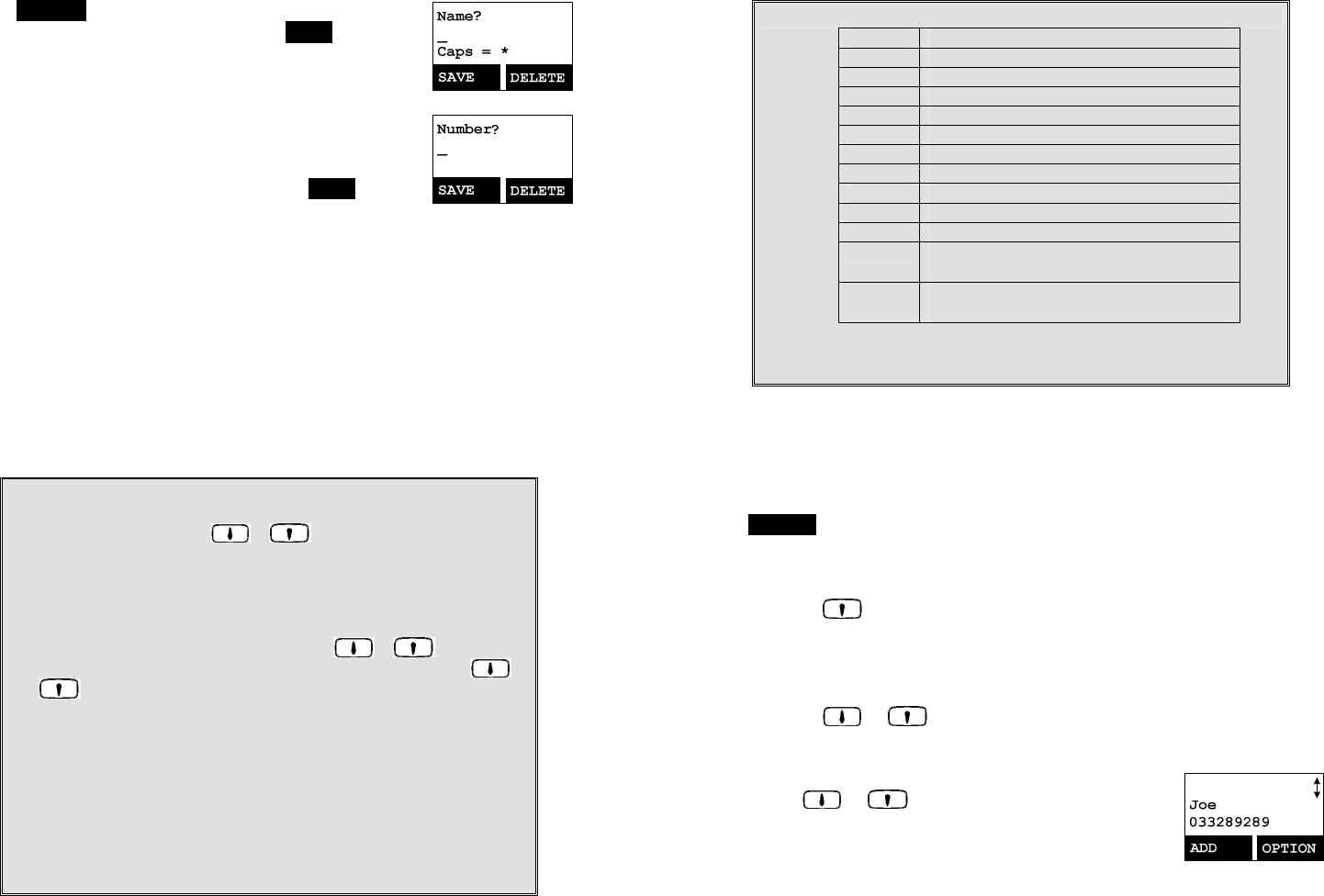

Phonebook
a. 50 entries, each stores a phone number or handset ID (up to 26
digits) and name (up to16 characters)
~
16
~
b. Alphabetically sorted display and search
c. Dial from display
d. During the stand-by mode, you can enter the phone book by
pressing scrolling key
15.
Key tone
a. Four-level key tone volume selections (Off/Low/Medium/High)
b. Four key tone type selections
16.
Call Timers
a. Display call time duration for current call during and immediately
after the call
17.

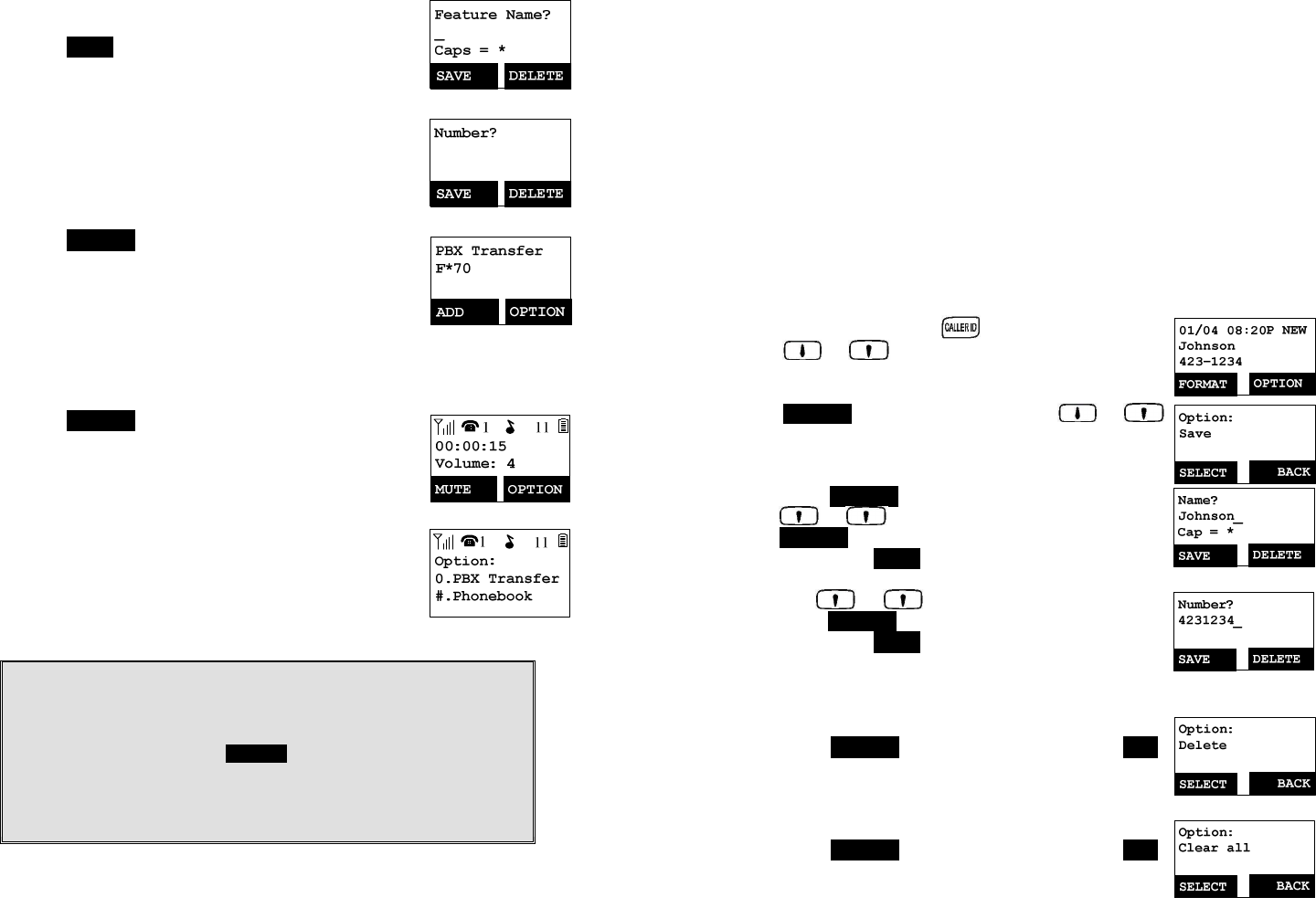

Programmable Feature Call
a. Allow user to pre-program the most frequently used Feature code
into FreeStyl 1 which is adjunct to the PBX system.
b.
Up to 10 entries can be saved.
c.
Once the feature code being programmed, you can quick perform
those functions during the call by pressing OPTION soft key.
18.
PA On/Off
a. Enable or disable the broadcast function.
b. When PA is Off, the handset can’t receive broadcast from base or
other registered handsets; But it can broadcast to base or other
registered handsets.
19.
Menu Display
a. To avoid mis-setup in the “Call Settings”(MENU-4), “Phone Settings”
(MENU-5) and “Base Settings” (MENU-6), these settings can be
hidden.
b. Password is required before enter Menu Display (MENU-8), the
default password is “0000”.
c. When enable the settings, these setting will not displayed any
longer, unless disable them by entering Menu Display again.
20.
Group Setting
a. Allow handset to subscribe to one or several groups.
Re: Up to 9 groups can be subscribed.
21.
Custom Name
a. Allow changing the “Welcome” screen to the desired wording or info,
such as the user’s name.
Re: Up to 32 characters can be entered.
~
17
~
22.
Change Pwd
a. Allow changing the handset password which requires to enter in Call
Barring (MENU-4-4) and Menu Display (MENU-8) .
Re:Default is “0000”.
23.
Change PIN
a. Allow changing the Base PIN which requires to enter in Base
Settings (MENU-6).
Re: Default is “0000”.
24.
DTMF Duration
a. From MENU-6-1 to select variable duration of DTMF tone.
b. Default is 100ms.
c. When entering the base setting, PIN is required. Default is “0000”.
Re:
Better to check with your phone company first before changing it.
25.
Programmable Flash key timing
a. From MENU-6-2 to select flash key timing
b. 9-level (100 ms - 900 ms) timing selections, default= 600 ms.
c. The default value (600 ms) works in most areas. Changing this
setting may cause Flash key not working. Change only when you
are certain of the new value would work.
d. When entering the base setting, PIN is required. Default is “0000”.
26.
Assign handset ID for new handset
a.
Using registered handset from MENU-6-3 to assign a handset ID to
a new handset.
b. If not assign handset ID, the system will automatically assign a
handset ID to a new handset..
c. When entering the base setting, PIN is required. Default is “0000”.
27.
Clear Handset
a.
Using registered handset from MENU-6-4 to remove the other
registered handset, in case the other registered handset is defected.
b. Once clear the other registered handset, the user is able to register a
new handset for instead.
c. When entering the base setting, PIN is required. Default is “0000”.
28.
Change PIN
Allow changing the base PIN which requires to enter the “Base Settings”
(MENU-6-5).
a.
Using registered handset to change PIN from MENU-6-5.
~
18
~
b. Default PIN is “0000”.
c. When entering the base setting, PIN is required. Default is “0000”.
29.
Auto Hand Up feature
a.
Using registered handset from MENU-6-6 to turn on/off the Auto
hand up feature.
b. If turning on the feature, the handset will automatically hang up the
call when the far-end hangs up the call.
c. When entering the base setting, PIN is required. Default is “0000”.
30.
Set Time
The set time function allows user to set date/time to support the DTMF
caller ID (DTMF caller ID doesn’t attach date/time when receiving from
PSTN, using this setting, user is able to review the date/time when the
caller ID received).
a. Enter MENU-6 to set Base Settings.
b.
Press or scrolling key to select desired base.
c. Enter Base PIN (Default is “0000”).
d. Enter “7” to enter Set Time.
e. Enter 4 digits for MM/DD(Month/Day), then enter 4 digits for hr:mm
(HourMinute)
f. Press SAVE (left soft key) to finish the setting.
~
19
~
Base Illustration
~
20
~
Base Features
Basic Base Station Features
1. Antenna
a. The antenna port has a reverse thread connector; to remove
antenna or cable, turn clockwise; to install, turn counterclockwise.
Improper installation may damage the connector
b. When using an outdoor antenna, locate the antenna (not the base
station itself) as high as possible for a clear transmission path.
2. LED
a. Power: it indicates base station has power.
b. In-Use: it indicates an active telephone line.
c. Broadcast: it indicates “Broadcast” taking place.
3. RESET Button
a. Restores base station to factory settings
b. Reset button is indented to prevent accidental system reset.
c. All handsets (including administrator) and additional base(s) need to
be re-registered after a base station reset.
4. Registration Button (REG)
Enters registration mode along with handset, assigns handset ID (11-19).
5. Line Jack
Standard RJ-11C/CA-11A connector to plug in the telephone line
6. Telephone Jack
Another RJ-11C to plug in the optional answering machine
7. Dialing Keys
a.
Enter the phone no after pressing the Speakerphone key.
b. Enter the handset ID or Group ID when making the intercom call or
broadcast.
c. Enter the phone no when storing the base speed dial directory.
8. Function Keys
a. TRANSFER ( ): during talk, press the key to transfer the call to a
registered handset.
b. MEMORY ( ): store phone number into speed dial memory of
base unit. Up to 20 entries. Or retrieve a phone number from the
~
21
~
speed dial memory during the talking.
c. HOLD ( ): press the key to put the call on hold.
d. FLASH ( ): press the key to send a Flash signal to phone line to
retrieve a dial tone after the call ends, or to perform the call waiting
feature provided by local phone companies during a call.
e. REDIAL/P ( ): press the key to retrieve the last dialed number.
Or store a pause time (1 second) while storing the speed dial
memory.
9.
VOLUME keys ( and )
a. Increase or decrease the ringer volume during standby mode.
b.
Increase or decrease the voice volume during talk mode.
10.
SPEAKERPHONE key ( )
a. Press the key to get the dial tone, followed by phone number to
make outgoing call.
b. Press the key again to hang up the call.
c. When enable the speakerphone, the backlight of the key will be
turned on too.
11.
INTERCOM/BROADCAST Key ( )
a. Enter handset ID then press the key to enable the 2-way intercom
feature.
b. Enter handset ID then press the key for over one second to enable
the broadcast feature.
Re:
Press the INTERCOM/BROADCAST Key without entering handset
ID first, all registered handset will be enabled.
12.
DC In: to plug in the power adaptor
~
22
~
Charger Illustration
Handset
charging slot
Spare battery
charging slot
Spare battery
charging indicator
DC in
~
23
~
Charger Features
1. DC In
Connects to Charger AC Adaptor.
2. Handset Charging Slot
a. Charge handset battery when handset is placed in cradle.
b. Refer to the handset LCD for charging status
(1)
Charging: battery status bar is running and the LCD screen showed:
Charging
(2)
Fully Charged: battery status bar stands still and the LCD screen would
display “Fully Charged”
(3)
Charge Fail: Should there be any error occurred during charging mode,
the LCD screen would display “Charge Fail”
3. Spare Battery Charging Slot
a. Charge spare battery when battery is placed in slot.
b. LED as the spare battery charging indicator
(1)
Slot is empty and the power is on: LED is off
(2)
Battery is in charging: LED is Green light
(3)
Fully Charged: LED is off
4. It is impossible to overcharge the battery using this charger.
5. The adaptor for charging station can be used as travel charger as well.
However, you can’t turn off the power while you charge the handset via
travel charger. A warning message” “Unplug Travel Charger than OFF
the power” will be shown on the LCD.
Notes:
1. Fully charge battery packs before first use.
2. Both handset and spare batteries can be charged at the same
time.
3. Handset will be “power on” automatically when placing on the
charging slot.
4. However, if you run drain the battery, it will take around one
minute for handset to auto power on.
~
24
~
Getting Started

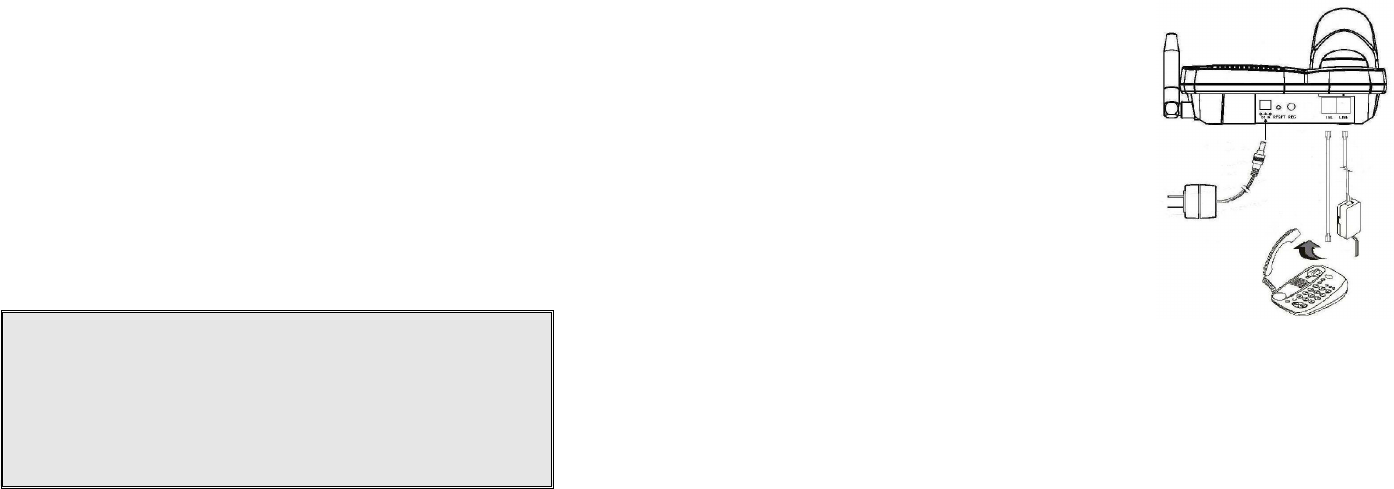

Base Station Installation
There are three possible base station setups:
Base station alone
Base station plus telephone answering device
Base station plus standard telephone
For best performance, maintain at least a distance of 1 meter (about 3 feet)
between the base station and other electronic devices (e.g., TV, computer,
stereo, fax machine, answer machine, cordless phone, etc.)
1. Install base station antenna.
The base station’s antenna port has a
reverse-thread connector; to install
antenna or cable, turn counter-
clockwise; to remove, turn clockwise.
Improper installation may damage the
connector.
2. Plug the transformer end of the base
station AC/DC adaptor into a standard
AC electrical power outlet, plug the
other end into the “DC In” jack on the
back of the base station.
a.
The base adaptor’s DC plug is
larger in dimension than the
charger’s DC plug. The charger
adaptor’s DC plug will not fit into
the base’s DC In jack.
b.
The base station’s power supply
(DC Adaptor) and telephone line
should be plugged into a surge
protector with phone line protection.
3. Plug phone cord into the “LINE” Jack
4. A standard telephone or answering machine can be plugged into the
adjacent receptacle on the bottom of the base station marked TEL
~
25
~
Handset and Charger Installation
1. Plug the transformer end of the Charger AC/DC adaptor into a standard
AC electric power outlet, plug the other end into the “DC In” jack on the
back of the Charger.
2. Install battery pack onto the handset.
3. Install handset antenna.
4. Place handset onto the charger front slot.
5. Fully charge the battery for three hours before use.
6. The phone system is now ready to perform basic functions such as
making and receiving phone calls and intercom calls. No base station or
handset programming is needed for basic operations.
Note:
1. Handset(s) packaged along with a Base Station are pre-
registered at the factory. If you have a new handset, you will
need to register the handset with the base station in order to be
recognized as a member handset by the base(s) and by other
handsets. See Handset Registration.
2. Fully charge battery packs before the first usage.
~
26
~
Basic Operations
Operation Modes
Both the base station and handset have levels of operation at which time
only certain procedures of functions can be performed.
A. Base Operation Modes
1. IDLE mode- this is the default mode. The speakerphone, intercom,
broadcast, and volume keys are active in IDLE mode.
2. TALK mode- the base operates in this mode during phone call,
intercom, and broadcast operation. The dialing, “Transfer”, “Memory”,
Hold”, Flash” and “Redial/P” keys are operated in this mode. The “In
Use”, “Intercom”, and “Broadcast” LED will light up respectively.
3. REGISTRATION mode- the base enters this mode by pressing the
REG button for three seconds. There are no active base unit keys once
this mode has been entered. Speakerphone and Intercom LEDs will be
lighted up in Registration mode, also a prompt ringing will be emitted.
B. Handset Operation Modes
1. Standby mode- this is the default mode.
a.
If there is no on-going activity, the handset
automatically goes into SLEEP/IDLE mode to
save battery power.
b.
The handset can be turned off completely by
holding down the END key for 3 seconds.
c. The idle screen display (custom name) can be
edited.
d. The 2-dight number represents the handset ID
2. Menu mode
a.
Press the Right soft function key to activate Menu
mode.
b.
In Menu mode, the handset settings and
information contained in memory can be changed.
c. The functions available through the Menu
selection are covered in greater detail from page
38.
Main Menu
1.KeyGuard
SELECT BACK
d. The Menu structure display as below:
~
27
~

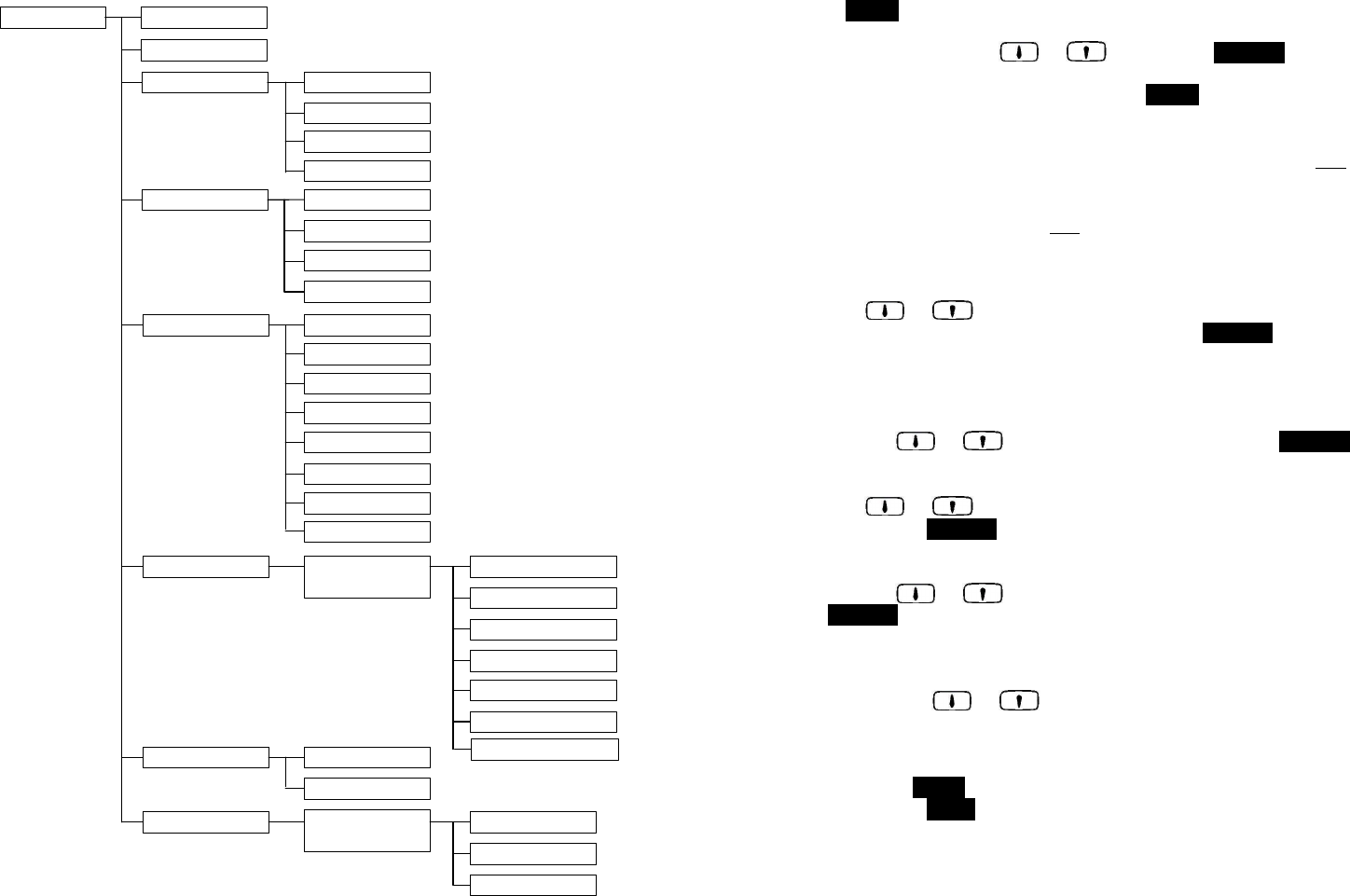

3. Menu Tree
Menu 1.KeyGuard
2.PhoneBook
3.Sounds
2.Ring Tone
1.Ring Volume
3.Key Voulme
4.Key Tone
4.Call Settings 1.Dial Prefix
2.Group Setting
7.Custom Name
3.Contrast
4.Backlight
4.Feature Call
6.Language
3.Call Barring
5.Name Tag
5.Phone Settings 1.PA On/Off
2.Any Key Talk
8.Change Pwd
6.Base Setting
2.Flash Time
1.DTMF Duration
3.Assign Next HS
Enter
Base PIN:****
5.Change PIN
6.Auto Hang Up
4.Clear HS
7.Registration 1.Register
2.Deregister
8.Menu Display 1.Call Settings
Enter Password:
---- 2.Phone Settings
3.Base Settings
7.Set Time
~
28
~
Making a Telephone Call
A. From Handset
1.
Press , wait for dial tone, and then enter phone
number.
2.
Alternatively, you can enter phone number first then
press key.
When using this method, you can use the CLEAR
(Left) and DELETE (Right) soft keys to edit the number
entered. “Delete” erases the last digit entered. “Clear”
erases the entire line but remains in the dialing mode.
3.
Speed dial by access the entries in the phone book
(Menu2)
a.
Press or scrolling key to enter the phone
book
b.
Press to dial out the number
4.
To abort dialing, press key.
Notes:
1.
If the line is occupied, the LCD shows “No Line Available”
and handset returns to standby mode.
2.
If a link cannot be established, the LCD will show “No Base”
after a 12-second time out.
3.
A call duration timer will start displaying the length of the call
after link is established.
B. From Base
1. Press , wait for dial tone, and then enter phone number.
2. Speed dial by access the entries in the base memory.
Press , then press and the location of speed dial “N” (N
00~19)
3. Press again to hang up the call.
~
29
~
Making an 2-Way/ Intercom Call
The FreeStyl 1 Cordless Phone System offers private, Intercom/ 2-way radio
calls independence of base station. Intercom/ 2-way communication can be
placed from or to base stations and handsets.
A. Handset to Handset Calls
1.
Press key followed by a two-digit handset ID or
Group ID.
2.
Press key to end the call.
Notes:
1. Intercom calls can be made regardless if the Base Station is
present.
2. If a Group ID is entered, the first handset (belonging to that
group) that answers will establish a link with the caller. See
Handset Group Subscription.
3. If a link cannot be established, the LCD shows “No
Connection” after a 12-second time out.
B. Intercom/2-Way from Base to Handset
1.
Press key on the base station to intercom all registered
handsets. The first handset to answer will establish a voice link with the
base.
2.
Or press a two-digit handset ID/group ID followed by key to
intercom the designated handset/ group.
3.
The INTERCOM LED will flash until a handset responds.
4. The base unit will page for 30 seconds, then terminate the page if no
handset responds.
5. Before a handset answers, the INTERCOM can only be cancelled from
the base by pressing again. However, once a handset answers,
the base and the answering handset both can end the call.
~
30
~
C. Intercom/2-Way from Handset to Base
1.
Press key followed by the left softkey --BASE
2.
The base will ring, until press the key to connect
the intercom call with the handset.
Making a Broadcast
A. Handset to Handset Calls
1.
Broadcasting all handsets
a.
Press and hold key (left side of handset) from
one handset.
b.
Hear bi-bi-beep while the initiating handset
broadcast to all handsets within communication
coverage.
c.
Start to speak the message to be broadcasted once you hear the
“beep” sound; the speakerphone of destination handsets will be
opened up.
d.
Release key to end the broadcasting.
2.
Broadcasting a group of handsets
a.
Enter the Group ID and then press and hold
key (left side of handset).
b.
Hear bi-bi-beep while the initiating handset
broadcast all handsets within communication
coverage.
c.
Start to speak the message to be broadcasted once you hear the
“beep” sound; the speakerphone of destination handsets will be
opened up.
d.
Release key to end the broadcasting.
3.
Broadcasting an individual handset
a.
Enter the Handset ID and then press and hold
key (left side of handset).
b.
Hear bi-bi-beep while the initiating handset
broadcast all handsets within communication
coverage.
c.
Start to speak the message to be broadcasted once you hear the
“beep” sound; the speakerphone of destination handsets will be
opened up.
d.
Release key to end the broadcasting.
~
31
~
B. Broadcasting from Base to Handset
1.
Broadcast to all handsets
a.
Press key on the base station to intercom all
registered handsets.
b.
Hear bi-bi-beep while the initiating handset
broadcast all handsets
c.
The BROADCAST LED will light up
d.
Press the key again and return to end the
broadcasting.
2.
Broadcasting a group of handsets
a.
Enter the Group ID and then press key.
b.
Hear bi-bi-beep while the initiating handset
broadcast all handsets within communication
coverage.
c.
Start to speak the message to be broadcasted once you hear the
“beep” sound; the speakerphone of destination handsets will be
opened up.
d.
Press key to end the broadcasting.
3.
Broadcasting an individual handset
a.
Enter the Handset ID and then press key.
b.
Hear bi-bi-beep while the initiating handset
broadcast all handsets within communication
coverage
c.
Start to speak the message to be broadcasted once you hear the
“beep” sound; the speakerphone of destination handsets will be
opened up
d.
Press key to end the broadcasting.
C. Broadcasting from Handset to Base
1.
Broadcast to the base station
a.
Enter the Base ID (10) and then press key
b.
Hear bi-bi-beep while the initiating handset
broadcast the base stations.
c.
Start to speak the message to be broadcasted
once you hear the “beep”
sound; the speakerphone
of the base will be opened up
d.
Press the key to end the broadcasting.
~
32
~

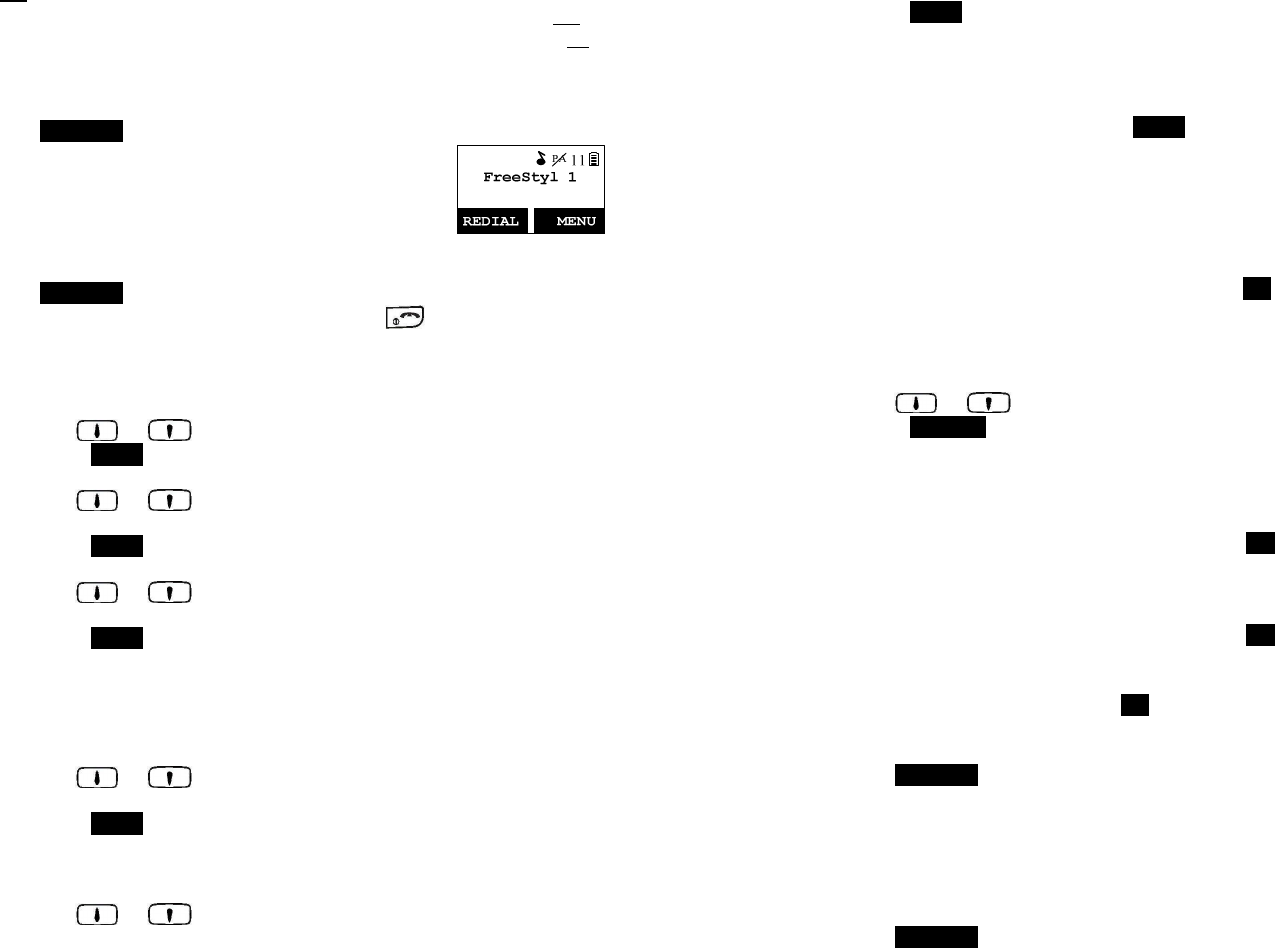

Redial
A. From Handset
1.
Press REDIAL (Left) softkey.
2.
The LCD shows the last phone number dialed. To dial
this number, press
key.
3.
Use p or Key to scroll through the last 10
phone numbers dialed. Select and press
key.
[Note] Intercom numbers (Handset ID) are not stored in
the last 10 numbers dialed log.
B. From Base
1.
Press key, after hearing the dial tone, followed by
the key, the last dialed number will be dialed.
Receiving a Telephone Call
A. Handset
1.
When an incoming call arrives, the LCD will show the
caller ID message, and the ringer will ring or vibrate
unless the ringer has been turned off.
2.
If the handset is on the charger cradle (ringer will be
temporarily switched to “Ring” if it has been set to
“Vibrate”), lift the handset and press key to start
conversation.
Re:
You can turn on the “Any Key Talk” from MENU-5-2
Notes:
1. You can press SILENT (Left) soft key if you choose to ignore
the call. Unlike turning off the ringer (from the handset menu),
the SILENT key operation is valid only for the current call.
2. If Caller ID service is available, the LCD will display the
incoming call information. If the LCD shows “Private” or
“Unknown”, the caller’s information may have been blocked by
the caller or the originating phone company.
~
33
~
B. Base
1. When an incoming call arrives, the ringer will ring, the speaker LED will
flash.
2. Press the to answer the call.

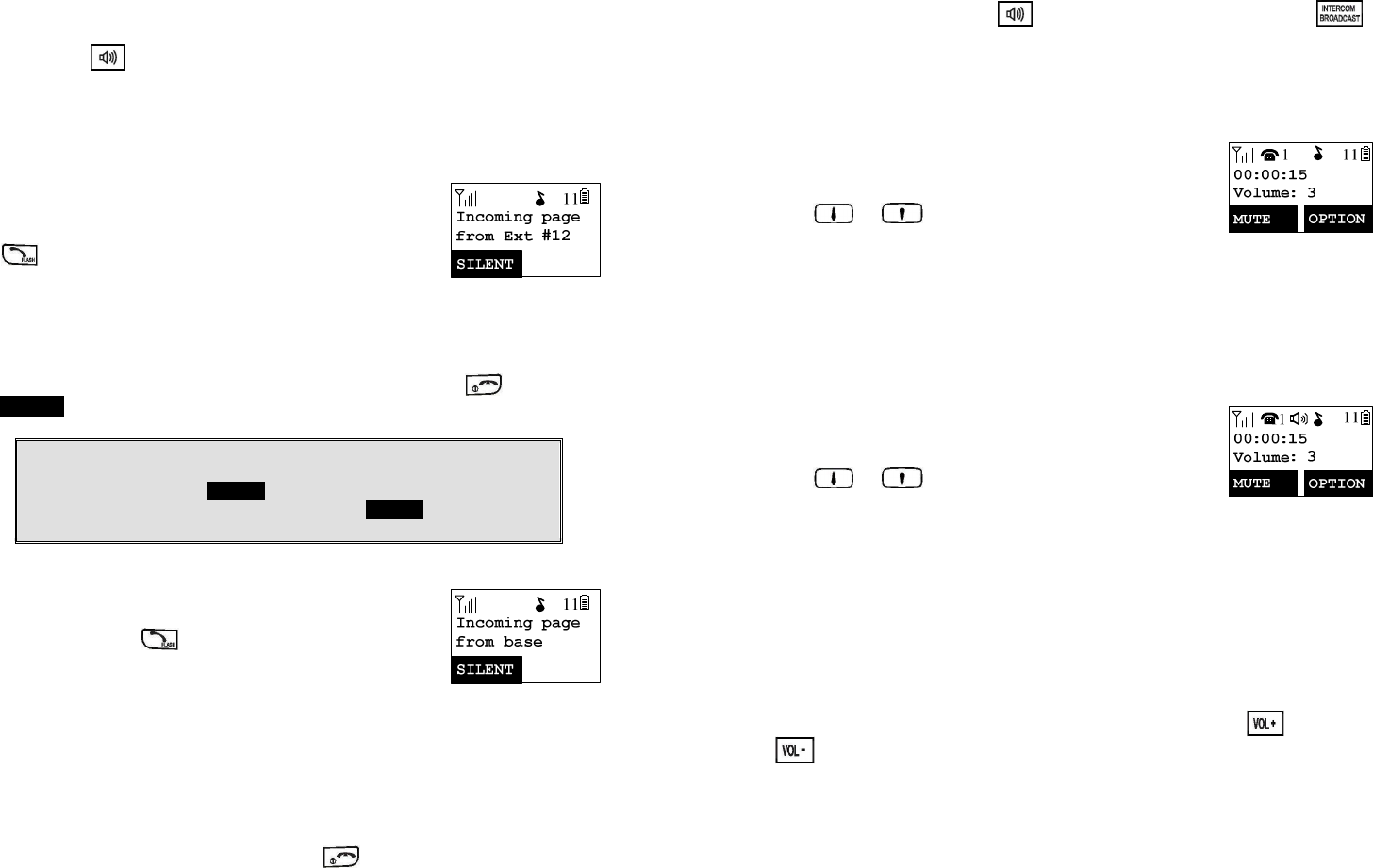

Receiving an Intercom Call
A. Intercom Call from Handset
1.
When an intercom call arrives (called from other
handsets, ex. Handset 12), the ringer will ring or
vibrate unless the ringer has been turned off. Press
to answer the intercom call.
2.
If the handset is on the charger cradle (ringer will be
temporarily switched to “Ring” if it has been set to
“Vibrate”), lift the handset and start conversation.
3.
If the handset is not on the cradle, press any key (except and the
SILENT soft key) to answer.
Notes:
1. The LCD displays the caller’s Handset ID.
2. You can press the SILENT (Left) soft key if you choose to ignore
the call. Unlike turning off the ringer the SILENT key operation is
valid only for the current call.
B. Intercom Call from Base
1.
When an intercom call arrives (called from Base), the
ringer will ring or vibrate unless the ringer has been
turned off. Press to answer the intercom call.
2.
If the handset is on the charger cradle (ringer will be
temporarily switched to “Ring” if it has been set to
“Vibrate”), lift the handset and start conversation.
Ending a Call
A. from Handset
To end a telephone or intercom call, press key, or place handset into
~
34
~
charger cradle.
B. from Base
To end a telephone call, press key. To end a intercom call, press
key.
Adjusting Handset Receiver (Earpiece) Voice Volume
1.
Voice volume can only be adjusted during a call.
2.
There are 6 levels of volume selections. Default = 3.
Use or key to adjust
3.
The new setting remains effective for all future calls
until changed.
Adjusting Handset Speakerphone Voice Volume
1.
Voice volume can only be adjusted during a call.
2.
There are 6 levels of volume selections. Default = 3.
Use or key to adjust
3.
The new setting remains effective for all future calls
until changed.
Adjusting Base Speakerphone Voice Volume
1.
Voice volume can only be adjusted during a call.
2.
There are 6 levels of volume selections. Default = 4. Use or
key to adjust
3.
The new setting remains effective for all future calls until changed.
~
35
~
Placing a Call On Hold
1.
When a call is in progress, it can be put on hold by
pressing the key.
2.
To return to the conversation, press UNHOLD (Left)
soft key
Notes:
1. The call being placed on hold can be “un-hold” by the handset
that puts it on hold. But if the handset press key to go back
standby, then other handsets can press or to pick
this held call (If press on base, it can also pick up this held
call).
2. Handset LCD displays a call is being on hold. An alert tone
(double beep) every 30 seconds will remind the handset that a
call is being on hold.
3. If the operation (e.g., call transfer) after putting a call on-hold
fails, the held call may be dropped.
Mute
1.
After a link is established, you can press MUTE (Left)
soft key to mute the handset microphone.
2.
When mute is active, the other end will not hear your
voice, but still can speak to you.
3.
To leave the mute state, press UNMUTE (Left) soft
key. Mute is effective only for the current call.
Do Not Disturb (Silent Ring)
1.
Enter the key sequence MENU-3-1, then select “Off”.
Press SELECT (Left) to confirm your choice. This will
turn off the ringer until it is turn on again from the
menu.
Re: When setting the ringer “Off”, the standby screen
will show “Ringer off”.
~
36
~
2.
For temporary silencing the ringer when an incoming
call arrives, press SILENT (Left) soft key.
Key Guard
1.
To prevent accidental dialing, you can press MENU
(Right) soft key, then press “*to select KeyGuard
option. The handset
keypad is locked. No key entry is
accepted.
2.
To unlock the keypad, press UNLOCK (Left) soft key,
then, within 2 seconds, press the digit “1” to unlock.
3.
Key Guard is in effect until unlocked.
Battery Recharge and Replacement
1. Charge the battery when one or several of the following happen:
a. Phone beeps twice every two seconds.
b. Battery icon is empty.
c. Phone does not respond when a key is pressed.
d. LCD and backlighting become dim.
e. Talk range shortfall is experienced.
2. You can replace the handset battery after placing the call-in-progress on
hold.
3. Battery talk time and standby time vary depending on the talk/standby
pattern and the operating distance. Putting the handset back to charger
cradle as often as possible is recommended for best performance. Use
only manufacturer provided battery and charger!
~
37
~
Advanced Operations
Handset Registration
1. If your handset(s) is purchased as part of a system, it has been pre-
registered with the base station at the factory.
2. If Handset ID as “00,” that means it is a new handset or the ID has been
erased. You need to register the handset with the base station.
3.
Registration:
a.
Press MENU-7 to enter the registration mode
b.
Press and hold the base’s Registration (REG)
button for 2 seconds until the and LEDs
lighting up and flashing, also the base will emit
ringing to remind you the base is in the registration
mode..
c.
Press handset key “1”, this completes the
registration process. The base station will assign a
handset ID between 12 and 19. The assigned ID
will be displayed on the handset LCD, indicating
successful registration.
d.
Repeat above steps for all additional handsets.
4.
De-registration:
a.
You can de-register the handset you’re using from
the base. De-registration will reset the Handset ID
to 00, erase the system security code, and free up
the old ID for future registration.
b.
After deregistration, the handset will not be able to
use the base to make or receive phone calls, nor
can it intercom other handsets.
c.
Press MENU-7 to enter the registration mode
d.
Press and hold the base’s REG button for 2
seconds until until the and LEDs lighting
up and flashing.
e.
Press the handset number key “2”, this completes
the de-registration process. Upon successful de-
registration, the handset will show ID “00”.
~
38
~
Notes:
1. The base has a 30 second registration timeout starting from
pressing the REG button. The handset has a 12 second
registration timeout starting from the registration or de-
registration option has been selected. The base and handset
will automatically exit registration mode after timeout.
2. Repeat registration or de-registration process if unsuccessful.
Handset Group Subscription
1.
Up to nine handset groups (91-99) can be defined and
handsets can decide which group(s) they want to be
in.
2.
For example, Group 1 represents the Customer
Service Group, Group 2 represents the Sales Group,
and Group 3 is the Marketing Group. Suppose that
Handset 11 wants to receive incoming rings for all
Sales and Marketing related calls. Then handset 11
will need to “subscribe” to Group 2 and Group 3.
Call Settings
3.Group Setting
SELECT BACK
3.
Group Selections:
a.
b.
Press handset MENU-4 to enter the Call Settings
menu
Press number “3”, handset enters group setting
menu.
c.
Press OPTION soft key and followed by “1” key to
subscribe the group (“9#”, :1~9). Enter 1~9.
d.
Repeat for all desired groups.
e.
Delete group selections by pressing OPTION soft
key and followed by “2” to Unsubscribe the group.
Notes:
1. The handset can change group affiliations at any time.
2. The base is not responsible for group assignments.
Consequently, it cannot de-subscribe a handset from a group.
~
39
~
3. When an outside line or an intercom caller enters a group ID, all
handsets subscribed to this group will ring. The first handset to
answer will establish a link with the caller. Afterward, it is a one-
to-one call, not a one-to-many call.

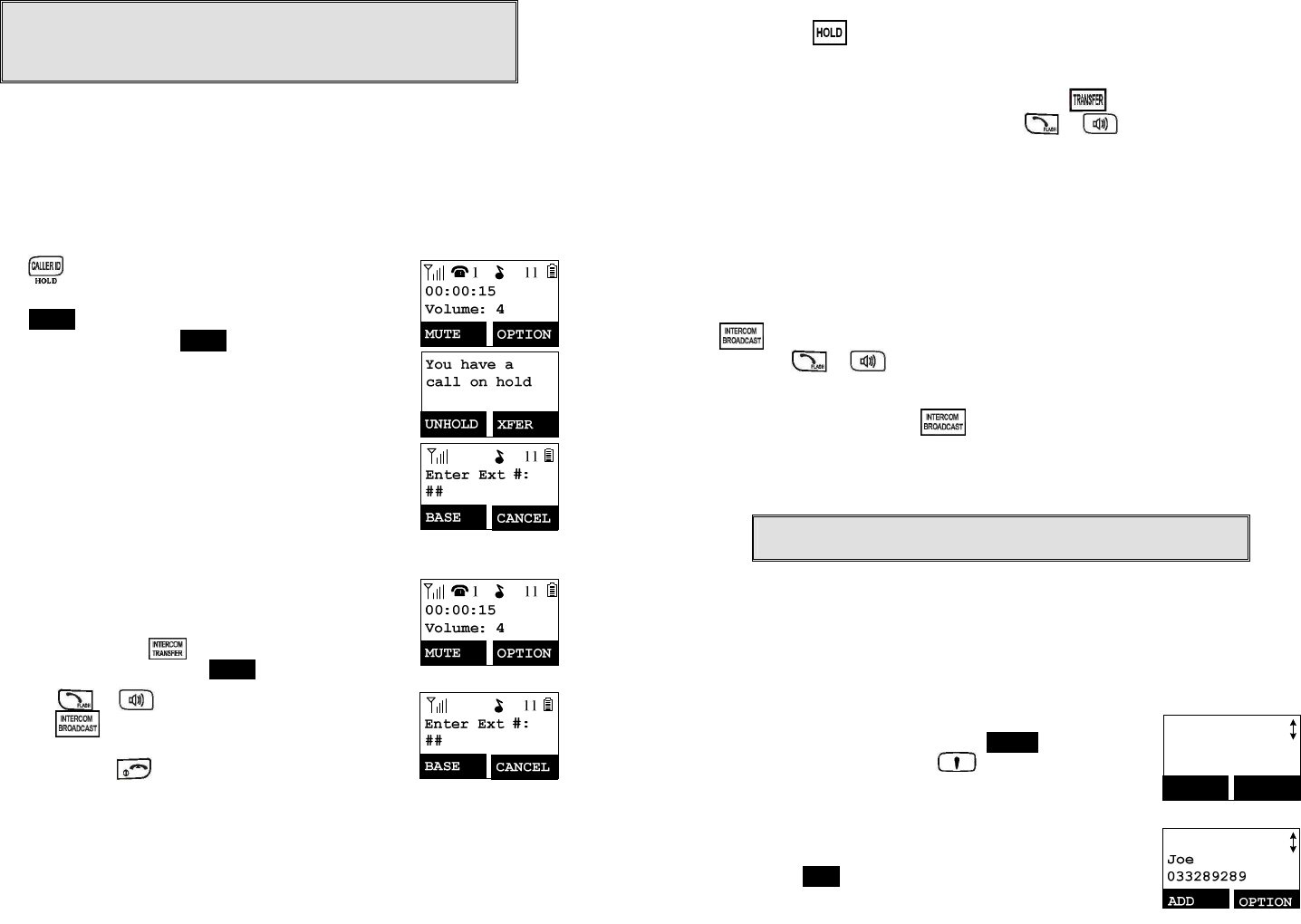

Call Transfer
While a telephone call is in progress, you can transfer it between different
handsets or transfer to base.
Direct transfer from handset
1.
Press key to put the call on hold.
2.
Press XFER (Right) soft key, followed by the
destination handset ID or BASE (Left), then the held
call will be transferred directly.
After the call transferred to destination handset or
Base, the original handset will go back to standby
mode automatically.
Indirect transfer from handset
If you want to talk to the destination handset or Base
before the call transferred, you can follow with below
method:
1.
During the call, press key, followed by entering
the destination handset ID or BASE (Left).
2.
Press the or of the destination handset or
press the key of base to answer the intercom
call, you can now talk to the destination handset. After
the talking, press to end the intercom call, then the
destination handset is able to pick up the incoming call.
After the call transferred to destination handset or
Base, the original handset will go back to standby
mode automatically.
~
40
~
Direct transfer from base
1.
Press base key to put the call on hold.
Re:
When call on hold, the base In Use & speakerphone LED
will be flashing.
2.
Enter the destination handset ID followed by key,
the destination handset will ring, press
or key
of
destination handset
to pick up the call.
After the call pick up by destination handset, the base
will go back to standby mode automatically.
Indirect transfer from base
If you want to talk to the destination handset before the
call transferred, you can follow with below method:
1.
Press the destination handset ID followed by the base
key to intercom the destination handset.
2.
Press the or of the
destination
handset to answer
the intercom call, you can now talk to the destination handset.
After the talking, press base to end the intercom call,
then the
destination
handset will pick up the held incoming
call.
Notes: If the destination handset does not answer after handset
paging timeout, the call is routed back to the originating handset.
Phonebook Operations
1.
You can store up to 50 entries in the phonebook.
Each entry can contain a phone number or handset ID
(up to 26 digits) and a name (up to16 characters).
2.
To access the phonebook, press MENU (Right) soft
key, follow by “2”; or press scrolling key
while the
handset is in standby mode.
Main Menu
2.PhoneBook
SELECT BACK
3.
To add a new entry:
a.
Press ADD (Left) soft key.
b.
Enter the name when LCD prompts “Name?” Use
~
41
~
DELETE (Right) soft key to delete the last digit
entered. When completed, press SAVE (Left) soft
key to save.
Re: Up to 16 characters can be entered as the
name.
c.
You will then be prompted to enter a number
for the
name just entered.
Re: Up to 26 digits can be entered as the nunber.
d.
After entering the number, press the SAVE (Left)
soft key to save this entry into phonebook.
e.
Enter a phonebook entry without a name, the all
records without name will be placed on top of the
phonebook list.
f.
To enter the name, press the corresponding
keypad number one or more times according to the
order of the character on the key.
See table below for a list of available characters
and their orders. For example, press “2” once for
the character “A”, twice for “B”, etc.
Notes:
1.
When enter a phone number, the cursor automatically advances to
the next digit field. Use or scrolling key to move the
cursor backward or forward to insert or delete (the digit above the
cursor, or left of the cursor if cursor is on the right of the last digit).
2.
When entering a name, the cursor automatically advances to the
next character field if you press a different key for the next character.
If you need to enter consecutive characters from the same key, you
can wait for the cursor to advance or use or scrolling key
to move the cursor backward or forward manually. Also use or
to move the cursor to insert (to the left of the cursor) or delete
(the character above the cursor, or left of the cursor if cursor is on
the right of the last character).
3.
By default, all letters are entered in the upper case. Use the * key to
toggle between upper and lower cases.
4.
A “Pause” entry represents a 1 second delay in dialing the following
digits, which is useful when calling a sequence of segmented
numbers (e.g., access code, credit card number, auto-attendant
entries, etc.) Pause is entered by pressing the # key twice (LCD
displays P). Entering pause twice (PP) will result in 2
seconds pause
in the dialing.
~
42
~
5.
Character Table:
Key Characters and Orders
1 ‘ + , . * ( ) & 1
2 A B C 2
3 D E F 3
4 G H I 4
5 J K L 5
6 M N O 6
7 P Q R S 7
8 T U V 8
9 W X Y Z 9
0 0
Caps – when in character editing.
– when in number editing.
# Space & – when in character editing
# & P (Pause) – when in number editing
4. The entries are alphabetically sorted and stored as a list in an ascending
order (A to Z) from the top of the list.
5. The first line of LCD display shows name and the 2
nd
line shows the
phone number. If the phone number is longer than 16 digits, press
OPTION (Right) soft key and select Option 3 to view the complete
number.
6. To search for a record:
a. Use scrolling key to enter the Phone Book mode.
b. Press a key that corresponds to the first character of the name you
are looking for.
c. For example, you are looking for “EnGenius”, and then press the
number “3” once.
d. Use
or scrolling key to locate the exact record you are
looking for.
7.
To erase phonebook:
a.
Use
or scrolling key or the alphabetical
search method to locate the record to be erased or
edited.
~
43
~
b.
Press OPTION (Right) soft key to enter editing
menu.
c.
Press “1” to erase the desinated phone entry.
d.
LCD shown “Delete entry? Press YES (Left) soft
key to confirm your change.
8.
To edit phonebook:
a.
Use
or scrolling key or the alphabetical
search method to locate the record to be erased or
edited.
b.
Press OPTION (Right) soft key to enter editing
menu.
c.
Press “2” to edit the desinated phone entry.
9. Dial from display:
a. Press or to dial the phone number or Handset ID
displayed.
Call barring
1.
Block the users from dialing the long distance calls or international calls.
You need the password to enter the setting. The default PW is “0000”.
2.
Press MENU-4-4 to enter Call Barring. Enter the
password, followed by OK (Left) soft key
3.
Use
or scrolling key to switch between On
and Off of this setting. Press SELECT to confirm your
selection.
ReThe default of Call barring is “Off”.
Call Barring
off
SELECT BACK
4.
To add the Call barring code
~
44
~
a.
Once turn on the call barring feature, you can key
in the “call barring” code.
Press ADD (Left) soft key then start entering the
call barring code After the number entered, press
SAVE (Left) soft key to save it.
(1)
Up to 5 digits can be edit to be call barring code. For
example, if you want to block all call dialing to
Manhanttan, NY area, you can enter 1212 as the call
barring code.
(2)
If you base station is adjuct to a PBX system, please
also include that specific number to retrieve the
PSTN tone.
b.
Press OPTION to delete or edit the call barring
codes.
c.
Up to 5 set of call barring codes can be
programmed.
d.
If wants to block all outgoing calls, enter “****
”, press SAVE (Left) soft key to save it, all
outgoing calls will be restricted.
Programmable Feature Call
1.
If FreeStyl1 base unit is installed behind a PBX system, it is feasible to
pre-program some feature call along with the PBX’s feature code into the
system.
2.
Up to 10 most frequently used feature call codes can be pre-
programmed.
3.
Name and enter feature call codes:
a.
Press MENU (Right) soft key while the handset is
in the standby mode.
b.
Press “4”, followed by “5” to enter the “Feature Call”
menu.
c.
Press ADD (Left) soft key to add a new entry of
feature call.
d.
Key in the name of feature call, like editing a
phonebook entry, i.e. “PBX Transfer”.
Press SAVE (Left) soft key to confirm.
~
45
~
e.
Key in the feature call code of the correspondence
PBX feature i.e. F70.
Press SAVE (Left) soft key to confirm.
Re: “F” represent the Flash signal.
f.
The 1
st
feature call and correspondence feature call
code you entered will appear on the LCD screen.
g.
Press OPTION (Right) soft key to delete or edit the
feature call you programmed into the system.
h.
Repeat the same operations to program 2
nd
and
even more feature call that you will use frequently.
4.
Using pre-programmed feature call during the call.
a.
Press OPTION (Right) soft key while the handset is
in the talk mode.
b.
Press the correspondence number of the feature
call which you want to perform i.e. press “0” to
perform the “PBX Transfer”.
Notes:
1.
This feature call would be useful if the FreeStyl 1 base unit is adjunct
to a PBX system,
2.
if you have not pre-programmed any feature call into the system,
only “#.Phonebook” in the OPTION menu.
3.
The FreeStyl 1’s programmable feature call may not function with all
PBX or Key phone systems due to the diversity of various proprietary
systems.
~
46
~
Caller ID
1.
Contact with your local phone company to subscribe to this feature. The
phone system receives and displays Caller ID information transmitted by
your local phone company. This information may include the phone
number, date, time. This unit can store up to 50 calls.
2.
The display will show the date and time of call on the first line, followed by
the name on the second line, and the phone number on the third line. An
unread record will have a “NEW” at the end of the first line of display.
3.
When viewing a call record, the number can be dialed, stored to the phonebook or
deleted.
View Call Log
1.
To view the call log, press to enter the Call Log.
Press or key to scroll through the numbers
and names when available.
2.
Press OPTION (Right) soft key, you can or
key to choose save, delete, clear all.
a.
Save call log:
(1)
Press SELECT (Right) soft key, you can use
or key to scrool the name, and press
DELETE to edit the name.
Then press SAVE (Left) soft key to save the
name.
(2)
Use or key to scrool the number, and
press DELETE to edit the number.
Then press SAVE (Left) soft key to save the
number.
(3)
After above process, the call log saved into
phonebook.
b.
Delete call log:
(1)
Press SELECT (Right) soft key followed by YES
(Left) soft key to confirm deleting.
c.
Clear All:
(1)
Press SELECT (Right) soft key followed by YES
(Left) soft key to confirm clearing all caller ID
records.
~
47
~
Call a Caller ID
1.
When display a caller ID, Press or to dial
this number.
2.
The displayed caller ID normally will be a 10-digit
number with a 3-digit area code followed by the 7-digit
telephone number.
The number in call log can be modified to comply with
the local dialing rules.
3.
Press key, use or key to scrool the
call log.
4.
To display the telephone number without “1” or area
code, press FORMAT (Left) soft key.
5.
For example, the number stored in the call log is “1-
555-423-1234”, press the FORMAT (Left) soft key
once, the displayed number will be changed to “423-
1234”.
Press the FORMAT (Left) soft key a second time, it
will be changed to “555-423-1234”.
Press the FORMAT (Left) soft key a third time, it will
be changed to original number “1-555-423-1234”.
6.
Press or to dial this displayed number which
complies with the dialing rules.
Note: Normally the standard format of telephone
number is 10-digit or 11-digit, if the number
doesn’t meet the format (For example, over 11-
digit), then the displayed number will not be
modified as above item 5 when press FORMAT
(Left) soft key.
Base Speed Dial Setting
1.
You can store up to 20 entries in the speed dial memory. Each speed
dial memory can contain a phone number (up to 32 digits).
2.
Base during standby mode, press key, enter the telephone
number.
3.
Press key, followed by a 2-digit memory location, base then will
emit a two short tone (Bi-Bi) to confirm the setting.
~
48
~
Re: The memory location is “00” ~ “19”.
4.
When using the base speed dail, press key followed by
key, then enter the 2-digit memory location (“00”~”19”).
The base will dial the telephone number accordingly.
Base Ringer Setting
1.
You can change the base ringer by following :
2.
Base during standby mode, press key twice, followed by
or key, the base speaker will emit the varied ringer (up to 8
ringer tones).
3.
Press key to confirm the setting.
4.
To adjust the ringer volume, two options can be followed:
a. Base during standby mode, press or key.
b. When incoming call, press or key.
c. When press or key to adjust the volume, the speaker will
emit the loudness of ringer, you can choose the preference.
Re: The loudness level of ringer is “0~4”, “0” means ringer “Off”.
Visual Message Waiting Indicator (VMWI)
VMWI feature supported the FSK message which received from telephone
line; It will activate a message icon of handset and flash the broadcast LED
of base.
Notes:
1. A subscription to telephone company voice mail service is required.
2. If the handset still indicates the icon even after you have listened all messages,
turn it off by pressing and holding “Caller ID” key on the handset.
~
49
~
Menu Operations
Menu 1.KeyGuard
2.PhoneBook
3.Sounds
2.Ring Tone
1.Ring Volume
3.Key Voulme
4.Key Tone
4.Call Settings 1.Dial Prefix
2.Group Setting
7.Custom Name
3.Contrast
4.Backlight
4.Feature Call
6.Language
3.Call Barring
5.Name Tag
5.Phone Settings 1.PA On/Off
2.Any Key Talk
8.Change Pwd
6.Base Setting
2.Flash Time
1.DTMF Duration
3.Assign Next HS
Enter
Base PIN:****
5.Change PIN
6.Auto Hang Up
4.Clear HS
7.Registration 1.Register
2.Deregister
8.Menu Display 1.Call Settings
Enter Password:
---- 2.Phone Settings
3.Base Settings
7.Set Time
~
50
~
1. Press MENU (Right) soft key to enter menu mode while the phone is in
standby mode.
Re: You can either press or , followed by SELECT (Left) soft
key to confirm the selected menu. Or Press the digit directly to confirm
the selected menu. For example, press MENU (Right) soft key -3-1 to
select the Ring Volume.
2. Press “1” to select KeyGuard (see Key Guard operation on page 33 ).
3. Press “2” to add, delete, edit, view and edit the phonebook (see
Phonebook instruction on page 41 ).
4. Press “3” to set Sounds settings:
a. Press “1” to select Ring Volume:
Use or to scroll through 6 options: “Off”, “Low”, “Medium”,
“High”, “Vibrate” and “Vibrate & High”. Press SELECT (Left) soft key
to save selection. Default = Medium.
b. Press “2” to select Ring Tone:
Total 8 ringers (1~8) for two scenarios: 1.Line Ring (Ringer for
incoming call) ; 2.Intercom Ring (Ringer for intercom call).
Use the or to scroll through 8 ringers, press SELECT
(Left) soft key to save selection. Default = 1.
c. Press “3” to select Key Volume when a key is pressed:
Use or to scroll through 4 options: Off, Low, Medium, and
High. Press SELECT (Left) soft key to save selection. Default =
Medium.
d. Press “4” to select Key Tone:
Use the or to scroll through 4 options: 1, 2, 3 and 4. Press
SELECT (Left) soft key to save selection. Default = 1.
5. Press “4” to set Call Settings:
a. Press “1” to set Dial Prefix:
(1) Press or to turn of or off the dial prefix feature.
Default = Off.
(2) If “On” is selected, the handset is prompted to enter the prefix
number, up to 14 digits can be entered.
(3) Use Delete (Right) soft key to edit prefix number.
(4) Press SAVE (Left) soft key to confirm the selection.
(5) When this feature is turned on, the LCD will prompt the user on
each outgoing phone call, the current prefix is also displayed.
(6) This feature is useful for access code, calling card, and credit
card calls, etc.
~
51
~
b. Press “2” to Group Select: see Handset Group Subscription on page
35 .
c. Press “3” to set Call Barring: see Call Barring operation on Page 40.
d. Press “4” to set Feature Call: see Feature Call operation on Page 41.
6. Press “5” to set Phone Settings:
a. Press “1” to set PA On/Off
Use CHANGE (Left) soft key to select and confirm on or off.
Re: When set “off”, the handset will not receive
broadcast from other handsets or base. The
LCD will display a PA off icon to prompt.
b. Press “2” to set Any Key TALK:
Use CHANGE (Left) soft key to select and confirm on or off.
Re: a. When set “on”, press any key (except ) to answer the
incoming call.
b. When set “on”, the handset will automatically answer the call
while lift the handset from cradle.
c. Press “3” to set LCD Contrast:
(1)
Use or to scroll through option 1~8. Default is 4.
(2)
Press SAVE (Left) soft key to confirm selection.
d. Press “4” to set LCD Backlight:
(1)
Use or to scroll through option 1~3 (1.8 seconds
2.On 3.Off ). Default is “8 seconds”.
(2)
Press SAVE (Left) soft key to confirm selection.
e. Press “5” to set Name Tag:
(1)
Use or to scroll through option on or off. Default is
“Off”.
(2)
Press SAVE (Left) soft key to confirm selection.
Re: When Set “on”, if matching the caller ID with the phone book
entries; once matched, the LCD screen will display the name or
nickname instead of pure caller ID info (needs Call Waiting with
Caller ID service from local telephone company)
f. Press “6” to set Language:
(1)
Use or to scroll through option 1~3 (1.English
2.Spanish 3.French ). Default is “English”.
(2)
Press SAVE (Left) soft key to confirm selection.
g. Press “7” to set Custom Name:
(1)
Enter characters using the Character Table and method
discussed in the Phonebook section.
(2)
Use or to move the cursor backward or forward to
insert (to the left of the cursor) or delete (the character above the
~
52
~
cursor, or left of the cursor if cursor is on the right of the last
character).
(3)
Press SAVE (Left) soft key to confirm setting.
Re:
Once entering the custom name, the greeting of LCD in standby
mode will be changed as the entering.
h. Press “8” to Change Password:
(1)
Enter original password (4 digits) when enter this menu.
(2)
Enter new password then press SAVE (Left) soft key to confirm
new password.
7. Press “6” to set Base Settings:
When enter this menu, you must enter PIN code first (4 digits).
Re: The PIN code is for Base Settings.
a. Press “1” to set DTMF Duration.
(1)
Enter the DTMF duration (90~200ms), press OK (Left) soft key to
confirm the setting. Default is 100ms.
Re: Please check with your dealer before you change it. If the duration
not match with PSTN or PBX setting, it may operate faultily.
b. Press “2” select flash key timing. Default is 600ms.
(1)
Use or to scroll through option 1~9 (100~900ms).
(2)
Press SELECT (Left) soft key to confirm selection.
Re: The default value (600 ms) works in most areas. Changing this
setting may cause Flash key not working. Change only when you
are certain of the new value would work.
c. Press “3” to set Assign Next HS
(1)
Enter 2-digit handset ID followed by pressing OK (Left) soft key.
(2)
When register a new handset, the base will assign the specific
handset ID which assigned in advance to the new handset.
d. Press “4” to set Clear HS
(1)
Enter 2-digit handset ID followed by pressing OK (Left) soft key.
(2)
The base will erase the handset ID from system.
e. Press “5” to Change PIN:
(1)
Enter the new PIN followed by OK (Left) soft key.
Re: Default PIN is “0000”.
f. Press “6” to set Auto Hang Up:
(1)
Use CHANGE (Left) soft key to select and confirm on or off. The
Default PIN is “0000”.
Re: When setting “on”, the FreeStyl 1 will automatically hang up if the
far end caller hung up already. However, this function depends on
if there is “Line Reversal” signal sent out by PBX or PSTN, after
the call hung up.
g. Press “7” to Set Time to support DTMF Caller ID:
(1)
Use CHANGE (Left) soft key to select and confirm on or off. The
~
53
~
Default PIN is “0000”.
8. Press “7” to register & de-register handset: see Handset Registration
operation on Page 34.
9. Press “8” to set Menu Display:
To avoid mis-setup of Call Settings (MENU-4), Phone Settings (MENU-5)
and Base Settings (MENU-6), you can hide these menus, so that other
handset users won’t have chance to mis-settup these settings.
Re: When entering the Menu Display, you have to enter password first.
a. Press “1” to set hiding/un-hiding of the Call Settings menu.
(1)
Use CHANGE (Left) soft key to select and confirm on or off.
b. Press “2” to set hiding/un-hiding of the Phone Settings menu.
(1)
Use CHANGE (Left) soft key to select and confirm on or off.
c. Press “3” to set hiding/un-hiding of the Base Settings menu.
(1)
Use CHANGE (Left) soft key to select and confirm on or off.
Re:
Select “On” means the menu will be displayed on screen. Select “Off”
means the menu will be hidden.
~
54
~
Part 68 Statement
This equipment complies with Part 68 of the FCC rules and the
requirements adopted by the ACTA. On the bottom of this equipment is a
label that contains, among other information, a product identifier in the format
US: SNIW403BFS1. If requested, this number must be provided to the
telephone company.
The REN is used to determine the number of devices that may be
connected to a telephone line. Excessive RENs on a telephone line may
result in the devices not ringing in response to an incoming call. In most but
not all areas, the sum of RENs should not exceed five (5.0). To be certain of
the number of devices that may be connected to a line, as determined by the
total RENs, contact the local telephone company. For products approved
after July 23, 2001, the REN for this product is part of the product identifier
that has the format US: SNIW403BFS1. The digits represented by 03 are the
REN without a decimal point (e.g., 03 is a REN of 0.3). For earlier products,
the REN is separately shown on the label.
If your equipment causes harm to the telephone network, the telephone
company may discontinue your service temporarily. If possible, they will
notify you in advance. But if advance notice is not practical, you will be
notified as soon as possible. You will be informed of your right to file a
complaint with the FCC. Your telephone company may make changes in its
facilities, equipment, operations or procedures that could affect the proper
functioning of your equipment. If they do, you will be notified in advance to
give you an opportunity to maintain uninterrupted telephone service.
If you experience trouble with this telephone equipment, please contact
the following address and phone number for information on obtaining service
or repairs.
The telephone company may ask that you disconnect this equipment from
the network until the problem has been corrected or until you are sure that
the equipment is not malfunctioning.
This equipment may not be used on coin service provided by the
telephone company. Connection to party lines is subject to state tariffs.
~
55
~
Company:
EnGenius Technologies, Inc.
Address: 1580 Scenic Avenue Costa Mesa, CA 92626 USA
Tel no.:
1-714-432-8668
A plug and jack used to connect this equipment to the premises wiring
and telephone network must comply with the applicable FCC Part 68 rules
and requirements adopted by the ACTA. A compliant telephone cord and
modular plug is provided with this product. It is designed to be connected to a
compatible modular jack that is also compliant. See installation instructions
for details.
~
56
~
Index
2
2-Way/Intercom, 13, 21, 30, 31
A
Adjusting Receiver (Earpiece) Voice Volume, 35
Adjusting Handset Speakerphone Voice Volume, 35
Adjusting Base Speakerphone Voice Volume, 35
Administrator Features, 20
B
Base ID, 32
Base Illustration, 19
Base Operation, 26
Base PIN, 17, 18
Base Ringer Setting, 49
Base Setting, 16, 17, 18, 53, 54
Base Speed Dial, 20, 48
Base Station, 5, 6, 7, 10, 13, 14, 20, 24, 25, 30, 32, 38
Base Station Features, 20
Base Station Installation, 24
Battery, 5, 6, 8, 13, 15, 23
Battery Recharge and Replacement, 37
Battery Safety Instructions, 6
Battery Strength, 12
Broadcast, 13, 16, 20, 21, 31, 32
Broadcasting a Group of Handsets, 31, 32
Broadcasting all Handsets, 32
Broadcasting an Individual Handset, 31, 32
C
Call Barring, 15, 17, 44, 45, 52
Call Log, 15, 47, 48
Call Timer, 16
Call Transfer, 36, 40
Call Hold, 15
Caller ID, 14, 15, 18, 33, 47, 48, 49, 52, 53
Call in-progress, 12
Call Settings, 16, 39, 51, 54
Call Waiting, 13, 14, 21, 52
Call Waiting with Caller ID, 14
Cardiac Pacemaker, 4
Change PIN, 17, 53
~
57
~
Charger Features, 23
Charger Illustration, 22, 25
D
De-registration, 38, 39
DND, 14
Do Not Disturb (Silent Ring), 14, 36
DTMF Tone, 17
DTMF Duration, 17, 53
E
Electric Shock, 4, 5
Emergency, 4
Equipment Checklist, 10
F
FCC, 5, 7, 8, 9, 55, 56
FDA, 4
Flash, 13, 17, 21, 26, 30, 34, 46, 53
Feature Call, 16, 45, 46, 52
G
General Safety Instructions, 4
Group ID, 14, 20, 30, 31, 32
Group Settings, 16
Group Selections, 39
H
Handset and Charger Installation, 25
Handset Charging Slot, 23
Handset Features, 12, 14
Handset Group Subscription, 39, 52
Handset ID, 12, 14, 17, 20, 21, 26, 30, 31, 32, 33, 34, 38, 40, 41, 44, 53
Handset Registration, 38, 54
Handset to Handset Call, 30, 31
Hearing Aid, 4
I
IDLE Mode, 26
K
Key Guard, 37, 51
Key Tone, 16, 51
Key Volume, 51
~
58
~
L
Line Jack, 20
Lithium-Ion (Li-Ion), 10
Line Reversal, 53
Line Ring, 5
M
Making a Broadcast, 31
Making a Telephone Call, 29
Making an 2-Way/ Intercom Call, 30
Memory, 20, 26, 48
Menu Display, 16, 17, 54
Menu Mode, 26
Multiple Handsets Registration, 14
Mute, 15, 36
N
Name Tagging, 14, 52
O
Outdoor Antenna, 7, 20
P
Phonebook, 13, 15, 41, 51
Phone Settings, 16, 52, 54
Placing a Call On Hold, 36
Power Outage, 5, 24
Product Safety Instructions, 4
Programmable Flash, 17
Programmable feature call, 16, 41, 45
R
Receiving a Telephone Call, 33
Receiving an Intercom Call, 34
Redial, 15, 21, 33
REG, 20, 26, 38
Registration Button, 20
Registration Mode, 26, 38
Regulatory Information, 7
REN
, 55
Reset Button, 20
Reverse Thread Connector, 20
~
59
~
Ringer, 12, 14, 49, 51
Ringer Volume, 13, 14, 21, 49
RSSI, 12
S
Safety Instructions, 4
SILENT, 14, 33, 34, 36
Spare Battery, 10
Spare Battery Charging Slot, 23
Speed Dial, 48
Speakerphone, 13, 20, 21, 26, 31, 32, 35, 41
T
Talk Mode, 13, 26
Talk/Flash, 13
Technical Specifications, 61
Transformer, 24, 25
Two-Digit Address Index, 12
V
Vibrator, 14
View Call log, 47
W
Warning Message, 23
~
60
~
Technical Specifications
Electrical Specifications Base Station Portable Handset
Frequency 902-928 MHz 902-928 MHz
RF Power Peak: 27 dBm
Average: 21 dBm Peak: 26 dBm
Average: 20 dBm
Channel Spacing 101 kHz 101 kHz
Number of Channels 252 252
Modulation Differentially Encoded MSK Differentially Encoded MSK
Multiple Access Frequency Hopping TDD Frequency Hopping TDD
Frequency Hopping Rate 100 per second 100 per second
TDMA Frame Length 10 ms 10 ms
Number of Slots/Frame 4 4
Receiver Sensitivity < -111 dBm (@ BER 10
-2
) < -111 dBm (@ BER 10
-2
)
Antenna Connector Reverse TNC Non-standard
Antenna Gain 2 dBi
1.5 dBi (short antenna)
2.5 dBi (long antenna)
TX Power Control Range 19~27dBm 19~26dBm
Telephone Interface RJ11 x 2 NA
Speech Coding 8 kbps G.729AB 8 kbps G.729AB
Channel Coding 8 kbps Convolutional + CRC
8 kbps Convolutional + CRC
Transmission Data Rate 85.333 kbps 85.333 kbps
User Data Rate 64 kbps duplex 64 kbps duplex
Duplex Time Division Duplex (TDD) Time Division Duplex (TDD)
Voice Quality TIA/EIA-470B TIA/EIA-470B
No. of System ID 65,536 65,536
Ring Signal 20-50 Hz, 30-90 Vrms NA
Flash Time 100-900 ms programmable NA
Power Source AC/DC 100~240V/12V,1A SW
Adapter 3.7V/1100 mAh Li-Ion Battery
Optional: 3.7V/1700mAh
Charger Current NA 550 mA
(850 mA for Spare Battery
Slot)
Charge Time NA 3 hours
Regulation Compliance FCC Part 15, Part 68
FCC Part 15, Part 68
Hearing Aid Compatible
Operating Temperature 0 – 50 °C -10 – 60 °C
Storage Temperature -40 – 70 °C -40 – 70 °C
Humidity 20 – 75 % 20 – 75 %
Notes:
1.
NA = Not Applicable.
2.
The manufacturer reserves the right to change designs and specifications without
notice.

Navigation menu
