Senao Networks IAP8350AG AP-Indoor User Manual PRODUCT DESCRIPTION
Senao Networks, Inc. AP-Indoor PRODUCT DESCRIPTION
User Maual.pdf
IAP8350AG Page 1
IAP8350AG/IAP8351AG
Installation Guide
Indoor Enterprise AP
V. 0.1
▌PRODUCT DESCRIPTION
IAP8350AG is Senao new generation of Enterprise AP with 4x4 MU-MIMO technology
implement. It is using Qualcomm total solution to provide the maximum throughput
on the WIFI.
IAP8350AG is internal antenna model.
IAP8351AG is external antenna model.
Any installation to IAP8350AG applies to both models.
▌PACKAGE CONTENT
IAP8350AG or IAP8351AG Access Point
IAP8350AG/IAP8351AG Quick Start Guidet
Mounting Bracket
Mounting screw kits (includes washers, wall anchors and bolts)
IAP8350AG Page 2
5G Diople antennas
2.4G Diople antenna
▌CONNECT TO THE IAP8350AG/IAP8351AG ACCESS POINT
1. Attach and gently tighten the provided antennas to the appropriate port on the IAP8351AG
2. Power is provided through two Ethernet ports (LAN port). This is the preferred method of powering the
AP on ceiling and wall installations
3. The IAP8350AG can also be powered by an external DC power supply plugged into an AC source. Plug
the supply’s input jack into the DC-In port
IAP8350AG Page 3
▌MOUNTING OF THE IAP8350AG/IAP8351AG ACCESS POINT

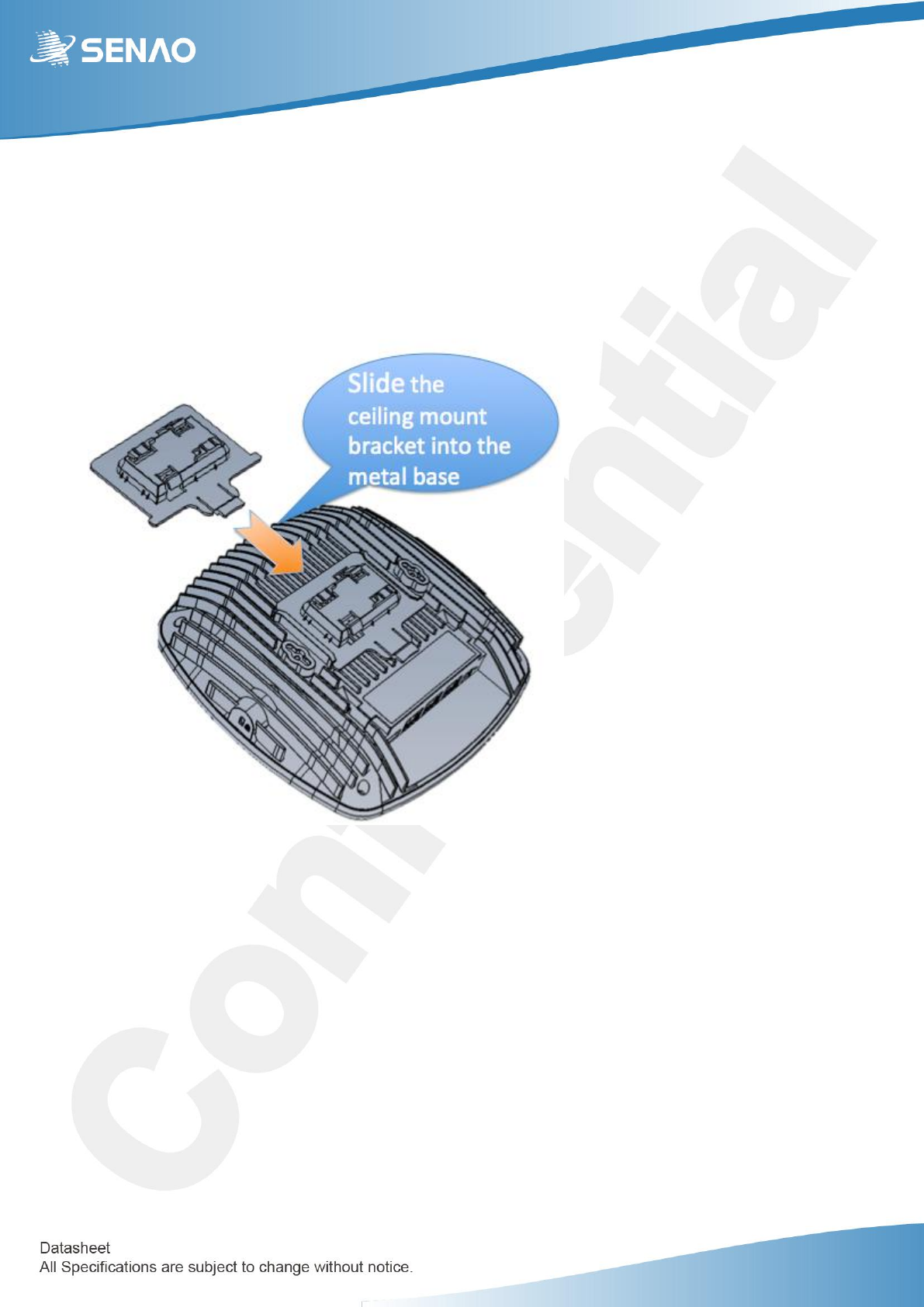

TOOL-LESS CEILING MOUNT
IAP8350AG Page 4

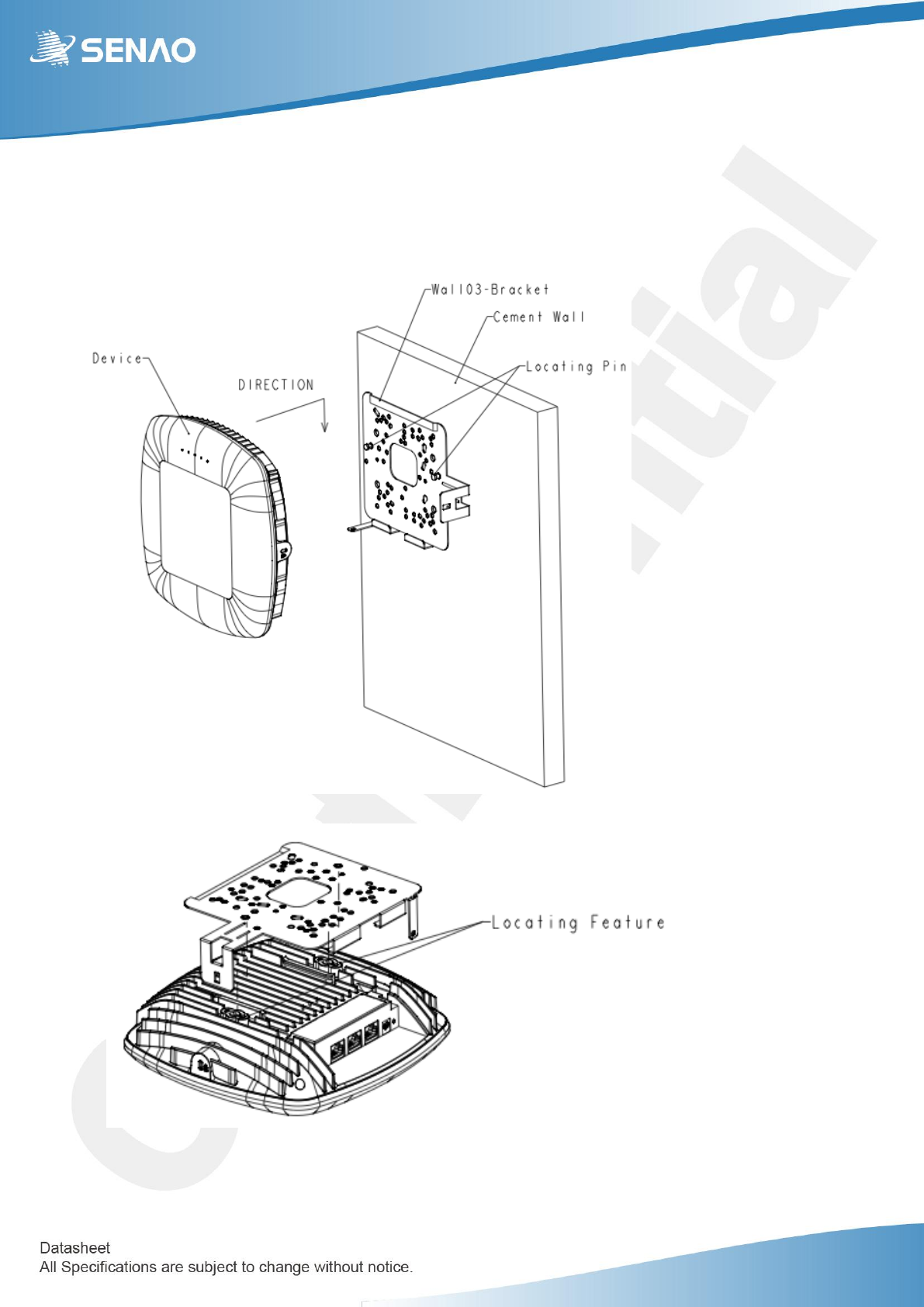

FLAT WALL OR SOLID CEILING MOUNTING
Mounting the AP with 4 drill holes into flat wall or solid ceiling mounting.
IAP8350AG Page 5
FCC Statement:
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna
or transmitter.
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 28cm
between the radiator & your body.
