Senao Networks MP5605H Wireless LAN Card User Manual EMP5605H Datasheet 20110113 v1 0C
Senao Networks, Inc. Wireless LAN Card EMP5605H Datasheet 20110113 v1 0C
User Manual
EMP5605H
High Power 5GHz 11n Mini-PCI Adapter
5GHz IEEE802.11a/n 2T2R 300Mbps High Performance
Package Contents
1 x MiniPCI Adapter (EMP5605H)

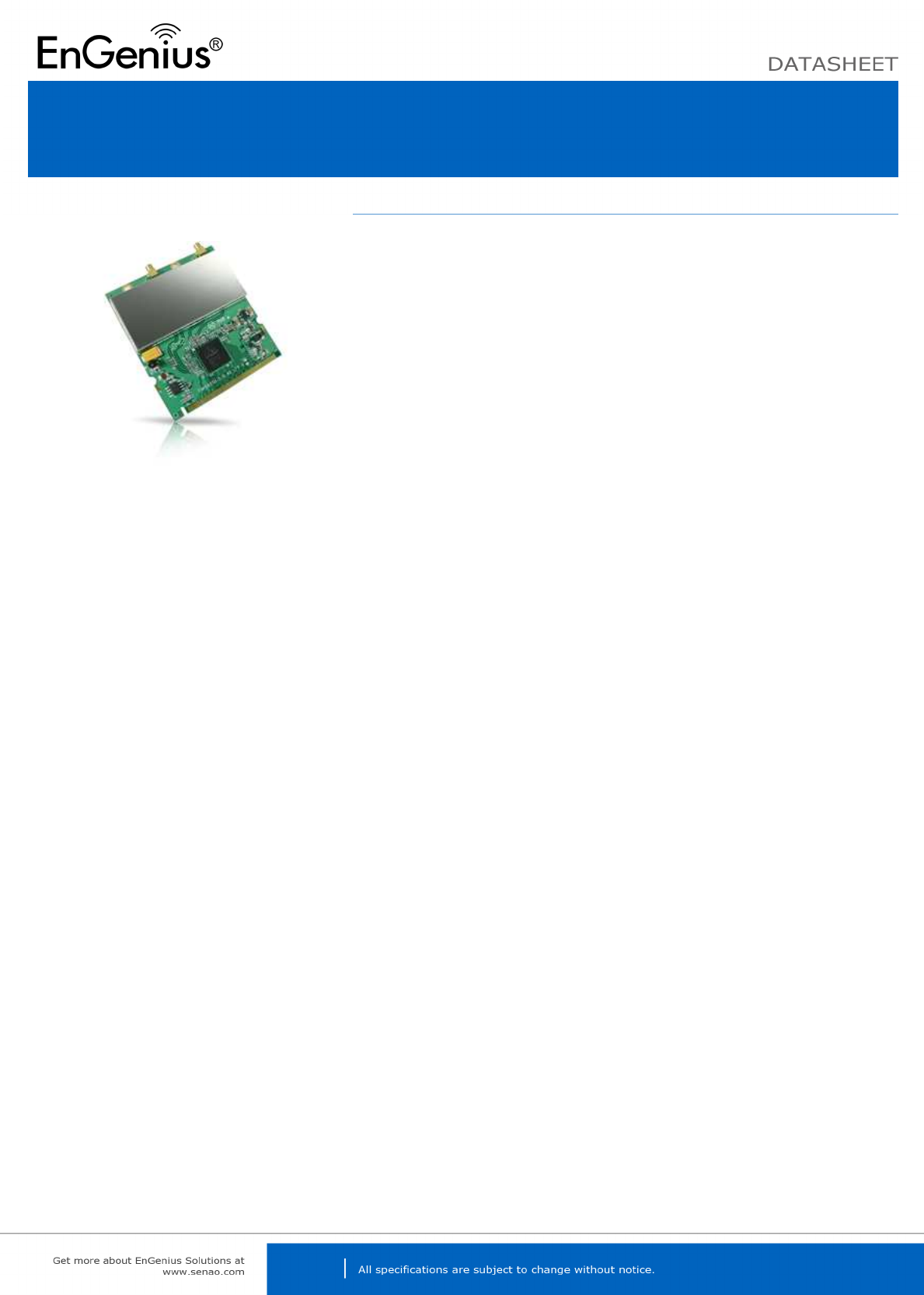

Engenius miniPCI series radio modules perform extreme high power
and economize the power consumption on the system platform.
EMP5605H is an 802.11a/n WiFi 2x2 mini-PCI module designed
specifically for integration to maximum performance ratio. EMP5605H
delivers the ultimate wireless triple play experience for video, voice, and
data transmission in the home, for the business, and on the road.
With enhanced features on the ESD protection, industrial-based
operating temperature, economized system power consumption,
industrial-best sensitivity than normal module, MMCX connectors, and
stable heating protection design, makes the module is easily to
integrate into a wide range of any platform.
EMP5605H
High Power 5GHz 11n Mini-PCI Adapter
5GHz IEEE802.11a/n 2T2R 300Mbps High Performance
Features
Industrial-best sensitivity -90dBm@6Mbps, -72dBm@54Mbps, -89dBm@MCS0/MCS8,
-70dBm@MCS7/MCS15
Enables bandwidth up to 300Mbps Fast throughput for 802.11a and 802.11n
2T2R design architecture Higher and greater reliable throughputs over range
MMCX antenna connector Two MMCX connectors
Specification
Hardware Specification
Standard WECA(WiFi & WiFi5 Compliance), IEEE802.11a/n, RoHS
Chipset Atheros AR9220
Physical Interface 32-bit Mini-PCI Type III A
2 x MMCX Connector
Power Requirements External DC power in supported, Voltage=5V
Continuous Tx@802.11a <1.7A Tx Current Consumption
Continuous Tx@802.11n <2A
Rx Current Consumption Continuous Rx <600mA
Card on Current Data Communicating with AP <450mA
Current Consumption Information
Sleep Current Sleep Mode <100mA
RF Specification
Frequency Band 802.11a
5.15 ~ 5.35GHz, 5.725~5.825GHz
Data rate 300 Mbps
Receive Sensitivity (Typical) 802.11n(20MHz)
-89dBm @ MCS0/MCS8
-70dBm @ MCS7/MCS15
802.11n(40MHz)
-86dBm @ MCS0/MCS8
-68dBm @ MCS7/MCS15
802.11a
-90dBm @ 6Mbps
-72dBm @ 54Mbps
Software Specification
Security WPA, WPA2, 64/128 bits WEP, TKIP and AES
Hardware-base IEEE 802.11i encryption engine
Environment & Mechanical
Temperature Range -30°C to 80°C
Humidity (non-condensing) 0%～95% typical
Dimensions 66mm (L) x 59.5mm (W) x 5mm (H)
Weight 16g
EMP5605H
High Power 5GHz 11n Mini-PCI Adapter
5GHz IEEE802.11a/n 2T2R 300Mbps High Performance
U.S. Regulatory Wireless Notice
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
Operations in the 5.15-5.25GHz band are restricted to indoor usage only.
EMP5605H
High Power 5GHz 11n Mini-PCI Adapter
5GHz IEEE802.11a/n 2T2R 300Mbps High Performance
This device is intended only for OEM integrators under the following conditions:
1) The antenna must be installed such that 20 cm is maintained between the
antenna and users, and
2) The transmitter module may not be co-located with any other transmitter or
antenna,
As long as 2 conditions above are met, further transmitter test will not be required.
However, the OEM integrator is still responsible for testing their end-product for any
additional compliance requirements required with this module installed (for example,
digital device emissions, PC peripheral requirements, etc.).
IMPORTANT NOTE: In the event that these conditions can not be met (for example
certain laptop configurations or co-location with another transmitter), then the FCC
authorization is no longer considered valid and the FCC ID can not be used on the
final product. In these circumstances, the OEM integrator will be responsible for
re-evaluating the end product (including the transmitter) and obtaining a separate
FCC authorization.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be
installed such that 20 cm may be maintained between the antenna and users. The final
end product must be labeled in a visible area with the following: “Contains FCC ID:
U2M-MP5650H”.
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user
regarding how to install or remove this RF module in the user’s manual of the end
product which integrates this module.
The end user manual shall include all required regulatory information/warning as show
in this manual.
U2M-MP5605H"
