Senao Networks SP922FH Long Range Cordless Handset User Manual SP922FH EN Mar202013 For RBU

User Manual (English)

SP922FH

Digital Long Range Cordless System

~

2

~

Table of Contents

Safety Instructions ............................................................................. 5

General Safety Instructions ............................................................ 5

Product Safety Instructions ............................................................ 5

Battery Safety Instructions ............................................................ 7

Regulatory Information ...................................................................... 8

Portable Handset ........................................................................... 8

Equipment Checklist ........................................................................ 11

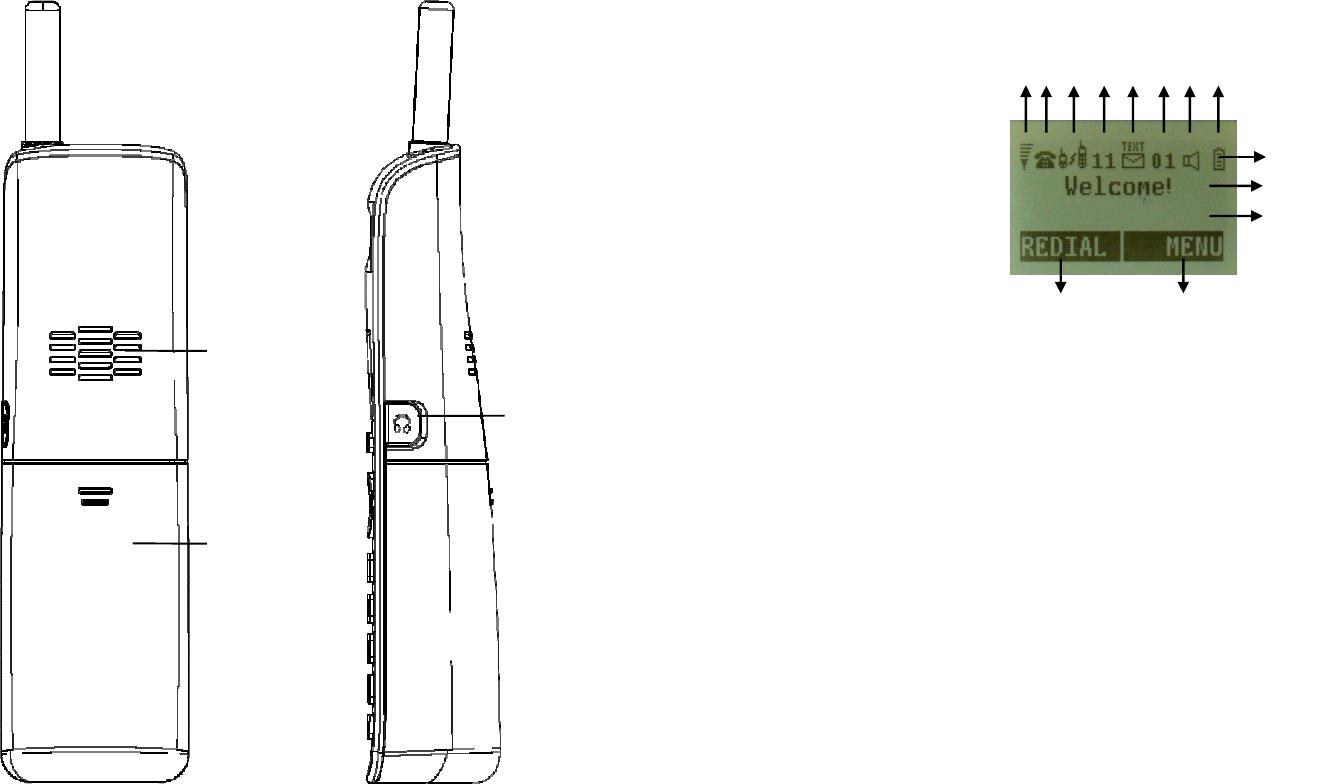

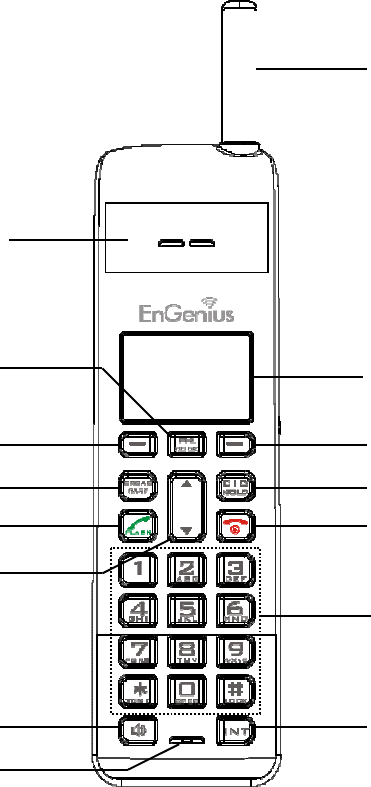

Handset Illustration.......................................................................... 12

Handset Features ............................................................................. 14

Basic Handset Features ................................................................ 14

Additional Handset Features ....................................................... 16

Administrator Features (Register to 1X base only) ...................... 19

Administrator Features (Register to PRO base only) ................... 20

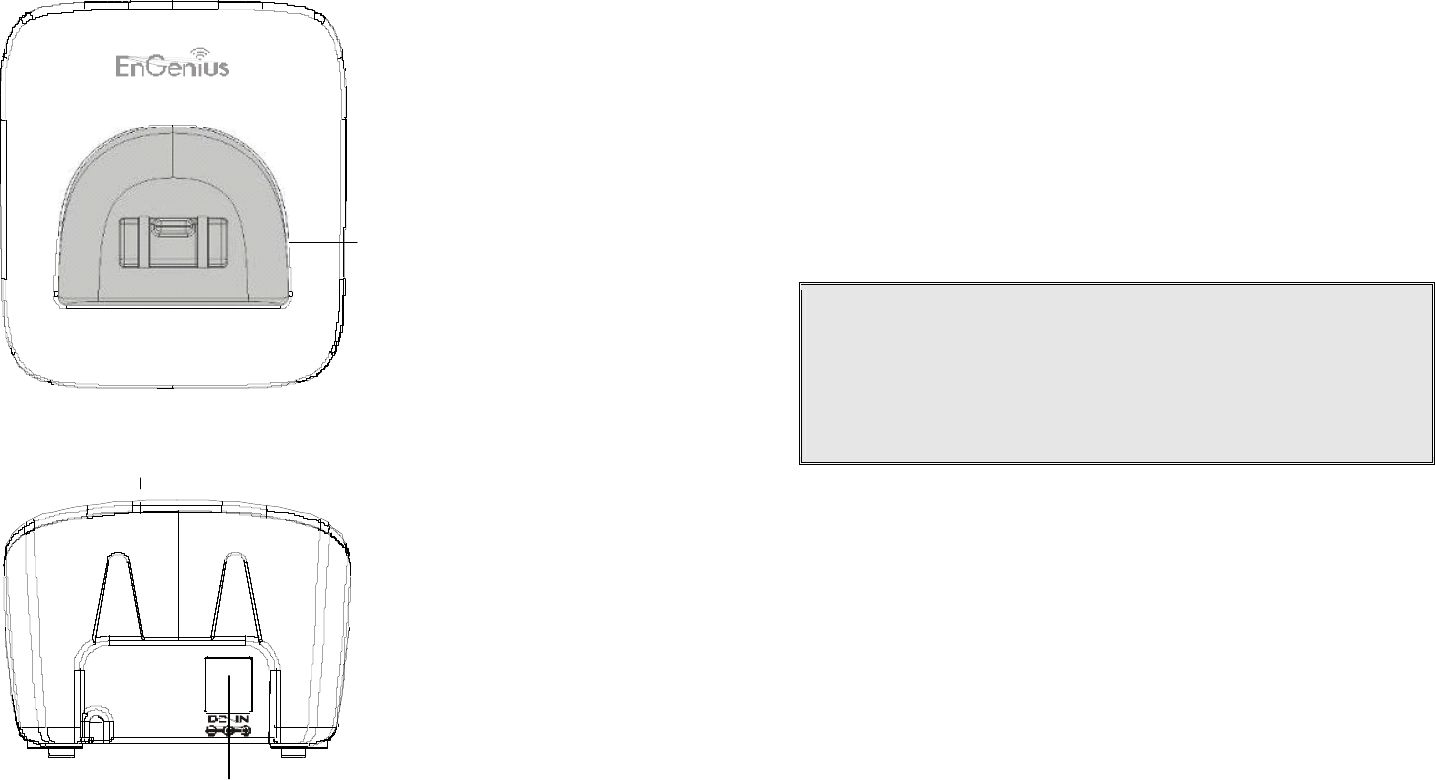

Charger Illustration .......................................................................... 21

Charger Features .............................................................................. 22

Getting Started ................................................................................. 23

Handset and Charger Installation ................................................ 23

Basic Operations .............................................................................. 24

Operation Modes ......................................................................... 24

A. Base Operation Modes ........................................................ 24

B. Handset Operation Modes .................................................. 24

Menu Tree (Register to 1X base only) ......................................... 25

Menu Tree (Register to PRO base only) ....................................... 26

Making a Telephone Call .............................................................. 27

Making an 2-Way/ Intercom Call ................................................. 27

A. Handset to Handset Calls ..................................................... 28

B. Intercom/2-Way from Base to Handset (Register to 1X base

only) ......................................................................................... 28

C. Intercom/2-Way from Handset to Base (Register to 1X base

only) ......................................................................................... 28

Making a Broadcast ...................................................................... 29

A. Handset to Handset Calls ..................................................... 29

B. Broadcasting from Base to Handset (Register to 1X base only)

.................................................................................................. 29

~

3

~

C. Broadcasting from Handset to Base (Register to 1X base only)

.................................................................................................. 30

Redial............................................................................................ 30

Receiving a Telephone Call .......................................................... 30

Receiving an Intercom Call ........................................................... 31

Ending a Call ................................................................................. 31

Adjusting Receiver (Earpiece) Voice Volume ............................... 32

Placing a Call On Hold .................................................................. 32

Mute ............................................................................................. 32

Do Not Disturb (Silent Ring) ......................................................... 33

Key Guard ..................................................................................... 33

To View Missed Call(s) ................................................................. 33

To Call back from Call Log ............................................................ 33

Battery Recharge and Replacement ............................................ 34

Advanced Operations ....................................................................... 35

Preliminary Setting ....................................................................... 35

Handset Registration (Register to 1X base only) ......................... 35

Registration of Additional Base (Register to 1X base only) ......... 36

Handset Registration (Register to PRO base only) ...................... 37

Advanced Registration (Register to PRO base only) .................... 38

Handset Group Subscription ........................................................ 39

Call Transfer (Register to 1X base only) ....................................... 40

Call Transfer (Register to PRO base only) .................................... 40

Call Manager (Register to 1X base only) ...................................... 41

Change System Settings by Administrator (Register to 1X base only)

...................................................................................................... 42

3-Way Conferencing (Register to PRO base only) ....................... 43

Base Select (Register to PRO base only ) ..................................... 44

Call Waiting (Register to PRO base only) .................................... 45

Auto Attendant (AA) (Register to PRO base only) ....................... 45

AA Configuration by Administrator (Register to PRO base only) 47

Change AA Parameters (Register to PRO base only) ................... 47

Line Dedication (Register to PRO base only) ............................... 48

Line Selection (Register to PRO base only) .................................. 49

~

4

~

Change System and Line Settings by Administrator (Register to PRO

base only) ..................................................................................... 49

Phonebook Operations (Register to 1X base only) ...................... 50

Phonebook Operations (Register to PRO base only) ................... 54

Call barring (Register to 1X base only) ......................................... 57

Text Messaging (Register to 1X base only) .................................. 58

Programmable PBX Options (Register to 1X base only) .............. 60

Programmable PBX Options (Register to PRO base only)............ 62

Broadcast through PBX (Register to PRO base only) ................... 63

Repeater Operation (Register to PRO base only) ........................ 64

Menu Operations (Register to 1X base only) ................................... 66

Menu Operations (Register to PRO base only) ................................ 70

Technical Specifications ................................................................... 76

Index ................................................................................................. 77

~

5

~

Safety Instructions

Caution

:

Your wireless telephone

gives you freedom and flexibility to

stay in touch while you move around. However, when using your phone

equipment, safety instructions should be followed to avoid the risks of

fire, electric shock, injury to person, and damage to property.

General Safety Instructions

1. When using your wireless phone, ensure your safety and the safety of others:

a. Always watch where you are walking and standing.

b. Don’t let a phone call distract you from working safely.

c. If power goes out, it won’t work. Recommend backup power.

2. In an emergency:

a. If an emergency occurs, dial the emergency phone number. Remember: if

you are in an area where your phone does not have a clear signal from the

base, it is highly probable that the call may not go through. Locate the

nearest landline telephone or other communications device to call for help.

b. Emergency calls may not automatically provide emergency personnel with

your name, phone number or location.

3. Notice to Hearing Aid Users: This phone system is compatible with inductively

coupled hearing aids.

4. Notice to Cardiac Pacemaker Users: Preliminary studies done by the US FDA

and others have shown that, although interference to the implanted cardiac

pacemaker may occur when operating very closely, wireless telephones “do not

seem to pose a significant problem for pacemaker wearers.” However, until

more is known, FDA suggests that people with pacemakers may want to take

precautions when using or carrying a wireless telephone to ensure that there is

ample distance between the telephone and the pacemaker. Do not carry the

handset in a breast pocket. If you have any reason to suspect that interference

is taking place, turn off your handset immediately.

Product Safety Instructions

1. Read and understand all instructions.

2. Follow all warnings and instructions including those marked on the product.

~

6

~

3. Changes or modifications to this product not expressively approved by the

manufacturer will void the warranty and the FCC authorization to operate the

equipment. Use only manufacturer provided accessories.

4. Do not use the telephone near water. Never spill liquid of any kind on this

product.

5. Unplug the product from the wall telephone jack and power outlet before

cleaning. Do not use liquid or aerosol cleaners. Use damp cloth for cleaning.

6. Do not place this product on an unstable cart, stand, or table. The product may

fall and cause personal injury or damage to the product or other property.

7. Power Outage: In the event of a power outage, your handset charger will not

recharge the handset battery, and the base station will not allow you to make

an outgoing call or take an incoming call. Both the charger and the base station

require electricity for operation. You should have a telephone that does not

require electricity available for use during power outage, or have a temporary

backup power supply.

8. Slots or openings in the product’s housing are provided for ventilation. These

openings must not be blocked or covered. Placing the product on a bed,

carpeting, or other similar surface may block these openings and should be

avoided. This product should never be placed near or over a radiator or heat

register, or in a built-in installation unless proper ventilation is provided.

9. Never push objects of any kind into this product through housing

slots/openings as they may damage the product, touch dangerous voltage

points or short out parts that could result in fire, electric shock, or injury.

10. This product should be operated only from the type of power source indicated

on the marking label. If you are not sure of the type of power supply to your

home, consult your dealer or local power company.

11. Do not overload wall power outlets and extension cords as this may result in

fire or electric shock.

12. To avoid electric shock or burn, do not disassemble this product. Send this

product to an authorized service center when service or repair work is required.

Call Customer Service for locations near you. Opening or removing covers may

expose you to dangerous voltages, electrical currents or other risks. Incorrect

reassembling of the product may cause electric shock when the product is

subsequently used.

13. Avoid using the product during a storm. There may be a risk of electric shock

from lightning.

14. Do not place the product where persons can step, trip, or fall on it.

15. Do not place conductive objects over or near the antenna.

~

7

~

16. Do not use the product to report a gas leak while in the vicinity of the leak.

17. Do not install the base station or the handset charger near microwave ovens,

radios, TV sets, speakers, or other electrical equipment. These appliances may

cause interference to the product or experience interference from the product.

18. Unplug the base station or the charger adaptor from the power outlet and refer

to an authorized service center under the following conditions:

a. If liquid has been spilled into the product.

b. When the power supply cord or plug is damaged or frayed.

c. If the product has been exposed to rain or water.

d. If the product does not operate normally by following the operating

instructions.

e. If the product has been dropped or housing has been damaged.

f. If the product shows a distinct change in performance.

Battery Safety Instructions

1. Use only manufacturer approved Li-ion rechargeable batteries and charger. Do

not use other types of rechargeable batteries or non-rechargeable batteries.

The batteries could short-circuit, and the battery enclosure may be damaged

causing a hazardous condition.

2. Follow the charging instruction in this manual and instruction labels and

markings in the handset and charger compartments.

3. Battery must be recycled or disposed of properly. Do not dispose the battery in

a fire. The cells may explode.

4. Do not dispose of the battery in municipal waste. Check with local codes for

disposal instructions.

5. Exercise care in handling the batteries in order not to short-circuit the battery

with conductive materials such as rings, bracelets, keys, pocketknife, and coins.

The battery or conductive material may overheat and cause burn or fire.

6. Do not expose batteries to rain or water.

7. Do not open or mutilate the battery. Released electrolyte is corrosive and may

cause injury to eyes or skin. The electrolyte may be toxic if swallowed.

8. During charging, the battery heats up. This is normal and is not dangerous.

~

8

~

Regulatory Information

SP922FH

FCC ID: U2M-SP922FH

IC: 3616C-SP922FH

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

1) this device may not cause harmful interference, and

2) this device must accept any interference received, including interference

that may cause undesired operation

.

Privacy of communications may not be ensured when using this phone.

Portable Handset

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency energy

and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the

interference by one of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party

responsible for compliance could void the user's authority to operate this

equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and

~

9

~

(2) this device must accept any interference received, including interference that

may cause undesired operation.

IMPORTANT NOTE:

Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an

uncontrolled environment. End users must follow the specific operating instructions

for satisfying RF exposure compliance. To maintain compliance with FCC RF

exposure compliance requirements, please follow operation instruction as

documented in this manual.

This transmitter must not be co-located or operating in conjunction with any other

antenna or transmitter.

~

10

~

Industry Canada statement:

This device complies with RSS-210 of the Industry Canada Rules. Operation is

subject to the following two conditions: (1) This device may not cause harmful

interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation.

Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux

appareils radio exempts de licence. Son fonctionnement est sujet aux deux

conditions suivantes: (1) le dispositif ne doit pas produire de brouillage

préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un

brouillage susceptible de provoquer un fonctionnement indésirable.

IMPORTANT NOTE:

Radiation Exposure Statement:

This equipment complies with IC radiation exposure limits set forth for an

uncontrolled environment. End users must follow the specific operating instructions

for satisfying RF exposure compliance. To maintain compliance with IC RF exposure

compliance requirements, please follow operation instruction as documented in

this manual.

This device has been designed to operate with an antenna having a maximum gain

of 2dBi. Antenna having a higher gain is strictly prohibited per regulations of

Industry Canada. The required antenna impedance is 50 ohms.

NOTE IMPORTANTE:

Déclaration d'exposition aux radiations:

Le produit est conforme aux limites d'exposition pour les appareils portables RF

pour les Etats-Unis et le Canada établies pour un environnement non contrôlé.

Le produit est sûr pour un fonctionnement tel que décrit dans ce manuel. La

réduction aux expositions RF peut être augmentée si l'appareil peut être conservé

aussi loin que possible du corps de l'utilisateur ou que le dispositif est réglé sur la

puissance de sortie la plus faible si une telle fonction est disponible.

Ce dispositif a été conçu pour fonctionner avec une antenne ayant un gain maximal

de dB 2. Une antenne à gain plus élevé est strictement interdite par les règlements

d'Industrie Canada. L'impédance d'antenne requise est de 50 ohms.

~

11

~

Equipment Checklist

1.

In a Handset package, please find the following components:

a.

Handset x 1

b.

Handset Antenna x 1(short)

c.

Handset Antenna x 1(long)

d.

1100mA Li-ion Battery x 1

e.

Charger x 1

f.

Charger AC/DC Adaptor x 1

g.

Belt Clip x 1

h.

CD user manual, Quick Guide and Warranty Card

2.

Optional Accessory

a.

Belt Clip

b.

Spare Battery

c.

Handset Long antenna

d.

Headset

~

12

~

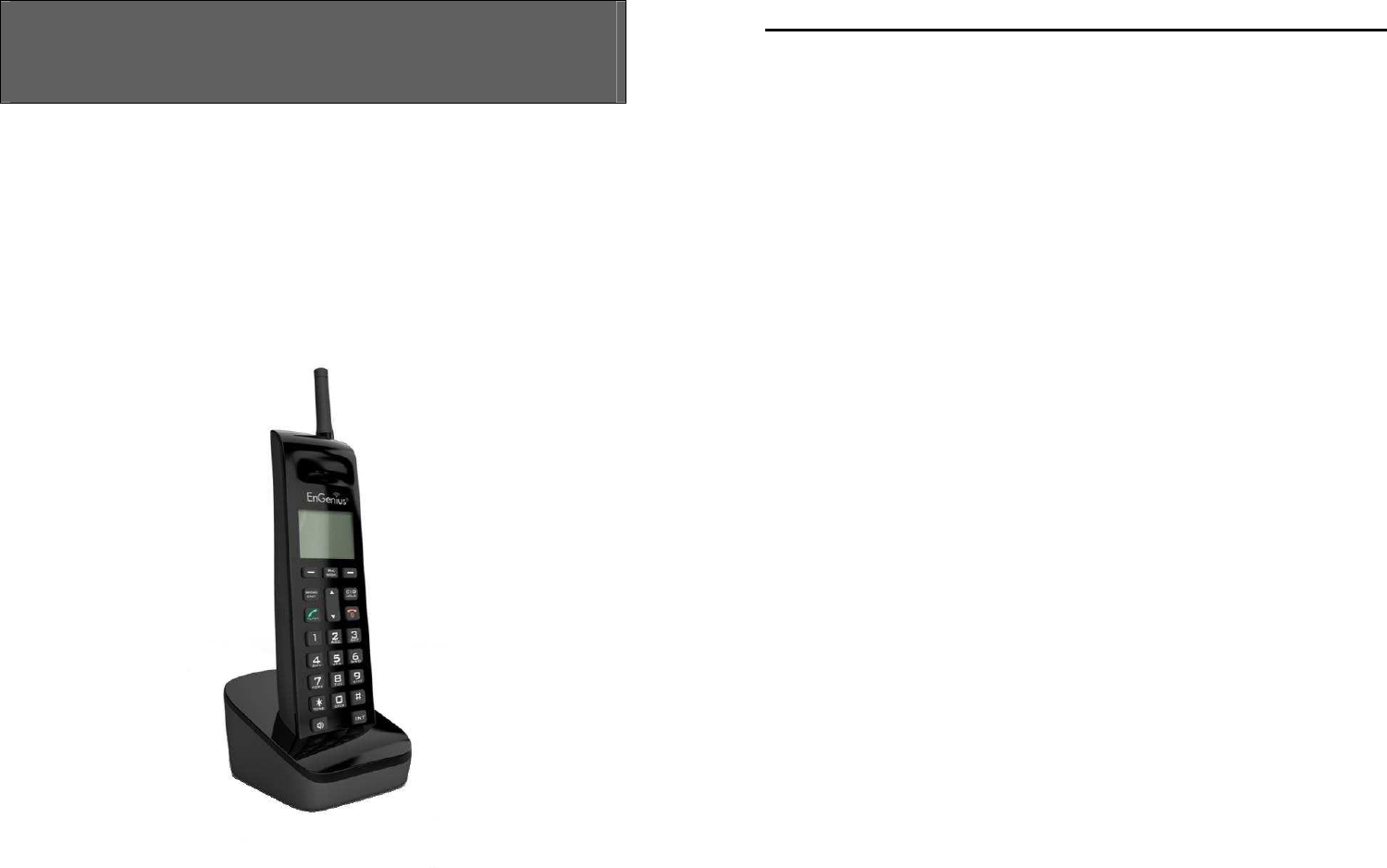

Handset Illustration

Soft key

Display

Caller ID / Hold

End / Power Off

Dialing key

Intercom

Antenna

Receiver

(Earpiece)

Talk / Flash

Speakerphone

Broadcast

Soft key

Microphone

Up / Down

Phonebook

~

13

~

Speaker

Battery Cover

(2.5mm)

Headset Jack

~

14

~

Handset Features

Basic Handset Features

1

.

4

-

line LCD (Liquid Crystal Display)

a.

The LCD display has LED (Light Emitting Diode) for backlighting.

b.

The 1

st

line of LCD consists of icons

.

c.

Icons explanation from left to right

(1)

RSSI

(Receive Signal Strength Indicator)

During a call, the number of bars is proportional to the radio signal

strength received.

(2)

Call in-progress (ON/OFF-Hook)

Indicates if phone line mode is active

.

(3)

Intercom in

-

progress

Indicates if Intercom mode is active

.

(4)

Handset ID

Displays a handset icon and

a 2

-

digit Handset ID

.

(5)

Text Envelope

(Register to 1X base

only

)

Indicates if there is new text message.

(6)

Two

-

Digit Address Index

Shows address index when viewing contents of the call logs.

(7)

Line Indicator

Indicates

the number

of the

line being accessed by the handset.

(8)

Speaker phone

Indicates if speaker phone is active.

(9)

Battery Strength

 Number of bars is proportional to the amount of battery time

remaining.

(1)

(2)

(3)

(4)

(5)

(6,7)

(8)

(9)

e

d

b,c

~

15

~



Indicates charging when i

n charger cradle.

d. The 2

nd

and 3

rd

lines of the LCD, maximum 14 characters each, display

status, message, menu selections, or user-editable alphanumerical

characters

.

e

The last line displays the left and right soft keys.

2.

Ringer

a.

Rings to

an incoming call.

b.

Distinctive alert sounds indicating various events:

(1)

Single Beep: successful key entry

.

(2)

Double beep: failed operation or invalid key entry, also indicates

power on/off

.

(3)

Periodic 1

-

Long

-

2

-

Short Beep (every 1 minut

e): low battery warning

.

(4)

Periodic Long Series of Beeps (repeat every 30 seconds): indicates a

call is on

-

hold

.

3.

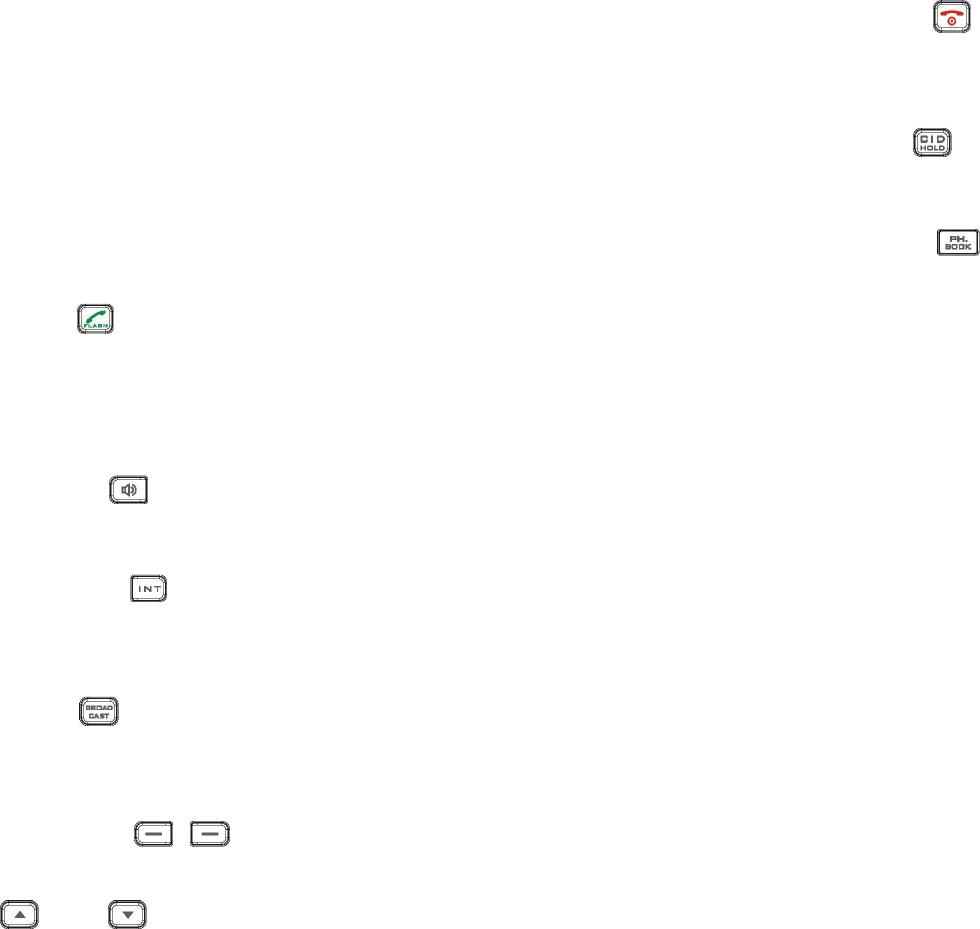

TALK/FLASH ( )

a.

Places or answers a telephone or intercom call

.

b. Sends a Flash signal to phone line to retrieve a dial tone after the call ends,

or to perform the call waiting feature provided by local phone companies

during a call.

c.

Press and hold the key for one second to enable/disable speakerphone.

4.

SPEAKERPHONE ( )

Press the key to enable/disable the speakerphone during incoming, outgoing or

intercom call.

5

.

2-WAY/INTERCOM ( )

a.

Places an intercom call to another handset ID or a group ID (

group paging

).

b. Intercom calls are digital, full duplex, and are conducted without the

assistance from the ba

se.

6

.

BROADCAST ( )

a.

Half duplex broadcasting to handsets for immediate announcement

.

b.

Half duplex broadcasting to base stations

.

[please refer to page

30

for detail operation]

7

.

Left/Right Soft Keys( / )

Make menu selection.

8. Up( ) /Down( ) Scrolling Keys

~

16

~

a.

Scroll through records and menu selections.

b.

Adjust receiver voice volume when in Talk mode.

9

.

END; On/Off Key ( )

a.

Ends a call.

b.

Leaves current menu operation, up one level

.

c.

Press for 3 seconds

to off the power

.

10.

CALLER ID Key ( )

a.

Review caller ID list

.

b.

Including received and missed caller ID.

11.

PHONEBOOK Key ( )

a.

Review

phonebook

.

b.

Add

、

delete

、

edit

、

view and transfer the phonebook entry.

Additional Handset Features

1.

Multiple handsets registration

(Register to 1X base

only

)

a.

Up to 9 handsets can be registered to a base station; up to 36 handsets ca

n

be accommodated to the system.

b.

ID 11

-

19; 21

-

29; 31

-

39; 41

-

49: individual Handset IDs. ID 11 and 12

are the first two ID’s assigned by the base and are designated

“administrators” who can change base settings such as greeting

message and other base administrative functions

.

c. ID 01-09: Group IDs. Handsets can “subscribe” from the handset menu to

group(s) and be paged when a landline caller or an intercom caller enters a

Group ID.

2

.

Multiple handsets registration

(Register to PRO base

only

)

a.

Up to 90 handsets.

b. ID 10 and 11 are the first two ID’s assigned by the base and are designated

“administrators” who can change base settings such as greeting message

and other base administrative functions.

Note: Unless necessary, it is better not to assign ID 10 and 11 to

DuraWalkie handsets.

c.

ID 01

-

07: Group IDs. Handsets can “subscribe” from the handset menu to

group(s) and be paged when a landline caller or an intercom caller enters

a Group ID.

~

17

~

3

.

Ringer

/

Vibrator

a. Six-level ringer volume selections (high/ Medium/ low/ vibrate/ vibrate-

then

-

ring/

off)

.

b. Four ringer type selections.

4

.

Caller ID

Displays incoming call phone number and name on the LCD (needs Caller ID

service from local telephone compan

y)

.

5

.

Call waiting with c

aller ID

Displays 2

nd

incoming call information on the same phone line when 1

st

call is in

progress (needs Call Waiting with Caller ID service from local telephone

company)

.

6

.

Name tagging with c

aller ID

Match the caller ID with the phone book entries; once matched, the LCD screen

will display the name or nickname instead of pure caller ID info (needs Call

Waiting with Caller ID service from local telephone company)

7

.

DND (Do Not Disturb, i.e., Silent Ring)

8

.

Three Call Logs

a. Called Log: Stores 10 phone numbers (up to 28 digits each) dialed most

recently. Can perform last

-

number redial on all 10 numbers.

b. Received Call Log: 10 entries (14-digit phone number, 14-character names,

and time stamp), n

eeds Caller ID service from local telephone company

.

c. Missed Call Log: 10 entries (14-digit phone number, 14-character names,

and time stamp), needs Caller ID service from local telephone company.

d.

Phone numbers and names can be saved into phoneboo

k while in display.

9

.

Call barring

(Register to 1X base

only

)

a.

Block the users from dialing the long distance calls or international calls

.

b.

Up to 5 digits of each call barring setting; up to 4 entries allowed

.

c. If you need to dial a specific number to retrieve the dial tone, you need to

key in that number while setting the call barring

.

[Note] you need to key in the accurate user ID and password to perform this

feature

. The default password is

“

0000

”

.

10

.

Key

-

guard

~

18

~

1

.

Dialing

Prefix

Up to 14 digits, including pause(s), one access code can be pre-programmed to

be added automatically in front of the dialed number when dialing from call

logs, phonebook, and dial

-

and

-

send dialing.

1

2

.

Call Hold

a.

Places call on hold

.

b

.

Battery Hot Swap:

Change battery while call is on hold.

1

3

.

Mute

1

4

.

Phonebook

a. 30 entries(Register to 1X base only) and 90 entries(Register to PRO base

only), each stores a phone number or handset ID (up to 28-digit) and name

(up to14

-

char

acter)

.

b.

Alphabetically sorted display and search

.

c.

Dial from display

.

d.

During the stand

-

by mode, you can enter the phone book by pressing

or scrolling key.

e.

Phone book transfer via air

i. Transfer specific phonebook to one handset or all registered handsets.

ii. Transfer all phonebooks to one handset or all registered handsets.

1

5

.

K

ey

tone

a.

Three

-

level key

-

tone volume selections (high/low/off)

.

b.

Four key

-

tone type selections

.

1

6

.

Call timers

Display call time durati

on for current call during and immediately after the call

.

1

7

.

Text Messaging

(Register to 1X base

only

)

a. Editing Message: from a handset, users can edit the short text message for

up to

25

characters.

Up to 5 messages can be edited and stored.

b. Sending Message: In view mode, handset can send a message to another

handset or a group of handsets.

c. Incoming Message: A distinctive tone alerts an incoming message. The

message will stay on LCD display for 8 seconds and then is saved in

memory.

A total of 5 incoming messages can be saved.

1

8

.

Call Transfer

(Register to PRO base

only

)

a. Direct Transfer: transfer a telephone call to another handset without

announcement.

~

19

~

b.

Announced Transfer: speak to the destinati

on handset before transferring a

telephone call.

1

9

.

Call Conferencing

(

Register to

PRO

base

only

)

a.

2

-

handset and 1

-

line conferencing.

b.

1

-

handset and 2

-

line conferencing.

20.

Line Selection

(

Register to

PRO

base

only

)

When enabled from the handset menu, a handset user will be prompted to

select from a list of available lines before making an outgoing call.

2

1

.

Programmable PBX Options

:

a.

Allow user to pre

-

program the most

frequently used PBX feature

along with its feature code into DuraFon which is adjunct to the PBX

system

.

b.

Up to 9 entries can be saved

.

c.

Once the feature and feature codes being programmed, you can

quick perform those functions during the call by pressing OPTION

soft key

.

22

.

Base Selection

When enable from the handset menu

,

a handset user can manually

select the

base which is the nearest one with user before making an outgoing call.

23.

Repeater Operation

(

Register to

PRO

base

only

)

In order to get better range performance for handset to handset calls

(intercom

and broadcast), install a repeater and make the calls via repeater is able to

extend the range of handset to handset calls.

Administrator Features (Register to 1X base only)

Handsets 11 and 12 are designated administrators. Both have the same authority

to perform base station administrative functions from their handset menu

selections. No password is required and to remember.

1.

Supports both DTMF and Pulse dialing

a. From an administrator handset (Handset 11 or 12), press MENU-9-1- enter

base ID(

10,20,30,40)

-

1

to select Tone or Pulse dialing mode.

b.

Default is Tone dialing.

~

20

~

2.

Administrator programmable Flash

key timing

a. From an administrator handset (Handset 11 or 12), press MENU-9-2- enter

base ID(

10,20,30,40)

-

4

to select flash key timing

.

b.

9

-

level (100 ms

-

900 ms) timing selections, default=

6

00 ms.

c. The default value (600 ms) works in most areas. Changing this setting may

cause Flash key not working. Change only when you are certain of the new

value would work.

3.

Call transfer to PBX extension

a.

When install the DuraFon 1X behind the PBX system, you can pre-program

the feature code o

f call transfer function

.

b.

Need to adjust the Flash time to match your PBX setting

.

Administrator Features (Register to PRO base only)

Handsets 10 and 11 are designated administrators. Both have the same authority

to perform base station administrative functions from their handset menu

selections. No password is required.

1.

Supports both DTMF and Pul

se dialing

a. From an administrator handset (Handset 10 or 11 ), press MENU- 9 – 1 –

enter base ID(00

–

07)

-

1

to select Tone or Pulse dialing mod

e.

b.

Default is Tone dialing.

2.

Administrator programmable Flash

key timing

a. From an administrator handset (Handset 10 or 11), press MENU- 9 -1-

enter base ID(00

–

07)

-

2

to select flash key timing

.

b.

9

-

level (100 ms

-

900 ms) timing selectio

ns, default=

6

00 ms

.

c. The default value (600 ms) works in most areas. Changing this setting may

result in Flash function not working. Change only when you are certain

the new value will work.

3.

Call Transfer to PBX Extension

a.

When the DuraFon PRO is installed behind a PBX system, you can pre-

program the feature code of call transfer function.

b.

Need to adjust the Flash time to match your PBX setting.

Re:

If loosing administrator handsets (handset 10 and 11), all settings must be

reset (

reset the base and re

-

register all handsets).

~

21

~

Charger Illustration

Handset charging slot

DC in

~

22

~

Charger Features

1.

DC In

Connects to Charger AC Adaptor.

2.

Handset Charging Slot

a.

Charge handset battery when handset is placed in cradle.

b.

Refer to the ha

ndset LCD for charging status

.

(1)

Charging: battery status bar is running and the LCD screen showed:

Charging

.

(2)

Fully Charged: battery status bar stands still and the LCD screen would

display “Fully Charged”

.

(3)

Charge Fail: Should there be any error occurred during charging mode,

the LCD screen would display “Charge Fail”

.

3

.

It is impossible to overcharge the battery using this charger.

Notes:

1. Fully charge battery packs before first use.

2. Both handset and spare batteries can be charged at the same time.

3. Handset will be “power on” automatically when placing on the charging

slot.

4. However, if you run drain the battery, it would take around one minute for

handset to auto power on.

4. You can’t turn off the power while you charge the handset. A warning message:

“

Unplug Charger then OFF again

” will be shown on the LCD display.

~

23

~

Getting Started

Handset and Charger Installation

1. Plug the transformer end of the Charger AC/DC adaptor into a standard AC

electric power outlet, plug the other end into the “DC In” jack on the back of

the Charger.

2.

Install battery pack onto the handset.

3.

Install handset antenna.

4.

Place handset onto the charg

ing

slot.

5.

Fully charge the battery for three hours before us

e.

6. The phone system is now ready to perform basic functions such as making and

receiving phone calls and intercom calls. No base station or handset

programming is needed for basic operations.

Note:

1.

Handset(s) packaged along with a Base Station are pre-

registered at the factory. If you have a new handset, you will

need to register the handset with the base station in order to

be recognized as a member handset by the base(s) and by

other handsets. See Handset Registration.

2.

Fully charge battery packs before the first usage.

~

24

~

Basic Operations

Operation Modes

Both the base station and handset have levels of operation at which time only

certain procedures of functions can be performed.

A. Base Operation Modes

1. IDLE mode (Register to 1X base only) - this is the default mode. The intercom,

broadcast, and volume keys are active in IDLE mode.

2. TALK mode (Register to 1X base only) - the base operates in this mode during

phone call, intercom, and broadcast operation. The “In Use”, “Intercom”, and

“Broadcast” LED will light up respectively.

3. REGISTRATION mode- the base enters this mode by pressing the REG button

for three seconds. There are no active base unit keys once this mode has been

entered. Four LEDs will be lighted up in R

egi

stration mode.

B. Handset Operation Modes

1.

IDLE mode

-

this is the default mode.

a. If there is no on-going activity, the handset

automatically goes into SLEEP/IDLE mode to save

battery power.

b.

The handset can be turned off completely by

holding down the key for 3 seconds.

c. The idle screen display (custom name) can be

edited.

d.

The 2

-

dight number represents the handset ID

2.

Menu

mode

a. Press the Right soft function key to activate MENU

mode.

b. In MENU mode, the handset settings and

information contained in memory can be changed.

c. The functions available through the MENU selection

are covered in

greater

detail from page

67

.

d.

The MENU structure display as below:





11



Welcome!

REDIAL MENU





11



Main Menu:



1.KeyGuard

2.PhoneBook

~

25

~

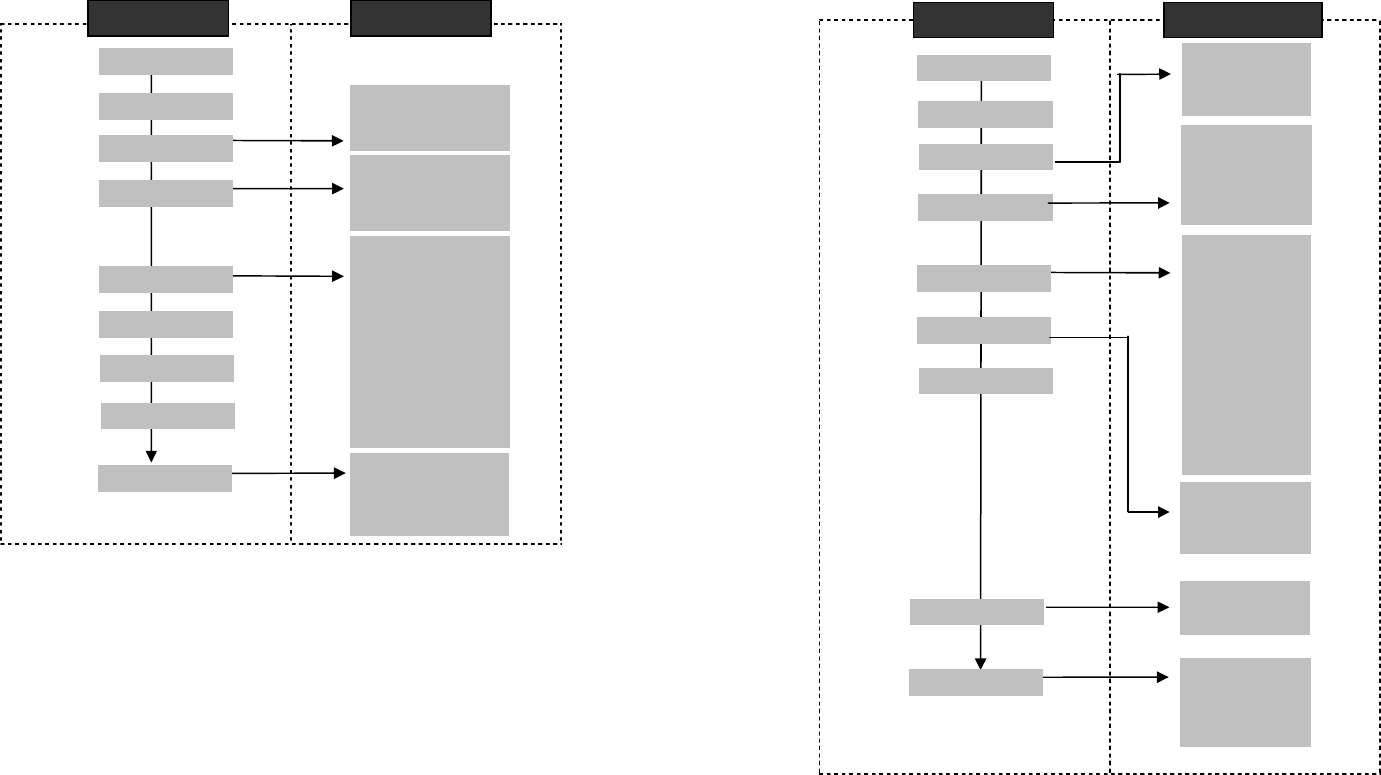

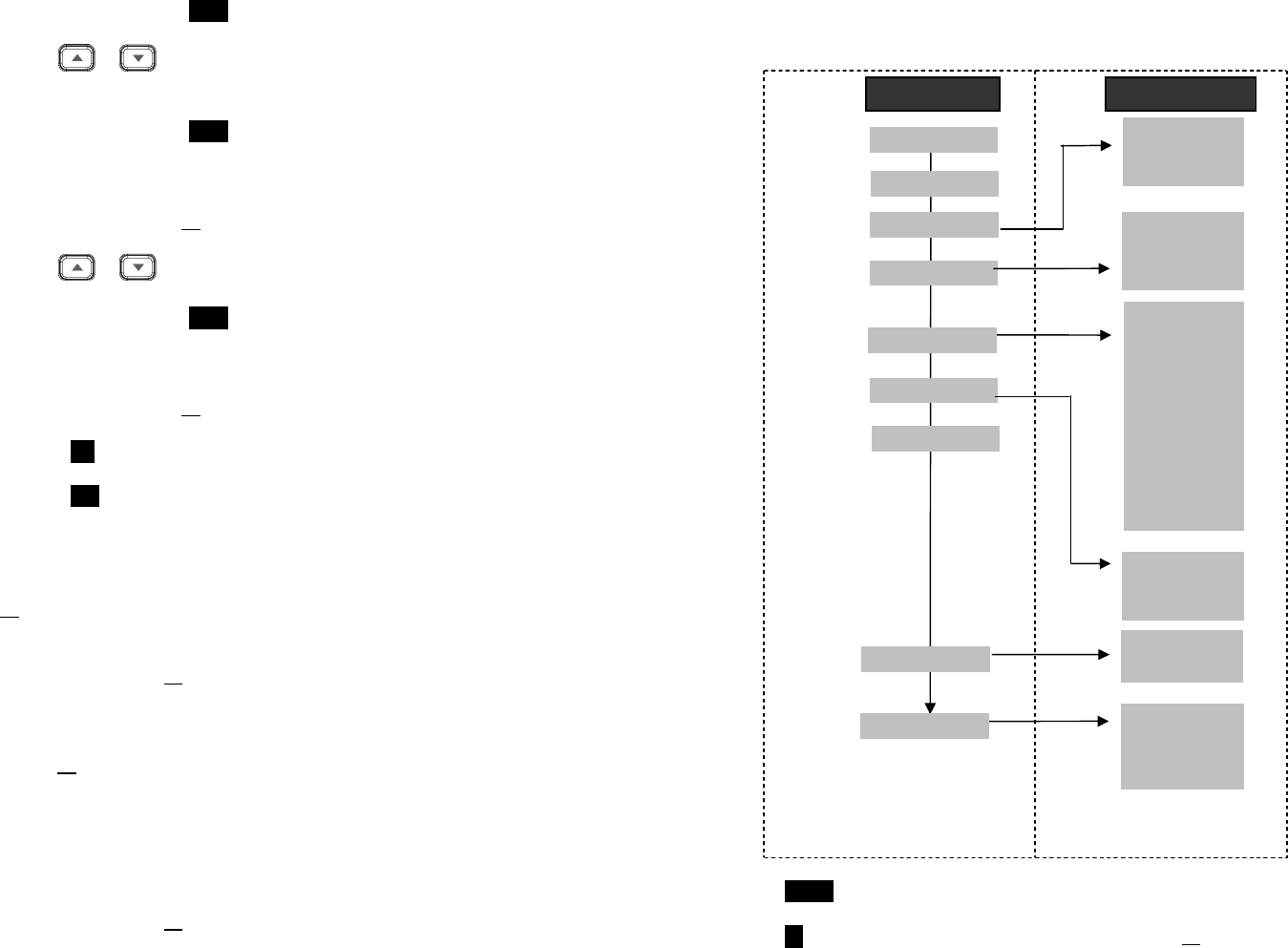

Menu Tree (Register to 1X base only)

Main menu Sub-menu

1.KeyGuard

2.PhoneBook

1.Dialed

2.Received

3.Missed

1.Ring Volume

2.Ring Tone

3.Key Volume

4.Key Tone

1.Dial Prefix

2.Group Select

3.Language

4.Clear

5.Custom Name

6.Contrast

7.Backlight

8.Call Barring

9.Name Tag

0.PBX Options

#.PA On/Off

6.Registration

7.Text Message

5.Settings

4.Sound

3.Call Logs

8.Call Manager

1.Dial Mode

2.Flash

3.Clear HS

4.Assign HS

9.System

~

26

~

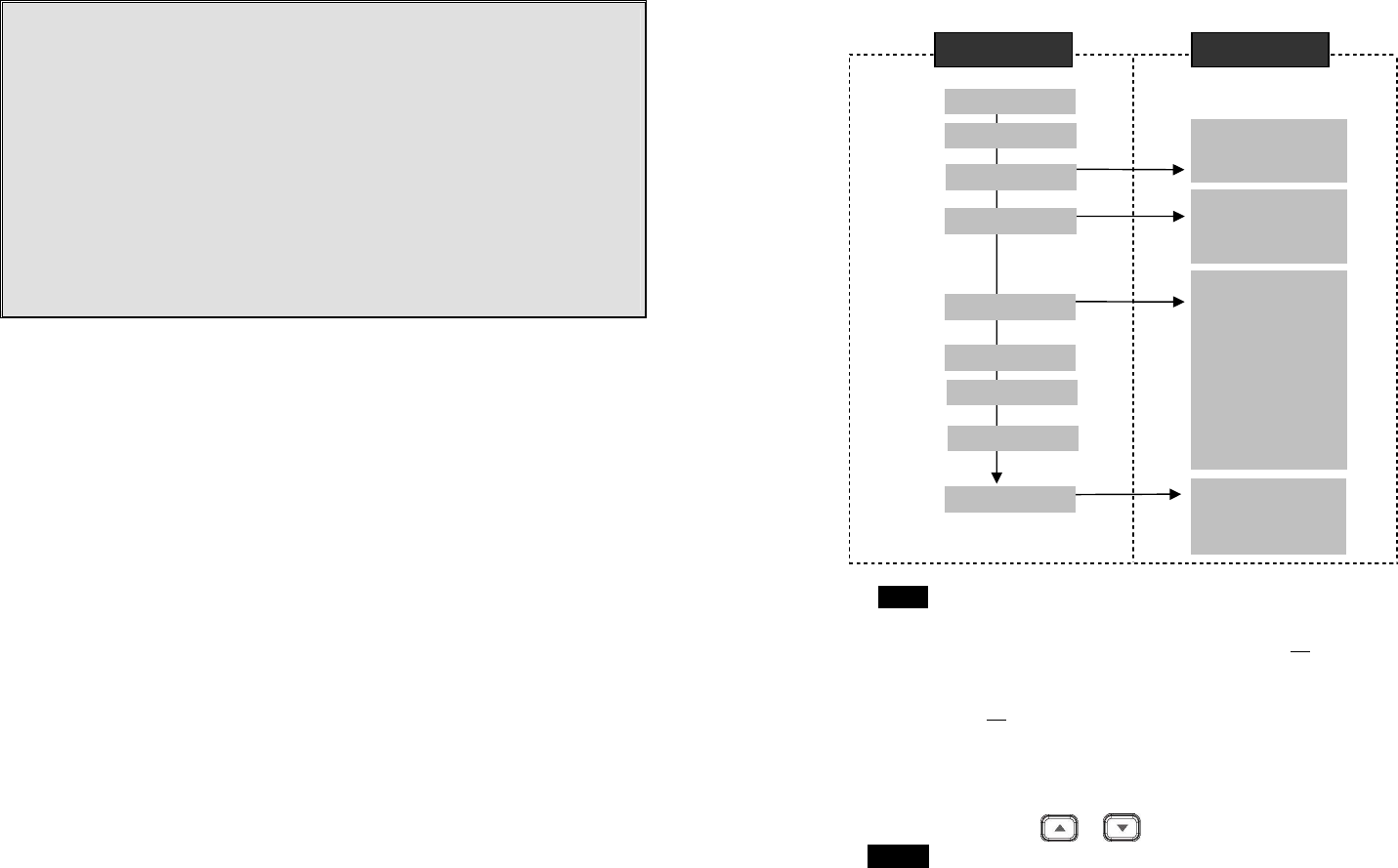

Menu Tree (Register to PRO base only)

Main menu

Sub

-

menu

1.KeyGuard

2.PhoneBook

1.Dialed

2.Received

3.Missed

1.Ring Volume

2.Ring Tone

3.Key Volume

4.Key Tone

1.Dial Prefix

2.Group Select

3.Base Select

4.Clear

5.Naming

6.Contrast

7.Backlight

8.Line Select

9.PBX Options

0.Language

#.PA On/Off

*.Name Tag

6.Registration

7.

BC/INT Type

5.Settings

4.Sound

3.Call Logs

9.Admin

8.Multi

-

base

Select Mode:

1.Add Base

Admin:

1.System

2.Line Setting

3.Auto Attndnt

1.

Register

2.Deregister

3.Remote REG

~

27

~

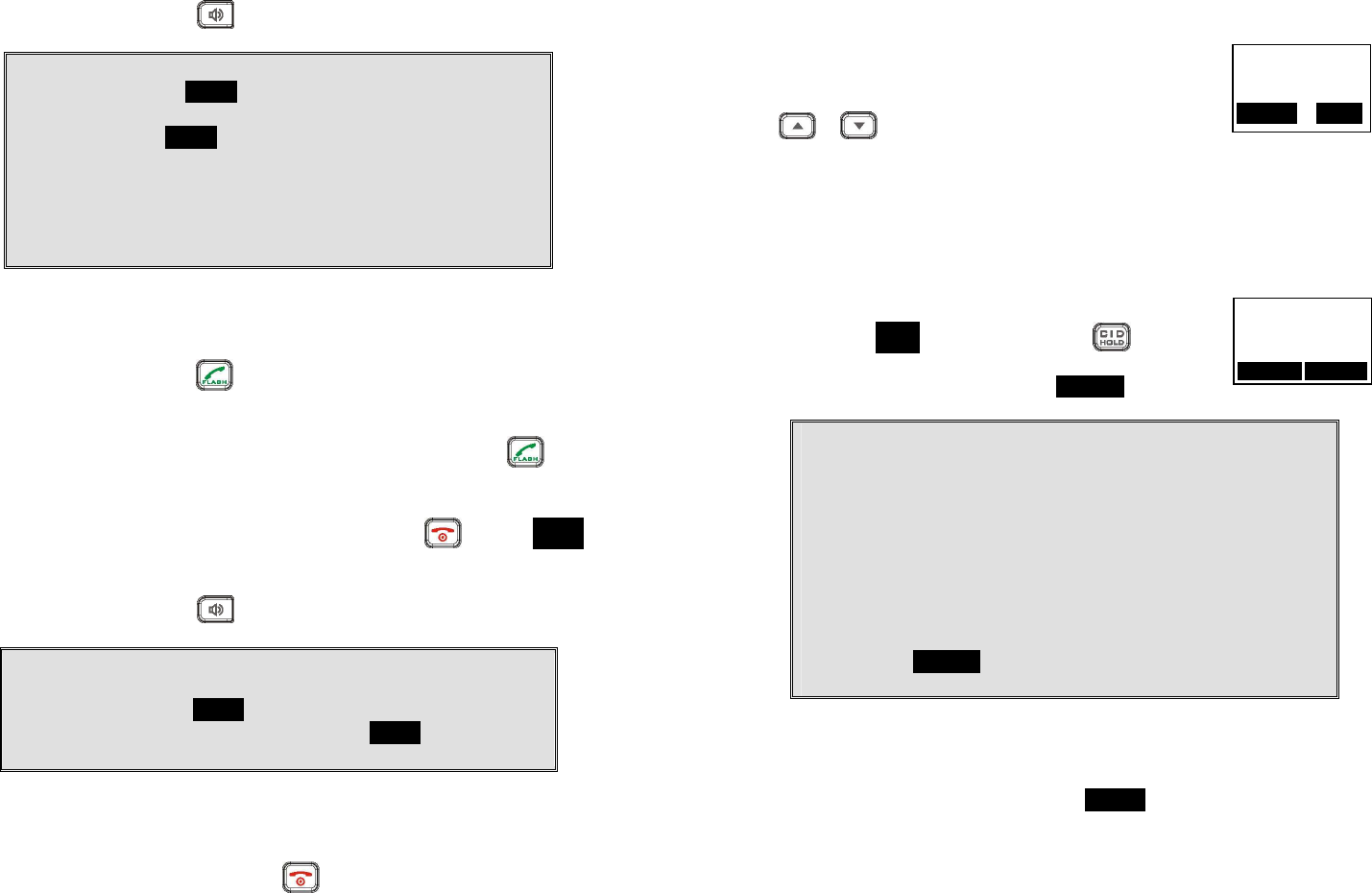

Making a Telephone Call

1.

Press , wait for dial tone, and then enter phone number.

2.

Alternatively, you can enter phone number first then press key.

When using this method, you can use the CLEAR (Left) and DELETE (Right) soft

keys to edit the number entered. “Delete” erases the last digit entered.

“Clear” erases the entire line but remains in the dialing mode.

3.

Speed dial

by acce

ss the entries in the phone book

a. Press or scrolling key to enter the phone

book

b.

Press to dial out the number

4.

To abort dialing, press key.

5. During the call, press the key to activate the

speakerphone.

Notes:

1. After a link established, the Base ID will appear on the upper-right

corner. If no Base ID shown up, it applied that you are approaching

the boundary of the coverage.

2. If the line is occupied, the LCD shows “No Line Available” and handset

returns to standby mode.

3. If a link cannot be established, the LCD will show “No Base” after a 12-

second time out.

4. A call duration timer will start displaying the length of the call after

link is established.

Making an 2-Way/ Intercom Call

The EnGenius Industrial Cordless Phone System offers private, Intercom/ 2-way

radio calls independence of base station. Intercom/ 2-way communication can be

placed from or to base stations and handsets.





11



EnGenius

8884328668

ADD

OPTION

~

28

~

A. Handset to Handset Calls

1. Press key followed by a two-digit handset ID or

Group ID.

2. Press key to end the call.

3. During the call, press the key, the speakerphone

is active.

Notes:

1.

Intercom calls can be made regardless if the Base Station is

present.

2.

If a Group ID is entered, the first handset (belonging to

that group) that answers will establish a link with the

caller. See Handset Group Subscription.

3.

If a link cannot be established, the LCD shows “No

Connection” after a 12-second time out.

B. Intercom/2-Way from Base to Handset (Register to 1X base only)

1.

Press key on the base station to intercom all

registered handsets. The first handset to answer will

establish a voice link with the base.

2.

The INTERCOM LED will flash until a handset responds.

3. The base unit will page for 15 seconds, then terminate the page if no handset

responds.

4.

Before a handset answers, the INTERCOM can be cancelled from the base by

pressing again. However, once a handset answers, only the answering

handset can end the call.

C. Intercom/2-Way from Handset to Base (Register to 1X base only)

1. Press key followed by a two-digit base ID

[Note: Base 1 ID as 10, Base 2 ID as 20, Base 3 ID as 30,

and Base 4 ID as 40]

2.

The base will ring once, then automatically conne

ct the



11



Please enter

Ext. #: 12





11



Intercom from

Base 1

SILENT



11



Please enter

Ext. #: 10

~

29

~

intercom call from a handset.

Making a Broadcast

A. Handset to Handset Calls

1.

Broadcasting all handsets

a. Press and hold key from one handset.

b. Hear bi-bi-beep while the initiating handset

broadcast all handsets within communication

coverage

.

c. Start to speak the message to be broadcasted once

you hear the “beep” sound; the speakerphone of

destination handsets will be opened up

.

d.

Release the key and return to IDLE mode.

2.

Broadcasting a group of handsets

a. Enter the Group ID then press and hold key.

b. Hear bi-bi-beep while the initiating handset

broadcast all handsets within communication

coverage

.

c. Start to speak the message to be broadcasted once

you hear the “beep” sound; the speakerphone of

destination hand

sets will be opened up

.

d.

Release the key and return to IDLE mode.

3.

Broadcasting an individual handset

a. Enter the Handset ID then press and hold key.

b. Hear bi-bi-beep while the initiating handset

broadcast all handsets within communication

coverage

.

c. Start to speak the message to be broadcasted once

you hear the “beep” sound; the speakerphone of

destination handsets will be opened up

.

d.

Release the key and return to IDLE mode.

B. Broadcasting from Base to Handset (Register to 1X base only)

1.

Broadcast to all handsets

a.

Press key on the base station to intercom all

registered handsets.



11



PA paging

to all…



11



PA paging

to Ext. # 02



11



PA paging

to Ext. # 12





11



PA paging from

Base 1

SILENT

~

30

~

b. Hear bi-bi-beep while the initiating handset

broadcast all handsets within communication

coverage.

c.

The Broadc

ast LED will light up

.

d.

Press the key again and return to IDLE mode.

C. Broadcasting from Handset to Base (Register to 1X base only)

1.

Broadcast to the base station

a. Enter the Base ID then press and hold key.

b. Hear bi-bi-beep while the initiating handset

broadcast the base stations.

c. Start to speak the message to be broadcasted once

you hear the “beep” sound; the speakerphone of

the base will be opened up

.

d.

Release the key and return to IDLE mode.

Redial

1.

Press

REDIAL

(Left) soft key.

2.

The LCD shows the last phone number dialed. To dial this number, press

DIAL

(Left) soft key.

3. Use or Arrow Key to scroll through the last 10 phone numbers

dialed. Select and press DIAL soft key.

[Note

]

Intercom numbers (Handset ID) are not stored in the last 10 numbers

dialed log.

Receiving a Telephone Call

1. When an incoming call arrives, the ringer will ring or vibrate unless the ringer

has been turned off.

2.

If the handset is on the charge

r cradle (ringer will be temporarily switched to

“Ring” if it has been set to “Vibrate”), lift the handset and press the

to

start conversation.

3.

If the handset is not on the cradle, press any key (except , and the Silent



11



PA paging

to Ext. # 10

~

31

~

soft key) to answer.

4. During the call, press the key, the speakerphone is active.

Notes:

1.

You can press SILENT (Left) soft key if you choose to ignore

the call. Unlike turning off the ringer (from the handset

menu), the SILENT key operation is valid only for the current

call.

2.

If Caller ID service is available, the LCD will display the

incoming call information. If the LCD shows “Private” or

“Unknown”, the caller’s information may have been blocked

by the caller or the originating phone company.

Receiving an Intercom Call

1.

When an intercom call arrives, the ringer will ring or vibrate unless the ringer

has been turned off. Press to answer the intercom call.

2.

If the handset is on the charger cradle (ringer will be temporarily switched to

“Ring” if it has been set to “Vibrate”), lift the handset and press the key

to start conversation.

3. If the handset is not on the cradle, press any key (except , and the SILENT

soft key) to answer.

4. During the call, press the key, the speakerphone is active.

Notes:

1.

The LCD displays the caller’s Handset ID.

2.

You can press the SILENT (Left) soft key if you choose to ignore

the call. Unlike turning off the ringer the SILENT key operation is

valid only for the current call.

Ending a Call

To end a telephone or intercom call, press key or place handset into charger

cradle.

~

32

~

Adjusting Receiver (Earpiece) Voice Volume

1.

Voice volume can only be adjusted during a call.

2.

There are 6 levels of volume selections. Default =

1

.

Use

or arrow key to adjust

3. The new setting remains effective for all future calls

until changed.

Placing a Call On Hold

1.

When a call is in progress, it can be put on hold by

pressing the HOLD (Right) soft key or the key.

2.

To return to the conversation, p

ress

U

NHOLD

Notes:

1.

The call being placed on hold can only be “un-hold” by the

handset that puts it on hold.

2.

Handset LCD displays a call is being on hold. An alert tone

(double beep) every 30 seconds will remind the handset that a

call is being on hold.

3.

If the operation (e.g., call transfer) after putting a call on-hold

fails, the held call may be dropped.

4.

You can power off the handset (e.g., change battery) while call

is on hold. After power on again, you can continue the call by

pressing UNHOLD (Left) soft key or select “4” from the Option

(only for 1X) menu to terminate the hold state.

Mute

1.

After a link is established, you can press

OPTION

(Left) soft key and

press “0” to mute the handset microphone

.

2.

When mute is active, the other end wi

ll not hear your voice, but still can speak

to you.





11



00:00:10

Volume:4

MUTE HOLD





11



You have a

Call on hold

UNHOLD

OPTION

~

33

~

3. To leave the mute state, press UNMUTE (Left) soft key. Mute is effective only

for the current call.

Do Not Disturb (Silent Ring)

1. Enter the key sequence MENU - 4 - 1, then select “Off”.

Press SAVE to confirm your choice. This will turn off the

ringer until it is turn on again from the menu.

2.

For temporary silencing the ringer when an incoming call

arrives, press SILENT (Left) soft key.

Key Guard

1. To prevent accidental dialing, you can press MENU (Right)

soft key, then press “1” to select KeyGuard option. The

handset keypad is locked. No key entry is accepted except

the

“

UNLOCK

”

key.

2.

To unlock the keypad, press

U

NLOCK

(Left) soft key, then,

within 2 seconds, press the digit “1” to unlock.

3.

Key Guard is in effect until unlocked or powered off.

To View Missed Call(s)

1.

Whenever you have missed incoming call(s), you can

Press or VIEW soft key to enter the call logs

information.

2.

You need to subsc

ribe the caller ID service from local

telecom company to retrieve this data.

To Call back from Call Log

1.

When you review missed incoming call(s), you can directly call back





11



Sounds: 

1. Ring Volume

2. Ring Tone





11



Ring Volume: 

Off

SAVE





11



Welcome!

UNLOCK





11



Press 1 to

confirm

unlock





11



You have 1

missed call

VIEW

MENU

~

34

~

by pressing key.

2. The displayed CID number in most cases will be a 10-digit number

with the 3-digit area code followed by the 7-digit telephone

number. If the area code is unnecessary for calling back, you can

follow below rule to adjust the calling back number:

a.

Press

FORMAT

key once

, the 3

-

digit area code will be removed.

b. Press FORMAT key twice, “1” will be added in front of the

displayed number.

c. Press FORMAT key three times, it will loop back original

displayed number.

Re:The CID default is 10 digits, when press FORMAT key, it will be

7

-

digit

–

> 11

-

digit

–

> 10

-

digit in

circle.

3. After the displayed number chosen, press the key to call back.

Battery Recharge and Replacement

1.

Charge the battery when one or several of the following happen:

a.

Phone beeps twic

e every two seconds.

b.

Battery icon is empty.

c.

Phone does not respond when a key is pressed.

d.

LCD and backlighting become dim.

e.

Talk range shortfall is experienced.

2.

You can replace the handset battery after placing the call

-

in

-

progre

ss on hold.

3.

Battery talk time and standby time vary depending on the talk/standby pattern

and the operating distance. Putting the handset back to charger cradle as

often as possible is recommended for best performance.

Use only

manufacturer provided battery and charger!

~

35

~

Advanced Operations

Preliminary Setting

1. Since the SP922FH is able to register to DuraFon 1x or PRO, when you take it

out and power on, you will see the initial screen as figure, you have to choose

the desired base station befo

re making handset registration.

2

.

Choose base

:

a. Press key 1 means you desire to register the handset on

a PRO base.

b. Press key 2 means you desire to register the handset on

a 1X base.

3. When choosing the base, the handset is ready to register to

the desired base station.

4. The handset can’t served for 1X and PRO base at the same

time, once the desired base chosen (ie. 1X base), the handset

can’t be registered to PRO any longer, unless making factory

reset.

Re:

In case you want to change the desired base station, please

check with EnGenius’ authorized dealer about the factory

reset.

Handset Registration (Register to 1X base only)

1. When 1

st

time using the handset, you need to register the handset to the base

station (Th

e handset ID is 00 before registering to the base station) .

2

.

Registration:

a.

Press

MENU

-

6

to enter the registration mode

b. Press and hold the base’s Registration (REG) button

for 2 seconds until

4

LED

s

light up

.

c.

Press handset key “1”,

this completes the

registration process. When you register the

handset to BASE 10, the base will assign a

handset ID between 12 and 19. The assigned ID

will be displayed on the handset LCD, indicating

successful registration

.

d.

Repeat above steps for a

ll additional handsets.

e.

The first

two

handsets registered will be given ID 1

1





11



Main Menu: 

5. Settings

6. Registration





11



Registration: 

1. Register

2. Deregister





00



Select Base

1.DuraFon PRO

2.DuraFon 1X





00



Please

Register

REDIAL MENU

~

36

~

and 1

2

, which gives them administrator privileges.

4.

De

-

registration:

a. You can de-register a handset from a base. De-registration will reset the

Handset ID to 00, erase the system security code, and free up the old ID

for future registration.

b. After deregistration, the handset will not be able to use the base to make

or receive phone calls, nor can it intercom other handsets.

c.

Press handset

M

ENU

(Right) soft k

ey.

d. Press the handset number key “6”, this will enter the handset registration

menu.

e.

Press and hold the base’s REG button for 2 seconds until 4 LED

s

come on.

f. Press the handset number key “2”, this completes the de-registration

process. Upon

successful de

-

registration, the handset will show ID “00”.

Notes:

1. The base has a 30 second registration timeout starting from

pressing the REG button. The handset has a 12 second registration

timeout starting from the registration or deregistration option has

been selected. The base and handset will automatically exit

registration mode after timeout.

2. When you conduct the registration procedure with BASE 20, the

handset ID will be ranging from 21 to 29.

3. Up to 4 bases can be installed to form a sub-multiple line system.

4. Repeat registration or de-registration process if unsuccessful.

Registration of Additional Base (Register to 1X base only)

1.

DuraFon 1X can be installed as the multiple base configurations: up to 4

base units can be regist

ered. The BASE 10 serve as the master base

.

2. Use admin handset, HS 11 or HS12, to conduct the registration for 2nd,

3

rd

, 4

th

base unit.

3.

Registration:

a.

Press

MENU

-

6

from HS 11 to enter the registration

mode.

b.

Press and hold the Regist

ration (REG) button on

that additional base unit, which you want to add

into the system) for 2 seconds until 4 LEDs light

up





11



Main Menu: 

5. Settings

6. Registration

Selection

~

37

~

c.

Press handset key “

3

”, then enter the base ID i.e. 20

for 2nd base, 30 for 3rd base, or 40 for 4th base.

this completes the registration process.

Handset Registration (Register to PRO base only)

1. When 1

st

time using the handset, you need to register the handset to the base

station (The handset ID is 00 before registering to the base station

) .

2. In certain situations, you may want to change a handset’s ID. For example,

you want to change a particular handset from a user to an administrator (ID 10

or 11), or vice versa. Or in some rare occasions, you find another handset

having the sa

me Handset ID.

3.

Registration

:

a.

Press

MENU

-

6

to enter the registration mode

b.

Press and hold the base’s Registration

(

REG

) button for 2 seconds until the

L1, L2, L3, and L4 LED come on.

c. Press handset key “1”, this completes the registration process. The base

station will assign a handset ID between 10 and 99. The assigned ID will

be displayed on the handset LCD, indicating successful registration.

d.

Repeat above steps for all additional handsets.

e. The first two handsets registered will be given ID 10 and 11, which gives

them administrator privileges.

Re : Base 00 is a primary base. All handse

ts m

ust register to Base 00.

4.

De

-

registration

:

a. You can de-register a handset from a base. De-registration will reset the

Handset ID to 00, erase the system security code, and free up the old ID

for future registration.

b. After deregistration, the handset will not be able to use the base to make

or receive phone calls, nor can it use the intercom to reach other

handsets.

c.

Press handset

MENU

(Right) soft key.

d. Press the handset number key 6 , this will enter the handset registration

menu.

e. Press and hold the base’s REG button for 2 seconds until L1, L2, L3, and L4

LED come on

f. Press the handset number key 2 , this completes the de-registration

process. Upon successful de

-

registration, the handset will show ID “00”.





11



Registration: 

2. Deregister

3. Set Base

Selection

~

38

~

Notes:

1. The base has a 30 second registration timeout starting from pressing

the REG button. The handset has a 12 second registration timeout

starting from the time registration or de-registration option has been

selected. The base and handset will automatically exit registration

mode after timeout.

2. Repeat registration or de-registration process if unsuccessful.

Advanced Registration (Register to PRO base only)

1. Advanced registration functions can be performed by administrator handsets

(ID 10 and 11) only.

2.

Administrato

r handsets can perform advanced registration function as long as

it is within range with the base station. The base station does not need to be

in registration mode.

3.

De

-

register a Handset ID

by administrator:

a. Make sure that the administrator handset is within the coverage range of

the base station.

b.

Press administrator handset

MENU

(Right) soft key

c.

Press the number

9

, this will enter the handset administration menu.

d.

Press number

1

, handset enters system sett

ing menu.

e.

Press number

4

,

and enter the two

-

digit Handset ID

to be cleared.

f. Upon successful operation, the handset LCD will display “Done”, otherwise

it will show “Message not received, try again”.

4.

Obtain a Specific H

andset ID

:

a. If a particular Handset ID is preferred over sequentially assigned ID, the

administrator can “tell” the base in advance what the next ID assignment

should be.

b.

Press administrator handset

MENU

(Righ

t) soft key.

c.

Press the number

9

, this will enter the handset administration menu.

d.

Press number

1

, handset enters system setting menu.

e. Press number 5 , and enter the two-digit Handset ID to be assigned next

by the base

.

f. Upon successful operation, the handset LCD will display “Done,” otherwise

it will show “Message not received, try again.”

g. If the handset ID is already in use by another handset, the administrator

will be alerted. In that case, the administrator can choose another ID or

asks the handset having the desired ID to vacate by de

-

registering with the

~

39

~

base.

h. Perform registration immediately afterward for the handset desiring a

specific ID to ensure that the ID is not taken by another handset.

5.

Remotely register Handset

:

a. If base install in ceil or higher location, administrator handsets can perform

remote registration

.

b.

Press administrator handset

MENU

(Right) soft key

c.

Press the number

6

,

this will enter reg

istration mode

.

d. Press number 3 , this will replace the procedures to press & hold the base

REG

button until the L1, L2, L3 and L4 LED come on

.

e.

Proceeding the handset registration process for new handsets.

Notes:

1.

De-registration by the administrator will disable a handset’s ability to use the

base station to make or receive phone calls. This also frees up the ID for future

registration.

2.

Handsets de-registered by the administrator can still perform intercom to other

handsets.

Handset Group Subscription

1. When register to 1X base, there are up to nine handset groups (01-09) can be

defined and handsets can decide which group(s) they want to be in.

2. When register to PRO base, there are up to seven handset groups (01-07) can be

defined and handsets can decide which group(s) they want to be in.

3. For example, Group 1 represents the Customer Service Group, Group 2

represents the Sales Group, and Group 3 is the Marketing Group. Suppose that

Handset 11 wants to receive incoming rings for all Sales and Marketing related

calls. Then handset 10 will need to “subscribe” to Group 2 and Group 3.

4

.

Group Selections:

a. Press handset MENU-5 to enter the handset setting

menu

b.

Press number “

2

”, handset enters grou

p select menu.

c. Press ADD soft key and enter two-digit group number

(

0

1

-

0

9) to add membership in a group.

d.

Repeat for all desired groups.

e.

Delete group selections by pressing

DELETE

key and





11



Settings: 

1. Dial Prefix

2. Group Selection





11



Groups

ADD DELETE

~

40

~

enter group number.

Notes:

1.

The handset can change group affiliations at any time.

2.

The base (administrator) is not responsible for group

assignments. Consequently, it cannot de-subscribe a handset

from a group.

Call Transfer (Register to 1X base only)

1. While a telephone call is in progress, you can place call on hold and transfer

the call.

2.

Press

HOLD

(Right) soft key to put call on hold.

3.

Press

OPTION

(Right) soft key to enter selection menu.

4.

T

wo

types of transfer method

:

a.

Un

-

announced Call Transfer:

Press before the destination handset answers,

the call is automatically transferred to the

destination handset.

b.

Announced Call Transfer:

(

1

)

Speak to the destination handset.

(2)

Press XFER (Right) soft key or the to end

announcement. The call is transferred to the

destination handset.

Notes:

If the destination handset does not answer after handset

paging timeout, the call is routed back to the originating handset.

Call Transfer (Register to PRO base only)

1. While a telephone call is in progress, you can place the call on hold and

transfer the call.





11



You have a

Call on hold

UNHOLD OPTION





11



1.Unused

2.UnancdXfer HS

3.AncdXfer HS





11



System: 

2. Flash

3. Xfter PBX

~

41

~

2.

Press

HOLD

soft key to put call on hold.

3.

Press

OPTION

soft key to enter feature list for selection.

4. Press number 2 and enter a two-digit Handset ID to call another handset

extension.

a.

Un

-

announced Call Transfer

:

Press END before the destination handset answers, the call is

automatically transferred to the destination handset.

b.

Announced Call Trans

fer

:

(1)

Speak to the destination handset.

(2)

Press

XFER

soft key or the END to end announcement. The call is transferred

to the destination handset.

Notes:

1. If the destination handset does not answer after handset paging

timeout, the call is routed back to the originating handset.

2. Above described “Call Transfer” is for DuraFon PRO handset-to handset

call transfers

.

Call Manager (Register to 1X base only)

“Call Manager” feature allows the handset to be set to receive all incoming,

transferred, and 2-Way/Intercom calls OR just transferred and 2-Way/

Intercom calls. The option is selectable by base 1 to base 4. Besides, this

feature allows you to select a specific base station to make an outgoing call.

1.

Decide whether to receive the incoming, transferred,

and 2

-

Way/Intercom

calls from a specific base station:

a. Press MENU - 8 to enter the Call Manager function.

The screen will display:

b.

Press 1 to enter “incoming” setti

ng.

c. Use or Scrolling keys to select a base from

base 1 to base 4.

d.

Then press the



YES NO

key to switch between

Yes and No, then press SAVE key to confirm the

setting.

e.

Repeat the process until all base stations from





11



Main Menu: 

8. Call Manager

9. System





11



Call Manager: 

1. Incoming

2. Outgoing





11



Receive Calls

From base 1: 

SAVE YES NO

~

42

~

which calls are to b

e accepted have been

selected for the handset

2. Decide whether to select a specific base station to make

outgoing call:

a.

Press

MENU

-

8

to enter the Call Manager function.

b.

Press 2 to enter “Outgoing” setting.

c. Use or to select either On or Off.

d.

Scroll to On and press

SAVE

if you want to select a

specific base station before you make an

outgoing call. The default setting is Off.

Change System Settings by Administrator (Register to 1X base only)

There are four types of system setting that can be adjusted by Administrator.

1.

Dial Mode

a.

Press

MENU

-

9

and enter the two

-

digit base ID to

enter the System mode

.

b.

Press 1 to enter Dial Mode

selection

c. You can adjust the dial mode between Tone and

Pulse.

d

.

The default s

etting is Tone.

2.

Flash

a. Press MENU-9 and enter the two-digit base ID to

enter the System mode.

b.

Press 2 to enter Flash selection

c. You can adjust the flash time from 100ms to 900 ms (9

levels to choose from.) For example, press “2” if the

desired flash time is 200ms. You will see “Done” once

you finish the setting.

d

.

The default setting is

6

00ms.

Notes:

If the

base station is adjunct to a PBX system, it is

recommended to adjust the flash time of DuraFon 1X to

match the PBX spec.

3.

Clear HS

a.

This function is useful if you want to replace a new





11



System: 

1. Dial Mode

2. Flash





11



Main Menu: 

8. Call Manager

9. System





11



Flash:

1-9 * 100msec

(600msec)

Flash(msec)

:









11



Done





11



System: 

2. Flash Time

3. Clear HS





11



Select Base

On

SAVE

~

43

~

handset to a damaged handset. You need to clear this

registered handset ID on the base station before you

register this new handset. Press Menu-9 and enter

the two

-

digit base ID

to enter the System mode.

b.

Press 3 and then enter two digits ID number to be

assigned . You will see “Saving Configuration”

and a Done confirmation.

4.

Assign HS:

Set next Handset ID to be assigned

a.

This function is useful if you want to as

sign a designed

handset ID to a specific handset. Press

Menu-9 and enter the two-digit base ID to enter

the administration mode

.

b.

Press 4 and then enter two digits ID number to be

assigned. You will see “Saving Configuration”

and a Done confirmation.

3-Way Conferencing (Register to PRO base only)

1. While a telephone call is in progress, you can place call on hold

and bring in another phone line or another handset for a 3-way

conference.

2.

Press

HOLD

(Right) so

ft key to put the current call on hold.

3.

Press

OPTION

(Right) soft key to enter selection menu.

4.

3

-

Way Conferencing

with a Second Handset:

a. Press number 2 and enter a two-digit Handset ID to call

another handset extension.

b. After the second handset answers, press the CONF (Left) soft

key.

c. Two handsets and one phone line can now talk

simultaneously. Any one party can drop out of the 3-way

conferencing, leaving the remaining two parties still

connected.

5.

3

-

Way Conferencing

with a Second Phone Line:

a.

Press number

1

and enter a phone number to call another





11



System: 

3. Clear HS

4. Assign HS





11



Please Enter

Ext. #:**

CANCEL





11



Please Enter

Ext. #:**

CANCEL

~

44

~

phone line.

b.

After the second line answers, press the

CONF

(Left) soft key.

c. One handset and two phone lines can now talk

simultaneously.

I.

If one phone line hangs up, the handset continues

talking to the remaining phone line.

II.

If the handset presses key, the 2nd phone line

will be dropped. The handset and the first phone line

continue conversation.

Notes:

1.

3-way conferencing between 3 handsets is not supported.

2.

Unlike 3-way conferencing provided by the phone company, 3-way

conferencing involving 2 phone lines will take up two physical lines, leaving

only two lines left available for other handsets. The handset must have access

to a second line.

Base Select (Register to PRO base only )

1.

A handset can manually select the desired base station before

access outbound line.

2.

Press handset

MENU

(Right) sof

t key.

3.

Press the number

5

, this will enter the handset setting menu.

4.

Press number

3

, handset enters Base Select setting mode.

5 Use or arrow to scroll up and down the selection

on/Off.

6.

Make a selection (default =off), and p

ress

SAVE

(Left softkey).

Re: When turns on the Base Select, you must enter 2-digit Base

ID after press key.

Notes:

1.

Because this setting allows handset manually select the base station, the

handset must be in range with the direct base station.

~

45

~

Call Waiting (Register to PRO base only)

1.

A handset, while talking on one phone line, can be informed of the arrival of a

new incoming phone call.

2.

For example, suppose that Handset 15 is talking on Line 1. When a new call

comes in on, Line 4, and the caller enters extension number “15” when

prompted by the AA, or if the call is set to be routed to Handset 15 when AA is

disabled.

3.

The base station recognizes that Handset 15 is busy. Instead of announcing to

Line 4 that Handset 15 is busy, the base sends an alert to Handset 15.

4.

Upon receiving the alert, the handset sounds an audible double beep alert and

LCD displays “New call on Line 4”.

5.

Handset 15 can:

a.

Ignore the new call; continue talking to Line 1.

b.

Press Switch key to switch to Line 4.

c.

Subsequent pressing of FLASH key will toggle between Line 1 and Line 4.

d.

Press key while talking to a line will terminate that particular call and

automatically switch back to talking to the remaining line.

Notes:

1.

This built-in call waiting is separate from the Call Waiting feature available from

the local phone company. The phone company provided Call Waiting functions

on the same phone line, while the DuraFon Call Waiting functions on two

separate phone lines.

2.

This feature only works for 2 lines, if a 3

rd

phone call comes for the same

handset, the call will not be routed to the handset.

3.

It is recommended to order from the local phone company Hunt Group feature

for all your lines and not subscribe to the Call Waiting feature.

Auto Attendant (AA) (Register to PRO base only)

1. When enabled by the administrator, an automated attendant would

greet a telephone line incoming call.

~

46

~

2. The caller will be prompted by the greeting message to enter a two-digit

extension number (Handset ID) or press for operator

3.

The greeting message is user programmable. The Handset ID that is

designated as the operator is also user programmabl

e.

a. Default greeting message (Main OGM): “Please enter the extension

number or press

0

for the operator”

b.

Default operator: Handset 10

.

4.

AA will ask for another handset ID if the first entry is invalid (no

registered handset with that ID) with the announcement (OGM2): “The

extension you entered is invalid, please try another extension or press

for the operator”

.

5.

If there is no entry time out, AA will announce (OGM3): “Please hold,

your call is being transferred to the operator”. And automatically ring

the operator handset.

6.

If the destin

ation handset does not answer (busy, power off, or out of

range) after handset paging time out, the AA prompts the caller for

another extension number by announcing (OGM5): “The extension

you’ve entered is busy or not available. Please enter another extension

number or press 0 for the operator”

7.

If the 2nd try is still not successful, AA will announce (OGM4): “Sorry,

nobody can answer your call right now. Please try again later,

“goodbye”. Then drops the call.

8.

When the DURAFON PRO base station

is connected to wired PBX

extension lines, calls addressed/routed to the AA operator can be sent

back to the operator of the wired PBX system. From an administrator

handset, up to 10 keys/digits are allowed to program a specific code in

order to transfer the calls back to the wired PBX. This feature can only

be enabled and pre-programmed by an administrator handset (Handset

ID 10 or 11). Consult with the wired PBX manual for operation

instructions and correct key sequence for transfer calls to the operator

from an extension

Notes:

1. Intercom calls are not routed by Auto-Attendant.

2. Routing messages OGM2,3,4 and 5 are not user programmable.

~

47

~

3. The timeout is 5 seconds for entering extension number.

4. The calls can be routed to either a Handset ID or an extension number of the

wired PBX system, There can be only one operator for the AA, which is either

an DURAFON PRO handset or the wired PBX operator.

5. Call routing is at most 2 hops. That is, if both the 1st and the 2

nd

handsets do

not answer, the call will be terminated if the operator does not answer.

nced Operations

AA Configuration by Administrator (Register to PRO base only)

1.

Administrator can change the following AA settings:

a.

Record/playback new main greeting messa

ge.

b.

Set number of rings before AA picks up a call.

c.

Turn on/off the AA line

-

by

-

line.

d.

Set Designated Handset ID for AA disabled line(s). Either the

Designated Handset ID or the Group ID can use that particular line

for incoming and outgoing calls. Which means this specific line(s)

will be dedicated to a particular handset (Handset ID 10-99) or a

calling group (Group ID 01

-

07)

e. Designate an operator, the handset which would answer un-

routable calls or when the caller chooses “Operator” when

prompted

Change AA Parameters (Register to PRO base only)

a.

From an administrator handset (Handset 10 or 11), press

MENU

(Right softkey).

b.

Press number

9

, this will enter administration menu

c.

Press

3

, handset enters AA setting menu.

i. P

ress

1

and follow instruction to record new greeting message.

ii. Press 2 to playback the current greeting message.

iii.

Press 3 to set number of rings before the AA picks up a call. Use

Up/Down arrow to choose between 2 and 9 rings.

iv.Press 4 to turn AA On/Off. This can be done separately for each

phone line by using or to scroll through Line 1 to Line

4, and press On or Off softkey to turn AA On/Off.If turning off the

AA may be useful when:

- The line is not used by a group of people.

- External answering machine is to be attacked to the line.

v. Press 5 and select from the following two options to set Operator

for AA:

- “Handset” : assign a specific handset as operator by entering a

~

48

~

two

-

digit handset ID (default=Handset 10) as operator for all

calls addressed to the operator when AA is on, or “PBX” :

transfer calls to be answered by the operator back to the

designated wired PBX operator. System administrators must

know the proper programming and “call transfer” feature code

(available from the user manual of the wired PBX system) in

order to perform this function correctly.

- The following example is the instruction to route a call back to

the brand N’s PBX system by pressing “Flash-7-0-1-8-3-0”,

where a Flash key is pressed followed by the call transfer code

“70”, then enter the extension number “1830” immediately.

Confirm the set up by press using the SAVE (Left softkey).

Notes:

1. Only administrator can change AA settings.

2. Because AA setting is stored on the base station, the handset must be in range

with the base to make changes.

3. The maximum recording time for the greeting message is 128 seconds.

4. Allowing each line’s AA to be turned on or off separately is useful if different

lines are used for different purposes.

5. When AA is disabled, the line can be dedicated to either an individual Handset

ID or a Group ID.

6. The operator can be any individual handset or a group; it doesn’t need to be

an administrator handset (Handsets 10 and 11).

7. The minimum number of rings before the AA picks up cannot be lower than

two for the purpose of receiving the Caller ID message.

Line Dedication (Register to PRO base only)

1

Line dedication function can be performed by administrator handsets (ID 10

and 11) only.

2

By default all incoming calls will ring all handsets.

3

With the administrative handset, press MENU- 9 – 2 - 2 for Line Dedication

setting.

4

It will first show Line 1 and line status. If you wish to dedicate line 1 to a

specific handset or group, you need to press OK. To dedicate lines 2-4 use

or scrolling key on the keypad.

5

After choosing a line, it will show YES and NO, when choosing YES, you need

to enter the handset ID or group ID for extension number. If you choose NO,

it will go back to Line Setting menu.

~

49

~

Notes:

1. When entering Line Dedication setting, it will show line and status. If line is

already dedicated to a specific handset or group, it will show the handset or

group ID behind the line. If line isn’t dedicated to a specific handset yet, it will

show “ALL HS” behind the line.

2. When setting Line Dedication, make sure the handset or group ID is correct to

avoid losing calls sent to an DuraWalkie handset or invalid ID.

3. Handsets dedicated to a port will also receive calls from non-dedicated line as

well as the handset’s dedicated line. Use Line Dedication for a group on other

lines to further manage calls

Line Selection (Register to PRO base only)

1.

Press MENU - 5 - 8 while the phone is in standby to enter Line Select menu.

2.

Use or to switch between On and Off, default = Off.

3.

If set to On, when pressing or entering a phone number followed by

pressing key, the handset LCD display will show “Select Line” followed by

available lines (1~4). Select from one of the available lines i.e. press 1 to

select line 1 and press 2 to select line 2.

4.

This feature is also supported when selecting a second line during call

conferencing.

Change System and Line Settings by Administrator (Register to PRO base

only)

1.

There are two system parameters that can be changed by the administrator:

clear (de-register) handset ID and set the next handset ID to be assigned by the

base.

2.

From an administrator handset (Handset 10 or 11), press MENU(Right) soft key.

3.

Press number 9 , this will enter the administration menu.

4.

Press number 1 , handset enters System setting menu.

a.

Dial tone:

Press 1 to set up the dial tone to be either “Tone” or “Pulse.” Press 1 to

choose “Tone” or press 2 to choose “Pulse.”

~

50

~

b.

Flash time:

Press 2 to set up the flash time from 100ms, 200ms, to 900 ms (9 levels to

choose from.) For example, press 2 if the desired flash time is 200ms.

c.

Line Detect:

Press 3 to set up the line detect to be either “On” or “Off.” Press 1 to

choose “On” or press 2 to choose “Off.”

d.

Clear Handset ID:

Press 4 and enter a two-digit Handset ID when prompted to clear this ID

for later assignment.

e.

Set next Handset ID to be assigned:

Press 5 and enter a two-digit Handset ID when prompted. This is the ID

that will be given out by the base to the next handset registering with the

base.

5.

Press number 2 , handset enters Line Setting menu.

a.

Enter Base ID(00~07) to access base.

b.

Press 1 to enter Broadcast setting

i. Press handset OFF(Right softkey) to disable broadcasting function;

ii Or press handset ON(Left softkey) to enable broadcasting function

c.

Press 2 to enter Line dedication setting

i Select base’s line and press handset CHANGE(Right softkey)

ii Line Dedicate confirm:

Press NO(Right softkey) to go back Line Setting Menu.

Press YES(Left softkey) then enter extension number.

No

te:

De-registration by the administrator will disable a handset’s ability to use the

base station to make or receive phone calls. This also frees up the ID for future

registratio

Phonebook Operations (Register to 1X base only)

1. You can store up to 30 entries in the phonebook. Each

entry can contain a phone number or handset ID (up to 28

digits) and a name (up to14 characters).

2.

To access the phonebook,

press

menu

follow by “2”

or

or scrolling key while the handset is in standby

mode.

3.

To add a new entry:





11



Main Menu: 

1. KeyGuard

2. PhoneBook





11



ADD OPTION

~

51

~

a.

Press

ADD

(Left) soft key.

b. Enter a phone number when LCD prompts “Number?”

Use DELETE (Right) soft key to delete the last digit

entered. When completed, press SAVE (Left) soft key

to save.

c. You will then be prompted to enter a name for the

phone number just entered.

(1)

Press the SAVE key to enter a phone number

without a name. All records without naming will

be placed on top of the list, in the order they are

entered.

(2)

To enter the name, press the corresponding

keypad number one or more times according to

the order of the character on the key. See table

below for a list of available characters and their

orders. For example, press “2” once for the

character “A”, twice for “B”,

etc.

(3)

Use DELETE (Right) soft key to delete the last

character entered. When completed, press SAVE

(Left) soft key to save.





11



Number?

SAVE DELETE





11



Name?

Caps = *

SAVE DELETE

~

52

~

Notes:

1.

When enter a phone number, the cursor automatically advances to

the next digit field. Use or scrolling key to move the

cursor backward or forward to insert or delete (the digit above the

cursor, or left of the cursor if cursor is on the right of the last digit).

2.

When entering a name, the cursor automatically advances to the

next character field if you press a different key for the next

character. If you need to enter consecutive characters from the

same key, you can wait for the cursor to advance or use or

scrolling key to move the cursor backward or forward

manually. Also use or to move the cursor to insert (to the

left of the cursor) or delete (the character above the cursor, or left

of the cursor if cursor is on the right of the last character).

3.

By default, all letters are entered in the upper case. Use the * key to

toggle between upper and lower cases.

4.

A “Pause” entry represents a 2.8 second delay in dialing the

following digits, which is useful when calling a sequence of

segmented numbers (e.g., access code, credit card number, auto-

attendant entries, etc.) Pause is entered by pressing the * key twice

(LCD displays P). Entering pause twice (PP) will result in 5.6 seconds

pause in the dialing.

5.

Character Table:

Key

Characters and Orders

1

‘ + , . * ( ) & 1

2

A B C 2

3

D E F 3

4

G H I 4

5

J K L 5

6

M N O 6

7

P Q R S 7

8

T U V 8

9

W X Y Z 9

0

*

Toggle case when in character editing

* P (Pause) when in number editing

#

Space

–

when in character editing

# when in number editing

~

53

~

4. The entries are alphabetically sorted and stored as a list in an ascending order

(A to Z) from the top of

the list.

a. If the phonebook is entered from the menu, the first entry displayed is the

top of the list.

b. If the phonebook is entered using the arrow, the first entry displayed

is the top of the list.

c. If the phonebook is entered using the arrow, the first entry displayed

is the bottom of the list.

5. The first line of LCD display shows name and the 2

nd

line shows the phone

number. If the phone number is longer than 14 digits, press OPTION (Right)

soft key and select Option 3 to view th

e complete number.

6.

To search for a record:

a. Use or scrolling key to enter the Phone Book mode.

b. Press a key that corresponds to the first character of the name you are

looking for.

c. For example, you are looking for “EnGenius”, and then press the number

“

3

” once.

d. Use or scrolling key to locate the exact record you are looking

for.

7.

To erase

phonebook:

a. Use or scrolling key or the alphabetical

search method to locate the record to be erased or

edited.

b.

Pres

s

OPTION

(Right) soft key to enter editing menu.

c.

Press “1” to erase the desinated phone entry.

d. LCD shown “Are you sure?” Press YES to double

confirm your change.

8.

To edit phonebook:

a. Use or scrolling key or the alphabetical

search method to locate the record to be erased or

edited.

b.

Press

OPTION

(Right) soft key to enter editing menu.

c.

Press “2 to edit the desinated phone entry.





11



EnGenius

7144328668

ADD OPTION





11



Option: 

1. Erase

2. Edit





11



Are you sure?

YES 12 OPTINO

~

54

~

9.

Dial from display:

a.

Press or to dial the phone number or Handset ID displayed.

Phonebook Operations (Register to PRO base only)

1.

You can store up to

90

entries in the phonebook. Each entry can

contain a phone number or handset ID (up to 28 digits) and a

name (up to14 characters).

Re: For DuraWalkie, each entry can store 2 digits handset ID or

Group ID.

2.

To access phonebook, press MENU followed by 2 or or

scrolling key when handset in standby mode.

3.

To add a new entry:

a.

Press

ADD

soft key.

b. Enter a phone number when LCD prompts “Number?” Use

DELETE soft key to delete the last digit entered. Press SAVE

when completed.

c. You will then be prompted to enter a name for the phone

number just entered.

(1)

Press SAVE key to enter a phone number without a name. All

records without a name will be placed on top of the list, in the

order they are entered.

(2)

To enter the name, press the corresponding keypad number

one or more times according to the order of the character on

the key.

(3)

Use DELETE soft key to delete the last character entered. When

completed, press SAVE soft key to confirm your selection.

Notes:

1.

When entering a phone number, the cursor automatically advances to

the next digit field. Use or scrolling key to move the cursor

backward or forward to insert or delete.

2.

When entering a name, the cursor automatically advances to the next

character field if you press a different key for the next character. If you

need to enter consecutive characters from the same key, you can wait

for the cursor to advance or use or scrolling key to move the

~

55

~

cursor backward or forward manually. Also use or to move

the cursor to insert or delete.

3.

By default, all letters are entered in the upper case. Use the ＊ key to

toggle between upper and lower cases.

4.

A “Pause” entry represents a 2.8 second delay in dialing the following

digits, which is useful when calling a sequence of segmented numbers

(e.g., access code, credit card number, auto-attendant entries, etc.)

Pause is entered by pressing the ＊ key twice (LCD displays P). Entering

pause twice (PP) will result in 5.6 seconds pause in the dialing.

4. The entries are alphabetically sorted and stored as a list in an

ascending order (A to Z) from the top of

the list.

a. If the phonebook is entered from the menu, the first entry

displayed is from the top of the list.

b. If the phonebook is entered using the , the first entry

displayed is from the top of the list.

c. If the phonebook is entered using the , the first entry

displayed is from the bottom of the list.

5. The first line of LCD display shows name and the 2

nd

line shows

the phone number. If the phone number is longer than 14 digits,

press OPTION soft key and select Option 3 to view the complete

number.

6.

To search for a record:

a. Use or scrolling key to enter the Phone Book

mode.

b. Press a key that corresponds to the first character of the

name you are looking for.

c. For example, you are looking for “EnGenius”, and then press

the number

3

once.

d. Use or scrolling key to locate the exact record you

are looking for.

7.

To erase phonebook entry:

a. Use or scrolling key or the alphabetical search

method to locate the record to be erased.

b.

Press

OPTION

soft key to enter editing menu.

c.

Press

1

to erase the designated phone entry.

d.

LCD shown “Are you sure?” Press

YES

to double confirm

~

56

~

your change.

8.

To edit phonebook entry:

a. Use or scrolling key or the alphabetical search

method to locate the record to be edited.

b.

Press

OPTION

soft key to enter editing menu.

c.

Press

2

to edit the designated phone entry.

9.

Dial from display:

a. Press TALK or Intercom to dial the phone number or Handset

ID

displayed.

10.

To transfer phonebook:

To transfer phonebook, both parties have to enter the

phonebook transfer mode firstly by following below:

a. Press OPTION follow by 4 or or scrolling key when

handset in phonebook mode.

b.

For phone sending part

y, press

1

to enter sending mode.

i.

Either press TX ALL(left softkey) to transfer all

phonebook entries to another handset(s).

ii.

Or press TX ONE (right softkey) to transfer one entry to

another handset(s).

iii.

Press 2-digit handset ID or group ID, then select all

phonebook entries or one entry to be transferred.

Re : “00” means all handsets

iv.

During phonebook transferring, LCD shows “Sending”

and 2-digit countdown on the LCD to indicate the

phonebook numbers which are waiting for sending.

c. For phonebook receiving party, press 2 to enter receiving

mode.

i.

When entering the receiving mode, LCD shows “Ready”.

ii.

Start to receive phonebook, LCD shows “Get phonebook

from Ext. # : xx”.

iii.

A beep emitted when receiving each phonebook.

iv.

When the phonebook receiving, 2-digit countdown on

the LCD to indicate the phonebook numbers which are

waiting for receiving.

Re:

The phonebook transfer through the wireless interface, it

may partially miss transmission by interference

.

~

57

~

Call barring (Register to 1X base only)

1. Block the users from dialing the long distance calls or international calls. You

need the password to enter the setting. The default PW is “0000”.

2. Use or scrolling key to switch between On and

Off of this setting. The default is “Off”. Press SAVE to

confirm your selection.

3.

To edit the Call barring code

a. Once turn on the call barring feature, you can key in

the “call barring” code.

(1)

Up to 5 digit can be edit to be call barring code.

For example, if you want to block all call dialing to

Manhanttan, NY area, you can enter 1212 as the

call barring code.

(2)

If you base station is adjuct to a PBX system,

please also include that specific number to

retrieve the

PSTN tone.

b.

Press

OPTION

to erase or edit the call barring codes.

b.

Up to 5 set of call barring codes can be programmed.

Notes:

Character Table:

Key

Characters and Orders

1

‘ + , . ＊ ( ) & 1

2

A B C 2

3

D E F 3

4

G H I 4

5

J K L 5

7

P Q R S 7

8

T U V 8

9

W X Y Z 9

0 0

＊

Toggle case when in character editing

＊ P (Pause) when in number editing

#

Space

–

when in character editing

# when in number editing





11



Call Barring 

On

SAVE SET PW





11



Option: 

1. Erase

2. Edit





11



Call Barring:

1212

ADD

OPTION

~

58

~

Text Messaging (Register to 1X base only)

1. Short text messages, up to 25 characters each, can be sent from a handset to

another handset or a group of handsets.

2. Up to 5 outgoing messages can be edited, stored and sent. They are stored in

the “Outbox” in the order they are entered, with Message 01 being the most

recent entry. The message counter on the upper right corner of the LCD

display shows the message ID.

3. Up to 5 received messages can be stored for later reference. They are stored

in the “Inbox” in the order they are received, with Message 01 being the most

recently received. The message counter on the upper right corner of the LCD

display shows the message ID.

4.

Viewing and editing outgoing text messages:

a. Press MENU (Right) soft key while the handset is in

standby.

b.

Press “7”

following by “2”

to enter Outbox menu.

c.

Press

ADD

(Left

) soft key to enter a new text message.

(1)

Enter characters using the Character Table and

method discussed in the Phonebook section.

(2)

Use or scrolling key to move the cursor

backward or forward to insert character or delete

the character. For example, you are editing the

message 1 as “Meeting now.”

(3)

When finished, press SAVE (Left) soft key to save

change. You will see the Text Message ID as 01 on

the upper right corner of the LCD screen.

5.

Sending a text message:

a. While viewing the message, press key followed

by a Handset ID or a Group ID (01-09).

b.

The current message is sent.

c.

There will be no acknowledgement returned.

6.

To erase or edit the current messages:

a.

Press

M

ENU

-

7

-

2 to enter outbox text messag

e.

b. Press OPTION (Right) soft key to erase or edit the

current message:

(1)

Press “1” and confirm to erase message.

Subsequent messages will be moved up in the





11



Tex Message

1. Inbox

2. Outbox





11



Meeting now

SAVE12 ODELETE





11

01



Meeting now

ADD12 OOPTION





11

01



Please enter

Ext. #: 02

Send this

message to

Group 02



11

01



Sending…

~

59

~

Outbox.

(2)

Press “2” to edit message. Follow the instructions

above for entering a

new message.

7.

Receiving a text message:

a. When a message arrives, a double beep alerts the arrival of a text

message.

b. The text message remains on the LCD display for 8 seconds and then is

automatically stored in the Inbox.

8.

Viewing receiv

ed text messages:

a.

Press

M

ENU

-

7

-

1 to

enter Inbox menu

b.

The LCD displays Message 01, the most recent received message. Use

or to view previous messages. The LCD displays Empty if there

is no inbound text message.

c.

Press

SAVE

(Left) soft ke

y to return the message to Inbox.

d. Press DELETE (Right) soft key and confirm to delete the current message.

Subsequent messages will be moved up in the Inbox.

~

60

~

Programmable PBX Options (Register to 1X base only)

1. When DuraFon 1X base unit installed behind the PBX

system, it is feasible to pre-program some PBX features

along with their feature

codes into the system.

2.

Up to 9 most frequently used PBX feature codes

can be pre

-

programmed.

3.

Name and enter PBX feature codes:

a.

Press

MENU

(Right) soft key while the handset is

in standby.

b.

Press “

5

” following by “

0

” to enter “PBX Options”

menu.

c.

Press

ADD

soft key to edit a PBX feature to be

memorized.

d.

Key in the name of the PBX features just like

editing a phonebook entry i.e. PBX Transfer.

Press

SAVE

to confirm your entries.

e.

Key in the feature code of the correspondence

PBX feature i.e. Flash*70. Press SAVE to confirm

your entries.

f.

The first PBX feature and the correspondence

feature code you enter will appear on the LCD

screen.

[note] “F” represents the Flash signal

g.

Press

O

PTION

soft key to Erase or Edit the PBX

feature you program into the system.

h.

Repeat the same operation to edit the second and

even the third PBX feature that you will use

frequently.

4.

Using pre

-

programmed PBX feature during the call.

a.

Press

OPTION

soft key while the handset is in

talk mode

.

b.

Press the correspondence number of the function

you want to perform i.e. press 1 to perform “PBX

Transfer” function.

c. Press when you finish the desired function

and back to standby mode.





1



Settings: 

9. Name Tag

0. PBX Options





11



Empty

ADD





11



Feature Name?

Caps = *

SAVE DELETE





11



Feature Code?

SAVE DELETE





11



PBX Transfer

F*70

ADD OPTION





11



00:00:16

Volume:4

OPTION HOLD





11



1. PBX Transfer

0. Mute

~

61

~

Notes:

1. This feature would be useful if the DuraFon 1X base unit is

adjunct to a PBX system.

2. Only “Mute” function will be displayed if you have not

preprogrammed any PBX features into the system.

3. The DuraFon 1X’s Programmable PBX Options may not function

with all PBX / Key systems due to the diversity of various

proprietary systems.

~

62

~

Programmable PBX Options (Register to PRO base only)

1. When DuraFon PRO base unit installed behind the PBX

system, it is feasible to pre-program some PBX features

along with their feature codes into the system.

2.

Up to 9 most frequently used PBX feature codes

can be pre

-

programmed.

3.

Name and enter PBX feature codes:

a.

Press

MENU

(Right) soft key while the handset is

in standby.

b.

Press “5” following by “

9

” to enter “PBX Options”

menu.

c.

Press

ADD

soft key to edit a PBX feature to be

memorized.

d.

Key in the name of the PBX features just like

editing a phonebook entry i.e. PBX Transfer.

Press

SAVE

to confirm your entries.

e.

Key in the feature code of the correspondence

PBX feature i.e. Flash*70. Press SAVE to confirm

your entries.

f.

The first PBX feature and the correspondence

feature code you enter will appear on the LCD

screen.

[note] “F” represents the Flash signal

g.

Press

OPTION

soft key to Erase or Edit the PBX

feature you program into the system.

h.

Repeat the same operation to edit the second and

even the third PBX feature that you will use

frequently.

4

.

Using pre

-

programmed PBX feature during the call.

a.

Press

OPTION

soft key while the handset is in

talk mode

.

b.

Press the correspondence number of the function

you want to perform i.e. press 1 to perform “PBX

Transfer” function.

c. Press when you finish the desired function

and back to standby mode.





11



Settings: 

8. Line Select

9. PBX Options





11



Empty

ADD





11



Feature Name?

Caps = *

SAVE DELETE





11



Feature Code?

SAVE DELETE





11



PBX Transfer

F*70

ADD OPTION





11



00:00:16

Volume:4

OPTION HOLD





11



1. PBX Transfer

0. Mute

~

63

~

Notes:

1. This feature would be useful if the DuraFon PRO base unit is

adjunct to a PBX system.

2. Only “Mute” function will be displayed if you have not

preprogrammed any PBX features into the system.

3. The DuraFon PRO’s Programmable PBX Options may not function

with all PBX / Key systems due to the diversity of various

proprietary systems.

Broadcast through PBX (Register to PRO base only)

1. DuraFon PRO and DuraWalkie both have the broadcast function,

each can broadcast another handset without going through the

base station, as long as the handsets are connecting. However,

when setting up the multi-base, the broadcast feature may not be

available due to the coverage range. In that case, you can use the

function of “Broadcast through PBX

” to broadcast.

2. From an administrator handset (Handset 10 or 11), press

MENU

(Right) soft key.

3.

Press number

9

, this will ent

er administration menu.

4.

Press number

2

, handset enters Line setting menu.

a.

Enter Base ID(00~07) to access base.

b.

Press

1

to enter Broadcast setting

i. Press or to select L3 or L4 (the status of setting

will be displayed on LCD)

ii. Press CHANGE to enter the setting mode, and the base ID

will be displayed on LCD.

iii. Press On (Left softkey) to enable the broadcast function.

Press Off (Right softkey) to disable the broadcast function.

iv. After setting broadcast, press On (Left softkey) to enable

the AA. Press Off (Right softkey) to disable the AA.

Re: L3 and L4 can be setting as two broadcast lines, repeated

above items for setting 2

nd

broadcast line.

5. When calling through the line 3 or 4, the caller will be prompt ed

by the

greeting message to enter a two

-

digit extension number

~

64

~

( “01” ~ “07” for Group ID: “10” ~ “99” for Handset ID: “00” for

all).

a.

The greeting message : “Please enter the extension number”

b. If there is no entry after 5 seconds, the broadcast will be

enabled to all handsets.

Note

：

1. Line 3 and or 4 can be reserved for broadcast function.

2. For a single broadcast port; reserve Line 3 for broadcast and line

dedicate (see pg. 46) Line 4 to a non-existent handset (ie: 99).

3. A base unit configured with a single broadcast port Lines 1 and 2

may be used as standard telephone ports or lines.

4. For dual broadcast ports; reserve Line 3 and 4 for broadcast and line

dedicate Lines 1 and 2 to a non-existent handset (ie: 99)

5. Broadcast is limited to 30 seconds.

Repeater Operation (Register to PRO base only)

1. Due to the range performance of handset to handset calls

(intercom or broadcast) isn’t as good as line calls, in order to get

better range performance for handset to handset calls, install a

rep

eater and make the calls via repeater is the solution

.

2.

The procedure of repeater’s registration is same as the multi

-

base

which can be performed by administrator handset (Handset 10

and 11)

.

3.

From an administrator handset (Handset 10 or 11),

press

MENU

–

7 to enter the “BC/INT Type” menu setting.

4. Press or key to select “Repeater Mode”, then press

SAVE (Left softkey)to confirm the selection.

Re : When setting to “Repeater” mode, the handset to handset

calls will always via repeater.

5.

Enter the base number (00~07) which assigned

the base

to be a

repeater.

6.

The default of “BC/INT Type” is “P2P Mode”

.

~

65

~

Notes:

a. The repeater must work with PRO system.

b. A repeater can only support 2 simultaneous intercom calls (2 pairs handsets).

Or can only support 1 broadcast call.

c . In order to operate with a PRO system, the repeater must be assigned a base

ID from the PRO system, please refer to the multi-base setup to add the

repeater as a multi-base.

d. The handsets which intend to work with the repeater require enabling a

“Repeater Mode”.

e. When enabling the “Repeater Mode”, both intercom and broadcast calls will go

via the repeater, instead of the original direct handset to handset (P2P mode).

f. A repeater will no linger to support any PSTN call.

g. No support put the repeaters in cascade.

~

66

~

Menu Operations (Register to 1X base only)

1.

Press

MENU

(Right) soft key while the phone is in standby.

2.

Press “1” to lock keypad (see Key Guar

d

operation o

n page

3

4

).

3. Press “2” to view, search, delete, and edit the phonebook (see Phonebook

instruction on page

51

).

4. Press “3” to view the last 10 numbers called, received, or missed. Records can

be erased or edit/save into the phoneb

ook.

a.

Press “1” to view the last 10 phone numbers dialed, starting from the

most recent one. Use or to scroll through the list. Press

OPTION for options.

(1)

Erase: p

ress “1” and confirm to erase the current record.

(2)

Save: press “2” to edit and save or save without editing into the

phonebook.

(3)

View Number: p

ress “3” to view the complete number if the phone

Main menu Sub-menu

1.KeyGuard

2.PhoneBook

1.Dialed

2.Received

3.Missed

1.Ring Volume

2.Ring Tone

3.Key Volume

4.Key Tone

1.Dial Prefix

2.Group Select

3.Language

4.Clear

5.Custom Name

6.Contrast

7.Backlight

8.Call Barring

9.Name Tag

0.PBX Options

#.PA On/Off

6.Registration

7.Text Message

5.Settings

4.Sound

3.Call Logs

8.Call Manager

1.Dial Mode

2.Flash

3.Clear HS

4.Assign

HS

9.System

~

67

~

number is longer than 14 digits.

b.

Press “2” to view the last 10 phone numbers received, starting from the

most recent one. Use or to scroll through the list. Press

OPTION for options.

(1)

Erase: p

ress “1” and

confirm to erase the current record.

(2)

Save: press “2” to edit and save or save without editing into the

phonebook.

(3)

View Number: press “3” to view the complete number if the phone

number is longer than 14 digits.

(4)

No entries: the LCD displays “No entries” if there is no “Received call

logs”. Please note that you need to subsribe the Caller ID service from

your local teleco to facilitate this functio

n.

c.

Press “3” to view the last 10 phone numbers received but didn’t answer,

starting from the most recent one. Use or to scroll through the

list. Press OPTION for options.

(1)

Erase: p

ress “1” and

confirm to erase the current record.

(2)

Save: press “2” to edit and save or save without editing into the

phonebook.

(3)

View Number: press “3” to view the complete number if the phone

number is longer than 14 digits.

(4)

No entries: the LCD displays “No entries” if there is no “Missed call

logs”. Please note that you need to subsribe the Caller ID service from

your local teleco to facilitate this function.

d. While viewing any of the three call logs, press DIAL to dial the phone

number.

Notes:

1.

Only phone numbers are stored in the three call logs. Intercom

calls are not recorded.

2.

Caller ID service is required from your local phone company in

order to receive phone numbers, names and time stamps on

incoming calls. The Received and Missed Call Logs will register no

incoming calls if Caller ID service is not available.

5.

Press “4” to set sound

-

related settings:

a. Press “1” to select ringer volume: use or to scroll through 6

options: Medium, Low, Vibrate, Off, High-then-Vibrate, and High. Press

SAVE to save selection. Default = Medium.

b. Press “2” to select ringer tone: use the or to scroll through 4

options: 0, 1, 2, and 3. Press SAVE to save selection. Default = 0.

~

68

~

c. Press “3” to select key volume when a key is pressed: use or to

scroll through 3 options: High, Low, and Off. Press SAVE to save selection.

Default = Low.

d. Press “4” to select key tone: use the or to scroll through 4

options: 0, 1, 2, and 3. Press SAVE to save selection. Default = 0.

5.

Press “5” to change handset settings:

a.

Pres

s “1” to set dialing prefix:

(1)

Use or to scroll and select to turn on or off the dialing

prefix feature. Default = Off.

(2)

If “On” is selected, the handset is prompted to enter a prefix, up to 14

digits.

(3)

Use Delete and or scrolling key to edit prefix.

(4)

When this feature is turned on, the LCD will prompt the user on each

outgoing phone call except during redial or dialing by pressing the

key first whether to use the dialing prefix. The current prefix is

also displayed. Press Yes or No soft key to add the prefix to the

beginning of the number.

(5)

This feature is useful for access code, calling card, and credit card

calls, etc.

b.

Press “2” to Group Select: see Handset Group Subscription

on page

40

.

c.

Press “3” to sel

ect language

(1)

Use or to select English, Spanish, French. The default

setting is English.

(2)

Press

SAVE

to

confirm your selection

.

d.

Press “4” to clear call logs and phonebook:

(1)

Press ‘1” and confirm to delete the entire phonebook.

(2)

Press “2” and confirm to clear the three call logs (Called, Received,

and Missed).

e. Press “5” to change the power-up LCD display to show, e.g., customer

name or other greeting message:

(1)

Use or to move the cursor backward or forward to insert

(to the left of the cursor) or delete (the character above the cursor, or

left of the cursor if cursor is on the right of the last character).

(2)

Enter characters using the Character Table and method discussed in

the Phonebook section.

(3)

Wh

en finished

;

press

SAVE

to save change.

f.

Press “6” to change LCD display contrast:

(1)

Use or to scroll through values 1 to 8. Pick one that is most

suitable to you. Default = 6.

~

69

~

(2)

When finished

;

press

SAVE

to save change.

g.

Press

“7”

to change the LCD backlight:

(1)

Use or to scroll through options: On, Off, and 20 Seconds.

Default = 20 seconds, meaning that the backlight will turn off the

backlight after 20 seconds of inactivity.

(2)

When finished

;

press

SAVE

to save change

.

h

.

Press “8” to edit Call Barring

(1)

Need to Enter Password to edit the call barring code to be executed.

The default PW is “0000.”

(2)

Please refer to page

58

for detail operation.

i

.

Press “9” to enable Name tag

(1)

Use or to switch between On and Off. The default setting

is Off.

(

2

)

When finished

;

press

SAVE

to save change.

j.

Press “0” to program PBX features that you use frequently

(1)

Program and save the most frequently used PBX function into

DuraFon system

.

(2)

Ple

ase refer to page

6

3

for detail operation

.

k.

Press “#” to turn Broadcast On/Off.

(1)

Press ON (Left) soft key to turn on the broadcast function (including

the broadcast of handset to handset or base to handset).

(2)

Press OFF (Left) soft key to turn off the broadcast function.

Re: when broadcast setting “OFF”, there is an icon indicated in the

display, side of the battery icon.

6. Press “6” to register or de-register handset: See the detail instructions on

page

3

6

.

7. Press “7” to view inbox text message(s) or edit outbox text message(s). See the

detail instructions on page

59

.

8.

Press “8” to enter Ca

l

l Manager setting.

a.

Press “1” to edit “incoming call” setting. See the detail instructions

on page

42

.

b.

Press “2” to ed

it “outgoing call” setting.

(1)

Once activate Select BS function, you need to enter the base ID which

you want to choose for an outgoing call.

(2)

The default setting is OFF.

9. Press “9” following by entering a base ID to enter System setting. See the

detail instructions on page

50

.

~

70

~

Menu Operations (Register to PRO base only)

1.

Press MENU (Right) soft key while the phone is in standby.

2.

Press 1 to lock keypad (see Key Guard operation on page 34).

Main menu Sub-menu

1.KeyGuard

2.PhoneBook

1.Dialed

2.Received

3.Missed

1.Ring Volume

2.Ring Tone

3.Key Volume

4.Key Tone

1.Dial Prefix

2.Group Select

3.Base Select

4.Clear

5.Naming

6.Contrast

7.Backlight

8.Line Select

9.PBX Options

0.Language

#.PA On/Off

*.Name Tag

6.Registration

7.

BC/INT Type

5.Settings

4.Sound

3.Call Logs

9.Admin

8.Multi

-

base

Select Mode:

1.Add Base

Admin:

1.System

2.Line Setting

3.Auto Attndnt

1.

Register

2.Deregister

3.Remote REG

~

71

~

3.

Press 2 to view, search, erase, edit and transfer the phonebook (see

Phonebook operation on page 55).

4.

Press 3 to view the last 10 numbers called, received, or missed. Records can

be erased or edit/save into the phonebook.

a.

Press 1 to view the last 10 phone numbers dialed, starting from the most

recent one.

Use or

to scroll through the list.

i.

Press OPTION (Right) soft key for options.

•

Press 1 and confirm to erase the current record.

•

Press 2 to edit and save or save without editing into the

phonebook.

•

Press 3 to view the complete number if the phone number is

longer than 14 digits.

b.

Press 2 to view the last 10 phone numbers received, starting from the

most recent one.

Use or

to scroll through the list.

i.

Press OPTION (Right) soft key for options.

•

Press 1 and confirm to erase current record.

•

Press 2 to view the arrival date and time of the call.

•

Press 3 to edit and save or save without editing into the

phonebook.

c.

Press 3 to view the last 10 phone numbers received but not answered,

starting from the most recent one.

Use or

to scroll through the

list.

i.

Press OPTION (Right) soft key for options.

•

Press 1 and confirm to erase current record.

•

Press 2 to view the arrival date and time of the call.

•

Press 3 to edit and save or save without editing into the

phonebook.

d. The two-digit index on the upper right corner of the LCD display shows the

location in ascending order, with 01 being the most recent call.

e. While viewing any of the three call logs, press DIAL (Left) soft key to dial

the phone number.

Notes:

1.

Only phone numbers are stored in the three call logs.

Intercom calls are not recorded.

2.

Caller ID service is required from your local phone

company in order to receive phone numbers, names

and time stamps on incoming calls. The Received and

Missed Call Logs will register no incoming calls if Caller

~

72

~

ID service is not available.

3.

The Caller ID feature may not be supported by all PBX

or Key systems’ analog ports, check with your

equipment provider

5.

Press 4 to set sound-related settings:

a.

Press 1 to select ringer volume:

Use or to

scroll through 6

options: Low, Medium, High, Vibrate, Vib and Ring, Off. Press SAVE (Left)

soft key to save selection. Default = Medium.

b.

Press 2 to select ringer tone:

Use or to

scroll through 4 options:

0, 1, 2, and 3. Press SAVE (Left) soft key to save selection. Default = 0.

c.

Press 3 to select key volume when a key is pressed:

Use or to

scroll through 3 options: High, Low, and Off. Press SAVE (Left) soft key to

save selection. Default = Low.

d.

Press 4 to select key tone:

Use or to

scroll through 4 options: 0,

1, 2, and 3. Press SAVE (Left) soft key to save selection. Default = 0.

6.

Press 5 to change handset settings:

a.

Press 1 to set dialing prefix:

i.

Use or

to scroll and select to turn on or off the dialing prefix

feature. Default = Off.

ii.

If “On” is selected, the handset is prompted to enter a prefix, up to 14

digits.

iii.

Use DELETE (Right) soft key and

or

to edit prefix.

iv.

When this feature is turned on, the LCD will prompt the user on each

outgoing phone call except during redial or dialing by pressing the

key first whether to use the dialing prefix. The current prefix is

also displayed. Press “YES” (Left) or “NO” (Right) soft key to add the

prefix to the beginning of the number.

v.

This feature is useful for access code, calling card, and credit card calls,

etc.

b.

Press 2 to Group Select: see Handset Group Subscription on page 40.

c.

Press 3 to set or turn Base Select on or off. Default = Off. See Base Select.

d.

Press 4 to clear call logs and phonebook:

i.

Press 1 and confirm to delete the entire phonebook.

ii.

Press 2 and confirm to clear the three call logs (Called, Received, and

Missed).

e.

Press 5 to edit the name of Custom or Line:

~

73

~

e-1. Press 1 to change the power-up LCD display to show, e.g., customer

name or other greeting message:

e-2. Press 2 to change the name of line, when calls coming, it will indicate

the calls came from which line.

i.

Use or

to move the cursor backward or forward to insert (to

the left of the cursor) or delete (the character above the cursor, or left

of the cursor if cursor is on the right of the last character).

ii.

Enter characters using the Character Table and method discussed in

the Phonebook section.

iii.

When finished, press SAVE (Left) soft key to save change.

f.

Press 6 to change LCD display contrast:

i.

Use or

to scroll through values 1 to 8. Pick one that is most

suitable to you. Default = 6.

ii.

Press SAVE (Left) soft key to save setting.

g.

Press 7 to change the LCD backlight:

i.

Use or

to scroll through options: On, Off, and 20 Seconds.

Default = 20 seconds, meaning that the backlight on, will turn off after

20 seconds of inactivity.

ii.

Press SAVE (Left) soft key to save setting.

h.

Press 8 to change the Line selection:

i.

Use or

to scroll through options: On or Off. Default = Off,

meaning that you can not select the other available lines to dial.

ii.

Press SAVE (Left) soft key to save setting.

i.

Press 9 to change the PBX options:

i.

Press ADD soft key to edit a PBX feature to be memorized and key in

the name of the PBX features just like editing a phonebook entry.

ii.

Press SAVE (Left) soft key to save setting.

iii.

Press OPTION and 1 following by entering PBX options mode, you can

erase the PBX option.

iv.

Press OPTION and 2 following by entering PBX options mode, you can

edit the PBX option.

v.

Press OPTION and 3 following by entering PBX options mode, you can

transfer the PBX options to other handset(s).

Re: To transfer PBX Options, both parties have to enter the PBX Option

mode firstly by following below:

For sending party, press 1 to enter sending mode.



Either press TX ALL(left softkey) to transfer all PBX options to

another handset(s).



Or press TX ONE (right softkey) to transfer a specific entry to

another handset(s).



Press 2-digit handset ID or group ID, then select all PBX options

~

74

~

or a specific entry to be transferred(“00” means all handsets)



During PBX options transferring, LCD shows “Sending”, and 2-

digit countdown on the LCD to indicate the numbers of PBX

options which are waiting for sending.

For receiving party, press 2 to enter receiving mode.



When entering the receiving mode, LCD shows “Ready”.



Start to receive PBX options, LCD shows “Get PBX options from

Ext. # : x

㎜

x”.



When the PBX options is receiving, 2-digit countdown on the

LCD indicates the number of PBX options which are waiting to

be received.

j.

Press 0 to change Language:

i.

Use or

to scroll through options: English and Portuguese.

Default = Portuguese, meaning the LCD display shows in English.

ii.

Press SAVE (Left) soft key to save setting.

K. Press # to turn Broadcast On/Off.

i. Press On (Left softkey) to turn on the broadcast function (including the

broadcast of handset to handset and base to handset).

ii. Press Off(Left softkey) to turn off the broadcast function

Re: When broadcast setting “Off”, there is an icon indicated in the display,

side of the battery icon.

L. Press * to turn Name Tag On/Off.

i. Press On (Left softkey) to turn on the name tag function, when receiving

the incoming calls, the LCD will show the name which stored in

phonebook.

ii. Press Off(Left softkey) to turn off the name tag function.

7.

Press 6 to register or de-register handset: See Handset Registration.

8.

Press 7 to set up the intercom or broadcast via repeater(see Repeater Setup).

Note:

1.

Different PBX makers use different analog codes to control PBX

function, like call transfer, call park, etc.; Please refer to your PBX

maker’s manual for this information.

2. Errors may occur in PBX options and phonebook entries transferred

wirelessly due to interference. Please re-enter entry manually if

problems occur with a entry.

~

75

~

9.

Item 8 is to add new bases.

From an administrator handset (Handset 10 or 11) to set new

Base 01~07. Maximum additional bases is up to 8. Before adding

a new base, the Handset must be registered in master base(Base

ID =00).

a.

Press

REG

button on new Base.

b.

Use Handset 10 or 11 to Add base: Press

MENU



8



1

c.

Enter 01~07 (base ID)

10.

Press 9 to change system and Line setting: See System and Line Setting.

~

76

~

Technical Specifications

Electrical Specifications

Portable Handset

Frequency

902

-

928 MHz

RF Output Power

Peak:

26 dBm

Average: 20 dBm

Channel Spacing

200

kHz

Number of Channels

128

Modulation

Different

ially Encoded MSK

Multiple Access

Frequency Hopping TD

D

Frequency Hopping Rate 100 per second

TDD

Frame Length

10 ms

Number of Slots/Frame

4

Receiver Sensitivity <-108dBm (@ BER 10

-

2

)

Antenna Gain

Long: 2.

dBi

; Short: 1.5 dBi

Antenn

a Connector

P

roprietary

Telephone Interface

NA

Channel Coding

8 kbps Convolutional + CRC

Transmission Data Rate

176.678

kbps

Speech Coding

8 kbps G.729

User Data Rate

128

kbps duplex

Duplex

Time Division Duplex (TDD)

Number

of System ID

65,536

Ring Signal

NA

Flash Time

NA

Power Source 3.7V/1100mAh Li-Ion Battery

Charge Time

3hours

Regulation Compliance

FCC Part 15, Part 68

Hearing Aid Compatible

Canada RSS-210, CS03

Operating Temperature -10 – 60 °C

Storage Temperature

-40 – 70 °C

Humidity

20

–

75 %

Notes:

1.

NA = Not Applicable.

2.

The manufacturer reserves the right to change designs and specifications without

notice.

~

77

~

Index

2

2-Way/Intercom, 15, 41

3

3-way conference, 43

A

AA Configuration by Administration, 47

Additional Handset Features, 16

Adjusting Receiver (Earpiece) Voice Volume, 32

Administrator Features, 19, 20

Assign HS, 43

Auto Attendant, 46

B

Base Select, 44

Basic Handset Features, 14

Battery, 11

Battery Hot Swap, 18

Battery Recharge and Replacement, 34

Battery Strength, 14

Battery Safety Instructions, 7

Broadcast, 15, 50

Broadcast On/Off, 69, 74

Broadcast through PBX, 63

Broadcasting a Group of Handsets, 29

Broadcasting all Handsets, 29

Broadcasting an Individual Handset, 29

Broadcasting from Base to Handset, 29

Broadcasting from Handset to Base, 30

C

Call Barring, 17, 57, 69

Call conference, 19

Call Manager, 41

Call Timer, 18

Call Transfer, 18, 40

Call Transfer to PBX Extension, 20

Call Hold, 18

Caller ID, 16, 17

~

78

~

Call in-progress, 14

Call log, 17

Call Waiting, 45

Call Waiting with Caller ID, 17

Cardiac Pacemaker, 5

Change AA parameters, 47

Change System and line setting by administration, 49

Change System Settings by Administrator, 42

Charger Features, 22

D

De-registration, 36, 37

Dial Mode, 42

Dial Prefix, 18

DND, 17

Do Not Disturb (Silent Ring), 17, 33

DTMF, 19, 20

E

Electric Shock, 5, 6

Emergency, 5

End a call, 31

Equipment Checklist, 11

F

FCC, 6, 8, 9, 10

FDA, 5

Flash, 15, 19, 20, 42, 50, 60

G

Group ID, 15, 16

H

Handset and Charger Installation, 23

Handset Charging Slot, 22

Handset Features, 14

Handset Group Subscription, 39

Handset ID, 14, 16

Handset Registration, 35, 37

Handset to Handset Call, 28, 29

Hearing Aid, 5

~

79

~

I

IDLE Mode, 24

K

Key Guard, 33, 66, 70

Key Tone, 18, 68, 72

L

Line Dedication, 48

Line Indicator, 14

Line Selection, 19, 49

Lithium-Ion (Li-Ion), 7, 11

Low battery warning, 14

M

Making a 2-way/Intercom Call. 27

Making a telephone call, 27

Making a broadcast, 29

Menu Mode, 24

Mute, 32

N

Name tag, 17, 69, 74

P

Phonebook operation, 50, 54

Placing a call on hold, 32

Preliminary Setting, 35

Programmable PBX Options, 35

R

Receiving a intercom call, 31

Receiving a telephone call, 30

Redial, 30

Registration of Additional Base, 36, 37

Registration Mode, 24

Regulatory Information, 8

Repeater operation, 19, 62

Ringer, 15, 17, 67, 72

RSSI, 14

S

~

80

~

Safety Instructions, 5

Speakerphone, 15

Speed Dial, 27

T

Talk Mode, 24

Talk/Flash ,15

Technical Specifications, 76

Text Messaging, 18, 58

Transformer, 23

Three Call Logs, 17

To Call back from call log, 33

To View Missed Call(s), 33

Two-Digit Address Index, 14

V

Vibrator, 17

W

Warning Message, 22
