Senao Networks SR9850 Wireless N Gigabit Router User Manual ESR9850 UM 20090714
Senao Networks, Inc. Wireless N Gigabit Router ESR9850 UM 20090714
Manual
ESR9850
Wireless N Gigabit Router
(IEEE 802.11 b/g/n)
User Manual
Revision History
Version Date Notes
1.0 2009/5/22 Initial
Table of Content
1.
INTRODUCTION..............................................................................................................................................1
1.1.
S
UMMARY
....................................................................................................................................................1
1.2.
K
EY
F
EATURES
............................................................................................................................................2
1.3.
P
ACKAGE
C
ONTENTS
...................................................................................................................................3
1.4.
P
RODUCT
L
AYOUT
....................................................................................................................................... 4
2.
INSTALLATION................................................................................................................................................5
2.1.
N
ETWORK
+
S
YSTEM
R
EQUIREMENTS
......................................................................................................... 5
2.2.
W
ALL
M
OUNTING
........................................................................................................................................5
2.3.
ESR9850
P
LACEMENT
.................................................................................................................................6
2.4.
S
ETUP
LAN
&
WAN....................................................................................................................................7
2.5.
PC
N
ETWORK
A
DAPTER SETUP
(W
INDOWS
XP) ..........................................................................................8
2.6.
S
MART
W
IZARD
CD...................................................................................................................................10

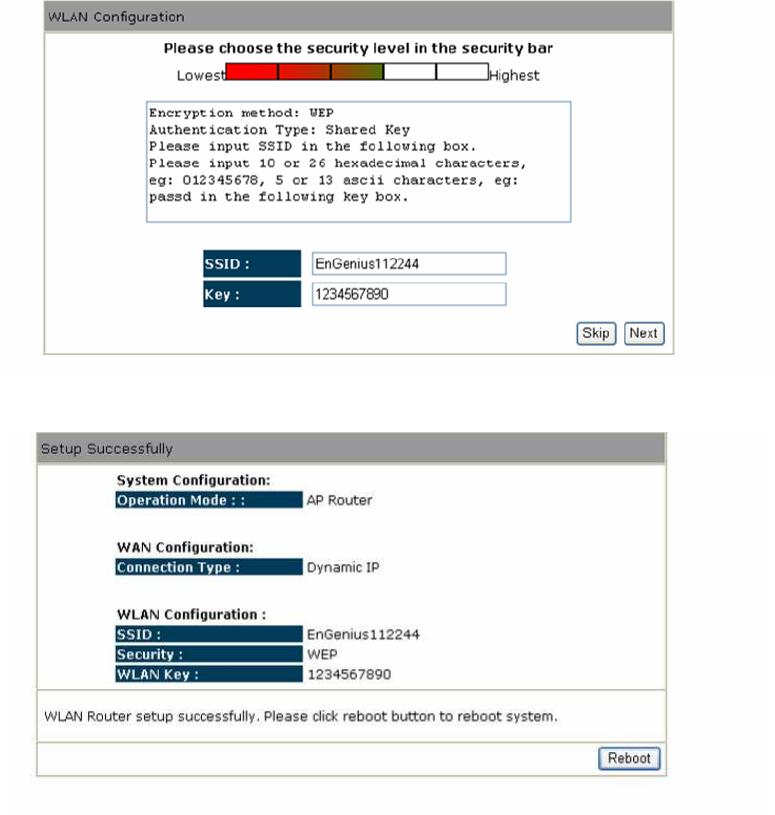

2.7.
W
IZARD
C
ONFIGURATION
..........................................................................................................................12
2.8.
I
NITIAL
S
ETUP
ESR9850............................................................................................................................ 14
3.
SYSTEM............................................................................................................................................................16

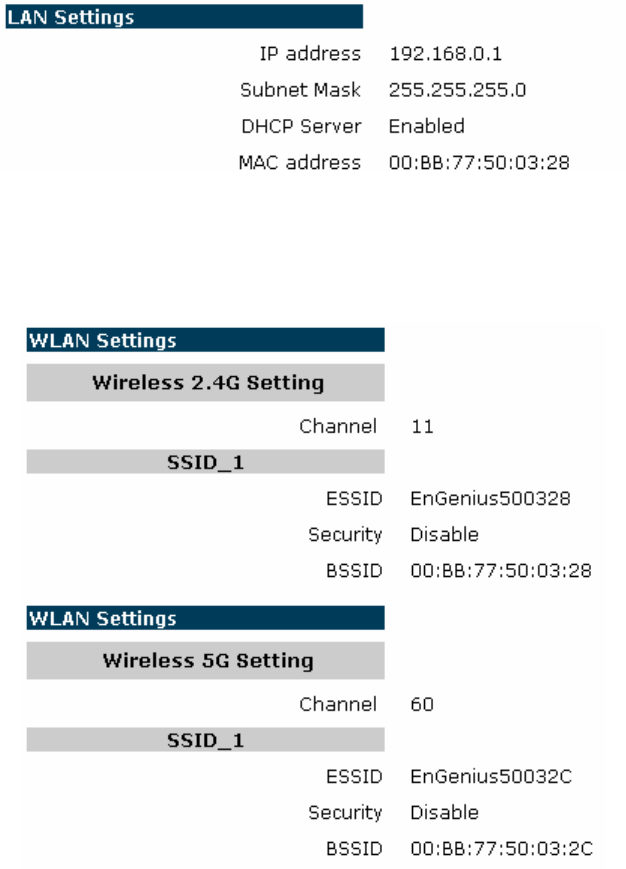

3.1.
S
TATUS
.......................................................................................................................................................16
3.2.
LAN ..........................................................................................................................................................18
3.3.
DHCP........................................................................................................................................................19
3.4.
S
CHEDULE
.................................................................................................................................................20

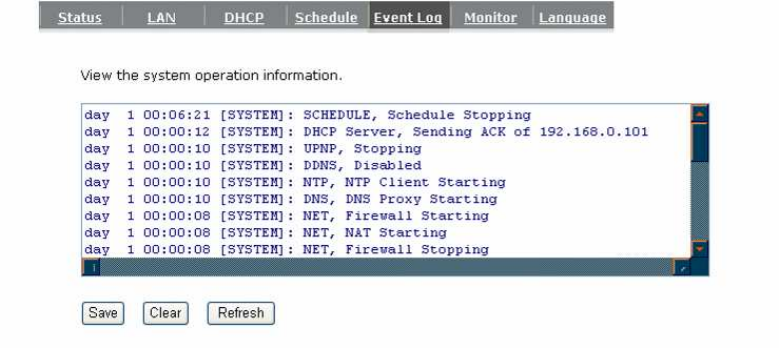

3.5.
E
VENT
L
OG
................................................................................................................................................21

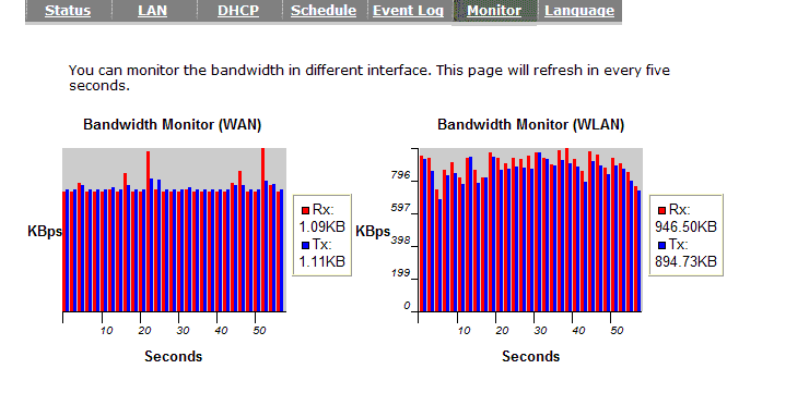

3.6.
M
ONITOR
................................................................................................................................................... 22
3.7.
L
ANGUAGE
................................................................................................................................................23
4.
WIZARD...........................................................................................................................................................24
5.
INTERNET ....................................................................................................................................................... 25

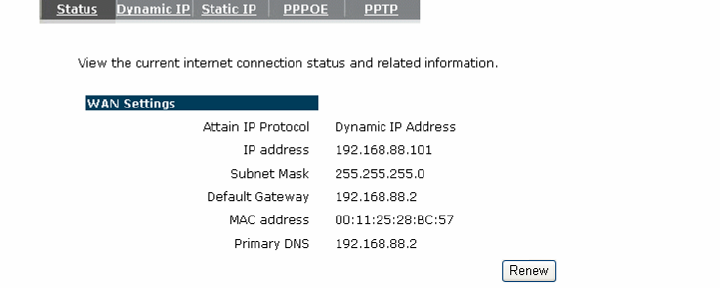

5.1.
S
TATUS
.......................................................................................................................................................25
5.2.
D
YNAMIC
IP .............................................................................................................................................. 26
5.3.
S
TATIC
IP ...................................................................................................................................................27
5.4.
P
OINT
-
TO
-P
OINT OVER
E
THERNET
P
ROTOCOL
(PPP
O
E).............................................................................28

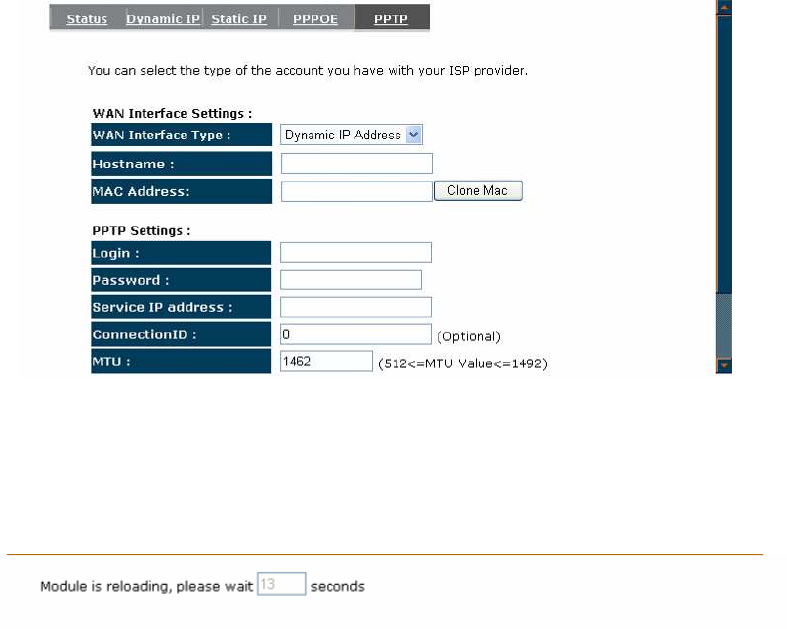

5.5.
P
OINT
-
TO
-P
OINT
T
UNNELING
P
ROTOCOL
(PPTP) ......................................................................................29
6.
WIRELESS .......................................................................................................................................................30

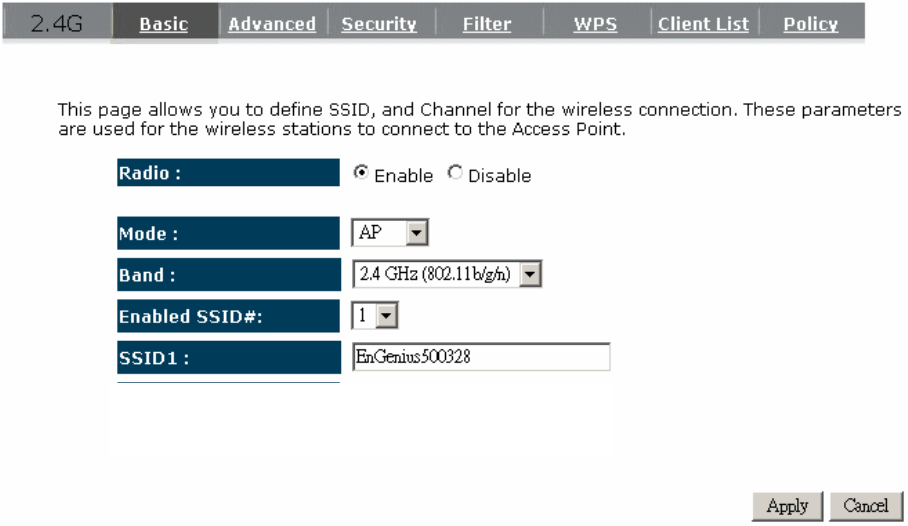

6.1.
B
ASIC
........................................................................................................................................................30

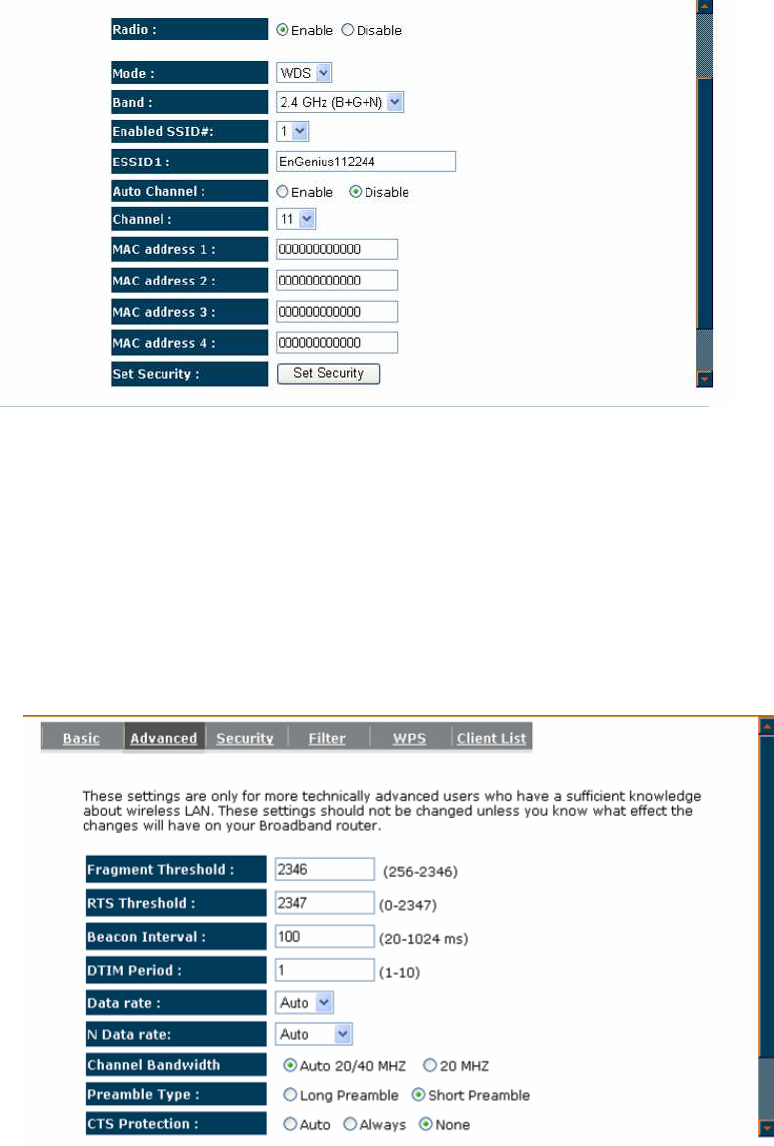

6.2.
M
ODE
:
WDS..............................................................................................................................................31
6.3.
A
DVANCED
................................................................................................................................................31

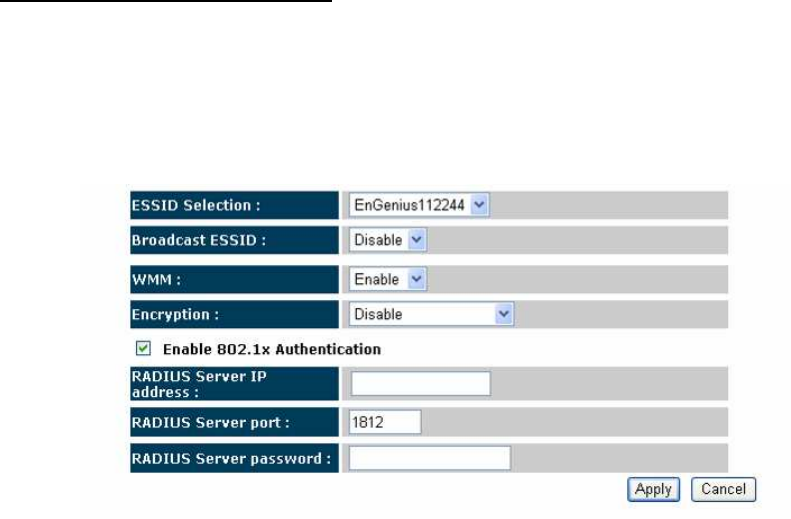

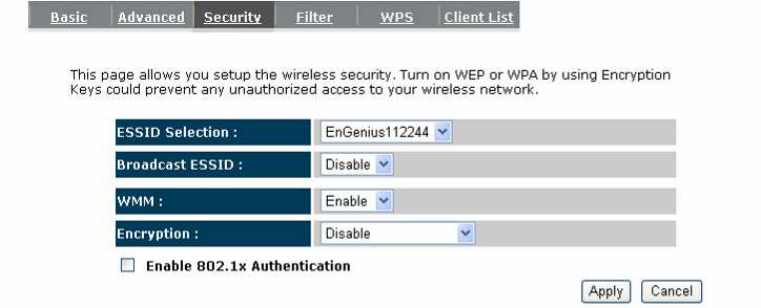

6.4.
S
ECURITY
.................................................................................................................................................. 33
6.5.
F
ILTER
.......................................................................................................................................................37
6.6.
WPS
(W
I
-F
I
P
ROTECTED
S
ETUP
)...............................................................................................................38
6.7.
C
LIENT
L
IST
...............................................................................................................................................40
6.8.
P
OLICY
......................................................................................................................................................41
7.
FIREWALL.......................................................................................................................................................42
7.1.
E
NABLE
.....................................................................................................................................................42
7.2.
D
EMILITARIZED
Z
ONE
(DMZ) ...................................................................................................................43

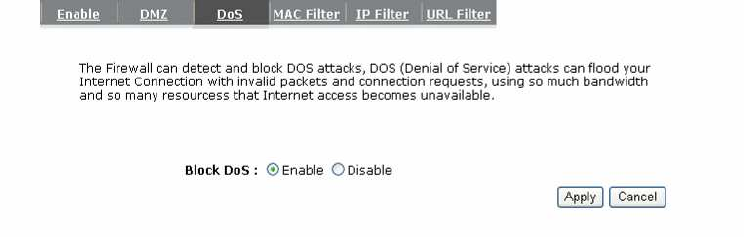

7.3.
D
ENIAL OF
S
ERVICE
(D
O
S) ........................................................................................................................44
7.4.
-
MAC
F
ILTER
...........................................................................................................................................45

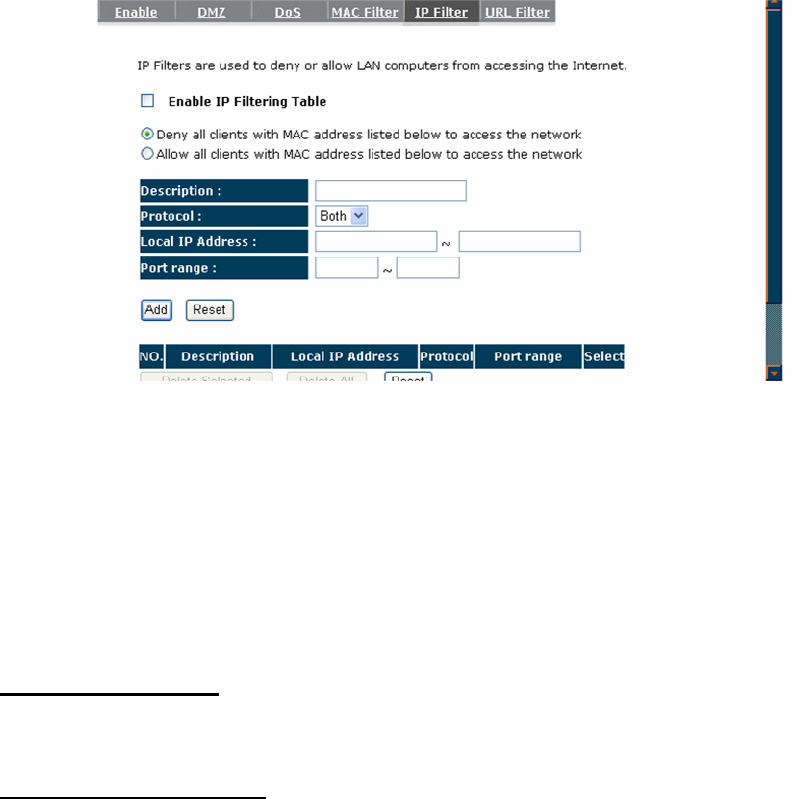

7.5.
IP
F
ILTER
................................................................................................................................................... 47
7.6.
URL
F
ILTER
...............................................................................................................................................48
ii
8.
ADVANCED......................................................................................................................................................49
8.1.
N
ETWORK
A
DDRESS
T
RANSLATION
(NAT)................................................................................................49
8.2.
-
P
ORT
M
APPING
........................................................................................................................................49
8.3.
P
ORT
F
ORWARDING
(V
IRTUAL
S
ERVER
).....................................................................................................51
8.4.
P
ORT
T
RIGGERING
(S
PECIAL
A
PPLICATIONS
) .............................................................................................52
8.5.
A
PPLICATION
L
AYER
G
ATEWAY
(ALG)......................................................................................................53
8.6.
UPNP ........................................................................................................................................................54

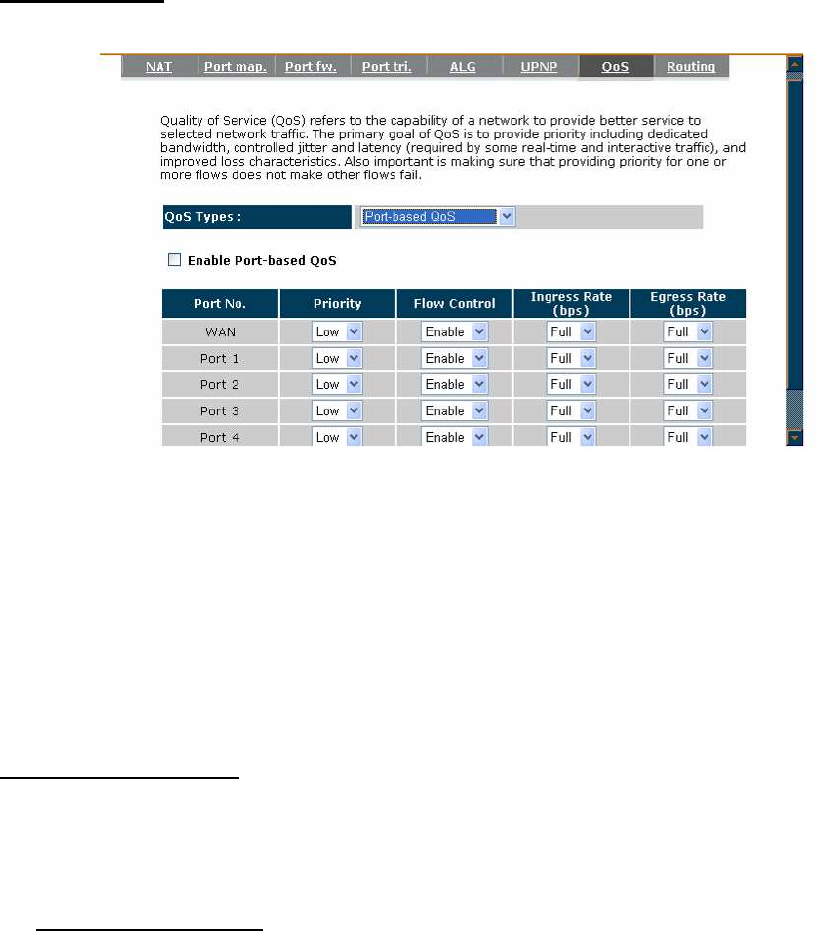

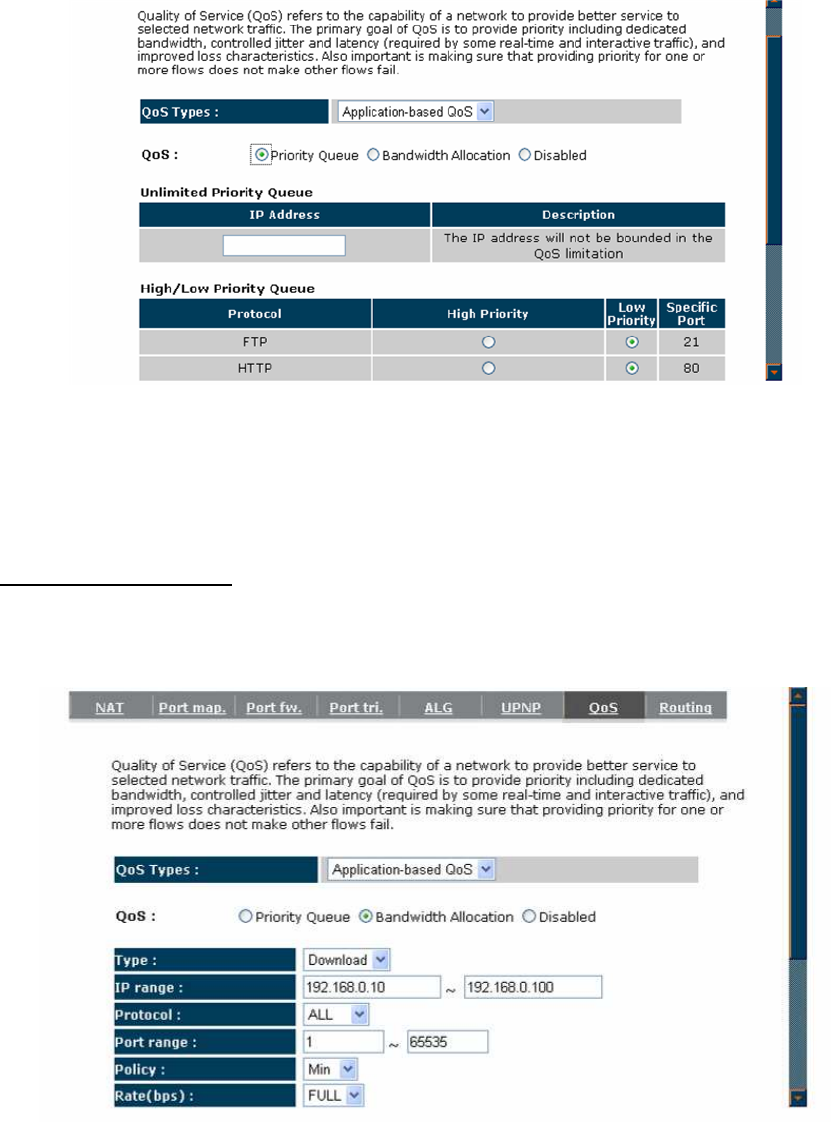

8.7.
Q
UALITY OF
S
ERVICE
(Q
O
S)......................................................................................................................54
8.8.
R
OUTING
....................................................................................................................................................57
9.
TOOLS ..............................................................................................................................................................58
9.1.
A
DMIN
.......................................................................................................................................................58
9.2.
T
IME
..........................................................................................................................................................59
9.3.
DDNS........................................................................................................................................................ 60
9.4.
P
OWER

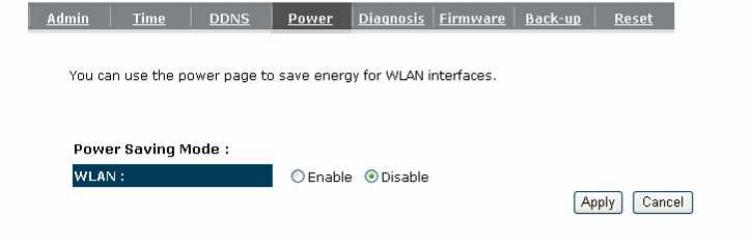

.......................................................................................................................................................61

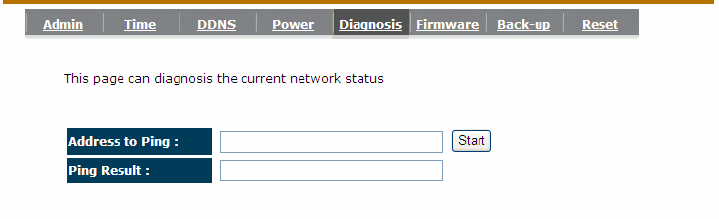

9.5.
D
IAGNOSIS
.................................................................................................................................................62

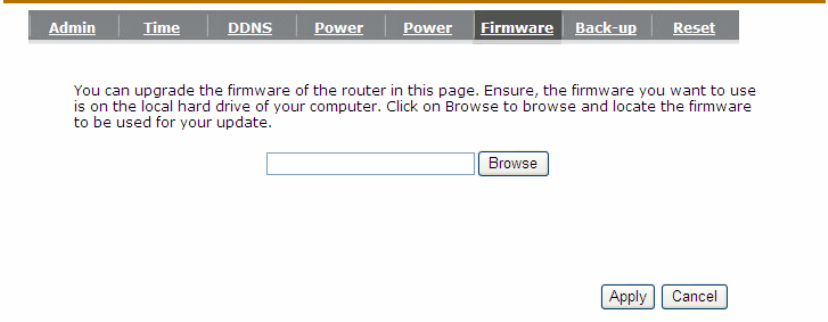

9.6.
F
IRMWARE
.................................................................................................................................................63
9.7.
B
ACK
-U
P
................................................................................................................................................... 64
9.8.
R
ESET
........................................................................................................................................................65
APPENDIX A – FCC INTERFERENCE STATEMENT .......................................................................................66
APPENDIX B – IC INTERFERENCE STATEMENT...........................................................................................67
1
1. Introduction
1.1. Summary

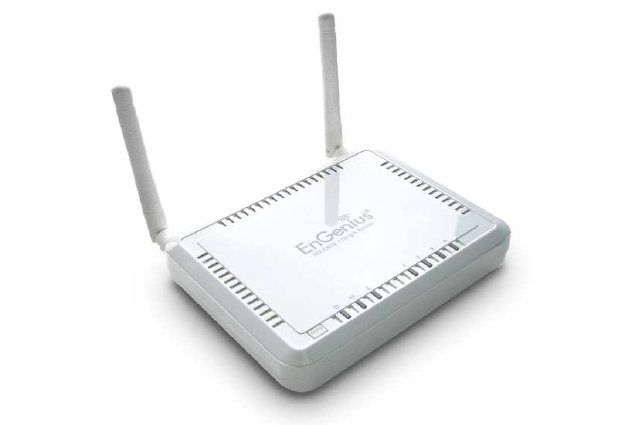

ESR9850 is a 2T2R Wireless 11N Gigabit Router that
delivers up to 6x faster speeds and 3x extended
coverage than 802.11g devices. ESR9850 supports
home network with superior throughput and performance
and unparalleled wireless range. With easy to use on the
WPS function, it helps users to connect to wireless
device with just one push button.
There's also a built-in 4-port full-duplex 10/100/1000 Fast
Switch to connect your wired-Ethernet devices together.
The Router function ties it all together and lets your
whole network shares a high-speed cable or DSL
Internet connection.
2
1.2. Key Features
Features Advantages
Incredible Data Rate up to 600Mbps**
Heavy data payloads such as
MPEG video streaming
Multiple SSIDs Enhanced management among
multiple users groups
Four 10/100/1000 Mbps Fast Switch
Ports (Auto-Crossover)
Scalability, extend your network.
Firewall supports Virtual Server
Mapping, DMZ, IP Filter, ICMP
Blocking, SPI
Avoids the attacks of Hackers or
Viruses from Internet
Support 802.1x Authenticator, 802.11i
(WPA/WPA2, AES), VPN pass-through
Provide mutual authentication
(Client and dynamic encryption
keys to enhance security
WDS (Wireless Distribution System) Make wireless AP and Bridge mode
simultaneously as a wireless
repeater
WPS button support Quick WiFi Security Setup
WMM & QoS Wireless QoS mechanism
** Theoretical wireless signal rate based on IEEE standard of 802.11a, b, g, n chipset used. Actual throughput
may vary. Network conditions and environmental factors lower actual throughput rate. All specifications are
subject to change without notice.
3
1.3. Package Contents
Open the package carefully, and make sure that none of the items listed below are
missing. Do not discard the packing materials, in case of return; the unit must be shipped
back in its original package.
1 * Dual Band Concurrent AP Router (ESR9850)
1 * 12V/1.25 A Power Adapter
1 * CAT 5 UTP cable
1 * QIG
1 * CD (User Manual & Wizard)
4
1.4. Product Layout
Physical Interface WAN: 1 * 10/100/1000 Fast Ethernet RJ-45
LAN: 4 * 10/100/1000 Fast Ethernet RJ-45
Reset Button (5 second for reboot, 5~10 seconds for
reset to factory default )
Power Jack
WPS push button (Wi-Fi Protected Setup)
Antenna: SMA Connector * 2
LEDs Status Power/ Status
Internet (WAN)
LAN1~LAN4
WLAN
WPS
5
2. Installation
2.1. Network + System Requirements
To begin using the ESR9850, make sure you meet the following as minimum
requirements:
PC/Notebook.
Operating System – Microsoft Windows 98SE/ME/XP/2000/VISTA
1 Free Ethernet port.
WiFi card/USB dongle (802.11 b/g/n) – optional.
External xDSL (ADSL) or Cable modem with an Ethernet port (RJ-45).
PC with a Web-Browser (Internet Explorer, Safari, Firefox, Opera etc.)
Few Ethernet compatible CAT5 cables.

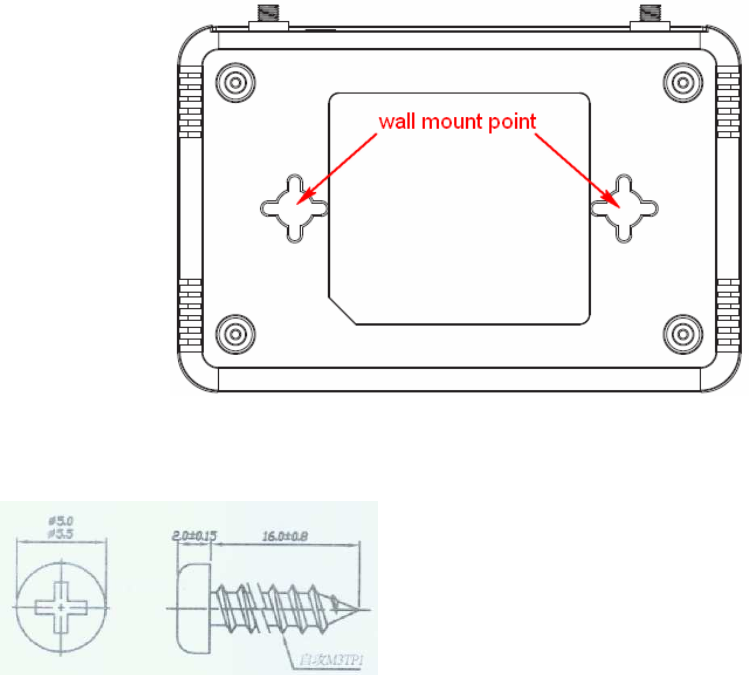

2.2. Wall Mounting
Screw Dimension: 18mm x 5mm
You can mount the device on the wall. There are two mounting points on the bottom of the
device. Please find a proper spot where two nails can be applied. Finally, carefully mount the
device onto the wall and make sure the nails are firmly locked on the mount points.
6
2.3. ESR9850 Placement
You can place ESR9850 on a desk or other flat surface, or you can mount it on a wall. For
optimal performance, place your device in the center of your office (or your home) in a
location that is away from any potential source of interference, such as a metal wall or
microwave oven.
This location must be close to a power connection and your ADSL/Cable modem. If the
antennas are not positioned correctly, performance loss can occur.
7
2.4. Setup LAN & WAN
LAN connection:
Connect Ethernet cable between your PC/Notebook LAN port & one of
the 4 available LAN ports on ESR9850.
WAN connection:
Connect Ethernet cable between WAN ports of your ADSL/CABLE
modem & INTERNET port of ESR9850. Make sure your ADSL/CABLE
modem is working well. Contact your ISP if you have any questions.
8

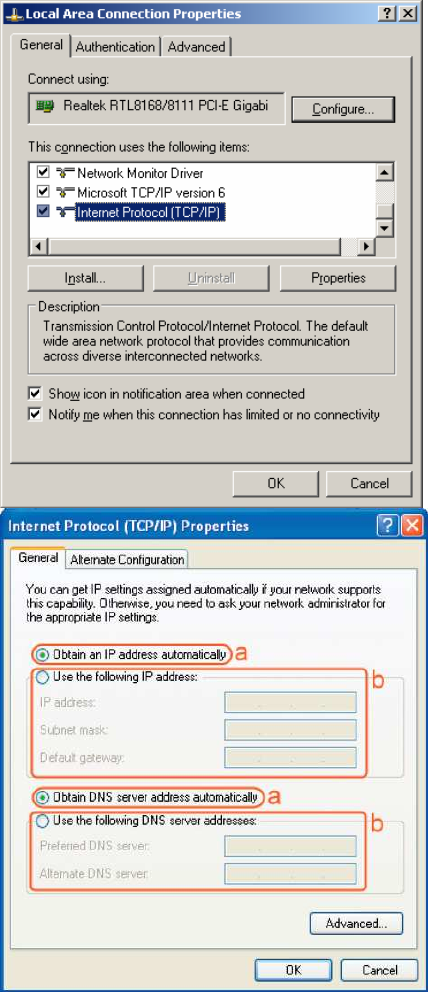

2.5. PC Network Adapter setup (Windows XP)

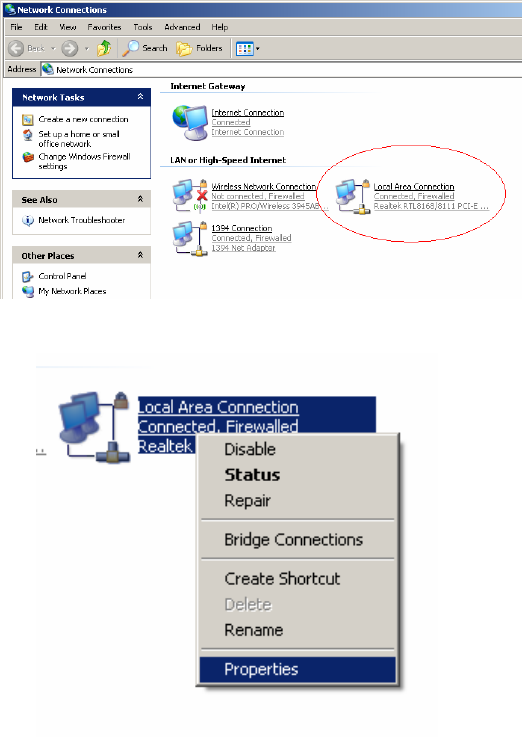

Enter [Start Menu] select [Control panel] select [Network].
Select [Local Area Connection]) icon=>select [properties]
9
Select [Internet Protocol (TCP/IP)] =>Click [Properties].
Select the [General] tab.
select both [Obtain an IP address automatically] and [Obtain DNS server address
automatically].
10

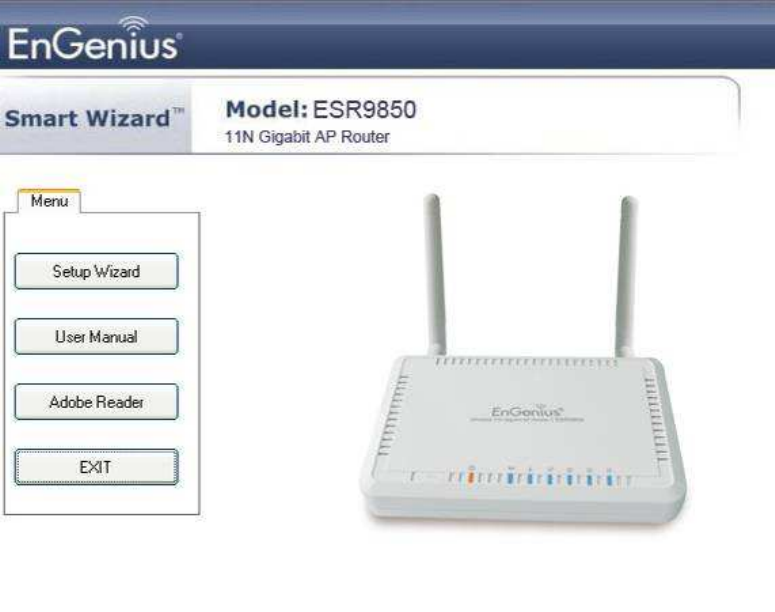

2.6. Smart Wizard CD
Connect the supplied power-adapter to the power inlet port and connect it to a wall outlet.
Then, the router automatically enters the self-test phase. During self-test phase, Power LED
will blink briefly, and then will be lit continuously to indicate that this product is in normal
operation.
CHECK
• A standard CD-ROM drive
• Internet connection should be setup & ready to use (ADSL or cable modem).
• Modem must provide RJ45 port to connect with ESR9850.
• Microsoft Windows compatible PC/Notebook with UPnP enabled network adapter
• CAT 5 network cable(s), RJ45 port on PC/Notebook.
STEP 1
Connect ESR9850 WAN port & your modem WAN port with RJ45 cable.
STEP 2
Power up ESR9850. POWER led on front panel lights up & remains stable.
STEP 3
Connect ESR9850 LAN port & PC/Notebook RJ45 port with network cable.
STEP 4
Insert Wizard CD into your CD-ROM drive. If Wizard does not start automatically,
please browse it with Windows Explorer.
Click on “Wizard.exe” to activate SMART WIZARD.
11
Please click on Setup Wizard and follow the instruction given to complete the device
initiation configuration.
12

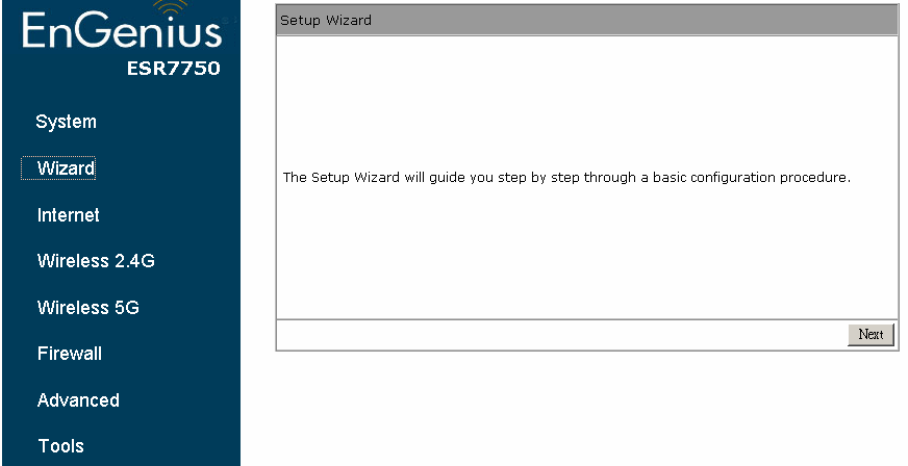

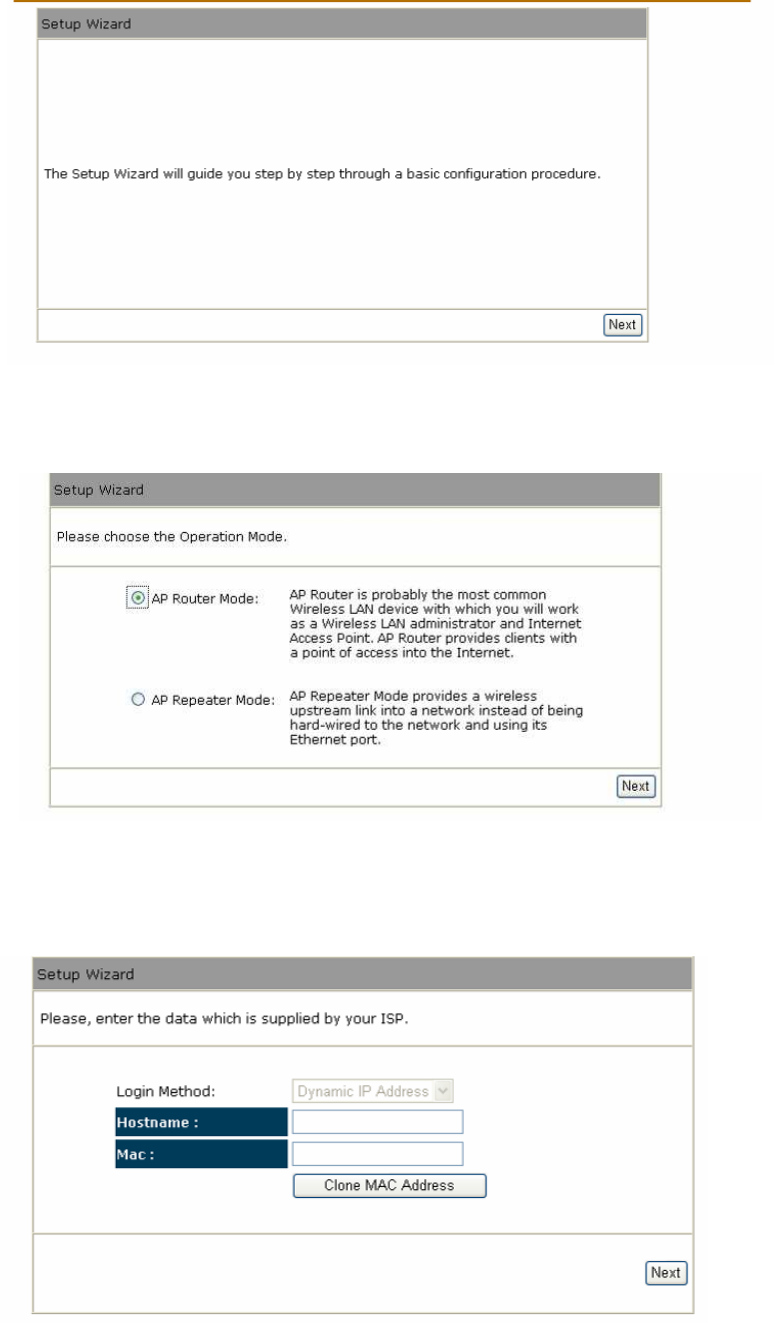

2.7. Wizard Configuration
Click <Next> to enter mode selection.
Select the mode that ESR9850 is going to be and set its configurations. AP Repeater
mode does not enable WAN interface, Setup Wizard will skip WAN Configuration.
Click <Next> to automatically detect your Internet Network settings.
Smart Wizard has detected DHCP client. Configure the host name and MAC address of your
ADSL modem. Click Next to proceed.
13
Smart Wizard has finished setting up WAN Configuration. Click <Next> to proceed.
Enter the name for your wireless network (SSID) and security key
Click <Next> to proceed
To apply the entire configuration, click <Reboot>.
NOTE: After Wireless settings are applied, you need to connect from your WLAN client
with the security settings you just finished configuring. Remember the type of
security & security key.
14
2.8. Initial Setup ESR9850
ESR9850 provides web-interface for configuration through web browser, such as
Internet Explorer, Firefox or Safari.

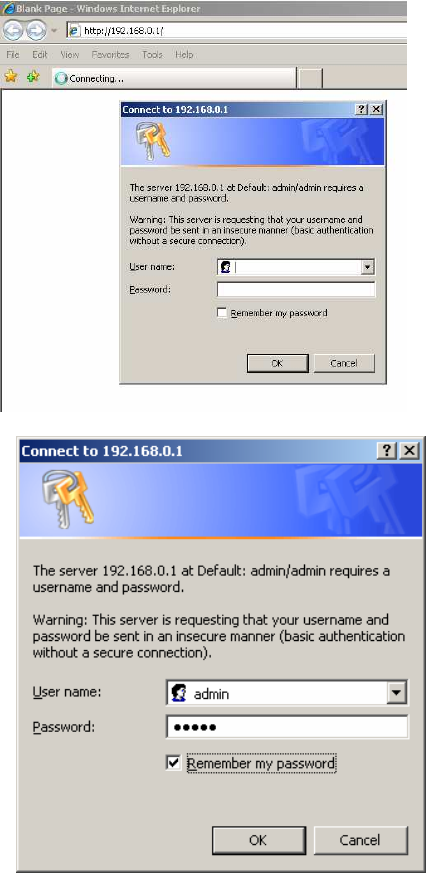

1. Open your browser (e.g. Internet Explorer).
2. Type in http://192.168.0.1 in the address bar and press [Enter].
3. Click <OK> to navigate into ESR9850 configuration home page.

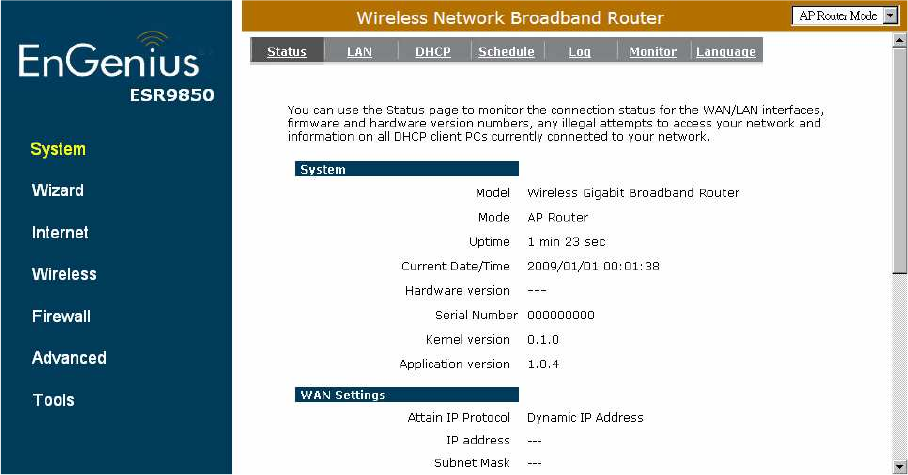

4. You will see the home page of ESR9850 as follows.
15
16
3. SYSTEM
3.1. Status
This page allows you to monitor the current status of your router. You can use the status
page to quickly see if you have any updated firmware available (bug fixes, updates). You can
navigate from this page with a few interesting options for reminding or skipping this page
forever & so forth.
Once you click on <OK> button to go to the requested page, you can see the status page of
the ESR9850.

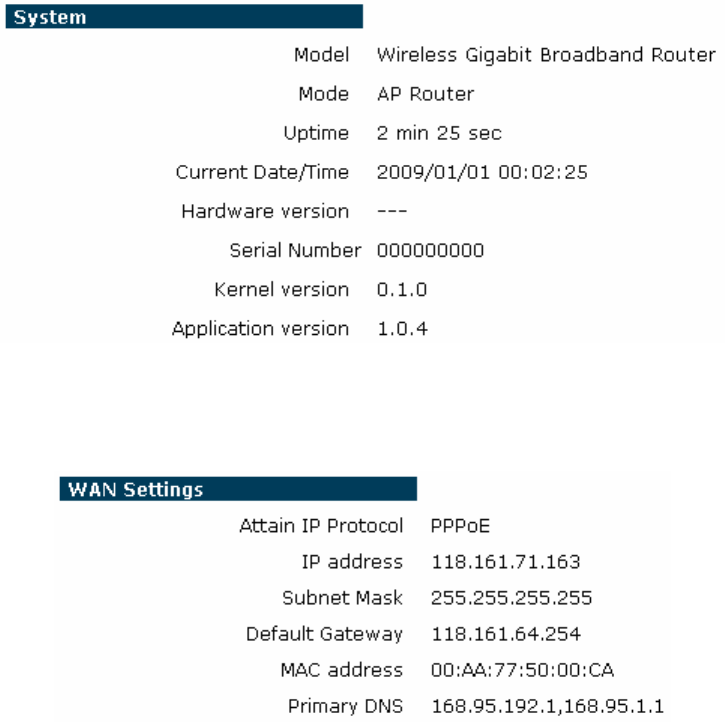

System: You can see the UP time, hardware information, serial number as well as firmware
version information.
WAN Settings: This section displays whether the WAN port is connected to a Cable/DSL
connection. It also displays the router’s WAN IP address, Subnet Mask, and ISP
Gateway as well as MAC address, the Primary DNS. Press <Renew> button to renew
your WAN IP address.
LAN Settings: This section displays the Broadband router LAN port’s current LAN & WLAN
information. It also shows whether the DHCP Server function is enabled / disabled.
17
WLAN Settings: This section displays the current WLAN configuration settings you’ve
configured in the Wizard / Basic Settings / Wireless Settings section. Wireless
configuration details such as SSID, Security settings, BSSID, Channel number, mode of
operation are briefly shown.
18
3.2. LAN
The LAN Tabs reveals LAN settings which can be altered at will. If you are an entry level
user, try accessing a website from your browser. If you can access website without a glitch,
just do not change any of these settings.
Click <Apply> at the bottom of this screen to save the changed configurations.
LAN IP
IP address: 192.168.0.1. It is the router’s LAN IP address (Your LAN clients default gateway
IP address). It can be changed based on your own choice.
IP Subnet Mask: 255.255.255.0 Specify a Subnet Mask for your LAN segment.
802.1d Spanning Tree: This is disabled by default. If 802.1d Spanning Tree function is
enabled, this router will use the spanning tree protocol to prevent network loops.
DHCP Server
DHCP Server: This will enable or disable the Dynamic Pool setting..
Lease time: This is the lease time of each assigned IP address.
Start IP: This will be the beginning of the pool of IP addresses available for client devices.
End IP: This will be the end of the pool of IP addresses available for client devices.
Domain name: The Domain Name for the existing or customized network.
19

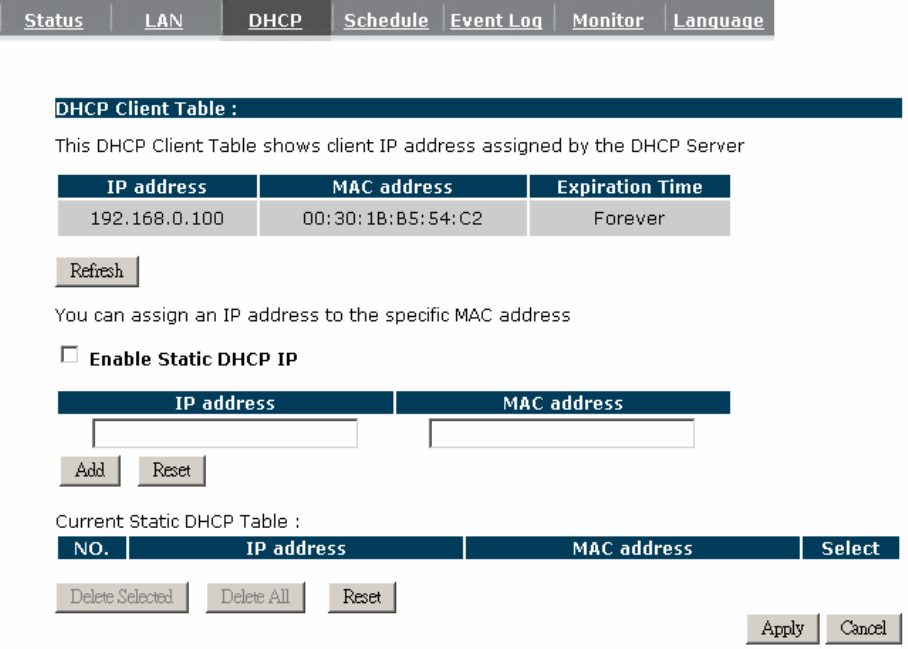

3.3. DHCP
View the current LAN clients which are assigned with an IP Address by the DHCP-server.
This page shows all DHCP clients (LAN PCs) currently connected to your network. The table
shows the assigned IP address, MAC address and expiration time for each DHCP leased
client. Use the <Refresh> button to update the available information. Hit <Refresh> to get
the updated table.
You can check “Enable Static DHCP IP“. It is possible to add more static DHCP IPs. They are
listed in the table “Current Static DHCP Table“. IP address can be deleted at will from the
table.
Click <Apply> button to save the changed configuration.
20

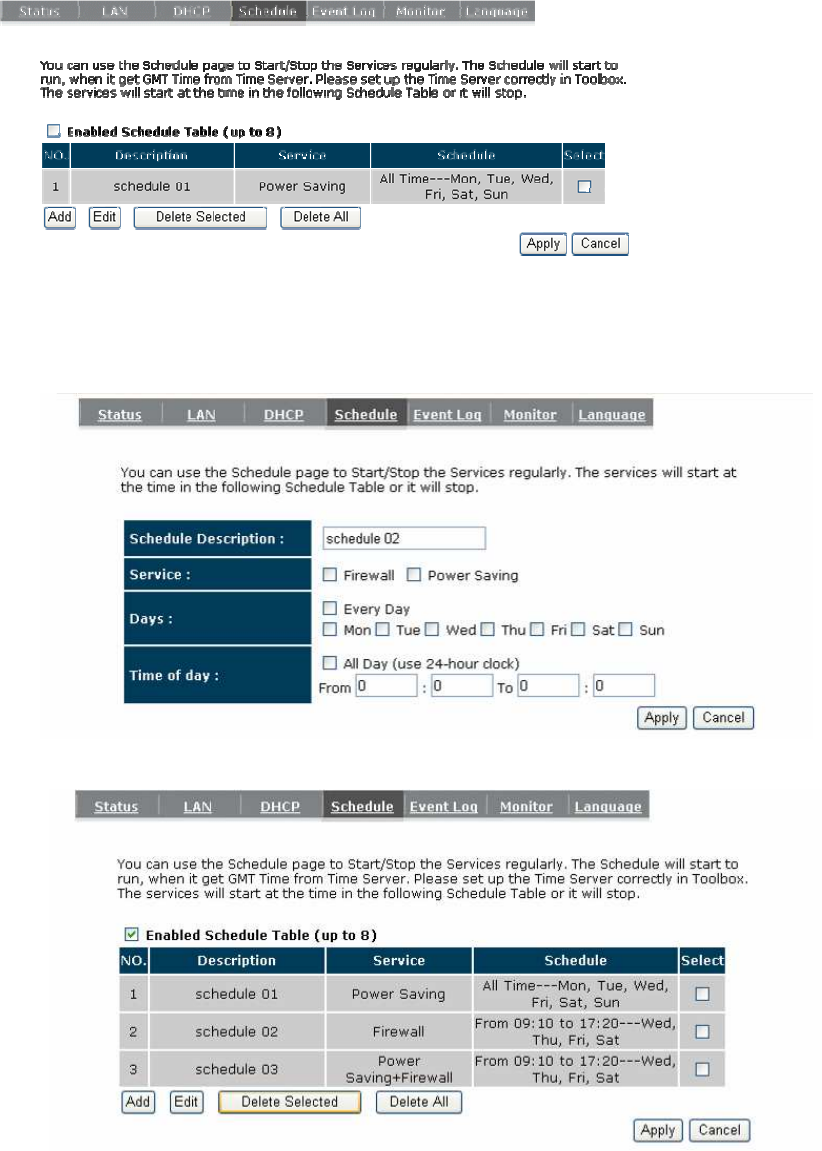

3.4. Schedule
This page allows user to set up schedule function for Firewall and Power Saving.
Add schedule, edit schedule options to allow configuration of firewall and power savings
services. Fill in the schedule and select type of service. Click <Apply> to implement those
settings.
The schedule table lists the pre-schedule service-runs. You can select any of them using
the check box.
21
3.5. Event Log
View operation event log. This page shows the current system log of the Broadband
router. It displays any event occurred after system start up. At the bottom of the page, the
system log can be saved <Save> to a local file for further processing or the system log can
be cleared <Clear> or it can be refreshed <Refresh> to get the most updated information.
When the system is powered down, the system log will disappear if not saved to a local file.
22
3.6. Monitor
Show histogram for network connection on WAN, LAN & WLAN. Auto refresh keeps
information updated frequently.
23

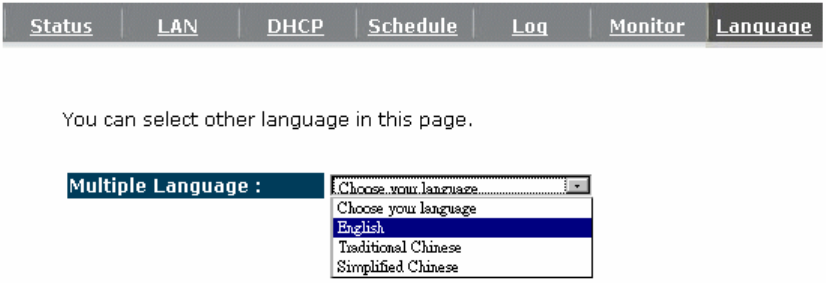

3.7. Language
This Wireless Router support multiple language of web pages, You could select your
native language here.
24
4. Wizard
Please refer to Chapter 2.6 for Wizard Configuration details
25
5. INTERNET
5.1. Status
This page shows the current Internet connection type and status
26

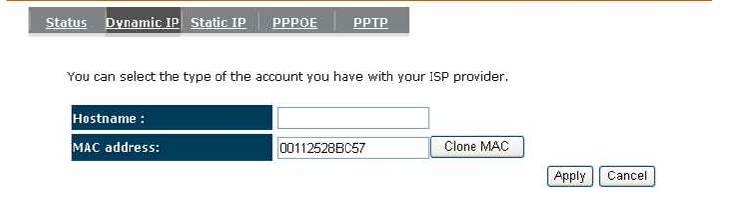

5.2. Dynamic IP
Use the MAC address when registering for Internet service, and do not change it unless
required by your ISP. If your ISP used the MAC address of the Ethernet card as an identifier,
connect only the PC with the registered MAC address to the broadband router and click the
<Clone MAC Address> button. This will replace the current MAC address with the already
registered Ethernet card MAC address
Host Name: This is optional.
MAC address: The default value is set to the WAN’s physical interface of the broadband
router.
27

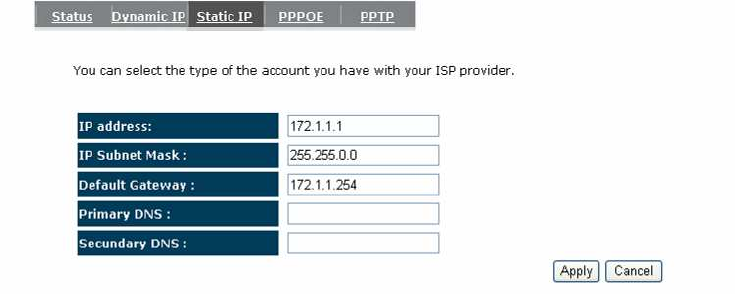

5.3. Static IP
If your ISP Provider has assigned a fixed IP address, enter the assigned IP address,
Subnet mask, Default Gateway IP address, and Primary DNS of your ISP provider.
28

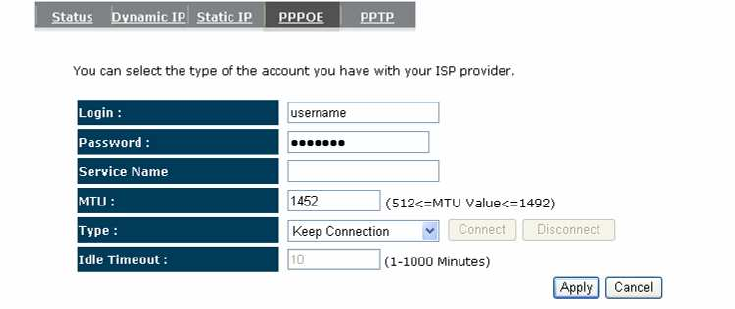

5.4. Point-to-Point over Ethernet Protocol (PPPoE)
Login / Password: Enter the PPPoE username and password assigned by your ISP
Provider.
Service Name: This is normally optional.
Maximum Transmission Unit (MTU): This is the maximum size of the packets.
Type: Enable the Auto-reconnect option to automatically re-establish the connection
when an application attempts to access the Internet again.
Idle Timeout: This is a maximum period of time for which the Internet connection is
maintained during inactivity. If the connection is inactive for longer than the
Maximum Idle Time, it will be dropped.
29
5.5. Point-to-Point Tunneling Protocol (PPTP)
PPTP allows the secure connection over the Internet by simply dialing in a local point
provided by your ISP provider. The following screen allows client PCs to establish a normal
PPTP session and provides hassle-free configuration of the PPTP client on each client PC.
Click <Apply> to save configuration and connect to ISP provider.
30
6. WIRELESS
6.1. Basic
Radio: You can turn on/off wireless radio. If wireless Radio is off, you cannot associate
with AP through wireless.
Mode: In this device, we support three operation modes which are AP router, AP route
with WDS (we will introduce this function later section), and repeater. If you
choose AP Router Mode, you can select AP or WDS function in the drop-down
menu.
Band: You can select the wireless standards running on your network environment.
Band 2.4G:
2.4 GHz(B): If all of your clients are 802.11b, select this one.
2.4 GHz(G): If all of your clients are 802.11g, select this one.
2.4 GHz(B/G): Either an 802.11b or an 802.11g wireless devices are in your
environment.
2.4 GHz(N): If all of your clients are 802.11n, select this one.
2.4 GHz(B/G/N): Either 802.11b, 802.11g, or 802.11n wireless devices are in
your environment.
Enable ESSID: We support 4 multiple SSIDs in this device. Please select how many
SSIDs you would like to use in your network environment.
ESSID1~4: ESSID is the name of your wireless network. It might be a unique name to
identify this wireless device in the Wireless LAN. It is case sensitive and up to 32
printable characters. You might change the default ESSID for added security.
31
6.2. Mode: WDS
Wireless Distribution System, a system that enables the wireless interconnection of
access point, allows a wireless network to be expended using multiple access points
without a wired backbone to like them. Each WDS APs need setting as same channel and
encryption type.
MAC address 1~4: Please enter the MAC address of the neighboring APs that
participates in WDS, we support 4 devices now.
Set Security: WDS Security depends on your AP security settings. Note: it does not
support mixed mode such as WPA-PSK/WPA2-PSK Mixed mode.
6.3. Advanced
This tab allows you to set the advanced wireless options. The options included are
Authentication Type, Fragment Threshold, RTS Threshold, Beacon Interval, and Preamble
Type. You should not change these parameters unless you know what effect the changes
will have on the router.
32
Fragment Threshold: This specifies the maximum size of a packet during the
fragmentation of data to be transmitted. If you set this value too low, it will result in bad
performance.
RTS Threshold: When the packet size is smaller than the RTS threshold, the wireless
router will not use the RTS/CTS mechanism to send this packet.
Beacon Interval: is the interval of time that this wireless router broadcasts a beacon. A
Beacon is used to synchronize the wireless network.
DTIM Period: Enter a value between 1 and 255 for the Delivery Traffic Indication
Message (DTIM). A DTIM is a countdown informing clients of the next window for
listening to broadcast and multicast messages
Data Rate: The “Data Rate” is the rate that this access point uses to transmit data packets.
The access point will use the highest possible selected transmission rate to transmit
the data packets.
N Data Rate: The “Data Rate” is the rate that this access point uses to transmit data
packets for N compliant wireless nodes. Highest to lowest data rate can be fixed.
Channel Bandwidth: This is the range of frequencies that will be used.
Preamble Type: The “Long Preamble” can provide better wireless LAN compatibility while
the “Short Preamble” can provide better wireless LAN performance.
CTS Protection: It is recommended to enable the protection mechanism. This mechanism
can decrease the rate of data collision between 802.11b and 802.11g wireless
stations. When the protection mode is enabled, the throughput of the AP will be a little
lower due to a lot of frame-network that is transmitted.
TX Power: This can be set to a bare minimum or maximum power.
33
6.4. Security
This Access Point provides complete wireless LAN security functions, included are
WEP, IEEE 802.1x, IEEE 802.1x with WEP, WPA with pre-shared key and WPA with
RADIUS. With these security functions, you can prevent your wireless LAN from illegal
access. Please make sure your wireless stations use the same security function, and are
setup with the same security key.
34
ESSID Selection: This broadband router support multiple ESSID, you could select
and set up the wanted ESSID.
Broadcast ESSID: If you enabled “Broadcast ESSID”, every wireless station located
within the coverage of this access point can discover this access point easily. If
you are building a public wireless network, enabling this feature is recommended.
Disabling “Broadcast ESSID” can provide better security.
WMM: Wi-Fi MultiMedia if enabled supports QoS for experiencing better audio, video
and voice in applications.
Encryption: When you choose to disable encryption, it is very insecure to operate
ESR9850.
Enable 802.1x Authentication
IEEE 802.1x is an authentication protocol. Every user must use a valid account to login to
this Access Point before accessing the wireless LAN. The authentication is processed by a
RADIUS server. This mode only authenticates users by IEEE 802.1x, but it does not
encrypt the data during communication.
35
WEP Encryption
When you select 64-bit or 128-bit WEP key, you have to enter WEP keys to encrypt data.
You can generate the key by yourself and enter it. You can enter four WEP keys and select
one of them as a default key. Then the router can receive any packets encrypted by one of
the four keys.
Authentication Type: There are two authentication types: "Open System" and "Shared
Key". When you select "Open System", wireless stations can associate with this
wireless router without WEP encryption. When you select "Shared Key", you should
also setup a WEP key in the "Encryption" page. After this has been done, make
sure the wireless clients that you want to connect to the device are also setup with the
same encryption key.
Key Length: You can select the WEP key length for encryption, 64-bit or 128-bit. The
larger the key will be the higher level of security is used, but the throughput will be
lower.
Key Type: You may select ASCII Characters (alphanumeric format) or Hexadecimal Digits
(in the "A-F", "a-f" and "0-9" range) to be the WEP Key.
Key1 - Key4: The WEP keys are used to encrypt data transmitted in the wireless network.
Use the following rules to setup a WEP key on the device. 64-bit WEP: input 10-digits
Hex values (in the "A-F", "a-f" and "0-9" range) or 5-digit ASCII character as the
encryption keys.
128-bit WEP: input 26-digit Hex values (in the "A-F", "a-f" and "0-9" range) or 13-digit
ASCII characters as the encryption keys.
Click <Apply> at the bottom of the screen to save the above configurations. You can
now configure other sections by choosing Continue, or choose Apply to apply the settings
and reboot the device.
WPA Pre-Shared Key Encryption
Wi-Fi Protected Access (WPA) is an advanced security standard. You can use a
36
pre-shared key to authenticate wireless stations and encrypt data during communication. It
uses TKIP or CCMP (AES) to change the encryption key frequently. So the encryption key
is not easy to be cracked by hackers. This is the best security available.
WPA-Radius Encryption
Wi-Fi Protected Access (WPA) is an advanced security standard. You can use an
external RADIUS server to authenticate wireless stations and provide the session key to
encrypt data during communication.
It uses TKIP or CCMP (AES) to change the encryption key frequently. Press <Apply>
button when you are done.
37

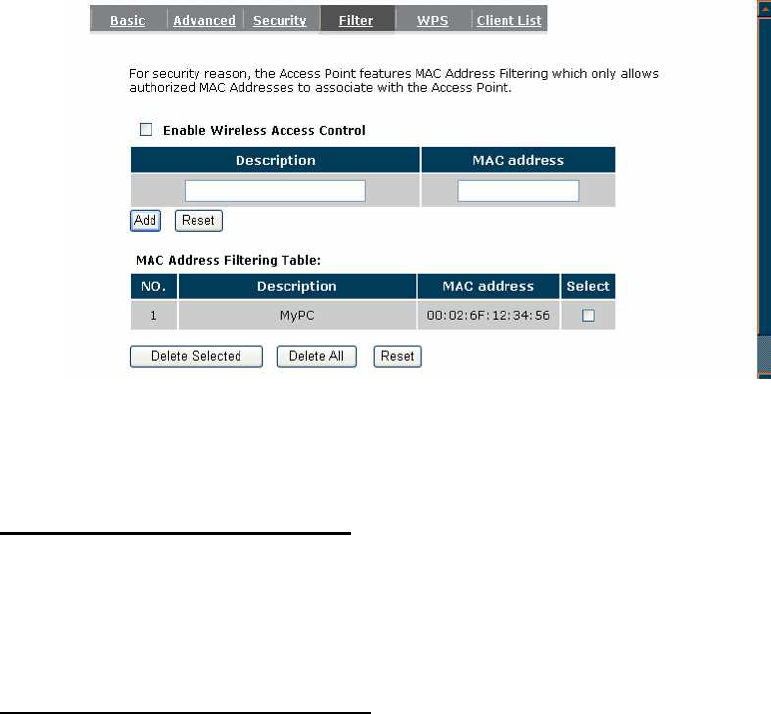

6.5. Filter
This wireless router supports MAC Address Control, which prevents unauthorized clients
from accessing your wireless network.
Enable wireless access control: Enable the wireless access control function
Adding an address into the list
Enter the "MAC Address" and "Comment" of the wireless station to be added and
then click <Add>. The wireless station will now be added into the "Current Access
Control List" below. If you are having any difficulties filling in the fields, just click
"Clear" and both "MAC Address" and "Comment" fields will be cleared.
Remove an address from the list
If you want to remove a MAC address from the "Current Access Control List ",
select the MAC address that you want to remove in the list and then click "Delete
Selected". If you want to remove all the MAC addresses from the list, just click the
<Delete All> button. Click <Reset> will clear your current selections.
Click <Apply> at the bottom of the screen to save the above configurations.
38
6.6. WPS (Wi-Fi Protected Setup)
WPS is the simplest way to establish a connection between the wireless clients and the
wireless router. You don’t have to select the encryption mode and fill in a long encryption
passphrase every time when you try to setup a wireless connection. You only need to
press a button on both wireless client and wireless router, and the WPS will do the rest for
you.
The wireless router supports two types of WPS: WPS via Push Button and WPS via PIN
code. If you want to use the Push Button, you have to push a specific button on the wireless
client or in the utility of the wireless client to start the WPS mode, and switch the wireless
router to WPS mode. You can simply push the WPS button of the wireless router, or click
the ‘Start to Process’ button in the web configuration interface. If you want to use the PIN
code, you have to know the PIN code of the wireless client and switch it to WPS mode, then
fill-in the PIN code of the wireless client through the web configuration interface of the
wireless router.
WPS: Check the box to enable WPS function and uncheck it to disable the WPS function.
WPS Current Status: If the wireless security (encryption) function of this wireless router is
properly set, you’ll see a ‘Configured’ message here. Otherwise, you’ll see
‘UnConfigured’.
Self Pin Code: This is the WPS PIN code of the wireless router. You may need this
information when connecting to other WPS-enabled wireless devices.
SSID: This is the network broadcast name (SSID) of the router.
Authentication Mode: It shows the active authentication mode for the wireless
connection.
Passphrase Key: It shows the passphrase key that is randomly generated by the wireless
router during the WPS process. You may need this information when using a device
which doesn’t support WPS.
39
Interface: If device is set to repeater mode, you can choose “Client” interface to connect
with other AP by using WPS, otherwise you may choose “AP” interface to do WPS
with other clients.
WPS via Push Button: Press the button to start the WPS process. The router will wait for
the WPS request from the wireless devices within 2 minutes.
WPS via PIN: You can fill-in the PIN code of the wireless device and press the button to
start the WPS process. The router will wait for the WPS request from the wireless
device within 2 minutes.
40

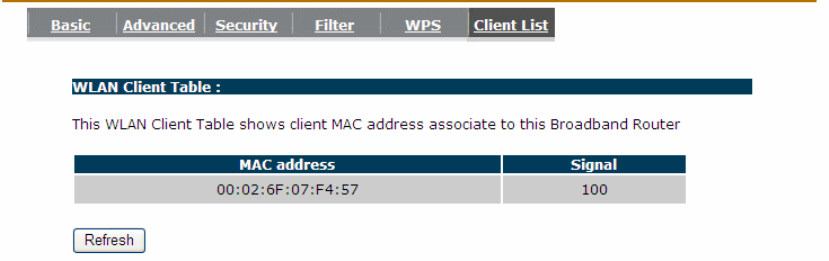

6.7. Client List
This WLAN Client Table shows the Wireless client associate to this Wireless Router.
41

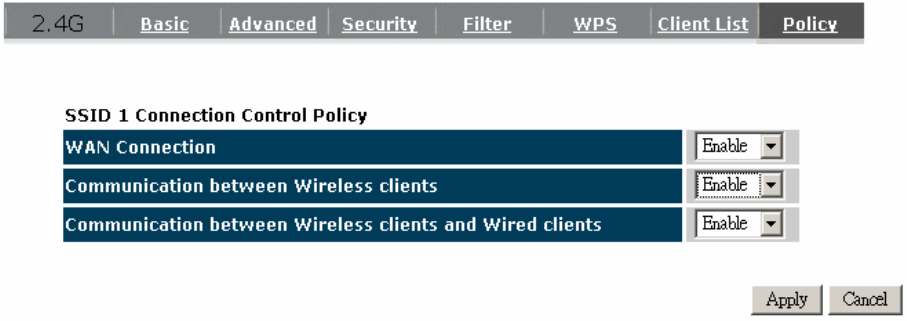

6.8. Policy
Policy provides a list of control policies. These settings define whether wireless or
wired clients are able to “see” each in the LAN.
If you are offering Internet access to your clients, please enable WAN
connection.
If you allow communication between Wireless clients please enable the second
item.
If you allow communication between Wireless client and Wired client please
enable the last item.
Disable WAN connection if you do not provide Internet access.
Disable the items if you would like to enhance privacy between clients.
42
7. FIREWALL

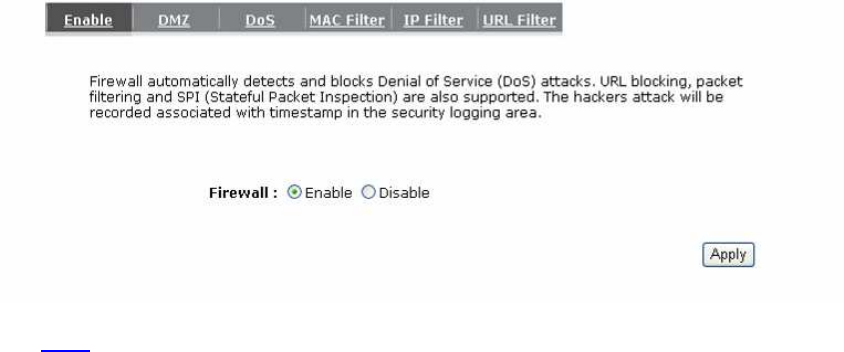

7.1. Enable
The Broadband router provides extensive firewall protection by restricting connection
parameters, thus limiting the risk of hacker attacks, and defending against a wide array of
common Internet attacks. However, for applications that require unrestricted access to the
Internet, you can configure a specific client/server as a Demilitarized Zone (DMZ).
Note: To enable the Firewall settings select Enable and click Apply
43

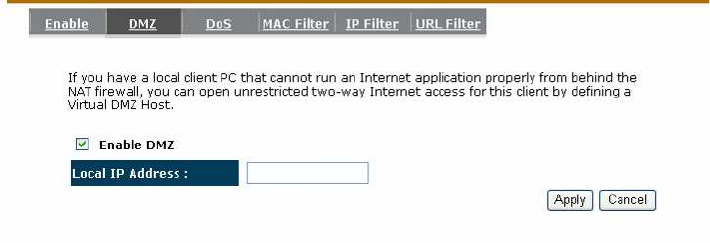

7.2. Demilitarized Zone (DMZ)
If you have a client PC that cannot run an Internet application (e.g. Games) properly from
behind the NAT firewall, then you can open up the firewall restrictions to unrestricted
two-way Internet access by defining a DMZ Host. The DMZ function allows you to re-direct
all packets going to your WAN port IP address to a particular IP address in your LAN. The
difference between the virtual server and the DMZ function is that the virtual server
re-directs a particular service/Internet application (e.g. FTP, websites) to a particular LAN
client/server, whereas DMZ re-directs all packets (regardless of services) going to your
WAN IP address to a particular LAN client/server.
Enable DMZ: Enable/disable DMZ
LAN IP Address: Fill-in the IP address of a particular host in your LAN Network that will
receive all the packets originally going to the WAN port/Public IP address above.
Click <Apply> at the bottom of the screen to save the above configurations.
44
7.3. Denial of Service (DoS)
The Broadband router's firewall can block common hacker attacks, including Denial of
Service, Ping of Death, Port Scan and Sync Flood. If Internet attacks occur the router can
log the events.
Ping of Death: Protections from Ping of Death attack.
Discard Ping From WAN: The router’s WAN port will not respond to any Ping requests
Port Scan: Protects the router from Port Scans.
Sync Flood: Protects the router from Sync Flood attack.
45

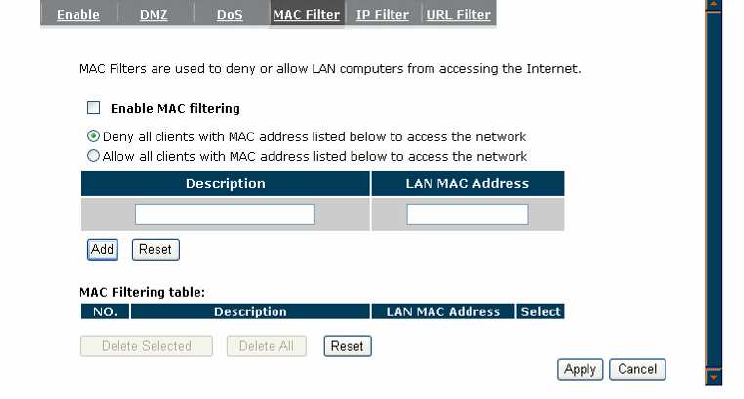

7.4. - MAC Filter
If you want to restrict users from accessing certain Internet applications / services (e.g.
Internet websites, email, FTP etc.), and then this is the place to set that configuration.
Access Control allows users to define the traffic type permitted in your LAN. You can
control which PC client can have access to these services.
Enable MAC Filtering: Check to enable or disable MAC Filtering.
Deny: If you select “Deny” then all clients will be allowed to access Internet accept for the
clients in the list below.
Allow: If you select “Allow” then all clients will be denied to access Internet accept for the
PCs in the list below.
46
Add PC MAC Address
Fill in “LAN MAC Address” and <Description> of the PC that is allowed to access
the Internet, and then click <Add>. If you find any typo before adding it and want to
retype again, just click <Reset> and the fields will be cleared.
Remove PC MAC Address
If you want to remove some PC from the "MAC Filtering Table", select the PC you
want to remove in the table and then click <Delete Selected>. If you want to remove
all PCs from the table, just click the <Delete All> button. If you want to clear the
selection and re-select again, just click <Reset>.
Click <Apply> at the bottom of the screen to save the above configurations.
47
7.5. IP Filter
Enable IP Filtering: Check to enable or disable IP Filtering.
Deny: If you select “Deny” then all clients will be allowed to access Internet accept for the
clients in the list below.
Allow: If you select “Allow” then all clients will be denied to access Internet accept for the
PCs in the list below.
Add PC IP Address
You can click <Add> PC to add an access control rule for users by an IP address
or IP address range.
Remove PC IP Address
If you want to remove some PC IP from the <IP Filtering Table>, select the PC
you want to remove in the table and then click <Delete Selected>. If you want to
remove all PCs from the table, just click the <Delete All> button.
Click <Apply> at the bottom of the screen to save the above configurations.
48

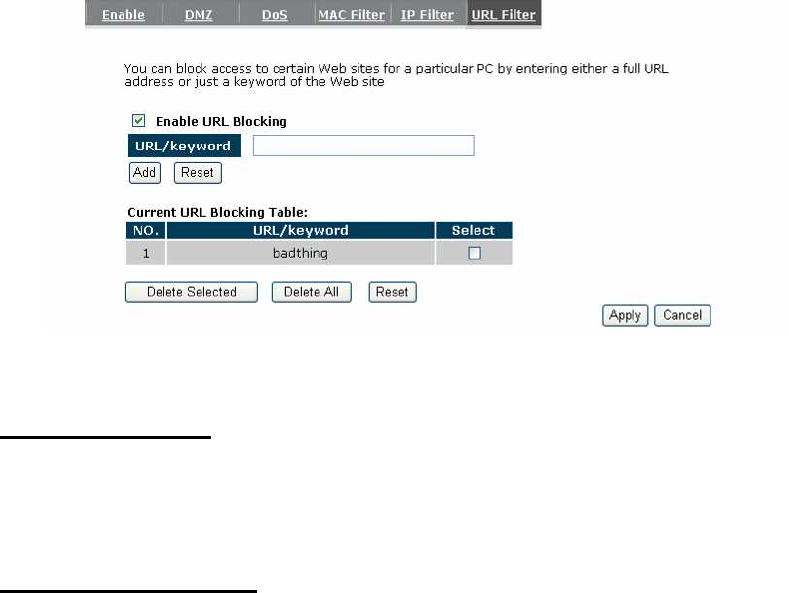

7.6. URL Filter
You can block access to some Web sites from particular PCs by entering a full URL
address or just keywords of the Web site.
Enable URL Blocking: Enable or disable URL Blocking
Add URL Keyword
Fill in “URL/Keyword” and then click <Add>. You can enter the full URL address
or the keyword of the web site you want to block. If you happen to make a mistake
and want to retype again, just click "Reset" and the field will be cleared.
Remove URL Keyword
If you want to remove some URL keywords from the "Current URL Blocking
Table", select the URL keyword you want to remove in the table and then click
<Delete Selected>.
If you want remove all URL keywords from the table, click <Delete All> button. If
you want to clear the selection and re-select again, just click <Reset>.
Click <Apply> at the bottom of the screen to save the above configurations
49
8. Advanced

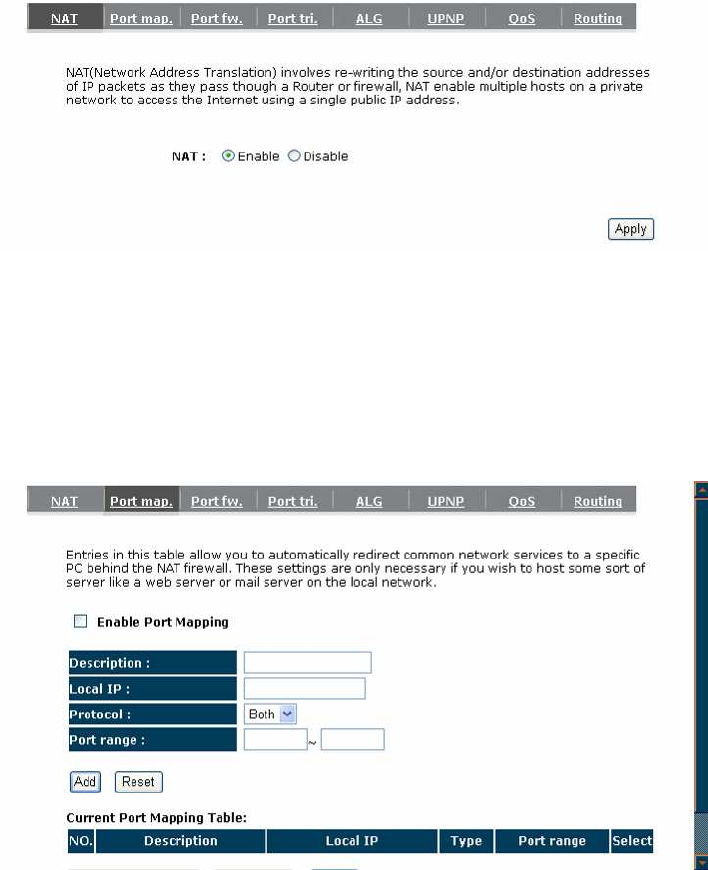

8.1. Network Address Translation (NAT)
Network Address Translation (NAT) allows multiple users at your local site to access the
Internet through a single Public IP Address or multiple Public IP Addresses. NAT provides
Firewall protection from hacker attacks and has the flexibility to allow you to map Private IP
Addresses to Public IP Addresses for key services such as Websites and FTP. Select
Disable to disable the NAT function.
8.2. - Port Mapping
Port Mapping allows you to re-direct a particular range of service port numbers (from the
Internet / WAN Port) to a particular LAN IP address. It helps you to host servers behind the
router NAT firewall.
Enable Port Mapping: Enable or disable port mapping function.
Description: description of this setting.
Local IP: This is the local IP of the server behind the NAT firewall.
Type: This is the protocol type to be forwarded. You can choose to forward “TCP” or “UDP”
packets only, or select “BOTH” to forward both “TCP” and “UDP” packets.
50
Port Range: The range of ports to be forward to the private IP.
Add Port Mapping
Fill in the "Local IP", “Type”, “Port Range” and "Description" of the setting to be
added and then click "Add". Then this Port Mapping setting will be added into the
"Current Port Mapping Table" below. If you find any typo before adding it and want
to retype again, just click <Clear> and the fields will be cleared.
51
Remove Port Mapping
If you want to remove a Port Mapping setting from the "Current Port Mapping
Table", select the Port Mapping setting that you want to remove in the table and then
click D<Delete Selected>. If you want to remove all Port Mapping settings from the
table, click <Delete All> button. Click <Reset> will clear your current selections.
Click <Apply> at the bottom of the screen to save the above configurations.

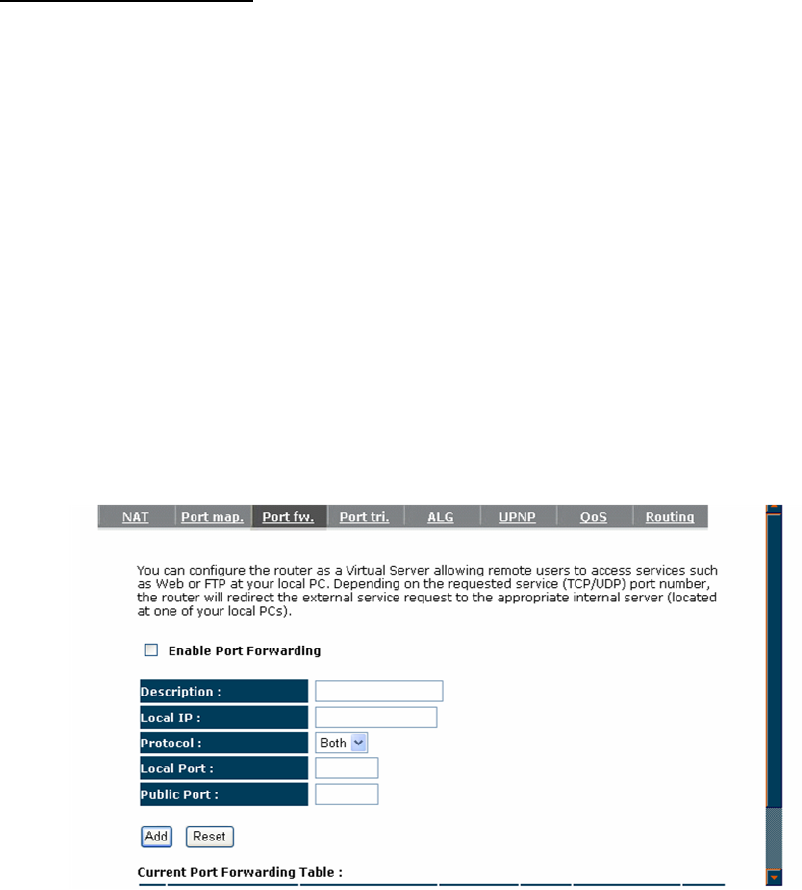

8.3. Port Forwarding (Virtual Server)
Use the Port Forwarding (Virtual Server) function when you want different servers/clients
in your LAN to handle different service/Internet application type (e.g. Email, FTP, Web
server etc.) from the Internet. Computers use numbers called port numbers to recognize a
particular service/Internet application type. The Virtual Server allows you to re-direct a
particular service port number (from the Internet/WAN Port) to a particular LAN private IP
address and its service port number. (See Glossary for an explanation on Port number).
52
Enable Port Forwarding: Enable or disable Port Forwarding.
Description: The description of this setting.
Local IP / Local Port: This is the LAN Client/Host IP address and Port number that the
Public Port number packet will be sent to.
Type: Select the port number protocol type (TCP, UDP or both). If you are unsure, then
leave it to the default “both” setting. Public Port enters the service (service/Internet
application) port number from the Internet that will be re-directed to the above Private
IP address host in your LAN Network.
Public Port: Port number will be changed to Local Port when the packet enters your LAN
Network.
Add Port Forwarding
Fill in the "Description" , "Local IP", "Local Port", "Type" and “Public Port” of the
setting to be added and then click <Add> button. Then this Virtual Server setting will
be added into the "Current Port Forwarding Table" below. If you find any typo
before adding it and want to retype again, just click <Clear> and the fields will be
cleared.
Remove Port Forwarding
If you want to remove Port Forwarding settings from the "Current Port
Forwarding Table", select the Port Forwarding settings you want to remove in the
table and then click "Delete Selected". If you want to remove all Port Forwarding
settings from the table, just click the <Delete All> button. Click <Reset> will clear
your current selections.
Click <Apply> at the bottom of the screen to save the above configurations.

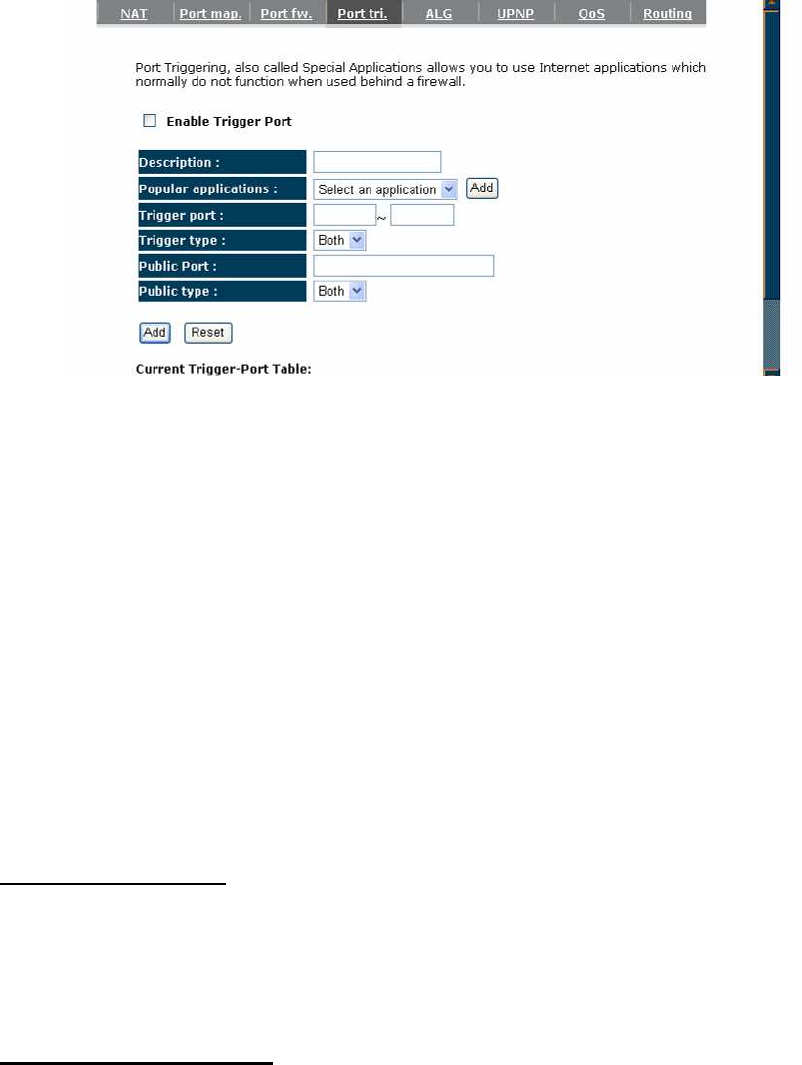

8.4. Port Triggering (Special Applications)
Some applications require multiple connections, such as Internet games, video
Conferencing, Internet telephony and others. In this section you can configure the router to
support multiple connections for these types of applications.
53
Enable Trigger Port: Enable or disable the Port Trigger function.
Trigger Port: This is the outgoing (Outbound) range of port numbers for this particular
application.
Trigger Type: Select whether the outbound port protocol is “TCP”, “UDP” or “BOTH”.
Public Port: Enter the In-coming (Inbound) port or port range for this type of application
(e.g. 2300-2400, 47624)
Public Type: Select the Inbound port protocol type: “TCP”, “UDP” or “BOTH”
Popular Applications: This section lists the more popular applications that require
multiple connections. Select an application from the Popular Applications selection.
Once you have selected an application, select a location (1-10) in the Copy to
selection box and then click the Copy to button. This will automatically list the Public
Ports required for this popular application in the location (1-10) you specified.
Add Port Triggering
Fill in the "Trigger Port", "Trigger Type”, “Public Port”, "Public Type", "Public
Port" and "Description" of the setting to be added and then Click <Add>. The Port
Triggering setting will be added into the "Current Trigger-Port Table" below. If you
happen to make a mistake, just click <Clear> and the fields will be cleared.
Remove Port Triggering
If you want to remove Special Application settings from the "Current Trigger-Port
Table", select the Port Triggering settings you want to remove in the table and then
click <Delete Selected>. If you want remove all Port Triggering settings from the table,
just click the <Delete All> button. Click <Reset> will clear your current selections.

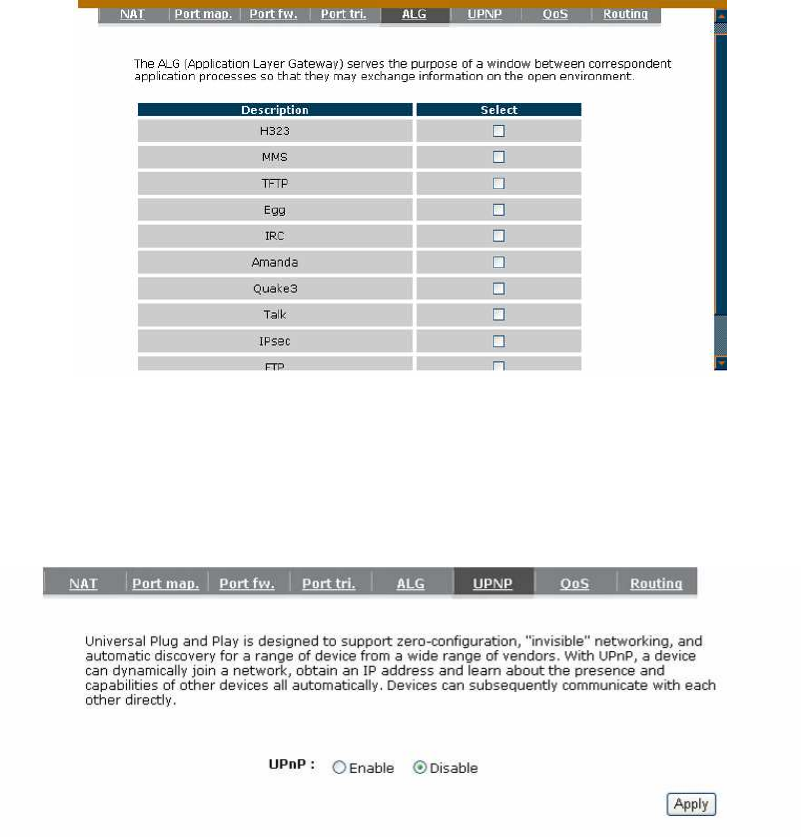

8.5. Application Layer Gateway (ALG)
You can select applications that need ALG support. The router will let the selected
54
application to correctly pass through the NAT gateway.
8.6. UPNP
With UPnP, all PCs in you Intranet will discover this router automatically. So, you don’t
have to configure your PC and it can easily access the Internet through this router.
Enable/Disable UPnP: You can enable or Disable the UPnP feature here. After you
enable the UPnP feature, all client systems that support UPnP, like Windows XP, can
discover this router automatically and access the Internet through this router without
having to configure anything. The NAT Traversal function provided by UPnP can let
applications that support UPnP connect to the internet without having to configure the
virtual server sections.

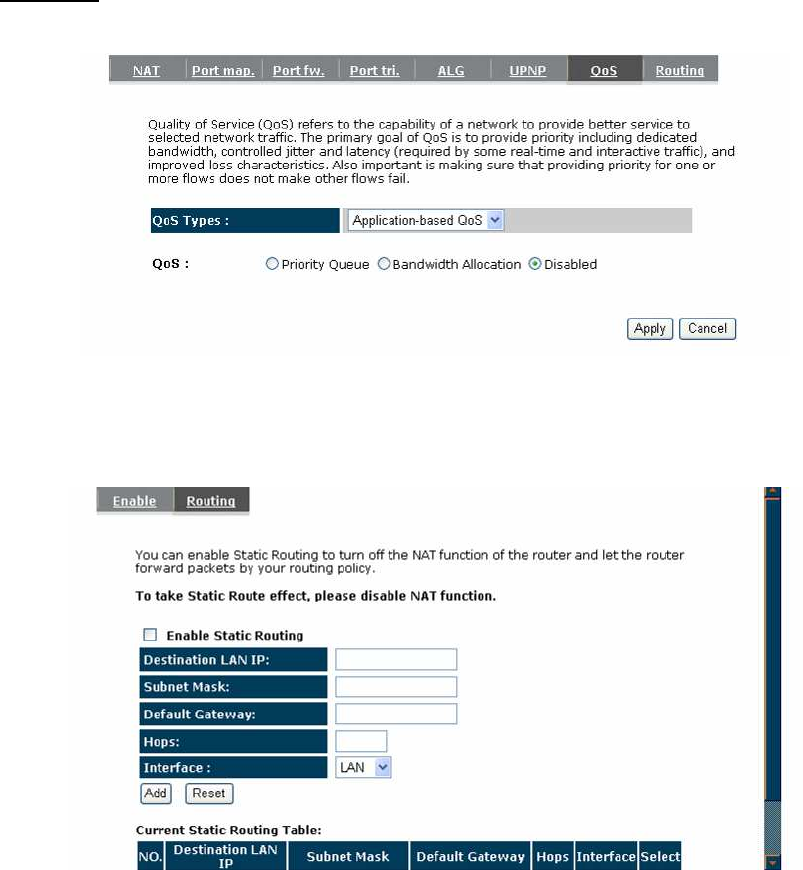

8.7. Quality of Service (QoS)
QoS can let you classify Internet application traffic by source/destination IP address and
port number. You can assign priority for each type of application and reserve bandwidth for
it. The packets of applications with higher priority will always go first. Lower priority
applications will get bandwidth after higher priority applications get enough bandwidth. This
can let you have a better experience in using critical real time services like Internet phone,
video conference …etc. All the applications not specified by you are classified as rule
55
“Others”. The rule with a smaller priority number has a higher priority; the rule with a larger
priority number has a lower priority. You can adjust the priority of the rules by moving them
up or down.
Port-based Qos
This is hardware port-based QoS control method. It will limit the packets throughput in
LAN1~4, WAN port.
Enable Port-based QoS: Check this to enable port-based QoS functionality for the
LAN/WAN port. You can also uncheck to disable.
Priority: High or Low priority level of the transmit packets.
Ingress Rate: The throughput limit of receiving packets.
Egress Rate: The throughput limit of sending packets.
Application-based Qos
This is the application based QoS control method. You can reserve or limit the
bandwidth of some LAN IP address and port number. They will guarantee the throughput
in WAN connection.
Priority Queue Type:
This can put the packets of specific protocols in High/Low Queue. The packets in
High Queue will process first.
56
Unlimited Priority Queue: The LAN IP address will not be bounded in the QoS limitation.
High/Low Priority Queue: This can put the packets in the protocol and port range to
High/Low QoS Queue.
Bandwidth Allocation:
This can reserve / limit the throughput of specific protocols and port range. You can
set the upper bound and Lower bound.
Type: Specify the direction of packets. Upload or download.
IP range: Specify the IP address range. You could also fill one IP address
Protocol: Specify the packet type. The default ALL will put all packets in the QoS priority
Queue.
Port range: Specify the Port range. You could also fill one Port.
57
Policy: Specify the policy the QoS, Min option will reserve the selected data rate in QoS
queue. Max option will limit the selected data rate in QoS queue.
Rate: The data rate of QoS queue.
Disabled: This could turn off QoS feature.
8.8. Routing
You can set enable Static Routing to let the router forward packets by your routing policy.
Destination LAN IP: Specify the destination LAN IP address of static routing rule.
Subnet Mask: Specify the Subnet Mask of static routing rule.
Default Gateway: Specify the default gateway of static routing rule.
Hops: Specify the Max Hops number of static routing rule.
Interface: Specify the Interface of static routing rule.
58
9. TOOLS

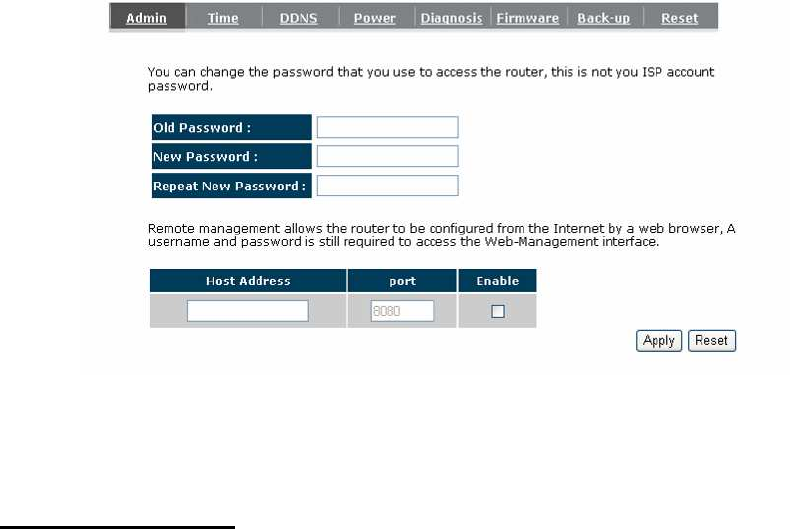

9.1. Admin
You can change the password required to log into the broadband router's system
web-based management. By default, the password is: admin. Passwords can contain 0 to
12 alphanumeric characters, and are case sensitive.
Current Password: Fill in the current password to allow changing to a new password.
New Password: Enter your new password and type it again in Repeat New Password for
verification purposes
Remote managemen
t
This allows you to designate a host in the Internet the ability to configure the
Broadband router from a remote site. Enter the designated host IP Address in the
Host IP Address field.
Host Address: This is the IP address of the host in the Internet that will have
management/configuration access to the Broadband router from a remote site. If the
Host Address is left 0.0.0.0 this means anyone can access the router’s web-based
configuration from a remote location, providing they know the password.
Port: The port number of the remote management web interface.
Enabled: Check to enable the remote management function.
Click <Apply> at the bottom of the screen to save the above configurations.
59

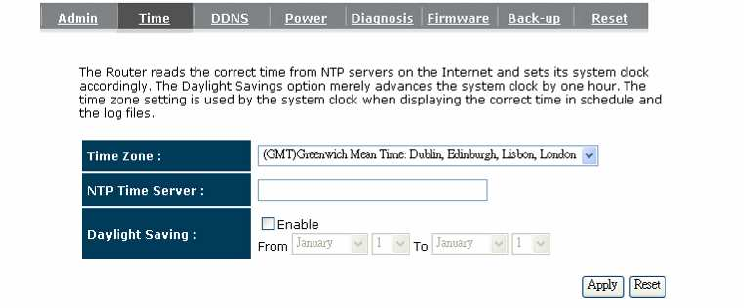

9.2. Time
The Time Zone allows your router to reference or base its time on the settings configured
here, which will affect functions such as Log entries and Firewall settings.
Time Zone: Select the time zone of the country you are currently in. The router will set its
time based on your selection.
NTP Time Server: The router can set up external NTP Time Server.
Daylight Savings: The router can also take Daylight Savings into account. If you wish to
use this function, you must select the Daylight Savings Time period and check/tick
the enable box to enable your daylight saving configuration.
Click <Apply> at the bottom of the screen to save the above configurations.
60

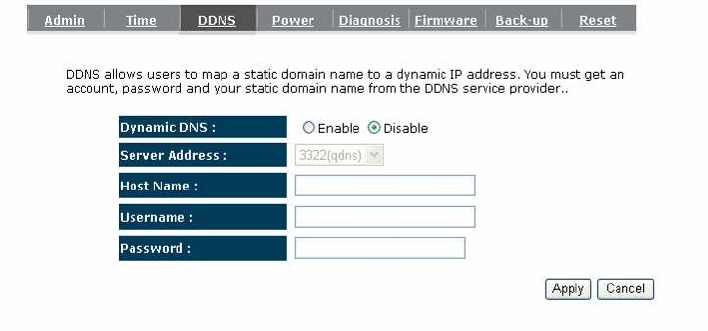

9.3. DDNS
DDNS allows you to map the static domain name to a dynamic IP address. You must get
an account, password and your static domain name from the DDNS service providers. This
router supports DynDNS, TZO and other common DDNS service providers.
Enable/Disable DDNS: Enable or disable the DDNS function of this router
Server Address: Select a DDNS service provider
Host Name: Fill in your static domain name that uses DDNS.
Username: The account that your DDNS service provider assigned to you.
Password: The password you set for the DDNS service account above
Click <Apply> at the bottom of the screen to save the above configurations.
61
9.4. Power
Saving power in WLAN/Ethernet mode can be enabled/disabled in this page.
62
9.5. Diagnosis
This page could let you diagnosis your current network status.
63
9.6. Firmware
This page allows you to upgrade the router’s firmware. To upgrade the firmware of your
Broadband router, you need to download the firmware file to your local hard disk, and enter
that file name and path in the appropriate field on this page. You can also use the Browse
button to find the firmware file on your PC.
Once you’ve selected the new firmware file, click <Apply> at the bottom of the screen to
start the upgrade process
64

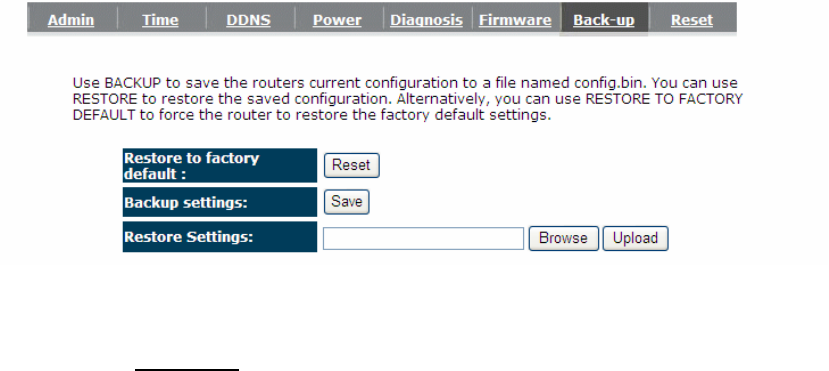

9.7. Back-Up
This page allows you to save the current router configurations. When you save the
configurations, you also can re-load the saved configurations into the router through the
Restore Settings. If extreme problems occur you can use the Restore to Factory Defaults to
set all configurations to its original default settings.
Backup Settings: This can save the Broadband router current configuration to a file
named "config.bin" on your PC. You can also use the <Upload> button to restore
the saved configuration to the Broadband router. Alternatively, you can use the
"Restore to Factory Defaults" tool to force the Broadband router to perform a power
reset and restore the original factory settings.
65

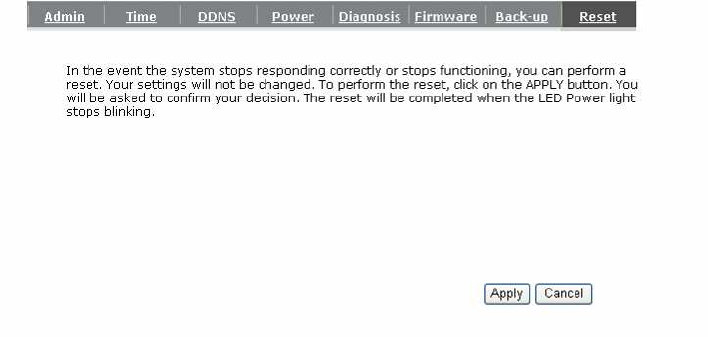

9.8. Reset
You can reset the broadband router when system stops responding correctly or stop
functions.
66
Appendix A – FCC Interference Statement
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate this equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
We declare that the product is limited in CH1~CH11 by specified firmware controlled in the USA.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
67
Appendix B – IC Interference Statement
Industry Canada statement:
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
IMPORTANT NOTE:
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
This device has been designed to operate with an antenna having a maximum gain of 2 dBi. Antenna having a
higher gain is strictly prohibited per regulations of Industry Canada. The required antenna impedance is 50 ohms.
68
