1 Purpose
The purpose of this guide is to describe the basic features of the PT300.
2 Introduction
2.1 What is a PT300
The PT300 is a wireless tracking device which operates on the CDMA network
using assisted GPS for location.
It is used for tracking valuable packages or assets.
2.2 How does a PT300 work
It establishes a data connection through either the cellular or the PCS band similar
to a mobile phone.
A user can send a SMS message through an internet connection or a mobile phone
to the device by calling its phone number. The device gets its location and send it
back to the user via the CDMA network.
3 Getting Started
3.1 Battery Tips
Battery life depends on the network, signal strength,
temperature, features, and accessories you use.
Always use Sendum Original batteries and battery chargers. The warranty does
not cover damage caused by non-Sendum batteries and/or chargers.
New batteries or batteries stored for a long time may take more time to charge.
When charging your battery, keep it near room temperature.
When storing your battery, keep it uncharged in a cool, dark, dry place, such as a
refrigerator.
Never expose batteries to temperatures below -10°C (14°F) or above 45°C
(113°F). Always take your device with you when you leave your vehicle.
It is normal for batteries to gradually wear down and require longer charging
times. If you notice a change in your battery life, it is probably time to purchase a
new battery.
Contact your local recycling center for proper battery disposal.
Warning: Never dispose of batteries in a fire because they may explode.
Before using your device, please read the battery safety information in the Safety and
General Information section included in this guide.
SENDUM WIRELESS, CORP.
3.2 Installing the Battery
Slide the battery pack into the PT300 battery slot using the guiding tabs until the latch
clicks into place.
3.3 Removing the Battery
Pull the latch and slide the battery pack away from the PT300 housing at the same time.
3.4 Charging the Battery
New batteries are shipped partially charged. Before you can use your device, install and
charge the battery as described below. Some batteries perform best after several full
charge/discharge cycles.
3.4.1 Charging using the PT300 Device
Simply attached the Sendum charger into the device and plug the AC adapter to the AC
outlet.
3.4.2 Charging using Gang Charger
To be updated later.
4 Provisioning Your Device
Connect your device using the sendum USB cable. If problem communicating
with the device. Use the following documents for troubleshooting:
DEX00003 (DOC
QUALCOMM USB DRIVER INSTALLATION).doc

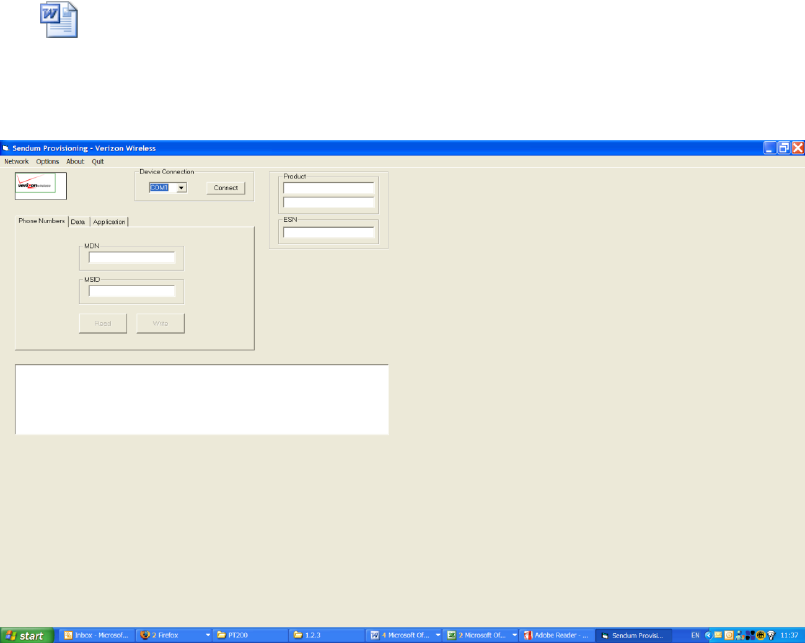

Open the Sendum Provisioning Tool. Should look like:
SENDUM WIRELESS, CORP.
Select the com port that the device is communicating, then press “Connect”. The
ESN will be shown.
If the device is already provisioned, the “Read” button is used to check.
Now all provisioning parameters can be entered into the appropriate boxes.
Press “Write” to load into the device.
5 PT300 Command Set
The PT300 supports the following commands. There are sent to the device using SMS
messages:
//BREW:0x12345678:PSW2,PROVISION,PDE,<ip_address>:<port>
Sets the PDE address used by the device. In control plane architectures, this is the address
of the Control Plane Server. In user plane architectures, this is the address of the actual
PDE.
//BREW:0x12345678:PSW2,PROVISION,APP,<ip_address>:<port>
Sets the APP address of used by the device. All messages from the device are sent to this
IP address.
//BREW:0x12345678:PSW2,COMMAND,STATUS
Causes the device to send a status report.
//BREW:0x12345678:PSW2,COMMAND,LOCATE
Causes the device to locate itself and send a location report.
//BREW:0x12345678:PSW2,REPORT,STATUS,<interval>
Causes the device to send a status report every <interval> seconds.
//BREW:0x12345678:PSW2,REPORT,LOCATION,<interval>
Causes the device to send a location report every <interval> seconds.
The device sends the following messages to the APP IP address:
@RESPONSE,<MDN>,PSW2,RESPONSE,STATUS,BATTERY=<0..255>,
TEMPERATURE=<0..255>
Indicates device status.
SENDUM WIRELESS, CORP.
@RESPONSE,<MDN>,PSW2,RESPONSE,LOCATE,FOUND
Indicates that the device found itself. This is in response to a command to locate the
device. Actual location results are returned from the PDE and vary from carrier to carrier.
6 Locating Your PT300
In order to Locate your PT300, send it the following SMS message:
PSW1,LOCATE,0
6.1 Frequent Tracking
In order to Track (repeated locating) your PT300, send it an SMS message in the
following format:
PSW1,LOCATE,X
where the value of X is specified according to the following table:
1
wait 15 seconds before locating again
2
wait 30 seconds before locating again
3
wait 45 seconds before locating again
4
wait 60 seconds before locating again
5
wait 75 seconds before locating again
6
wait 90 seconds before locating again
7
wait 105 seconds before locating again
8
wait 120 seconds before locating again
9
wait 135 seconds before locating again
To stop Tracking your PT300 in this mode, send it the following SMS message:
PSW1,LOCATE,0
6.2 Periodic Tracking
In order to Track (repeated locating) your PT300, send it an SMS message in the
following format:
PSW1,REPORT,X
where the value of X is specified according to the following table:
1
wait 15 minutes before locating again
2
wait 30 minutes before locating again
3
wait 45 minutes before locating again
4
wait 60 minutes before locating again
5
wait 75 minutes before locating again
6
wait 90 minutes before locating again
SENDUM WIRELESS, CORP.
7
wait 105 minutes before locating again
8
wait 120 minutes before locating again
9
wait 135 minutes before locating again
To stop Tracking your PT300 in this mode, send it the following SMS message:
PSW1,REPORT,0
6.3 Fast Tracking
In order to Track (repeated locating) your PT300, send it an SMS message in the
following format:
PSW1,FIND
Your PT300 will wait three seconds before locatiing again.
To stop Tracking your PT300 in this mode, send it the following SMS message:
PSW1,STOPFIND
7 Using the Diagnostic Tool
With the unit connected, open the Sendum Diagnostic Tool:
SENDUM WIRELESS, CORP.
9 Important Safety and Legal Information
IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATION. READ
THIS INFORMATION BEFORE USING YOUR DEVICE.
Never attempt to disassemble your PT300. If service or repair is required, return
the device to an authorized Sendum service centre.
Always use Sendum provided accessories. Use of incompatible equipment could
result in fire, electric shock, or bodily injury.
Never allow children to play with your PT300.
Never store or transport flammable liquids, gases, or explosive materials in the
same compartment as your PT300 or any of its accessories.
Always secure your PT300. Never place the device on the passenger seat or
anyplace else in the vehicle where it can become a projectile during collision or
sudden stop.
Never expose your PT300 to high temperatures, such as those found near a heater.
This can cause heat damage to the plastic components, the electronic components,
and the backup battery.
Never drop your PT300 or expose it to violent impact or shock. This can cause
mechanical damage.
Never use harsh chemicals, cleaning solvents, or strong detergents to clean your
PT300.
Never attempt to dispose of your PT300 by throwing it into a fire.
Your PT300 is not to be operated in body-worn applications. Keep your PT300
twenty (20 cm) centimeters or more from a human body when operating.
Ensure your PT300 is powered off prior to shipping by air.
Do not proceed into areas posted “Turn off two-way radio”, such as blasting
areas.
Do not install your PT100 in the area over an airbag. If the airbag inflates, serious
injury could result.
9.1 RF Energy Interference/Compatibility
Note: Nearly every electronic device is susceptible to RF energy interference from
external sources if inadequately shielded, designed, otherwise configured for RF energy
compatibility. In some circumstances your PT300 may cause interference.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation.
