User manual

Sensibo Sky
User Manual
App Installation Wizard
Installation
A/C settings
Scheduling
Geofencing and Anticipate my Arrival feature
Open API and integrations
Sharing your AC with others
FAQ and Troubleshooting
How can I turn the A/C on or off?
How can I change the A/C state to cool, heat, etc.?
How can I change the fan level of my A/C?
How can I set a timer for my A/C?
How can I change the name or icon of my A/C?
How can I invite other people to use my A/C?
How can I set and edit schedules for my A/Cs?
How can I delete a schedule?
How can I setup another Smart A/C?
How can I reset my Sensibo user password?
I get a “device is disconnected” notification in the app, what
does it mean?
Cannot join Wi-Fi network
Android only - Network has no internet connection
Android only - App cannot find your smart A/C’s network
Android only - Cannot connect to your Smart A/C network
Smart A/C Installation issues
My Smart A/C cannot connect to my local network
Cannot join Wi-Fi network
Network has no internet connection
Certification
Welcome
Hi,
In this manual we will guide you through the installation and
operation of Sensibo Sky: Make your air conditioner smart.
Sensibo Sky is a device that upgrades your existing air conditioner
to connect to the internet and makes it smart. It lets you control the
air conditioner from anywhere using your smartphone, monitor the
temperature and humidity remotely, set 7-day scheduling, make
your air conditioner turn on and off automatically and much more.
Compatibility
Sensibo can be installed to control any air conditioner that comes
with a remote control. These include split (wall mounted) air
conditioners, central air conditioners with a remote control,
window air conditioners, room air conditioners, cassettes and
more.
As long as the air conditioner can be controlled with a remote,
Sensibo can be installed and used with it.
Sensibo also needs WiFi access to operate.
Installation
App Installation Wizard
Sensibo app will guide you through the installation process.
Download the free Sensibo app to your mobile device:
For iOS devices, search for ‘Sensibo’ on the app store or go to
sensibo.com/pages/ios
For Android devices, search for ‘Sensibo’ on Google Play store or go
to sensibo.com/pages/android
Installation
1. Launch the app and sign up. If you already signed, just log in:

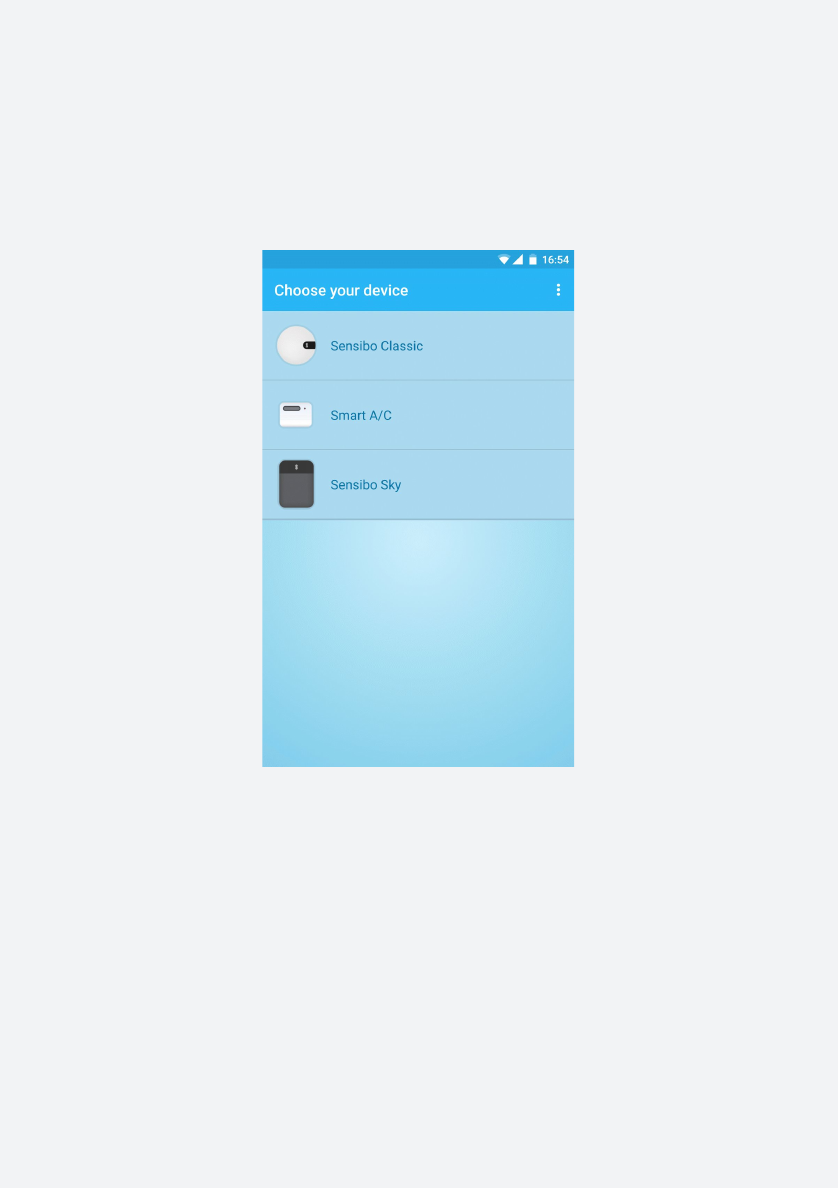

2. If this is your first installation, select ‘Sensibo Sky’ from the
menu.
If you already have some devices install, click on the
‘settings’ icon and select ‘Setup a new Sensibo device’

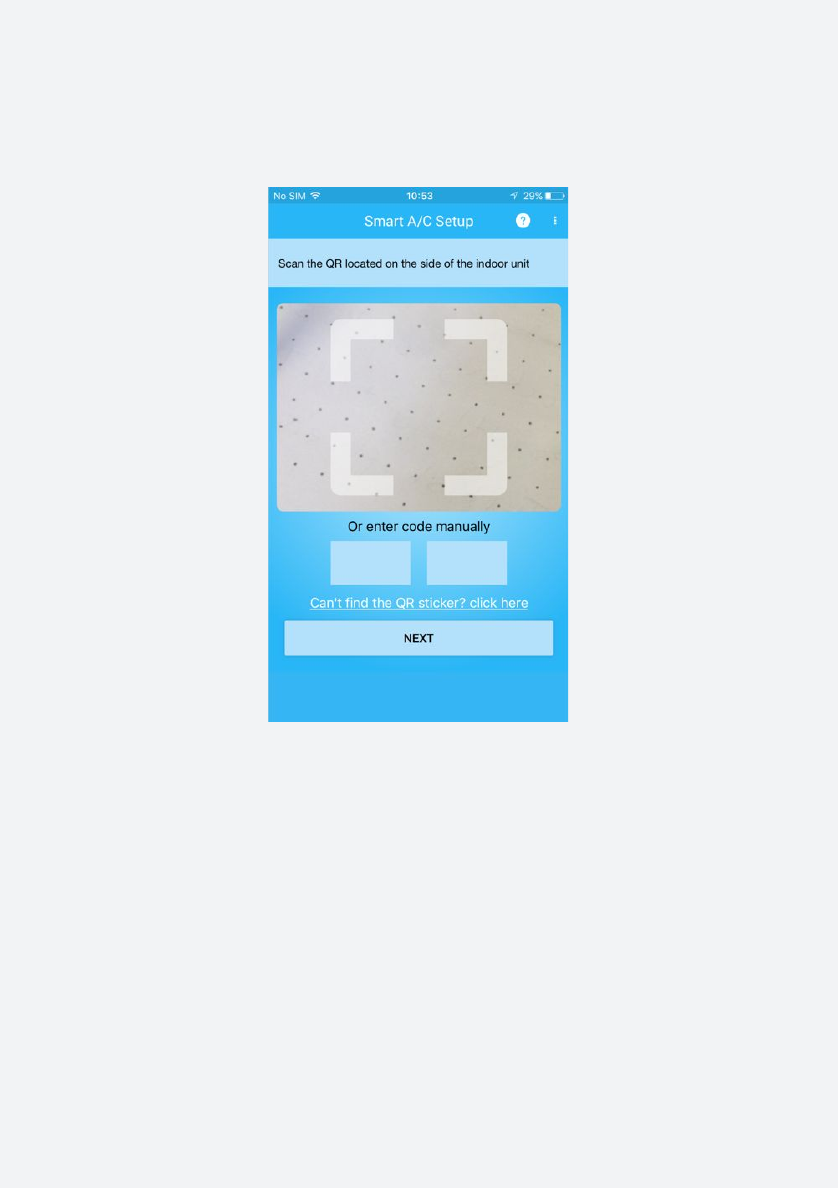

3. Scan the QR code that is provided on the device

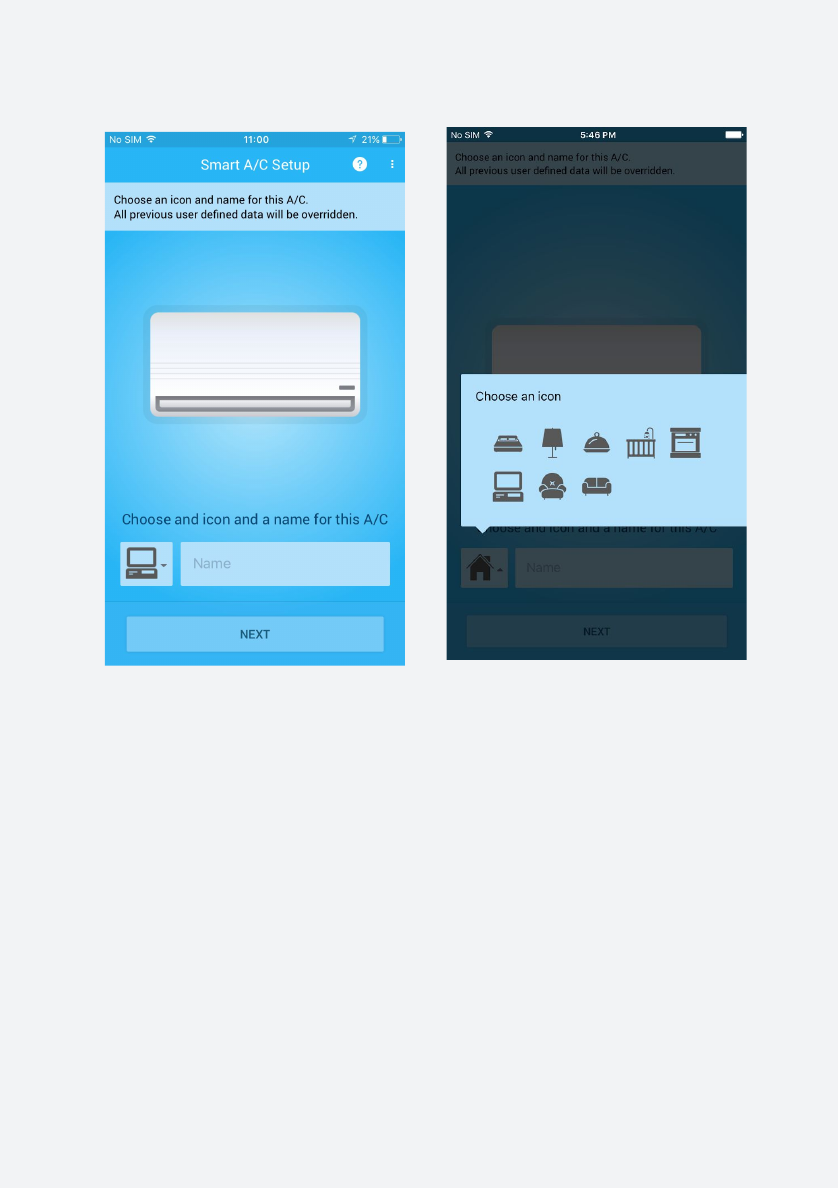

4. Select a name and icon for the AC and your Sensibo Inside
5. Detect your remote control
6a. Android devices: The app will ask for the password of your
networks and will automatically configure Sensibo Sky.

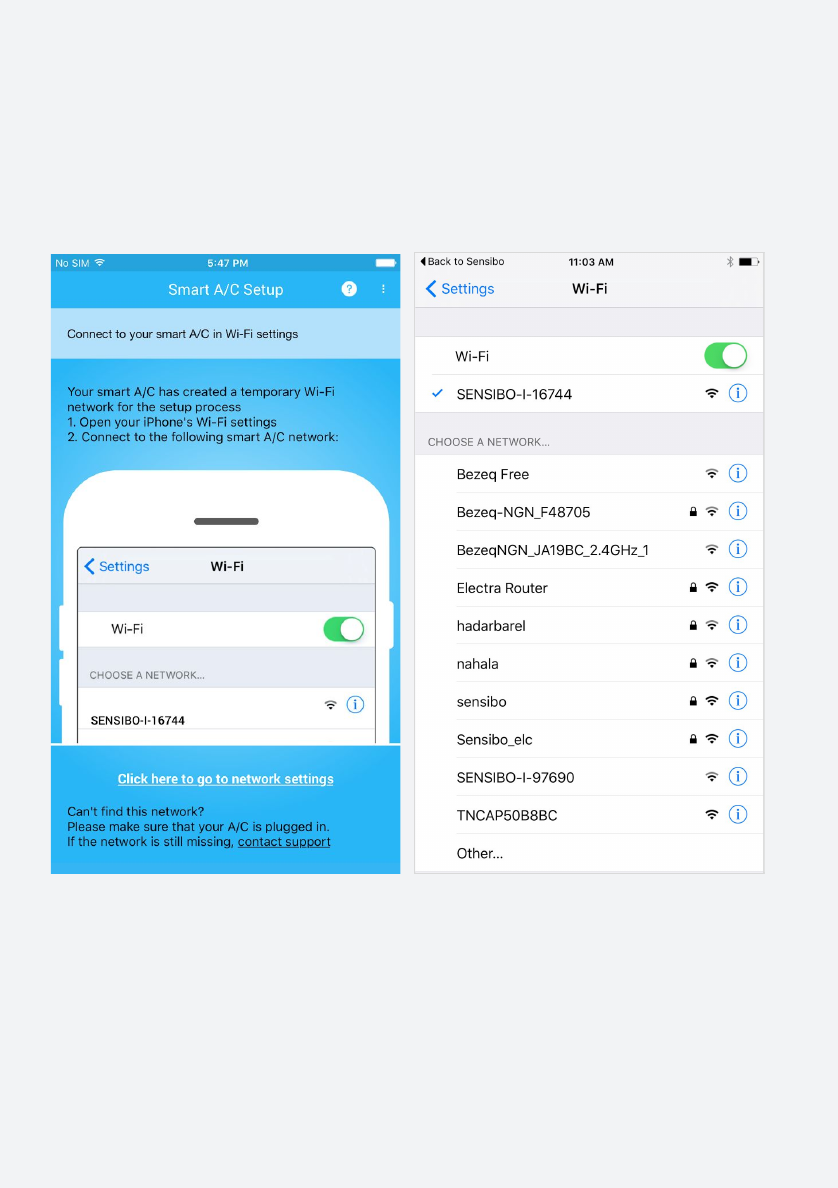

6b. iOS devices only: Connect to the device’s access point as
detailed in the next screen (each device creates a unique Access
Point, you’ll see the exact name)

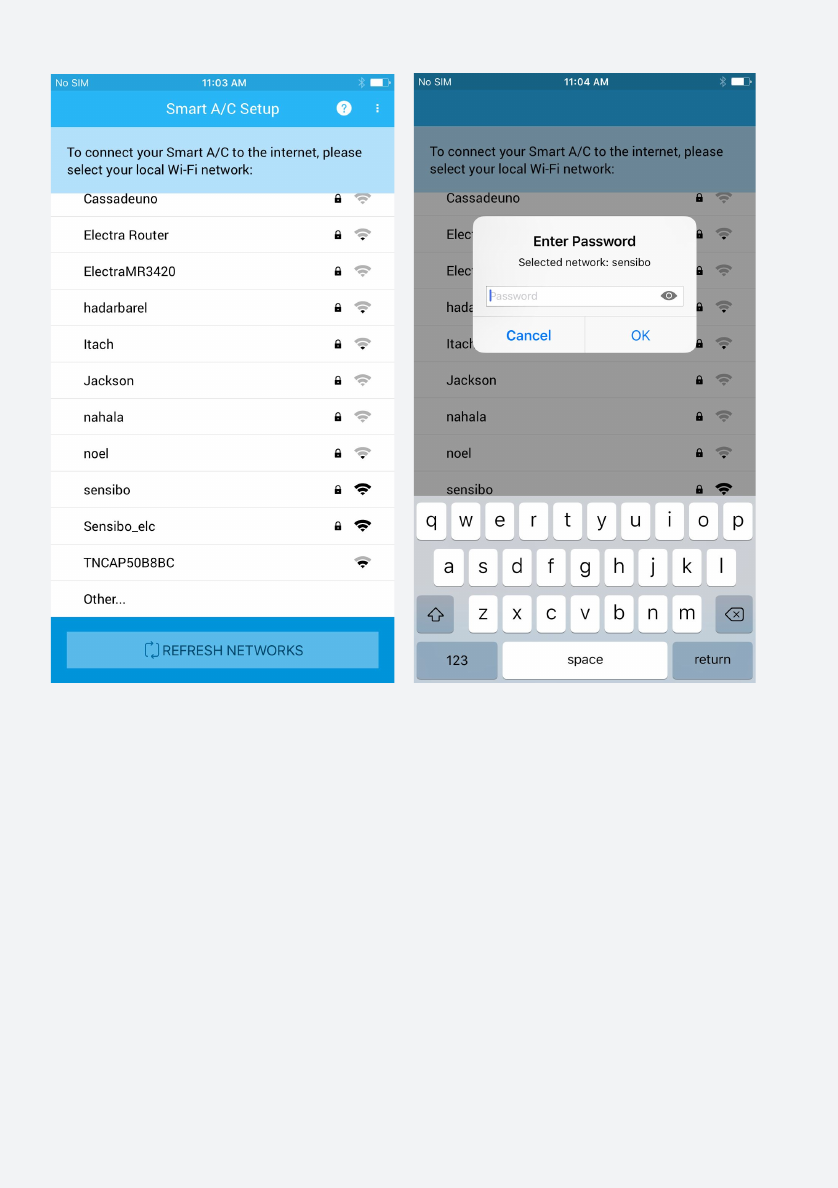

7. Locate your local Wi-Fi network in the list and connect to it

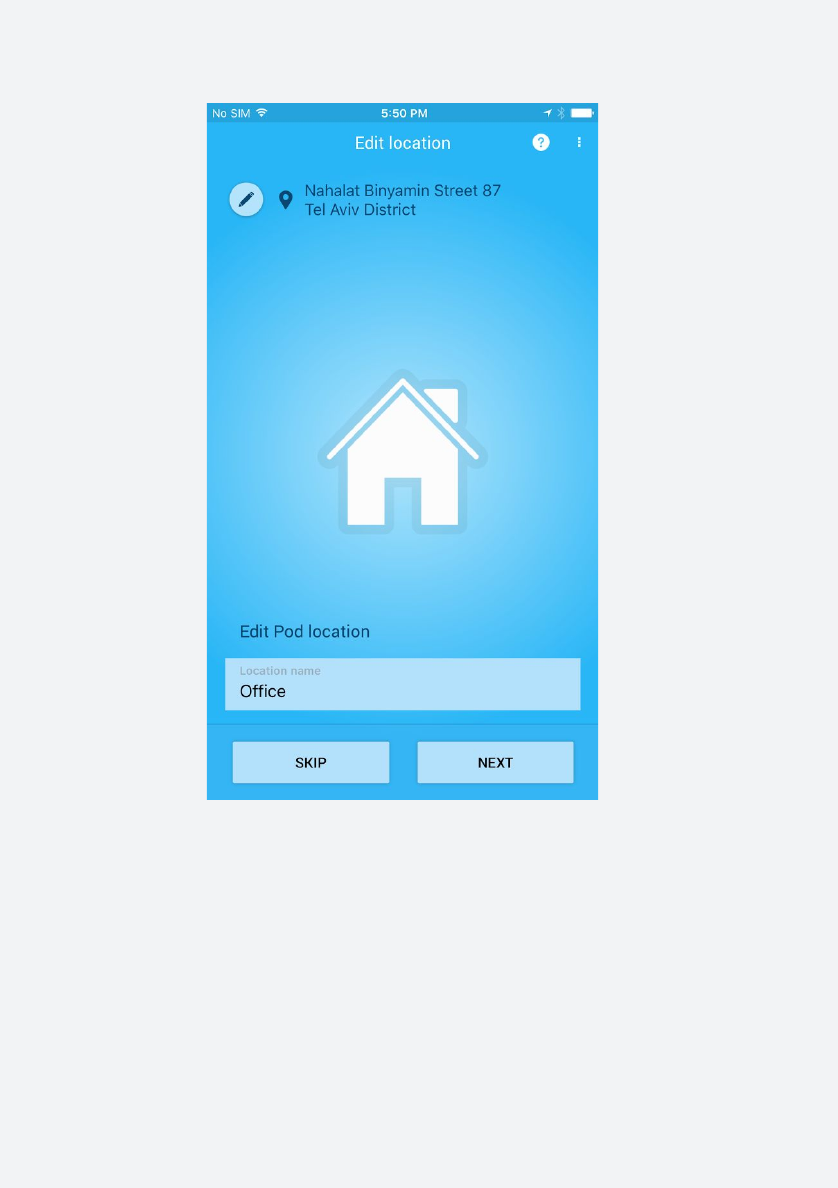

8. Name your location and you’re done!
Operating the Sensibo App
The main screen of each A/C has live information about
temperature and humidity in the room, the current settings of the
A/C and enables you to control your A/C from anywhere manually
or by using Sensibo’s in-app automations.

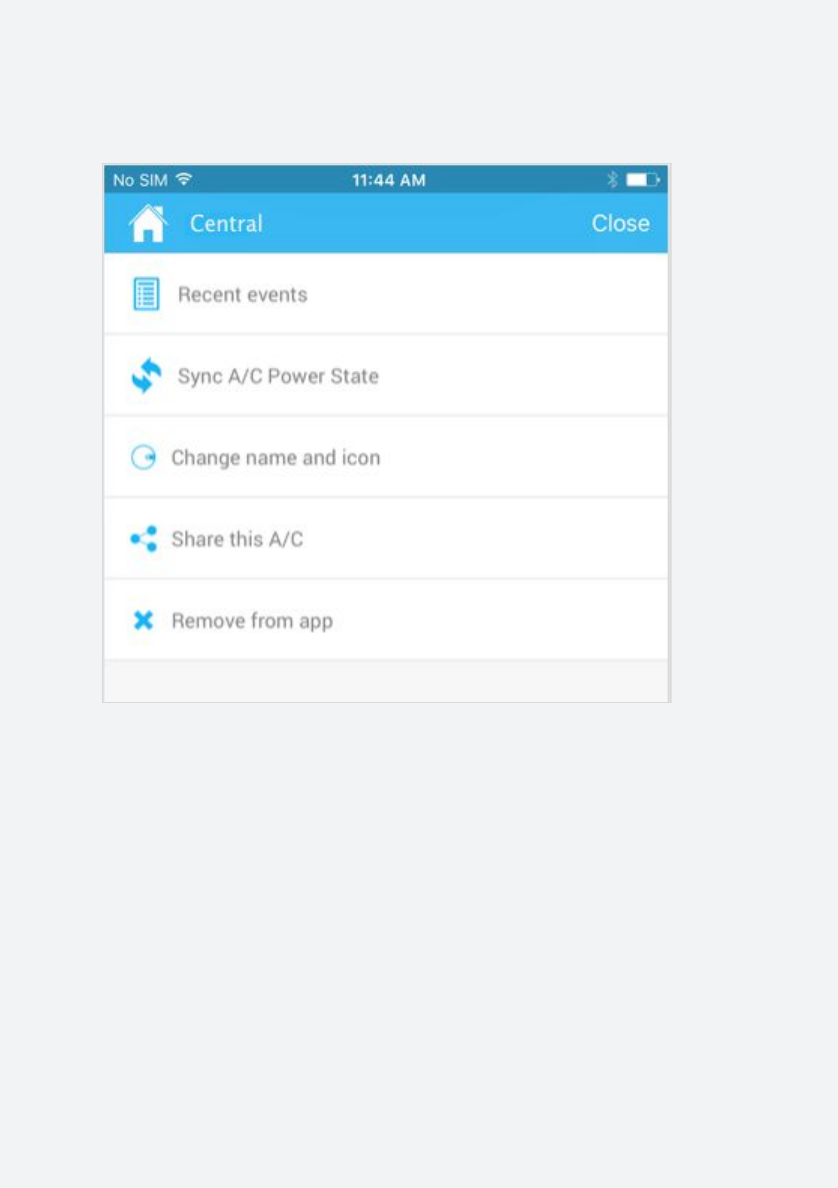

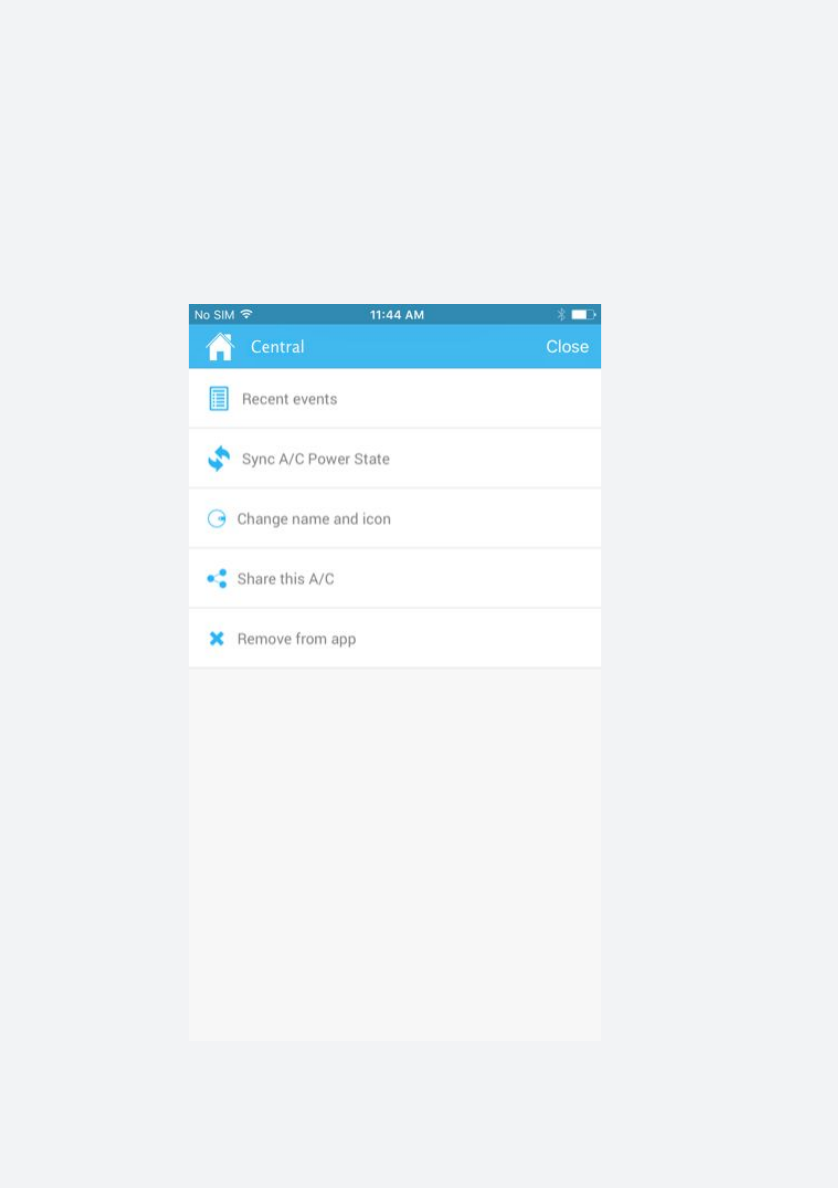

A/C settings

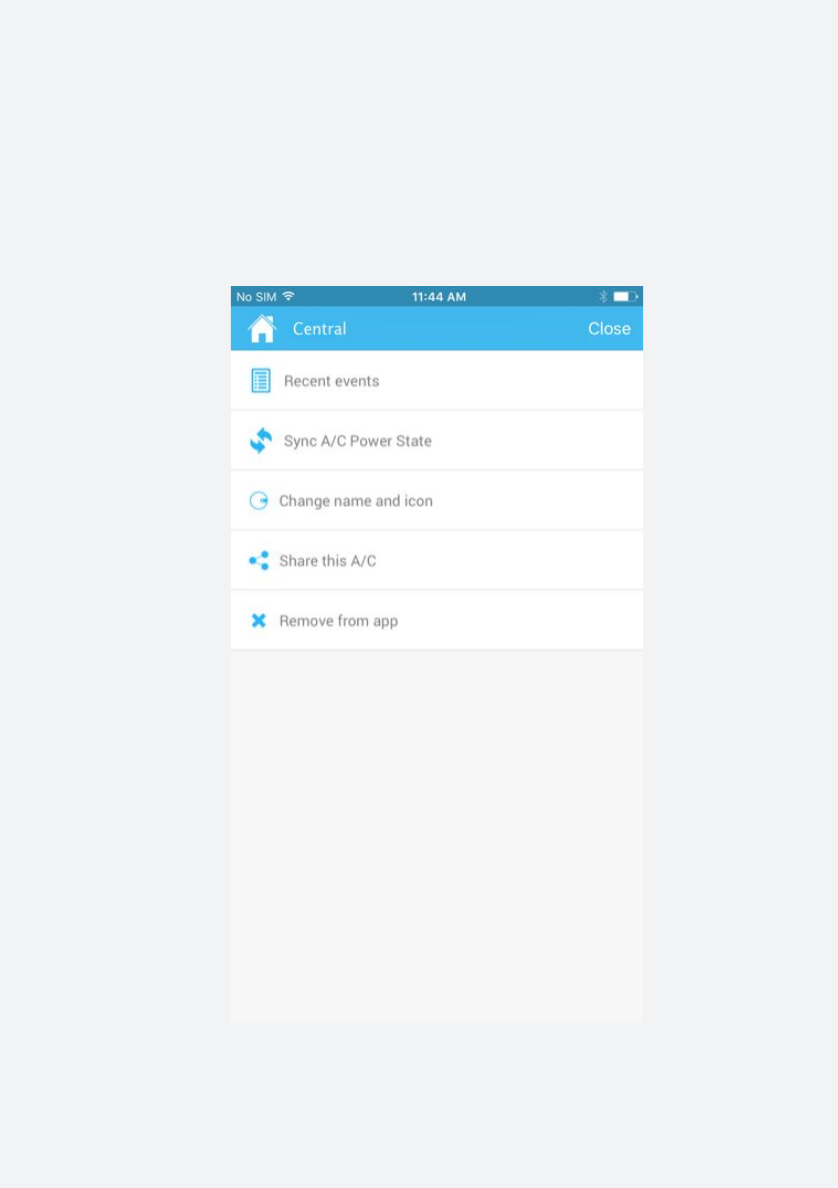

In the screen you can view Recent Events you and other users of
this A/C performed, sync the A/C power state, change name and
icon of this device, share it with family/friends/colleagues and
remove this device from your Sensibo account.
Scheduling
With Sensibo you can automate your AC’s on and off times.
Select an AC to apply the schedule to, whether you’d like to turn it
on or off, other AC settings like temperature, mode and fan level
and the time to do the action. You can create multiple schedules for
each AC and create schedules for all your connected ACs.

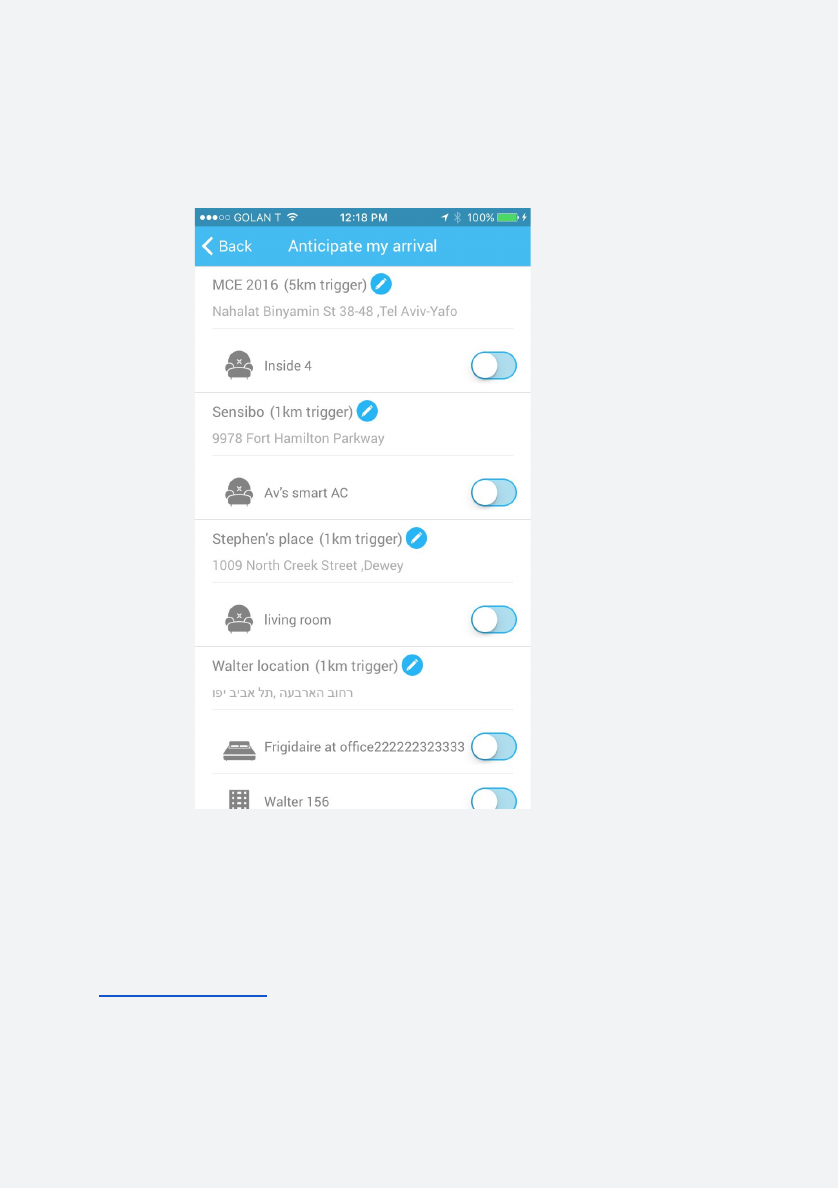

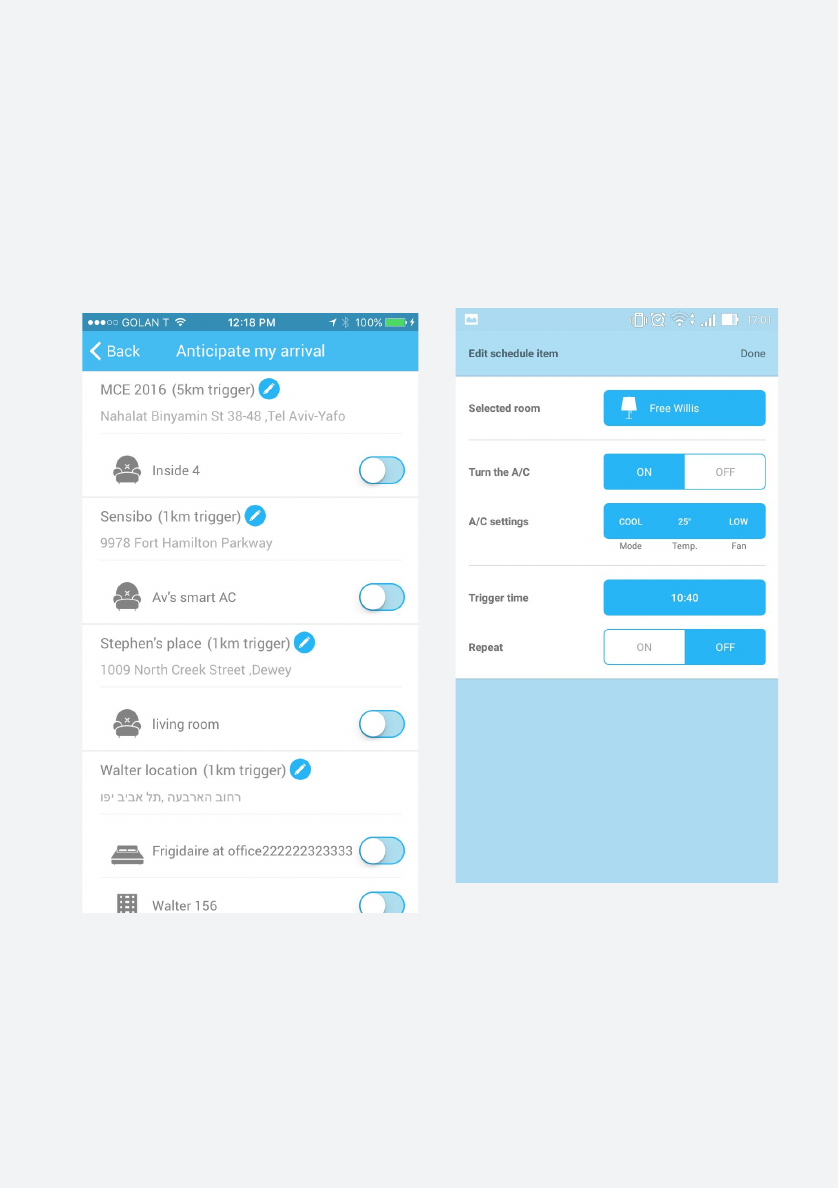

Geofencing and Anticipate my Arrival feature
Sensibo can turn on your AC automatically before you arrive when
you enter a predefined geofence radius (1km/2km/5km/10km).
Open API and integrations
Sensibo is open and can be integrated into other services. You can
view our current integrations and read more about the API here:
bit.ly/sensiboAPI
Sharing your AC with others
You can easily grant access to your AC to family members, friends,
colleagues and more. Other users of the AC need to download and

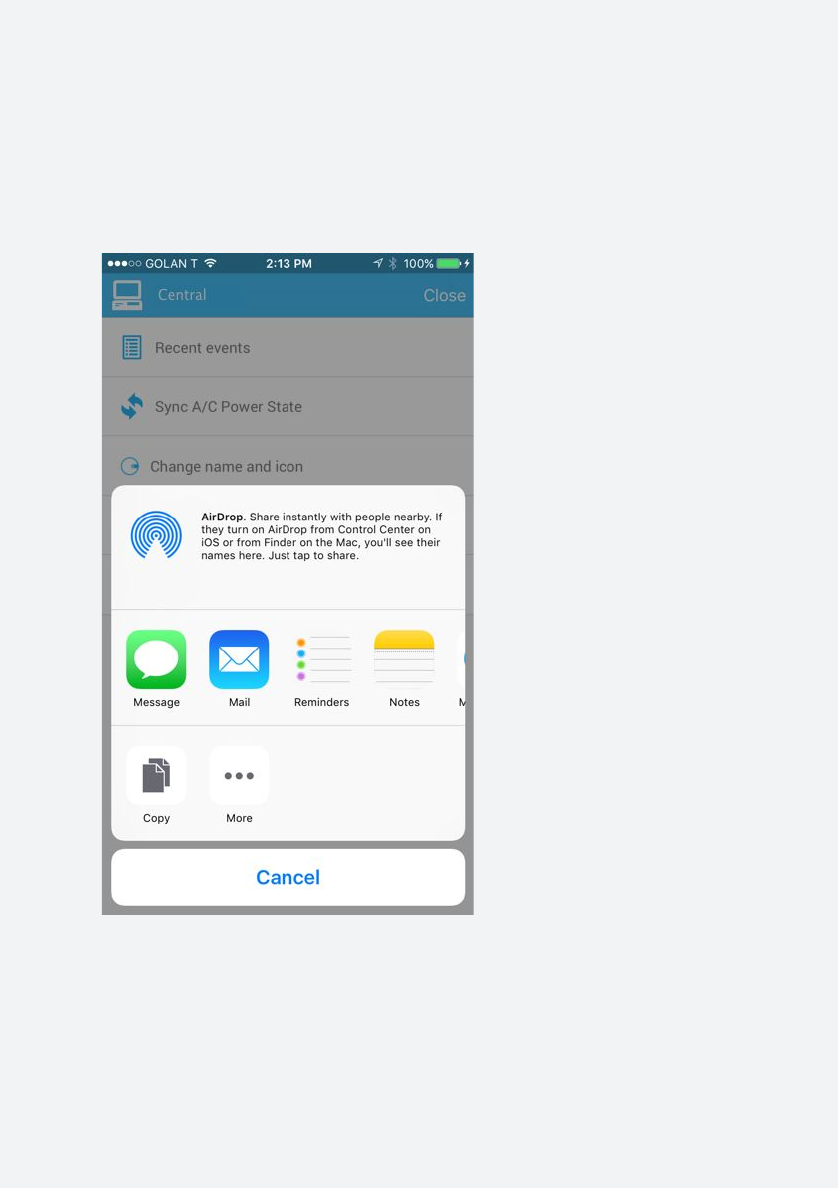

install the Sensibo app on their mobile device. To share your AC, go
to the AC settings and select “Share this AC”, then select how to
share the access link - via email, IM apps, etc. Each invitation can be
used one time only.
FAQ and Troubleshooting

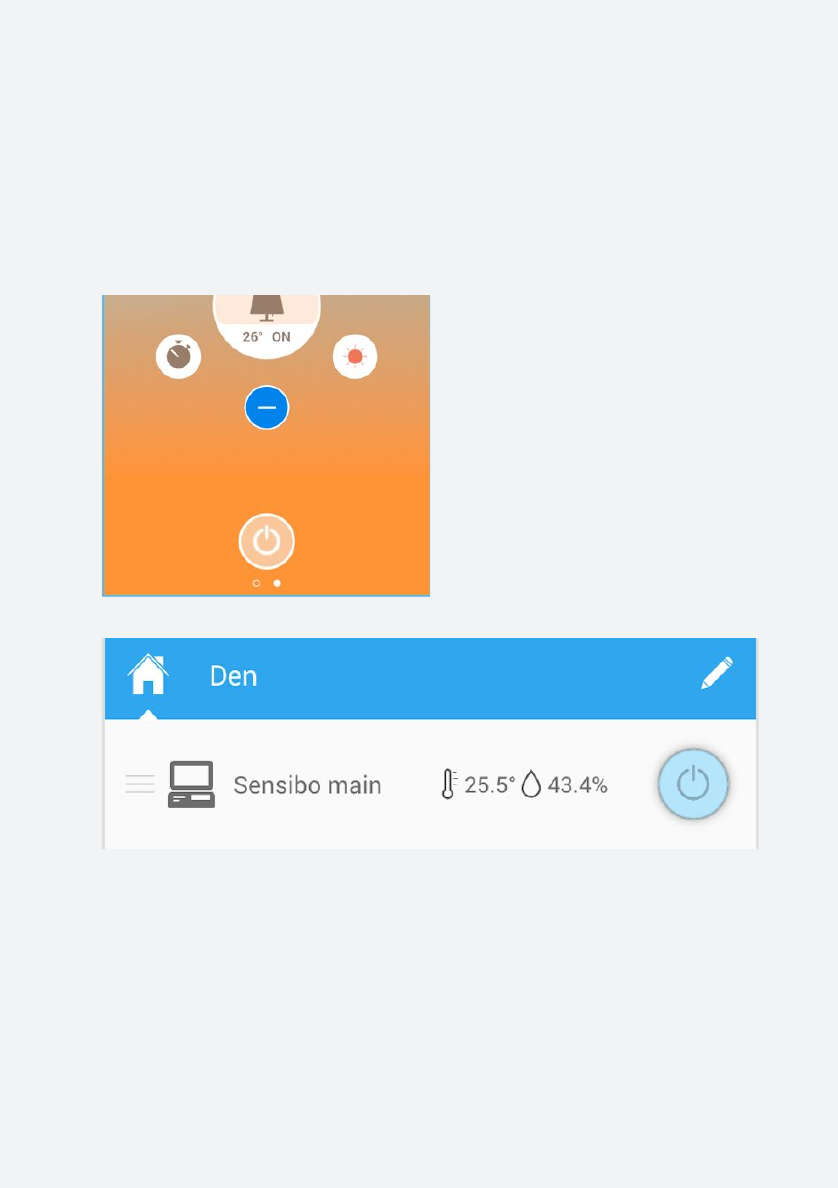

How can I turn the A/C on or off?
You can turn the A/C on or off via:
1. The power button at the bottom of the main A/C screen
2. The power button in the locations/devices screen

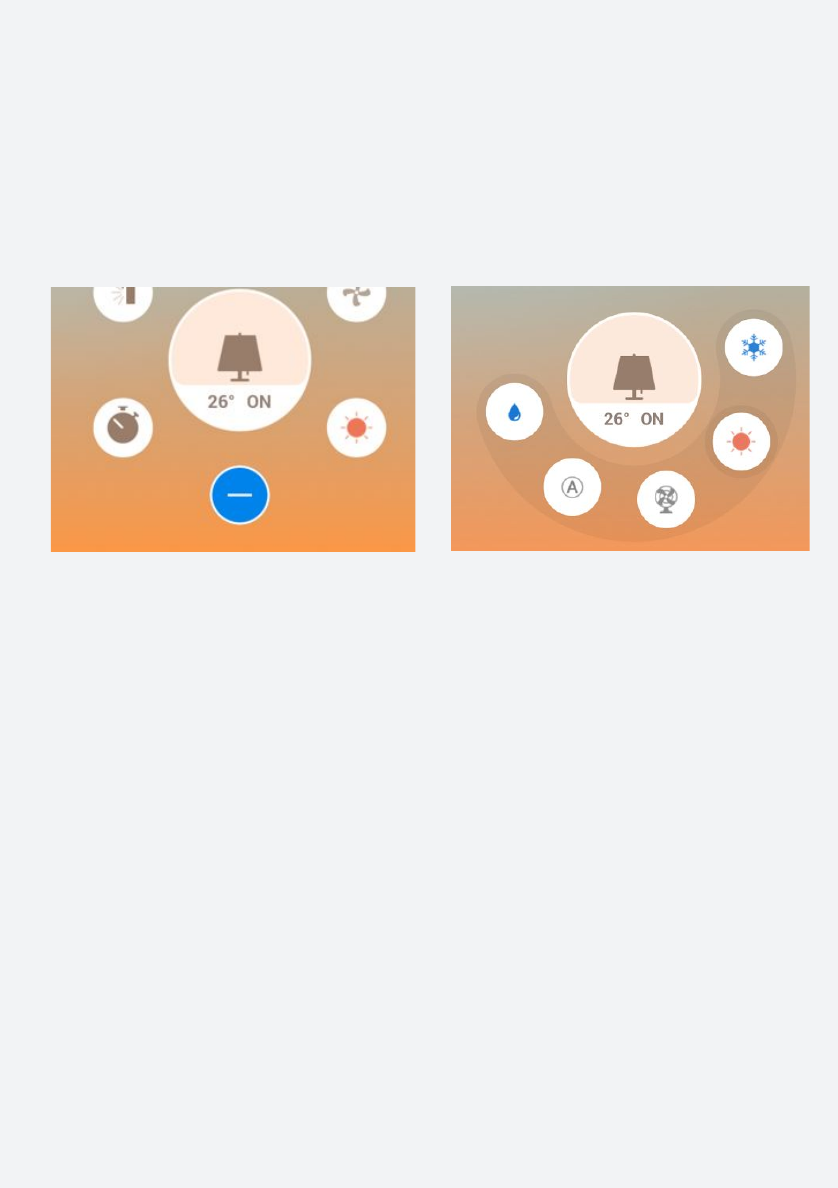

How can I change the A/C state to cool, heat,
etc.?
You can change the A/C state via the A/C state button in the main
screen - clicking on the current A/C state will open a little fan with
all available modes

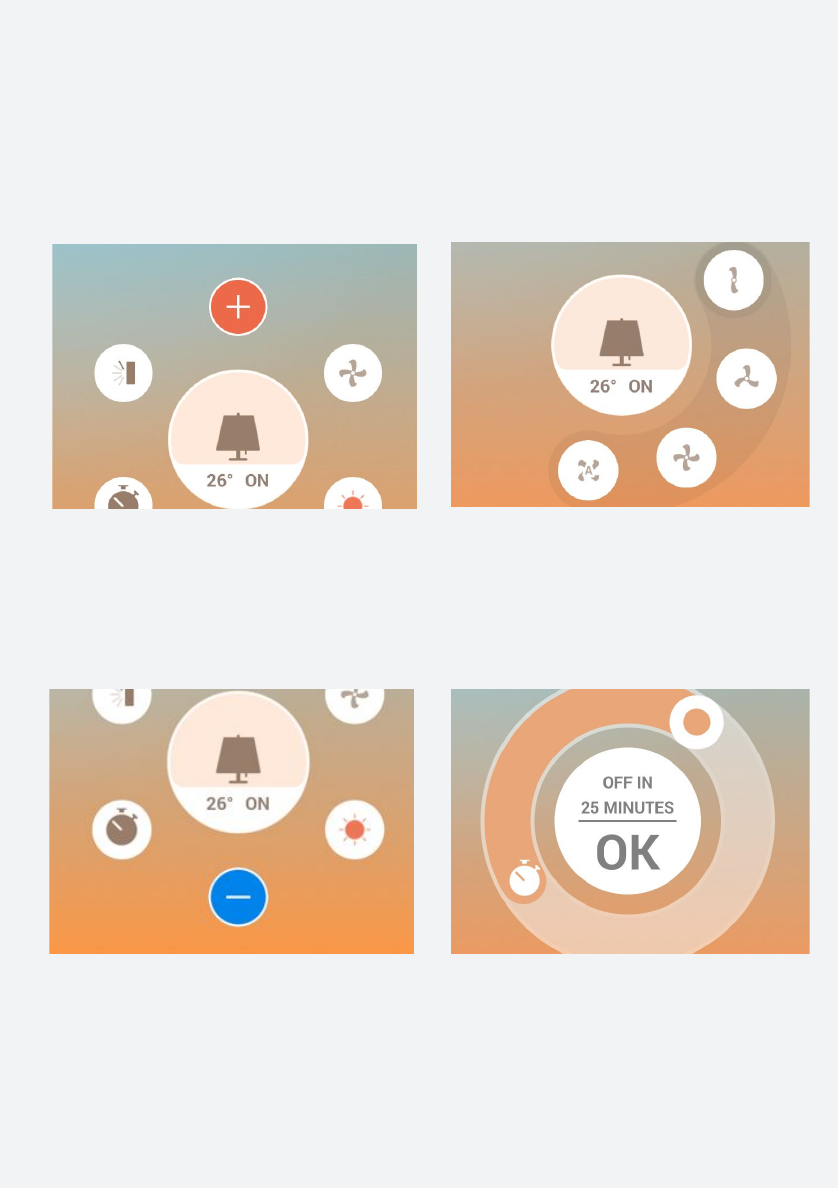

How can I change the fan level of my A/C?
You can change the fan level via the fan button in the main screen -
clicking on the current fan level will open a little fan with all
available levels
How can I set a timer for my A/C?
You can set a timer for a specific A/C via the timer button in the
main screen - clicking on it will open a round dialer where you can
set the amount of minutes/hours you want the A/C to turn on/off.
How can I change the name or icon of my A/C?
Go to the specific A/C’s settings and hit “Change name and icon”.
How can I invite other people to use my A/C?
If you want to grant access to your A/C to other people (family
members, friends, colleagues, etc.) you can send a unique link via
multiple channels - go to the A/C settings, choose “Share this A/C”,
select an app to send the invitation from and hit send.
How can I set and edit schedules for my A/Cs?

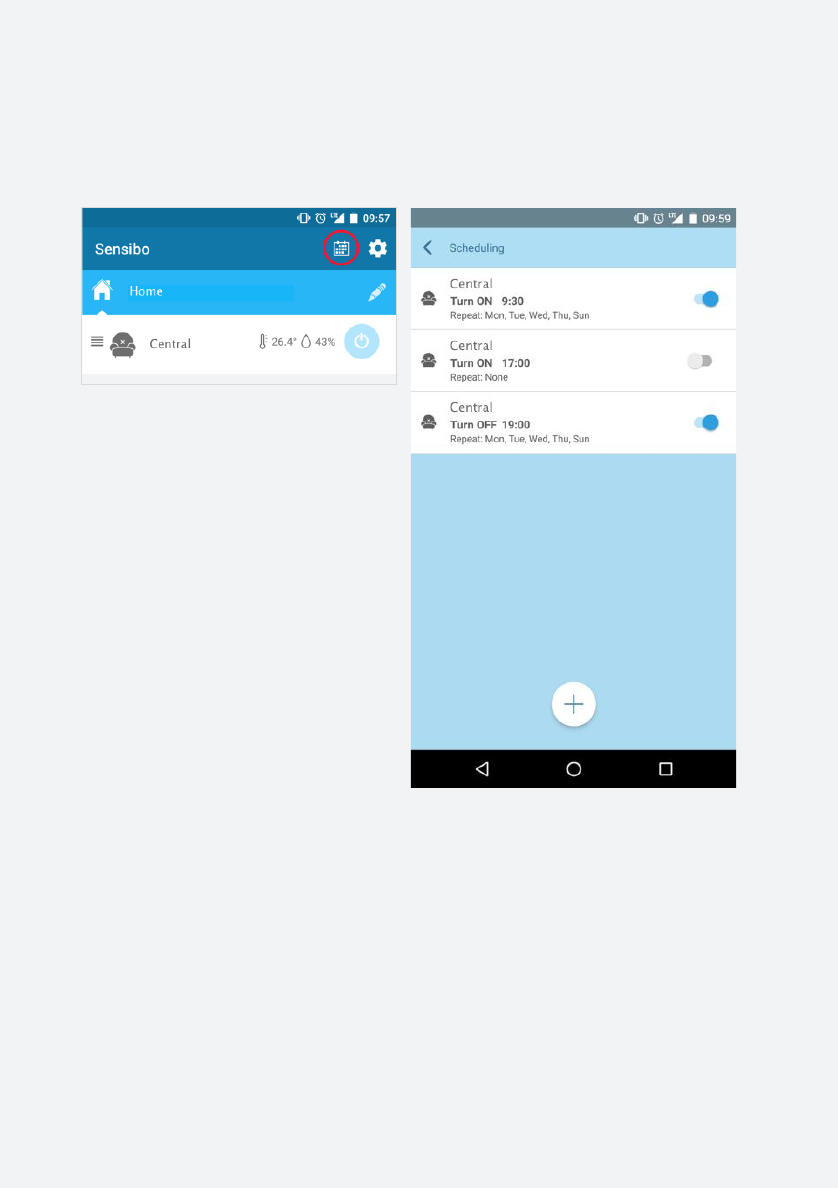

You can access your devices’ schedules and create new ones via the
locations/devices screen:
To edit an existing schedule, click on it in the list of schedules.

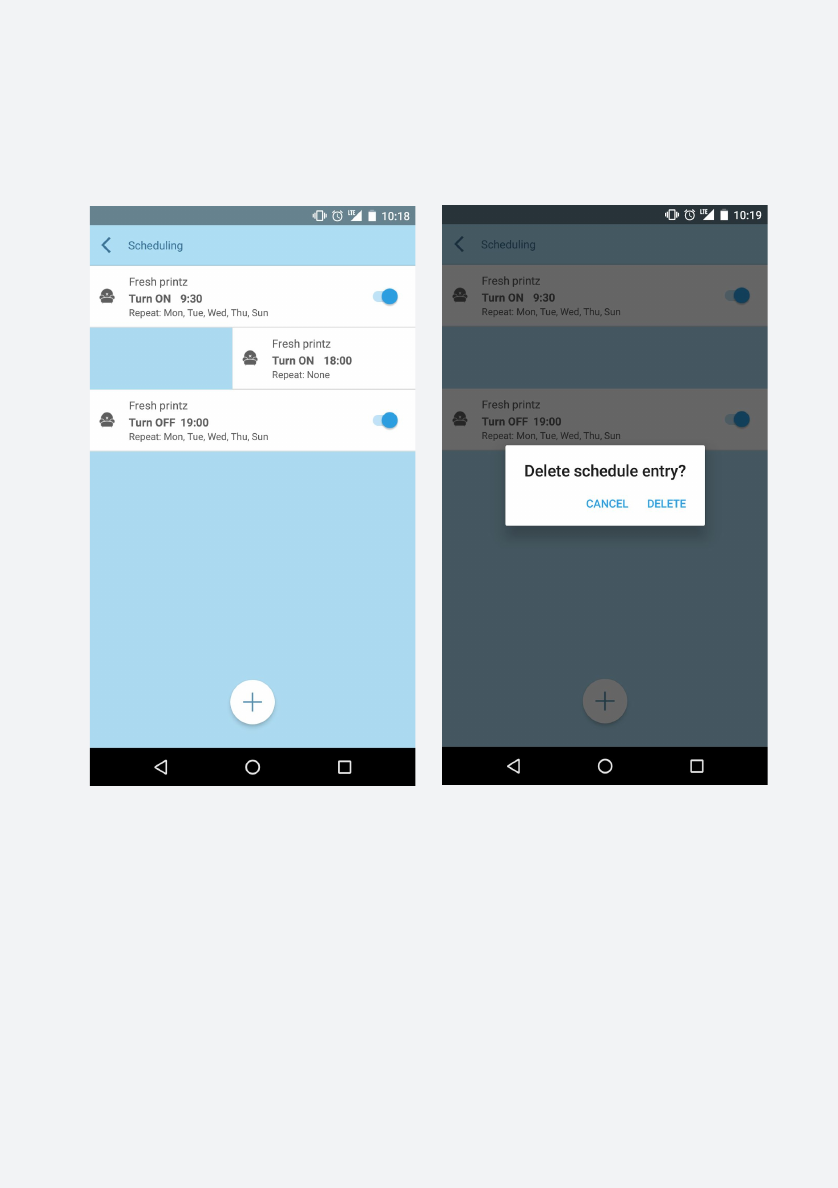

How can I delete a schedule?
Just swipe the schedule you want to delete to the right in the
schedules main screen and confirm.
How can I setup another Smart A/C?
In the general settings (accessible via locations/devices screen) tap
“Setup a new Sensibo device” to start the installation process again
with another device.
How can I reset my Sensibo user password?
Via this page: https://home.sensibo.com/password-reset/
I get a “device is disconnected” notification in
the app, what does it mean?
A few reasons can cause your smart A/C to appear as disconnected.
Please click on the notification to learn the reason (in iOS devices
you’ll need to reconnect to the Smart A/C’s network again).

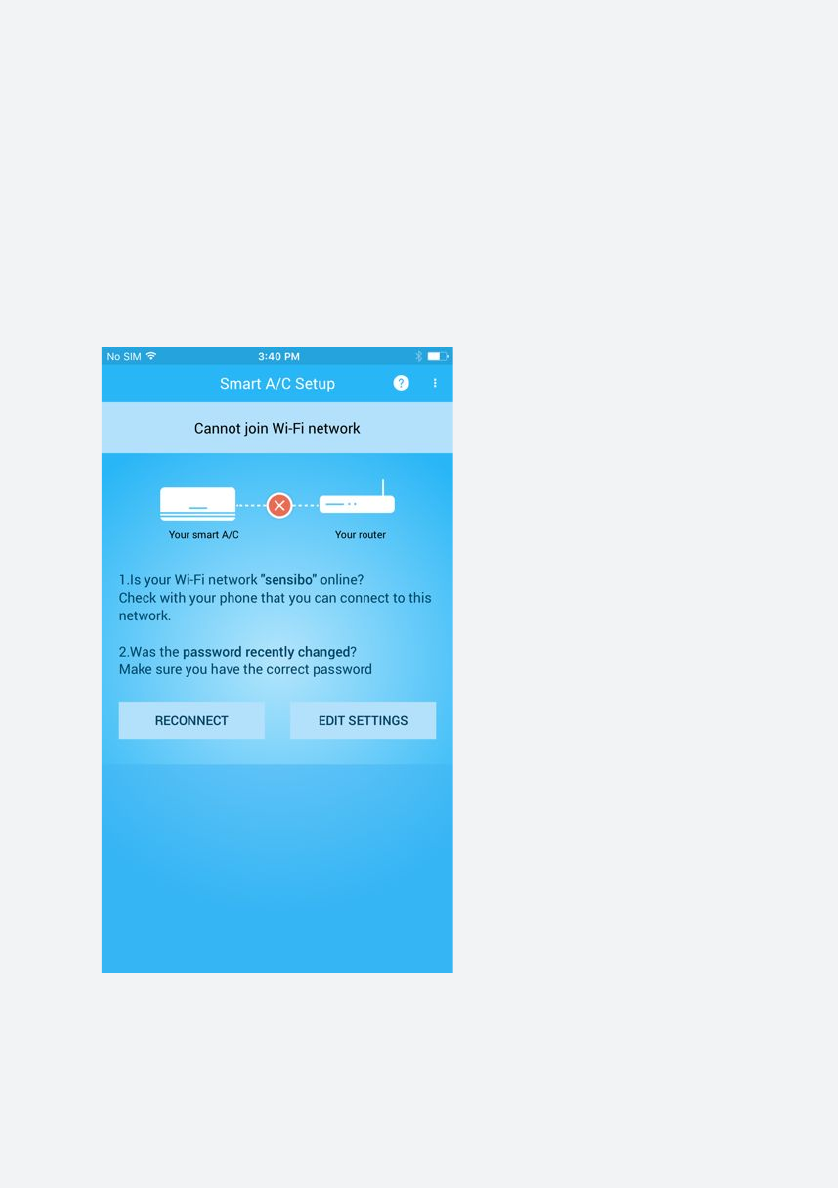

Cannot join Wi-Fi network
This screen will appear when one of 3 scenarios happens:
1. The network is offline and the Smart A/C cannot join it
2. The password or name of the network were changed
recently and the Smart A/C cannot join it with it’s existing
data that is outdated
3. The Smart A/C was reset on purpose to connect to another
network
Android only - Network has no internet connection
This screen will appear when one of 2 scenarios happen, while the
Smart A/C managed to connect to the network (correct name and
password) but:
1. The network has no internet - might be an issue with the
Internet Service Provider
2. Some firewall or other security measures were changed and
block your A/C from connecting

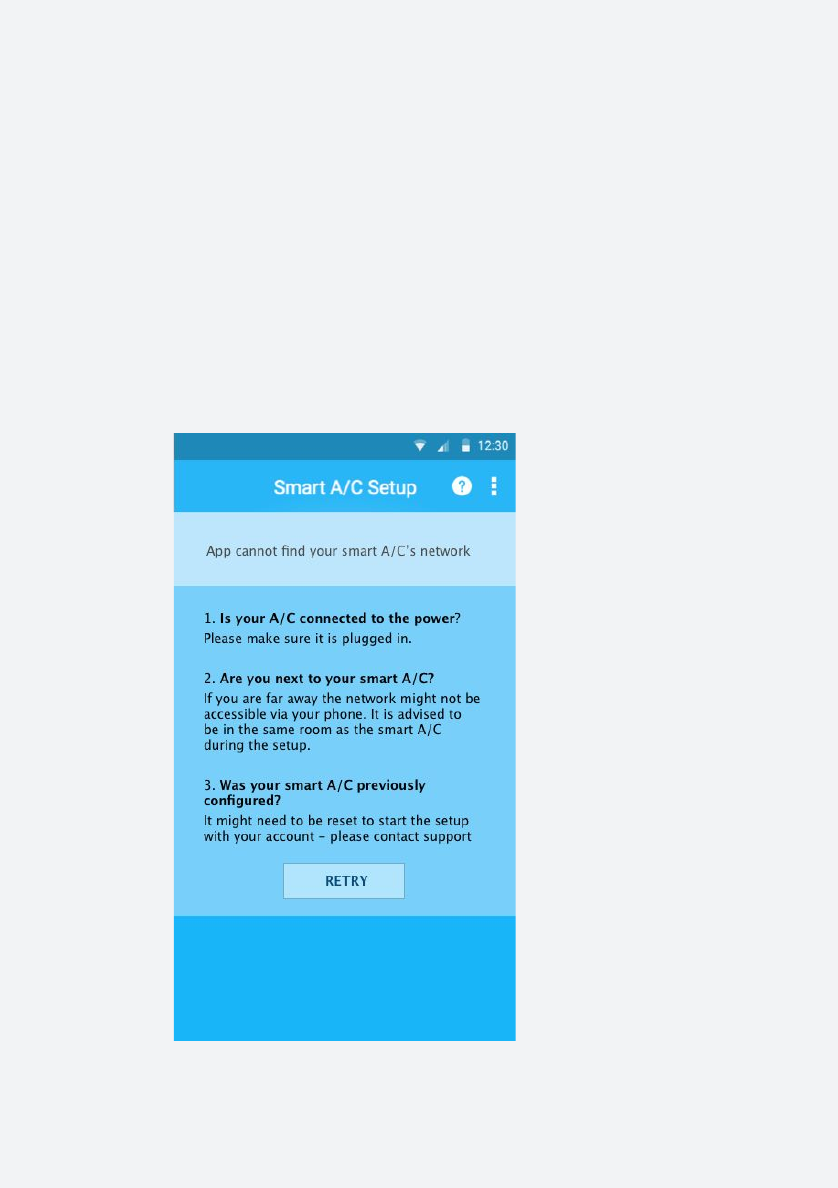

Android only - App cannot find your smart A/C’s
network
This screen will appear if your mobile phone cannot “see” the Smart
A/C network when it scans the nearby networks - this can be
caused by a few reasons:
1. The A/C is not connected to the power so the device cannot
transmit any signals
2. The mobile phone is too far away from the Smart A/C so it
cannot see it
3. The Smart A/C was previously configured and need to be
reset remotely by the support
Android only - Cannot connect to your Smart A/C
network
This screen will appear when your mobile phone tried to connect to
the Smart A/C network (it appeared properly in the networks scan
your mobile phone performed) but then couldn’t complete the
connection process.
This is usually caused by another device that connected to the
device before your mobile phone managed to connect.
Smart A/C Installation issues
My Smart A/C cannot connect to my local
network
1. Make sure that you connected Sensibo Inside to your
network and that it the network is working properly (on
your mobile phone, etc.). Sensibo Inside should have a
steady blue light when it’s connected to the internet
properly. If it blinks it means there is a problem with the
connection:
a. 2 blinks repeatedly: Sensibo Inside cannot connect
to the network. This might be due to a
password/name change, proxy/security changes in
the network or just no signal from the network.
b. 3 blinks repeatedly: Sensibo Inside is connected to
the network but receives no connection.
c. LED is off = Wi-Fi chip issue, restart installation
process.
d. LED is on but no connection in app- server issue
2. Make sure that the A/C is connected to the power. If the
A/C is not connected to the power, Sensibo Inside cannot
connect to the internet and control the A/C.
A few reasons can cause your smart A/C to not be able to connect
in the installation process.
Please click on the notification to learn the reason (in iOS devices
you’ll need to reconnect to the Smart A/C’s network again).
Cannot join Wi-Fi network
This screen will appear when one of 3 scenarios happens:
1. The network is offline and the Smart A/C cannot join it
2. The password or name of the network were not entered
correctly
3. The Smart A/C was reset on purpose to connect to another
network

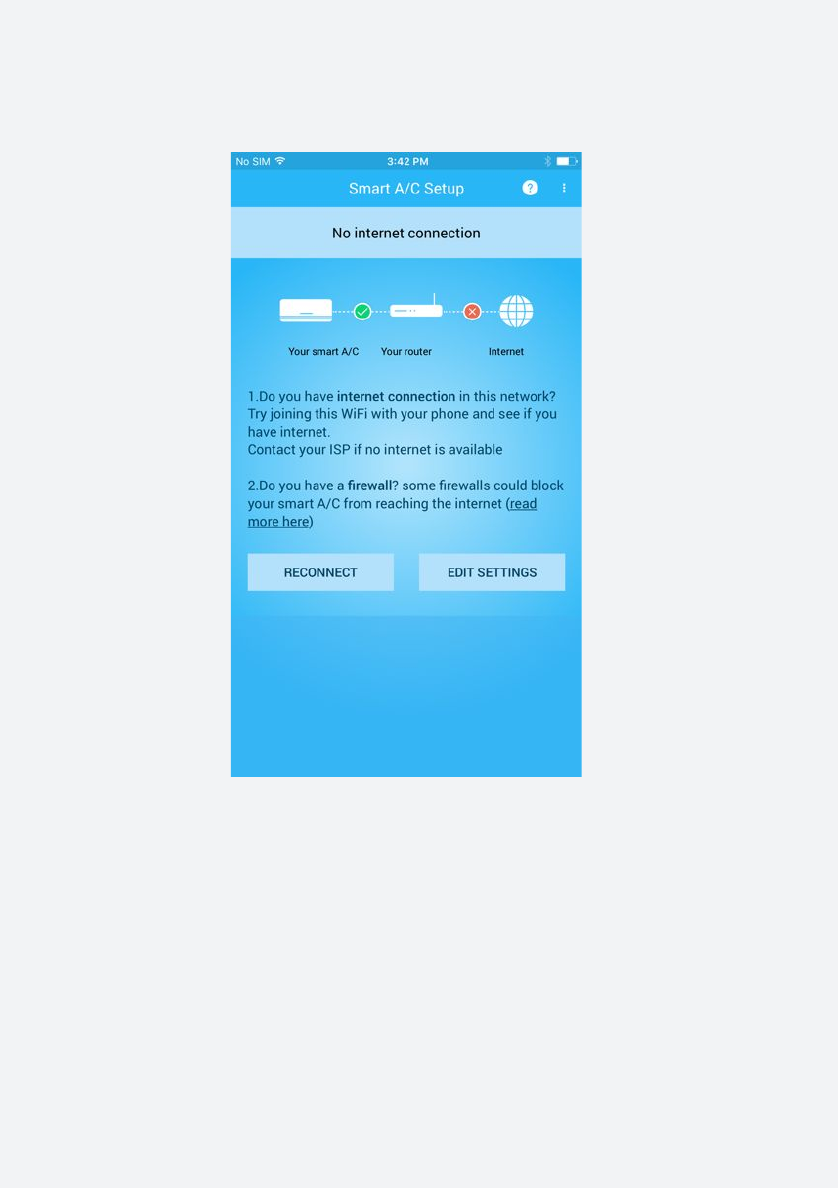

Network has no internet connection
This screen will appear when one of 2 scenarios happen, while the
Smart A/C managed to connect to the network (correct name and
password) but:
1. The network has no internet - might be an issue with the
Internet Service Provider
2. Some firewall or other security measures were changed and
block your A/C from connecting
Certification
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
Operating temperature: 5°C - 50°C
The socket-outlet shall be installed near the equipment and shall be
easily accessible
Note: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for
help.
The minimum separation distance between the user and the device
shall be 20cm.
Company Information:
Sensibo Ltd.
Ahuzat Bayit 3
Tel Aviv
Israel 6514302

Navigation menu
