SmartBeacon-4AA User Manual
Outlook
Sensoro Box series Beacon Sensor SmartBeacon-4AA have integrated Sensoro Tag as the PCB. The
build-in PCB Antenna is an ultra small form-factor, high-performance antenna for 2.4GHz. It
operates with high stability in wide temperature range and adjusts to temperature / humidity
changes, allowing SmartBeacon-4AA to work stably in complex environment.

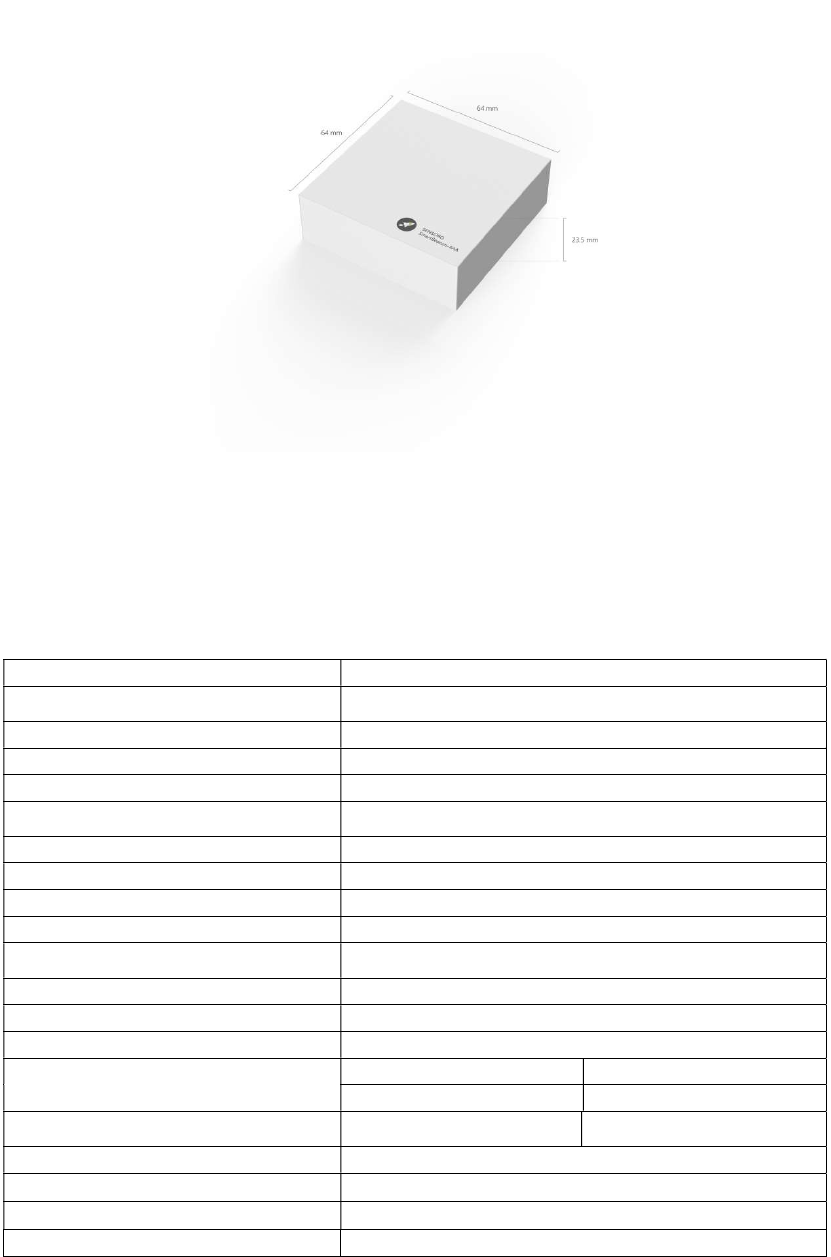

Tech Specifications
Item Description
Appearance
*Length 64.0 mm
*Width 64.0 mm
* Thickness 23.5 mm
Board Info
*Layer 2 Layer
*Size 53mm(L)*34mm(W)
*Thickness 1mm
*Surface Treatment Matt black ENIG PCB
Control & Display
*Control BLE SOC Chip
*Antenna 2.4G PCB Antenna
*LED LED * 1
*Sensor Temperature Sensor Support
3 Axis G-Sensor Optional
Basic Info
*BT BLE Only
*Operating Voltage DC 2.1V ~ 3.6V,Typ 3.0V
*Operating Temperature -25°C ~ 55°C
*Sleep Mode Power Consumption 30uW
![](/img.php?id=3533624&img=bg2.png)
*Sleep Mode Current 10uA
*Power Consumption per Broadcast 7.58 * 10-6mAh (-8dBm transmitting power)
*Radius Power -30dBm to +4dBm; applicable for signal coverage
optimization
*Transmission Range 0.15m to 80m
*Broadcast Frequency Broadcasting time interval, Adjustable (100~1285ms)
* Weight 132g
* Resistances Anti-vibration
*TF Card Socket 1 Micro TF Card Socket
*Protocol standard Bluetooth® 4.0, Apple iBeacon,Google Eddystone
*System Requirements iOS7.0/ Android 4.3 or above
*Upgrade Support for Firmware Over-The Air upgrade
*Security Support Password for Connection
Battery Usage Reference(Days)
And the preference data below, is based the button cell battery(CR2477).
Power\ Interval +4dBm 0dBm -8dBm -12dBm -30dBm
100ms 105 126 138 146 152
152.5ms 156 185 203 215 223
211.25ms 211 249 271 286 297
318.75ms 301 353 382 402 416
417.5ms 378 438 473 497 513
546.25ms 467 538 578 604 622
760ms 596 677 722 752 772
852.5ms 645 729 776 806 827
1022.5ms 727 815 864 895 916
1285ms 836 928 977 1009 1031
Main Features
1. Easy to Use
SmartBeacon-4AA was powered by 4 AA batteries.
2. Low power consumption
Employing Bluetooth® 4.0(Bluetooth® low energy) Nordic N51822 chip, and consuming
less power with better performance.
Equipped with energy-efficient sensors and by using intelligent energy saving solution, 4 AA
batteries will be able to power SmartBeacon-4AA continuously operating for around 3 years.
3. Compatibility
Software and firmware completely fulfill Apple's iBeacon technical standards and can be
applied to systems including:
iOS 7.0 or above:
![](/img.php?id=3533624&img=bg3.png)
iPhone 4S,iPhone 5, iPhone 5S, iPad 3, iPad mini, iPad air.
Android 4.3 or above:
Samsung Galaxy S III, Galaxy S IV, Galaxy Note II, Galaxy Note III and Motorola RAZR,
HTC ONE, etc.
Download configuration tool
Scan QR code to get the App from www.sensoro.com
Signal stability and data transmission
1. Transmission reliability and range
To achieve long-distance data transmission with more stable signals, we have conducted
numbers of testing and corresponding modifications. Tag works stable under complex
circumstances. Radius power is adjustable to fit the need, the largest signal coverage of which
can be ranged up to 80m with 2826 m2 area.
2. Enterprise level device management support
Manage status of mass volume devices is an essential requirement for an enterprise level
deployment. By using our patent technology, you can gather status of each device that
deployed in a batch way. Assets management of beacon devices is an easy task now with our
solution.
Configuration tool
The configuration tool "Sensoro" is a mobile app designed for developers to check and modify
Sensoro SmartBeacon’s configurations. It is compatible with iOS 7.0 or above (iPhone 4S,iPhone 5,
iPhone 5S, iPad 3, iPad mini, iPad air) and Android 4.3 or above (Samsung Galaxy S III, Galaxy S
IV, Galaxy Note II, Galaxy Note III and Motorola RAZR, HTC ONE, etc.)

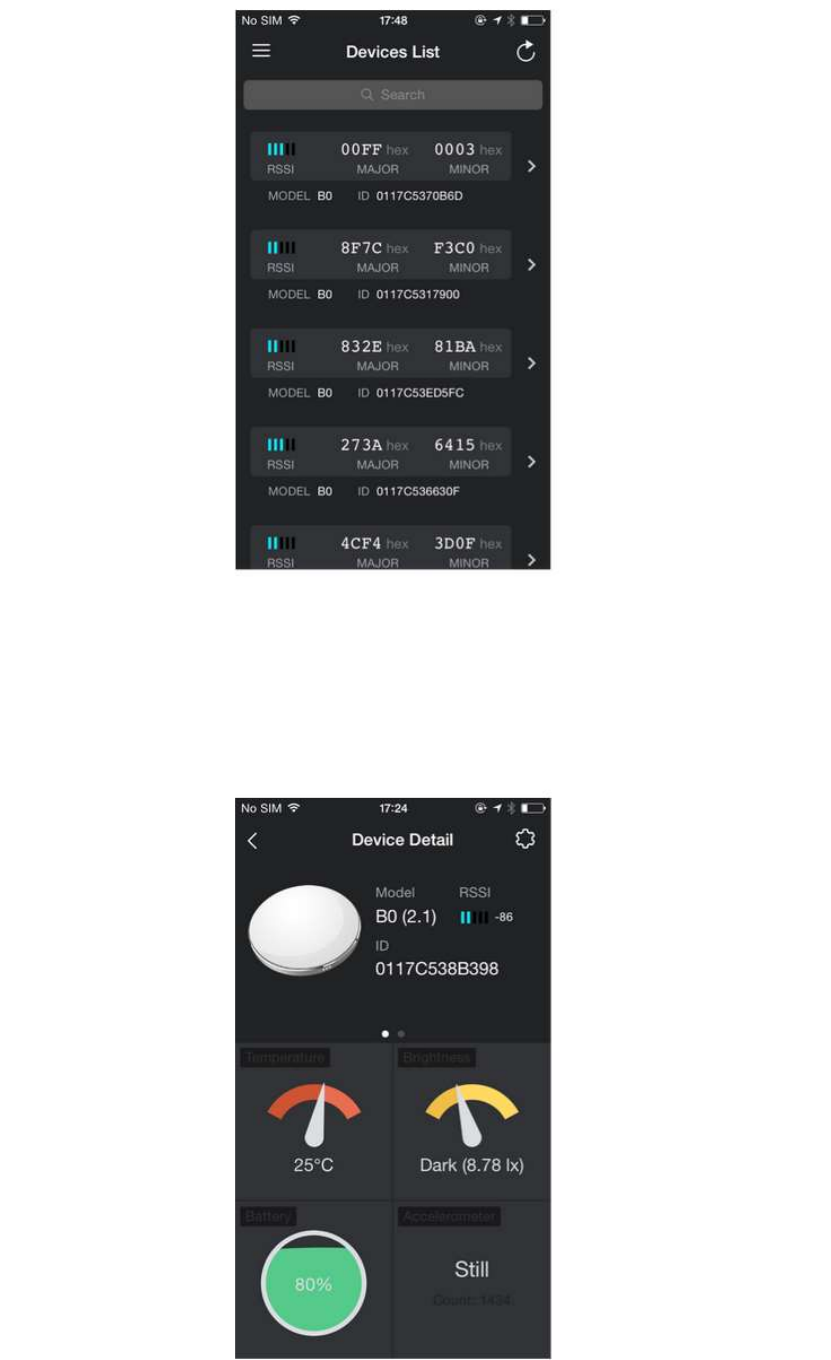

Open up the configuration tool, you will see all the SmartBeacons nearby. Each SmartBeacon's
Major, Minor and animated RSSI bar will be shown on the list.
![](/img.php?id=3533624&img=bg4.png)
In case you are deploying numbers of SmartBeacons within certain area, a specific function is
designed to help you select the one at hand - simply shake the SmartBeacon and its information
bar will perform a vibrating animation.
Select one SmartBeacon's info bar and enter the detail page. Every SmartBeacon is integrated
with a temperature sensor, and an accelerometer. Every sensor's data and the battery status are
real-time displayed, which reflect the operation status of specific SmartBeacon in a visualized and
direct manner.
![](/img.php?id=3533624&img=bg5.png)

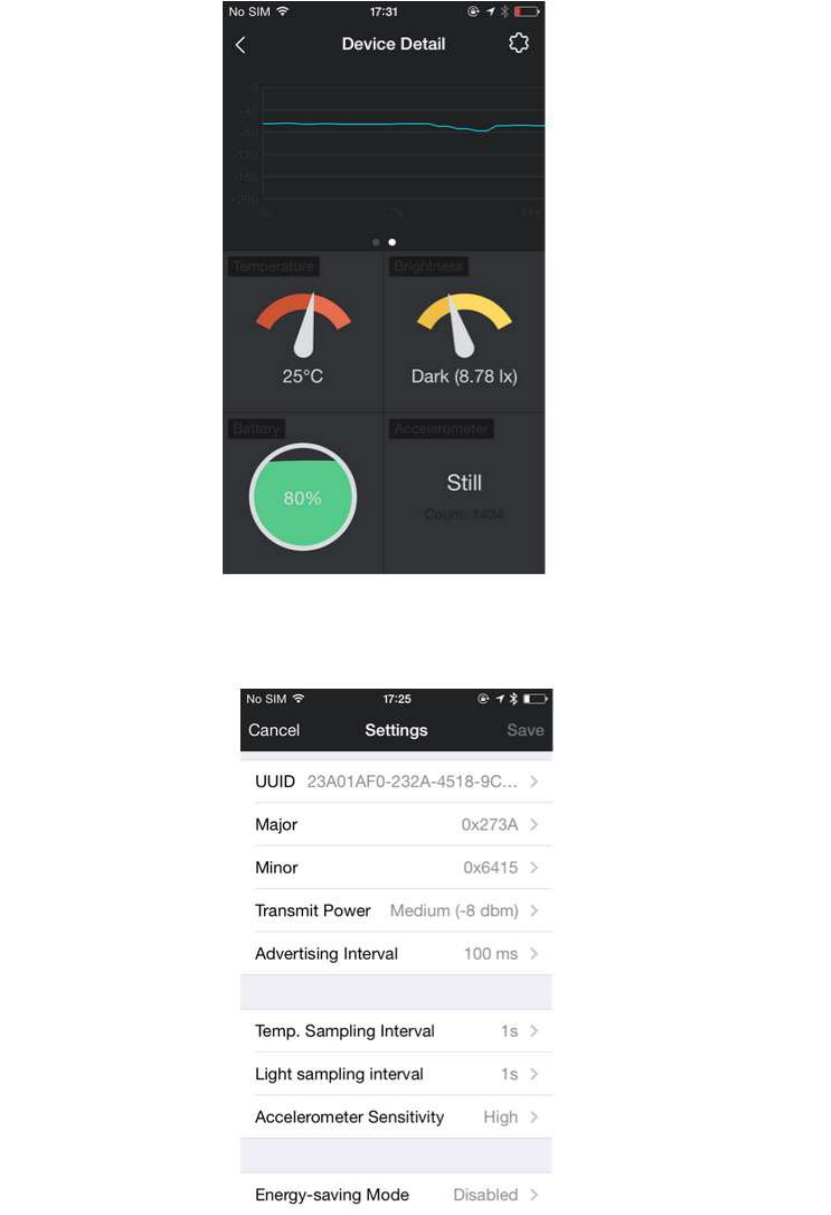

Flip the upper section of this page and you may check the RSSI signal graph accurately.
You can access to SmartBeacon's UUID, Major and Minor through this configuration tool and
revise them according to your need. Through this app, you may also setup SmartBeacon's radius
power, broadcasting frequency and even modify the operation parameters of the sensors.
As to security considerations, you may setup password so that only authorized user can access to
SmartBeacon's settings.
![](/img.php?id=3533624&img=bg6.png)
Quality Guarantee
iBeacon,Google EddyStone, FCC, CE and TELEC
SmartBeacon has been certificated with FCC, CE and TELEC. To ensure the quality, every single
device has to pass through testing and must be scrupulously checked for imperfections (Defect
detection, frequency spectrum test, power consumption test, stability test, etc.).
Any Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
Note
Trademark: SENSORO
Product Name: SmartBeacon
Model No: 4AA
Customer Service
Tell :+86 010-8416 1077
Email :seattle@sensoro.com
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
This equipment should be installed and operated with minimum distance 20cm between the radiator&
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off a nd on, the
user is encouraged to try to correct the interference by one or more of the following measures:
your body.
