Outlook
The 4AA Pro is built for commercial deployment
and is specially suited to outdoor situations
because its protection against
various environmental conditions.
Ingress Protection Criterion
The Sensoro SmartBeacon-4AA
Pro achieves a professional -grade
waterproof and dustproof
rating of IP67 . The IP67 rating guarantees
total protection from dust and from submersion in between 15cm to
1m of water despite featuring an external power button and screwless
design.
IP is an abbreviation of International Protection Marking, sometimes
called Ingress Protection. The IP rating for electrical equipment
enclosure classifies and rates the degree of protection against
intrusion by dust, accidental contact, and water. The rating
classification is published by the International Electrotechnical
Commission (IEC) standard IEC 60529, the standard adopted in 2004
by the American National Standards Institute. The IP rating format for
enclosure and protection of electrical equipment is IPXX, where XX is
the two digits, the first digit representing the contact protection level
against external particles, and the second digit representing the
waterproofing protection level.
The Sensoro SmartBeacon-4AA Pro’s rating of IP67 guarantees
no ingress of dus
t,
complete protection against contact, and protection
while submerged
in up to 1 meter of water.
Features
1. Ultra-Low Power
A Bluetooth® 4.0 (Bluetooth® low energy) Nordic NFR51822 chip
with ultra-low power consumption is used.
Bluetooth low energy with intelligent energy-saving programs allows
the beacon to work for three to five years on four AA batteries.
2. Compatibility
Software and firmware are fully compatible with Apple’s iBeacon
and Google’s Eddystone (include EID) technical requirements, and
can be applied to systems including:
iOS 7.0 or above:
iPhone 4S, iPhone 5, iPhone 5S, iPad 3, iPad mini, iPad air.
Android 4.3 or above:
Samsung Galaxy S III, Galaxy S IV, Galaxy Note II, Galaxy Note III
and Motorola RAZR, HTC ONE, etc.
3. Demo App and Configuration App
The “Yunzi” (demo) app allows you to experience our beacons,
while the “Sensoro” app (configuration tools) puts you in control of
all of their features.
Scan the QR code to download:
!
Signal Stability and Data Transmission
1. Transmission Stability and Distance
To achieve signal stability and long-distance data transmission
requirements, the Sensoro SmartBeacon-4AA Pro underwent extensive
testing and modification. Its signal remains stable even in complex
deployment locations. Radius frequency (RF) power demand
configuration can be adjusted to a maximum radius of 80 meters.
The RF power demand configuration can reduce its radius to a
minimum of 0.15 meters, which covers an area of 0.225 square
meters. However, it is possible that no signal will be obtained if the
RF power is adjusted to a minimum.
2. Enterprise Class Device Management Support for Enterprises
Mass management of device status is an essential component of
our enterprise class cloud software solutions. Our patented beacon
devices can be deployed to collect bulk data, and using the
Sensoro cloud, your organization has the essential tools needed to
seamlessly manage large-scale deployments. Centralized
management on your phone or computer is made easy by
enterprise class software solutions.
Specifications
Property Specifications
Chip Nordic

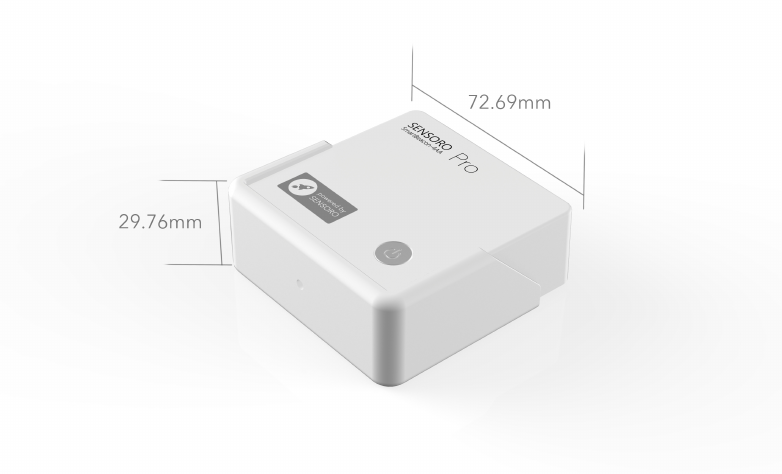

Dimensions 72.69mm x 70.00mm x
29.76mm (Including the wall
mount kit)
Weight 92g
Material Polycarbonate
Three-Layered Protection Water/Dust/Shock Proof
at a time, and then view all nearby beacons if you want to make
30dB
IP Level IP67
Protocol Standards Bluetooth 4.0 iBeacon and
Eddystone Authorization
Compatible Systems iOS 7.0 or above, Android 4.3
or above
Upgrades Supports wireless upgrades
Security Supports password access
Sensors Temperature
LED 1 LED light bulb
Emission Strength - +4dB (Can be
adjusted to optimize signal
strength)
Transmission Distance 0.15~80m
Radio Frequency
(Transmission Broadcast
Interval)
Adjustable (100
milliseconds~1.285 seconds)
Broadcast Time Electricity
Consumption
7.58 * 10 -6 mAh (-8dB
Emission Power)
Supply Voltage 3.0V
Battery No. 5 battery（4 batteries, not
included）
Operation Life 2-5 years
Sensoro App’s Configuration Tools
The Sensoro app is available for developers to check on and configure
the parameters of all nearby Sensoro beacons. The Sensoro app is
compatible with iOS 7.0 or above (iPhone 4S, iPhone 5, iPhone 5S,
iPad 3, iPad mini, iPad air) and Android 4.3 or above (Samsung Galaxy
S III, Galaxy S IV, Galaxy Note II, Galaxy Note III and Motorola RAZR,
HTC ONE, etc.). Using the Sensoro app, you can deploy beacons one
m to m
changes. If you would like to deploy and configure beacons in bulk,
please use the “Deploy” app.

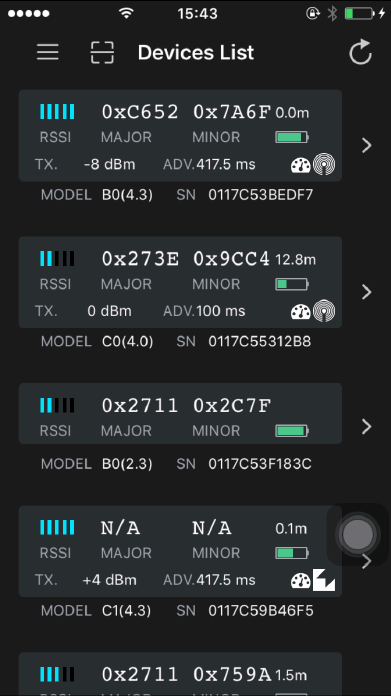

Open the Sensoro app, and the Device List of all nearby beacons will
appear. The information for each beacon includes Major, Minor, as
well as other basic information including an animated display of the
RSSI strength.
All nearby Sensoro beacons will be listed by order of when the app
detected their presence. By changing the Major, Minor values, we can
differentiate beacons. Since Major, Minor consists of two values, we
recommend grouping associated beacons using the Major value, and
labeling individual beacons using the Minor value. For example,
beacons at a museum might all have the 00FF code for Major, and
each individual beacon placed at different locations throughout the
museum would have a unique Minor code. If you would like to view
the tags of all devices in range, please log into the Sensoro Cloud on
the Inspection app.

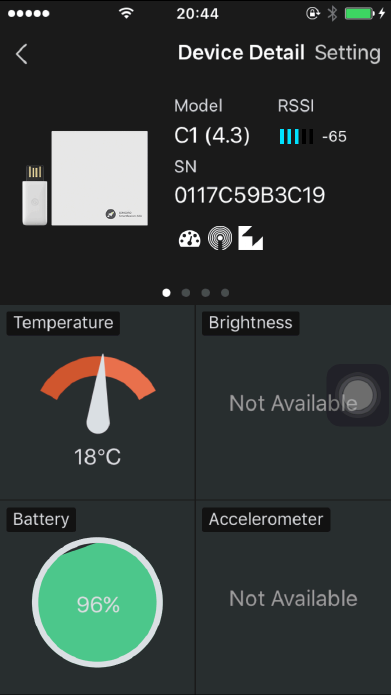

The Device Detail page displays the real-time details of each of the
beacon’s sensors, battery life, and RSSI signal. Touch the device box
on the Device List to enter the Device Detail page.
You can also locate an individual beacon on the Device List by
scanning the device’s QR code. Touch the scanning icon on the top
right of the device list. Once the device is scanned, it will take you to
the Device Detail page.

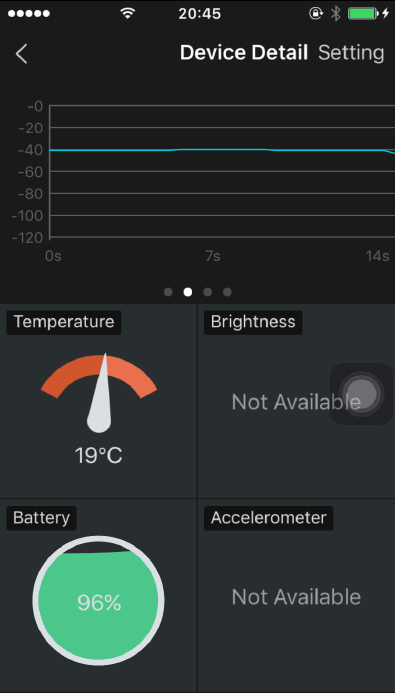

Swipe left on the top of the Device Detail page to bring up the real-
time RSSI line display graph. This more detailed RSSI graph allows
developers to accurately understand the signal changes in the device,
as show below.

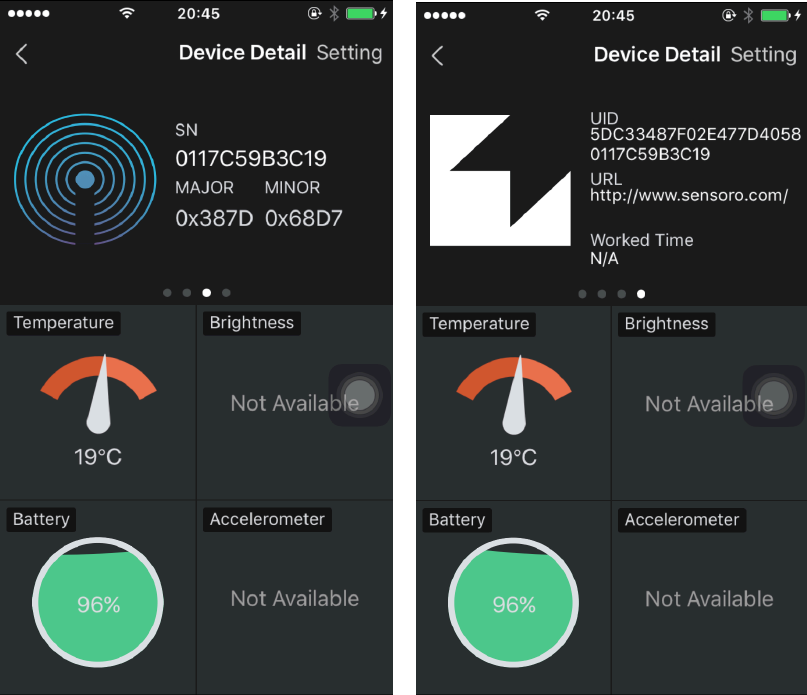

Swipe left again to view whether the device being viewed is using
iBeacon or Eddystone protocol.

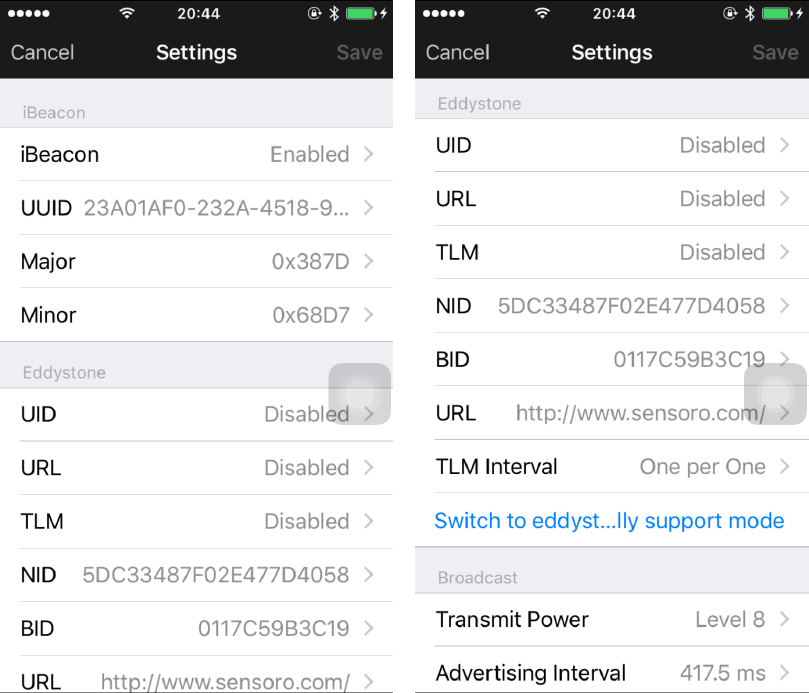

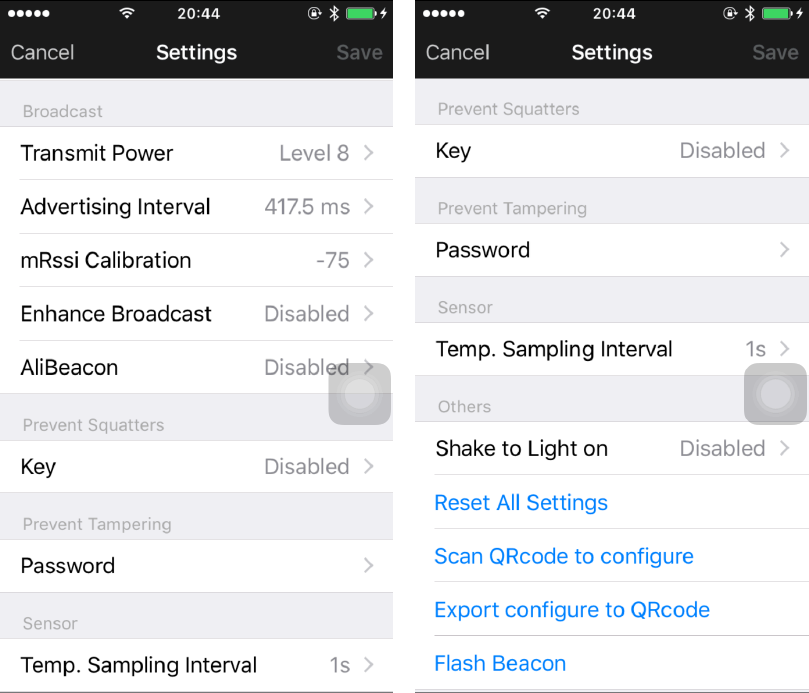

The Sensoro app supports setup of beacon’s basic information
(including UUID, Major and Minor) as well as the modification of device
transmitting power, radio frequency, and other parameters.
For Google Eddystone, UID, URL, TLM and EID are fully supported by
Sensoro app now. Moreover, you can also use this app to ONE-way-
switch the beacon mode into the standard Eddystone Configuration
GATT service.
*Notice:
1. Currently setting up the EID is only available on Android (download
link: http://www.sensoro.com/en/download/), which needs a full installation of
Google-Play-Service and Google Service Framework, and Nexus 5/6
are recommended.
2. We also have another "Full Eddystone GATT" special version
firmware available, which was built to work with Google’s Beacon Tool
App. Please contact our sales team (seattle@sensoro.com) if you’d like to
order this special version.
3. Currently switching to the standard Eddystone Configuration GATT
service is a ONE way feature, and a third-party tool is needed when
switching back to Sensoro Configuration service. Manual for Mode
Switch download link:
http://www.sensoro.com/static/Manual_for_Mode_Switch.pdf
Security
The device is made secure by a hardware level password, used also
by the US military, which prevents unauthorized modification of Sensoro
SmartBeacon-4AA Pro parameters. Sensoro SmartBeacon-4AA Pro
-
allows you to enjoy rich functionality and stability without security concerns.
Quality Assurance
Having passed FCC (FCC certification number: 2ADYO-S0002D), CE, and
MIC certification, each device has rigorously undergone factory defect,
spectrum, power, and stability testing.
