α Humiture User Manual
Overview
This product is a highly stable indoor temperature and humidity detection
products, used to detect the environment temperature, humidity. The
temperature and humidity sensor use high-performance MEMS sensor that has
high stability, high sensitivity, low drift, etc. This product combines the specialty
of IoT(Internet of things), can view the temperature and humidity information
of monitoring site in the background.
Technical Parameters
Property
Specifications
Detection
Temperature、Humidity
Dimensions
141.7mm×67.7mm×35mm
Operating Condition
-20℃~+60℃、0~100%RH
Storage Condition
-40℃~+80℃、5%RH~90%RH
Power Supply
3.6VDC/ER14505
Battery Type
Lithium Thionyl Chloride
Power Dissipation
200mA max
LED
1
Response Time
≤8S
Preheating Time
3min
Life Time
10 years without battery
Wireless System
BLE、IoT-WAN
![](/img.php?id=3908113&img=bg2.png)
Wind resistance
165MPH
Atmospheric pressure
53kPa~106kPa

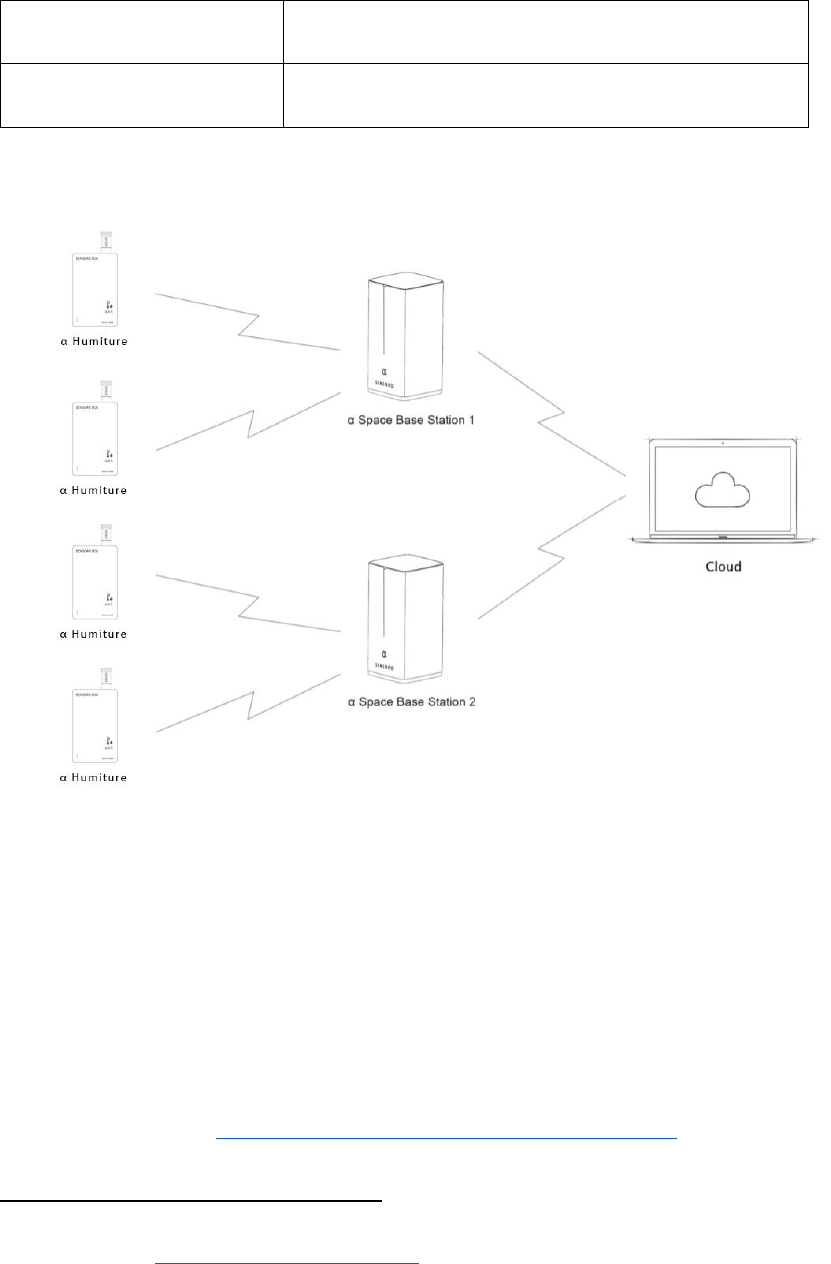

Operating Principles
Requirements
You need α Space Base Station ,an iOS or Android phone or tablet and a free
SENSORO Account in order to use some α Humiture features: watch sensor
data log.
The sensor data can be viewed in the background or phone app。
Get the phone app: https://iot.sensoro.com/en/app/download
https://city.sensoro.com/download
Background:https://city.sensoro.com
Installation
1、 Apply 3M paste to the back of the device and fix it on the wall.
![](/img.php?id=3908113&img=bg3.png)
2、 Fixed the mounting bracket to the wall first,then place the device on the
bracket.
Contact Us
Beijing Headquarters
Customer Service Tel: 400-686-3180
Working Hours: Monday to Friday 10:00 am to 7:00 pm
E-mail: beijing@sensoro.com
Developers’ QQ group: 385 456 618
Address: T1-B-2807, Wangjing SOHO, Chaoyang District, Beijing, China
Customer Service
Tell: +86 010-8416 1077
Email : beijing@sensoro.com
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED
BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING
TO THE INSTRUCTIONS
RECYCLING
This product bears the selective sorting symbol for Waste electrical and
electronic equipment
(WEEE). This means that this product must be handled pursuant to European
directive
2012/19/EU in order to be recycled or dismantled to minimize its impact on the
environment.
User has the choice to give his product to a competent recycling organization
or to the retailer
when he buys an new electrical or electronic equipment.
Warning
Changes or modifications to this unit not expressly approved by the party
responsible for
compliance could void the user’s authority to operate the equipment.
NOTE
This equipment has been tested and found to comply with the limits for a Class
B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protectionagainst harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
☐ Reorient or relocate the receiving antenna.
☐ Increase the separation between the equipment and receiver.
☐ Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
☐ Consult the dealer or an experienced radio/TV technician for help.
FCC RF exposure statement:
FCC RF Radiation Exposure Statement Caution: To maintain compliance with
the FCC’s RF exposure guidelines, place the product at least 20cm from nearby
persons. The device must not be co-located or operating in conjunction with
any other antenna or transmitter.
