Sensus Metering Systems Inc. Utility Meter Module FLEXGE100

User Manual

FlexNet KV2c Transceiver Installation Guide
8 July, 2010
Sensus
Copyright 2009 by Sensus Metering Systems, North America. All rights reserved. This document
contains proprietary information. It may not be copied, transmitted or distributed, in whole or in part,
without the consent of Sensus Metering Systems.
REVISION SUMMARY
Date
Version
Author
Change Description
08 JUL 2010
0.1
T.G.
Revision 0.1 3 OF 9 7-8-2010
TO BE USED ONLY FOR THE PURPOSE FOR WHICH IT IS SUBMITTED. ALL RIGHTS RESERVED TO SENSUS
REPRODUCTION WITHOUT WRITTEN CONSENT IS PROHIBITED.
SENSUS CONFIDENTIAL
Section
1
1 Flexnet KV2c Transceiver Overview
The Flexnet KV2c Transceiver (“device” in this guide) is a printed circuit board which
provides wireless communication capability to the GE KV2c family of electric utility
meters.
The device will mount into the existing GE meters and act as the “Third Party AMR
Board”.
The device shall monitor meter reading and diagnostic information via a C12-21 serial
interface to the GE main board.
The device will communicate via the FlexNet fixed wireless telemetry network to provide
electric meter readings and diagnostic data from the meter to the utility provider via radio.
The device has receiver capabilities to allow for two-way communication over the
FlexNet network.
Section
2 Mechanical Requirements
The device is designed to mount mechanically into the existing GE KV2c meter into the
“AMR” position with no mechanical modification required.
Revision 0.1 4 OF 9 7-8-2010
TO BE USED ONLY FOR THE PURPOSE FOR WHICH IT IS SUBMITTED. ALL RIGHTS RESERVED TO SENSUS
REPRODUCTION WITHOUT WRITTEN CONSENT IS PROHIBITED.
SENSUS CONFIDENTIAL
2.1 Mechanical Overview

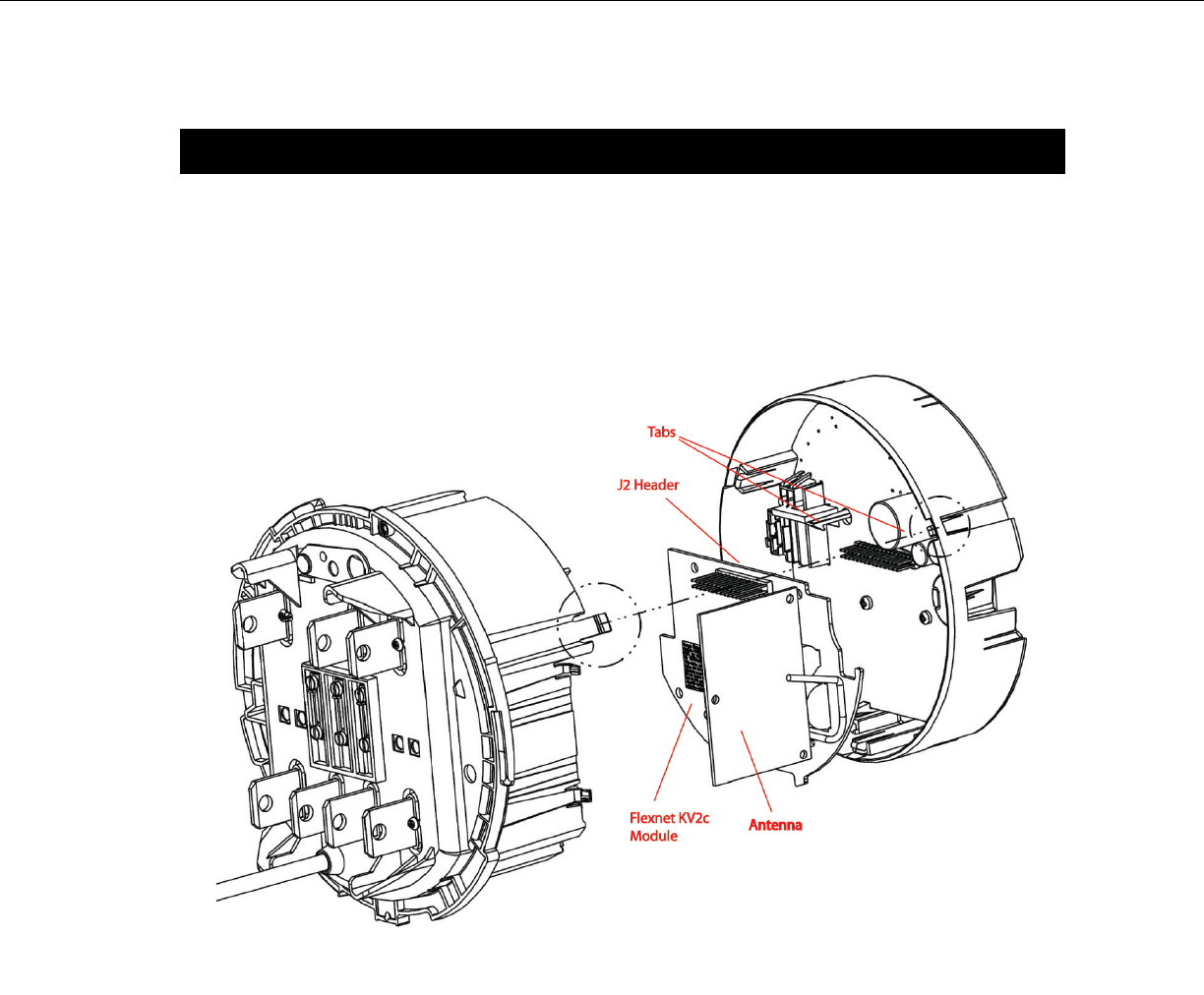

2.1.1 Device Installation Flexnet KV2c Module and Antenna:
Flexnet KV2C module will mount using two tabs protruding from the bottom of the Flexnet module,
and the insertion of the J2 header. There are two additional snaps (tabs) on the GE meter housing
which will allow the top portion of the Flexnet KV2c module to be secured.
Figure 1
Flexnet KV2c Installation
Revision 0.1 5 OF 9 7-8-2010
TO BE USED ONLY FOR THE PURPOSE FOR WHICH IT IS SUBMITTED. ALL RIGHTS RESERVED TO SENSUS
REPRODUCTION WITHOUT WRITTEN CONSENT IS PROHIBITED.
SENSUS CONFIDENTIAL

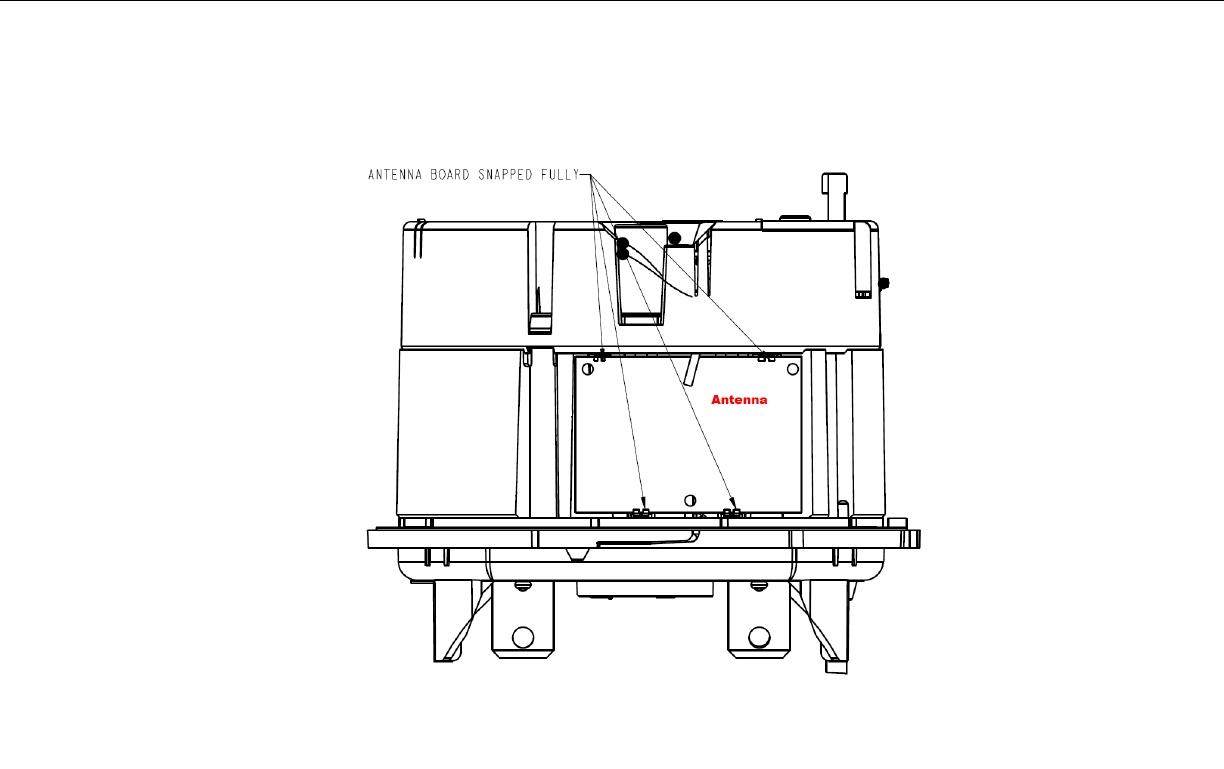

The Flexnet KV2c Antenna will snap into place via 4 tabs on the external side of the GE meter
housing.
Figure 2
Flexnet KV2c Antenna Installation
Revision 0.1 6 OF 9 7-8-2010
TO BE USED ONLY FOR THE PURPOSE FOR WHICH IT IS SUBMITTED. ALL RIGHTS RESERVED TO SENSUS
REPRODUCTION WITHOUT WRITTEN CONSENT IS PROHIBITED.
SENSUS CONFIDENTIAL

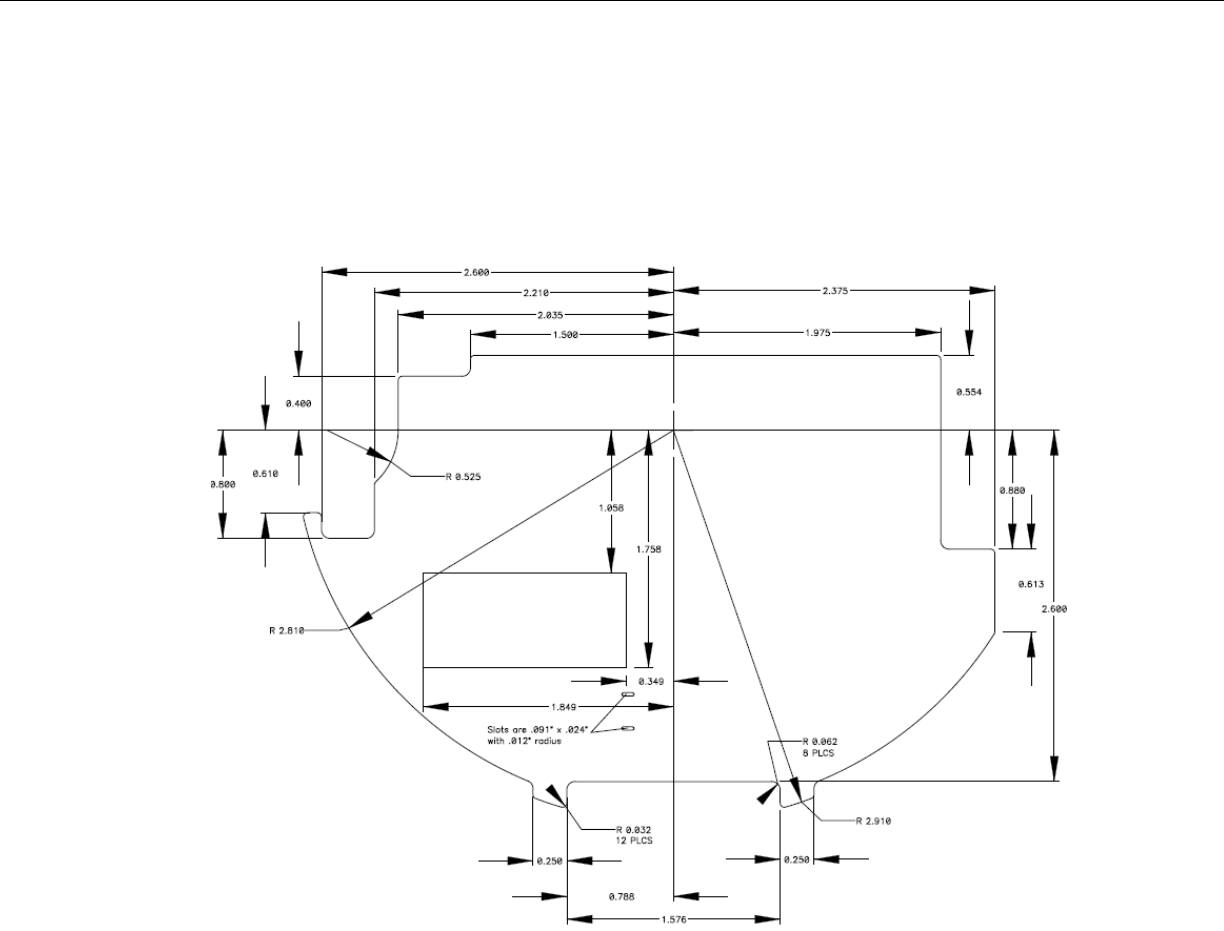

2.1.3 Device Dimensions: The device printed circuit board (PCB) shall have the following dimensions
as shown below.
Revision 0.1 7 OF 9 7-8-2010
TO BE USED ONLY FOR THE PURPOSE FOR WHICH IT IS SUBMITTED. ALL RIGHTS RESERVED TO SENSUS
REPRODUCTION WITHOUT WRITTEN CONSENT IS PROHIBITED.
SENSUS CONFIDENTIAL
Appendix A Regulatory Information
A.1 Compliance Information
A.1.1 FCC
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet or circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
WARNING: Changes or modifications to this device not expressly approved by
Sensus or AMDS LLC could void the user’s authority to operate this equipment.
Warning
Sensus FlexNET Modules are for professional installation only. They are to be serviced by
professional personnel only. This product is NOT for consumer installation or servicing.
Warning
Hazardous voltages are present: To reduce the risk of electric shock and danger to
personal health, follow the instructions.
Attention Any modifications made to this device that are not approved by Sensus may void the
authority granted to the user by the FCC to operate equipment.
A.1.2 Industry Canada
This Class B digital apparatus meets all requirements of the Canadian Interference
Causing Equipment Regulations. Operation is subject to the following two conditions:
1.
this device may not cause harmful interference, and
2.
this device must accept any interference received, including interference that
may cause undesired operation.
Revision 0.1 8 OF 9 7-8-2010
TO BE USED ONLY FOR THE PURPOSE FOR WHICH IT IS SUBMITTED. ALL RIGHTS RESERVED TO SENSUS
REPRODUCTION WITHOUT WRITTEN CONSENT IS PROHIBITED.
SENSUS CONFIDENTIAL

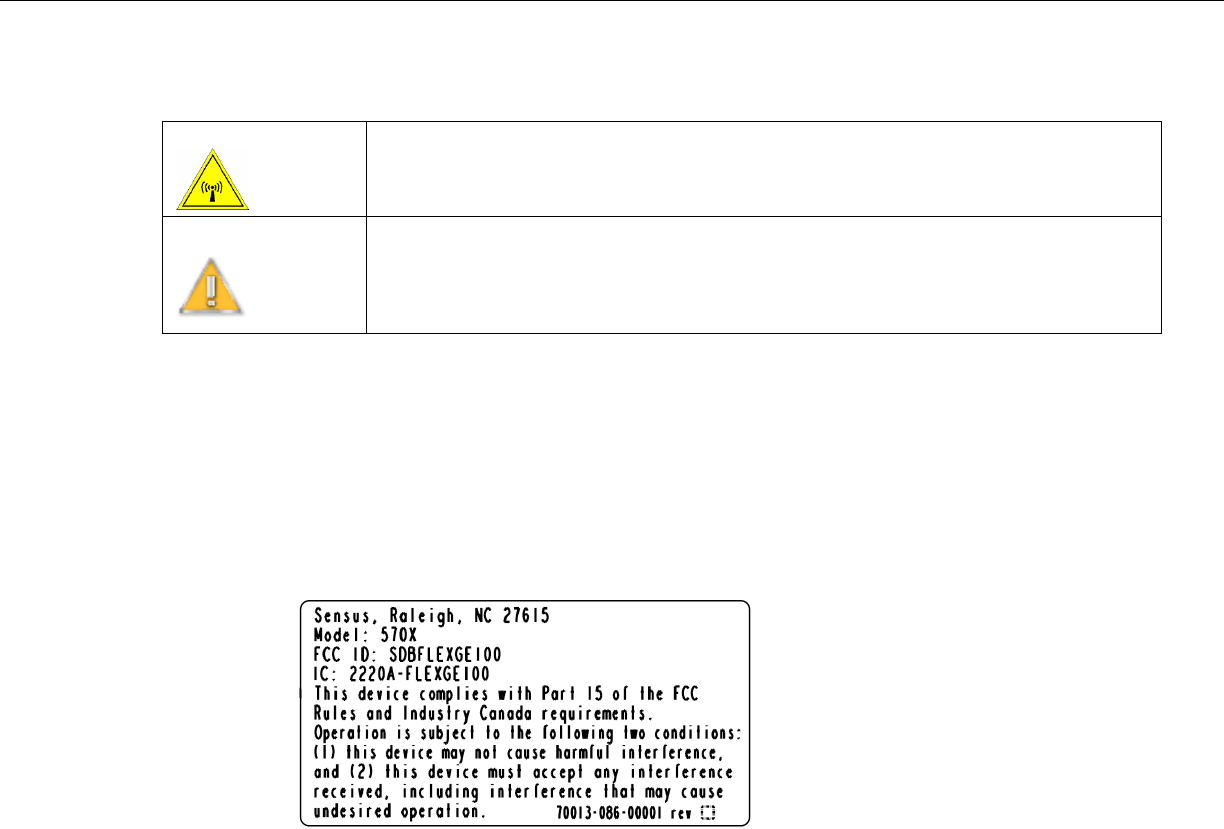

A.2 RF Exposure Statement for Flexnet L&G Focus
Radiation
Hazard
When operating the Sensus FlexNET Module, a minimum distance of 20 cm (7.8 inches)
is required between personnel and this antenna to comply with a radio-frequency
exposure limit of 1.0 mW/cm2.
Warning
To satisfy FCC RF exposure requirements for transmitting devices, a separation distance
of 20 cm or more should be maintained between the antenna of this device and persons
during device operation. To ensure compliance, operations at closer than this distance is
not recommended.
A.3 FCC Labeling Requirements
A.3.1 PCB FCC Label (internal label)
The PCB manufacturer must place an FCC label on the PCB device such as the one shown
below.
Revision 0.1 9 OF 9 7-8-2010
TO BE USED ONLY FOR THE PURPOSE FOR WHICH IT IS SUBMITTED. ALL RIGHTS RESERVED TO SENSUS
REPRODUCTION WITHOUT WRITTEN CONSENT IS PROHIBITED.
SENSUS CONFIDENTIAL
A.3.2 Meter FCC Label (external label)
The meter manufacturer must place an external label on the meter housing such as the one
shown below. This must be placed in a clearly visible area.
