Sensus Metering Systems HANXCVR01 HAN FlexNet Tranceiver User Manual 08 0233 Manual
Sensus Metering Systems Inc. HAN FlexNet Tranceiver 08 0233 Manual
Manual
5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598
Certification Exhibit
FCC ID: SDBHANXCVR01
IC: 2220A-HANXCVR01
FCC Rule Part: : CFR 47 24 Subpart D, Part 90 Subpart I, Part 101
Subpart C
IC Radio Standards Specification: RSS-119, RSS-134
ACS Report Number: 08-0233-LD
Manufacturer: Sensus Metering Systems
Model: HANXCVR01
Manual
The following document and its attachments are considered proprietary and confidential and the Property
of Sensus Metering Systems Inc. To be used only for the purpose for which it is submitted. All rights are
reserved to Sensus Metering Systems Inc. Reproduction without prior written consent is prohibited.
SENSUS CONFIDENTIAL
Installation and Users Guide

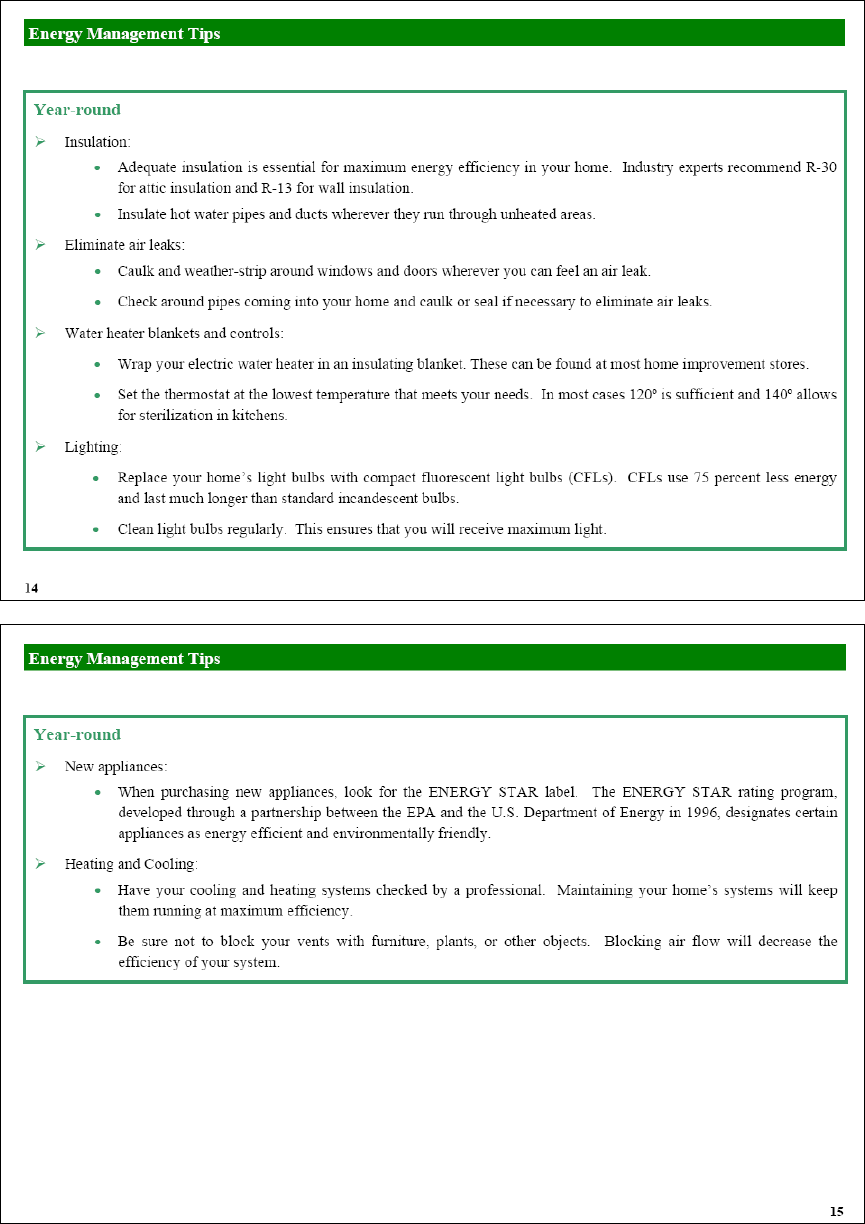

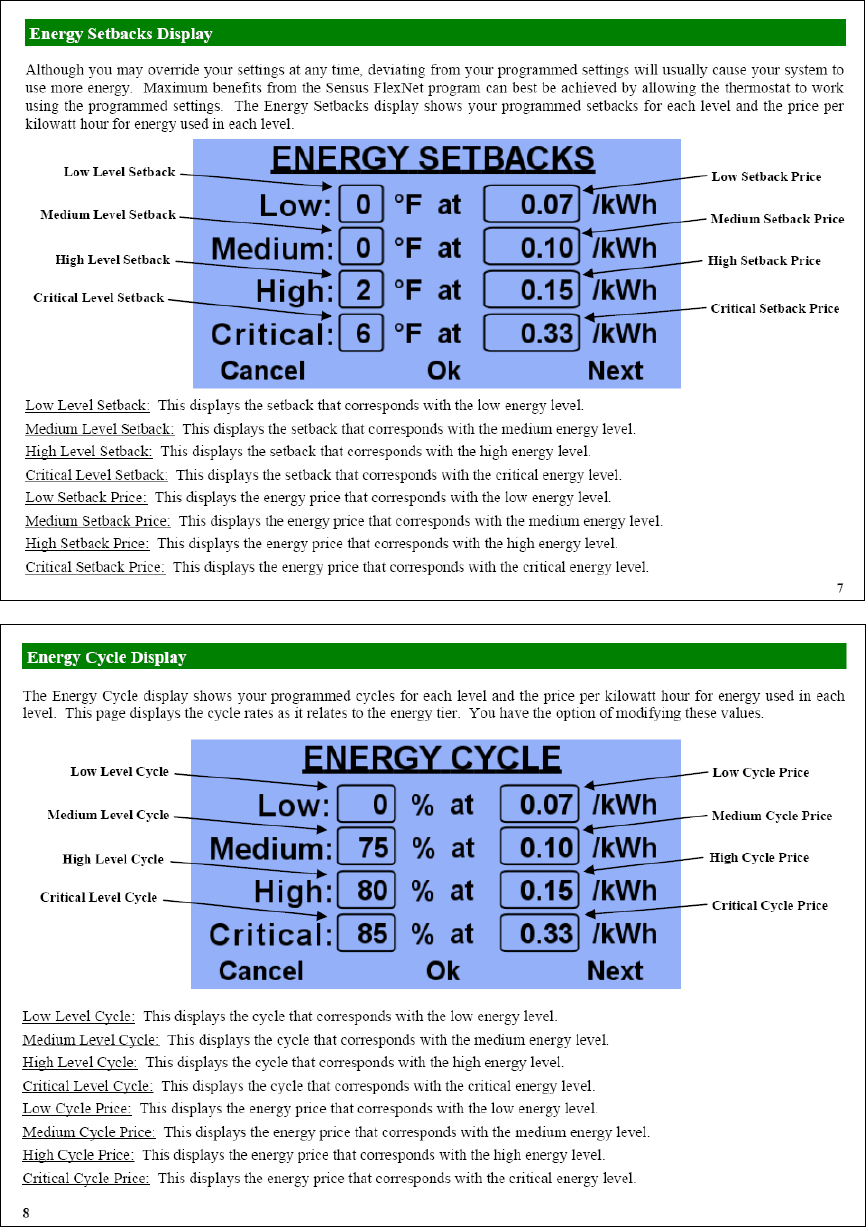

HAN FlexNetTM Transceiver with HAI RC2000 Thermostat Series
DRAFT COPY
09-22-2008
Sensus Metering Systems
The following document and its attachments are considered proprietary and confidential and the Property
of Sensus Metering Systems Inc. To be used only for the purpose for which it is submitted. All rights are
reserved to Sensus Metering Systems Inc. Reproduction without prior written consent is prohibited.
SENSUS CONFIDENTIAL
The following document and its attachments are considered proprietary and confidential and the Property
of Sensus Metering Systems Inc. To be used only for the purpose for which it is submitted. All rights are
reserved to Sensus Metering Systems Inc. Reproduction without prior written consent is prohibited.
SENSUS CONFIDENTIAL

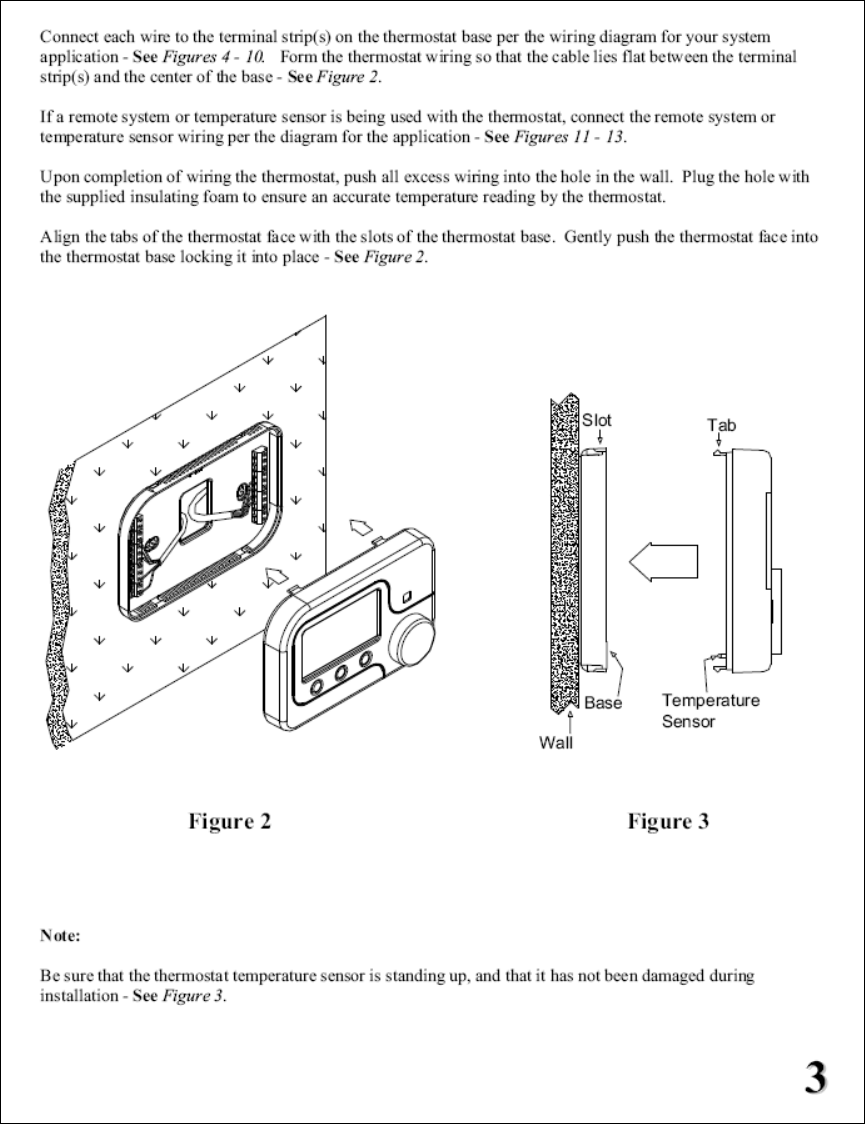

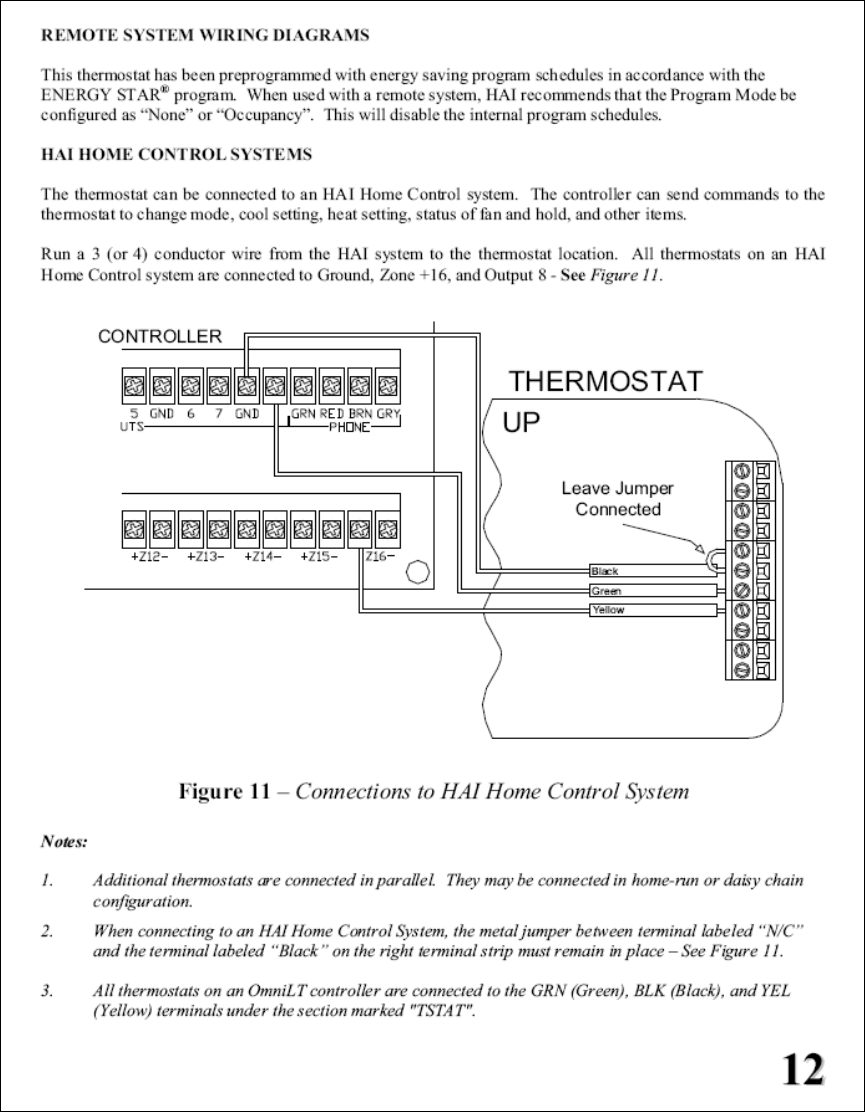

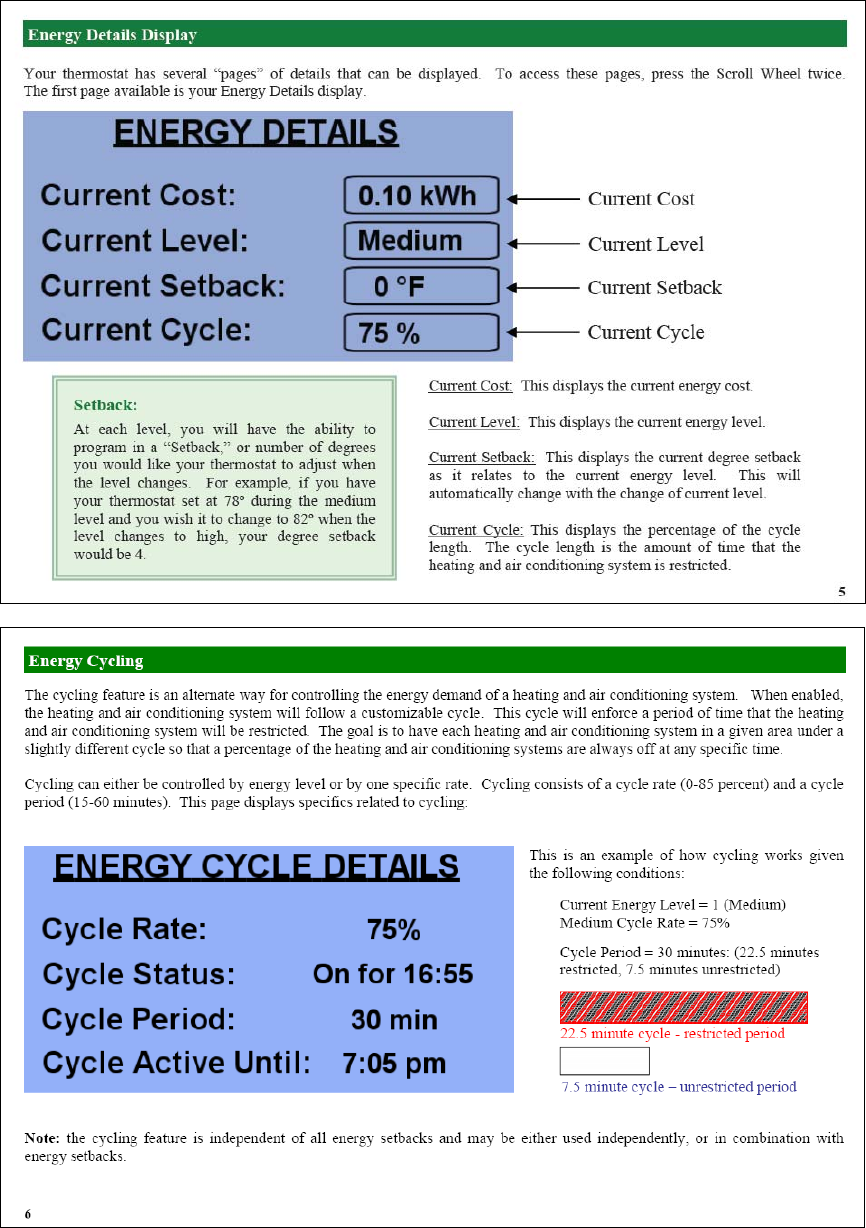

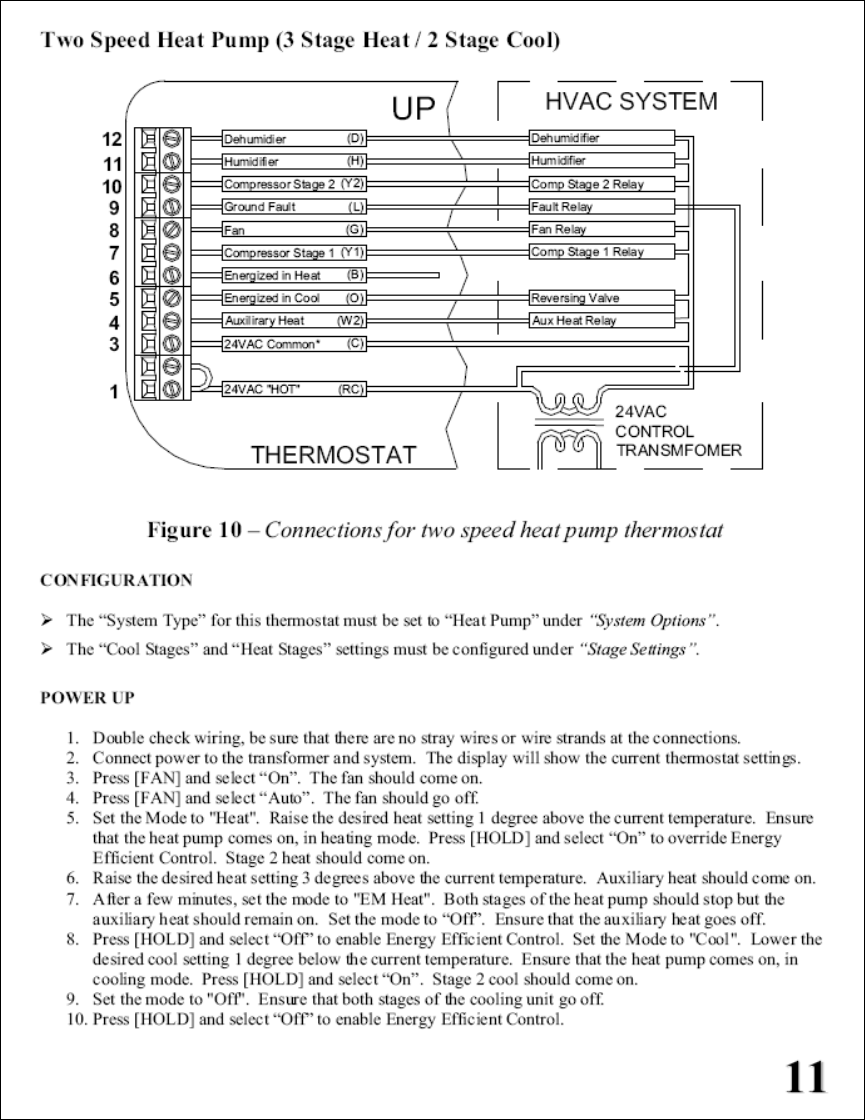

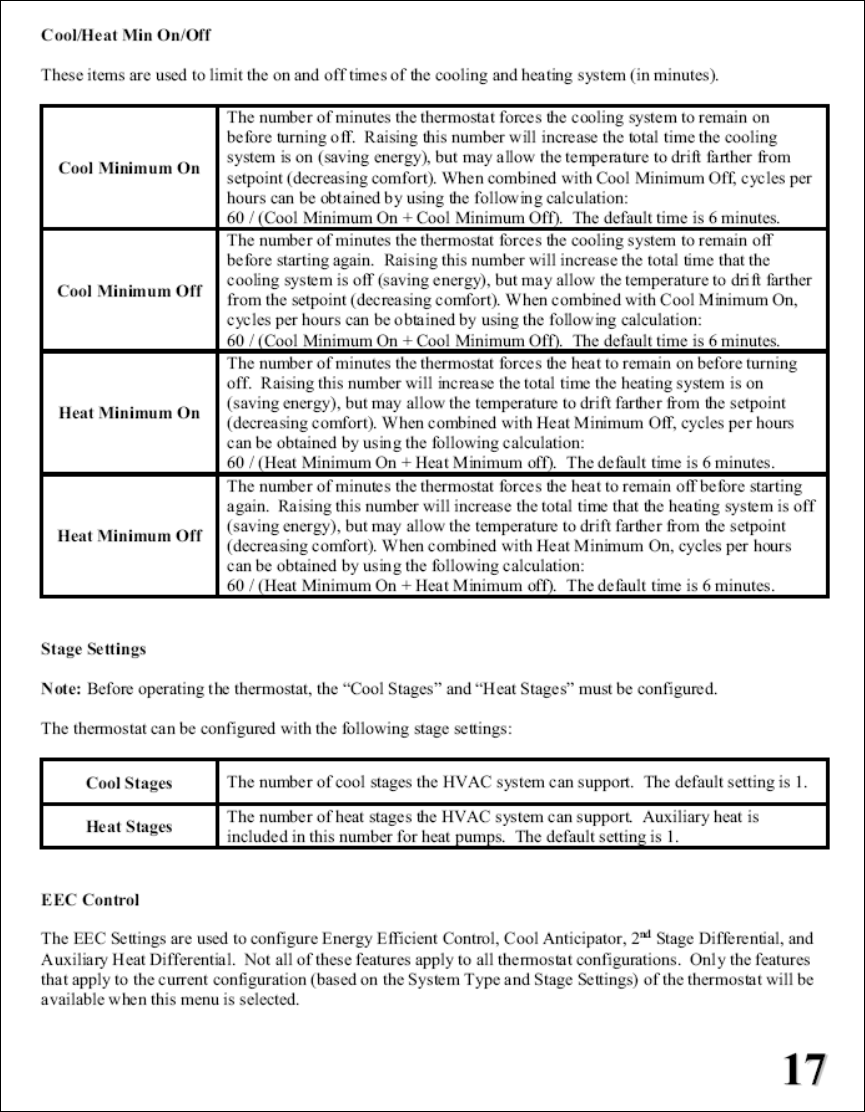

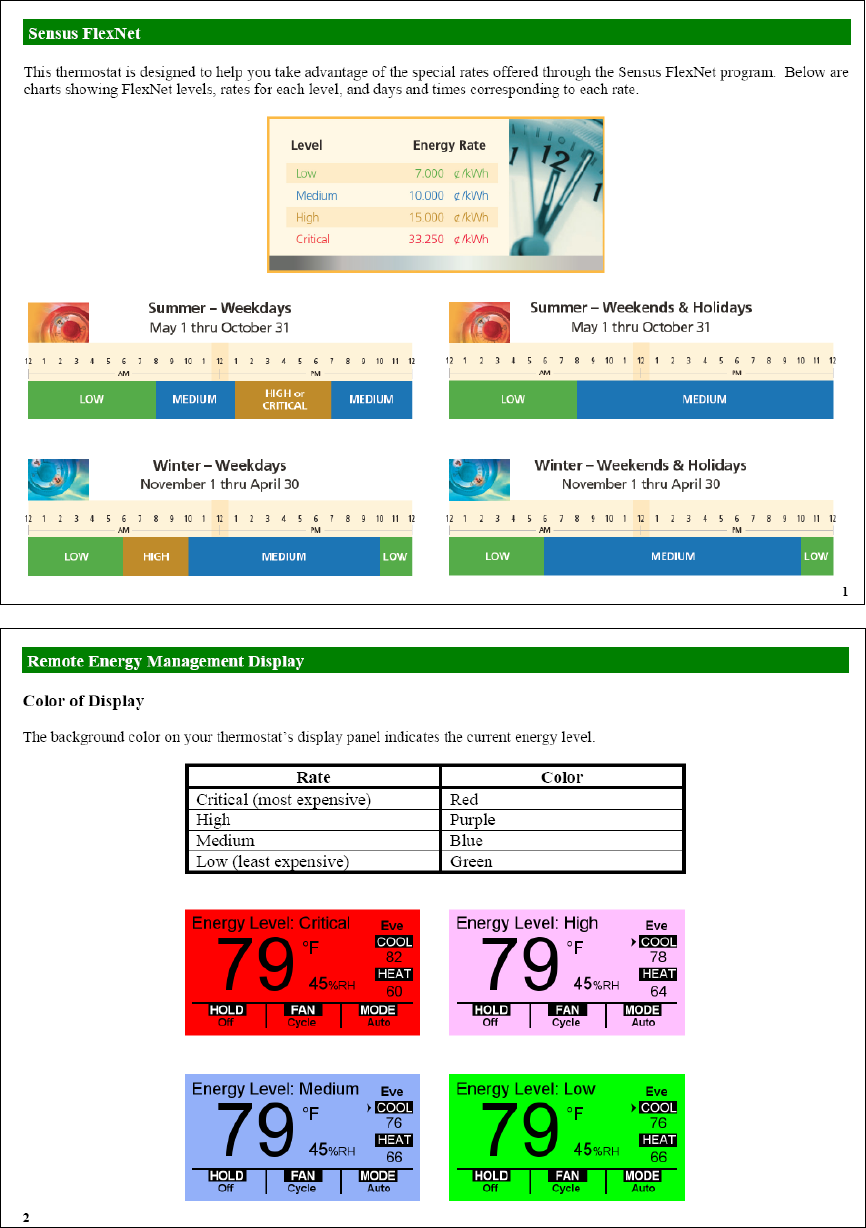

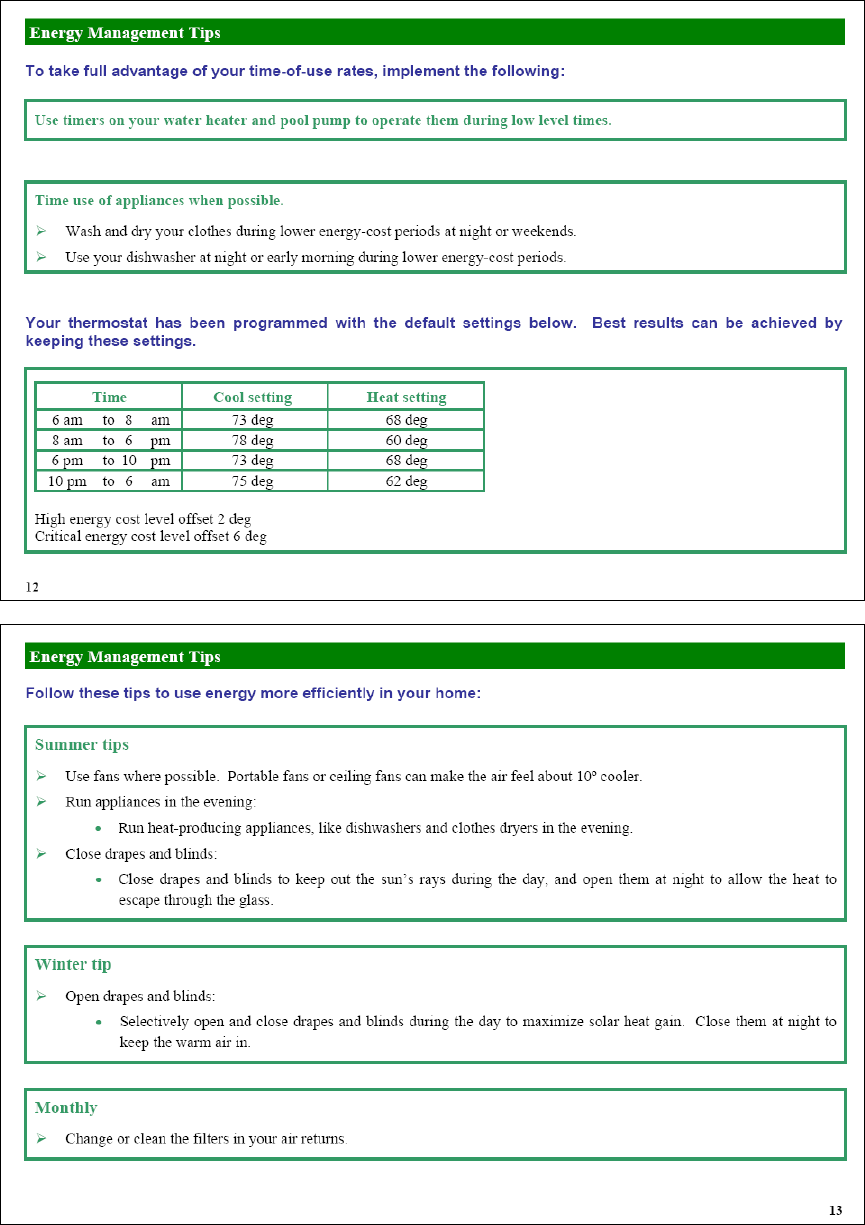

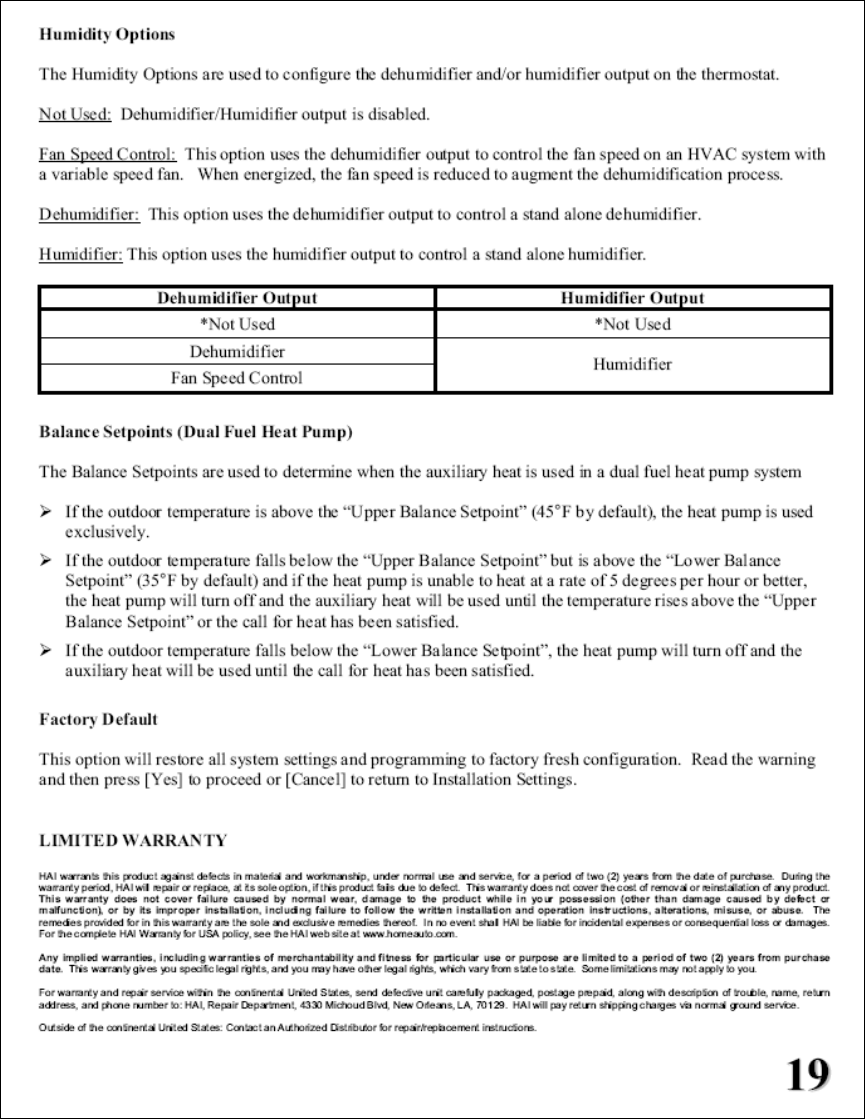

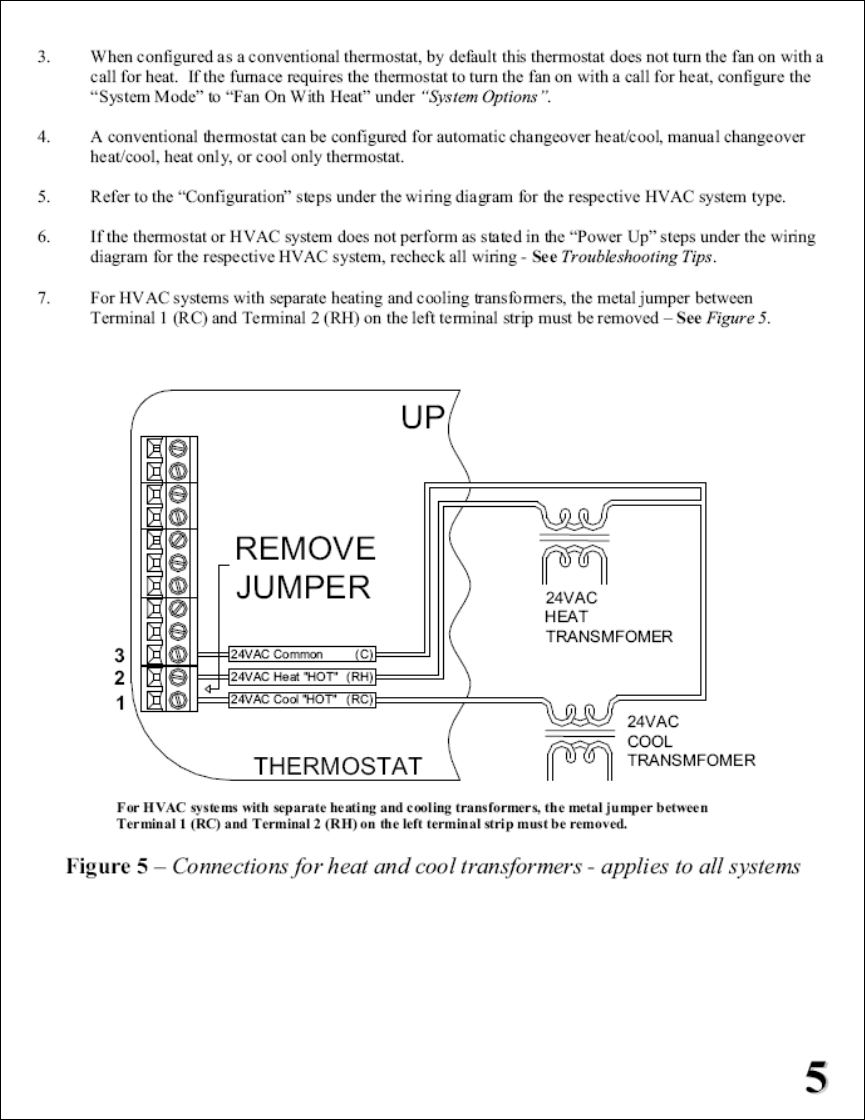

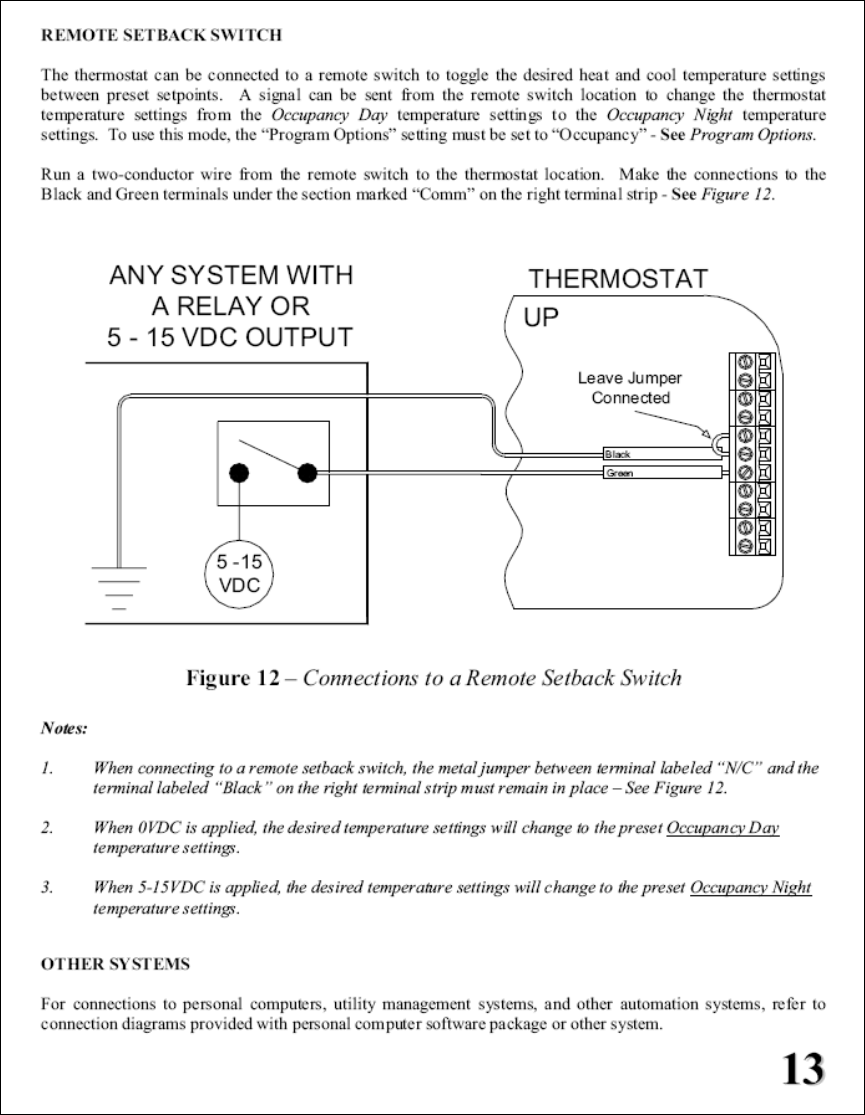

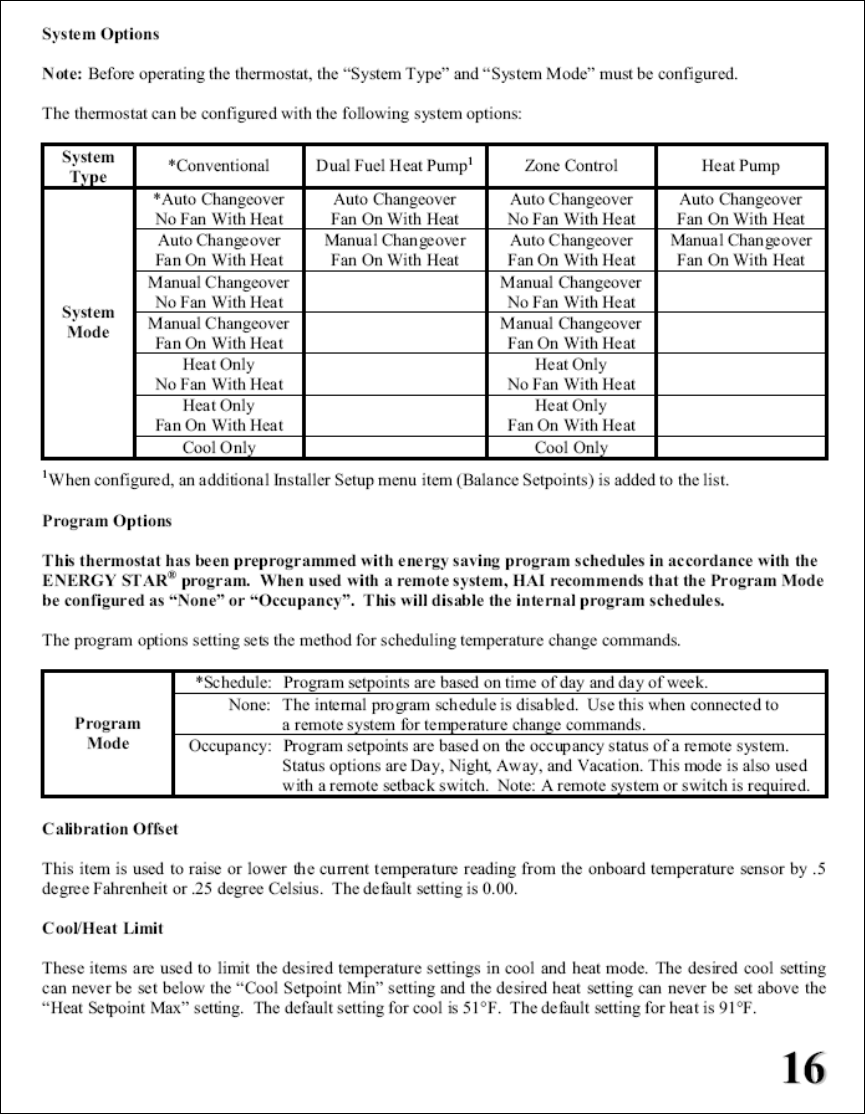

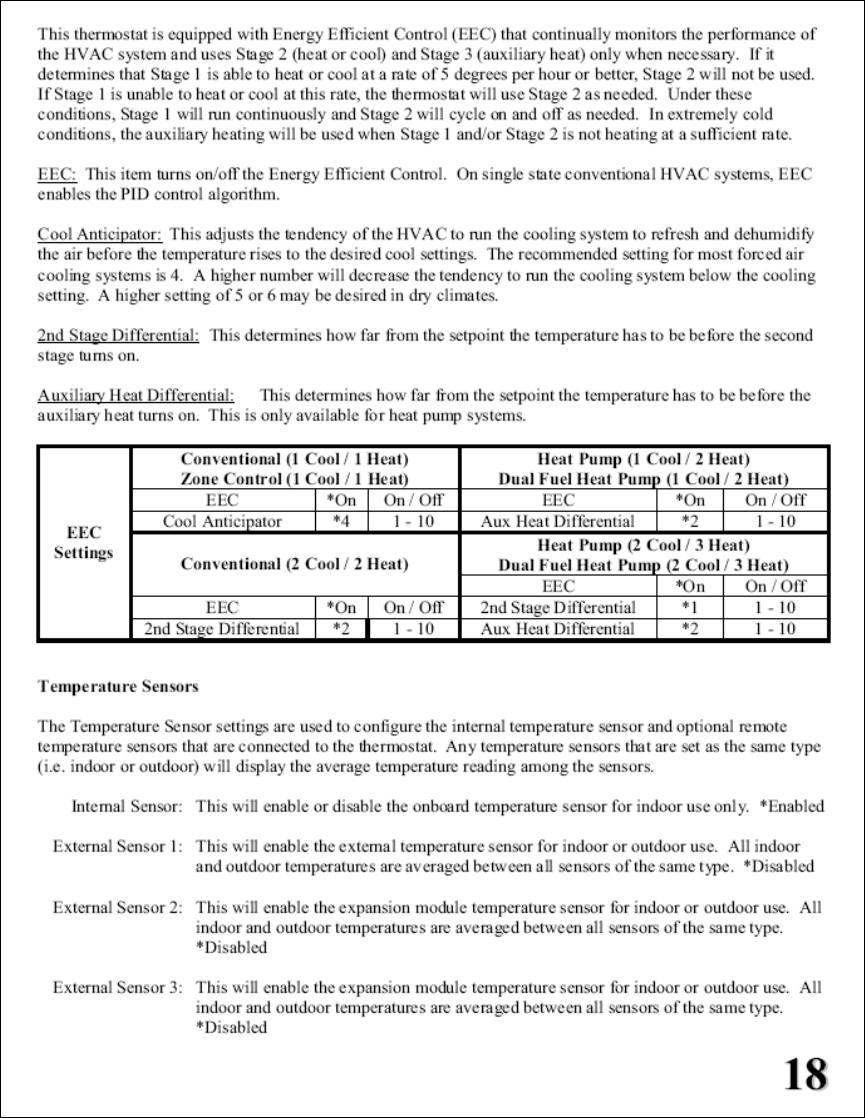

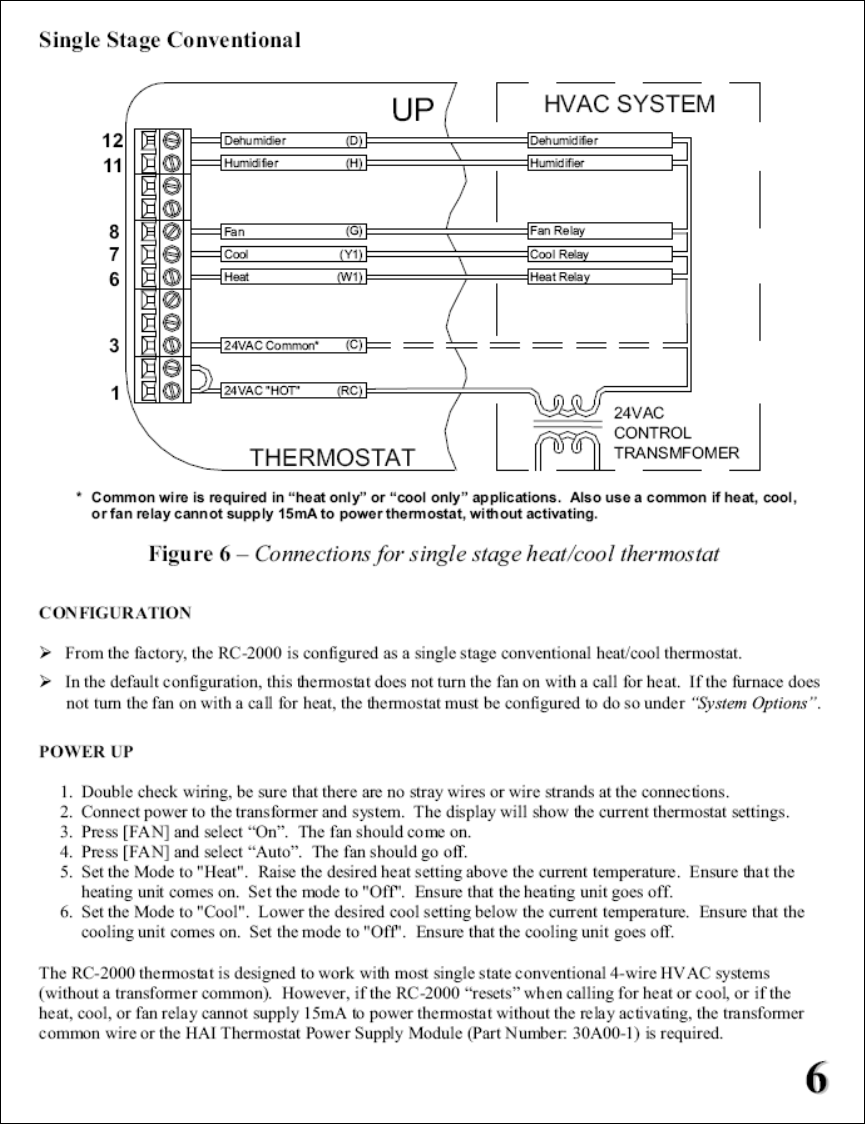

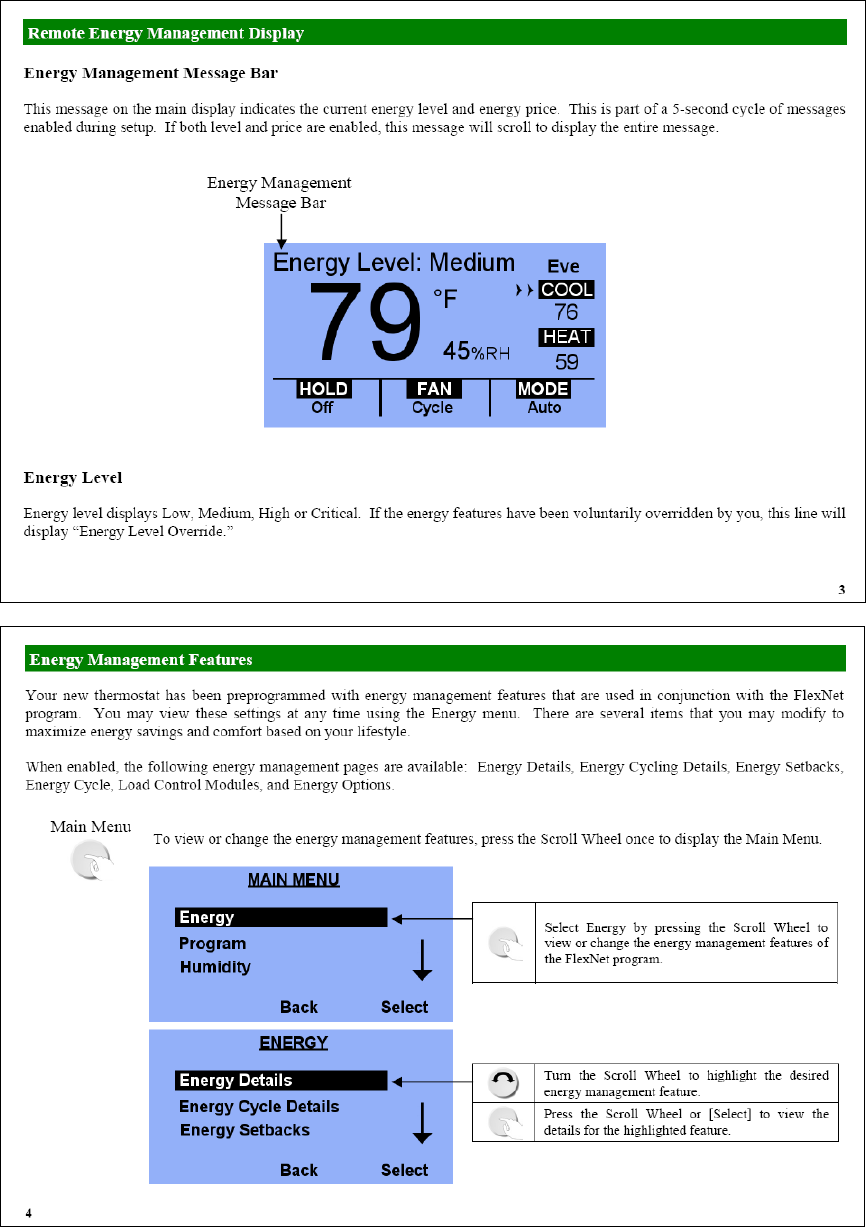

HAI RC2000 Installation and User’s Guide
The following document and its attachments are considered proprietary and confidential and the Property
of Sensus Metering Systems Inc. To be used only for the purpose for which it is submitted. All rights are
reserved to Sensus Metering Systems Inc. Reproduction without prior written consent is prohibited.
SENSUS CONFIDENTIAL
The following document and its attachments are considered proprietary and confidential and the Property
of Sensus Metering Systems Inc. To be used only for the purpose for which it is submitted. All rights are
reserved to Sensus Metering Systems Inc. Reproduction without prior written consent is prohibited.
SENSUS CONFIDENTIAL
The following document and its attachments are considered proprietary and confidential and the Property
of Sensus Metering Systems Inc. To be used only for the purpose for which it is submitted. All rights are
reserved to Sensus Metering Systems Inc. Reproduction without prior written consent is prohibited.
SENSUS CONFIDENTIAL

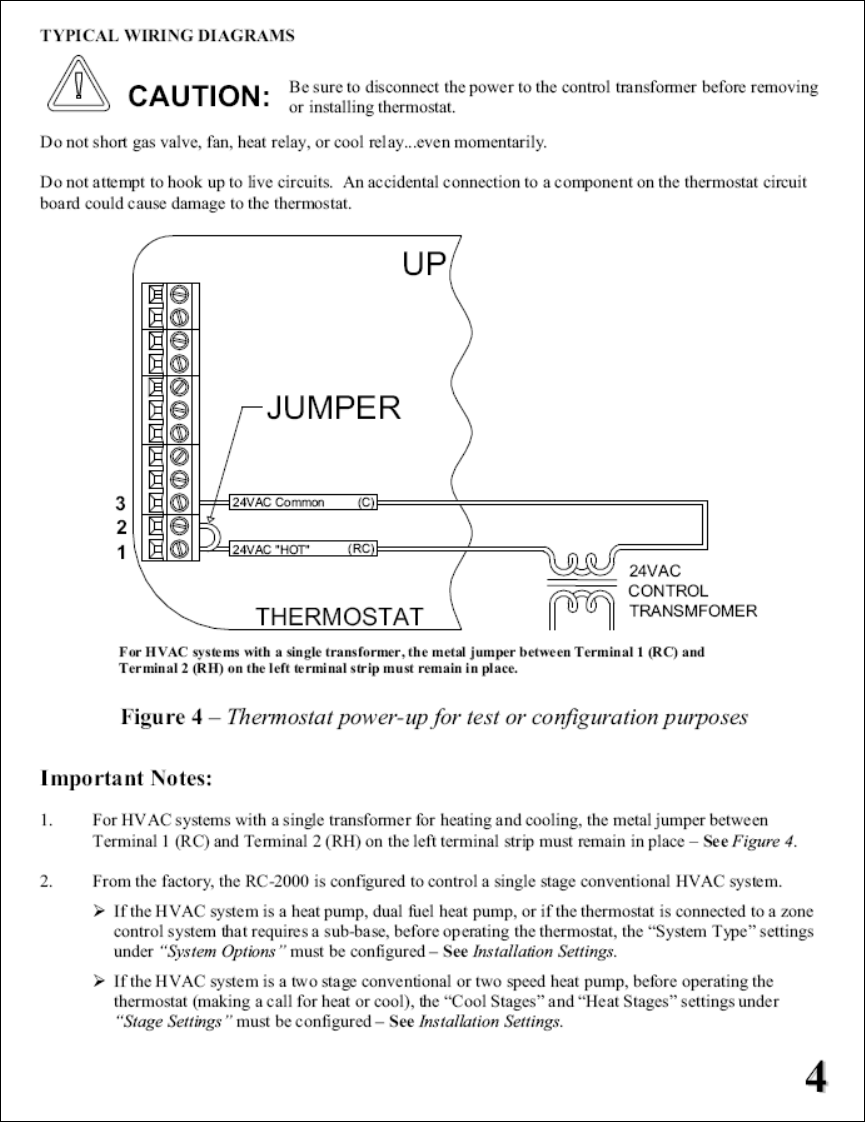

The following document and its attachments are considered proprietary and confidential and the Property
of Sensus Metering Systems Inc. To be used only for the purpose for which it is submitted. All rights are
reserved to Sensus Metering Systems Inc. Reproduction without prior written consent is prohibited.
SENSUS CONFIDENTIAL
The following document and its attachments are considered proprietary and confidential and the Property
of Sensus Metering Systems Inc. To be used only for the purpose for which it is submitted. All rights are
reserved to Sensus Metering Systems Inc. Reproduction without prior written consent is prohibited.
SENSUS CONFIDENTIAL
The following document and its attachments are considered proprietary and confidential and the Property
of Sensus Metering Systems Inc. To be used only for the purpose for which it is submitted. All rights are
reserved to Sensus Metering Systems Inc. Reproduction without prior written consent is prohibited.
SENSUS CONFIDENTIAL

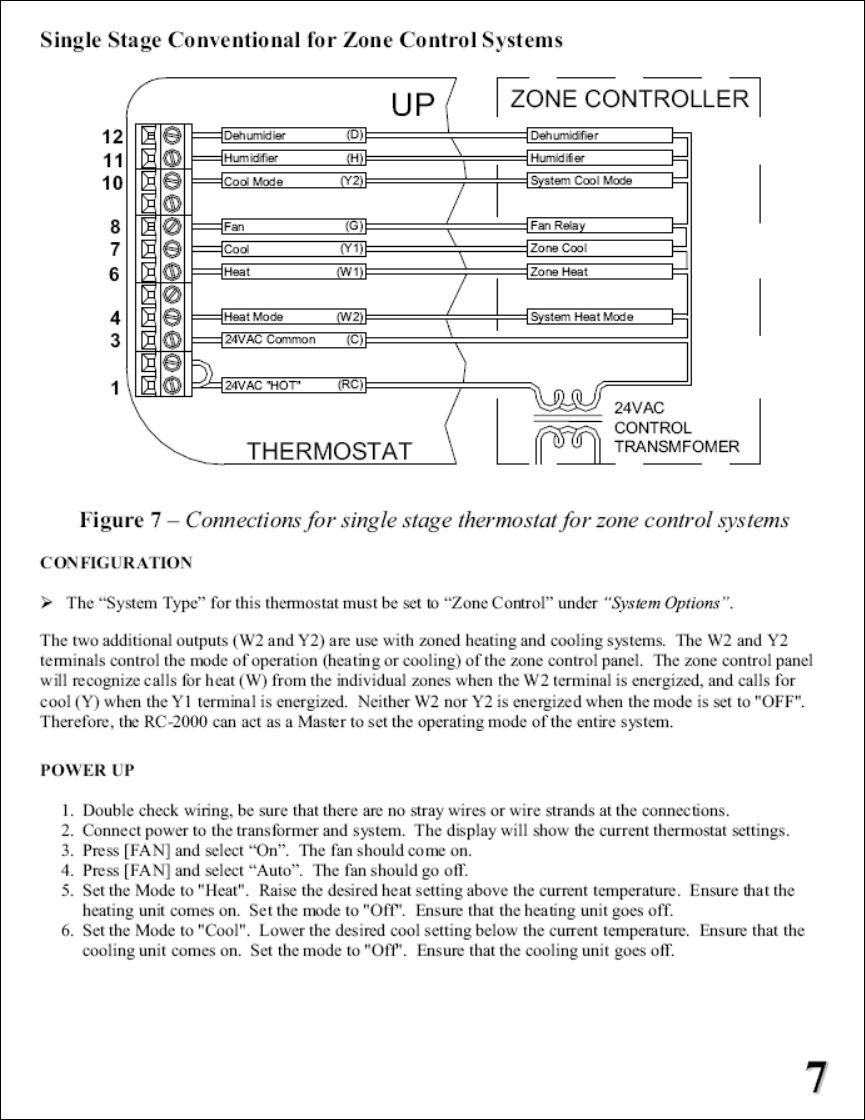

The following document and its attachments are considered proprietary and confidential and the Property
of Sensus Metering Systems Inc. To be used only for the purpose for which it is submitted. All rights are
reserved to Sensus Metering Systems Inc. Reproduction without prior written consent is prohibited.
SENSUS CONFIDENTIAL

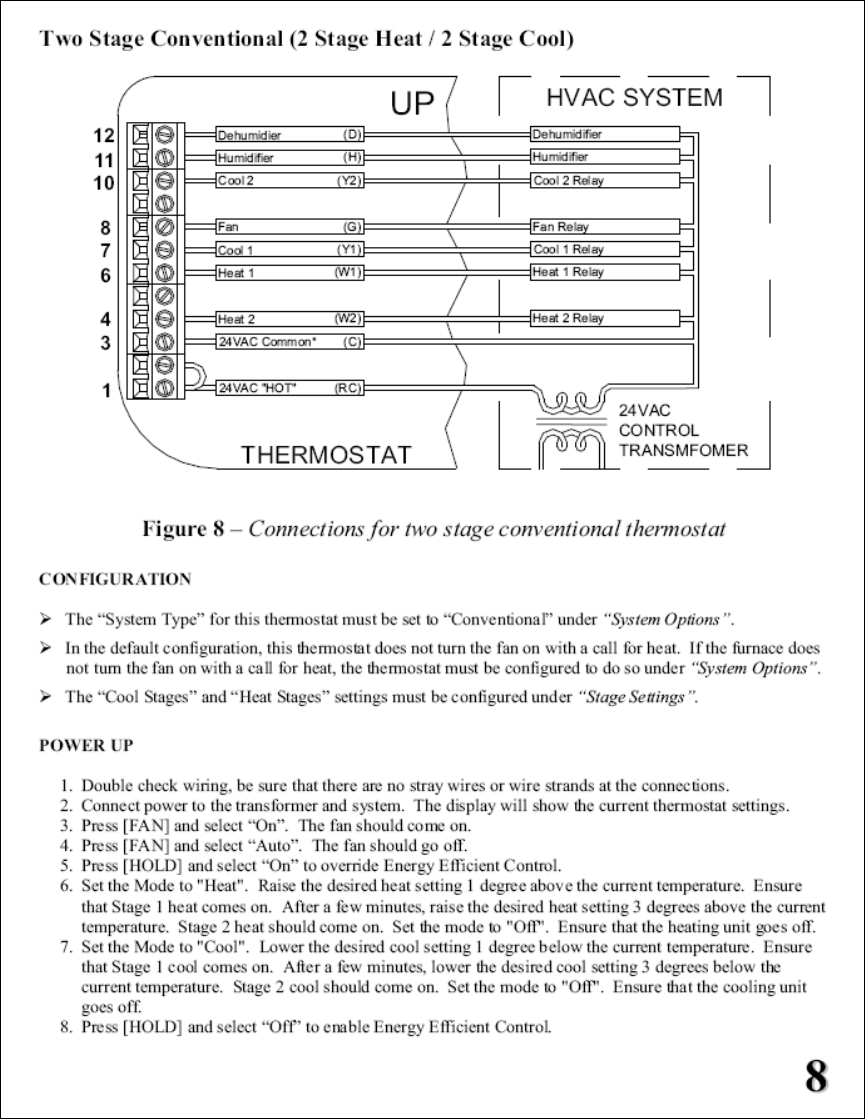

The following document and its attachments are considered proprietary and confidential and the Property
of Sensus Metering Systems Inc. To be used only for the purpose for which it is submitted. All rights are
reserved to Sensus Metering Systems Inc. Reproduction without prior written consent is prohibited.
SENSUS CONFIDENTIAL

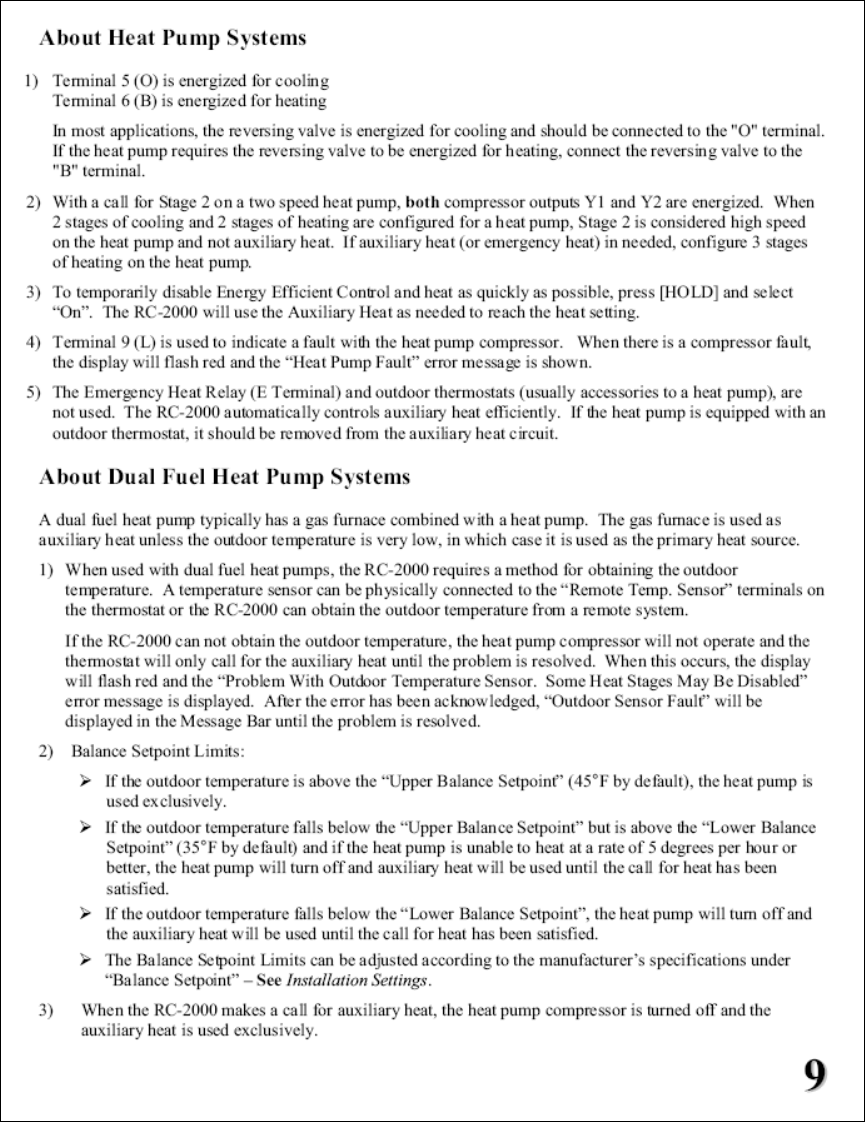

The following document and its attachments are considered proprietary and confidential and the Property
of Sensus Metering Systems Inc. To be used only for the purpose for which it is submitted. All rights are
reserved to Sensus Metering Systems Inc. Reproduction without prior written consent is prohibited.
SENSUS CONFIDENTIAL

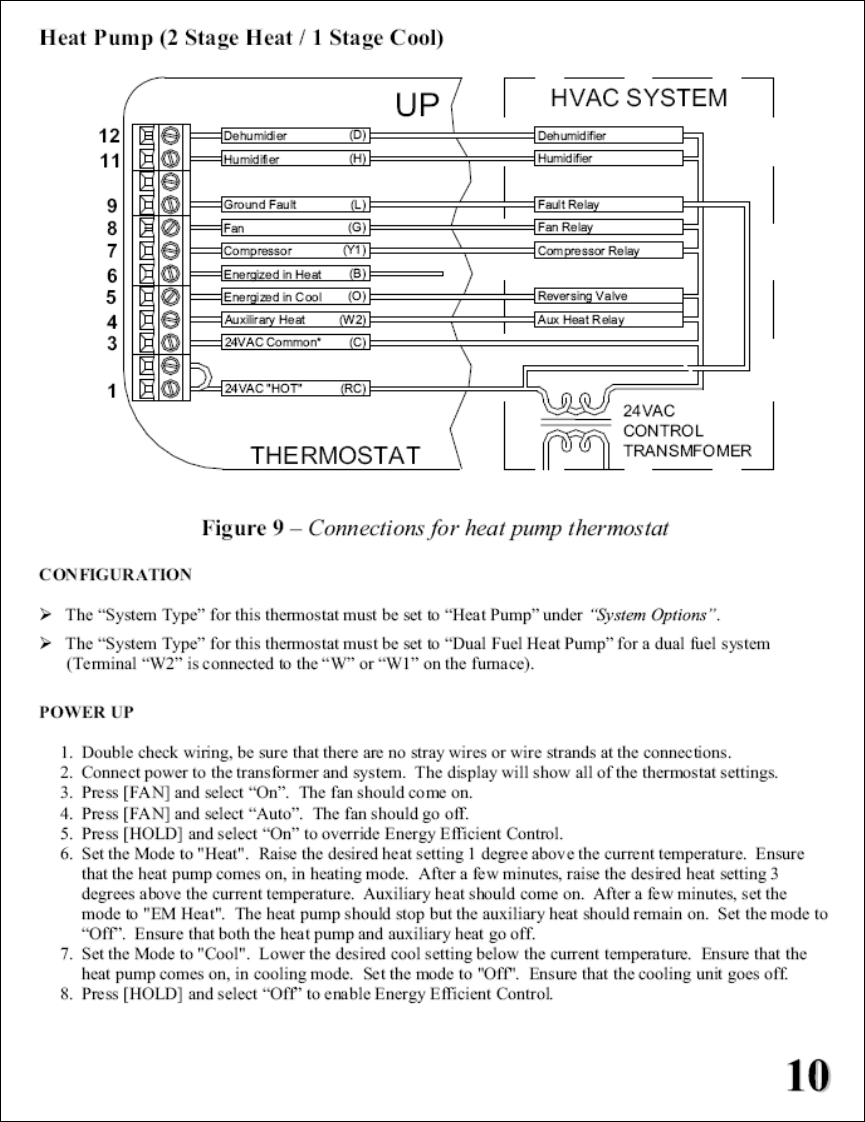

The following document and its attachments are considered proprietary and confidential and the Property
of Sensus Metering Systems Inc. To be used only for the purpose for which it is submitted. All rights are
reserved to Sensus Metering Systems Inc. Reproduction without prior written consent is prohibited.
SENSUS CONFIDENTIAL
The following document and its attachments are considered proprietary and confidential and the Property
of Sensus Metering Systems Inc. To be used only for the purpose for which it is submitted. All rights are
reserved to Sensus Metering Systems Inc. Reproduction without prior written consent is prohibited.
SENSUS CONFIDENTIAL
The following document and its attachments are considered proprietary and confidential and the Property
of Sensus Metering Systems Inc. To be used only for the purpose for which it is submitted. All rights are
reserved to Sensus Metering Systems Inc. Reproduction without prior written consent is prohibited.
SENSUS CONFIDENTIAL
The following document and its attachments are considered proprietary and confidential and the Property
of Sensus Metering Systems Inc. To be used only for the purpose for which it is submitted. All rights are
reserved to Sensus Metering Systems Inc. Reproduction without prior written consent is prohibited.
SENSUS CONFIDENTIAL

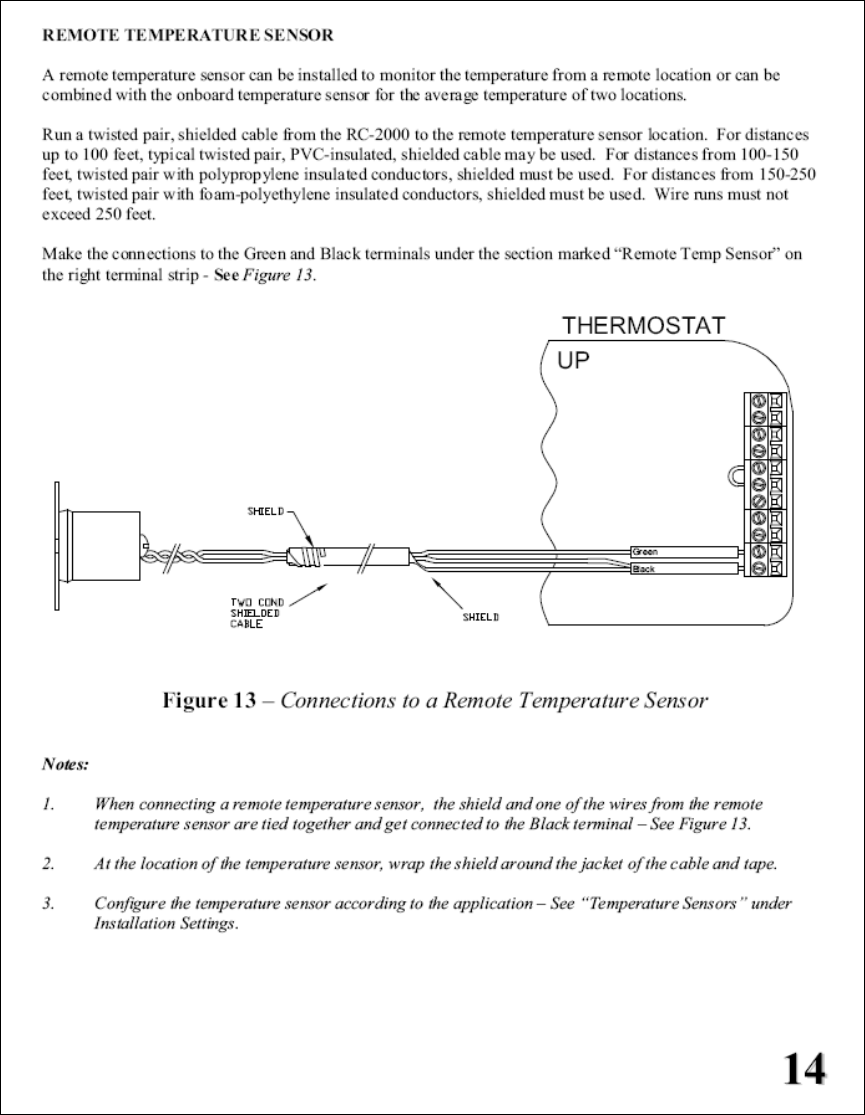

The following document and its attachments are considered proprietary and confidential and the Property
of Sensus Metering Systems Inc. To be used only for the purpose for which it is submitted. All rights are
reserved to Sensus Metering Systems Inc. Reproduction without prior written consent is prohibited.
SENSUS CONFIDENTIAL
The following document and its attachments are considered proprietary and confidential and the Property
of Sensus Metering Systems Inc. To be used only for the purpose for which it is submitted. All rights are
reserved to Sensus Metering Systems Inc. Reproduction without prior written consent is prohibited.
SENSUS CONFIDENTIAL
The following document and its attachments are considered proprietary and confidential and the Property
of Sensus Metering Systems Inc. To be used only for the purpose for which it is submitted. All rights are
reserved to Sensus Metering Systems Inc. Reproduction without prior written consent is prohibited.
SENSUS CONFIDENTIAL
The following document and its attachments are considered proprietary and confidential and the Property
of Sensus Metering Systems Inc. To be used only for the purpose for which it is submitted. All rights are
reserved to Sensus Metering Systems Inc. Reproduction without prior written consent is prohibited.
SENSUS CONFIDENTIAL
The following document and its attachments are considered proprietary and confidential and the Property
of Sensus Metering Systems Inc. To be used only for the purpose for which it is submitted. All rights are
reserved to Sensus Metering Systems Inc. Reproduction without prior written consent is prohibited.
SENSUS CONFIDENTIAL
The following document and its attachments are considered proprietary and confidential and the Property
of Sensus Metering Systems Inc. To be used only for the purpose for which it is submitted. All rights are
reserved to Sensus Metering Systems Inc. Reproduction without prior written consent is prohibited.
SENSUS CONFIDENTIAL
The following document and its attachments are considered proprietary and confidential and the Property
of Sensus Metering Systems Inc. To be used only for the purpose for which it is submitted. All rights are
reserved to Sensus Metering Systems Inc. Reproduction without prior written consent is prohibited.
SENSUS CONFIDENTIAL
The following document and its attachments are considered proprietary and confidential and the Property
of Sensus Metering Systems Inc. To be used only for the purpose for which it is submitted. All rights are
reserved to Sensus Metering Systems Inc. Reproduction without prior written consent is prohibited.
SENSUS CONFIDENTIAL
The following document and its attachments are considered proprietary and confidential and the Property
of Sensus Metering Systems Inc. To be used only for the purpose for which it is submitted. All rights are
reserved to Sensus Metering Systems Inc. Reproduction without prior written consent is prohibited.
SENSUS CONFIDENTIAL
The following document and its attachments are considered proprietary and confidential and the Property
of Sensus Metering Systems Inc. To be used only for the purpose for which it is submitted. All rights are
reserved to Sensus Metering Systems Inc. Reproduction without prior written consent is prohibited.
SENSUS CONFIDENTIAL
The following document and its attachments are considered proprietary and confidential and the Property
of Sensus Metering Systems Inc. To be used only for the purpose for which it is submitted. All rights are
reserved to Sensus Metering Systems Inc. Reproduction without prior written consent is prohibited.
SENSUS CONFIDENTIAL

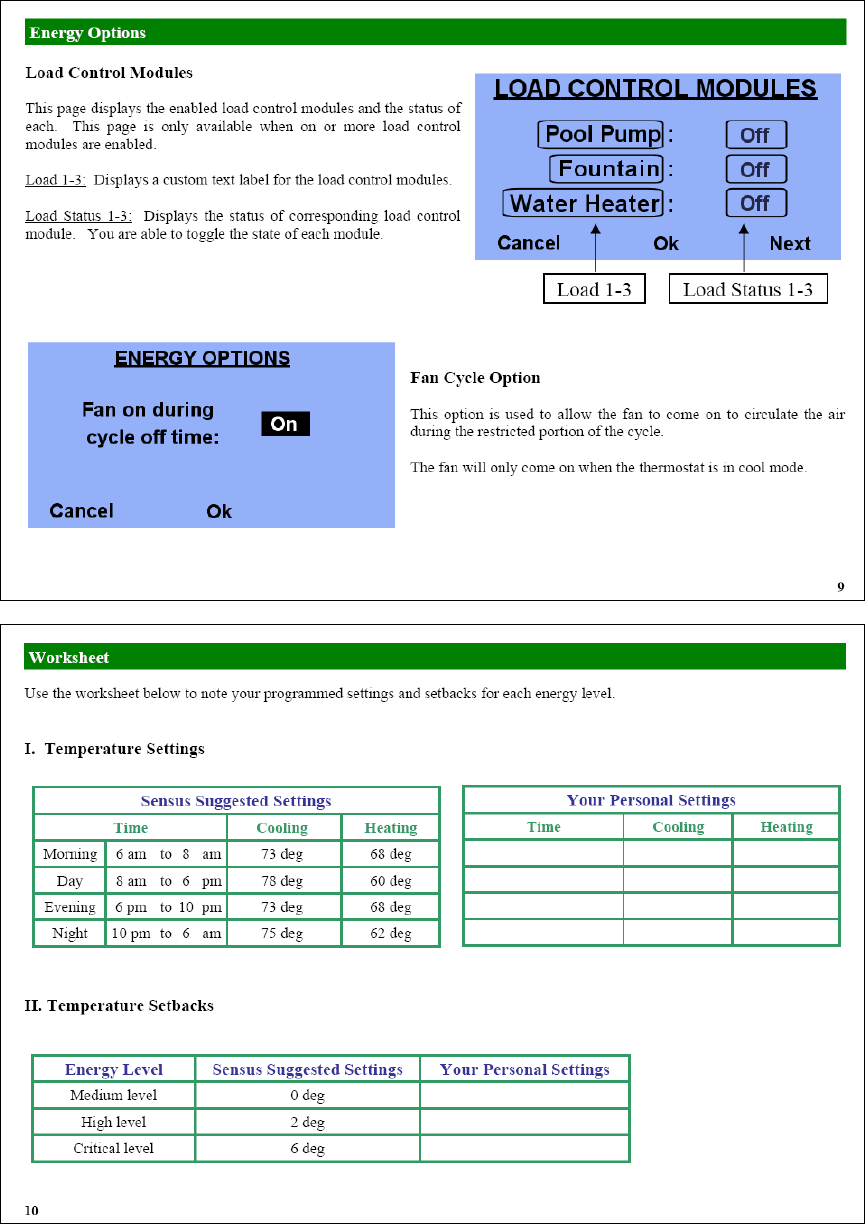

The following document and its attachments are considered proprietary and confidential and the Property
of Sensus Metering Systems Inc. To be used only for the purpose for which it is submitted. All rights are
reserved to Sensus Metering Systems Inc. Reproduction without prior written consent is prohibited.
SENSUS CONFIDENTIAL
The following document and its attachments are considered proprietary and confidential and the Property
of Sensus Metering Systems Inc. To be used only for the purpose for which it is submitted. All rights are
reserved to Sensus Metering Systems Inc. Reproduction without prior written consent is prohibited.
SENSUS CONFIDENTIAL
The following document and its attachments are considered proprietary and confidential and the Property
of Sensus Metering Systems Inc. To be used only for the purpose for which it is submitted. All rights are
reserved to Sensus Metering Systems Inc. Reproduction without prior written consent is prohibited.
SENSUS CONFIDENTIAL
The following document and its attachments are considered proprietary and confidential and the Property
of Sensus Metering Systems Inc. To be used only for the purpose for which it is submitted. All rights are
reserved to Sensus Metering Systems Inc. Reproduction without prior written consent is prohibited.
SENSUS CONFIDENTIAL
The following document and its attachments are considered proprietary and confidential and the Property
of Sensus Metering Systems Inc. To be used only for the purpose for which it is submitted. All rights are
reserved to Sensus Metering Systems Inc. Reproduction without prior written consent is prohibited.
SENSUS CONFIDENTIAL
The following document and its attachments are considered proprietary and confidential and the Property
of Sensus Metering Systems Inc. To be used only for the purpose for which it is submitted. All rights are
reserved to Sensus Metering Systems Inc. Reproduction without prior written consent is prohibited.
SENSUS CONFIDENTIAL
FlexNet Activation Instructions:
Meter and Endpoint Interaction
In normal operation, the FlexNet meter will send Set TOU Rate ant Current Time
commands out periodically to Demand Response (DR) endpoints in the premises.
The HANXCVR01 will transmit Thermostat Status Messages at the programmed
Transmit Supervisory Rate.

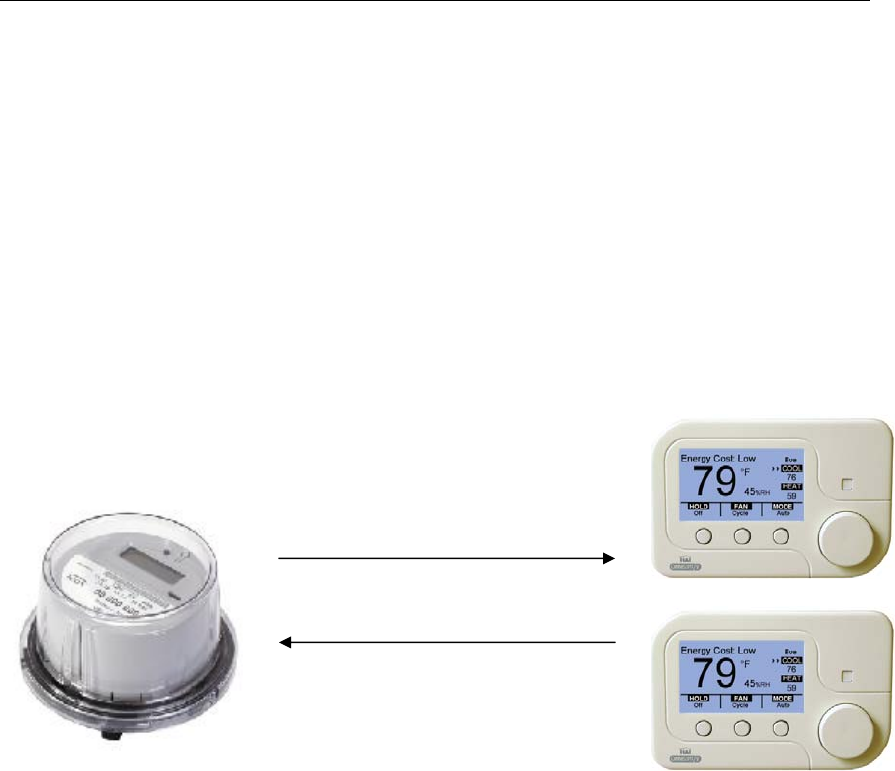

Typical Interaction – The meter does not store the FlexNet Id’s of devices communication with it,
rather all of the DR equipment in a residence stores the FlexNet Id of the meter at the residence. The
meter shall be a TOU meter that periodically sends out “Set TOU Rate and Current Time” commands
addressed with the meter’s own FlexNet Id. The DR equipment listens for the commands and
responds accordingly.
Set TOU Rate and
Current Time Command
•Sent n times per TOU Period
•Repeat set to 1 to block Buddy repeats
•FlexNet Id set to meter’s FlexNet Id
Thermostat Status Message
•Sent at Tx Supervisory Rate
•Repeat set to 0 to allow Buddy repeats
•FlexNet Id set to Thermostats FlexNet Id
The following document and its attachments are considered proprietary and confidential and the Property
of Sensus Metering Systems Inc. To be used only for the purpose for which it is submitted. All rights are
reserved to Sensus Metering Systems Inc. Reproduction without prior written consent is prohibited.
SENSUS CONFIDENTIAL
Device Installation and Binding Process
1) User Runs Sensus Demand Response Installation Tool program
2) User enters Meter FlexNet Id and Thermostat FlexNet Id in each of the FlexNet ID fields.
3) User then presses the Install Button
Send “Set Associated Meter FlexNet Id” command to thermostat
i. Repeat n times until Ack received
The following document and its attachments are considered proprietary and confidential and the Property
of Sensus Metering Systems Inc. To be used only for the purpose for which it is submitted. All rights are
reserved to Sensus Metering Systems Inc. Reproduction without prior written consent is prohibited.
SENSUS CONFIDENTIAL
Send “Set TOU Bin Definition” command to thermostat
i. Repeat n times until Ack received
Send “Set TOU Setbacks” command to thermostat
i. Repeat n times until Ack received
Send “Set Energy Pricing” or “Energy Cycling” command to thermostat
i. Repeat n times until Ack received
Send “Enable Set TOU Rate and Current Time” command to meter
i. Repeat n times until Ack received
Ping Meter for Set TOU Rate and Current Time command
i. Ping thermostat for Thermostat Status
ii. Repeat d. and i. n times until Thermostat Status shows “Received Set TOU Rate
Command” flag is set
Send Static Setup to thermostat
i. Repeat n times until Ack received
Verify Meter – Thermostat Link and Setup information
4) Report Success or Failure, log results to file.
The following document and its attachments are considered proprietary and confidential and the Property
of Sensus Metering Systems Inc. To be used only for the purpose for which it is submitted. All rights are
reserved to Sensus Metering Systems Inc. Reproduction without prior written consent is prohibited.
SENSUS CONFIDENTIAL
The following document and its attachments are considered proprietary and confidential and the Property
of Sensus Metering Systems Inc. To be used only for the purpose for which it is submitted. All rights are
reserved to Sensus Metering Systems Inc. Reproduction without prior written consent is prohibited.
SENSUS CONFIDENTIAL
APPENDIX B: REGULATORY LABELING:

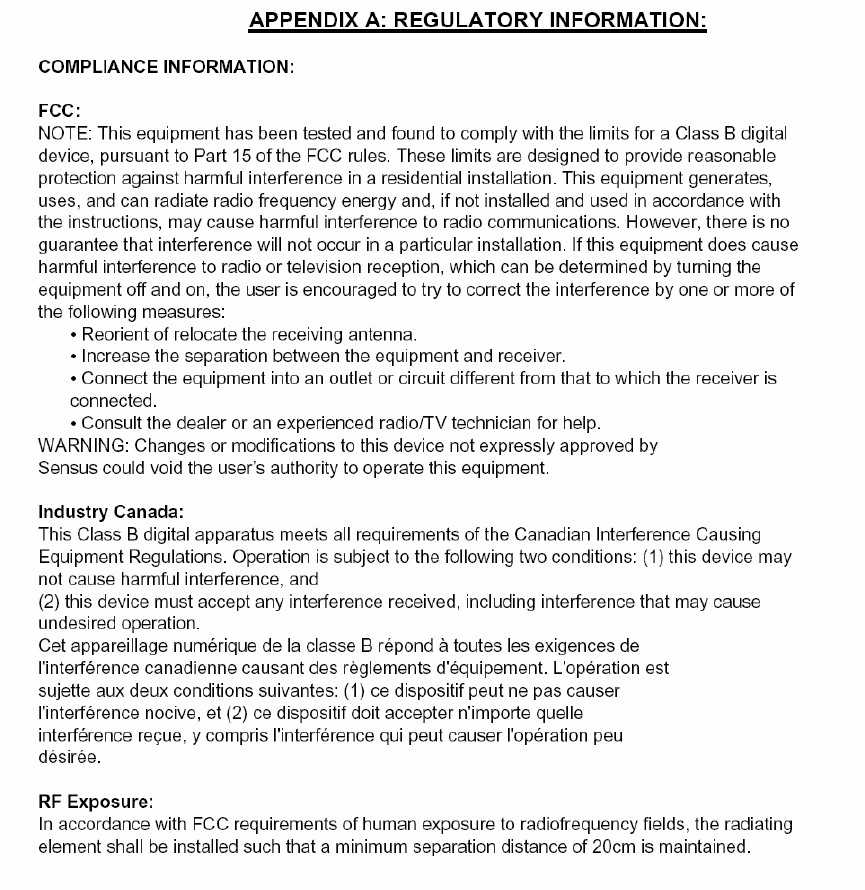

FCC LABELING:
This device when used in an end product where the FCC label of the device is not visible must have an
exterior label as shown below.
Sensus Metering Systems
Model: HANXCVR01
Contains FCC ID: SDBHANXCVR01
Contains IC: 2220A-HANXCVR01
This device complies with Part 15 of the FCC Rules and Industry
Canada requirements. Operation is subject to the following two
condition: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
