QUICK GUIDE
GQG-10004-01
SonixIQ
Quick Guide
FEATURES
250CFH or 400 CFH meter class options
Live temperature compensation
Fixed factor pressure compensation
Alarm notifications
Configurable volume pulse output
Configurable scrolling LCD display
20-year battery life
FlexNet SmartPoint® inside (available
with or without)

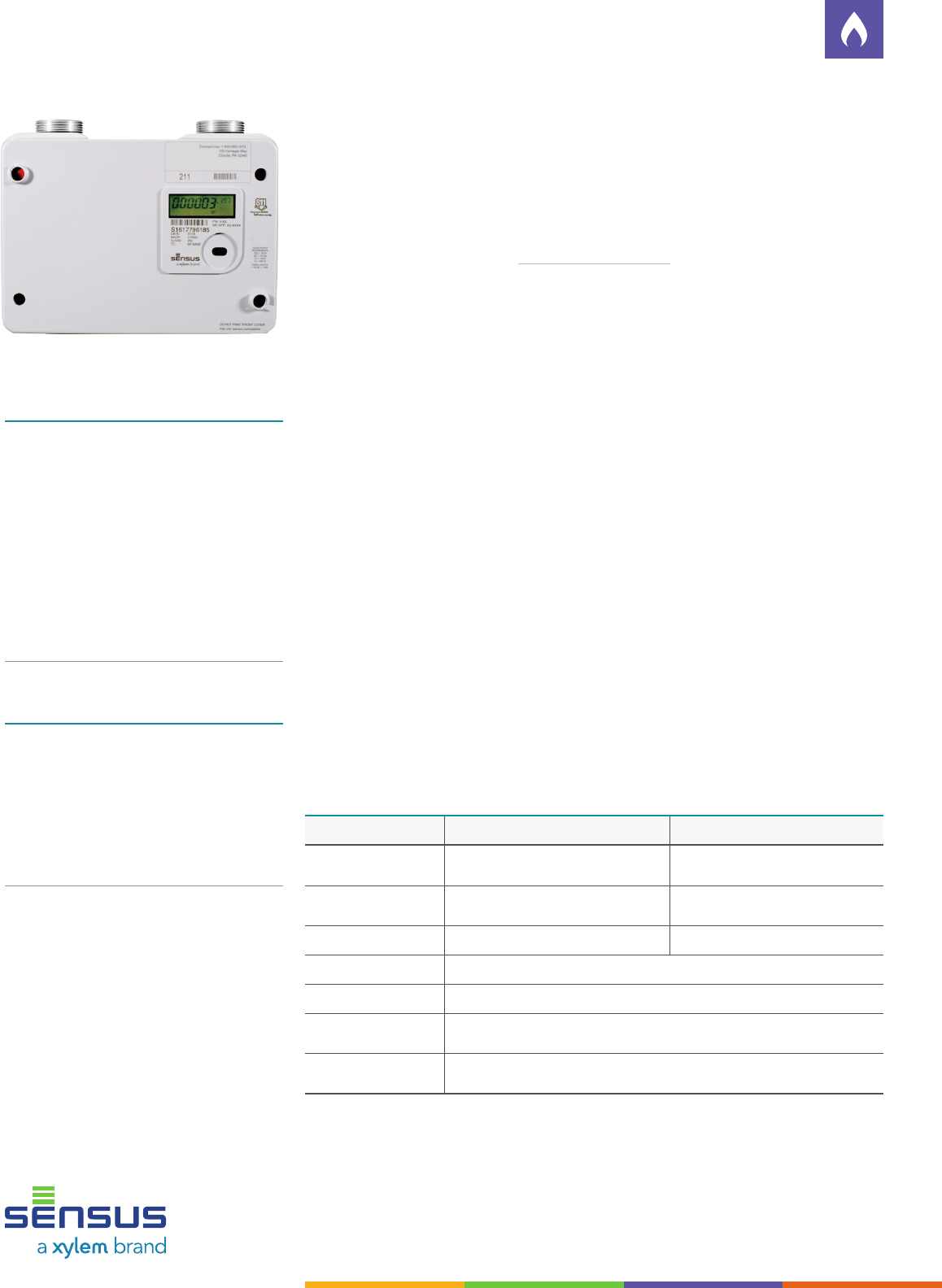

The SonixIQ is a solid state residential gas meter, providing
pinpoint accuracy of ultrasonic measurement and no
moving parts to replace or wear out over time. Available
with or without an integrated FlexNet® radio, the SonixIQ
covers both 250 or 400 CFH needs.
The SonixIQ has an LCD display that supports walk up readings and
status, an optical port that can be used with the SonixCom tool for
configuration, a pulse output, and an optional integrated radio for
communication across the Sensus FlexNet system.
Application and Safety
The SonixIQ should be used with clean, dry natural gas or air only. The
meter electronics are enclosed in a vented case that provides both
weather and EMC protection.
Only suitable non incendive circuits and non incendive field wiring
should be connected to the field wiring terminals via the pulse cable.
Meter Specifications
SonixIQ 250 series 400 series
Capacity 250 to 299 cfh at 1/2” differential 400 to 450 cfh at 1/2”
differential
Connections 20LT connections on 6” center to
center
30LT connections on 6” center
to center
MAOP 10 psig
Dimensions 9.94” L x 4.38” W x 7.89” H (25.25cm L x 11.13cm W x 20.04cm H)
Weight 6.3 lb (2.86 kg)
Operating
Temperature
-40° to +150°F (-40° to +66°C)
Humidity 0 to 95% relative humidity operating and storage (non-condensing
and condensing)

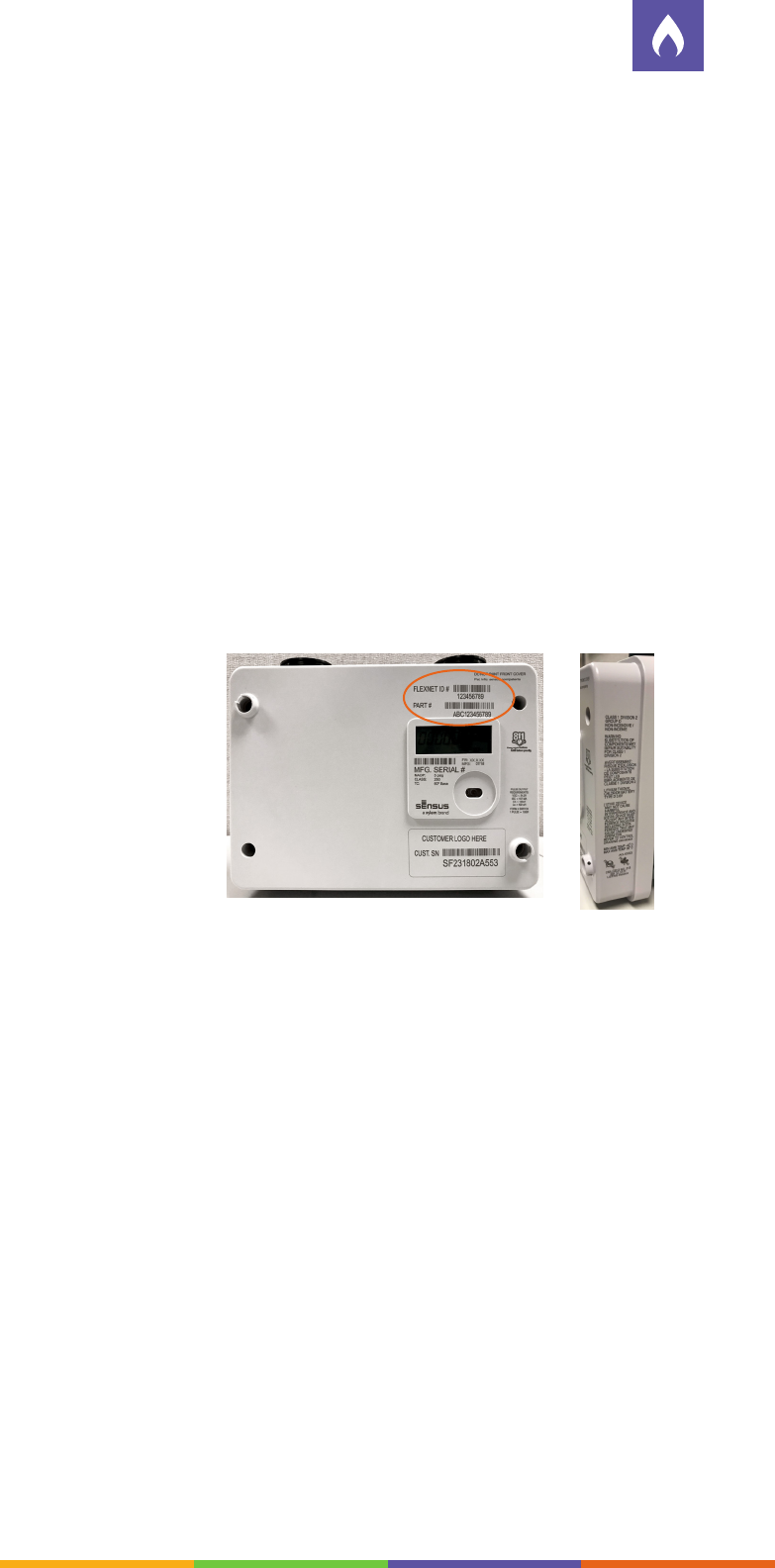

IDENTIFICATION
The SonixIQ meter with the FlexNet module
will have a visible label containing the
following information:
Model: SONIXIQ
FCC ID: SDBSONIXIQ
IC: 2220A-SONIXIQ
GQG-10004-01
SonixIQ
Quick Guide
Basic Installation
Meter options are set at the factory and are
determined according to the order specifications.
1. Shut the gas off at the inlet and outlet valves and
remove the existing meter if present.
2. Connect the new SonixIQ to the pipe connections
using an appropriate wrench.
3. Open the inlet and outlet valves to allow gas to flow
through the meter.
4. Read the meter alarm status via the LCD display to
confirm there are no active alarms.
5. If an initial reading is required at time of installation,
the volume totalizer should be set to initial reading.
Connect a handheld tool (HHD) running FieldLogic
to the optical port to initiate the meter with a known
reading.
Configure the FlexNet SmartPoint Module with
FieldLogic
The FlexNet SmartPoint module is embedded in
the SonixIQ as an option. If ordered, the SmartPoint
module is already configured to the appropriate
frequency. Once the SmartPoint module is activated,
the SonixIQ can send messages through the FlexNet
AMI system.
1. Connect a handheld tool (HHD) running FieldLogic
to the optical port of the SonixIQ.
2. Launch FieldLogic Tools.
3. Enter the FlexNet ID of the SmartPoint Module, tap
Start Connection, and then Activate and Configure
as desired.
Note: e FlexNet ID is on the front cover of the SonixIQ.
GQG-10004-01
SonixIQ
Warnings & Hazards
ATTENTION
Any modications made to this device that are not approved by
Sensus may void the authority granted to the user by the FCC to
operate equipment.
ATTENTION
For Class B - Unintentional Radiators:
is device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) this device may
not cause harmful interference and (2) this device must accept
any interference received, including interference that may cause
undesired operation.
ATTENTION
ICES-003 Class B Notice—Avis NMB-003, Class B
is Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numerique de la classe B est conforme à la norme
NMB-003 du Canada.
ATTENTION
Note: is equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. ese limits are designed to provide reasonable protection
against harmful interference in a residential installation. is
equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment o and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit dierent
form that to which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for
help
RADIATION HAZARD
In order to satisfy the FCC RF exposure limit for transmitting
devices, a separation distance of 20cm (7.8 inches) or more
should be maintained while operating the Sensus SONIXIQ. To
ensure compliance, operations at closer than this distance are not
recommended. is minimum safe distance is required between
personnel and this antenna of this device.
RADIATION HAZARD
In order to satisfy the ISED RF exposure limit for transmitting
devices, a separation distance of 26cm (10.2 inches) or more
should be maintained while operating the Sensus SONIXIQ. To
ensure compliance, operation at closer than this distance is not
recommended. is minimum safe distance is required between
personnel and the antenna of this device.
An de satisfaire à la limite d’exposition RF pour les appareils de
transmission, une distance de séparation de 26cm (10.2 pouces)
ou plus doit être maintenu pendant le fonctionnement du Sensus
SONIXIQ. Pour assurer la conformité, un fonctionnement à
distance inférieure à celle est pas recommandée. Cette distance
minimale de sécurité est nécessaire entre le personnel et l’antenne de
cet appareil.
ATTENTION
is device complies with Industry Canada license-exempt RSS
standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada
applicables aux appareils radio exempts de licence. L’exploitation est
autorisée aux deux conditions suivantes: (1) l’appareil ne doit pas
produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter
tout brouillage radioélectrique subi, même si le brouillage est
susceptible d’en compromettre le fonctionnement.
WARNING
If you are not sure of the rated power of your radio, contact your
Sensus representative or dealer and supply the product model
number found on the product label. If you cannot determine the
rated power out, then assure 20cm separation from the body to the
device.
©2018 Sensus. All products purchased and services performed are subject to Sensus’ terms of sale, available at either sensus.com/TC or 1-800-
638-3748. Sensus reserves the right to modify these terms and conditions in its own discretion without notice to the customer. e Sensus logo is a
registered trademark of Sensus.
is document is for informational purposes only, and SENSUS MAKES NO EXPRESS WARRANTIES IN THIS DOCUMENT. FURTHERMORE,
THERE ARE NO IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION, WARRANTIES AS TO FITNESS FOR A PARTICULAR
PURPOSE AND MERCHANTABILITY. ANY USE OF THE PRODUCTS THAT IS NOT SPECIFICALLY PERMITTED HEREIN IS PROHIBITED.
8601 Six Forks Rd, Ste 700
Raleigh, NC 27615
1-800-638-3748
sensus.com
WARNING
e antenna used for this transmitter must not be co-located in
conjunction with any other antenna or transmitter.
ATTENTION
is radio transmitter the Sensus SONIXIQ has been approved
by Industry Canada to operate with the antenna types listed
below with the maximum permissible gain and required antenna
impedance for each antenna type indicated. Antenna types not
included in this list, having a gain greater than the maximum
gain indicated for that type, are strictly prohibited for use with this
device.
Le présent émetteur radio (Sensus SONIXIQ) a été approuvé
par Industrie Canada pour fonctionner avec les types d’antenne
énumérés ci-dessous et ayant un gain admissible maximal et
l’impédance requise pour chaque type d’antenne. Les types d’antenne
non inclus dans cette liste, ou dont le gain est supérieur au gain
maximal indiqué, sont strictement interdits pour l’exploitation de
l’émetteur.
• Dipole ~3dBi
ATTENTION
Under Industry Canada regulations, this radio transmitter may
only operate using an antenna of a type and maximum (or lesser)
gain approved for the transmitter by Industry Canada. To reduce
potential radio interference to other users, the antenna type and its
gain should be so chosen that the equivalent isotropically radiated
power (e.i.r.p.) is not more than that necessary for successful
communication.
Conformément à la réglementation d’Industrie Canada, le présent
émetteur radio peut fonctionner avec une antenne d’un type et
d’un gain maximal (ou inférieur) approuvé pour l’émetteur par
Industrie Canada. Dans le but de réduire les risques de brouillage
radioélectrique à l’intention des autres utilisateurs, il faut choisir
le type d’antenne et son gain de sorte que la puissance isotrope
rayonnée équivalente (p.i.r.e.) ne dépasse pas l’intensité nécessaire à
l’établissement d’une communication satisfaisante.
ATTENTION
Class 1, Division 2, Group D T4
Intrinsically Safe/Sécurité Intrinsèque Type D lithium battery, 3.6
VDC Max.
WARNING
Substitution of components may impair intrinsic safety.
Avertissement: la substitution de composants peut compromettre la
Sécurité Intrinsèque.
WARNING
ere is danger of explosion if batteries are mishandled or
incorrectly replaced. On systems with replaceable batteries, replace
only with the same manufacturer and type or equivalent type
recommended per the instructions provided in the product service
manual.
Do not disassemble batteries or attempt to recharge them outside
the system. Do not dispose of batteries in re.
Dispose of batteries properly in accordance with the manufacturer’s
instructions and local regulations.
WARNING
DO NOT INCINERATE or subject battery cells to temperatures in
excess of 212°F. Such treatment can cause cell rupture.
WARNING
EXPLOSION HAZARD - BATTERIES MUST ONLY BE
CHANGED IN AN AREA KNOW TO BE NON-HAZARDOUS.
AVERTISSEMENT-RISQUE D’EXPLOSION - AFIN
D’ÉVITER TOUT RISQUE D’EXPLOSION, S’ASSURER QUE
L’EMPLACEMENT EST DÉSIGNÉ NON DANGEREUX AVANT
DE CHANGER LA BATTERIE.
SonixIQ
Warnings & Hazards
