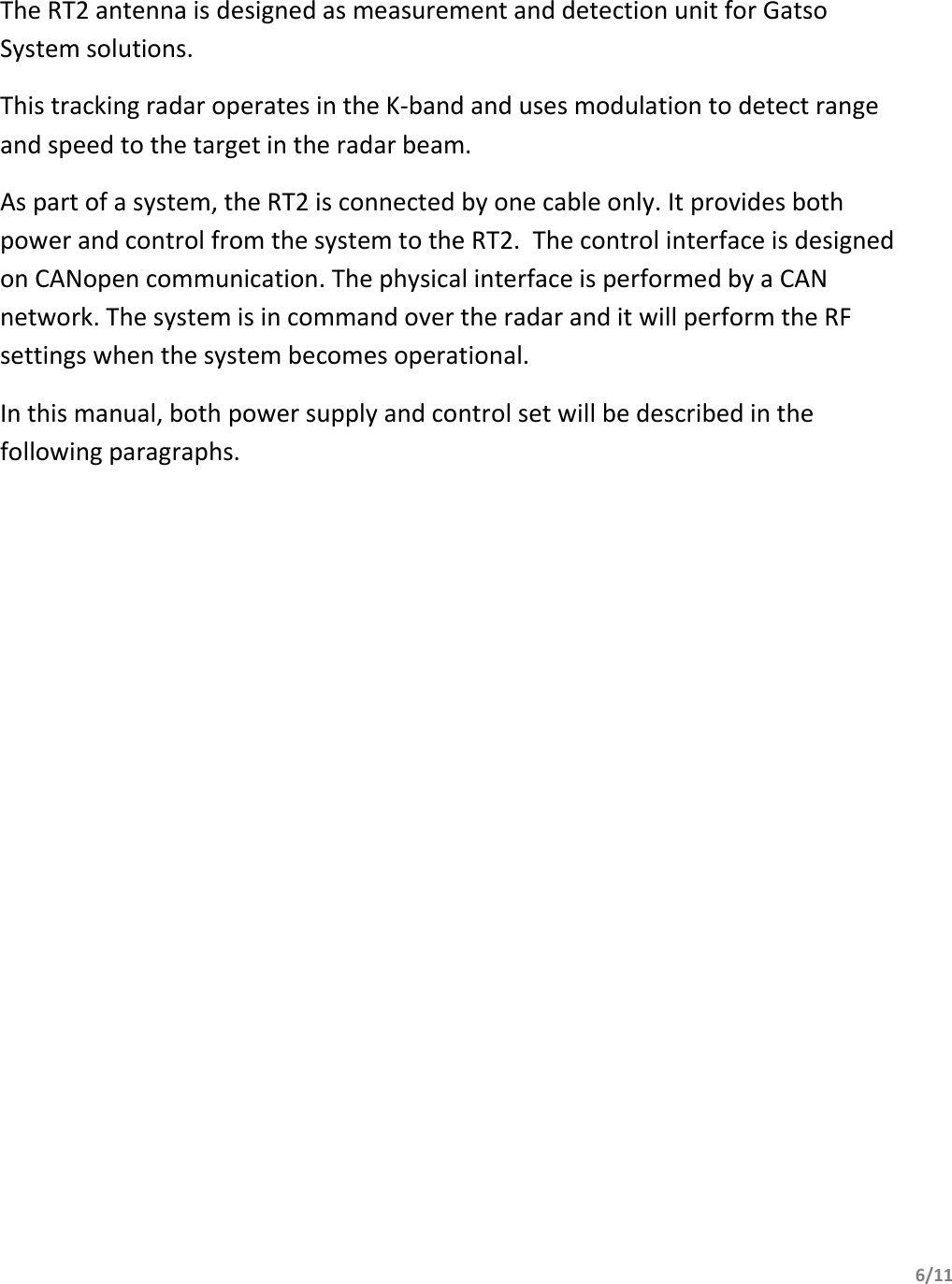

6/11 The RT2 antenna is designed as measurement and detection unit for Gatso System solutions. This tracking radar operates in the K-band and uses modulation to detect range and speed to the target in the radar beam. As part of a system, the RT2 is connected by one cable only. It provides both power and control from the system to the RT2. The control interface is designed on CANopen communication. The physical interface is performed by a CAN network. The system is in command over the radar and it will perform the RF settings when the system becomes operational. In this manual, both power supply and control set will be described in the following paragraphs.
7/11 COMMAND SET

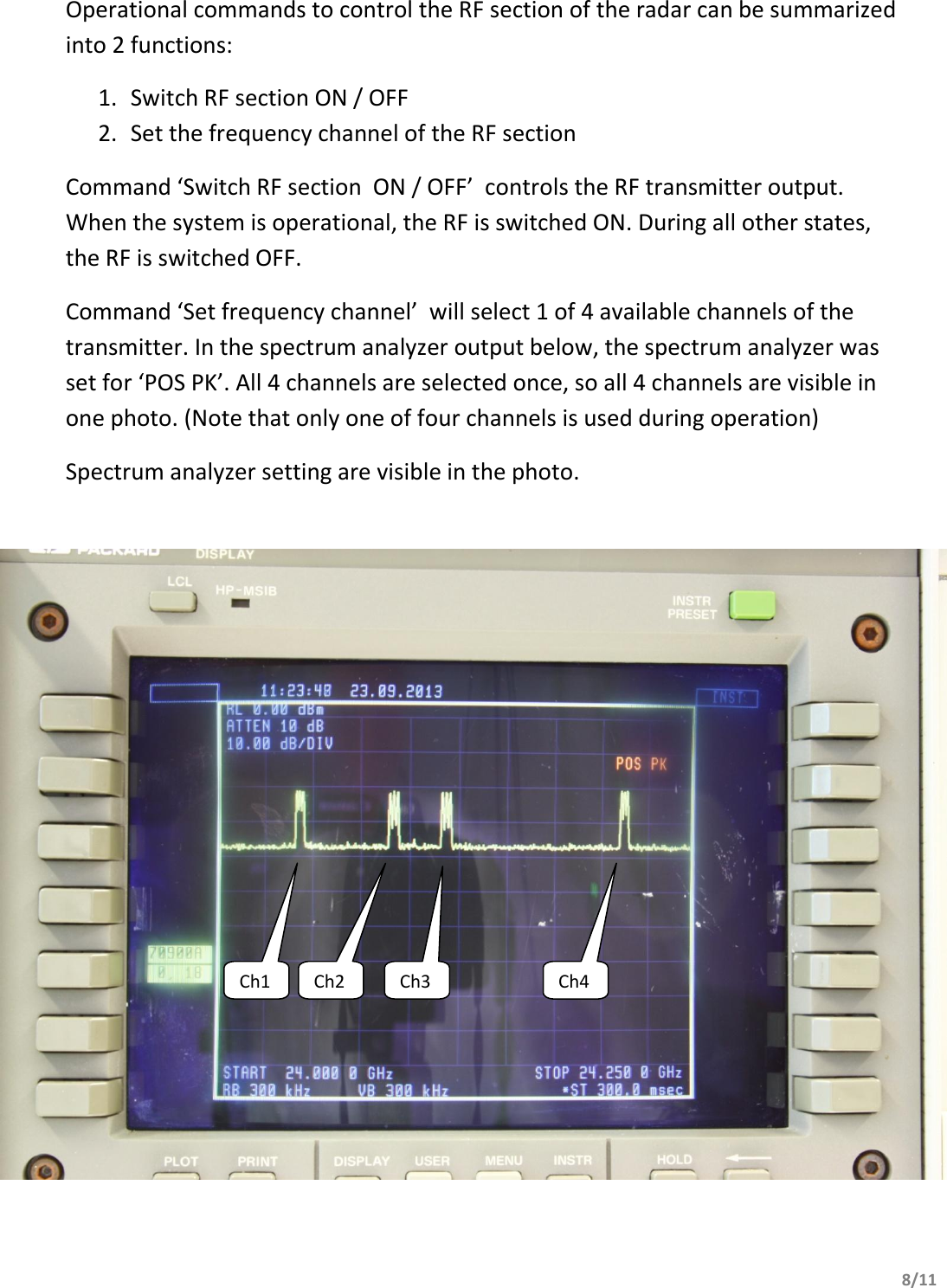

8/11 Operational commands to control the RF section of the radar can be summarized into 2 functions: 1. Switch RF section ON / OFF 2. Set the frequency channel of the RF section Command ‘Switch RF section ON / OFF’ controls the RF transmitter output. When the system is operational, the RF is switched ON. During all other states, the RF is switched OFF. Command ‘Set frequency channel’ will select 1 of 4 available channels of the transmitter. In the spectrum analyzer output below, the spectrum analyzer was set for ‘POS PK’. All 4 channels are selected once, so all 4 channels are visible in one photo. (Note that only one of four channels is used during operation) Spectrum analyzer setting are visible in the photo. Ch1 Ch2 Ch3 Ch4
9/11 POWER SUPPLY

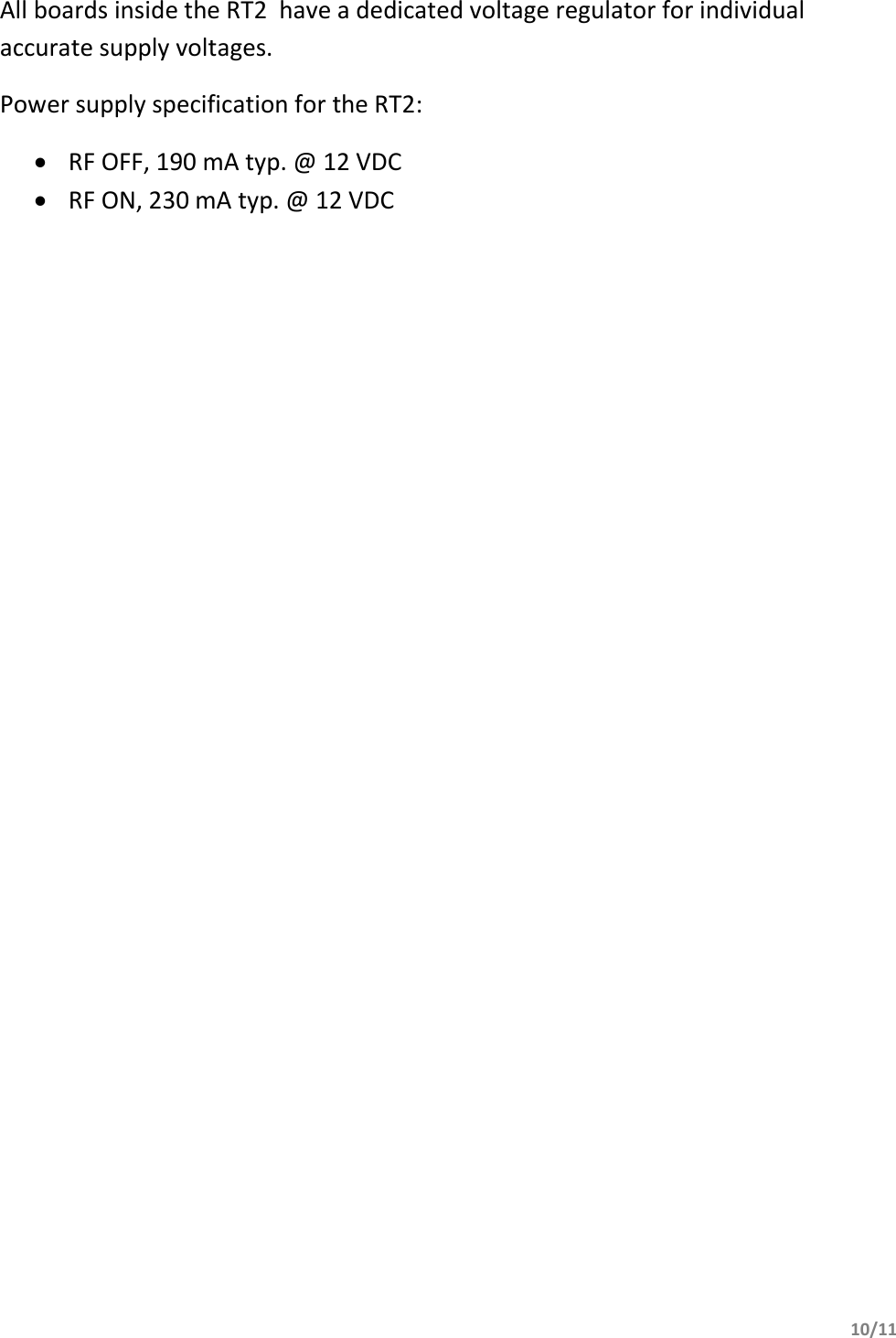

10/11 All boards inside the RT2 have a dedicated voltage regulator for individual accurate supply voltages. Power supply specification for the RT2:  RF OFF, 190 mA typ. @ 12 VDC  RF ON, 230 mA typ. @ 12 VDC
