Sensys Networks FLEX-RP FLEX RP Repeater User Manual FLEX Repeater Data Sheet
Sensys Networks, Inc. FLEX RP Repeater FLEX Repeater Data Sheet
User Manual
1608 4th Street Suite 200 Berkeley CA 94710| info@sensysnetworks.com | P 510.548.4620 F 510.548.8264
1608 4th Street Suite 200 Berkeley CA 94710 | info@sensysnetworks.com| P 510.548.4620 F 510.548.8264
Quick Start Guide: FLEX-RP-B/FLEX-RP-B-LL

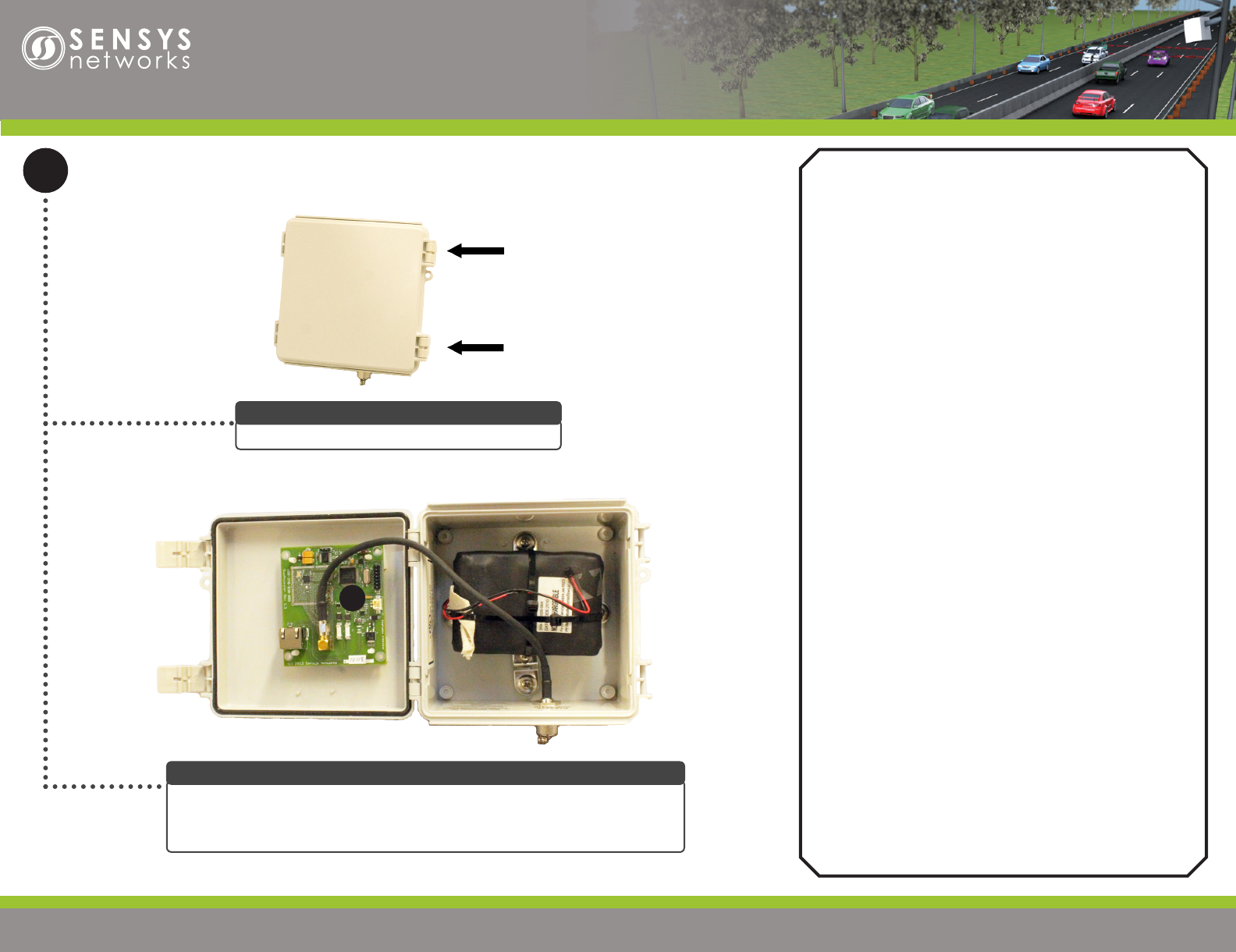

Connect Battery
Unlatch the two hinges. Open the repeater cover.
Open repeater
1
a
Warnings
Lithium Thionyl Chloride Batteries
Sensys Networks uses Lithium Thionyl Chloride batteries in the
following products:
• SENSORS (VSN240-F, VSN240-T, VSN240-S,
VSN240-M, VSN240-F-2, VSN240-T-2)
• REPEATERS (RP240-B, RP240-B-LL, RP240-BH,
RP240-BH-LL, FLEX-RP-B, FLEX-RP-B-LL)
Lithium batteries are widely used in electronic products because they
contain more energy per unit-weight than conventional batteries.
However, the same properties that deliver high energy density
also contribute to potential hazards if the batteries are damaged.
Improper use or handling of the batteries may result in leakage or
release of battery contents, explosion, or re.
Following are the recommendations of the battery manufacturer for
proper use and handling of batteries in the Sensys Networks devices
mentioned above:
• DO NOT CHARGE OR ATTEMPT TO RECHARGE THE
BATTERIES (BATTERIES ARE NOT RECHARGEABLE)
• DO NOT CRUSH OR PUNCTURE BATTERIES
• DO NOT SHORT-CIRCUIT THE BATTERIES
• DO NOT FORCE OVER-DISCHARGE OF THE
BATTERIES
• DO NOT INCINERATE OR EXPOSE BATTERIES TO
EXCESSIVE HEATING
• DO NOT EXPOSE BATTERY CONTENTS TO WATER
• DO DISPOSE OF BATTERIES AND DEVICES
CONTAINING BATTERIES IN ACCORDANCE WITH
LOCAL REGULATIONS
Sensys Networks sensors contain no serviceable parts and should
never be disassembled. Installation and removal of sensors from
pavement should only be done by trained personnel and care should
be taken to insure that the sensor casing is not punctured or crushed.
Additional safety information is available from the battery’s
manufacturer:
Sensor battery cell: http://ultralifecorporation.com/download/308/
Repeater battery cell: www.ewtbattery.com/en/DownView.asp?ID=9
Connect battery cable to circuit-board connector (a). DO NOT PINCH OR
STRESS CABLES. Wait approximately ve seconds for LED lights to blink.
Close cover; ensure wires are not caught in edges. Latch the two hinges securely.
Connect Battery
1608 4th Street Suite 200 Berkeley CA 94710| info@sensysnetworks.com | P 510.548.4620 F 510.548.8264
1608 4th Street Suite 200 Berkeley CA 94710 | info@sensysnetworks.com| P 510.548.4620 F 510.548.8264
Connect to Access Point
Select an access point from the automated list
and click Connect.
Note: Ensure the box for Load map data is
checked before clicking Connect.
Select IP address
Click the icon to start TrafcDOT2.
Run TrafcDOT
2
The Main window displays. The map on the Main window
populates and congured equipment appears on the map and
in the sensor tray at the bottom of the window.
Note: Before conguring or reconguring a repeater, ensure
the correct repeater is displayed on the map by hovering over
the repeater icon with the mouse to view repeater information.
Main Window
Quick Start Guide: FLEX-RP-B/FLEX-RP-B-LL
1608 4th Street Suite 200 Berkeley CA 94710| info@sensysnetworks.com | P 510.548.4620 F 510.548.8264
1608 4th Street Suite 200 Berkeley CA 94710 | info@sensysnetworks.com| P 510.548.4620 F 510.548.8264

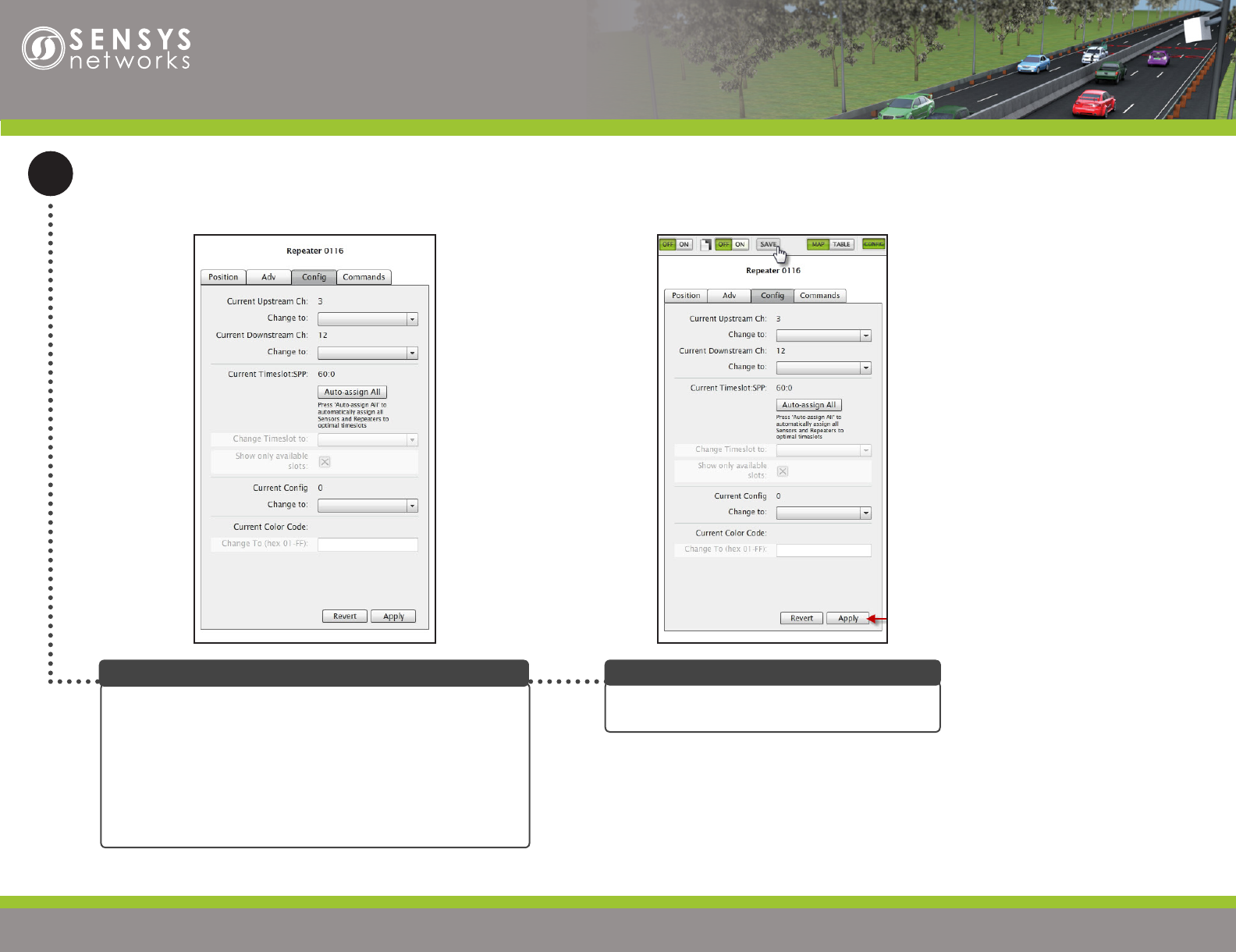

Congure Repeater
Select a repeater from the image map
to access the Repeater Conguration
window with the Position tab open. The
Name eld allows the repeater’s name
to be user-dened.
Note: Repeater’s rmware version is
displayed for reference only.
Repeater Conguration Window
3
Select an upstream channel by clicking
the Cong tab. Select an entry for the
Current Upstream Ch eld by clicking on
the Change to drop-down list.
Specifying Upstream Channel
Select a entry for the Current
Downstream Ch eld by clicking the
Change to drop-down list.
Specifying Downstream Channel
Quick Start Guide: FLEX-RP-B/FLEX-RP-B-LL
• The default radio channel for access
point to repeater communications is
0 (zero).
• The default radio channel for repeater
to sensor communications is 1 (one).
• Never use the same channel for
both access point and sensor
communications.
Refer to Sensys Network VDS240 Wireless
Vehicle Detection System TrafcDOT v2.10 Set
Up and Operating Guide for more information.
Channel Notes
• When an installation contains multiple
repeaters with more than ten sensors,
changing one or more repeaters from
Current Cong 0 to Current Cong 1
allows the repeater to communicate
with up to 20 sensors.
Refer to Sensys Network VDS240 Wireless
Vehicle Detection System TrafcDOT v2.10 Set
Up and Operating Guide for more information.
Cong Notes
1608 4th Street Suite 200 Berkeley CA 94710| info@sensysnetworks.com | P 510.548.4620 F 510.548.8264
1608 4th Street Suite 200 Berkeley CA 94710 | info@sensysnetworks.com| P 510.548.4620 F 510.548.8264
Congure Repeater (cont.)
Quick Start Guide: FLEX-RP-B/FLEX-RP-B-LL
Click Apply to accept conguration changes. Click
SAVE to save changes made to the access point.
Save Conguration
By default, TrafcDOT lters the contents of the drop-down list
so that only available time slots are displayed. Click an entry from
the Change Timeslot to drop-drop list.
Note: The grayed out options can be made accessible by enabling
Advanced Mode using the Advanced drop-down menu.
To change the drop-down list to include all time slots in the
network (both assigned and unassigned), remove the check in the
Show only available slots.
Set Time Slot
Sensys Networks and the Sensys Networks logo are trademarks of Sensys Networks, Inc. All other trademarks are the property of their respective owners.
Information contained herein is believed to be reliable, but Sensys Networks makes no warranties as to its accuracy or completeness.
Copyright © 2014 Sensys Networks, Inc. • ALL RIGHTS RESERVED • P/N 152-240-020-016 Rev D
Local Distributor
Quick Start Guide: FLEX-RP-B/FLEX-RP-B-LL

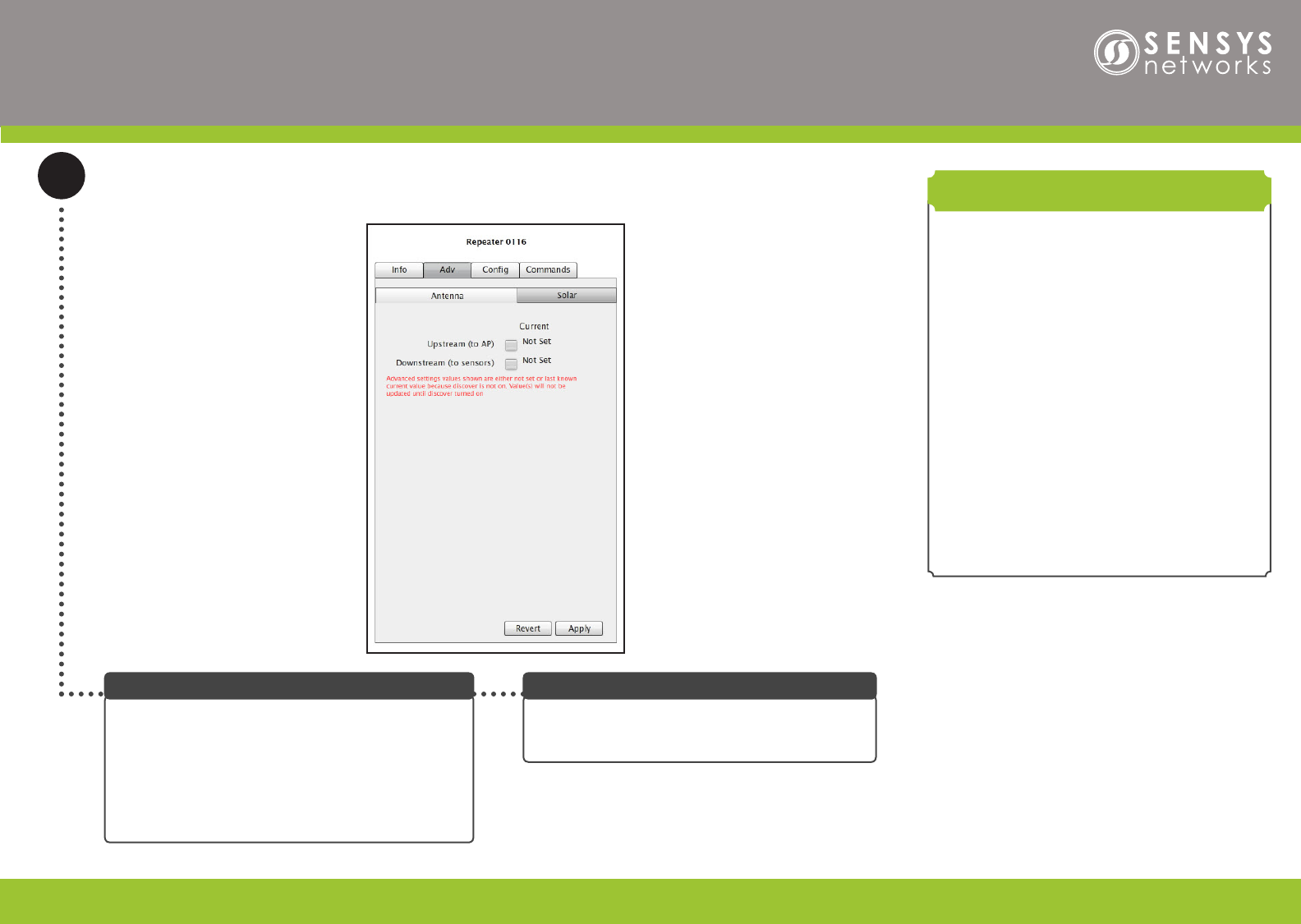

Congure Repeater (cont.)
If the repeater is connected to an external antenna,
then it can be congured via the Adv tab. From the
Antenna window, select either Upstream (to AP) or
Downstream (to sensors) to congure the external
antenna.
Note: Recommended setting for external antenna is
Downstream (to sensors).
Adv Tab
• Internal antenna is not listed on the panel, but will
automatically be assigned to the unchecked option.
• A failsafe error message will occur should you
choose both options.
• If FLEX-RP-B/FLEX-RP-B-LL is installed with
or without the external antenna, and the Adv tab
options are left unchecked, the internal antenna
will be used for both Upstream and Downstream
channels.
• If Discover Mode is not on the following warning
will display: Advanced setting values are either not
set or last known current value because discover
not on. Value(s) will not be updated until discover
on.
• If Discover Mode is off at connection time for
TrafcDOT the Adv tab will display Not Set values.
Turn on Discover Mode for true values to display.
Refer to Sensys Network VDS240 Wireless Vehicle Detection
System TrafcDOT v2.10 Set Up and Operating Guide for
more information.
Adv Tab Notes
Click Apply to accept conguration changes. Click
SAVE at the top of the screen to save changes
made to the access point.
Save Conguration
1608 4th Street Suite 200 Berkeley CA 94710| info@sensysnetworks.com | P 510.548.4620 F 510.548.8264
1608 4th Street Suite 200 Berkeley CA 94710 | info@sensysnetworks.com| P 510.548.4620 F 510.548.8264
Functions / Features
Relay of radio communications
• To/from wireless sensors
• To/from access point
• To/from another repeater (FLEX or RP240)
Extension of range and coverage of the access
point
• Supports operating in two directions with one
repeater; its supported sensors communicate with the
access point
• Maximum single-hop range of ~2000 feet (610
meters) from supporting access point or repeater
• Maximum single-hop range of ~300 feet (91 meters)
from sensors with Long Range External Antenna
Fully wireless operation – no cable connections
Radio signal quality measurements (of each link to
wireless sensor)
• Receive Signal Strength Indicator (RSSI, in dBm)
• Link Quality Index (LQI, gure of merit 40-99)
Firmware upgrades over-the-air from access point
Simple installation
• Any roadside location that provides adequate signal
coverage to sensors and the access point or repeater
• No special requirements regarding setback, relative
angle of the sun or mounting stability
No calibration or adjustment required

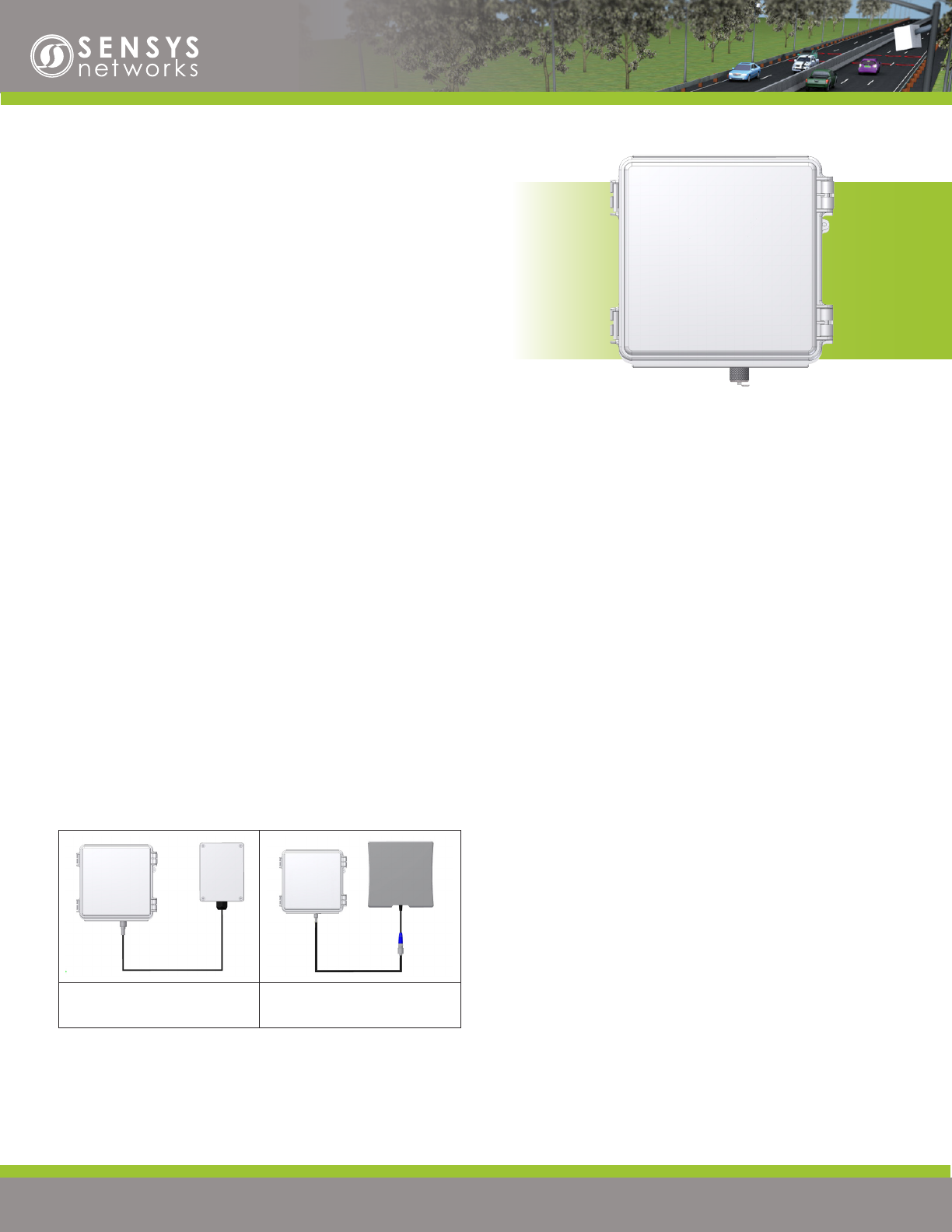

FLEX-RP-B & FLEX-RP-B-LL Repeater
The Sensys Networks Repeater. In cases where installed
Sensys Networks wireless sensors are out of range of the
nearest access point, one or more Sensys Networks repeaters
can be used to provide a two-way relay between the out-of-
range sensors and the access point. A repeater is mounted
by the roadside on a pole or other structure. The repeater is
positioned so that both the sensors and the tandem repeater
or access point are within view and within range.
FLEX Repeaters are second generation repeaters from
Sensys Networks that provide antenna options that extends
the range of the repeaters and eliminates the need for
additional repeaters operating in tandem. The FLEX-RP-B
Repeater is powered with a replaceable battery pack located
within the unit; however the FLEX-RP-B-LL Repeater
does not have a replaceable battery. Both FLEX Repeaters
utilize enhanced RF chipsets and circuitry that improves RF
robustness and reduces energy consumption. FLEX Repeaters
have an internal antenna and connect with the FLEX External
Antenna.
Antenna Options. The FLEX External Antenna connects
to FLEX Repeaters via a coaxial cable. The antenna, which
works in conjunction with a repeater, allows the repeater to
be aimed in two directions simultaneously utilizing a pole
located between the sensor and access point.
Two types of FLEX External Antennas are supported: (i)
the FLEX-ANT-1 with the same RF coverage as the internal
antenna and (ii) the FLEX-ANT-2 with Long Range RF
coverage.
The FLEX family of repeaters work with the standard
repeaters RP240-BH and RP240-BH-LL.
FLEX Repeater Congurations
FLEX Repeater with Standard
External Antenna
FLEX Repeater with Long
Range External Antenna
Sensys Networks and the Sensys Networks logo are trademarks of Sensys Networks, Inc. All other trademarks are the property of their respective owners.
Information contained herein is believed to be reliable, but Sensys Networks makes no warranties as to its accuracy or completeness.
Copyright © 2014 Sensys Networks, Inc. • ALL RIGHTS RESERVED • P/N 153-240-020-013 Rev C
Local Distributor
Functional Specications Power, Physical, & Environmental
Compliance
interfaces
• to/from sensors via 802.15.4 PHY
radio
• to/from repeaters via 802.15.4 PHY
radio
• to/from access point via 802.15.4
PHY radio
over-the-air
protocol
Sensys Networks NanoPower (SNP)
protocol (TDMA)
physical layer
protocol
IEEE 802.15.4 PHY
modulation
Direct Sequence Spread Spectrum
Offset Quadrature Phase-Shift Keying
(DSSS O-QPSK)
transmit/receive
bit rate
250 kbps
frequency band 2400 to 2483.5 MHz
(ISM unlicensed band)
frequency
channels
16
channel
bandwidth
2 MHz
internal antenna
type
microstrip patch antenna (behind
front face panel)
antenna eld of
view
±60° (azimuth & elevation)
nominal output
power
3 dBm
spurious emissions
• 30 - 1000 MHz: < -36 dBm
• 1 - 12.75 GHz: < -30 dBm
• 1.8 - 1.9 GHz: < -44 dBm
• 5.15 - 5.3 GHz: < -47 dBm
typical receive
sensitivity
-101 dBm (PER ≤ 1%)
saturation
(max input level)
≥ 10 dBm
power supply
• FLEX-RP-B:
–Li-SOCl2 3.6V battery pack
◦ nominal capacity: 57 Ah
• FLEX-RP-B-LL:
–Li-SOCl2 3.6V battery pack
◦ nominal capacity: 171 Ah
recommended
battery/unit
replacement
• FLEX-RP-B: battery replacement every 2
years
• FLEX-RP-B-LL: unit replacement every
7 years
dimensions
• FLEX-RP-B: 6.50” x 6.55” x 6”
(16.5 cm x 16.6 cm x 15.2 cm)
• FLEX-RP-B-LL: 6.50” x 6.55” x 6”
(16.5 cm x 16.6 cm x 15.2 cm)
• FLEX-ANT-1: 5.65” x 3.54” x 4.80”
(14.4 cm x 9 cm x 12.2 cm)
• FLEX-ANT-2: 9.5” x 9.5” x 4.38”
(24.10 cm x 24.10 cm x 11.10 cm)
weight
• FLEX-RP-B: 2.31 lb ( 1.05 kg)
• FLEX-RP-B-LL: 2.62 lb ( 1.19 kg)
• FLEX-ANT-1: 0.94 lb ( 0.43 kg)
• FLEX-ANT 2: 2.2 lb (1 kg)
environmental
• designed for weatherproof, outdoor
operation
• NEMA Type 4x enclosure
• IP65 ingress protection
operating temp -40ºF to 176ºF / -40ºC to +80ºC
safety 2006/95/EC
EMC
• FCC: This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation. Changes or
modications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
• CE0678
• 2004/108/EC
FLEX-RP-B/FLEX-RP-B-LL
Products Descriptions
FLEX-RP-B FLEX Repeater with internal battery pack
FLEX-RP-B-LL FLEX Repeater with long-life battery pack
FLEX-ANT-1 FLEX Standard External Antenna
FLEX-ANT-2 FLEX Long Range External Antenna
Available Products
