Seoby Electronics VTN RF Remote Control Unit User Manual Venetian manual

Seoby Electronics Co., Ltd. RF Remote Control Unit Venetian manual

Users Manual

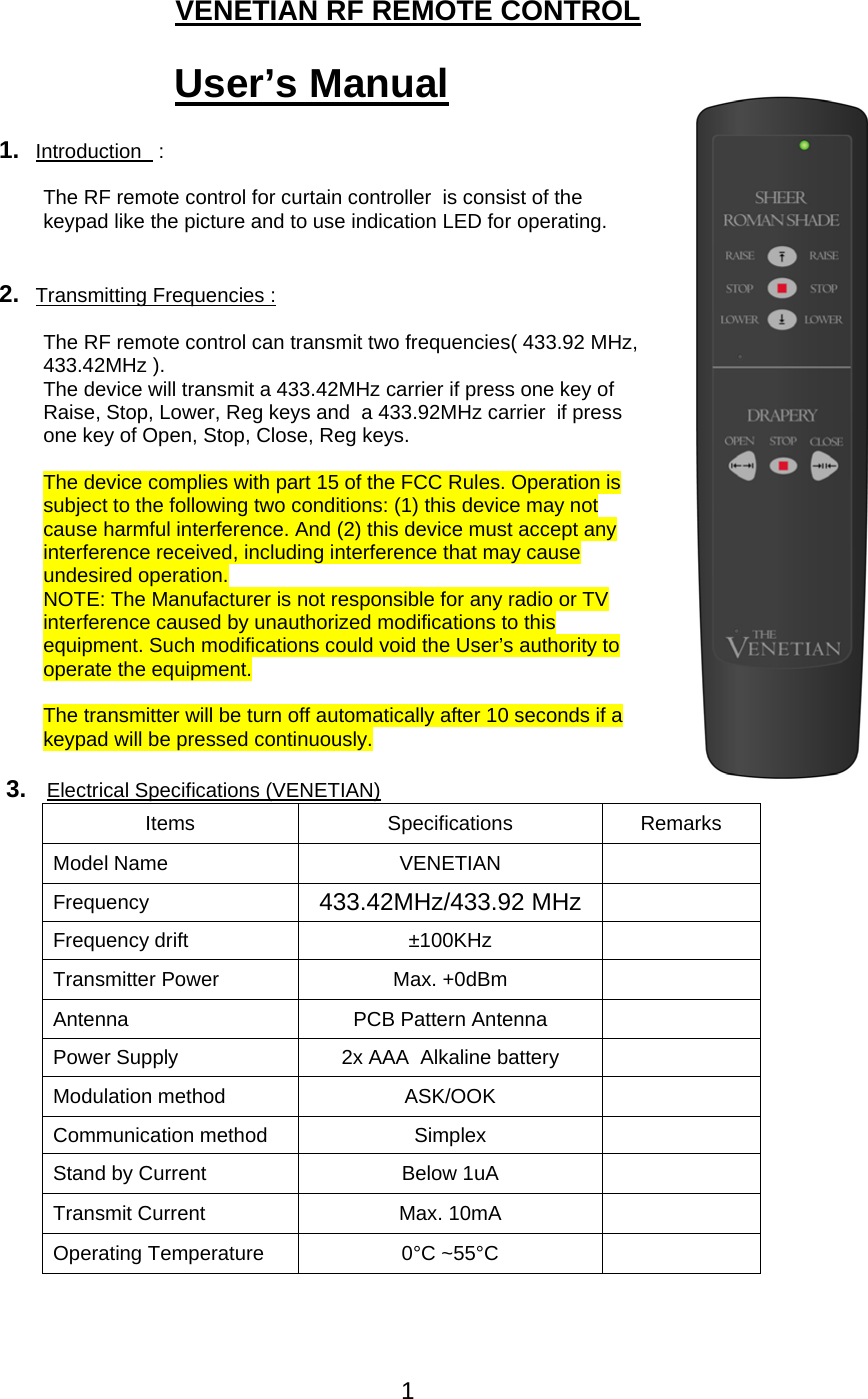

1   VENETIAN RF REMOTE CONTROL  User’s Manual  1.  Introduction   :   The RF remote control for curtain controller  is consist of the keypad like the picture and to use indication LED for operating.     2.  Transmitting Frequencies :  The RF remote control can transmit two frequencies( 433.92 MHz, 433.42MHz ). The device will transmit a 433.42MHz carrier if press one key of Raise, Stop, Lower, Reg keys and  a 433.92MHz carrier  if press one key of Open, Stop, Close, Reg keys.  The device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference. And (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: The Manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the User’s authority to operate the equipment.  The transmitter will be turn off automatically after 10 seconds if a keypad will be pressed continuously.  3.   Electrical Specifications (VENETIAN) Items Specifications Remarks Model Name  VENETIAN   Frequency   433.42MHz/433.92 MHz   Frequency drift  ±100KHz   Transmitter Power  Max. +0dBm   Antenna  PCB Pattern Antenna   Power Supply  2x AAA  Alkaline battery   Modulation method  ASK/OOK   Communication method  Simplex   Stand by Current  Below 1uA   Transmit Current  Max. 10mA   Operating Temperature  0°C ~55°C

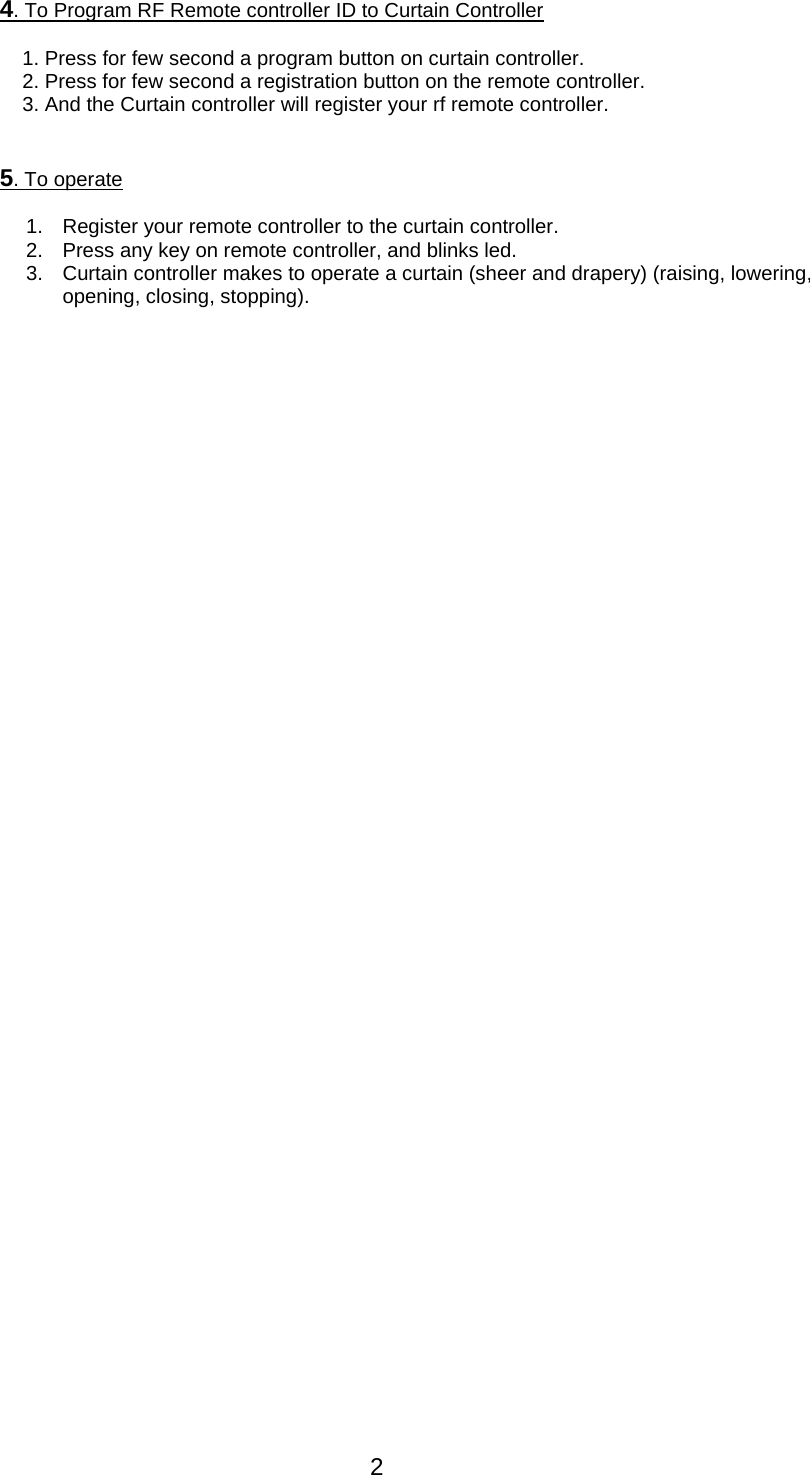

2 4. To Program RF Remote controller ID to Curtain Controller   1. Press for few second a program button on curtain controller. 2. Press for few second a registration button on the remote controller. 3. And the Curtain controller will register your rf remote controller.   5. To operate    1.  Register your remote controller to the curtain controller. 2.  Press any key on remote controller, and blinks led. 3.  Curtain controller makes to operate a curtain (sheer and drapery) (raising, lowering, opening, closing, stopping).
