Vehicle Antenna Installation Guide
sepura
Sepura plc, Radio House. SPR-DOC-03060
St Andrews Road, Cambridge CB4 1GR Issue 1
www.sepura.com
INTRODUCTION
When installing any TETRA antenna to a vehicle, it is the responsibility of the installer to
ensure that the location of the antenna is considered not only for best RF performance but
more importantly in order to minimize the potential for RF exposure to third parties.
To minimise the potential risk of RF exposure to third parties, antennas should ideally be
fitted to locations on the vehicle that ensures that the distance between the radiating
antenna and third parties is at least 20cm or if greater the minimum safe distance required to
meet the General Exposure limit for that antenna fitted.
If this General Exposure distance cannot be met then the radiating antenna must be
placed in a location that ensures the Occupation limit cannot exceeded.
A list of minimum distances for Sepura supplied TETRA antennas are shown in table 1

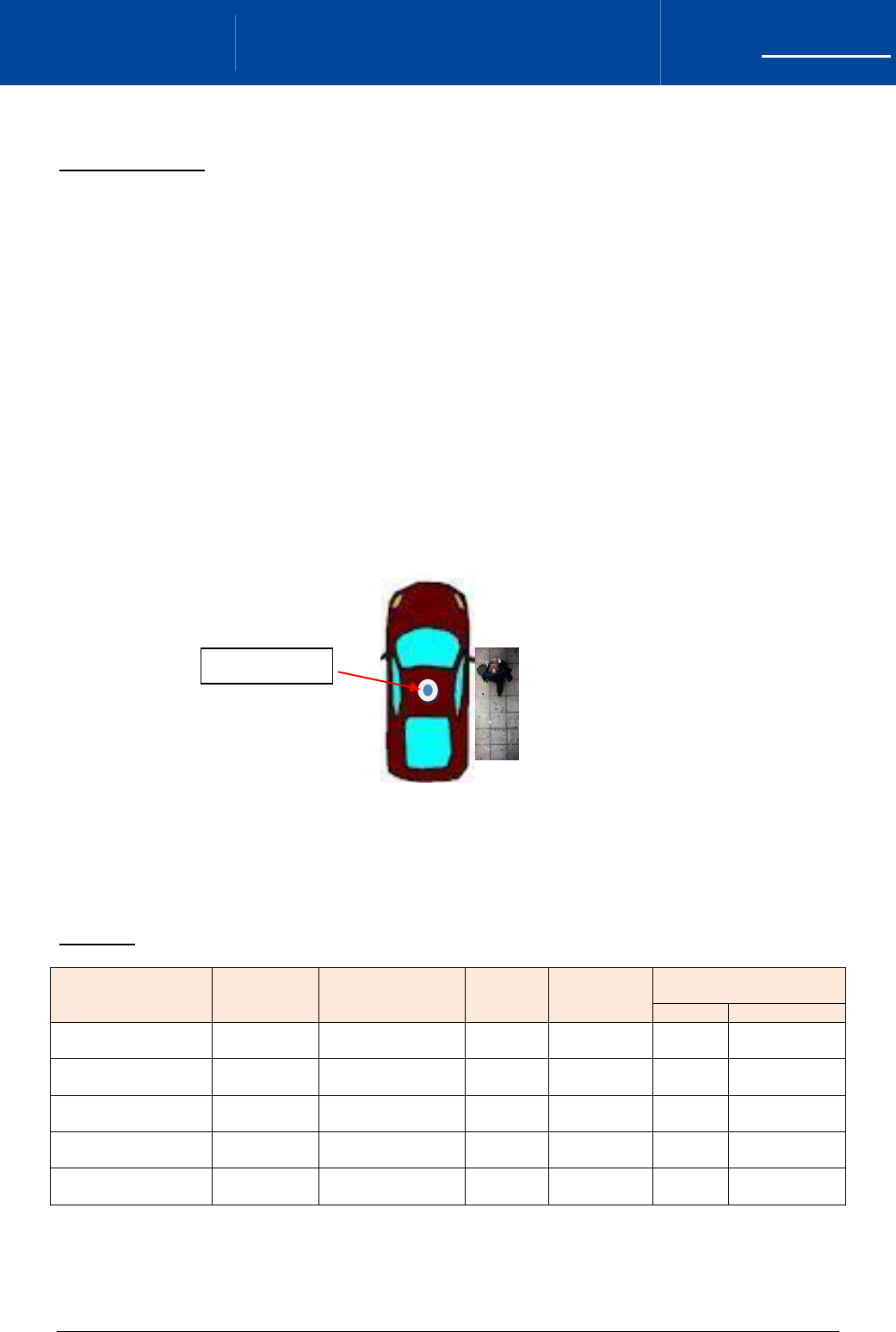

below. The outline drawing below shows one example of how third parties may come into
proximity of the installed antenna.
Should it not be possible to maintain the minimum safe distance between third parties and
the radiating antenna, then action must be taken by the installer to reduce the potential for
exposure at the specified minimum distance such that the General Exposure limits are not
exceeded.
TABLE 1
Application/Power
Sepura Part
No
Antenna type
Antenna
Gain
Frequency
Range
Minimum Safe
Distance
General
Occupational
STP Car kit
32.5dBm
9525 800
41080
5/8 wave, M8
mount
7dBi
450-
470MHz
25cm
20cm
STP Car kit
32.5dBm
300-00390
Co-linear whip,
M8 mount
5dBi
817-
869MHz
20cm
20cm
STP Car kit
32.5dBm
9525 800
41021
Co-linear whip,
M8 mount
5dBi
817-
869MHz
20cm
20cm
SRG/40dBm
9525 800
41079
¼ wave, M8
mount
2dBi
450-
470MHz
32cm
20cm
SRG/40dBm
9525 800
41080
5/8 wave, M8
mount
7dBi
450-
470MHz
57cm
26cm
Fitted antenna
