First in TETRA
DATASHEET
3000 SERIES

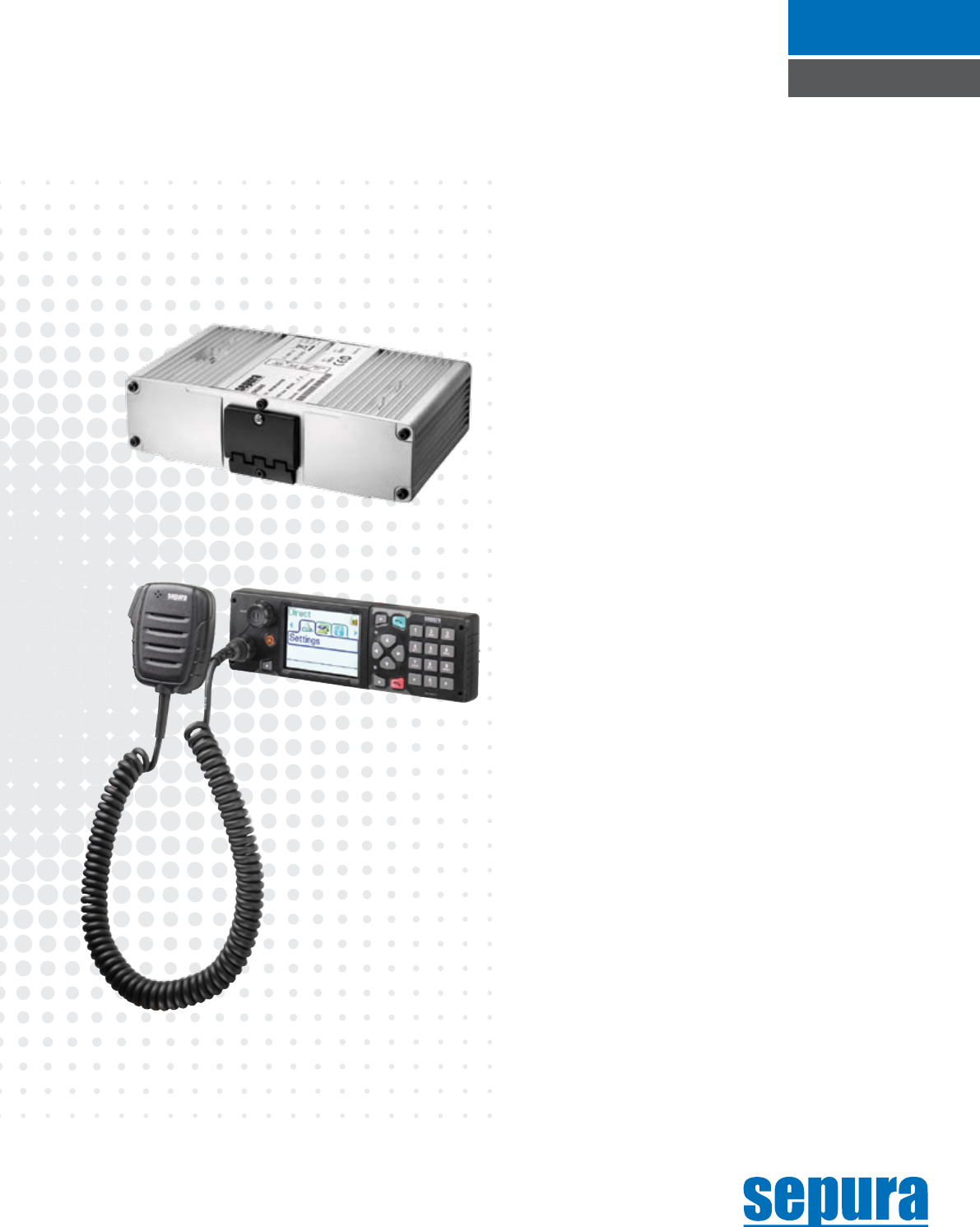

SRG3900
TETRA GATEWAY/REPEATER
Sepura’s SRG3900 is the latest generation of the
proven SRG3000 Series mobile radio and includes
support for both the Sepura Colour Console
(SCC) with hi-colour user interface and for
“hot swappable” front connected accessories.
The SRG3900 is a fully featured TETRA
mobile that is hardware ready to support
Direct Mode Gateway, Direct Mode
Repeater, PEI based Data and E2EE options.
Designed and manufactured by Sepura,
the adaptability and flexibility of the
SRG3900 has been designed to meet the
needs of demanding users within the Transport,
Utility and Public Safety markets.
sepura.com
ADAPTABLE
• Classleading10WattsRFPowergivesthegreatest
operational range of any TETRA radio.
• DirectModeGatewayservicesincreaseworkow
management with Intelligent Call Conversion and
Message Routing.
• DirectModeRepeaterfunctionalityenhancesDMO
communication.
FLEXIBLE
• Featurelicencecodestoenablefunctionalitywhen
required in the field.
• Backwards compatible with existing Sepura
Mobile installations.
• Numerous installation solutions include Transceiver
only, Dual Console, Virtual Console, Handset Based
Console and a Remote SIM Reader option.
• AudiopresentationoptionssupportPAbroadcast,
local recording and 3rd party radio equipment.
INTELLIGENT
• NightModeforlow-glarenightuse.
• Over-the-airremotecontrolviaSepuraStatus
Triggered Functions.
• TamperprotectedandSmartcardbasedE2E
Encryption options.
• Performancemonitoringfeaturefacilitates
network analysis.
Products is not
actual size
Note: Finishes
may vary
EXTENDING OPERATIONAL REACH

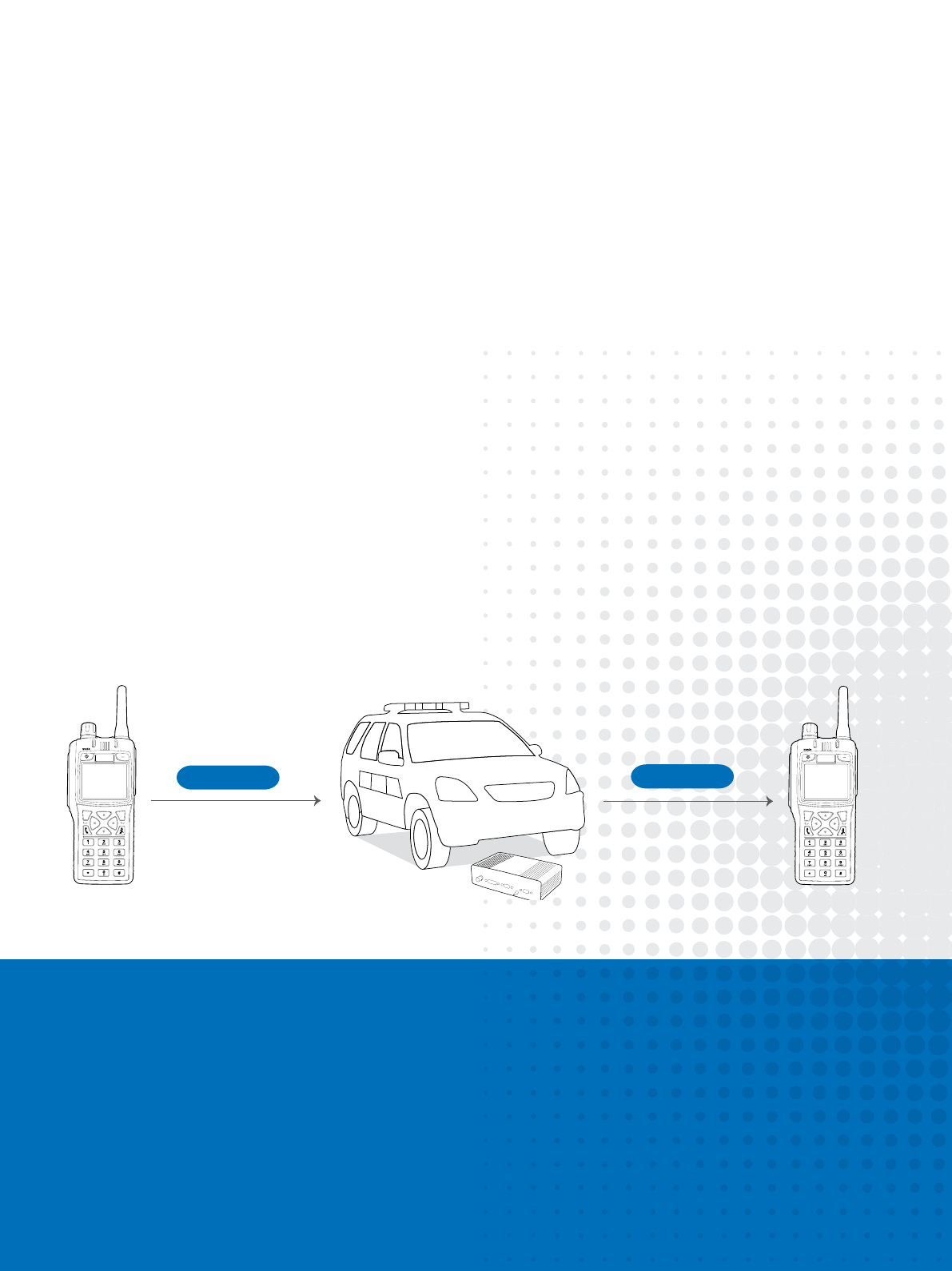

DIRECT MODE GATEWAY
IMPROVED COVERAGE
Links radios operating in Direct Mode with the
trunked radio network extending primary radio
coverage into areas of unreliable coverage or
network dead spots found inside buildings, deep
inside tunnels or in remote rural locations.
INTELLIGENT COMMUNICATION
With Sepura Intelligent Call Conversion, the calling
party only needs to call the TETRA identity of the
SRG3900. Once switched to DMO Gateway mode,
the SRG3900 automatically converts and relays
the incoming call or message to the Direct
Mode users.
OPERATIONAL EFFECTIVENESS
Status messaging and SDS based messaging,
including text and GPS location reports, are
seamlessly transferred between the network
and Direct Mode users. In operational terms,
a control room dispatcher is able to track the
positions of the individual users in a greater
number of scenarios.
DMO
TMO
NO NETWORK COVERAGE
TETRA
NETWORK

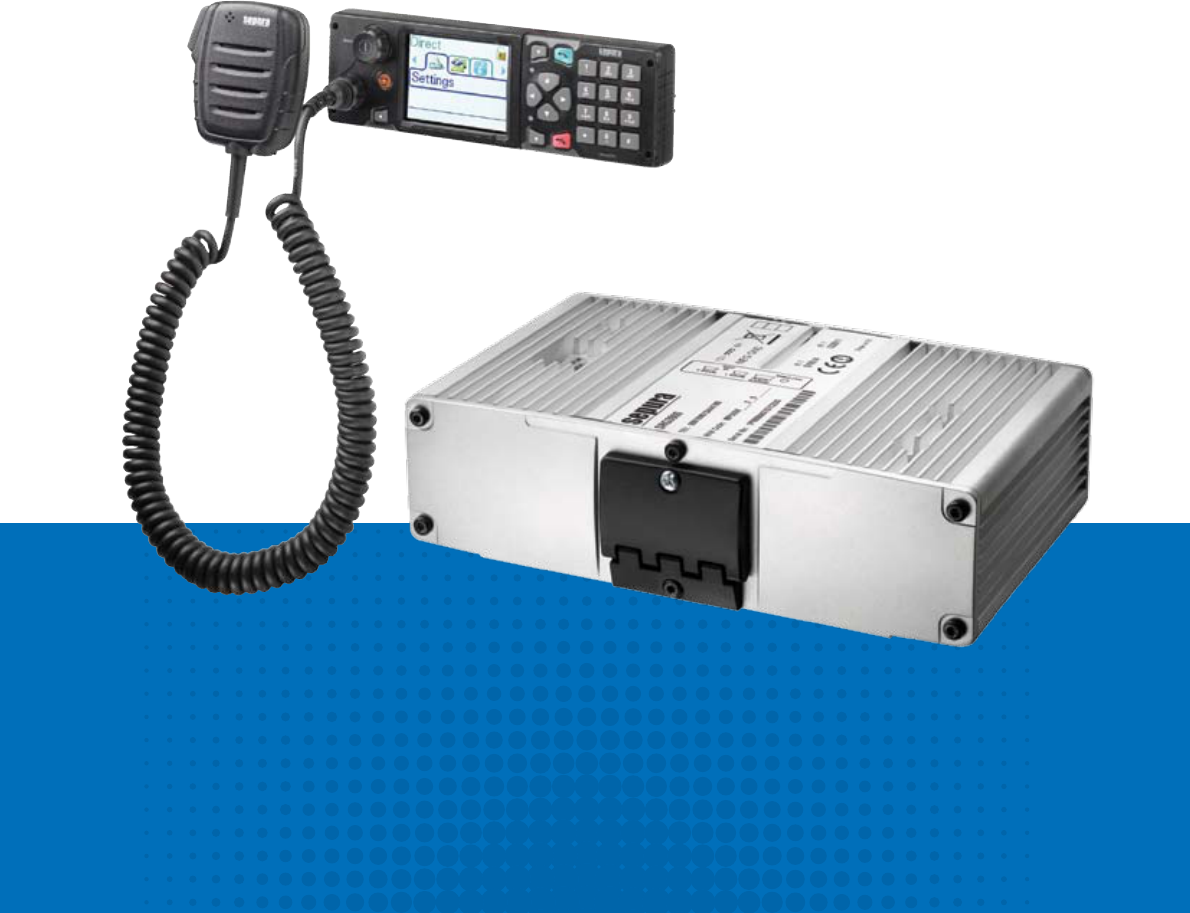

SRG3900 TETRA
GATEWAY / REPEATER RADIO
The SRG3900 is a fully featured TETRA mobile radio that
can be easily field upgraded to support DMO Gateway
and DMO Repeater via a software licence code.
•10WattsRFPower–themostpowerfulTETRAmobile
radio available.
•HardwarereadytosupportDirectModeGateway,
Direct Mode Repeater, PEI based Data and E2EE options.
•CommonUIwithallSepuraradios–givesadvantages
of easy integrationintoexistingeets,whilstminimising
user training.
•Flexible configuration, installation and audio
options allow a solution to be tailored for all applications.
The SRG3900 can be deployed as:
- Transceiver only – for remote SCADA and telemetry
operation.
- Single Console – for vehicle, motorcycle, marine,
desk and rack based solutions.
- Dual console – for larger vehicles such as ambulance,
fire and rail installations, which require multiple control
points, each mounted up to 12m away from the transceiver.
- Virtual Console – a software application allowing control
of the radio from a WindowsTM based computer.
- Handset Based Console – offers a GSM style handset
solution where installation space is limited.
- Full and semi-covert installation.
- Applications Interface Unit – allows 3rd party control of
the transceiver and user interface.
- Suitcase and Rucksack Transportable variants plus an Air
approved product for helicopter and fixed wing installations.
- Remote SIM Reader allows Smart card security solutions to
be located near the user and up to 7m from the SRG3900.
•OptionalGPSmodule,integralwithinthetransceiver,
with selectable support for NEMA, Sepura Compact or ETSI
LIP messaging.
•ComprehensiveOvertheAircontrolusingSepuraStatus
Triggered Functions.
•Multi-lingualuserinterface:EasternandWesternEuropean
languages plus Cyrillic, Chinese, Korean and Arabic.
•Fullycongurableemergencycallbehaviourincludinglive
microphone, status messaging and location reporting options.
•TheSRG3900hasbeenbuilttoaddresssecurityissuesby
including tamper protected security processors and a smart card
connector in all models. E2E Encryption can be implemented
in the field by a software upgrade, thus minimising any
operational disruption.
Note: Finishes may vary
INTELLIGENT OPERATION
•Lowglarenightmodetoenablesafe night use.
•Dualdataports,asstandard,enablesupportfortwodata
applications.
•MultipleI/Olinesavailable–activatedlocallyorviaStatus
Triggered operation.
•Congurableaudiopresentationoptionsallow:
- Fixed Level Line-out audio for use with PA Broadcast or
local voice Recorder2.
- Line-in Audio to support a 3rd party console interface2.
- Independent volume control of the loudspeaker and audio
accessories2.
•SepuraAdvancedSerialInterface(SASI)ontheSCC
provides future scope for advanced accessories with increased
functionality.
•Macrokeysallowasequenceoffunctionstobecombined
and activated by a single Soft key action.
•Short Data Applications that allow system integrators to
create and run complex form driven programmes that can
interact with back office systems via SDS messaging.
•PerformanceMonitoring,wherebytheradiocanberemotely
interrogated for a report on the signal level, location, neighbour
cells and data latency of a TETRA network, allowing an
organisation to monitor the Quality of Service (QoS) provided.
•WhenoperatinginGatewaymode,theSRG3900will
translate any received GPS message so that the DMO
originator’s identity is maintained.
ADAPTABLE DESIGN
•FullycompatiblewithexistingSepuraaccessoriesandcabling,
allowing easy substitiution and extending the life of existing
installations.
•TheSRG3900willautomaticallyvarythedisplaymode
to match the connected console and accessories4.
The following modes are supported:
- Hi-Colour
- Colour
- Monochrome
In situations where there is no network coverage available,
the 10 watt DMO Repeater allows multiple Direct Mode users
to exchange voice and data messages over a wider area with
increased reliability. The DMO Repeater is ETSI compliant
Type 1A which uses a single frequency, thus saving
scarce spectrum.
Note: Direct Mode Gateway and Repeater
services are enabled by a feature licence code.
DIRECT MODE DIRECT MODE
DIRECT MODE REPEATER
EXTENDING OPERATIONAL REACH
Standard Mode Screen Night Mode Screen
Handset
Based
Control
SCC Black
Bezel
SCC Blue
Bezel

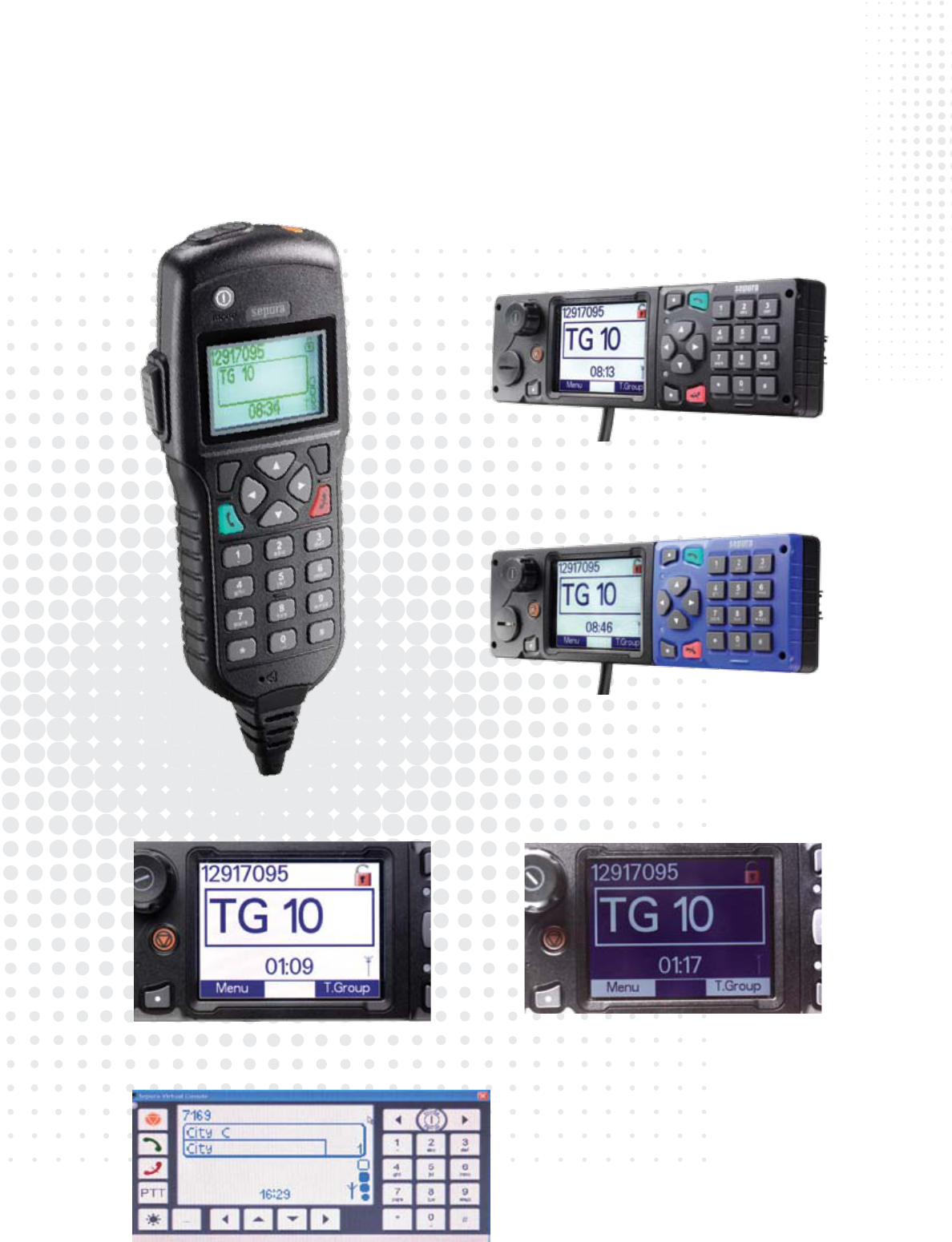

SRG3900 CONSOLE OPTIONS
Virtual Console Screen
SRG3900
TETRA GATEWAY/REPEATER
1 – further information available on request.
2 – accessories connected at the rear of a console use the same volume level.
3 – functionality is subject to an export licence.
4 – display mode and audio support will change when the legacy console, HBC or Virtual Console are connected.
5 – As defined in ETSI EN300 019-2-1 and EN300 019-2-2
6 – Operating at temperature extremes may limit some aspects of operational performance
Sepura’s policy is to continually improve its products and services. The features and facilities described
in this document were correct at publication, but are subject to change without notice.
© Sepura plc
For more information visit sepura.com
DN006 SRG3900 English / April 2011
SIZE AND WEIGHT
FREQUENCY BANDS
POWER SUPPLY
RF PERFORMANCE
ENVIRONMENTAL
GPS RECEIVER - OPTIONAL
SECURITY
CONSOLE
LICENCES
AUDIO
VOICE SERVICES
TRANSCEIVER
980g - 180mm W x 54mm L x 110mm D
SEPURA COLOUR CONSOLE (SCC)
220g - 185mm W x 58mm L x 33mm D
HANDSET BASED CONSOLE
225g - 69mm W x 162mm L x 28mm D
380 - 430MHz
407 - 473MHz
10.8 to 15.6V DC, typical 13.8V DC
10 watt RF Power output (Class 2)
RF power adjustable in steps of 5dB,
Independently adjustable for TMO and DMO
operations
Adaptive Power Control supported
Receiver Static Sensitivity -112dBm
Receiver Dynamic Sensitivity -103dBm
Receiver Class A & B
Dust & Water protection to IEC529 IP54
ETS 300 019 -2-5 drop, vibration and humidity
Storage Temp -40°C to +85°C5
Operating Temp -30°C to +70°C6
IP67 Console option available1
12 channel GPS receiver
- 155 dBm / - 185 dBW acquisition sensitivity
- 159 dBm / - 189 dBW tracking sensitivity
ETSI LIP, Sepura Compact & NMEA protocol
support
Position Assist
Over the Air GPS management
Location reporting to two TETRA identities
Position & Direction Display1
Authentication – Mutual and SwMI initiated
TMO and DMO Air Interface Encryption
support - TEA1, TEA2, TEA3 and TEA43
Trunked Mode Security Class 1, 2 and 3
Direct Mode DM-2C support
PIN and PUK Entry
Temporary Enable and Disable
Fully Integrated E2E hardware with tamper
protection
Public & Private Algorithm E2E support enabled
via software upgrade3
Integral SIM connector for Smart Card based
E2EE options3
Dual E2EE Algorithm support with dynamic
switching of active algorithm3
Software Authenticity and protection employing
Digital Signature
High resolution 320 x 240 pixels QVGA TFT
display
Large 57.6mm x 43.2mm Active Area (2.8”)
262k colours
Three text sizes4
Night Mode4
Front mounted audio accessories
Front mounted connector for data and
configuration via radio manager
AMPS and single DIN compatible
Fully compatible with existing accessories,
cables and legacy mounting options
Common Sepura UI
Two context sensitive keys4
Missed event LED
Tri colour status LED
18 configurable soft keys
Dual remote console support, each up to 12
metres from the Transceiver
Virtual and Handset Based Console (HBC)
options available1
DMO Gateway
DMO Repeater
Virtual Console
Line in/out audio
Rated Audio Output - 8 W @ 1kHz into 4 Ohms
Dual speaker configuration capable of driving
2 x 4 Ohms speakers
Fixed Level Line-out audio option enabling
Broadcast and Recording support
Line-in Audio for 3rd party console interface
support
Five independent volume controls for
Loudspeaker and Audio Accessories 2 & 4
Three audio accessories per console
Full Duplex Calls (to MS and PABX/PSTN)
Half Duplex Calls (Individual and Group)
Late Entry
Priority Call
Emergency Call (Pre-emptive Priority Call)
Emergency Call preference
Talking Party Identity
Calling Line Identity Presentation
DTMF Dialling
Ambience Listening
Privacy Mode
Whisper Mode
Group Focus
GATEWAY SERVICES (OPTION ENABLED BY
A FEATURE LICENSE CODE)
Group voice call between DMO and TMO
Individual voice calls between DMO and TMO
Emergency group call from DMO to TMO
Emergency group call from TMO to DMO
Pre-emption (in either direction) of existing call
SDS messaging in either direction1
Configurable routing of SDS messages to
Console or PEI
Intelligent handling of point to point calls and
SDS messages whilst operating as a Gateway
REPEATER SERVICES (OPTION ENABLED BY
A FEATURE LICENSE CODE)
Repeats DMO voice and tone signalling on
selected talk group
Repeats SDS and Status messaging on selected
talk group
ETSI Type 1A DMO Repeater for channel
efficient operation
Priority Call
Emergency Call (Pre-emptive Priority Call)
Supports E2E Encrypted DMO traffic
Call participation whilst in Repeater mode
DATA SERVICES
Status Messaging
Short Data Service Messaging
SDS via DMO Gateway
Circuit Switched Data Calls
Multi Slot Packet Data
Text Message Data Store
Short Data Applications (SDA)
Wireless Application Protocol (WAP)
SDS Store & Forward
Concatenated SDS (up to 1000 characters)
OTHER FUNCTIONS AND FEATURES
Support for up to 9900 pre-programmed
Talkgroups and in any combination of TMO
or DMO talk groups
Up to 50 Dynamic Group Number
Assignment(DGNA) and supporting Lifetime
Timers
Efficient management of talk-groups using up
to 5000 folders in a multilevel folder structure
with up to 75 talk-groups per folder
Talk-group Folder Management via PEI and SDS
Fixed and User Defined Talk-group Scan Lists
Priority Group Scanning with support for
Background groups
Fast Talk-group Access supports up to 5 TMO
and 5 DMO groups
Query selected Talk-group
Telephone and Radio user Address Book
(2000 entries) across 64 Folders
Call History with Missed Call alerts
Transmit Inhibit (TXI) with On/Off Status
messaging
DMO Group and Emergency Calls
DMO Gateway Interoperability supported
ETSI compliant PEI port. AT-command interface
for external applications
User Profiles including Pager capability
Remote control via Status triggered functions
Status triggered functions (up to 64configurable
actions driven by remote user)
Macro keys – operation of a single key will
perform a sequence of complex functions
Digital I/O lines (3 in, 1 out)
Network performance monitoring

Navigation menu
