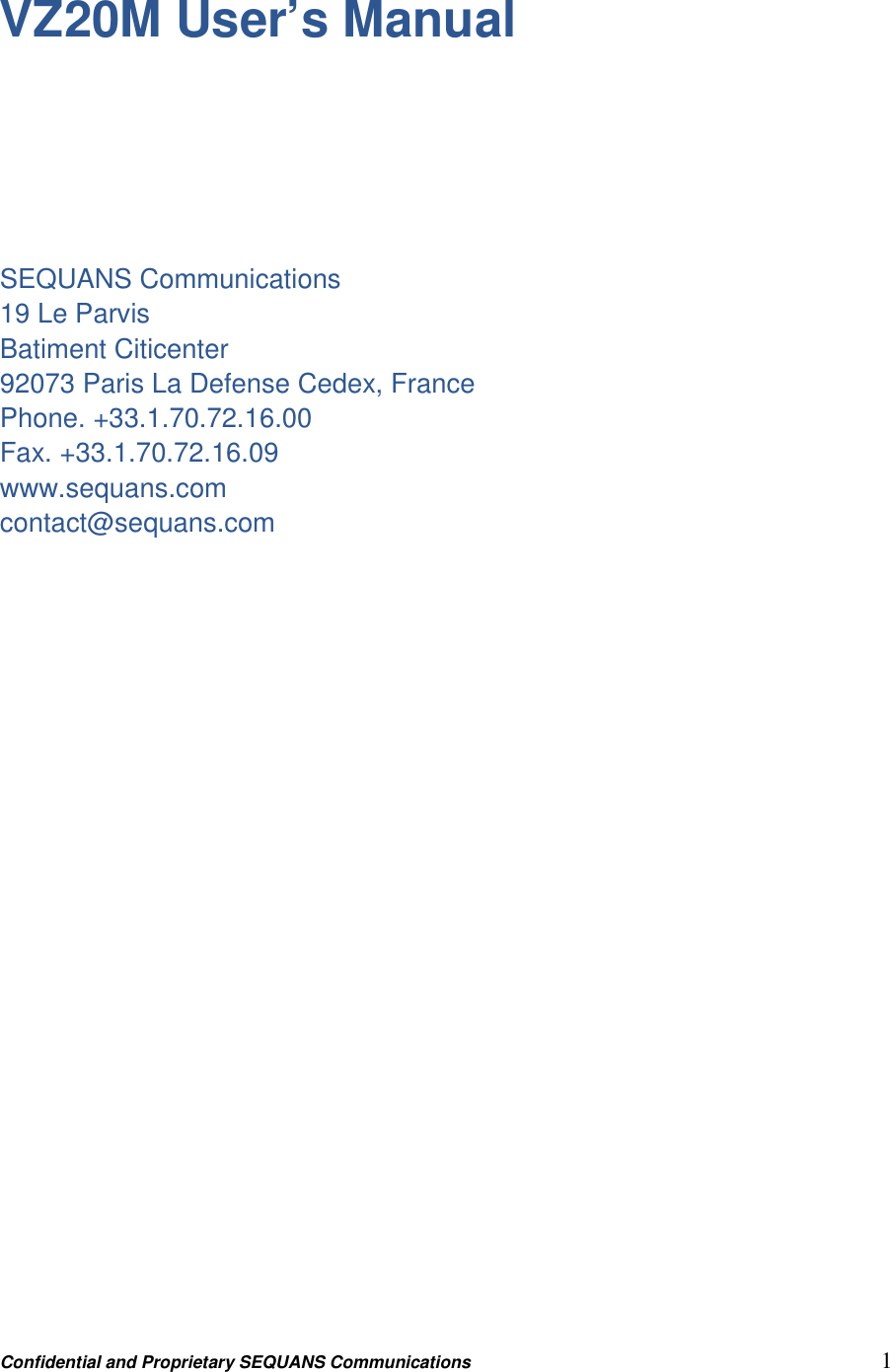

Confidential and Proprietary SEQUANS Communications 1 VZ20M User’s Manual SEQUANS Communications 19 Le Parvis Batiment Citicenter 92073 Paris La Defense Cedex, France Phone. +33.1.70.72.16.00 Fax. +33.1.70.72.16.09 www.sequans.com contact@sequans.com

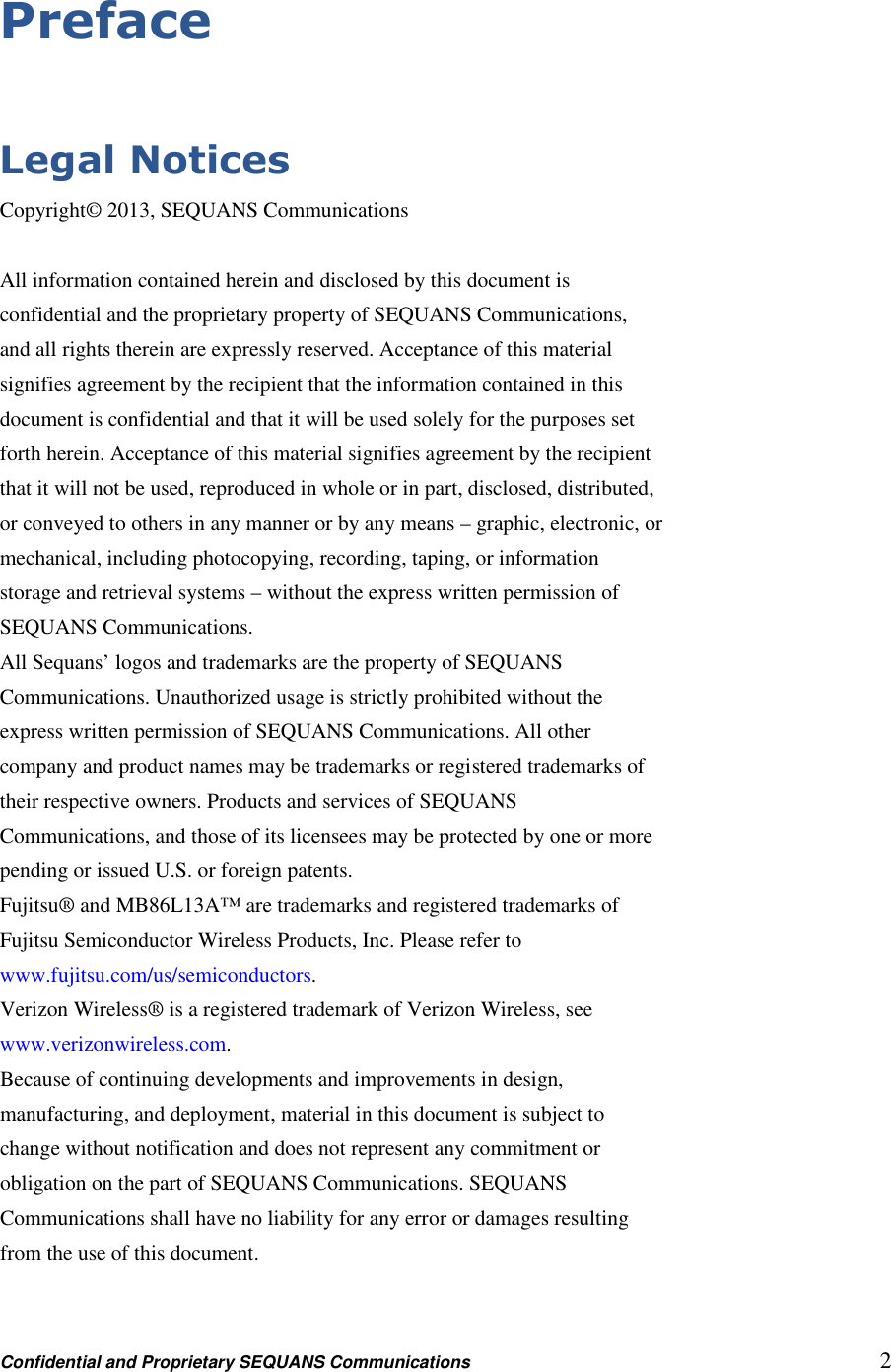

Confidential and Proprietary SEQUANS Communications 2 Preface Legal Notices Copyright© 2013, SEQUANS Communications All information contained herein and disclosed by this document is confidential and the proprietary property of SEQUANS Communications, and all rights therein are expressly reserved. Acceptance of this material signifies agreement by the recipient that the information contained in this document is confidential and that it will be used solely for the purposes set forth herein. Acceptance of this material signifies agreement by the recipient that it will not be used, reproduced in whole or in part, disclosed, distributed, or conveyed to others in any manner or by any means – graphic, electronic, or mechanical, including photocopying, recording, taping, or information storage and retrieval systems – without the express written permission of SEQUANS Communications. All Sequans’ logos and trademarks are the property of SEQUANS Communications. Unauthorized usage is strictly prohibited without the express written permission of SEQUANS Communications. All other company and product names may be trademarks or registered trademarks of their respective owners. Products and services of SEQUANS Communications, and those of its licensees may be protected by one or more pending or issued U.S. or foreign patents. Fujitsu® and MB86L13A™ are trademarks and registered trademarks of Fujitsu Semiconductor Wireless Products, Inc. Please refer to www.fujitsu.com/us/semiconductors. Verizon Wireless® is a registered trademark of Verizon Wireless, see www.verizonwireless.com. Because of continuing developments and improvements in design, manufacturing, and deployment, material in this document is subject to change without notification and does not represent any commitment or obligation on the part of SEQUANS Communications. SEQUANS Communications shall have no liability for any error or damages resulting from the use of this document.

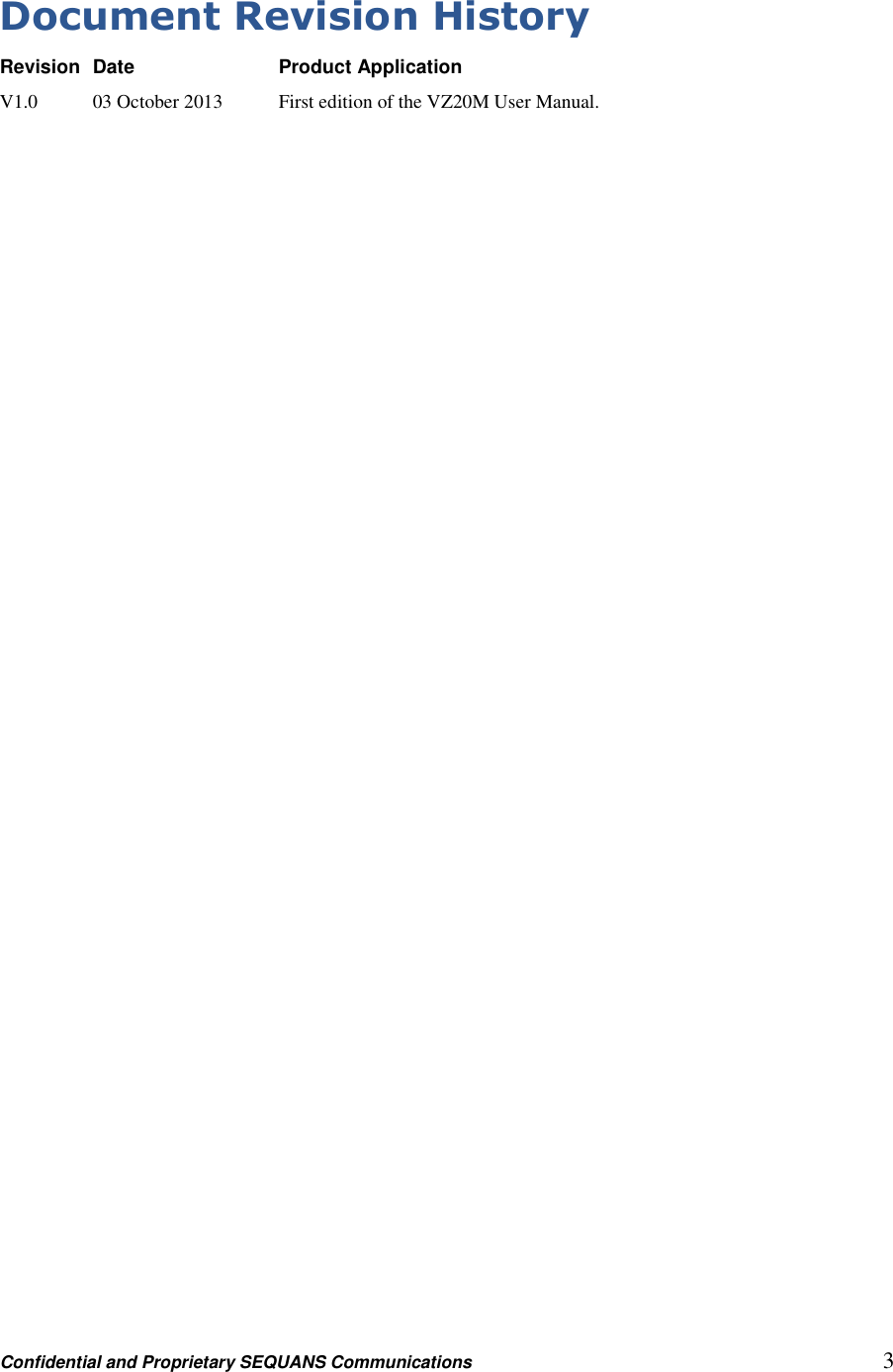

Confidential and Proprietary SEQUANS Communications 3 Document Revision History Revision Date Product Application V1.0 03 October 2013 First edition of the VZ20M User Manual.

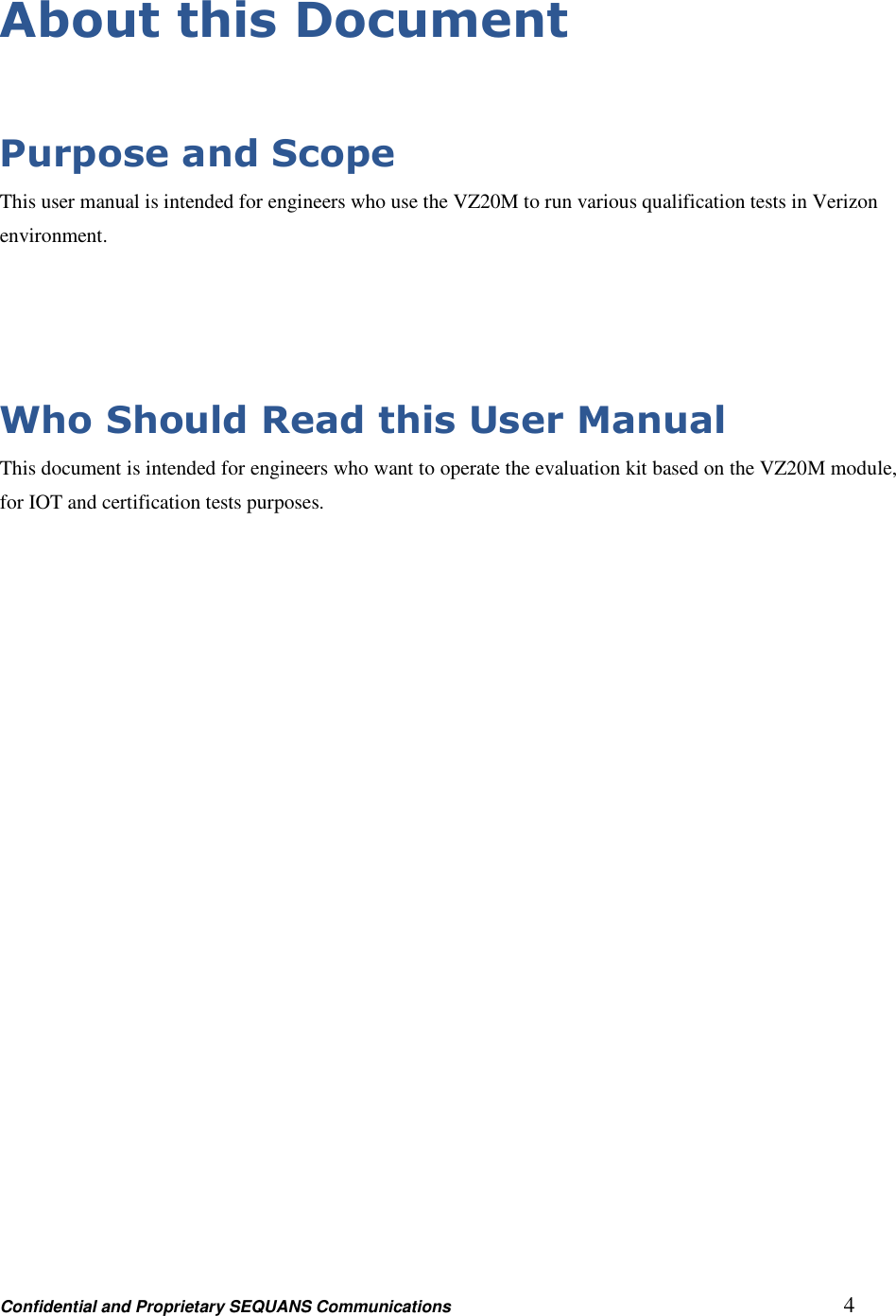

Confidential and Proprietary SEQUANS Communications 4 About this Document Purpose and Scope This user manual is intended for engineers who use the VZ20M to run various qualification tests in Verizon environment. Who Should Read this User Manual This document is intended for engineers who want to operate the evaluation kit based on the VZ20M module, for IOT and certification tests purposes.

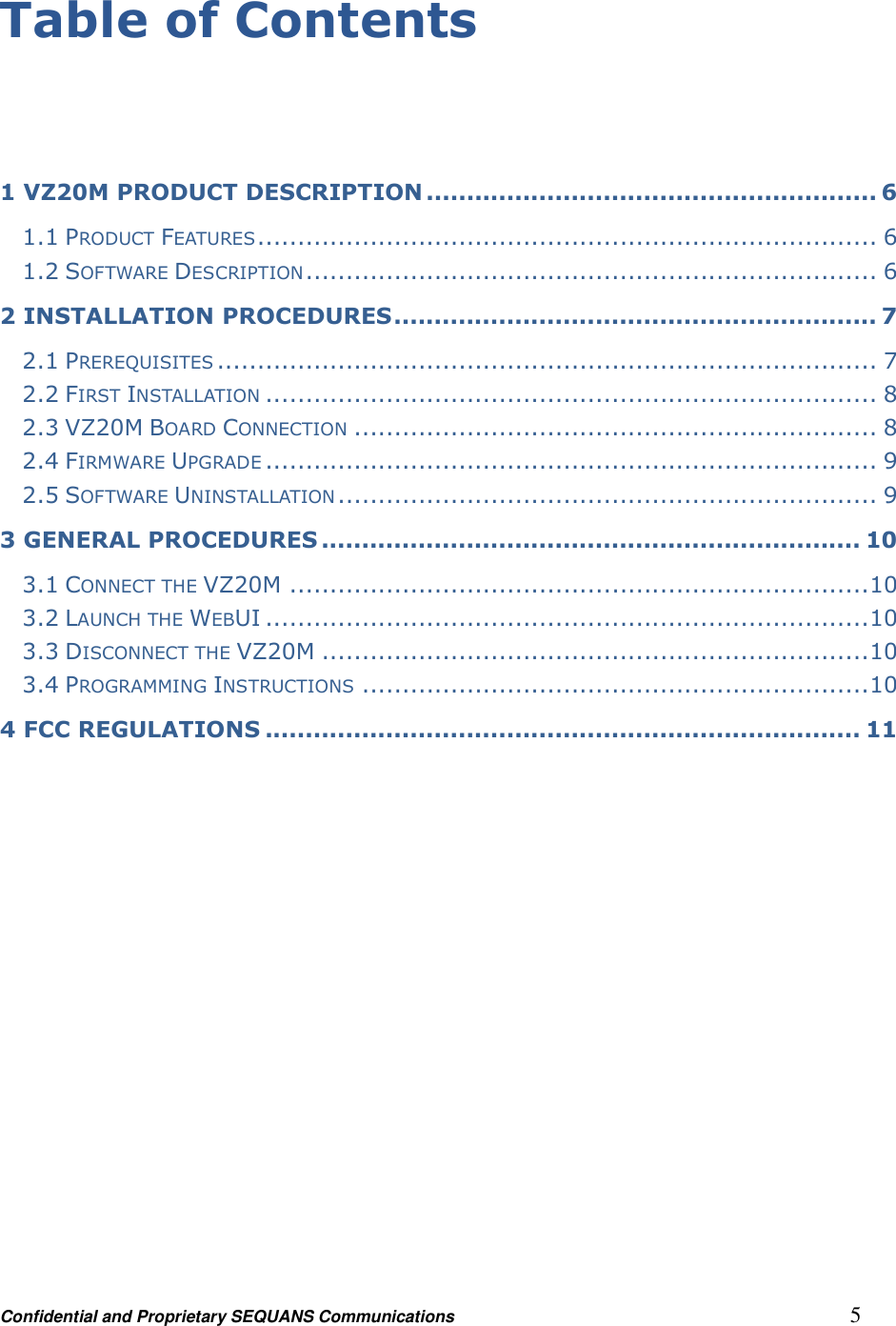

Confidential and Proprietary SEQUANS Communications 5 Table of Contents 1 VZ20M PRODUCT DESCRIPTION ........................................................ 6 1.1 PRODUCT FEATURES ............................................................................. 6 1.2 SOFTWARE DESCRIPTION ....................................................................... 6 2 INSTALLATION PROCEDURES ............................................................ 7 2.1 PREREQUISITES .................................................................................. 7 2.2 FIRST INSTALLATION ............................................................................ 8 2.3 VZ20M BOARD CONNECTION ................................................................. 8 2.4 FIRMWARE UPGRADE ............................................................................ 9 2.5 SOFTWARE UNINSTALLATION ................................................................... 9 3 GENERAL PROCEDURES ................................................................... 10 3.1 CONNECT THE VZ20M ........................................................................ 10 3.2 LAUNCH THE WEBUI ........................................................................... 10 3.3 DISCONNECT THE VZ20M .................................................................... 10 3.4 PROGRAMMING INSTRUCTIONS ............................................................... 10 4 FCC REGULATIONS .......................................................................... 11

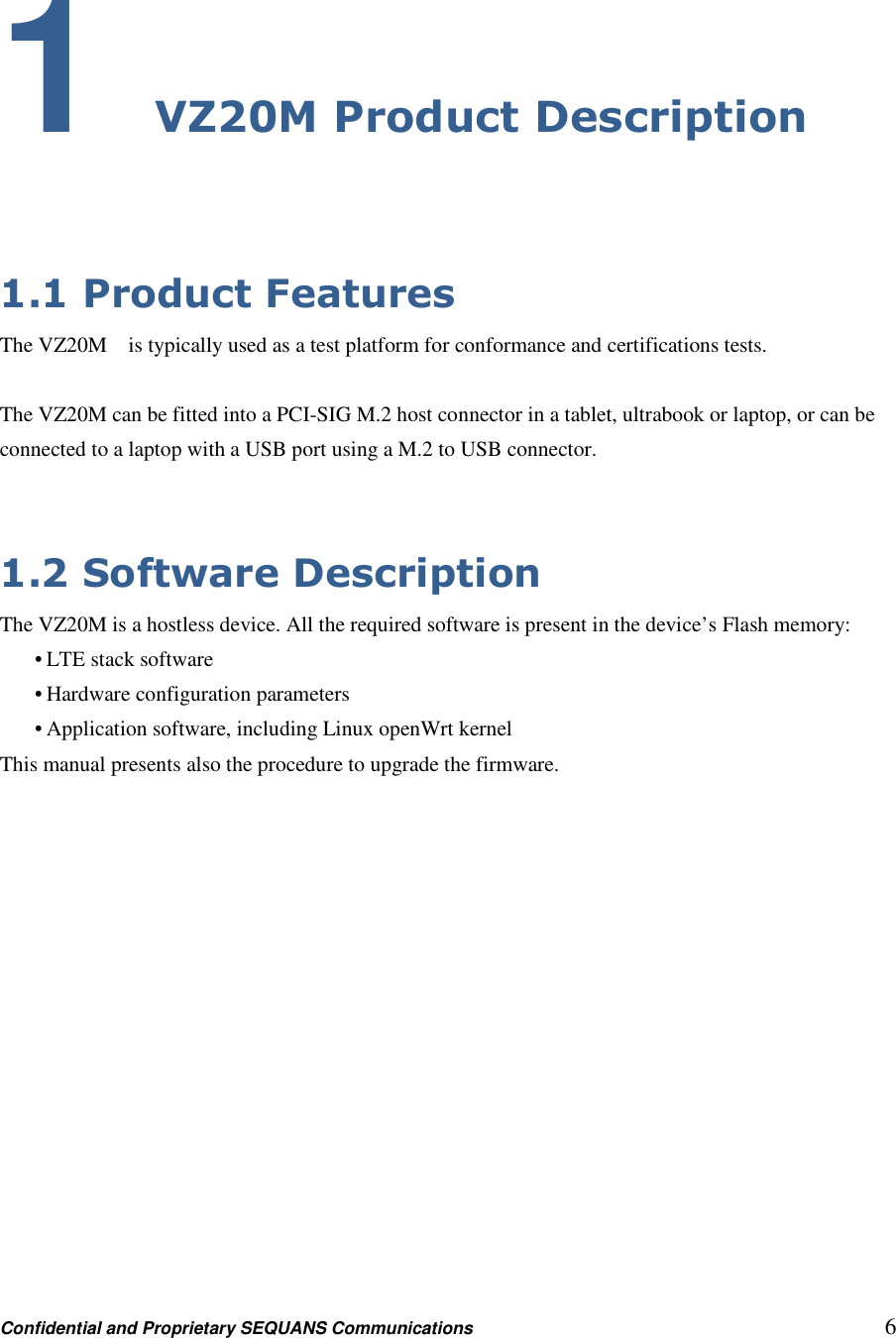

Confidential and Proprietary SEQUANS Communications 6 1 VZ20M Product Description 1.1 Product Features The VZ20M is typically used as a test platform for conformance and certifications tests. The VZ20M can be fitted into a PCI-SIG M.2 host connector in a tablet, ultrabook or laptop, or can be connected to a laptop with a USB port using a M.2 to USB connector. 1.2 Software Description The VZ20M is a hostless device. All the required software is present in the device’s Flash memory: • LTE stack software • Hardware configuration parameters • Application software, including Linux openWrt kernel This manual presents also the procedure to upgrade the firmware.

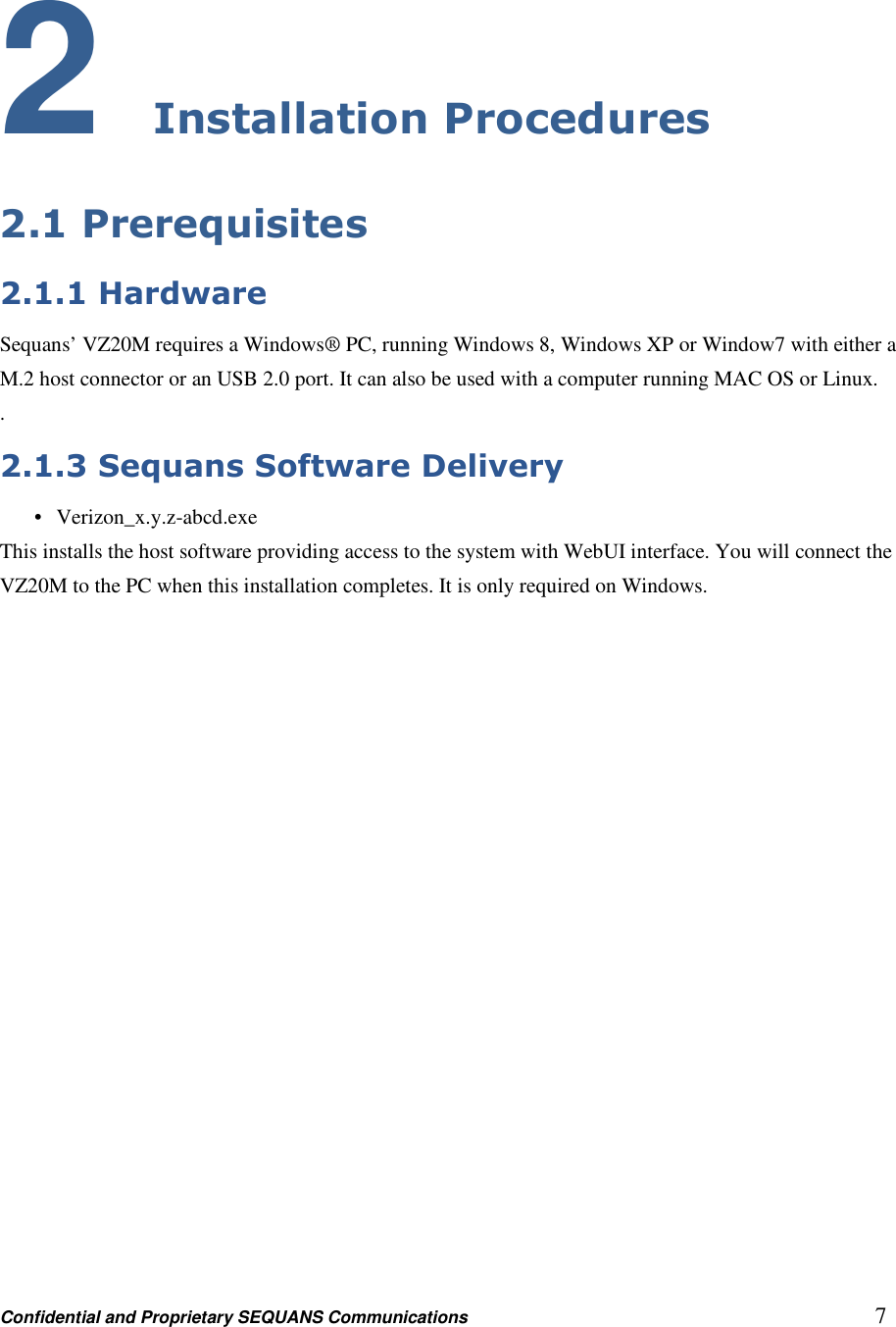

Confidential and Proprietary SEQUANS Communications 7 2 Installation Procedures 2.1 Prerequisites 2.1.1 Hardware Sequans’ VZ20M requires a Windows® PC, running Windows 8, Windows XP or Window7 with either a M.2 host connector or an USB 2.0 port. It can also be used with a computer running MAC OS or Linux. . 2.1.3 Sequans Software Delivery • Verizon_x.y.z-abcd.exe This installs the host software providing access to the system with WebUI interface. You will connect the VZ20M to the PC when this installation completes. It is only required on Windows.

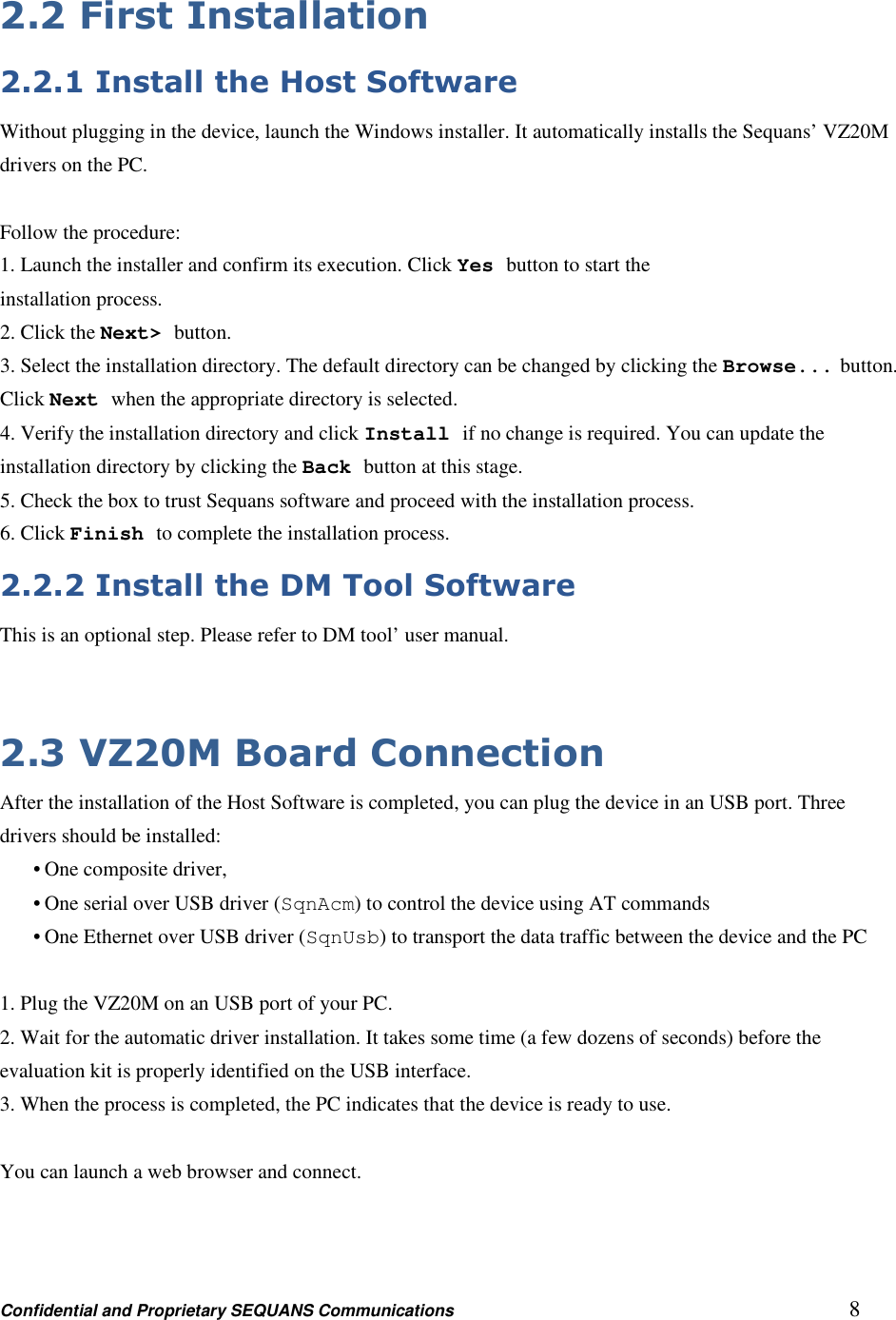

Confidential and Proprietary SEQUANS Communications 8 2.2 First Installation 2.2.1 Install the Host Software Without plugging in the device, launch the Windows installer. It automatically installs the Sequans’ VZ20M drivers on the PC. Follow the procedure: 1. Launch the installer and confirm its execution. Click Yes button to start the installation process. 2. Click the Next> button. 3. Select the installation directory. The default directory can be changed by clicking the Browse... button. Click Next when the appropriate directory is selected. 4. Verify the installation directory and click Install if no change is required. You can update the installation directory by clicking the Back button at this stage. 5. Check the box to trust Sequans software and proceed with the installation process. 6. Click Finish to complete the installation process. 2.2.2 Install the DM Tool Software This is an optional step. Please refer to DM tool’ user manual. 2.3 VZ20M Board Connection After the installation of the Host Software is completed, you can plug the device in an USB port. Three drivers should be installed: • One composite driver, • One serial over USB driver (SqnAcm) to control the device using AT commands • One Ethernet over USB driver (SqnUsb) to transport the data traffic between the device and the PC 1. Plug the VZ20M on an USB port of your PC. 2. Wait for the automatic driver installation. It takes some time (a few dozens of seconds) before the evaluation kit is properly identified on the USB interface. 3. When the process is completed, the PC indicates that the device is ready to use. You can launch a web browser and connect.

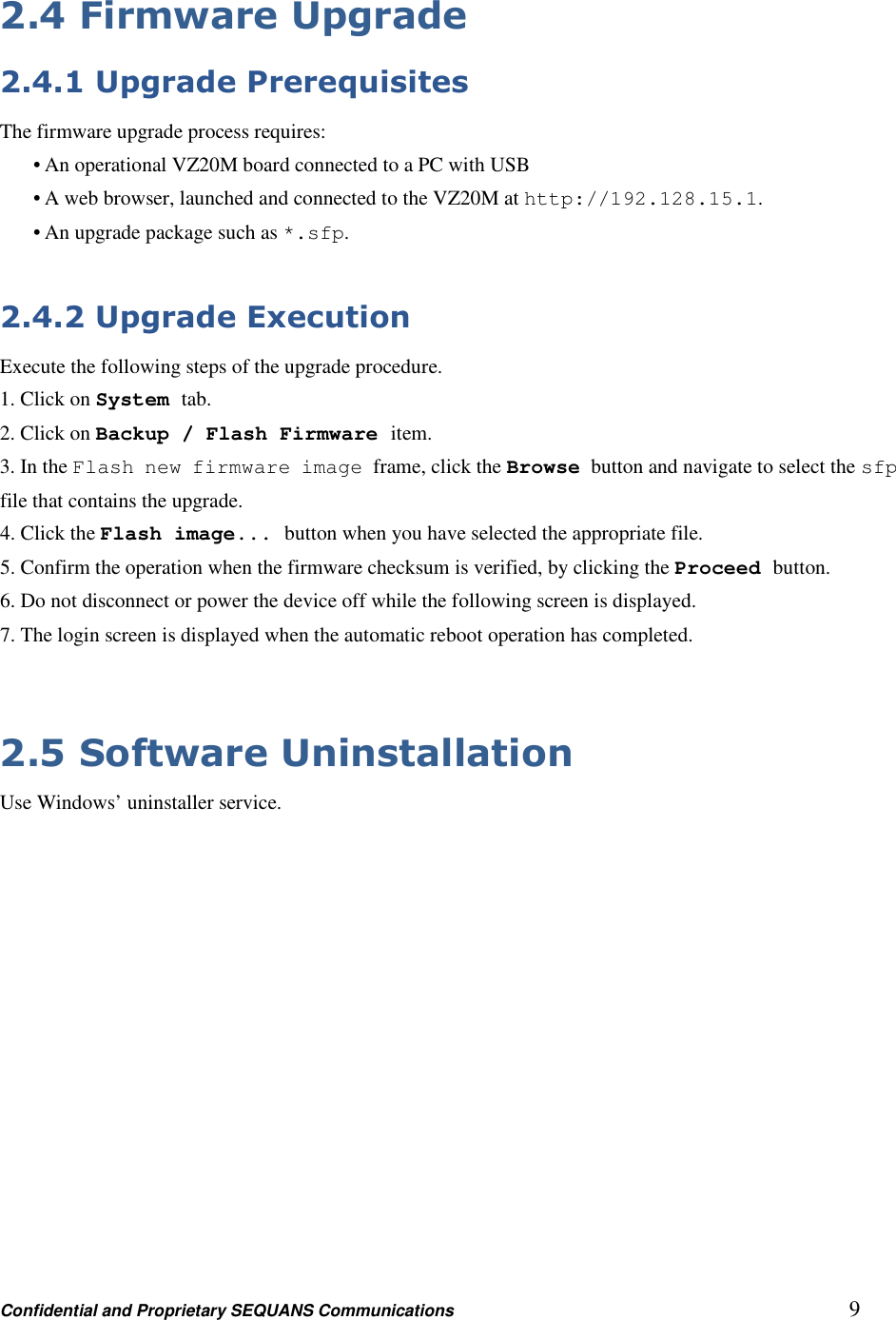

Confidential and Proprietary SEQUANS Communications 9 2.4 Firmware Upgrade 2.4.1 Upgrade Prerequisites The firmware upgrade process requires: • An operational VZ20M board connected to a PC with USB • A web browser, launched and connected to the VZ20M at http://192.128.15.1. • An upgrade package such as *.sfp. 2.4.2 Upgrade Execution Execute the following steps of the upgrade procedure. 1. Click on System tab. 2. Click on Backup / Flash Firmware item. 3. In the Flash new firmware image frame, click the Browse button and navigate to select the sfp file that contains the upgrade. 4. Click the Flash image... button when you have selected the appropriate file. 5. Confirm the operation when the firmware checksum is verified, by clicking the Proceed button. 6. Do not disconnect or power the device off while the following screen is displayed. 7. The login screen is displayed when the automatic reboot operation has completed. 2.5 Software Uninstallation Use Windows’ uninstaller service.

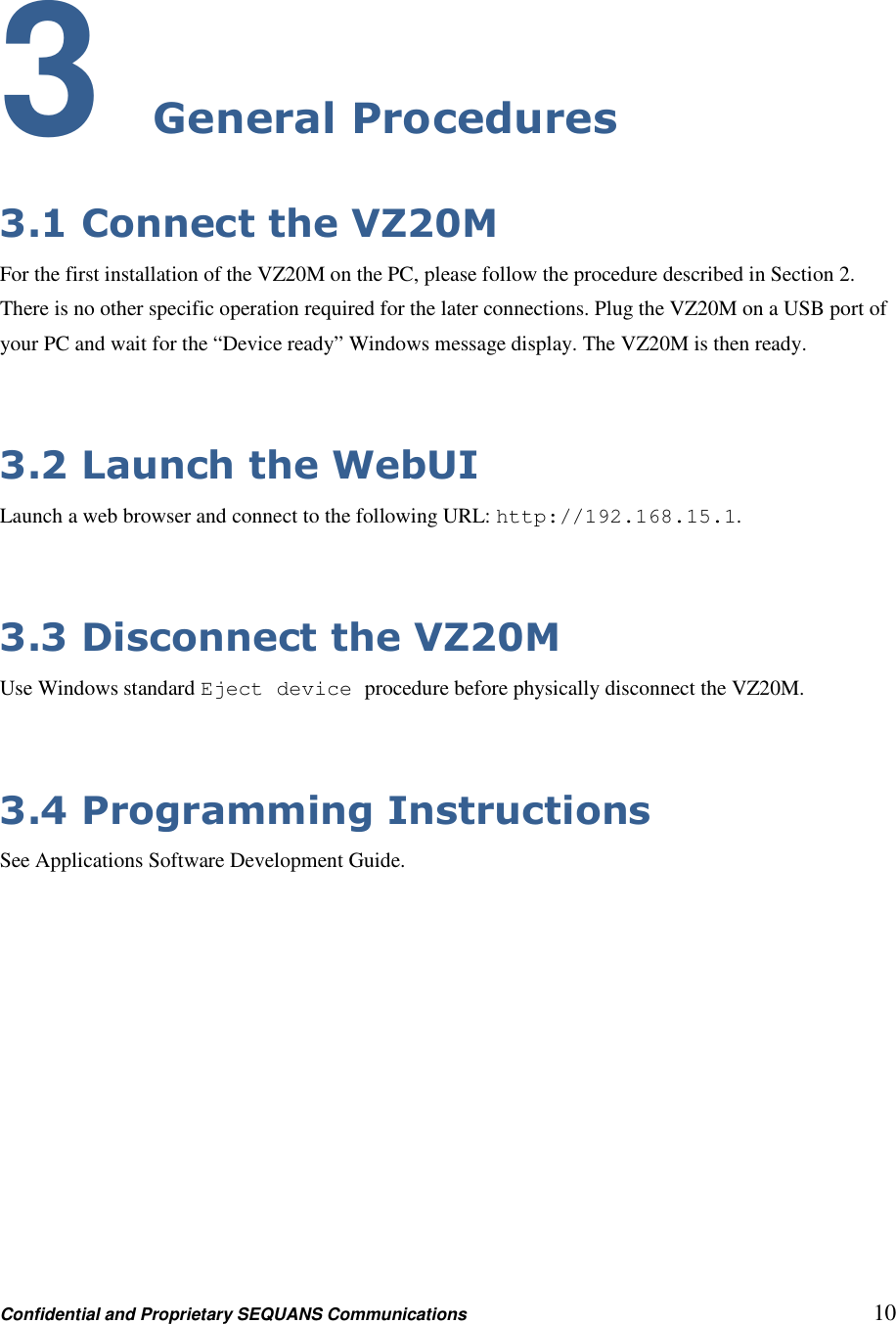

Confidential and Proprietary SEQUANS Communications 10 3 General Procedures 3.1 Connect the VZ20M For the first installation of the VZ20M on the PC, please follow the procedure described in Section 2. There is no other specific operation required for the later connections. Plug the VZ20M on a USB port of your PC and wait for the “Device ready” Windows message display. The VZ20M is then ready. 3.2 Launch the WebUI Launch a web browser and connect to the following URL: http://192.168.15.1. 3.3 Disconnect the VZ20M Use Windows standard Eject device procedure before physically disconnect the VZ20M. 3.4 Programming Instructions See Applications Software Development Guide.

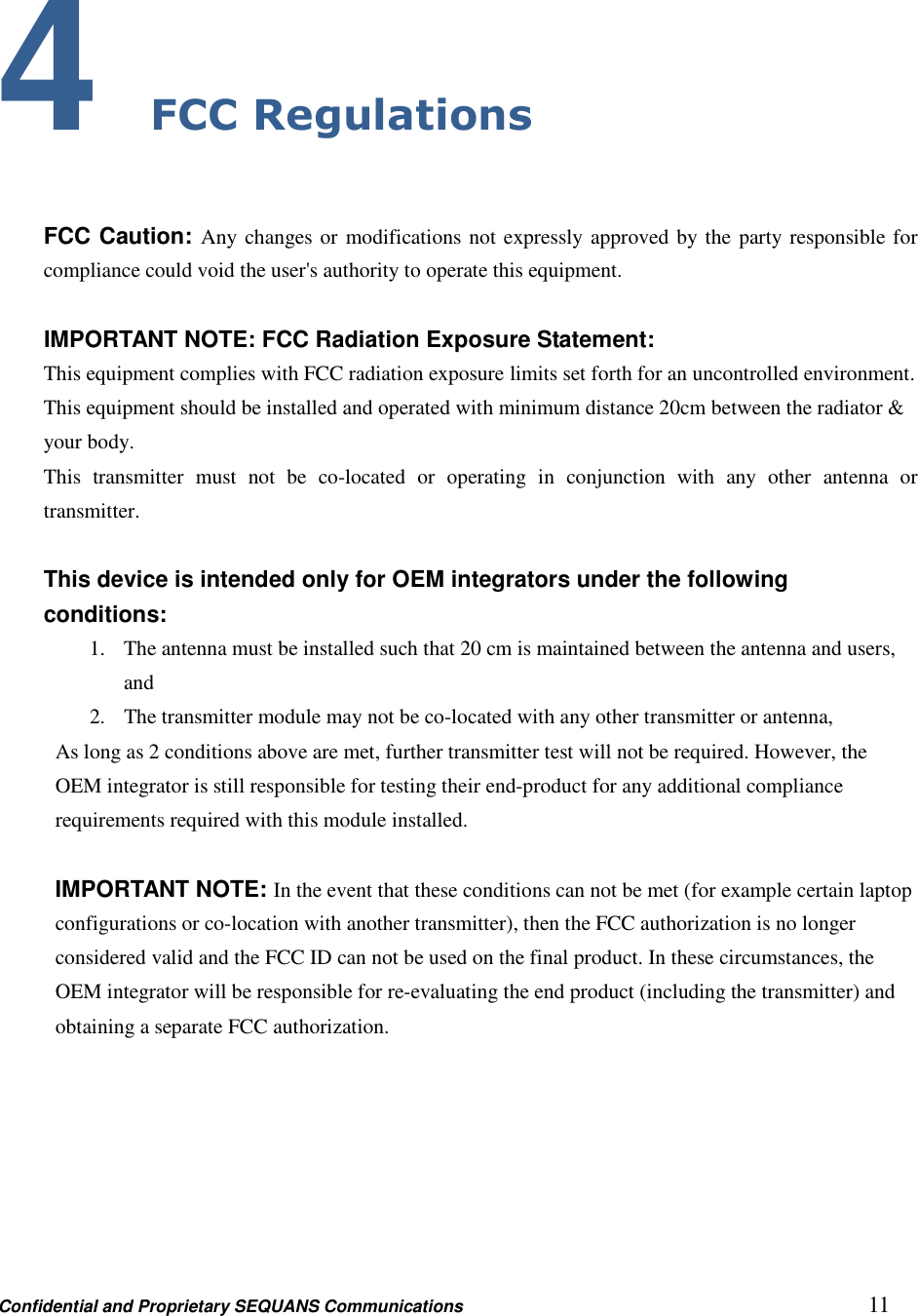

Confidential and Proprietary SEQUANS Communications 11 4 FCC Regulations FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This device is intended only for OEM integrators under the following conditions: 1. The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2. The transmitter module may not be co-located with any other transmitter or antenna, As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed. IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization.

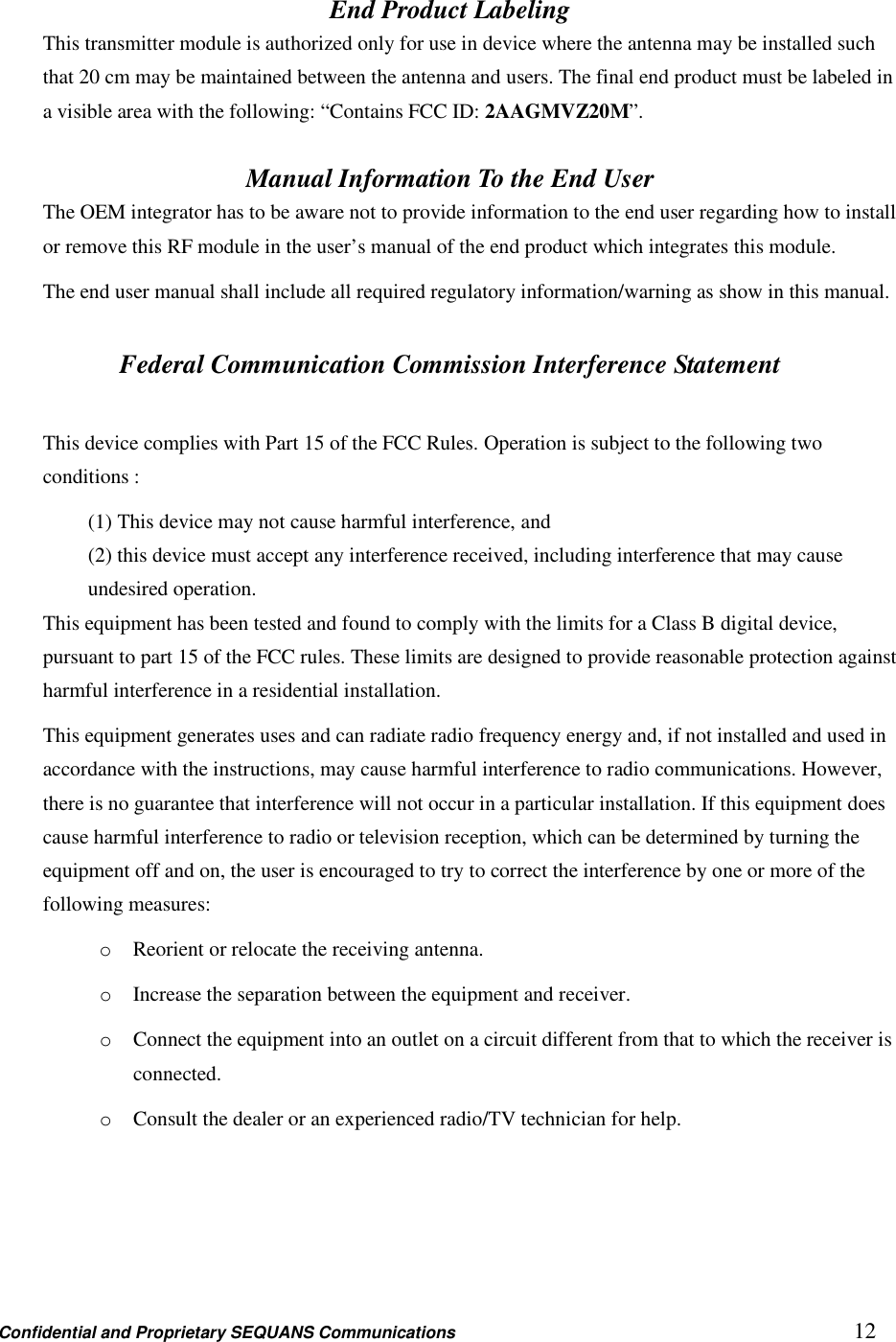

Confidential and Proprietary SEQUANS Communications 12 End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “Contains FCC ID: 2AAGMVZ20M”. Manual Information To the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module. The end user manual shall include all required regulatory information/warning as show in this manual. Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: o Reorient or relocate the receiving antenna. o Increase the separation between the equipment and receiver. o Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. o Consult the dealer or an experienced radio/TV technician for help.
