Chapter 1
Introduction
This Chapter provides an overview of the LevelOne 22Mbps Wireless AP
Router's features and capabilities.
Congratulations on the purchase of your new LevelOne 22Mbps Wireless AP Router. The
LevelOne 22Mbps Wireless AP Router is a multi-function device providing the following
services:
• Shared Broadband Internet Access for all LAN users.
• 4-Port Switching Hub for 10BaseT or 100BaseT connections.
• Wireless Access Point for 802.11b Wireless Stations.
LevelOne
22Mbps Wireless
Broadband Router
Figure 1: LevelOne 22Mbps Wireless AP Router
LevelOne 22Mbps Wireless AP Router Features
The LevelOne 22Mbps Wireless AP Router incorporates many advanced features, carefully
designed to provide sophisticated functions while being easy to use.
Internet Access Features
• Shared Internet Access. All users on the LAN or WLAN can access the Internet
through the LevelOne 22Mbps Wireless AP Router, using only a single external IP Ad-
dress. The local (invalid) IP Addresses are hidden from external sources. This process is
called NAT (Network Address Translation).
• DSL & Cable Modem Support. The LevelOne 22Mbps Wireless AP Router has a
10/100BaseT Ethernet port for connecting a DSL or Cable Modem. All popular DSL and
Cable Modems are supported.
• PPPoE, PPTP. The Internet (WAN port) connection supports PPPoE (PPP over
Ethernet), PPTP (Peer-to-Peer Tunneling Protocol as well as "Direct Connection" type
services.
• Fixed or Dynamic IP Address. On the Internet (WAN port) connection, the LevelOne
22Mbps Wireless AP Router supports both Dynamic IP Address (IP Address is allocated
on connection) and Fixed IP Address.
1
LevelOne 22Mbps Wireless AP Router User Guide
Advanced Internet Functions
• Conferencing & Telephony Applications. Internet Telephony and Conferencing
applications, which are often difficult to use when behind a Firewall, are supported.
• Communication Applications. Support for Internet communication applications, such
as interactive Games, Telephony, and Conferencing applications, which are often difficult
to use when behind a Firewall, is included.
• Special Internet Applications. Applications which use non-standard connections or
port numbers are normally blocked by the Firewall. The ability to define and allow such
applications is provided, to enable such applications to be used normally.
• Virtual Servers. This feature allows Internet users to access Internet servers on your
LAN. The required setup is quick and easy.
• DMZ. One (1) PC on your local LAN can be configured to allow unrestricted 2-way
communication with Servers or individual users on the Internet. This provides the ability
to run programs which are incompatible with Firewalls.
• URL Filter. Use the URL Filter to block access to undesirable Web sites by LAN users.
• Internet Access Log. See which Internet connections have been made.
• VPN Pass through Support. PCs with VPN (Virtual Private Networking) software
using PPTP, L2TP and IPSec are transparently supported - no configuration is required.
Wireless Features
• Standards Compliant. The LevelOne 22Mbps Wireless AP Router complies with the
IEEE802.11b (DSSS) specifications for Wireless LANs.
• WEP support. Support for WEP (Wired Equivalent Privacy) is included. Both 64 Bit
and 128 Bit keys are supported.
• Access Control. The Access Control feature can ensure that only trusted Wireless
Stations can access your LAN.
• Simple Configuration. If the default settings are unsuitable, they can be changed
quickly and easily.
LAN Features
• 4-Port Switching Hub. The LevelOne 22Mbps Wireless AP Router incorporates a 4-
port 10/100BaseT switching hub, with "Auto-uplink" ports, making it easy to create or ex-
tend your LAN.
• DHCP Server Support. Dynamic Host Configuration Protocol provides a dynamic IP
address to PCs and other devices upon request. The LevelOne 22Mbps Wireless AP
Router can act as a DHCP Server for devices on your local LAN and WLAN.
• Multi Segment LAN Support. LANs containing one or more segments are supported,
via the LevelOne 22Mbps Wireless AP Router's RIP (Routing Information Protocol) sup-
port and built-in static routing table.
Configuration & Management
• Easy Setup. Use your WEB browser from anywhere on the LAN or WLAN for configu-
ration.
• Remote Management. The LevelOne 22Mbps Wireless AP Router can be managed
from any PC on your LAN. And, if the Internet connection exists, it can also (optionally)
be configured via the Internet.
2
Introduction
• UPnP Support. UPnP (Universal Plug and Play) allows automatic discovery and con-
figuration of the LevelOne 22Mbps Wireless AP Router. UPnP is by supported by
Windows ME, XP, or later.
Security Features
• Password - protected Configuration. Optional password protection is provided to
prevent unauthorized users from modifying the configuration data and settings.
• Wireless LAN Security. WEP (Wired Equivalent Privacy) is supported, as well as
Wireless access control to prevent unknown wireless stations from accessing your LAN.
• NAT Protection. An intrinsic side effect of NAT (Network Address Translation) tech-
nology is that by allowing all LAN users to share a single IP address, the location and
even the existence of each PC is hidden. From the external viewpoint, there is no network,
only a single device - the LevelOne 22Mbps Wireless AP Router.
• Stateful Inspection Firewall. All incoming data packets are monitored and all incom-
ing server requests are filtered, thus protecting your network from malicious attacks from
external sources.
• Protection against DoS attacks. DoS (Denial of Service) attacks can flood your
Internet connection with invalid packets and connection requests, using so much band-
width and so many resources that Internet access becomes unavailable. The LevelOne
22Mbps Wireless AP Router incorporates protection against DoS attacks.
Package Contents
The following items should be included:
• The LevelOne 22Mbps Wireless AP Router Unit
• Power Adapter
• Quick Installation Guide
• CD-ROM containing the on-line manual.
If any of the above items are damaged or missing, please contact your dealer immediately.
3
LevelOne 22Mbps Wireless AP Router User Guide
Physical Details
Front Panel
Figure 2: Front Panel
Status (Red)
LED
On - Error condition.
Off - Normal operation.
Blinking - This LED blinks during start up.
Power LED On - Power on.
Off - No power.
LAN LEDs For each port, there are 2 LEDs
• Link/Act
• On - Corresponding LAN (hub) port is active.
• Off - No active connection on the corresponding LAN (hub) port.
• Flashing - Data is being transmitted or received via the corre-
sponding LAN (hub) port.
• 100
• On - Corresponding LAN (hub) port is using 100BaseT.
• Off - Corresponding LAN (hub) port connection is using
10BaseT, or no active connection.
WAN LED On - Connection to the Broadband Modem attached to the WAN (Inter-
net) port is established.
Off - No connection to the Broadband Modem.
WLAN LED On - Idle.
Off - Error - No Wireless connection available.
Flashing - Data is being transmitted or received via the Wireless access
point. This includes "network traffic" as well as user data.
4
Introduction
Rear Panel

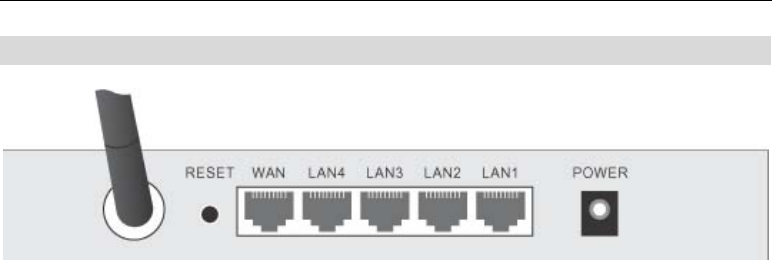

Figure 3: Rear Panel
Reset Button This button has two (2) functions:
• Reboot. When pressed and released, the LevelOne 22Mbps
Wireless AP Router will reboot (restart).
• Clear All Data. This button can also be used to clear ALL data
and restore ALL settings to the factory default values.
To Clear All Data and restore the factory default values:
1. Power Off.
2. Hold the Reset Button down while you Power On.
3. Keep holding the Reset Button for a few seconds, until the RED
LED has flashed TWICE.
4. Release the Reset Button. The LevelOne 22Mbps Wireless AP
Router is now using the factory default values.
WAN port
(10/100BaseT)
Connect the DSL or Cable Modem here. If your modem came with a
cable, use the supplied cable. Otherwise, use a standard LAN cable.
10/100BaseT
LAN connections
Use standard LAN cables (RJ45 connectors) to connect your PCs to
these ports.
Note: Any port will automatically function as an "Uplink" port when
required. You can connect any port to a standard port on another hub,
using a standard cable.
Power port Connect the supplied power adapter here.
5
Chapter 2
Installation
This Chapter covers the physical installation of the LevelOne 22Mbps Wire-
less AP Router.
Requirements
• Network cables. Use standard 10/100BaseT network (UTP) cables with RJ45 connectors.
• TCP/IP protocol must be installed on all PCs.
• For Internet Access, an Internet Access account with an ISP, and either a DSL or Cable
modem (for WAN port usage).
• To use the Wireless Access Point, all Wireless devices must be compliant with the
IEEE802.11b specifications.
Procedure

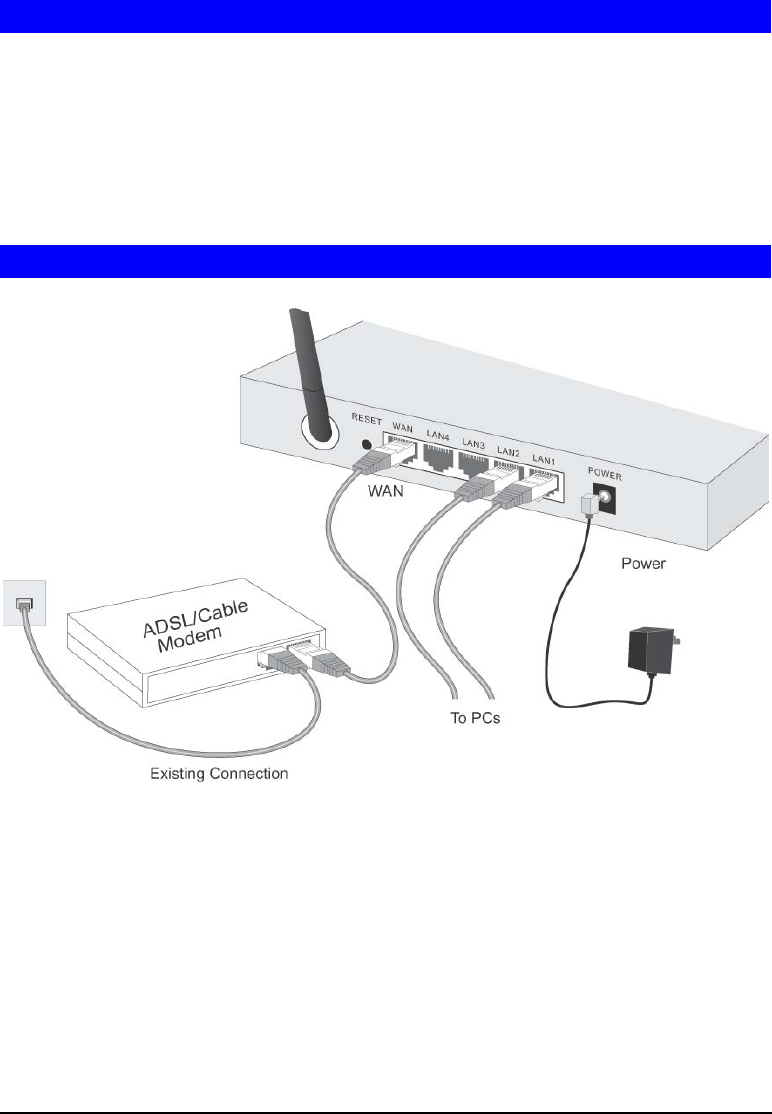

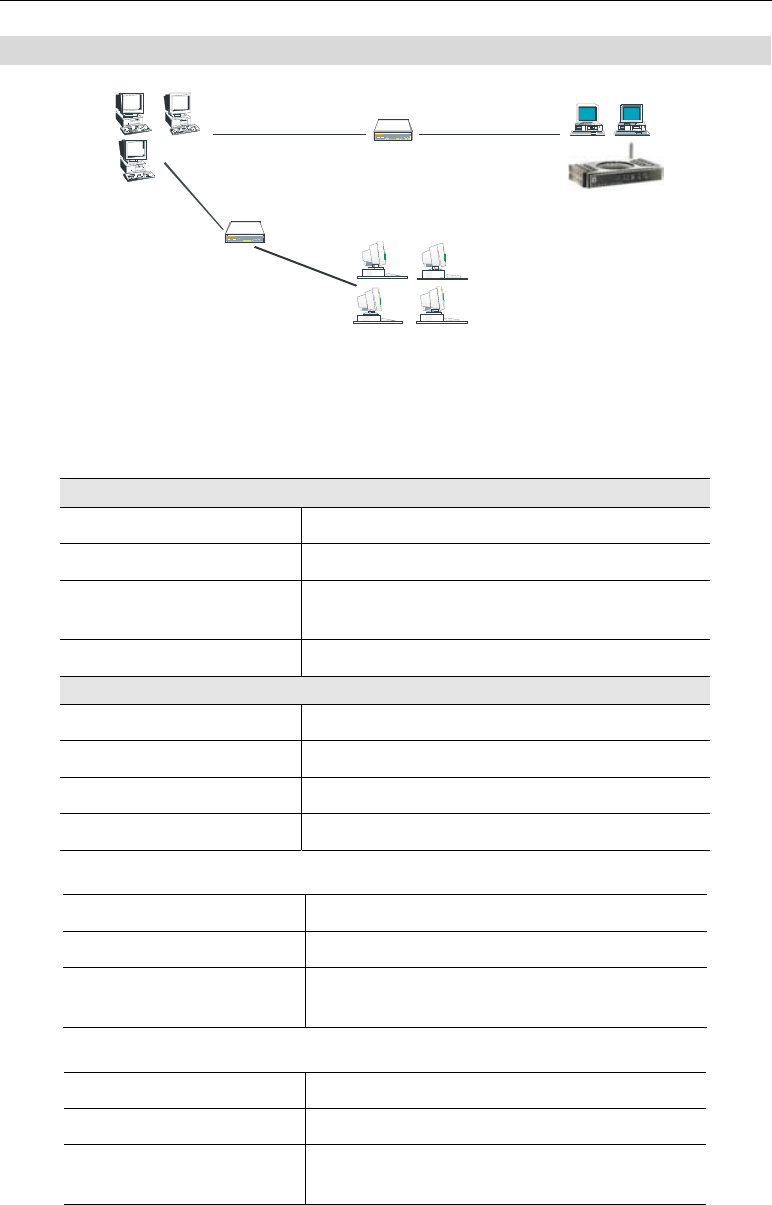

Figure 4: Installation Diagram
1. Choose an Installation Site
Select a suitable place on the network to install the LevelOne 22Mbps Wireless AP
Router.
Ensure the LevelOne 22Mbps Wireless AP Router and the DSL/Cable modem are pow-
ered OFF.
6
Installation
For best Wireless reception and performance, the Access
Point should be positioned in a central location with mini-
mum obstructions between the Access Point and the PCs.
Also, if using multiple Access Points, adjacent Access
Points should use different Channels.
2. Connect LAN Cables
Use standard LAN cables to connect PCs to the Switching Hub ports on the LevelOne
22Mbps Wireless AP Router. Both 10BaseT and 100BaseT connections can be used si-
multaneously.
Note: Any port will automatically function as an "Uplink" port when required. You can
connect any port to a standard port on another hub, using a standard cable.
3. Connect WAN Cable
Connect the DSL or Cable modem to the WAN port on the LevelOne 22Mbps Wireless
AP Router. Use the cable supplied with your DSL/Cable modem. If no cable was supplied,
use a standard cable.
4. Power Up
• Power on the Cable or DSL modem.
• Connect the supplied power adapter to the LevelOne 22Mbps Wireless AP Router and
power up.
Use only the power adapter provided. Using a different one may cause hardware damage
5. Check the LEDs
• The Power LED should be ON.
• The Status LED should flash, then turn OFF. If it stays on, there is a hardware error.
• For each LAN (PC) connection, the LAN Link/Act LED should be ON (provided the PC is
also ON.)
• The WAN LED should be ON.
• The WLAN LED should be ON
For more information, refer to the Front Panel section in Chapter 1.
7
Chapter 3
Setup
This Chapter provides Setup details of the LevelOne 22Mbps Wireless AP
Router.
Overview
This chapter describes the setup procedure for:
• Internet Access
• LAN configuration
• Wireless setup
• Assigning a Password to protect the configuration data.
PCs on your local LAN may also require configuration. For details, see Chapter 4 - PC Con-
figuration.
Other configuration may also be required, depending on which features and functions of the
LevelOne 22Mbps Wireless AP Router you wish to use. Use the table below to locate detailed
instructions for the required functions.
To Do this: Refer to:
Configure PCs on your LAN. Chapter 4:
PC Configuration
Check LevelOne 22Mbps Wireless AP Router operation
and Status.
Chapter 5:
Operation and Status
Use any of the following Internet features:
• Special Applications
• DMZ
• Virtual Servers
• Dynamic DNS
• Remote Management
Chapter 6:
Advanced Features
Use any of the following Advanced Configuration
settings:
• PC Database
• Options (Backup DNS, TFTP, UPnP, Firewall)
• Routing (RIP and static Routing)
Chapter 7
Advanced Configuration
Where use of a certain feature requires that
PCs or other LAN devices be configured, this
is also explained in the relevant chapter.
8
Setup
Configuration Program
The LevelOne 22Mbps Wireless AP Router contains an HTTP server. This enables you to
connect to it, and configure it, using your Web Browser. Your Browser must support
JavaScript. The configuration program has been tested on the following browsers:
• Netscape V4.08 or later
• Internet Explorer V4 or later
Preparation
Before attempting to configure the LevelOne 22Mbps Wireless AP Router, please ensure that:
• Your PC can establish a physical connection to the LevelOne 22Mbps Wireless AP
Router. The PC and the `be directly connected (using the Hub ports on the LevelOne
22Mbps Wireless AP Router) or on the same LAN segment.
• The LevelOne 22Mbps Wireless AP Router must be installed and powered ON.
• If the LevelOne 22Mbps Wireless AP Router's default IP Address (192.168.0.1) is already
used by another device, the other device must be turned OFF until the LevelOne 22Mbps
Wireless AP Router is allocated a new IP Address during configuration.
Using UPnP
If your Windows system supports UPnP, an icon for the LevelOne 22Mbps Wireless AP
Router will appear in the system tray, notifying you that a new network device has been found,
and offering to create a new desktop shortcut to the newly-discovered device.
• Unless you intend to change the IP Address of the LevelOne 22Mbps Wireless AP Router,
you can accept the desktop shortcut.
• Whether you accept the desktop shortcut or not, you can always find UPnP devices in My
Network Places (previously called Network Neighborhood).
• Double - click the icon for the LevelOne 22Mbps Wireless AP Router (either on the
Desktop, or in My Network Places) to start the configuration. Refer to the following sec-
tion Setup Wizard for details of the initial configuration process.
Using your Web Browser
To establish a connection from your PC to the LevelOne 22Mbps Wireless AP Router:
1. After installing the LevelOne 22Mbps Wireless AP Router in your LAN, start your PC. If
your PC is already running, restart it.
2. Start your WEB browser.
3. In the Address box, enter "HTTP://" and the IP Address of the LevelOne 22Mbps Wireless
AP Router, as in this example, which uses the LevelOne 22Mbps Wireless AP Router's
default IP Address:
HTTP://192.168.0.1
9
LevelOne 22Mbps Wireless AP Router User Guide
If you can't connect
If the LevelOne 22Mbps Wireless AP Router does not respond, check the follow-
ing:
• The LevelOne 22Mbps Wireless AP Router is properly installed, LAN connec-
tion is OK, and it is powered ON. You can test the connection by using the
"Ping" command:
• Open the MS-DOS window or command prompt window.
• Enter the command:
ping 192.168.0.1
If no response is received, either the connection is not working, or your
PC's IP address is not compatible with the LevelOne 22Mbps Wireless AP
Router's IP Address. (See next item.)
• If your PC is using a fixed IP Address, its IP Address must be within the range
192.168.0.2 to 192.168.0.254 to be compatible with the LevelOne 22Mbps
Wireless AP Router's default IP Address of 192.168.0.1. Also, the Network
Mask must be set to 255.255.255.0. See Chapter 4 - PC Configuration for de-
tails on checking your PC's TCP/IP settings.
• Ensure that your PC and the LevelOne 22Mbps Wireless AP Router are on the
same network segment. (If you don't have a router, this must be the case.)
10
Setup
Setup Wizard
The first time you connect to the LevelOne 22Mbps Wireless AP Router, the Setup Wizard
will run automatically. (The Setup Wizard will also run if the LevelOne 22Mbps Wireless AP
Router's default setting are restored.)
1. Step through the Wizard until finished.
• You need to know the type of Internet connection service used by your ISP. Check
the data supplied by your ISP.
• The common connection types are explained in the tables below.
2. On the final screen of the Wizard, run the test and check that an Internet connection can be
established.
• If the connection fails, check your data, the Cable/DSL modem, and all connections.
• If your ISP has recorded your MAC (hardware) address, exit the Wizard and select
MAC Address on the Advanced menu. Change the MAC address to match the value
expected by your ISP.
Cable Modems
Type Details ISP Data required
Dynamic
IP Address
Your IP Address is allocated
automatically, when you
connect to you ISP.
Usually, none.
However, some ISP's may
require you to use a particular
Hostname, Domain name, or
MAC (physical) address.
Static (Fixed)
IP Address
Your ISP allocates a perma-
nent IP Address to you.
IP Address allocated to you.
Some ISP's may also require
you to use a particular Host-
name, Domain name, or MAC
(physical) address.
@Home type
service.
The IP Address is allocated
automatically, but a "Host
Name" and "Domain Name"
are allocated to you. Some-
times, the ISP will record the
MAC (Hardware) address of
your PC.
Host Name and Domain Name;
sometimes the MAC (hardware)
address.
DSL Modems
Type Details ISP Data required
Dynamic
IP Address
Your IP Address is allocated
automatically, when you
connect to you ISP.
None.
Static (Fixed)
IP Address
Your ISP allocates a perma-
nent IP Address to you.
IP Address allocated to you.
PPPoE You connect to the ISP only
when required. The IP address
is usually allocated automati-
cally.
User name and password.
11
LevelOne 22Mbps Wireless AP Router User Guide
PPTP Mainly used in Europe.
You connect to the ISP only
when required. The IP address
is usually allocated automati-
cally, but may be Static
(Fixed).
• PPTP Server IP Address.
• User name and password.
• IP Address allocated to
you, if Static (Fixed).
Other Modems (e.g. Broadband Wireless)
Type Details ISP Data required
Dynamic
IP Address
Your IP Address is allocated
automatically, when you con-
nect to you ISP.
None.
Static (Fixed)
IP Address
Your ISP allocates a permanent
IP Address to you.
IP Address allocated to you.
12
Setup
Home Screen
After finishing the Setup Wizard, you will see the Home screen. When you connect in future,
you will see this screen when you connect. An example screen is shown below.

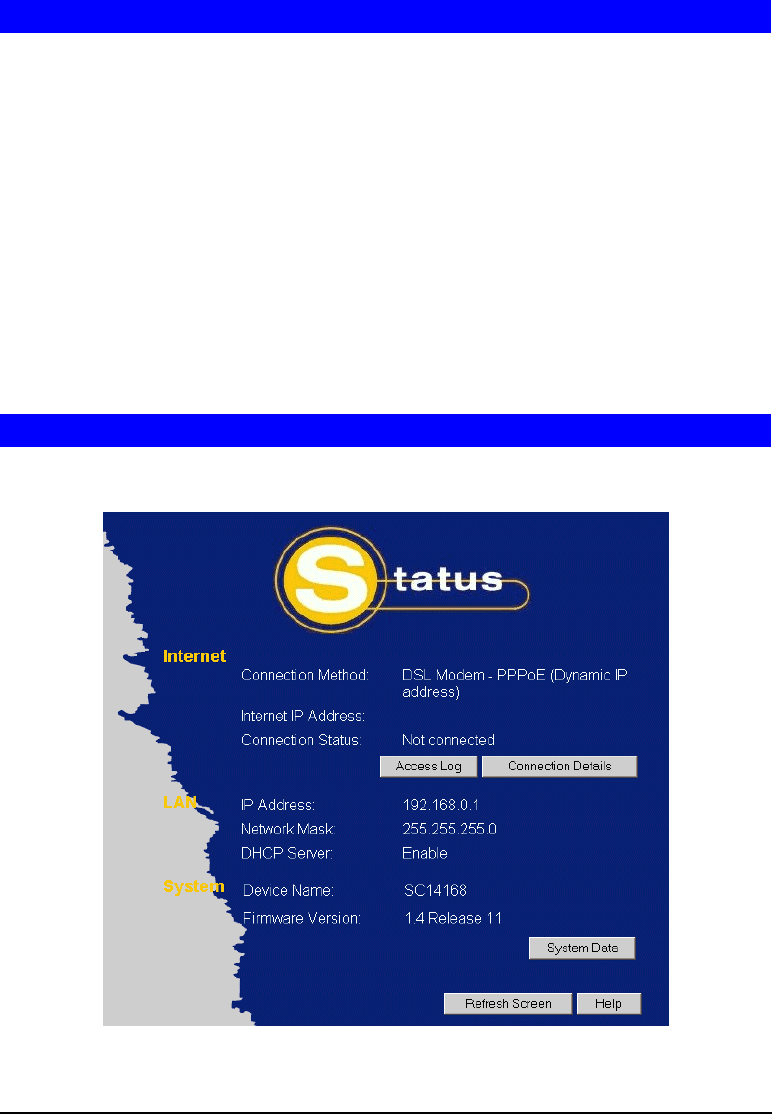

Figure 5: Home Screen
Navigation & Data Input
• Use the menu bar on the top of the screen, and the "Back" button on your Browser, for
navigation.
• Changing to another screen without clicking "Save" does NOT save any changes you may
have made. You must "Save" before changing screens or your data will be ignored.
On each screen, clicking the "Help" button will
display help for that screen.
From any help screen, you can access the list of all
help files (help index).
13
LevelOne 22Mbps Wireless AP Router User Guide

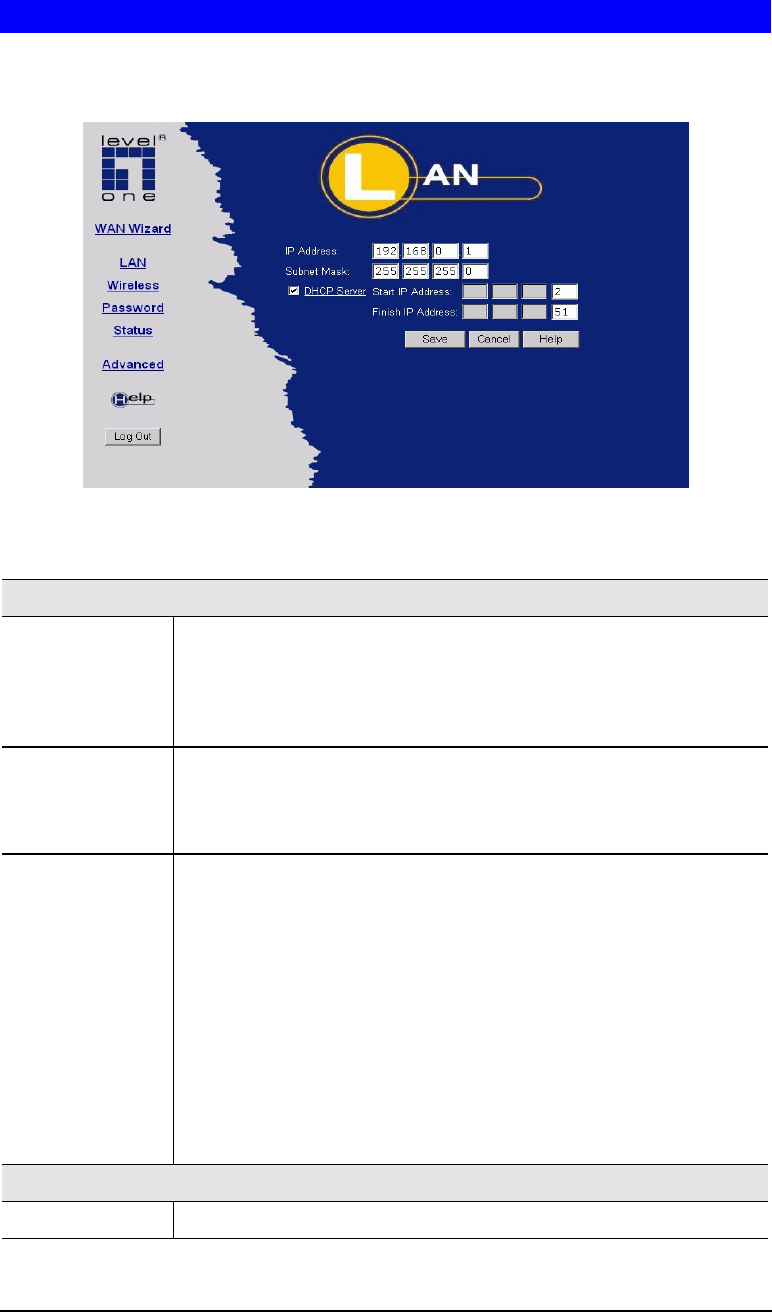

LAN Screen
Use the LAN link on the main menu to reach the LAN screen. The example screen is shown
below.
Figure 6: LAN Screen
Data - LAN Screen
TCP/IP
IP Address IP address for the LevelOne 22Mbps Wireless AP Router, as seen from
the local LAN. Use the default value unless the address is already in
use or your LAN is using a different IP address range. In the latter
case, enter an unused IP Address from within the range used by your
LAN.
Subnet Mask The default value 255.255.255.0 is standard for small (class "C")
networks. For other networks, use the Subnet Mask for the LAN
segment to which the LevelOne 22Mbps Wireless AP Router is at-
tached (the same value as the PCs on that LAN segment).
DHCP Server • If Enabled, the LevelOne 22Mbps Wireless AP Router will allo-
cate IP Addresses to PCs (DHCP clients) on your LAN when they
start up. The default (and recommended) value is Enabled.
• If you are already using a DHCP Server, this setting must be
Disabled, and the existing DHCP server must be re-configured to
treat the LevelOne 22Mbps Wireless AP Router as the default
Gateway. See the following section for further details.
• The Start IP Address and Finish IP Address fields set the values
used by the DHCP server when allocating IP Addresses to DHCP
clients. This range also determines the number of DHCP clients
supported.
See the following section for further details on using DHCP.
Buttons
Save Save the data on screen.
14
Setup
Cancel The "Cancel" button will discard any data you have entered and reload
the file from the LevelOne 22Mbps Wireless AP Router.
DHCP
What DHCP Does
A DHCP (Dynamic Host Configuration Protocol) Server allocates a valid IP address to a
DHCP Client (PC or device) upon request.
• The client request is made when the client device starts up (boots).
• The DHCP Server provides the Gateway and DNS addresses to the client, as well as
allocating an IP Address.
• The LevelOne 22Mbps Wireless AP Router can act as a DHCP server.
• Windows 95/98/ME and other non-Server versions of Windows will act as a DHCP
client. This is the default Windows setting for the TCP/IP network protocol. However,
Windows uses the term Obtain an IP Address automatically instead of "DHCP Client".
• You must NOT have two (2) or more DHCP Servers on the same LAN segment. (If your
LAN does not have other Routers, this means there must only be one (1) DHCP Server on
your LAN.)
Using the LevelOne 22Mbps Wireless AP Router's DHCP Server
This is the default setting. The DHCP Server settings are on the LAN screen. On this screen,
you can:
• Enable or Disable the LevelOne 22Mbps Wireless AP Router's DHCP Server function.
• Set the range of IP Addresses allocated to PCs by the DHCP Server function.
You can assign Fixed IP Addresses to some devices
while using DHCP, provided that the Fixed IP Addresses
are NOT within the range used by the DHCP Server.
Using another DHCP Server
You can only use one (1) DHCP Server per LAN segment. If you wish to use another DHCP
Server, rather than the LevelOne 22Mbps Wireless AP Router's, the following procedure is
required.
1. Disable the DHCP Server feature in the LevelOne 22Mbps Wireless AP Router. This
setting is on the LAN screen.
2. Configure the DHCP Server to provide the LevelOne 22Mbps Wireless AP Router's IP
Address as the Default Gateway.
To Configure your PCs to use DHCP
This is the default setting for TCP/IP under Windows 95/98/ME.
See Chapter 4 - PC Configuration for the procedure to check these settings.
15
LevelOne 22Mbps Wireless AP Router User Guide
Wireless Screen
The Wireless Access Point settings must match the other Wireless stations. To change the
LevelOne 22Mbps Wireless AP Router's default settings for the Wireless Access Point feature,
use the Wireless link on the main menu to reach the Wireless screen. An example screen is
shown below.

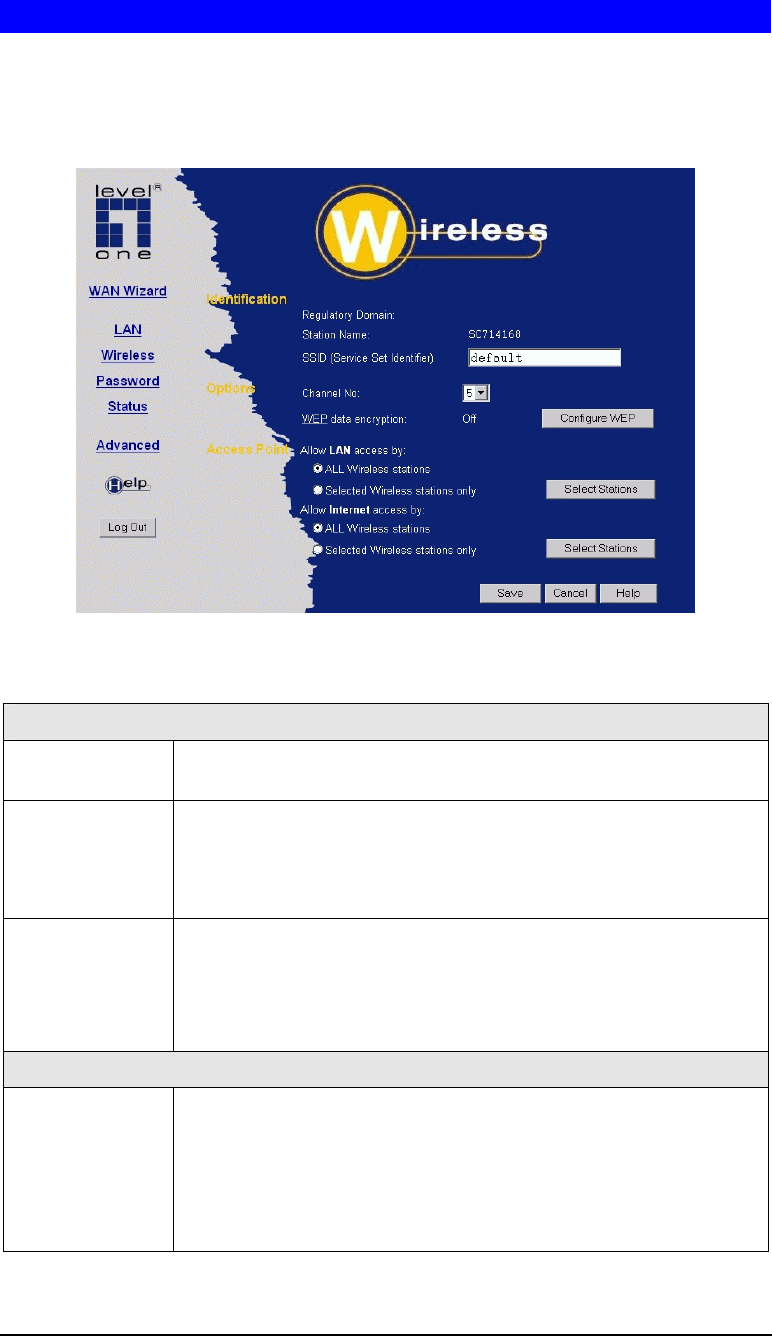

Figure 7: Wireless Screen
Data - Wireless Screen
Identification
Regulatory
Domain
It is illegal to use this device in any location outside of the regulatory
domain.
Station name This is the same as the "Device Name" for the LevelOne 22Mbps
Wireless AP Router.
On your PC, some Wireless status screens may display this name as the
name of the Access Point in use.
SSID
(ESSID)
• If using an ESS (Extended Service Set, with multiple access
points) this ID is called an ESSID (Extended Service Set Identi-
fier).
• To communicate, all Wireless stations should use the same
SSID/ESSID.
Options
Channel No. • Select the Channel you wish to use on your Wireless LAN.
• If you experience interference (shown by lost connections and/or
slow data transfers) you may need to experiment with different
channels to see which is the best.
• If using multiple Access Points, adjacent Access Points should use
different Channels to reduce interference.
16
Setup
WEP data
encryption
• WEP (Wired Equivalent Privacy) status will display "Enabled" or
"Disabled", depending on whether WEP is being used. If used,
data is Encrypted before being transmitted, making communica-
tion more secure.
• Click the "Configure WEP" button to access the WEP sub-screen,
and view or change the WEP settings.
Access Point
Allow LAN
access by …
• All Wireless Stations - All wireless stations can use the access
point to access your LAN.
• Selected Wireless stations only - Only selected wireless stations
access your LAN. To select the required wireless stations, click
the "Select Stations" button.
Allow Internet
access by …
• All Wireless Stations - All wireless stations can use the access
point to access the Internet.
• Selected Wireless stations only - Only selected wireless stations
use the access point to access the Internet. To select the required
wireless stations, click the "Select Stations" button.
Buttons
Configure WEP Click this button to view the WEP sub-screen. See the following
section for more details.
Select Stations Click this button to select the required PCs.
Save Save the data on screen.
Cancel The "Cancel" button will discard any data you have entered since the
last "Save" operation.
17
LevelOne 22Mbps Wireless AP Router User Guide
WEP Screen
This screen is accessed by clicking the "Configure WEP" button on the Wireless screen. An
example WEP screen is shown below. Note that in IE, the "Key Table" is only displayed when
required.
Figure 8: WEP Screen
Data - WEP Screen
WEP Data Encryption
Authentication
Type
Select the appropriate value - "Open System" or "Shared Key". Check
your Wireless card's documentation to see what method to use. Some
Wireless cards do not support both methods.
Encryption Off
• If OFF (default), data is NOT encrypted before being transmitted.
64 Bit Encryption
• If selected, data is encrypted, using the default key, before being
transmitted. The receiving station must be set to use 64 Bit En-
cryption, and have the same Key value in the same position in its
key table. Otherwise, it will not be able to decrypt the data.
• Default Key - select the key you wish to be the default. Transmit-
ted data is ALWAYS encrypted using the Default Key; the other
Keys are for decryption only.
• Key Table:
• This table is used when Encrypting and Decrypting data. All
stations, including this Access Point, always transmit data en-
crypted using their default key. The key number (1, 2, 3, 4) is
also transmitted. The receiving station will use the key num-
ber (1, 2, 3, 4) to determine which key value to use for
decryption. If the key value does not match the transmitting
station, decryption will fail.
• The easiest way to ensure there are no problems is to have
every Station, including the Access Point, use the same key
table (all entries identical).
18
Setup
128 Bit Encryption
• If selected, data is encrypted using the key before being transmit-
ted. The receiving station must be set to use 128 Bit Encryption,
and have the same Key value. Otherwise, it will not be able to de-
crypt the data.
• Key - Enter the key value you wish to use. Other stations must
have the same key.
19
LevelOne 22Mbps Wireless AP Router User Guide
Password Screen
The password screen allows you to assign a password to the LevelOne 22Mbps Wireless AP
Router.

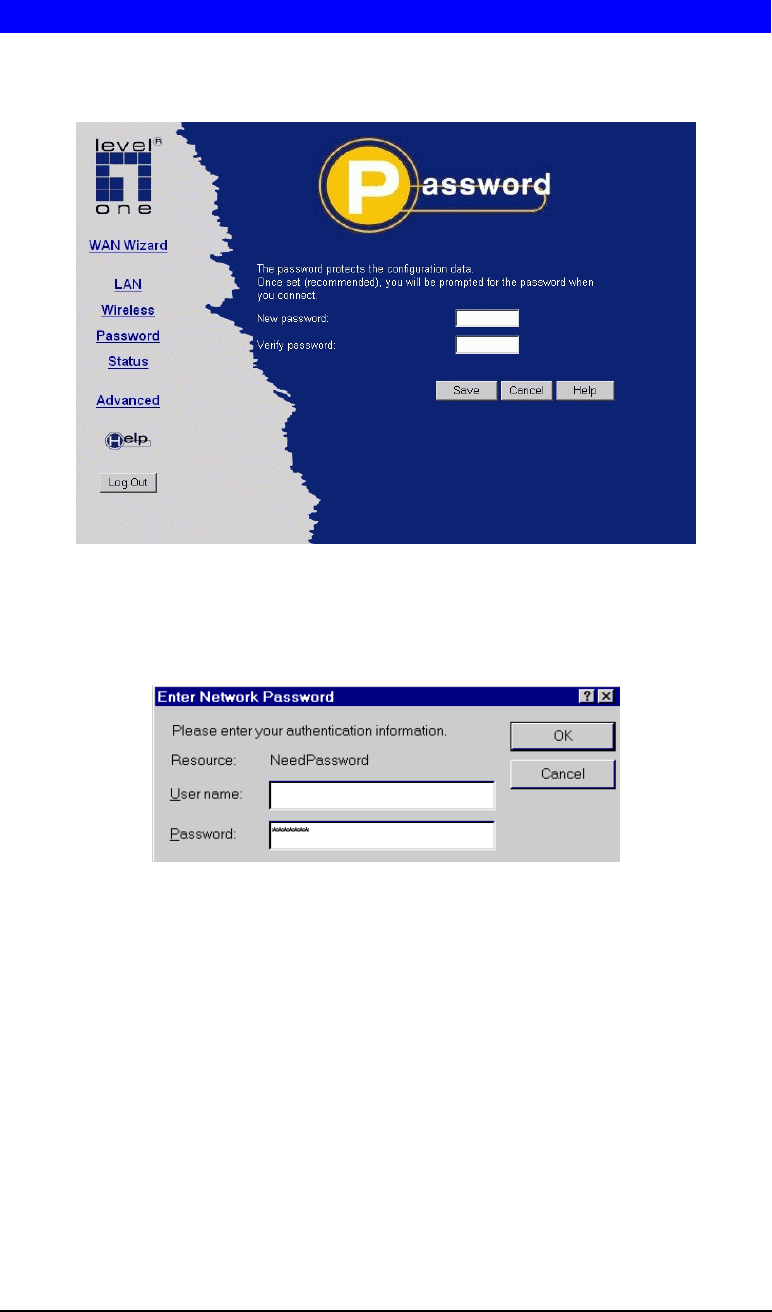

Figure 9: Password Screen
Once you have assigned a password to the LevelOne 22Mbps Wireless AP Router (on the
Password screen above) you will be prompted for the password when you connect, as shown
below. (If no password has been set, this dialog will not appear.)
Figure 10: Password Dialog
• Leave the "User Name" blank.
• Enter the password for the LevelOne 22Mbps Wireless AP Router, as set on the Password
screen above.
20
Chapter 4
PC Configuration
This Chapter details the PC Configuration required on the local ("Internal")
LAN.
Overview
For each PC, the following may need to be configured:
• TCP/IP network settings
• Internet Access configuration
• Wireless configuration
Windows Clients
This section describes how to configure Windows clients for Internet access via the LevelOne
22Mbps Wireless AP Router.
The first step is to check the PC's TCP/IP settings.
The LevelOne 22Mbps Wireless AP Router uses the TCP/IP network protocol for all func-
tions, so it is essential that the TCP/IP protocol be installed and configured on each PC.
TCP/IP Settings - Overview
If using the default LevelOne 22Mbps Wireless AP Router settings, and
the default Windows TCP/IP settings, no changes need to be made.
• By default, the LevelOne 22Mbps Wireless AP Router will act as a DHCP Server, auto-
matically providing a suitable IP Address (and related information) to each PC when the
PC boots.
• For all non-Server versions of Windows, the default TCP/IP setting is to act as a DHCP
client.
If using a Fixed (specified) IP address, the following changes are re-
quired:
• The Gateway must be set to the IP address of the LevelOne 22Mbps Wireless AP Router
• The DNS should be set to the address provided by your ISP.
If your LAN has a Router, the LAN Administrator must re-
configure the Router itself. Refer to Chapter 8 - Ad-
vanced Setup for details.
21
LevelOne 22Mbps Wireless AP Router User Guide
Checking TCP/IP Settings - Windows 9x/ME:

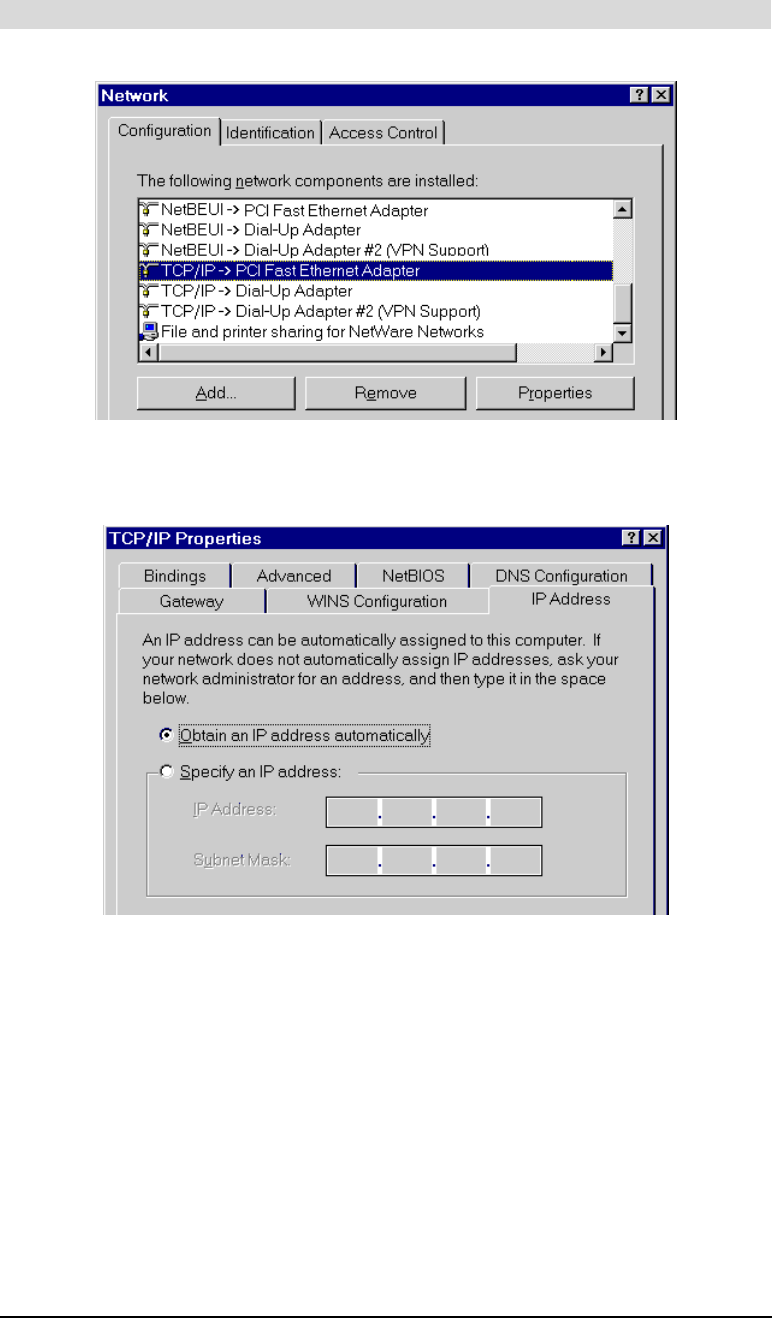

1. Select Control Panel - Network. You should see a screen like the following:
Figure 11: Network Configuration
2. Select the TCP/IP protocol for your network card.
3. Click on the Properties button. You should then see a screen like the following.
Figure 12: IP Address (Win 95)
Ensure your TCP/IP settings are correct, as follows:
Using DHCP
To use DHCP, select the radio button Obtain an IP Address automatically. This is the default
Windows setting. Using this is recommended. By default, the LevelOne 22Mbps Wireless AP
Router will act as a DHCP Server.
Restart your PC to ensure it obtains an IP Address from the LevelOne 22Mbps Wireless AP
Router.
Using "Specify an IP Address"
If your PC is already configured, check with your network administrator before making the
following changes:
22
PC Configuration
• On the Gateway tab, enter the LevelOne 22Mbps Wireless AP Router's IP address in the
New Gateway field and click Add, as shown below. Your LAN administrator can advise
you of the IP Address they assigned to the LevelOne 22Mbps Wireless AP Router.

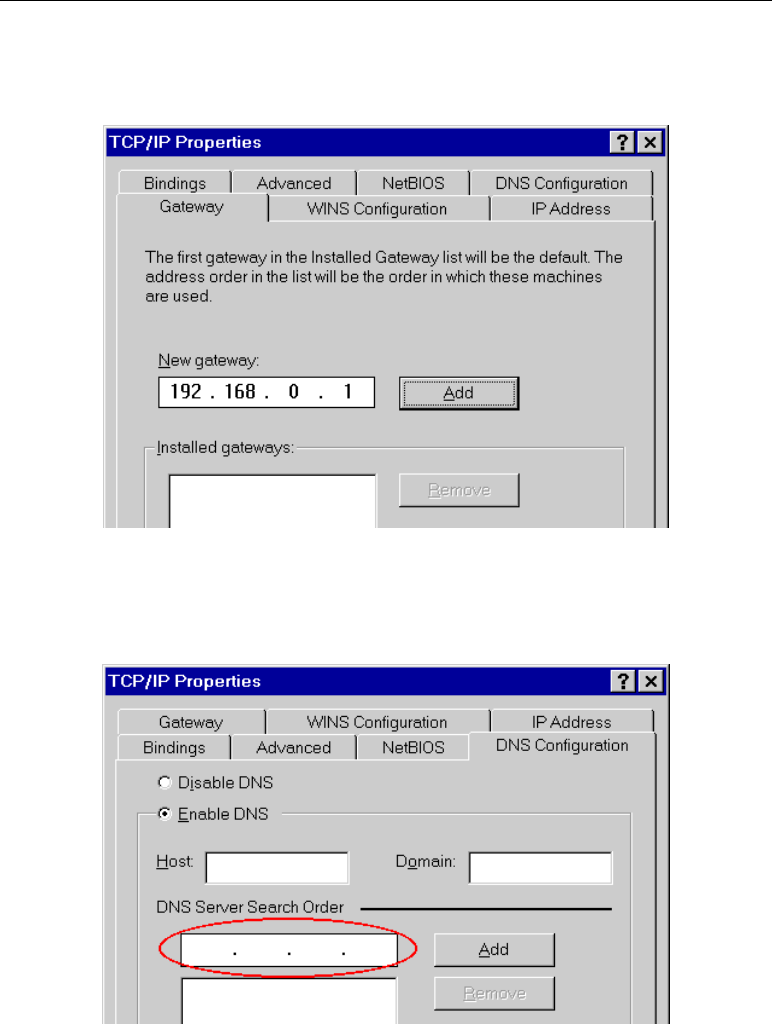

Figure 13: Gateway Tab (Win 95/98)
• On the DNS Configuration tab, ensure Enable DNS is selected. If the DNS Server Search
Order list is empty, enter the DNS address provided by your ISP in the fields beside the
Add button, then click Add.
Figure 14: DNS Tab (Win 95/98)
23
LevelOne 22Mbps Wireless AP Router User Guide
Checking TCP/IP Settings - Windows NT4.0
1. Select Control Panel - Network, and, on the Protocols tab, select the TCP/IP protocol, as
shown below.
Figure 15: Windows NT4.0 - TCP/IP
2. Click the Properties button to see a screen like the one below.
24
PC Configuration

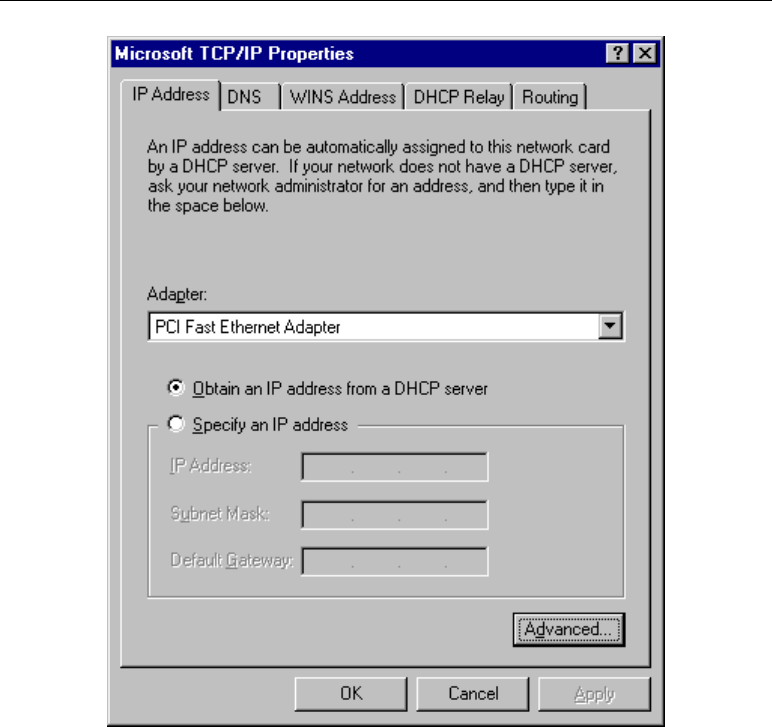

Figure 16: Windows NT4.0 - IP Address
3. Select the network card for your LAN.
4. Select the appropriate radio button - Obtain an IP address from a DHCP Server or Specify
an IP Address, as explained below.
Obtain an IP address from a DHCP Server
This is the default Windows setting. Using this is recommended. By default, the LevelOne
22Mbps Wireless AP Router will act as a DHCP Server.
Restart your PC to ensure it obtains an IP Address from the LevelOne 22Mbps Wireless AP
Router.
Specify an IP Address
If your PC is already configured, check with your network administrator before making the
following changes.
1. The Default Gateway must be set to the IP address of the LevelOne 22Mbps Wireless AP
Router. To set this:
• Click the Advanced button on the screen above.
• On the following screen, click the Add button in the Gateways panel, and enter the

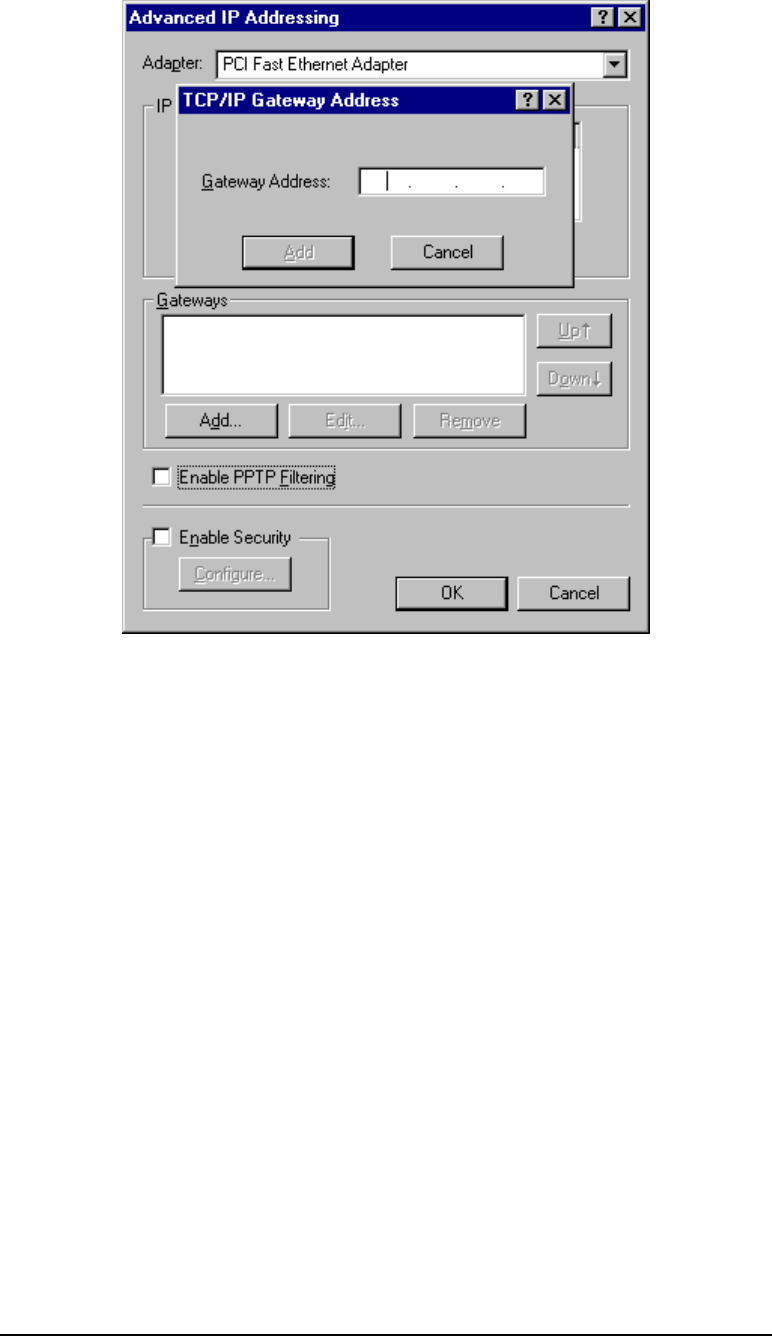

LevelOne 22Mbps Wireless AP Router's IP address, as shown in Figure 17 below.
• If necessary, use the Up button to make the LevelOne 22Mbps Wireless AP Router
the first entry in the Gateways list.
25
LevelOne 22Mbps Wireless AP Router User Guide
Figure 17 - Windows NT4.0 - Add Gateway
2. The DNS should be set to the address provided by your ISP, as follows:
• Click the DNS tab.
• On the DNS screen, shown below, click the Add button (under DNS Service Search
Order), and enter the DNS provided by your ISP.
26
PC Configuration
Figure 18: Windows NT4.0 - DNS
27
LevelOne 22Mbps Wireless AP Router User Guide
Checking TCP/IP Settings - Windows 2000:
1. Select Control Panel - Network and Dial-up Connection.
2. Right - click the Local Area Connection icon and select Properties. You should see a
screen like the following:

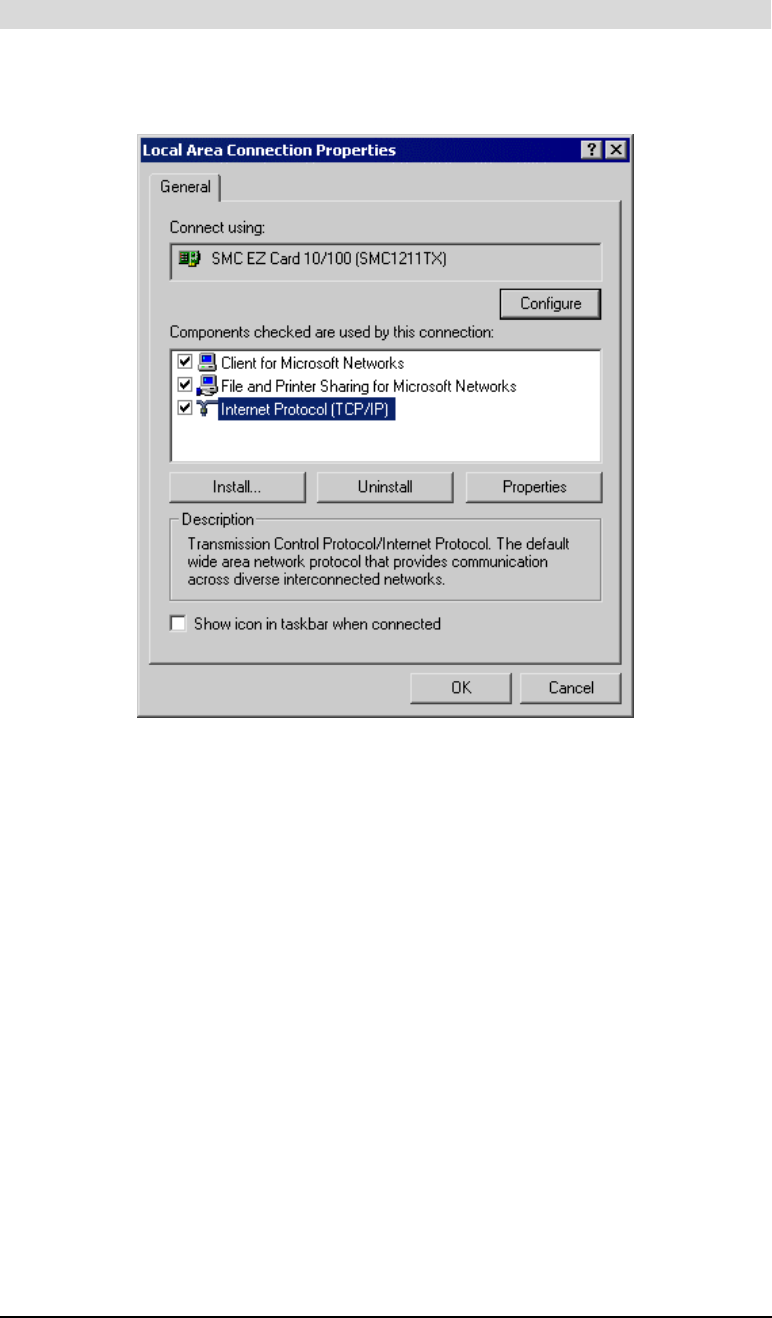

Figure 19: Network Configuration (Win 2000)
3. Select the TCP/IP protocol for your network card.
4. Click on the Properties button. You should then see a screen like the following.
28
PC Configuration

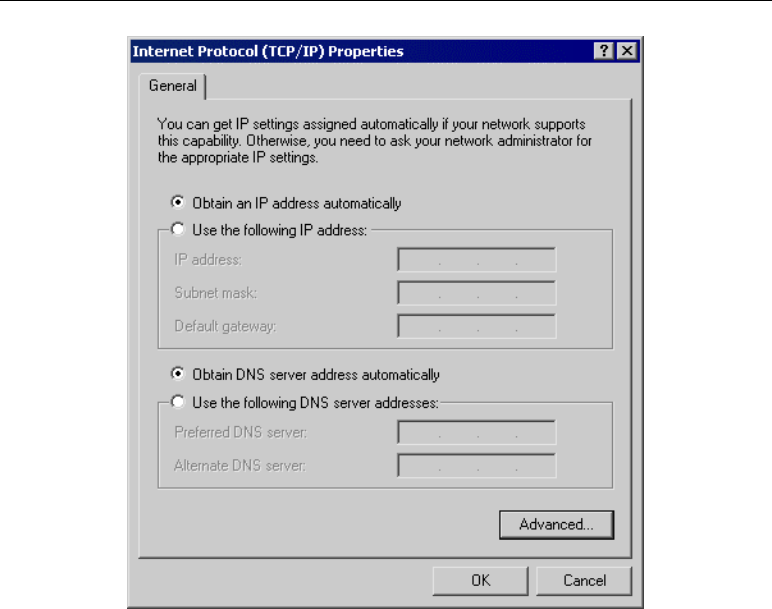

Figure 20: TCP/IP Properties (Win 2000)
5. Ensure your TCP/IP settings are correct, as described below.
Using DHCP
To use DHCP, select the radio button Obtain an IP Address automatically. This is the default
Windows setting. Using this is recommended. By default, the LevelOne 22Mbps Wireless AP
Router will act as a DHCP Server.
Restart your PC to ensure it obtains an IP Address from the LevelOne 22Mbps Wireless AP
Router.
Using a fixed IP Address ("Use the following IP Address")
If your PC is already configured, check with your network administrator before making the
following changes.
• Enter the LevelOne 22Mbps Wireless AP Router's IP address in the Default gateway field
and click OK. (Your LAN administrator can advise you of the IP Address they assigned to
the LevelOne 22Mbps Wireless AP Router.)
• If the DNS Server fields are empty, select Use the following DNS server addresses, and
enter the DNS address or addresses provided by your ISP, then click OK.
29
LevelOne 22Mbps Wireless AP Router User Guide
Checking TCP/IP Settings - Windows XP
1. Select Control Panel - Network Connection.
2. Right click the Local Area Connection and choose Properties. You should see a screen
like the following:

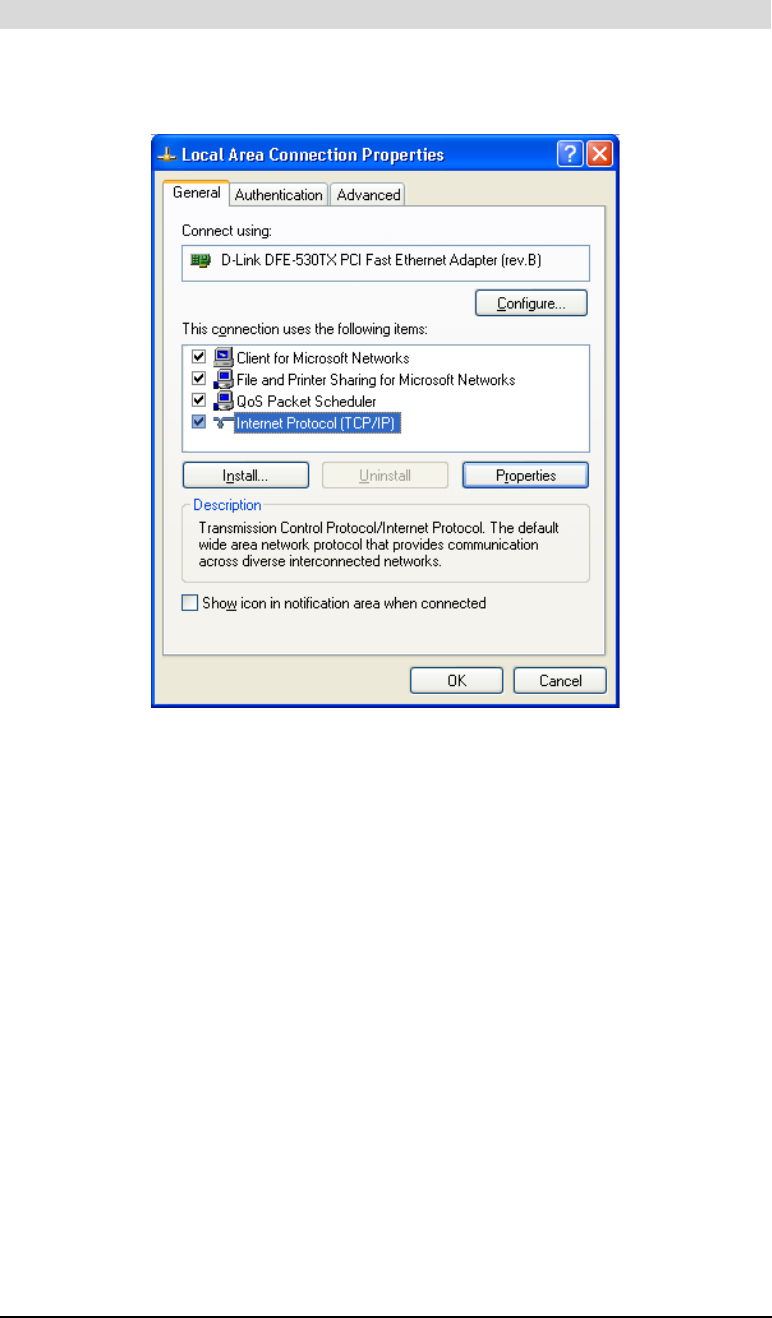

Figure 21: Network Configuration (Windows XP)
3. Select the TCP/IP protocol for your network card.
4. Click on the Properties button. You should then see a screen like the following.
30
PC Configuration

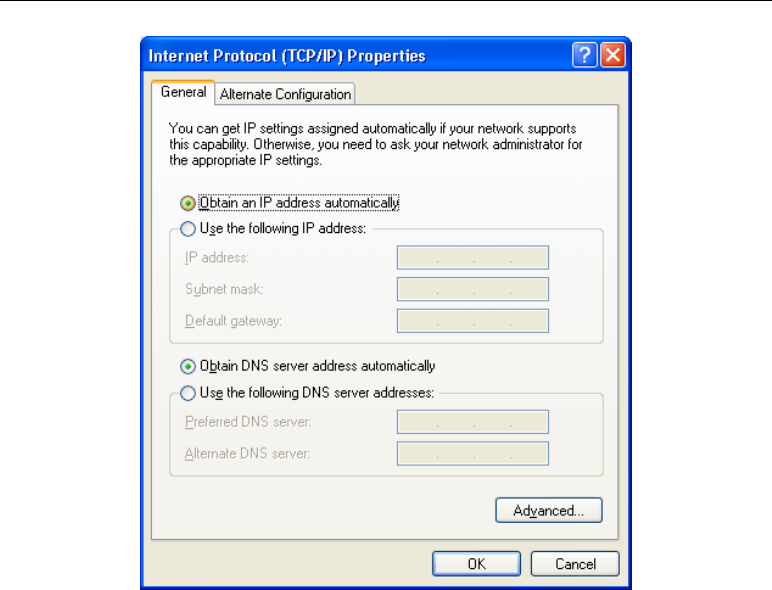

Figure 22: TCP/IP Properties (Windows XP)
5. Ensure your TCP/IP settings are correct.
Using DHCP
To use DHCP, select the radio button Obtain an IP Address automatically. This is the default
Windows setting. Using this is recommended. By default, the LevelOne 22Mbps Wireless AP
Router will act as a DHCP Server.
Restart your PC to ensure it obtains an IP Address from the LevelOne 22Mbps Wireless AP
Router.
Using a fixed IP Address ("Use the following IP Address")
If your PC is already configured, check with your network administrator before making the
following changes.
• In the Default gateway field, enter the LevelOne 22Mbps Wireless AP Router's IP address
and click OK. Your LAN administrator can advise you of the IP Address they assigned to
the LevelOne 22Mbps Wireless AP Router.
• If the DNS Server fields are empty, select Use the following DNS server addresses, and
enter the DNS address or addresses provided by your ISP, then click OK.
31
LevelOne 22Mbps Wireless AP Router User Guide
Internet Access
To configure your PCs to use the LevelOne 22Mbps Wireless AP Router for Internet access:
• Ensure that the DSL modem, Cable modem, or other permanent connection is functional.
• Use the following procedure to configure your Browser to access the Internet via the
LAN, rather than by a Dial-up connection.
For Windows 9x/ME/2000
1. Select Start Menu - Settings - Control Panel - Internet Options.
2. Select the Connection tab, and click the Setup button.
3. Select "I want to set up my Internet connection manually, or I want to connect through a
local area network (LAN)" and click Next.
4. Select "I connect through a local area network (LAN)" and click Next.
5. Ensure all of the boxes on the following Local area network Internet Configuration screen
are unchecked.
6. Check the "No" option when prompted "Do you want to set up an Internet mail account
now?".
7. Click Finish to close the Internet Connection Wizard.
Setup is now completed.
For Windows XP
1. Select Start Menu - Control Panel - Network and Internet Connections.
2. Select Set up or change your Internet Connection.
3. Select the Connection tab, and click the Setup button.
4. Cancel the pop-up "Location Information" screen.
5. Click Next on the "New Connection Wizard" screen.
6. Select "Connect to the Internet" and click Next.
7. Select "Set up my connection manually" and click Next.
8. Check "Connect using a broadband connection that is always on" and click Next.
9. Click Finish to close the New Connection Wizard.
Setup is now completed.
Accessing AOL
To access AOL (America On Line) through the LevelOne 22Mbps Wireless AP Router, the
AOL for Windows software must be configured to use TCP/IP network access, rather than a
dial-up connection. The configuration process is as follows:
• Start the AOL for Windows communication software. Ensure that it is Version 2.5, 3.0 or
later. This procedure will not work with earlier versions.
• Click the Setup button.
• Select Create Location, and change the location name from "New Locality" to "LevelOne
22Mbps Wireless AP Router".
• Click Edit Location. Select TCP/IP for the Network field. (Leave the Phone Number
blank.)
• Click Save, then OK.
Configuration is now complete.
• Before clicking "Sign On", always ensure that you are using the "LevelOne 22Mbps
Wireless AP Router" location.
32
PC Configuration
Macintosh Clients
From your Macintosh, you can access the Internet via the LevelOne 22Mbps Wireless AP
Router. The procedure is as follows.
1. Open the TCP/IP Control Panel.
2. Select Ethernet from the Connect via pop-up menu.
3. Select Using DHCP Server from the Configure pop-up menu. The DHCP Client ID field
can be left blank.
4. Close the TCP/IP panel, saving your settings.
Note:
If using manually assigned IP addresses instead of DHCP, the required changes are:
• Set the Router Address field to the LevelOne 22Mbps Wireless AP Router's IP Address.
• Ensure your DNS settings are correct.
Linux Clients
To access the Internet via the LevelOne 22Mbps Wireless AP Router, it is only necessary to
set the LevelOne 22Mbps Wireless AP Router as the "Gateway".
Ensure you are logged in as "root" before attempting any changes.
Fixed IP Address
By default, most Unix installations use a fixed IP Address. If you wish to continue using a
fixed IP Address, make the following changes to your configuration.
• Set your "Default Gateway" to the IP Address of the LevelOne 22Mbps Wireless AP
Router.
• Ensure your DNS (Name server) settings are correct.
To act as a DHCP Client (recommended)
The procedure below may vary according to your version of Linux and X -windows shell.
1. Start your X Windows client.
2. Select Control Panel - Network
3. Select the "Interface" entry for your Network card. Normally, this will be called "eth0".
4. Click the Edit button, set the "protocol" to "DHCP", and save this data.
5. To apply your changes
• Use the "Deactivate" and "Activate" buttons, if available.
• OR, restart your system.
Other Unix Systems
To access the Internet via the LevelOne 22Mbps Wireless AP Router:
• Ensure the "Gateway" field for your network card is set to the IP Address of the LevelOne
22Mbps Wireless AP Router.
• Ensure your DNS (Name Server) settings are correct.
33
LevelOne 22Mbps Wireless AP Router User Guide
Wireless Station Configuration
This section applies to all Wireless stations wishing to use the LevelOne 22Mbps Wireless AP
Router's Access Point, regardless of the operating system which is used on the client.
To use the Wireless Access Point in the LevelOne 22Mbps Wireless AP Router, each Wireless
Station must have compatible settings, as follows:
Mode The mode must be set to Infrastructure.
SSID (ESSID) This must match the value used on the LevelOne 22Mbps Wireless AP
Router. The default value is default
Note! The SSID is case sensitive.
WEP By default, WEP on the LevelOne 22Mbps Wireless AP Router is
disabled.
• If WEP remains disabled on the LevelOne 22Mbps Wireless AP
Router, all stations must have WEP disabled.
• If WEP is enabled on the LevelOne 22Mbps Wireless AP Router,
each station must use the same settings as the LevelOne 22Mbps
Wireless AP Router.
34
Chapter 5
Operation and Status
This Chapter details the operation of the LevelOne 22Mbps Wireless AP
Router and the status screens.
Operation
Once both the LevelOne 22Mbps Wireless AP Router and the PCs are configured, opera-
tion is automatic.
However, there are some situations where additional Internet configuration may be required:
• If using Internet-based Conferencing & Telephony applications, it may be necessary to
specify which PC receives an incoming connection. Refer to Chapter 6 - Advanced Fea-
tures for further details.
• Applications which use non-standard connections or port numbers may be blocked by the
LevelOne 22Mbps Wireless AP Router's built-in firewall. You can define such applica-
tions as Special Applications to allow them to function normally. Refer to Chapter 6 -
Advanced Features for further details.
• Some non-standard applications may require use of the DMZ feature. Refer to Chapter 6 -
Advanced Features for further details.
Status Screen
Use the Status link on the main menu to view this screen.
Figure 23: Status Screen
35
LevelOne 22Mbps Wireless AP Router User Guide
Data - Status Screen
Internet
Connection Method This indicates the current connection method, as set in the Setup
Wizard.
Internet IP Address This IP Address is allocated by the ISP (Internet Service Pro-
vider).
Connection Status Current connection status:
• OK
• No connection
• Error
If there is an error, you can click the "Connection Details" button
to find out more information.
"Connection Details"
Button
Click this button to open a sub-window and view a detailed
description of the current connection. Depending on the type of
connection, a "log" may also be available.
"Access Log"
Button
Click this button to open a sub-window and view details of
outgoing connections to the Internet. The log contains the follow-
ing data:
• Source IP Address - The IP Address of the local PC re-
questing the Internet connection.
• Destination - The Internet address which was requested. If
the URL Filter is enabled, this address will be shown as a
URL. Otherwise, the IP address will be displayed.
• Blocked - If the request was blocked by the URL Filter
function, this will display "Yes". Otherwise, it will be blank.
LAN
IP Address The IP Address of the LevelOne 22Mbps Wireless AP Router.
Network Mask The Network Mask (Subnet Mask) for the IP Address above.
DHCP Server This shows the status of the DHCP Server function - either
"Enabled" or "Disabled".
For additional information about the PCs on your LAN, and the
IP addresses allocated to them, use the PC Database option on
the Advanced menu.
System
Device Name This displays the current name of the LevelOne 22Mbps Wireless
AP Router.
Firmware Version The current version of the firmware installed in the LevelOne
22Mbps Wireless AP Router.
"System Data"
Button
Clicking this button will open a Window which lists all system
details and settings.
Buttons
Connection Details View the details of the current Internet connection. The sub-
screen displayed will depend on the connection method used. See
36
Operation and Status
the following sections for details of each sub-screen.
Access Log View details of outgoing connections to the internet.
System Data Display all system information in a sub-window.
Refresh Screen Update the data displayed on screen.
Connection Status - PPPoE
If using PPPoE (PPP over Ethernet), a screen like the following example will be displayed
when the "Connection Details" button is clicked.

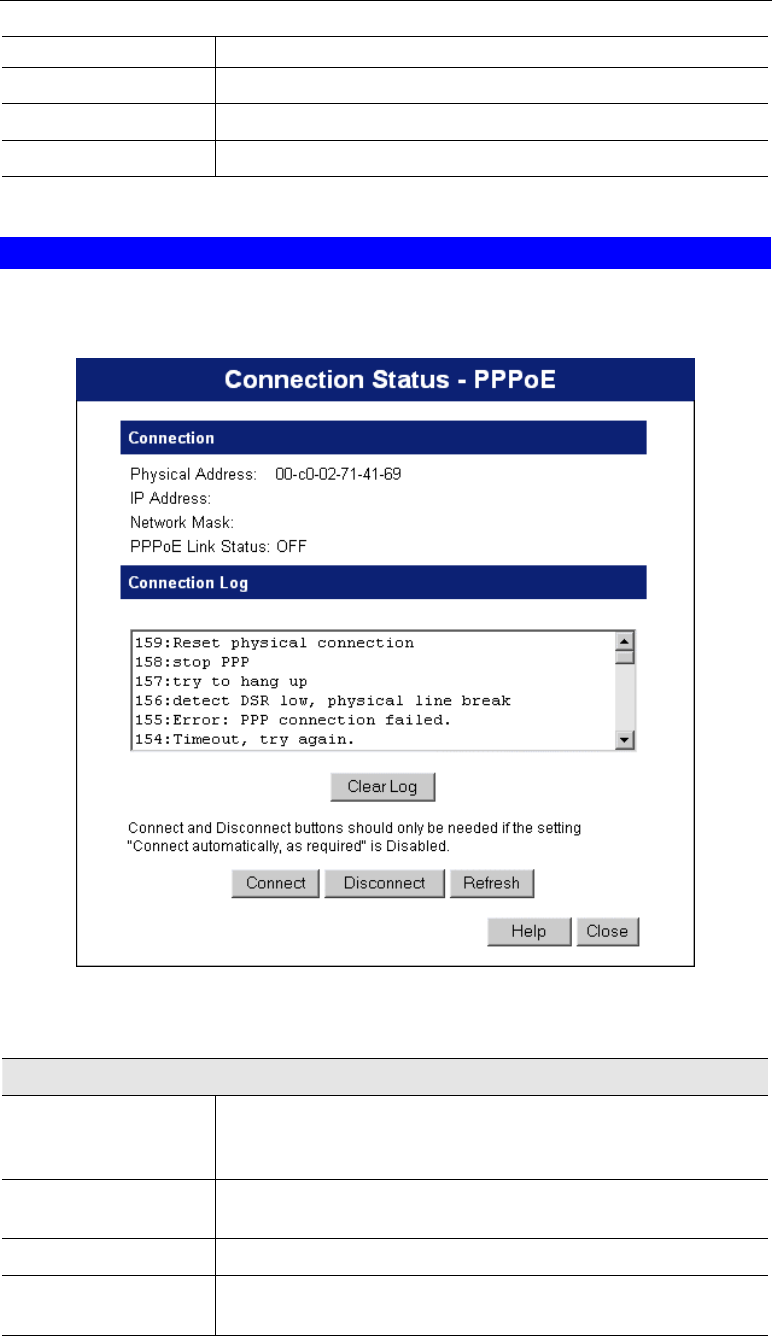

Figure 24: PPPoE Status Screen
Data - PPPoE Status Screen
Connection
Physical Address The hardware address of this device, as seen by remote devices
on the Internet. (This is different to the hardware address seen by
devices on the local LAN.)
IP Address The IP Address of this device, as seen by Internet users. This
address is allocated by your ISP (Internet Service Provider).
Network Mask The Network Mask associated with the IP Address above.
PPPoE Link Status This indicates whether or not the connection is currently estab-
lished.
37
LevelOne 22Mbps Wireless AP Router User Guide
• If the connection does not exist, the "Connect" button can be
used to establish a connection.
• If the connection currently exists, the "Disconnect" button
can be used to break the connection.
Connection Log
Connection Log • The Connection Log shows status messages relating to the
existing connection.
• The most common messages are listed in the table below.
• The "Clear Log" button will restart the Log, while the Re-
fresh button will update the messages shown on screen.
Buttons
Connect If not connected, establish a connection to your ISP.
Disconnect If connected to your ISP, hang up the connection.
Clear Log Delete all data currently in the Log. This will make it easier to
read new messages.
Refresh Update the data on screen.
Connection Log Messages
Message Description
Connect on Demand Connection attempt has been triggered by the "Connect
automatically, as required" setting.
Manual connection Connection attempt started by the "Connect" button.
Reset physical connection Preparing line for connection attempt.
Connecting to remote
server
Attempting to connect to the ISP's server.
Remote Server located ISP's Server has responded to connection attempt.
Start PPP Attempting to login to ISP's Server and establish a PPP
connection.
PPP up successfully Able to login to ISP's Server and establish a PPP connection.
Idle time-out reached The connection has been idle for the time period specified in
the "Idle Time-out" field. The connection will now be termi-
nated.
Disconnecting The current connection is being terminated, due to either the
"Idle Time-out" above, or "Disconnect" button being clicked.
Error: Remote Server not
found
ISP's Server did not respond. This could be a Server problem,
or a problem with the link to the Server.
Error: PPP Connection
failed
Unable to establish a PPP connection with the ISP's Server.
This could be a login problem (name or password) or a Server
problem.
Error: Connection to
Server lost
The existing connection has been lost. This could be caused
by a power failure, a link failure, or Server failure.
38
Operation and Status
Error: Invalid or unknown
packet type
The data received from the ISP's Server could not be proc-
essed. This could be caused by data corruption (from a bad
link), or the Server using a protocol which is not supported by
this device.
Connection Status - PPTP
If using PPTP (Peer-to-Peer Tunneling Protocol), a screen like the following example will be
displayed when the "Connection Details" button is clicked.
Figure 25: PPTP Status Screen
Data - PPTP Status Screen
Connection
Physical Address The hardware address of this device, as seen by remote devices on
the Internet. (This is different to the hardware address seen by
devices on the local LAN.)
IP Address The IP Address of this device, as seen by Internet users. This address
is allocated by your ISP (Internet Service Provider).
PPTP Status This indicates whether or not the connection is currently established.
• If the connection does not exist, the "Connect" button can be
used to establish a connection.
• If the connection currently exists, the "Disconnect" button can be
used to break the connection.
39
LevelOne 22Mbps Wireless AP Router User Guide
Connection Log
Connection Log • The Connection Log shows status messages relating to the
existing connection.
• The "Clear Log" button will restart the Log, while the Refresh
button will update the messages shown on screen.
Buttons
Connect If not connected, establish a connection to your ISP.
Disconnect If connected to your ISP, hang up the connection.
Clear Log Delete all data currently in the Log. This will make it easier to read
new messages.
Refresh Update the data on screen.
Connection Details - Fixed/Dynamic IP Address
If your access method is neither PPPoE nor PPTP, a screen like the following example will be
displayed when the "Connection Details" button is clicked.
Figure 26: Connection Details - Fixed/Dynamic IP Address
Data - Connection Details Screen
Internet
Physical Address The hardware address of this device, as seen by remote devices on
the Internet. (This is different to the hardware address seen by
devices on the local LAN.)
IP Address The IP Address of this device, as seen by Internet users. This address
is allocated by your ISP (Internet Service Provider).
Network Mask The Network Mask associated with the IP Address above.
40
Operation and Status
Default Gateway The IP Address of the remote Gateway or Router associated with the
IP Address above.
DNS IP Address The IP Address of the Domain Name Server which is currently used.
DHCP Client This will show "Enabled" or "Disabled", depending on whether or
not this device is functioning as a DHCP client.
If "Enabled" the "Remaining lease time" field indicates when the IP
Address allocated by the DHCP Server will expire. The lease is
automatically renewed on expiry; use the "Renew" button if you wish
to manually renew the lease immediately.
Buttons
Release/Renew
Button will display
EITHER
"Release"
OR
"Renew"
This button is only useful if the IP address shown above is allocated
automatically on connection. (Dynamic IP address). Otherwise, it has
no effect.
• If the ISP's DHCP Server has NOT allocated an IP Address for
the LevelOne 22Mbps Wireless AP Router, this button will say
"Renew". Clicking the "Renew" button will attempt to re-
establish the connection and obtain an IP Address from the ISP's
DHCP Server.
• If an IP Address has been allocated to the LevelOne 22Mbps
Wireless AP Router (by the ISP's DHCP Server), this button will
say "Release". Clicking the "Release" button will break the con-
nection and release the IP Address.
Refresh Update the data shown on screen.
41
Chapter 6
Advanced Features
This Chapter explains when and how to use the LevelOne 22Mbps Wireless
AP Router's "Advanced" Features.
Overview
The following advanced features are provided.
• Special Applications
• DMZ
• Virtual Servers
• Dynamic DNS
• Remote Management
Advanced Internet Screen
This screen allows configuration of all advanced features relating to Internet access.
• Conferencing and Telephony
• Special Applications
• DMZ
• URL filter
An example screen is shown below.

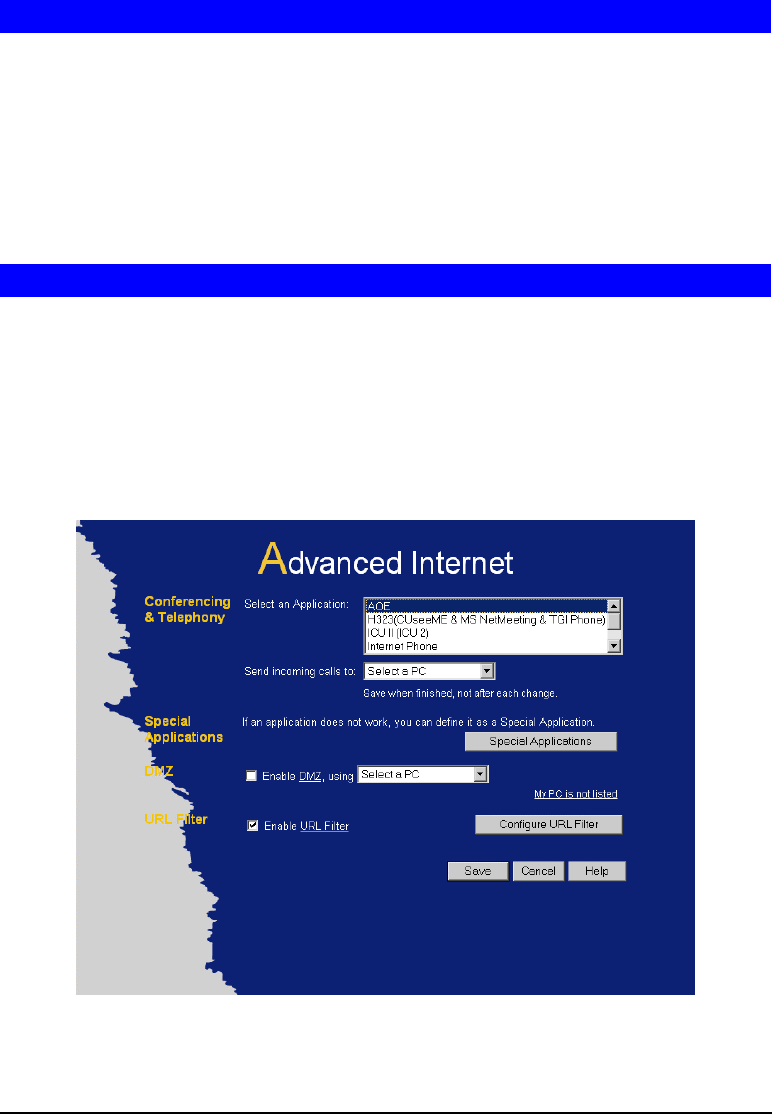

Figure 27: Internet Screen
42
Advanced Features
Conferencing & Telephony
Most applications are supported transparently by the LevelOne 22Mbps Wireless AP Router.
But sometimes it is not clear which PC should receive an incoming connection. This problem
could arise with the following Conferencing & Telephony applications:
• CUseeME
• ICQ
• ICU II (ICU 2)
• Internet Phone
• mIRC
• MS NetMeeting
• Yahoo Messenger
If this problem arises, you can use this screen to set which PC should receive an incoming
connection, as described below.
Conferencing & Telephony
Select an Application This lists applications which may generate incoming connections,
where the destination (on your local LAN) is unknown.
Send incoming calls to This lists the PCs on your LAN.
• If necessary, you can add PCs manually, using the "PC
Database" option on the advanced menu.
• For each application listed above, you can choose a destina-
tion PC.
• There is no need to "Save" after each change; you can set the
destination PC for each application, then click "Save".
43
LevelOne 22Mbps Wireless AP Router User Guide
Special Applications
If you use Internet applications which use non-standard connections or port numbers, you may
find that they do not function correctly because they are blocked by the LevelOne 22Mbps
Wireless AP Router 's firewall. In this case, you can define the application as a "Special
Application".
Special Applications Screen
This screen can be reached by clicking the Special Applications button on the Internet screen.
You can then define your Special Applications. You will need detailed information about the
application; this is normally available from the supplier of the application.
Also, note that the terms "Incoming" and "Outgoing" on this screen refer to traffic from the
client (PC) viewpoint

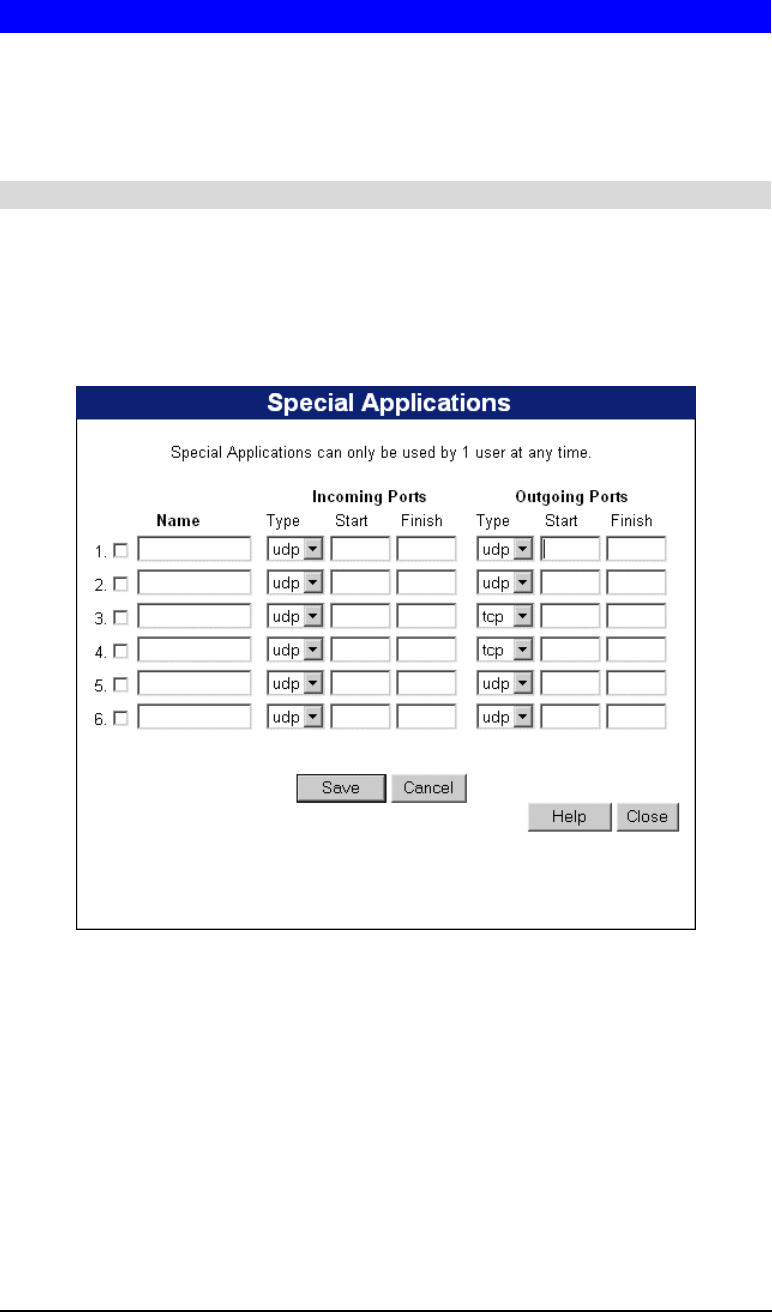

Figure 28: Special Applications Screen
44
Advanced Features
Data - Special Applications Screen
Checkbox Use this to Enable or Disable this Special Application as required.
Name Enter a descriptive name to identify this Special Application.
Incoming
Ports
• Type - Select the protocol (TCP or UDP) used when you receive data
from the special application or service. (Note: Some applications use
different protocols for outgoing and incoming data).
• Start - Enter the beginning of the range of port numbers used by the
application server, for data you receive. If the application uses a single
port number, enter it in both the "Start" and "Finish" fields.
• Finish - Enter the end of the range of port numbers used by the applica-
tion server, for data you receive.
Outgoing
Ports
• Type - Select the protocol (TCP or UDP) used when you send data to
the remote system or service.
• Start - Enter the beginning of the range of port numbers used by the
application server, for data you send to it. If the application uses a sin-
gle port number, enter it in both the "Start" and "Finish" fields.
• Finish - Enter the end of the range of port numbers used by the applica-
tion server, for data you send to it. If the application uses a single port
number, enter it in both the "Start" and "Finish" fields.
Using a Special Application
• Configure the Special Applications screen as required.
• On your PC, use the application normally. Remember that only one (1) PC can use each
Special application at any time. Also, when 1 PC is finished using a particular Special Ap-
plication, there may need to be a "Time-out" before another PC can use the same Special
Application. The "Time-out" period may be up to 3 minutes.
If an application still cannot function correctly,
try using the "DMZ" feature.
45
LevelOne 22Mbps Wireless AP Router User Guide
DMZ
This feature, if enabled, allows one (1) computer on your LAN to be exposed to all users on
the Internet, allowing unrestricted 2-way communication between the "DMZ PC" and other
Internet users or Servers.
• This allows almost any application to be used on the "DMZ PC".
• The "DMZ PC" will receive all "Unknown" connections and data.
• If the DMZ feature is enabled, you must select the PC to be used as the "DMZ PC".
• The DMZ feature can be Enabled and Disabled on the Advanced Internet screen.
The "DMZ PC" is effectively outside the Firewall, mak-
ing it more vulnerable to attacks. For this reason, you
should only enable the DMZ feature when required.
URL Filter
The URL Filter allows you to block access to undesirable Web site
• To use this feature, you must define "filter strings". If the "filter string" appears in a
requested URL, the request is blocked.
• Enabling the URL Filter also affects the Internet Access Log. If Enabled, the "Destination"
field in the log will display the URL. Otherwise, it will display the IP Address.
• The URL Filter can be Enabled or Disabled on the Advanced Internet screen.
Figure 29: URL Filter Screen
46
Advanced Features
Data - URL Filter Screen
Filter Strings
Current Entries This lists any existing entries. If you have not entered any values, this
list will be empty.
Add Filter String To add an entry to the list, enter it here, and click the "Add" button.
An entry may be a Domain name (e.g. www.trash.com) or simply a
string. (e.g. ads/ )
Any URL which contains ANY entry ANYWHERE in the URL will
be blocked.
Buttons
Delete/Delete All Use these buttons to delete the selected entry or all entries, as required.
Multiple entries can be selected by holding down the CTRL key while
selecting.(On the Macintosh, hold the SHIFT key while selecting.)
Add Use this to add the current Filter String to the site list.
47
LevelOne 22Mbps Wireless AP Router User Guide
Remote Management
This feature allows you to manage the LevelOne 22Mbps Wireless AP Router via the Internet.
Figure 30: Remote Management Screen
Data - Remote Management Screen
Remote Management
Enable Remote
Management
Enable to allow management via the Internet. If Disabled, this device
will ignore management connection attempts from the Internet.
Port Number Enter a port number between 1024 and 65535 (8080 is recom-
mended). This port number must be specified when you connect (see
below).
Note: The default port number for HTTP (Web) connections is port
80, but using port 80 here will prevent the use of a Web "Virtual
Server" on your LAN. (See Advanced Internet - Virtual Servers)
Current IP Ad-
dress
You must use this IP Address to connect (see below).
This IP Address is allocated by your ISP. But if using a Dynamic IP
Address, this value can change each time you connect to your ISP.
So it is better if your ISP allocates you a Fixed IP Address.
To connect from a remote PC via the Internet
1. Ensure your Internet connection is established, and start your Web Browser.
2. In the "Address" bar, enter "HTTP://" followed by the Internet IP Address of the Leve-
lOne 22Mbps Wireless AP Router. If the port number is not 80, the port number is also
required. (After the IP Address, enter ":" followed by the port number.)
e.g.
HTTP://123.123.123.123:8080
This example assumes the WAN IP Address is 123.123.123.123, and the port number is 8080.
48
Advanced Features
Virtual Servers
This feature allows you to make Servers on your LAN accessible to Internet users. Normally,
Internet users would not be able to access a server on your LAN because:
• Your Server does not have a valid external IP Address.
• Attempts to connect to devices on your LAN are blocked by the firewall in this device.
The "Virtual Server" feature solves these problems and allows Internet users to connect to your
servers, as illustrated below.
Wireless
Router
Web Se rve r FTP Serv er
Internet
Remote PC Remote PC
Using Web Server Using FTP Server
(http://203.70.212.52) (ftp://203.70.212.52)
203.70.212.52
192.168.0.1
(192.168.0.10) (192.168 .0.20)
(LAN IP Ad dres s)
(Internet IP Address)

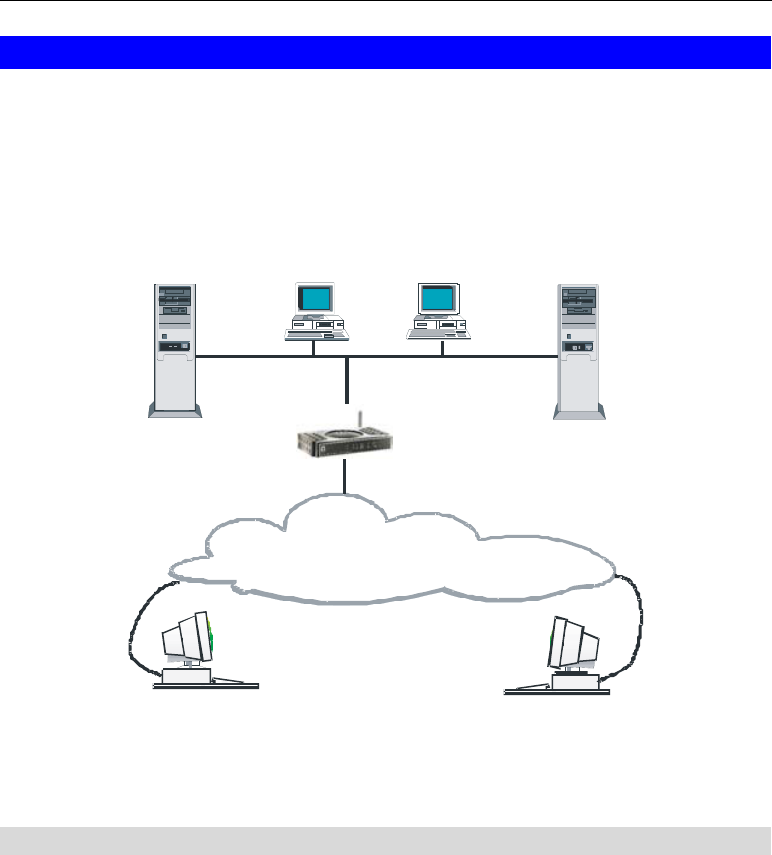

Figure 31: Virtual Servers
IP Address seen by Internet Users
Note that, in this illustration, both Internet users are connecting to the same IP Address, but
using different protocols.
To Internet users, all virtual Servers on your LAN have the same IP Address.
This IP Address is allocated by your ISP.
This address should be static, rather than dynamic, to make it easier for Internet users to
connect to your Servers.
However, you can use the DDNS (Dynamic DNS) feature to allow users to connect to your
Virtual Servers using a URL, instead of an IP Address.
49
LevelOne 22Mbps Wireless AP Router User Guide
Virtual Servers Screen
The Virtual Servers screen is reached by the Virtual Servers link on the Advanced screen. An
example screen is shown below.

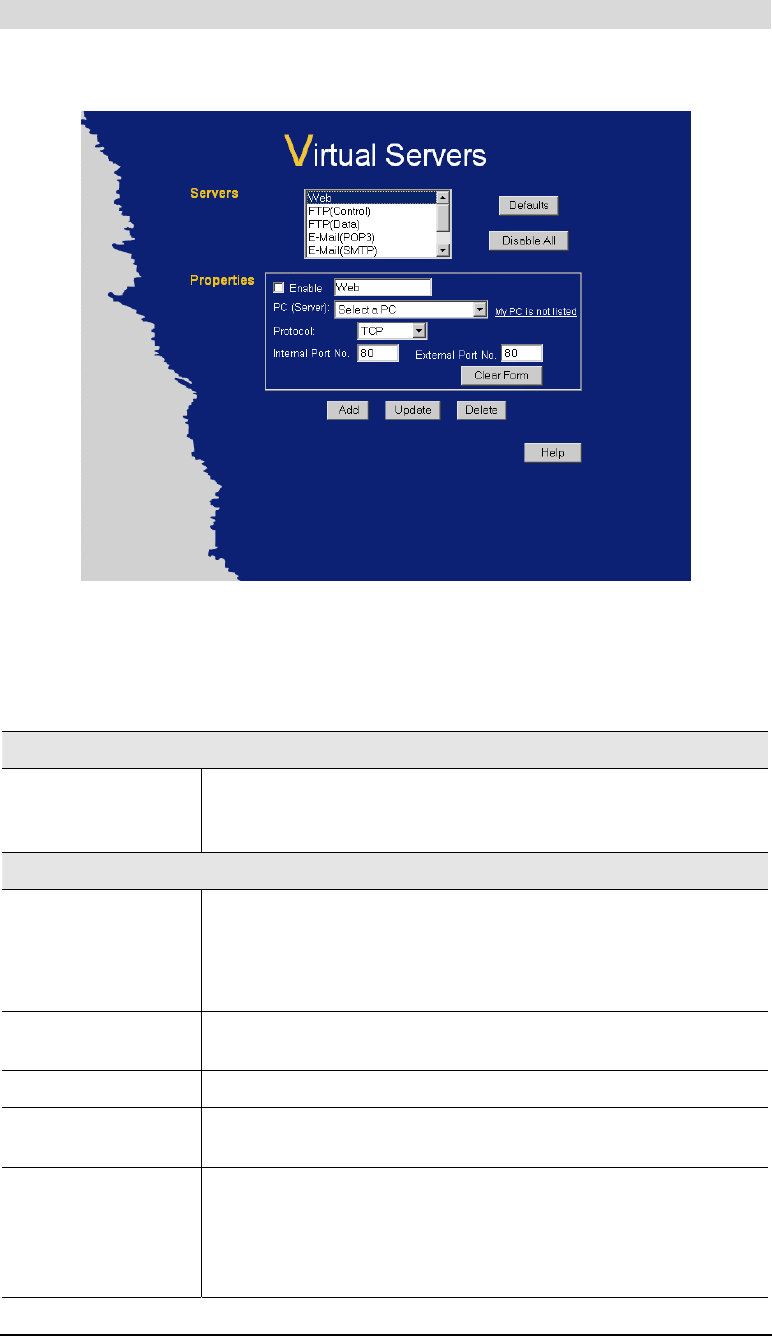

Figure 32: Virtual Servers Screen
This screen lists a number of pre-defined Servers, and allows you to define your own Servers.
Details of the selected Server are shown in the "Properties" area.
Data - Virtual Servers Screen
Servers
Servers This lists a number of pre-defined Servers, plus any Servers you
have defined. Details of the selected Server are shown in the
"Properties" area.
Properties
Enable Use this to Enable or Disable support for this Server, as required.
• If Enabled, any incoming connections will be forwarded to the
selected PC.
• If Disabled, any incoming connection attempts will be blocked.
PC (Server) Select the PC for this Server. The PC must be running the appro-
priate Server software.
Protocol Select the protocol (TCP or UDP) used by the Server.
Internal Port No. Enter the port number which the Server software is configured to
use.
External Port No. The port number used by Internet users when connecting to the
Server. This is normally the same as the Internal Port Number. If it
is different, this device will perform a "mapping" or "translation"
function, allowing the server to use one port address, while clients
use a different port address.
50
Advanced Features
Buttons
Defaults This will delete any Servers you have defined, and set the pre-
defined Servers to use their default port numbers.
Disable All This will cause the "Enable" setting of all Virtual Servers to be set
OFF.
Add Add a new entry to the Virtual Server list, using the data shown in
the "Properties" area on screen. The entry selected in the list is
ignored, and has no effect.
Update Update the current Virtual Server entry, using the data shown in the
"Properties" area on screen.
Delete Delete the current Virtual Server entry. Note that the pre-defined
Servers can not be deleted. Only Servers you have defined yourself
can be deleted.
Clear Form Clear all data from the "Properties" area, ready for input of a new
Virtual Server entry.
For each entry, the PC must be running the
appropriate Server software.
Defining your own Virtual Servers
If the type of Server you wish to use is not listed on the Virtual Servers screen, you can define
and manage your own Servers:
Create a new Server: 1. Click "Clear Form"
2. Enter the required data, as described above.
3. Click "Add".
4. The new Server will now appear in the list.
Modify (Edit) a Server: 5. Select the desired Server from the list
6. Make any desired changes (for example, change the
Enable/Disable setting).
7. Click "Update" to save changes to the selected Server.
Delete a Server: 8. Select the entry from the list.
9. Click "Delete".
Note: You can only delete Servers you have defined. Pre-
defined Server cannot be deleted.
From the Internet, ALL Virtual Servers have the IP
Address allocated by your ISP.
51
LevelOne 22Mbps Wireless AP Router User Guide
Connecting to the Virtual Servers
Once configured, anyone on the Internet can connect to your Virtual Servers. They must use
the Internet IP Address (the IP Address allocated to you by your ISP).
e.g. http://203.70.212.52
ftp://203.70.212.52
It is more convenient if you are using a Fixed IP Address from your ISP, rather than Dynamic.
However, you can use the Dynamic DNS feature, described in the following section, to allow
users to connect to your Virtual Servers using a URL, rather than an IP Address.
Dynamic DNS (Domain Name Server)
This free service is very useful when combined with the Virtual Server feature. It allows
Internet users to connect to your Virtual Servers using a URL, rather than an IP Address.
This also solves the problem of having a dynamic IP address. With a dynamic IP address, your
IP address may change whenever you connect, which makes it difficult to connect to you.
The Service works as follows:
1. You must register for the service at http://www.dyndns.org (Registration is free). Your
password will be E-mailed to you.
2. After registration, use the "Create New Host" option (at www.dyndns.org) to request your
desired Domain name.
3. Enter your data from www.dyndns.org in the LevelOne 22Mbps Wireless AP Router's
DDNS screen.
4. The LevelOne 22Mbps Wireless AP Router will then automatically ensure that your
current IP Address is recorded at http://www.dyndns.org
5. From the Internet, users will be able to connect to your Virtual Servers (or DMZ PC)
using your Domain name, as shown on this screen.
52
Advanced Features
Dynamic DNS Screen
Select Advanced on the main menu, then Dynamic DNS, to see a screen like the following:

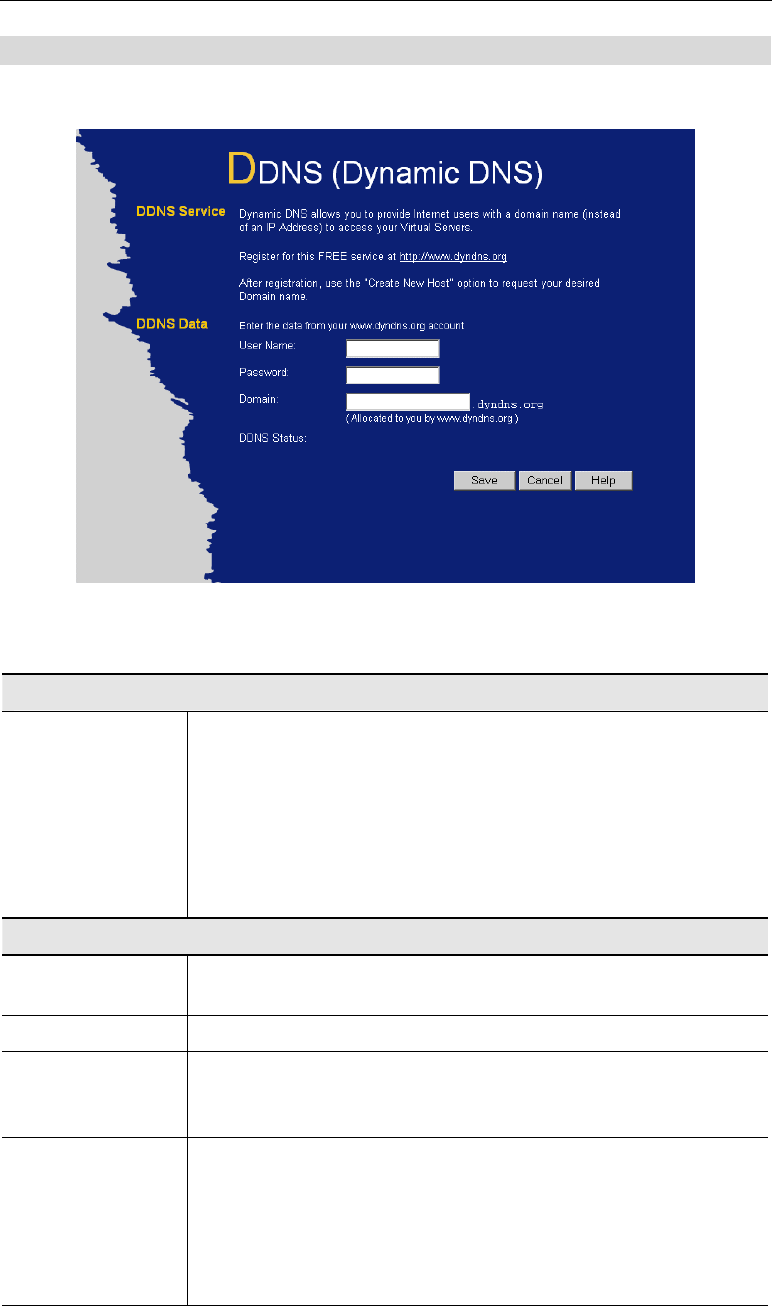

Figure 33: DDNS Screen
Data - Dynamic DNS Screen
DDNS Service
DDNS Service • You must sign up first to create a new account before using the
service. The service is free.
• Click this link to connect to the www.dyndns.org Web site.
• Your initial password will be E-mailed to you; you can change
this later if you wish.
• After registration, use the "Create New Host" link (on the
www.dyndns.org Web site) to request a domain name.
DDNS Data
User Name Enter the "User name" specified at the www.dyndns.org Web site
when you registered.
Password Enter your current password for www.dyndns.org
Domain • Enter your domain name, as allocated at www.dyndns.org.
• The name should consist only of letters and the hyphen (dash).
Using any other characters may cause problems..
DDNS Status This message is returned by the DDNS Server at www.dyndns.org
• Normally, this message should be "Update successful" (current
IP address was updated on the www.dyndns.org server).
• If the message is "No host", this indicates the host name entered
was not allocated to you. You need to connect to
www.dyndns.org and correct this problem.
53
Chapter 7
Advanced Configuration
This Chapter explains the settings available via the Advanced configuration
section of the "Advanced" menu.
Overview
Normally, it is not necessary to use these screens, or change any settings. These screens and
settings are provided to deal with non-standard situations, or to provide additional options for
advanced users.
The settings available are:
PC Database This is the list of PCs shown when you select the "DMZ PC" or a "Vir-
tual Server". This database is maintained automatically, but you can add
and delete entries for PCs which use a Fixed (Static) IP Address.
Options Various options, such as backup DNS, UPnP, and enable TFTP firm-
ware upgrade option.
MAC Address Set the MAC (hardware) address used on the Internet (WAN port)
interface. This is required only if your ISP has recorded the MAC
(hardware) address you should use.
Routing Only required if your LAN has other Routers or Gateways.
54
Advanced Configuration
PC Database
The PC Database is used whenever you need to select a PC (e.g. for the "DMZ" PC). It elimi-
nates the need to enter IP addresses. Also, you do not need to use fixed IP addresses on your
LAN.
PC Database Screen
An example PC Database screen is shown below.
Figure 34: PC Database
• PCs which are "DHCP Clients" are automatically added to the database, and updated as
required.
• By default, non-Server versions of Windows act as "DHCP Clients"; this setting is called
"Obtain an IP Address automatically".
• The LevelOne 22Mbps Wireless AP Router uses the "Hardware Address" to identify each
PC, not the name or IP address. The "Hardware Address" can only change if you change
the PC's network card or adapter.
• This system means you do NOT need to use Fixed (static) IP addresses on your LAN.
However, you can add PCs using Fixed (static) IP Addresses to the PC database if re-
quired.
Data - PC Database Screen
PC Database
PCs This lists all current entries. Data displayed is name (IP Address) type.
The "type" indicates whether the PC is connected to the LAN or
WLAN (Wireless LAN).
Name If adding a new PC to the list, enter its name here. It is best if this
matches the PC's "hostname".
IP Address Enter the IP Address of the PC. The PC will be sent a "ping" to deter-
mine its hardware address. If the PC is not available (not connected, or
not powered On) you will not be able to add it.
55
LevelOne 22Mbps Wireless AP Router User Guide
Buttons
Add This will add the new PC to the list. The PC will be sent a "ping" to
determine its hardware address. If the PC is not available (not con-
nected, or not powered On) you will not be able to add it.
Delete Delete the selected PC from the list. This should be done in 2 situa-
tions:
• The PC has been removed from your LAN.
• The entry is incorrect.
Refresh Update the data on screen.
Generate Report Display a read-only list showing full details of all entries in the PC
database.
56
Advanced Configuration
Options
This screen allows advanced users to enter or change a number of settings. For normal opera-
tion, there is no need to use this screen or change any settings.
An example Options screen is shown below.

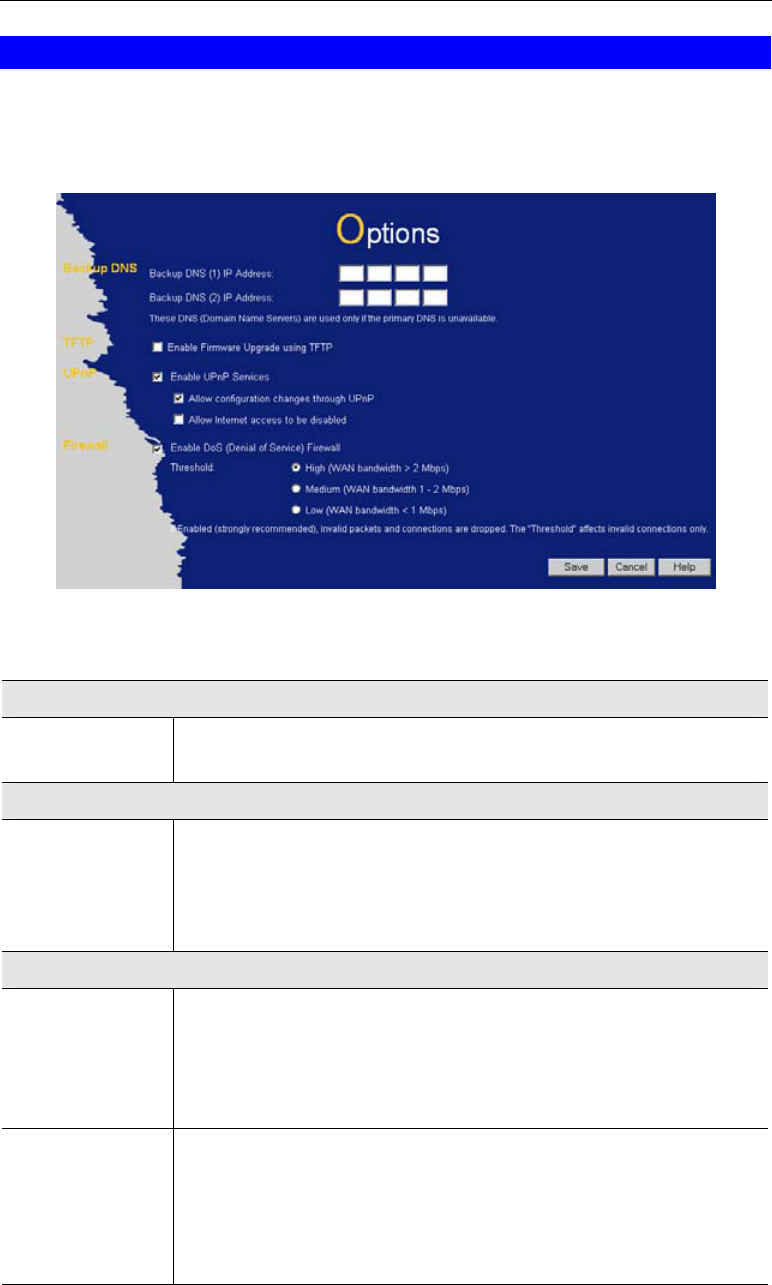

Figure 35: Options Screen
Data - Options Screen
Backup DNS
IP Address Enter the IP Address of the DNS (Domain Name Servers) here. These
DNS will be used only if the primary DNS is unavailable.
TFTP
Enable Firm-
ware Upgrade
using TFTP
• If enabled, TFTP (Trivial FTP) can be used to upgrade the firm-
ware in this device. This is normally not required; a Windows
utility is available for this purpose.
• You must obtain the firmware upgrade file first; instructions for
using TFTP will be available with the upgrade.
UPnP
Enable UPnP
Services
• UPnP (Universal Plug and Play) allows automatic discovery and
configuration of equipment attached to your LAN. UPnP is by
supported by Windows ME, XP, or later.
• If Enabled, this device will be visible via UPnP.
• If Disabled, this device will not be visible via UPnP.
Allow Configu-
ration...
• If checked, then UPnP users can change the configuration.
• If Disabled, UPnP users can only view the configuration. But
currently, this restriction only applies to users running Windows
XP, who access the Properties via UPnP. (e.g. Right - click the
LevelOne 22Mbps Wireless AP Router in My Network Places, and
select Properties)
57
LevelOne 22Mbps Wireless AP Router User Guide
Allow Internet
access to be
disabled
• If checked, then UPnP users can disable Internet access via this
device.
• If Disabled, UPnP users can NOT disable Internet access via this
device. But currently, this restriction only applies to users running
Windows XP, who access the Properties via UPnP. (e.g. Right -
click the LevelOne 22Mbps Wireless AP Router in My Network
Places, and select Properties)
Firewall
Enable DoS
Firewall
If enabled, DoS (Denial of Service) attacks will be detected and
blocked. The default is enabled. It is strongly recommended that this
setting be left enabled.
Note:
• A DoS attack does not attempt to steal data or damage your PCs,
but overloads your Internet connection so you cannot use it - the
service is unavailable.
• The LevelOne 22Mbps Wireless AP Router uses "Stateful Inspec-
tion" technology. This system can detect situations where
individual TCP/IP packets are valid, but collectively they become
a DoS attack.
Threshold This setting affects the number of "half-open" connections allowed.
• A "half-open" connection arises when a remote client contacts the
Server with a connection request, but then does not reply to the
Server's response.
• While the optimum number of "half-open" connections allowed
(the "Threshold") depends on many factors, the most important
factor is the available bandwidth of your Internet connection.
• Select the setting to match the bandwidth of your Internet connec-
tion.
58
Advanced Configuration

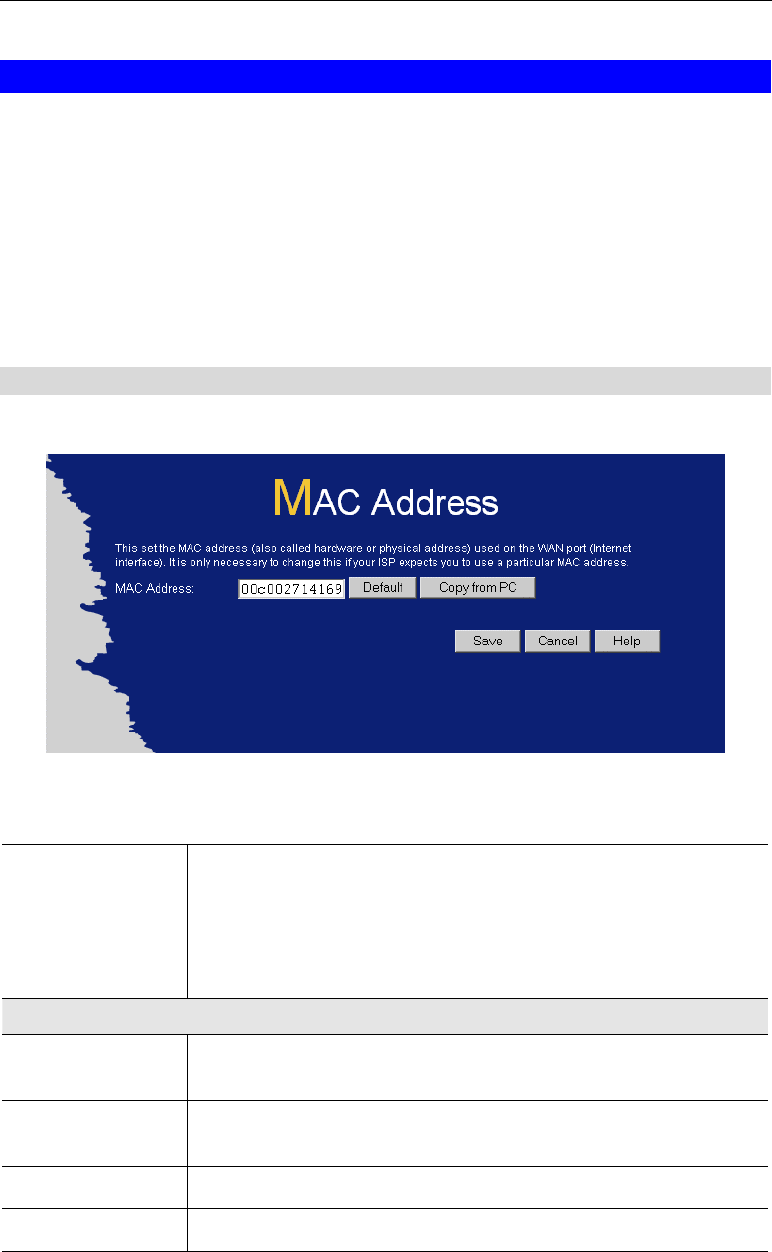

MAC Address
The MAC (hardware) address is a low-level network identifier. It may be called "MAC Ad-
dress", "Hardware Address", or "Physical Address". On a PC, this address is associated with
the Network card or adapter. The address on the MAC Address screen is the address on the
Internet (WAN port) interface, and has no effect on the LAN interface.
• If your ISP asks for the "Network Adapter Address", "Physical Address", "Hardware
Address", or "MAC Address" for the PC the DSL/Cable modem is connected to, provide
this value.
• If your ISP has already recorded a MAC address, you can change the address used by the
LevelOne 22Mbps Wireless AP Router to match the address recorded by your ISP.
MAC Address Screen
Select MAC Address from the Advanced menu to reach a screen like the example below.
Figure 36: MAC address Screen
Data - MAC address Screen
MAC (hardware)
Address
The current MAC (hardware) address is displayed.
If your ISP has recorded a Hardware Address, you can "spoof" that
address by entering it in the address field. The hardware address
consists of 12 characters, where each character is a digit (0..9) or a
character between A and F.
Buttons
Default Inserts the default MAC address into the MAC address field. You
must click "Save" to actually change the address used.
Copy from PC Inserts the MAC address from your PC into the MAC address field.
You must click "Save" to actually change the address used.
Save Save your changes to the LevelOne 22Mbps Wireless AP Router.
Cancel Reverse any changes made since the last "Save".
59
LevelOne 22Mbps Wireless AP Router User Guide
If the MAC address is changed, the LevelOne
22Mbps Wireless AP Router must restart.
Routing
Overview
• If you don't have other Routers or Gateways on your LAN, you can ignore the "Routing"
page completely.
• If the LevelOne 22Mbps Wireless AP Router is only acting as a Gateway for the local
LAN segment, ignore the "Routing" page even if your LAN has other Routers.
• If your LAN has a standard Router (e.g. Cisco) on your LAN, and the LevelOne 22Mbps
Wireless AP Router is to act as a Gateway for all LAN segments, enable RIP (Routing In-
formation Protocol) and ignore the Static Routing table.
• If your LAN has other Gateways and Routers, and you wish to control which LAN seg-
ments use each Gateway, do NOT enable RIP (Routing Information Protocol). Configure
the Static Routing table instead. (You also need to configure the other Routers.)
• If using Windows 2000 Data center Server as a software Router, enable RIP on the Leve-
lOne 22Mbps Wireless AP Router, and ensure the following Windows 2000 settings are
correct:
• Open Routing and Remote Access
• In the console tree, select Routing and Remote Access , [server name], IP Routing,
RIP
• In the "Details" pane, right-click the interface you want to configure for RIP version
2, and then click "Properties".
• On the "General" tab, set Outgoing packet protocol to "RIP version 2 broadcast", and
Incoming packet protocol to "RIP version 1 and 2".
Routing Screen
The routing table is accessed by the Routing link on the Advanced screen.
Using this Screen
Generally, you will use either RIP (Routing Information Protocol) OR the Static Routing
Table, as explained above, although is it possible to use both methods simultaneously.
Static Routing Table
• If RIP is not used, an entry in the routing table is required for each LAN segment on your
Network, other than the segment to which this device is attached.
• The other Routers must also be configured. See Configuring Other Routers on your LAN
later in this chapter for further details and an example.
60
Advanced Configuration

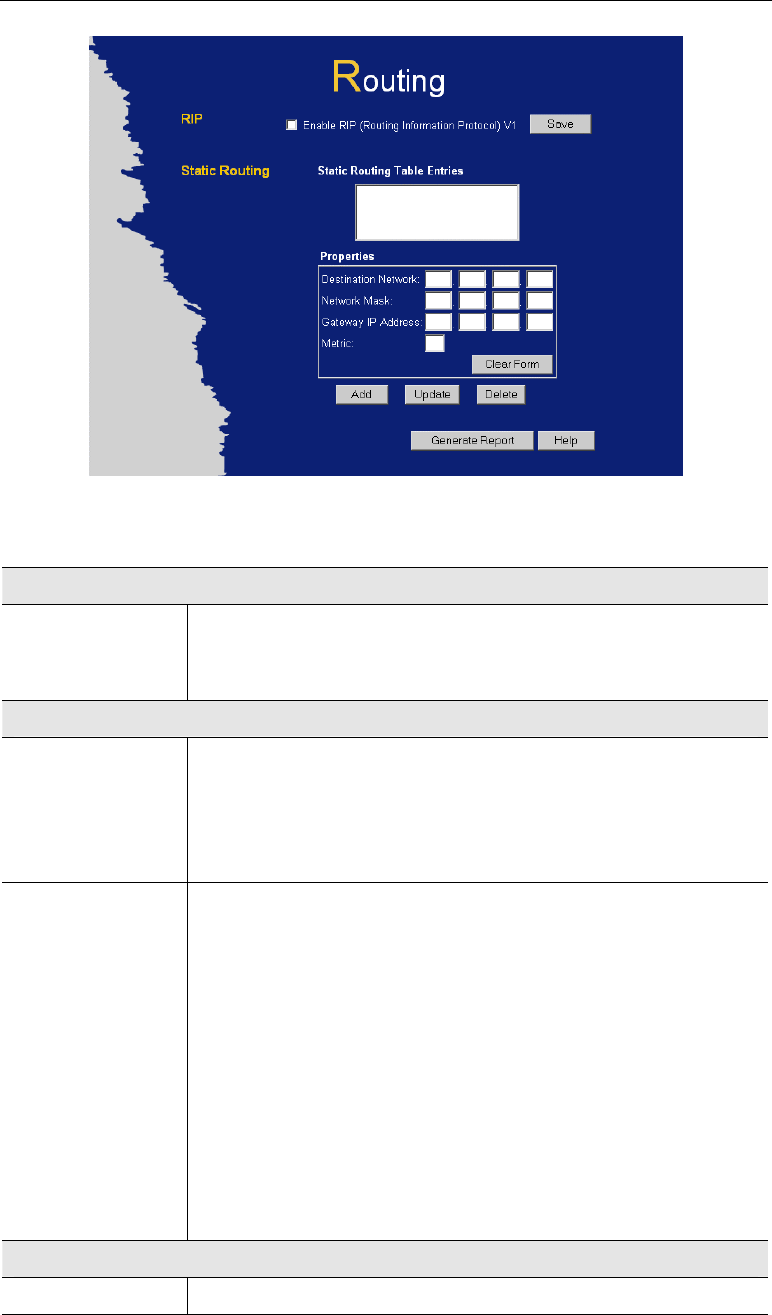

Figure 37: Routing Screen
Data - Routing Screen
RIP
Enable RIP Check this to enable the RIP (Routing Information Protocol) feature
of the LevelOne 22Mbps Wireless AP Router.
The LevelOne 22Mbps Wireless AP Router supports RIP 1 only.
Static Routing
Static Routing
Table Entries
This list shows all entries in the Routing Table.
• The "Properties" area shows details of the selected item in the
list.
• Change any the properties as required, then click the "Update"
button to save the changes to the selected entry.
Properties • Destination Network - The network address of the remote LAN
segment. For standard class "C" LANs, the network address is
the first 3 fields of the Destination IP Address. The 4th (last)
field can be left at 0.
• Network Mask - The Network Mask for the remote LAN
segment. For class "C" networks, the default mask is
255.255.255.0
• Gateway IP Address - The IP Address of the Gateway or
Router which the LevelOne 22Mbps Wireless AP Router must
use to communicate with the destination above. (NOT the router
attached to the remote segment.)
• Metric - The number of "hops" (routers) to pass through to
reach the remote LAN segment. The shortest path will be used.
The default value is 1.
Buttons
Save Save the RIP setting. This has no effect on the Static Routing Table.
61
LevelOne 22Mbps Wireless AP Router User Guide
Add Add a new entry to the Static Routing table, using the data shown in
the "Properties" area on screen. The entry selected in the list is
ignored, and has no effect.
Update Update the current Static Routing Table entry, using the data shown
in the "Properties" area on screen.
Delete Delete the current Static Routing Table entry.
Clear Form Clear all data from the "Properties" area, ready for input of a new
entry for the Static Routing table.
Generate Report Generate a read-only list of all entries in the Static Routing table.
Configuring Other Routers on your LAN
It is essential that all IP packets for devices not on the local LAN be passed to the LevelOne
22Mbps Wireless AP Router, so that they can be forwarded to the external LAN, WAN, or
Internet. To achieve this, the local LAN must be configured to use the LevelOne 22Mbps
Wireless AP Router as the Default Route or Default Gateway.
Local Router
The local router is the Router installed on the same LAN segment as the LevelOne 22Mbps
Wireless AP Router. This router requires that the Default Route is the LevelOne 22Mbps
Wireless AP Router itself. Typically, routers have a special entry for the Default Route. It
should be configured as follows.
Destination IP Address Normally 0.0.0.0, but check your router documentation.
Network Mask Normally 0.0.0.0, but check your router documentation.
Gateway IP Address The IP Address of the LevelOne 22Mbps Wireless AP
Router.
Metric 1
Other Routers on the Local LAN
Other routers on the local LAN must use the LevelOne 22Mbps Wireless AP Router's Local
Router as the Default Route. The entries will be the same as the LevelOne 22Mbps Wireless
AP Router's local router, with the exception of the Gateway IP Address.
• For a router with a direct connection to the LevelOne 22Mbps Wireless AP Router's local
Router, the Gateway IP Address is the address of the LevelOne 22Mbps Wireless AP
Router's local router.
• For routers which must forward packets to another router before reaching the LevelOne
22Mbps Wireless AP Router's local router, the Gateway IP Address is the address of the
intermediate router.
62
Advanced Configuration
Static Routing - Example
Router B
(192.168.1. 90) (192.168.2.70)
Ro u te r A
Segment 0
Segment 2
Segment 1
Wireless
(192. 168.0.xx)
(192.168.1.xx)
(192.168.0.100)
(192.168.2.xx)
(192. 168.1.80)
Gateway
(192. 168.0.1)
Figure 38: Routing Example
For the LevelOne 22Mbps Wireless AP Router's Routing Table
For the LAN shown above, with 2 routers and 3 LAN segments, the LevelOne 22Mbps Wire-
less AP Router requires 2 entries as follows.
Entry 1 (Segment 1)
Destination IP Address 192.168.1.0
Network Mask 255.255.255.0 (Standard Class C)
Gateway IP Address 192.168.0.100 (LevelOne 22Mbps Wireless
AP Router's local Router)
Metric 2
Entry 2 (Segment 2)
Destination IP Address 192.168.2.0
Network Mask 255.255.255.0 (Standard Class C)
Gateway IP Address 192.168.0.100
Metric 3
For Router A's Default Route
Destination IP Address 0.0.0.0
Network Mask 0.0.0.0
Gateway IP Address 192.168.0.1 (LevelOne 22Mbps Wireless AP
Router's IP Address)
For Router B's Default Route
Destination IP Address 0.0.0.0
Network Mask 0.0.0.0
Gateway IP Address 192.168.1.80 (LevelOne 22Mbps Wireless AP
Router's local router)
63
64
A
Appendix A
Troubleshooting
This Appendix covers the most likely problems and their solutions.
Overview
This chapter covers some common problems that may be encountered while using the Leve-
lOne 22Mbps Wireless AP Router and some possible solutions to them. If you follow the
suggested steps and the LevelOne 22Mbps Wireless AP Router still does not function prop-
erly, contact your dealer for further advice.
General Problems
Problem 1: Can't connect to the LevelOne 22Mbps Wireless AP Router to config-
ure it.
Solution 1: Check the following:
• The LevelOne 22Mbps Wireless AP Router is properly installed, LAN
connections are OK, and it is powered ON.
• Ensure that your PC and the LevelOne 22Mbps Wireless AP Router are
on the same network segment. (If you don't have a router, this must be
the case.)
• If your PC is set to "Obtain an IP Address automatically" (DHCP
client), restart it.
• If your PC uses a Fixed (Static) IP address, ensure that it is using an IP
Address within the range 192.168.0.2 to 192.168.0.254 and thus com-
patible with the LevelOne 22Mbps Wireless AP Router's default IP
Address of 192.168.0.1.
Also, the Network Mask should be set to 255.255.255.0 to match the
LevelOne 22Mbps Wireless AP Router.
In Windows, you can check these settings by using Control Panel-
Network to check the Properties for the TCP/IP protocol.
Internet Access
Problem 1: When I enter a URL or IP address I get a time out error.
Solution 1: A number of things could be causing this. Try the following troubleshooting
steps.
• Check if other PCs work. If they do, ensure that your PCs IP settings
are correct. If using a Fixed (Static) IP Address, check the Network
Mask, Default gateway and DNS as well as the IP Address.
• If the PCs are configured correctly, but still not working, check the
LevelOne 22Mbps Wireless AP Router. Ensure that it is connected and
ON. Connect to it and check its settings. (If you can't connect to it,
check the LAN and power connections.)
• If the LevelOne 22Mbps Wireless AP Router is configured correctly,
Appendix A - Troubleshooting
check your Internet connection (DSL/Cable modem etc) to see that it is
working correctly.
Problem 2: Some applications do not run properly when using the LevelOne
22Mbps Wireless AP Router.
Solution 2: The LevelOne 22Mbps Wireless AP Router processes the data passing
through it, so it is not transparent.
Use the Special Applications feature to allow the use of Internet applications
which do not function correctly.
If this does solve the problem you can use the DMZ function. This should
work with almost every application, but:
• It is a security risk, since the firewall is disabled.
• Only one (1) PC can use this feature.
Wireless Access
Problem 1: My PC can't locate the Wireless Access Point.
Solution 1: Check the following.
• Your PC is set to Infrastructure Mode. (Access Points are always in
Infrastructure Mode)
• The SSID on your PC and the Wireless Access Point are the same.
Remember that the SSID is case-sensitive. So, for example "Work-
group" does NOT match "workgroup".
• Both your PC and the Wireless Access Point must have the same setting
for WEP. The default setting for the LevelOne 22Mbps Wireless AP
Router is disabled, so your wireless station should also have WEP dis-
abled.
• If WEP is enabled on the LevelOne 22Mbps Wireless AP Router, your
PC must have WEP enabled, and the key tables (for 64 Bit encryption)
or key (for 128 Bit encryption) must match.
• If the LevelOne 22Mbps Wireless AP Router's Wireless screen is set to
Allow LAN access to selected Wireless Stations only, then each of your
Wireless stations must have been selected, or access will be blocked.
• To see if radio interference is causing a problem, see if connection is
possible when close to the Wireless Access Point.
Remember that the connection range can be as little as 100 feet in poor
environments.
Problem 2: Wireless connection speed is very slow.
Solution 2: The wireless system will connect at the highest possible speed, depending
on the distance and the environment. To obtain the highest possible connec-
tion speed, you can experiment with the following:
• Access Point location.
Try adjusting the location and orientation of the Access Point.
• Wireless Channel
If interference is the problem, changing to another channel may show a
marked improvement.
• Radio Interference
Other devices may be causing interference. You can experiment by
65
LevelOne 22Mbps Wireless AP Router User Guide
switching other devices Off, and see if this helps. Any "noisy" devices
should be shielded or relocated.
• RF Shielding
Your environment may tend to block transmission between the wireless
stations. This will mean high access speed is only possible when close
to the Access Point.
66
67
B
Appendix B
About Wireless LANs
This Appendix provides some background information about using Wireless
LANs (WLANs).
Modes
Wireless LANs can work in either of two (2) modes:
• Ad-hoc
• Infrastructure
Ad-hoc Mode
Ad-hoc mode does not require an Access Point or a wired (Ethernet) LAN. Wireless Sta-
tions (e.g. notebook PCs with wireless cards) communicate directly with each other.
Infrastructure Mode
In Infrastructure Mode, one or more Access Points are used to connect Wireless Stations
(e.g. Notebook PCs with wireless cards) to a wired (Ethernet) LAN. The Wireless Stations
can then access all LAN resources.
Access Points can only function in "Infrastructure" mode,
and can communicate only with Wireless Stations which are
set to "Infrastructure" mode.
BSS/ESS
BSS
A group of Wireless Stations and a single Access Point, all using the same ID (SSID), form a
Basic Service Set (BSS).
Using the same SSID is essential. Devices with different SSIDs are unable to communicate
with each other.
ESS
A group of Wireless Stations, and multiple Access Points, all using the same ID (ESSID), form
an Extended Service Set (ESS).
Different Access Points within an ESS can use different Channels. In fact, to reduce interfer-
ence, it is recommended that adjacent Access Points SHOULD use different channels.
As Wireless Stations are physically moved through the area covered by an ESS, they will
automatically change to the Access Point which has the least interference or best performance.
This capability is called Roaming. (Access Points do not have or require Roaming capabili-
ties.)
LevelOne 22Mbps Wireless AP Router User Guide
Channels
The Wireless Channel sets the radio frequency used for communication.
• Access Points use a fixed Channel. You can select the Channel used. This allows you to
choose a Channel which provides the least interference and best performance. In the USA
and Canada, 11 channel are available. If using multiple Access Points, it is better if adja-
cent Access Points use different Channels to reduce interference.
• In "Infrastructure" mode, Wireless Stations normally scan all Channels, looking for an
Access Point. If more than one Access Point can be used, the one with the strongest signal
is used. (This can only happen within an ESS.)
• If using "Ad-hoc" mode (no Access Point), all Wireless stations should be set to use the
same Channel. However, most Wireless stations will still scan all Channels to see if there
is an existing "Ad-hoc" group they can join.
WEP
WEP (Wired Equivalent Privacy) is a standard for encrypting data before it is transmitted.
This is desirable because it is impossible to prevent snoopers from receiving any data which is
transmitted by your Wireless Stations. But if the data is encrypted, then it is meaningless
unless the receiver can decrypt it.
If WEP is used, the Wireless Stations and the Access Point must have the same settings
for each of the following:
WEP Off, 64 Bit, 128 Bit
Key For 64 Bit encryption, the Key Table must match.
For 128 Bit encryption, the Key value must match.
WEP Authentication Open System or Shared Key.
Wireless LAN Configuration
To allow Wireless Stations to use the Access Point, the Wireless Stations and the Access Point
must use the same settings, as follows:
Mode On client Wireless Stations, the mode must be set to "Infrastructure".
(The Access Point is always in "Infrastructure" mode.)
SSID (ESSID) Wireless Stations should use the same SSID (ESSID) as the Access
Point they wish to connect to. Alternatively, the SSID can be set to "any"
or null (blank) to allow connection to any Access Point.
WEP The Wireless Stations and the Access Point must use the same settings
for WEP (Off, 64 Bit, or 128 Bit).
WEP Key: If WEP is enabled, the Key Table (for 64 Bit encryption) or
Key (for 128 Bit Encryption) must be the same on the Wireless Stations
and the Access Point.
WEP Authentication: If WEP is enabled, all Wireless Stations must
use the same setting as the Access Point (either "Open System" or
"Shared Key").
68
69
C
Appendix C
Specifications
Multi-Function LevelOne 22Mbps Wireless AP Router
Model WBR-2400TX
Dimensions 215mm(L) x 150mm(W) x 36mm(H)
Operating Temperature 0° C to 40° C
Storage Temperature -10° C to 70° C
Network Protocol: TCP/IP
Network Interface: 5 Ethernet:
4 * 10/100BaseT (RJ45) LAN connection
1 * 10/100BaseT (RJ45) for WAN
Wireless interface Wireless Access Point via built-in wireless module.
LEDs 12
Power Adapter 12 V DC External
Relative humidity 10% to 90%
Wireless Interface
Standards IEEE802.11b WLAN, PCMCIA 2.1, JEIDA 4.2, roaming
support
Frequency 2.4 to 2.4835GHz ( Industrial Scientific Medical Band )
Channels Maximum 14 Channels, depending on regulatory authorities
Modulation DSSS BPSK/QPSK/CC
Data Rate 11 / 5.5 / 2 / 1 Mbps
Coverage Area Indoors : 25m @11Mbps, 100m @5.5Mbps or lower
Outdoors : 150m @11Mbps, 250m @5.5Mbps or lower
WEP 64Bit, 128Bit
Output Power 13dBm (typical)
Receiver Sensitivity -80dBm Min.
LevelOne 22Mbps Wireless AP Router User Guide
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communica-
tions. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
To assure continued compliance, any changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to operate this equipment.
FCC Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20
centimeters between the radiator and your body.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
CE Marking Warning
This is a Class B product. In a domestic environment this product may cause radio interference
in which case the user may be required to take adequate measures.
70
