1
Chapter 1
Introduction
This Chapter provides an overview of the device's features and capabilities.

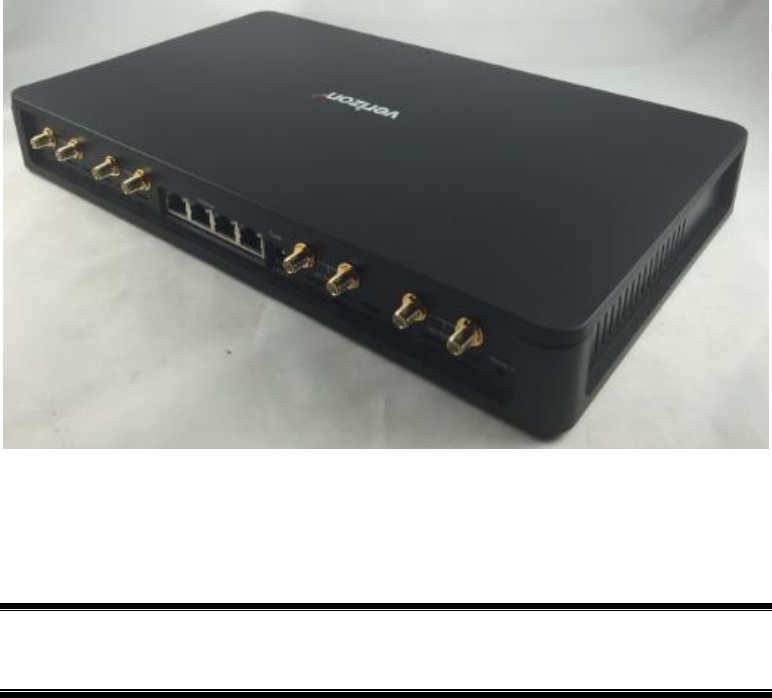

The LTE 13245 UE Tester is a Desktop Small Cell LTE Device Tester handles multiple sce-
narios, running different protocols simultaneously, and provides a complete, independent
solution.
Package Contents

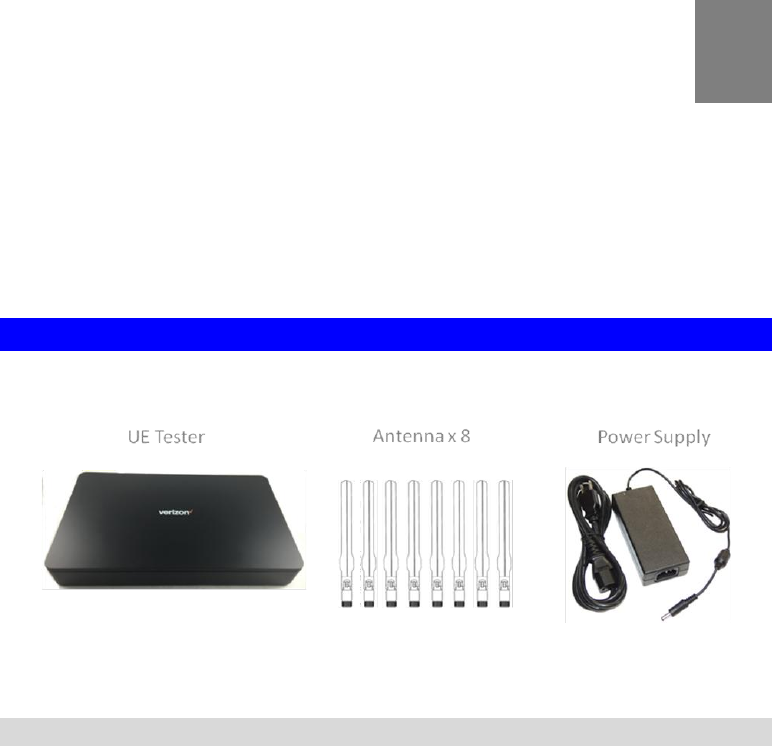

The following items should be included:
If any of the above items are damaged or missing, please contact your dealer immediately.
Key Feature
Designed for indoor lab test equipment deployment
Dual BCM61765 chipset
Total 2GB RAM (1 GB RAM per each BCM61765)
Support 4 concurrent LTE bands (Band 4/13/2/5).
Support 4 Gigabit Ethernet Ports with RJ45 connector
Support 8 External RF antenna with Transmission output at 17dBm per RF ports
1
![](/img.php?id=3426759&img=bg6.png)
2

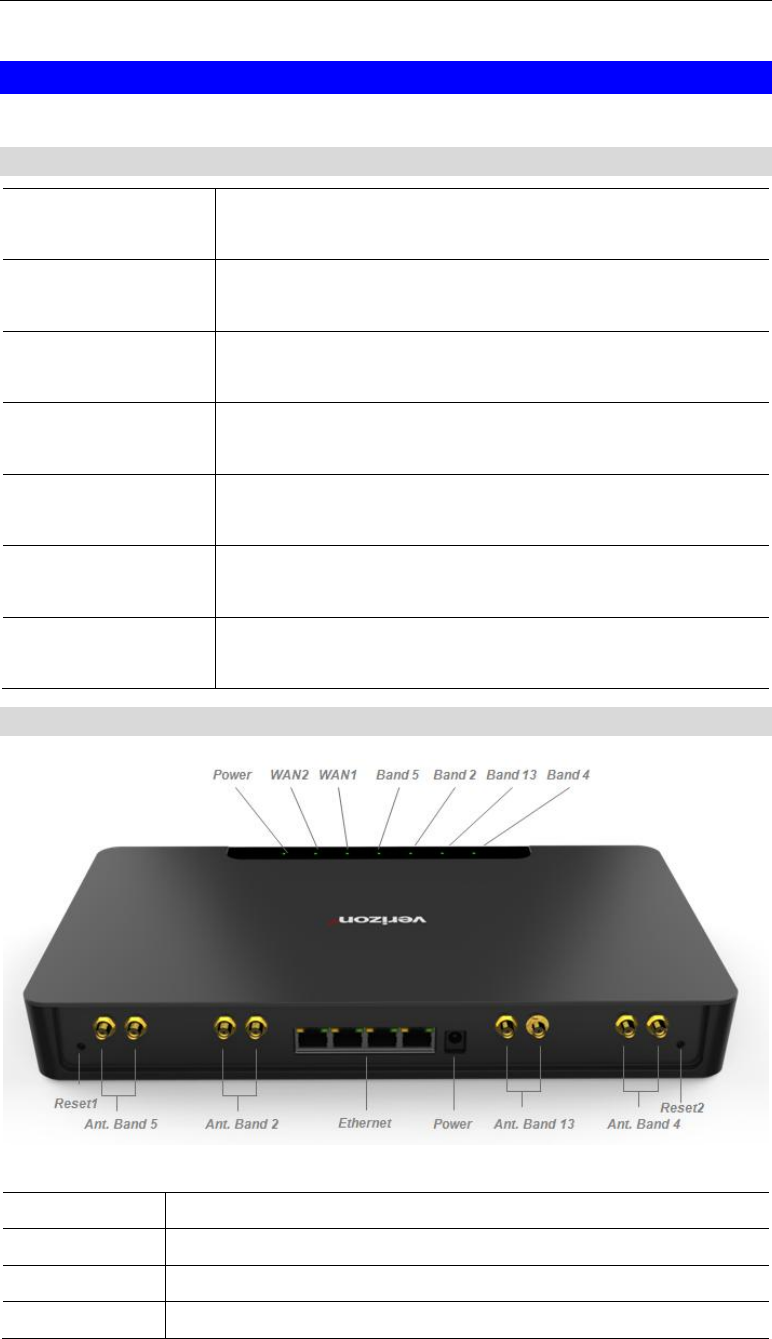

LEDs
Top-mounted LED
POWER (Red)
On - Power On/Normal Operation
Off - Power off
WAN1 (Red/Green)
On Green - CPU1 LAN active
On Red - CPU1 LAN inactive
WAN2 (Red/Green)
On Green – CPU2 LAN active
On Red – CPU2 LAN inactive
Band 5 (Red/Green)
On Green – Band 5 in service
On Red – Band 5 RF not in service
Band 2 (Red/Green)
On Green – Band 2 in service
On Red – Band 2 RF not in service
Band 13 (Red/Green)
On Green – Band 13 in service
On Red – Band 13 RF not in service
Band 4 (Red/Green)
On Green – Band 4 in service
On Red – Band 4 RF not in service
Rear Panel
Power
12V DC IN Power Jack
Reset 1
This button is used to reset or restore to factory default.
Reset 2
Connect the supplied power adapter here.
Ethernet
Use standard LAN cable (RJ45 connectors) to connect to backhaul
![](/img.php?id=3426759&img=bg7.png)
3
/broadband router
Ant Band 4
SMA connection for Band 4 External Antennas
Ant Band 13
SMA connection for Band 13 External Antennas
Ant Band 2
SMA connection for Band 2 External Antennas
Ant Band 5
SMA connection for Band 5 External Antennas
![](/img.php?id=3426759&img=bg8.png)
4
Chapter 2
Initial Installation
This Chapter covers the software installation of the device.
Procedure
1. Power Up
Connect the supplied power adapter to the UE Tester. Use only the power adapter pro-
vided. Using a different one may cause hardware damage.
2. Connect LAN Cable
Use a standard LAN cable to connect the device to the Ethernet port on the UE Tester
3. Check the LESs
The Power LED should be ON.
WAN1, WAN2 LED should be ON
Band 4/Band 13/Band 2/Band5 should be ON depend on the UE test case scenario
2
![](/img.php?id=3426759&img=bg9.png)
5
Chapter 3
Specifications
General Specification
Connectivity
- Eight SMA RF connector for External Antennas
- Four Gigabit Ethernet LAN ports
Power Supply
External Power Adapter: AC100~250V, 50Hz/60Hz
Operating Requirement
Operating Temp. 0ºC to 40ºC
Storage Temp. -5ºC to 45ºC
Operating Humidity 5% to 90% Non-Condensing
Storage Humidity 5% to 95% Non-Condensing
Reset button
Two
LED
7 LED for Status.
Housing
320mm(W)x45mm(H)x191mm(D)
RF Characteristics
Parameter
UMTS
Frequency
FDD:
Band 2: DL/UL: 1930~1990MHz /1850~1910MHz
Band 4: DL/UL: 2100~2155MHz/1710~1755MHz
Band 5: DL/UL: 869~894MHz/824~849MHz
Band 13: DL/UL: 746~756MHz/777~787MHz
Bandwidth
CPU1:
2CA Band 4 + Band 13 (10M+10M)
2CA Band 4 + Band 13 (20M+10M)
CPU2:
2CA Band 2 + Band 5 (10M+10M)
2CA Band 2 + Band 5 (20M+10M)
Beamwidth
External Omni Antennas
Power rating
+17dBm(50mW) per Antenna.
3
![](/img.php?id=3426759&img=bga.png)
6
Regulatory Requirements
Catalog Area Standard Note
Safety USA UL 61010 3rd
EMC USA FCC Part 15B
RF USA FCC Part
24E/27/22H/27F
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one of the
following measures:
-Reorient or relocate the receiving antenna. -Increase the separation between the equipment
and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate this equipment. This transmitter must
not be co-located or operating in conjunction with any other antenna or transmitter.
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
![](/img.php?id=3426759&img=bgb.png)
7
Safety Information
All instructions, warning and caution statements that accompany this equipment must be strictly
followed at all times to ensure its safe use. Observe all warning and caution symbols that are
fixed to this equipment. This electrical equipment is designed with the utmost care for the
safety of those who install and use it. However, when using this device, basic safety precautions
should always be followed to reduce the risk of fire and injury to persons, and the dangers of
electric shock and static electricity. Do not cover the device or block the airflow to the device
with any other objects. This product was qualified under test conditions that included the use of
the supplied cables between system components. To be in compliance with regulations, the user
must use the cables supplied with the unit and install them properly. This includes the power
adapter that is provided. Place the unit to allow for easy access when disconnecting the power
adapter from the mains wall outlet. Operate this product only with the type of power source
indicated on the marking label. If you are not sure of the type of power supplied to your home,
consult your dealer or local electricity company. Do not use this product near water, for exam-
ple a swimming pool or a bathroom. Keep the device away from excessive heat and humidity
and keep the device free from vibration and dust. Wipe the unit with a clean, dry cloth. Never
use cleaning fluid or similar chemicals. Do not spray cleaners directly on the unit or use forced
air to remove dust. Avoid installing or using this product during an electrical storm. There may
be remote risk of electric shock from lightning. During a lightning storm for added protection
please unplug it from the wall outlet and disconnect all cables. This will prevent damage due to
lightning and power surges. For safety reasons, only authorized service technicians should open
the device. If the device is opened the warranty will become void. The device may affect
medical equipment and so please take account of any technology restrictions with this equip-
ment. This device, like other radio devices, emits radio frequency electromagnetic energy, but
operates within the guidelines found in radio frequency safety standards and recommendations.
It is recommended that the minimum operating distance from the installed Access Point to
persons is 20cm.
