Sercomm >
Users Manual
11N Home Monitoring
Gateway
User Guide
i
Table of Contents
CHAPTER 1 INTRODUCTION.........................................................................................1
Package Contents..........................................................................................................1
Specfication...................................................................................................................1
LEDs.............................................................................................................................2
CHAPTER 2 INITIAL INSTALLATION...........................................................................5
Requirements................................................................................................................5
Procedure......................................................................................................................5
CHAPTER 3 BOARD DESCRIPTION...............................................................................6
Components and connectors.........................................................................................6
Copyright 2010. All Rights Reserved.
Document Version: 1.0
All trademarks and trade names are the properties of their respective owners.
1
Chapter 1
Introduction
This Chapter provides an overview of the 11N Home Monitoring Gateway's
features and capabilities.
Congratulations on the purchase of your new 11N Home Monitoring Gateway. The 11N Home
Monitoring Gateway is a consumer electronic device, which is used for home monitoring and
security.
Package Contents
The following items should be included:
• The 11N Home Monitoring Gateway Unit
• Power Adapter
If any of the above items are damaged or missing, please contact your dealer immediately.
Specfication
• DDR2 SDRAM 64MB
• NAND 32MB Flash
• Four Ethernet ports with RJ45 connectors.
• Front Panel LEDs
• Z-Wave module
• Two USB 2.0 ports
• Sync button
• WPS button
• Reset button
• Power In connector
• Two Internal antennae
1
2
LEDs

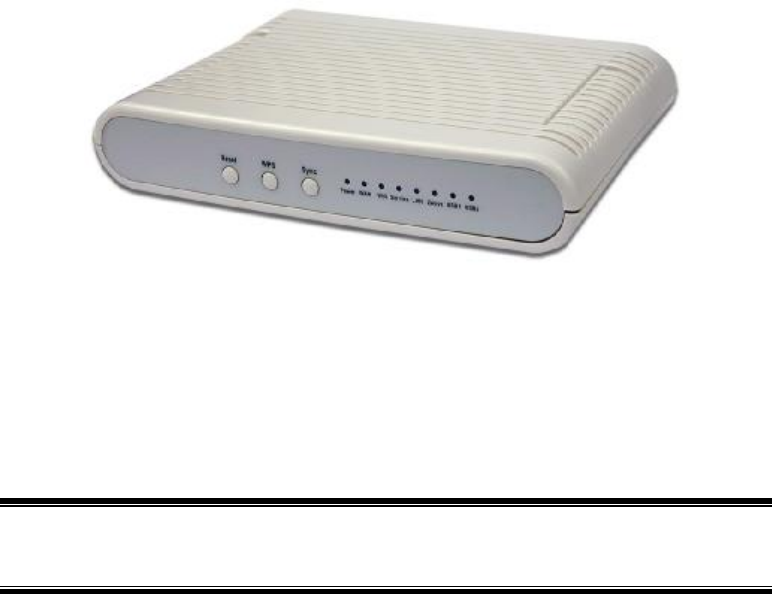

Front-mounted LEDs
The 11N Home Monitoring Gateway has 8 LEDs.
Reset This button has two (2) functions:
• Reboot. When pressed and released, the 11N Home Monitoring
Gateway will reboot (restart).
• Clear All Data. This button can also be used to clear ALL data
and restore ALL settings to the factory default values.
To Clear All Data and restore the factory default values:
1. Power On.
2. Keep holding the Reset Button down for 8 seconds.
Release the Reset Button. The 11N Home Monitoring Gateway is now
using the factory default values.
WPS button Push the WPS button on the device and on your other wireless device to
perform WPS function that easily creates an encryption-secured wireless
connection automatically.
Sync Button Push this button to synchronize for portal server or Z-Wave clients.
POWER
(Green) • On - Power On
• Off - Power Off
• Flashing - Reboot or Firmware upgrade.
WAN (Green) • On - Connection to the Gateway attached to the WAN (Internet)
port is established.
• Off - No connection to the Gateway.
• Flashing - Data is being transmitted or received via the connec-
tion.
3
WiFi
• On (Green) - Wireless connection available
• Off (Green) - No Wireless connection available.
• Flashing (Green) - Data is being transmitted or received via the
Wireless connection.
WiFi & WPS
WPS
• On (Amber) - Problem occurred while trying to enable the
WPS function.
• On (Green) - WPS function is enabled.
• Flashing - Data is being transmitted or received via the connection.
Service • On (Green)- Open for Sensor Binding (Add)
• Off - System is in ready mode, no sensor is needed to be bined
(added.)
• Flashing - Sensor is binding (adding)
LAN (Green) • On (Green)- LAN connection established.
• Off - No active connection on the corresponding LAN port.
• Flashing - Data is being transmitted or received via the correspond-
ing LAN (hub) port.
HAN • On - Zwave function enabled.
• Off - Zwave function disabled
• Flashing - Data is being transmitted or received via the connection.
USB (1~2) • On (Green)- USB connection established.
• Off - No active connection on the corresponding USB port.
• Flashing - Data is being transmitted or received via the correspond-
ing USB port.
4

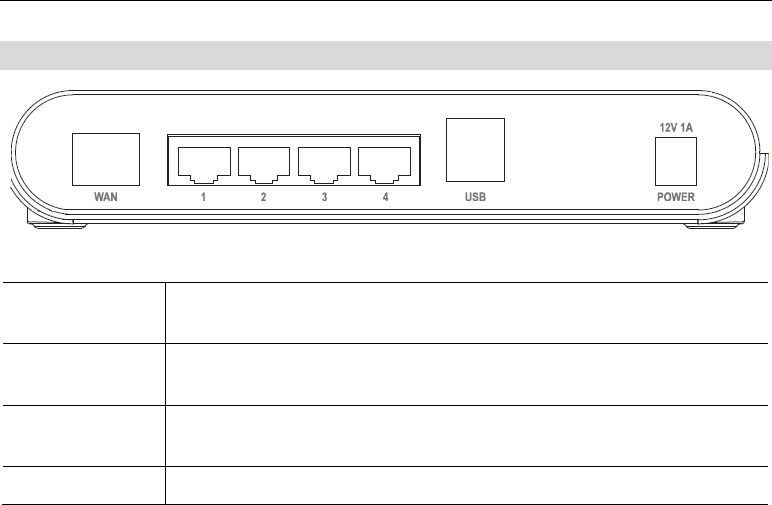

Rear Panel
WAN port
(10/100BaseT) Connect the DSL or Cable Modem here. If your modem came with a
cable, use the supplied cable. Otherwise, use a standard LAN cable.
LAN (1~4) Port
Use standard LAN cables (RJ45 connectors) to connect your PCs to
these ports.
USB (1~2) Port The two connectors are USB hosts with support for mass storage
devices.
Power Port Connect the supplied power adapter here.
5
Chapter 2
Initial Installation
This Chapter covers the software installation of the 11N Home Monitoring
Gateway.
Requirements
• Network cables. Use standard 10/100BaseT network (UTP) cables with RJ45 connectors.

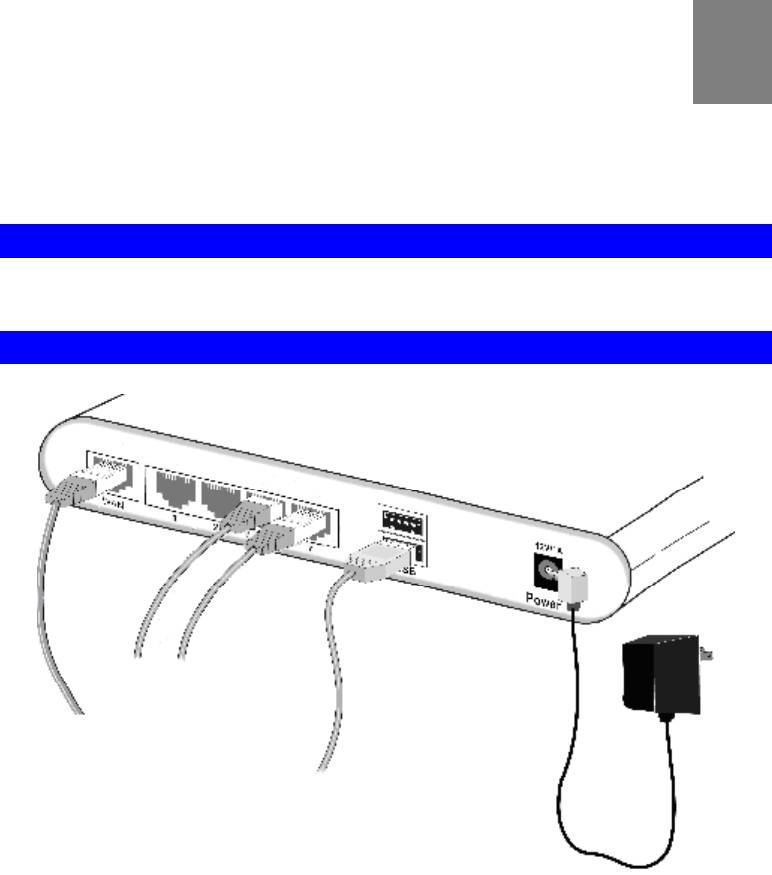

Procedure
1. Choose an Installation Site
Select a suitable place to install the 11N Home Monitoring Gateway.
2. Connect LAN Cables
Use standard LAN cables to connect devices to the Ethernet ports on the 11N Home
Monitoring Gateway.
4. Power Up
Connect the supplied power adapter to the 11N Home Monitoring Gateway. Use only the
power adapter provided. Using a different one may cause hardware damage.
5. Check the LEDs
• The POWER LED should be ON.
• The LAN LED should be ON (provided the PC is also ON.)
2
6
Chapter 3
Board Description
This Chapter provides board description for the 11N Home Monitoring
Gateway.
Components and connectors
|
3
11 2
5
34
68
79
7
• 2. USB type A connector
• 3. LAN port
• 4. WAN port
• 5. Expansion slot connectors
• 6. Push buttons.
• 7. Console port
• 8. LEDs
• 9. RT3662 processor
• 11. DC power jack
8

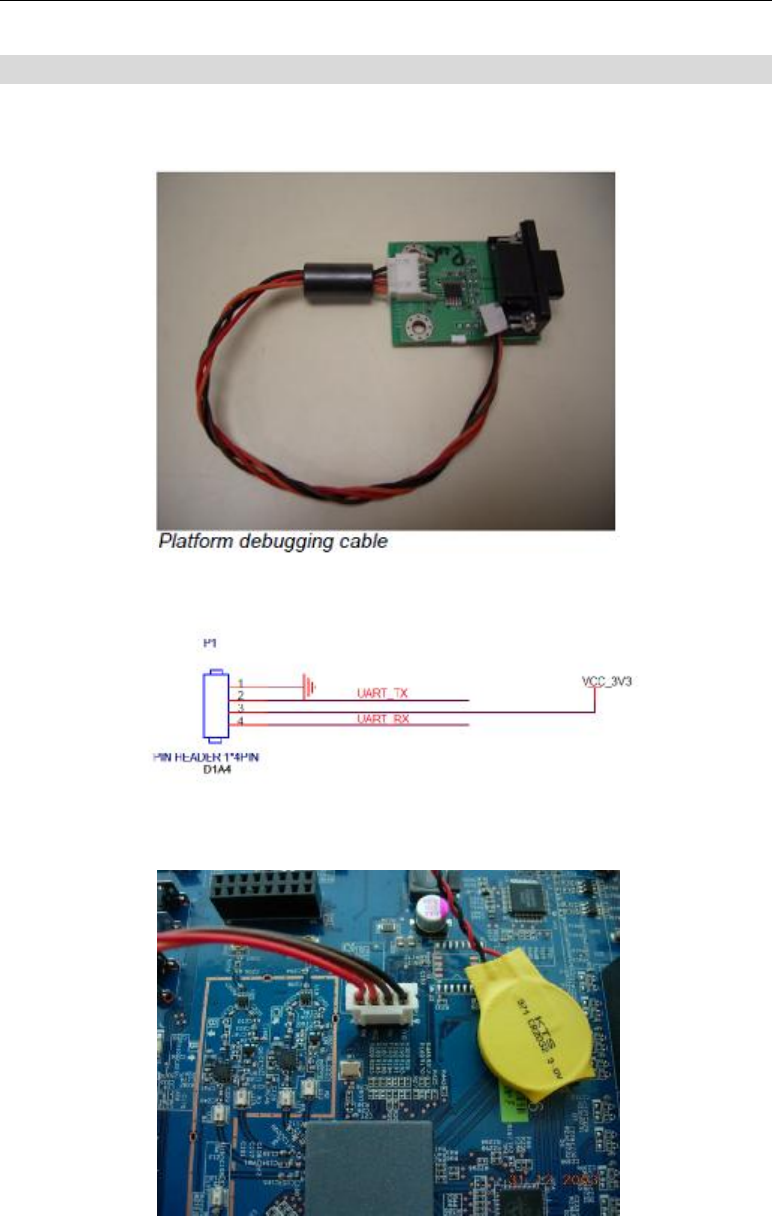

Console port connection guide
For platform debugging, please locate the console cable accompanied with the development
kit. Then follow the steps illustrated below:
Pin definition
1. Connect cable to console port
2. Execute minicom on Linux host machine

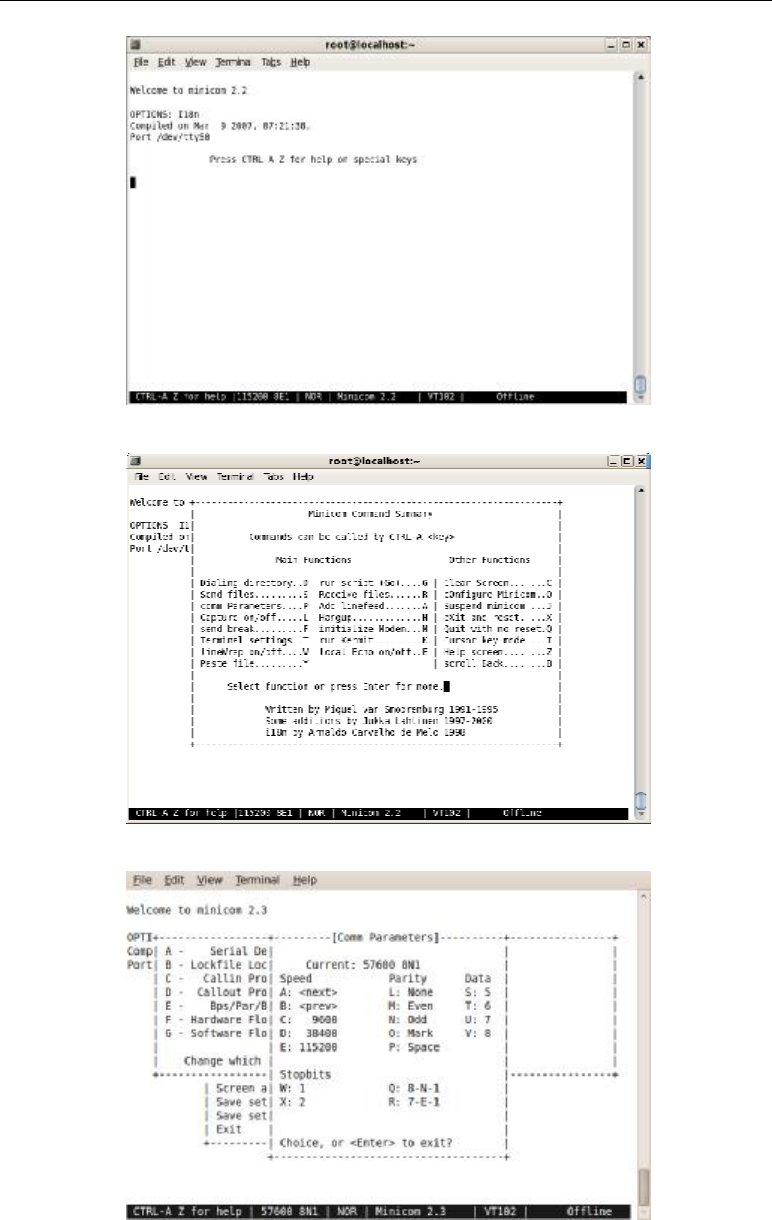

9
3. Press Ctrl+A then Z to enter minicom configuration
4. Set Comm port to baud rate 57600, 8 data bits, no parity bits, and one stop bit.
11
Regulatory Approvals
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the interfer-
ence by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
You are cautioned that changes or modifications not expressly approved by the party responsible for
compliance could void your authority to operate the equipment.
FCC Radiation Exposure Statement
FCC RF Radiation Exposure Statement:
1. This Transmitter must not be co-located or operating in conjunction with any other antenna or trans-
mitter.
2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled envi-
ronment. This equipment should be installed and operated with a minimum distance of 20 centimeters
between the radiator and your body.
