Sercomm OC821 Wireless(11n) Outdoor Camera User Manual RC8120 4120 20091224
Sercomm Corporation Wireless(11n) Outdoor Camera RC8120 4120 20091224
Sercomm >
5.User's manual R2
Network Camera
User’s Guide
i
Table of Contents
CHAPTER 1 INTRODUCTION..............................................................................................1
Overview ............................................................................................................................1
Physical Details - Network Camera .................................................................................4
Package Contents ..............................................................................................................6
CHAPTER 2 BASIC SETUP ...................................................................................................7
System Requirements........................................................................................................7
Installation - Network Camera.........................................................................................7

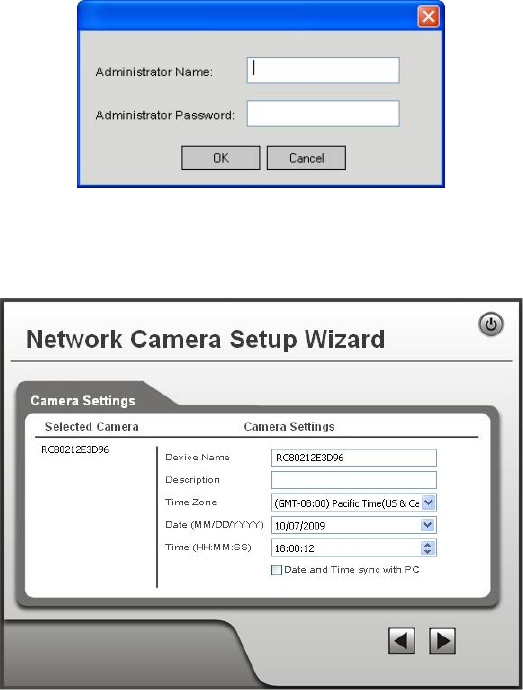

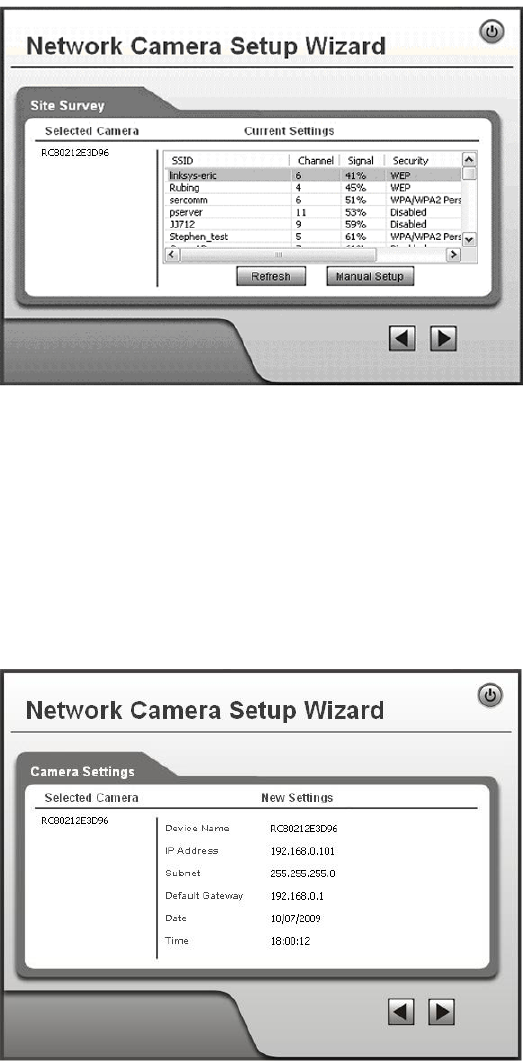

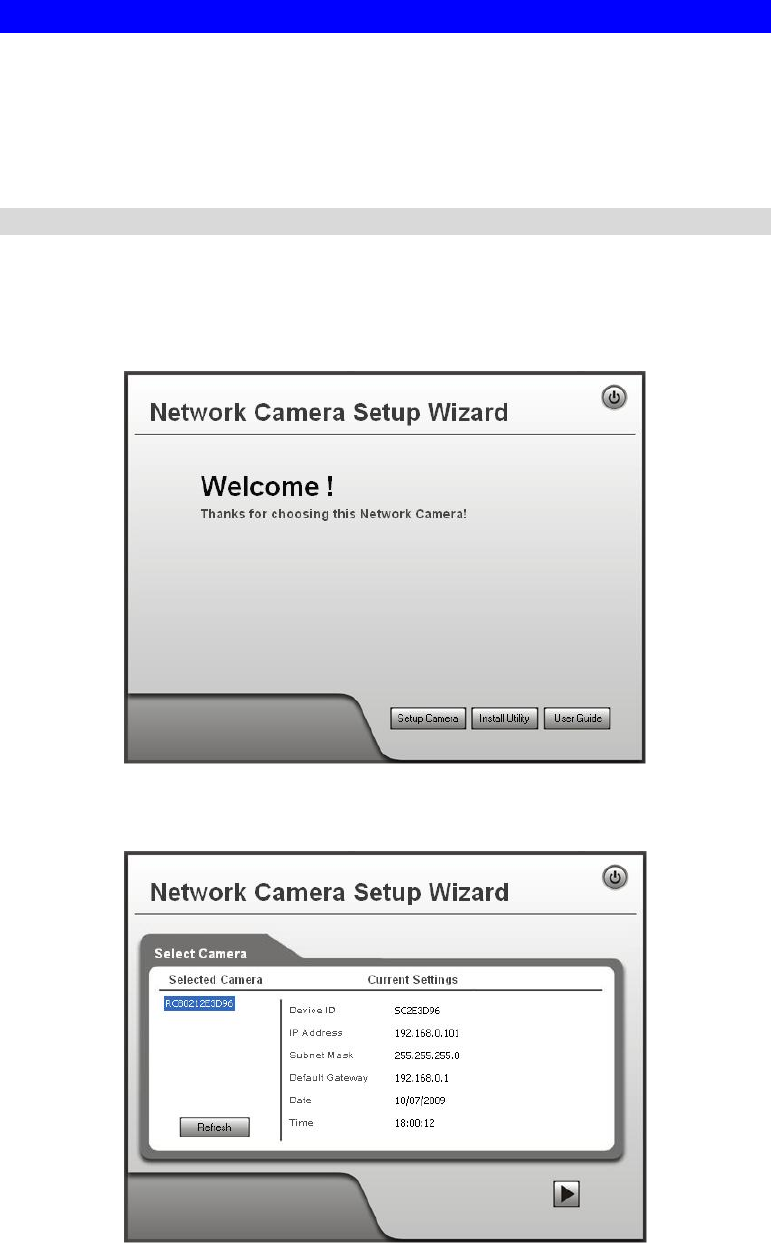

Setup using the Windows Wizard....................................................................................9
CHAPTER 3 VIEWING LIVE VIDEO................................................................................14
Overview ..........................................................................................................................14
Requirements...................................................................................................................14
Connecting to a Camera on your LAN..........................................................................14

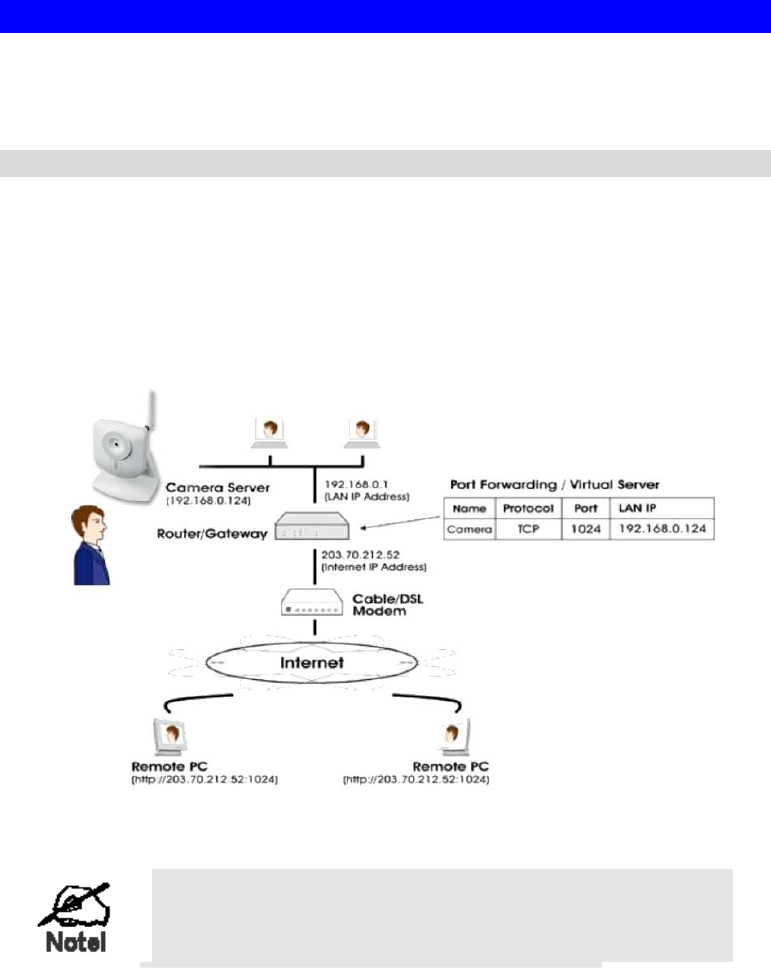

Connecting to a Camera via the Internet......................................................................16

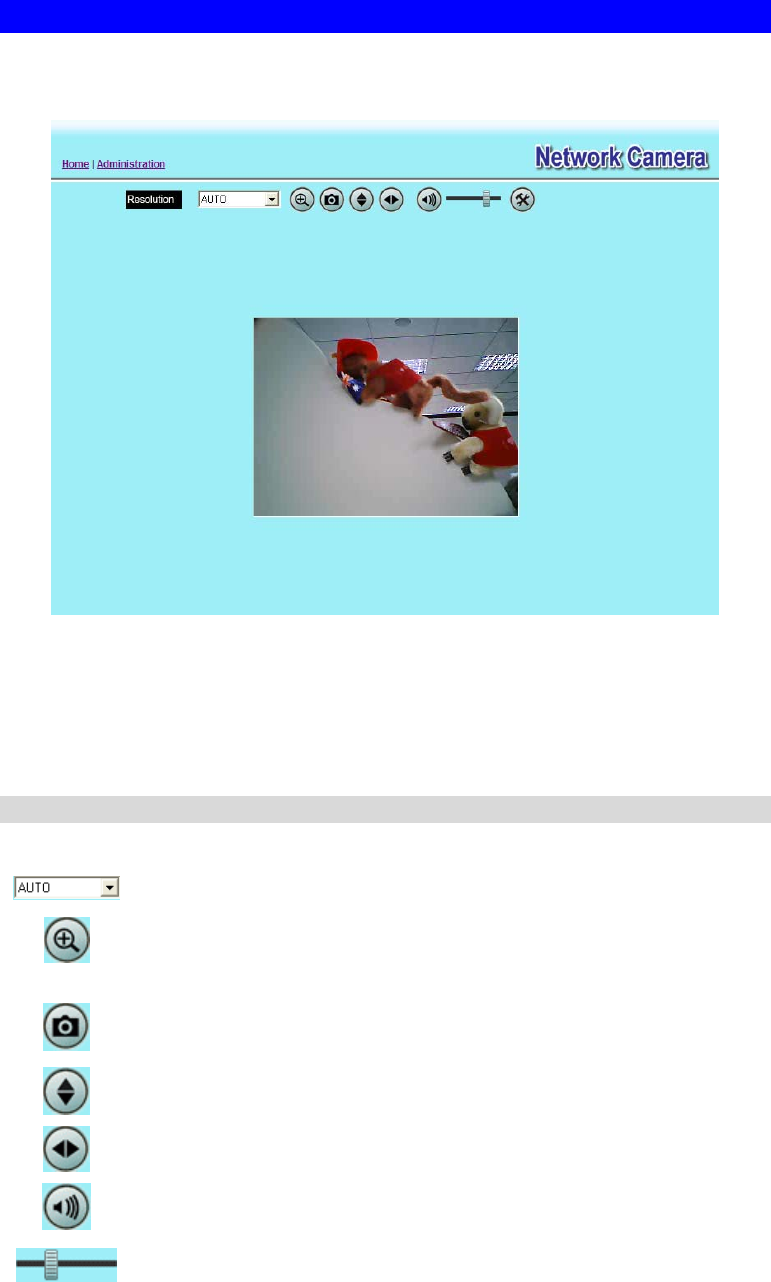

Viewing Live Video .........................................................................................................18
CHAPTER 4 ADVANCED VIEWING SETUP ...................................................................20
Introduction.....................................................................................................................20
Adjusting the Video Image .............................................................................................20
Viewing the live Video on your cell phone.....................................................................23
Controlling User Access to the Video Stream...............................................................25
Making Video available from the Internet....................................................................26
Viewing Live Video via the Internet ..............................................................................29
Motion Detection Alerts..................................................................................................30
CHAPTER 5 WEB-BASED MANAGEMENT ....................................................................32
Introduction.....................................................................................................................32
Connecting to Network Camera.....................................................................................32

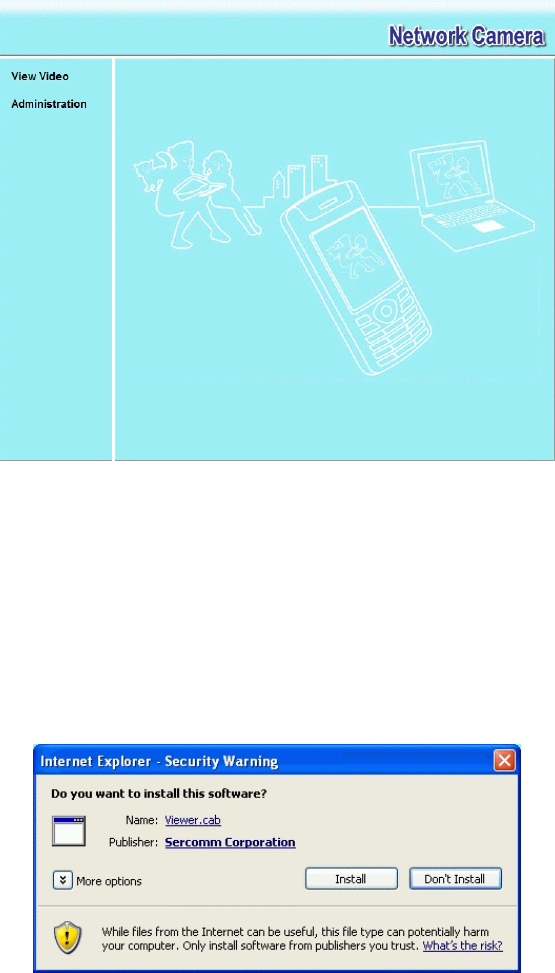

Welcome Screen...............................................................................................................33
Administration Menu......................................................................................................34

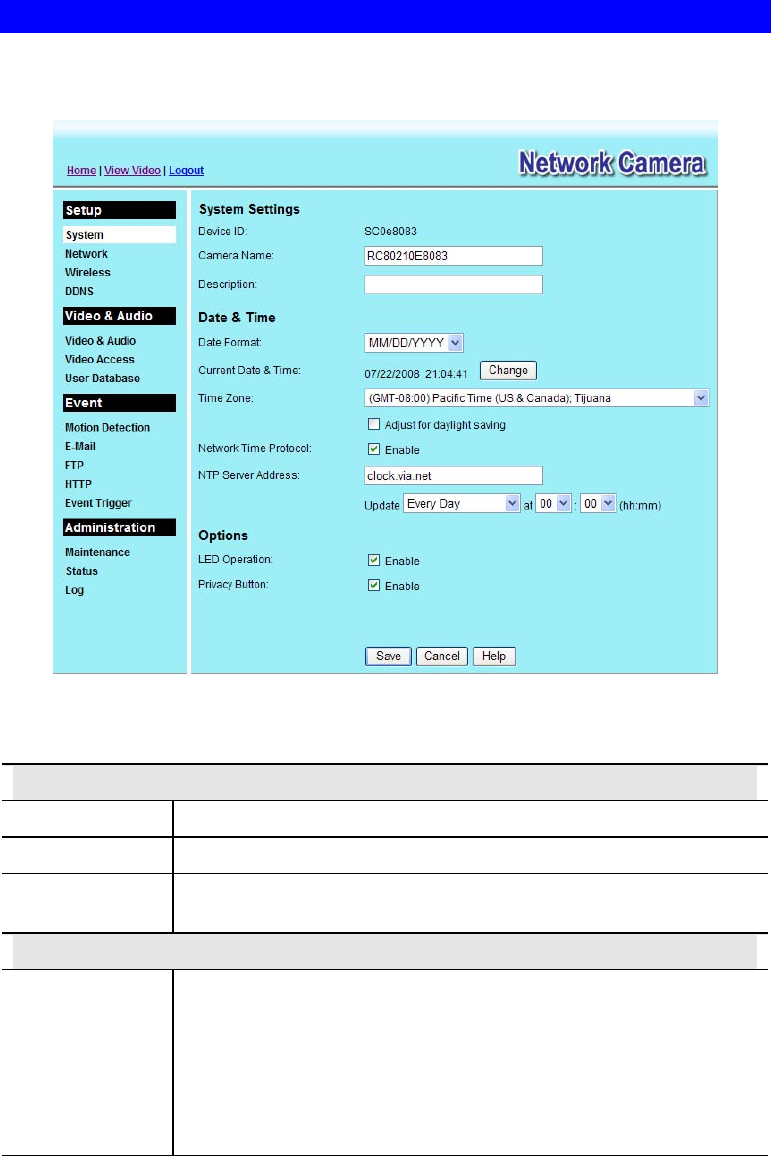

System Screen..................................................................................................................35

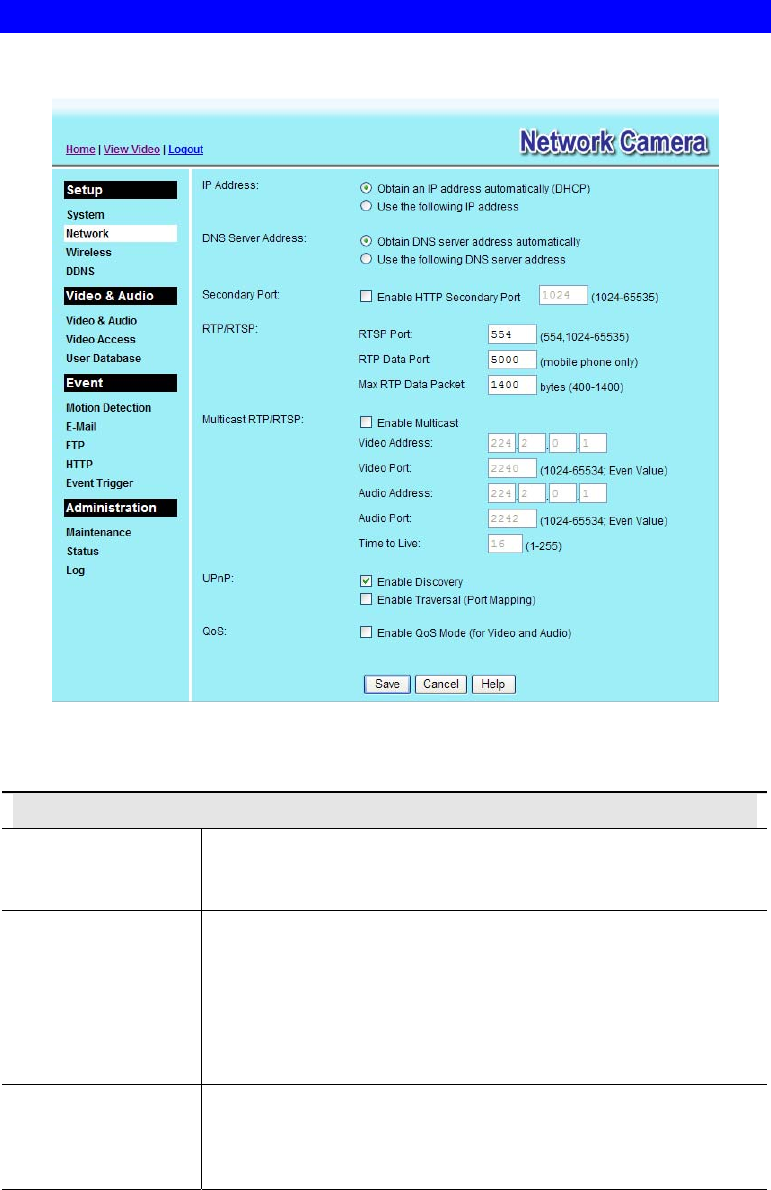

Network Screen................................................................................................................37
Wireless Screen (Wireless Model Only) ........................................................................40

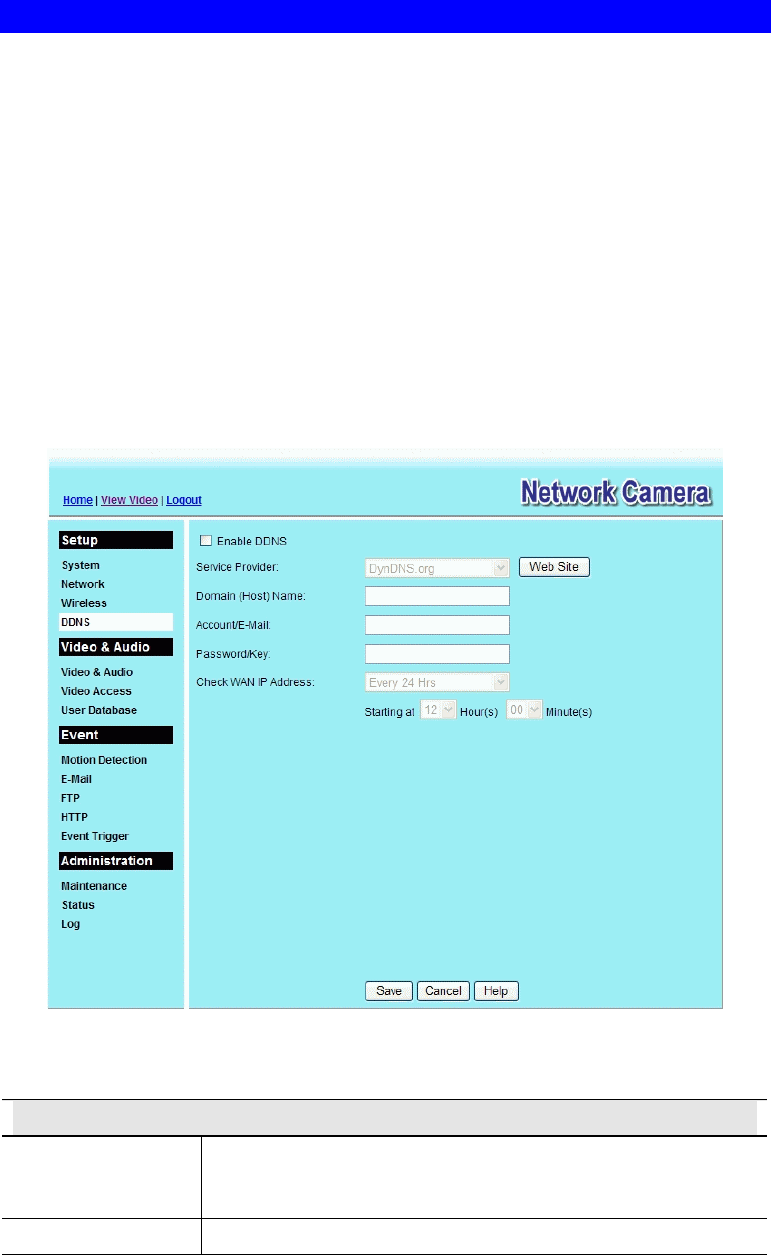

DDNS Screen ...................................................................................................................42
Video Image Screen.........................................................................................................44

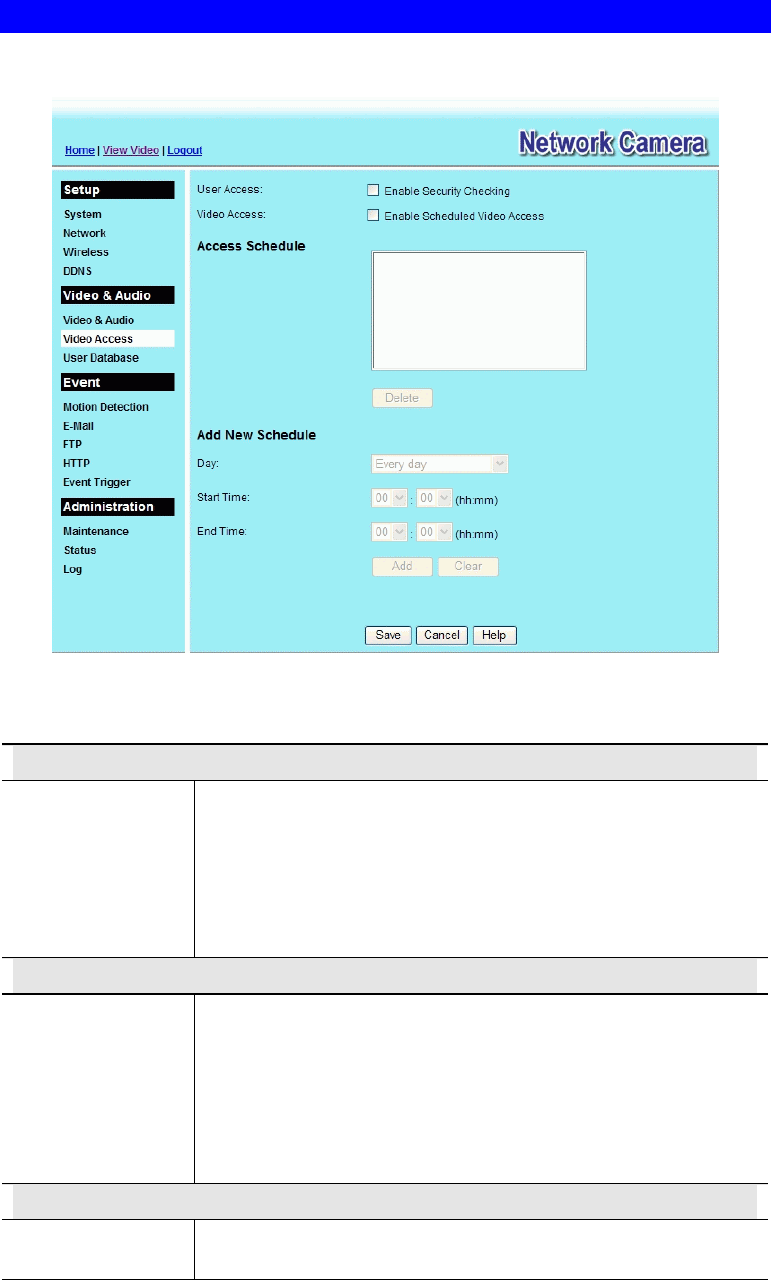

Video Access Screen........................................................................................................47
User Database Screen......................................................................................................49
Motion Detection Screen.................................................................................................50

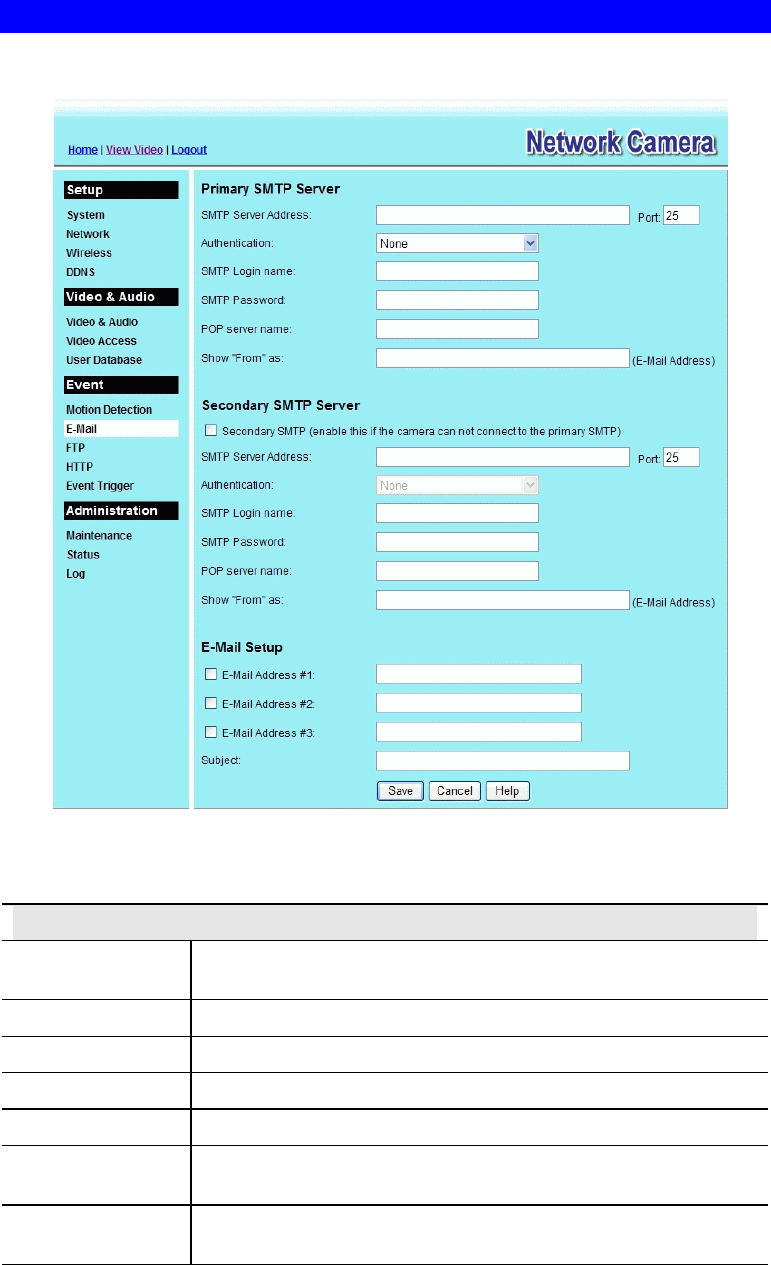

E-Mail Screen ..................................................................................................................51
FTP Screen.......................................................................................................................53

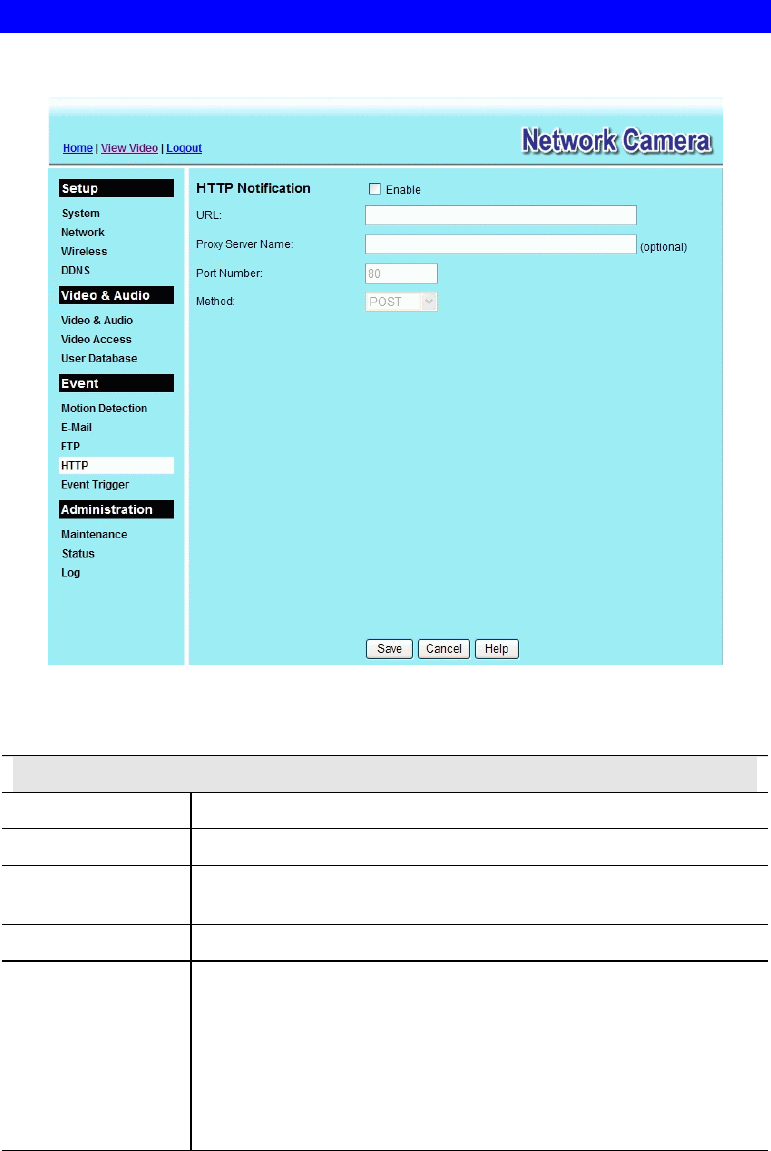

HTTP Screen ...................................................................................................................54

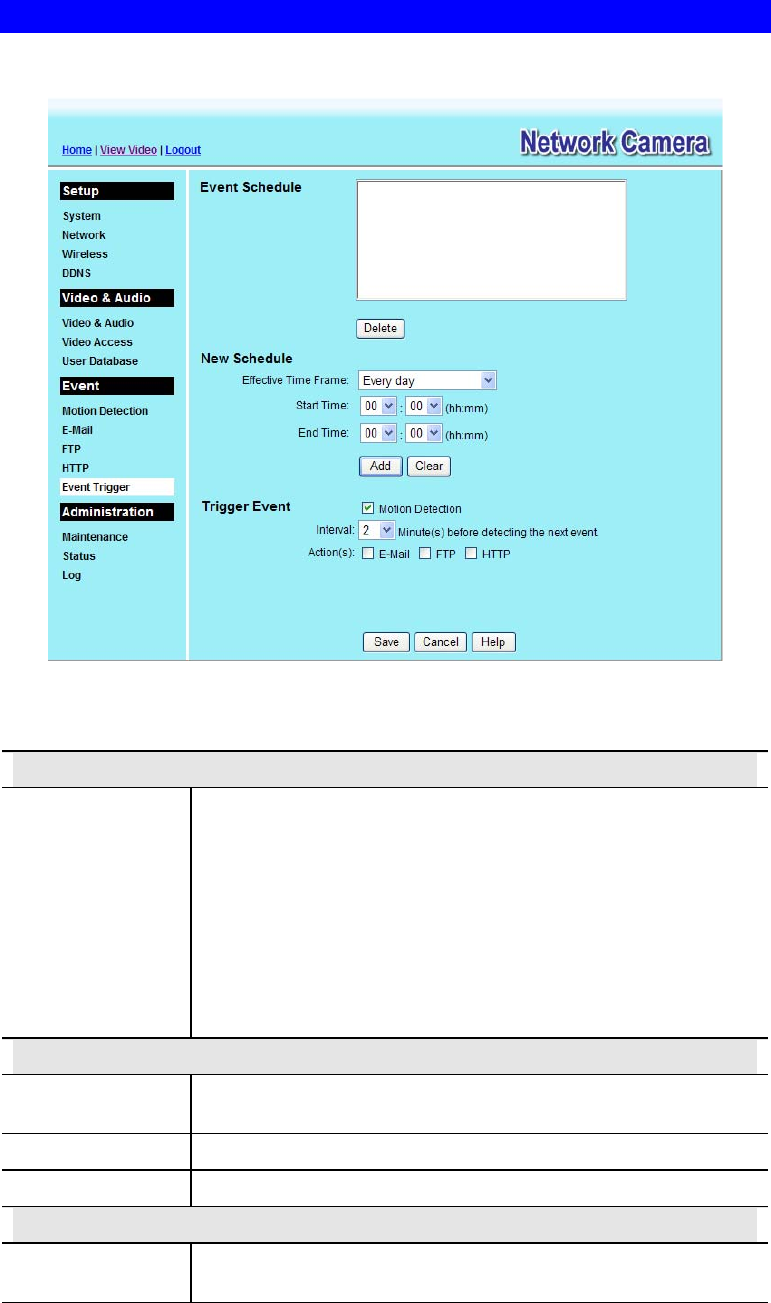

Event Trigger Screen ......................................................................................................55

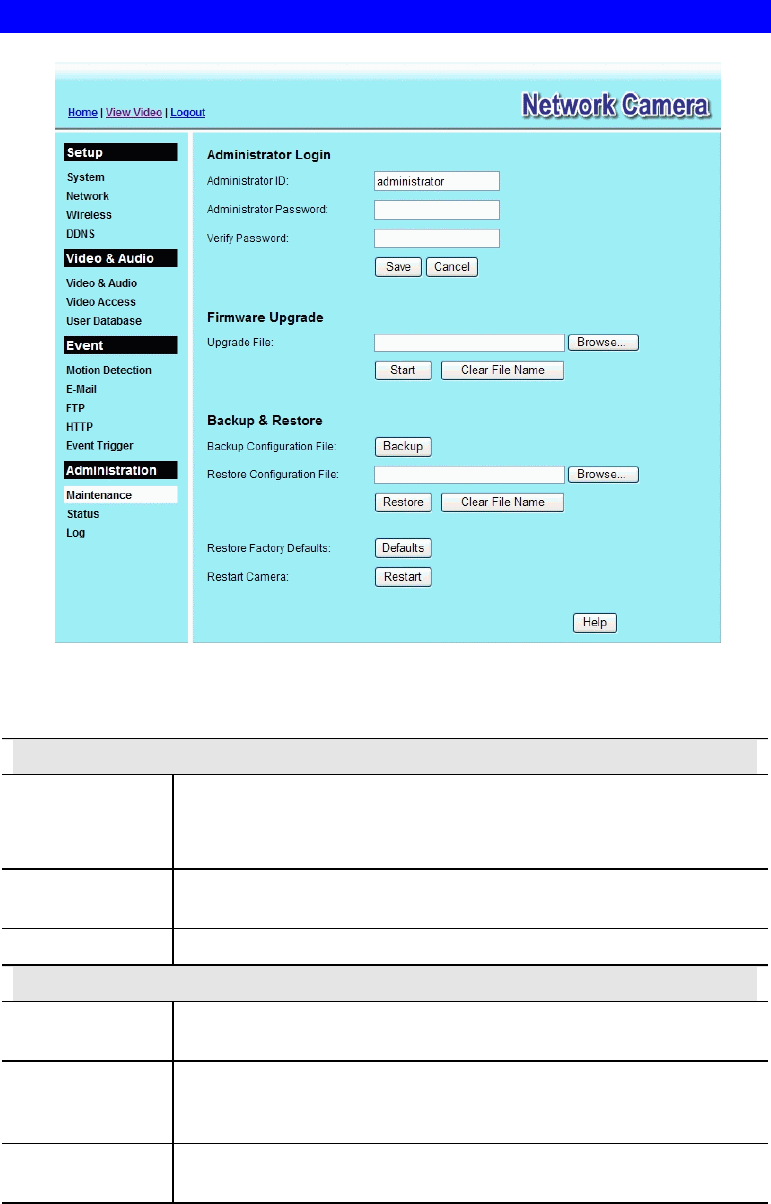

Maintenance Screen ........................................................................................................57
Status Screen....................................................................................................................59

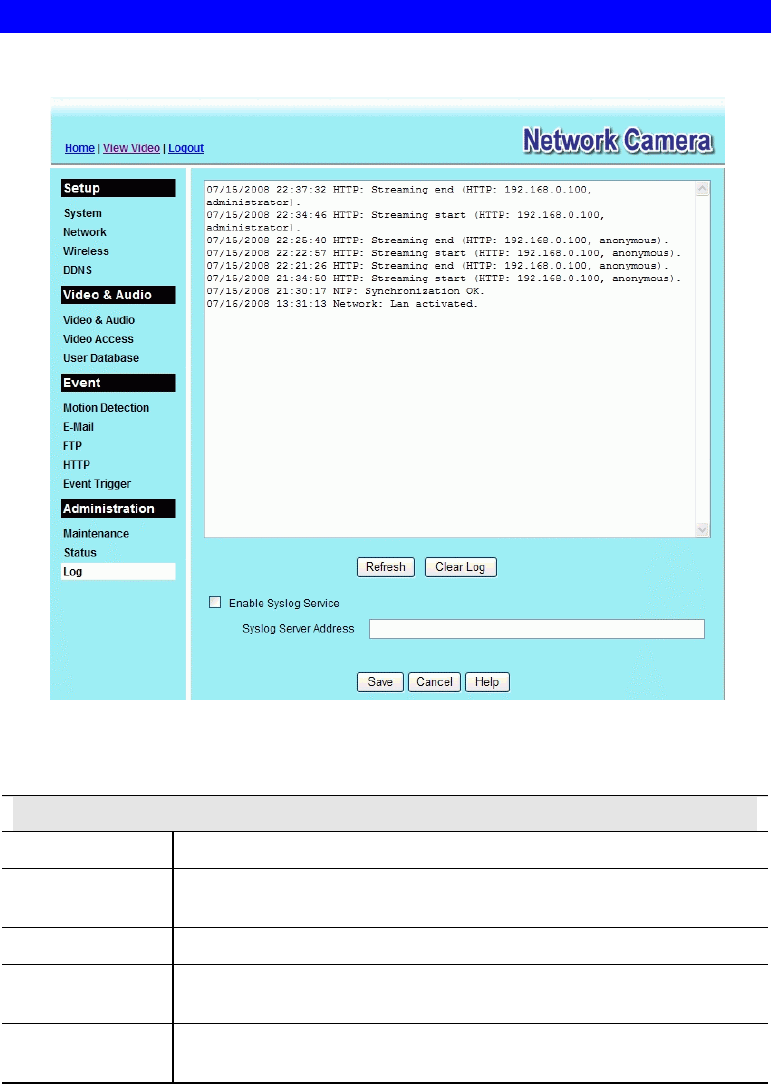

Log Screen........................................................................................................................61
CHAPTER 6 WINDOWS VIEWING/RECORDING UTILITY........................................62
Overview ..........................................................................................................................62
Installation .......................................................................................................................62
System Tray Icon.............................................................................................................63
Main Screen .....................................................................................................................63

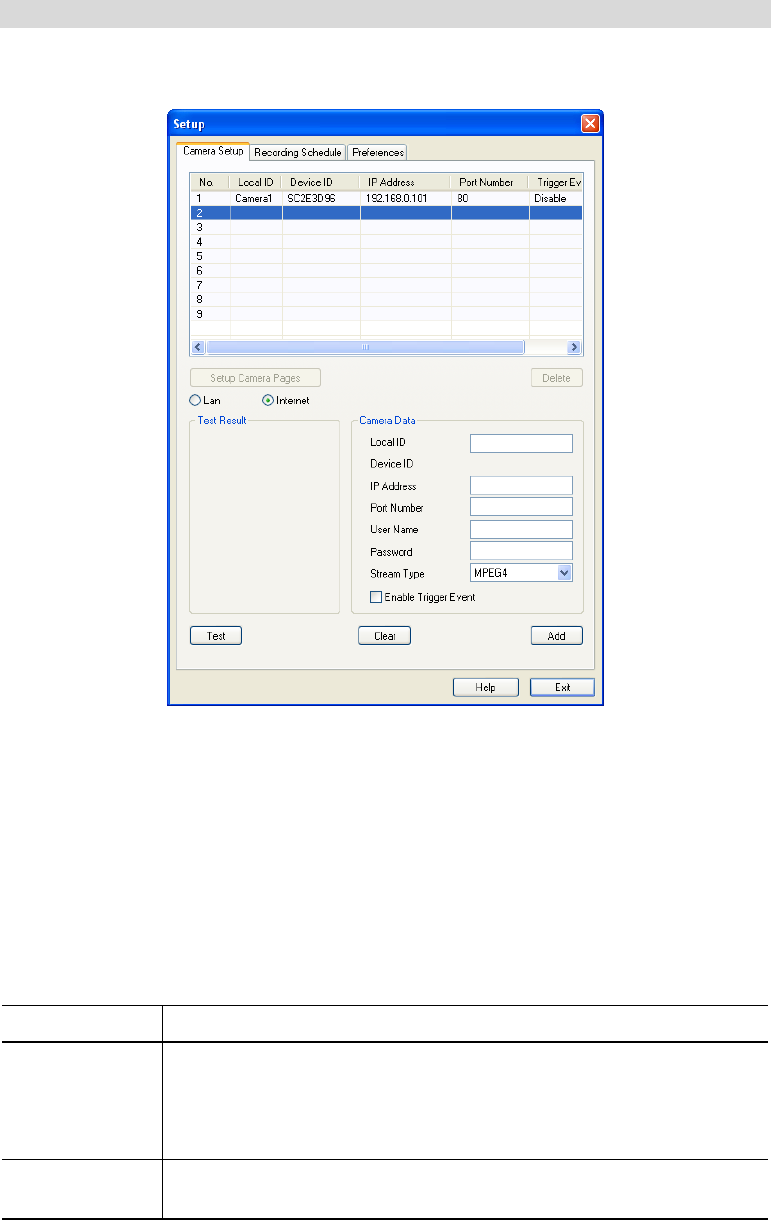

Camera Setup ..................................................................................................................64
ii
Monitor Program - for Streams Live Viewing..............................................................68
Recorder Program - for Streams Recording.................................................................70
CHAPTER 7 TROUBLESHOOTING ..................................................................................75
Overview ..........................................................................................................................75
Problems...........................................................................................................................75
APPENDIX A SPECIFICATIONS........................................................................................77
Network Camera .............................................................................................................77
Regulatory Approvals.....................................................................................................77
Copyright Notice..............................................................................................................78
APPENDIX B STREAMING VIDEO/AUDIO SOLUTION...............................................93
Overview ..........................................................................................................................93
Streaming Video/Audio through Internet Camera.......................................................93
P/N: 956YFF0001
Copyright © 2009. All Rights Reserved.
Document Version: 1.3
All trademarks and trade names are the properties of their respective owners.
1
Chapter 1
Introduction
This Chapter provides details of the Network Camera's features, components
and capabilities.
Overview
The Network Camera has an Integrated Microcomputer and a high quality CMOS digital-
Image-Sensor, enabling it to display high quality live streaming video over your wired LAN,
the Internet, and for the Network Camera, an 802.11g Wireless LAN.
Using enhanced MPEG-4 technologies, the Network Camera is able to stream high quality
video and audio directly to your PC. The high compression capabilities of MPEG-4 reduce
network bandwidth requirements to amazingly low levels.
A convenient and user-friendly Windows program is provided for both viewing and recording
video. If necessary, you can even view video using your Web Browser, on a variety of software
platforms.

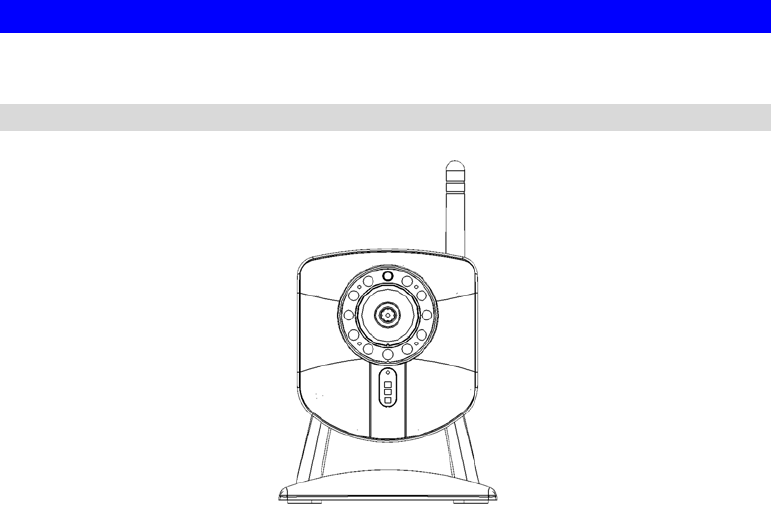

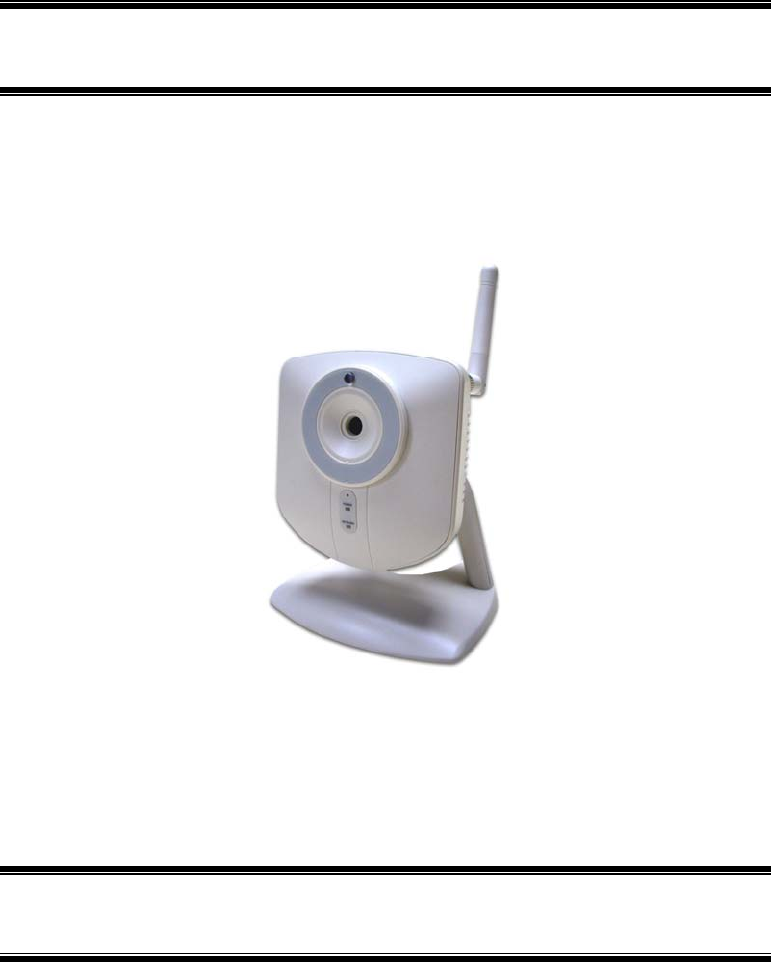

Figure 1: Network Camera
Features
• Standalone Design. The Network Camera is a standalone system with built-in CPU and
Video encoder. It requires only a power source and a connection to your LAN or Wireless
LAN.
• Dual Video Support. The Network Camera can support both MEPG4 and MJEPG video
for different image compression.
1
2
• Stream Live Video to Multiple Users. The MPEG4 encoder and HTTP server built
into the camera generate a ready-to-view video stream. Just connect to the camera using
your Web browser or the provided Windows utility to view live video.
• Suitable for Home, Business or Public Facilities. Whether for Home, Business or
Public Facility surveillance, or just for entertainment and fun, the Network Camera has the
features you need.
• Multi-Protocol Support. Supporting TCP/IP networking, SMTP (E-mail), HTTP and
other Internet related protocols, the Network Camera can be easily integrated into your
existing network.
• Easy Configuration. A Windows-based Wizard is provided for initial setup.
Subsequent administration and management can be performed using a standard web
browser. The administrator can configure and manage the Network Camera via the LAN
or Internet.
• Viewing/Recording Utility. A user-friendly Windows utility is provided for viewing
live video. For periods when you are absent, or for scheduled recording, this application
also allows you to record video to an ASF file on your PC. The recorded files are in a
standard Windows Media format, and thus usable by a wide variety of programs if
required.
• Motion Detection. This feature can detect motion in the field of view. The Network
Camera will compare consecutive frames to detect changes caused by the movement of
large objects. This function only works indoors due to the sensitivity of the CMOS sensor.
When motion is detection, an E-mail alert can be sent, or some other action may be
triggered.
• Flexible Scheduling. You can limit access to the video stream to specified times using
a flexible scheduling system. The Motion Detection feature can also have its own schedule,
so it is active only when required.
• Syslog Support. If you have a Syslog Server, the Network Camera can send its log data
to your Syslog Server.
• Audio Support. You can listen as well as look! Audio is encoded with the video if
desired. You can use either the built-in microphone or an external microphone.
Internet Features
• User-definable HTTP port number. This allows Internet Gateways to use "port
mapping" so the Network Camera and a Web Server can share the same Internet IP
address.
• DDNS Support. In order to view video over the Internet, users must know the Internet
IP address of the gateway used by the Network Camera. But if the Gateway has a dynamic
IP address, DDNS (Dynamic DNS) is required. Since many existing Gateways do not
support DDNS, this function is incorporated into the Network Camera.
• NTP (Network-Time-Protocol) Support. NTP allows the Network Camera to
calibrate its internal clock from an Internet Time-Server. This ensures that the time stamp
on Video from the Network Camera will be correct.
Security Features
• User Authentication. If desired, access to live video can be restricted to known users.
Users will have to enter their username and password before being able to view the video
stream. Up to 5 users can be entered.
• Password-Protected Configuration. Configuration data can be password protected, so
that it only be changed by the Network Camera Administrator.
3
Wireless Features (Wireless Model Only)
• Standards Compliant. The Network Camera complies with the IEEE802.11g (DSSS)
specifications for Wireless LANs.
• Supports both 802.11b and 802.11g Standards. The Network Camera supports both
802.11b and 802.11g standards.
• Speeds to 54Mbps. All speeds up to the 802.11g maximum of 54Mbps are supported.
• Wired and Wireless Network Support. The Network Camera supports either wired or
wireless transmission.
• WEP Support. Full WEP support (64/128 Bit) on the Wireless interface is provided.
• WPA/WPA2 Support. The WPA Personal/WPA2 Personal standard is also supported,
allowing advanced encryption of wireless data.
• WPS Support. WPS (Wi-Fi Protected Setup) can simplify the process of connecting any
device to the wireless network by using the push button configuration (PBC) on the
Wireless Access Point, or entering a PIN code if there's no button.
4
Physical Details - Network Camera
Front - Network Camera
Figure 2: Front Panel
Privacy Button On (Green) - The privacy button is activated.
Off - The privacy button is not in use.
Lens No physical adjustment is required or possible for the lens, but you
should ensure that the lens cover remain clean. The image quality is
degraded if the lens cover is dirty or smudged.
Microphone The built-in microphone is mounted on the front.
Reset Button This button is recessed; you need a pin or paper clip can be used to
depress it. It can be activated at any time the camera is in the
"ready" mode.
• Reset to manufacturer default valued and reboot. When
pressed and held over 10 seconds, the settings of Network
Camera will be set to their default values.
Note:
After this procedure is completed, the Power LED will blink three
times to confirm that the reset was completed successfully.
Power LED
(Green) On - Power on.
Off - No power.
Blinking - The Power LED will blink during start up. This will take
15 to 20 seconds.
5
Network LED
(Green, Amber) On (Green) - Wireless or LAN connection is available.
Off - Wireless or LAN is not connected or camera is not
sending/receiving data.
Blinking (Green) - Data is being transmitted or received via the
LAN or Wireless connection.
On (Amber) - If the LED is on, the WPS is not processing
successfully.
Blinking (Amber) - WPS function is being processed.

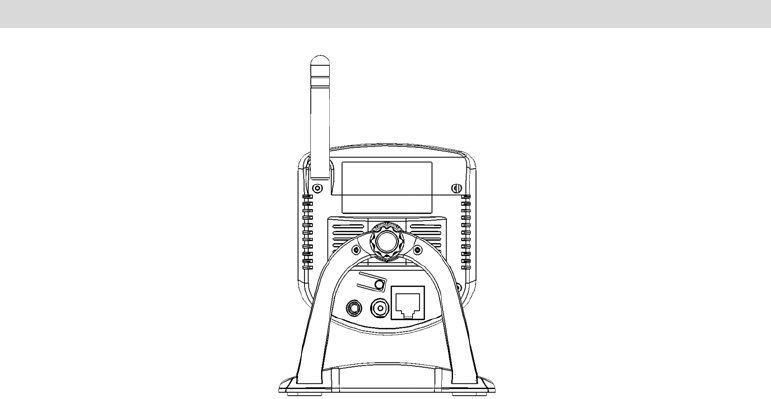

Rear - Network Camera
Figure 3: Rear Panel
Antenna Attach the supplied antenna here. The antenna is adjustable; best
results are usually obtained with the antenna positioned vertically.
Speaker out If required, an external speaker can be plugged in here.
Power Input Connect the supplied 5V power adapter here. Do not use other
power adapters; doing so may damage the camera.
LAN port Use a standard LAN cable to connect your Network Camera to a
10/100BaseT hub or switch.
Note:
• Plugging in the LAN cable will disable the Wireless interface.
Only 1 interface can be active at any time.
• The LAN cable should only be connected or disconnected when
the camera is powered OFF. Attaching or detaching the LAN
cable while the camera is powered on does NOT switch the
interface between wired and wireless.
WPS Button
(Wireless Model
Only)
Push the WPS button on the device and on your other wireless
device to perform WPS function that easily creates an encryption-
secured wireless connection automatically.
• WPS PBC Mode. When pressed and released (less then 3
seconds), the Network Camera will be in the WPS PBC mode
(Auto link mode).
• WPS Pin Code Mode. When pressed and held for over 3
6
seconds, the Network Camera will be in the WPS Pin Code
mode.
Package Contents
The following items should be included: If any of these items are damaged or missing, please
contact your dealer immediately.
1. Network Camera
2. Antenna (Wireless Model Only)
3. Power adapter
4. Installation CD-ROM
5. Quick Installation Guide
7
Chapter 2
Basic Setup
This Chapter provides details of installing and configuring the Network
Camera.
System Requirements
• To use the wired LAN interface, a standard 10/100BaseT hub or switch and network cable
is required.
• To use the Wireless interface on the wireless model, other Wireless devices must be
compliant with the IEEE802.11b or IEEE802.11g specifications. All Wireless stations
must use compatible settings.
The default Wireless settings are:
Mode: Infrastructure
SSID: ANY
Wireless Security: Disabled
Domain: USA
Channel No.: Auto
Figure 4: Installing Diagram
2
8
Installation - Network Camera
1. Assemble the Camera
Screw the supplied antenna to the mounting point on the rear.
Attach the Camera Mount to the camera.
2. Connect the LAN Cable
Connect the Network Camera to a 10/100BaseT hub or switch, using a standard LAN
cable.
For the Wireless Model, this will disable the Wireless Interface.
The Wireless and LAN interfaces cannot be used
simultaneously. Using the LAN interface is recommended for
initial configuration. After the Wireless settings are correct,
the Wireless interface can be used.
The first time you connect to the camera, you should connect
the LAN cable and configure the Network Camera with
appropriate settings. Then you can unplug the LAN cable and
power off the camera. The Network Camera will be in wireless
interface when you power on the camera again.
3. Power Up
Connect the supplied 5Vpower adapter to the Network Camera and power up. Use only the
power adapter provided. Using a different one may cause hardware damage.
4. Check the LEDs
• The Power LED will turn on briefly, then start blinking. It will blink during startup, which
takes 15 to 20 seconds. After startup is completed, the Power LED should remain ON.
• The Network LED should be ON.
For more information, refer to Physical Details - Network Camera in Chapter 1.
9
Setup using the Windows Wizard
Initial setup should be performed using the supplied Windows-based setup Wizard. This
program can locate the Network Camera even if its IP address is invalid for your network. You
can then configure the Network Camera with appropriate TCP/IP settings for your LAN.
Subsequent administration can be performed with your Web browser, as explained in Chapter
5 - Web-based Management.
Setup Procedure
1. Insert the supplied CD-ROM into your drive. If the setup program does not start
automatically, run NetworkCamera.exe in the root folder.
• You will see the Welcome screen shown below.
• Click the Setup Camera button to start the setup Wizard
Figure 5: Welcome Screen
2. The next screen, shown below, will list all the Network Cameras on your LAN.
Figure 6: Camera List Screen
10
• Select the desired Camera from the list on the left. The current settings for the selected
Camera will be displayed in the table on the right.
• Click Next to continue.
3. You will be prompted to enter the Administrator Name and Administrator Password, as
shown below.
• If using the default values, enter administrator for the name, and leave the
password blank.
• Otherwise, enter the Administrator Name and Administrator Password set on the
Maintenance screen.
Figure 7: Password Dialog
4. This screen allows you to enter a suitable Description, and set the correct Time Zone,
Date, and Time. Make any desired changes, then click Next to continue.
Figure 8: Camera Settings
5. On the following IP Address Settings screen, shown below, choose Fixed IP Address or
Dynamic IP Address.
11
Figure 9: Fixed or Dynamic IP Selection
• Fixed IP Address is recommended, and can always be used.
• Dynamic IP Address can only be used if your LAN has a DCHP Server.
• Enable the Set Wireless check box if you want to configure the Wireless settings.
(Wireless Model Only)
Click Next to continue.
6. If you chose Fixed IP Address, the following TCP/IP Settings screen will be displayed.
Figure 10: TCP/IP Settings
• Enter an unused IP Address from within the address range used on your LAN.
• The Subnet Mask and Default Gateway fields must match the values used by PCs on
your LAN.
• The Primary DNS address is required in order to use the E-mail alert or Dynamic
DNS features. Enter the DNS (Domain Name Server) address recommended by your
ISP.
• The Secondary DNS is optional. If provided, it will be used if the Primary DNS is
unavailable.
12
Click Next to continue.
7. If you enable Set Wireless, the following Site Survey screen will be displayed.
Figure 11: Site Survey Screen
• Select the desired Access Point. If the Access Point does not show up, click the
Refresh button.
• If you select the Manual Setup, click Next to move to the Security Setting screen.
Select the desired Security method (Disabled, WEP or WPA/WPA2 Personal) in the
screen and enter the required data.
8. The next screen, shown below, displays all details of the Network Camera.
• Click Next if the settings are correct
• Click Back to modify any incorrect values.
Figure 12: Save Settings
9. Click OK to confirm that you want to save the new settings. If you want to cancel your
changes, click Cancel.
13
Figure 13: Confirm Screen
10. After clicking OK, you will see the screen below.
Figure 14: Final Screen
Clicking the Install Utility button will install the Viewing/Recording utility described in
Chapter 6 - Windows Viewing/Recording Utility.
11. Click Exit to end the Wizard.
Setup is now complete.
14
Chapter 3
Viewing Live Video
This Chapter provides basic information about viewing live video.
Overview
After finishing setup via the Windows-based Wizard, all LAN users can view live video using
Internet Explorer on Windows.
This Chapter has details of viewing live video using Internet Explorer.
But many other powerful features and options are available:
• To view multiple cameras simultaneously, or record video (either interactively or by
schedule), you should install the Windows Viewing/Recording utility. Refer to Chapter 6 -
Windows Viewing/Recording Utility for details on installing and using this program.
• The camera administrator can also adjust the Video Stream, and restrict access to the video
stream to known users by requiring viewers to supply a username and password. See
Chapter 4 - Advanced Viewing Setup for details.
• To make Live Video from the camera available via the Internet, your Internet Gateway or
Router must be configured correctly. See Making Video available from the Internet in
Chapter 4 - Advanced Viewing Setup for details.
Requirements
To view the live video stream generated by the Network Camera, you need to meet the
following requirements:
• Windows 98/98SE, Windows 2000, Windows XP.
• Internet Explorer 6 or later.
Connecting to a Camera on your LAN
To establish a connection from your PC to the Network Camera:
1. Use the Windows utility to get the IP address of the Network Camera.
2. Start Internet Explorer.
3. In the Address box, enter "HTTP://" and the IP Address of the Network Camera.
4. When you connect, the following screen will be displayed.
3
15
Figure 15: Home Screen
5. Click View Video.
6. If the Administrator has restricted access to known users, you will then be prompted for a
username and password.
Enter the name and password assigned to you by the Network Camera administrator.
7. The first time you connect to the camera, you will be prompted to install an ActiveX
component (OCX or CAB file), as in the example below.
You must install this ActiveX component (OCX or CAB file) in order to view the
Video stream in Internet Explorer.
Click the "Yes" button to install the ActiveX component.
Figure 16: ActiveX OCX Prompt
8. Video will start playing automatically. There may be a delay of a few seconds while the
video stream is buffered.
16
Connecting to a Camera via the Internet
You can NOT connect to a camera via the Internet unless the camera
Administrator has configured both the camera and the Internet Gateway/Router
used by the camera.
See Making Video available from the Internet in Chapter 4 - Advanced Viewing Setup for
details of the required configuration.
Also, you need a broadband Internet connection to view video effectively. Dial-up connections
are NOT supported.
To establish a connection from your PC to the Network Camera via the Internet:
1. Obtain the following information from the Administrator of the camera you wish to
connect to:
• Internet IP Address or Domain Name of the camera.
• Port number for HTTP connections.
• Login (username, password) if required.
2. Start Internet Explorer.
3. In the Address box, enter the following:
HTTP://Internet_Address:port_number
Where Internet_Address is the Internet IP address or Domain Name of the camera,
and port_number is the port number used for HTTP (Web) connections to the camera.
Examples using an IP address:
HTTP://203.70.212.52:1024
Where the Internet IP address is 203.70.212.52 and the HTTP port number is 1024.
Example using a Domain Name:
HTTP://mycamera.dyndns.tv:1024
Where the Domain name (using DDNS in this example) is mycamera.dyndns.tv and
the HTTP port number is 1024.
17
4. When you connect, the following screen will be displayed.
Figure 17: Home Screen
5. Click View Video.
6. If the Administrator has restricted access to known users, you will then be prompted for a
username and password.
Enter the name and password assigned to you by the Network Camera administrator.
7. The first time you connect to the camera, you will be prompted to install an ActiveX
component (OCX or CAB file), as in the example below.
You must install this ActiveX component (OCX or CAB file) in order to view the
Video stream in Internet Explorer.
Click the "Yes" button to install the ActiveX component.
Figure 18: ActiveX OCX Prompt
8. Video will start playing automatically. There may be a delay of a few seconds while the
video stream is buffered.
18
Viewing Live Video
After installing the ActiveX component, you will be able to view the live video stream in its
own window, as shown below.
Figure 19: View Video Screen
There are a number of options available on this screen, accessed by select list, button or icon.
See the table below for details.
Note: The options can only be configured while using IE browser. Other browsers can just
view the video rather than configuration.
General Options
These options are always available, regardless of the type of camera you are connected to.
Resolution. Use this drop-down list to select the desired video size.
Zoom. A digital zoom feature is available. To zoom in on a section of the
window, click this icon. Then use your mouse to select the section you want
to magnify. Click the icon again to disable the zoom feature.
Snapshot. Click this to take a single JPEG "snapshot" image of the current
video.
Flip. Click this to have the image swapped top-to-bottom.
Mirror. Click this to have the image swapped left-to-right.
Audio On. This icon is displayed if audio is On. Click on the icon to turn
audio Off.
Volume. If audio is enabled, use this slider to adjust the volume.
19
Setup. Select the desired setup format from the drop-down list.
20
Chapter 4
Advanced Viewing Setup
This Chapter provides information about the optional settings and features for
viewing video via the Network Camera. This Chapter is for the Camera
Administrator only.
Introduction
This chapter describes some additional settings and options for viewing live Video:
• Adjusting the video image
• Controlling user access to the live video stream
• Making video available from the Internet
• Using the Motion Detection feature
Adjusting the Video Image
If necessary, the Network Camera Administrator can adjust the Video image.
To Adjust the Video Image:
1. Connect to the Web-based interface of the Network Camera. (See Chapter 5 - Web-based
Management for details.)
2. Select Administration, then Video Image. You will see a screen like the example below.
Figure 20: Video Image Screen
4
21
3. Make the required adjustments, as explained below, and save your changes.
MPEG-4 Settings
Resolution Select the desired video resolution format. The default resolution is
set to 320*240.
Video Quality
Control
• Constant Bit Rate: Select the desired bit rate. The default is set
to 256 Kbps.
• Fixed Quality: Select the desired option. The default fix quality
is set to Normal.
Max. Frame Rate Select the desired Maximum bandwidth for the video stream. Note
that you can specify EITHER the Bandwidth OR the Frame Rate,
not both. If the Bandwidth is defined, the frame rate will be adjusted
as necessary to achieve the specified frame rate.
The default value for bandwidth is 30.
MJPEG Settings
Resolution Select the desired video resolution format. The default resolution is
set to 320*240.
Fixed Video
Quality Select the desired fix quality. The default fix quality is set to
Normal.
Max. Frame Rate Select the desired Maximum bandwidth for the video stream. Note
that you can specify EITHER the Bandwidth OR the Frame Rate,
not both. If the Bandwidth is defined, the frame rate will be adjusted
as necessary to achieve the specified frame rate.
The default value for bandwidth is 30.
Mobil Settings
Enable Mobil
Streaming Enable streaming video for the mobile device by checking this
checkbox.
Resolution The default resolution is set to 160x120.
Video Quality
Control
• Constant Bit Rate: Select the desired fix bit rate.
• Fixed Quality: Select the desired option. The default fix quality
is set to Normal.
Max. Frame Rate Select the desired Maximum bandwidth for the video stream.
Access Code Enter the code for accessing the live video from camera through cell
phone connection.
Video Adjustment
Power Line
Frequency Select the power line frequency (50Hz or 60Hz) used in your region,
to improve the picture quality under florescent lighting.
White Balance Select the desired option to match the current environment and
lighting.
Lighting Condition Select the desired option to match the current lighting condition.
Brightness If necessary, you can adjust the brightness to obtain a better image.
For example, if the camera is facing a bright light, the image may be
too dark. In this case, you can increase the brightness.
22
Sharpness Select the desired option for the sharpness. You can select a
Sharpness value between -3 and 3.
Options
Microphone Enable audio by checking this checkbox. Using Audio will increase
the bandwidth requirements slightly.
Audio Type Select the desired audio type.
Speaker Enable speaker sound by checking this checkbox.
Flip This setting will have the image swapped top-to-bottom.
Mirror This setting will have the image swapped left-to-right.
Time Stamp If enabled, the current time will be displayed on the Video image.
Text Display Enable this setting if you want text to be displayed on the Video
image, and enter the desired text - up to 20 characters. This feature
is often used to identify each camera when multiple cameras are
installed.
23
Viewing the live Video on your cell phone
The live streaming of the Network Camera can even be viewed from a compatible cell phone,
so you can keep an eye on things almost everywhere you go. It’s just as easy as following the
required steps.
To Adjust the Mobile Settings
1. Connect to the Web-based interface of the Network Camera. (See Chapter 5 - Web-based
Management for details.)
2. Select Administration, then Video & Audio. You will see a screen like the example below.
Figure 21: Mobile Settings
3. Check the checkbox of Enable Mobile Streaming and configure the related settings in the
Mobile Settings section, as explained below. Save your changes.
Mobil Settings
Enable Mobil
Streaming Enable streaming video for the mobile device by checking this
checkbox.
Resolution The default resolution is set to 160x120.
Video Quality
Control
• Constant Bit Rate: Select the desired fix bit rate.
• Fixed Quality: Select the desired option. The default fix quality
is set to Normal.
Max. Frame Rate Select the desired Maximum bandwidth for the video stream.
Access Code Enter the code for accessing the live video from camera through cell
phone connection.
Connecting Cell Phone to the Network Camera
A number of different mobile handsets are compatible with the Network Camera. Follow the
suggested steps (steps may differ according to the mobile phone you use).
Before connecting to the cell phone, please make sure the following:
• Mobile phone should be supported by 3GPP protocol.
• Camera Web management - RTSP port number needs to be entered. Default is 554.
• Access code: 8 digits (0~9)
24
Steps:
1. Start IE
2. Select Add Bookmark
3. Click Edit
4. Enter desired value for Subject or leave it blank
5. Enter the camera’s IP address into the Address box.
RTSP://Internet_Address:port_number
6. Click Play
25
Controlling User Access to the Video Stream
By default, anyone can connect to the Network Camera and view live Video at any time.
If desired, you can limit access to scheduled times, and also restrict access to known users.
To Control User Access to Live Video:
1. Connect to the Web-based interface of the Network Camera. (See Chapter 5 - Web-based
Management for details.)
2. Select Administration, then Video Access.
3. Set the desired options for Access.
Access
If the Video Access is disabled, users cannot connect using either their Web Browser or the
Windows utility. However, viewing video is still possible by logging in as the Administrator.
Figure 22: Controlling User Access
See Chapter 5 - Web-based Management for further details about using the Video Access and
User Database screens.
26
Making Video available from the Internet
If your LAN is connected to the Internet, typically by a Broadband Gateway/Router and
Broadband modem, you can make the Network Camera available via the Internet. You will
need to configure your Router or Gateway to allow connections from the Internet to the camera.
Router/Gateway Setup
Your Router or Gateway must be configured to pass incoming TCP (HTTP) connections (from
Internet Viewers) to the Network Camera. The Router/Gateway uses the Port Number to
determine which incoming connections are intended for the Network Camera.
This feature is normally called Port Forwarding or Virtual Servers, and is illustrated below.
The Port Forwarding/Virtual Server entry tells the Router/Gateway that incoming TCP
connections on port 1024 should be passed to the Network Camera. If necessary, check the
user manual for your Router/Gateway for further details.
Figure 23: Connecting via the Internet
The "Port" for the Port Forwarding / Virtual Server entry
above is the " Secondary Port" number specified on the
Network screen of the Network Camera.
27
Network Camera Setup
The Network Camera configuration does NOT have be changed, unless:
• You wish to change the port number from the default value (1024).
• You wish to use the DDNS (Dynamic DNS) feature of the Network Camera.
HTTP Port Configuration
Normally, HTTP (Web) connections use port 80. Since the Network Camera uses HTTP, but
port 80 is likely to be used by a Web Server, you can use a different port for the Network
Camera. This port is called the Secondary Port.
The default Secondary Port is 1024. If you prefer to use a different port number, you can
specify the port number on the Network Camera's Network screen, as shown below.
Figure 24: Network Screen
See Chapter 5 - Web-based Management for further details on using the Network screen.
Viewers need to know this port number in order to connect
and view live Video, so you must inform viewers of the
correct port number.
DDNS (Dynamic DNS)
Many internet connections use a "Dynamic IP address", where the Internet IP address is
allocated whenever the Internet connection is established.
This means that other Internet users don't know the IP address, so can't establish a connection.
DDNS is designed to solve this problem, by allowing users to connect to your LAN using a
domain name, rather than an IP address.
To use DDNS:
1. Register for the DDNS service with a supported DDNS service provider. You can then
apply for, and be allocated, a Domain Name.
2. Enter and save the correct DDNS settings on the DDNS screen of the Network Camera.
3. Both Router and Camera should use the same port number for DDNS service.
28
Figure 25: DDNS Screen
4. Operation is then automatic:
• The Network Camera will automatically contact the DDNS server whenever it detects
that the Internet IP address has changed, and inform the DDNS server of the new IP
address.
• Internet users can then connect to the camera using the Domain Name allocated by the
DDNS service provider.
Example: http://normanyu123456789.dyndns.org:6016
normanyu123456789.dyndns.org is domain host name. 6016 is the port number.
29
Viewing Live Video via the Internet
Clients (viewers) will also need a broadband connection; dial-up connections are NOT
recommended.
Viewing Live Video Using your Web Browser
If using your Web browser, you need to know the Internet IP address (or the Domain name) of
the camera's Router/Gateway, and the correct port number.
Enter the Internet address of the Router/Gateway, and its port number, in the Address (or
Location) field of your Browser.
Example - IP address:
HTTP://203.70.212.52:1024
Where the Router/Gateway's Internet IP address is 203.70.212.52 and the "Secondary
Port" number on the Network Camera is 1024.
Example - Domain Name:
HTTP://mycamera.dyndns.tv:1024
Where the Router/Gateway's Domain name is mycamera.dyndns.tv and the "Secondary
Port" number on the Network Camera is 1024.
Viewing Live Video with the Viewing/Recording Utility
If using the Windows Viewing/Recording Utility, the details of the Network Camera must be
entered on the Camera Setup screen.
Figure 26: Add Camera from Internet
See Chapter 6 - Window Viewing/Recording Utility for full details on using the Windows
Viewing/Recording utility.
30
Motion Detection Alerts
The Motion Detection feature can generate an Alert when motion is detected.
The Network Camera will compare consecutive frames to detect changes caused by the
movement of large objects.
But the motion detector can also be triggered by:
• Sudden changes in the level of available light
• Movement of the camera itself.
Try to avoid these situations. The motion detection feature works best in locations where there
is good steady illumination, and the camera is mounted securely. It cannot be used outdoors
due to the sensitivity of the CMOS sensor.
Note: The Motion Detection settings can only be configured while using IE browser.
To Use Motion Detection Alerts
Using the Web-based interface on the Network Camera, select the Motion Detection screen,
then configure this screen as described below.
Figure 27: Motion Detection
1. Enable the Motion Detection feature.
2. Set the area or areas of the video image to be examined for movement. You can define up
to 4 areas, and set the motion threshold individually for each area.
3. If using a schedule, define the desired schedule in Event Trigger screen.
4. Save your changes.
5. Select the E-Mail screen to have alerts sent by E-mail:
• Enable and enter at least one (1) E-mail address
• Select or enter the desired options for Video Attachment, Show "From" as and Subject
fields.
31
• Enter details of the SMTP Server used to send the E-mail.
If the Motion Detection feature is enabled, but E-Mail is not
enabled, then the only action when motion is detected is to
log this event in the system log.
32
Chapter 5
Web-based Management
This Chapter provides Setup details of the Network Camera’s Web-based
Interface. This Chapter is for the Camera Administrator only.
Introduction
The Network Camera can be configured using your Web Browser. The Network Camera must
have an IP address which is compatible with your PC.
The recommended method to ensure this is to use the supplied Windows-based Wizard, as
described in Chapter 2 - Basic Setup.
Connecting to Network Camera
• If you have run the Windows-based setup Wizard, the final screen provided a button Web
UI. Clicking this button will immediately connect to the Network Camera, using your Web
Browser.
• If using only your Web Browser, use the following procedure to establish a connection
from your PC to the Network Camera:
• Once connected, you can add the Network Camera to your Browser's Favorites or
Bookmarks.
Connecting using your Web Browser
1. Use the Windows utility to get the IP address of the Network Camera.
2. Start your WEB browser.
3. In the Address box, enter "HTTP://" and the IP Address of the Network Camera.
4. You will then be prompted for a username and password.
• If using the default values, enter administrator for the name, and leave the
password blank.
• Otherwise, enter the Administrator ID and Administrator Password set on the
Maintenance screen.
5
33
Welcome Screen
When you connect, the following screen will be displayed.
Figure 28: Welcome Screen
The menu options available from this screen are:
• View Video - View live Video using your Web Browser. See Chapter 3 - Viewing Live
Video for details.
• Administration - Access the Administration menu.
34
Administration Menu
Clicking on Administration on the menu provides access to all the settings for the Network
Camera.
The Administration menu contains the following options:
Setup
• System
• Network
• Wireless (Wireless Model Only)
• DDNS
Video Stream
• Video & Audio
• Video Access
• User Database
Event
• Motion Detection
• E-Mail
• FTP
• HTTP
• Event Trigger
Administration
• Maintenance
• Status
• Log
35
System Screen
After clicking Administration on the main menu, or selecting System on the Administration
menu, you will see a screen like the example below.
Figure 29: System Screen
Data - System Screen
System Settings
Device ID This displays the ID for the Network Camera.
Camera Name Enter the desired name for the Network Camera.
Description This field is used for entering a description, such as the location of the
Network Camera.
Date & Time
Date Format Select the desired date format, it will also be used to display the date
and time as an overlay on the video image.
The abbreviations used to predefine the date formats are list as follows:
• YYYY-MM-DD = Year-Month-Day, e.g. 2006-01-31
• MM/DD/YYYY = Month/Day/Year, e.g. 01/31/2006
• DD/MM/YYYY = Day/Month/Year, e.g. 31/01/2006
36
Current
Date & Time This displays the current date and time on the camera.
If it's not correct, click the Change button to modify the date/time
settings. This button will open a sub-screen where you have 2 options:
• Set the camera's date and time to match your PC.
• Enter the correct date and time.
Time Zone Choose the Time Zone for your location from the drop-down list.
If your location is currently using Daylight Saving, enable the Adjust
for daylight saving checkbox.
You must UNCHECK this checkbox when Daylight Saving
finishes.
Network Time
Protocol Enable or disable the Time Server feature as required.
If Enabled, the Network Camera will contact a Network Time Server at
regular intervals and update its internal timer.
NTP Server
Address Enter the address for the desired NTP server.
Update The Schedule determines how often the Network Camera contacts the
NTP Server.
Select the desired options.
LED Operation Enable this if you want to use this function.
Privacy Button If Enabled, click the Privacy button will stop uploading the stream
without turning the camera off. Click the button one more time to
continue uploading. The default is Enabled.
37
Network Screen
This screen is displayed when the Network menu option is clicked.
Figure 30: Network Screen
Data - Network Screen
Network
Obtain an IP
Address
Automatically
If selected, the Network Camera will obtain its IP address and
related information from a DHCP Server. Only select this option if
your LAN has a DHCP Server.
Use the following IP
Address If selected, you must assign the following data to the Network
Camera.
• IP Address - Enter an unused IP address from the address
range used on your LAN.
• Subnet Mask - Use the same value as PCs on your LAN.
• Default Gateway - Use the same value as PCs on your LAN.
Obtain DNS server
address
automatically
If selected, the Network Camera will use the DNS address or
addresses provided by the DHPC server.
This option is only available if the IP address setting is Obtain an
IP address Automatically.
38
Use the following
DNS server address Primary DNS server - Use the same value as PCs on your LAN.
Normally, your ISP will provide this address.
Secondary DNS server - This is optional. If entered, this DNS will
be used if the Primary DNS does not respond.
Secondary Port This sets the port number for HTTP (Web) connections to the
Camera, whether for administration or viewing video.
The secondary port can be used for DDNS, other service and when
more than 2 cameras are in use.
If enabled, you can connect using either port 80 or the Secondary
port. You must enter the Secondary port number (between 1024 to
65535) in the field provided.
Note that when using a port number which is not 80, you must
specify the port number in the URL. For example, if the Camera's
IP address was 192.168.1.100 and the Secondary port was 1024,
you would specify the URL for the Camera as follows:
http://192.168.1.100:1024
RTP/RTSP The RTSP (Real Time Streaming Protocol), a standard for
connected client(s) to control streaming data (MPEG-4) over the
World Wide Web. Enter the RTSP Port number (between 1024 and
65535) in the field provided. The default RTSP Port is 554.
The RTP (Real Time Transport Protocol), an Internet protocol for
transmitting real-time data such as audio and video.
Max RTP Data Packet field will let users limit the size of the file.
Enter the desired value between 400 and 1400.
Note: RTSP and RTP settings are for Mobil phone only.
Multicast RTP/RTSP
Enable Multicast Enable the feature as required.
Video Address Enter the address of video.
Video Port Enter the desired value (between 1024 to 65534) in the field
provided. The number you entered must be even values.
Audio Address Enter the address of the audio.
Audio Port Enter the desired value (between 1024 to 65534) in the field
provided. The number you entered must be even values.
Time to Live Enter the desired length of time, if the packets fail to be delivered
to their destination within. The Time to Live you entered must be
in-between 1 to 255.
UPnP
Enable Discovery If enabled, the Network Camera will broadcast its availability
through UPnP. UPnP compatible systems such as Windows XP will
then be able to detect the presence of the Network Camera.
Enable Traversal If enabled, HTTP connections (from your Web Browser or the
Viewer and Recorder utility) can use secondary port instead of port
80 (the standard HTTP port) to access the camera.
39
QoS
Enable QoS Mode If enabled, the throughput level (for Video and Audio) is
guaranteed through QoS (Quality of Service).
40
Wireless Screen (Wireless Model Only)
This screen is displayed when the Wireless menu option is clicked.
Figure 31: Wireless Screen
Data - Wireless Screen
Wireless Network
WSC PIN Code It displays the WSC PIN code number for the camera.
Network Type This determines the type of wireless communication used by the
Network Camera.
• If you have an Access Point, select Infrastructure.
• Otherwise, select Ad-hoc.
SSID This must match the value used by other devices on your wireless
LAN. The Default is ANY.
Note! The SSID is case sensitive.
Domain Select your region from the drop-down list.
Channel No. • In Infrastructure mode, this setting is ignored. The Network
Camera will use the Channel set on the Access Point.
• For Ad-hoc mode, select the Channel you wish to use on your
Network Camera. Other Wireless stations should use the same
setting.
• If you experience interference (shown by lost connections
and/or slow data transfers) you may need to experiment with
different channels to see which one is the best.
41
Security
Security System Select the desired option, and then enter the settings for the selected
method:
• Disabled - No security is used. Anyone using the correct SSID
can connect to your network. This is default.
• WEP - The 802.11b standard. Data is encrypted before
transmission, but the encryption system is not very strong.
• WPA/WPA2 Personal - Like WEP, data is encrypted before
transmission. WPA is more secure than WEP, and should be
used if possible. WPA Personal is the version of WPA which
does NOT require a Radius Server on your LAN.
WEP
Authentication Type Normally this can be left at the default value of "Automatic." If that
fails, select the appropriate value - "Open System" or "Shared
Key." Check your wireless card's documentation to see what
method to use.
Note: In Infrastructure mode, either setting will normally work,
since most Access Points can use both methods.
WEP Encryption Select the WEP Encryption level:
• 64 Bit Keys (10 Hex chars)
• 128 Bit Keys (26 Hex chars)
• 64 Bit Keys (5 ASCII chars)
• 128 Bit Keys (13 ASCII chars)
Passphrase Enter a word or group of printable characters in the Passphrase box
and click the "Generate Key" button to automatically configure the
WEP Key(s). If encryption strength is set to 64-bit, then each of the
four key fields will be populated with key values. If encryption
strength is set to 128-bit, then only the selected WEP key field will
be given a key value.
WEP Keys • Use the radio buttons to select the default key.
• Enter the key value you wish to use. Other stations must have
the same key values.
• Keys must be entered in Hex. Hex characters are the digits (0 ~
9) and the letters A ~ F.
• Click Clear Keys to set the Keys to be blank.
WPA/WPA2 Personal
Shared Key Enter the key value. Data is encrypted using a key derived from the
network key. Other Wireless Stations must use the same network
key. The PSK must be from 8 to 63 characters in length.
42
DDNS Screen
Many Internet connections use a "Dynamic IP address", where the Internet IP address is
allocated whenever the Internet connection is established.
This means that other Internet users don't know the IP address, so can't establish a connection.
DDNS is designed to solve this problem, as follows:
• You must register for the DDNS service with a DDNS service provider. The DDNS
Service provider will allocate a Domain Name to you upon request.
• The DDNS settings on the DDNS screen above must be correct.
• The Network Camera will then contact the DDNS server whenever it detects that the
Internet IP address has changed, and inform the DDNS server of the new IP address. (The
Check WAN IP Address determines how often the Network Camera checks if the Internet
IP address has changed.)
This system allows other internet users to connect to you using the Domain Name allocated by
the DDNS service provider.
This screen is displayed when the DDNS menu option is clicked.
Figure 32: DDNS Screen
Data - DDNS Screen
DDNS
Enable DDNS Enable or disable the DDNS function, as required.
Only enable this feature if you have registered for the DDNS
Service with a DDNS Server provider.
Service Provider Choose a service provider from the list.
43
Web Site Button Click this button to open a new window and connect to the Web
site for the selected DDNS service provider.
Domain (Host)
Name Enter the Domain Name (Host Name) allocated to you by the
DDNS Server provider.
Account/E-Mail Enter the login name for the DDNS account.
Password/Key Enter the password for the DDNS account.
Check WAN IP
Address Set the schedule for checking if the Internet IP address has
changed. If the IP address has changed, the DDNS Server will be
notified.
NOTE: If the DDNS Service provided some software to perform
this IP address update or notification, you should NOT use this
software. The update is performed by the camera.
44
Video Image Screen
This screen is displayed when the Video Image menu option is clicked.
If Mobile Streaming is enabled:
1. Mobile phone should be supported by 3GPP protocol.
2. Enter 554 for RTSP port number in the Network screen.
3. Enter the following address in the URL:
RTSP:// Router IP address / Access Code
4. Select 15 fps for Max Frame Rate.
Figure 33: Video Image Screen
45
Data - Video Image Screen
MPEG-4 Settings
Resolution Select the desired video resolution format. The default resolution is
set to 320*240.
Video Quality
Control
• Constant Bit Rate: Select the desired bit rate. The default is set
to 256 Kbps.
• Fixed Quality: Select the desired option. The default fix quality
is set to Normal.
Max. Frame Rate Select the desired Maximum bandwidth for the video stream. Note
that you can specify EITHER the Bandwidth OR the Frame Rate,
not both. If the Bandwidth is defined, the frame rate will be adjusted
as necessary to achieve the specified frame rate.
The default value for bandwidth is 30.
MJPEG Settings
Resolution Select the desired video resolution format. The default resolution is
set to 320*240.
Fixed Video
Quality Select the desired fix quality. The default fix quality is set to
Normal.
Max. Frame Rate Select the desired Maximum bandwidth for the video stream. Note
that you can specify EITHER the Bandwidth OR the Frame Rate,
not both. If the Bandwidth is defined, the frame rate will be adjusted
as necessary to achieve the specified frame rate.
The default value for bandwidth is 30.
Mobil Settings
Enable Mobil
Streaming Enable streaming video for the mobile device by checking this
checkbox.
Resolution The default resolution is set to 160x120.
Video Quality
Control
• Constant Bit Rate: Select the desired fix bit rate.
• Fixed Quality: Select the desired option. The default fix quality
is set to Normal.
Max. Frame Rate Select the desired Maximum bandwidth for the video stream.
Access Code Enter the 8-digit code (0~9) for accessing the live video from
camera through cell phone connection.
Video Adjustment
Power Line
Frequency Select the power line frequency (50Hz or 60Hz) used in your region,
to improve the picture quality under florescent lighting.
White Balance Select the desired option to match the current environment and
lighting.
Lighting Condition Select the desired option to match the current lighting condition.
Brightness If necessary, you can adjust the brightness to obtain a better image.
For example, if the camera is facing a bright light, the image may be
too dark. In this case, you can increase the brightness.
46
Sharpness Select the desired option for the sharpness. You can select a
Sharpness value between -3 and 3.
Options
Microphone Enable audio by checking this checkbox. Using Audio will increase
the bandwidth requirements slightly.
Audio Type Select the desired audio type.
Speaker Enable speaker sound by checking this checkbox.
Flip This setting will have the image swapped top-to-bottom.
Mirror This setting will have the image swapped left-to-right.
Time Stamp If enabled, the current time will be displayed on the Video image.
Text Display Enable this setting if you want text to be displayed on the Video
image, and enter the desired text - up to 20 characters. This feature
is often used to identify each camera when multiple cameras are
installed.
47
Video Access Screen
This screen is displayed when the Video Access option on the Administration menu is clicked.
Figure 34: Video Access Screen
Data - Video Access Screen
User Access
Enable Security
Checking
• If disabled (default) - No login required. Users do not have to
provide a username and password when they connect to the
camera for viewing video.
• If enabled - Require login. Users will be prompted for a
username and password when they connect to the camera for
viewing video. The camera administrator must use the "User
Database" menu option to create the desired users.
Video Access
Enable Scheduled
Video Access
• If enabled - Viewing video is available during the scheduled
periods, and unavailable at other times. If this option is selected,
you need to define a schedule. If no schedule is defined, this
option is always disabled.
• If disabled - The option will remain disabled until you enable it.
Note that regardless of which setting is chosen, the Administrator
can ALWAYS access the camera and view live video.
Access Schedule
Scheduled Periods This displays all periods you have entered into the database. If you
have not entered any periods, this list will be empty.
48
Delete Use the Delete button to delete the selected item in the list.
Add New Schedule
Day Choose the desired option for the period.
Start Time Enter the start time using a 24 hr clock.
End Time Enter the end time using a 24 hr clock.
Add Click this button to add a new period.
Clear Use this button to clear the input fields.
49
User Database Screen
This screen is displayed when the User Database option on the Administration menu is clicked.
Figure 35: User Database Screen
Data - User Database Screen
Existing Users
User List This displays all users you have entered into the User database. If
you have not entered any users, this list will be empty.
The maximum number of users is 20.
Edit, Delete, Delete
All Use these buttons to manage the user database.
User Properties
User Name Enter the name for the user here.
• Spaces, punctuation, and special characters must NOT be used
in the name.
• The name is case insensitive (case is ignored), so you can not
have 2 names which differ only by case.
User Password The password for this user.
Confirm Password Re-enter the password for the user, to ensure it is correct.
Add Button Click this button to add a new user, using the data shown on screen.
Clear Button Use this button to clear the input fields, ready to add a new user.
50
Motion Detection Screen
This screen is displayed when the Motion Detection option on the Event menu is clicked.
.
Figure 36: Motion Detection Screen
Data - Motion Detection Screen
Motion Detection
Set Detection Areas You can set the full screen or selected areas of the video image to be
examined.
Note: Motion detection can be triggered by rapid changes in lighting
condition, as well as by moving objects. For this reason, it should
only be used indoors.
Indicator/Threshol
d Administrator needs to adjust the relation between indicator and
threshold for each area.
51
E-Mail Screen
This screen is displayed when the E-Mail option on the Event menu is clicked.
.
Figure 37: E-Mail Screen
Data - E-Mail Screen
Primary/Secondary SMTP Server
SMTP Server
Address Enter the address of the SMTP (Simple Mail Transport Protocol)
Server to be used to send E-Mail.
Authentication Select the desired Authentication type for the SMTP Server.
SMTP Login name Enter your login name for the SMTP Server.
SMTP Password Enter your password for the SMTP Server.
POP server name Enter the name for the POP Server.
Show "From" as Enter the E-Mail address to be shown in the "From" field when the
E-Mail is received.
Secondary SMTP Check the box to upload to the Secondary SMTP if the camera can
not connect to the primary SMTP.
52
E-Mail Setup
E-mail Address Enter at least one (1) E-Mail address; the 2nd and 3rd addresses are
optional. The E-Mail alert will be sent to the E-Mail address or
addresses specified here.
Subject Enter the desired text to be shown as the "Subject" for the E-Mail
when it is received. Subject can not exceed 48 alphanumeric
characters.
53
FTP Screen
This screen is displayed when the FTP option on the Event menu is clicked.
Figure 38: FTP Screen
Data - FTP Screen
Primary/Secondary FTP
FTP Server Enter the address of the FTP Server.
Port Enter the Port of the FTP Server to be connected.
Login name Enter your login name for the FTP Server.
Password Enter your password for the FTP Server.
Enable Passive
Mode Check the box to enable the Passive mode feature of the FTP.
File Path Name Enter the file path/name of the FTP.
Secondary FTP Check the box to upload to the Secondary FTP if the camera can not
connect to the primary FTP.
54
HTTP Screen
This screen is displayed when the HTTP option on the Event menu is clicked.
Figure 39: HTTP Screen
Data - HTTP Screen
HTTP Notification
Enable Enable this checkbox to use the HTTP Notification.
URL Enter the URL of your HTTP notification server.
Proxy Server
Name Specify the proxy server name in the provided field if the camera
needs to pass through a Proxy Server to do the HTTP notification.
Port Number Enter the port number for the proxy server.
Method Select the desired method of form data encoding.
• Get - It should be used if and only if the form processing is
independent, which typically means a pure query form.
Generally it is advisable to do so.
• Post - If there are problems related to long URLs and non-ASCII
character repertoires, which can make it necessary to use
"POST" even for independent processing.
55
Event Trigger Screen
This screen is displayed when the Event Trigger option on the Event menu is clicked.
Figure 40: Event Trigger Screen
Data - Event Trigger Screen
Event Schedule
Schedule List The Event Schedule shows all of the event types currently
configured in the Network Camera, along with various information
about their configuration, as listed below:
• Name - the descriptive event name set by the user.
• Effective Time Frame - shows when the event at a set time will
be triggered.
• Trigger by - shows what kind trigger activate the event.
• Action - shows what kind of the actions will be issued when the
event been triggered
New Schedule
Effective Time
Frame Choose the desired option for the period.
Start Time Choose the desired start time using a 24 hr clock.
End Time Choose the desired end time using a 24 hr clock.
Trigger Event
Motion Detection If enabled, movement in a motion detection window can be used to
trigger events.
56
Interval Select the desired option for the events interval. (* "0" = No Delay)
Actions • E-Mail - If checked, an E-Mail (with "Attachment") will be
delivered to the SMTP server. (SMTP Server must be
configured on the E-Mail page.)
• FTP - If checked, an FTP upload will be activated to the FTP
server. (FTP servers must be configured on the FTP page.)
• HTTP - If checked, an Instant Messaging (IM) will be delivered
to the Jabber server. (Jabber server must be configured on the
Instant Messaging page.)
Attachment Type • JPEG Image:
Frame Rate - Select the desired capture rate (1~5) for the JPEG
image here.
Pre/Post Capture - Select the desired length. The snapshot(s) of
the JPEG image depends on this setting, and also the file size
and degree of compression.
• Video:
Video Format - Select the desired type for the video file.
Pre/Post Capture - Select the desired length. The size of the file
depends on this setting, and also the Video size and degree of
compression.
Note: The total length of Pre/Post Capture is 5 seconds that is limited
by the flash size.
57
Maintenance Screen
.
Figure 41: Maintenance Screen
Data - Maintenance Screen
Administrator Login
Administrator
ID Enter the name for the Administrator here.
Spaces, punctuation, and special characters must NOT be used in the
name.
Administrator
Password The password for the Administrator.
Verify Password Re-enter the password for the Administrator, to ensure it is correct.
Firmware Upgrade
Upgrade File Click the "Browse" button and browse to the location on your PC
where you stored the Firmware file. Select this file.
Start Click this button to start the Firmware. When the upgrade is finished,
the Network Camera will restart, and this management connection will
be unavailable during the restart.
Clear File Name This does NOT stop the Upgrade process if it has started. It only clears
the input for the "Upgrade File" field.
58
Backup & Restore
Backup
Configuration
File
Click Backup button to save the current configuration information to a
text file.
It is suggested to backup the configuration file, in order to restore the
camera easily.
Restore
Configuration
File
Click Restore button to reinitialize the camera to load the new updated
software. Do this after loading the upgrade file.
Clear File Name This does NOT stop the Restore process if it has started. It only clears
the input for the "Restore Configuration File" field.
Restore Factory
Defaults Click Defaults button to reloads all default settings on the camera.
Restart Camera Click Restart button to restarts the camera.
59
Status Screen
.
Figure 42: Status Screen
Data - Status Screen
System
Device Name This shows the name of the Network Camera.
Description This shows the description of the Network Camera, such as location.
F/W version The version of the current firmware installed.
Network
MAC Address The current IP address of the Network Camera.
IP Address The IP Address of the Network Camera.
Network Mask The network mask associated with the IP address above.
Gateway The IP Address of the remote Gateway associated with the IP Address
above.
Wireless (Wireless Model Only)
WSC PIN Dode It displays the current WSC PIN code.
60
Network Type This shows the Network Type currently in use (Ad-hoc or
Infrastructure).
SSID This displays the wireless SSID.
Channel This shows the wireless channel currently used.
Security The current security setting for Wireless connections.
Signal Strength This shows the strength of the signal.
MPEG-4/MJPEG
Resolution The image size of the video stream.
Video Quality This displays the image quality of the video stream.
Frame Rate This displays the frame rate of the video stream.
Buttons
Refresh Update the log and any other data on screen.
61
Log Screen
This screen displays a log of system activity.
.
Figure 43: Log Screen
Data - Log Screen
Log
System Log This is a log of system activity.
Refresh
Button Click this to update the data shown on screen.
Clear Log Click this button to restart the log.
Enable Syslog
Service Check the box to enable the System Log Server feature.
Syslog Server
Address Enter the address of the Syslog Server.
62
Chapter 6
Windows
Viewing/Recording Utility
This Chapter describes how to use the supplied Utilities package to view and
listen the live streams generated by the Network Camera.
Overview
The Utilities package includes following four functions:
• Monitor - to view/listen the live streams.
• Recorder - to record the live streams.
• Playback - to view the previous recordings.
• Configuration - to configure the Utilities such as adding camera, making recording
schedules and setting required parameters, etc..
The Utilities must be installed in the Windows before they can be configured.
Installation
1. Insert the supplied CD-ROM into your drive. If the setup program does not start
automatically, run NetworkCamera.exe in the root folder. You will see the Welcome
screen shown below.
Figure 44: Welcome Screen
2. Click the Install Utility button to start the installation of the Utilities package.
3. Follow the prompts to complete the installation.
6
63
4. After the installation, double click the Monitor icon on the desktop or click Monitor menu
item in the Windows main program menu to launch the Utilities.
System Tray Icon
When started, the program will create an icon in the Windows system tray on the taskbar, as
shown below.
Figure 45: System Tray Icon
You can right click the icon and it will provides a menu which allows you to launch Playback
program, view the recording schedule details or even exit the Utilities package.
Main Screen
When Utilities launched, the Monitor Manager screen like the example below will be displayed.
Figure 46: Main Screen
If no cameras have been defined and added to the Utilities, no video will be displayed. Utilities
should be configured first to view the camera streams. See the following section for
information on defining a camera. Note that each Camera is given a number (Channel Number).
64
Camera Setup
To define a camera and associate it with a Channel Number.
1. Click the Setup button on the main screen. You will see a screen like the example below.
Figure 47: Camera Setup Screen
2. Select the desired Channel number in the left (No.) column.
3. There are 2 radio buttons, for LAN or Internet. The default is LAN. See the following
section for details of the Internet option.
• The LAN panel, on the left, displays all available Network Cameras found on your
LAN automatically. This list can be updated by clicking the Refresh button. The
progress bar appears for initial use or clicking the Refresh button.
• The Camera Data panel, on the right, displays the data for the selected camera.
4. To associate a camera with the current Channel:
• Select a camera in the list on the left.
• It is required to enter the unique value of Local ID.
• Check that the Camera Data shown on the right is correct. Enter associated User
Name and Password.
Note: The IP Address, Port Number, User Name and Password can only be
modified in the WEB UI instead of Camera Setup screen. You can click the Setup
Camera Pages button to the WEB UI screens.
• Click the Add button. The camera will now appear in the Channel List.
65
Camera Data - LAN
Local ID This is the name you gave to this camera. This field must be entered.
Device ID This is the default name for the Wireless Network Camera, and cannot
be changed.
IP Address The current IP address of the Wireless Network Camera.
Port Number This will normally display "80". Only change this if requested to do so
by the Wireless Network Camera Administrator.
Login The camera Administrator can require that users provide a username and
password before being allowed to view the live video.
• If the Administrator has not enabled this option, the Login fields can
be left blank.
• Otherwise, you must enter the username and password allocated to
your by Administrator.
Stream Type Select the desired type from the drop-down list.
Setup Camera
Pages Click this button to connect the Web-based interface of the Camera
Enable Trigger
Event Check this if you want the Utilities to enable motion triggered recording.
Note: Event trigger setting in the camera must also be enabled to let the
event triggered recording of Utilities take effect.
You can add the same Camera twice, once for the LAN (using
the LAN IP address), and again for the Internet (using the
Internet IP address). This will allow viewing the camera whether
you are on the same LAN as the camera or in a remote location.
66
Adding Cameras on the Internet
If the Wireless Network Camera you wish to add is not on your LAN, but is available via the
Internet, click the Internet button. You will see a screen like the example below.
Figure 48: Add Camera from Internet
To associate a camera with the current Channel:
1. Enter the Local ID, IP Address, Port Number, User Name and Password in the Camera
Data section manually.
2. Click the Test button to check that a connection and login can be performed successfully.
Note that if the remote LAN does not currently have an Internet connection, or the remote
camera is not on-line, the test will fail because no connection is possible.
3. Click the Add button. The camera will now appear in the Channel List.
Camera Data - Internet
Local ID This is the name you gave to this camera. This field must be entered.
Device ID This is the default name for the Wireless Network Camera, and cannot
be changed.
This field will be displayed automatically once a connection to the
Wireless Network Camera has been established.
IP Address Enter the Domain Name or Internet IP address of the desired Wireless
Network Camera.
67
Port Number Enter the port number used by the Wireless Network Camera for
connections via the Internet The Camera Administrator can advise you
of the port to use. The default value is 1024.
Login The camera Administrator can require that users provide a username and
password before being allowed to view the live video.
• If the Camera Administrator has not enabled this option, the Login
fields can be left blank.
• Otherwise, you must enter the username and password allocated to
you by the Camera Administrator.
Stream Type Select the desired type from the drop-down list.
Setup Camera
Pages Click this button to connect the Web-based interface of the Camera
Enable Motion
Detection Check this if you want the Utilities to enable motion triggered recording.
Note: Event trigger setting in the camera must also be enabled to let the
event triggered recording of Utilities take effect.
You can add the same Camera twice, once for the LAN, and
again for the Internet. This will allow viewing the camera
whether you are on the same LAN as the camera or in a remote
location.
68
Monitor Program - for Streams Live Viewing
You can view live video in the Monitor screen. The built-in software can let you view up to 9
cameras on a single computer screen at one central location.

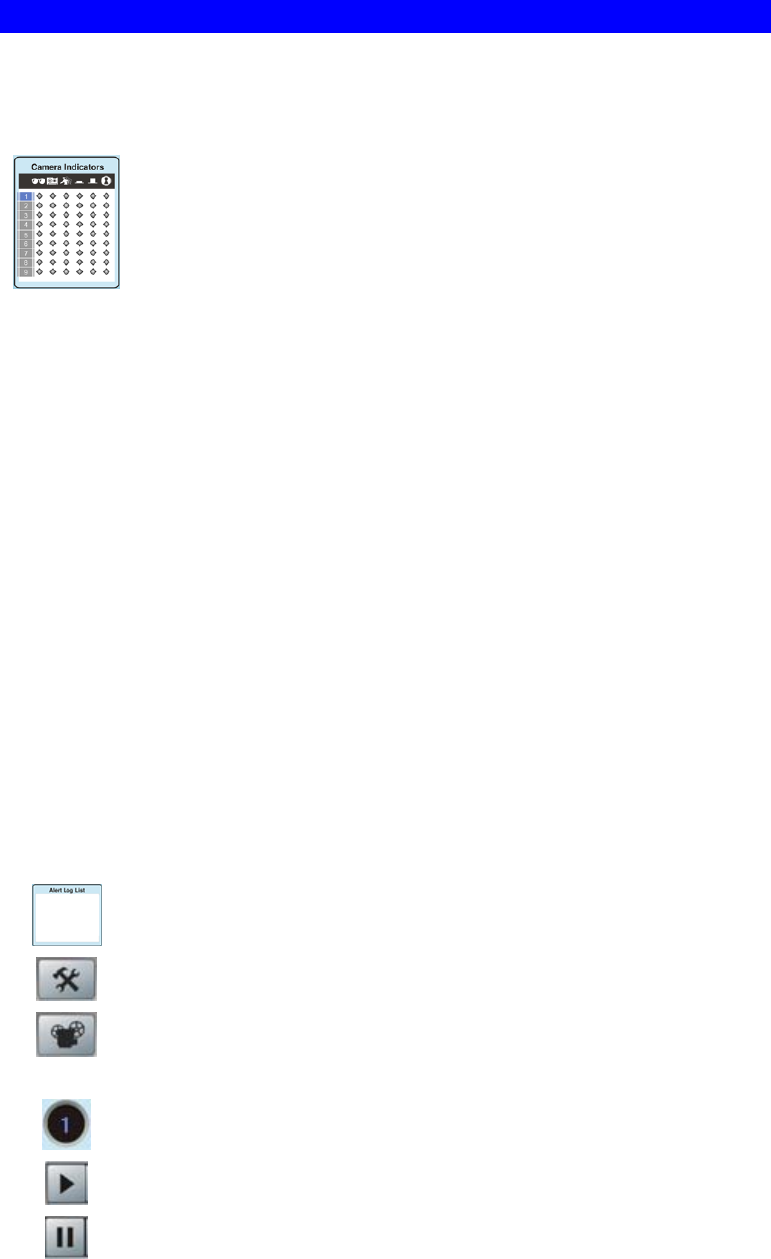

The following table lists the icons displayed on the Monitor screen:
Channel (Camera) Selection.
Use this to select the desired Channel (Camera) by clicking on the top row.
This panel also indicates the status of the camera.
• The First column indicates if the associated channel number has a
configured camera or not.
Blue indicates a camera has been configured for the channel.
Gray indicates no camera is configured for the channel.
User can drag a blue button to a desired viewport to let the camera
stream be displayed in the desired viewport.
• The View column indicates if the camera stream is being viewed.
Green indicates the configured camera is being viewed.
Gray indicates that no camera is configured or the configured camera is
not connected to the Monitor.
• The Instant Record column indicates if a recording is in progress.
Gray indicates no recording.
Red indicates recording is in progress.
• The Motion Detection column indicates if Motion event detected in the
associated channel.
Yellow indicates Motion Detection is in progress.
Gray indicates this feature is not enabled.
• The I/O columns indicate if there is any I/O type triggered event
detected in the port 1/2.
Yellow indicates there is an I/O type trigger event detected.
Gray indicates there is no new I/O type trigger event detected.
When user clicks on the Alert Log List, all the trigger event indicators
such as motion, I/O for the associated focused channel will turn to gray.
• The PIR column indicates if there is any PIR triggered event detected.
Yellow indicates there is a PIR trigger event detected.
Gray indicates there is no new PIR trigger event detected.
Alert Log List.
It displays the list of triggered events, if any, for the focused viewport.
Setup. Click this button to open the Utilities configuration program.
Playback. Click this button to launch the Playback program, which allows
you to browse through the previously saved recordings. Please see the
"Playback Program - for Streams Playback" section for details.
Channel Indicator. This indicates the current channel (camera).
Play. Use this to re-start viewing, after using the Stop or Pause button.
Pause. Use this to temporarily stop the playing of focused viewport.
69
Stop. This will terminate the connection to the camera, halting both the
viewing and the instant recording (if in progress).
Record. Click this to start recording the current stream. While recording,
this button will be red. To stop recording, click the Stop button. To pause
the playing, press Pause button.
Snapshot. Click this to take a still image of the current video stream. The
image format could be BMP or JPEG depending on user’s selection.
Zoom Camera. A digital zoom-in feature is available. To zoom in a
viewport:
1. Click this icon. Then move the mouse to the area to be magnified.
2. Left click the mouse to magnify the viewport to x2 rate.
3. Repeat steps 1) and 2) to magnify the viewport to x4 rate.
4. Click the icon again to back to normal viewport display rate.
Flip Video. Click this to have the image swapped top-to-bottom.
Mirror Video. Click this to have the image swapped left-to-right.
Sound On/Off. To turn On/Off the audio volume for the camera in focused
viewport.
Microphone On/Off. To turn On/Off the audio upload function for the
camera in the focused viewport.
Volume. If Sound/Microphone is enabled, you can right click the icon, then
drag and drop to raise or lower the volume.
Screen Layout. Use this to select the number of Channels (Cameras) to be
displayed on screen. Up to 9 cameras can be displayed.
70
Recorder Program - for Streams Recording
You can record the streams from camera by pressing the Record button in the Monitor program
as mentioned in the "Monitor Program - for Streams Live viewing" section or by making
schedules to let the recording happen on the arranged time period.
All the recorded streams are stored in files with a proprietary format and can be viewed via
Playback program in the Utilities package.
If you want to change the default settings of recording parameters before doing any recording,
please see the “Preferences” section for details.
Recording Schedule
To make recording schedules, click the Recording Schedule tab on the Setup screen. You will
see a screen like the example below.
Figure 49: Recording Schedule
If necessary, change these settings to suit your environment. Please follow the steps below to
make a schedule for recording:
1. Select a camera from the available camera list labeled Local ID.
2. Select a recording type from the Interval list box.
3. Select the recording time range from Start Date, Start Time and Duration list boxes.
4. Press Add button to add the schedule. There are up to ten schedules could be added for
each camera.
You will see all the schedules in the recording list.
71
Preferences
Clicking the Preferences tab on the Configuration program to make change of default Utilities
parameter settings.

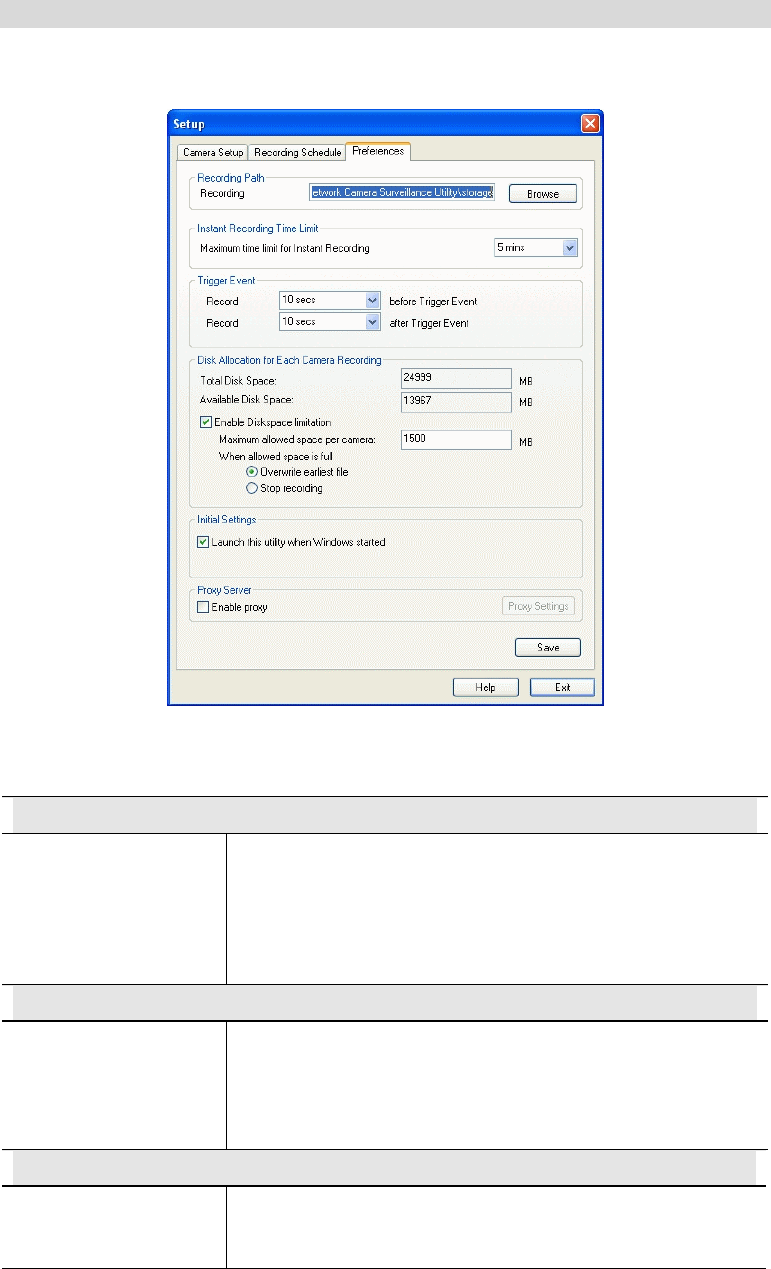

Figure 50: Preferences Screen
Data - Preferences
Recording Paths
Recording This is the Drive and Folder on your PC/Notebook where
recorded files will be placed. You need a drive which has large
amounts (Gigabytes) of free space. Click the Browse button to
select the drive and folder if you want to change the default
path. Note that file names for the recordings are automatically
assigned, using an internal date-time coding rule.
Instant Recording Time Limit
Maximum time limit
for Instant Recording This sets the maximum time period of a recording which is
started by clicking the Record button on the Monitor main
screen. If the recording is not stopped manually before the
arranged time period elapsed, it will be terminated automatically
when the end time hit.
Trigger Event
Record before Trigger
Event Set the time so that the Recorder will make a pre-recording for
at most the specified time range while a triggered event
detected.
72
Record after Trigger
Event Set the time so that the Recorder will make a post-recording for
at most the specified time range while a detected triggered event
ends.
Disk Allocation for Each Camera Recording
Total Disk Space This displays the total size of the selected disk.
Available Disk Space This displays the available space of the selected disk for storing
recordings.
Enable Disk space
limitation Enable this if you wish to limit the disk space used by video
recordings.
Maximum Allowed
Space Enter the maximum amount of disk space assigned to each
camera for stream recordings.
When allowed space
is full. Select the desired option for the behavior when the disk space
limit is reached.
• Overwrite earliest file. The Recorder will overwrite the
oldest file if the space is not enough for further recording.
• Stop Recording. If the disk space limit is reached, no
further recording is done.
Initial Settings
Launch this utility
when Windows started Check this to have this utility start when Windows starts.
Proxy Server
Enable proxy If enabled, click the Proxy Settings button to configure the proxy
server/exception list settings. Enter the address and port number
for the proxy server in the proxy sub-screen.
73
Playback Program - for Recordings Playback
To access the saved recordings of the Cameras, click Playback button in the Monitor main
screen, then you will see a screen like following.
Figure 51: Playback Screen
Searching Recorded Streams Files
Select Camera. Select the desired camera from the list.
Recording Methods. Select the type of the recorded file from the drop-down list that you wish
to view.
Start Date/Time. The start date and time the recordings will be searched
End Date/Time. The end date and time the recordings will be searched.
Load other Cameras. Click this button to load other recordings made from cameras outside of
the current folder where the Utilities was installed.
Submit. Click this button to confirm the file searching criteria then the Playback will display a
list of files matched with the search criteria on the recording bar.
Play. Use this to re-start viewing, after using the Stop or Pause button.
Pause. Use this to temporarily stop playing.
Frame by Frame. Playback will display the video stream in a one-frame per mouse clicking
mode.
Stop. This will stop playing the recording.
Snapshot. Click this to take a still image of the current video.
Zoom In. To zoom in on a section of the window, click this icon.
Zoom Out. To zoom out on a section of the window, click this icon.
74
Print. Click this to print the current video stream.
Playback Speed. To play a recorded file, select the desired speed.
Audio Control. To play a recorded file, select the desired volume.
Delete Video. To delete a recorded file, select the file and click this button.
Recording Bar. It displays the recordings that match your requests.
• Green color indicates the schedule and instant recordings.
• Orange color indicates Motion triggered recordings.
• Blue color indicates I/O triggered recordings.
• Gray color indicates no recording found.
Available Operation on Recording Bar.
It is possible to drag an area on the Recording Bar to narrow the time range selection.
75
Chapter 7
Troubleshooting
This chapter covers the most likely problems and their solutions.
Overview
This chapter covers some common problems that may be encountered while using the Network
Camera and some possible solutions to them. If you follow the suggested steps and the
Network Camera still does not function properly, contact your dealer for further advice.
Problems
Problem 1: I can't connect to the Network Camera with my Web Browser to
configure it.
Solution 1: It is possible that your PC's IP address is not compatible with the IP
address of the Network Camera.
Use the Windows utility to configure the Network Camera with a valid IP
address.
Problem 2: The Windows utility doesn't list any Network Cameras.
Solution 2: Check the following:
• The Network Camera is installed, LAN connections are OK, it is
powered ON and startup is complete.
• Ensure that your PC and the Network Camera are on the same network
segment. (If you don't have a router, this must be the case.)
• Ensure that your PC has the TCP/IP network protocol loaded. In
Windows, this is done by using Control Panel-Network.
• If an entry for TCP/IP -> Network card is not listed, use Add -
Protocol - Microsoft - TCP/IP to add it.
• You then need to select the new entry (TCP/IP -> Network card),
click Properties, and configure the IP Address tab.
• If your LAN has a DHCP Server, you can select "Obtain an IP
Address automatically". Otherwise, you must select "Specify an
IP Address", and enter values for IP Address, Subnet Mask, and
Gateway. All devices on your LAN must use compatible values.
Remember that each device needs a unique IP Address, and the
same Subnet Mask.
Problem 3 When I try to connect to the Network Camera, I get prompted for a
user name and password.
Solution 3 You SHOULD be prompted for a user name and password if trying to
access the Administration menu.
Enter the Administrator ID and Password set on the Maintenance screen.
If you are just trying to view Video, the User Name/Password prompt
7
76
indicates that the Administrator has restricted access to specified users.
Ask the Administrator for your User Name and Password.
Problem 4 I can't connect to the Network Camera using a Wireless connection.
Solution 4 1) If a LAN cable is connected to the LAN port, the Wireless interface is
disabled. Only one interface can be active.
2) Check that your PC and the Network Camera have compatible Wireless
settings.
• Mode (Infrastructure or Ad-hoc) must be correct.
• ESSID must match.
• WEP settings must match.
• In Ad-hoc mode, the Channel should match, although this is often not
required.
Problem 5 Video quality may suddenly deteriorate.
Solution 5 This can happen when an additional viewer connects to the Network
Camera, overloading the camera or the available bandwidth. The image
size and quality can be adjusted to cater for the required number of viewers
and the available bandwidth.
Problem 6 The motion detection feature doesn't send me any E-mail.
Solution 6 It may be that the SMTP (Simple Mail Transport Protocol) server used by
the camera to send the E-Mail will not accept mail. (This is to prevent span
being sent from the server.). Try using a different SMTP server, or contact
your ISP to see if SMTP access is being blocked.
Problem 7 Using the motion detection feature, I receive E-Mails which don't show
any moving objects.
Solution 7 The motion detection feature doesn't actually detect motion. It compares
frames to see if they are different. Major differences between frames are
assumed to be caused by moving objects.
But the motion detector can also be triggered by:
• Sudden changes in the level of available light
• Movement of the camera itself.
Try to avoid these situations. The motion detection feature works best in
locations where there is good steady illumination, and the camera is
mounted securely. This feature can NOT be used if the camera is outdoors.
Problem 8 The image is blurry.
Solution 8 Try cleaning the lens, or adjusting the Video Quality Control setting on the
Video Image screen. Video created by the lower settings will contain less
detail; this is the trade-off for using less bandwidth.
77
Appendix A
Specifications
Network Camera
Model Network Camera
Dimensions 90mm (W) * 35mm (H) * 90mm (D)
Operating Temperature 0° C to 40° C
Storage Temperature 10° C to 80° C
Network Protocols TCP/IP, DHCP, SMTP, NTP, HTTP, FTP, RTP, RTSP, UPnP
(Discovery/Traversal)
Network Interface 1 Ethernet 10/100BaseT (RJ45) LAN connection
Wireless interface
(Wireless Model Only) IEEE 802.11b/802.11g compatible, Infrastructure/Ad-hoc mode,
WEP/WPA Personal/WPA2 Personal security support, roaming
support
LEDs 3
Power Adapter 5V DC External
Regulatory Approvals
CE Approvals
The Network Camera and the Ethernet Network Camera meet the guidelines of the European
Union and comply with the 99/5/EEC and RTTE 99/5EG directives, including the following
standards:
• EN60950
• EN300 328-2
• EN301 489-1
• EN301 489-17
This is a Class B product. In a domestic environment this product may cause radio interference
in which case the user may be required to take adequate measures.
A
78
Copyright Notice
Many software components are covered by the GNU GPL (General Public License). Some are
covered by other Licenses as listed in the table below.
Details of each applicable license are contained in the following section.
No Warranty
THIS SOFTWARE IS PROVIDED BY THE AUTHOR AND CONTRIBUTORS ``AS IS''
AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED
TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHOR
OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT
LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF
USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND
ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR
TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF
THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.
Network Camera copyright information
Package source codes License
bootloader GPL
arm-linux 2.6.5 GPL
arm-linux-gcc 3.4.1 library LGPL
DM9000 lan driver GPL
Busy-box GPL
boa-0.94.13a GPL
ez-ipupdate GPL
dhcpd-1.3.22 GPL
boa-0.94-13e11 GPL
WPA_supplicant GPL
cron Public domain (BSD & Lineo
http://www.lineo.com/)
ntp-4.1.71 Public domain
(http://www.ntp.org/)
libupnp-1.2.1 Intel
(http://upnp.sourceforge.net/)
79
ntp-4.1.71 license
Copyright (c) David L. Mills 1992-2001
Permission to use, copy, modify, and distribute this software and its documentation for any
purpose and without fee is hereby granted, provided that the above copyright notice appears in
all copies and that both the copyright notice and this permission notice appear in supporting
documentation, and that the name University of Delaware not be used in advertising or
publicity pertaining to distribution of the software without specific, written prior permission.
The University of Delaware makes no representations about the suitability this software for any
purpose. It is provided "as is" without express or implied warranty.
Libupnp-1.2.1 License
Copyright (c) 2000 Intel Corporation. All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are permitted
provided that the following conditions are met:
1. Redistributions of source code must retain the above copyright notice, this list of conditions
and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of
conditions and the following disclaimer in the documentation and/or other materials provided
with the distribution.
3. Neither name of Intel Corporation nor the names of its contributors may be used to endorse
or promote products derived from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND
CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE
DISCLAIMED. IN NO EVENT SHALL INTEL OR CONTRIBUTORS BE LIABLE FOR
ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR
CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO PROCUREMENT
OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF
LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING
NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS
SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
80
cron license
Copyright (c) 1989 The Regents of the University of California. All rights reserved.
This code is derived from software contributed to Berkeley by Paul Vixie.
Redistribution and use in source and binary forms are permitted provided that the above
copyright notice and this paragraph are duplicated in all such forms and that any
documentation, advertising materials, and other materials related to such distribution and use
acknowledge that the software was developed by the University of California, Berkeley. The
name of the University may not be used to endorse or promote products derived from this
software without specific prior written permission.
THIS SOFTWARE IS PROVIDED ''AS IS'' AND WITHOUT ANY EXPRESS OR IMPLIED
WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
81
GNU General Public License
GNU GENERAL PUBLIC LICENSE
Version 2, June 1991
Copyright (C) 1989, 1991 Free Software Foundation, Inc.
51 Franklin St, Fifth Floor, Boston, MA 02110-1301 USA
Everyone is permitted to copy and distribute verbatim copies of this license document, but
changing it is not allowed.
Preamble
The licenses for most software are designed to take away your freedom to share and change it.
By contrast, the GNU General Public License is intended to guarantee your freedom to share
and change free software--to make sure the software is free for all its users. This General
Public License applies to most of the Free Software Foundation's software and to any other
program whose authors commit to using it. (Some other Free Software Foundation software is
covered by the GNU Library General Public License instead.) You can apply it to your
programs, too.
When we speak of free software, we are referring to freedom, not price. Our General Public
Licenses are designed to make sure that you have the freedom to distribute copies of free
software (and charge for this service if you wish), that you receive source code or can get itif
you want it, that you can change the software or use pieces of it in new free programs; and that
you know you can do these things.
To protect your rights, we need to make restrictions that forbid anyone to deny you these rights
or to ask you to surrender the rights. These restrictions translate to certain responsibilities for
you if you distribute copies of the software, or if you modify it.
For example, if you distribute copies of such a program, whether gratis or for a fee, you must
give the recipients all the rights that you have. You must make sure that they, too, receive or
can get the source code. And you must show them these terms so they know their rights.
We protect your rights with two steps: (1) copyright the software, and (2) offer you this license
which gives you legal permission to copy, distribute and/or modify the software.
Also, for each author's protection and ours, we want to make certain that everyone understands
that there is no warranty for this free software. If the software is modified by someone else and
passed on, we want its recipients to know that what they have is not the original, so that any
problems introduced by others will not reflect on the original authors' reputations.
Finally, any free program is threatened constantly by software patents. We wish to avoid the
danger that redistributors of a free program will individually obtain patent licenses, in effect
making the program proprietary. To prevent this, we have made it clear that any patent must
be licensed for everyone's free use or not licensed at all.
The precise terms and conditions for copying, distribution and modification follow.
GNU GENERAL PUBLIC LICENSE
Terms And Conditions For Copying, Distribution And Modification
0. This License applies to any program or other work which contains a notice placed by the
copyright holder saying it may be distributed under the terms of this General Public License.
The "Program", below, refers to any such program or work, and a "work based on the
Program" means either the Program or any derivative work under copyright law: that is to say,
a work containing the Program or a portion of it, either verbatim or with modifications and/or
82
translated into another language. (Hereinafter, translation is included without limitation in the
term "modification".) Each licensee is addressed as "you".
Activities other than copying, distribution and modification are not covered by this License;
they are outside its scope. The act of running the Program is not restricted, and the output from
the Program is covered only if its contents constitute a work based on the Program
(independent of having been made by running the Program). Whether that is true depends on
what the Program does.
1. You may copy and distribute verbatim copies of the Program's source code as you receive it,
in any medium, provided that you conspicuously and appropriately publish on each copy an
appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to
this License and to the absence of any warranty; and give any other recipients of the Program a
copy of this License along with the Program.
You may charge a fee for the physical act of transferring a copy, and you may at your option
offer warranty protection in exchange for a fee.
2. You may modify your copy or copies of the Program or any portion of it, thus forming a
work based on the Program, and copy and distribute such modifications or work under the
terms of Section 1 above, provided that you also meet all of these conditions:
a) You must cause the modified files to carry prominent notices stating that you changed the
files and the date of any change.
b) You must cause any work that you distribute or publish, that in whole or in part contains or
is derived from the Program or any part thereof, to be licensed as a whole at no charge to all
third parties under the terms of this License.
c) If the modified program normally reads commands interactively when run, you must cause
it, when started running for such interactive use in the most ordinary way, to print or display an
announcement including an appropriate copyright notice and a notice that there is no warranty
(or else, saying that you provide a warranty) and that users may redistribute the program under
these conditions, and telling the user how to view a copy of this License. (Exception: if the
Program itself is interactive but does not normally print such an announcement, your work
based on the Program is not required to print an announcement.)
These requirements apply to the modified work as a whole. If identifiable sections of that
work are not derived from the Program, and can be reasonably considered independent and
separate works in themselves, then this License, and its terms, do not apply to those sections
when you distribute them as separate works. But when you distribute the same sections as part
of a whole which is a work based on the Program, the distribution of the whole must be on the
terms of this License, whose permissions for other licensees extend to the entire whole, and
thus to each and every part regardless of who wrote it.
Thus, it is not the intent of this section to claim rights or contest your rights to work written
entirely by you; rather, the intent is to exercise the right to control the distribution of derivative
or collective works based on the Program.
In addition, mere aggregation of another work not based on the Program with the Program (or
with a work based on the Program) on a volume of a storage or distribution medium does not
bring the other work under the scope of this License.
3. You may copy and distribute the Program (or a work based on it, under Section 2) in object
code or executable form under the terms of Sections 1 and 2 above provided that you also do
one of the following:
a) Accompany it with the complete corresponding machine-readable source code, which must
be distributed under the terms of Sections 1 and 2 above on a medium customarily used for
software interchange; or,
83
b) Accompany it with a written offer, valid for at least three years, to give any third party, for a
charge no more than your cost of physically performing source distribution, a complete
machine-readable copy of the corresponding source code, to be distributed under the terms of
Sections 1 and 2 above on a medium customarily used for software interchange; or,
c) Accompany it with the information you received as to the offer to distribute corresponding
source code. (This alternative is allowed only for noncommercial distribution and only if you
received the program in object code or executable form with such an offer, in accord with
Subsection b above.)
The source code for a work means the preferred form of the work for making modifications to
it. For an executable work, complete source code means all the source code for all modules it
contains, plus any associated interface definition files, plus the scripts used to control
compilation and installation of the executable. However, as a special exception, the source
code distributed need not include anything that is normally distributed (in either source or
binary form) with the major components (compiler, kernel, and so on) of the operating system
on which the executable runs, unless that component itself accompanies the executable.
If distribution of executable or object code is made by offering access to copy from a
designated place, then offering equivalent access to copy the source code from the same place
counts as distribution of the source code, even though third parties are not compelled to copy
the source along with the object code.
4. You may not copy, modify, sublicense, or distribute the Program except as expressly
provided under this License. Any attempt otherwise to copy, modify, sublicense or distribute
the Program is void, and will automatically terminate your rights under this License. However,
parties who have received copies, or rights, from you under this License will not have their
licenses terminated so long as such parties remain in full compliance.
5. You are not required to accept this License, since you have not signed it. However, nothing
else grants you permission to modify or distribute the Program or its derivative works. These
actions are prohibited by law if you do not accept this License. Therefore, by modifying or
distributing the Program (or any work based on the Program), you indicate your acceptance of
this License to do so, and all its terms and conditions for copying, distributing or modifying the
Program or works based on it.
6. Each time you redistribute the Program (or any work based on the Program), the recipient
automatically receives a license from the original licensor to copy, distribute or modify the
Program subject to these terms and conditions. You may not impose any further restrictions on
the recipients' exercise of the rights granted herein.You are not responsible for enforcing
compliance by third parties to this License.
7. If, as a consequence of a court judgment or allegation of patent infringement or for any other
reason (not limited to patent issues), conditions are imposed on you (whether by court order,
agreement or otherwise) that contradict the conditions of this License, they do not excuse you
from the conditions of this License. If you cannot distribute so as to satisfy simultaneously
your obligations under this License and any other pertinent obligations, then as a consequence
you may not distribute the Program at all. For example, if a patent license would not permit
royalty-free redistribution of the Program by all those who receive copies directly or indirectly
through you, then the only way you could satisfy both it and this License would be to refrain
entirely from distribution of the Program.
If any portion of this section is held invalid or unenforceable under any particular circumstance,
the balance of the section is intended to apply and the section as a whole is intended to apply in
other circumstances.
It is not the purpose of this section to induce you to infringe any patents or other property right
claims or to contest validity of any such claims; this section has the sole purpose of protecting
the integrity of the free software distribution system, which is implemented by public license
84
practices. Many people have made generous contributions to the wide range of software
distributed through that system in reliance on consistent application of that system; it is up to
the author/donor to decide if he or she is willing to distribute software through any other
system and a licensee cannot impose that choice.
This section is intended to make thoroughly clear what is believed to be a consequence of the
rest of this License.
8. If the distribution and/or use of the Program is restricted in certain countries either by
patents or by copyrighted interfaces, the original copyright holder who places the Program
under this License may add an explicit geographical distribution limitation excluding those
countries, so that distribution is permitted only in or among countries not thus excluded. In
such case, this License incorporates the limitation as if written in the body of this License.
9. The Free Software Foundation may publish revised and/or new versions of the General
Public License from time to time. Such new versions will be similar in spirit to the present
version, but may differ in detail to address new problems or concerns.
Each version is given a distinguishing version number. If the Program specifies a version
number of this License which applies to it and "any later version", you have the option of
following the terms and conditions either of that version or of any later version published by
the Free Software Foundation. If the Program does not specify a version number of this
License, you may choose any version ever published by the Free Software Foundation.
10. If you wish to incorporate parts of the Program into other free programs whose distribution
conditions are different, write to the author to ask for permission. For software which is
copyrighted by the Free Software Foundation, write to the Free Software Foundation; we
sometimes make exceptions for this. Our decision will be guided by the two goals of
preserving the free status of all derivatives of our free software and of promoting the sharing
and reuse of software generally.
NO WARRANTY
11. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO
WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE
LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT
HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM "AS IS" WITHOUT
WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT
NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY
AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM
PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING,
REPAIR OR CORRECTION.
12. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN
WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY
MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE
LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL,
INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR
INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF
DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY
YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH
ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
85
END OF TERMS AND CONDITIONS
86
Lesser GNU General Public License
GNU LESSER GENERAL PUBLIC LICENSE
Version 2.1, February 1999
Copyright (C) 1991, 1999 Free Software Foundation, Inc.
51 Franklin St, Fifth Floor, Boston, MA 02110-1301 USA
Everyone is permitted to copy and distribute verbatim copies of this license document, but
changing it is not allowed.
[This is the first released version of the Lesser GPL. It also counts as the successor of the
GNU Library Public License, version 2, hence the version number 2.1.]
Preamble
The licenses for most software are designed to take away your freedom to share and change it.
By contrast, the GNU General Public Licenses are intended to guarantee your freedom to share
and change free software--to make sure the software is free for all its users.
This license, the Lesser General Public License, applies to some specially designated software
packages--typically libraries--of the Free Software Foundation and other authors who decide to
use it. You can use it too, but we suggest you first think carefully about whether this license or
the ordinary General Public License is the better strategy to use in any particular case, based on
the explanations below.
When we speak of free software, we are referring to freedom of use, not price. Our General
Public Licenses are designed to make sure that you have the freedom to distribute copies of
free software (and charge for this service if you wish); that you receive source code or can get
it if you want it; that you can change the software and use pieces of it in new free programs;
and that you are informed that you can do these things.
To protect your rights, we need to make restrictions that forbid distributors to deny you these
rights or to ask you to surrender these rights. These restrictions translate to certain
responsibilities for you if you distribute copies of the library or if you modify it.
For example, if you distribute copies of the library, whether gratis or for a fee, you must give
the recipients all the rights that we gave you. You must make sure that they, too, receive or
can get the source code. If you link other code with the library, you must provide complete
object files to the recipients, so that they can relink them with the library after making changes
to the library and recompiling it. And you must show them these terms so they know their
rights.
We protect your rights with a two-step method: (1) we copyright the library, and (2) we offer
you this license, which gives you legal permission to copy, distribute and/or modify the library.
To protect each distributor, we want to make it very clear that there is no warranty for the free
library. Also, if the library is modified by someone else and passed on, the recipients should
know that what they have is not the original version, so that the original author's reputation will
not be affected by problems that might be introduced by others.
87
Finally, software patents pose a constant threat to the existence of any free program. We wish
to make sure that a company cannot effectively restrict the users of a free program by obtaining
a restrictive license from a patent holder. Therefore, we insist that any patent license obtained
for a version of the library must be consistent with the full freedom of use specified in this
license.
Most GNU software, including some libraries, is covered by the ordinary GNU General Public
License. This license, the GNU Lesser General Public License, applies to certain designated
libraries, and is quite different from the ordinary General Public License. We use this license
for certain libraries in order to permit linking those libraries into non-free programs.
When a program is linked with a library, whether statically or using a shared library, the
combination of the two is legally speaking a combined work, a derivative of the original library.
The ordinary General Public License therefore permits such linking only if the entire
combination fits its criteria of freedom. The Lesser General Public License permits more lax
criteria for linking other code with the library.
We call this license the "Lesser" General Public License because it does Less to protect the
user's freedom than the ordinary General Public License. It also provides other free software
developers Less of an advantage over competing non-free programs. These disadvantages are
the reason we use the ordinary General Public License for many libraries. However, the Lesser
license provides advantages in certain special circumstances.
For example, on rare occasions, there may be a special need to encourage the widest possible
use of a certain library, so that it becomes a de-facto standard. To achieve this, non-free
programs must be allowed to use the library. A more frequent case is that a free library does
the same job as widely used non-free libraries. In this case, there is little to gain by limiting the
free library to free software only, so we use the Lesser General Public License.
In other cases, permission to use a particular library in non-free programs enables a greater
number of people to use a large body of free software. For example, permission to use the
GNU C Library in non-free programs enables many more people to use the whole GNU
operating system, as well as its variant, the GNU/Linux operating system.
Although the Lesser General Public License is Less protective of the users' freedom, it does
ensure that the user of a program that is linked with the Library has the freedom and the
wherewithal to run that program using a modified version of the Library.
The precise terms and conditions for copying, distribution and modification follow. Pay close
attention to the difference between a "work based on the library" and a "work that uses the
library". The former contains code derived from the library, whereas the latter must be
combined with the library in order to run.
GNU LESSER GENERAL PUBLIC LICENSE
TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND
MODIFICATION
0. This License Agreement applies to any software library or other program which contains a
notice placed by the copyright holder or other authorized party saying it may be distributed
under the terms of this Lesser General Public License (also called "this License"). Each
licensee is addressed as "you".
A "library" means a collection of software functions and/or data prepared so as to be
conveniently linked with application programs (which use some of those functions and data) to
form executables.
88
The "Library", below, refers to any such software library or work which has been distributed
under these terms. A "work based on the Library" means either the Library or any derivative
work under copyright law: that is to say, a work containing the Library or a portion of it, either
verbatim or with modifications and/or translated straightforwardly into another language.
(Hereinafter, translation is included without limitation in the term "modification".)
"Source code" for a work means the preferred form of the work for making modifications to it.
For a library, complete source code means all the source code for all modules it contains, plus
any associated interface definition files, plus the scripts used to control compilation and
installation of the library.
Activities other than copying, distribution and modification are not covered by this License;
they are outside its scope. The act of running a program using the Library is not restricted, and
output from such a program is covered only if its contents constitute a work based on the
Library (independent of the use of the Library in a tool for writing it). Whether that is true
depends on what the Library does and what the program that uses the Library does.
1. You may copy and distribute verbatim copies of the Library's complete source code as you
receive it, in any medium, provided that you conspicuously and appropriately publish on each
copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that
refer to this License and to the absence of any warranty; and distribute a copy of this License
along with the Library.
You may charge a fee for the physical act of transferring a copy, and you may at your option
offer warranty protection in exchange for a fee.
2. You may modify your copy or copies of the Library or any portion of it, thus forming a work
based on the Library, and copy and distribute such modifications or work under the terms of
Section 1 above, provided that you also meet all of these conditions:
a) The modified work must itself be a software library.
b) You must cause the files modified to carry prominent notices stating that you changed the
files and the date of any change.
c) You must cause the whole of the work to be licensed at no charge to all third parties under
the terms of this License.
d) If a facility in the modified Library refers to a function or a table of data to be supplied by an
application program that uses the facility, other than as an argument passed when the facility is
invoked, then you must make a good faith effort to ensure that, in the event an application does
not supply such function or table, the facility still operates, and performs whatever part of its
purpose remains meaningful.
(For example, a function in a library to compute square roots has a purpose that is entirely
well-defined independent of the application. Therefore, Subsection 2d requires that any
application-supplied function or table used by this function must be optional: if the application
does not supply it, the square root function must still compute square roots.)
These requirements apply to the modified work as a whole. If identifiable sections of that
work are not derived from the Library, and can be reasonably considered independent and
separate works in themselves, then this License, and its terms, do not apply to those sections
when you distribute them as separate works. But when you distribute the same sections as part
of a whole which is a work based on the Library, the distribution of the whole must be on the
terms of this License, whose permissions for other licensees extend to the entire whole, and
thus to each and every part regardless of who wrote it.
Thus, it is not the intent of this section to claim rights or contest your rights to work written
entirely by you; rather, the intent is to exercise the right to control the distribution of derivative
or collective works based on the Library.
89
In addition, mere aggregation of another work not based on the Library with the Library (or
with a work based on the Library) on a volume of a storage or distribution medium does not
bring the other work under the scope of this License.
3. You may opt to apply the terms of the ordinary GNU General Public License instead of this
License to a given copy of the Library. To do this, you must alter all the notices that refer to
this License, so that they refer to the ordinary GNU General Public License, version 2, instead
of to this License. (If a newer version than version 2 of the ordinary GNU General Public
License has appeared, then you can specify that version instead if you wish.) Do not make any
other change in these notices.
Once this change is made in a given copy, it is irreversible for that copy, so the ordinary GNU
General Public License applies to all subsequent copies and derivative works made from that
copy.
This option is useful when you wish to copy part of the code of the Library into a program that
is not a library.
4. You may copy and distribute the Library (or a portion or derivative of it, under Section 2) in
object code or executable form under the terms of Sections 1 and 2 above provided that you
accompany it with the complete corresponding machine-readable source code, which must be
distributed under the terms of Sections 1 and 2 above on a medium customarily used for
software interchange.
If distribution of object code is made by offering access to copy from a designated place, then
offering equivalent access to copy the source code from the same place satisfies the
requirement to distribute the source code, even though third parties are not compelled to copy
the source along with the object code.
5. A program that contains no derivative of any portion of the Library, but is designed to work
with the Library by being compiled or linked with it, is called a "work that uses the Library".
Such a work, in isolation, is not a derivative work of the Library, and therefore falls outside the
scope of this License.
However, linking a "work that uses the Library" with the Library creates an executable that is a
derivative of the Library (because it contains portions of the Library), rather than a "work that
uses the library". The executable is therefore covered by this License.
Section 6 states terms for distribution of such executables.
When a "work that uses the Library" uses material from a header file that is part of the Library,
the object code for the work may be a derivative work of the Library even though the source
code is not. Whether this is true is especially significant if the work can be linked without the
Library, or if the work is itself a library. The threshold for this to be true is not precisely
defined by law.
If such an object file uses only numerical parameters, data structure layouts and accessors, and
small macros and small inline functions (ten lines or less in length), then the use of the object
file is unrestricted, regardless of whether it is legally a derivative work. (Executables
containing this object code plus portions of the Library will still fall under Section 6.)
Otherwise, if the work is a derivative of the Library, you may distribute the object code for the
work under the terms of Section 6. Any executables containing that work also fall under
Section 6, whether or not they are linked directly with the Library itself.
90
6. As an exception to the Sections above, you may also combine or link a "work that uses the
Library" with the Library to produce a work containing portions of the Library, and distribute
that work under terms of your choice, provided that the terms permit modification of the work
for the customer's own use and reverse engineering for debugging such modifications.
You must give prominent notice with each copy of the work that the Library is used in it and
that the Library and its use are covered by this License. You must supply a copy of this
License. If the work during execution displays copyright notices, you must include the
copyright notice for the Library among them, as well as a reference directing the user to the
copy of this License. Also, you must do one of these things:
a) Accompany the work with the complete corresponding machine-readable source code for the
Library including whatever changes were used in the work (which must be distributed under
Sections 1 and 2 above); and, if the work is an executable linked with the Library, with the
complete machine-readable "work that uses the Library", as object code and/or source code, so
that the user can modify the Library and then relink to produce a modified executable
containing the modified Library. (It is understood that the user who changes the contents of
definitions files in the Library will not necessarily be able to recompile the application to use
the modified definitions.)
b) Use a suitable shared library mechanism for linking with the Library. A suitable mechanism
is one that (1) uses at run time a copy of the library already present on the user's computer
system, rather than copying library functions into the executable, and (2) will operate properly
with a modified version of the library, if the user installs one, as long as the modified version is
interface-compatible with the version that the work was made with.
c) Accompany the work with a written offer, valid for at least three years, to give the same user
the materials specified in Subsection 6a, above, for a charge no more than the cost of
performing this distribution.
d) If distribution of the work is made by offering access to copy from a designated place, offer
equivalent access to copy the above specified materials from the same place.
e) Verify that the user has already received a copy of these materials or that you have already
sent this user a copy.
For an executable, the required form of the "work that uses the Library" must include any data
and utility programs needed for reproducing the executable from it. However, as a special
exception, the materials to be distributed need not include anything that is normally distributed
(in either source or binary form) with the major components (compiler, kernel, and so on) of
the operating system on which the executable runs, unless that component itself accompanies
the executable.
It may happen that this requirement contradicts the license restrictions of other proprietary
libraries that do not normally accompany the operating system. Such a contradiction means
you cannot use both them and the Library together in an executable that you distribute.
7. You may place library facilities that are a work based on the Library side-by-side in a single
library together with other library facilities not covered by this License, and distribute such a
combined library, provided that the separate distribution of the work based on the Library and
of the other library facilities is otherwise permitted, and provided that you do these two things:
a) Accompany the combined library with a copy of the same work based on the Library,
uncombined with any other library facilities. This must be distributed under the terms of the
Sections above.
b) Give prominent notice with the combined library of the fact that part of it is a work based on
the Library, and explaining where to find the accompanying uncombined form of the same
work.
91
8. You may not copy, modify, sublicense, link with, or distribute the Library except as
expressly provided under this License. Any attempt otherwise to copy, modify, sublicense,
link with, or distribute the Library is void, and will automatically terminate your rights under
this License. However, parties who have received copies, or rights, from you under this
License will not have their licenses terminated so long as such parties remain in full
compliance.
9. You are not required to accept this License, since you have not signed it. However, nothing
else grants you permission to modify or distribute the Library or its derivative works. These
actions are prohibited by law if you do not accept this License. Therefore, by modifying or
distributing the Library (or any work based on the Library), you indicate your acceptance of
this License to do so, and all its terms and conditions for copying, distributing or modifying the
Library or works based on it.
10. Each time you redistribute the Library (or any work based on the Library), the recipient
automatically receives a license from the original licensor to copy, distribute, link with or
modify the Library subject to these terms and conditions. You may not impose any further
restrictions on the recipients' exercise of the rights granted herein. You are not responsible for
enforcing compliance by third parties with this License.
11. If, as a consequence of a court judgment or allegation of patent infringement or for any
other reason (not limited to patent issues), conditions are imposed on you (whether by court
order, agreement or otherwise) that contradict the conditions of this License, they do not
excuse you from the conditions of this License. If you cannot distribute so as to satisfy
simultaneously your obligations under this License and any other pertinent obligations, then as
a consequence you may not distribute the Library at all. For example, if a patent license would
not permit royalty-free redistribution of the Library by all those who receive copies directly or
indirectly through you, then the only way you could satisfy both it and this License would be to
refrain entirely from distribution of the Library.
If any portion of this section is held invalid or unenforceable under any particular circumstance,
the balance of the section is intended to apply, and the section as a whole is intended to apply
in other circumstances.
It is not the purpose of this section to induce you to infringe any patents or other property right
claims or to contest validity of any such claims; this section has the sole purpose of protecting
the integrity of the free software distribution system which is implemented by public license
practices. Many people have made generous contributions to the wide range of software
distributed through that system in reliance on consistent application of that system; it is up to
the author/donor to decide if he or she is willing to distribute software through any other
system and a licensee cannot impose that choice.
This section is intended to make thoroughly clear what is believed to be a consequence of the
rest of this License.
12. If the distribution and/or use of the Library is restricted in certain countries either by
patents or by copyrighted interfaces, the original copyright holder who places the Library under
this License may add an explicit geographical distribution limitation excluding those countries,
so that distribution is permitted only in or among countries not thus excluded. In such case,
this License incorporates the limitation as if written in the body of this License.
13. The Free Software Foundation may publish revised and/or new versions of the Lesser
General Public License from time to time. Such new versions will be similar in spirit to the
present version, but may differ in detail to address new problems or concerns.
Each version is given a distinguishing version number. If the Library specifies a version
number of this License which applies to it and "any later version", you have the option of
following the terms and conditions either of that version or of any later version published by
the Free Software Foundation. If the Library does not specify a license version number, you
may choose any version ever published by the Free Software Foundation.
92
14. If you wish to incorporate parts of the Library into other free programs whose distribution
conditions are incompatible with these, write to the author to ask for permission. For software
which is copyrighted by the Free Software Foundation, write to the Free Software Foundation;
we sometimes make exceptions for this. Our decision will be guided by the two goals of
preserving the free status of all derivatives of our free software and of promoting the sharing
and reuse of software generally.
NO WARRANTY
15. BECAUSE THE LIBRARY IS LICENSED FREE OF CHARGE, THERE IS NO
WARRANTY FOR THE LIBRARY, TO THE EXTENT PERMITTED BY APPLICABLE
LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT
HOLDERS AND/OR OTHER PARTIES PROVIDE THE LIBRARY "AS IS" WITHOUT
WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT
NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY
AND PERFORMANCE OF THE LIBRARY IS WITH YOU. SHOULD THE LIBRARY
PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING,
REPAIR OR CORRECTION.
16. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN
WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY
MODIFY AND/OR REDISTRIBUTE THE LIBRARY AS PERMITTED ABOVE, BE
LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL,
INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR
INABILITY TO USE THE LIBRARY (INCLUDING BUT NOT LIMITED TO LOSS OF
DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY
YOU OR THIRD PARTIES OR A FAILURE OF THE LIBRARY TO OPERATE WITH
ANY OTHER SOFTWARE), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
END OF TERMS AND CONDITIONS
93
Appendix B
Streaming Video/Audio
Solution
Overview
Streaming video is a sequence of "moving images" that are sent in compressed form over the
Internet and displayed by the viewer as they arrive. With streaming, a Web user does not have
to wait to download a large file before seeing the video or hearing the sound. Instead, the
media is sent in a continuous stream and is played as it arrives.
Streaming Video/Audio through Internet Camera
To snapshot a JPEG image from the Internet Camera with specified resolution and quality:
http://<ip>/img/snapshot.cgi?[size=<value>][&quality=<value>]
Size = 1(160*128)
2(320*240)
3(640*480)
Quality = 1(Very low)
2(Low)
3(Normal)
4(High)
5(Very high)
To stream M-JPEG video from the Internet Camera (M-JPEG mode only)
http://<ip>/img/mjpeg.cgi or http://<ip>/img/main_mjpeg.htm
To stream video through the RTP/RTSP protocol from Internet Camera (MPEG-4 mode only)
rtsp://<ip>/img/media.sav
Note: Users need to specify the desired protocol in the players.
To snapshot a JPEG image (160*128, very low quality) through a mobile phone:
http://<ip>/img/mobile.cgi
B
