SZ-BSW01 ZigBee Binary Switch Installation Guide
SZ-BSW01 can provide "smart" lighting remote control with its embedded radio frequency (RF) technology that is compatible
with ZigBee enabled devices. This device is designed to give you one-touch control of your home's lighting.
In a ZigBee network, each device is designed to act as a router. These routers will re-transmit the RF signal from one device to
another until the signal is received by the final destination. Using RF technology ensures SerComm to provide great signal through
all the obstacles and radio dead spots. The plug-in Lamp Module of SZ-BSW01 is compatible with any ZigBee enabled network,
regardless of the manufacturer and can also be used with other devices with the ZigBee logo.
CAUTION: Remember to have common sense while using the remote control, especially when scheduling unattended devices.
There can be some unexpected consequences if used without care. For example, if an empty coffee pot is remotely turned on, and
your coffee pot could be damaged from overheating. Or if an electric heater is turned on by remote control while clothing is
draped over it, it may result a fire. DO NOT USE the remote for controlling the high power heating appliances such as portable
heaters. This device will not control lighting used with electronic low-voltage and high frequency power supply transformers, nor
high pressure discharge lamps (HID lighting), which include mercury-vapor, sodium vapor and metal halide lamps. DO NOT
change location after unit is enrolled in ZigBee network.
Specification
Rado Frequency 2.4GHz
RF Communication Range Open Aire：100M (Max)
LED Indicator Red / Greed LED x 1
Power Source Input：120 VAC, 0.5A, 50-60 Hz
Output Max Current 10A
Dimensions (H x W x D) 55 mm x 55 mm x 38 mm (2.15” x 2.15” x 1.48”)
Operation Temperature 0° - 50°C (32° - 122°F)
Storage Temperature -20° - 70°C (-4° - 158°F)
Package Contents
Warnings and Cautions
To be installed and/or used in accordance with appropriate electrical codes and regulations.
If you are unsure about any part of these instructions, please consult a qualified electrician.
2
To reduce the risk of overheating and possible damage to other equipments, do not install for controlling a motor-operated
appliance, fluorescent lighting fixture, or a transformer supplied appliance.
Unplug unit when servicing the connected lighting fixtures.
Save this instruction sheet. It contains important technical data along with testing and troubleshooting information, which will
be useful for future reference.
LEDs
Power (Red/Green)
On (Red) - When ON/OFF button is pressed to ON.
Blinking (Green):
The LED will blink for 10 seconds when join/leave function is being processed.
The LED will be on for 1 seconds when join/leave function is succeeded and then off
Installation
NOTE: In order to use SZ-BSW01 in a ZigBee network, the device must be Included into the network by using a Primary
Programmer/Remote. Please refer to the Remote Control instruction sheet for complete information.

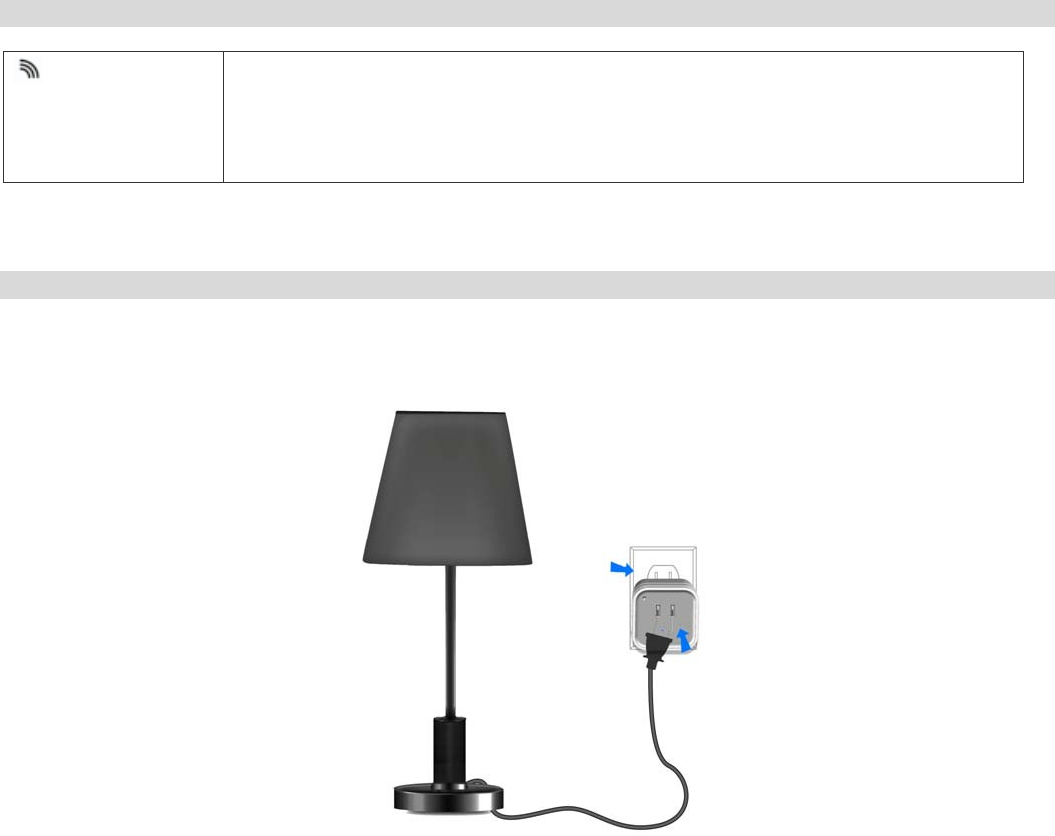

1. Put the lamp’s plug into SZ-BSW01.
2. Attach the SZ-BSW01 into wall receptacle. Make sure the receptacle is working properly. If it is controlled by a wall switch,
which must be set to ON all the times.
WARNING: For use with up to 1000 Watts incandescent lights.
3
Operation

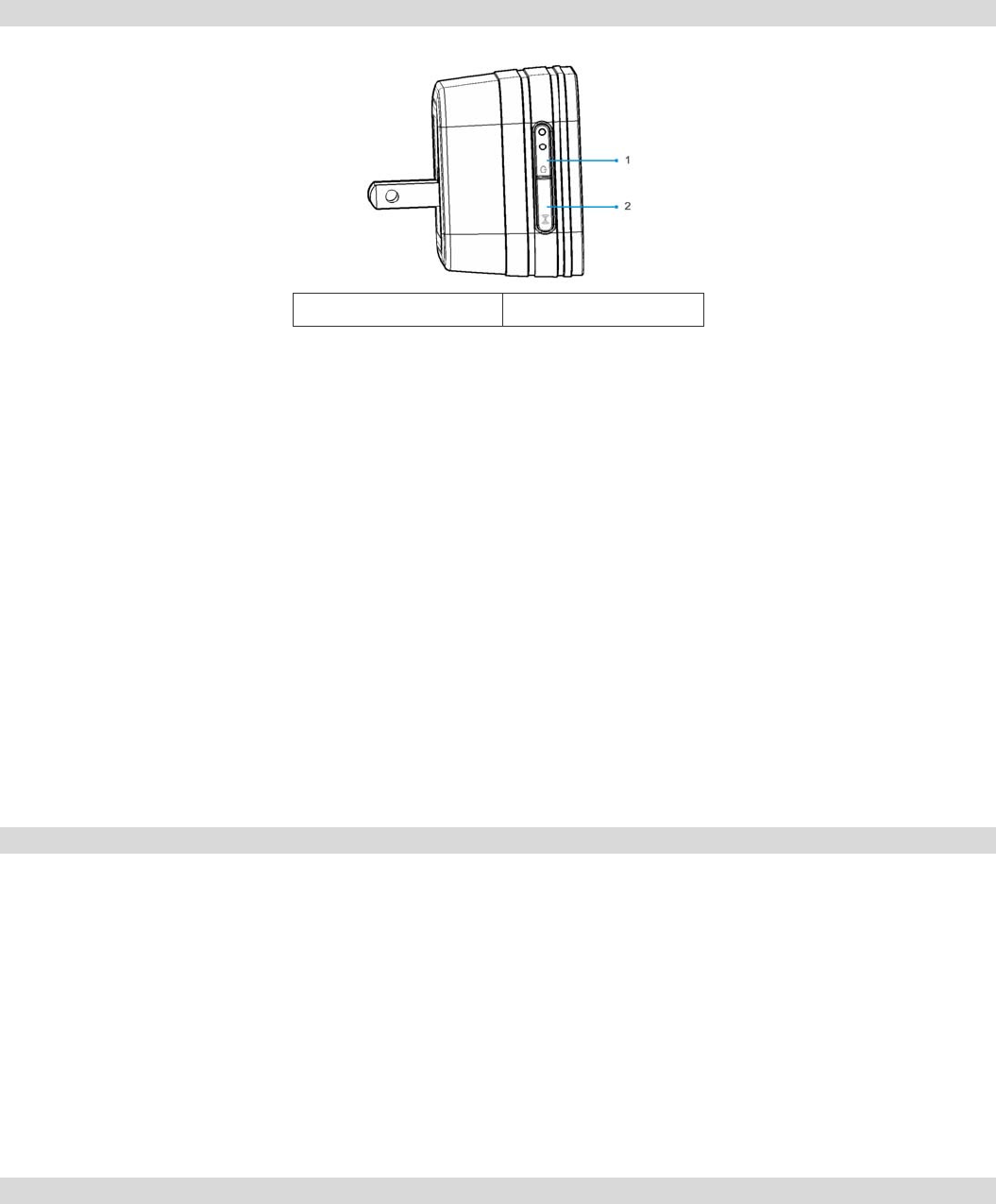

1. ON/OFF Button 2. Join/Leave Button
Auto Operation:
NOTE: For complete details on operating by the Remote Control, please refer to the individual device’s instruction guide.
If a power interruption should occur while the device is ON, the light will return to its previous state when power is restored.
ON: This command will turn on the lights to the previous setting.
OFF: This command will turn the lights off.
MANUAL Operation:
ON: Press the ON/OFF button of the device to turn the lights on.
NOTE: The lights will be turned ON regardless of the previous setting.
OFF: Press the ON/OFF button to turn the lights off.
Joing / Leaving to a ZigBee Network
Join Function
For "Join" a network, please do the following instruction:
Press the Join/Leave button for less than 1 second. The LED is blinking while processing. If the device has been joined
with the controller successfully, the Green LED will be on for 2 seconds and then off. The Green LED will be off
instantly if failed.
Leave Function
For "Leave" a network, please do the following instruction:
Pressed Join/Leave button for 3 seconds to let the SZ-BSW01 be deleted from the ZigBee Coordinator. If the SZ-BSW01
has been deleted successfully, the LED will be on for 1 second and then off.
Troubleshooting
If the device appears to be functioning improperly, please follow the suggested steps:
1. Confirm that the device is being supplied from a 120V, 60Hz AC source ONLY.
2. Confirm that the device is being controlled in proper way (local switch is ON) and check for burned-out bulbs.
3. Be sure that the lighting does not exceed the current 10A limit.
4
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate this equipment. (Example - use only shielded interface cables when connecting to
computer or peripheral devices).
FCC Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should
be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
CE Approval
CE Standards
This product complies with the 99/5/EEC directives, including the following safety and EMC standards:
EN301489-1/-17
EN300328
EN14604
CE Marking Warning
This is a Class B product. In a domestic environment this product may cause radio interference in which case the user may be
required to take adequate measures.
UL Notices: This device complies with UL Standard 217.
