Shakespeare CA-819 Single Channel Power Amplifier User Manual 398505
Shakespeare Company Single Channel Power Amplifier 398505
Users manual
Dual Band Cellular Amplifier Installation Manual Page 1 of 2
All brands and trademarks are the property of their respective owners. Copyright
2003, Shakespeare, Janizary Holdings, Inc. All rights reserved.
Rev C D00000413
Designed and manufactured in the USA under license from Motorola, Inc.
Note: Before installing the Shakespeare™ Amplifier, please read the entire contents of this manual.
Section # 1 Parts List
Ite
m
Q
ty
Description

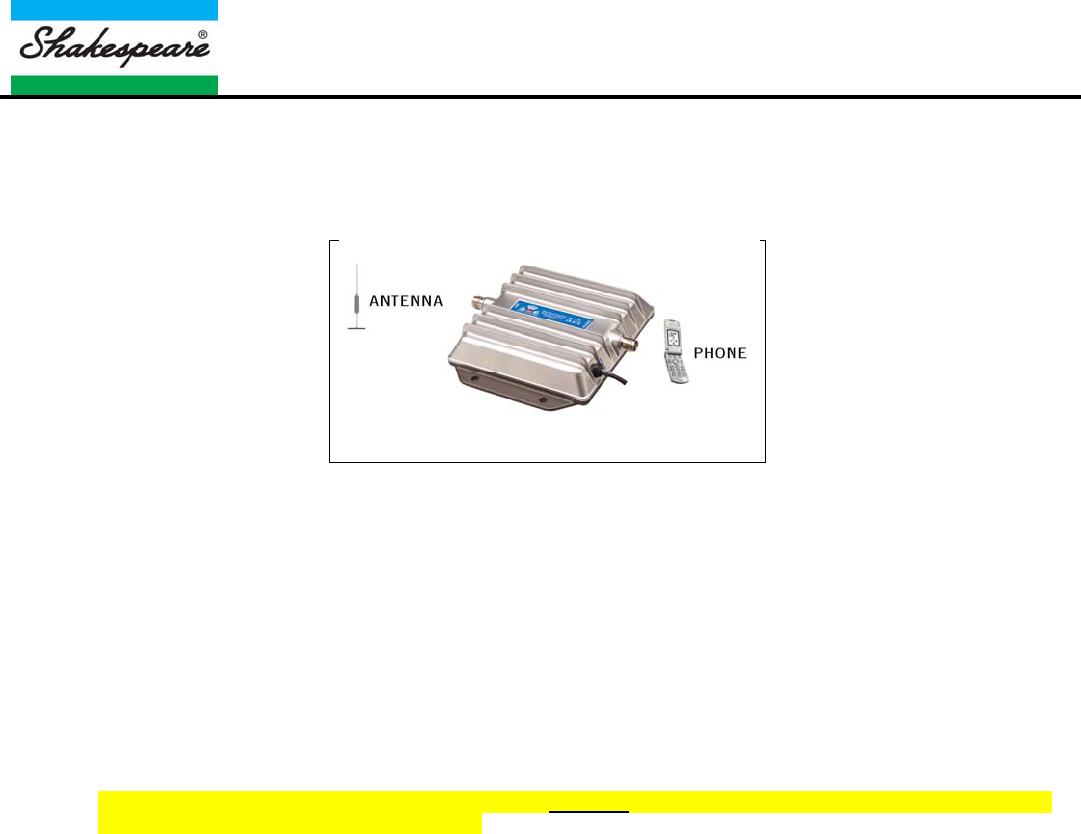

1 1 Shakespeare™ Amplifier
2 1
2 Meter (78”) DC Power
Cable
Section # 2 Tools and Other Materials Required
Item Description
1 Electric drill (as required for signal amplifier mounting holes)
2 Screw driver
3 Qty 4 screws (length and type as required for signal amplifier mounting)
4 Wire cutters / strippers
5 Qty 2 wire connection insulators or insulating material (as required for DC power cable connection to 12V DC system)
RF adapter cable to connect phone to amplifier
Section # 3 WARNINGS!
∇ Directly wired vehicle antennas must be mounted a minimum distance of 20 cm (7.87”) away from the body of
any user or nearby persons and the antenna.
∇ Mounting a signal amplifier in the engine cavity or on the underside of the vehicle will void the manufacturer’s warranty.
∇ Subjecting the amplifier to voltages greater than 30 Volts DC will damage the amplifier and void the manufacturers
warranty.
∇ Any vehicle with an electrical system of greater than 30 Volts DC should use a step-down voltage regulator to bring the
voltage within the DC operating power range of the amplifier (10 to 30V dc).
∇ Under no circumstances should the amplifier be powered up without a properly connected 50 ohm 800/1900 MHz dual band
Shakespeare cellular antenna or the amplifier may be damaged, resulting in the manufacturer’ warranty being void.
∇ For optimum performance and compatibility with cellular service provider requirements, it is recommended that an external
antenna with a maximum gain of 3dB be installed.
∇ Use of cellular amplifiers with antennas of higher gains than 7dBi gain is in violation of FCC regulations for which the
offender will be fully liable, and warranty claims will be voided.
It is recommended that only certified automotive installation technicians install this product in a vehicle. Installation by any other
person is at the risk of the vehicle owner and operator.
Section # 4 Installation Selecting a Suitable Location To Mount The Signal Amplifier
Locate a suitable place to mount and conceal the signal amplifier. Suggested mounting locations include: under the dashboard,
under the seat, or in the console area. For peak performance the signal amplifier should be mounted as close to the phone
handset as possible. The amplifier’s location should be easily accessible and mounted away from moving parts, as well as
excessive heat and moisture.
Dual Band Cellular Amplifier Installation Manual Page 2 of 2
All brands and trademarks are the property of their respective owners. Copyright
2003, Shakespeare, Janizary Holdings, Inc. All rights reserved.
Rev C D00000413
Designed and manufactured in the USA under license from Motorola, Inc.
Section # 5 Installation Cautions
∇ Use caution to avoid drilling through or near fuel lines or fuel tanks; brake lines; or electrical wiring.
∇ Do not mount the signal amplifier or its associated wiring in a location that may interfere with the safe operation of the
vehicle.
∇ If the fuse is changed from the 3 amps to a higher rating the warranty is void. Purchaser of the amplifier would be
responsible for the repair of the unit.
∇ Caution: Connection to the negative side with the positive lead will cause damage to the amplifier.
Section # 6 Installation Of The Signal Amplifier
To meet the FCC Exposure Guidelines, the antenna should be installed so there is at least 20 cm of
separation between the body of the user or nearby persons and the antenna.

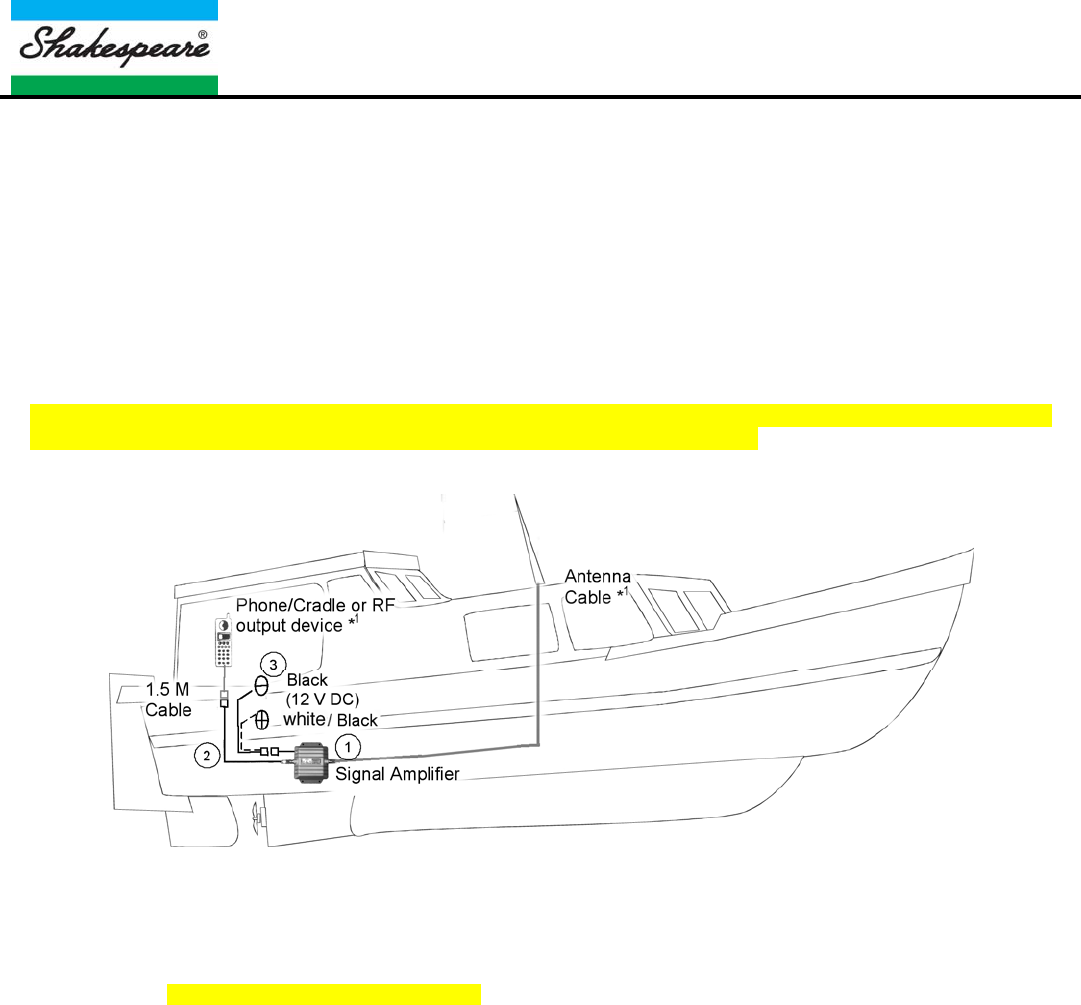

Typical Installation For Under The Seat Mounting
1. For safety, disconnect the vessel’s negative “−“ battery terminal to remove power from the vehicle.
2. Drill holes or Velcro tape and mount the signal amplifier (ITEM 1) in the selected location.
3. Connect the coloured striped black/white or red wire of the supplied 2 Meter (78”) fused power cable (ITEM 2) for the signal
amplifier to a positive connection on the vehicle’s electrical system. Choose a 10 to 30 Volt DC circuit that is: fuse or circuit
breaker protected; and ignition switched. (Often referred to as the “Accessory output”)
4. Attach the solid black wire of the supplied 2 Meter (78”) power cable (ITEM 2) to a vehicle electrical ground point.
5. Attach an external antenna cable (7dbi max) to the amplifier's input connector. The output connector on the amplifier is
connected to a cellular phone handset via a RF cradle or an RF cable. The phone must be connected to the amplifier with a
proper RF adapter cable.
6. Reconnect the vessel’s negative “−“ Battery terminal.
Section # 7 Limited Warranty
Shakespeare™ warrants that this product is free from any defects in material or workmanship for a period of
one year. If a defect in material or workmanship is found, Shakespeare agrees to repair or replace the product
at its own discretion, free of charge to the original purchaser. Please return the product along with proof of
purchase to the original authorized dealer. This warranty is null and void if the product has been modified,
abused, tampered with, subjected to abnormal conditions, if the fuse is changed to a higher rating than 3 amp,
or transferred to someone other than the original purchaser.
Use the Shakespeare 3dB
dual band cellular
antenna for Optimal
Performance
